User Manual
4” LED
Bae Selectable
Retrot Downlight
SKU: DL_BFDR4-11W-27K_5K
1

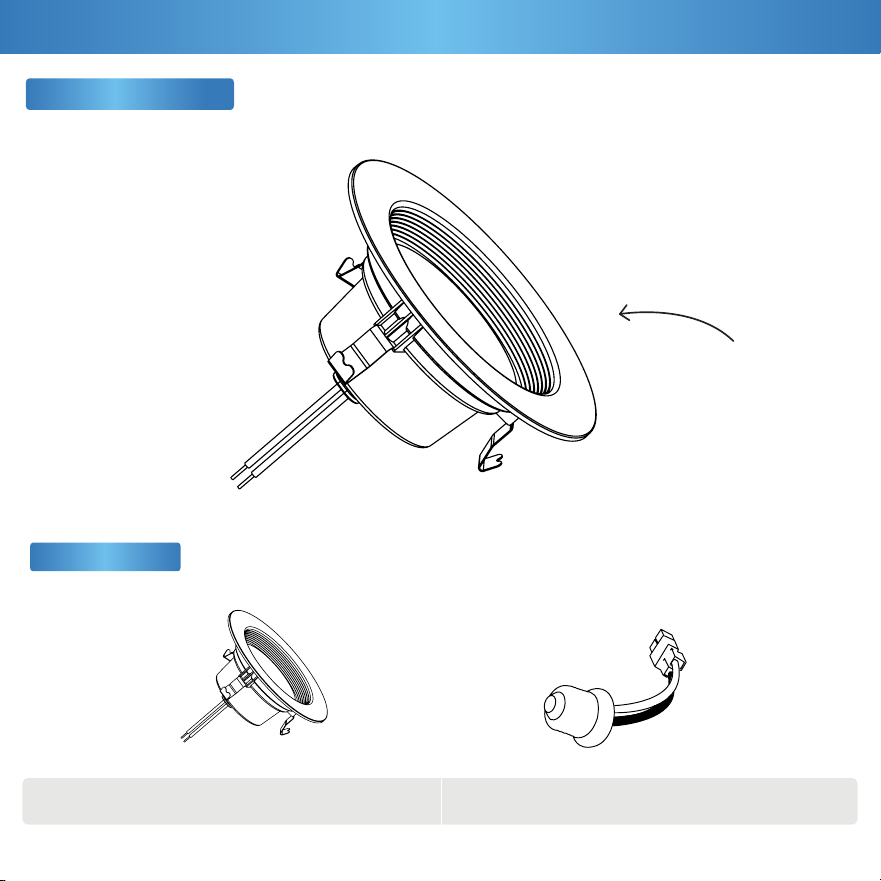

What’s in the Box?
x1
Light Fixture
TP24 to E26
Adapter
x1
Let there be light!
(literally)
Retrofit Downlight
A B
Accessories
2
Safety Information

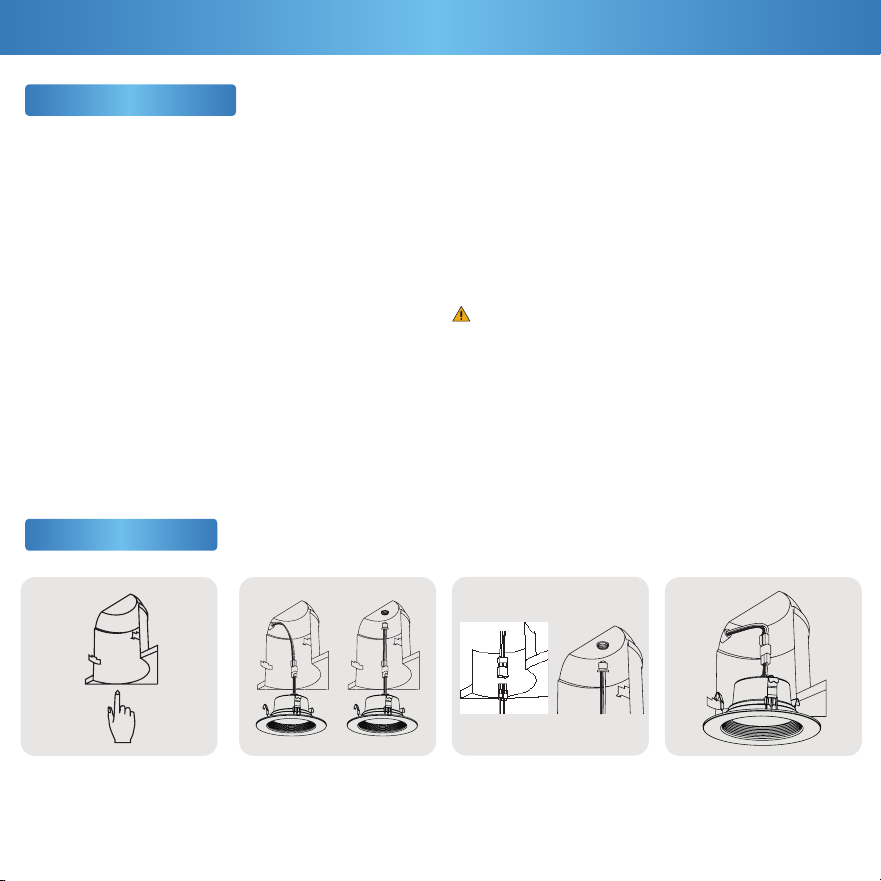

Quickstart Guide
2
Before You Start
Turn o the power then
locate the housing.
Connect the adapter with
lamp base connector.
Determine type of
connector available.
Push downlight into can
until secure.
Step 1 Step 2 Step 3 Step 4
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
1) This device may not caus e harmful interference.
2) This device must accept any interference that
may cause undesired operation. Please review
all instructions carefully prior to installation.
• Turn o circuit breaker before installing this fixture.
• This product should be installed by a person familiar with
the construction and operation of the product and hazards
involved. Safety eyeglasses and gloves are recommended.
• Abide by related regional and local laws or regulations.
• Proper grounding is required to ensure safety.
• Do not alter, relocate, or remove wiring during installation.
• Do not make or alter any open holes in wiring enclosure or
electrical components during installation.
• Check for shipping damage before installing. If the
product is damaged, do not use it.
• Keep fixture away from corrosive substances.
• Suitable for damp locations at temperatures ranging from
-4°F to 113°F. Not for use where directly exposed to water.
• Clean the fixture regularly to ensure proper operation. Do
not clean with harsh solvents.
• Use safety precautions and abide by regional and local
laws or regulations.
• This product is not compatible with 3rd party sensors.
• This product is not compatible with photo controls.
• This product is not compatible with occupancy sensors.
• This product is not compatible with timing devices.
To reduce the risk of fire, electric shock, or physical injury:
WARNING:
Cancer & Reproductive Harm- www.P65Warnings.ca.gov
3

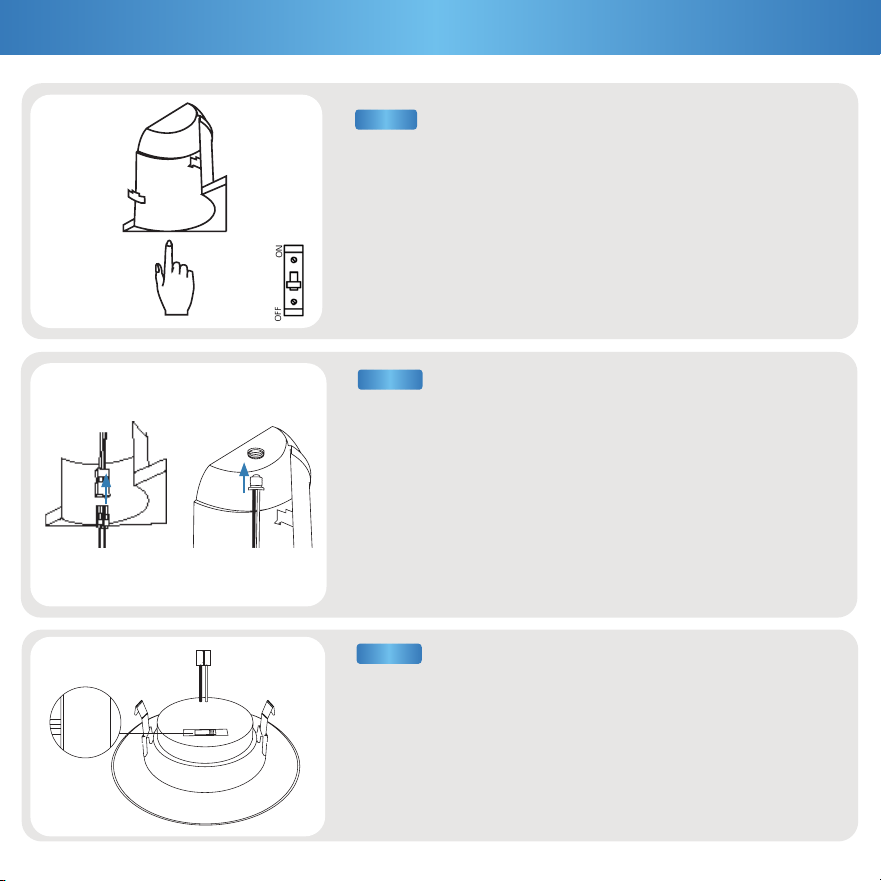

STEP 2
STEP 1
a. Turn off circuit breaker before installation.
b. Locate the housing and remove the previous fixture.
NOTE: Light fixture may be hot! Allow time for the fixture
to cool after the power is off.
a. Determine the type of connector available, then
connect the wires.
(1) TP24 Connector
(2) E26 Base
Installation Guide
STEP 3
a. Use the switch on the back of the retrofit to select
one of five color temperatures.
(1) (2)
5000K
4000K
3500K
3000K
2700K
Scan for the full
compatible dimmer list!
Product Details
Recommended Dimmers
Specifications
Brand
Model
MACL-153M-WH
AYCL-153P-WH
DVCL-153P-WH
LUTRON
LUTRON
LEVITON
LEVITON
LUTRON

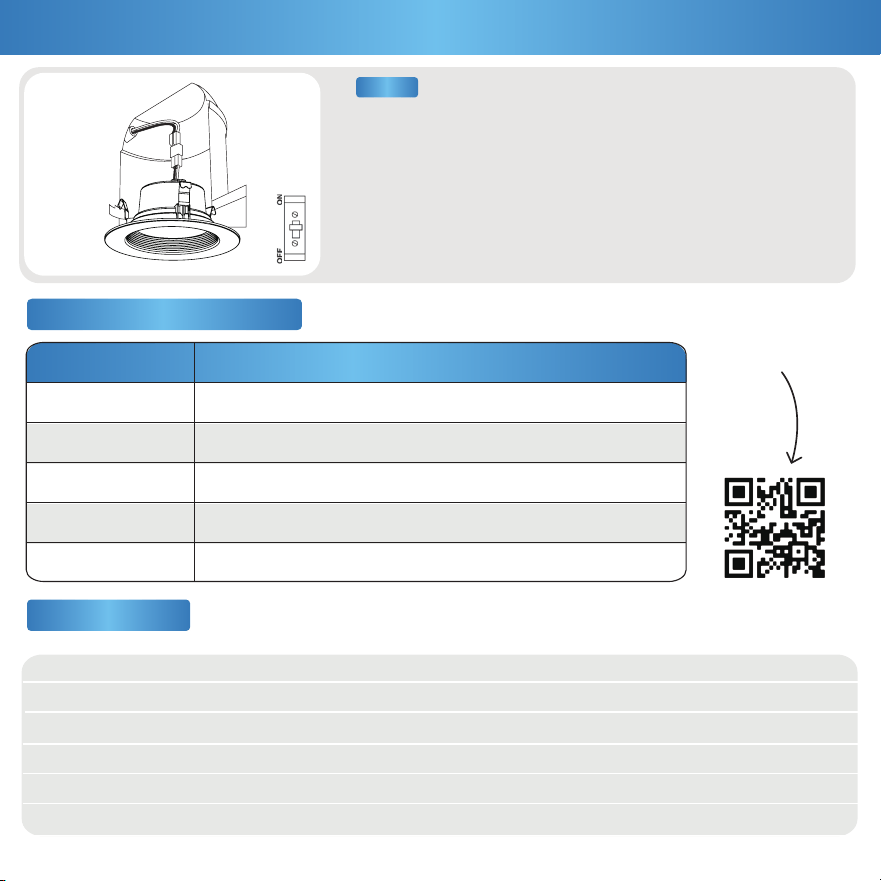

STEP 4
a. Tuck all wires into the can.
b. Line up the trim ring with the opening, then push the
downlight into the can. The compression clips will hold
the retrofit in place.
c. Turn on the circuit breaker to test the light.
IPLO6-10Z
6672-1LW
Voltage
Wattage
Beam Angle
Efficacy
Material
Dimmable
120 V
11W
120°
60 lm/W
PA
Yes
50000 Hours
660 lm
Damp
80+
Indoor
7 Years
Average Lifetime
Lumens
Moisture Rating
CRI
Usage
Warranty
4
Installation
5
Feeling in the dark about an issue with your product? No
worries! Our troubleshooting section is here to shed some light
and provide you with easy-to-follow solutions for any problem.
Light unexpectedly fails.
Light not dimming to lowest setting.
Fixture buzzing with appliances or electronic devices.
Fixture buzzing when dimmed.
Look for nearby interferences that can cause buzzing.
Such as televisions, radios, computers, etc.
Light not dimming smoothly.
Light flickering with other lights on the same circuit.
Check that the lights on the same circuit are not
overloading the circuit.
Light flickering when turned on.
Light flickering when dimmed.
Verify dimmer switch compatibility.
Double check if fixture is properly connected
and circuit breaker hasn’t been tripped.
Check light-dimmer compatibility. Consider purchasing
compatible switch if necessary.
Verify dimmer compatibility with fixture.
Light isn’t turning on.
Light not compatible with dimmer switch.
Fixture buzzing with power outages. Verify light is connected to surge protector securely.
Verify dimmer switch compatibility.
Verify fixture compatibility and that it is grounded.
Light is flickering when turning on.
Check that fixture wiring connections are secure.
For further assistance, reach out to customer support.
Ensure minimum dimmer load requirement is met.
If you still need some assistance, please feel free to
contact us with any questions. Our team of lighting experts
are happy to help brighten your day.
Dimming
Flickering
Buzzing
Common Troubleshooting

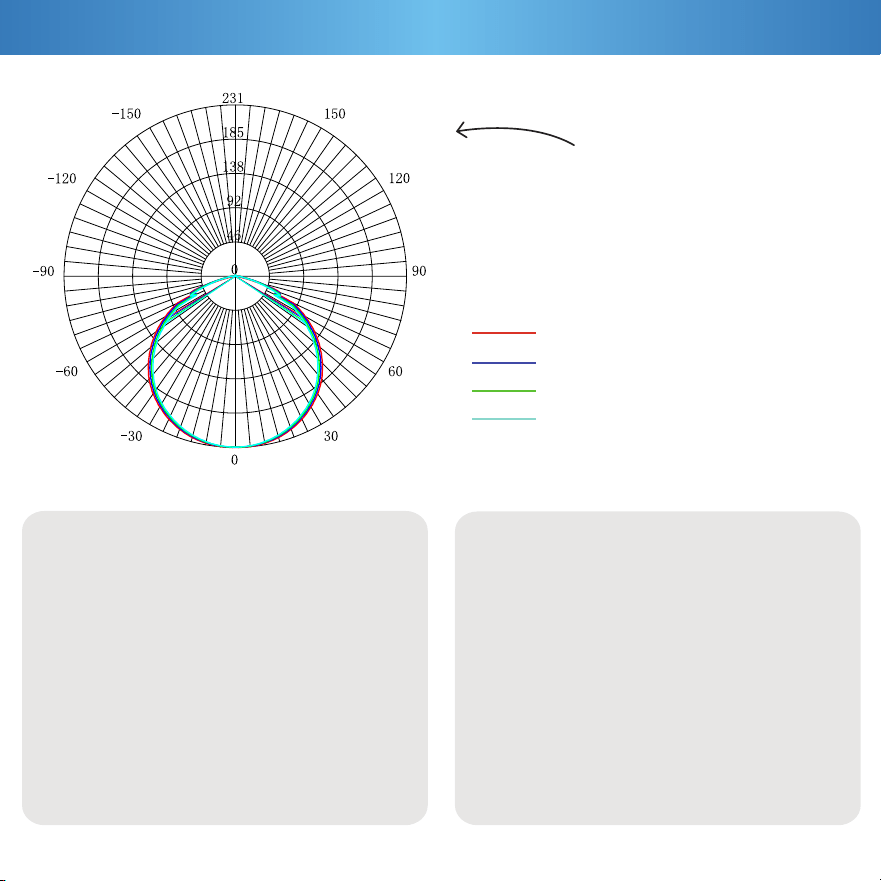

UNIT:cd
AVERAGE BEAM ANGLE (50%): 114.7°DEG
Luminous Intensity Distribution 1
C0/180
C30/210
C60/240
C90/270
117.6°
115.9°
113.6°
111.8°
Lighting distribution angle refers to the spread of light
emitted from a light source. It is an important factor to
consider when selecting a fixture or bulb, as it aects the
way it will illuminate an area. There are two main types of
lighting distribution angles:
A symmetric lighting distribution emits light evenly
in all directions, creating a cone-shaped pattern that
provides a pool of light. This type of lighting is ideal for
general lighting and illuminating large areas. Common
applications for symmetric lighting include general area
illumination, security lighting, and perimeter
lighting. Symmetric lighting is also used to a certain
degree in up-lighting.
An asymmetric lighting distribution angle, also known
as beam angle, creates a pattern that focuses light in a
specific direction. This type of lighting is ideal for task
lighting as it reduces glare and light spill in other areas.
Common applications include task lighting in spaces such
as landscape settings, retail stores, museums,
and much more.
It is important to note that the lighting distribution angle
can also be aected by other factors such as the
reflector design of the light source, the type of lens used,
and the distance between the light source and the surface
being illuminated.
N a lighting nerd?
No worries, you can skip this page
6
Light Distribution Angle
