3600W DEMOLITION JACK HAMMER
ITEM # 61109-XP
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
OWNER’S MANUAL AND SAFETY INSTRUCTIONS
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: (909) 628 0880 MON-FRI 9AM TO 3PM PST
GENERAL SAFETY WARNINGS
Read all safety warnings and instructions. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury. Save all warnings and instructions for future
reference.
SAFETY
1
The warnings, precautions, and instructions discussed in this instruction manual cannot cover all
possible conditions and situations that may occur. It must be understood by the operator that common
sense and caution are factors which cannot be built into this product, but must be supplied by the
operator. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before
operating. Failure to follow the safety rules and other basic safety precautions may result in serious
personal injury.
Read and understand all instructions. Failure to follow all instructions may result in serious injury or
property damage.
DO NOT allow persons to operate or assemble the product until they have read this manual and have
developed a thorough understanding of how it works.
DO NOT modify this product in any way. Unauthorized modification may impair the function and/or
safety and could affect the life of the product. There are specific applications for which the product was
designed.
Use the right tool for the job. DO NOT attempt to force small equipment to do the work of larger
industrial equipment. There are certain applications for which this equipment was designed. This
product will be safer and do a better job at the capacity for which it was intended. DO NOT use this
equipment for a purpose for which it was not intended.
Keep children and bystanders away from the work area while operating the tool. DO NOT allow
children to handle the product.
DO NOT operate power tools in explosive atmospheres, such as in the presence of flammable liquids,
gases or dust. Power tools create sparks which may ignite the dust or fumes
Power tool plugs must match the outlet. Never modify the plug in any way. DO NOT use any adapter
plugs with grounded power tools. Unmodified plugs and matching outlets will reduce risk of electric
shock.
Avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an
increased risk of electric shock if your body is grounded.
DO NOT expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
DO NOT abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of
electric shock.
When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a Ground Fault circuit Interrupter (GFcI)
protected supply.
IMPORTANT SAFETY INFORMATION
2
Stay alert, watch what you are doing and use common sense when operating a power tool. DO NOT
use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in serious personal injury.
Use personal protective equipment. Always wear eye protection. Safety equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal
injuries
Prevent unintentional starting. Ensure the Switch is in the off-position before connecting to power source,
picking up or carrying the tool. Carrying power tools with your nger on the Switch or energizing power
tools that have the Switch on invites accidents.
DO NOT overreach. Keep proper footing and balance at all times. This enables better control of the power
tool in unexpected situations.
Dress properly. DO NOT wear loose clothing or jewellery. Keep your hair, clothing and gloves away from
moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are
connected and properly used. Use of these devices can reduce dust-related hazards.
Only use safety equipment that has been approved by an appropriate standards agency. Unapproved
safety equipment may not provide adequate protection. Eye protection must be ANSI-approved and
breathing protection must be NIOSH-approved for the specic hazards in the work area.
DO NOT force the power tool. Use the correct power tool for your application. The correct power tool will
do the job better and safer at the rate for which it was designed.
DO NOT use the power tool if the Switch does not turn it on and off. Any power tool that cannot be
controlled with the Switch is dangerous and must be repaired.
Disconnect the plug from the power source before making any adjustments, changing accessories, or
storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool
or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained user.
Maintain power tools. check for misalignment or binding of moving parts, breakage of parts and any other
condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account
the working conditions and the work to be performed. Use of the power tool for operations different from
those intended could result in a hazardous situation.
DO NOT operate this tool if you have back, neck, or wrist injuries, or other conditions that will be aggravated
by the severe jerking forces that this tool exerts upon the operator.
DO NOT lay the tool down until it has come to a complete stop. Moving parts can grab the surface and
pull the tool out of your control.
People with pacemakers should consult their physician(s) before use. Electromagnetic elds near
heart pacemakers could cause pacemaker interference or pacemaker failure. In addition, people with
pacemakers should: • Avoid operating alone. • Properly maintain and inspect to avoid electrical shock. •
Properly ground power cord. Ground Fault Circuit Interrupter (GFCI)
IMPORTANT SAFETY INFORMATION
3
Hold power tools by insulated gripping surfaces when performing an operation where the cutting tool may
contact hidden wiring or its own cord. Contact with a ″live″ wire will make exposed metal parts of the tool
″live″ and shock the operator.
Keep clear of moving parts.
Avoid unintentional starting. Prepare to begin work before turning on the tool.
DO NOT leave the tool unattended when it is plugged into an electrical outlet. Turn off the tool and
unplug it from its electrical outlet before leaving.
Anyone using vibrating tools regularly or for an extended period should rst be examined by a doctor
and then have regular medical check-ups to ensure medical problems are not being caused or worsened
from use. pregnant women or people who have impaired blood circulation to the hand, past hand injuries,
nervous system disorders, diabetes, or Raynaud’s Disease should not use this tool. If you feel any
symptoms related to vibration (such as tingling, numbness, and white or blue ngers), seek medical advice
as soon as possible.
DO NOT smoke during use. Nicotine reduces the blood supply to the hands and ngers, increasing the
risk of vibration-related injury.
Wear suitable gloves to reduce the vibration effects on the user.
To reduce vibration, maintain the tool as explained in this manual. If any abnormal vibration occurs, stop
use immediately.
IMPORTANT SAFETY INFORMATION
SAVE THESE WARNINGS
4
This Jack Hammer with 3600W power is ideal for demolition, trenching, chipping, breaking
holes in concrete-block-brick, removing foundation concrete slab, oil chimney and so on.
It features heavy duty construction with industrial grade for high durability. It features two
chisels for multiply functions. It comes along with 360 degree swivel handle with slip prevent
grip for stable grips. In addition, it also features shock mounted handles for absorbing
vibration to reduce operation fatigue.
Voltage~110v 60Hz
Power input:3600 watt
Max Impact rates: 1900 bpm
Net weight: 55lbs Hammer
360 Degrees Swivel Side Handle
UL Listed 8Feet Power Cord w/ 110v plug
360 Degrees Swivel Side Handle

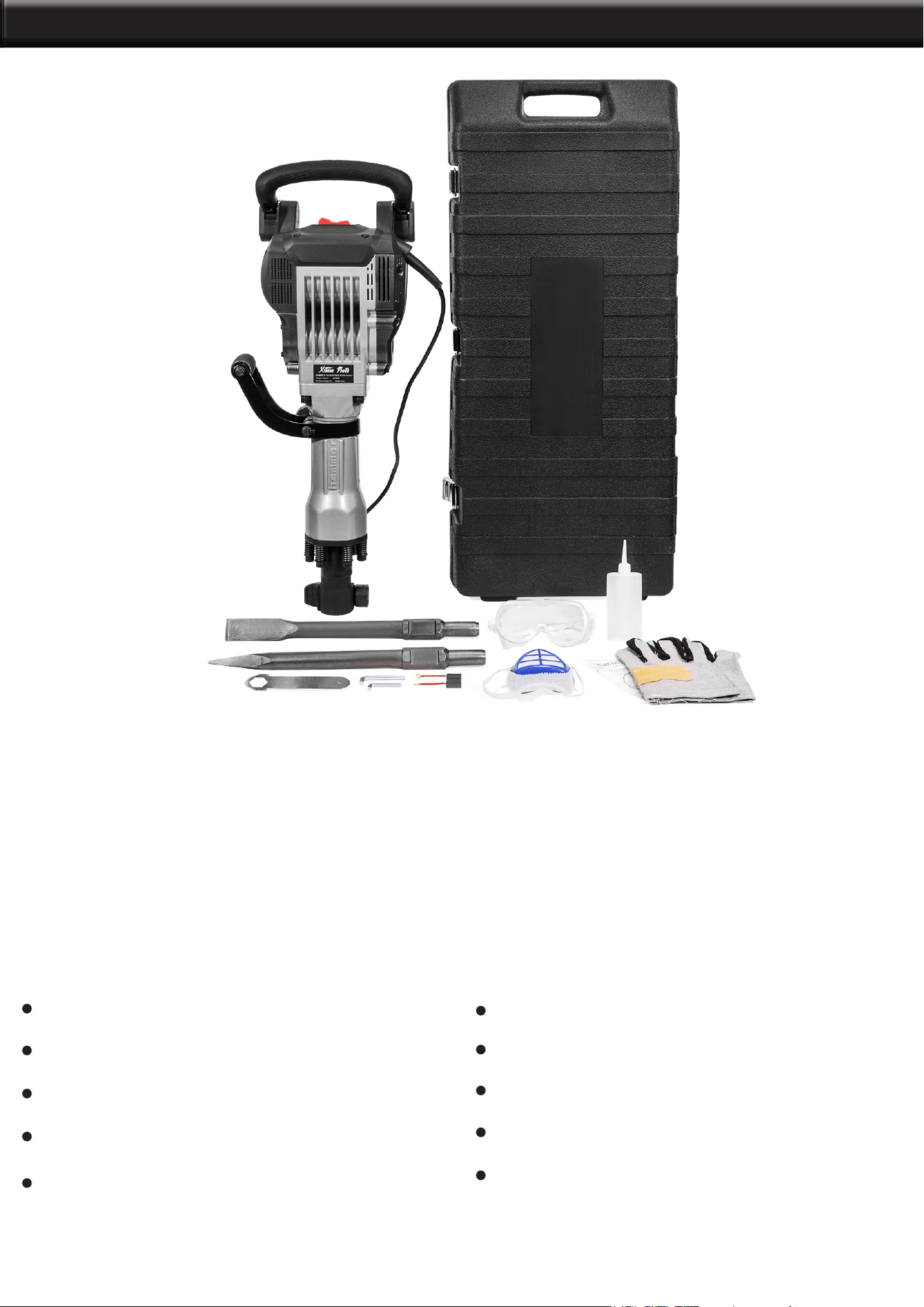

Blow Mold Carrying Case with wheels
1-1/8” Hex Point Bit
1-1/8” hex Flat chisel
FEATURES
PRODUCT INFORMATION
1. Designate a work area that is clean and well-lit. The work area must not allow access by children or pets
to prevent distraction and injury.
WORK AREA SET UP
2. Route the power cord along a safe route to reach the work area without creating a tripping hazard or
exposing the power cord to possible damage. The power cord must reach the work area with enough extra
length to allow free movement while working.
3. Secure loose work pieces using a vise or clamps (not included) to prevent movement while working.
4. There must not be objects, such as utility lines, nearby that will present a hazard while working.
PRIOR TO OPERATION
1. POWER SOURCE: Ensure that the power source to be utilized conforms to the power requirements
specied on the product nameplate.
2. GROUNDING: This tool should be grounded while in use to protect the operator from electric shock.
This tool is equipped with a three-conductor cord and grounding plug to t the proper grounding receptacle.
The green (or green and yellow) conductor in the cord is the grounding wire. Never connect the green (or
green and yellow) wire to a live terminal.
3. POWER SWITCH: Ensure that the power switch is in the OFF position. If the plug is connected to a
power receptacle while the power switch is the ON position. The power tool will start operating immediately,
possible causing serious injury.
4. EXTENSION CORD: Use an extension cord of sufcient thickness and rated capacity. The extension
cord should be kept as short as possible.
5
OPERATION
INSTALL / REMOVE ACCESSORIES
By installing and removing accessories, please make sure the tool is OFF and the power cord is removed
from the power source.

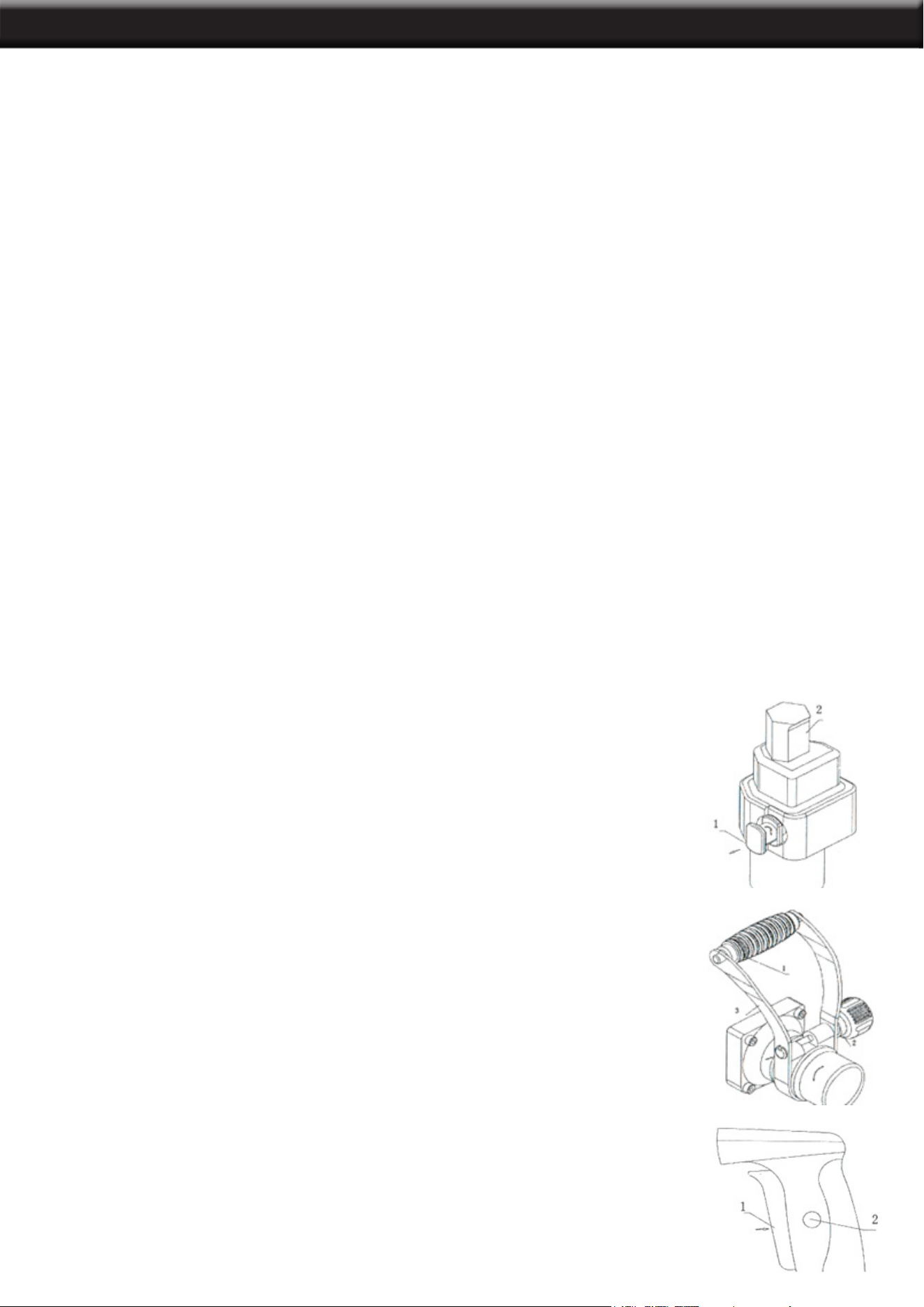

1. Pull out the bolt (1) and swivel it to make the ange towards the direction of
the motor housing. Insert the accessory into the tool holder through the dust
shield, while twisting and pushing inward until it locks automatically into place.
2. Auxiliary Handle: The tool must be supported with the auxiliary handle (1)
which can be swivelled 360 °. To reposition and/or swivel the handle, loosen
the hand grip (2) then move the handle to the desired position along the barrel
(3) and securely re-tighten the hand grip.
3. Switch Operation: If you want to operate the tool, you only need to press
switch (1). If you want to operate the tool non-stop, you can switch and press
the locking button (2). If you want to stop the tool, press the switch again and
release.
6
OPERATION / MAINTENANCE
Demolish / Plane: Hold the tool rmly with both hands and press the switch. When operating, hold down the
tool with a little pressure to prevent rebounding out of control. Not too much as it will not increase working
efciency.
CAUTION: If the tool is left unused for an extended period, or in cold weather conditions, be sure to press
the switch continuously to switch it on. Before using, let the tool run for 3-5 minutes.

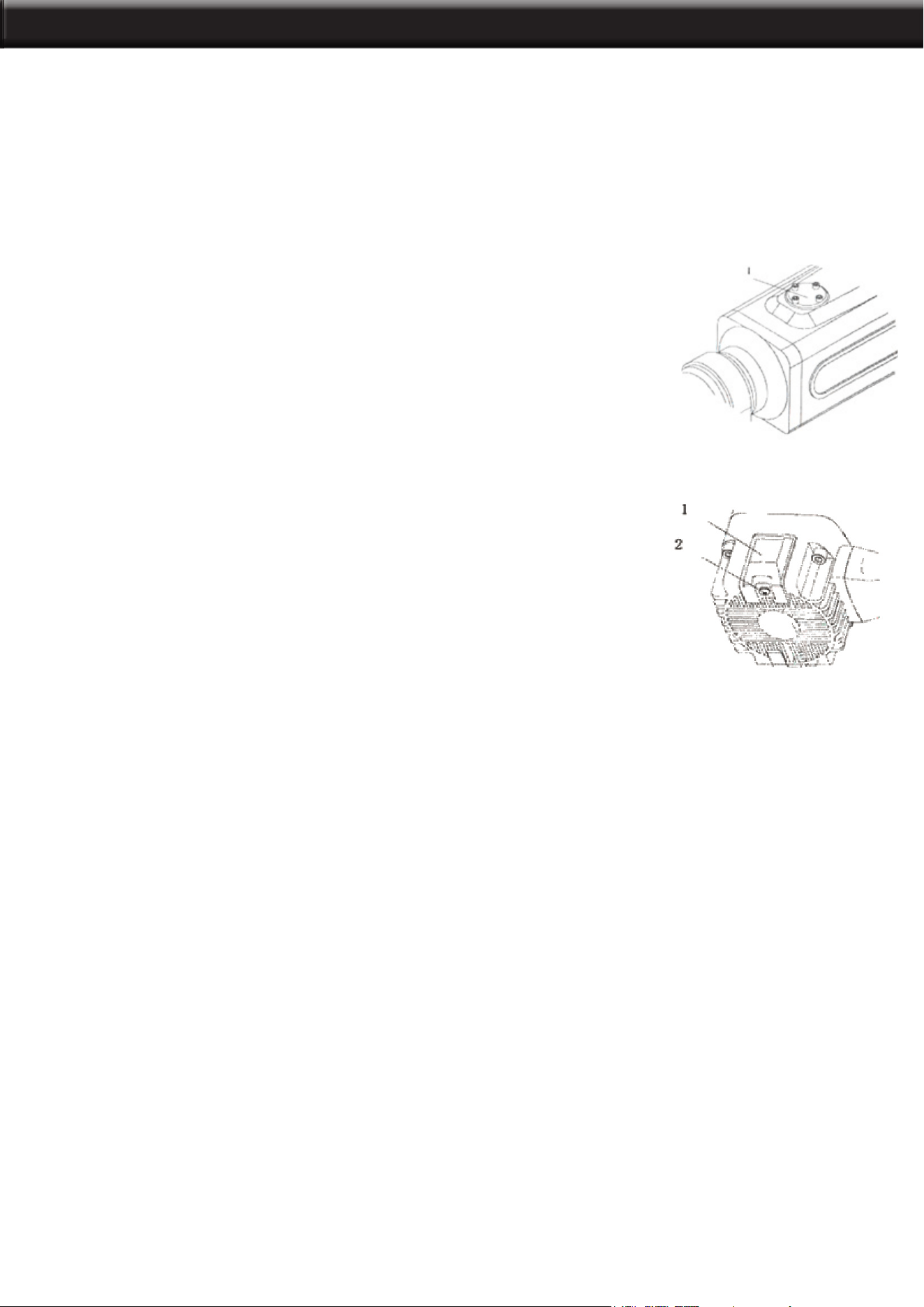

Tool Lubrication: When the tool has worked for 60 hours or more and the
brake appears to not be strong enough, it must be lubricated. First open the
oil cover with the hex wrench provided and clean up the used lubricant with a
towel. Then grease to tool with special lubricant.
CAUTION: DO NOT grease with more than 30g of lubricant or the tool will not
function properly. It is recommended that the tool be regressed with special
gear lubricant. Other lubricants will harm the tool.
MAINTENANCE
In working pause, such as changing working equipment, maintenance and
adjustment, pull out the plug. After removing the screw (2) of the cover (1) with
a screwdriver, take out the brush cover and take out the wearing brush. Place
a new brush and re-x the brush cover and top cover. Te ensure the safety and
reliability of the tool, all repairing, brush checking or changing, including other
maintenance or adjustments, should be performed by a professional.
7
8
9

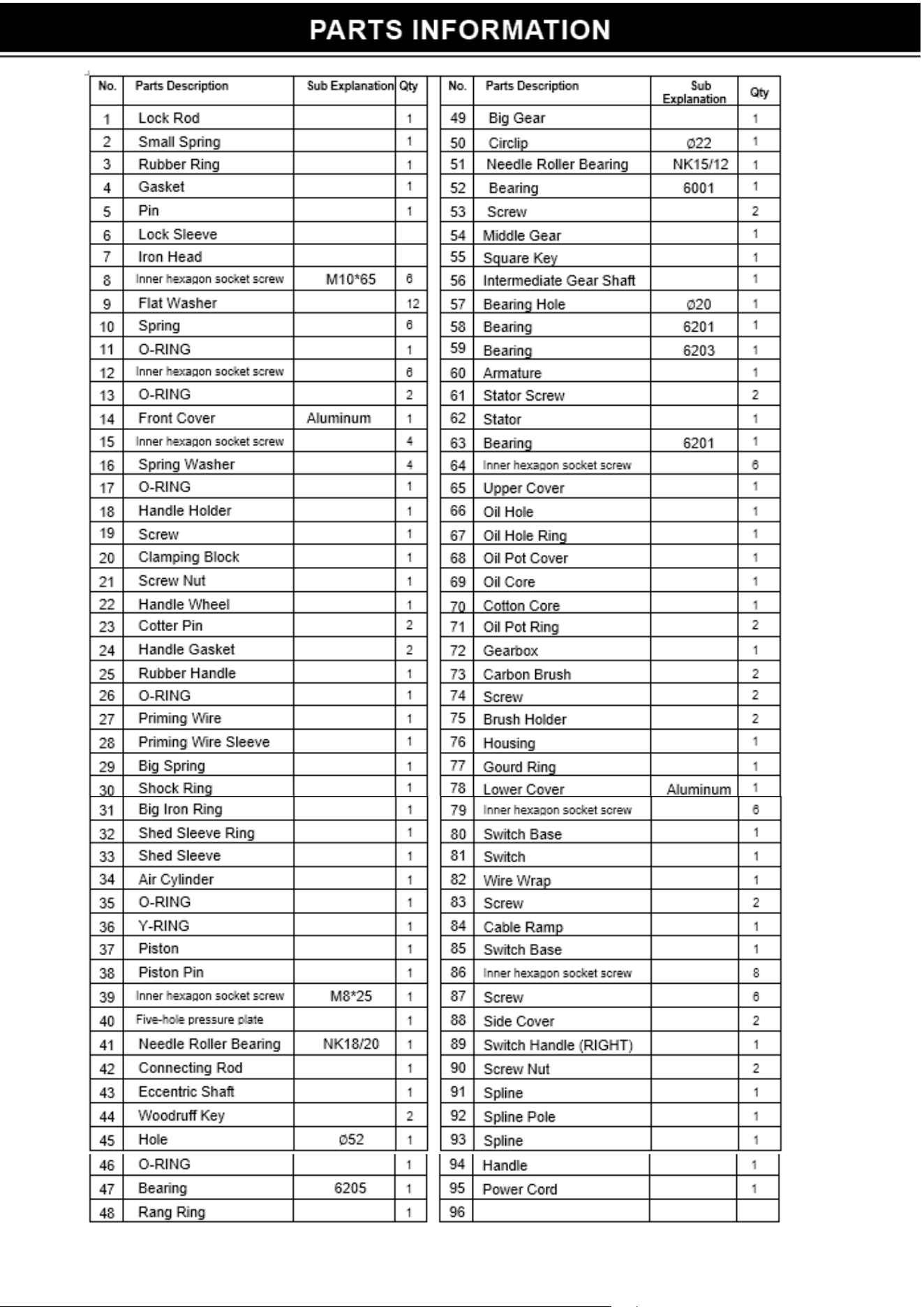

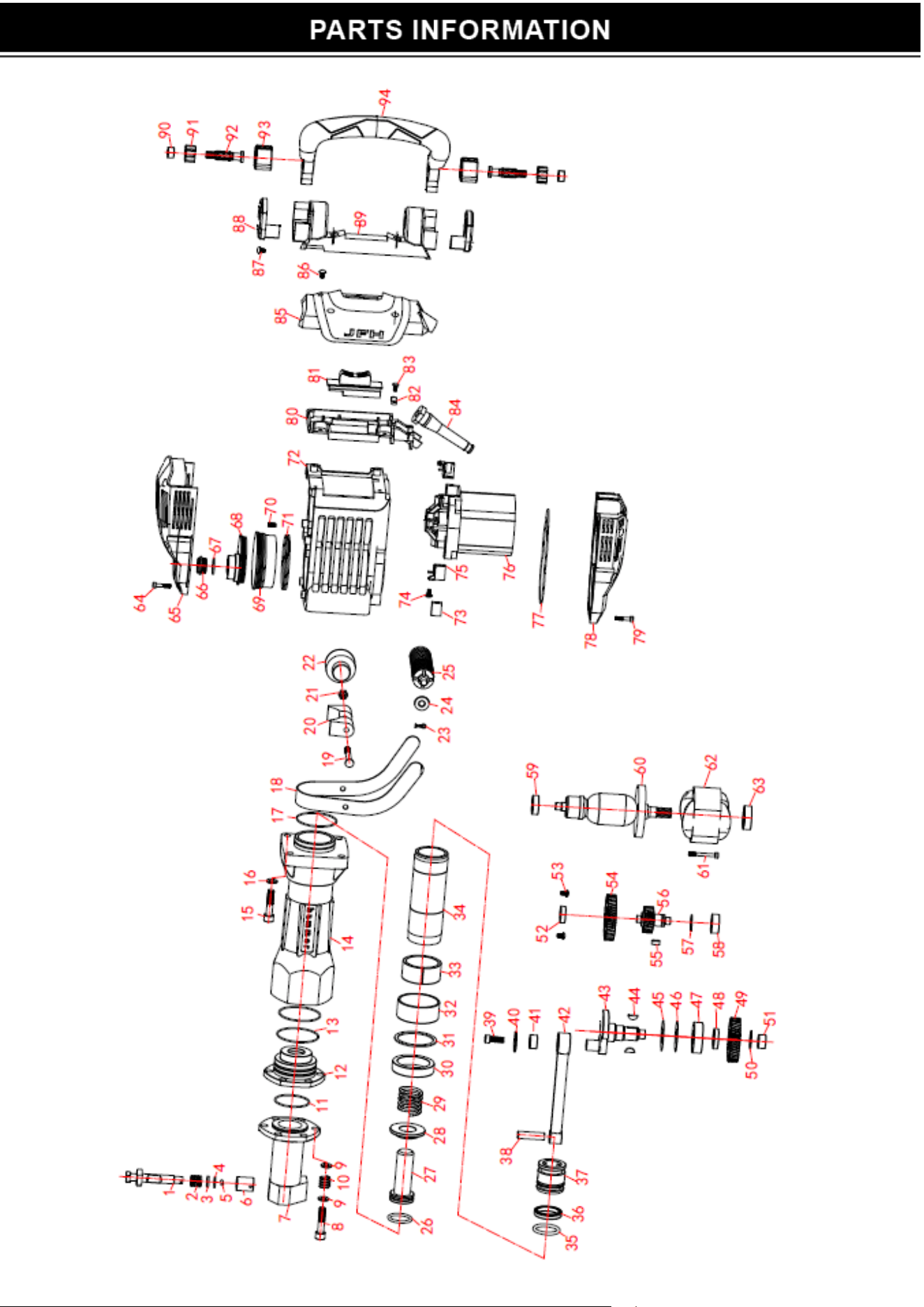

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE
UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL
PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION
OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available individually
as replacement parts.
PLEASE READ THE FOLLOWING CAREFULLY
DISCLAIMER
PRODUCT MADE IN CHINA
