Body-Solid SPRDBLKIT Double Half Rack Kit User Manual

Assembly Instructions

OWNER’S MANUAL

V. SPRDHR

-20210827

SPRDHR

Warning, Safety & Maintenance

Be sure that all users carefully read and understand all

warning, safety and maintenance labels on the machine

before each use. Failure to do so may result in death or

serious injury.

It is imperative that you retain this Owner’s Manual and be

sure all warning labels are legible and intact. Replacement

Owner’s Manuals and warning labels are available from your

local Body-Solid dealer.

If you have any questions about the operation, set up or

maintenance of this machine please call our customer service

department at 1 (800) 556-3113.

Table of Contents

• SAFETY INSTRUCTIONS.............................. PAGE 4

• PREPARATION............................................... PAGE 5

• HARDWARE ILLUSTRATION......................... PAGE 6

• PART / HARDWARE LIST............................... PAGE 7

• ASSEMBLY INSTRUCTIONS......................... PAGE 8

• EXPLODED VIEW.......................................... PAGE 15

• CONTACT PAGE............................................ PAGE 16

Important Safety Instructions

Beforebeginninganytnessprogram,youshouldobtainacompletephysicalexaminationfromyourphysician.

Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise.

Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement.

Antes de comenzar cualquier programma de ejercicios, deberias tener un examen sico con su doctor.

When using exercise equipment, you

should always take basic precautions,

including the following:

m ReadallinstructionsbeforeusingtheSPRDHR.

Theseinstructionsarewrittentoensureyour

safetyandtoprotecttheunit.

m Do not remove any safety labels from the

machine.

m Donotallowchildrenonorneartheequipment.

m Usetheequipmentonlyforitsintendedpurpose

asdescribedinthisguide.Donotuseaccessory

attachmentsthatarenotrecommendedbythe

manufacturer.Suchattachmentsmightcause

injuries.

m Wearproperexerciseclothingandshoesforyour

workout,nolooseclothing.

m Keephands,limbs,looseclothing,andlonghairwell

outofthewayofallmovingparts.

m Usecarewhengettingonoro󰀨theunit.

m Donotoverexertyourselforworktoexhaustion.

m Ifyoufeelanypainorabnormalsymptoms,stop

yourworkoutimmediatelyandconsultyour

physician.

m Neveroperateunitwhenithasbeendroppedor

damaged.Returntheequipmenttoaservice

centerforexaminationandrepair.

m Neverdroporinsertobjectsintoanyopeningin

theequipment.

m Alwayschecktheunitanditscablesbeforeeach

use.Makesurethatallfastenersandcablesare

secureandingoodworkingcondition.

m Donotusetheequipmentoutdoorsornearwater.

Personal Safety During Assembly

m Beforebeginningassembly,pleasetakethetime

toreadtheinstructionsthoroughly.

m Readeachstepintheassemblyinstructionsand

followthestepsinsequence.Donotskipahead.

Ifyouskipahead,youmaylearnlaterthatyou

havetodisassemblecomponentsandthatyou

mayhavedamagedtheequipment.

m Assembleandoperatethe SPRDHRonasolid,level

surface.Locatetheunitafewfeetfromthewalls

orfurnituretoprovideeasyaccess.

TheSPRDHR isdesignedforyourenjoyment.By

followingtheseprecautionsandusingcommonsense,

youwillhavemanysafeandpleasurablehoursof

healthfulexercisewithyourBody-SolidDOUBLE HALF

RACK.

Afterassembly,youshouldcheckallfunctionsto

ensurecorrectoperation.Ifyouexperienceproblems,

rstrechecktheassemblyinstructionstolocateany

possibleerrorsmadeduringassembly.Ifyouareunable

tocorrecttheproblem,callthedealerfromwhomyou

purchasedthemachineorcall1-800-556-3113forthe

dealernearestyou.

Obtaining Service

PleaseusethisOwner’sManualtomakesurethatall

partshavebeenincludedinyourshipment.When

orderingparts,youmustusethepartnumberand

descriptionfromthisOwner’sManual.Useonly

Body-Solidreplacementpartswhenservicingthis

machine.Failuretodosowillvoidyourwarrantyand

couldresultinpersonalinjury.

Forinformationaboutproductoperationorservice,

checkouttheo󰀩cialBody-Solidwebsiteat

www.bodysolid.comorcontactanauthorized

Body-SoliddealeroraBody-Solidfactory-authorized

servicecompanyorcontactBody-Solidcustomer

serviceatoneofthefollowing:

Toll Free: 1-800-556-3113

Phone: 1-708-427-3555

Fax: 1-708-427-3556

Hours: M-F 8:30-5:00 CST

E-Mail: [email protected]

Or write to: Body-Solid, Inc.

Service Department

1900 S. Des Plaines Ave.

Forest Park, IL 60130 USA

Retain this Owner’s Manual for future

reference. If you need to order replacement

parts please be prepared to provide the

following information when contacting us so

that we can assist you better.

1. Model Number

2. Place of Purchase

3. Serial Number (S/N)

4. Part # and Description

Preparation

Body-Solidcontinuallyseekswaystoimprovetheperformance,specicationsandproductmanualsinordertoensurethatonly

superiorproductsarereleasedfromourfactories.Pleasetakethetimetocarefullyreadthroughthismanualthoroughly.Instructions

containedinthisdocumentarenotintendedtocoveralldetailsorvariationspossiblewithBody-Solidequipment,ortocoverevery

contingencythatmaybemetinconjunctionwithinstallation,operation,maintenanceortroubleshootingoftheequipment.Even

thoughwehavepreparedthismanualwithextremecare,neitherthepublishernortheauthorcanacceptresponsibilityforanyerrors

in,oromissionfrom,theinformationgiven.Shouldadditionalinformationberequired,orshouldsituationsarisethatarenotcovered

bythismanual,themattershouldbedirectedtoyourlocalBody-Solidrepresentative,ortheServiceDepartmentatBody-SolidInc.

inForestPark,Illinois.

Required Tools

Thebasictoolsthatyoumustobtainbeforeassembling

theSPRDHRincludebutarenotlimitedto:

m StandardWrenchSet

m MetricWrenchSet

m AdjustableWrench

Installation Requirements

Followtheseinstallationrequirementswhenassembling

theSPRDHR:SetuptheSPRDHRonasolid,atsur-

face.Asmooth,atsurfaceunderthemachinehelps

keepitlevel.Alevelmachinehasfewermalfunctions.

Provideamplespacearoundthemachine.Open

spacearoundthemachineallowsforeasieraccess.

Insertallboltsinthesamedirection.Foraesthetic

purposes,insertallboltsinthesamedirectionunless

specied(intextorillustrations)todootherwise.

Leaveroomforadjustments.Tightenfastenerssuchas

bolts,nuts,andscrewssotheunitisstable,butleave

roomforadjustments.Donotfullytightenfasteners

untilinstructedintheassemblystepstodoso.

Fill out and mail the warranty card.

Assembly Tips

Readall“Notes”oneachpagebeforebeginningeach

step.

WhileyoumaybeabletoassembletheSPRDHRusing

theillustrationsonly,importantsafetynotesandother

tipsareincludedinthetext.

Somepiecesmayhaveextraholesthatyouwillnotuse.

Useonlythoseholesindicatedintheinstructionsand

illustrations.

NOTE: Withsomanyassembledparts,proper

 alignmentandadjustmentiscritical.While

 tighteningthenutsandbolts,besuretoleave

 roomforadjustments.

CAUTION: Obtainassistance!Ifyoufeellikeyoucan’t

 assembletheSPRDHRbyyourselfthendo

 notattempttodosoasthiscouldresultin 

 injury.Reviewtheinstallationrequirements 

 beforeproceedingwiththefollowingsteps.

YourS/N#can

befoundhere

↑

ThankyouforpurchasingtheSPRDHR.ThisproductispartoftheBody-Solidlineofqualitystrengthtraining

machines,whichletyoutargetspecicmusclegroupstoachievebettermuscletoneandoveralbodycondition

ing.TomaximizeyouruseofequipmentpleasestudythisOwner’sManualthoroughly.

SPRDHR Hardware Illustration

Part#1  HEXHEADBOLTM16x110mm     QTY. 12

Part#3  REGULARO.DWASHERM16     QTY.32

Part#4  LARGEO.D.WASHERM16     QTY. 8

Part#5  NYLONLOCKNUTM16      QTY. 20

Part#2  HEXHEADBOLTM16x105mm     QTY. 8





















SPRDHR Parts & Hardware List

Part# Qty Description

A 2 UPRIGHT

B 4 STEEL PLATE

C 4 SIDE TOP FRAME

1  12  M16x110mmHEXHEADBOLT

2  8  M16x105mmHEXHEADBOLT

3  32  M16REGULARO.D.WASHER

4 8 M16 LARGE O.D. WASHER

5 20 M16 NYLON LOCK NUT

STEP

Be careful to assemble all components

in the sequence they are presented.

NOTE:

Finger tighten all hardware in this step. DO NOT wrench tighten until instructed.

Some components may be pre-assembled. Nylon lock nuts will not fully screw onto

bolts, they must be wrench tighten to fully go on.

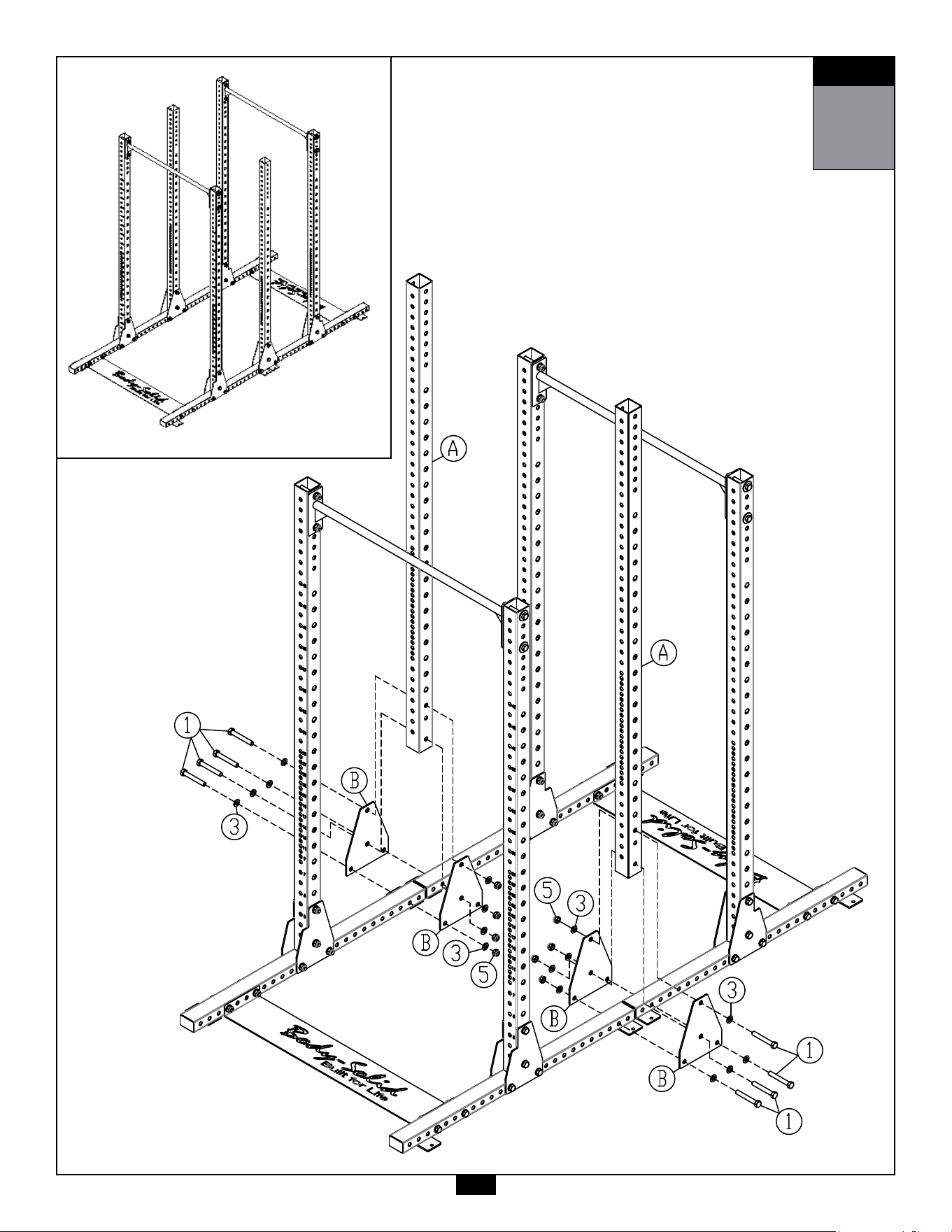

1A. AssembletwoSPRHALFRackswithouttheBackBaseFrame.

 PleaserefertotheSPRHALFmanualforassemblyinstruction.

1B. AttachthetwoSPRHALFRackswiththeSteelPlates(B) of

 SPRDHRusing:

4 - (#1) M16x110mm Hex Head Bolt

8 - (#3) M16 Regular O.D. Washer

4 - (#5) M16 Nylon Lock Nut

1C. AttachtheUprights(A) totheSteelPlates(B)using:

4 - (#1) M16x110mm Hex Head Bolt

8 - (#3) M16 Regular O.D. Washer

4 - (#5) M16 Nylon Lock Nut

STEP

AboveshowsStep1assembledandcompleted.

STEP

Be careful to assemble all components

in the sequence they are presented.

NOTE:

Finger tighten all hardware in this step. DO NOT wrench tighten until instructed.

Some components may be pre-assembled. Nylon lock nuts will not fully screw onto

bolts, they must be wrench tighten to fully go on.

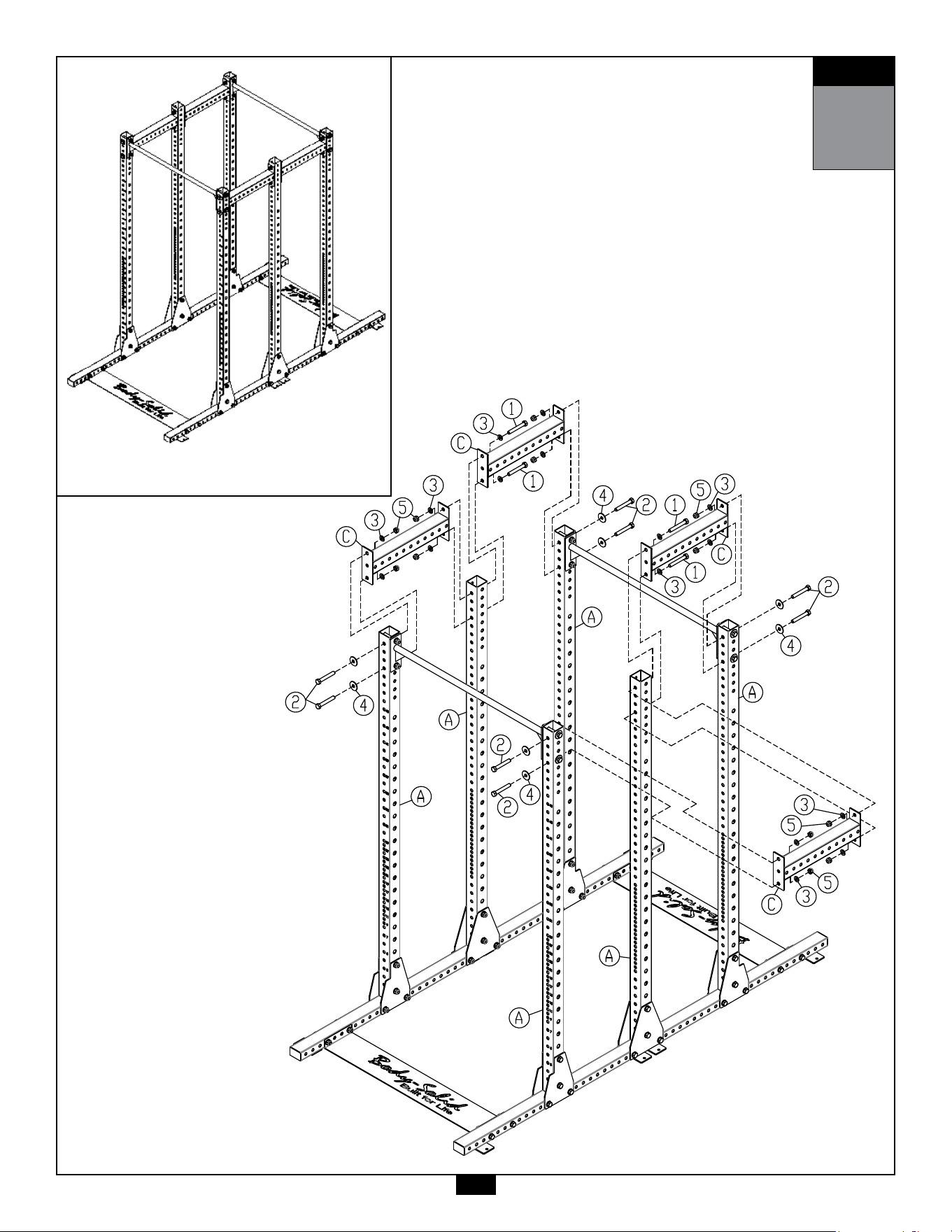

2A. AttachSideTopFrames(C)totheUprights(A)using:

4 - (#1) M16x110mm Hex Head Bolt

8 - (#2) M16x105mm Hex Head Bolt

16 - (#3) M16 Regular O.D. Washer

8 - (#4) M16 Large O.D. Washer

12 - (#5) M16 Nylon Lock Nut

STEP

AboveshowsStep2assembledandcompleted.

STEP

Be careful to assemble all components

in the sequence they are presented.

NOTE:

Wrench tighten ALL hardware at the end of STEP 3A. Some components may be pre-as-

sembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to

fully go on.

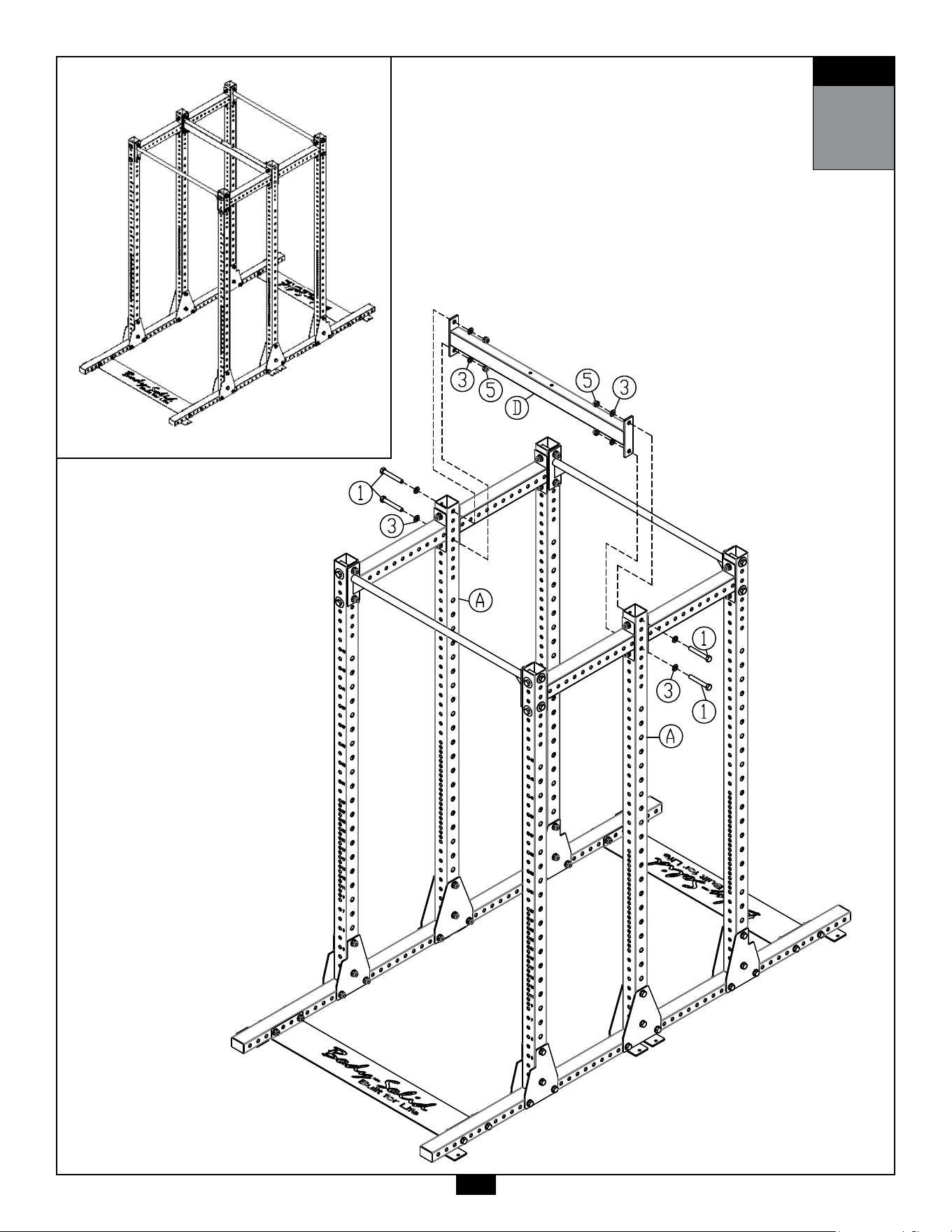

3A. AttachoneBackBaseFrame (D) of SPRHALF totheUprights(A)

of SPRDHR using:

4 - (#1) M16x110mm Hex Head Bolt

8 - (#3) M16 Regular O.D. Washer

4 - (#5) M16 Nylon Lock Nut

Note:

- Back Base Frame is from Half Rack (SPRHALF).

- 4pcs of Hex Head Bolts, 8pcs of Washers and 4 pcs of Nylon Lock Nuts

are from the Half Rack (SPRHALF).

STEP

AboveshowsStep1assembledandcompleted.

Notes

SPRDHR Exploded View

1900S.DesPlainesAve.

ForestPark,IL60130

Phone:(708)427-3555

Fax:(708)427-3556

Hours:M-F8:30-5:00CST

www.bodysolid.com

PLEASE WRITE YOUR SERIAL NUMBER IN THE BOXES BELOW

S/N# 016347-��-��-��-��

SPRDHR
