INSTALLATION GUIDE
Kassel
Models: KBF440C
KBF440MB
KBF440SS
Karran USA Tel: 866.452.7726 www.karran.com [email protected]

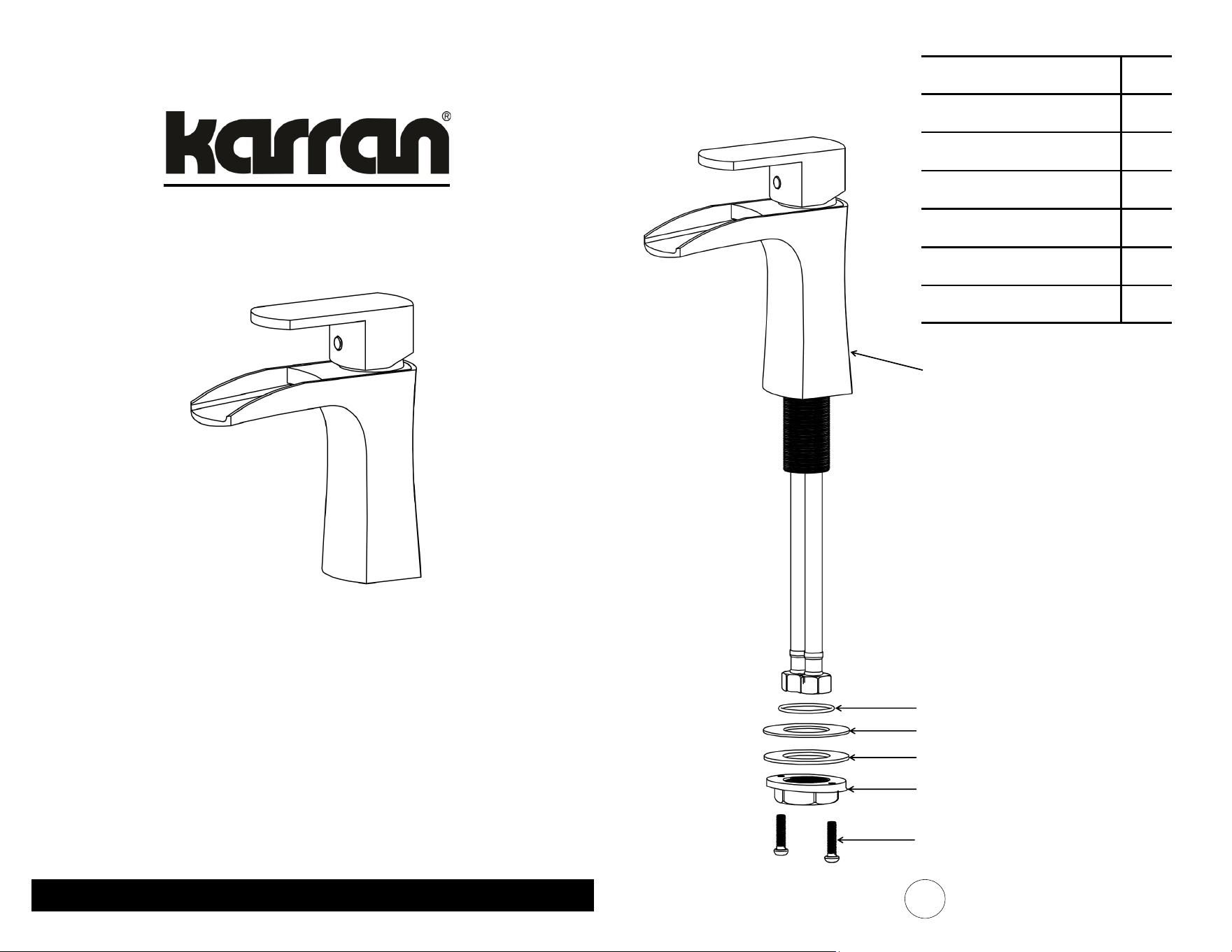

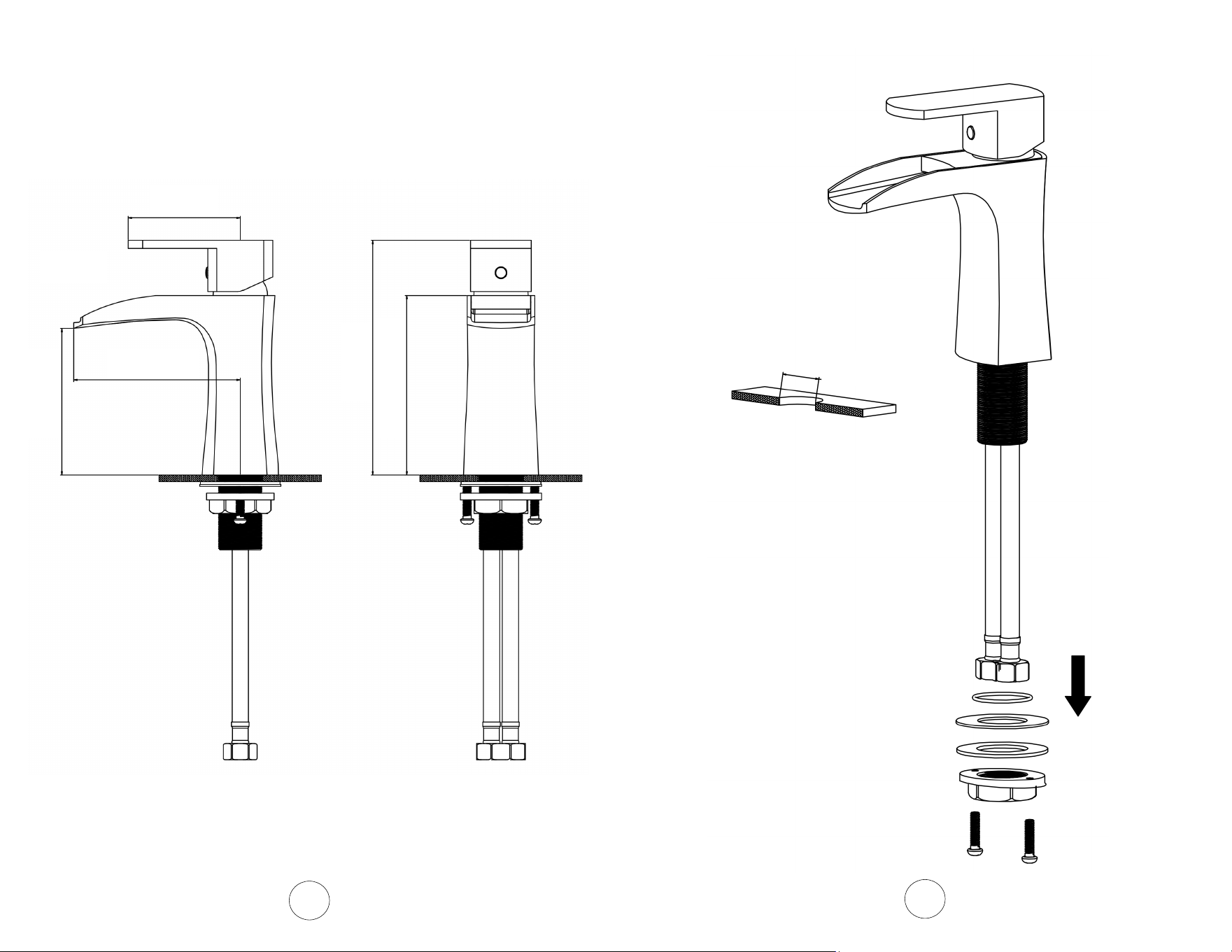

COMPONENT LIST QTY
1 - Faucet Body 1
2 - O-Ring 1
3 - Rubber Washer 1
4 - Metal Washer 1
5 - Mounng Hardware 1
6 - Screw 2

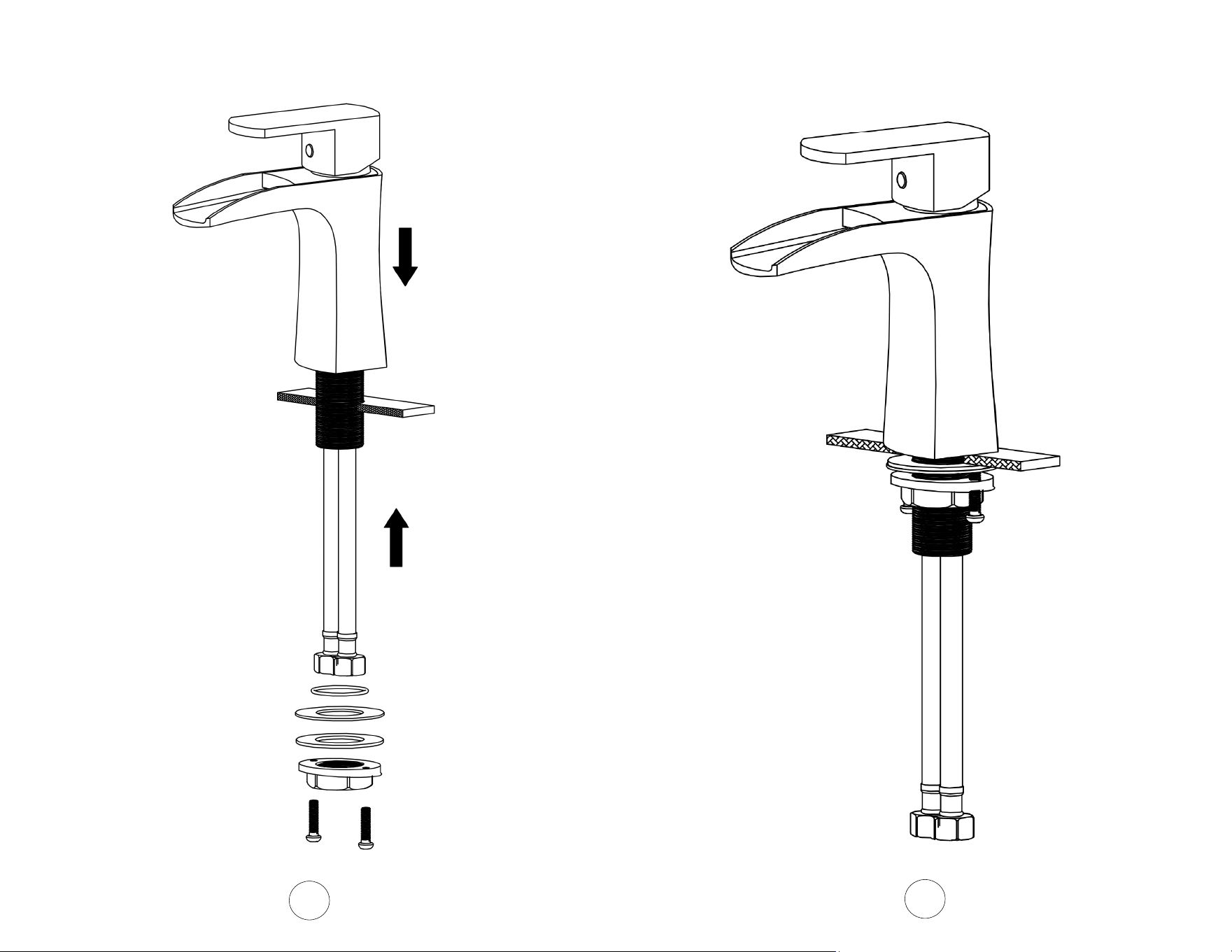

1
1
2
3
4
5
6
3
2
5-1/4”
4-1/4”
4-7/8”
6-7/8”
3-1/4”
1-1/4” to 1-3/8”
5
4
7
6

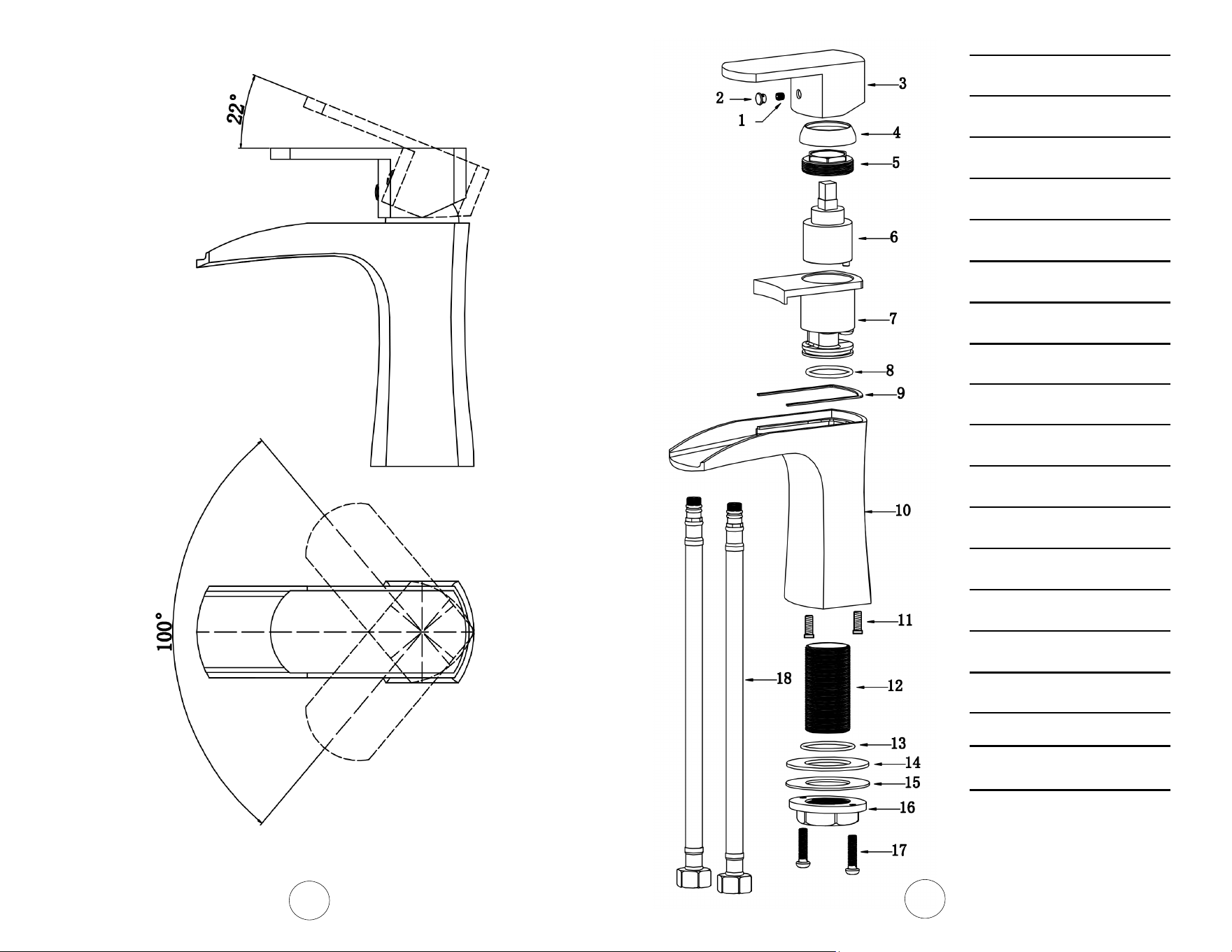

1 - Screw
2 - Color Buon
3 - Handle
4 - Cover
5 - Nut
6 - Cartridge
7 - Cartridge Base
8 - O-Ring
9 - Gasket
10 - Faucet Body
11 - Screw
12 - Base
13 - O-Ring
14 - Rubber Washer
15 - Metal Washer
16 - Mounng Hardware
17 - Screw
18 - Water Lines
