Purchase Date
1
4007498
ITEM #2599787
1058853
HENDERSON LED
CEILING FAN
Español p. 20
MODEL # EUK60MBK10LR
EUK60GV10LR
ATTACH YOUR RECEIPT HERE
SM21655
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also
contact us at [email protected].
HARBOR BREEZE and logo design are
trademarks or registered trademarks of LF, LLC.
All rights reserved.
APPROVED FOR USE
IN DAMP LOCATIONS
ADJUNTE SU RECIBO AQUÍ
2
Safety Information ...............................................................................................................
.
. 2
Package Contents ..............................................................................................................
.
.. 5
Hardware Contents
...........................................................................................................................
6
Preparation ........................................................................................................................... 6
Initial Installation ................................................................................................................... 6
Wiring .................................................................................................................................. 10
Final Installation ................................................................................................................... 12
Operating Instructions ......................................................................................................... 16
Care and Maintenance ...................................................................................................
.
.... 17
Troubleshooting ................................................................................................................... 18
Limited Lifetime Warranty .................................................................................................... 19
Replacement Parts List ....................................................................................................... 19
TABLE OF CONTENTS
SAFETY INFORMATION
CAUTION: Changes or modifications not approved by the party responsible for compliance
could void the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, (2) this device must accept any
interference received, including interference that may cause undesired operation.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75050; 800-527-1292
NOTE: Dimmable to 10%.
3
SAFETY INFORMATION
The DC Motor will not operate until blades are installed.
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or
operate the product. Review the accompanying assembly diagrams.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage that
might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan is: 29 lbs.
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the fan,
including the blades.
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for
the support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a plastic
outlet box. Secure the outlet box directly to the building structure. The outlet box and its support
must be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan
are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING
4
CAUTION
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Before beginning installation, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
Do NOT tamper with or attempt to repair LED component. The light source is designed for this
specific application and should not be serviced by untrained personnel. If any servicing is required,
call our customer service department.
Due to the weight and construction of this fixture, it is advisable to seek the help of another person.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blades when
installing or balancing them or when cleaning the fan. Do not insert objects between the rotating
fan blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
This fan MUST be installed with the safety cable provided with the fan. Failure to use the safety
cable provided may result in personal injury, damage to the fan or damage to other property.
WARNING
SAFETY INFORMATION
5

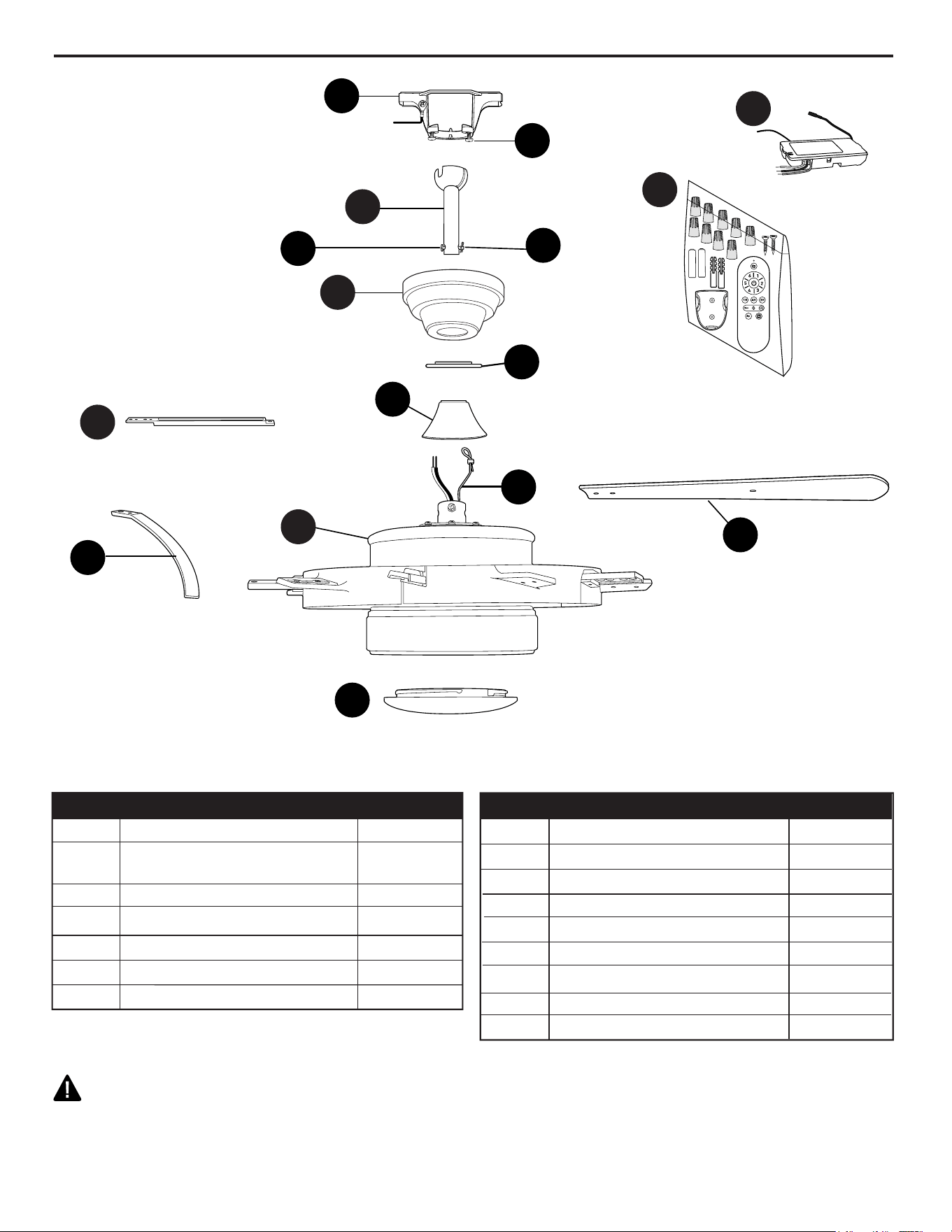

PACKAGE CONTENTS
DESCRIPTIONPART
QUANTITY
DESCRIPTIONPART
QUANTITY
IMPORTANT REMINDER: You must use the parts provided with this fan for proper installation
and safety.
A
L
M
G
C
D
B
E
H
I
K
J
N
O
F
A Mounting Bracket 1
B Canopy Mounting Screw 2
(preassembled)
C Downrod 1
D Pin (preassembled) 1
E Clip (preassembled) 1
F Canopy 1
G Canopy Cover 1
H Yoke Cover 1
I Motor Assembly 1
J Blade 10
K Blade Bracket 5
L Blade Bar 10
M Shade 1
N Remote Pack 1
O
Safety Cable (preassembled)
1
P
Remote Control Receiver
1
P
HARDWARE CONTENTS (shown actual size)
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder, Wire Strippers and Precision Screwdriver (0 x 2 in.).
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and
Wire Cutters.
PREPARATION
CC
Blade
Screw/Washer
Qty. 40
+ 1 extra
Wire
Connector
Qty. 3
AA
BB
CC
INITIAL INSTALLATION
ON
OFF
ON
OFF
1

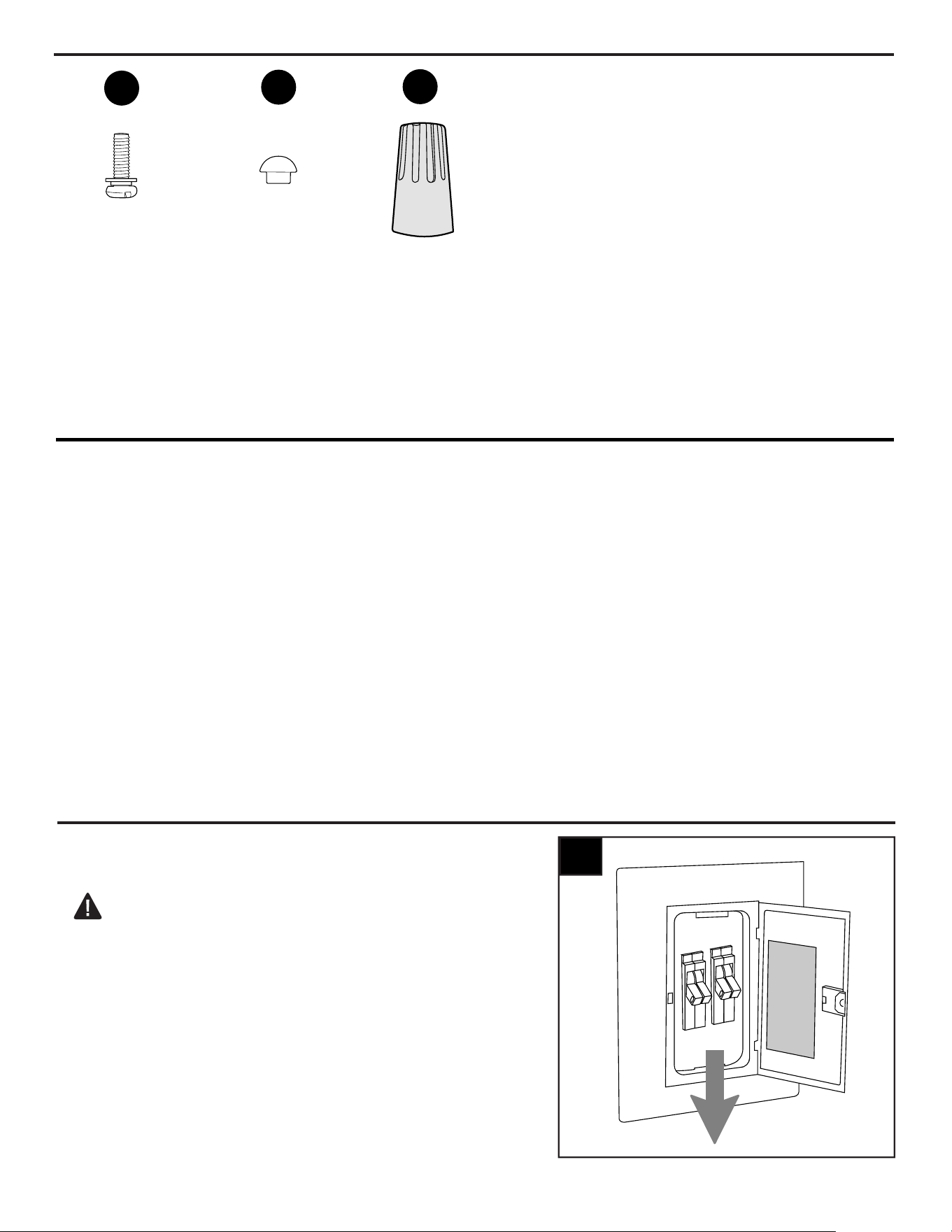

Turn off circuit breakers and wall switch to the fan
supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
Decorative
Nut
Qty. 20
+ 1 extra
6
INITIAL INSTALLATION

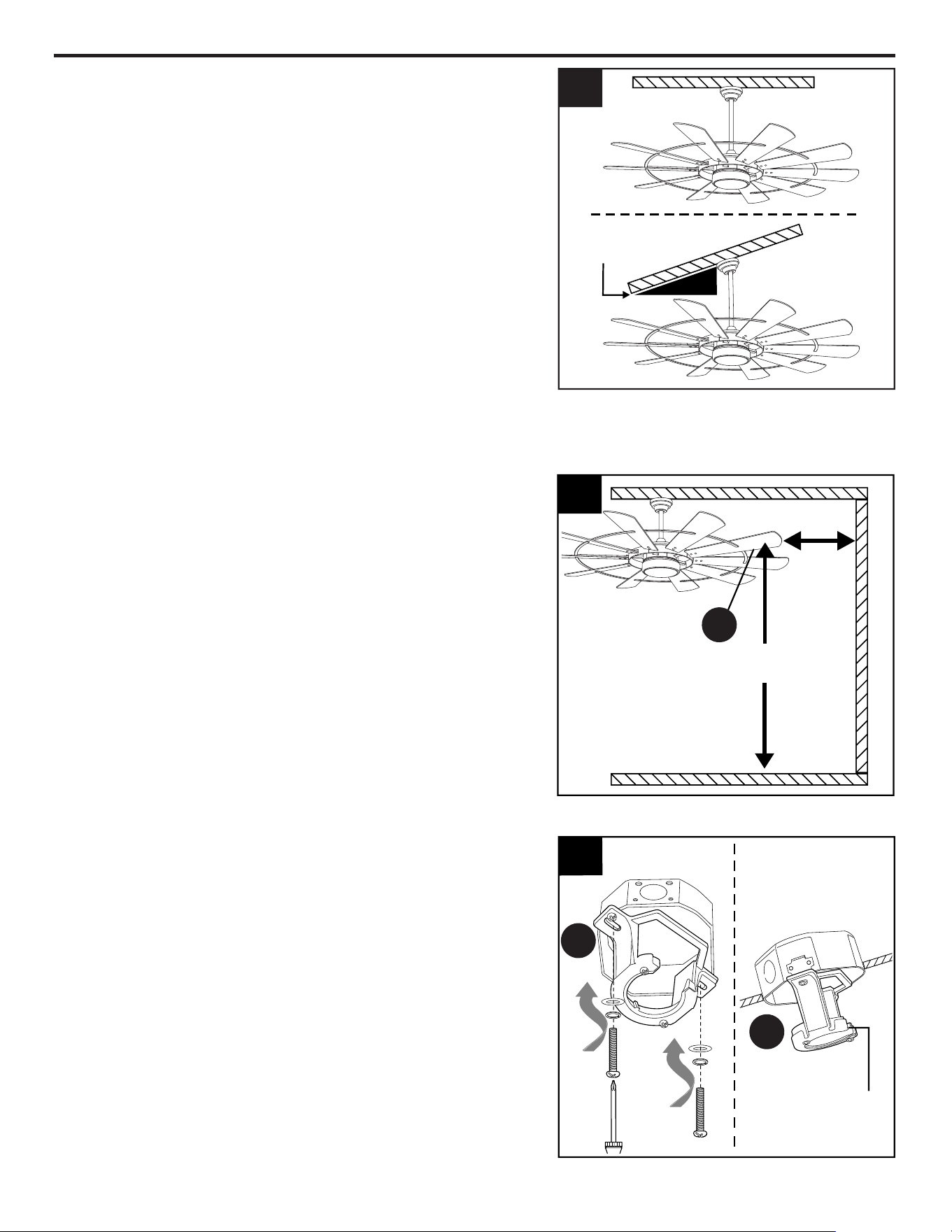

Check to make sure blades (J) will be at least
30 inches from any obstruction at least 7 ft. above
the floor.
3.
2.
Determine mounting method to use.
A. Standard mount
B. Angle mount
IMPORTANT: If using the angle mount, ensure the
ceiling angle is not steeper than 19°.
NOTE: Closemount option is not available for this
fan.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. high or higher. For taller
ceilings you may want to use a longer downrod
(not included). Angle-style mounting is best suited
for angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance.
2
B
A
7 ft.
min.
30 in.
min.
3
19° max.
4.
Open End
4
ANGLE MOUNTSTANDARD MOUNT
Secure mounting bracket (A) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket (A)
as this will support the fan.
IMPORTANT: If using the angle mount, make sure
open end of mounting bracket (A) is installed facing
the higher point of the ceiling, and ensure the
ceiling angle is not steeper than 19°.
7
J
A
A
INITIAL INSTALLATION

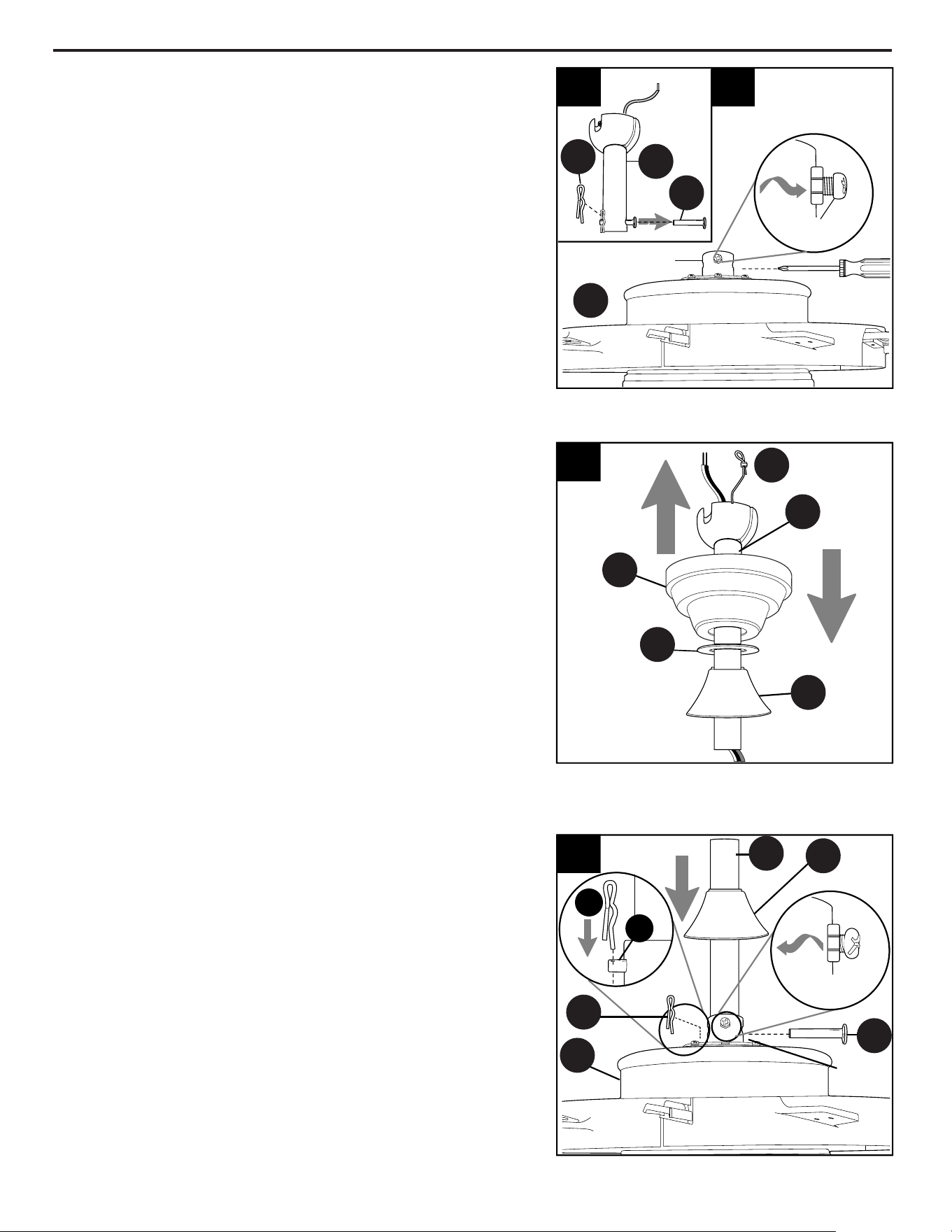

Remove pin (D) and clip (E) from downrod (C).
Partially loosen preassembled set screws and nuts
in yoke at top of motor assembly (I).
5a.
5A 5B
Set Screw
Sideview
Yoke
6.
Insert downrod (C) through canopy (F), canopy
cover (G) and yoke cover (H). NOTE: Canopy
cover (G) must be turned with the shiny side
toward the motor assembly (I).
Then, thread wires and safety cable (O) from
motor assembly (I) through downrod (C).
6
7.
Slip downrod (C) into yoke, align holes and
re-install pin (D) and clip (E). Tighten set screws
in yoke and then tighten preassembled nuts on
the set screws. Then, slide yoke cover (H) down
until it rests on top of motor assembly (I).
7
Yoke
E
D
Set Screw
and Nut
Sideview
5b.
8
E
I
D
C
H
G
F
O
C
D
I
H
E
C
INITIAL INSTALLATION
8.
9
Install hanging ball of downrod (C) into opening of
mounting bracket (A). Align one of the slots in
hanging ball with tab in mounting bracket (A).
DANGER: Failure to align one of the slots in
the ball with the tab may result in serious injury or
death.
Tab
10
Slot

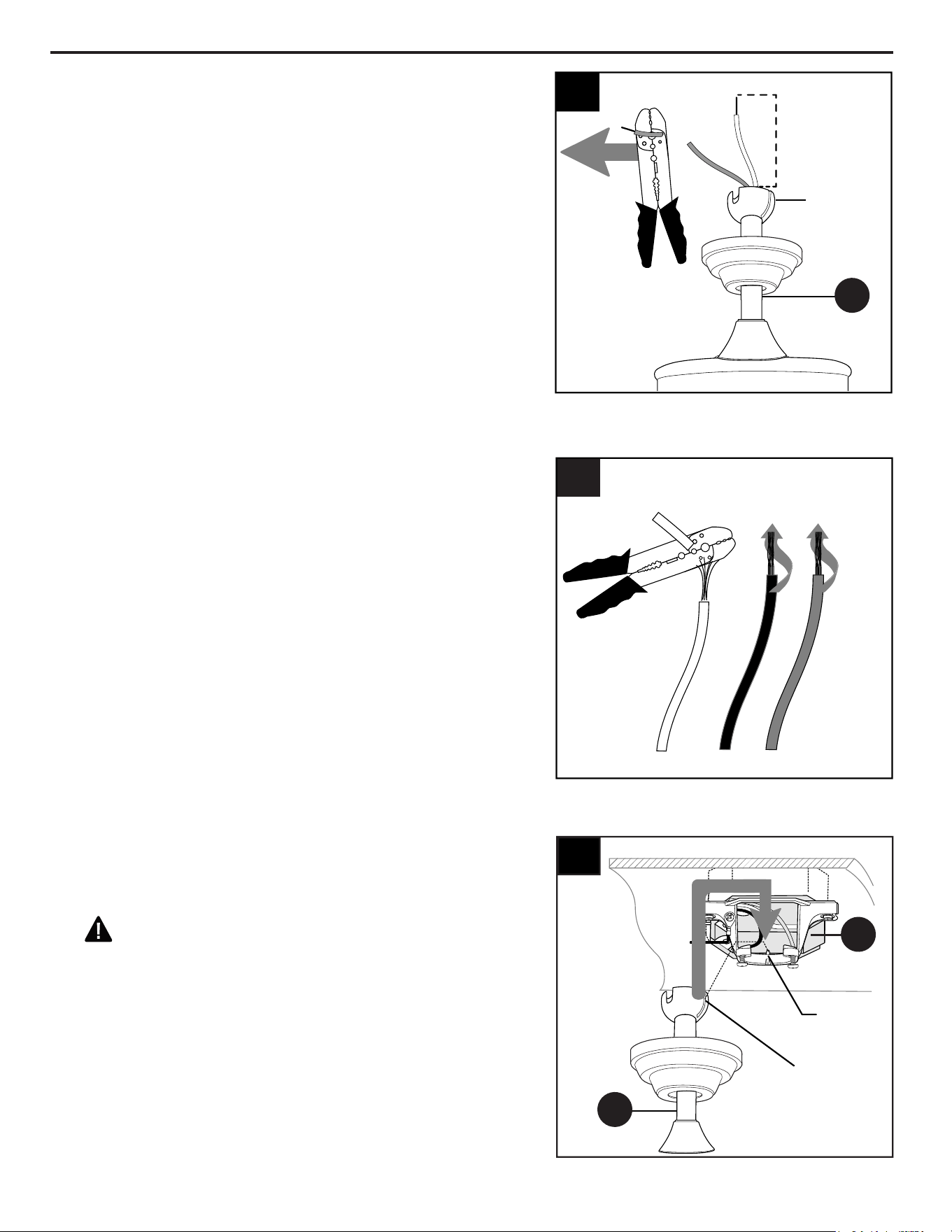

If you decided to cut back the lead wires in Step 8,
strip 1/2 in. of insulation from end of each
wire -- WHITE, BLACK, AND GREEN (if
applicable). Twist stripped ends of each strand of
wire within the insulation with pliers (not included).
Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify
the wiring. If you decide to cut back the lead
wires, it is suggested you do so in the following
manner:
Take the lead wires and make sure you have
pulled them all the way through the top of the
downrod. Start at the TOP of the hanging ball on
the downrod and measure 8 in. of lead wire, then
cut the excess wire off with wire cutters (not
included).
NOTE: If you do not cut back the lead wires,
Steps 8 and 9 are not necessary and you may
proceed to Step 10 instead.
Hanging
Ball
8
8 in.
9.
10.
9
C
A
C
Wood Screw,
Washer and
Lock Washer
Wood
Joist
Loop
11.
11

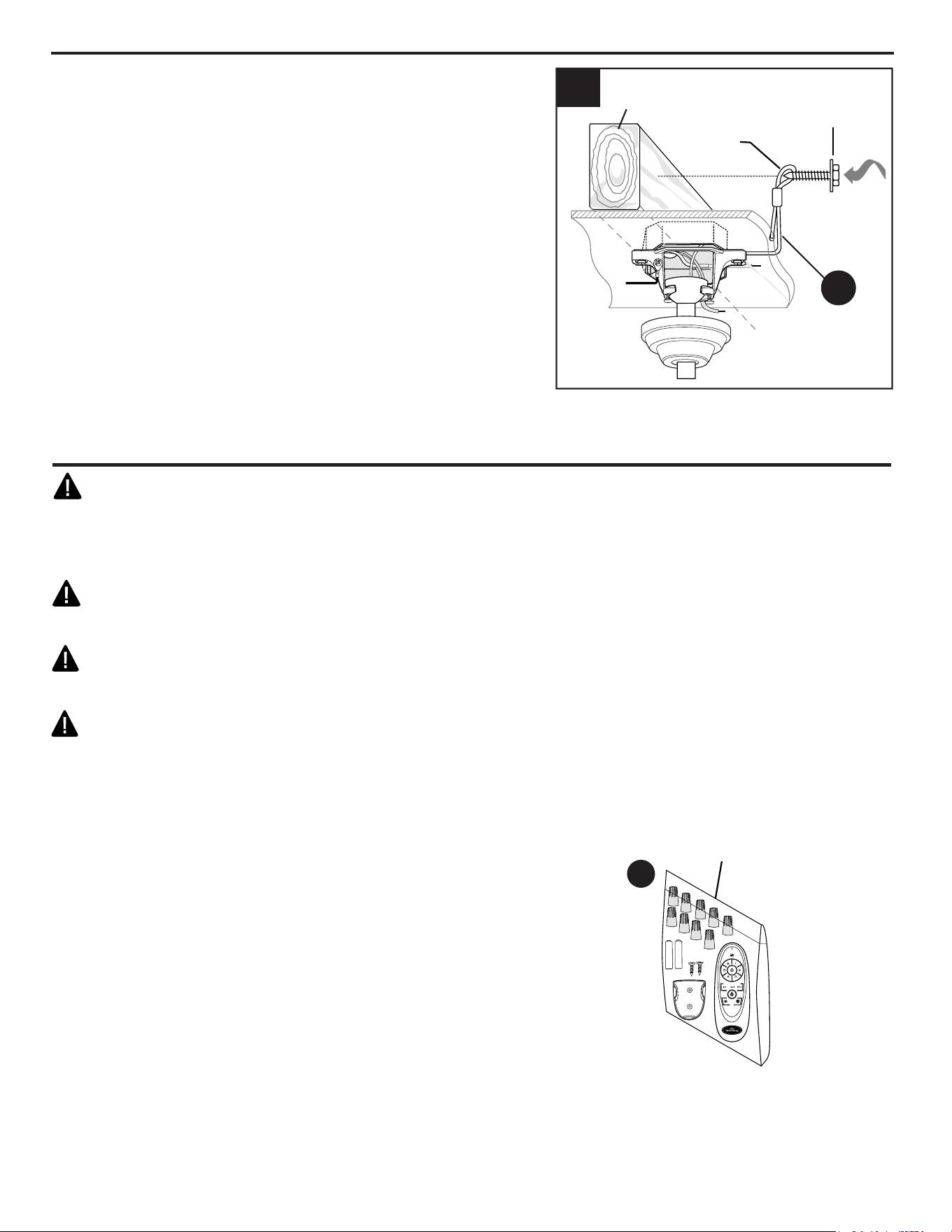

Find a secure attachment point (wood ceiling joist
recommended) and secure safety cable (O). Use a
heavy-duty wood screw, washer and lock washer
(not included) to secure safety cable (O) loop. The
loop at the end of the safety cable (O) should just
fit over the threads on the wood screw (not
included) used to secure it.
Test safety cable (O) by pulling on loose end of
cable with pliers. If the safety cable (O) slips, the
loop must be adjusted tighter.
NOTE: Extra cable slack can be left in ceiling area.
INITIAL INSTALLATION
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to
the corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (green or bare) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range
dimmer switch to control fan speed.
WIRING
10
O
IMPORTANT: Make the necessary wiring connections for
remote control operation as detailed on next page. For each
wire connection, use one of the wire connectors from the
remote pack (R), making sure to screw wire connector on in
a clockwise direction.
Wire
Connectors
R
Wrap electrical tape (not included) around each
individual wire connector (CC) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections.
Place GREEN and WHITE connections on
opposite side of the outlet box from the BLACK
and BLUE (if applicable) connections.
2.
2
WIRING
11
CC
CC
CC

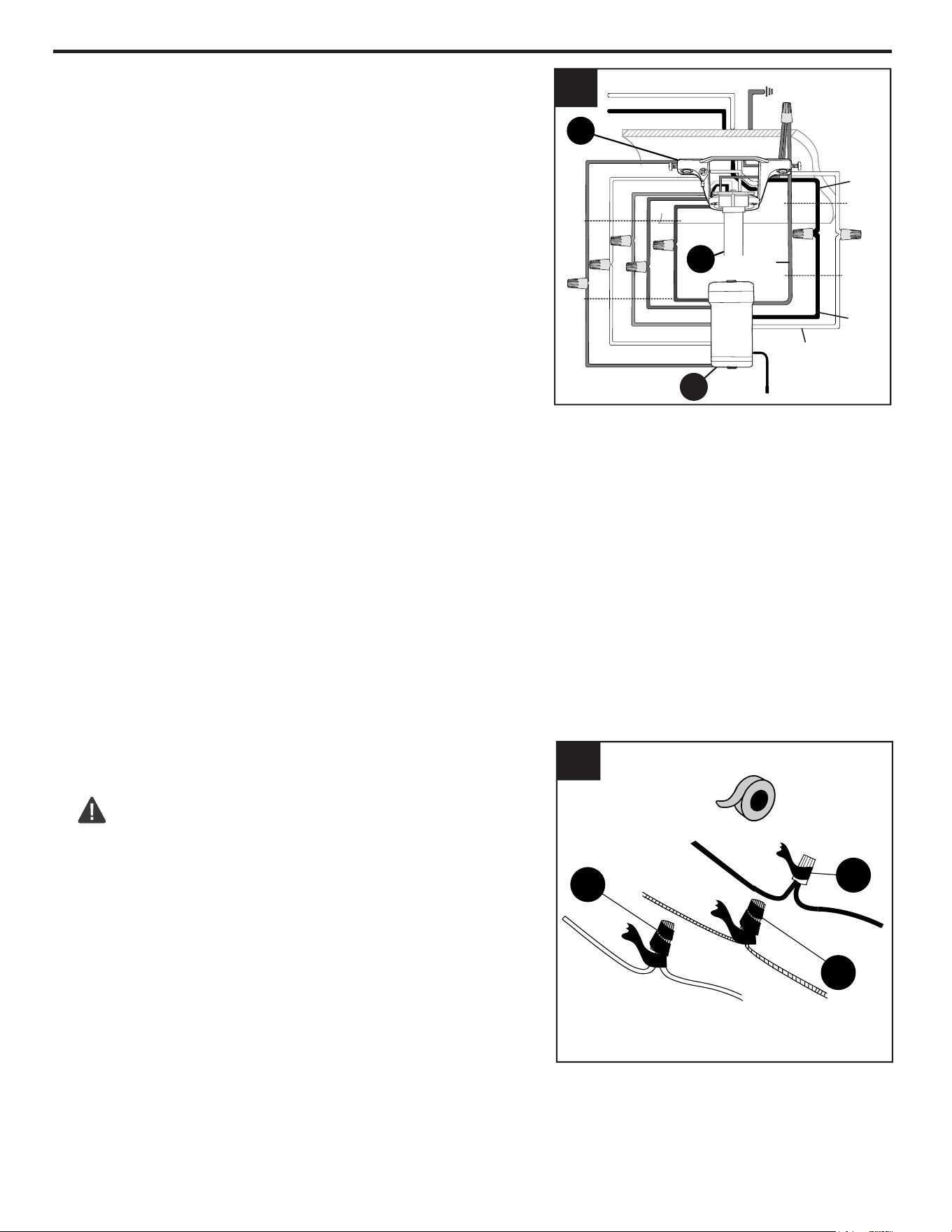

Connect all GROUND (GREEN) wires from fan
(on downrod (A), if applicable, mounting
bracket (C)) and remote control receiver (Q) to
BARE/GREEN supply wire from ceiling.
Connect BLACK wire (labeled AC IN L) from
remote control receiver (Q) to BLACK supply
wire from ceiling.
Connect WHITE wire (labeled AC IN N) from
remote control receiver (Q) to WHITE supply wire
from ceiling.
Connect RED wire (labeled TO MOTOR) from
remote control receiver (Q) to RED wire from
motor housing (D).
Connect GRAY wire (labeled TO MOTOR) from
remote control receiver (Q) to GRAY wire from
motor housing (D).
Connect PINK wire (labeled FOR MOTOR) from
remote control receiver (Q) to PINK wire from
motor housing (D).
Connect BLUE wire (labeled FOR LIGHT L) from
remote control receiver (Q) to BLUE wire from
motor housing (D).
Connect WHITE wire (labeled FOR LIGHT N)
from remote control receiver (Q) to WHITE wire
from motor housing (D).
1.
Q
1
WHITE SUPPLY WIRE
BLACK SUPPLY WIRE
PINK
RED
RED
GRAY
GRAY
PINK
WHITE
BLUE
BLUE
WHITE
BLACK
AC IN L
WHITE
AC IN N
WHITE
GROUND (GREEN OR BARE)
GROUND
(GREEN OR BARE)
BLACK
FROM
RECEIVER
FROM
FAN
FROM
RECEIVER
FROM
CEILING
A
C
GREEN/
GROUND
WIRING
FINAL INSTALLATION
12
DANGER: To reduce the risk of serious bodily
injury, DO NOT use power tools to assemble the
blades (J). If overtightened, blades (J) may crack and
break.
Select five blades (J) to attach the five blade
brackets (K). Place one blade bracket (K) on top of
blade (J) aligning the two biggest of four holes at top
of blade (J). Attach blade bracket (K) to top of blade
(J) with two blade screws/washers (AA), and two
decorative nuts (BB).
Repeat step for the other four blades (J).
1
Hardware Used
Blade Screw/Washer
x 10
AA
Decorative Nut
x 10
BB
1.
K
J
BB
AA
3

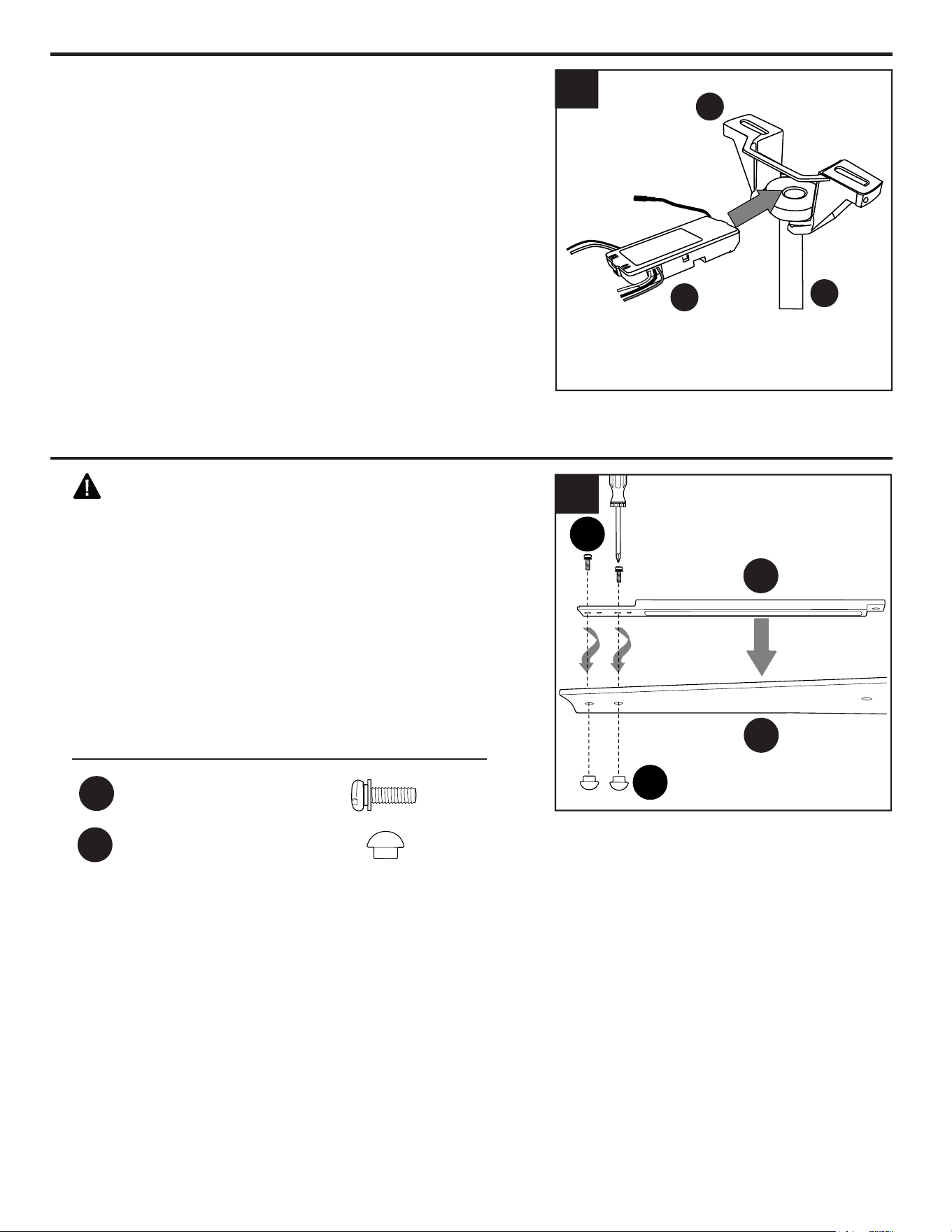

Gently slide remote control receiver (Q) flat-side
up into mounting bracket (C). Turn spliced/taped
wires upward and gently push wires and wire
connectors (CC) into outlet box. Let antenna from
remote control receiver (Q) hang to the side.
NOTE: The remote control included with this fan
meets the following requirements:
a. Not for use with solid state fans.
b. Electrical rating: 120V / 60 Hz;
motor amps:1.25 MAX.
3.
Antenna
A
Q
C

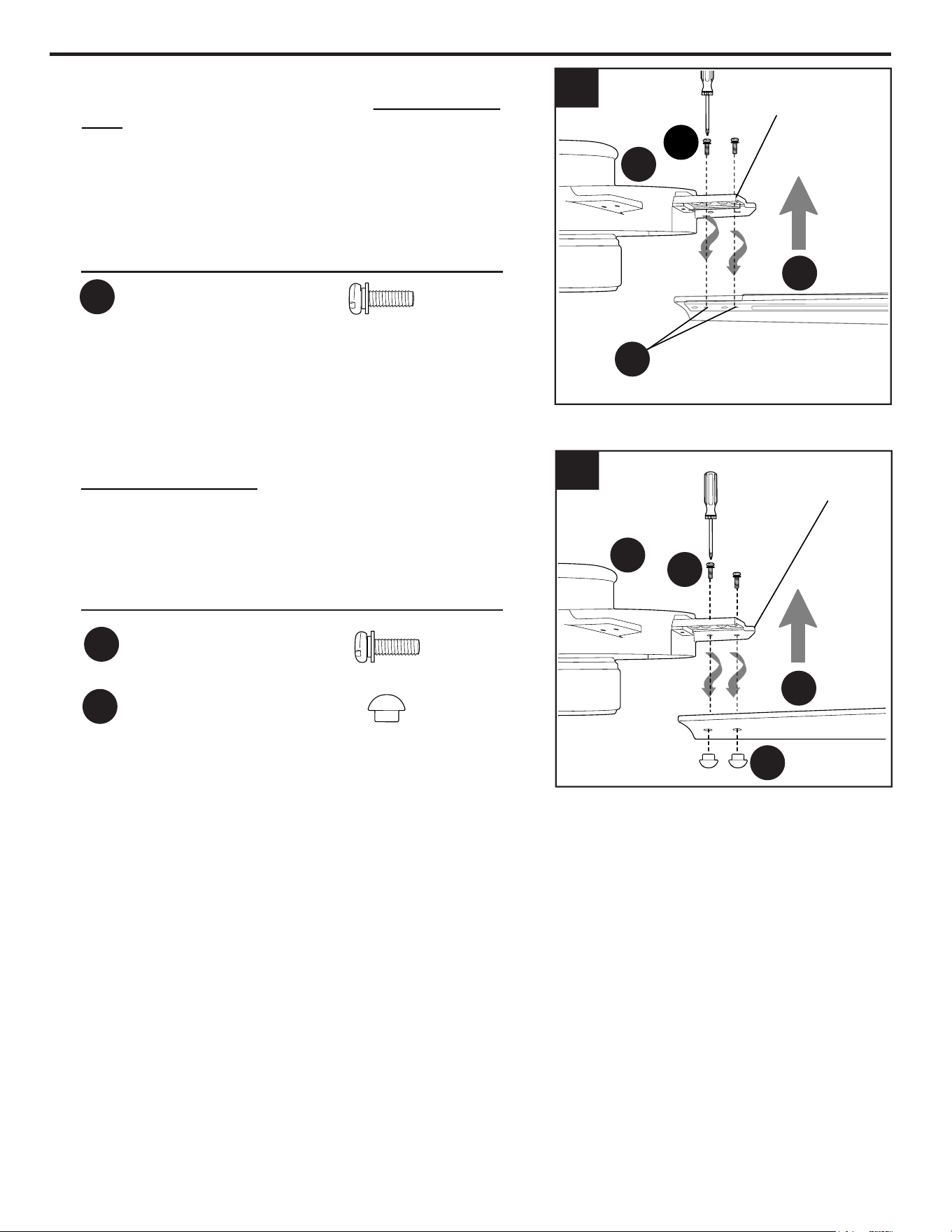

1b.
1b
Attach one of the remaining five blades (J) to the
V-shaped blade arms on the motor assembly (I)
using two blade screws/washers (AA) and two
decorative nuts (BB).
Repeat step for the other four remaining blades (J).
Hardware Used
Blade Screw/Washer
x 10
AA
Decorative Nut
x 10
BB
V-shaped
blade arm
FINAL INSTALLATION
13
J
I
AA
BB
1a
Align the two smallest of four holes of blade bracket
(K) with the two holes on one of the V-shaped blade
arms on the edge of motor assembly (I).
Attach blade (J) to blade arm with two blade
screws/washers (AA) only.
Repeat step for the other four blades (J).
1a.
Hardware Used
Blade Screw/Washer
x 10
AA
V-shaped
blade arm
AA
I
J
K
1c.
FINAL INSTALLATION
Connect each blade (J) using the blade bars (L).
On the topside of the blade (J), slide the bent
portion of the blade bar (L) directly under the
opening at the end of the blade bracket (K),
aligning the holes. Then, on the underside of the
blade (J), insert the nodule portion of another blade
bar (L) directly under the same hole. Secure with
one blade screw/washer (AA).
NOTE: Blade bar (L) must be turned with the
smooth side toward the floor.
Repeat step for the remaining blade bars (L) until
the blades (J) are all connected.
CAUTION: Assistance from another person is
recommended for this step.
Hardware Used
Blade Screw/Washer
x 10
AA
1c
nodule
smooth
side
2.
2
Knobs

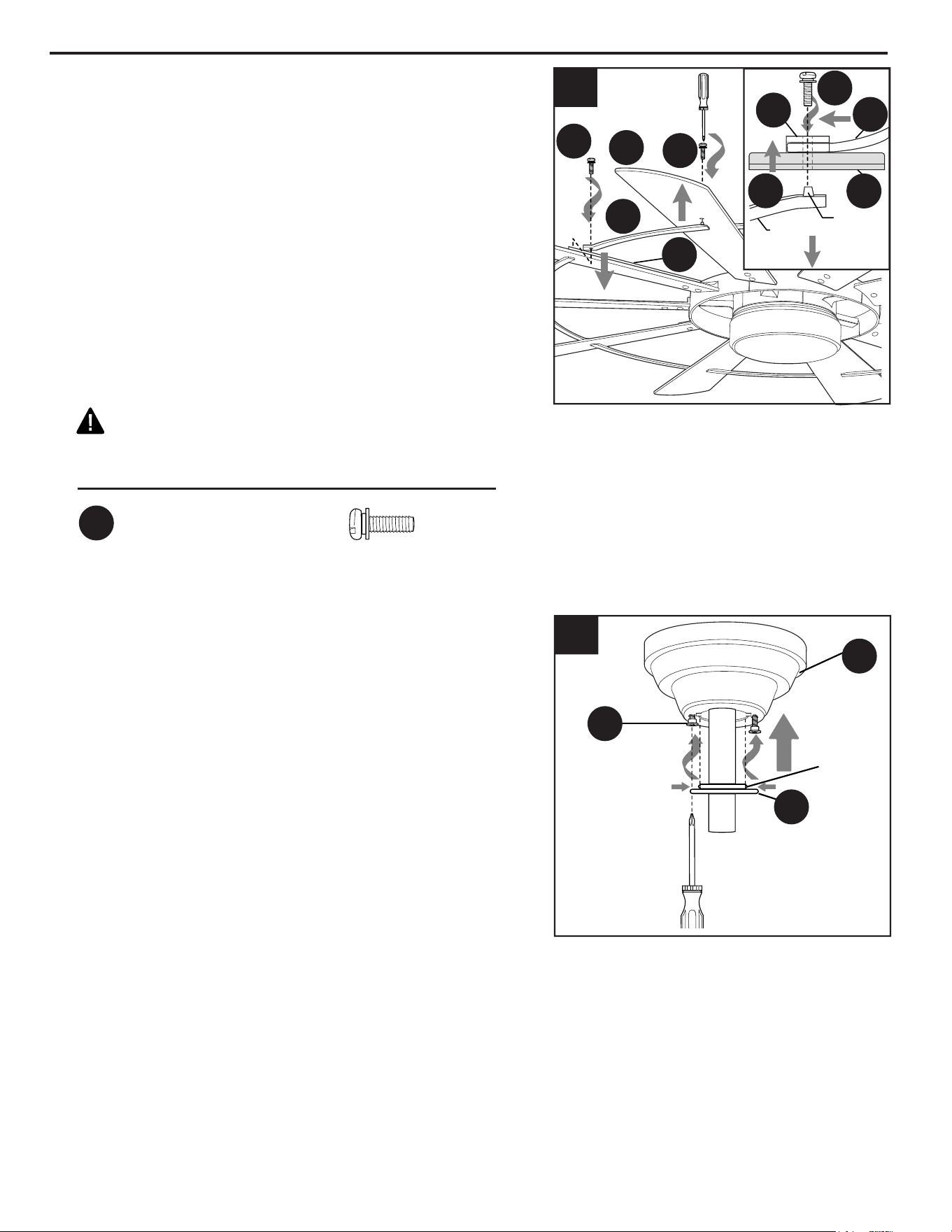

Locate two canopy mounting screws (B) on
underside of mounting bracket (A) and remove
canopy mounting screw (B) closest to the open end
of the mounting bracket (A). Partially loosen the
other canopy mounting screw (B). Lift canopy (F) to
mounting bracket (A). Place rounded part of slotted
hole in canopy (F) over loosened canopy mounting
screw (B) and push up. Twist canopy (F) to lock.
Re-insert canopy mounting screw (B) that was
removed, then tighten both canopy mounting
screws (B).
Use arrows on inside of canopy cover (G) to locate
knobs on center ring of canopy cover (G). Slide
canopy cover (G) up to canopy (F), aligning knobs
on canopy cover (G) with openings in bottom of
canopy (F). Press up gently but firmly on canopy
cover (G) until you hear it snap onto the bottom of
the canopy (F) and then turn canopy cover (G)
clockwise about 1/2 in.
14
AA
AA
J
K
L
L
J
L
K
AA
G
B
F
3.

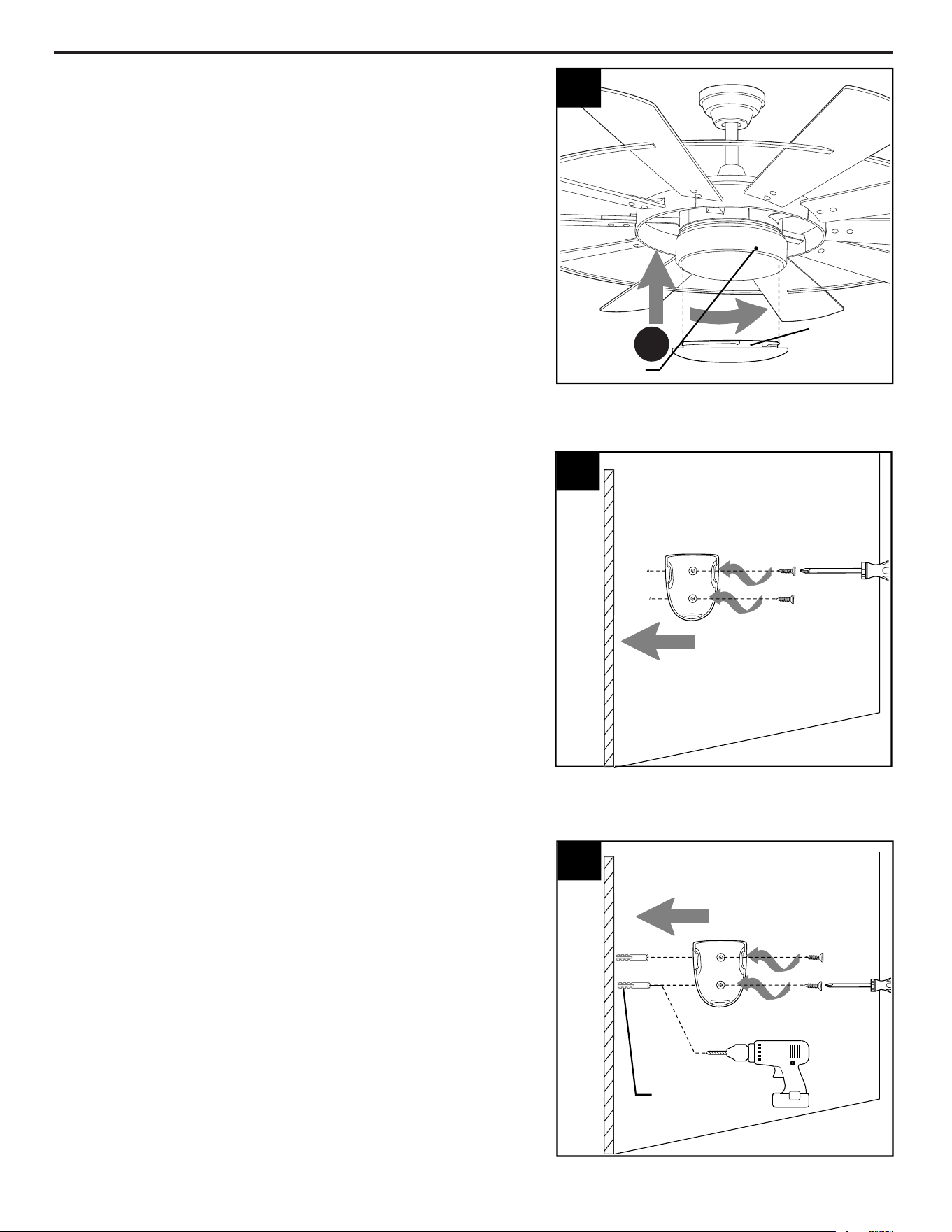

If mounting surface is drywall, mark the
location of the holes using a pencil or a marker
(not included). Use a 7/32 in. drill bit (not
included) to drill two pilot holes in drywall at
marked locations.
Position plastic anchor in each pilot hole. Gently
tap plastic anchors with a hammer (not
included) until flush with wall surface. Screw
bracket screws into plastic anchor.
The remote control transmitter from remote
pack (N) rests inside the bracket.
5.
3
Align slots on shade (M) with protrusions on
underside of motor assembly (I). Turn shade (M)
clockwise until it no longer turns.
NOTE: Pull down gently on the shade (M) to make
sure it is secured completely.
5
Remote Control
Bracket
Wall
Bracket
Screws
Wall
Anchors
Slot
Protrusion
FINAL INSTALLATION
4
Remote Control
Bracket
Wall
Bracket
Screws
If you wish to use the remote control bracket
from remote pack (N) on a wood surface, install
bracket screws from remote pack (N) through
bracket and into the desired installation site.
4.
15
M
16
OPERATING INSTRUCTIONS

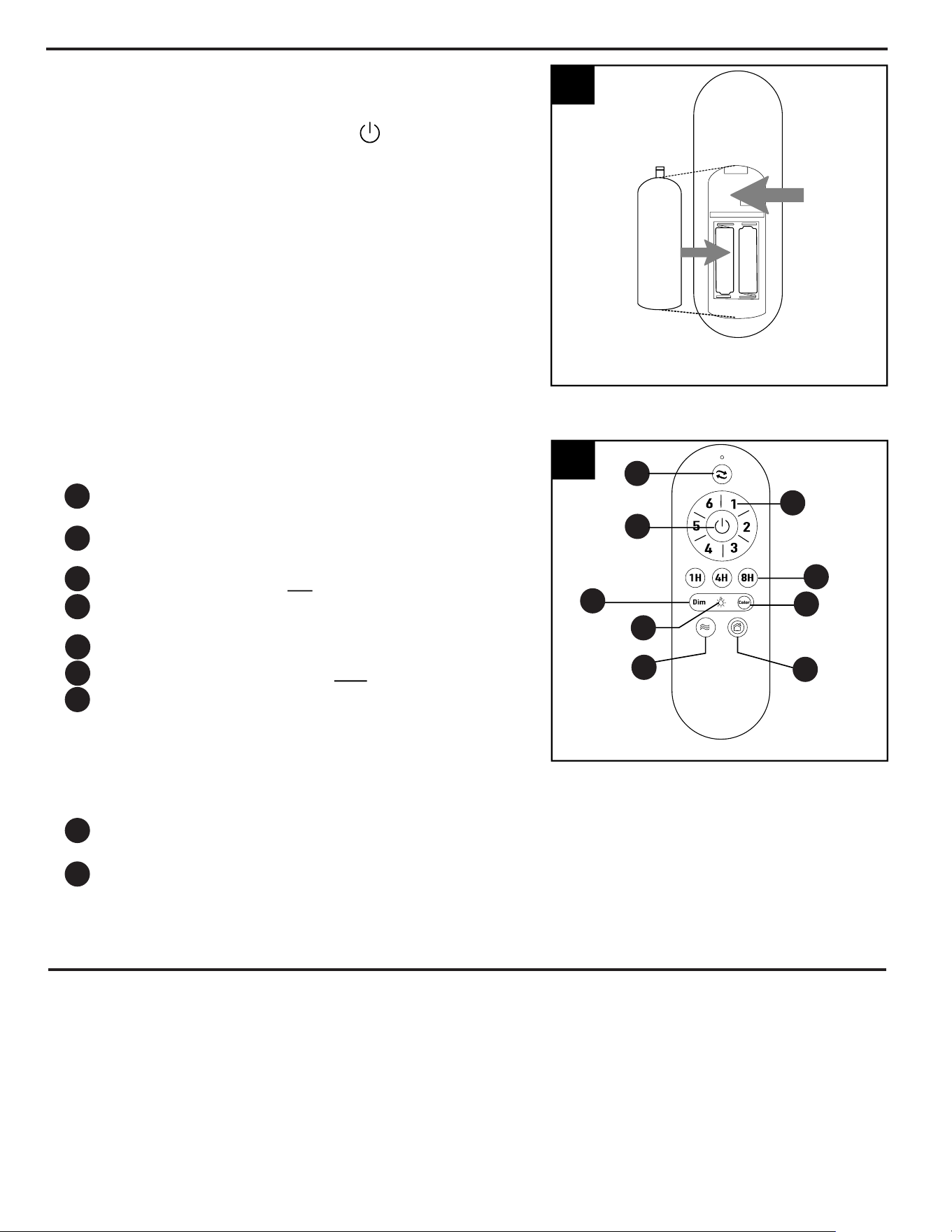

Locate remote control transmitter in remote pack (N).
Remove battery cover. Install two AAA batteries from
remote pack (N). Observe diagram inside battery
compartment to install batteries correctly.
WARNING: Batteries are to be inserted with
correct polarity.
WARNING: Choking/Ingestion Hazard - Small
parts. Keep batteries away from children.
NOTE: DO NOT mix old and new batteries; DO NOT
mix alkaline, standard (carbon - zinc) or rechargeable
(nickel - cadmium) batteries or equivalent.
NOTE: Batteries are NOT rechargeable. Remove
batteries with low or no charge and dispose of
properly.
1.
1
Battery
Cover
Remote Control
Transmitter (back side)
Batteries
AAA
-
+
-
+
AAA
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR
LEAK.” - When disposing of household alkaline batteries, it is best to check with your local and
state recycling or household hazardous waste coordinators concerning the specifics of the
program in your area. You may also locate a recycling center by calling 1-800-8-BATTERY or
1-877-2-RECYCLE or visit www.epa.gov/epawaste/index.htm or www.earth911.org for more
information.
CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If
this is not desired, turn wall switch off to any other programmable receiver or fan.
FCC Compliance Notice for Remote Control and LED Light Kit
CAUTION: Changes or modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, (2) this device must accept any
interference received, including interference that may cause undesired operation.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
N
17
CARE AND MAINTENANCE
At least twice each year, lower canopy (F) to check downrod (C) assembly, and then tighten all screws on
fan. Clean motor assembly (I) with only a soft brush or lint-free cloth to avoid scratching the finish. Clean
blades (J) with a lint-free cloth. You may occasionally apply a light coat of furniture polish to wood blades
for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
Total wattage for this fan is 18 watts; do not attempt to replace the LEDs.
OPERATING INSTRUCTIONS
2.
Replace battery cover on remote control transmitter.
Restore electrical power. Within 30 seconds of powering
fan, press and hold ON/OFF button ( ) on remote
control transmitter for 5 seconds until fan beeps once in
order to synchronize remote with fan motor. Use the
remote control transmitter to test the light and fan
functions to confirm the learning process is complete.
IMPORTANT: To prevent damage to remote control
transmitter, remove the battery if not used for long
periods. Store the remote control transmitter away from
excess heat or humidity.
NOTE: If fan and/or remote control fail(s) to operate or
you have purchased a new remote control transmitter,
make sure to turn the power off first.
Remote Control Transmitter
(back side)
2
3.
Operation buttons on the front panel of the remote control
transmitter:
- Reverse function ─ fan must be set on low before
reversing blade direction
- Fan speeds: 1 (lowest) to 6 (highest) and
to turn fan ON
- OFF power button for fan
- Timer mode: fan may be set to run for
– 1 hour / 4 hours / 8 hours
- Dimmer mode: press and hold to dim light
- ON / OFF, power button for light
- Color mode: change/select light color
– soft white
– warm white
– cool white
– daylight
– cool daylight
- Breeze mode: fan automatically cycles between all
6 different speeds
- Vacation mode: light kit switches on for 5 minutes
every 2 hours
3
1
2
4
5
6
8
9
7
Remote Control Transmitter
3
1
3
8
9
2
4
7
5
6
18
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move. 1. Power is off or fuse is blown.
2. Faulty wire connection.
3. Learning code process between fan
and remote control transmitter may
not have been successful and
learning code was not activated.
4. Blades are not installed.
1. Turn power on or check fuse.
2. Turn power off. Loosen canopy
and check all connections.
3. Turn off power and repeat
instructions in Step 2 on page
17.
4. Attach blades to fan.
Noisy operation. 1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
1. Tighten all blade screws.
2. Replace blade.
3. Replace with an approved
speed control device.
4. Allow fan a “break in” period of
a few days, especially when
running the fan at Medium and
High speeds.
Excessive wobbling.
1. Blades are loose.
2. Unbalanced blades.
3. Fan not securely mounted.
4. Fan too close to vaulted ceiling.
5. Set screw(s) on motor assembly yoke
is (are) not tightened properly.
6. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade
screws/washers.
2. Switch one blade with a blade
from the opposite side.
3. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
4. Use a longer downrod or move
fan to another location.
5. Tighten yoke set screw(s)
securely.
6. Carefully loosen and lower
canopy and verify that set screw
on hanging ball is tightened
securely.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
Fan operates but
light fails.
1. Wires in canopy not wired
properly.
2. Wall switch to fan is off.
1. Check wires in canopy and, if
necessary, re-wire according to
instructions on page 11.
2. Make sure that wall switch to
fan is on.
19
Printed in China
DRLI2309
A
F
C

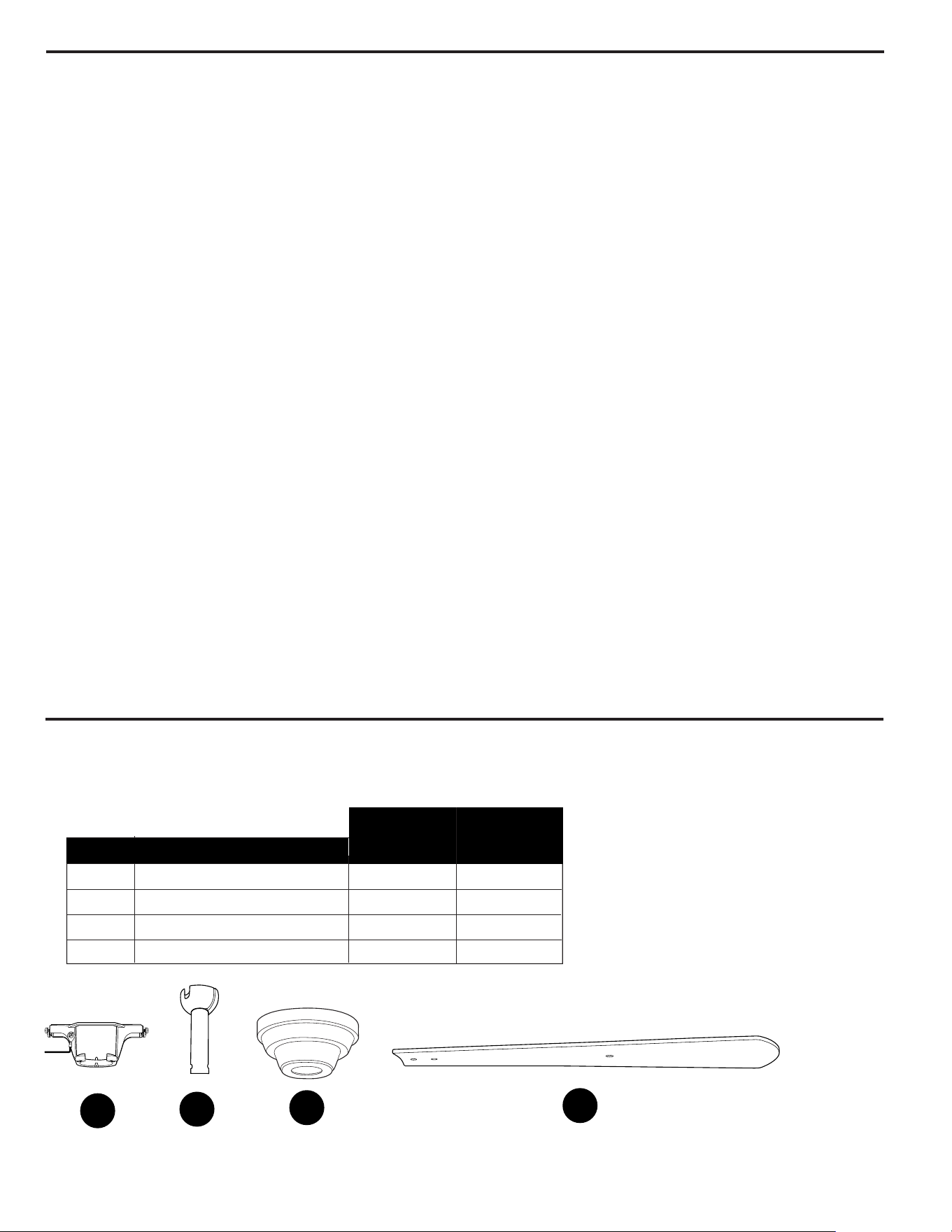

REPLACEMENT PARTS LIST
LIMITED LIFETIME WARRANTY
J
PART DESCRIPTION
A Mounting Bracket
C
Downrod
F Canopy
J Blade
2599787-A
2599787-C
2599787-F
2599787-J
#
2599787
PART #
For replacement parts, call our customer service department at 888-251-1003, 8 a.m. - 8 p.m., EST,
Monday - Sunday. You could also contact us at [email protected].
#
1058853
PART
1058853-A
1058853-C
1058853-F
1058853-J
Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects in
workmanship and material for the life of the product. Also, subject to the limitations below, the
manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in
whole or in part with glass) to be free from defects in workmanship and material for a period of one
year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product
through a store or contractor. Ceiling fan part defects must be reported within the first year from the
date of purchase. Parts made in whole or in part with glass and the finishes of metal and other
surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by
this warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any
service performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within
the terms stated above. The manufacturer shall not be liable for any loss or damage of any kind,
including any incidental or consequential damages resulting directly or indirectly, from any breach of
warranty, express or implied, or any other failure of this product. Some states do not allow the
exclusion or limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or
materials within the warranty period associated with the defective part, the manufacturer agrees to
replace the defective part without charge, or at its option, to replace the ceiling fan with a comparable
or superior model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of fitness for a particular purpose and the implied warranty of merchantability are
disclaimed. Some states do not allow the disclaimer of implied warranties, so this disclaimer may not
apply to you.
