EARTH AUGER
HYEA5200X
Instruction Manual
Introduction
Thank You For Purchasing Your HYUNDAI Product
We work very hard to give all of our customers the best possible service. If you have any
problems, before leaving negative feedback, please contact us to give us a chance to resolve
the issue. We would be delighted if you left us positive feedback! Thank you for purchasing this
product.
Important!
This manual has been produced by Hyundai Power Products and should be kept with the
product. Please read and understand these instructions before you use your product. Failure to
do this may result in personal injury or damage to the product.
The safety precautions and warnings are to ensure your safety and protect you from harm or
damage to the product.
The information contained in this manual was accurate at the time of production, however
HYUNDAI Power Products may make modifications to the product without notification.
WARNING : READ THE INSTRUCTION BOOKLET THOROUGHLY BEFORE
USING THE MACHINE. Keep for future reference and pass it on if the machine is
loaned or sold to another user.
!
Contents
Maintenance And Care..........................................25-32
Safety...............................................................25
Maintenance Schedule....................................26
Checking Your Machine..................................27
Repairs.............................................................27
Cleaning...........................................................27
Spark Plug.......................................................28
Cleaning & Replacing Air Filter........................29
Gear Box.........................................................29
Replacing Fuel Filter.......................................30
Storage.......................................................30-31
After Storage....................................................31
Transportation And Handling..........................31
Recycling And Disposal...................................32
Environmental Protection................................32
Spare Parts..................................................................33
Our Product Range......................................................34
Useful Information.......................................................35
Our YouTube Channel.....................................35
Warranty..........................................................35
Manual Updates..............................................35
Returning Your Product...................................35
Leaving A Review............................................35
Ordering Spare Parts......................................35
Notes.......................................................................36-37
Contact Us...................................................................38
Declaration Of Conformity...........................................39
Features.........................................................................4
What’s In The Box.........................................................4
Symbols On The Machine.............................................5
General Safety..........................................................6-16
Understand Your Machine.................................6
Personal Safety..............................................6-7
Inspect Your Machine....................................7-8
Engine Safety.....................................................8
Work Area..........................................................9
During Use...................................................9-11
Remaining Risks..............................................11
Avoid Skin And Eye Contact............................11
Carbon Monoxide............................................12
General Fuel Safety....................................12-13
Electrical Safety...............................................14
Batteries...........................................................14
Vibrations....................................................14-15
Noise................................................................15
Intended Use...................................................15
Personal Protective Equipment.......................16
Getting Started.............................................................17
Assembly Safety..............................................17
Unboxing.........................................................17
Assembly......................................................................18
Preparation...................................................................19
Mixing 2-Stroke Oil..........................................19
Starting Procedure..................................................20-21
Stopping Procedure.....................................................22
Troubleshooting...........................................................23
Specifications..............................................................24
Features
• Earth Auger
• 100mm, 150mm, 200mm Drill Attachments
• User manual
• Tools
• Mixing Bottle

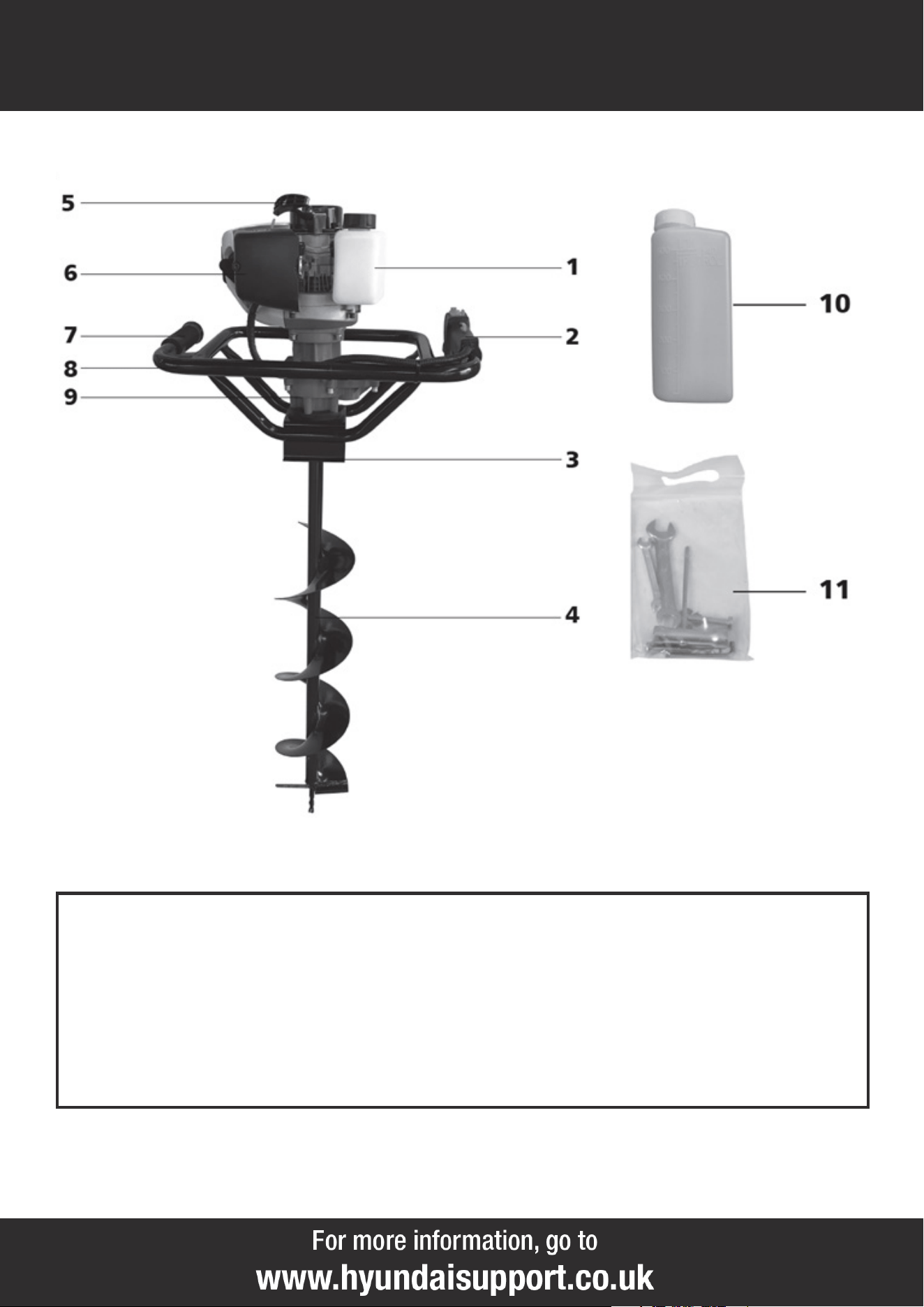

What’s In The Box
4
1 - Fuel Tank
2 - Right Handle
3 - Locking Pin
4 - Drill
5 - Starter Cord
6 - 2-Stroke Engine
7 - Left Handle
8 - Handle Bar
9 - Transmission
10 - Mixing Tank
11 - Tools
5

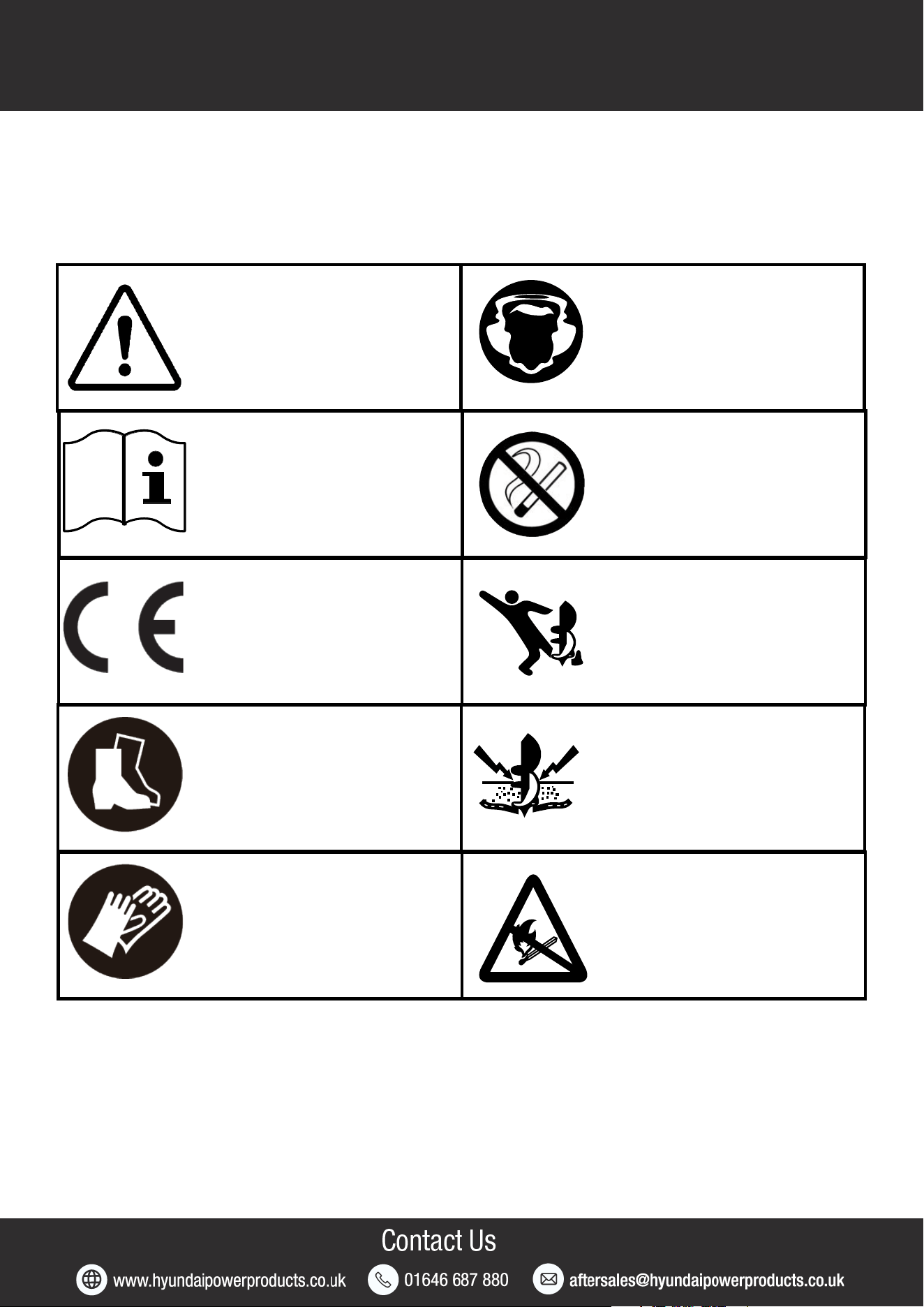

CAUTION!
Handle carefully.
INSTRUCTION MANUAL
Read and understand
operator’s manual before using
the machine. Failure to follow
instructions could result in
death or serious injury.
Symbols On The Machine
CE SYMBOL
This product complies with
the applicable European
directives and an evaluation
method of conformity for
these directives was done.
HAND PROTECTION MUST
BE WORN
Protective gloves are highly
recommended when working.
FOOT PROTECTION MUST
BE WORN
Non-skid heavy duty footwear
is highly recommended when
working.
HEARING PROTECTION
MUST BE WORN
Suitable safety hearing
protection is recommended.
We have provided safety messages in this manual and on the lawnmower. This information
alerts you to potential hazards that could hurt you or others. Please read these messages
carefully. However, we may not have listed all of the possible hazards, you must also use your
own judgment.
DANGER!
Keep feet away from drilling
area.
DANGER!
Do not drill near underground
cables or pipes.
DANGER!
Keep away from fire and do not
smoke near this machine.
DO NOT SMOKE
Do not smoke, stay away from
sparks, open flames, or other
sources of ignition.
General Safety
6
WARNING : READ THE INSTRUCTION BOOKLET THOROUGHLY BEFORE
USING THE MACHINE. Keep for future reference and pass it on if the machine
is loaned or sold to another user.
!
• WARNING! You must read these
instructions carefully before operating the
machine. Make sure that you are familiar with
the controls and properly operate the
machine. You must learn how to stop the
machine quickly. If you do not follow the
warnings and instructions, it may result in fire
and/or serious injury. Make sure to save all
warnings and instructions for future reference.
• Read this manual and labels affixed to the
machine to understand its limitations and
potential hazards.
• Be thoroughly familiar with the controls and
their proper operation. Know how to stop the
machine and disengage the controls quickly.
• If the unit is to be used by someone other
than original purchaser, or is to be loaned,
rented, or sold, always provide this manual
and any needed safety training before
operation. The user can prevent and is
responsible for accidents or injuries that may
occur to themselves, to other people, or to
property.
• Do not force the machine beyond its limits.
Use the correct machine for your application.
• Know how to stop the engine quickly in
case of emergency. Understand the use of all
controls.
• ALL MAINTENANCE other than that listed in
this manual, should be carried out by
professionally trained and certified personnel.
• You must pass on safety notices to anyone
working with the machine. They must read the
manual before starting work. All safety and
hazard notices must be observed.
• WARNING! Never allow children or people
unfamiliar with these instructions to use the
product. Local regulations can restrict the
minimum age of the operator.
• Keep children, pets, and other people not
using the unit at least 23m (75 feet) away from
the work area. Be alert and shut off the unit if
anyone enters work area. Keep children under
the watchful care of a responsible adult. If you
are approached, stop the unit immediately.
• Stay alert, watch what you are doing and
use common sense when operating the
machine. Never operate the machine when
unwell or tired, or if you have taken alcohol,
medicine, drugs or any substances which may
slow your reflexes and compromise
judgement. A moment of inattention while
operating the machine may result in serious
personal injury.
• Appropriate Personal Protective Equipment
(PPE), MUST be worn at all times when
operating or repairing the machine. Always
wear anti-slip and resistant work footwear and
long trousers while using the machine. Do not
use the machine when barefoot, wearing
sandals or similar lightweight footwear. Do not
wear chains, bracelets or clothing that is loose
fitting or hanging ties or cords. Tie long hair
back. Always wear protective earplugs. Loose
clothes, jewellery, or long hair can be caught
in moving parts. Protect eyes, face, and head
from objects that may be thrown from the unit.
Always wear safety goggles or safety glasses
with side shields when operating.
• Always keep hands and feet away from all
moving parts during operation. Moving parts
can cut or crush body parts.
Understand Your Machine
!
Personal Safety
!
7
General Safety
• Always keep hands and feet away from all
pinch points.
• Do not touch parts that might be hot
from operation. Allow parts to cool before
attempting to maintain, adjust, or service.
• Do not overreach. Keep proper footing and
balance at all times. This enables better
control of the machine in unexpected
situations. Extending your body too far can
result in a loss of balance and you may fall
which will result in injury.
• Never place any part of your body where it
would be in danger if movement should occur
during assembly, installation, and operation,
maintenance, repairing or moving.
• Start the engine carefully according to
instructions and with feet away from the
moving parts.
• Do not place your hands or feet near or
under rotating parts. Keep away from any
discharge openings.
• Keep in mind that the operator or user is
responsible for accidents, hazards or
unexpected events involving the machine that
occur to other people or their property. It is
the responsibility of the user to assess the
potential risk of the area where work is being
carried out. The operator or user must take
all necessary precautions to ensure their own
safety and that of others, especially on slopes
or rough, slippery and unstable ground.
• The machine may only be used, maintained
or repaired by people who are familiar with it
and its dangers. Unauthorised changes to the
machine negate the manufacturer’s liability for
damages resulting from this.
• The relevant accident prevention stipulations
and other widely recognised safety rules must
be observed.
• Check your machine before starting it. Keep
guards in place and in working order. Make
sure all nuts, bolts, etc., are securely
tightened.
• You must check the general condition of the
machine before use.
• Never operate the machine when it is in
need of repair or is in poor mechanical
condition. Replace damaged, missing, or
failed parts before using it. Check for fuel
leaks. Keep the machine in safe working
condition.
• Do not use the machine if the engine’s
switch does not turn off the engine when
running. Any petrol powered machine that
can’t be controlled with the engine switch is
dangerous and must be replaced.
• Regularly check to see that keys and
adjusting wrenches are removed from the
machine area before starting it. A wrench or
a key that is left attached to a rotating part of
the machine may result in personal injury.
• Avoid accidental starting. Be sure the
engine’s switch is off before transporting the
machine or performing any maintenance or
service on the unit. Transporting or performing
maintenance or service on a machine with its
switch on invites accidents.
• If the machine should start to vibrate
abnormally, stop the engine and check
immediately for the cause. Vibration is
generally a warning sign of trouble.
• Do not tamper with or disable safety
systems.
• The manufacturer’s stipulations concerning
safety, work and maintenance as well as the
measurements specified in Technical Data,
must be complied with.
Inspect Your Machine
!
General Safety
8
• Keep the machine in good operating
condition. Operating a machine in poor or
questionable condition could result in serious
injury.
• Be sure all safety devices are in working
order and warning labels are in place. These
items are installed for your safety.
• All safety and hazard notices must be kept in
completely legible condition.
• Only use manufacturer-recommended
attachments.
• Before using, always visually inspect to see
that the tools are not worn out or damaged.
Replace worn out or damaged elements and
bolts in set to preserve balance.
• Keep all nuts, bolts and screws tight to
ensure the equipment is in safe working
condition.
• The auger must not rotate in idling mode
when the engine is warm.
• This machine is equipped with an internal
combustion engine. Do not use on, or near,
forest-covered or brush-covered land unless
the exhaust system is equipped with a spark
arrester meeting applicable local, state, or
federal laws.
• A spark arrester, if used, must be maintained
in effective working order by the operator.
• Never start or run the engine inside a closed
area. The exhaust fumes are dangerous,
containing carbon monoxide, an odorless and
deadly gas. Operate this unit only in a
well-ventilated outdoor area. (See carbon
monoxide safety).
• Do not tamper with the engine in an effort to
get it to run at higher speeds. The maximum
engine speed is preset by the manufacturer
and is within safety limits.
• Keep a fire extinguisher on hand when
operating this machine in dry areas as a
precautionary measure.
• Never leave the operating position when the
engine is running.
• The engine parts get very hot when
running, do not touch. Danger of burns.
• Follow the instructions to ignite the engine
carefully whilst keeping feet away from
moving parts.
• Never incline the machine during ignition.
Ignite the machine on a flat surface without
obstacles or high grass.
• Do not over-rev the engine or change the
engine settings.
• Never pick up or carry the machine while
the engine is running.
• Stop the engine whenever you leave the
machine, or before refuelling, when cleaning
or while maintaining.
• Reduce the throttle setting during engine
shut down and, if the engine is provided with
a shut-off valve, turn the fuel off at the
conclusion of working.
• Do not run the engine at a high speed when
you are not using it.
• Keep the engine and exhaust free of grass,
leaves, excessive grease or carbon build up
to reduce the chance of a fire hazard.
Engine Safety
!
9
General Safety
• Make sure you thoroughly inspect the entire
work area and remove all objects and anything
that could be thrown by the machine or could
damage the engine or machine (branches,
stones, wire, toys, etc). Attempting to clear the
work area whilst using the machine will reduce
your concentration and creates a trip hazard.
Any liquid spilled on the floor may result in you
slipping.
• You must only work in daylight or with good
artificial light in good visibility conditions. Keep
people, children and animals away from the
working area.
• Never place the machine in a place with
unstable ground which could give way.
• You must pay special attention when
approaching obstacles that could compromise
visibility.
• Check the working environment for foreign
bodies and remove them.
• Do not use where there is a risk of fire or
explosion.
• Find and locate all fixed objects in the
ground, such as sprinkler systems, poles,
water valves, bases for washing lines etc
Make sure that you check for hidden
electrical cables or similar on the surface of
the ground. Make sure that the area to be
drilled is free of all underground obstacles
such as power cables, water and drainage
pipes.
• You must be careful near ravines, ditches or
embankments.
• Exercise extreme caution when operating on
or crossing gravel drives, walks, or roads. Stay
alert for hidden hazards or traffic.
• Do not work in the rain and when there is a
thunderstorm or lightning risk. If there is bad
weather conditions, do not use the machine.
• Avoid working on ground that is stony, hard
or has many roots, strong recoil may occur at
the handles.
• Be careful on unstable ground. Always
ensure a safe standing position.
• During drilling, ejected rocks or pieces of
wood can injure people and animals.
• Do not use the machine in a wet
environment.
• Operate on a flat level ground. Never
operate on slopes.
• Always hold the unit with both hands when
operating. Keep a firm grip on the handlebars.
Be aware that the machine may unexpectedly
bounce upward or jump forward if the
machine should strike buried obstacles such
as large rocks or roots.
• Walk, never run with the machine.
• Use extreme caution when in reverse or
pulling the machine towards you.
• Do not operate the machine in confined
areas where there may be a risk of crushing
the operator between the machine and
another object.
• Be very careful when pulling the
machine toward you. You must look behind
you to make sure there are no obstacles
before and during operations in reverse gear
(if applicable).
• Before leaving the machine to clear
blockages, check, clean, refuel or after
striking foreign object, you must stop the
engine.
Work Area
!
During Use
!
General Safety
10
• Always secure bore holes, otherwise there is
a risk of injury.
• Drill the hole in the ground in several
sections so you can remove the soil in
between.
• The machine may only be used for its
intended purpose. The user alone is
responsible for unintended use of the
machine. The manufacturer is not liable in the
event of unintended use.
• People working with the machine must not
be distracted.
• Only use the machine in a technically
flawless condition, as well as for its intended
purpose, in a safe manner and being aware of
dangers, in compliance with the operating
instructions. Disruptions which can affect
safety in particular must be eliminated straight
away.
• Do not touch rotating or hot parts.
• Do not smoke whilst using the machine.
• WARNING - The earth auger can catch
clothes, string or wire and draw them in.
• Switch off the machine when not in use.
• Do not overload the appliance.
• Do not touch the exhaust when the engine
is running (risk of burns).
• The auger drill bit is capable of causing
serious injury so AT ALL times you MUST
keep hands and feet clear of all moving parts.
Failure to observe these safety instructions
could result in serious injury or death.
• NEVER attempt to unclog either the auger
drill bit while the engine is running.
Immediately shut off the engine. Allow the
auger drill bit to come to a complete stop.
• WARNING! If something breaks or an
accident happens whilst working, you must
turn off the engine immediately and move the
machine away to prevent further damage. If an
accident happens with injuries or third
parties are injured, carry out the first aid
measures most suitable for the situation
immediately and contact the medical
authorities for any necessary health care.
Carefully remove any debris that might cause
damage or harm persons or animals should it
not be seen.
• The excessive speed of movement or the
absence of maintenance have a significant
influence on noise emissions and vibrations.
It is necessary to take preventive steps to
eliminate possible damage due to high levels
of noise and stress from vibration. You must
maintain the machine well, wear ear protection
and take breaks from working.
• Keep a firm hold on the handlebars with
both hands when working.
• When leaving the machine, the engine must
be switched off.
• Do not work by yourself, someone has to be
close in case of emergencies.
• Do not lean too far forwards when working.
• Keep the earth auger vertical, do not twist it.
• Do not place the earth auger in dry grass or
on flammable objects (fire risk).
• Immediately turn off the motor when you can
feel changes to the machine’s behaviour.
• Ensure you have a safe position, during the
drilling process as well.
• You must only drill holes in soil.
• When leaving the earth auger, the engine
must always be switched off.
11
General Safety
The machine has been built according to the
latest technology and recognised safety rules.
However, there is still a chance of residual
risks whilst working.
Furthermore, despite all measures taken,
remaining risks can occur that are not
obvious.
Remaining risks can be minimised by
complying with the manual as well as the
operating instructions overall.
Mineral oil products degrease your skin. If
your skin comes in contact with these
substances repeatedly and for an extended
period of time, it will desiccate. Various skin
diseases may result. In addition, allergic
reactions are known to occur.
Eyes can be irritated by contact with oil. If oil
comes into your eyes, immediately wash them
with clear water. If your eyes are still irritated,
see a doctor immediately!
Remove the clogged material. Inspect for
damage and check for any loose parts for
repair or replacement.
• NEVER allow an accumulation of earth or
drilled material to build up on the earth auger
drill bit, this will prevent proper discharge from
the hole and will make the auger heavy to
handle.
• Whenever you leave the operating position
or if you have to remove processed material,
leaves or debris from the machine, You MUST
always shut down the engine, disconnect
spark plug HT lead, keeping them away from
the spark plugs to prevent accidental
starting, and wait for all moving parts to come
to a complete stop.
• You MUST keep all combustible materials
and substances away from the engine when it
is hot.
Remaining Risks
!
Avoid Skin & Eye Contact
!
General Safety
12
Never operate the engine in a confined space
where dangerous carbon monoxide fumes
can develop. All ignition operations have to be
effected in an open or well-ventilated area.
Always remember that exhaust fumes are
toxic.
The symptoms of carbon monoxide poisoning
can include but are not limited to the
following; Headaches, dizziness, nausea,
breathlessness, collapsing or loss of
consciousness.
Carbon monoxide poisoning symptoms are
similar to flu, food poisoning, viral infections
and simply tiredness. It is quite common for
people to mistake this very dangerous
poisoning for something else.
To avoid carbon monoxide poisoning DO NOT
use Petrol/Diesel powered equipment inside
any of the following; Home, garage, tent,
camper van, mobile home, caravan or boat.
DO NOT use in an enclosed area or moving
vehicle. This is not exhaustive and if you are in
any doubt contact your dealer.
If you think you have or someone around you
has been affected by carbon monoxide
poisoning; Get them fresh air immediately,
CARBON MONOXIDE IS A COLOURLESS,
ODOURLESS GAS. INHALING THIS GAS
CAN CAUSE DEATH OR SERIOUS
LONG-TERM HEALTH PROBLEMS SUCH
AS BRAIN DAMAGE.
DANGER!
!
DANGER
by leaving the affected area or by opening
doors and windows. If safe and practical to do
so make sure that the machine is turned off.
DO NOT enter a room you suspect of having
carbon monoxide present – instead call the
emergency services.
Contact a Doctor immediately or go to
Hospital – let them know that you suspect
carbon monoxide poisoning.
ALL FUELS ARE HIGHLY FLAMMABLE AND
PETROL VAPOUR IS EXPLOSIVE. TAKE
EXTREME CARE WHEN HANDING FUEL.
KEEP FUEL OUT OF REACH OF CHILDREN.
CAUTION!
General Safety
• Do not smoke each time fuel is handled.
• ALWAYS avoid inhaling fumes.
• ALWAYS carry fuel in the correct and clearly
marked container.
• ALWAYS wear correct, suitable and fit for
purpose Personal Protective Equipment (PPE),
suggested items are but not limited to safety
gloves, overalls.
• To avoid sparking or arcing, keep grounded
conductive objects – such as tools – away
from exposed, live electrical parts and
connections. These events could ignite fumes
or vapors.
• Do not operate the machine with known
leaks in the fuel system.
• Fire hazard - keep fuel away from all
sources of ignition for example heaters,
lamps, sparks from grinding or welding.
• DO NOT carry out hot work on tanks that
Carbon Monoxide
!
General Fuel Safety
!
General Safety
13
• When refilling or draining the fuel tank, use
an approved fuel storage container while in
a clean, well-ventilated outdoor area. While
adding fuel or operating the unit, do not
smoke, and stay away from sparks, open
flames, or other sources of ignition near the
area of operation.
• Always stop the engine and allow it to cool
before filling the fuel tank. Never remove
the cap of the fuel tank or add fuel while the
engine is running or when the engine is hot.
• Loosen the fuel tank cap slowly to relieve
any pressure in the tank.
• ALWAYS keep the handles dry, clean and
free of oil and fuel.
Storage
• Make sure to store fuel in special containers.
• Store fuel in containers specifically designed
and approved for fuel storage.
• Store fuel in a cool, well-ventilated area,
safely away from sparks, open flames, or
other sources of ignition.
• Never store fuel – or a machine with fuel in
the tank – inside a building where fumes may
reach a spark, open flame, or any other source
of ignition (such as a water heater, furnace, or
clothes dryer). Allow the engine to cool before
storing in any enclosure.
• Replace all fuel tank and container caps
securely and wipe up spilled fuel. Never
operate the unit without the fuel cap securely
in place.
• Fuels have a limited storage life. Aged fuel
can cause starting problems and damage the
engine. Purchase only the amount of fuel that
you need.
have contained fuel.
• ALWAYS keep the work area tidy.
• ALWAYS dispose of waste fuels correctly.
Spilled Fuel
• If you have spilled fuel, make sure you do
not attempt to ignite the engine but move the
machine away from the area of spilled fuel and
avoid creating any source of ignition until the
fuel has evaporated and fuel vapours have
dissipated.
• When fuel is spilled on yourself or your
clothes, wash your skin and change clothes
immediately.
• ALWAYS clean up spills promptly using
absorbent granules and a lidded bin.
Fueling / De-Fuelling
• ALWAYS fuel and de-fuel in a well
ventilated area outside of buildings. Use a
funnel to add fuel, only outdoors. Do not
smoke during this and each time fuel is
handled.
• Add fuel before igniting the engine, never
remove the fuel tank cap or add fuel whilst the
engine is running or when it is hot.
• When de-fueling ALWAYS use a proper fuel
retriever.
• Never overfill the fuel tank. Because engine
heat can cause fuel to expand, never fill the
tank to more than 1/2” below the bottom of
the filler neck. This will provide space for fuel
expansion.
General Safety
14
• Prior to carrying out any maintenance work
you MUST identify electrical isolation methods
and isolate all electrical supplies.
• Prior to use and with all electrical supplies
isolated, you MUST check all electrical cables,
plugs and connectors for the following;
• Are intact and have no signs of damage, to
include but not limited to bare wires, chaffing,
cuts and loose wiring.
• If there are any signs of damage, the
damaged item MUST be taken out of service
until the damage has been repaired by an
electrically competent person.
• All trailing cables should be routed so as not
to cause any kind of trip hazard.
• NEVER work on or near electricity with wet
hands, wet clothing and wet gloves.
ELECTRICITY CAN KILL – NEVER WORK
ON LIVE/ENERGISED EQUIPMENT.
DANGER!
Batteries present a risk if they become
damaged by the possible leaking of
electrolyte. This electrolyte is an acid and can
cause serious burn injuries. Care should be
taken when working on or near them. NOTE
the electrolyte may be in a liquid or gel form.
Should you come in to contact with electrolyte
you should;
• Remove all clothing contaminated with
electrolyte. If you cannot remove then saturate
them in water.
• Get medical assistance as soon as possible.
You must advise the medical staff of the type
of acid.
• Lead/acid battery = dilute sulphuric acid.
• Nickel/cadmium = potassium hydroxide
alkali electrolyte.
• Use fresh running water to wash off excess
electrolyte, continue this until medical assis-
tance arrives. Make sure that you do not was
the electrolyte to another part of your body or
face.
• If electrolyte comes in to contact with Eyes
the electrolyte needs to be immediately
washed away with large amounts of water.
Make sure that you do not wash the electro-
lyte to another part of your face or body.
• Gasses from charging batteries are highly
flammable and great care should be taken to
charge in well ventilated areas.
• There is an explosion risk if the battery
terminals are short circuited, when
connecting/disconnecting ALWAYS exercise
great care so that the terminals or battery
leads are NOT allowed to touch and cause a
spark. ALWAYS use suitable insulated tools.
• Prolonged use of hand held (operated)
machines will cause the user to feel the effects
of/from vibrations. These vibrations can lead
to white finger (Raynaud’s phenomenon) or
carpal tunnel syndrome. This condition
reduces the ability of the hand to feel and
regulate temperature, causing numbness and
heat sensations and may cause never damage
and circulatory tissue death.
• Not all factors that lead to white finger
disease are known, but cold weather, smoking
and other diseases that affect blood vessels
Electrical Safety
!
Batteries
!
Vibrations
!
15
General Safety
and blood circulation as well as large and
long-lasting impact of shocks are considered
factors in the formation of white finger. Note
the following to reduce the risk of white finger
and carpal tunnel syndrome;
• Wear gloves and keep your hands warm.
• Take regular breaks.
• All of the above precautions may help
reduce the risk of white finger disease but not
rule out the carpal tunnel syndrome.
Long-term and regular users are therefore
recommended to observe the condition of
your hands and fingers. Seek medical
attention immediately if any of the above
symptoms should occur.
• The operating noise of the machine can
damage your hearing. Wear hearing protection
such as earplugs or ear defenders to protect
your hearing. Long-term and regular users are
advised to have hearing checked regularly. Be
especially vigilant and cautious when hearing
ear protection because your ability to hear
alarm warnings will be reduced.
• Noise emissions for this equipment is
unavoidable. Carry out noisy work at
approved times and for certain periods.
Limit the working time to a minimum. For your
personal protection and protection of people
working nearby it is also advisable for them to
wear hearing protection.
• See Certificate of Conformity section
for Outdoor Noise declaration of conformity.
The HYEA5200X is a petrol earth auger from
Hyundai. The HYEA5200X is powered by a
52cc 2-stroke petrol engine.
This machine is a garden tool and precisely a
pedestrian controlled earth auger. The
operator is able to operate the machine and
use the main controls, always staying behind
the handle.
The machine is manufactured according to the
latest safety requirements. Every precaution is
only effective when it is followed exactly.
Intended Use
The basic version of the equipment is an
earth auger intended for private use, i.e. for
use in home and gardening environments. It
is designed for excavating planting holes, for
perfolas and dences in light soil. It has only
limited use on ground that is hard and stony
and has many roots. The earth auger has been
designed to be operated by one person.
User Types
This machine is intended for use by
consumers, i.e. non professional operators.
The machine is intended for “DIY” and
domestic use only.
Improper Use
Any other usage not in keeping with the above
mentioned ones may be hazardous and harm
persons and/or damage things.
The equipment is allowed to be only used
for its prescribed purpose. Any other use is
deemed to be a case of misuse. The user/
operator and not the manufacturer will be
liable for any damage or injuries of any kind
resulting from such misuse.
Noise
!
Intended Use
General Safety
16
HAND PROTECTION MUST BE WORN
Protective electrically non-conductive gloves are highly recommended when working.
HEARING PROTECTION MUST BE WORN
Suitable safety hearing protection is recommended.
EYE PROTECTION MUST BE WORN
Always wear safety glasses/goggles and/or face shields. Everyday eyeglasses have
only impact resistant lenses; they are not safety glasses/goggles.
FOOT PROTECTION MUST BE WORN
Non-skid heavy duty footwear are highly recommended when working.

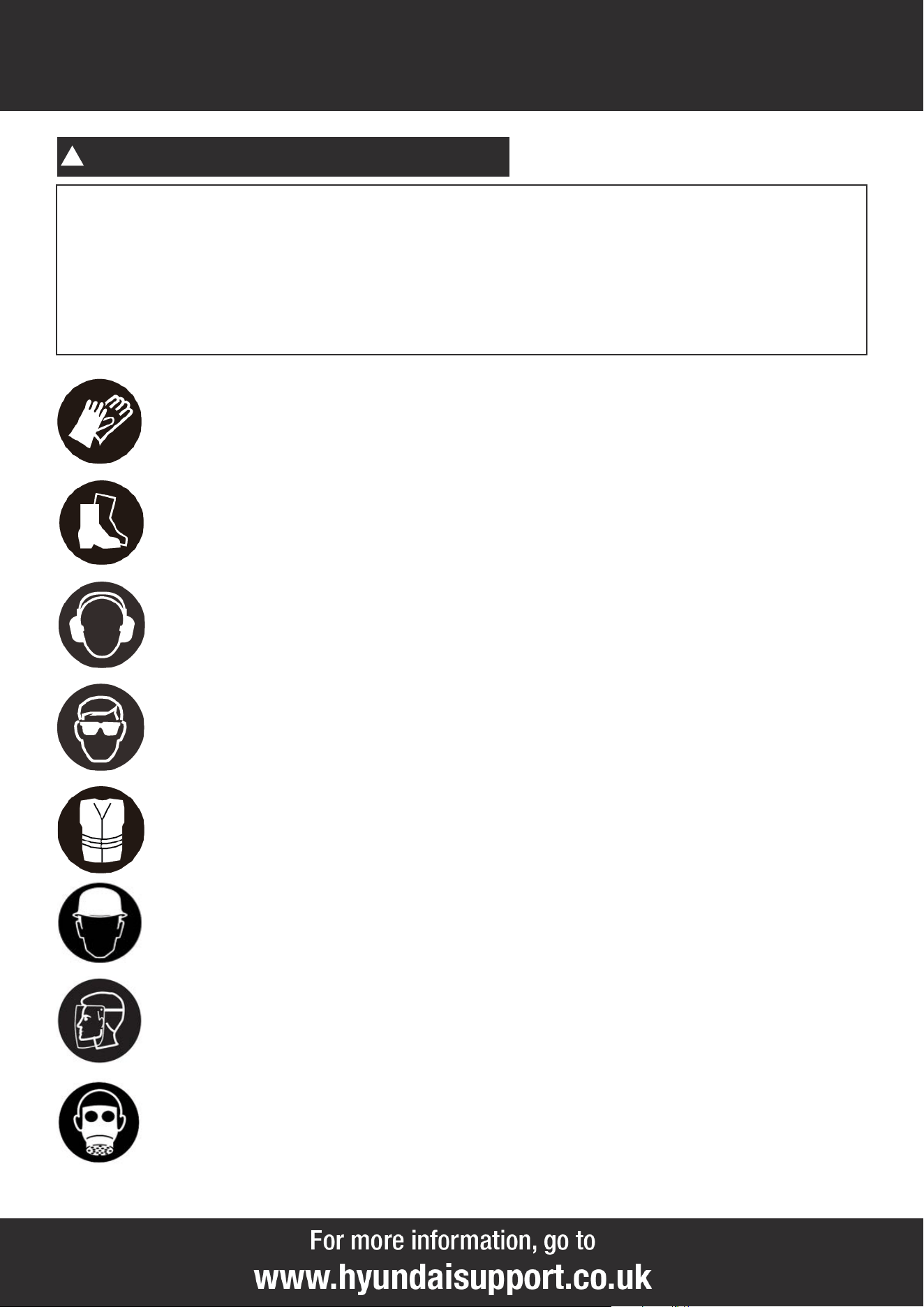

PROTECTIVE CLOTHING MUST BE WORN
Do not wear loose clothing, gloves, scarfs, neckties or jewellery
(rings, wrist watches), which can be caught in moving parts.
HEAD PROTECTION MUST BE WORN
Wear a safety helmet with a safety visor.
FACE SHIELD MUST BE WORN
Wear a face shield to protect your face.
RESPIRATOR MUST BE WORN
Wear a respirator.
Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when
operating or repairing the machine. No protective equipment can ensure 100%
protection.
When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit etc. If
more than one item of PPE is worn at the same time, make sure they can be used together, e.g
wearing safety glasses may disturb the seal of a respirator, causing air leaks.
Personal Protective Equipment
!
Getting Started
17
CAUTION - This guide is meant to serve
as a quick reference for operating your
HYUNDAI machine. We always advise reading
the manual in full before operation.
CAUTION - For OUTDOOR use ONLY.
Petrol machines produce carbon monoxide
– a poisonous, colourless and odourless gas
that can cause serious injury or death. Petrol
is highly flammable, always handle with
extreme care and in a well ventilated area.
NOTE - Images may vary depending on
model.
NOTE - The machine can be supplied with
some parts already assembled. Prior to
assembly, check all items have been received.
NOTE - This machine is shipped without
fuel and oil and MUST be filled before use.
Failure to do so may cause damage to the
engine that will not be covered by warranty.
!
!
!
!
!
As soon as you have purchased your
machine, we recommend that you fill out
the information on page 38. If you need to
contact an authorised dealer or customer
service for information on servicing, you
may need to provide this information.
!
WARNING! Unboxing and assembling
the machine should be done on a flat, stable
surface with enough room. Disposal of the
packaging should be done in accordance with
the local regulations in force.
Carefully remove the product from the
packaging and examine it for any sign of
damage caused during shipping. Lay the
contents out and check them. If any part is
damaged or missing, you must not use the
machine. Contact HYUNDAI Power Products
immediately. You must keep the packaging
material in case the machine needs to be
returned or repaired.
WARNING! Some of the packaging
material may be harmful to children. Keep out
of reach of children.
!
IMPORTANT - For all work on the earth
auger, you must turn off the engine,
disconnect the spark plug connector and wear
safety gloves. Start the auger only after
complete assembly and checking it.
!
Assembly Safety
!
Unboxing Safety
!
18
Assembly

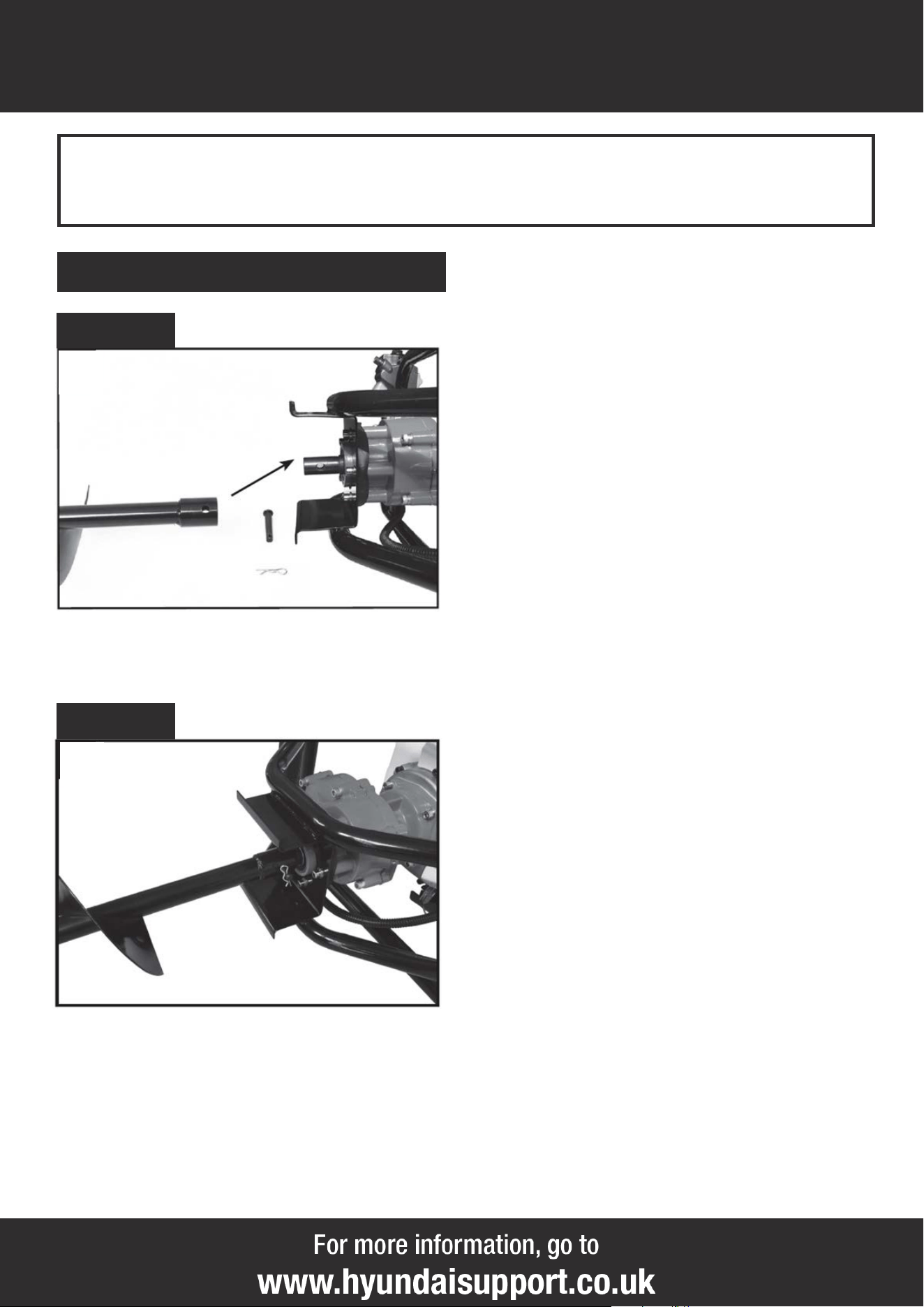

STEP 1
Place the motor casing on a work bench.
Place the earth auger on the drive shaft,
ensuring that both holes are aligned.
STEP 2
Insert the drive pin. Secure with R-pin.
Inserting The Earth Auger
Unboxing & Assembly Video:
YOU MUST read and understand the instruction manual first.
Go to youtube.com and type in Hyundai HYEA5200X assembly.
19
Preparation
STEP 4
Fuel Type : Use fresh unleaded petrol
mixed 40:1 with semi-synthetic 2-stroke
oil or aspen2 pre-mixed fuel.
Fuel Capacity : 1000ml
STEP 1
Fill the mixing bottle with the correct amount
of fresh unleaded petrol. DO NOT mix the fuel
mixture in the fuel tank. You MUST only use
fresh unleaded petrol and 2 stroke engine oil
mixture.
For the first time ONLY a mixing ratio of 25:1
should be used to lubricate all engine parts to
an optimum level. After this, the mix is 40:1.
STEP 3
Unscrew the fuel tank cap and carefully add
the fuel / 2-stroke oil mixture as in the step
above. Only pour the fuel mixture into the fuel
tank after you have mixed and stirred it.
DO NOT overfill and allow a 25mm gap at the
top of the tank. DO NOT use straight unleaded
petrol. Clean up any spills immediately. Clean
the area around the cap, to prevent dirt from
getting into the fuel or oil tank.
STEP 2
Mix the fuel/oil mixture.
Once full replace and correctly tighten the fuel
cap. Clean up any fuel spilt before starting the
engine.
CAUTION - ALL FUELS ARE FLAMMABLE
• ALWAYS fuel and defuel in a well
ventilated area outside of buildings with the
engine switched off. Allow the engine to cool
down before refueling.
• ALWAYS wear correct, suitable and fit for
purpose Personal Protective Equipment (PPE),
suggested items are but not limited to safety
gloves, overalls.
• NEVER refuel the machine in a building where
the petrol fumes can reach flames or sparks.
• Petrol is highly flammable and explosive.
• Never refuel when the engine is still hot or
running.
Petrol Semi-Synthetic
2-Stroke Oil
2L 50ml
3L 75ml
4L 100ml
Method of mixing 40 parts petrol + 1 part
2-stroke oil
NOTE
• Do not add more 2-stroke oil than specified
to ensure safe operation. This will only result
in a higher production of combustion residues
which will pollute the environment and clog the
exhaust channel in the cylinder as well as the
muffler. In addition, fuel consumption will rise
and performance will decrease.
!
Mixing 2-Stroke Oil
A
20

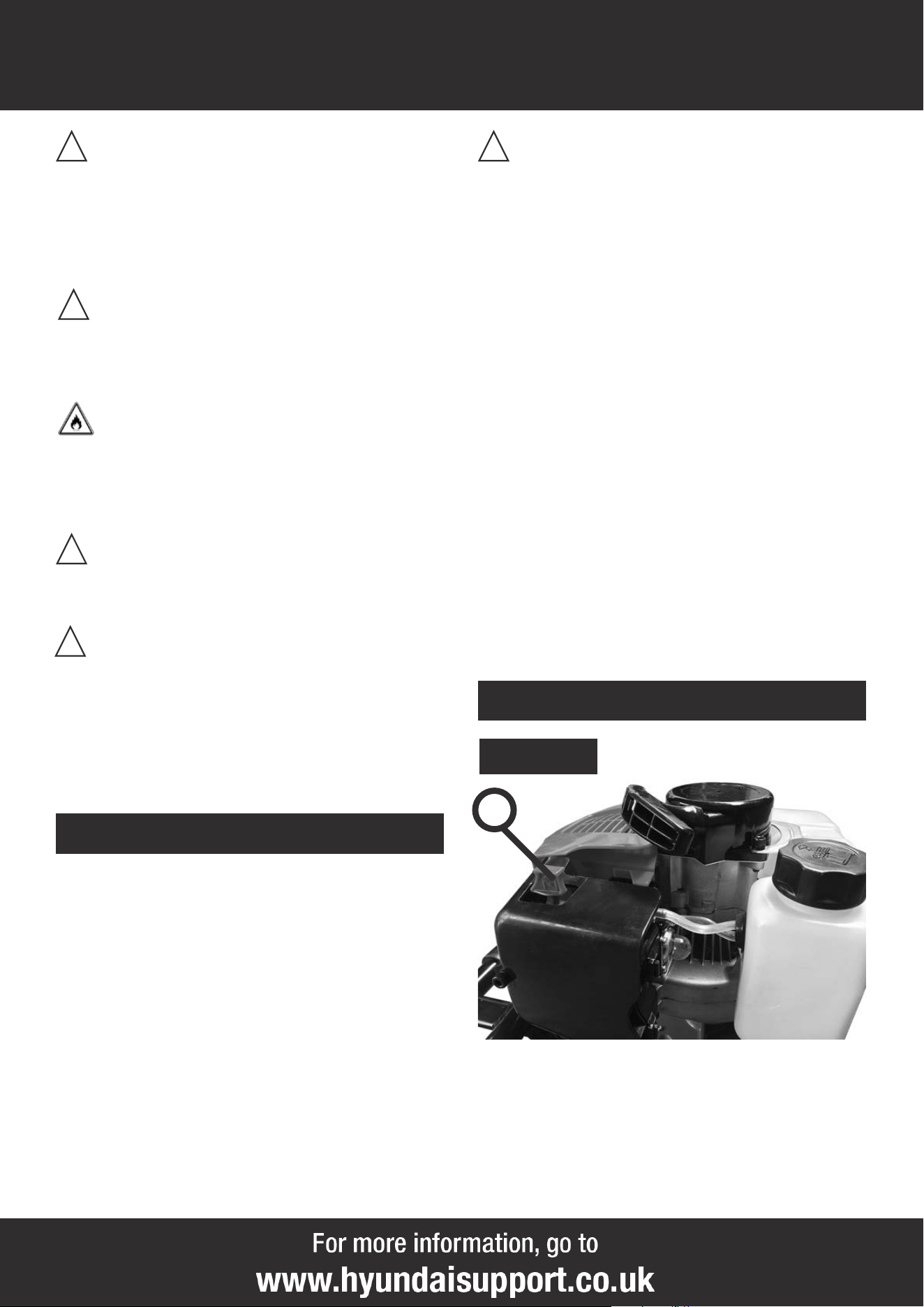

Starting Procedure
STEP 1
If the engine is cold, move the choke lever
(A) to the START position. The choke lever
opens and closes the choke in the
carburettor.
If the engine is warm, leave the choke lever to
the RUN position.
CAUTION - For OUTDOOR use ONLY.
Petrol machines produce carbon monoxide –
a poisonous, colourless and odourless gas that
can cause serious injury or death. Petrol is
highly flammable, always handle with extreme
care and in a well ventilated area.
NOTE - This machine is shipped without
fuel and oil mixture and MUST be filled before
use. Failure to do so may cause damage to the
engine that will not be covered by warranty.
CAUTION! ALL FUELS ARE FLAMMABLE
Always fuel and de-fuel in a well ventilated area
away from sources of ignition. Move the ma-
chine at least 3m away from the refuelling point
before starting.
!
!
• Always ensure that the machine is in a safe
working condition. Inspect the machine, check
safety devices, the condition of the fuel lines
and check all nuts, bolts and screws are
secure. Make sure that the earth auger can
move freely.
• Check the fuel / 2-stroke oil mixture. Go to
page 19 for more information.
• Before starting, make sure the machine is
clear of all materials and non-essential people.
• Make sure you know how to stop the engine
before starting.
WARNING - If you are not familiar with
this type of machine, you should seek advice
and guidance from your dealer.
!
CAUTION
!
• Always start slowly with half throttle and
keep a firm grip on both handles of the auger
at all times. Keep a wide stance.
• After engine warms up, accelerate the
engine. To accelerate the engine to working
speed, squeeze the throttle lever toward the
main handle.
• Do not force the auger drill bit into the
ground - instead allow the machine to do the
work. If the machine jams you MUST release
the throttle and move the auger drill bit before
re-commencing work.
• To remove blockages DO NOT under any
circumstance use your hands. STOP and
disable the machine and clear the auger drill
bit of materials which have become stuck to
the auger bit.
WARNING - You MUST STOP using the
machine if any of the following occur:
• The engine speed changes with no control
• In case of misfire
• In case of high vibration
• When flames or smoke appear
• In rain or stormy weather
!
Before Each Use
Starting Procedure
A
C
B
21
Starting Procedure
STEP 2

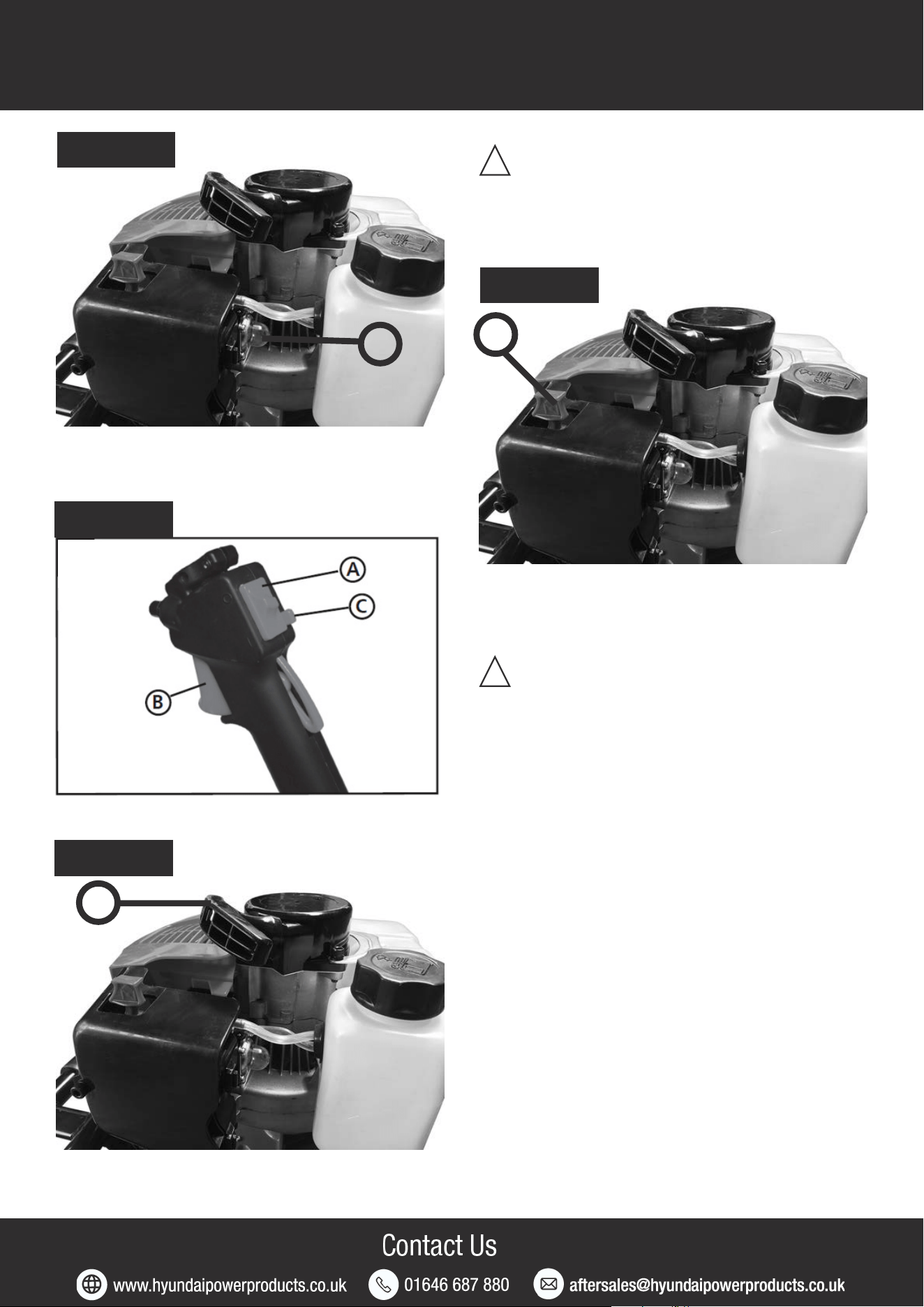

2Prime the fuel pump (B) by pressing primer
bulb several times until you can see fuel in the
bulb and pipes.
STEP 3
Put the stop switch (A) into the start position.
STEP 4
4Lightly pull on the starter cord (C) until you
can feel resistance, then pull on the cord
quickly and firmly until the engine starts.
CAUTION - Do not pull out the starter cord
more than approx. 50cm, and let it recoil slowly
by hand. For efficient starting, it is important to
pull the starter cable quickly and powerfully.
!
STEP 5
After running for 10 seconds or so, squeeze
the throttle trigger to release the choke lever
(A) to the RUN position.
WARNING - The earth auger only begins to
rotate when the throttle lever is used.
!
22

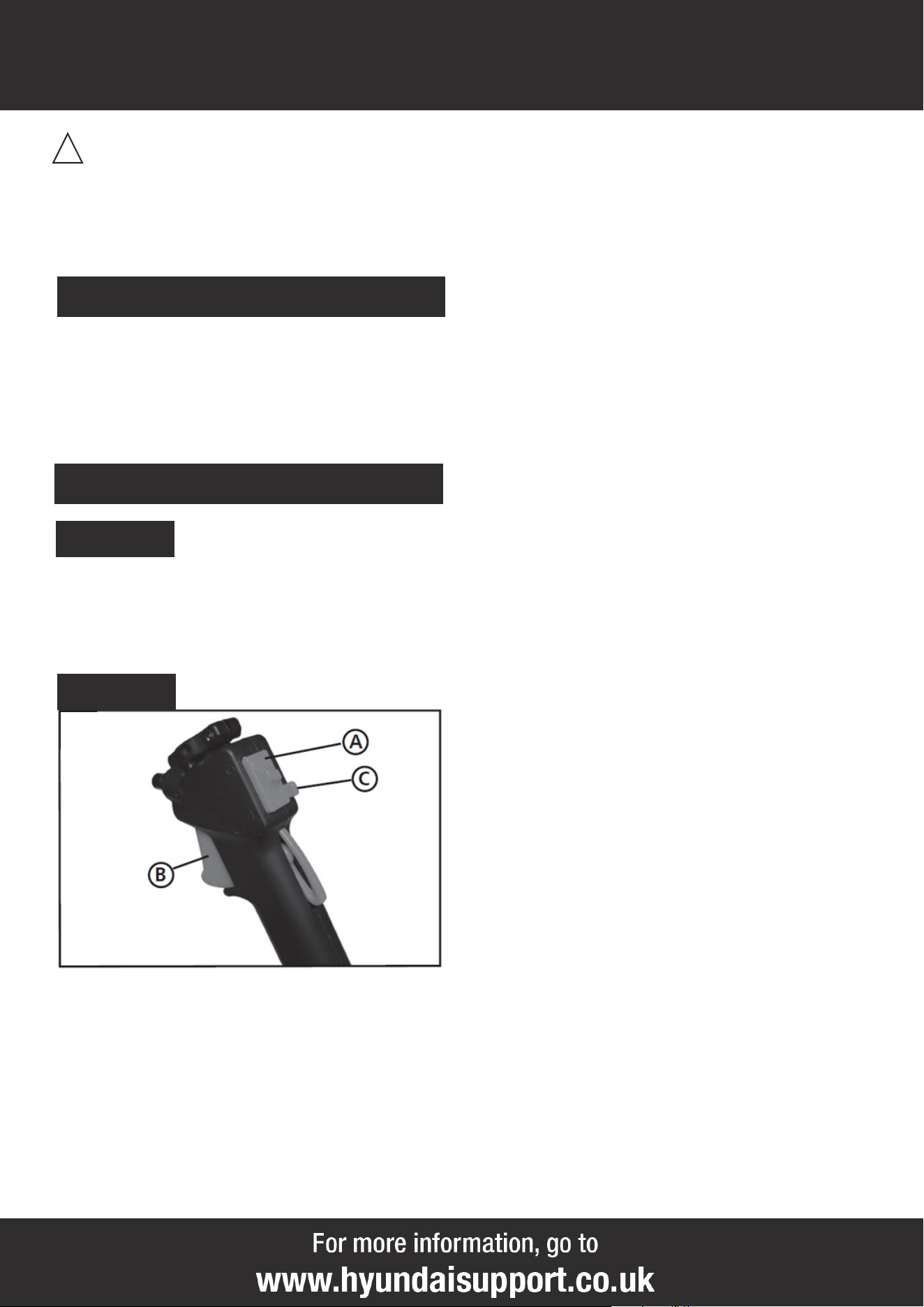

Stopping Procedure
• Examine the machine for damage.
• Clean the machine if necessary, go to page
27 for more information on how to clean your
machine.
CAUTION - The engine and exhaust will
remain hot for a while after use. Ensure the
engine and exhaust has cooled before
carrying out any maintenance, refuelling or
storage.
!
STEP 1
Before stopping the machine, allow the engine
to cool down for a few minutes, by allowing it
to run without throttle.
STEP 2
Put the stop switch (A) into the stop position.
After Each Use
Stopping Procedure
23
Troubleshooting
Problem Possible Cause Possible Solution
Starting difficulty - no spark 1. Carbon deposit between
electrodes of the spark plug.
2. Defective ignition coil,
flywheel magneto too weak.
1. Clean the spark plug.
Adjust the gap to
0.6~0.7mm. Replace the
spark plug.
2. Replace the ignition coil or
the flywheel.
Starting difficulty - weak spark 1. Too much fuel in the
combustion chamber, poor
fuel or water in tank.
2. Blocked fuel line.
1. Remove spark plug and
dry, replace fuel.
2. Clean the carburettor and
fuel lines.
Starting difficulty - normal fuel -
but weak compression
1. Worn piston rings, spark
plug not tightened.
1. Replace and adjust as
required.
Difficulties during use
1. Motor does not come up to
speed.
2. Runs out of power
3. Noisy engine
4. Leaking carburettor
1. Choke is in ‘cold start’
position, exhaust blocked,
weak spark, valve clearance
too large.
2.Blocked fuel lines, incorrect
spark plug gap.
3. Incorrect choke position,
damage to crank shaft.
4. Failure of the fuel tank
non-return valve, worn
carburettor gasket.
1. Open choke, clear
exhaust, check or replace
ignition coil and flywheel,
adjust valve clearance.
2. Clear or replace fuel lines,
adjust spark plug gap.
3. Adjust choke lever position
- replace crankshaft.
4. Replace fuel cap - replace
gasket or carburettor as
required.
NOTE- If troubleshooting does not solve the problem, contact your dealer or the
manufacturer directly. Use only original parts approved by the manufacturer, otherwise a hazard
risk arises.
!
15 24
Specifications
NOTE - All machines are tested and inspected so there may be some residual oil left in the
machine so please fill with caution.
Model HYEA5200X
Engine Type 2-Stroke Air-Cooled
Engine Size 51.7cc
Max. Engine Power At 9600rpm 1.45kW / 2hp
Max. Working Engine Speed 9600rpm
Diameter Of Drill 100mm / 150mm / 200mm
Depth Of Drilling 730mm
Fuel Type 40:1 Unleaded Petrol and Semi-Synthetic
2-Stroke Oil
Fuel Tank Capacity 1000ml
Measured Noise Level LwA = 106.28dB
(A) ; K = 1.52dB (A)
Guaranteed Noise Level 107dB(A)
Vibrations At Handles 18.8m/s2
K = 1.5m/s2
Vibrations At Handles In Idle Speed 11.4m/s2
K = 1.5m/s2
Operating Conditions 0 °C. - + 32°C
Net Weight 13kg (with 100mm drill)
Dimensions (L x W x H) 1040 x 590 x 420mm
Specifications are subject to change without notice.
25
Maintenance & Care
WARNING - Before cleaning or doing
maintenance work, you need to stop the
engine, disconnect the spark plug cable and
read the relevant instructions. You need to
wear proper clothing and protective gloves
whenever your hands are at risk.
If there are worn or damaged parts, never
use the machine. Faulty or worn-out parts
must be replaced and not repaired. You must
only use original spare parts. The use of
non-original and/or incorrectly fitted parts will
jeopardize the safety of the machine. This may
also cause accidents or personal injuries for
which the manufacturer is under no
circumstance liable or responsible.
Any maintenance operations or
adjustments not explained in this manual must
be carried out by your Dealer or a specialised
Service Centre with the necessary knowledge
and equipment to ensure that the work is done
correctly maintaining the machine’s original
safety level. Any operations performed in
unauthorised centres or by unqualified
persons will invalidate the Warranty and all
obligations and responsibilities of the
Manufacturer.
Be very careful during adjustment of the
machine to prevent entrapment of the fingers
between moving and fixed parts of the
machine.
!
!
IMPORTANT - Routine and accurate
maintenance is essential for maintaining
original machine safety and performance
levels.
!
CAUTION - DO NOT use a hose pipe or
pressure washer to clean the engine. Water
can damage the engine or contaminate the
fuel system.
!
!
!
All protective and safety equipment must
be re-attached immediately after
completing repairs and maintenance. The
machine’s safety devices must not be
removed or made unstable.
!
Only use appliances which are in perfect
working order.
!
You must service the appliance whenever
necessary.
!
Installations, repairs and maintenance
must be carried out by a specialist.
!
Position the machine in such a way that it
cannot move during use, maintenance,
cleaning, adjustment, assembly of accessories
or spare parts, as well as under storage.
!
Maintenance Safety
26
Maintenance & Care
Before Each
Use
After Each
Use
After 20
Hours
After 100
Hours
After 300
Hours
Check
Machine.
See page 27.
X X
Air Filter.
See page 29.
Clean Replace*
Spark Plug.
See page 28.
Check Replace
Fuel Filter.
See page 30.
X
Gear Box.
See page 29.
Check
Cooling Fins. Check
Mechanical
Connections.
Check
Fuel Tank. Check
Fuel Pipes. Check
* Increase maintenance interval if operating in dusty environment.
Maintenance Schedule
27
Maintenance & Care
CAUTION - DO NOT use a hose pipe or
pressure washer to clean the engine. Water
can damage the engine or contaminate the
fuel system.
NOTE Engine must be switched off and
spark plug lead disconnected.
!
!
After Each Use
• You must remove grass and mud from the
machine to prevent it from drying. This will
cause problems the next time the it is used.
• Wipe the machine down with a damp cloth.
• For larger build ups of debris, use a scraper
or similar product.
• Dry the machine completely to prevent rust
from forming.
• Make sure not to drip petrol onto the plastic
parts to prevent damaging them and remove
all traces of spilt petrol immediately. The
warranty will not cover damage to plastic
parts caused by petrol.
• Avoid using solvents when cleaning plastic
parts. Most plastics are susceptible to
damage from various types of commercial
solvents and may be damaged by their use.
Ensure that no water can seep into the
machine.
When checking your machine, we
recommend you :
• Check for worn or damaged parts.
• Make sure all nuts, screws and bolts are tight.
• Make sure all warning stickers are in place
and not damaged.
• Check for oil / fuel leaks.
• Check fuel tank, fuel lines and fuel cap for
leakages or tears, do not start the machine with
such damage.
• Check exhaust cover and the air filter cover.
• Check the position of the auger and
functioning of the operating elements.
If you need to send your earth auger to be
repaired, please not that for safety reasons, it
must be delivered free from oil and petrol.
• Use a light silicone spray on exposed metal
parts to protect the metal.
Regularly
NEVER pour or squirt the unit with water
or any other liquid. Keep handles dry, clean
and free from debris.
!
Checking Your Machine
Repairs
Cleaning
28

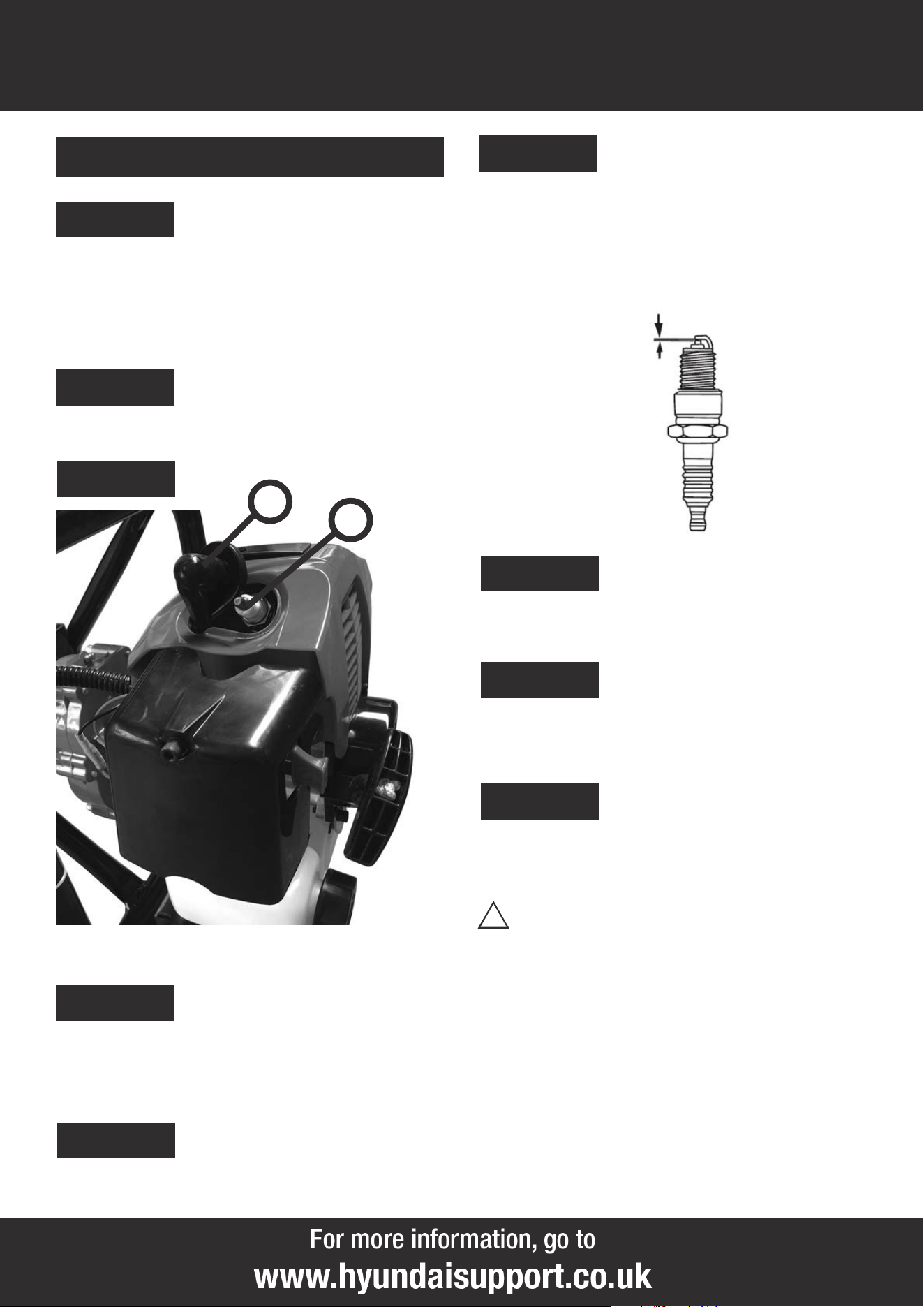

Maintenance & Care
You MUST allow the engine to cool down
before carrying out any maintenance.
Do not touch the spark plug when the
machine is running (risk of electric shock).
STEP 1
Always replace with the same model spark
plug as fitted.
STEP 2
To clean the spark plug, gently clean the
electrode with a soft wire brush.
STEP 5
The spark plug gap should be 0.70mm to
0.80mm. Check the gap by using a feeler
gauge. Adjust as necessary by carefully
bending the side electrode to achieve the
correct gap.
STEP 6
0.60mm to 0.70mm
Visually inspect the spark plug for signs of
damage, wear or carbon build up. Check the
insulator for damage such as cracks or chips.
If damaged or worn, replace immediately.
STEP 4
Remove the spark plug cover (A) by removing
the screw (B) with the provided key.
STEP 3
Refit the cleaned and adjusted spark plug by
hand to avoid cross-threading.
STEP 7
Tighten as necessary with a spark plug
wrench but avoid over-tightening.
STEP 8
Re-attach the spark plug cover.
STEP 9
NOTE
Ensure that no dirt gets into the cylinder
head during replacement.
Check the position of the spark plug.
• A loose spark plug can damage the engine
by overheating.
• Tightening it too much can damage the
thread in the cylinder head.
!
A
B
The Spark Plug
29

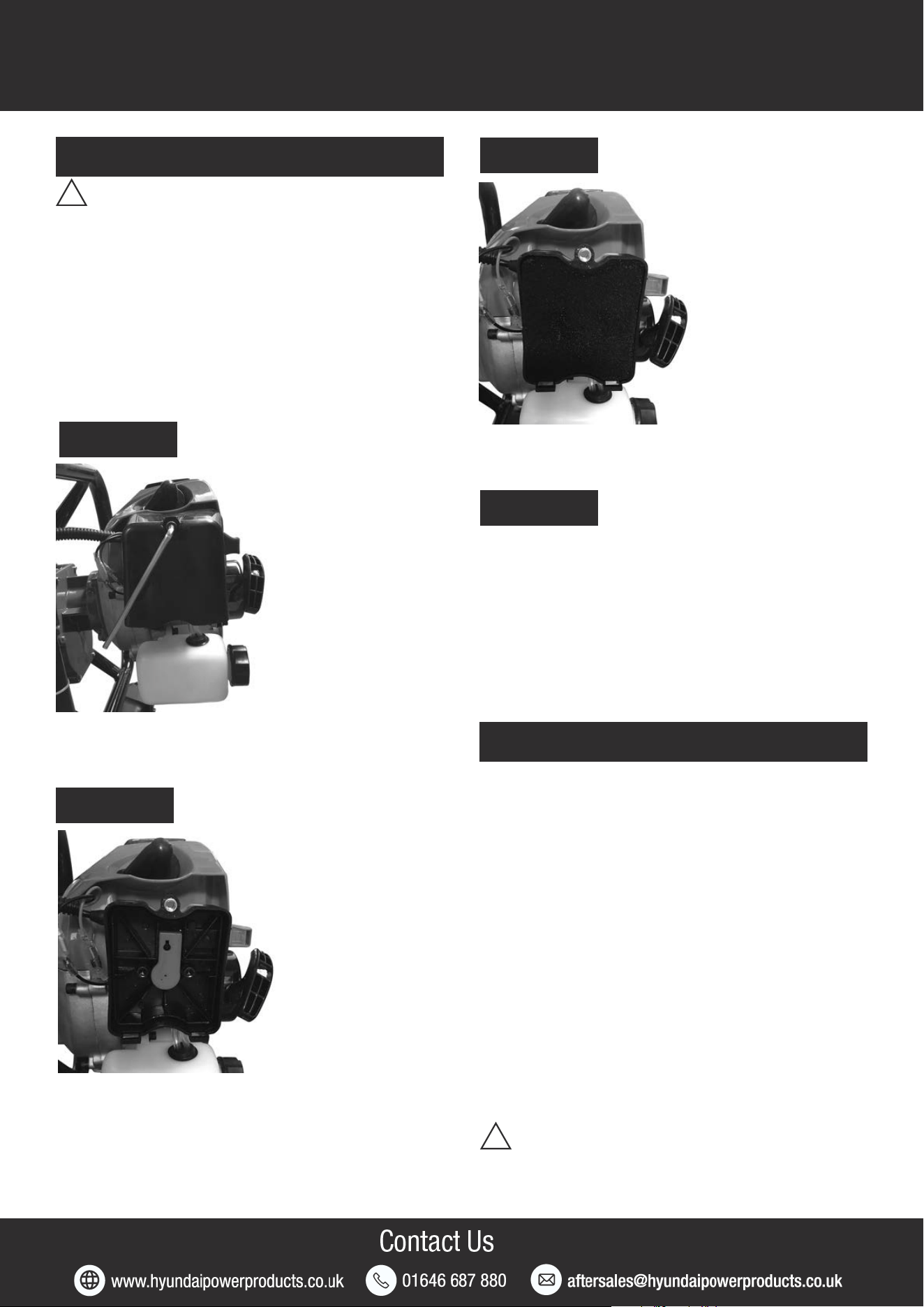

Maintenance & Care
CAUTION - A dirty air filter will restrict the
air flow to the carburettor, which will reduce
engine efficiency.
When using the earth auger in very dusty
areas you must clean or replace the air filter
more often. Never operate the machine without
the air filter being fitted it can cause damage to
the engine which is not covered by warranty.
!
STEP 1
Loosen the screw on the air filter casing.
Remove the air filter cover and check it.
STEP 2
Carefully remove the foam filter insert and
check it for damage. Replace if required.
Clean the foam insert in warm water with a
mild soap solution. Thoroughly rinse it with
clear water and leave it to dry.
STEP 3
Clean dirt from the inside of the filter casing
with a clean, damp cloth.
Return the foam filter insert and reposition the
air filter casing.
Do not run the engine without an air filter
insert or when it is damaged. This can cause
damage which is not covered by your
warranty.
STEP 3
• Use a high temperature gearbox grease.
Such as Morris K323 Premium blue grease or
equivalent.
• Check the gear box grease every 20 hours of
use and fill as required. Thereafter check and
top-up after every 25 hours. N.B. 20 grams is
sufficient for a full top-up.
• To fill with or top-up with grease apply
grease with a grease gun to the grease nipple.
• Recommended change interval. 1st check
after 20 hours of use. Thereafter every 25
hours of use.
If you do not follow these steps, deposit
may arise in the carburettor. This will cause
starting difficulties and may cause
permanent damage.
!
Air Filter
Gearbox
30

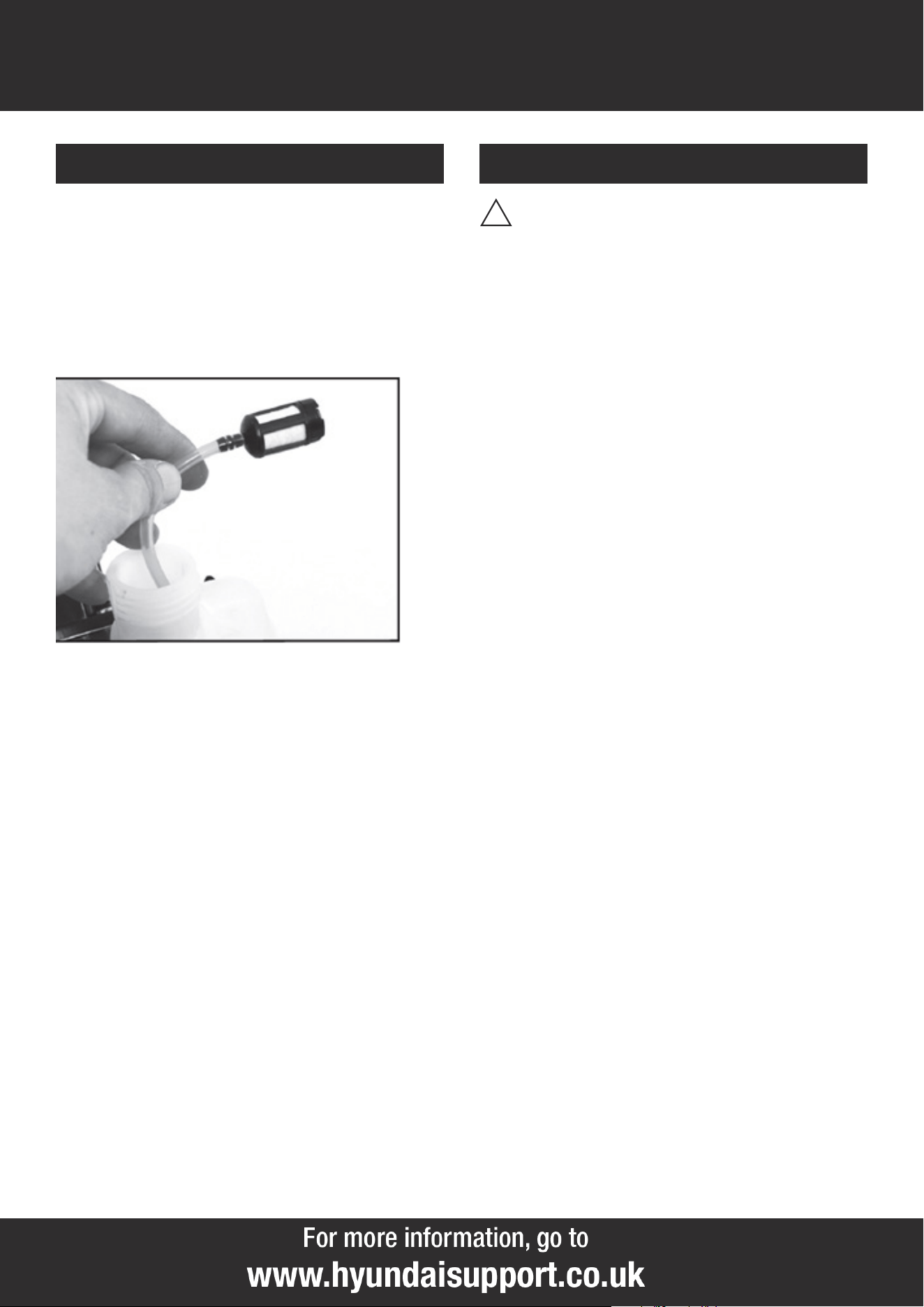

Maintenance & Care
CAUTION - When storing the machine,
make sure it has been cleaned properly. See
cleaning section.
NOTE - If storing the machine for a period of
30 days or more, you must follow proper
storage and winterisation guidelines to avoid
any possible issues with your machine.
Incorrect storage can lead to possible fueling
or engine issues that will not be covered by
the warranty.
The following steps should be taken to
prepare your machine for storage. Unless the
storage instructions are followed, fuel
remaining in the carburettor will evaporate,
leaving gum-like deposits. This could lead to
difficult starting and result in costly repairs.
1. Remove the fuel tank cap slowly to release
any pressure in the tank. Drain all the fuel from
the fuel tank and then run the machine until it
has completely run out of fuel.
2. Allow the engine to cool.
3. Follow the cleaning instructions as set out
in the cleaning section and make sure all
moving parts are lubricated with a light
silicone based spray or grease.
4. Follow the maintenance section and check,
service or replace serviceable items if
required.
5. Remove the spark plug and pour 1
teaspoon of clean 2-cycle oil into the
combustion chamber. Pull starter rope slowly
several times to coat internal components.
6. Refit the spark plug.
7. Visually inspect the machine and replace or
repair any worn parts.
!
The fuel filter can become clogged. It is
recommended to replace the fuel filter once
every 100 hours in order to ensure sufficient
fuel flow to the carburettor.
To remove the fuel filter for replacement, pull it
out through the tank filler neck using a piece of
wire bent at one end to form a hook.
Pull old filter from fuel pipe and replace with
new filter.
Replacing Fuel Filter
Storage
31
8. Once all work above is carried out store the
machine in a clean, cool and dry place away
from sources of ignition and varying changes
in temperature. DO NOT store a
machine that has not been given time to fully
cool down. Store away from potential sources
of ignition, such as furnaces, hot water boilers
with gas, etc.
1. Whenever the machine is to be handled,
lifted, transported or tilted you must:
- Wear sturdy work gloves
- Hold the machine at the points that offer a
safe grip, taking into account the weight and
relative distribution of the same
- Use an appropriate number of people for the
weight of the machine and the characteristics
of the vehicle or the place where it must be
placed or collected
- You must make sure that machine
movements do not cause fuel leaks, damage
or injuries.
2. During transport, make sure to fasten the
machine securely with cables or straps.
3. Leave the machine to cool down before
transporting.
4. Turn off the engine even for short distances.
5. The fuel tank must be emptied completely
before transport.
Maintenance & Care
!
You must follow these guidelines for storage:
Store in a cool, dry place away from
sources of ignition and varying changes in
temperature.
DO NOT store a machine that has not been
given time to fully cool down. Engine must be
cooled down fully before storage.
DO NOT stack other items on top of the
machine when in storage.
DO NOT store the machine with fuel in the
tank in an area where the fuel vapours could
reach an open flame, a strong heat source or a
spark.
Store the machine in a safe place, out of
the reach of children.
Store the machine safely so that nobody
can get injured by the machine or put it into
operation.
!
!
!
!
1. Remove spark plug
2. Pull starter rope briskly to clear excess oil
from combustion chamber.
3. Clean the spark plug and check that the
electrode gap is correct.
4. Prepare unit for operation.
5. Fill fuel tank with proper fuel/oil mixture.
!
After Storage
Transportation & Handling
1. Environmental protection should be a
priority of considerable importance when
using the machine, for the benefit of both
social coexistence and the environment in
which we live. Try not to cause any
disturbance to the surrounding area.
2. You must comply with local regulations and
provisions for the disposal of packaging, oils,
petrol, filters, damaged parts or any elements
which have a strong impact on the
environment. This waste must not be
disposed of as normal waste. It needs to be
separated and taken to specified waste
disposal centres where the material will be
recycled.
3. You must comply with local regulations for
the disposal of waste materials after mowing.
4. When disposing, do not pollute the
environment with the machine, but hand it
over to a disposal centre, in accordance with
the local laws in force.
32
We do not offer a takeback
scheme for the recovery of
Waste Electrical Electronic
Equipment (WEEE) & Batteries.
Instead the responsibility to dis
pose of WEEE and or
Batteries is passed onto you by
us.
So when it becomes necessary to dispose of
your machine you must take it to your local
Civic Amenity Site. For further information
please contact your local Authority for
disposal advice.
You MUST make sure that all unused oil and
fuel is disposed of correctly either beforehand
or at your local Civic Amenity Site.
Under NO circumstances must any fuel or oil
be put down any drains.
Certain products contain WEEE waste which
should not be disposed of in your domestic
waste.
You MUST recycle WEEE in accordance with
your local authority or recycling centre.
Certain products contain batteries which
should not be disposed of in your domestic
waste.
You MUST recycle batteries in accordance
with your local authority or recycling centre.
Unwanted packaging and materials should be
stored and taken to a recycling centre so it
can be disposed of in a manner which is
compatible with the environment.
We are a Member of the VALPAK
National Compliance Scheme and our
registration number is RM08660
For further information about disposal please
contact your Local Authority.
You can also get more advice and guidance
about recycling at the following website
http://www.recycle-more.co.uk
Should you pass this product on to another
user either sold or loaned, you MUST pass on
this user manual. This will make sure that all
other users can use and maintain this machine
safely.
This symbol means you should
‘Reduce - Reuse - Recycle’
Maintenance & Care
Recycling And Disposal
Environmental Protection
33
Spare Parts
Part Part Number
Spark Plug HYEA5200XSPARKPLUG
Recoil Start HYEA5200XRECOIL
Air Filter HYEA5200XAIRFILTER
Fuel Filter HYEA5200XFUELFILTER
Only use original spare parts: The use of non-original and/or incorrectly fitted parts will jeopardize
the safety of the machine, may cause accidents or personal injuries for which the Manufacturer is
under no circumstance liable or responsible.
19
34
Our Product Range
If you would like more information on any of
these products, please contact our sales team
on 01646 687880 or visit our website
www.hyundaipowerproducts.co.uk
Generators
Leisure Inverter, Petrol, Diesel And Built-In
Motorhome Generators
Pressure Washers
Petrol, Diesel And Electric Pressure Washers
Water Pumps
Submersible, Clean And Dirty Water And
Professional Chemical Water Pumps
Lawnmowers
Petrol, Cordless, Electric, Roller, Self Propelled,
Robotic And Electric Start Lawnmowers
Grass Trimmers And Brushcutters
Petrol, Cordless And Wheeled Grass Trimmers
And Brushcutters
Chainsaws
Petrol, Cordless And Electric Chainsaws
Hedge Trimmers
Petrol And Cordless Hedge Trimmers
Leaf Blowers
Petrol, Electric, Cordless, Backpack And 3 -in-1
Leaf Blowers
Log Splitters
Horizontal, Vertical, Petrol And Electric Log
Splitters
Wood Chippers
Petrol And Electric Start Wood Chippers
Tillers
Petrol Garden Tiller And Cultivator
Earth Augers And Trenchers
Petrol Earth Augers And Heavy Duty Trenchers
Compactor Plates
Petrol Compactor Plates
Cement Mixers
Portable Electric Cement Mixers
Mini Dumpers
4-Wheel Drive Mini Dumper / Power Barrow
Yard Sweeper
Self Propelled Yard Sweeper Power Brush
Scarifiers
Petrol Lawn Scarifier And Aerator
Stump Grinders
Petrol 4-Stroke Stump Grinders
Welders And Plasma Cutters
MIG, TIG, MMA, ARC Welders And Plasma Cutters
Power Tools And Tool Chests
Electric And Cordless Power Tools And Caster
Mounted Tool Chests
Vacuum Cleaners
Wet And Dry Vacuum Cleaners
Engines
Petrol And Electric Start Engines
Battery Chargers / Starters
6V, 12V, 24V Battery Chargers, Jump Starters And
Hydraulic Floor Jack
Air Compressors
Home, Domestic, DIY And Professional Use Air
Compressors
Lighting Towers
Mobile Lighting Towers With Diesel Generators
And More
We Are Constantly Expanding Our Range With
New Products
35
Useful Information
Check Out Our YouTube Channel
Our videos on YouTube include:
• Unboxing
• Assembly of your machine
• How to service your machine
• Products in use
• ‘How To’ videos
• Product features
Go to www.hyundaisupport.co.uk or search ‘Hyundai Power Products’ in YouTube.
Warranty
Proof of purchase will be required before you make a warranty claim.
Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website:
www.hyundaipowerproducts.co.uk
Manual Updates
Our manuals are constantly being reviewed and updated. Should you find an error, omission or
something unclear, please contact us for assistance.
We reserve the right to make any modifications without prior notice whenever necessary.
Our latest manuals are also placed online.
All our manuals can be downloaded at: www.hyundaipowerproducts.co.uk
Returning Your Product
If you are returning your product, please contact the dealer for their returns policy.
Leaving A Review
We work very hard to give all of our customers the best possible service. If you have any
problems, before leaving negative feedback, please contact us to give us a chance to resolve the
issue. We would be delighted if you left us positive feedback!
To leave a review, please go to: uk.trustpilot.com/review/hyundaipowerequipment.co.uk
Ordering Spare Parts
Only use original spare parts: The use of non-original and/or incorrectly fitted parts will jeopardize
the safety of the machine, may cause accidents or personal injuries for which the Manufacturer is
under no circumstance liable or responsible.
36
Notes
37
Notes
Our friendly aftersales team will be more than happy to help you.
Phone
Call our team on 01646 687880, open Monday-Friday 8.30am-5pm.
Email
Online Live Chat
Go to www.hyundaipowerproducts.co.uk
Live chat is open Monday-Friday from 8.30am-5pm.
Post
Genpower Limited, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK.
Need Help? Talk To Our Experts
38
Date Of Purchase: ........................................................................................................................
Dealer Name:.................................................................................................................................
Dealer Phone:................................................................................................................................
Model Number:.............................................................................................................................
Serial Number:..............................................................................................................................
As soon as you have purchased the machine, we recommend that you fill out the
following. If you need to contact an authorised dealer or customer service for
information on servicing, you may need to provide the following information.
The model number and serial number can be found on the grey specification sticker on
the machine.
Contact Us
Declaration Of Conformity
39
EC Declaration of Conformity
We hereby declare that the machine detailed in this declaration complies to all the relevant
provisions of the following EC directives.
• 2006/42/EC The Machinery Directive
• 2014/30/EU Annex ll Electromagnetic Compatibility Directive
• 2016/1628/EC The Emission of Gaseous and Particulate Pollutants from internal Combustion
engines
• 2000/14/EC Noise Emissions in the Environment by Equipment for use Outdoors.
And is in conformity with the applicable requirements of the following documents:
• EN ISO 11806-1:2011
• EN ISO 10517:2019
Declaration for 2000/14/EC Noise Emissions in the Environment by Equipment for use Outdoors.
Notified Body for EC Directive 2000/14/EC TÜV Rheinland (Shanghai) Co., Ltd.
Product Details:
Brand: Hyundai
Model: HYEA5200X
Description: Petrol Earth Auger
Name and address of technical documentation holder and EU distributor:
Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK.
Signed by: Roland Llewellin, Managing Director
Date: 13/04/2020
Model Type Engine Size Measured
Sound Power
Guaranteed
Sound Power
Engine Output
HYEA5200X Earth Auger 51.7cc 106.28dB(A) 107dB(A) 1.45kW
Importer:
GENPOWER LTD
Isaac Way, London Road,
Pembroke Dock, UNITED KINGDOM, SA72 4RW
T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198
www.hyundaipowerproducts.co.uk
Imported/Distributed by Genpower Ltd for The United Kingdom & Ireland
Licensed by Hyundai Corporation, Korea
