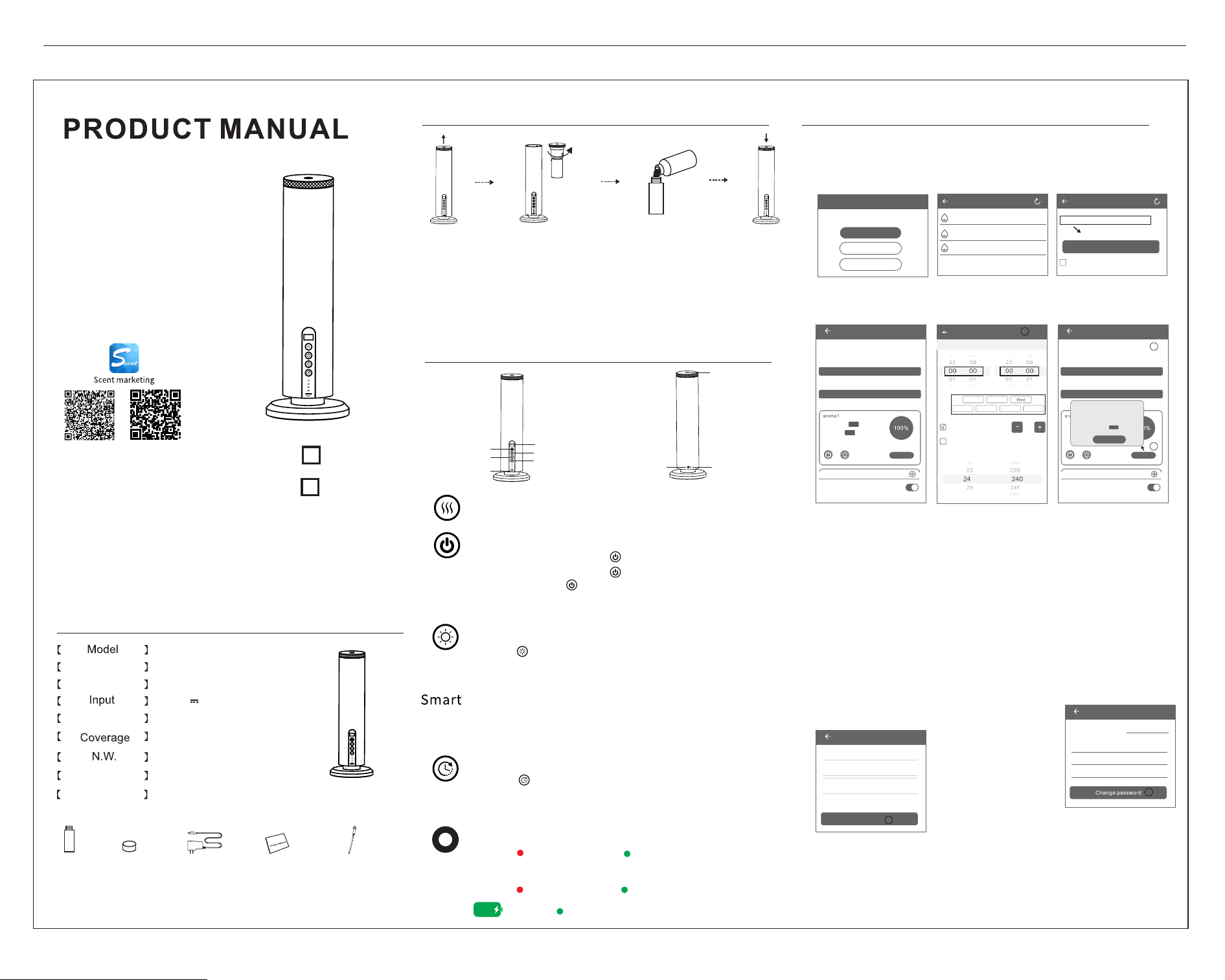

物料编码：503011085
图纸版本：B1.1
第1⻚，共2⻚
Aromadiffuser
DCconnector
Nozzle
Timer
Ambient light
ON/OFF
Grade
Smart APP
① ② ③
④
02Installationstep
03Functionalanalysis
1. Take out the diffuser head；
2. Twist off the bottle；
3. Fill the bottle with essential oil；
4. Put the diffuser head back in the machine.
02
LCD screen
Indicator Light
01Specification
Size
117.5*117.5*342mm
Bottle
120ml
4W
100㎡/300m³/10500ft³
1.35 kg
2200mAh
Li-battery
A326/A326-c
12V 2A
ManualPower adapter
Bottle capBottle
Aluminum
Material
BT
√
√Button
Atomizing core
- Bluetooth Paired: the light remains on.
- Data receiving: the light flashes.
- Bluetooth Unpaired: the light is off.
Smart APP
ON/OFF
Ambient light
- Power on: short press “ ” to turn on the machine.
- Power off: short press “ ” to turn off the machine.
-Press “ ” to turn On/Off the ambient light
- Long press for “ ” 5 seconds to restore the factory
settings (including levels, programs, and password).
GradeButton
- Short press to change grades 1→2→3→4→5→Custom
Timer
- Press “ ” once to switch to a different timer.
- When powered on, the default setting is 24-hour operation.
The timer can be adjusted between 1H→2H→4H→8H→
Smart and 24H modes.
04SmartAppInstructions
Ifyouforgetyourpassword,holddowntheOn/Offbuttonfor5seconds,
Restorefactorysettings,passwordis8888
Wheretogettheapp:
Pleasesearchfor“ ScentMarketing"inGoogleplayorAPPstore.
Note:
MakesurethatthelocationfunctionofBluetoothandmobilephoneisenabled.
A326_005B1E8
A1_000EDBA
A315_B9B 5E
AAA
AAA
2G/3G/4G/5G
①
③②
④
⑤
⑥
1.Openthescentmarketing
appandselectBluetooth.
2.Select your device. 3.Enterthedefaultpassword
8888andpressLogin.
4.OntheDeviceControl
page;Youcanchange
yourdevicenameand
labelinformationof
yourscentdiffuser.
5.Differentschedules
bypressingthe"+"
button.Todeletea
schedule,swipeleft.
6.Pressthetogglebutton
toturnon/offany
schedule.
⑦
⑨
⑧
11
⑩
8.Selectthedaysofthe
weekyouwantyour
diffusertorun(alldays
arepre-selected).
7.Onthe"Workingperiod
setting"page，Setthe
hoursofthedayyouwant
yourdiffusertorunby
scrollingthe"Startworking
time"and"Stopworking
time".
9.Press"+"or"-"to
increaseordecrease
thepresetintensity
grades(1-5.Seechart
fordetails.
11.Pressthe"Save"button
toupdatetheSettings.
12.Tap"Calibrate"tocalibrate
consumption.Itisadvised
tocalibrateafterworking
foratleast10days.Please
measuretheremainingoil
ofthebottlefirstbefore
startingcalibrating.Enter
thecurrentessentialoil
volume,thenclick
"Confirm"toupdatethe
consumptionandremaining
daysautomatically.
13.Changethedefaultpassword
bypressingonthe"About"
tab,inthe"Devicecontrol".
Thenewpassword
Thenewpassword
Confirm
15
15.Enteranewfour-digit
password,thenclick
"Confirm".
PCBVersion：V2.00
Equip ment version：V1.0
APPversion：V4.2.9
14
14.Pressthe"Password
Change"toaccessthe
passwordchangepage.
√
10.Check()theCustom
boxtocreateacustom
intensityandscrollthe
" " "SprayTime and
PauseTime ."
Input password
(factory default password is 8888)
Login
Remember password
NOTE:Pressthe"Save"
buttonatthetopright
cornerofthescreen
aftereachchange.
Select version
Bluetooth version
Wifi version
Device
Device control
Set
About
Working period setting
SaveSave
Name:
Label:
Consumption: ml1.58
Aroma oils: ml150
Remaining: Day166
Calibrate
Start working time
Stop working time
Repeat
Grad e
Cust om
Work Ti me( s) Stop Time(s)
Mon
Tue
Thur
Fri
Sat Sun
AAA
Device control
Set
About
Save
Name:
Label:
Consumption: ml1.58
Aroma oils: ml150
Remaining: Day166
Calibrate
12
13
Co nfir m
Last ti me : 150ml
Aroma oils: ml145
Pleaseenterthecurrentamount
ofaromaoils
Device control
Save
Set
About
PasswordChange
5
Grade:1
Every day
00:00-23:59
23:58-00:01
Every day
Grade:1
Grade:1
Every day
00:00-23:59
23:58-00:01
Every day
Grade:1
lftheQRcodecannotbescanned,
pleasesearchfor"ScentMarketing"
inGoogleplayorAPPstore.
Androidsystem
IOSsystem
Power description:
100%,()green light always on.
＜20%,()red light.
＞20%,()green light
＜20%,()red light.
＞20%,()greenlight
100
Charging status(flashing):
Note: If the app is connected, the "Smart" light will flash.
Note: The light can be turned on/off in both power on/off
states, so it can be used as a night light.
Working Power
展开尺⼨：240*208mm，材质：128g铜版纸
签字受控:
第2⻚，共2⻚
!
08 Warning
1. Please keep the machine vertical after installation.
Tilting or lying flat can cause oil to overflow, and
the circuit board may be contaminated, which
could affect its efficiency;
2. Should not modify, dismantle or repair the machine
arbitrarily. Any malfunction occurs, please contact
the relevant technician immediately.
10Equipmentcleaning
09Troubleshooting
Oil leakage
No diffuse
Weak diffusion
Oil sprinkle
Abnormal sound
Breakdown
Solution
-Check if the power is ON or OFF.
- Check if the pump is damaged, if yes, please replace a
new one.
- lf there is no diffusion or it is weak, replace the oil by
rubbing alcohol and run it through the machine for 5
minutes.
-Atomization head may be blocked. Clean the diffuser
by alcohol or replace a new atomized core.
- The atomized core with straw may be missed or
damaged, replace with a new one.
- The pump may be damaged and may need to replace
with a new one.
-The
bottle may be loose, make sure to screw it properly.
- The seal gasket may be loose, please replace with a
new one
-The air pump may be loose or damaged, please tighten
it or replace a new one.
No display on screen
05Concentrationandconsumption
Consumption(g/h)
Work time(s)
Stop time(s)
5s
15s
20s
25s
240s
200s
160s
100s
25s 60s
0.05
0.27
0.49
0.72
Grade
G5
G4
G3
G2
G1
Customized
5-35s
60-300s
Battery life(H)
200H
80H
50H
29H
20H
--
Note: 1. Abova data is for reference only. If customers use essential
oils with different viscosities, the oil consumption will vary；
2. For the best diffusion effect, it's recommended to use essential
oils with a viscosity below 30mPa.s. And the optimal working
temperature is 25℃.
06ISEDStatement
English: This device contains licence-exempt
transmitter(s)/receiver(s) that comply with Innovation, Science and
Economic Development Canada’s licence-exempt RSS(s). Operation
is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference
that may cause undesired operation of the device.
The digital apparatus complies with Canadian CAN ICES-3
(B)/NMB-3(B).
French: Cet appareil contient des émetteurs/réce
pteurs exempts de
licence qui sont conformes aux RSS exemptés de licence
d'Innovation, Sciences et Développement économique Canada.
L'exploitation est soumise aux deux conditions suivantes :
(1) Cet appareil ne doit pas provoquer d'interférences.
(2) Cet appareil doit accepter toute interférence, y compris les
interférences susceptibles de provoquer un fonctionnement
indésirable de l'appareil.
forth for an uncontrolled environment
l'appareil numérique du ciem conforme canadien peut -3 (b) / nmb
- 3 (b).
This device meets the exemption from the routine evaluation limits in
section 6.
6 of RSS 102 and compliance with RSS 102 RF exposure, users
can obtain Canadian information on RF exposure and compliance.
cet appareil est conforme à l'exemption des limites d'évaluation courante
dans la section 6.6 du cnr - 102 et conformité avec rss 102 de l'exposition
aux rf, les utilisateurs peuvent obtenir des données canadiennes sur
l'exposition aux champs rf et la conformité.
This equipment complies with Canada radiation exposure limits set
.
Cet équipement est conforme aux limites d'exposition aux
rayonnements du Canada établies pour un environnement non
contrôlé.
This equipment should be installed and operated with minimum
distance 20cm between the radiator & your body.
Cet équipement doit être installé et utilisé à une distance minimale de
20 cm entre le radiateur et votre corps.
07FCCStatement
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasona b l e p r o t e ction against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of
the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by
the party responsible
for compliance could void the user's authority to operate the equipment.
This transmitter
must not be co-located
or operating in conjunction with any other
antenna or transmitter.
Not applicable
RF Exposure
This device complies with FCC radiation exposure limits set forth for an
uncontrolled
environment. This equipment should be installed and operated with
minimum distance 20cm
between the radiator & your body.
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions:
1. You're about to change to another kind of essential oil;
2. The atomization volume becomes weak .
1 . F
ind a clean bottle and fill it with industrial alcohol;
2. Install this bottle to the machine and turn the machine on
Let it work for 5-10 minutes;
3. Turn off the electric, finish the cleaning.
Before asking to have the machine repaired, please try to diagnose
the problem first by following the instructions below.
-The atomized head is damaged:changetoanewone
-Themachineistilledorlaying flat,keepthemachine
vertical.
-Make sure the power is ON.
-The plug may be damaged. Try another electric outlet
or replace it with a new plug.
-The display screen may be d
amaged. Please contact
our relevant personnel.
The machine needs to be cleaned when below situations
happen:
Cleaning steps:
0.17
--
