2BVNN-SMARTCORE100 User
Manual
Rev 1.0
May 11, 2026
Lumenly Lamps Inc., Proprietary
251 Little Falls Dr,
Wilmington, DE 19808
Copyright
©
2026 Lumenly Lamps Inc.
All rights reserved.
2BVNN-SMARTCORE100 User Manual
Lumenly Lamps Inc., Proprietary Rev 1.0
Contents
1. About this User Manual ....................................................................................................................... 3
2. Introduction ......................................................................................................................................... 4
2.1 Product Features ................................................................................................................................. 4
2.2 Fully integrated Linux Module ..................................................................................................... 5
3. Module Integration Instructions .......................................................................................................... 6
3.1 Pin Assignment ............................................................................................................................ 6
4. FCC Information ................................................................................................................................... 9
4.1 FCC RF Exposure Requirements ................................................................................................... 9
4.2 FCC Regulations ........................................................................................................................... 9
2BVNN-SMARTCORE100 User Manual
Lumenly Lamps Inc., Proprietary Rev 1.0
1. About this User Manual
This document is intended to provide the usage of module 2BVNN-SMARTCORE100.
1
2BVNN-SMARTCORE100 User Manual
Lumenly Lamps Inc., Proprietary Rev 1.0
2. Introduction

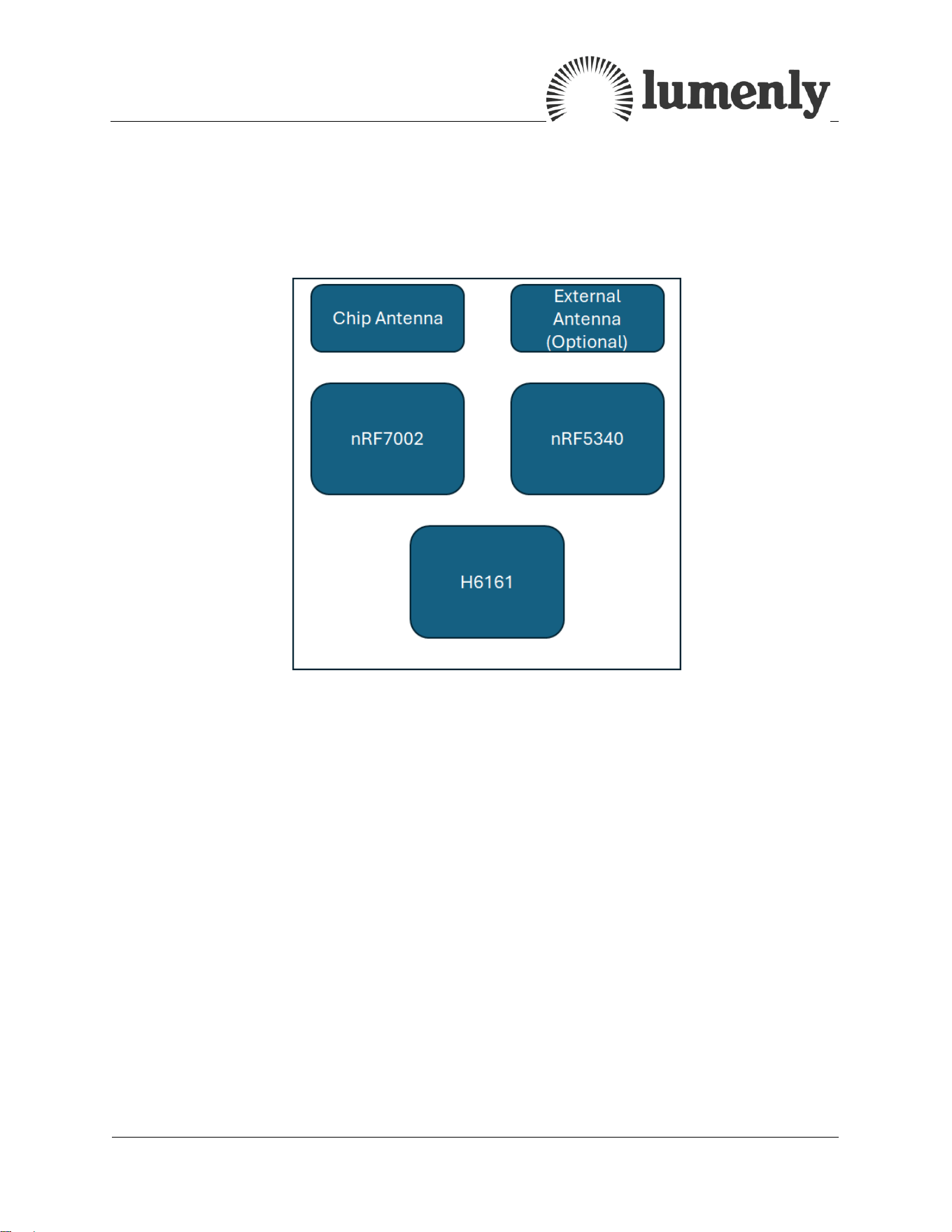

2BVNN-SMARTCORE100 is a generic compact WiFi (2.4GHz and 5GHz) and Bluetooth Low Energy (BLE)
module for large variety of IoT applications requiring full Linux Operating System (Ubuntu). 2BVNN-
SMARTCORE100 is based on Allwinner Qual-core ARM Cortex SoC (H616), Nordic WiFi chipset (nRF7002)
and Nordic BLE chipset (nRF5340).
2.1 Product Features
• Qual-Core 64-bit ARM Cortex A53 processor
• Support Trustzone
• Support Linux Operating System (Ubuntu)
• Support 2.4GHz & 5GHz
• Support 802.11a, 802.11b, 802.11g, 802.11ac (20MHz), 802.11ax (20MHz), 802.11n (20MHz)
• Up to 86Mbps PHY WiFi throughput
• Supports WiFi WEP/WPA/WPA2/WPA3 Personal/WPA3 Enterprise
• Supports STA, AP, WiFi Direct mode
• Support BLE v5.2 (Up to 1Mbps)
2
2BVNN-SMARTCORE100 User Manual
Lumenly Lamps Inc., Proprietary Rev 1.0
2.2 Fully integrated Linux Module
2BVNN-SMARTCORE100 has fully integrated all wireless features into Linux Operating System,
Ubuntu 20.04. Users are not allowed to modify the built-in Operating System. Users can develop
any Linux application, which would run on the module.
3
2BVNN-SMARTCORE100 User Manual
Lumenly Lamps Inc., Proprietary Rev 1.0
3. Module Integration Instructions

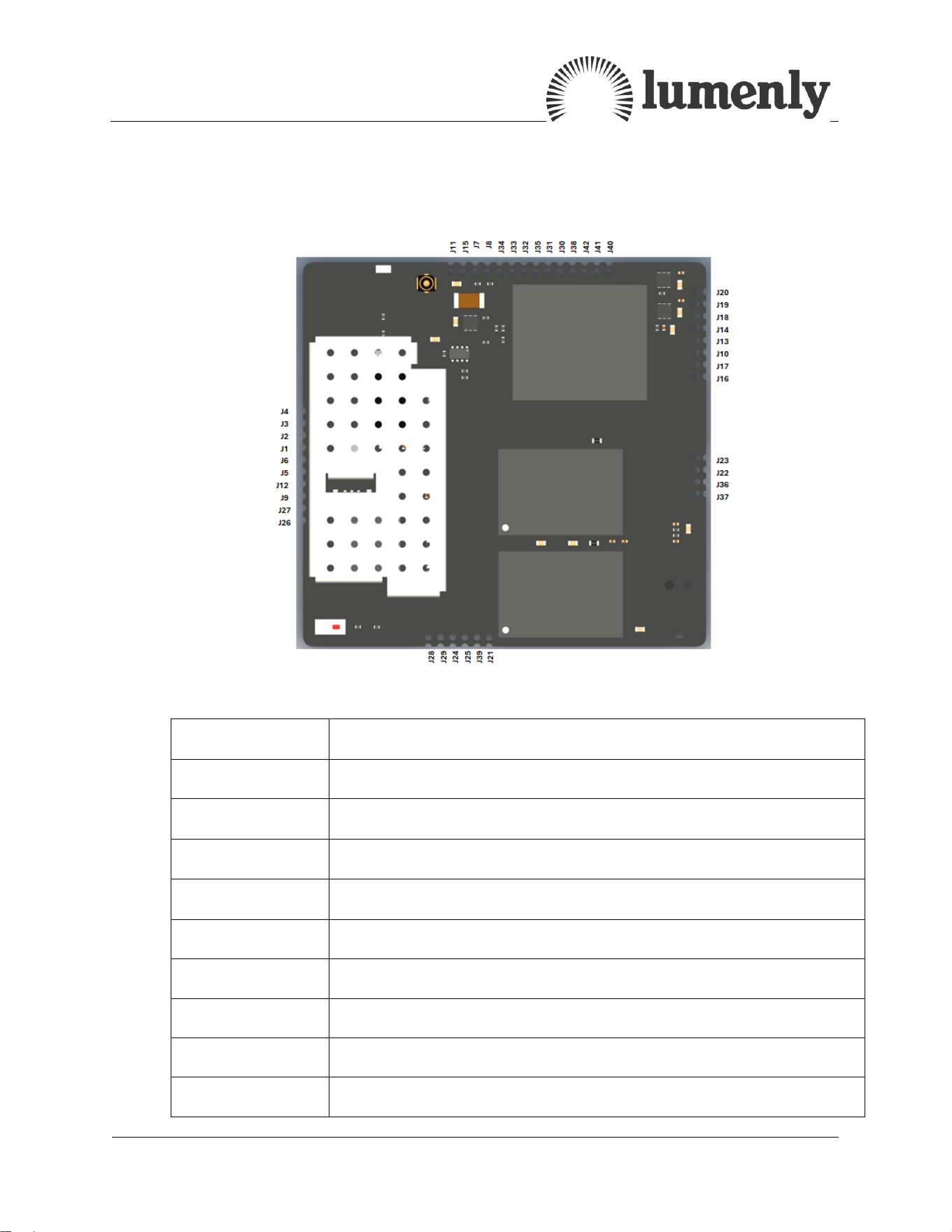

With the following pinout of the module, module schematic and the H616 datasheet, the module
integrator can design the host device with this module.
3.1 Pin Assignment
Pin Name Description
J1 SDC0-D0
J2 SDC0-D1
J3 SDC0-D2
J4 SDC0-D3
J5 SDC0-CMD
J6 SDC0-CLK
J7 SDA-PMIC
J8 SCL-PMIC
J9 3.3V
4
2BVNN-SMARTCORE100 User Manual
Lumenly Lamps Inc., Proprietary Rev 1.0
J10 GND
J11 5V IN
J12 GND
J13 USB0-J616_P
J14 USB0-H616_N
J15 GND
J16 USB-H616_P
J17 USB-H616_N
J18 GND
19 CPUX-UTX
20 CPUX-URX
21 GND
22 I2C-3-SCL
23 I2C-3-SDA
24 I2C-0-SCL
25 I2C-0-SDA
26 I2C-1-SCL
27 I2C-1-SDA
28 I2C-2-SCL
29 I2C-2-SDA
30 UART2-TX
31 UART2-RX
32 SPI-0-SCLK
33 SPI-0-MOSI
5
2BVNN-SMARTCORE100 User Manual
Lumenly Lamps Inc., Proprietary Rev 1.0
34 SPI-0-CS
35 SPI-0-MISO
36 PWM-2
37 PWM-1
38 AP-RESET
39 GPIO-1
40 GPIO-2
41 GPIO-3
42 GPIO-4
6

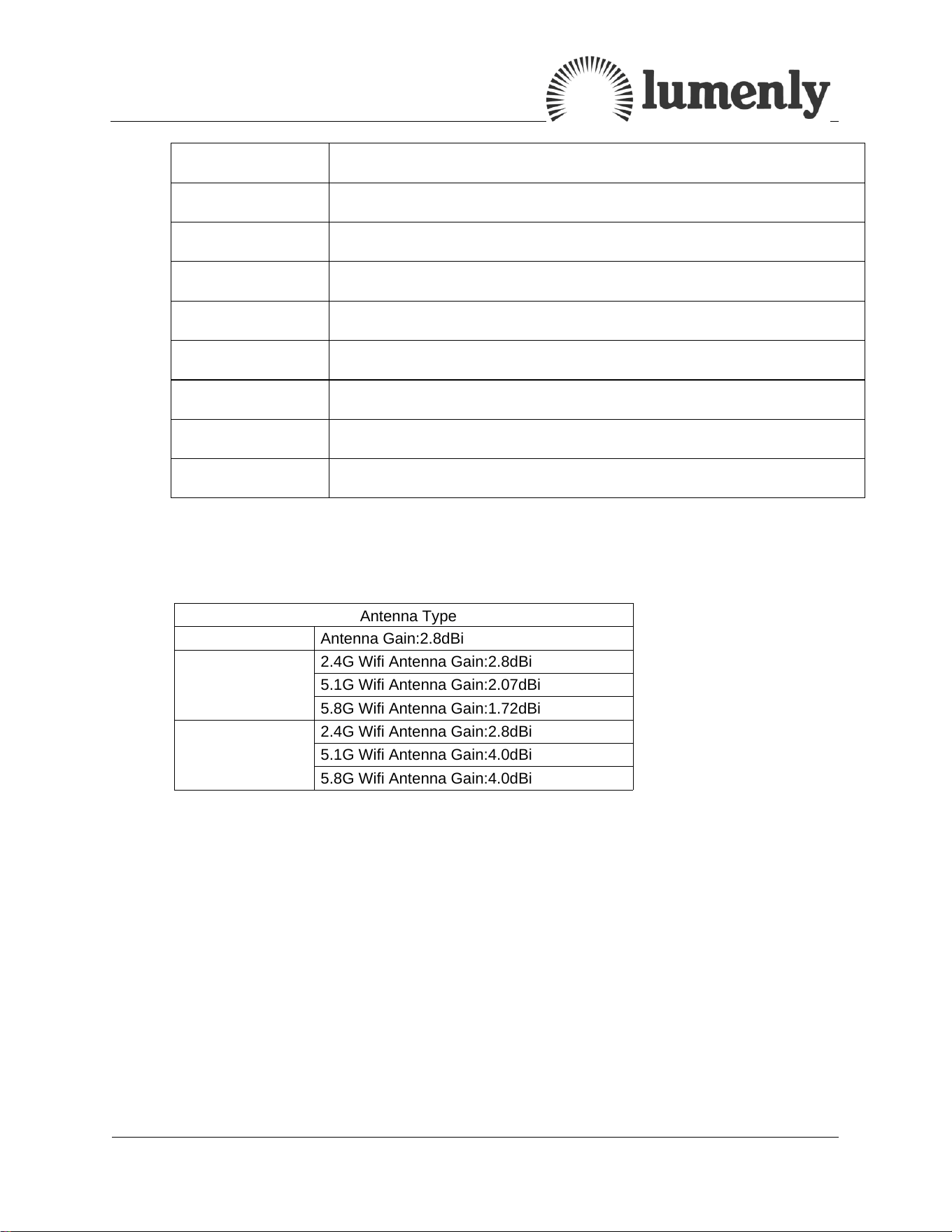

Antenna Type
BT ANT
Antenna Gain:2.8dBi
WiFi ANT 1
WiFi ANT 2
2.4G Wifi Antenna Gain:2.8dBi
2.4G Wifi Antenna Gain:2.8dBi
5.1G Wifi Antenna Gain:2.07dBi
5.8G Wifi Antenna Gain:4.0
5.1G Wifi Antenna Gain:4.0
5.8G Wifi Antenna Gain:1.72dBi
dBi
dBi
This module is intended for OEM integrators only. Per FCC KDB 996369 D03 OEM
Manual v01 guidance, the following conditions must be strictly followed when using
this certified module:
KDB 996369 D03 OEM Manual v01 rule sections:
2.3 Summarize the specific operational use conditions
The module is tested for standalone mobile RF exposure use condition. Any other
usage conditions such as co-location with other transmitter(s) or being used in a
portable condition will need a separate reassessment through a class II permissive
change application or new
2.2 List of applicable FCC rules This module has been tested for compliance to FCC
part15.247/Part 15.407
certification.
2.6 RF exposure considerations This equipment complies with FCC mobile radiation
exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with a minimum distance of 20cm between the radiator &
your body. If the module is installed in a portable host, a separate SAR evaluation is
2.4 Single module procedures The EUT was tested inside a specific platform (model:
SmartCore 100)and Single modular app roval for this specific
platform.
2.5 Antenna 1: Dipole Antenna;
Antenna 2: Chip Antenna.
Antenna designs Not applicable
required to confirm compliance with relevant FCC portable RF exposure rules.
2.7 Antennas
The following antennas have been certified for use with this module; antennas of the
same type with equal or lower gain may also be used with this module. The antenna
must be installed such that 20 cm can be maintained between the antenna and
users. Antenna Type Antenna 1: Dipole Antenna;Antenna 2: Chip Antenna.
2.8 Label and compliance information
The final end product must be labeled in a visible area with the following: “Contains
FCC ID:
2BVNN-SMARTCORE100
”. The grantee'sFCC ID can be used only when all FCC
compliance requirements are met.
8
2.9 Information on test modes and additional testing requirements
This transmitter is tested in a standalone mobile RF exposure condition and any co-
located or simultaneous transmission with other transmitter(s) or portable use will
require a separate class II permissive change re-evaluation or new certification.
2.10 Additional testing, Part 15 Subpart B disclaimer
This transmitter module is tested as a subsystem and its certification does not cover
the FCC Part 15 Subpart B (unintentional radiator) rule requirement applicable to the
final host. The final host will still need to be reassessed for compliance to this portion
of rule requirements if applicable.

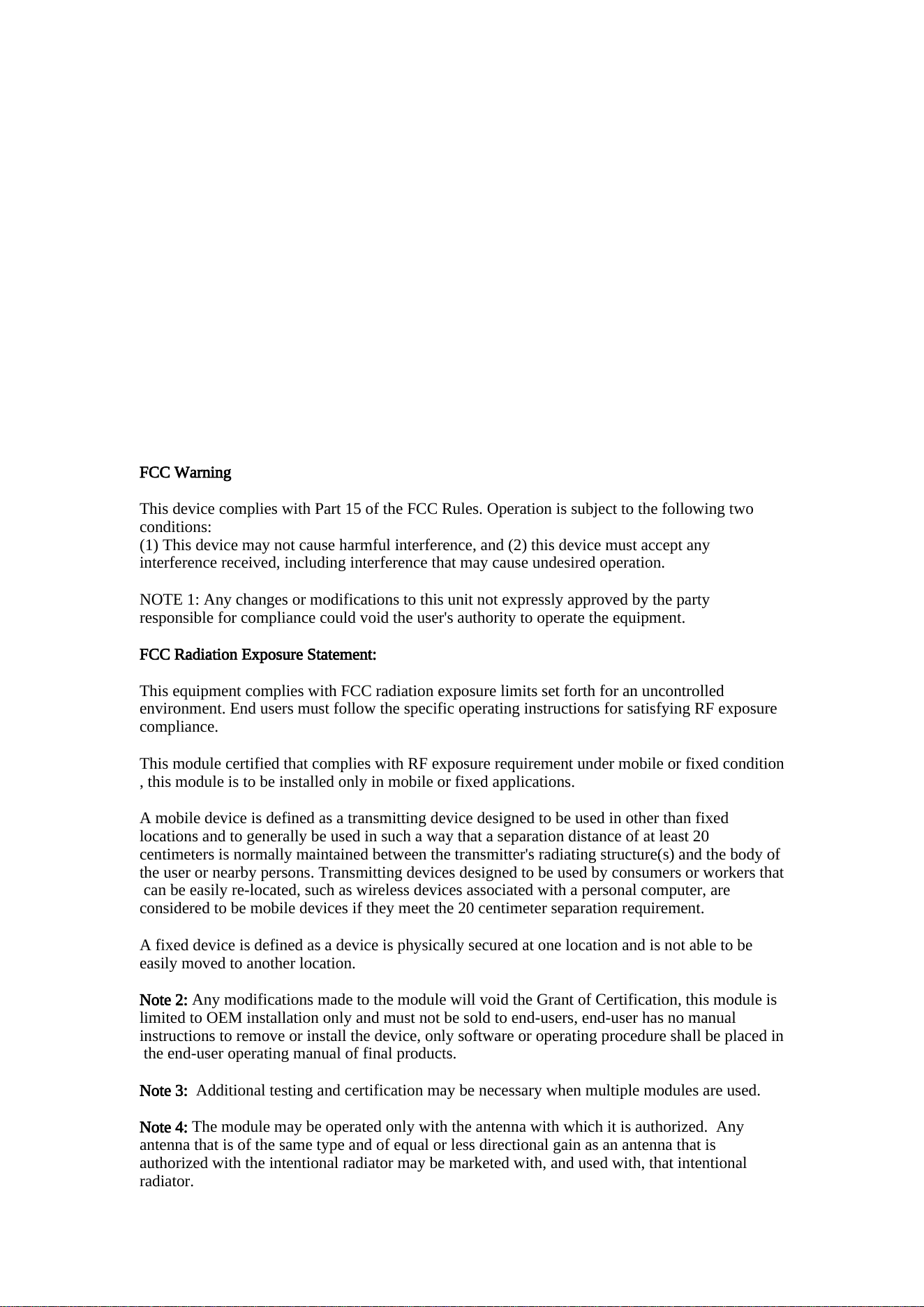

FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE 1: Any changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF exposure
compliance.
This module certified that complies with RF exposure requirement under mobile or fixed condition
, this module is to be installed only in mobile or fixed applications.
A mobile device is defined as a transmitting device designed to be used in other than fixed
locations and to generally be used in such a way that a separation distance of at least 20
centimeters is normally maintained between the transmitter's radiating structure(s) and the body of
the user or nearby persons. Transmitting devices designed to be used by consumers or workers that
can be easily re-located, such as wireless devices associated with a personal computer, are
considered to be mobile devices if they meet the 20 centimeter separation requirement.
A fixed device is defined as a device is physically secured at one location and is not able to be
easily moved to another location.
Note 2: Any modifications made to the module will void the Grant of Certification, this module is
limited to OEM installation only and must not be sold to end-users, end-user has no manual
instructions to remove or install the device, only software or operating procedure shall be placed in
the end-user operating manual of final products.
Note 3: Additional testing and certification may be necessary when multiple modules are used.
Note 4: The module may be operated only with the antenna with which it is authorized. Any
antenna that is of the same type and of equal or less directional gain as an antenna that is
authorized with the intentional radiator may be marketed with, and used with, that intentional
radiator.
9
