COVER DRAWINGCOVER DRAWINGCOVER DRAWING
TurboFry®
9-Quart
Easy-View
Air Fryer
RJ38-45DBW
2
FEATURES
READ ALL INSTRUCTIONS BEFORE USE
For your safety and continued enjoyment of this product,
always read the instruction manual before using.
1
2
33
6
5
4
Get to Know Your Air Fryer
1. Unit housing
2. Control panel
3. Ceramic-coated nonstick racks (2)
4. 4.5-Quart baskets (2)
5. Basket windows (2)
6. Basket handles (2)
5
6
3
CONTROL PANEL
2
31 4 5
11 12 15
14
109
7 8 13
Control Panel
1. Oven light button
2. TIME adjustment buttons
3. SHAKE light
4. PAUSED light
5. ON HOLD light
6. READY light
7. TEMP adjustment buttons*
8. Cook function buttons
9. Power button
10. +2 MIN button
11. START | STOP button
12. KEEP WARM button
13. SYNC FINISH button
14. SYNC BASKETS button
15. Mute button
NOTE: Buttons 1-12 are mirrored on
the right side of the control panel for
the second basket
6
*To switch between °F and °C, press the up and down temperature adjustment
arrows on the LEFT side of the panel and hold for about 3 seconds.
4
SAFETY INSTRUCTIONS &
IMPORTANT SAFEGUARDS
WARNING: When using electrical appliances, basic safety precautions should
always be followed, including:
1. Read all instructions.
2. Do NOT touch hot surfaces. Use handles or knobs.
3. To protect against electric shock, do not immerse cord, plugs, or unit body
in water or other liquids.
4. Close supervision is necessary when any appliance is used by or
near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool
before putting on or taking off parts, and before cleaning the appliance.
6. Do NOT operate any appliance with a damaged cord or plug or after the
appliance malfunctions, or has been damaged in any manner. Contact
Chefman Customer Support for examination, repair, or adjustment.
7. The use of accessory attachments not recommended by Chefman
may cause injuries.
8. Do NOT use outdoors.
9. Do NOT let cord hang over edge of table or counter, or touch hot surfaces.
10. Do NOT place on or near a hot gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving an appliance containing hot
oil or other hot liquids.
12. To disconnect, turn any control to off, then remove plug from wall outlet.
13. Do NOT use the appliance for anything other than its intended use.
14. Place the unit on a flat, sturdy, heat-resistant surface. Do NOT place the
unit near or on any type of heat source, such as a gas or electric burner,
stove, or oven, even if not on. Do NOT use near an open flame or
flammable materials.
15. The unit will emit some heat. Allow sufficient space around the unit when
in use, and do NOT place near other items or appliances.
16. Check that your home power supply corresponds with the intended
voltage of the air fryer.
5
SAVE THESE INSTRUCTIONS
FOR HOUSEHOLD USE ONLY
SAFETY INSTRUCTIONS &
IMPORTANT SAFEGUARDS
17. Never wrap the cord tightly around the appliance during use or storage;
this may cause the wire to fray and break.
18. This product is not a deep fryer. It is not meant to be filled with oil. Never
fill any parts of the air fryer with oil. If you choose to use oil, toss food with
oil in a separate bowl, and then transfer food to the removable racks
or baskets.
19. Do not leave uncooked ingredients in the air fryer for more than a short
period of time before cooking; raw meat, poultry, fish, fruits, and vegetables
can spoil.
20. Do not move the air fryer while it is full of food.
21. Do not move the unit during use. During initial use, you may notice some
smoke and/or a slight odor. This is normal and should quickly dissipate. It
should not happen after the appliance has been used a few more times.
22. Do not leave the air fryer unattended during use.
23. Some areas do get hot during use, and the touch screen may get warm.
Do not touch the heating elements. Do not place hands or other body
parts near the air vents while the air fryer is in use; burns may result. Take
caution when handling the hot air fryer rack and all removable parts.
24. Use protective mitts and/or tongs to remove hot food from the air fryer.
25. Store the air fryer in a cool, dry place.
6
SAFETY INSTRUCTIONS &
IMPORTANT SAFEGUARDS
WARNING: This appliance has a polarized plug (one blade is wider than the
other). To reduce the risk of electric shock, this plug is intended to fit into a
polarized outlet only one way. If the plug does not fit fully into the outlet, reverse
the plug. If it still does not fit, contact a qualified electrician. Do not attempt to
modify the plug in any way.
Short Cord Instructions
A short power-supply cord is provided to reduce the hazards of entanglement
or tripping over a longer cord. Longer detachable power-supply cords or
extension cords are available and may be used if care is exercised in their use.
If a longer detachable power-supply extension cord is used:
1. The marked electrical rating of the extension cord should be at least as
great as the electrical rating of the appliance;
2. The longer cord should be arranged so that it will not drape over the
countertop or tabletop where it can be pulled on by children or tripped over.
California Proposition 65:
(Applicable for California Residents only)
WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Do not place the appliance on a
stovetop or any other heatable surface,
even if stovetop is not on.
Doing so is a fire hazard.
7
SAFETY INSTRUCTIONS &
IMPORTANT SAFEGUARDS
Power Cord Safety Tips
1. Never pull or yank on the cord or the appliance.
2. To insert the plug, grasp it firmly and guide it into the outlet.
3. To disconnect the appliance, grasp the plug and remove it from the outlet.
4. Never use the product if the power cord shows signs of abrasion or
excessive wear. Contact Chefman Customer Support for additional
guidance and support.
5. Never wrap the cord tightly around the appliance, as this could place
undue stress on the cord where it enters the appliance and cause it to fray
and break.
DO NOT OPERATE THE APPLIANCE IF THE POWER CORD SHOWS ANY DAMAGE
OR IF THE APPLIANCE WORKS INTERMITTENTLY OR STOPS WORKING ENTIRELY.
8
Before First Use
For best results, follow these steps before using your air fryer for the first time.
1. Remove all packaging materials, such as plastic bags and foam inserts.
2. Check to ensure that all parts and accessories are accounted for.
3. Read and remove any stickers on the unit except for the rating label on the
bottom, which should remain on the unit.
4. Wipe down the interior and exterior with a damp cloth.
5. Wash the baskets and racks with warm, soapy water. Dry thoroughly.
9
How to Use the Air Fryer
The air fryer’s high-speed fans cook your favorite foods quickly. The rubber feet
on the racks elevate the racks to allow air to circulate around foods for even
cooking and crisping. The racks also allow excess fat to drip down and away
from foods for healthier eating.
CAUTION: Never fill the baskets with oil. Unlike deep fryers, air fryers require little
to no oil to produce a crisp texture. If you choose to use oil, toss food with just a
little in a separate bowl before cooking in the air fryer.
1. Prepare the food(s) you plan to cook.

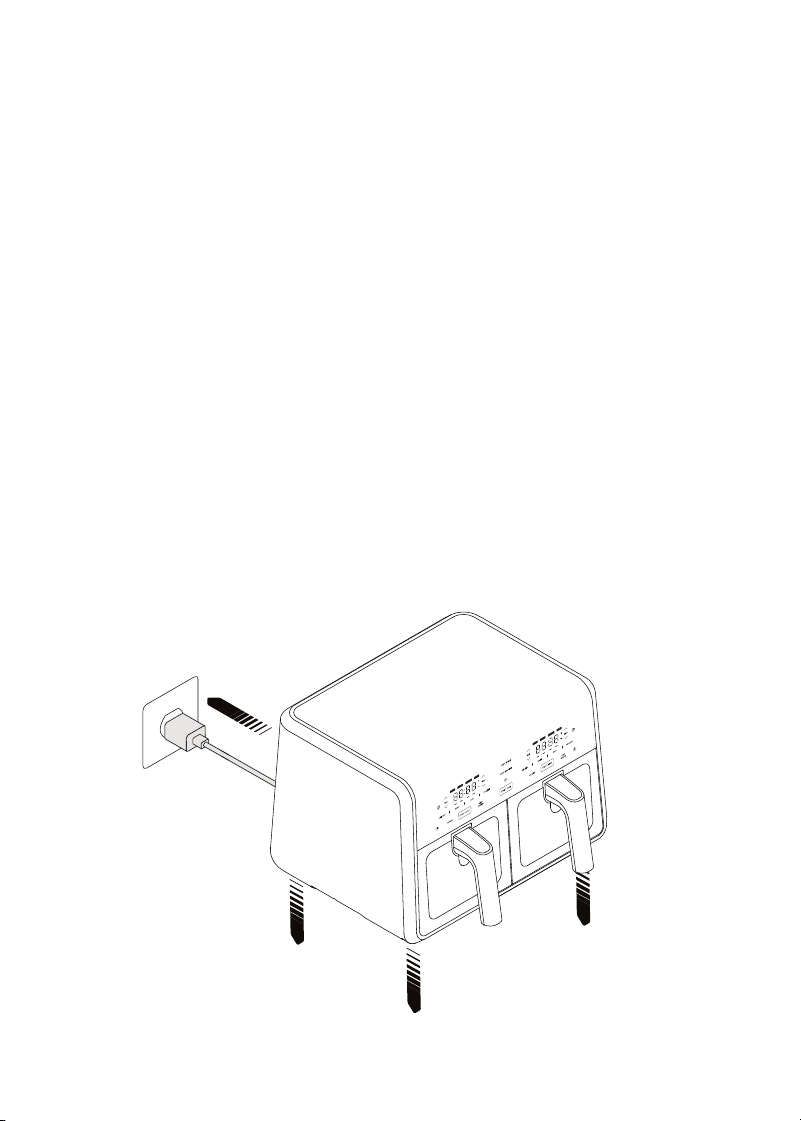

2. Set the unit on a hard, flat surface and plug in. Lower the rack(s) into the
basket(s). Press on the rack(s) to ensure they are secure and level. Press
down on the racks to ensure they are secure and level. There should be
a small amount of space between the rack(s) and the bottom of the
basket(s). (For easiest handling of the basket rack, use the hole in the center
to lift it.) CAUTION: Never spray the baskets or racks with cooking oil from
an aerosol spray can, which includes harsh components that can cause
chipping of the nonstick coating. However, you can oil the racks or spray
them with oil from a nonaerosol mister.
STEP 1
10
How to Use the Air Fryer

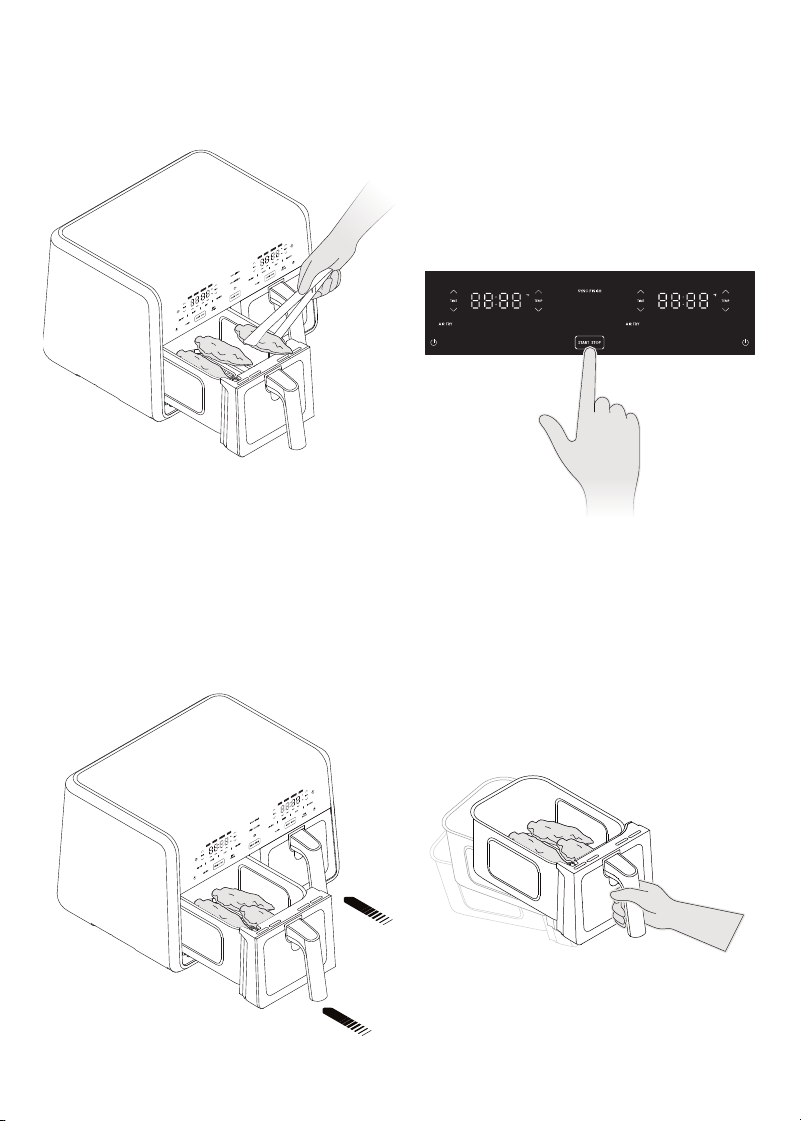

3. Put food on the rack(s). To allow for
good air circulation, do not fill the
basket(s) past the MAX line.
4. Slide the basket(s) into the air fryer.
(If cooking in just one basket, keep
the other one in place to avoid a
burn risk.) NOTE: On first use, the
unit may emit a slight odor,
which is normal and will dissipate
with use.
STEP X
STEP X
STEP X
STEP X
5. Press the Power button on one or
both baskets, then set the time
and temperature independently or
in sync, as desired. (Refer to How to
Program the Air Fryer on p. 12).
6. Press START | STOP. If you want to
check on foods during cooking,
press the Oven light button.
7. During cooking, the SHAKE light
will turn on for active baskets for
certain functions (not necessarily
simultaneously), and the air fryer
will beep as a reminder to shake
(or flip) food, as necessary. If your
food does not need to be shaken,
simply ignore the warning.
11
How to Use the Air Fryer
8. When the timer is done, the air fryer will turn off automatically and the
READY light will display. Remove the basket, check food for doneness,
then carefully transfer food to plates or a platter and serve.
STEP X
Function Default Time Time Range
Temperature Range
Notes
AIR FRY 15 minutes 1-60 minutes 300-450°F Includes SHAKE alert.
BAKE 30 minutes 1-60 minutes 200-350°F No SHAKE alert.
Displays “PRE” for
5 minutes as unit
preheats before cook
time starts.
DRY
(Dehydrate)
6 hours 30 minutes-
24 hours
90-200°F No SHAKE alert. For
best results food
under the rack to
prevent the fan from
blowing it out of place.
FROZEN 30 minutes 1-60 minutes 300-400°F Includes SHAKE alert.
Unit cooks at 200°F for
first 5 minutes before
increasing to selected
temperature.
Cook Functions at a Glance
The four cook functions give your air fryer maximum versatility. Here’s a guide to
what each function does.
12
How to Program the Air Fryer
Refer to this quick guide to program the air fryer for each mode, then the
following pages for details of how each mode operates.
To cook in one
basket
To cook with
SYNC BASKETS
To cook with
SYNC FINISH
Press the Power
button on either side
to activate one basket.
Press the Power
button on either side
to activate one basket.
Press the Power
button on either side
to activate one basket.
Choose a cook
function.
Press one of the cook
function buttons for
your selected basket.
Choose a cook
function.
Press one of the cook
function buttons for
your selected basket.
Choose a cook
function.
Press one of the cook
function buttons for
your selected basket.
Set time and temp for
that basket.
Use the TIME and
TEMP adjustment
buttons to set as
desired.
Set time and temp for
that basket.
Use the TIME and
TEMP adjustment
buttons to set as
desired.
Set time and temp for
that basket.
Use the TIME and
TEMP adjustment
buttons to set as
desired.
Press the other Power
button to activate the
second basket.
Press SYNC BASKETS.
Set time and
temperature for the
second basket as you
did for the first.
Press SYNC FINISH.
Press START | STOP. Press START | STOP. Press START | STOP.
13
The Three Cooking Modes
Single Basket Cooking
Though the beauty of this air fryer is its double-basket capacity and sync
functions, you can easily cook in just one basket. (The other basket can be
removed or left in the unit.)
1. Press either the right or left Power button to activate a single basket.
2. Press your desired cook function button: AIR FRY, BAKE, DRY (Dehydrate),
or FROZEN.
3. Use the TIME and TEMP buttons to set your desired time and temperature.
4. Press START | STOP.
5. For certain functions, the SHAKE light will illuminate halfway through cooking
as a reminder to shake (or flip) food, as necessary. While the basket is
removed, the PAUSED light illuminates.
6. When the timer is done, the air fryer will turn off automatically and the READY
light will display. At this point, you can press the +2 MIN button to add more
time or the KEEP WARM button (see p. 15). Otherwise, remove the basket,
check food for doneness, and serve.
NOTE: While the unit is cooking on one side, you can begin cooking in the other
basket at any time. (The SYNC BASKETS and SYNC FINISH functions will not be
available, however.) Simply press the other basket’s Power button, set the time
and temperature for that side, then press START | STOP.
Sync Baskets Mode
The SYNC BASKETS button is a shortcut for setting both baskets to cook
simultaneously with the same time and temperature.
1. Press the Power button for one basket.
2. Press your desired cook function button: AIR FRY, BAKE, DRY (Dehydrate),
or FROZEN.
3. Use the TIME and TEMP buttons to set your desired time and temperature.
4. Press SYNC BASKETS, then the center START | STOP button. As the unit cooks,
the left side of the control panel will display the temperature and the right side
the time.
5. For certain functions, SHAKE lights will illuminate halfway through cooking as
a reminder to shake or flip food, as necessary. When one basket is removed,
both sides will pause cooking until the basket is returned, though the PAUSED
light will illuminate only on the right control panel.
14
The Three Cooking Modes
6. When the timer is done, the air fryer will turn off automatically and the READY
lights will display. At this point, you can press the +2 MIN button to add more
time or the KEEP WARM button on either basket (see p. 15). Otherwise, remove
the baskets, check food for doneness, and serve.
NOTE: If one basket’s time or temperature is manually adjusted during cooking,
the other basket will automatically adjust to match.
Sync Finish Mode
By pressing the SYNC FINISH button, you can program two foods with different
cooking functions, times, and/or temperatures so they finish cooking at the same
time. This function delays the start of the basket with the shorter cook time so that
both baskets finish cooking together.
1. Press the Power button for one basket.
2. Press your desired cook function button: AIR FRY, BAKE, DRY (Dehydrate), or
FROZEN.
3. Use the TIME and TEMP buttons to set your desired time and temperature.
4. Press the Power button for the second basket, then repeat steps 2 and 3 to
program that basket.
5. Press the SYNC FINISH button, then press START. The air fryer will begin cooking
on the side with the longer cooking time and will delay the start of cooking
on the other side until the appropriate time so that they finish together.
The basket that is waiting to cook will display ON HOLD on the panel until it
begins cooking.
6. For certain functions, the SHAKE lights will turn on for either or both baskets as
a reminder to shake (or flip) food, as necessary. If one basket is removed while
both are cooking, both sides will pause cooking and PAUSED will illuminate on
both control panels until the basket is returned. If the second basket hasn’t yet
started cooking, it will continue to count down its hold time while the other side
is paused.
7. When the timer is done, the air fryer will turn off automatically, and the READY
lights will display on the panel. At this point, you can press the +2 MIN button
to add more time or the KEEP WARM button on either basket (see p. 15).
Otherwise, remove the baskets, check food for doneness, and serve.
8. NOTE: If either timer is adjusted while one of the baskets is still waiting to cook
and the timer with the shorter time is not increased above the longer time,
then the finish will remain synced. If either timer is adjusted while both sides
are actively cooking (including with the +2 MIN buttons), then the sync
will break, and the SYNC FINISH light will turn off, but both baskets will
continue cooking.
15
Special Functions
KEEP WARM
The KEEP WARM buttons are available either from Standby mode or just as the
cooking cycles finish (Ready mode). In Keep Warm mode, the unit holds the
basket at a warm temperature (between 165°F and 200°F) until you’re ready to
serve, up to 30 minutes.
From Standby mode, press the KEEP WARM button; it will default to 165°F for 15
minutes, but you can use the time and temperature adjustment buttons to set
it as you like. You can also press SYNC BASKETS to run the warming cycle on
both baskets. Then press START | STOP.
From Ready mode, press KEEP WARM and the warming cycle will begin
immediately. You can still adjust the time and temperature as desired, no need
to press START | STOP. If you turn on KEEP WARM after cooking in Sync Baskets
mode, they’ll both go into Keep Warm together. If you were cooking in Sync
Finish mode, you’ll need to activate Keep Warm separately on the two baskets.
When ready to serve, turn off Keep Warm mode by pressing the Power button,
or after 30 minutes it will turn off automatically.
+2 MIN Button
These buttons light up during the last two minutes of the cooking cycle.
Pressing one of them adds 2 more minutes of cooking time to the
corresponding basket at the current temperature. It can also be pressed after
cooking ends, and can be pressed more than once to add additional time.
When cooking in Sync Baskets mode, pressing +2 MIN will add 2 minutes to
both baskets. When cooking in Sync Finish mode, it will break the sync and only
add time to the corresponding basket.
Muting Sounds
The unit beeps at various points in the cooking cycle to alert you to flip your
food or that cooking is complete. If you wish to mute these beeps, press the
Mute button (the icon will illuminate brightly). Press the button again to turn the
sound back on (the icon will dim).
1616
Air Fryer Cooking Tips
For a crisp exterior, oil foods lightly. Some foods, especially if fresh, benefit
from being tossed with a little oil in a separate bowl before air frying. However,
high-fat foods, like a well-marbled steak, or prepared foods usually require no
additional oil.
Avoid wet batters. Loose batters, such as those used for deep frying, do not work
in air fryers, as the batter simply slides off. Adapt such recipes to give foods a
thicker coating, preferably including breadcrumbs to help the coating adhere.
Use medium-high to high heat for most air frying. Most foods will air fry best
between 375°F and 400°F (190°C and 205°C). For gentler cooking and reheating,
use a lower temperature to avoid overcooking.
Don’t overcrowd the baskets. Too much food, especially if tightly packed, can
inhibit browning and crisping. A better bet: cook food in batches.
For more even results, shake or flip foods you prepare using the Air Fry and
Frozen functions. A good shake is especially beneficial for smaller items like
french fries, onion rings, and chicken wings. Gently flip larger or more fragile
foods.
Check foods early. Check foods on the earlier side of cooking time; you can
always slide the basket(s) back in to continue cooking.
Follow food-safety guidelines for doneness. Because air fryer temperatures and
food sizes can vary, do not rely only on recipe timing when cooking food. Check
foods for doneness against current safety guidelines before serving.
Preheat if you like. While not necessary for air frying, preheating the unit can
cook foods faster and promote crisp results. For the bake function, an automatic
5-minute preheat is built into the cook cycle. CAUTION: Be careful when adding
food after preheating as the interior of the fryer will be hot.
1717
Having Trouble?
Problem Likely Cause Solution
White smoke
coming from
the unit.
There’s too much fat in
the air fryer.
Avoid cooking very fatty foods in the air
fryer. Be sure the baskets, the racks, and
the interior of the air fryer are clean
before cooking
The food is cooked
unevenly.
Two culprits are likely:
overcrowding and
not shaking.
Fill the air fryer baskets loosely with food
to let air circulate, and shake, toss, or flip
foods at least once during cooking for
more even results.
Food is not crisp. Although you can air fry
with no added oil, a very
light coat of oil can help
guarantee crisp results.
Coat foods very lightly with oil (usually just
½ teaspoon per batch for most recipes).
Preheating the fryer also helps.
E1 or E2 shows on
display.
There is a loose wire
contact or a short circuit,
and the unit will not
function.
Contact Chefman Customer Support.
Rack is missing a
rubber foot.
Though they should be
secure, the feet on the
rack are removable.
Contact Chefman Customer Support for
a replacement. When washing the racks
in the dishwasher, remove the feet first to
ensure they don’t get lost.
18
Keep It Clean
The nonstick coating on the baskets and racks makes the air fryer easy to
clean following the steps below.
1. Unplug the unit and let cool completely before cleaning. (For faster cooling,
take hot baskets out of the unit.)
2. Use the center hole to pull the cooled racks straight up and out of the
baskets. WARNING: Do not lift the rack out of the basket when hot, or injury
can occur.
3. Wash the baskets and racks with warm, soapy water, rinse, and dry well
with a towel for best results. Baskets and racks are also top-rack
dishwasher safe. Do not use glass cleaner on the basket windows.
4. Wipe down the outside and the inside of the unit with a damp cloth as
needed. Do not put the unit in the dishwasher or submerge in water or any
other liquid.
5. Do not use abrasive cleansers on baskets, racks, or the interior or exterior of
the appliance, or you could damage the finishes.
19
Notes
20
Terms & Conditions
Limited Warranty
RJ Brands, LLC d/b/a Chefman® offers a limited 1-year Warranty (the “Warranty”)
available on sales through authorized distributors and retailers only. Please
note that this Warranty becomes valid from the date of initial retail purchase
and that the Warranty is nontransferable and applies only to the
original purchaser.
This Warranty is void without proof of purchase within the United States and
Canada. Please be aware that this Warranty supersedes all other warranties
and constitutes the entire agreement between the consumer and Chefman®.
Any changes to the Terms and Conditions of this Warranty must be in writing,
signed by a representative of Chefman®. No other party has the right or ability
to alter or change the Terms and Conditions of this Warranty.
We may ask you to please submit, via email, photos and/or video of the issue
you are experiencing. This is to help us better assess the matter and possibly
offer a quick fix. Photos and/or video may also be required to determine
Warranty eligibility.
We encourage you to register your product. Registering can make the Warranty
process easier and can keep you informed of any updates or recalls on
your product. To register, follow the directions on the Chefman® Warranty
Registration page in the Chefman® User Guide. Please retain your proof of
purchase even after registering. In the event that you do not have proof of
your purchase date, we may declare your Warranty void or we may, at our sole
discretion, apply the date of manufacture as the purchase date for purposes of
this Warranty.
21
Terms & Conditions
What the Warranty Covers
• Manufacturer Defects
Chefman® products are warranted against defects in material and
workmanship, under normal household use, for a period of 1 year from the
date of purchase when used in accordance with the directions listed in the
Chefman® User Guide. If your product does not work as it should, please
contact Customer Support at support@chefman.com so that we may
assist you.
This Warranty Does Not Cover
• Misuse
Damage that occurs from neglectful or improper use of products, including,
but not limited to, damage that occurs as a result of usage with incompatible
voltage, regardless of whether the product was used with a converter or
adapter. See Safety Instructions in the Chefman® User Guide for information
on proper use of product;
• Poor Maintenance
General lack of proper care. We encourage you to take care of your
Chefman® products so that you may continue to enjoy them. Please see
Keep It Clean directions in this Chefman® User Guide for information on
proper maintenance;
• Commercial Use
Damage that occurs from commercial use;
• Normal Wear and Tear
Damage or degradation expected to occur due to normal use over time;
• Altered Products
Damage that occurs from alterations or modifications by any entity other
than Chefman® such as the removal of the rating label affixed to the
product;
• Catastrophic Events
Damage that occurs from fire, floods, or natural disasters; or
• Loss of Interest
Claims of loss of interest or enjoyment.
22
Terms & Conditions
For product information, please visit us at Chefman.com.
EXCEPT WHERE SUCH LIABILITY IS REQUIRED BY LAW, THIS WARRANTY DOES NOT
COVER, AND CHEFMAN® SHALL NOT BE LIABLE FOR, INCIDENTAL, INDIRECT, SPECIAL,
OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, DAMAGE TO, OR
LOSS OF USE OF THE PRODUCT, OR LOST SALES OR PROFITS OR DELAY OR FAILURE TO
PERFORM THIS WARRANTY OBLIGATION. THE REMEDIES PROVIDED HEREIN ARE THE
EXCLUSIVE REMEDIES UNDER THIS WARRANTY, WHETHER BASED ON CONTRACT, TORT
OR OTHERWISE.
23
How do I register my product?
All you need to do is fill out a simple Chefman® registration form.
You can easily access the form in one of the two ways listed below:
• Visit Chefman.com/register.
• Scan the QR code to the right to access site.
Warranty Registration
What do I need to register my product?
• Contact Information
• Model Number (see example below)
• Proof of Purchase (online confirmation, receipt, gift receipt)
• Date Code (see example below)
• Access Code (see example below)
NOTE: Label depicted here is an example.
Please see label on your product for actual model/date code/access code.
Date Code:
0000
Access Code:
Xxxxxxxx
XXXXX
RJ3845DBWUG091125
TurboFry®
9-Quart Easy-View
Air Fryer
Chefman® is a registered trademark of RJ Brands, LLC.
TurboFry® is a registered trademark of RJ Brands, LLC.
