WARRANTY TERMS 18
6
11
3
4
Do not use this wine cooler for other than its intended purpose.
Move this wine cool e r by 2 people. Failure to do so can result in i njury.
Place this wine cooler in a well-ventilated area with temperatures above 15°C (60°F) and
below 32°C (90°F).
To ensure proper ventilation for your wine cooler, the front of the cooler must be
completel y unobstructed.
This wine coole r must be i nstalled in an area away from wind, rain, water spray or drips.
The win
e cooler should not be located ne
xt to ovens, grills or other sources of high heat.
Do not kink or pinch the powe r supply cord of wine cooler.
It is important for the wine cooler to be leveled in order to work properly. You may need
to make several ad justments to level i t.
This wine cooler is designed fo r storing and cooling wines. Do not store perishable food
or medical products inside the cooler.
When disposing of refrigeration wine coolers, special handling is often required. I
t is the
consumer’s responsibil
ity to comply with federal and local regulations when disposing of
this product.
WARNING: Risk of child entrapment and suffocatio n. Before you thro w away this or an
old cooler, remove the door. Leave the shelves in place, so that children may not easily
climb inside.
FLAMMABLE REFRIGERANT GAS
DANGER - Ris k of fire or explosion. Flammable refrigerant used.
DO NOT use mechanical devices to defrost refrigerator. DO NOT puncture refrigerant
tubing.
DANGER - Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained
service personnel. DO NOT puncture refrigerant tubing.
CAUTION - Risk of fire or explosion. Flammable refrigerant used. Consult repair manual / owner’s
guide before attempting to service this product. All safety precauti
ons must be followed.
CAUTION - Risk of fire or explo sion. Dispose of property in accordance with federal or loca l
regulations. Flammable refrigerant used.
CAUTION - Risk of fire or explosion due to puncture of refrigerant tubing. Follow handling
instructions careful ly. Flamma ble refrig e rant used.
CAUTION - To prevent a child from being entrapped, keep out of reach of children and no t in the
vicinity of the cooler .
.
.
.
.
.
.
.
.
.
.
.
5
1.This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. This appliance can be used by children aged from 8 years and above and persons with
reduced ph
ysical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a
hazard.
5. To avoid a hazard due to instability of the appliance, it must be fixed in accordance with
the instructions.
6. When positioning the appliance, ensure the supply cord is not trapped or damaged.
7. Do not locate multiple portable socket-outlets or portable power supplies at the rear of the
appliance.
8. Keep ventilation openings, in the appliance enclosure or in the built-in structure,clear of
obstruction.
9. Do not use mechanical devices or other means to accele
rate the defrosting process,other
than those recommended by the manufacturer.
10. Do not damage the refrigerant circuit.
11. Do not use electrical appliances inside the drink storage compartments of the appliance,
unless they are of the type recommended by the manufacturer.
12. Do not store explosive substances such as aerosol cans with a flammable propellant in
this appliance.
13. This appliance is intended to be used in household and similar applications such as
– sta
ff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
14. To avoid contamination of drink, please respect the following instructions:
– Opening the door for long periods can cause a significant increase of the temperature in the
compartments of the appliance.
– Clean regularly surfa
ces that can come in contact with drink and accessible drainage
systems.
– Clean water tanks if they have not been used for 48 h, flush the water system connected to
a water supply if water has not been drawn for 5 days.
– If the refrigerating appliance is left empty for long periods, switch off, defrost, clean,
dry, and leave the door open to prevent mould developing within the appliance.
WARNING:Risk of fire / flammable materials
The coolant circuit of this unit contains the refrigerant lsobutane (R600a),a natural gas that-is
flammable and of high environmental compatibility. Make sure no parts of the coolant circuit
get damaged-during transport and installation of the appliance.
6
1
2
3
4
5
6
7
INSTALLATION INSTRUCTIONS
Before Using Your Wine Cool e
7
r
Remove the exterior and interior packaging.
Check to be sure you have all of the following parts:
IMPORTANT: Before connecting this wine cooler to a power source, let it stand upright for
approximately 24 hours. This will reduce the possibility of a malfunction in the cooling
system from handling during transportation.
Clean the interior s
urface with lukewarm water using a soft cloth.
Install the handle on the left side of the door.

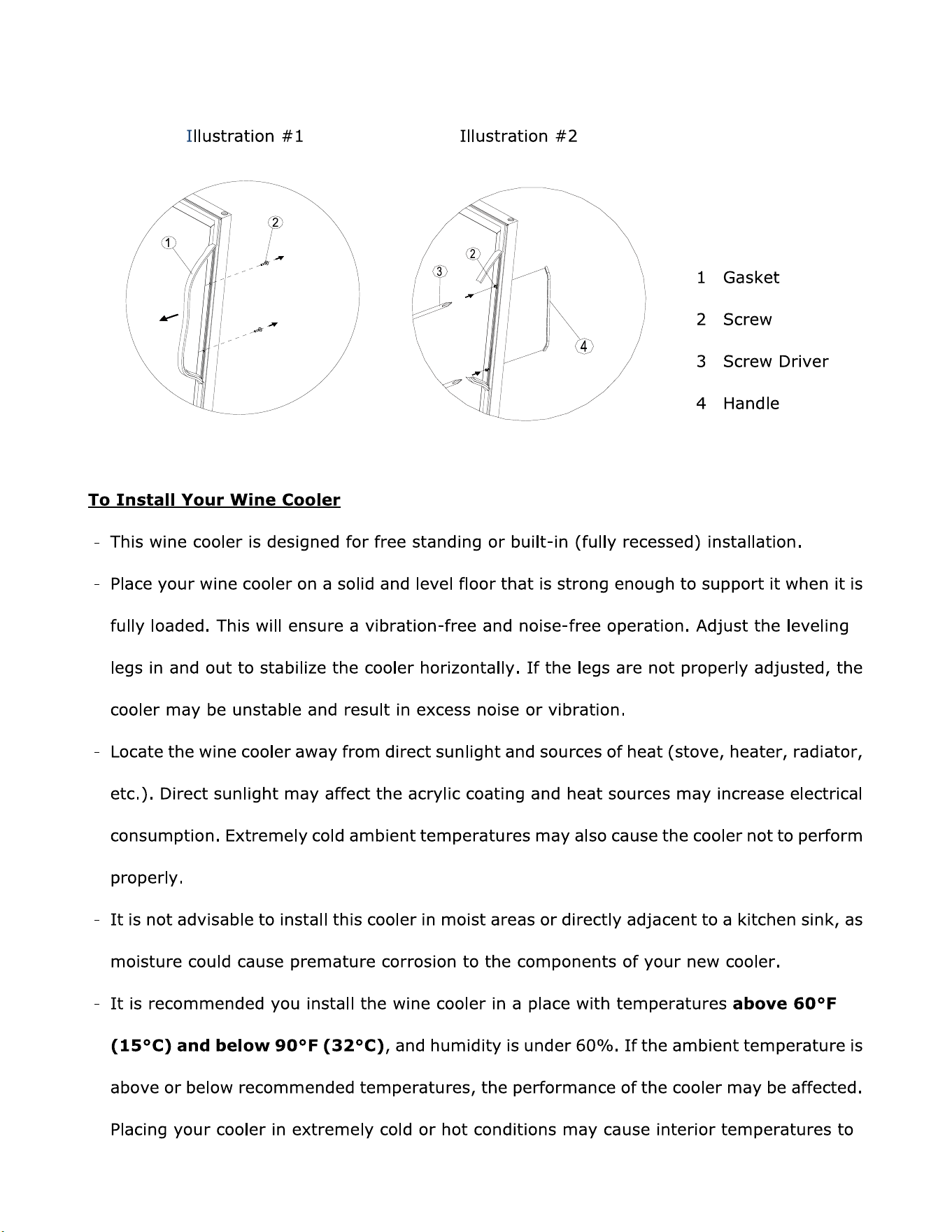

To Install Stainless Steel Handle
1) Pull
away the door gasket in the area where the handle is to be installed, as Illustration #1.
The gasket is easily removed by hand, no tools are necessary.
2) Align the handle with the pre-installed screws on the door frame. Tighten the screws with a
screwdriver until the handles secure tightly against the door frame, as Illustration #2. (Do NOT
ove
r tighten as this will cause damage to the handle assembly).
3) Replace the door gasket to its original position.
Note: This wine cooler
includes stainless steel handles that are not required to operate this wine
cooler. If you choose not to use the handle supplied, simply follow step 1 to access the
pre-installed screws and remove them and then place 2 decorative plugs (NOT included) into the
two holes separately. Continue on to step 3 to replace the door gasket to its original
position
o
16 Shelves
o 2 Keys
o
Stainless Steel Handle
o
Instruction Manual
o
2 Extra Screws for Installing Handle
.
-
-
-
-
-
8
fluctuate, and the temperature range of 5ºC-18ºC (40ºF- 65ºF) may no t be reached
9
.
Connect the wine cooler to an exclusive, properly grounded, standard electrical supply (115
V AC only, 60 Hz), in accordance with the National Electric al Code and local codes and
ordinances. Any question s concerning power and/or groundin g should be directed toward a
certified electrician or an aut ho rized product s service center.
Warning: Improper use of the grounded plug can result in the risk of electrical shock. If the
power cord is damaged, have it replaced by an authorized service center.
The wine cooler should always be plugged into its own individual electrical outlet which
has a voltage rating that matches the rating label on the wine cooler. This provides the
best performance and also prevents overloading house wiring circuits that could cause a
fire haza rd from ove rheated.
Do not under any circumst
ances cut or remove the third ground prong from the power
cord supplied.
Do not use an extension cord or adapter plug. However, if you must use an extension
cord, it is absolutely necessary that it be a U L-l isted, 3-wire grounding type wine cooler
extension cord having a grou nding type plug and outlet and that the electrical rating of
the cord is 10 amperes (minimum) and 115 volts.
Do not use a cord that shows cracks or abrasion damage along its le ngth or at either end.
If the wine co
oler is going to be used in an area that is prone to power surges/outages,
it is suggested that you use a power surge protector. The surge protector that you select
must have a surge block high enough to protect the wine cooler it is connected to.
Damages due to power surges are not considered a manufacturer covere d defe ct and
will void your product warranty.
-
.
.
.
.
.
10
E
11
Shelves
12
This wine cooler is equipped with a sliding rail assembly and you can move the shelves out and
in smoothly.
The slide-out shelves allow bottles of wine to be viewed and removed more easily . Any of the
shelves can be remov e d to store larger bottles.
To prevent damaging the door gasket, make sure to have the door all the way opened when
pulling shelves out of the rail compartment. For easy access to the bottles , you may need to pull
the shelves approximately 1/2 out of the rail compart
ment.
To Remove a Sliding Shelf
1. Remo ve all bottles from the shelf.
2. Pull the shelf out as far as it will go.
3. Adjust the lever on each side of the shelf, as shown below (UP on the left, DOWN on the right )
and at the same time, pull the shelf out completely.
13
Moving Your Wine Cooler
14
Remove all items (bottles) from the cooler;
Securely tape down any loose items, such as shelves, inside the cooler.
Turn the adjustable leg up to the base to avoid damage.
Tape the door shut.
Ensure that the wine cooler stays securely in the upright position during transportation.
Protect the outside of the wine cooler with a blanket or a similar item.
Energy saving tips
- The cooler should be located in the coolest area of the room away from heat sources or direct
sunlight.
- Ensure that the cooler is adequately ventilated. Never cover air vents.
- Only open the cooler door for as long as necessary. Frequent opening of the door will affect
internal temperature.
Charcoal filtration system
Your wine is a living object that breathes through the cork of its bottle. In order to preserve the
quality and taste of your fine wines, they must be stored at the ideal temperature and ambient
conditions. Your wine cooler is equipped with an active charcoal filtration system to ensure air
purity, cooling efficiency, and to maintain an odor free cabinet for the storage of your fine wines.
To replace the filte
15
r
1
Remove the bottles of wine stored on the two (2)
shelves in front of the filter.
Turn Left to remove filter.
2
Remove the shelves and set aside to be replaced
once you have changed the filter
3
Hold the filter and turn it at 45 degrees in the
counter-clockwise direction and then pull it out.
4
Remove the existing filter and replace with a new
one.
5
Put the new filter into the hole and then turn the
filter at 45 degrees in clockwise direction.
TROUBLESHOOTING GUID
16
E
PROBLEM POSSIBLE CAUSE SOLUTION
The wine cooler
does not run.
The wine cooler may not be plugged
in, or p l ug may be loose.
Ensure the wine cooler has been
plugged in properly.
The wine cooler is turne d off.
Press to t urn on the cooler.
House fuse blown or tripped circuit
breaker.
Check/replace fuse. Reset circuit
breaker.
The wine cooler
is not cold
enough.
External environment may require a
higher setting.
Set a colder setting. Allow several hours
for the temperature to stabi
lize.
The wine cooler has recently been
disconnected for a period of time.
It takes 3-4 hours for the Wi ne Cooler to
cool down completely.
Prolonged or frequent door
openings.
Open the door less often.
The door is not closed compl etely. Close the door properly.
The door gasket does not seal
properly.
Check the door gasket. Clean or change
gasket if necessary.
The compressor
turns on and off
frequently.
The room temperature is hotter than
normal.
It’s normal for the wine cooler
to work
harder under these conditions.
A large amount of contents has been
added to the cooler.
A large amount of contents cause the
wine cooler to run more until the
desired temperature is reached.
Prolonged or frequent door
openings.
Open the door less often.
The temperature has not been set
correctly.
Press either or to check
the set temperature, and set the
temperature properly.
The door is not closed compl etely. Close the door properly.
The door gasket does not seal
prope
rly.
Check the door gasket. Clean or change
gasket if necessary.
PROBLE
17
M POSSIBLE CAUSE SOLUTION
The light does not
work.
Not plugged in. Plug the cooler in.
The circuit breaker tripped
or a blown fuse.
Check the breaker and/or fuses.
The light button is “OFF”.
Press to turn the light ON.
Vibrations.
The cooler is not leveled. Check to assure that the cooler is level.
The bottles are vibrating.
Make sure the bottles don
’
t touch each
others.
There is an object under the
cooler.
Remove the object under the cooler.
The cooler seems to
make too m
uch
noise.
The cooler is not level. Level the cooler.
Normal noise from the flow
of the refrigerant
The rattling noise may come from the flow
of the refrigerant, which is normal. As each
cycle ends, you may hear gurgling sounds
caused by the flow of refrigerant in your
cooler. Contraction and expansion of the
inside walls may cause popping and
crackling noises.
The door will not
close properly.
The cooler is not level. Level the cooler.
The door was reversed and
not properly inst
alled.
Re-install the door properly.
The gasket is dirty. Clean the door gasket.
The shelves are out of
position.
Place the shelves properly.
Moisture build up on
interior or
exterior of the wine
cooler.
This is normal during high
humidity periods.
Lower the room humidity.
This is normal in high
temperature environment.
Move the cooler to a cooler place, and avoid
heat and sunlight.
Prolonged or frequent door
openings.
Open the door less often.
The door does not seal
complet
ely.
Check door gaskets for proper seal.
Error Code:
E1 -E3
Temperature sensor failure.
Contact the customer service
Evaporator temperature
sensor failure.
18
Warranty Terms
Warranty Period
in the product within 15 days upon receipt of the product.
Warranty Exclusions
1. Products subjected to unauthorized repair, misuse, collision, neglect, mishandling, soaking, accident,
2. Products subjected to improper use or whose labels or security tags have been torn off or altered.
3. Products whose warranty has expired.
4. Products damaged due to force majeure, such as fire, flood, lightening, etc.
Warranty Claim Procedure
can always contact our customer service through email at [email protected].
2. Our customer service will guide you through the whole service procedure regarding any product
issue or problem you have encountered.
We reserve the right to reexamine damaged or returned products.
Contact Card
