NOTES

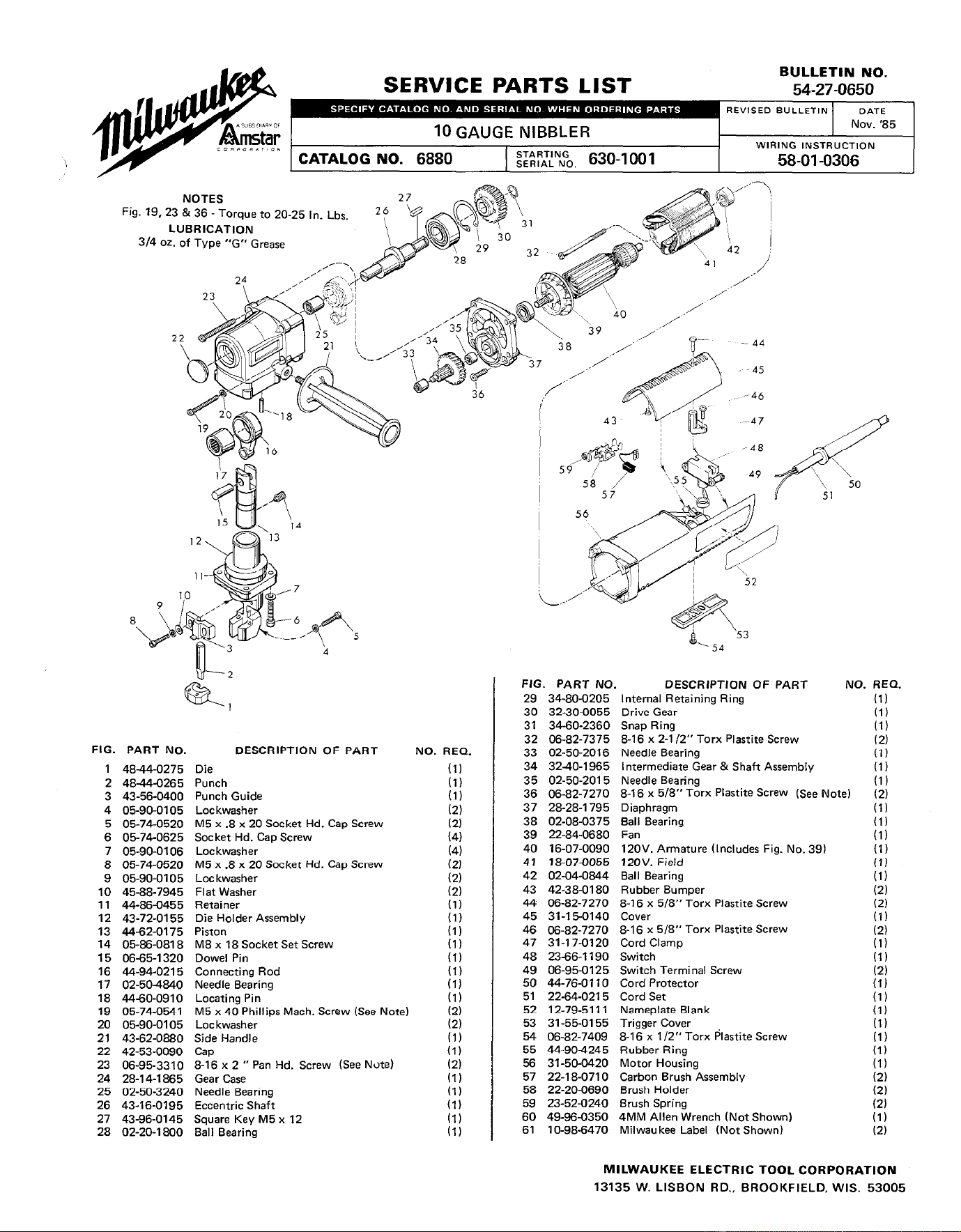

SERVICE PARTS LIST
BULLETIN NO.
54-27-0650
8
5
Fig. 19.23 & 36 - Torque to 20-25 In. Lbs.
LUBRICATION
2
314 oz. of Type “G” Grease
FIG. PART NO.
DESCRIPTION OF PART
NO. REQ.
1 48440275
2 48-44-0265
3 43-56-0400
4 05-90-0105
5 05-74-0520
6 05-74-0625
7 05-90-0106
8 05-74-0520
9 05-90-0105
10 45-88-7945
11 44-86-0455
12 43-72-0155
13 44-62-0175
14 05-86-0818
15 06-65-I 320
16 44-94-0215
17 02-504840
18 4450-0910
19 05-74-054 1
20 05-90-0105
21 43-62-0880
22 42-53-0090
23 06-95-3310
24 28-14-1865
25 02-503240
26 43-16-0195
27 43-96-0145
28 02-20-I 800
Die
Punch
Punch Guide
Lockwasher
M5 x .8 x 20 Socket Hd. Cap Screw
Socket Hd. Cap Screw
Lockwasher
M5 x .8 x 20 Socket Hd. Cap Screw
Lot kwasher
Flat Washer
Retainer
Die Holder Assembly
Piston
M8 x 18 Socket Set Screw
Dowel Pin
Connecting Rod
Needle Bearing
Locating Pin
M5 x 40 Phillips Mach. Screw (See Note)
Lockwasher
Side Handle
CaP
8-16 x 2 ” Pan Hd. Screw (See Note)
Gear Case
Needle Bearing
Eccentric Shaft
Square Key M5 x 12
Ball Bearing
(I)
(I)
(1)
(2)
(2)
(4)
(4)
(2)
(2)
(2)
(1)
(1)
(I)
(1)
(1)
(1)
(1)
(I)
(2)
(2)
(1)
(I)
(2)
(I)
(1)
(I)
(I)
(I)
FIG. PART NO.
DESCRIPTION OF PART NO. REQ.
29 34-80-0205
Internal Retaining Ring
(1)
30
32-30-0055 Drive Gear
(1)
31 34-60-2360 Snap Ring
(I)
32 06-82-7375
8-16 x 2-l /2” Torx Plastite Screw
(2)
33
02-50-2016
Needle Bearing
(1)
34 3240-l 965
intermediate Gear & Shaft Assembly
(1)
35 02-50-2015 Needle Bearing
(1)
36 06-82-7270
8-l 6 x 5/8” Torx Plastite Screw (See Note)
(2)
37 28-28-l 795 Diaphragm
(1)
38 02-08-0375 Ball Bearing
(1)
39 22-84-0680 Fan
(I)
40
16-07-0090 120V. Armature (Includes Fig. No. 39)
(1)
41
18-07-0055 12OV. Field
(1)
42 02-04-0844 Ball Bearing
(1)
43
42-3 8-O 180 Rubber Bumper
(2)
44
06-82-7270
8-l 6 x 5/8” Torx Plastite Screw
(2)
45 31-150140 Cover
(I)
46 06-82-7270
8-16 x 5/8” Torx Plastite Screw
(2)
47 31-17-0120 Cord Clamp
(I)
48
23-66-l 190 Switch
(1)
49
06-95-0125 Switch Terminal Screw
(2)
50 44-76-01 IO Cord Protector
(I)
51
22-64-0215 Cord Set
(1)
52 12-79-5 Ill Nameplate Blank
(I)
53 31-55-0155 Trigger Cover
(1)
54
06-82-7409
8-16 x l/2” Torx Plastite Screw
[I)
55 44-904245 Rubber Ring
(I)
66 31-50-0420 Motor Housing
(1)
57 22-l 8-0710
Carbon Brush Assembly
(2)
58
22-20-0690 Brush Holder
(2)
59
23-52-0240 Brush Spring
(2)
60 49-96-0350
4MM Allen Wrench (Not Shown)
(I)
61 1 o-98-6470
Milwaukee Label (Not Shown)
(2)
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD. WIS. 53005
