MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 1
BULLETIN NO.
WIRING INSTRUCTION
REVISED BULLETIN DATE
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
FIG. NOTES
46 Torque to 20-25 in./lbs.
FIG. LUBRICATION
6 3/4 Oz. Type "G" Grease, No. 49-08-4140.

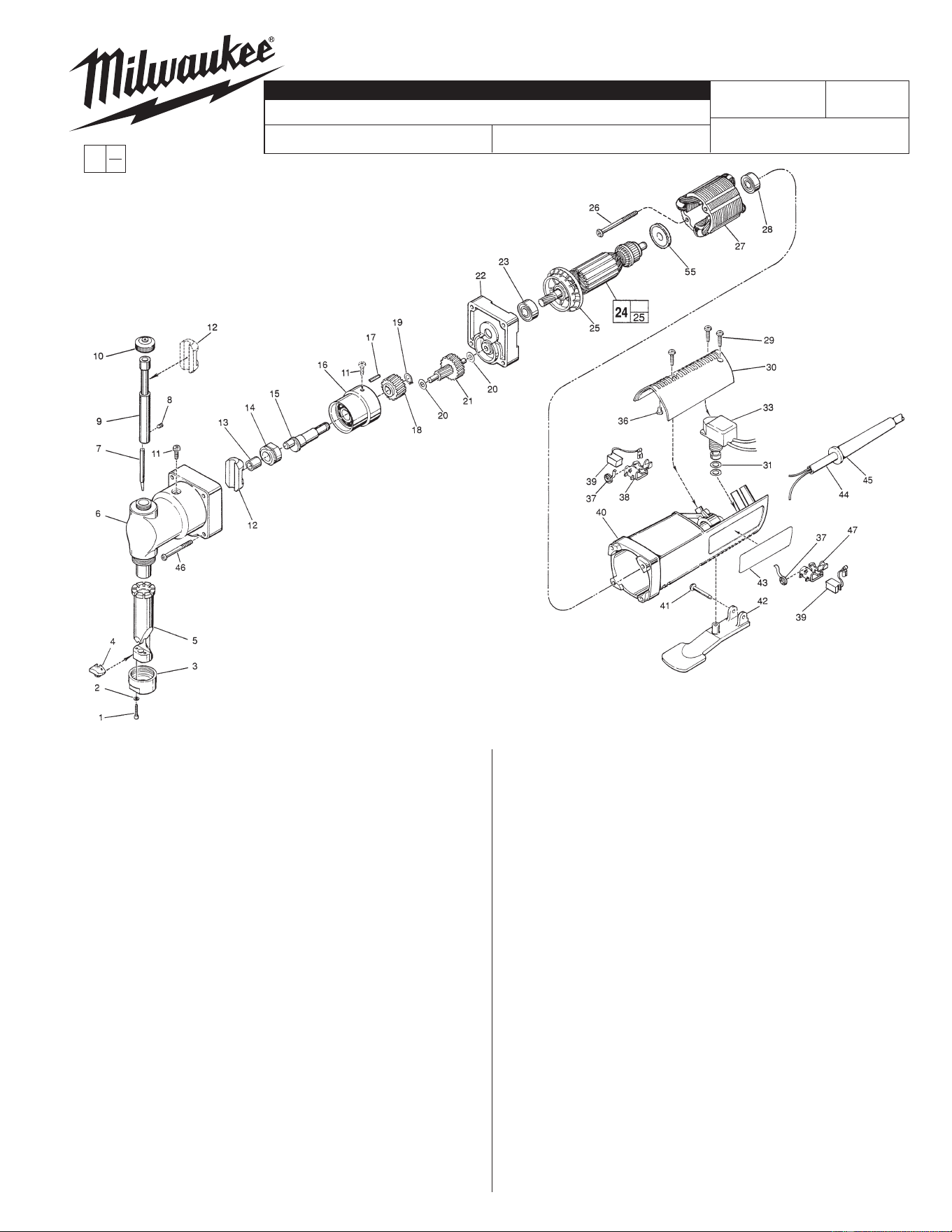

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 05-74-0300 Socket Head Cap Screw (2)
2 05-90-0003 Lockwasher (2)
3 44-86-0450 Retainer (1)
4 48-44-0270 Die (1)
5 43-72-0150 Die Holder (1)
6 28-14-1860 Gear Case (1)
7 48-44-0260 Punch (1)
8 05-86-0508 Socket Set Screw (1)
9 44-62-0170 Piston (1)
10 42-52-0310 Metal Cap (1)
11 05-81-0720 Screw (1)
12 42-50-0190 Cam Guide (1)
13 02-50-2460 Needle Bearing (1)
14 42-50-0200 Cam Holder (1)
15 43-16-0190 Eccentric (1)
16 43-72-0140 Bearing Holder - Complete (1)
17 43-96-0140 Square Key (1)
18 32-30-0050 Drive Gear (1)
19 34-60-2355 External Snap Ring (1)
20 45-88-7925 Thrust Washer (2)
21 32-40-1960 Intermediate Gear & Shaft Assembly (1)
22 28-28-1790 Diaphragm with Bushing (1)
23 02-04-0847 Ball Bearing (1)
24 16-07-0037 120 Volt Armature (1)
25 22-84-0680 Fan (1)
26 06-82-7375 8-16 x 2-1/2" Plastite T-20 Screw (2)
27 18-07-0037 120 Volt Field (1)
28 02-04-0850 Ball Bearing (1)
29 06-82-7270 8-16 x 5/8" Plastite T-20 Screw (3)
30 31-15-0143 Cover (1)
31 34-40-4015 O-Ring (2)
54-27-0642
SERVICE PARTS LIST 54-27-0643
58-01-0309
Aug. 2008
CATALOG NO. 6890
734B
STARTING
SERIAL NO.
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
16 GAUGE NIBBLER
00
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
33 23-66-2181 Switch (1)
36 42-38-0181 Rubber Bumper (2)
37 23-52-0240 Brush Spring (2)
38 22-20-0692 Right Brush Holder (1)
39 22-18-0710 Carbon Brush Assembly (2)
40 31-50-0426 Motor Housing (1)
41 06-72-0815 Tapered Rivet (1)
42 31-92-0225 Trigger Paddle (1)
43 12-20-0570 Service Nameplate Kit (1)
44 22-64-0215 Cord Set (1)
45 44-76-0130 Cord Protector (1)
46 06-82-7395 8-16 x 1-3/4" Taptite T-20 Screw (4)
47 22-20-0691 Left Brush Holder Assembly (1)
55 23-16-1670 Commutator Insulator (1)
49-96-4725 Plate Wrench (1)
= Part number change from
previous service parts list.
