MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. Lisbon Road, Brookfi eld, WI 53005
Drwg. 3
BULLETIN NO.
54-24-2603

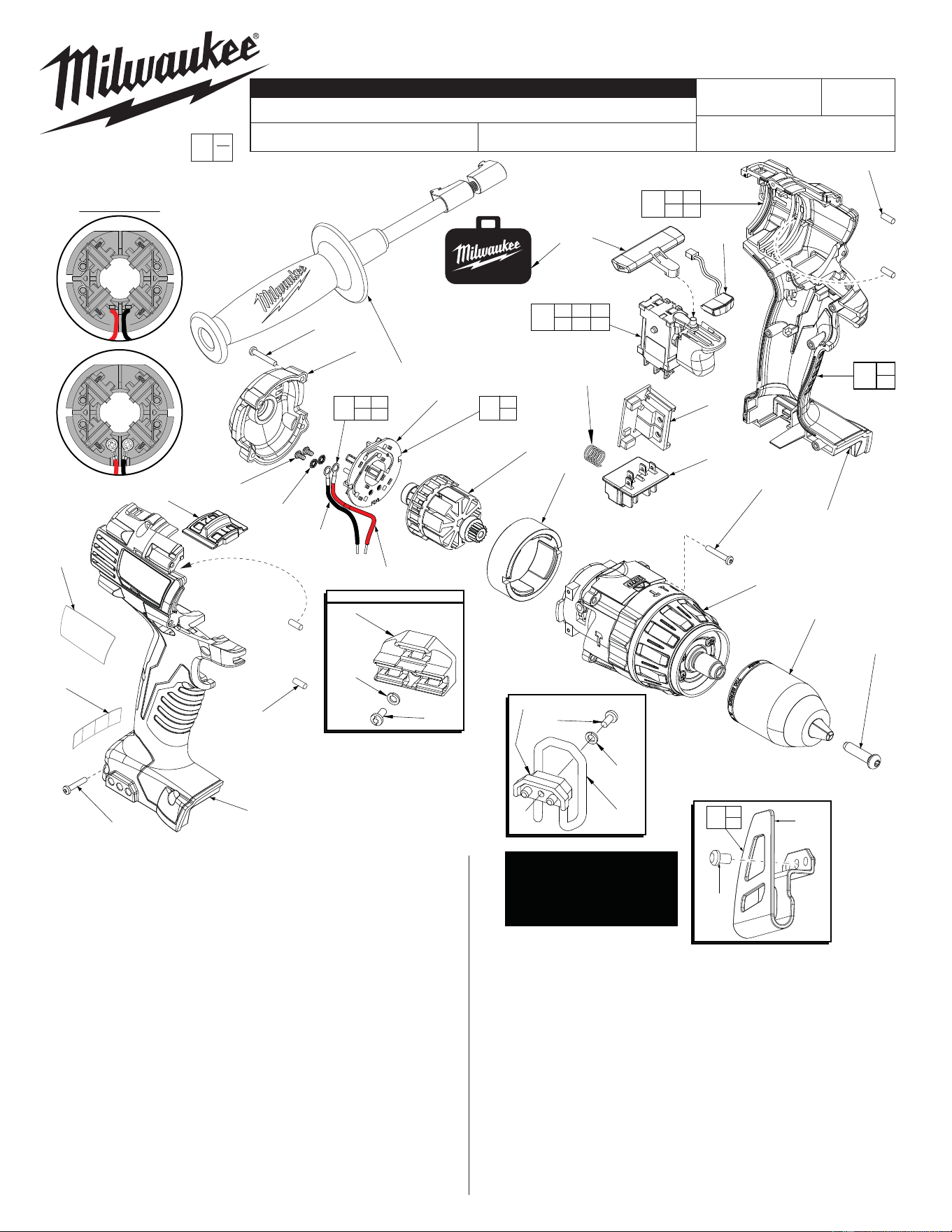

SERVICE PARTS LIST
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 05-88-1500 M6 x 1.0 LH Chuck Screw w/ locking patch (1)
2 42-66-0785 1/2” Keyless Chuck (1)
3 06-82-6350 M3 x 16 Pan Hd. Plastite T-10 Screw (7)
4 18-01-3016 Service Field (1)
5 16-01-3015 Service Armature Assembly (1)
6 --------------- Brush Card (1)
7 45-24-0250 High / Low Shifter (1)
8 42-42-0850 Forward / Reverse Button (1)
9 23-66-1236 Service Switch Assembly (1)
10 40-50-1090 Compression Spring (1)
11 10-20-2695 Warning Label (1)
12 45-30-0270 Rubber Slug (4)
13 --------------- PCBA (1)
14 05-88-0675 M3.0 x 20mm End Cap/Gearcase Scr T-10 (8)
15 --------------- Left Handle (1)
16 --------------- Right Handle (1)
17 42-50-1060 End Cap (1)
18 --------------- LED Assembly (1)
19 --------------- Terminal Block Assembly (1)
22 12-20-2602 Service Nameplate Kit (1)
23 14-29-0376 Service Gearcase Assembly (1)
24 31-44-2635 Service Housing Kit (1)
25 42-55-2603 Carrying Case, Optional (1)
28 23-66-1237 Switch and Housing Kit (1)
29 42-62-0526 Side Handle Assembly (1)
CATALOG NO. 2602-20
REVISED BULLETIN
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
M18 1/2" COMPACT HAMMER-DRILL
STARTING
SERIAL NO.
DATE
Aug. 2014

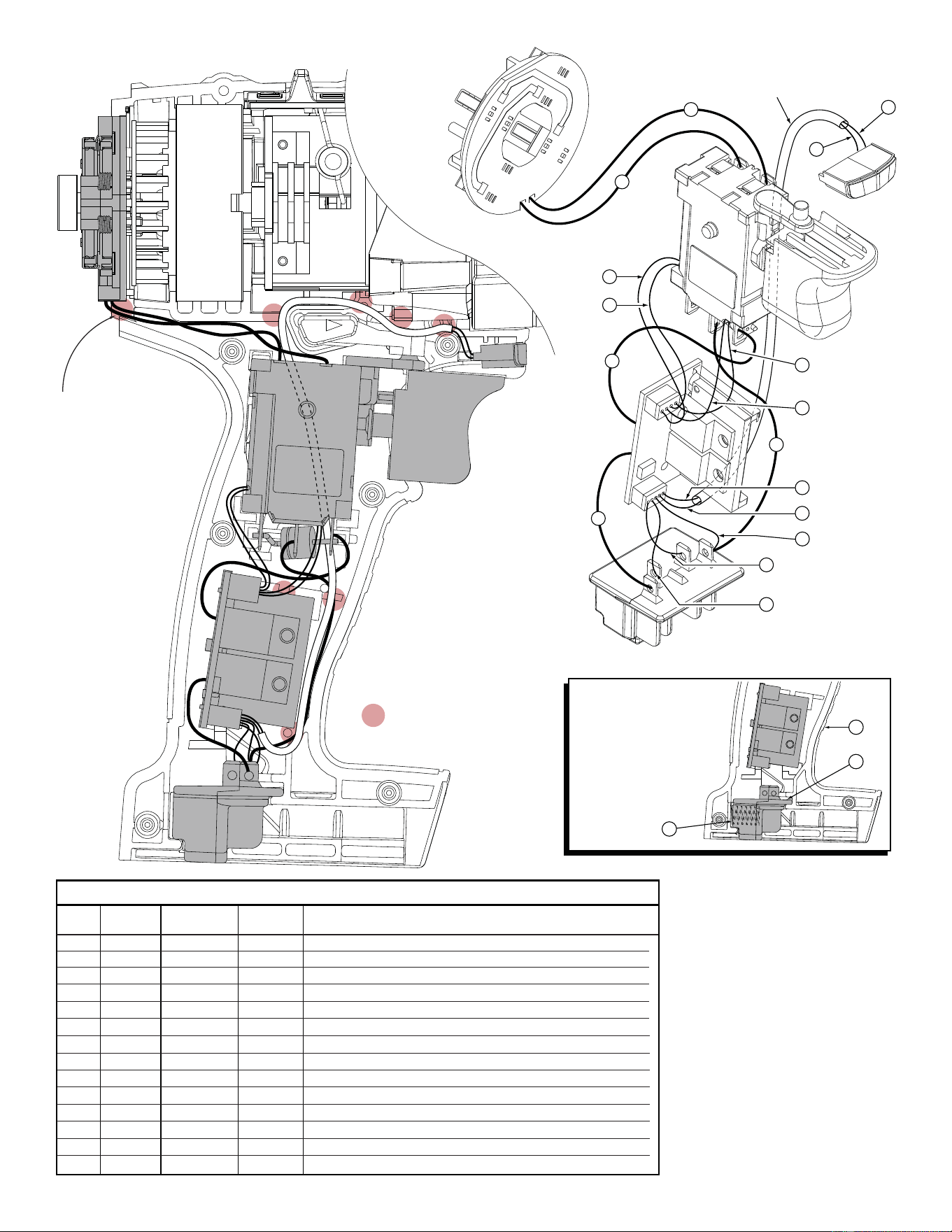

WIRING INSTRUCTION
C15D
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
0
00
SEE PAGE 3
54-24-2602
25
= Part number change
from previous service
parts list.
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
31 43-72-0550 Bit Holder, Optional (1)
32 45-88-1935 Washer, Optional (1)
33 06-82-5275 6-32 x 5/16” Pan Hd. T-15 Screw, Optional (2)
34 42-70-5150 Belt Hook, Optional (1)
72 05-88-0928 M3 x 5mmPan Hd. T10 Screw (2)
73 45-88-1980 Spring Washer (2)
74 --------------- Leadwire Assembly - Red (1)
75 --------------- Leadwire Assembly - Black (1)
76 14-46-2399 Leadwire/Screw/Washer Kit (1)
77 14-46-2012 Brush Card Assembly (1)
80 42-70-2653 Belt Clip Assembly (1)
81 --------------- Belt Clip (1)
82 --------------- Belt Clip Screw (1)
31
32
33
33
32
34
Belt Clip No. 42-70-5150
80
81
82
81
82
= Optional, Not
Standard Equipment
There are 2 belt clip designs
for this tool. The inital design,
Belt Clip #34, 42-70-5150 is
being discontinued and re-
placed by Belt Clip Assembly
#80, 42-70-2653.
S
= Optional, Not
Standard Equipment
S
S
S
BIT HOLDER, OPTIONAL
S
S
S
S
S
10
6 13 18
19 76
9
1
2
23
4
5
19
14
15
8
17
14
22
11
3
12
16
18
13
12 15
16 17
24
12
9
24
28
29
6
7
72
(2x)
73
(2x)
75
74
77
6
76
76
72 73
74 75
Soldered
L
Screwed
#77 Two styles
of Brush Card
Assemblies
See Page Two
*
*
L
Soldered-
Original design
Screwed-
New design
Back View

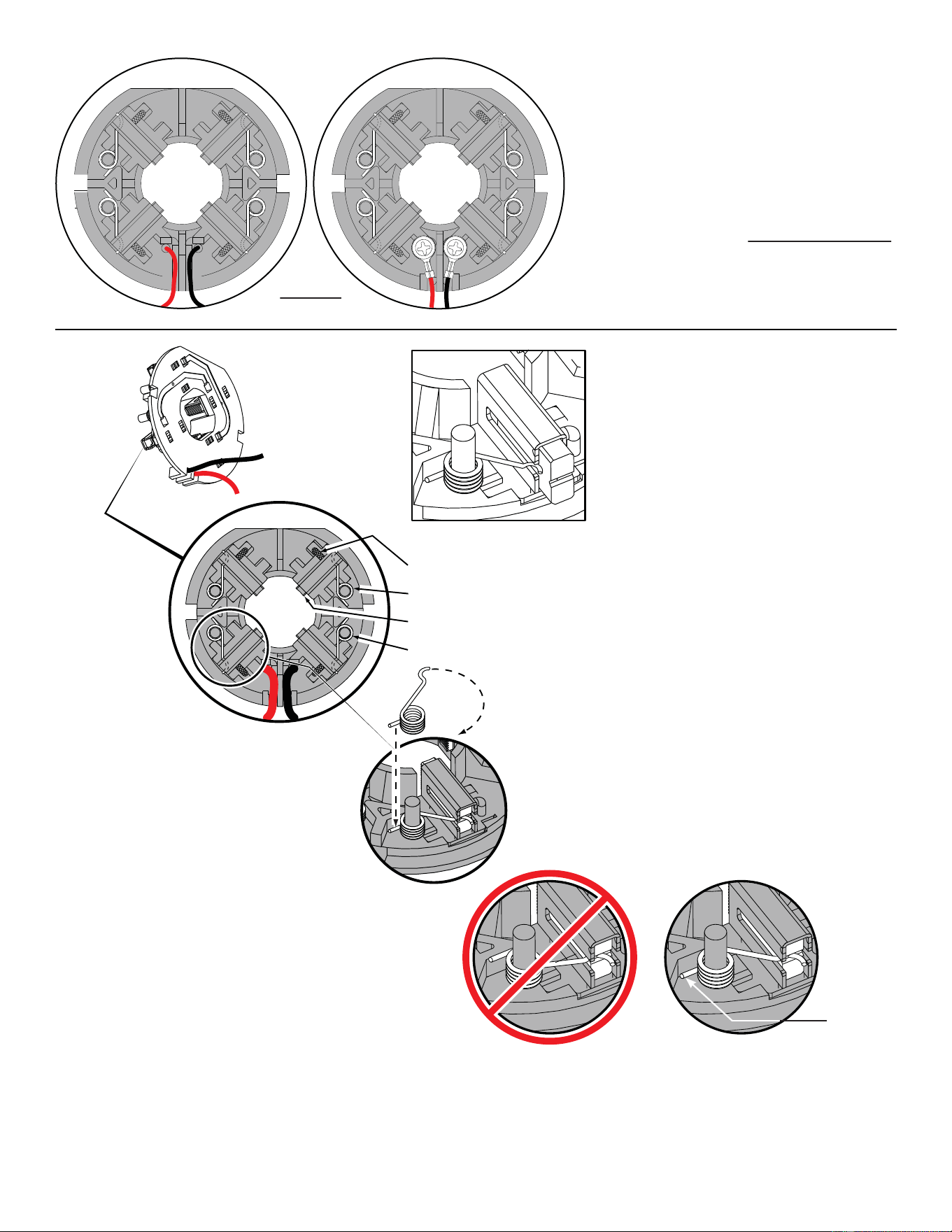

Brush Card Assemblies
NOTE:
There are two Brush Card Assembly designs.
On the original brush card design the red and black wires
that go to the switch are soldered on the brush card.
On the new brush card design the red and black wires
that go to the switch are secured to the brush card with
spring washers and screws.
The new brush card design is directly interchangeable
in tools that have the old brush card design.
Be sure carbon
brush is in brush tube
with brush shunt moving
freely in side groove of tube.
Place brush spring over post with short leg
positioned downward as shown. Be sure spring
is completely down with short leg trapped against
'Y' shaped wall on brush card.
While holding spring in place, bring the long leg of
spring over the brush tube and through rear opening
of tube. Position rounded hook of spring in groove on
back of carbon brush. Be sure to check for free move-
ment between carbon brush, brush shunt and brush spring.
Brush Card Assy.
Brush Shunt (4 places)
Right Brush Spring (2x)
Carbon Brush (4x)
Left Brush Spring (2x)
Red
Black
CorrectWrong
Short leg of
spring to the
bottom
NOTE:
As an aid to prevent damage to the armature
commutator or the brushes when removing and
installing the armature assembly, it is recommended to
pull the carbon brushes partially back into the brush
tube. The carbon brushes will be held in place with the
brush spring moving from the rear of the brush to the
side of the brush.
In the unlikely event that the spring pops off follow the
instructions below.
= WIRE TRAPS
Watch for pinched
wires in this area.
13
3
4
5
2
1
14
13
14
12
11
10
7
9
6
8
Sleeve
Black
Orange
Orange
White
Black
Blue
Red
Yellow
Blue
Red
Brown
Green
BRUSH CARD
ASSEMBLY
LED
SWITCH
PCBA
TERMINAL
BLOCK
ASSEMBLY
1 Black ----- ----- Component of Brush Card Assy. Connect to M2 on Switch.
2 Red ----- ----- Component of Brush Card Assy. Connect to M1 on Switch.
3 Red ----- ----- Component of Switch/Brush Card/Terminal Block Assembly.
4 Black ----- ----- Component of Switch/Brush Card/Terminal Block Assembly.
5 Orange ----- ----- Component of Switch/Brush Card/Terminal Block Assembly.
6 Orange ----- ----- Component of Switch/Brush Card/Terminal Block Assembly.
7 Green ----- ----- Component of Switch/Brush Card/Terminal Block Assembly.
8 White ----- ----- Component of Switch/Brush Card/Terminal Block Assembly.
9 Brown ----- ----- Component of Switch/Brush Card/Terminal Block Assembly.
10 Black ----- ----- Component of Switch/Brush Card/Terminal Block Assembly.
11 Blue ----- ----- Component of Switch/Brush Card/Terminal Block Assembly.
12 Red ----- ----- Component of Switch/Brush Card/Terminal Block Assembly.
13 Blue ----- ----- Component of Switch/Brush Card/Terminal Block Assy. (LED)
14 Yellow ----- ----- Component of Switch/Brush Card/Terminal Block Assy. (LED)
Terminals, Connectors and 1 or 2 End Wire Preparation
Wire
Color
Origin or
Gauge
Wire
No.
Length
WIRING SPECIFICATIONS
NOTE:
Compression spring (10)
is positioned between the
bottom/back of the left
housing half (15) and the
back of the terminal
block assembly (19)
as shown.
*
10
15
19
