Operating and installation
instructions
Wine conditioning unit
To avoid the risk of accidents or damage to the appliance it is essen-
tial to read these instructions before it is installed and used for the
first time.
en-GB, ZA M.-Nr. 10 531 901
Contents
2
Warning and Safety instructions ............................................................................... 5
Caring for the environment......................................................................................... 14
Saving energy................................................................................................................. 15
Guide to the appliance................................................................................................. 16
Control panel...................................................................................................................
16
Symbols ...........................................................................................................................
17
Using the door-opening mechanism correctly...........................................................
19
Accessories.................................................................................................................... 20
Accessories supplied.....................................................................................................
20
Optional accessories .....................................................................................................
20
Switching on and off..................................................................................................... 21
Before using for the first time.......................................................................................
21
Operating the wine conditioning unit..........................................................................
21
Switching the wine conditioning unit on ............................................................... 21
Switching the wine unit off...................................................................................... 22
Switching off for longer periods of time......................................................................
23
Selecting further settings............................................................................................ 24
Safety lock ..................................................................................................................
24
Audible tones............................................................................................................
25
Display brightness.....................................................................................................
26
The optimum temperature and air quality ............................................................... 27
The optimum temperature ............................................................................................
27
Setting the temperature .......................................................................................... 28
Temperature range.................................................................................................... 29
Temperature display ................................................................................................. 29
Air quality and humidity.................................................................................................
29
Using DynaCool (constant humidity) ............................................................... 30
Air filtration with the Active AirClean filters.......................................................... 30
Temperature and door alarm ...................................................................................... 31
Feature lighting.............................................................................................................. 33
Switching the feature lighting on and off ....................................................................
33
Setting the brightness of the feature lighting....................................................... 33
Lighting duration of the feature lighting................................................................. 34
Contents
3
Storing wine bottles ..................................................................................................... 35
Wooden shelves .............................................................................................................
36
Moving the wooden shelves ................................................................................... 36
Adjusting the wooden shelves................................................................................ 37
Annotating wooden shelves.................................................................................... 38
Inserting the decor shelf.......................................................................................... 38
Maximum capacity.........................................................................................................
38
Automatic defrosting.................................................................................................... 39
Cleaning and care ......................................................................................................... 40
Cleaning agents ..............................................................................................................
40
Before cleaning the wine unit .......................................................................................
41
Interior, accessories and appliance door ....................................................................
41
Cleaning the ventilation gaps .......................................................................................
41
Cleaning the door seal...................................................................................................
41
Cleaning the air filter......................................................................................................
41
After cleaning ..................................................................................................................
41
Active AirClean filters................................................................................................... 42
Replacing the Active AirClean filter .............................................................................
42
Problem solving guide.................................................................................................. 43
Noises.............................................................................................................................. 48
After sales service and warranty ............................................................................... 49
Contact in the event of a fault......................................................................................
49
EPREL database .............................................................................................................
49
Warranty ..........................................................................................................................
49
Installation...................................................................................................................... 50
Location ...........................................................................................................................
50
Side-by-side....................................................................................................................
51
Climate range..................................................................................................................
51
Ventilation........................................................................................................................
52
Door opening angle limiter............................................................................................
52
Installation dimensions .................................................................................................
53
View from above ....................................................................................................... 54
Adjusting the door hinges .............................................................................................
55
Changing the door hinging ............................................................................................
55
Contents
4
Installing the wine conditioning unit............................................................................
60
Before installing the wine conditioning unit.......................................................... 60
Setting up the wine conditioning unit.................................................................... 61
Push the wine conditioning unit into the niche.................................................... 63
Secure the wine conditioning unit in the niche.................................................... 64
Electrical connection .....................................................................................................
67
Information for dealers ................................................................................................ 68
Demo mode .................................................................................................................
68
Warning and Safety instructions
5
This wine conditioning unit complies with all current local and na-
tional safety requirements. Inappropriate use can, however, lead to
personal injury and material damage.
Read the operating and installation instructions carefully before us-
ing the wine conditioning unit. They contain important information
on safety, installation, use and maintenance. This is to protect
yourself from injury, and from damaging your wine conditioning
unit.
In accordance with standard IEC60335-1, Miele expressly and
strongly advises that you read and follow the instructions in the
chapter on installing the wine conditioning unit as well as the
safety instructions and warnings.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any fu-
ture owner.
Danger of injury from broken glass.
If installed at altitudes above 1500m there is a risk of the glass in
the door breaking because of changes in air pressure.
Shards of glass can cause severe injury.
Warning and Safety instructions
6
Correct application
This wine conditioning unit is intended for use in the home and in
similar environments, for example
– in shops, offices and similar work settings
– by the guests in hotels, motels, bed & breakfasts and other typical
home settings.
This wine conditioning unit is not intended for outdoor use.
The wine conditioning unit is intended for domestic use only for
storing wine.
It must not be used for any other purpose.
The wine conditioning unit is not suitable for storing and keeping
cool medicines, blood plasma, laboratory preparations or other such
materials or products. Incorrect use of the wine conditioning unit for
such purposes can cause deterioration of the items stored. The wine
conditioning unit is not suitable for use in areas where there is a risk
of explosion.
Miele cannot be held liable for damage resulting from improper or in-
correct use of the appliance.
This wine conditioning unit may only be used by people (including
children) with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they are supervised whilst using it.
The wine conditioning unit may only be used by these people without
supervision if they have been shown how to use it in a safe way and
recognise and understand the consequences of incorrect operation.
Warning and Safety instructions
7
Safety with children
Children under 8years of age must be kept away from the wine
conditioning unit unless they are constantly supervised.
Children aged 8 and older may only use the wine conditioning unit
without supervision if they have been shown how to use it in a safe
manner. Children must be able to understand and recognise the pos-
sible dangers caused by incorrect operation.
Children must not be allowed to clean or maintain the wine condi-
tioning unit unsupervised.
Please supervise children in the vicinity of the wine conditioning
unit and do not let them play with it.
Danger of suffocation! Whilst playing, children could become en-
tangled in packaging (such as plastic wrapping) or pull it over their
head and suffocate. Keep packaging material away from children.
Warning and Safety instructions
8
Technical safety
The refrigerant circuit has been checked for leaks. The wine condi-
tioning unit complies with statutory safety requirements and the ap-
propriate EU directives.
This wine unit contains the refrigerant Isobutane (R600a), a nat-
ural gas which is environmentally friendly. The refrigerant does not
damage the ozone layer and does not contribute to the greenhouse
effect.
The use of this refrigerant has, however, led to a slight increase in the
noise level of the appliance. In addition to the noise of the com-
pressor, you might be able to hear the refrigerant flowing around the
cooling circuit. Unfortunately, this cannot be avoided, but it does not
affect the performance of the wine unit.
When transporting and installing the wine unit, ensure that no parts
of the cooling circuit are damaged. Splashes of refrigerant can dam-
age the eyes.
In the event of damage:
- Avoid naked flames or anything which creates a spark.
- Disconnect the wine unit from the mains electricity supply.
- Ventilate the room where the wine unit is located for several
minutes.
- Contact the Miele Customer Service Department.
The more refrigerant there is in a wine unit, the larger the room it
should be installed in. In the event of a leakage, if the appliance is in a
small room, there is the danger of a combustible gas/air mixture
building up. For every 8g of refrigerant at least 1m
3
of room space is
required. The amount of refrigerant in the wine unit is stated on the
data plate inside the appliance.
Warning and Safety instructions
9
To avoid the risk of damage to the wine conditioning unit, make
sure that the connection data (fuse rating, frequency and voltage) on
the data plate corresponds to the household supply.
Check that this is the case before connecting the wine conditioning
unit. Consult a qualified electrician if in any doubt.
The electrical safety of the wine conditioning unit can only be guar-
anteed when correctly earthed. It is essential that this standard
safety requirement is met. If in any doubt please have the electrical
installation tested by a qualified electrician.
Temporary or permanent operation on an autonomous power sup-
ply system or a power supply system that is not synchronised with
the mains power supply (e.g. island networks, back-up systems) is
possible. A prerequisite for operation is that the power supply system
complies with the specifications of EN50160 or an equivalent stand-
ard.
The function and operation of the protective measures provided in
the domestic electrical installation and in this Miele product must
also be maintained in isolated operation or in operation that is not
synchronised with the mains power supply, or these measures must
be replaced by equivalent measures in the installation. As described,
for example, in the current version of BS OHSAS 18001–2 ISO
45001.
If the electrical connection cable is faulty it must only be replaced
by a Miele authorised service technician to protect the user from
danger.
Do not connect the wine conditioning unit to the mains electrical
supply by a multi-socket adapter or extension lead. These are a fire
hazard and do not guarantee the required safety of the appliance.
If moisture gets into electrical components, it could cause a short
circuit. Therefore, do not operate this wine conditioning unit in areas
which are exposed to moisture (e.g in a garage or utility room).
This wine conditioning unit must not be used in a non-stationary
location (e.g. on a ship).
Warning and Safety instructions
10
Do not use a damaged wine conditioning unit. It could be danger-
ous. Check the wine conditioning unit for visible signs of damage.
For safety reasons, this wine conditioning unit may only be used
after it has been built in.
The wine conditioning unit must be isolated from the electricity
supply during installation, maintenance and repair work.
Unauthorised installation, maintenance and repairs can cause con-
siderable danger for the user.
Installation, maintenance and repairs must only be carried out by a
Miele authorised technician.
While the wine conditioning unit is under warranty, repairs should
only be undertaken by a Miele authorised service technician. Other-
wise the warranty is invalidated.
Faulty components must only be replaced with genuine Miele ori-
ginal spare parts. Miele can only guarantee the safety standards of
the appliance when Miele replacement parts are used.
This wine unit is supplied with a special lamp to cope with particu-
lar conditions (e.g. temperature, moisture, chemical resistance, abra-
sion resistance and vibration). This lamp must only be used for the
purpose for which it is intended. The lamp is not suitable for room
lighting. Replacement lamps may only be fitted by a Miele authorised
technician or by the Miele Customer Service Department. This wine
unit contains several light sources with at least energy efficiency
classE.
Correct use
The wine conditioning unit is designed for use within a certain cli-
mate range (ambient temperatures), and should not be used outside
this range. The climate range for your wine conditioning unit is stated
on the data plate inside the appliance. Installing it in a room with too
low an ambient temperature, e.g. a garage, will lead to the wine con-
ditioning unit switching off for longer periods so that it cannot main-
tain the required temperature.
Warning and Safety instructions
11
Do not cover or block the air vents as this could impair the effi-
ciency of the appliance, increase the electricity consumption and
could cause damage to the components.
If the wine conditioning unit is used for storing food which con-
tains fat or oil, make sure that it does not come into contact with
plastic components. Any spillages of oil or fat could cause stress
cracks to the plastic and cause it to break or split.
Risk of fire and explosion. Do not store explosive materials in the
wine conditioning unit or any products containing propellants (e.g.
spray cans). Electrical components can cause flammable mixes of
gases to ignite.
Danger of explosion. Do not operate any electrical appliances in-
side the wine conditioning unit. Danger of sparking and explosion.
Accessories and spare parts
Only use original Miele accessories. If other parts are used, war-
ranty, performance and product liability claims will be invalidated.
Miele will guarantee to supply functional spare parts for a min-
imum of 10years and up to 15years following the discontinuation of
your wine unit.
Warning and Safety instructions
12
Cleaning and care
Do not use any oils or grease on the door seals, as these will cause
the seals to deteriorate and become porous with time.
Do not use a steam cleaning appliance to clean this wine condi-
tioning unit.
The steam could reach electrical components and cause a short cir-
cuit.
Sharp edged or pointed objects will damage the evaporator, caus-
ing irreversible damage to the wine conditioning unit. Do not use
sharp edged or pointed objects to
- remove frost and ice,
- remove labels, stickers etc.
Transporting the appliance
Always transport the wine conditioning unit in an upright position
and in its original transport packaging to avoid damage in transit.
Danger of injury and damage to the appliance. The wine condition-
ing unit is very heavy and must be transported by two people.
Disposing of your old appliance
Children playing could become trapped in the wine unit and could
suffocate.
- Remove the appliance door.
- Leave the wooden shelves in the wine unit so children cannot
climb inside.
- If your old wine unit has a door lock, destroy it. This will prevent
the risk of children playing accidentally locking themselves in the
appliance and endangering their lives.
Risk of electric shock!
- Cut the plug off the mains connection cable.
- Cut the mains connection cable off the old appliance.
Warning and Safety instructions
13
Dispose of everything separately from the old appliance.
During and after disposal, make sure that the wine unit is not
placed near petrol or other flammable gases and liquids.
Risk of fire due to escaping oil or refrigerant!
The refrigerant and oil inside the appliance are flammable. In high
enough concentrations, escaping refrigerant or oil may ignite if they
come into contact with an external heat source.
During disposal, make sure that the cooling circuit is not damaged in
order to prevent refrigerant and oil escaping in an uncontrolled man-
ner (see the data plate for details of the refrigerant).
Splashes of coolant can damage the eyes. Be careful not to dam-
age any part of the pipework whilst awaiting disposal, e.g. by
- puncturing the coolant channels in the condenser,
- bending any pipework, or
- scratching the surface coating.
Caring for the environment
14
Disposing of the packaging ma-
terial
The packaging material is used for hand-
ling and protects the appliance from
transport damage. The packaging ma-
terial used is selected from materials
which are environmentally friendly for
disposal and can generally be recycled.
Recycling the packaging material re-
duces the use of raw materials. Use ma-
terial-specific collection points for valu-
able materials and take advantage of re-
turn options. Your Miele dealer will take
the packaging material away.
Disposing of your old appliance
Electrical and electronic appliances con-
tain many valuable materials. They also
contain certain materials, compounds
and components which were essential
for their correct functioning and safety.
These could be hazardous to human
health and to the environment if dis-
posed of with household waste or if
handled incorrectly. Please do not,
therefore, dispose of your old appliance
with household waste.
Take care not to damage your refrigera-
tion appliance before or during disposal
in an authorised, environmentally
friendly manner.
This is to ensure that refrigerant in the
cooling circuit and oil in the compressor
is contained, and will not leak into the
environment.
Instead, please make use of officially
designated collection and disposal
points to dispose of and recycle elec-
trical and electronic appliances in your
local community, with your dealer or
with Miele, free of charge. By law, you
are solely responsible for deleting any
personal data from the old appliance
prior to disposal. You are legally obliged
to remove any old batteries which are
not securely enclosed by the appliance
and to remove any lamps without des-
troying them, where this is possible.
These must be taken to a suitable col-
lection point where they can be handed
in free of charge. Please ensure that
your old appliance poses no risk to chil-
dren while being stored for disposal.
Saving energy
15
Normal energy consump-
tion
Increased energy consump-
tion
Installation / Main-
tenance
In a ventilated room. In an enclosed, unventilated
room.
Protected from direct sun-
light.
In direct sunlight.
Not near to a heat source
(radiator, oven).
Near to a heat source (radi-
ator, oven).
Where the ideal ambient
room temperature is approx.
20°C.
Where the ambient room
temperature is above 25°C.
Ventilation gaps uncovered
and dusted regularly.
Ventilation gaps covered or
dusty.
Remove and clean the air fil-
ter with a vacuum cleaner at
least once a year.
If dust has accumulated on
the air filter.
Temperature
setting
10 to 12°C The lower the temperature,
the higher the energy con-
sumption.
Use Wooden shelves arranged as
they were when the appli-
ance was delivered.
Only open the door when
necessary and for as short a
time as possible. Store wine
bottles in an organised way.
Frequent opening of the door
for long periods will cause a
loss of coldness. The wine
conditioning unit works
harder to cool down and the
compressor runs for longer
periods.
Do not over-fill the appliance
to allow air to circulate.
Poor air circulation will cause
a loss of coldness.
Guide to the appliance
16
Control panel
a
For switching
the whole wine conditioning unit on and off
b
Optical interface
(for Service technicians only)
c
For selecting the upper or lower wine conditioning zone
d
For switching the DynaCool function (constant humidity) on and off
e
For switching the feature lighting on and off
f
For setting the temperature
( for colder)
g
For confirming a selection (OK sensor)
h
For setting the temperature
( for warmer)
i
For selecting and deselecting settings mode
j
For switching the temperature or door alarm off
k
Display with temperature and symbols (symbols only visible in settings mode;
see chart for an explanation of the symbols)
Guide to the appliance
17
Symbols
Symbol Meaning Function
Lock function To prevent inadvertent switching off and al-
tering of settings
Audible tones Choice of keypad tone and door alarm tone
Miele@home Only visible when a communication module
or communication stick is fitted and signed
on
Demo mode
(only visible when
Demo mode is
switched on)
For switching off Demo mode
Display brightness set-
tings
For adjusting the brightness of the display
Mains connection
(only visible when the
wine conditioning unit
is switched off)
Confirms that the wine conditioning unit is
connected to the electricity supply; flashes
in the event of a power cut
Alarm
(only visible when the
door or temperature
alarm sounds)
Lights up when there is a door alarm;
flashes when there is a temperature alarm,
power cut or other fault

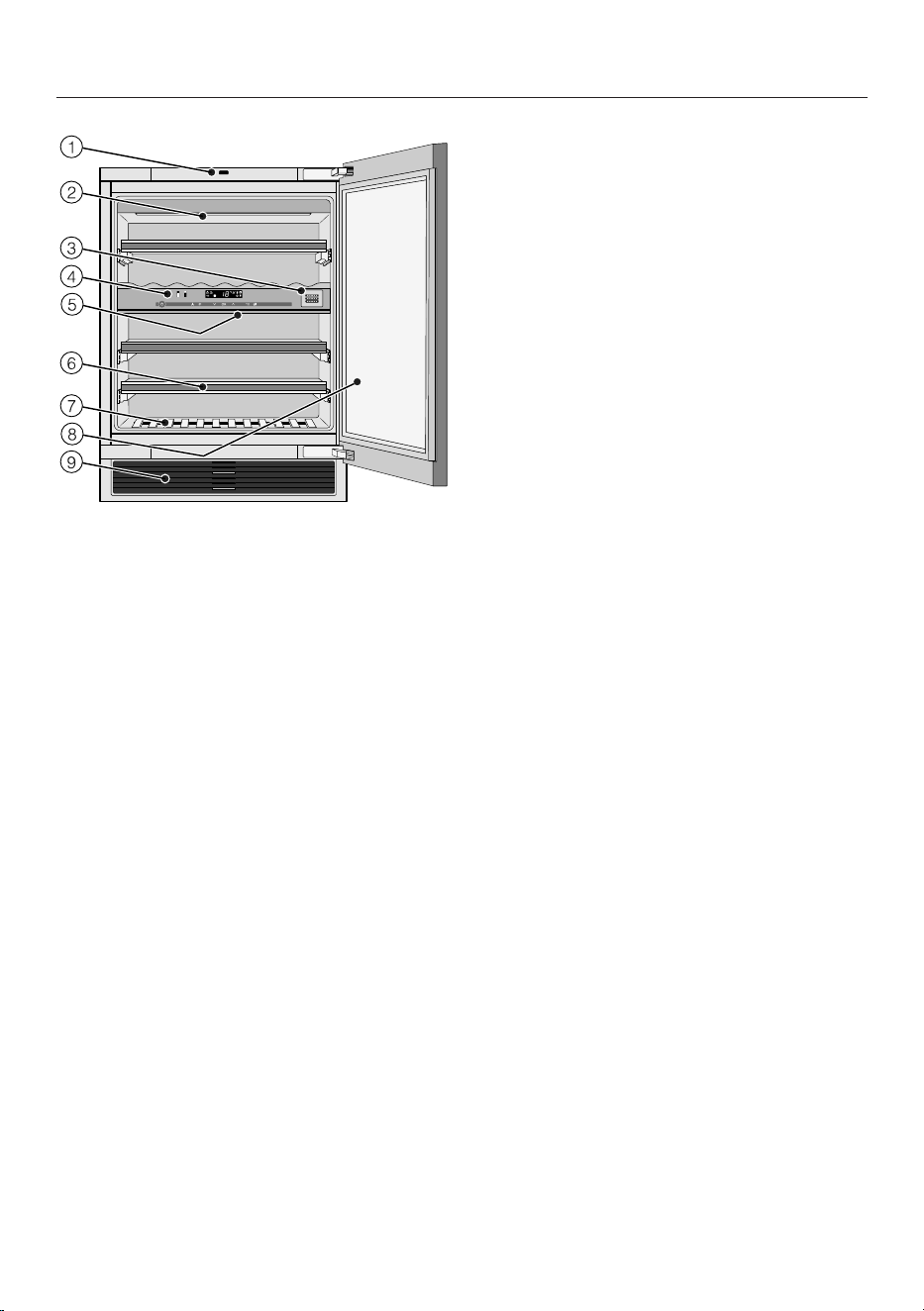

Guide to the appliance
18
a
Door-opening mechanism (Push2open)
b
Lighting strip
(in both wine conditioning zones)
c
Active AirClean filter
d
Control panel for the upper and lower wine conditioning zones/
isolation plate for thermal separation of the zones
e
Isolation strips for thermal
separation of the temperature zones
f
Wooden shelves with labels (FlexiFrames with Noteboard)
g
Decor shelf
h
Safety glass door
with UV filter
i
Ventilation grille with air filter
Guide to the appliance
19
Using the door-opening mech-
anism correctly
The Push2open system on your wine
unit makes it easy to open the appliance
door. The appliance door on your wine
unit is sensitive to pressure.
The Push2open system is deactivated
at the factory. The function has to be
activated by touching the On/Off
sensor once the appliance has been
installed in the niche (see “Switching
the wine unit on and off”).
Opening the appliance door
Risk of damage!
To avoid damage to the door opening
mechanism:
Do not obstruct the appliance door
while it is opening.
Do not push in or hold onto the door
catch while the door is closing.
Press gently against the appliance
door and then release it. The appli-
ance door will then open a little way
automatically.
Then pull the appliance door fully
open.
To protect against inadvertent open-
ing: if you do not open the door wider,
it will close again by itself after approx.
3seconds.
Closing the appliance door
Push the appliance door shut.
Please be aware that using magnets in
front of the wine unit door can cause it
to open by mistake. This is caused by
the door-closing mechanism on the
wine unit.
Accessories
20
Accessories supplied
Chalk
Use the chalk to annotate the magnetic
strips on the wooden shelves to identify
your wines quickly and easily.
Active AirClean filter
The Active AirClean filter ensures op-
timum air quality in the wine condition-
ing unit by filtering the incoming air.
Air filter
The air filter behind the ventilation grille
protects the cooling system from dust.
Optional accessories
A range of useful Miele accessories and
care products are available for your wine
conditioning unit.
WiFi stick (Miele@home)
The WiFi stick enables your wine condi-
tioning unit to communicate, so that you
can access appliance data at any time.
The WiFi stick must be fitted by the
Miele Customer Service Department.
Multi-purpose microfibre cloth
The microfibre cloth is suitable for re-
moving fingerprints and light soiling
from surfaces such as stainless steel,
glass, plastic and chrome without the
use of chemicals.
MicroCloth Kit
The MicroCloth Kit contains a universal
cloth, a glass cloth and a polishing cloth.
These cloths are extremely resistant to
tearing and very robust. Thanks to very
fine microfibres these cloths achieve an
excellent cleaning performance.
Active AirClean filters
See “Accessories supplied”.
Side-by-side fitting kit
For a high-quality side-by-side combina-
tion of undercounter wine cabinets
Accessories are available to order via
the Miele Webshop, from Miele dir-
ectly (see back cover for contact de-
tails) or from your Miele dealer.
Switching on and off
21
Before using for the first time
Packaging material
Remove all packaging material from
the inside of the appliance.
Protective foil (depending on model)
Stainless steel surfaces have a layer of
protective foil to prevent scratching dur-
ing transportation.
Do not remove the foil until the wine
conditioning unit has been installed in
its final location. Start at one of the
top corners.
Cleaning the wine unit
Please refer to the relevant instruc-
tions in “Cleaning and care”.
Clean the inside of the appliance and
the accessories.
Operating the wine conditioning
unit
A light touch of the finger on the
sensors is all that is required to operate
this wine conditioning unit.
Every touch of a sensor is confirmed
with an audible tone. This tone can be
switched off (see “Selecting further set-
tings” – “Audible tones ”).
Switching the wine conditioning unit
on
When the wine conditioning unit is con-
nected to the electrical supply, the
power connection symbol will ap-
pear in the display after a short while.
Touch the On/Off control.
The power connection symbol will
go out and the wine conditioning unit
will start to cool.
The selected wine conditioning zone will
be highlighted yellow and the temperat-
ure of the selected zone will show in the
display.
The first time the appliance is turned on,
the sensors for the wine conditioning
zones and the alarm symbol will
flash until the selected temperature has
been reached in the zones.
As soon as the set temperature has
been reached, the sensor for the re-
spective wine conditioning zone will
light up constantly and the alarm sym-
bol will go out.
The interior lighting will come on when
the door is opened.
Switching on and off
22
Selecting settings
A different setting can be set for each
wine conditioning zone.
Touch the sensor for the wine condi-
tioning zone you want to adjust the
settings for.
The sensor that has been selected is
highlighted in yellow. Now you can
- Set the temperature, and
- Switch on the DynaCool function.
Tip: Please refer to the relevant sec-
tions for more information.
If you then select a different wine con-
ditioning zone, the settings for the pre-
viously selected zone will remain un-
changed.
Switching the wine unit off
Touch the On/Off control.
If this does not work, the safety
lock is activated.
The sensor controls for the 2 wine con-
ditioning zones will go out in the control
field.
The temperature shown on the display
will go out and the power connection
symbol appears.
The interior lighting goes out and cool-
ing is turned off.
Switching on and off
23
Switching off for longer periods
of time
If the wine unit is not going to be used
for a longer period of time:
Switch the wine unit off.
Switch off at the wall and withdraw
the plug from the socket, or discon-
nect the fuse.
Clean the wine unit.
Leave the door ajar to air the wine unit
and avoid odours building up inside it.
If the wine unit is switched off, but
not cleaned, during a long absence
and the door is left shut, there is a
risk of mould building up inside the
appliance.
The wine unit must be cleaned.
Selecting further settings
24
Certain settings on the wine condition-
ing unit can only be selected in settings
mode.
The door alarm is automatically dis-
abled when the appliance is in settings
mode.
Safety lock
The safety lock can be activated to pre-
vent:
- the appliance being switched off by
mistake,
- the temperature being changed by
mistake,
- DynaCool being switched on by mis-
take,
- the feature lighting being switched on
by mistake.
Activating or deactivating the safety
lock
Touch the settings sensor.
All symbols available for selection will
appear in the display and the symbol
flashes.
Touch the OK sensor to confirm your
selection.
The last selected setting flashes and the
symbol lights up in the display.
By touching the or sensor, you
can now select whether the safety
lock is activated or deactivated:
0: the safety lock is deactivated
1: the safety lock is activated
Touch the OK sensor to confirm your
selection.
The selected setting is applied, the
symbol flashes.
Touch the settings sensor to leave
settings mode.
Otherwise the appliance exits set-
tings mode automatically after ap-
proximately one minute.
The symbol will appear in the display
when the lock is activated.
Selecting further settings
25
Audible tones
The wine conditioning unit has audible
tones such as the keypad tone and the
door and temperature alarms.
You can switch the keypad tone or the
door alarm tone on or off but you cannot
deactivate the temperature alarm.
There are four settings to choose from.
Option 3 is set the factory, i.e. the
keypad tone and the door alarm are
switched on.
Switching audible signals on/off
Touch the settings sensor.
All symbols available for selection ap-
pear in the display and the symbol
flashes.
Touch the sensors for setting the tem-
perature ( or ) repeatedly until the
symbol flashes.
Touch the OK sensor to confirm the
selection.
The most recently selected setting
flashes and the symbol lights up in
the display.
Touch the or sensor now to se-
lect:
0: keypad tone off; door alarm off
1: keypad tone off; door alarm on
(after 4minutes)
2: keypad tone off; door alarm on
(after 2minutes)
3: keypad tone on; door alarm on
(after 2minutes).
Touch the OK sensor to confirm the
selection.
The selected setting is applied, the
symbol flashes.
Touch the settings sensor to exit set-
tings mode.
Otherwise, the appliance electronics
will exit the settings mode automatic-
ally after approximately one minute.
Selecting further settings
26
Display brightness
The display brightness can be adjusted
to suit lighting conditions in the room.
The display brightness can be adjusted
in steps from 1to3. The factory default
setting is 3 (maximum brightness).
Altering the display brightness
Touch the settings sensor.
All symbols available for selection will
appear in the display and the symbol
flashes.
Touch the sensors for setting the tem-
perature ( or ) repeatedly until the
symbol flashes.
Touch the OK sensor to confirm your
selection.
The last selected setting flashes and the
symbol lights up in the display.
By touching the or sensor you
can now alter the brightness of the
display:
1: dimmest setting
2: medium setting
3: brightest setting.
Touch the OK sensor to confirm your
selection.
The selected setting is applied, the
symbol flashes.
Touch the settings sensor to leave
settings mode.
Otherwise the appliance exits set-
tings mode automatically after ap-
proximately one minute.
The optimum temperature and air quality
27
Wine keeps on maturing depending on
the surrounding conditions. The length
of time for which wine can be kept in
good condition will therefore depend
not only on the temperature but also on
the air quality.
The wine unit with its constant and wine
specific temperature, increased air hu-
midity and odour-free atmosphere of-
fers the perfect conditions for storing
your wine.
The wine unit also guarantees (as op-
posed to a refrigerator) an environment
without vibrations so that the maturing
process of the wine is not disturbed.
The optimum temperature
Wine can be stored at a temperature
between 6 and 18°C. If you are storing
white and red wines together, select a
temperature between 12 and 14°C. This
is suitable for both white and red wines.
Red wine should be taken out of the
wine conditioning unit and opened at
least two hours before drinking to allow
it to breathe and develop its aroma.
At too high a temperature (over 22°C)
wine matures too quickly, which pre-
vents the aromas from developing fur-
ther. Wine cannot mature fully at too
low a temperature (below 5°C).
Fluctuations in temperature put wine
under stress and interrupt the maturing
process. It is therefore very important to
maintain a constant temperature.
Type of wine Recommended
drinking temper-
ature*
Light, fruity reds: +14°C to +16°C
Full-bodied
reds:
+18°C
Rosé wines: +8°C to +10°C
Delicate, aromatic
whites:
+8°C to +12°C
Full-bodied or
sweet whites:
+12°C to +14°C
Champagne,
sparkling white
wines, Prosecco:
+6°C to +10°C
* Store the wine 1 or 2°C cooler than
the recommended drinking temperature
as it warms up a little when poured into
the glass.
Tip: Full-bodied reds should be opened
for 2–3hours before drinking to allow
the wine to breathe and develop its
aroma.
Safety device in case of low ambient
temperatures
The appliance is equipped with a safety
thermostat to protect your wine against
a sharp drop in temperature. If the ex-
ternal temperature should fall, a heater
element switches on automatically to
keep the temperature inside as constant
as possible. If the ambient temperature
continues to fall, the appliance switches
itself off automatically.
The optimum temperature and air quality
28
Isolator plate for thermal separation
The unit comes with a fixed isolation
panel that partitions the interior of the
wine conditioning unit into two separate
temperature zones. This enables you to
store different types of wine at the same
time, e.g., red wine and Champagne.
The isolation strips inside the glass door
prevent the exchange of heat between
the individual zones.
Setting the temperature
The temperatures in the wine condition-
ing zones can be set independently of
one another.
Touch the sensor for the zone for
which you wish to change the tem-
perature, so that it is highlighted in
yellow.
The current temperature for the selec-
ted zone appears in the display.
Use the two sensors underneath the
display to set the temperature.
By touching the sensor
- The temperature decreases
- The temperature increases
Touch the OK sensor to confirm your
selection
or
Wait approximately 5 seconds after
the last touch of a sensor
The temperature being set will flash in
the display.
The following information shows in the
display while the sensors are being
touched:
- Touching a sensor once:
The last temperature selected
flashes.
- Each subsequent touch of the sensor:
Adjusts the temperature shown in
1°C increments.
- Leaving a finger on the sensor:
Changes the temperature continu-
ously.
A negative tone will sound (if the
keypad tone is switched on) when the
lowest or highest possible temperat-
ure is reached.
Approximately 5seconds after the last
time a sensor has been touched, the ac-
tual temperature inside the wine condi-
tioning zone is automatically shown.
When the temperature is altered, there
is a short delay until the temperature
selected is set.
The temperature display on the control
panel always shows the actual tem-
perature.
The optimum temperature and air quality
29
Temperature range
In both zones it is possible to set tem-
peratures between 5 and 20°C.
Temperature display
In normal operation the temperature
display shows the actual temperature in
the zone.
If the temperature in one of the zones is
not within the range that the appliance
is able to display, dashes will light up in
the temperature display.
Depending on the ambient temperature
and the temperature setting, it can take
the appliance a few hours to reach the
temperature required and for this tem-
perature to then be shown as a constant
temperature in the display.
Air quality and humidity
In most refrigerators the humidity is too
low for wine and therefore a refrigerator
is not suitable for wine storage. High hu-
midity levels are necessary when storing
wine to moisten corks from the outside.
When the humidity is too low the corks
dry out and the bottle is no longer
tightly sealed. For this reason wine
bottles should always be stored hori-
zontally to ensure that corks are also
kept moist from the inside. If air gets
into the bottle, this will have a negative
impact on the wine!
Danger of damage from excess
amounts of moisture
An increase in humidity will lead to
condensation on the interior walls.
Condensate can cause damage such
as corrosion to the wine unit.
Do not introduce additional moisture
to air in the cabinet, e.g. by placing a
dish of water in the wine unit.
The optimum temperature and air quality
30
Using DynaCool (constant humid-
ity)
DynaCool raises the relative humidity
inside the whole of the wine condition-
ing unit. It also distributes the humidity
and the temperature evenly around the
interior so that you can store all your
wine under the same excellent condi-
tions.
This will create a stable climate in the
unit which imitates that of a wine cel-
lar.
Switching on DynaCool
If you would like to use the wine condi-
tioning unit to store wine over the long
term, we recommend that you keep the
DynaCool function switched on.
Touch the sensor to switch the
DynaCool function on/off. The sensor
will be highlighted in yellow.
Even if DynaCool has not been
switched on, the fans in the wine con-
ditioning unit will come on automatic-
ally as soon as the cooling system
switches on. This ensures the op-
timum climate for your wine is main-
tained.
The fans automatically switch off when
the door is open.
Switching off DynaCool
The wine conditioning unit uses
slightly more energy and is a little nois-
ier when the DynaCool function is
switched on. You can switch it off now
and then if you wish.
Touch the sensor for switching the
DynaCool function on and off so that
it is no longer highlighted in yellow.
Air filtration with the Active AirClean
filters
The Active AirClean filter achieves op-
timum air quality by filtering the incom-
ing air.
Fresh air from the room enters the wine
unit via the Active AirClean filter.
The fans (DynaCool function) then dis-
tribute the air evenly throughout the
cabinet.
Filtering the incoming air through the
Active AirClean filter ensures that all the
air entering the wine unit is fresh and
free from dust and odours.
This also ensures your wine does not
absorb any unwanted odours through
the corks.
Temperature and door alarm
31
This wine conditioning unit is equipped
with an alarm system so that the tem-
perature cannot rise or fall unnoticed,
thus possibly damaging the wine.
Temperature alarm
If the temperature in one of the wine
conditioning zones rises or falls by a
certain amount, the sensor for that zone
will flash in the control panel and at the
same time the alarm symbol will
flash in the display. An audible alarm will
also sound.
Audible and visual signals will be activ-
ated, for example,
- when the wine unit is switched on
and the temperature in one of the
temperature zones differs greatly
from the set temperature,
- when too much warm ambient air
enters the cabinet when bottles are
being rearranged or taken out,
- when a large number of bottles are
stored for the first time,
- in the event of a power cut,
- if there is a fault with the wine unit.
The alarm will stop and the alarm sym-
bolgoes out as soon as the reason
for the alarm has been resolved. The
sensor for the relevant zone will light up
constantly again.
Switching the temperature alarm off
early
If the noise disturbs you, you can switch
the alarm off if you wish.
Touch the sensor for switching off the
temperature alarm.
The alarm will stop.
The relevant wine conditioning zone will
continue to flash in the control panel
and the alarm symbol will continue
to flash in the display until the cause of
the alarm has been rectified.
Temperature and door alarm
32
Door alarm
An alarm will sound if the appliance
door has been left open for longer than
approx. 2minutes. The sensors for the
wine conditioning zones will flash in the
control panel. The alarm symbol
lights up in the display.
As soon as the door is closed, the alarm
will stop. The sensors for the wine con-
ditioning zones and the alarm sym-
bol will go out in the control panel.
If the audible signal does not sound in
the event of a door alarm, then the
audible signal has been switched off in
settings mode (see “Selecting further
settings – Audible signals”).
Switching the door alarm off early
If the noise disturbs you, you can switch
the alarm off if you wish.
Touch the sensor for switching off the
door alarm.
The alarm will stop.
The sensors for the wine conditioning
zones will continue to flash and the
alarm symbol will remain lit up until
you close the door.
Feature lighting
33
The interior lighting can be set to remain
on when the door is closed so your
wines can be on display at all times.
Each wine conditioning zone has its own
light so that your wine unit is lit up to
maximum effect.
Thanks to the use of LED lighting, the
wine will not be adversely affected by
heat or UV light.
Switching the feature lighting
on and off
Touch the On/Off sensor for the fea-
ture lighting so that it is highlighted in
yellow.
The interior lighting is now switched on,
even when the appliance door is closed.
To switch the feature lighting off again:
Touch the On/Off sensor for the fea-
ture lighting so that it is no longer
highlighted in yellow.
The interior lighting is now switched off
when the appliance door is closed.
Setting the brightness of the feature
lighting
The brightness of the feature lighting
can be adjusted.
Touch the On/Off sensor for the fea-
ture lighting so that it is highlighted in
yellow.
Touch the sensor for the feature light-
ing again for approximately four
seconds until flashes in the display
(after two seconds will flash).
Use the sensors for altering the tem-
perature to set the feature lighting
brightness(and). To do this,
touch and hold the sensors. The
brightness is adjusted directly and is
infinitely variable. The results are not
visible in the display.
By touching the sensor
- the lighting becomes dimmer
- the lighting becomes brighter.
Feature lighting
34
Touch the OK sensor to confirm your
choice.
The set brightness is saved to memory.
The temperature display then appears
again.
As soon as the appliance door is closed,
the set brightness for the feature light-
ing takes effect. When the appliance
door is opened, the interior lighting re-
turns to its normal level.
Lighting duration of the feature lighting
The lighting duration for the feature
lighting is set to 30minutes as stand-
ard.
The lighting duration can be set to 30,
60, 90minutes up to 00 (unlimited).
The feature lighting will have the bright-
ness setting you have selected previ-
ously.
Open the appliance door.
Touch the On/Off sensor for the fea-
ture lighting so that it is highlighted in
yellow.
Touch the sensor for the feature light-
ing again for approx. two seconds un-
til flashes in the display.
Use the and sensors for altering
the temperature to set the feature
lighting duration.
The duration (in minutes) will flash in
the display.
By touching the sensor
- lighting duration is reduced by
30minutes
- lighting duration is increased by
30minutes.
Touch the OK sensor to confirm your
choice.
The selected lighting duration is saved
and the temperature reappears in the
display.
The lighting duration set starts anew
whenever the appliance door is opened
and closed.
Risk of injury from LED lighting.
This lighting corresponds to risk
group RG2. If the cover is defective,
there is a risk of eye injury.
If the lighting cover is defective, do
not look from a close range directly
into the lighting with optical instru-
ments (e.g. magnifying glass or sim-
ilar).
Storing wine bottles
35
Vibration and movement have a negat-
ive effect on the maturing process,
which can in turn affect the taste of the
wine.
To avoid disturbing other bottles when
removing a bottle of wine, store bottles
of the same type beside each other on
the same wooden shelf. Avoid stacking
bottles on top of one another on the
wooden shelves.
Always place the bottles in a horizontal
position so that the natural corks can be
kept moist on the inside and air is pre-
vented from getting into the bottles.
Tip: We also recommend increasing the
humidity level inside the wine condition-
ing unit for wine bottles with natural
corks (see “The optimum temperature
and air quality – Using DynaCool (con-
stant humidity)”).
Risk of injury from falling wine
bottles.
Wine bottles may become wedged in
the wooden shelves above and fall
out of the wine unit when the shelves
are pulled out.
Always pull out the wooden shelves
slowly and carefully.
Risk of damage and injury from
broken glass.
If wooden shelves and bottles pro-
trude too far forwards, they may
damage the glass door when it is
closed.
Please ensure that the wooden
shelves and wine bottles do not pro-
trude.
Do not cover the vents in the rear
wall, as they are essential for keeping
the appliance cool.
Storing wine bottles
36

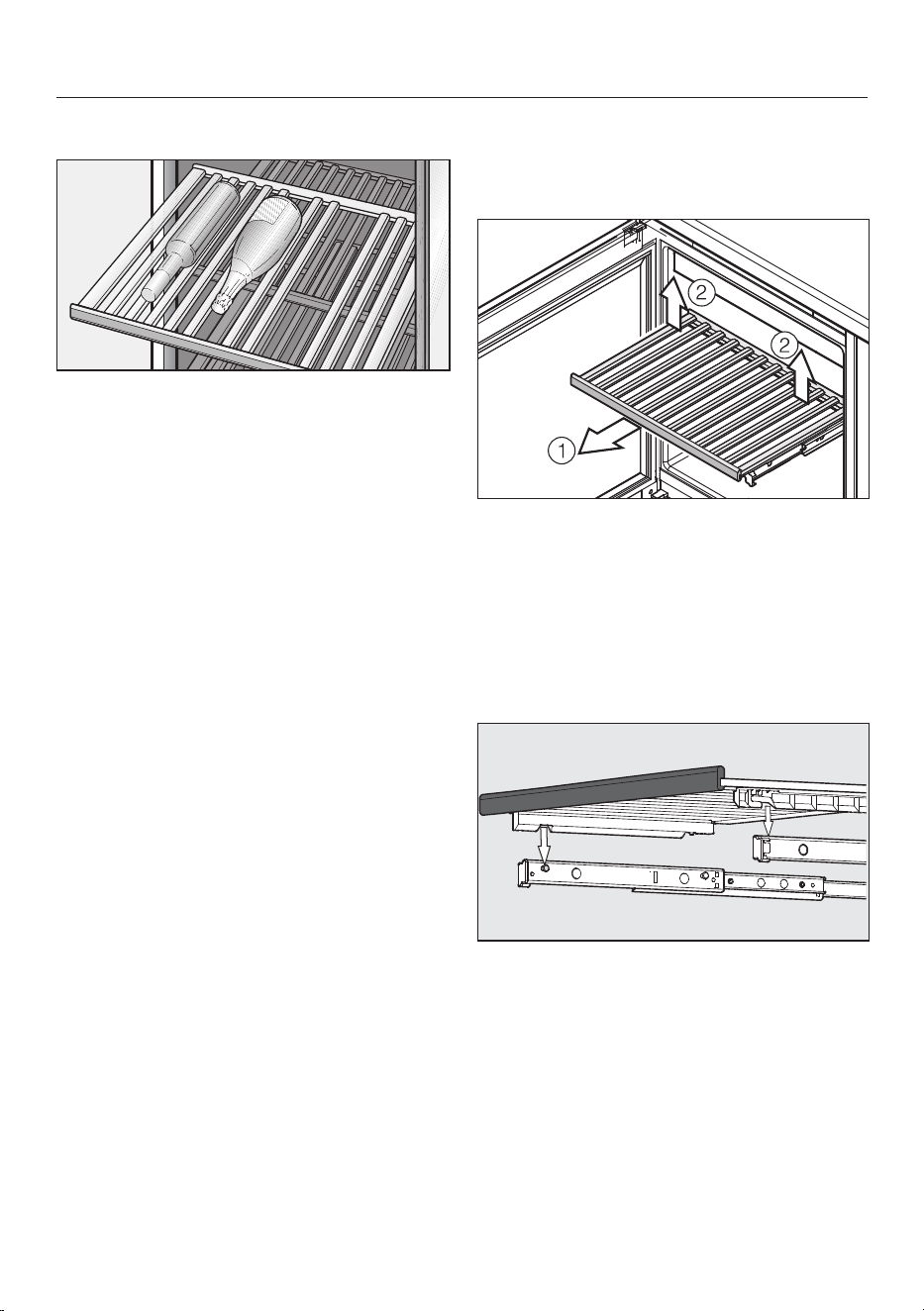

Wooden shelves
The wooden shelves are on telescopic
runners which can be pulled out to
make it easier to store and remove
bottles.
Moving the wooden shelves
The wooden shelves can be removed
and replaced again if required.
Pull the wooden shelf out until it
stops .
Release the wooden shelf at the back,
lifting the shelf on the left and right at
the same time .
Lift the wooden shelf forwards to re-
move it.
To replace the shelf, place it on the
extended rails. The notches in the
wooden shelf fit onto the retaining
bolts. The magnetic strip must face
the front.
Storing wine bottles
37

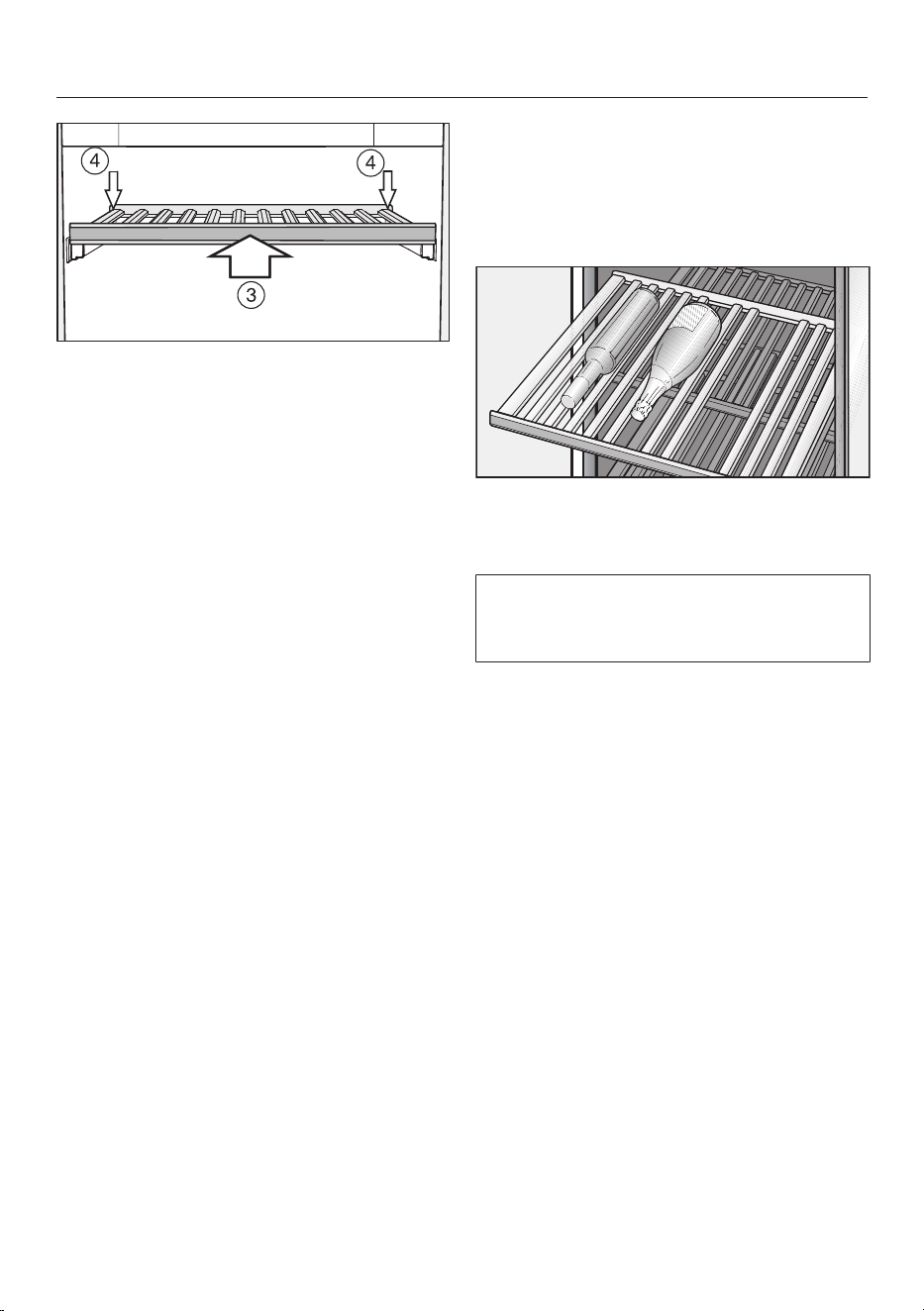

Slide the wooden shelf back into the
appliance as far as it will go .
Push the wooden shelf right back so
that it clicks into place at the front.
Press down on the back of the
wooden shelf until it clicks into place
at the back .
Adjusting the wooden shelves
The slats in the wooden shelves can be
individually adjusted to suit, so that
every bottle is stored in perfect safety
regardless of shape or size.
Simply lift individual slats to move or
remove them from the wooden
shelves.
The slats in the decor shelf (at the bot-
tom of the appliance) cannot be adjus-
ted.
Storing wine bottles
38

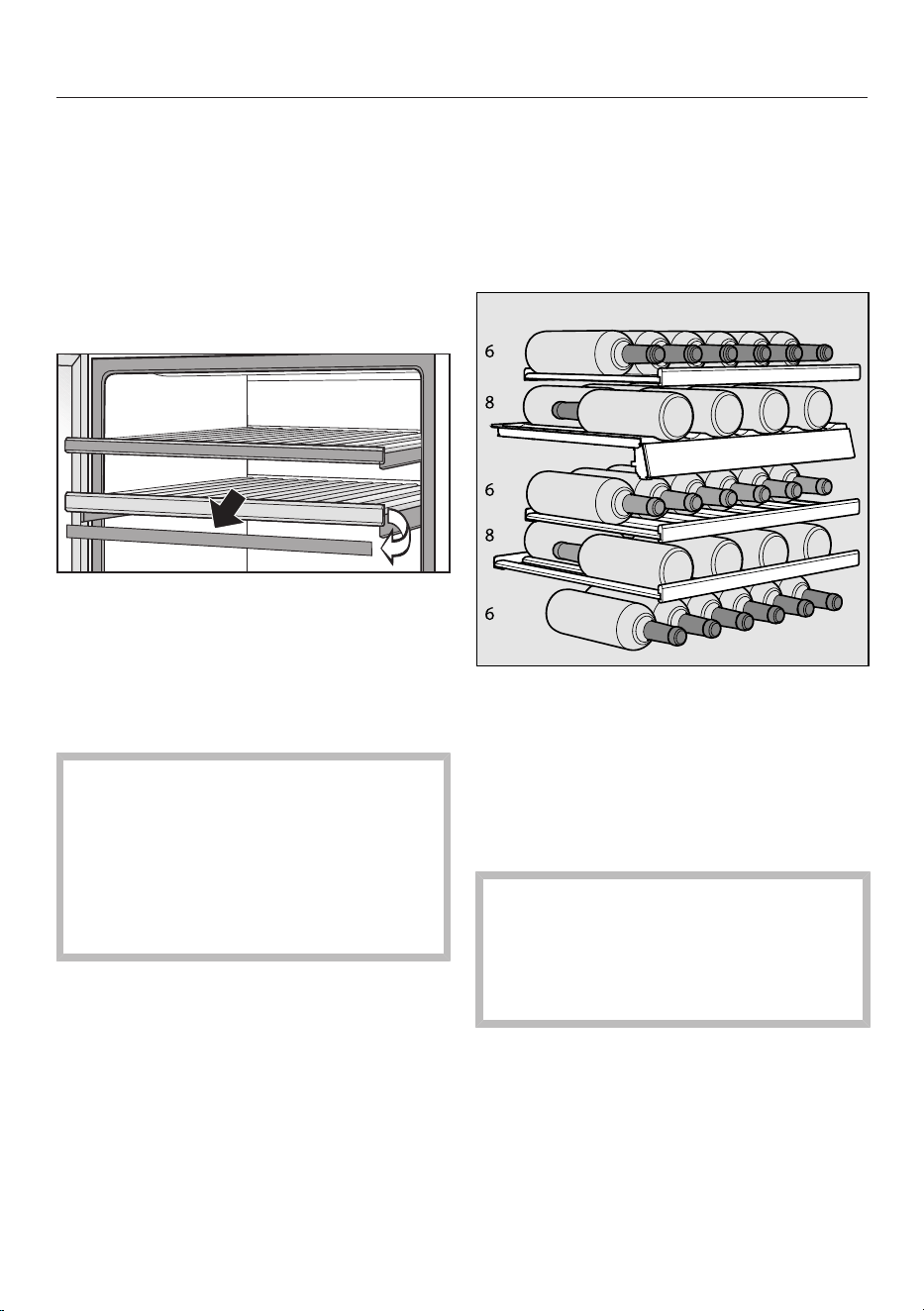

Annotating wooden shelves
For quick and easy identification of the
wines stored, you can write on the
blackboard-painted surface on the mag-
netic strips on the wooden shelves.
Use the chalk supplied. You can write
directly on the magnetic strip or remove
it from the wooden shelf. To do so:
Hold the magnetic strip by the sides
and pull it forwards. The magnetic
strip is held on the wooden shelf by
magnets.
The magnetic strip can be wiped
clean with a damp cloth.
Risk of damage from unsuitable
cleaning methods.
Cleaning the magnetic strips with a
cleaning agent may damage the
blackboard surface on them.
Use clean water only to wipe the
magnetic strips.
Annotate the magnetic strip with the
chalk supplied and replace it on the
front of the wooden shelf.
Inserting the decor shelf
Place the decor shelf at the very bot-
tom of the appliance (see “Descrip-
tion of the appliance”).
Maximum capacity
Up to 34 Bordeaux bottles (0.75l) can
be stored in the wine conditioning unit,
with 14 in the upper zone and 20 in the
lower zone.
The total of 34 bottles can only be
achieved by using all the wooden
shelves.
Please note that each wooden shelf
has a maximum load-bearing capa-
city of 25kg. Please avoid stacking
bottles on the wooden shelves.
Automatic defrosting
39
The wine unit defrosts automatically.
Cleaning and care
40
Do not let water get into the elec-
tronic module, the ventilation grille or
the lighting.
Risk of damage due to moisture
ingress.
The steam from a steam cleaner can
damage plastic and electrical com-
ponents.
Do not use a steam cleaner to clean
the wine conditioning unit.
The data plate located inside the wine
conditioning unit must not be re-
moved. It contains information which
is required in the event of a service
call.
Cleaning agents
To avoid damaging the surfaces of your
appliance, do not use
- Cleaning agents containing soda, am-
monia, acids or chlorides
- Cleaning agents containing descaling
agents
- Abrasive cleaning agents (e.g. scour-
ing powder, scouring liquid or pumice
stones)
- Cleaning agents containing solvents
- Stainless steel cleaning agents
- Dishwasher cleaner
- Oven sprays
- Glass cleaner (except on the glass in
the appliance door)
- Hard, abrasive sponges and brushes
(e.g. pot scourers)
- Eraser stain remover blocks
- Sharp metal scrapers
Cleaning and conditioning agents
used inside the wine conditioning
unit must be food safe.
We recommend using lukewarm water
with a little washing-up liquid for clean-
ing.
Cleaning and care
41
Before cleaning the wine unit
Switch the wine unit off.
Take any wine bottles out of the wine
unit and store them in a cool place.
Take out all other removable parts for
cleaning.
Remove the magnetic strips from the
wooden shelves before cleaning
them.
Interior, accessories and appli-
ance door
Clean the wine conditioning unit at
least once a month.
Remove soiling immediately to pre-
vent it from drying on.
Clean the interior with a solution of
lukewarm water and a little washing-
up liquid.
The wooden shelves should only be
wiped with a well wrung-out damp
cloth. They must not be allowed to
get wet.
Risk of damage due to incorrect
cleaning.
The blackboard coating on the mag-
netic strips may be damaged.
Use clean water only to wipe the
magnetic strips at the front of the
wooden shelves. Do not use a clean-
ing agent.
After cleaning, wipe the interior and
accessories with a damp cloth and
dry with a soft cloth. Leave the door
open to air the wine conditioning unit
for a short while.
Clean the glass panes in the appli-
ance door with glass cleaner.
Cleaning the ventilation gaps
A build-up of dust will increase the en-
ergy consumption of the appliance.
The ventilation gaps should be
cleaned on a regular basis with a
brush or vacuum cleaner (you could
use a Miele vacuum cleaner dusting
brush, for example).
Cleaning the door seal
Risk of damage as a result of in-
correct cleaning.
If you treat the door seal with oils or
grease, it can become porous.
Do not use any oils or grease on the
door seal.
The door seal should be cleaned regu-
larly with clean water, and then wiped
dry with a soft cloth.
Cleaning the air filter
Clean the air filter behind the ventila-
tion grille at least once a year.
Remove the air filter and vacuum it
thoroughly on both sides. A dirty filter
can prevent the wine conditioning
unit from cooling sufficiently.
After cleaning
Replace all shelves and accessories in
the wine conditioning unit.
Reconnect to the mains and switch
the wine conditioning unit back on.
Place the wine bottles back in the
wine conditioning unit and close the
appliance door.
Active AirClean filters
42
Fresh air from the room enters the wine
unit via the Active AirClean filter. Filter-
ing the incoming air through the Active
AirClean filter ensures that all the air en-
tering the wine unit is fresh and free
from dust and odours.
Tip: Replace the Active AirClean filter at
least every 12months.

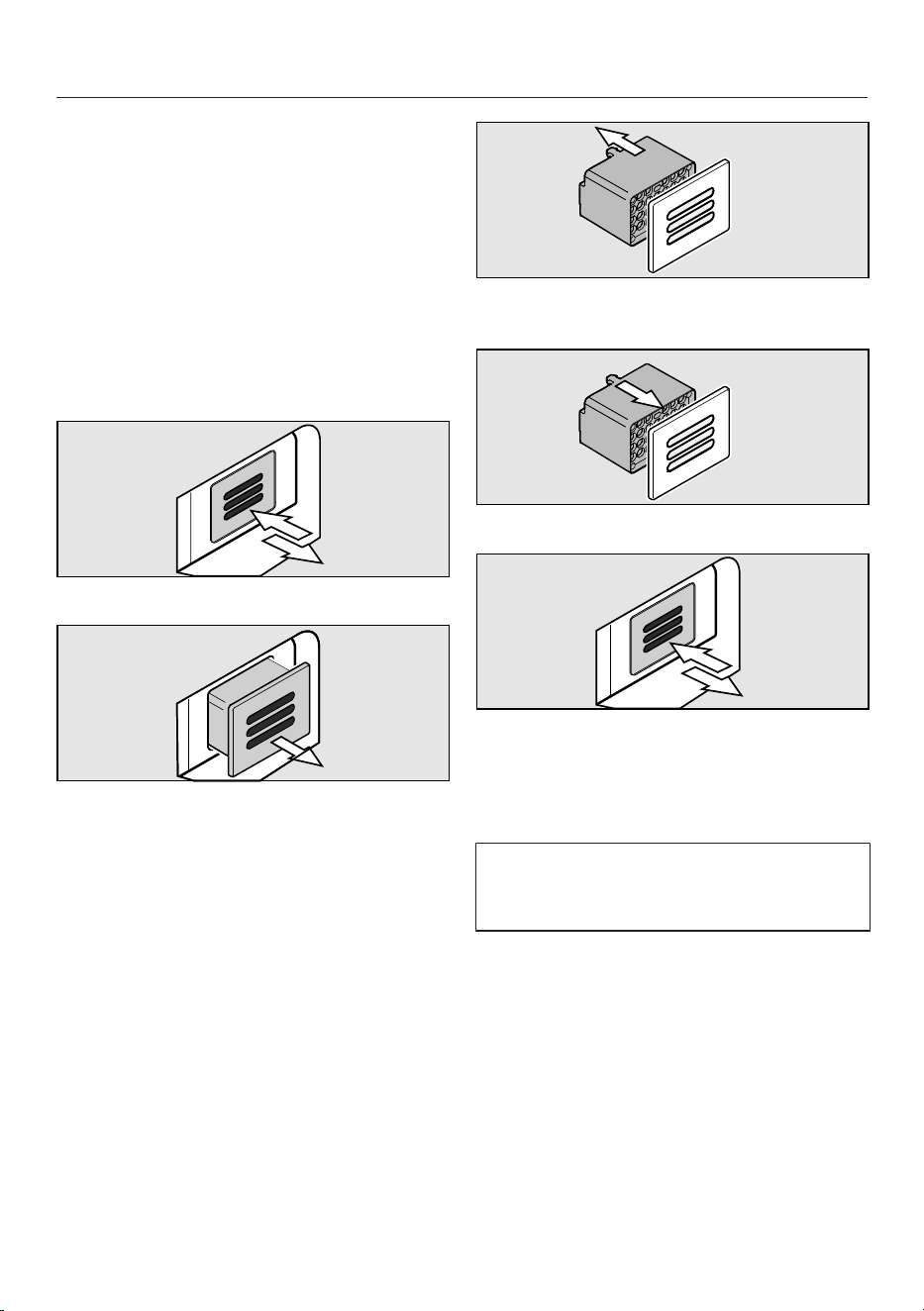

Replacing the Active AirClean
filter
Push the filter in and then release it.
Pull the filter out.
Detach the back part of the filter from
the cover.
Push the new filter onto the cover.
Insert the new filter.
Push the filter in and then release it.
The filter will lock into place automat-
ically with an audible click.
Active AirClean filters can be obtained
from your Miele dealer, Miele or from
the Miele website.
Problem solving guide
43
Many malfunctions and faults that can occur in daily operation can be easily
remedied. You can save time and money in many cases, as you do not need to call
the Miele Customer Service Department.
Information to help you rectify faults yourself can be found at www.miele.com/ser-
vice.
The following tables are designed to help you to find the cause of a malfunction or a
fault and to resolve it.
To prevent cold from escaping, open the appliance as little as possible until the
fault has been corrected.
Problem Cause and remedy
The wine conditioning
unit is not getting cold,
the interior lighting does
not come on when the
door is opened, and the
display is not lit up.
The wine conditioning unit is not switched on and the
mains connection symbol is lit up in the display.
Switch on the wine conditioning unit.
The plug is not inserted in the socket correctly.
Insert the plug correctly into the socket. The mains
connection symbol appears in the display when
the wine conditioning unit is switched off.
Check whether the mains fuse has tripped. If it has
there could be a fault with the appliance, the house-
hold electrical wiring or another electrical appliance.
Contact a qualified electrician or Miele.
The symbol is dis-
played, the wine condi-
tioning unit is not getting
cold. However, the appli-
ance and the interior
lighting are working fine.
Demo mode is turned on and the symbol is illumin-
ated in the display.
Switch off Demo mode (see “Information for deal-
ers - Demo mode”).
Problem solving guide
44
Problem Cause and remedy
The compressor is
switching on more fre-
quently and for longer
periods of time, the tem-
perature in the wine
conditioning unit is fall-
ing.
The temperature in the wine conditioning unit is set
too low.
Adjust the temperature.
The appliance door is not properly closed.
Check that the appliance door closes properly.
The appliance door has been opened too frequently.
Only open the door when necessary and for as
short a time as possible.
The ventilation gaps have been covered over or be-
come dusty.
Do not cover the ventilation gaps and dust them
regularly.
The air filter is dusty.
Clean the air filter (see “Cleaning and care”).
The ambient room temperature is too warm.
Decrease the ambient room temperature.
The compressor comes
on less and less often
and for shorter periods
of time. The temperature
in the wine conditioning
unit rises.
Not a fault. The temperature is too high.
Correct the temperature setting.
Check the temperature again after 24hours.
The air filter in the appliance plinth is dirty.
Clean the air filter (see “Cleaning and care”).
Problem solving guide
45
Display warnings
Message Cause and remedy
The alarm symbol is
lit in the display and
both sensors for the
wine conditioning zones
are flashing in the con-
trol field. Furthermore,
an audible alarm is also
sounding.
The door alarm has been activated.
Close the appliance door. Both sensors for the
wine conditioning zones and the alarm symbol
will go out and the audible alarm will stop.
The alarm symbol is
flashing in the display,
and the sensor for one of
the wine conditioning
zones is also flashing. An
alarm tone is also
sounding.
The temperature in the zone concerned has risen
higher or fallen lower than the temperature set.
Possible reasons for this include:
– The appliance door has been opened too fre-
quently.
– The ventilation gaps have been blocked.
– A prolonged power cut (power outage) has oc-
curred.
Rectify the cause of the alarm. The alarm sym-
bol goes out and the sensor for the affected
wine conditioning zone lights up again constantly.
The alarm will stop.
A dash is lit up up/flash-
ing in the display.
Only temperatures within the range the wine condi-
tioning unit can display will be shown.
“F0”to“F3” or
“S1”to“S3” appear in
the display.
There is a fault.
Call Service.
Problem solving guide
46
The interior lighting is not working.
Problem Cause and remedy
The LED interior lighting
is not working.
The wine conditioning unit is not switched on.
Switch the wine conditioning unit on.
To avoid overheating, the LED lighting switches itself
off automatically after approx. 15minutes if the door
is left open.
If this is not the cause, then there is a fault.
Danger of electric shock.
There are live electrical components under the
lighting cover.
The LED lighting may only be repaired or replaced
by the Customer Service Department.
Risk of injury from LED lighting.
This lighting corresponds to risk group RG2. If the
cover is defective, there is a danger of eye injury.
If the lighting cover is defective, do not look from a
close range directly into the lighting with optical in-
struments (e.g. magnifying glass or similar).
Call the Customer Service Department.
The LED interior lighting
is on even when the
door is closed.
The feature lighting is switched on.
Switch the feature lighting off (see “Feature light-
ing”).
Problem solving guide
47
General problems with the wine conditioning unit
Problem Cause and remedy
There is no audible alarm
although the door has
been open for a long
time.
This is not a fault. The alarm tone has been switched
off in settings mode (see “Selecting further settings
– Audible signals”).
The wine conditioning
unit cannot be switched
off.
The safety lock has been activated.
Completely deactivate the safety lock (see “Select-
ing further settings – Activating and deactivating
the safety lock”).
The slats on the wooden
shelves are warping.
Volume change due to moisture absorption or drying
out is a typical characteristic of wood. An increase in
humidity will cause wooden components to warp,
which can lead to cracking. Knots and grain patina are
part of the natural character of wood.
Mildew has begun to
form on the wine bottle
labels.
Mildew can begin to form on the labels, depending on
the type of label adhesive used.
Clean the wine bottles and remove any adhesive
residue.
A white deposit has
formed on the wine
bottle corks.
The corks have oxidised due to contact with the air.
Use a dry cloth to wipe off the deposit. The deposit
will not affect the quality of the wine.
Noises
48
Normal noises What is causing them?
Brrrrr... A humming noise is made by the motor (compressor). The
humming noise can get louder for brief periods when the motor
switches on.
Blubb, blubb... A gurgling noise can be heard when the refrigerant circulates
through the pipes.
Click... Clicking sounds occur whenever the thermostat switches the
motor on or off.
Sssrrrrr... With a multi-zone wine unit a slight hissing sound may eman-
ate from the interior due to the circulation of the air.
Crack... A cracking sound can be heard when material inside the wine
unit expands.
Please bear in mind that a certain amount of noise is unavoidable (from the com-
pressor and the refrigerant circulating through the cooling circuit).
Noises that you
can easily rectify
Cause Remedy
Rattling, vibrating The wine unit is uneven. Realign the wine unit using a
spirit level. Do so by raising
or lowering the screw feet
underneath the appliance or
place something underneath
it.
Shelves are unstable or stick-
ing.
Check all removable items
and refit them correctly.
Bottles or containers are
touching.
Separate them.
The transport cable clips are
hanging loose at the back of
the appliance.
Remove the cable clips.
After sales service and warranty
49
Information to help you rectify faults
yourself and about Miele spare parts
can be found at www.miele.com/ser-
vice.
Contact in the event of a fault
In the event of a fault which you cannot
remedy yourself, please contact your
Miele dealer or Miele Customer Service.
You can book a Miele Customer Ser-
vice call-out online at www.miele.com/
service.
Contact information for Miele Cus-
tomer Service can be found at the end
of this document.
Please quote the model identifier and
serial number of your appliance (SN)
when contacting Miele Customer Ser-
vice. Both numbers can be found on the
data plate inside the refrigeration appli-
ance or, depending on the model, in
Settings mode under Information.
The data plate can be found inside the
wine unit.
EPREL database
Since 1 March 2021, information on en-
ergy labelling and ecodesign require-
ments has been available in the
European Product Database (EPREL).
You can find the product database at
the following link https://
eprel.ec.europa.eu/. You will be asked to
enter the model identifier.

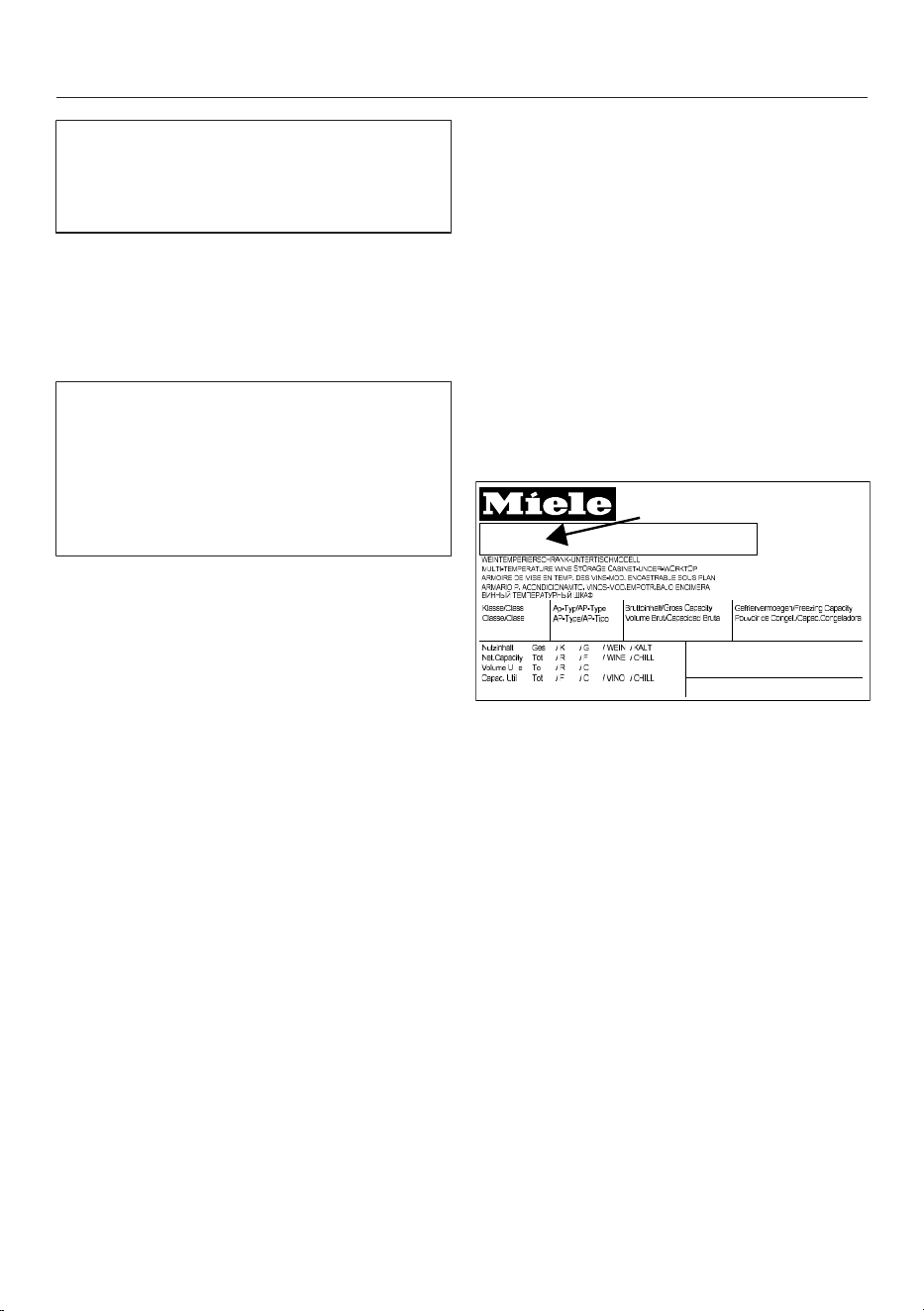

The model identifier can be found on the
data plate inside the refrigeration appli-
ance or, depending on the model, in
Settings mode under Information.
SN-ST
R600a:
XXXXXX
Nr. XX/ XXXXXXXXX.
XXX l
XXg
Warranty
For information on the appliance war-
ranty specific to your country please
contact Miele. See back cover for ad-
dress.
In the UK, your appliance warranty is
valid for 2 years from the date of pur-
chase. However, you must activate your
cover by calling 0330 160 6640 or re-
gistering online at www.miele.co.uk.
Installation
*INSTALLATION*
50
Location
Risk of damage and injury from
the wine conditioning unit tipping
over.
The wine conditioning unit is very
heavy and can tip forwards when the
appliance door is open.
Keep the appliance door shut until
the wine conditioning unit has been
built in and secured in its building-in
niche in accordance with these oper-
ating and installation instructions.
Risk of damage and injury from
the wine conditioning unit tipping
over.
There is an increased risk of injury
and damage if the wine conditioning
unit is installed by a single person.
Two people are required for installing
the wine conditioning unit.
Fire risk and risk of damage from
appliances which give off heat.
Appliances which give off heat can
catch fire and set fire to the wine
conditioning unit.
This wine conditioning unit must not
be installed underneath a hob.
Fire risk and risk of damage from
appliances which give off heat.
Appliances which give off heat can
catch fire and set fire to the wine
conditioning unit.
Do not install a warming drawer un-
der the wine conditioning unit.
This appliance should be installed in a
dry, well-ventilated room.
When deciding where to install your
wine conditioning unit, please bear in
mind that it will use more energy if in-
stalled near to a heater, a cooker or an-
other appliance that gives off heat. Dir-
ect sunlight should also be avoided.
The higher the room temperature, the
longer the compressor runs and the
higher the energy consumption is.
When installing the wine conditioning
unit, please note:
- The socket must be easily accessible
in an emergency, not concealed be-
hind the appliance.
- The plug and cable must not touch
the back of the wine conditioning unit
as they could be damaged by vibra-
tions from the appliance.
- Do not plug in other appliances be-
hind the wine conditioning unit.
Danger from broken glass!
Danger of injury from broken glass.
If installed at altitudes above 1500m
there is a risk of the glass in the door
breaking because of changes in air
pressure. Shards of glass can cause
severe injury if not handled with care.
Installation
*INSTALLATION*
51
Side-by-side
This wine conditioning unit can be in-
stalled side-by-side with another refri-
geration appliance.
A side-by-side installation kit is re-
quired for this. This is available from
Miele or your Miele dealer.
Your dealer will be able to advise you
which combination of models is pos-
sible.
Instructions for fitting appliances side-
by-side are given in the side-by-side
fitting kit instruction manual.
Climate range
The wine conditioning unit is designed
for use within a certain climate range
(ambient temperatures) and should not
be used outside this range. The climate
range of the wine conditioning unit is
stated on the data plate inside it.
Climate range Ambient room
temperature
SN +10°C to +32°C
N +16°C to +32°C
ST +16°C to +38°C
T +16°C to +43°C
Operating in a room which is too cold
will cause the compressor to switch off
for too long, causing the internal tem-
perature in the wine conditioning unit to
rise which could lead to damage.
Risk of damage due to high hu-
midity.
In environments with high humidity,
condensation can build up on the ex-
ternal wine unit panels, which can
cause corrosion.
Install the wine unit with sufficient
ventilation in a dry and/or air-condi-
tioned room.
After installation, make sure that the
appliance door closes properly, the
ventilation gaps are not covered and
that the wine unit has been installed
in accordance with these operating
and installation instructions.
Installation
*INSTALLATION*
52
Ventilation
The wine conditioning unit is ventilated
via the grille in the plinth. This must not
be covered over or blocked. Clean the
plinth regularly to remove any dust.
The cut-out in the plinth facing must
be aligned centrally with the wine con-
ditioning unit.
Door opening angle limiter
The door opening angle limiter restricts
the opening angle of the appliance door
to 90°. This may be necessary if the ap-
pliance door hits an adjacent wall when
opened, for example (see “Adjusting the
door hinges”).
Installation
*INSTALLATION*
53

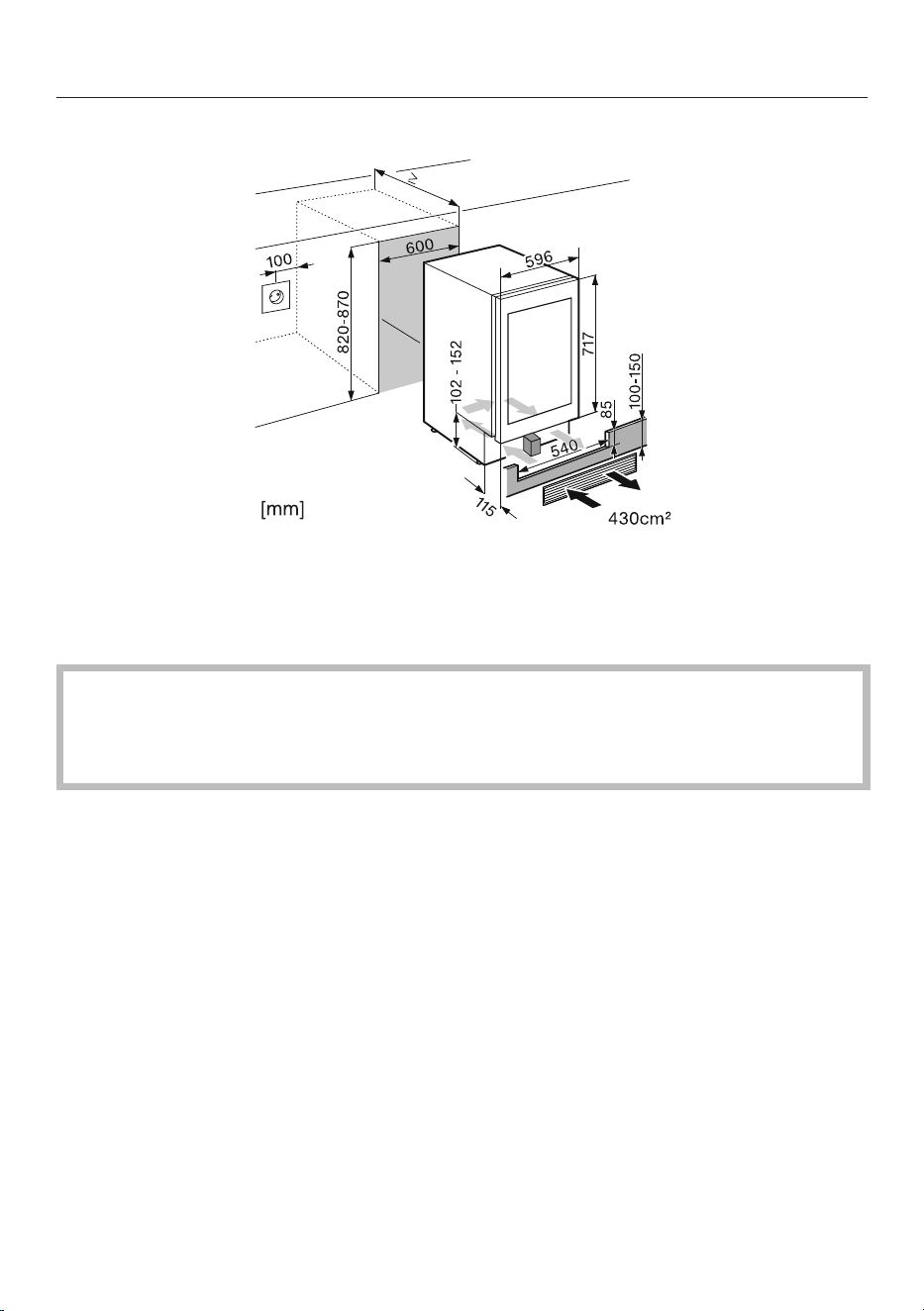

Installation dimensions
580
Before installation, ensure the niche dimensions are the correct size. Before install-
ation, ensure that the ventilation gap dimensions are the correct size. The specified
air vents must be observed and the cut-out in the plinth panel must be aligned
centrally with the wine unit in order to ensure the correct functioning of the wine
unit.
If the wine unit is not ventilated sufficiently, there is a fire hazard and risk of
damage.
The ventilation grille and foam block supplied must be fitted and used to-
gether.
Installation
*INSTALLATION*
54
View from above
Installation
*INSTALLATION*
55

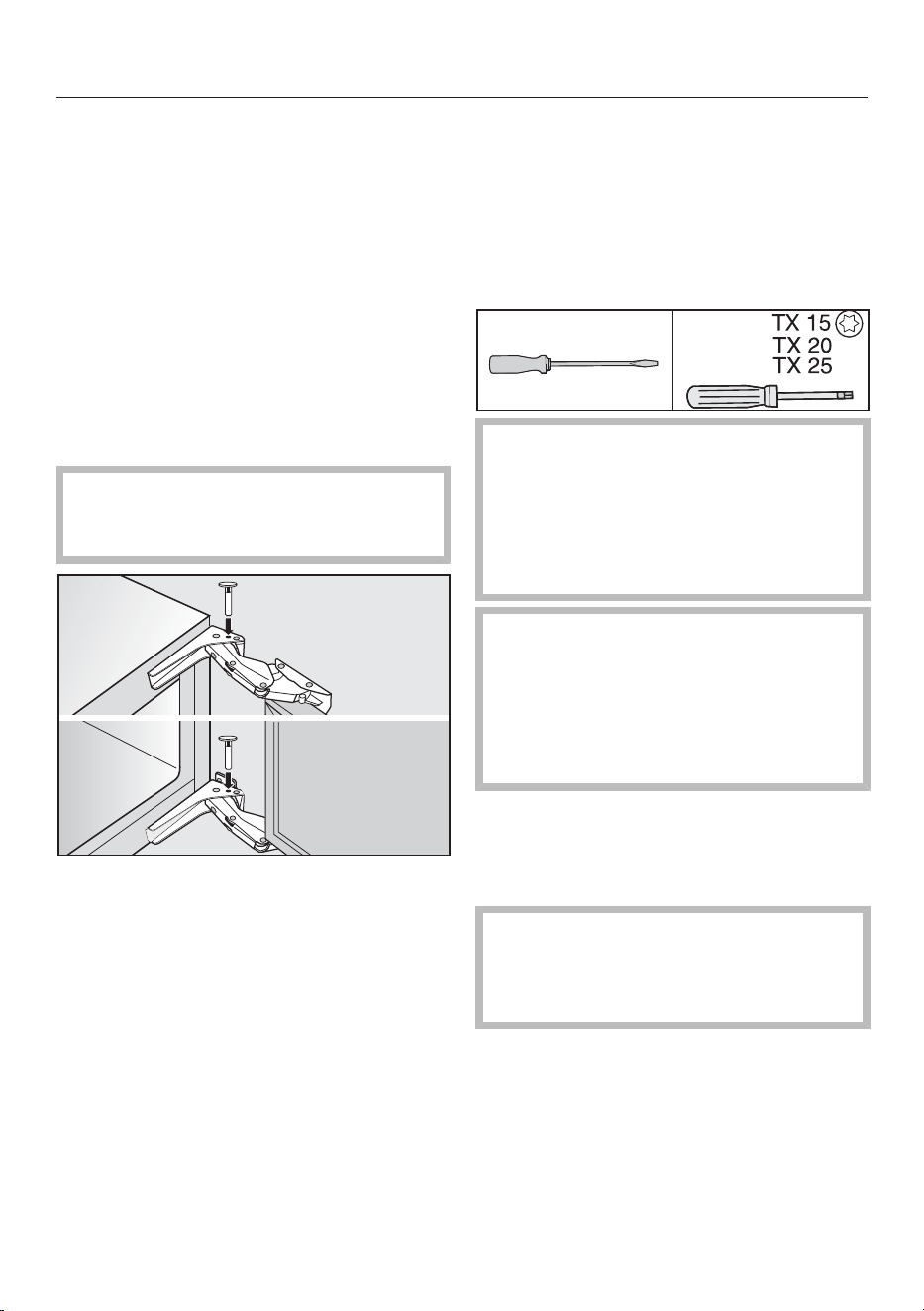

Adjusting the door hinges
The door hinges on the wine unit are set
ex-works to enable the appliance door
to be opened wide.
However if the opening angle of the ap-
pliance door needs to be limited for any
reason, the hinge can be adjusted to ac-
commodate this.
If the appliance door hits an adjacent
wall when opened, for example, the
opening angle can be limited to ap-
prox.90°.
The locking pins for limiting the door
opening must be fitted before the
wine unit is installed.
Insert the locking pins supplied for
limiting the door opening into the
hinges from above.
The appliance door opening angle is
now limited to approx. 90°.
Changing the door hinging
The wine unit is supplied right-hinged. If
left-hand hinging is required, the hinges
must be changed.
To change the door hinging, you will
need the following tools:
Danger of injury and damage to
the appliance.
The glass door is breakable.
The glass door is heavy. Always
change the door hinging with the as-
sistance of another person.
Danger of injury and damage to
the appliance.
The glass door can drop.
When changing the door hinging
make sure that all fixing parts are se-
curely screwed into position.
Tip: Place a suitable cover on the floor
in front of the wine unit to protect the
glass door and your floor from damage
when changing the hinging.
Be careful not to damage the door
seal. If the door seal is damaged, the
appliance door may not close prop-
erly and cooling will be insufficient.
Installation
*INSTALLATION*
56

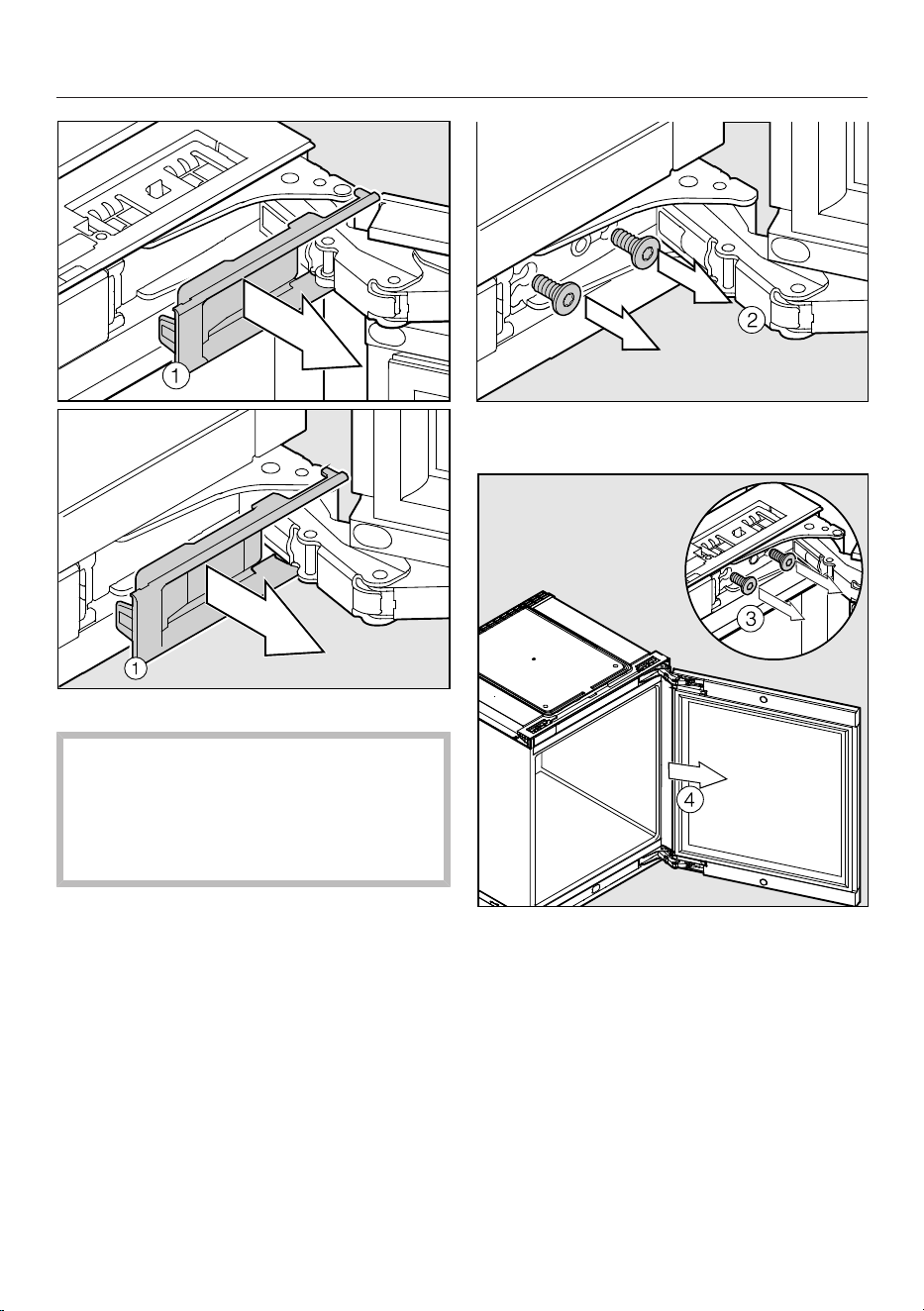

Remove covers.
The second person must support
the appliance door.
Caution! When the hinge is sub-
sequently released, the door is no
longer secure.
First remove screws from the lower
hinge.
Then remove screws from the up-
per hinge.
Remove the appliance door.
Installation
*INSTALLATION*
57

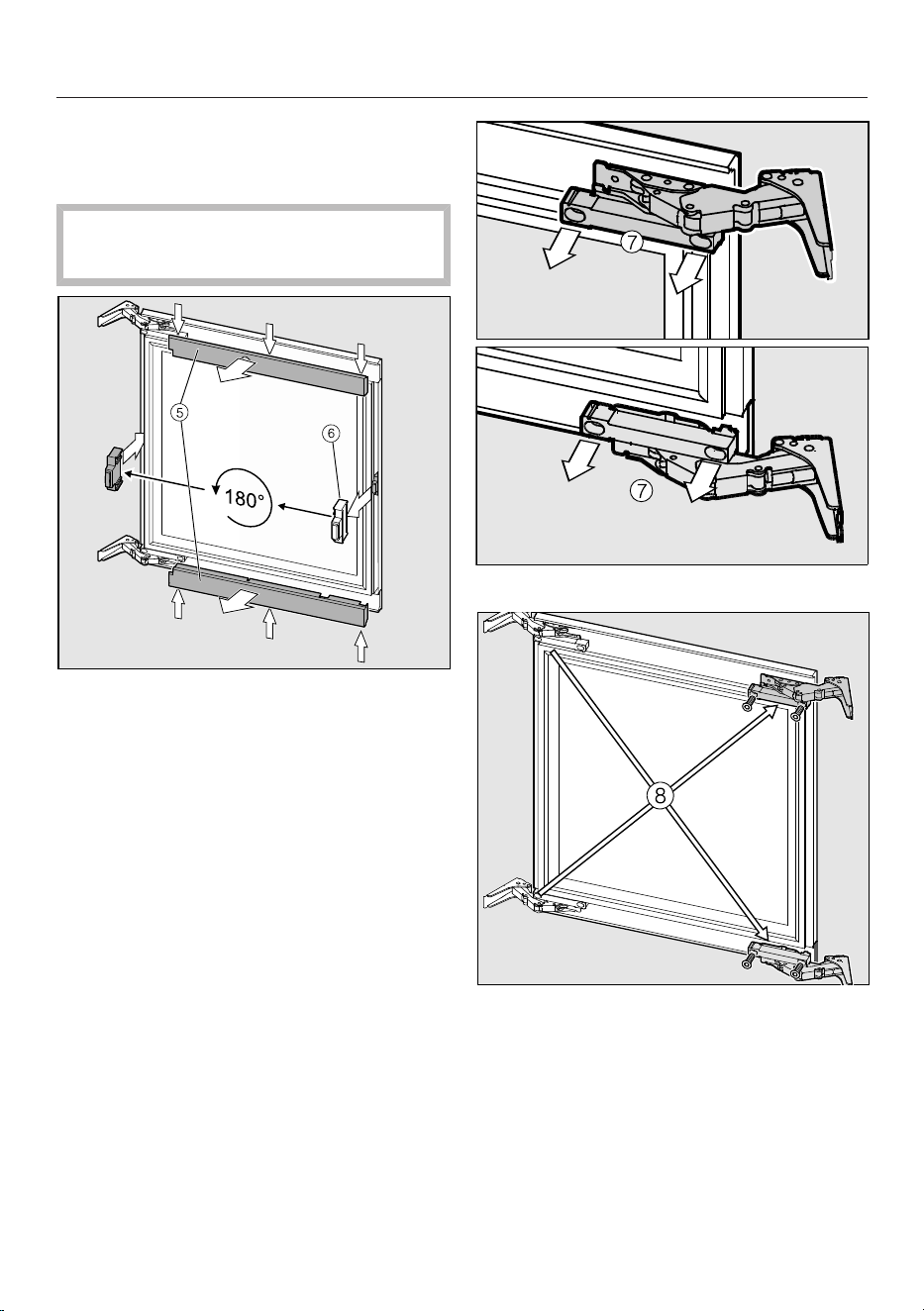

Place the appliance door with the
outer side upwards on a stable sur-
face.
Danger of injury!
Do not close the hinges.
Unclip the upper and lower covers.
Remove spacer from the appliance
door, rotate it through 180° and fit it
on the opposite side.
Remove the screws completely.
Replace the hinges in their diagonally
opposite corners.
Installation
*INSTALLATION*
58

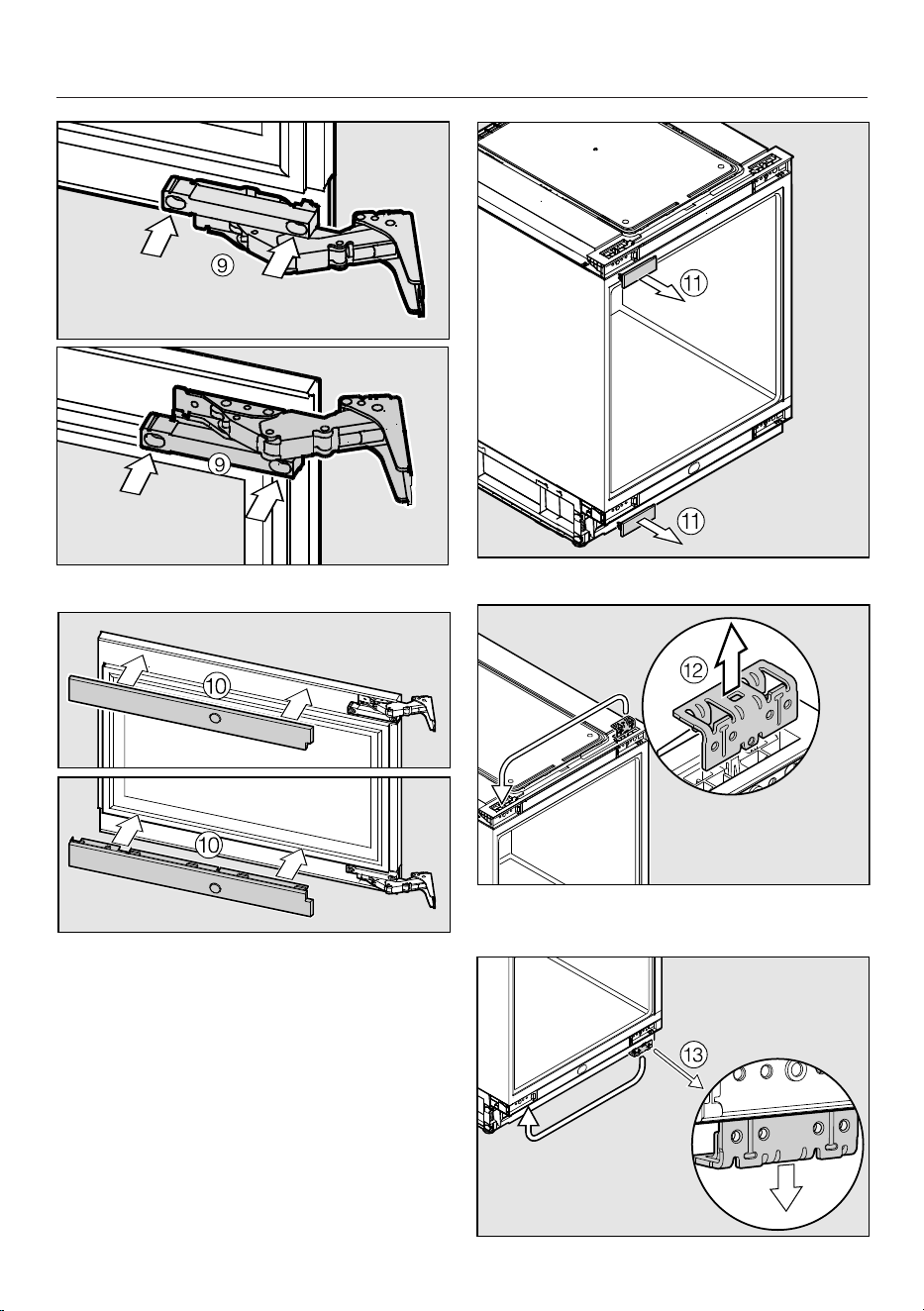

Tighten screws again.
Clip the covers. Make sure that the
recesses on the hinges are positioned
correctly.
Remove covers.
Take off the upper retaining bracket
and replace it on the opposite side.
Installation
*INSTALLATION*
59

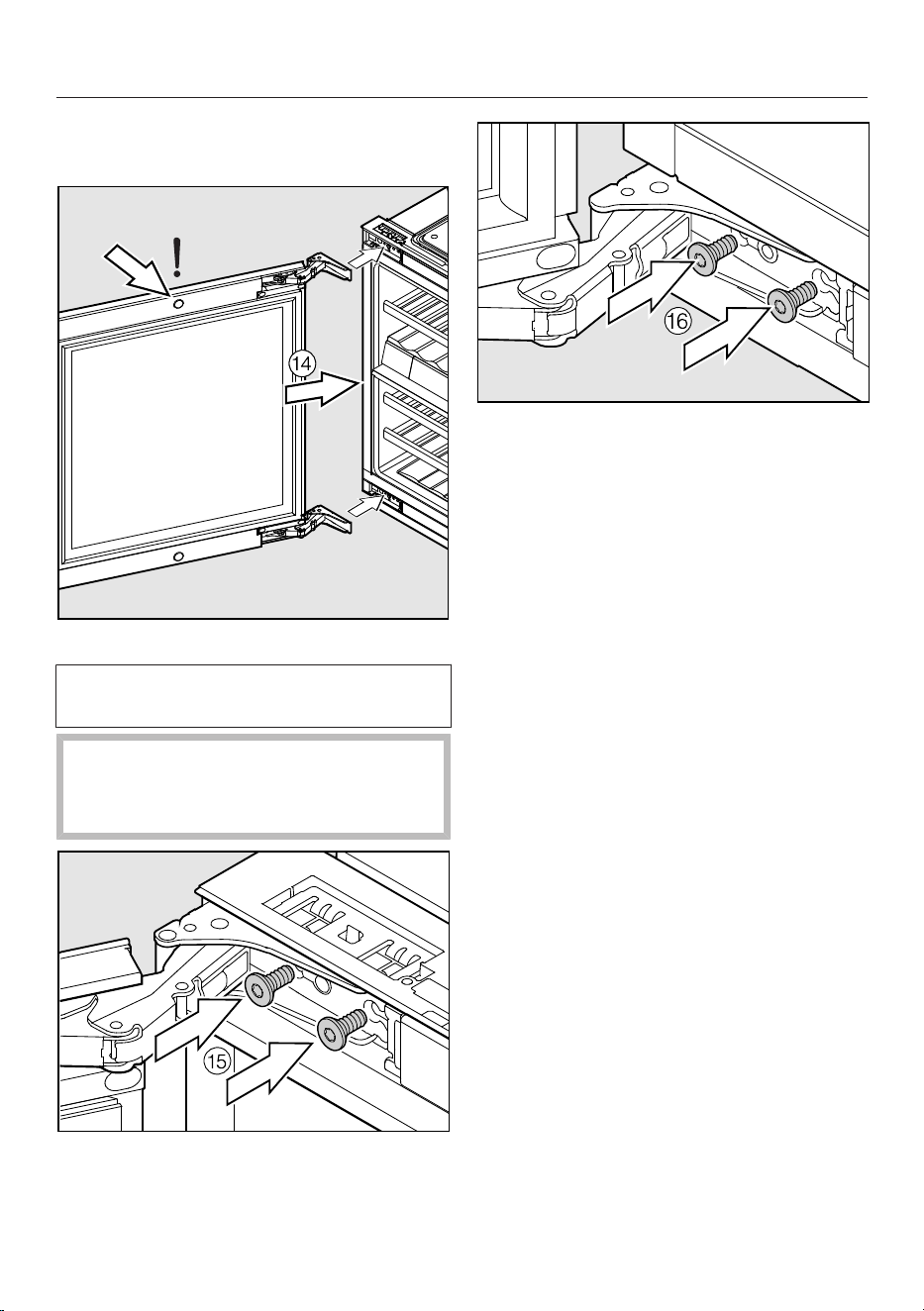

Take off the lower retaining bracket
and replace it on the opposite side.
Fit the appliance door.
Make sure that the door magnet is in-
serted at the top.
Danger of injury!
The second person must support the
appliance door.
Tighten the upper hinge.
Tighten the lower hinge.
Now install the wine unit.
Installation
*INSTALLATION*
60
Installing the wine conditioning
unit
Before installing the wine conditioning
unit
Take any accessories out of the appli-
ance.
Remove the cable clip from the back
of the appliance (depending on
model).
Risk of damage and injury from
the wine unit tipping over.
There is an increased risk of injury
and damage if the wine unit is in-
stalled by a single person.
Two people are required for installing
the wine unit.
Install the wine unit in a stable, solid
housing unit, positioned on an even
and level floor.
The building-in niche must be hori-
zontally and vertically aligned.
The required ventilation gaps must be
provided (see “Installation” – “Ventil-
ation” and “Building-in dimensions”).
To install the wine unit, you will need
the following tools:
- Screwdrivers of various sizes
- A spirit level
- Tape measure
The following supplied installation
components are required for in-
stalling in the niche:
- Ventilation grille
- Air filter
- Foam block for airflow in the appli-
ance plinth
- Screws to secure the appliance in
the niche
- Spanner for adjusting the height in
the niche
Installation
*INSTALLATION*
61

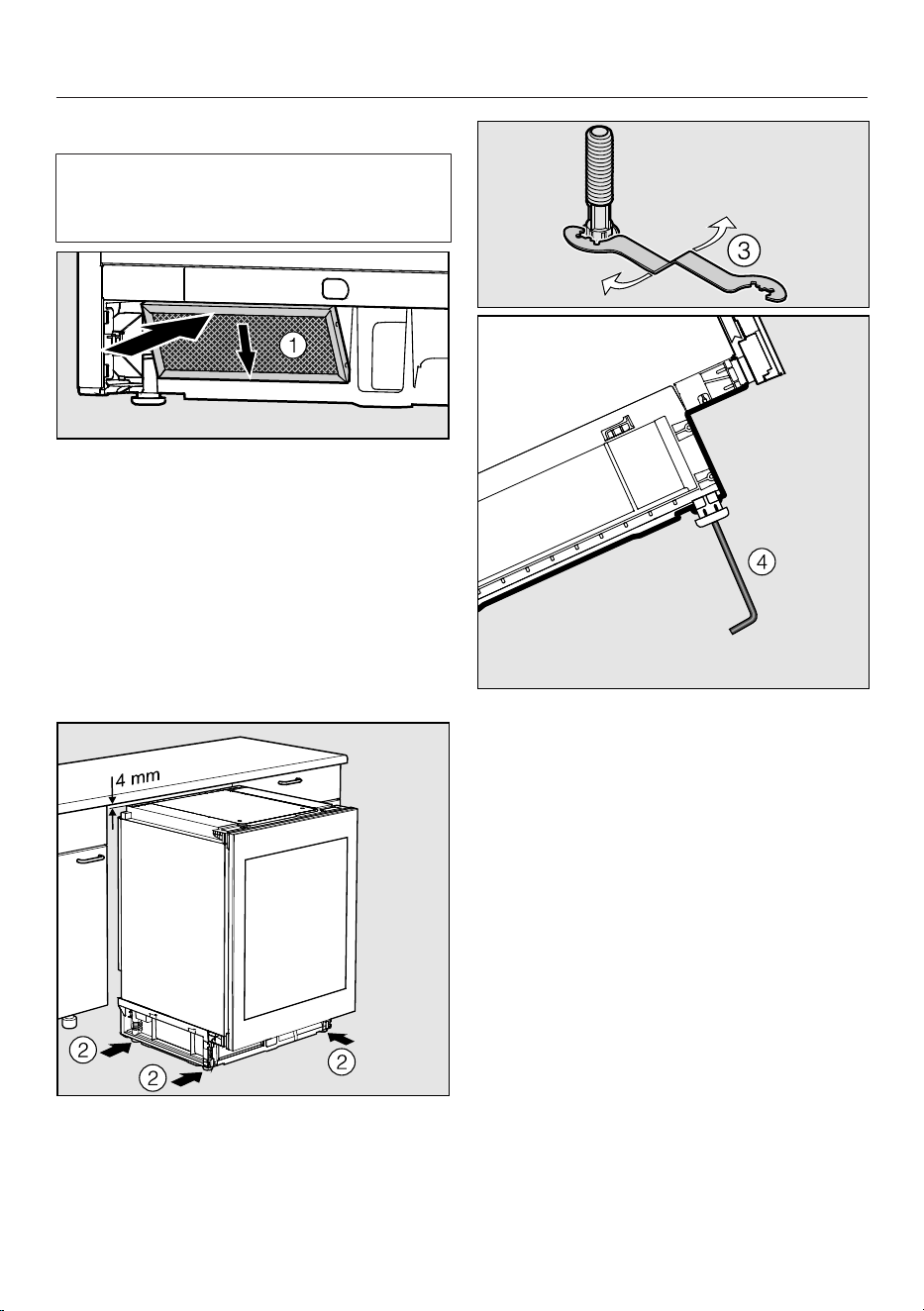

Setting up the wine conditioning unit
The air filter prevents soiling of the
compressor compartment to ensure
efficient functioning of the appliance.
Remove the protective foil from air fil-
ter .
Insert the air filter into the bottom left
of the appliance plinth.
Connect the wine conditioning unit to
the mains electrical supply (see
“Electrical Connection”).
Position the wine conditioning unit in
front of the niche.
Unscrew feet clockwise until the
appliance is 4mm less than the
height of the niche.
The feet can be adjusted with the
spanner supplied or with an allen
key .
Installation
*INSTALLATION*
62

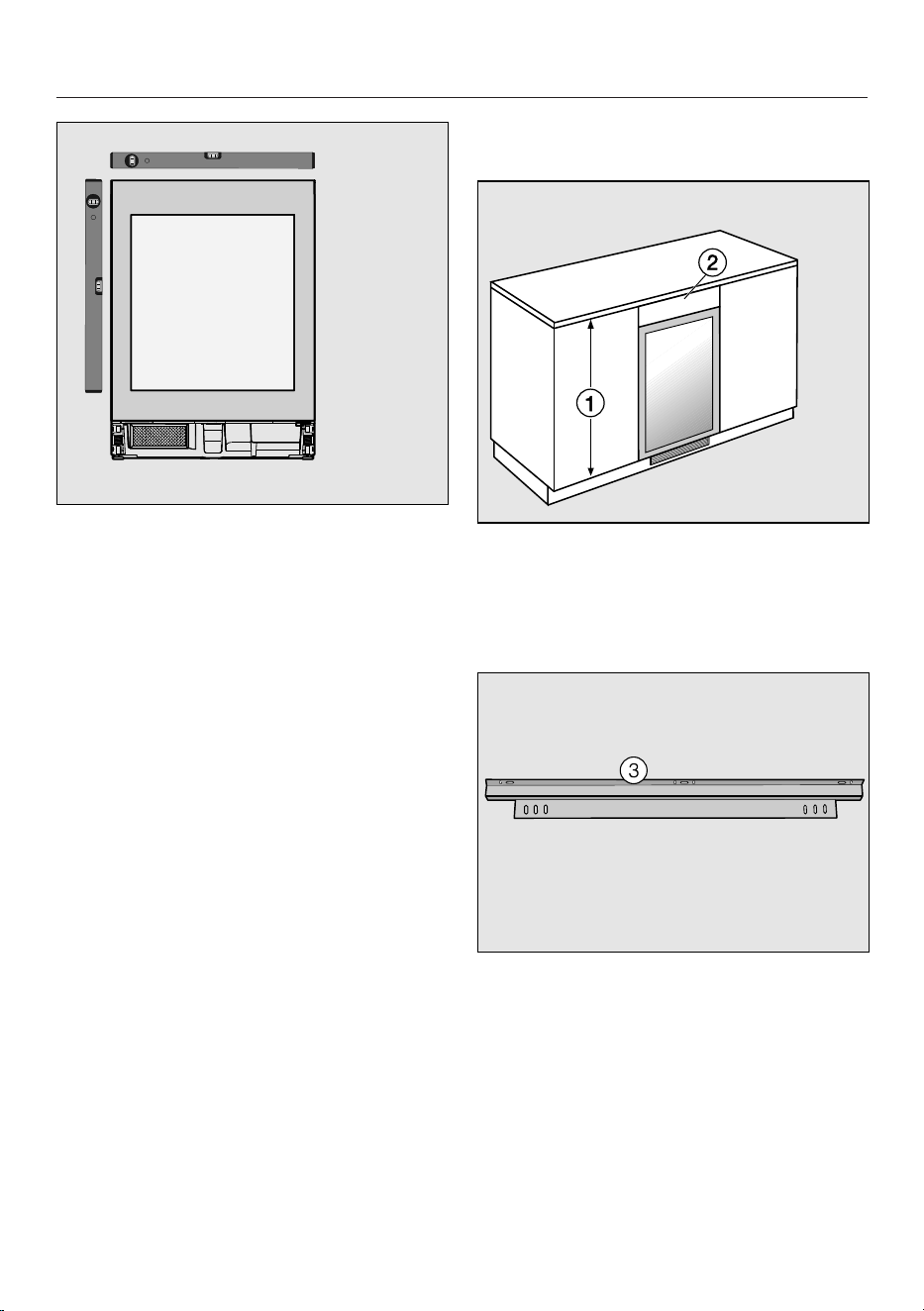

Align the wine conditioning unit hori-
zontally and vertically. If the wine con-
ditioning unit is not correctly aligned it
can distort.
Check the alignment of adjacent fur-
niture housing doors. If adjacent
doors vary in height from the wine
conditioning unit, see “Aligning the
wine conditioning unit to taller fur-
niture doors”.
Aligning the wine conditioning unit to
taller furniture doors
If adjacent furniture housing doors
are taller than the wine conditioning unit
door, the wine conditioning unit can be
aligned to the adjacent furniture doors
using a filler panel .
A bracket is required to secure the
filler panel, which is available from the
Miele Spare Parts Department or from
your dealer. The filler panel can be fitted
above or below the wine conditioning
unit as required.
Installation
*INSTALLATION*
63

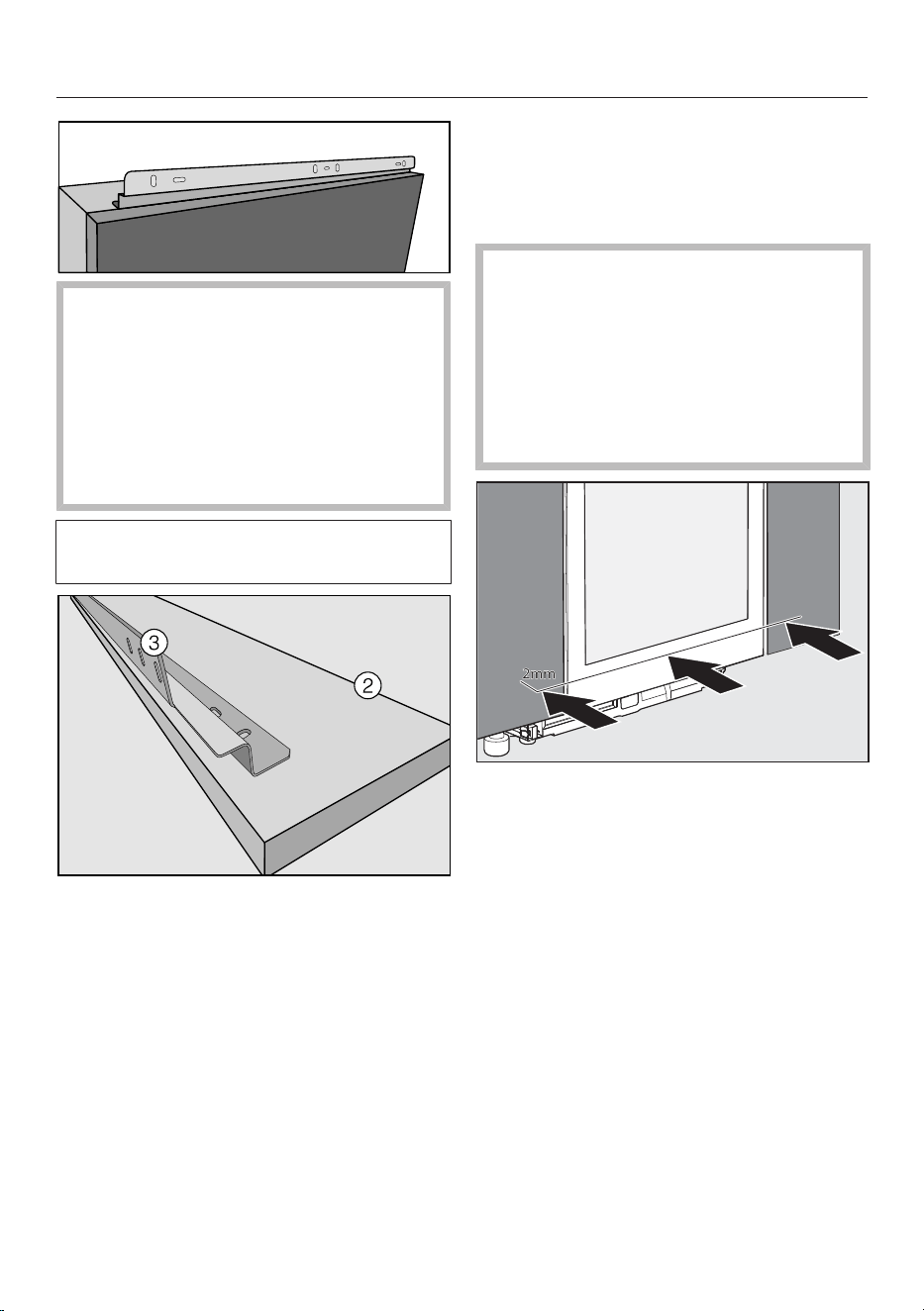

To avoid damaging the wine condi-
tioning unit, the ventilation grille must
be positioned precisely in front of the
vent outlet. If you wish to fit a plinth
facing across the front of the wine
conditioning unit make sure it
provides adequate ventilation.
The filler panel must be made exactly
to measure.
Fix bracket to the back of filler
panel .
Pull the wine conditioning unit as far
as you need to out of the niche so
that you can tilt it towards you.
Loosely hand-screw the bracket with
the filler panel to the wine condition-
ing unit.
Align the filler panel to the wine con-
ditioning unit door using the long slots
to give a flush finish.
Now tighten the screws.
You can now push the wine condition-
ing unit into the niche.
Push the wine conditioning unit into
the niche
Make sure that the mains cable
does not become trapped or dam-
aged as you push the wine condition-
ing unit into its niche.
To avoid damaging flooring which is
susceptible to scratching, take great
care when pushing the appliance into
its niche.
Push the wine conditioning unit into
the niche until the front of the appli-
ance door is flush with adjacent fur-
niture doors.
Pull the wine conditioning unit for-
ward so that it stands proud of the
furniture doors evenly by 2mm.
Installation
*INSTALLATION*
64

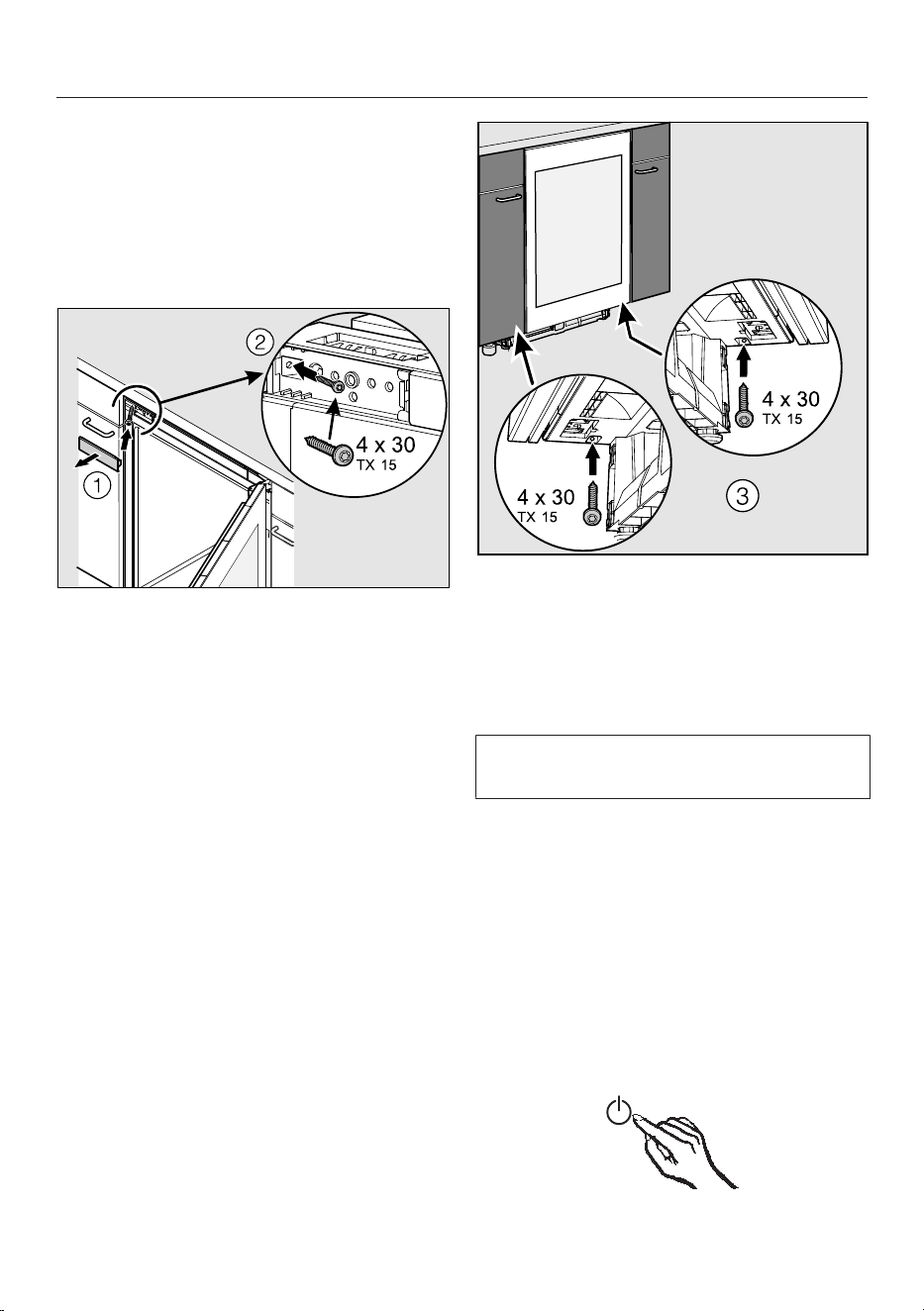

Secure the wine conditioning unit in
the niche
The wine conditioning unit must
stand proud of furniture doors evenly
by 2 mm.
Open the appliance door.
Remove cover , and first screw the
wine conditioning unit to the adjacent
furniture unit at the top left .
The wine conditioning unit will align it-
self to the left side of the niche. The
front of the appliance door must be
flush with the furniture front.
Refit the cover.
Screw the wine conditioning unit at
the bottom left and right to adjacent
furniture units.
If necessary a fourth screw can be
used in the top right hand hinge to se-
cure the wine conditioning unit.
To do so dismantle the door and then
fit this extra screw.
Close the appliance door and check
that the side edges of the appliance
door are aligned with the side walls of
the wine conditioning unit.
Now connect the wine conditioning
unit to the electrical supply.
When the wine conditioning unit is con-
nected to the electrical supply, the
mains connection symbol will ap-
pear in the display after a short while.
Touch the On/Off sensor.
Installation
*INSTALLATION*
65
The mains connection symbol will go
out and the wine conditioning unit will
start to cool.
The Push2open system on the wine
conditioning unit is now activated (see
“Door catch”).

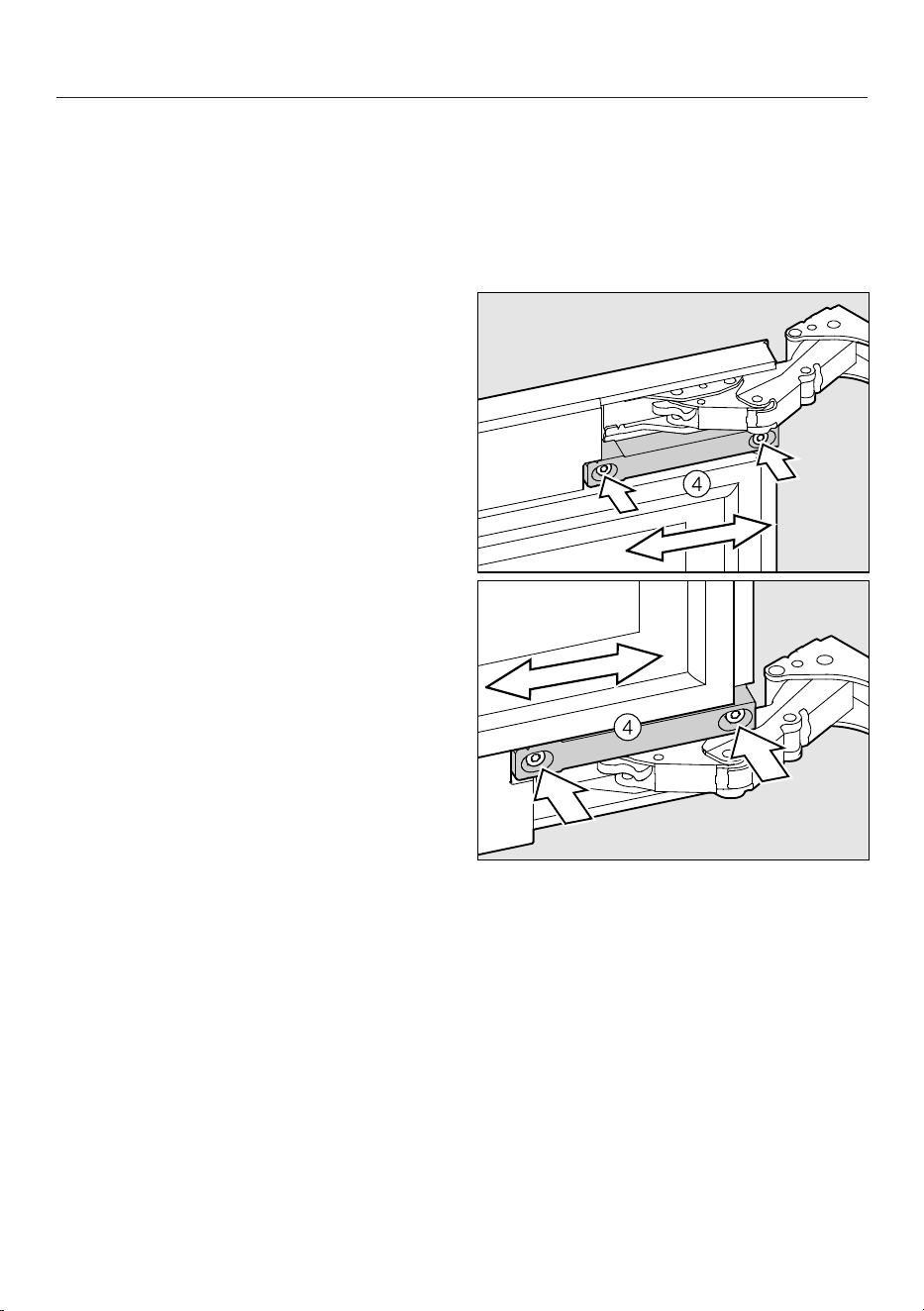

Adjusting the lateral alignment of the
appliance door
If the appliance door is not aligned with
the housing side walls, the appliance
door can be adjusted using the screws
underneath the hinges.
Loosen screws and align the appli-
ance door.
Tighten screws again.
Installation
*INSTALLATION*
66

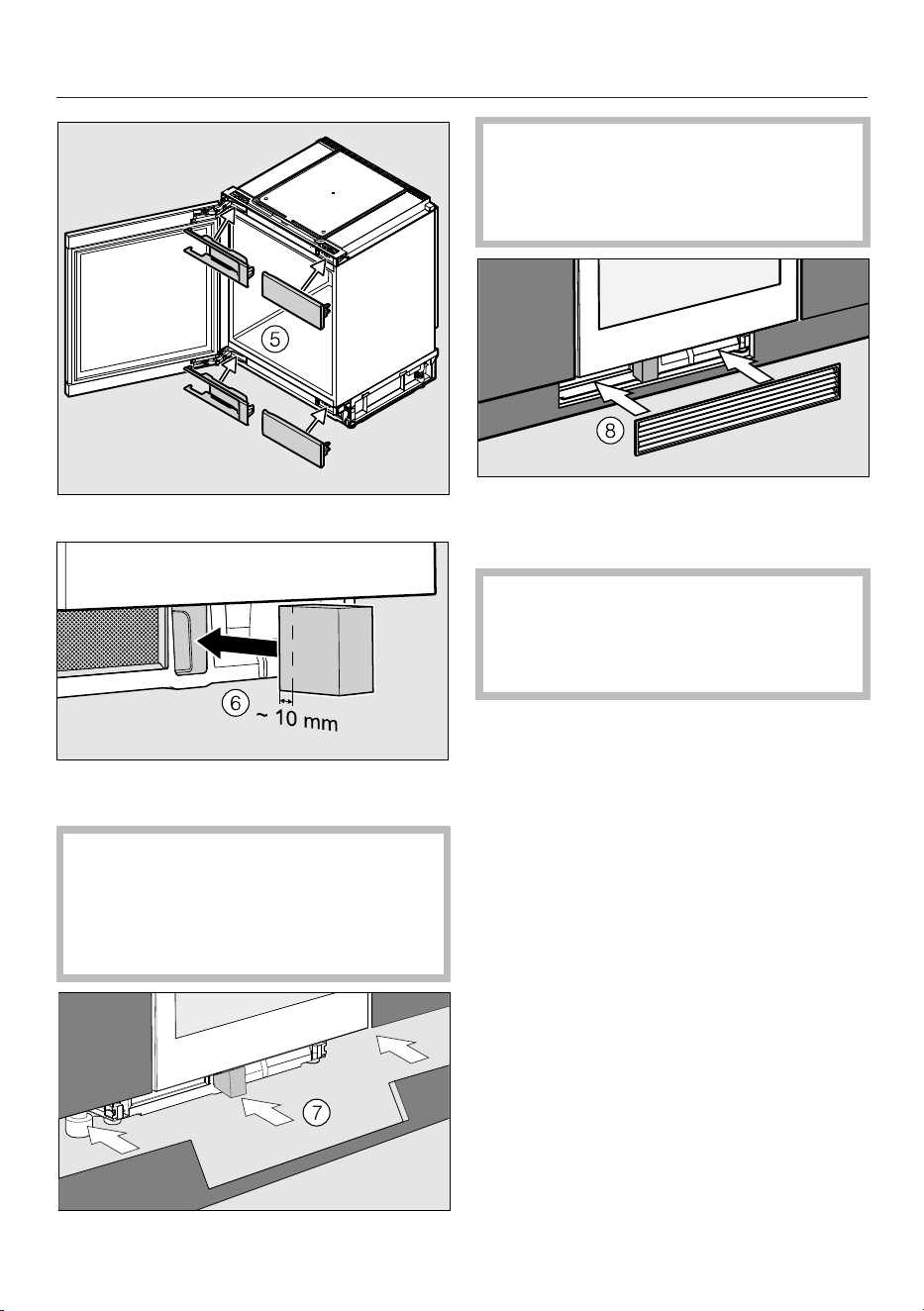

Fit the covers.
Insert foam block supplied into the
appliance plinth.
If the foam block is not fitted, the
wine conditioning unit will not
achieve optimum cooling and can
suffer damage.
Fit plinth facing in position.
The cut-out in the plinth facing must
be aligned centrally with the wine
conditioning unit.
Fit plinth ventilation grille . As you
do so the foam block will be pushed
back.
The foam block must be resting
against the ventilation grille in order
to separate the airflow.
Installation
*INSTALLATION*
67
Electrical connection
The wine unit is supplied with a mains
cable with moulded plug ready for con-
nection to an earthed socket.
The socket must be easily accessible
after the wine unit has been installed. If
the socket is not easily accessible, en-
sure that a suitable means of discon-
nection is provided on the installation
side for each pole.
Risk of fire from overheating.
Connecting the refrigeration appli-
ance to a multi-socket plug adapter
or to an extension lead can overload
the cable.
For safety reasons, do not use an ex-
tension lead or multi-socket adapter.
The electrical installation must comply
with VDE0100 requirements.
For safety reasons, we recommend us-
ing a type residual current device
(RCD) in the assigned electrical installa-
tion for connecting the wine unit.
If the mains connection cable is dam-
aged, it must only be replaced with a
specific mains connection cable of the
same type (available from the Miele
Customer Service Department). For
safety reasons, such replacement may
only be carried out by a qualified spe-
cialist or the Miele Customer Service
Department.
These operating instructions and the
data plate indicate the nominal power
consumption and the appropriate fuse
rating. Compare this information with
the data of the on-site electrical con-
nection.
If in any doubt, consult a qualified elec-
trician.
Temporary or permanent operation on
an autonomous power supply system or
a power supply system that is not syn-
chronised with the mains power supply
(e.g. island networks, back-up systems)
is possible. A prerequisite for operation
is that the power supply system com-
plies with the specifications of
EN50160 or an equivalent standard.
The function and operation of the pro-
tective measures provided in the do-
mestic electrical installation and in this
Miele product must also be maintained
in isolated operation or in operation that
is not synchronised with the mains
power supply, or these measures must
be replaced by equivalent measures in
the installation. As described, for ex-
ample, in the current version of VDE-
AR-E2510-2.
Information for dealers
68
Demo mode
The wine conditioning unit can be
demonstrated in the showroom or at ex-
hibitions in “Demo mode”. In this mode
the control panel and interior lighting are
active but the compressor remains
switched off, so that the appliance does
not cool down.
Switching on demo mode
Switch the wine conditioning unit off
by touching the On/Off sensor.
The temperature display will go out and
the mains connection symbol will
appear.
Place your finger on the sensor, and
leave it there.
At the same time, briefly touch the
On/Off sensor (without letting go of
the sensor).
Leave your finger on the sensor un-
til the symbol appears in the display.
Then release the sensor.
Demo mode is activated and the sym-
bol appears in the display.
Switching off Demo mode
The symbol is lit up in the display.
Touch the settings sensor.
All symbols available for selection will
appear in the display and the symbol
flashes.
Touch the sensors for setting the tem-
perature ( or ) repeatedly until the
symbol flashes.
Touch the OK sensor to confirm your
selection.
1 flashes in the display (means: Demo
mode is switched on) and the symbol
lights up.
Information for dealers
69
Touch the or sensor until 0 ap-
pears (means: Demo mode is
switched off).
Touch the OK sensor to confirm your
selection.
The selected setting is applied, the
symbol flashes.
Touch the settings sensor to leave
settings mode.
Otherwise the appliance exits set-
tings mode automatically after ap-
proximately one minute.
Demo mode is switched off, the sym-
bol goes out.
United Kingdom
Miele Co. Ltd., Fairacres, Marcham Road, Abingdon, Oxon, OX14 1TW
Tel: 0330 160 6600, Internet: www.miele.co.uk, E-mail: [email protected]
Australia
Miele Australia Pty. Ltd.
ACN 005 635 398
ABN 96 005 635 398
Level 4, 141 Camberwell Road
Hawthorn East, VIC 3123
Tel: 1300 464 353
E-mail: [email protected]
Internet: www.miele.com.au
Miele Electrical Appliances Co., Ltd.
1-3 Floor, No. 82 Shi Men Yi Road
Jing' an District
200040 Shanghai, PRC
Tel: +86 21 6157 3500
Fax: +86 21 6157 3511
E-mail: [email protected]
Internet: www.miele.cn
China Mainland
Miele (Hong Kong) Ltd.
41/F - 4101, Manhattan Place
23 Wang Tai Road
Kowloon Bay, Hong Kong
Tel: (852) 2610 1025
Fax: (852) 3579 1404
E-mail:
Website: www.miele.hk
Hong Kong, China
Miele India Pvt. Ltd.
1st Floor, Copia Corporate Suites,
Commercial Plot 9, Mathura Road,
Jasola, New Delhi - 110025
E-mail: customercare@miele.in
Website: www.miele.in
India
Miele Ireland Ltd.
2024 Bianconi Avenue
Citywest Business Campus
Dublin 24
Tel: (01) 461 07 10
Fax: (01) 461 07 97
E-mail: [email protected]
Internet: www.miele.ie
Ireland
Malaysia
Miele Sdn Bhd
Suite 12-2, Level 12
Menara Sapura Kencana
Petroleum
Solaris Dutamas No. 1
Jalan Dutamas 1
50480 Kuala Lumpur, Malaysia
Phone: +603-6209-0288
Fax: +603-6205-3768
Miele New Zealand Limited
IRD 98 463 631
8 College Hill
Freemans Bay, Auckland 1011
Tel: 0800 464 353
Internet: www.miele.co.nz
New Zealand
Miele Pte. Ltd.
29 Media Circle
#11-04 ALICE@Mediapolis
Singapore 138565
Tel: +65 6735 1191
Fax: +65 6735 1161
E-mail: [email protected]
Internet: www.miele.sg
Singapore
Miele (Pty) Ltd.
63 Peter Place, Bryanston 2194
Tel: (011) 875 9000
Fax: (011) 875 9035
E-mail: [email protected]
Internet: www.miele.co.za
South Africa
Miele Appliances Ltd.
Showroom 1, Eiffel 1 Building
P.O. Box 114782 - Dubai
Tel. +971 4 3044 999
Fax. +971 4 3418 852
800-MIELE (64353)
E-mail: [email protected]
Website: www.miele.ae
United Arab Emirates
Manufacturer: Miele & Cie. KG, Carl-Miele-Straße 29, 33332 Gütersloh, Germany
Thailand
Miele Appliances Ltd.
BHIRAJ TOWER at EmQuartier
43rd Floor Unit 4301-4303
689 Sukhumvit Road
North Klongton Sub-District
Vadhana District
Bangkok 10110, Thailand
Sheikh Zayed Road, Umm Al Sheif
E-mail: customercare@miele.co.nz
P.O. Box 69434, Bryanston 2021
M.-Nr. 10 531 901 / 04en-GB, ZA
KWT 6322 UG ...
