Miele KWT 6722 IGS-1 Glass door User Manual

Operating and installation

instructions

Wine conditioning unit

To avoid the risk of accidents or damage to the appliance it is essen-

tial to read these instructions before it is installed and used for the

first time.

en-GB M.-Nr. 11 324 480

Contents

Warning and Safety instructions...................................................................... 5

Caring for the environment .............................................................................. 14

Saving energy .................................................................................................... 15

Guide to the appliance...................................................................................... 16

Control panel....................................................................................................... 16

Symbols............................................................................................................... 17

Using the door-opening mechanism correctly .................................................... 19

Accessories ....................................................................................................... 20

Accessories supplied .......................................................................................... 20

Optional accessories........................................................................................... 20

Switching on and off ......................................................................................... 21

Before using for the first time.............................................................................. 21

Operating the wine conditioning unit .................................................................. 21

Switching the wine conditioning unit on ........................................................ 21

Switching the wine unit off ............................................................................. 22

Switching off for longer periods of time .............................................................. 23

Selecting further settings ................................................................................. 24

Safety lock ...................................................................................................... 24

Audible tones................................................................................................. 25

Display brightness .......................................................................................... 26

The optimum temperature and air quality....................................................... 27

The optimum temperature................................................................................... 27

Setting the temperature.................................................................................. 28

Temperature range ......................................................................................... 29

Temperature display ....................................................................................... 29

Air quality and humidity....................................................................................... 30

Using DynaCool  (constant humidity)........................................................ 30

Air filtration with the Active AirClean filter ...................................................... 31

Temperature and door alarm............................................................................ 32

Feature lighting.................................................................................................. 34

Switching the feature lighting on and off............................................................. 34

Setting the brightness of the feature lighting ................................................. 34

Lighting duration of the feature lighting ......................................................... 35

Contents

Storing wine bottles .......................................................................................... 37

Wooden shelves.................................................................................................. 38

Moving the wooden shelves........................................................................... 38

Adjusting the wooden shelves ....................................................................... 39

Annotating wooden shelves ........................................................................... 40

Setting up the 3D bottle presenter ................................................................. 40

Maximum capacity .............................................................................................. 42

SommelierSet .................................................................................................... 45

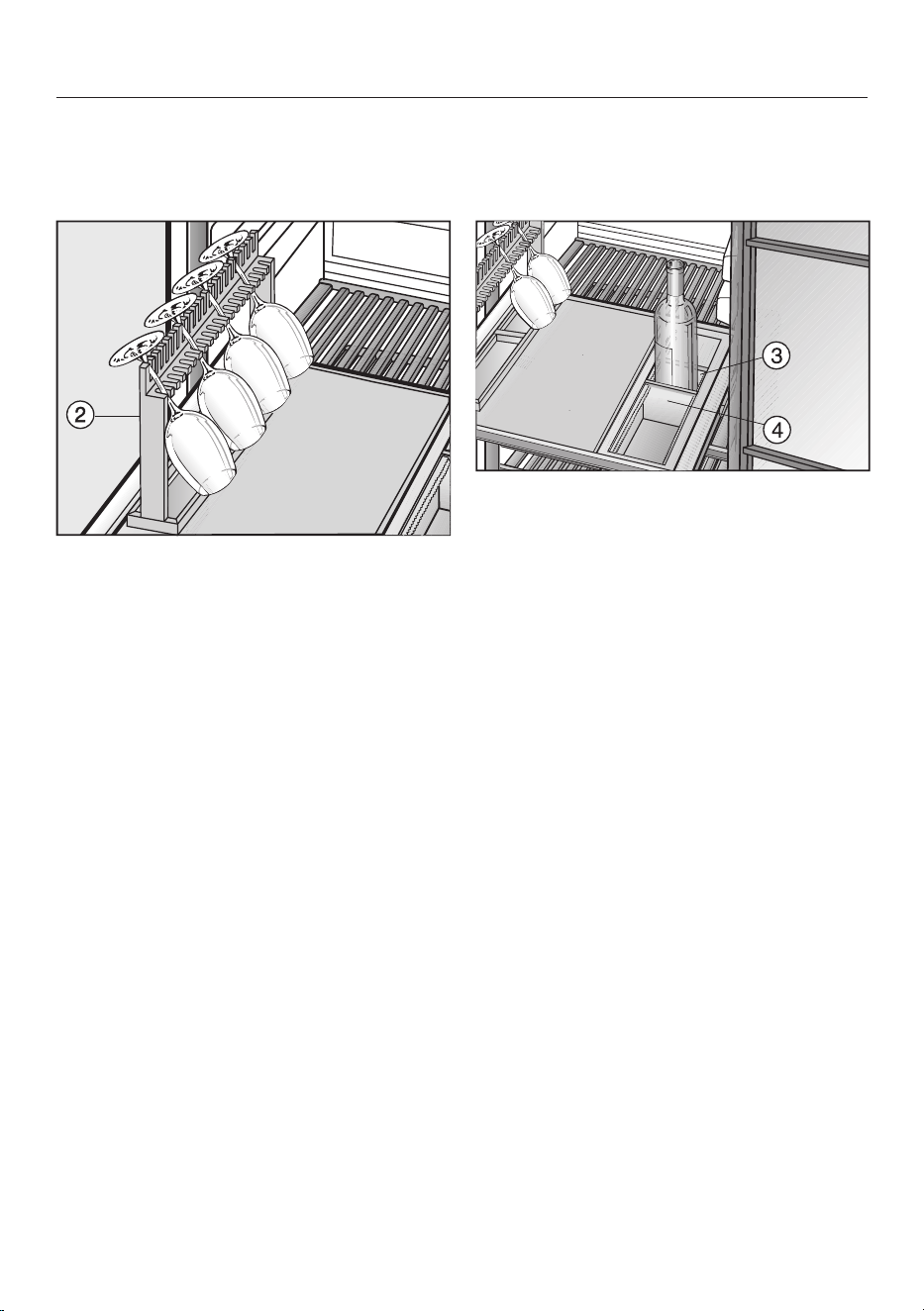

Setting up the SommelierSet .............................................................................. 45

Fitting the runner covers ................................................................................ 45

Inserting the glass holder ............................................................................... 46

Inserting the bottle holder .............................................................................. 46

Automatic defrosting ........................................................................................ 47

Cleaning and care ............................................................................................. 48

Cleaning agents................................................................................................... 48

Before cleaning the wine unit.............................................................................. 49

Interior, accessories and appliance door ............................................................ 49

Cleaning the ventilation gaps .............................................................................. 50

Cleaning the door seal ........................................................................................ 50

After cleaning ...................................................................................................... 50

Active AirClean filters ....................................................................................... 51

Replacing the Active AirClean filters ................................................................... 51

Problem solving guide ...................................................................................... 53

Noises................................................................................................................. 58

Service................................................................................................................ 59

Contact in the event of a fault ............................................................................. 59

EPREL database ................................................................................................. 59

Warranty .............................................................................................................. 59

Installation.......................................................................................................... 60

Location............................................................................................................... 60

Load-bearing capacity of the niche floor ....................................................... 62

Climate range ...................................................................................................... 63

Side-by-side........................................................................................................ 63

Ventilation............................................................................................................ 64

Installation dimensions........................................................................................ 65

Adjusting the door hinges ................................................................................... 66

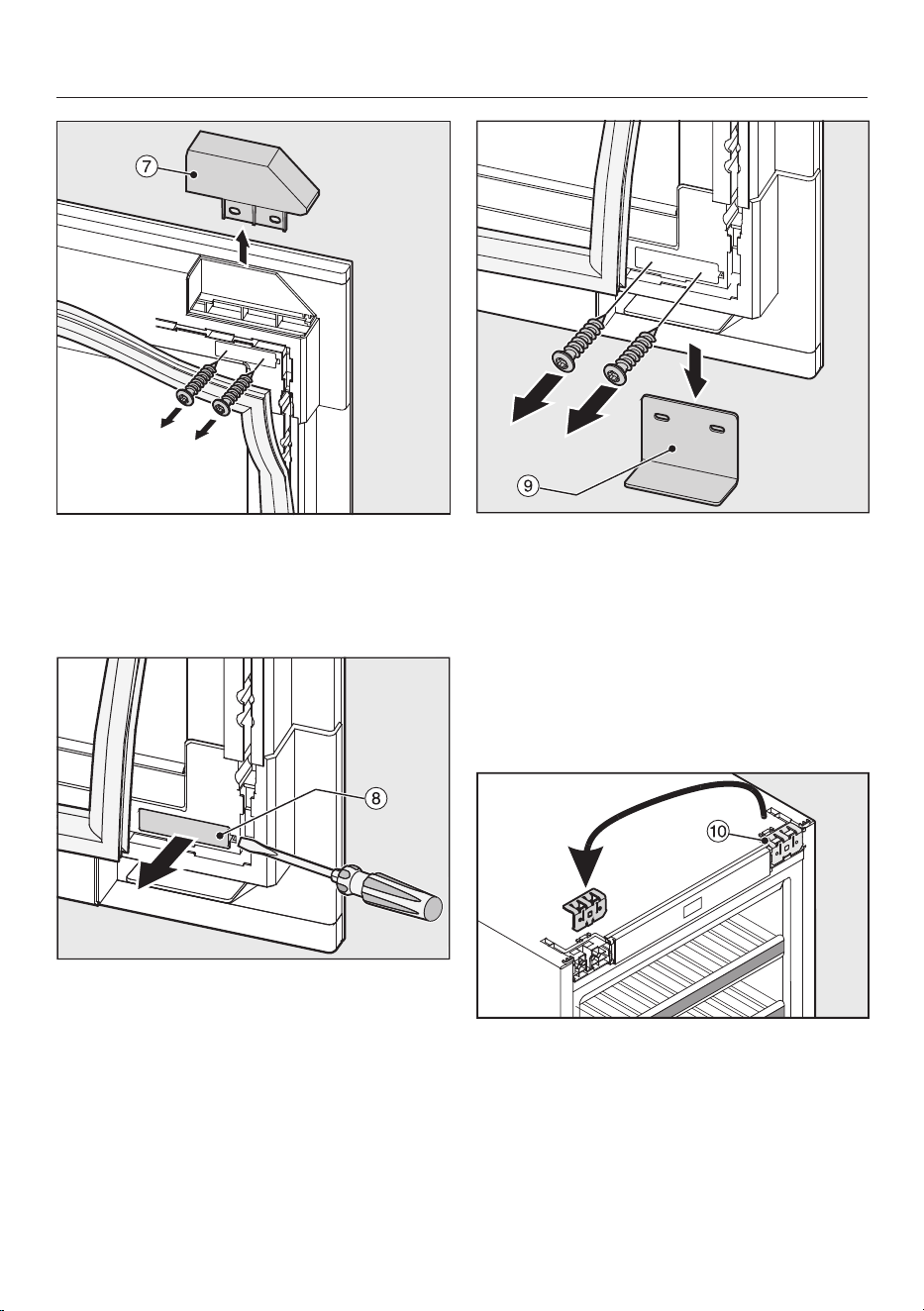

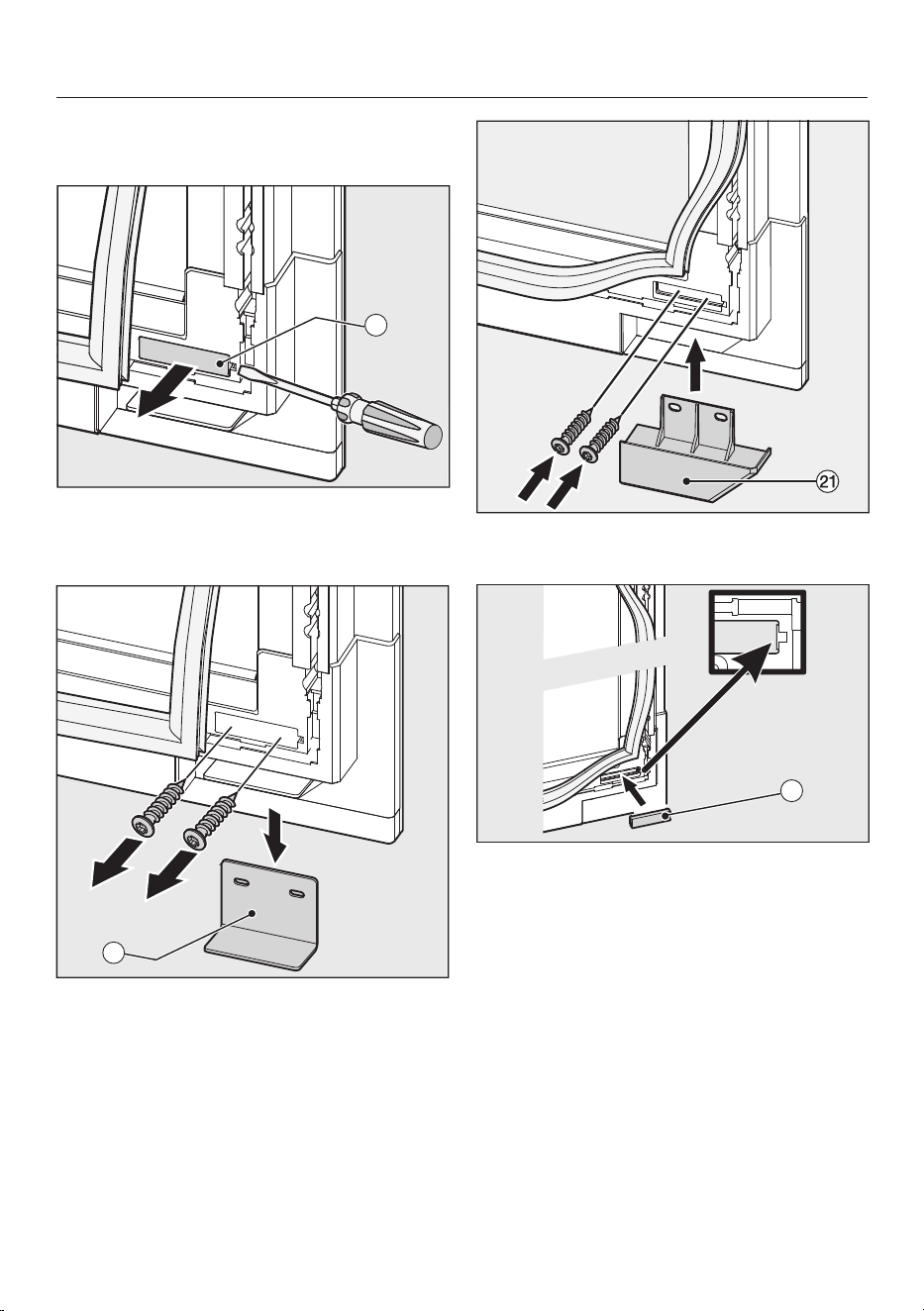

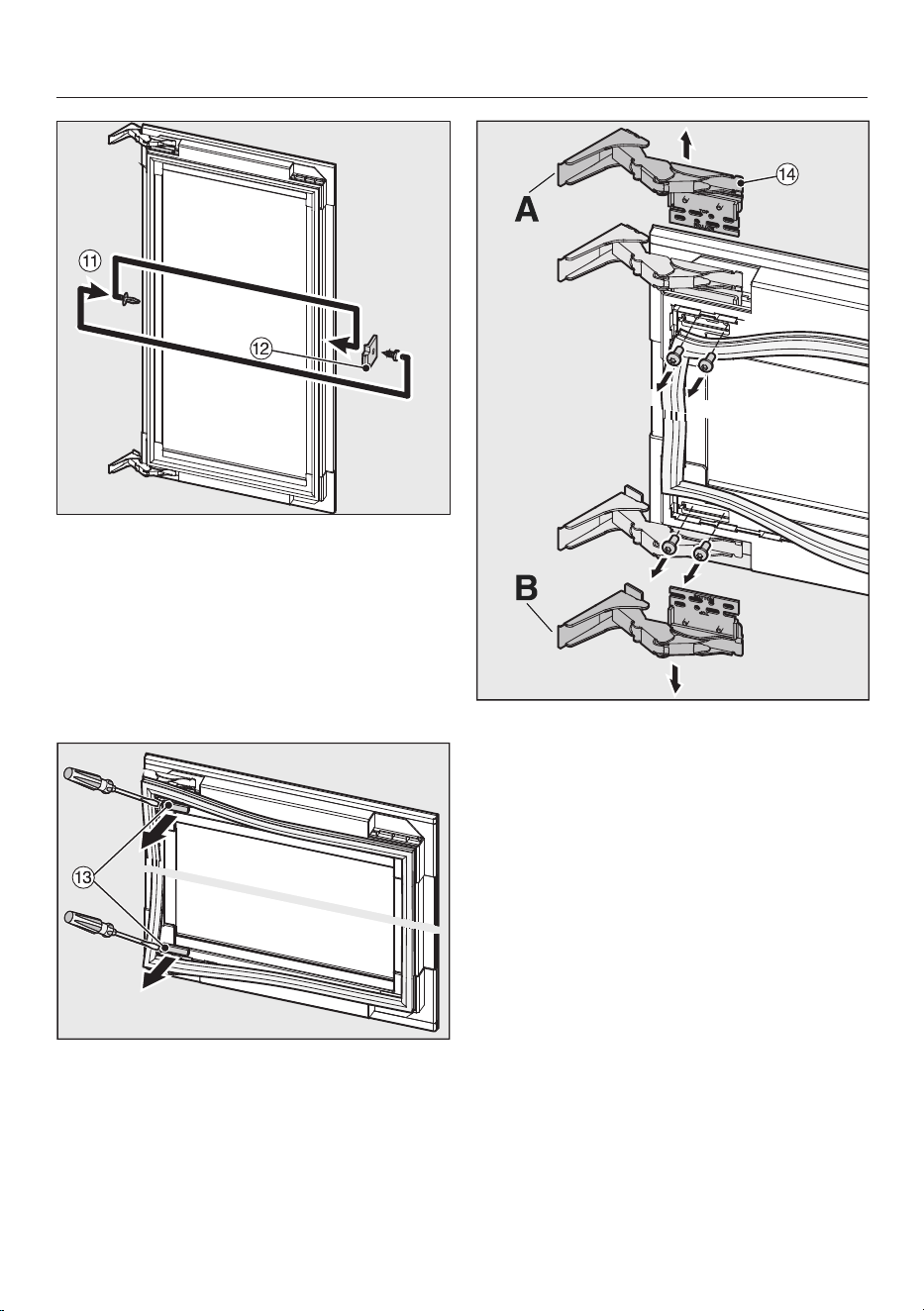

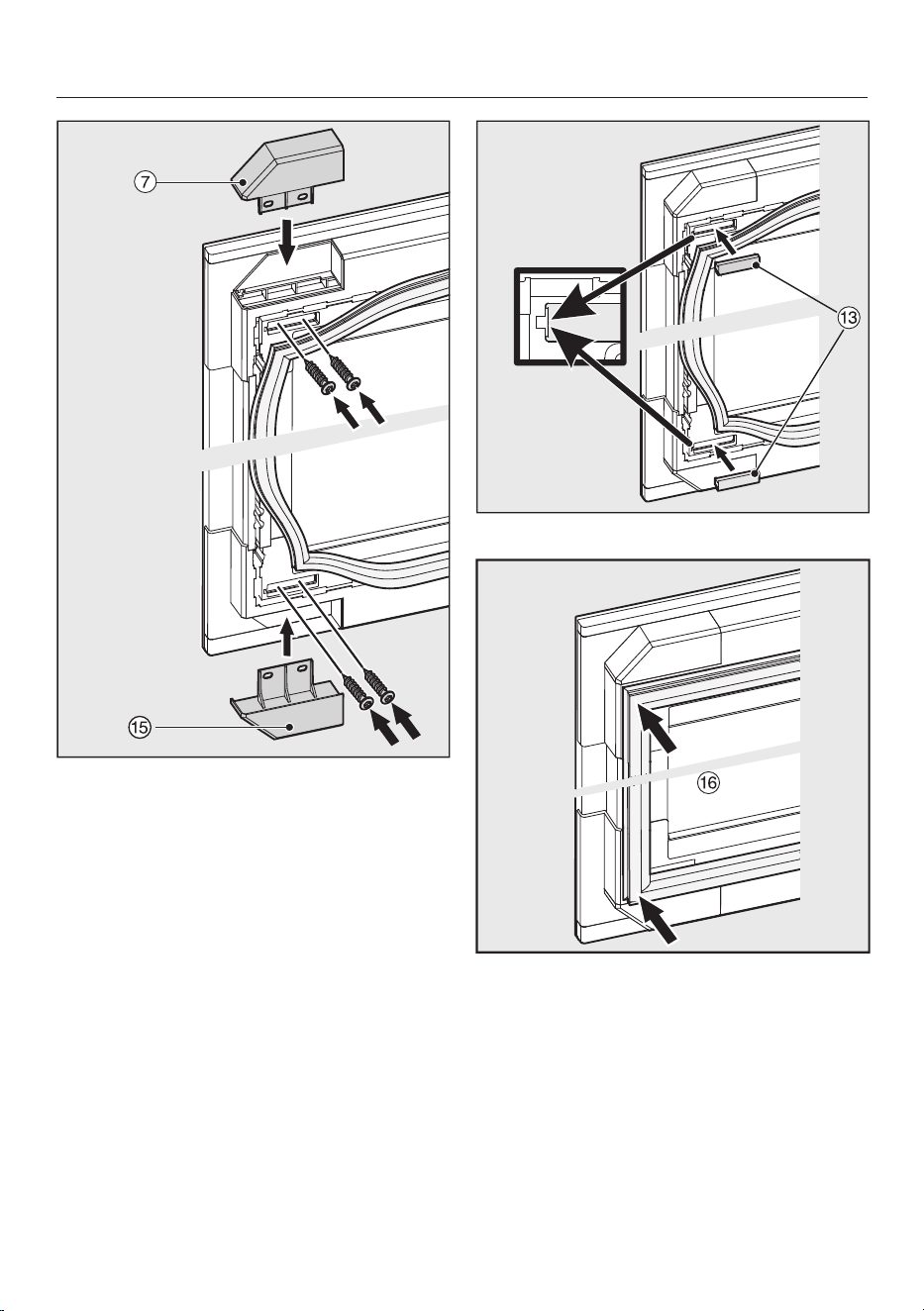

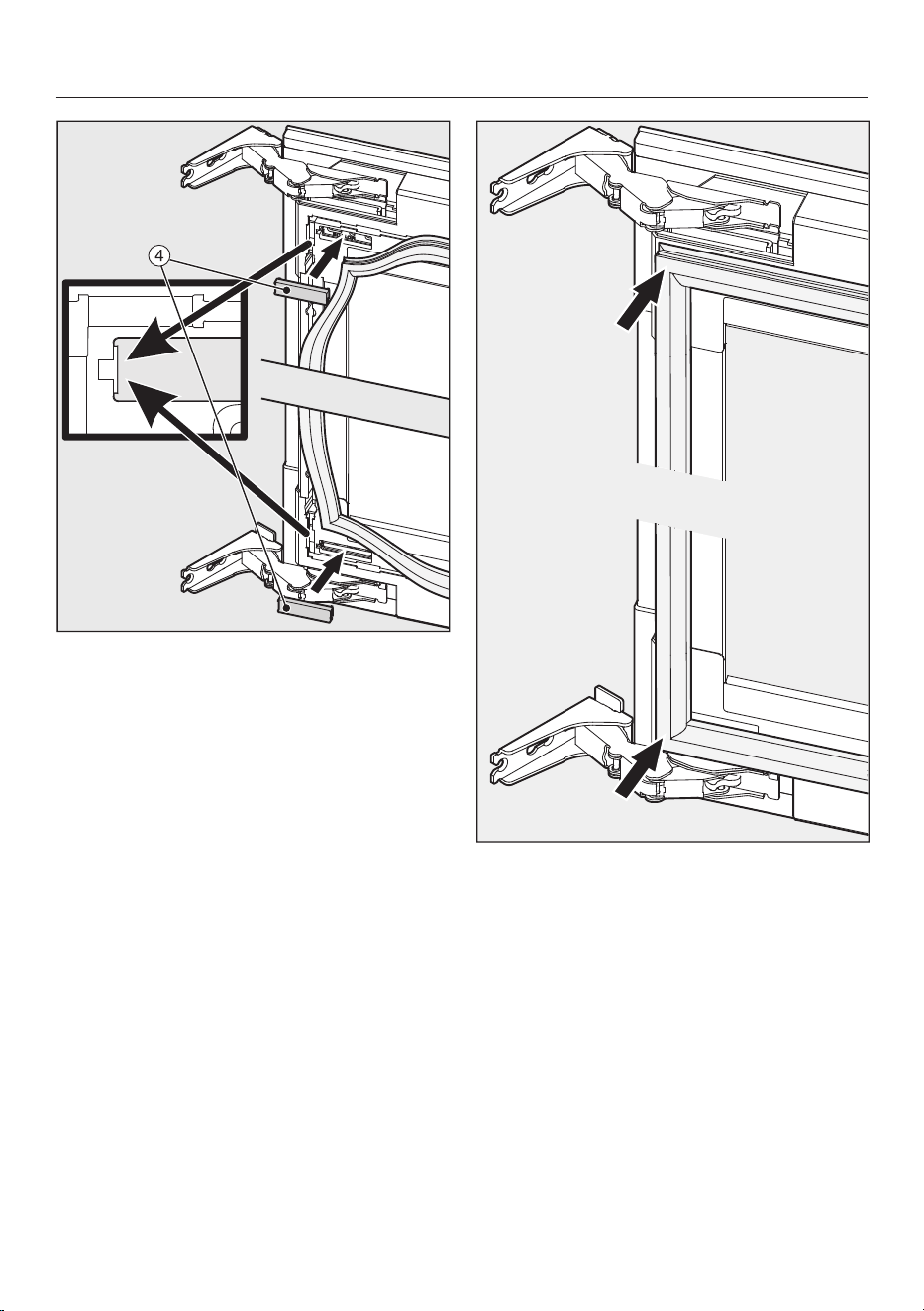

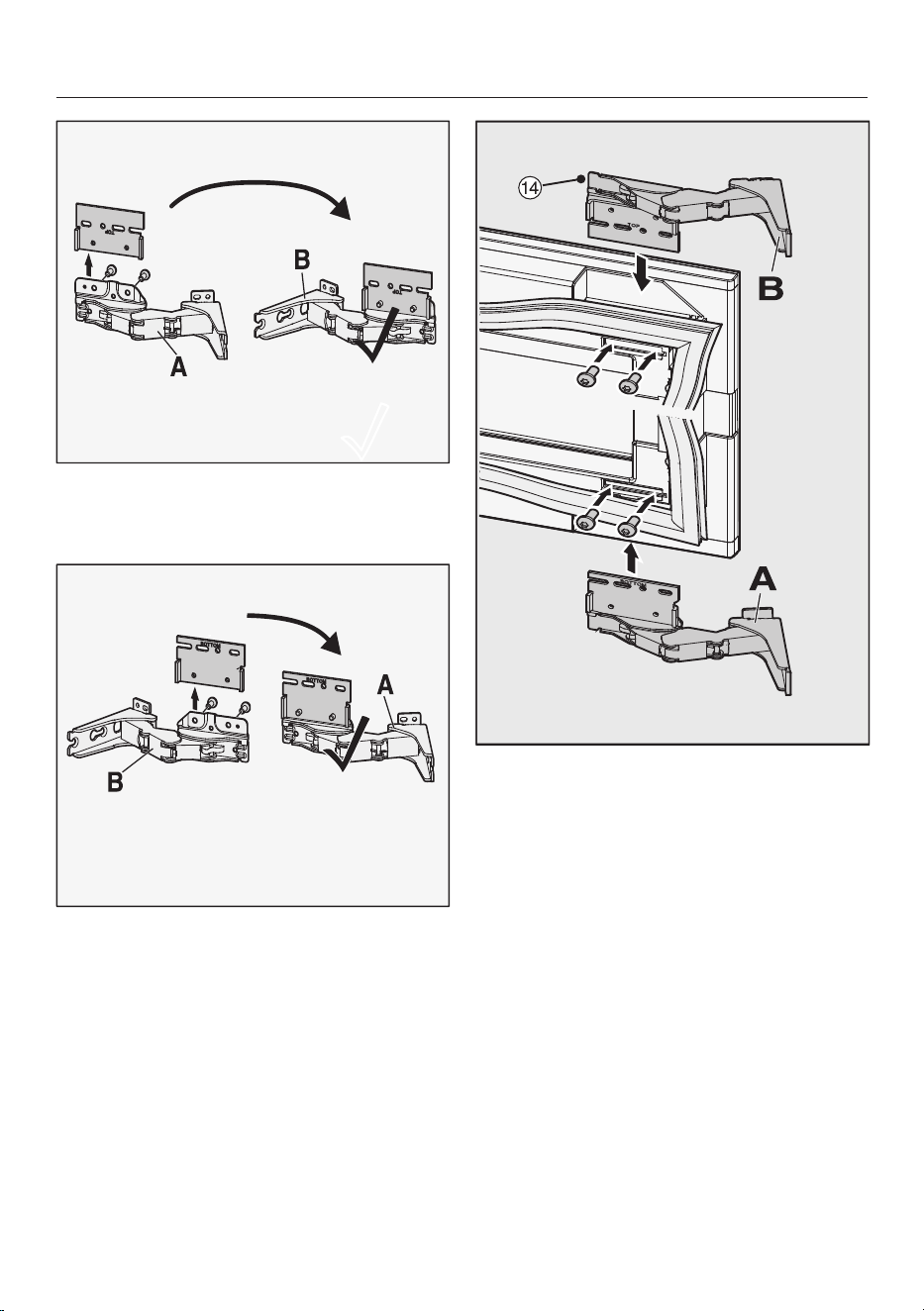

Changing the door hinging.................................................................................. 67

Contents

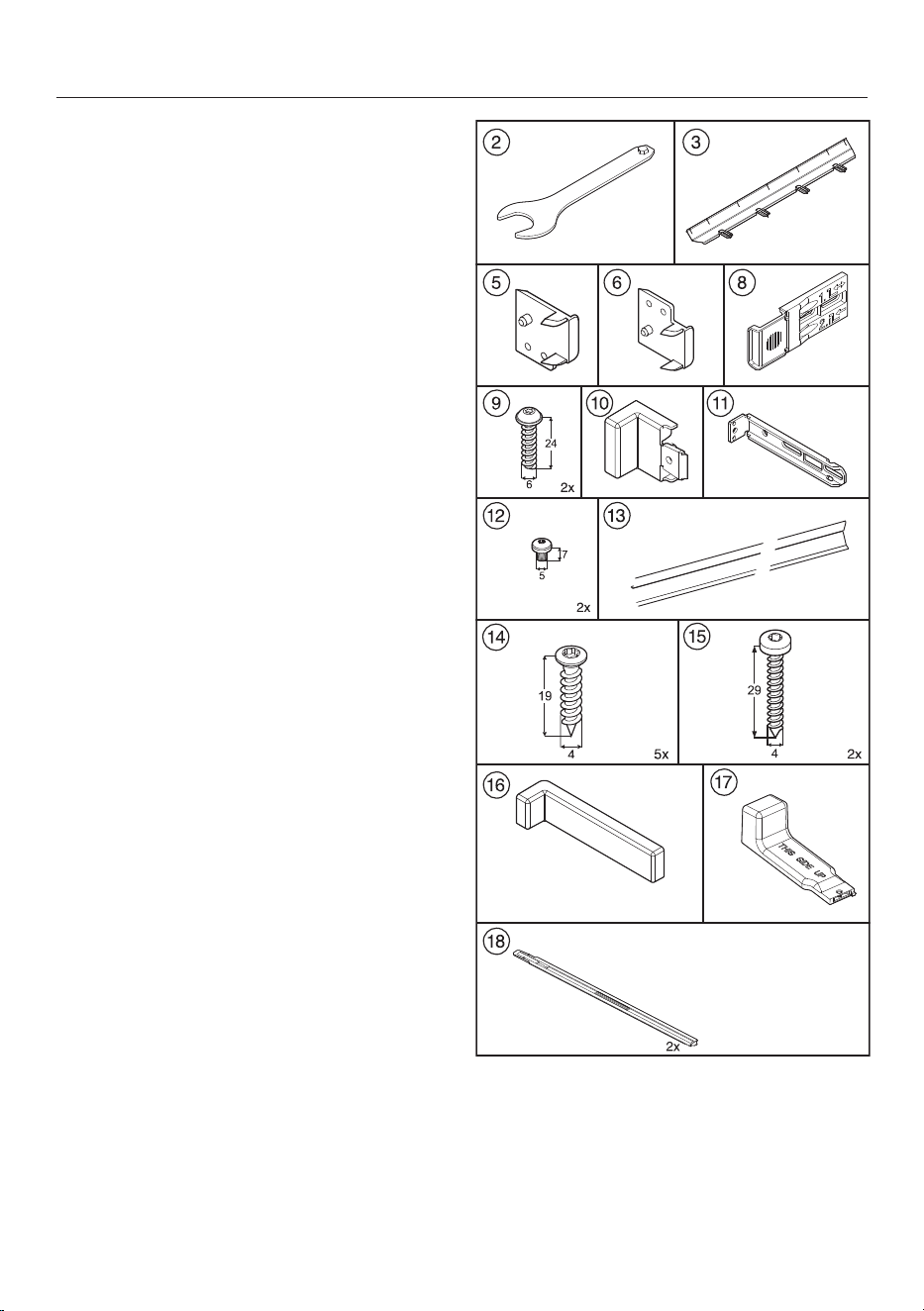

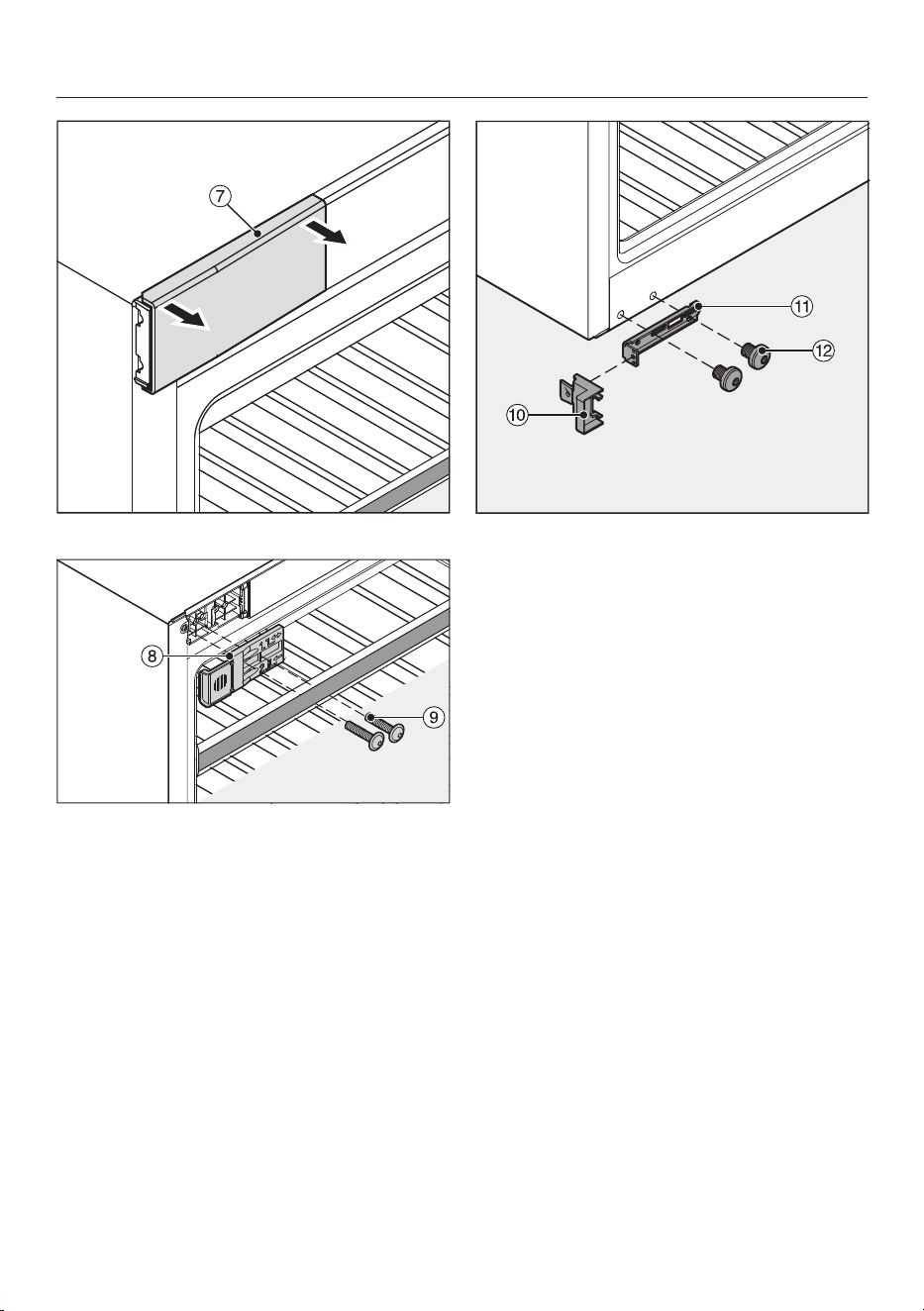

Installing the wine conditioning unit .................................................................... 74

Before installing the wine conditioning unit.................................................... 74

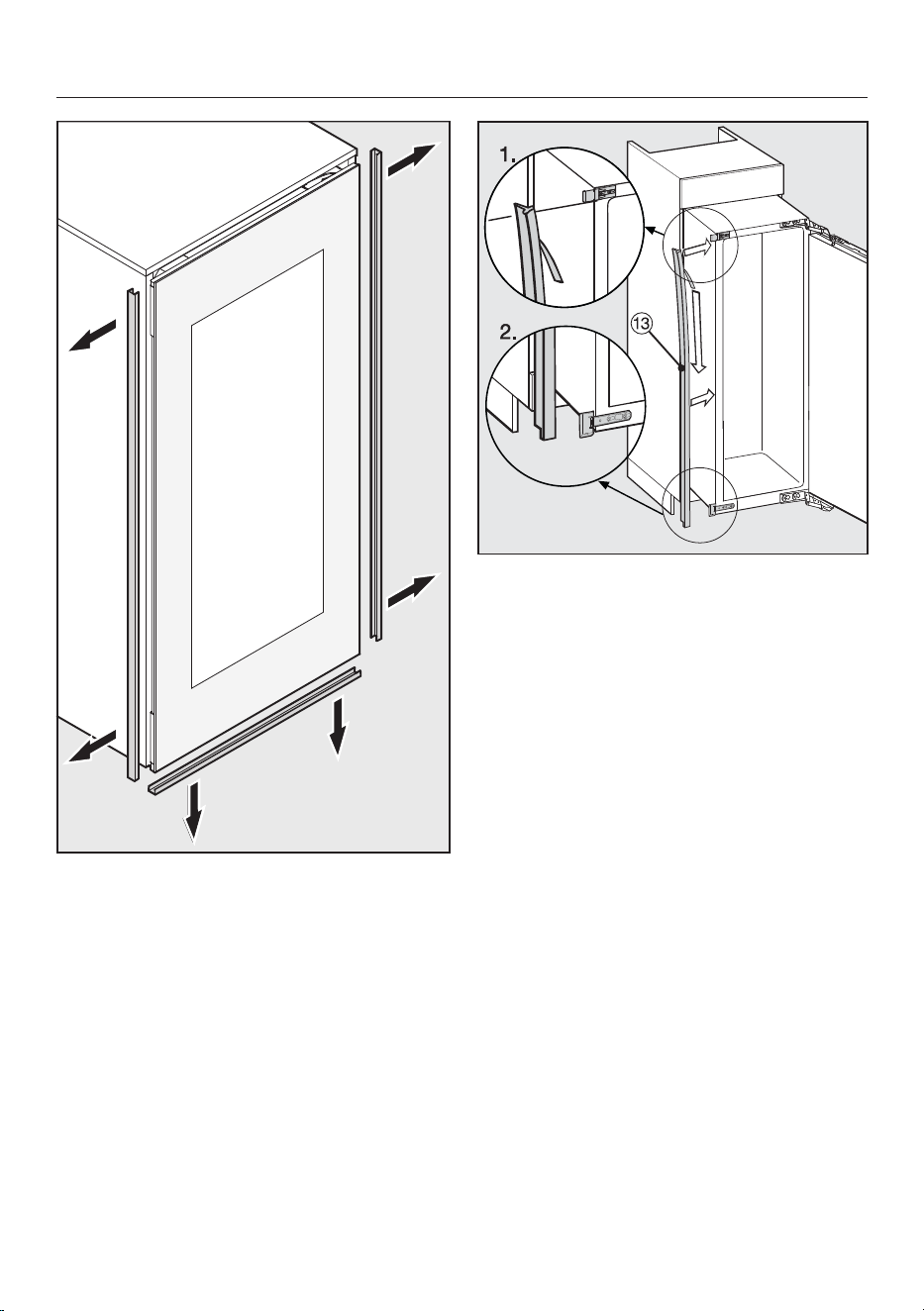

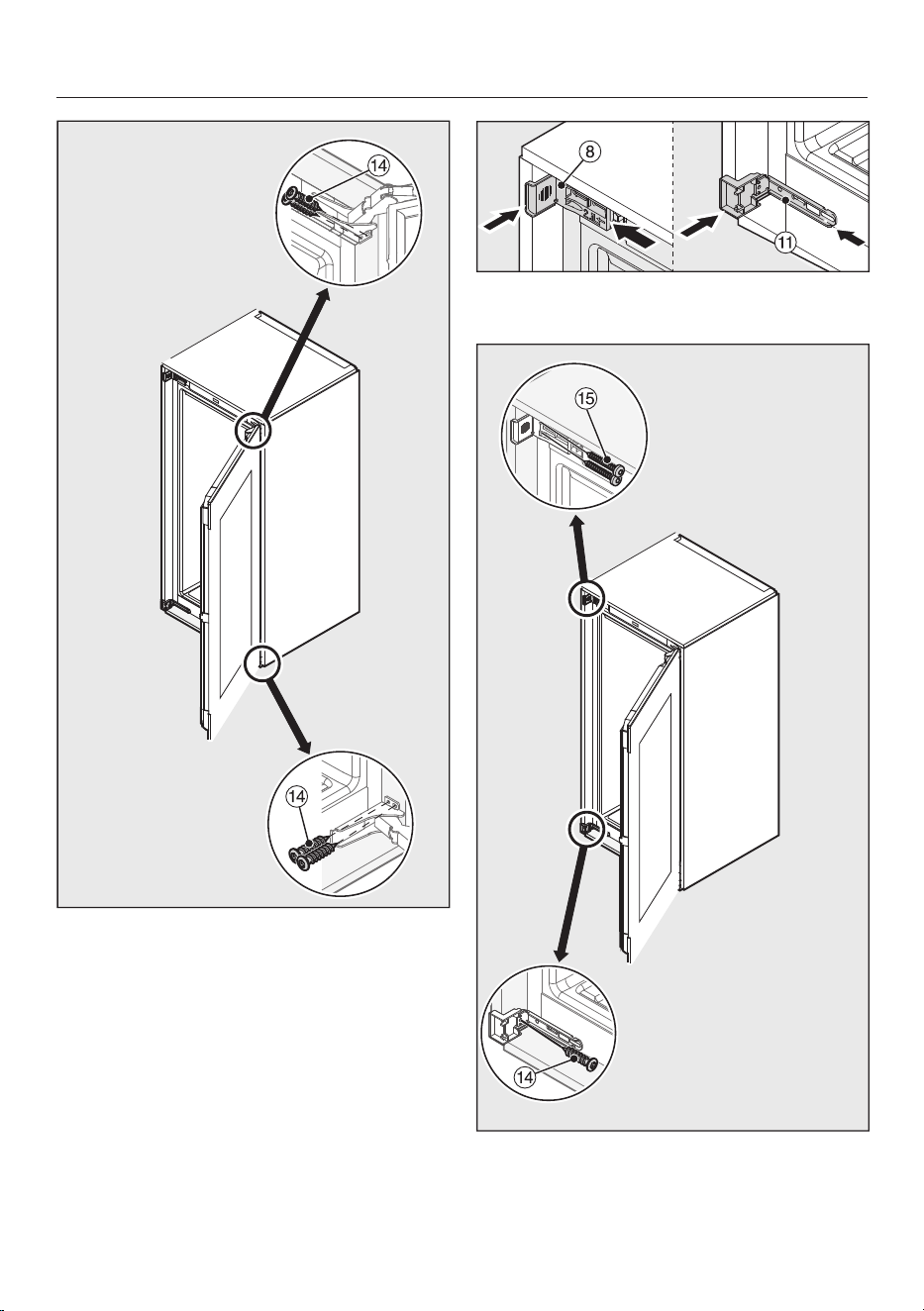

Setting up the wine conditioning unit............................................................. 76

Electrical connection ........................................................................................... 87

Information for dealers ..................................................................................... 88

Demo mode ...................................................................................................... 88

Warning and Safety instructions

This wine conditioning unit complies with all current local and na-

tional safety requirements. Inappropriate use can, however, lead to

personal injury and material damage.

Read the operating and installation instructions carefully before

using the wine conditioning unit. They contain important informa-

tion on safety, installation, use and maintenance. This is to protect

yourself from injury, and from damaging your wine conditioning

unit.

In accordance with standard IEC60335-1, Miele expressly and

strongly advises that you read and follow the instructions in the

chapter on installing the wine conditioning unit as well as the

safety instructions and warnings.

Miele cannot be held liable for injury or damage caused by non-

compliance with these instructions.

Keep these instructions in a safe place and pass them on to any

future owner.

 Danger of injury from broken glass.

If installed at altitudes above 1500m there is a risk of the glass in

the door breaking because of changes in air pressure.

Shards of glass can cause severe injury.

Correct application

 This wine conditioning unit is intended for use in the home and in

similar environments, for example

– in shops, offices and similar work settings

– by the guests in hotels, motels, bed & breakfasts and other typical

home settings.

This wine conditioning unit is not intended for outdoor use.

Warning and Safety instructions

 The wine conditioning unit is intended for domestic use only for

storing wine.

It must not be used for any other purpose.

 The wine conditioning unit is not suitable for storing and keeping

cool medicines, blood plasma, laboratory preparations or other such

materials or products. Incorrect use of the wine conditioning unit for

such purposes can cause deterioration of the items stored. The wine

conditioning unit is not suitable for use in areas where there is a risk

of explosion.

Miele cannot be held liable for damage resulting from improper or in-

correct use of the appliance.

 This wine conditioning unit may only be used by people (including

children) with reduced physical, sensory or mental capabilities or

lack of experience and knowledge if they are supervised whilst using

it.

The wine conditioning unit may only be used by these people

without supervision if they have been shown how to use it in a safe

way and recognise and understand the consequences of incorrect

operation.

Safety with children

 Children under 8years of age must be kept away from the wine

conditioning unit unless they are constantly supervised.

 Children aged 8 and older may only use the wine conditioning unit

without supervision if they have been shown how to use it in a safe

manner. Children must be able to understand and recognise the pos-

sible dangers caused by incorrect operation.

 Children must not be allowed to clean or maintain the wine condi-

tioning unit unsupervised.

 Please supervise children in the vicinity of the wine conditioning

unit and do not let them play with it.

Warning and Safety instructions

 Danger of suffocation! Whilst playing, children could become en-

tangled in packaging (such as plastic wrapping) or pull it over their

head and suffocate. Keep packaging material away from children.

Warning and Safety instructions

Technical safety

 The refrigerant circuit has been checked for leaks. The wine con-

ditioning unit complies with statutory safety requirements and the

appropriate EU directives.

 This wine conditioning unit contains the coolant Isobutane

(R600a), a natural gas which is environmentally friendly. The coolant

does not damage the ozone layer and does not contribute to the

greenhouse effect.

The use of this coolant has, however, led to a slight increase in the

noise level of the appliance. In addition to the noise of the com-

pressor, you might be able to hear the coolant flowing around the

cooling circuit. Unfortunately, this cannot be avoided, but it does not

affect the performance of the wine conditioning unit.

When transporting and installing the wine conditioning unit, ensure

that no parts of the cooling circuit are damaged. Splashes of coolant

can damage the eyes.

In the event of damage:

- Avoid naked flames or anything which creates a spark.

- Disconnect the wine conditioning unit from the mains electricity

supply.

- Ventilate the room where the wine conditioning unit is located for

several minutes.

- Contact the Miele Customer Service Department.

 The more coolant there is in a wine conditioning unit, the larger

the room it should be installed in. In the event of a leakage, if the ap-

pliance is in a small room, there is the danger of combustible gases

building up. For every 11 g of coolant at least 1m

of room space is

required. The amount of coolant in the appliance is stated on the

data plate inside the wine conditioning unit.

Warning and Safety instructions

 To avoid the risk of damage to the wine conditioning unit, make

sure that the connection data (fuse rating, frequency and voltage) on

the data plate corresponds to the household supply.

Check that this is the case before connecting the wine conditioning

unit. Consult a qualified electrician if in any doubt.

 The electrical safety of the wine conditioning unit can only be

guaranteed when correctly earthed. It is essential that this standard

safety requirement is met. If in any doubt please have the electrical

installation tested by a qualified electrician.

 Reliable and safe operation of the wine conditioning unit can only

be assured if it has been connected to the mains electricity supply.

 If the electrical connection cable is faulty it must only be replaced

by a Miele authorised service technician to protect the user from

danger.

 Do not connect the wine conditioning unit to the mains electrical

supply by a multi-socket adapter or extension lead. These are a fire

hazard and do not guarantee the required safety of the appliance.

 If moisture gets into electrical components, it could cause a short

circuit. Therefore, do not operate this wine conditioning unit in areas

which are exposed to moisture (e.g in a garage or utility room).

Warning and Safety instructions

 This wine conditioning unit must not be used in a non-stationary

location (e.g. on a ship).

 Do not use a damaged wine conditioning unit. It could be danger-

ous. Check the wine conditioning unit for visible signs of damage.

 For safety reasons, this wine conditioning unit may only be used

after it has been built in.

 The wine conditioning unit must be isolated from the electricity

supply during installation, maintenance and repair work.

 Unauthorised installation, maintenance and repairs can cause

considerable danger for the user.

Installation, maintenance and repairs must only be carried out by a

Miele authorised technician.

 While the wine conditioning unit is under warranty, repairs should

only be undertaken by a Miele authorised service technician. Other-

wise the warranty is invalidated.

 Faulty components must only be replaced with genuine Miele ori-

ginal spare parts. Miele can only guarantee the safety standards of

the appliance when Miele replacement parts are used.

 This wine conditioning unit is supplied with a special lamp to cope

with particular conditions (e.g. temperature, moisture, chemical res-

istance, abrasion resistance and vibration). This lamp must only be

used for the purpose for which it is intended. The lamp is not suit-

able for room lighting. Replacement lamps may only be fitted by a

Miele authorised technician or by the Miele Customer Service De-

partment. This wine conditioning unit contains light sources rated as

energy efficiency class E.

Warning and Safety instructions

Correct use

 The wine conditioning unit is designed for use within a certain cli-

mate range (ambient temperatures), and should not be used outside

this range. The climate range for your wine conditioning unit is stated

on the data plate inside the appliance. Installing it in a room with too

low an ambient temperature, e.g. a garage, will lead to the wine con-

ditioning unit switching off for longer periods so that it cannot main-

tain the required temperature.

 Do not cover or block the air vents as this could impair the effi-

ciency of the appliance, increase the electricity consumption and

could cause damage to the components.

 If the wine conditioning unit is used for storing food which con-

tains fat or oil, make sure that it does not come into contact with

plastic components. Any spillages of oil or fat could cause stress

cracks to the plastic and cause it to break or split.

 Risk of fire and explosion. Do not store explosive materials in the

wine conditioning unit or any products containing propellants (e.g.

spray cans). Electrical components can cause flammable mixes of

gases to ignite.

 Danger of explosion. Do not operate any electrical appliances in-

side the wine conditioning unit. Danger of sparking and explosion.

Warning and Safety instructions

Accessories and spare parts

 Only use genuine original Miele accessories and spare parts with

this appliance. Using accessories or spare parts from other manu-

facturers will invalidate the warranty, and Miele cannot accept liabil-

ity.

 Miele will guarantee to supply functional spare parts for a min-

imum of 10years and up to 15years following the discontinuation of

your wine unit.

Cleaning and care

 Do not use any oils or grease on the door seals, as these will

cause the seals to deteriorate and become porous with time.

 Do not use a steam cleaning appliance to clean this wine condi-

tioning unit.

The steam could reach electrical components and cause a short cir-

cuit.

 Sharp edged or pointed objects will damage the evaporator, caus-

ing irreversible damage to the wine conditioning unit. Do not use

sharp edged or pointed objects to

- remove frost and ice,

- remove labels, stickers etc.

Transporting the appliance

 Always transport the wine conditioning unit in an upright position

and in its original transport packaging to avoid damage in transit.

 Danger of injury and damage to the appliance. The wine condi-

tioning unit is very heavy and must be transported by two people.

Warning and Safety instructions

Disposing of your old appliance

 If your old wine unit or refrigeration appliance has a door lock,

destroy it.

This will prevent the risk of children playing accidentally locking

themselves in and endangering their lives.

 Splashes of coolant can damage the eyes. Be careful not to dam-

age any part of the pipework whilst awaiting disposal, e.g. by

- puncturing the coolant channels in the condenser,

- bending any pipework, or

- scratching the surface coating.

Symbol on the compressor (depending on model)

This information is only relevant for recycling. There is no risk during normal oper-

ation.

 The oil in the compressor can be fatal if swallowed or if it penet-

rates the airways.

Caring for the environment

Disposal of the packing mater-

ial

The packaging is designed to protect

the wine conditioning unit from damage

during transportation. The packaging

materials used are selected from mater-

ials which are environmentally friendly

for disposal and should be recycled.

Recycling the packaging reduces the

use of raw materials in the manufactur-

ing process and also reduces the

amount of waste in landfill sites.

Disposing of your old appli-

ance

Electronic and electrical appliances

contain many valuable materials. They

also contain certain materials, com-

pounds and components which were

essential for their correct functioning

and safety. These could be hazardous

to your health and to the environment if

disposed of with general waste or if

handled incorrectly. Please do not,

therefore, dispose of your old appliance

with general waste.

Instead, please make use of officially

designated collection and disposal

points to dispose of and recycle elec-

trical and electronic appliances in your

local community, with your dealer or

with Miele. By law, you are solely re-

sponsible for deleting any personal data

from the appliance prior to disposal.

Take care not to damage your wine

conditioning unit's pipework before or

during transportation to an authorised

collection depot.

This is to ensure that coolant in the

cooling circuit and oil in the compressor

is contained, and will not leak into the

environment.

Please ensure that your old appliance

poses no risk to children while being

stored prior to disposal. For further in-

formation, see “Warning and safety in-

structions” in these operating and in-

stallation instructions.

Saving energy

Normal energy consump-

tion

Increased energy con-

sumption

Installation /

Maintenance

In a ventilated room. In an enclosed, unventilated

room.

Protected from direct sun-

light.

In direct sunlight.

Not near to a heat source

(radiator, oven).

Near to a heat source (radi-

ator, oven).

Where the ideal ambient

room temperature is approx.

20°C.

Where the ambient room

temperature is above 25°C.

Ventilation gaps uncovered

and dusted regularly.

Ventilation gaps covered or

dusty.

Temperature

setting

10 to 12°C The lower the temperature,

the higher the energy con-

sumption.

Use Wooden shelves arranged

as they were when the appli-

ance was delivered.

Only open the door when

necessary and for as short a

time as possible. Store wine

bottles in an organised way.

Frequent opening of the

door for long periods will

cause a loss of coldness.

The wine conditioning unit

works harder to cool down

and the compressor runs for

longer periods.

Do not over-fill the appliance

to allow air to circulate.

Poor air circulation will

cause a loss of coldness.

Guide to the appliance

Control panel

For switching

the whole wine conditioning unit on and off

Optical interface

(for Service technicians only)

For selecting the upper or lower wine conditioning zone

For switching the DynaCool function (constant humidity) on and off

For switching the feature lighting on and off

For setting the temperature

( for colder)

For confirming a selection (OK sensor)

For setting the temperature

( for warmer)

For selecting and deselecting settings mode

For switching the temperature or door alarm off

Display with temperature and symbols (symbols only visible in settings mode;

see chart for an explanation of the symbols)

Guide to the appliance

Symbols

Symbol Meaning Function

 Lock function To prevent inadvertent switching off and al-

tering of settings

 Audible tones Choice of keypad tone and door alarm tone

 Miele@home Only visible when a communication module

or communication stick is fitted and signed

 Demo mode

(only visible when

Demo mode is

switched on)

For switching off Demo mode

 Display brightness set-

tings

For adjusting the brightness of the display

 Active AirClean filters Lights up when the active charcoal filter

needs changing

 Mains connection

(only visible when the

wine conditioning unit

is switched off)

Confirms that the wine conditioning unit is

connected to the electricity supply; flashes

in the event of a power cut

 Alarm

(only visible when the

door or temperature

alarm sounds)

Lights up when there is a door alarm;

flashes when there is a temperature alarm,

power cut or other fault

Guide to the appliance

Door-opening mechanism

(Push2open)

Lighting strip

(in both wine conditioning zones)

Wooden shelves with labels

(FlexiFrames with Noteboard)

Glass holder*

Bottle holder* (ConvinoBox)

Control panel for the upper and

lower wine conditioning zones/

isolation plate for thermal separation

of the zones

Active AirClean filter

Isolation strips for thermal

separation of the temperature zones

Safety glass door

with UV filter

3D bottle presenter

* The SommelierSet consists of:

A glass holder, a bottle holder and four

covers for the runners.

Guide to the appliance

Using the door-opening mech-

anism correctly

The Push2open system on your wine

unit makes it easy to open the appli-

ance door. The appliance door on your

wine unit is sensitive to pressure.

The Push2open system is deactivated

at the factory. The function has to be

activated by touching the On/Off

sensor once the appliance has been

installed in the niche (see “Switching

the wine unit on and off”).

Opening the appliance door

 Risk of damage from incorrect

handling of the door-opening mech-

anism.

Obstructing the appliance door while

opening it, or pushing in or holding

onto the door-opening mechanism

while the door is closing, may cause

damage to the door-opening mech-

anism.

Do not handle the door-opening

mechanism in this way.

To bring the door-opening mechan-

ism into its original position if neces-

sary, remove the plug and reconnect

it again after 5seconds.

 Press briefly against the top left-

hand side of the appliance door

and then release it. The appliance

door will then open a little way auto-

matically.

 Then pull the appliance door fully

open.

To protect against inadvertent open-

ing, if you do not pull the appliance

door open, it will close again by itself

after approximately 3seconds.

Closing the appliance door

 Push the appliance door shut.

Please be aware that using magnets in

front of the wine unit door can cause it

to open by mistake. This is caused by

the door-closing mechanism on the

wine unit.

Accessories

Accessories supplied

Chalk

Use the chalk to annotate the magnetic

strips on the wooden shelves to identify

your wines quickly and easily.

Optional accessories

A range of useful Miele accessories and

care products are available for your

wine conditioning unit.

Multi-purpose microfibre cloth

The microfibre cloth is suitable for re-

moving fingerprints and light soiling

from surfaces such as stainless steel,

glass, plastic and chrome without the

use of chemicals.

MicroCloth Kit

The MicroCloth Kit contains a universal

cloth, a glass cloth and a polishing

cloth.

These cloths are extremely resistant to

tearing and very robust. Thanks to very

fine microfibres these cloths achieve an

excellent cleaning performance.

Active AirClean filter

The Active AirClean filter ensures op-

timum air quality in the wine condition-

ing unit by filtering the incoming air.

WiFi stick (Miele@home)

The WiFi stick enables your wine condi-

tioning unit to communicate, so that

you can access appliance data at any

time.

Accessories are available to order via

the Miele Webshop, from Miele dir-

ectly (see back cover for contact de-

tails) or from your Miele dealer.

Switching on and off

Before using for the first time

Packaging material

 Remove all packaging material from

the inside of the appliance.

Cleaning the wine unit

Please refer to the relevant instruc-

tions in “Cleaning and care”.

 Clean the inside of the appliance and

the accessories.

Operating the wine condition-

ing unit

A light touch of the finger on the

sensors is all that is required to operate

this wine conditioning unit.

Every touch of a sensor is confirmed

with an audible tone. This tone can be

switched off (see “Selecting further set-

tings” – “Audible tones ”).

Switching the wine conditioning unit

When the wine conditioning unit is con-

nected to the electrical supply, the

power connection symbol will ap-

pear in the display after a short while.

 Touch the On/Off control.

The power connection symbol will

go out and the wine conditioning unit

will start to cool.

The selected wine conditioning zone

will be highlighted yellow and the tem-

perature of the selected zone will show

in the display.

The first time the appliance is turned

on, the sensors for the wine condition-

ing zones and the alarm symbol will

flash until the selected temperature has

been reached in the zones.

As soon as the set temperature has

been reached, the sensor for the re-

spective wine conditioning zone will

light up constantly and the alarm sym-

bol will go out.

Switching on and off

The interior lighting will come on when

the door is opened.

Selecting settings

A different setting can be set for each

wine conditioning zone.

 Touch the sensor for the wine condi-

tioning zone you want to adjust the

settings for.

The sensor that has been selected is

highlighted in yellow. Now you can

- Set the temperature, and

- Switch on the DynaCool function.

Tip: Please refer to the relevant sec-

tions for more information.

If you then select a different wine con-

ditioning zone, the settings for the pre-

viously selected zone will remain un-

changed.

Switching the wine unit off

 Touch the On/Off control.

If this does not work, the safety

lock is activated.

The sensor controls for the 2 wine con-

ditioning zones will go out in the control

field.

The temperature shown on the display

will go out and the power connection

symbol  appears.

The interior lighting goes out and cool-

ing is turned off.

Switching on and off

Switching off for longer peri-

ods of time

If the wine unit is not going to be used

for a longer period of time:

 Switch the wine unit off.

 Switch off at the wall and withdraw

the plug from the socket, or discon-

nect the fuse.

 Clean the wine unit.

 Leave the door ajar to air the wine

unit and avoid odours building up in-

side it.

If the wine unit is switched off, but

not cleaned, during a long absence

and the door is left shut, there is a

risk of mould building up inside the

appliance.

The wine unit must be cleaned.

Selecting further settings

Certain settings on the wine condition-

ing unit can only be selected in settings

mode.

The door alarm is automatically dis-

abled when the appliance is in set-

tings mode.

Safety lock

The safety lock can be activated to pre-

vent:

- the appliance being switched off by

mistake,

- the temperature being changed by

mistake,

- DynaCool being switched on by mis-

take,

- the feature lighting being switched on

by mistake.

Activating or deactivating the safety

lock

 Touch the settings sensor.

All symbols available for selection will

appear in the display and the  symbol

flashes.

 Touch the OK sensor to confirm your

selection.

The last selected setting flashes and

the  symbol lights up in the display.

 By touching the  or  sensor, you

can now select whether the safety

lock is activated or deactivated:

0: the safety lock is deactivated

1: the safety lock is activated

 Touch the OK sensor to confirm your

selection.

The selected setting is applied, the

symbol flashes.

 Touch the settings sensor to leave

settings mode.

Otherwise the appliance exits set-

tings mode automatically after ap-

proximately one minute.

The symbol will appear in the display

when the lock is activated.

Selecting further settings

Audible tones

The wine conditioning unit has audible

tones such as the keypad tone and the

door and temperature alarms.

You can switch the keypad tone or the

door alarm tone on or off but you can-

not deactivate the temperature alarm.

There are four settings to choose from.

Option 3 is set the factory, i.e. the

keypad tone and the door alarm are

switched on.

Switching audible signals on/off

 Touch the settings sensor.

All symbols available for selection ap-

pear in the display and the  symbol

flashes.

 Touch the sensors for setting the

temperature ( or ) repeatedly until

the symbol flashes.

 Touch the OK sensor to confirm the

selection.

The most recently selected setting

flashes and the  symbol lights up in

the display.

 Touch the  or sensor now to se-

lect:

0: keypad tone off; door alarm off

1: keypad tone off; door alarm on

(after 4minutes)

2: keypad tone off; door alarm on

(after 2minutes)

3: keypad tone on; door alarm on

(after 2minutes).

 Touch the OK sensor to confirm the

selection.

The selected setting is applied, the

symbol flashes.

 Touch the settings sensor to exit set-

tings mode.

Otherwise, the appliance electronics

will exit the settings mode automatic-

ally after approximately one minute.

Selecting further settings

Display brightness

The display brightness can be adjusted

to suit lighting conditions in the room.

The display brightness can be adjusted

in steps from 1to3. The factory default

setting is 3 (maximum brightness).

Altering the display brightness

 Touch the settings sensor.

All symbols available for selection will

appear in the display and the  sym-

bol flashes.

 Touch the sensors for setting the

temperature ( or ) repeatedly until

the symbol flashes.

 Touch the OK sensor to confirm your

selection.

The last selected setting flashes and

the  symbol lights up in the display.

 By touching the  or  sensor you

can now alter the brightness of the

display:

1: dimmest setting

2: medium setting

3: brightest setting.

 Touch the OK sensor to confirm your

selection.

The selected setting is applied, the

symbol flashes.

 Touch the settings sensor to leave

settings mode.

Otherwise the appliance exits set-

tings mode automatically after ap-

proximately one minute.

The optimum temperature and air quality

Wine keeps on maturing depending on

the surrounding conditions. The length

of time for which wine can be kept in

good condition will therefore depend

not only on the temperature but also on

the air quality.

The wine conditioning unit with its con-

stant ideal temperature, increased air

humidity and odour free atmosphere of-

fers the perfect conditions for storing

your wine.

It also guarantees a vibration-free envir-

onment (in contrast to a refrigerator) so

that the maturing process is not dis-

turbed.

The optimum temperature

Wine can be stored at a temperature

between 6 and 18°C. If you are storing

white and red wines together, select a

temperature between 12 and 14°C.

This is suitable for both white and red

wines. Red wine should be taken out of

the wine conditioning unit and opened

at least two hours before drinking to al-

low it to breathe and develop its aroma.

At too high a temperature (over 22°C)

wine matures too quickly, which pre-

vents the aromas from developing fur-

ther. Wine cannot mature fully at too

low a temperature (below 5°C).

Fluctuations in temperature put wine

under stress and interrupt the maturing

process. It is therefore very important to

maintain a constant temperature.

Type of wine Recommended

drinking

temperature*

Light, fruity reds: +14°C to +16°C

Full-bodied reds: +18°C

Rosé wines: +8°C to +10°C

Delicate, aromatic

whites:

+8°C to +12°C

Full-bodied or

sweet whites:

+12°C to +14°C

Champagne,

sparkling white

wines, Prosecco:

+6°C to +10°C

* Store the wine 1 or 2°C cooler than

the recommended drinking temperature

as it warms up a little when poured into

the glass.

Tip: Full-bodied reds should be opened

for 2-3 hours before drinking to allow

the wine to breathe and develop its

aroma.

The optimum temperature and air quality

Safety device in case of low ambient

temperatures

The appliance is equipped with a safety

thermostat to protect your wine against

a sharp drop in temperature. If the ex-

ternal temperature should fall, a heater

element switches on automatically to

keep the temperature inside as constant

as possible. If the ambient temperature

continues to fall, the appliance switches

itself off automatically.

Isolator plate for thermal separation

The unit comes with a fixed isolation

panel that partitions the interior of the

wine conditioning unit into two separate

temperature zones. This enables you to

store different types of wine at the same

time, e.g., red wine and Champagne.

The isolation strips inside the glass

door prevent the exchange of heat

between the individual zones.

Setting the temperature

The temperatures in the wine condition-

ing zones can be set independently of

one another.

 Touch the sensor for the zone for

which you wish to change the tem-

perature, so that it is highlighted in

yellow.

The current temperature for the selec-

ted zone appears in the display.

 Use the two sensors underneath the

display to set the temperature.

By touching the sensor

- The temperature decreases

- The temperature increases

 Touch the OK sensor to confirm your

selection

 Wait approximately 5 seconds after

the last touch of a sensor

The temperature being set will flash in

the display.

The following information shows in the

display while the sensors are being

touched:

The optimum temperature and air quality

- Touching a sensor once:

The last temperature selected

flashes.

- Each subsequent touch of the

sensor:

Adjusts the temperature shown in

1°C increments.

- Leaving a finger on the sensor:

Changes the temperature continu-

ously.

A negative tone will sound (if the

keypad tone is switched on) when

the lowest or highest possible tem-

perature is reached.

Approximately 5seconds after the last

time a sensor has been touched, the

actual temperature inside the wine con-

ditioning zone is automatically shown.

When the temperature is altered, there

is a short delay until the temperature

selected is set.

The temperature display on the control

panel always shows the actual tem-

perature.

Temperature range

In both zones it is possible to set tem-

peratures between 5 and 20°C.

A room temperature above 32°C

may cause the temperature in the

lower section of the appliance to in-

crease slightly so that the temperat-

ure is approx. 2°C above the tem-

perature set for this section.

Wines which may not be stored un-

der these slightly raised temperature

conditions should preferably not be

placed on the 3D bottle presenter,

but instead should be placed on one

of the wooden shelves above it.

Temperature display

In normal operation the temperature

display shows the actual temperature in

the zone.

If the temperature in one of the zones is

not within the range that the appliance

is able to display, dashes will light up in

the temperature display.

Depending on the ambient temperature

and the temperature setting, it can take

the appliance a few hours to reach the

temperature required and for this tem-

perature to then be shown as a con-

stant temperature in the display.

The optimum temperature and air quality

Air quality and humidity

In most refrigerators the humidity is too

low for wine and therefore a refrigerator

is not suitable for wine storage. High

humidity levels are necessary when

storing wine to moisten corks from the

outside. When the humidity is too low

the corks dry out and the bottle is no

longer tightly sealed. For this reason

wine bottles should always be stored

horizontally to ensure that corks are

also kept moist from the inside. If air

gets into the bottle, this will have a neg-

ative impact on the wine!

 Danger of damage from excess

amounts of moisture

An increase in humidity will lead to

condensation on the interior walls.

Condensate can cause damage such

as corrosion to the wine unit.

Do not introduce additional moisture

to air in the cabinet, e.g. by placing a

dish of water in the wine unit.

Using

DynaCool  (constant humidity)

DynaCool raises the relative humidity

inside the whole of the wine condition-

ing unit. It also distributes the humidity

and the temperature evenly around the

interior so that you can store all your

wine under the same excellent condi-

tions.

This will create a stable climate in the

unit which imitates that of a wine cel-

lar.

Switching on DynaCool

If you would like to use the wine condi-

tioning unit to store wine over the long

term, we recommend that you keep the

DynaCool function switched on.

 Touch the sensor to switch the

DynaCool function on/off. The sensor

will be highlighted in yellow.

Even if DynaCool has not been

switched on, the fans in the wine con-

ditioning unit will come on automatic-

ally as soon as the cooling system

switches on. This ensures the op-

timum climate for your wine is main-

tained.

The fans automatically switch off

when the door is open.

The optimum temperature and air quality

Switching off DynaCool

The wine conditioning unit uses

slightly more energy and is a little

noisier when the DynaCool function is

switched on. You can switch it off now

and then if you wish.

 Touch the sensor for switching the

DynaCool function on and off so that

it is no longer highlighted in yellow.

Air filtration with the Active AirClean

filter

The Active AirClean filter achieves op-

timum air quality by filtering the incom-

ing air.

Fresh air from the room enters the ap-

pliance via the Active AirClean filter.

The fans (DynaCool function) then dis-

tribute the air evenly throughout the

cabinet.

Filtering the incoming air through the

Active AirClean filter ensures that all the

air entering the appliance is fresh and

free from dust and odours.

This also ensures your wine does not

absorb any unwanted odours through

the corks.

Replace the Active AirClean filter regu-

larly. The  symbol will appear in the

display to remind you (see “Active

AirClean filter”).

Temperature and door alarm

This wine conditioning unit is equipped

with an alarm system so that the tem-

perature cannot rise or fall unnoticed,

thus possibly damaging the wine.

Temperature alarm

If the temperature in one of the wine

conditioning zones rises or falls by a

certain amount, the sensor for that zone

will flash in the control panel and at the

same time the alarm symbol  will

flash in the display. An audible alarm

will also sound.

Audible and visual signals will be activ-

ated, for example,

- when the wine unit is switched on

and the temperature in one of the

temperature zones differs greatly

from the set temperature,

- when too much warm ambient air

enters the cabinet when bottles are

being rearranged or taken out,

- when a large number of bottles are

stored for the first time,

- in the event of a power cut,

- if there is a fault with the wine unit.

The alarm will stop and the alarm sym-

bolgoes out as soon as the reason

for the alarm has been resolved. The

sensor for the relevant zone will light up

constantly again.

Switching the temperature alarm off

early

If the noise disturbs you, you can

switch the alarm off if you wish.

 Touch the sensor for switching off the

temperature alarm.

The alarm will stop.

The relevant wine conditioning zone will

continue to flash in the control panel

and the alarm symbol  will continue

to flash in the display until the cause of

the alarm has been rectified.

Temperature and door alarm

Door alarm

An alarm will sound if the appliance

door has been left open for longer than

approx. 2minutes. The sensors for the

wine conditioning zones will flash in the

control panel. The alarm symbol

lights up in the display.

As soon as the door is closed, the

alarm will stop. The sensors for the

wine conditioning zones and the alarm

symbol will go out in the control

panel.

If the audible signal does not sound in

the event of a door alarm, then the

audible signal has been switched off

in settings mode (see “Selecting fur-

ther settings – Audible signals”).

Switching the door alarm off early

If the noise disturbs you, you can

switch the alarm off if you wish.

 Touch the sensor for switching off the

door alarm.

The alarm will stop.

The sensors for the wine conditioning

zones will continue to flash and the

alarm symbol  will remain lit up until

you close the door.

Feature lighting

The interior lighting can be set to re-

main on when the door is closed so

your wines can be on display at all

times.

Each wine conditioning zone has its

own lighting strip so that all zones are

illuminated.

Thanks to the use of LED lighting, the

wine will not be adversely affected by

heat or UV light.

Switching the feature lighting

on and off

 Touch the On/Off sensor for the fea-

ture lighting so that it is highlighted in

yellow.

The interior lighting is now switched on,

even when the appliance door is

closed.

To switch the feature lighting off

again:

 Touch the On/Off sensor for the fea-

ture lighting so that it is no longer

highlighted in yellow.

The interior lighting is now switched off

when the appliance door is closed.

Setting the brightness of the feature

lighting

The brightness of the feature lighting

can be adjusted.

 Touch the On/Off sensor for the fea-

ture lighting so that it is highlighted in

yellow.

 Touch the sensor for the feature light-

ing again for approximately four

seconds until  flashes in the display

(after two seconds  will flash).

 Use the sensors for altering the tem-

perature to set the feature lighting

brightness(and). To do this,

touch and hold the sensors. The

brightness is adjusted directly and is

infinitely variable. The results are not

visible in the display.

By touching the sensor

- the lighting becomes dimmer

- the lighting becomes brighter.

Feature lighting

 Touch the OK sensor to confirm your

choice.

The set brightness is saved to memory.

The temperature display then appears

again.

As soon as the appliance door is

closed, the set brightness for the fea-

ture lighting takes effect. When the ap-

pliance door is opened, the interior

lighting returns to its normal level.

Lighting duration of the feature light-

ing

The lighting duration for the feature

lighting is set to 30minutes as stand-

ard.

The lighting duration can be set to 30,

60, 90minutes up to 00 (unlimited). The

feature lighting will have the brightness

setting you have selected previously.

 Open the appliance door.

 Touch the On/Off sensor for the fea-

ture lighting so that it is highlighted in

yellow.

 Touch the sensor for the feature light-

ing again for approx. two seconds

until  flashes in the display.

 Use the  and  sensors for altering

the temperature to set the feature

lighting duration.

The duration (in minutes) will flash in

the display.

Feature lighting

By touching the sensor

- lighting duration is reduced by

30minutes

- lighting duration is increased by

30minutes.

 Touch the OK sensor to confirm your

choice.

The selected lighting duration is saved

and the temperature reappears in the

display.

The lighting duration set starts anew

whenever the appliance door is opened

and closed.

 Risk of injury from LED lighting.

This lighting corresponds to risk

group RG2. If the cover is defective,

there is a risk of eye injury.

If the lighting cover is defective, do

not look from a close range directly

into the lighting with optical instru-

ments (e.g. magnifying glass or sim-

ilar).

Storing wine bottles

Vibration and movement have a negat-

ive effect on the maturing process,

which can in turn affect the taste of the

wine.

To avoid disturbing other bottles when

removing a bottle of wine, store bottles

of the same type beside each other on

the same shelf. Avoid stacking bottles

on top of one another on the wooden

shelves.

Always place the bottles in a horizontal

position so that the natural corks can

be kept moist on the inside and air is

prevented from getting into the bottles.

Tip: We also recommend increasing the

humidity level inside the wine condition-

ing unit for wine bottles with natural

corks (see “The optimum temperature

and air quality – Using DynaCool (con-

stant humidity)”).

 Risk of injury from falling wine

bottles.

Wine bottles may become wedged in

the wooden shelves above and fall

out of the wine conditioning unit

when the shelves are pulled out.

Always pull out the wooden shelves

slowly and carefully.

 Risk of damage and injury from

broken glass.

If wooden shelves and bottles pro-

trude too far forwards, they may

damage the glass door when it is

closed.

Please ensure that the wooden

shelves and wine bottles do not pro-

trude.

Do not cover the vents in the rear

wall, as they are essential for keeping

the appliance cool.

Storing wine bottles

Wooden shelves

The wooden shelves are on telescopic

runners which can be pulled out to

make it easier to store and remove

bottles.

Moving the wooden shelves

The wooden shelves can be removed

and replaced again if required.

 Pull the wooden shelf out until it

stops .

 Release the wooden shelf at the

back, lifting the shelf on the left and

right at the same time .

 Lift the wooden shelf forwards to re-

move it.

 If you require more room, cover the

runners at the top on both sides

which are now not needed with the

covers supplied. The thicker side of

the cover should point forwards. The

covers are held in position with mag-

nets.

Storing wine bottles

 To replace the wooden shelf, position

it on the extended runners. The

notches in the wooden shelf fit over

the retaining pins. The magnetic strip

should be pointing forwards.

 Slide the wooden shelf back into the

appliance as far as it will go .

 Push the wooden shelf right back so

that it clicks into place at the front.

 Press down on the back of the

wooden shelf until it clicks into place

at the back .

Adjusting the wooden shelves

The slats in the wooden shelves can be

individually adjusted to suit, so that

every bottle is stored in perfect safety

regardless of shape or size.

 Simply lift individual slats to move or

remove them from the wooden

shelves.

Storing wine bottles

Annotating wooden shelves

For quick and easy identification of the

wines stored, you can write on the

blackboard-painted surface on the

magnetic strips on the wooden shelves.

Use the chalk supplied. You can write

directly on the magnetic strip or remove

it from the wooden shelf. To do so:

 Hold the magnetic strip by the sides

and pull it forwards. The magnetic

strip is held on the wooden shelf by

magnets.

 The magnetic strip can be wiped

clean with a damp cloth.

 Risk of damage from unsuitable

cleaning methods.

Cleaning the magnetic strips with a

cleaning agent may damage the

blackboard surface on them.

Use clean water only to wipe the

magnetic strips.

 Annotate the magnetic strip with the

chalk supplied and replace it on the

front of the wooden shelf.

Setting up the 3D bottle presenter

Set up the 3D bottle presenter in the

bottom of the wine conditioning unit:

 Fold out the rear struts of the 3D

bottle presenter.

 Simply lift individual slats on the

shelf forwards to move or remove

them from the wooden shelves. This

will adapt the 3D bottle presenter

perfectly to the size of the wine

bottles.

 Carefully place the wine bottles on

the 3D bottle presenter.

Tip: You can place your chalk in the

chalk rest on the 3D bottle presenter

to prevent it from getting lost.

Storing wine bottles

 If you do not wish to use the 3D

bottle presenter for presentation pur-

poses or would like to make use of

the maximum storage capacity of

your wine conditioning unit, simply

fold down the rear struts.

 Place the 3D bottle presenter flat on

the floor of the wine conditioning unit

and push it back until it touches the

back wall of the appliance.

 When placing wine bottles on the 3D

bottle presenter, make sure that you

push them carefully back as far as

they will go.

 Risk of damage and injury.

If wooden shelves and bottles pro-

trude too far forwards, they may

damage the glass door when it is

closed.

Please ensure that the wooden

shelves and wine bottles do not pro-

trude.

The 3D bottle presenter can only

take bottles up to a maximum bottle

height of 300mm when laid flat in

the cabinet.

If you wish to stack taller bottles,

please use one of the other shelves.

Storing wine bottles

Maximum capacity

 Risk of damage.

Do not exceed the maximum load-

bearing capacity of 25kg for each

wooden shelf.

Do not stack bottles on the wooden

shelves in more than two layers.

Except when the 3D bottle presenter

is folded down in the bottom of the

appliance, in which case you can

easily stack wine bottles on this.

Without SommelierSet

- With

3D bottle presenter folded down

Up to 83 Bordeaux-type bottles

(0.75l) can be stored in the wine condi-

tioning unit, with 33 in the upper zone

and 50 in the lower zone.

The total of 83 bottles can only be

achieved by using all wooden shelves

and with the 3D bottle presenter folded.

Storing wine bottles

- With

3D bottle presenter set up

With the 3D bottle presenter set up, up

to 70Bordeaux-type bottles (0.75l)

can be stored in the wine conditioning

unit, with 33 in the upper zone and 37

bottles in the lower zone.

With SommelierSet

- With

3D bottle presenter folded down

Up to 65 Bordeaux-type bottles

(0.75l) can be stored in the wine condi-

tioning unit, with 15 in the upper zone

and 50 in the lower zone.

Storing wine bottles

- With

3D bottle presenter set up

With the 3D bottle presenter set up, up

to 52 Bordeaux-type bottles (0.75l)

can be stored in the wine conditioning

unit, with 15 in the upper zone and 37

bottles in the lower zone.

SommelierSet

Setting up the SommelierSet

The SommelierSet can be used to have

the wine in your wine unit ready for

drinking. You can store wine glasses

and accessories, decant your wine and

store open bottles in the wine unit.

You can place the SommelierSet in the

upper or lower wine conditioning zone.

Simply remove the two wooden shelves

at the top of these zones.

Fitting the runner covers

 Remove both wooden shelves above

the SommelierSet by pulling them out

as far as they will go and lifting them

off the runners. To do this, hold them

by the frame.

 Place the four covers supplied 

over the runners which are now vis-

ible. The thicker side of the cover

should be pointing forwards.

SommelierSet

Inserting the glass holder

This can be used for storing and chilling

wine glasses.

 To fit the glass holder, remove the

necessary number of slats from the

wooden shelf.

 Place the glass holder on the

wooden shelf.

Tip: There are two compartments un-

derneath the glassware rail for ac-

cessories such as corkscrews, knives

and chalk.

Inserting the bottle holder

You can store opened wine bottles in

bottle holder.

 Remove the necessary number of

slats and place bottle holder  on

the wooden shelf.

 Position dividers  in the bottle

holder to suit the size of bottles being

held. They should be held securely

and not rattle against each other.

Tip: For wine which has been opened

we recommend removing the oxygen

from the bottle as otherwise the wine

will lose its aroma and taste and spoil

more quickly. Special devices (e.g. a

wine pump with bottle stopper) create a

vacuum by extracting the air.

Automatic defrosting

The wine conditioning unit defrosts

automatically.

Cleaning and care

Do not let water get into the elec-

tronic unit or the lighting.

 Risk of damage due to moisture

ingress.

The steam from a steam cleaner can

damage plastic and and electrical

components.

Do not use a steam cleaner to clean

the wine conditioning unit.

The data plate located inside the wine

conditioning unit must not be re-

moved. It contains information which

is required in the event of a service

call.

Cleaning agents

To avoid damaging the surfaces of your

appliance, do not use

- Cleaning agents containing soda,

ammonia, acids or chlorides

- Cleaning agents containing descaling

agents

- Abrasive cleaning agents (e.g. scour-

ing powder, scouring liquid or pumice

stones)

- Cleaning agents containing solvents

- Stainless steel cleaning agents

- Dishwasher cleaner

- Oven sprays

- Glass cleaner (except on the glass in

the appliance door)

- Hard, abrasive sponges and brushes

(e.g. pot scourers)

- Eraser stain remover blocks

- Sharp metal scrapers

Cleaning and conditioning agents

used inside the wine conditioning

unit must be food safe.

We recommend using lukewarm water

with a little washing-up liquid for clean-

ing.

Cleaning and care

Before cleaning the wine unit

 Switch the wine unit off.

 Take any wine bottles out of the wine

unit and store them in a cool place.

 Take out all other removable parts for

cleaning.

 Remove the magnetic strips from the

wooden shelves before cleaning

them.

Interior, accessories and appli-

ance door

Clean the wine conditioning unit at

least once a month.

Remove soiling immediately to pre-

vent it from drying on.

 Clean the interior with a solution of

lukewarm water and a little washing-

up liquid.

 The wooden shelves should only be

wiped with a well wrung-out damp

cloth. They must not be allowed to

get wet.

 Risk of damage due to incorrect

cleaning.

The blackboard coating on the mag-

netic strips may be damaged.

Use clean water only to wipe the

magnetic strips at the front of the

wooden shelves. Do not use a clean-

ing agent.

 After cleaning, wipe the interior and

accessories with a damp cloth and

dry with a soft cloth. Leave the door

open to air the wine conditioning unit

for a short while.

 Clean the glass panes in the appli-

ance door with glass cleaner.

Cleaning and care

Cleaning the ventilation gaps

A build-up of dust will increase the en-

ergy consumption of the appliance.

 The ventilation gaps should be

cleaned on a regular basis with a

brush or vacuum cleaner (you could

use a Miele vacuum cleaner dusting

brush, for example).

Cleaning the door seal

 Risk of damage as a result of in-

correct cleaning.

If you treat the door seal with oils or

grease, it can become porous.

Do not use any oils or grease on the

door seal.

 The door seal should be cleaned reg-

ularly with clean water, and then

wiped dry with a soft cloth.

After cleaning

 Replace all shelves and accessories

in the wine conditioning unit.

 Reconnect to the mains and switch

the wine conditioning unit back on.

 Place the wine bottles back in the

wine conditioning unit and close the

appliance door.

Active AirClean filters

Fresh air from the room enters the wine

conditioning unit through the Active

AirClean filter. Filtering the incoming air

through the Active AirClean filter en-

sures that all the air entering the appli-

ance is fresh and free from dust and

odours.

The reminder to change the Active

AirClean filter will appear every 12

months at the latest.

When the Change Active AirClean filter

symbol  lights up in the display, the

Active AirClean filter needs to be

changed.

Replacing the Active AirClean

filters

 Press the top right-hand cover in until

you hear it click and then release it.

 Remove the filter.

 Insert the new filter.

 Press the top right-hand cover into

position until you hear it click and

then release it.

Active AirClean filters can be obtained

from the Miele Customer Service De-

partment, your Miele dealer or from

the Miele website.

Active AirClean filters

To confirm the filters have been

changed

 Touch the settings sensor.

All symbols available for selection will

appear in the display and the  symbol

flashes.

 Touch the sensors for setting the

temperature ( or ) repeatedly until

the symbol flashes.

 Touch the OK sensor to confirm your

selection.

The  will flash in the display (means:

Active AirClean filter is fitted in the ap-

pliance), the  symbol lights up.

 Touch the symbols for setting the

temperature ( or ) repeatedly, until

the  symbol is displayed (means: the

counter has been reset).

 Touch the OK sensor to confirm your

selection.

The selected setting is applied, the

symbol flashes.

 Touch the settings sensor to leave

settings mode.

Otherwise the appliance exits set-

tings mode automatically after ap-

proximately one minute.

The  in the display goes out.

Problem solving guide

Many malfunctions and faults that can occur in daily operation can be easily

remedied. Time and money will be saved because a service call will not be

needed.

The following guide may help you to find the reason for a malfunction or a fault,

and to correct it.

To prevent cold from escaping, open the appliance as little as possible until the

fault has been corrected.

Problem Cause and remedy

The wine conditioning

unit is not getting cold,

the interior lighting

does not come on when

the door is opened, and

the display is not lit up.

The wine conditioning unit is not switched on and the

mains connection symbol is lit up in the display.

 Switch on the wine conditioning unit.

The plug is not inserted in the socket correctly.

 Insert the plug correctly into the socket. The mains

connection symbol appears in the display

when the wine conditioning unit is switched off.

Check whether the mains fuse has tripped. If it has

there could be a fault with the appliance, the house-

hold electrical wiring or another electrical appliance.

 Contact a qualified electrician or Miele.

The symbol is dis-

played, the wine condi-

tioning unit is not get-

ting cold. However, the

appliance and the in-

terior lighting are work-

ing fine.

Demo mode is turned on and the symbol is illumin-

ated in the display.

 Switch off Demo mode (see “Information for deal-

ers - Demo mode”).

Problem solving guide

Problem Cause and remedy

The compressor is

switching on more fre-

quently and for longer

periods of time, the

temperature in the wine

conditioning unit is fall-

ing.

The temperature in the wine conditioning unit is set

too low.

 Adjust the temperature.

The appliance door is not properly closed.

 Check that the appliance door closes properly.

The appliance door has been opened too frequently.

 Only open the door when necessary and for as

short a time as possible.

The ventilation gaps have been covered over or be-

come dusty.

 Do not cover the ventilation gaps and dust them

regularly.

The ambient temperature is too warm.

 Decrease the ambient temperature.

The compressor comes

on less and less often

and for shorter periods

of time. The temperat-

ure in the wine condi-

tioning unit rises.

Not a fault. The temperature setting is too high.

 Correct the temperature setting.

 Check the temperature again after 24hours.

The fan runs continu-

ously although the

DynaCool function is

not turned on.

This is not a fault. The fan turns itself on automatic-

ally from time to time depending on the set temper-

ature and ambient temperature.

Problem solving guide

Display warnings

Message Cause and remedy

The alarm symbol  is

lit in the display and

both sensors for the

wine conditioning zones

are flashing in the con-

trol field. Furthermore,

an audible alarm is also

sounding.

The door alarm has been activated.

 Close the appliance door. Both sensors for the

wine conditioning zones and the alarm symbol 

will go out and the audible alarm will stop.

The alarm symbol is

flashing in the display,

and the sensor for one

of the wine conditioning

zones is also flashing.

An alarm tone is also

sounding.

The temperature in the zone concerned has risen

higher or fallen lower than the temperature set.

Possible reasons for this include:

– The appliance door has been opened too fre-

quently.

– The ventilation gaps have been blocked.

– A prolonged power cut (power outage) has oc-

curred.

 Rectify the cause of the alarm. The alarm sym-

bol goes out and the sensor for the affected

wine conditioning zone lights up again constantly.

The alarm will stop.

The Change Active

AirClean filter symbol

 is lit up.

This is the reminder to change the Active AirClean fil-

ter.

 Replace the Active AirClean filter and then confirm

the filter change in settings mode (see “Active

AirClean Filter”).

A dash is lit up up/flash-

ing in the display.

Only temperatures within the range the wine condi-

tioning unit can display will be shown.

“F0”, “F1”, “F8”,“E1”, “E2”,

“E7” or “E8” appears in

the display.

There is a fault.

 Call Service.

Problem solving guide

The interior lighting is not working.

Problem Cause and remedy

The LED interior lighting

is not working.

The wine conditioning unit is not switched on.

 Switch the wine conditioning unit on.

To avoid overheating, the LED lighting switches itself

off automatically after approx. 15minutes if the door

is left open.

If this is not the cause, then there is a fault.

 Danger of electric shock.

There are live electrical components under the

lighting cover.

The LED lighting may only be repaired or replaced

by the Customer Service Department.

 Risk of injury from LED lighting.

This lighting corresponds to risk group RG2. If the

cover is defective, there is a danger of eye injury.

If the lighting cover is defective, do not look from a

close range directly into the lighting with optical in-

struments (e.g. magnifying glass or similar).

 Call the Customer Service Department.

The LED interior lighting

is on even when the

door is closed.

The feature lighting is switched on.

 Switch the feature lighting off (see “Feature light-

ing”).

Problem solving guide

General problems with the wine conditioning unit

Problem Cause and remedy

The door seal is dam-

aged or needs to be re-

placed.

No tools are required to change the door seal.

 Change the door seal. A replacement is available

from Miele or from specialist retailers.

There is no audible

alarm although the door

has been open for a

long time.

This is not a fault. The alarm tone has been

switched off in settings mode (see “Selecting fur-

ther settings – Audible signals”).

The wine conditioning

unit cannot be switched

off.

The safety lock has been activated.

 Completely deactivate the safety lock (see “Select-

ing further settings – Activating and deactivating

the safety lock”).

The slats on the

wooden shelves are

warping.

Volume change due to moisture absorption or drying

out is a typical characteristic of wood. An increase in

humidity will cause wooden components to warp,

which can lead to cracking. Knots and grain patina

are part of the natural character of wood.

Mildew has begun to

form on the wine bottle

labels.

Mildew can begin to form on the labels, depending

on the type of label adhesive used.

 Clean the wine bottles and remove any adhesive

residue.

A white deposit has

formed on the wine

bottle corks.

The corks have oxidised due to contact with the air.

 Use a dry cloth to wipe off the deposit. The de-

posit will not affect the quality of the wine.

Noises

Normal noises What causes them

Brrrrr ... A humming noise is made by the motor (compressor). This

noise can get louder for brief periods when the motor switches

on.

Blubb, blubb ... A gurgling noise can be heard when coolant is circulating

through the pipes.

Click ... Clicking sounds are made when the thermostat switches the

motor on and off.

Sssrrrrr ... On multi-zone wine conditioning units you can sometimes just

hear the sound of the fan inside the appliance.

Crack ... A cracking sound can be heard when material inside the wine

conditioning unit expands.

Remember that the noise of the compressor and the coolant circulating in the

system is unavoidable.

Noises that you

can easily rectify

Possible cause Remedy

Rattling, vibrating The wine conditioning unit is

uneven.

Realign the wine condition-

ing unit using a spirit level,

by raising or lowering the

screw feet underneath the

appliance.

Shelves are unstable or stick-

ing.

Check all removable items

and refit them correctly.

Bottles or containers are

touching each other.

Separate them.

The transport cable clips are

hanging loose at the back of

the appliance.

Remove the cable clips.

Service

Contact in the event of a fault

In the event of any faults which you

cannot remedy yourself, please contact

your Miele dealer or the Miele Customer

Service Department.

You can book a Miele Customer Ser-

vice Department call-out online at

www.miele.com/service.

Contact information for the Miele Cus-

tomer Service Department can be

found at the end of this document.

Please quote the model identifier and

serial number of your appliance (Fabr./

SN/Nr.) when contacting the Miele Cus-

tomer Service Department. This inform-

ation can be found on the data plate.

Please note that telephone calls may be

monitored and recorded for training

purposes and that a call-out charge will

be applied to service visits where the

problem could have been resolved as

described in this booklet.

The data plate is located inside the wine

unit.

EPREL database

From 1 March 2021, information on en-

ergy labelling and ecodesign require-

ments will be available in the European

Product Database (EPREL). You can

find the product database at the follow-

ing link https://eprel.ec.europa.eu/. You

will be asked to enter the model identi-

fier.

The model identifier can be found on

the data plate.

SN-ST

R600a:

XXXXXX

Nr. XX/ XXXXXXXXX.

XXX l

XXg

Warranty

The appliance warranty is valid for 2

years from date of purchase. In the UK,

you must activate your cover by calling

0330 160 6640 or registering online at

www.miele.co.uk.

For more information on country-spe-

cific warranty terms and conditions,

please contact Miele Customer Service.

Installation

*INSTALLATION*

Location

 Risk of damage and injury from

wine conditioning unit tipping over.

The wine conditioning unit is very

heavy and can tip forwards when the

appliance door is open.

Keep the appliance door shut until

the wine conditioning unit has been

built in and secured in its building-in

niche in accordance with these oper-

ating and installation instructions.

 Risk of tipping over.

Danger of injury and damage to the

appliance.

If you install the wine conditioning

unit by itself in a separate housing

unit, this housing unit must be se-

curely fixed to the wall.

 Risk of damage and injury from

wine conditioning unit tipping over.

There is an increased risk of injury

and damage if the wine conditioning

unit is installed by a single person.

Two people are required for installing

the wine conditioning unit.

 Fire risk and risk of damage from

appliances which give off heat.

Appliances which give off heat can

catch fire and set fire to the wine

conditioning unit.

This wine conditioning unit must not

be installed underneath a hob.

 Fire risk and risk of damage from

appliances which give off heat.

Appliances which give off heat can

catch fire and set fire to the wine

conditioning unit.

Do not install a warming drawer un-

der the wine conditioning unit.

 Danger of damage.

Do not install a vacuum sealing

drawer under the wine conditioning

unit.

Installation

*INSTALLATION*

Risk of damage.

The wine conditioning unit has an

elongated glass door and must not

be set down vertically at any time.

Installation

*INSTALLATION*

This appliance should be installed in a

dry, well-ventilated room.

When deciding where to install your

wine conditioning unit, please bear in

mind that it will use more energy if in-

stalled near to a heater, a cooker or an-

other appliance that gives off heat. Dir-

ect sunlight should also be avoided.

The higher the room temperature, the

longer the compressor runs and the

higher the energy consumption is.

When installing the wine conditioning

unit, please note:

- The socket must be easily accessible

in an emergency, not concealed be-

hind the appliance.

- The plug and cable must not touch

the back of the wine conditioning unit

as they could be damaged by vibra-

tions from the appliance.

- Do not plug in other appliances be-

hind the wine conditioning unit.

Load-bearing capacity of the niche

floor

To ensure the safe installation of the

wine conditioning unit and to guarantee

its correct functioning, the floor of the

niche where the appliance is to be in-

stalled must be smooth and even.

It must be made from strong, rigid ma-

terial.

Because the appliance is extremely

heavy when fully loaded, it is essential

that the floor it stands on is able to bear

its weight.

When fully loaded, the weight of the ap-

pliance is approx. 200kg.

Installation

*INSTALLATION*

 Danger from broken glass!

Danger of injury from broken glass.

If installed at altitudes above 1500m

there is a risk of the glass in the door

breaking because of changes in air

pressure. Shards of glass can cause

severe injury if not handled with care.

 Risk of damage due to high hu-

midity.

In environments with high humidity,

condensation can build up on the ex-

ternal wine conditioning unit panels,

which can cause corrosion.

Install the wine conditioning unit with

sufficient ventilation in a dry and/or

air-conditioned room.

After installation, make sure that the

appliance door closes properly, the

ventilation gaps are not covered and

that the wine conditioning unit has

been installed in accordance with

these operating and installation in-

structions.

Climate range

The wine conditioning unit is designed

for use within a certain climate range

(ambient temperatures) and should not

be used outside this range. The climate

range of the wine conditioning unit is

stated on the data plate inside it.

Climate range Ambient room

temperature

SN +10°C to +32°C

N +16°C to +32°C

ST +16°C to +38°C

T +16°C to +43°C

Operating in a room which is too cold

will cause the compressor to switch off

for too long, causing the internal tem-

perature in the wine conditioning unit to

rise which could lead to damage.

Side-by-side

This wine conditioning unit can be in-

stalled side-by-side with another wine

conditioning unit or a refrigeration appli-

ance.

Your dealer will be able to advise you

which combination of models is pos-

sible.

Installation

*INSTALLATION*

Ventilation

 Risk of fire and damage due to

insufficient ventilation.

If the wine conditioning unit is not

ventilated sufficiently, the com-

pressor will run more frequently and

for longer periods. This will result in

increased energy consumption and a

higher operating temperature for the

compressor. This may, in turn, cause

damage to the compressor.

Please ensure that there is adequate

ventilation around the wine condi-

tioning unit.

It is essential to observe the required

ventilation gaps. The ventilation gaps

must not be covered or blocked in

any way.

Air at the back of the wine conditioning

unit gets warm. The appliance housing

unit must therefore be constructed to

allow sufficient space for ventilation

(see “Installation – Building-in dimen-

sions”):

Air intake occurs via the plinth  at the

bottom of the appliance and the air es-

capes at the top at the back of the

housing unit.

- A ventilation gap of at least 40mm

depth must be allowed for behind the

appliance for air to circulate.

- The ventilation cross-sections in the

plinth, housing unit and above the

appliance must each provide an un-

obstructed airflow of at least 200cm²

to ensure that air can circulate

without hindrance.

If ventilation grilles are to be inserted

into the ventilation gaps, the ventila-

tion gaps must be larger than

200cm². The unobstructed airflow of

200cm² is calculated by adding up

the total area of ventilation gaps in

the grille.

- Important! The larger the ventilation

gaps, the less energy the wine condi-

tioning unit will use.

Installation

*INSTALLATION*

The ventilation gap at the top of the ap-

pliance can be constructed in different

ways:

- : Directly above the wine condition-

ing unit

- : Above a top box

- : In a top box through a ventilation

grille at the front

The ventilation gaps must not be

covered or blocked in any way. They

must also be regularly dusted.

Installation dimensions

The mains connection cable is

2800mm long.

The socket must be easily accessible

in an emergency, not concealed be-

hind the appliance.

Installation

*INSTALLATION*

Side view

Adjusting the door hinges

The door hinges on the wine condition-

ing unit are set ex-works to enable the

appliance door to be opened wide.

However if the opening angle of the ap-

pliance door needs to be limited for any

reason, the hinge can be adjusted to

accommodate this.

If the appliance door hits an adjacent

wall when opened, for example, the

opening angle can be limited to approx.

90°.

The locking pins for limiting the door

opening must be fitted before the

wine conditioning unit is installed.

 Insert the locking pins supplied for

limiting the door opening into the

hinges from above.

The appliance door opening angle is

now limited to approx. 90°.

Installation

*INSTALLATION*

Changing the door hinging

The wine conditioning unit is supplied

right-hinged. If left-hand hinging is re-

quired, the hinges must be changed.

To change the door hinging, you will

need the following tools:

 Danger of injury and damage to

the appliance.

The glass door is breakable.

The glass door is heavy (approx.

33kg). Always change the door

hinging with the assistance of an-

other person.

 Risk of damage.

The wine conditioning unit has an

elongated glass door and must not

be set down vertically at any time.

 Danger of injury and damage to

the appliance.

The glass door can drop.

When changing the door hinging

make sure that all fixing parts are se-

curely screwed into position.

Tip: Place a suitable cover on the floor

in front of the appliance to protect the

appliance door and your floor from

damage.

Be careful not to damage the door

seal. If the door seal is damaged, the

appliance door may not close prop-

erly and cooling will be insufficient.

 Open the appliance door and remove

covers and on the left and right

of the wine unit.

 Remove cover from the bottom of

the wine unit.

 Unscrew the transport safety

device.

Tip: Keep this device in a safe place

for refitting should the appliance need

to be moved in the future.

Installation

*INSTALLATION*

 Danger of injury and damage to

the appliance.

The appliance door is not secure

once the screws in the hinges have

been removed.

The second person must support the

appliance door.

 Danger of injury from folding

hinges.

If the hinges close there is a danger

of injury.

Leave them open.

 Slightly unscrew the bottom and top

screws from the hinges. The appli-

ance door must be held by a second

person whilst you do this.

 Remove the appliance door.

 Risk of damage.

The glass door is breakable.

The wine unit has an elongated glass

door and must not be set down ver-

tically at any time.

 Carefully place the dismantled appli-

ance door on a soft surface.

 Now undo the screws completely.

 Caution. Ensure that the hinges do

not close.

 Pull the door seal back a little from

the top corner of the appliance door

and remove cover.

Installation

*INSTALLATION*

Tip: Take care not to let the screws that

you have loosened fall through the slits

in the appliance door.

 Unscrew cover.

 Pull the door seal back a little from

the bottom corner of the appliance

door and remove cover.

Tip: Take care not to let the screws that

you have loosened fall through the slits

in the appliance door.

 Unscrew the transport safety

device from the bottom of the ap-

pliance.

 Place the screws to one side. They

will be needed later on.

 Take off the upper retaining

bracket and refit it on the opposite

side.

Installation

*INSTALLATION*

 Remove the stopper from the ap-

pliance door.

 Remove the spacer from the appli-

ance door, rotate it 180° and fit it on

the opposite side.

 Refit the stopper on the opposite

side of the door.

 Pull the door seal back a little from

the top and bottom corners of the ap-

pliance door and remove covers.

 Unscrew the hinges from the appli-

ance door.

Installation

*INSTALLATION*

 Unscrew the mounting plate from

hinge A and then screw it onto hinge

 Unscrew the mounting plate from

hinge B and then screw it onto hinge

 Secure the hinges diagonally on

the opposite side.

Installation

*INSTALLATION*

 Screw on the cover and the sup-

plied cover. To do so use the

screws that you put to one side that

were previously used for the transport

safety device .

 Refit the covers.

 Secure the seal.

 Make sure that the seal is properly

seated.

Installation

*INSTALLATION*

 Refit covers and.

 Secure the seal.

 Danger of injury and damage to

the appliance.

The glass door can drop.

The second person must support the

appliance door during the following

steps.

 Fit the screws loosely through

hinges at the top and bottom.

 Refit the appliance door and then

tighten the screws, first at the bot-

tom, then at the top.

 Replace the top covers and and

click them into place.

 Replace the bottom cover and

click it into place.

Installation

*INSTALLATION*

 Check that the wine unit is standing

securely in the building-in niche and

that the appliance door closes prop-

erly.

Installing the wine conditioning

unit

Before installing the wine condition-

ing unit

 Take any accessories out of the appli-

ance.

 Remove the cable clip from the back

of the appliance (depending on

model).

 Risk of damage and injury from

wine conditioning unit tipping over.

There is an increased risk of injury

and damage if the wine conditioning

unit is installed by a single person.

Two people are required for installing

the wine conditioning unit.

 Install the wine conditioning unit in a

stable, solid housing unit, positioned

on an even and level floor.

 The building-in niche must be hori-

zontally and vertically aligned.

 The required ventilation gaps must be

provided (see “Installation” – “Ventila-

tion” and “Building-in dimensions”).

Installation

*INSTALLATION*

The following parts are supplied with

the wine conditioning unit:

All installation parts are number coded.

This coding is also used in the installa-

tion instructions.

- Required for installing the wine con-

ditioning unit in its housing unit:

Installation

*INSTALLATION*

All fitting instructions given are for a

right-hinged appliance. If you have

converted the appliance to left hand

hinging you will need to adapt these

instructions accordingly.

Setting up the wine conditioning unit

 Unscrew the transport safety

devices from both sides on the

back of the wine conditioning unit

and remove them upwards.

 Feed the power cable through to the

socket.

 Risk of damage.

The wine conditioning unit has an

elongated glass door and must not

be set down vertically at any time.

 Fire hazard due to short circuit.

When pushing the wine conditioning

unit into its niche, make sure that the

power cable does not get trapped.

Never operate a wine conditioning

unit with a faulty power cable.

 Push the appliance two thirds of the

way into the building-in niche.

 Turn the front adjustable feet all the

way in using the spanner supplied.

Installation

*INSTALLATION*

 Slide the filler panel supplied from

the front into the holders on the wine

conditioning unit as shown.

 If the wine conditioning unit is left-

hinged, allow for the position of the

lug (see illustration above).

 If the wine conditioning unit is right-

hinged, allow for the position of the

lug (see illustration above).

 Unscrew the transport safety

device from the front of the wine

conditioning unit, if you have not

already done so.

Tip: Keep this device in a safe place for

refitting should the appliance need to

be moved in the future.

With 16mm thick unit walls only:

 Clip spacers and supplied on

the right-hand side of the hinges.

 Open the appliance door.

Installation

*INSTALLATION*

 Remove top cover.

 Screw the supplied fixing bracket

loosely with the screws supplied

into the top left of the wine condition-

ing unit (1st and 3rd hole from the

left). Do not tighten the screws so

that you can adjust the position of

bracket later on.

 Fit the stopper supplied onto the

fixing bracket also supplied.

 Screw the supplied fixing bracket

loosely with the screws supplied

into the bottom of the wine condition-

ing unit. Do not tighten the screws

so that you can adjust the position of

the bracket later on.

Installation

*INSTALLATION*

 Remove the edge protection from all

sides of the door.

 Push the appliance two thirds of the

way into the building-in niche.

 Carefully remove the protective foil

from the supplied sealing strip.

 Fix the sealing strip flush with the

front of the appliance on the door

opening side.

1. Position the sealing strip flush with

the lower edge of the top fixing

bracket.

2. Stick it down along its entire length.

 If necessary, insert the locking pins

supplied for limiting the door opening

into the hinges from above (see “In-

stallation – Adjusting the hinges”).

Installation

*INSTALLATION*

Installing the wine conditioning unit

If the wine conditioning unit is

pushed too far into the niche, the

door will not close properly. This can

cause ice to build up, condensate to

accumulate and lead to faults in the

appliance. These can all lead to in-

creased energy consumption.

Push the wine conditioning unit into

the building-in niche, making sure a

gap of 42mm is maintained all round

between the appliance carcase and

the front of the housing unit side

walls.

 Push the wine conditioning unit into

the niche until all fixing brackets at

the top and bottom touch the front

edge of the side walls of the housing

unit.

- With 16mm thick unit walls:

The spacers should touch the front

edge of the housing unit side walls at

the top and bottom.

- With 19mm thick unit walls:

The front edges of the top and bot-

tom hinges should be flush with the

front edge of the housing unit side

wall.

 Check the position of the fixing

brackets at the top and bottom front

edge of the housing unit side wall

again.

This will create a gap all round of

42mm to the front edges of the hous-

ing unit side walls.

 Close the appliance door and align

the wine conditioning unit flush with

the surrounding cabinetry, pulling the

wine conditioning unit forwards if ne-

cessary.

 Align the height of the wine condi-

tioning unit as necessary on both

sides with adjacent cabinetry by al-

tering the adjustable feet using the

spanner supplied.

Installation

*INSTALLATION*

 Push the hinged side of the appliance

to the housing unit wall.

 To secure the wine conditioning unit

to the housing unit, screw the sup-

plied chipboard screws through

the hinge plates at the top and bot-

tom (1. + 2.).

 Push the fixing brackets and

against the housing unit wall.

 Now secure the wine conditioning

unit to the other side of the housing

unit by screwing the supplied chip-

Installation

*INSTALLATION*

board screws and through the

hinge plates at the top and bottom (3.

+ 4.).

 Now tighten screws and.

 Snap off any protruding ends from

securing brackets and. They are

no longer required and can be dis-

posed of.

 Fit the cover to the top fixing

bracket.

 Fit the supplied cover to the bot-

tom fixing bracket.

For additional stability of the wine con-

ditioning unit in the housing unit, push

the stabilising rods supplied in under-

neath the appliance between it and

the floor of the housing unit:

 Then secure the handle to one of

the stabilising rods.

 Push the stabilising rod into the

guide hole as far as it will go. Remove

the handle and fit it to the other

rod supplied and push this into its

guide as far as it will go.

Tip: Important! Keep the handle

somewhere safe in case you ever need

to fit the wine conditioning unit into new

cabinetry.

 Check that the wine conditioning unit

is standing securely in the niche and

that the door closes properly.

Installation

*INSTALLATION*

 If not already done, remove the trans-

port safety device as follows:

 Pull the door seal back a little from

the bottom corner of the door and re-

move the cover.

 Unscrew the transport safety

device from the bottom of the ap-

pliance.

 Screw the supplied cover into pos-

ition.

 Refit the cover and secure the

seal.

 Check that the wine conditioning unit

is standing securely in the housing

unit and that the door closes prop-

erly.

Installation

*INSTALLATION*

Adjusting the appliance door

 Align the appliance door by width (X)

with neighbouring furniture fronts.

 Risk of damage to the adjacent

furniture front.

The adjacent furniture front may get

damaged.

When adjusting the appliance door

take care not to damage furniture

fronts of units adjacent to the hinged

side.

After adjusting the appliance door,

carefully open the door and if neces-

sary readjust it.

 Remove the seal from the appliance

door and remove the covers.

 Loosen screw  and move it to posi-

tion.

 Loosen screw .

 Carry out these steps for the lower

appliance door as well.

 Adjust the width of the appliance

door (X) so that the gap on both sides

of the door is the same.

 Now tighten screws  and .

Installation

*INSTALLATION*

 Refit the covers.

 Secure the seal back on the appli-

ance door.

Installation

*INSTALLATION*

The following confirms that the wine

unit is correctly installed:

- The appliance door closes properly.

- The appliance door does not touch

the housing unit.

- The seal on the top corner of the

handle side is firmly seated.

 To double check place a torch in the

wine unit and close the door.

Turn the lights out in the room and

check whether you can see any light

shining out from the sides of the wine

unit. If you can, double check each

stage of the installation.

Installation

*INSTALLATION*

Electrical connection

The wine unit is supplied with a mains

cable with moulded plug ready for con-

nection to an earthed socket.

The socket must be easily accessible

after the wine unit has been installed. If

the socket is not easily accessible, en-

sure that a suitable means of discon-

nection is provided on the installation

side for each pole.

 Risk of fire from overheating.

Connecting the wine unit to a multi-

socket adapter or to an extension

lead can overload the mains connec-

tion cable.

For safety reasons, do not use an ex-

tension lead or multi-socket adapter.

The electrical system must comply with

local and national safety regulations

(BS7671 in the UK).

For safety reasons, we recommend us-

ing a type residual current device

(RCD) in the assigned electrical installa-

tion for connecting the wine unit.

If the mains connection cable is dam-

aged, it must only be replaced with a

specific mains connection cable of the

same type (available from the Miele

Customer Service Department). For

safety reasons, such replacement may

only be carried out by a qualified spe-

cialist or the Miele Customer Service

Department.

These operating instructions and the

data plate indicate the nominal power

consumption and the appropriate fuse

rating. Compare this information with

the data of the on-site electrical con-

nection.

If in any doubt, consult a qualified elec-

trician.

Do not connect the wine unit to a

stand-alone inverter such as those used

with an autonomous power supply, e.g.

solar power. When the wine unit is

switched on, power surges could result

in an auto switch-off. This could dam-

age the electronic module.

Information for dealers

Demo mode 

The wine conditioning unit can be

demonstrated in the showroom or at

exhibitions in “Demo mode”. In this

mode the control panel and interior

lighting are active but the compressor

remains switched off, so that the appli-

ance does not cool down.

Switching on demo mode

 Switch the wine conditioning unit off

by touching the On/Off sensor.

The temperature display will go out and

the mains connection symbol  will

appear.

 Place your finger on the sensor,

and leave it there.

 At the same time, briefly touch the

On/Off sensor (without letting go of

the sensor).

 Leave your finger on the sensor

until the symbol appears in the dis-

play.

 Then release the sensor.

Demo mode is activated and the sym-

bol appears in the display.

Switching off Demo mode

The symbol is lit up in the display.

 Touch the settings sensor.

All symbols available for selection will

appear in the display and the symbol

flashes.

 Touch the sensors for setting the

temperature ( or ) repeatedly until

the symbol flashes.

 Touch the OK sensor to confirm your

selection.

1 flashes in the display (means: Demo

mode is switched on) and the symbol

lights up.

Information for dealers

 Touch the  or  sensor until 0 ap-

pears (means: Demo mode is

switched off).

 Touch the OK sensor to confirm your

selection.

The selected setting is applied, the

symbol flashes.

 Touch the settings sensor to leave

settings mode.

Otherwise the appliance exits set-

tings mode automatically after ap-

proximately one minute.

Demo mode is switched off, the sym-

bol goes out.

United Kingdom

Miele Co. Ltd., Fairacres, Marcham Road, Abingdon, Oxon, OX14 1TW

Tel: 0330 160 6600, Internet: www.miele.co.uk/service, E-mail: [email protected]

Australia

Miele Australia Pty. Ltd.

ACN 005 635 398

ABN 96 005 635 398

1 Gilbert Park Drive

Knoxfield, VIC 3180

Tel: 1300 464 353

Internet: www.miele.com.au

Miele Electrical Appliances Co., Ltd.

1-3 Floor, No. 82 Shi Men Yi Road

Jing' an District

200040 Shanghai, PRC

Tel: +86 21 6157 3500

Fax: +86 21 6157 3511

E-mail: [email protected],

Internet: www.miele.cn

China Mainland

Miele (Hong Kong) Ltd.

41/F - 4101, Manhattan Place

23 Wang Tai Road

Kowloon Bay, Hong Kong

Tel: (852) 2610 1025

Fax: (852) 3579 1404

Email:

[email protected]

Website: www.miele.hk

Hong Kong, China

Miele India Pvt. Ltd.

1st Floor, Copia Corporate Suites,

Commercial Plot 9,

Mathura Road, Jasola,

New Delhi - 110025

E-mail: customercare@miele.in

Website: www.miele.in

India

Miele Ireland Ltd.

2024 Bianconi Avenue

Citywest Business Campus

Dublin 24

Tel: (01) 461 07 10

Fax: (01) 461 07 97

E-Mail: [email protected]

Internet: www.miele.ie

Ireland

Malaysia

Miele Sdn Bhd

Suite 12-2, Level 12

Menara Sapura Kencana

Petroleum

Solaris Dutamas No. 1

Jalan Dutamas 1

50480 Kuala Lumpur, Malaysia

Phone: +603-6209-0288

Fax: +603-6205-3768

Miele New Zealand Limited

IRD 98 463 631

8 College Hill

Freemans Bay, Auckland 1011

New Zealand

Tel: 0800 464 353

Internet: www.miele.co.nz

New Zealand

Miele Pte. Ltd.

29 Media Circle

#11-04 ALICE@Mediapolis

Singapore 138565

sTel: +65 6735 1191

Fax: +65 6735 1161

E-Mail: [email protected]

Internet: www.miele.sg

Singapore

Miele (Pty) Ltd.

63 Peter Place

Bryanston 2194

P.O. Box 69434

Bryanston 2021

Tel: (011) 875 9000

Fax: (011) 875 9035

E-mail: [email protected]

Internet: www.miele.co.za

South Africa

Miele Appliances Ltd.

Showroom 1

Eiffel 1 Building

P.O. Box 114782 - Dubai

Tel. +971 4 3044 999

Fax. +971 4 3418 852

800-MIELE (64353)

E-Mail: [email protected]

Website: www.miele.ae

United Arab Emirates

Manufacturer:

Miele & Cie. KG, Carl-Miele-Straße 29, 33332 Gütersloh, Germany

Thailand

Miele Appliances Ltd.

BHIRAJ TOWER at EmQuartier

43rd Floor Unit 4301-4303

689 Sukhumvit Road

North Klongton Sub-District

Vadhana District

Bangkok 10110, Thailand

Sheikh Zayed Road, Umm Al Sheif

M.-Nr. 11 324 480 / 02en-GB

KWT 6722 iG S

Miele KWT 6722 IGS-1 Glass door

Product's Documents

Operating instructions/Installation instructions

Specifications

Miele KWT 6722 IGS-1 Questions and Answers
