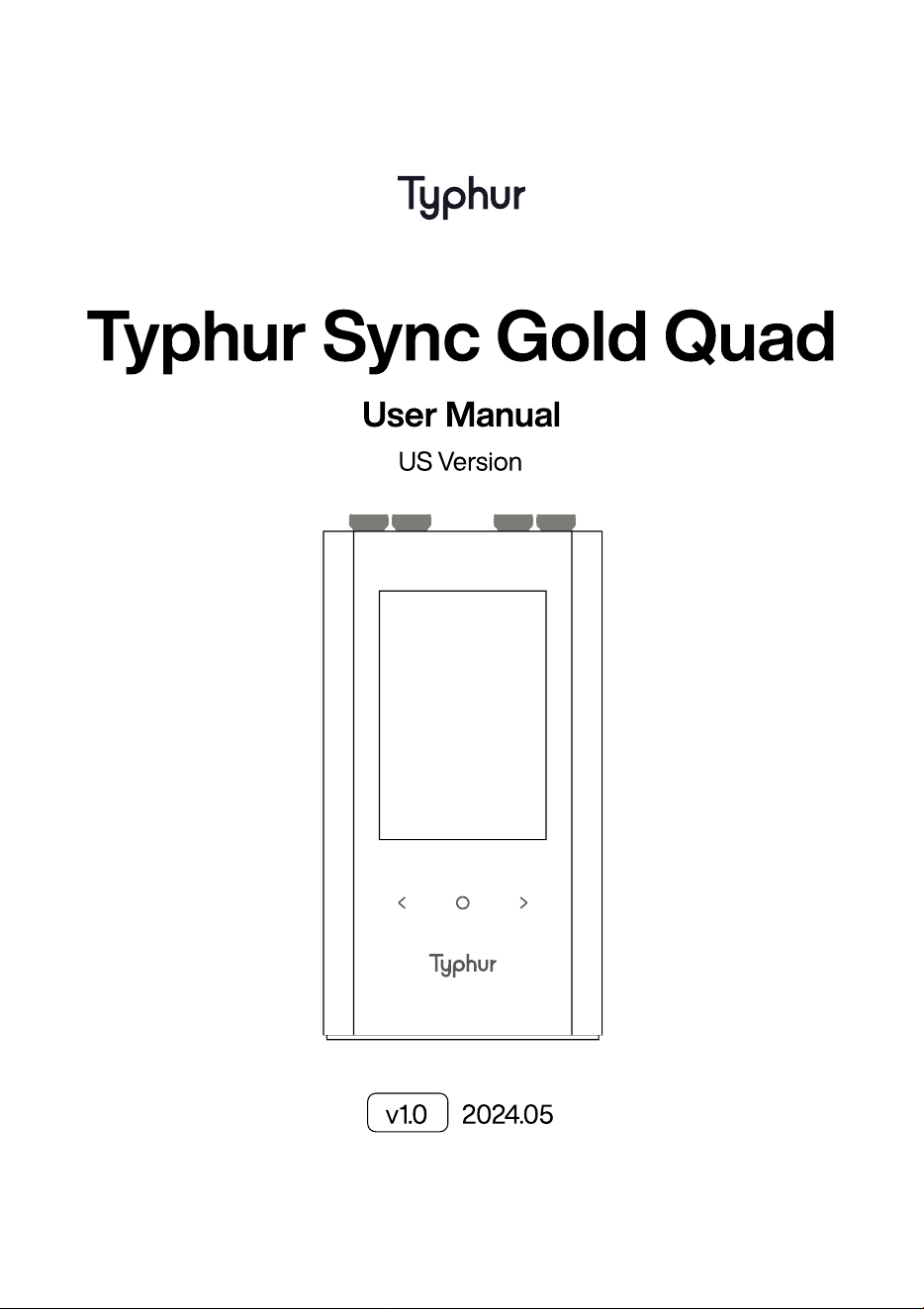

Typhur SYNC GOLD QUAD 4-Probe Wireless Meat Thermometer User Manual

Typhur Sync Gold Quad

User Manual

US Version

v1.0 2024.05

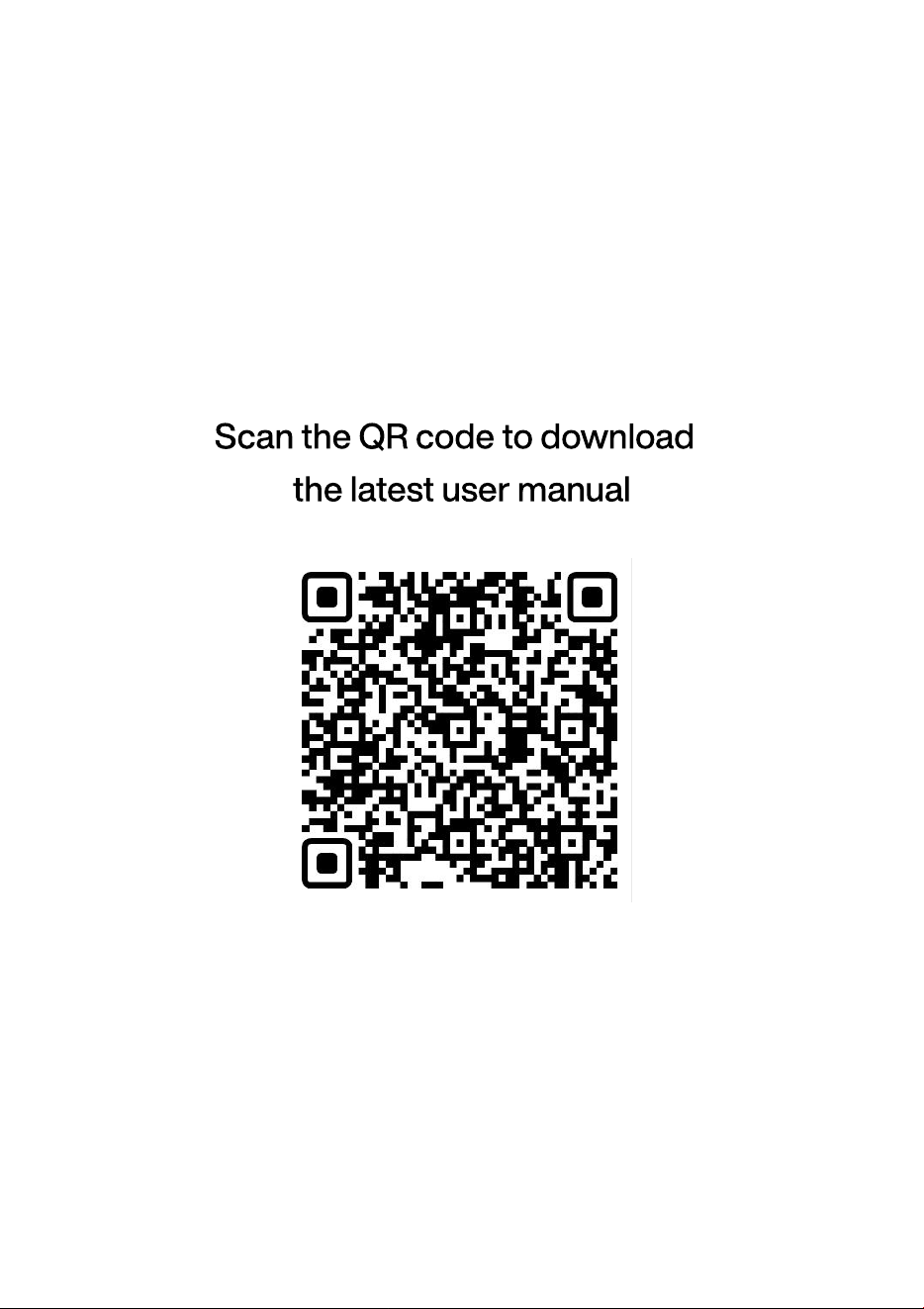

Scan the QR code to download 

the latest user manual

Typhur Sync Gold Quad User Manual

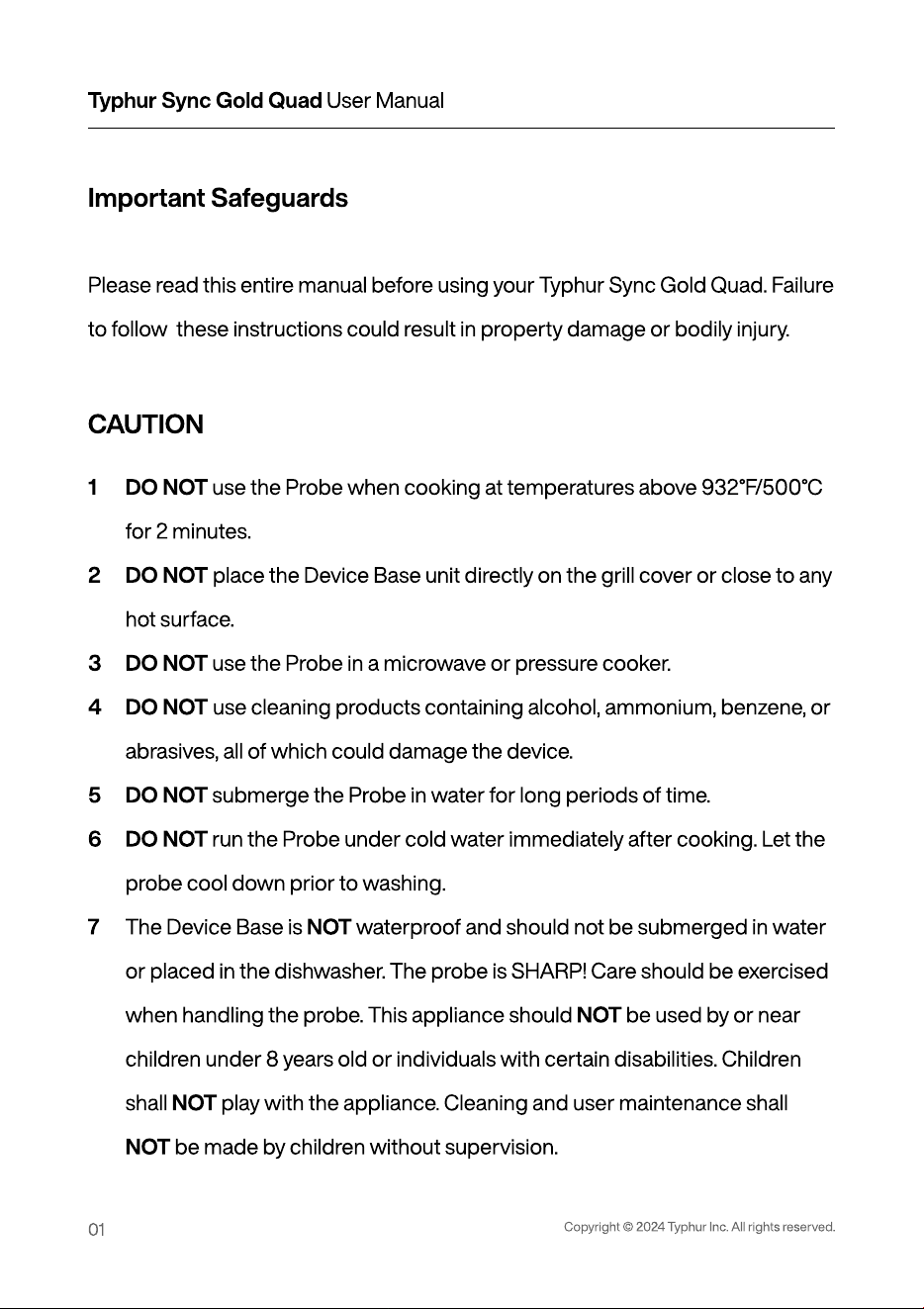

Important Safeguard

Please read this entire manual before using yourTyphur Sync Gold Quad. Failure

to follow these instructions could result in property damage or bodily injury

CAUTION















DO NOT use the Probe when cooking at temperatures above 932°F/500°C

for 2 minutes

DO NOT place the Device Base unit directly on the grill cover or close to any

hot surface

DO NOT use the Probe in a microwave or pressure cooker

DO NOT use cleaning products containing alcohol, ammonium, benzene, or

abrasives, all of which could damage the device

DO NOT submerge the Probe in water for long periods of time

DO NOT run the Probe under cold waterimmediately after cooking. Let the

probe cooldown prior to washing

The Device Base is NOT waterproof and shouldnot be submerged in water

or placed in the dishwasher. The probe is SHARP! Care should be exercised

when handling the probe. This appliance should NOT be used by or near

children under 8 years old or individuals with certain disabilities. Children

shall NOT play with the appliance. Cleaning and user maintenance shall

NOT be made by children without supervision.

Typhur Sync Gold Quad User Manual





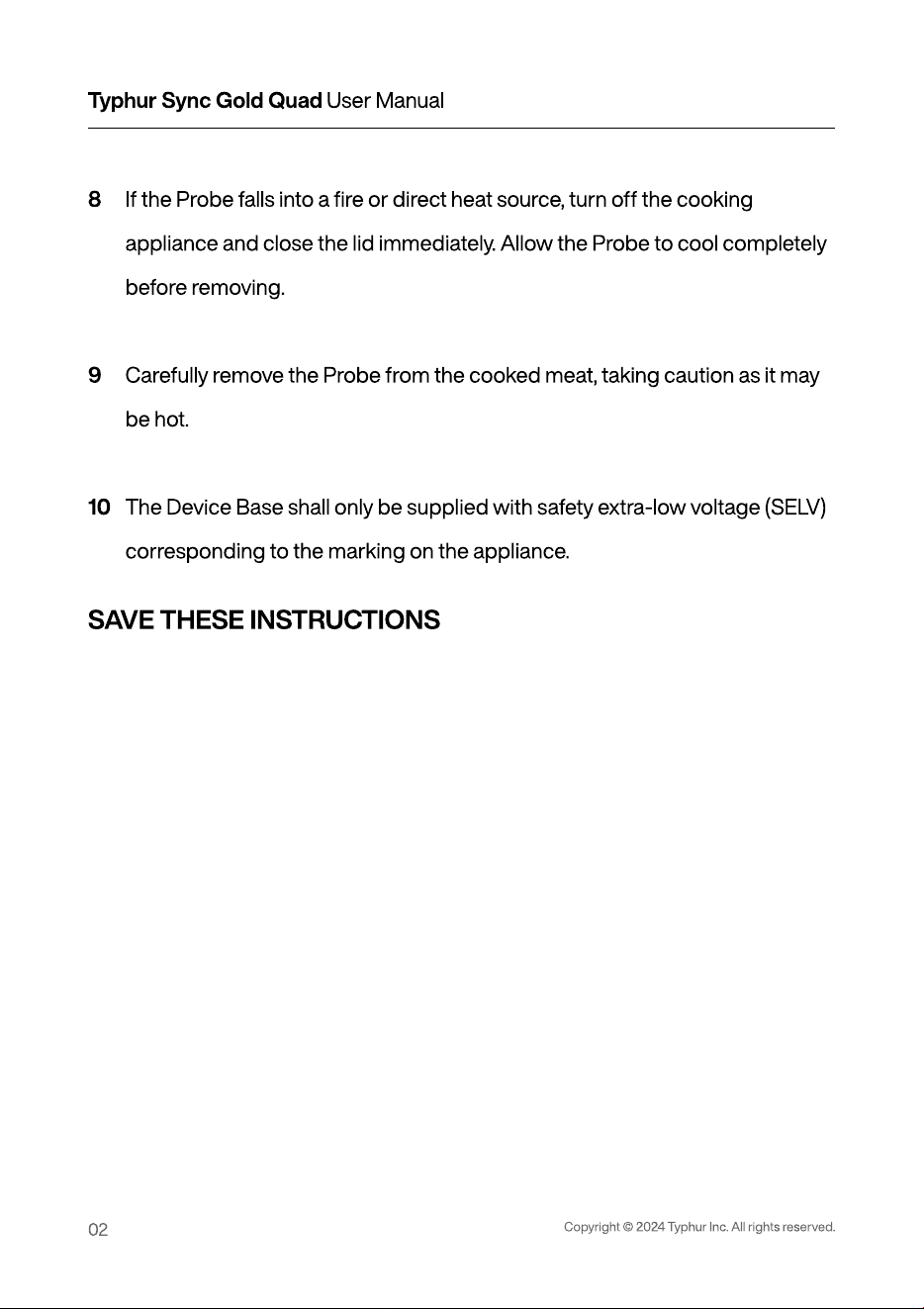

If the Probe falls into a re or direct heat source, turn off the cooking

appliance and close the lidimmediately. Allow the Probe to cool completely

before removing

Carefully remove the Probe from the cooked meat, taking caution as it may

be hot

The Device Base shall only be supplied with safety extra-low voltage (SELV)

corresponding to the marking on the appliance.

SAVE THESE INSTRUCTIONS

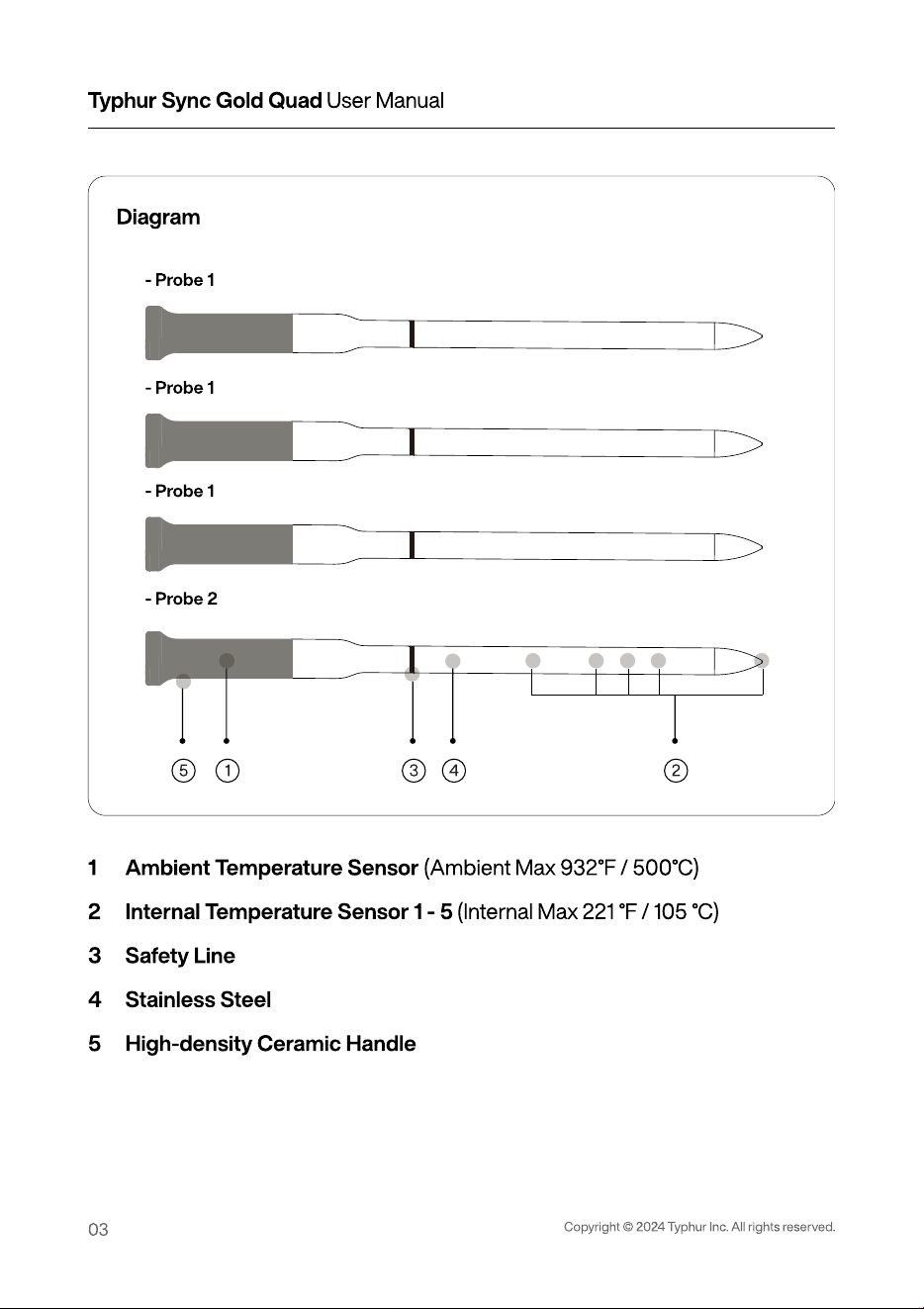

Diagram

- Probe 1

- Probe 2

Typhur Sync Gold Quad User Manual

431









Ambient Temperature Sensor (Ambient Max 932°F / 500°C

Internal Temperature Sensor 1 - 5 (Internal Max 221 °F / 105 °C

Safety Lin

Stainless Stee

High-density Ceramic Handle









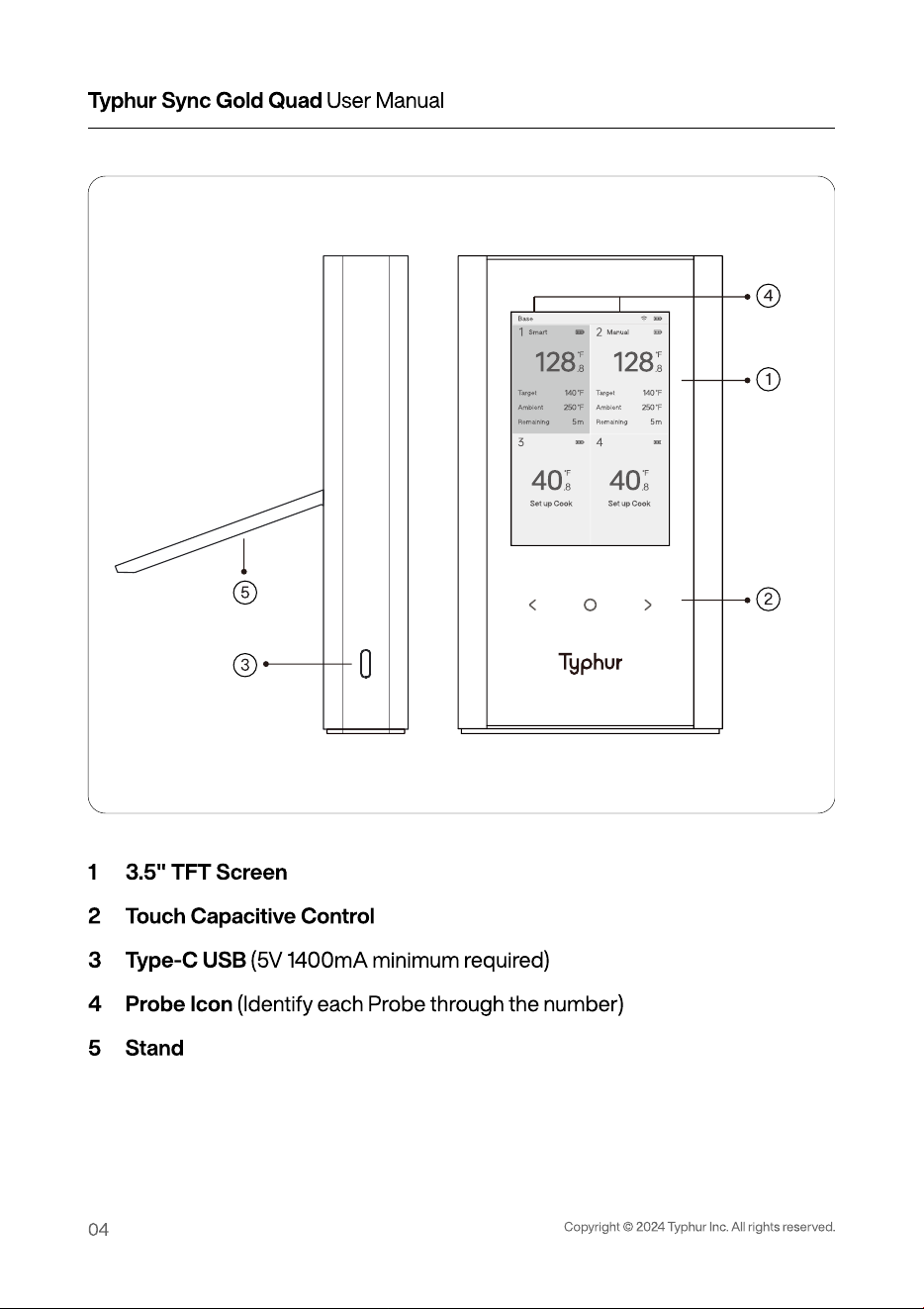

3.5" TFT Scree

Touch Capacitive Contro

Type-C USB (5V 1400mA minimum required

Probe Icon (Identify each Probe through the number)

Stan

Typhur Sync Gold Quad User Manual

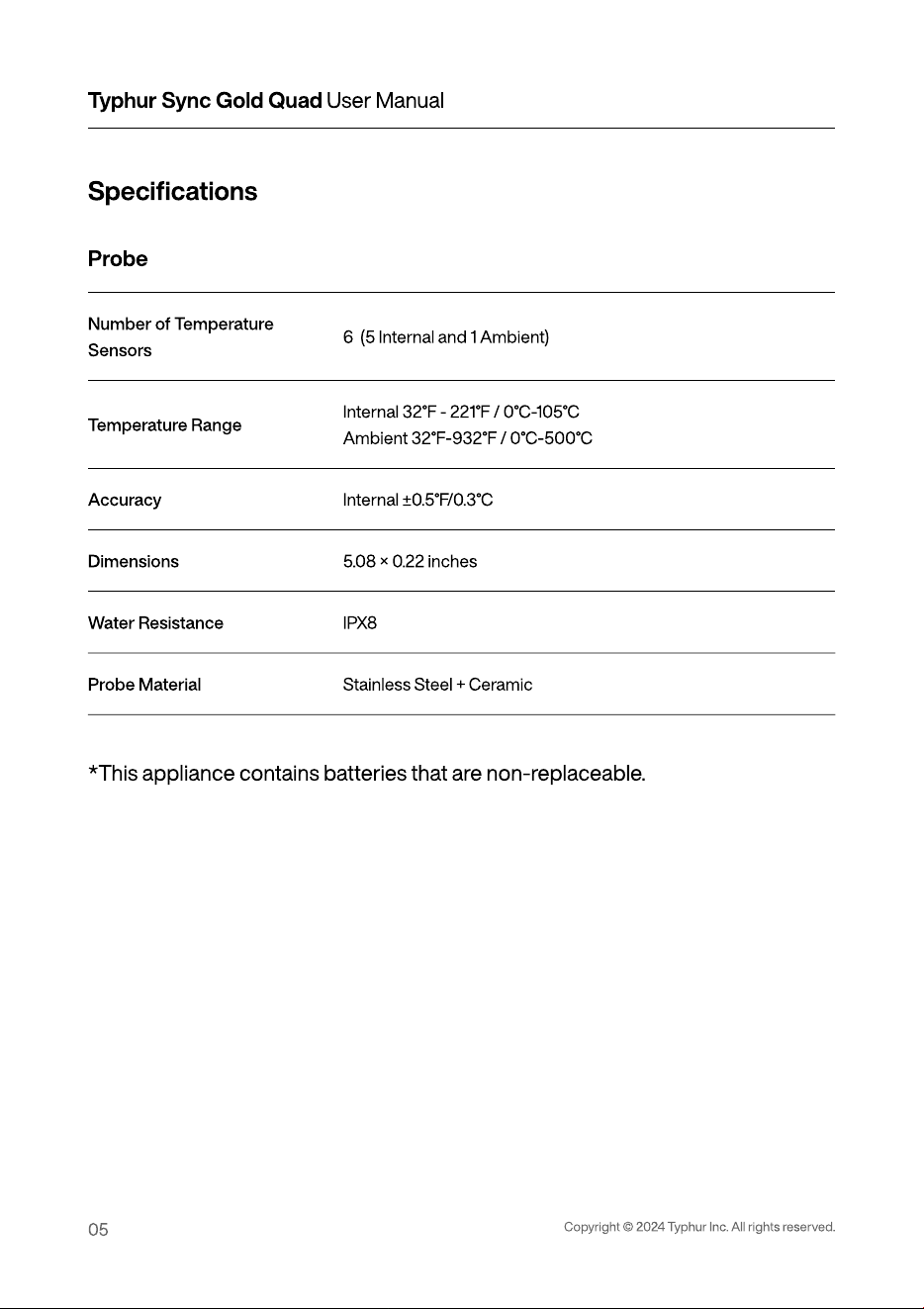

Speciﬁcations

Probe

Number of Temperature

Sensors

6 (5 Internal and 1 Ambient)

Temperature Range

Internal 32°F - 221°F / 0°C-105°

Ambient 32°F-932°F / 0°C-500°C

Accuracy

Internal ±0.5°F/0.3°C

Dimensions

5.08 × 0.22 inches

Water Resistance

IPX8

Probe Material Stainless Steel + Ceramic

*This appliance contains batteries that are non-replaceable.

Typhur Sync Gold Quad User Manual

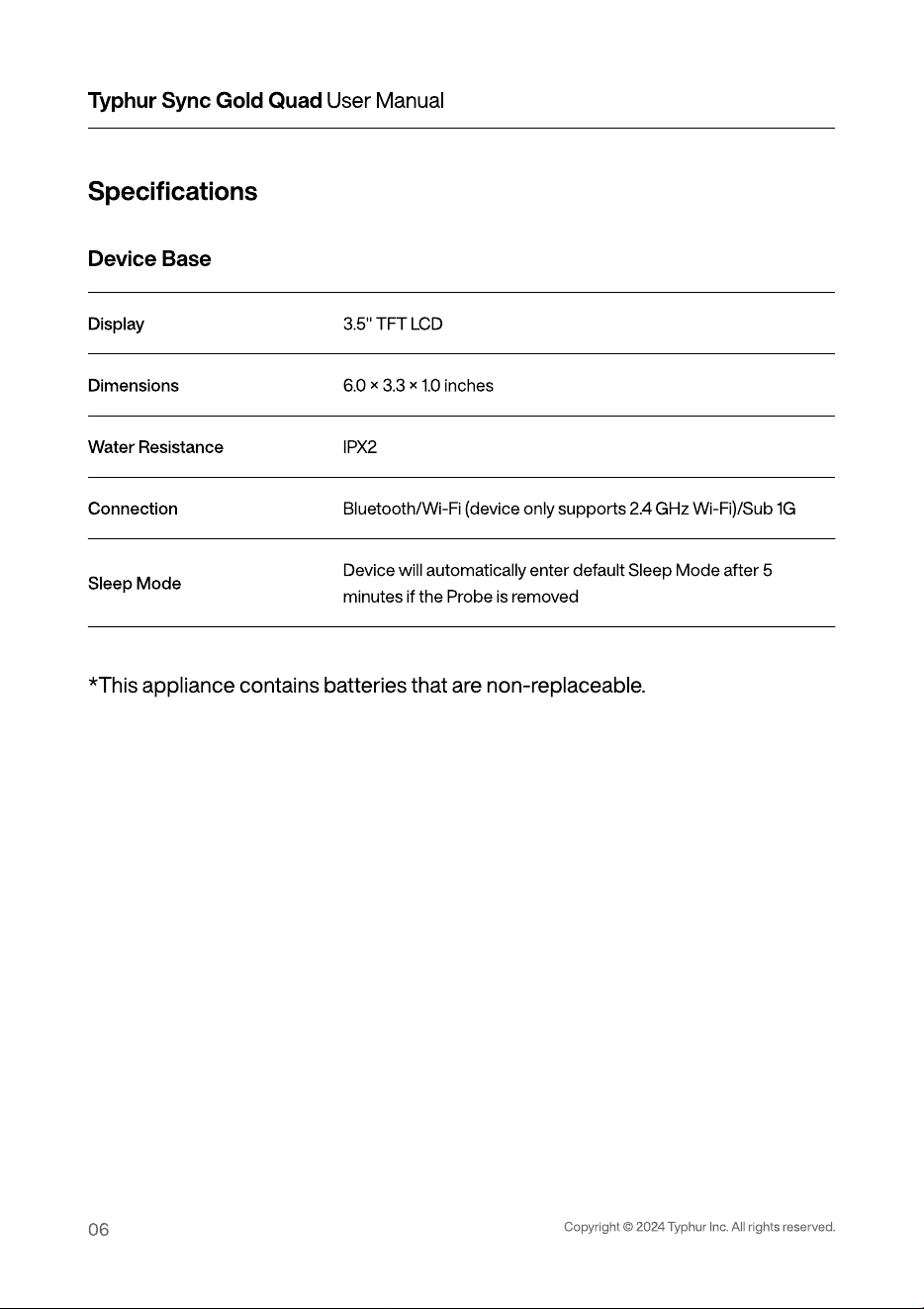

Speciﬁcations

Device Base

Display

3.5" TFT LCD

Dimensions

6.0 × 3.3 × 1.0 inches

Water Resistance

IPX2

Connection

Bluetooth/Wi-Fi (device only supports 2.4 GHz Wi-Fi)/Sub 1G

Sleep Mode

Device will automatically enter default Sleep Mode after 5

minutes if the Probe is removed

*This appliance contains batteries that are non-replaceable.

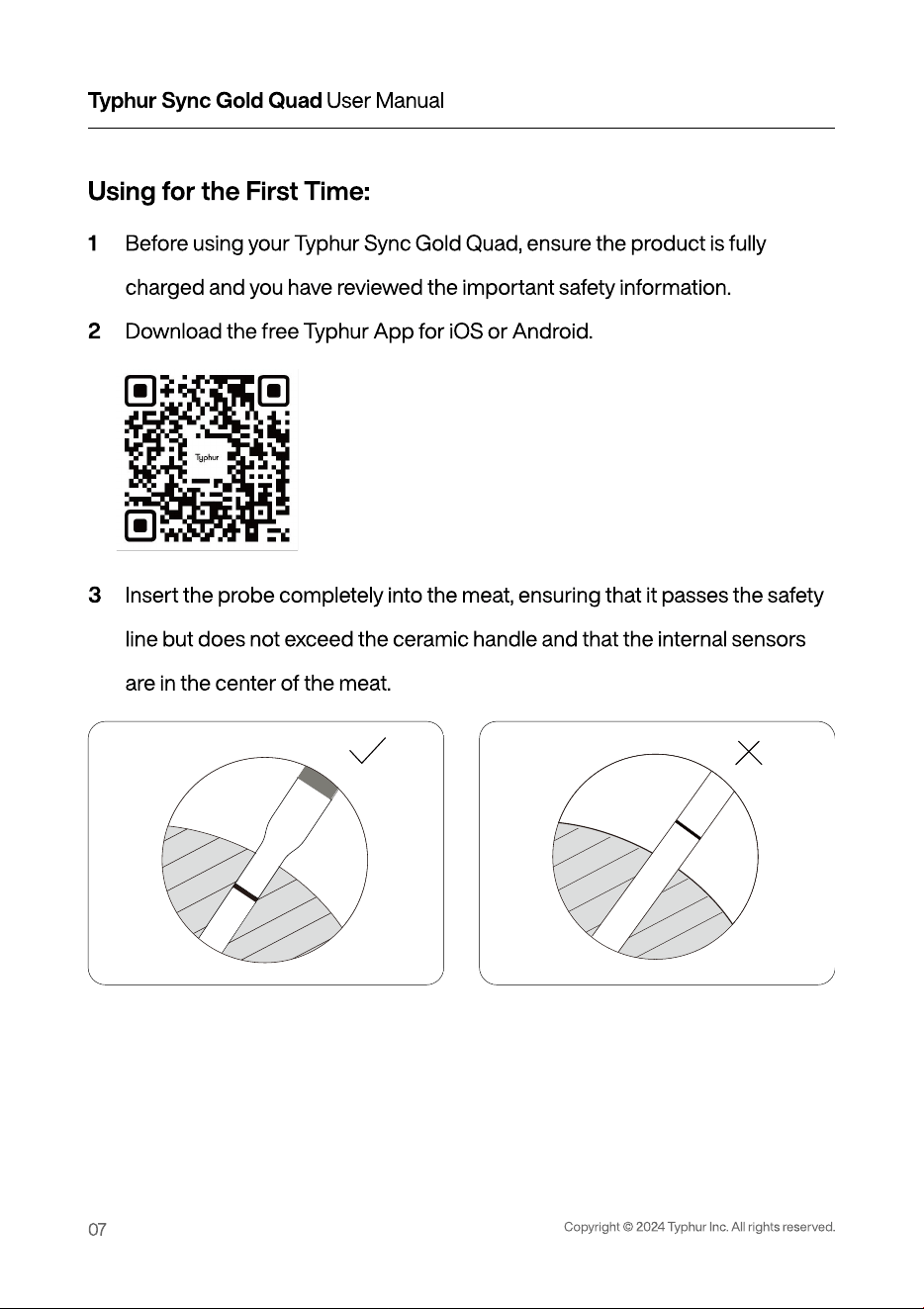

Using for the First Time:







Before using your Typhur Sync Gold Quad, ensure the product is fully

charged and you have reviewed the important safety information

Download the free Typhur App for iOS or Android

Insert the probe completely into the meat, ensuring that it passes the safety

line but does not exceed the ceramic handle and that the internal sensors

are in the center of the meat.

Typhur Sync Gold Quad User Manual

Bluetooth Indicator

3 Battery Indicator

Rechargeable Device Bas

5 Left/Right Button

Select an item

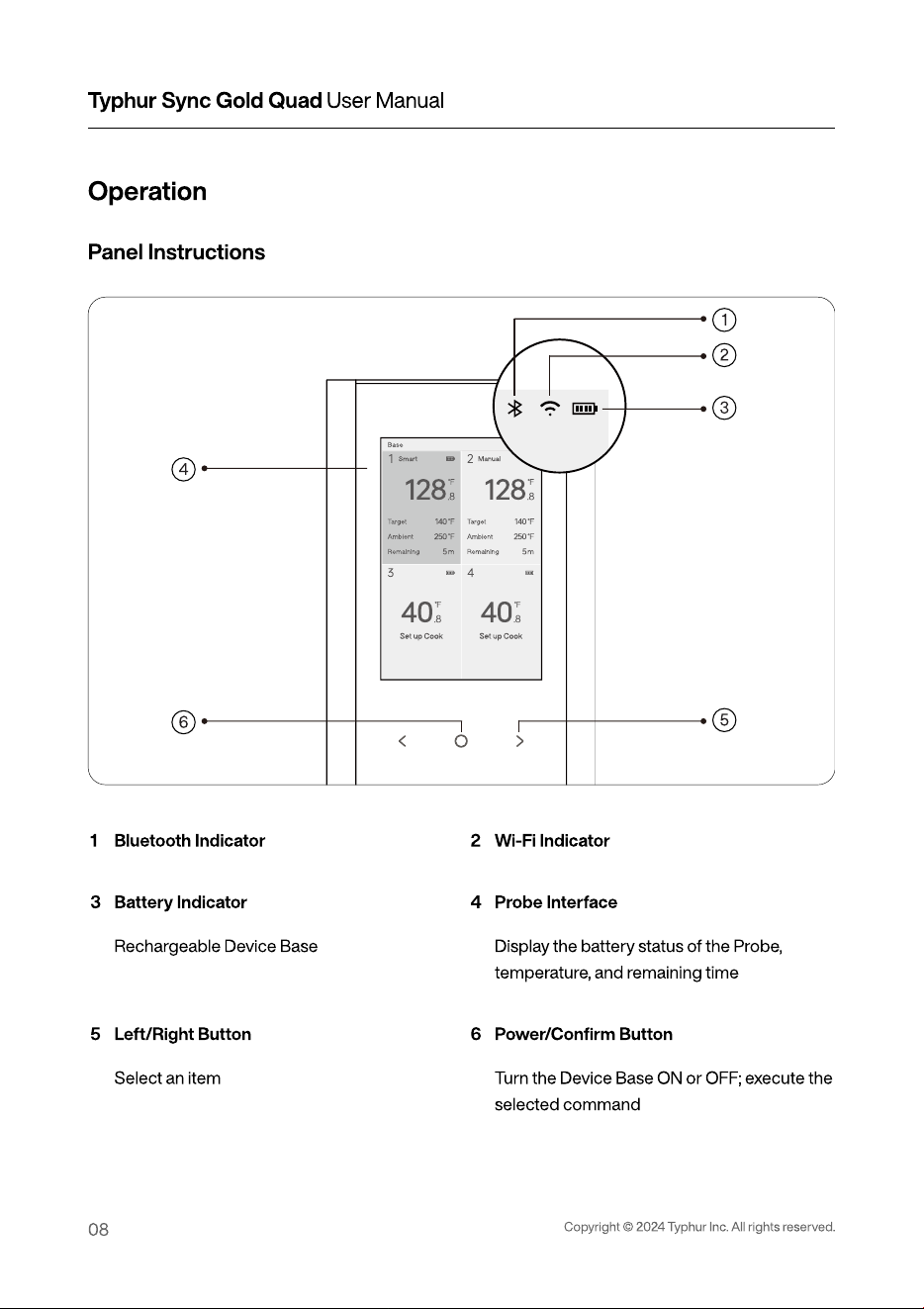

Operation

Wi-Fi Indicator

4 Probe Interface

Display the battery status of the Probe,

temperature, and remaining time

6 Power/Conﬁrm Button

Turn the Device Base ON or OFF; execute the

selected command

Panel Instructions

Typhur Sync Gold Quad User Manual

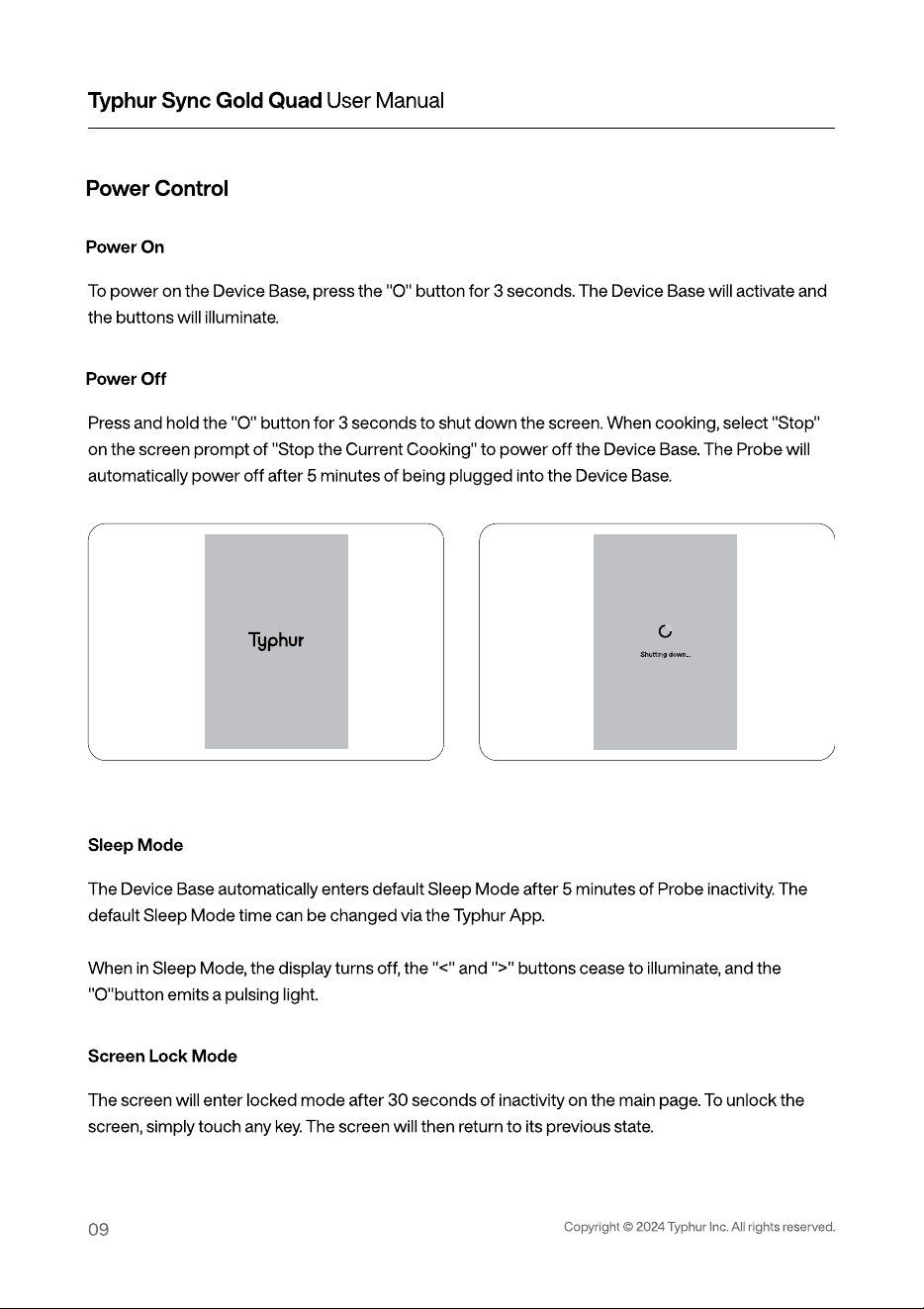

To power on the Device Base, press the "O" button for 3 seconds. The Device Base will activate and

the buttons will illuminate.

Power On

Sleep Mode

The Device Base automatically enters default Sleep Mode after 5 minutes of Probe inactivity. The

default Sleep Mode time can be changed via the Typhur App

When in Sleep Mode, the display turns off,the "<" and ">" buttons cease to illuminate, and the

"O"button emits a pulsing light.

Power Control

Power Off

Press and hold the "O" button for 3 seconds to shut down the screen. When cooking, select "Stop"

on the screen prompt of "Stop the Current Cooking" to power off the Device Base. The Probe will

automatically power off after 5 minutes of being plugged into the Device Base.

The screen will enter locked mode after 30 seconds of inactivity on the main page. To unlock the

screen, simply touch any key. The screen will then return to its previous state.

Screen Lock Mode

Typhur Sync Gold Quad User Manual

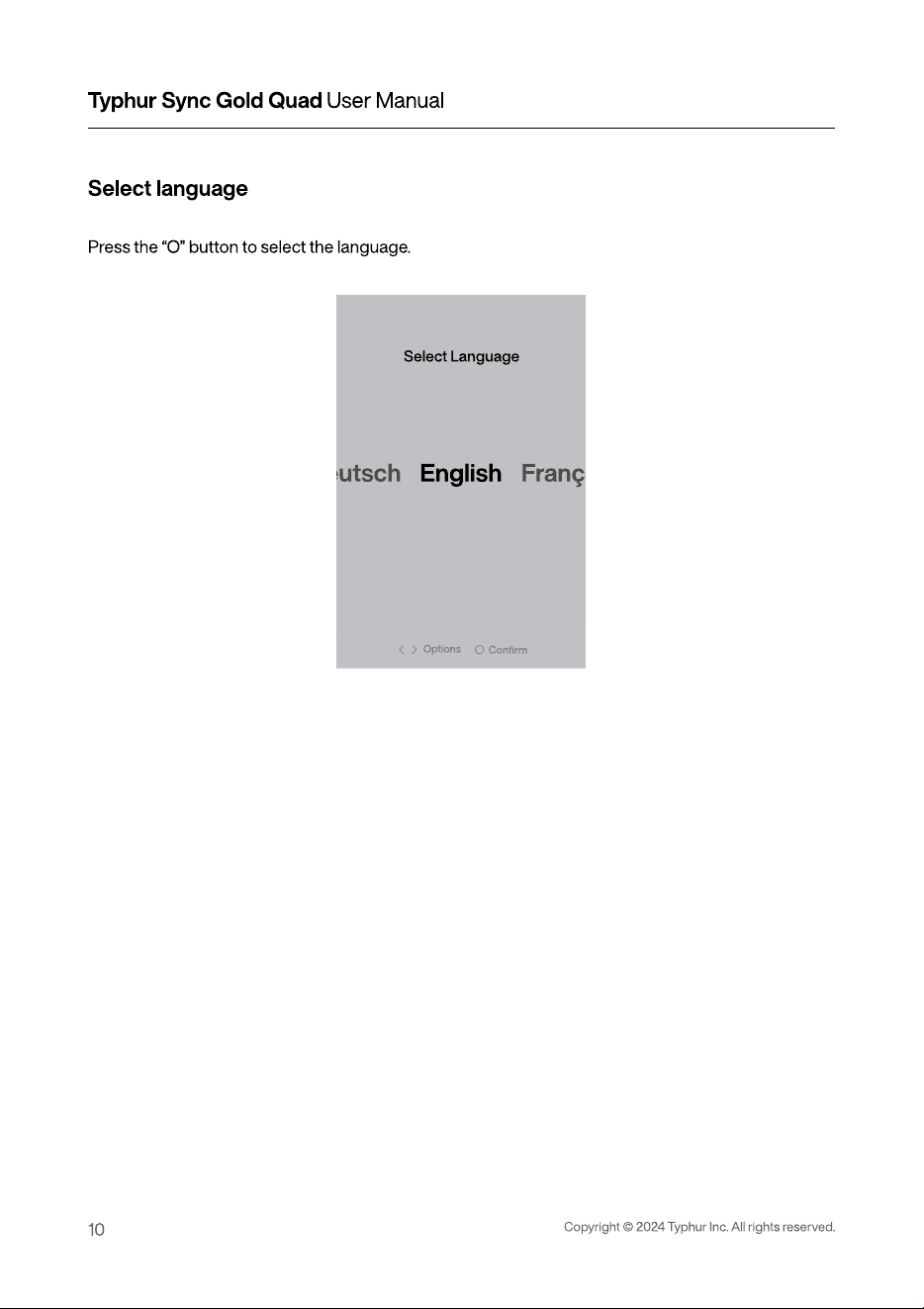

Press the “O” button to select the language.

Select language

Typhur Sync Gold Quad User Manual

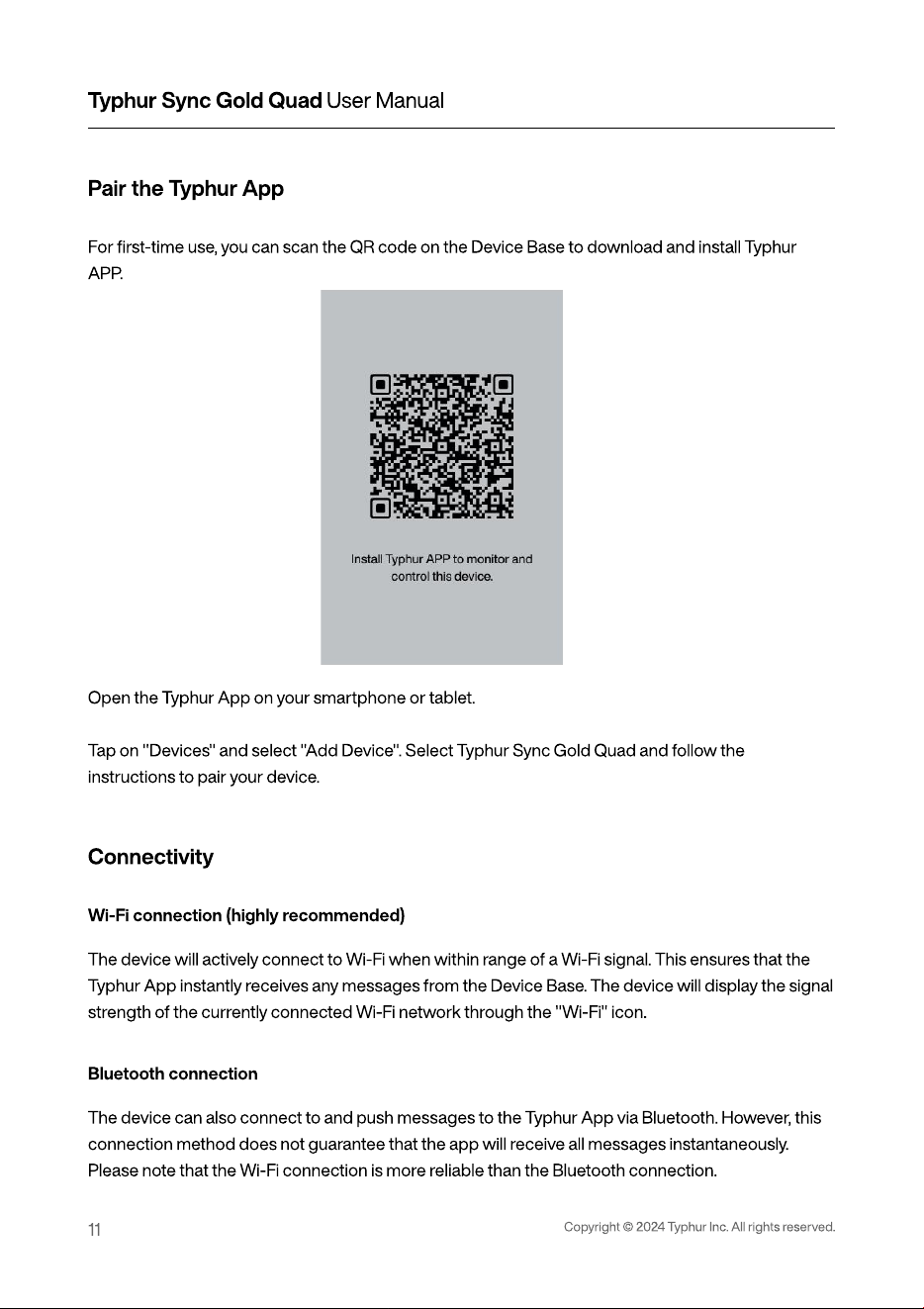

For rst-time use, you can scan the QR code on the Device Base to download and install Typhur

APP.

Open the Typhur App on your smartphone or tablet

Tap on "Devices" and select "Add Device". Select Typhur Sync Gold Quad and follow the

instructions to pair your device.

The device will actively connect to Wi-Fi when within range of a Wi-Fi signal. This ensures that the

Typhur App instantly receives any messages from the Device Base. The device will display the signal

strength of the currently connected Wi-Fi network through the "Wi-Fi" icon.

Wi-Fi connection (highly recommended)

Connectivity

Pair the Typhur App

The device can also connect to and push messages to the Typhur App via Bluetooth. However, this

connection method does not guarantee that the app will receive all messages instantaneously.

Please note that the Wi-Fi connection is more reliable than the Bluetooth connection.

Bluetooth connection

Typhur Sync Gold Quad User Manual

Press “<” and “>” simultaneously for 5 seconds to enter the “Reset” mode. Follow the prompts to

complete the operation.

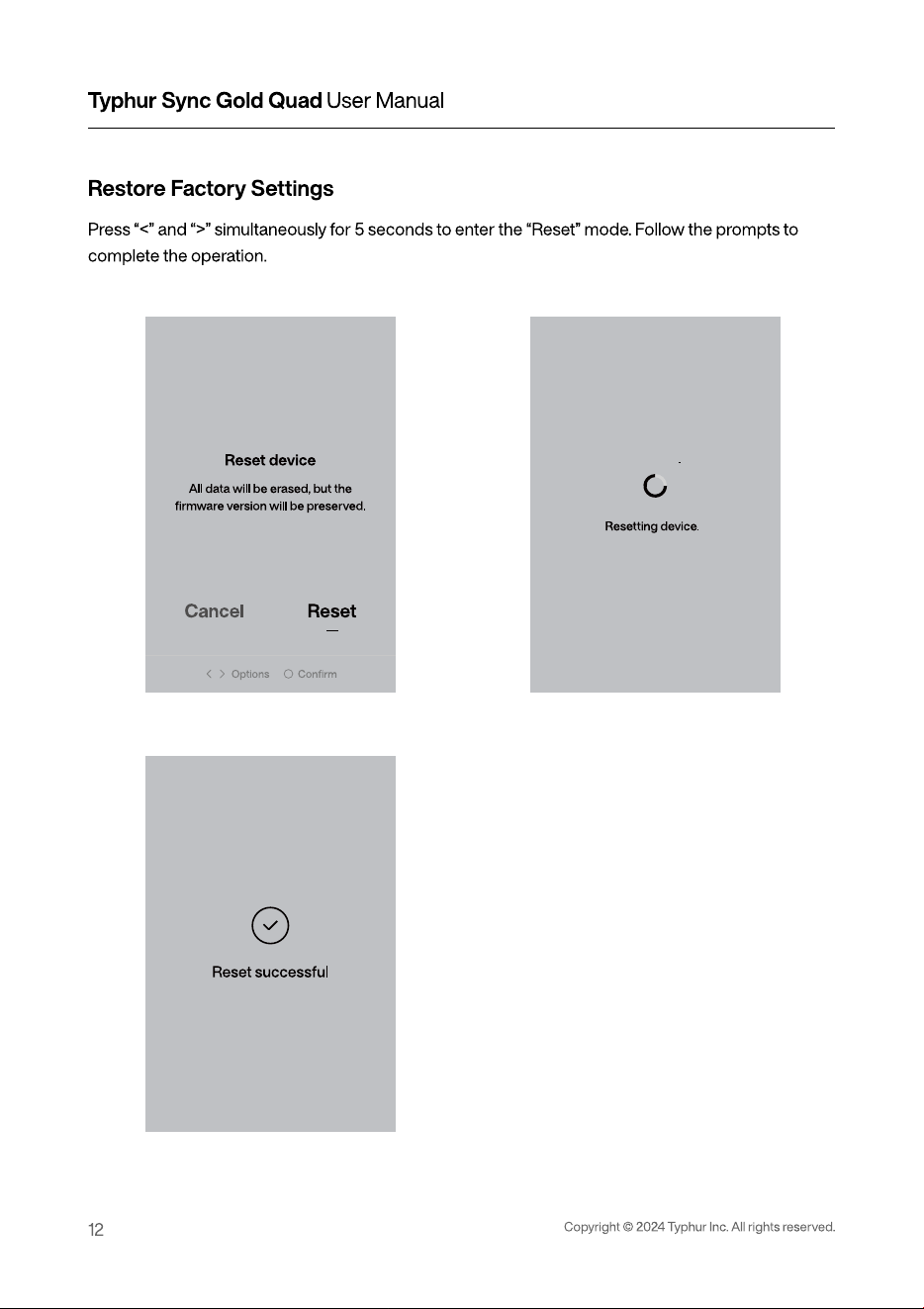

Restore Factory Settings

Typhur Sync Gold Quad User Manual

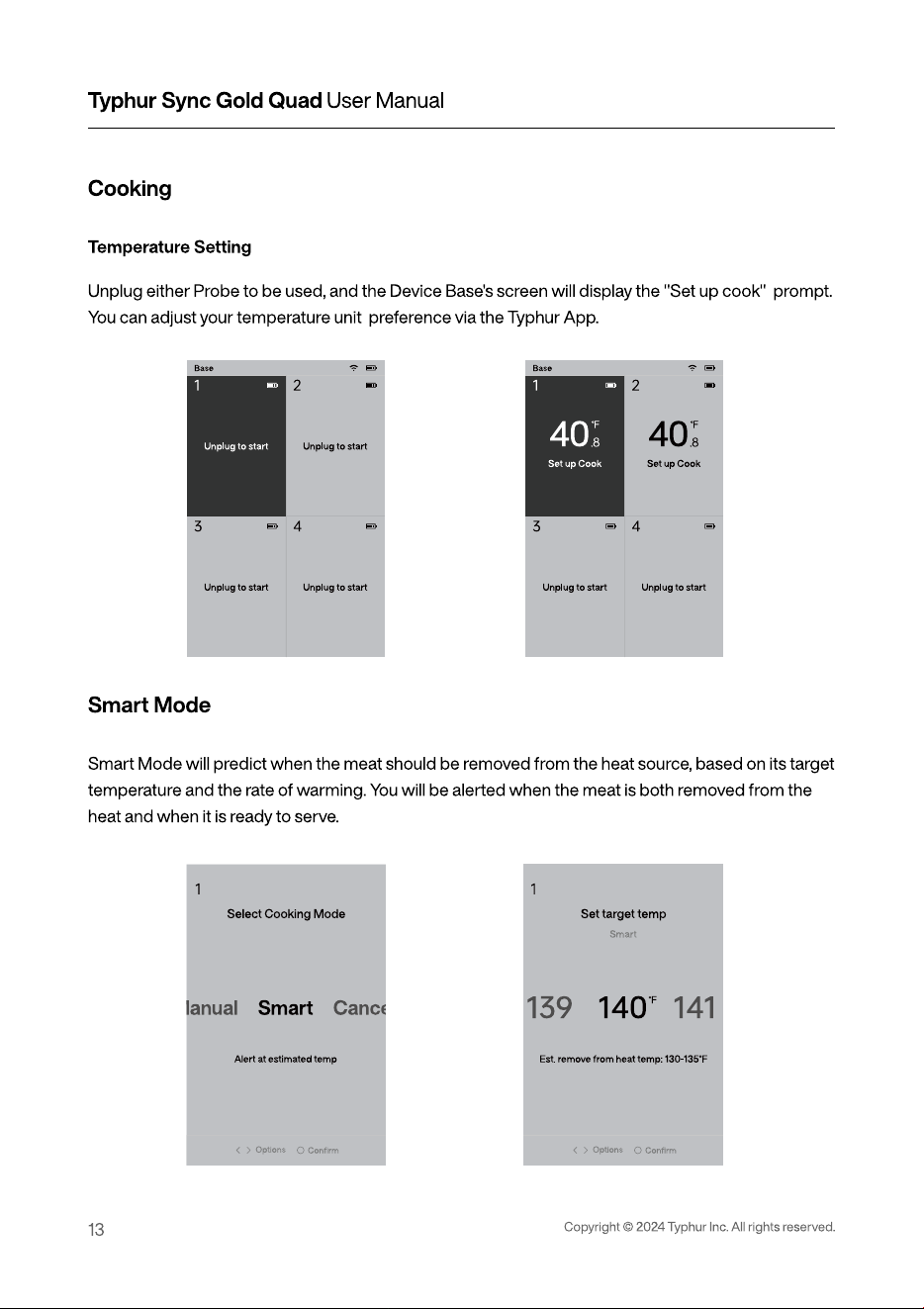

Cooking

Unplug either Probe to be used, and the Device Base's screen will display the "Set up cook" prompt

You can adjust your temperature unit preference via the Typhur App.

Temperature Setting

Smart Mode

Smart Mode will predict when the meat should be removed from the heat source, based on its target

temperature and the rate of warming. You will be alerted when the meat is both removed from the

heat and when it is ready to serve.

Typhur Sync Gold Quad User Manual

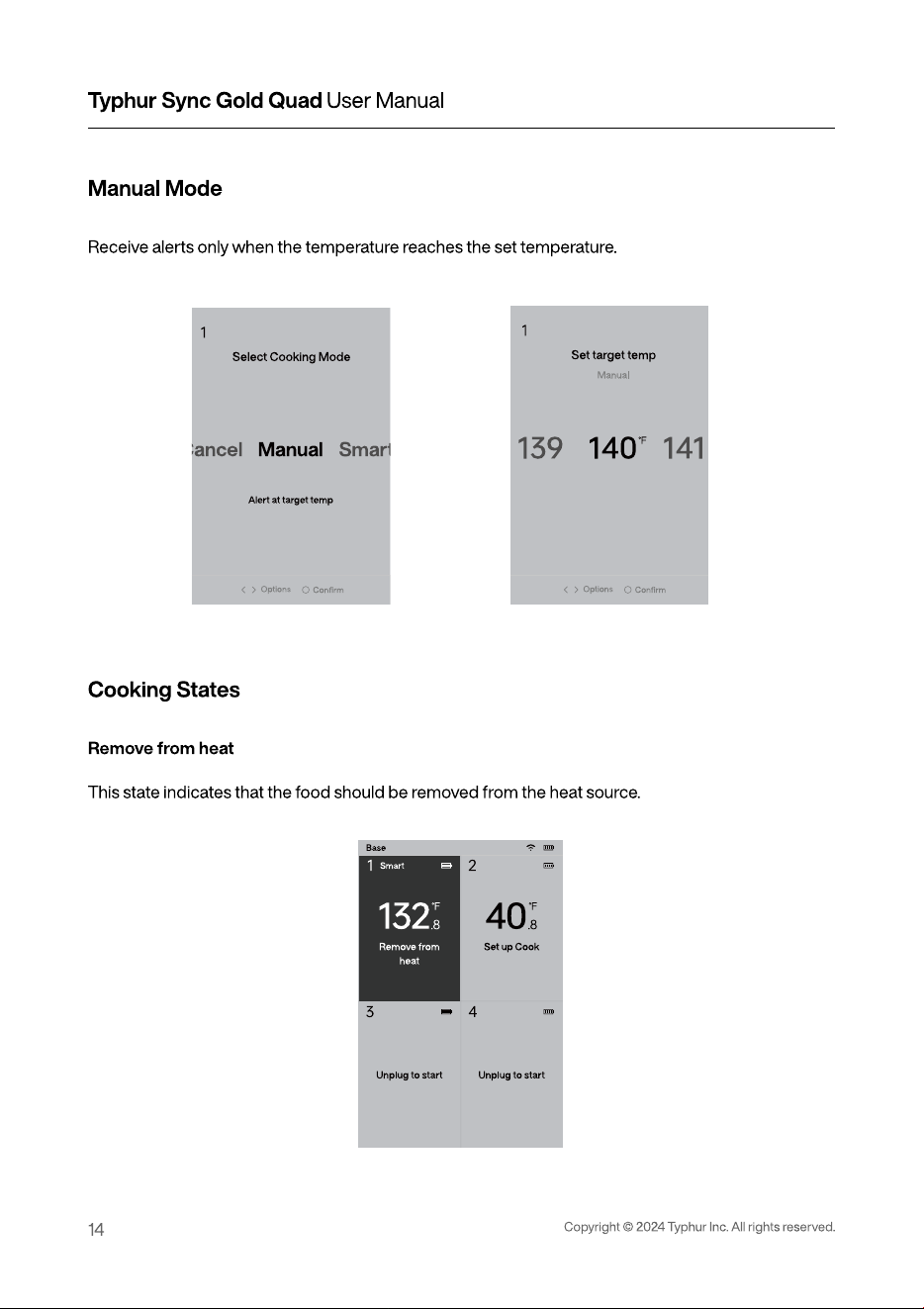

Manual Mode

Receive alerts only when the temperature reachesthe set temperature.

Cooking States

This state indicates that the food should be removed from the heat source.

Remove from heat

Typhur Sync Gold Quad User Manual

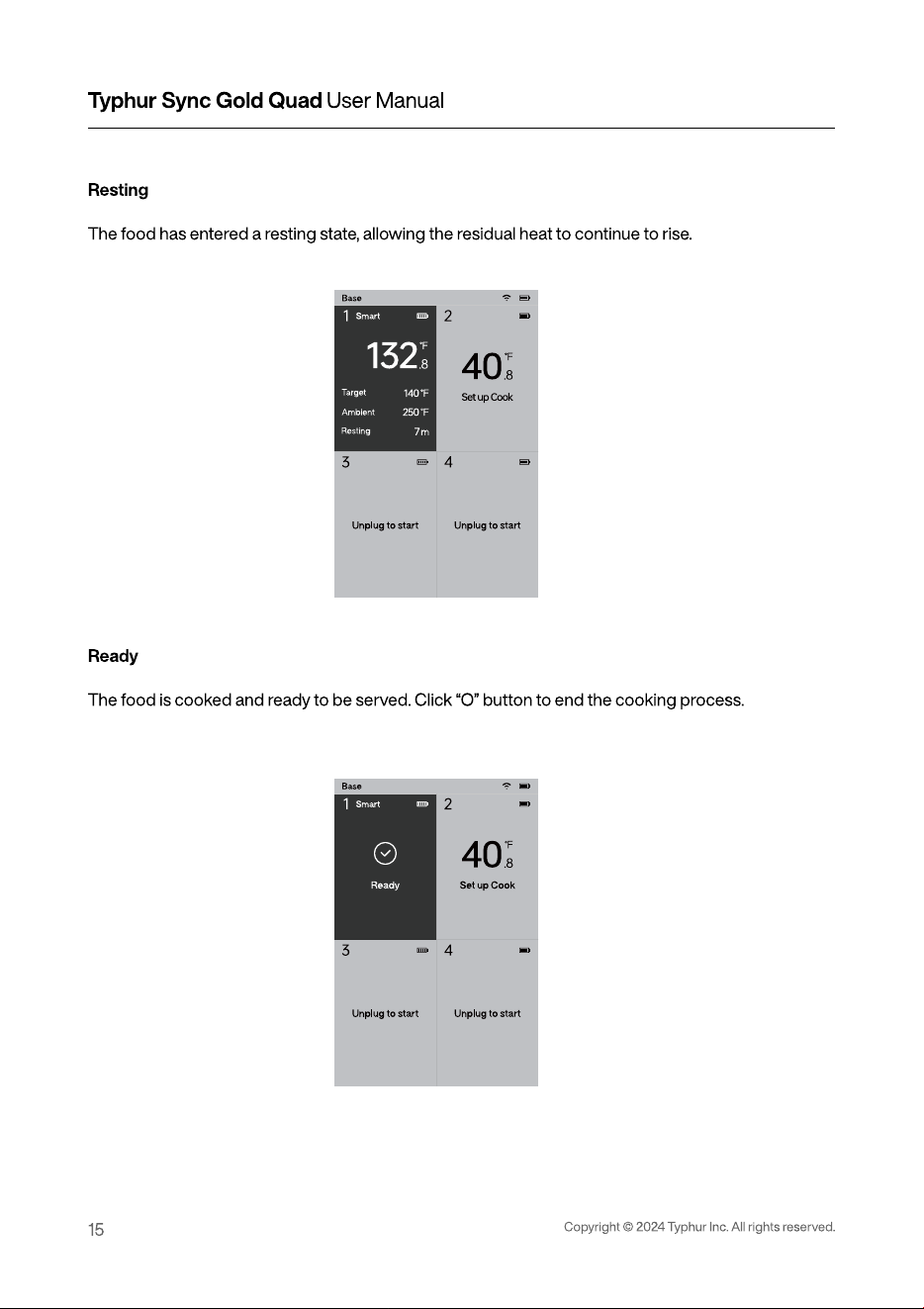

The food has entered a resting state, allowing the residual heat to continue to rise.

The food is cooked and ready to be served. Click “O” button to end the cooking process.

Resting

Ready

Typhur Sync Gold Quad User Manual

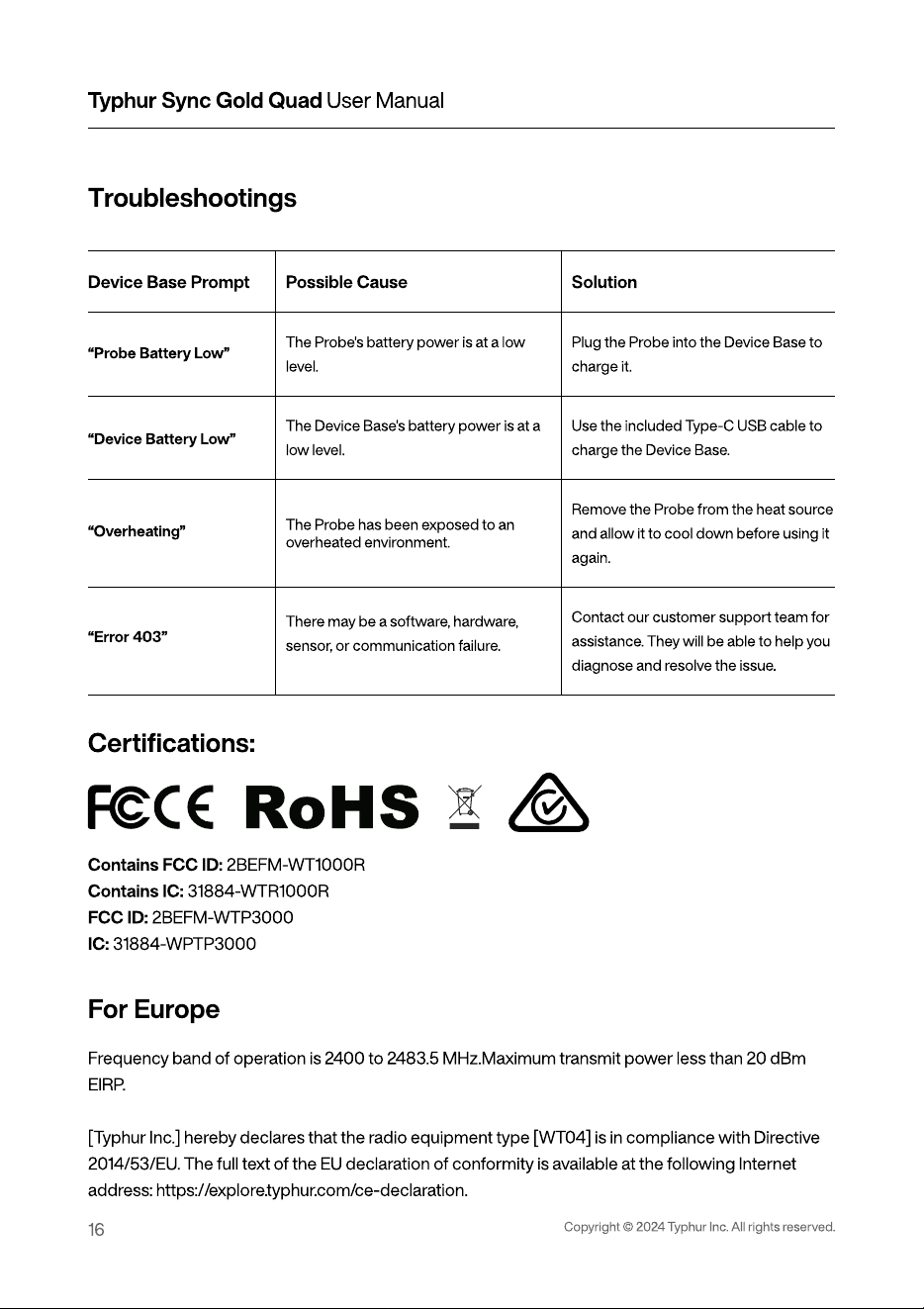

Troubleshootings

Device Base Prompt

“Probe Battery Low

“Device Battery Low”

“Overheating”

“Error 403”

Possible Cause

The Probe's battery power is at a low

level.

The Device Base's battery power is at a

low level.

The Probe has been exposed to an

overheated environment.

There may be a software, hardware,

sensor, or communication failure.

Solution

Plug the Probe into the Device Base to

charge it.

Use the included Type-C USB cable to

charge the Device Base.

emove the Probe from the heat source

and allow it to cool down before using it

again.

Contact our customer support team for

assistance. They will be able to help you

diagnose and resolve the issue.

Contains FCC ID:

EFM

T1000



Contains IC: 3

1000



FCC ID:

EFM



IC: 3

PTP

000

Certi

ﬁ

cations

or Europe

uency band of operation is 2400 to 24

MHz

aximum transmit power less than 20 dBm



[

Typhur Inc.

]

hereby declares that the radio e

uipment type

T04

]

is in compliance with Directive

2014

/53/E

U. The full text of the

U declaration of conformity is available at the following Internet

address

:

https

://

explore.typhur.com

ce-declaration.

Typhur Sync Gold Quad User Manual

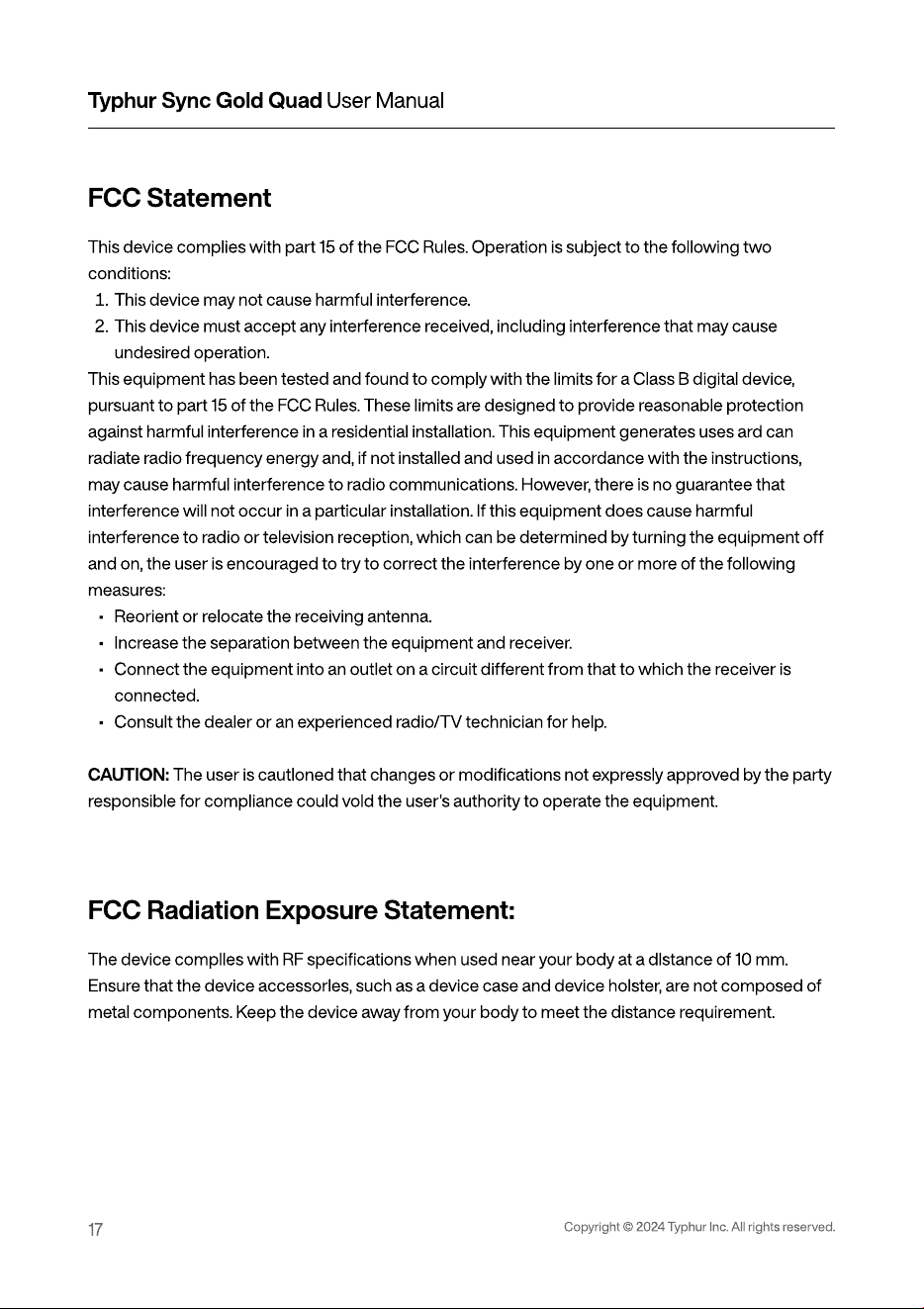

FCC Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions

 This device may not cause harmful interference

 This device must accept any interference received, including interference that may cause

undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates uses ard can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

 Reorient or relocate the receiving antenna

 Increase the separation between the equipment and receiver

 Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected

 Consult the dealer or an experienced radio/TV technician for help

CAUTION: The user is cautloned that changes or modications not expressly approved by the party

responsible for compliance could vold the user's authority to operate the equipment.

FCC Radiation Exposure Statement:

The device complles with RF specications when used near your body at a dlstance of 10 mm.

Ensure that the device accessorles, such as a device case and device holster, are not composed of

metal components. Keep the device away from your body to meet the distance requirement.

Typhur Sync Gold Quad User Manual

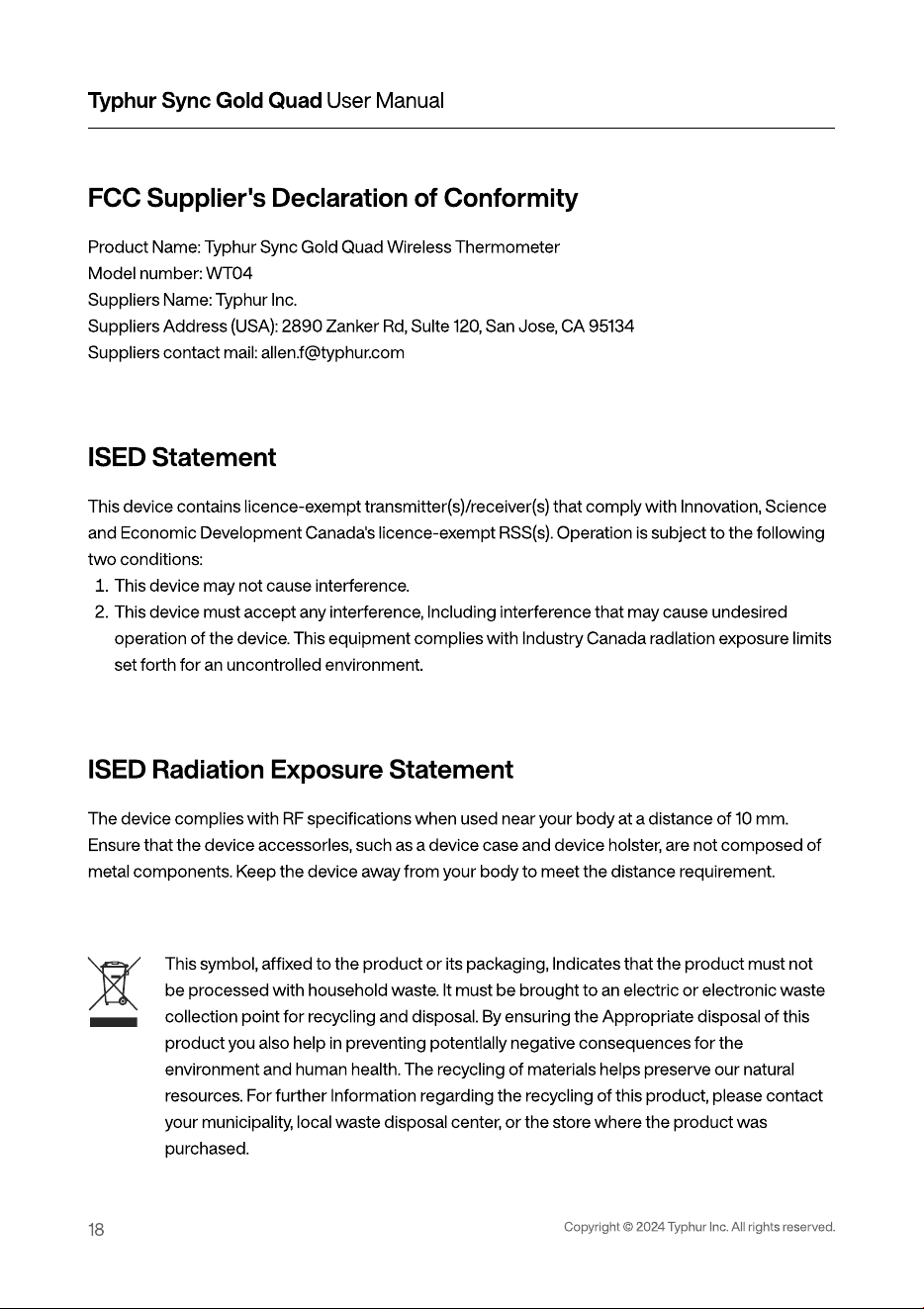

FCC Supplier's Declaration of Conformity

Product Name: Typhur Sync Gold Quad Wireless Thermomete

Model number: WT0

Suppliers Name: Typhur Inc

Suppliers Address (USA): 2890 Zanker Rd, Sulte 120, San Jose, CA 9513

Suppliers contact mail: allen.f@typhur.com

ISED Statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science

and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following

two conditions

 This device may not cause interference

 This device must accept any interference,Including interference that may cause undesired

operation of the device. This equipment complies with Industry Canada radlation exposure limits

set forth for an uncontrolled environment.

ISED Radiation Exposure Statement

The device complies with RF specicationswhen used near your body at a distance of 10mm.

Ensure that the device accessorles, suchas a device case and device holster, are notcomposed of

metal components. Keep thedevice away from your body to meet thedistance requirement.

This symbol, afxed to the product or its packaging, Indicates that the product must not

be processed with household waste. It must be brought to an electric or electronic waste

collection point for recycling and disposal.

y ensuring the Appropriate disposal of this

product you also help in preventing potentlally negative consequences for the

environment and human health. The recycling of materials helps preserve our natural

resources. For further Information regarding the recycling of this product, please contact

your municipality, local waste disposal center, or the store where the product was

purchased.

Typhur Sync Gold Quad User Manual

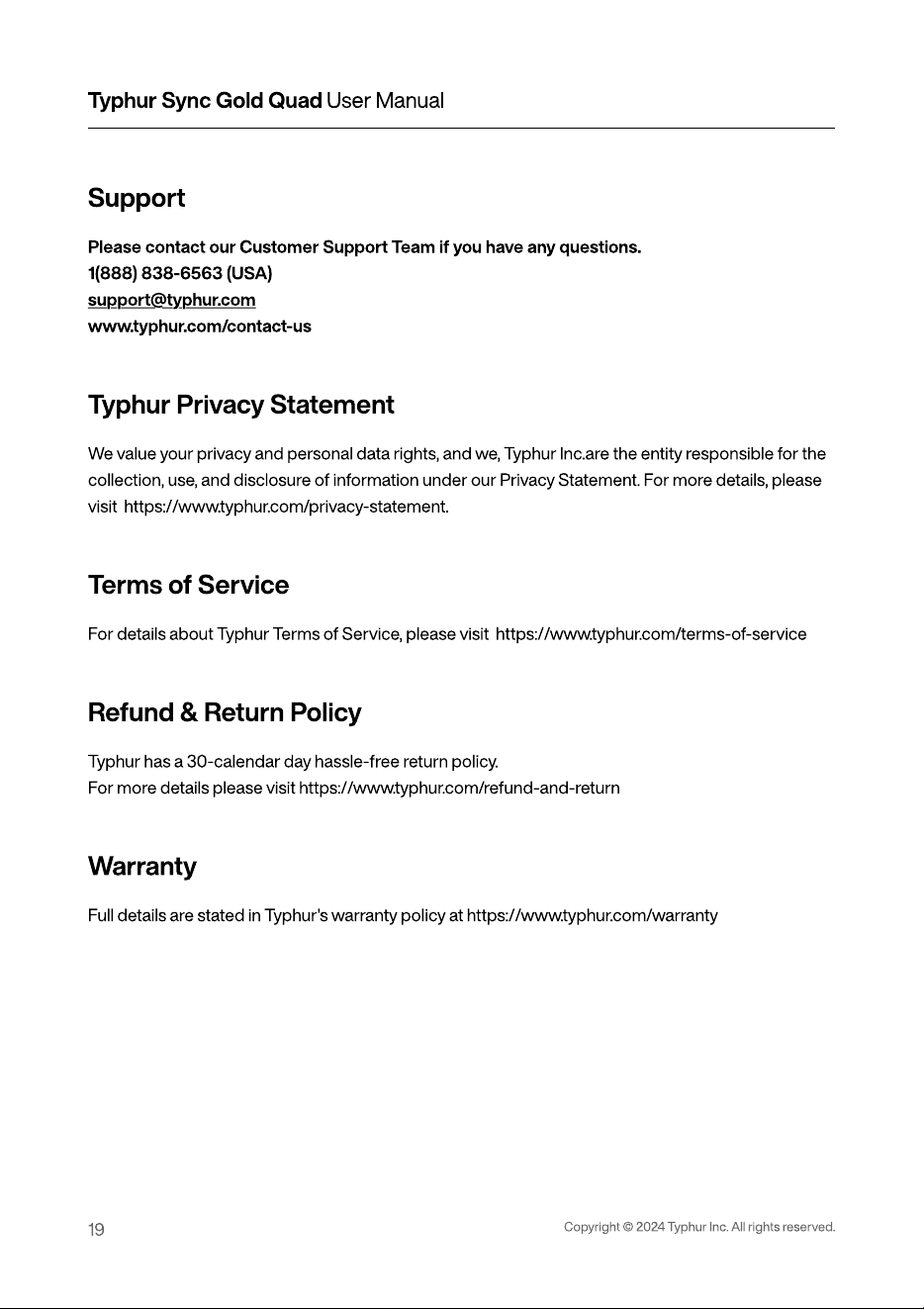

Support

Please contact our Customer Support Team if you have any questions

1(888) 838-6563 (USA

support@typhur.co

www.typhur.com/contact-us

Typhur Privacy Statement

We value your privacy and personal data rights,and we, Typhur Inc.are the entity responsible for the

collection, use, and disclosure of information under our Privacy Statement. For more details, please

visit https://www.typhur.com/privacy-statement.

For details about Typhur Terms of Service,please visit https://www.typhur.com/terms-of-service

Refund & Return Policy

Typhur has a 30-calendar day hassle-freereturn policy.

For more details please visithttps://www.typhur.com/refund-and-return

Warranty

Full details are stated in Typhur's warranty policy at https://www.typhur.com/warranty

Typhur SYNC GOLD QUAD 4-Probe Wireless Meat Thermometer

Product's Documents

User Manual

Specifications

Typhur SYNC GOLD QUAD Questions and Answers
