Doc. nr.: TBKW_20168_D_EN
KMX7* New bayonet design
December 2021
Description: KMX7 bayonet design change to improve bowl retention in the pedestal.
Root cause: Due to parts manufactured out of specification, an inconsistency in the bowl’s locking position
and torque may happen. This can lead to the plastic ring snapping, bowl getting stuck in the pedestal or
unlocking and during usage.
Design difference: A new bayonet design is developed to address these issues. The new bayonet solution
has a different design and increased number of lugs to prevent the bowl ejecting, and to reduce the risk of
breakage.

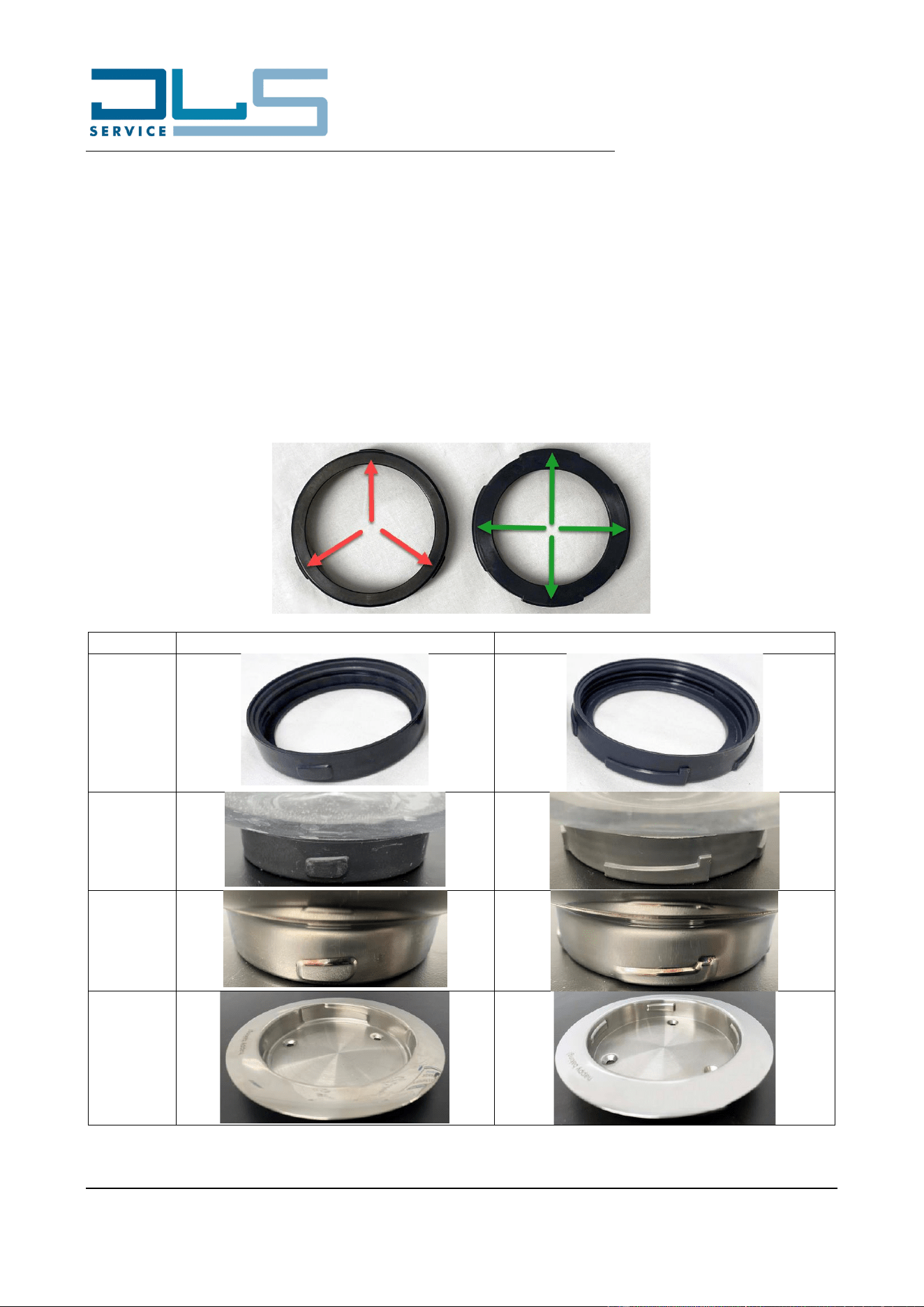

Old design (red) with 3 lugs and the new design with 4 lugs (green)
Old (pre-21D14) design
New (post-21D14) design
Plastic
Ring
Glass
Bowl
Assembly
Stainless
Steel
Bowl
Bowl
Bayonet
Socket
[2]
Doc. nr.: TBKW_20168_D_EN
Stock Situation: The old design spare parts are no longer available. They are replaced with new codes:
Part name
Old design (not available)
New design (post-21D14)
Plastic Ring Nut
KW717073
AS00002704
Glass Bowl Assembly
KW716702
AW20011055 (KXT754GL)
Stainless Steel Bowl
KW716703 / AW20011043 (KXT0060S)
AW20011056 (KXT750SS)
Bowl Bayonet Socket
KW717188
AS00002703
Plastic Ring Nut & Bowl Bayonet Socket set
NA
AS00003115

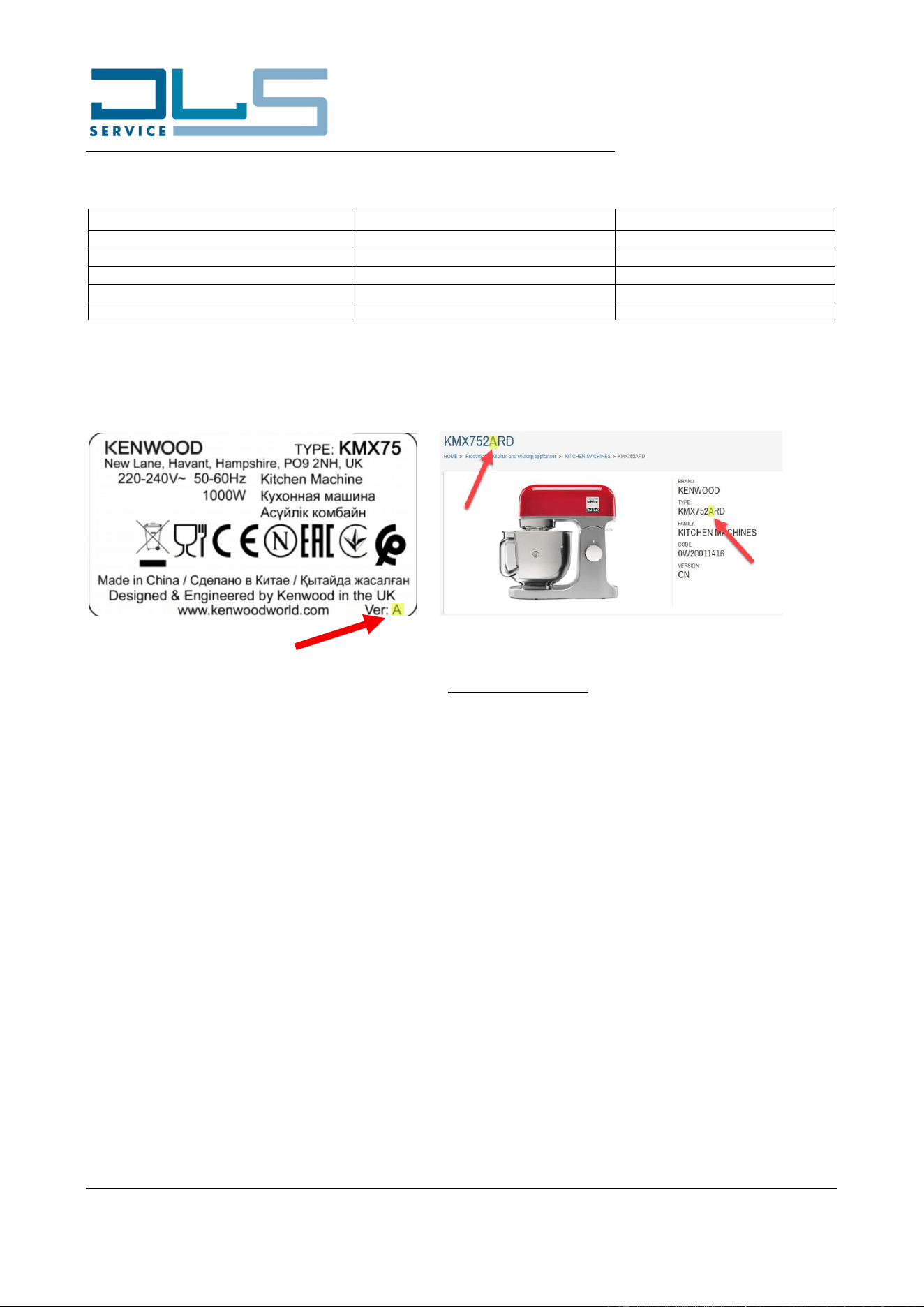

Identification: The KMX7* finished goods with the old bayonet design are discontinued from 21D14.
Finished goods manufactured from date code 21D14 have the new bayonet design. The new bayonet
design is indicated by a letter ’A’ on the product’s label and product model number:
Service repairs: The new and old bayonet types are not interchangeable. When a single part (plastic ring,
bowl or bowl socket) is replaced, the other components must be matched.
Example: When a customer has a product date coded pre-21D14 and orders a new bowl, the bowl bayonet
socket AS00002703 must be replaced as well.
