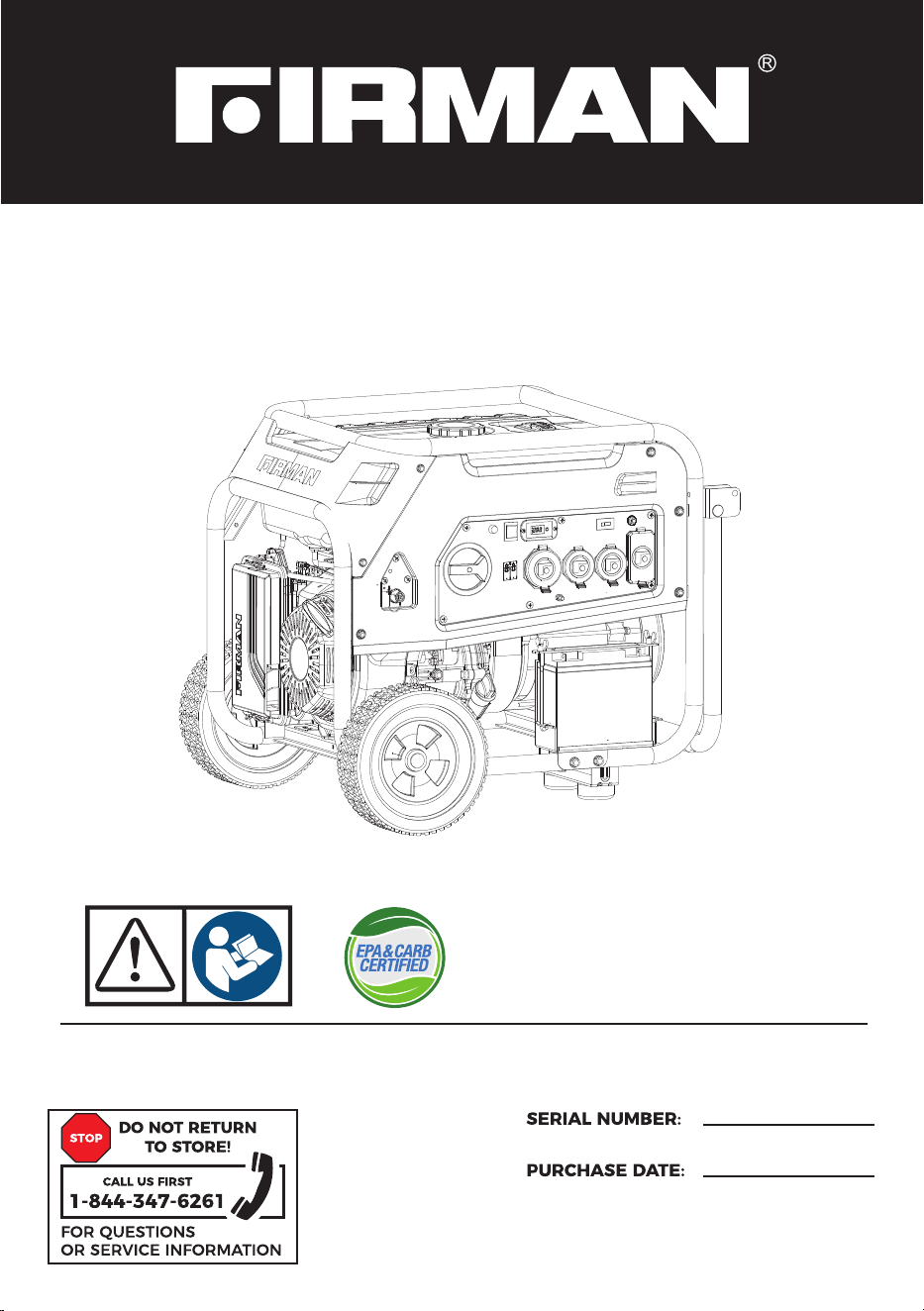

Firman H07552 Dual Fuel Portable Generator 7500W User Manual

P/N:375745483 Rev:03

DUAL FUEL GENERATOR

Record product information to reference when ordering parts or

obtaining warranty coverage.

MODEL NUMBER

H07552

OPERATOR’S MANUAL

•

DO

NOT

RETURN

TO STORE!

-;_

CALL US FIRST

11-844-347-6261

~

FOR

QUESTIONS

OR SERVICE INFORMATION

SERIAL NUMBER:

PURCHASE DATE:

Table of Contents

. . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Safety Precautions . . . . . . . . . . . . . . . . . . . . .2

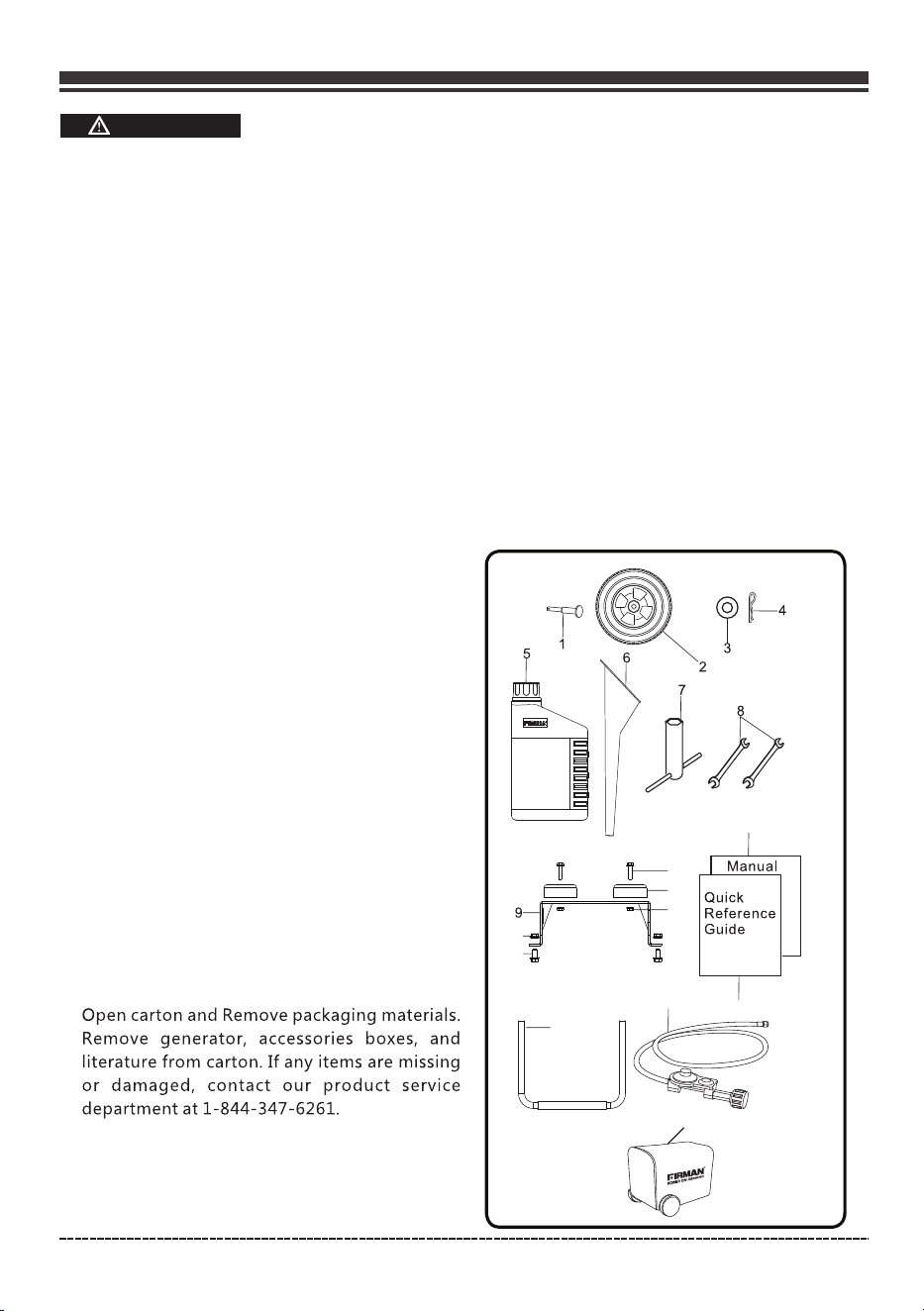

Unpacking the Generator. . . . . . . . . . . . . . . .6

Parts Included. . . . . . . . . . . . . . . . . . . . . . . .7

Assembly . . . . . . . . . . . . . .. . . . . . . . . . . . . . . 8

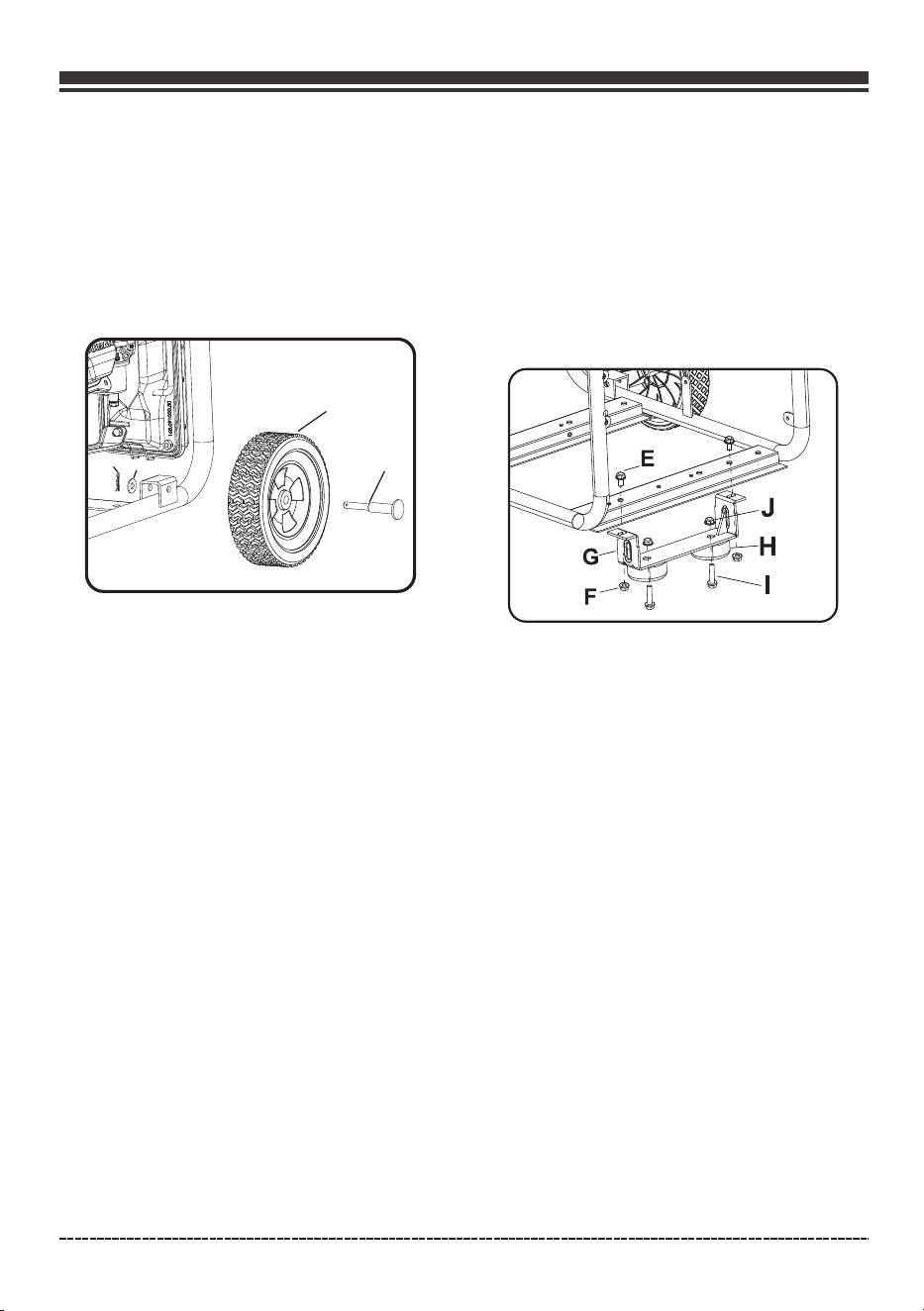

Install the Wheel Kit . . . . . . . . . . . . . . . . . . 8

Install the Support Leg. . . . . . . . . . . . . . . . 8

. . . . . . . . . . . . . . 9

Controls and Features. . . . . . . . . . . . . . . . . 10

Generator. . . . . . . . . . . . .. . . . . . . . . . . . . .10

Control Panel. . . . . . . . . . . . . . . . . . . . . . . 11

Specifications. . . . . . . . . . . . . . . . . . . . . . . . 13

Add Engine Oil . . . . . . . . . . . . . . . . . . . . . .14

Low Oil Shutdown . . . . . . . . . . . . . . . . . . .14

Add Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Operation at High Altitude . . . . . . . . . . .17

Grounding. . . . .. . . . . . . . . . . . . . . .. . . . . .18

System.. . . . . . . . . . . . . . . . . . . . . . .. . . . . .18

Operation . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 19

Generator Location . . . . . . . . . . . . . . . . . . 19

Surge Protection . . . . . . . . . . . . .. . . . . . . .19

Connecting Electrical Loads . . . . . . . .. . . 24

Stopping the Engine . . . . . . . . . . . . . . . . . 24

Low Oil Shutdown . . . . . . . . . . . . . . . . . . 25

Do Not Overload Generator . . . . . . . . . . . 25

Introduction

Battery Cable Connection

Connecting to a Building’s Electrical

Maintenance And Storage. . . . . . . . . . . . . . 27

Maintenance Schedule . . . . . . . . . . . . . 27

Engine Maintenance .. . . . . . . . . . . .. . . . 28

Change Engine Oil . . .. . . . . . . . . . . . . . 28

Air Filter Maintenance. . . . . . . . . . . . . .28

Spark Plug Maintenance. . . . . . . . . . . . 29

Cleaning Fuel Strainer . . . . . . . . . . . . 29

. . . 29

Generator Maintenance . . . . . . . . . . . . . . 30

. . . . . . . . . . . . . . . 30

Service and Storage . . . . . . . . . . . . . . . .. 31

Trouble Shooting . . . . . . . . . . . . . . . . . . . . .33

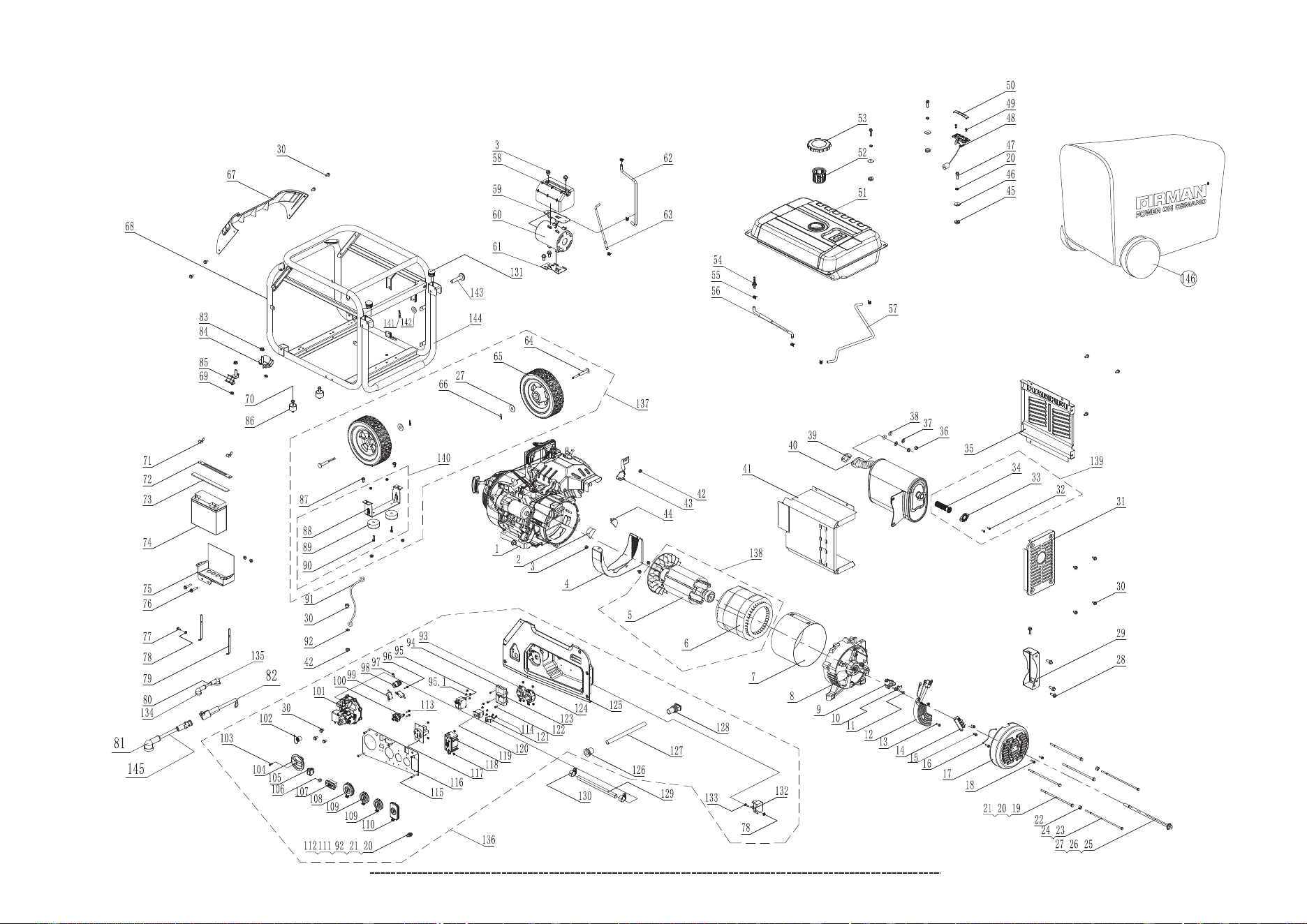

Parts Diagram and Parts List . . . . . . . . . . 34

Generator Parts Diagram . . . . . . . . . . . . 34

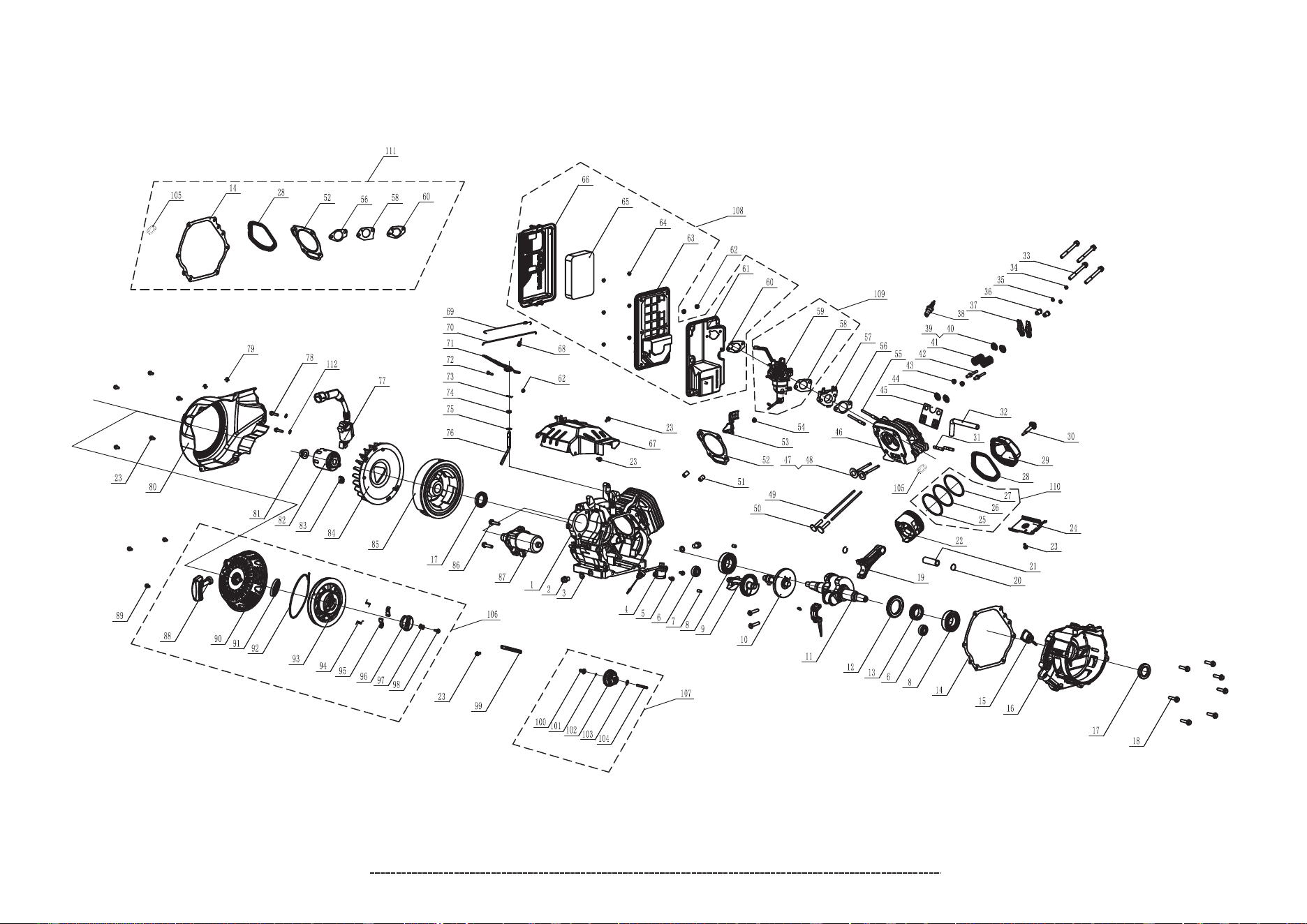

Engine Parts Diagram . . . . . . . . . .. . . . . 35

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . 36

Service Information . . . . . . . . . . . . . .. . . . . 38

Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Inspect Muffler and Spark Arrester

Battery Replacement

English Customer Service: 1-844-FIRMAN1

Starting the Generator (Recoil Start-Gasoline). . 20

Indicator light - Battery Power Saving Mode . . 25

Starting the Generator (Electric Start-LPG) .. 23

Starting the Generator (Recoil Start-LPG). . 20

Starting the Generator (Electric Start-Gasoline) .. 22

Thank you for purchasing a FIRMAN generator.

This manual covers operation and maintenance of the FIRMAN generators. All information in this

publication is based on the latest production information available at the time of approval for printing.

The manufacturer reserves the right to change, alter or other wise improve the generator and this

documentation at any time without prior change.

Page 01

This manual contains safety information to make you aware of the hazards and risks associated

with generator products and how to avoid them. This generator is designed and intended only

for supplying electrical power for operating compatible electrical lighting, appliances, tools and

motor loads, and is not intended for any other purpose. It is important that you read and

understand these instructions thoroughly before attempting to start or operate this equipment.

Save these original instructions for future reference.

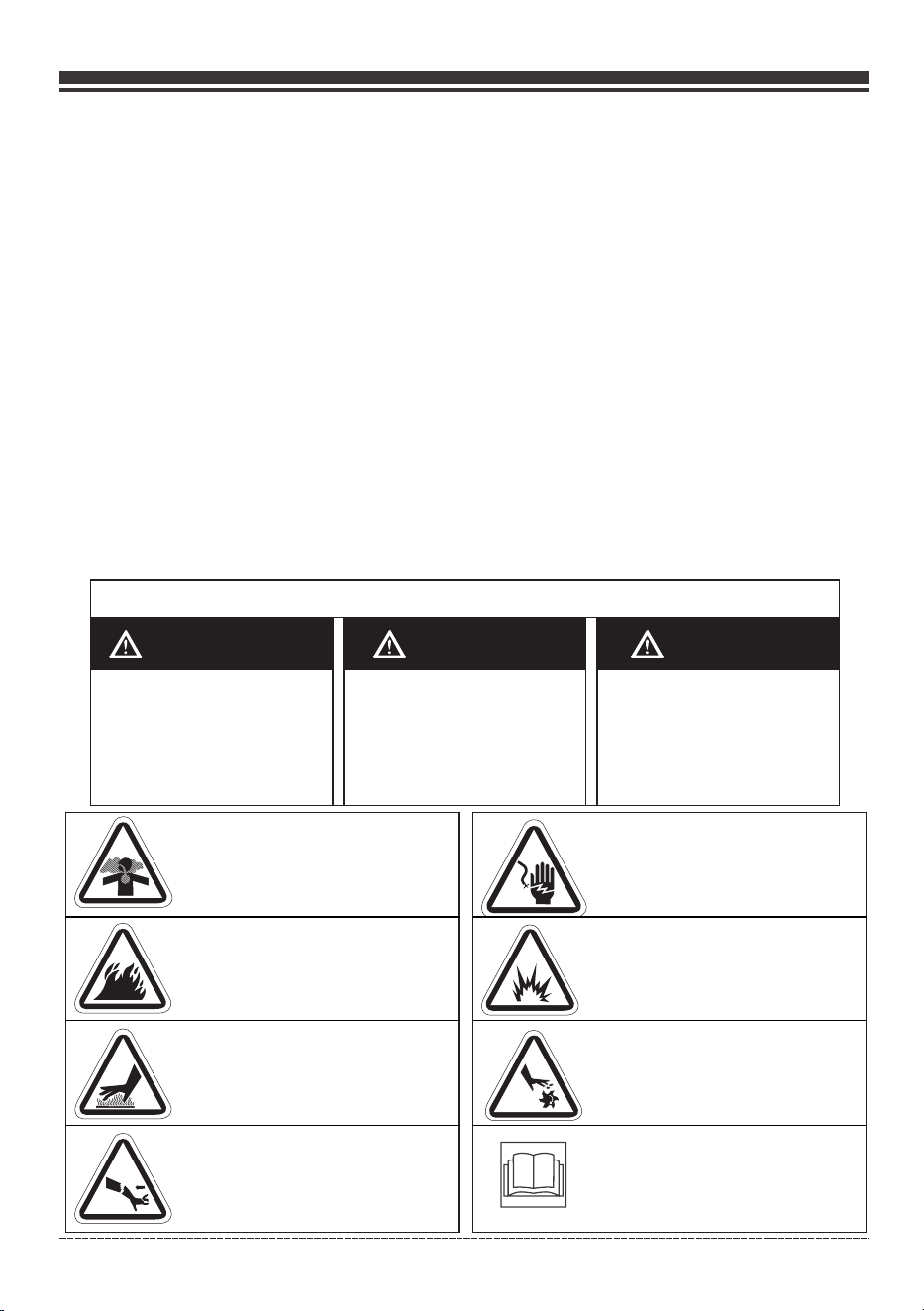

Important Safety Information

The manufacturer cannot possibly anticipate every possible circumstance that might involve a

hazard. The warnings in this manual and the tags and decals affixed to the unit are therefore not

all-inclusive. If you use a procedure, work method or operating technique that the manufacturer

does not specifically recommend you must satisfy yourself that it is safe for you and others. You

must also make sure that the procedure work method or operating technique that you choose

does not render the generator unsafe.

Toxic Fumes

Fire Hazard

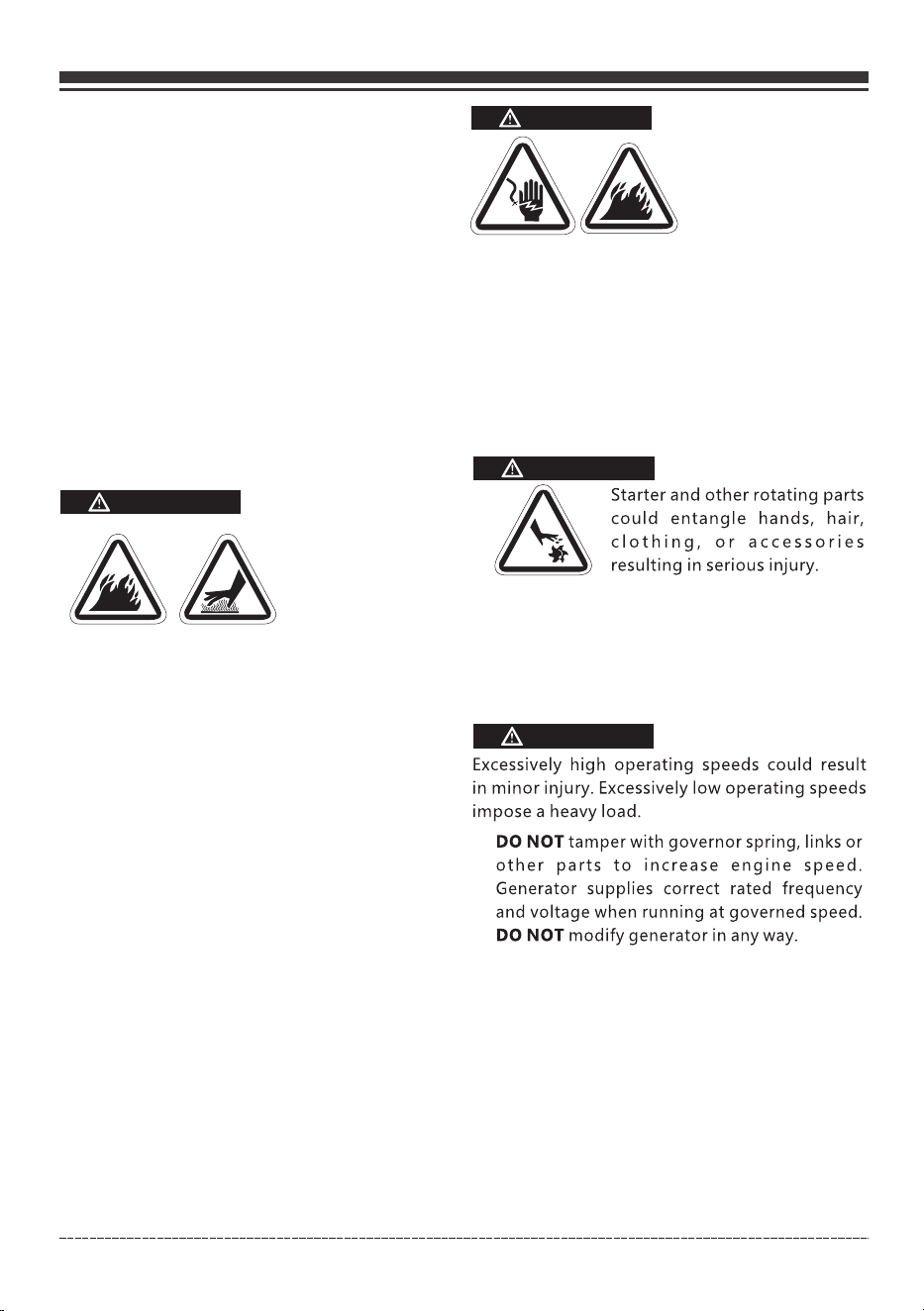

Hot Surface.

Do Not Touch the Surface.

Kickback

Risk of Electric Shock

Explosion Hazard

Rotating Parts Entanglement

Hazard

Operator’s Manual

INTRODUCTION

English Customer Service: 1-844-FIRMAN1

SAFETY INFORMATION

DANGER WARNING CAUTION

Indicates a hazard

which, if not avoided,

will result in death or

serious injury.

Indicates a hazard

which, if not avoided,

could result in death

or serious injury.

Indicates a hazard

which, if not avoided,

could result in minor or

moderate injury.

£ &

1-----------1

£ &

1------------------i

~

&

1-----------1

& m

SAFETY PRECAUTIONS

Page 02

WARNING

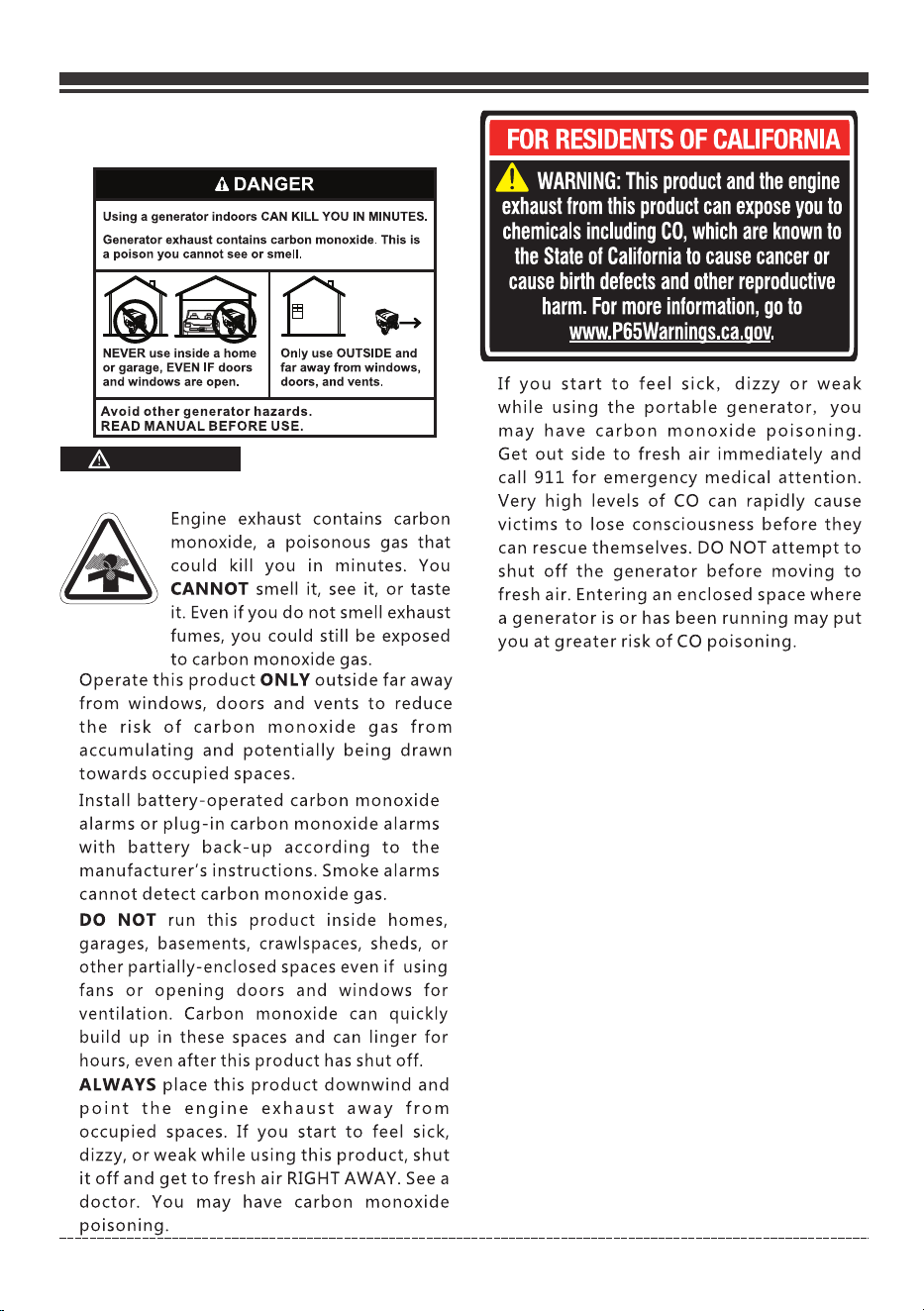

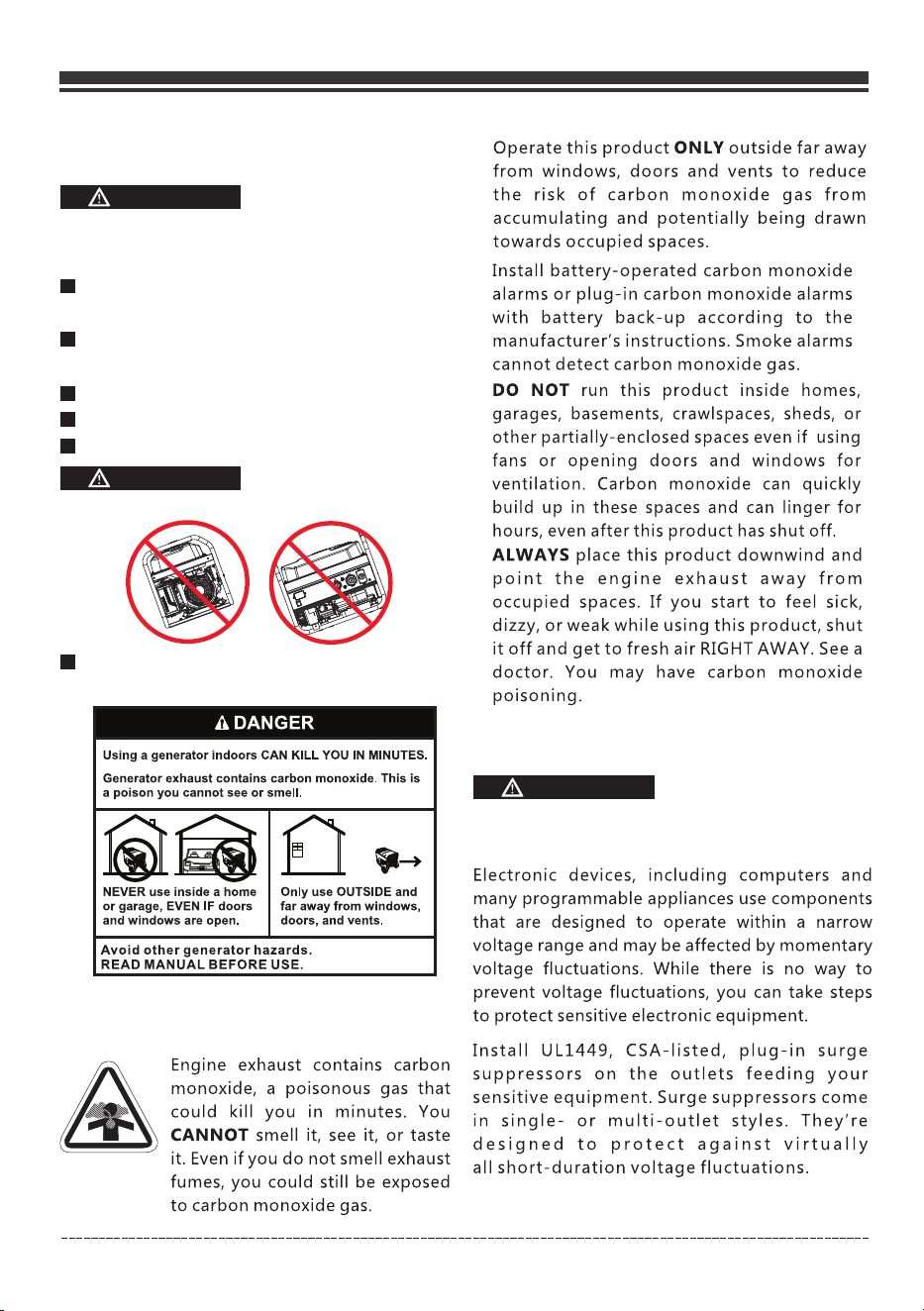

POISONOUS GAS HAZARD.

•

English Customer Service: 1-844-FIRMAN1

A

DANGER

Using a generator indoors CAN KILL YOU

IN

MINUTES.

Generator exhaust contains carbon monoxide. This

is

a

poison

you

cannot

see

or

smell.

]@[

@

f)

•➔

NEVER use inside a home

Only

use OUTSIDE and

or

garage,

EVEN

IF

doors

far away from windows,

and windows are open. doors, and vents.

Avoid

other

generator

hazards.

READ MANUAL BEFORE USE.

Engine exhaust contains carbon

monoxide, a poisonous gas

that

could kill you in minutes. You

CANNOT smell it,

see

it,

or

taste

it.

Even

if

you

do

not

smell exhaust

fumes, you could still be exposed

to

carbon monoxide gas.

Operate

this

product

ONLY

outside

far

away

from

windows,

doors

and vents

to

reduce

the

risk

of

carbon

monoxide

gas

from

accumulating

and

potentially

being drawn

towards

occupied

spaces.

Install

battery-operated

carbon

monoxide

alarms

or

plug-in

carbon

monoxide

alarms

with

battery

back-up

according

to

the

manufacturer's

instructions.

Smoke alarms

cannot

detect

carbon

monoxide

gas.

DO NOT run this

product

inside homes,

garages, basements, crawlspaces, sheds,

or

other

partially-enclosed spaces even

if

using

fans

or

opening

doors

and

windows

for

ventilation.

Carbon monoxide

can

quickly

build up in these spaces and

can

linger

for

hours, even after this

product

has

shut off.

ALWAYS place

this

product

downwind

and

point

the

engine

exhaust

away

from

occupied

spaces.

If

you

start

to

feel sick,

dizzy,

or

weak

while

using

this

product,

shut

it

off

and

get to

fresh air RIGHT AWAY.

See

a

doctor.

You may have carbon

monoxide

poisoning.

FOR

RESIDENTS

OF

CALIFORNIA

A

WARNING:

This

product

and

the

engine

exhaust

from

this

product

can

expose

you

to

chemicals

including

CO,

which

are

known

to

the

State

of

California

to

cause

cancer

or

cause

birth

defects

and

other

reproductive

harm.

For

more

information,

go

to

www.P65Warnin

s.ca.

ov.

If

you

start

to

feel

sick,

dizzy

or

weak

while

using

the

portable

generator,

you

may

have

carbon

monoxide

poisoning.

Get

out

side

to

fresh air

immediately

and

call 911

for

emergency

medical

attention.

Very

high

levels

of

CO

can

rapidly

cause

victims

to

lose consciousness

before

they

can rescue themselves. DO NOT

attempt

to

shut

off

the

generator

before

moving

to

fresh air. Entering

an

enclosed space where

a

generator

is

or

has been

running

may

put

you at

greater

risk

of

CO

poisoning.

Page 03

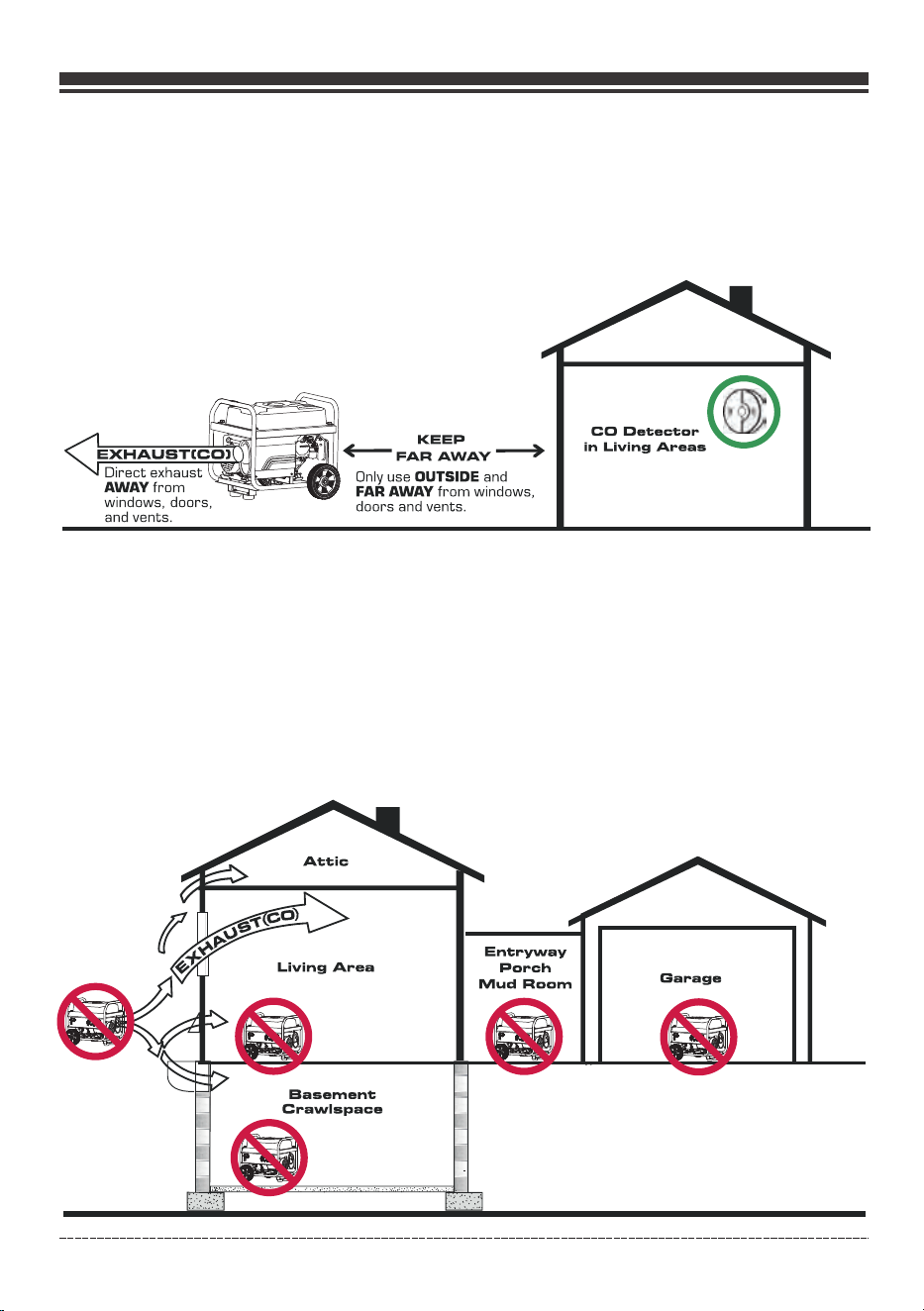

CORRECT USAGE

Example location to reduce risk of carbon monoxide poisoning

•

ONLY use outside and downwind, far away from windows, doors and vents.

•

Direct exhaust away from occupied spaces.

INCORRECT USAGE

Do not operate in any of the following locations:

Near any door, window or vent

Garage

Basement

Crawl Space

Living Area

Attic

Entry Way

Porch

Mudroom

English Customer Service: 1-844-FIRMAN1

+--

KEEP

FAR

AWAY---+

_==-·

@

,n

Living

Areas

~

~t~

~~2~TSIDE

and

doors and

ve~~:

windows,

Page 04

WHEN OPERATING EQUIPMENT

•

DO NOT tip engine or equipment at angle

which causes fuel or oil to spill.

DO NOT stop engine by moving choke

control to “Start” position.

•

WHEN TRANSPORTING, MOVING

OR REPAIRING EQUIPMENT

Transport/move/repair with fuel tank

EMPTY or with fuel shut OFF.valve

•

DO NOT tip engine or equipment at angle

which causes fuel or oil to spill.

Disconnect spark plug wire.

•

WHEN STORING FUEL OR EQUIPMENT

WITH FUEL IN TANK

•

WARNING

•

WARNING

Generator voltage could cause

electrical shock or burn resulting

in death or serious injury.

•

WARNING

•

NEVER start or stop engine with electrical

devices plugged in and turned on.

WARNING

Gasoline, gasoline vapors and liquid petroleum

gas(LPG) are extremely flammable and explosive

which could cause burns, fire, or explosion resulting

in death or serious injury .

WHEN ADDING OR DRAINING GASOLINE

Turn generator engine OFF and let it cool at

least 2 minutes before removing fuel cap.

Loosen cap slowly to relieve pressure in tank.

Fill or drain fuel tank outdoors.

•

DO NOT overfill tank. Allow space for fuel

expansion.

If fuel spills, wait until it evaporates before

starting engine.

•

Keep fuel away from sparks, open flames,

pilot lights, heat, and other ignition sources.

Check fuel lines, tank, cap, and fittings

frequently for cracks or leaks. Replace if

necessary.

DO NOT light a cigarette or smoke.

•

WHEN STARTING EQUIPMENT

Ensure spark plug, muffler, fuel cap, and air

cleaner are in place.

•

DO NOT crank engine with spark plug

removed.

•

Use approved transfer equipment, suitable

for the intended use, to prevent backfeed by

isolating generator from electric utility

workers.

English Customer Service: 1-844-FIRMAN1

Make certain that a LPG cylinder is not attached

to generator and is securely stowed away.

•

Do not store gasoline or LPG cylinder near

furnaces, water heaters, or any other appliances

that produce heat or have automatic ignitions.

•

Failure to use the appropriate U. S. Coast

Guardapproved generator could result in

death orserious injury.

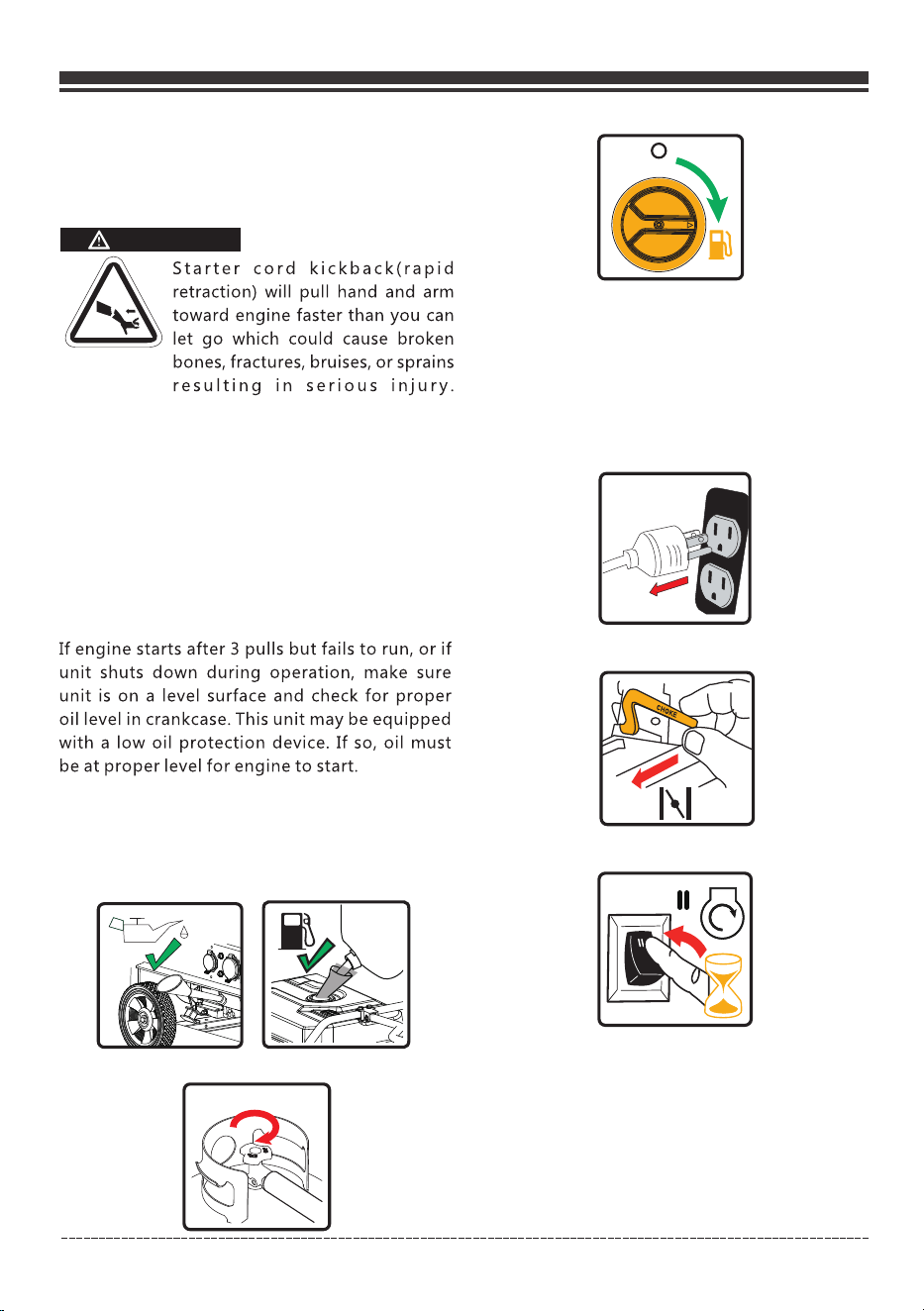

Starter

cord

kickback

(rapid

retraction)

will

pull

hand and arm

toward

engine

faster

than

you can

let

go

which

could

cause

broken

bones,

fractures,

bruises,

or

sprains

resulting

in serious injury.

When

starting

engine,

pull

cord

slowly

until

resistance

is

felt

and

then

pull

rapidly

to

avoid kickback.

DO

NOT

operate

this

product

inside

any

building,

carport,

porch,

mobile

equipment,

marine

applications,

or

enclosure.

Store away

from

furnaces, stoves,

water

heaters, clothes dryers,

or

other

appliances

that

have

pilot

light

or

other

ignition

source

because

they

could

ignite

fuel vapors.

This

generator

does

not

meet

U.

S.

Coast

Guard Regulation 33CFR-183 and should

not

be used on marine applications.

Page 05

WARNING

Unintentional sparking

could cause fire or

electric shock resulting

in death or serious

injury.

WHEN ADJUSTING OR MAKING REPAIRS TO

YOUR GENERATOR

Disconnect the spark plug wire from the

spark plug and place the wire where it cannot

contact spark plug.

•

WHEN TESTING FOR ENGINE SPARK

Use approved spark plug tester.

•

DO NOT check for spark with spark plug

removed.

•

WARNING

NEVER operate generator without protective

housing or covers.

DO NOT wear loose clothing, jewelry or

anything that could be caught in the starter

or other rotating parts.

Tie up long hair and remove jewelry.

•

DO NOT exceed the generator’s wattage

amperage capacity.

Start generator and let engine stabilize

before connecting electrical loads.

•

CAUTION

Exceeding generators wattage/amperage capacity

could damage generator and/or electrical devices

connected to it.

Connect electrical loads in OFF position,

then turn ON for operation.

Turn electrical loads OFF and disconnect

from generator before stopping generator.

•

DO NOT use generator with electrical cords

which are worn, frayed, bare or otherwise

damaged.

DO NOT operate generator in the rain or

wet weather.

DO NOT handle generator or electrical

cords while standing in water, while

barefoot, or while hands or feet are wet.

DO NOT allow unqualified persons or

children to operate or service generator.

•

WARNING

Exhaust heat/gases could ignite combustibles,

structures or damage fuel tank causing a fire,

resulting in death or serious injury .

Contact with muffler area could cause burns

resulting in serious injury.

DO NOT touch hot parts and AVOID hot

exhaust gases.

Allow equipment to cool before touching.

It is a violation of California Public Resource

Code, Section 4442, to use or operate the

engine on any forest-covered, brush-covered,

or grass-covered land unless the exhaust

system is equipped with a spark arrester, as

defined in Section 4442, maintained in

effective working order. Other states or

federal jurisdictions may have similar laws.

Contact the original equipment manufacturer,

retailer, or dealer to obtain a spark arrester

designed for the exhaust system installed on

this engine.

Replacement parts must be the same and

installed in the same position as the original

parts.

•

When using generator for backup power,

notify utility company.

Use a ground fault circuit interrupter (GFCI)

in any damp or highly conductive area,

such as metal decking or steel work.

DO NOT touch bare wires or receptacles.

•

English Customer Service: 1-844-FIRMAN1

NOTICE

Starter and

oth

could

entang~r

rotating parts

clothing

e

ha

nd

s,

hair

'

or

a c '

resulting

ins

.

_cessories

erious injury.

Excessively

h"

h

·

1

9 oper t·

in

minor·

· a mg speed

im lnJury. Excessively lo s could result

pose a heavy load. w operating speeds

DO

NOT tamper with

other

parts

t . governorspring link

G o 1ncrea ,

sor

enerator supplies

se

engine

speed

and voltage when

co_rrect

rated frequen •

DON

running t

cy

OT

modify gen

~

governed speed

erator

in

any -

way.

Page 06

•

Use generator only for intended uses.

If you have questions about intended use,

ask dealer or contact local service center.

Operate generator only on level surfaces.

DO NOT expose generator to excessive

moisture, dust, dirt, or corrosive vapors.

DO NOT insert any objects through cooling

slots.

If connected devices overheat, turn them off

and disconnect them from generator.

Shut off generator if:

-Electrical output is lost.

-Equipment sparks, smokes, or emits flames.

-Unit vibrates excessively.

•

WARNING

Medical and Life Support Uses.

In case of emergency, call 911 immediately.

NEVER use this product to power life support

devices or life support appliances.

NEVER use this product to power medical

devices or medical appliances.

Inform your electricity provider immediately

if you or anyone in your household depends

on electrical equipment to live.

Inform your electrical provider immediately

if a loss of power would cause you or anyone

in your household to experience a medical

emergency.

•

Improper treatment of generator could damage

it and shorten its life.

English Customer Service: 1-844-FIRMAN1

Liquid Petroleum Gas (LPG/Propane):

This generator is dual fuel and capable of running

with both gasoline and Liquid Petroleum Gas

(LPG/Propane).

•

If you smell gas: close off the gas supply. Make

sure there is no leak before using the generator.

•

Liquid Petroleum Gas (LPG) is highly flammable

and explosive. Fire or explosion could cause severe

burns or death.

Do not use or store LPG cylinder in a building,

garage or enclosed area.

Do not check for leaks with a lighted match or

flame.

The LPG cylinder valve should be fully closed

when the generator is not in use or is running

with gasoline.

Device used for handling LPG must be installed

and used in strict conformance with NFPA 58

(Liquefied Petroleum Gas Code) and NFPA 54

(National Fuel Gas) and all other codes, regulations

and manufacturer recommendations.

Never use a gas container, LPG connector

hose, LPG cylinder or any other fuel item that

is damaged or appears damaged.

The LPG cylinder valve should be fully closed

when the generator is not in use or is running

with gasoline.

•

The regulator/hose assembly and cylinder

valve must be inspected before each use for

leaks or sign of damages.

NOTICE

WARNING

NOTICE

If you smell gas: close off the gas supply. Spray

a soapy water solution to check all connections

for leaks before attempting to use generator.

Contact a qualified technician to inspect and

repair the LPG system if a leak found before

using the generator.

•

Page 07

English Customer Service: 1-844-FIRMAN1

UNPACKING THE GENERATOR

•

Parts Included

Your gasoline powered generator ships with

the following parts:

1. Axle pin . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

2. 10.0" in. Wheel . . . . . . . . . . . . . . . . . . . . . . . . . 2

3. Flat Washer. . . . . . . . . . . . . . . .. . . . . . . . . . . . . .2

4. Cotter pin. . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . .2

5. Engine Oil(Bottle) . . . .. . . . . . . . . . . . . . . . . . . .1

6. Oil Funnel . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . 1

7. Wrench for Spark plug . . . . . . . . . . . . . . . . . . .1

8. Double Open wrench (10mm & 12mm). . . . 2

9. Support Leg with Vibration Mounts . . . . . . 1

10. Flange Bolt (M8x16 for Support Leg) . . . . . 2

11. Flange Lock Nut (M8) . . . . . . . . . . . . . . . . . . . 4

12. Flange Bolt M6X25. . . . . . . . . . . . . . . . . . . . . .2

13. Rubber Support

15. Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 1

16.

17. Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

18. Quick Reference Guide . . . . . . . . . . . . . . . . . 1

19. Cover

. . . . . . . . . . . . . . . . . . . . . . . . .2

14. Flange Lock Nut (M6) . . . . . . . . . . . . . . . . . . . 4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

LPG Hose With Regulator 5 ft. (1.5 m) . . . 1

LPG under pressure is highly flammable and

could cause a fire or explosion if ignited.

LPG is heavier than air and can accumulate in

confined spaces and low places in the event

of a leak.

LPG has a distinctive odor to help detect

potential leaks.

Do not allow children to tamper or play with

the LPG cylinder.

In the event of an LPG fire, flames should not

be extinguished unless by doing so the fuel

supply valve can be turned off. If the fire is

extinguished and a supply of fuel is not turned

off, an explosion hazard greater than the fire

hazard could be created.

Keep a fire extinguisher near the generator all

the time.

Always keep the LPG cylinder in an upright

position.

Do not subject LPG cylinder to excessive heat.

Contact with liquid contents of the cylinder

will cause freeze burns to the skin.

An LPG cylinder not connected for use shall

not be stored in the vicinity of the generator.

When transporting and storing, turn off the

cylinder valve and fuel selector switch, and

disconnect the cylinder.

•

10

11

12

13

14

15

16

17

18

19

WARNING

Open carton and Remove packaging materials.

Remove generator, accessories boxes, and

literature

from

carton.

If

any items are missing

or

damaged,

contact

our

product

service

department

at 1-844-347-6261.

9

T1

1

2

I

I Manual

Quick

Reference

Guide

Page 08

English Customer Service: 1-844-FIRMAN1

Install the Wheel Kit

The wheel kit is not intended for over-the-road

use.

Install the Support Leg

ASSEMBLY

A

B

C

The generator requires some assembly prior to

usage. If problems arise when assembling the

generator, call 1-844-347-6261.

1. Before adding wheels, tip the generator on

its side.

2. Slide the axle pin A through the wheel B.

3. Slide the axle pin A through the mount point

on the frame and flat washer D.

4. Secure the wheel and axle pin with the cotter

pin C.

5. Repeat steps 2-4 to attach another wheel.

3. Tip the generator slowly so that it rests on the

wheels and support leg.

4. Tighten bolt E and nut F with provide wrenches.

D

2. Attach the support leg (G) to the generator

frame with flange bolt (E) (M8X16) and flange

lock nut(F) (M8).

1. Attach the rubber support (H) to the support

leg (G) with flange bolt (I) (M6X25) and flange

lock nut(J) (M6).

NOTICE

Page 09

English Customer Service: 1-844-FIRMAN1

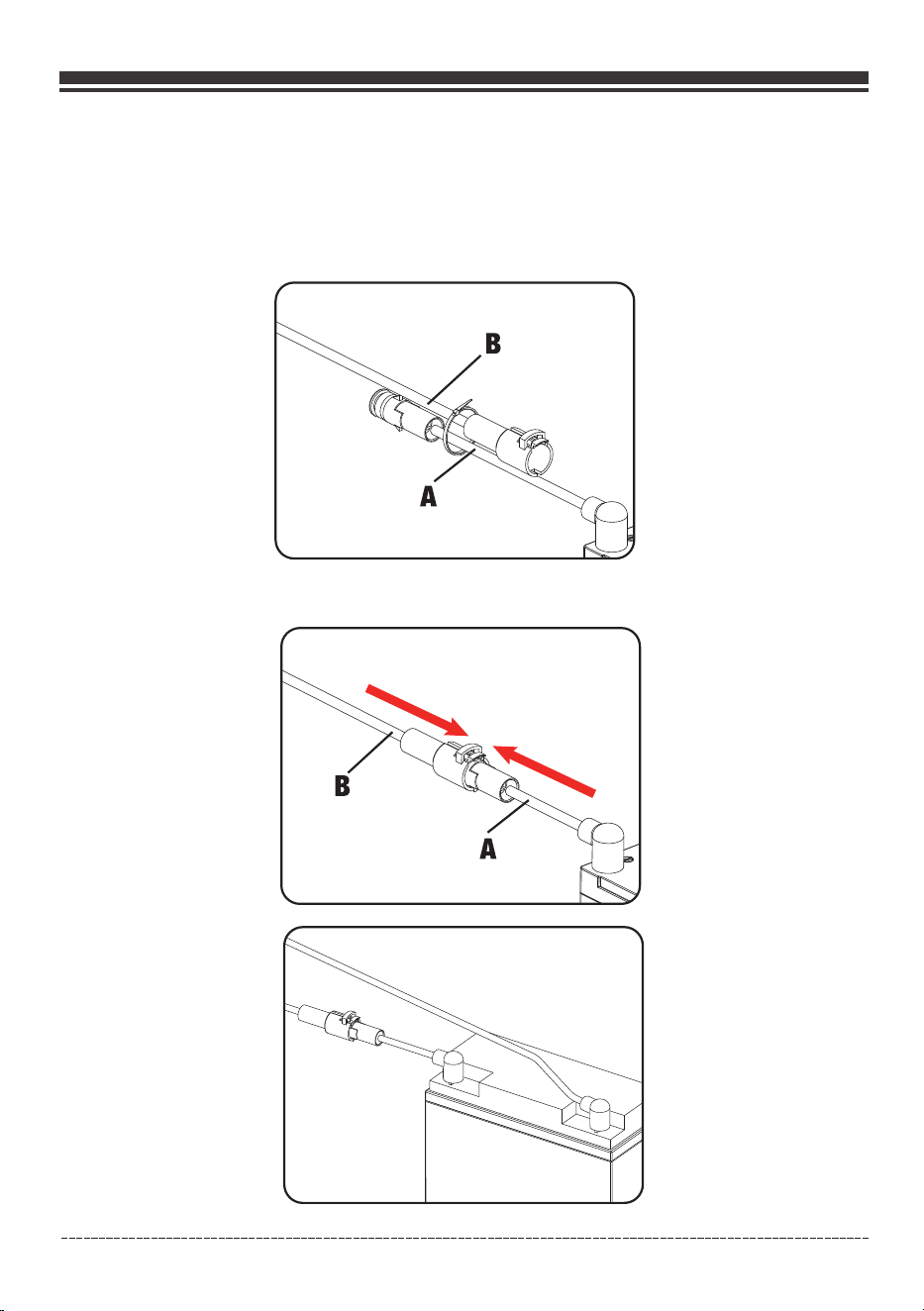

Battery Cable Connection

The generator comes equiped with the positive(red) and negative(black) cables already attached

to battery terminals.

1. Cut wire tie that is binding the black battery cables A and B.

2. Insert the male connector of cable A into female connector of cable B.

NOTICE

Page 10

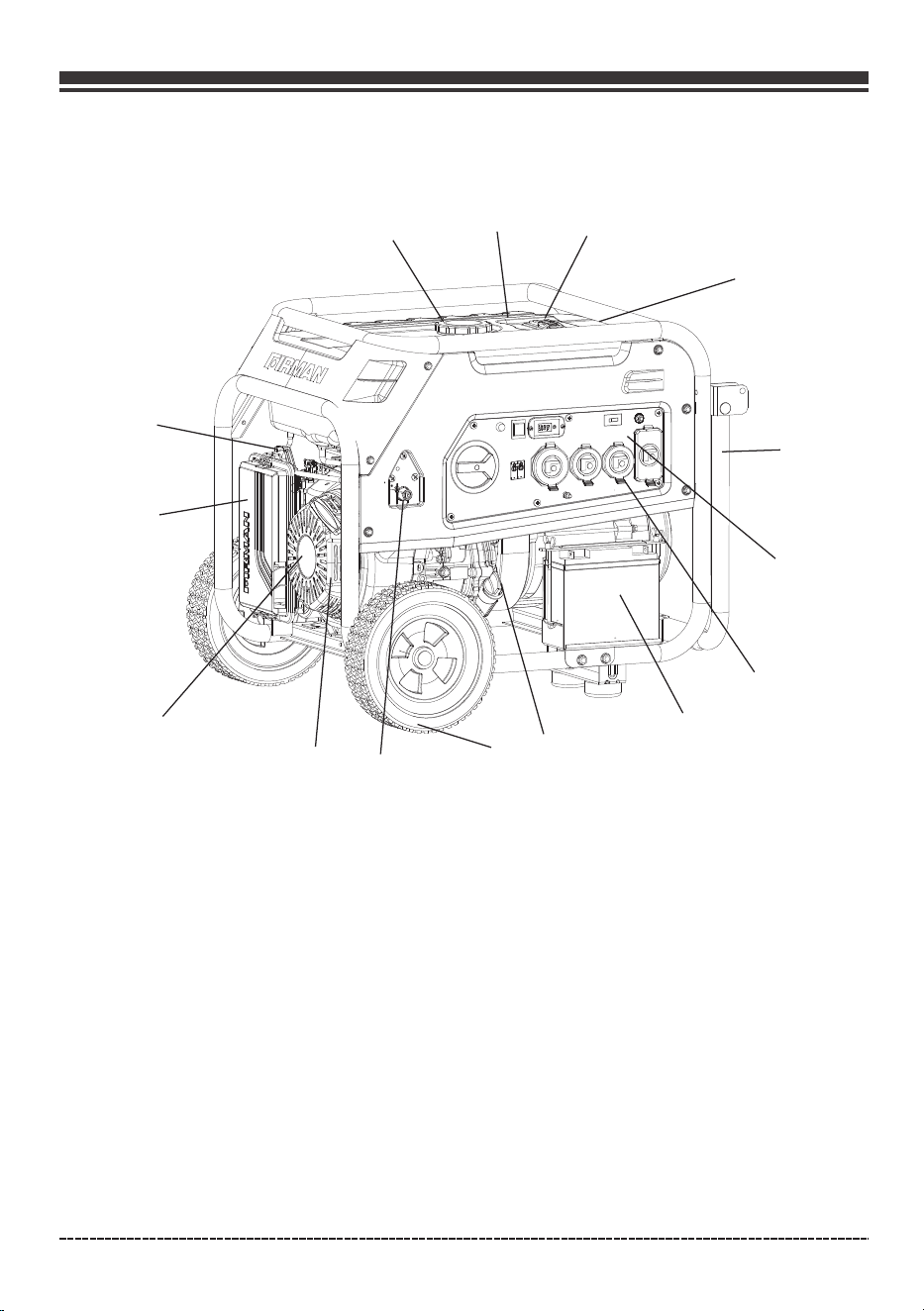

CONTROLS AND FEATURES

Generator

1- Fuel Gauge

2- 8.0 Gallon Capacity Fuel Tank

3- Fuel Cap

4- Choke Lever(behind air filter box)

5- Air Filter

6- 439cc FIRMAN OHV Engine

7- Recoil Starter

8-

9-

10-

11-

12-

13-

10.0" Flat Free Wheel

Oil Filler Cap

Battery

Outlet Cover

Control Panel

Handle

14- LPG Hose Connector(Inlet)

15- Data Decal / Serial Number

English Customer Service: 1-844-FIRMAN1

*We are always working to improve our products. Therefore, the enclosed product may differ

slightly from the image on this page.

2

①

②

③

⑤

⑥

⑦

⑧

⑨

⑩

⑪

⑫

④

⑬

⑭

⑮

2

3

4

Page 11

Total power drawn from all receptacles must not exceed the name plate rating.

Engine Start Switch – Used to start engine

from the starter motor(Electric start model

only). To start engine, press and hold the

switch in the “START”(ll) position, the

engine will crank and attempt to start. When

the engine starts, release the switch to the

“RUN”(l) position.

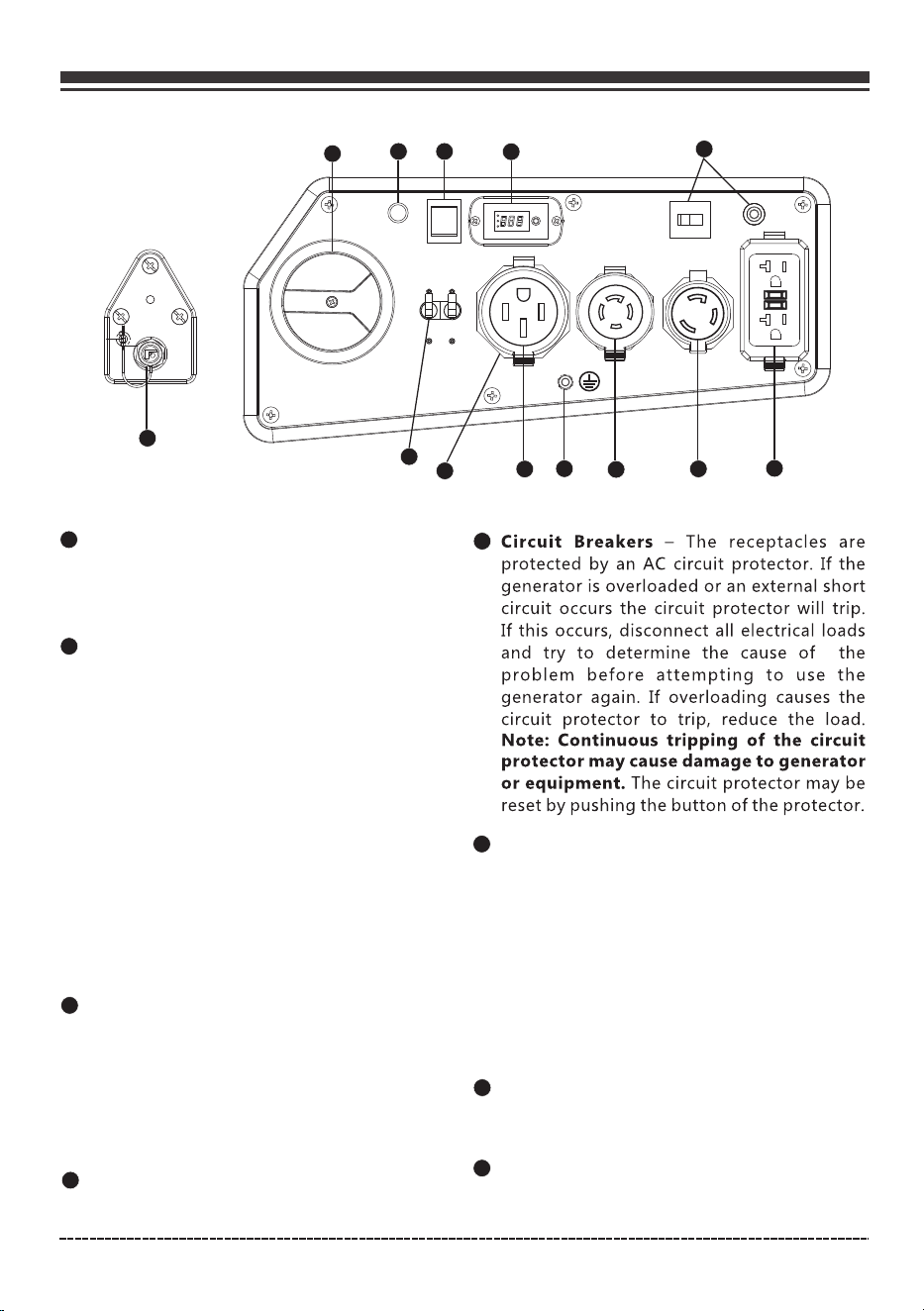

Control Panel

English Customer Service: 1-844-FIRMAN1

1

3-1 Data-Minder(Multi-Meter) – Push the

SELECT button to show the Voltage, Hertz

and running hours.

5

6

120V, 30A Twist-Lock (NEMA L5-30R) –

Maximum full load 30 Amp current may be

drawn from this 120 Volt receptacle.

7

8

Indicator Light

When the fuel selector switch is turned to the

“GAS” or “LPG” position, the indicator light will

become RED up to 4 minutes(before goes off).

Starting the engine successfully during these

4 minutes will turn the indicator light GREEN.

MUST HAVE SOLID RED INDICATOR LIGHT

TO BE ABLE TO START THE GENERATOR. THE

GENERATOR CANNOT BE STARTED DURING

BATTERY POWER SAVING MODE UNLESS

THE FUEL SELECTOR SWITCH IS TURNED TO

THE “OFF” POSITION AND THEN TURNED

BACK TO THE “GAS” OR “LPG” POSITION.

See Indicator light-Battery power Saving

Mode section for more information.

3

4

2

1

11

5

6

7

8

9

10

12

Ground Fault Circuit Interrupter conforms to UL 943,

and NEC requirements. This device protects

you against hazardous electrical shock that may be

caused if your body becomes a path through which

electricity travels to reach ground. This could happen

when you touch an appliance or cord that is “ live “

through faulty mechanism, damp or worn insulation, etc.

120V, 20A Duplex GFCI (Ground Fault

Circuit Interrupter) – (NEMA 5-20R)

This receptacle is rated so that a total of 20 amps

may be drawn regardless of whether both halves or

just one receptacle is used.

120/240V, 30A Twist-Lock – (NEMA L14-30R)

Maximum 30 Amp current maybe drawn from

this 120/240 Volt receptacle.

5

Fuel Selector Switch – Use to select and turn

on gasoline or LPG fuel source. Fuel (gasoline)

valve is closed when the switch is on “OFF” or

“LPG” positions. Engine switch is on when the

switch is on “GAS” or “LPG” positions.

NOTICE

•

e Circuit Breakers - The receptacles are

protected by

an

AC

circuit protector.

If

the

generator

is

overloaded

or

an

external short

circuit occurs the circuit

protector

will trip.

If

this occurs, disconnect all electrical loads

and

try

to

determine the cause

of

the

problem

before

attempting

to

use

the

generator again.

If

overloading causes

the

circuit

protector

to

trip, reduce

the

load.

Note: Continuous tripping

of

the

circuit

protector may cause damage

to

generator

or

equipment. The circuit

protector

may be

reset by pushing

the

button

of

the

protector

.

•

Page 12

English Customer Service: 1-844-FIRMAN1

Ground Terminal – Consult an electrician

for local grounding regulations.

9

10

11

120/240V, 50A – (NEMA 14-50R)

Supplies electrical power for the operation of

120/240 Volt AC, 50Amp, single phase.

Maximum full load current may be drawn from

this receptacle. If other receptacles are used

at the same time, total power used must be

kept within nameplate.

Outlet Cover - Protect the receptacles from

dust and debris.

LPG Hose Connector(Inlet) – Used to connect

LPG hose to generator.

12

120VAC, 20AMP GFCI RECEPTACLE

This unit is equipped with a ground fault circuit

interrupter (GFCI). This device meets applicable

federal, state and local codes .

A GFCI receptacle does NOT protect against

circuit overloads, short circuits, or shocks. For

example, electric shock can still occur if a person

touches charged electrical wires while standing

on a non-conducting surface, such as a wood floor.

Definition: Instead of following its normal safe

path, electricity passes through a persons body

to reach the ground. For example, a defective

appliance can cause a ground fault.

A GFCI receptacle is different from conventional

receptacles. In the event of a ground fault, a GFCI

will trip and quickly stop the flow of electricity to

prevent serious injury.

1. Plug a test lamp into the receptacle.

2. Start the generator, the test lamp should be on.

3. Press the “Test” button located on the front

of the receptacle to trip the device.

4. This should stop the flow of electricity making

the lamp shut off. The GFCI’s indicator light comes

off.

RESET

TEST

TEST MONTHLY

FOLLOW DIRECTIONS

RESET BUTTON

Receptacle

Outlet

LED Indicator Light

TEST BUTTON

Outlet

5. To restore the flow of electricity, press the

“RESET” button on the front of the receptacle.

If the GFCI does not perform in this manner, do

not use the receptacle. Contact a local service

dealer or costumer service.

6. This outlet is protected against overload by

a 20A push-to-reset circuit breaker. Use the

outlet to power 120V AC, single-phase, 60 Hz,

electrical loads requiring up to a combined

2400 watts (2.4 kW) or 20 amps of current.

Testing the GFCI: Test the GFCI outlet every

month as follows:

SELF-TEST OPERATION

A Self-Test GFCI receptacle has all the features

of a conventional GFCI receptacle. In addition,

this receptacle tests itself periodically to confirm

the GFCI electronics are functional. The Indicator

Light will be solid green when the GFCI is powered

from Line side and working correctly.

Self-Test Indications: If the Indicator Light is solid

orange or flashing red a problem may exist.

Press the TEST button to trip the GFCI. If unable to

Reset, replace the GFCI.

•

D

0

Page 13

SPECIFICATIONS

Model

Starting Watts

Running Watts*

Rated AC Voltage

Rated

Phase

Voltage Regulator

Total Harmonic Distortion(THD)

Power Factor

Alternator Type

Engine

Engine Type

Displacement

Low Oil Shutdown

Ignition System

Starting System

Fuel

Capacity Fuel Tank

Lubricating Oil Capacity

Carburetor Type

Air Cleaner

P.T.O. Shaft Rotation

Oil Type

AC Grounding System

Gross/Net Weight

Height×Width×Length

Fequency

H07552

9400

7500(GASOLINE)/6750(LPG)

1

Single Cylinder, 4-Stroke OHV Air Cooled

37.2 oz(1.1L)

(GASOLINE)/8450(LPG)

120/240V

60Hz

Single

AVR

Standard

Brushed

439cc

Yes

Breakless Ignition Type, Flywheel Magneto

Unleaded Automotive Gasoline/LPG

8.0 Gallon(30L)

Float

Polyurethane Type

Counter Clockwise (Facing P.T.O.)

See “Add Engine Oil” Section

Neutral Bonded To Frame

FIRMAN

Recoil/Electric Start

AN IMPORTANT MESSAGE ABOUT TEMPERATURE:

English Customer Service: 1-844-FIRMAN1

26.2 27 5 30 1 66.8 69.9 76.6(cm)× . × . (in.)/ × ×

227 lb.(103kg)/210 lb.(95.2kg)

*This generator is rated in accordance with CSA (Canadian Standards Association) standard

C22.2 No. 100-14.

Your FIRMAN Power Equipment product is designed and rated for continuous operation at ambient

temperatures up to 104°F (40°C). The generator may be operated at temperatures ranging from

5°F(-15°C) to 122°F(50°C) for short periods. If the generator is exposed to temperatures outside

this range during storage, the generator should be brought back within this range before operation.

When operated above 77°F(25°C) there may be a decrease in power. Maximum wattage and current

are subject to and limited by such factors as ambient temperature, altitude, engine conditions etc.

ADD ENGINE OIL

Page 14

1.Place generator on a flat, level surface.

2.Clean area around oil fill and remove yellow

oil fill cap/dipstick.

3.Wipe dipstick clean.

The engine is equipped with a low oil shut-off and

will stop when the oil level in the crankcase falls

below the threshold level.

We consider the first 5 hours of run time to be

the break-in period for the unit. During the break

in period stay at or below 50% of the running

watt rating and vary the load occasionally to allow

stator windings to heat and cool. Adjusting the

load will also cause engine speed to vary and help

seat piston rings.

The unit is equipped with a low oil shutdown.If

the oil level becomes lower than required,the

sensor will activate a warning device or stop the

engine.

If generator shuts off and the oil level is within

specifications, check to see if generator is sitting

at an angle that forces oil to shift. Place on an

even surface to correct this. If engine fails to

start, the oil level may not be sufficient to

deactivate low oil level switch. Make sure the

sump is completely full of oil.

(H)

DRAIN PLUG

(L)

5.Replace oil fill cap/dipstick and fully tighten.

6.Oil level should be checked prior to each use

or at least every 8 hours of operation. Keep oil

level maintained.

4.Using oil funnel, slowly pour contents of

provided oil bottle into oil fill opening to the

"H" mark on dipstick. Be careful do not

overfill. Overfilling with oil could cause the

engine to not start or hard starting.

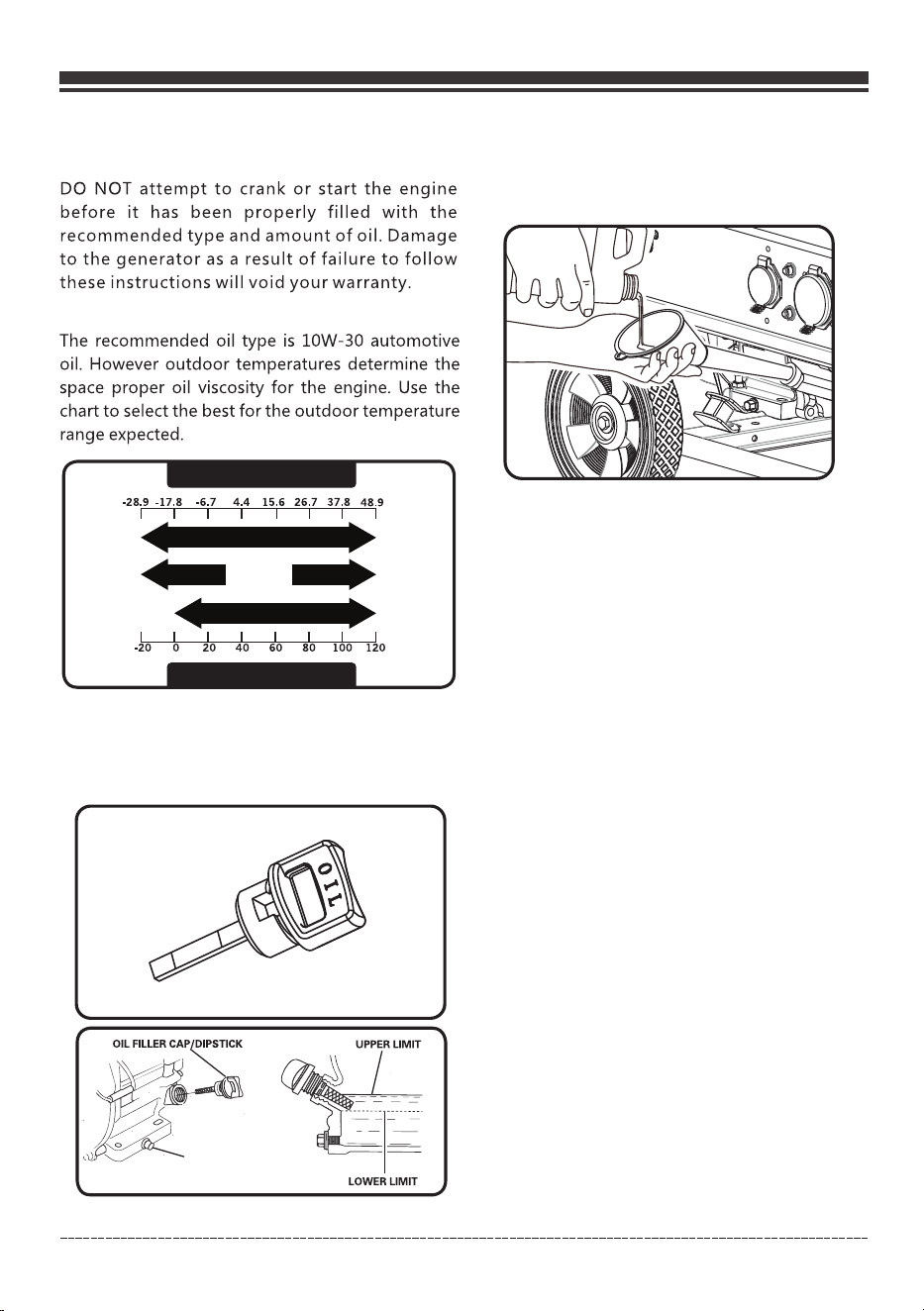

Low Oil Shutdown

Degrees Celsiusº(Outside)

Full Synthetic 5W-30

Degrees Fahrenheitº(Outside)

5W-30 10W-40

10W-30

H

L

English Customer Service: 1-844-FIRMAN1

NOTICE

DO NOT

attempt

to

crank

or

start

the

engine

before

it

has been

properly

filled

with

the

recommended

type

and

amount

of

oil. Damage

to

the

generator

as

a result

of

failure

to

follow

these

instructions

will

void

your

warranty.

The

recommended oil type

is

lOW-30 automotive

oil. However outdoor temperatures determine the

space

proper oil viscosity for the engine.

Use

the

chart

to

select the best for the outdoor temperature

range expected.

LOWER LIMIT

ADD FUEL

Page 15

Fuel must meet these requirements:

•

Clean, fresh, unleaded gasoline.

Use regular UNLEADED gasoline with the

generator engine with a minimum 87 octane

/ 87 AKI (91 RON).

For high altitude use, see "Operation at High

Altitude".

Do not use gasoline with more than 10%

ethanol such as E85 or ethanol.

•

Failure to follow Operator's Manual for fuel

recommendations voids warranty.

Avoid generator damage.

DO NOT use unapproved gasoline such as E85.

DO NOT mix oil in gasoline.

DO NOT modify engine to run on alternate fuels.

•

WARNING

Fuel and its vapors are extremely flammable

and explosive which could cause burns, fire or

explosion resulting in death, serious injury .

Fill fuel tank outdoors.

DO NOT overfill tank. Allow space for fuel

expansion. If the tank is overfilled, fuel

can overflow onto a hot engine and cause fire

or explosion.

If fuel spills, wait until it evaporates before

starting engine.

Keep fuel away from sparks, open flames,

pilot lights, heat, and other ignition sources.

Check fuel lines, tank, cap and fittings

frequently for cracks or leaks. Replace if

necessary.

•

1.Clean area around fuel fill cap, remove cap.

2.Slowly add unleaded fuel to fuel tank. Be

careful not to fill above the red fuel level

indicator . This allows adequate space for

fuel expansion.

3.Install fuel cap and let any spilled fuel

evaporate before starting engine.

CAUTION

Slowly add unleaded gasoline to fuel tank.

Do not overfill tank.

Do not fill above the red line indicator.

This will allow expansion in hot weather

and prevent overflow.

•

English Customer Service: 1-844-FIRMAN1

Red Line Indicator

1.Gasoline

2-Connecting Liquid Petroleum Gas

(LPG/Propane) Cylinder

•

Liquid Petroleum Gas (LPG) is highly flammable

and explosive. Fire or explosion can cause severe

burns or death.

Do not use or store LPG cylinder in a building,

garage or enclosed area.

•

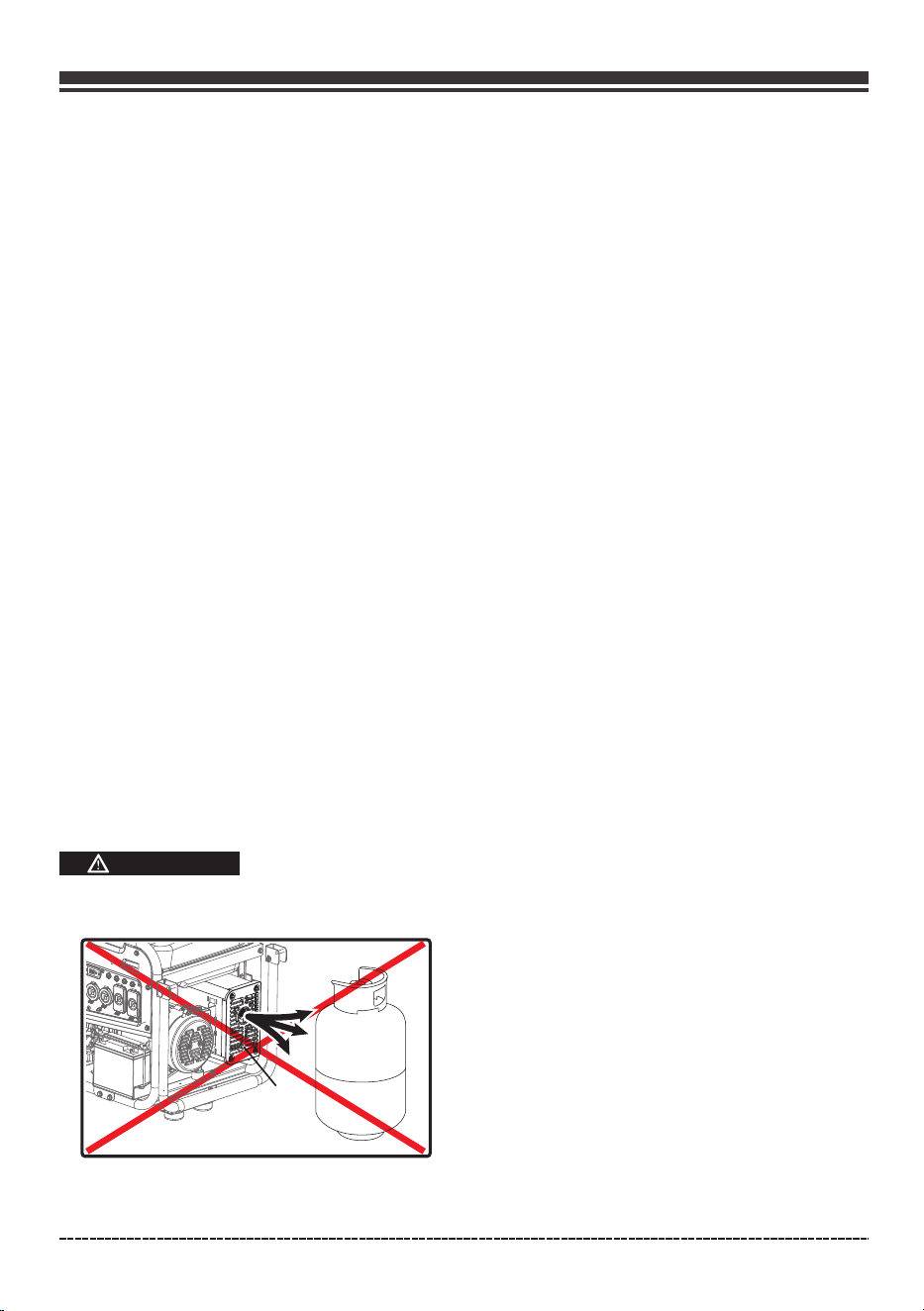

Do not place the LPG cylinder in the path of

muffler outlet.

NOTICE It is important to prevent gum

deposits from forming in fuel system parts such

as the carburetor, fuel hose or tank during storage.

Alcohol-blended fuels (called gasohol, ethanol

or methanol) can attract moisture, which leads to

separation and formation of acids during storage.

Acidic gas can damage the fuel system of an engine

while in storage. To avoid engine problems, the

fuel system should be emptied before storage of

30 days or longer. See the " Long Term Storage"

section. Never use engine or carburetor cleaner

products in the fuel tank as permanent damage

may occur.

NOTICE

DO NOT light a cigarette or smoke when

filling the fuel tank.

WARNING

llllffllll--

&

Page 16

English Customer Service: 1-844-FIRMAN1

•

Never use a gas container, LPG connector

hose, LPG cylinder or any other fuel item that

is damaged or appears damaged.

The LPG cylinder valve should be fully closed

when the generator is not in use or is running

with gasoline.

•

The regulator/hose assembly and cylinder

valve must be inspected before each use for

leaks or sign of damages.

Use LPG cylinders with Type 1, right hand

Acme threads with this generator. Verify the

re-qualification date on the tank has not

expired. Do not use rusted or damaged

cylinders.

All new cylinders must be purged of air and

moisture prior to filling. Used cylinders that

have not been plugged or kept closed must

also be purged. The purging process should

be done by your propane gas supplier.

Do not connect or disconnect the LPG cylinder

in enclosed area.

Do not install or replace the LPG cylinder near

open flames, pilot lights, or sparking electrical

equipment such as power tools, welders and

grinders.

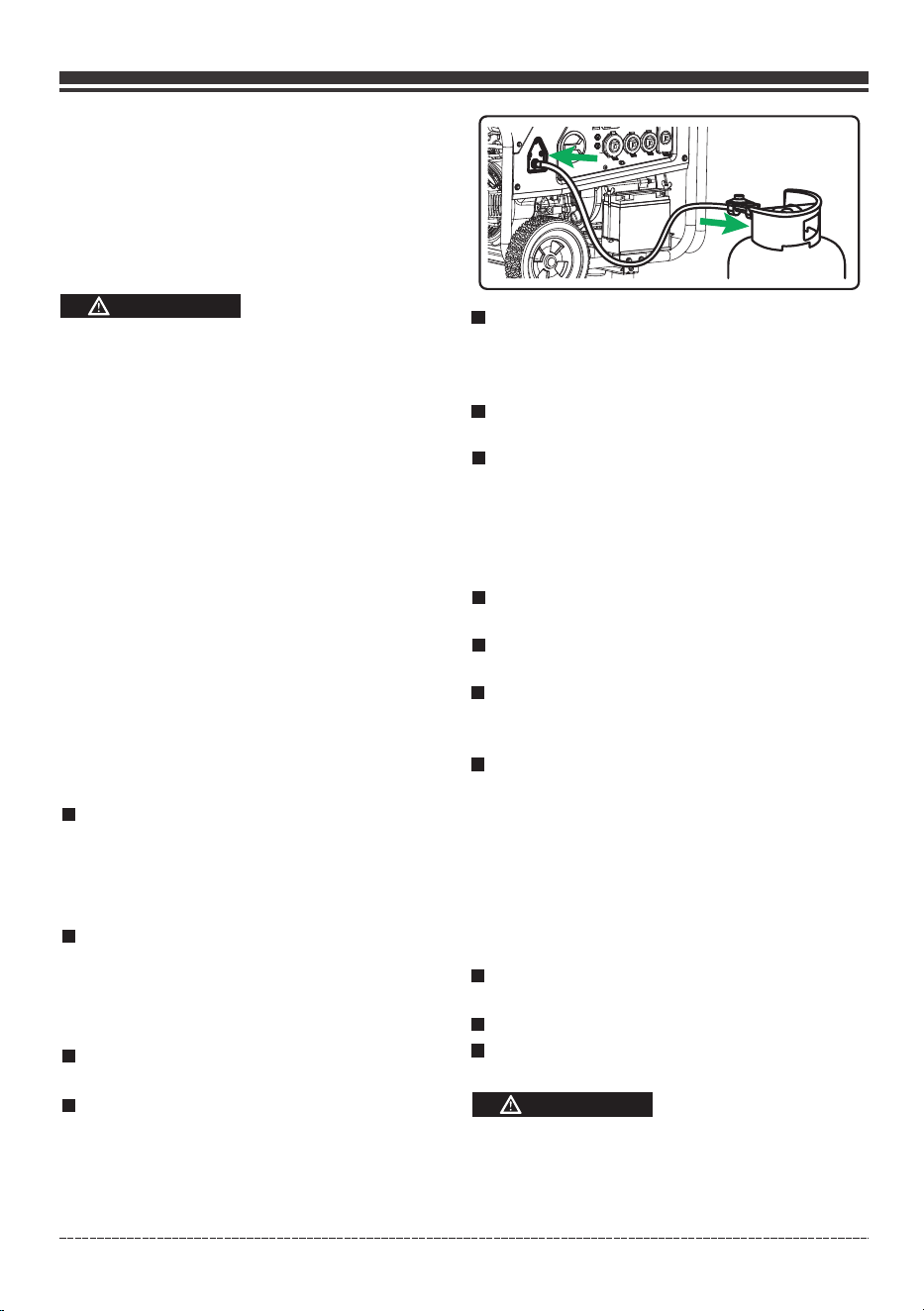

Attach the LPG regulator/hose assembly

(included) to the LPG hose connector (inlet)

on the control panel of the generator. Tighten

the nut with 19 mm or adjustable wrench.

Remove the safety plug or cap from the

cylinder valve.

Attach the other end of the LPG regulator/hose

assembly to the cylinder valve. Tighten the nut

by hand clockwise to a positive stop. Do not

use a wrench to tighten. Use of wrench may

damage quick closing coupling nut and result

in a hazardous condition.

Do not use tape or any type sealant to seal the

LPG hose connections.

Always position the cylinder so the connection

between the valve and the regulator won’t cause

bends or kinks in the hose.

Spray a soapy water solution (one part liquid

detergent and one part water) to check all

connections for leaks before attempting to

use generator. Slowly open the cylinder valve.

A leak exists if bubbles appear or grow larger

in size or number. This must be corrected before

using the generator. Contact your local

Authorized Service Facility for assistance. Do

not attempt to make repairs yourself.

Do not check for leaks with a lighted match

or flame.

Do not light or smoke cigarettes.

Check the fuel system periodically for leaks

or signs of damages.

LPG under pressure is highly flammable and

could cause a fire or explosion if ignited.

•

LPG is heavier than air and can accumulate in

confined spaces and low places in the event

of a leak.

•

If you smell gas: close off the gas supply. Spray

a soapy water solution to check all connections

for leaks before attempting to use generator.

Contact a qualified technician to inspect and

repair the LPG system if a leak found before

using the generator.

•

You must use the supplied regulator/hose

assembly for safe operation.

•

WARNING

Device used for handling LPG must be installed

and used in strict conformance with NFPA 58

(Liquefied Petroleum Gas Code) and NFPA 54

(National Fuel Gas) and all other codes, regulations

and manufacturer recommendations.

If you smell gas: close off the gas supply. Make

sure there is no leak before using the generator.

•

Do not check for leaks with a lighted match or

flame.

The LPG cylinder valve should be fully closed

when the generator is not in use or is running

with gasoline.

WARNING

■

Page 17

English Customer Service: 1-844-FIRMAN1

3-Permanent Connection to a large

Propane supply tank:

In the instance that you would need to connect

your generator to a large propane Supply tank,

it is recommended to contact your Gas Equipment

Company. Various equipment for use with LPG,

is required for proper conformance to all NFPA

regulations. Your Gas Equipment Company can

help you select and install the proper regulator,

fittings and connections to meet all the Codes

and manufacturer regulations. Each installation

may be different and will required proper equipment.

Contact your Gas Equipment Company to assure

that you are meeting all NFPA 58 (Liquefied

Petroleum Gas Code) and NFPA 54 (National Fuel

Gas) Codes.

439cc

380717004

380717005

When transporting and storing, turn off the

cylinder valve and fuel selector switch, and

disconnect the cylinder.

Contact with liquid contents of the cylinder

will cause freeze burns to the skin.

•

An LPG cylinder not connected for use shall

not be stored in the vicinity of the generator.

•

Always keep the LPG cylinder in an upright

position.

Do not subject LPG cylinder to excessive heat.

•

In the event of an LPG fire, flames should not

be extinguished unless by doing so the fuel

supply valve can be turned off. If the fire is

extinguished and a supply of fuel is not turned

off, an explosion hazard greater than the fire

•

hazard could be created.

•

Keep a fire extinguisher near the generator

all the time.

LPG has a distinctive odor to help detect

potential leaks.

•

Do not allow children to tamper or play with

the LPG cylinder.

•

Altitude main jet 1

Altitude main jet 2

Altitude

3000-6000Feet

6000-8000Feet

OPEN

Operation at High Altitude

At altitudes over 5,000 feet(1524 meters), a

minimum 85 octane gasoline is acceptable.

Engine power and generator output will be

reduced approximately 3.5% for every 1000

feet (305 m) of elevation above sea level. High

altitude may cause hard starting, increased fuel

consumption and spark plug fouling. To operate

at high altitudes FIRMAN can provide a high

altitude carburetor main jet. The alternative

main jet and installation instructions can be

obtained by contacting Customer Support.

NOTICE Operation using an alternative main

jet at elevations lower than the recommended

minimum altitude can damage the engine. For

operation at lower elevations, the standard

main jet supplied must be used. Operating the

engine with the wrong main jet may increase

exhaust emissions, fuel consumption and

reduce performance.

(914-1828 m)

(1828- 2438 m)

I I I I

Page 18

Grounding

Use approved transfer equipment to prevent

backfeed by isolating generator from electric

utility workers.

When using generator for backup power, notify

utility company.

Use a ground fault circuit interrupter (GFCI) in

any damp or highly conductive area, such as

metal decking or steel work.

DO NOT touch bare wires or receptacles.

DO NOT use generator with electrical cords

which are worn,frayed, bare or otherwise

damaged.

DO NOT operate generator in the rain or wet

weather.

DO NOT handle generator or electrical cords

while standing in water, while barefoot, or

while hands or feet are wet.

DO NOT allow unqualified persons or children

to operate or service generator.

Connecting to a Building's Electrical System

WARNING

Generator voltage could cause

electrical shock or burn resulting

in death or serious injury.

•

English Customer Service: 1-844-FIRMAN1

The generator has a system ground that connects

the generator frame components to the ground

terminals on the AC output receptacles. The

system ground is connected to the AC neutral

wire. The neutral is bonded to the generator

frame. There may be Federal or State regulations,

local codes, or ordinances that apply to the

intended use of the generator. Consult a qualified

electrician, electrical inspector, or the local

agency having jurisdiction. This generator is not

intended to be used at a construction site or

similar activity as defined by NFPA 70-2020 (NEC)

section 590.6.

Connections to your home’s electrical system

must use a listed* transfer switch installed by

alicensed electrician. The connection must

isolate the generator power from the utility

power andcomply with all applicable laws and

electrical codes.

*Certified by a Nationally Recognized Testing Laboratory that the product complies to appropriate

product safety test standards.

~

5. OPERATION

Page 19

Generator Location

Make sure you review each warning in order to

prevent fire hazard.

Keep area clear of inflammables or other

hazardous materials.

Select a site that is dry, well ventilated and

protected from the weather.

Keep exhaust pipe clear of foreign objects.

Keep generator away from open flame.

Keep generator on a stable and level surface.

WARNING

Surge Protection

Voltage fluctuation may impair the proper

functioning of sensitive electronic equipment.

POISONOUS GAS HAZARD.

•

Do not block generator air vents with paper or

other material.

CAUTION

Tilting can cause fuel spillage.

CAUTION

English Customer Service: 1-844-FIRMAN1

■

~

A

DANGER

Using a generator indoors CAN KILL

YOU

IN

MINUTES.

Generator exhaust contains carbon monoxide. This

is

a poison you cannot see or smell.

]@[@

JC[

•➔

NEVER

use

inside a home Only use OUTSIDE and

or garage,

EVEN

IF

doors

far away from windows,

and

windows are open. doors,

and

vents.

Avoid

other

generator

hazards.

READ

MANUAL

BEFORE

USE.

Engine exhaust contains carbon

monoxide, a poisonous gas

that

could kill you in minutes. You

CANNOT smell it,

see

it,

or

taste

it.

Even

if

you

do

not

smell exhaust

fumes, you could still be exposed

to

carbon monoxide gas.

Operate

this

product

ONLY

outside

far

away

from

windows,

doors

and vents

to

reduce

the

risk

of

carbon

monoxide

gas

from

accumulating

and

potentially

being drawn

towards

occupied

spaces.

Install

battery-operated

carbon

monoxide

alarms

or

plug-in

carbon

monoxide

alarms

with

battery

back-up

according

to

the

manufacturer's

instructions.

Smoke alarms

cannot

detect

carbon

monoxide

gas.

DO NOT run

this

product

inside homes,

garages, basements, crawlspaces, sheds, or

other

partially-enclosed spaces even

if

using

fans

or

opening

doors

and

windows

for

ventilation. Carbon monoxide

can

quickly

build up in these spaces and

can

linger

for

hours, even

after

this

product

has

shut off.

ALWAYS place

this

product

downwind

and

point

the

engine

exhaust

away

from

occupied

spaces.

If

you

start

to

feel sick,

dizzy,

or

weak

while

using

this

product,

shut

it

off

and

get

to

fresh air RIGHT AWAY.

See

a

doctor.

You may have carbon

monoxide

poisoning.

Electronic devices,

including

computers

and

many programmable appliances

use

components

that

are designed

to

operate within a narrow

voltage range and may be affected by momentary

voltage fluctuations. While there

is

no way

to

prevent voltage fluctuations, you

can

take steps

to

protect sensitive electronic equipment.

Install

UL1449,

CSA-listed,

plug-in

surge

suppressors

on

the

outlets

feeding

your

sensitive

equipment.

Surge suppressors

come

in

single-

or

multi-outlet

styles.

They're

designed

to

protect

against

virtually

all

short-duration

voltage

fluctuations.

Page 20

English Customer Service: 1-844-FIRMAN1

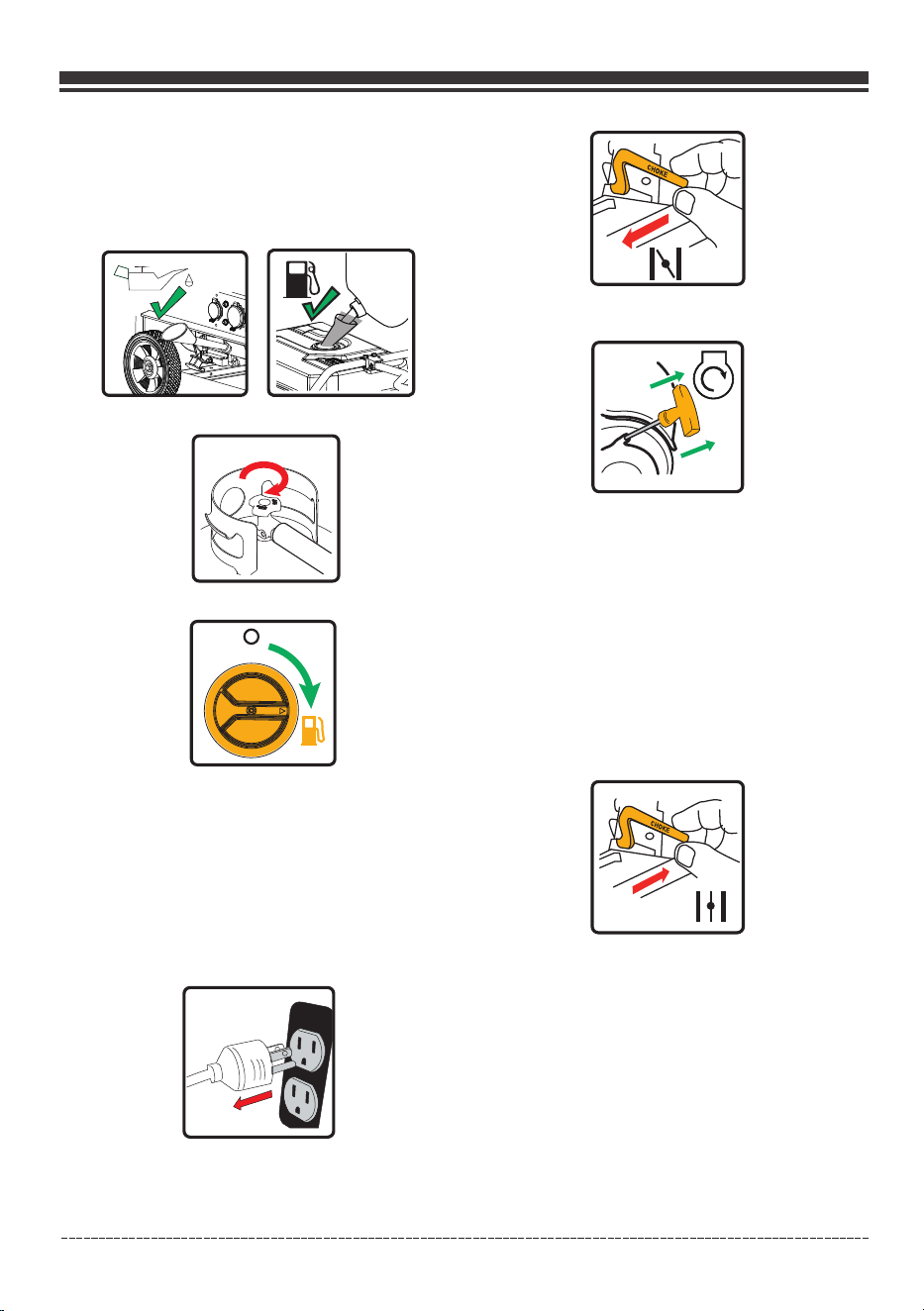

Starting the Generator (Recoil Start-Gasoline)

1. Before starting the generator, check for loose

or missing parts and for any damage which

may have occurred during shipment.

2. Check oil level and fuel(Gasoline).

8. Do not over-choke. As soon as engine starts

and warms up, move the choke lever to the

“RUN” position.

7. Pull the starter cord slowly until resistance is

felt and then pull rapidly.

5. Disconnect all electrical loads from the

generator. Never start or stop the generator

with electrical devices plugged in or turned

on.

4. Turn the fuel selector switch to “GAS” position.

3. Make sure the LPG cylinder knob is fully closed.

9. Allow generator to run at no load for few

minutes upon each initial start-up to permit

engine and generator to stablize.

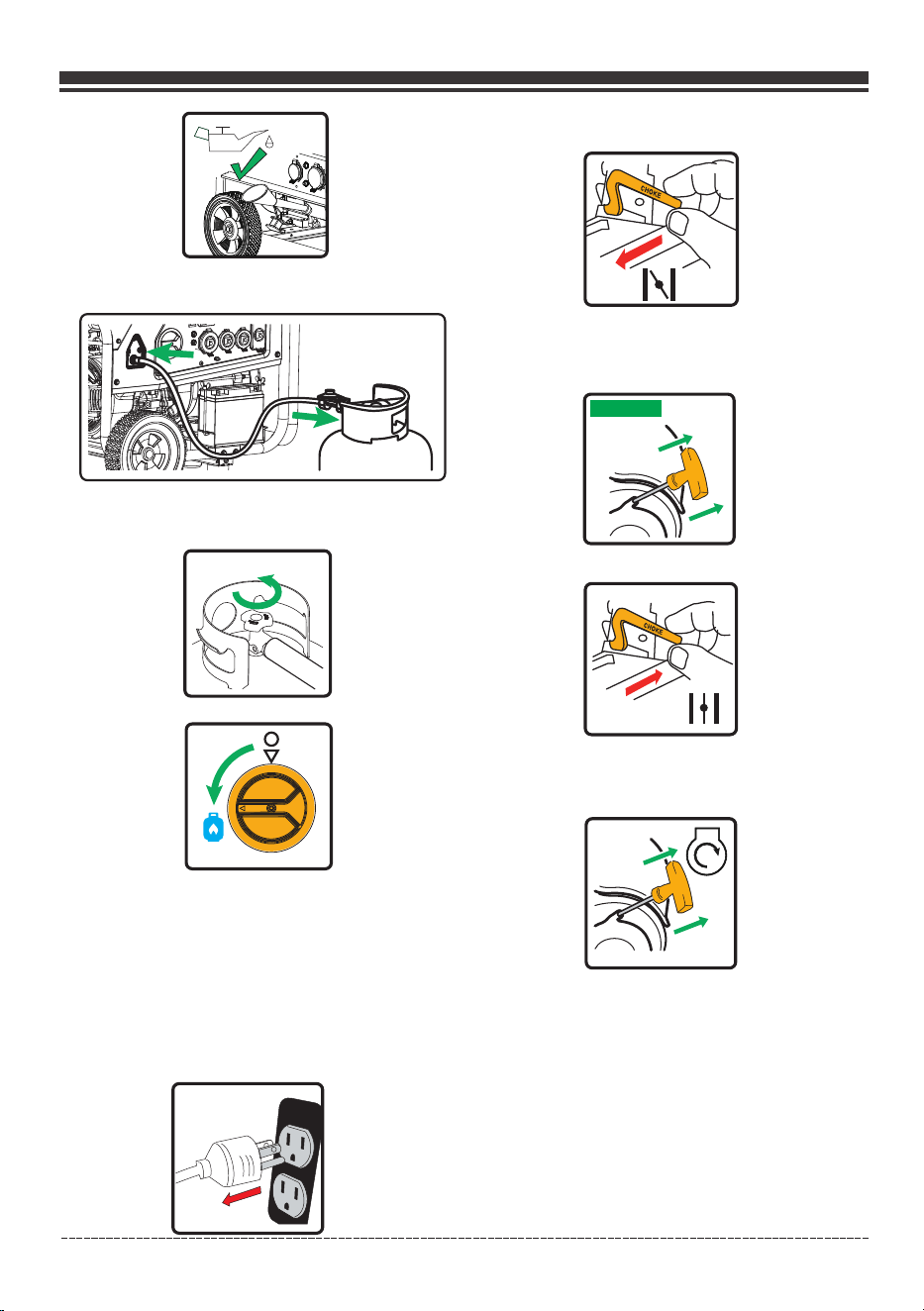

Starting the Generator (Recoil Start-LPG]

1. Before starting the generator, check for loose

or missing parts and for any damage which

may have occurred during shipment.

2. Check oil level .

NOTICE

to the “GAS” position, the indicator light will

become RED up to 4 minutes(before goes off).

Starting the engine successfully during these

4 minutes will turn the indicator light GREEN.

When the fuel selector switch is turned

6. Move choke lever located on engine to “START”

position.

REMINDER: MUST HAVE SOLID RED INDICATOR

LIGHT TO BE ABLE TO START THE GENERATOR.

THE GENERATOR CANNOT BE STARTED DURING

BATTERY POWER SAVING MODE UNLESS

THE FUEL SELECTOR SWITCH IS TURNED TO

THE “OFF” POSITION AND THEN TURNED

BACK TO THE “GAS” POSITION.

See Indicator light-Battery power Saving

Mode section for more information.

0

8

Page 21

English Customer Service: 1-844-FIRMAN1

4. Fully open the LPG cylinder knob.

5. Turn the fuel selector switch to “LPG” position.

9.Move the choke lever to the “RUN” position.

11. Allow generator to run at no load for few

minutes upon each initial start-up to permit

engine and generator to stablize.

3. Connect the regulator to both LPG cylinder and

generator.

NOTICE

to the “LPG” position, the indicator light will

become RED up to 4 minutes(before goes off).

Starting the engine successfully during these

4 minutes will turn the indicator light GREEN.

When the fuel selector switch is turned

6. Disconnect all electrical loads from the

generator. Never start or stop the generator

with electrical devices plugged in or turned

on.

7. Move choke lever located on engine to “START”

position.

NOTICE Do not place the LPG cylinder in the

path of muffler outlet.

8. PULL TO-PRIME:-

Pull the starter cord 1-2 times. Pull slowly until

resistance if felt and then pull rapidly.

10. PULL TO RUN:- -

Pull the starter cord slowly until resistance if felt

and pull rapidly to run the unit.

REMINDER: MUST HAVE SOLID RED INDICATOR

LIGHT TO BE ABLE TO START THE GENERATOR.

THE GENERATOR CANNOT BE STARTED DURING

BATTERY POWER SAVING MODE UNLESS

If the engine fails to start in 1-2 pulls with choke in the

“RUN” position, then move choke lever to “START”

position and repeat the “PULL-TO-PRIME” step.

1-2 Times

Page 22

English Customer Service: 1-844-FIRMAN1

Starting the Generator (Electric Start-Gasoline)

1. Before starting the generator, check for loose

or missing parts and for any damage which

may have occurred during shipment.

2. Check oil level and fuel(Gasoline).

4. Turn the fuel selector switch to “GAS” position.

3. Make sure the LPG cylinder knob is fully closed.

When starting engine, pull cord slowly until resistance

is felt and then pull rapidly to avoid kickback.

Keep choke lever in “START” position for only 1

pull of the recoil starter. After first pull, move

choke lever to the “RUN” position for up to the

next 3 pulls of the recoil starter. Too much

choke leads to sparkplug fouling/engine

flooding due to the lack of incoming air. This

will cause the engine not to start.

NOTICE

to the “GAS” position, the indicator light will

become RED up to 4 minutes(before goes off).

Starting the engine successfully during these

4 minutes will turn the indicator light GREEN.

When the fuel selector switch is turned

5. Disconnect all electrical loads from the

generator. Never start or stop the generator

with electrical devices plugged in or turned on.

6. Move choke lever located on engine to “START”

position.

3 sec.

REMINDER: MUST HAVE SOLID RED INDICATOR

LIGHT TO BE ABLE TO START THE GENERATOR.

THE GENERATOR CANNOT BE STARTED DURING

BATTERY POWER SAVING MODE UNLESS

THE FUEL SELECTOR SWITCH IS TURNED TO

THE “OFF” POSITION AND THEN TURNED

BACK TO THE “GAS” POSITION.

See Indicator light-Battery power Saving

Mode section for more information.

See Indicator light-Battery power Saving

Mode section for more information.

THE FUEL SELECTOR SWITCH IS TURNED TO THE “OFF”

POSITION AND THEN TURNED BACK TO THE “LPG”

POSITION.

WARNING

7. Flip the engine switch to the "START"(ll) position

for few seconds and then release.

NOTICE

&

Starter

cord

k.

retraction) will p

:1c~back(rapid

toward engine f u and and arm

let

go

wh· h aster than you

1c

could

can

bones, fractures b

_cause

broken

resulting

in'

ruises,orsprains

serious

i •

nJ

u

ry.

If

eng·

. ine starts after

unit

shuts

do

~

pulls

but

fail t

unit

is

on a I

wnl

during

operatic

s o run,

or

if

oil level in eve surface and

ch

nk,

make sure

. crankca •

ec

fo

with

a

low

o·1

se.

This

unit

ma

b r

proper

be

at

pr

I

protection

de • y e equipped

oper

level

for

. vice.

If

so

oil

engine

to

start. ' must

0

8

Page 23

English Customer Service: 1-844-FIRMAN1

4. Fully open the LPG cylinder knob.

5. Turn the fuel selector switch to “LPG” position.

9. Allow generator to run at no load for few

minutes upon each initial start-up to permit

engine and generator to stablize.

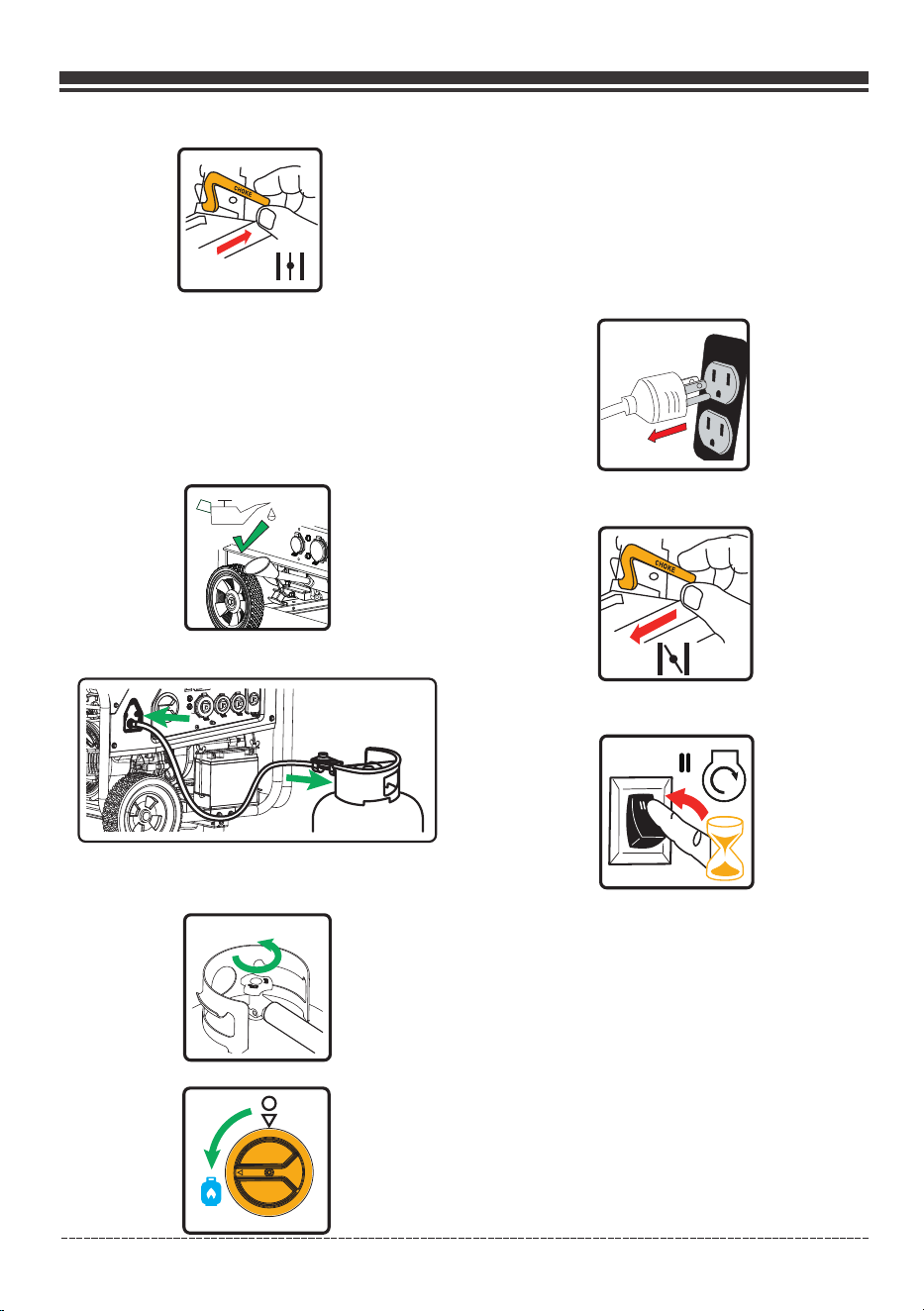

Starting the Generator (Electric Start-LPG)

1. Before starting the generator, check for loose

or missing parts and for any damage which

may have occurred during shipment.

2. Check oil level .

3. Connect the regulator to both LPG cylinder and

generator.

NOTICE

to the “LPG” position, the indicator light will

become RED up to 4 minutes(before goes off).

Starting the engine successfully during these

4 minutes will turn the indicator light GREEN.

When the fuel selector switch is turned

6. Disconnect all electrical loads from the

generator. Never start or stop the generator

with electrical devices plugged in or turned

on.

7. Move choke lever located on engine to “START”

position.

3 sec.

See Indicator light-Battery power Saving

Mode section for more information.

REMINDER: MUST HAVE SOLID RED INDICATOR

LIGHT TO BE ABLE TO START THE GENERATOR.

THE GENERATOR CANNOT BE STARTED DURING

BATTERY POWER SAVING MODE UNLESS

THE FUEL SELECTOR SWITCH IS TURNED TO

THE “OFF” POSITION AND THEN TURNED

BACK TO THE “LPG” POSITION.

9. Move the choke lever to the “RUN” position.

NOTICE

of muffler outlet.

Do not place LPG cylinder in the path

8. Move the choke lever to the “RUN” position.

8. Flip the engine switch to the "START"(ll) position

for few seconds and then release.

Page 24

English Customer Service: 1-844-FIRMAN1

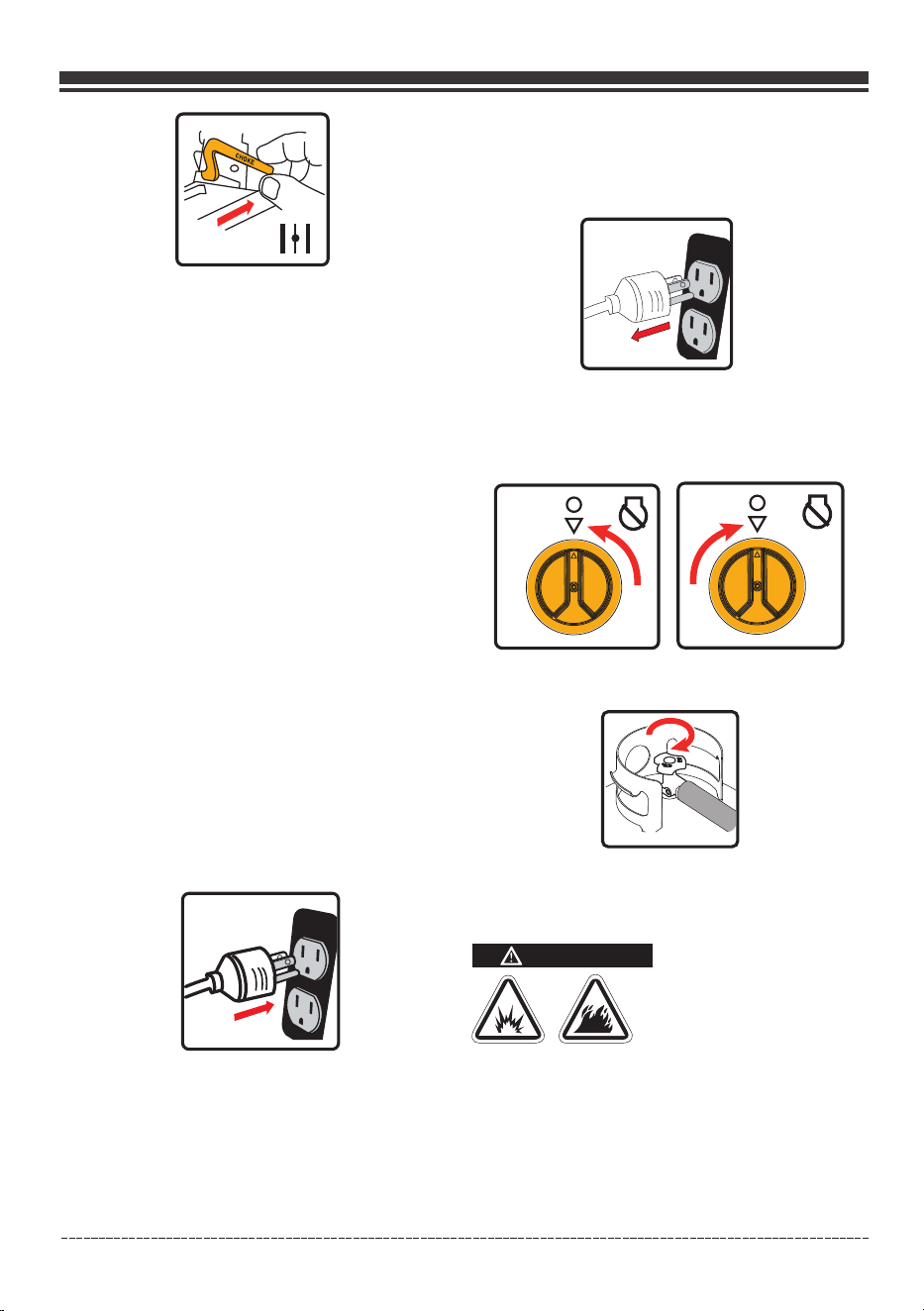

Stopping the Engine

1. Turn off and remove entire electrical loads.

Never start or stop the generator with

electrical devices plugged in or turned on.

Let the generator run at no-load for two

minutes to stabilize internal temperatures

of the engine and generator.

2. Turn the fuel selector switch to OFF (O)position.

GAS LPG

10. Allow generator to run at no load for few

minutes upon each initial start-up to permit

engine and generator to stablize.

Connecting Electrical Loads

This unit has been pretested and adjusted to

handle its full capacity. Before starting the

generator, disconnect all load. Apply load only

after generator is running. Voltage is regulated

via the engine speed adjusted at the factory for

correct output. Readjusting will void warranty.

1.Let engine stabilize and warm up for a few

minutes after starting.

2.Ensure circuit breaker on control panel is in

on position.

3.Plug in and turn on the desired 120 Volt

AC, single phase, 60Hz electrical loads. It is

better to attach the item with largest load first.

When applying a load, do not exceed the maximum

wattage rating of the generator when using one or

more receptacles. Also, do not exceed the amperage

rating of any one receptacle.

Do not apply heavy electrical load during break-in

period (the first five hours of operations).

3. Fully close the LPG cylinder knob.

NOTICE

If a cover is used, do not install until unit has cooled.

WARNING

Fuel and its vapors are extremely flammable and

explosive which could cause burns, fire or

DO NOT stop engine by moving choke control

to “START” position.

explosion resulting in death, serious injury.

NOTICE

generator during transportation.

Disconnect the LPG cylinder from the

NOTICE Always ensure that the

is in the “OFF” position when the engine

is not in use.

fuel selector

switch

Page 25

English Customer Service: 1-844-FIRMAN1

If the engine will not be used for a period of two

weeks or longer, please see the Storage section

for proper engine and fuel storage.

This generator is equipped with an electronic

module which consumes battery power. When

the fuel selector switch is turned to the “GAS” or

“LPG” position, the indicator light will become

RED up to 4 minutes(before goes off).

Indicator light - Battery Power Saving Mode

The indicator light will start FLASHING for 4

minutes in the event of any unwanted shutdown

such as low oil, running out of fuel(gasoline or LPG),

or any other unwanted shutdown. This is a reminder

that the generator is switching to Battery Power

Saving Mode. The generator should be checked

Starting the engine successfully during these 4

minutes will turn the indicator light GREEN.

Starting the engine unsuccessfully or not attempting

to start the engine at all during these 4 minutes will

switch generator to Battery Power Saving Mode in

order to conserve and increase the life of battery.

MUST HAVE SOLID RED INDICATOR LIGHT TO

BE ABLE TO START THE GENERATOR. THE GENERATOR

CANNOT BE STARTED DURING BATTERY POWER

SAVING MODE UNLESS THE FUEL SELECTOR SWITCH

IS TURNED TO THE “OFF” POSITION AND THEN

TURNED BACK TO THE “GAS” OR “LPG” POSITION.

Unwanted Shutdown:

The generator cannot be started during or after

the 4 minutes of FLASHING mode unless the fuel

selector switch is turned to the "OFF" position and

then turned back to the “GAS” or “LPG” position.

for any unwanted shutdown.

This generator is equipped with an automatic

battery charging circuit and the battery will

receive a proper charge when the engine is

running to keep the battery charged.

Low Oil Shutdown

If the engine oil drops below a preset level, an

oil switch will stop the engine. Check oil level

with dipstick.

If oil level is between LOW and HIGH mark on

dipstick:

1.DO NOT try to restart the engine.

2.Contact an Authorized FIRMAN Service Dealer.

3.DO NOT operate engine until oil level is

corrected.

If oil level is below LOW mark on dipstick:

1.Add oil to bring level to HIGH mark.

2.Restart engine and if the engine stops again

a low oil condition may still exist. DO NOT try

to restart the engine.

3.Contact an Authorized FIRMAN Service Dealer.

4.DO NOT operate engine until oil level is

corrected.

Do Not Overload Generator

Overloading a generator in excess of its rated

wattage capacity can result in damage to the

generator and to connected electrical devices.

To prolong the life of your generator and

attached devices, follow these steps to add

electrical load:

1. Start the generator with no electrical load

attached.

2. Allow the engine to run for several minutes

to stabilize.

3. Plug in and turn on the first item. It is best to

attach the item with the largest load first.

4. Allow the engine to stabilize.

5. Plug in and turn on the next item.

6. Allow the engine to stabilize.

7. Repeat steps 5-6 for each additional item.

NOTICE

Page 26

English Customer Service: 1-844-FIRMAN1

Observing frost on LPG and regulators

is common during operation and normally is not

an indication of a problem. As LPG vaporizes and

travels from the tank to the generator engine it

expands. The amount of frost that forms can be

affected by the size of the cylinder, the amount

of fuel being used, the humidity of the air and other

operating conditions. In unusual situations this

frost may eventually restrict the flow of LPG gas

cylinders

to the generator resulting in deteriorating

performance. For example, if the tank temperature

is reduced to a very low level then the rate at which

the LPG vaporizes is also reduced and may not

provide sufficient fuel flow to the engine. This is

not an indication of a problem with the generator

but only a problem with the flow of gas from the

LPG cylinder. If generator performance seems

to be deteriorating at the same time that ice

formation is observed on tank valve, hose or

regulator then some actions may be taken to

eliminate this symptom. In these rare situations

it can be helpful to reduce or eliminate the cold

fuel system effects by doing one of the following:

The LPG cylinder can be temporarily warmed

by pouring warm water over the top of the

cylinder.

Exchanging fuel tanks to allow the first tank

to warm up, repeating as necessary

•

Placing the LPG cylinder at the end of the

generator near the handle, where engine fan

air flows out from the generator. This air is

slightly heated by flowing over the engine.

•

DO NOT PLACE THE LPG CYLINDER IN THE PATH

OF MUFFLER OUTLET.

Muffler

NOTICE

WARNING

Page 27

English Customer Service: 1-844-FIRMAN1

√

Check for damage and leaks.

Replace if necessary.

LPG Regulator

/Hose Assy.

MAINTENANCE AND STORAGE

MAINTENANCE SCHEDULE

General Recommendations

Regular maintenance will improve the performance and extend the life of the generator. See any

authorized dealer for service.

The generator's warranty does not cover items that have been subjected to operator abuse or

negligence. To receive full value from the warranty, the operator must maintain the generator as

instructed in this manual.

Some adjustments will need to be made periodically to properly maintain your generator.

All service and adjustments should be made at least once each season. Follow the requirements

in the Maintenanc Shedule chart above.

Once a year you should clean or replace the spark plug and replace the air filter. New

spark plugs and clean air filter assure proper fuel-air mixture and help your engine run better

and last longer.

ITEM NOTES

Daily(Before

operation)

Initial

25 hours

Every

50 hours

Every

100 hours

(or annual)

Fittings/

Fasteners

Spark Plug

Engine Oil

Air Filter

Fuel Line

Exhaust

System

Engine

Check condition. Adjust gap

and clean. Replace if necessary.

Check oil level.

Clean, replace if necessary.

Check for leakage. Retighten or

replace gasket if necessary.

Check adjust valve clearance.

Clean combustion chamber.

Check. Replace if necessary.

Check fuel hose for cracks or other

damage. Replace if necessary.

√

Replace.

Check spark arrester screen.

Clean/Replace if necessary.

Every

250 hours

√

To be performed by knowledgable/experienced owner or by authorized service center.

*

Fuel Filter

Clean fuel filter and fuel tank

strainer. Replace if necessary.

√

NOTICE

Page 28

English Customer Service: 1-844-FIRMAN1

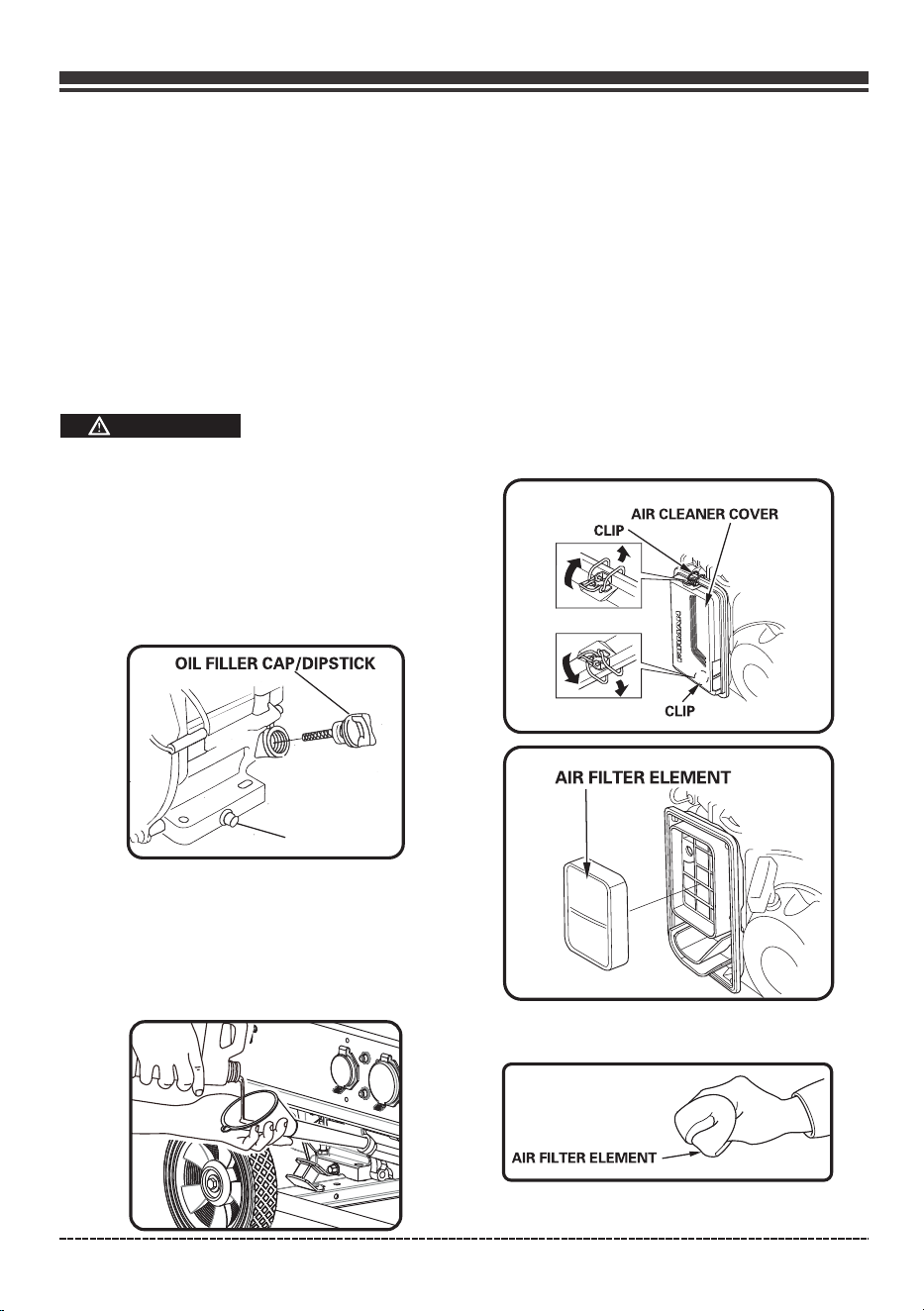

ENGINE MAINTENANCE

Air Filter Maintenance

Use fresh and high quality lubricating oil to the

specified quantity.

If contaminated or deteriorated oil is used or

the quantity of the engine oil is not sufficient,

the engine damage will result and its life will be

greatly shortened.

Change Engine Oil

To prevent accidental starting, remove and

ground spark plug wire before performing any

service.

If you are using your generator under extremely

dirty or dusty conditions, or in extremely hot

weather, change the oil more often.

Avoid prolonged or repeated skin contact with

used motor oil.

CAUTION

Used motor oil has been shown to cause skin

cancer in certain laboratory animals.

Thoroughly wash exposed areas with soap

and water.

•

(a) Drain oil by removing the drain plug and the

oil filler cap while the engine is warm.

Change engine oil every 100 hours.

(for a new engine, change oil after 25 hours.)

DRAIN PLUG

Please use a container to dump the

used oil for protecting the environment.

(b) Reinstall the drain plug and fill the engine

with oil until it reaches the HIGH(H) level on the

oil filler cap.

Maintaining an air filter in proper condition is

very important. Dirt induced through improperly

installed, improperly serviced, or inadequate

elements damages and wears out engines.

Always keep the element clean.

(a) Take out the air cleaner, clean it well in

kerosene and dry it.

(b) After wetting the element by clean engine

oil squeeze it tight by hand.

(c)Lastly, put the element in the case and install

it securely.

NOTICE

AIR

CLEANER

COVER

CLIP

OIL

FILLER

CAP~ICK

/

CLIP

AIR FILTER ELEMENT

8J

AIR

FILTER

ELEMENT

Page 29

English Customer Service: 1-844-FIRMAN1

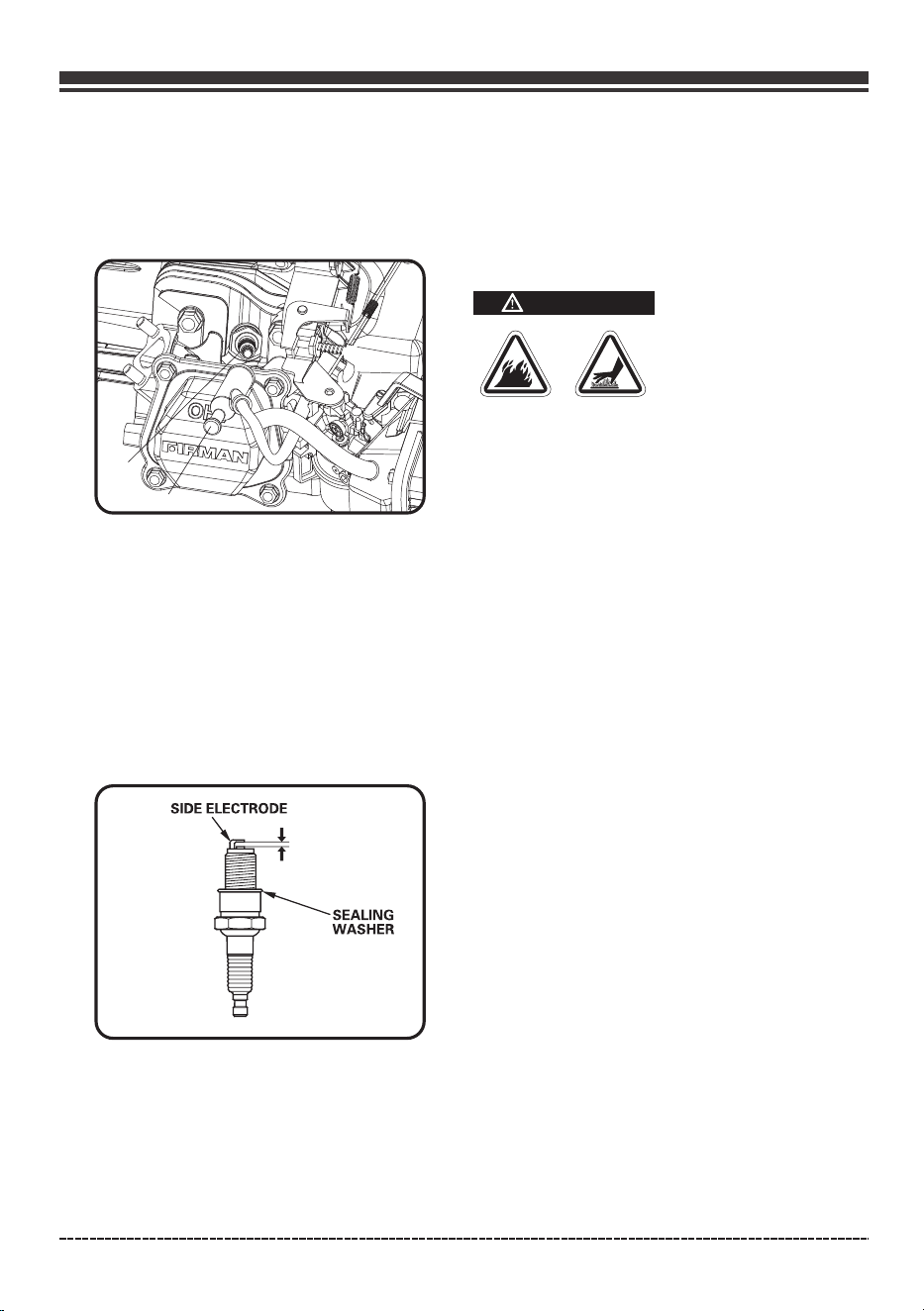

Spark Plug Maintenance

Changing the spark plug will help your engine

to start easier and run better.

(a) Remove the spark plug cap.

(d) Adjust the electrode gap to

( ).

0.028” to 0.031”

0.7 to 0.8 mm

(e) Seat spark plug in position and thread by

hand to prevent cross threading.

(f) Tighten plug with provided wrench and put

the cap back on spark plug.

SPARK PLUG: TORCH F6RTC

NGK BPR6ES

CHAMPION RN9YC or equivalent.

(b) Remove spark plug using provided wrench.

Inspect spark plug for damage and clean

with a wire brush before reinstalling

Inspect Muffler and Spark Arrester

Inspect the muffler for cracks, corrosion, or

other damage. Remove the spark arrester, if

equipped, and inspect for damage or carbon

blockage. If replacement parts are required,

make sure to use only original equipment

replacement parts.

Exhaust heat/gases could ignite combustibles,

structures or damage fuel tank causing a fire,

resulting in death or serious injury. Contact

with muffler area could cause burns resulting

in serious injury.

WARNING

A

B

A- Spark plug

B- Spark plug cap

c) (

DO NOT touch hot parts and AVOID hot exhaust

gases.

Allow equipment to cool before touching.

Keep at least 5 feet (1.5 m) of clearance on all

sides of generator including overhead.

Replacement parts must be the same and

installed in the same position as the original

parts.

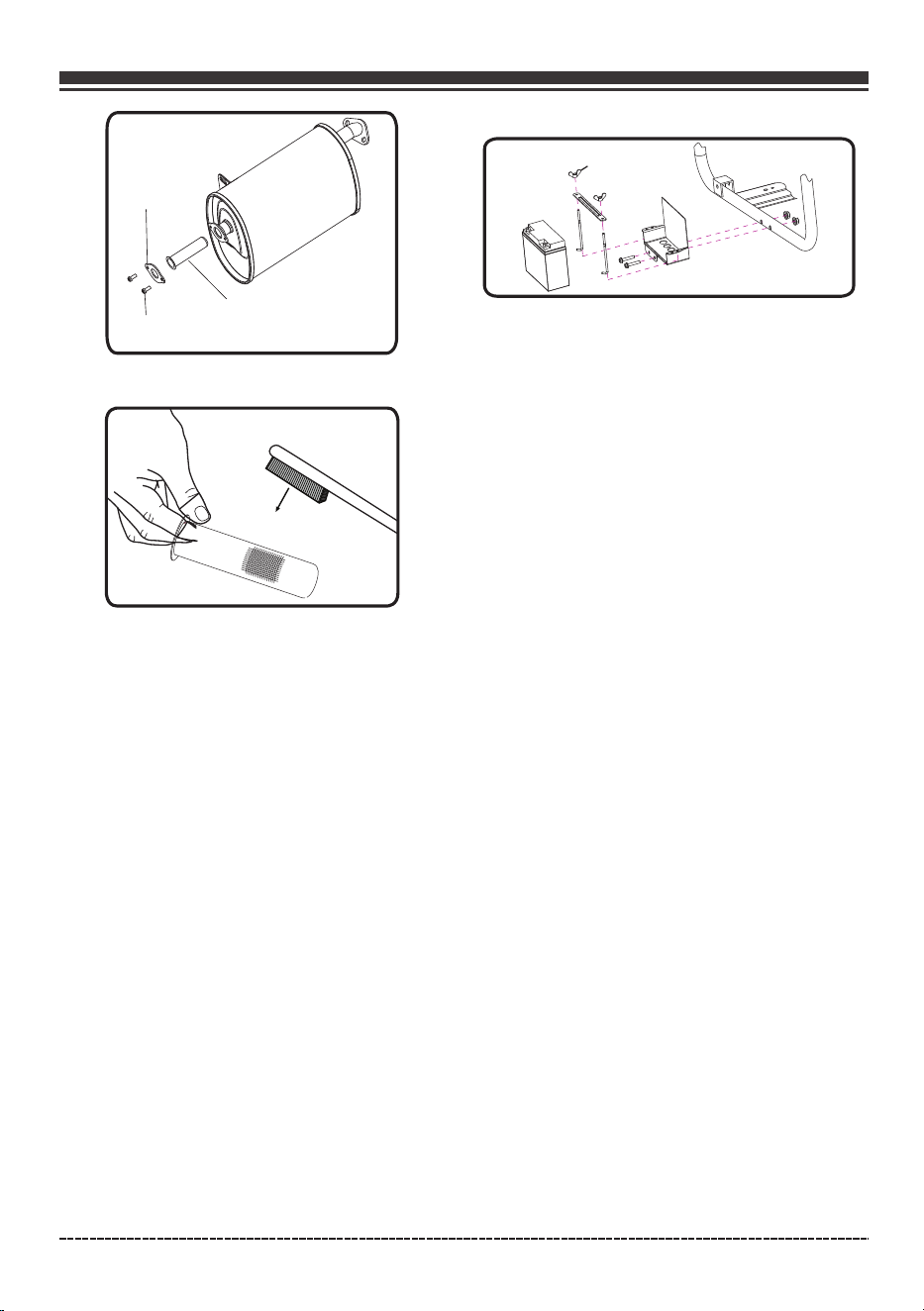

Clean or replace spark arrester as follows:

1. Allow the engine to cool completely before

servicing the spark arrester.

2. Remove the screws securing the spark arrester

in place and the remove it from muffler.

•

Depending on the type fuel used ,the type and

amount of lubricant used, and/or your operating

conditions, the exhaust part and muffler may

become blocked with carbon deposits. If you

notice power loss, you may need to remove these

deposits to restore performance.

Maintenance Valve Clearance

- Intake: ( )

- Exhaust: 0.004 - 0.006 in. (0.1 - 0.15 mm)

0.004 - 0.006 in. 0.1 - 0.15 mm

0.028-0.031 in

(0.7-0.8 mm)

SIDE ELECTRODE

SEALING

WASHER

~

Page 30

English Customer Service: 1-844-FIRMAN1

3. Carefully remove the carbon deposits from

the spark arrester screen with a wire brush.

Failure to clean the spark arrester will result in

degraded engine performance.

GENERATOR MAINTENANCE

Make certain that the generator is kept clean

and stored properly. Only operate the unit on

a flat, level surface in a clean, dry operating

environment. DO NOT expose the unit to

extreme conditions, excessive dust, dirt,

moisture or corrosive vapours.

DO NOT use a garden hose to clean the generator.

Water can enter the generator through the cooling

slots and damage the generator windings.

Use a damp cloth to clean exterior surfaces of

the generator.

Use a soft bristle brush to remove dirt and oil.

Use an air compressor 25 PSI (172 kPa) to clear

dirt and debris from the generator.

Inspect all air vents and cooling slots to ensure

that they are clean and unobstructed.

4. Replace the spark arrester if it is damaged.

5. Position the spark arrester in the muffler and

attach with the screws.

Spark arrester

screen

Flange

Screw

Battery Replacement

1. Remove the spark plug wire from spark plug.

2. Remove the nut and bolt from the negative(-)

and positive(+) posts.

3. Loosen and remove the screw A on the battery

holding bracket.

4. Remove the battery and recycle and dispose

of properly.

12V sealed lead acid 15AH

LXWXH:7.09X2.95X6.5 in. (180X75X165 mm)

6. Connect the red positive(+) battery cable to

the battery first.

7. Connect the black positive(-) battery cable

to the battery second.

8. Cover the post with boots.

9. Install the spark plug wire onto spark plug.

5. Install the new battery with follwoing specification:

A(M6)

ALWAYS connect the positive (+) battery cable

(red boot) first when connecting battery cables.

ALWAYS disconnect the negative (-) battery

cable (black boot) first when disconnecting

battery cables.

NEVER connect the negative (-) battery cable

(black boot) to the positive (+) post on the

battery.

NEVER connect the positive (+) battery cable

(red boot) to the negative (-) post on the battery.

NEVER touch both battery posts simultaneously.

NEVER place a metal tool across both battery

posts.

ALWAYS use insulated or nonconducting tools

when installing the battery.

NOTICE

Page 31

English Customer Service: 1-844-FIRMAN1

SERVICE AND STORAGE

Infrequent Service

If the unit is used infrequently, difficult starting

may result. To eliminate hard starting, follow

these instructions:

1. Run the generator at least 30 minutes every

month.

2. Run the generator, then close the fuel shut-off

valve and allow the unit to run until the engine

stops.

3. Move the fuel selector to the "OFF" position.

Long Term Storage

It is important to prevent gum deposits from forming

in essential fuel system parts such as the carburetor,

fuel hoses or tank during storage. Also, experience

indicates that alcohol-blended fuels (called gasohol,

ethanol or methanol) can attract moisture, which

leads to separation and formation of acids during

storage. Acidic gas can damage the fuel system of

an engine while in storage.

When the generator set is not being operated,

or is being stored for more than one month, follow

these instructions to avoid engine problems:

1-ADD a properly formulated commercially FUEL

STABILIZER to the tank if it is not already added.

2-Operate the engine for 5-10 minutes to circulate

treated fuel into fuel lines and carburetor before

shutdown.

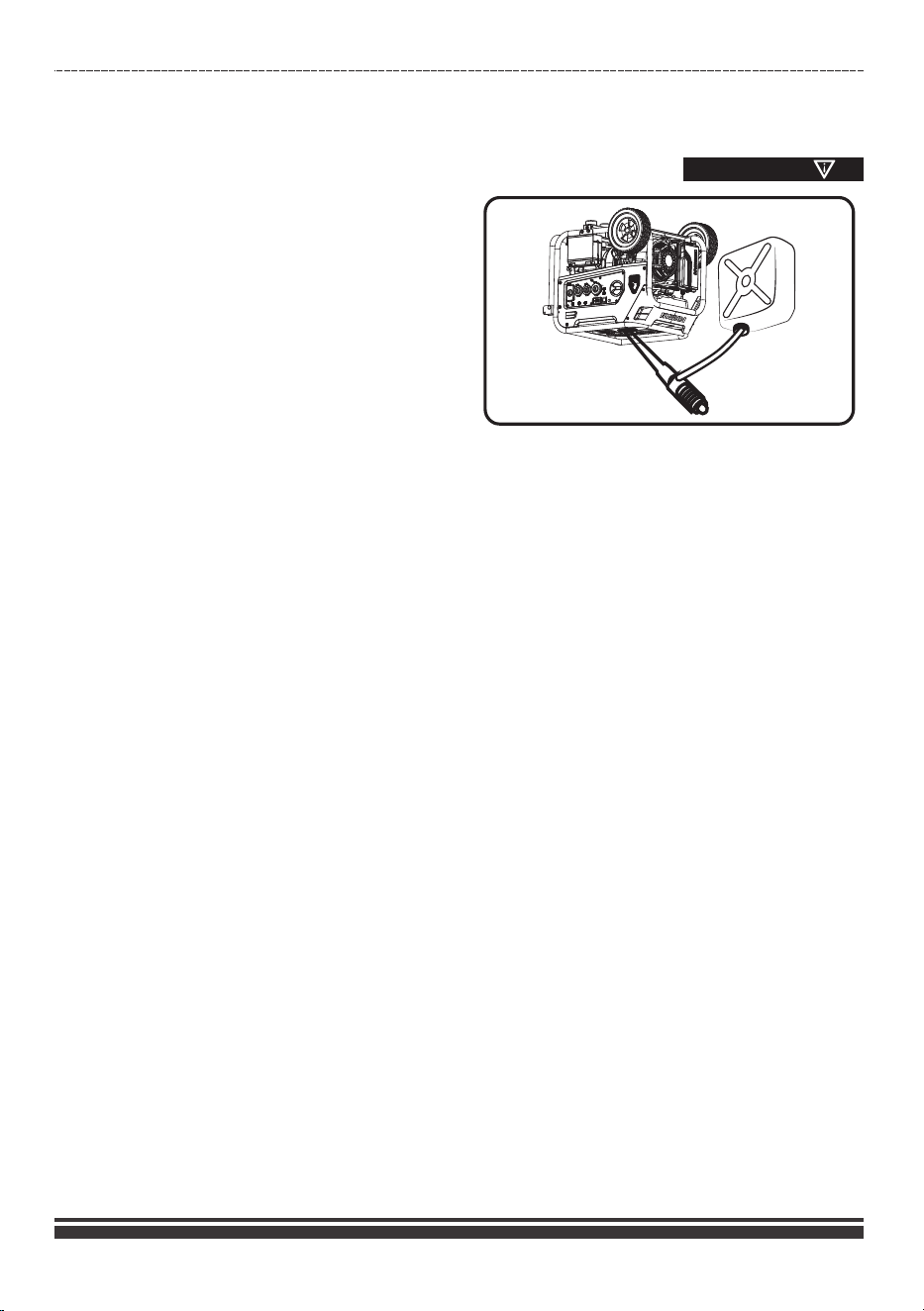

3- After engine cools down, remove all gasoline

from the fuel tank. Use a commercially available,

non-conductive vacuum siphon.

Drain fuel into approved container outdoors,

away from open flame. Be sure engine is cool.

Do not smoke.

4-FUEL STARVATION: Turn fuel selector switch

to “GAS” position. Start and run the generator until it

stops from lack of gasoline. This will dry out all

remaining gasoline in tank, fuel lines and carburetor.

5-Turn fuel selector switch to “OFF” position.

Fully close the LPG cylinder knob if it is open and

disconnect LPG cylinder from the generator.

6-Allow the unit to cool entirely before cleaning

and storage.

7-Change oil with recommended grade oil.

8-Remove spark plug and pour about one teaspoon

of engine oil through the spark plug hole, then pull

the recoil starter several times to distribute the oil for

lubricating the cylinder. Reattach the spark plug.

Pull recoil slowly until resistance is felt. This will

close the valves so moisture cannot enter engine

9-Cover the unit and store in a clean, dry place

out of direct sunlight. NEVER USE WATER TO

CLEAN GENERATOR.

cylinder. Gently release recoil starter.

We recommend always using a fuel stabilizer.

A FUEL STABLIZER will minimize the formulation

of fuel gum deposits during storage, the fuel

stabilizer can be added to the gasoline in the

fuel tank, or into the gasoline in a storage

container.

•

If it is not practical to empty the fuel tank and

the unit is to be stored for some time, use a

commercially available FUEL STABILIZER added

to the gasoline to increase the life of the gasoline.

Run the unit for 5-10 minutes ,turn off the

fuelvalve and allow to run until engine stops from

lack of fuel (FUEL STARVATION).

•

Any damages or hazards caused by using

improper fuel, improperly stored fuel, and/

or improperly formulated stabilizers, are not

Do not store gasoline from one season to

another season.

•

covered by manufacturer's warranty.

•

WARNING

NOTICE

~

Page 32

English Customer Service: 1-844-FIRMAN1

WARNING

Generator exhaust contains odorless and

colorless carbon monoxide gas.

To avoid accidental or unintended ignition of

your generator during periods of storage, the

following precautions should be followed:

When storing the generator for short or extended

periods of time make sure that the fuel selector

switch is in the “OFF” position and the battery

leads have been disconnected from the battery.

The battery powers up the starter motor and the control

module in this generator. This product is equipped with

an automatic battery charging circuit. The battery will

receive charging voltage when the engine is running.

The battery will maintain a proper charge if the unit is

used on a regular basis (about once every two weeks).

If it is used less frequently, the battery should be connected

to a trickle charger (not included) or battery maintainer (not

included) to keep the battery properly charged. If the

battery is not able to start the engine, it can be started

manually only on “GAS” position by pulling the engine

recoil cord. If the battery voltage is extremely low, the

charging circuit may not be able to re-charge the battery.

In this case, the battery must be connected to a standard

automotive style battery charger for re-charging before

it can be used.

Battery Charging & Maintenance

TROUBLE SHOOTING

Page 33

Problem Cause Correction

Engine is running, but no

AC output is available.

1. Circuit breaker is open.

2. Fault in generator.

3. Poor connection or defective cord

set.

4. Connected device is bad.

1. Reset circuit breaker.

2. Contact authorized service facility.

3. Check and repair.

4. Connect another device that is in

good condition.

Engine runs good at

no-load but “bogs down”

when loads are connected.

1. Short circuit in a connected load.

2. Engine speed is too slow.

3. Generator is overloaded.

4. Shorted generator circuit.

1. Disconnect shorted electrical load.

2. Contact authorized service facility.

3. See Don't Overload Generator

4. Contact authorized service facility.

Engine will not start; starts

and runs rough or shuts

down when running.

1. Fuel selector switch set to OFF (O)

position.

3. Low oil level.

4. Dirty air cleaner.

5. Out of gasoline.

6. Stale gasoline.

7. Spark plug wire not connected to

spark plug.

8. Bad spark plug.

9. Water in gasoline.

10. Flooded.

11. Excessively rich fuel mixture.

12. Intake valve stuck open or closed.

13. Engine has lost compression.

1. Set fuel selector switch to “GAS”

or “LPG” position.

3. Fill crankcase to proper level or

place generator on level surface.

4. Clean or replace air cleaner.

5. Fill fuel tank with gasoline.

6. Drain fuel tank and carburetor; fill

with fresh gasoline.

7. Connect wire to spark plug.

8. Replace spark plug.

9. Drain gas tank and carburetor; fill

with fresh gasoline.

10. Wait 5 minutes and re-crank engine.

11. Contact authorized service facility.

12. Contact authorized service facility.

13. Contact authorized service facility.

Engine lacks power.

1. Load is too high.

2. Dirty air filter.

1. Don't Overload Generator

2. Replace air filter.

Engine“hunts”or falters.

1. Carburetor is running too rich or too lean.

1. Contact authorized service facility.

14. Clogged or dirty fuel filter.

5. Clean or replace fuel filter.

14. Clean or replace fuel filter.

3. Clogged or dirty fuel filter.

4. Clogged spark arrester.

3. Clean or replace fuel filter.

4. Clean or replace spark arrester.

2. Clogged or dirty fuel filter.

2. Clean or replace fuel filter.

Engine shuts down when

running.

1. Out of gasoline or LPG.

2. Dirty air cleaner.

3. Low oil level.

1. Fill fuel tank with gasoline or replace

LPG tank.

2. Clean or replace air cleaner.

3. Fill crankcase to proper level or place.

generator on level surface.

5. Clogged or dirty fuel filter.

15. Starting battery may have in sufficient

charge.

15. Check battery output and charge

battery as necessary.

English Customer Service: 1-844-FIRMAN1

16. Out of LPG. 16. Replace LPG tank.

17. LPG cylinder knob is not open. 17. Fully open LPG cylinder knob.

2. The indicator light is OFF or

flashing red.

2. Must have solid red indicator light

to be able to start the engine.

18. Out of battery Power. 18. Start Engine in “GAS” position.

Charge or replace battery.

Page 34

PARTS DIAGRAM AND PART LIST

H07552 PARTS DIAGRAM

English Customer Service: 1-844-FIRMAN1

"

~

"

~

""

8

~"""

"

127

1

\_

__

_/

I

)

Page 35

439cc DUAL FUEL ENGINE PARTS DIAGRAM

English Customer Service: 1-844-FIRMAN1

------------------

.....................

I

--

_,

Page 36

H07552 PARTS LIST

NO.Part Number

Qty.

English Customer Service: 1-844-FIRMAN1

Description

NO.Part Number

Qty.

Description

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

95.1

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

357713572

357713501

336713528

357713573

380713544

380713545

380713537

357713506

357713507

336713525

336713524

380713504

336713519

336713523

336713520

336713522

357713509

336713507

380713506

336713512

336713513

336713577

380713507

357713511

380713508

357713513

357713514

336713531

357713515

336713515

357713516

336713538

357713517

336713536

357713518

336713534

336713509

336713533

357713520

380713538

357713523

336713517

357713577

357713524

336713542

336713543

336713544

357713578

336713546

336713547

357713579

336713806

336713549

336713807

336713540

357713580

357713581

336713636

336713639

336713637

336713638

380713532

380713533

357713535

357713592

357713536

357713582

357713583

336713558

357713584

357713550

357713551

357713552

357713553

357713554

336713593

357713569

336713578

357713555

357713556

336713842

336713693

357713531

357713532

357713533

357713585

336713559

357713538

336713557

336713561

336713514

336713516

336713601

336713817

375713001

375713562

336713819

336713820

336713821

336713822

336713824

336713823

336713826

336713816

336713815

336713827

336713828

357713586

336713574

336713573

357713541

380713512

380713515

336713830

336713569

330713582

380713552

380713518

336713568

357713588

336713526

336713585

336713565

336713818

336713583

357713590

357713545

357713546

357713548

357713591

336713835

357713598

336713643

330713502

336713841

336713611

380413506

357413509

380413510

357413503

357413506

336713590

336713844

357713596

357713597

357713607

380447001

Rubber Cap B

Flange Bolt M6×8

Generator Wind Shield

Rotor Assy

Stator Assy

Stator Cover

Generator End Cover

Carbon Brush Assembly

Carbon Brush Holder

Bolt &washer Assemblies

AVR

Flange Bolt M5×16

Terminal Block

Bolt M5×16

Ground Wire

Generator End Cover Cap

Flange Bolt M5×12

Flange Bolt M6×200

Lock Washer Ø6

Washer Ø6

Nut M5

Side Cover Bolt M5×229

Lock Washer Ø5

Flange Bolt M10×285

Lock Washer Ø10

Washer Ø10

Flange Bolt M8×20

Holder, Muff

Flange Bolt M6×12

Muffler Fixed Plate A

Screw&washer Assy M5×14

Holder, Spark Arrester

Arrester, Spark

Muffler Fixed Plate B

Nut M8

Lock Washer Ø8

Flat Washer Ø8

Gskt., Ext.

Muff.,Assy.

Muffler Fixed Plate C

Nut M6

Air Filter Bracket

Rubber Cap A

Grommet, Fuel Tank

Washer Tank Buffer

Flange Bolt M6×20

Fuel Gauge Assy.

Screw M5×10

Fuel Gauge Display

Fuel Tank Assy.

Fuel Filter, Wire Mesh

Fuel Cap

Tank Fitting With Filter

Clamp Ø8×6

Hose, Fuel 1

Hose, Fuel 2

Carbon Canister Shield

Carbon Canister Bracket

Carbon Canister

Carbon Canister Holder

Vapor Hose 1

Vapor Hose 2

Axle Pin

Wheel

Cotter Pin

Plastic Front Cover

Frame

Nut M8

Flange Bolt M8×35

Wing Nut M6

Battery Pressing Bracket

Rubber Pad

Battery

Battery Holder

Flange. Bolt M8×45

Screw&washer Assy M5×10

Nut M5

Bolt, Bend Hook

Battery Red Cable +

Black Boot

Battery cable(Female 180mm)

Nut M10

Isolator 2

Isolator 1

Motor Mount

Flange. Bolt M8×16

Support Leg

Rubber, Support

Flange Bolt M6×25

Ground Wire

External Star Washer Ø6

Receptacle L14-30R

Control Module

Circuit Breaker Amp 31A

Screw&washer Assy M5×8

Tapping Screw St2.9×19

Tapping Screw St2.9×32

Micro Switch 1

Micro Switch 2

Fuel Valve

Main Regulator Assy.

LPG Inlet Cover

Screw M4×12

Fuel Selector Switch

Electric Start Switch

Indicator Light

Multi Meter

Outlet Cover TT-30R

Outlet Cover L5-30R

Outlet Cover 5-20R GFCI

Bolt M6×22

Nut M6

Tapping Screw St4.8×20

Screw&washer Assy M4×8

Screw&washer Assy M4×14

Control Panel

Receptacle 14-50R

Nut M4

5-20R Duplex GFCI

Circuit Breaker Amp 30A

Circuit Breaker Amp 20A

Screw M5×14

Charger

Receptacle L5-30R

Control Box

Grommet

Sleeve

Grommet

LPG Hose

Metal Clamp (ø8-ø14)×b8

Waterproof Cover

VF Protection Module

Screw M5×20

Red Boot

Boot, Starter

Control Panel Assy.

Wheel Kit

Rotor And Stator Set

Spark Arrestor Kit

Support Leg Assembly

Cotter Pin, Handle

Washer Ø8

Axle Pin, Handle

Handle

Battery cable(Male 180mm)

Cover

1

5

1

2

1

2

1

3

4

8

4

2

1

5

4

1

19

1

2

1

2

1

4

1

4

1

2

1

7

1

2

1

8

2

1

2

3

2

1

2

1

2

4

1

2

4

1

4

2

1

2

1

2

1

2

6

1

8

1

4

1

2

1

2

1

FIRMAN 439cc Dual Fuel Engine

FIRMAN 439cc Dual Fuel Engine Parts List

Page 37

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

NO.

Part Number

Description

Qty.

English Customer Service: 1-844-FIRMAN1

380723518

357723501

357723502

357723503

357723504

357723505

336723501

357723506

357723507

357723508

380723501

357723510

357723511

357723512

357723513

357723514

357723515

357723516

357723517

357723518

357723519

380723502

336723503

357723521

380723503

380723504

380723505

357723525

357723526

357723527

357723528

357723529

357723530

357723531

336723528

336723529

357723532

336723556

357723533

357723534

357723535

336723537

357723536

357723537

357723538

380723506

380723507

380723508

357723542

357723543

357723544

380723509

357723546

357723547

357723548

357723549

357723550

357723551

NO.

Part Number

Description

Qty.

380723515

357723554

357723555

336723555

357723556

357723557

380723516

357723559

357723560

357723561

357723562

357723563

357723564

336723567

357723565

357723566

336723564

357723567

357723568

357723569

336723606

357723570

357723571

357723572

336723612

380723511

380723519

357723575

380723512

357723577

357723578

357723579

357723580

357723581

357723582

336723589

336723590

336723591

336723592

336723593

330723528

357723584

336723597

357723585

336723595

357723586

357713520

357423500

357423501

357423508

357423509

380423501

380423502

336723615

1

2

1

2

1

2

7

1

2

1

8

1

2

1

4

1

2

1

2

1

2

1

2

1

3

1

6

1

2

1

2

1

3

1

2

1

2

Crankcase Comp.

Bolt,drain

Washer,drain Bolt

Oil Level Sensor

Flg. Bolt M6×15

Bearing

Locating Pins

Bearing

Balance Shaft

Camshaft Comp

Crankshaft

Gear,Crank Shaft

Gear,Drive

Gskt.,Crankcase Cover

Oil Dipstick Assy

Cover,Crankcase

Oil Seal

Flange Bolt M8×40

Conn, Rod Comp

Piston Pin Retainer Ring

Wrist Pin

Piston

Flange. Bolt M6×12

Air Guide Lower

Ring, Oil

Ring, Second Piston

Ring, First Piston

Gasket, Valve Cover

Valve Cover Assy

Bolt

Exhaust Valves Stud Bolt

Breather Tube

Flg. Bolt M10×80

Rotator, Exhaust Valve

Locknut

Adjusting Nut, Valve

Valve Rocker

Spark Plug

Retainer, Intake Valve

Retainer, Exhaust Valve

Spring,Valve

Bolt, Rocker Arm

Oil Seal, Valve

Retainer, Valve

Guide Plate, Push Rod

Cylinder Head

Valve,Intake

Valve, Exhaust

Push Rod

Lifter, Valve

Locating Pins

Gasket,cyl.head

Air Cleaner Holder

Nut M6

Air Intake Stud Bolt

Gskt.,Insulator

Insulator, Carburetor

Gskt.,Carburetor

Carburetor

Gskt., Air Cleaner

Elbow, Air Cleaner

Nut M6

Clapboard

Nut M5

Element, Air Cleaner

Cover, Air Cleaner

Wind Guide, Top

Spring, Governor

Spring, Throttle Return

Rod, Governor

Arm, Governor

Bolt, Governor Arm

Pin, Shaft

Oil Seal

Rocker Shim

Shaft, Governor Arm

Ignition Coil

Flange Bolt M6×29

Wire Clip

Fan Cover Comp

Nut, Shaft

Pulley, Starter

Sheath, Wire

Cooling Fan

Flywheel Comp

Flange Bolt M8×35

Starter Motor Assembly

Grip, Starter

Flange Bolt M6×8

Case Comp.,recoil Starter

Spring,starter Return

Cord

Pulley,recoil Starter

Spring,patchet

Patchet,starter

Pawl Guide

Clip Sprg.,pawl Guide

Screw,pawl Guide

Wire Clip

Bushing, Govorner Gear

Clip, Govorner Gear

Gear, Governor

Inner Washer,gear

Gov., Gear Shaft

Gskt., Ext.

Recoil Starter Set

Governing Gear Set

Air Cleaner Set

Carburetor Set

Piston Rings Set

Gasket Set

Lock Washer

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

Page 37

English Customer Service: 1-844-FIRMAN1

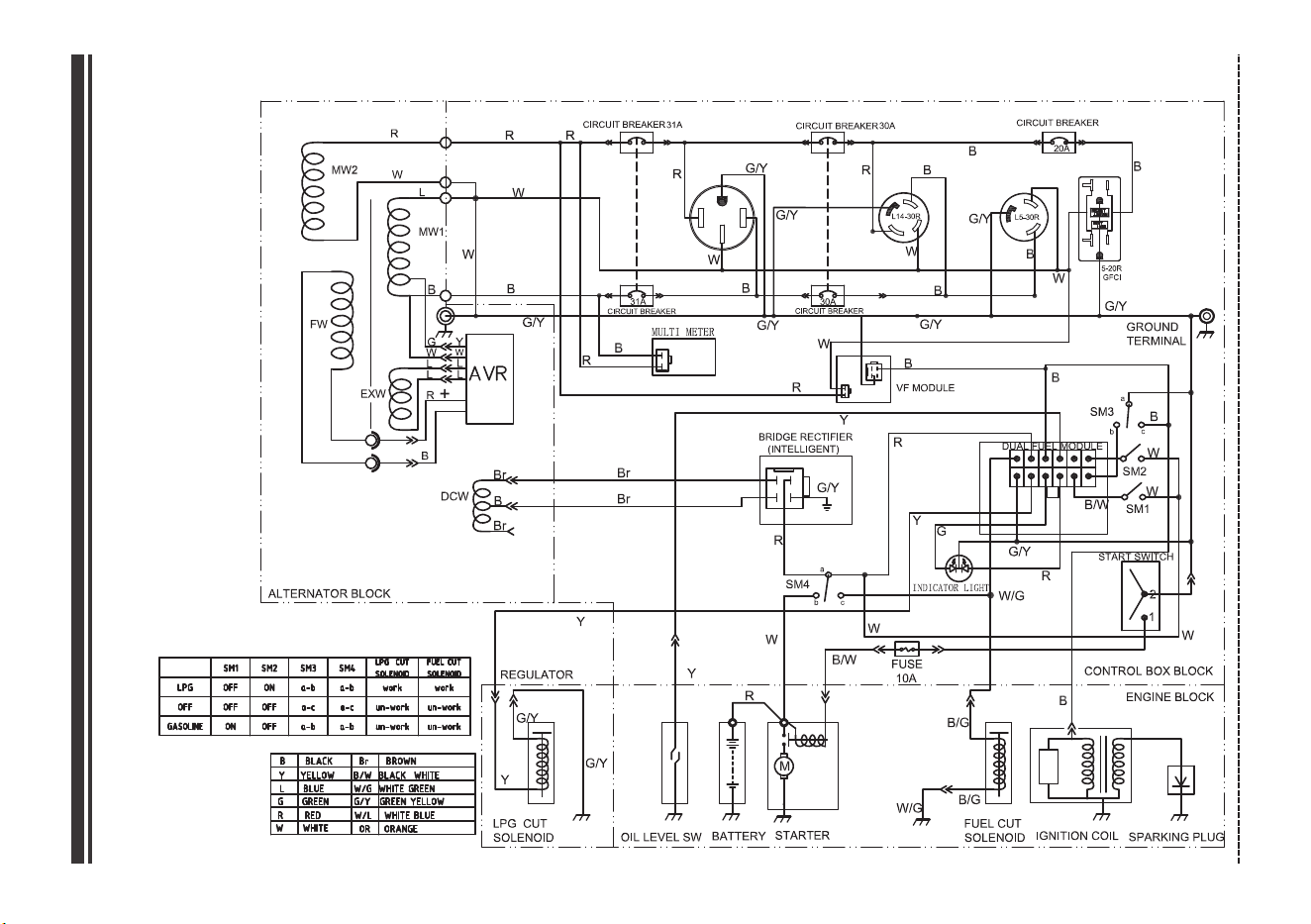

Wiring Diagram

SH1

LPG

Off

Off Off

GASOIN

ON

,----1-

CIRCUIT BREAKER31A

CIR~EAKER30A

CIRC~AKER

7

R

.l

R

B

R

B

~

CIK{.;UI I t:IKl::AKl::K

VIK!.A

/1

1

t:IKcAM:K

GN

(j

GM

GROUND

I:

Exw•=i

_qAVR

I

X:

, H +

Br

DCW~E

Br

I I

I

R

BRIDGE

RECTIFIER

(INTELLIGENT)

R

TERMINAL

B

I

~LTERNATORBLOCK

..

-··-

·-··-

I_.

SM4

I

y

w

J

I

·1·

5142 5143

5144

REGULAT~

..

--t

Y

ON

a-b

.....

work

OFF

,_,

1-C

un-work

·---

i!~OJ

}Mi

OFF

a-b

.....

un-vorh

·---

BLACK

Br

BROWN

Y

7YELLOW

8/W

Ill

ACK

WHITE

L I

BLUE

W/G

•IITE

GREEN

G

GREEN

G/Y

r.AEEN

YllLOW

R I

RED

W/L

WHITE

BLUE

W

jWHITE

OR

ORANGE

~

OLENOID

_jOIL

LEVEL SW BATTERY STARTER

··-

·-··

··-··-

·-··-··-··-

CONTROL BOX BLOCK I

l

'

BI

ENGINE

BLociZl

ITTlh

WIG

~

!

C FUELCUT

.. _

..

__

SOLENOID IGNITION

COIL_

SPARKING_

P~

Page 38

SERVICE INFORMATION

CONTACT THE

FIRMAN

PRODUCT SERVICE

DEPARTMENT AT

1-844-347-6261

or at

to obtain warranty service

information or to order

replacement parts or

accessories.

www.firmanpowerequipment.com

HOW TO ORDER REPLACEMENT PARTS

1. Model No. ,Rev. Level and Serial No. and all

specifications shown on the Model No./Serial

No. plate.

2. Parts number or numbers as shown in the

Parts List section.

3. A brief description of the trouble with the

generator.

REGISTER YOUR PRODUCT

Register your Firman generator online

at www.firmanpowerequipment.com

WARRANTY

Do Not Return the Unit to the Place

of Purchase

Contact the FIRMAN Service Center and FIRMAN

will troubleshoot any issue via phone or e-mail.

If the problem is not corrected by this method,

FIRMAN will, at its option, authorize evaluation,

repair or replacement of the defective part or

component at a FIRMAN Service Center. FIRMAN

will provide you with a case number for warranty

service. Please keep it for future reference.

Repairs or replacements without prior authoriz

-ation, or at an unauthorized repair facility, will

not be covered by this warranty.

Normal Wear

Your product needs periodic parts and service

to perform well. This warranty does not cover

repair when normal use has exhausted the life

of a part or the equipment as a whole.

English Customer Service: 1-844-FIRMAN1

FIRMAN Three(3) Years Limited Warranty

Repair/Replacement Warranty

FIRMAN warrants to the original purchaser that

the mechanical and electrical components will be

free of defects in material and workmanship for

a period of one(1) year(parts and labor) and three(3)

years (parts and technical support) from the original

date of purchase 90 days [parts and labor] and

180 days [parts] for commercial & industrial use.

Transportation charges on product submitted for

repair or replacement under this warranty are the

s o l e r e s p o n s i b i l i t y of t h e p u r c h a s e r .

This warranty only applies to the original purchaser

and is not transferable.

Even

quality

built

equipment

such

as

the

electric

generator

you

have

purchased

might

need

occasional

replacement

parts

to

maintain

it

in

good

condition

over

the

years.

To

order

replacement

parts, please

give

the

following

information:

Warranty Qualifications

FIRMAN

GENERATOR

will register the warranty upon

receipt

of

your Warranty Registration

Card

and

a

copy

of

your

sales

receipt from one

of

FIRMAN's

retail locations

as

proof

of

purchase.

Please

submit

your warranty registration

and

your proof

of

purchase

within ten

(10)

days

of

the date

of

purchase.

Warranty

Exclusions

This

warranty

does

not

cover

the

following

repairs

and

equipment:

Page 39

We are FIRMAN POWER - And we are here for you.

English Customer Service: 1-844-FIRMAN1

Contact Information

You may contact FIRMAN at:

Address

Firman Power Equipment Inc.

Attn: Customer Service

8716 West Ludlow Dr. Suite #6

Peoria, AZ 85381

www.firmanpowerequipment.com

Installation, Use and Maintenance

This warranty will not apply to parts and/or labor

if your product is deemed to have been misused,

neglected, involved in an accident, abused,

loaded beyond the generator's limits, modified,

installed improperly or connected incorrectly to

any electrical component.

Normal maintenance is not covered by this

warranty.

Other Exclusions

This warranty excludes:

– cosmetic defects such as paint, decals, etc.

– wear items

– accessory parts

– failures due to acts of God and other force

majeure events beyond the manufacturer’s

control

– problems caused by parts that are not original

FIRMAN parts

– units used for prime power in place of existing

utility power where utility is present or in place

of utility power where utility power service does

not normally exist.

Limits

of

Implied Warranty and

Consequential

Damage

FIRMAN disclaims any

obligation

to

cover any

loss

of

time,

use

of

this

product,

freight,

or

any

incidental

or

consequential

claim by anyone

from

using

this

product.

THIS WARRANTY

IS

IN

LIEU

OF

ALL

OTHER

WARRANTIES,

EXPRESS

OR

IMPLIED,

INCLUDING

WARRANTIES

OF

MERCHANTABILITY

OR FITNESS FOR A

PARTICULAR

PURPOSE.

A

unit

provided

as

an

exchange

will

be

subject

to

the

warranty

of

the

original

unit.

The

length

of

the

warranty

governing

the

exchanged

unit

will

remain calculated by reference

to

the

purchase

date

of

the

original

unit.

This

warranty

gives

you

certain

legal

rights

which

may

change

from

state

to

state.

Your

state

may

also

have

other

rights

you

may

be

entitled

to

that

are

not

listed

within

this

warranty.

Page 40

English Customer Service: 1-844-FIRMAN1

CALIFORNIA AND FEDERAL EXHAUST AND EVAPORATIVE EMISSIONS CONTROL WARRANTY STATEMENT

YOUR WARRANTY RIGHTS AND OBLIGATIONS

FIRMAN POWER EQUIPMENT INC.

Emission Control System Warranty

The warranty period begins on the date the engine/equipment is delivered to an ultimate purchaser. FIRMAN warrants to the ultimate

purchaser and each subsequent purchaser that the engine is:

Designed, built, and equipped so as to conform with all applicable regulations adopted by the Air Resources Board and US EPA;

and Free from defects in materials and workmanship that cause the failure of a warranted part to be identical in all material

respects to the part as described in the engine manufacturers application for certification.

The warranty on emissions-related parts is as follows:

(1) Any warranted part that is not scheduled for replacement as required maintenance in the owner's manual supplied, is

warranted for the warranty period stated above. If any such part fails during the period of warranty coverage, the part will be

repaired or replaced by FIRMAN at no charge to the owner. Any such part repaired or replaced under the warranty will be

warranted for the remaining warranty period.

(2) Any warranted part that is scheduled only for regular inspection in the owner's manual supplied, is warranted for the warranty

period stated above. Any such part repaired or replaced under warranty will be warranted for the remaining warranty period.

(3) Any warranted part that is scheduled for replacement as required maintenance in the owner's manual supplied, is warranted

for the period of time prior to the first scheduled replacement point for that part. If the part fails prior to the first scheduled

replacement, the part will be repaired or replaced by FIRMAN at no charge to the owner. Any such part repaired or replaced

under warranty will be warranted for the remainder of the period prior to the first scheduled replacement point for the part.

(4) Repair or replacement of any warranted part under the warranty must be performed at no charge to the owner at a warranty

station.

(5) Notwithstanding the provisions of Subsection (4) above, warranty services or repairs must be provided by FIRMAN that

are franchised to service the subject engines.

(6) The owner must not be charged for diagnostic labor that leads to the determination that a warranted part is in fact defective,

provided that such diagnostic work is performed at a warranty station.

(7) FIRMAN is liable for damages to other engine components proximately caused by a failure under warranty of any

warranted part.

MANUFACTURER'S WARRANTY COVERAGE:

The exhaust and evaporative emissions control system on your is warranted

for two years. If any emissions-related part on your small off-road engine and engine powered equipment is defective, the part will

be repaired or replaced by FIRMAN.

small off-road engine and engine powered equipment

The California Air Resources Board, US Environmental Protection Agency (“US EPA”) and FIRMAN POWER EQUIPMENT

INC.(FIRMAN) are pleased to explain the emissions control systems warranty on your 2021-2022 or later Small Off-Road

Engine (“SORE”) and engine powered equipment. In California, new equipment that use small off-road engines must be

designed, built and equipped to meet the State’s stringent anti-smog standards. FIRMAN must warrant the emissions control

systems on your SORE and engine powered equipment for the periods of time listed below provided there has been no abuse,

neglect or improper maintenance of your small off-road engine or equipment leading to the failure of the emissions control system.

Your emissions control system may include parts such as the carburetor or fuel-injection system, the ignition system, catalytic

converter, fuel tanks, fuel lines (for liquid fuel and fuel vapors), fuel caps, valves, canisters, filters, clamps and other associated

components. Also included may be hoses, belts, connectors, and other emission-related assemblies.

Where a warrantable condition exists, FIRMAN will repair your SORE and engine powered equipment at no cost to you

including diagnosis, parts and labor.

OWNER'S WARRANTY RESPONSIBILITIES:

As the owner, you are responsible for the performance of the required maintenance

listed in your owner's manual. FIRMAN recommends that you retain all receipts covering maintenance on your SORE and

engine powered equipment, but FIRMAN cannot deny warranty coverage solely for the lack of receipts or for your failure to

ensure the performance of all scheduled maintenance.

SORE and engine powered equipment

As the owner, you should however be aware that FIRMAN may deny you warranty

coverage if your small off-road engine or engine powered equipment or a part has failed due to abuse, neglect, or improper

maintenance or unapproved modifications.

SORE and engine powered equipment

You are responsible for presenting your to a FIRMAN distribution center

or service center as soon as the problem exists. The warranty repairs shall be completed in a reasonable amount of time,

not to exceed 30 days.

small off-road engine and engine powered equipment

If you have any questions regarding your warranty rights and responsibilities, you should contact FIRMAN at 1-844-347-6261.

FIRMAN Emission Control Defects Warranty Provisions

Page 41

English Customer Service: 1-844-FIRMAN1

PARTS COVERED BY WARRANTY

Limitations

Listed below are the parts (if equipped) covered by the Federal and California Emission Control System Warranty.

This Emission Control System Warranty shall not cover any of the following:

(a) Consequential damages such as loss of time, inconvenience, loss of use of the engine or equipment, etc.

(b) Diagnosis and inspection fees that do not result in eligible warranty service being performed.

1. Ignition system including:

- Spark plug

- Ignition coil

2. Fuel metering system:

- Fuel tank

- Fuel cap

- Fuel lines(for liquid fuel and fuel vapors) and

related fittings/clamps

- Fuel regulator, carburetor and internal parts.

3. Catalytic muffler assembly including:

- Exhaust manifold

- Catalytic converter

- Muffler gasket

-pulse valve

4. Air induction system including:

- Intake pipe/manifold

- Air cleaner

5. Crankcase breather assembly including:

- Breather connection tube

6. Fuel tank evaporative emission control system including:

- Purge valves

- Carbon canister

- Vapor hoses and fitting/clamps

FIRMAN POWER EQUIPMENT INC.

www.firmanpowerequipment.com

(8) Throughout the emissions warranty period defined in Subsection (b)(2), FIRMAN will maintain a supply of warranted

parts sufficient to meet the expected demand for such parts.

(9) Any replacement part may be used in the performance of any warranty maintenance or repairs and must be provided without

charge to the owner. Such use will not reduce the warranty obligations of the manufacturer.

(10) Add-on or modified parts that are not exempted by the Air Resources Board may not be used. The use of any non-exempted

add-on or modified parts by the ultimate purchaser will be grounds for disallowing a warranty claim.

The manufacturer will not be liable to warrant failures of warranted parts caused by the use of a non-exempted add-on or modified

part.

P/N:375745483 Rev 0 3

without the written permission is expressly prohibited.

TM

FIRMAN POWER EQUIPMENT INC.

8716 W LUDLOW DR. SUITE 6

PEORIA, AZ 85381

1-844-347-6261

WWW.FIRMANPOWEREQUIPMENT.COM

FOLLOW

US

ON

SOCIAL

USE

#EVERYCENERATORTELLSASTORY

FOR

YOUR

CHANCE

TO

WIN

FIRMAN

SWAC

D

CJ

Firman H07552 Dual Fuel Portable Generator 7500W

Product's Documents

User Manual

Specifications

Firman H07552 Questions and Answers
