BENCHTOP
ROUTER TABLE
70772
tM
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 24l
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1‑800‑444‑3353 as soon as possible.
Copyright
©
2024 by Harbor Freight Tools
®
. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Page 2 For technical questions, please call 1-800-444-3353. Item 70772
SaFety OperatiOn MaintenanceSetup
table of contents
Safety ......................................................... 2
Specifications ............................................. 7
Setup .......................................................... 8
Operation ................................................... 14
Maintenance .............................................. 20
Parts List and Diagram .............................. 22
Warranty .................................................... 24
tM
WarninG SyMBOLS anD DeFinitiOnS
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
iMpOrtant SaFety inFOrMatiOn
General power tool Safety Warnings
read all safety warnings, instructions, illustrations and specifications provided with the router.
Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away
while operating a power tool. Distractions
can cause you to lose control.
2. electrical safety
a. power tool plugs must match the outlet.
never modify the plug in any way. Do not use
any adapter plugs with earthed (grounded)
power tools. Unmodified plugs and matching
outlets will reduce risk of electric shock.
b. avoid body contact with earthed or
grounded surfaces, such as pipes,
radiators, ranges and refrigerators.
There is an increased risk of electric shock
if your body is earthed or grounded.
Page 3For technical questions, please call 1-800-444-3353.Item 70772
SaFetyOperatiOnMaintenance Setup
c. Do not expose power tools to rain or wet
conditions. Water entering a power tool
will increase the risk of electric shock.
d. Do not abuse the cord. never use the cord
for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
e. if operating a power tool in a damp location
is unavoidable, use a ground fault circuit
interrupter (GFci) protected supply. Use of
a GFCI reduces the risk of electric shock.
3. personal safety
a. Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use a power tool while
you are tired or under the influence of
drugs, alcohol or medication. A moment
of inattention while operating power tools
may result in serious personal injury.
b. use personal protective equipment. always
wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c. prevent unintentional starting. ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools
with your finger on the switch or energizing power
tools that have the switch on invites accidents.
d. remove any adjusting key or wrench
before turning the power tool on. A wrench
or a key left attached to a rotating part of the
power tool may result in personal injury.
e. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing
or jewelry. Keep your hair, clothing
and gloves away from moving parts.
Loose clothes, jewelry or long hair
can be caught in moving parts.
g. if devices are provided for the connection
of dust extraction and collection
facilities, ensure these are connected
and properly used. Use of dust collection
can reduce dust-related hazards.
h. Do not let familiarity gained from frequent
use of tools allow you to become
complacent and ignore tool safety
principles. A careless action can cause
severe injury within a fraction of a second.
i. Only use safety equipment that has been
approved by an appropriate standards agency.
Unapproved safety equipment may not provide
adequate protection. Eye protection must be
ANSI‑approved and breathing protection
must be NIOSH‑approved for the
specific hazards in the work area.
j. Avoid unintentional starting.
Prepare to begin work before turning on the tool.
k. Do not lay the tool down until it has come to
a complete stop. Moving parts can grab the
surface and pull the tool out of your control.
l. When using a handheld power tool,
maintain a firm grip on the tool with
both hands to resist starting torque.
m. Do not depress the spindle lock when
starting or during operation.
n. Do not leave the tool unattended when
it is plugged into an electrical outlet.
Turn off the tool, and unplug it from its
electrical outlet before leaving.
o. This product is not a toy.
Keep it out of reach of children.
p. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields
in close proximity to heart pacemaker could
cause pacemaker interference or pacemaker
failure. In addition, people with pacemakers
should:
• Avoid operating alone.
• Do not use with Trigger locked on.
• Properly maintain and inspect to avoid
electrical shock.
• Properly ground power cord.
Ground Fault Circuit Interrupter (GFCI)
should also be implemented – it prevents
sustained electrical shock.
q. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
4. power tool use and care
a. Do not force the power tool. use the correct
power tool for your application. The correct
power tool will do the job better and safer
at the rate for which it was designed.
b. Do not use the power tool if the switch
does not turn it on and off. Any power
tool that cannot be controlled with the switch
is dangerous and must be repaired.
Page 4 For technical questions, please call 1-800-444-3353. Item 70772
SaFety OperatiOn MaintenanceSetup
c. Disconnect the plug from the power
source and/or remove the battery pack,
if detachable, from the power tool before
making any adjustments, changing
accessories, or storing power tools.
Such preventive safety measures reduce the
risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e. Maintain power tools and accessories.
check for misalignment or binding of moving
parts, breakage of parts and any other
condition that may affect the power tool’s
operation. if damaged, have the power tool
repaired before use. Many accidents are
caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g. use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
power tool for operations different from those
intended could result in a hazardous situation.
h. Keep handles and grasping surfaces
dry, clean and free from oil and grease.
Slippery handles and grasping surfaces
do not allow for safe handling and control
of the tool in unexpected situations.
5. Service
a. Have your power tool serviced by a
qualified repair person using only identical
replacement parts. This will ensure that
the safety of the power tool is maintained.
b. Maintain labels and nameplates on the tool.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
6. Safety instructions for routers
a. Hold the power tool by insulated gripping
surfaces only, because the cutter may contact
its own cord. Cutting a “live” wire may make
exposed metal parts of the power tool “ live”
and could give the operator an electric shock.
b. use clamps or another practical way
to secure and support the workpiece
to a stable platform. Holding the work
by your hand or against the body leaves it
unstable and may lead to loss of control.
c. DO nOtOperateWitH anyGuarD
DiSaBLeD, DaMaGeD, OrreMOVeD. Moving
guards must move freely and close instantly.
d. The use of accessories or attachments
not recommended by the manufacturer
may result in a risk of injury to persons.
e. Remove the Safety Key after each use.
Store the Safety Key separate from
the tool and out of children’s reach.
f. Industrial applications must
follow OSHA guidelines.
g. Feed workpiece against rotation of cutter.
h. Do not use awkward hand positions.
i. Keep fingers away from revolving cutter
– use fixtures when necessary.
7. Vibration Safety
Routers vibrate during use.
Repeated or long‑term exposure to vibration may
cause temporary or permanent physical injury,
particularly to the hands, arms and shoulders.
To reduce the risk of vibration‑related injury:
a. Anyone using vibrating tools regularly or for
an extended period should first be examined
by a doctor and then have regular medical
check‑ups to ensure medical problems are not
being caused or worsened from use. Pregnant
women or people who have impaired blood
circulation to the hand, past hand injuries,
nervous system disorders, diabetes, or
Raynaud’s Disease should not use this tool.
If you feel any symptoms related to
vibration (such as tingling, numbness,
and white or blue fingers), seek medical
advice as soon as possible.
b. Do not smoke during use. Nicotine reduces
the blood supply to the hands and fingers,
increasing the risk of vibration‑related injury.
c. Wear suitable gloves to reduce the
vibration effects on the user.
d. Use tools with the lowest vibration
when there is a choice.
e. Include vibration‑free periods each day of work.
f. Grip tool as lightly as possible (while still keeping
safe control of it). Let the tool do the work.
g. To reduce vibration, maintain the tool as
explained in this manual. If any abnormal
vibration occurs, stop use immediately.
SaVe tHeSe inStructiOnS.
Page 5For technical questions, please call 1-800-444-3353.Item 70772
SaFetyOperatiOnMaintenance Setup
Grounding
tO preVent eLectric SHOcK anD DeatH FrOM
incOrrect GrOunDinG Wire cOnnectiOn:
check with a qualified electrician if you are in doubt as to whether the outlet is properly
grounded. Do not modify the power cord plug provided with the tool. never remove the
grounding prong from the plug. Do not use the tool if the power cord or plug is damaged. if damaged, have
it repaired by a service facility before use. if the plug will not fit the outlet, have a proper outlet installed by
a qualified electrician.
Grounded tools: tools with three prong plugs
1. In the event of a malfunction or breakdown,
grounding provides a path of least resistance for
electric current to reduce the risk of electric shock.
This tool is equipped with an electric cord having an
equipment‑grounding conductor and a grounding
plug. The plug must be plugged into a matching
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
2. Do not modify the plug provided. If it will not fit
the outlet, have the proper outlet installed by a
qualified electrician. Improper connection of the
equipment‑grounding conductor can result in a risk
of electric shock. The conductor with insulation
having an outer surface that is green with or
without yellow stripes is the equipment‑grounding
conductor. If repair or replacement of the electric
cord or plug is necessary, do not connect the
equipment‑grounding conductor to a live terminal.
3. Check with a qualified electrician or service
personnel if the grounding instructions are
not completely understood, or if in doubt as
to whether the tool is properly grounded.
4. Repair or replace damaged or
worn cord immediately.

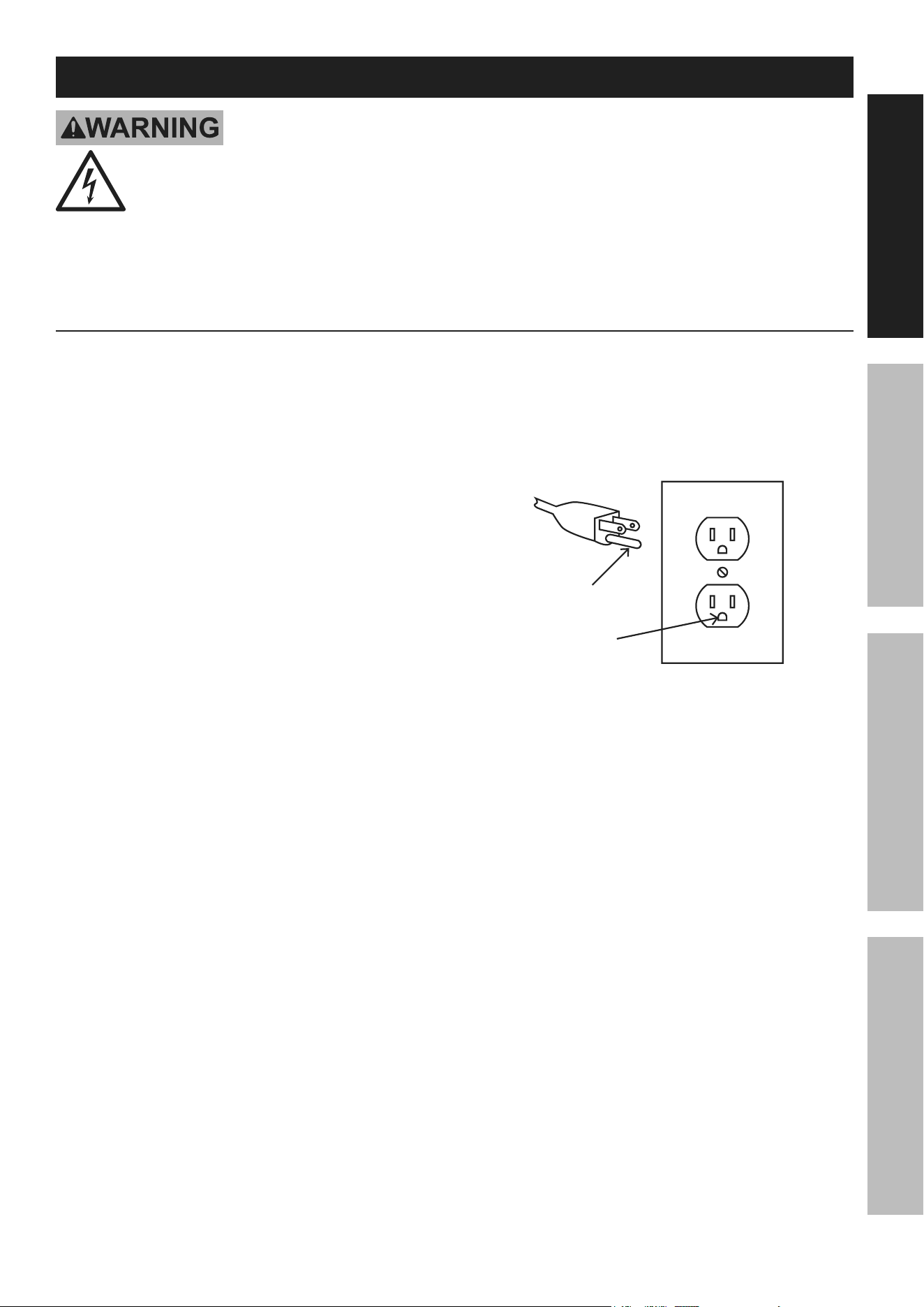

5. This product is intended for use on a circuit
that has an outlet that looks like the one
shown in 3-prong plug and Outlet. It also
has a grounding pin like the one shown.
Grounding
pin
120V
Grounded
Outlet
3-prong plug and Outlet
Page 6 For technical questions, please call 1-800-444-3353. Item 70772
SaFety OperatiOn MaintenanceSetup
extension cords
1. Grounded tools require a three wire extension cord.
Double Insulated tools can use either
a two or three wire extension cord.
2. As the distance from the supply outlet increases,
you must use a heavier gauge extension cord.
Using extension cords with inadequately sized wire
causes a serious drop in voltage, resulting in loss of
power and possible tool damage. (See table a.)
3. The smaller the gauge number of the wire, the
greater the capacity of the cord. For example,
a 14 gauge cord can carry a higher current
than a 16 gauge cord. (See table a.)
4. When using more than one extension cord
to make up the total length, make sure
each cord contains at least the minimum
wire size required. (See table a.)
5. If you are using one extension cord for more
than one tool, add the nameplate amperes
and use the sum to determine the required
minimum cord size. (See table a.)
6. If you are using an extension cord outdoors, make
sure it is marked with the suffix “W‑A” (“W” in
Canada) to indicate it is acceptable for outdoor use.
7. Make sure the extension cord is properly wired
and in good electrical condition. Always replace
a damaged extension cord or have it repaired
by a qualified electrician before using it.
8. Protect the extension cords from sharp objects,
excessive heat, and damp or wet areas.
taBLe a: recOMMenDeD MiniMuM Wire
GauGe FOr eXtenSiOn cOrDS* (120/240 VOLt)
naMepLate
aMpereS
(at full load)
eXtenSiOn cOrD
LenGtH
25´ 50´ 75´ 100´ 150´
0 – 2.0 18 18 18 18 16
2.1 – 3.4 18 18 18 16 14
3.5 – 5.0 18 18 16 14 12
5.1 – 7.0 18 16 14 12 12
7.1 – 12.0 18 14 12 10 ‑
12.1 – 16.0 14 12 10 ‑ ‑
16.1 – 20.0 12 10 ‑ ‑ ‑
* Based on limiting the line voltage drop to five volts at
150% of the rated amperes.
Page 7For technical questions, please call 1-800-444-3353.Item 70772
SaFetyOperatiOnMaintenance Setup
Symbology
Double Insulated
V
Volts
~
Alternating Current
a
Amperes
n
0
xxxx/min.
No Load Revolutions per Minute (RPM)
WARNING marking concerning Risk
of Eye Injury. Wear ANSI‑approved
safety goggles with side shields.
Read the manual before
set‑up and/or use.
WARNING marking
concerning Risk of Fire.
Do not cover ventilation ducts.
Keep flammable objects away.
WARNING marking concerning
Risk of Electric Shock.
Properly connect power cord
to appropriate outlet.
WARNING marking concerning
Risk of Hearing Loss.
Wear hearing protection.
WARNING marking concerning Risk
of Respiratory Injury. Wear NIOSH‑
approved breathing protection rated
for the hazards in your work area.
Specifications
Electrical Rating 120VAC / 60Hz / 15A Max
Miter Gauge 0 - 60 º Left and Right
Dust Port Dimensions 1-1/4″, 2-1/2″
Page 8 For technical questions, please call 1-800-444-3353. Item 70772
SaFety OperatiOn MaintenanceSetup
Setup - Before use:
read the entire iMpOrtant SaFety inFOrMatiOn section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
note: For additional information regarding the parts listed in the
following pages, refer to Parts List and Diagram on page 22.

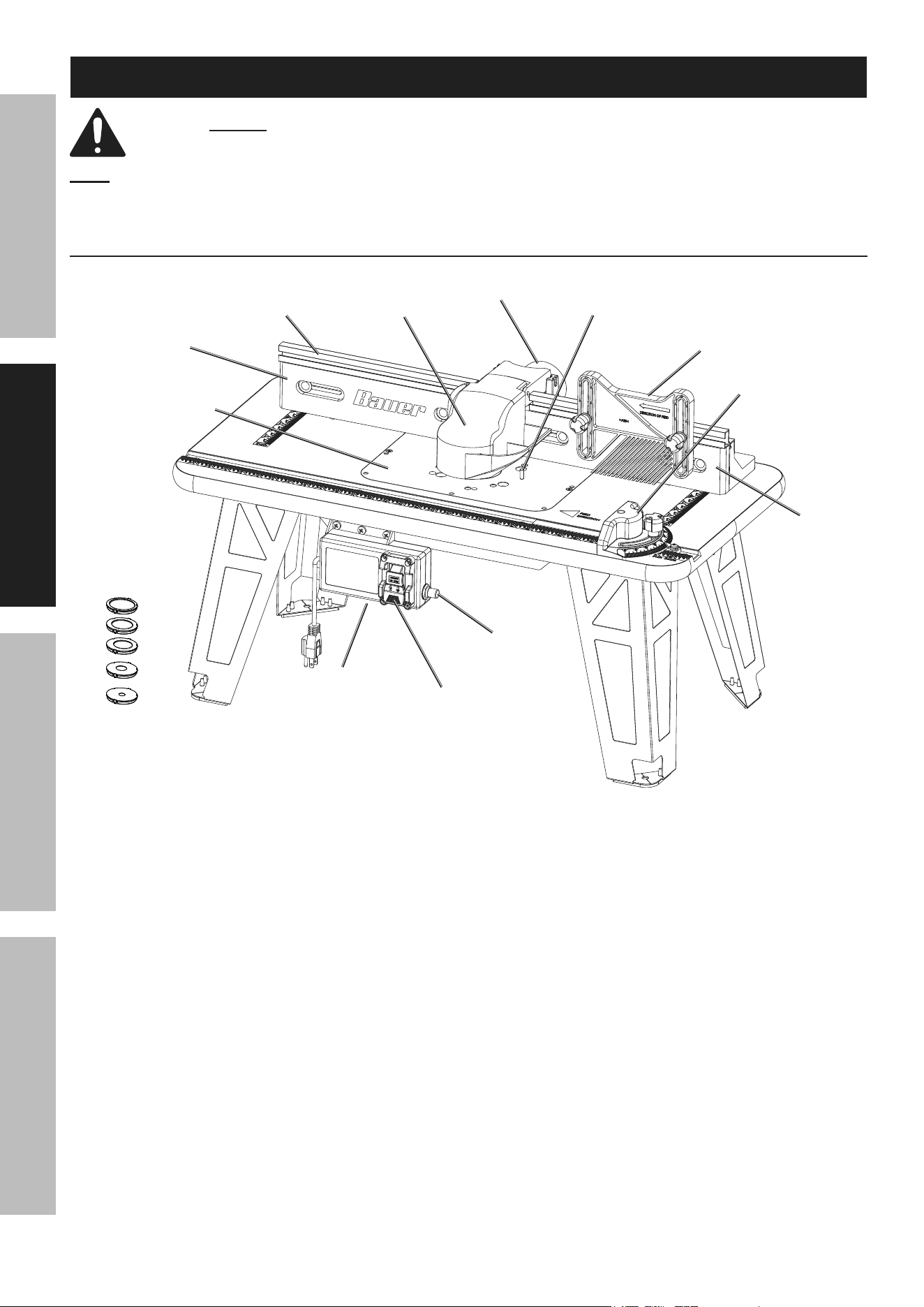

Functions
Miter Gauge
insert plate
Fence
Featherboard
Bit Guard
reset Button
throat plates
power Switch
With Safety Key
Dust port
Starting pin
Outlets
Outfeed Fence
extension
infeed Fence
extension
Fence – Adjustable guide for stabilizing workpiece.
Fence extensions – To extend fence length
for longer workpieces and jointing.
insert plate – For mounting a variety
of routers to the table.
throat plate – Provides a stable surface around cutter
bit and helps prevent objects from falling through.
power Switch With Safety Key – Activates
power to the router and accessories. Removing
Safety Key deactivates power.
reset Button – Protects the electrical
system from electrical overload.
Miter Gauge – Allows workpiece to
be routed at specific angles.
Featherboard – Device for stabilizing
workpiece and aid in preventing kickback.
Starting pin – A guide and/or pivot
point for freehand routing.
Dust port – Provides for a dust
collection system to be attached.
Bit Guard – Articulating guard on the Fence protecting
the operator from contacting the cutting bit.Assembly
Page 9For technical questions, please call 1-800-444-3353.Item 70772
SaFetyOperatiOnMaintenance Setup

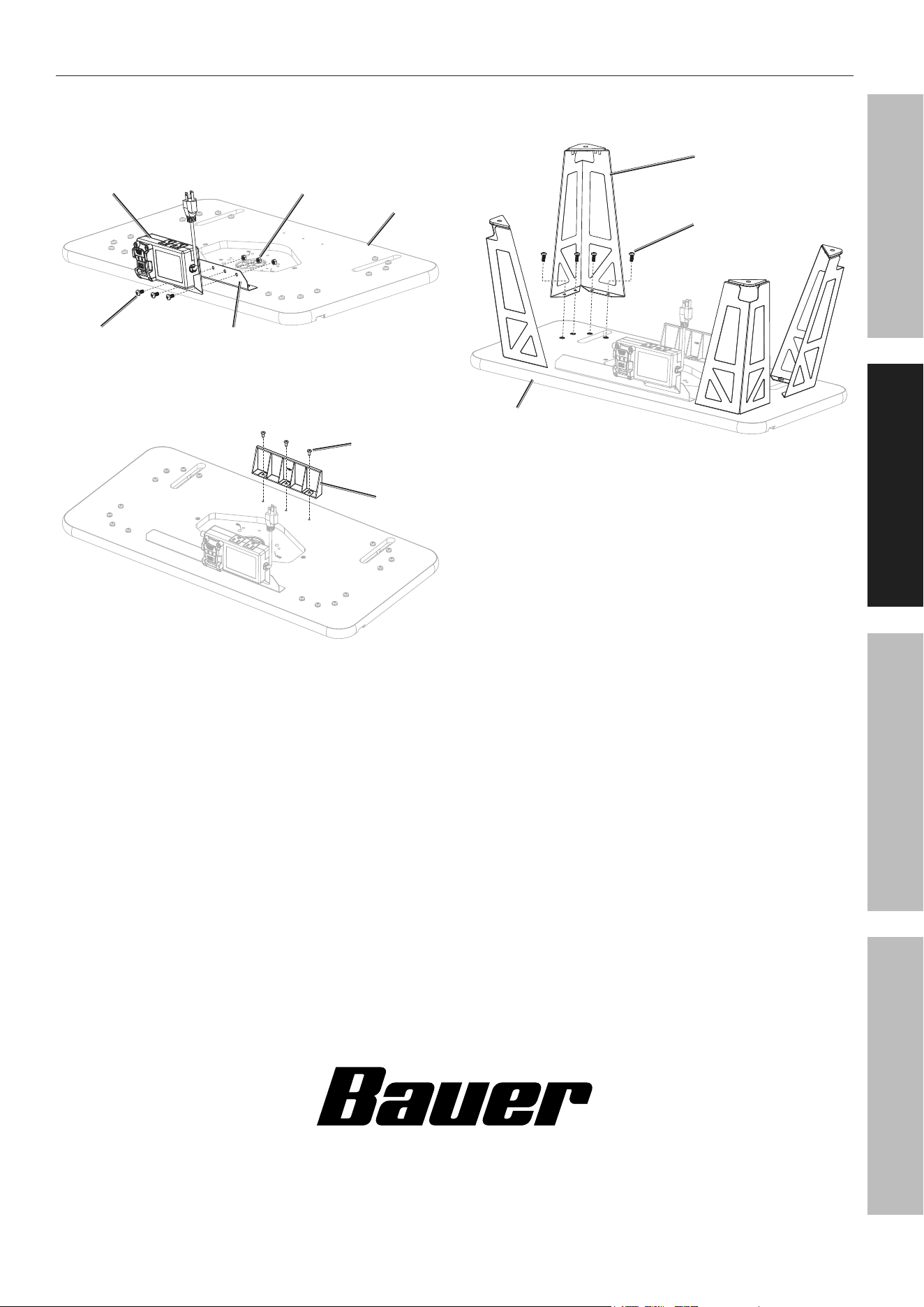

assembling table
1. Place Table upside down on flat surface.
2. Attach Switch Box to Support Plate with Screws
(48) and Nuts (43), tighten nuts securely.
table
Screw (48)
nut (43)Switch Box
Switch Box
plate
3. Attach Guard Plate with Screws (45),
tighten securely.
Screw (45)
Guard
plate
4. Attach Legs to Table with
Screws (48), tighten securely.
table (front)
Screw (48)
Leg
5. Turn Table over and place on mounting
surface capable of supporting the weight
of Table, router and accessories.
tM
Page 10 For technical questions, please call 1-800-444-3353. Item 70772
SaFety OperatiOn MaintenanceSetup
Drilling Depth adjustment tool Hole (optional)
router and depth adjustment tool sold separately.
note: Determine if there is a depth adjustment
tool available before drilling hole.
Pilot holes for through‑table depth adjustment
are provided for the following routers:
(rD) RIGID R2930 / R22002
(ry) Bauer 71025, Ryobi R163K / R163GK
(ML) Milwaukee 5615-20 / 5616-20
(pc1) Porter‑Cable 890 Series
(pc2) Porter‑Cable 8529
(H) Hercules 57368
1. Place Insert Plate on a flat surface
with bottom side facing up.
2. Locate pilot hole for router model and drill hole
large enough for depth adjustment tool.
rD
ML
pc2
pc1
ry
H
Bottom
3. Remove router’s base plate.
attaching insert plate to router

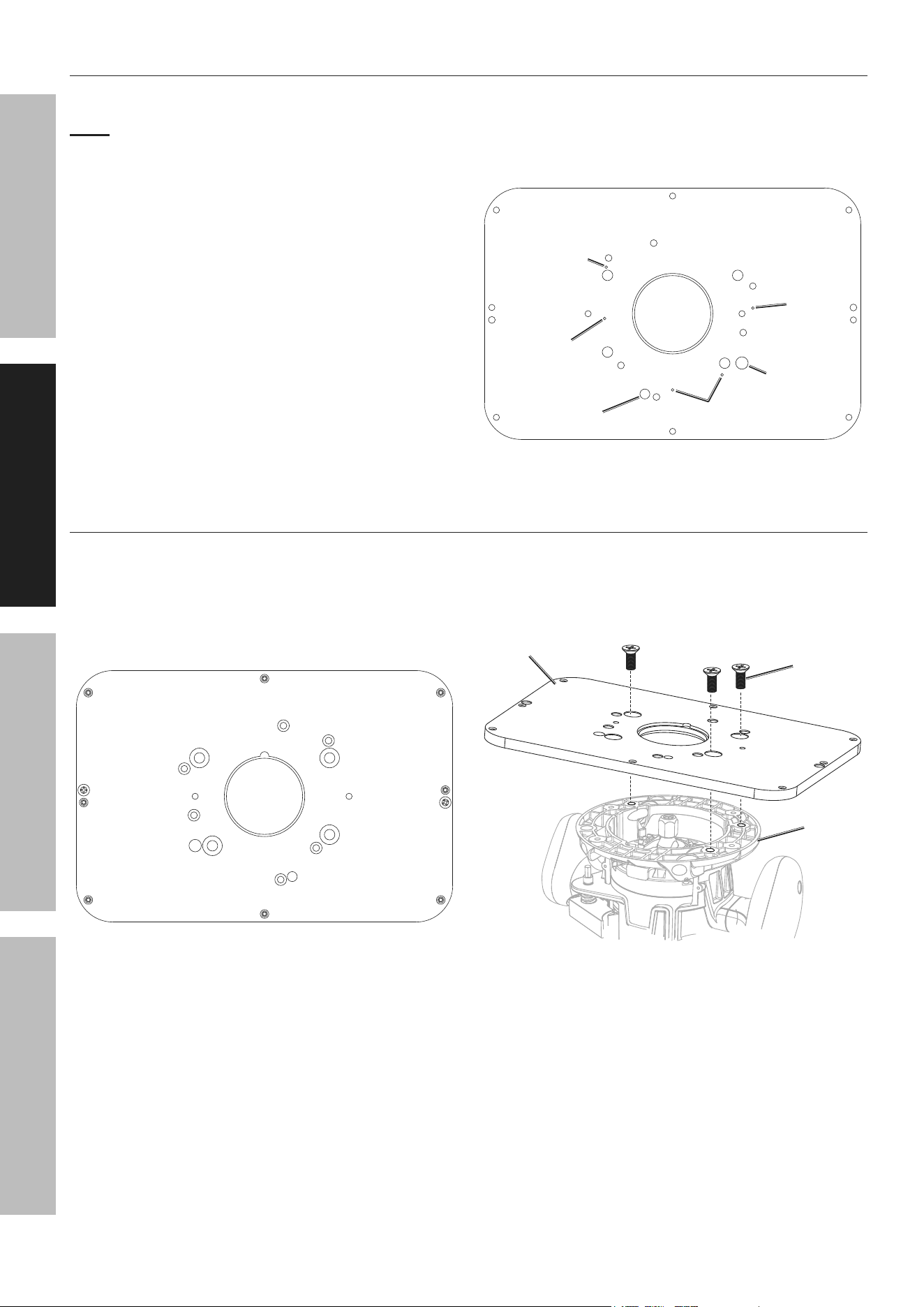

1. Place Insert Plate on a flat surface
with top side facing up.
2. Reference Router Mounting Chart on page
11 to determine proper base type, screw
size, and mounting holes for router.
a1
a2
a3
a4
a5
a6
B1
B2
B3
B4
top
3. Place Insert Plate on router, aligning holes on
Plate with holes on router. Secure Plate to router
with appropriate Router Screws (included).
router
router
Screws
insert
plate (top)
Page 11For technical questions, please call 1-800-444-3353.Item 70772
SaFetyOperatiOnMaintenance Setup
router Mounting chart
Brand Model Base type Screw Size insert plate Holes
Bauer 71025 Fixed M8 x 20 B1, B2, B3
Bosch 1617 Fixed 10-24 x 5/8″ A1, A3, A5
Bosch 1617EVS Fixed 10-24 x 5/8″ A1, A3, A5
Bosch 1617EVSPK Fixed 10-24 x 5/8″ A1, A3, A5
Craftsman 17504 Fixed 10-32 x 5/8″ A2, A4, A6
Craftsman 17505 Fixed 10-32 x 5/8″ A2, A4, A6
Craftsman 17506 Fixed 10-32 x 5/8″ A2, A4, A6
Craftsman 17508 Fixed 10-32 x 5/8″ A2, A4, A6
Craftsman 17510 Fixed 10-32 x 5/8″ A2, A4, A6
Craftsman 17511 Fixed 10-32 x 5/8″ A2, A4, A6
Craftsman 17515 Plunge 5/16-18 x3/4″ B1, B2, B4
Craftsman 17517 Plunge 10-32 x 5/8″ A2, A4, A6
Craftsman 17533 Fixed 10-32 x 5/8″ A2, A4, A6
Craftsman 17533 Plunge 5/16-18 x3/4″ B1, B2, B4
Craftsman 24833 Fixed 10-32 x 5/8″ A2, A4, A6
Craftsman 24833 Plunge 5/16-18 x3/4″ B1, B2, B4
Craftsman 27500 Fixed 5/16-18 x3/4″ B1, B2, B4
Craftsman 26921 Fixed 10-32 x 5/8″ A2, A4, A6
Hercules 57368 Fixed / Plunge M5 x22 A2, A4, A6
Hitachi M12V Plunge 10-32 x 5/8″ A1, A3, A5
Hitachi KM12VC Fixed 10-32 x 5/8″ A1, A3, A5
Makita RF1101 Fixed 10-24 x 5/8″ A1, A3, A5
Makita RF1101 Plunge 10-24 x 5/8″ A1, A3, A5
Makita RF1101K Fixed / Plunge 10-24 x 5/8″ A1, A3, A5
Milwaukee 5615‑20 Fixed 10-24 x 5/8″ A1, A3, A5
Milwaukee 5616‑20 Fixed 10-24 x 5/8″ A1, A3, A5
Porter Cable 693LRPK Plunge 10-24 x 5/8″ A1, A3, A5
Porter Cable 694PK Plunge 10-24 x 5/8″ A1, A3, A5
Porter Cable 694VK Plunge 10-24 x 5/8″ A1, A3, A5
Porter Cable 892 Fixed 10-24 x 5/8″ A1, A3, A5
Porter Cable 893PK Fixed 10-24 x 5/8″ A1, A3, A5
Porter Cable 7529 Plunge 10-24 x 5/8″ A1, A3, A5
Porter Cable 8529 Plunge 10-24 x 5/8″ A1, A3, A5
RIGID R2930 Fixed / Plunge 10-32 x 5/8″ A1, A3, A5
RIGID R22002 Fixed 10-32 x 5/8″ A1, A3, A5
Ryobi R163GK Fixed 5/16-18 x3/4″ B1, B2, B4
Ryobi R160 Fixed 5/16-18 x3/4″ B1, B2, B4
Ryobi R161K Fixed 5/16-18 x3/4″ B1, B2, B4
Ryobi R162K Fixed 5/16-18 x3/4″ B1, B2, B4
Ryobi R163K Fixed 5/16-18 x3/4″ B1, B2, B4
Ryobi R165U Fixed 5/16-18 x3/4″ B1, B2, B4
Ryobi R175 Plunge 5/16-18 x3/4″ B1, B3
Ryobi RE175 Plunge 5/16-18 x3/4″ B1, B3
Ryobi RE180PL / PL1 / PL1G Plunge 5/16-18 x3/4″ B1, B3
Skil 1810 Fixed 10-32 x 5/8″ A2, A4, A6
Skil 1825 Fixed / Plunge 10-32 x 5/8″ A2, A4, A6
Page 12 For technical questions, please call 1-800-444-3353. Item 70772
SaFety OperatiOn MaintenanceSetup

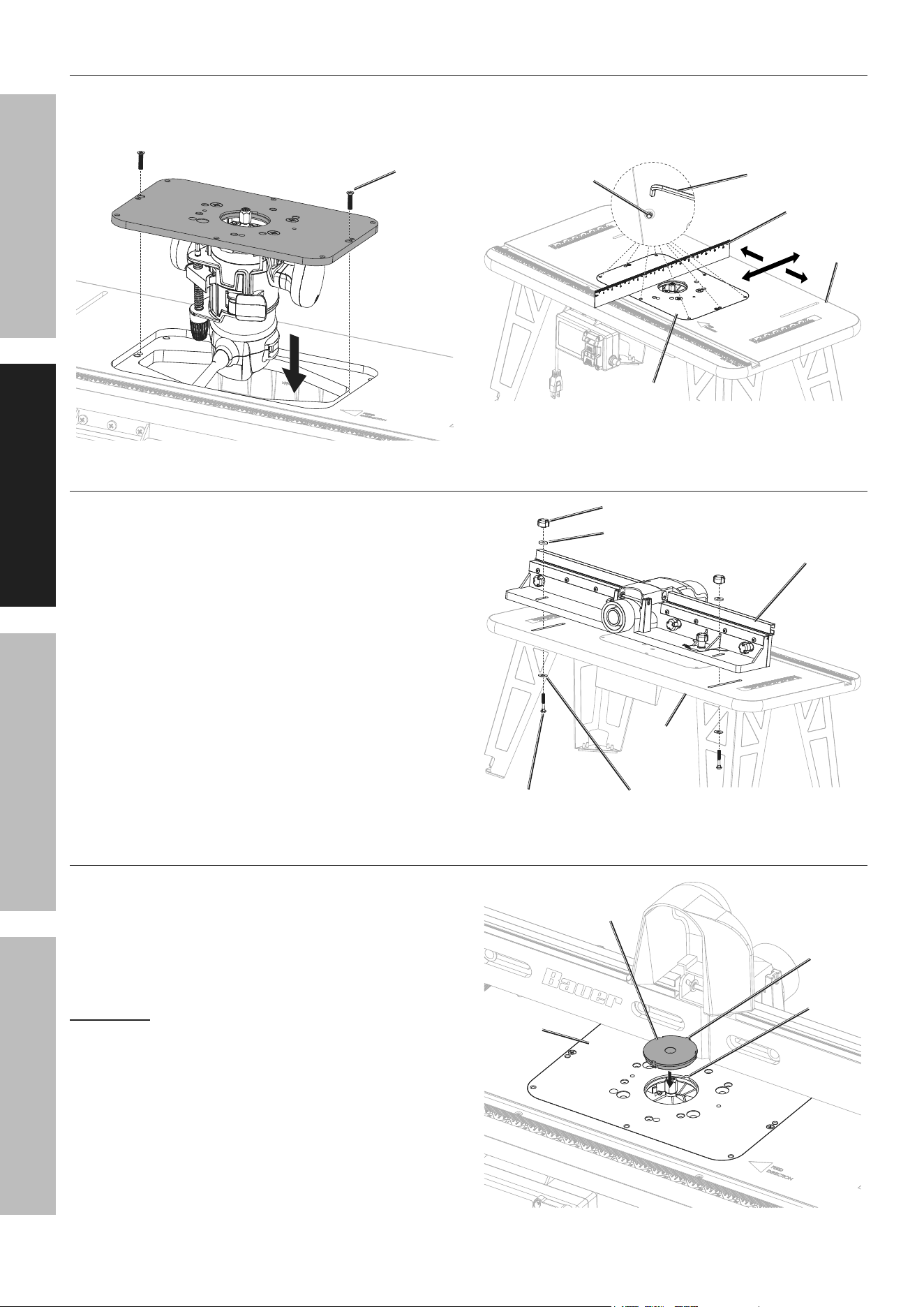

installing router
1. Insert Router into Table. Install
Screws (28), do not tighten.
Screw (28)
2. Using a straight edge (sold separately), level
Plate flush to Table by adjusting Set Screws
with the included 3mm Hex Key.
3mm Hex Key
insert
plate
table
Straight
edge
Set Screw
3. Tighten Screws (28) securely.
attaching Fence
Attach Fence using Lock Knobs (17), Washers (16),
Square Hole Washers (6), and Bolts (5).
Lock Knob (17)
Washer (16)
Bolt (5)
Square Hole
Washer (6)
table
(back)
Fence
installing throat plate
1. Select appropriate size Throat Plate.
Opening should be approximately 1/4″
away from edge of cutter bit.
2. Insert Throat Plate with Tab aligning
with Notch until it snaps into place.
WarninG! tO preVent SeriOuS inJury:
DO nOt uSe a DaMaGeD tHrOat pLate.
iF tHrOat pLate BecOMeS DaMaGeD, it
MuSt Be DiSpOSeD OF iMMeDiateLy.
insert
plate
throat
plate
tab
notch
Page 13For technical questions, please call 1-800-444-3353.Item 70772
SaFetyOperatiOnMaintenance Setup

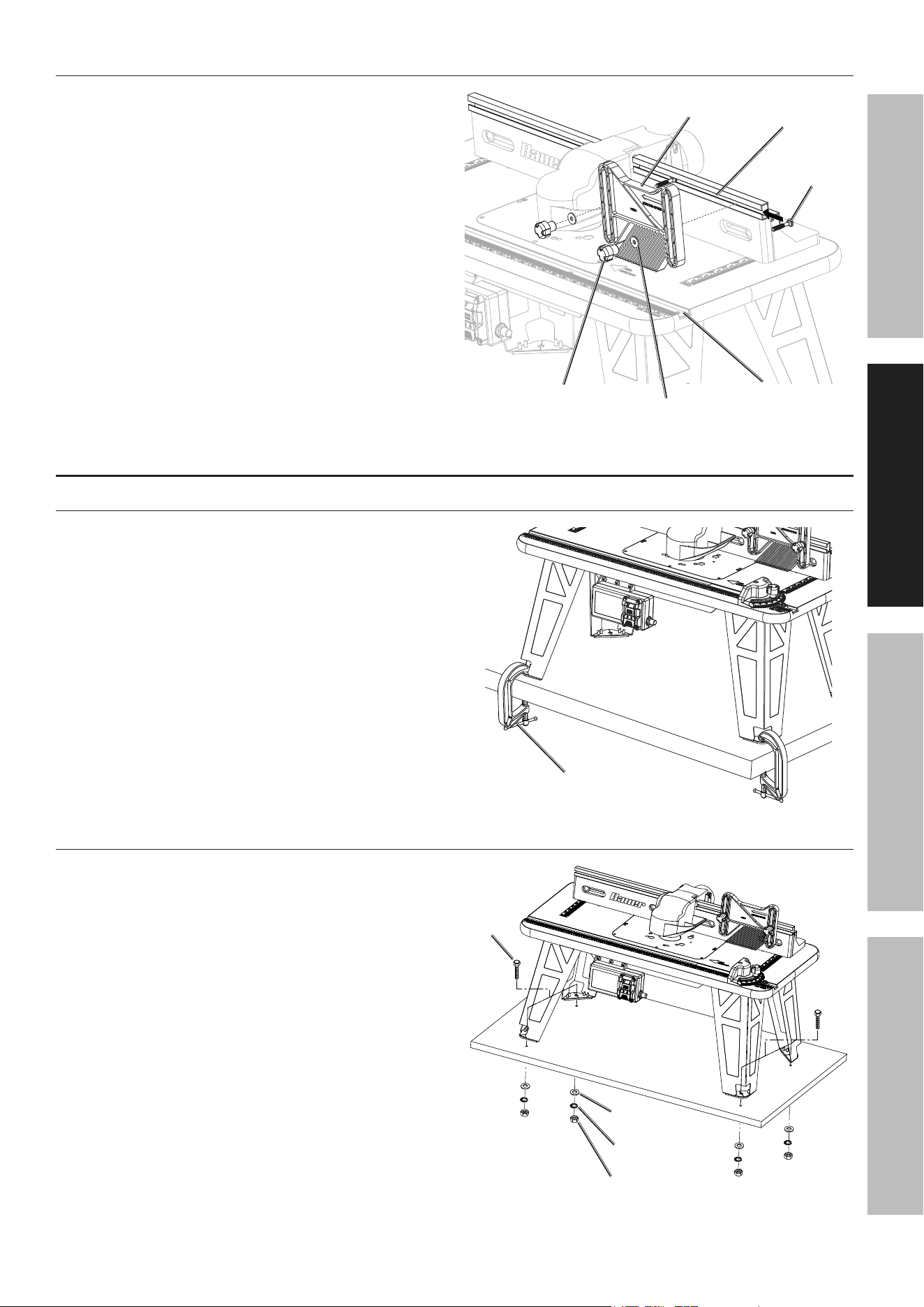

attaching Feartherboards
1. Attach Featherboard to Fence using Lock Knobs,
Washers (2) and Carriage Bolts (4).
2. Attach second Featherboard to Miter
Gauge Slot using Lock Knobs, Washers (2)
and Carriage Bolts (4) to apply pressure
to the workpiece against the Fence.
Featherboard
Lock Knob
Washer (2)
carriage
Bolt (4)
Fence Slot
Miter Gauge
Slot
Mounting table
temporary
1. Place Table onto sturdy work surface.
2. Clamp Legs onto mounting surface with
appropriate clamps (sold separately).
Mounting
Surface
clamp
permanent
1. Place Table onto sturdy work surface.
2. Mark holes on bottom of Legs onto
mounting surface, then remove Table.
3. Drill holes through work surface for
1/4‑20 hardware (sold separately).
4. Align Legs on Table to drilled holes in work surface,
and secure in place with 1/4‑20 hardware.
Mounting
Surface
Bolt
Washer
Lock Washer
nut
Page 14 For technical questions, please call 1-800-444-3353. Item 70772
SaFety OperatiOn MaintenanceSetup
Operating instructions
read the entire iMpOrtant SaFety inFOrMatiOn section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
tO preVent SeriOuS inJury FrOM acciDentaL OperatiOn:
turn the power Switch of the table off and unplug the table from
its electrical outlet before performing any procedure in this section.
tO preVent SeriOuS inJury:
DO nOt Operate WitH any GuarD DiSaBLeD, DaMaGeD, Or reMOVeD.
Moving guards must move freely and close instantly.
tool changing
collet installation
Install collet according to router’s instruction manual.
Bit installation
WarninG! tO preVent SeriOuS inJury:
Use only rotary cutting bits of the correct shank
diameter for the collet mounted. Use only rotary
cutting bits suitable for the speed of the router.
1. Remove Throat Plate.
2. Adjust router depth to raise collet nut above Table
using depth adjustment tool if available. It may
be necessary to remove router to adjust depth.
3. Loosen collet nut and insert shank
end of bit. Tighten collet nut.
4. Adjust router depth to position bit at
the desired height above Table.
5. Replace Throat Plate.

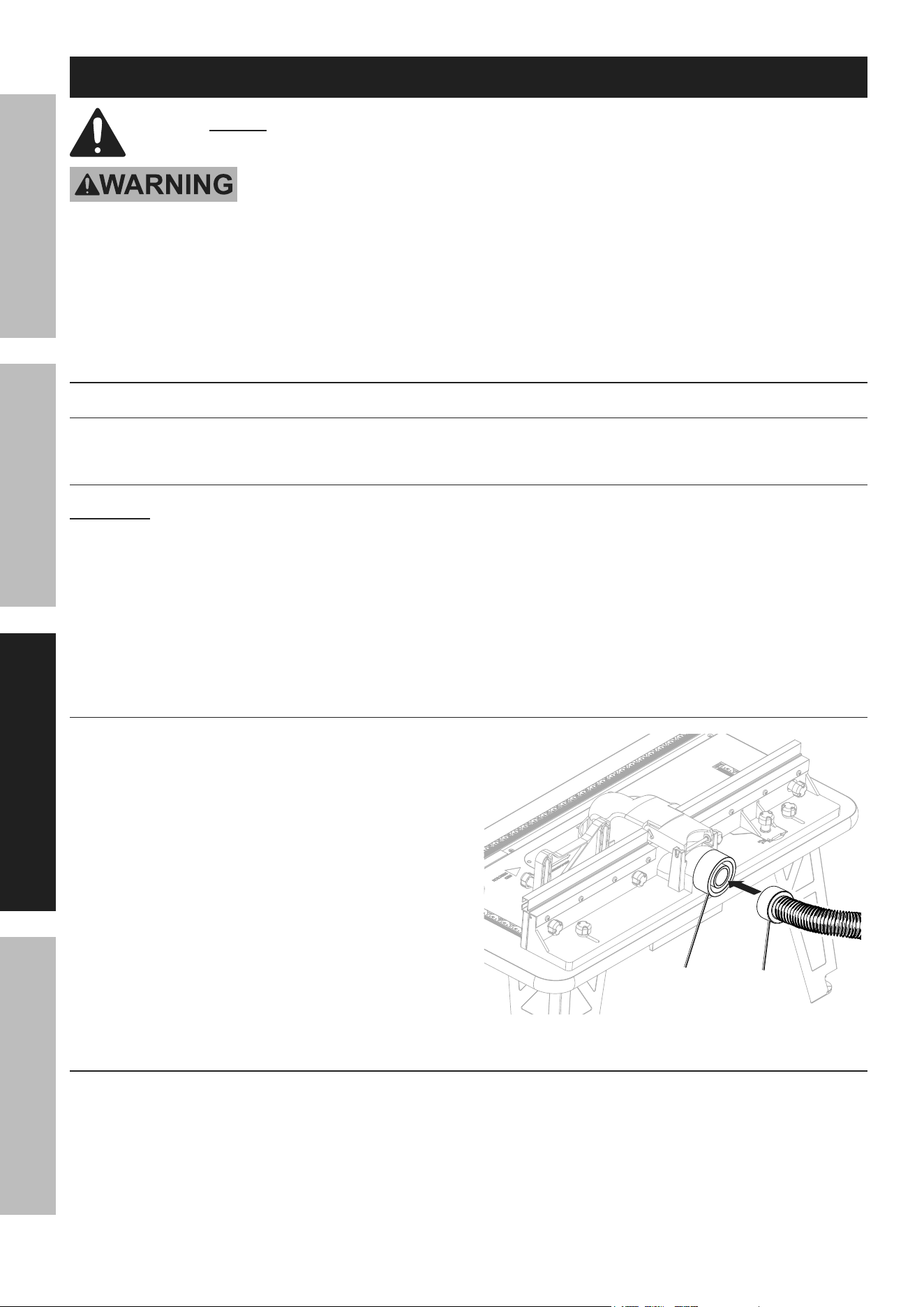

Dust collection Setup
1. Connect one end of dust hose
(sold separately) to Dust Port.
2. Connect other end of dust hose to a dust
collection system (not included).
Dust
Hose
Dust
port
Workpiece and Work area Set up
1. Designate a work area that is clean and well lit.
The work area must not allow access by children
or pets to prevent distraction and injury.
2. Route the power cord along a safe route to reach
the work area without creating a tripping hazard or
exposing the power cord to possible damage. The
power cord must reach the work area with enough
extra length to allow free movement while working.
3. There must not be objects, such as utility lines,
nearby that will present a hazard while working.
Page 15For technical questions, please call 1-800-444-3353.Item 70772
SaFetyOperatiOnMaintenance Setup

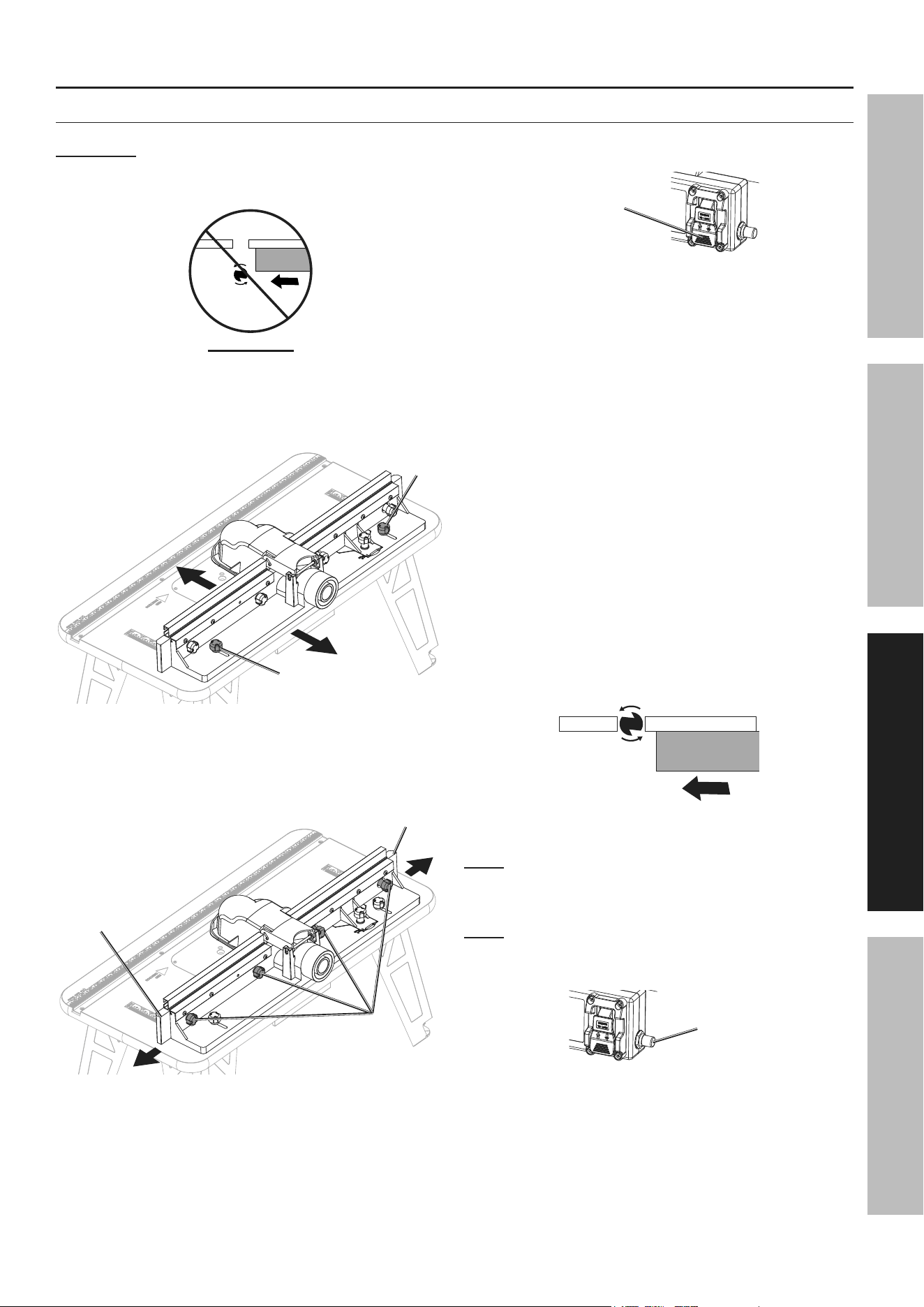

General instructions for use
using Fence
WarninG! tO preVent SeriOuS inJury:
DO nOt pOSitiOn Fence SO tHat
WOrKpiece iS BeHinD cutter Bit.
incorrect!
Fence
Workpiece
1. Loosen Fence Lock Knobs and adjust Fence
to desired distance from cutter bit, and to
allow for bit width. Tighten Lock Knobs.
Lock
Knob
Lock
Knob
2. Loosen Extension Lock Knobs and adjust
Infeed and Outfeed Extensions as needed for
longer workpieces. Tighten Lock Knobs.
infeed
extension
Outfeed
extension
Lock
Knobs
3. Plug Table’s Power Cord into a dedicated
15A, grounded 120VAC outlet.
4. Push Power Switch down.
power
Switch
5. Plug router and dust collector into
Outlets on bottom of Switch Box.
6. Turn router and dust collector power switches ON.
7. To turn on router and dust collection
system, pull up on Power Switch.
8. Practice on scrap material before routing workpiece.
9. Loosen Lock Knobs and adjust Featherboard
so workpiece can slide under it easily, but not
raise up from the Table. Tighten Lock Knobs.
10. Select a push block (sold separately) to stabilize
and push workpiece through the router bit.
11. Allow cutter bit to rotate up to full speed, then feed
workpiece with push block gradually from right
(infeed) to left (outfeed) against the rotation
of the bit. Keep feed rate constant. Feeding
workpiece too quickly may slow router’s motor.
Feeding workpiece too slowly may burn workpiece.
Bit rotation
Workpiece
Fence
Direction
Of Feed
Fence
note: On very hard wood or large cuts it may be
necessary to make more than one pass at progressive
depth settings until the desired depth of cut is made.
note: If Router Table loses power, push Power
Switch down. Remove workpiece. Press
Reset Button, then lift Power Switch.
reset
Button
12. When finished, remove workpiece, push
Power Switch down and remove Safety
Key. Remove Table’s Power Cord.
13. Clean, then store the router and Router Table in a
clean, dry, safe location out of reach of children.
Page 16 For technical questions, please call 1-800-444-3353. Item 70772
SaFety OperatiOn MaintenanceSetup

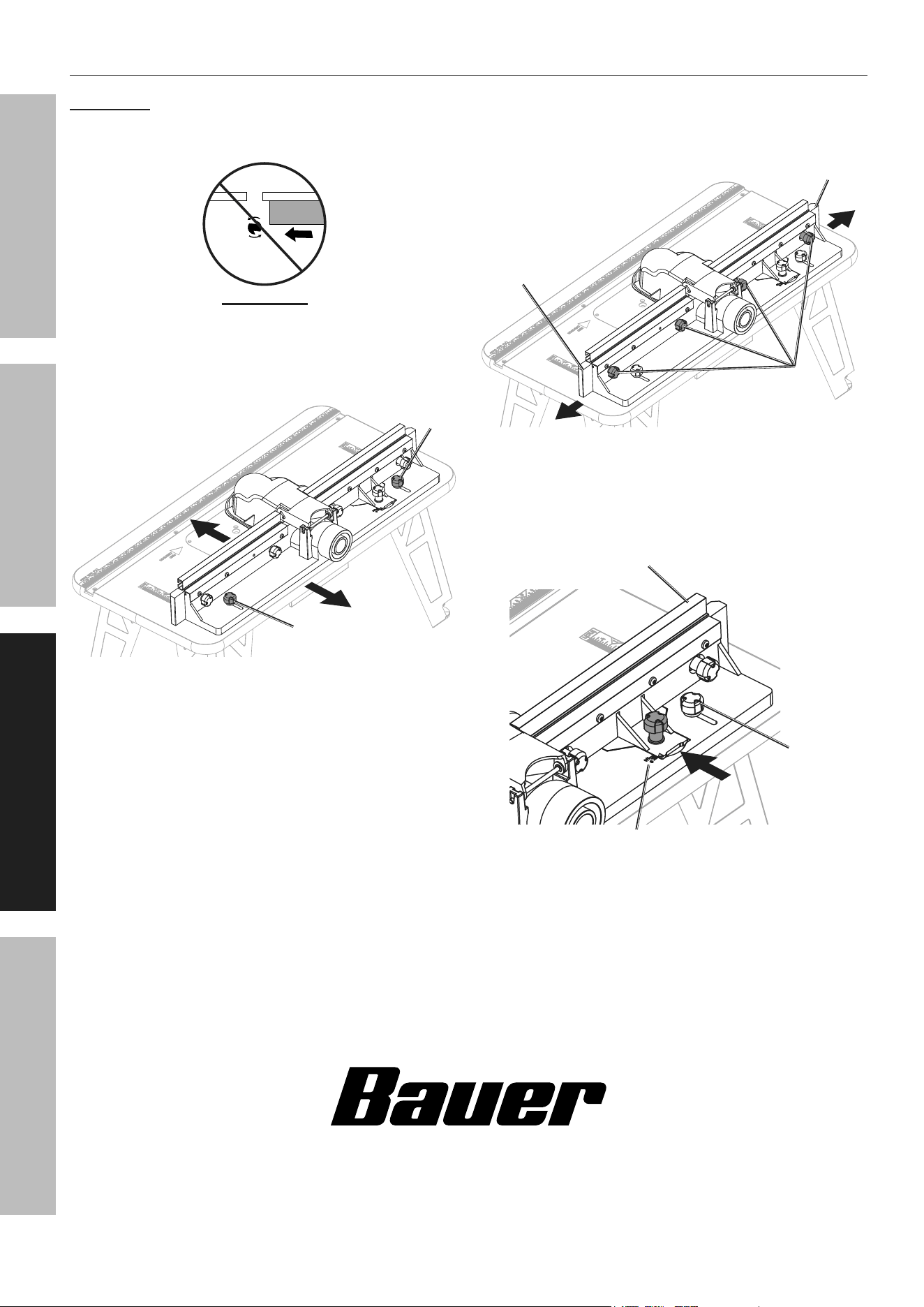

Jointing
WarninG! tO preVent SeriOuS inJury:
DO nOt pOSitiOn Fence SO tHat
WOrKpiece iS BeHinD cutter Bit.
incorrect!
Fence
Workpiece
1. Loosen Fence Lock Knobs and adjust
Fence to remove up to 1/4″ of material
from workpiece. Tighten Lock Knobs.
Lock
Knob
Lock
Knob
2. Loosen Extension Lock Knobs and adjust Fence as
needed for longer workpieces. Tighten Lock Knobs.
infeed
extension
Outfeed
extension
Lock
Knobs
3. Loosen Lock Knob on Outfeed Fence and
align Fence with outside edge of cutter
bit (up to 1/4″). Tighten Lock Knob.
Scale
Outfeed
Fence
Lock
Knob
tM
Page 17For technical questions, please call 1-800-444-3353.Item 70772
SaFetyOperatiOnMaintenance Setup

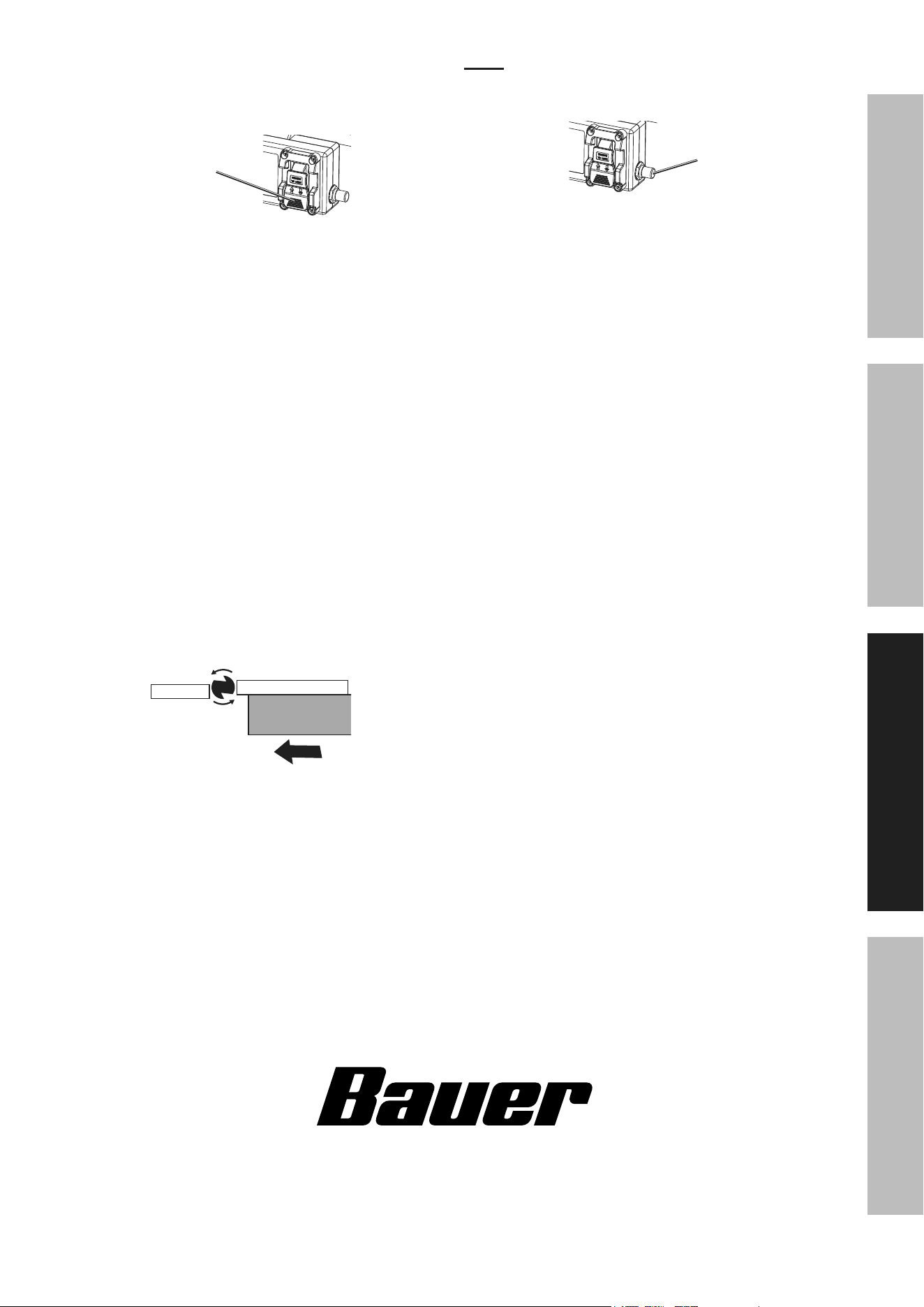

4. Plug Table’s Power Cord into a dedicated
15A, grounded 120VAC outlet.
5. Push Power Switch down.
power
Switch
6. Plug router and dust collector into
Outlets on bottom of Switch Box.
7. Turn router and dust collector power switches ON.
8. To turn on router and dust collection
system, pull up on Power Switch.
9. Practice on scrap material before routing workpiece.
10. Loosen Lock Knobs and adjust Featherboard
so workpiece can slide under it easily, but not
raise up from the Table. Tighten Lock Knobs.
11. Select a push block (sold separately) to stabilize
and push workpiece through the router bit.
12. Allow cutter bit to rotate up to full speed, then feed
workpiece with push block gradually from right
(infeed) to left (outfeed) against the rotation
of the bit. Keep feed rate constant. Feeding
workpiece too quickly may slow router’s motor.
Feeding workpiece too slowly may burn workpiece.
Bit rotation
Workpiece
Fence
Direction
Of Feed
Fence
note: If Router Table loses power, push Power
Switch down. Remove workpiece. Press
Reset Button, then lift Power Switch.
reset
Button
13. When finished, remove workpiece, push
Power Switch down and remove Safety
Key. Remove Table’s Power Cord.
14. Clean, then store the router and Router Table in a
clean, dry, safe location out of reach of children.
tM
Page 18 For technical questions, please call 1-800-444-3353. Item 70772
SaFety OperatiOn MaintenanceSetup
using Miter Gauge
1. Insert Miter Gauge bar into the slot on table.
Miter
Gauge
Slot
table
2. Remove Fence as needed. Loosen Lock Knob and
adjust Miter Gauge angle. Tighten Lock Knob.
Miter
Gauge
Workpiece
Fence
3. Plug Table’s Power Cord into a dedicated
15A, grounded 120VAC outlet.
4. Push Power Switch down.
power
Switch
5. Plug router and dust collector into
Outlets on bottom of Switch Box.
6. Turn router and dust collector power switches ON.
7. To turn on router and dust collection
system, pull up on Power Switch.
8. Practice on scrap material before routing workpiece.
9. Allow cutter bit to rotate up to full speed, then feed
workpiece with Miter Gauge gradually from right
(infeed) to left (outfeed) against the rotation
of the bit. Keep feed rate constant. Feeding
workpiece too quickly may slow router’s motor.
Feeding workpiece too slowly may burn workpiece.
Bit rotation
Direction
Of Feed
Workpiece
Miter
Gauge
note: On very hard wood or large cuts it may be
necessary to make more than one pass at progressive
depth settings until the desired depth of cut is made.
note: If Router Table loses power, push Power
Switch down. Remove workpiece. Press
Reset Button, then lift Power Switch.
reset
Button
10. When finished, remove workpiece, push
Power Switch down and remove Safety
Key. Remove Table’s Power Cord.
11. Clean, then store the router and Router Table in a
clean, dry, safe location out of reach of children.
Page 19For technical questions, please call 1-800-444-3353.Item 70772
SaFetyOperatiOnMaintenance Setup

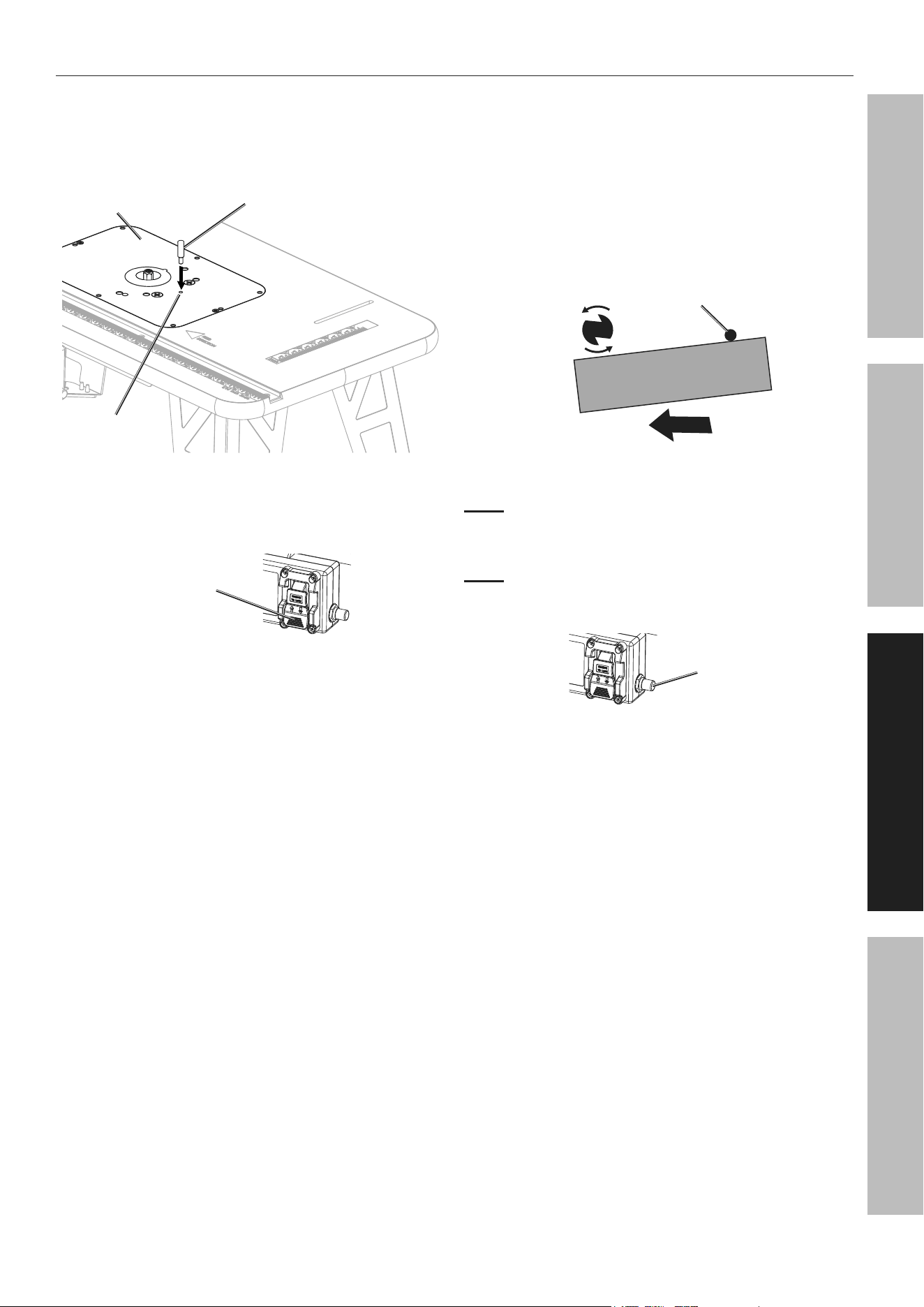

Freehand routing
1. Remove Fence and Miter Gauge.
2. Insert Starting Pin in infeed side
pin hole on Insert Plate.
insert
plate
Starting
pin
Starting
pin Hole
3. Plug Table’s Power Cord into a dedicated
15A, grounded 120VAC outlet.
4. Push Power Switch down.
power
Switch
5. Plug router and dust collector into
Outlets on bottom of Switch Box.
6. Turn router and dust collector power switches ON.
7. To turn on router and dust collection
system, pull up on Power Switch.
8. Practice on scrap material before routing workpiece.
9. Select a push block (sold separately) to stabilize
and push workpiece through the router bit.

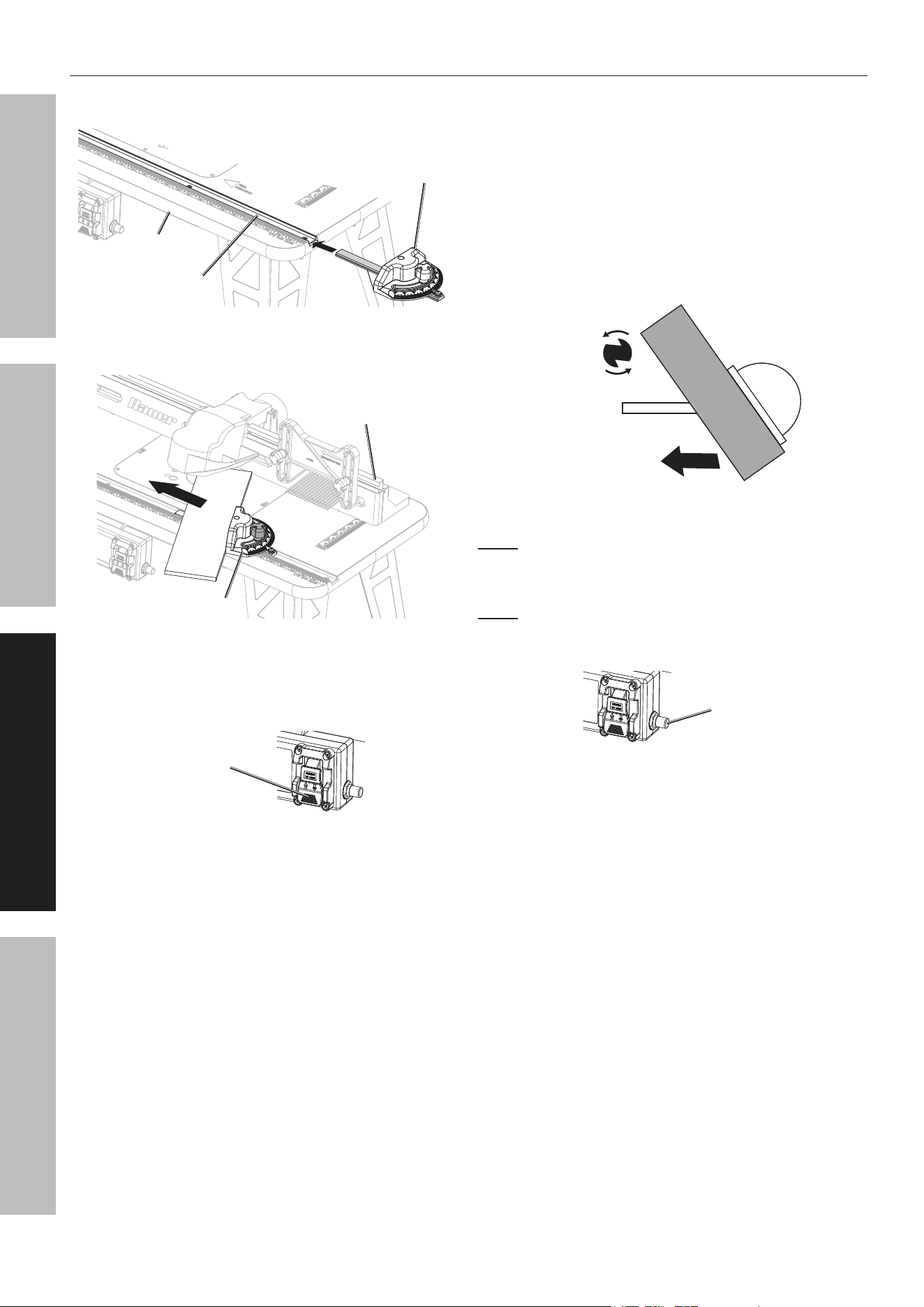

10. Allow cutter bit to rotate up to full speed, then with
workpiece bearing against the Starting pin, feed
workpiece with push block gradually from right
(infeed) to left (outfeed) against the rotation
of the bit. Keep feed rate constant. Feeding
workpiece too quickly may slow router’s motor.
Feeding workpiece too slowly may burn workpiece.
Bit rotation
Workpiece
Direction
Of Feed
Starting pin
note: On very hard wood or large cuts it may be
necessary to make more than one pass at progressive
depth settings until the desired depth of cut is made.
note: If Router Table loses power, push Power
Switch down. Remove workpiece. Press
Reset Button, then lift Power Switch.
reset
Button
11. When finished, remove workpiece, push
Power Switch down and remove Safety
Key. Remove Table’s Power Cord.
12. Clean, then store the router and Router Table in a
clean, dry, safe location out of reach of children.
Page 20 For technical questions, please call 1-800-444-3353. Item 70772
SaFety OperatiOn MaintenanceSetup
Maintenance and Servicing instructions
procedures not specifically explained in this manual must
be performed only by a qualified technician.
tO preVent SeriOuS inJury FrOM acciDentaL OperatiOn:
Make sure that the trigger is in the off-position and unplug the tool from its
electrical outlet before performing any procedure in this section.
tO preVent SeriOuS inJury FrOM tOOL FaiLure:
Do not use damaged equipment. if abnormal noise or vibration
occurs, have the problem corrected before further use.
cleaning, Maintenance, and Lubrication
1. BeFOre eacH uSe, inspect the general
condition of the tool. Check for:
• loose hardware,
• misalignment or binding of moving parts,
• damaged cord/electrical wiring,
• cracked or broken parts, and
• any other condition that may
affect its safe operation.
2. aFter uSe, wipe external surfaces of
the router and Table with clean cloth.
3. WarninG! tO preVent SeriOuS
inJury: if the supply cord of the table
is damaged, it must be replaced only
by a qualified service technician.
Page 21For technical questions, please call 1-800-444-3353.Item 70772
SaFetyOperatiOnMaintenance Setup
pLeaSe reaD tHe FOLLOWinG careFuLLy
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
record product’s Serial number Here:
note: if product has no serial number, record month and year of purchase instead.
note: Some parts are listed and shown for illustration purposes only, and are not
available individually as replacement parts. Reference UPC 193175512659.
Page 22 For technical questions, please call 1-800-444-3353. Item 70772
SaFety OperatiOn MaintenanceSetup
parts List and Diagram
parts List
part Description Qty.
1 Lock Knob 7
2 Washer 10
3 Featherboard 2
4 Carriage Bolt 4
5 Carriage Bolt 2
6 Square Hole Washer 6
7 Outfeed Extension 1
8 Infeed Extension 1
9 Washer 1
10 Moving Bracket 1
11 Nut 8
12 Hex Bolt 1
13 T‑Track Left Side 1
14 Main Bracket 1
15 Cross Head Screw 8
16 Washer 2
17 Lock Knob 4
18 T‑Track Right Side 1
19 Big Washer 4
20 E‑Ring 4
21 Pin 1
22 Bit Guard 1
23 Guard Bracket 1
24 Long Pin 1
25 Starting Pin 1
26‑1 Throat Plate A - 0.495″ 1
26‑2 Throat Plate B - 0.997″ 1
26‑3 Throat Plate C - 1.185″ 1
26‑4 Throat Plate D - 1.499″ 1
26‑5 Throat Plate E - 2″ 1
27 Set Screw 8
part Description Qty.
28 Cross Head Screw 2
29 Insert Plate 1
30 Pin 8
31 Screw 4
32 Sliding Rail 1
33 Table 1
34 Lock Knob 1
35 Screw 1
36 Pointer 1
37 Miter Gauge 1
38 Angle Plate 1
39 Sliding Bar 1
40 Nut 16
41 Nut 2
43 Nut 3
44 Guard Plate 1
45 Self‑Tapping Screw 10
46 Leg 4
47 Feet 4
48 Cross Head Screw 19
49 Support Plate 1
50 Self‑Tapping Screw 10
51 Power Switch Box 1
52 Cord Clamp 1
53 Power Cord 1
54 Power Switch Box Cover 1
55 Power Switch 1
56 Outlet 2
57 Overload Switch 1
58 Power Switch Box Assembly 1
Page 23For technical questions, please call 1-800-444-3353.Item 70772
SaFetyOperatiOnMaintenance Setup
assembly Diagram
1
2
3
4
6
7
8
5
9
10
11
13
14
15
16
17
18
19
20
21
22
23
24
12
20
19
50
50
51
52
53
54
55
56
57
58
25
27
28
29
32
31
33
34
2
35
36
37
38
39
6
5
40
44
45
43
46
47
48
49
30
26-2
26-3
26-4
26-5
41
26-1
27
30
28
6
5
41
40
46
46
45
46
47
47
47
48
48
48
48
1
2
6
5
6
5
6
5
11
2
2
2
2
2
15
15
16
17
17
1
1
1
4
17
1
2
3
4
1
2
4
tM
26677 agoura road • calabasas, ca 91302 • 1-800-444-3353
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
HERCULES and BAUER are trademarks of Harbor Freight Tools.
All other marks are trademarks of their respective owners.
