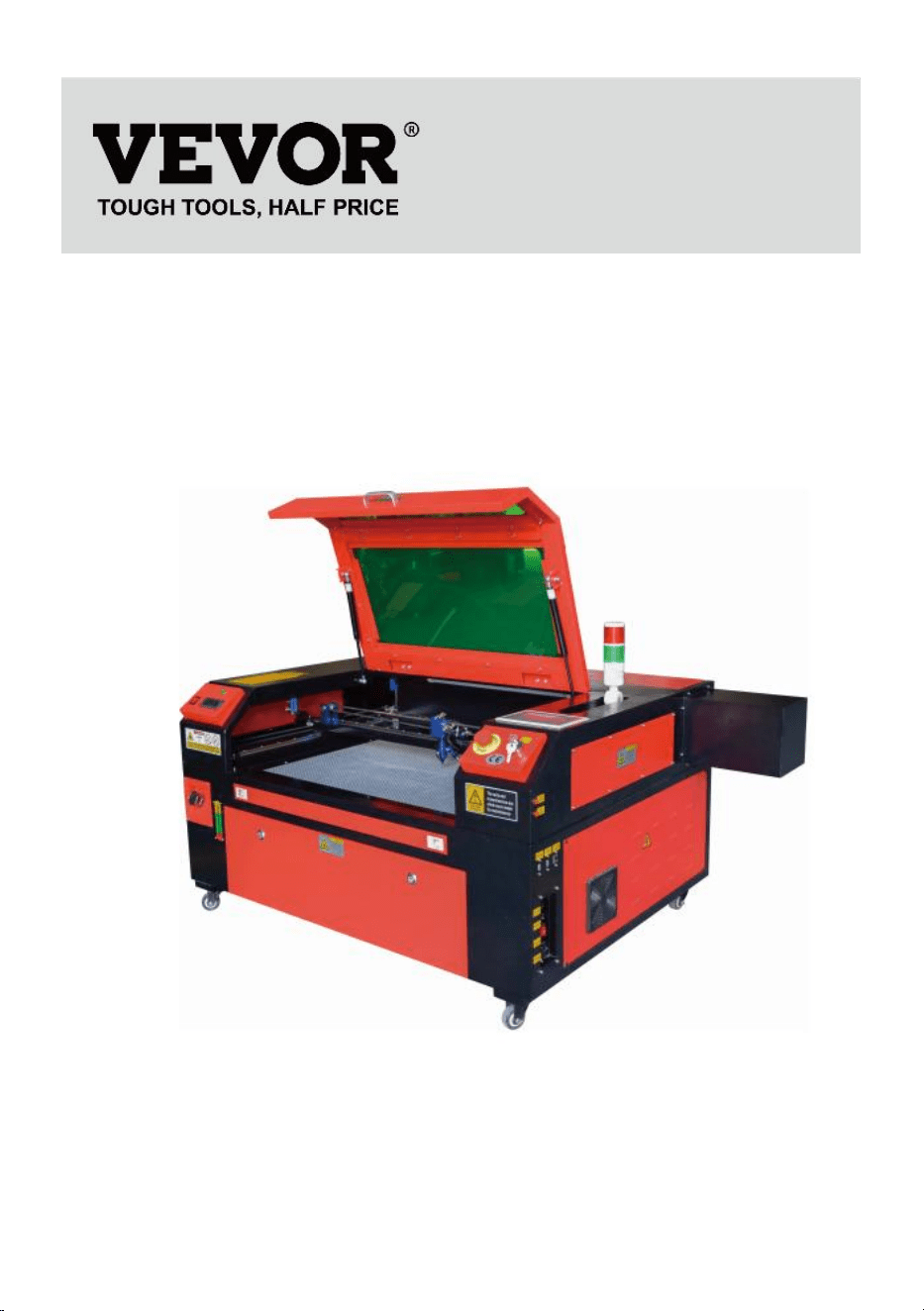

LASER ENGRAVING MACHINE

INSTRUCTION MANUAL

MODEL:KH5030/KH6040/KH7050/KH906/KH1490

KH-5030/KH-6040/KH-7050/KH-906/KH-1490

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an

estimate of savings you might benefit from buying certain tools with us compared to the major

top brands and does not necessarily mean to cover all categories of tools offered by us. You

are kindly reminded to verify carefully when you are placing an order with us if you are

actually saving half in comparison with the top major brands.

- 1 -

MODEL:KH5030/KH6040/KH7050/KH9060/KH1490

KH-5030/KH-6040/KH-7050/KH-906/KH-1490

LASER ENGRAVING MACHINE

- 2 -

Have product questions? Need technical support? Please feel free to

Technical Support and E-Warranty Certificate

www.vevor.com/support

NEED HELP? CONTACT US!

This is the original instruction, please read all manual instructions

carefully before operating. VEVOR reserves a clear interpretation of our

user manual. The appearance of the product shall be subject to the

product you received. Please forgive us that we won't inform you again if

there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read

instructions manual carefully.

This device complies with Part 15 of the FCC Rules. Operation

is subject to the following two conditions:(1)This device may

not cause harmful interference, and (2)this device must accept

any interference received, including interference that may

cause undesired operation.

This product is subject to the provision of European Directive

2012/19/EC. The symbol showing a wheelie bin crossed

through indicates that the product requires separate refuse

collection in the European Union. This applies to the product

and all accessories marked with this symbol. Products marked

as such may not be discarded with normal domestic waste, but

must be taken to a collection point for recycling electrical and

electronic devices

- 3 -

IMPORTANT NOTES

CO2 laser engraver is suitable for both personal and professional use.

When used in accordance with these instructions, it includes a Class 1

laser system, but some components are still very dangerous. Never

disable pre-in-stalled safety equipment and always use the laser safely and

responsibly.

Before operating the equipment, the user must carefully read the

operation manual and strictly abide by it. This manual is applicable to

multiple models of products.

This equipment uses international standard four types of lasers (strong

laser radiation). Laser radiation may cause the following events:

1.ignite surrounding combustibles.

2.During the laser processing, due to different processed objects, other

radiation and other toxics may be generated Harmful gas.

3.Direct laser radiation may cause personal injury. Therefore, the

equipment must be equipped with fire-fighting equipment. It is strictly

forbidden to stack flammable and explosive materials on the

workbench and around the equipment. At the same time, ensure good

ventilation. Non-professional operators are not allowed to approach

the equipment.

Laser processing objects and emissions should comply with local laws

and regulations.

Laser processing may have high risks, so you should carefully consider

whether the object is suitable for laser processing.

The internal laser equipment has high voltage and other dangers, except

for equipment operators, it is strictly prohibited to disassemble.

When the equipment is turned on, someone must be guarded,

unauthorized leaving is forbidden, and all power must be cut off before

personnel leave.

It is forbidden to open any door when the equipment is working.

Before starting operation, this equipment and other equipment must be

safely and effectively grounded.

Do not place any irrelevant total reflection or diffuse reflection ob

- 4 -

jects in the equipment to prevent the laser from being reflected on the

human body or flammable objects.

During the operation of the equipment, the operator must always

observe the operation of the equipment. If an abnormal situation occurs,

please immediately.

The equipment should be in a dry, pollution-free, vibration-free and strong

electromagnetic interference environment, with a working temperature of

5-40 degrees Celsius and a humidity of 5-95%(non condensing water

environment).

The equipment should always be far away from electrical equipment

sensitive to electromagnetic interference, otherwise it may cause

electromagnetic interference.

The working voltage of the device is: European AC220V or North

American AC120V (please confirm the working voltage of the device

before use).

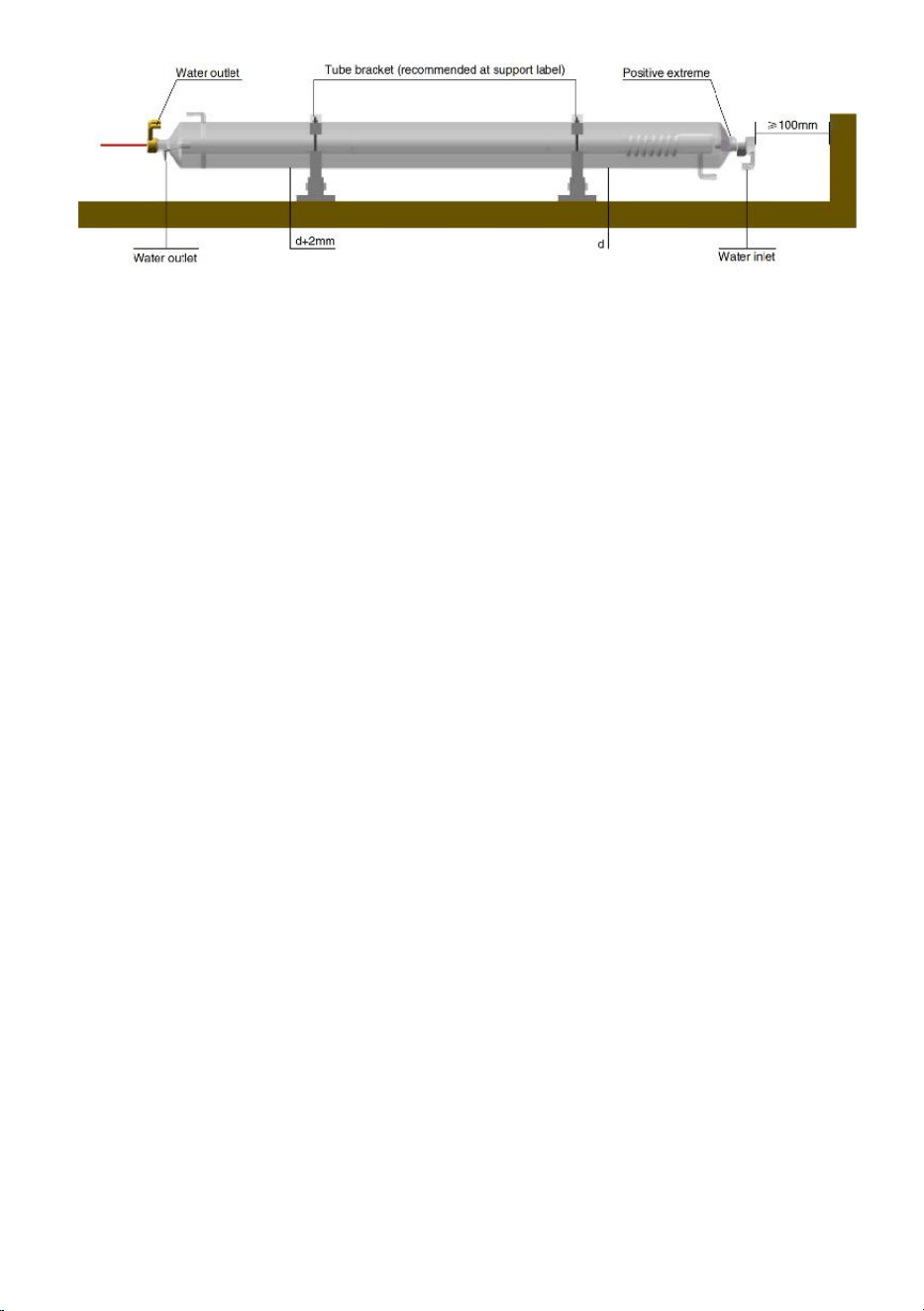

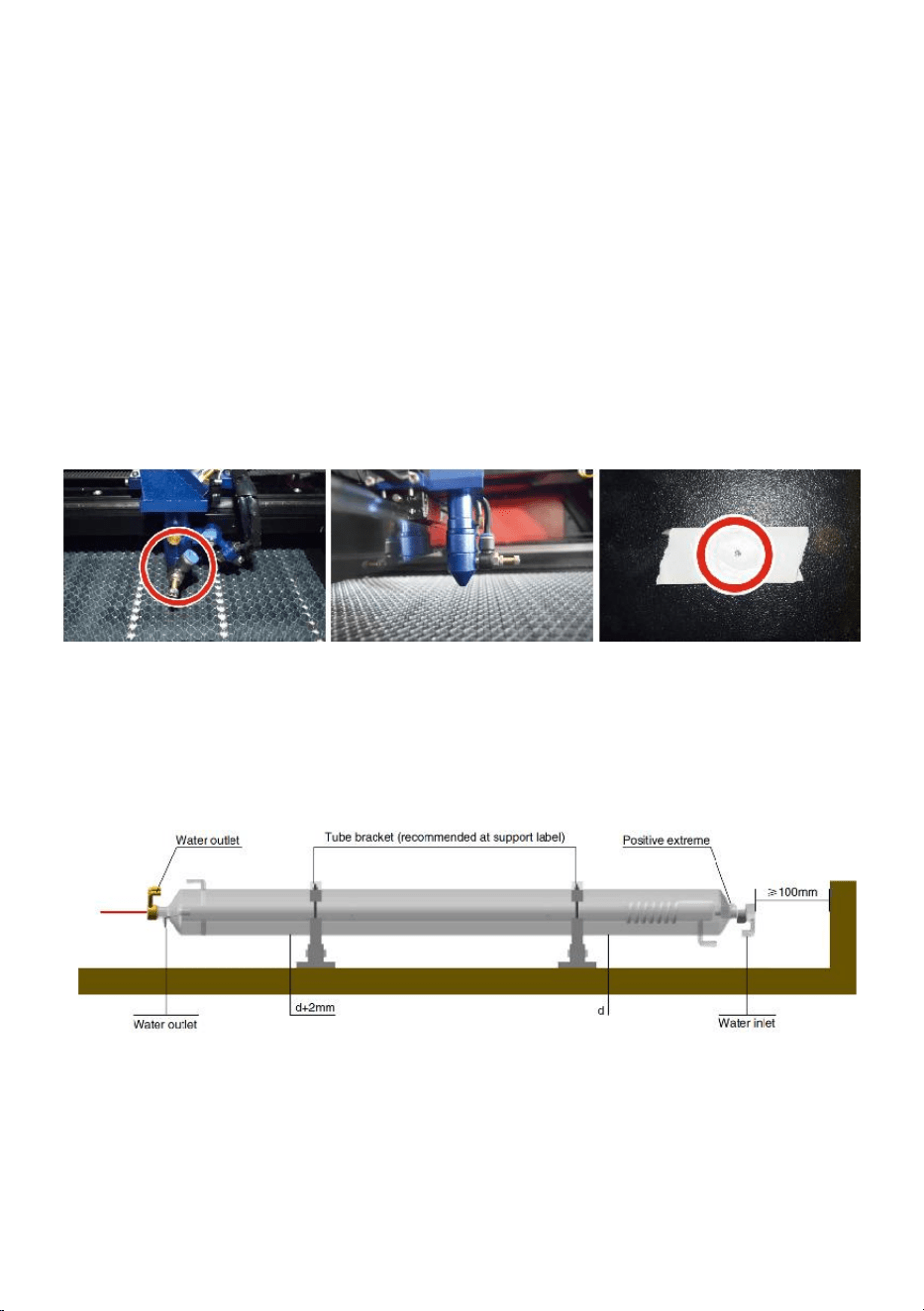

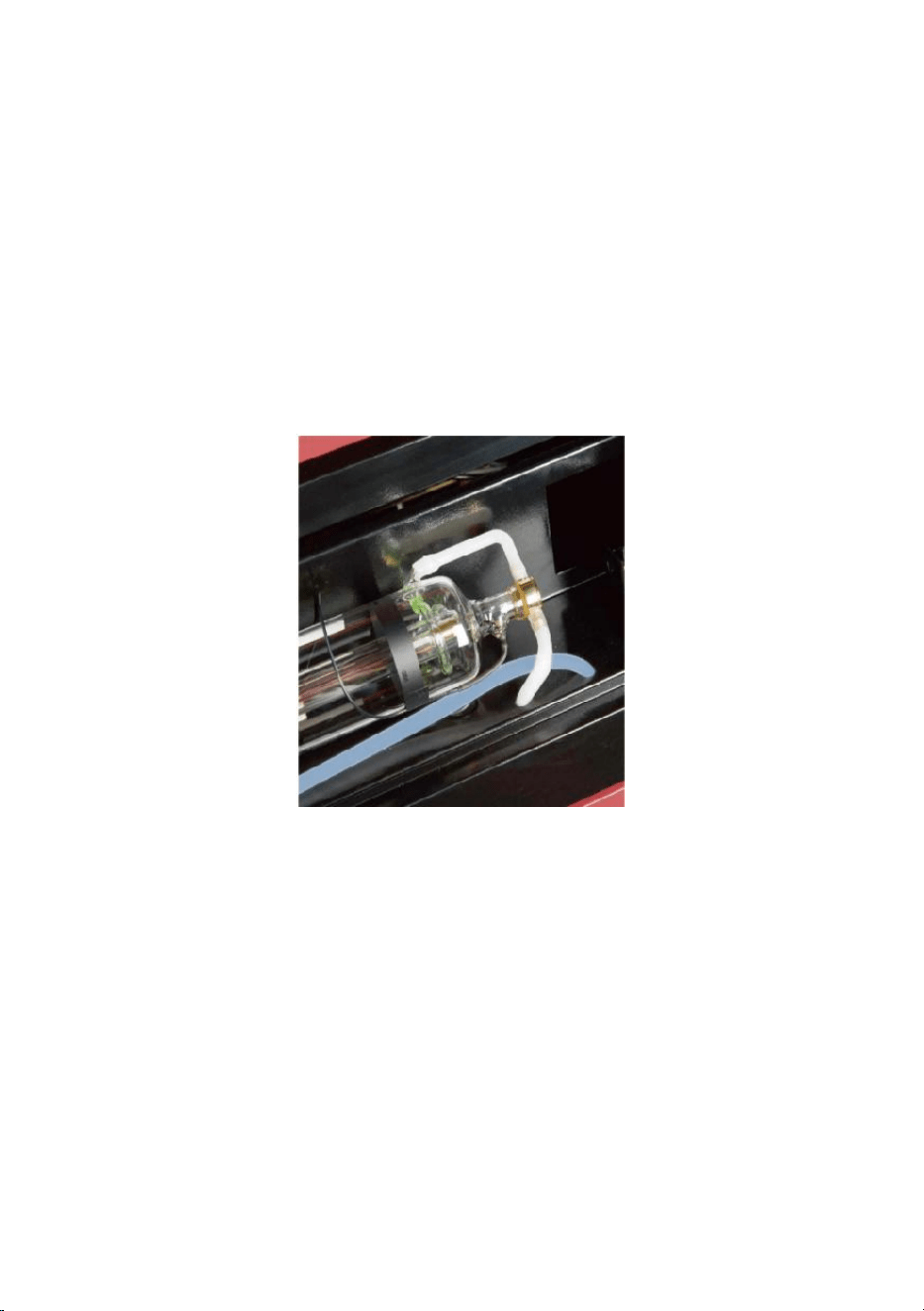

The most important carbon dioxide glass laser in the equipment is a

consumable and a vulnerable item. Please take care of it during use The

carbon dioxide glass laser needs pure cold water to cool down Please

pay attention to the water temperature not to exceed 30 degrees Celsius

during use, otherwise the laser will be damaged. When the am-bient

temperature is about to drop below 0 degrees Celsius, please re-place it

with an antifreeze liquid to avoid damage to the carbon dioxide glass

laser.

It is forbidden to turn on the equipment when the grid voltage is unstable

or mismatched. The manufacturer and seller are not responsible for any

loss caused by incorrect use or non-compliance with the above

regulations.

- 5 -

BASIC INFORMATION

This manual is a designated user guide engraver for cabinet laser

installation, setup, safe operation, and maintenance. Covers general

information, safety instructions, installation steps, operating instructions,

maintenance procedures, and contact information.

All personnel involved in the installation, setup, operation, maintenance,

and repair of this machine should read and understand this manual,

especially its safety instructions. Some components have extremely high

voltages and/or generate powerful laser radiation. Substandard

performance and longevity, property damage, and personal injury can

result from not understanding and following these instructions.

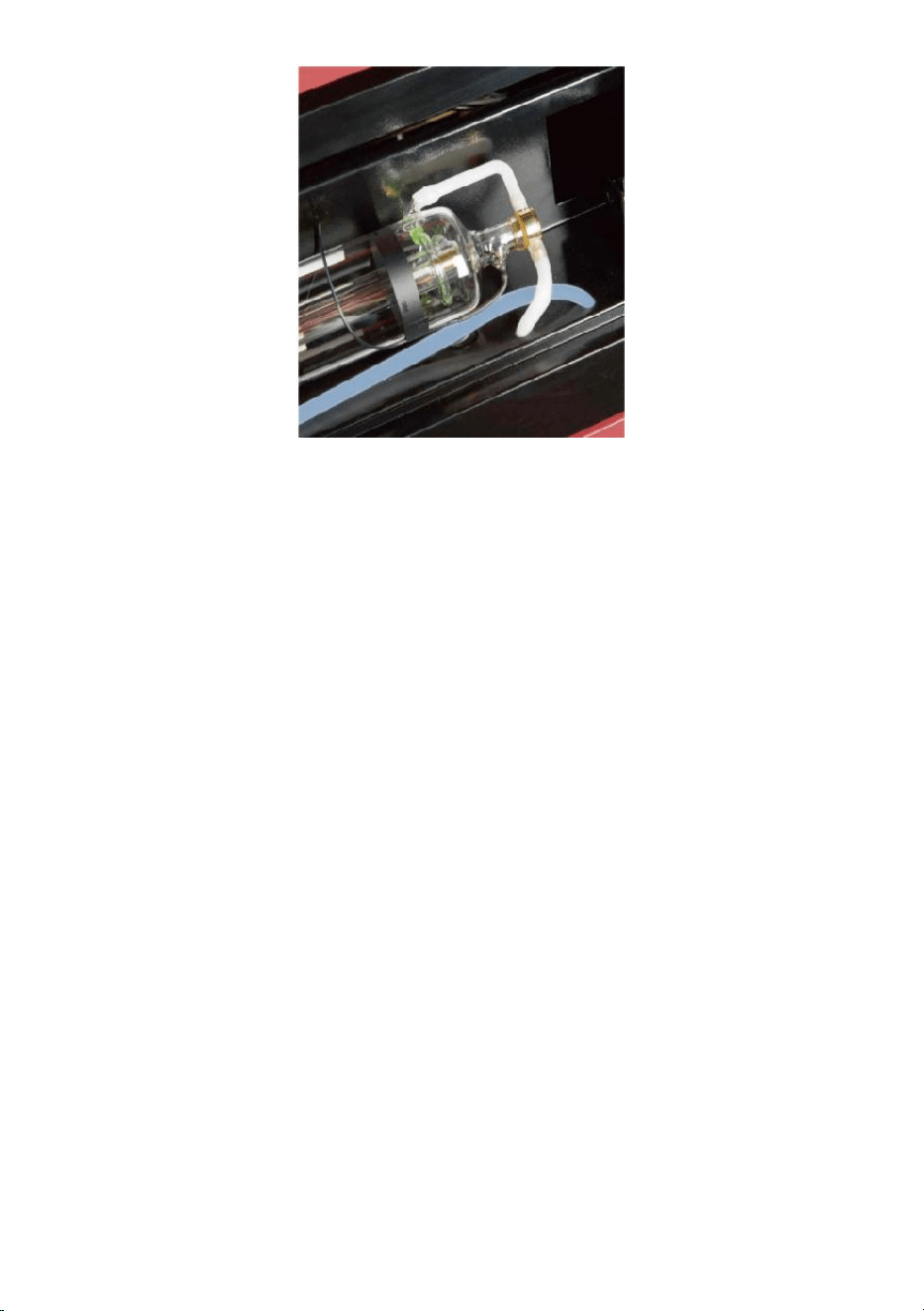

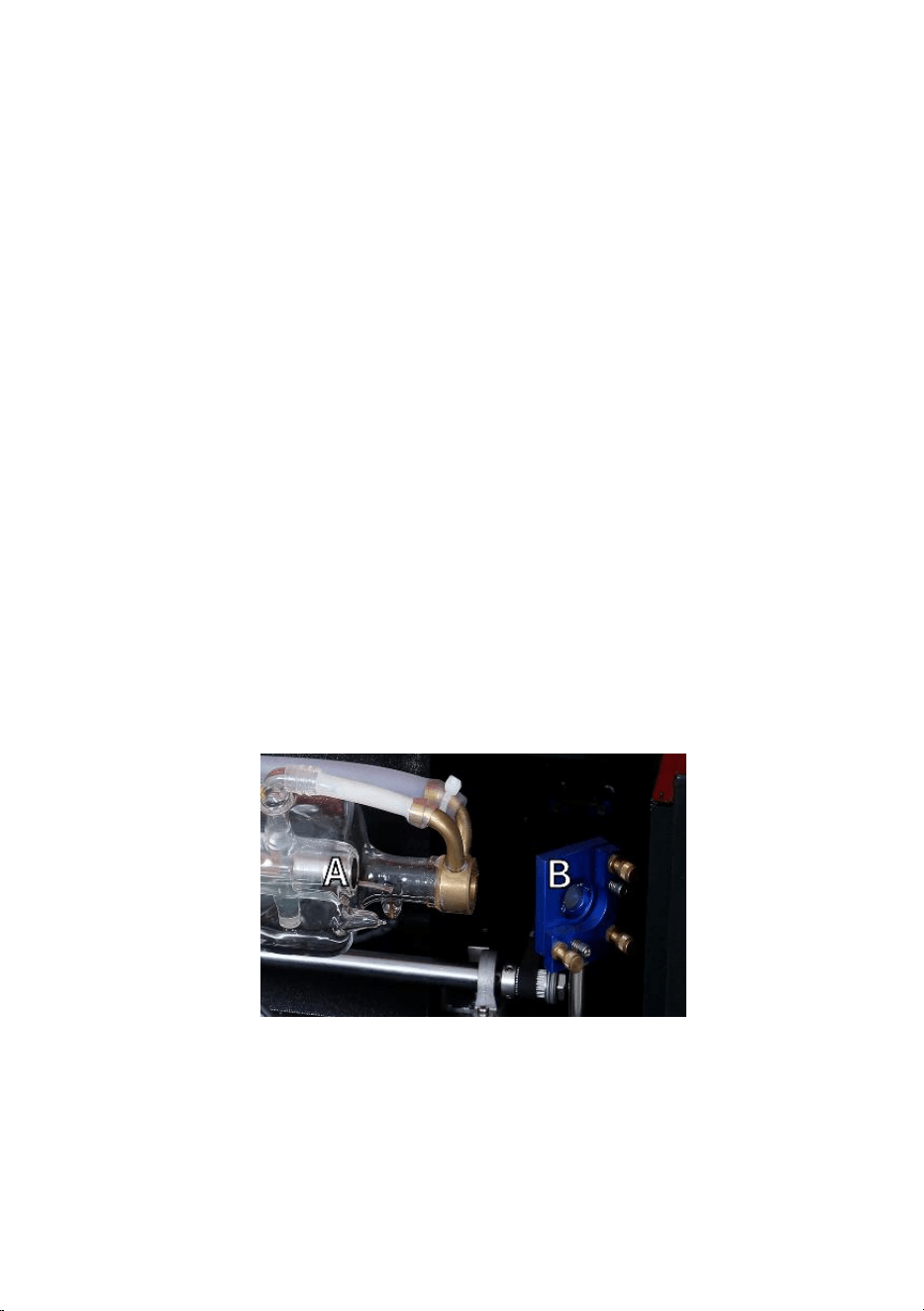

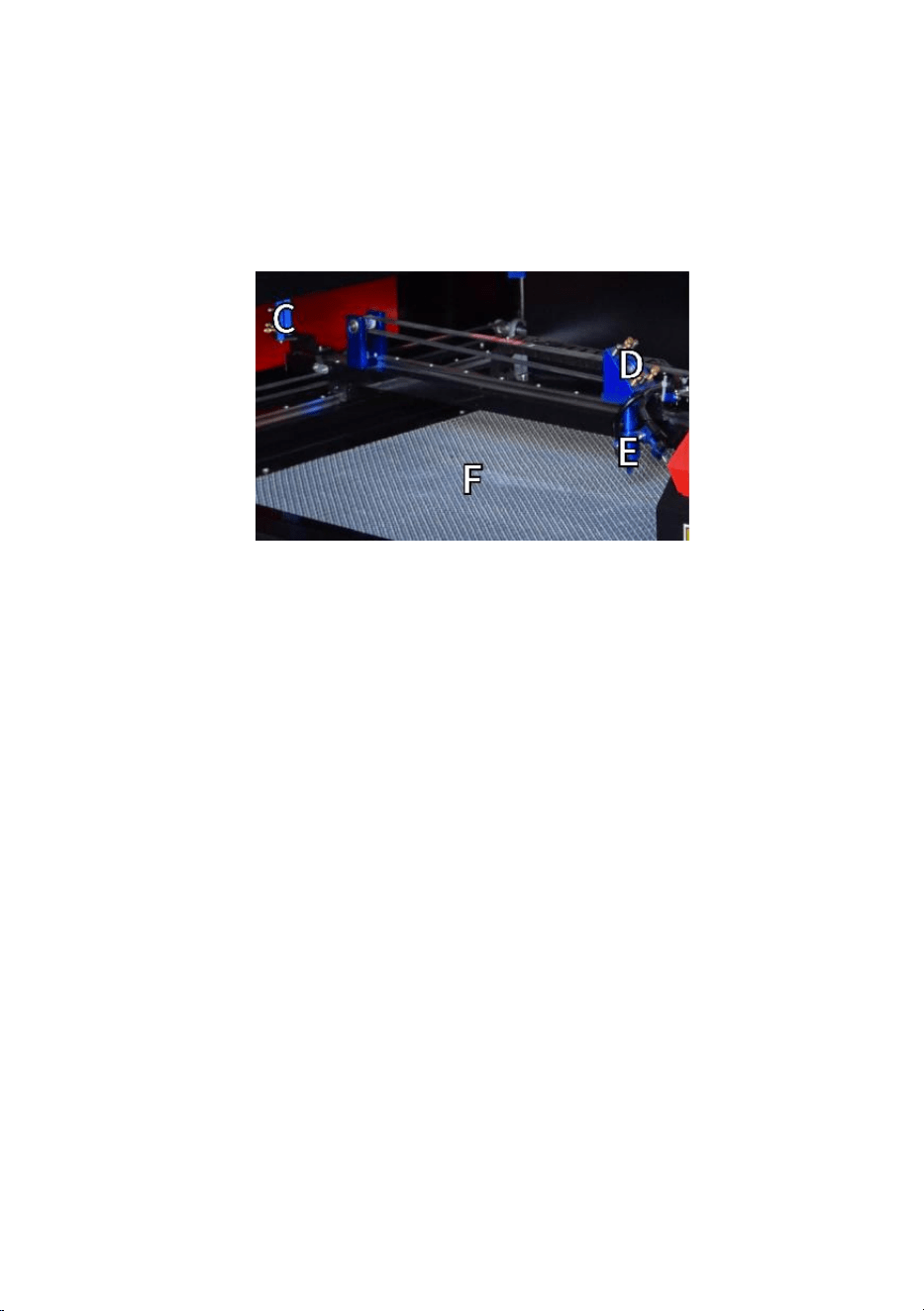

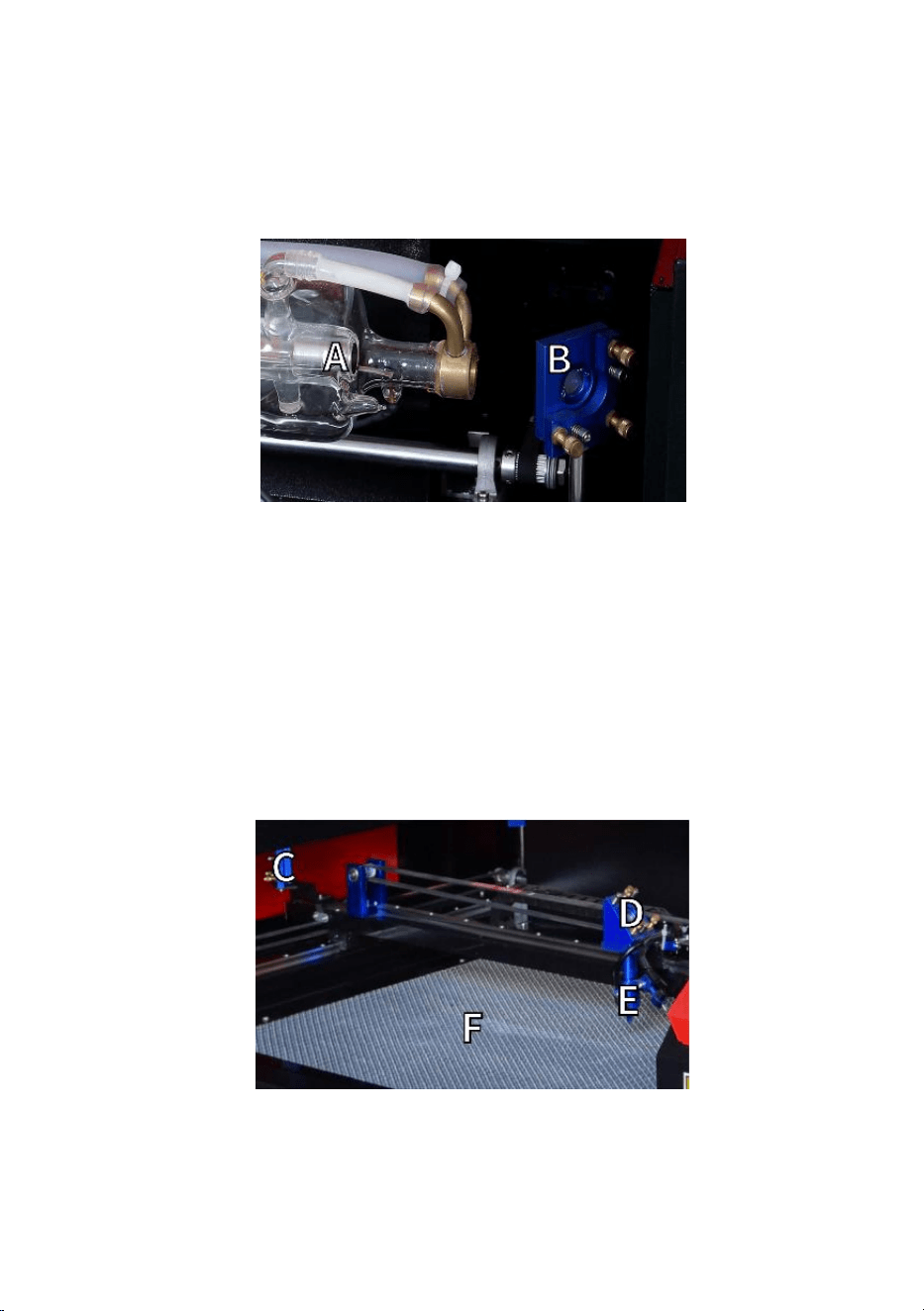

Your laser engraver works by emitting a powerful laser beam from a

glass tube filled with insulating carbon dioxide (CO2), reflecting that beam

off three mirrors and reflecting it through a focusing lens, and using this

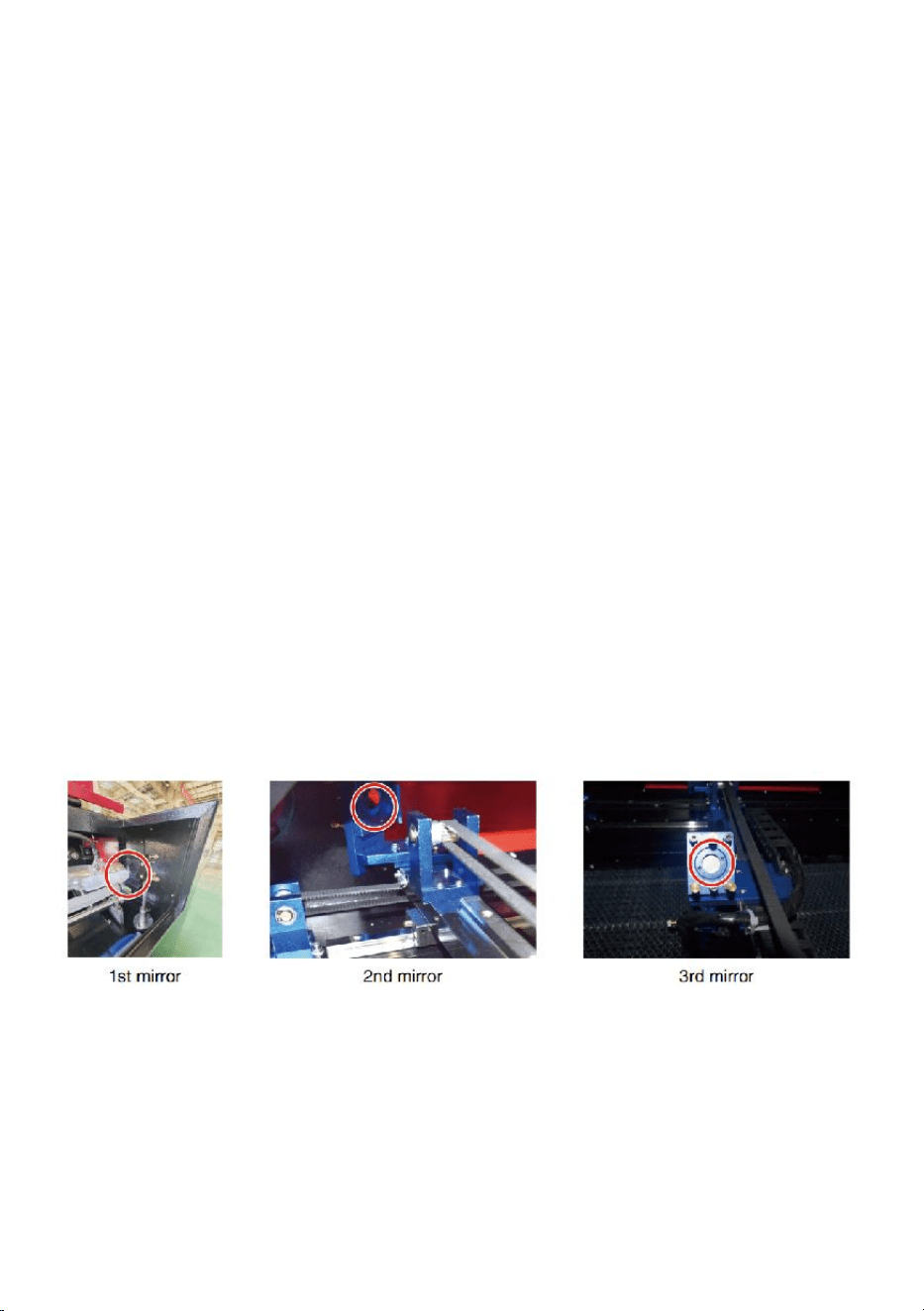

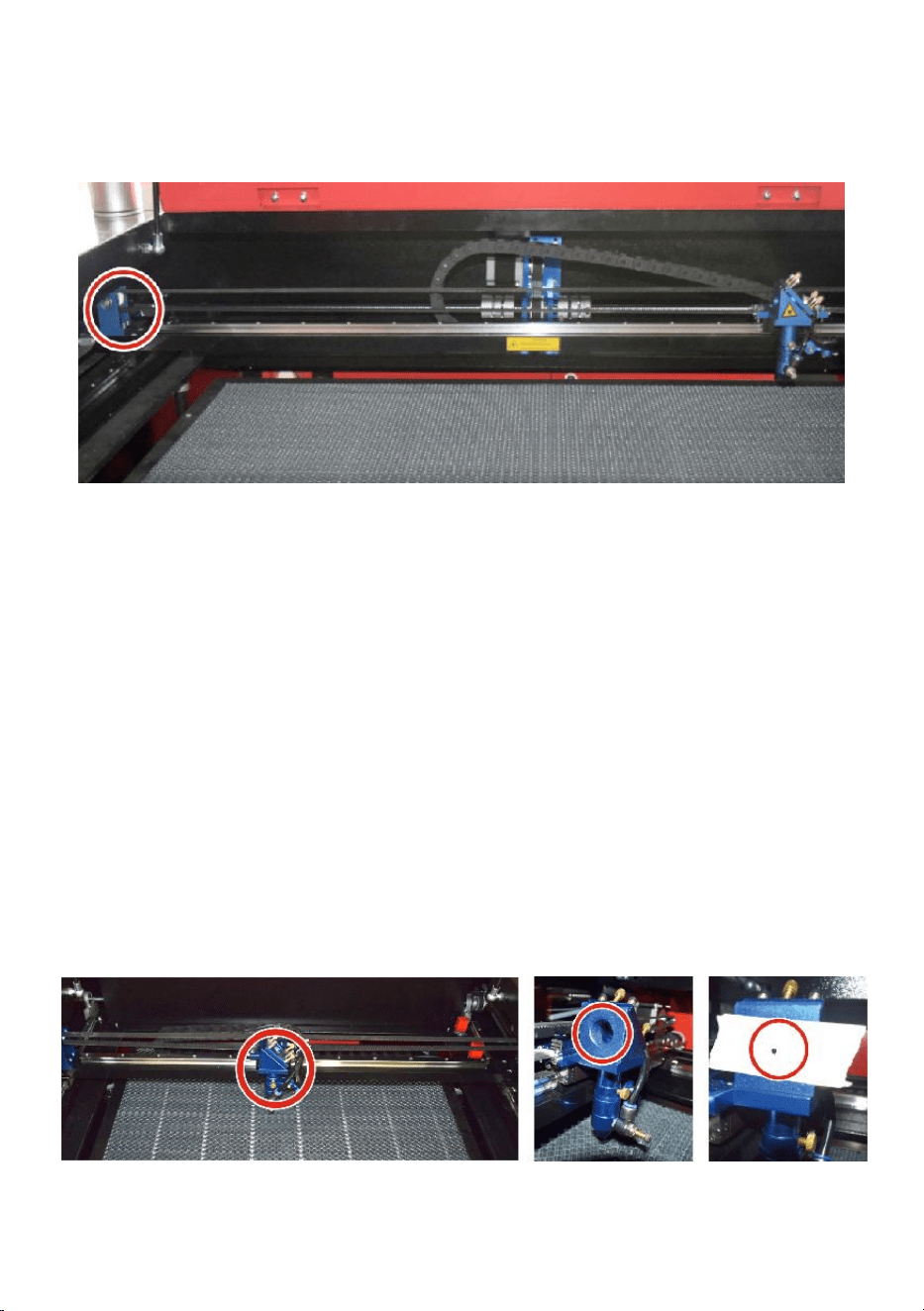

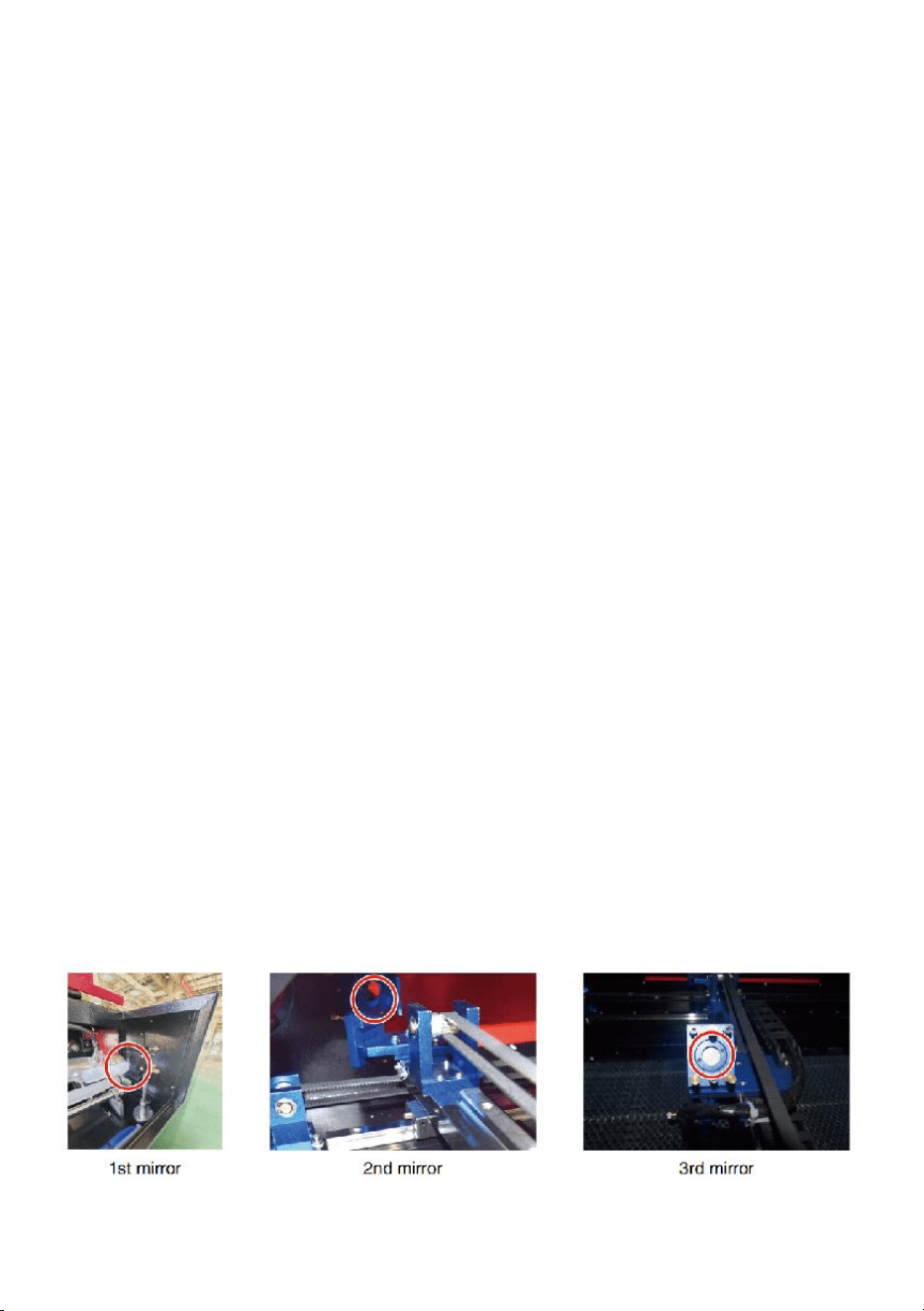

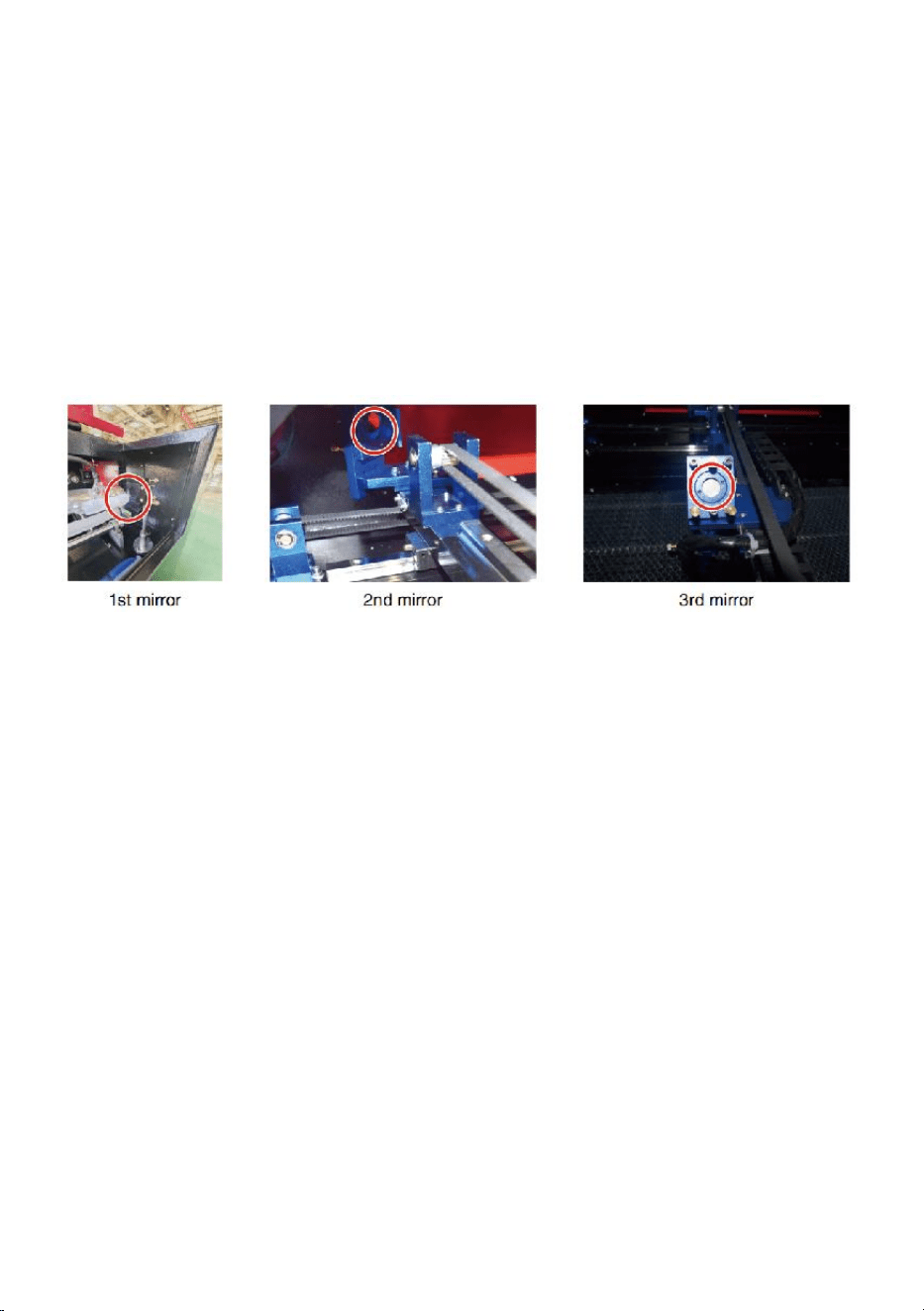

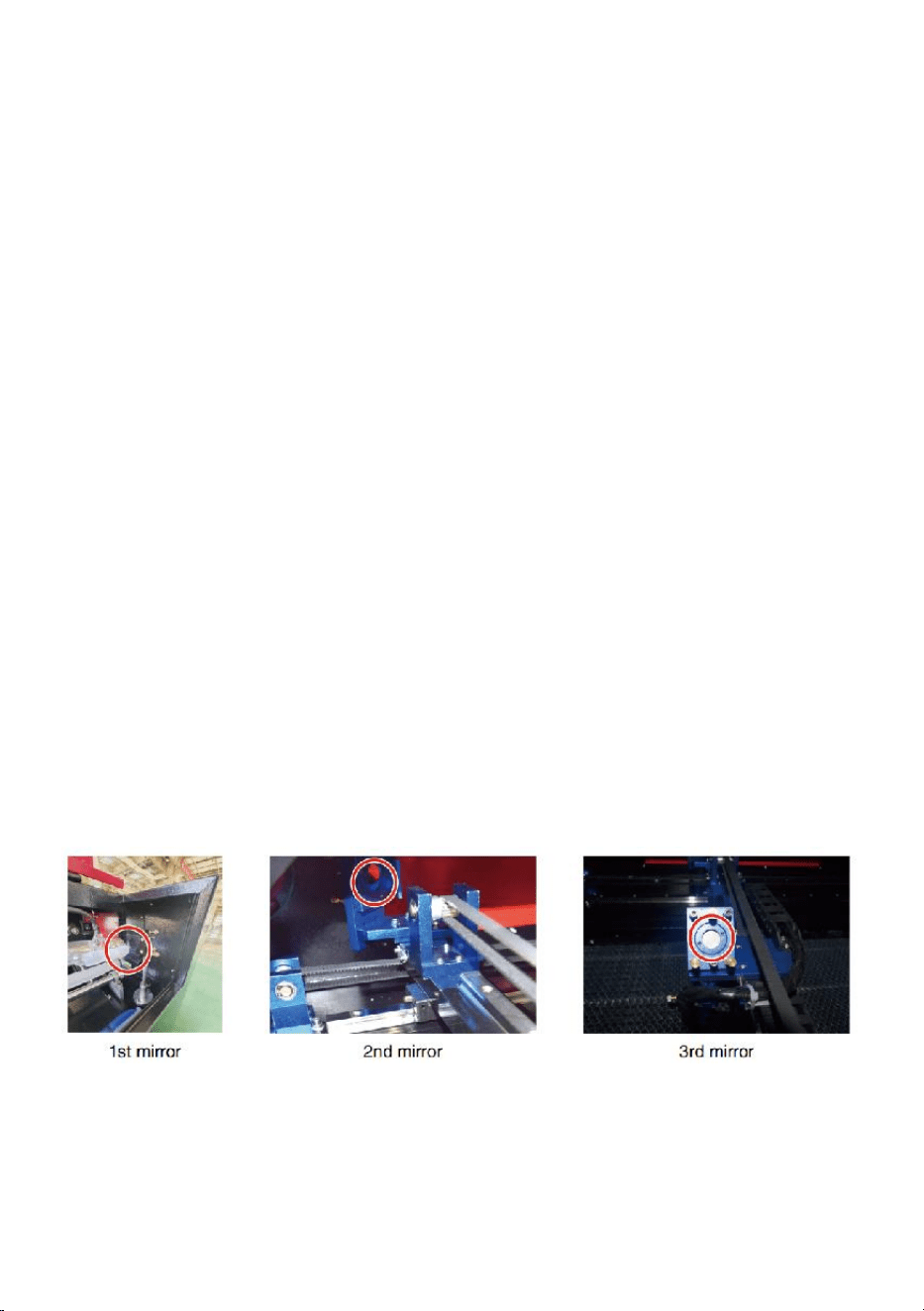

focused light to etch the design onto certain substrates. The first mirror is

fixed near the end of the laser tube, the second mirror travels along the

Y-axis of the machine, and the third mirror is attached to the laser head

traveling along the X-axis. Since some of the dust from the engraving

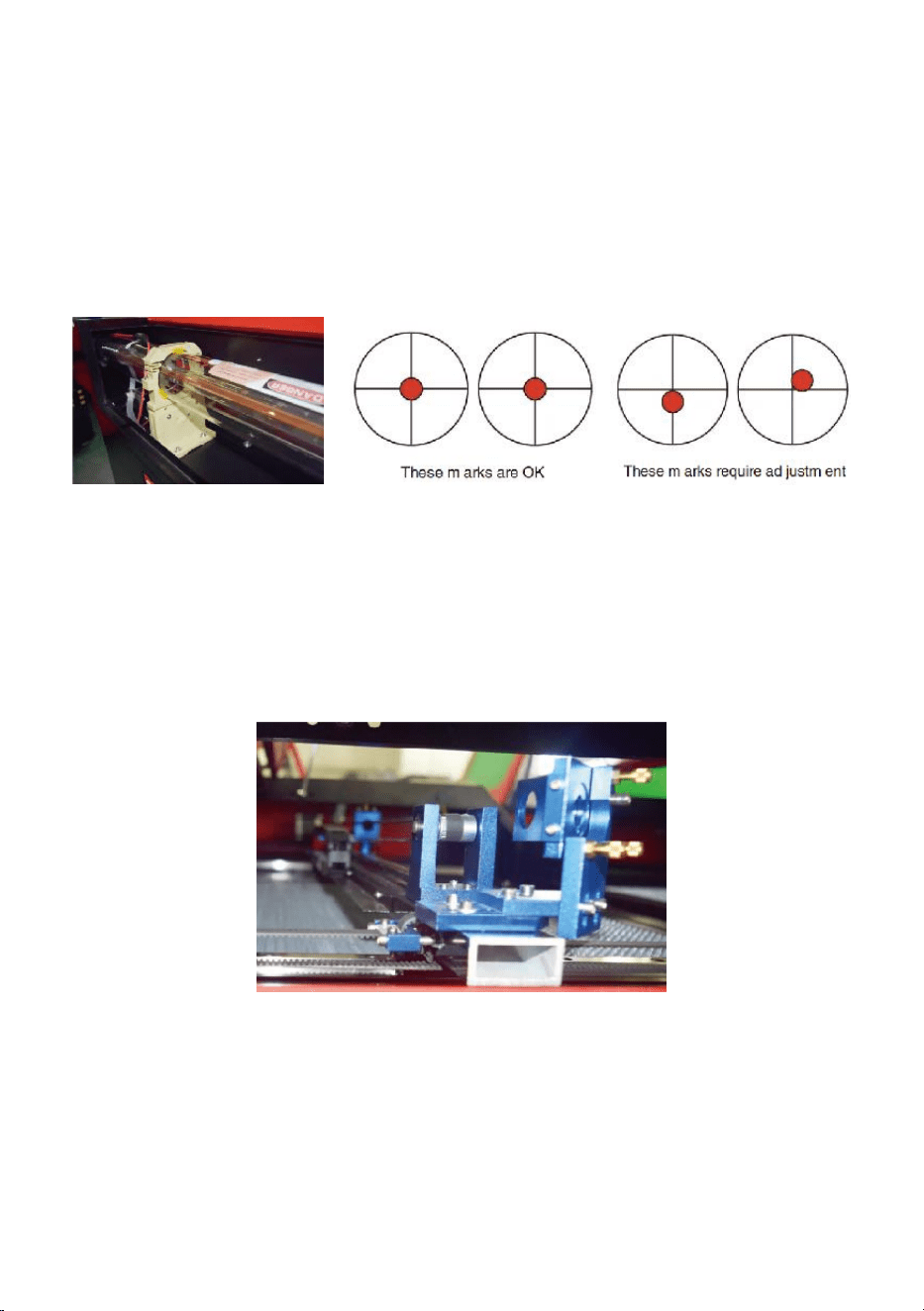

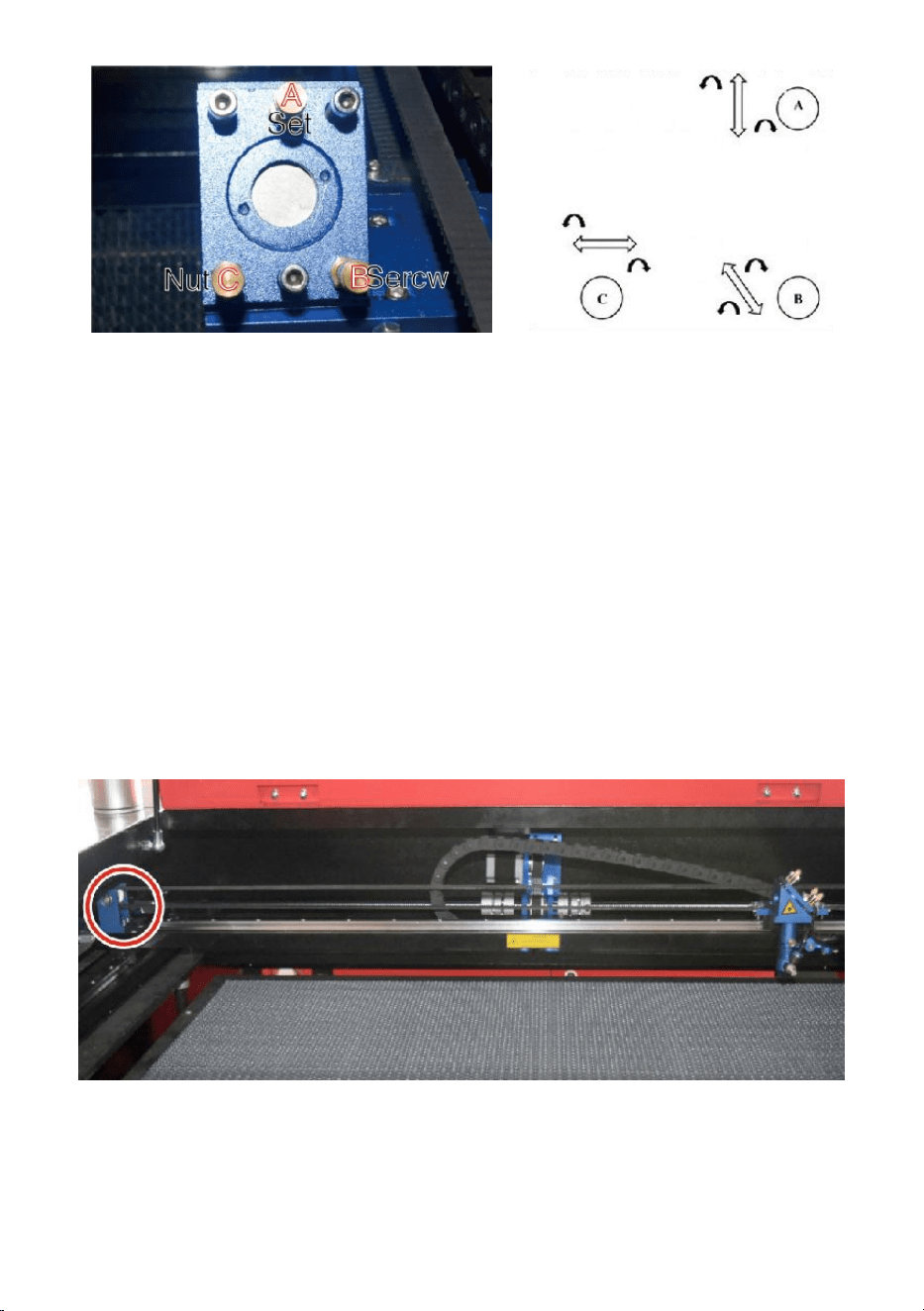

process settles on the mirror, it needs to be cleaned frequently. Since they

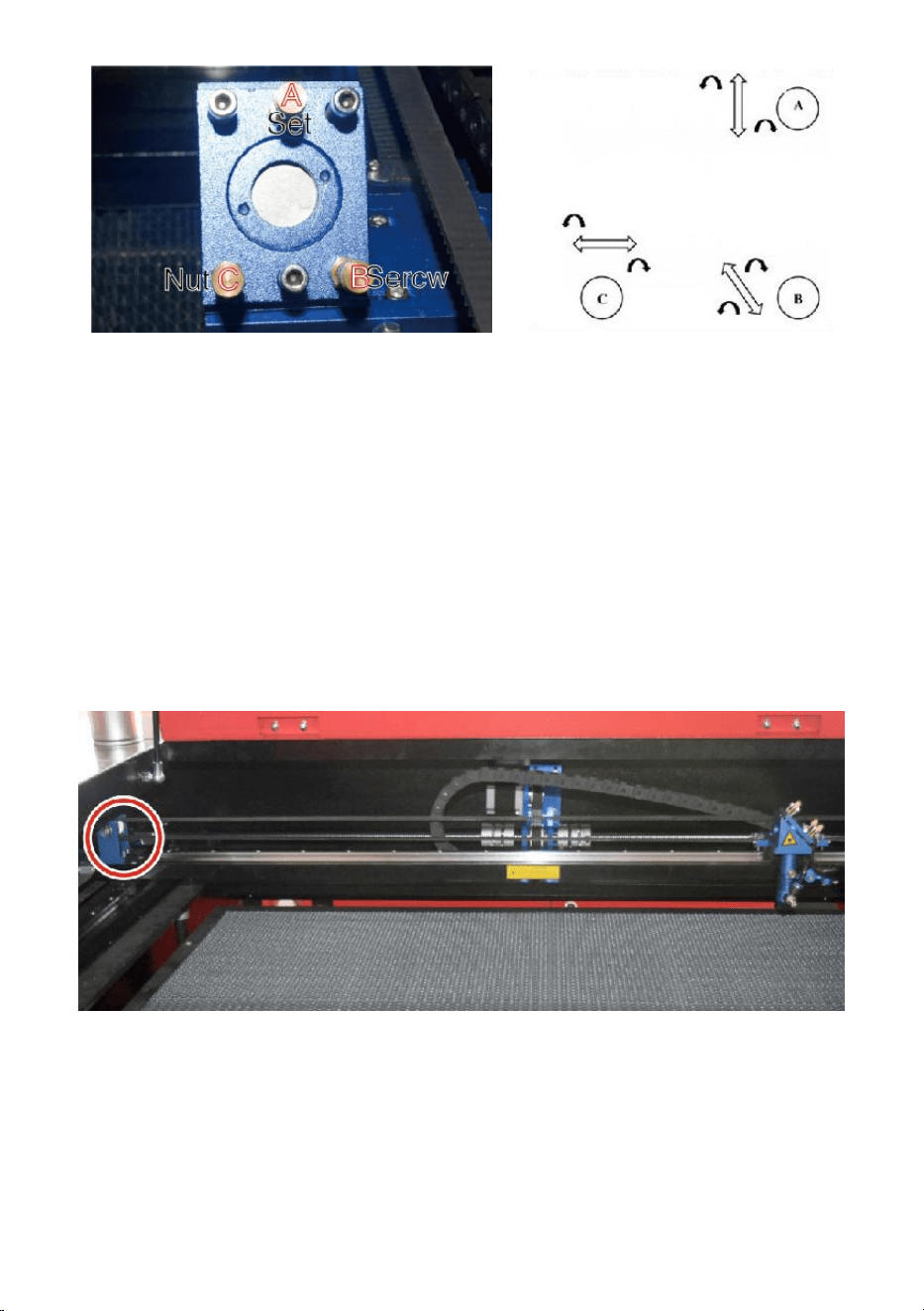

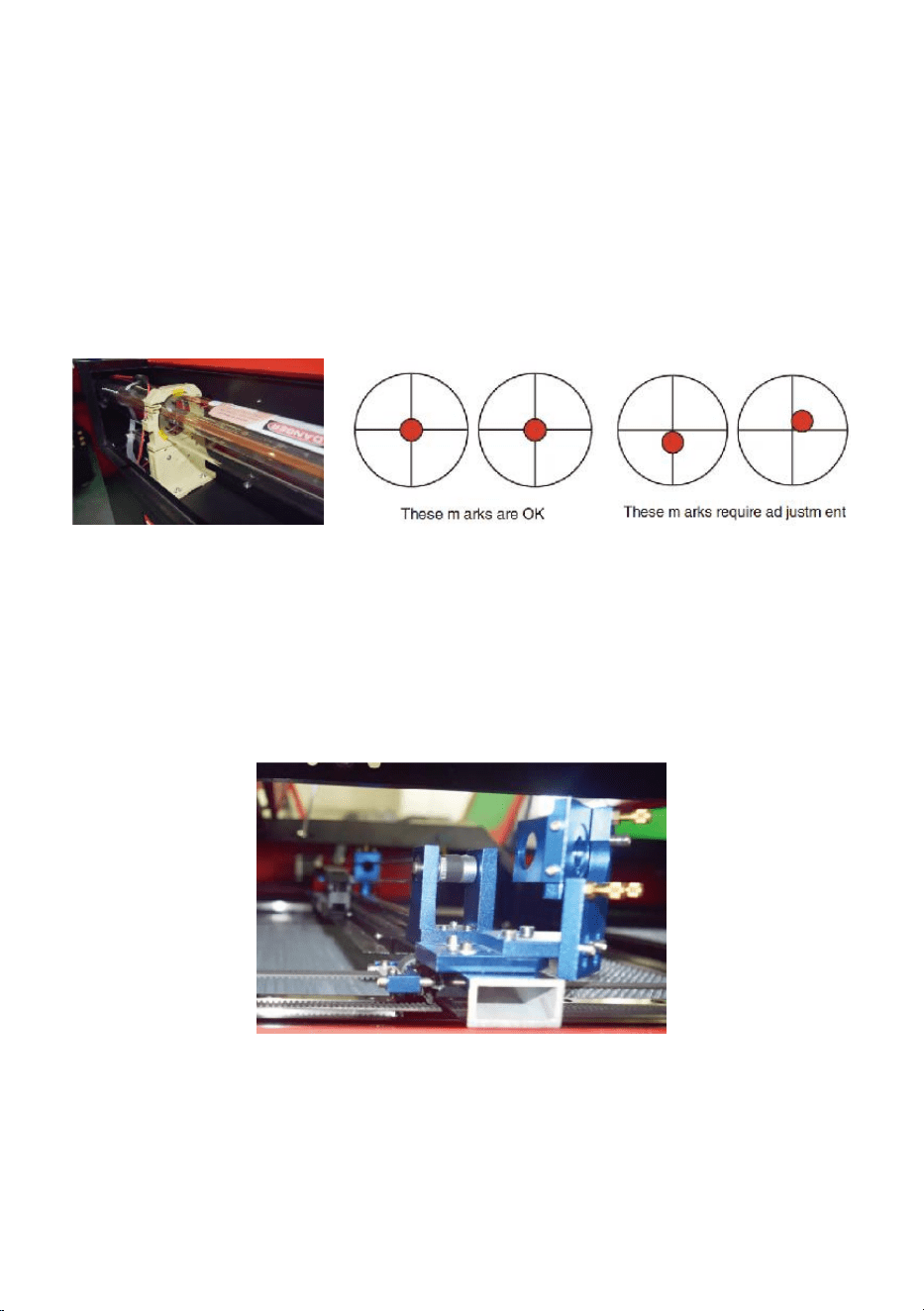

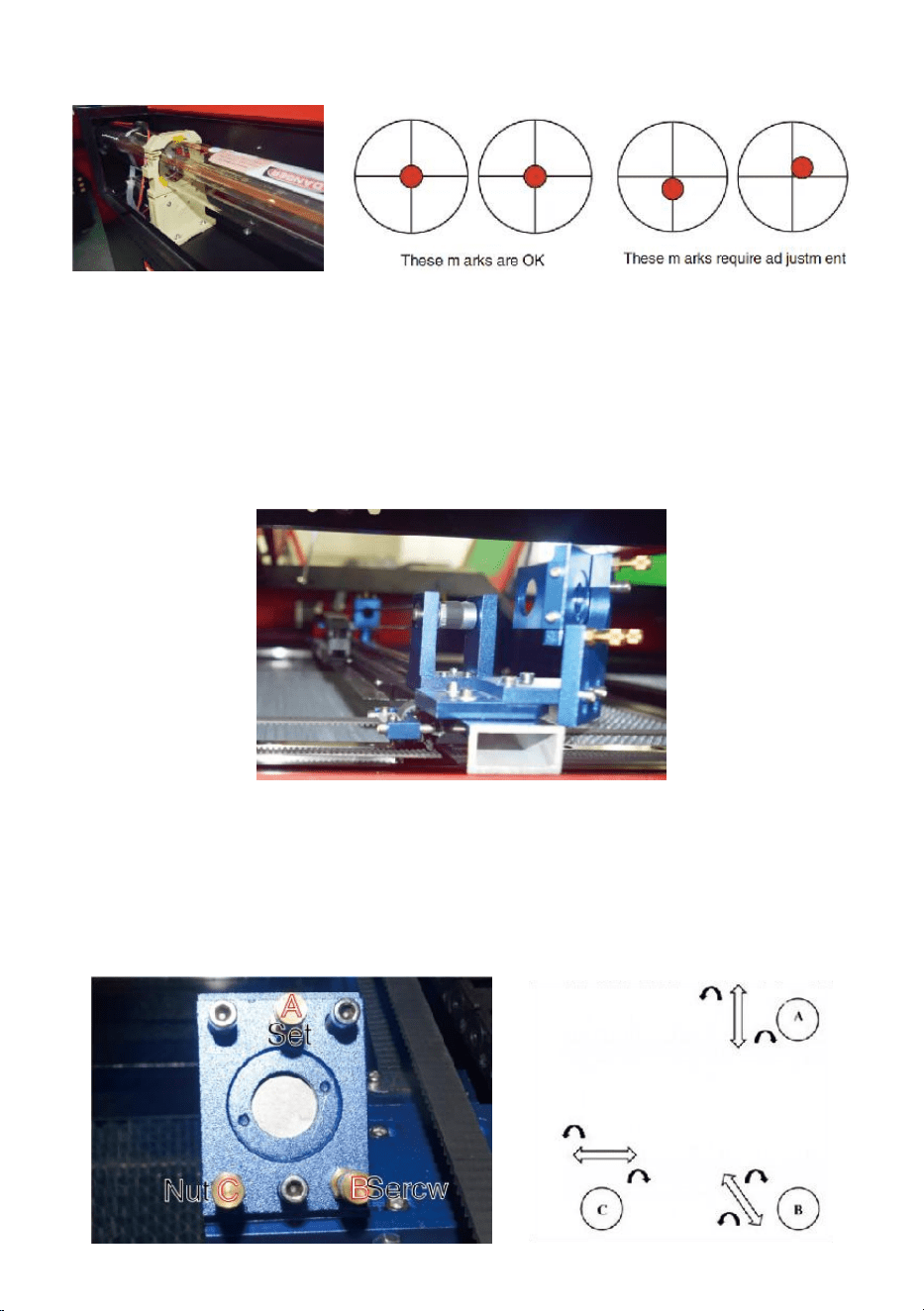

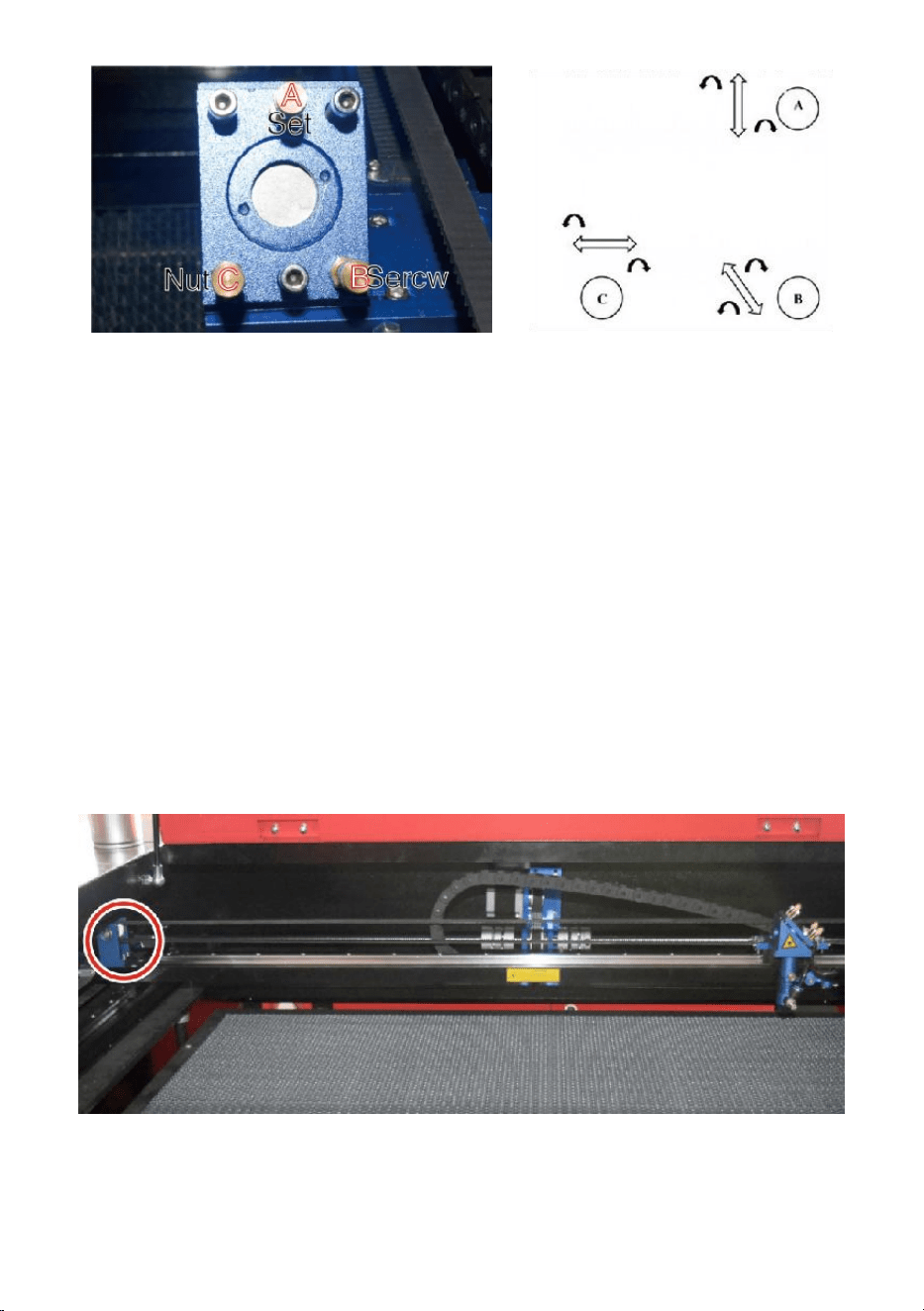

move during operation, they also need to be readjusted periodically with

the set screws to which they are attached to maintain the correct laser path.

A water-cooled system (usually a pump or cooler) must be used with this

engraver to dissipate the heat generated by the laser tube. Similarly, an

exhaust system (usually an external vent or a dedicated air purifier) must

be used to remove the dust and gases generated during the engraving

process.

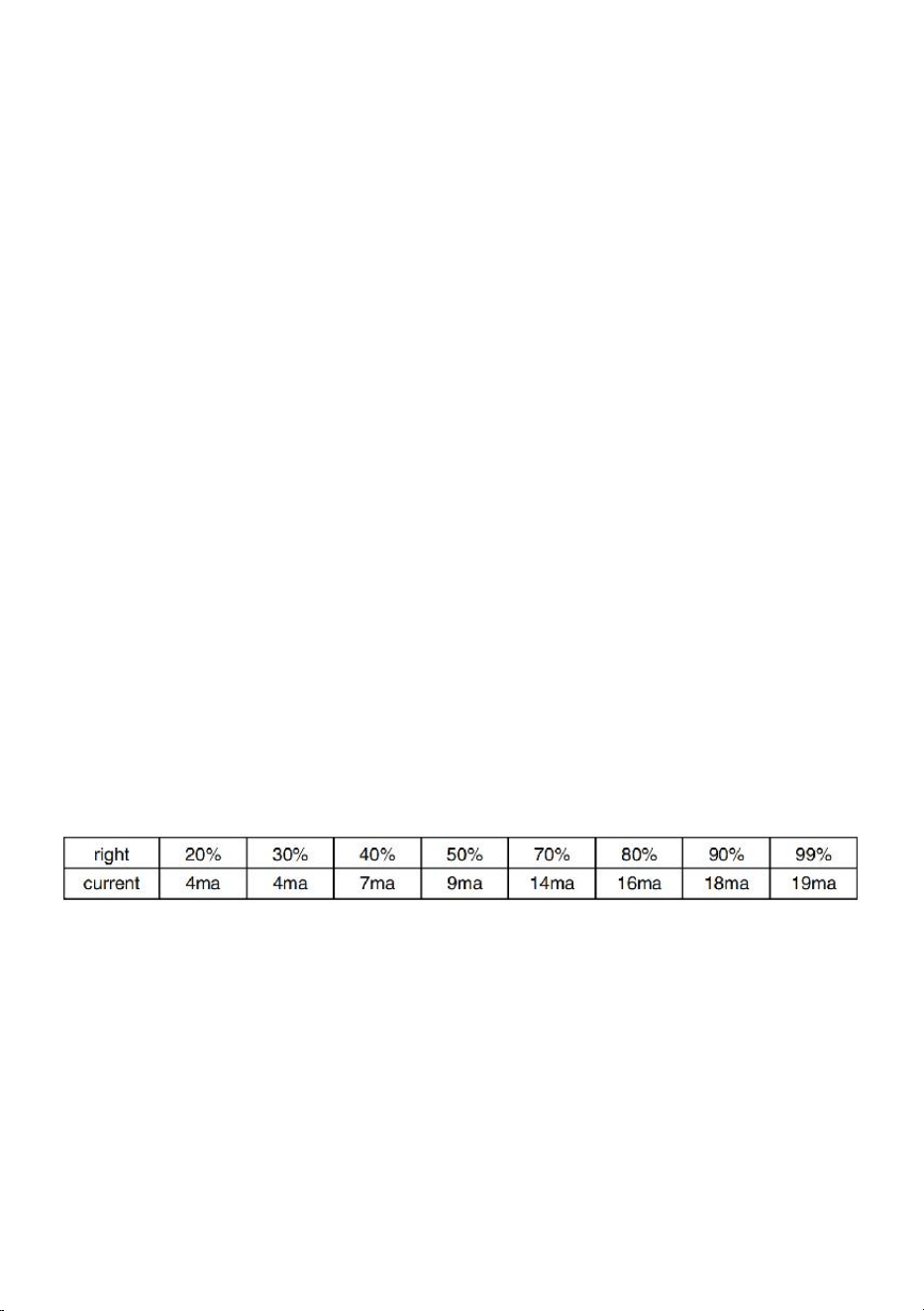

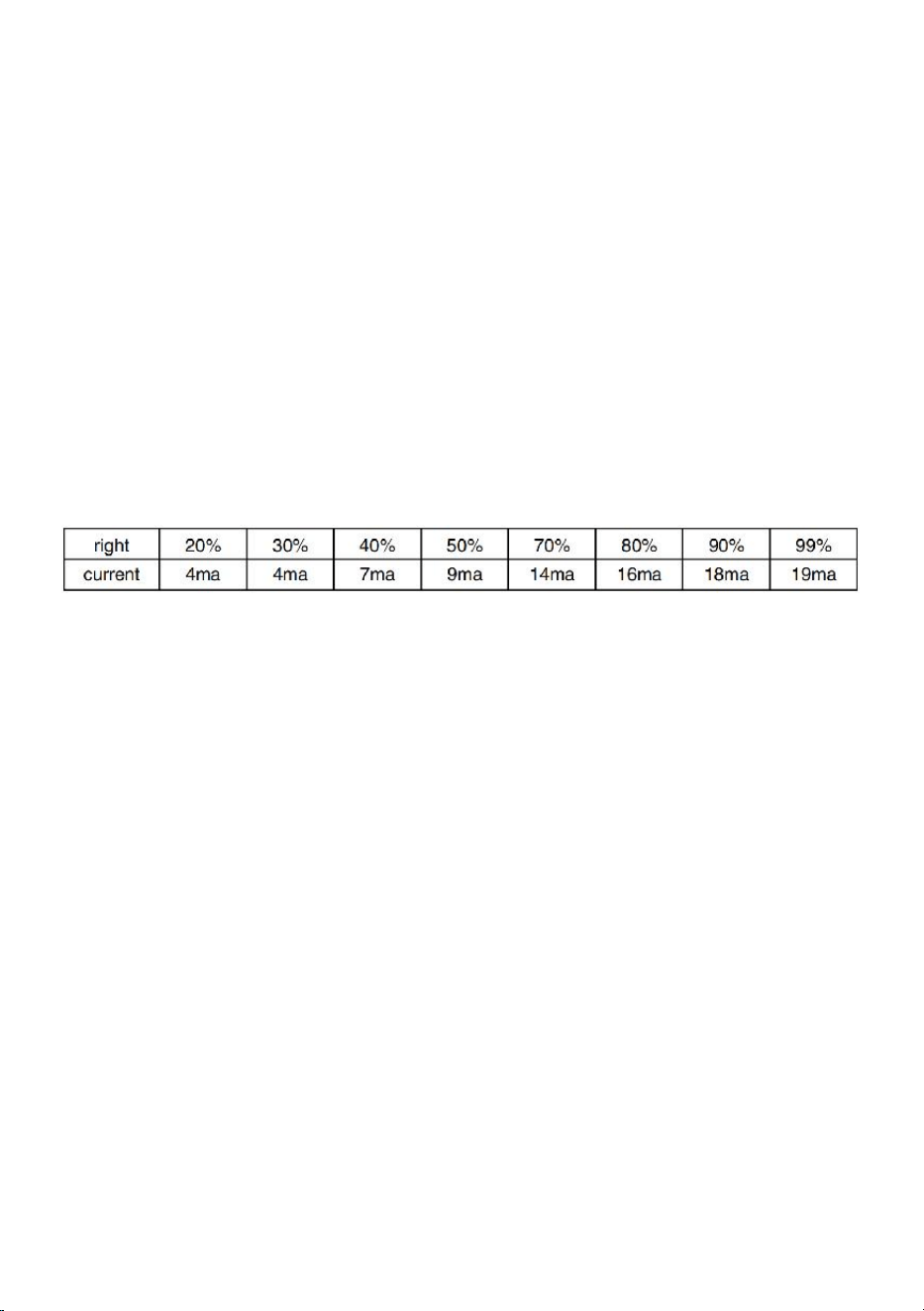

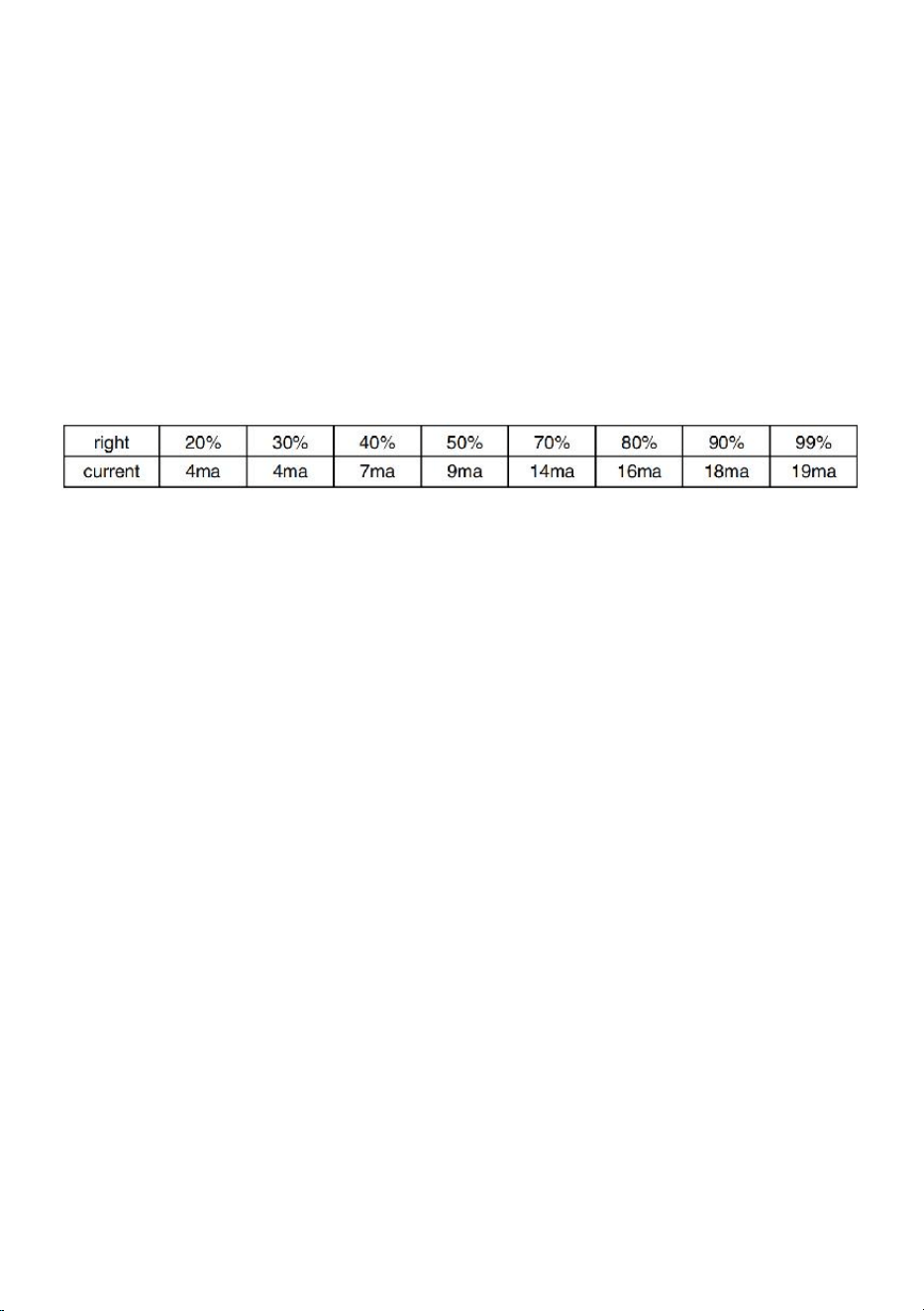

Running your laser consistently above 70% of its maximum power rating

will significantly shorten its lifespan. It is recom-mended to set at 10-70% of

the maximum rated power for optimal performance and longevity

Please note that this is a high-voltage device and for safety reasons, it is

recommended to only touch its components with one hand at a time during

use.

Note that active lasers are invisible to the human eye. This appliance

- 6 -

should not be used with any lid open to avoid potential permanent injury.

It should also be noted that both the cooling water system and the exhaust

system are absolutely necessary for the safe use of this equipment. Do not

operate the engraving machine without these two systems functioning

properly. The water should always be clean and kept around room

temperature, and the exhaust system should always comply with all laws

and regulations applicable to the workplace and ambient air quality.

The following symbols are used on the label of this machine or in this

manual:

These items carry a risk of serious property damage or personal injury

These projects solve similar serious problems related to laser beams.

These projects solved similar serious problems with electrical

components.

Anyone around the unit should wear protective glasses during operation.

- 7 -

The machine is suitable for engraving logos and other consumer

products on applicable substrates. This laser can process a variety of

materials, including wood and cork, paper and cardboard, most plastics,

glass, cloth and leather, and stone. It can also be used with some

specially coated metals. Use of this system for purposes or materials

other than those for which it is specified is not permitted.

The system must be operated, maintained, and repaired by a person who

is familiar with the field of use and hazards of the machine and engraving

materials, including its reflectivity, electrical conductivity, potential for the

production of harmful or combustible fumes, etc.

Laser beams are dangerous. The manufacturer and/or seller shall not be

liable for any improper use of this device or for any damage or injury

resulting from use. It is the operator's obligation to use this cabinet laser

engraver only in ac-cordance with its intended use, other instructions in

the manual, and all applicable local and national laws and regula-tions.

- 8 -

Model

KH5030

KH6040

KH7050

KH9060

KH1490

KH-5030

KH-6040

KH-7050

KH-9060

KH-1490

Input

voltage

AC 120V

AC 230V

Total power

420W

560W

680W

830W

900W

Laser power

50W

60W

80W

100W

130W

Working

area

500*300m

600*400m

700*500m

900*600mm

1400*900m

temperature

5-50 ℃

humidity

5%-95% non-condensate

Laser type

CO2 glass lasers

Laser model

KH-LT50

KH-LT60

Material

Stone, wood, ceramic, metal, cloth, paper, etc

Workbench

Cellular platform

Cutting

speed

0-400mm/s

Engraving

speed

0-500mm/s

- 9 -

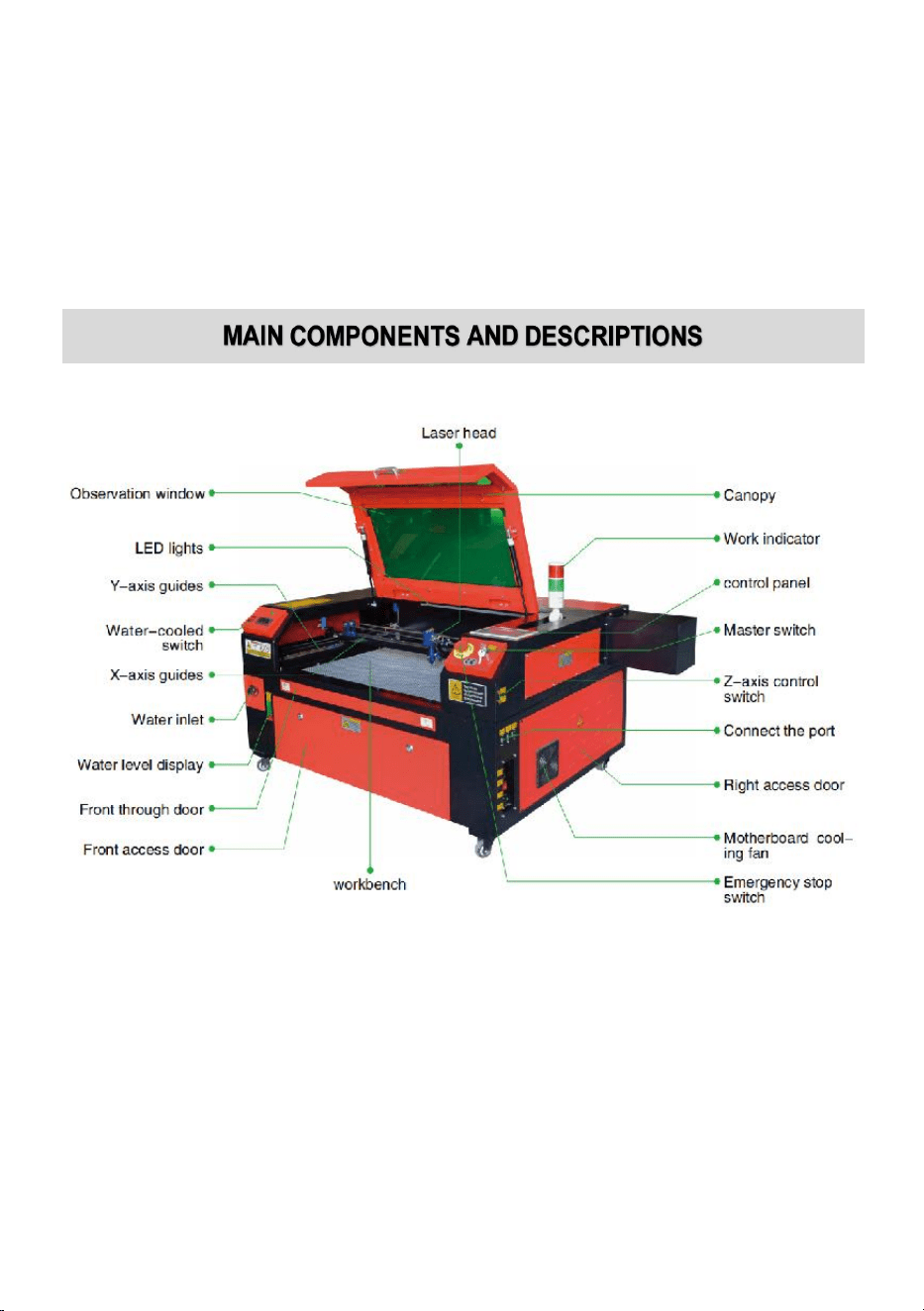

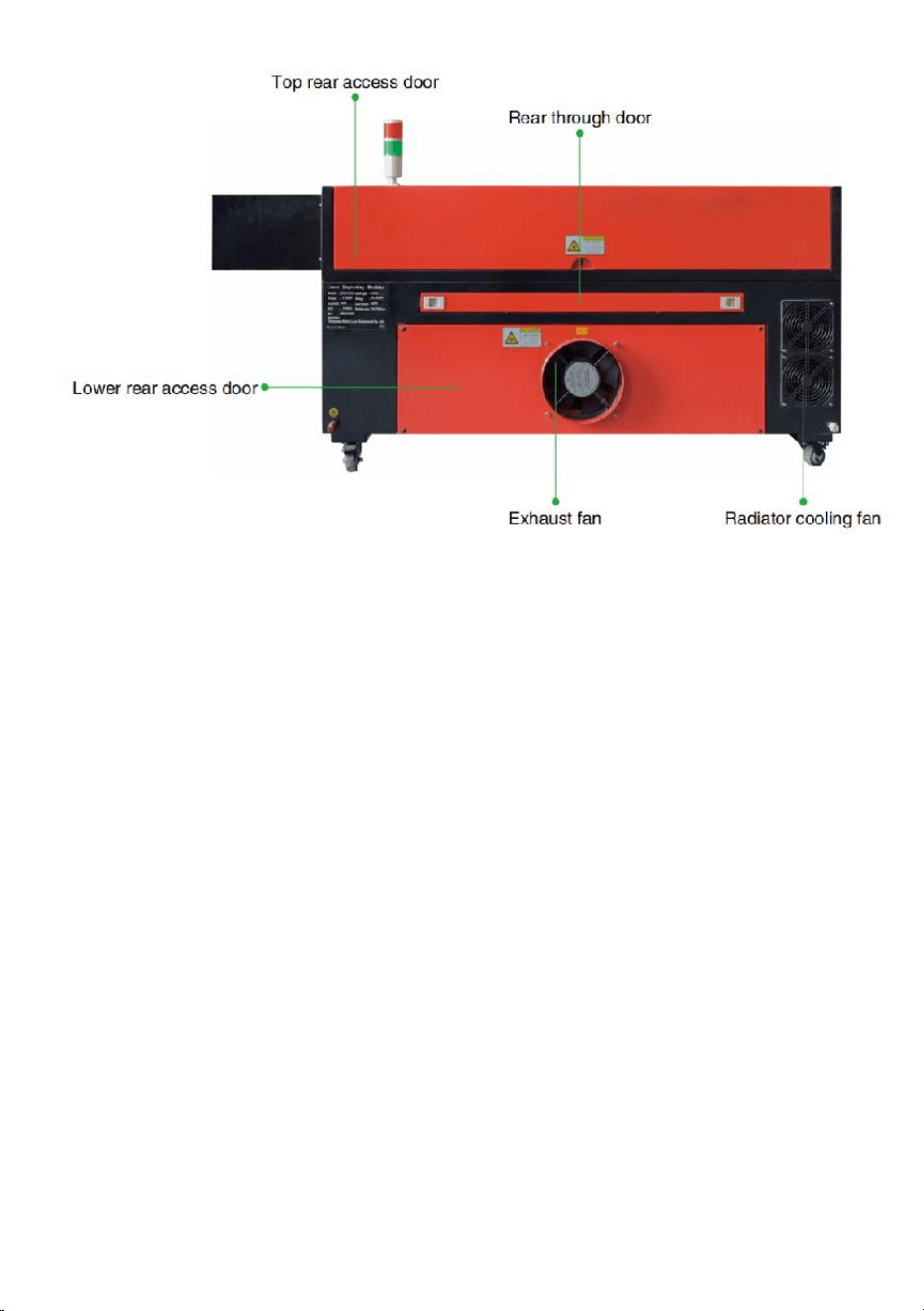

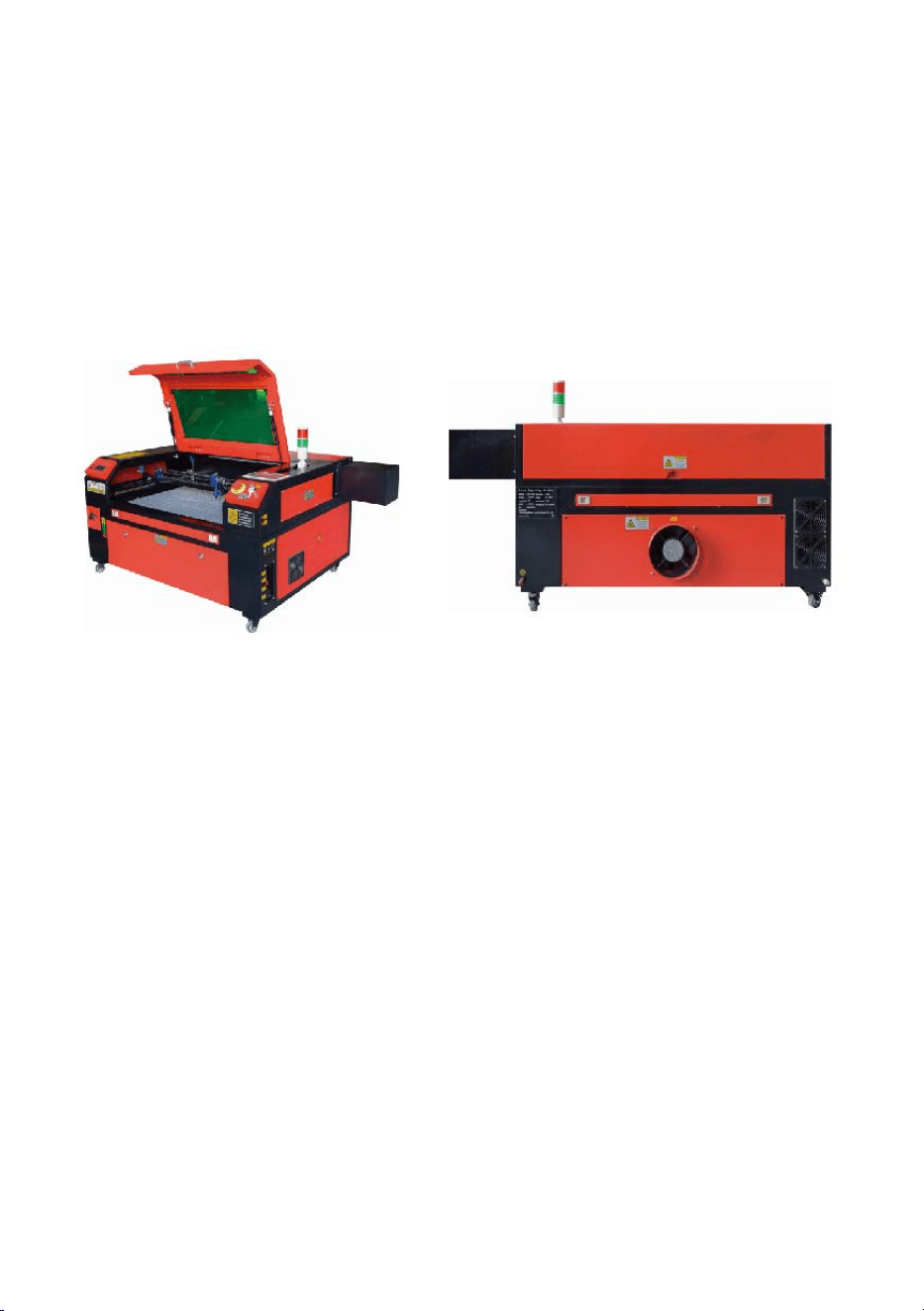

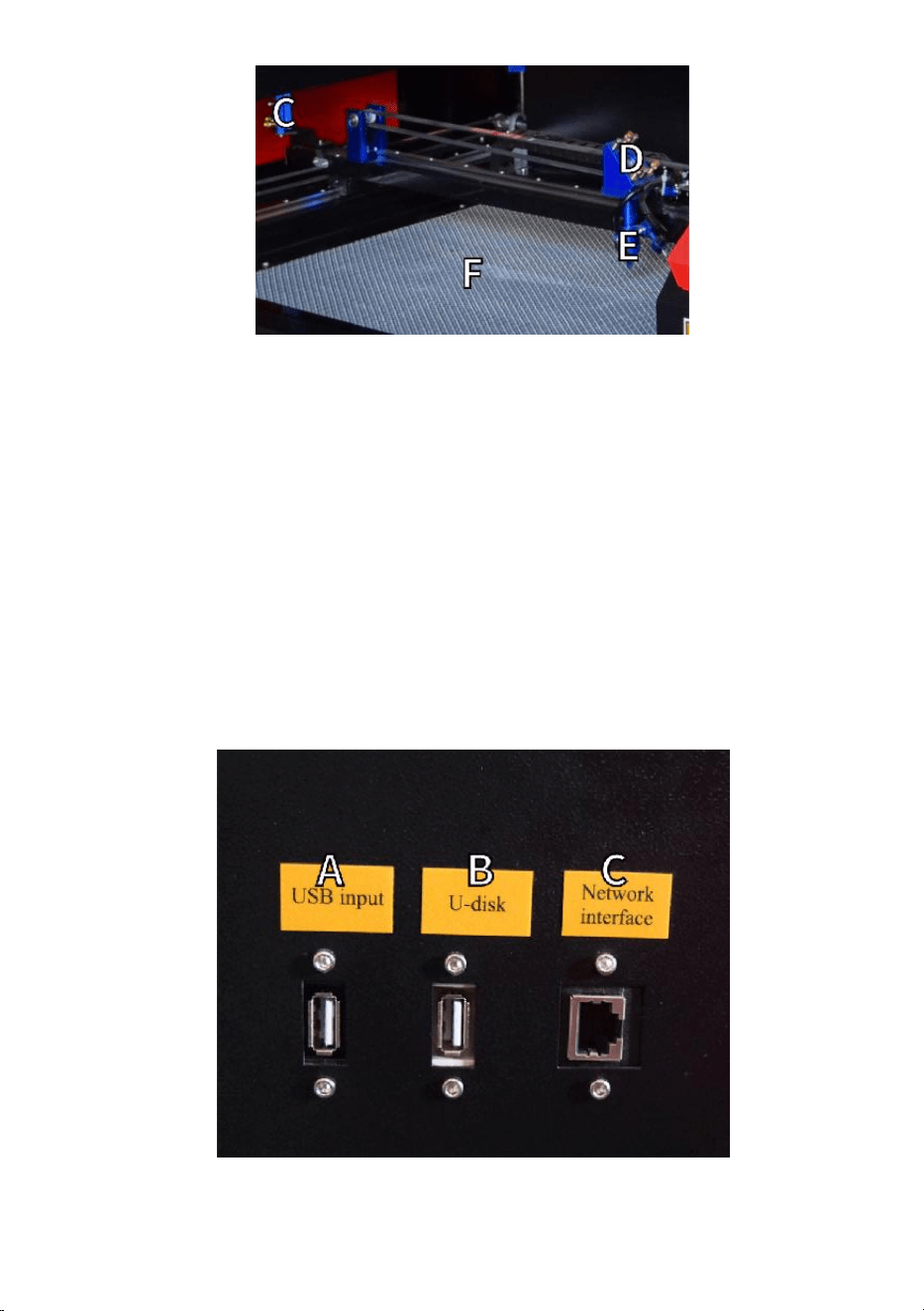

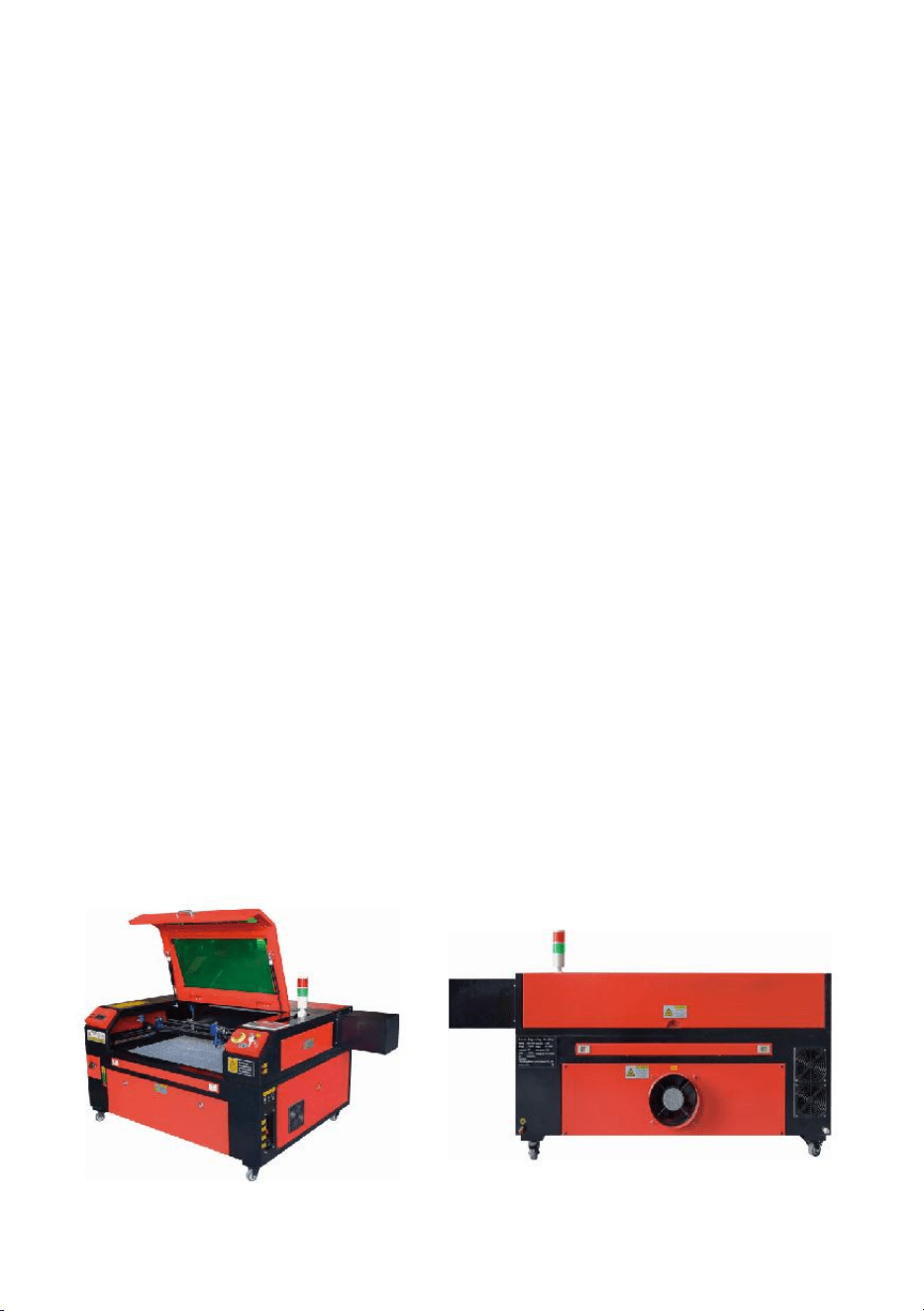

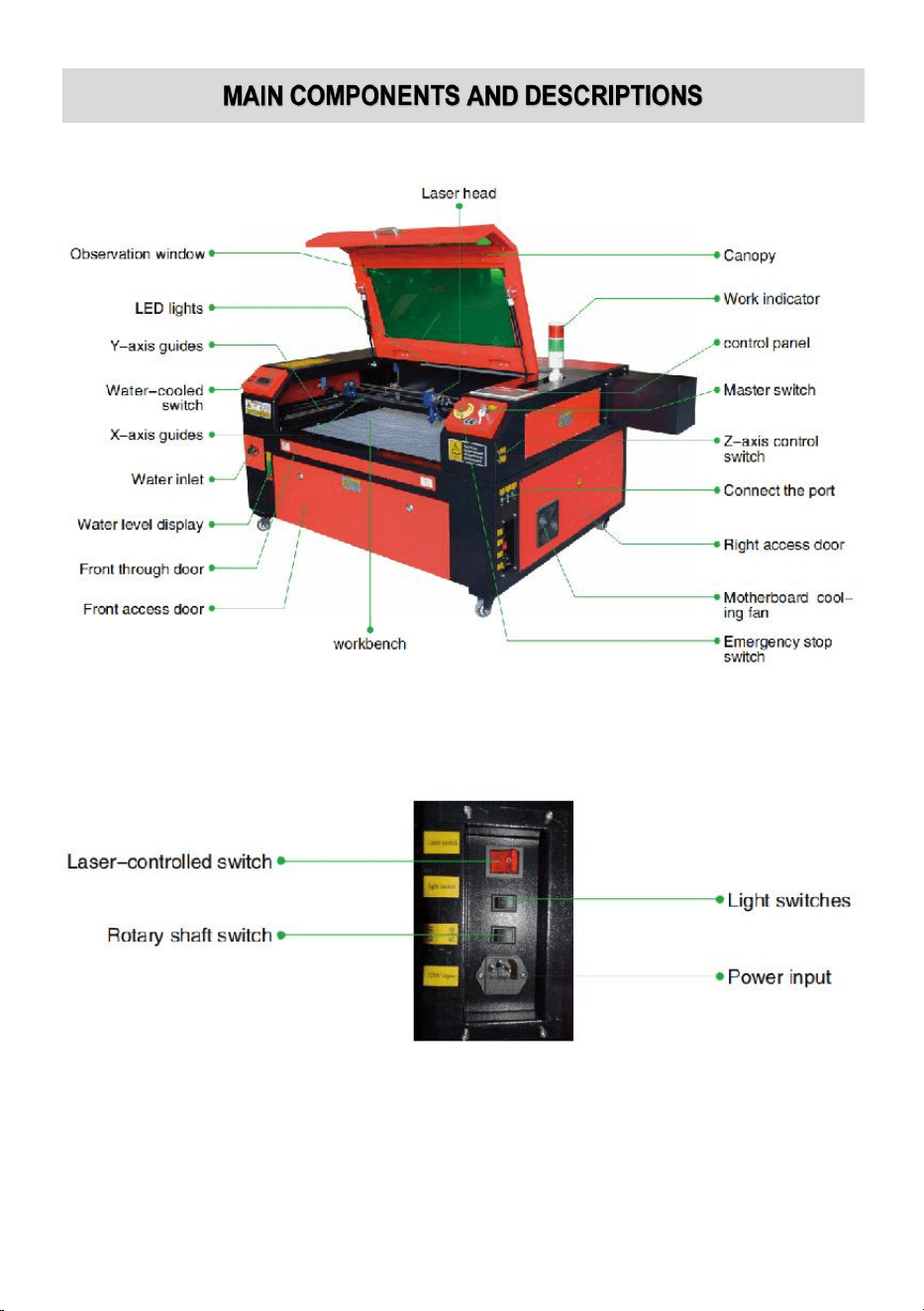

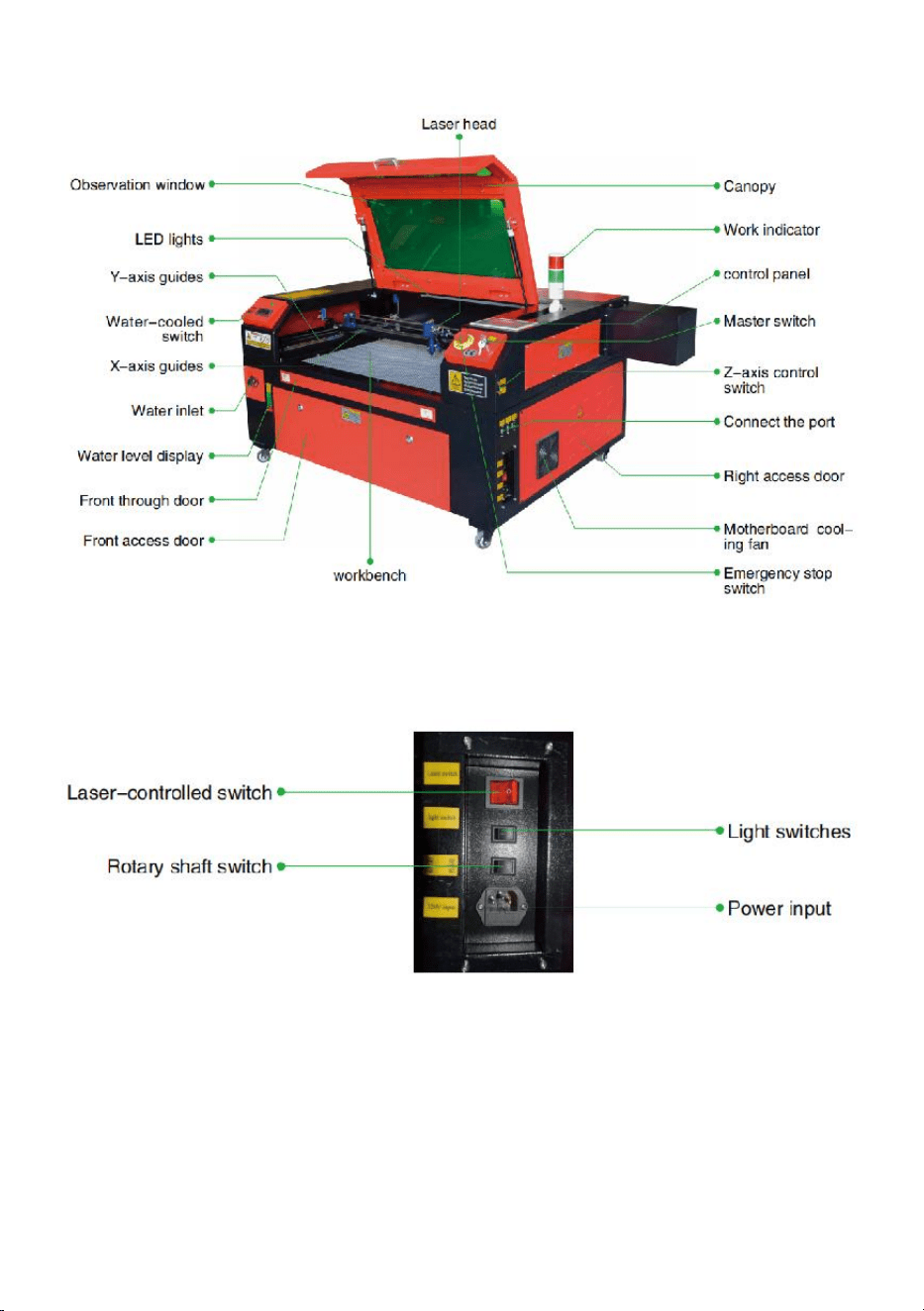

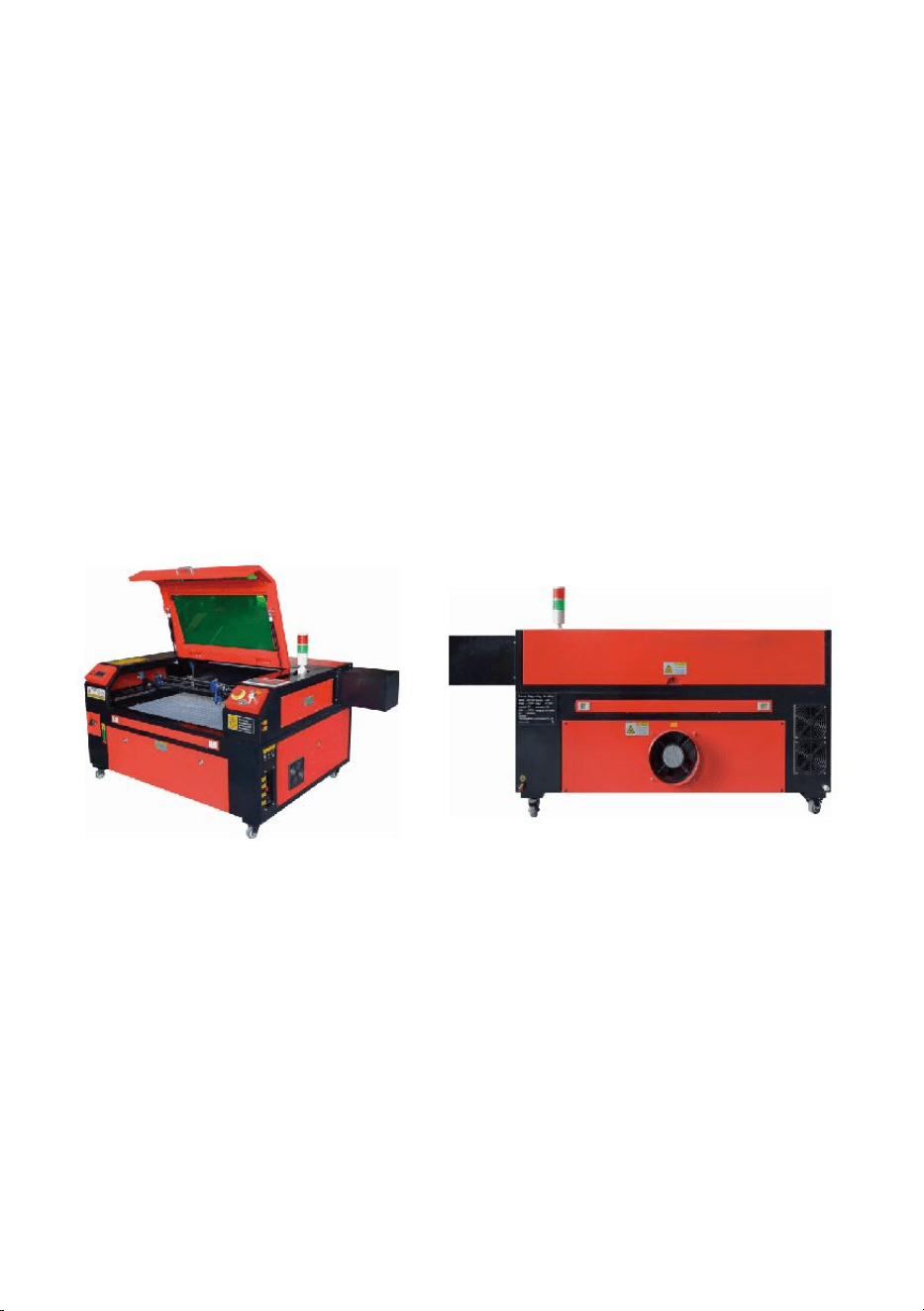

1.Schematic diagram of the part.

- 10 -

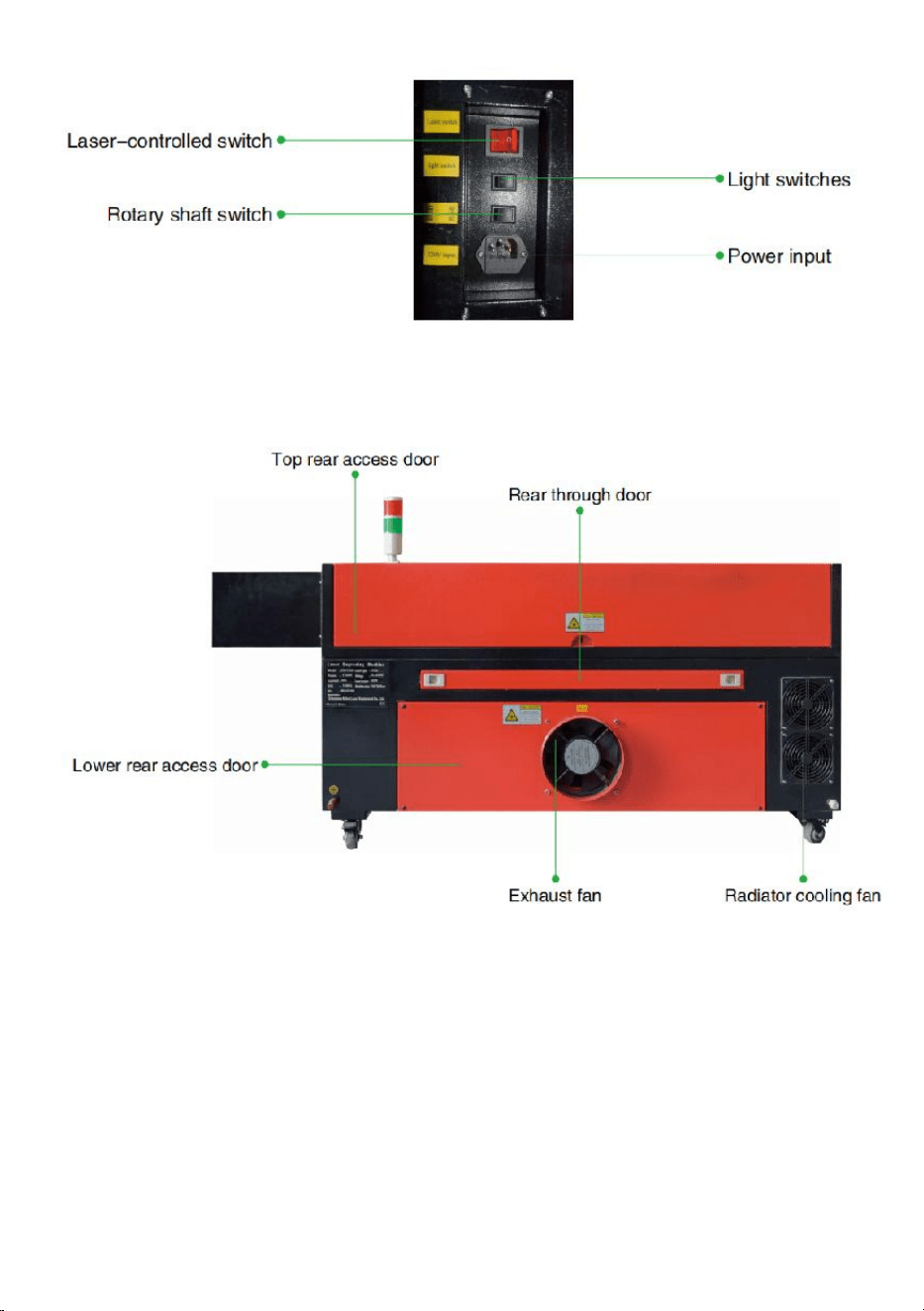

2.Part Description.

Viewing window: This tan acrylic window allows you to monitor the

engraving process, but only partially absorbs the high infrared laser and

has no other protection. Always wear glasses when using the Protective

Observation Active Laser and never stare at it for long periods of time.

LED Light: This light green light illuminates the workbench for a clear

view of the material engraving before, during, and after work.

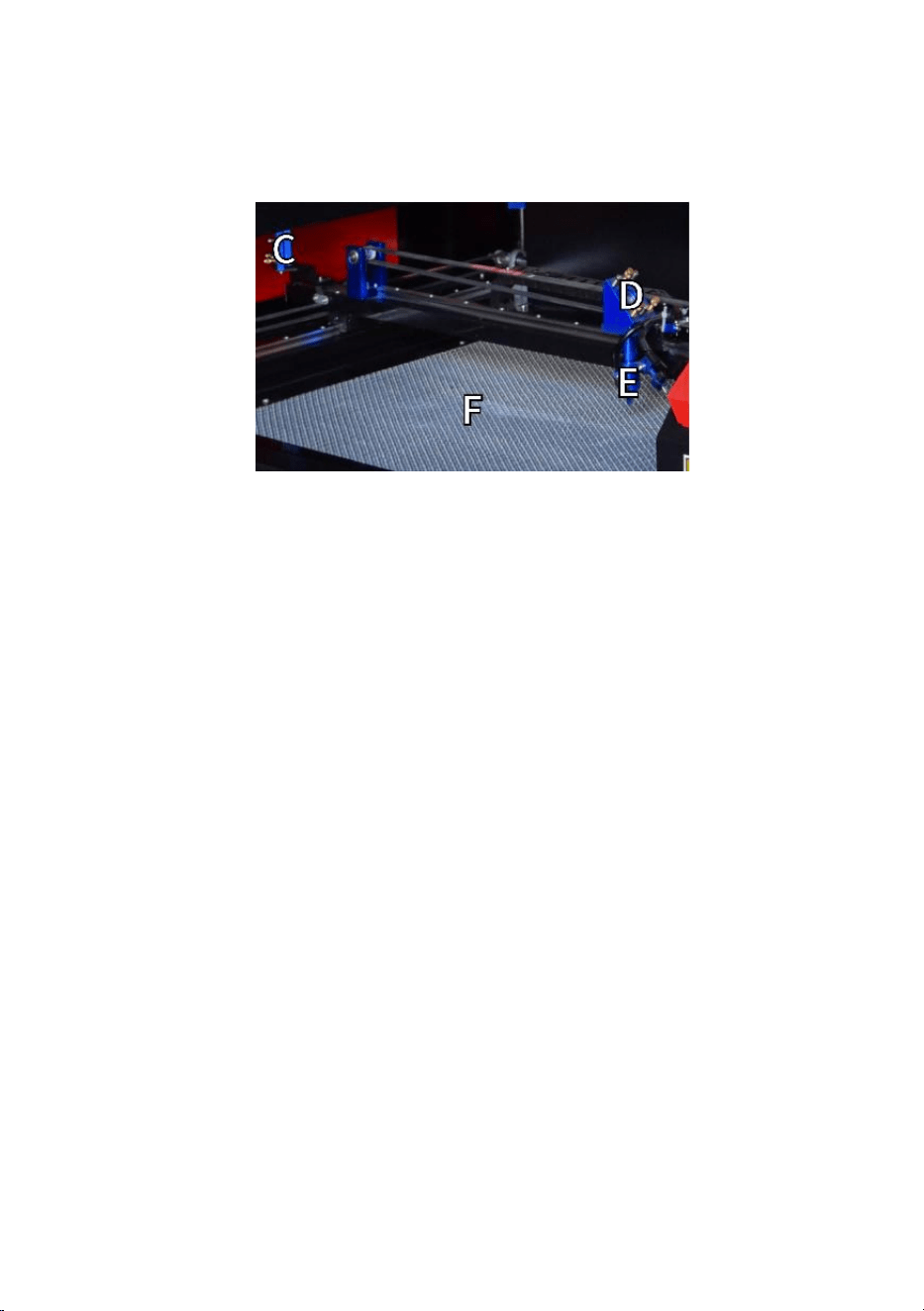

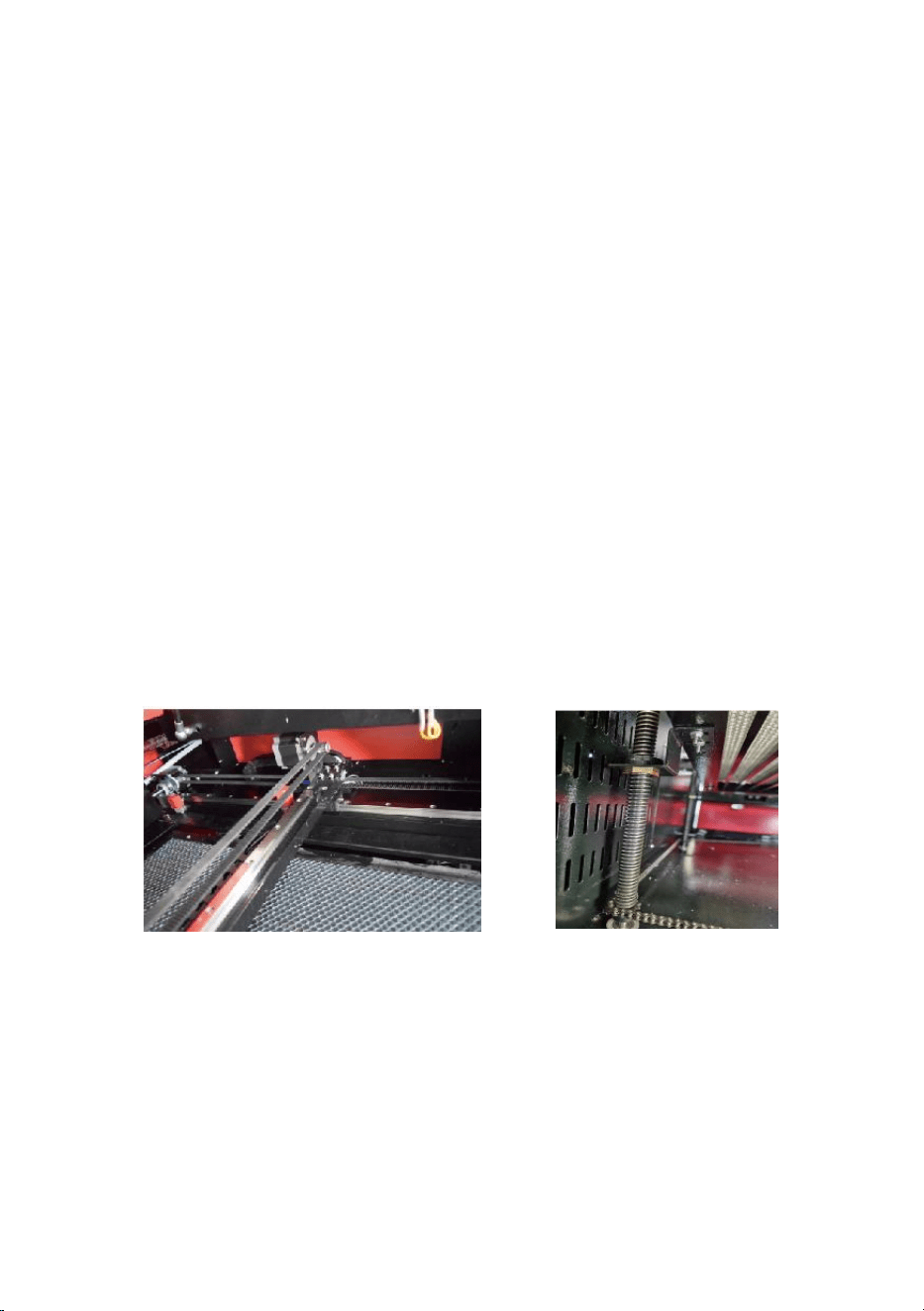

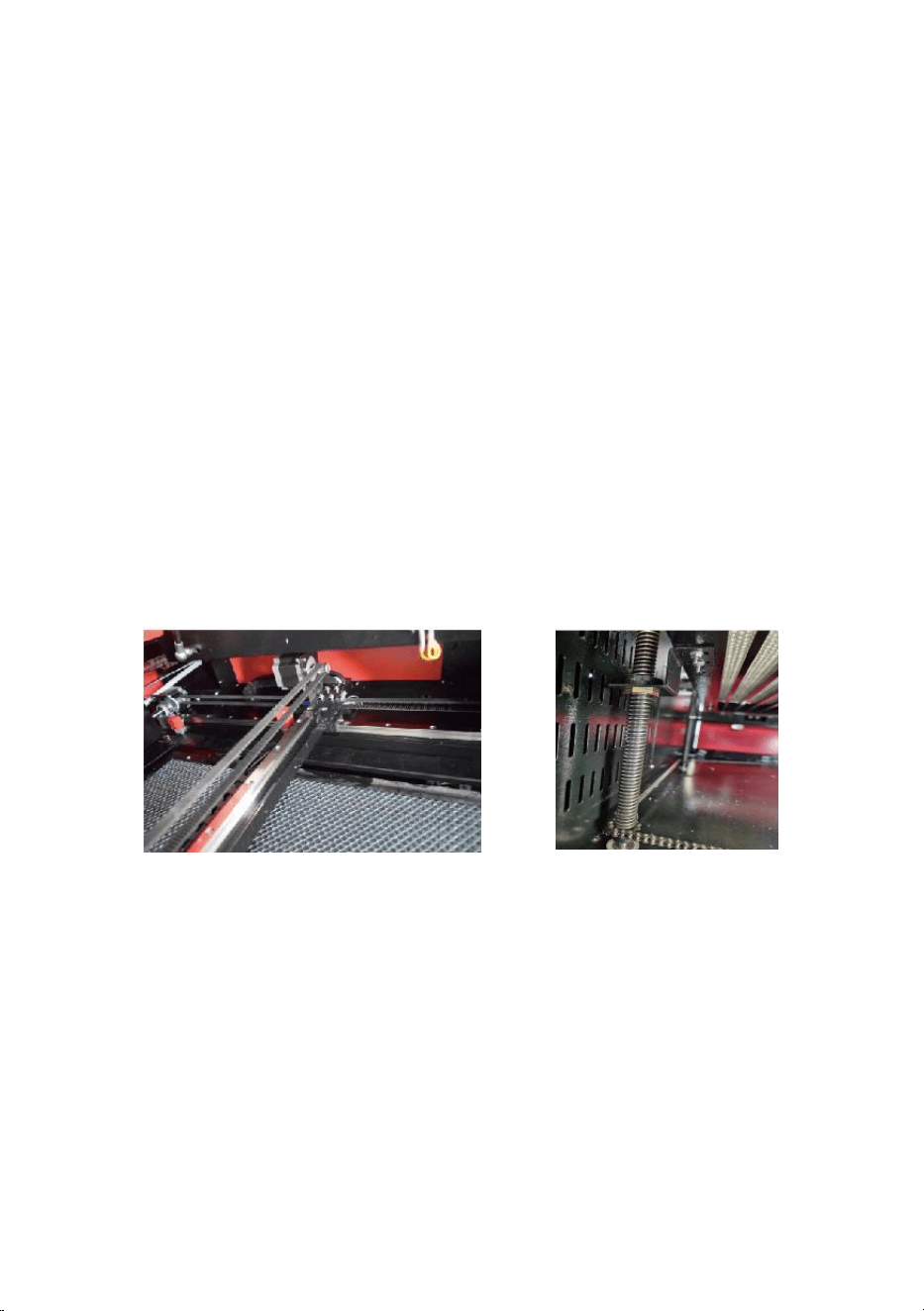

Y-axis guides: Y-axis guides allow X-axis guides to move back and forth

on the table.

Water cooling switch: After the switch is activated, the built-in water

cooling starts, and the real-time temperature display lights up.

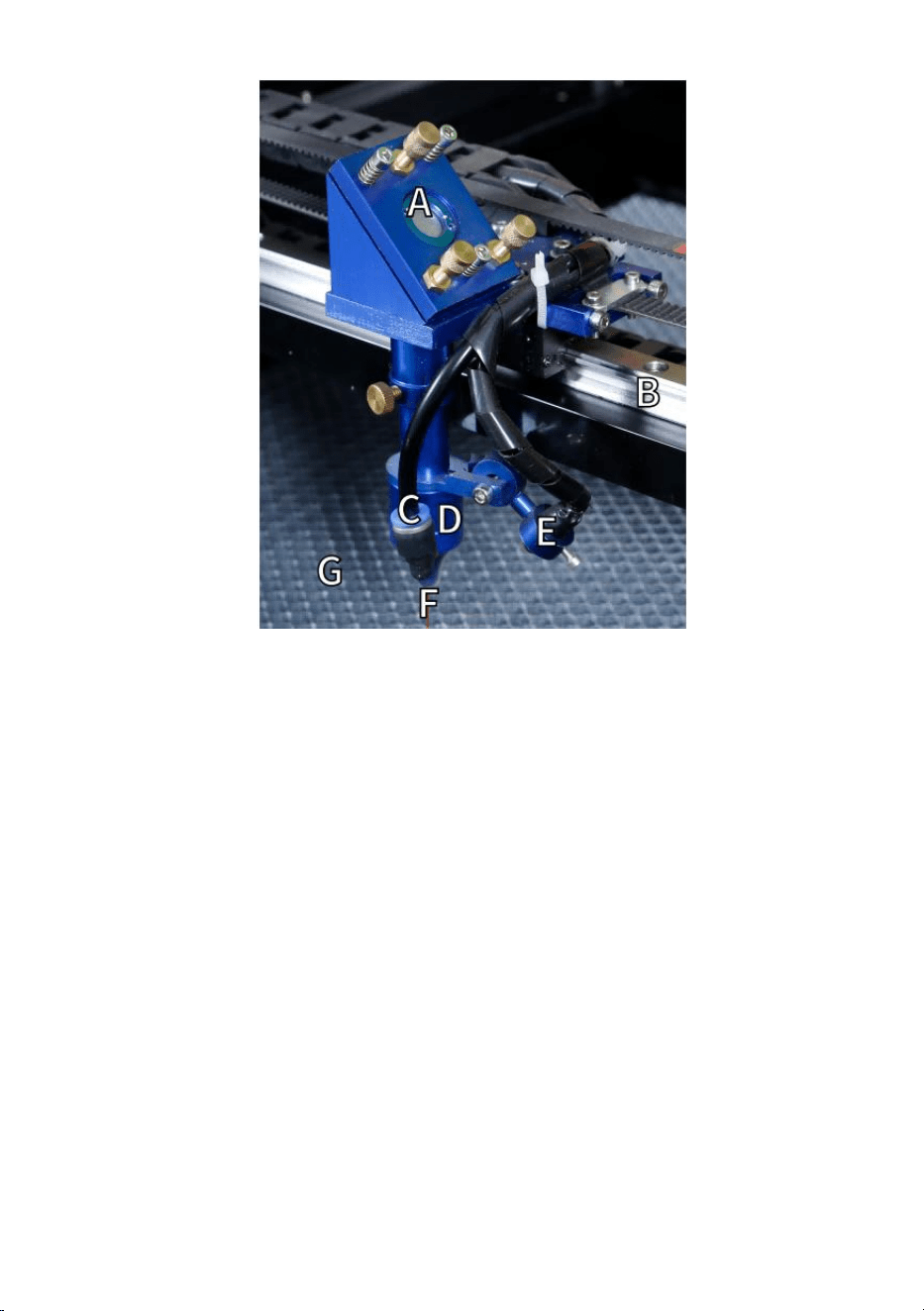

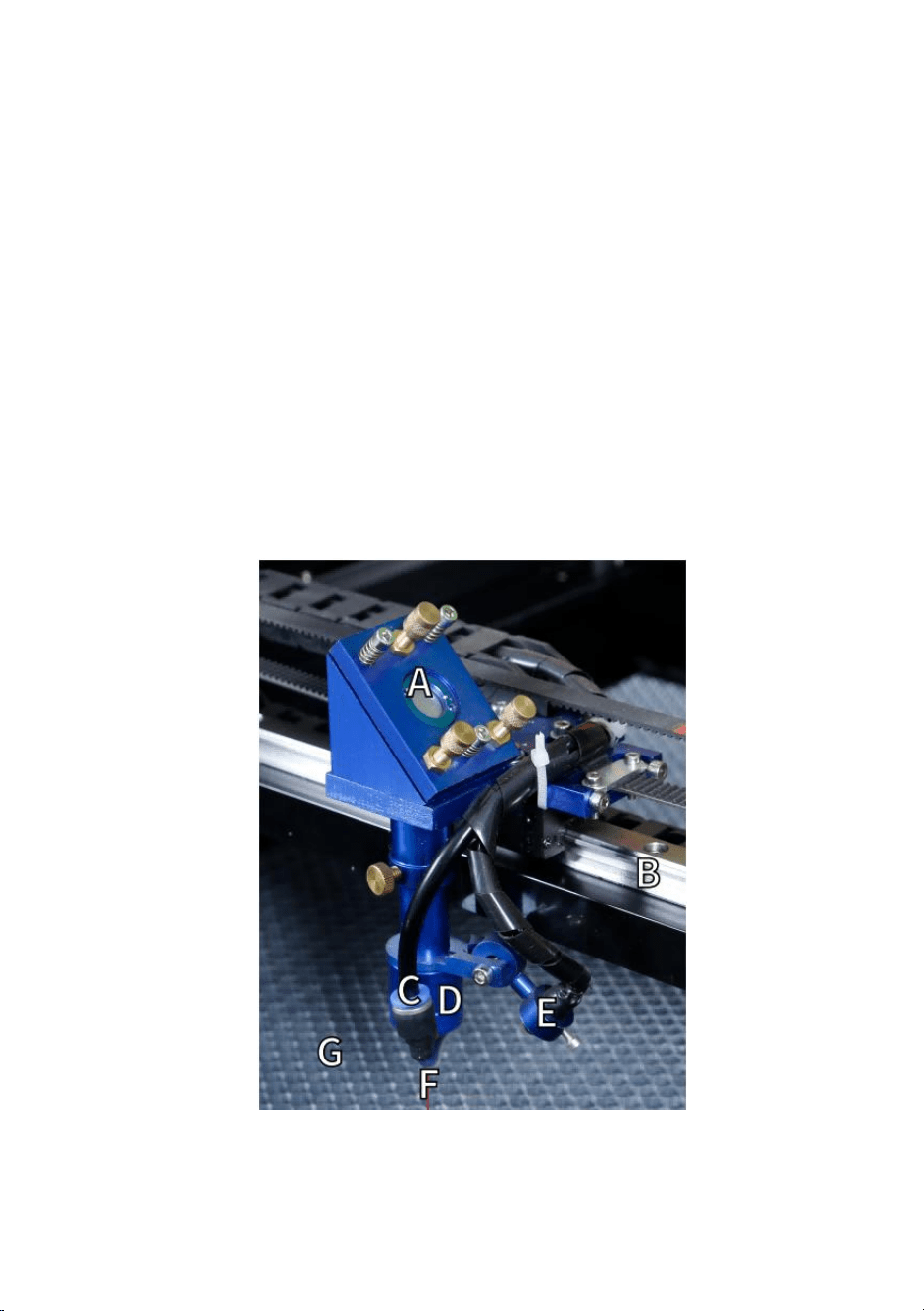

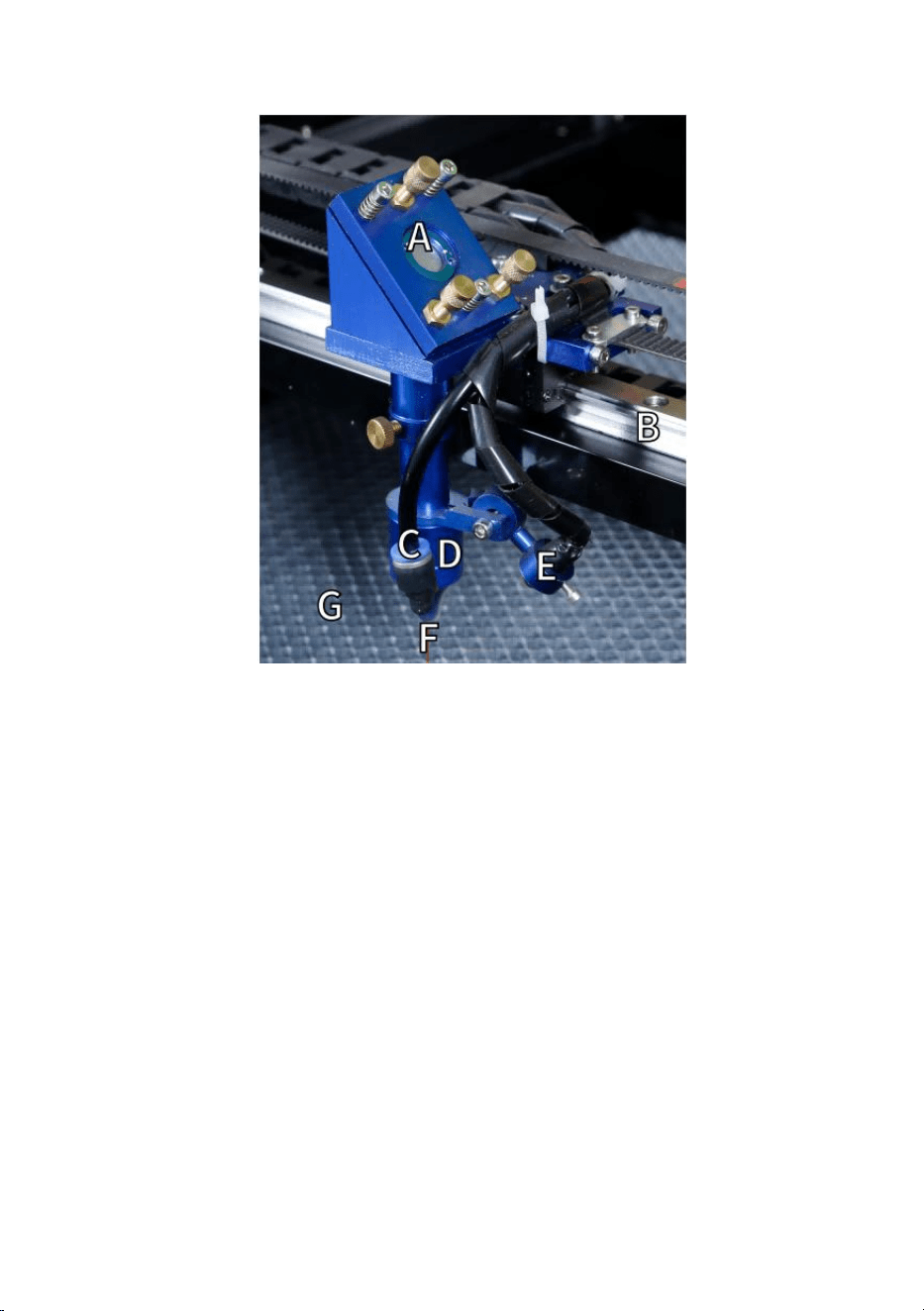

X-Axis Rail: The X-axis rail holds the second mirror and supports the

laser head to move left and right.

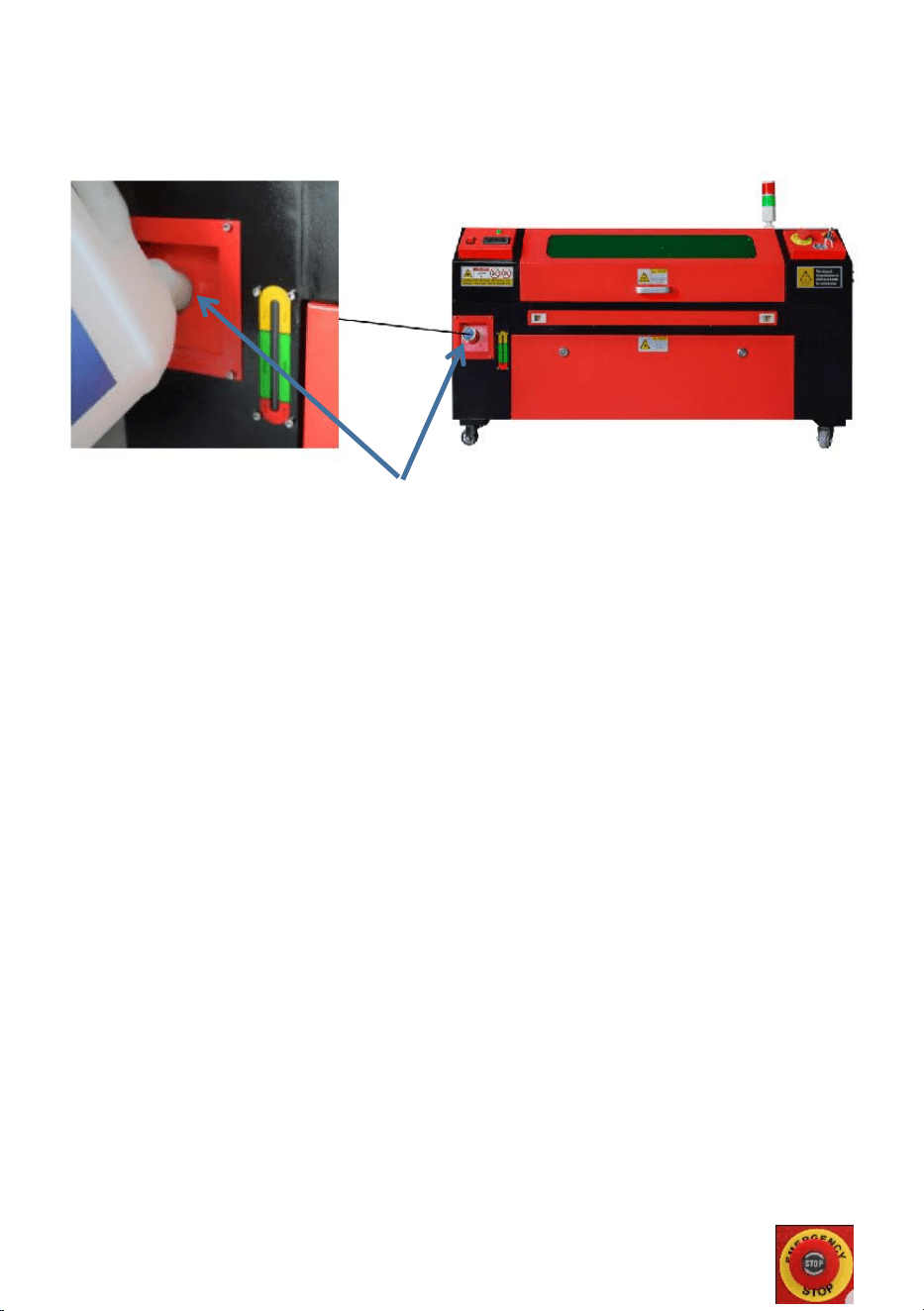

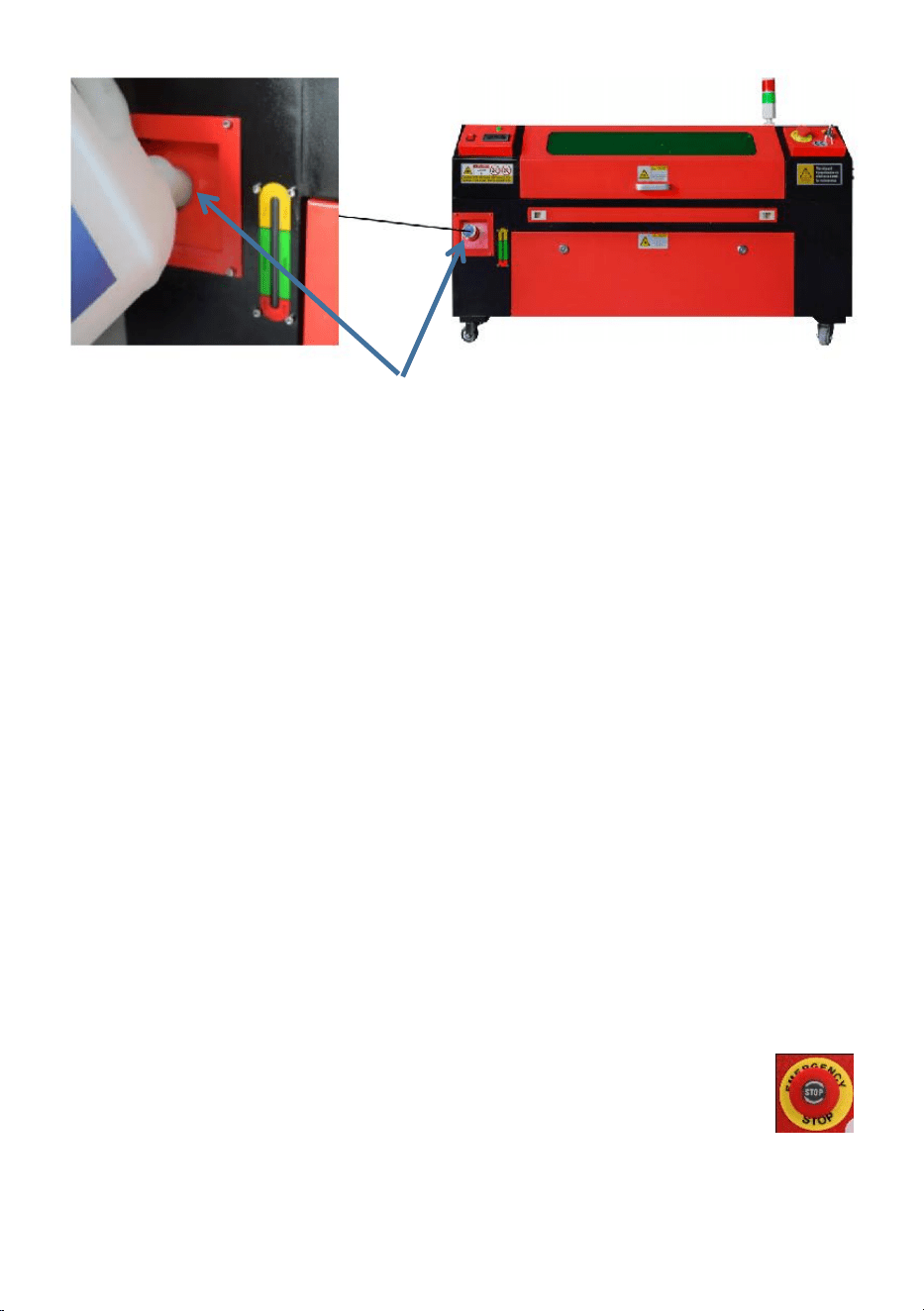

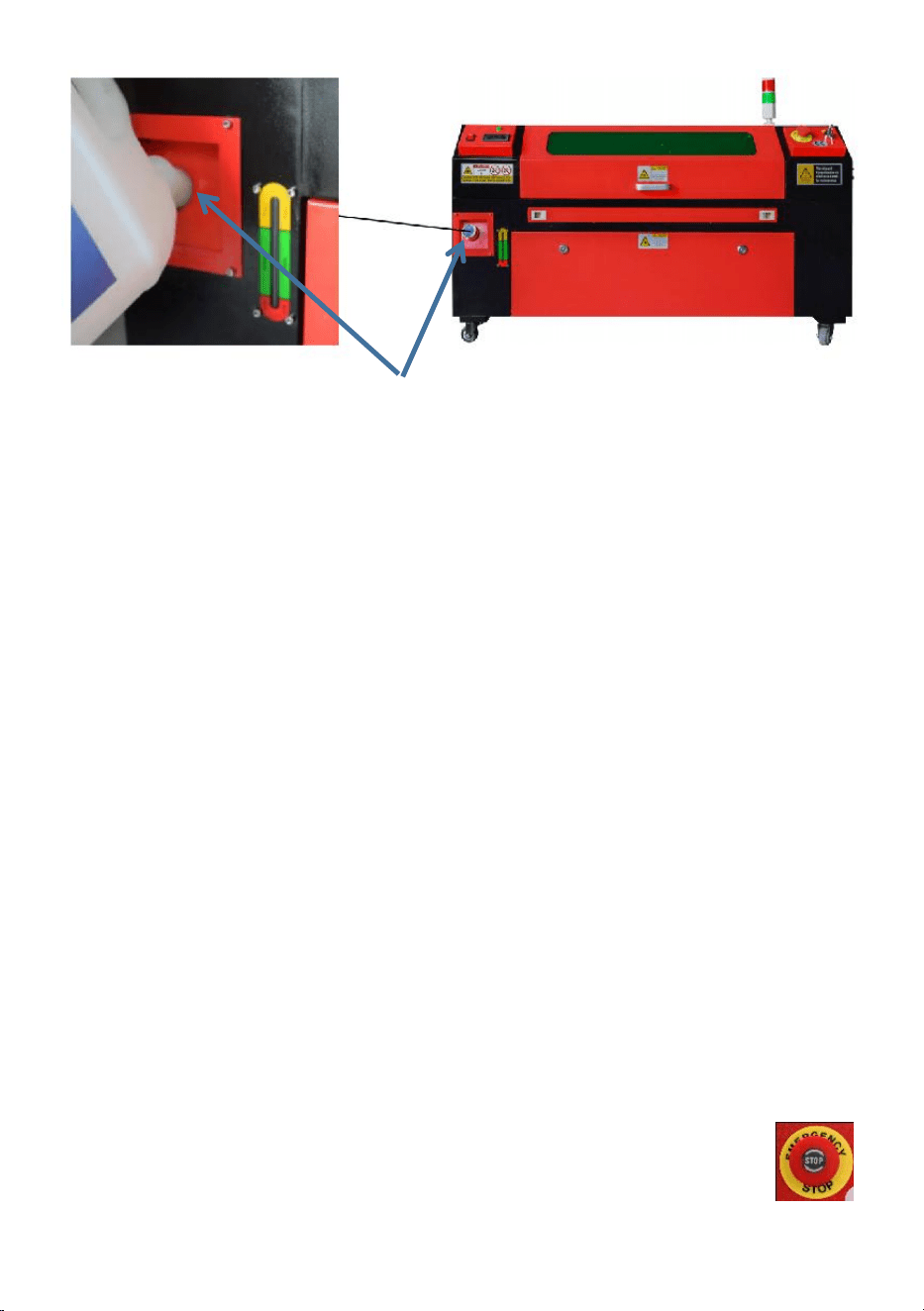

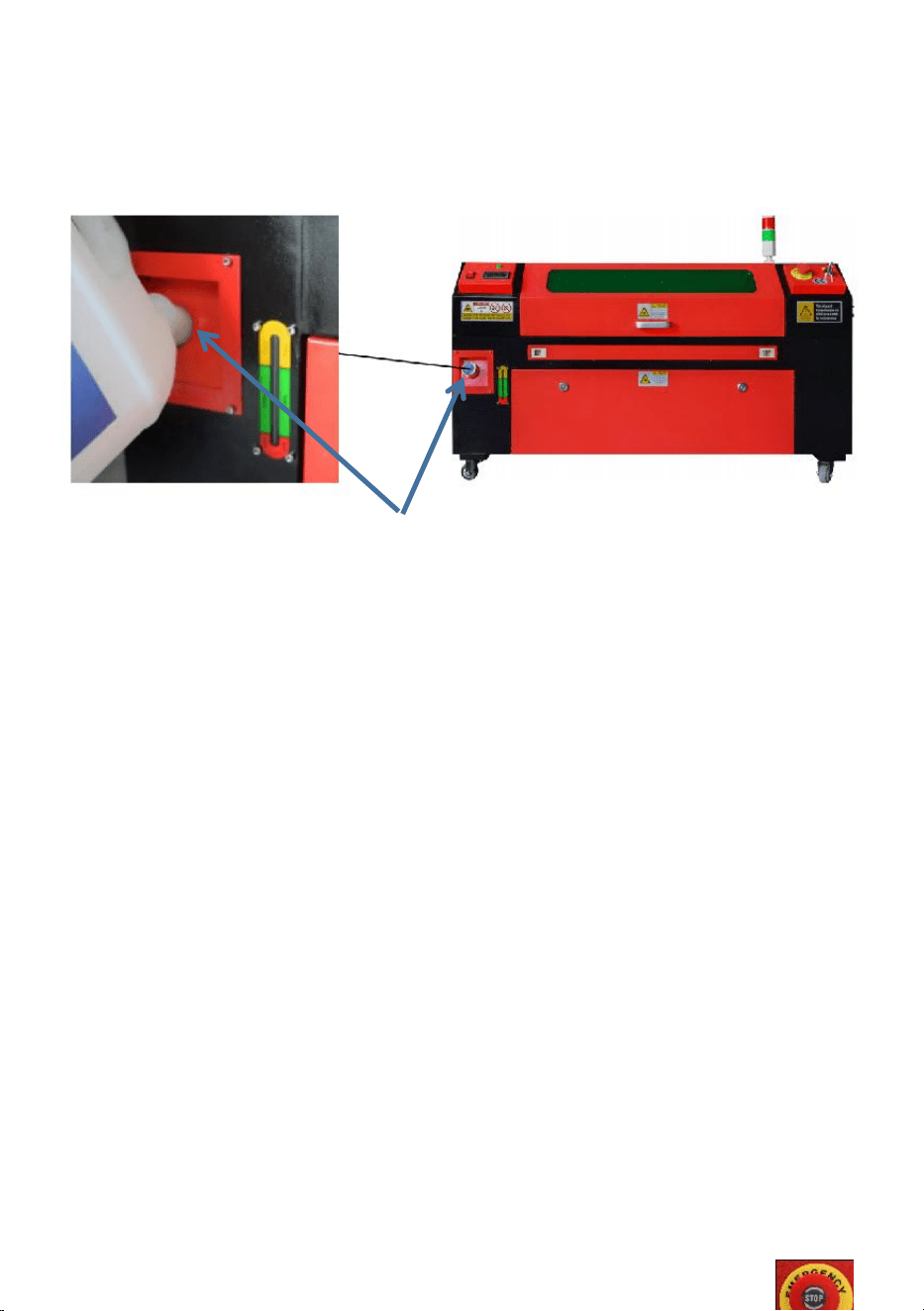

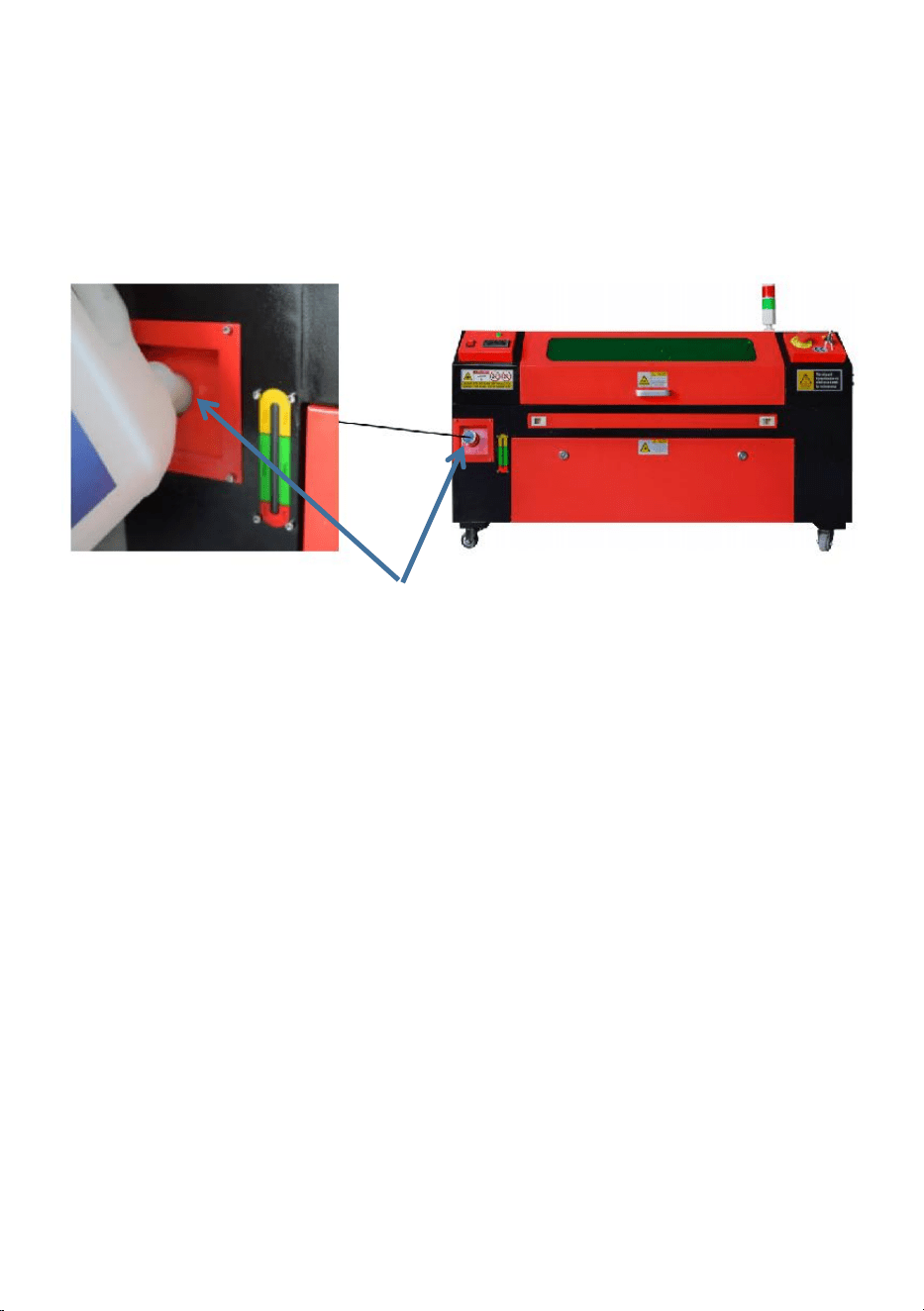

Water inlet: This is used to unscrew the lid counterclockwise when filling

the built-in circulating water tank.

Water level display: This observation port can be used to observe the

water level of the water tank in the fuselage. (yellow: too high / green:

suitable / red: too little).

Front Straight Door: This door opens to allow larger materials to pass

through the work bed. Extreme care must be taken to avoid seeing or

- 11 -

suffering from the laser beam and its reflections. This is also where the

accessory bag was when the engraver first arrived.

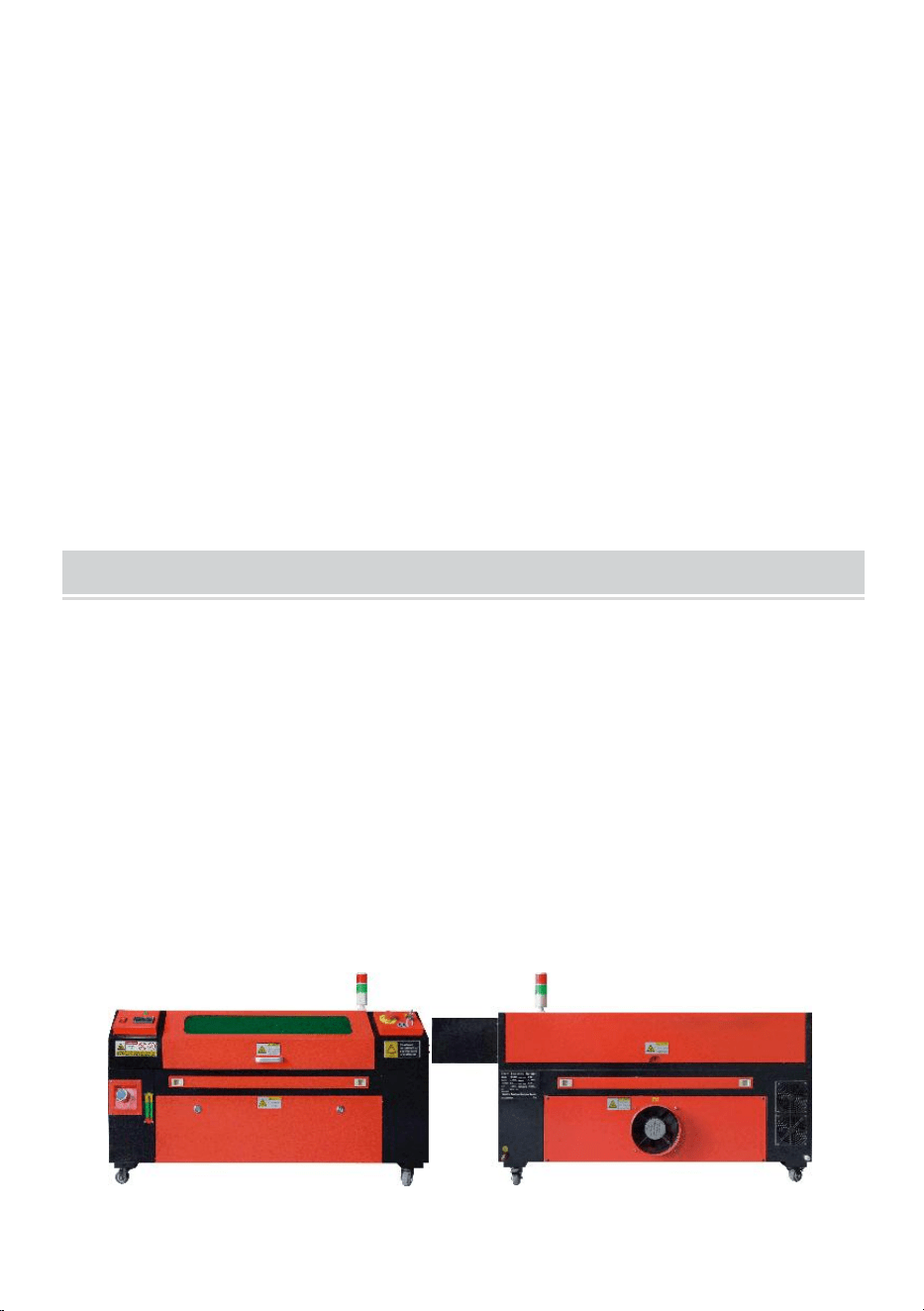

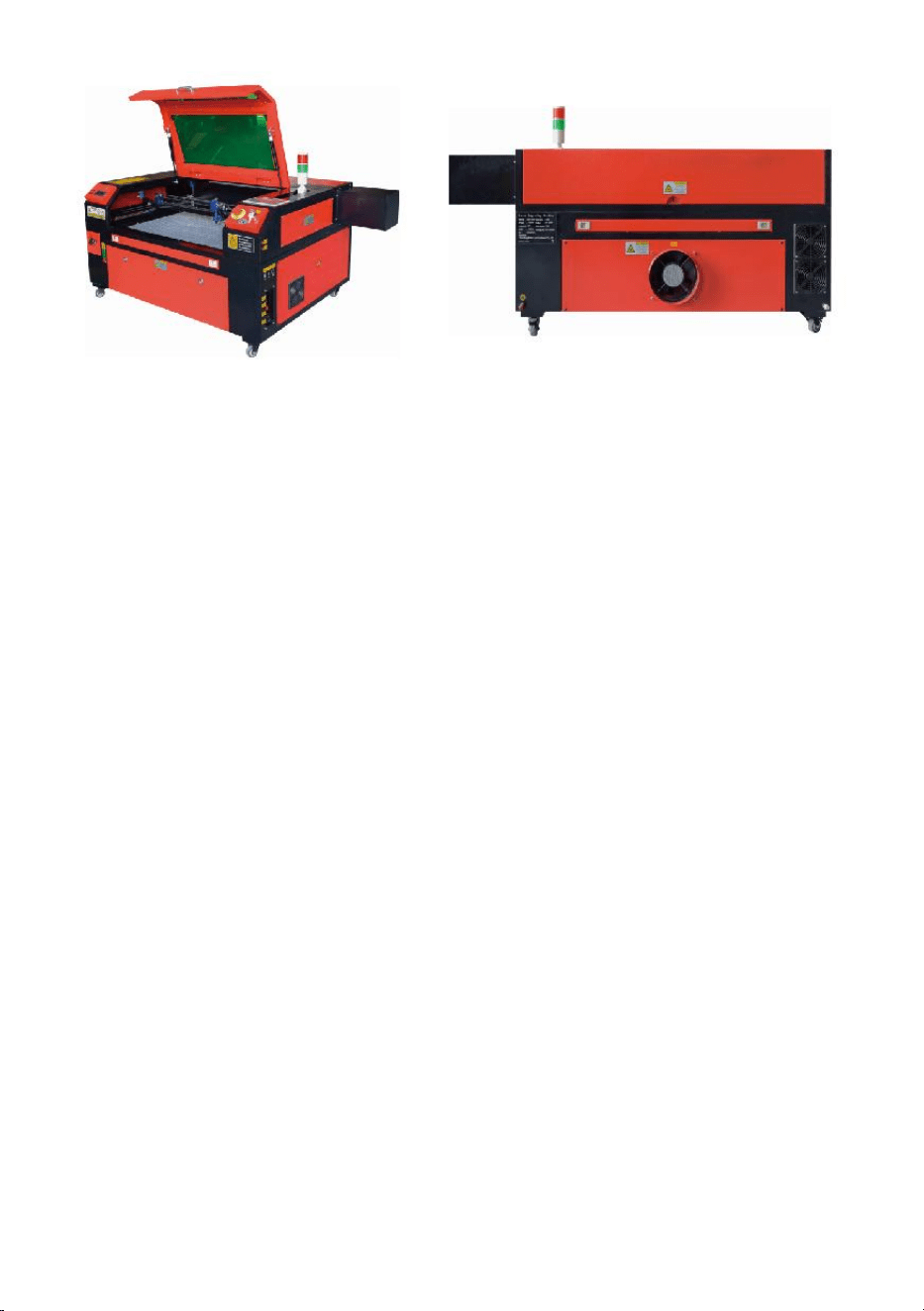

Front Access Door: This door provides access to the area below the

bench for easy cleaning.

Canopy: The lid provides access to the main bracket for placing and

retrieving materials, as well as fixing laser path alignment and other

maintenance. When the lid is opened, the power of the laser is

automatically cut off.

Working indicator: It can help the operator to better observe the laser

emission status, red light: laser working, green light: laser idle.

Control Panel: The control panel provides manual control of the

engraving process, including the movement of the manual laser head

and the emission of the laser.

Main switch: control the total power switch of the whole machine.

Z-Axis Control Switches: These buttons move the table up or down to

help you quickly adapt and focus on the various thicknesses of the table.

Connection Ports: These ports connect the main board of the engraving

machine to the control computer and its engrav-ing software via a USB

or Ethernet cable.

Right Access Door: This door provides access to the motherboard, motor

drivers, and power supply. The vents prevent the components from

overheating during use and should not be obstructed.

Motherboard cooling fan: This fan is used for heat dissipation of core

appliances such as built-in motherboards and laser power supplies.

Emergency Stop Switch: In case of emergency, this button will

immediately cut off all power to the laser tube.

Laser Head: The laser head holds the 3rd mirror, focusing lens, red dot

guidance, and air assist outlet.

Table: Table height can be adjusted to accommodate thinner and thicker

materials, as well as between aluminum and cellular platforms.

Laser Control Switch: This switch must be turned on when using a laser.

Light switch: Turn on the light on the workbench.

Rotary axis switch: This switch must be turned on when using the rotary

axis (off when the rotary axis is not in use), if the Y axis is not moving,

- 12 -

check if this switch is off.

Power Input: This power connector must be connected before using the

machine.

Top Rear Access Door: This door leads to the laser bay where the laser

tube and its connections are secured.

Rear Door: This door is the equivalent of a front door and requires similar

care during use.

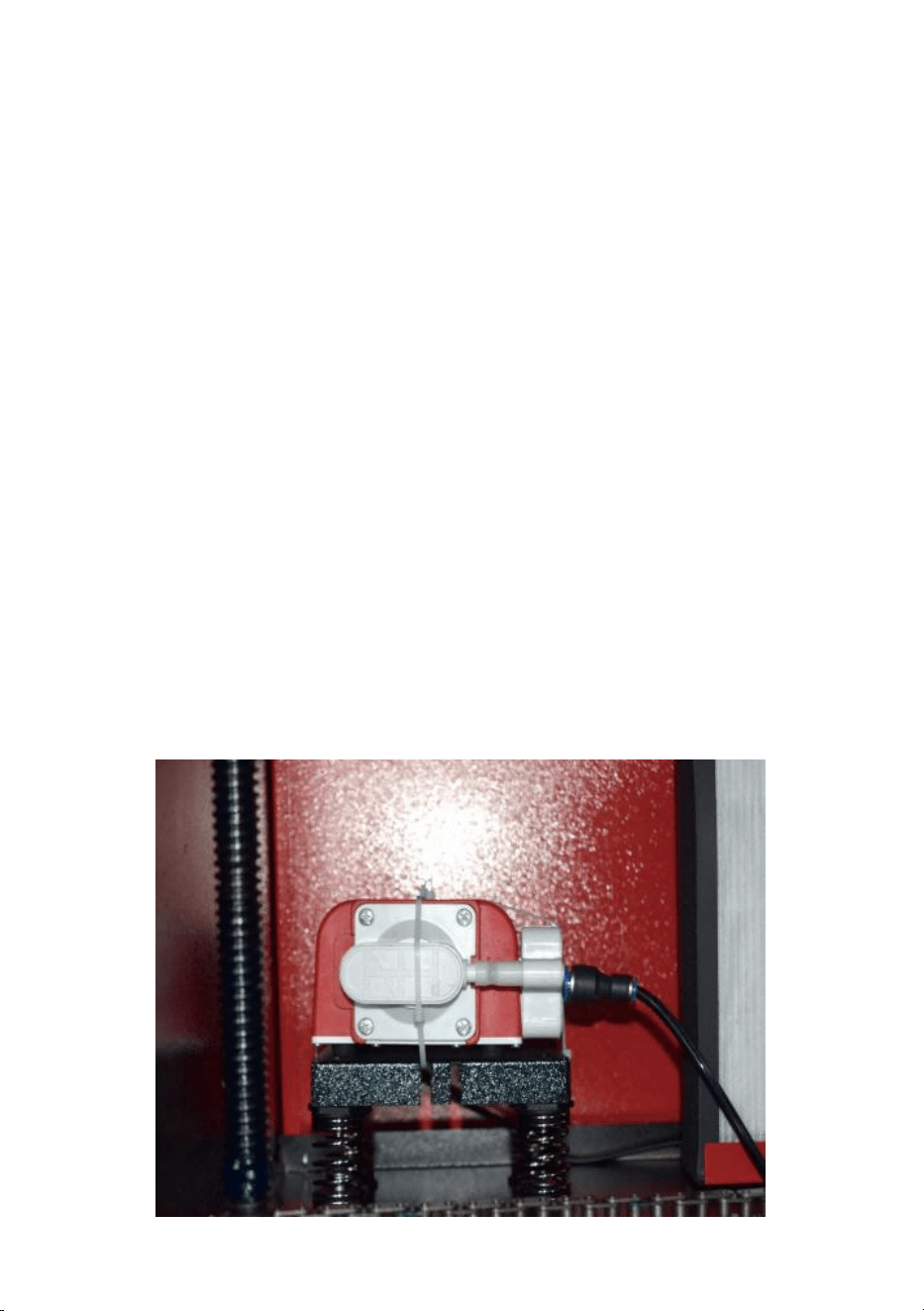

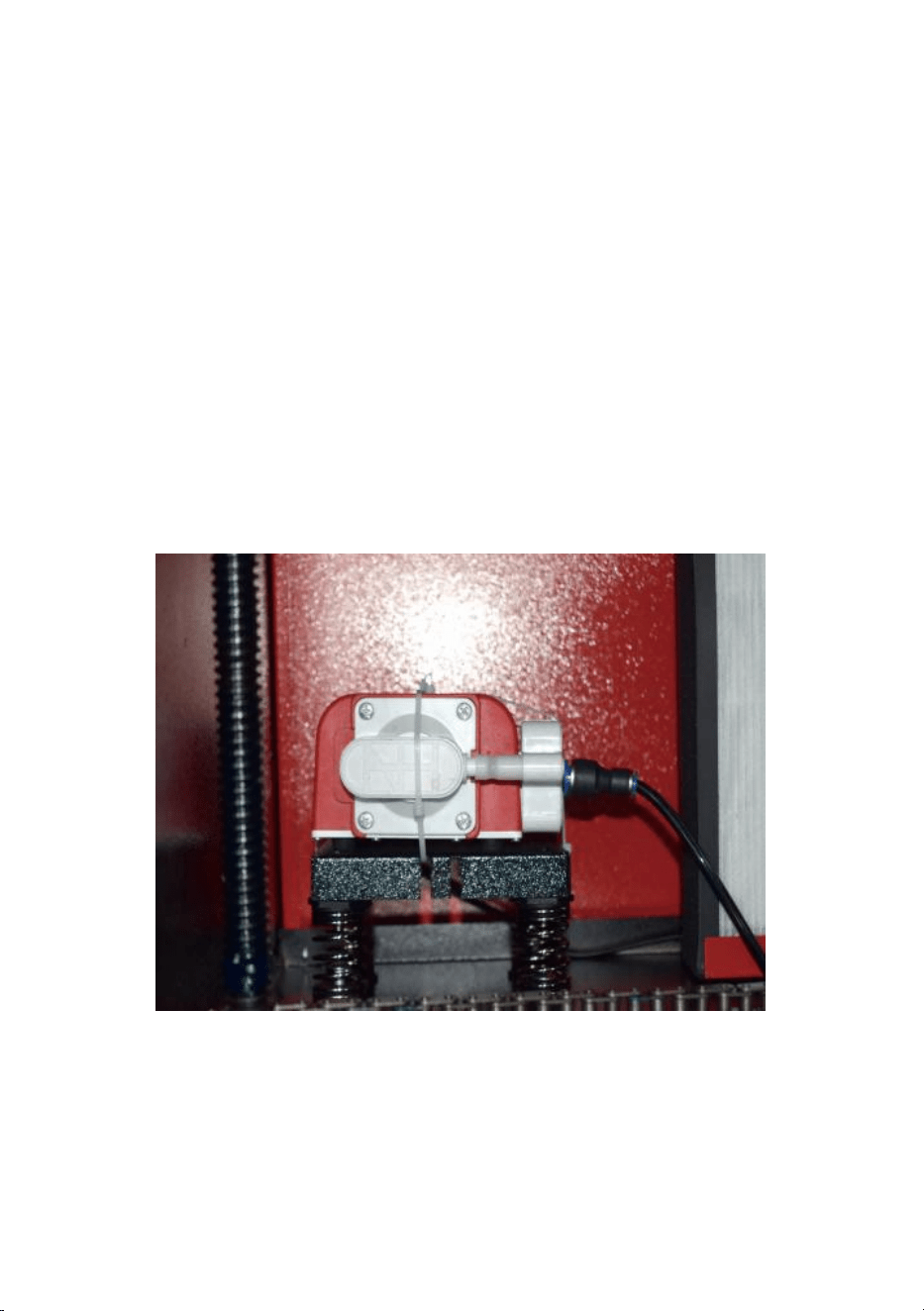

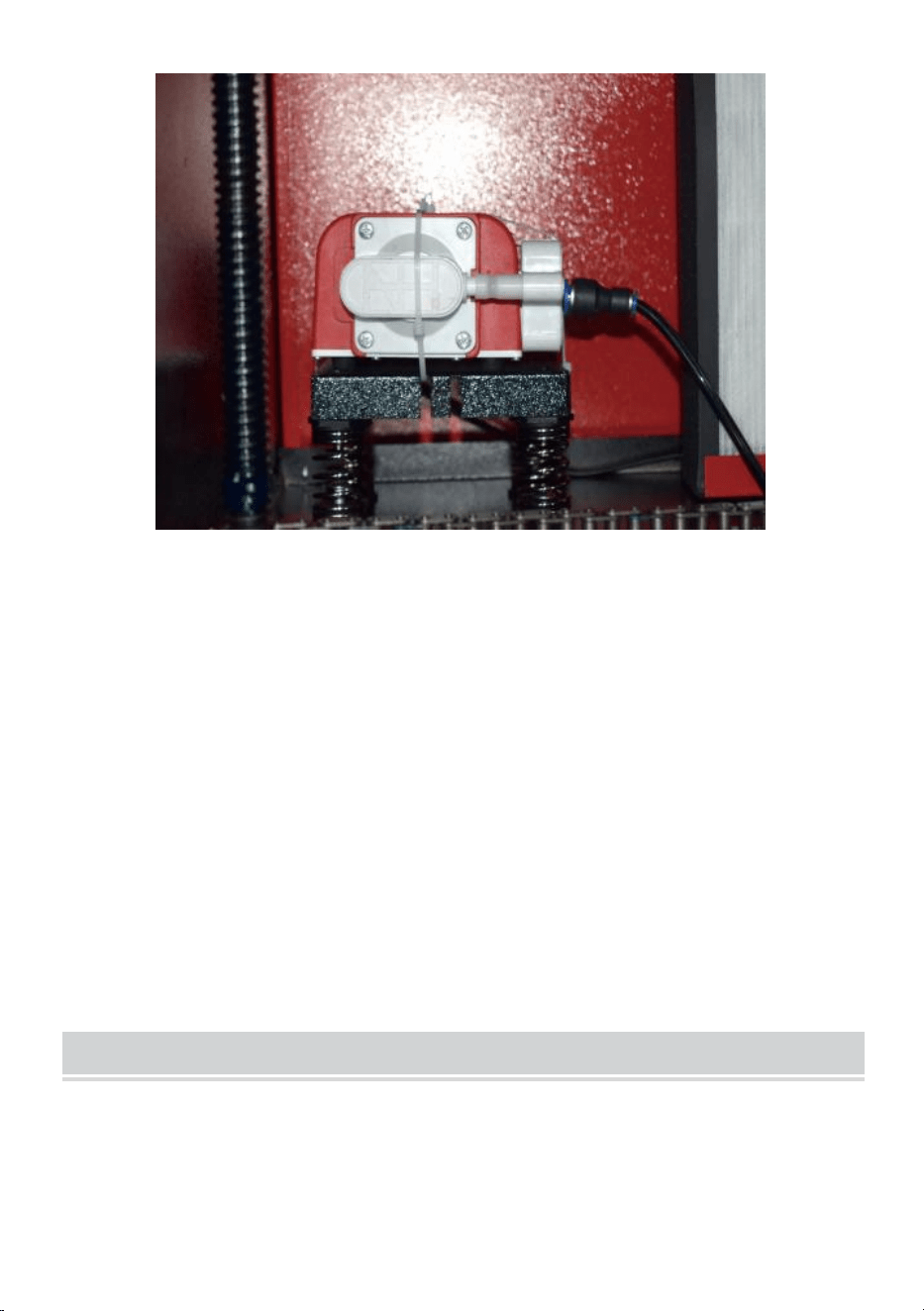

Lower Rear Access Door: This door provides access to the air assist

pump and Z-axis belt.

Exhaust fan: This fan extracts gas and debris from the air from the

workbench and sends the air out after being purified by an eco-friendly

filter.

Water Tank Cooling Fan: This fan is used to cool the circulating water.

3.Laser path description.

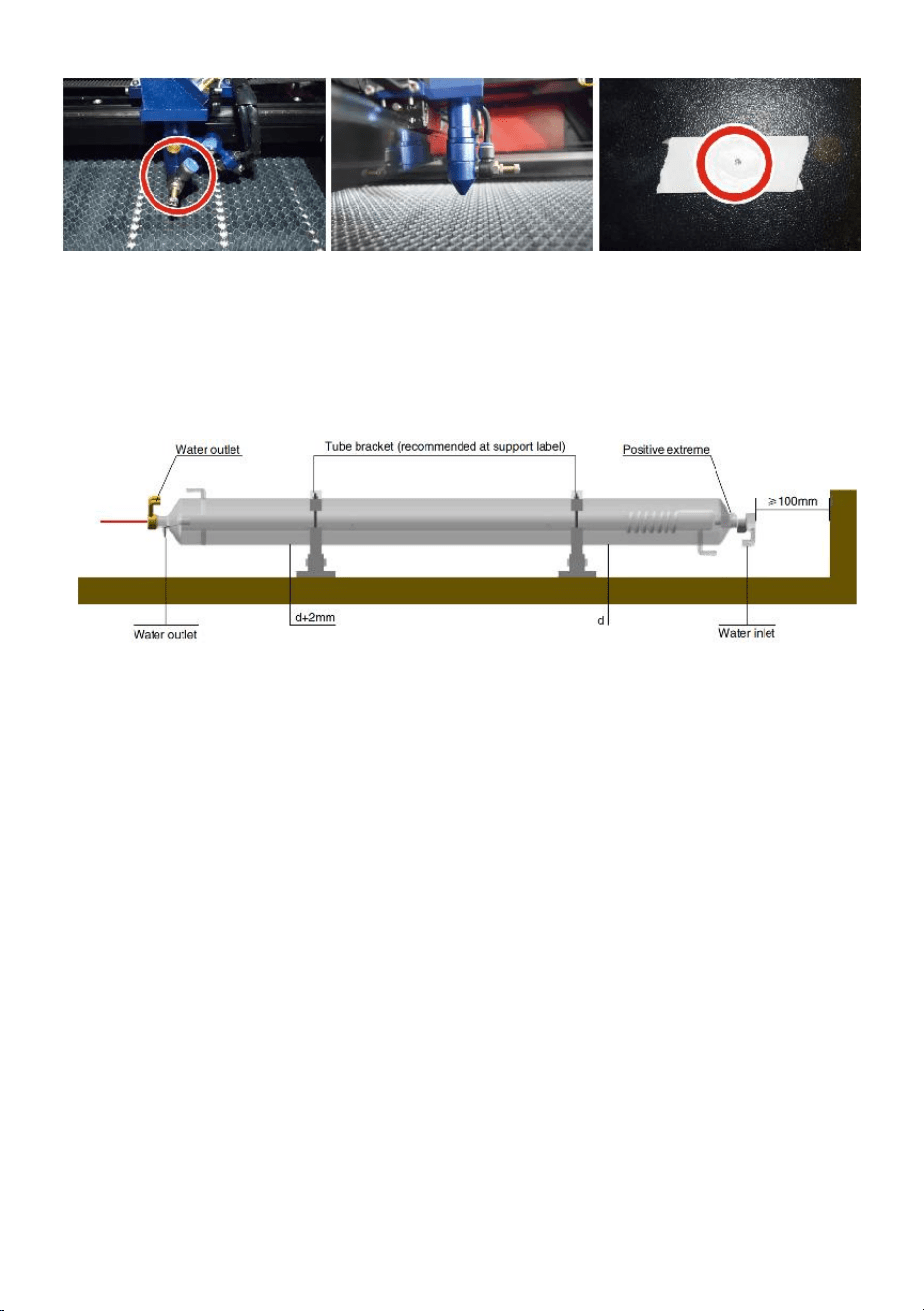

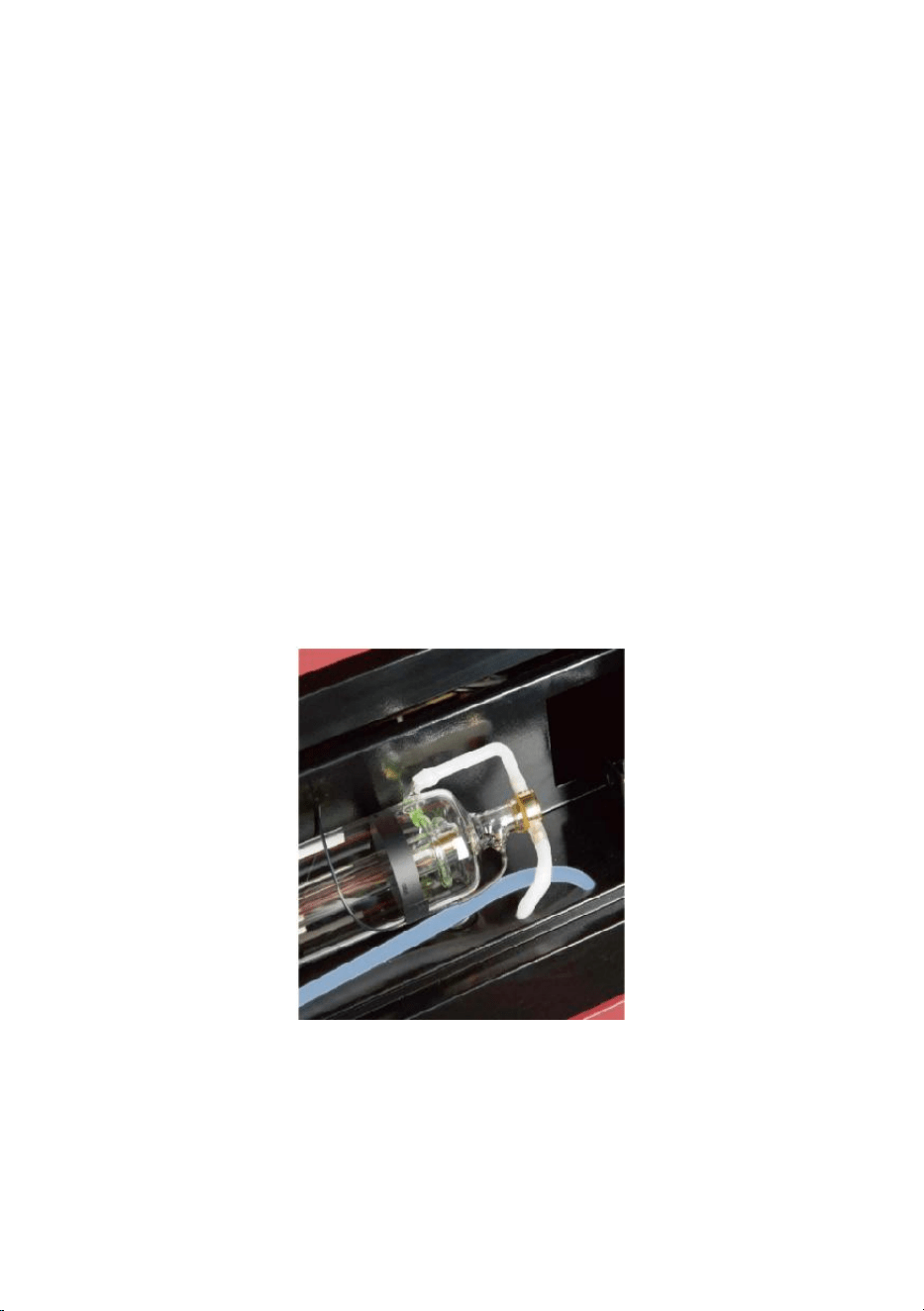

A. Laser tube:This glass tube filled with carbon dioxide is mounted on a

bracket and cannot be moved. The connection voltage between it and

the laser power supply is extremely high and extremely dangerous.

B. First reflector — This adjustable angle mirror is held in place to

transfer the engraving laser from the tube to the second mirror.

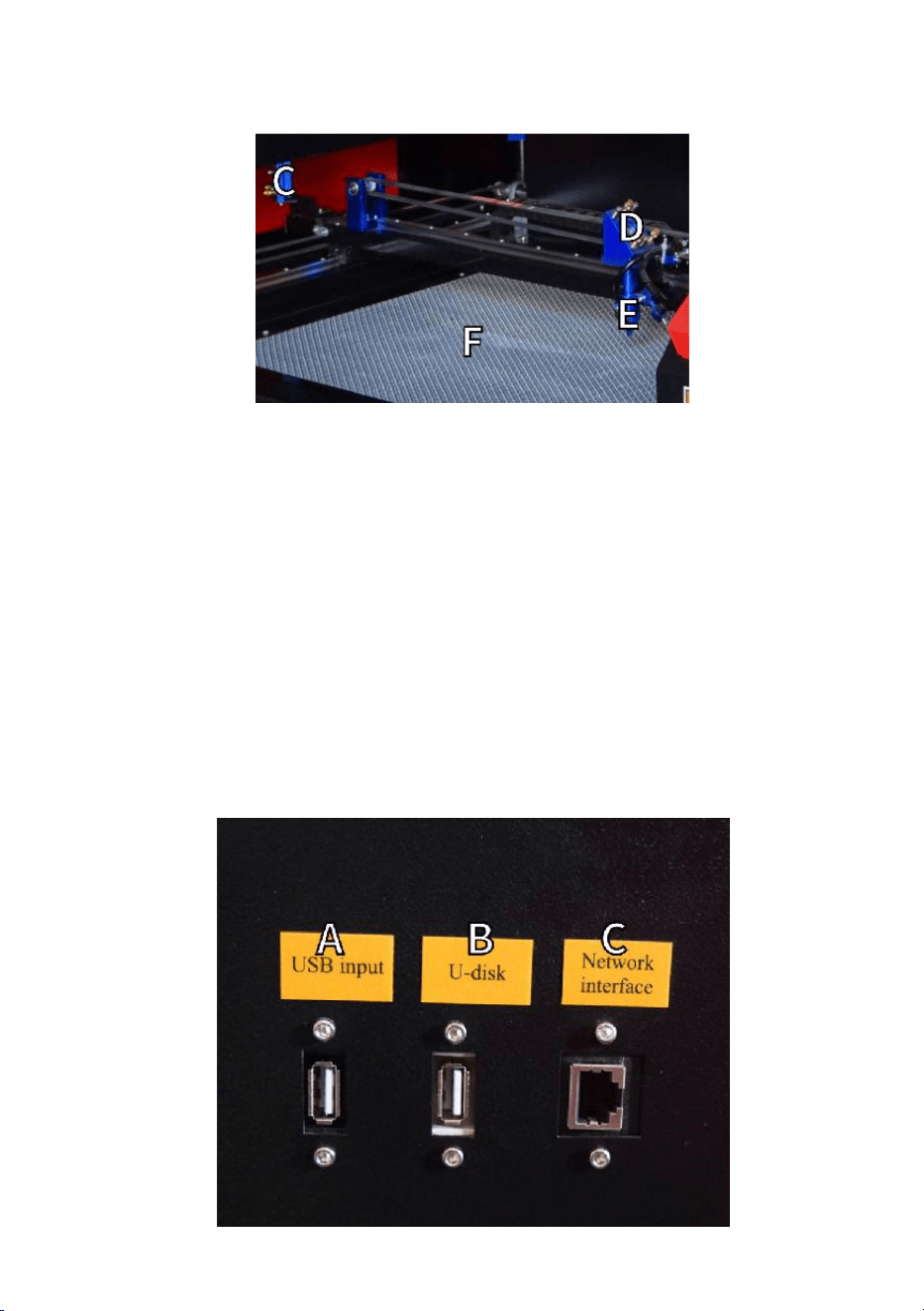

C. Second mirror:This adjustable angle mirror moves along the X-axis

guide to allow the laser beam to travel along the Y-axis.

D. Third mirror:This angle-adjustable mirror moves with the laser head,

allowing the laser beam to travel along the X-axis.

- 13 -

E. Focusing Lens:This lens directs and focuses the laser light onto the

material.

F. Workbench:The height of the exposed workbench can be adjusted.

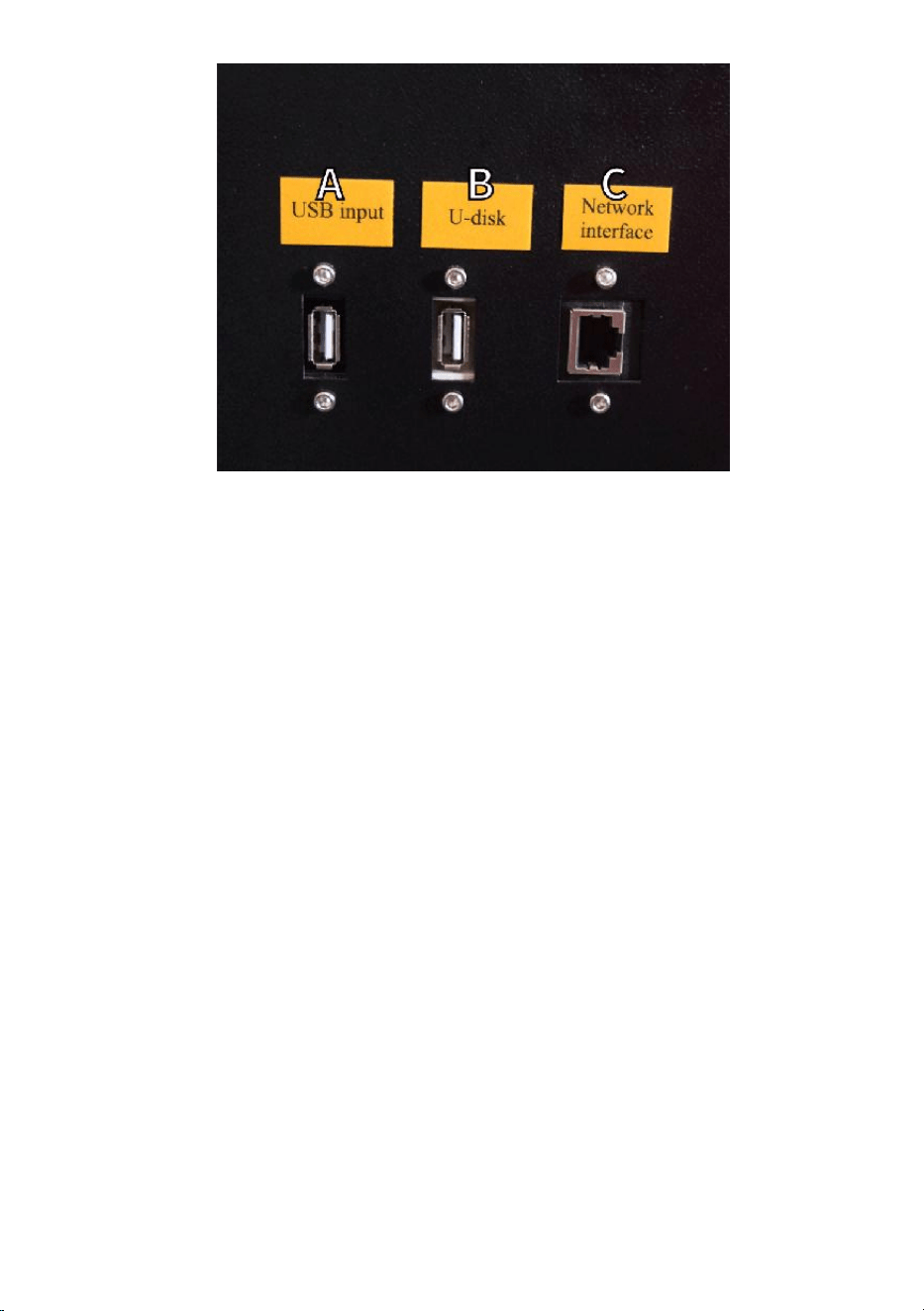

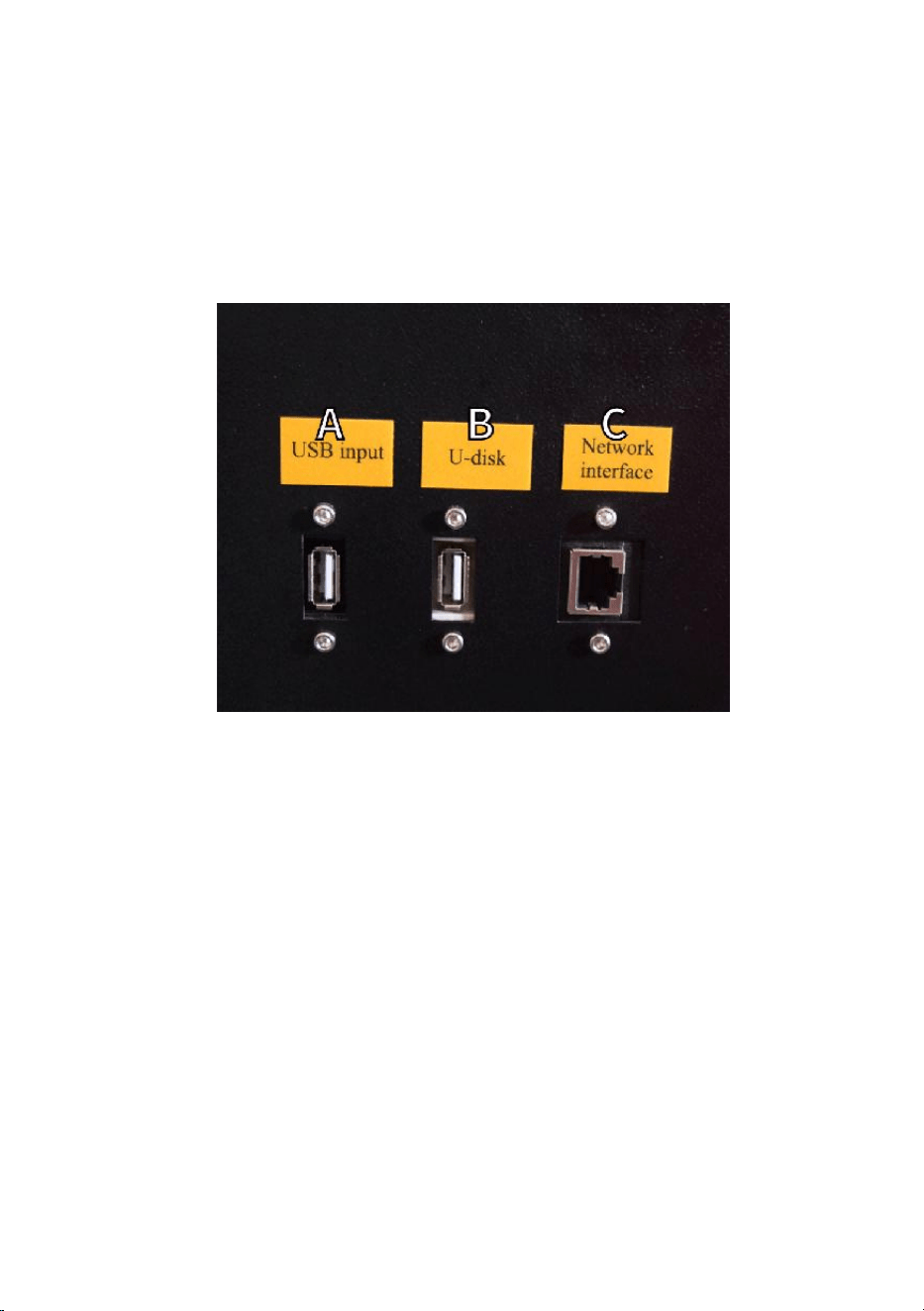

4.Connect the inputs.

A. USB Line Port:This port uses any of its USB ports to connect to the

control com-puter and its engraving software.

B. USB Port:This port allows you to load and save designs and

parameters directly to the engraver.

C. Ethernet port:This port connects directly or via the Internet to the

control computer and its software.

- 14 -

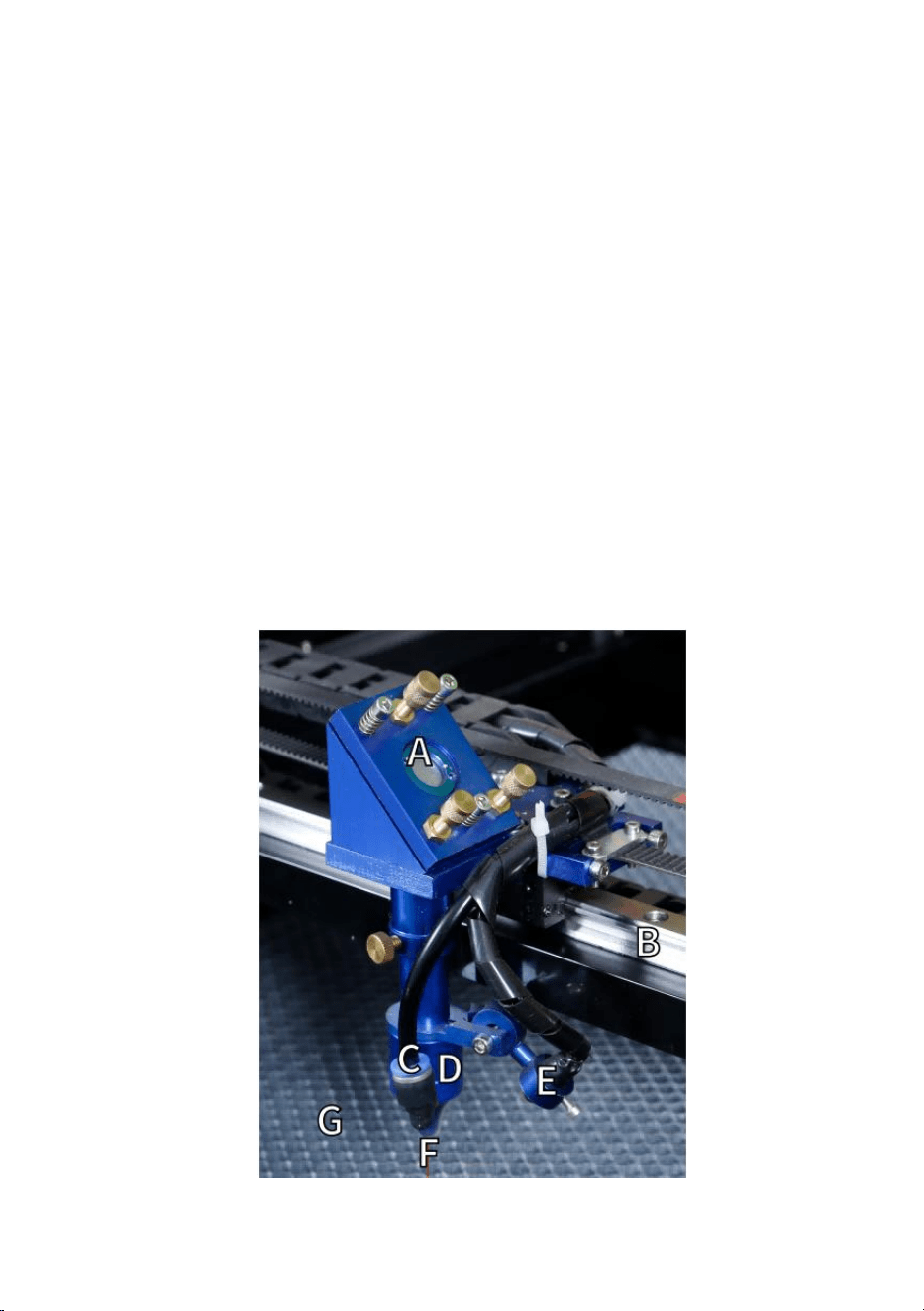

5.Laser head assembly.

A. Laser Head Third Mirror: This angle-adjustable mirror transmits laser

light from the second mirror to the focusing lens.

B. X-axis guide: This guide moves along the Y-axis, and its movement is

controlled by a limit switch.

C. Air Assist: This device blows pressurized air to kill sparks and blow

away gases and debris while engraving.

D. Focusing Lens: This lens directs and focuses the laser beam to its

point of contact with the engraving material.

E. Red Dot Pointer: This device helps you see the exact location of the

invisible engraving laser.

F. Laser:The engraving laser itself is invisible, but very dangerous. Avoid

direct contact with skin or eyes.

G. Workbench: Use the acrylic tools provided to achieve the perfect

focus for any thickness of material.

- 15 -

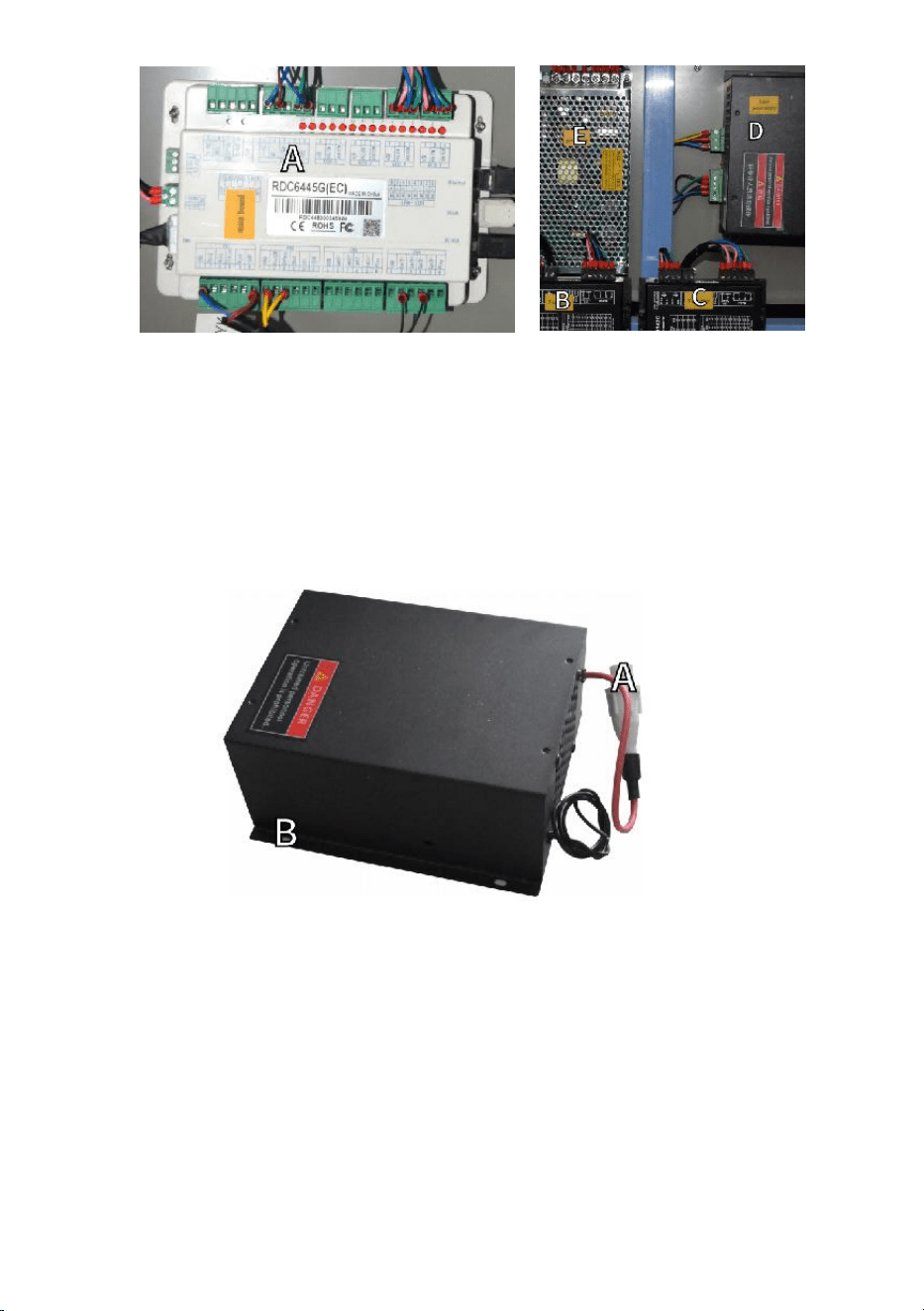

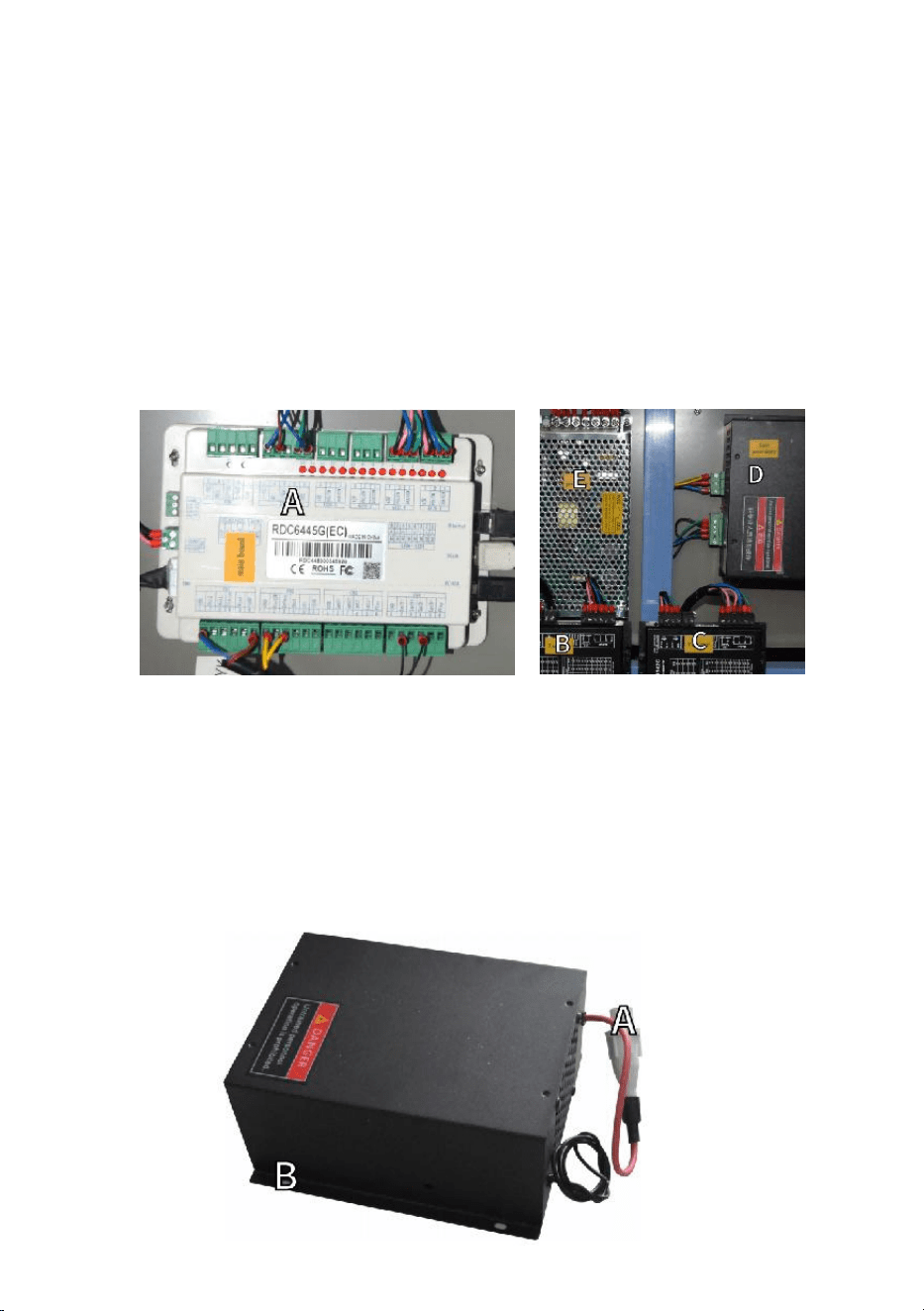

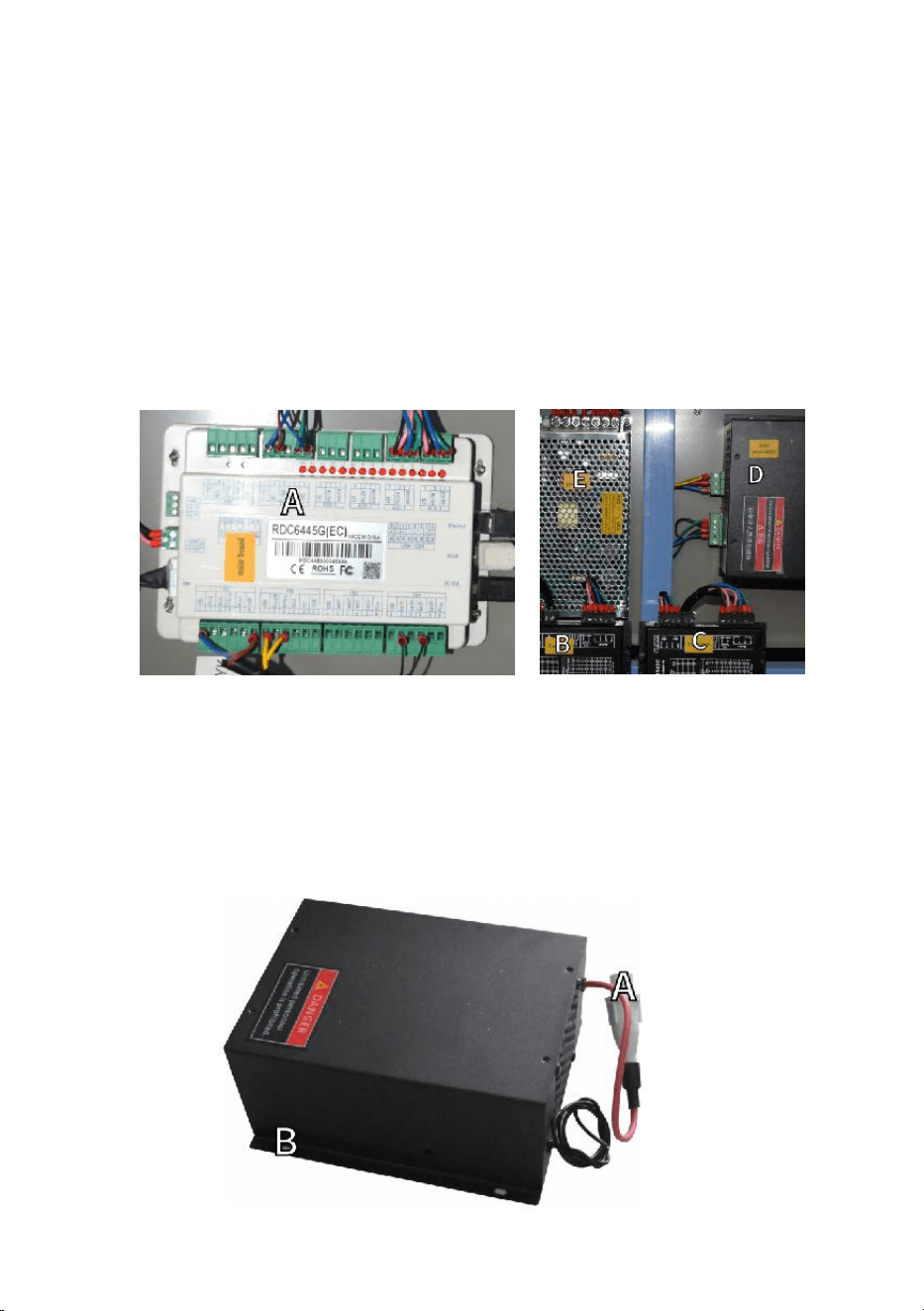

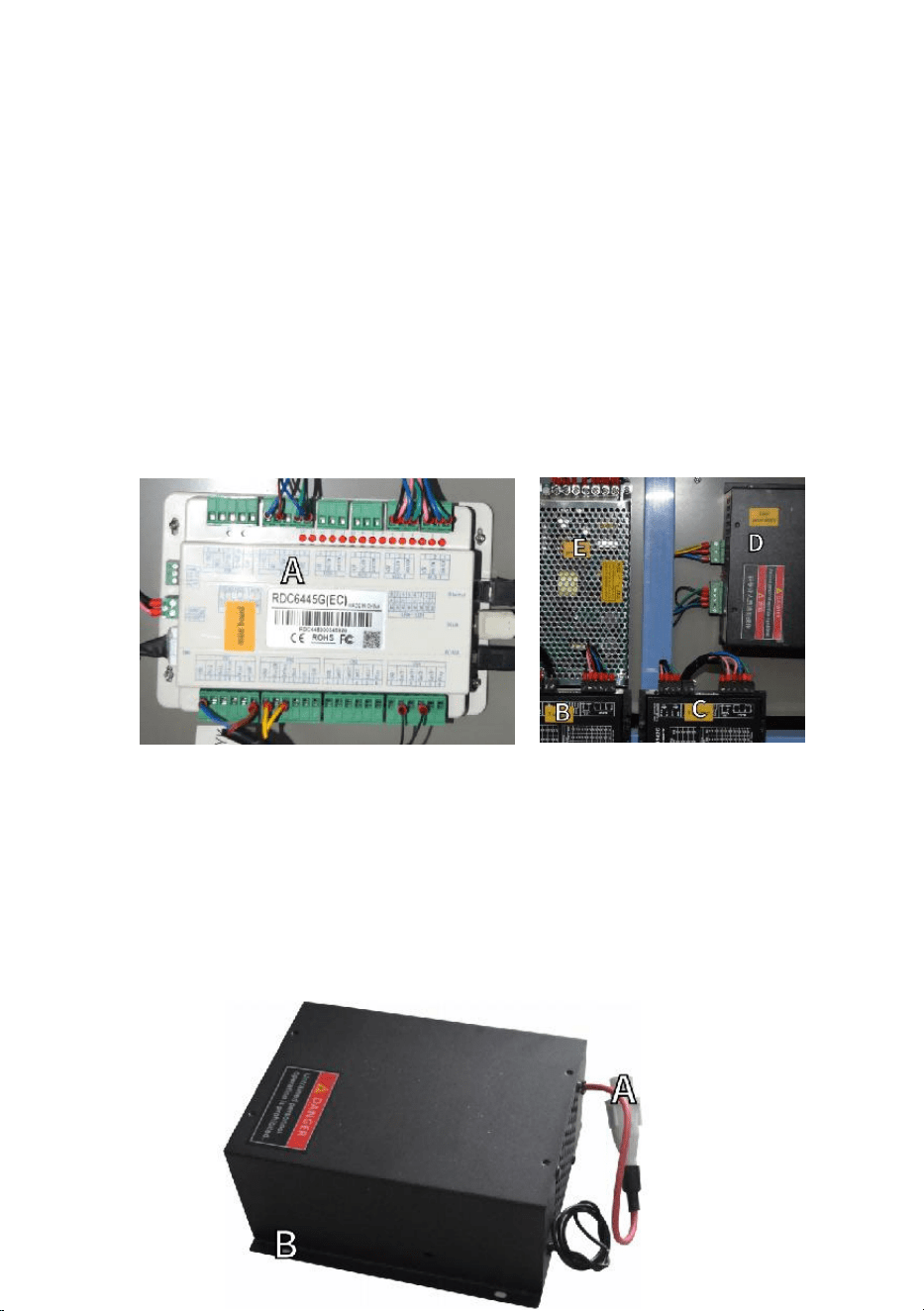

6.Right access door.

A.Motherboard:This board controls the engraving process and responds

to com-mands from the engraving software or the machine's control

panel.

B.X-axis driver: This device moves the laser head along the X-rail.

C.Y-axis drive: This device moves the X-rail along the Y-rail.

D.Laser Power: This device converts standard electricity into the

extremely high voltage charge required for a laser tube.

E. Power Supply—This device powers the machine's motherboard and

drives.

7.Laser power supply.

A. High-voltage wire: This wire is connected to the anode or positive end

of the laser tube and provides high-voltage current to power the laser.

B. Mounting Holes: These standard slots allow for simple installation and

removal.

- 16 -

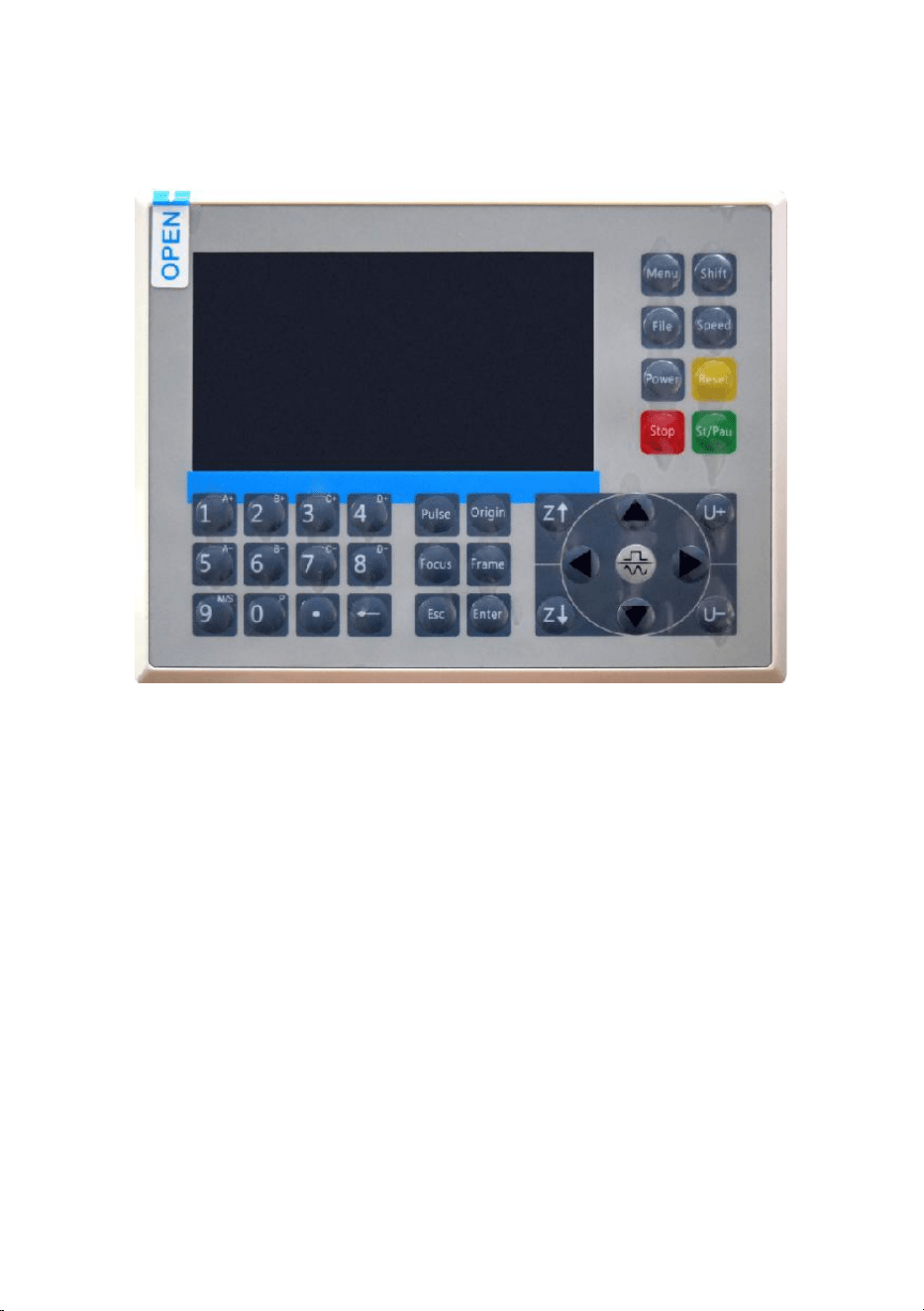

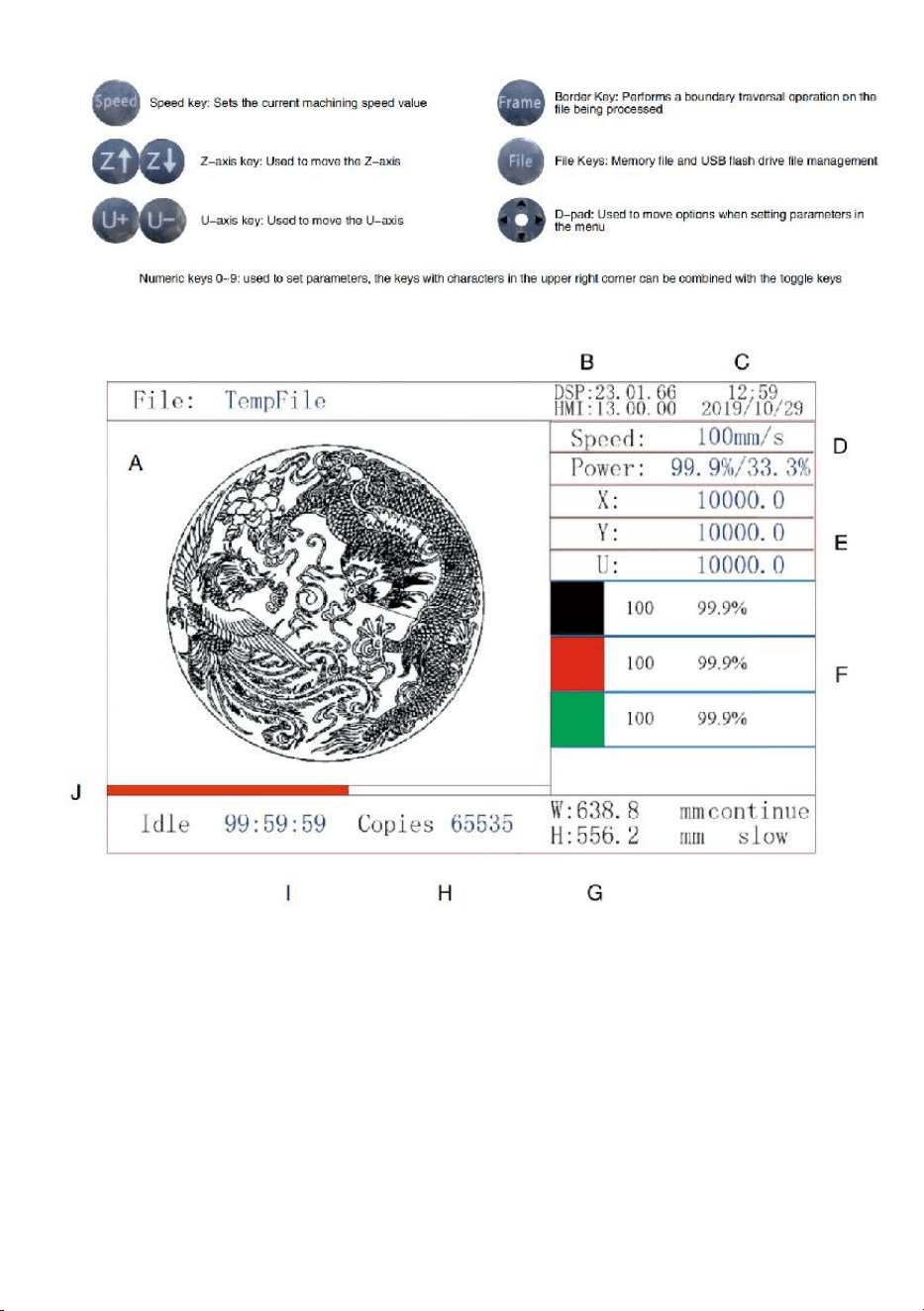

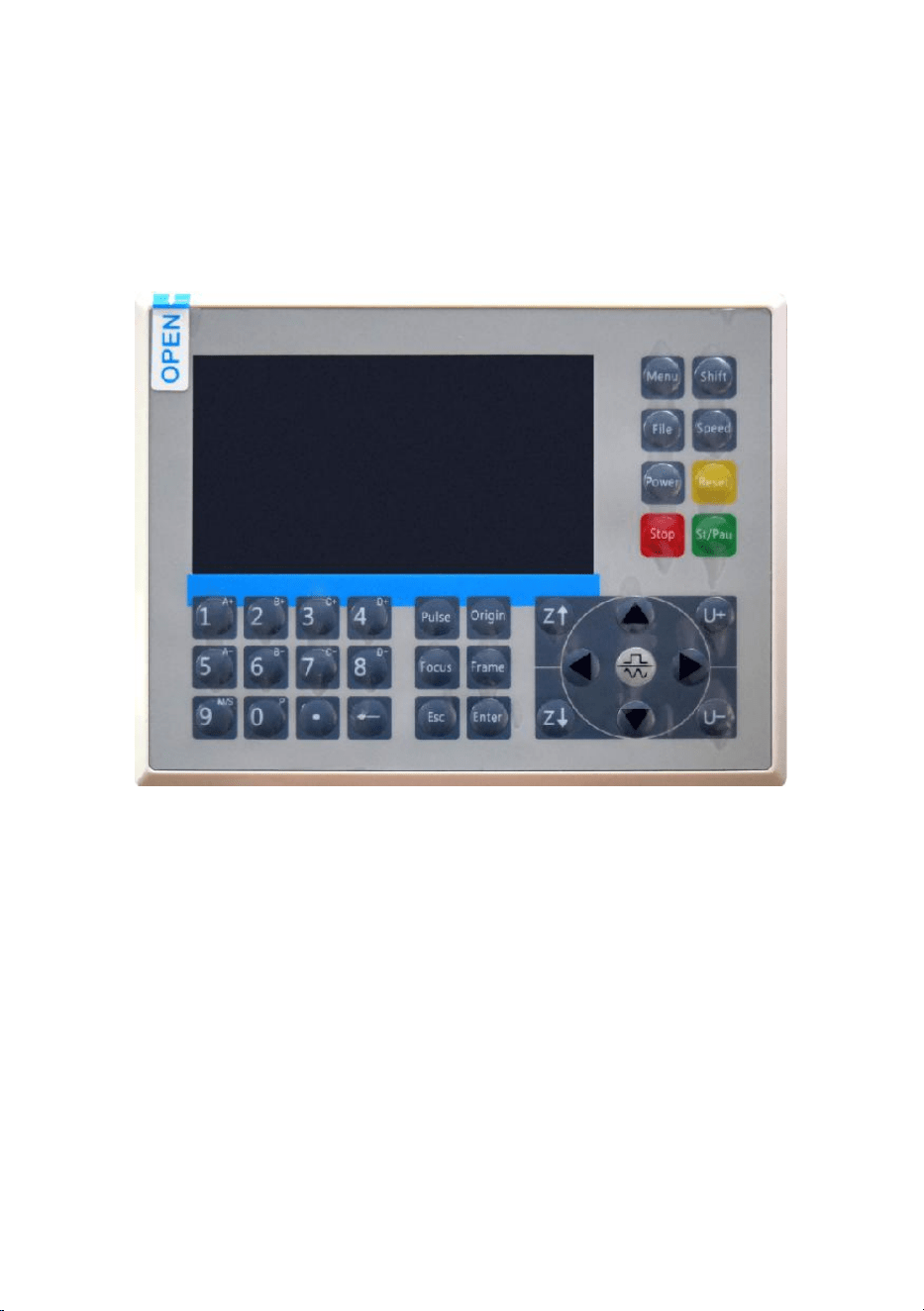

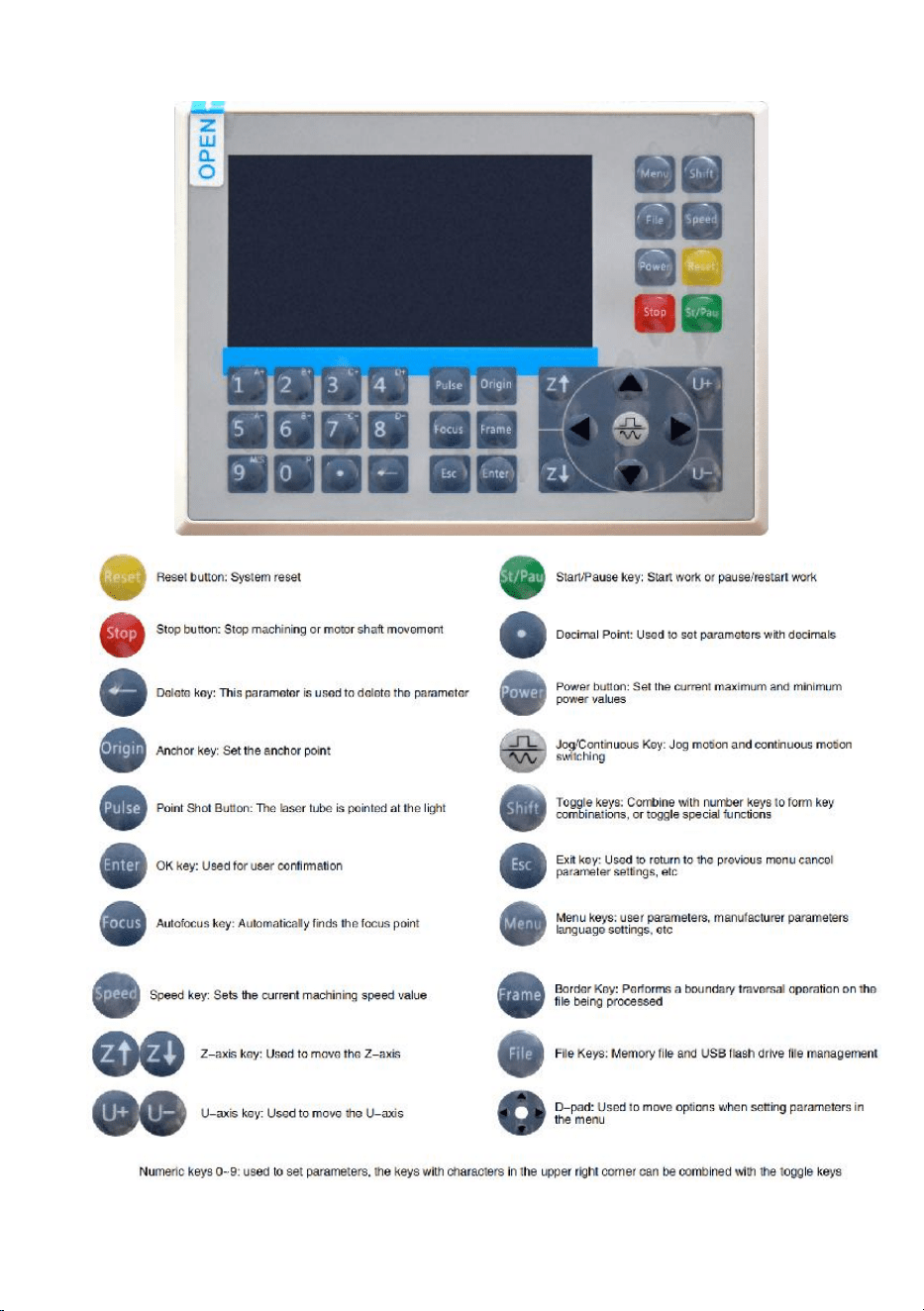

8.Control the display.

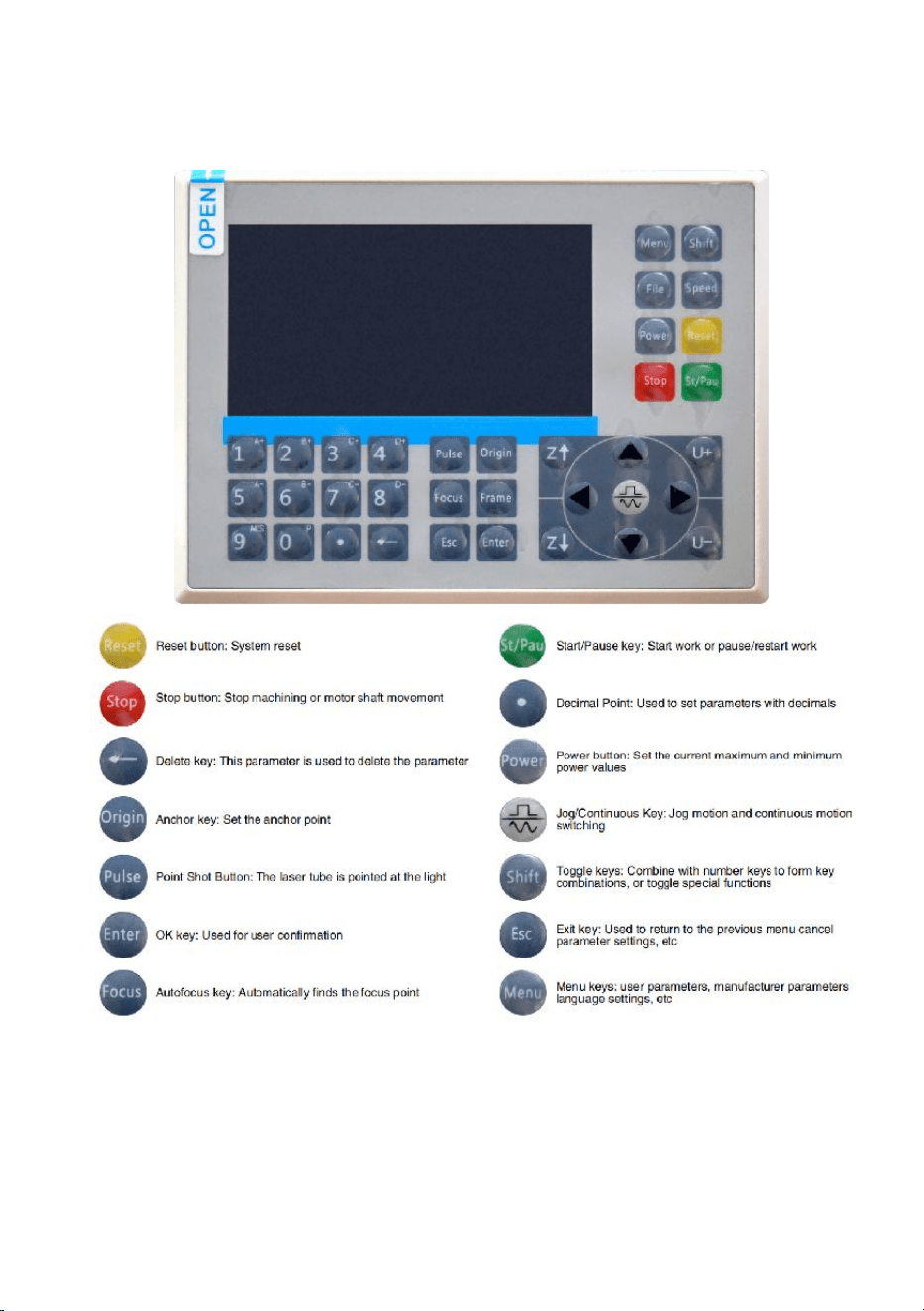

 Button description

- 17 -

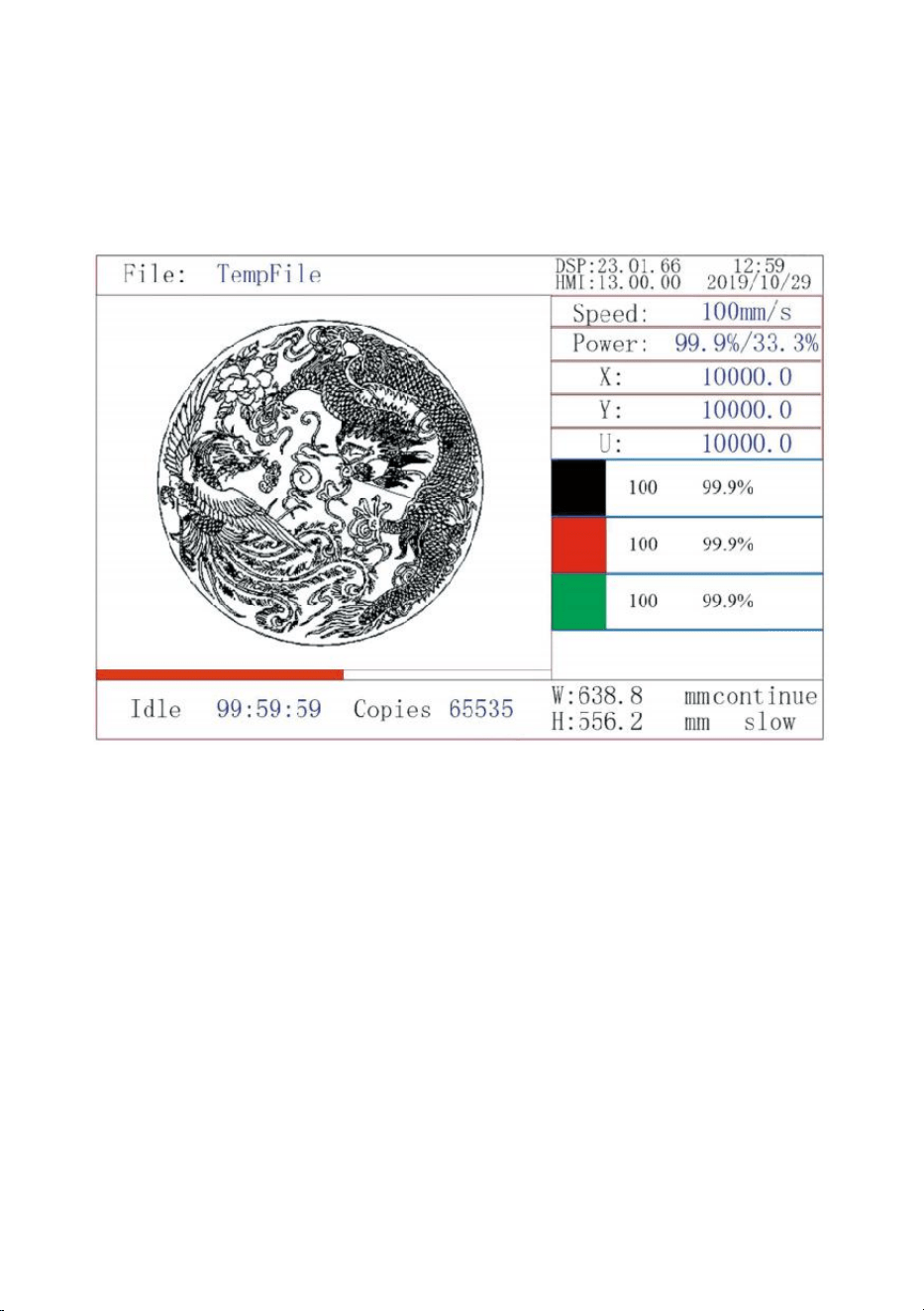

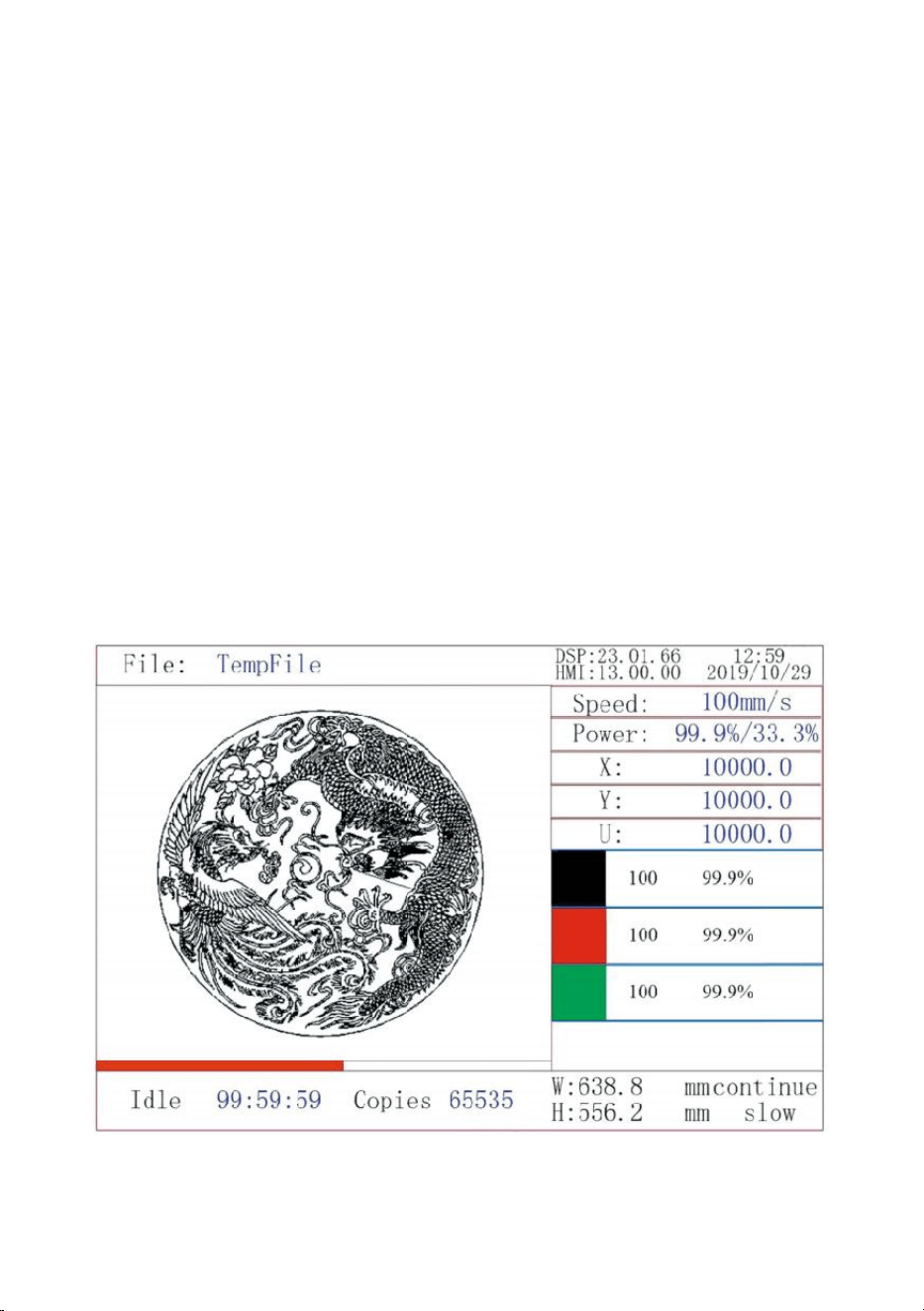

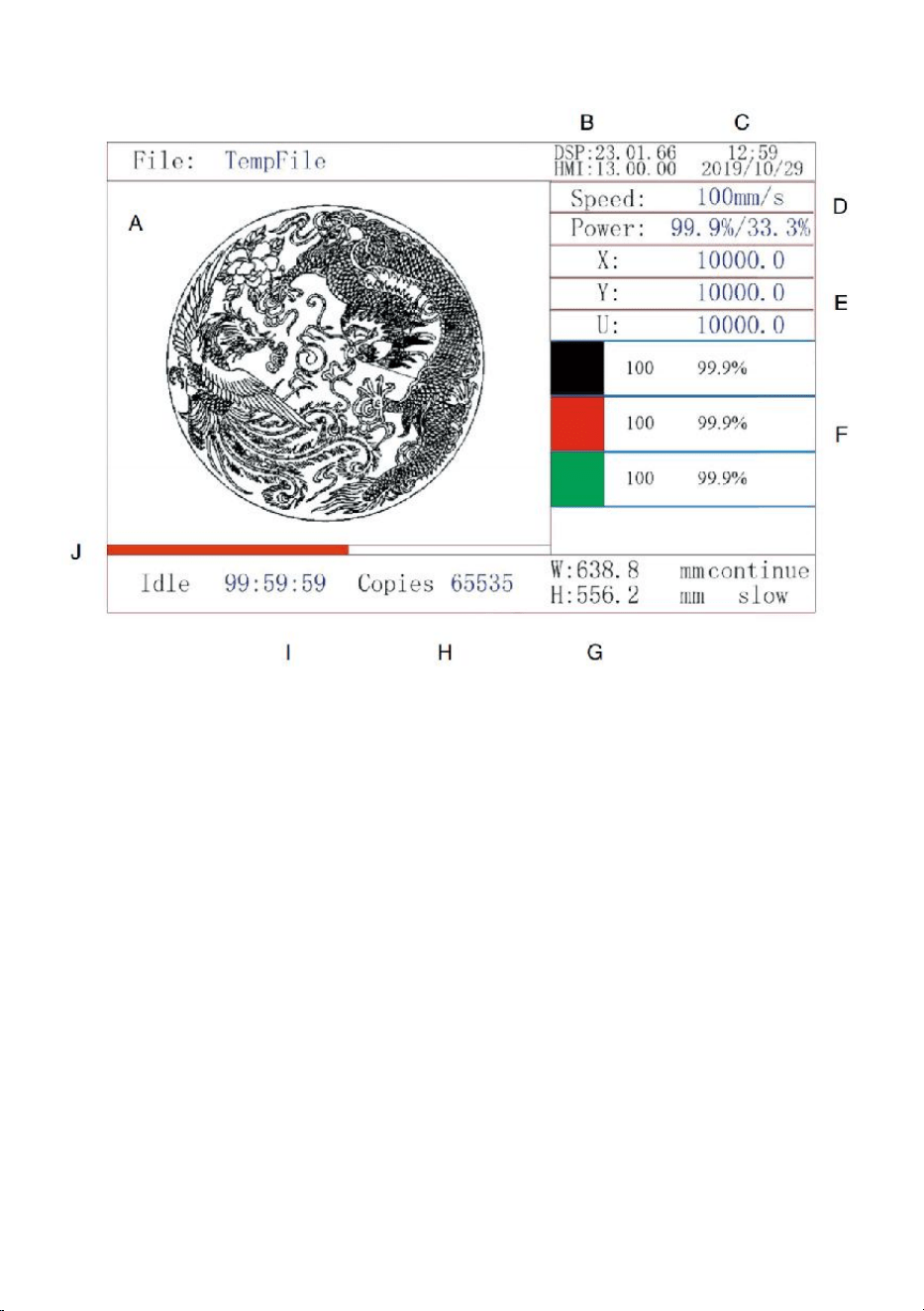

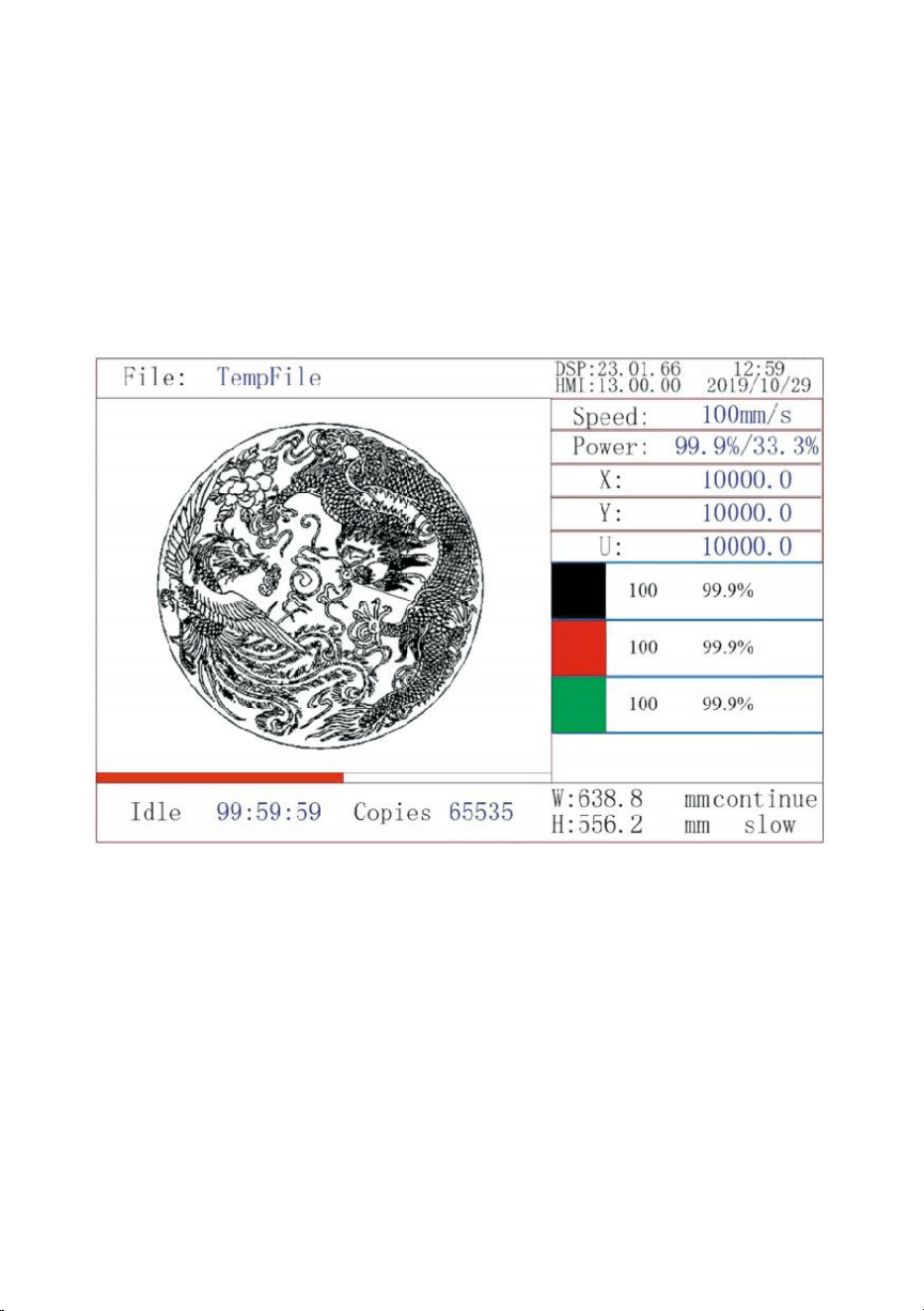

Display description

A. Graphical display area: Displays the track and running track of the

entire file.

B. Version Number: Displays the version number of the panel and

motherboard.

C. System Time: Displays the current system time.

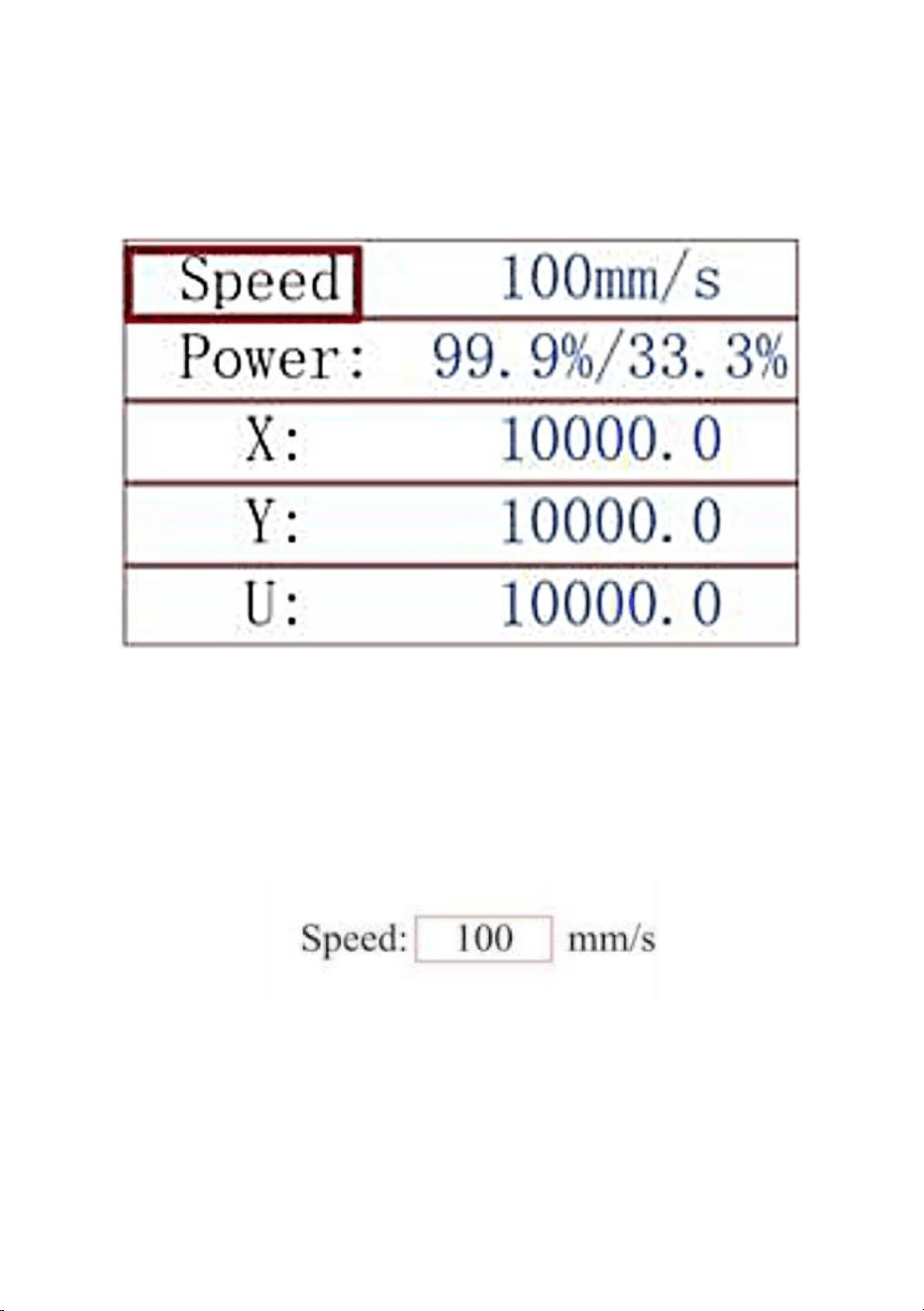

D. Parameter display area: display the file number, speed, maximum

power, etc. of the running file.

E. Coordinate Display Area: Displays the current coordinates of the laser

head.

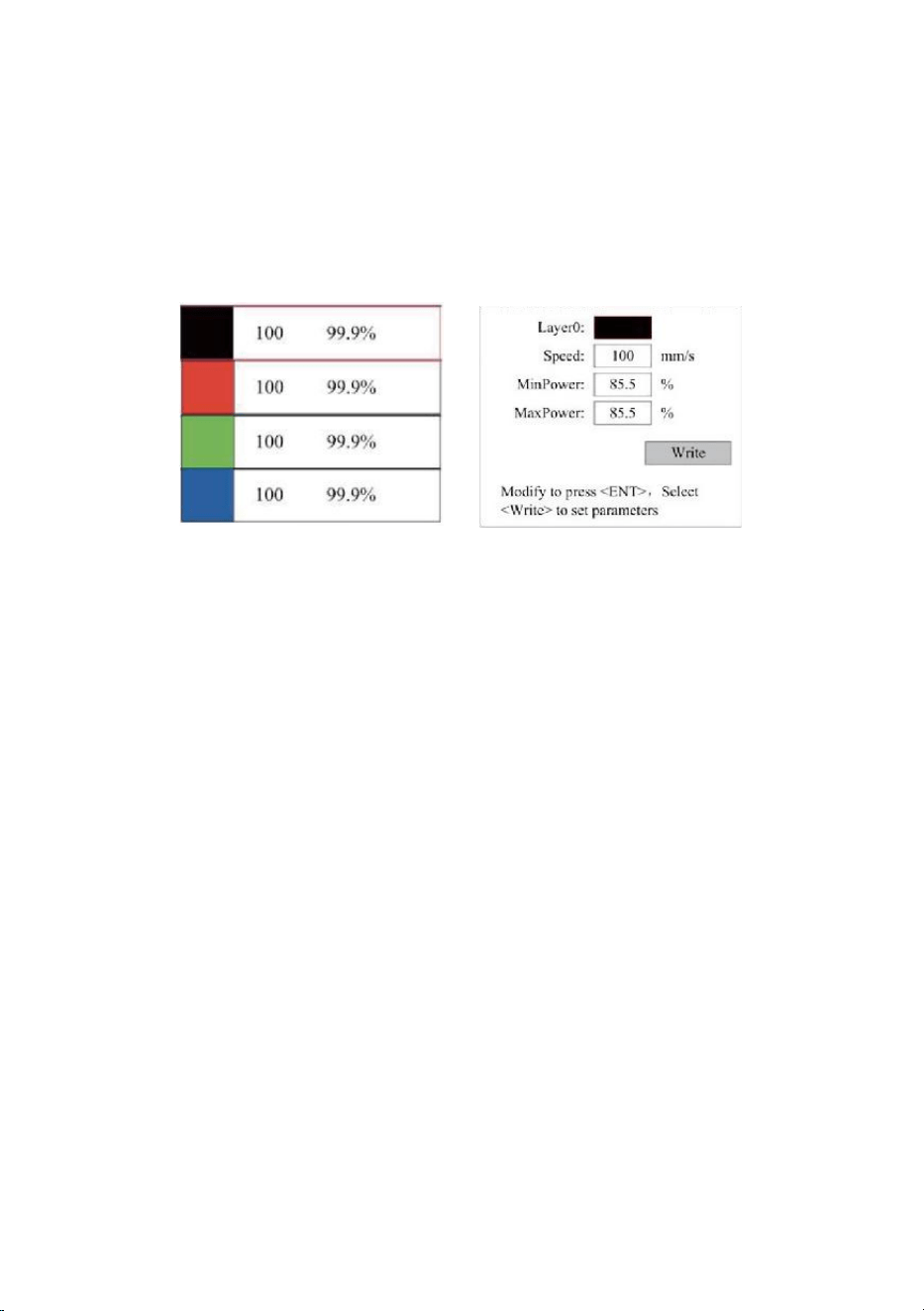

F. Layer Display Area: Displays the layer parameters of the current or

preview file. The parameters from left to right are the number of layers,

color, speed, and maximum power.

G. Frame Size Processed: Displays the dimensions of the current file.

H. Number of Pieces: Displays the count of completed runs for the current

file.

- 18 -

I. System Status: Displays the current status of the machine: idle, running,

paused, or completed. The processing time is shown on the right.

J. Processing Progress Bar: Displays the progress of the current file.

Note: When the system is idle or when the work is complete, all buttons

are used. Users can work on files, set parameters, preview files, and more.

Some buttons will not work when the work is running or paused (for

example, origin and frame).

SAFETY INFORMATION

1.DISCLAIMER OF WARRANTIES

Your engraver may be slightly different from the one shown in this

manual due to options, updates, etc. If your engraving machine comes with

an outdated manual or you have any other questions, please contact us.

2.GENERAL SECURITY NOTICE

Your device should have an instruction label attached in the following

locations:

- 19 -

If any of these tags are missing, illegible, or damaged, they must be

Replaced.

Use this laser engraving device only in accordance with all applicable

local and national laws and regulations.

Use this appliance only in accordance with this instruction manual. Only

others who have read and understood this manual are allowed to install,

operate, maintain, repair, etc. If this device has been given away or sold

to a third party, make sure this manual is included with this device.

Do not run continuously for more than 3 and a half hours. Stop for at least

30 minutes between uses.

Do not leave this device unattended during operation. Observe the

equipment throughout the operation, if there is any abnormal operation,

cut off all power to the machine immediately, and contact our customer

service or your specialized repair service. Again, make sure the

appliance is completely turned off after each use (including via the

emergency stop switch).

Do not allow minors, untrained personnel, or persons with physical or

mental disabilities that would interfere with their ability to follow this

manual and software manuals to install, operate, maintain, or repair this

equipment.

Any untrained personnel who may be in close proximity to the equipment

while operating must be informed that the equipment is dangerous and

given adequate instructions on how to avoid injury during use.

Always place fire extinguishers, water pipes, or other flame retardant

systems nearby to prevent accidents. Make sure the phone number of

the local fire department is clearly displayed nearby. In the event of a fire,

cut off the power supply before extinguishing the flames. Before use,

familiarize yourself with the correct range of the fire extinguisher. Be

careful not to use the fire extinguisher too close to the flame, as its high

pressure can create a backlash.

- 20 -

3.LASER SAFETY INSTRUCTIONS.

When used as directed, the machine includes a Class 1 laser system

that is safe for both users and bystanders. However, invisible lasers, laser

tubes, and their electrical connections are still very dangerous. They can

cause serious property damage and personal injury if not used or modified

with care, including but not limited to the following:

 Lasers can easily burn nearby combustible materials.

Some working materials may produce radiation or harmful gases during

Processing.

Direct contact with the laser can cause bodily harm, including severe

burns and-irreparable eye damage.

Do not modify or disable the security features provided by this device. Do

not modify or disassemble the laser, and do not use the laser if it has

been modified or disassembled by anyone other than a trained and

skilled professional. Dangerous radiation exposure and other injuries

can result from the use of adapted, modified, or otherwise incompati-ble

equipment.

Never keep any part of the cabinet open during operation unless

(required) through doors. Never interfere with the laser beam, do not

place any part of the body on any part of the laser path during the

operation, and never attempt to observe the laser directly. When using a

pass-through door or otherwise risking exposure to a laser beam, take

steps to protect yourself from potentially reflected laser beams, including

the use of personal protective equipment, such as specially designed

protective eyewear, to filter engravers with an optical density (OD) of 5+

for specific wavelengths of lasers.

During operation, do not stare or allow others to stare at the laser beam

continuously, even if the lid is closed and/or protective glasses are worn.

Use this engraving machine only when its auto-shut-off function is

working properly. When you first get this engraver, if you subsequently

notice any issues, test it before doing any other work (see below). If

- 21 -

closure does not occur, do not continue to use it. Turn off the device and

contact customer service or repair service. Never disable these closures.

If the water cooling system is not working properly, do not use this laser

engraver under any circumstances. Always activate the water cooling

system and visually confirm that the water is flowing through the entire

system before turning on the laser tube. Do not use ice water or water

with temperatures higher than 100° F (38 ° C). For best results, keep it

between 60–70°F (15–21°C).

Do not use generic coolant or antifreeze in the cooling water, as they may

leave a corrosive residue and solidify inside the hose and pipes, which

can lead to failure or even explosion. Use custom laser-safe formulations,

or use and store your engraver in a climate-controlled area.

Do not leave potentially flammable, flammable, explosive, or corrosive

materials nearby to avoid exposing them to direct or reflected laser

beams.

Do not use or place sensitive EMI equipment nearby. Make sure that the

area around the laser is free of strong electromagnetic interference

during any use.

Use this machine only for the processing of materials described in the

Material Safety section of this manual. The laser setup and engraving

process must be appropriately adjusted for the specific material.

Ensure that the area is free of other air pollutants as these may pose a

similar risk of reflection, combustion, etc.

- 22 -

4.ELECTRICAL SAFETY INSTRUCTIONS.

Use this device only with a compatible and stable power supply with a

voltage fluctuation of less than 10%.

Do not connect other devices to the same fuse as the laser system

requires its full amperage. Do not use with standard extension cords or

power strips. Only surge protective devices with a rating of more than

2000 J are used.

Power this device on only if this device is well grounded, either by a firm

connection to a 3-pin socket or by a dedicated grounding cable that is

securely connected to the correct slot on the cabinet. Do not use with an

ungrounded 3 to 2-pin adapter. The grounding of the equipment should

be checked regularly for any damage or loose connections.

Therefore, the area around this laser engraving device should be kept

dry, well ventilated, and environmentally controlled to keep the ambient

temperature between 40–95°F (5–35°C). For best results, keep the

temperature at 75°F (25°C) or lower. The ambient humidity should not

exceed 70%.

When the pump is connected to its power source, do not handle the

pump or the water it is submerged in. Put it in the water before

connecting it to a power source and disconnect it from the power supply

before taking it out.

Adjustments, maintenance, and repairs of the electrical components of

this equipment must be done only by trained and skilled professionals to

avoid fire and other failures, including potential radiation exposure due to

damage to laser components. Since testing the electrical components of

this marking system requires specialized techniques, it is recommended

that such testing should only be carried out by manufacturers, sellers, or

repair service organizations.

Unless otherwise noted, adjust, maintain, and repair the appliance only

when it is turned off, disconnected from power, and completely cooled.

- 23 -

5.MATERIAL SAFETY INSTRUCTIONS.

It is the responsibility of the user of this laser engraving machine to

confirm that the material to be processed is able to withstand the heat of

the laser and does not produce any emissions or by-products that are

harmful to nearby people or that violate local or national laws or

regulations. In particular, do not use this equipment to process polyvinyl

chloride (PVC), Teflon, or other halogen-containing materials under any

circumstances.

It is the responsibility of the user of this laser engraving machine to

ensure that everyone present during operation has adequate personal

protective equipment to avoid injuries caused by emissions and

by-products of the material being processed. In addition to the laser

protective glasses mentioned above, this may require goggles, masks or

respirators, gloves, and other protective outerwear.

If the exhaust system is not working properly, do not use this laser

engraving machine under any circumstances. Always ensure that the

exhaust fan is able to remove dust and gases from the engraving

process in accordance with all applicable local and national laws and

regulations. If the exhaust fan or exhaust pipe fails, stop using it

immediately.

Users must be especially careful when working with conductive

materials,as the build-up of dust and environmental particles may

damage electrical components, cause short circuits, or have other

effects, including reflected laser radi-ation.

- 24 -

This machine is safe to use with the following materials:

1.plastics.

·Acrylonitrile butadiene styrene (ABS)

·Nylon (polyamide, PA, etc.)

·polyethylene

·High-density polyethylene (high-density polyethylene, polyethylene,

etc.)

·Biaxially oriented polyethylene terephthalate (BoPET, polyester,

polyester, etc.)

·Polyethylene terephthalate (PETG, PET-G, etc.)

·Polyimide (PI, Kapton, etc.)

·Polymethyl methacrylate (PMMA, acrylic, plexiglass, fluorite, etc.)

·Polyoxymethylene (POM, acetal, DL, etc.)

·Polypropylene (PP, etc.)

·styrene

2.other.

·cardboard

·Ceramics, including cutlery, tiles, etc.

- 25 -

·glass

·leather

·Paper and cardboard

·rubber

·Stone, including marble, granite, etc.

·Textiles, including cotton, suede, felt, hemp, etc.

·Timber, including cork, MDF, plywood, balsa wood, birch, cherry, oak,

poplar, etc.

Note:See for the recommended parameters for the most commonly used

engraving materials.

This unit cannot be used with the following materials or any materials

containing them:

· Artificial leather containing hexavalent chromium (Cr[VI]) due to its

toxic fumes

·Astatine due to its toxic fumes

·Beryllium oxide, due to its toxic fumes

·Bromine, due to its toxic fumes

·Chlorine, including polyvinyl butyral (PVB) and polyvinyl chloride (PVC,

- 26 -

vinyl, Sintra, etc.), due to its toxic fumes

·Fluorine, including Teflon (Teflon, Teflon, etc.), due to its toxic fumes

·Iodine, due to its toxic fumes

·Metals, due to their electrical conductivity and reflectivity

·Phenolic resins, including various forms of epoxy resins, as they

produce toxic fumes

·Polycarbonate (PC, Lexan, etc.) due to its toxic fumes

Note:For all other materials, if you are unsure about the safety or

laserability of this device, look for its Material Safety Data

Sheet (MSDS). Particular attention is paid to information about

safety, toxicity, corrosivity, reflectivity, and reaction to high

temperatures. Alternatively, please contact our support department

for further guidance

INSTALLATION

1.INSTALLATION OVERVIEW.

A complete working system includes the laser engraving cabinet, its

vents, all applicable connection cables, as well as the laser and access

- 27 -

key. The cabinet can use the design provided by the included engraving

software by connecting directly with your computer or the internet; It can

also engrave designs that are loaded directly from flash drives. Users

can configure other additional accessories, such as rotary axes, to meet

their needs.

Use only the hardware, cabling, and power supplies that come with or are

compatible with this device. Installing equipment that is not suitable for

use may result in poor performance,Reduced service time, increased

maintenance costs, property damage, and personal injury.

Please pay attention to the specific requirements for system installation.

Every customer must be aware of these considerations prior to

installation in order to perform the correct setup and achieve safe laser

performance. If you have any installation issues or problems, please

contact our technicians and customer support team.

Any auxiliary equipment must be adjusted to the main unit. If in doubt,

please contact the dealer or manufacturer of such equipment directly.

2.Installation site selection

Before installing the enggraver, choose the appropriate location for use.

Make sure it meets all the requirements discussed in the above safety

information. The location should be stable, level, dry, and

climate-controlled to ensure an ambient temperature of 40–95°F

(5–35°C) and ambient humidity below 70%. In particular, temperature

and humidity together should not approach the dew point. It is also

advisable to use windowless rooms or to use blinds and/or curtains to

avoid exposure to the potential additional heat of direct sunlight. The

location should be free of dust and other air contaminants and well

ventilated enough to handle any fumes generated during the engraving

process in accordance with all applicable laws and regulations.

Depending on the material to be processed, this may require the

construction of a dedicated ventilation system. It should be kept away

from children; flammable, flammable, explosive or corrosive materials;

and sensitive EMI equipment. The power cord should be

plugged into a compatible and stable power source through a grounded

- 28 -

3-pin outlet. There should be no other items drawing current from the

same fuse. Fire equipment should be available nearby, and the phone

number of the local fire department should be clearly displayed.

It is highly recommended to place an additional bench near the machine

to avoid placing objects on or directly near the machine, which could

become a fire or laser hazard.

3.WIRE GROUNDING.

The device uses a powerful laser. As mentioned in the safety information

above, it has extremely high voltages and potential hazards, so the user

must ground it firmly to avoid static build-up. Using a standard 3-pin

socket will provide adequate grounding. If you don't have access to a

3-pin outlet, you must use a grounding cable and make sure it's properly

connected. The distal end of the cable should be securely attached to a

metal rod at least 8 feet (2.5 meters) deep, or to two separate metal rods

that have been driven into the soil at least 5 feet (1.5 meters) from the

machine.

Poor grounding can lead to equipment failure and create a serious risk of

electric shock. The manufacturer and/or seller shall not be liable for any

damage, accident or injury caused by a poor grounding connection.

4. UNPACK THE ENGRAVING MACHINE.

Your engraver comes in a wooden case with its accessories (including

this manual) packed in the area behind the front through door. You

should place the crate in a generous, flat area for unpacking, and ideally,

you plan to operate the machine permanently.

- 29 -

Step 1: If you haven't already done so, finish removing the crate from

around the engraver. Then roll the machine into place.

Step 2: Hold the brake pads in place by pressing the brake pads on the 2

front wheels.

Step 3: Retrieve the access key from the main bay at the front of the

machine. Remove the accessory bag from the area behind the front

through door. Check that you have received all of the following items:

power cord, ground cable, USB and Ethernet cables, USB flash drive

with engraving software, exhaust pipe with hose clamp, set of hex

wrench, acrylic focusing tool, keys, and this manual.

Step 4 : Carefully inspect the assembly of the laser tube, the viewing

window and the rest of the machine. The laser tube is a highly fragile

object and should be handled with care and as few bumps as possible.

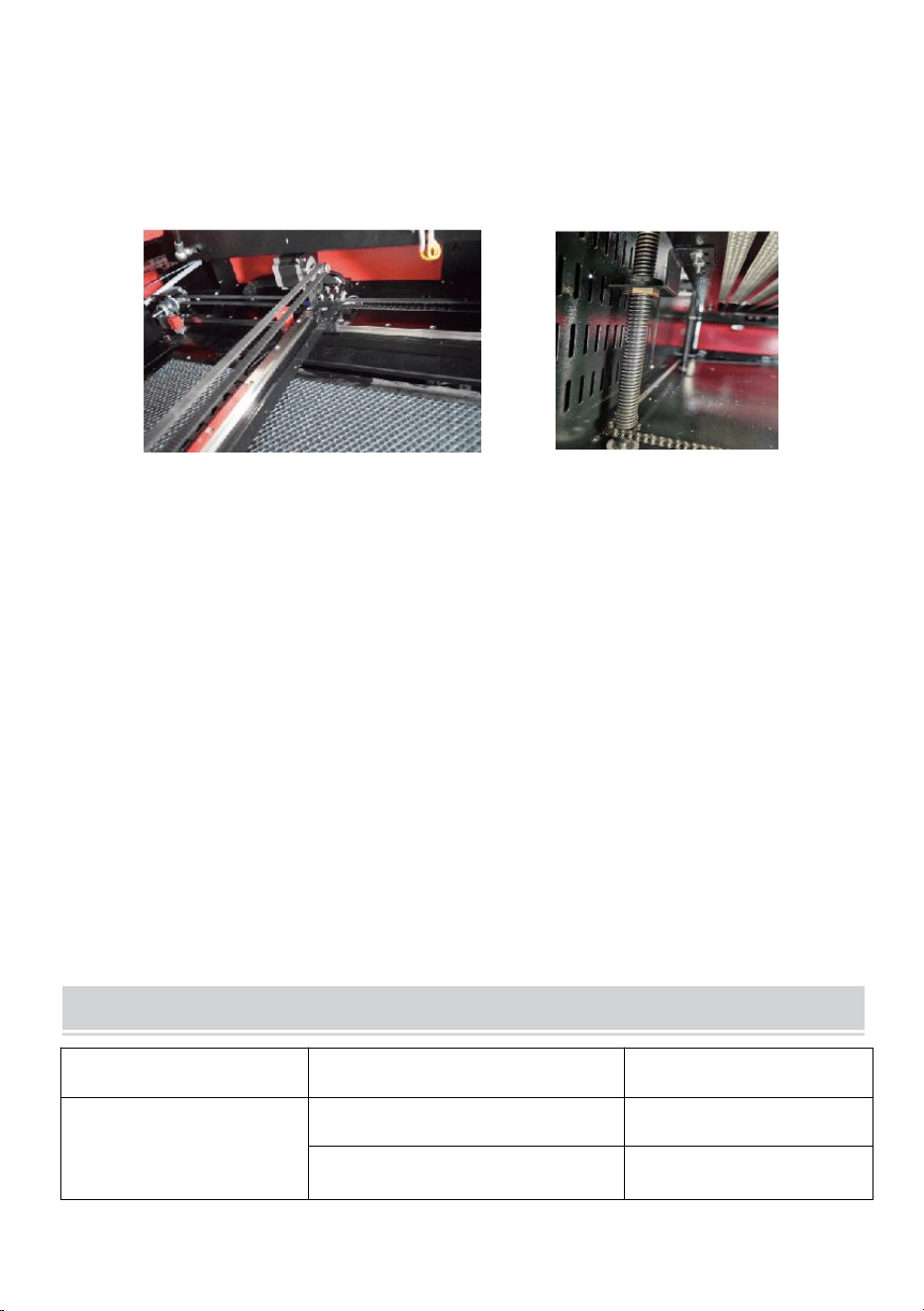

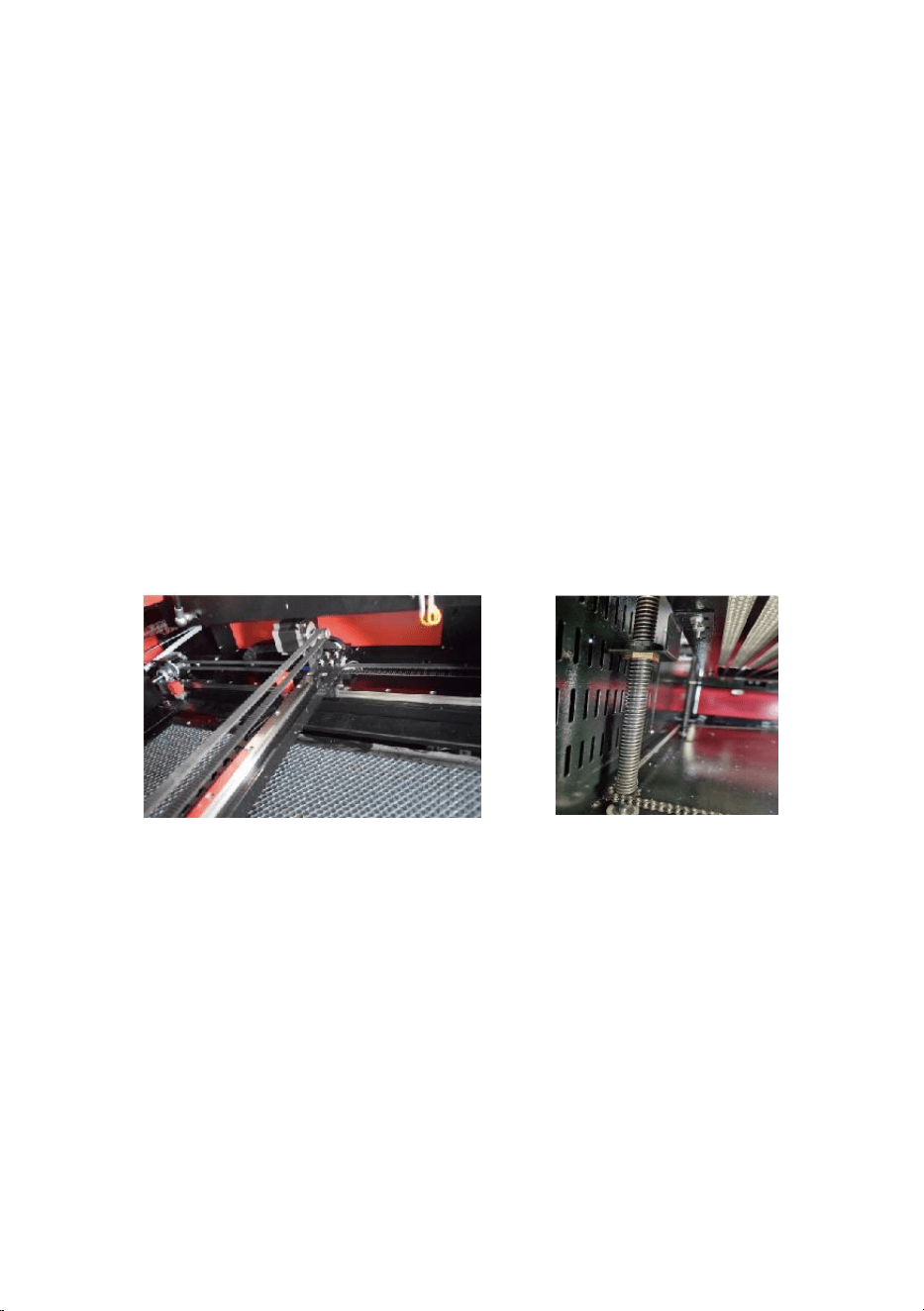

Step 5: Inside the main bracket, remove from the X-axis and the

honeycomb table.

Step 6: You can keep the packaging for future returns, but if you dispose

of it or any accessories, be sure to follow the applicable waste disposal

regulations.

5.MAIN POWER CONNECTION.

Confirm that the label next to the connected outlet on the machine

matches your power supply. Connect one end of the main cable to a

connection socket and the other end to a grounding socket. Under no

circumstances should you turn on the device if the voltage does not

- 30 -

correspond.

Fluctuations along the line should be less than 10%. If this value is

exceeded, the fuse will blow. They are located in the connecting socket

and are externally accessible. Again, do not connect this device to a

standard extension cord or power strip. Connect it directly to a grounding

outlet or use a surge protective device rated over 2000J.

6.WATER-COOLED INSTALLATION.

The supplied water pump is critical to the performance and service life of

the engraving machine. When such a laser works without a properly

maintained cooling system, its glass tube can explode due to

overheating.

Never touch or adjust the water supply of the engraving machine while

the pump is plugged in.

To use the water pump, fill a dedicated tank with at least 2 gallons (7.5

liters) of distilled or purified water This will gradually reduce the quality of

the engraving machine and may even lead to dangerous mineral

accumulation.Cooling system. For the same reason, never use

all-purpose antifreeze. Use custom laser-safe formulations or storage

Engraving machines in climate-controlled areas.

Note：Distilled water or purified water must be added, not tap water

or sewage, otherwise it will reduce the service life of the

product.

Please rotate to remove the dust cover of the water inlet, and then add

purified water or distilled water to the water inlet for the engraving

machine. The green range of the water level line is the safe water level,

and then you can fill the water nozzle dust cover, and then turn on the

- 31 -

main power supply and water circulation switch of the machine.

Note: The water level should not be too full, so as not to overflow the

water cooler.

Water inlet

Before starting the laser, be sure to obtain visual confirmation that water

is flowing through the laser tube.

Never let the water in the tank become too hot to cool the laser. Install a

heat alarm or check the water temperature regularly during extended

use. If the water starts to reach 100 ° F (38 ° C), replace it with cooler

water. During this process, either the laser is replaced in phases or the

laser is turned off: never allow the laser to operate without a con stant

flow of cooling water.

7.INITIAL TESTING.

EMERGENCY SHUTDOWN.

Due to the risk of fire and other hazards during the engraving process, the

engraving machine includes a large, easy-to-reach emergency stop button

- 32 -

near the control panel. Press it to stop the laser tube immediately.

When your engraver arrives, its emergency stop has been pressed and

must be rotated to the right and bounce upwards for the laser to work.

Before using the machine for any other work, you should test if it is working

properly. Start the water cooling system, place a piece of laserable scrap

on the work bed, close the lid, and press PULSE to fire the laser. Press

the emergency stop button and observe if the laser stops immediately. If

the laser continues to fire, the emergency stop does not work and must be

replaced before using the engcher. Turn off the machine and contact

customer service.

LID CLOSURE (INTERLOCK).

Due to the risk of blindness, burns, and other injuries from direct exposure

to the invisible engraving beam, the device

also automatically shuts off the laser when the protective cover is raised

during operation.

After making sure that the emergency stop button is working properly, you

should also test that the cover closure is working properly before doing any

other work on the machine. Start the water cooling system, place a piece of

laserable scrap on the work bed, close the lid, and press PULSE to fire the

laser. Release the button. Be careful not to expose yourself to or be hit by

any possible reflected lasers, open the lid as little as possible and try to fire

the laser again.

Note:If the laser is emitted, the automatic shut-off does not work and must

be repaired before using the engraver. Turn off the machine and

contact customer service.

WATER CUT-OFF.

Due to the dangers posed by uncooled laser tubes, the engraver also

automatically shuts down the laser when the water cooling system fails.

After making sure that both the emergency stop button and the lid protection

- 33 -

are working properly, you should also test that the water cut-off is working

properly before doing any other work on the machine. Start the water cooling

system, place a piece of laserable scrap on the work bed, close the lid, and

press PULSE to fire the laser. Release the button. Cut off the flow of water by

curling or tying two hoses. Be careful not to damage the hose itself during this

process. Try firing the laser again. If the laser is emitted, the automatic shut-off

does not work and must be repaired before using the engraver. Turn off the

machine and contact customer service. If the laser does not emit, the

automatic shut-off works fine; Simply loosen both hoses to start circulating

water again and continue setting up the engraver.

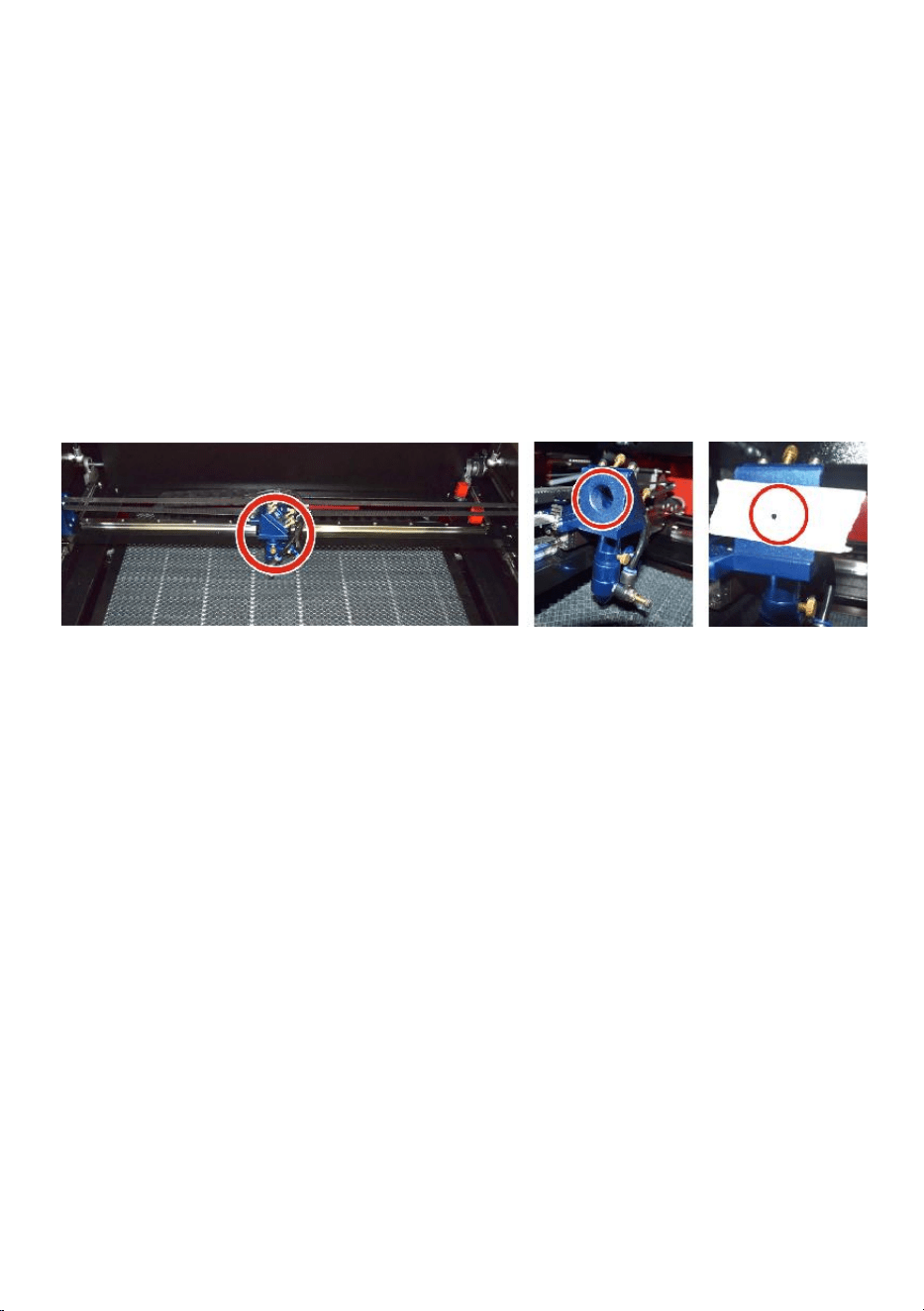

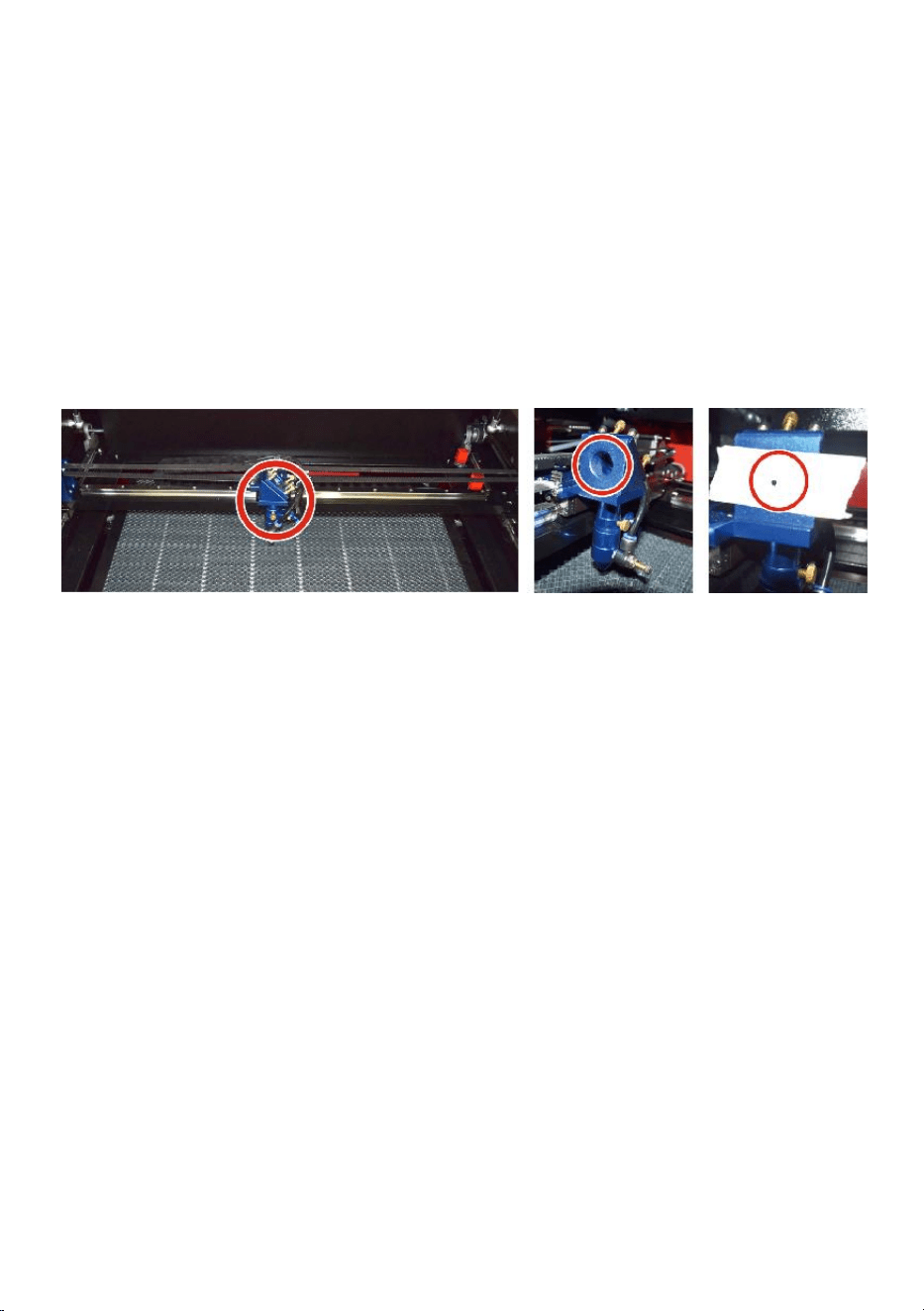

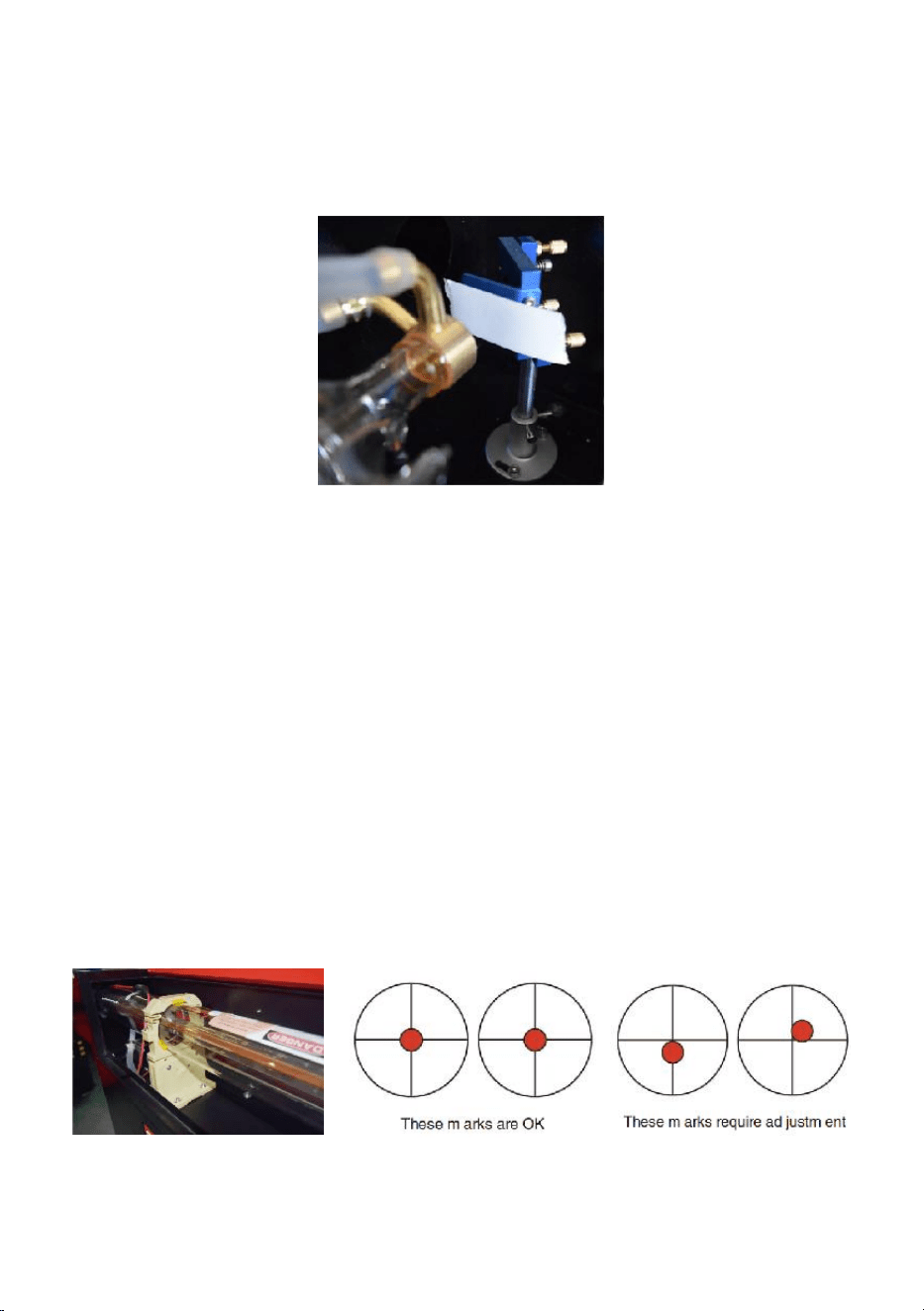

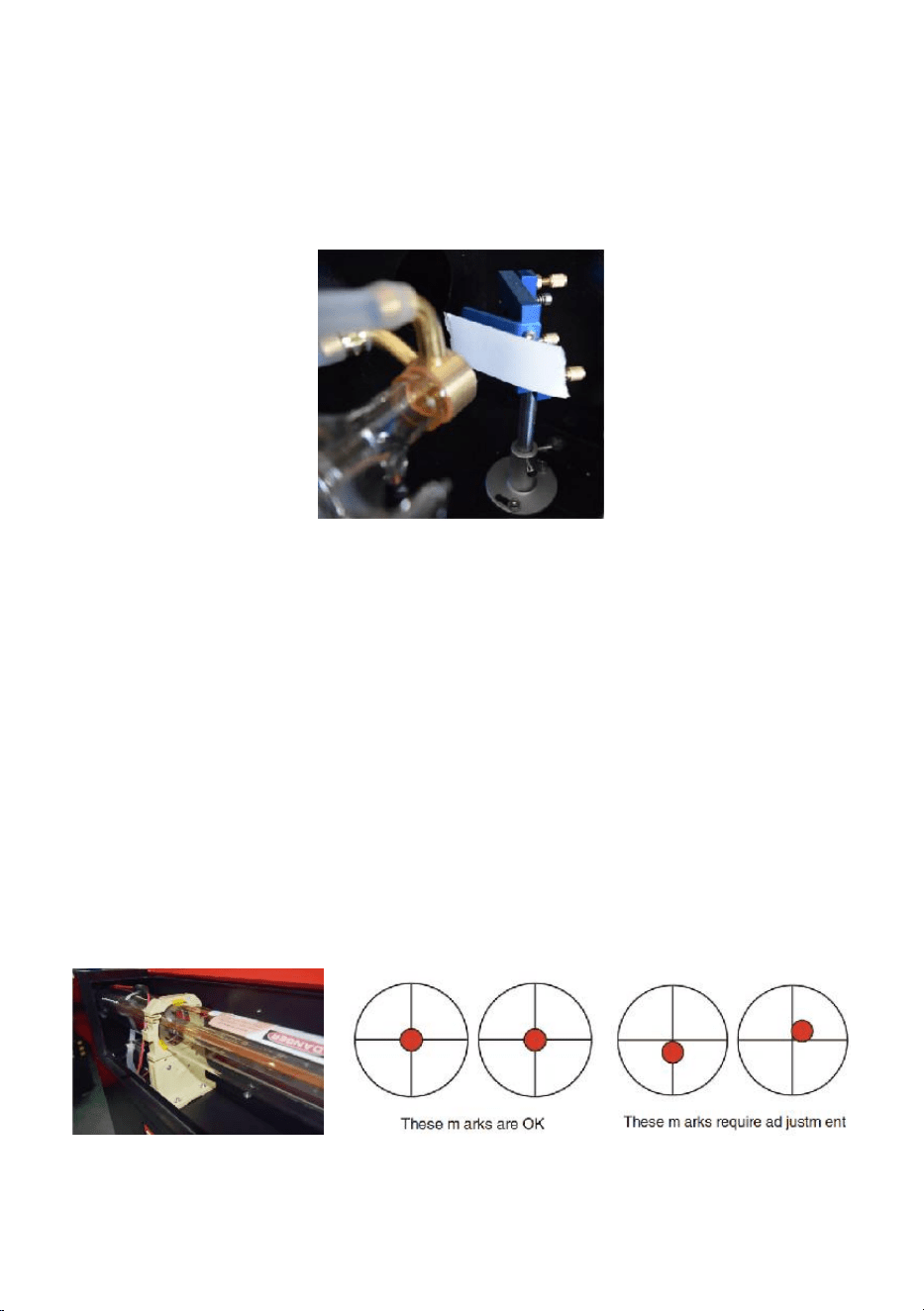

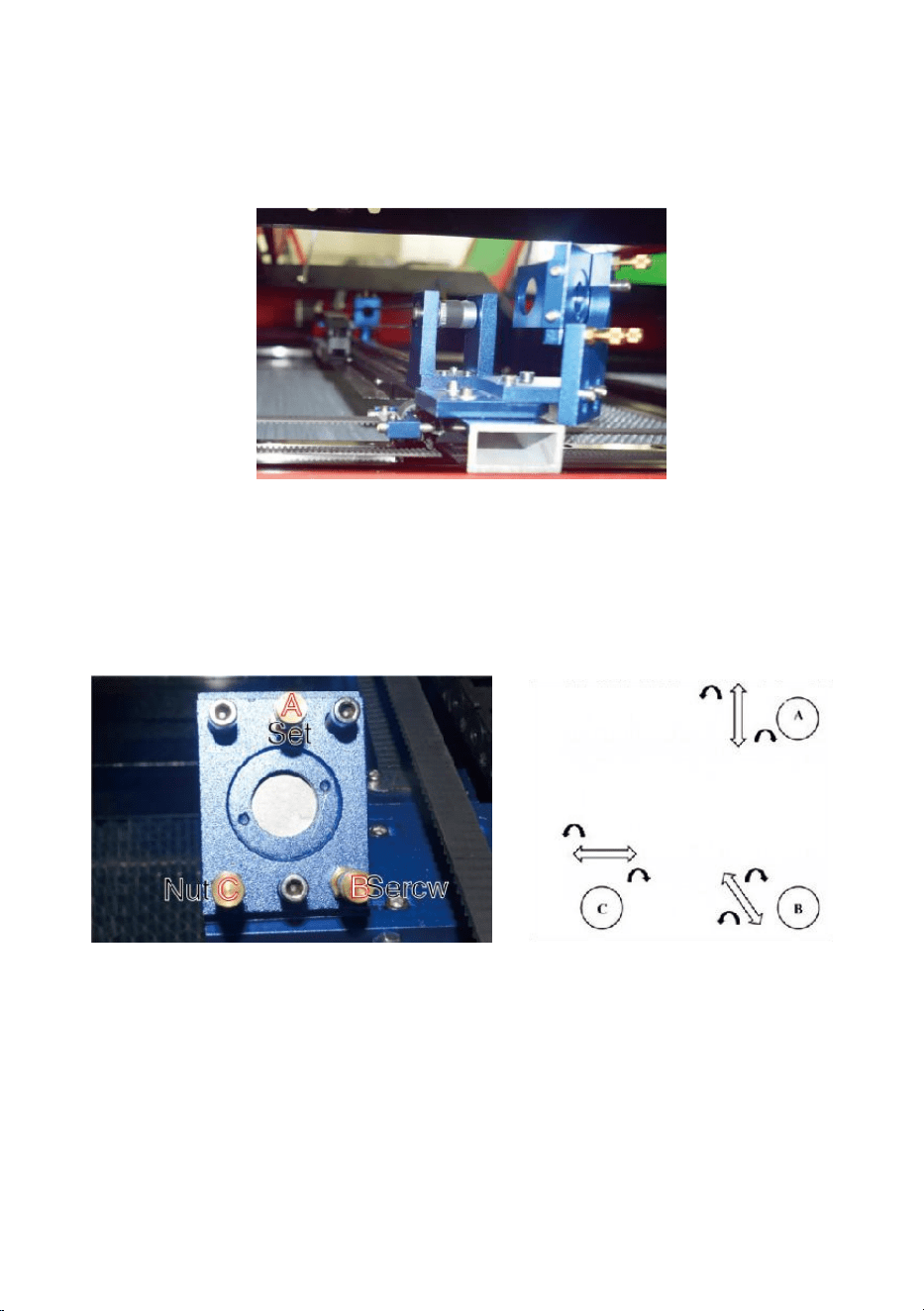

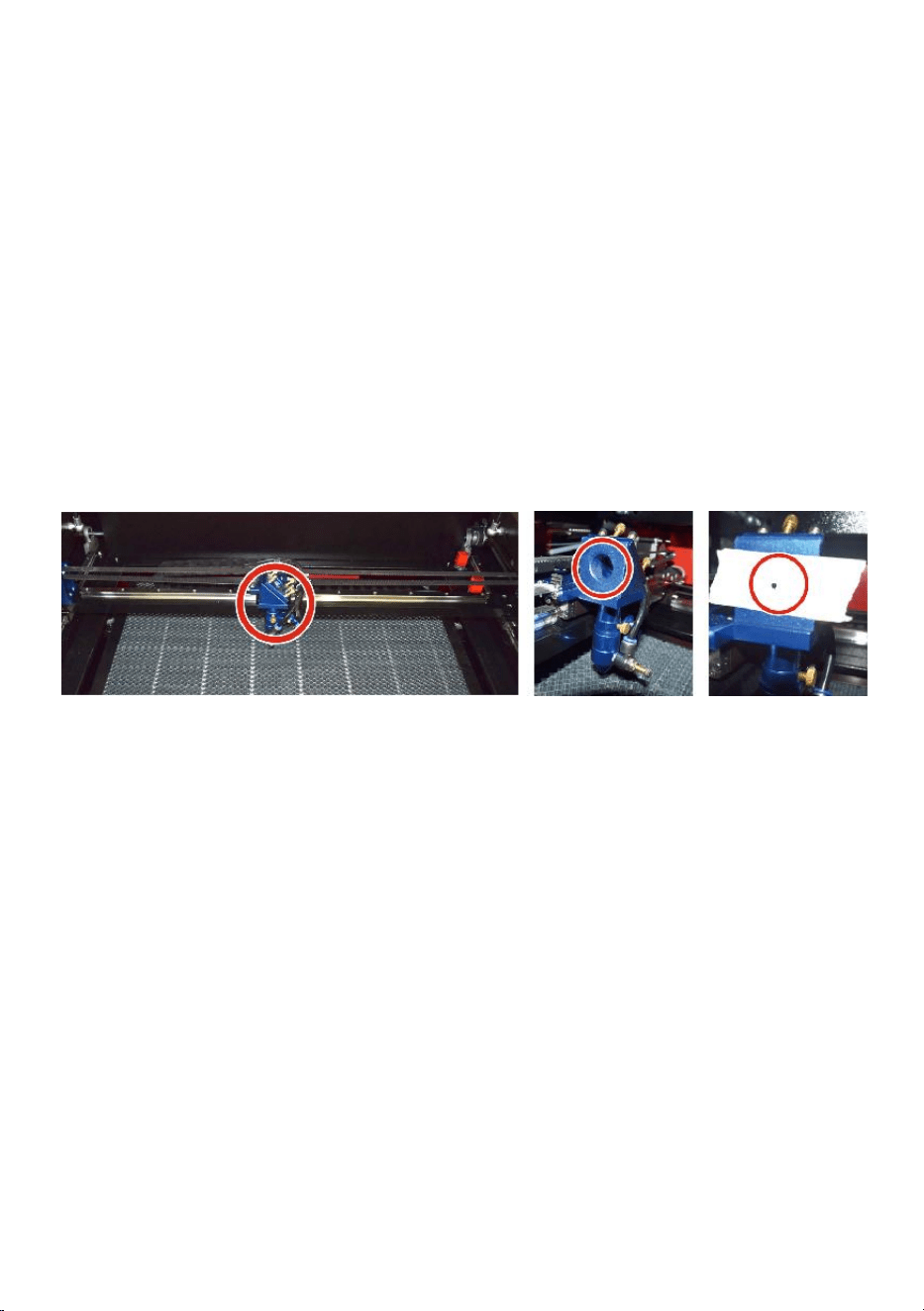

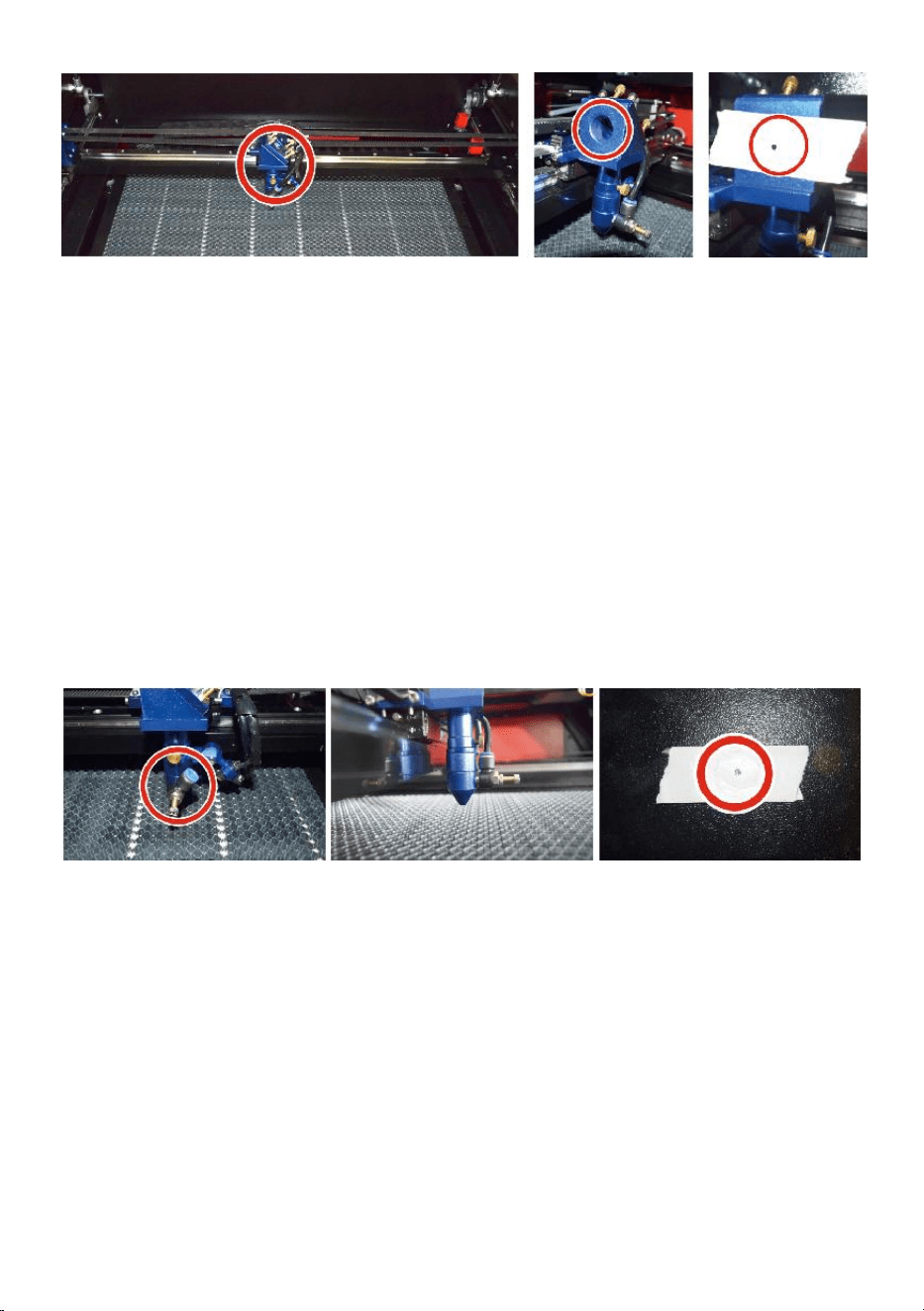

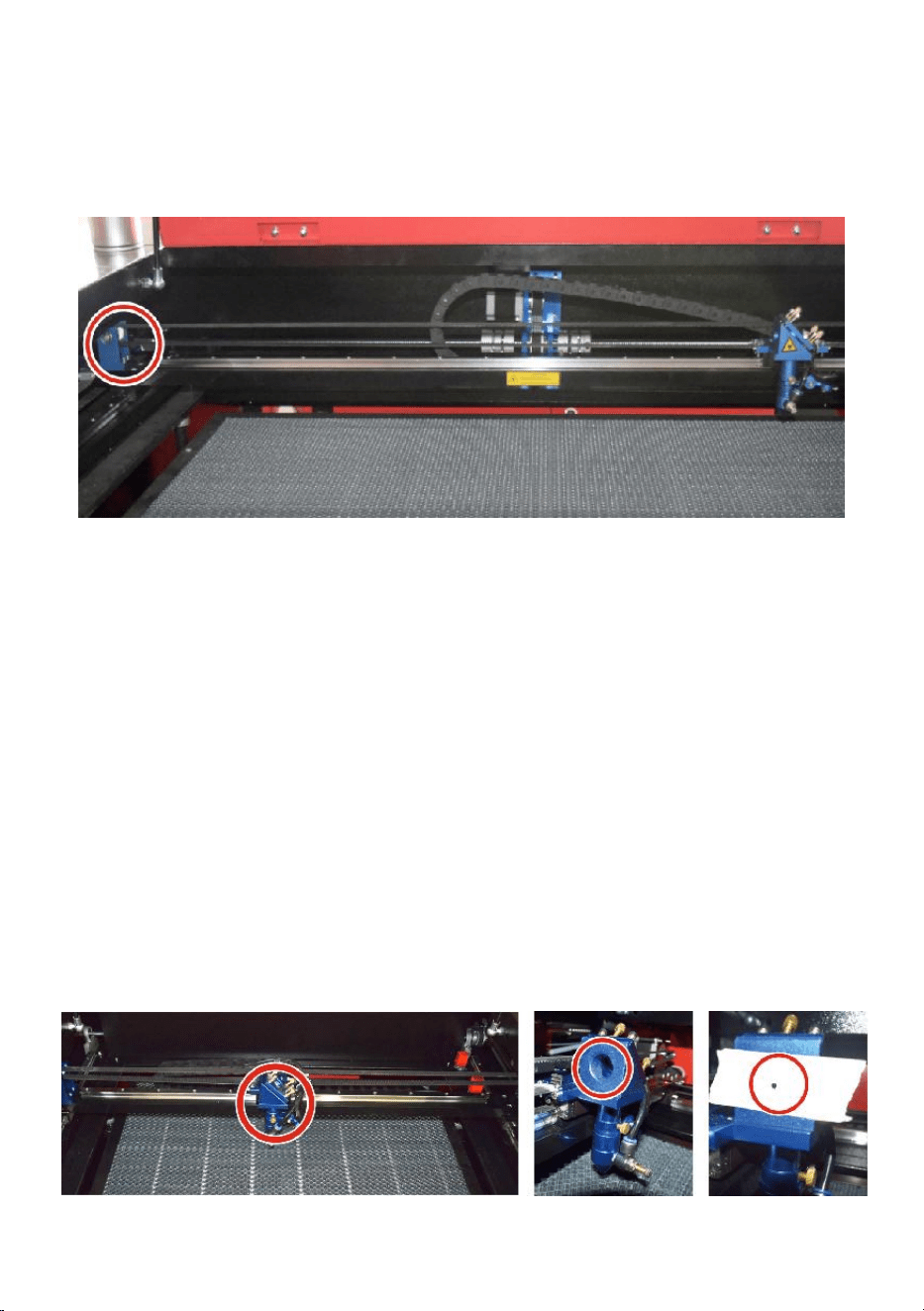

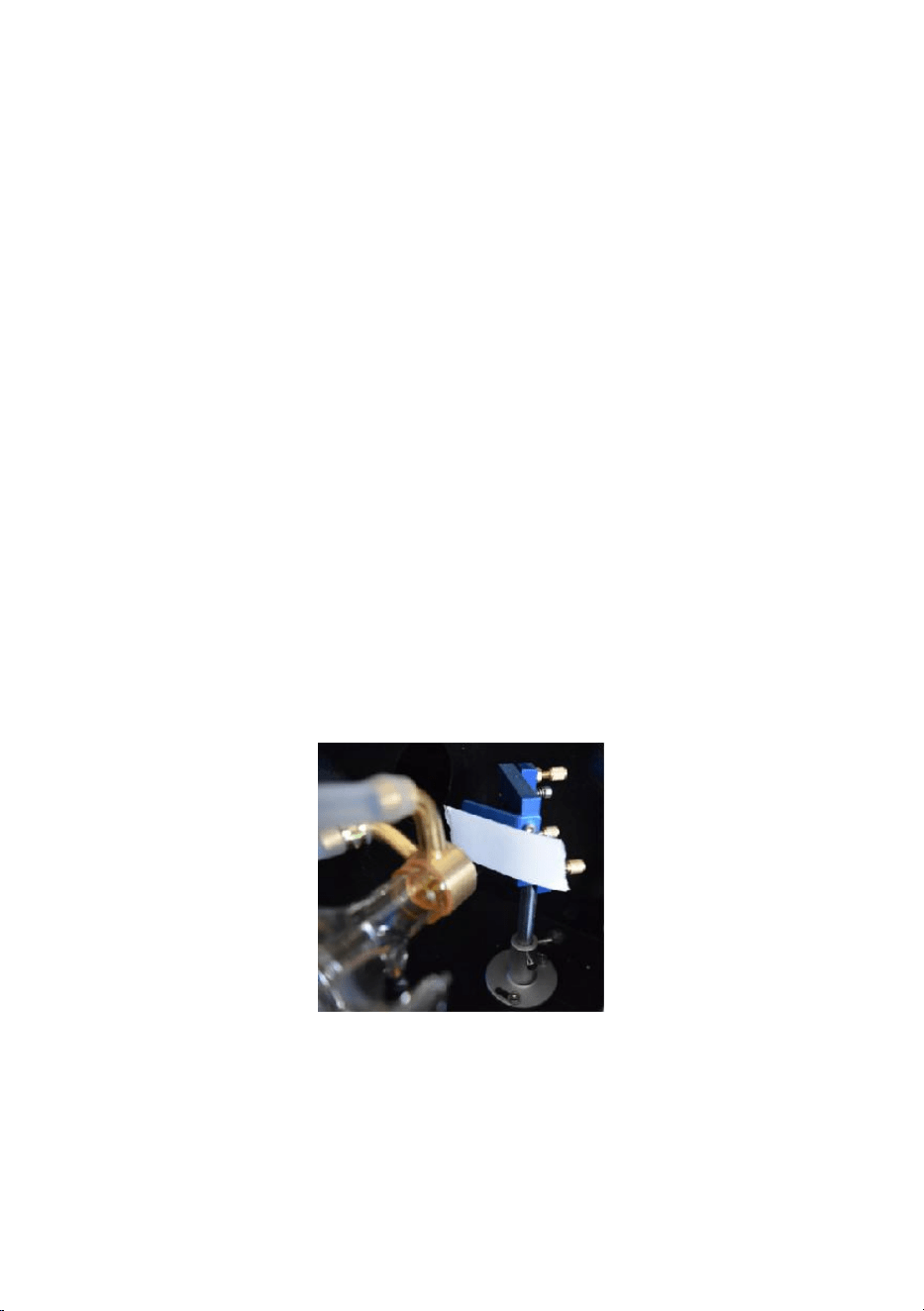

LASER PATH CALIBRATION.

While our factory calibrates your entire system during assembly, the laser tube,

focusing lens, and/or one or more mirrors may be pushed out of alignment

during shipping. Therefore, it is recommended that you perform an optical

alignment-test when setting up your machine. For step-by-step guidance, see

the maintenance section below.

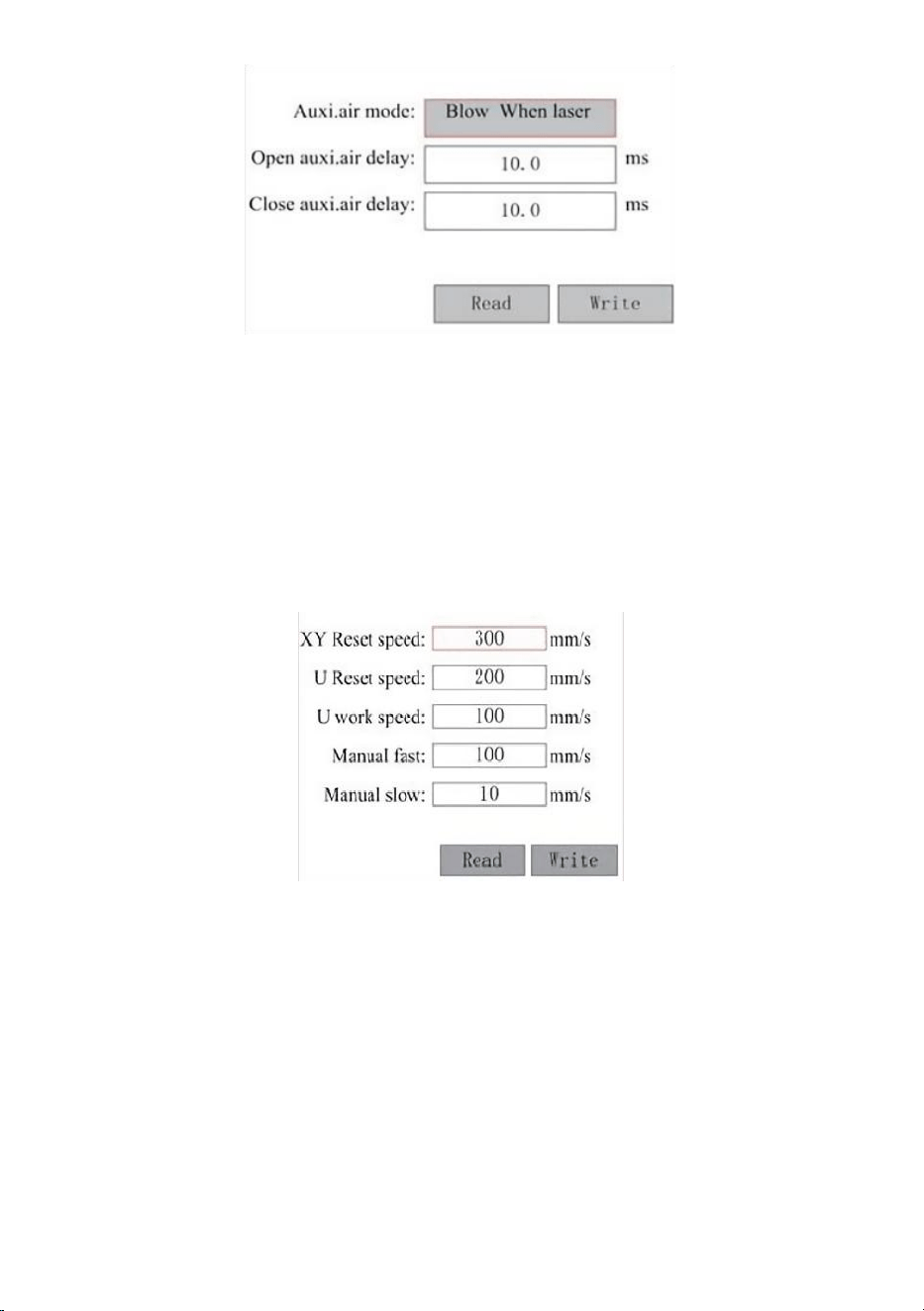

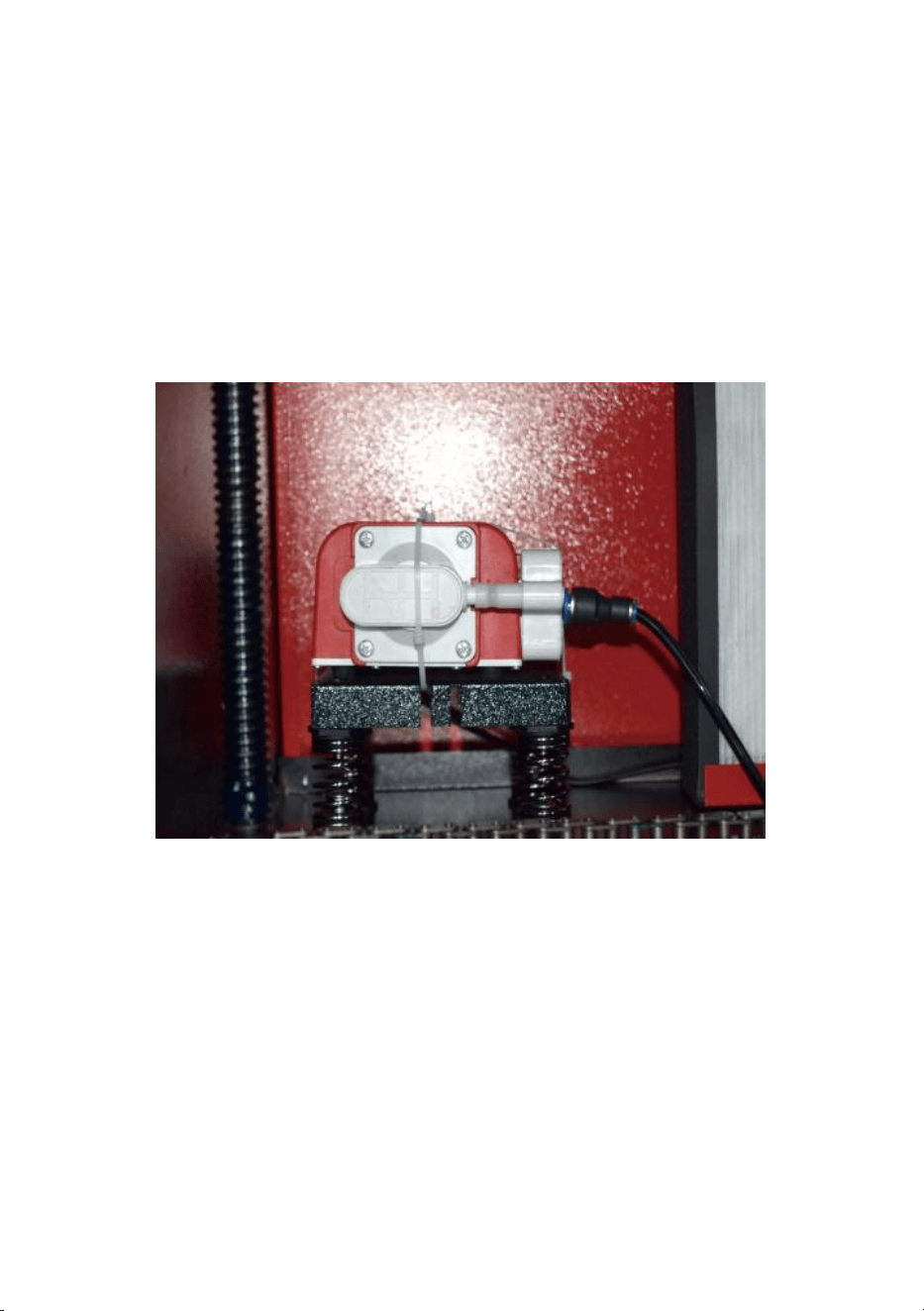

AIR ASSISTED.

Your air auxiliary equipment should be pre-installed and properly wired. Just

check if it is properly configured and connected as shown in the image. If any

pipes or wiring need to be reconnected, turn off all power to the machine

- 34 -

(including pressing the emergency stop) before adjusting any equipment.

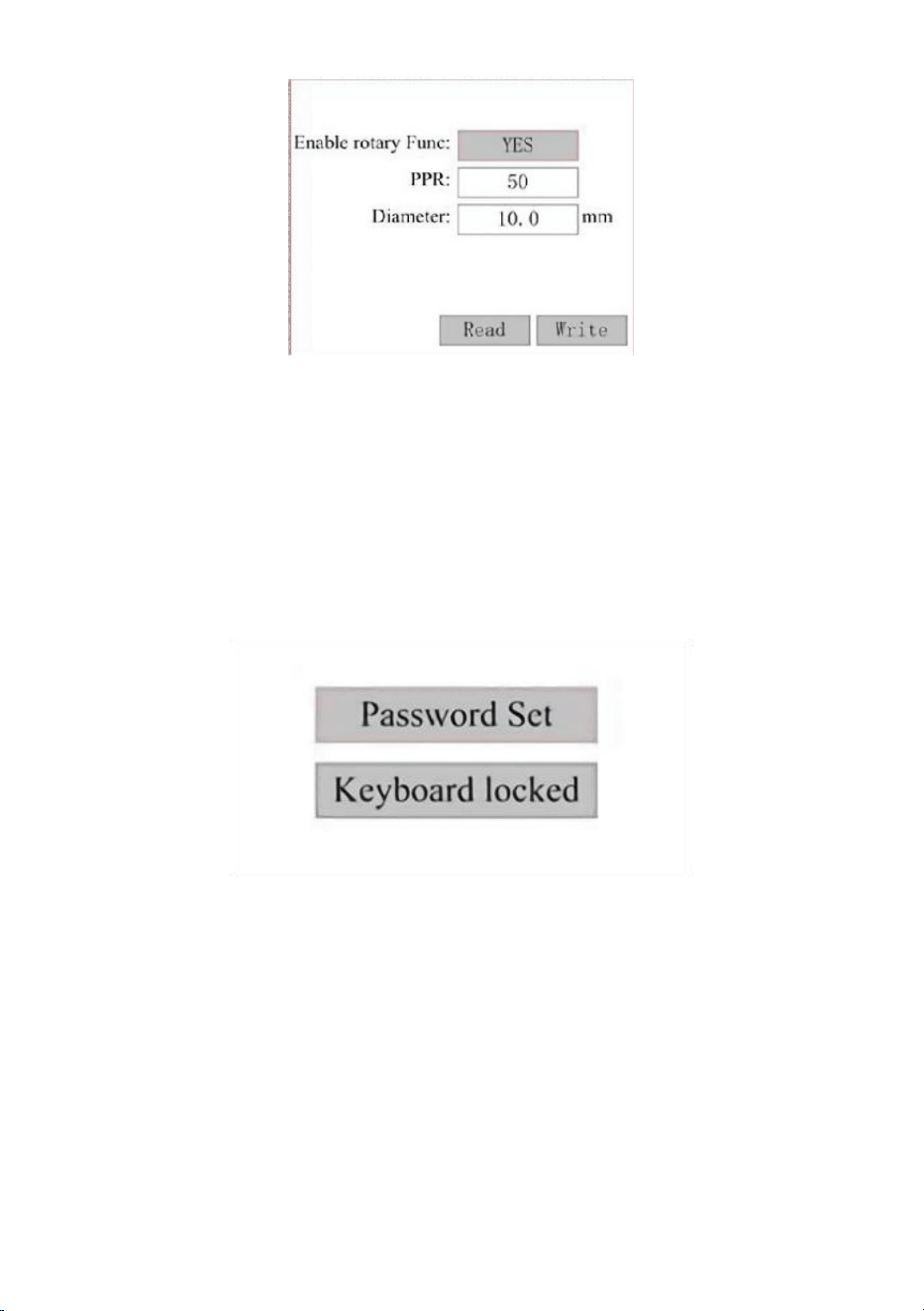

8.SECURITY.

For your own safety and the safety of passers-by, this engraving machine can be

locked with the key provided. It is recommended that you use it to lock your

computer between sessions to prevent any unauthorized actions on your

computer.

OPERATION

1.OPERATION OVERVIEW.

Operate this laser engraver only by following all the instructions provided in this

- 35 -

manual. Failure to follow the appropriate guidelines detailed herein may result in

property damage and personal injury.

This section will describe only some of the options and features offered by the

operating software. Before you start using the machine, make sure you have read

the entire manual (especially the safety information above), as well as any and all

warnings provided by the machine itself.

2.GENERAL OPERATING INSTRUCTIONS.

Step 1. Create the design you want to engrave. You can do this directly in the

engraving software, or you can use any

Step 2.Please connect the companion equipment and tools to the product and

connect the power supply. You can refer to the video on CD/USB. Fill the water

inlet with purified or distilled water for the built-in water circulation. The

water level must be added to the green water level safety line. Note: (The

water level should not be too full, so as not to overflow).

Step 3. Please remove the smoke pipe. One end of the smoke pipe is connected

to the smoke exhaust port of the equipment, and the other end is connected

to an outdoor or auxiliary smoke extraction device. Note: (Please use a tube

clamp to secure the connection to prevent it from falling off.)

Step 4. Pull up the emergency stop button and use the buttons on the front of

the cabinet to open the control panel of the engraving machine. Load the

design of your choice directly from a USB flash drive or via a computer's

connection to the engraver.

Step 5. Open the engraver cover, check that the air assist is working properly, and

adjust the table if necessary. Cellular beds are recommended for most applications.

The bed can be raised or lowered using the Z-axis control on the front of the

cabinet to accommodate a variety of materials of different thicknesses.

- 36 -

Step 6. Place the material sample on the bench. The standard position is located in

the upper left corner of the table. This can be changed by moving the location of

your design or engraver's origin using the control panel or engraving software. To

handle larger materials, you can open the front or rear through door, or both, at

the same time. When the laser is active, do not insert anything into the work

surface through a pass-through door other than the material. Pay special attention

to fumes and dust that may be released through these doors. Make sure your

ventilation system is robust enough to absorb all by-products or wear the

necessary PPE to ensure the health of users and passers-by.

Step 7. Focus the laser by placing the acrylic focusing tool on top of the material

and carefully lifting the table. The laser head should barely touch the top of the

acrylic tool without applying any pressure, ensuring that the engraving distance is

correct. (Again, never try to be on the bench without material.)In any way, the

laser is focused. Close the lid.

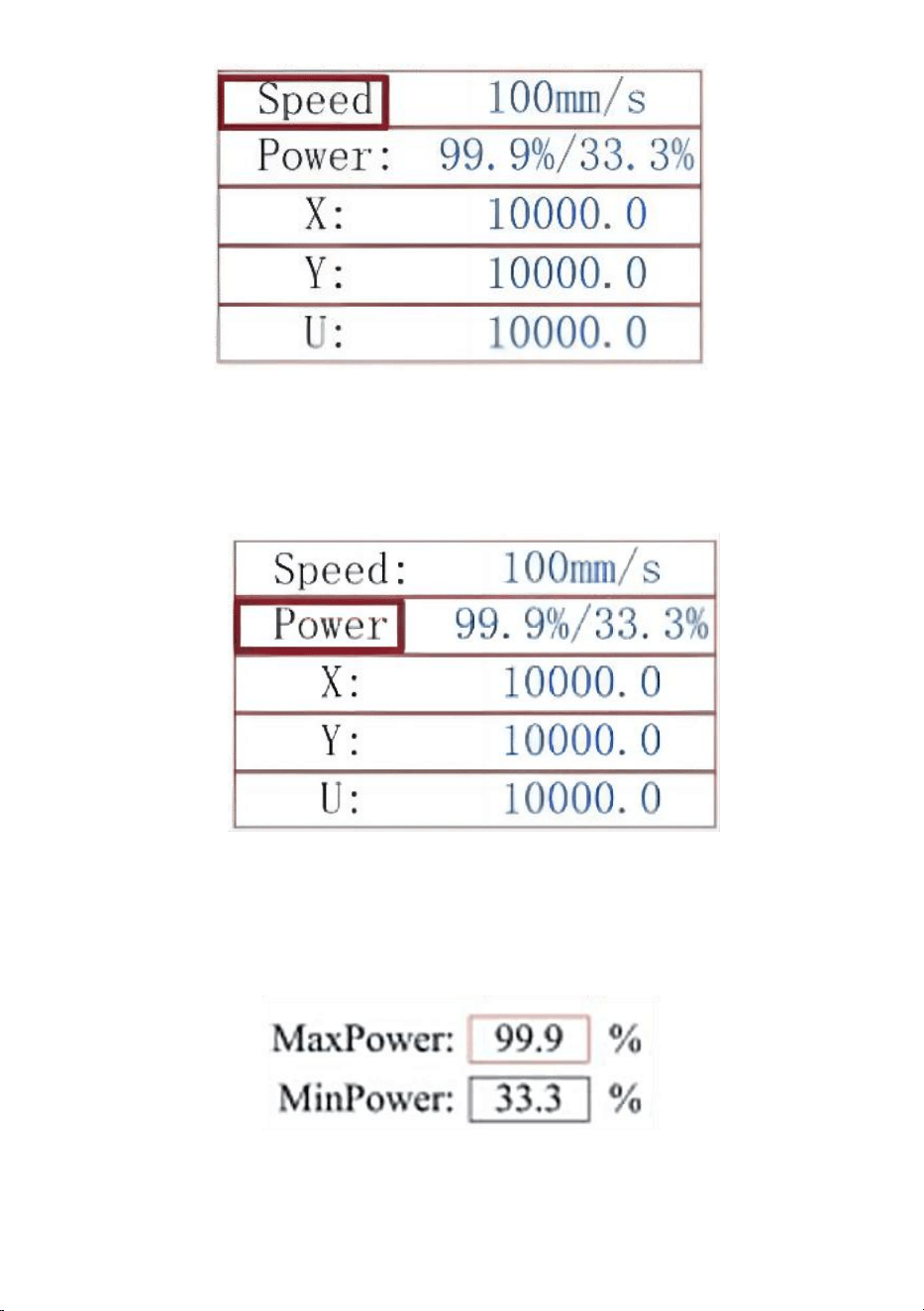

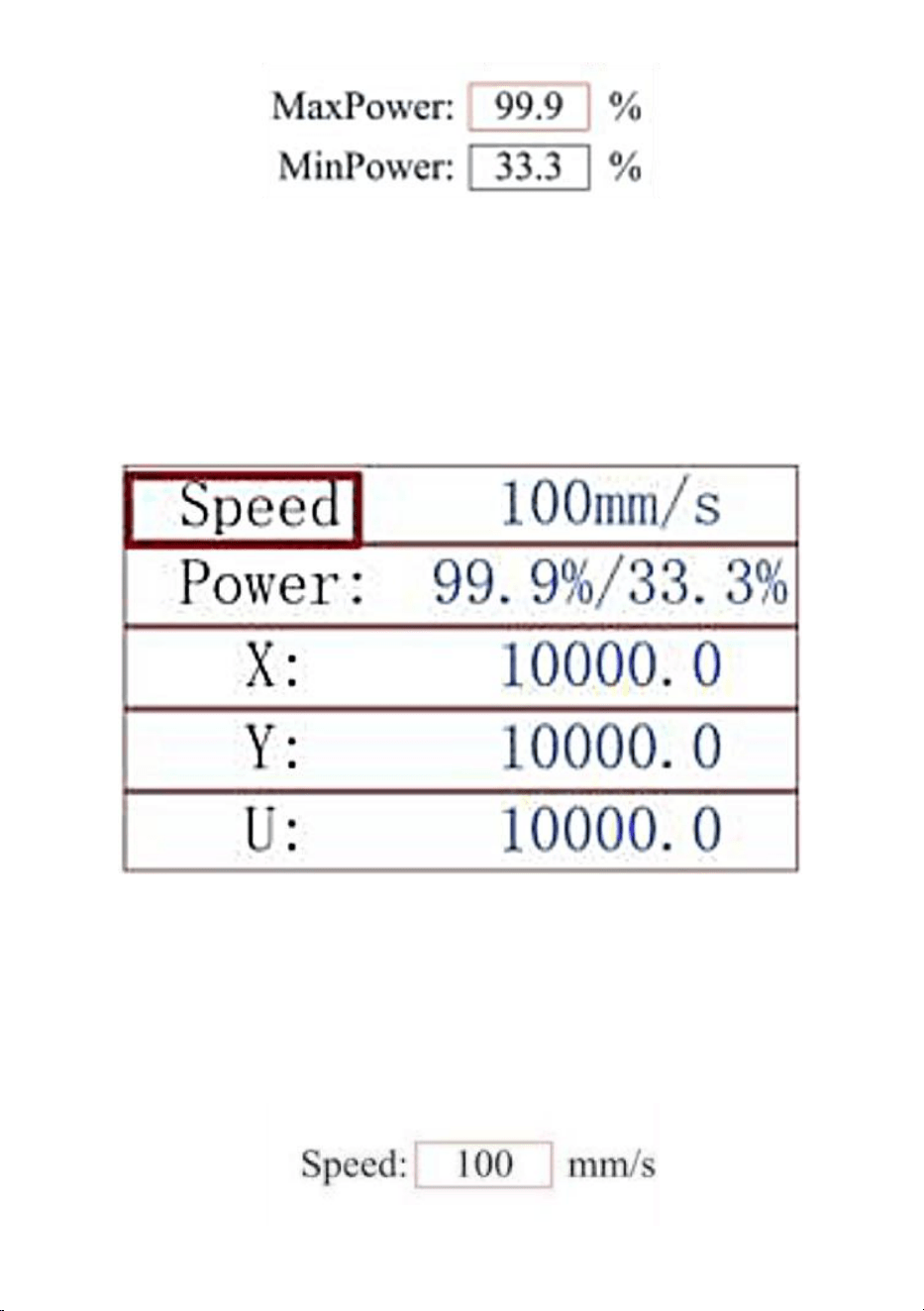

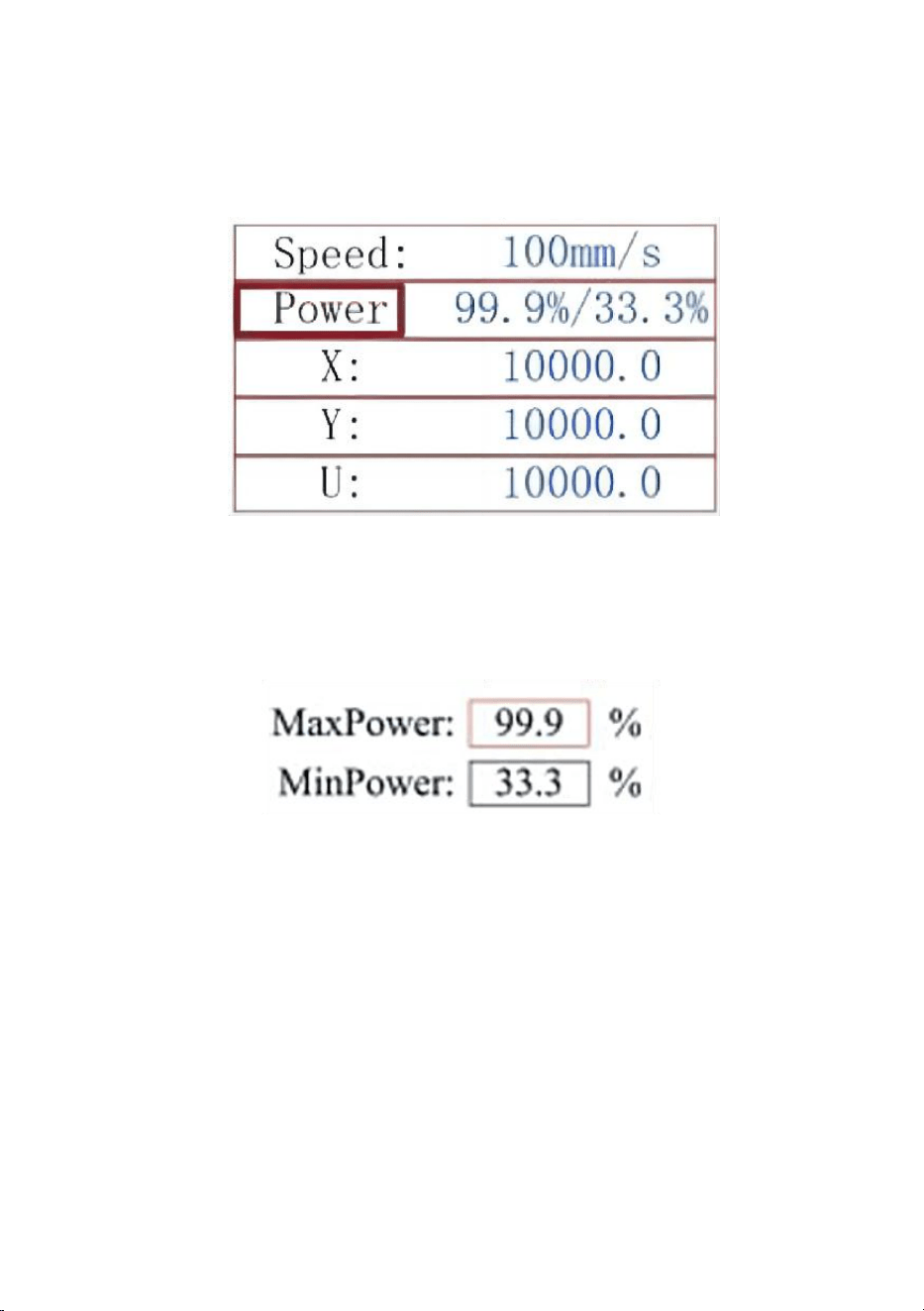

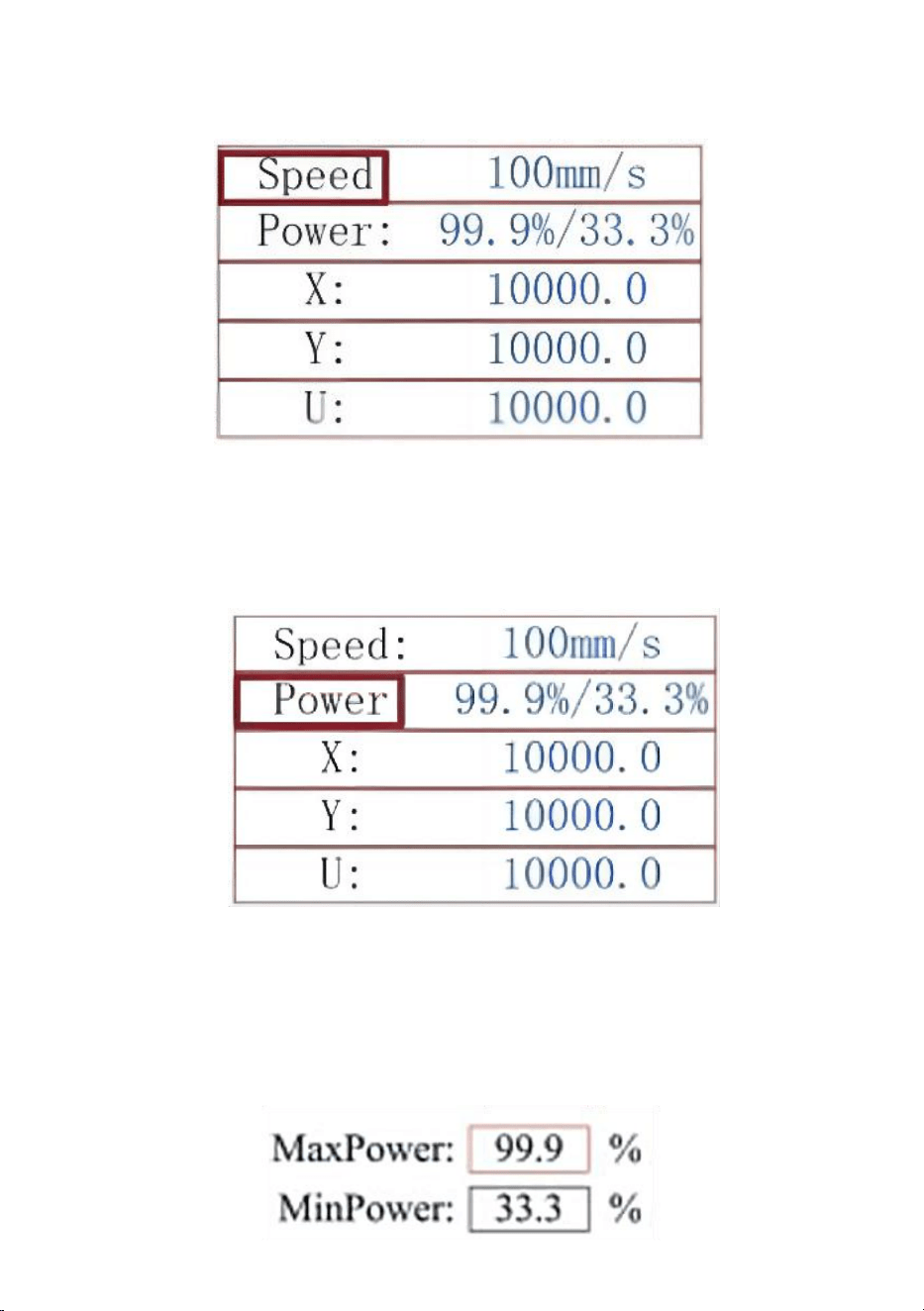

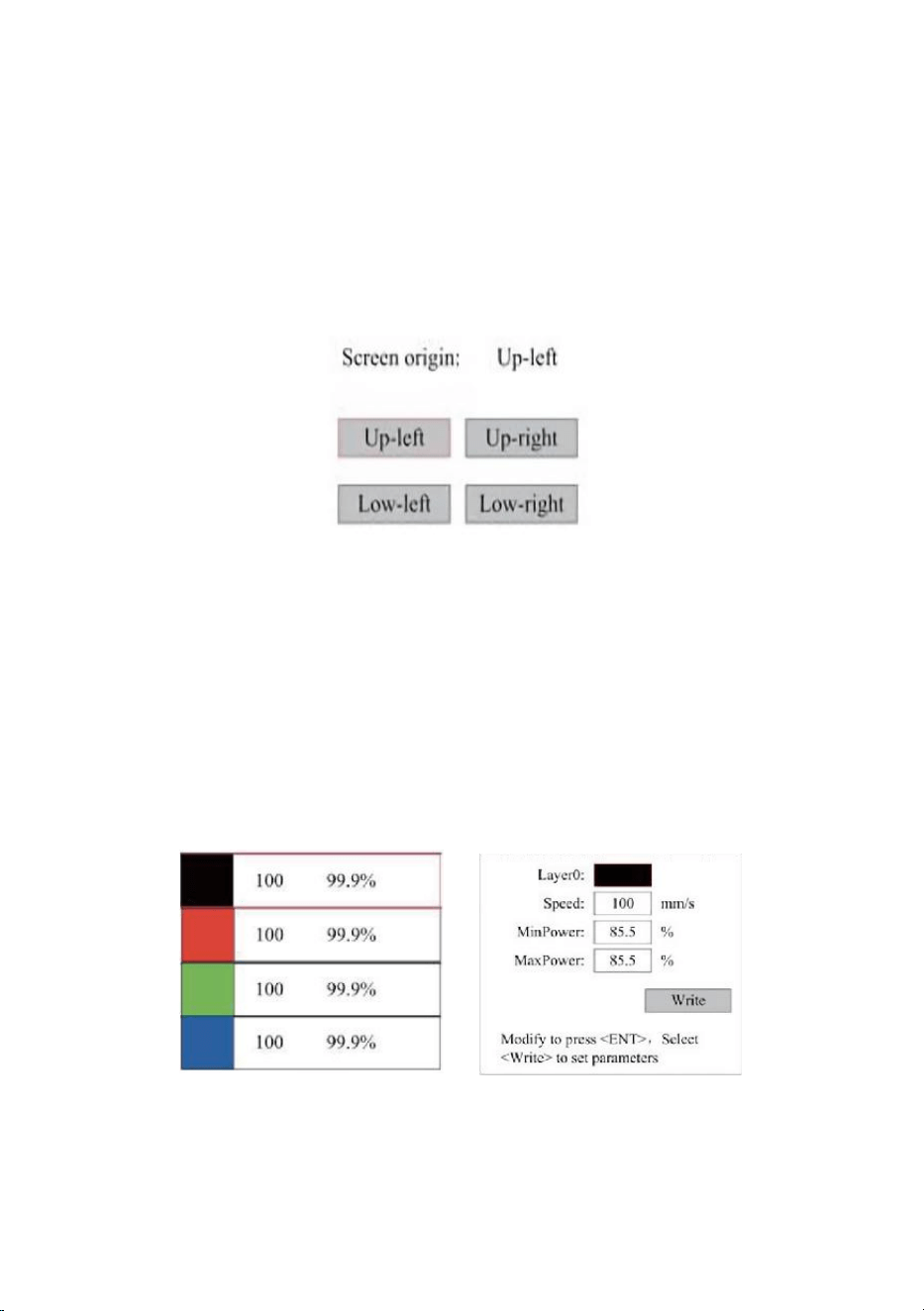

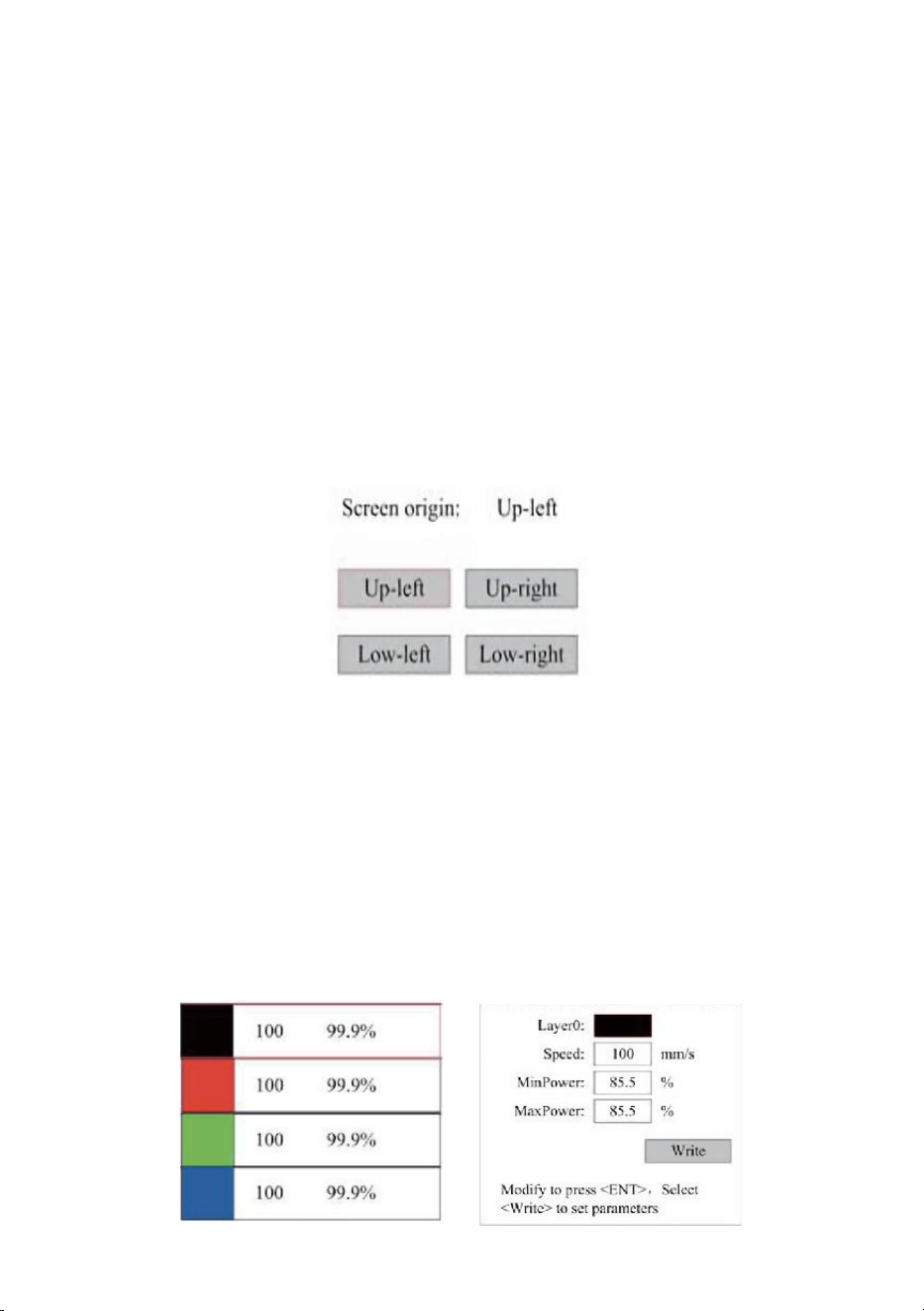

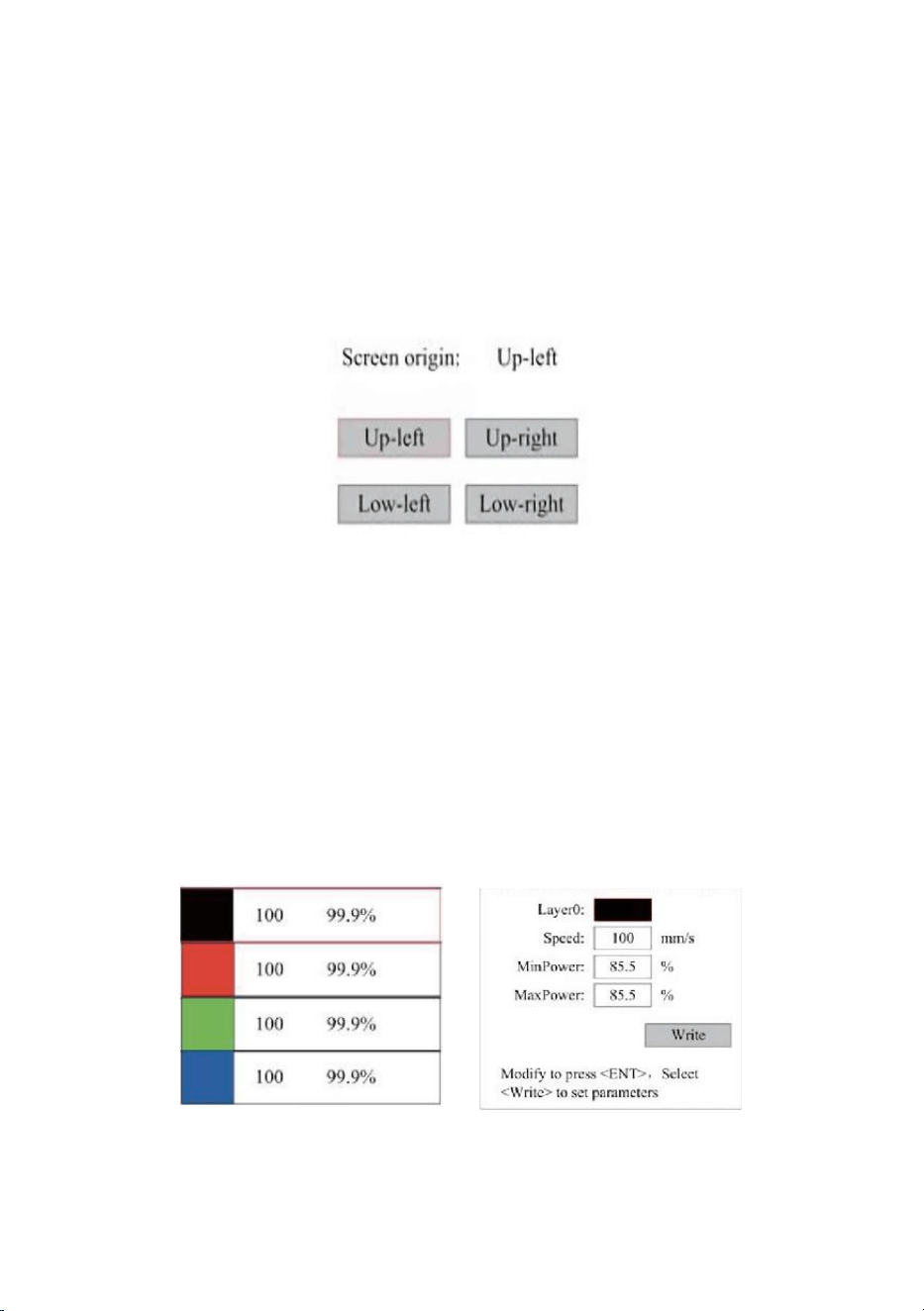

Step 8. Customize the contrast and engraving depth of your design by adjusting

parameters in the engraving software or directly from the control panel. If your

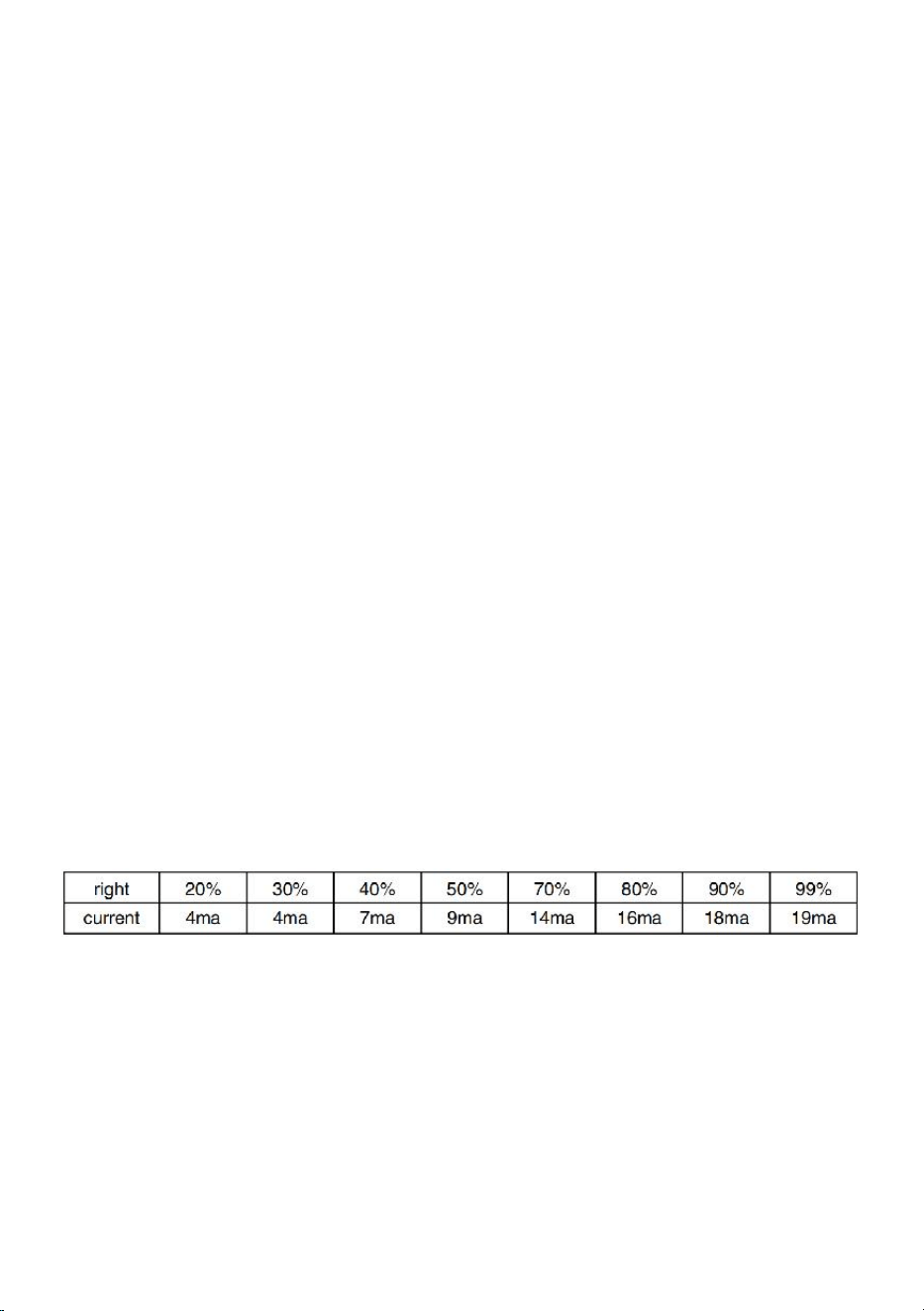

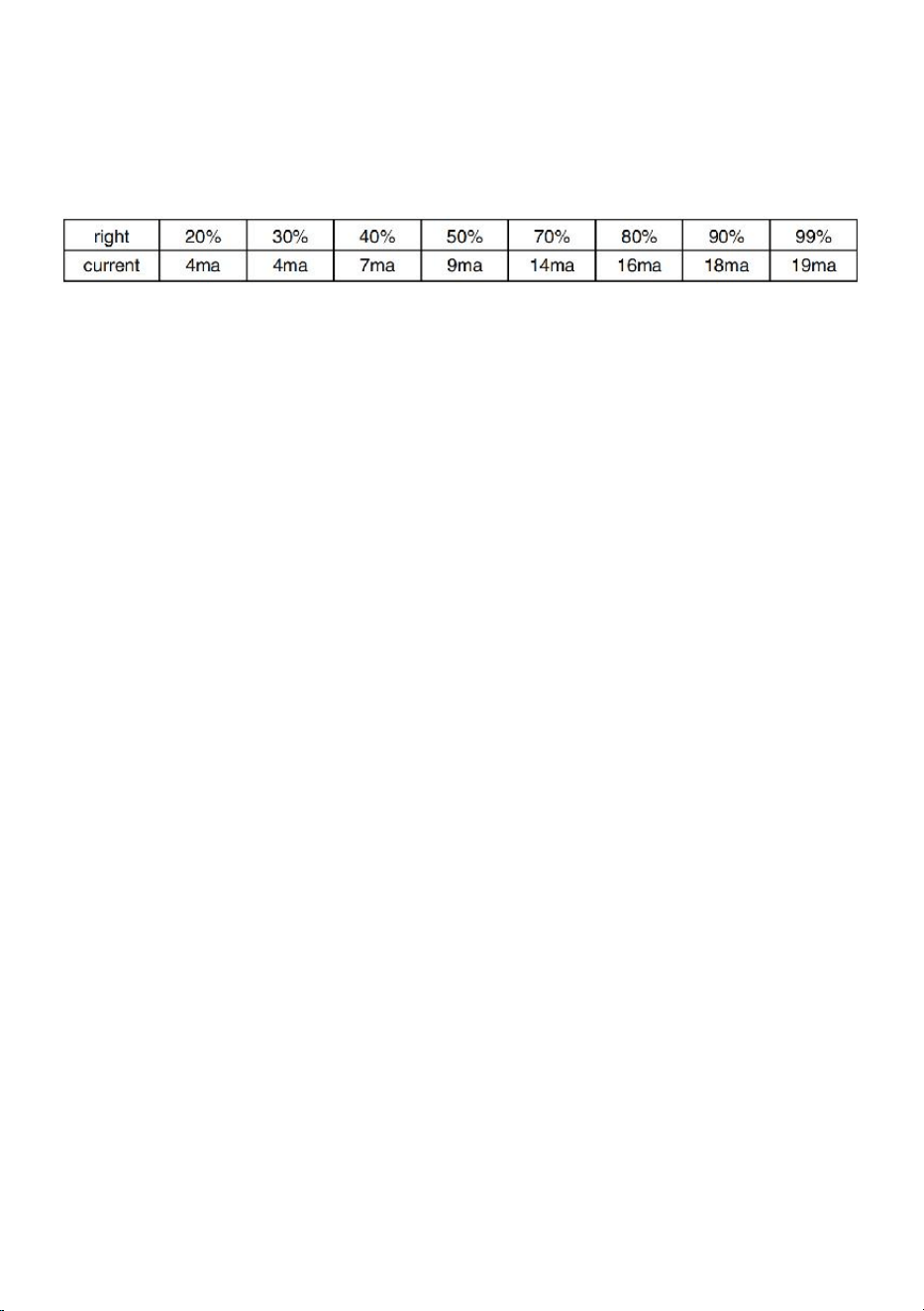

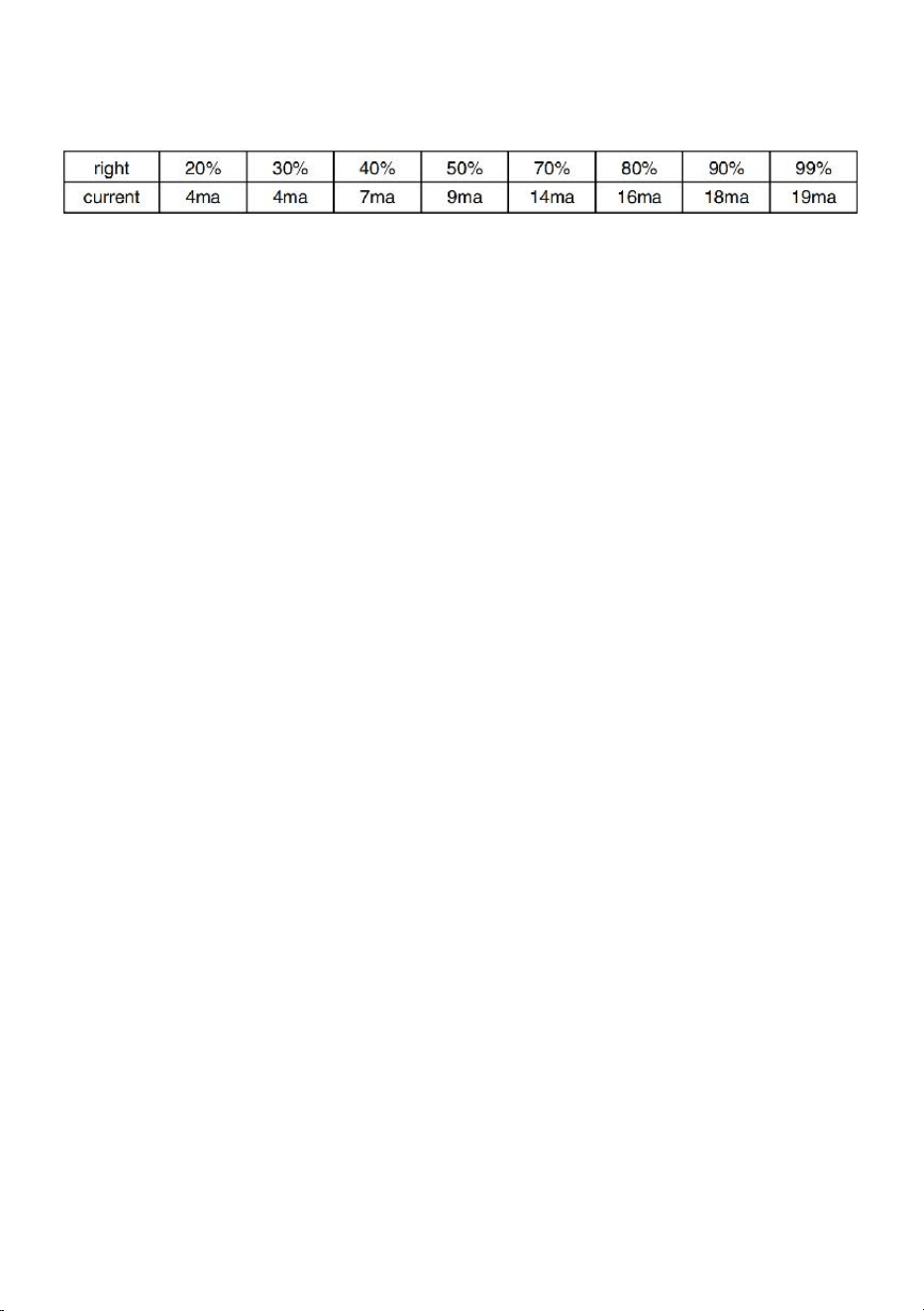

engraving instructions detail the power setting in milliamps, use the following

conversion chart to find the appropriate power setting:

The minimum threshold is 10%. The laser will not be emitted at any setting lower

than this setting. It is not recommended to use the laser tube at full load, especially

for long periods of time. The recommended maximum power is set at 70%, as

- 37 -

prolonged use of more than this amount will shorten the lifetime of the laser. To

increase the engraving depth, increase the energy per unit area by increasing the

laser's power or number of rings or slowing down the speed parameter. However,

engraving too deep can degrade the image quality, especially for the coating

material.

When working with new materials, keep in mind that you should always start at the

low end of your possible settings. If the effect is not strong enough, it can always be

more than once Rerun the design loop, or rerun it with more powerful settings until

you create the desired effect.

The resolution should generally be set to 500 dots per inch. In some cases, lowering

the image resolution may help, reducing burn and Increase the energy of the pulses

and thus improve the quality of the images produced in certain materials, such as

certain plastics.

Step 9. Open the laser tube by inserting and turning the laser key. To reduce the

risk of electric shock, try touching the engraver with only one hand at a time once

the laser tube is opened.

Step 10. Press run to pause to engrave your design. Similarly, even if you are

wearing protective glasses, do not stare at the active laser continuously. However,

be aware of possible issues such as sparks or fires, and be prepared to ex-tinguish

fires quickly if necessary.

Step 11. Once the laser stops, check the quality of the first run and adjust the laser

parameters in the control panel or software as needed to produce the desired

effect. During repeated engraving and cutting, check the pump's tank regularly to

keep the water temperature below 100° F (38° C). If this temperature is reached,

stop working and allow the engraver to cool down before further use.

Step 12. When you are done engraving, close the engraving software and turn off

the machine in the following order: laser power, control panel, any ventilation,

water cooling system, and emergency power button. Remove the laser key from

- 38 -

the control panel.

Step 13. Clean the bench completely, emptying the lower bracket of any debris.

3.SPECIFIC MATERIAL DESCRIPTIONS.

The following instructions are recommendations that can help expedite safe work

with a variety of materials. Users should research the safety and engraving

requirements for their specific materials to avoid the risk of potential problems such

as fire, hazardous dust, corrosive and toxic fumes. Once you know that the product is

safe or with the proper protective equipment in place, it can be helpful to engrave a

test matrix of small boxes produced at various speeds and power settings to discover

the ideal settings for your design. Or start with low power consumption and fast

setup, re-run the design as many times as needed, using progressively increasing

laser intensity.

CERAMICS.

When engraving on ceramics, medium to high power is generally used. Using more

circuits instead of higher power and lower speed can help avoid material breakage

during the working process. Be aware of the health risks posed by dust from ceramic

engraving, especially for repetitive industrial applications. Depending on the material

and workload, a fan or even a complete ventilation system may be required to

resolve the issue. Similarly, operators and others in the work area may need to use

respiratory PPE, such as masks and respirators.

STONE.

When carving all kinds of stones, medium power and medium to fast speeds are

generally used. As with ceramics and glass, be aware of the dust generated

(especially for repetitive industrial applications) and take similar measures to

ensure the safety of users and others in the work area.

TEXTILES.

When it comes to carving textiles such as cloth and wool, low power and high speed

are often used. As with leather, special attention should be paid to the possibility of

- 39 -

fire and dust.

GLASS.

When engraving glass, high power and low speed are generally used. As with ceramic,

it would be helpful to run more cycles on a lower setting to avoid cracks. Care must

be taken when engraving glass and carbon fibers to avoid combining settings that

produce laser intensity sufficient to disrupt the structural integrity of the fibers of

their components, resulting in blurred markings. Personal protective equipment

should be worn to avoid exposure of eyes, nose, mouth, and skin to dust from the

use of any kind of material, especially for repetitive industrial applications. Clothes

worn when working with fiberglass should be washed separately afterwards.

LEATHER.
