HEATPUMP WASHER DRYER COMBI
PLANNING GUIDE
WD1871HG1
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 290004603A PLANNING GUIDE HEATPUMP WASHER DRYER COMBI VERSION A - JULY 2025
WD1871HG1
CONCEPT DESIGN PAGE
DEVELOPED AND DETAILED DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE
SPECIFICATION GUIDE
Heatpump Washer Dryer Combi 4
DATA SHEETS
Heatpump Washer Dryer Combi 7
SERVICES
Heatpump Washer Dryer Combi 9
SUPPORT
For additional design planning and installation support please
contact the Fisher & Paykel design support team.
designsupport@fisherpaykel.com
CONTENTS | HEATPUMP WASHER DRYER COMBI
CONTENTS
INTRODUCTION
This comprehensive planning guide provides you with the
framework and tools to achieve your desired design outcome
with Fisher & Paykel appliances. In this guide, you will find a
range of conceptual, detailed, and dimensional product
information to bring your ideas to life and create spaces that
truly reflect your vision.
NOTES
The models shown in this Planning Guide may not be available
in all markets and are subject to change at any time. Refer to to
our website fisherpaykel.com for the latest document version.
Product specifications may vary from those shown.
This Planning Guide should not be used as installation guidance
for any product. Specific installation guidance will be available
with the product on delivery and on our website.
PAGE 3© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE HEATPUMP WASHER DRYER COMBI VERSION A - JULY 202590004603A
SPECIFICATION GUIDE
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 490004603A PLANNING GUIDE HEATPUMP WASHER DRYER COMBI VERSION A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OVERVIEW
A sophisticated take on fabric care, brought together with
thoughtfully engineered design. Complete an everyday wash-to-
dry cycle in as little as 2 hours* and ensure garments are clean,
dry and cared for eortlessly. Decades of expertise deliver
intuitive convenience and seamless performance, a stainless
steel fascia and a glass door with a generous 18kg wash and
10kg dry capacity - to support life lived away from the laundry.
*Based on an everyday 3kg Mixed Cotton load
PRODUCTS
WD1871HG1
18kg + 10kg Series 9 Front Loader Washer Dryer Combi
FEATURES
1 Wash and Dry with 13 continuous cycles, up to 18kg wash
and 10kg dry capacity
2 Heat pump technology dries gently and efficiently, even at
low temperatures
3 Auto-dosing adjusts to each load for precise detergent and
softener use, with generous reservoirs for up to 29 washes
4 Intuitive 10" touchscreen offers high-definition clarity and
guided navigation
5 Three tailored Steam Refresh cycles for Shirts, Delicates and
Mixed
6 Refined ergonomics with the angled drum for easier
unloading and tilted touchscreen for better visibility
7 Crease Free+ prevents wrinkles and maintains freshness by
circulating air for 12 hours after a cycle
8 Drum Dry feature reduces humidity and odour after wash
cycles
9 SmartHQ™ alerts and remote control to stay connected
SPECIFICATION GUIDE | HEATPUMP WASHER DRYER COMBI
WD1871HG1
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 590004603A PLANNING GUIDE HEATPUMP WASHER DRYER COMBI VERSION A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

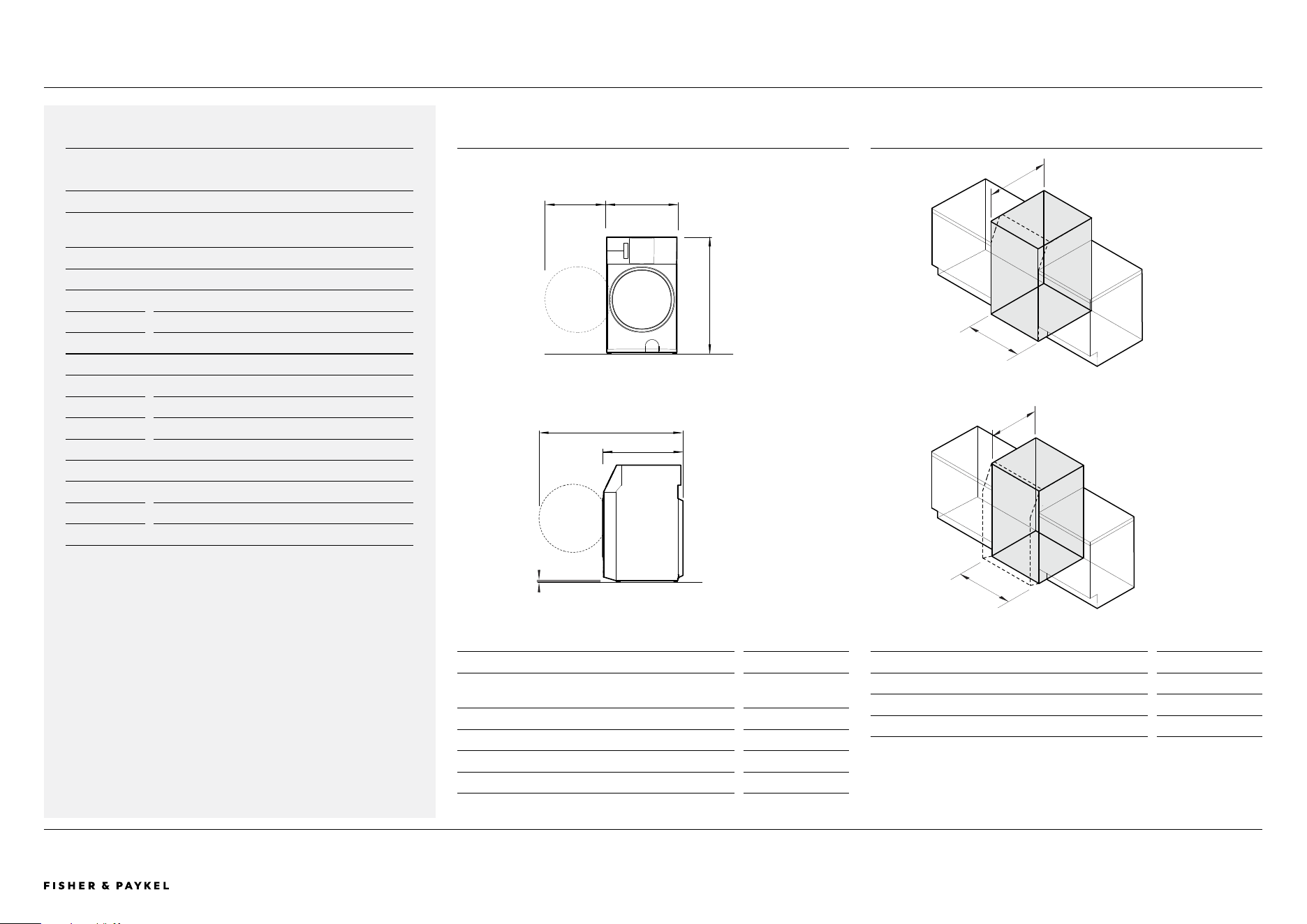

FLUSH & PROUD INSTALL CAVITY DIMENSIONS
Cavity Dimensions mm
A Minimum cavity width
740
B Minimum cavity depth - Flush install
845
C Minimum cavity depth - Proud install
700
SPECIFICATION GUIDE | HEATPUMP WASHER DRYER COMBI
PRODUCT DIMENSIONS
Product Dimensions mm
A Overall height of product
min 1185
max 1200
B Overall width of product
710
C Overall depth of product
815
D Overall depth with door open
1330
E Door clearance to adjacent wall
min 200
PROFILE VIEW
FLUSH INSTALL
PROUD INSTALL
FRONT VIEW
bE
a
c
d
A
C
A
B
SPECIFICATIONS
Model Number
WD1871HG1 Series 9, Heatpump Washer Dryer Combi,
Graphite
Weight
Packaged 164 kg
Unpackaged 145 kg
Electrical
Supply 230 V, 50 Hz
Service 10 A
Outlet 3-pin earthing type
Plumbing
Supply Min 6 l/min
Pressure 200kPa (29 psi) - 1MPa (150 psi)
WD1871HG1
<< CONTENTS
PAGE 6© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE HEATPUMP WASHER DRYER COMBI VERSION A - JULY 202590004603A
DATA SHEETS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 790004603A PLANNING GUIDE HEATPUMP WASHER DRYER COMBI VERSION A - JULY 2025

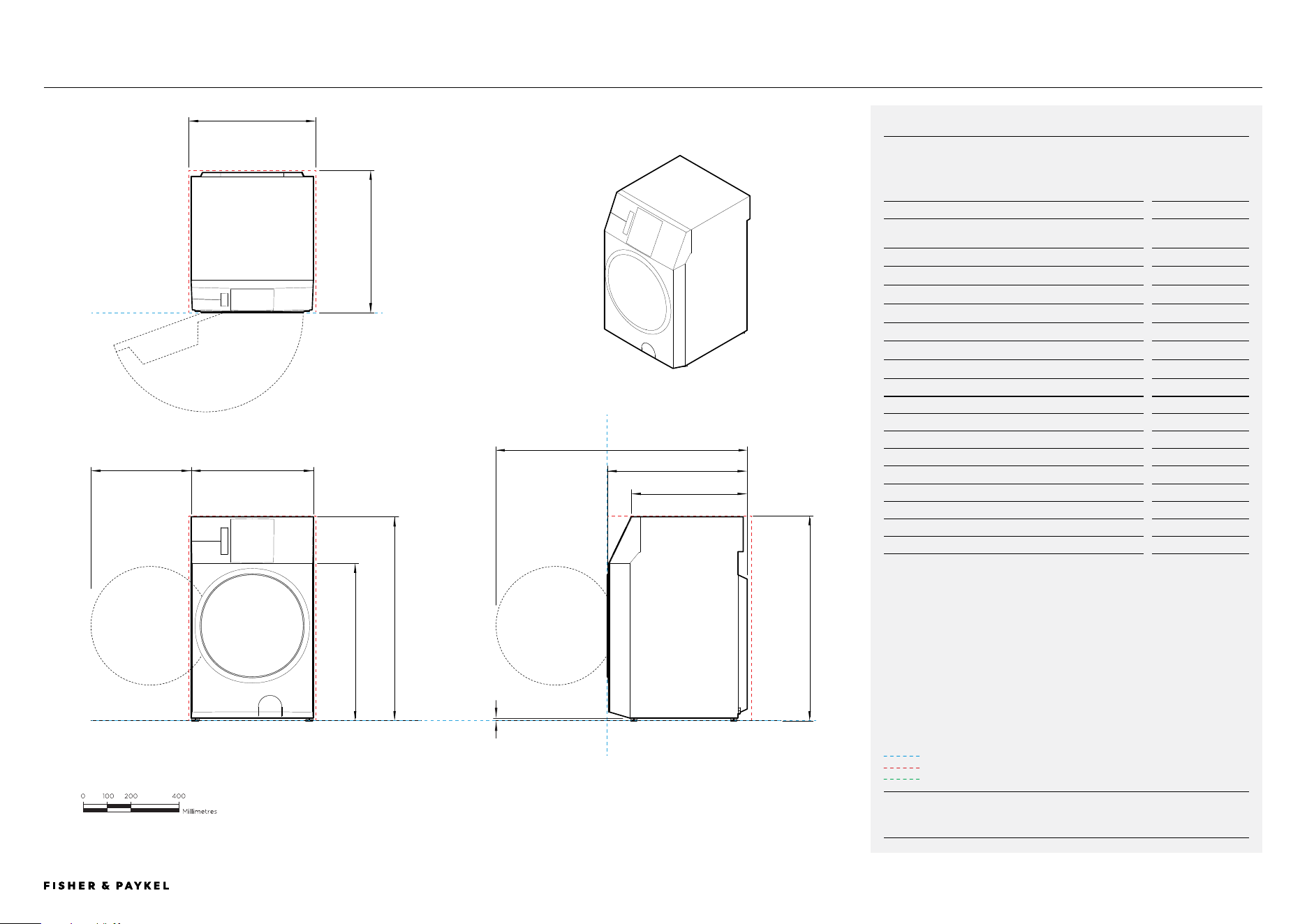

INDICATES CABINETRY / PRODUCT DATUM
INDICATES CABINETRY CLEARANCES
INDICATES CUTOUT
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16''). Please
read the installation manual for detailed information on installing the product. For full
installation instructions & specifications visit fisherpaykel.com
Model no:
WD1871HG1
Heatpump Washer Dryer Combi, Graphite
Product Dimensions mm
A Overall height of product
min 1185
max 1200
b Height to product control panel
900
C Overall width of product
710
D Overall depth of product
815
D Product rear to front of front face
670
E Depth with the door open
1330
F Door clearance to adjacent wall
min 200
G Height of adjustable mounted feet
15
Minimum Clearances - Flush installation mm
Minimum clearance above product* 260
Minimum clearance either side of product 15
Minimum clearance rear of product 30
Minimum Clearances - Proud installation mm
Minimum clearance above product 20
Minimum clearance either side of product 15
Minimum clearance rear of product 30
*Maintain a minimum vertical and horizontal clearance above the dispenser to
prevent any obstruction that could compromise the ergonomics.
NOTE:
For the optimal performance of Crease free air feature, the vents above door
must not be obstructed.
PLAN VIEW
FRONT VIEW
PROFILE VIEW
DATUM : FRONT OF PRODUCT
DATUM : BOTTOM OF PRODUCT
DATUM : FRONT OF PRODUCT
NOT TO SCALE
DATA SHEET | HEATPUMP WASHER DRYER COMBI
E
D
F
I
H
CG
K
J
A
B
WD1871HG1
<< CONTENTS
PAGE 8© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE HEATPUMP WASHER DRYER COMBI VERSION A - JULY 202590004603A
SERVICES
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 990004603A PLANNING GUIDE HEATPUMP WASHER DRYER COMBI VERSION A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

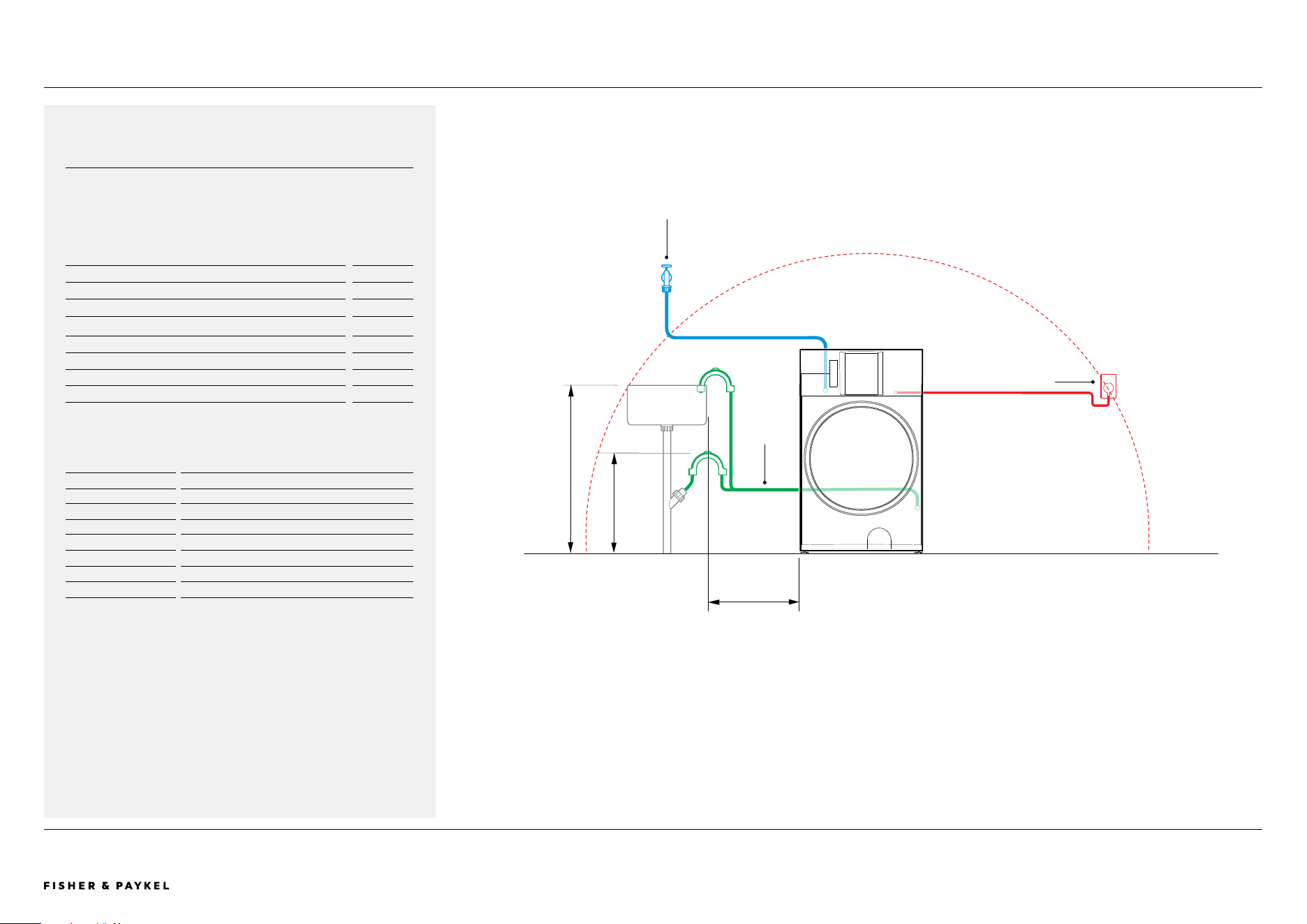

WD1871HG1SERVICES | HEATPUMP WASHER DRYER COMBI
Standpipe or
Tub
Inlet hose
Drain hose
Power
Maximum Distance of Hose and Cords
Model:
Heatpump Washer Dryer Combi - WD1871HG1
Product Dimensions
mm
A Maximum standpipe or tub height
1000
B Minimum standpipe or tub height
600
C Maximum distance to standpipe when located on the left
300
Maximum distance to standpipe when located on the right
900
D Maximum power cord length from power outlet
1400
E Maximum drain hose length
1700
F Maximum inlet hose length
1500
Specifications
Electrical
Supply
230 V, 50 Hz
Service
10 A
Outlet
3-pin earthing type
Plumbing
Supply
Min 6 l/min
Pressure
200kPa (29 psi) - 1MPa (150 psi)
NOTE: Connections may be located in an adjacent cabinet to either side of the
washer dryer. Ensure power will remain accessible following install to allow
access for any future product maintenance.
C
A
B
E
D
F
