2000W INVERTER
GENERATOR
Instruction Manual
IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
TECHSUPPOR[email protected]1-800-232-1195 (M-F 8AM-5PM CST)
For replacement parts and the most up-to-date instruction manuals, visit WENPRODUCTS.COM
MODEL 56203i
2
CONTENTS
WELCOME 3
Specifications ................................................................................................... 3
Introduction ..................................................................................................... 4
SAFETY 5
Safety Information ........................................................................................... 5
Generator Safety Warnings .............................................................................. 6
BEFORE OPERATING 9
Unpacking & Packing List ................................................................................ 9
Know Your Inverter Generator ........................................................................ 10
Preparation .................................................................................................... 12
OPERATION & MAINTENANCE 13
Starting Your Generator ................................................................................. 15
Using Your Generator ..................................................................................... 18
Stopping Your Generator ............................................................................... 22
Maintenance ................................................................................................... 23
Transportation & Storage ............................................................................... 28
Troubleshooting Guide ................................................................................... 29
Wire Diagram ................................................................................................. 30
Exploded View & Parts List ............................................................................ 31
Warranty Statement ....................................................................................... 37
To purchase accessories for your tool, visit WENPRODUCTS.COM
Magnetic Oil Dipstick (Model No. 55201)
WEN Parallel Connection Kit
Weatherproof Generator Cover (Model No. 56200iC)
High-Altitude Kit (Part No. 56235i-HA36 & 56235i-HA69)
3
SPECIFICATIONS
Model Number 56203i
Surge (Starting) Wattage 2000 Watts
Rated (Running) Wattage 1700 Watts
Rated Voltage AC: 120V, DC: 12V (Cigarette Plug), 5V
Rated Amperage AC: 14.1A, DC: 8.3A (Cigarette Plug), 2.1A/1A (USB)
Phase Single
Frequency 60Hz
Product Weight 39 lbs
Product Dimensions 17.3" x 11.5" x 17.7"
Engine Type
4 stroke, OHV, single cylinder with forced air
cooling system
Engine Displacement 79cc
Engine Speed 4800 RPM
Fuel Tank Capacity 1.06 Gallons (4 L)
Oil Capacity 15 fl. oz. (0.44 L)
Half-Load Run Time 7 Hours
Lubrication System Splash Lubrication
Spark Plug Type Torch E5T (NGK BPR5HS)
Spark Plug Gap 0.6 mm - 0.8 mm (0.02 in. - 0.03 in.)
Spark Plug Torque 11.1 - 14.7 ft-lbs (15 - 20 Nm)
GENERATOR
ENGINE
2000 WATT INVERTER GENERATOR
MODEL 56203i
OIL CAPACITY
PRODUCT WEIGHT
39 lbs.
VOLTAGE
AMPERAGE
SERIAL NO.
ENGINE SERIAL NO.
RATED WATTAGE
SURGE WATTAGE
RATED FREQUENCY
FUEL CAPACITY
AC: 120V DC: 12V, 5V
AC: 14.1A DC: 8.3A 2.1A/1A USB
1700W
2000W
60 Hz
1.06 gal.
WENPRODUCTS.COM
1-800-232-1195
Great Lakes Technologies LLC 1101 Wesemann Drive West Dundee, IL 60118
INTRODUCTION
Thanks for purchasing the WEN 2000-Watt Inverter Generator. Refer to the illustration below for the location of the
serial number on the side of the engine. Record the generator information in the spaces provided below. If assis-
tance for information or service is required, please contact customer service by calling 1-800-232-1195, M-F 8-5
CST; you will be asked to provide the following generator information when calling.
Generator Model Number: 56203i
Date of Purchase: ______________________________________________
Purchased From: _______________________________________________
Serial Number: ________________________________________________
TO MAXIMIZE THE LIFESPAN OF YOUR GENERATOR: We recommend running your generator at least once a
month for 20 to 30 minutes. Start the generator according to the instructions and plug a small load in to make
sure the outlet is producing electricity.
SERVICE RECORD
Record the service dates of your generator in the chart below. Please perform maintenance checks and operations
according to the “Maintenance” section of the manual.
Service Record Date Date Date Date Date Date
Change Oil
Change Spark Plug
Clean Fuel Tank
Clean Air Cleaner
Clean Spark Arrestor
4
Serial NumberSerial NumberSerial Number
SAFETY INFORMATION
SAFETY INTRODUCTION
Safety is a combination of common sense, staying alert, and knowing how your tool works. This manual contains
important information regarding the generator’s potential safety concerns, as well as preparation, operation, and
maintenance instructions. Before operating this generator, be sure to read and observe all warnings and instructions
both on the generator labels and in this instruction manual. Failure to follow all instructions listed below may result
in personal injury.
NOTE: The following safety information is not meant to cover all possible conditions and situations that may occur.
WEN reserves the right to change this product and specifications at any time without prior notice.
At WEN, we are continuously improving our products. If you find that your tool does not exactly match this manual,
please visit wenproducts.com for the most up-to-date manual or contact customer service at 1-800-232-1195, M-F
8-5 CST.
Keep this manual available to all users during the entire life of the tool and review it frequently to maximize
safety for both yourself and others.
SAVE THESE SAFETY INSTRUCTIONS.
SAFETY SYMBOLS
The purpose of following safety symbols is to attract your attention to possible dangers. The safety symbols, and
their explanations, deserve your careful attention and understanding. The safety warnings do not by themselves
eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention
measures.
NOTICE REGARDING EMISSIONS
Engines that are certified to comply with U.S. EPA emission regulations for SORE (Small Off Road Equipment), are
certified to operate on regular unleaded gasoline, and may include the following emission control systems: (EM)
Engine Modifications and (TWC) Three-Way Catalyst (if so equipped).
QUESTIONS? PROBLEMS?
In order to answer questions and solve problems in the most efficient and speedy manner, contact customer
service at 1-800-232-1195, M-F 8-5 CST or email [email protected].
DANGER: indicates a hazard, which, if not avoided, will result in death or serious injury.
WARNING: indicates a hazard, which, if not avoided, could result in death or serious injury.
CAUTION: indicates a hazard, which, if not avoided, might result in minor or moderate injury.
CAUTION! when used without the alert symbol, indicates a situation that could result in damage to the machine.
WARNING! Before operating the generator, make sure to read all safety warnings and all instructions. Failure
to follow the warnings and instructions may result in electric shock, fire or serious injury.
5
6
GENERATOR SAFETY WARNINGS

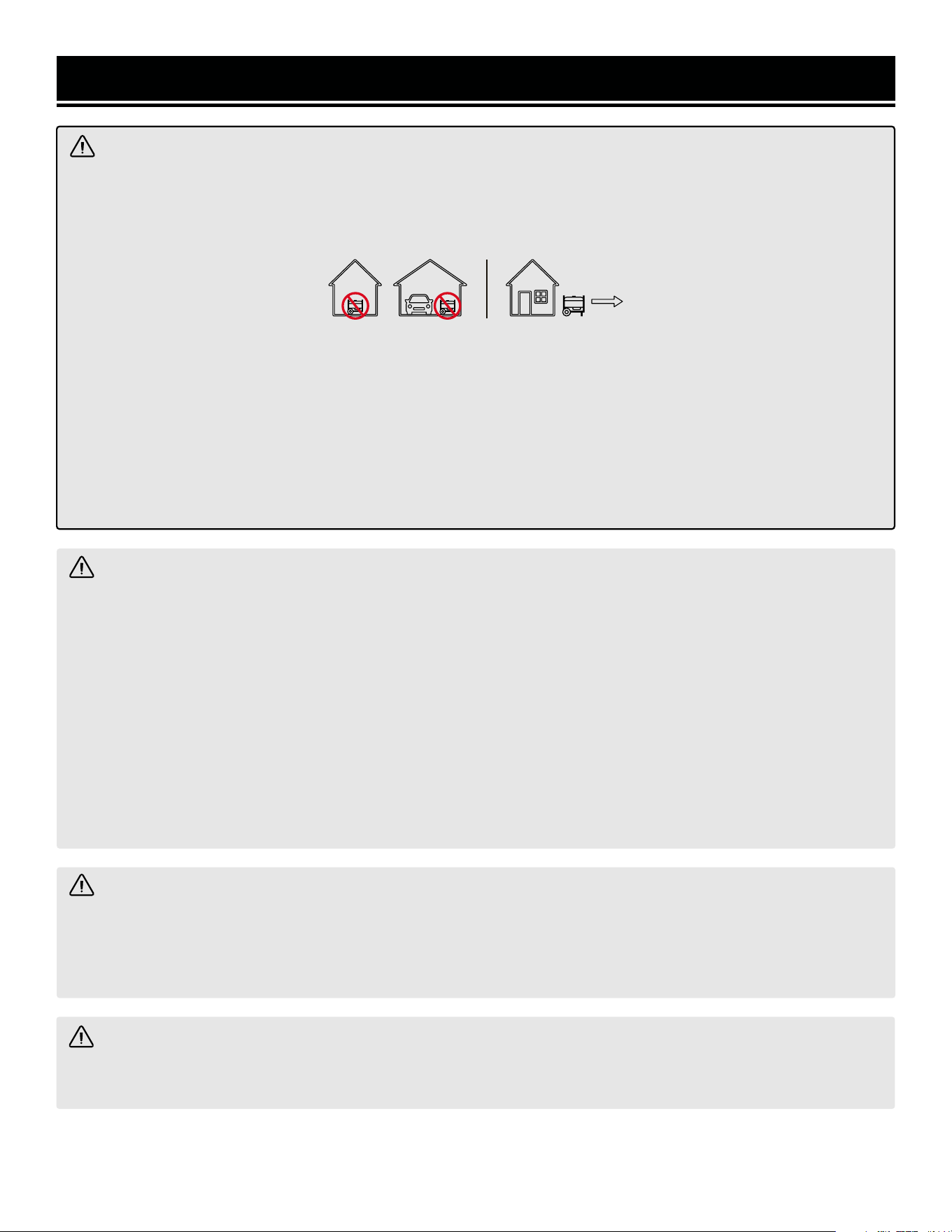

DANGER! CARBON MONOXIDE
Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide (CO). This
is a poison gas you cannot see or smell. If you can smell the generator exhaust, you are breathing CO. But even
if you cannot smell the exhaust, you could be breathing CO.
NEVER use a generator inside homes, garages, crawl spaces, or other partially enclosed areas. Deadly levels
of carbon monoxide can build up in these areas. Using a fan or opening windows and doors does NOT supply
enough fresh air. ONLY use a generator outside and far away from windows, doors, and vents. These openings
can pull in generator exhaust.
Even if you use a generator correctly, CO may leak into the home. ALWAYS use a battery-powered or battery-
backup CO alarm in the home. If you start to feel sick, dizzy, or weak after the generator has been running, move
to fresh air RIGHT AWAY. See a doctor. You may have carbon monoxide poisoning.
WARNING! RISK OF EXPLOSION. HIGHLY FLAMMABLE: This generator may emit highly flammable and
explosive gasoline vapors, which can cause severe burns or even death, if ignited. A nearby open flame can lead
to explosion even if not directly in contact with gasoline.
• Do not operate near open flame, heat, or any other ignition source. Do not smoke near the generator.
• Always operate on a firm, level surface.
• Always turn generator off before refueling. Allow generator to cool for at least 2 minutes before removing
fuel cap. Loosen cap slowly to relieve pressure in tank.
• Do not overfill fuel tank. Gasoline may expand during operation. Do not fill to the top of the tank. Allow for
expansion. Always check for spilled fuel before operating.
• If fuel spills, move the generator at least 30 feet away from the spill and wipe clean any spilled fuel before
starting the engine.
• Empty fuel tank before storing or transporting the generator.
WARNING! If this generator is used as a supply for a building’s wiring system, the generator must be in-
stalled by a qualified electrician and connected to a transfer switch as a separately derived system in accordance
with all applicable laws and electrical codes and the National Electrical Code, NFPA 70. The generator shall be
connected to a transfer switch that switches all conductors excluding the equipment grounding conductor. The
frame of the generator shall be connected to an approved grounding electrode.
CALIFORNIA PROPOSITION 65 WARNING: This product can expose you to chemicals including carbon
monoxide and engine exhaust, which are known to the State of California to cause cancer and birth defects or
other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
7
GENERATOR SAFETY WARNINGS
OPERATING ENVIRONMENT
1. Using a generator indoors can kill you in minutes.
Only use a generator outside and far away from win-
dows, doors and vents.
2. Do not smoke near the generator.
3. Do not operate near open flame, heat, or flammable
materials. This generator may emit highly flammable
and explosive gasoline vapors, which can cause severe
burns or even death if ignited. A nearby open flame can
lead to an explosion even if it isn’t directly in contact with
gasoline.
4. Do not expose the generator to rainy or wet con-
ditions; doing so significantly increases the risk of
electrical shock. Never handle the generator, electronic
devices, or any cord while standing in water, while bare-
foot, or when hands or feet are wet.
5. Always operate the generator on a dry, firm, level
surface.
6. The generator should have at least 5 feet of clear-
ance from buildings or other equipment during opera-
tion.
7. Do not allow children or non-qualified persons to
operate the generator.
GENERATOR PREPARATION
1. Always ground the generator before using it to maxi-
mize safety (see “Ground the Generator” section).
2. Do not overfill fuel tank, as gasoline may expand
during operation. Do not fill to the very top of the tank.
Leave room for gasoline expansion. Always check for
spilled fuel before operating.
3. If any part of the generator, electrical device or pow-
er cord is broken, damaged, or defective, make sure
it is repaired or replaced before operation. Service
should only be performed by a qualified technician. Do
not use receptacles or cords that show signs of damage,
such as broken or cracked insulation.
4. Use a ground fault circuit interrupter (GFCI) in highly
conductive areas such as metal decking or steel work.
Extension cords with in-line GFCIs are recommended for
these operations to maximize safety.
5. If connecting the generator to a building’s electri-
cal system for standby power, you MUST consult a
qualified electrician and install a transfer switch. Such
connections must comply with local electrical laws and
codes. Failure to comply can create a back-feed, which
may result in serious injury or death to utility workers.
6. Never modify the generator in any way. Modifying
or using the machine for any other purpose for which it
is not designed may result in serious injuries, machine
damage and voiding of the warranty.
GENERATOR OPERATION
1. Only use the generator for its intended purposes.
Modifying or using the generator for operations for
which it was not designed may cause hazards and per-
sonal injury.
2. Do not touch bare wires or receptacles (outlets).
3. Do not exceed the wattage capacity of the generator
by plugging in more electrical devices than the unit
can handle. This could damage the generator and/or
connected electrical devices. Check the operating volt-
age and frequency requirements of all electrical devices
prior to plugging them into the generator.
Generator safety warnings continue on the next page.
WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety
rules. Failure to follow the safety instructions may result in serious personal injury.
8
GENERATOR SAFETY WARNINGS
WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules.
Failure to follow the safety instructions may result in serious personal injury.
4. Allow generator to run for several minutes before
connecting electrical devices. Do not start or stop en-
gine with electrical devices plugged in to the receptacles.
Failure to do so could damage the generator and/or con-
nected electrical devices.
5. Do not turn on electrical devices until after they are
connected to the generator.
6. Generators vibrate in normal use. During and after
the use of the generator, inspect both the generator as
well as extension and power supply cords for damage
resulting from vibration.
7. Do not touch hot parts. This generator produces heat
when running. Temperatures near exhaust can exceed
150ºF (65ºC). Allow generator to cool down after use be-
fore touching engine or areas of the generator that be-
come hot during use.
8. Turn off all connected electrical devices before stop-
ping the generator.
9. Always turn generator off before refueling. Allow
generator to cool for at least 2 minutes before removing
fuel cap. Loosen cap slowly to relieve pressure in tank.
10. Turn the engine switch to “OFF” position when the
engine is not running.
11. Empty fuel tank before storing or transporting the
generator. Do not store generator or gasoline near fur-
naces, water heaters, or any other appliances that pro-
duce heat or have automatic ignitions. Store the genera-
tor and fuel away from sparks, open flames, pilot lights,
heat and other sources of ignition.
12. Always wash hands after handling generator.
CAUTION: Misuse of this generator can damage it or
shorten its lifespan.
TO MAXIMIZE THE LIFESPAN OF YOUR GENERATOR: We recommend running your generator at least once a
month for 20 to 30 minutes. Start the generator according to the instructions and plug a small load in to make
sure the outlet is producing electricity. If you do not run it often, it will greatly shorten the generator’s lifespan
and void the warranty.
9
UNPACKING
With the help of a friend or trustworthy foe, such as one of your in-laws, carefully remove the generator from the
packaging and place it on a sturdy, flat surface. Make sure to take out all contents and accessories. Do not discard
the packaging until everything is removed. Check the packing list below to make sure you have all of the parts and
accessories. If any part is missing or broken, please contact customer service at 1-800-232-1195 (M-F 8-5 CST),
or email [email protected].

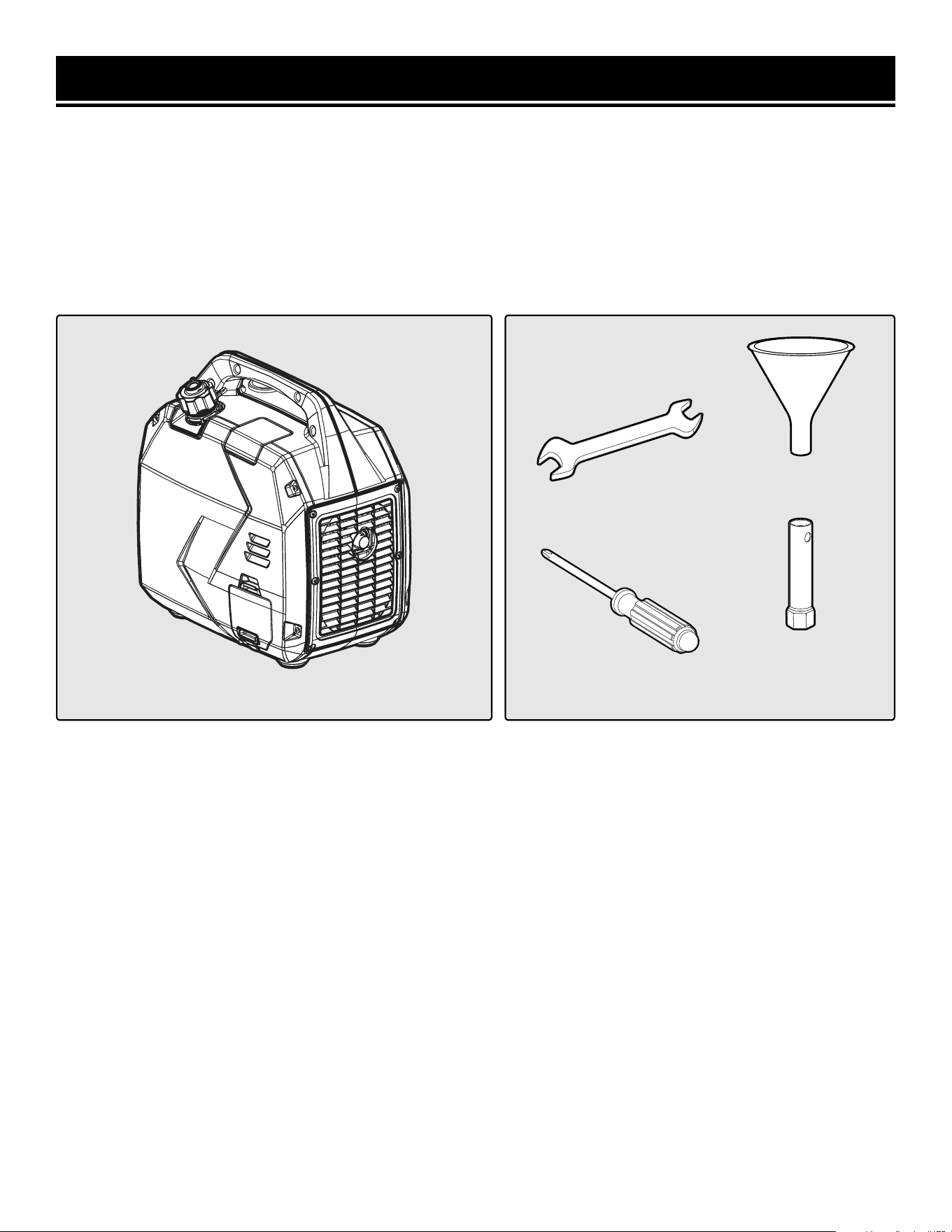

PACKING LIST
UNPACKING & PACKING LIST
Components
Generator
Tools & Accessories
8/10mm Wrench
Screwdriver
Spark Plug Socket
Funnel
KNOW YOUR INVERTER GENERATOR
TOOL PURPOSE
Inverter Generators provide you with clean and quiet power, when and where you need it most. Refer to the fol-
lowing diagrams to become familiarized with all the parts and controls of your Generator. The components will be
referred to later in the manual for assembly and operation instructions.

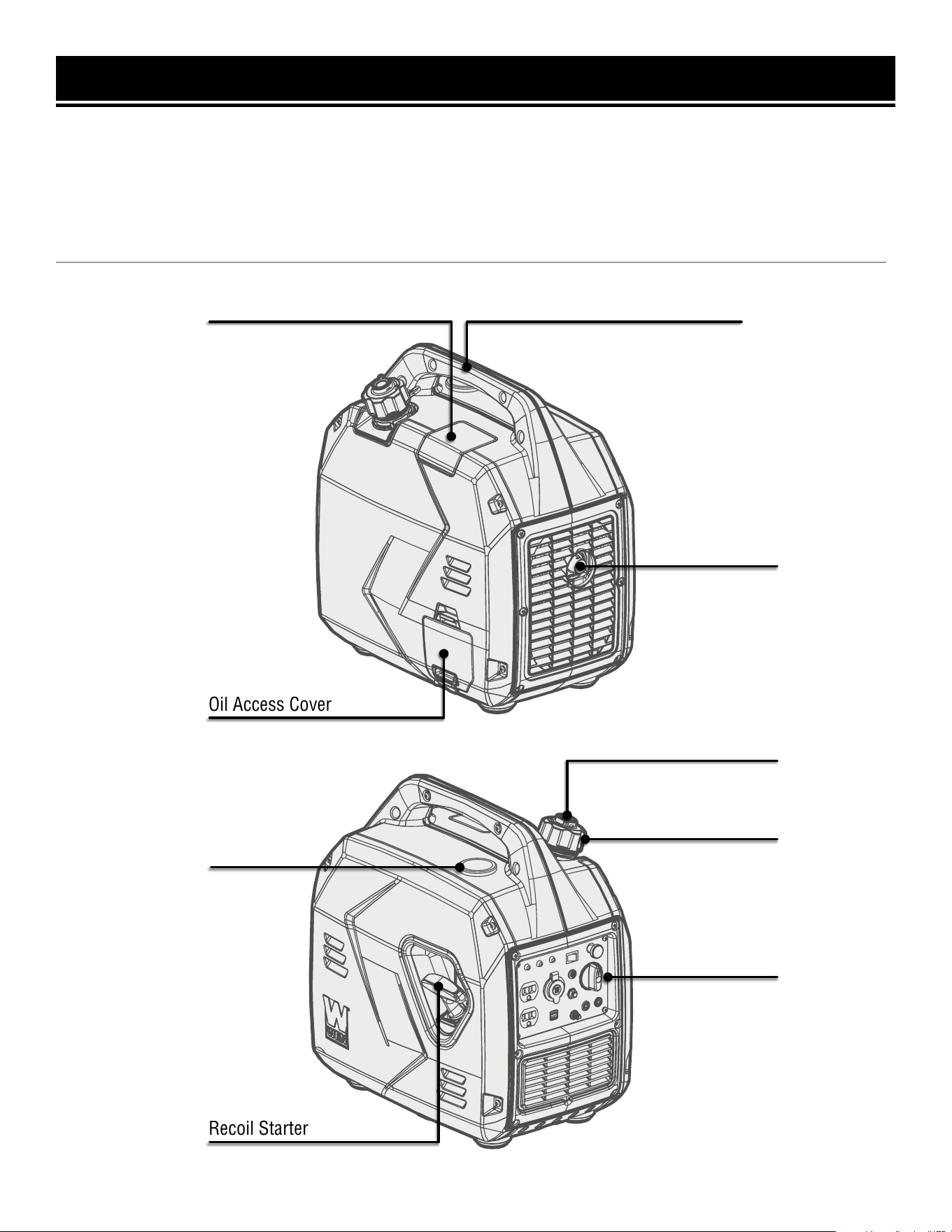

GENERATOR
Spark Plug Access Cover
Oil Access Cover
Spark Arrestor
Carrying Handle
Recoil Starter
Control Panel
Fuel Cap
Vacuum Relief Valve
10
Fuel Gauge
ECO-MODE
ON OFF
DC 12V
RESET
CIRCUIT
BREAKER
OUTPUT OVERLOAD
AC 120V
NEMA 5-20R
START
RUN
CHOKE
OFF
FUEL
OFF
ON
PARALLEL CONNECT
DC 5V
OFF
ON
1A
2.1A
USB
11
KNOW YOUR INVERTER GENERATOR

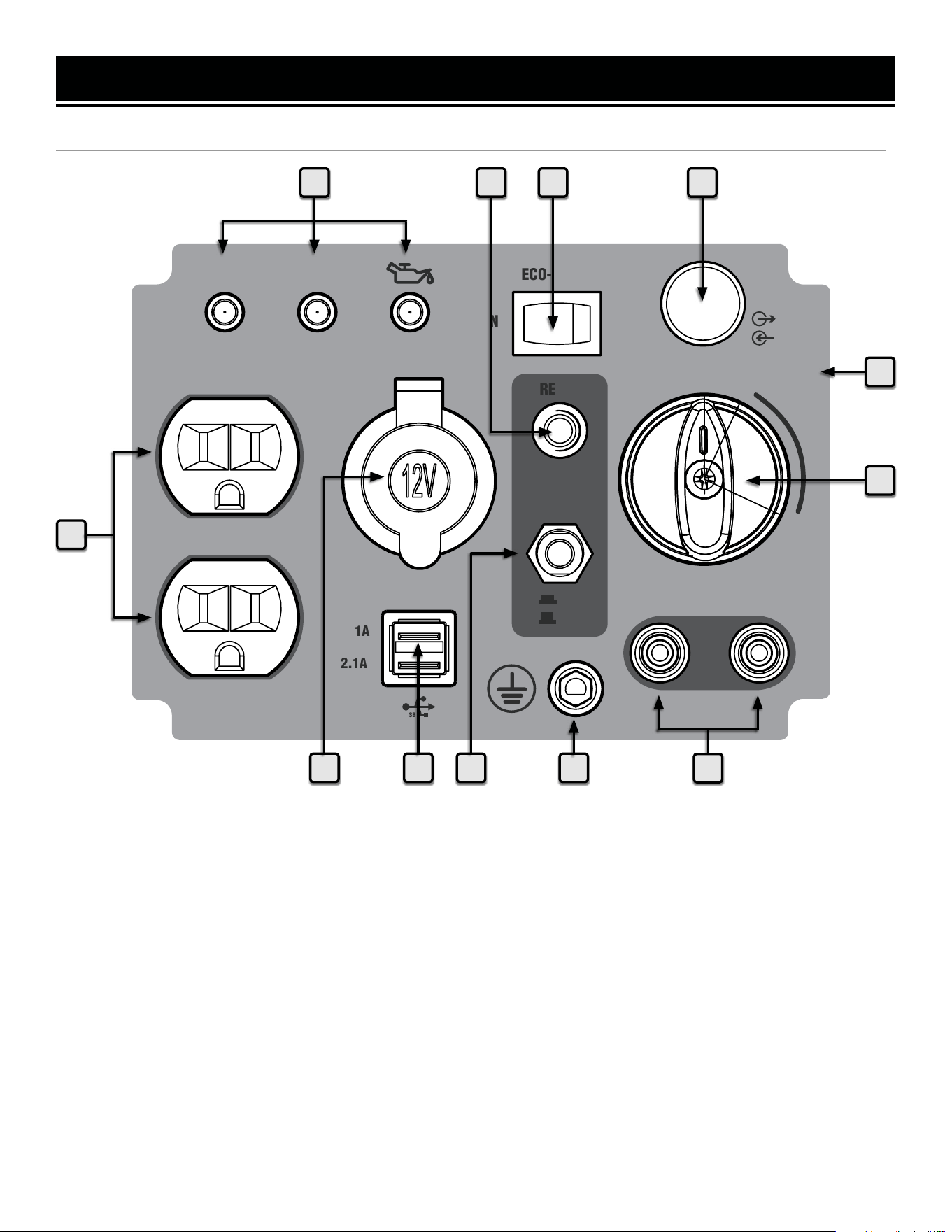

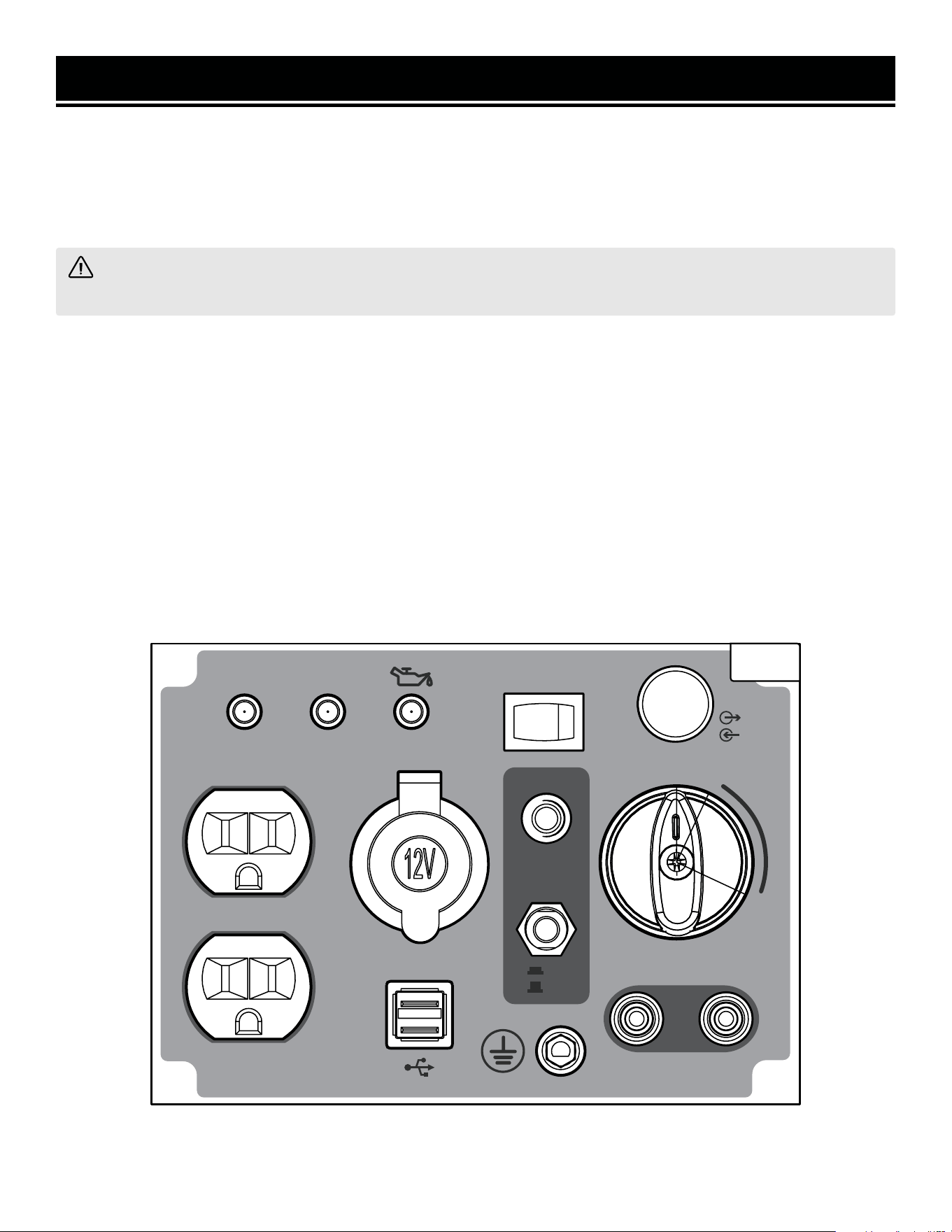

CONTROL PANEL
2
3 4
8
5 6
1. Indicator Lights
Output, Overload, & Low Oil
2. AC 120V NEMA 5-20R Duplex Receptacles
Standard household outlets provide 120V 60Hz power.
3. 12V DC Outlet
Cigarette-style outlet provides DC power.
4. 5V USB Port
1A & 2.1A for charging various electronic devices.
5. Circuit Breaker
Press to reset.
6. Grounding Nut
Ground the generator to reduce the risk of electric shock.
Refer to “Ground the Generator” section on page 14.
1
7
9
101112
7. Parallel Connection
Connect to share wattage between inverter generators.
8. On / Off Switch
Used to turn on or shut down the generator.
9. Auto Shut Off
Turn the ON / OFF Switch to this position to burn off the
fuel in the carburetor.
10. Choke Lever
Used to start the engine.
11. Eco-Mode Switch
Maximizes fuel economy & run time.
12. Reset Button
Press to reset the circuit incase of overload.
12
PREPARATION
TO ADD OIL:
1. Place the generator on a level surface. Make sure the engine is
OFF before adding or checking oil.
1
The following section describes the necessary steps to prepare the generator for use. If you are unsure about how to
perform any of the steps please call 1-(800) 232-1195 M-F 8-5 CST for customer service. Failure to perform these
steps properly can damage the generator or shorten its life.
STEP 1 - ADD / CHECK OIL
The generator is shipped without oil. User must add the proper amount of oil before operating the generator for the
first time. The oil capacity of the engine crankcase is 15 fl. oz. (0.44 L).
• 30W Engine Oil

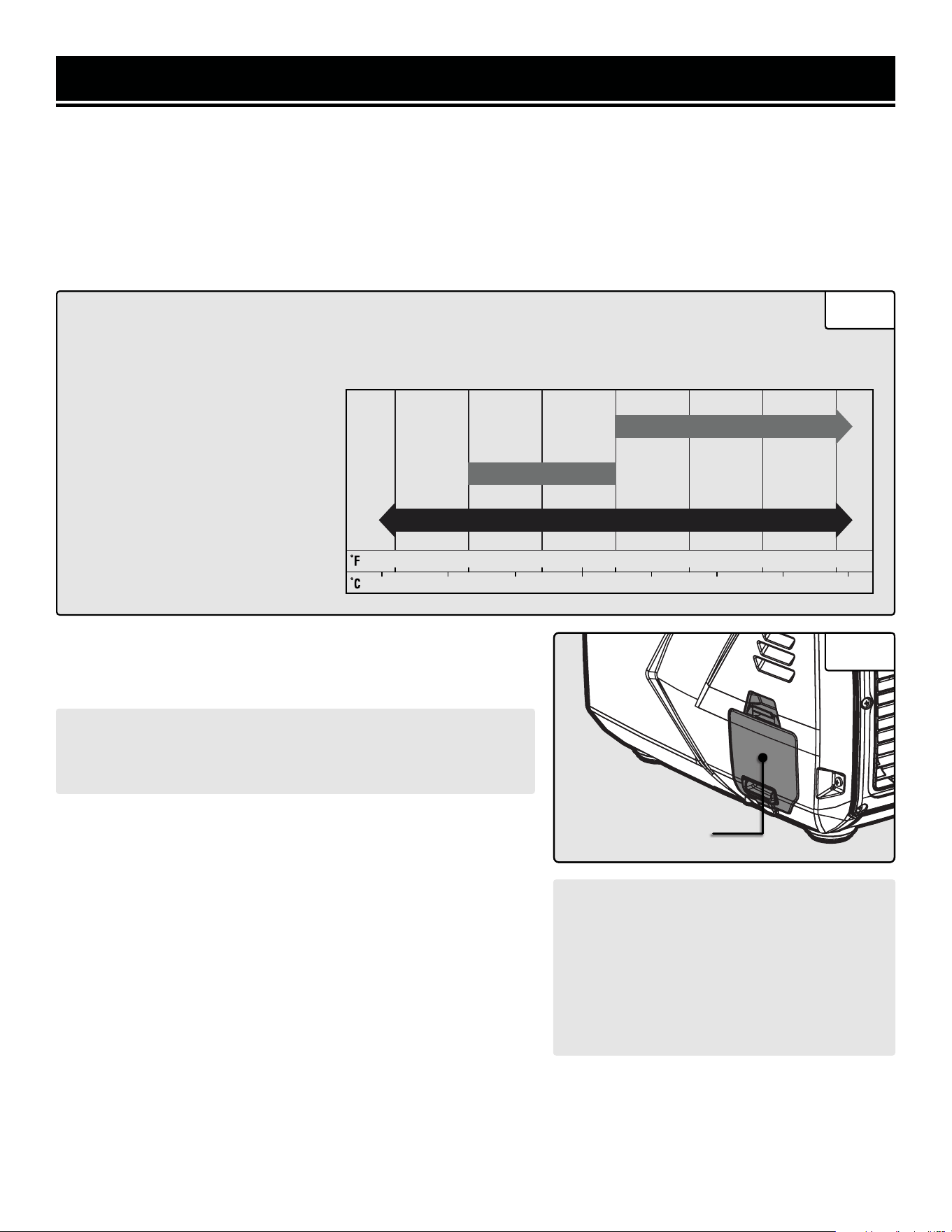

Temperatures above 40°F
• 10W-30 Engine Oil
Temperatures between 0°F - 40°F
• Synthetic 5W-30 Engine Oil
All temperature ranges
ENGINE OIL RECOMMENDATIONS
Select good quality detergent oil bearing the American Petroleum Institute (API) service classifications
SJ, SL, or SM (synthetic oils may be used). Select the SAE viscosity grade of oil that matches the
expected operating temperature.
CAUTION! Keep the generator level. Tilting the generator to
assist in filling will cause oil to flow into the wrong areas of the
engine and cause damage.

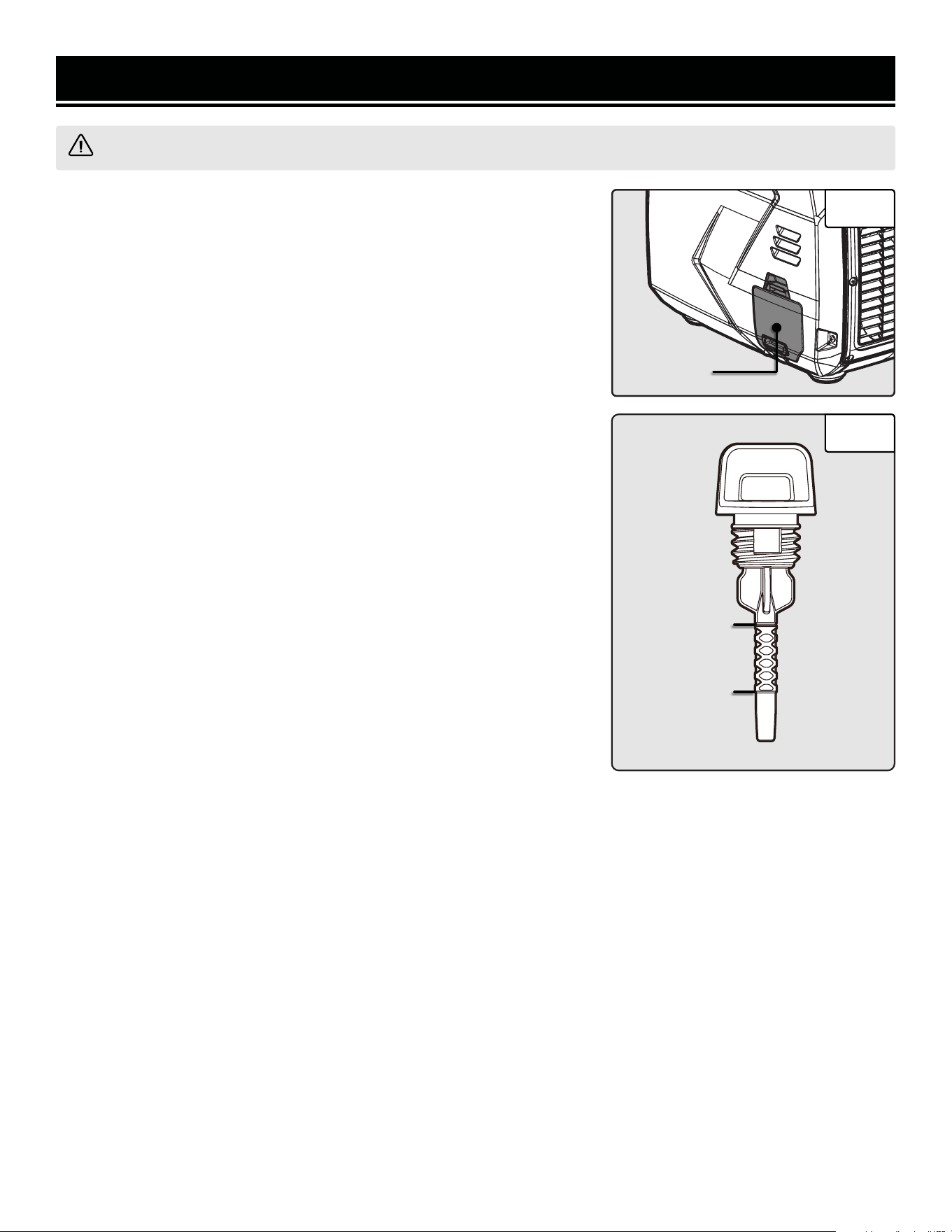

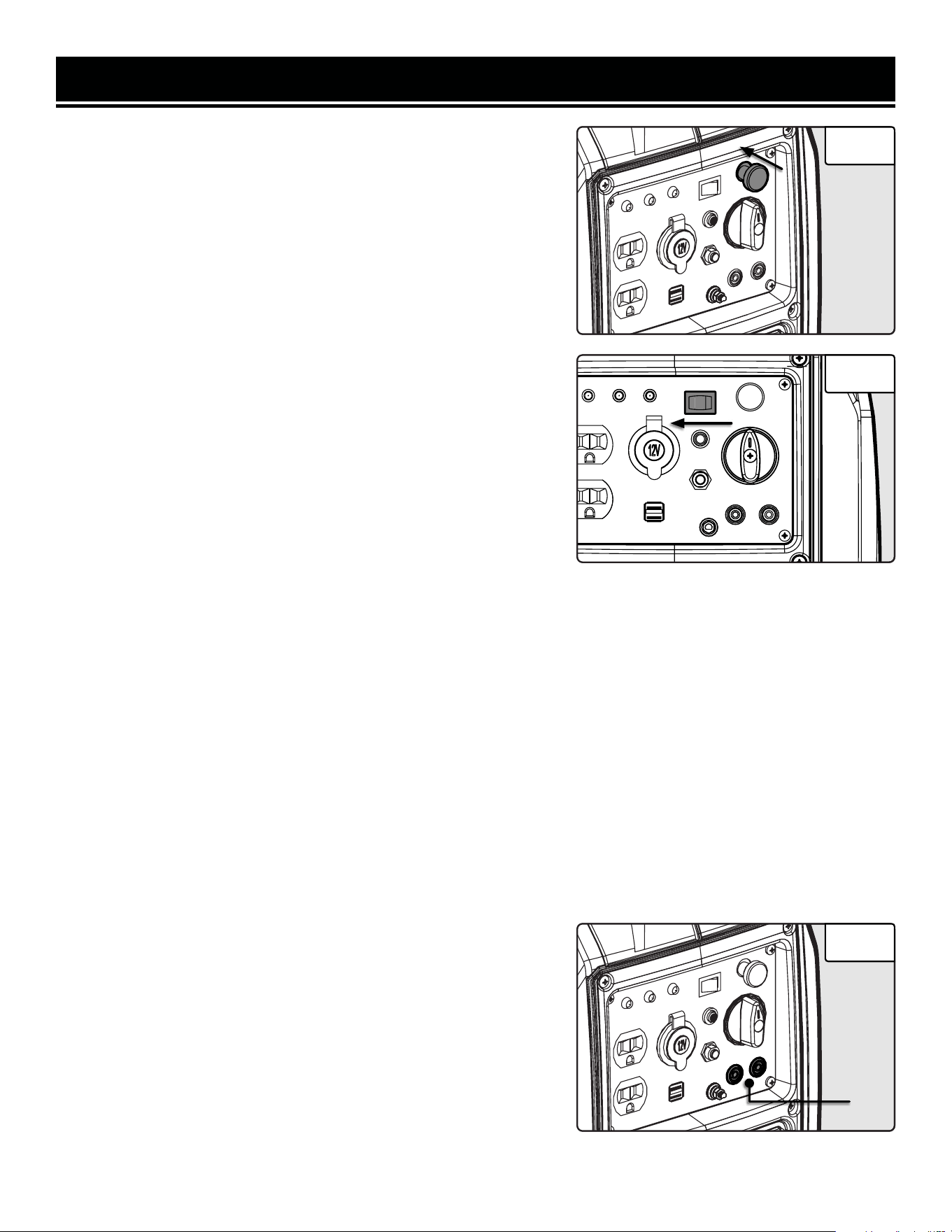

1. Open the oil access cover (Fig. 2 - 1), remove and wipe the oil
dipstick with a clean rag. Insert the dipstick into the oil fill opening
without screwing it in.
2. Remove the dipstick to check the oil mark on the dipstick (Fig.
3). Add oil if the oil mark covers less than one half of the dipstick.
3. Slowly add oil and repeat step 2 until the oil mark measures
between the upper limit mark and halfway mark of the dipstick. Do
not overfill the crankcase.
4. Wipe clean any oil leaks and firmly tighten the dipstick.
CAUTION! For subsequent operation, the oil
level should be checked before each use, or
after every 8 hours of operation. The gen-
erator is equipped with a low-oil sensor and
will not start without a sufficient amount of
oil. Follow the instructions on the next page
to check the oil level.
Fig. 1
Fig. 2
Synthetic 5W-30
30W
10W-30
-30 -20 -10 0 10 20 30 40
-20 0 20 32 40 60 80 100
13
PREPARATION
Lower Limit
Upper Limit
TO CHECK OIL LEVEL (before every subsequent start):
1. Place the generator on a level surface. Make sure the en-
gine is OFF before adding or checking oil.
2. Remove and wipe the dipstick with a clean rag.
3. Insert the dipstick into the oil fill without screwing it in.
Remove the dipstick to check the oil mark.
4. If the oil mark covers less than one half of the dipstick,
slowly add oil until the oil mark measures between the up-
per limit mark and halfway mark of the dipstick. See Fig. 3.
TIP: Your WEN generator is compatible with the WEN 55201 Magnetic Oil Dipstick (not included), available for
purchase at wenproducts.com. The dipstick’s industrial-strength magnetic tip will collect metal shavings from
your generator’s oil tank to help preserve the engine and extend your generator’s lifespan.
WARNING! RISK OF EXPLOSION. HIGHLY FLAMMABLE: This generator may emit highly flammable and
explosive gasoline vapors, which can cause severe burns or even death, if ignited. A nearby open flame can lead
to explosion even if not directly in contact with gasoline.
• Do not operate near open flame, heat, or any other ignition source. Do not smoke near the generator.
• Always operate on a firm, level surface.
• Always turn generator off before refueling. Allow generator to cool for at least 2 minutes before removing
fuel cap. Loosen cap slowly to relieve pressure in tank.
• Do not overfill fuel tank. Gasoline may expand during operation. Do not fill to the top of the tank. Allow for
expansion. Always check for spilled fuel before operating.
• If fuel spills, move the generator at least 30 feet away from the spill and wipe clean any spilled fuel before
starting the engine.
• Empty fuel tank before storing or transporting the generator.
STEP 2 - ADD / CHECK FUEL
ONLY use fresh (within 30 days from purchase), lead-free
gasoline with a minimum of 87 octane rating. The genera-
tor performs best with ethanol-free gasoline. DO NOT use
gasoline with over 10% ethanol.
The capacity of the fuel tank is 1.06 gallons. Do not mix oil
with gasoline.
Follow the instructions on the next page to add gasoline.
IMPORTANT:
• Avoid getting dirt or water into the fuel tank.
• Keep gasoline away from sparks, open flames,
pilot lights, heat, and other sources of ignition.
• Gasoline can age in the tank and make starting
difficult. Never store the generator for more
than 2 months with fuel in the tank.
• Never use an oil/gasoline mixture.
• Never use old gasoline.
Fig. 3
1
1
PREPARATION
TO ADD GASOLINE:
Use fresh (within 30 days from purchase), lead-free gaso-
line with a minimum of 87 octane rating. The generator per-
forms best with ethanol-free gasoline. DO NOT use gasoline
with over 10% ethanol. The capacity of the fuel tank is 1.06
gallon. Do not mix oil with gasoline.
1. Place the generator on a level surface. Make sure the en-
gine is OFF before adding or checking the fuel.

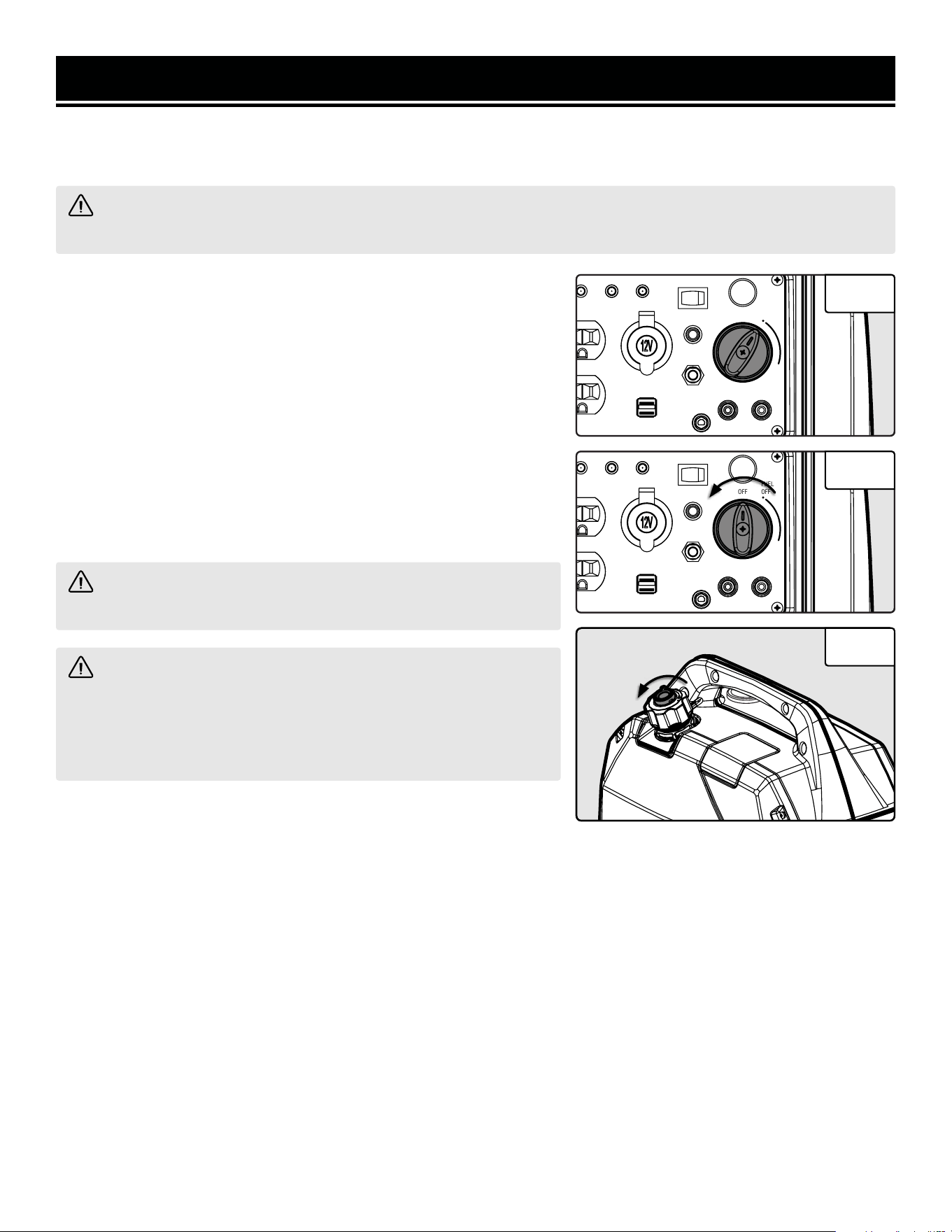

2. Unscrew the fuel cap (Fig. 4 - 1) and set it aside. The fuel
cap may be tight and hard to unscrew.
3. Slowly add unleaded gasoline to the fuel tank. Be careful
not to overfill. Reinstall fuel cap and wipe clean any spilled
gasoline with a dry cloth.
NOTE: Do not fill the fuel tank to the very top. If you do so,
gasoline will expand and spill during use, even with the fuel
cap in place.
4. Reinstall fuel cap and wipe clean any spilled gasoline
with a dry cloth.
STEP 3 - GROUND THE GENERATOR
To reduce the risk of electric shock and to maximize safety,
the generator should be properly grounded.

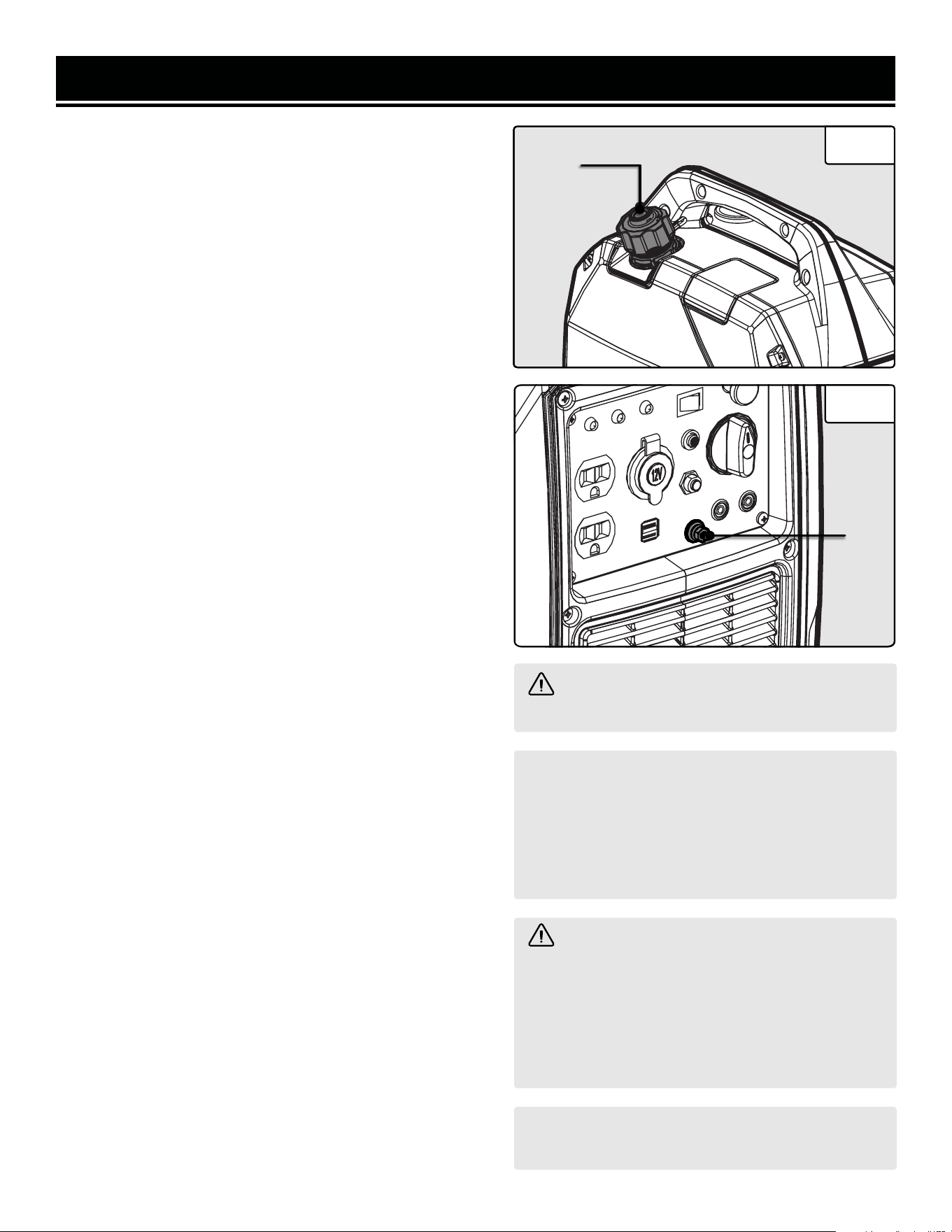

1. Attach one end of the grounding wire to the grounding
nut (Fig. 5 - 1). Tighten the nut to secure the grounding
wire.
2. Connect the other end of the grounding wire to a copper,
brass, or steel-grounding rod that is driven into the earth.
HIGH ALTITUDE OPERATION ABOVE 2000 FEET
The fuel system on this generator may be affected by opera-
tion at high altitudes. Proper operation can be ensured by
installing an altitude kit at altitudes higher than 2000 feet
above sea level. At elevations above 7000 feet, the engine
may experience a decrease in performance, even with the
proper altitude kit. Operating this generator without said kit
may increase the engine’s emissions and decrease both fuel
economy and performance.
This kit should be installed by a qualified mechanic. You can
order the kit at wenproducts.com by searching part number
56202i-HA. Refer to the instructions included with your al-
titude kit for more information about installation.
WARNING! Failure to properly ground the
generator increases your risk of electric shock.
WARNING! To prevent serious injury from
fire, follow the kit installation procedures in a
well-ventilated area away from ignition sources.
If the engine is hot from use, shut the engine off
and wait for it to cool before proceeding. Do not
smoke near the generator. Warranty will be void
if adjustments are not made for high altitude use.
CAUTION!
UNINSTALL the high altitude kit
when operating at altitudes below 2000 feet.
NOTE: Grounding wire and grounding rods
are not included with the generator. A general-
ly acceptable grounding wire is a No. 12 AWG
(American Wire Gauge) stranded copper wire.
Grounding codes can vary by location. Contact a
local electrician to check the area codes.
Fig. 4
Fig. 5
14
CAUTION!
Disconnect all electrical loads from the generator before attempting to start.
Before starting the generator, make sure you have read and performed the steps in the “Preparation” section of this
manual, pages 12-14. If you are unsure about how to perform any of the steps in this manual please call 1-(800)
232-1195 M-F 8-5 CST for customer service.
To maximize safety, ALWAYS ground the generator before using it. See page 14, “Ground the Generator”.
Use a ground fault circuit interrupter (GFCI) in highly conductive areas such as metal decking or steel work. GFCIs
are available in-line with some extension cords.
STARTING YOUR GENERATOR
DANGER! CARBON MONOXIDE
Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide (CO). This
is a poison gas you cannot see or smell. If you can smell the generator exhaust, you are breathing CO. But even
if you cannot smell the exhaust, you could be breathing CO.
NEVER use a generator inside homes, garages, crawl spaces, or other partially enclosed areas. Deadly levels
of carbon monoxide can build up in these areas. Using a fan or opening windows and doors does NOT supply
enough fresh air. ONLY use a generator outside and far away from windows, doors, and vents. These openings
can pull in generator exhaust.
Even if you use a generator correctly, CO may leak into the home. ALWAYS use a battery-powered or battery-
backup CO alarm in the home. If you start to feel sick, dizzy, or weak after the generator has been running, move
to fresh air RIGHT AWAY. See a doctor. You may have carbon monoxide poisoning.
WARNING! The exhaust from this product contains chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.
WARNING! Do not operate generator near open flame or flammable materials This generator may emit
highly flammable and explosive gasoline vapors, which can cause severe burns or even death if ignited. A
nearby open flame can lead to explosion even if it isn’t directly in contact with gasoline. Do not smoke near the
generator.
WARNING! This generator produces powerful voltage, which can result in electrocution.
WARNING! Do not use in rainy or wet conditions. Do not touch bare wires or receptacles (outlets). Do not
allow children or non-qualified persons to operate.
WARNING! Generator should only be connected to electrical devices, either directly or with an extension
cord. NEVER connect to a building electrical system without a qualified electrician and connected to a transfer
switch as a separately derived system. Such connections must comply with local electrical laws and codes.
Failure to comply can create a back-feed, which may result in serious injury or death to utility workers.
Follow the instructions on the next page to start your generator.
15
STARTING YOUR GENERATOR
1
ON OFF
OFF
FUEL
OFF
ON
BEFORE STARTING THE GENERATOR
1. Verify that the generator is outside on a dry, level surface. Allow at
least two feet of clearance on all sides of the generator.
2. To maximize safety, check that the generator is properly grounded.
See page 14, “Ground the Generator.”
3. Check that there is a sufficient level of oil in the crankcase. Add oil
if necessary. Refer to page 12, “Step 1 - Add / Check Oil.”
4. Check that there is a sufficient level of fuel in the fuel tank. Add gas
if necessary. Refer to page 13, “Step 2 - Add / Check Fuel.”
5. Make sure all electrical devices are unplugged from the generator
during ignition. Otherwise it will be difficult for the engine to start.
STARTING THE GENERATOR
1. Place the generator outside on a dry, level surface. Allow at least
two feet of clearance on all sides of the generator.
2. Check there is sufficient level of oil in the crankcase. Add oil if
necessary (refer to “Add / Check Oil” on page 12).
3. Check there is sufficient level of gasoline in the fuel tank. Add fuel
if necessary (refer to “Add Gasoline” on page 13).
4. To maximize safety, make sure the generator is properly grounded
(refer to “Ground the Generator” on page 14).
5. Make sure all electrical devices are unplugged from the generator
during ignition. Otherwise it will be difficult for the engine to start.

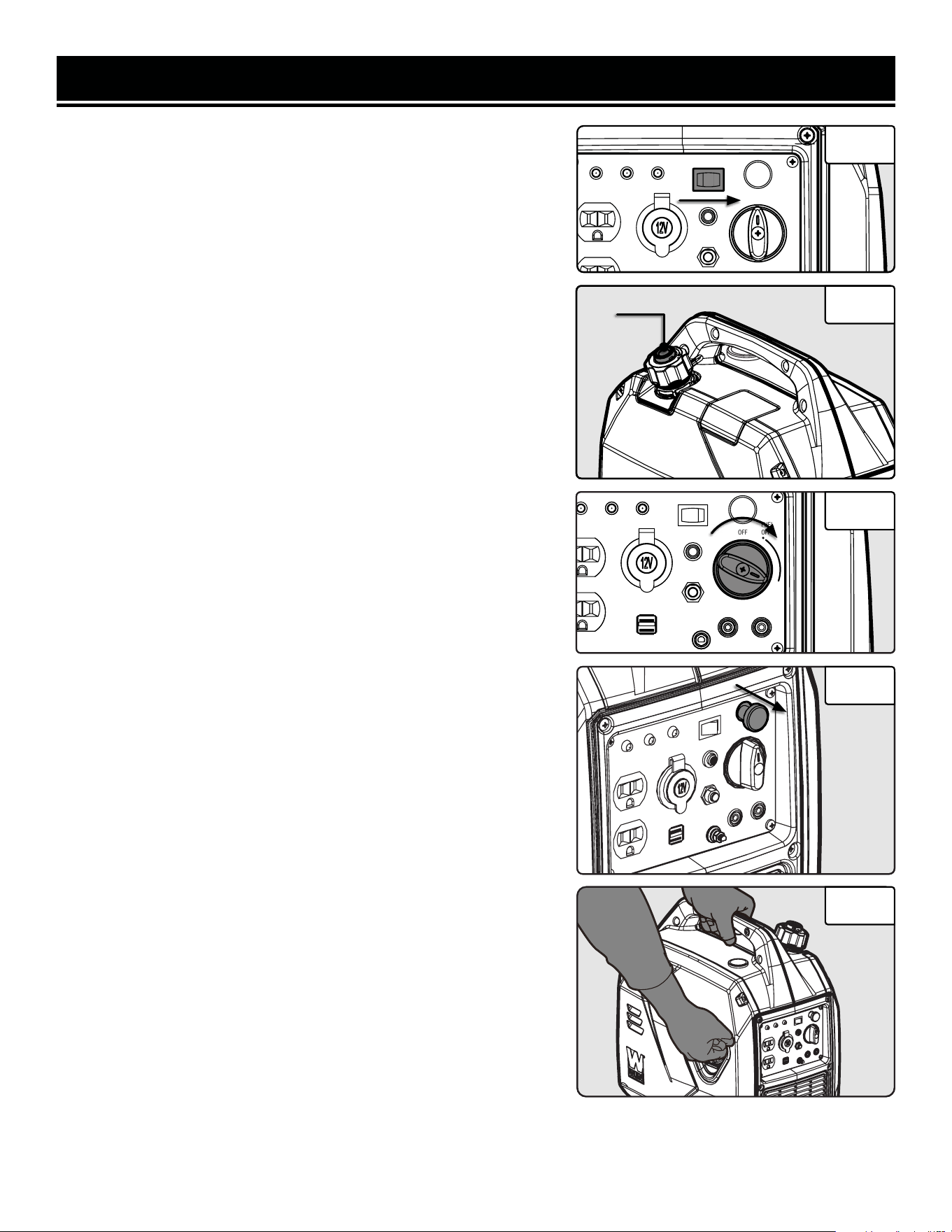

6. Turn the ECO-MODE switch to “OFF” during starting (Fig. 6).
7. Open the vacuum relief valve on top of fuel cap (Fig. 7 - 1) by
rotating it clockwise to the “ON” position. This will allow fuel to flow.
8. Turn the engine switch to the ON position (Fig. 8).
9. Pull out the choke lever to CLOSE the choke valve (Fig. 9).
10. Pull on the recoil starter handle (Fig. 10) slowly until a slight
resistance is felt, then pull quickly to start the engine. Return cord
gently into the recoil starter. Never allow the cord to snap back.
Fig. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
1
16
STARTING YOUR GENERATOR
STARTING THE GENERATOR (CONTINUED)
11. Repeat step 10 until the engine starts. Note that the engine start
time cannot exceed 15 minutes. If the engine fails to start, allow it to
cool down for one minute before restarting, otherwise it may cause
machine damage.
NOTE: After repeated failed attempts to start the engine, please con-
sult the troubleshooting guide before attempting again. If problems
persist please call 1-(800) 232-1195 M-F 8-5 CST.
12. After the engine has started, the output indication light (green)
on the control panel will light up.
13. Slowly push in the choke lever to open the choke valve (Fig. 11).
NOTE: If the engine shakes or runs unstably, pull the choke lever
halfway to the HALF open position, and then push it in to the FULL
open position after the engine is running stably.
14. Allow the engine to run for several minutes before attempting to
connect any electrical devices. This allows the generator to stabilize
its speed and temperature.
PARALLEL OPERATION
The parallel connection feature (Fig. 13 - 1) allows you to connect
two WEN generators to increase the total available electrical power.
The “Parallel Connection Kit” can be purchased from wenproducts.
com.
Follow the instructions included with your WEN parallel connection
kit for proper installation and operaion.
ON OFF
1
ECO-MODE SWITCH
This generator is equipped with an Eco-Mode Idle Control Switch (Fig. 12). Engaging the switch automatically ad-
justs the engine to match the load. When the electrical load changes, the generator engine will automatically speed
up and slow down as needed. This reduces fuel consumption and noise levels.
Keep this switch engaged when the power load requirement is less than 1000W. Do not engage the Eco-Mode
Switch when the total load is more than 1000W. The generator engine must run at full speed to supply power for
anything over 1000W.
OIL LEVEL SHUTDOWN
The low oil indication light (yellow) will turn on to remind you that the engine oil level is low and need to be refilled.
The generator is equipped with a low oil pressure shutoff that will automatically stop the engine when the oil level is
too low to protect the unit from damage. The oil level of the engine should be checked before each start to ensure
that the engine crankcase contains sufficient lubricant.
Fig. 11
Fig. 12
Fig. 13
17
USING YOUR GENERATOR
CALCULATING THE WATTAGE OF YOUR DEVICE(S)
Connect electrical devices running on AC current according to their wattage requirements. Calculate the total run-
ning wattage and starting wattage of the device(s) you wish to connect, and MAKE SURE that they are within the
capacity of your generator and the capacity of each individual outlet.
Generator
Wattage
Capacity
GENERATOR RUNNING (RATED) WATTS GENERATOR STARTING (SURGE) WATTS
1700W 2000W
What this means:
The generator can produce a maximum of
1700W on a continuous basis to supply on-
going power to your electronic devices.
NOTE: Also check the rated amperage for
each outlet and make sure not to overload
the individual outlets.
What this means:
Some devices such as box fans require short
bursts of extra power in addition to the rated
wattage listed by the device to start their mo-
tors.
The generator can produce a maximum watt-
age of 2000W for a short period of time
(seconds) to cover the extra starting power
required by your electronic devices.
Electronic
Device
Wattage
Calculation
Find the wattage information of each device you plan to connect. The information should be
listed on the device or in its instruction manual, or you may refer to page19, Table 2.
The wattage can be calculated using this equation: Watts = Volts x Amperes
To calculate the total running watts of your
devices:
+ Add up the running wattages of all the
device(s) you plan to connect.
= The total running (rated) wattage.
This wattage should NOT exceed the run-
ning wattage of 1700W.
It is recommended to maintain a load at or
below 1530W (90% of the rated output) to
ensure steady voltage output and to prolong
the generator’s lifespan.
To calculate the total starting watts of your
devices:
+ Add up the total running wattage of all the
device(s) you plan to connect.
+ Add the single highest ADDITIONAL start-
ing wattage out of the device(s) you plan to
connect.
= The total starting (surge) wattage.
This wattage should NOT exceed the starting
wattage of 2000W.
If any of either of the total calculated running watts or starting watts is higher than the capac-
ity of your generator, adjust the load until both wattage requirements are met. Otherwise you
will overload the generator, and cause damage to the engine and your electrical device(s).
Table 1 - How to Calculated Wattages
18
USING YOUR GENERATOR
CALCULATING THE WATTAGE OF YOUR DEVICE(S) - CONTINUED
The chart below serves as a reference for the estimated wattage requirements of common electrical devices. How-
ever, do not solely rely on this chart - all electronics and appliances are built differently. Always check the wattage
listed on the electrical device before consulting this chart.
Tool or Appliance Rated (Running) Watts Surge (Starting) Watts
Electric Water Heater (40 Gal) 4000 0
Hot Plate 2500 0
Saw - Radial Arm 2000 2000
Electric Stove (Each Element) 1500-2800 0
Saw - Circular 1500 1500
Air Compressor (1 HP) 1500 3000
Window Air Conditioner 1200 1800
Saw - Miter 1200 1200
Microwave 1000 0
Well Water Pump 1000 1000
Sump Pump 800 1200
Refrigerator Freezer 800 1200
Furnace Blower 800 1300
Computer 800 0
Electric Drill 600 900
Television 500 0
Deep Freezer 500 500
Garage Door Opener 480 0
Stereo 400 0
Box Fan 300 600
Clock Radio 300 0
Security System 180 0
Dvd Player / VCR 100 0
Common Light Bulb 75 0
Table 2 - Estimated Wattages of Common Electrical Appliances
NOTE: Become familiar with the functions and capacity of each component on the control panel before con-
necting electrical devices. See page 21 for more information about the components of the control panel. Do not
overload generator or individual panel receptacles. Do not connect 50Hz or 3-phase loads to the generator.
19
ECO-MODE
ON OFF
DC 12V
RESET
CIRCUIT
BREAKER
OUTPUT OVERLOAD
AC 120V
NEMA 5-20R
START
RUN
CHOKE
OFF
FUEL
OFF
ON
PARALLEL CONNECT
DC 5V
OFF
ON
1A
2.1A
USB
USING YOUR GENERATOR
CONNECTING ELECTRICAL DEVICES
When the rated wattage requirement of each electrical device has been determined, add these numbers to find the
total rated wattage needed. If this number exceeds the rated wattage (1700W) of the generator, DO NOT connect all
these devices. Select a combination of electrical devices with a total rated wattage lower than or equal to the rated
wattage of the generator.
CAUTION! Become familiar with the markings on the control panel (Fig. 14) before connecting electrical
devices. Do not connect 50Hz loads to the generator.
1. Before connecting electrical devices, allow the generator to run for a few minutes to stabilize the speed and volt-
age output.
2. Make sure that all devices are turned off. Start plugging in each electric device, from the highest wattage to the
lowest. Check the power indicator light (green) to ensure the generator is producing power.
3. Do not overload the generator or individual panel receptacles. If an overload occurs, the overload indication light
(red) will activate. If it is flashing, turn off and unplug one load. If it is solid (not flashing), the generator will cut
off power to protect itself. Unplug all electrical devices and then press the reset button to reset the entire circuit,
or press the circuit breaker to reset the DC circuit. Check the total wattage of the devices and reduce the load if it
exceeds the capacity of the generator. Then, plug the loads back in one by one.
NOTE: If the reset button or circuit breaker does not reset, wait several minutes and try again. If problem still per-
sists, please call 1-(800) 232-1195 M-F 8-5 CST.
NOTE: The NEMA 5-20 receptacles are capable of connecting devices up to 20A only when two generators are
parallel connected. When operating a single generator, do not exceed 14A (1700 running watts) on this receptacle.
20
Fig. 14
21
USING YOUR GENERATOR
Table 3 - Power Cord Requirement Guide
SOME NOTES ABOUT POWER CORDS
Long or thin cords can drain the power provided to an electrical device by the generator. When using such cords,
allow for a slightly higher rated wattage requirement by the electrical device.
*NR = Not Recommended
Device Requirements Max. Cord Length (ft) by Wire Gauge
Amps Watts
(120V)
Watts (240V) #8 wire #10 wire #12 wire #14 wire #16 wire
2.5 300 600 NR NR NR 375 250
5 600 1200 NR NR 300 200 125
7.5 900 1800 NR 350 200 125 100
10 1200 2400 NR 250 150 100 50
15 1800 3600 NR 150 100 65 NR
20 2400 4800 175 125 75 50 NR
25 3000 6000 150 100 60 NR NR
30 3600 7200 125 65 NR NR NR
40 4800 9600 90 NR NR NR NR
WARNING! Generator should only be connected to electrical devices, either directly or with an extension
cord. NEVER CONNECT TO A BUILDING ELECTRICAL SYSTEM without a qualified electrician and connected to
a transfer switch as a separately derived system. Such connections must comply with local electrical laws and
codes. Failure to comply can create a back-feed, which may result in serious injury or death to utility workers.
NOTE: For power outages, permanently installed, stationary generators are better suited for providing backup
power to your home. Even a properly connected portable generator can become overloaded. This may result in
overheating or stressing the machine’s components, possibly leading to generator failure.
22
STOPPING YOUR GENERATOR
SHUTTING OFF THE GENERATOR
1. Turn off all electrical devices and then unplug the devices from the generator.
CAUTION! Unplugging running devices can cause damage to the generator. Never stop the engine with elec-
trical devices connected and running.
2. Allow generator to run at no load for a few minutes to stabilize
internal temperatures.
3. Turn the engine switch to the FUEL OFF position (Fig. 15). This fea-
ture will burn off the remaining fuel in the carburetor, helping to com-
bat fuel degradation and prolong engine life. You may also choose to
shut off the engine quickly (e.g. for refueling, moving the generator,
etc.) by turning the engine switch to the OFF position (Fig. 16), but
this option will let fuel remain in the carburetor. Be sure to drain the
carburetor (see page 26) after use to prolong engine life.
4. Close the vacuum relief valve (Fig. 17) on the top of the fuel cap by
rotating it counterclockwise to the OFF position.
WARNING! Allow the generator to cool for several minutes
before touching areas that become hot during use.
CAUTION! Allowing gasoline to sit in the fuel tank for long
periods of time can make it difficult to start the generator in the fu-
ture. Never store the generator for extended periods of time (over
2 months) with fuel in the fuel tank. Refer to “Storing the Genera-
tor” on page 28.
OFF
FUEL
OFF
ON
OFF
FUEL
OFF
ON
Fig. 15
Fig. 16
Fig. 17
23
MAINTENANCE
Proper routine maintenance of the generator will help prolong the life of the machine. Please perform maintenance
checks and operations according to the schedule in Table 4.
CAUTION! Never perform maintenance operations while the generator is running. Before maintaining or
servicing the generator, turn OFF the generator, disconnect all devices and allow the generator to cool down.
If there are any questions about the maintenance procedures listed in this manual, please call 1-(800) 232-1195 M-F
8-5 CST or email [email protected].
Recommended
Maintenance Schedule
Every 8
Hours or
Daily
Every 25
Hours
Every 3
Months or
50 Hours
Every 6
Months or
100 Hours
Before
Storage
As
Necessary
Engine Oil
Check Level x
Replace x* x
Air Filter
Check x*
Clean x*
Spark Plug
Check/Clean/
Regap
x
Change x x
Fuel
Check Level x
Drain x x
Carburetor Drain x x
Spark
Arrestor
Check/Clean x
Table 4 - Recommended Maintenance Schedule* Clean/change more often under dusty conditions
or operating under heavy load.
IMPORTANT GENERATOR MAINTENANCE TIPS:
• Drain your carburetor after each use and before storage to prevent it from clogging.
• Do not store the generator with fuel inside the tank for more than 2 months - the fuel will go bad.
• Run the generator for at least 15 minutes every month to maximize its lifespan.
CLEANING THE GENERATOR
Keep the generator clean to prevent improper operation or machine damage from dirt and debris. Inspect all venti-
lation openings on the generator. These openings must be kept clean and unobstructed. If the generator becomes
dirty, use a damp cloth to wipe exterior surfaces. Use a soft bristle brush to loosen dirt and oil and use a vacuum to
pick up loose dirt. Use low pressure air (not to exceed 25 PSI) to blow away dirt.
CAUTION! Never clean the generator when it is running! Never clean with a bucket of water or a hose. Water
can get inside the working parts of the generator and cause corrosion or a short circuit.
NOTE: Failure to properly maintain the generator will void the warranty.
24
MAINTENANCE
WARNING! Make sure generator is shut off before performing any inspection or maintenance procedures.
CHECKING / ADDING OIL
Check the oil level of the generator according to the Recommended Main-
tenance Schedule in Table 4. The oil level should be checked before each
use or every 8 hours of operation. The oil capacity of the generator engine
is 15 fl. ounces. Add oil when the oil level is low.
For proper type and weight of oil refer to “Add / Check Oil” section on
page 12. The generator is equipped with an automatic shutoff to protect
it from running on low oil. To check the oil level:
1. Make sure the generator is on a level surface. Do not tilt the generator
to assist in filling, as oil will flow into engine areas and cause damage.
Keep generator level!

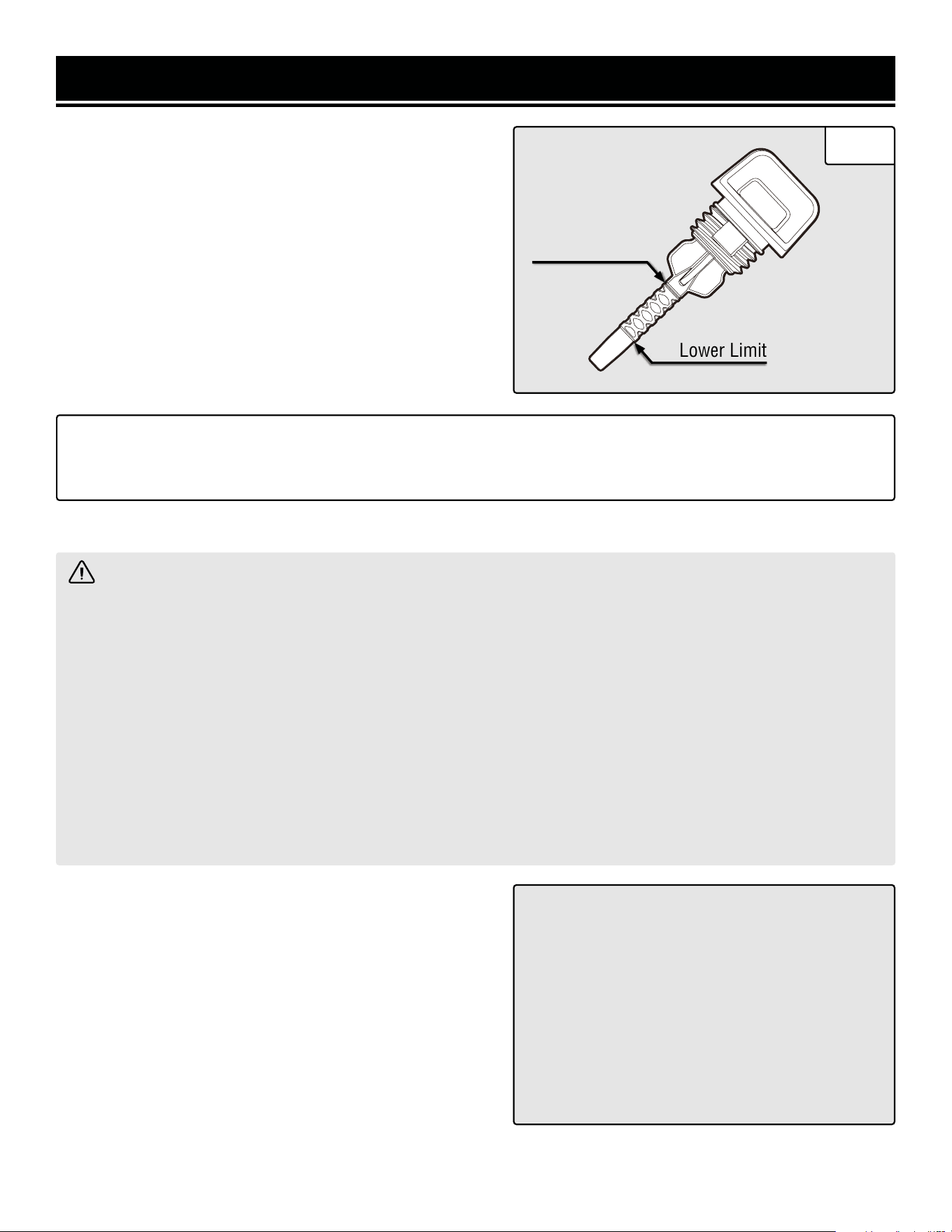

2. Open the oil access cover (Fig. 18 - 1). Remove the dipstick (Fig. 19)
and wipe it with a clean rag.
3. Insert the dipstick into the oil fill opening without screwing in. Remove
the dipstick to check the oil mark. Add oil if the oil mark covers less than
one half of the dipstick.
4. Using a funnel or appropriate dispenser, slowly add more oil. Repeat
step 3 until the oil mark measures between the upper limit mark and half-
way mark of the dipstick. Do not over fill the crankcase.
5. Reinstall dipstick and wipe clean any spill oil with a rag.
DRAINING / CHANGING THE OIL
Change the oil according to the Recommended Maintenance Schedule in Table 4. Change the oil more often if oper-
ating under heavy load or high ambient temperatures. It is also necessary to drain the oil from the crankcase if it has
become contaminated with water or dirt. Changing the oil when the engine is warm allows for complete drainage.
Drain the oil from the generator according to the following steps.
1. Place generator on an elevated platform such as table or desk. Prepare a container underneath the oil fill to catch
the oil as it drains.
2. Open the oil access cover. Remove the dipstick and tilt the generator towards you to allow the oil to drain from
the engine completely.
3. Reinstall the oil dipstick and tighten it securely. Wipe clean any oil spillage and replace the oil access cover.
NOTE: Do not dispose of used motor oil in the trash or down a drain. Please call a local recycling center or auto
garage to arrange proper oil disposal.
1
Upper Limit
Lower Limit
Fig. 18
Fig. 19
25
MAINTENANCE
SPARK PLUG MAINTENANCE
The spark plug is important for proper engine operation. A good
spark plug should be intact, free of deposits, and properly gapped.
Refer to Recommended Maintenance Schedule in Table 4 for for
instructions on maintaining. To inspect the spark plug:
1. Open the spark plug access cover (Fig. 20 - 1).
2. Pull up to remove the black plastic spark plug boot. Be careful
not to tear any insulation or wire.
3. Use a spark plug wrench to unscrew and remove the spark plug
from the engine.
4. Visually inspect the spark plug for cracks or excessive elec-
trode wear. If the electrodes are worn or burned, or porcelain is
cracked, replace with a NGK BPR5HS/Torch E5T spark plug (Part
No. 56202i-102), available at wenproducts.com.
5. If re-using the spark plug, use a wire brush to clean any dirt
from around the spark plug base then re-gap the spark plug.

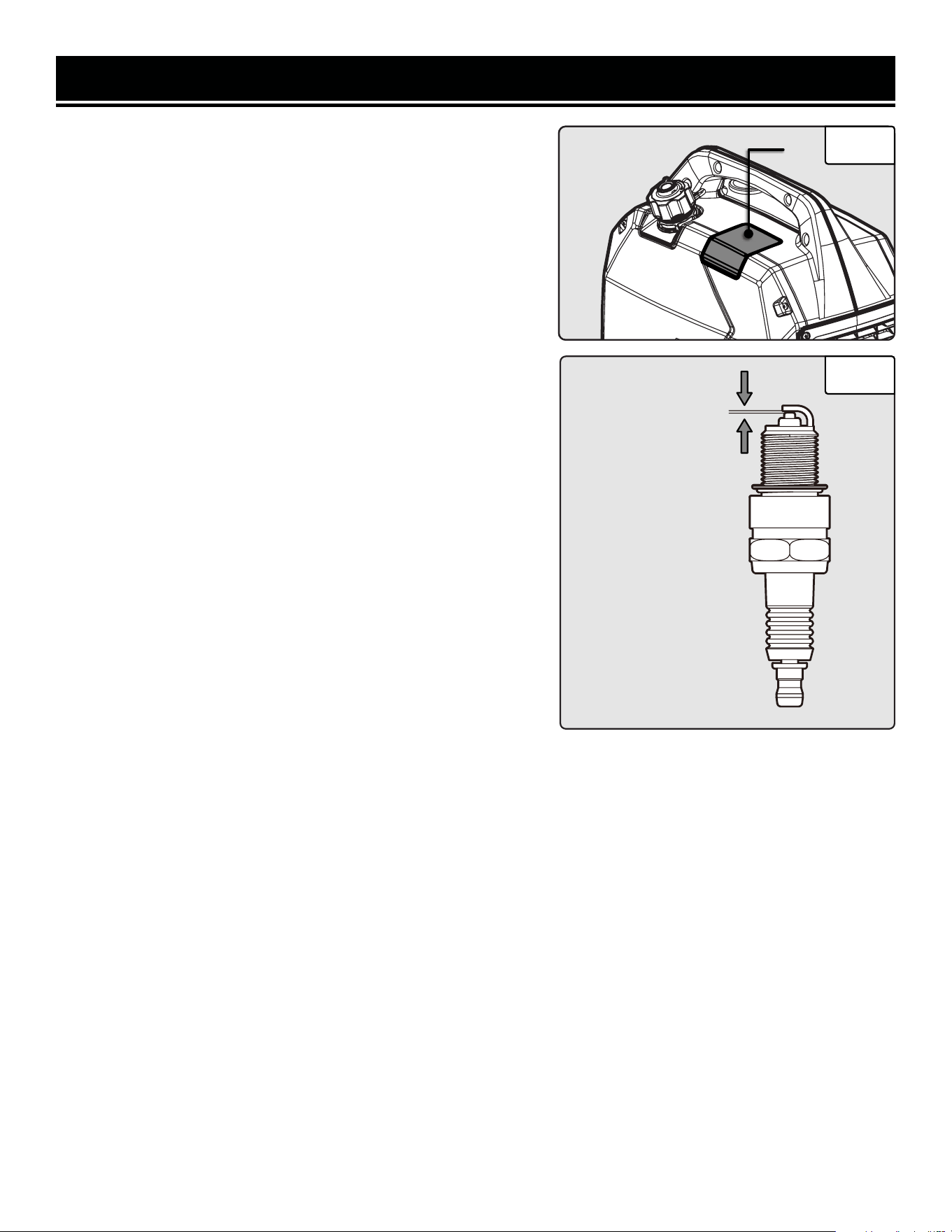

6. Measure the plug gap with a wire gauge (Fig. 21). The gap
should be 0.6 mm - 0.8 mm. Carefully adjust the gap if necessary.
7. Screw the spark plug back into the spark plug hole by hand.
After the spark plug is properly seated, use the spark plug wrench
to tighten it.
NOTE: The spark plug torque is 15 ft. lb. The recommended tightening of spark plug is ½ to ¾ of a turn after spark
plug gasket contacts spark plug hole. Do not over-tighten the spark plug.
8. Reinstall the spark plug boot over the spark plug.
9. Reinstall the spark plug access cover.
1
Fig. 20
Fig. 21
0.6 mm - 0.8 mm
MAINTENANCE
AIR FILTER MAINTENANCE
Routine maintenance of the air filter helps maintain proper airflow
to the carburetor. Occasionally check that the air filter is free of ex-
cessive dirt. The air filter should be checked every 50 hours of use.
Refer to Recommended Maintenance Schedule in Table 4.

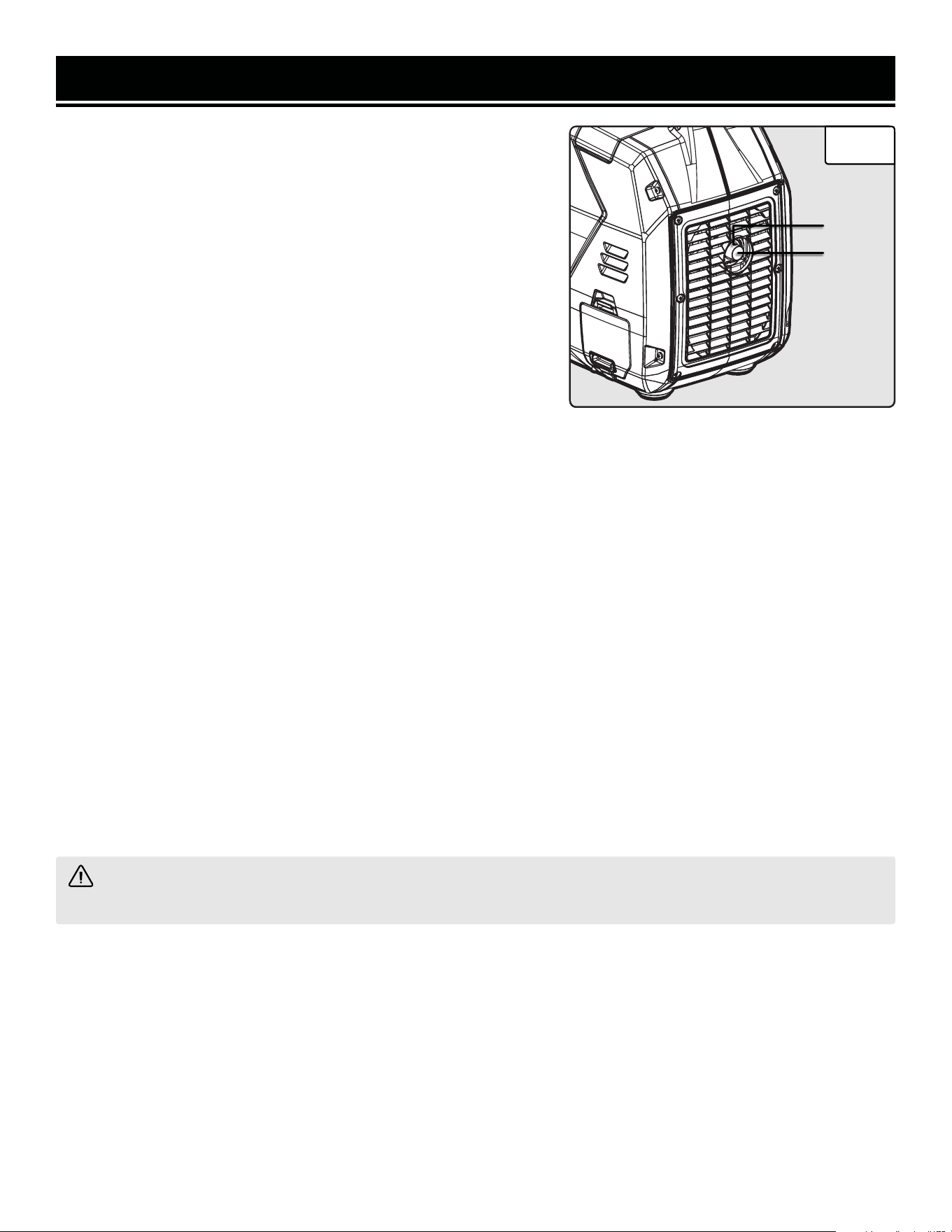

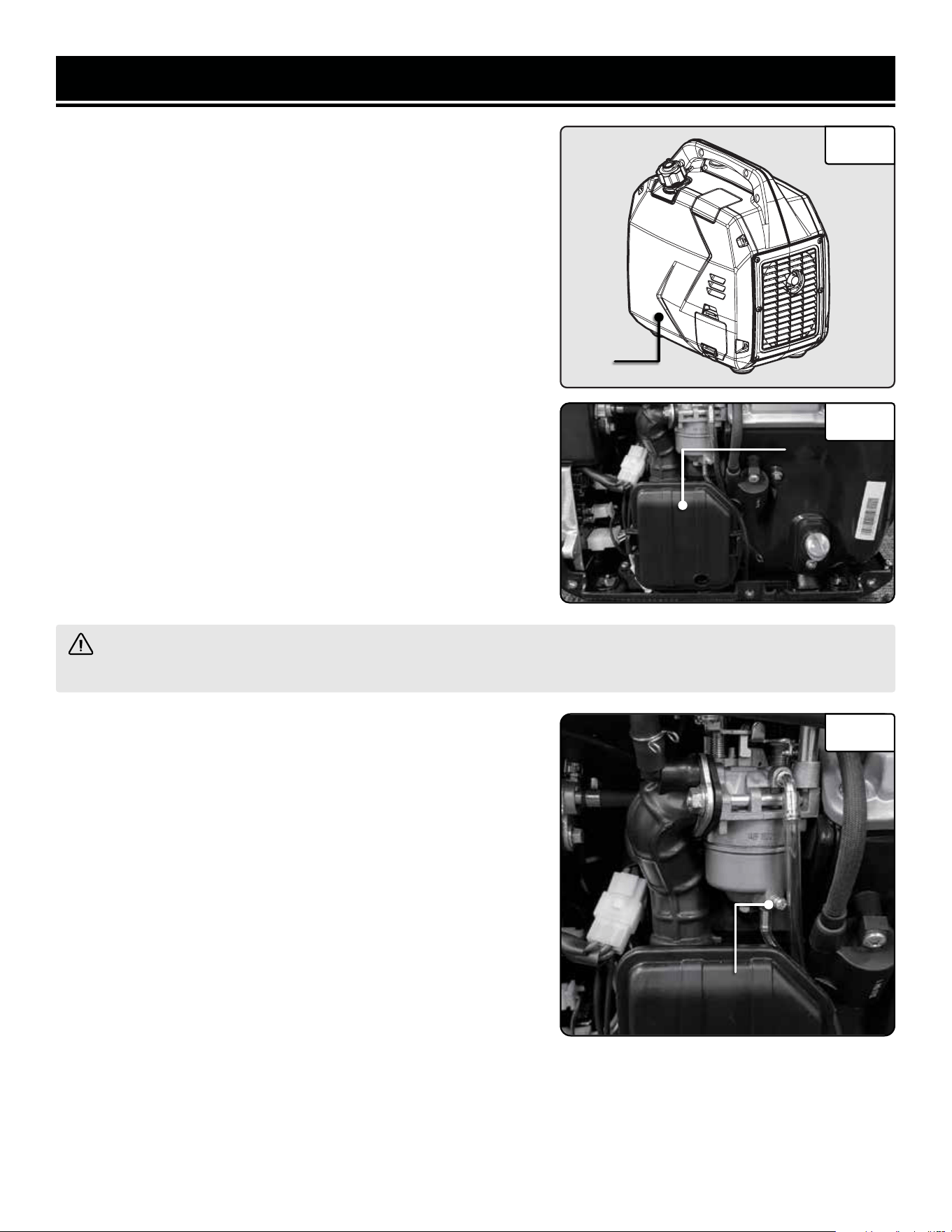

1. Remove the oil access panel. Unscrew the four Phillips-head
screws and remove the side panel (Fig. 22 - 1).
2. Open the air filter cover (Fig. 23 - 1), and remove the air filter
foam element from the casing.
3. Check and clean the foam air filter element. Wash the filter ele-
ment in warm soapy water. Squeeze it thoroughly dry in a clean
cloth. Saturate the element in clean engine oil and squeeze off ex-
cess oil in a clean absorbent cloth. A small amount of oil in the
element is normal and necessary for the engine to work properly.
If the element is damaged, replace it with a new one.
4. Reinstall the air filter element and close the air filter cover. Close
the the cover. Secure it with the screws. Reinstall the oil access
panel.
CAUTION! Running the engine with a dirty, damaged, or missing air filter element will result in possible
danger and cause the engine to wear out prematurely.
DRAINING THE CARBURETOR
Drain the carburetor after every use and before storing
the generator (refer to Table 4). Draining the
carburetor can help prevent build-up and blockages caused
by stagnant fuel inside of the carburetor.
1. Remove the oil access panel. Unscrew the four Phillips-head
screws and remove the side panel (Fig. 22 - 1).
2. Open up the carburetor drain screw (Fig. 24) with a Phillips
screwdriver and drain out any gasoline that has built up inside the
carburetor.
3. Once the fuel has drained, tighten the drain screw with the
screwdriver.
NOTE: Make sure to drain your carburetor before storing the gen-
erator for long periods of time.
4. Close the back cover and muffler cover, and secure them with
the screws.
1
26
1
Carburetor
Drain Screw
Fig. 22
Fig. 23
Fig. 24
MAINTENANCE
SPARK ARRESTOR MAINTENANCE
It is recommended to inspect and clean the spark arrestor
(Fig. 25 - 2) every 100 hours of operation.
1. The spark arrestor is located outside the muffler, which gets very
hot during operation. Allow the engine to cool completely before ser-
vicing the spark arrestor.
2. Unscrew the six Phillips head screws and remove the muffler cov-
er (Fig. 22 - 1).
3. Remove screw that holds spark arrestor to muffler (Fig. 25 - 1).
4. Remove the spark arrestor screen.
5. Carefully clean and remove the carbon deposits from the spark arrestor screen with a wire brush. Replace the
spark arrestor (Part No. 56202i-040) if it is damaged.
6. Reinstall the spark arrestor in the muffler and secure it in place with the screw.
7. Replace the muffler cover and secure it with the six screws.
DRAINING THE FUEL TANK
1. Prepare an approved gasoline-storage container. Make sure the vacuum-relief valve atop the gas cap is open.
Make sure the engine switch is turned to OFF.
2. Remove the side panel to access the carburetor, as instructed on the previous page.
3. Open the carburetor drain screw and turn the engine switch to ON. This will allow gasoline to drain from the gas
tank through the carburetor.
NOTE: it may take a few hours for your tank to drain completely, depending on the amount of gasoline in the tank.
4. Once the gasoline has drained fully, close the carburetor drain screw, turn the engine switch to OFF, and close the
vacuum-relief valve.
CAUTION! Running the engine with a dirty, damaged, or missing air filter will result in possible danger and
cause the engine to wear out prematurely.
1
2
27
Fig. 25
TRANSPORTATION & STORAGE
WARNING! Avoid direct sunlight inside a vehicle. If the generator is left in an enclosed vehicle for many
hours, the high temperature could cause the fuel to vaporize and result in a possible explosion.
WARNING! Store the generator upright in a cool and dry location, away from sources of heat, open flames,
sparks or pilot lights.
TRANSPORTING THE GENERATOR
To prevent fuel spillage when transporting, be sure to perform the following:
1. Tighten the fuel cap and turn the fuel valve to the OFF position.
2. Flip the engine switch to the OFF position.
3. Drain the fuel tank if possible. Refer to page 27, “Draining the Fuel Tank.”
4. Keep the generator upright. Never place the generator on its side or upside down - doing so could damage the
internal components of the generator and make it difficult to start.
STORING THE GENERATOR
Shut off the generator and allow the unit to cool to room temperature before storing it. NEVER place any type of
storage cover on the generator while it is still hot. Do not obstruct any ventilation openings.
Follow the procedures below for properly storing your generator. We highly recommend running your generator
once a month for 20 to 30 minutes. Plug in a small load in to ensure there is proper power output.
PRODUCT DISPOSAL
Do not dispose of a used generator or parts with your household waste. This product contains electrical or elec-
tronic components that should be recycled. Please take this product to your local recycling facility for responsible
disposal to minimize its environmental impact.
Do not dispose of used oil or fuel in the trash or down a drain. Please contact your local recycling center or auto
garage to arrange proper oil/fuel disposal.
For Short Periods (30 to 60 Days):
• Drain the carburetor. Refer to page 26, “Draining the
Carburetor.”
• Add fuel stabilizer: Follow the suggested portions and
instructions of your preferred stabilizer. Run the engine for
15 to 20 minutes, allowing the fuel stabilizer to mix with the
gasoline and circulate through the carburetor, and then top
off with fuel. Filling the fuel tank full reduces the amount of
air in the tank and helps fight deterioration of fuel.
For Extended Periods (Over 60 Days):
• Drain the fuel tank and carburetor (see
“Draining the Fuel Tank”). Never store
generator with fuel in the tank for more
than two months.
• Change the engine oil (see “CHANGING
OIL”).
Please recycle the packaging and electronic components where facilities exist. Please contact your
local auto garage or recycling facility to properly dispose of oil/fuel.
28
TROUBLESHOOTING GUIDE
WARNING! Stop using the generator immediately if any of the following problems occur or risk serious
personal injury. If you have any questions, please contact customer service at 1-800-232-1195 (M-F 8-5 CST),
or email [email protected].
PROBLEM POSSIBLE CAUSE SOLUTION
Engine will not
start.
Engine switch is set to OFF. Set engine switch to ON.
Choke is open. Close the choke.
Engine is out of fuel. Add fuel.
Engine is filled with con-
taminated or old fuel.
Drain the fuel in the tank. Fill with fresh fuel.
Spark plug is dirty. Clean the spark plug.
Spark plug is broken. Replace spark plug.
Oil level is low.
Add or replace oil. This generator is equipped with a low
oil sensor. The engine will not start unless the oil level is
sufficient.
Carburetor is air locked.
Shut off the fuel valve. Remove the nut from the bottom of
the carburetor. Take off the carburetor to allow it to reset.
Place the carburetor back and reinstall the nut.
Engine runs
but there is no
electrical output.
Circuit breaker has been
tripped due to overload.
Disconnect all the loads. Wait for two minutes and push the
circuit breaker to the ON position to reset it.
Bad connecting cords/wires.
Check the power cords and extension cords. Do not use if
any cord is damaged. Replace damaged cords immediately.
Bad electrical device con-
nected to the generator.
Try connecting a different device.
Generator runs but
does not support all
electrical devices
connected.
Generator is overloaded.
Perform these steps:
1. Turn off all electrical devices.
2. Unplug all electrical devices.
3. Turn off generator.
4. Wait several minutes.
5. Restart generator.
6. Try connecting few electrical loads to the generator.
Short circuit in one of the
devices.
Try disconnecting any faulty or short-circuited electrical
loads.
The air filter is dirty. Clean or replace the air filter element (see page 20).
Engine is
“Hunting” during
Operation (Engine
RPM is fluctuating).
1. The fuel isn’t running
through the fuel valve.
2. The air filter is clogged.
3. The muffler or spark ar-
restor is blocked
4. There is gunk in the car-
buretor preventing a consis-
tent fuel/air mixture.
Turn off the generator and wait for it to cool down. Per-
form the following steps:
1. Check if the fuel is properly and consistently going
through the fuel valve
2. Check for any blockage in the air filter. Check and clean
the air filter as necessary.
3. Check if the spark arrestor is blocked. Clean with metal
brush as necessary.
4. Use “Gunk remover” spray on the carburetor jets.
29

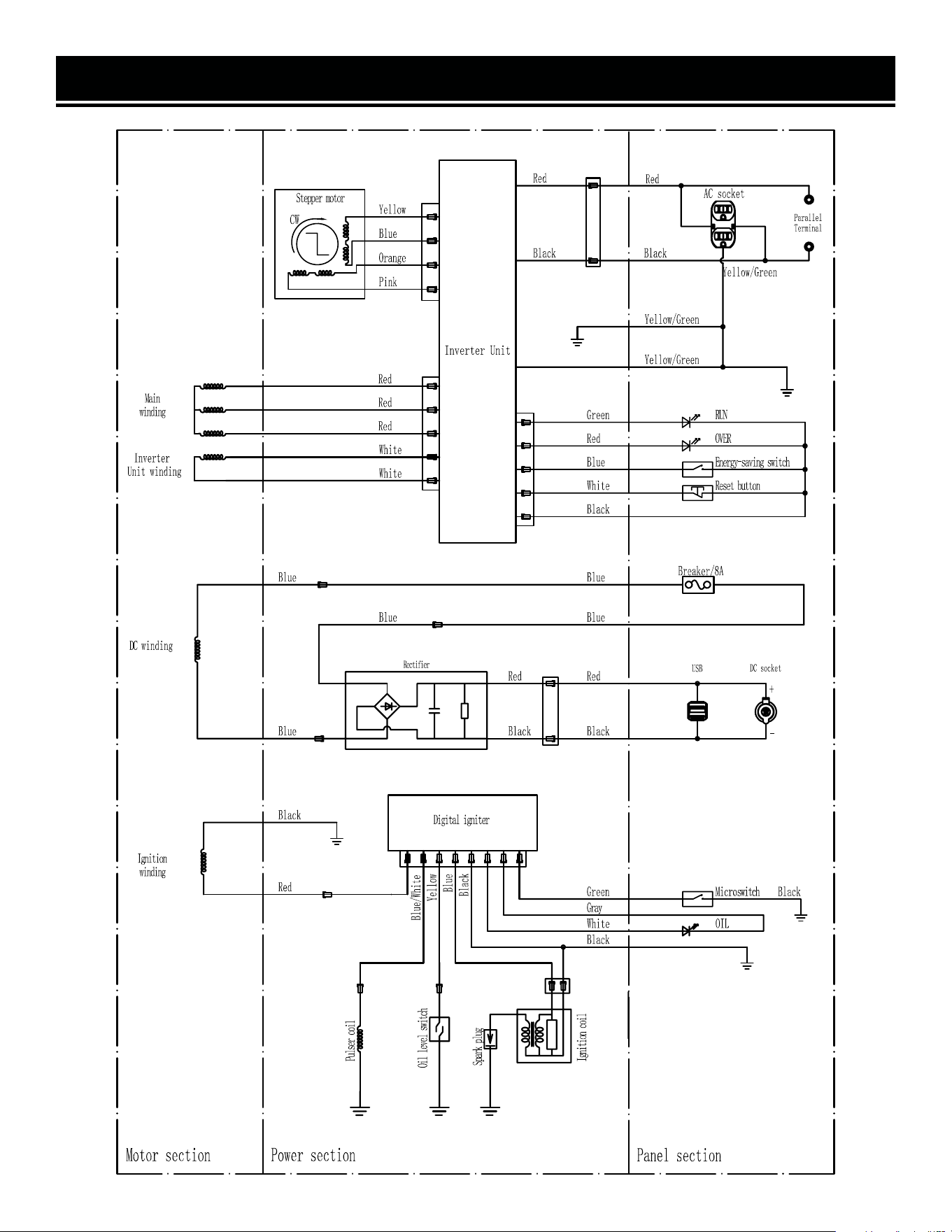

WIRING DIAGRAM
30
EXPLODED VIEW & PARTS LIST

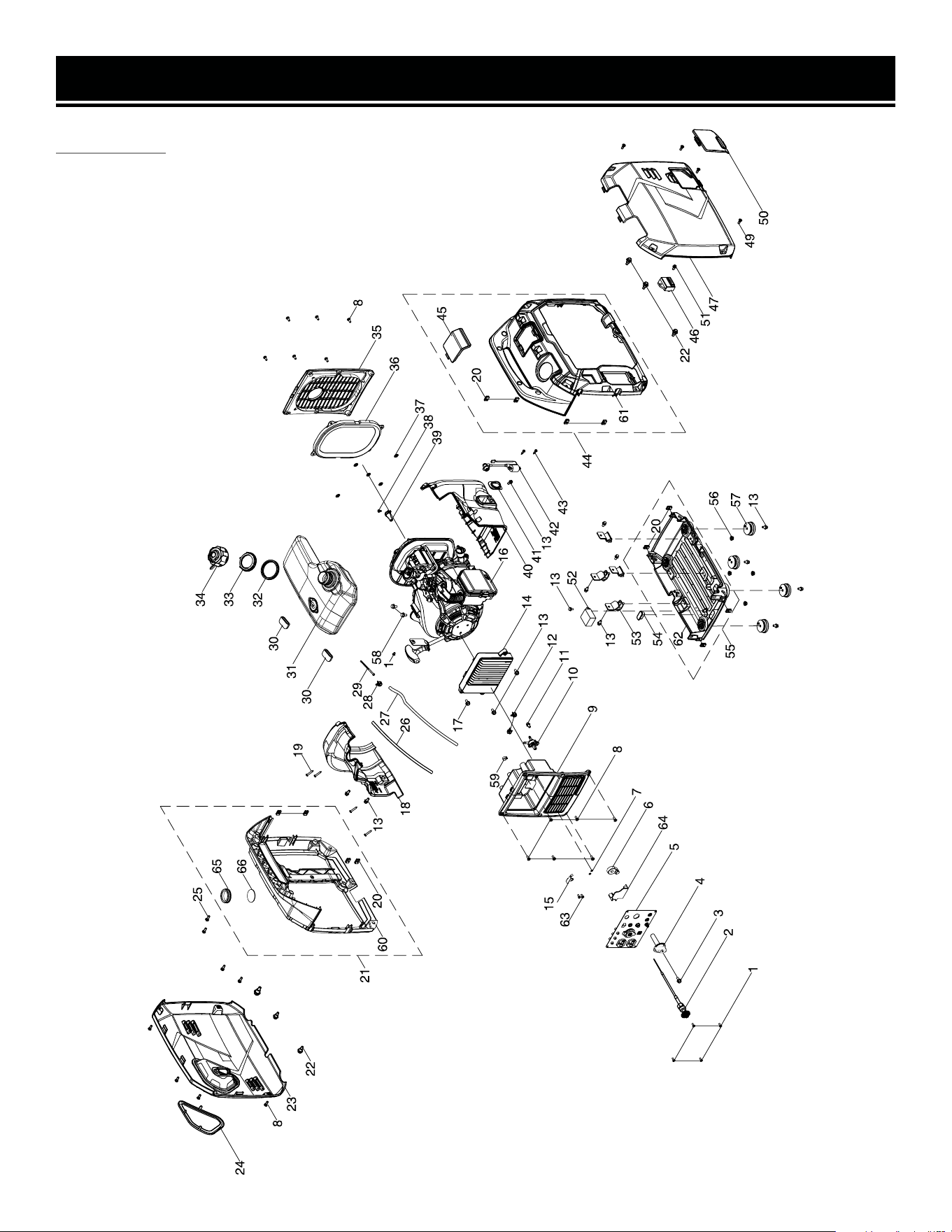

GENERATOR
31
EXPLODED VIEW & PARTS LIST
NO. PART NO. DESCRIPTION QTY.
1 56202i-001 Screw, M4x10 5
2 56202i-002 Cable 1
3 56202i-003 Screw, M4x18 1
4 56202i-004 Fuel Valve Lever 1
5
56203i-
005ASM
Control Panel Assembly 1
6 56202i-006 Switch Block 1
7 56202i-007
Circlip, Bearing Holder,
Ø10.8 x Ø6
2
8 56202i-008 Step Bolt 16
9 56202i-009 Protective Panel 1
10 56202i-010 Fuel Valve 1
11 56202i-011
Hex Head Flange Bolt,
M6x14
1
12 56202i-012 Clamp 1, Ø8 2
13 56203i-013 Big Flange Bolt, M6x12 14
14 56202i-014 Inverter, 120V 60Hz 1
15 56202i-015 Spring 1
16 56202i-016 Engine Assembly, 79cc 1
17 56202i-017 Bolt, M5x12 1
18 56202i-019 Front Air Guide 1
19 56203i-019
Self-tapping Screw,
ST4.2x25
4
20 56202i-020 Threaded Clamp 12
21
56203i-
021ASM
Left Frame Assembly 1
22 56202i-022 Shaft Locating Bolt 6
23 56202i-023 Left Cover Panel 1
24 56202i-024
Protective Panel, Starter
Handle
1
25 56202i-025 Screw, M5x16 4
26 56202i-026 Tube Sheath 1
27 56202i-027 Fuel Tube, 300mm 1
28 56202i-028 Clamp 2, Ø9.7 x 8 1
29 56202i-029 Fuel Strainer 1
30 56202i-030 Rubber Pad 2
31 56203i-031 Fuel Tank 1
NO. PART NO. DESCRIPTION QTY.
32 56202i-032 Rubber Washer 1
33 56202i-033 Lock Nut 1
34 56202i-034 Fuel Tank Cap 1
35 56202i-035 Muffler Cover 1
36 56202i-036 O-ring Seal 1
37 56202i-037 Retainer Ring 5
38 56202i-038
Self-tapping Screw,
ST4.2x9.5
1
39 56202i-039 Spark Arrestor Assembly 1
40 56202i-040 Rear Air Guide 1
41 56202i-041 Oil Seal 1
42 56202i-042 Ignition Coil 1
43 56202i-043
Self-tapping Screw,
ST4.8x20
2
44
56202i-
044ASM
Right Frame Assembly 1
45 56202i-045 Spark Plug Access Panel 1
46 56202i-046 Igniter 1
47 56202i-047 Right Cover Panel 1
49 56202i-049 Phillips Screw 4
50 56202i-050 Oil Access Panel 1
51 56203i-051 Screw, M6x12 1
52 56202i-052 Rectifier Bridge 1
53 56202i-053 Damper Supports 4
54 56202i-054 Rubber Support 1
55 56202i-055 Bottom Plate Assembly 1
56 56202i-056 Nut M6 4
57 56202i-057 Foot 4
58 56203i-058 Bolt, M6x18 2
59 56203i-059 Clip 1
60 56203i-021 Left Frame 1
61 56202i-044 Right Frame 1
62
56202i-
055.1
Base Plate 1
63 56203i-063
Self-tapping Screw,
ST4.2×10
2
64 56203i-064 Block 1
65 56203i-065 Rubber Ring 1
66 56203i-066 Cover Plate 1
GENERATOR
32
EXPLODED VIEW & PARTS LIST

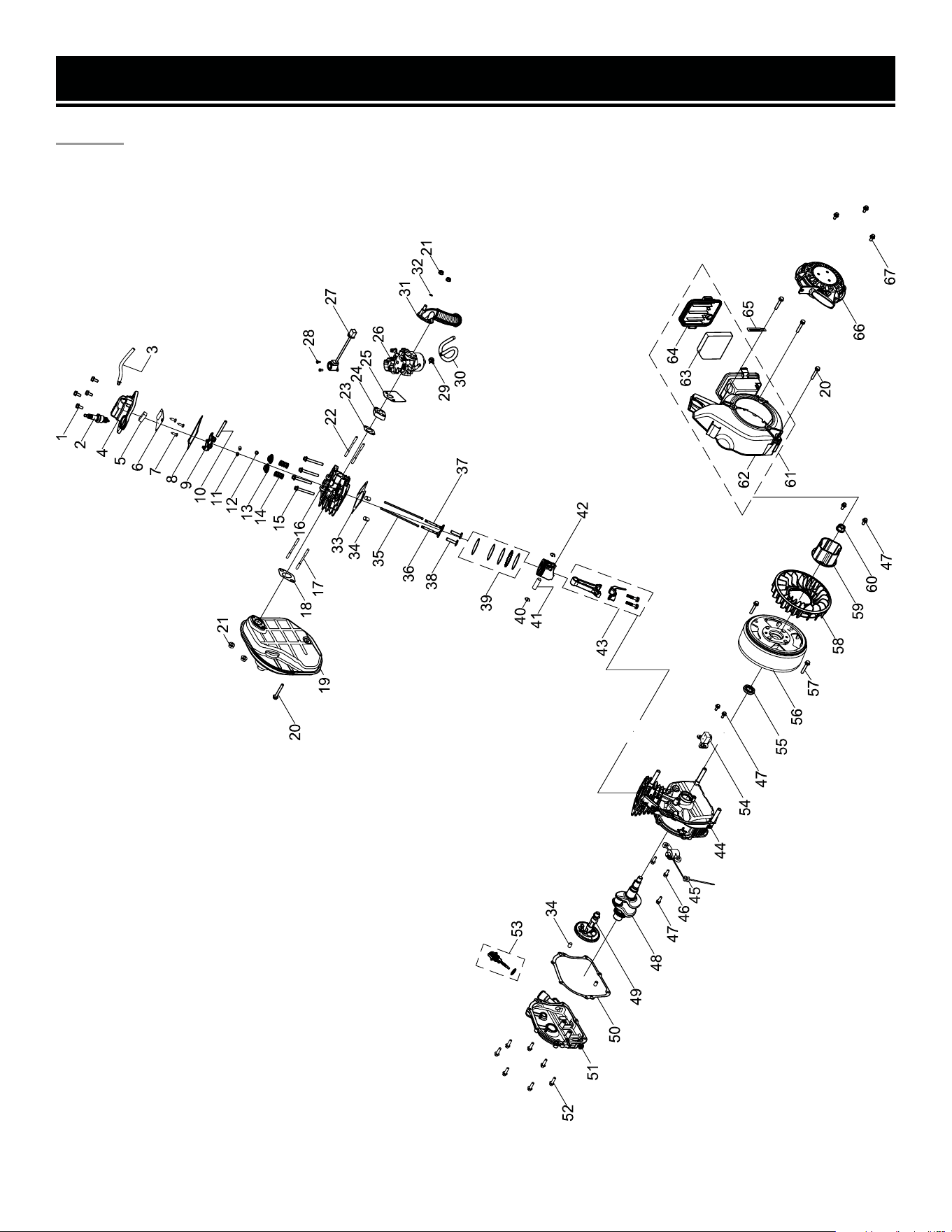

ENGINE
33
EXPLODED VIEW & PARTS LIST
NO. PART NO. DESCRIPTION QTY.
1 56202i-101
Hex Head Flange Bolt,
M6x18
4
2 56202i-102
Spark Plug, Torch E5T
(NGK BPR5HS)
1
3 56202i-103 Breather Tube 1
4 56202i-104
Cylinder Head Cover As-
sembly
1
5 56202i-105
Strainer, Cylinder Head
Cover
1
6 56202i-106
Inner Cover, Cylinder Head
Cover
1
7 56202i-107 Cross Head Screw, M3x6.5 3
8 56202i-108
Gasket, Cylinder Head
Cover
1
9 56202i-109 Rocker Arm Assembly 2
10 56202i-110 Shaft, Rocker Arm 1
11 56202i-111 Valve Collet 2
12 56202i-112 Oil Drip Plug 1
13 56202i-113 Valve Spring Seat, 182F 2
14 56235i-114 Spring Valve 2
15 56202i-115 Flange Bolt, M6x50 4
16 56235i-116 Cylinder Head 1
17 56202i-117 Stud Bolt, M6x72 2
18 56202i-118 Gasket, Muffler 1
19 56203i-119 Exhaust Muffler Assembly 1
20 56202i-120 Flange Bolt M6x60 4
21 56202i-121 Lock Nut M6, Flange 4
22 56202i-122 Stud Bolt, M6x87 2
23 56202i-123 Gasket, Carburetor 1
24 56202i-124 Insulator, Carburetor 1
25 56202i-125 Gasket, Insulator 1
26 56235i-126 Carburetor 1
27 56202i-127 Stepper Motor 1
28 56203i-128 Screw, M4x6 2
29 56202i-129 Clamp 1, Ø7.5 1
30 56202i-130 Oil Tube 1
31 56202i-131 Air Filter Hose 1
32 56202i-132 Clamp 1
33 56202i-133 Gasket, Cylinder Head 1
34 56202i-134 Dowel Pin, Ø8x12 4
NO. PART NO. DESCRIPTION QTY.
35 56202i-135 Push Rod 2
36 56202i-136 Valve, Exhaust 1
37 56235i-137 Valve, Intake 1
38 56202i-138 Lifter, Valve 2
39 56202i-139 Piston Ring Set 1
40 56202i-140 Circlip 2
41 56202i-141 Piston Pin 1
42 56235i-142 Piston 1
43 56202i-143 Connecting Rod Assembly 1
44 56202i-144 Crankcase 1
45 56202i-145 Oil Level Sensor 1
46 56202i-146
Hex Head Flange Bolt,
M6x16
2
47 56202i-147
Hex Head Flange Bolt,
M6x12
5
48 56202i-148 Crankshaft 1
49 56235i-149 Camshaft 1
50 56202i-150 Gasket, Crankcase Cover 1
51 56202i-151 Cover, Crankcase 1
52 56202i-152
Hex Head Flange Bolt,
M6x20
7
53 56202i-153 Oil Dipstick Assembly 1
54 56202i-154 Trigger 1
55 56202i-155 Oil Seal, Ø20xØ32x6 1
56 56235i-156 Alternator Assembly 1
57 56202i-157 Flange Bolt, M6x32 2
58 56202i-158 Cooling Fan 1
59 56202i-159 Pulley, Starter 1
60 56202i-160 Flange Nut, M12-1.25 1
61 56202i-161 Fan Cover Assembly 1
62 56202i-162 Fan Cover 1
63 56202i-163 Air Filter Element 1
64 56202i-164 Air Filter Cover 1
65 56202i-165 Wire Clip B 1
66 56202i-166 Recoil Starter Assembly 1
67 56202i-167
Hex Head Flange Bolt,
M6x14
3
ENGINE
34
EXPLODED VIEW & PARTS LIST
35

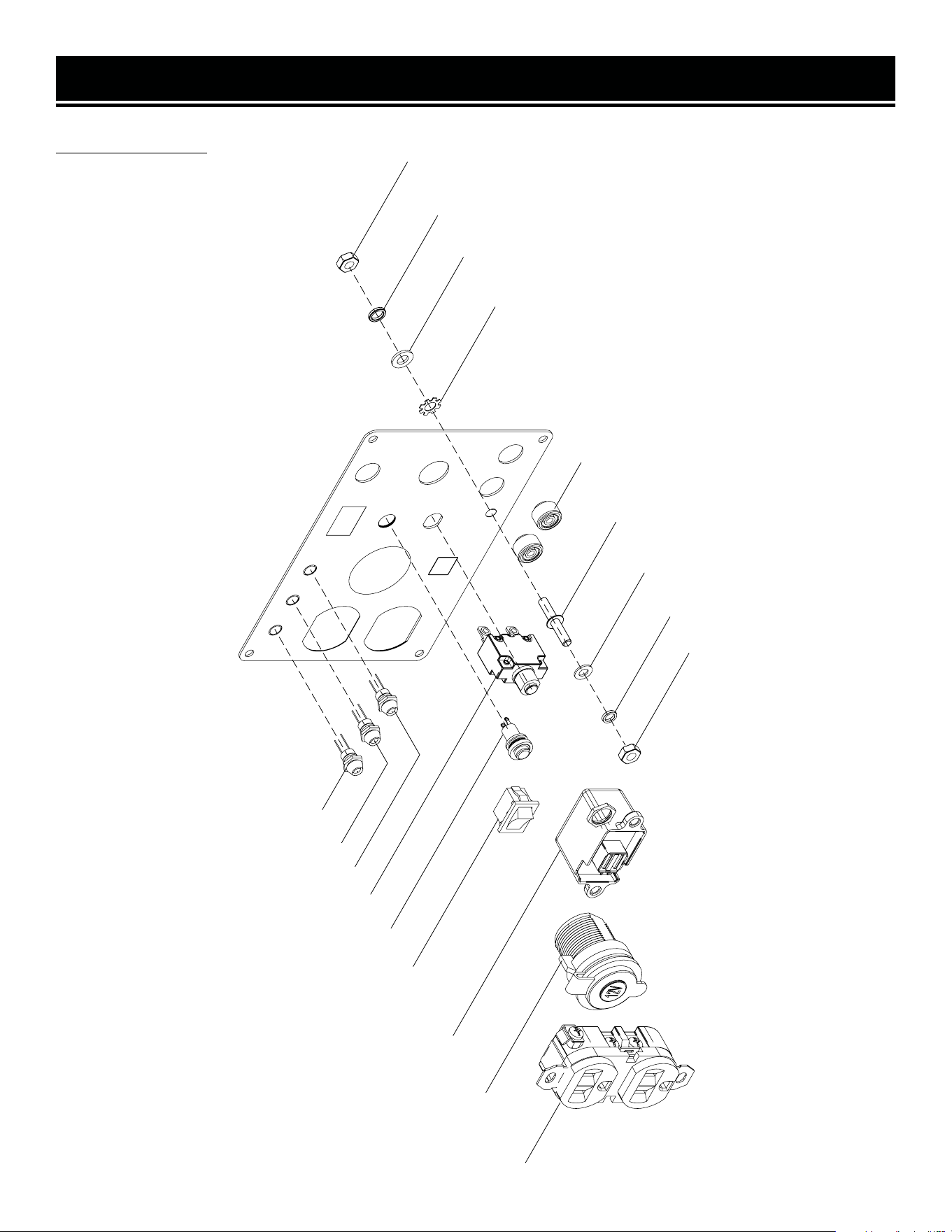

CONTROL PANEL
1
2
3
4
5
6
7
8
9
10
10
11
11
12
12
13
14
15
EXPLODED VIEW & PARTS LIST
NO. PART NO. DESCRIPTION QTY.
1 56203i-005.1
NEMA 5-20R 120V AC
Duplex Outlet
1
2 56203i-005.2 DC 12V Outlet 1
3 56203i-005.3 USB Outlet 1
4 56203i-005.4 Eco-Mode Switch 1
5 56203i-005.5 Reset Button 1
6 56203i-005.6 DC Breaker, 8A 1
7 56203i-005.7 Oil Level LED, Yellow 1
CONTROL PANEL
36
NO. PART NO. DESCRIPTION QTY.
8 56203i-005.8 Overload LED, Red 1
9 56203i-005.9 Output LED, Green 1
10 56203i-005.10 Nut, M6 2
11 56203i-005.11 Locking Washer, 6mm 2
12 56203i-005.12 Flat Washer, 6mm 2
13 56203i-005.13 Bolt, M6x20 1
14 56203i-005.14 Parallel Socket 2
15 56203i-005.15 Washer, 6mm 1
WARRANTY STATEMENT
37
WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this
commitment and our dedication to qualit
y.
LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE
GREA
T LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer
power
tools
will be free from defects in material or workmanship during personal use for a period of two (2) years from
date
-
fessional or commer
cial use. Purchaser has 30 days from the date of purchase to report missing or damaged parts.
SELLER’S SOLE OBLIG
ATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent per-
mitted
by law, any warranty or condition implied by law, shall be the replacement of parts, without charge, which
are
defective
in material or workmanship and which have not been subjected to misuse, alteration, careless handling,
misrepai
r, abuse, neglect, normal wear and tear, improper maintenance, improper storage, incorrect lubricants/
fuels,
or other conditions adversely affecting the Product or the component of the Product, whether by accident or
intentionall
y, by persons other than Seller. To make a claim under this Limited Warranty, you must make sure to
keep
-
chase. Place of Pur
chase must be a direct vendor of Great Lakes Technologies, LLC. Pur
chasing through third party
vendors,
including but not limited to garage sales, pawn shops, resale shops, or any other secondhand merchant,
voids the warranty included with this product. Contact [email protected] or 1-800-232-1195 with the
following
information to make arrangements: your shipping address, phone number, serial number, required part
numbers, and proof of pur
chase. Damaged or defective parts and products may need to be sent to WEN before the
replacements can be shipped out.
-
turning
a product for warranty service, the shipping charges must be prepaid by the purchaser. The product must
be
shipped in its original container (or an equivalent), properly packed to withstand the hazards of shipment. The
product
must be fully insured with a copy of the proof of purchase enclosed. There must also be a description of
the
will be returned and shipped back to the pur
chaser at no charge for addresses within the contiguous United States.
THIS
LIMITED WARRANTY DOES NOT APPLY TO ITEMS THAT WEAR OUT FROM REGULAR USAGE OVER TIME,
INCLUDING
FILTERS, SPARK PLUGS, VOLTAGE REGULATORS, BRUSHES, GASKETS, O-RINGS, WHEEL KITS, BAT-
TERIES,
RECOIL STARTERS, HIGH PRESSURE HOSES, SPRAY GUNS, ETC. ANY IMPLIED WARRANTIES SHALL
BE
LIMITED IN DURATION TO TWO (2) YEARS FROM DATE OF PURCHASE. SOME STATES IN THE U.S. AND
SOME
CANADIAN
PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE
ABOVE LIMIT
ATION MAY NOT APPLY TO YOU.
IN
NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING BUT
NOT
LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT. SOME
ST
ATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF IN-
CIDENT
AL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
THIS
LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER
RIGHTS
WHICH
VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY
TO COUNT
RY.
THIS
LIMITED WARRANTY APPLIES ONLY TO ITEMS SOLD WITHIN THE UNITED STATES OF AMERICA, CANADA
AND
THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER COUNTRIES, CON-
T
ACT THE WEN CUSTOMER SUPPORT LINE. FOR WARRANTY PARTS OR PRODUCTS REPAIRED UNDER WAR-
RANTY
SHIPPING TO ADDRESSES OUTSIDE OF THE CONTIGUOUS UNITED STATES, ADDITIONAL SHIPPING
CHARGES MAY APPLY.
NOTES
38
NOTES
39
THANKS FOR
REMEMBERING
V. 2021.07.23
