2250W INVERTER
GENERATOR
Instruction Manual
MODEL 56225i
CONTENTS
WELCOME 3
Specifications ................................................................................................... 3
Introduction ..................................................................................................... 4
SAFETY 5
Safety Information ........................................................................................... 5
Generator Safety Warnings .............................................................................. 6
BEFORE OPERATING 9
Know Your Inverter Generator .......................................................................... 9
Generator Preparation .................................................................................... 11
OPERATION & MAINTENANCE 15
Starting Your Generator ................................................................................. 15
Using Your Generator ..................................................................................... 17
Shutting Off Your Generator ........................................................................... 22
Maintenance ................................................................................................... 23
Transportation & Storage ............................................................................... 30
Troubleshooting Guide ................................................................................... 31

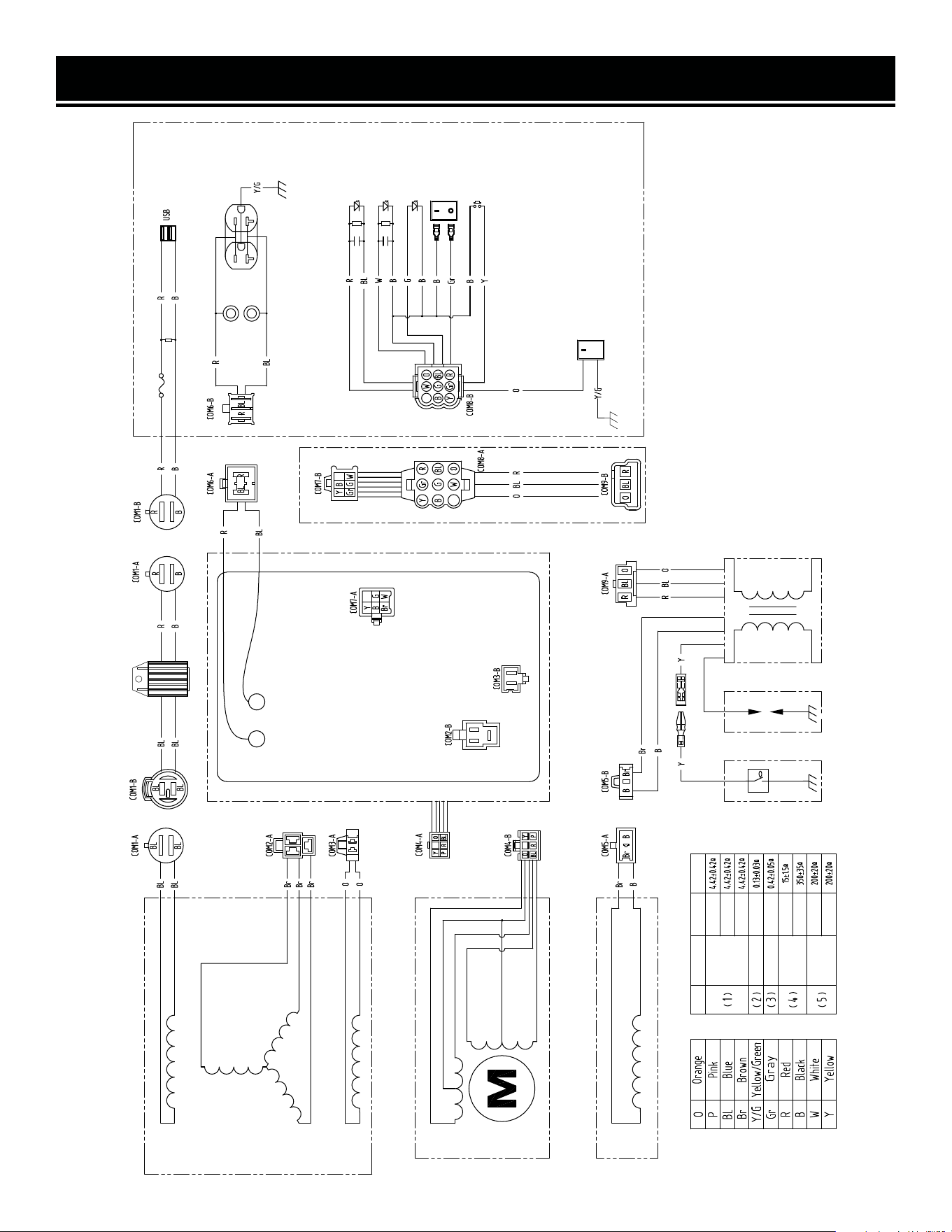

Wire Diagram ................................................................................................. 32

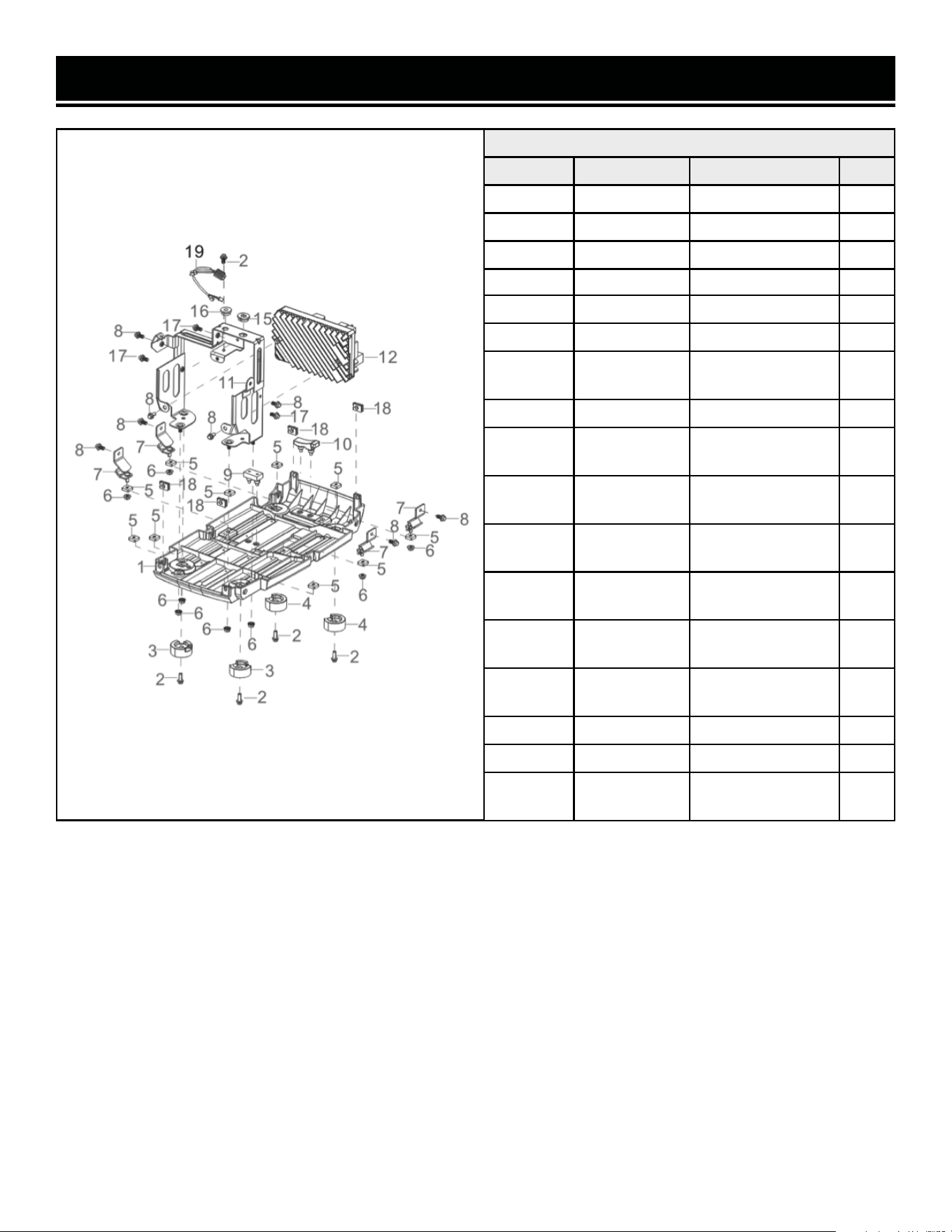

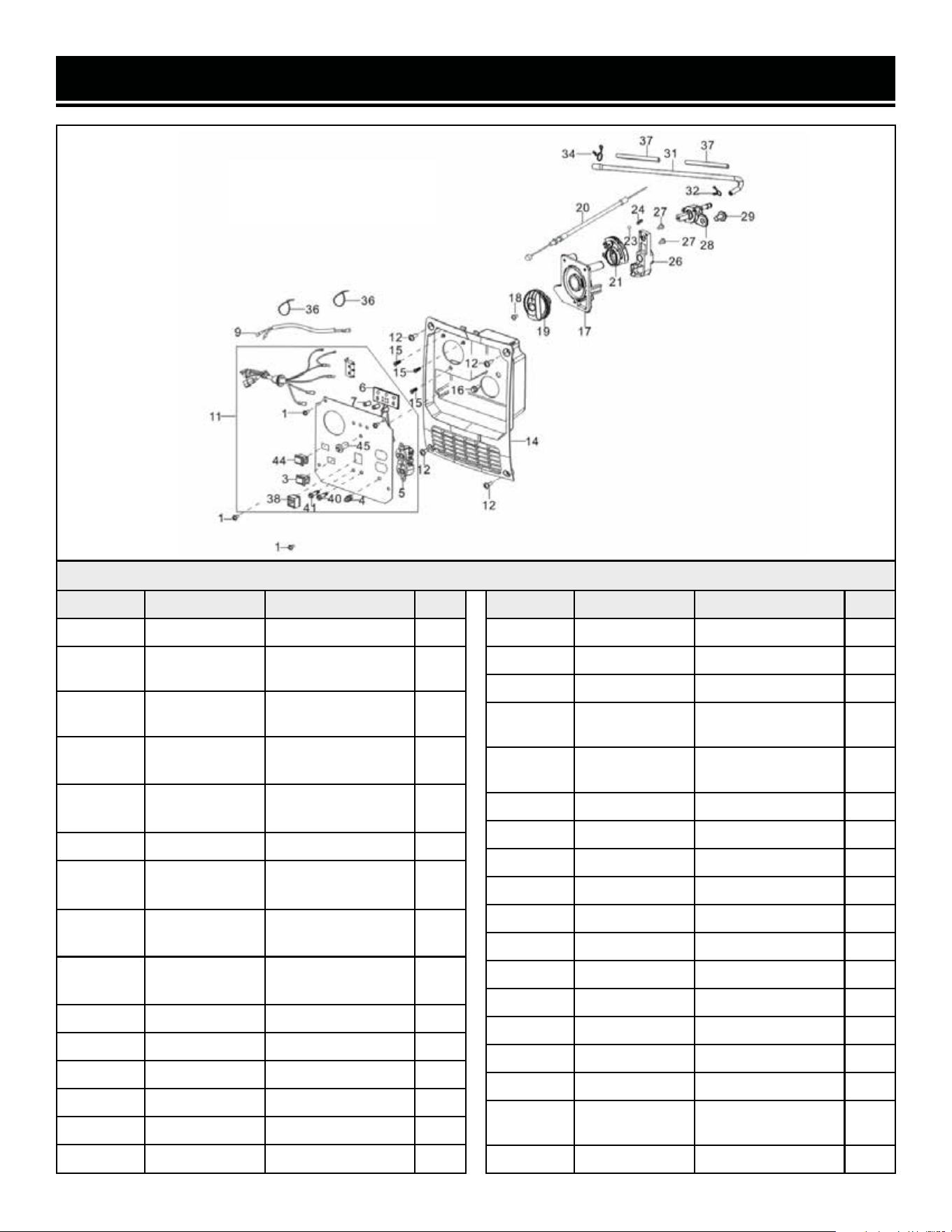

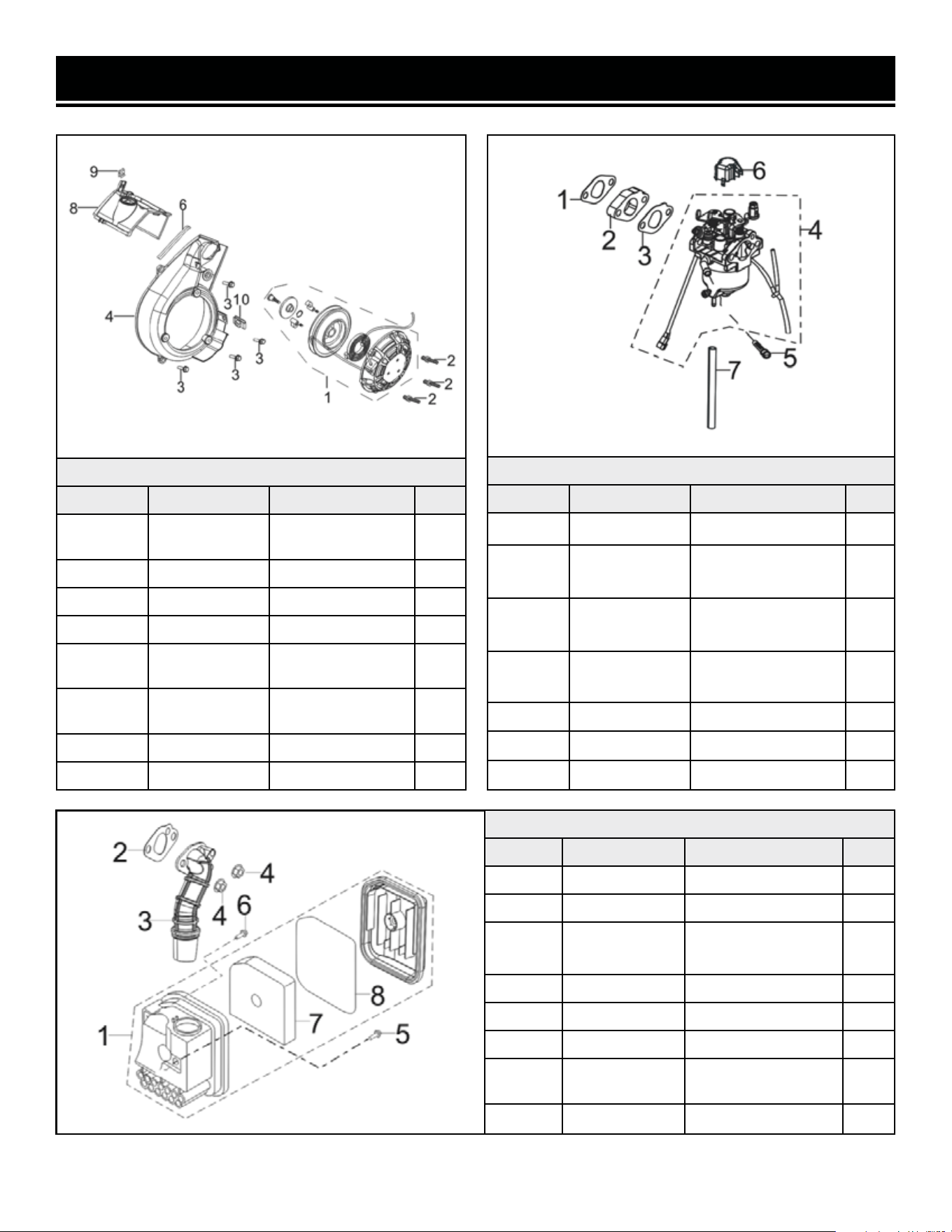

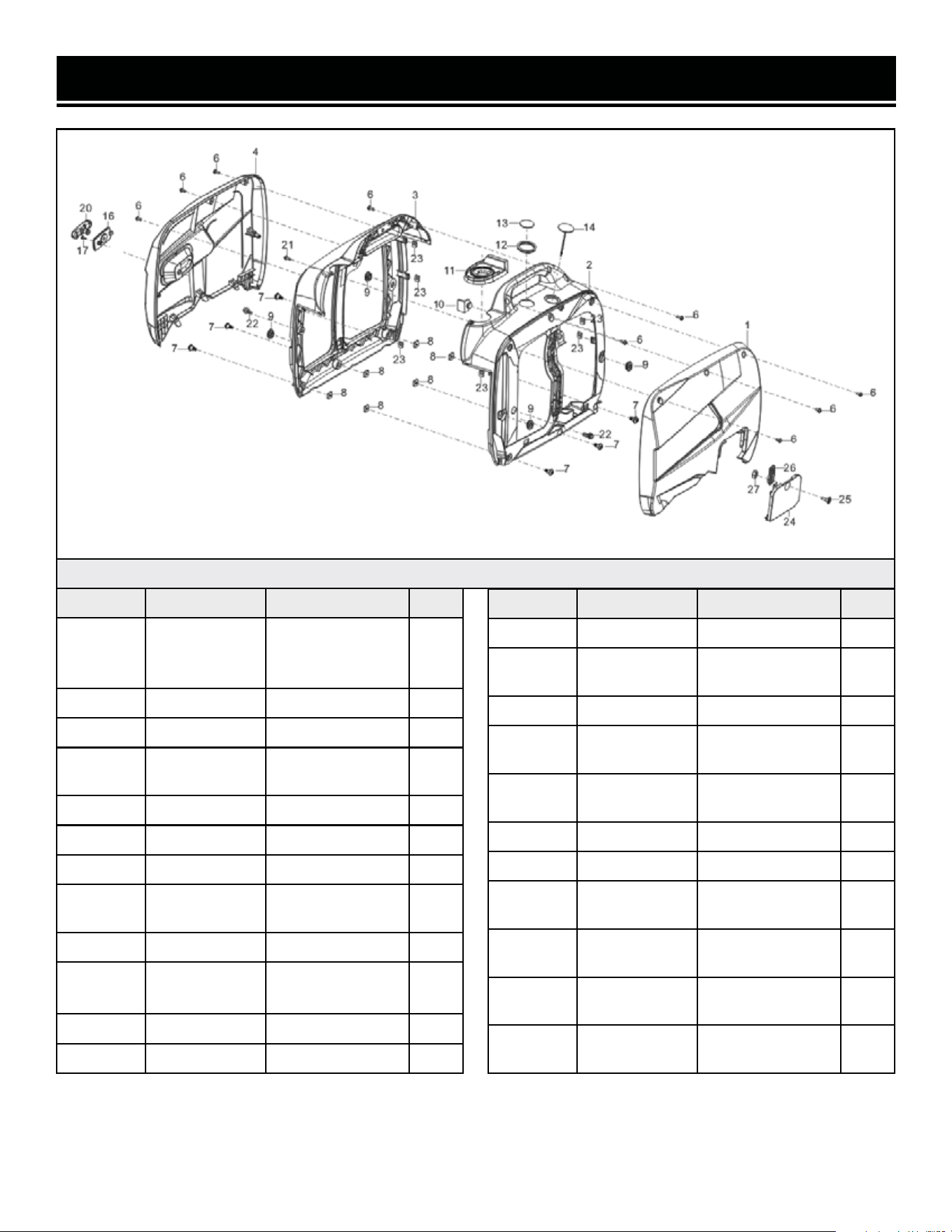

Exploded View & Parts List ............................................................................ 33
Warranty Statement ....................................................................................... 42
To purchase accessories for your tool, visit WENPRODUCTS.COM
Parallel Connection Kit
Magnetic Oil Dipstick (Model Number 55201)
2
SPECIFICATIONS
Rated Wattage 1800 Watts
Surge Wattage 2250 Watts
Rated Voltage
AC: 120V
DC: 5V
Rated Amperage
AC: 15A
DC: 1A (Top), 2.1A (Bottom)
Phase Single
Frequency 60Hz
Product Dimensions
Length: 19 in.
Width: 11.5 in.
Height: 18.2 in.
Product Net Weight 48.5 lbs
GENERATOR
ENGINE
Engine Type
4-stroke, OHV, single cylinder with forced air cooling system
Engine Displacement 79.7 cc
Fuel Tank Capacity
1.19 US gallon (4.5 L), 87 octane minimum
Oil Capacity
12.7 fl. oz. (0.38 L)
Half-Load Run Time
6 hours
Lubrication System
Splash Lubrication
Spark Plug Type
NGK CR5HS/Torch A5RTC
Spark Plug Gap
0.6 - 0.8 mm (0.024 - 0.031 in)
Spark Plug Torque
1/2 - 3/4 turn after gasket contacts base or 15 ft-lbs
Noise Rating:
(Tested from 22 ft
away with ambient dB
rating of 44 dB)
52 dBA at no load
53 dBA at 1/4 load
54 dBA at 1/2 load
57 dBA at 3/4 load
3
INTRODUCTION
Thanks for purchasing the WEN 2250-Watt Inverter Generator. Refer to the illustration below for the location of the
serial number on the side of the engine. Record the generator information in the spaces provided below. If assis-
tance for information or service is required, please contact customer service by calling 1-800-232-1195, M-F 8-5
CST; you will be asked to provide the following generator information when calling.
Generator Model Number: 56225i
Date of Purchase: ______________________________________________
Purchased From: _______________________________________________
Serial Number: ________________________________________________
TO MAXIMIZE THE LIFESPAN OF YOUR GENERATOR: We recommend running your generator at least once a
month for 20 to 30 minutes. Start the generator according to the instructions and plug a small load in to make
sure the outlet is producing electricity.
SERVICE RECORD
Record the service dates of your generator in the chart below. Please perform maintenance checks and operations
according to the “Maintenance” section of the manual.

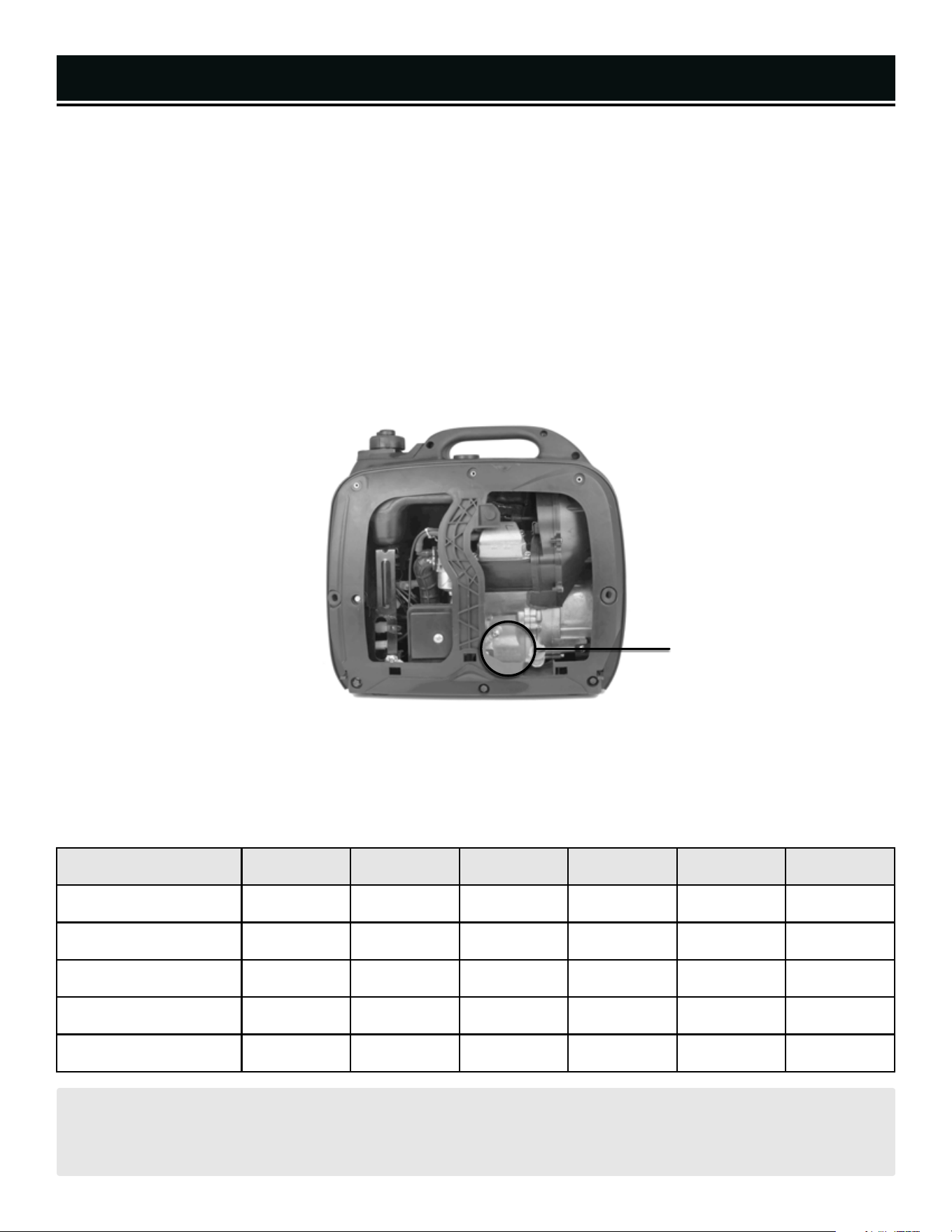

Service Record Date Date Date Date Date Date
Change Oil
Change Spark Plug
Clean Fuel Tank
Clean Air Cleaner
Clean Spark Arrestor
SERIAL NUMBER
4
SAFETY INFORMATION
SAFETY INTRODUCTION
Safety is a combination of common sense, staying alert, and knowing how your tool works. This manual contains
important information regarding the generator’s potential safety concerns, as well as preparation, operation, and
maintenance instructions. Before operating this generator, be sure to read and observe all warnings and instructions
both on the generator labels and in this instruction manual. Failure to follow all instructions listed below may result
in personal injury.
NOTE: The following safety information is not meant to cover all possible conditions and situations that may occur.
WEN reserves the right to change this product and specifications at any time without prior notice.
At WEN, we are continuously improving our products. If you find that your tool does not exactly match this manual,
please visit wenproducts.com for the most up-to-date manual or contact customer service at 1-800-232-1195, M-F
8-5 CST.
Keep this manual available to all users during the entire life of the tool and review it frequently to maximize
safety for both yourself and others.
SAVE THESE SAFETY INSTRUCTIONS.
SAFETY SYMBOLS
The purpose of following safety symbols is to attract your attention to possible dangers. The safety symbols, and
their explanations, deserve your careful attention and understanding. The safety warnings do not by themselves
eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention
measures.
NOTICE REGARDING EMISSIONS
Engines that are certified to comply with U.S. EPA emission regulations for SORE (Small Off Road Equipment), are
certified to operate on regular unleaded gasoline, and may include the following emission control systems: (EM)
Engine Modifications and (TWC) Three-Way Catalyst (if so equipped).
QUESTIONS? PROBLEMS?
In order to answer questions and solve problems in the most efficient and speedy manner, contact customer
service at 1-800-232-1195, M-F 8-5 CST or email [email protected].
DANGER: indicates a hazard, which, if not avoided, will result in death or serious injury.
WARNING: indicates a hazard, which, if not avoided, could result in death or serious injury.
CAUTION: indicates a hazard, which, if not avoided, might result in minor or moderate injury.
CAUTION! when used without the alert symbol, indicates a situation that could result in damage to the machine.
WARNING! Before operating the generator, make sure to read all safety warnings and all instructions. Failure
to follow the warnings and instructions may result in electric shock, fire or serious injury.
5
GENERATOR SAFETY WARNINGS

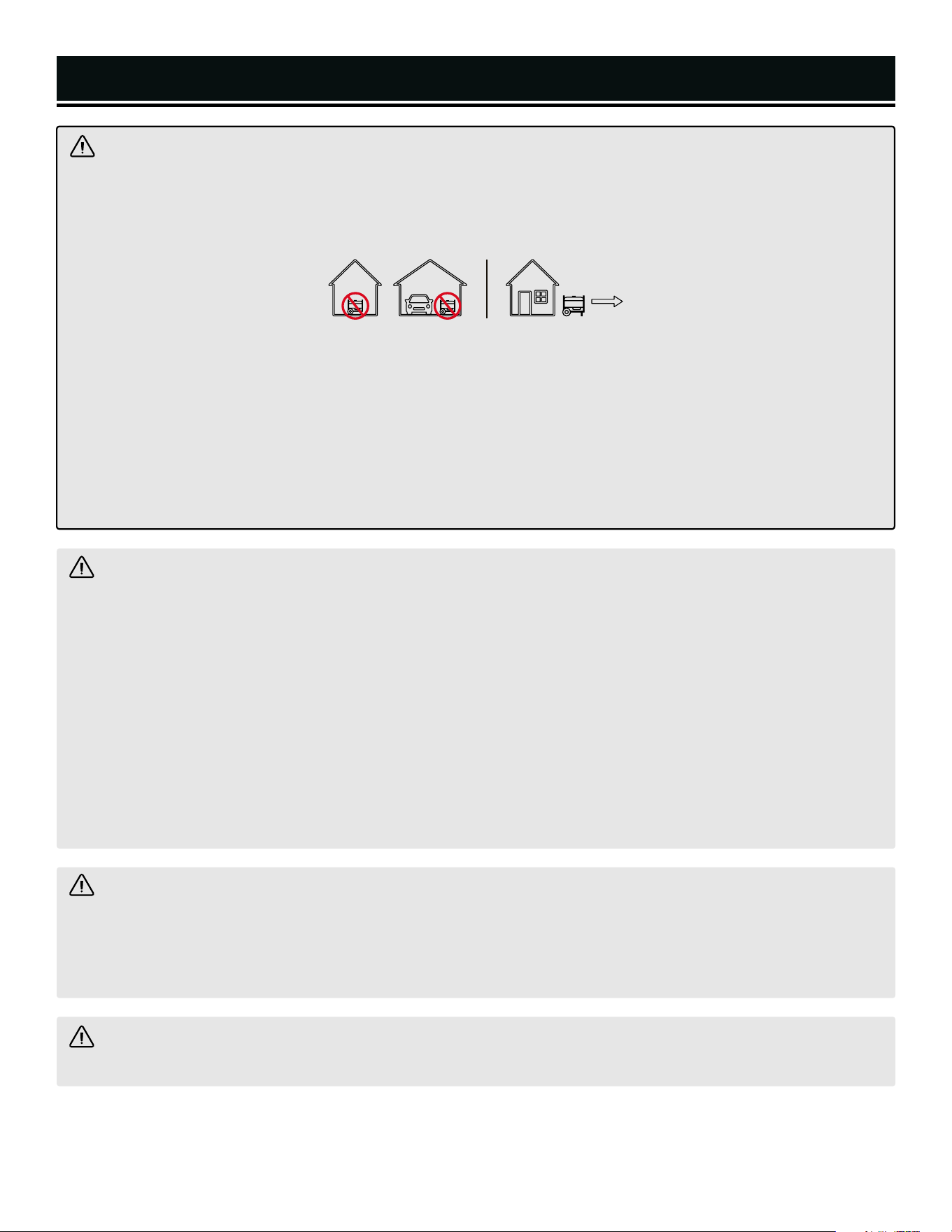

DANGER! CARBON MONOXIDE
Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide (CO). This
is a poison gas you cannot see or smell. If you can smell the generator exhaust, you are breathing CO. But even
if you cannot smell the exhaust, you could be breathing CO.
NEVER use a generator inside homes, garages, crawl spaces, or other partially enclosed areas. Deadly levels
of carbon monoxide can build up in these areas. Using a fan or opening windows and doors does NOT supply
enough fresh air. ONLY use a generator outside and far away from windows, doors, and vents. These openings
can pull in generator exhaust.
Even if you use a generator correctly, CO may leak into the home. ALWAYS use a battery-powered or battery-
backup CO alarm in the home. If you start to feel sick, dizzy, or weak after the generator has been running, move
to fresh air RIGHT AWAY. See a doctor. You may have carbon monoxide poisoning.
WARNING! RISK OF EXPLOSION. HIGHLY FLAMMABLE: This generator may emit highly flammable and
explosive gasoline vapors, which can cause severe burns or even death, if ignited. A nearby open flame can lead
to explosion even if not directly in contact with gasoline.
• Do not operate near open flame, heat, or any other ignition source. Do not smoke near the generator.
• Always operate on a firm, level surface.
• Always turn generator off before refueling. Allow generator to cool for at least 2 minutes before removing
fuel cap. Loosen cap slowly to relieve pressure in tank.
• Do not overfill fuel tank. Gasoline may expand during operation. Do not fill to the top of the tank. Allow for
expansion. Always check for spilled fuel before operating.
• If fuel spills, move the generator at least 30 feet away from the spill and wipe clean any spilled fuel before
starting the engine.
• Empty fuel tank before storing or transporting the generator.
WARNING! If this generator is used as a supply for a building’s wiring system, the generator must be in-
stalled by a qualified electrician and connected to a transfer switch as a separately derived system in accordance
with all applicable laws and electrical codes and the National Electrical Code, NFPA 70. The generator shall be
connected to a transfer switch that switches all conductors excluding the equipment grounding conductor. The
frame of the generator shall be connected to an approved grounding electrode.
CALIFORNIA PROPOSITION 65 WARNING: This product contains chemicals and produces exhaust known
to the State of California to cause cancer, birth defects and other reproductive harm.
6
GENERATOR SAFETY WARNINGS
OPERATING ENVIRONMENT
1. Using a generator indoors can kill you in minutes.
Only use a generator outside and far away from win-
dows, doors and vents.
2. Do not smoke near the generator.
3. Do not operate near open flame, heat, or flammable
materials. This generator may emit highly flammable
and explosive gasoline vapors, which can cause severe
burns or even death if ignited. A nearby open flame can
lead to an explosion even if it isn’t directly in contact with
gasoline.
4. Do not expose the generator to rainy or wet con-
ditions; doing so significantly increases the risk of
electrical shock. Never handle the generator, electronic
devices, or any cord while standing in water, while bare-
foot, or when hands or feet are wet.
5. Always operate the generator on a dry, firm, level
surface.
6. The generator should have at least 5 feet of clear-
ance from buildings or other equipment during opera-
tion.
7. Do not allow children or non-qualified persons to
operate the generator.
GENERATOR PREPARATION
1. Always ground the generator before using it to maxi-
mize safety (see “Ground the Generator” section).
2. Do not overfill fuel tank, as gasoline may expand
during operation. Do not fill to the very top of the tank.
Leave room for gasoline expansion. Always check for
spilled fuel before operating.
3. If any part of the generator, electrical device or pow-
er cord is broken, damaged, or defective, make sure
it is repaired or replaced before operation. Service
should only be performed by a qualified technician. Do
not use receptacles or cords that show signs of damage,
such as broken or cracked insulation.
4. Use a ground fault circuit interrupter (GFCI) in highly
conductive areas such as metal decking or steel work.
Extension cords with in-line GFCIs are recommended for
these operations to maximize safety.
5. If connecting the generator to a building’s electrical
system for standby power, you MUST consult a quali-
fied electrician and install a transfer switch. Such
connections must comply with local electrical laws and
codes. Failure to comply can create a back-feed, which
may result in serious injury or death to utility workers.
6. Never modify the generator in any way. Modifying
or using the machine for any other purpose for which it
is not designed may result in serious injuries, machine
damage and voiding of the warranty.
GENERATOR OPERATION
1. Only use the generator for its intended purposes.
Modifying or using the generator for operations for
which it was not designed may cause hazards and per-
sonal injury.
2. Do not touch bare wires or receptacles (outlets).
3. Do not exceed the wattage capacity of the generator
by plugging in more electrical devices than the unit
can handle. This could damage the generator and/or
connected electrical devices. Check the operating volt-
age and frequency requirements of all electrical devices
prior to plugging them into the generator.
Generator safety warnings continue on the next page.
WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety
rules. Failure to follow the safety instructions may result in serious personal injury.
7
GENERATOR SAFETY WARNINGS
WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules.
Failure to follow the safety instructions may result in serious personal injury.
4. Allow generator to run for several minutes before
connecting electrical devices. Do not start or stop en-
gine with electrical devices plugged in to the receptacles.
Failure to do so could damage the generator and/or con-
nected electrical devices.
5. Do not turn on electrical devices until after they are
connected to the generator.
6. Generators vibrate in normal use. During and after
the use of the generator, inspect both the generator as
well as extension and power supply cords for damage
resulting from vibration.
7. Do not touch hot parts. This generator produces heat
when running. Temperatures near exhaust can exceed
150ºF (65ºC). Allow generator to cool down after use be-
fore touching engine or areas of the generator that be-
come hot during use.
8. Turn off all connected electrical devices before stop-
ping the generator.
9. Always turn generator off before refueling. Allow
generator to cool for at least 2 minutes before removing
fuel cap. Loosen cap slowly to relieve pressure in tank.
10. Turn the engine switch to “OFF” position when the
engine is not running.
11. Empty fuel tank before storing or transporting the
generator. Do not store generator or gasoline near fur-
naces, water heaters, or any other appliances that pro-
duce heat or have automatic ignitions. Store the genera-
tor and fuel away from sparks, open flames, pilot lights,
heat and other sources of ignition.
12. Always wash hands after handling generator.
CAUTION: Misuse of this generator can damage it or
shorten its lifespan.
TO MAXIMIZE THE LIFESPAN OF YOUR GENERATOR: We recommend running your generator at least once a
month for 20 to 30 minutes. Start the generator according to the instructions and plug a small load in to make
sure the outlet is producing electricity. If you do not run it often, it will greatly shorten the generator’s lifespan
and void the warranty.
8
Recoil Starter
Ventilation Slots
Carrying Handle
Control Panel
Fuel Cap
Vacuum Relief Valve
Oil Access Cover
Fuel Gauge
Spark Plug Cover
Service Panel

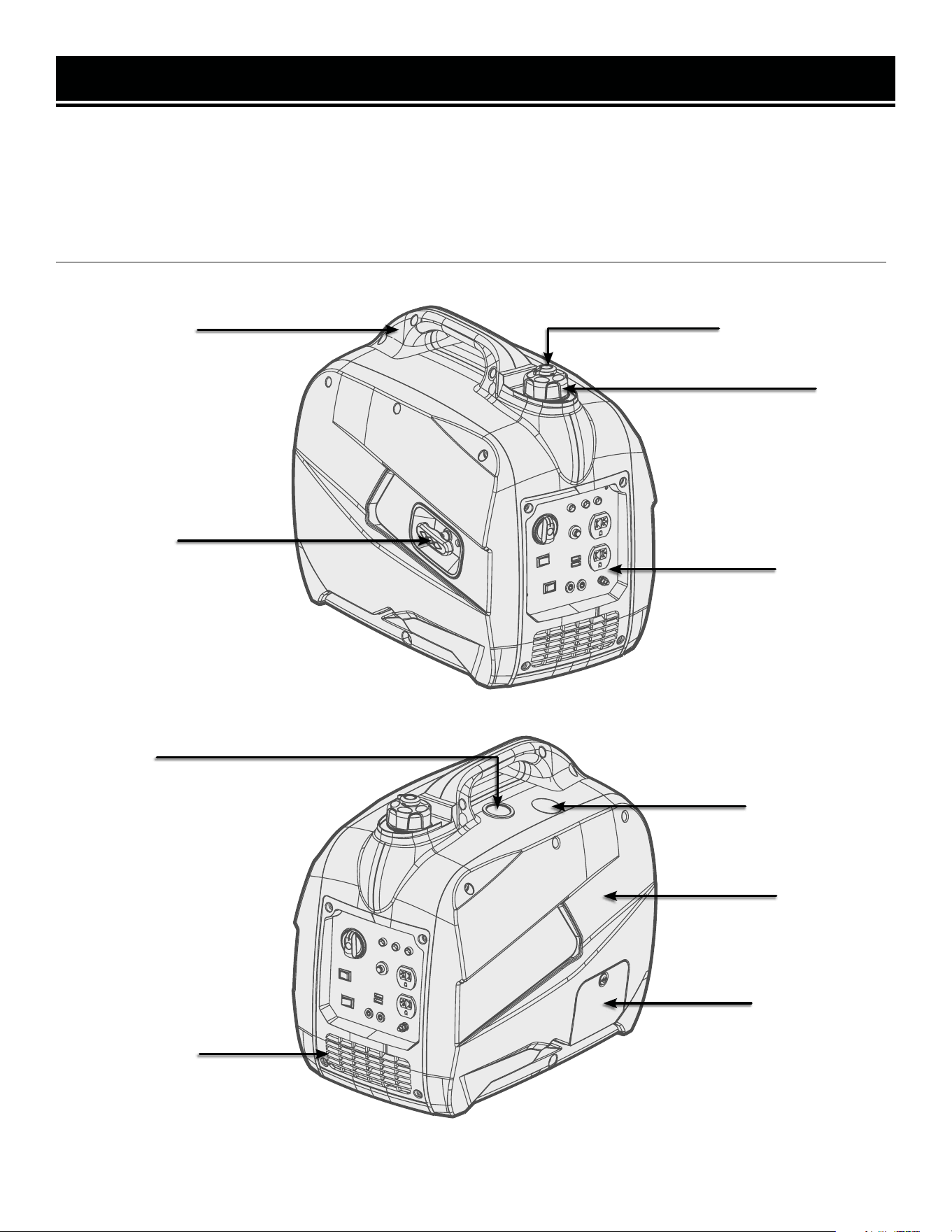

KNOW YOUR INVERTER GENERATOR
TOOL PURPOSE
Inverter Generators provide you with clean and quiet power, when and where you need it most. Refer to the fol-
lowing diagrams to become familiarized with all the parts and controls of your Generator. The components will be
referred to later in the manual for assembly and operation instructions.
GENERATOR
9
KNOW YOUR INVERTER GENERATOR
3

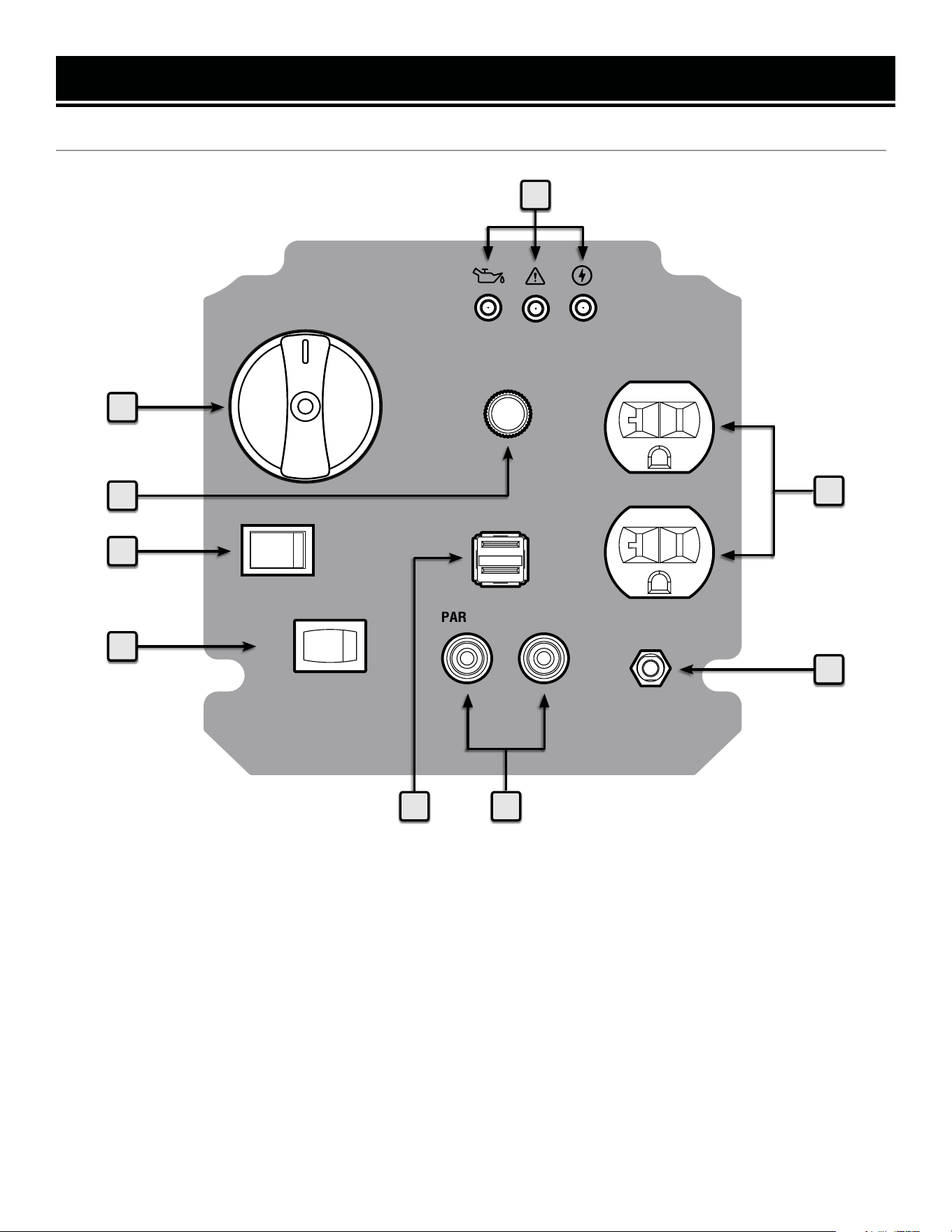

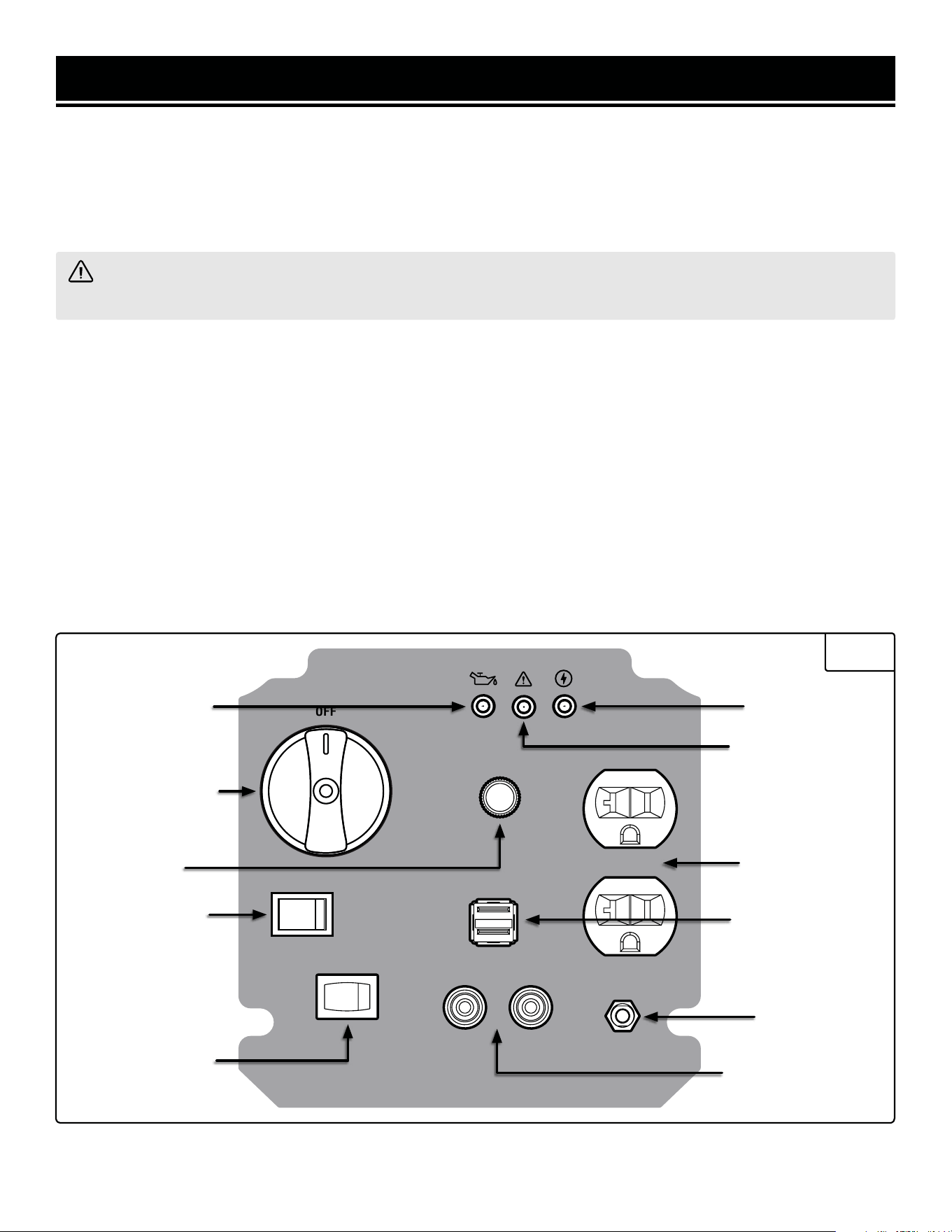

1. 3-In-1 Dial Switch
Choke, Run, Off
2. Indication Lights
Low Oil (Yellow), Overload (Red), & Output (Green).
3. AC 120V Duplex NEMA 5-20R
Standard household outlets provide 120V 60Hz power.
4. Grounding Nut
Ground the generator to reduce the risk of electric shock.
Refer to “Ground the Generator” section.
5. Parallel Connection
Connect to share wattage between inverter generators.
6. DC 5V USB Port
1A & 2.1A for charging various electronic devices.
7. Eco-Mode Switch
Maximizes fuel economy & run time.
8. Manual Shut Off
Quickly shut down your generator to refuel or relocate.
9. Reset Button
Press to reset the circuit incase of overload.
ECO-MODE
ON OFF
MANUAL
SHUT OFF
CHOKE
PARALLEL CONNECT
RESET
AC 120V
GROUNDING
DC 5V
RUN
OFF
CONTROL PANEL
2
5
4
6
7
8
9
1
10
The following section describes the necessary steps to prepare the generator for use. If you are unsure
about how to perform any of the steps please call 1-(800) 232-1195 M-F 8-5 CST for customer service.
Failure to perform these steps properly can damage the generator or shorten its life.

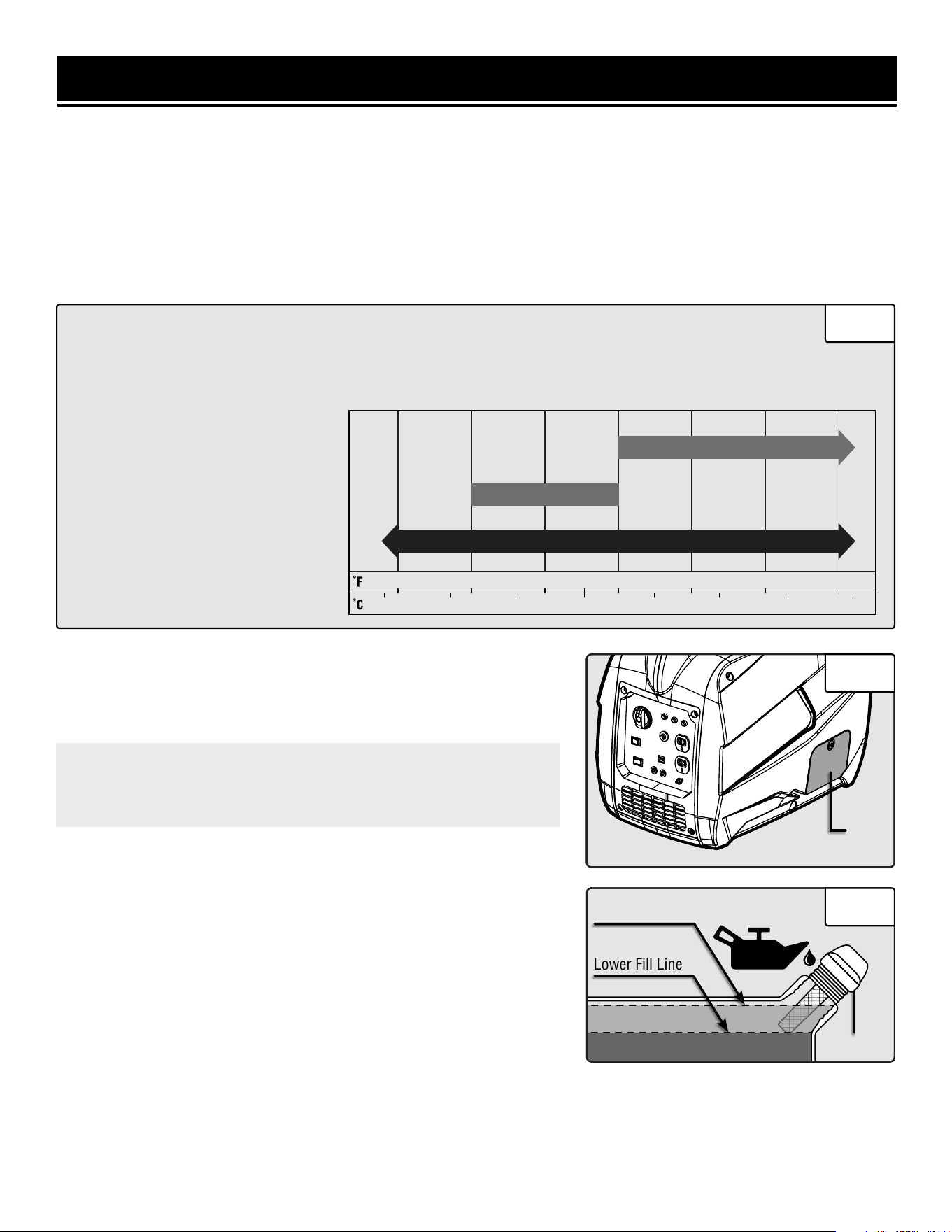

STEP 1 - ADD / CHECK OIL
The generator is shipped without oil. User must add the proper amount of oil before operating the gen-
erator for the first time. The oil capacity of the engine crankcase is 11.8 fl. oz (0.35 L).
To add oil, follow these steps:
1. Place the generator on a level surface. Make sure the en-
gine is OFF before adding or checking oil.
2. Using a coin, turn the oil access cover screw 1/4 turn
clockwise, then remove the access cover (Fig. 2 - 1) from
the service panel. Then, unscrew the oil dipstick from the
engine.
3. Using an oil funnel or appropriate dispenser, slowly add
oil into the oil fill, being careful not to overfill the unit. Fill the
crank case to the upper fill line so you can visually see the oil
coming halfway up the oil fill threads (Fig. 3).
4. Reinstall the oil dipstick and firmly tighten it. Wipe clean
any spilled oil.
5. Reinstall the oil access cover. Using a coin, turn the screw
1/4 turn counterclockwise to secure it in place.
CAUTION! Keep the generator level! Tilting the genera-
tor to assist in filling will cause oil to flow into the engine
areas and will cause damage.
• 30W Engine Oil
Temperatures above 40°F
• 10W-30 Engine Oil
Temperatures between 0°F - 40°F
• Synthetic 5W-30 Engine Oil
All temperature ranges
ENGINE OIL RECOMMENDATIONS
Select good quality detergent oil bearing the American Petroleum Institute (API) service classifications
SJ, SL, or SM (synthetic oils may be used). Select the SAE viscosity grade of oil that matches the
expected operating temperature.
Fig. 1
Dipstick
GENERATOR PREPARATION
1
Fig. 2
Fig. 3
Lower Fill Line
Upper Fill Line
11
-30 -20 -10 0 10 20 30 40
-20 0 20 32 40 60 80 100
Synthetic 5W-30
30W
10W-30

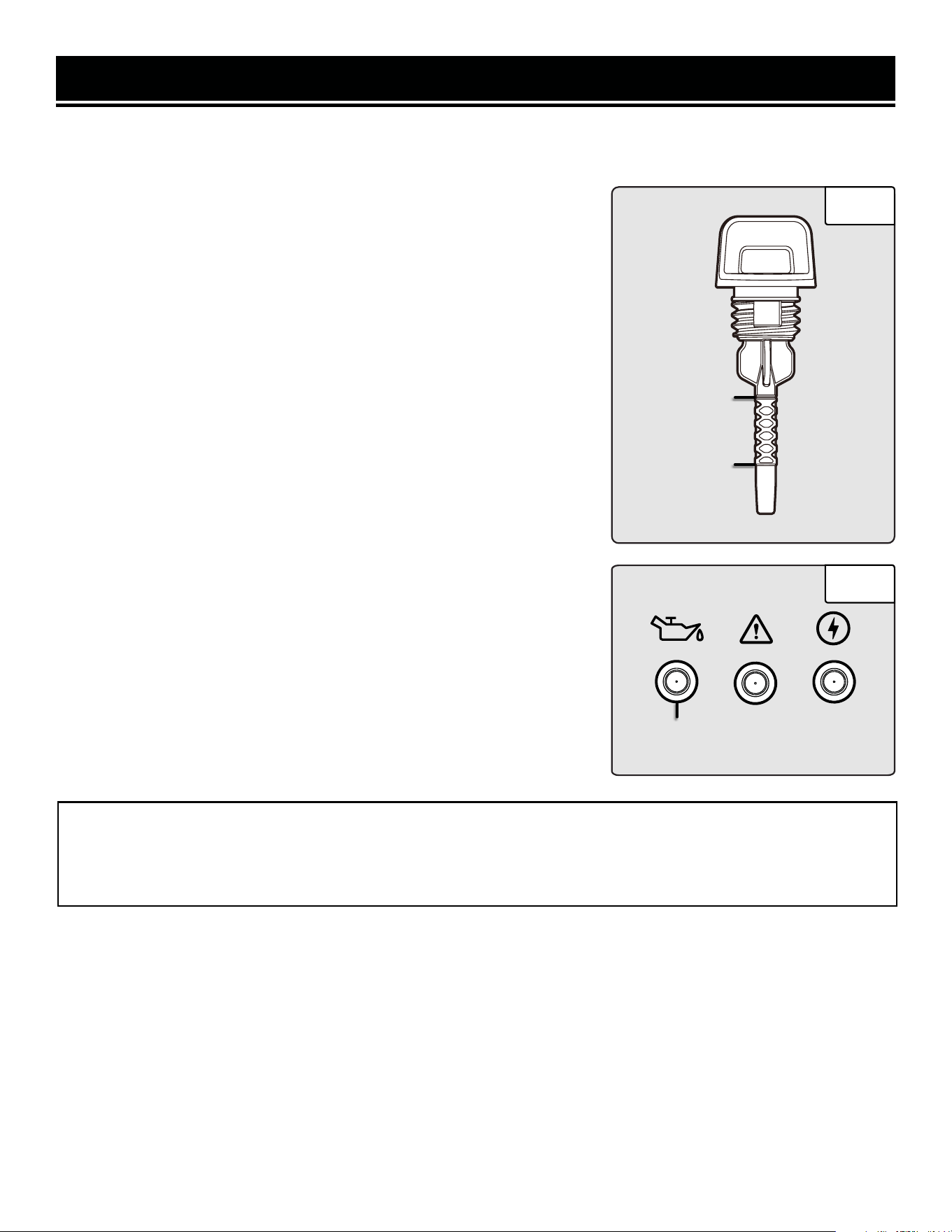

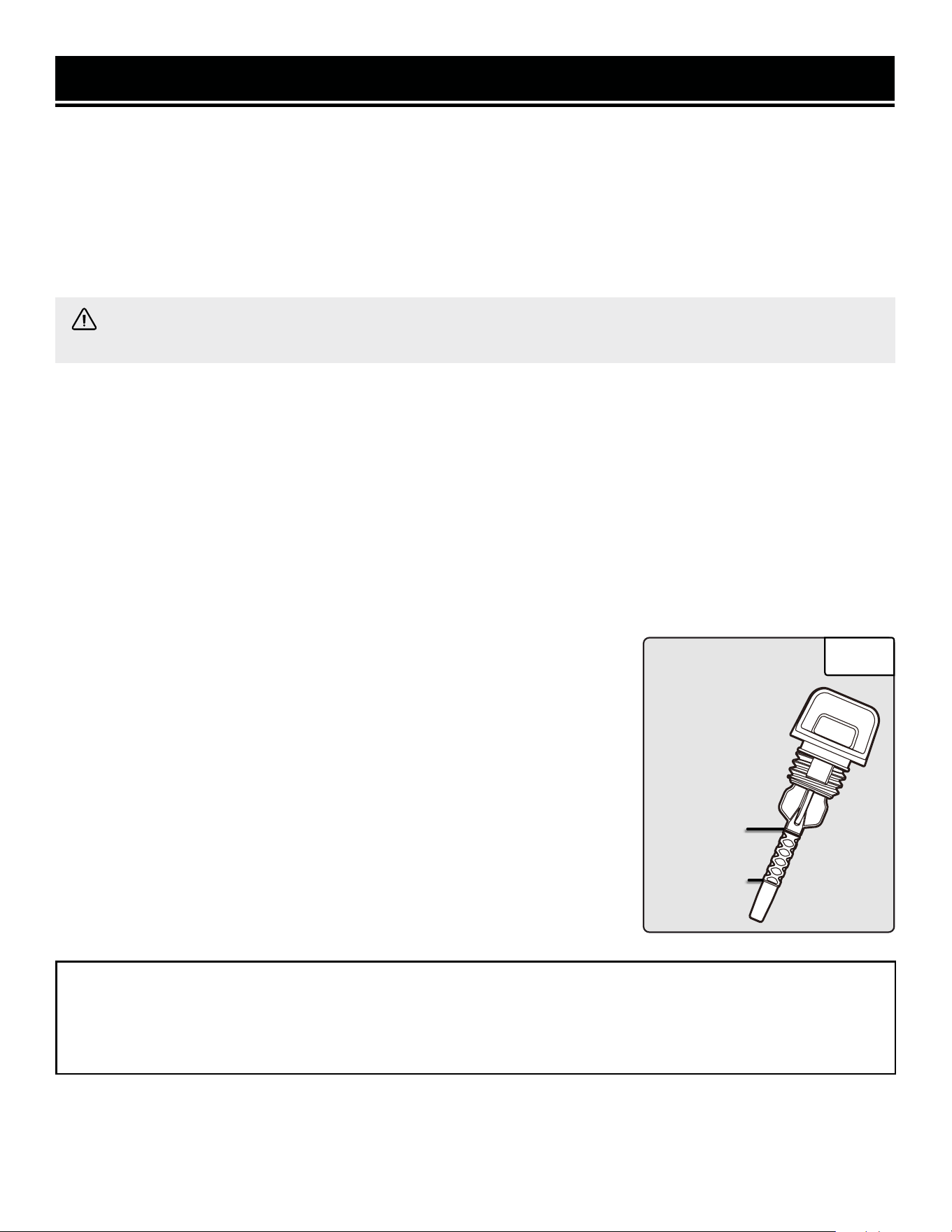

For subsequent operation, the oil level should be checked before each use, or after every 8 hours of op-
eration. The generator is equipped with a low-oil sensor and will NOT start without a sufficient amount
of oil.
Low Oil
Indicator
To check oil level (before every subsequent start):
1. Place the generator on a level surface. Make sure the engine is
OFF before adding or checking oil.
2. Open the oil access cover. Remove and wipe the dipstick with
a clean rag.
3. Insert the dipstick into the oil fill without screwing it in. Re
-
move the dipstick to check the oil mark (Fig. 4).
If the oil mark covers less than one half of the dipstick, slowly
add oil until the oil mark reaches to the top of the dipstick (or
when you can see the oil coming halfway up the oil fill threads).
4. Wipe clean any oil leaks and firmly tighten the dipstick. Rein
-
stall the oil access cover.
OIL LEVEL SHUTDOWN
To protect the unit from damage, the generator is equipped with
a low-oil-pressure shutoff that will automatically stop the engine
when the oil level is too low. The low oil indication light (yellow)
will turn on to remind you that the engine oil level is low and need
to be refilled.
The oil level of the engine should be checked before each start
to ensure that the engine crankcase contains sufficient lubricant.
TIP: Your WEN generator is compatible with the WEN 55201 Magnetic Oil Dipstick (not included),
available for purchase at wenproducts.com. The dipstick’s industrial-strength magnetic tip will
collect metal
shavings from your generator’s oil tank to help preserve the engine and extend your
generator’s lifespan.
Upper Limit
Lower Limit
GENERATOR PREPARATION
Fig. 4
Fig. 5
12

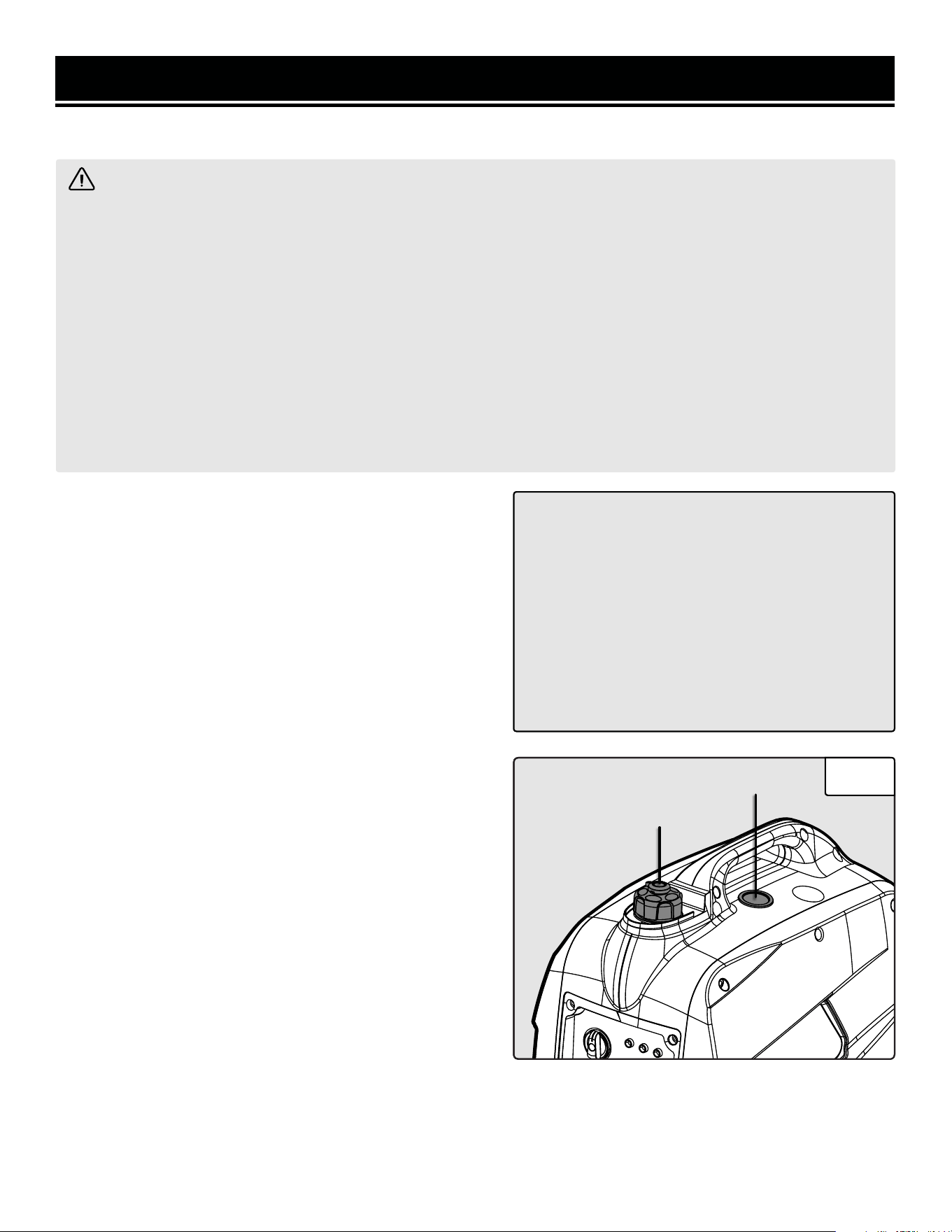

GENERATOR PREPARATION
WARNING! RISK OF EXPLOSION. HIGHLY FLAMMABLE: This generator may emit highly flammable and
explosive gasoline vapors, which can cause severe burns or even death, if ignited. A nearby open flame can lead
to explosion even if not directly in contact with gasoline.
• Do not operate near open flame, heat, or any other ignition source. Do not smoke near the generator.
• Always operate on a firm, level surface.
• Always turn generator off before refueling. Allow generator to cool for at least 2 minutes before removing
fuel cap. Loosen cap slowly to relieve pressure in tank.
• Do not overfill fuel tank. Gasoline may expand during operation. Do not fill to the top of the tank. Allow for
expansion. Always check for spilled fuel before operating.
• If fuel spills, move the generator at least 30 feet away from the spill and wipe clean any spilled fuel before
starting the engine.
• Empty fuel tank before storing or transporting the generator.
STEP 2 - ADD / CHECK FUEL
ONLY use fresh (within 30 days from purchase), lead-free
gasoline with a minimum of 87 octane rating. The genera-
tor performs best with ethanol-free gasoline. DO NOT use
gasoline with over 10% ethanol.
The capacity of the fuel tank is 1.19 gallons. Do not mix oil
with gasoline.
To add gasoline, follow these steps:
1. Make sure the generator is shut OFF and on a level
surface. Unscrew the fuel cap (Fig. 6) and set it aside.
The fuel cap may be tight and hard to unscrew.
2. Slowly add unleaded gasoline to the fuel tank. Be
careful not to overfill.
NOTE: Do not fill the fuel tank to the very top. If you
do so, gasoline will expand and spill during use, even
with the fuel cap in place.
3. Reinstall fuel cap and wipe clean any spilled gaso-
line with a dry cloth.
To check fuel level
(before every subsequent start):
Before starting the generator, check the fuel gauge
to see if there is sufficient fuel inside the tank. “E”
indicates Empty and “F” indicates Full. Refill the fuel
tank as necessary.
IMPORTANT:
• Avoid getting dirt or water into the fuel tank.
• Keep gasoline away from sparks, open flames,
pilot lights, heat, and other sources of ignition.
• Gasoline can age in the tank and make starting
difficult. Never store the generator for more
than 2 months with fuel in the tank.
• Never use an oil/gasoline mixture.
• Never use old gasoline.
Fuel Gauge
Fuel Cap
Fig. 6
13
Grounding Nut
After completing the above preparation, the generator is ready to be started.

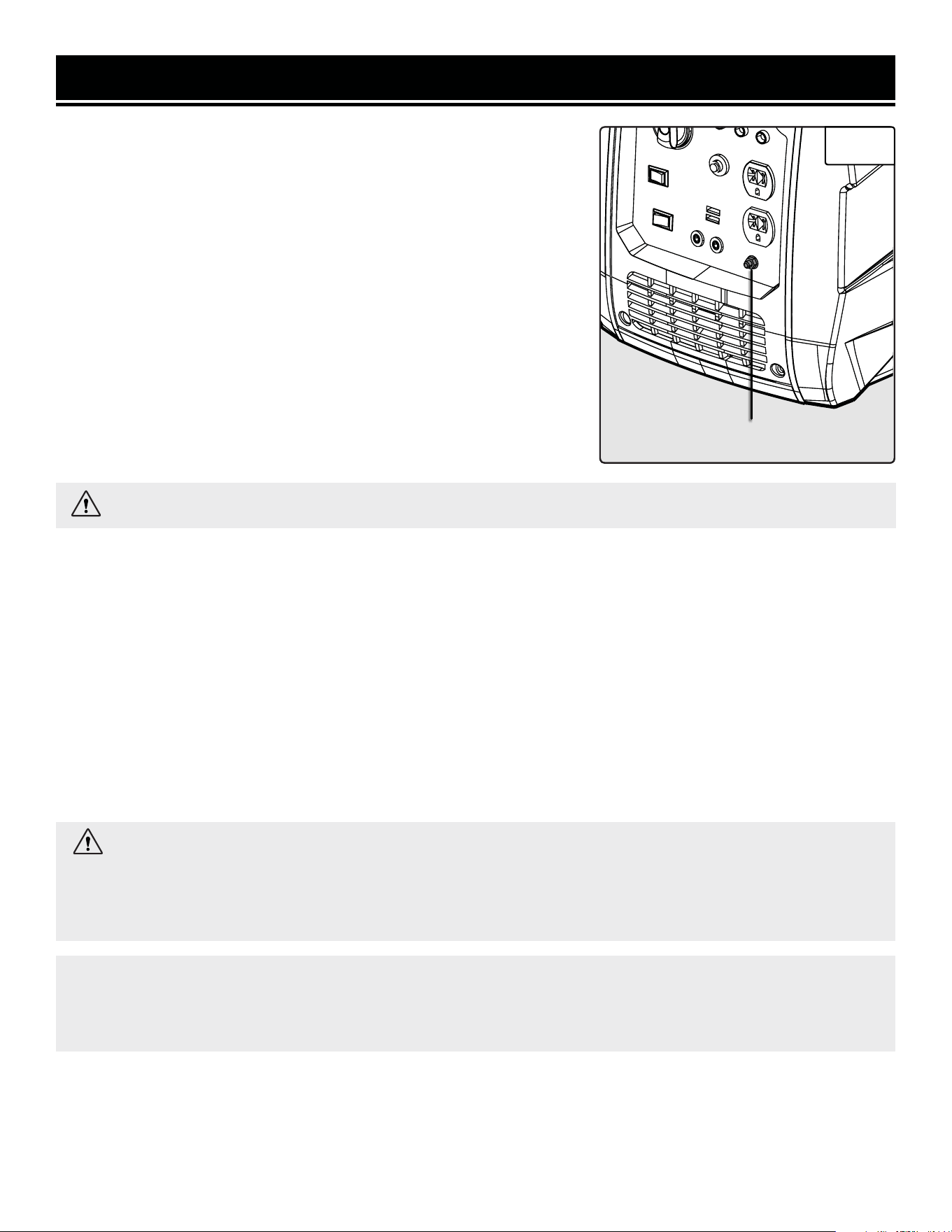

STEP 3 - GROUND THE GENERATOR
To reduce the risk of electric shock and to maximize safety, the
generator should be properly grounded.
Ground the generator by tightening the grounding nut on the
front control panel (Fig. 7) against a grounding wire. A gen
-
erally acceptable grounding wire is a No. 12 AWG (American
Wire Gauge) stranded copper wire.
This grounding wire should be connected at the other end to
a copper, brass, or steel-grounding rod that is driven into the
earth. Wire and grounding rods are not included with the gen
-
erator.
NOTE: Grounding codes can vary by location. Contact a local
electrician to check the area codes.
WARNING: Failure to properly ground the generator increases your risk of electric shock.
HIGH ALTITUDE OPERATION ABOVE 3000 FEET
The fuel system on this generator may be affected by operation at high altitudes. Proper operation
can be ensured by installing an altitude kit at altitudes higher than 3000 feet above sea level. At eleva-
tions above 8000 feet, the engine may experience a decrease in performance, even with the proper al-
titude kit. Operating this generator without said kit may increase the engine’s emissions and decrease
both fuel economy and performance.
This kit should be installed by a qualified mechanic. You can order the kit at wenproducts.com by
searching part 56200i-HA36 for 3000 to 6000 feet above sea level or 56200i-HA68 for 6000 to 8000
feet above sea level. Refer to the instructions included with your altitude kit for more information
about installation.
WARNING: To prevent serious injury from fire, follow the kit installation procedures in a
well-ventilated area away from ignition sources. If the engine is hot from use, shut the engine off
and wait for it to cool before proceeding. Do not smoke near the generator. Warranty will be void
if adjustments are not made for high altitude use.
CAUTION: Engines with the high-altitude kit installed operated at lower altitudes could cause
severe engine damage and affect emissions compliance. Be sure to UNINSTALL the high altitude
kit when operating at altitudes below 3000 feet.
GENERATOR PREPARATION
Fig. 7
14
STARTING YOUR GENERATOR
CAUTION!
Disconnect all electrical loads from the generator before attempting to start.
Before starting the generator, make sure you have read and performed the steps in the “Generator Preparation”
section of this manual, page 11. If you are unsure about how to perform any of the steps in this manual please call
1-(800) 232-1195 M-F 8-5 CST for customer service.
To maximize safety, ALWAYS ground the generator before using it. See page 14, “Ground the Generator”.
Use a ground fault circuit interrupter (GFCI) in highly conductive areas such as metal decking or steel work. GFCIs
are available in-line with some extension cords.
DANGER! CARBON MONOXIDE
Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide (CO). This
is a poison gas you cannot see or smell. If you can smell the generator exhaust, you are breathing CO. But even
if you cannot smell the exhaust, you could be breathing CO.
NEVER use a generator inside homes, garages, crawl spaces, or other partially enclosed areas. Deadly levels
of carbon monoxide can build up in these areas. Using a fan or opening windows and doors does NOT supply
enough fresh air. ONLY use a generator outside and far away from windows, doors, and vents. These openings
can pull in generator exhaust.
Even if you use a generator correctly, CO may leak into the home. ALWAYS use a battery-powered or battery-
backup CO alarm in the home. If you start to feel sick, dizzy, or weak after the generator has been running, move
to fresh air RIGHT AWAY. See a doctor. You may have carbon monoxide poisoning.
WARNING! The exhaust from this product contains chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.
WARNING! Do not operate generator near open flame or flammable materials This generator may emit
highly flammable and explosive gasoline vapors, which can cause severe burns or even death if ignited. A
nearby open flame can lead to explosion even if it isn’t directly in contact with gasoline. Do not smoke near the
generator.
WARNING! This generator produces powerful voltage, which can result in electrocution.
WARNING! Do not use in rainy or wet conditions. Do not touch bare wires or receptacles (outlets). Do not
allow children or non-qualified persons to operate.
WARNING! Generator should only be connected to electrical devices, either directly or with an extension
cord. NEVER connect to a building electrical system without a qualified electrician and connected to a transfer
switch as a separately derived system. Such connections must comply with local electrical laws and codes.
Failure to comply can create a back-feed, which may result in serious injury or death to utility workers.
Follow the instructions on the next page to start your generator.
15
ECO-MODE
ON OFF
MANUAL
SHUT OFF
CHOKE
RUN
OFF
Before starting the generator, check the following:
1. Place the generator outside on a dry, level surface. Allow at
least two feet of clearance on all sides of the generator.
2. Make sure all electrical devices are unplugged from the gen-
erator during ignition. Otherwise it will be difficult for the en-
gine to start.
3. To maximize safety, check that the generator is properly
grounded (see “GROUND THE GENERATOR” section).
4. Check there is sufficient level of oil in the crankcase. Add oil
if necessary (refer to “ADD / CHECK OIL” section).
5. Make sure there is sufficient level of gasoline in the fuel tank.
Add fuel if necessary (refer to “ADD / CHECK FUEL” section).

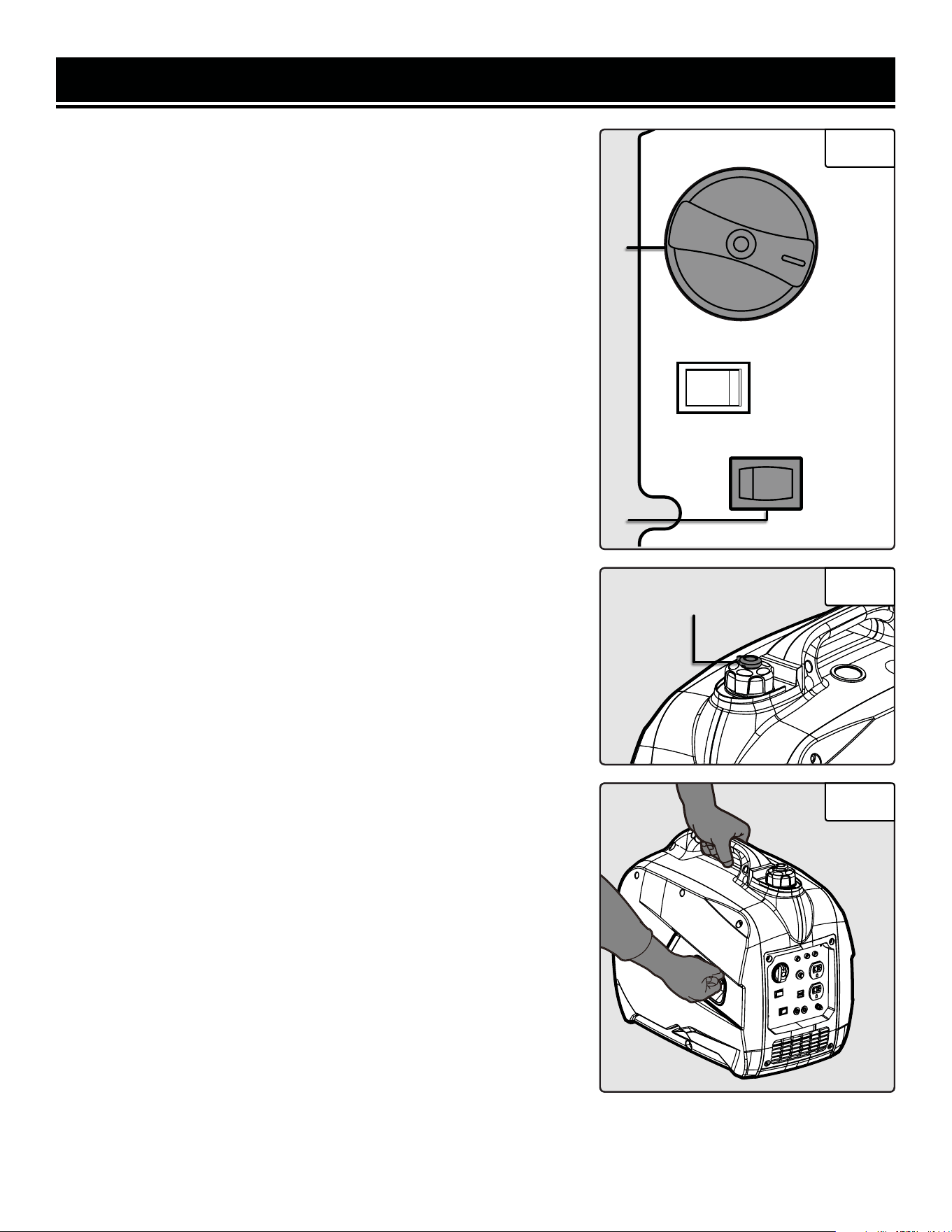

To start the generator, perform the following steps:
1. Turn the ECO-MODE (Fig. 8 - 1) switch to “OFF” during start-
ing.
2. Open the vacuum relief valve (Fig. 9) on top of fuel cap by
rotating it clockwise to the “ON” position. This will allow fuel
to flow.
3. Turn the 3-in-1 dial switch (Fig. 8 - 2) to the “CHOKE” posi-
tion.
4. Place one hand on the generator to hold it in place, and pull
on the recoil starter handle slowly until a slight resistance is
felt (Fig. 10). Then pull quickly to start the engine. Return cord
gently into the machine. Never allow the cord to snap back.
5. If engine fails to start, repeat step 4.
NOTE: After repeated failed attempts to start the engine, please
consult the troubleshooting guide before attempting again. If
problems persist please call 1-(800) 232-1195 M-F 8-5 CST.
6. After the engine has started, turn the 3-in-1 switch (Fig. 8 -
2) to the “RUN” position. The output indicator (green) will light
up.
7. Allow the generator to run for several minutes before at-
tempting to connect any electrical devices. This allows the gen-
erator to stabilize its speed and temperature.
STARTING YOUR GENERATOR
1
2
Vacuum Relief Valve
Fig. 8
Fig. 9
Fig. 10
16
USING YOUR GENERATOR
CALCULATING THE WATTAGE OF YOUR DEVICE(S)
Connect electrical devices running on AC current according to their wattage requirements. Calculate the total run-
ning wattage and starting wattage of the device(s) you wish to connect, and MAKE SURE that they are within the
capacity of your generator and the capacity of each individual outlet.
Generator
Wattage
Capacity
GENERATOR RUNNING (RATED) WATTS GENERATOR STARTING (SURGE) WATTS
1800W 2250W
What this means:
The generator can produce a maximum of
1800W on a continuous basis to supply on-
going power to your electronic devices.
NOTE: Also check the rated amperage for
each outlet and make sure not to overload
the individual outlets.
What this means:
Some devices such as box fans require short
bursts of extra power in addition to the rated
wattage listed by the device to start their mo-
tors.
The generator can produce a maximum watt-
age of 2250W for a short period of time
(seconds) to cover the extra starting power
required by your electronic devices.
Electronic
Device
Wattage
Calculation
Find the wattage information of each device you plan to connect. The information should be
listed on the device or in its instruction manual, or you may refer to page 18, Table 2.
The wattage can be calculated using this equation: Watts = Volts x Amperes
To calculate the total running watts of your
devices:
+ Add up the running wattages of all the
device(s) you plan to connect.
= The total running (rated) wattage.
This wattage should NOT exceed the run-
ning wattage of 1800W.
It is recommended to maintain a load at or
below 1620W (90% of the rated output) to
ensure steady voltage output and to prolong
the generator’s lifespan.
To calculate the total starting watts of your
devices:
+ Add up the total running wattage of all the
device(s) you plan to connect.
+ Add the single highest ADDITIONAL start-
ing wattage out of the device(s) you plan to
connect.
= The total starting (surge) wattage.
This wattage should NOT exceed the starting
wattage of 2250W.
If any of either of the total calculated running watts or starting watts is higher than the capac-
ity of your generator, adjust the load until both wattage requirements are met. Otherwise you
will overload the generator, and cause damage to the engine and your electrical device(s).
Table 1 - How to Calculated Wattages
17
CALCULATING THE WATTAGE OF YOUR DEVICE(S) - CONTINUED
The chart below serves as a reference for the estimated wattage requirements of common electrical devices. How-
ever, do not solely rely on this chart - all electronics and appliances are built differently. Always check the wattage
listed on the electrical device before consulting this chart.
Tool or Appliance Rated (Running) Watts Surge (Starting) Watts
Electric Water Heater (40 Gal) 4000 0
Hot Plate 2500 0
Saw - Radial Arm 2000 2000
Electric Stove (Each Element) 1500-2800 0
Saw - Circular 1500 1500
Air Compressor (1 HP) 1500 3000
Window Air Conditioner 1200 1800
Saw - Miter 1200 1200
Microwave 1000 0
Well Water Pump 1000 1000
Sump Pump 800 1200
Refrigerator Freezer 800 1200
Furnace Blower 800 1300
Computer 800 0
Electric Drill 600 900
Television 500 0
Deep Freezer 500 500
Garage Door Opener 480 0
Stereo 400 0
Box Fan 300 600
Clock Radio 300 0
Security System 180 0
Dvd Player / VCR 100 0
Common Light Bulb 75 0
Table 2 - Estimated Wattages of Common Electrical Appliances
NOTE: Become familiar with the functions and capacity of each component on the control panel before con-
necting electrical devices. See page 19 for more information about the components of the control panel. Do not
overload generator or individual panel receptacles. Do not connect 50Hz or 3-phase loads to the generator.
USING YOUR GENERATOR
18
Low Oil Indicator
Overload Indicator
Output Indicator
AC 120V Duplex
NEMA 5-20R
DC 5V USB Outlet
Grounding Nut
Parallel Connection
Manual Shut-Off
3-in-1 Dial Switch
Reset Button
Eco-Mode Switch
CONNECTING ELECTRICAL DEVICES
When the rated wattage requirement of each electrical device has been determined, add these numbers to find the
total rated wattage needed. If this number exceeds the rated wattage (1800W) of the generator, DO NOT connect all
these devices. Select a combination of electrical devices with a total rated wattage lower than or equal to the rated
wattage of the generator.
CAUTION! Become familiar with the markings on the control panel (Fig. 11) before connecting electrical
devices. Do not connect 50Hz loads to the generator.
1. Before connecting electrical devices, allow the generator to run for a few minutes to stabilize the speed and volt-
age output.
2. Make sure that all devices are turned off. Start plugging in each electric device, from the highest wattage to the
lowest. Check the power indicator light (green) to ensure the generator is producing power.
3. Do not overload the generator or individual panel receptacles. If an overload occurs, the overload indication light
(red) will activate. If it is flashing, turn off and unplug one load. If it is solid (not flashing), the generator will cut
off power to protect itself. Unplug all electrical devices and then press the reset button to reset the entire circuit,
or press the circuit breaker to reset the DC circuit. Check the total wattage of the devices and reduce the load if it
exceeds the capacity of the generator. Then, plug the loads back in one by one.
NOTE: If the reset button or circuit breaker does not reset, wait several minutes and try again. If problem still per-
sists, please call 1-(800) 232-1195 M-F 8-5 CST.
NOTE: The NEMA 5-20 receptacles are capable of connecting devices up to 20A only when two generators are
parallel connected. When operating a single generator, do not exceed 15A (1800 running watts) on this receptacle.
ECO-MODE
ON OFF
MANUAL
SHUT OFF
CHOKE
PARALLEL CONNECT
RESET
AC 120V
GROUNDING
DC 5V
RUN
OFF
USING YOUR GENERATOR
Fig. 11
19
ECO-MODE SWITCH
This generator is equipped with an Eco-Mode Idle Control Switch. Engaging this switch allows the
system to regulate the engine speed and automatically adjust its fuel consumption to match the re
-
quired load. When the electrical load changes, the generator engine will automatically speed up and
slow down as needed. This reduces fuel consumption and noise levels, while extending runtime and
engine’s lifespan.
Keep this switch engaged ONLY when the power load requirement is LESS THAN 1350W (75% of the
rated watts). Do not engage the Eco-Mode Switch when the total load is more than 1350W. The genera
-
tor engine must run at full speed to supply power for anything over 1350W.
PARALLEL OPERATION
The parallel connection ports allow you to connect two WEN generators to increase the total available
electrical power. The WEN Parallel Connection Kit can be purchased from wenproducts.com. Follow
the instructions included with your parallel connection kit for proper installation and operation.
IN CASE OF OVERLOAD
If your generator becomes overloaded from too much drawn wattage, the overload indicator (red) on
the control panel will light up, and the overload reset button on your control panel may activate and cut
off the output. When an overload occurs, reduce the load by turning off and unplugging your electronic
device(s), then press the reset button to reset your generator. If no power is produced after resetting,
restart your generator.
• 4% to 10% over rated watts: overload light will flash to indicate overload
• 10% to 18% over rated watts: overload light will stay on for 16 seconds, output will be cut off.
• More than 18% over rated watts: overload light will stay on for 3 seconds, output will be cut off.
USING YOUR GENERATOR
20
Table 3 - Power Cord Requirement Guide
SOME NOTES ABOUT POWER CORDS
Long or thin cords can drain the power provided to an electrical device by the generator. When using such cords,
allow for a slightly higher rated wattage requirement by the electrical device.
*NR = Not Recommended
Device Requirements Max. Cord Length (ft) by Wire Gauge
Amps Watts
(120V)
Watts (240V) #8 wire #10 wire #12 wire #14 wire #16 wire
2.5 300 600 NR NR NR 375 250
5 600 1200 NR NR 300 200 125
7.5 900 1800 NR 350 200 125 100
10 1200 2400 NR 250 150 100 50
15 1800 3600 NR 150 100 65 NR
20 2400 4800 175 125 75 50 NR
25 3000 6000 150 100 60 NR NR
30 3600 7200 125 65 NR NR NR
40 4800 9600 90 NR NR NR NR
WARNING! Generator should only be connected to electrical devices, either directly or with an extension
cord. NEVER CONNECT TO A BUILDING ELECTRICAL SYSTEM without a qualified electrician and connected to
a transfer switch as a separately derived system. Such connections must comply with local electrical laws and
codes. Failure to comply can create a back-feed, which may result in serious injury or death to utility workers.
NOTE: For power outages, permanently installed, stationary generators are better suited for providing backup
power to your home. Even a properly connected portable generator can become overloaded. This may result in
overheating or stressing the machine’s components, possibly leading to generator failure.
USING YOUR GENERATOR
21
WARNING: Allow generator to cool down before touching areas that become hot during use.
OPTION 1: FUEL SHUT OFF (RECOMMENDED)
The WEN 2250W Inverter Generator is equipped with automatic fuel shutoff. This feature turns off the
flow of fuel, allowing for the generator to use up the remaining fuel from the carburetor before turning
off. This prolongs the lifespan of the generator by preventing build-up and blockages caused by stag-
nant fuel inside of a carburetor.
CAUTION: Unplugging running devices can cause damage to the generator. Never stop the
engine with electrical devices connected and running.
CAUTION: Allowing gasoline to sit in the fuel tank for long periods of time can make it difficult
to start the generator in the future. Never store the generator for extended periods of time (over 2
months) with fuel in the fuel tank. Refer to “TRANSPORTATION & STORAGE”.
1. Turn off all electrical devices prior to unplugging them
from the generator. Unplugging running devices can
cause damage to the generator.
2. Allow generator to run at no load for a few minutes to
stabilize internal temperatures.

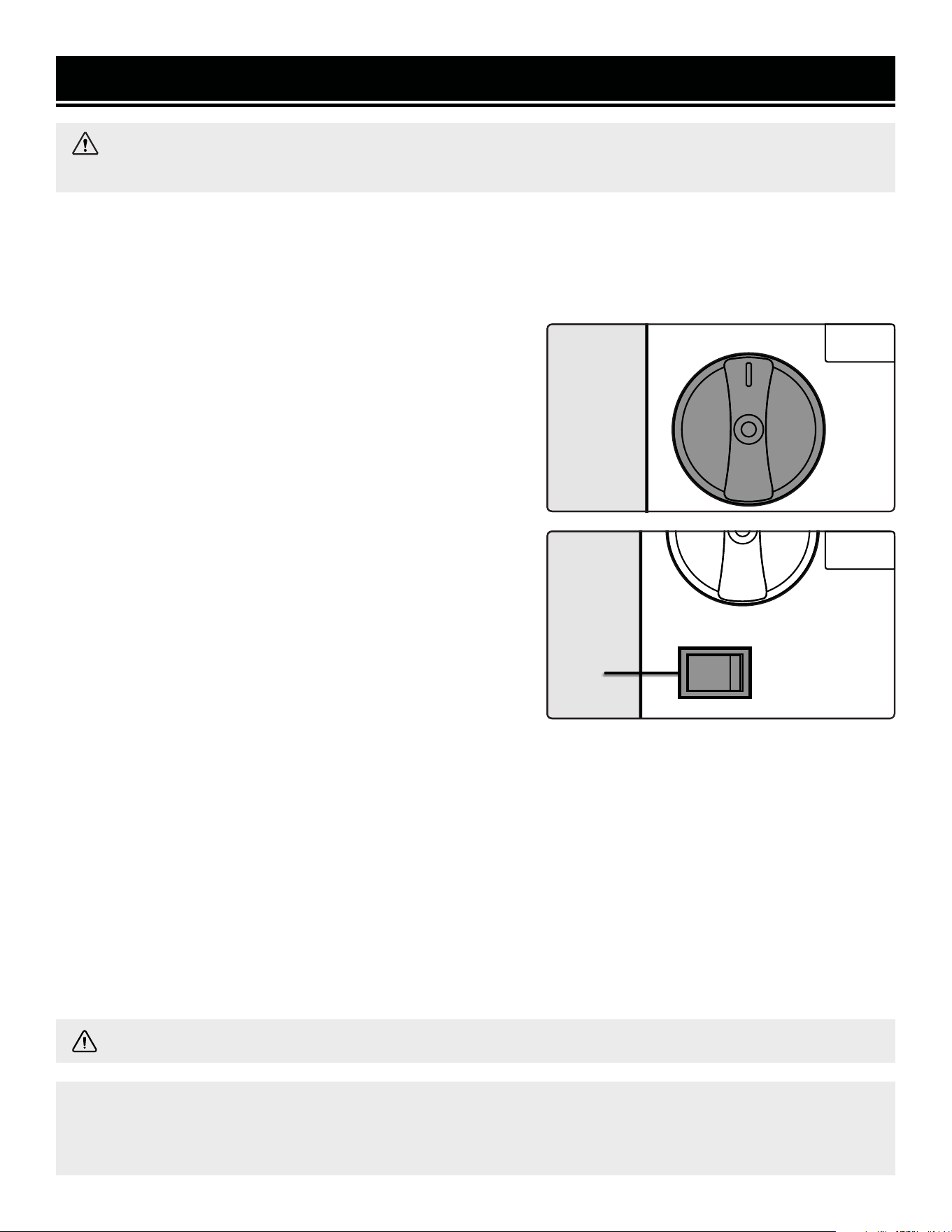

3. Turn the engine switch to the “OFF” position (Fig. 12).
4. Close the vacuum relief valve on the top of the fuel cap
by rotating it counterclockwise to the “OFF” position.
5. The engine will continue to run until the majority of the
fuel in the carburetor is consumed. The engine will then
shut off automatically. This helps prevent the carburetor
from being clogged by stale fuel, extending your genera
-
tor’s lifespan.
OPTION 2: MANUAL SHUT OFF
In case you need to refuel or move your generator in a hurry, and do not want to wait for the generator
to automatically shut down, the manual shutoff feature is available. However, this method will leave
stagnant fuel in the carburetor, possibly causing blockages, a shortened lifespan, and other mainte
-
nance issues. If this approach is frequently taken, make sure to drain your carburetor before any long
storage periods.
1. Turn off all electrical devices prior to unplugging them from the generator. Unplugging running de
-
vices can cause damage to the generator.
2. Press the “MANUAL SHUT OFF” switch (Fig. 13 - 1) and hold it down in the “OFF” position for about
6 seconds until the engine shuts off.
SHUTTING OFF YOUR GENERATOR
CHOKE
RUN
OFF
MANUAL
SHUT OFF
CHOKE
Fig. 12
Fig. 13
1
22
Proper routine maintenance of the generator will help prolong the life of the machine. Please perform maintenance
checks and operations according to the schedule in Table 4.
CAUTION! Never perform maintenance operations while the generator is running. Before maintaining or
servicing the generator, turn OFF the generator, disconnect all devices and allow the generator to cool down.
If there are any questions about the maintenance procedures listed in this manual, please call 1-(800) 232-1195 M-F
8-5 CST or email [email protected].
Recommended
Maintenance Schedule
Every 8
Hours or
Daily
Every 25
Hours
Every 3
Months or
50 Hours
Every 6
Months or
100 Hours
Before
Storage
As
Necessary
Engine Oil
Check Level x
Replace x* x
Air Filter
Check x*
Clean x*
Spark Plug
Check/Clean/
Regap
x
Change x x
Fuel
Check Level x
Drain x x
Carburetor Drain x x
Spark
Arrestor
Check/Clean x
Table 4 - Recommended Maintenance Schedule* Clean/change more often under dusty conditions
or operating under heavy load.
IMPORTANT GENERATOR MAINTENANCE TIPS:
• Drain your carburetor after each use and before storage to prevent it from clogging.
• Do not store the generator with fuel inside the tank for more than 2 months - the fuel will go bad.
• Run the generator for at least 15 minutes every month to maximize its lifespan.
CLEANING THE GENERATOR
Keep the generator clean to prevent improper operation or machine damage from dirt and debris. Inspect all venti-
lation openings on the generator. These openings must be kept clean and unobstructed. If the generator becomes
dirty, use a damp cloth to wipe exterior surfaces. Use a soft bristle brush to loosen dirt and oil and use a vacuum to
pick up loose dirt. Use low pressure air (not to exceed 25 PSI) to blow away dirt.
CAUTION! Never clean the generator when it is running! Never clean with a bucket of water or a hose. Water
can get inside the working parts of the generator and cause corrosion or a short circuit.
NOTE: Failure to properly maintain the generator will void the warranty.
MAINTENANCE
23
2. Using a coin, turn the oil access cover screw 1/4 turn clockwise,
then remove the access cover from the service panel. Clean around
the oil fill. Remove the dipstick and wipe the it with a clean rag.
3. Insert the dipstick into the oil fill opening without screwing in.
Remove the dipstick to check the oil mark (Fig. 14). Add oil if the
oil mark covers less than one half of the dipstick.
4. Using a funnel or appropriate dispenser, slowly add more oil.
Repeat step 2 until the oil mark reaches the top of the dipstick (you
can see oil coming up the threads of the oil fill). Do not over fill.
5. Reinstall dipstick and wipe clean any spilled oil with a rag. Rein
-
stall the oil access cover.
TIP: Your WEN generator is compatible with the WEN 55201 Magnetic Oil Dipstick (not included),
available for purchase at wenproducts.com. The dipstick’s industrial-strength magnetic tip will
collect metal
shavings from your generator’s oil tank to help preserve the engine and extend your
generator’s lifespan.
CLEANING THE GENERATOR
Keep the generator clean to prevent improper operation or machine damage from dirt and debris. In-
spect all ventilation openings on the generator. These openings must be kept clean and unobstructed.
If the generator becomes dirty, use a damp cloth to wipe exterior surfaces. Use a soft bristle brush
to loosen dirt and oil and use a vacuum to pick up loose dirt. Use low pressure air (not to exceed 25
PSI) to blow away dirt.
WARNING: Never clean generator when it is running! Never clean with a bucket of water or a
hose. Water can get inside working parts of the generator and cause corrosion or a short circuit.
CHECKING/ADDING OIL
Check the oil level before each use and every 8 hours of operation (refer to Table 4).
The oil capacity of the generator engine is 11.8 fl. ounces. Add oil when the oil level is low. For
proper type and weight of oil refer to “ADD OIL” portion of the “GENERATOR PREPARATION” sec
-
tion. This is a critical step for proper engine starting. The generator is equipped with an automatic
shutoff to protect it from running on low oil.
To check the oil level and add oil:
1. Make sure the generator is on a level surface. Do not tilt the generator, as oil will flow into engine
areas and cause damage. Keep generator level!
MAINTENANCE
Upper Limit
Lower Limit
Fig. 14
24
1. Place generator on elevated platform such as table or
desk.
2. Using a Phillips-head screwdriver (not included), re
-
move the service panel by unscrewing the three Phillips-
head screws (Fig. 15) along the upper edge.

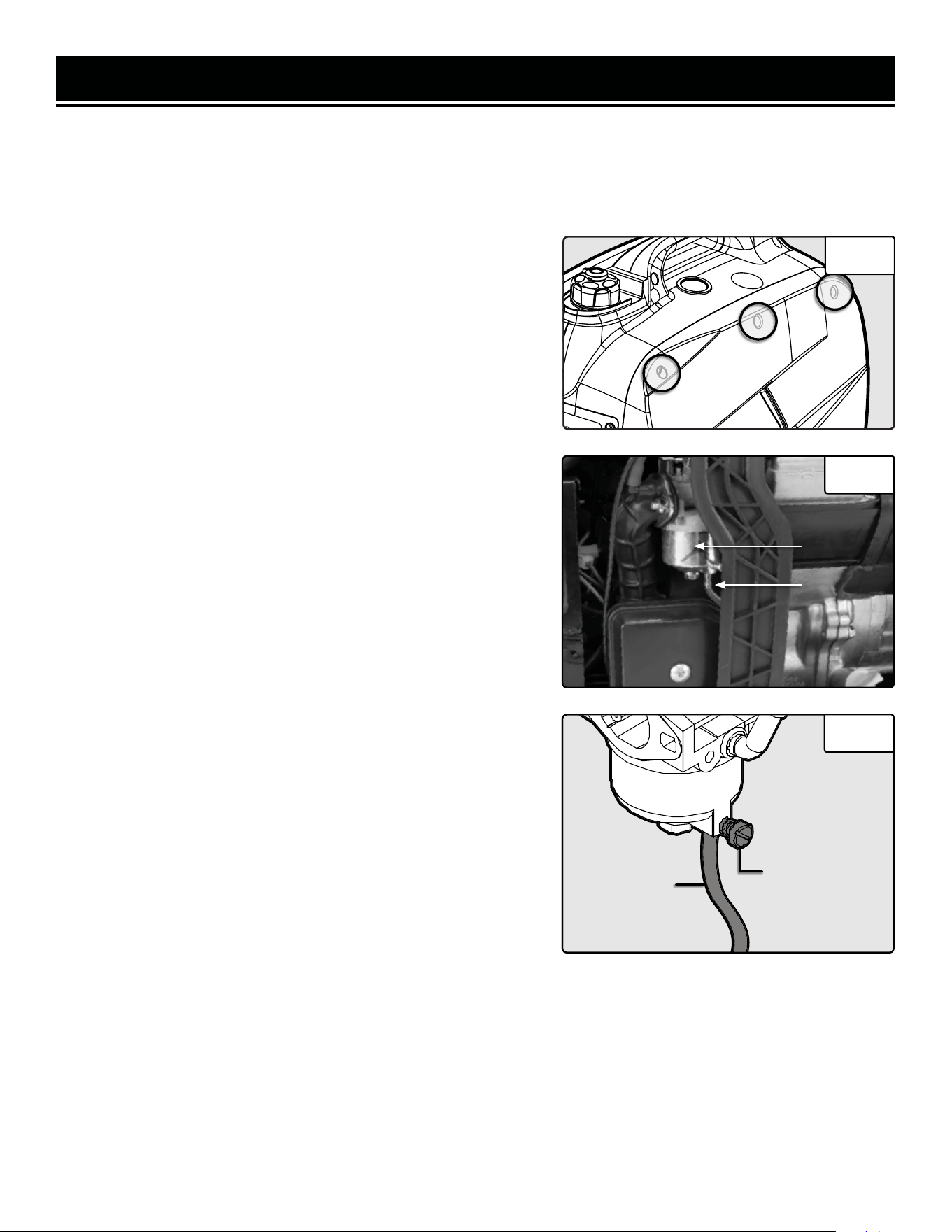

3. The carburetor (Fig. 16 - 1) can be accessed from the
backside of the generator between the engine and the air
filter. Locate the transparent tube (Fig. 16 - 2) from the
carburetor that extends down through the bottom of the
generator.
4. Prepare an approved gasoline-storage container and di
-
rect the end of the drain tube into the container.
5. Open up the carburetor drain screw (Fig. 17) with a flat-
head screwdriver (not included) and drain out any gaso
-
line that has built up inside the carburetor through the
drain tube into the approved gasoline-storage container.
6. Once the fuel has drained, tighten the drain screw with
the screwdriver.
NOTE: Make sure to drain your carburetor before storing
the generator for long periods of time.
7. Reinstall the service panel.
DRAINING THE CARBURETOR
We recommended draining the carburetor after every use (not necessary if the generator is shut
off using the “FUEL OFF” option), and before storing the generator. Draining the carburetor can
prevent the fuel from clogging up the carburetor and preventing the generator from starting.
MAINTENANCE
Fig. 15
1
2
Fig. 16
Fig. 17
Drain Tube
Carburetor
Drain Screw
25

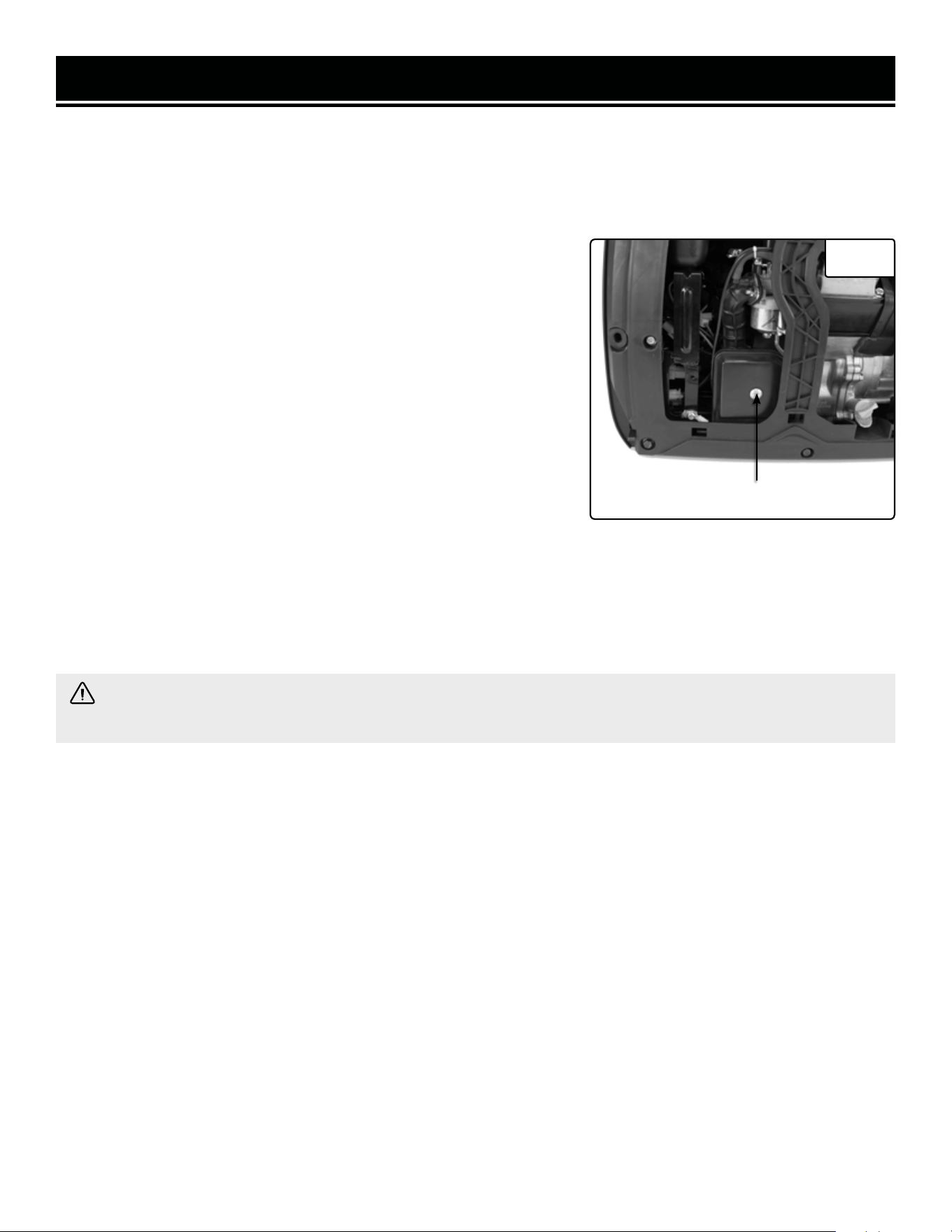

Air Cleaner Cover
WARNING: Running the engine with a dirty, damaged or missing air filter element can result
in danger to the operator and cause the engine to wear out prematurely.
MAINTENANCE
AIR FILTER MAINTENANCE
Check every 50 hours of operation (refer to Table 4 - Recommended Maintenance Schedule).
Routine maintenance of the air filter helps maintain proper airflow to the carburetor. Occasionally
check that the air cleaner is free of excessive dirt.
To inspect and clean the air filter:
1. Using a Phillips-head screwdriver (not included), remove
the service panel by unscrewing the three Phillips-head
screws (Fig. 15) along the upper edge.
2. Take the cover off of the air cleaner assembly by unscrew-
ing the middle screw (Fig. 18). Remove the air filter element.
Wipe excessive oil and any dirt from inside of the air filter
casing.
3. Check and clean the foam air cleaner element. Good ele
-
ments can be washed in soapy water, dried and reused. A
small amount of oil in the element is normal and necessary
for the engine to work properly.
If the air filter element has been damaged, replace it with a new one. Replacement air filters can be
ordered from wenproducts.com by searching part no. 56200-1407B.
4. Reinstall the air cleaner element, air cleaner cover and service panel.
Fig. 18
26
DRAINING/CHANGING OIL
Change the oil according to the Recommended Maintenance Schedule in Table 4.
Change the oil MORE OFTEN if operating under heavy load or high ambient temperatures. It is also
necessary to drain the oil from the crankcase if it has become contaminated with water or dirt.
Changing the oil when the engine is warm allows for complete drainage.
1. Close the gas cap and vacuum relief valve.
2. Place generator on elevated platform such as table or workbench Prepare a gasoline-approved
container to catch the oil as it drains.
NOTE: To avoid possible oil spills from the carburetor bowl, drain the carburetor (see page 25) be
-
fore draining oil.
3. Using a coin, turn the oil access cover screw 1/4 turn clockwise, then remove the access cover from
the service panel. Remove the dipstick and tilt the generator towards you and allow the oil to drain
from the engine completely.
NOTE: Never dispose of used motor oil in the trash or down a drain. Please call a local recycling
center or auto garage to arrange proper oil disposal.
4. Using a funnel or appropriate dispenser, add 11.8 oz of clean engine oil until you can see oil com
-
ing up the threads of the oil fill. Do not over fill.
5. Reinstall the oil dipstick and tighten it securely. Wipe clean any oil spillage and reinstall the oil
access cover.
MAINTENANCE
27
Fig. 1
MAINTENANCE
SPARK PLUG MAINTENANCE
Refer to Recommended Maintenance Schedule in Table 4 for maintaining the spark plug.
The spark plug is important for proper engine operation. Check the spark plug regularly to maintain
proper engine operation. A good spark plug should be intact, free of deposits, and properly gapped.
To inspect or replace the spark plug:
1. Using a Phillips-head screwdriver (not included), remove
the service panel by unscrewing the three Phillips-head
screws along the upper edge.

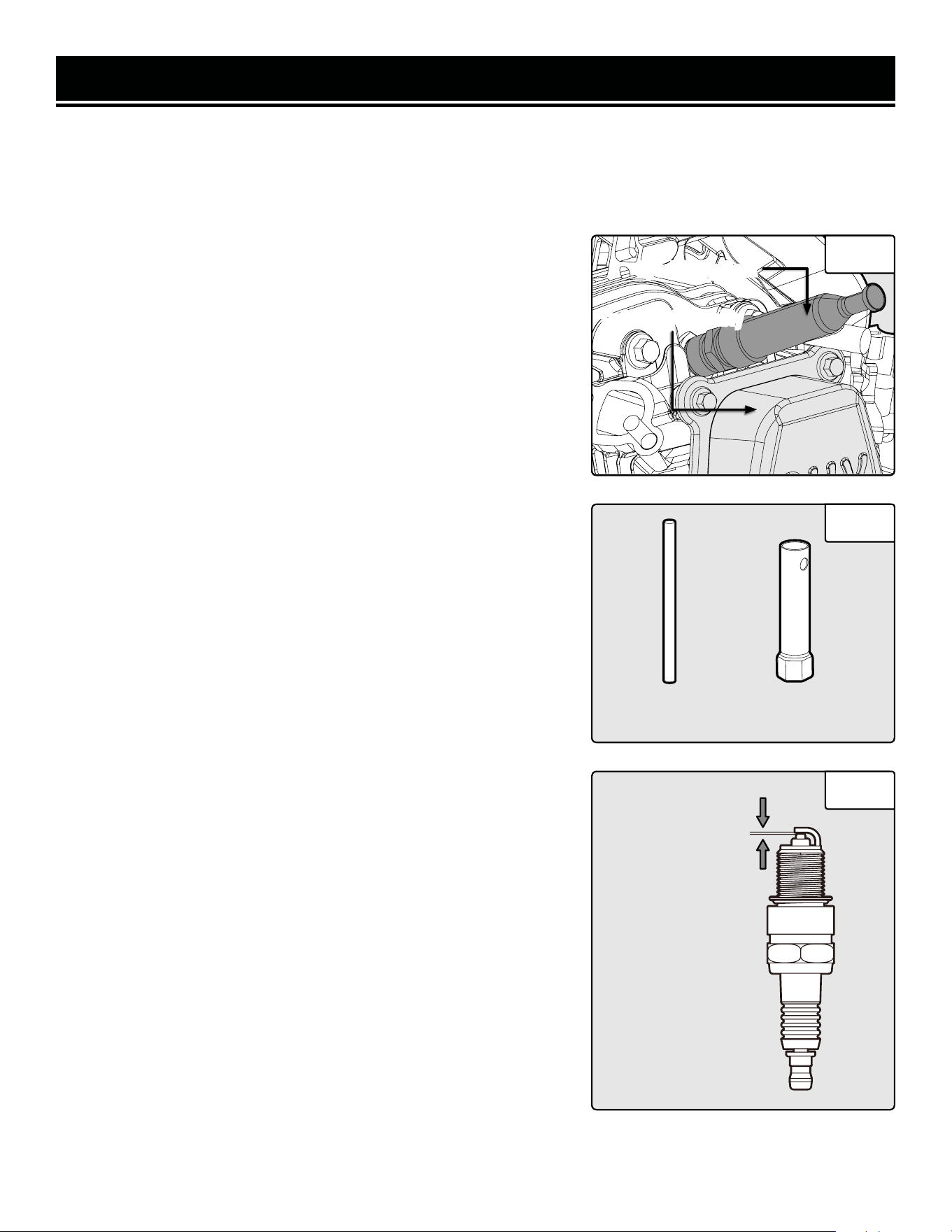

2. Pull on the spark plug boot (Fig. 19) to remove it. Be careful
not to tear any insulation or wire.
3. Remove the spark plug rubber cover on the top of the gen
-
erator next to the fuel gauge. Insert the included spark plug
wrench through the spark plug access hole to unscrew and
then carefully remove the spark plug from the engine (Fig.
20).
TIP: There is limited space for the wrench to turn. Use both
rows of holes in the spark plug wrench to gain leverage to
loosen the plug.
4. Visually inspect the spark plug. If it is cracked or chipped,
or if the electrodes are worn or burned, discard it and replace
with a new spark plug.
We recommend replacing with a NGK CR5HS/Torch A5RTC
spark plug (part no. 56200-0806), available for purchase at
wenproducts.com.
5. If re-using the spark plug, use a wire brush to clean any dirt
from around the spark plug base, then re-gap the spark plug.
6. Measure the plug gap with a spark plug gap gauge. The gap
should be 0.6-0.8 mm (0.024-0.031 in). (Fig. 21). Carefully
adjust the gap if necessary.
7. Screw the spark plug back into the spark plug hole using
the spark plug wrench. Do not over-tighten spark plug. Rec-
ommended tightening of spark plug is ½ to ¾ of a turn (15
ft-lb torque/20.33 Nm) after spark plug gasket contacts spark
plug hole.
8. Reinstall the spark plug boot, spark plug rubber cover, and
service panel.
Spark Plug BootSpark Plug Boot
Cylinder AssemblyCylinder Assembly
Fig. 19
Spark Plug
Wrench
Spark Plug
Handle
Fig. 20
0.6 mm - 0.8 mm
Fig. 21
28
DRAINING THE FUEL TANK
Drain and clean the fuel tank each year, or before storing the generator for longer than two
months.
To drain the fuel tank and carburetor:
1. Using a Phillips-head screwdriver (not included), remove the service panel by unscrewing the
three Phillips-head screws (Fig. 15) along the upper edge.
2. Locate the carburetor (Fig. 16 - 1) and the transparent drain tube (Fig. 16 - 2) from the carburetor
that extends down through the bottom of the generator.
3. Prepare an approved gasoline-storage container and direct the end of the transparent tube into the
container.
4. Remove the fuel cap and turn the 3-in-1 switch to the “RUN” position. Fuel will start draining from
the carburetor and fuel tank through the drain tube.
NOTE: The draining process may take a few hours, depending on the amount of fuel in your gas tank.
5. Once fuel is completely drained, reinstall the fuel cap and turn the 3-in-1 switch to “OFF” position.
Tighten the drain screw with the screwdriver and reinstall the service panel.
6. Store emptied gasoline in a suitable place. DO NOT store flammable materials near the gasoline.
CAUTION: Store emptied gasoline in a suitable place. Never store fuel for more than 2 months.

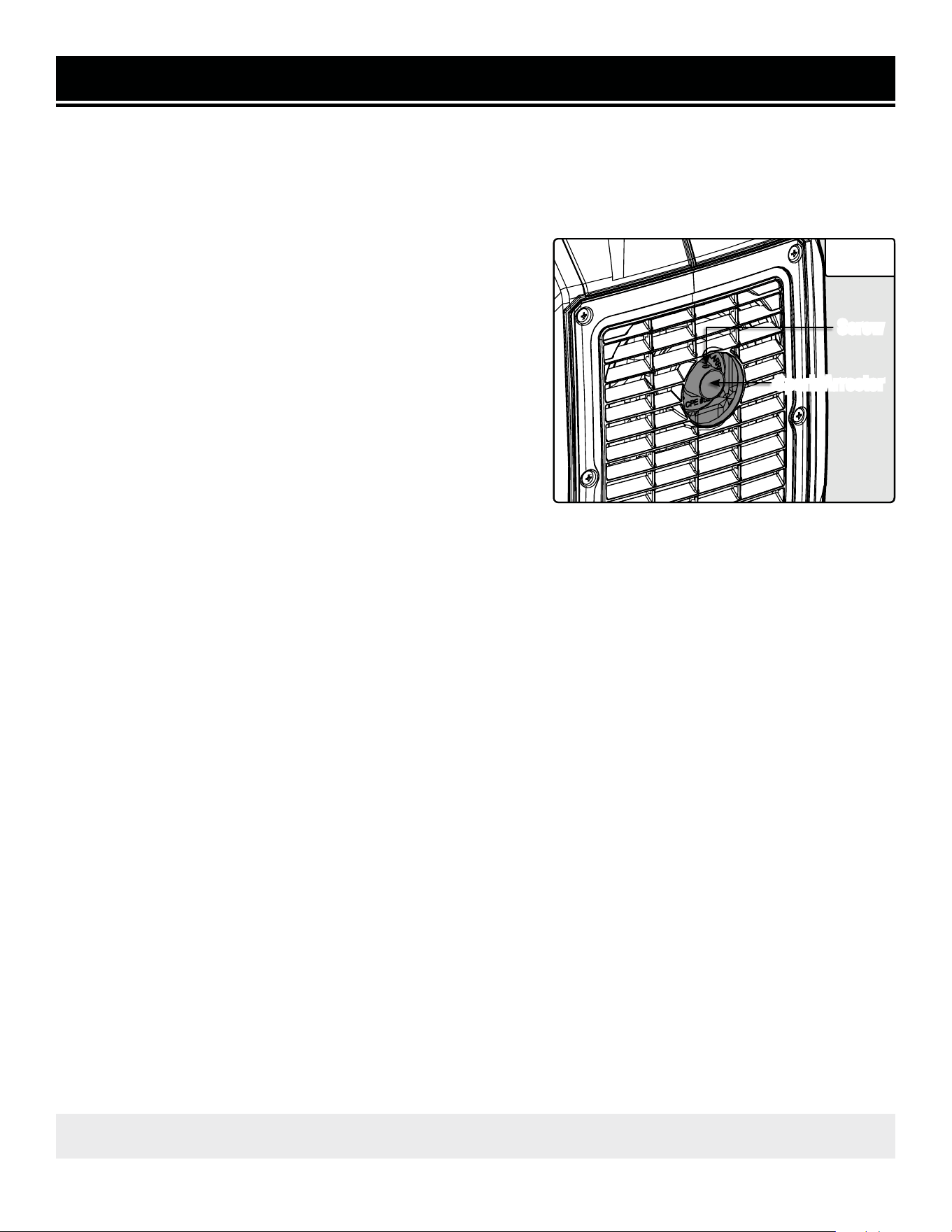

SPARK ARRESTOR MAINTENANCE
Inspect and clean the spark arrestor every 100 hours of operation.
The spark arrester is located outside the muffler, which gets very hot during operation. Allow the
engine to cool completely before servicing the spark arrester. To inspect and clean the spark arrester:
1. Remove the screw that secures the spark arrestor to the
muffler.
2. Remove the spark arrestor screen (Fig. 22).
3. Carefully clean and remove the carbon deposits from
the spark arrestor screen with a wire brush. Replace the
spark arrestor if it is damaged (replacement spark arres
-
tors can be purchased from wenproducts.com by search-
ing the part no. 56225i-1509).
4. Reinstall the spark arrestor in the muffler and secure it
in place with the screw.
MAINTENANCE
ScrewScrew
Spark ArrestorSpark Arrestor
Fig. 22
29
WARNING: Avoid direct sunlight inside a vehicle. If generator is left in an enclosed vehicle
for many hours, the high temp could cause the fuel to vaporize and result in a possible explosion.
WARNING: Store the generator upright in a cool and dry location, away from sources of heat,
open flames, sparks or pilot lights.
TRANSPORTATION & STORAGE
TRANSPORTING THE GENERATOR
To prevent fuel spillage when transporting, be sure to perform the following:
1. Tighten the fuel cap and turn the vacuum relief valve to “OFF”.
2. Set the engine switch to “OFF”.
3. Drain the fuel tank if possible (see “DRAINING THE FUEL TANK”).
4. Keep the generator upright. Never place the generator on its side or upside down - doing so will
make it difficult to start.
STORING THE GENERATOR
Shut off the generator and allow the unit to cool to room temperature before storing it. NEVER place
any type of storage cover on the generator while it is still hot. Do not obstruct any ventilation open-
ings.
Follow the procedures below for properly storing your generator. We highly recommend running your
generator once a month for 15 to 30 minutes. Plug in a small load in to ensure there is proper power
output.
For Short Periods (30 to 60 Days):
• Drain the carburetor. Refer to, “Draining the Carburetor.”
• Add fuel stabilizer: Follow the suggested portions and
instructions of your preferred stabilizer. Run the engine for
15 to 20 minutes, allowing the fuel stabilizer to mix with the
gasoline and circulate through the carburetor, and then top
off with fuel. Filling the fuel tank full reduces the amount of
air in the tank and helps fight deterioration of fuel.
For Extended Periods (Over 60 Days):
• Drain the fuel tank and carburetor. Refer
to, “Draining the Fuel Tank”. Never store
generator with fuel in the tank for more
than two months.
• Change the engine oil. Refer to,
“Changing Oil”.
PRODUCT DISPOSAL
Do not dispose of a used generator or parts with your household waste. This product contains electrical or elec-
tronic components that should be recycled. Please take this product to your local recycling facility for responsible
disposal to minimize its environmental impact.
Do not dispose of used oil or fuel in the trash or down a drain. Please contact your local recycling center or auto
garage to arrange proper oil/fuel disposal.
Please recycle the packaging and electronic components where facilities exist. Please contact your
local auto garage or recycling facility to properly dispose of oil/fuel.
30
PROBLEM POSSIBLE CAUSE SOLUTION
Engine will not
start.
Engine switch is set to OFF. Set engine switch to ON.
Fuel valve is turned to OFF. Turn fuel valve to ON.
Oil is low. Add or replace oil.
Engine is out of fuel. Add fuel.
Engine is filled with
contaminated or old fuel.
Drain fuel in the tank. Fill with fresh fuel.
Spark plug is dirty or bro
-
ken.
Clean or replace the spark plug.
Carburetor is air locked.
Shut off fuel valve. Remove the bolt from the bottom of
the carburetor. Take off the carburetor bowl to allow it
to
reset. Replace carburetor bowl and reinstall the bolt.
Engine runs but
there is no
electrical output.
Circuit breaker has been
tripped due to overload.
Turn off and unplug all electrical devices. Wait 5 minutes,
then press the circuit breaker to reset. Check the total
wattage of the devices and reduce the load if it exceeds
the capacity of the generator. Then plug the loads back in
one by one.
Bad connecting cords/wires.
Check the power cords and extension cords. Do not use
if any cord is damaged. Replace damaged cords imme
-
diately.
Bad electrical device con
-
nected to the generator.
Try connecting a different device.
Generator runs
but does not sup
-
port all electrical
devices con
-
nected.
Generator is overloaded.
Turn off and unplug all electrical devices. Wait 5 minutes,
then press the circuit breaker to reset. Reduce load as
necessary, then plug devices back in one by one.
Short circuit in one of the
devices.
Try disconnecting any faulty or short-circuited electrical
loads.
Air filter is dirty. Clean or replace the air filter element.
Engine is
“Hunting” during
Operation
(Engine RPM is
fluctuating).
1. The fuel isn’t running
through the fuel valve.
2. The air filter is clogged.
3. The muffler or spark ar
-
rester is blocked
4. There is gunk in the car
-
buretor preventing a consis-
tent fuel/air mixture.
Turn off the generator and wait for it to cool down. Per
-
form the following steps:
1. Check if the fuel is properly and consistently going
through the fuel valve
2. Check for any blockage in the air filter. Check and
clean the air filter as necessary.
3. Check if the spark arrester is blocked. Clean with
metal brush as necessary.
4. Use “gunk remover” spray on the carburetor jets.
WARNING: Stop using the generator immediately if any of the following problems occur or
risk serious personal injury. If you have any questions, please contact our customer service at
(800) 232-1195, M-F 8-5 CST or email us at [email protected].
TROUBLESHOOTING GUIDE
31
Control Panel
Control Panel Wiring
Overload Protector
Parallel Connection
Eco-Mode Switch
Reset
Manual Shut Off
Operation Indicator
Overload Indicator
Low Oil Indicator
IgnitorSpark PlugOil Sensor
Ignition Coil
Stepper Motor
Main Winding
Control
Winding
DC Winding
Ignition
Pulse
Voltage Regulator
Magnetic Motor
No.
Winding Name Wire Color Resistance
Br U-Br V
Br V-Br W
Br U-Br W
Br-RW
R-RW
BL-Y
P-O
BL-BL
O-O
Main Winding
DC Winding
Control Winding
Ignition Coil
Stepper Motor
WIRING DIAGRAM
32

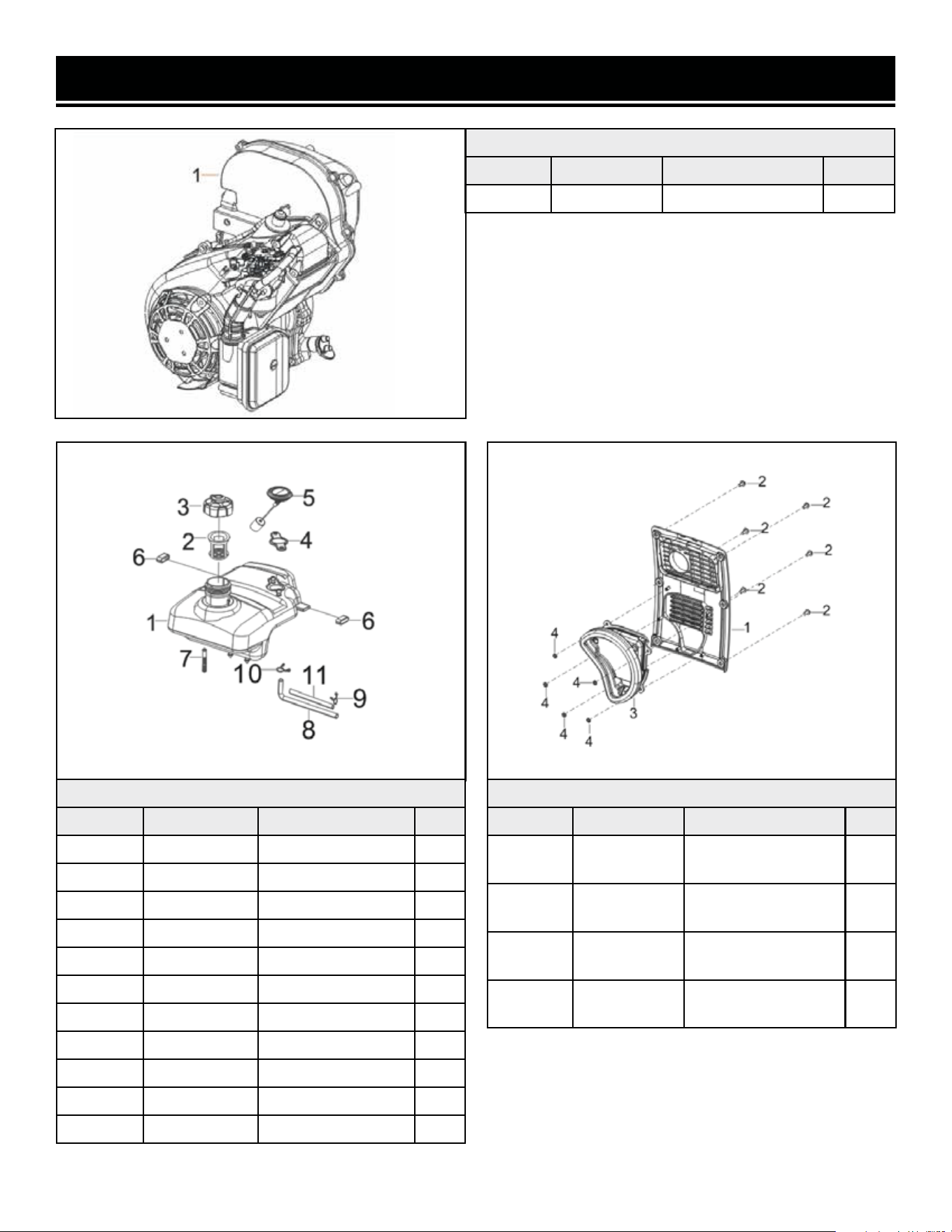

FIG. 3 - MUFFLER COVER
NO. PART NO. DESCRIPTION QTY.
Fig. 3-1
56200-
0301
Cover, Muffler
Side
1
Fig. 3-2
56200-
0302
Washer & Screw
Component
6
Fig. 3-3
56200-
0303
Cushion,
Joint Rubber
1
Fig. 3-4
56200-
0304
Clip, Spring 5
FIG. 2 - FUEL TANK ASSEMBLY
NO. PART NO. DESCRIPTION QTY.
Fig. 2-1 56225-0201 Tank, Fuel 1
Fig. 2-2 56200-0202 Fuel Filter 1
Fig. 2-3 56200-0203 Cover, Fuel Tank 1
Fig. 2-4 56200-0204 Clamp Oil Seal 1
Fig. 2-5 56200-0205 Fuel Gauge 1
Fig. 2-6 56200-0206 Bush 2
Fig. 2-7 56200-0207 Element, Strainer 1
Fig. 2-8 56200-0208 Tube, Fuel 1
Fig. 2-9 56200-0209 Collar 1
Fig. 2-10 56200-0210 Collar 1
Fig. 2-11 56200-0211 Jacket, Rubber 1
FIG. 1 - ENGINE
NO. PART NO. DESCRIPTION QTY.
Fig. 1-1
56225i-0101
Engine Assembly 1
EXPLODED VIEW & PARTS LIST
33
NO. PART NO. DESCRIPTION QTY.
Fig. 4-1
56200-
0401B
Side Panel
(Right)/Service
Panel
1
Fig. 4-2 56200-0402 Shell, Right 1
Fig. 4-3 56200-0403 Shell, Left 1
Fig. 4-4
56200-
0404B
Side Panel
(Left)
1
Fig. 4-6 56200-0406 Bolt 9
Fig. 4-7 56200-0407 Bolt 6
Fig. 4-8 56200-0408 Stud 6
Fig. 4-9 56200-0409
Fuel Tank
Rubber Sleeve
4
Fig. 4-10 56200-0410 Rubber Washer 1
Fig. 4-11 56200-0411
Gas Tank
Opening
1
Fig. 4-12 56200-0412 Jacket, Rubber 1
Fig. 4-13 56200-0413 Fuel Gauge 1
NO. PART NO. DESCRIPTION QTY.
Fig. 4-14 56200-0414 Jacket, Rubber 1
Fig. 4-16
56200-
0416B
Guide Starting
Rope
1
Fig. 4-17 56200-0417 Screw 1
Fig. 4-20 56200-0420
Starter Cable
Handle
1
Fig. 4-21
56200-
0421B
Screw 1
Fig. 4-22 56200-0422 Bolt 2
Fig. 4-23 56200-0423 Nut 6
Fig. 4-24
56200-
0424B
Oil Access
Cover
1
Fig. 4-25
56200-
0425B
Bolt 1
Fig. 4-26
56200-
0426B
Lever 1
Fig. 4-27
56200-
0427B
Nut 1
FIG. 4 - SIDE CASING
EXPLODED VIEW & PARTS LIST
34
FIG. 5 - BASE PLATE / INVERTER
NO. PART NO. DESCRIPTION QTY.
Fig. 5-1 56200-0501 Plate, Bottom 1
Fig. 5-2 56200-0502 Bolt 5
Fig. 5-3 56200-0503 Seat, Frame 2
Fig. 5-4 56200-0504 Seat, Frame 2
Fig. 5-5 56200-0505 Nut 10
Fig. 5-6 56200-0506 Nut 8
Fig. 5-7 56200-0507
Cushion, Engine
Frame
4
Fig. 5-8 56200-0508 Bolt 8
Fig. 5-9 56200-0509
Bracket, Cush
-
ion Rubber
1
Fig. 5-10 56200-0510
Bracket, Cush
-
ion Rubber
1
Fig. 5-11 56200-0511
Support, In
-
verter
1
Fig. 5-12
56225i-
0512
Inverter 1
Fig. 5-15 56200-0515
Sleeve, Fuel
Tank Rubber
1
Fig. 5-16 56200-0516
Sleeve, Fuel
Tank Rubber
1
Fig. 5-17 56200-0517 Bolt 3
Fig. 5-18 56200-0518 Nut 4
Fig. 5-19
56225i-
0519
Voltage Regula
-
tor
1
EXPLODED VIEW & PARTS LIST
35
NO.
PART NO. DESCRIPTION QTY.
Fig. 6-1
56200-0601B Screw 4
Fig. 6-3
56225i-0603
Eco-Mode Idle
Switch
1
Fig. 6-4
56200-0604
Grounding
Terminal
1
Fig. 6-5
56200-0605
120 Volt Duplex
Receptacle
1
Fig. 6-6
56200-0607B
Indicator Light
Seat
1
Fig. 6-7
56200-0606B Indicator Light 3
Fig. 6-9
56225i-0609
Control Panel Wir-
ing
1
Fig. 6-11
56225i-0611
Control Panel
Assembly
1
Fig. 6-12
56225i-0612
Washer and
Screw, M5x16
4
Fig. 6-14
56200-0614 Seat, Panel 1
Fig. 6-15
56200-0615 Screw 3
Fig. 6-16
56200-0617 Bolt 1
Fig. 6-17
56225i-0617 Control Box 1
Fig. 6-18
56225i-0618 Screw M4x16 1
Fig. 6-19
56225i-0619 Knob 1
No.
Part No. Description Qty.
Fig. 6-20
56200-0620 Handle Choke 1
Fig. 6-21
56200-0621B Cover Plate 1
Fig. 6-23
56200-0623 Ball, Steel 1
Fig. 6-24
56200-0624B
Spring, Stopper
Adjusting
1
Fig. 6-26
56225i-0626
Bracket, Fuel
Cock
1
Fig. 6-27
56225i-0627 Screw M4.2x16 2
Fig. 6-28
56200-0628 Cock Assy, Fuel 1
Fig. 6-29
56200-0629 Bolt 1
Fig. 6-31
56200-0631 Tube, Fuel 1
Fig. 6-32
56200-0632 Collar 2
Fig. 6-34
56200-0634 Collar 1
Fig. 6-36
56200-0636 Band 2
Fig. 6-37
56200-0637 Jacket, Rubber 2
Fig. 6-38
56225i-0638 USB Charger 1
Fig. 6-40
56200-0640 Parallel Kit Socket 1
Fig. 6-41
56200-0641 Parallel Kit Socket 1
Fig. 6-44
56225i-0644
Manual Shut Off
Switch
1
Fig. 6-45
56225i-0645 Reset Button 1
FIG. 6 - CONTROL PANEL
EXPLODED VIEW & PARTS LIST
36

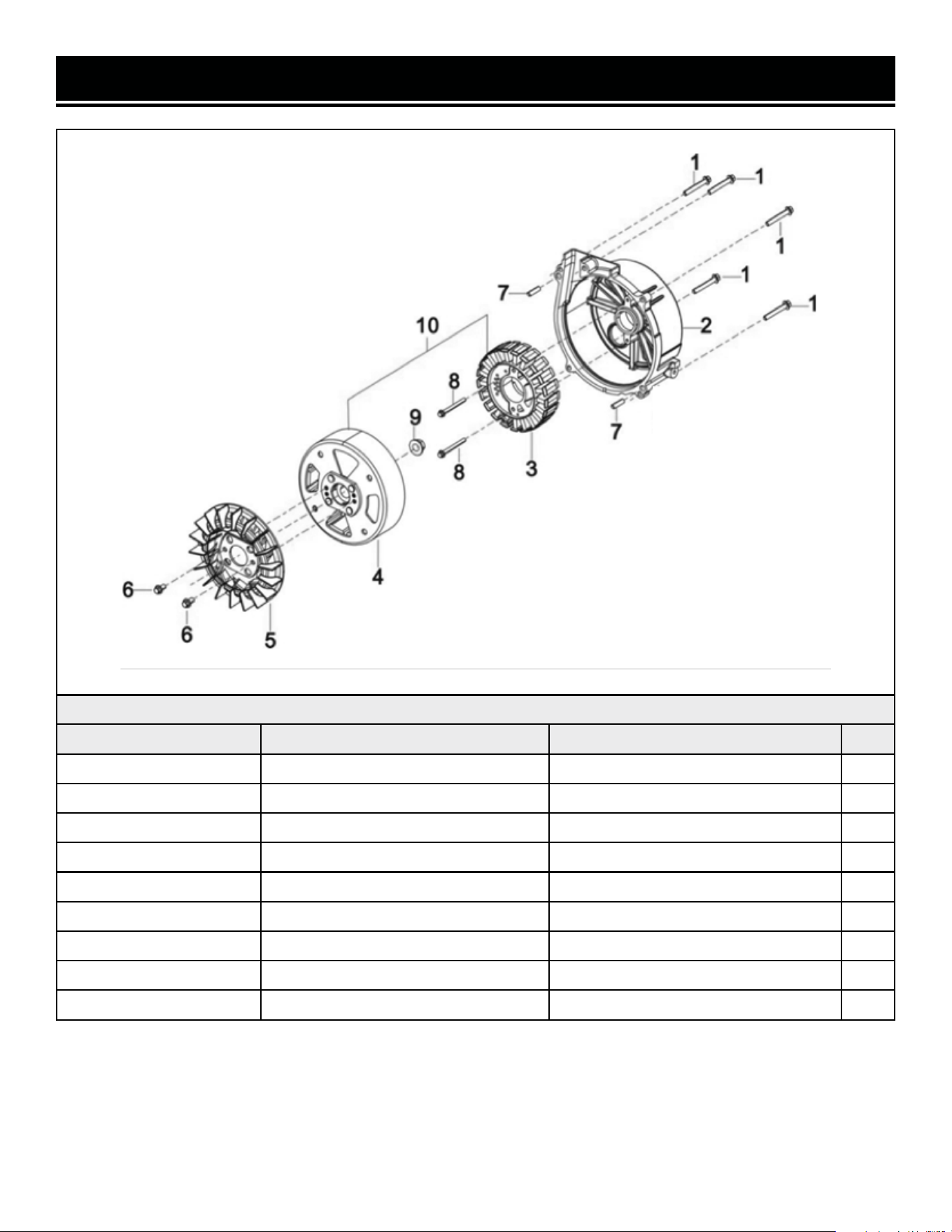

FIG. 7 - ROTOR / STATOR ASSEMBLY
NO. PART NO. DESCRIPTION QTY.
Fig. 7-1 56200-0701 Bolt 5
Fig. 7-2 56200-0702 Shroud, Motor 1
Fig. 7-3 56225i-0703 Stator Assembly 1
Fig. 7-4 56200-0704 Rotor Assembly 1
Fig. 7-5 56200-0705 Impeller 1
Fig. 7-6 56200-0706 Bolt 2
Fig. 7-7 56200-0707 Pin 2
Fig. 7-8 56200-0708 Bolt 2
Fig. 7-9 56200-0709 Nut 1
EXPLODED VIEW & PARTS LIST
37

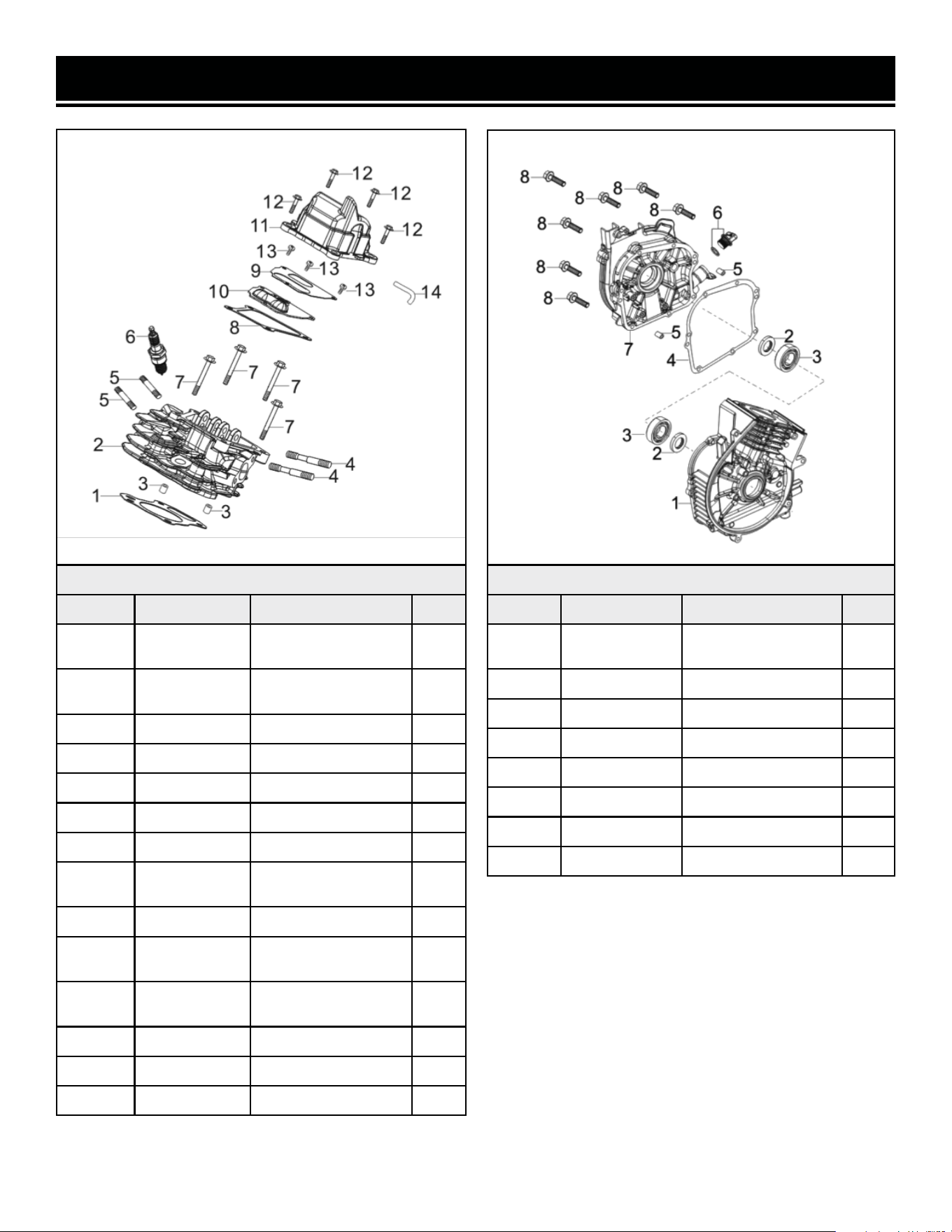

FIG. 9 - CRANKCASE ASSEMBLY
NO. PART NO. DESCRIPTION QTY.
Fig. 9-1 56200-0901
Crankcase
Subassembly
1
Fig. 9-2 56200-0902 Oil-Seal 2
Fig. 9-3 56200-0903 Bearing 2
Fig. 9-4 56200-0904 Gasket, Crankcase 1
Fig. 9-5 56200-0905 Pin 2
Fig. 9-6 56200-0906 Oil Dipstick 1
Fig. 9-7 56200-0907 Cover, Crankcase 1
Fig. 9-8 56200-0908 Bolt 7
FIG. 8 - CYLINDER HEAD ASSEMBLY
NO.
PART NO. DESCRIPTION QTY.
Fig. 8-1
56200-0801
Gasket, Cylinder
Head
1
Fig. 8-2
56200-0802
Head Subassembly,
Cylinder
1
Fig. 8-3
56200-0803 Pin 2
Fig. 8-4
56200-0804 Stud 2
Fig. 8-5
56200-0805 Stud 2
Fig. 8-6
56200-0806 Spark Plug 1
Fig. 8-7
56200-0807 Bolt, Cylinder Head 4
Fig. 8-8
56200-0808
Gasket, Cylinder
Head Cover
1
Fig. 8-9
56200-0809 Piece, Breath 1
Fig. 8-10
56200-0810
Gasket, Breath
Groove
1
Fig. 8-11
56200-0811
Cover Subassem-
bly, Cylinder Head
1
Fig. 8-12
56200-0812 Bolt 4
Fig. 8-13
56200-0813 Screw 3
Fig. 8-14
56200-0814 Tube, Breather 1
EXPLODED VIEW & PARTS LIST
38

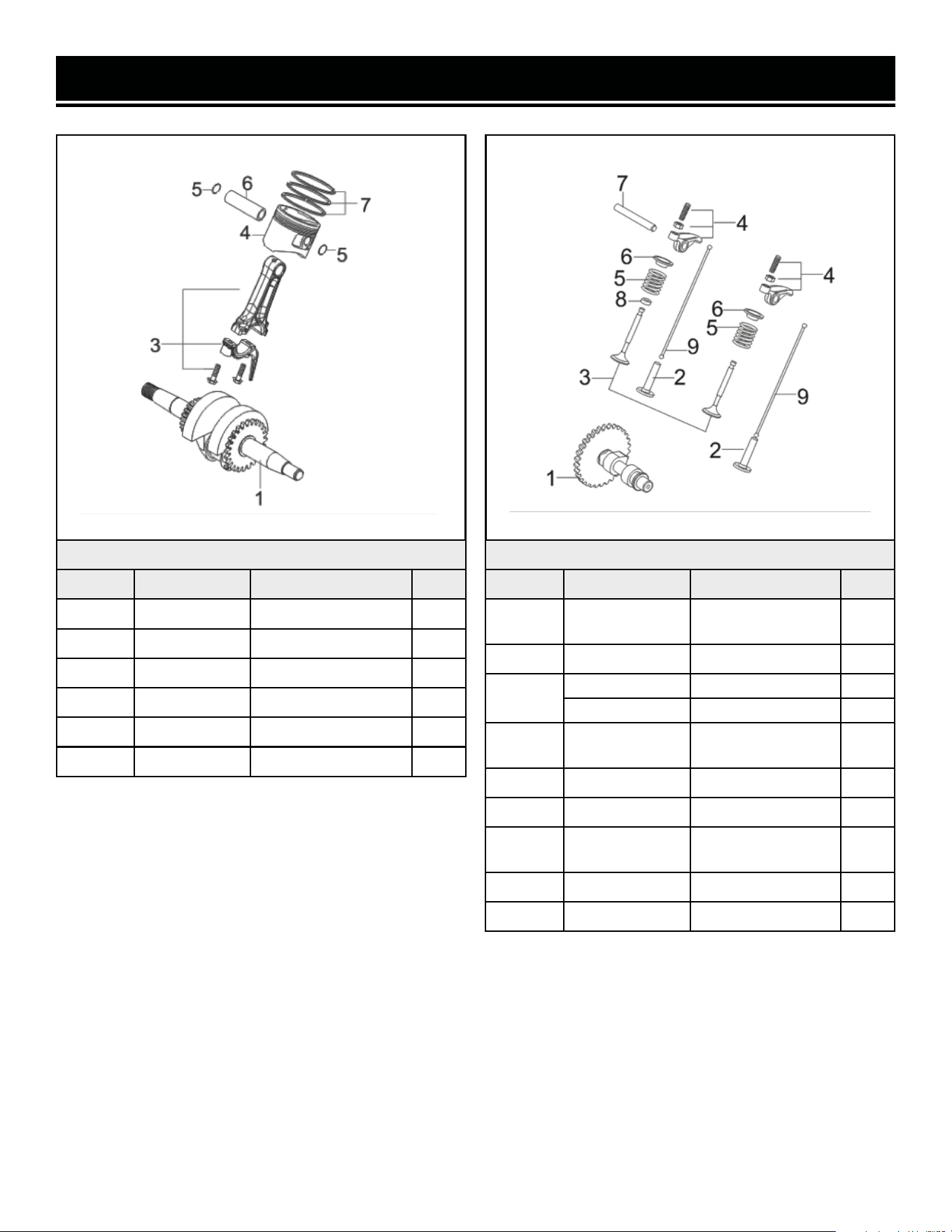

FIG. 10 - PISTON RING SET & CRANKSHAFT
NO. PART NO. DESCRIPTION QTY.
Fig.10-1 56200-1001 Crankshaft Assy. 1
Fig.10-2 56225i-1002 Rod, Connecting 1
Fig.10-3 56200-1003 Piston 1
Fig.10-4 56200-1004 Clip, Piston Pin 2
Fig.10-5 56200-1005 Pin, Piston 1
Fig.10-6 56200-1007 Ring Assy, Piston 1
FIG. 11 - VALVE TRAIN / CAMSHAFT ASSEMBLY
NO. PART NO. DESCRIPTION QTY.
Fig.11-1 56225i-1101
Camshaft
Assembly
1
Fig.11-2 56200-1103 Tappet, Valve 2
Fig.11-3
56200-1104.1
Inner Valve 1
56200-1104.2 Outer Valve
1
Fig.11-4 56200-1105
Rocker Subas-
sembly, Valve
2
Fig.11-5 56200-1106 Spring, Valve 2
Fig.11-6 56200-1107 Seat, Valve Spring 2
Fig.11-7 56200-1112
Shaft, Valve
Rocker
1
Fig.11-8 56200-1113 Guide, Seal 1
Fig.11-9 56200-1114 Lifter, Valve 2
EXPLODED VIEW & PARTS LIST
39
FIG. 13 - CARBURETOR ASSEMBLY
NO. PART NO. DESCRIPTION QTY.
Fig.13-1
56200-1301
Gasket, Carburetor 1
Fig.13-2 56200-1302
Plate, Carburetor
Insulator
1
Fig.13-3 56200-1303
Gasket, Carburetor
Insulator
1
Fig.13-4 56200-1304B
Carburetor
Assembly
1
Fig.13-5 56200-1305 Fuel Filter 1
Fig.13-6 56200-1306B Cap 1
Fig.13-7 56200-1307B Tube, Fuel 1
FIG. 14 - AIR FILTER ASSEMBLY
NO. PART NO. DESCRIPTION QTY.
Fig.14-1 56200-1401 Cleaner, Air 1
Fig.14-2 56200-1402 Gasket, Air Cleaner 1
Fig.14-3 56200-1403
Duct, Air Cleaner
Intake
1
Fig.14-4 56200-1404 Nut 2
Fig.14-5 56200-1405 Stud 1
Fig.14-6 56200-1406 Stud 1
Fig.14-7 56200-1407B
Element,
Air Cleaner
1
Fig.14-8 56200-1408B Ring, Seal 1
FIG. 12- RECOIL START ASSEMBLY
NO. PART NO. DESCRIPTION QTY.
Fig.12-1 56225i-1201
Recoil Starter
Assembly
1
Fig.12-2 56200-1202B Bolt 3
Fig.12-3 56200-1203 Bolt 4
Fig.12-4 56200-1204 Shroud 1
Fig.12-6 56200-1206
Strip, Shroud
Seal
1
Fig.12-8 56200-1208
Air Deflector,
Cylinder Head
1
Fig.12-9 56200-1209B Limit Card 1
Fig.12-10 56200-1210 Nut 1
EXPLODED VIEW & PARTS LIST
40

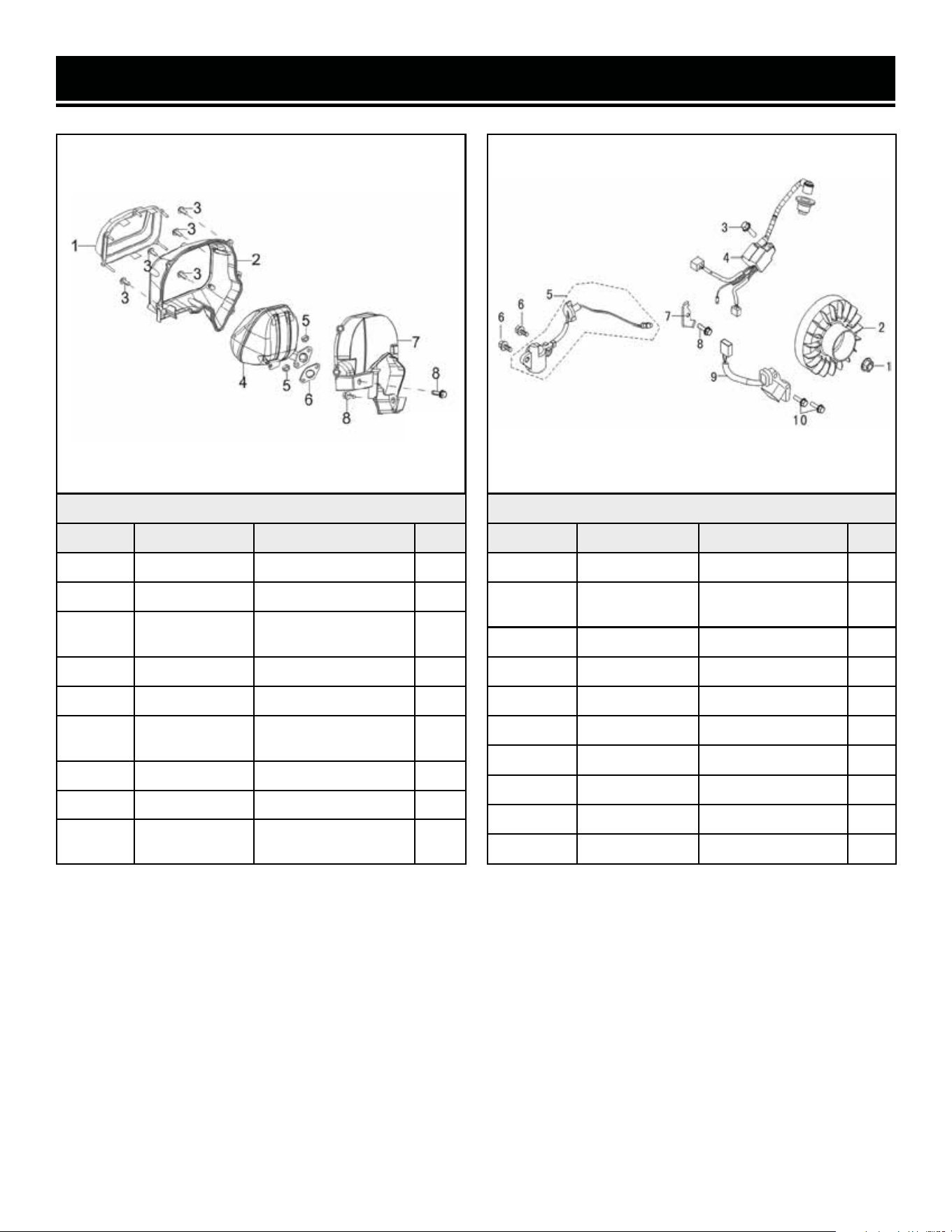

FIG. 16 - FLYWHEEL/IGNITION COIL
NO. PART NO. DESCRIPTION QTY.
Fig.16-1 56200-1601 Nut, Flywheel 1
Fig.16-2 56200-1602
Flywheel
Subassembly
1
Fig.16-3 56200-1603 Bolt 1
Fig.16-4 56225i-1604 Igniter 1
Fig.16-5 56200-1605 Sensor, Engine Oil 1
Fig.16-6 56200-1606 Bolt 2
Fig.16-7 56200-1607 Clamp 1
Fig.16-8 56200-1608 Bolt 1
Fig.16-9 56225i-1609 Ignition Coil 1
Fig.16-10 56200-1610 Bolt 2
FIG. 15 - MUFFLER ASSEMBLY
NO. PART NO. DESCRIPTION QTY.
Fig.15-1 56200-1501 Cover, Muffler Side 1
Fig.15-2 56200-1502 Shroud Muffler 1
Fig.15-3 56200-1503
Screw Cross
Groove Pan
5
Fig.15-4 56200-1504 Muffler Assy. 1
Fig.15-5 56200-1505 Nut 2
Fig.15-6 56200-1506
Gasket, Exhaust
Outlet
1
Fig.15-7 56200-1507 Muffler Shield 1
Fig.15-8 56200-1508B Bolt 2
Fig.15-9 56225i-1509
Spark Arrestor
(Not Shown)
1
NOTE: Replacement parts can be purchased from wenproducts.com, or by calling our customer ser-
vice at (800) 232-1195, M-F 8-5 CST. Parts and accessories that wear down over the course of normal
use are not covered by the two-year warranty.
EXPLODED VIEW & PARTS LIST
41
WARRANTY STATEMENT
WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this
commitment and our dedication to qualit
y.
LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE
GREA
T LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer
power
tools
will be free from defects in material or workmanship during personal use for a period of two (2) years from
date
of
purchase or 500 hours of use; whichever comes first. Ninety days for all WEN products if the tool is used for pro-
fessional or commer
cial use. Purchaser has 30 days from the date of purchase to report missing or damaged parts.
SELLER’S SOLE OBLIGA
TION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent per-
mitted
by law, any warranty or condition implied by law, shall be the replacement of parts, without charge, which
are
defective
in material or workmanship and which have not been subjected to misuse, alteration, careless handling,
misrepai
r, abuse, neglect, normal wear and tear, improper maintenance, improper storage, incorrect lubricants/
fuels,
or other conditions adversely affecting the Product or the component of the Product, whether by accident or
intentionall
y, by persons other than Seller. To make a claim under this Limited Warranty, you must make sure to
keep
a
copy of your proof of purchase that clearly defines the Date of Purchase (month and year) and the Place of Pur-
chase. Place of Pur
chase must be a direct vendor of Great Lakes Technologies, LLC. Pur
chasing through third party
vendors,
including but not limited to garage sales, pawn shops, resale shops, or any other secondhand merchant,
voids the warranty included with this product. Contact [email protected] or 1-800-232-1195 with the
following
information to make arrangements: your shipping address, phone number, serial number, required part
numbers, and proof of pur
chase. Damaged or defective parts and products may need to be sent to WEN before the
replacements can be shipped out.
Upon
the confirmation of a WEN representative, your product may qualify for repairs and service work. When re-
turning
a product for warranty service, the shipping charges must be prepaid by the purchaser. The product must
be
shipped in its original container (or an equivalent), properly packed to withstand the hazards of shipment. The
product
must be fully insured with a copy of the proof of purchase enclosed. There must also be a description of
the
problem
in order to help our repairs department diagnose and fix the issue. Repairs will be made and the product
will be returned and shipped back to the pur
chaser at no charge for addresses within the contiguous United States.
THIS
LIMITED WARRANTY DOES NOT APPLY TO ITEMS THAT WEAR OUT FROM REGULAR USAGE OVER TIME,
INCLUDING
FILTERS, SPARK PLUGS, VOLTAGE REGULATORS, BRUSHES, GASKETS, O-RINGS, WHEEL KITS, BAT-
TERIES,
RECOIL STARTERS, HIGH PRESSURE HOSES, SPRAY GUNS, ETC. ANY IMPLIED WARRANTIES SHALL
BE
LIMITED IN DURATION TO TWO (2) YEARS FROM DATE OF PURCHASE. SOME STATES IN THE U.S. AND
SOME
CANADIAN
PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE
ABOVE LIMI
TATION MAY NOT APPLY TO YOU.
IN
NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING
BUT
NOT
LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT. SOME
ST
ATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF IN-
CIDENT
AL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
THIS
LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER
RIGHTS
WHICH
VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY
TO COUNT
RY.
THIS
LIMITED WARRANTY APPLIES ONLY TO ITEMS SOLD WITHIN THE UNITED STATES OF AMERICA, CANADA
AND
THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER COUNTRIES, CON-
T
ACT THE WEN CUSTOMER SUPPORT LINE. FOR WARRANTY PARTS OR PRODUCTS REPAIRED UNDER WAR-
RANTY
SHIPPING TO ADDRESSES OUTSIDE OF THE CONTIGUOUS UNITED STATES, ADDITIONAL SHIPPING
CHARGES MAY APPLY.
42
NOTES
43
THANKS FOR
REMEMBERING
V. 2019.07.11
