BULLETIN NO.
SERVICE PARTS LIST
54-26-1725
54-26-1726
Mar. 2008
REVISED BULLETIN
DATE
WIRING INSTRUCTION

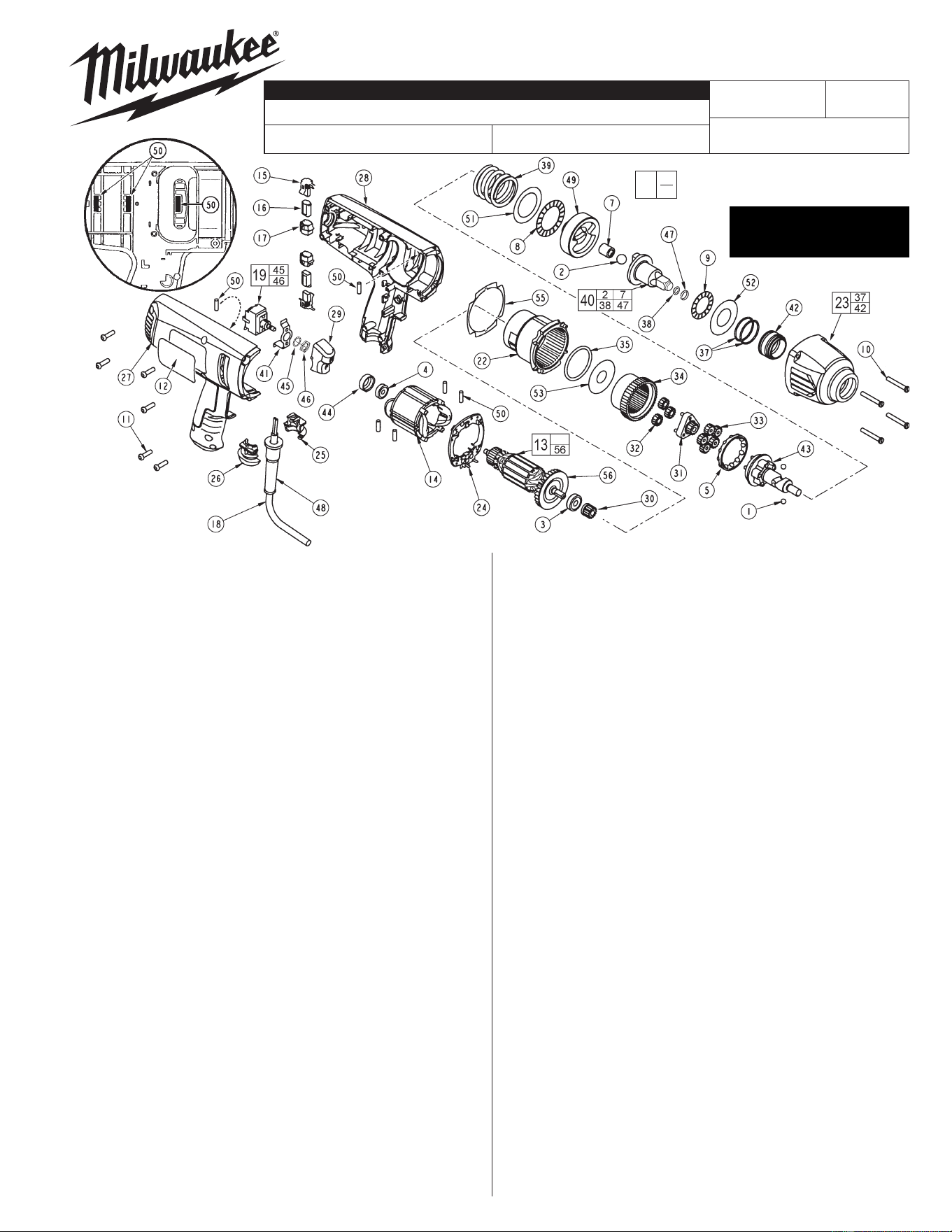

FIG. PART NO. DESCRIPTION OF PART NO.REQ.
1 02-02-0250 1/4" Ball (2)
2 --------------- 1/2" Ball (1)
3 02-04-0852 Ball Bearing (1)
4 02-04-0645 Ball Bearing (1)
5 02-40-0050 Angular Contact Bearing (1)
7 --------------- Drawn Cup Bearing (1)
8 02-80-0200 Thrust Bearing (1)
9 02-80-3256 Thrust Bearing (1)
10 05-88-5988 K50 x 35mm Screw (4)
11 06-95-6290 M5 x 2.24 x 18 Plastite Screw (6)
12 12-20-9070 Service Nameplate (1)
13 16-10-2275 Armature (1)
14 18-07-2275 Field (1)
15 22-18-0040 Brush Assembly (2)
16 22-20-0110 Brush Tube (2)
17 22-20-0465 Brush Tube Holder (2)
18 22-64-0970 Cord (1)
19 23-66-1305 Switch (1)
22 28-14-0175 Gearcase (1)
23 14-38-0100 Front Housing Assembly (1)
24 31-15-2045 Field Connector (1)
25 31-17-0261 Cord Clamp (1)
26 31-17-0271 Cord Clamp (1)
27 31-44-2176 Right Handle (1)
28 31-44-2181 Left Handle (1)
29 31-92-0060 Rocker Trigger (1)
30 32-60-0150 Sun Gear (1)
31 32-60-0175 Sun Gear (1)
32 32-62-0215 Planet Gear (3)
33 32-62-0215 Planet Gear (5)
34 32-65-0005 Ring Gear (1)
35 34-40-0070 O-Ring (1)
37 --------------- O-Ring (2)
38 34-40-0900 O-Ring (1)
39 40-50-0241 Spring (1)
40 14-73-0165 Anvil Assembly (1)
41 42-36-0275 Switch Bracket (1)
42 --------------- Bushing (1)
43 14-73-0300 Cam Shaft Assembly (1)
44 42-96-0015 Bearing Cup (1)
45 --------------- Supplied with Switch (1)
58-01-1820
230B
STARTING
SERIAL NO.
9071-20
CATALOG NO.
1/2" D.I. IMPACT WRENCH
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 4
FIG. PART NO. DESCRIPTION OF PART NO.REQ.
46 --------------- Supplied with Switch (1)
47 44-90-4530 Friction Ring (1)
48 44-76-0210 Cord Protector (1)
49 44-82-0205 Ram (1)
50 45-30-0025 Rubber Slug (6)
51 45-88-0535 Washer (1)
52 45-88-1575 Washer (1)
53 45-88-3250 Washer (1)
55 43-44-0991 Gasket (1)
56 22-84-0375 Fan (1)
FIG. NOTES:
4 Orient bearing seal (black side) toward the commutator.
10 Torque to 45-50 in./lbs.
11 Torque to 25-30 in./lbs.
16 At the time of brush replacement, the tool should be
relubricated with Type "Z" Grease, No.49-08-7655.
FIG. LUBRICATION (Type "Z" Grease, No.49-08-7655):
23,34,42, Lightly coat with grease the Ring Gear (34) and the
43,49 bearing races of the Camshaft Planet Carrier (43), the
back bearing surface of the Ram (49) and the I.D. the
Front Housing Bushing (42).
7,40 Place a dab of grease in the Needle Bearing (7) inside
the Anvil (40).
31,32,33,43 Fill with grease the center of the fi ve Planet Gears (33)
on the Camshaft Assembly (43). Fill the center of the
three Planet Gears (32) on the Sun Gear (31).
49 Place approximately 1/2 oz. of grease in the front cavity
of the Ram.
43 Place approximately 1/2 oz. grease on the Camshaft
(43) inside the Spring (39).
0
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
00
Slug
placement
is for both
handle halves.
Replace the Gasket (55)
whenever the tool is opened
for servicing.
