BULLETIN NO.
SERVICE PARTS LIST
54-26-1700
July 2002
REVISED BULLETIN DATE
WIRING INSTRUCTION
FIG. PART NO. DESCRIPTION OF PART NO.REQ.
1 02-02-0250 1/4" Ball (2)
2 --------------- 1/2" Ball (1)
3 02-04-0852 Ball Bearing (1)
4 02-04-0645 Ball Bearing (1)
5 02-40-0050 Angular Contact Bearing (1)
6 02-50-3250 Unit Cage Bearing (3)
7 --------------- Drawn Cup Bearing (1)
8 02-80-0200 Thrust Bearing (1)
9 02-80-3256 Thrust Bearing (1)
10 05-88-5988 K50 x 35mm Screw (4)
11 06-95-6290 M5 x 2.24 x 18 Plastite Screw (6)
12 12-20-9070 Service Nameplate (1)
13 16-10-0275 Armature (1)
14 18-07-2275 Field (1)
15 22-18-0040 Brush Assembly (2)
16 22-20-0110 Brush Tube (2)
17 22-20-0465 Brush Tube Holder (2)
18 22-64-0970 Cord (1)
19 23-66-1305 Switch (1)
22 28-14-0175 Gearcase (1)
23 14-38-0100 Front Housing Assembly (1)
24 31-15-2045 Field Connector (1)
25 31-17-0260 Cord Clamp (1)
26 31-17-0270 Cord Clamp (1)
27 31-44-2176 Right Handle (1)
28 31-44-2181 Left Handle (1)
29 31-92-0060 Rocker Trigger (1)
30 32-60-0150 Sun Gear (1)
31 32-60-0175 Sun Gear (1)
32 32-62-0200 Planet Gear (3)
33 32-62-0215 Planet Gear (5)
34 32-65-0005 Ring Gear (1)
35 34-40-0070 O-Ring (1)
37 --------------- O-Ring (2)
38 40-50-8320 Detent Spring (1)
39 40-50-0241 Spring (1)
40 14-73-0145 Anvil Assembly (1)
41 42-36-0275 Switch Bracket (1)
42 --------------- Bushing (1)
43 14-73-0300 Cam Shaft Assembly (1)
44 42-96-0015 Bearing Cup (1)
45 --------------- Supplied with Switch (1)
46 --------------- Supplied with Switch (1)
58-01-1820
229A
STARTING
SERIAL NO.
9070-20
CATALOG NO.
1/2" D.I. IMPACT WRENCH
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005

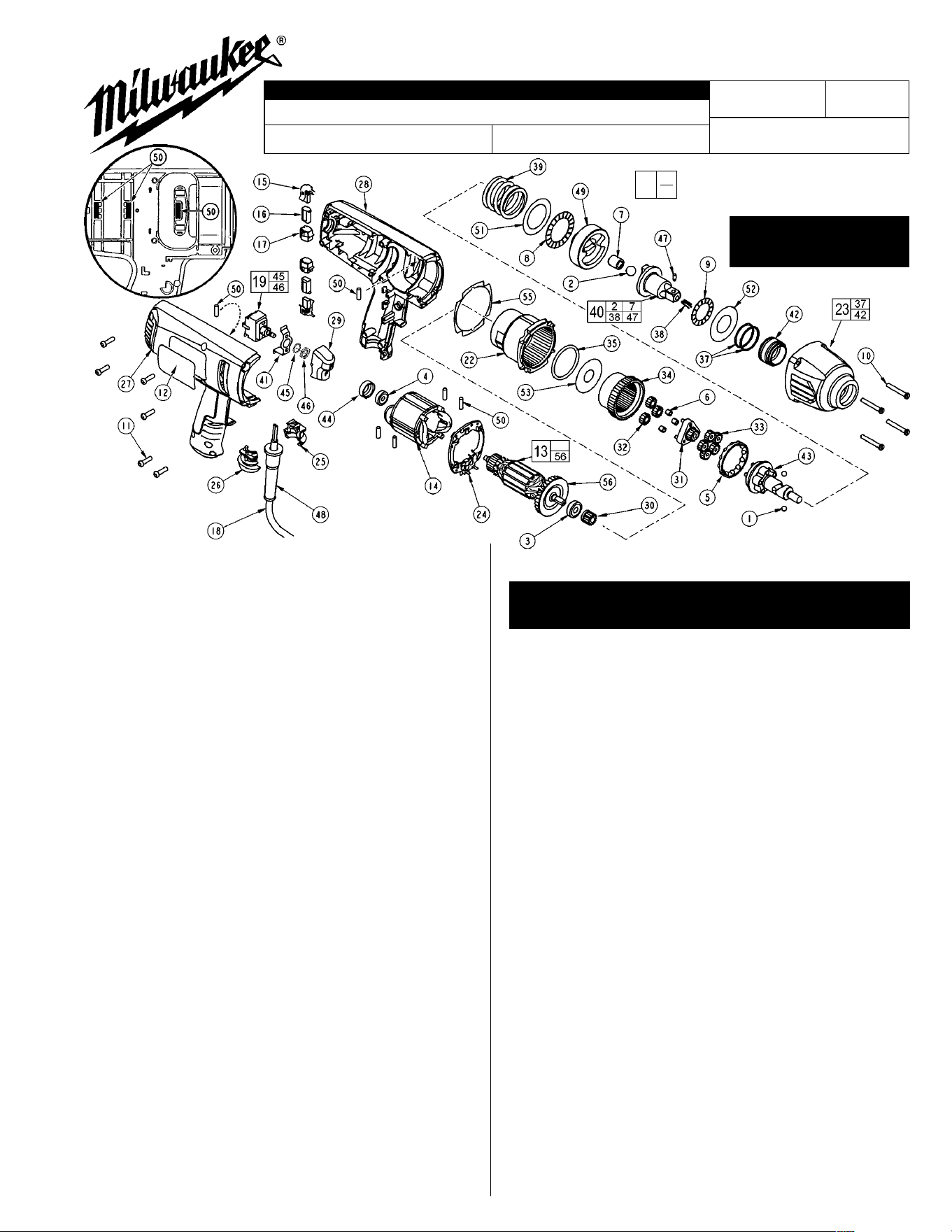

Drwg. 5
FIG. PART NO. DESCRIPTION OF PART NO.REQ.
47 44-60-1170 Detent Pin (1)
48 44-76-0210 Cord Protector (1)
49 44-82-0205 Ram (1)
50 45-30-0025 Rubber Slug (6)
51 45-88-0535 Washer (1)
52 45-88-1575 Washer (1)
53 45-88-3260 Washer (1)
55 43-44-0991 Gasket (1)
56 22-84-0375 Fan (1)
FIG. NOTES:
4 Orient bearing seal (black side) toward the commutator.
10 Torque to 45-50 in./lbs.
11 Torque to 25-30 in./lbs.
16 At the time of brush replacement, the tool should be
relubricated with Type "Z" Grease, No.49-08-7655.
FIG. LUBRICATION (Type "Z" Grease, No.49-08-7655):
23,34,42, Lightly coat with grease the Ring Gear (34) and the
43,49 bearing races of the Camshaft Planet Carrier (43), the
back bearing surface of the Ram (49) and the I.D. the
Front Housing Bushing (42).
7,40 Place a dab of grease in the Needle Bearing (7)inside
the Anvil (40).
31,32,33,43 Fill with grease the center of the five Planet Gears (33)
on the Camshaft Assembly (43). Fill the center of the
three Planet Gears (32) on the Sun Gear (31).
49 Place approximately 1/2 oz. of grease in the front cavity
of the Ram.
43 Place approximately 1/2 oz. grease on the Camshaft
(43) inside the Spring (39).
0
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
00
Slug
placement
is for both
handle halves.
Replace the Gasket (55)
whenever the tool is
opened for servicing.
RECALL NOTICE!
See back page for important safety information.
RECALL NOTICE!
Milwaukee is providing a no-charge warranty service to owners of 9070-20, 9071-20, and 9075-20 Impact Wrenches. We
are taking this action because under certain circumstances the cord set of the Impact Wrench may pull out of the handle, which
poses a risk of injury or electrocution.
All 9070-20, 9071-20, and 9075-20 Impact Wrenches sold by March, 2001 and July 2001 within the serial number ranges shown
are affected.
Nameplate Catalog Number Serial Number Range
9070-20 229A4
01010001 thru 229A401250722
9071-20 230A4
01010001 thru 230A401260104
9075-20 239A401010001 thru 239A401250404
For operator safety a 9070-20, 9071-20 or 9075-20 Impact Wrench within the listed serial number ranges require
original equipment 31-17-0265 Cord Clamp to be replaced with a 31-17-0270 Cord Clamp.
As an aid to determining the cord clamp in a tool, the 31-17-0270
Cord Clamp has the numbers '0270' molded into the clamping rib.
The 31-17-0265 Cord Clamp has no markings on the rib.
If the tool contains a 31-17-0265 Cord Clamp, please return your Impact Wrench to the nearest Milwaukee factory Service
Center or Authorized Service station for no-charge warranty replacement of the cord clamp.
If nameplate has a X stamped into the tools nameplate, next to the catalog number, the tool has been repaired and the defective
cord clamp has already been replaced.
If you need assistance in locating the service facility nearest you or have questions please call 1.800.729.3878.
0270
