Questions, problems, missing parts?
Before returning to your retailer, call our customer service
at 1-800-267-4427 Monday – Friday 8:00 a.m. – 5:00 p.m. EST

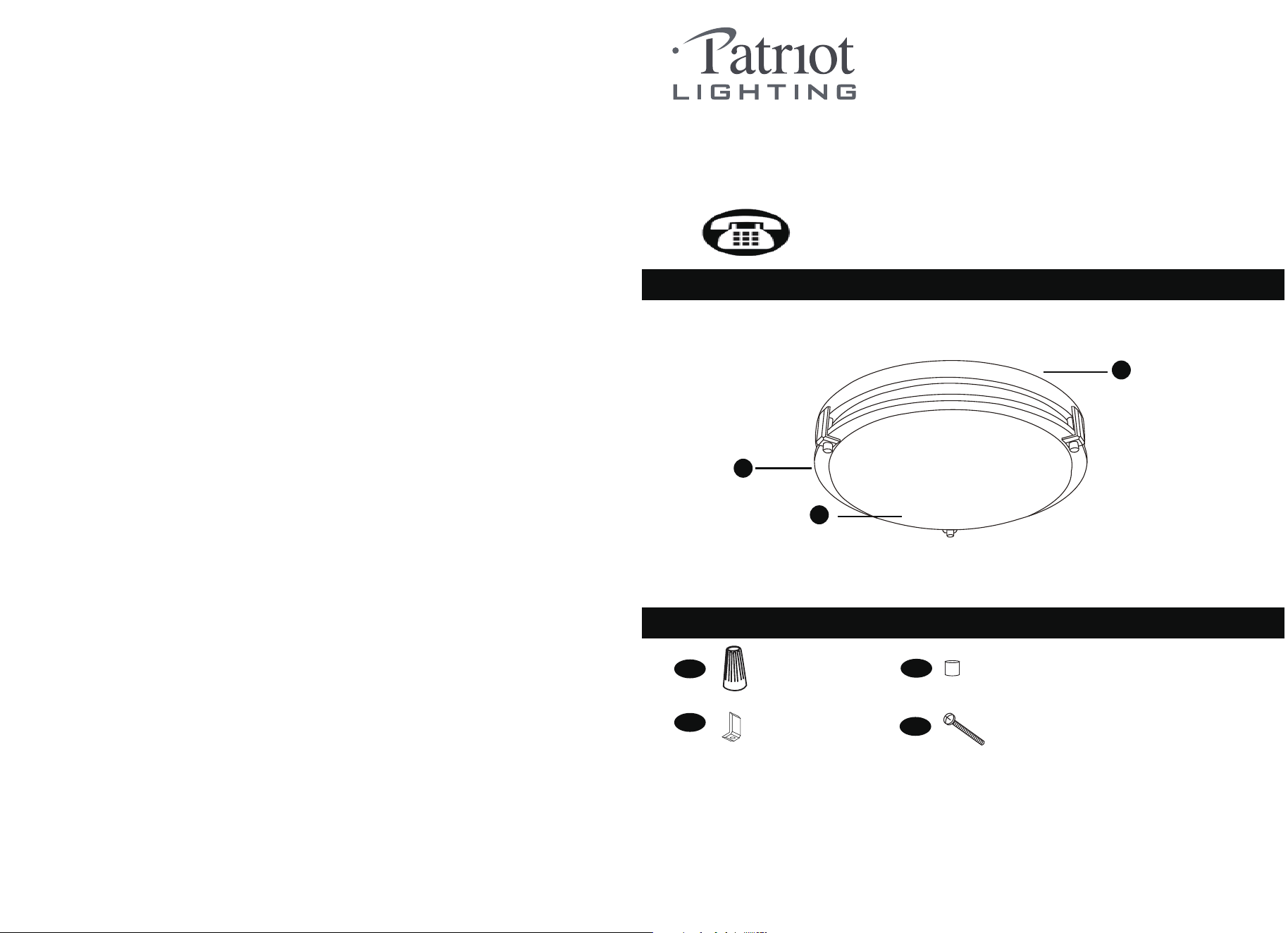

PACKAGE CONTENTS
HARDWARE CONTENTS Note: Hardware not shown actual size.
Wire Nut
x 3
Mounting screw
x 2
AA
BB
CC
DD
Cap Nut
x 3
A
C
B
06-19
Sku Number: 351-0009
351-0010
351-0011
351-0012
LED FLUSH MOUNT
Model Number: LFM172A13-M
LFM172A19-M
Bracket
x 3
2
IMPORTANT SAFETY INSTRUCTIONS
PREPARATION
Please read and understand this entire manual before attempting to assemble,
operate or install the product.
Please save this instruction manual.
WARNING
• Turn off electricity at main fuse box (or circuit breaker box) before beginning
installation by removing fuse (or switching off circuit breaker).
• Be careful not to damage or cut the wire insulation (covering) during fixture
installation. Do not permit wires to contact any surface having a sharp edge.
To do so may damage or cut the wire insulation, which could cause serious
injury or death from electric shock.
• This product must be installed in accordance with the applicable installation
code by a person familiar with the construction and operation of the product and
the hazards involved.
• Connect the ground wire (bare copper or green) from your fixture to the ground
wire (bare copper or green) or ground screw in the electrical box.
CAUTION
• All electrical connections must be in agreement with local codes, ordinances or
the national electric code (NEC). Contact your municipal building department to
learn about your local codes, permits and/or inspections.
• Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC.
Consult a qualified electrician before installation.
• Do not connect this fixture to an electrical system that does not provide a means for
equipment grounding. Never use a fixture in a two-wire system that is not grounded.
If you are not sure your lighting system has a grounding means, do not attempt to
install this fixture. Contact a qualified, licensed electrician for information with regards
to proper grounding methods as required by the local electrical code in your area.
• If a dimmer control switch is used with this fixture, obtain professional advice to
determine the correct type and electrical rating required.
Before beginning assembly, installation or operation of product, make sure all parts
are present. Compare parts with package contents list and diagram on previous page.
If any part is missing or damaged, do not attempt to assemble, install or operate the
product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Screwdriver, Phillips Screwdriver, Pliers,
Electrical Tape, Wire Cutters, Safety Glasses, Ladder, Wire Stripper
3
BB
CC
DD
DD
A

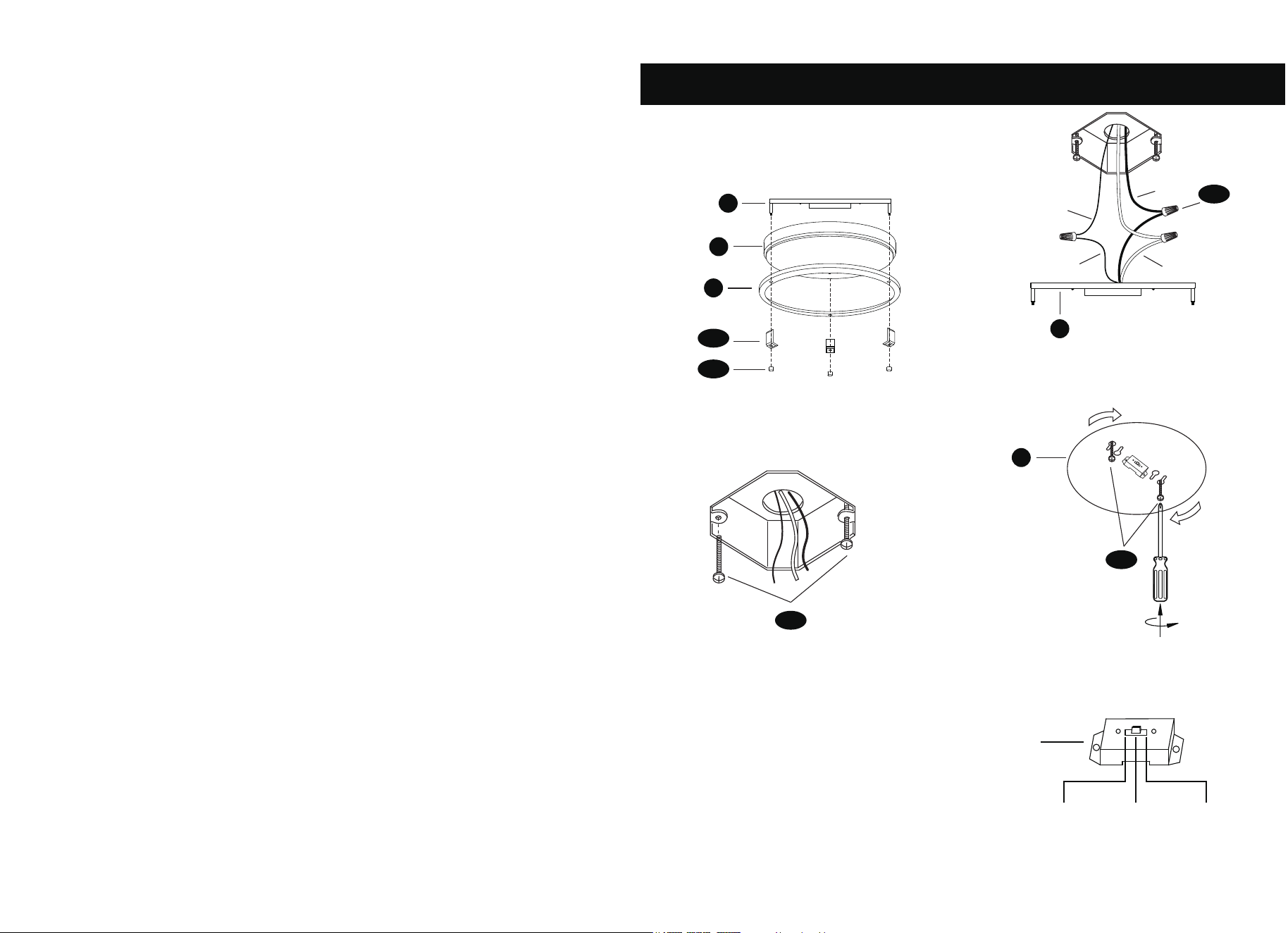

ASSEMBLY INSTRUCTIONS
1. Unscrew the 3 cap nuts (CC) as shown
to remove the brackets (BB), metal ring (C)
and diffuser (B).
C
B
A
A
2. Secure the mounting screws (DD)
(only screwing on halfway) to electrical box.
House supply
Ground wire
Fixture
Ground wire
White
Black
3. Connect the ground wire (bare copper or
green) from your fixture (A) to the ground wire
(bare copper or green) or ground screw in
the electrical box. Connect the black wire (or
wire with marking) from the fixture (A) to the
black wire in the electrical box and connect
the white wire from the fixture (A) to the white
wire in the electrical box.
NOTE: Do not disconnect any pre-wired
connections.
AA
Once wire connections are completed,
carefully tuck wires and wire nuts (AA) into
the electrical box making sure no bare wire
(on the black and white) is visible at the wire
nuts (AA).
4. Attach the fixture to the mounting
screws (DD), turn fixture (A) clockwise, and
tighten screws (DD).
6. Reverse the process of step #1 to install
the fixture.
5. Use the slide switch to choose a color
temperature. The options are Soft White (SW),
Bright White (BW), and Daylight (DL).
Switch
Soft White
3000K
Bright White
4000K
Daylight
5000K
4
CARE AND MAINTENANCE
TROUBLESHOOTING
1) The light does not come on at all:
a) Make sure the wall switch and circuit breaker are on.
b) Make sure the wiring is correct.
2) Fuse blows or circuit trips when light is turned on.
a) Check for crossed wires, ensure wiring is correct.
If unable to fix any of the above issues, please consult a certified electrician.
Questions, problems, missing parts?
Before returning to your retailer, call our customer service
at 1-800-267-4427 Monday – Friday 8:00 a.m. – 5:00 p.m. EST
5-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING
®
light fixture fails due to a defect in material and workmanship within five (5) years
from the date of purchase, simply bring this light fixture with your original sales
receipt back to your nearest MENARDS
®
retail store. At its discretion, PATRIOT
LIGHTING
®
agrees to have the lighting fixture replaced with the same or similar
PATRIOT LIGHTING
®
product free of charge, within the stated warranty period,
when returned by the original purchaser with original sales receipt. This warranty:
(1) excludes expendable parts including but not limited to light bulbs; (2) does not
cover damage that has resulted from abuse or misuse; and (3) does not cover any
losses, labor, injuries to persons/property or costs. This warranty does give you
specific legal rights and you may have other rights, which vary from state to state.
• To clean, turn off and wipe with a damp, non-abrasive cloth.
• When cleaning, use only a soft brush or lint free cloth to avoid scratching the finish.
• Abrasive cleaning agents are not required and should be avoided to prevent damage
to the finish.
dimmable
SKU#
MAX rated
wattage
Suitable dimmer
351-0011
351-0012
32W
34W
This LED light is suitable to be dimmed by
Leviton# 742-6672-HLW, 722-6674-PDW MAX 150 W,
Lutron # SCL-153PH-WH, DVWCL-153PH-WH,
TGCL-153PH-WH MAX 150 W,
Eaton # SAL06P-W-K MAX 150 W.
These LED lights are dimmable:
351-0009
351-0010
ASSEMBLY INSTRUCTIONS (continued)
5
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this
device could void the user’s authority to operate the equipment. This device
complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may
cause undesired operation.
This device contains licence-exempt transmitter(s)/receiver(s)
that comply with Innovation, Science and Economic Development
Canada’s licence-exempt RSS(s). Operation is subject to the
following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference
that may cause undesired operation of the device.
Supplier's Declaration of Conformity
47 CFR § 2.1077 Compliance Information
Unique Identifier: PATRIOT
Responsible Party
CanarmInc.
808 Commerce Park Drive, Ogdensburg, New York, USA 13669
1-800-267-4427
