BRNAD:amzchef
MODEL:YL-CF7308S
ITEM MODEL:YL-CF7HD308S /
YL-CF7WM308S / YL-CF7WF308S
220-240V~ 50-60Hz
Manufacturer:
Zhongshan Youlong Kitchen Appliances Co., LTD
Add.: Building B, E and part 3 of Building F, No. 103, Sanxin Road, Sanjiao, Zhongshan, Guangdong, P. R. China

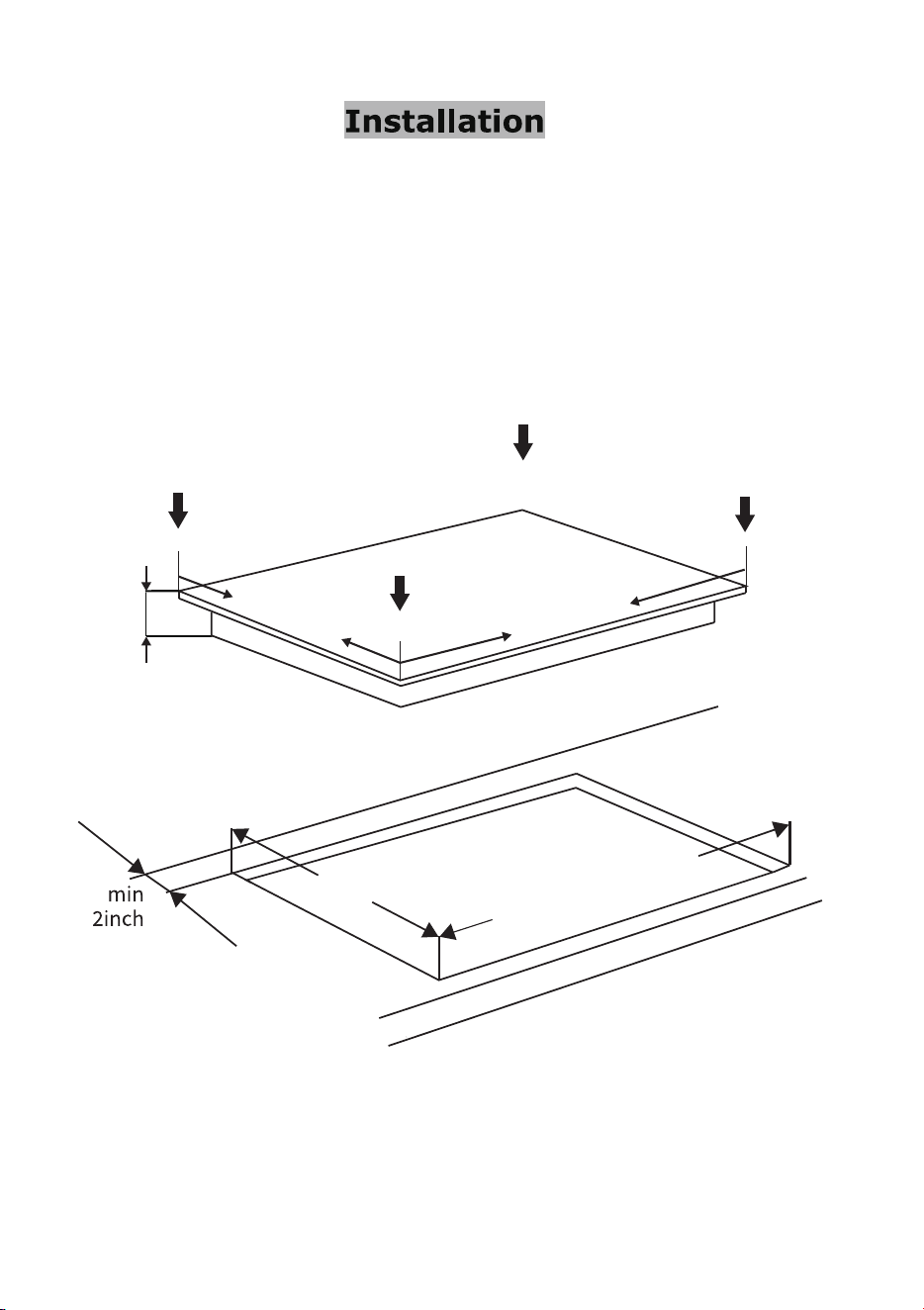

Selection of installation equipment
1. Make sure the size of the induction cooktop (DxWxH):
770x520x52mm/30.31X20.47X2.05inch/
2. Clean the countertop surface and make a proper cutout(DxW):
(741~743)x(490~492)mm/(29.17~29.25)X(19.29~19.37)inch

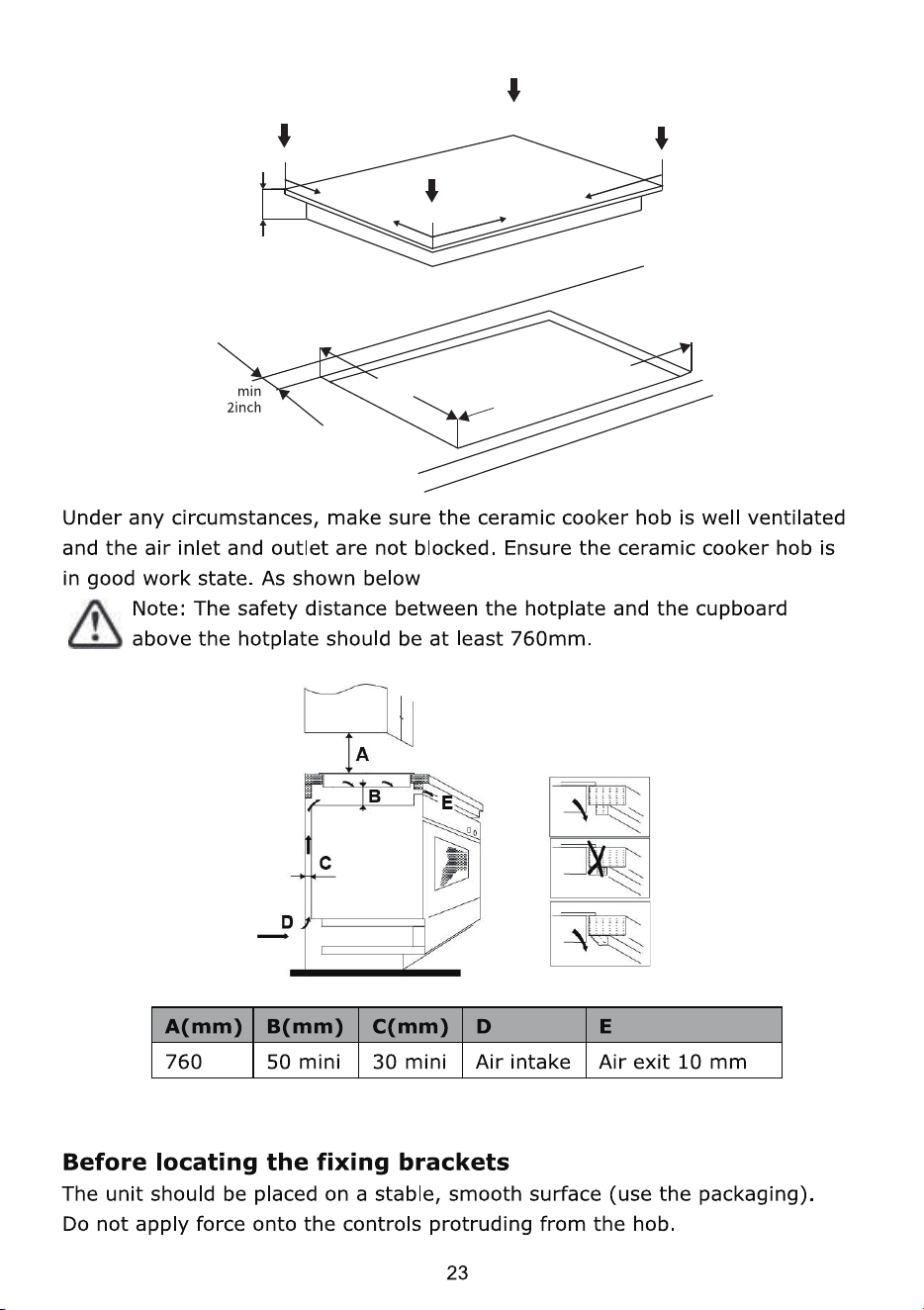

Kindly Note: For the purpose of installation and use, a minimum of 50mm/1.97inch space
shall be preserved around the hole. Be sure the thickness of the work surface is at least
30mm/1.18inch. Please select heat-resistant work surface material to avoid larger
deformation caused by the heat radiation from the hotplate. As shown below:
1
30.31 inch
(19.29~19.37) inch
(29.17~29.25) inch
2.05inch
20.47 inch
(741~743)X(490~492)/
(29.17~29.25)X(19.29~19.37)
Selection of installation equipment
1. Make sure the size of the induction cooktop (DxWxH):770mmx520mmx52mm
2. Clean the countertop surface and make a proper cutout(DxW):
(741~743)mmx(490~492)mm
Kindly Note: For the purpose of installation and use, a minimum of 50mm space shall be
preserved around the hole. Be sure the thickness of the work surface is at least 30mm. Please
select heat-resistant work surface material to avoid larger deformation caused by the heat
radiation from the hotplate. As shown below:
30.31 inch
(19.29~19.37) inch
(29.17~29.25) inch
2.05inch
20.47 inch
