ION Audio Trouper™ 300 User Guide 2
INTRODUCTION ........................................................................................ 3
Box Contents ............................................................................................................................ 3
Support ...................................................................................................................................... 3
SETUP ......................................................................................................... 4
Charging & Battery Information ........................................................................................... 4
Connection Diagram ............................................................................................................... 5
Balancing Your Levels ............................................................................................................ 6
FEATURES .................................................................................................. 7
Rear Panel ................................................................................................................................. 7
OPERATION .............................................................................................. 11
Using the Control Knob .......................................................................................................... 11
Pairing a Bluetooth® Device ................................................................................................. 12
Wireless Stereo-Link™ ........................................................................................................... 13
Using the Radio ....................................................................................................................... 14
Using the Aux Input ............................................................................................................... 15
Using USB Mode ..................................................................................................................... 16
Using the USB Charge Port .................................................................................................. 17
Light Modes ............................................................................................................................. 18
App Control ............................................................................................................................. 19
TROUBLESHOOTING ............................................................................. 20
APPENDIX ................................................................................................ 22
Technical Specifications ...................................................................................................... 22
Trademarks & Licenses ......................................................................................................... 23
TABLE OF CONTENTS
ION Audio Trouper™ 300 User Guide 3
Thank you for purchasing the Trouper™ 300. At ION, your entertainment is as important to us
as it is to you. That’s why we design our products with one thing in mind—to make your life
more fun and more convenient.
Note: Before you first use the product, please fully charge the batteries. Your unit was
purposely shipped with a reduced battery charge to ensure safe transit. For optimal charging,
power o the speaker while charging.
Use the included power cable to connect the unit to power outlet and let it charge for up to
10 hours. This helps ensure the longest life for your battery.
Box Contents
Trouper™ 300
IEC C13 Power Cable (6 ft. / 183 cm)
Microphone with Cable (8.2 ft. / 250 cm)
Quickstart Guide
Support
For the latest information about this product (documentation, technical specifications, system
requirements, compatibility information, etc.) and product registration, visit i
onaudio.com.
For additional product support, visit i
onaudio.com/support.
INTRODUCTION
ION Audio Trouper™ 300 User Guide 4
Charging & Battery Information
For the quickest charging time, power o
Trouper™ 300 and use the included power cable to
connect the P
ower Input on the rear panel of the
speaker to a power outlet. A full charge can take
up to 10 hours.
If Trouper™ 300 is powered on, the l
ightning bolt
icon on the display will light up when connected to
a power source and charging. The b
attery icon will
fill to display the battery life percentage. When
charging is complete, the lightning bolt icon will
disappear, and the battery icon will be completely
filled.
Rechargeable lead-acid batteries are the same type used in automobiles. As with your car
battery, how you use this battery has a significant impact on its lifespan. With proper use and
treatment, a lead-acid battery can last for years. Here are some recommendations for getting
the longest life from the internal battery.
G
eneral Usage Fully charge the battery before using it.
Charge the battery completely after each use.
S
torage For best product longevity, do not store at exceedingly hot (greater than
90°F/32°C) or exceedingly cold (less than 32°F/0°C) temperatures.
It is acceptable to leave your sound system plugged in. This will not
overcharge the battery.
If you leave the battery level low and do not charge it for 3 months, it may
permanently lose capacity.
R
epair If the battery fails to charge, contact ION Audio at ionaudio.com.
D
isposal Bring the unit to a recycling center or dispose of in accordance with local
ordinances.
SETUP
ION Audio Trouper™ 300 User Guide 6
Balancing Your Levels
This process shows how you can quickly balance your microphone signal(s) and the signal from
your Source Device (Bluetooth, Aux, USB). Levels for the microphones, source, and main
volume can be set anywhere between 0 to 30.
1. Power on Trouper™ 300. Connect the included microphone (if using)
and your preferred Bluetooth device, Aux device, or USB drive.
2. Using the C
ontrol Knob on the speaker, set the main volume to
around 10 or lower while balancing your levels. This will allow you to
set your levels to a clear and audible level without being
overpowering. You can adjust it again later once a balance has been
achieved.
3. Adjust the S
OURCE VOL Knob down to 0. We’ll turn this up in a later
step.
4. Set the M
IC Volume using the MIC IN VOL Knob on the speaker.
Setting the level to 25 is a good starting point if you're unsure.
5. Now, set the volume on your Aux or Bluetooth source device (phone,
tablet, etc.) to 100%. This will guarantee a strong signal.
6. With the S
OURCE VOL Knob still set to 0, start playback on your
device and slowly turn up the S
OURCE VOL knob on the speaker
until it reaches a clear and audible level. If you are using a
microphone, set the source volume level to where you can still hear
the microphone above the music.
7. Once the microphone and audio source are clearly audible and
balanced, use the C
ontrol Knob to set the overall output level of the
speaker to your desired volume.
For specific troubleshooting steps, please see the T
roubleshooting
section.

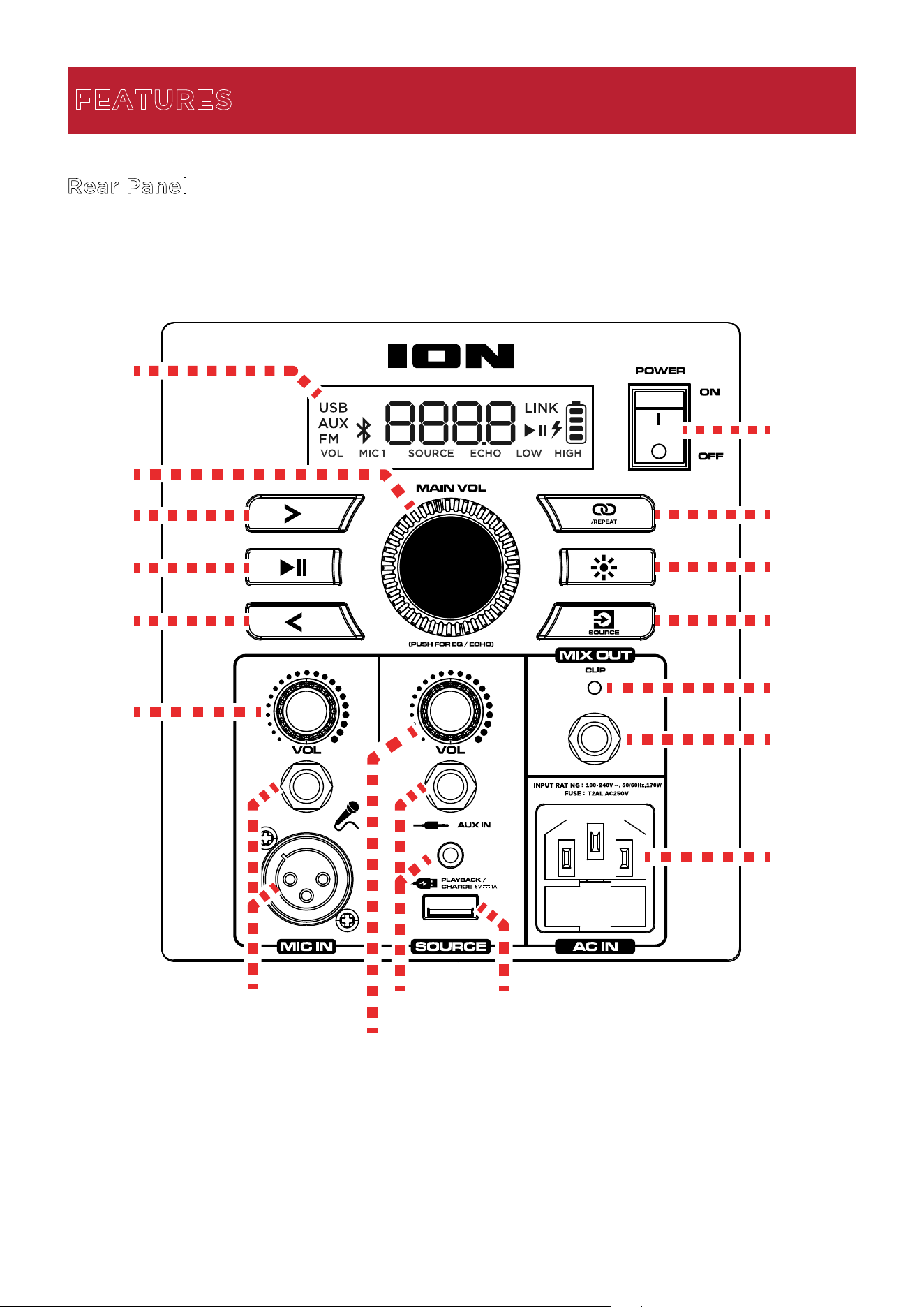

ION Audio Trouper™ 300 User Guide 8
1
. Display
This screen shows information relevant to Trouper
TM
300’s current operation:
• S
ource Icons (USB, AUX, FM): These icons will indicate whether Trouper
TM
300 is in
USB, Aux, or FM playback modes.
• B
luetooth Icon ( ): The Bluetooth icon will display when a device is paired to
Trouper™ 300. See O
peration > Pairing a Bluetooth® Device to learn how to connect
a Bluetooth device.
• R
adio Station: The centered numerals indicate the current radio station that is
selected. See O
peration > Using the Radio for more information.
This area will also show the volume, EQ/Echo level, and the current repeat mode
when any are changed. See O
peration > Using the Control Knob for more information.
• S
tereo-Link
TM
Icon (LINK): The Stereo-Link
TM
icon will display when Trouper
TM
300
is linked to another speaker. The Stereo-Link
TM
icon will be o when a single speaker
is used. See O
peration > Wireless Stereo-Link
TM
below for instructions on how to
link two speakers.
• P
lay/Pause Icon ( ): This icon indicates when connected media is playing or
paused.
• L
ightning Bolt Icon ( ): The lightning bolt icon will display when Trouper
TM
300 is
connected to a power outlet and charging.
• B
attery Indicator ( ): The battery icon displays the battery life percentage. When
fully charged, the battery icon will be completely filled.
• V
OL/MIC/SOURCE/ECHO/LOW/HIGH: These icons indicate the current operation
of the C
ontrol Knob. Press the Control Knob to cycle between the available options.
2
. Control Knob
Turn this knob to adjust the Main Volume (overall output) of the loudspeaker. Press the
knob and turn to cycle through to select EQ or the Echo eect. See the section U
sing the
C
ontrol Knob for more details.
3
. Next Button
In Bluetooth and USB modes, press this button to go to the next track.
In FM mode, press this button briefly to go to the next station. Press and hold this button to
seek the next strong station.
ION Audio Trouper™ 300 User Guide 9
4. Play/Pause / Presets Button
Press this button to play and pause Bluetooth or USB audio.
In FM mode, use this button to save and recall radio presets. See Operation > Using the
Radio to learn more.
5. Previous Button
In Bluetooth and USB modes, press this button once to go to the start of the current track.
Press the button again within one second to go to the previous track.
In FM mode, press this button briefly to go to the previous station. Press and hold this button
to seek the previous strong station.
6. Stereo-Link™ / Repeat Button
See Operation > Wireless Stereo-Link
TM
to learn more about syncing two Trouper
TM
300
speakers together using this button.
In USB Mode, press this button to cycle between repeat modes during USB playback. See
Operation > Using USB Mode to learn more.
7. Lights
Press this button to select how the lights on the front panel function. See the section
Operation > Light Modes for more details.
Note: For the best lighting effect, you may need to adjust the volume of your device and/or
the Source volume.
To factory reset the speaker to default settings, press and hold this button for 10 seconds.
The speaker will power cycle and the reset will be successful.
8. Source Button
Press this button to select the audio source to use: USB, AUX, FM Radio, or Bluetooth. The
default source when powering on Trouper™ 300 is Bluetooth. The USB source is only
selectable if a USB drive is plugged into Trouper™ 300; otherwise, the Source button will
toggle between Aux, FM Radio, and Bluetooth. See the Operation chapter for more details
on using each mode.
9. Mic In Volume
Adjust the volume of the microphone or mic-level source connected to the MIC Input using
this knob.
TIP: For proper audio level mixing, always set the Mic In volume (MIC) using this knob to a
higher level, and then adjust the Main volume (VOL) setting using the Control Knob to the
appropriate volume.
10. MIC Inputs (1/4” [6.35 mm] & XLR)
Connect a microphone or mic-level source to these inputs.
ION Audio Trouper™ 300 User Guide 10
1
1. Source Volume
Adjust the U
SB, Aux, FM Radio, or Bluetooth source volume.
TIP: For proper audio level mixing, always set the channel source volume (SOURCE) to a
higher level, and then adjust the Main volume (VOL) setting using the Control Knob to the
appropriate volume. If you are using a Bluetooth device on this channel, make sure the
device volume is turned all the way up before setting the channel volume and Main volume.
1
2. Aux Input (1/8” [3.5 mm] or 1/4" [6.35 mm])
Connect an external audio device (such as a tablet or MP3 player) to Trouper
TM
300 here
using a 1/8” (3.5 mm) or 1/4" (6.35 mm) auxiliary cable (not included). See O
peration >
U
sing the Aux Input for more information.
1
3. USB Playback / Charge (5V, 1A) Port
Connect a USB drive here for USB mode playback. See O
peration > Using USB Mode for
more information.
Trouper
TM
300 includes a power bank function, which allows you to charge a compatible
5V, 1A smartphone, tablet, or other device using the unit’s internal battery (Capacity: 7000
mAh/12 V) by connecting a cable here. See O
peration > Using the USB Charge Port for
more information.
Note: To charge smartphones and tablets faster, put the device’s screen to sleep.
1
4. Clip LED
The Clip LED will flash red if the signal from the input jacks or M
edia Panel audio source is
clipping (distortion from an overly loud signal). If this happens, decrease the setting of the
M
ain Volume or the SOURCE volume (if a loud device is plugged into either).
1
5. Mix Out (XLR)
Connect this output to an additional amplifier system or speaker. This output will send the
combined channels mix to the connected device.
1
6. Power
Connect the included power cable here to power the unit and charge the internal battery.
A full charge may take up to 10 hours.
Note: The speaker will go into ERP energy saving mode when running on battery power
after 30 minutes of no signal or panel interaction. This mode is cancelled when a signal is
detected or with panel interaction.
1
7. Power Switch
Use this switch to power the speaker on or o. When powered on, the blue indicator on
the front panel will be lit. Return the M
ain volume to "zero" before powering o the
speaker.
ION Audio Trouper™ 300 User Guide 11
Using the Control Knob
The C
ontrol Knob defaults to controlling the Main Volume for all channels.
Press the Control Knob to cycle through dierent functions. Rotate the Control Knob to
change the selected setting:
P
ress Control Rotate
1x LOW Adjust low EQ
2x HIGH Adjust high EQ
3x ECHO Adjust mic echo
4x VOL Adjust main volume
If there is no activity on the Control Knob for five seconds, the function will go back to Main
Volume.
OPERATION
1. PRESS TO SELECT
2. TURN TO ADJUST
ION Audio Trouper™ 300 User Guide 12
Pairing a Bluetooth® Device
1. Power on Trouper™ 300 using the P
ower switch.
2. Upon powering on, Trouper™ 300 will be available to pair, so make sure your Bluetooth
device is within range of the speaker, no more than 100 ft. (30.5 m). While in pairing mode,
the B
luetooth icon on the display will flash blue.
If Trouper™ 300 is powered on and you are using another source, you will need to press
the S
OURCE button to switch to Bluetooth mode, as indicated on the display with the
B
luetooth icon.
3. Navigate to your device’s Bluetooth setup screen, find T
ROUPER 300, and connect.
Note: Do not connect to iPA118C_BLE; this is reserved exclusively for connecting to the
ION Sound Control™ app. If you experience trouble in connecting, select “Forget this
Device” on your Bluetooth device and try to connect again.
4. Once paired, you will hear “Connected” (if voice prompts are enabled), and the B
luetooth
icon on the d
isplay will become solid blue.
5. You can now press play in your music player app of choice on your device.
To disconnect a paired device, navigate to your device’s Bluetooth settings and disconnect
or turn o Bluetooth. The speaker will enter Bluetooth pairing mode to make it available for
another device. When you disconnect a Bluetooth device, you will hear “Disconnected” if voice
prompts are enabled.
TROUPER
TM
300
31 - POWER ON 2 - BLUETOOTH PAIRING
ION Audio Trouper™ 300 User Guide 13
Wireless Stereo-Link™
To sync audio wirelessly between two Trouper™ 300 speakers:
1. Power on both Trouper™ 300 speakers using the p
ower switches.
2. Press and hold the L
ink button on the first speaker for five seconds and release it. Then,
press and hold the L
ink button on the second speaker for five seconds and release it.
The L
INK icon on both speakers’ display will begin flashing and a linking tone will be heard
while the speakers establish a link. Please allow 10 to 30 seconds for the speakers to link.
Note: Speakers should be within 50’ (15 m) of each other to properly link. The closer the
speakers are, the faster they will link.
3. Once the speakers are successfully linked, the L
INK icon on both speakers’ display will be
lit solid and a confirmation tone will be heard.
The default linking process enables stereo playback by providing half of the stereo signal
to each speaker.
Note: FM Radio, Aux, and USB modes will be disabled when Stereo-Link™ is active.
Tip: The Bluetooth range will be determined by the distance that your Bluetooth device is
to the primary speaker. See Technical Specifications for Bluetooth and Stereo-Link™
ranges.
4. Follow the steps in P
airing a Bluetooth® Device to connect your device to one of the
speakers. This will be your “primary” (left channel) speaker. The other speaker will be the
“secondary” (right channel) speaker.
T
o exit Stereo-Link™ mode, quickly double-press the Link button on either speaker. The
primary speaker will remain paired to your Bluetooth device. The secondary speaker will begin
searching for a new Bluetooth device to pair to, and you will hear "Bluetooth Pairing" if voice
prompts are enabled.
T
o erase the Stereo-Link™ settings on both units, press and hold the Link button on the
primary (left) speaker for 10 seconds. A confirmation tone will be heard to indicate that the link
settings have been erased.
PRESS AND HOLD
(Speaker 1)
PRESS AND HOLD
(Speaker 2)
ION Audio Trouper™ 300 User Guide 14
Using the Radio
1. Press the S
OURCE button until FM is shown on the display.
2. Press the <
/> (Previous/Next) buttons to go to the previous or next station.
Press and hold the <
/> buttons to seek to the previous or next strongest station.
T
o save a radio station as a preset:
1. Press and hold the P
lay/Pause / Presets button.
2. Use the <
/> buttons to select a preset number, 1–10, shown on the display.
3. When you have selected the desired preset number, quickly press and release the P
lay/
P
ause / Presets button again to save it.
T
o recall a previously saved preset, briefly press the Play/Pause / Presets button to cycle
between the 10 presets.
You can also use the ION Sound Control™ app to save and recall presets. See O
peration >
A
pp Control for more information.
1. SELECT FM SOURCE
2. PRESS - Previous/
Next Station
HOLD - Seek Station
1. PRESS AND HOLD
3. PRESS TO CONFIRM
PRESS TO CYCLE
SAVED PRESETS
2. PRESS TO
SELECT PRESET
ION Audio Trouper™ 300 User Guide 15
Using the Aux Input
1. Connect a 1/4" (6.35 mm) or 1/8” (3.5 mm) audio cable to the input on the rear panel of
Trouper
TM
300, and connect the other end to an instrument or audio device such as an MP3
or CD player.
2. Press the S
OURCE button so that AUX is selected and shown on the display. Doing so will
also cause Bluetooth devices to disconnect.
3. Press play on your device’s music player, if connected.
TIP: For proper audio mixing, first make sure your device volume is turned all the way up.
Then set the SOURCE Volume to an appropriate level, about 30 on the display. Finally,
adjust the MAIN volume level. This will help ensure the best quality audio signal from your
device. If signal distortion occurs, try lowering the volume on your device.
T
o exit Aux mode, press the SOURCE button to switch to USB, FM, or Bluetooth modes.
2 - PRESS SOURCE
1 - CONNECT DEVICE
3 - ADJUST VOLUME
ION Audio Trouper™ 300 User Guide 16
Using USB Mode
Connect a USB drive to the USB-A port on the rear panel of Trouper
TM
300 to play music files.
USB Mode will be automatically selected, and music files will begin playing. If you have
switched to another source while the USB drive is connected, press the S
OURCE button to
select U
SB mode, as indicated on the display.
Use the S
OURCE Volume knob to set the level to about 30, and then adjust the MAIN volume
as needed.
While in USB playback mode, you can use the following buttons on the front panel to control
playback:
• Press the P
lay/Pause / Presets button to start or stop USB playback.
• Use the <
/> (Previous/Next) buttons to skip to the previous or next USB track.
• Briefly press the S
tereo-Link™ / Repeat button to cycle between repeat modes, as shown
on the display:
o A
LL: Repeats all tracks on the USB drive.
o F
OLd: Repeats all tracks in the current folder of the USB drive.
o O
nE: Repeats the currently playing track.
o r
An: Randomly shues the track order.
T
o exit USB mode, press the SOURCE button to switch to AUX, FM, or Bluetooth modes.
ADJUST VOLUME
PLAYBACK CONTROLS
REPEAT CONTROL
CONNECT
USB DRIVE
ION Audio Trouper™ 300 User Guide 17
Using the USB Charge Port
T
o use the USB charge port:
1. Connect a USB type-A cable to the U
SB Playback
/
Charge Port on the rear panel of your Trouper
TM
300 (see image). Trouper
TM
300 must be
powered on for charging to work.
2. Connect the other end of the cable to the
charging input on your smartphone, tablet, or
other compatible device.
Note: To charge smartphones and tablets faster,
put the device’s screen to sleep.
ION Audio Trouper™ 300 User Guide 18
Light Modes
Press the L
ights button to toggle between six
modes for the LEDs on Trouper
TM
300.
Note: For the best lighting eect, you may need to
increase the volume of your connected device or
input source.
• R
ainbow Chase (Beat Sync): A rainbow of
colors spinning around. The higher the music
volume, the faster the speed of the spinning
rainbow pattern.
• L
ight Pulse (Beat Sync): The lights flash in reaction to the volume of the music. The lights
will cycle through the color spectrum.
• C
olor Cycle: The lights slowly cycle through the color spectrum.
• T
wo-Tone Fade: One side of the LEDs will show one color while the other side of the LEDs
will light up with a nearby color on the full color spectrum. Both will cycle through the color
spectrum.
• S
tatic Color: All LEDs will stay the same color (the color can be adjusted from the ION
Sound Control
™
app). The default color is blue. There are the 15 colors that can be selected
from the I
ON Sound Control™ app.
• O
ff: All LEDs are o.
PRESS TO CYCLE
ION Audio Trouper™ 300 User Guide 19
App Control
IMPORTANT: To ensure the best possible experience with the app, use the most current
Android OS or iOS on your device.
F
ollow these steps to download the free app on your device:
1. Open the Apple App Store or Google Play on your device. Then, search for the I
ON Sound
C
ontrol™ app.
2. Follow the on-screen instructions to download and install the app. Once downloaded, the
I
ON Sound Control™ app will appear on your device's home screen.
3. Connect your device to Trouper™ 300 via Bluetooth. See O
peration > Pairing a Bluetooth®
D
evice to learn how to do this.
4. Open the ION Sound Control™ app. If prompted, allow the app to access your device's
Bluetooth and Location Services.
5. Follow the steps on screen to find and connect to your Trouper™ 300. Once connected,
you can control various functions of the speaker, such as:
• M
ain Volume: Adjust the main speaker output volume.
• S
ource Selection: Select the source to use: Bluetooth, USB, or Aux.
• S
ource Volume: Adjust the incoming volume for Bluetooth, USB, and Aux sources.
• M
ic Volume: Adjust the volume for the 1/4” / 6.35 mm and XLR microphone inputs.
• E
Q: Adjust the speaker's equalization.
• M
ic Echo: Turn the mic echo eect on/o.
• V
oice Prompts: Enable or disable the voice prompts.
• S
upport: Visit ionaudio.com, contact Technical Support, and view Warranty information
and Frequently Asked Questions.
• L
ight Effect: Choose the lighting eect.
• O
ver-The-Air Firmware Updates: Stay up to date with the latest firmware installation.
ION Audio Trouper™ 300 User Guide 20
I
f the unit is not charging: Make sure the power cable is properly connected to the power
input and the power outlet.
I
f the sound is distorted: You may need to adjust the levels of your sources and Trouper™
300 for proper mixing.
i. First, turn your source volume all the way up.
ii. Then, adjust the selected S
OURCE VOL knob on Trouper™ 300 to an appropriate level.
iii. Finally, adjust the M
AIN volume to an appropriate level.
If the sound is still distorted, try lowering the volume control of your sound source, then
lowering the S
OURCE VOL knob of the channel in use on Trouper™ 300.
I
hear a hum when cables are connected:
• Disconnect cables from the input jacks to see if it’s a faulty cable.
• Use balanced cabling connections whenever possible.
• Make sure the signal cables are not placed near power cables.
• Connect all audio equipment power cables to outlets which share a common ground.
I
f there is a high-pitched whistling noise when using microphones: This is probably
feedback. Point the microphone away from the speaker. If feedback continues, try lowering
the M
IC IN VOL knob on Trouper™ 300.
I
f you can’t hear the microphone over the music volume:
i. First, turn down the volume from your source using the S
OURCE VOL knob on
Trouper™ 300.
ii. Then, make sure your microphone volume is turned all the way up (if applicable), and
turn up the M
IC IN VOL knob on Trouper™ 300.
I
f there is too much bass: Try adjusting the tone or EQ control on your sound source or on
Trouper™ 300 via the ION Sound Control™ app to lower the bass level. This will allow you to
play the music louder before clipping (distortion) occurs.
TROUBLESHOOTING
ION Audio Trouper™ 300 User Guide 21
I
f you cannot connect your audio device to Trouper™ 300 via Bluetooth:
i. Power o Trouper™ 300 and then power it back on.
ii. Have your audio device (e.g., smartphone or tablet) and Trouper™ 300 as close together
as possible while trying to connect. Make sure both the audio device and Trouper™ 300
are unobstructed by walls, furniture, etc.
iii. Reset the Bluetooth connection on your audio device by turning Bluetooth o and back
on. You can find this under the Bluetooth menu in the Settings for your phone or other
audio device.
If this does not work, and you have connected to Trouper™ 300 before, find Trouper™
300 in the list of available or previously connected devices in your audio device's
Bluetooth menu, tap the "gear" or “i” icon located next to it and then select U
npair or
F
orget. Turn Trouper™ 300 o and back on and try pairing again once it reappears in
your available devices list.
Note: If Trouper™ 300 has been paired to another audio device recently that is still
within range, you may need to repeat this process with that audio device to fully
disconnect.
If you experience audio dropouts while playing music from a Bluetooth device, this may be
happening because your unit is trying to link to another speaker. This can occur if you power
o a speaker that was linked to your unit or if you have just turned on your unit and it is in
Stereo-Link™ mode.
To stop the audio dropouts, exit Stereo-Link ™ mode by pressing and holding the L
ink button.
Alternatively, you can wait for your unit to link to another speaker if there is one within range.
I
f there is a delay in the audio signal between the left and right speakers when linked, break
the link by disconnecting your Bluetooth device from Trouper™ 300, and pair them again
following the instructions in the O
peration > Wireless Stereo-Link
TM
section.
I
f you are experiencing other issues with Trouper™ 300 and need to perform a factory reset,
press and hold the L
IGHTS button for 10 seconds. The speaker will power cycle and the default
settings will be restored.
ION Audio Trouper™ 300 User Guide 22
Technical Specifications
D
rivers Low-Frequency: 10" (254 mm) woofer
H
igh-Frequency: 1" (25 mm) tweeter
Frequency Response 50 Hz – 18 kHz (-3 dB)
Connectors (1) XLR MIC Input
(1) 1/4” (6.35 mm) MIC Input
(1) 1/4" (6.35 mm) AUX Input
(1) 1/8” (3.5 mm) AUX Input
(1) USB-A Charging/Playback Port
(1) 1/4” (6.35 mm) Line Output
Charge Port 5V, 1 A
Speaker Pole Cup Size 35 mm
Bluetooth Specifications Profile: A2DP, AVRCP
V
ersion: 5.3
F
requency: 2402 – 2480 MHz
M
aximum Transmission Power: 10 dBm
C
odec: SBC
R
ange: 100 ft. (30.5 m) *
Battery Type: SLA 7000 mAh / 12 V
L
ife: 30+ hours
C
harging Time: Up to 10 hours
Power Connection: IEC
V
oltage: 100–240V~, 50/60 Hz, 170 W
F
use: T2AL AC250V
Dimensions
(height x width x depth)
19.69" x 12.01" x 11.81"
50.01 x 30.51 x 30.00 cm
Weight .sbl 7.32
10.75 kg
Specifications are subject to change without notice.
* Bluetooth and wireless reception and range are aected by walls, obstructions, and movement. For
optimal performance, place the product so it is unobstructed by walls or furniture and is raised o the
ground.
** Battery life may vary based on temperature, age, and volume usage of product.
APPENDIX
ION Audio Trouper™ 300 User Guide 23
Trademarks & Licenses
ION Audio is a trademark of inMusic Brands, Inc., registered in the U.S. and other countries.
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc., and any use of such
marks by ION Audio is under license.
App Store is a trademark of Apple Inc., registered in the U.S. and other countries.
Android and Google Play are registered trademarks of Google Inc. All other product names,
company names, trademarks, or trade names are those of their respective owners.
