When calling for parts or
service, please specify
the following number
:
Model#: A450-261
CAUTION:
Weight on this product should not exceed 250 lbs.
Owner's
Manual
This Product is Distributed Exclusively by
2040 N. Alliance, Springeld, MO 65803
Customer Care
1 (800) 375-7520
www.staminaproducts.com
Product May Vary Slightly From Pictured.
STAMINA PRODUCTS
MADE IN CHINA
©
2016 Stamina Products, Inc.
2017, 04
Exercise can present a
health risk. Consult a
physician before beginning
any exercise program with
this equipment. If you feel
faint or dizzy, immediately
discontinue use of this
equipment. Serious bodily
injury can occur if this
equipment is not assembled
and used correctly. Serious
bodily injury can also occur
if all instructions are not
followed. Keep others and
pets away from equipment
when in use. Always make
sure all bolts and nuts are
securely tightened prior to
each use. Follow all safety
instructions in this manual.
!
WARNING
Adjustable Height Treadmill
TABLE OF CONTENTS
Safety Instructions ...................................... 2
Before You Begin ........................................ 4
Equipment Warning, Caution & Notice Labels
... 5
Hardware Identication Chart .................... 6
Assembly Instructions ................................ 7
Operational Instructions ........................... 11
Storage ....................................................... 14
Maintenance ............................................... 15
Conditioning Guidelines ........................... 16
Warm-Up and Cool-Down ......................... 17

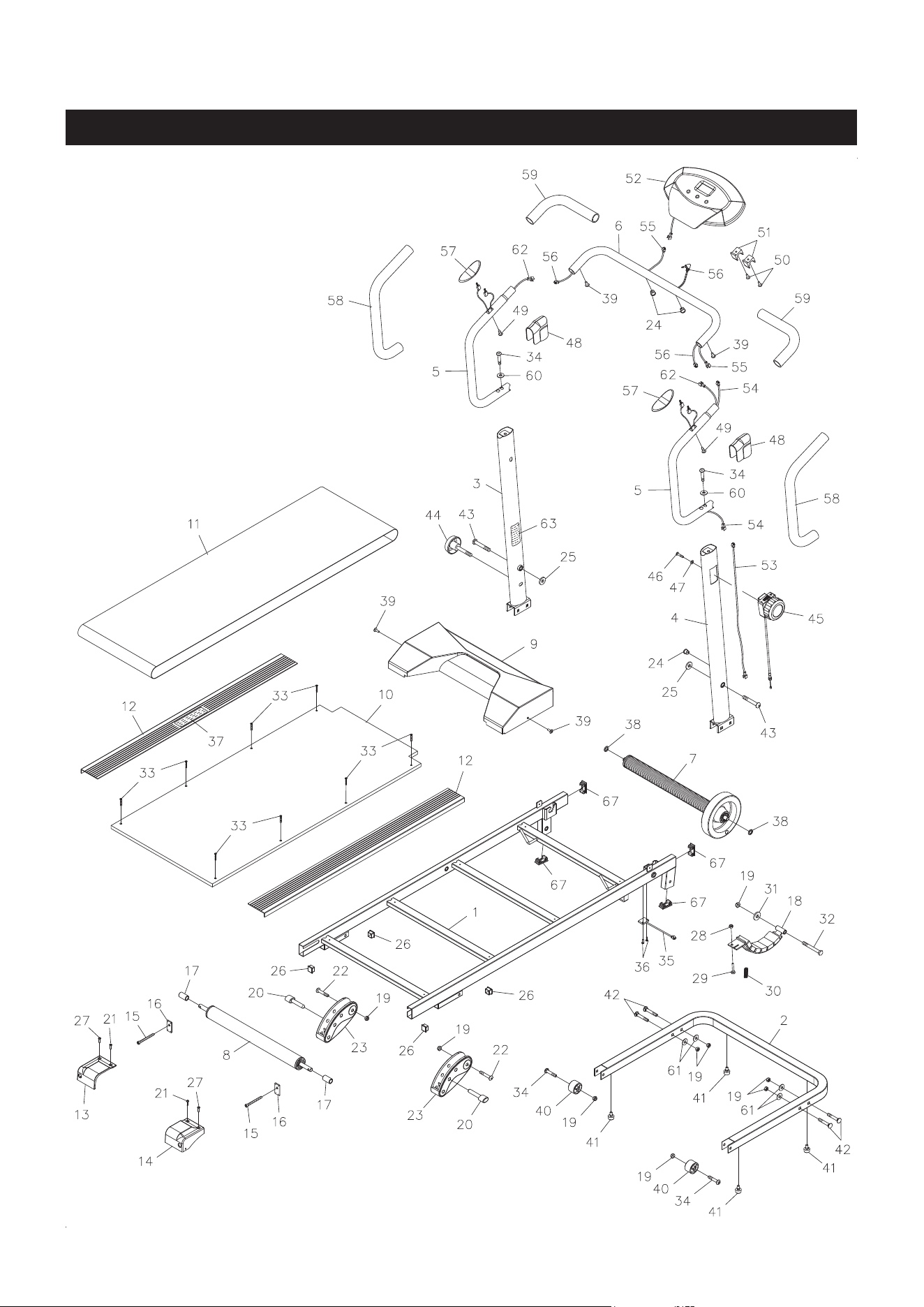

Product Parts Drawing .............................. 18
Parts List .................................................... 19
Warranty ..................................................... 21
Notes ........................................................... 22
Fax/Mail Ordering Form ............................ 23
SAFETY INSTRUCTIONS
2
1. Save these instructions and ensure that other exercisers read this manual prior to using the
Avari® Adjustable Height Treadmill for the rst time.
2. Read all warnings and cautions posted on the Avari® Adjustable Height Treadmill.
3. The Avari® Adjustable Height Treadmill should only be used after a thorough review of the
Owner’s Manual. Make sure that it is properly assembled and tightened before use.
4. We recommend that two people be available for assembly of this product.
5. Keep children away from the Avari® Adjustable Height Treadmill. Do not allow children to
use or play on the Avari® Adjustable Height Treadmill. Keep children and pets away from the
Avari® Adjustable Height Treadmill when it is in use.
6. It is recommended that you place this exercise equipment on an equipment mat.
7. Set up and operate the Avari® Adjustable Height Treadmill on a solid level surface. Do not
position the Avari® Adjustable Height Treadmill on loose rugs or uneven surfaces.
8. Make sure that adequate space is available for access to and around the Avari® Adjustable
Height Treadmill.
9. Keep ngers clear of all pinch points when folding and unfolding the Avari® Adjustable Height
Treadmill.
10. Before using, inspect the Avari® Adjustable Height Treadmill for worn or loose components,
and securely tighten or replace any worn or loose components prior to use.
11. Before using, always check the Main Frame(1) is locked securely with the Locking Knob(44).
12. Consult a physician prior to commencing an exercise program and follow his/her
recommendations in developing your tness program. If at any time during exercise you feel faint,
dizzy, or experience pain, stop and consult your physician.
13. Always choose the workout which best ts your physical strength and exibility level. Know your
limits and train within them. Always use common sense when exercising.
14. Do not wear loose or dangling clothing while using the Avari® Adjustable Height Treadmill.
15. Never exercise in bare feet or socks; always wear proper footwear such as running, walking, or
cross training shoes that t well, provide foot support, and feature non-skid rubber soles.
16. Be careful to maintain your balance while using, mounting, dismounting, or assembling the Avari®
Adjustable Height Treadmill, loss of balance may result in a fall and bodily injury.
17. The Avari® Adjustable Height Treadmill should not be used by persons weighing over 250
pounds.
18. The Avari® Adjustable Height Treadmill should be used by only one person at a time.
19. The Avari® Adjustable Height Treadmill is for consumer use only. It is not for use in public or
semipublic facilities.
!
WARNING
This product contains a chemical known to the State of California to cause
cancer and birth defects or other reproductive harm.
Consult your physician before starting this or any exercise program. This is
especially important if you are over the age of 35, have never exercised before,
are pregnant, or suer from any health problem. This product is for home use
only. Do not use in institutional or commercial applications. Failure to follow
all warnings and instructions could result in serious injury or death.
To reduce the risk of serious injury, read the following Safety Instructions
before using the Avari® Adjustable Height Treadmill.
!
WARNING
!
WARNING
NEED HELP?
CONTACT US FIRST
1 (800) 375-7520
customer.care@staminaproducts.com
Hi! From all of us here at Stamina Products, thank you for your purchase. We
know that you have big fitness goals in mind and we are here to help you along.
Call us, email us, or send us a message on Facebook. Be sure to contact us if you
have any questions on your new product. We look forward to hearing from you!
With your body in mind,
Stamina Customer Care
To enact your extended warranty and to help us better
serve you, please go online and register your new product.
register.staminaproducts.com
ONLINE
customer.care@staminaproducts.com
www.staminaproducts.com
TELEPHONE
1 (800) 375-7520
FAX
(417) 889-8064
MAIL
Stamina Products, Inc.
ATTN: Customer Care
P.O. Box 1071
Springfield, MO 65801-1071
facebook.com/StaminaProducts
facebook.com/AeroPilates
CUSTOMER CARE HOURS:
Monday-Thursday, 7:30 AM-5:00 PM, Central Time
Friday, 8:00 AM-3:00 PM, Central Time
It is quick and easy to register online, but if you’re a little old school or just need a
reason to raise that little flag on your mailbox, fill out the info on the last page of this
manual and mail it in.

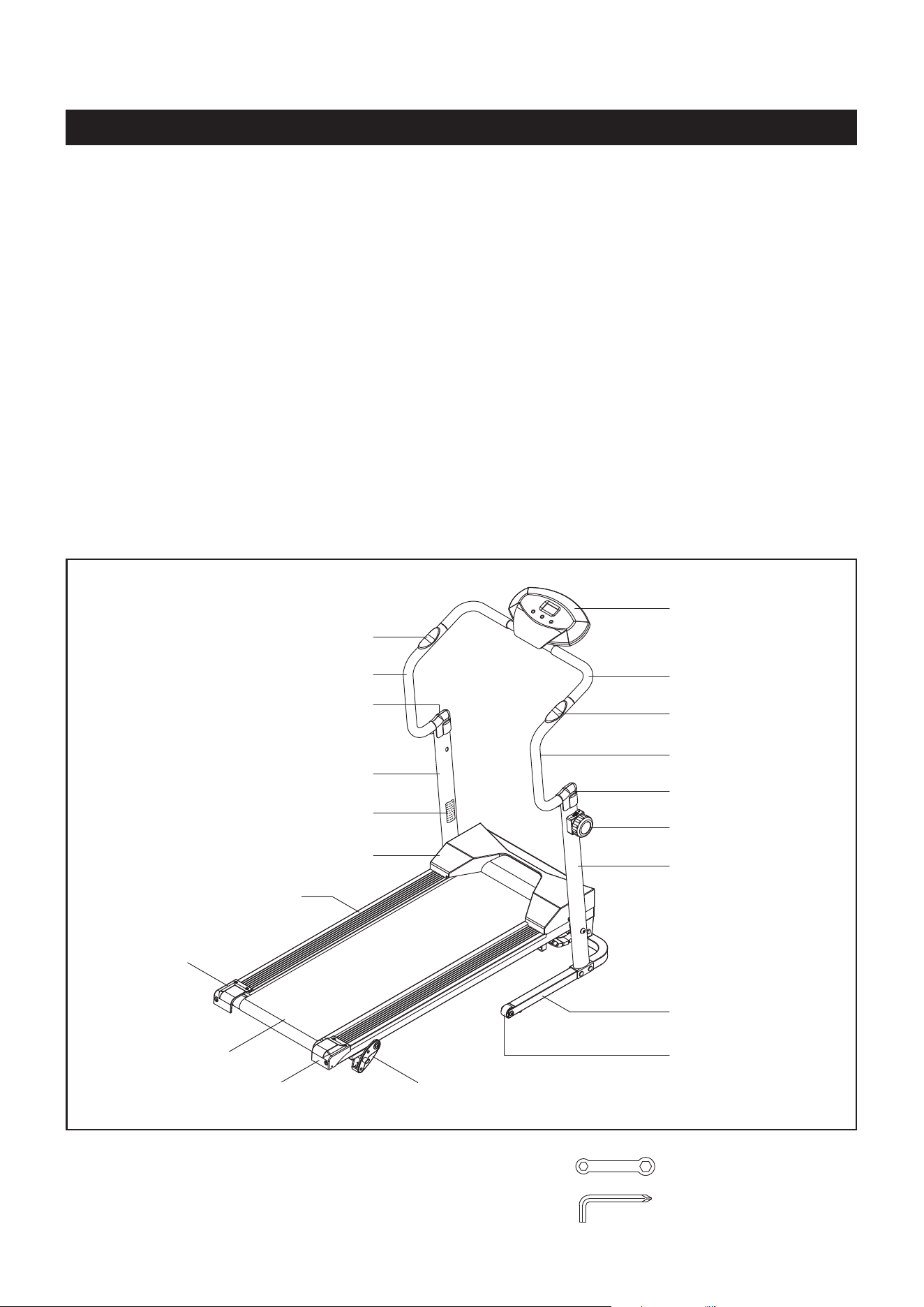

Left Upright
Left Rear Cap
Rear Support
Wheel
Meter
Handrail Cap
Flywheel Cover
Walking Belt
Side Molding
Right Handrail
Base Frame
Right Upright
Left Handrail
Tension Knob
Handrail Cap
THE FOLLOWING TOOLS ARE INCLUDED FOR ASSEMBLY : Wrench
Allen Wrench (5mm)
BEFORE YOU BEGIN
4
Caution Label
Right Rear Cap
Pulse Sensor
Front Handrail
Pulse Sensor
Thank you for choosing the Avari® Adjustable
Height Treadmill. We take great pride in producing
this quality product and hope it will provide many
hours of quality exercise to make you feel better,
look better, and enjoy life to its fullest.
It's a proven fact that a regular exercise program
can improve your physical and mental health.
Too often, our busy lifestyles limit our time and
opportunity to exercise. The Avari® Adjustable
Height Treadmill provides a convenient and
simple method to begin your journey of getting
your body in shape and achieving a happier and
healthier lifestyle.
Before reading further, please review the
drawing below and familiarize yourself with the
parts that are labeled.
Read this manual carefully before using the
Avari® Adjustable Height Treadmill.
Although Stamina constructs its products with
the nest materials and uses the highest standards
of manufacturing and quality control, there can
sometimes be missing parts or incorrectly sized
parts. If you have any questions or problems with
the parts included with your Avari® Adjustable
Height Treadmill, please do not return the
product. Contact us FIRST!
If a part is missing or defective, please go to
staminaproducts.com under the Customer Care
section and order the part needed, or call us toll
free at 1-800-375-7520 (in the U.S.). Our Customer
Care Staff is available to assist you from 7:30
A.M. to 5:00 P.M. (Central Time) Monday through
Thursday and 8:00 A.M. to 3:00 P.M. (Central
Time) on Friday.
Be sure to have the name and model number of
the product available when you contact us.
This chart is provided to help identify the warning, caution, and notice labels on the Avari®
Adjustable Height Treadmill. Please take a moment to familiarize yourself with all of the warning,
caution, and notice labels.
EQUIPMENT WARNING, CAUTION & NOTICE LABELS
CAUTION LABEL(63)C1
Labels are larger than actual size
5
MAINTENANCE DECAL(37)C2
CAUTION
!
Consult your physician before
starting this or any exercise
program. This is especially
important if you are over the age
of 35 or have any pre-existing
health condition. Always make
sure all nuts and bolts are
securely tightened before using
this product. This product should
not be used by person weighing
more than 250 lbs. unless
otherwise stated in your Owner’s
Manual.
Keep others including children &
pets away from equipment when
in use.
For consumer use only. Failure to
follow all warnings and
instructions could result in injury
or property damage. Before
assembling or using this product,
read and follow the Owner’s
Manual and all other warnings and
instructions that accompany this
product. Replace this caution label
if damaged, illegible, or removed.
39 Bolt, Round Head (M6 x 1 x 15mm) 2
Part Number and Description Qty
22 Bolt, Button Head (M8 x 1.25 x 45mm) 2
34 Bolt, Button Head (M8 x 1.25 x 40mm) 2
43 Bolt, Button Head (M10 x 1.5 x 65mm) 2
60 Arc Washer (M8) 2
6
19 Nut (M8 x 1.25) 6
46 Screw, Round Head (M5 x 0.8 x 25mm) 1
50 Screw, Round Head (M5 x 0.8 x 10mm) 2
length
length
mm.
in.
INCHES

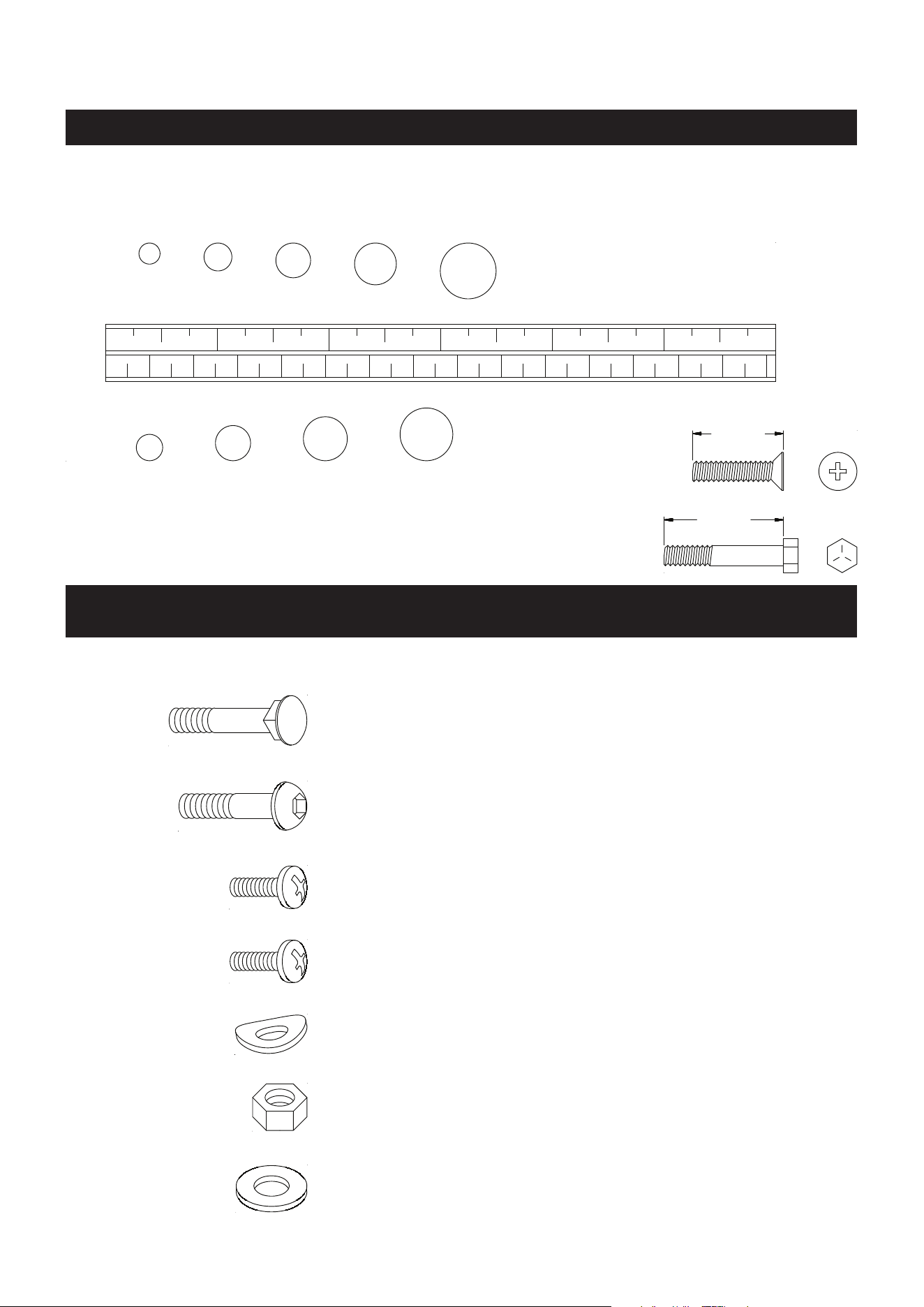

This chart is provided to help identify the hardware used in the assembly process. Place the washers or
the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to
check the length of the bolts and screws.
NOTICE: The length of all bolts and screws, except those with flat
heads, is measured from below the head to the end of the bolt
or screw. Flat head bolts and screws are measured from the
top of the head to the end of the bolt or screw.
After unpacking the unit, open the hardware bag and make sure that you have all the following items.
Some hardware may be already attached to the part.
MILLIMETERS
0 10 20 30 40 50 60 70 80 90
100
110
120
130 140
150
0 1/2
1 1/2
2 1/2
3 1/2
4 1/2
5 1/2
6
6 8
10
12
3/16"
1/4"
5/16" 3/8" 1/2"
HARDWARE IDENTIFICATION CHART
42 Carriage Bolt (M8 x 1.25 x 45mm) 4
25 Plastic Washer (ø10.2 x ø25 x 4mm) 2
47 Washer (M5) 1
61 Washer (M8) 4
ASSEMBLY INSTRUCTIONS
7

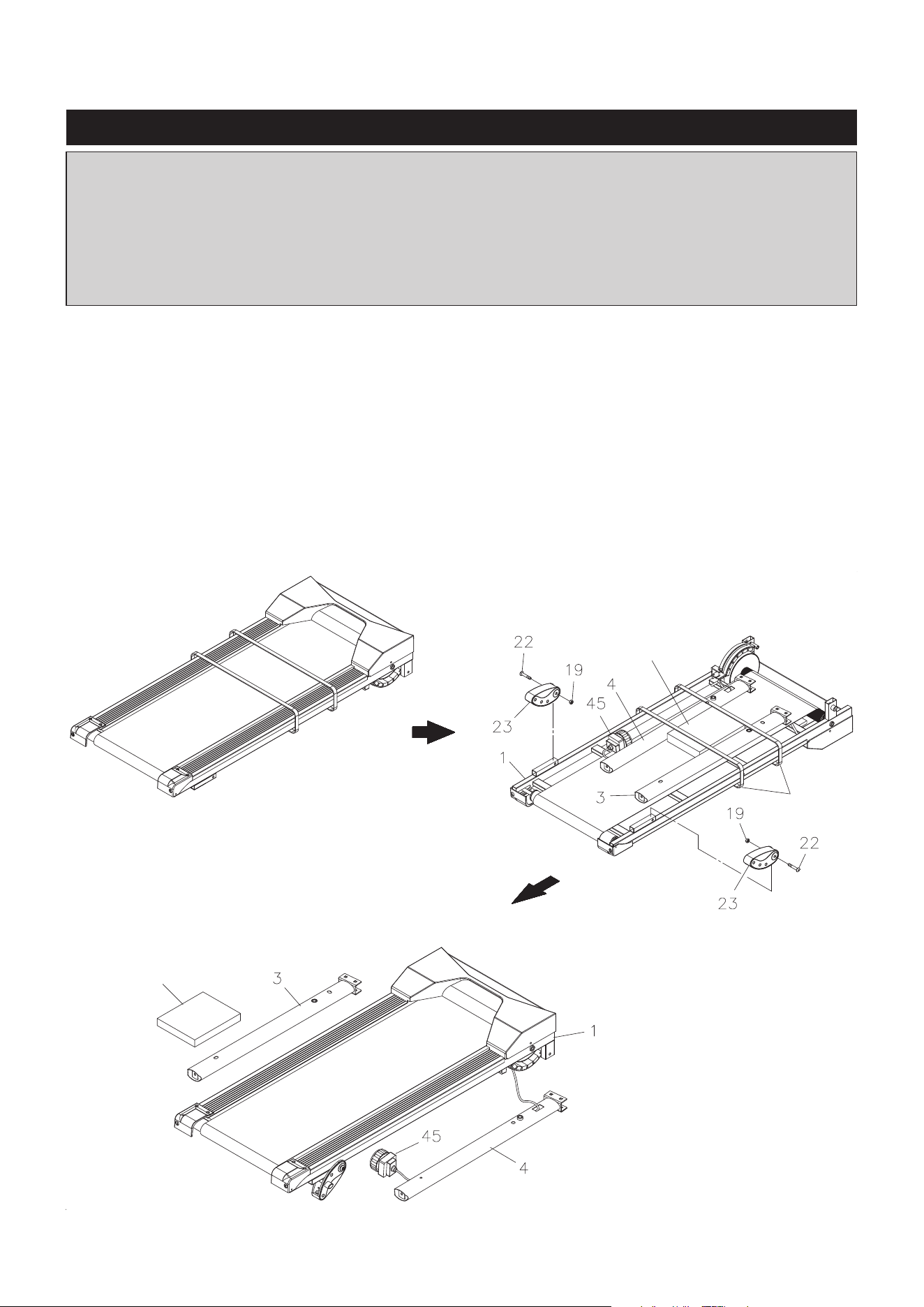

STEP 1

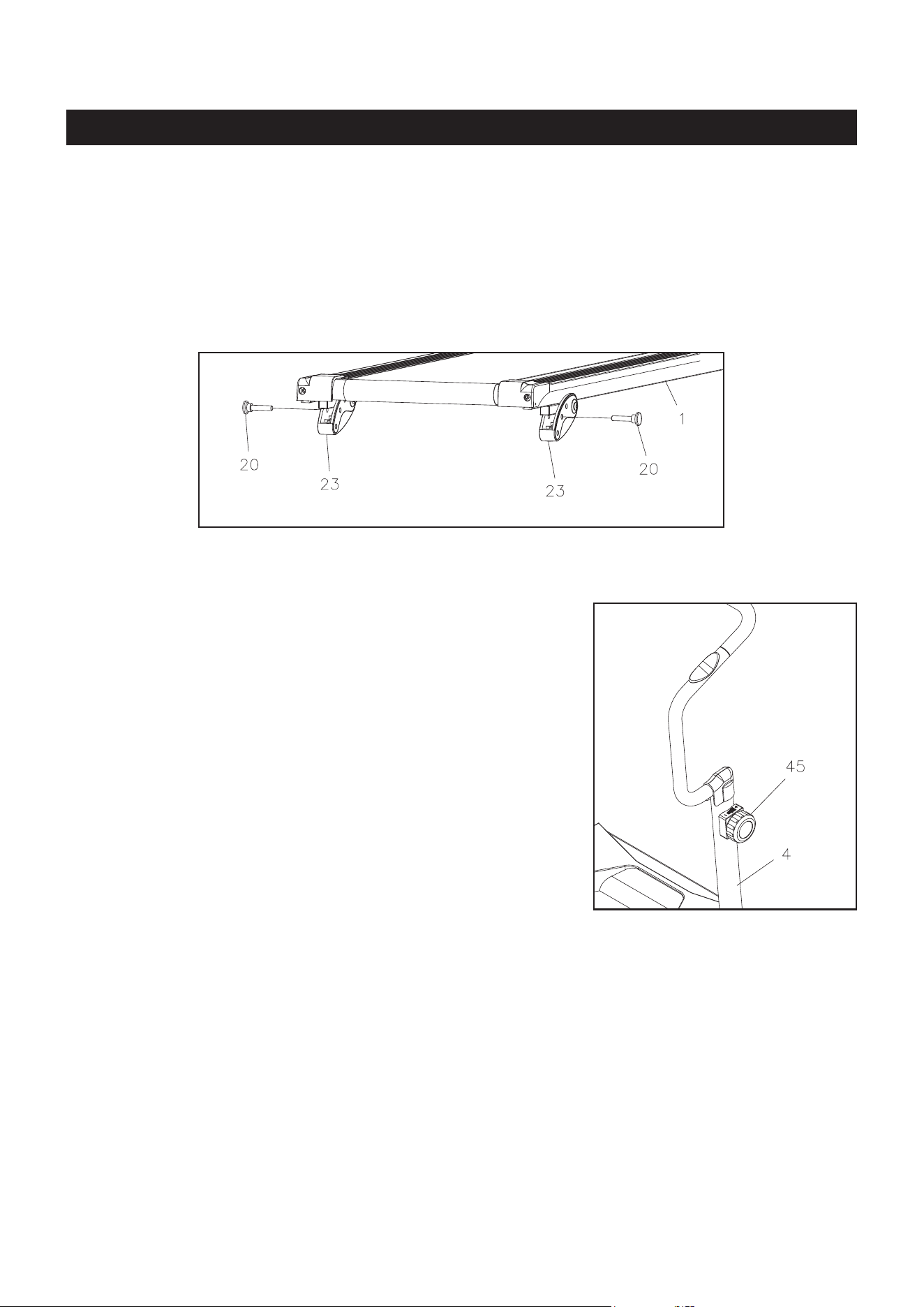

Remove the Avari® Adjustable Height Treadmill from its packing carton, the main assembly of the
product is shown in view 1. Turn the main assembly up-side down as shown in view 2. Attach the REAR
SUPPORTS(23) to the MAIN FRAME(1) with BUTTON HEAD BOLTS(M8x1.25x45mm)(22) and
NUTS(M8)(19) on both sides.
Cut o the packing straps and remove the LEFT UPRIGHT(3) and meter box from the main assembly.
The RIGHT UPRIGHT(4) is connected to the MAIN FRAME(1) by the cable of the TENSION KNOB(45).
Turn the MAIN FRAME(1) and the RIGHT UPRIGHT(4) back over as shown in view 3. Display the parts
on the oor as shown in view 3.
2.
3.
1.
Meter Box
Meter Box
Packing
Straps
Place all parts from the box in a cleared area and position them on the oor in front of you. Remove
all packing materials from your area and place them back into the box. Do not dispose of the packing
materials until assembly is completed. Read each step carefully before beginning. If you are missing
a part, please go to staminaproducts.com under the Customer Care section and order the part
needed, e-mail us at customer[email protected], or call us toll free at 1-800-375-7520 (in
the U.S.). Our Customer Care Sta is available to assist you from 7:30 A.M. to 5:00 P.M. (Central
Time) Monday through Thursday and 8:00 A.M. to 3:00 P.M. (Central Time) on Friday.
ASSEMBLY INSTRUCTIONS
8
STEP 2

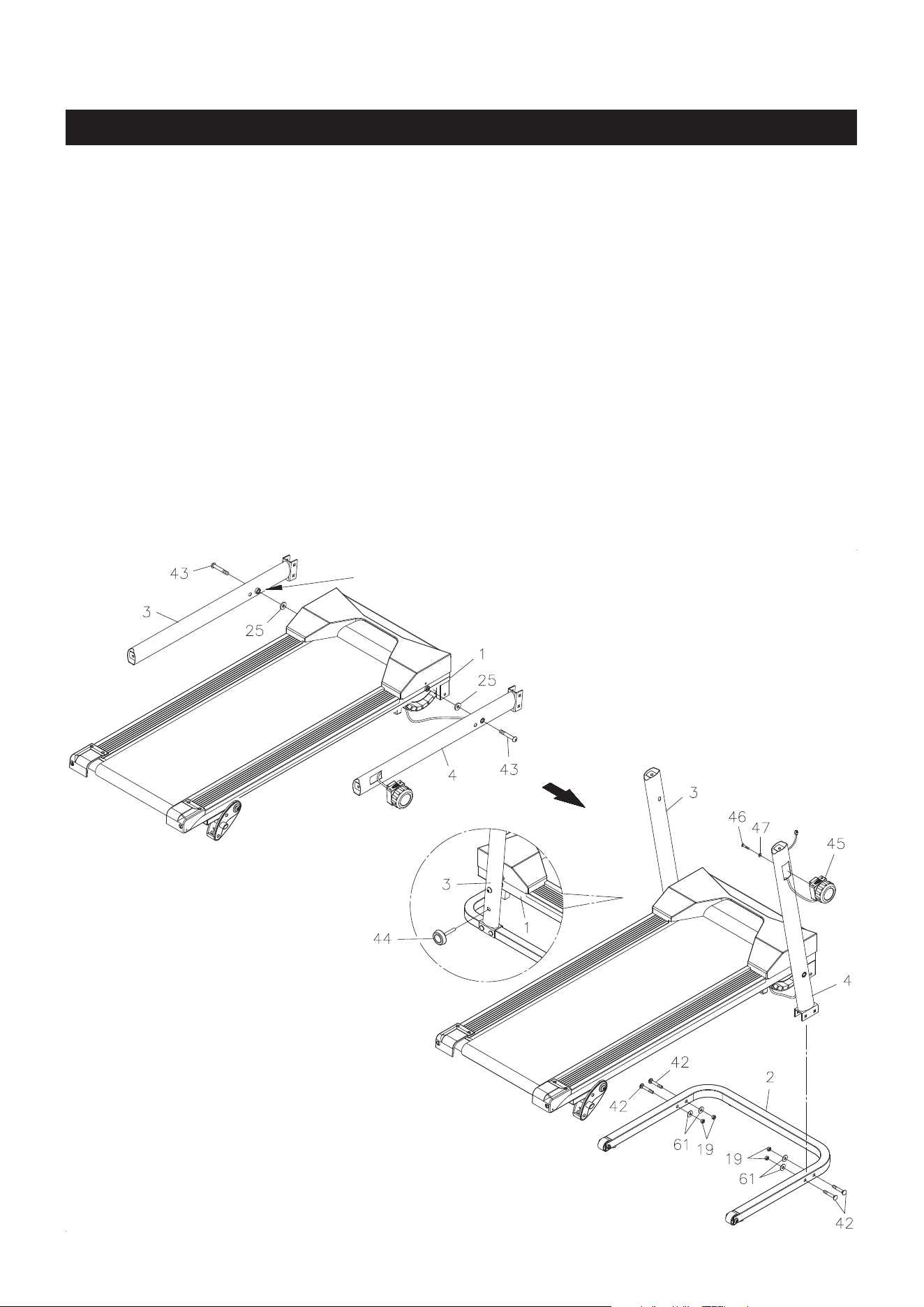

Refer to illustration A. Attach the RIGHT UPRIGHT(4) to the MAIN FRAME(1) with BUTTON HEAD
BOLT(M10x1.5x65mm)(43), and PLASTIC WASHER(ø10.2xø25x4mm)(25). Repeat on other side.
STEP 3
Refer to illustration B. Rotate the LEFT and RIGHT UPRIGHTS(3, 4) to the upright position. Attach the
LEFT and RIGHT UPRIGHTS(3, 4) to the BASE FRAME(2) with CARRIAGE BOLTS(M8x1.25x45)(42),
WASHERS(M8)(61), and NUTS(M8x1.25)(19).
STEP 4
Refer to the detail view. Lock the MAIN FRAME(1) in the unfolded position by inserting the LOCKING
KNOB(44) through the hole in the LEFT UPRIGHT(3) and screwing it into the MAIN FRAME(1).
STEP 5
Install the TENSION KNOB(45) into the opening in the RIGHT UPRIGHT(4) and secure with ROUND
HEAD SCREW(M5x0.8x25mm)(46) and WASHER(M5)(47).
A.
B.
Support Tube protuding
out at this side.
ASSEMBLY INSTRUCTIONS
STEP 6

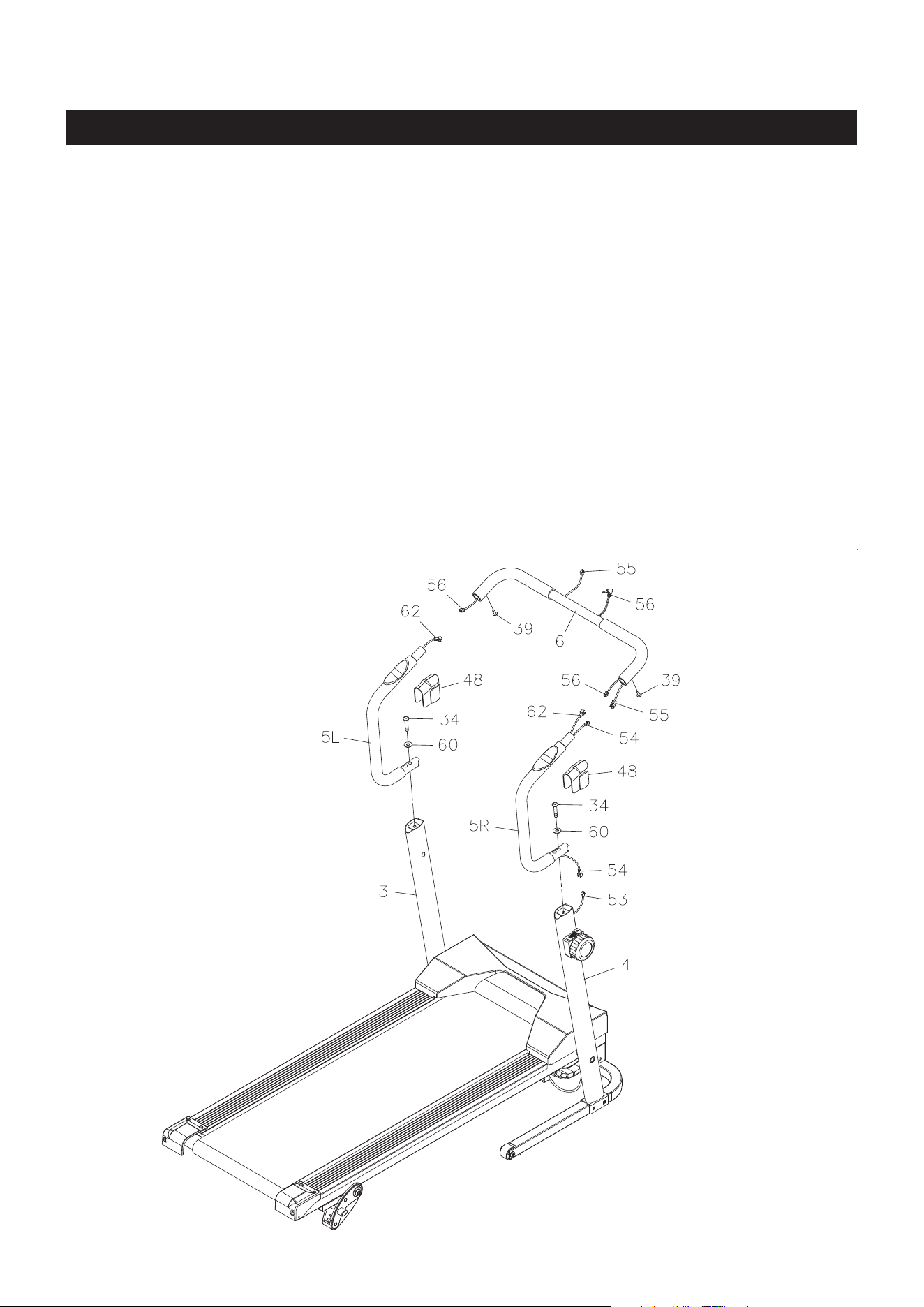

Refer to the illustration below. Attach the RIGHT HANDRAIL(5R), the one with EXTENSION WIRE(54),
to the RIGHT UPRIGHT(4) with BUTTON HEAD BOLTS(M8x1.25x40)(34) and ARC WASHERS(M8)(60).
Attach the LEFT HANDRAIL(5L) to the LEFT UPRIGHT(3) with BUTTON HEAD BOLTS(M8x1.25x40)
(34) and ARC WASHERS(M8)(60). DO NOT TIGHTEN THE BUTTON HEAD BOLTS(M8x1.25x40)(34).
STEP 7
Plug the EXTENSION WIRE(54) into the METER CONNECTING WIRE(55). Connect the PULSE
SENSOR WIRES(62) to the PULSE CONNECTING WIRES(56). Push the wires back inside of the
LEFT and RIGHT HANDRAILS(5L, 5R). Insert the FRONT HANDRAIL(6) onto the LEFT and RIGHT
HANDRAILS(5L, 5R) and secure with the ROUND HEAD BOLTS(M6x1x15mm)(39).
STEP 8
Securely tighten the BUTTON HEAD BOLTS(M8x1.25x40)(34) from STEP 6. Connect the EXTENSION
WIRE(54) which is attached on the RIGHT HANDRAIL(5R) to the SENSOR CONNECTING WIRE(53).
Press the HANDRAIL CAPS(48) onto the LEFT and RIGHT HANDRAILS(5L, 5R) to cover the top ends
of the LEFT and RIGHT UPRIGHTS(3, 4).
9
ASSEMBLY INSTRUCTIONS
STEP 9

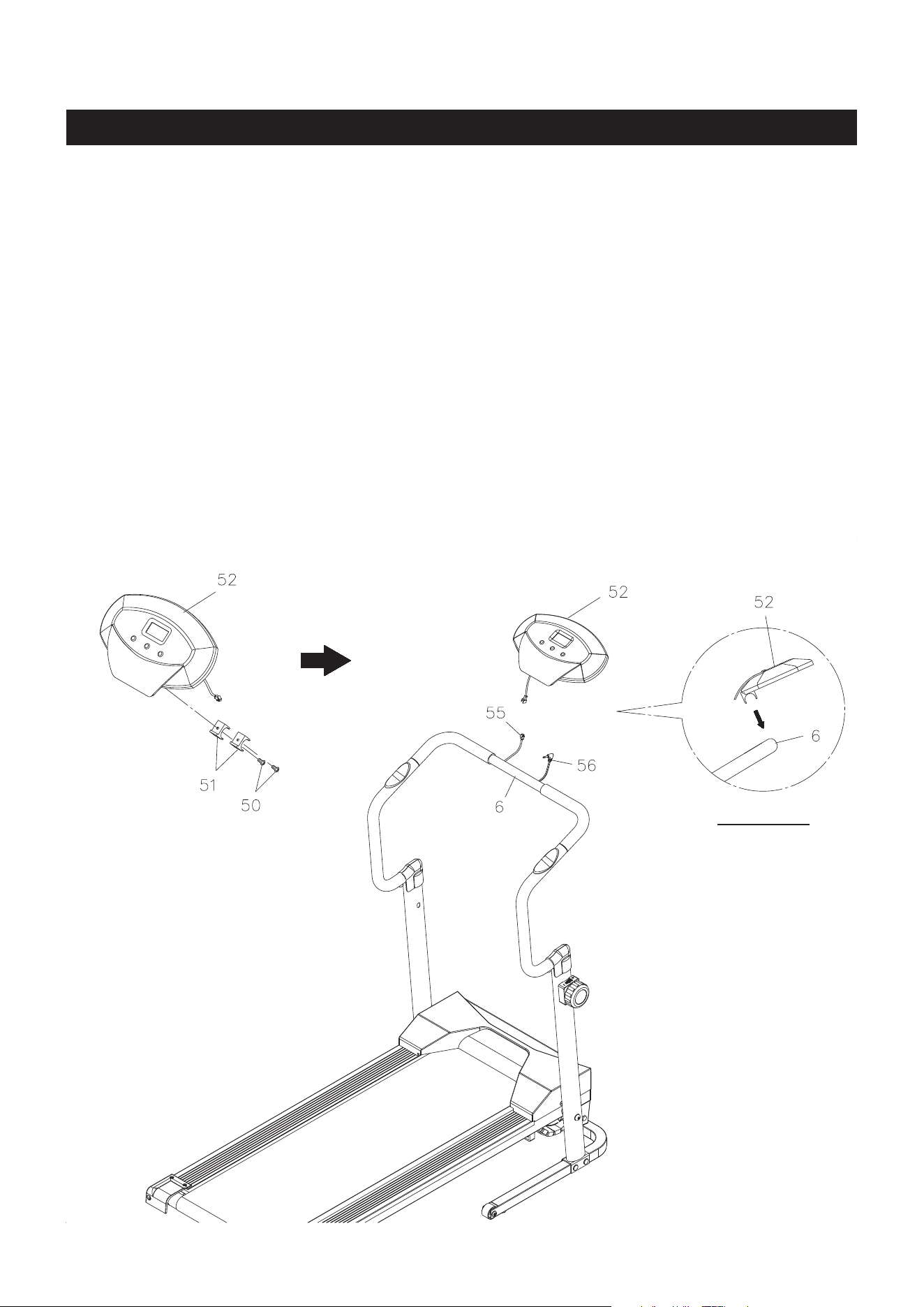

Refer to illustration C. Attach the METER CLIPS(51) to the back of the METER(52) with ROUND HEAD
SCREWS(M5x0.8x10mm)(50).
STEP 10
Install two AA batteries into the METER(52), the batteries are not included. See page 11 for detailed
battery installation instructions.
STEP 11
Refer to illustration below and the Side View. Press and clip the METER(52) onto the FRONT
HANDRAIL(6). Plug the METER CONNECTING WIRE(55) into the connecting wire on the METER(52).
Plug the PULSE CONNECTING WIRE(56) into the back of the METER(52). Adjust the METER(52) to
nd the best angle to t with your workout.
10
C.
SIDE VIEW
The TOTAL DIST will be reset to zero after batteries are removed for battery replacement or storage
of the unit.
POWER OFF:
Walking Belt movement or press
any button.
Automatically shuts off after 4
minutes of inactivity.
POWER ON:

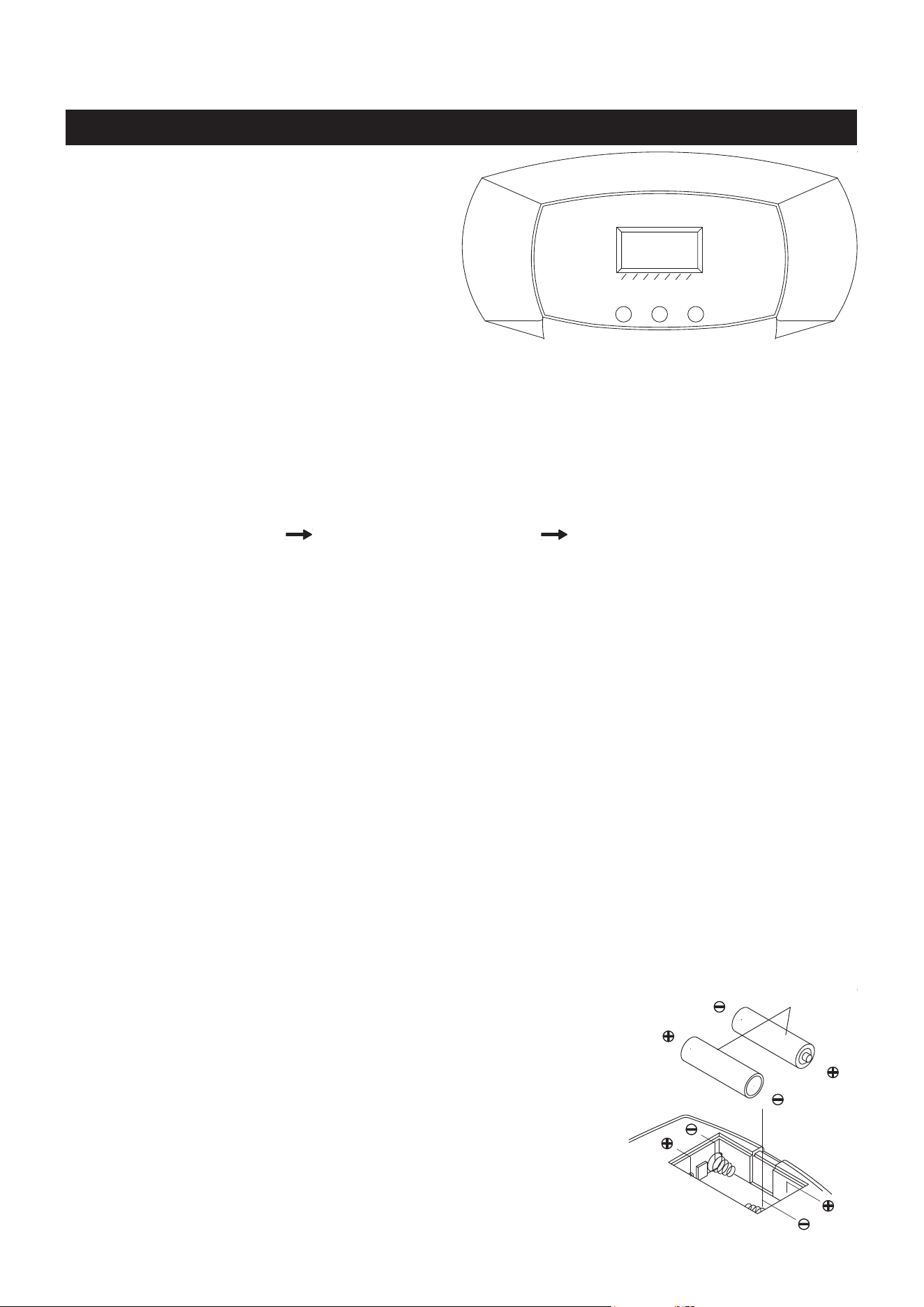

USING THE FITNESS METER
FUNCTIONS:
FUNCTION BUTTONS:
RESET :
This button will reset each function to zero.
To reset all functions to zero, press the button and hold it down for three seconds, except TOTAL DIST.
SET :
Press to set target values for TIME, DISTANCE, and CALORIES.
MODE :
Press and release to select each function for display or preset target values.
Press the button and hold it down for three seconds to reset all functions to zero, except TOTAL DIST.
1. Open the Battery Door on the back of the meter.
2. The meter operates with two AA batteries, the batteries are not included.
Refer to the illustration to install or replace the batteries.
HOW TO INSTALL AND REPLACE BATTERIES:
11
AA Batteries
OPERATIONAL INSTRUCTIONS
set
reset
mode
scan
time
speed
distance
calories
total dist
pulse
PRESET VALUES OPERATION:
Stop walking for four seconds. Press the MODE button to select functions for preset target values. The meter will
cycle through the functions as follows and allow you to set the function values.
TIME (0:00 to 99:00)
DISTANCE (0.0 to 999.0 mile) CALORIES (0.0 to 999.0 Kcal)
Use SET & RESET buttons to enter desired values and press MODE button to conrm and move to next function
for presetting. To pass the setting of some functions, just press the MODE button. Start to run the Meter functions by
walking.
Automatically scans TIME, SPEED, DISTANCE, CALORIES, TOTAL DIST, and PULSE in sequence
with a change every six seconds.
Counts upward to 99:59 in one second increments. Counts down from preset value.
Displays the current speed from zero to 999.9 Mile/Hr.
Displays distance up to 999.9 miles in increments of 0.01 miles. Counts down from preset value.
Displays the calories burned from zero to 999.9 Kcal. Counts down from preset value.
The calories readout is an estimate for an average user. It should be used only as a comparison
between workouts on this unit.
Displays the total accumulated distance you have taken from zero to 9999 miles. The total
accumulated distance is retained when the meter is turned o.
Displays your pulse rate in beats per minute. To display pulse, select the PULSE mode and grasp
the pulse sensors on the handrails, one in each hand. The heart icon will begin ashing when the
electronic meter senses your pulse. Your pulse will be displayed approximately ve (5) seconds after
the heart icon is displayed. If the heart icon does not appear, relax your grip or change your grip on
the pulse sensors.
NOTE: The pulse function is a great tool to optimize your workout, but should be used as a reference only.
NOTE:
SCAN:
TIME:
SPEED:
DISTANCE:
CALORIES:
TOTAL DIST:
PULSE:
1. Do not mix a new battery with an old battery.
2. Use the same type of battery. Do not mix an alkaline battery with
another type of battery.
3. Rechargeable batteries are not recommended.
4. Ultimate disposal of battery should be handled according to
all state and federal laws and regulations.
5. Do not dispose of batteries in re.
NOTE:
OPERATIONAL INSTRUCTIONS
TREADMILL ADJUSTMENTS
RIGHT
ADJUSTMENT
LEFT
ADJUSTMENT
When adjusted properly, the Avari® Adjustable Height Treadmill’s WALKING BELT(11) will roll smoothly
around the BOARD(10) and over the front and rear rollers without catching or rubbing. For the belt to run
smoothly, there are a few points that need to be noted.
BELT ALIGNMENT
The WALKING BELT(11) must be in the center of the BOARD(10) to prevent it from rubbing against the
FLYWHEEL COVER(9). If the belt rubs the FLYWHEEL COVER(9), it will be dicult to keep the belt moving
and will eventually damage the edge of the belt. The treadmill has belt guides welded to the bottom of the
treadmill frame that move the belt toward the center of the treadmill. However, the REAR ROLLER(8) must
be properly aligned with the treadmill frame and FRONT ROLLER w/FLYWHEELS(7) if the belt is to remain
centered on the treadmill. The bolts in the rear of the treadmill (one on the left and the other on the right)
adjust the alignment of the REAR ROLLER(8) as well as the tension of the belt
The belt will run to the side of the loose rear bolt.
Hint: Visually check the REAR ROLLER(8) to make sure both the right side and the left side of the REAR
ROLLER(8) are the same distance from the back edge of the treadmill. Using the 5mm ALLEN
WRENCH, make adjustments by turning the bolts clockwise to tighten and counterclockwise to loosen.
BELT DRIFTING LEFT
Adjust by turning the left screw 1/4 turn CLOCKWISE and the right screw
1/4 turn COUNTERCLOCKWISE. Walk on the treadmill to check alignment.
Repeat if needed.
BELT DRIFTING RIGHT
Adjust by turning the left screw 1/4 turn COUNTERCLOCKWISE and the
right screw 1/4 turn CLOCKWISE. Walk on the treadmill to check alignment.
Repeat if needed.
NOTE:
When you believe the WALKING BELT(11) is centered, use the treadmill for three (3) minutes to verify the
WALKING BELT(11) won’t drift to one side or the other. If the WALKING BELT(11) continues to drift, the
oor may not be level. Rotate the treadmill 90 degrees or move the treadmill to another location.
BELT TENSION
The WALKING BELT(11) should be taut and not lying loosely on the treadmill BOARD(10). If the belt is
too loose, it will slip on the front roller and you will notice a jerky movement when you walk on the treadmill.
If the belt is too tight, the edges of the belt will begin to curl and more eort will be required to move the
belt. Excessive belt tension can also damage the bearings in the rollers. The bolts on the ends of the MAIN
FRAME(1) (one on the left and the other on the right) adjust the WALKING BELT(10) tension as well as
the REAR ROLLER(8) alignment.
BELT TOO LOOSE: Use the 5mm ALLEN WRENCH to tighten the bolts on the ends of the MAIN
FRAME(1). Tighten both bolts 1/4 turn clockwise at a time until the belt stops slipping on the FRONT
ROLLER w/FLYWHEELS(7).
BELT TOO TIGHT : Use the 5mm ALLEN WRENCH to loosen the bolts on the ends of the MAIN FRAME(1).
Loosen both bolts 1/2 turn counterclockwise at a time until the belt begins to slip on the FRONT ROLLER
w/FLYWHEELS(7). Then use the procedure above to tighten the belt to the proper tension.
12
13
OPERATIONAL INSTRUCTIONS
WALKING RESISTANCE
The walking resistance or eort needed to push the treadmill belt
can be adjusted by turning the TENSION KNOB(45).
To increase the load, turn the TENSION KNOB(45) clockwise.
To decrease the load, turn the TENSION KNOB(45)
counterclockwise. There are eight levels for the load adjustment.
NOTE:
1. Since this is a new machine, you may need some time to get used to walking on the treadmill and to
break it in.
2. If the walking resistance is too high, check the BELT TENSION. Refer to page 12 for instructions to
adjust belt tension.
3. The belt resistance can be reduced by adding silicone lubricant between the belt and the board. Wipe
the board under the belt with a clean, dry cloth then spray or spread silicone lubricant on the board
under the belt.
MAIN FRAME HEIGHT ADJUSTMENT
The MAIN FRAME(1) can incline to three dierent heights by moving the REAR SUPPORTS(23) up or
down. Insert the PULL PINS(20) into the holes in the REAR SUPPORTS(23) to adjust. Choose the one
that best meets your workout needs: the higher the height, the more level the walking surface while the
lower height will provide more of an incline.
NOTE: Check to make sure you have placed the PULL PINS(20) into the same height position on both
sides of the REAR SUPPORTS(23).
STORAGE
1. To store the Avari® Adjustable Height Treadmill, simply keep it in a clean dry place.
2. To avoid damage to the electronics, remove the batteries before storing the Avari® Adjustable Height
Treadmill for one year or more.

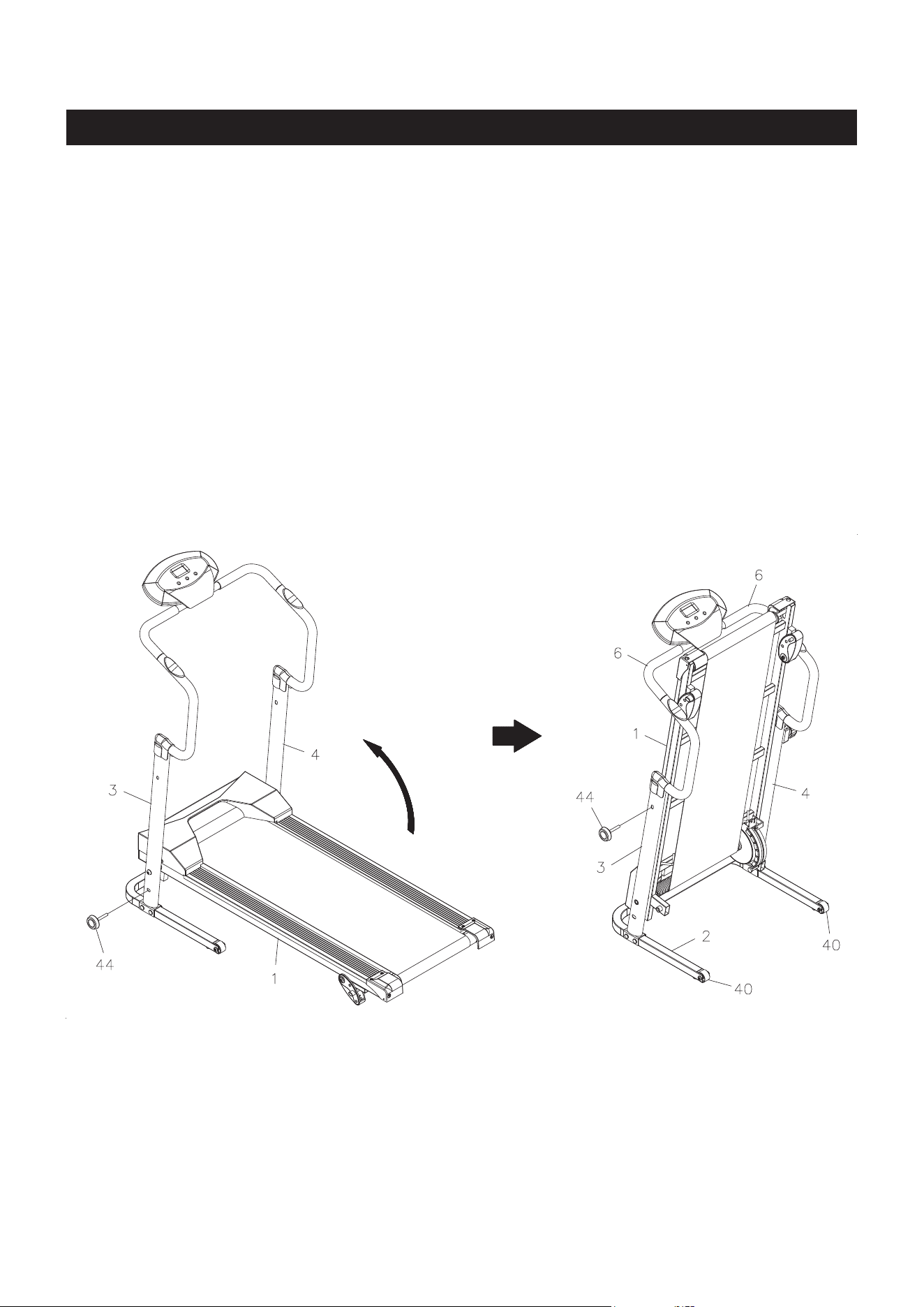

3. To fold the Avari® Adjustable Height Treadmill for easy storage, follow this process. Refer to the
illustrations below.
UNFOLD THE Avari® Adjustable Height Treadmill
a. Remove the LOCKING KNOB(44) from the LEFT UPRIGHT(3).
b. Unfold the MAIN FRAME(1) by lowering it. Lock the MAIN FRAME(1) in position by inserting the LOCKING
KNOB(33) through the hole in the LEFT UPRIGHT(3) and screwing it into the MAIN FRAME(1).
4. Move the Avari® Adjustable Height Treadmill with the WHEELS(40) on the BASE FRAME(2). Stand
behind the Avari® Adjustable Height Treadmill, grasp the FRONT HANDRAIL(6) on both sides and
tilt it toward you to easily roll the Avari® Adjustable Height Treadmill.
a. Remove the LOCKING KNOB(44) to unlock the MAIN FRAME(1).
b. Fold up the MAIN FRAME(1). Lock the MAIN FRAME(1) in the folded position by inserting the
LOCKING KNOB(44) through the hole in the LEFT UPRIGHT(3) and screwing it into the MAIN
FRAME(1), refer to illustration B.
CAUTION: Make sure the MAIN FRAME(1) is locked securely in folded position by the LOCKING
KNOB(44).
14
A. B.
15
The safety and integrity designed into the Avari® Adjustable Height Treadmill can only be maintained
when the Avari® Adjustable Height Treadmill is regularly examined for damage and wear. Special
attention should be given to the following:
MAINTENANCE
1. Adjust the TENSION KNOB(45) and verify that it functions properly and the resistance changes.
2. Clean the exposed surfaces of the walking belt and the board with an absorbent cloth.
3. Verify that all nuts and bolts are present and properly tightened. Replace missing nuts and bolts.
Tighten loose nuts and bolts.
4. Verify that the CAUTION LABEL(63) is in place and easy to read. Call Stamina Products immediately
at 1-800-375-7520 for a replacement CAUTION LABEL(63) if it is missing or damaged.
5. It is the sole responsibility of the user/owner to ensure that regular maintenance is performed.
6. Worn or damaged components must be replaced immediately or the Avari® Adjustable Height
Treadmill removed from service until repair is made.
7. Only Stamina Products supplied components should be used to maintain/repair the Avari®
Adjustable Height Treadmill.
8. Keep your Avari® Adjustable Height Treadmill clean by wiping it o with an absorbent cloth after
use.
9. If the WALKING BELT(11) does not move easily, lubricate the BOARD(10) under the WALKING
BELT(11) with silicone lubricant.
How you begin your exercise program depends on your physical condition. If you have been inactive for
several years or are severely overweight, start slowly and increase your workout time gradually. Increase
your workout intensity gradually by monitoring your heart rate while you exercise.
Initially you may only be able to exercise within your target zone for a few minutes; however, your aerobic
capacity will improve over the next six to eight weeks. It is important to pace yourself while you exercise
so you don't tire too quickly.
Measure your heart rate periodically during your workout by stopping the
exercise but continuing to move your legs or walk around. Place two or
three ngers on your wrist and take a six second heartbeat count. Multiply
the results by ten to nd your heart rate. For example, if your six second
heartbeat count is 14, your heart rate is 140 beats per minute. A six second
count is used because your heart rate will drop rapidly when you stop
exercising. Adjust the intensity of your exercise until your heart rate is at the
proper level.
wrist pulse
Remember to follow these essentials:
Have your doctor review your training and diet programs.
Begin your training program slowly with realistic goals that have been set by you and your physician.
Warm up before you exercise and cool down after you work out.
Take your pulse periodically during your workout and strive to stay within a range of 60% (lower
intensity) to 90% (higher intensity) of your maximum heart rate zone. Start at the lower intensity, and
build up to higher intensity as you become more aerobically t.
If you feel dizzy or lightheaded you should slow down or stop exercising.
To determine if you are working out at the correct intensity, use a heart rate monitor or use the table
below. For effective aerobic exercise, your heart rate should be maintained at a level between 60%
and 90% of your maximum heart rate. If just starting an exercise program, work out at the low end of
your target heart rate zone. As your aerobic capacity improves, gradually increase the intensity of your
workout by increasing your heart rate.
CONDITIONING GUIDELINES
Target Heart Rate Zone Estimated by Age*
* For cardiorespiratory training benefits, the American College of Sports Medicine recommends
working out within a heart rate range of 55% to 90% of maximum heart rate. To predict the
maximum heart rate, the following formula was used: 220 - Age = predicted maximum heart rate
20 years
25 years
30 years
35 years
40 years
45 years
50 years
55 years
60 years
65 years
70 years
Average Maximum
Heart Rate 100%
Age
110-180 beats per minute
107-175 beats per minute
105-171 beats per minute
102-166 beats per minute
99-162 beats per minute
97-157 beats per minute
94-153 beats per minute
91-148 beats per minute
88-144 beats per minute
85-139 beats per minute
83-135 beats per minute
200 beats per minute
195 beats per minute
190 beats per minute
185 beats per minute
180 beats per minute
175 beats per minute
170 beats per minute
165 beats per minute
160 beats per minute
155 beats per minute
150 beats per minute
Target Heart Rate Zone
(55%-90% of Maximum Heart Rate)
16
WARM-UP and COOL-DOWN
Warm-Up
The purpose of warming up is to prepare your body for exercise and to minimize injuries.
Warm up for two to ve minutes before strength training or aerobic exercising. Perform activities that
raise your heart rate and warm the working muscles. Activities may include brisk walking, jogging,
jumping jacks, jump rope, and running in place.
Stretching
Stretching while your muscles are warm after a proper warm-up and again after your
strength or aerobic training session is very important. Muscles stretch more easily at these times
because of their elevated temperature, which greatly reduces the risk of injury. Stretches should be held
for 15 to 30 seconds. Do not bounce.
Suggested Stretching Exercises
Remember to always check with your physician before starting any exercise program.
Cool-Down
The purpose of cooling down is to return the body to its normal, or near normal, resting
state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows
blood to return to the heart. Your cool-down should include the stretches listed above and should be
completed after each strength training session.
Lower Body Stretch
Place feet shoulder-width
apart and lean forward.
Keep this position for 30
seconds using the body as a
natural weight to stretch the
backs of the legs.
DO NOT BOUNCE!
When the pull on the back of
the legs lessens, gradually
try a lower position.
Floor Stretch
While sitting on the oor,
open the legs as wide as
possible. Stretch the upper
body toward the knee on the
right leg by using your arms
to pull your chest to your
thighs. Hold this stretch 10
to 30 seconds.
DO NOT BOUNCE!
Do this stretch 10 times.
Repeat the stretch with the
left leg.
Bent Over Leg Stretch
Stand with feet shoulder-
width apart and lean forward
as illustrated. Using the
arms, gently pull the upper
body towards the right leg.
Let the head hang down.
DO NOT BOUNCE!
Hold the position a minimum
of 10 seconds. Repeat
pulling the upper body to
the left leg. Do this stretch
several times slowly.
Bent Torso Pulls
While sitting on the oor,
have legs apart, one leg
straight and one knee bent.
Pull the chest down to touch
the thigh on the leg that is
bent, and twist at the waist.
Hold this position at least 10
seconds. Repeat 10 times
on each side.
17
PRODUCT PARTS DRAWING
18
FRONT
BACK
PART# PART NAME QTY
PARTS LIST
19
1 Main Frame 1
2 Base Frame 1
3 Left Upright 1
4 Right Upright 1
5 Handrail 2
6 Front Handrail 1
7 Front Roller w/ Flywheels 1
8 Rear Roller 1
9 Flywheel Cover 1
10 Board 1
11 Walking Belt 1
12 Side Molding 2
13 Left Rear Cap 1
14 Right Rear Cap 1
15 Bolt, Socket Head (M6 x 1 x 65mm) 2
16 Adjustment Plate 2
17 Plastic Spacer (ø12.2 x ø16 x 30mm) 2
18 Magnetic Brake 1
19 Nut (M8 x 1.25) 9
20 Pull Pin 2
21 Self-Drilling Screw, Round Head (M4 x 15mm) 2
22 Bolt, Button Head (M8 x 1.25 x 45mm) 2
23 Rear Support 2
24 Grommet Plug 3
25 Plastic Washer (ø10.2 x ø25 x 4mm) 2
26 Square Plug (20mm x 20mm) 4
27 Screw, Round Head (M4 x 15mm) 2
28 Nut (M6 x 1) 1
29 Bolt, Round Head (M6 x 1 x 20mm) 1
30 Spring 1
31 Plastic Washer (ø8.2 x ø16 x 3mm) 1
32 Bolt, Hex Head (M8 x 1.25 x 75mm) 1
33 Screw, Flat Head (M4 x 25mm) 8
34 Bolt, Button Head (M8 x 1.25 x 40mm) 4
35 Sensor Wire 1
36 Screw, Round Head (M3 x 10mm) 2
37 Maintenance Decal 1
38 Washer (ø12.5 x ø25 x 1mm) 2
39 Bolt, Round Head (M6 x 1 x 15mm) 4
40 Wheel 2
41 Stand 4
42 Carriage Bolt (M8 x 1.25 x 45) 4
43 Bolt, Button Head (M10 x 1.5 x 65mm) 2
44 Locking Knob 1
45 Tension Knob 1
46 Screw, Round Head (M5 x 0.8 x 25mm) 1
47 Washer (M5) 1
PART# PART NAME QTY
PARTS LIST
20
48 Handrail Cap 2
49 Screw, Round Head (M4 x 25mm) 2
50 Screw, Round Head (M5 x 0.8 x 10mm) 2
51 Meter Clip 2
52 Meter 1
53 Sensor Connecting Wire 1
54 Extension Wire 1
55 Meter Connecting Wire 1
56 Pulse Connecting Wire 1
57 Pulse Sensor 2
58 Long Foam Tube 2
59 Foam Tube 2
60 Arc Washer (M8) 2
61 Washer (M8) 4
62 Pulse Sensor Wire 2
63 Caution Label 1
64 Wrench 1
65 Allen Wrench (5mm) 1
66 Owner's Manual 1
67 Rectangle Plug (20mm x 40mm) 4
LIMITED WARRANTY
MODEL A450-261
21
WARRANTY
Stamina Products, Inc. (“Stamina”) warrants to the original purchaser that this product will be free from
defects in materials and workmanship that arise under normal use, service, proper assembly and proper
operation in accordance with product warnings/instructions for a period of 90 days on the parts and three
years on the frame from the date of the original purchase from an authorized retailer. THIS WARRANTY
SHALL NOT APPLY TO ANY PRODUCT WHICH HAS BEEN SUBJECT TO COMMERCIAL USE,
ABUSE, MISUSE, ALTERATION OF ANY KIND OR TO ANY DEFECT OR CHANGE CAUSED BY
IMPROPER ASSEMBLY, REPAIR, REPLACEMENT, SUBSTITUTION OR USE WITH PARTS NOT
PROVIDED BY STAMINA. Commercial use includes use of product in athletic clubs, health clubs, spas,
gyms, and all other public or semipublic facilities whether or not the product’s use is in furtherance of a
prot making enterprise, and all other use which is not for personal purposes.
To implement this limited warranty, send a written notice stating your name, date, and place of purchase
and a brief description of the defect along with your receipt to Stamina Products, Inc. P.O. Box 1071,
Springeld Missouri, USA, 65801-1071, or email us at customer[email protected], or call us
at 1-800-375-7520. If the defect is covered under this limited warranty, you will be requested to return the
product or part to us for free repair or replacement at our option.
NO ACTION FOR BREACH OF THIS LIMITED WARRANTY MAY BE COMMENCED MORE
THAN ONE (1) YEAR AFTER THE DATE THE ALLEGED BREACH WAS OR SHOULD HAVE
BEEN DISCOVERED. NO ACTION FOR BREACH OF ANY IMPLIED WARRANTY (INCLUDING
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) MAY BE COMMENCED
MORE THAN ONE (1) YEAR AFTER DELIVERY OF THE PRODUCT TO THE PURCHASER. These
warranties are not transferable. IF ANY PART OF THE PRODUCT IS NOT IN COMPLIANCE
WITH THIS LIMITED WARRANTY OR ANY IMPLIED WARRANTY, THE REMEDY OF REPAIR OR
REPLACEMENT IS THE EXCLUSIVE REMEDY. If any claim is made under this limited warranty or any
implied warranty, Stamina reserves the right to require the product to be returned for inspection, at the
purchaser’s expense, to Stamina’s premises in Springeld, Missouri. Return of the enclosed warranty
registration card is not required for warranty coverage, but is merely a way of establishing the date and
place of purchase.
Stamina SHALL NOT BE LIABLE FOR THE LOSS OF USE OF ANY PRODUCT, LOSS OF TIME,
INCONVENIENCE, COMMERCIAL LOSS OR ANY OTHER INDIRECT, CONSEQUENTIAL, SPECIAL
OR INCIDENTAL DAMAGES DUE TO BREACH OF THE ABOVE WARRANTY OR ANY IMPLIED
WARRANTY.
THIS LIMITED WARRANTY IS THE ONLY EXPRESS WARRANTY. NO ORAL OR WRITTEN
INFORMATION GIVEN BY STAMINA, ITS AGENTS OR EMPLOYEES, SHALL CREATE A WARRANTY
OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY. This warranty gives you specic legal
rights, and you may also have other legal rights which vary from state to state. ANY OTHER RIGHT
WHICH YOU MAY HAVE, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED IN DURATION TO THE DURATION OF THIS
WARRANTY.
The laws in some states aect the disclaimer or limitation of implied warranties and consequential and
incidental damages. If any such law is found applicable, the foregoing disclaimers and limitations of and
on implied warranties and consequential and incidental damages shall be deemed to be modied to the
extent necessary to comply with applicable law.
NOTES
22
Model Number: ...................................................................................... Serial Number: .............................................................................................
Product Name: ..................................................................................................................................................................................................................................
Place Purchased: ..............................................................................................................................................................................................................................
Date of Purchase: .................................................................................. Purchase Price: ............................................................................................
First Name: ............................................................................................ Last Name: ...................................................................................................
City: .................................................................. State: ................................................................ Zip Code: .................................................
Email Address: ....................................................................................... Phone #: ( ) ......................................................................................
Would you like to receive email information or special oers from Stamina Products?* ____Yes ____No
*If yes, be sure your email address is included above.
Stamina Products, Inc.
P.O. Box 1071
Springeld, MO 65801-1071
If there are missing or damaged parts, you can go to parts.staminaproducts.com and order those parts. If you have questions,
please contact customer care. Do not return the product. To order parts by mail, fill out the sheet below and fax it to
417-889-8064. The part will be mailed to your address.
Mr./Ms: ..............................................................................................................................................................................................................................................
Address: ........................................ ............................................................................................. Apt. #:..........................................................................
City: .................................................................. State: ................................................................ Zip Code: .................................................
IMPORTANT : We must have your phone number to process the order!
Phone #: ( ) ................................................................................ Work Phone #: ( ) .............................................................................
Date of Purchase: ..................................................................................
Model #: ............................................................................................................................................................................................................................................
Purchased From: ..............................................................................................................................................................................................................................
IMPORTANT : Before lling out the form below make sure you have the correct information.
Refer to the parts list to make sure you're ordering the right parts!
Stamina Products, Inc.
P.O. Box 1071
Springeld, MO 65801-1071
Detach and Mail or Fax the Form Above
TO CONTACT CUSTOMER CARE
For your convenience, Stamina’s customer care representatives can be reached by email at customer.care@staminaproducts.
com or by phone at 1-800-375-7520 (in the U.S.). Our customer care representatives are available Monday through Thursday
from 7:30 a.m. until 5:00 p.m., and Friday 8:00 a.m. until 3 p.m. Central Time.
TO REGISTER YOUR PRODUCT
Would you like to recieve email information or special oers from Stamina Products? Register at contact.staminaproducts.com
TELEPHONE
CUSTOMER CARE
Tel: 1 (800) 375-7520
FAX
CUSTOMER CARE
Fax: (417) 889-8064
MAIL
STAMINA PRODUCTS, INC.
ATTN: Customer Care
P.O. Box 1071 Springeld, MO. 65801-1071
ONLINE
CUSTOMER CARE
customer[email protected]
www.staminaproducts.com
To enact your warranty, please register your product by going to register.staminaproducts.com. Please have your product model
number (printed on the cover of this owner’s manual) and the serial number (printed on the black and white sticker on your
product) ready.
If you don’t have internet access, you can call customer care at 1-800-375-7520, or ll out and mail the product registration form
below to Stamina Products, Inc.; P.O. Box 1071; Springeld, MO 65801-1071.
PRODUCT REGISTRATION FORM
TO ORDER PARTS
Detach and Mail or Fax the Form Below
PARTS ORDER FORM
PART # DESCRIPTION QUANTITY
1 Rear Unit Assembly 1
EXAMPLE:
