WEN GN875IX 8750-Watt Electric Start Open Frame Inverter User Manual

8750-WATT

INVERTER GENERATOR

Instruction Manual

IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability,

ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,

trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use

your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

TECHSUPPOR[email protected]1-847-429-9263 (M-F 8AM-5PM CST)

For replacement parts and the most up-to-date instruction manuals, visit WENPRODUCTS.COM

MODEL GN875iX

CONTENTS

WELCOME 3

Speciﬁcations ................................................................................................... 3

Introduction ..................................................................................................... 4

SAFETY 5

General Safety Rules ........................................................................................ 5

Generator Safety Warnings .............................................................................. 7

BEFORE OPERATING 9

Unpacking & Packing List ................................................................................ 9

Know Your Generator ..................................................................................... 10

Assembly & Adjustments ............................................................................... 12

Generator Preparation .................................................................................... 14

OPERATION & MAINTENANCE 18

Starting the Generator .................................................................................... 18

Using the Generator ....................................................................................... 20

Shutting Off the Generator ............................................................................. 25

Maintenance ................................................................................................... 26

Transportation & Storage ............................................................................... 32

Troubleshooting Guide ................................................................................... 33

Wiring Diagram .............................................................................................. 35

Exploded View & Parts List ............................................................................ 36

Warranty Statement ....................................................................................... 44

SPECIFICATIONS

Model Number GN875iX

Surge (Starting) Wattage 8750W

Rated (Running) Wattage 7000W

Rated Voltage 120V / 240V AC

Phase Single

Frequency 60 Hz

Product Weight With Wheel Kit 136.7 lbs

Product Weight Without Wheel Kit 133 lbs

Product Dimensions With Wheel Kit 26.75 in. x 25.0 in. x 23.2 in.

Product Dimensions Without Wheel Kit 23.8 in. x 20.2 in. x 21.1 in.

GENERATOR

Engine Type 4 stroke, OHV, single cylinder with forced air cooling system

Engine Displacement 420 cc

Fuel Tank Capacity 4.2 Gallons (15.9 L)

Oil Capacity 37.2 ﬂ oz (1.1 L)

Half-Load Run Time 6.7 hours

Lubrication System Forced Splash

Spark Plug Type Torch F6RTC (NGK BPR6ES)

Spark Plug Gap 0.7 - 0.8 mm (0.028 - 0.031 in.)

Spark Plug Torque ½ - ¾ turn after gasket contacts base or 15 ft-lbs (20.33 Nm)

ENGINE

8750 WATT INVERTER GENERATOR

MODEL GN875iX

RATED VOLTAGE 120V / 240V

RATED WATTAGE

SURGE WATTAGE

RATED FREQUENCY

7000W

8750W

60 Hz

SERIAL NO.

TYPE 1

MADE IN CHINA

ENGINE SERIAL NO.

WENPRODUCTS.COM

1-800-232-1195

Great Lakes Technologies LLC 1101 Wesemann Drive West Dundee, IL 60118

INTRODUCTION

Thanks for purchasing the WEN 8750-Watt Inverter Generator. Refer to the illustration below for the location of the

serial number on the speciﬁcations label. Record the generator information in the spaces provided below. If assis-

tance for information or service is required, please contact customer service by calling 1-847-429-9263, M-F 8-5

CST; you will be asked to provide the following generator information when calling.

Generator Model Number: GN875iX

Date of Purchase: _______________________________________________

Purchased From: ________________________________________________

Serial Number: _________________________________________________

TO MAXIMIZE THE LIFESPAN OF YOUR GENERATOR: We recommend running your generator at least once a

month for 20 to 30 minutes. Start the generator according to the instructions and plug a small load in to make

sure the outlet is producing electricity.

SERVICE RECORD

Record the service dates of your generator in the chart below. Please perform maintenance checks and operations

according to the “Maintenance” section of the manual.

Service Record Date Date Date Date Date Date

Change Oil

Change Spark Plug

Clean Fuel Tank

Clean Air Cleaner

Clean Spark Arrestor

Serial Number

GENERAL SAFETY RULES

WORK AREA SAFETY

1. Keep work area clean and well lit. Cluttered or dark

areas invite accidents.

2. Do not operate power tools in explosive atmo-

spheres, such as in the presence of ﬂammable liquids,

gases or dust. Power tools create sparks which may ig-

nite the dust or fumes.

3. Keep children and bystanders away while operating

a power tool. Distractions can cause you to lose control.

ELECTRICAL SAFETY

1. Power tool plugs must match the outlet. Never mod-

ify the plug in any way. Do not use any adapter plugs

with earthed (grounded) power tools. Unmodiﬁed plugs

and matching outlets will reduce risk of electric shock.

2. Avoid body contact with earthed or grounded surfac-

es such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body

is earthed or grounded.

3. Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of elec-

tric shock.

4. Do not abuse the cord. Never use the cord for car-

rying, pulling or unplugging the power tool. Keep cord

away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric

shock.

5. When operating a power tool outdoors, use an ex-

tension cord suitable for outdoor use. Use of a cord

suitable for outdoor use reduces the risk of electric

shock.

6. If operating a power tool in a damp location is un-

avoidable, use a ground fault circuit interrupter (GFCI)

protected supply. Use of a GFCI reduces the risk of elec-

tric shock.

PERSONAL SAFETY

1. Stay alert, watch what you are doing and use com-

mon sense when operating a power tool. Do not use a

power tool while you are tired or under the inﬂuence

of drugs, alcohol or medication. A moment of inatten-

tion while operating power tools may result in serious

personal injury.

2. Use personal protective equipment. Always wear

eye protection. Protective equipment such as a respira-

tory mask, non-skid safety shoes and hearing protection

used for appropriate conditions will reduce the risk of

personal injury.

3. Prevent unintentional starting. Ensure the switch is

in the off-position before connecting to power source

and/or battery pack, picking up or carrying the tool.

Carrying power tools with your ﬁnger on the switch or

energizing power tools that have the switch on invites

accidents.

4. Remove any adjusting key or wrench before turning

the power tool on. A wrench or a key left attached to a

rotating part of the power tool may result in personal

injury.

5. Do not overreach. Keep proper footing and balance

at all times. This enables better control of the power

tool in unexpected situations.

6. Dress properly. Do not wear loose clothing or jew-

elry. Keep your hair and clothing away from moving

parts. Loose clothes, jewelry or long hair can be caught

in moving parts.

Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”

in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

SAVE THESE SAFETY INSTRUCTIONS.

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may

result in electric shock, ﬁre and/or serious injury.

GENERAL SAFETY RULES

7. If devices are provided for the connection of dust

extraction and collection facilities, ensure these are

connected and properly used. Use of dust collection

can reduce dust-related hazards.

POWER TOOL USE AND CARE

1. Do not force the power tool. Use the correct power

tool for your application. The correct power tool will

do the job better and safer at the rate for which it was

designed.

2. Do not use the power tool if the switch does not turn

it on and off. Any power tool that cannot be controlled

with the switch is dangerous and must be repaired.

3. Disconnect the plug from the power source and/or

the battery pack from the power tool before making

any adjustments, changing accessories, or storing

power tools. Such preventive safety measures reduce

the risk of starting the power tool accidentally.

4. Store idle power tools out of the reach of children

and do not allow persons unfamiliar with the power

tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained us-

ers.

5. Maintain power tools. Check for misalignment or

binding of moving parts, breakage of parts and any

other condition that may affect the power tool’s opera-

tion. If damaged, have the power tool repaired before

use. Many accidents are caused by poorly maintained

power tools.

6. Keep cutting tools sharp and clean. Properly main-

tained cutting tools with sharp cutting edges are less

likely to bind and are easier to control.

7. Use the power tool, accessories and tool bits, etc.

in accordance with these instructions, taking into ac-

count the working conditions and the work to be per-

formed. Use of the power tool for operations different

from those intended could result in a hazardous situa-

tion.

8. Use clamps to secure your workpiece to a stable

surface. Holding a workpiece by hand or using your

body to support it may lead to loss of control.

9. KEEP GUARDS IN PLACE and in working order.

SERVICE

1. Have your power tool serviced by a qualiﬁed repair

person using only identical replacement parts. This

will ensure that the safety of the power tool is main-

tained.

CALIFORNIA PROPOSITION 65 WARNING

Some dust created by power sanding, sawing, grinding,

drilling, and other construction activities may contain

chemicals, including lead, known to the State of Califor-

nia to cause cancer, birth defects, or other reproductive

harm. Wash hands after handling. Some examples of

these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement, and other

masonry products.

• Arsenic and chromium from chemically treated

lumber.

Your risk from these exposures varies depending on

how often you do this type of work. To reduce your ex-

posure to these chemicals, work in a well-ventilated area

with approved safety equipment such as dust masks

specially designed to ﬁlter out microscopic particles.

Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”

in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

SAVE THESE SAFETY INSTRUCTIONS.

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may

result in electric shock, ﬁre and/or serious injury.

GENERATOR SAFETY WARNINGS

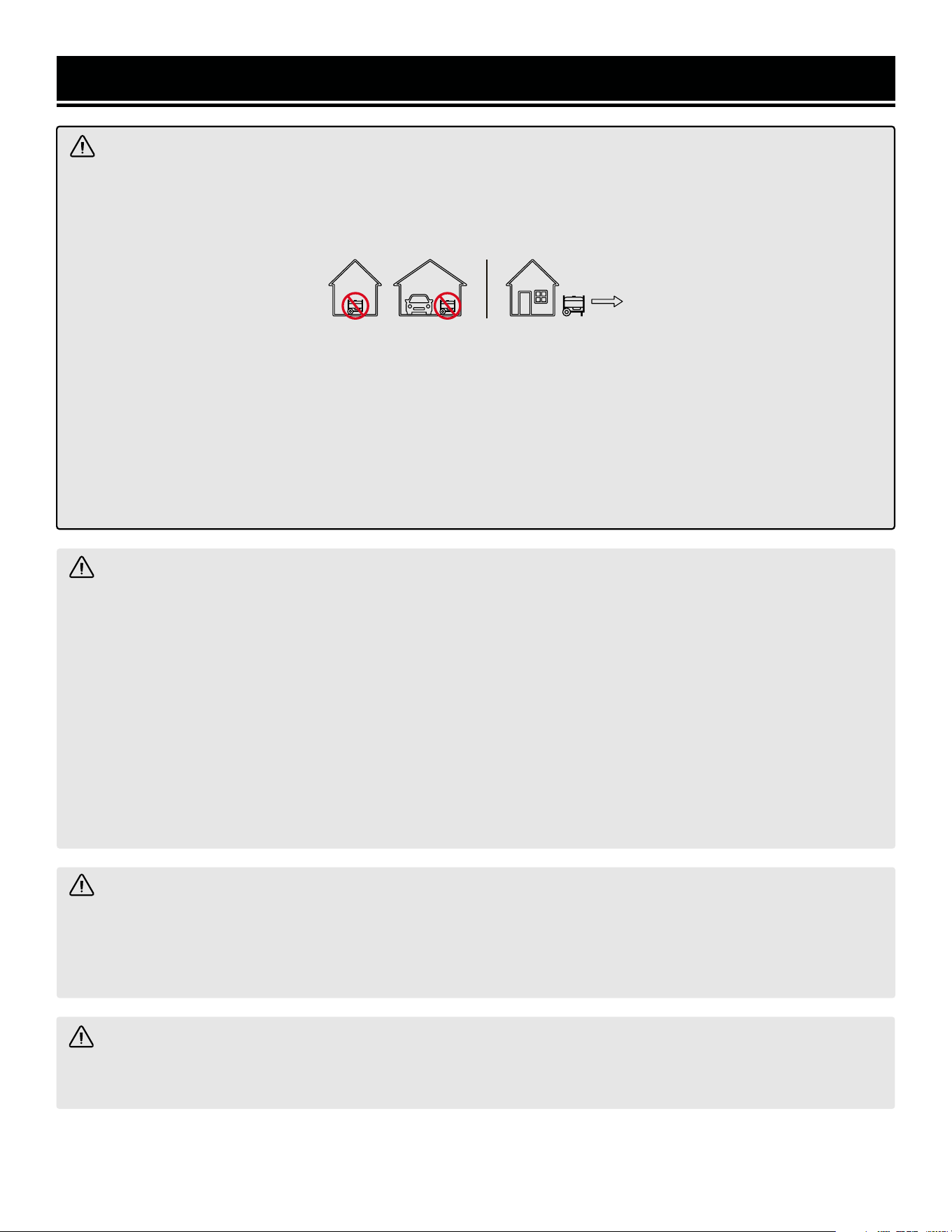

DANGER! CARBON MONOXIDE

Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide (CO). This

is a poison gas you cannot see or smell. If you can smell the generator exhaust, you are breathing CO. But even

if you cannot smell the exhaust, you could be breathing CO.

NEVER use a generator inside homes, garages, crawl spaces, or other partially enclosed areas. Deadly levels

of carbon monoxide can build up in these areas. Using a fan or opening windows and doors does NOT supply

enough fresh air. ONLY use a generator outside and far away from windows, doors, and vents. These openings

can pull in generator exhaust.

Even if you use a generator correctly, CO may leak into the home. ALWAYS use a battery-powered or battery-

backup CO alarm in the home. If you start to feel sick, dizzy, or weak after the generator has been running, move

to fresh air RIGHT AWAY. See a doctor. You may have carbon monoxide poisoning.

WARNING! RISK OF EXPLOSION. HIGHLY FLAMMABLE: This generator may emit highly ﬂammable and

explosive gasoline vapors, which can cause severe burns or even death, if ignited. A nearby open ﬂame can lead

to explosion even if not directly in contact with gasoline.

• Do not operate near open ﬂame, heat, or any other ignition source. Do not smoke near the generator.

• Always operate on a ﬁrm, level surface.

• Always turn generator off before refueling. Allow generator to cool for at least 2 minutes before removing

fuel cap. Loosen cap slowly to relieve pressure in tank.

• Do not overﬁll fuel tank. Gasoline may expand during operation. Do not ﬁll to the top of the tank. Allow for

expansion. Always check for spilled fuel before operating.

• If fuel spills, move the generator at least 30 feet away from the spill and wipe clean any spilled fuel before

starting the engine.

• Empty fuel tank before storing or transporting the generator.

WARNING! If this generator is used as a supply for a building’s wiring system, the generator must be in-

stalled by a qualiﬁed electrician and connected to a transfer switch as a separately derived system in accordance

with all applicable laws and electrical codes and the National Electrical Code, NFPA 70. The generator shall be

connected to a transfer switch that switches all conductors excluding the equipment grounding conductor. The

frame of the generator shall be connected to an approved grounding electrode.

CALIFORNIA PROPOSITION 65 WARNING: This product contains chemicals and produces exhaust known

to the State of California to cause cancer, birth defects and other reproductive harm. For more information, visit

www.P65Warnings.ca.gov

OPERATING ENVIRONMENT

1. Using a generator indoors can kill you in minutes.

Only use a generator outside and far away from win-

dows, doors and vents.

2. Do not smoke near the generator.

3. Do not operate near open ﬂame, heat, or ﬂammable

materials. This generator may emit highly ﬂammable

and explosive gasoline vapors, which can cause severe

burns or even death if ignited. A nearby open ﬂame can

lead to an explosion even if it isn’t directly in contact with

gasoline.

4. Do not expose the generator to rainy or wet con-

ditions; doing so signiﬁcantly increases the risk of

electrical shock. Never handle the generator, electronic

devices, or any cord while standing in water, while bare-

foot, or when hands or feet are wet.

5. Always operate the generator on a dry, ﬁrm, level

surface.

6. The generator should have at least 5 feet of clear-

ance from buildings or other equipment during opera-

tion.

7. Do not allow children or non-qualiﬁed persons to

operate the generator.

GENERATOR PREPARATION

1. Always ground the generator before using it to maxi-

mize safety (see “Ground the Generator” section).

2. Do not overﬁll fuel tank, as gasoline may expand

during operation. Do not ﬁll to the very top of the tank.

Leave room for gasoline expansion. Always check for

spilled fuel before operating.

3. If any part of the generator, electrical device or pow-

er cord is broken, damaged, or defective, make sure

it is repaired or replaced before operation. Service

should only be performed by a qualiﬁed technician. Do

not use receptacles or cords that show signs of damage,

such as broken or cracked insulation.

4. Use a ground fault circuit interrupter (GFCI) in highly

conductive areas such as metal decking or steel work.

Extension cords with in-line GFCIs are recommended for

these operations to maximize safety.

5. If connecting the generator to a building’s electri-

cal system for standby power, you MUST consult a

qualiﬁed electrician and install a transfer switch. Such

connections must comply with local electrical laws and

codes. Failure to comply can create a back-feed, which

may result in serious injury or death to utility workers.

6. Never modify the generator in any way. Modifying

or using the machine for any other purpose for which it

is not designed may result in serious injuries, machine

damage and voiding of the warranty.

GENERATOR OPERATION

1. Only use the generator for its intended purposes.

Modifying or using the generator for operations for

which it was not designed may cause hazards and per-

sonal injury.

2. Do not touch bare wires or receptacles (outlets).

3. Do not exceed the wattage capacity of the generator

by plugging in more electrical devices than the unit

can handle. This could damage the generator and/or

connected electrical devices. Check the operating volt-

age and frequency requirements of all electrical devices

prior to plugging them into the generator.

Generator safety warnings continue on the next page.

WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules.

Failure to follow the safety instructions may result in serious personal injury.

GENERATOR SAFETY WARNINGS

WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules.

Failure to follow the safety instructions may result in serious personal injury.

4. Allow generator to run for several minutes before

connecting electrical devices. Do not start or stop en-

gine with electrical devices plugged in to the receptacles.

Failure to do so could damage the generator and/or con-

nected electrical devices.

5. Do not turn on electrical devices until after they are

connected to the generator.

6. Generators vibrate in normal use. During and after

the use of the generator, inspect both the generator as

well as extension and power supply cords for damage

resulting from vibration.

7. Do not touch hot parts. This generator produces heat

when running. Temperatures near exhaust can exceed

150ºF (65ºC). Allow generator to cool down after use be-

fore touching engine or areas of the generator that be-

come hot during use.

8. Turn off all connected electrical devices before stop-

ping the generator.

9. Always turn generator off before refueling.

Allow generator to cool for at least 2 minutes before re-

moving fuel cap. Loosen cap slowly to relieve pressure

in tank.

10. Turn the engine switch to “STOP” position when

the engine is not running.

11. Empty fuel tank before storing or transporting the

generator. Do not store generator or gasoline near fur-

naces, water heaters, or any other appliances that pro-

duce heat or have automatic ignitions. Store the genera-

tor and fuel away from sparks, open ﬂames, pilot lights,

heat and other sources of ignition.

12. Always wash hands after handling generator.

CAUTION: Misuse of this generator can damage it or

shorten its lifespan.

TO MAXIMIZE THE LIFESPAN OF YOUR GENERATOR: We recommend running your generator at least once a

month for 20 to 30 minutes. Start the generator according to the instructions and plug a small load in to make

sure the outlet is producing electricity. If you do not run it often, it will greatly shorten the generator’s lifespan

and void the warranty.

UNPACKING

With the help of a friend or trustworthy foe, such as one of your in-laws, carefully remove the generator from the

packaging and place it on a sturdy, ﬂat surface. Make sure to take out all contents and accessories. Do not discard

the packaging until everything is removed. Check the packing list below to make sure you have all of the parts and

accessories. If any part is missing or broken, please contact customer service at 1-847-429-9263 (M-F 8-5 CST),

or email [email protected].

UNPACKING & PACKING LIST

Feet Assembly (Box 2)

Feet ..........................................2

M6x40 Bolt ..............................4

M6 Nut .....................................4

Wheel Assembly (Box 2)

Wheels .....................................2

Axles With Nuts .......................2

Tools & Accessories (Box 2)

Spark Plug Socket .......................... 1

Screwdriver .................................... 1

Wrenches ....................................... 4

(19/17mm (2), 15/13mm, 8/10mm)

Handle Assembly (Box 2)

Handle Bracket ............................... 1

M6x30 Bolt .................................... 4

Generator & Accessories (Box 1)

Generator .............................................1

Manual .................................................1

GN875i-HA36 High Altitude Kit ............1

GN875i-HA68 High Altitude Kit ............1

Handle ..................................................1

Funnel ..................................................1

Fuel Cap

KNOW YOUR GENERATOR

TOOL PURPOSE

Generators provide you with power when and where you need it most. Refer to the following diagrams to become

familiarized with all the parts and controls of your Generator. The components will be referred to later in the manual

for assembly and operation instructions.

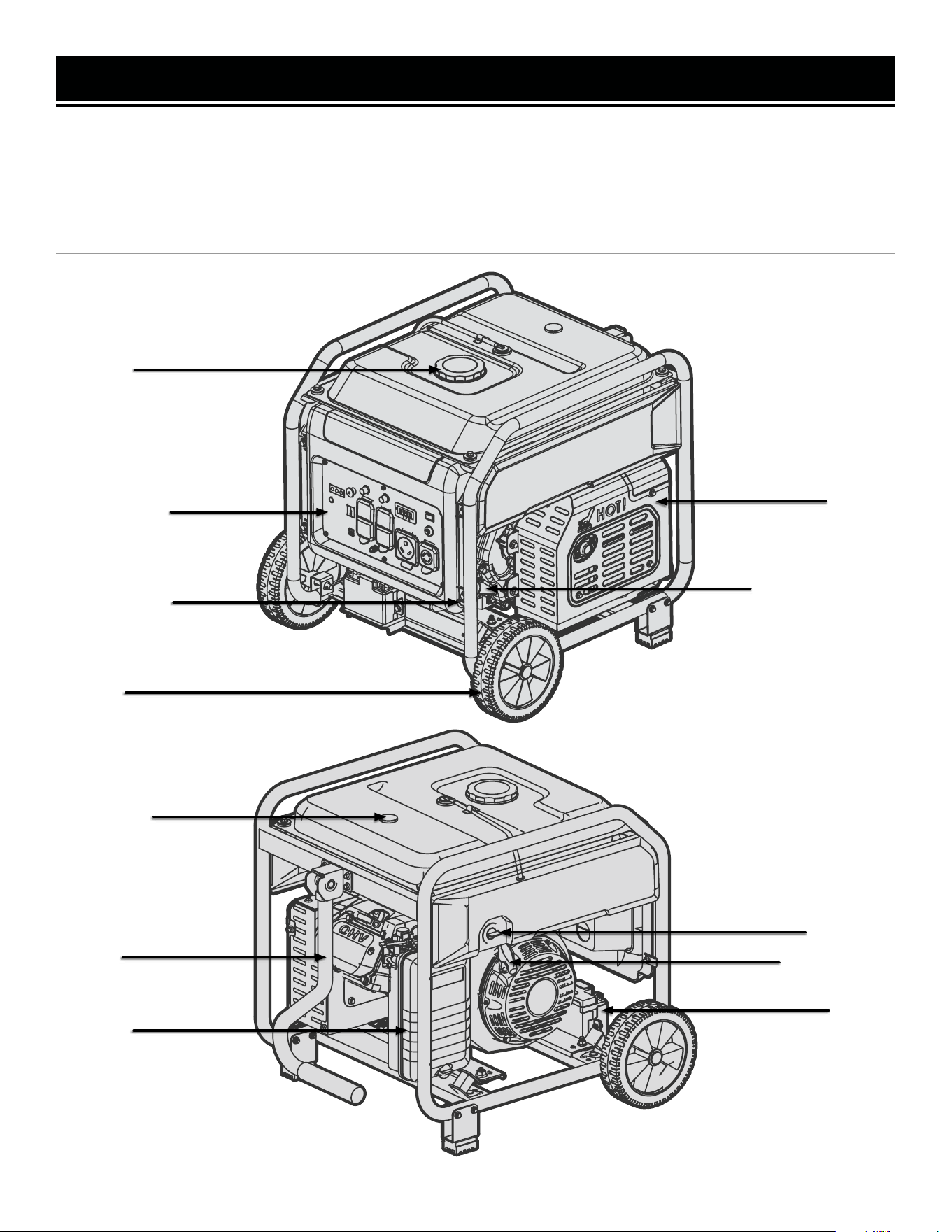

GENERATOR

Control Panel

Air Filter

Oil Drain Plug

Wheels

Handle

Fuel Valve

Recoil Starter

Fuel Gauge

Mufﬂer

Oil Fill & Dipstick

Battery

KNOW YOUR GENERATOR

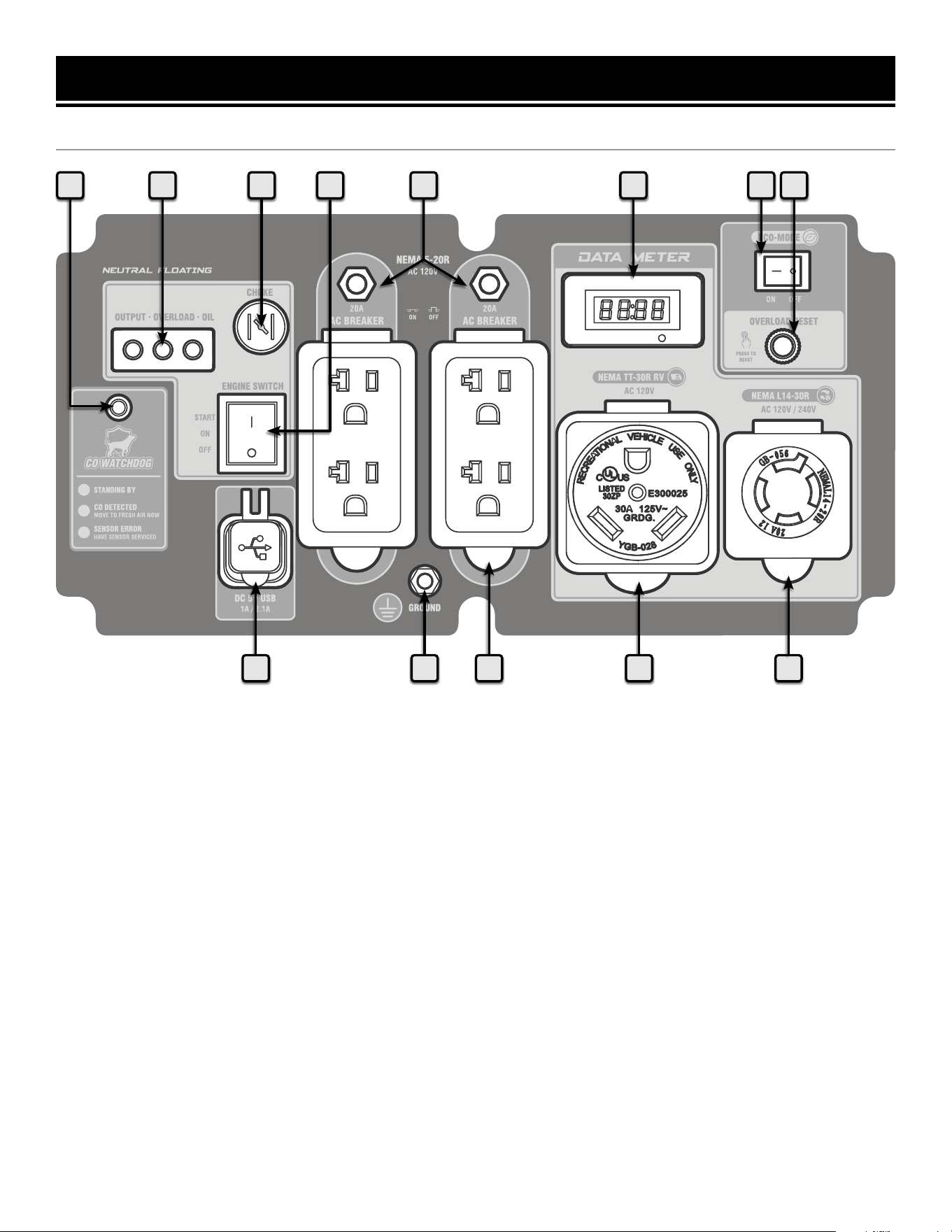

CONTROL PANEL

1 2 4 5 8

1. CO WATCHDOG Carbon Monoxide Monitor

Measures the accumulation of poisonous CO gas while the

generator is running. If the level of CO gas gets too high,

the CO Watchdog system will automatically shut down the

generator. See p. 24 for more information.

2. Indicator Lights

Output light (green) will turn on when receptacles have

power, overload light (red) will turn on if the generator is

overloaded, the oil light (yellow) will turn on if the oil is low.

3. Choke Button

Adjusts amount of air allowed into engine during startup.

4. Engine Switch

Start and stop engine. Refer to p. 19 for more details.

5. Circuit Breakers

Push the button to reset the circuit.

6. Data Meter

Displays voltage, frequency, total runtime (HHHH), and ses-

sion runtime (HH:MM). Press the MODE button to switch

between displays.

7. Eco-Mode Switch

Flip this switch to ON to increase fuel economy and

runtime when the load is below 5250W (75% load).

8. Overload Reset Button

If the overload light is ON, press this button to reset.

9. NEMA L14-30R

AC 120V/240V split-phase.

10. AC 120V NEMA TT-30R

Standard RV connector.

11. AC 120V NEMA 5-20R Duplex Receptacles

20A standard household outlets.

12. Grounding Nut

13. DC 5V USB Ports

The upper USB port provides 2.1A, while the lower

port provides 1A of power.

101112

ASSEMBLY & ADJUSTMENTS

HIGH ALTITUDE OPERATION ABOVE 3000 FEET

The fuel system on this generator may be affected by opera-

tion at high altitudes. Proper operation can be ensured by

installing an altitude kit at altitudes higher than 3000 feet

above sea level. At elevations above 8000 feet, the engine

may experience a decrease in performance, even with the

proper altitude kit. Operating this generator without the high

altitude kit at elevations above 3000 feet may increase the

engine’s emissions and decrease both fuel economy and

performance.

INSTALLING THE HIGH ALTITUDE KIT

This kit should be installed by a qualiﬁed mechanic. Con-

tact customer service at 1-847-429-9263 (M-F 8-5 CST),

or email [email protected] for information

about service centers near you. Two high-altitude kits (part

numbers GN875i-HA36 and GN875i-HA68) are included

with your generator.

Gather the parts in the high altitude kit.

1. Flip the engine switch to the STOP position.

2. Turn the fuel valve to the OFF position.

3. Prepare an approved gasoline-storage container to catch

any spilled fuel. Place it near the fuel valve.

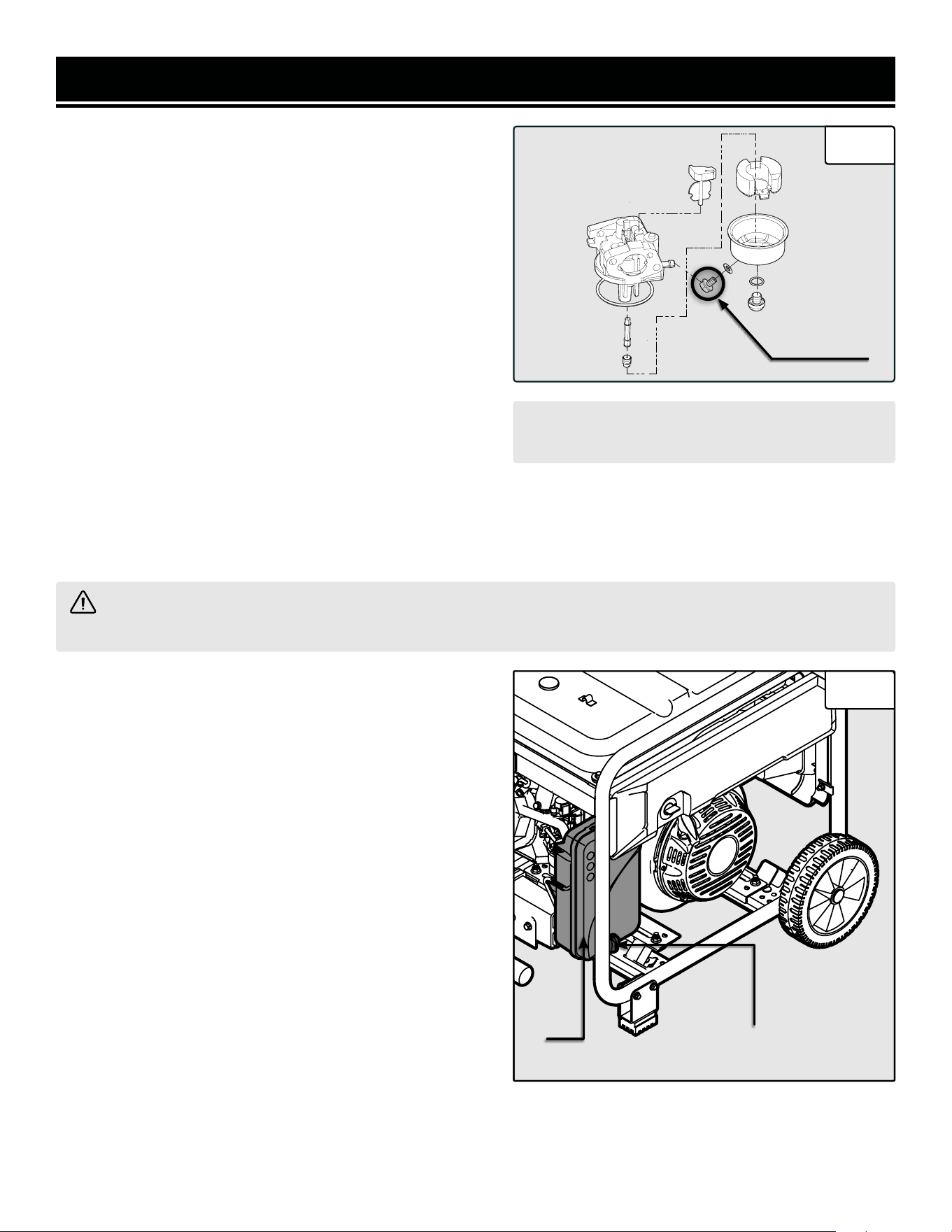

4. The carburetor can be accessed from the backside of the

generator between the engine and the air ﬁlter. Loosen the

bolt (Fig. 2) on the bottom of the carburetor with a Phillips-

head screwdriver (not included). CAUTION! The carburetor

bowl may have gas in it which will leak upon removing

the bolt.

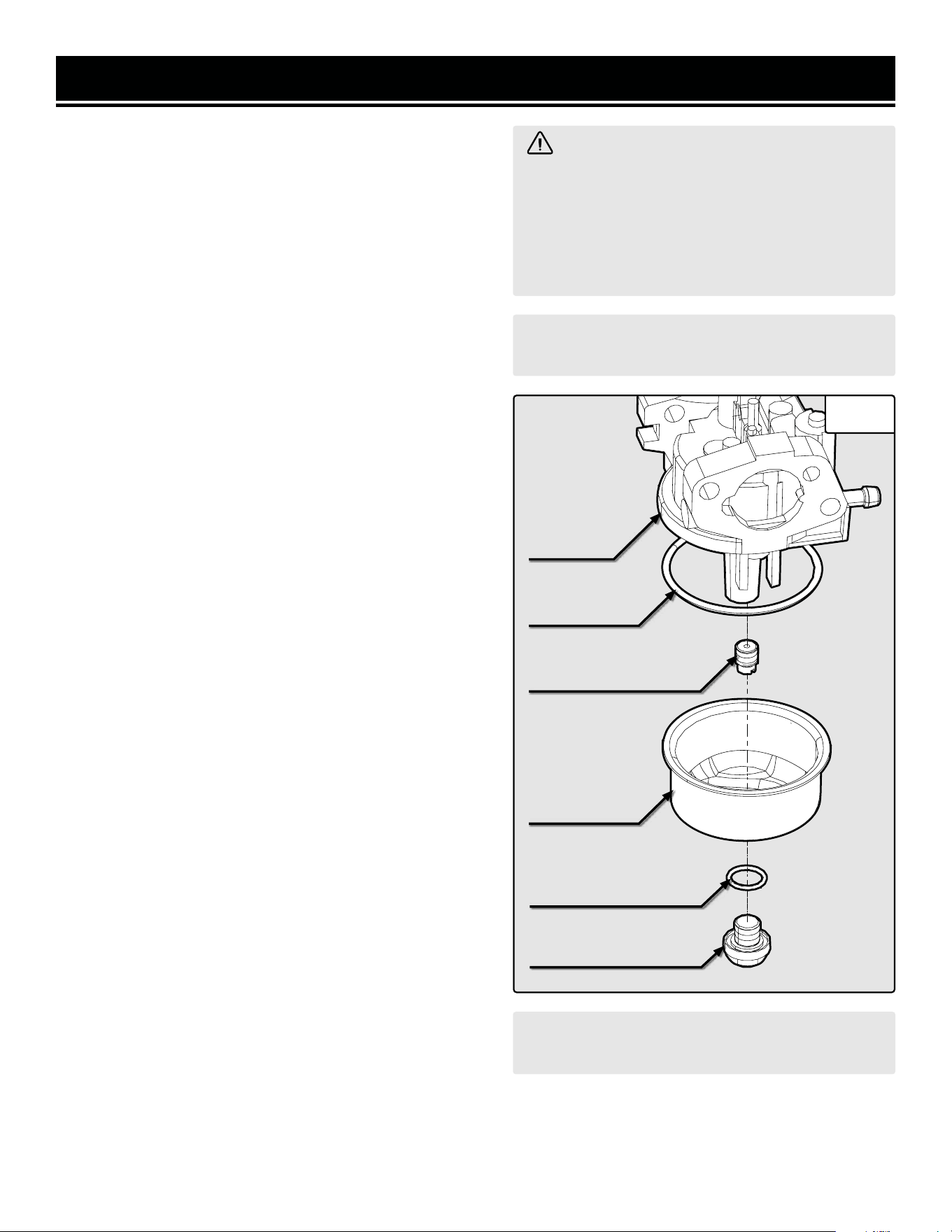

5. Remove the bolt, bolt seal, fuel cup, fuel cup seal, and

main jet from the body of the carburetor assembly. Refer to

Fig. 1.

6. Replace the main jet with the replacement jet needed for

your altitude range (3000-6000 ft or 6000-8000 ft). NOTE:

The fuel cup seal and bolt seal may be damaged during

removal and should be replaced with the new ones from

the kit.

WARNING! To prevent serious injury from

ﬁre, follow the kit installation procedures in a

well-ventilated area away from ignition sources.

If the engine is hot from use, shut the engine off

and wait for it to cool before proceeding. Do not

smoke near the generator. Warranty will be void

if adjustments are not made for high altitude use.

CAUTION! UNINSTALL the high altitude kit when

operating at altitudes below 3000 feet.

CarburetorCarburetor

AssemblyAssembly

Fuel Cup SealFuel Cup Seal

Fuel CupFuel Cup

Main JetMain Jet

Bolt SealBolt Seal

BoltBolt

CAUTION! UNINSTALL the high altitude kit when

operating at altitudes below 3000 feet.

7. Reassemble the fuel cup seal, fuel cup, bolt seal, and bolt. Tighten with a Phillips-head screwdriver to secure.

8. Wipe up any spilled fuel and allow excess to evaporate before starting the engine. WARNING! To prevent ﬁre, do

not start the engine while the smell of fuel hangs in the air.

Fig. 1

ASSEMBLY & ADJUSTMENTS

WARNING! Do not turn on the generator until it is fully assembled according to the instructions. Read

through and become familiarized with the following procedures of handling and adjusting your tool.

Failure to follow the safety instructions may result in serious personal injury.

• Never use the handle as a lifting point to support the entire weight of the generator. Only use the handle

to pull the generator with the help of the wheels.

• Use caution when collapsing the handle. Hands and ﬁngers could get caught and pinched.

ASSEMBLY

Refer to the packing list on p. 9 to gather the proper parts and tools for installing the feet, wheels, and handles.

NOTE: There are different sizes of bolts/nuts; be sure to use the proper bolts/nuts for each assembly step.

INSTALLING THE FEET

The legs are installed on the mufﬂer side of the generator.

1. Prepare a set of blocks on level ground (a 4×4 block of wood works well). Place the generator on the blocks. Have

someone help you lift the generator.

2. Slide one foot into place on the generator frame and align the holes on the foot with the holes on the frame.

3. Slide the M6 bolts through the legs and generator frame. Tighten the nuts onto the bolts using a wrench.

4. Repeat on the opposite side.

INSTALLING THE WHEELS

1. Remove the nuts from the axles.

2. Insert the thick side of the axle through the generator frame. Install and tighten the nut.

3. Slide the wheel onto the thin side of the axle. Install and tighten the nut.

NOTE: You can use a wrench on the hex shank of the axle to hold it steady when tightening the nuts.

INSTALLING THE HANDLE

1. Install the bracket on the top of the generator frame using the M6 bolts. Tighten using a wrench.

2. Insert the handle pin through the bracket and handle. Secure it using the R-clip.

NOTE: Refer to the instructions on the following pages before starting your generator.

GENERATOR PREPARATION

The following section describes the necessary steps to prepare the generator for use. If you are unsure about how to

perform any of the steps please call 1-847-429-9263 (M-F 8-5 CST) for customer service. Failure to perform these

steps properly can damage the generator or shorten its life.

STEP 1 - ADD/CHECK OIL

The generator is shipped without oil. User must add the proper amount of oil before operating the generator for the

ﬁrst time. The oil capacity of the engine crankcase is 37.2 ﬂ oz (1.1 L).

CAUTION! Keep the generator level. Tilting the generator

to assist in ﬁlling will cause oil to ﬂow into the wrong

areas of the engine and cause damage.

TO ADD OIL:

1. Place the generator on a level surface. Make sure the en-

gine is OFF before adding or checking oil.

2. Unscrew the oil dipstick (Fig. 3) from the engine.

3. Using an oil funnel or appropriate dispenser, slowly add

oil into the oil ﬁll, being careful not to overﬁll the unit. Fill the

crankcase to the upper ﬁll line so you can visually see the oil

coming halfway up the oil ﬁll threads. See Fig. 4.

4. Reinstall the oil dipstick and ﬁrmly tighten it. Wipe clean

any spilled oil.

CAUTION! For subsequent operation, the oil level should be

checked before each use, or after every 8 hours of operation.

The generator is equipped with a low-oil sensor and will not

start without a sufﬁcient amount of oil. Follow the instruc-

tions on the next page to check the oil level.

• 30W Engine Oil

Temperatures above 40°F

• 10W-30 Engine Oil

Temperatures between 0°F - 40°F

• Synthetic 5W-30 Engine Oil

All temperature ranges

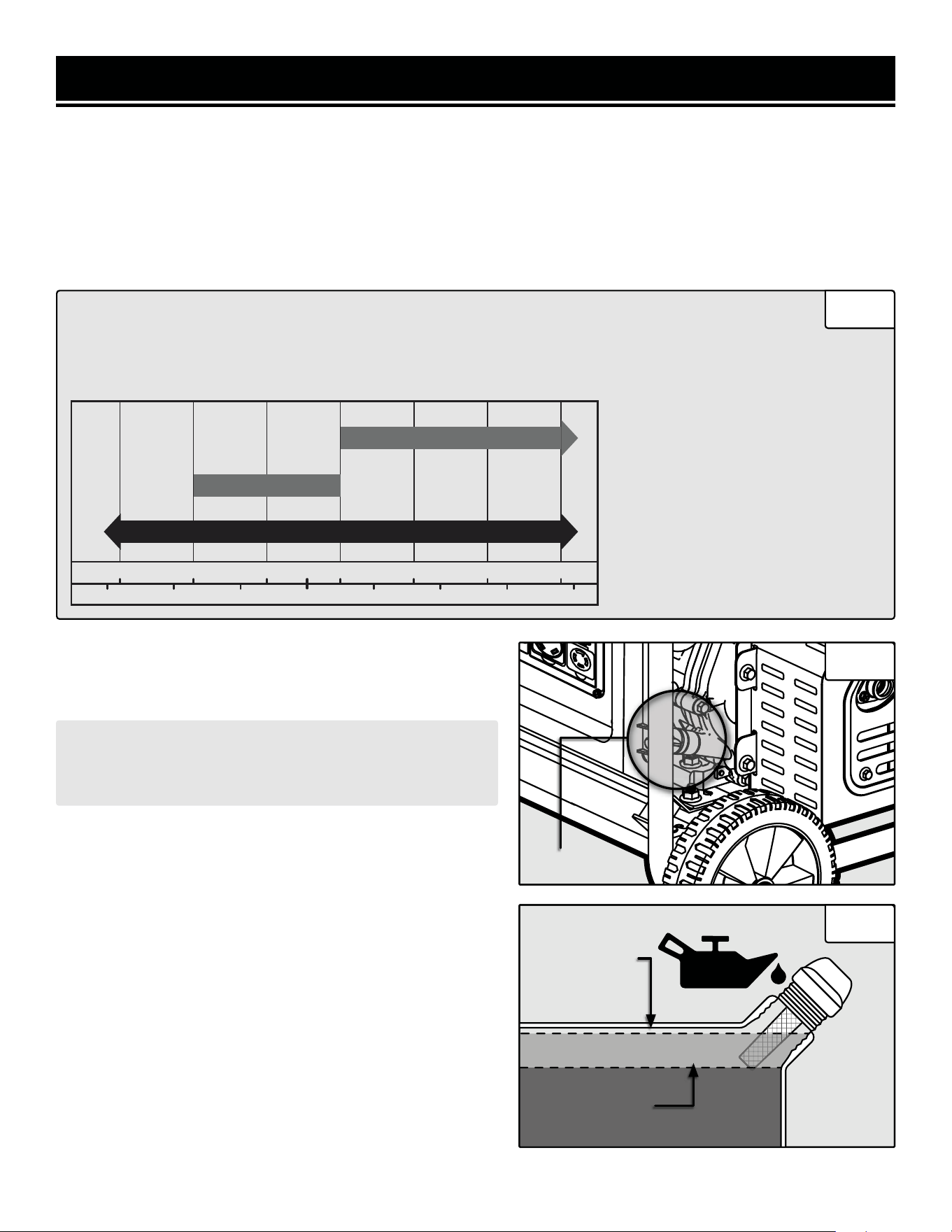

ENGINE OIL RECOMMENDATIONS

Select good quality detergent oil bearing the American Petroleum Institute (API) service classiﬁcations

SJ, SL, or SM (synthetic oils may be used). Select the SAE viscosity grade of oil that matches the ex-

pected operating temperature.

°F

°C

-20 0 20 32 40 60 80 100

40200

-20

-10

-30 30

Upper Fill Line

Lower Fill Line

Dipstick

Fig. 2

Fig. 3

Fig. 4

30W

10W-30

Synthetic 5W-30

Lower Limit

Upper Limit

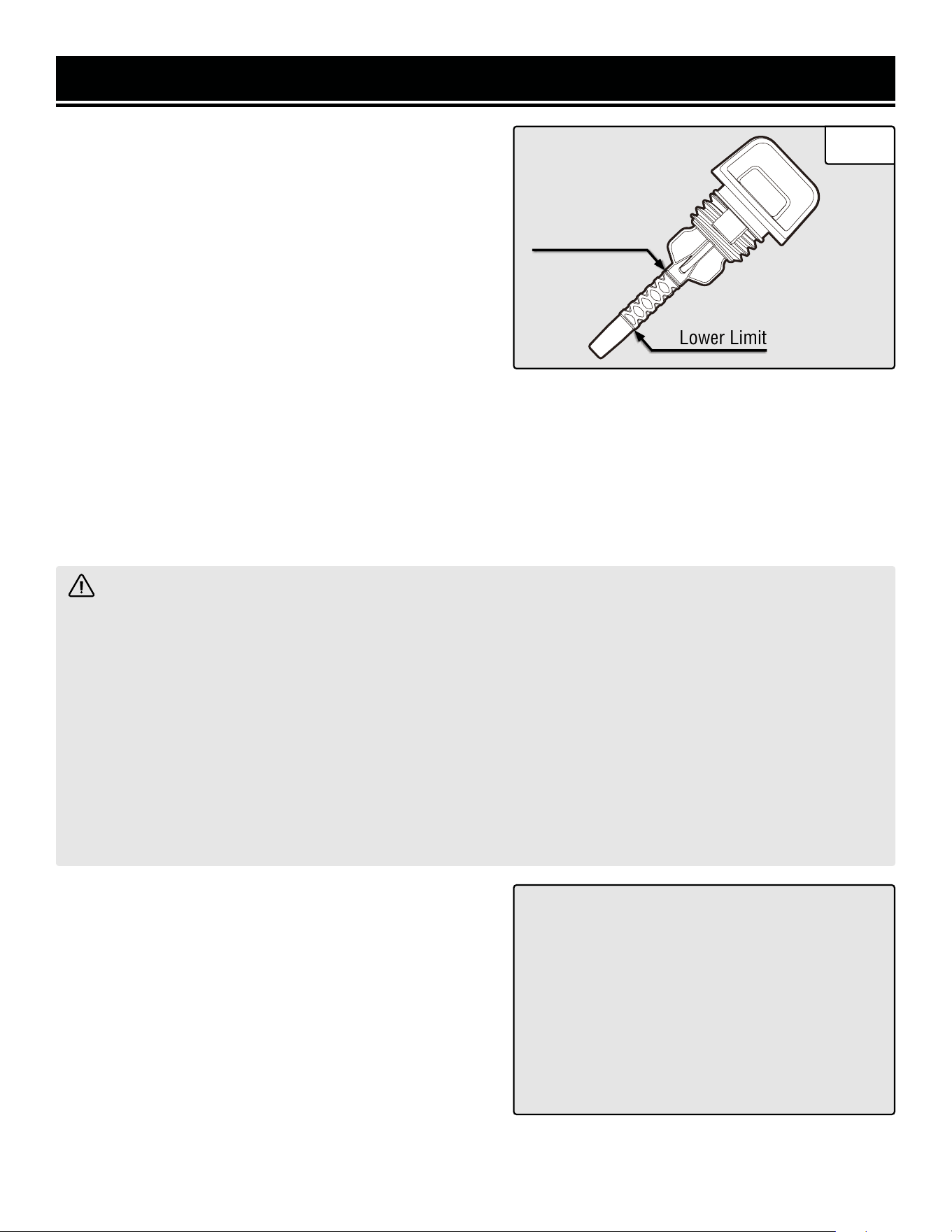

TO CHECK OIL LEVEL (before every subsequent start):

1. Place the generator on a level surface. Make sure the

engine is OFF before adding or checking oil.

2. Remove and wipe the dipstick with a clean rag.

3. Insert the dipstick into the oil ﬁll without screwing it in.

Remove the dipstick to check the oil mark.

4. If the oil mark covers less than one half of the dipstick,

slowly add oil until the oil mark reaches the top of the dip-

stick (or when you can see the oil coming halfway up the

oil ﬁll threads). See Fig. 5.

WARNING: RISK OF EXPLOSION. HIGHLY FLAMMABLE: This generator may emit highly ﬂammable and

explosive gasoline vapors, which can cause severe burns or even death, if ignited. A nearby open ﬂame can lead

to explosion even if not directly in contact with gasoline.

• Do not operate near open ﬂame, heat, or any other ignition source. Do not smoke near the generator.

• Always operate on a ﬁrm, level surface.

• Always turn generator off before refueling. Allow generator to cool for at least 2 minutes before removing

fuel cap. Loosen cap slowly to relieve pressure in tank.

• Do not overﬁll fuel tank. Gasoline may expand during operation. Do not ﬁll to the top of the tank. Allow for

expansion. Always check for spilled fuel before operating.

• If fuel spills, move the generator at least 30 feet away from the spill and wipe clean any spilled fuel before

starting the engine.

• Empty fuel tank before storing or transporting the generator.

ONLY use fresh (within 30 days from purchase), lead-free

gasoline with a minimum of 87 octane rating. The genera-

tor performs best with ethanol-free gasoline. DO NOT use

gasoline with over 10% ethanol.

The capacity of the fuel tank is 4.2 US gallons (16L). Do

not mix oil with gasoline.

Follow the instructions on the next page to add gasoline.

IMPORTANT:

• Avoid getting dirt or water into the fuel tank.

• Keep gasoline away from sparks, open ﬂames,

pilot lights, heat, and other sources of ignition.

• Gasoline can age in the tank and make starting

difﬁcult. Never store the generator for more

than 2 months with fuel in the tank.

• Never use an oil/gasoline mixture.

• Never use old gasoline.

OIL LEVEL SHUTDOWN

To protect the unit from damage, the generator is equipped with a low-oil-pressure shutoff that will automatically

shut down the engine when the oil level is too low. The oil level of the engine should be checked before each start

to ensure that the engine crankcase contains sufﬁcient lubricant.

STEP 2 - ADD/CHECK FUEL

GENERATOR PREPARATION

Fig. 5

TO ADD GASOLINE:

1. Place the generator on a level surface. Make sure the

engine is OFF before adding or checking the fuel.

2. Unscrew the fuel cap (Fig. 6) and set it aside. The fuel

cap may be tight and hard to unscrew.

3. Slowly add unleaded gasoline to the fuel tank. Be careful

not to overﬁll. Reinstall fuel cap and wipe clean any spilled

gasoline with a dry cloth.

NOTE: Do not ﬁll the fuel tank to the very top. If you do

so, gasoline will expand and spill during use, even with

the fuel cap in place.

TO CHECK GAS LEVEL (before every subsequent start):

1. Before starting the generator, check the fuel gauge (Fig. 7) to see if there is sufﬁcient fuel inside the tank:

• E = Empty

• F = Full

2. If the tank is empty add gasoline to the gas tank. See above section, "To Add Gasoline".

STEP 3 - CONNECT THE BATTERY

Fuel CapFuel Cap

WARNING! Use only genuine WEN batteries with your generator (part no. 56380i-1304). Use of other

batteries may induce premature product failure and could pose a safety risk.

GENERATOR PREPARATION

Fig. 6

Fuel Cap

ABOUT THE BATTERY

1. The lithium-ion battery supplied with your generator is only partially charged, in order to maximize its service

life. The battery may not have enough charge to start the engine during its ﬁrst use. If this is the case, connect the

battery according to the instructions below, and start the generator using the recoil starter, according to the instruc-

tions below. The battery will receive charge when the generator is running.

2. Lithium-ion batteries are subject to a natural aging process. The battery must be replaced at the latest when its

capacity falls to just 80% of its capacity when new. Weakened cells in an aged battery are no longer capable of meet-

ing the high power requirements needed for the proper operation of your generator, and therefore pose a safety risk.

3. DO NOT INCINERATE BATTERY. Do not throw the battery into an open ﬁre as this poses a risk of explosion. Do

not ignite the battery or expose it to ﬁre.

4. AVOID DAMAGE AND SHOCKS. Immediately replace batteries that have been dropped from a height of more than

one meter (3 feet) or those that have been exposed to violent shocks, even if the housing of the battery appears to

be undamaged. The battery cells inside the battery may have suffered serious damage. In such instances, please

read the waste disposal information on p. 31 for proper battery disposal.

5. DO NOT CRUSH, DROP OR DAMAGE BATTERY. Do not use the battery if it has sustained a sharp blow, been

dropped, run over or has been damaged in any way (e.g. pierced with a nail, hit with a hammer, stepped on, etc.).

NOTE: Grounding wire and grounding rods are not

included with the generator. A generally acceptable

grounding wire is a No. 12 AWG (American Wire

Gauge) stranded copper wire. Grounding codes

can vary by location. Contact a local electrician to

check the area codes.

ABOUT THE BATTERY (CONT.)

6. DO NOT DISASSEMBLE. Incorrect reassembly may pose a serious risk of electric shock, ﬁre or exposure to toxic

battery chemicals. If the battery or charger are damaged, call WEN customer service at 1-847-429-9263 for as-

sistance.

7. DO NOT SHORT CIRCUIT. Batteries will short circuit if a metal object makes a connection between the positive

and negative contacts on the battery. Do not place the battery near anything that may cause a short circuit, such as

paper clips, coins, keys, screws, nails and other metallic objects. A short-circuited battery poses a risk of ﬁre and

severe personal injury.

NOTE: The safe temperature range for charging the battery is 25°F – 104°F. The generator is shipped with the lith-

ium-ion battery’s negative (-) terminal disconnected to maximize safety. To start the generator using electric start,

the battery must be connected.

To connect the battery:

1. Remove the black battery bracket by removing the two Phillips-head bolts that hold the battery bracket in place.

Pull out the battery for easier access.

2. Pull back the protective cover from the red (+) lead near the battery.

GENERATOR PREPARATION

3. Attach the red (+) lead to the positive (+) terminal on the

battery, using the nut and bolt.

4. Repeat for the black (-) battery lead. Secure it to the

negative (-) terminal on the battery).

STEP 4 - GROUNDING THE GENERATOR

To reduce the risk of electric shock and to maximize safety,

the generator should be properly grounded.

1. Attach one end of the grounding wire to the grounding

nut (Fig. 7). Tighten the nut to secure the grounding wire.

2. Connect the other end of the grounding wire to a copper,

brass, or steel-grounding rod that is driven into the earth.

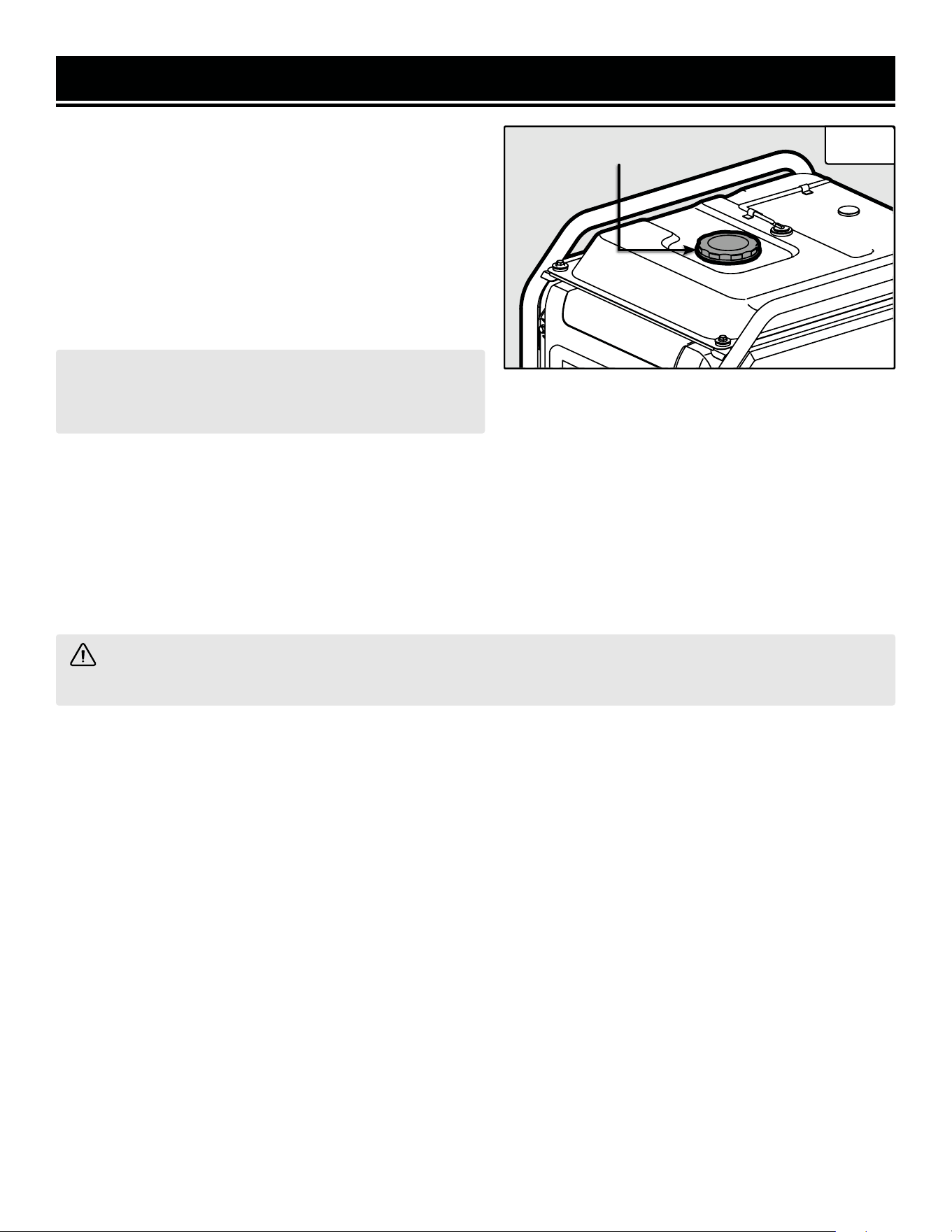

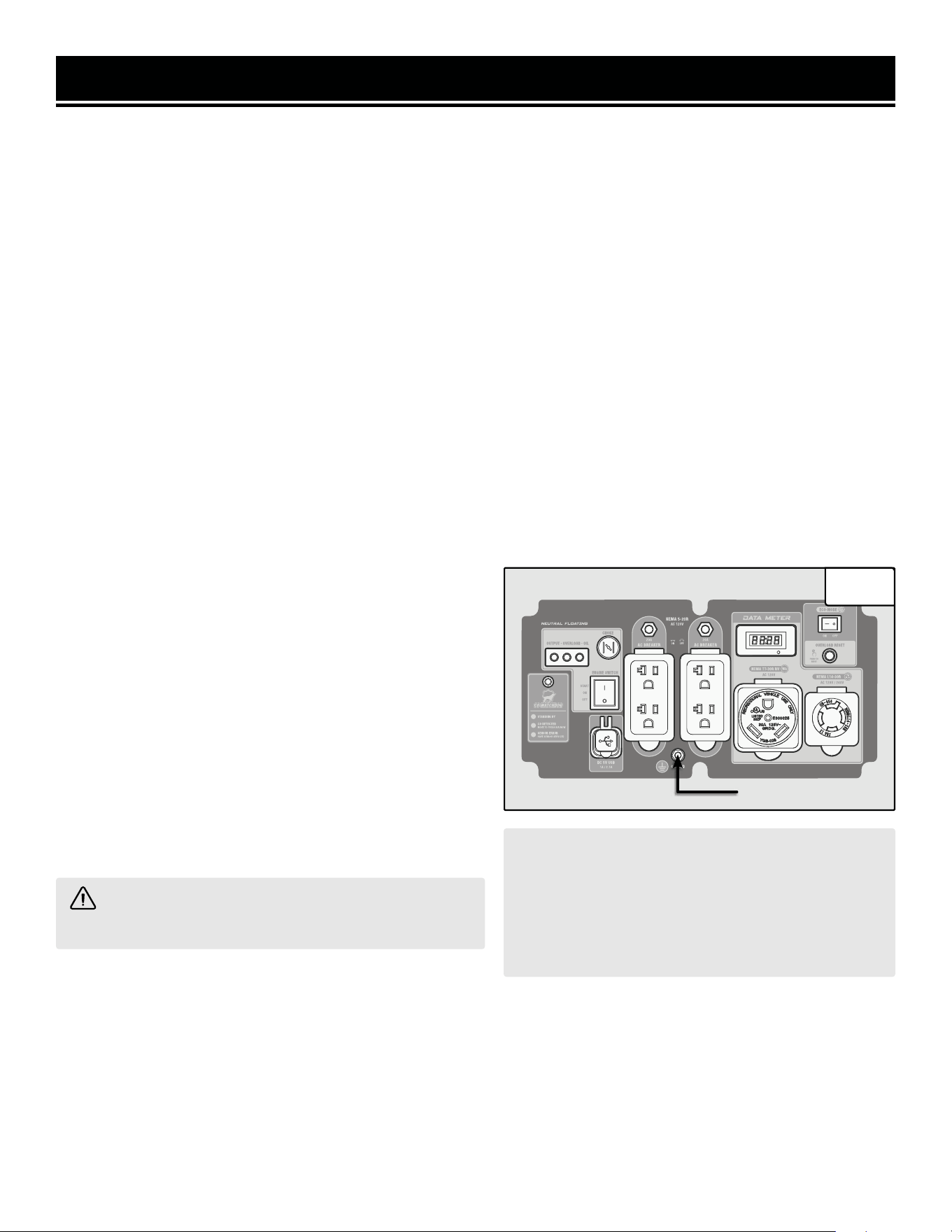

Fig. 7

Grounding Nut

WARNING! Failure to properly ground the generator

increases your risk of electric shock.

STARTING THE GENERATOR

CAUTION! Disconnect all electrical loads from the generator before attempting to start it.

Before starting the generator, make sure you have read and performed the steps in the “Generator Preparation” sec-

tion of this manual. If you are unsure about how to perform any of the steps in this manual please call

1-847-429-9263 (M-F 8-5 CST) for customer service.

To maximize safety, ALWAYS ground the generator before using it. Refer to "Step 3 - Ground The Generator."

Use a ground fault circuit interrupter (GFCI) in highly conductive areas such as metal decking or steel work. GFCIs

are available in-line with some extension cords.

DANGER: CARBON MONOXIDE

Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide (CO). This

is a poison gas you cannot see or smell. If you can smell the generator exhaust, you are breathing CO. But even

if you cannot smell the exhaust, you could be breathing CO.

NEVER use a generator inside homes, garages, crawl spaces, or other partially enclosed areas. Deadly levels

of carbon monoxide can build up in these areas. Using a fan or opening windows and doors does NOT supply

enough fresh air. ONLY use a generator outside and far away from windows, doors, and vents. These openings

can pull in generator exhaust.

Even if you use a generator correctly, CO may leak into the home. ALWAYS use a battery-powered or battery-

backup CO alarm in the home. If you start to feel sick, dizzy, or weak after the generator has been running, move

to fresh air RIGHT AWAY. See a doctor. You may have carbon monoxide poisoning.

WARNING: The exhaust from this product contains chemicals known to the State of California to cause

cancer, birth defects, or other reproductive harm.

WARNING: Do not operate generator near open ﬂame or ﬂammable materials This generator may emit

highly ﬂammable and explosive gasoline vapors, which can cause severe burns or even death if ignited. A

nearby open ﬂame can lead to explosion even if it isn’t directly in contact with gasoline. Do not smoke near the

generator.

WARNING: This generator produces powerful voltage, which can result in electrocution.

WARNING: Do not use in rainy or wet conditions. Do not touch bare wires or receptacles (outlets). Do not

allow children or non-qualiﬁed persons to operate.

WARNING: Generator should only be connected to electrical devices, either directly or with an extension

cord. NEVER connect to a building electrical system unless a qualiﬁed electrician has connected the generator to

a transfer switch as a separately derived system. Such connections must comply with local electrical laws and

codes. Failure to comply can create a back-feed, which may result in serious injury or death to utility workers.

Follow the instructions on the next page to start your generator.

STARTING THE GENERATOR

BEFORE STARTING THE GENERATOR

1. Verify that the generator is outside on a dry, level surface.

Allow at least two feet of clearance on all sides.

2. To maximize safety, check that the generator is properly

grounded. Refer to "Step 4 - Ground The Generator."

3. Check that there is a sufﬁcient level of oil in the crankcase.

Add oil if necessary. Refer to "Step 1 - Add/Check Oil."

4. Check that there is a sufﬁcient level of fuel in fuel tank. Add

gas if necessary. Refer to "Step 2 - Add/Check Fuel."

5. Make sure all electrical devices are unplugged from the

generator during ignition. Otherwise it will be difﬁcult for the

engine to start.

STARTING THE GENERATOR

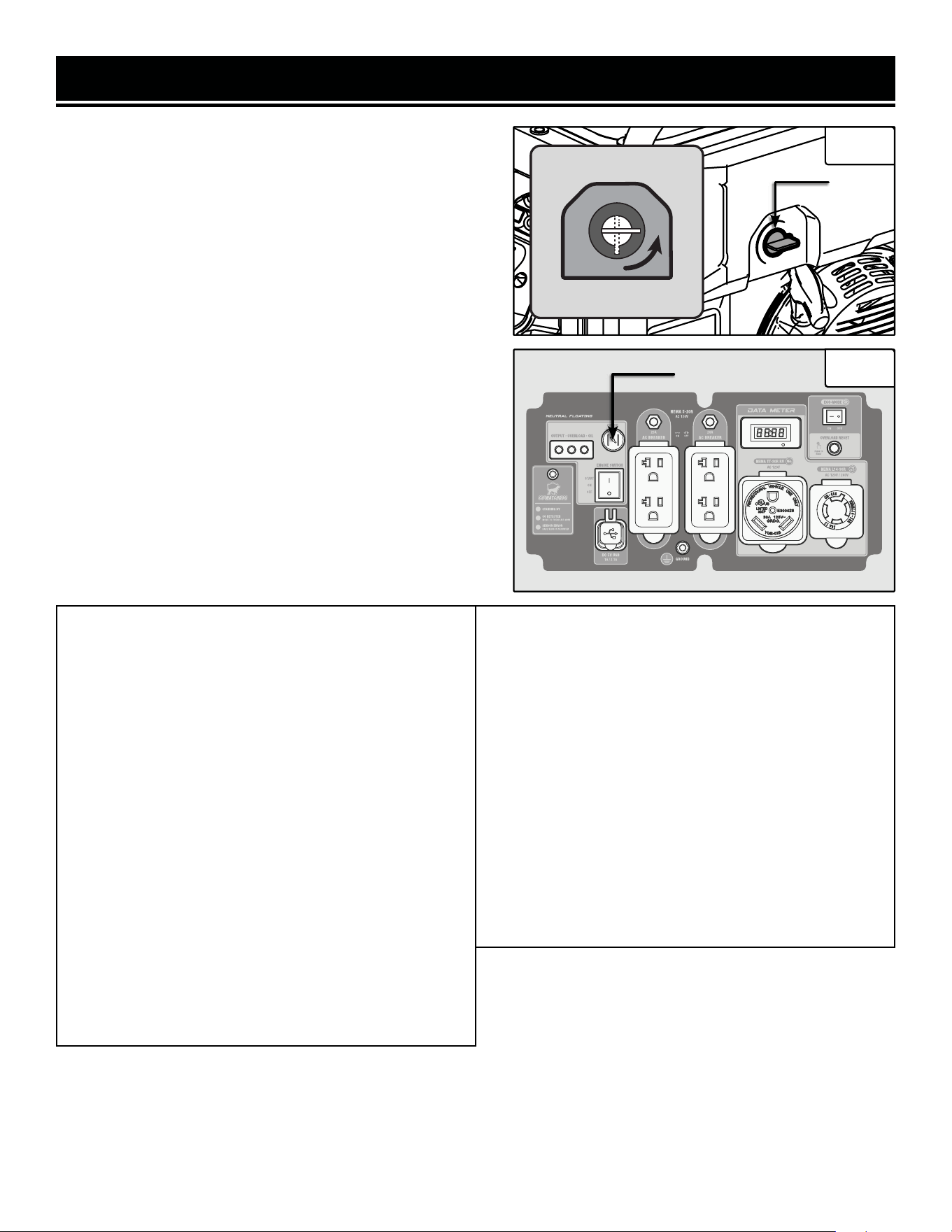

1. Turn the fuel valve (Fig. 8 - 1) to the ON position.

2. If the engine is cold, pull the choke button out to the

CLOSE / START position (Fig. 9). If the engine is warm, leave

the choke button in the OPEN/RUN position.

3. Make sure the Eco-Mode switch is OFF.

a. To start the engine using the electric starter:

4. Make sure the battery is properly connected. If the

battery is dead or not connected, the fuel solenoid

valve will not open and the generator will not start.

5. Press the engine switch to the START (II) position

for 2 – 3 seconds, or until the engine starts.

NOTE: if the engine does not start after 2 – 3 sec-

onds, release the switch and try again. Keeping the

switch in the START position too long can damage

the starter motor. If the engine does not start after

multiple attempts, please consult the troubleshooting

guide before attempting to start the generator again.

If problems persist, please contact WEN customer

service (see front page of manual).

6. When the engine starts, release the switch to ON.

7. Slowly push the choke button into the OPEN / RUN

position (Fig. 9).

Choke Button

Fig. 9

Fig. 8

OFF

ENGINE BREAK-IN PROCEDURE

Conduct the following when you receive your genera-

tor in order to prolong the engine’s service life. This

procedure helps to seat the piston rings properly in the

cylinder, and will reduce overall wear on the engine.

b. To start the engine using the recoil starter:

4. Turn the engine switch to the ON position.

5. Pull the recoil starter handle slowly until a slight

resistance is felt, then pull quickly to start the engine.

Return cord gently into the recoil starter. Never allow

the cord to snap back.

NOTE: If the engine does not start after multiple at-

tempts, please consult the troubleshooting guide be-

fore attempting to start the generator again. If prob-

lems persist, please contact WEN customer service

(see front page of manual).

6. Slowly push the choke button into the OPEN / RUN

position (Fig. 9).

For the ﬁrst 8 hours of operation, vary the load, but keep it at or below 50% of the generator’s rated wattage, if

possible. If your generator is equipped with an Eco-mode switch (only applicable for certain inverter generators),

engage Eco-mode periodically during the ﬁrst 8 hours. After the ﬁrst 8 hours, change the oil, then change it again af-

ter the ﬁrst 25 hours. You may run the generator at full load after the 8-hour oil change. Refer to the Recommended

Maintenance Schedule in Table 4 for the full maintenance schedule.

CALCULATING THE WATTAGE OF YOUR DEVICE(S)

Connect electrical devices running on AC current according to their wattage requirements. Calculate the total run-

ning wattage and starting wattage of the device(s) you wish to connect, and MAKE SURE that they are within the

capacity of your generator and the capacity of each individual outlet.

Generator

Wattage

Capacity

GENERATOR RUNNING (RATED) WATTS GENERATOR STARTING (SURGE) WATTS

7000W 8750W

What this means:

The generator can produce a maximum of

7000W on a continuous basis to supply on-

going power to your electronic devices.

NOTE: Also check the rated amperage for

each outlet and make sure not to overload

the individual outlets.

What this means:

Some devices such as box fans require short

bursts of extra power in addition to the rated

wattage listed by the device to start their mo-

tors.

The generator can produce a maximum watt-

age of 8750W for a short period of time

(seconds) to cover the extra starting power

required by your electronic devices.

Electronic

Device

Wattage

Calculation

Find the wattage information of each device you plan to connect. The information should

be listed on the device or in its instruction manual, or you may refer to Table 2 - Estimated

Wattages of Common Electrical Appliances.

The wattage can be calculated using this equation: Watts = Volts x Amperes

To calculate the total running watts of your

devices:

+ Add up the running wattages of all the

device(s) you plan to connect.

= The total running (rated) wattage.

This wattage should NOT exceed the run-

ning wattage of 7000W.

It is recommended to maintain a load at or

below 6300W (90% of the rated output) to

ensure steady voltage output and to prolong

the generator’s lifespan.

To calculate the total starting watts of your

devices:

+ Add up the total running wattage of all the

device(s) you plan to connect.

+ Add the single highest ADDITIONAL start-

ing wattage out of the device(s) you plan to

connect.

= The total starting (surge) wattage.

This wattage should NOT exceed the starting

wattage of 8750W.

If any of either of the total calculated running watts or starting watts is higher than the capac-

ity of your generator, adjust the load until both wattage requirements are met. Otherwise you

will overload the generator, and cause damage to the engine and your electrical device(s).

Table 1 - How to Calculate Wattages

USING YOUR GENERATOR

CALCULATING THE WATTAGE OF YOUR DEVICE(S) - CONTINUED

The chart below serves as a reference for the estimated wattage requirements of common electrical devices. How-

ever, do not solely rely on this chart - all electronics and appliances are built differently. Always check the wattage

listed on the electrical device before consulting this chart.

Tool or Appliance Rated (Running) Watts Surge (Starting) Watts

Hot Plate 2500 0

Saw - Radial Arm 2000 2000

Electric Stove (Each Element) 1500-2800 0

Saw - Circular 1500 1500

Air Compressor (1 HP) 1500 3000

Window Air Conditioner 1200 1800

Saw - Miter 1200 1200

Microwave 1000 0

Well Water Pump 1000 1000

Sump Pump 800 1200

Refrigerator Freezer 800 1200

Furnace Blower 800 1300

Computer 800 0

Electric Drill 600 900

Television 500 0

Deep Freezer 500 500

Garage Door Opener 480 0

Stereo 400 0

Box Fan 300 600

Clock Radio 300 0

Security System 180 0

DVD Player / VCR 100 0

Common Light Bulb 75 0

Table 2 - Estimated Wattages of Common Electrical Appliances

NOTE: Become familiar with the functions and capacity of each component on the control panel before con-

necting electrical devices. See page 11 for more information about the components of the control panel. Do not

overload generator or individual panel receptacles. Do not connect 50Hz or 3-phase loads to the generator.

USING YOUR GENERATOR

CONNECTING ELECTRICAL DEVICES

1. Before connecting electrical devices, allow the generator to run for a few minutes to stabilize the speed and volt-

age output.

2. Select the device with the highest wattage, and make sure it is turned off. Plug the device into the matching gen-

erator outlet and then turn the device on. Allow the engine to stabilize.

3. Repeat step 2 to plug in each additional device. Do not attempt to plug in or start multiple devices at the same

time.

NOTE: You may use the 120V and 240V outlets at the same time. This generator uses two windings to supply power.

One winding powers the 5-20R outlets and one leg of the L14-30R outlet. The other winding powers the TT-30R

outlet and the other leg of the L14-30R outlet. Consult the wiring diagram on p. 34 for more details.

ECO-MODE SWITCH

This generator is equipped with an Eco-Mode Idle Control Switch. Engaging this switch allows the system to regu-

late the engine speed and automatically adjust its fuel consumption to match the required load. When the electrical

load changes, the generator engine will automatically speed up and slow down as needed. This reduces fuel con-

sumption and noise levels, while extending runtime and engine’s lifespan.

Keep this switch engaged ONLY when the power load requirement is less than 5250W (75% of the rated watts). Do

not engage the Eco-Mode Switch when the total load is more than 5250W. The generator engine must run at full

speed to supply power for anything over 5250W.

CIRCUIT BREAKER

The circuit breakers will activate when the load on the outlet exceeds the breaker's rating. When the circuit breaker

activates, turn off and disconnect the device from its respective outlet, and press the circuit breaker to reset.

IN CASE OF OVERLOAD

If your generator becomes overloaded from too much drawn wattage, the overload light (red) on the control panel

will light up. Follow the instructions below when an overload occurs:

• When you’ve overloaded the generator, the overload light will stay on and the overload reset button will activate

to cut off the output in 3 to 16 seconds, depending on the load. Reduce the load by turning off and disconnecting

your electrical device(s) until the overload light turns off. Wait about ﬁve minutes and then press the activated

reset button to reset the circuit. If no power is produced after resetting, turn off and disconnect all electrical

devices and restart your generator.

• The pattern in which the overload light blinks gives diagnostic information about the problem. Refer to the chart

on the next page.

LIGHT

MEANING RESOLUTION

GREEN

(POWER INDICATOR)

RED

(OVERLOAD)

ON OFF Generator output is normal. No action needed.

OFF Flashes 1x, repeating

every 3 sec

Voltage at alternator is too low. No elec-

trical output.

Check for loose connections. Call

1-847-429-9263 for assistance.

OFF Flashes 2x, repeating

every 3 sec

Engine speed is too low. No electrical

output.

Check carburetor and stepper motor.

Ensure Eco-Mode is OFF. Have genera-

tor serviced; call 1-847-429-9263 for

assistance.

OFF Flashes 3x, repeating

every 3 sec

Inverter temperature is too high. No

electrical output.

Turn generator off and let it cool down

fully (1 – 2 hours) before restarting.

OFF Flashes 5x, repeating

every 3 sec

Voltage at alternator is too high. No

electrical output.

Have generator serviced; call 1-847-

429-9263 for assistance.

OFF Flashes 6x, repeating

every 3 sec

Generator has exceeded rated output and

cut off power to protect itself. No electri-

cal output.

Turn OFF and disconnect loads. Press

RESET button on panel. Reduce load on

generator.

Table 3 - Power Cord Requirement Guide*NR = Not Recommended

Device Requirements Max. Cord Length (ft) by Wire Gauge

Amps Watts

(120V)

Watts (240V) #8 wire #10 wire #12 wire #14 wire #16 wire

2.5 300 600 NR NR NR 375 250

5 600 1200 NR NR 300 200 125

7.5 900 1800 NR 350 200 125 100

10 1200 2400 NR 250 150 100 50

15 1800 3600 NR 150 100 65 NR

20 2400 4800 175 125 75 50 NR

25 3000 6000 150 100 60 NR NR

30 3600 7200 125 65 NR NR NR

40 4800 9600 90 NR NR NR NR

WARNING! Generator should only be connected to electrical devices, either directly or with an extension

cord. NEVER CONNECT TO A BUILDING ELECTRICAL SYSTEM unless a qualiﬁed electrician has connected the

generator to a transfer switch as a separately derived system. Such connections must comply with local electri-

cal laws and codes. Failure to comply can create a back-feed, which may result in serious injury or death.

NOTE: For power outages, permanently installed, stationary generators are better suited for providing backup

power to your home. Even a properly connected portable generator can become overloaded. This may result in

overheating or stressing the machine’s components, possibly leading to generator failure.

SOME NOTES ABOUT POWER CORDS

Refer to the following chart in determining the necessary gauge extension cord for each of your devices. Round up

to the higher amperage in the chart to maximize safety.

USING YOUR GENERATOR

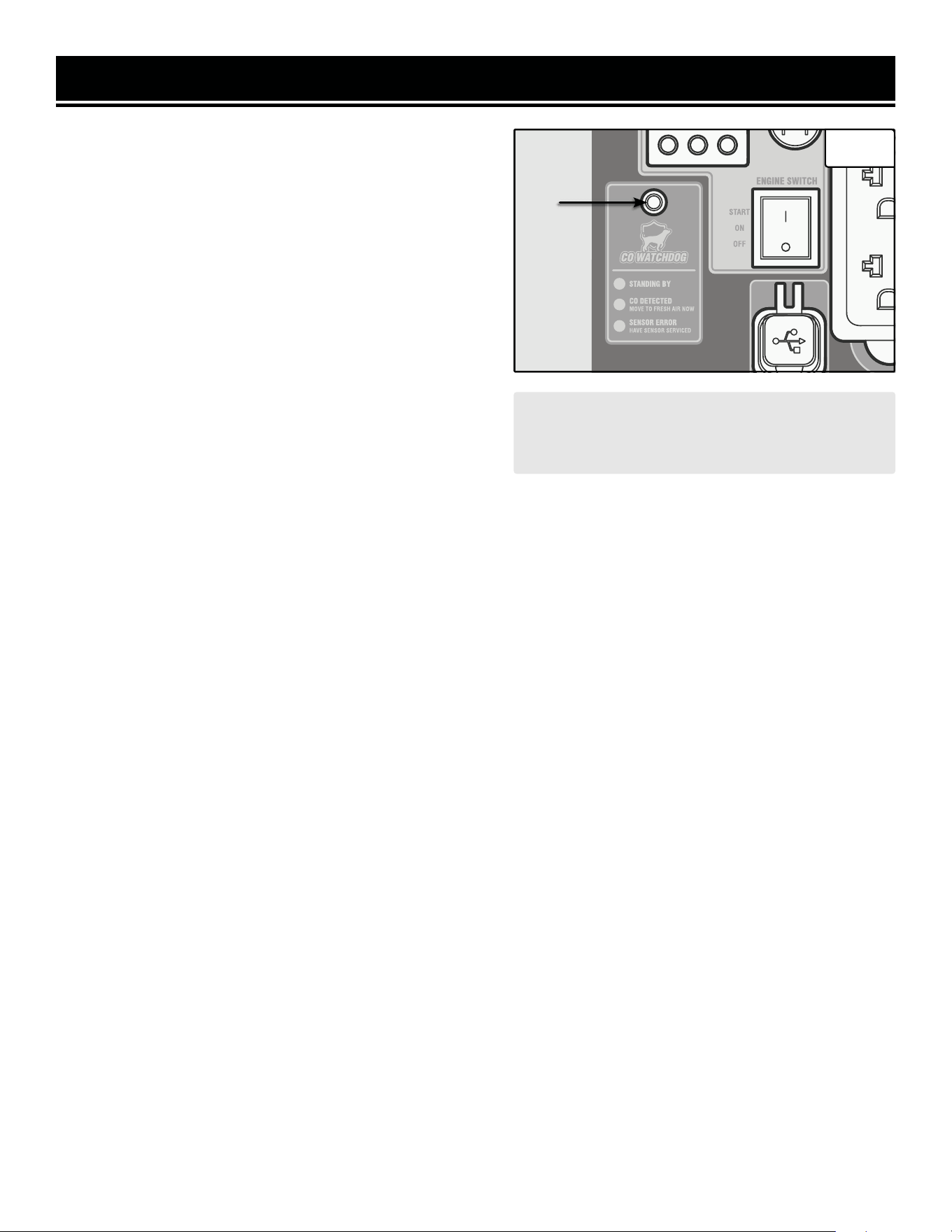

CO SENSOR INFORMATION

The CO Watchdog carbon monoxide monitoring system (Fig.

10 - 1) measures the accumulation of poisonous CO gas

while the generator is running. If the level of CO gas gets too

high, the CO Watchdog system will automatically shut down

the generator. This system is not a substitute for an indoor

CO alarm.

Whenever the CO Watchdog system shuts down the genera-

tor, the LED on the generator control panel (Fig. 10 - 1) will

blink red for at least 5 minutes after the generator is shut

down. If you notice that the LED is blinking red, vacate the

area immediately. Go to an open, outdoor area. Ventilate

the area around the generator thoroughly before returning.

Let the generator stay shut down for a few minutes before

restarting the engine. This should allow carbon monoxide to

dissipate from the area. If you restart the generator and the

CO Watchdog detects that CO levels are still too high, it will

shut down the generator again. If CO levels are low enough,

the generator will run normally.

Ensure that the generator is located in an open outdoor area, with the exhaust pointing away from occupied struc-

tures, and pointing away from the prevailing winds, such that those winds do not blow engine exhaust towards the

sensor module. If anyone experiences dizziness, headaches, nausea, fatigue, or other symptoms of CO poisoning,

get to fresh air immediately and seek the attention of a qualiﬁed medical professional. Follow all other directions in

this manual regarding the connection and disconnection of electrical devices when starting or shutting down the

generator.

When starting the generator, the CO Watchdog LED on the panel may ﬂash. This indicates that the system is running

a self-test procedure, and does not indicate a problem.

If the CO Watchdog LED on the panel is yellow, a system error has occurred, or the CO sensor has reached the end

of its life. Contact WEN customer service (1-847-429-9263, M – F 8 – 5 CST, or [email protected])

for assistance.

When operating your generator, please note the following:

• The CO Watchdog does not discriminate in its input; any source of carbon monoxide in the area around the genera-

tor could cause it to activate. If the CO Watchdog LED is blinking red, safety measures should be taken immediately.

• Tampering with, disconnecting, or bypassing the CO sensor could cause hazardous conditions, including but not

necessarily limited to injury or death, and will void your warranty. The generator will not run with the CO sensor

disconnected or bypassed, or if the CO sensor indicates an error.

• The CO sensor has a lifetime of about 7 years, and is capable of monitoring its lifetime. If your generator shows

an error light several years after purchase, it may be time to replace the CO sensor. Contact WEN customer service

for assistance.

NOTE: If the generator is oriented so that the

engine exhaust is blown towards the CO sensor,

the generator may shut down.

Fig. 10

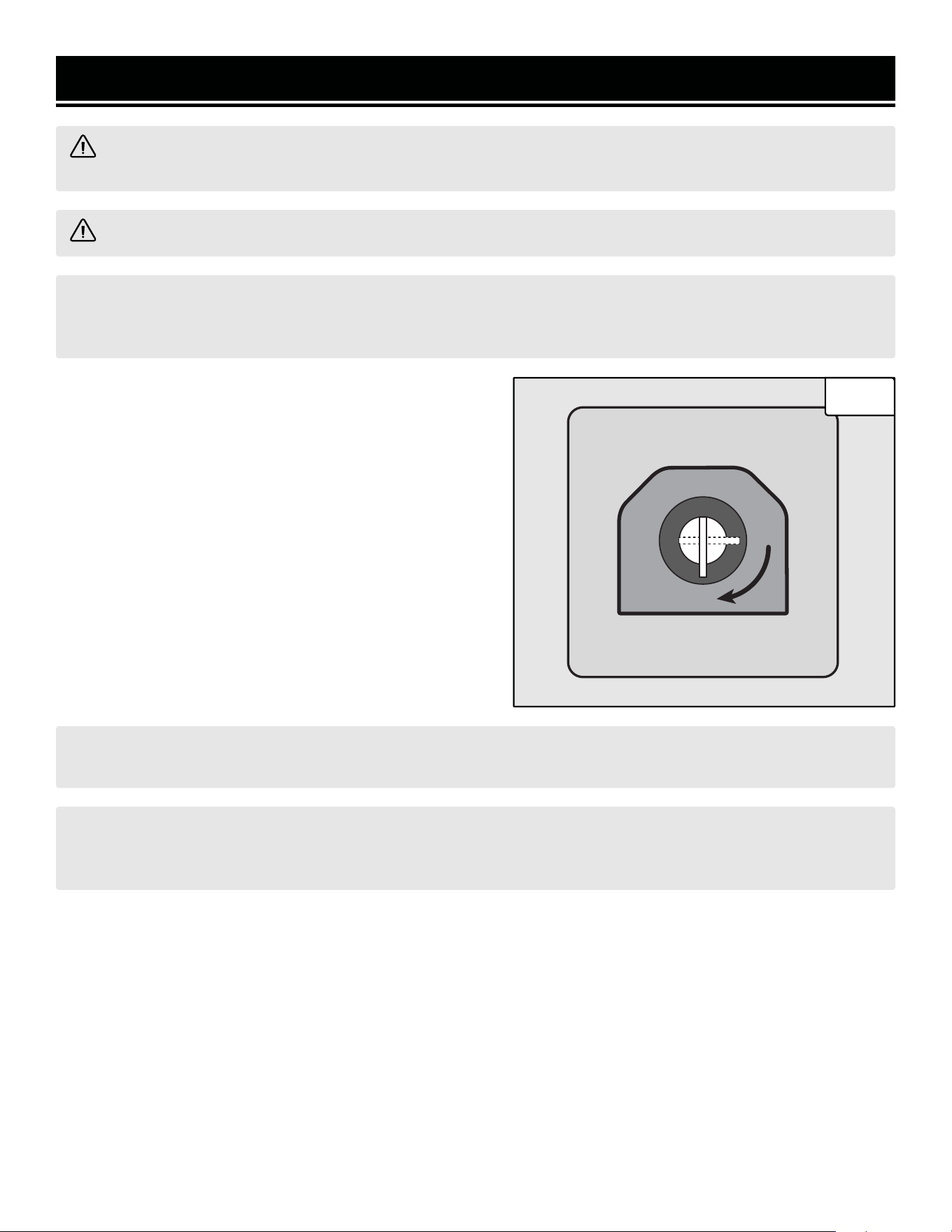

SHUTTING OFF THE GENERATOR

CAUTION! Unplugging running devices can cause damage to the generator. Never stop the engine with elec-

trical devices connected and running.

WARNING! Allow the generator to cool down before touching areas that become hot during use.

CAUTION! Allowing gasoline to sit in the fuel tank for long periods of time can make it difﬁcult to start the gen-

erator in the future. Never store the generator for extended periods of time (over 2 months) with fuel in the fuel

tank. Refer to "Storing The Generator."

IMPORTANT: Always ensure that the fuel valve and the engine switch are in the OFF position when the generator

is not in use.

MANUAL SHUTOFF

1. Turn off all electrical devices prior to unplugging them

from the generator. Unplugging running devices can cause

damage to the generator. Never start or stop the generator

with electrical devices plugged in or turned on.

2. Let engine run at no-load for several minutes to stabilize

internal temperatures of engine and generator.

3. Turn the fuel valve to the OFF position (Fig. 11). Let the

generator run until the fuel is used up.

4. Flip the engine switch to the OFF position.

5. Drain the carburetor. Refer to "Draining The Carburetor."

NOTE: If for some reason (e.g. refueling, moving the generator, etc.) you need to shut down the generator

quickly, simply ﬂip the engine switch to STOP. However, doing this will allow fuel to remain in the carburetor, and

will lead to problems if the carburetor is not drained after use.

Fig. 11

OFF

WARNING! Never perform maintenance operations while the generator is running. Before maintaining or

servicing the generator, turn OFF the generator, disconnect all devices and allow the generator to cool down.

NOTE: Failure to properly maintain the generator will void the warranty.

RECOMMENDED MAINTENANCE SCHEDULE

Proper routine maintenance of the generator will help prolong the life of the machine. Please perform maintenance

checks and operations according to the maintenance schedule below, Table 4. If there are any questions about the

maintenance procedures listed in this manual, please contact customer service at 1-847-429-9263 (M-F 8-5 CST),

or email [email protected].

IMPORTANT GENERATOR MAINTENANCE TIPS:

• Drain your carburetor after each use and before storage to prevent it from clogging.

• Do not store the generator with fuel inside the tank for more than 2 months - the fuel will go bad.

• Run the generator for 20 to 30 minutes every month to maximize its lifespan.

MAINTENANCE

Recommended

Maintenance Schedule

Every 8

Hours or

Daily

Every 25

Hours

Every 3

Months or

50 Hours

Every 6

Months or

100 Hours

Before

Storage

Necessary

Engine Oil

Check Level x

Replace x** x** x* x

Air Filter

Check x*

Clean x*

Spark Plug

Check/Clean/

Regap

Change x x

Fuel

Check Level x

Drain x x

Carburetor Drain x x

Spark

Arrestor

Check/Clean x

Table 4 - Recommended Maintenance Schedule* Clean/change more often under dusty conditions or operating

under heavy load.

** Change the oil after the ﬁrst 8 hours of operation, after the

ﬁrst 25 hours of operation, and every 50 hours after that.

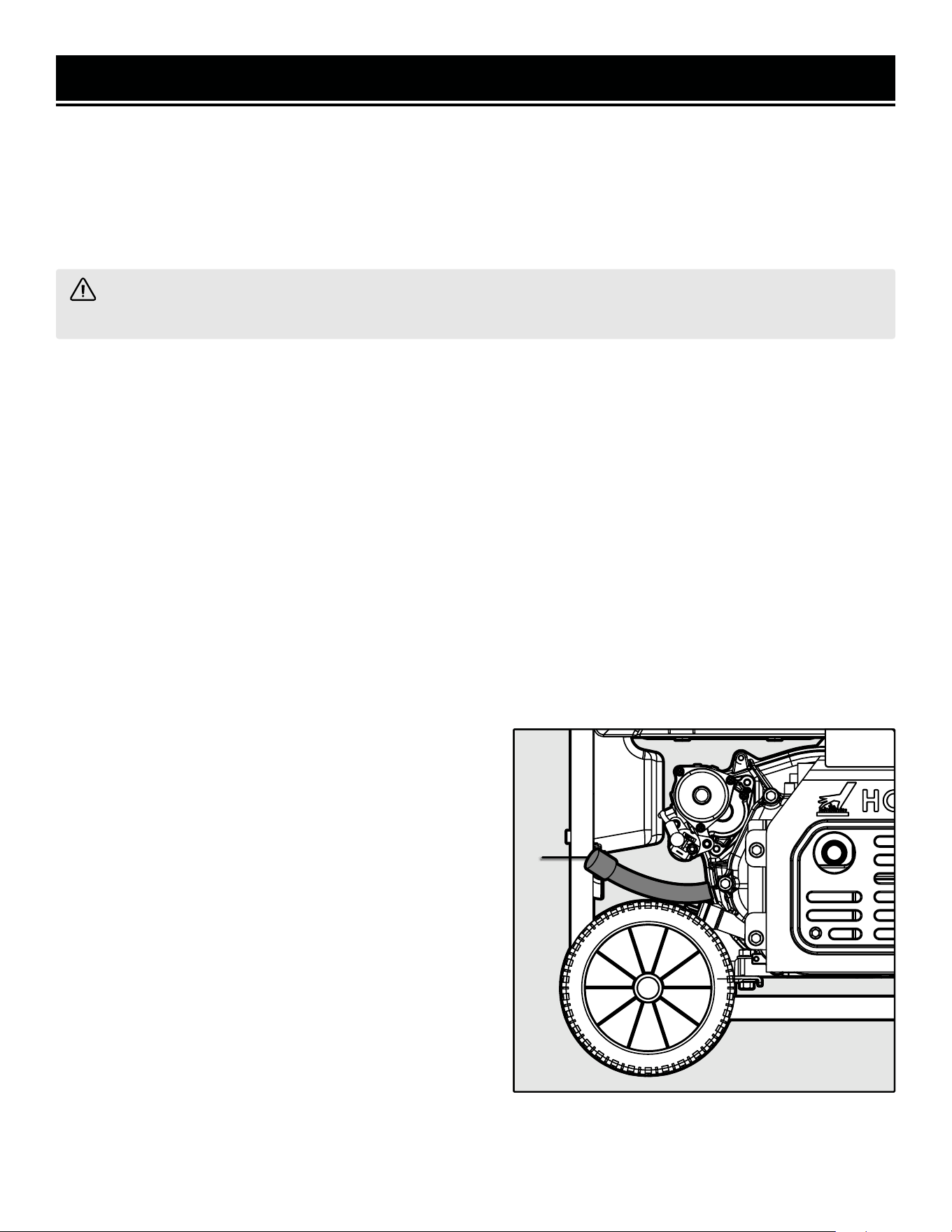

DRAINING / CHANGING OIL

Change the oil according to the Recommended Maintenance Schedule in Table 4. Change the oil more often if

operating under heavy load or high ambient temperatures. It is also necessary to drain the oil from the crankcase if

it has become contaminated with water or dirt. Changing the oil when the engine is warm allows for more-complete

drainage.

To change engine oil:

1. Prepare an approved oil-storage container underneath the oil drainage hose (Fig. 12 - 1) to catch oil as it drains.

Fig. 12

MAINTENANCE

WARNING! Never clean the generator when it is running! Never clean with a bucket of water or a hose. Water

can get inside the working parts of the generator and cause corrosion or a short circuit.

CLEANING YOUR GENERATOR

Keep the generator clean to prevent improper operation or machine damage from dirt and debris. Inspect all ventila-

tion openings on the generator. These openings must be kept clean and unobstructed.

If the generator becomes dirty, use a damp cloth to wipe exterior surfaces. Use a soft bristle brush to loosen dirt and

oil and use a vacuum to pick up loose dirt. Use low pressure air (not to exceed 25 PSI) to blow away dirt.

CHECKING / ADDING OIL

Check the oil level before each use and every 8 hours of operation (refer to Table 4). The oil capacity of the gen-

erator engine is 37.2 ﬂ. oz. (1 L). Add oil when the oil level is low. For the proper type and weight of oil refer to

page 3. This is a critical step for proper engine starting. The generator is equipped with a with low-oil shut down to

protect it from running without oil.

To check the oil level and/or add oil refer to "Step 1 - Add/Check Oil."

NOTE: To avoid possible gasoline spills from the carburetor

bowl, drain the carburetor (see p. 28) before draining oil.

2. Remove the oil drainage hose from its harness behind

the panel. Open the oil drainage valve by turning the lever,

and allow oil to drain from the engine completely.

3. Close the oil drainage valve after the oil has drained.

NOTE: Never dispose of used engine oil in the trash or down

a drain. Please call a local recycling center or auto garage to

arrange proper oil disposal.

4. Unscrew the oil dipstick. Using a funnel or appropriate

dispenser, add 37.2 ﬂ oz of clean engine oil into the oil ﬁll

until you can see oil coming up the threads of the oil ﬁll. Do

not over ﬁll.

5. Reinstall the oil dipstick and tighten it securely. Wipe

clean any oil spillage.

WARNING! Running the engine with a dirty, damaged or missing air ﬁlter element can result in danger to the

operator and cause the engine to wear out prematurely.

NOTE: Make sure to drain your carburetor before

storing the generator for long periods of time.

DRAINING THE CARBURETOR

Drain the carburetor after every use and before storing

the generator (refer to Table 4). Draining the carburetor can

help prevent build-up and blockages caused by stagnant fuel

inside of the carburetor.

1. Prepare an approved gasoline-storage container under

the carburetor to collect the drained fuel. Close fuel valve.

2. The carburetor can be accessed from the backside of

the generator between the engine and the air ﬁlter. To drain

the carburetor, open up the carburetor drain screw with a

Phillips-head screwdriver (not included) and drain out any

gasoline that has built up inside. See Fig. 13.

3. Once the fuel has drained, close the drain screw.

INSPECTING/CLEANING THE AIR FILTER

Inspect and clean the air ﬁlter every 50 hours of operation (refer to Table 4). Routine maintenance of the air ﬁlter

helps maintain proper airﬂow to the carburetor. Occasionally check that the air ﬁlter is free of excessive dirt. Clean

air ﬁlter more frequently in dirty or dusty conditions.

1. Remove the air ﬁlter cover (Fig. 14 - 1) by unscrewing the

cover lock knob (Fig. 14 - 2) at the bottom of the air ﬁlter

cover.

2. Remove the foam, sponge-like air ﬁlter element from the

casing. Wipe excessive oil and any dirt from inside of the air

ﬁlter casing.

3. Check the foam, sponge-like air ﬁlter element.

a) Good elements can be washed in soapy water. Dry the

element in clean cloth (do not twist it). Add a few drops

of engine oil to the air ﬁlter element and spread it evenly.

A small amount of oil left in the element is normal and

necessary for the engine to work properly.

b) Damaged elements should be replaced with a new

one. Replacement air ﬁlters can be purchased from

wenproducts.com.

4. Reinstall the air ﬁlter element and air ﬁlter cover.

Drain ScrewDrain Screw

MAINTENANCE

Fig. 13

Fig. 14

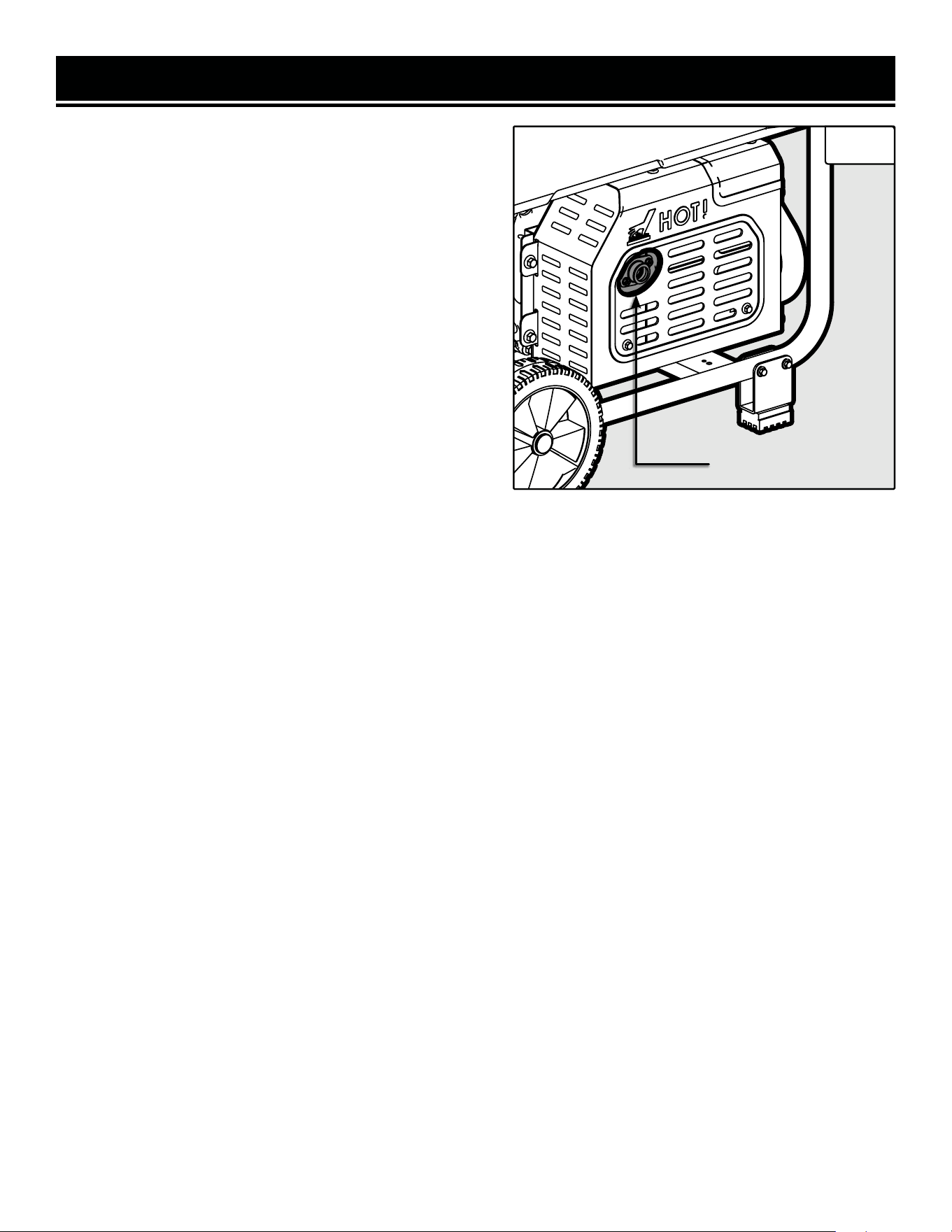

INSPECTING/CLEANING THE SPARK ARRESTOR

Inspect and clean the spark arrestor every 100 hours of

operation (refer to Table 4). The spark arrestor is located

outside the mufﬂer, which gets very hot during operation.

Allow the engine to cool completely before servicing the

spark arrestor.

1. Remove the two bolts that secure the spark arrestor to

the mufﬂer. See Fig. 15.

2. Remove the spark arrestor screen.

3. Carefully clean and remove the carbon deposits from the

spark arrestor screen with a wire brush. Replace the spark

arrestor if it is damaged. Replacement spark arrestors can

be purchased from wenproducts.com.

4. Reinstall the spark arrestor in the mufﬂer and secure it in

place with the screws.

SPARK PLUG MAINTENANCE

Inspect and change the spark plug every 100 hours of operation (refer to Table 4). The spark plug is important

for proper engine operation. Check the spark plug regularly to maintain proper engine operation. A good spark plug

should be intact, free of deposits, and properly gapped.

1. Gently pull on the spark plug boot to remove it. Be careful not to tear insulation or wire.

2. Use the included spark plug wrench (slide the handle into the hole on the wrench) to unscrew the spark plug from

the engine. Remove the spark plug from the engine. TIP: There is limited space for the wrench to turn. Use both

rows of holes in the spark plug wrench to gain leverage to loosen the plug.

3. Visually inspect the spark plug. If it is cracked or chipped, or if the electrodes are worn or burned, discard it and

replace with a new spark plug. We recommend replacing it with an F6RTC spark plug. These can be purchased from

wenproducts.com.

4. If re-using the spark plug, use a wire brush to clean any dirt from around the spark plug base, then re-gap the

spark plug.

Instructions continue on the next page.

MAINTENANCE

Spark Arrestor

Fig. 15

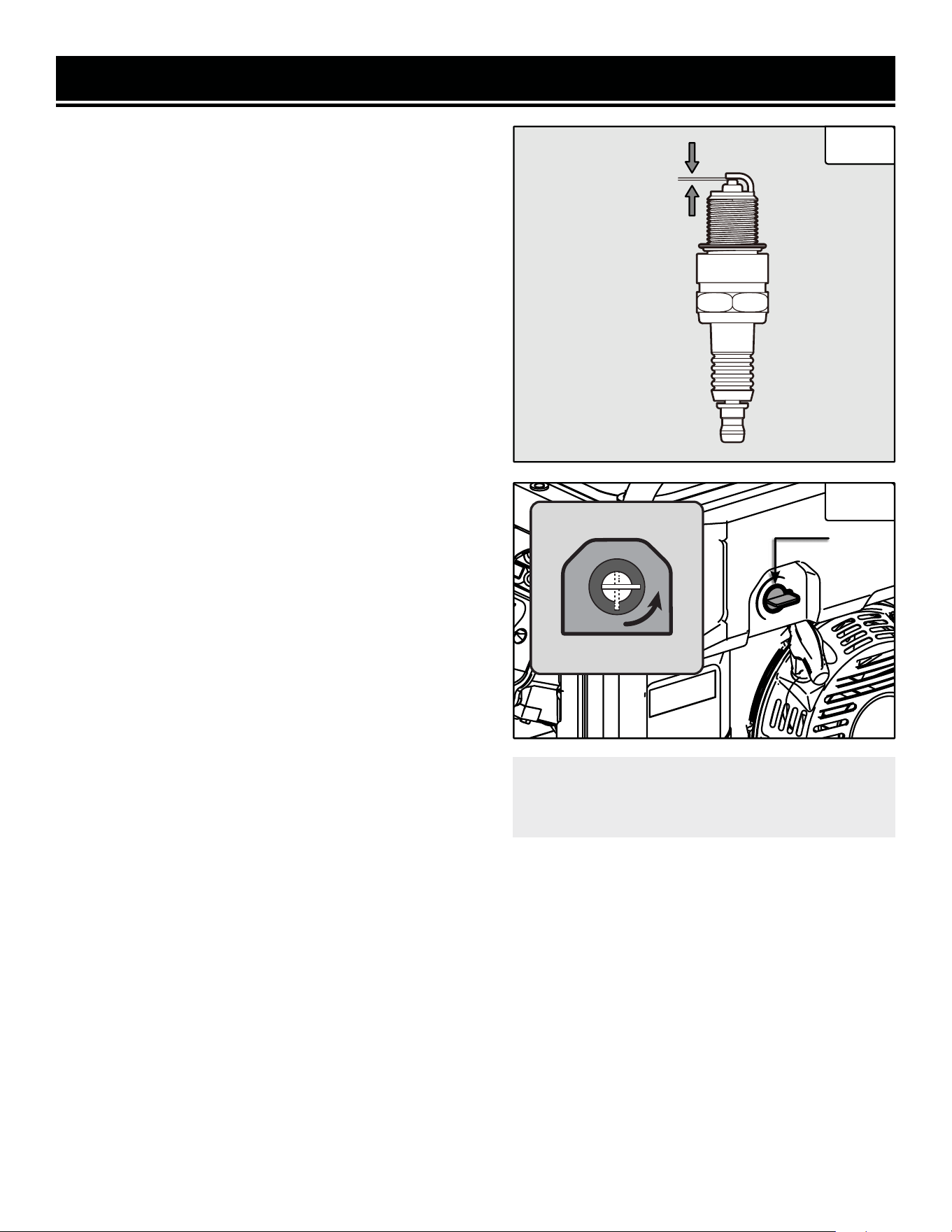

MAINTENANCE

5. Measure the plug gap with a spark plug gap gauge. The

gap should be 0.7 to 0.8 mm (0.028-0.031 in). Carefully

adjust the gap if necessary. See Fig. 16.

6. Screw the spark plug back into the spark plug hole us-

ing the spark plug wrench. Do not over-tighten spark plug.

Recommended tightening of the spark plug is ½ to ¾ of a

turn (15 ft-lb torque/20.33 Nm) after the spark plug gasket

contacts the spark plug hole.

7. Reinstall the spark plug boot over the spark plug.

DRAINING THE FUEL TANK

Drain and clean the fuel tank each year, or before storing

the generator for longer than two months.

1. Prepare an approved gasoline-storage container to collect

the drained fuel. Place it near the fuel valve (Fig. 17 - 1).

2. Turn the fuel valve to the OFF position.

3. Locate the fuel line between the fuel valve and the carbu-

retor. Disconnect the fuel line from the fuel valve.

NOTE: A small amount of fuel may leak from the fuel line

during removal.

4. Place a funnel below the fuel valve opening, and direct the

other end of the funnel over the prepared container.

5. Turn the fuel valve to the ON position to start draining the

fuel from the fuel valve opening. NOTE: The draining process

may take a few hours, depending on the amount of fuel in

your gas tank.

6. Once the fuel is completely drained, turn the fuel valve to

the OFF position.

7. Start and run the engine until the fuel runs out.

8. Drain the carburetor. Refer to "Draining The Carburetor."

CAUTION! Store the emptied gasoline in a suit-

able place. Never store fuel for more than 2

months.

0.7 - 0.8mm

OFF

Fig. 16

Fig. 17

BATTERY MAINTENANCE/STORAGE

The battery will receive charge when the engine is running. Remember to run the generator once a month for 20-30

minutes to charge the battery. A charged battery will allow you to start the generator during your next time of need.

IMPORTANT! If you do not plan to use the generator for a long period of time, we recommend DISCON-

NECTING the negative battery cable from the battery to protect the battery from losing charge. After disconnect-

ing the cable, cover the free end with an insulator such as electrical tape. You may also choose to use a trickle

charger (not included) to maintain battery charge.

WARNING! It is best to store the battery indoors at room temperature. Do not store your battery outside in

the winter, where temperatures may go below 25°F (-5°C), or in any location where temperatures may exceed

104°F (40°C), such as in direct sunlight or inside a vehicle or metal building during the summer.

MAINTENANCE

Lithium-ion batteries can be damaged or suffer a shortened lifespan if they are charged in very cold temperatures

(below freezing). If you expect to store the generator in temperatures below 25°F (-5°C), we recommend removing

the battery from the generator and storing it indoors. If using the generator in temperatures below 25°F (-5°C), we

recommend running the generator for at least 15 minutes with the battery removed, or the negative (black) battery

cable disconnected and covered with an insulator such as electrical tape, and then connecting the battery. This will

allow the area around the generator to warm up, and will greatly reduce the chance of damage to the battery.

NOTE: Always recycle used batteries in accordance with local laws and regulations. Contact your local solid waste

collection site or recycling facility to obtain information on local recycling processes.

TRANSPORTATION & STORAGE

WARNING! Avoid direct sunlight inside a vehicle. If the generator is left in an enclosed vehicle for many

hours, the high temperature could cause the fuel to vaporize and result in a possible explosion.

TRANSPORTING THE GENERATOR

To prevent fuel spillage when transporting, be sure to perform the following:

1. Tighten the fuel cap and turn the fuel valve to the OFF position.

2. Flip the engine switch to the STOP position.

3. Drain the fuel tank if possible. Refer to "Draining The Fuel Tank."

4. Keep the generator upright. Never place the generator on its side or upside down - doing so could damage the

internal components of the generator and make it difﬁcult to start.

STORING THE GENERATOR

Shut off the generator and allow the unit to cool to room temperature before storing it. NEVER place any type of

storage cover on the generator while it is still hot. Do not obstruct any ventilation openings.

WARNING! Store the generator upright in a cool and dry location, away from sources of heat, open ﬂames,

sparks or pilot lights.

Follow the procedures below for properly storing your generator.

We highly recommend running your generator once a month for

20 to 30 minutes. Plug in a small load in to ensure there is proper

power output.

Please recycle the packaging and electronic components where facilities exist. Please contact your

local auto garage or recycling facility to properly dispose of oil/fuel.

TIP: Your WEN generator is compatible

with the WEN 56409 Generator Cover (not

included). It is available for purchase at

wenproducts.com.

PRODUCT DISPOSAL

Do not dispose of used generator or parts with your household waste. This product contains electrical or electronic

components that should be recycled. Please take this product to your local recycling facility for responsible disposal

to minimize its environmental impact.

Do not dispose of used oil or fuel in the trash or down a drain. Please contact your local recycling center or auto

garage to arrange proper oil/fuel disposal.

For Short Periods (30 to 60 Days):

• Drain the carburetor. Refer to "Draining The Car-

buretor."

• Add fuel stabilizer: Follow suggested portions

and instructions of your preferred stabilizer. Run

engine for 15 to 20 minutes, allowing fuel stabiliz-

er to mix with the gasoline and circulate through

the carburetor, and then top off with fuel. Filling

the fuel tank full reduces the amount of air in the

tank and helps ﬁght deterioration of fuel.

For Extended Periods (Over 60 Days):

• Disconnect the negative lead from the battery.

Refer to "Battery Maintenance/Storage."

• Drain fuel tank and carburetor. Refer to "Draining

The Fuel Tank" and "Draining The Carburetor."

• Never store generator with fuel in the tank for

more than two months.

• Change engine oil. Refer to "Checking/Adding Oil."

PROBLEM POSSIBLE CAUSE SOLUTION

Engine will not start.

1. Engine switch is set to OFF. 1. Set engine switch to ON.

2. Fuel valve is turned to OFF. 2. Turn fuel valve to ON.

3. Oil is low.

3. Add or replace oil. Refer to "Step 1 - Add/

Check Oil."

4. Engine is out of fuel. 4. Add fuel. Refer to "Step 2 - Add/Check Fuel."

5. Engine is ﬁlled with

contaminated or old fuel.

5. Drain the fuel in the tank and ﬁll with fresh

fuel. Refer to "Draining The Fuel Tank."

6. Spark plug is dirty or broken.

6. Clean or replace the spark plug. Refer to

"Spark Plug Maintenance."

7. Carburetor is air locked.

7. Shut off the fuel valve. Remove the bolt

from the bottom of the carburetor. Take off the

carburetor bowl to allow it to reset. Replace

carburetor bowl and reinstall the bolt.

8. Ghost in the generator. 8. Persuade the ghost to leave.

9. Battery is dead; solenoid

valve is not actuating.

9. Connect battery to a trickle charger.

Engine runs but there is

no electrical output.

1. Circuit breaker has been

tripped due to overload, or the

inverter has cut off power to

protect itself.

1. Turn off and unplug electrical device(s). Wait

5 minutes, then press the circuit breaker button

to reset. Check the total wattage of the devices

and reduce the load if it exceeds the capacity of

the generator. Then plug the loads back in one

by one.

2. Bad connecting cords/wires.

2. Check the power cords and extension cords.

Do not use if any cord is damaged. Replace

damaged cords immediately.

3. Bad electrical device

connected to the generator.

3. Try connecting a different device.

4. Internal generator problem.

4. Consult chart on p. 21 for troubleshooting

the overload light.

WARNING! Stop using the generator immediately if any of the following problems occur or risk serious

personal injury. If you have any questions, please contact customer service at 1-847-429-9263 (M-F 8-5 CST),

or email [email protected].

TROUBLESHOOTING GUIDE

PROBLEM POSSIBLE CAUSE SOLUTION

Generator runs but does

not support all electrical

devices connected.

1. Generator is overloaded.

1. Turn off and unplug all electrical devices.

Wait 5 minutes, then press the circuit breaker

to reset. Reduce load as necessary, then plug

devices back in one by one.

2. Short circuit in one of the

devices.

2. Try disconnecting any faulty or short-

circuited electrical loads.

3. Air ﬁlter is dirty.

3. Clean or replace the air ﬁlter element. Refer

to "Inspecting/Cleaning The Air Filter."

Engine is "hunting" during

operation (engine RPM is

ﬂuctuating).

NOTE: Turn off the

generator and wait

for it to cool down

before performing the

maintenance solutions.

1. The fuel isn’t running

through the fuel valve.

1. Check if the fuel is properly and consistently

going through the fuel valve

2. The air ﬁlter is clogged.

2. Check for any blockage in the air ﬁlter. Check

and clean the air ﬁlter as necessary.

3. The mufﬂer or spark arrester

is blocked.

3. Check if the spark arrester is blocked. Clean

with metal brush as necessary.

4. There is gunk in the

carburetor preventing a

consistent fuel/air mixture.

4. Use "gunk remover" spray on the carburetor

jets.

WARNING! Stop using the generator immediately if any of the following problems occur or risk serious

personal injury. If you have any questions, please contact customer service at 1-847-429-9263 (M-F 8-5 CST),

or email [email protected].

IMPORTANT: Repairs and replacements should only be performed by an authorized technician. Parts and acces-

sories that wear down over the course of normal use are not covered by the two-year warranty.

WIRING DIAGRAM

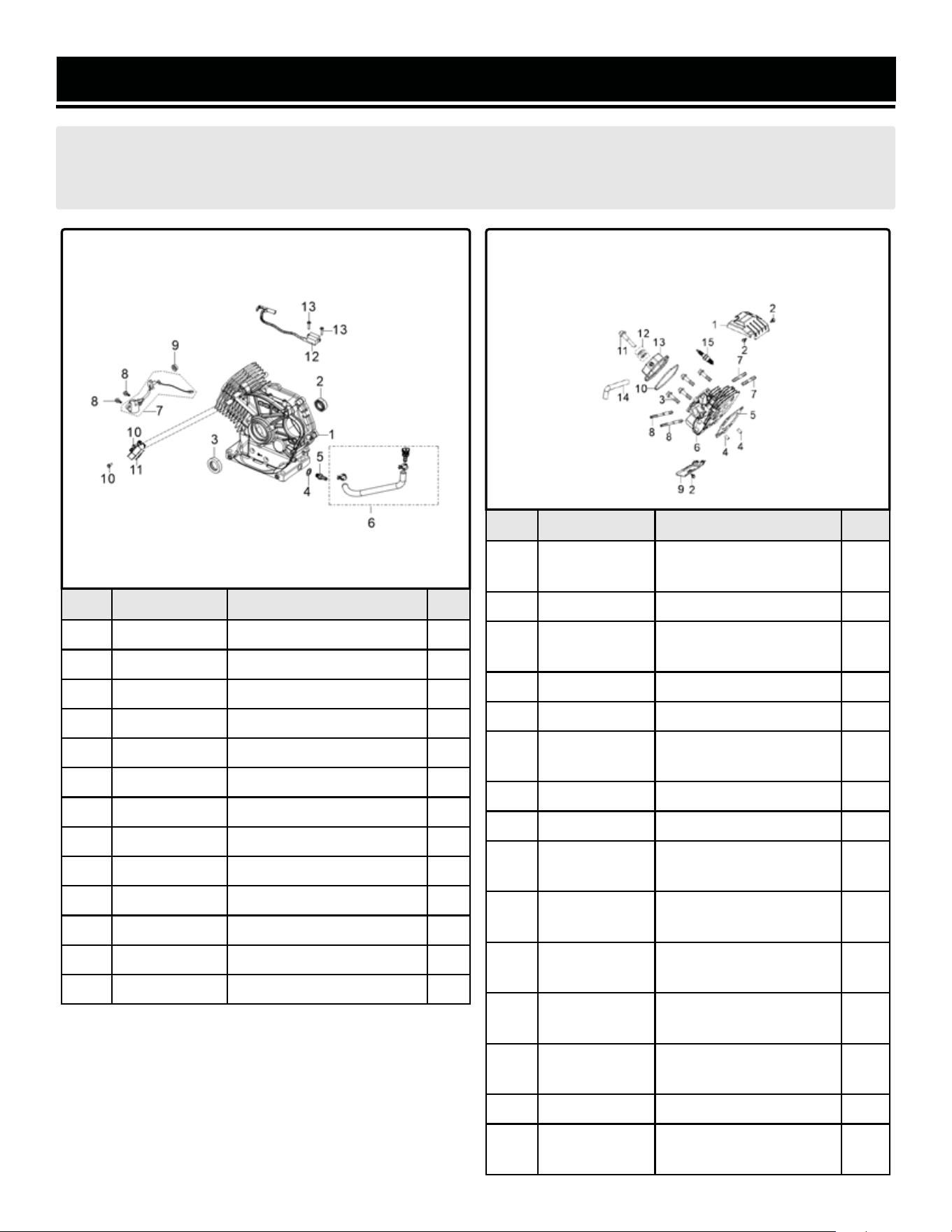

EXPLODED VIEW & PARTS LIST

NOTE: Replacement parts can be purchased from wenproducts.com, or by calling our customer service at

1-847-429-9263, M-F 8-5 CST. Parts and accessories that wear down over the course of normal use are not

covered by the two-year warranty. Not all parts may be available for purchase.

No. Part No. Description Qty.

1-1 GN875i-0101 Crankcase 1

1-2 GN875i-0102 Bearing, 6202P6 1

1-3 GN875i-0103 Oil Seal 1

1-4 GN625i-0204 Flat Washer, 12mm 1

1-5 GN875i-0105 Oil Drain Hose Fitting 1

1-6 GN625i-0205 Oil Drain Hose 1

1-7 GN625i-0207 Engine Oil Sensor 1

1-8 GN625i-0208 Bolt, M6x16 2

1-9 GN875i-0109 Nut, M10 1

1-10 GN400i-0910 Bolt, M5x16 2

1-11 GN625i-0212 Trigger 1

1-12 GN625i-0209 Ignition Coil 1

1-13 GN400i-0111 Bolt, M5x20 2

ASSEMBLY 1 - CRANKCASE

No. Part No. Description Qty.

2-1 GN875i-0201

Cylinder Body Shroud,

Primary

2-2 56200-1202 Bolt, M6x12 3

2-3 GN625i-0109

Cylinder Head Bolt,

M10x80

2-4 GN625i-0110 Pin 2

2-5 GN875i-0205 Cylinder Head Gasket 1

2-6 GN875i-0206

Cylinder Head

Subassembly

2-7 56310i-0109 Bolt, M8x34 2

2-8 GN875i-0208 Stud Bolt, M6/M8x110 2

2-9 GN875i-0209

Cylinder Body Shroud,

Secondary

2-10 GN625i-0104

Cylinder Head Cover

Gasket

2-11 GN625i-0101

Cylinder Head Cover

Bolt

2-12 GN625i-0102

Cylinder Head Cover

Bolt Gaskets

2-13 GN625i-0103

Cylinder Head Cover

Subassembly

2-14 GN875i-0214 Breather Tube 1

2-15 56310i-0104

Spark Plug, Torch

F6RTC (NGK BPR6ES)

ASSEMBLY 2 - CYLINDER HEAD

SUBASSEMBLY, SPARK PLUG

EXPLODED VIEW & PARTS LIST

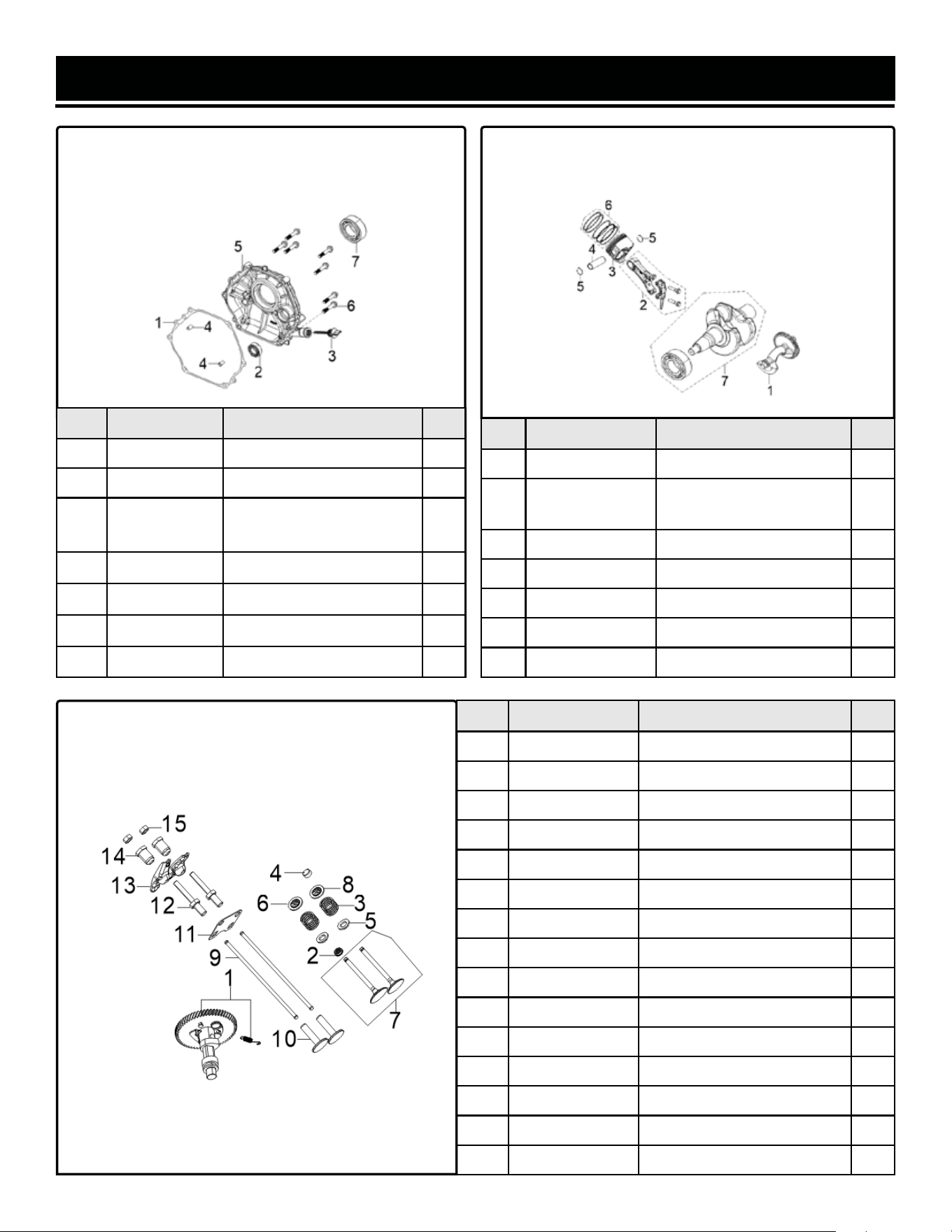

No. Part No. Description Qty.

3-1 GN875i-0301 Crankcase Cover Gasket 1

3-2 GN875i-0302 Bearing, 6202P6 2

3-3 GN625i-0304

Oil Dipstick

Subassembly

3-4 GN875i-0304 Pin 2

3-5 GN875i-0305 Crankcase Cover 1

3-6 GN875i-0306 Bolt, M8x40 7

3-7 GN875i-0307 Bearing, 6207P53 1

ASSEMBLY 3 - CRANKCASE COVER

No. Part No. Description Qty.

4-1 GN875i-0401 Balance Shaft Assembly 1

4-2 GN875i-0402

Connecting Rod

Assembly

4-3 GN875i-0403 Piston 1

4-4 GN875i-0404 Piston Pin 1

4-5 GN875i-0405 Piston Pin Clip 2

4-6 GN875i-0406 Piston Ring Set 1

4-7 GN875i-0407 Crankshaft Assembly 1

ASSEMBLY 4 - CRANKSHAFT,

CONNECTING ROD

No. Part No. Description Qty.

5-1 GN875i-0501 Camshaft Assembly 1

5-2 GN875i-0502 Seal Guide 1

5-3 GN875i-0503 Valve Spring Retainer 2

5-4 GN875i-0504 Valve Rotator 1

5-5 GN625i-0611 Valve Spring Retainer 2

5-6 GN875i-0506 Exhaust Valve Spring Seat 1

5-7 GN875i-0507 Valve Set 1

5-8 GN875i-0508 Intake Valve Spring Seat 1

5-9 GN875i-0509 Valve Lifter 2

5-10 GN875i-0510 Valve Tappet 2

5-11 GN625i-0606 Lifter Stopper Plate 1

5-12 GN400i-0605 Rocker Shaft Bolt 2

5-13 GN625i-0604 Valve Rocker Arm 2

5-14 GN400i-0603 Valve Adjustment Nut 2

5-15 GN400i-0602 Valve Lock Nut 2

ASSEMBLY 5 - VALVE TRAIN,

CAMSHAFT SUBASSEMBLY

EXPLODED VIEW & PARTS LIST

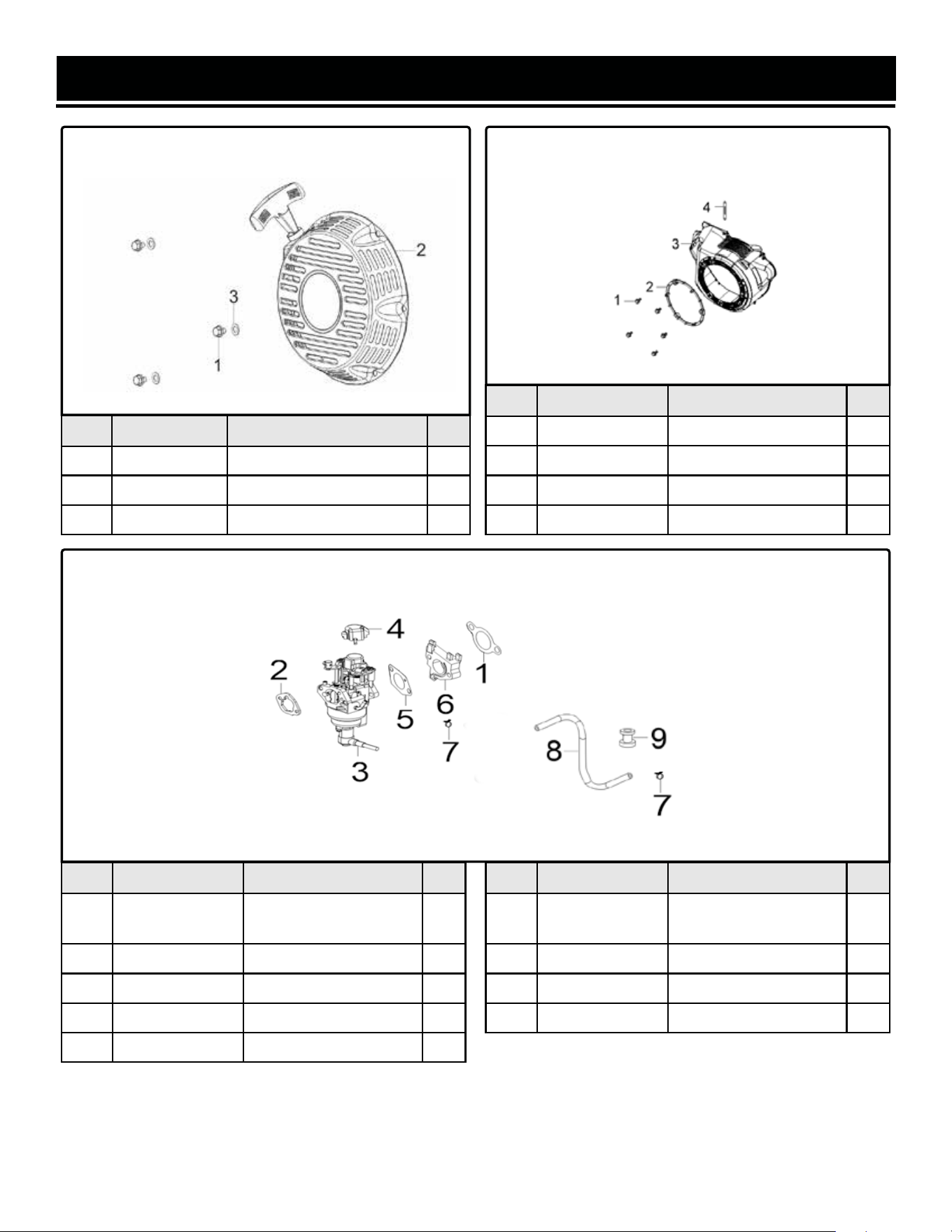

No. Part No. Description Qty.

6-1 GN625i-0701 Bolt, M6x20 3

6-2 GN875i-0602 Recoil Starter Assembly 1

6-3 GN625i-0703 Flat Washer, 6mm 3

ASSEMBLY 6 - RECOIL STARTER

No. Part No. Description Qty.

7-1 56200-1202 Bolt, M6x12 5

7-2 GN625i-0802 Retaining Ring 1

7-3 GN875i-0703 Shroud 1

7-4 GN400i-0703 Clip 1

ASSEMBLY 7 - SHROUD, LOWER SHIELD

No. Part No. Description Qty.

8-1 GN875i-0801

Carburetor Insulator

Gasket

8-2 GN625i-0901 Air Filter Gasket 1

8-3 GN875i-0803 Carburetor Assembly 1

8-4 56200-0103 Cap 1

8-5 GN875i-0805 Carburetor Gasket 1

ASSEMBLY 8 - CARBURETOR

No. Part No. Description Qty.

8-6 GN875i-0806

Carburetor Insulator

Plate

8-7 GN625i-0907 Hose Clamp 2

8-8 GN875iX-0908 Fuel Tube 1

8-9 GN875i-0809 Rubber Bushing 1

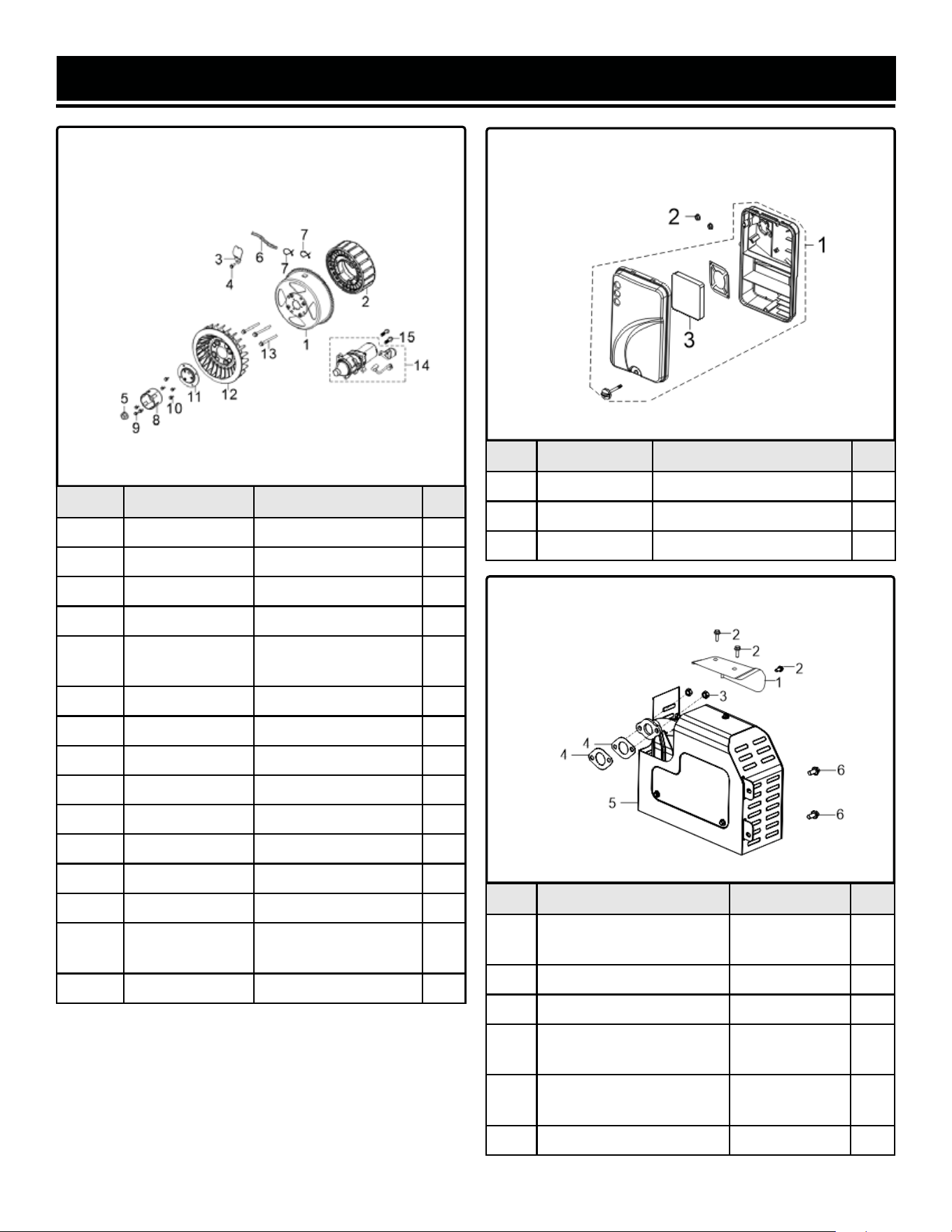

No. Part No. Description Qty.

10-1 GN875i-0901 Rotor 1

10-2 GN875iX-1002 Stator 1

10-3 GN625i-0214 Wiring Clamp 1

10-4 GN875i-0904 Bolt, M5x10 1

10-5 GN625i-1101

Flywheel Nut,

M16-1.5

10-6 GN875i-0906 Wiring Sheath 1

10-7 GN875i-0907 Wiring Clip 2

10-8 GN625i-1103 Starter Pulley 1

10-9 56200-1202 Bolt, M6x12 3

10-10 56200-1202 Bolt, M6x12 4

10-11 56380i-0705 Starter Pulley Seat 1

10-12 GN625i-1106 Impeller 1

10-13 GN875i-0913 Bolt, M6x65 3

10-14 GN875i-0914

Starter Motor

Assembly

10-15 GN875i-0915 Bolt, M8x25 2

ASSEMBLY 9 - FLYWHEEL, IMPELLER,

STARTER PULLEY

EXPLODED VIEW & PARTS LIST

No. Part No. Description Qty.

10-1 GN875i-1001 Air Filter Assembly 1

10-2 56200-0506 Nut, M6 2

10-3 GN875i-1003 Air Filter Element 1

ASSEMBLY 10 - AIR FILTER

ASSEMBLY 11 - MUFFLER ASSEMBLY

No. Part No. Description Qty.

11-1 18013-Y9X0120-H300

Outer Mufﬂer

Cover

11-2 90022-0612-03 Bolt, M6x12 3

11-3 90303-0800-33 Nut, M8 2

11-4 18001-Z080110-00A0

Mufﬂer

Gasket

11-5 18100-Y9X0411-H300

Mufﬂer

Assembly

11-6 90001-0816-03 Bolt, M8x16 2

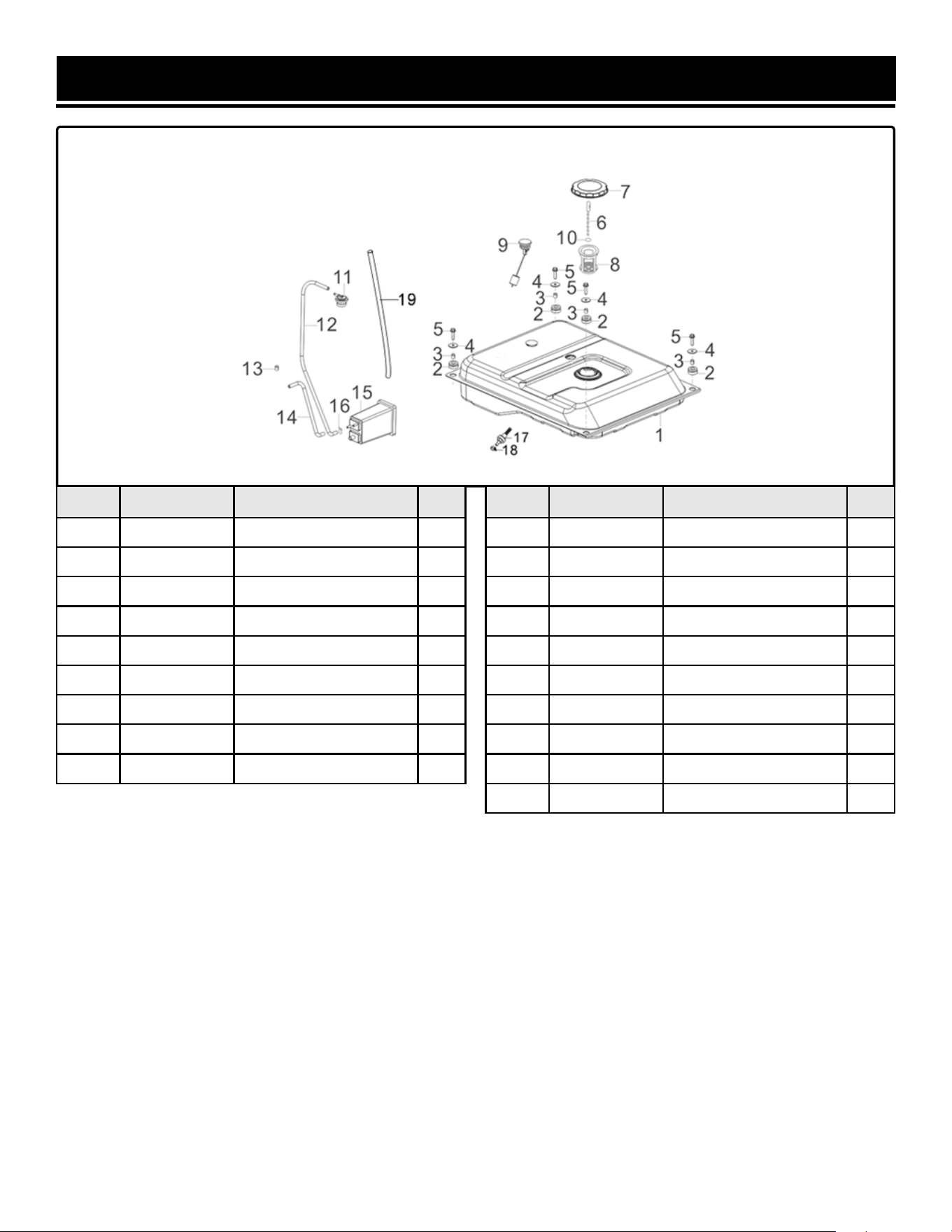

EXPLODED VIEW & PARTS LIST

No. Part No. Description Qty.

12-1 GN625i-1301 Fuel Tank 1

12-2 56380i-1207 Fuel Tank Damper 4

12-3 GN625i-1303 Bushing 4

12-4 GN625i-1304 Flat Washer, 6mm 4

12-5 GN625i-1305 Bolt, M6x25 4

12-6 GN400i-1214 Fuel Tank Cap Chain 1

12-7 GN400i-1202 Fuel Tank Cap 1

12-8 GN875i-1208 Fuel Strainer 1

12-9 GN400i-1204 Fuel Gauge Assembly 1

ASSEMBLY 12 - FUEL TANK

No. Part No. Description Qty.

12-10 GN625i-1310 Fuel Tank Chain Clip 1

12-11 GN400i-1205 Breather Valve 1

12-12 GN875i-1212 Breather Hose 1

12-13 GN400i-1316 Rubber Cover 1

12-14 GN875i-1214 Air Filter Hose 1

12-15 GN625i-1315 Carbon Tank 1

12-16 GN625i-1316 Hose Clamp A 1

12-17 GN625i-1317 Fuel Tank Outlet 1

12-18 GN625i-1318 Hose Clamp B 1

12-19 GN625i-1319 Rubber Cover 1

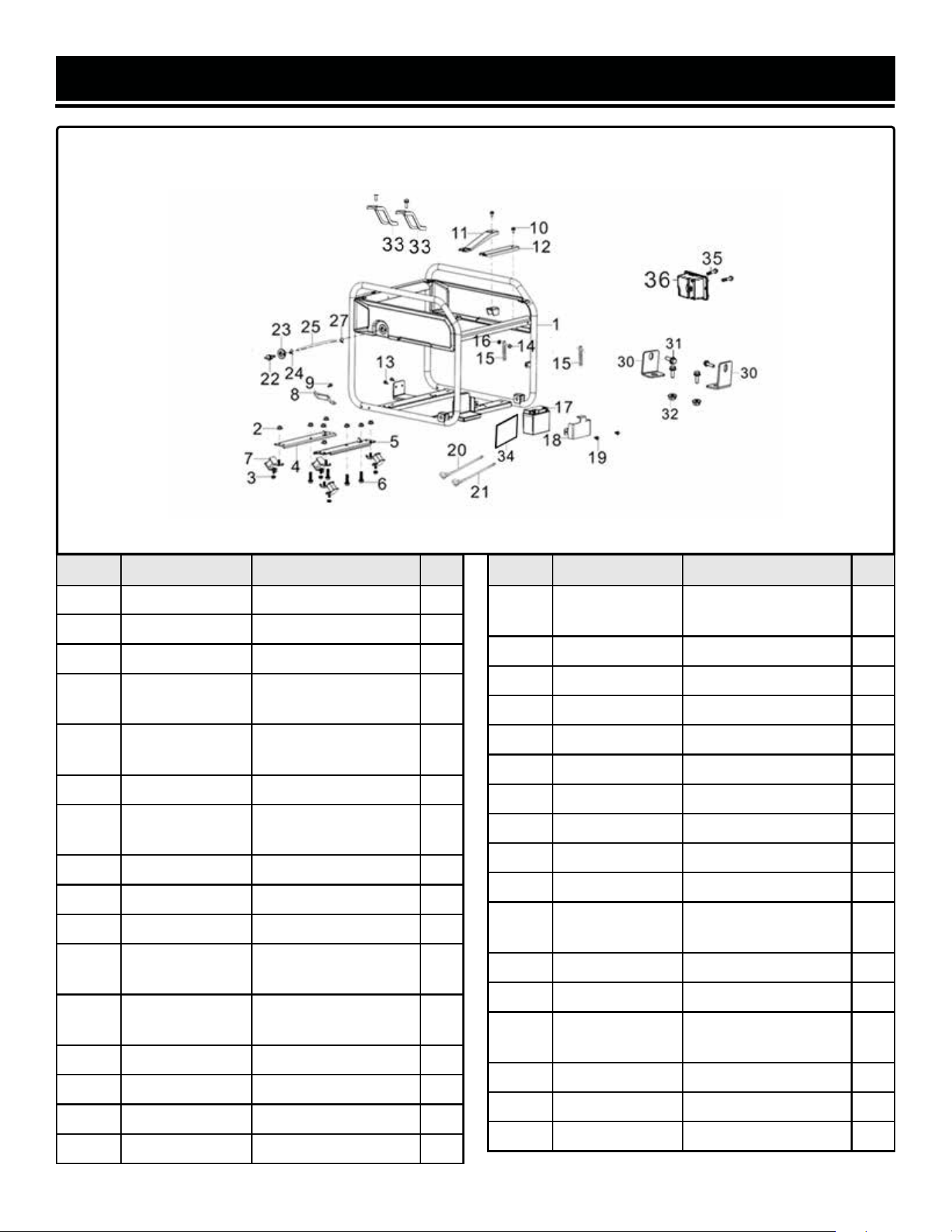

EXPLODED VIEW & PARTS LIST

No. Part No. Description Qty.

13-1 GN875iX-1301 Frame Assembly 1

13-2 GN625i-1402 Nut, M10-1.25 8

13-3 56310i-1404 Nut, M8 4

13-4 GN875i-1304

Engine Support

Bracket 1

13-5 GN875i-1305

Engine Support

Bracket 2

13-6 GN625i-1406 Bolt, M10-1.25x40 4

13-7 GN875i-1307

Engine Frame

Damper

13-8 GN875i-1308 Air Filter Support 1

13-9 56200-1202 Bolt, M6x12 1

13-10 56200-1202 Bolt, M6x12 4

13-11 GN875i-1311

Inverter Support

Bracket 1

13-12 GN875i-1312

Inverter Support

Bracket 2

13-13 56200-0706 Bolt, M6x10 2

13-14 GN400i-1311 Bolt, M6x8 1

13-15 GN625i-1415 Cllp 2

13-16 GN400i-1313 Nut, M6 1

ASSEMBLY 13 - FRAME

No. Part No. Description Qty.

13-17 56380i-1304

Battery (Li-ion, 12V,

1.6Ah)

13-18 GN875i-1318 Battery Clamp 1

13-19 56200-1202 Bolt, M6x12 2

13-20 GN875i-1320 Anode Wire 1

13-21 GN875i-1321 Cathode Wire 1

13-22 GN875iX-1322 Fuel Valve 1

13-23 GN625i-1423 Fuel Valve Seat 1

13-24 GN625i-1424 Clamp A 1

13-25 GN625i-1425 Fuel Hose A 1

13-27 GN625i-1427 Clamp B 1

13-30 GN625i-1430

Shipping Bracket

(Red)

13-31 GN400i-1104 Bolt, M8x16 4

13-32 GN625i-1432 Nut, M8 2

13-33 GN875i-1333

Inverter Support

Bracket 3

13-34 GN875i-1334 Insulator Plate 1

13-35 GN875iX-1332 Pan Head Screw 2

13-36 GN625iX-1430 CO Sensor Module 1

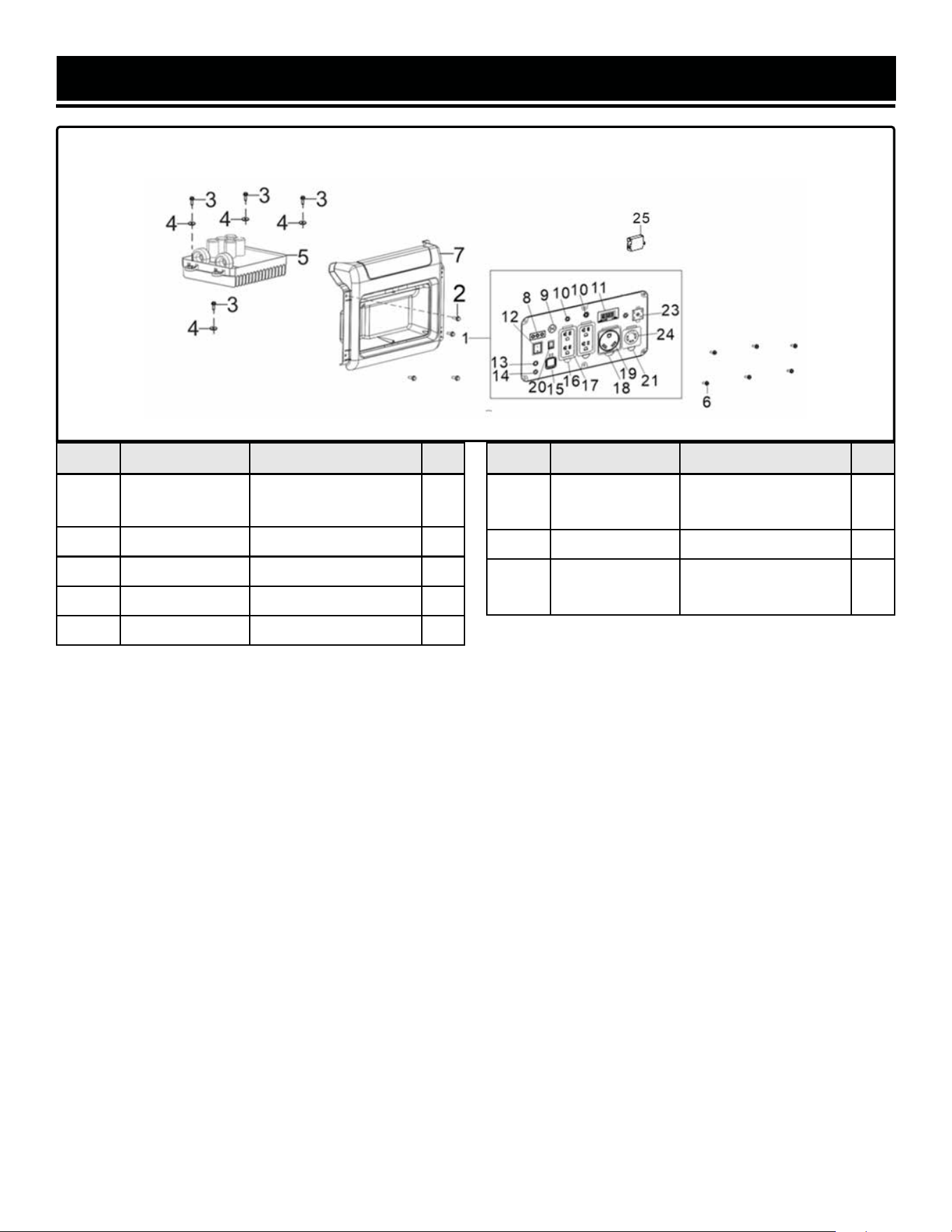

EXPLODED VIEW & PARTS LIST

No. Part No. Description Qty.

14-1

GN875iX-1401

Control Panel

Subassembly

14-2 GN625i-1502 Bolt, M6x16 4

14-3 GN625i-1503 Bolt, M6x20 4

14-4 GN625i-1504 Flat Washer, 6mm 4

14-5 GN875i-1405 Inverter 1

ASSEMBLY 14 - CONTROL PANEL

No. Part No. Description Qty.

14-6 GN625i-1506

Screw & Washer,

M5x10

14-7 GN625i-1507 Panel Seat 1

14-25 GN625iX-1528

CO Sensor Engine

Control Module

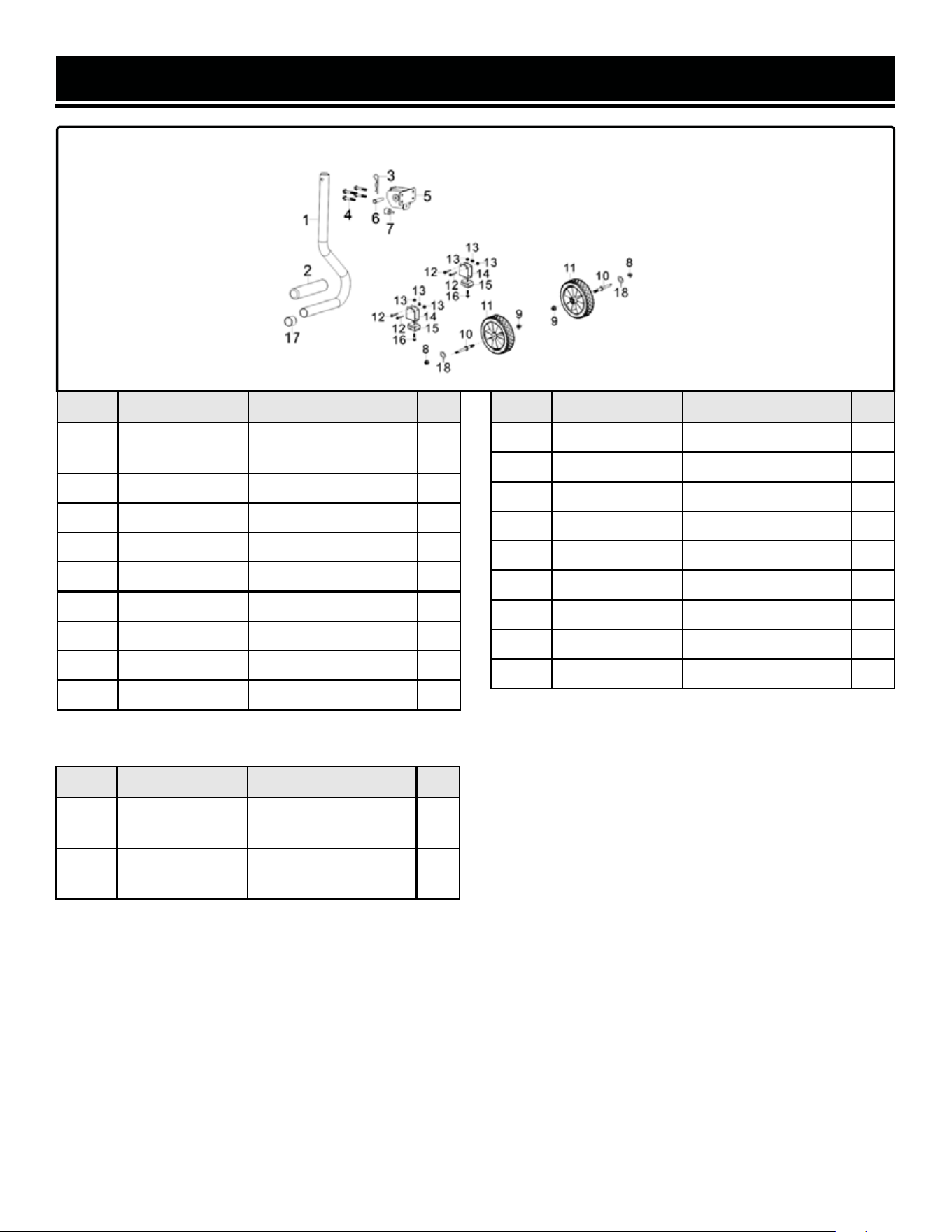

No. Part No. Description Qty.

15-1 GN625i-1601

Handle Tube

Assembly

15-2 GN625i-1602 Handle Sleeve 1

15-3 GN625i-1603 R-clip 1

15-4 GN625i-1604 Bolt, M6x30 4

15-5 GN625i-1605 Handle Bracket 1

15-6 GN625i-1606 Handle Pin 1

15-7 GN625i-1607 Handle Damper 1

15-8 GN625i-1608 Nut, M8 2

15-9 GN625i-1609 Nut, M12-1.25 2

ASSEMBLY 15 - WHEEL AND HANDLE

ACCESSORIES (NOT PICTURED)

No. Part No. Description Qty.

N.P. GN875i-HA36

High-Altitude Kit,

3000 - 6000 ft

N.P. GN875i-HA68

High-Altitude Kit,

6000 - 8000 ft

EXPLODED VIEW & PARTS LIST

No. Part No. Description Qty.

15-10 GN625i-1610 Axle 2

15-11 GN625i-1611 Wheel 2

15-12 GN625i-1612 Bolt, M6x40 4

15-13 56200-0506 Nut, M6 6

15-14 GN625i-1614 Foot Bracket 2

15-15 GN625i-1615 Foot Base 2

15-16 56310I-1420 Bolt, M6x25 2

15-17 GN625i-1617 Handle Tube Plug 1

15-18 GN625i-1618 Flat Washer, 8mm 2

WARRANTY STATEMENT

WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this

commitment and our dedication to qualit

LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE

GREA

T LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer

power

tools

will be free from defects in material or workmanship during personal use for a period of two (2) years from

date

fessional or commer

cial use. Purchaser has 30 days from the date of purchase to report missing or damaged parts.

SELLER’S SOLE OBLIG

ATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent per-

mitted

by law, any warranty or condition implied by law, shall be the replacement of parts, without charge, which

are

defective

in material or workmanship and which have not been subjected to misuse, alteration, careless handling,

misrepai

r, abuse, neglect, normal wear and tear, improper maintenance, improper storage, incorrect lubricants/

fuels,

or other conditions adversely affecting the Product or the component of the Product, whether by accident or

intentionall

y, by persons other than Seller. To make a claim under this Limited Warranty, you must make sure to

keep

chase. Place of Pur

chase must be a direct vendor of Great Lakes Technologies, LLC. Pur

chasing through third party

vendors,

including but not limited to garage sales, pawn shops, resale shops, or any other secondhand merchant,

voids the warranty included with this product. Contact [email protected] or 1-800-232-1195 with the

following

information to make arrangements: your shipping address, phone number, serial number, required part

numbers, and proof of pur

chase. Damaged or defective parts and products may need to be sent to WEN before the

replacements can be shipped out.

turning

a product for warranty service, the shipping charges must be prepaid by the purchaser. The product must

shipped in its original container (or an equivalent), properly packed to withstand the hazards of shipment. The

product

must be fully insured with a copy of the proof of purchase enclosed. There must also be a description of

the

will be returned and shipped back to the pur

chaser at no charge for addresses within the contiguous United States.

THIS

LIMITED WARRANTY DOES NOT APPLY TO ITEMS THAT WEAR OUT FROM REGULAR USAGE OVER TIME,

INCLUDING

FILTERS, SPARK PLUGS, VOLTAGE REGULATORS, BRUSHES, GASKETS, O-RINGS, WHEEL KITS, BAT-

TERIES,

RECOIL STARTERS, HIGH PRESSURE HOSES, SPRAY GUNS, ETC. ANY IMPLIED WARRANTIES SHALL

LIMITED IN DURATION TO TWO (2) YEARS FROM DATE OF PURCHASE. SOME STATES IN THE U.S. AND

SOME

CANADIAN

PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE

ABOVE LIMIT

ATION MAY NOT APPLY TO YOU.

NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING BUT

NOT

LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT. SOME

ATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF IN-

CIDENT

AL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

THIS

LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER

RIGHTS

WHICH

VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY

TO COUNT

RY.

THIS

LIMITED WARRANTY APPLIES ONLY TO ITEMS SOLD WITHIN THE UNITED STATES OF AMERICA, CANADA

AND

THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER COUNTRIES, CON-

ACT THE WEN CUSTOMER SUPPORT LINE. FOR WARRANTY PARTS OR PRODUCTS REPAIRED UNDER WAR-

RANTY

SHIPPING TO ADDRESSES OUTSIDE OF THE CONTIGUOUS UNITED STATES, ADDITIONAL SHIPPING

CHARGES MAY APPLY.

V. 2022.11.14

WEN GN875IX 8750-Watt Electric Start Open Frame Inverter Generator

Product's Documents

Product manual

Specifications

WEN GN875IX Questions and Answers
