Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 19a
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright
©
2018 by Harbor Freight Tools
®
. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly an d se rv ic e may n ot b e in cl uded.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
NOTICE
CLEAN IMMEDIATELY
Clean the Spray Gun
IMMEDIATELY after EVERY
use and when it will be idle
for more than 30 minutes.
Delayed or inadequate
cleaning will permanently
clog the Spray Gun.
Page 2 For technical questions, please call 1-888-866-5797. Item 64934
NOTICE
Clean the Spray Gun and Cup IMMEDIATELY after EVERY use and when it will be idle for more
than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETY OpERATION MAINTENANCESETup
Table of Contents
Safety .......................................................................2
Specifications ...........................................................7
Setup ........................................................................9
Operation .................................................................10
Maintenance ............................................................14

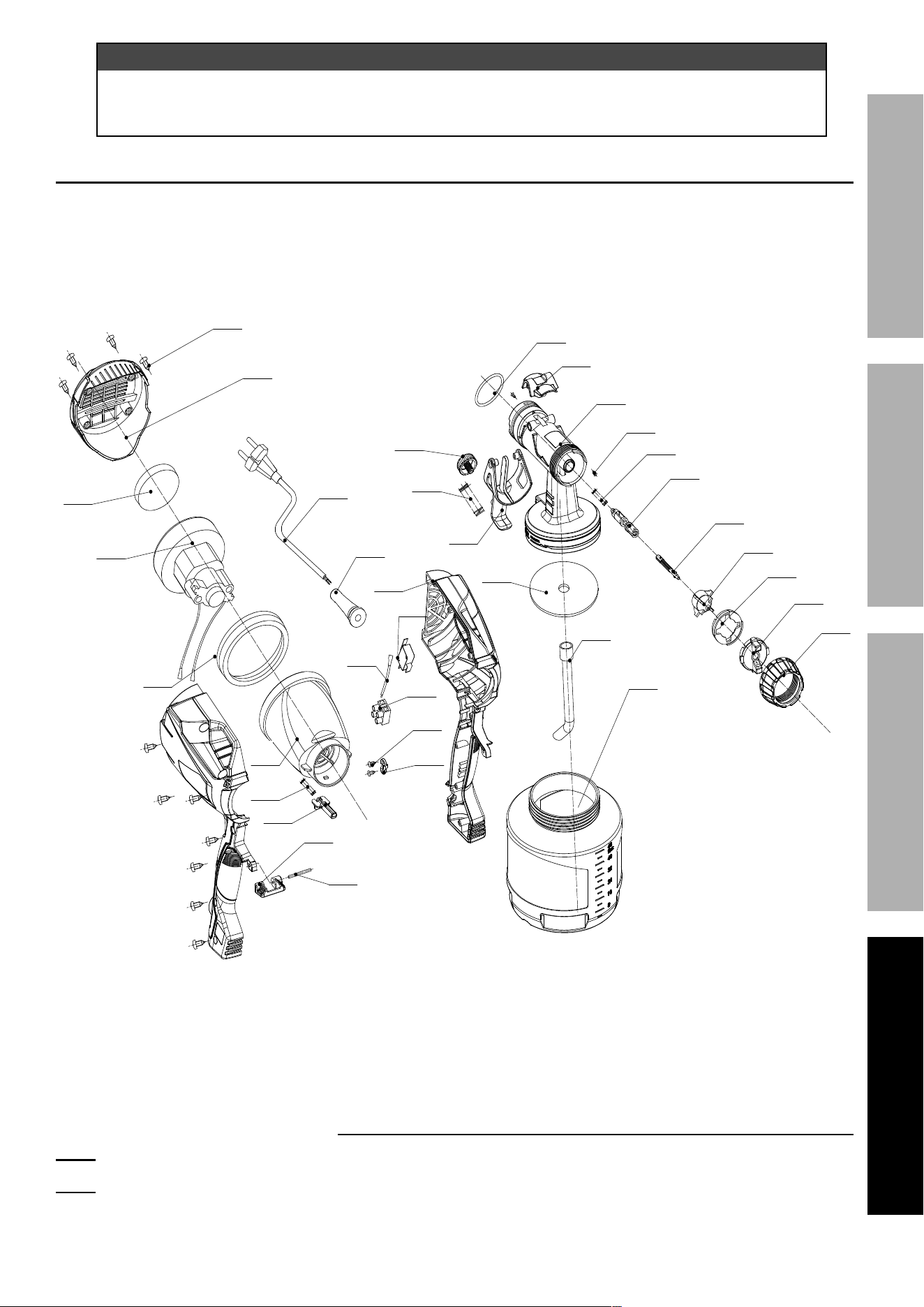

Parts List and Diagram ............................................18
Warranty ..................................................................20
WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
IMpORTANT SAFETY INSTRuCTIONS
personal Safety
1. Stay alert. Watch what you are doing and
use common sense when operating the tool.
Do not use the tool while tired or under the
influence of drugs, alcohol, or medication.
A moment of inattention while operating the
tool increases the risk of injury to persons.
2. Dress properly. Do not wear loose clothing
or jewelry. Contain long hair. Keep hair,
clothing, and gloves away from moving parts.
Loose clothes, jewelry, or long hair increases
the risk of injury to persons as a result
of being caught in moving parts.
3. Do not overreach. Keep proper
footing and balance at all times.
Proper footing and balance enables better
control of the tool in unexpected situations.
Page 3For technical questions, please call 1-888-866-5797.Item 64934
NOTICE
Clean the Spray Gun and Cup IMMEDIATELY after EVERY use and when it will be idle for more
than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETYOpERATIONMAINTENANCE SETup
4. use safety equipment.
Wear protective paint spraying
gloves and a NIOSH-approved
respirator during use. Non-skid safety
shoes and a hard hat must be used for
the applicable conditions.
5. Always wear eye protection.
Wear ANSI-approved safety goggles.
Tool use and Care
1. Do not force the tool. Use the correct tool for the
application. The correct tool will do the job better
and safer at the rate for which the tool is designed.
b. unplug the tool before making any
adjustments, changing accessories, or
storing the tool. Such preventive safety
measures reduce the risk of starting the tool
unintentionally. Turn off and detach the air supply,
safely discharge any residual air pressure, and
release the throttle and/or turn the switch to its
off position before leaving the work area.
c. Store the tool when it is idle out of reach
of children and other untrained persons.
A tool is dangerous in the hands of untrained users.
d. Check for misalignment or binding of moving
parts, breakage of parts, and any other condition
that affects the tool’s operation. If damaged,
have the tool serviced before using. Many accidents
are caused by poorly maintained tools.
There is a risk of bursting if the tool is damaged.
e. use only accessories that are identified by the
manufacturer for the specific tool model. Use of
an accessory not intended for use with the specific
tool model, increases the risk of injury to persons.
Service
a. Tool service must be performed only
by qualified repair personnel.
b. When servicing a tool, use only identical
replacement parts. use only authorized parts.
c. use only lubricants supplied with the
tool or specified by the manufacturer.
Specific Safety Instructions
1. To reduce the risk of electric shock,
do not expose to rain. Store indoors.
2. Risk of Explosion –
Do not spray flammable liquids.
3. Do not direct spray at people or animals.
4. Read all of the information concerning
coating products and cleaning solvents.
Do not use chlorinated solvents
(e.g. 1-1-1 trichloroethylene and
dichloromethane, also known as
methylene chloride) to clean spray guns.
Many spray guns contain aluminum,
which reacts strongly to chlorinated solvents.
Contact the solvent or coating manufacturer as
needed regarding potential chemical reactions.
5. Risk of injection – Do not point spray gun at any
person or any part of the body. In case of skin
injection, seek medical attention immediately.
6. Spraying hazardous materials may result in serious
injury or death. Do not spray pesticide, acid,
corrosive material, fertilizer, or toxic chemicals.
7. Paints and solvents may be harmful or fatal if
swallowed or inhaled. Avoid prolonged skin
contact with solvents or paints as they will
irritate skin. After any contact, immediately
wash off exposed area with hot, soapy water.
8. Attach all accessories properly to the tool
before plugging in the tool. A loose accessory
may detach or break during operation.
9. Maintain labels and nameplates on the tool.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
10. Avoid unintentional starting. Prepare to
begin work before turning on the tool.
Page 4 For technical questions, please call 1-888-866-5797. Item 64934
NOTICE
Clean the Spray Gun and Cup IMMEDIATELY after EVERY use and when it will be idle for more
than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETY OpERATION MAINTENANCESETup
11. Do not leave the tool unattended when it is plugged
into an electrical outlet. Turn off the tool, and
unplug it from its electrical outlet before leaving.
12. This product is not a toy.
Keep it out of reach of children.
13. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in
close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure. In
addition, people with pacemakers should:
• Avoid operating alone.
• Do not use with power switch locked on.
• Properly maintain and inspect
to avoid electrical shock.
• Properly ground power cord. Ground Fault Circuit
Interrupter (GFCI) should also be implemented
– it prevents sustained electrical shock.
14. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
SAVE THESE INSTRuCTIONS.
Page 5For technical questions, please call 1-888-866-5797.Item 64934
NOTICE
Clean the Spray Gun and Cup IMMEDIATELY after EVERY use and when it will be idle for more
than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETYOpERATIONMAINTENANCE SETup

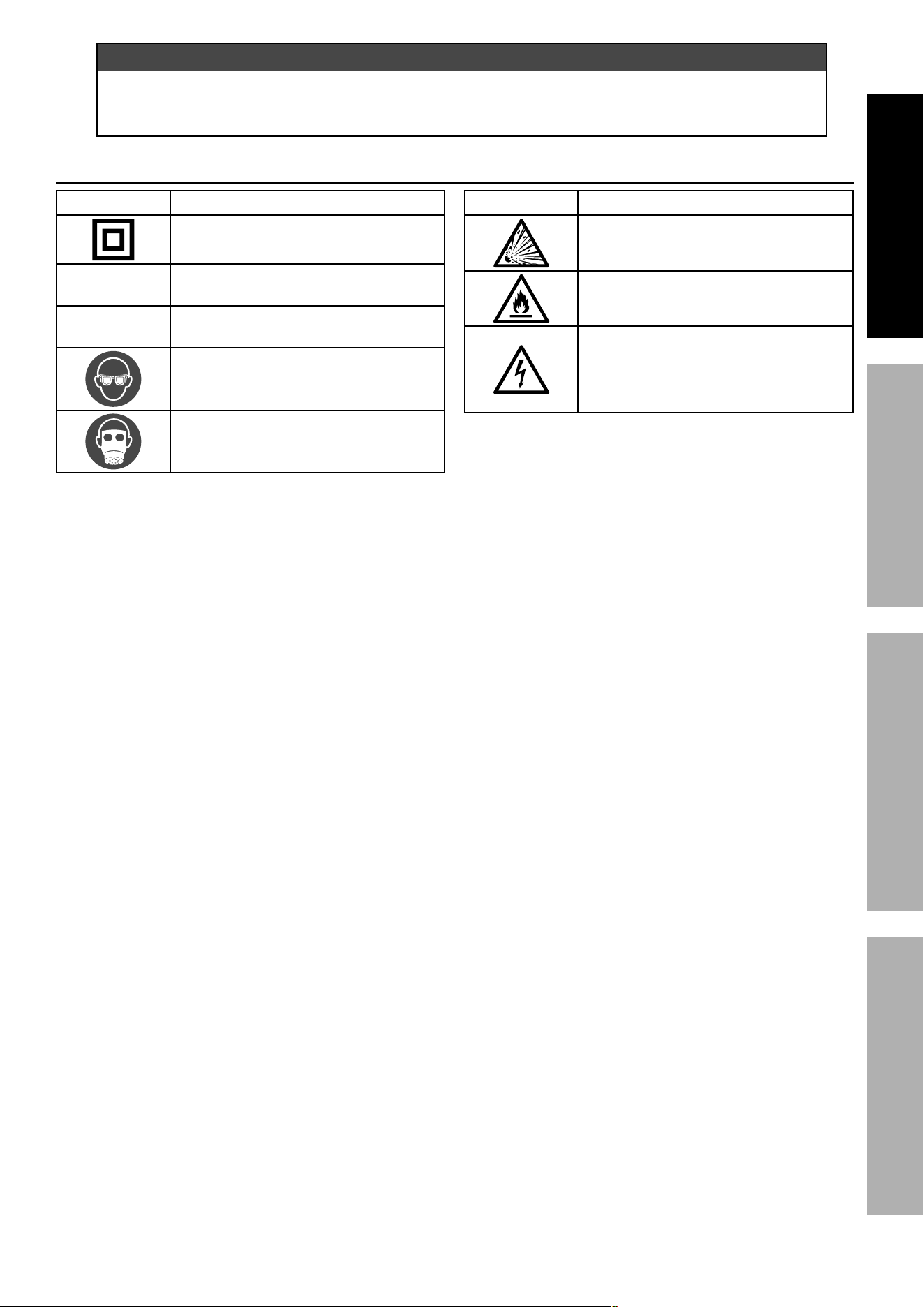

Symbol Definitions
Symbol property or Statement
Double Insulated
VAC
Volts Alternating Current
A
Amperes
WARNING marking concerning
Risk of Eye Injury.
Wear ANSI-approved eye protection.
WARNING marking concerning
Risk of Respiratory Injury.
Wear NIOSH-approved respirator.
Symbol property or Statement
WARNING marking concerning
Risk of Explosion.
WARNING marking concerning Risk
of Fire.
Do not use solvents improperly.
WARNING marking concerning
Risk of Electric Shock.
Properly connect power cord
to appropriate outlet.
Page 6 For technical questions, please call 1-888-866-5797. Item 64934
NOTICE
Clean the Spray Gun and Cup IMMEDIATELY after EVERY use and when it will be idle for more
than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETY OpERATION MAINTENANCESETup
Grounding
TO pREVENT ELECTRIC SHOCK AND DEATH FROM
INCORRECT GROuNDING WIRE CONNECTION:
Check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded.
Do not modify the power cord plug provided with the tool. Never remove the grounding prong from
the plug. Do not use the tool if the power cord or plug is damaged. If damaged, have it repaired by a
service facility before use. If the plug will not fit the outlet, have a proper outlet installed by a
qualified electrician.
Double Insulated Tools: Tools with Two prong plugs
Figure A: Outlets for 2-prong plug
1. Tools marked “Double Insulated” do not
require grounding. They have a special
double insulation system which satisfies OSHA
requirements and complies with the applicable
standards of Underwriters Laboratories, Inc.,
the Canadian Standard Association,
and the National Electrical Code.
2. Double insulated tools may be used in
either of the 120 volt outlets shown in the
preceding illustration. (See Figure A.)
3. This appliance has a polarized plug (one blade is
wider than the other). This plug will fit in a polarized
outlet only one way. If the plug does not fit fully in
the outlet, reverse the plug. If it still does not fit,
contact a qualified electrician to install the proper
outlet. Do not change the plug in any way.
Extension Cords
1. Grounded tools require a three wire extension cord.
Double Insulated tools can use either a
two or three wire extension cord.
2. As the distance from the supply outlet increases,
you must use a heavier gauge extension cord.
Using extension cords with inadequately sized wire
causes a serious drop in voltage, resulting in loss of
power and possible tool damage. (See Table A.)
3. The smaller the gauge number of the wire, the
greater the capacity of the cord. For example,
a 14 gauge cord can carry a higher current
than a 16 gauge cord. (See Table A.)
4. When using more than one extension cord to make
up the total length, make sure each cord contains at
least the minimum wire size required. (See Table A.)
5. If you are using one extension cord for more
than one tool, add the nameplate amperes
and use the sum to determine the required
minimum cord size. (See Table A.)
Page 7For technical questions, please call 1-888-866-5797.Item 64934
NOTICE
Clean the Spray Gun and Cup IMMEDIATELY after EVERY use and when it will be idle for more
than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETYOpERATIONMAINTENANCE SETup
1. If you are using an extension cord outdoors, make
sure it is marked with the suffix “W-A” (“W” in
Canada) to indicate it is acceptable for outdoor use.
2. Make sure the extension cord is properly wired
and in good electrical condition. Always replace
a damaged extension cord or have it repaired
by a qualified electrician before using it.
3. Protect the extension cords from sharp objects,
excessive heat, and damp or wet areas.
Table A: Recommended
Minimum Wire Gauge
forExtensionCords*(120 / 240Volt)
NAMEpLATE
AMpERES
(at full load)
EXTENSION CORD
LENGTH
25'
50'
75'
100'
150'
0 – 2.0 18 18 18 18 16
2.1 – 3.4 18 18 18 16 14
3.5 – 5.0 18 18 16 14 12
5.1 – 7.0 18 16 14 12 12
7.1 – 12.0 18 14 12 10 -
12.1 – 16.0 14 12 10 - -
16.1 – 20.0 12 10 - - -
* Based on limiting the line voltage drop to
five volts at 150% of the rated amperes.
Specifications
Electrical Rating 120 VAC / 60 Hz / 4 A
Cup Capacity 48 fl. oz.
Tip Size 2.5mm
HOuSEHOLD uSE ONLY.
Page 8 For technical questions, please call 1-888-866-5797. Item 64934
NOTICE
Clean the Spray Gun and Cup IMMEDIATELY after EVERY use and when it will be idle for more
than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETY OpERATION MAINTENANCESETup
Set-up: Before use
Read the ENTIRE IMpORTANT SAFETY INFORMATION section at the beginning of this manual
including all text under subheadings therein before set up or use of this product.

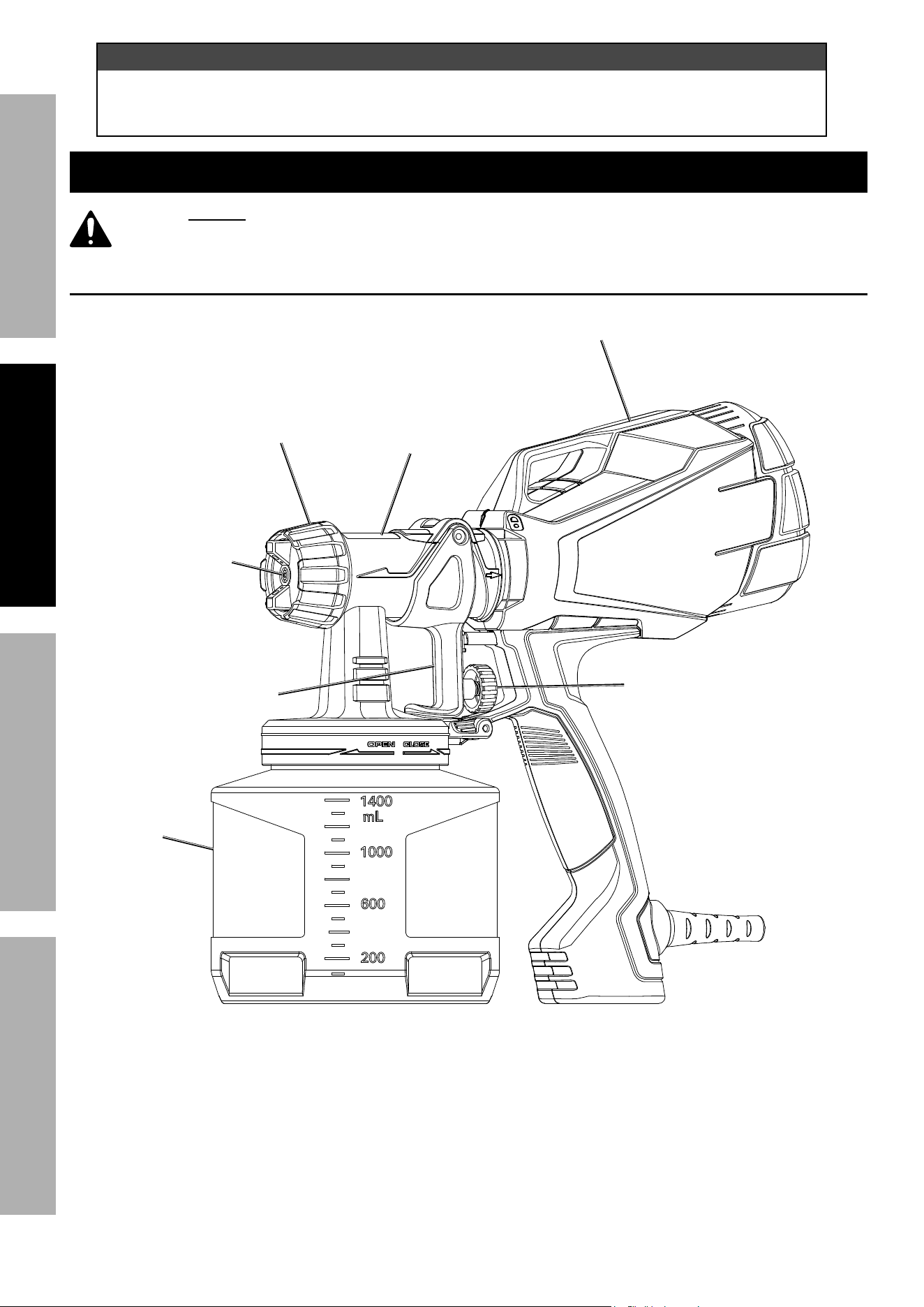

Components
Air
Cap
Lock
Ring
Spray
Gun
Body
Trigger
Fluid
Control
Knob
Cup
Air
Compressor
Page 9For technical questions, please call 1-888-866-5797.Item 64934
NOTICE
Clean the Spray Gun and Cup IMMEDIATELY after EVERY use and when it will be idle for more
than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETYOpERATIONMAINTENANCE SETup

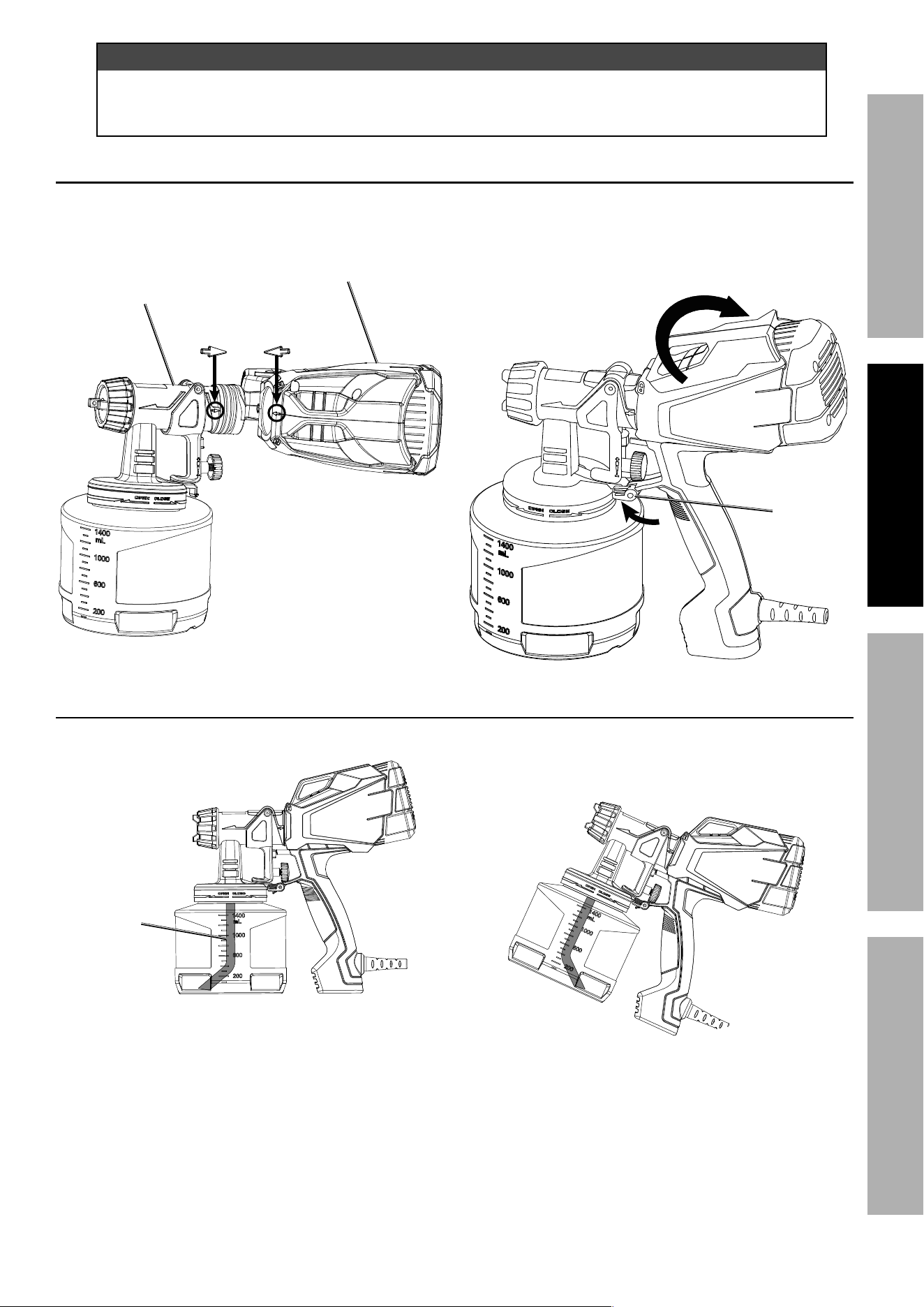

Assembly
1. Line up arrow on Spray Gun Body
to arrow on Air Compressor.
Air
Compressor
Spray
Gun
Body
2. Turn Air Compressor clockwise until
it locks with Spray Gun Body.
3. Push Clip forward until it clicks to attach
Air Compress and Spray Gun Body together.
Clip
Suction Tube position
Normal Spraying - Suction Tube angled forward.
Suction
Tube
Upward Spraying - Suction Tube angled backward.
Page 10 For technical questions, please call 1-888-866-5797. Item 64934
NOTICE
Clean the Spray Gun and Cup IMMEDIATELY after EVERY use and when it will be idle for more
than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETY OpERATION MAINTENANCESETup
Operating Instructions
Read the ENTIRE IMpORTANT SAFETY INFORMATION section
at the beginning of this manual including all text under subheadings therein
before set up or use of this product.
Inspect tool before use, looking for damaged, loose, and missing parts. If any problems are found,
do not use tool until repaired. Damaged or missing parts can increase risk of electric shock.
Workpiece and Work Area Set up
1. Designate a work area that is clean and well lit.
The work area must not allow access by children
or pets to prevent distraction and injury.
2. Before spraying, mask nearby objects not being
sprayed and lay cloths (not included) on the floors.
Spray Gun Setup and Adjustment
Material preparation and Filling
RISK OF EXpLOSION -
DO NOT SpRAY FLAMMABLE LIQuIDS.
Note: This Spray Gun can only be used for spraying water based or
oil-based low viscosity paints, stains and varnishes.
IMpORTANT! Before THINNING,
check the viscosity of FLUID.
1. Carefully strain the material through
a paint strainer or a piece of cheesecloth.
2. Fully submerge the included Viscosity
Cup into the material.
3. Lift the Cup out of the material and
time how many seconds it takes for it
to completely run out of the cup.
4. Refer to Viscosity Chart for recommended
times for different materials.
Material Time in seconds
Water-Based Paint
Primer
Oil-Based Paint
Varnish
Sealer
Wood Stain
<50
Viscosity Chart
Note: Proper material mixture is essential.
Follow the manufacturer’s directions for thinning
instructions.
Most materials will spray easily if
they are thinned properly.
5. If necessary, thin the material according to
manufacturer’s directions and mix thoroughly.
6. Check viscosity. Thin and check until
proper viscosity is achieved.
7. Fill the Cup no higher than 48 oz. mark.
8. Replace the Cup.
Page 11For technical questions, please call 1-888-866-5797.Item 64934
NOTICE
Clean the Spray Gun and Cup IMMEDIATELY after EVERY use and when it will be idle for more
than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETYOpERATIONMAINTENANCE SETup

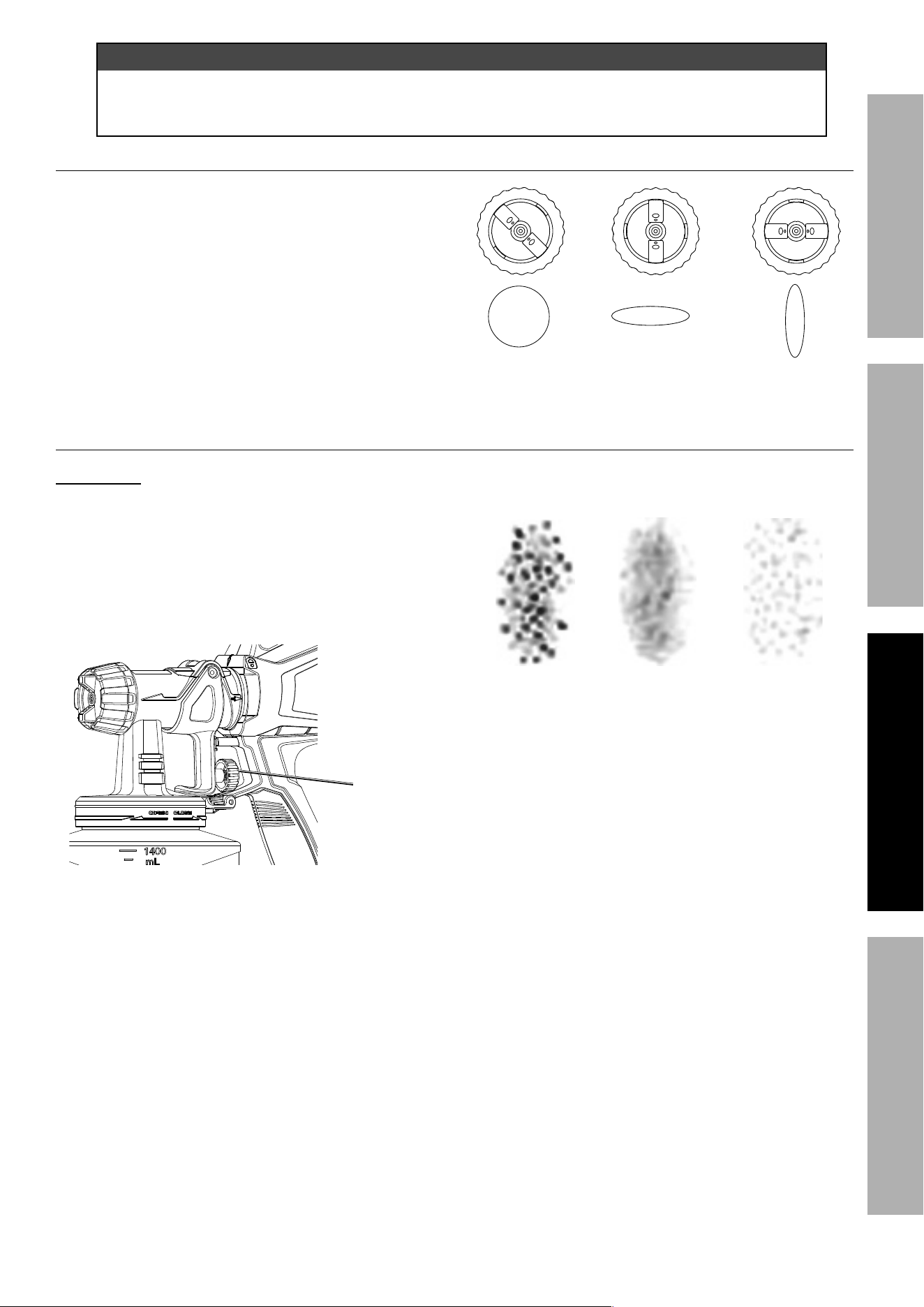

Fan pattern
1. Loosen Lock Knob.
2. Turn Air Cap until desired pattern is selected.
3. Tighten Lock Knob.
HorizontalCone
Vertical
Test Spray
WARNING!: Damaged or missing parts can increase risk of electric
shock. Do not operate Sprayer with damaged or missing parts.
1. Plug the Spray Gun into an electrical outlet.
2. Spray on piece of scrap material in short
bursts, then check consistency.
3. Adjust the Fluid Control Knob until
proper flow is achieved.
Fluid
Control
Knob
Too Coarse
(Close
Knob)
Too Fine
(Open
Knob)
Correct
Page 12 For technical questions, please call 1-888-866-5797. Item 64934
NOTICE
Clean the Spray Gun and Cup IMMEDIATELY after EVERY use and when it will be idle for more
than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETY OpERATION MAINTENANCESETup

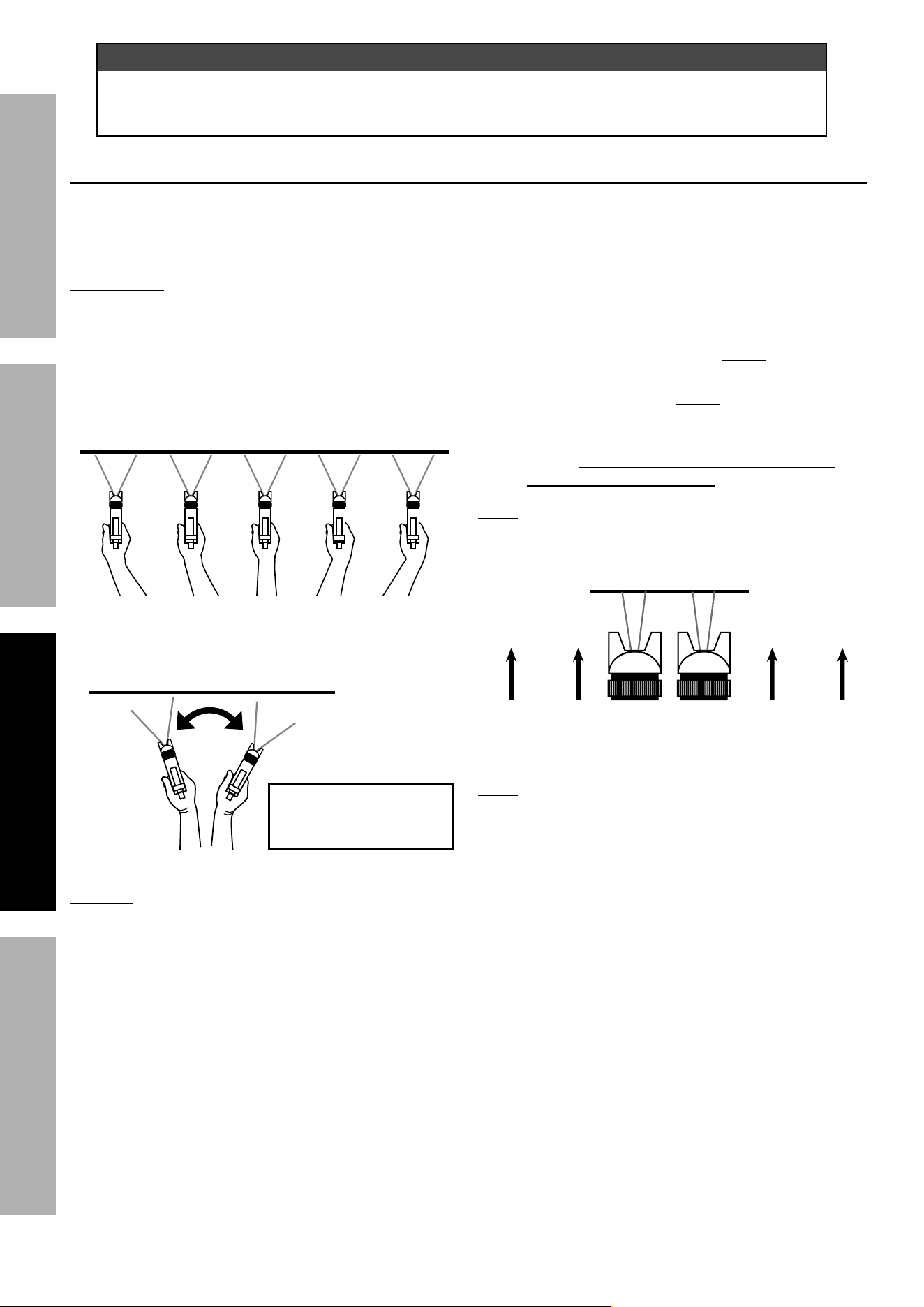

Spraying Technique
When first filled, the sprayer may take up a short time after
the trigger is depressed to prime and start spraying.
IMpORTANT: Proper spraying technique
is ESSENTIAL to achieve good results.
1. First, prepare the Spray Gun according to
the instructions under Spray Gun Setup and
Adjustment on page 10.
2. Keep the Spray Gun upright and
at a right angle to the workpiece -
See Figure B.
Incorrect
Gun
Angle
Do not pivot your wrist
or wave the gun like a
fan towards the wall.
Correct Gun Angle
Move your arm, not just your wrist.
Point gun directly towards the surface and
maintain an even, steady distance and speed.
Figure B: Spray Gun Angle - top view
NOTICE: Do not stop when spraying.
Spraying materials will start to set and dry as
soon as they come in contact with the air.
3. Depress Trigger fully and move Spray Gun
in parallel strokes to the workpiece.
4. Keep the distance from the workpiece
between 2" and 12".
5. To avoid paint build up:
a. Apply two thin coats rather than one thick
coat. Overlap 1/3 to 1/2 on second coat.
b. Start moving the Spray Gun before
fully depressing Trigger.
c. Fully depress Trigger before
contacting the workpiece.
d. When finished with the stroke, release the
Trigger while still moving the Spray Gun and
after passing the workpiece - see Figure C.
Note: Doing this will produce a smoother finish.
Do not stop moving the Spray Gun while spraying.
If the Spray Gun stops even briefly while spraying
the paint will build up and run down the workpiece.
End
Stroke
Begin
Stroke
Release
Trigger
Depress
Trigger
Figure C: paint Stroke Triggering - top view
Note: The stroke speed and
Fluid Control Knob adjustment will determine
how much paint is being applied.
6. Keep Cup filled half-way full
to prevent spattering.
7. To prevent accidents, after use, release Trigger,
unplug the tool, safely discharge any residual
air pressure, and release Trigger again.
8. Clean the Spray Gun and Cup IMMEDIATELY
after EVERY use and when it will be idle for
more than 30 minutes. Delayed or inadequate
cleaning will permanently clog the Spray Gun.
Page 13For technical questions, please call 1-888-866-5797.Item 64934
NOTICE
Clean the Spray Gun and Cup IMMEDIATELY after EVERY use and when it will be idle for more
than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETYOpERATIONMAINTENANCE SETup

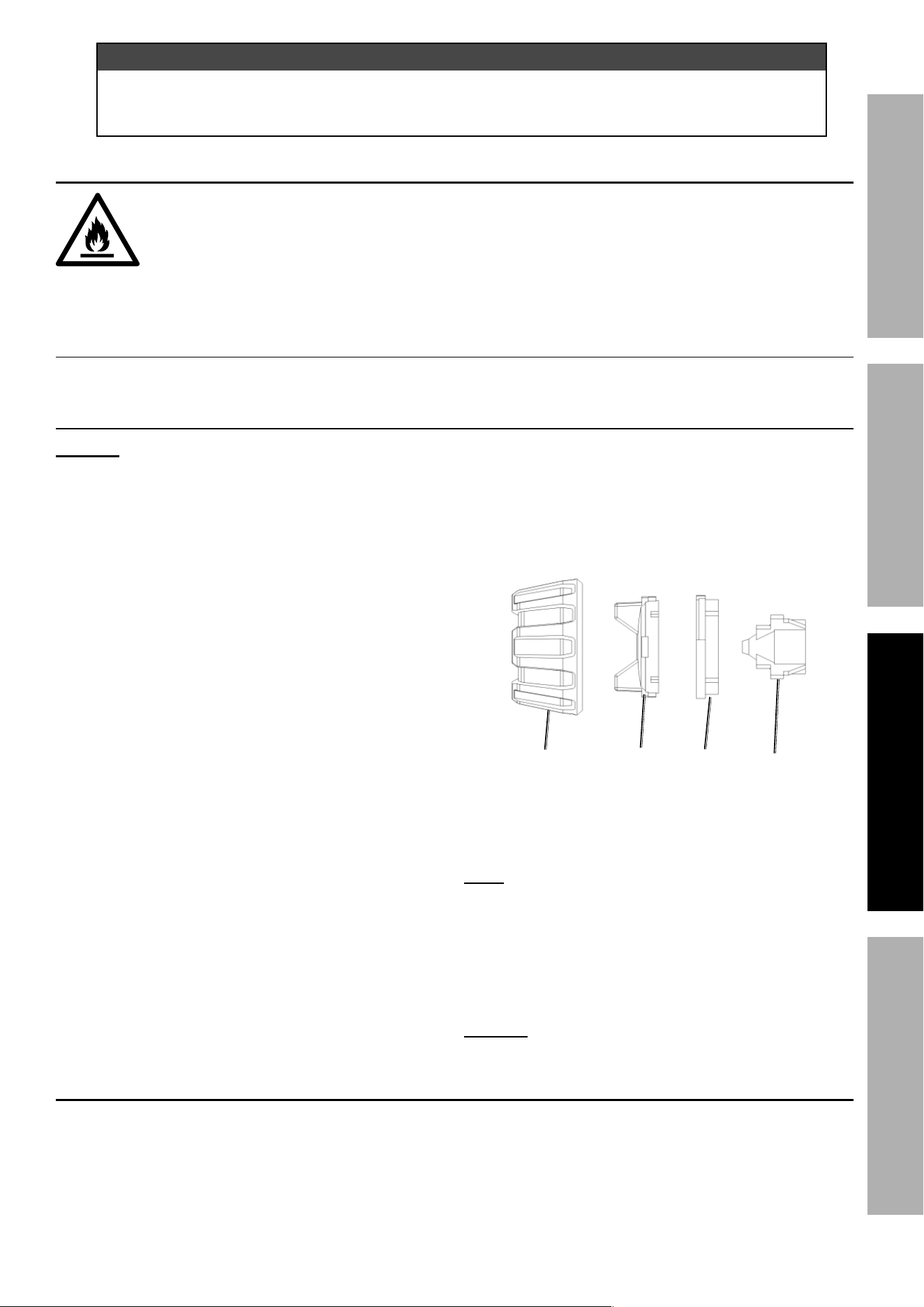

Cleaning
RISK OF EXpLOSION -
DO NOT SpRAY FLAMMABLE LIQuIDS.
a. Follow solvent manufacturer’s clean up
instructions and safety precautions.
b. If collecting flushed solvents in
metal container, transfer to nonmetal
container, and flush metal container.
c. Work far away from any ignition
sources in a vapor free area.
d. Keep class ABC fire extinguisher nearby.
Solvent Selection
Follow the paint and solvent manufacturer’s recommendations for cleaning, solvent type, and disposal.
After Every use
NOTICE: Do not immerse Air Compressor in solvent.
1. Unplug the Spray Gun from its electrical outlet.
2. Use solvent recommended by paint manufacturer.
3. Designate a container for spent solvent.
4. Separate Spray Gun from Air Compressor. Store
Air Compressor away from cleaning area.
5. Remove Cup. Carefully scrape paint out of
Cup and dispose of excess paint properly.
6. Fill Cup 1/4 to 1/2 full with solvent
(sold separately) . Replace Cup, then
shake Spray Gun for several seconds.
7. Remove Cup, pour solvent into spent
solvent container and wipe away any paint
residue from Cup with clean cloth.
8. Fill Cup 1/4 to 1/2 full with solvent. Replace Cup.
9. Plug the Spray Gun into an electrical outlet.
10. Point Spray Gun at interior side of spent solvent
container. Depress Trigger and slightly shake
Spray Gun while spraying solvent into the
container. Once the Cup is empty, repeat the
process until the solvent comes out clean.
11. Unplug the Spray Gun from its electrical outlet.
12. Point the Spray Gun into the spent
solvent container and depress the Trigger
again to make sure no air remains.
13. Remove Cup and Suction Tube.
14. Remove Lock Ring, Air Cap, Air Valve and Nozzle.
Lock
Ring
Air
Cap
Air
Valve
Nozzle
15. Inspect parts and soak in solvent as
necessary. Use brushes and toothpicks
(sold separately) to remove any paint.
Note: To prevent damage, do not use
metal objects to clean parts.
16. Wipe down Spray Gun Body with
a clean cloth and solvent.
17. Make sure all parts are dry and free from
residual paint, then reassemble Spray Gun.
NOTICE: Do not use any kind of lubricant. The
lubricant will mix with paint, causing poor results.
Spent Solvent Disposal
After cleaning, dispose of spent solvent according to the solvent manufacturer’s
directions and local hazardous waste standards.
Page 14 For technical questions, please call 1-888-866-5797. Item 64934
NOTICE
Clean the Spray Gun and Cup IMMEDIATELY after EVERY use and when it will be idle for more
than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETY OpERATION MAINTENANCESETup
user-Maintenance Instructions
procedures not specifically explained in this manual
must be performed only by a qualified technician.
TO pREVENT SERIOuS INJuRY:
Detach the air supply and safely discharge any residual air pressure in the tool
before performing any inspection, maintenance, or cleaning procedures.
TO pREVENT SERIOuS INJuRY FROM TOOL FAILuRE: Do not use damaged equipment.
If abnormal noise, vibration, or leaking air occurs, have the problem corrected before further use.
Inspection
Note: These procedures are in addition to the regular checks and maintenance
explained as part of the regular operation of the air-operated tool.
BEFORE EACH uSE, inspect the general condition of the tool. Check for:
• loose screws,
• misalignment or binding of moving parts,
• clogged nozzle or fluid tip,
• cracked or broken parts, and
• any other condition that may affect its safe operation.
Storage
Store in a dry, secure area out of reach of children.
Page 15For technical questions, please call 1-888-866-5797.Item 64934
NOTICE
Clean the Spray Gun and Cup IMMEDIATELY after EVERY use and when it will be idle for more
than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETYOpERATIONMAINTENANCE SETup
Air Filter Maintenance
1. Remove four screws on back of Spray Gun.
2. Remove housing and Air Filter.
3. Wash filter in warm water and mild detergents
several times. Rinse. Squeeze out excess
water and allow it to dry completely.
4. Install cleaned filter and replace housing and screws.
Page 16 For technical questions, please call 1-888-866-5797. Item 64934
NOTICE
Clean the Spray Gun and Cup IMMEDIATELY after EVERY use and when it will be idle for more
than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETY OpERATION MAINTENANCESETup

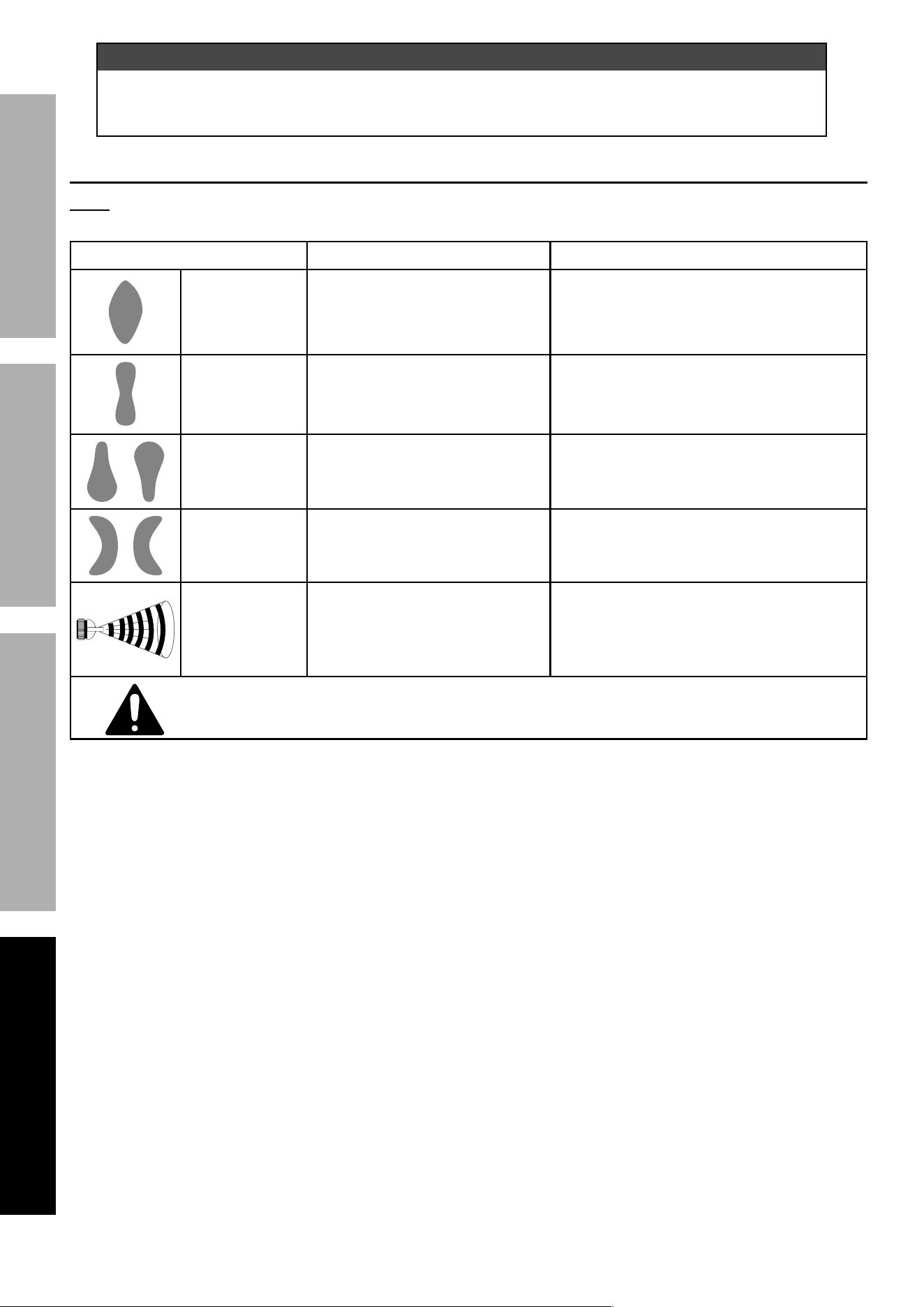

Troubleshooting - Spray pattern Diagnosis
Note: The drawings on the left below resemble symptoms of spray pattern problems.
Refer to the accompanying possible causes and likely solutions to the right.
problem possible Causes Likely Solutions
Heavy center
pattern
1. Fluid Control Knob
needs adjustment.
2. The paint is too thick.
1. Adjust Fluid Control Knob.
2. Thin paint according to the
manufacturer’s instructions.
Light center
pattern
1. Fluid Control Knob
needs adjustment.
2. Dried paint on Nozzle.
1. Adjust Fluid Control Knob.
2. Use a nonmetallic point to clean Nozzle.
Heavy top/
bottom pattern
1. Air Cap plugged.
2. Lock Ring loose.
3. Dried paint on Nozzle.
1. Clean Air Cap.
2. Tighten Lock Ring.
3. Use a nonmetallic point to clean Nozzle.
Pattern on right
or left only
Dried paint or debris on Nozzle. Use a nonmetallic point to clean Nozzle.
Jerky or
Fluttering Spray
1. Loose or damaged Air Cap.
2. Paint level low.
3. Cup and/or Lid loose.
4. Clogged Check Valve.
1. Tighten Air Cap.
2. Refill paint Cup.
3. Tighten Cup and/or Lid.
4. Clean Check Valve.
Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect air supply before service.
Page 17For technical questions, please call 1-888-866-5797.Item 64934
NOTICE
Clean the Spray Gun and Cup IMMEDIATELY after EVERY use and when it will be idle for more
than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETYOpERATIONMAINTENANCE SETup
General Troubleshooting Chart
problem possible Causes Likely Solutions
Sputtering Spray 1. Low paint level.
2. Cup tipped.
3. Cup and/or Lid loose.
4. Clogged Check Valve.
1. Refill.
2. Hold upright.
3. Tighten Cup and/or Lid.
4. Clean Check Valve.
Will Not Spray 1. No power at Spray Gun.
2. Fluid too thick.
3. Cup and/or Lid loose.
4. Clogged Check Valve.
1. Check Power Cord.
2. Thin fluid.
3. Tighten Cup and/or Lid.
4. Clean Check Valve.
Overspray
(Paint drifting to
unintended objects.)
1. Improper application speed.
2. Improper distance from workpiece.
3. Airflow too high.
4. Clogged Check Valve.
1. Move moderately and parallel.
2. Adjust distance.
3. Reduce Airflow.
4. Clean Check Valve.
Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect air supply before service.
Page 18 For technical questions, please call 1-888-866-5797. Item 64934
NOTICE
Clean the Spray Gun and Cup IMMEDIATELY after EVERY use and when it will be idle for more
than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETY OpERATION MAINTENANCESETup
pLEASE READ THE FOLLOWING CAREFuLLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
parts List and Diagram
parts List
part Description Qty
1 Lock Ring 1
2 Air Cap 1
3 Air Valve 1
4 Nozzle 2.5mm 1
5 Fluid Needle 1
6 Fluid Needle Bar Unit 1
7 Fluid Needle Spring 1
8 Screw 2
9 Gun Body 1
10 Trigger Connector 1
11 O Ring 1
12 Trigger Adjusting Knob 1
13 Trigger Adjusting Knob Spring 1
14 Trigger 1
15 Gasket 1
16 Suction Tube 1
17 Cup 48 oz 1
18 Power Cord Clamp 1
part Description Qty
19 Screw 2
20 Terminal Block 1
21 Lead Wire 1
22 Switch 1
23 Housing 2
24 Power Cord Sheath 1
25 Power Cord 1
26 Motor Cover 1
27 Screw 12
28 Air Filter 1
29 Motor 1
30 Damping Washer 1
31 Motor Holder 1
32 Push Rod Spring 1
33 Push Rod 1
34 Clip 1
35 Clip Pin 1
Page 19For technical questions, please call 1-888-866-5797.Item 64934
NOTICE
Clean the Spray Gun and Cup IMMEDIATELY after EVERY use and when it will be idle for more
than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETYOpERATIONMAINTENANCE SETup
Record product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
Assembly Diagram
2
3
4
5
1
6
7
8
9
1 0
1 1
1 2
1 3
1 4
1 5
1 6
1 7
1 8
1 9
2 0
2 1
2 2
2 3
2 4
2 5
2 6
2 7
2 8
2 9
3 0
3 1
3 2
3 3
3 4
3 5
26541AgouraRoad•Calabasas,CA91302•1-888-866-5797
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
