64933
PORTABLE HVLP
PAINT & STAIN SPRAYER
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 24b
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1‑888‑866‑5797 as soon as possible.
Copyright
©
2023 by Harbor Freight Tools
®
. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
NOTICE
CLEAn IMMEDIATELY
Clean the Spray Gun
IMMEDIATELY after EVERY
use and when it will be idle
for more than 30 minutes.
Delayed or inadequate
cleaning will permanently
clog the Spray Gun.
Page 2 For technical questions, please call 1-888-866-5797. Item 64933
NOTICE
Clean the Spray Gun Body and Cup IMMEDIATELY after EVERY use and when it will be idle for
more than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETY OpERATIOn MAInTEnAnCESETup
Table of Contents
Safety .......................................................................2
Specifications ...........................................................7
Setup ........................................................................8
Operation .................................................................12
Maintenance ............................................................16

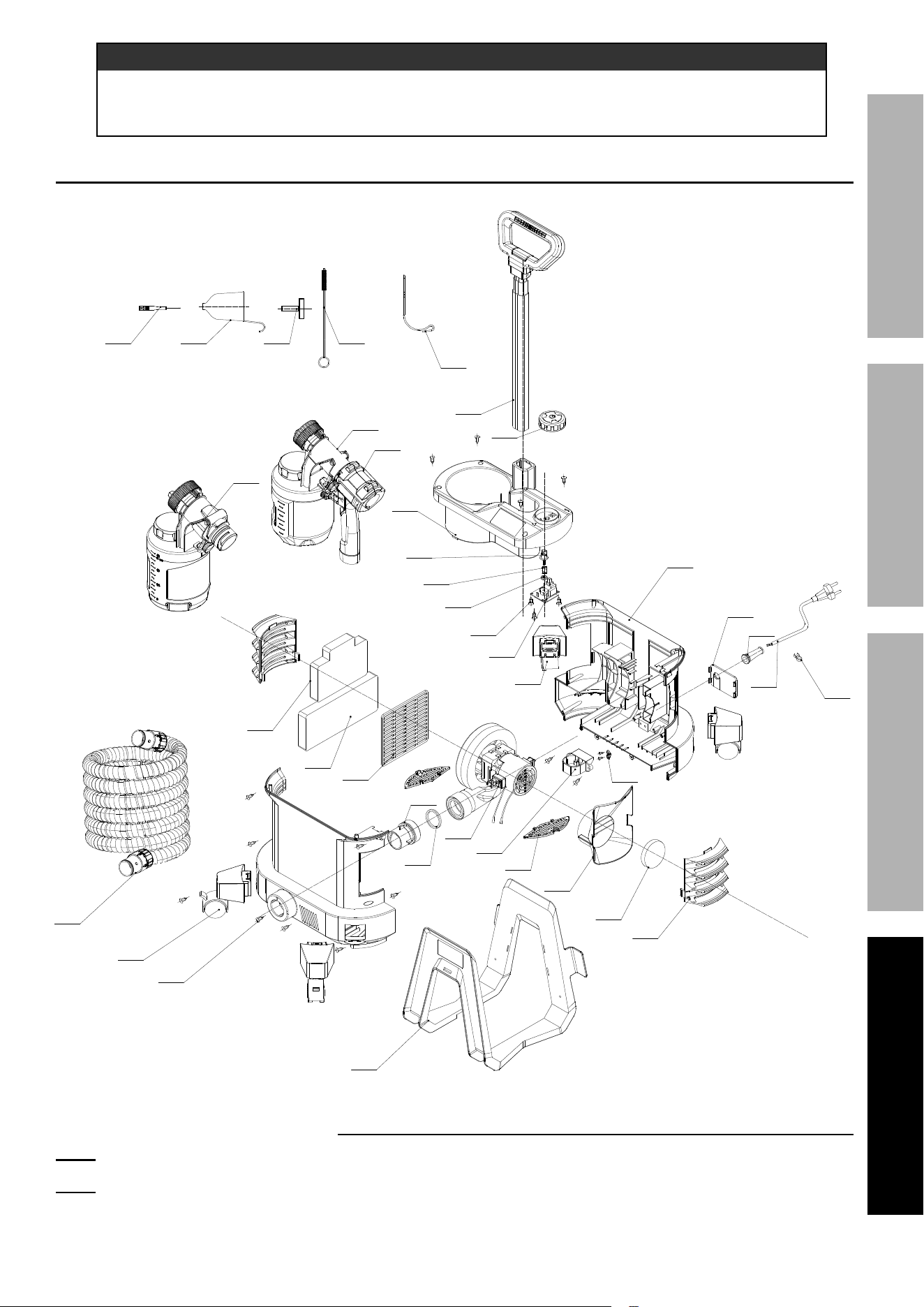

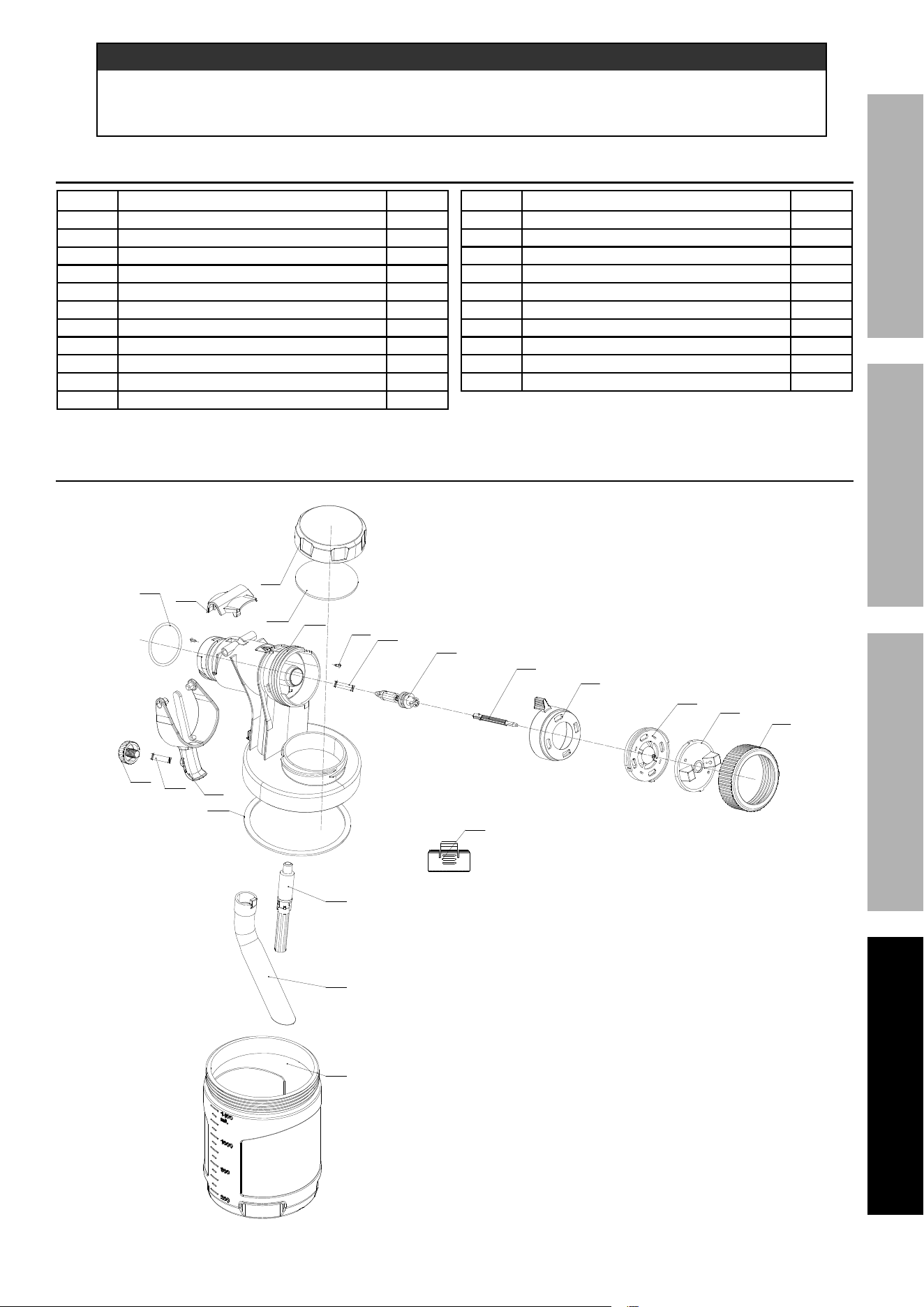

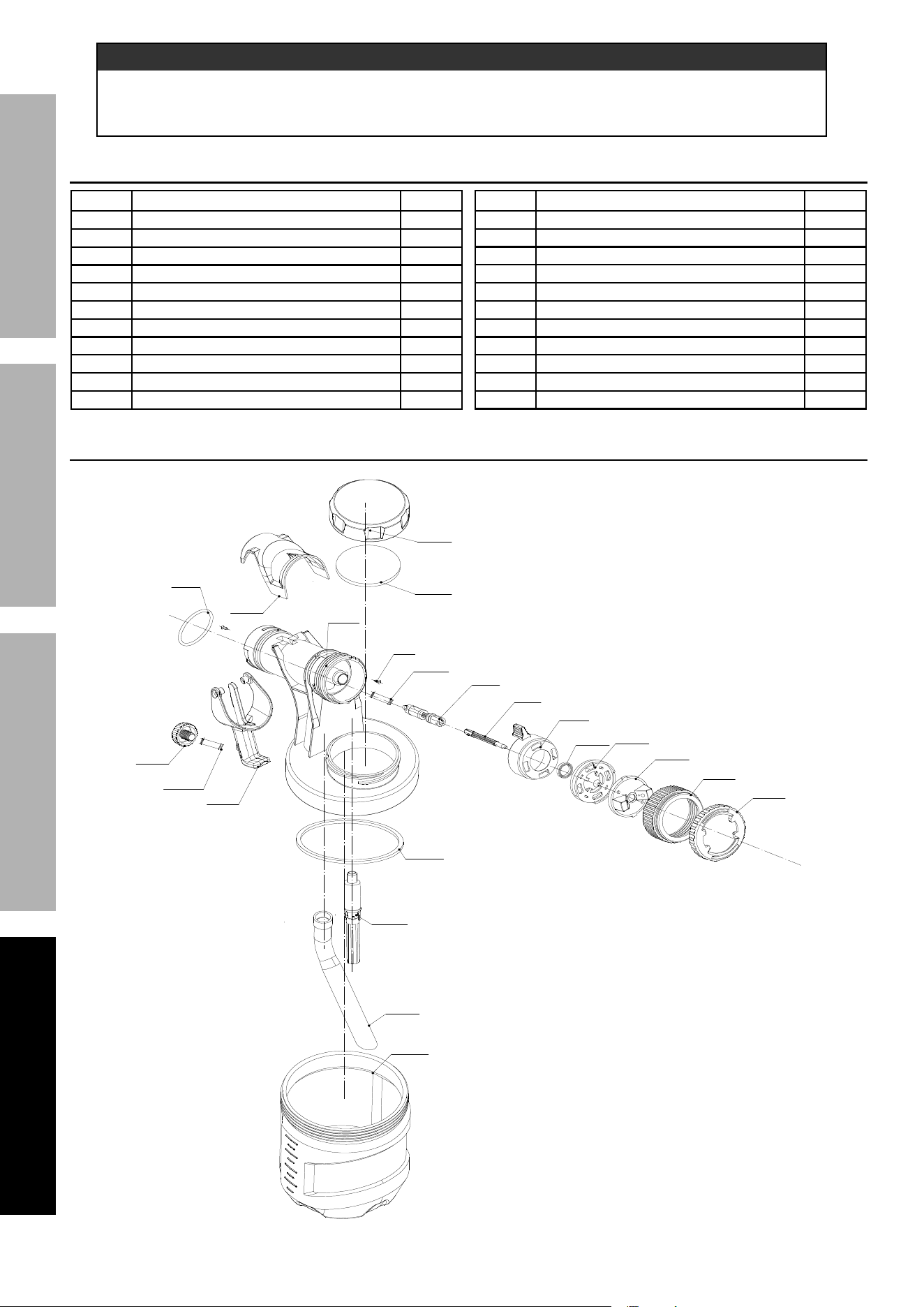

Parts Lists and Diagrams ........................................20
Warranty ..................................................................24
WARnInG SYMBOLS AnD DEFInITIOnS
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
IMpORTAnT SAFETY InSTRuCTIOnS
personal Safety
1. Stay alert. Watch what you are doing and
use common sense when operating the tool.
Do not use the tool while tired or under the
influence of drugs, alcohol, or medication.
A moment of inattention while operating the
tool increases the risk of injury to persons.
2. Dress properly. Do not wear loose clothing
or jewelry. Contain long hair. Keep hair,
clothing, and gloves away from moving parts.
Loose clothes, jewelry, or long hair increases
the risk of injury to persons as a result
of being caught in moving parts.
3. Do not overreach. Keep proper
footing and balance at all times.
Proper footing and balance enables better
control of the tool in unexpected situations.
Page 3For technical questions, please call 1-888-866-5797.Item 64933
NOTICE
Clean the Spray Gun Body and Cup IMMEDIATELY after EVERY use and when it will be idle for
more than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETYOpERATIOnMAInTEnAnCE SETup
4. use safety equipment.
Wear protective paint spraying
gloves and a NIOSH‑approved
respirator during use. Non‑skid safety
shoes and a hard hat must be used for
the applicable conditions.
5. Always wear eye protection.
Wear ANSI‑approved safety goggles.
Tool use and Care
1. Do not force the tool. Use the correct tool for the
application. The correct tool will do the job better
and safer at the rate for which the tool is designed.
b. unplug the tool before making any
adjustments, changing accessories, or
storing the tool. Such preventive safety
measures reduce the risk of starting the tool
unintentionally. Turn off and detach the air supply,
safely discharge any residual air pressure, and
release the throttle and/or turn the switch to its
off position before leaving the work area.
c. Store the tool when it is idle out of reach
of children and other untrained persons.
A tool is dangerous in the hands of untrained users.
d. Check for misalignment or binding of moving
parts, breakage of parts, and any other condition
that affects the tool’s operation. If damaged,
have the tool serviced before using. Many accidents
are caused by poorly maintained tools.
There is a risk of bursting if the tool is damaged.
e. use only accessories that are identified by the
manufacturer for the specific tool model. Use of
an accessory not intended for use with the specific
tool model, increases the risk of injury to persons.
Service
a. Tool service must be performed only
by qualified repair personnel.
b. When servicing a tool, use only identical
replacement parts. use only authorized parts.
c. use only lubricants supplied with the
tool or specified by the manufacturer.
Specific Safety Instructions
1. To reduce the risk of electric shock,
do not expose to rain. Store indoors.
2. Risk of Explosion –
Do not spray flammable liquids.
3. Do not direct spray at people or animals.
4. Read all of the information concerning
coating products and cleaning solvents.
Do not use chlorinated solvents
(e.g. 1-1-1 trichloroethylene and
dichloromethane, also known as
methylene chloride) to clean spray guns.
Many spray guns contain aluminum,
which reacts strongly to chlorinated solvents.
Contact the solvent or coating manufacturer as
needed regarding potential chemical reactions.
5. Risk of injection – Do not point spray gun at any
person or any part of the body. In case of skin
injection, seek medical attention immediately.
6. Spraying hazardous materials may result in serious
injury or death. Do not spray pesticide, acid,
corrosive material, fertilizer, or toxic chemicals.
7. Paints and solvents may be harmful or fatal if
swallowed or inhaled. Avoid prolonged skin
contact with solvents or paints as they will
irritate skin. After any contact, immediately
wash off exposed area with hot, soapy water.
8. Attach all accessories properly to the tool
before plugging in the tool. A loose accessory
may detach or break during operation.
9. Maintain labels and nameplates on the tool.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
10. Avoid unintentional starting. Prepare to
begin work before turning on the tool.
Page 4 For technical questions, please call 1-888-866-5797. Item 64933
NOTICE
Clean the Spray Gun Body and Cup IMMEDIATELY after EVERY use and when it will be idle for
more than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETY OpERATIOn MAInTEnAnCESETup
11. Do not leave the tool unattended when it is plugged
into an electrical outlet. Turn off the tool, and
unplug it from its electrical outlet before leaving.
12. This product is not a toy.
Keep it out of reach of children.
13. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in
close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure. In
addition, people with pacemakers should:
• Avoid operating alone.
• Do not use with power switch locked on.
• Properly maintain and inspect
to avoid electrical shock.
• Properly ground power cord. Ground Fault Circuit
Interrupter (GFCI) should also be implemented
– it prevents sustained electrical shock.
14. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
SAVE THESE InSTRuCTIOnS.
Page 5For technical questions, please call 1-888-866-5797.Item 64933
NOTICE
Clean the Spray Gun Body and Cup IMMEDIATELY after EVERY use and when it will be idle for
more than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETYOpERATIOnMAInTEnAnCE SETup

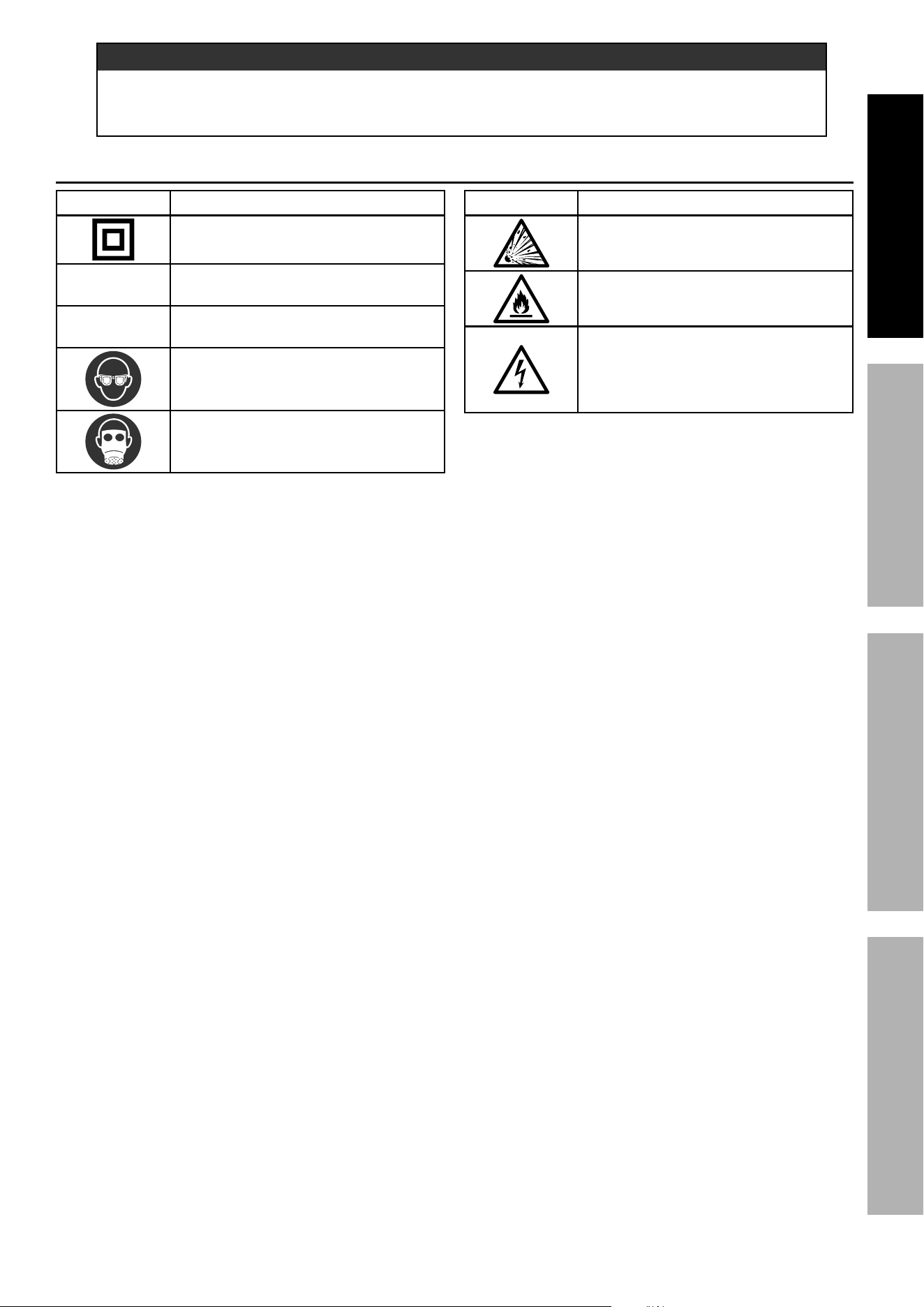

Symbol Definitions
Symbol property or Statement
Double Insulated
VAC
Volts Alternating Current
A
Amperes
WARNING marking concerning
Risk of Eye Injury.
Wear ANSI‑approved eye protection.
WARNING marking concerning
Risk of Respiratory Injury.
Wear NIOSH‑approved respirator.
Symbol property or Statement
WARNING marking concerning
Risk of Explosion.
WARNING marking concerning Risk
of Fire.
Do not use solvents improperly.
WARNING marking concerning
Risk of Electric Shock.
Properly connect power cord
to appropriate outlet.
Page 6 For technical questions, please call 1-888-866-5797. Item 64933
NOTICE
Clean the Spray Gun Body and Cup IMMEDIATELY after EVERY use and when it will be idle for
more than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETY OpERATIOn MAInTEnAnCESETup
Grounding
TO pREVEnT ELECTRIC SHOCK AnD DEATH FROM
InCORRECT GROunDInG WIRE COnnECTIOn:
Check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded.
Do not modify the power cord plug provided with the tool. never remove the grounding prong from
the plug. Do not use the tool if the power cord or plug is damaged. If damaged, have it repaired by a
service facility before use. If the plug will not fit the outlet, have a proper outlet installed by a
qualified electrician.
Double Insulated Tools: Tools with Two prong plugs
Figure A: Outlets for 2-prong plug
1. Tools marked “Double Insulated” do not
require grounding. They have a special
double insulation system which satisfies OSHA
requirements and complies with the applicable
standards of Underwriters Laboratories, Inc.,
the Canadian Standard Association,
and the National Electrical Code.
2. Double insulated tools may be used in
either of the 120 volt outlets shown in the
preceding illustration. (See Figure A.)
3. This appliance has a polarized plug (one blade is
wider than the other). This plug will fit in a polarized
outlet only one way. If the plug does not fit fully in
the outlet, reverse the plug. If it still does not fit,
contact a qualified electrician to install the proper
outlet. Do not change the plug in any way.
Extension Cords
1. Grounded tools require a three wire extension cord.
Double Insulated tools can use either a
two or three wire extension cord.
2. As the distance from the supply outlet increases,
you must use a heavier gauge extension cord.
Using extension cords with inadequately sized wire
causes a serious drop in voltage, resulting in loss of
power and possible tool damage. (See Table A.)
3. The smaller the gauge number of the wire, the
greater the capacity of the cord. For example,
a 14 gauge cord can carry a higher current
than a 16 gauge cord. (See Table A.)
4. When using more than one extension cord to make
up the total length, make sure each cord contains at
least the minimum wire size required. (See Table A.)
5. If you are using one extension cord for more
than one tool, add the nameplate amperes
and use the sum to determine the required
minimum cord size. (See Table A.)
Page 7For technical questions, please call 1-888-866-5797.Item 64933
NOTICE
Clean the Spray Gun Body and Cup IMMEDIATELY after EVERY use and when it will be idle for
more than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETYOpERATIOnMAInTEnAnCE SETup
1. If you are using an extension cord outdoors, make
sure it is marked with the suffix “W‑A” (“W” in
Canada) to indicate it is acceptable for outdoor use.
2. Make sure the extension cord is properly wired
and in good electrical condition. Always replace
a damaged extension cord or have it repaired
by a qualified electrician before using it.
3. Protect the extension cords from sharp objects,
excessive heat, and damp or wet areas.
Table A: Recommended
Minimum Wire Gauge
forExtensionCords*(120 / 240Volt)
nAMEpLATE
AMpERES
(at full load)
EXTEnSIOn CORD
LEnGTH
25'
50'
75'
100'
150'
0 – 2.0 18 18 18 18 16
2.1 – 3.4 18 18 18 16 14
3.5 – 5.0 18 18 16 14 12
5.1 – 7.0 18 16 14 12 12
7.1 – 12.0 18 14 12 10 ‑
12.1 – 16.0 14 12 10 ‑ ‑
16.1 – 20.0 12 10 ‑ ‑ ‑
* Based on limiting the line voltage drop to
five volts at 150% of the rated amperes.
Specifications
Electrical Rating 120 VAC / 60 Hz / 8.5 A
Cup Capacity 1.0mm Finish ‑ 32 fl. oz. 3.0mm Paint ‑ 48 fl. oz.
HOuSEHOLD uSE OnLY.
Page 8 For technical questions, please call 1-888-866-5797. Item 64933
NOTICE
Clean the Spray Gun Body and Cup IMMEDIATELY after EVERY use and when it will be idle for
more than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETY OpERATIOn MAInTEnAnCESETup
Set-up: Before use
Read the EnTIRE IMpORTAnT SAFETY InFORMATIOn section at the beginning of this manual
including all text under subheadings therein before set up or use of this product.

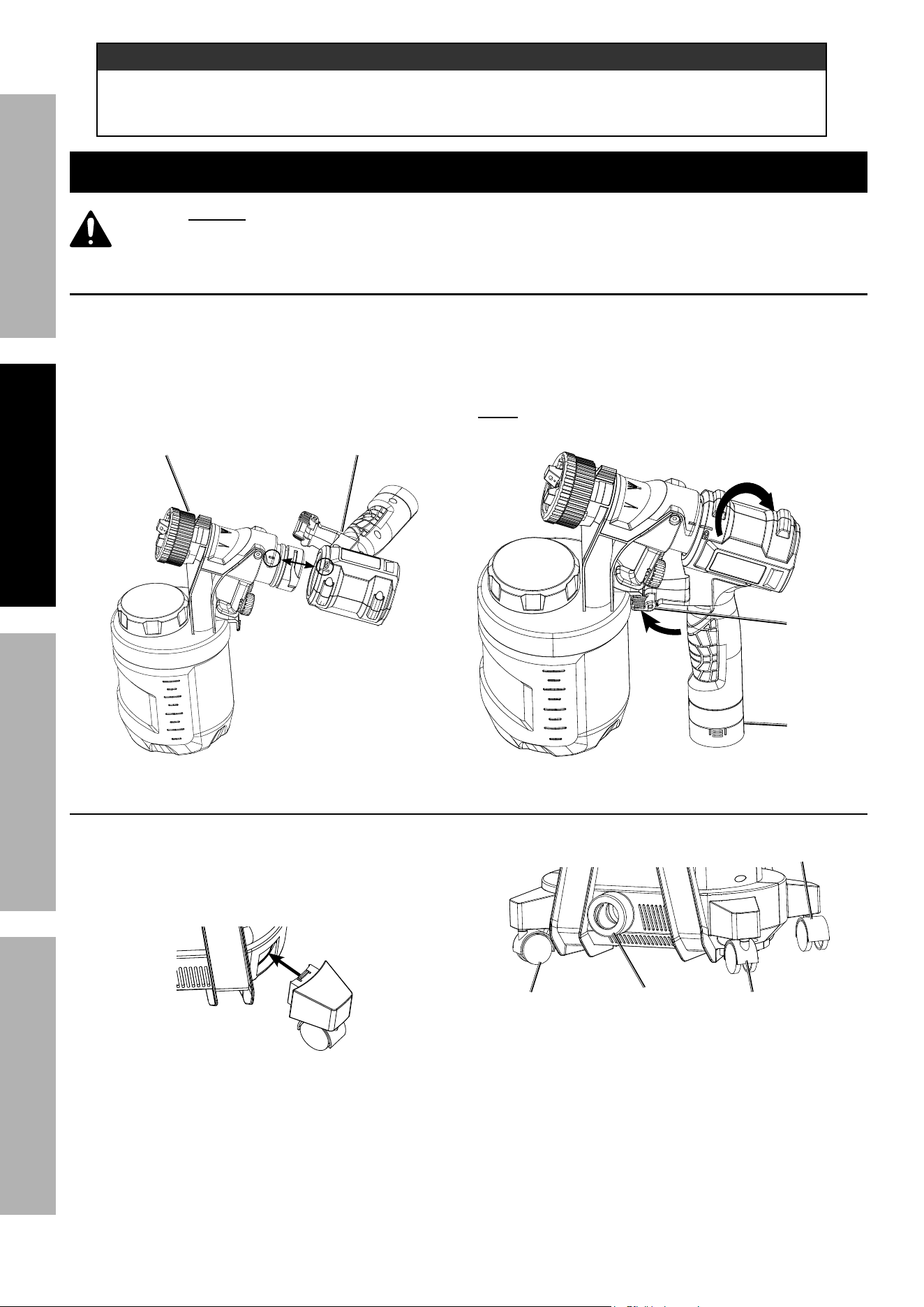

Assemble Spray Gun
OnLY uSE 32oz Cup WITH 1.0 FInISH SpRAY Gun.
ONLYUSE48oz Cup WITH 3.0 pAInT SpRAY Gun.
1. Line up marking on Spray Gun Body to
marking on Spray Gun Handle.
Spray Gun
Handle
Spray
Gun
Body
2. Turn Spray Gun Handle clockwise until
it locks with Spray Gun Body.
3. Push Clip forward until it clicks to attach
Spray Gun Handle and Spray Gun Body together.
note: If using 1.0mm Finish Sprayer, remove
Handle Extender so that Sprayer sits level.
Clip
Handle
Extender
Attach Casters
1. Attach two Locking Swivel Casters (31)
to the front (air outlet side).
2. Attach two Swivel Casters (17) to
the back (power cord side).
Air
Outlet
Locking
Swivel
Caster (31)
Locking
Swivel
Caster (31)
Swivel
Caster (17)
Front
Page 9For technical questions, please call 1-888-866-5797.Item 64933
NOTICE
Clean the Spray Gun Body and Cup IMMEDIATELY after EVERY use and when it will be idle for
more than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETYOpERATIOnMAInTEnAnCE SETup

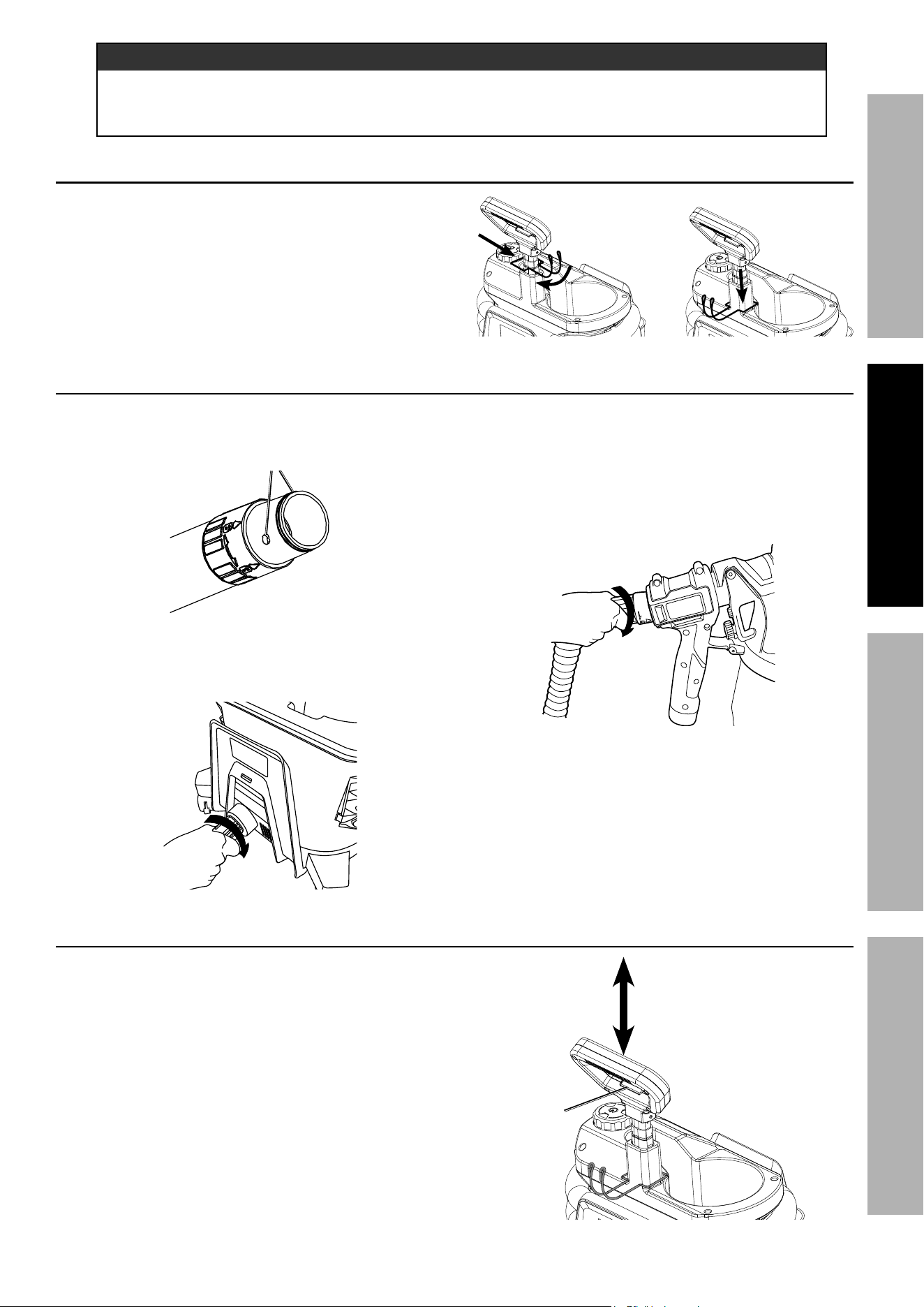

Attach Storage Hook
1. Slide Storage Hook over narrow part of handle.
2. Rotate Storage Hook 90°.
3. Slide Storage Hook down over thick part of handle.
1
2
3
Attach Air Hose
1. Add a small amount of petroleum jelly
to the two tabs on hose connector.
Tabs
2. Attach one end of Air Hose to Air Outlet by lining
up the tabs to the grooves inside the Inlet. Turn
the Air Hose clockwise until it is securely in place.
3. Add a small amount of petroleum jelly to
the two tabs on other hose connector.
4. Attach other end of Air Hose to Spray Gun
air inlet by lining up the tabs to the
grooves inside the Inlet. Turn the Air Hose
clockwise until it is securely in place.
Adjust Handle
1. Press Button and raise or lower Handle.
Button
Page 10 For technical questions, please call 1-888-866-5797. Item 64933
NOTICE
Clean the Spray Gun Body and Cup IMMEDIATELY after EVERY use and when it will be idle for
more than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETY OpERATIOn MAInTEnAnCESETup

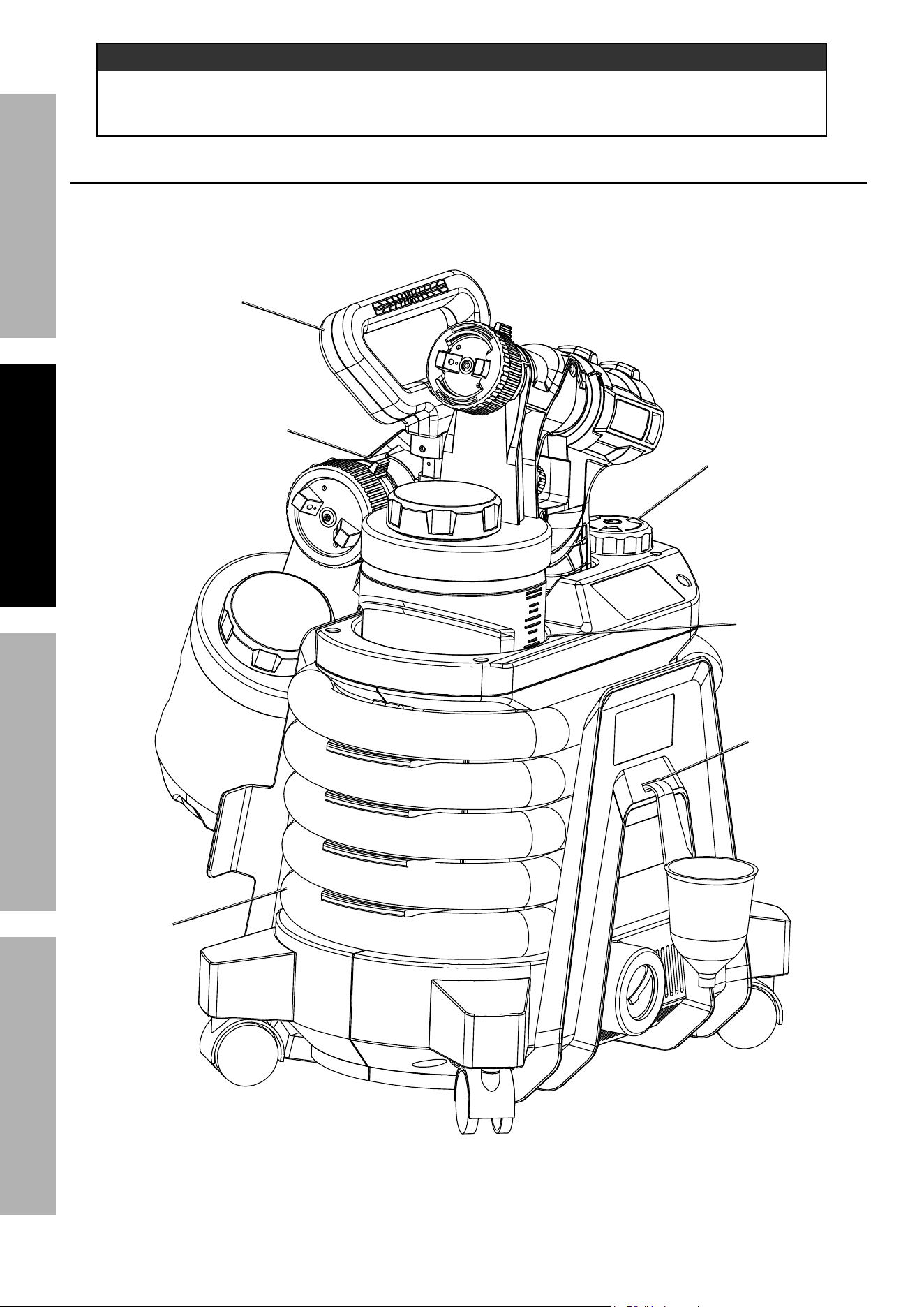

Components
power/
Air Flow
Switch
Viscosity
Cup
Storage
Slot
Hose
Storage
Extension
Handle
Spray Gun
Storage
Hook
Spray Gun
Storage
Cup
Page 11For technical questions, please call 1-888-866-5797.Item 64933
NOTICE
Clean the Spray Gun Body and Cup IMMEDIATELY after EVERY use and when it will be idle for
more than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETYOpERATIOnMAInTEnAnCE SETup

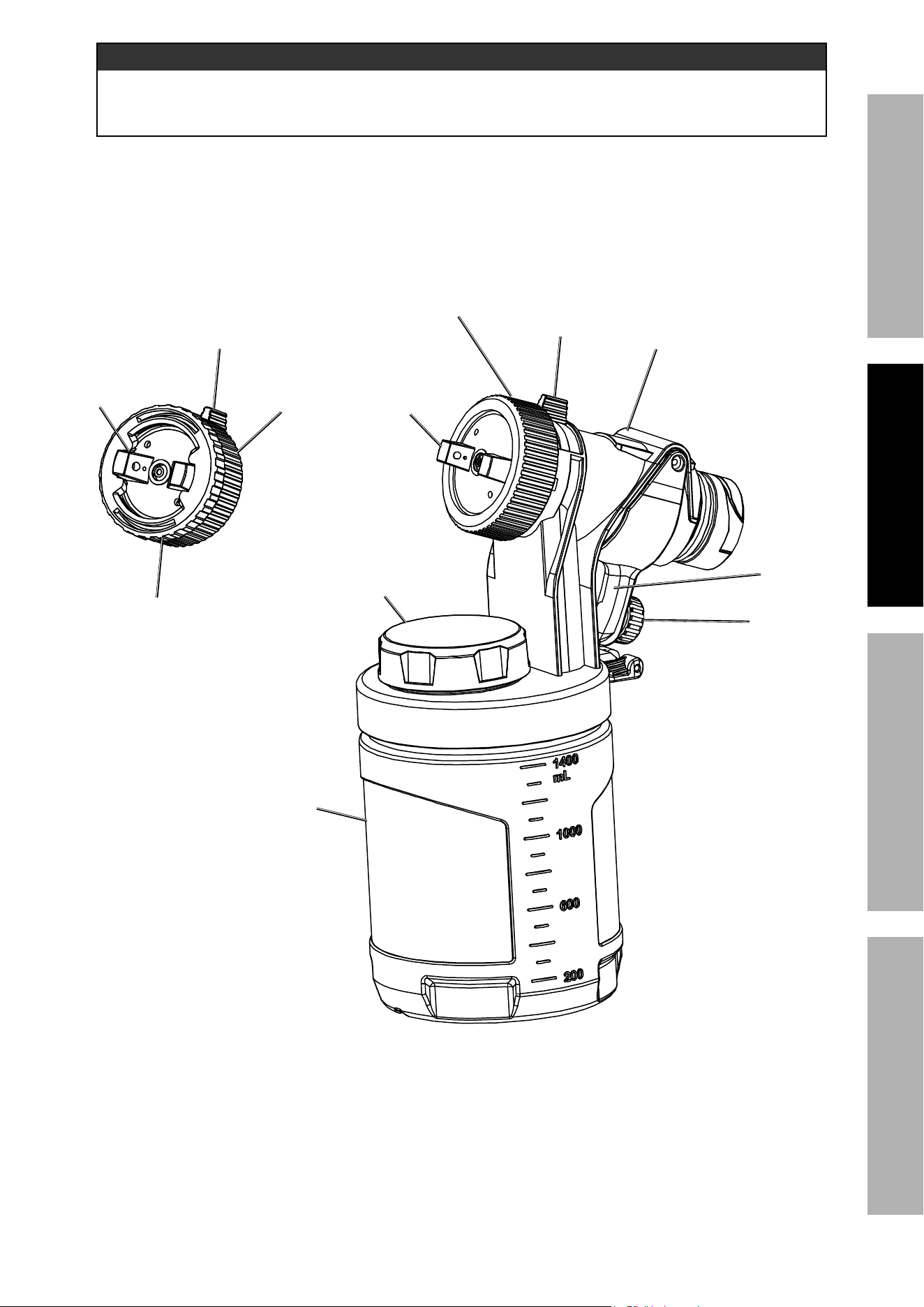

Lock
Ring
Spray Width
Adjustment
Knob
Fan
pattern
Adjustment
Ring
Air
Cap
1.0 mm Sprayer
Air
Cap
Lock
Ring
Spray
Gun
Body
Spray Width
Adjustment
Knob
Trigger
Fluid
Control
Knob
Cup
Lid
3.0 mm Sprayer
Page 12 For technical questions, please call 1-888-866-5797. Item 64933
NOTICE
Clean the Spray Gun Body and Cup IMMEDIATELY after EVERY use and when it will be idle for
more than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETY OpERATIOn MAInTEnAnCESETup

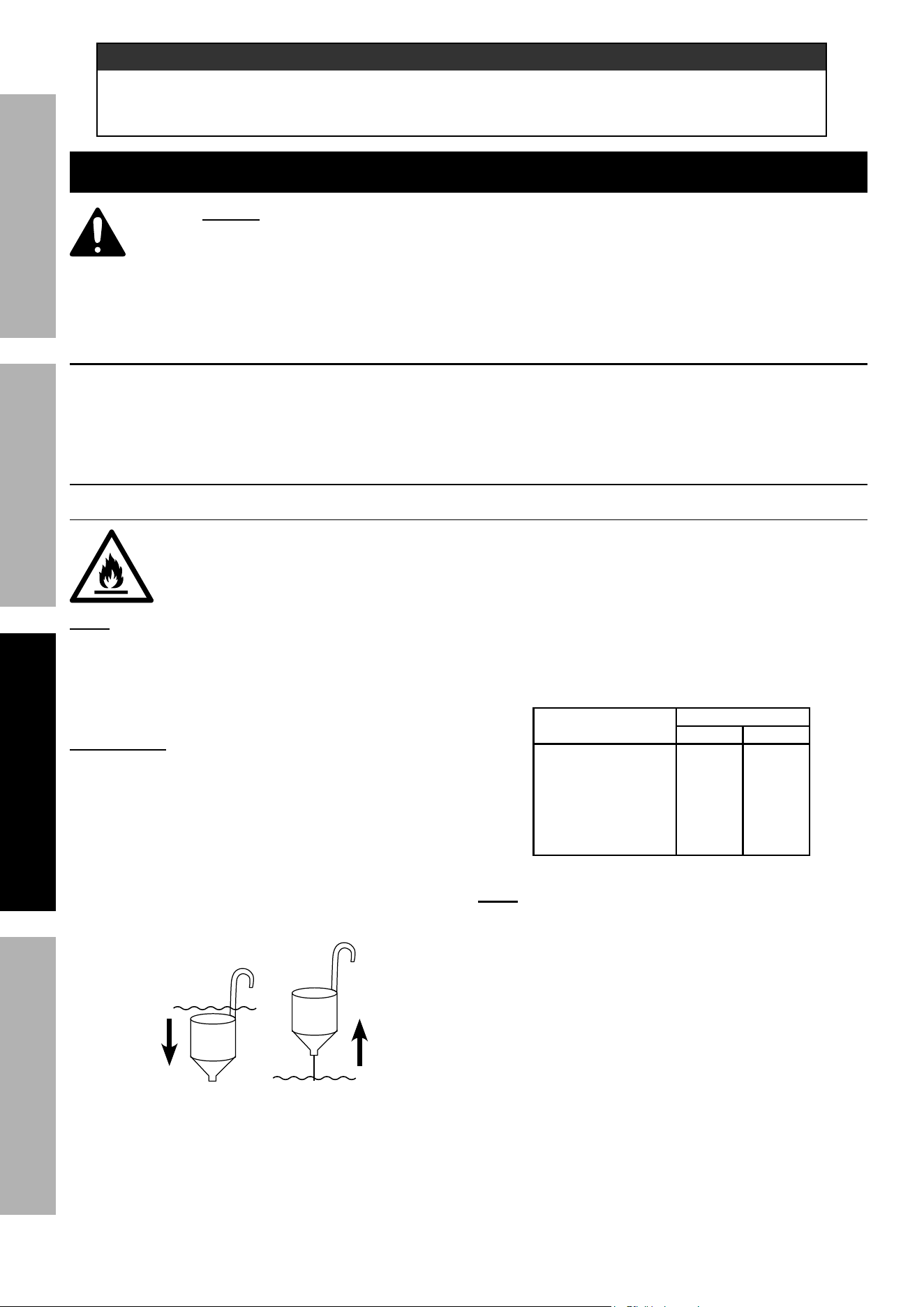

Operating Instructions
Read the EnTIRE IMpORTAnT SAFETY InFORMATIOn section
at the beginning of this manual including all text under subheadings therein
before set up or use of this product.
Inspect tool before use, looking for damaged, loose, and missing parts. If any problems are found,
do not use tool until repaired. Damaged or missing parts can increase risk of electric shock.
Workpiece and Work Area Set up
1. Designate a work area that is clean and well lit.
The work area must not allow access by children
or pets to prevent distraction and injury.
2. Before spraying, mask nearby objects not being
sprayed and lay cloths (not included) on the floors.
Spray Gun Setup and Adjustment
Material preparation and Filling
RISK OF EXpLOSIOn -
DO nOT SpRAY FLAMMABLE LIQuIDS.
note: This Spray Gun can only be used for spraying water-based or
oil-based low viscosity paints, stains and varnishes.
3.0mm Sprayer - For thick materials, such as
latex paint, where thinning is normally required.
1.0mm Sprayer - For thin materials, such as stain.
IMpORTAnT! Before THINNING,
check the viscosity of FLUID.
1. Carefully strain the material through
a paint strainer or a piece of cheesecloth.
2. Fully submerge the included Viscosity
Cup into the material.
3. Lift the Cup out of the material and
time how many seconds it takes for it
to completely run out of the cup.
4. Refer to Viscosity Chart for recommended
time for different materials.
Material
Time in seconds
1.0mm 3.0mm
Water‑Based Paint
Primer
Oil‑Based Paint
Varnish
Sealer
Wood Stain
< 50 <100
Viscosity Chart
note: Proper material mixture is essential.
Follow the manufacturer’s directions for
thinning instructions. Most materials will spray
easily if they are thinned properly.
5. If necessary, thin the material according to
manufacturer’s directions and mix thoroughly.
6. Check viscosity. Thin and check until
proper viscosity is achieved.
7. Remove Cup’s Lid.
8. Fill the Cup no higher than:
a. 3.0mm Sprayer - 48 oz. mark
b. 1.0mm Sprayer - 32 oz. mark
9. Replace Cup’s Lid. Securely tighten Cup and Lid.
Page 13For technical questions, please call 1-888-866-5797.Item 64933
NOTICE
Clean the Spray Gun Body and Cup IMMEDIATELY after EVERY use and when it will be idle for
more than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETYOpERATIOnMAInTEnAnCE SETup

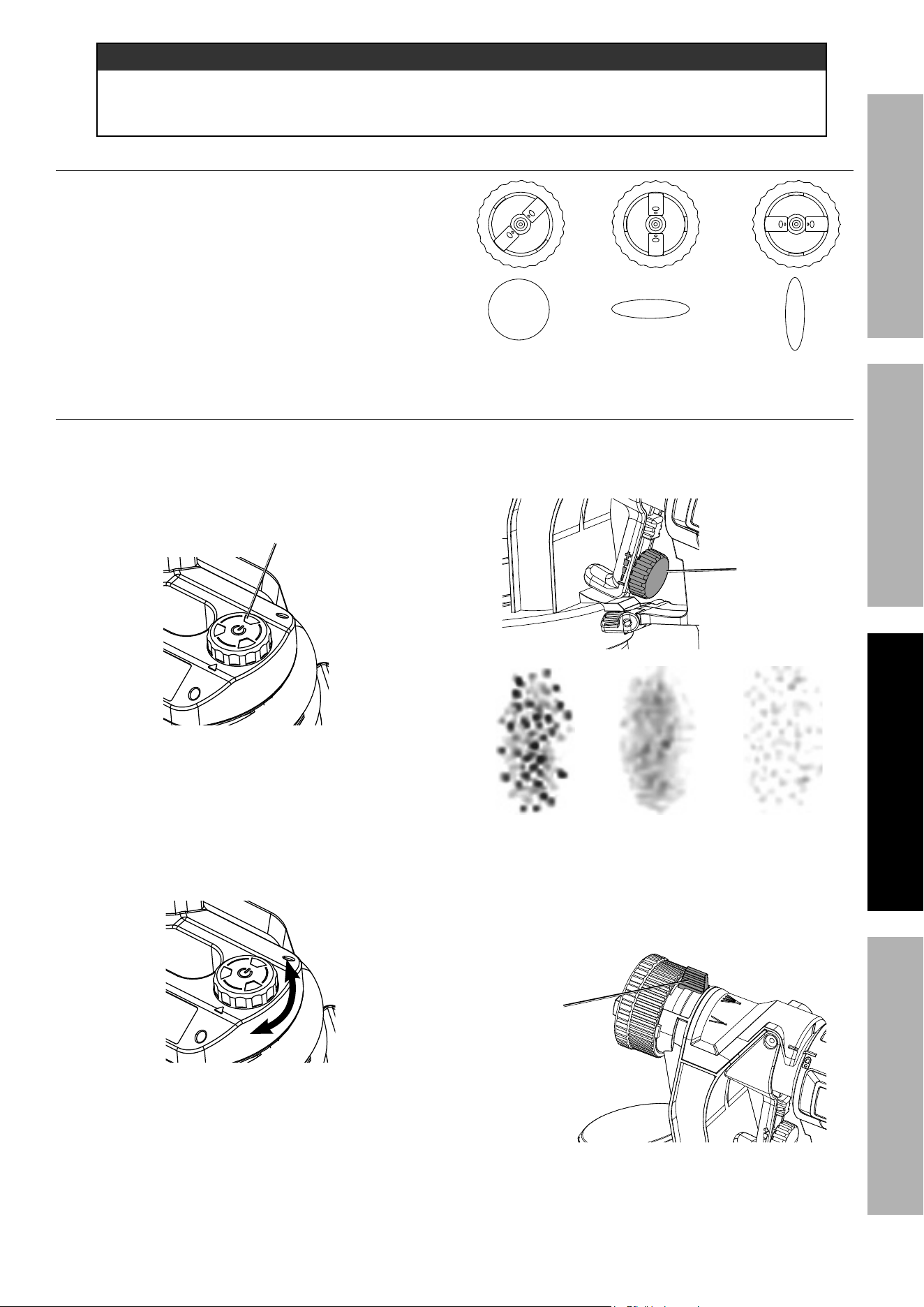

Fan pattern
3.0mm Sprayer
1. Loosen Lock Knob
2. Turn Air Cap until desired pattern is selected.
3. Tighten Lock Knob.
1.0mm Sprayer
4. Turn Fan Pattern Adjustment Ring
until desired pattern is selected.
HorizontalCone
Vertical
Test Spray
1. Plug the unit into an electrical outlet.
2. Press Power Switch.
power Switch/
Airflow Control
Knob
3. Spray on piece of scrap material in short
bursts, then check consistency.
4. Adjustments:
a. Airflow ‑ Turn Airflow Control Knob
clockwise until it stops for maximum
air flow. To reduce overspray, turn
counterclockwise to decrease airflow.
b. Fluid Control ‑ Turn Fluid Control
Knob clockwise to increase fluid and
counterclockwise to decrease fluid.
Fluid
Control
Knob
Too Coarse
(Decrease
Fluid)
Too Fine
(Increase
Fluid)
Correct
c. Spray Width ‑ Turn Spray Width Knob
to the right to increase width and
to the left to decrease width.
Spray
Width
Knob
Page 14 For technical questions, please call 1-888-866-5797. Item 64933
NOTICE
Clean the Spray Gun Body and Cup IMMEDIATELY after EVERY use and when it will be idle for
more than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETY OpERATIOn MAInTEnAnCESETup

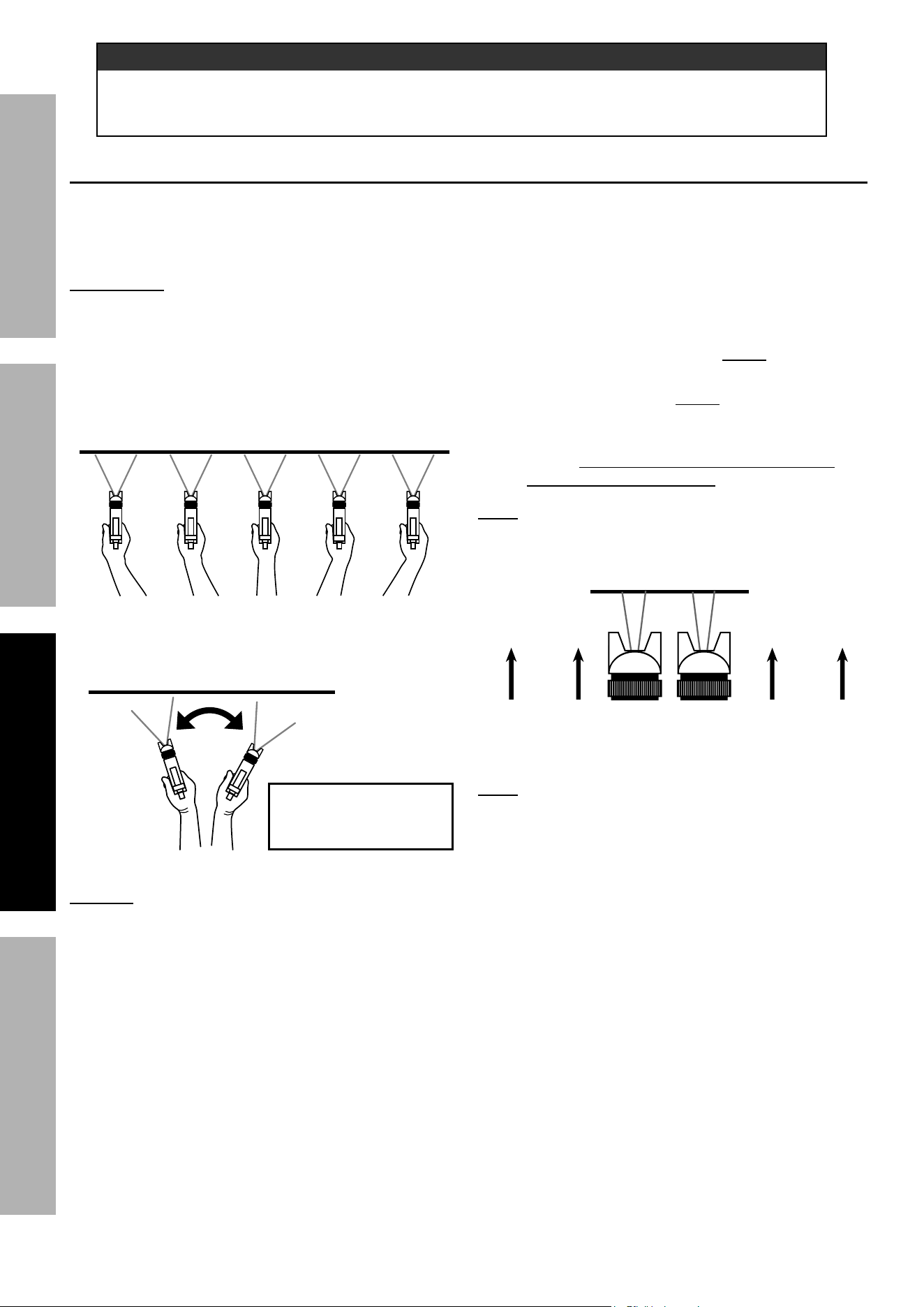

Spraying Technique
When first filled, the sprayer may take up a short time after
the trigger is depressed to prime and start spraying.
IMpORTAnT: Proper spraying technique
is ESSENTIAL to achieve good results.
1. First, prepare the Spray Gun according to
the instructions under Spray Gun Setup and
Adjustment on page 12.
2. Keep the Spray Gun upright and
at a right angle to the workpiece ‑
See Figure B.
Incorrect
Gun
Angle
Do not pivot your wrist
or wave the gun like a
fan towards the wall.
Correct Gun Angle
Move your arm, not just your wrist.
Point gun directly towards the surface and
maintain an even, steady distance and speed.
Figure B: Spray Gun Angle - top view
nOTICE: Do not stop when spraying.
Spraying materials will start to set and dry as soon as
they come in contact with the air.
To avoid clogs, check Nozzle regularly for dried
paint and remove with a cloth as needed.
3. Depress Trigger fully and move Spray Gun
in parallel strokes to the workpiece.
4. Keep the distance from the workpiece
between 2" and 12".
5. To avoid paint build up:
a. Apply two thin coats rather than one thick
coat. Overlap 1/3 to 1/2 on second coat.
b. Start moving the Spray Gun before
fully depressing Trigger.
c. Fully depress Trigger before
contacting the workpiece.
d. When finished with the stroke, release the
Trigger while still moving the Spray Gun and
after passing the workpiece ‑ see Figure C.
note: Doing this will produce a smoother finish.
Do not stop moving the Spray Gun while spraying.
If the Spray Gun stops even briefly while spraying
the paint will build up and run down the workpiece.
End
Stroke
Begin
Stroke
Release
Trigger
Depress
Trigger
Figure C: paint Stroke Triggering - top view
note: The stroke speed and
Fluid Control Knob adjustment will determine
how much paint is being applied.
6. Keep Cup filled half-way full to
prevent spattering. When refilling,
loosen Lid first to release pressure.
7. To prevent accidents, after use, release Trigger,
unplug the tool, safely discharge any residual
air pressure, and release Trigger again.
8. Clean Spray Gun and Cup IMMEDIATELY
after EVERY use and when it will be idle for
more than 30 minutes. Delayed or inadequate
cleaning will permanently clog the Spray Gun.
Page 15For technical questions, please call 1-888-866-5797.Item 64933
NOTICE
Clean the Spray Gun Body and Cup IMMEDIATELY after EVERY use and when it will be idle for
more than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETYOpERATIOnMAInTEnAnCE SETup
Cleaning
RISK OF EXpLOSIOn -
DO nOT SpRAY FLAMMABLE LIQuIDS.
a. Follow solvent manufacturer’s clean up
instructions and safety precautions.
b. If collecting flushed solvents in
metal container, transfer to nonmetal
container, and flush metal container.
c. Work far away from any ignition
sources in a vapor free area.
d. Keep class ABC fire extinguisher nearby.
After Every use
nOTICE: Only use water for water-based materials
or mineral spirits for oil-based materials.
Do not immerse Spray Gun Handle in solvent.
1. Unplug the unit from its electrical outlet.
2. Designate a container for waste.
3. Loosen Lid to relieve pressure, then remove Cup.
4. Carefully scrape paint back into paint container.
5. Fill Cup 1/4 full with solvent
(sold separately). Replace Cup, then
shake Spray Gun for several seconds.
6. Remove Cup, pour solvent into waste
container and wipe away any paint
residue from Cup with clean cloth.
7. Fill Cup 1/4 to 1/2 full with solvent. Replace
Cup. Securely tighten Cup and Lid.
8. Shake Spray Gun up and down
vigorously for five seconds.
9. Repeat steps 5. to 8. until Cup is clean.
10. Fill Cup 1/4 full with solvent
(sold separately). Replace Cup, then
shake Spray Gun for several seconds.
11. Plug the unit into an electrical outlet.
12. Point Spray Gun at interior side of waste
container. Depress Trigger and slightly
shake Spray Gun while spraying solvent into
container. Once the Cup is empty, repeat the
process until solvent comes out clean.
13. Unplug the unit from its electrical outlet.
14. Point the Spray Gun into the waste
container and depress the Trigger again
to make sure no air remains.
15. Separate Spray Gun Handle from Spray Gun Body.
Store Spray Gun Handle away from cleaning area.
16. Remove Cup and Suction Tube.
17. Remove Cup’s Lid, then remove
check valve under Lid.

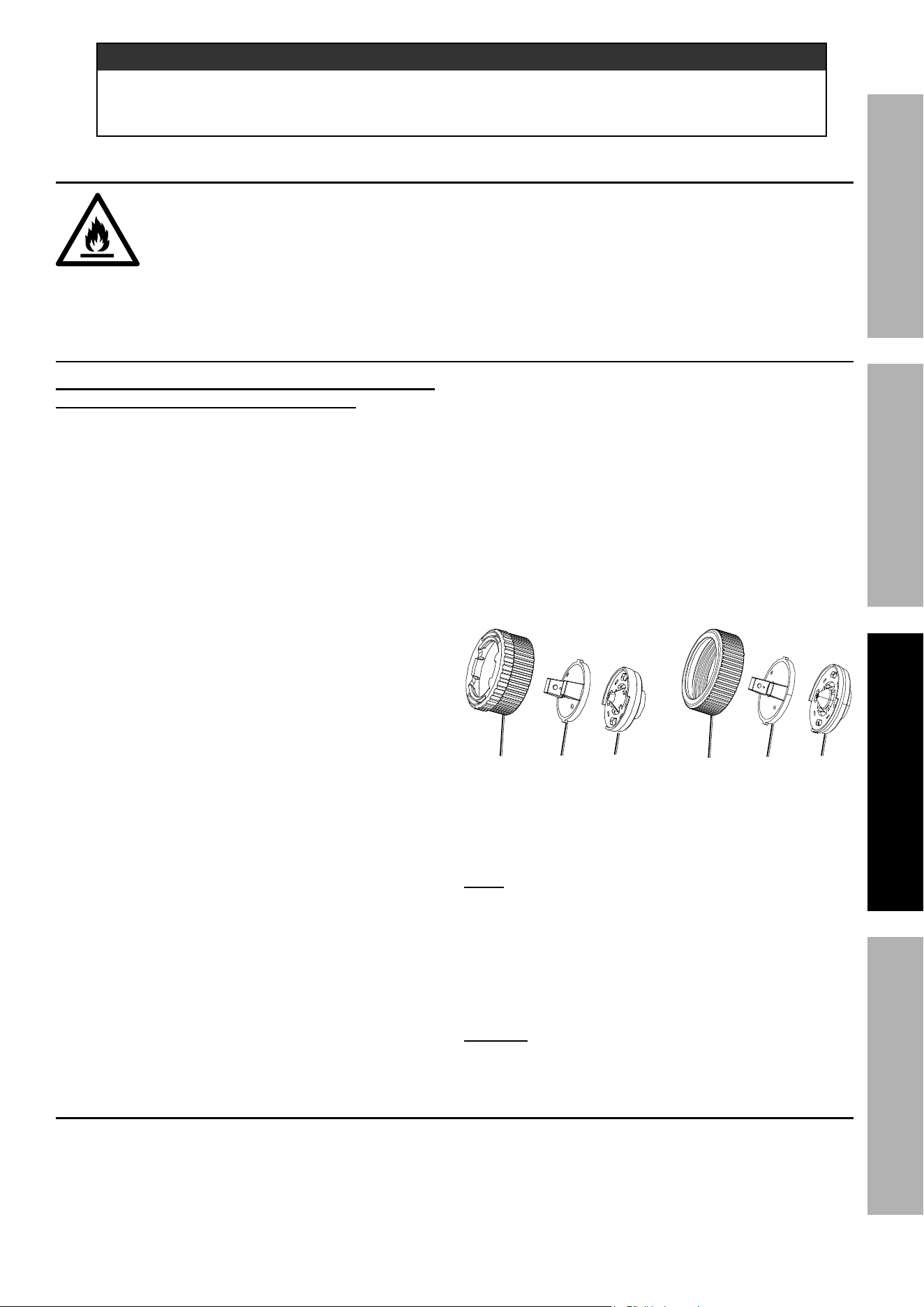

18. Remove Lock Ring, Air Cap, and Nozzle.
Lock
Ring
Lock
Ring
Air
Cap
Air
Cap
nozzle
nozzle
1.0mm Finish Sprayer 3.0mm paint Sprayer
19. Inspect parts and soak in solvent as
necessary. Use brushes and toothpicks
(sold separately) to remove any paint.
note: To prevent damage, do not use
metal objects to clean parts.
20. Wipe down Spray Gun Body with
a clean cloth and solvent.
21. Make sure all parts are dry and free from
residual paint, then reassemble Spray Gun.
nOTICE: Do not use any kind of lubricant. The
lubricant will mix with paint, causing poor results.
Waste Disposal
After cleaning, dispose of waste according to the solvent manufacturer’s
directions and local hazardous waste standards.
Page 16 For technical questions, please call 1-888-866-5797. Item 64933
NOTICE
Clean the Spray Gun Body and Cup IMMEDIATELY after EVERY use and when it will be idle for
more than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETY OpERATIOn MAInTEnAnCESETup
user-Maintenance Instructions
procedures not specifically explained in this manual
must be performed only by a qualified technician.
TO pREVEnT SERIOuS InJuRY:
Detach the air supply and safely discharge any residual air pressure in the tool
before performing any inspection, maintenance, or cleaning procedures.
TO pREVEnT SERIOuS InJuRY FROM TOOL FAILuRE: Do not use damaged equipment.
If abnormal noise, vibration, or leaking air occurs, have the problem corrected before further use.
Inspection
note: These procedures are in addition to the regular checks and maintenance
explained as part of the regular operation of the air‑operated tool.
BEFORE EACH uSE, inspect the general condition of the tool. Check for:
• loose screws,
• misalignment or binding of moving parts,
• clogged nozzle or fluid tip,
• cracked or broken parts, and
• any other condition that may affect its safe operation.
Storage
Store in a dry, secure area out of reach of children.
Page 17For technical questions, please call 1-888-866-5797.Item 64933
NOTICE
Clean the Spray Gun Body and Cup IMMEDIATELY after EVERY use and when it will be idle for
more than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETYOpERATIOnMAInTEnAnCE SETup

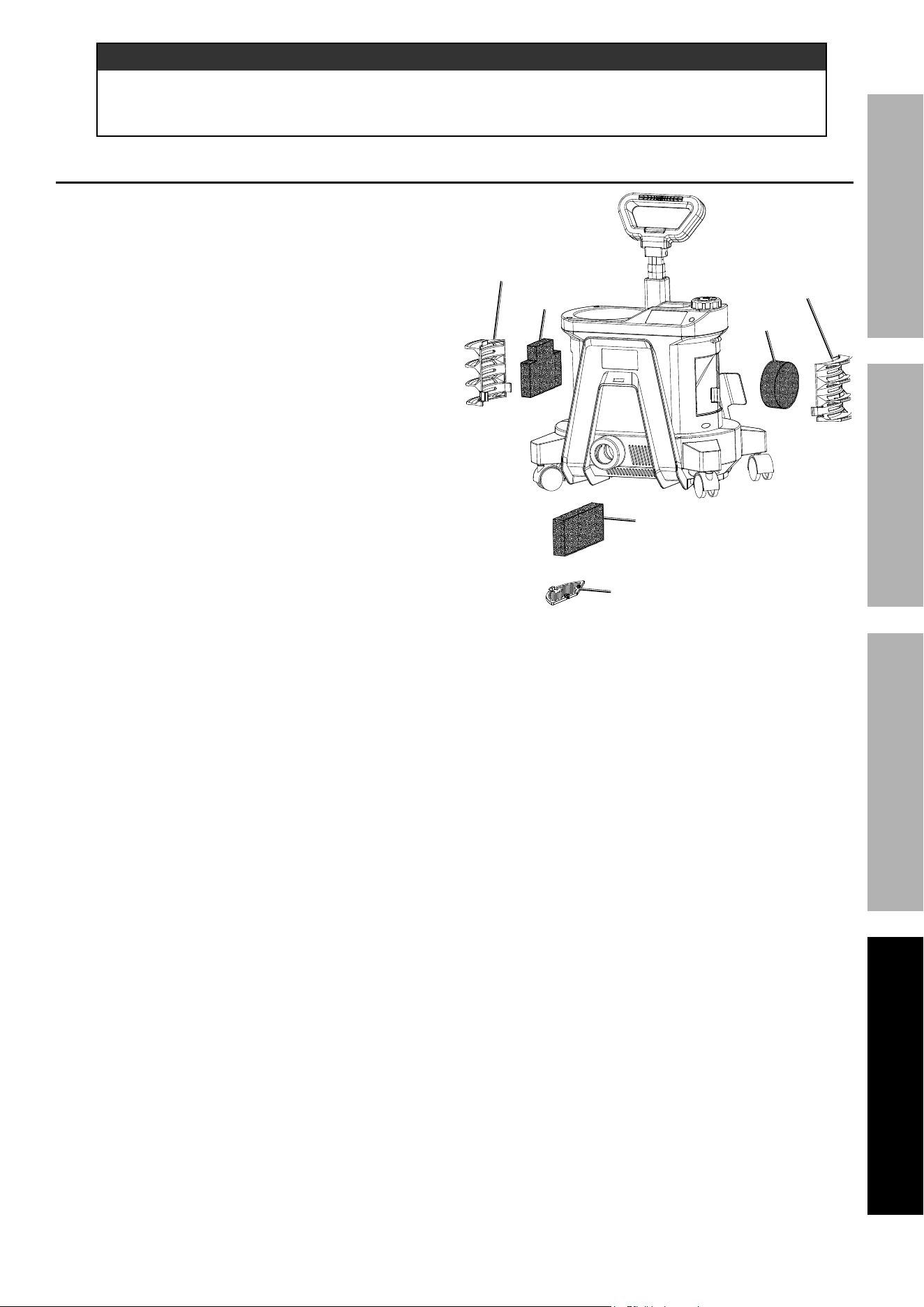

Air Filter Maintenance
1. Remove Air Hose.
2. Remove Air Inlet Covers and Filters.
3. Inspect Air Filters.
4. If necessary, Wash Air Filters in warm water and
mild detergent several times. Rinse. Squeeze out
excess water and allow them to dry completely.
5. Install cleaned Air Filters and
replace Air Inlet Covers.
Right Side
Air Inlet
Cover
Left Side
Air Inlet
Cover
Bottom Air
Inlet Cover
Filter C
Filter B
Filter A
Page 18 For technical questions, please call 1-888-866-5797. Item 64933
NOTICE
Clean the Spray Gun Body and Cup IMMEDIATELY after EVERY use and when it will be idle for
more than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETY OpERATIOn MAInTEnAnCESETup

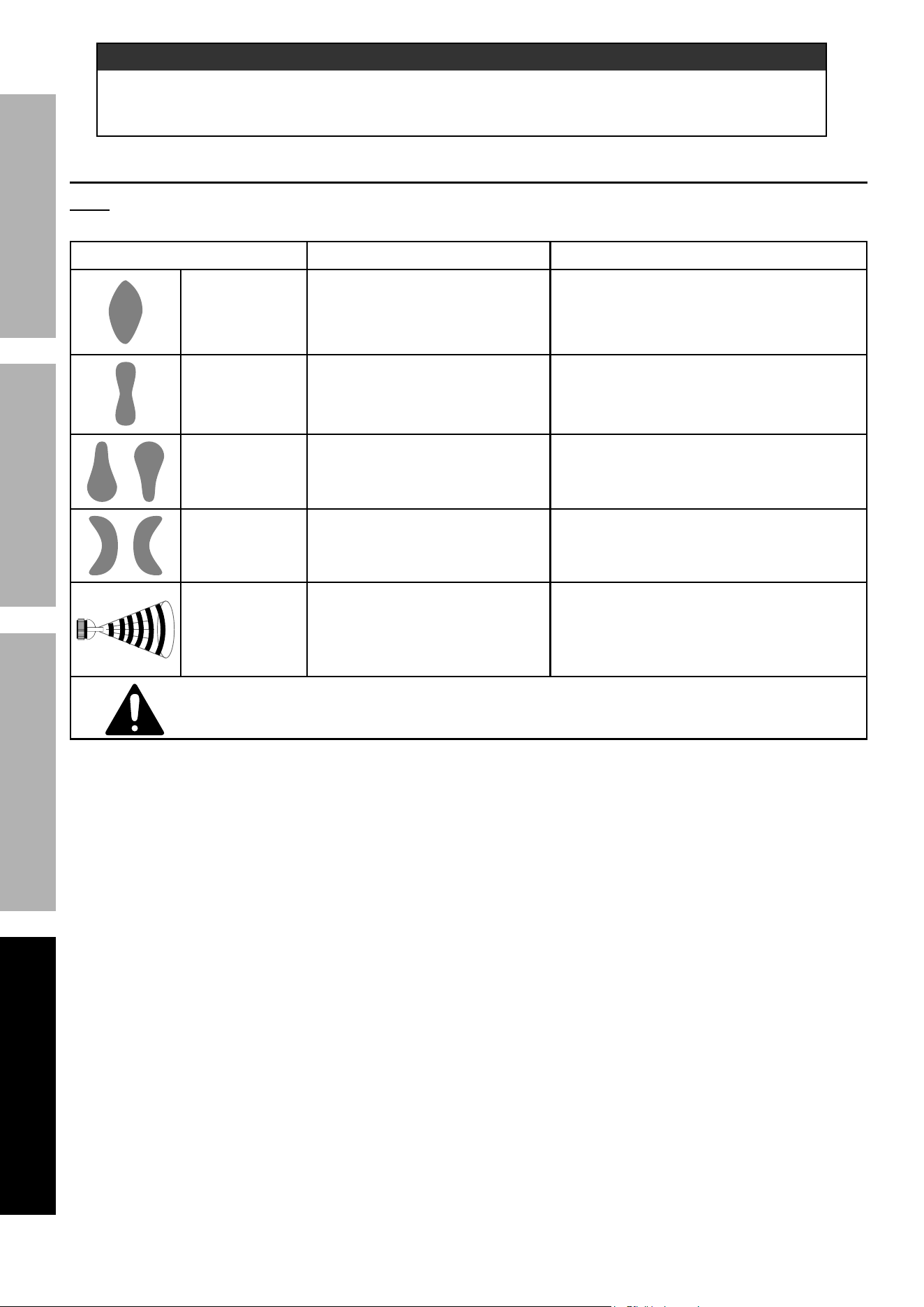

Troubleshooting - Spray pattern Diagnosis
note: The drawings on the left below resemble symptoms of spray pattern problems.
Refer to the accompanying possible causes and likely solutions to the right.
problem possible Causes Likely Solutions
Heavy center
pattern
1. Fluid Control Knob
needs adjustment.
2. The paint is too thick.
1. Adjust Fluid Control Knob.
2. Thin paint according to the
manufacturer’s instructions.
Light center
pattern
1. Fluid Control Knob
needs adjustment.
2. Dried paint on Nozzle.
1. Adjust Fluid Control Knob.
2. Use a nonmetallic point to clean Nozzle.
Heavy top/
bottom pattern
1. Air Cap plugged.
2. Lock Ring loose.
3. Dried paint on Nozzle.
1. Clean Air Cap.
2. Tighten Lock Ring.
3. Use a nonmetallic point to clean Nozzle.
Pattern on right
or left only
Dried paint or debris on Nozzle. Use a nonmetallic point to clean Nozzle.
Jerky or
Fluttering Spray
1. Loose or damaged Air Cap.
2. Paint level low.
3. Cup and/or Lid loose.
4. Clogged Check Valve.
1. Tighten Air Cap.
2. Refill paint Cup.
3. Tighten Cup and/or Lid.
4. Clean Check Valve.
Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect air supply before service.
Page 19For technical questions, please call 1-888-866-5797.Item 64933
NOTICE
Clean the Spray Gun Body and Cup IMMEDIATELY after EVERY use and when it will be idle for
more than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETYOpERATIOnMAInTEnAnCE SETup
General Troubleshooting Chart
problem possible Causes Likely Solutions
Sputtering Spray 1. Low paint level.
2. Cup tipped.
3. Cup and/or Lid loose.
4. Clogged Check Valve.
5. Nozzle Seal damaged.
1. Refill.
2. Hold upright.
3. Tighten Cup and/or Lid.
4. Clean Check Valve.
5. Have qualified technician replace seal.
Will Not Spray 1. No power at Spray Gun.
2. Fluid too thick.
3. Cup and/or Lid loose.
4. Clogged Check Valve.
1. Check Power Cord.
2. Thin fluid.
3. Tighten Cup and/or Lid.
4. Clean Check Valve.
Overspray
(Paint drifting to
unintended objects.)
1. Improper application speed.
2. Improper distance from workpiece.
3. Airflow too high.
4. Clogged Check Valve.
1. Move moderately and parallel.
2. Adjust distance.
3. Reduce Airflow.
4. Clean Check Valve.
Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect air supply before service.
Page 20 For technical questions, please call 1-888-866-5797. Item 64933
NOTICE
Clean the Spray Gun Body and Cup IMMEDIATELY after EVERY use and when it will be idle for
more than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETY OpERATIOn MAInTEnAnCESETup
pLEASE READ THE FOLLOWInG CAREFuLLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
parts Lists and Diagrams
Overall parts List
part Description Qty
1 3mm Paint Sprayer 1
2 1mm Finish Sprayer 1
3 Spray Gun Handle 1
4 Clip 1
5 Power Cord 1
6 Power Cord Sheath 1
7 Power Cord Cover 1
8 Housing Assembly 2
9 Power Switch 1
10 Handle 1
11 Upper Cover 1
12 Adjustment Lever 1
13 Lever Spring 1
14 Washer 1
15 Screw 4
16 Switch PCB 1
17 Swivel Caster 2
18 Cord Clamp 1
19 Side Air Inlet Cover 2
part Description Qty
20 Filter A 1
21 Motor Cover 1
22 Bottom Air Inlet Cover 2
23 Handle Support 1
24 Motor 1
25 O‑Ring 1
26 Air Outlet Inner Connector 1
27 Interior Air Inlet 1
28 Filter C 1
29 Filter B 1
30 Air Hose 1
31 Locking Swivel Caster 2
32 Screw 18
33 Hose/Cord Protector 1
34 Nozzle Cleaner 1
35 Viscosity Cup 1
36 Spray Tip Key 1
37 Cleaning Brush 1
38 Storage Hook 1
Page 21For technical questions, please call 1-888-866-5797.Item 64933
NOTICE
Clean the Spray Gun Body and Cup IMMEDIATELY after EVERY use and when it will be idle for
more than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETYOpERATIOnMAInTEnAnCE SETup
Record product’s Serial number Here:
note: If product has no serial number, record month and year of purchase instead.
note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175506504 when ordering parts.
Overall Assembly Diagram
1
2
9
10
21
26
27
29
30
31
32
33
19
20
8
7
6
4
5
17
16
15
18
11
12
13
14
22
25
28
3
23
24
34
35
36
37
38
Page 22 For technical questions, please call 1-888-866-5797. Item 64933
NOTICE
Clean the Spray Gun Body and Cup IMMEDIATELY after EVERY use and when it will be idle for
more than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETY OpERATIOn MAInTEnAnCESETup
1mm Finish Sprayer parts List
part Description Qty
1.1 Fan Pattern Adjustment Ring 1
1.2 Lock Ring 1
1.3 Air Cap 1
1.4a 1mm Nozzle ‑ Copper 1
1.4b Nozzle Seal 1
1.5 Spray Width Adjustment Knob 1
1.6 Fluid Needle 1
1.7 Fluid Needle Bar Unit 1
1.8 Fluid Needle Spring 1
1.9 Screw 2
1.10 Gun Body 1
part Description Qty
1.11 Seal Pad 1
1.12 Cup Lid 1
1.13 Trigger Cover 1
1.14 O‑Ring 1
1.15 Fluid Control Knob 1
1.16 Spring 1
1.17 Trigger 1
1.18 Seal Pad 1
1.19 Check Valve 1
1.20 Suction Tube 1
1.21 Cup 32 oz 1
1mm Finish Sprayer Assembly Diagram
1.20
1.21
1.19
1.1
1.2
1.3
1.4a
1.5
1.6
1.7
1.8
1.9
1.10
1.11
1.12
1.14
1.13
1.15
1.16
1.17
1.18
1.4b
Page 23For technical questions, please call 1-888-866-5797.Item 64933
NOTICE
Clean the Spray Gun Body and Cup IMMEDIATELY after EVERY use and when it will be idle for
more than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
Water-based paint hardens quickly and permanently inside Spray Gun.
SAFETYOpERATIOnMAInTEnAnCE SETup
3mm paint Sprayer parts List
part Description Qty
2.1 Lock Ring 1
2.2 Air Cap 1
2.3 3mm Nozzle 1
2.4 Spray Width Adjustment Knob 1
2.5 Fluid Needle 1
2.6 Fluid Needle Bar Unit 1
2.7 Fluid Needle Core Spring 1
2.8 Screw 2
2.9 Gun Body 1
2.10 Seal Pad 1
2.11 Cup Lid 1
part Description Qty
2.12 Trigger Cover 1
2.13 O‑Ring 1
2.14 Fluid Control Knob 1
2.15 Spring 1
2.16 Trigger 1
2.17 Seal Pad 1
2.18 Check Valve 1
2.19 Suction Tube 1
2.20 Cup 48 oz 1
2.21 Handle Base 1
3mm paint Sprayer Assembly Diagram
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
2.9
2.10
2.11
2.12
2.13
2.21
2.18
2.19
2.20
2.14
2.15
2.16
2.17
