Pleasereadinstructionscarefullybeforeinstallationanduse.Installationshouldbeperformedbyaprofessionalinstaller.
Toensureyoursafety,thedrivershouldnotwatchvideosoroperatefeaturesonthemonitorwhiledriving.Thereareno
serviceablepartsinthisunit,donotdisassembleortrytorepairthisunit.Iftheunitmalfunctionspleasereturntoyour
vendororsendtoaPylerepairfacility.Pleaseobserveandobeythelocallawsan
dregulationswheninstallingtheunit.
UponInstallation,pleasemakesureastonottointerferewithanyofthevehicle'ssafetyfeatures,wiring,components,etc.
Wearenotresponsibleforanydamages,injury,malfunctionsorotherwisenotedduetofaultyornon‐professional
installation.
Connection
Connectth
ecamera’sthr
eadedlocking4‐pincableconnectorsintothefemalereceivingconnectionoftheincluded4‐pin
extensioncables.Theextensioncablesthenconnecttoyourcompatiblevideomonitorswith4‐pinreceiv ingconnectors.
Thethreadedlockingcableconnectorsofthecameraservetoprovidepowerandvideoforallca
meras.
(camera1‐channel1,ca
mera 2‐channel2, camera 3 - channel 3, camera 4 - channel 4)
Pleasereme
mber
todisconnectyourvehicle'sbatterypriortoany connection/installation.Usetheincludedwiringharness
toprovidepowerandvideosignalstoyourmonitor.Therearecoloredwirestoassistinthevideocamerasystemsetup.
Seeth
ewiringdiagramforconnectionsbetweencameras,monitorandyourvehicle
.
PLCMTR‐CommercialGradeCameraSystem
www.pyleaudio.com

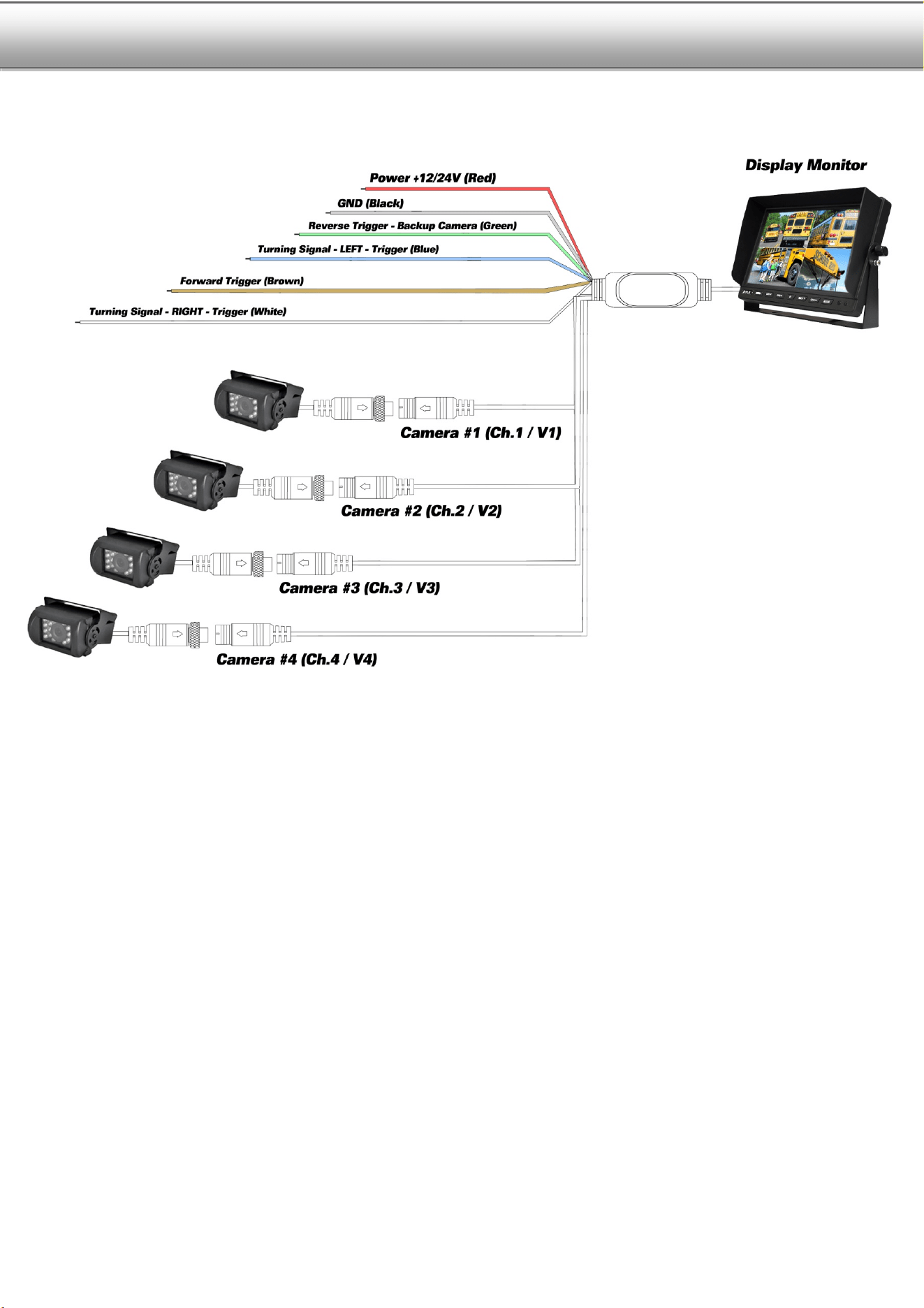

Wiring & Connection
Red:Power12/24V
Black:GND
Green:ReverseTrigger(BackupCamera)
Blue:TurningSignal‐Left‐Trigger
White:TurningSignal‐Right‐Trigger
Brown:ForwardTrigger
*Foradditionalinformation visitwww.PyleAudio.com
Ch.2 / V2 is used as the rearview
cameras as the backup camera input
When the Reverse Trigger (Green) wire is
connected and powered through the vehicle, the
display monitor will automatically switch to Ch.2 /
V2 when placing your vehicle into reverse gear
PLCMTR‐CommercialGradeCameraSystem
www.pyleaudio.com
Quad-View Control
Single Full View / Split Dual Video View / Quad Four Source View
Themonitorbuttoncontrolsfeatureselectableviewingmodes.Theoperatorcanchoosetosetto:
Singlefullview(1picture‐fromonecamerainputsource)
Splitdualview(2picture‐fromtwocamerainputsources)
Splitquadfoursourceview(4picture‐fromfourcamerainputsources)
Please note, in cold weather and temperatures, the
displaymonitor mayrequiresometimeto'warmup'to
clearlydisplayapictureonthedisplay.
Thevideomonitorisprovidedpowerandcameravideosignalsviathevideoandpowerwiringharness.From
themonitor,youwillbeabletocontrolCh.1,Ch.2,Ch.3andCh.4,inputvideocameras(V1,V2,V3,V4).
The monitor also features the ability to rotate the input camera image (Left / Righ
t) to accommodate for
cameraplacementintherearofthevehicle(Rearviewcameracompatibility).
7''DisplayMonitor
A SunShade
B LCDDisplay
C Menu
D Ch.1‐Camera1
E Ch.2‐Camera2
F Power
G Ch.3‐Camera3
H Ch.4‐Camera4
I ModeViewSwitch
J R/CWindow
K Angle/TiltSc reenAdjustmentKnob
L MountingStandBracket
PLCMTR‐CommercialGradeCameraSystem
www.pyleaudio.com

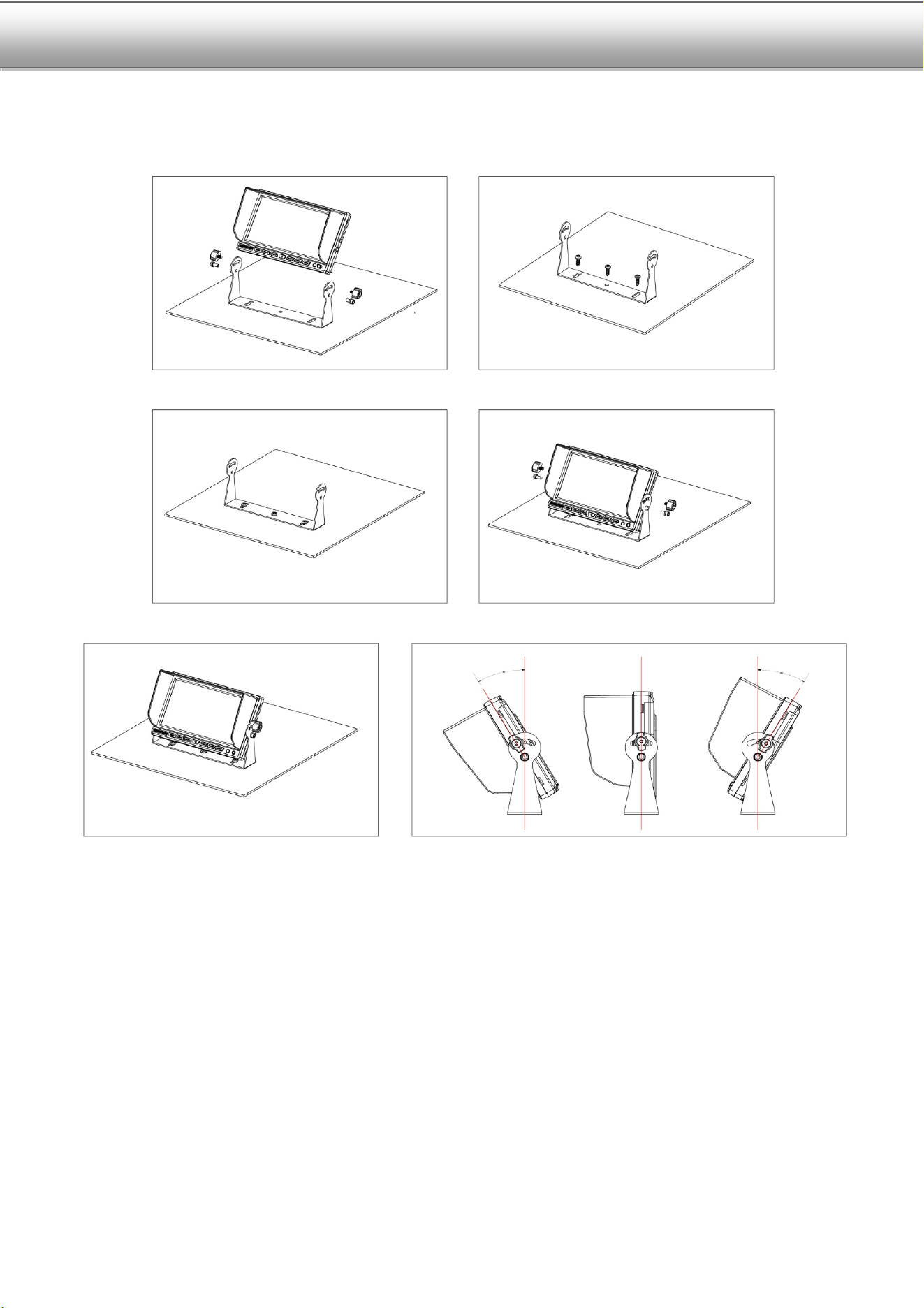

Monitor Stand Mounting
TheU‐shapedmountstandbracketseparatesfromtheLCDdisplayhousingforattachment/fixture.TheU‐shapedbracket
attachedtothedesiredlocationvia3screwholeslocatedatthebaseofthebracket.PleaseremovetheLCDdisplaymonitor
fromthebracketbeforeattemptingtosecurethebra
ckettoyourdesiredlocati on.
Oncescrewedintothedesiredlocation,attachtheLCDdisplaymonitorhousingandtightenwiththetighteningknobtothe
sideofthehousing.Adjusttheangle /tiltoftheLCDdisplaybeforetighteningthesideknob.
PLCMTR‐CommercialGradeCameraSystem
www.pyleaudio.com
Model:PLCMTR104
WeatherproofRearviewBackupCamera&MonitorVideoSystem,10’’DisplayScreen,(4)NightVisionCameras,Commercial
Grade,DualDCVoltage12‐24forBus,Truck,Trailer,Van
Camera&MonitorVideoSystem
ViewAll(4)CamerasOn‐ScreenattheSameTime
IncludesAllNecessaryCables&Wiring
Moni
tor:
10.1''TFT/LCDActiveMatrixVideoMonitor
Built‐inQuadControlBoxScreenFunction
Supportsupto(4)VideoCameraInputs(V1/V2/V3/V4)
SelectableViewingModes:SingleFullView/SplitDualVideoView/QuadFourSourceView
ReverseImage(BackupCamera)Ability
AspectRatio:16:9WidescreenFormat
PAL/NTSCVideoFormatCo
mpatible
SignalSense:AutoPower‐OnReversing
HighResolution:1024x800Pixels
UniversalStand&Anti‐GlareSunVisor
4‐PinVideoConnectors
PowerRequirement:DC12‐24V
OperatingTemperature:‐20to+145F
Dimensions(WxHxD):11.22''x7.20'' x2.91''
Camera:
Includes(4)MountableCa
meras
WeatherproofRearviewCameraSystem
LEDIRNightVisionIllumination
MarineGradeIP68Rating
MinIllumination:0.2Lux
ImageSensor:ColorCMD
VideoSystem:PAL/NTSCAutoSwitching
EffectivePixels:580x540
Resolution:420Lines
LensAngle:170Degree
AutoImageAdjustment
VideoOutput1.0Vpp‐75Ohm
DesignedforCar/Truckuse12‐24VoltSystems
CameraDime
nsions(WxHxD):3.18''x2.95''x2.17''‐Each
Includes(4)4‐pin50'Foot(15Meter)CommunicationCablesx4
