PUMP ADJUST
®
BASKETBALL SYSTEM
(x2) (x2) (x2) (x2) (x2)
(x1)
(x1)
1/2" (≈13mm) 9/16" (≈14mm) 11/16" (≈18mm) 3/4" (≈19mm) 1/2" (≈13mm)
Icon legend...................................................2
Warnings & notices......................................3
Ground preparation.......................................4
Pole assembly...............................................9

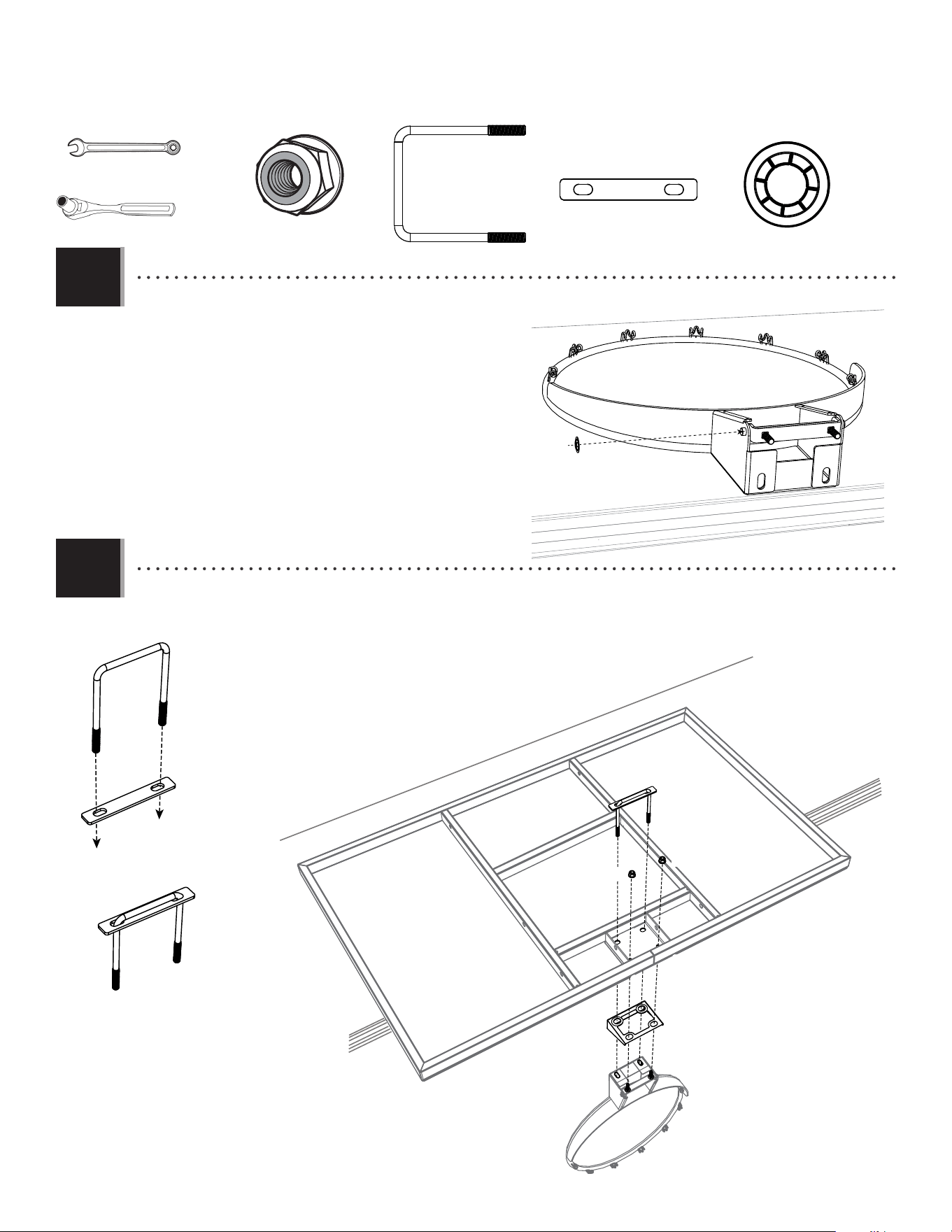

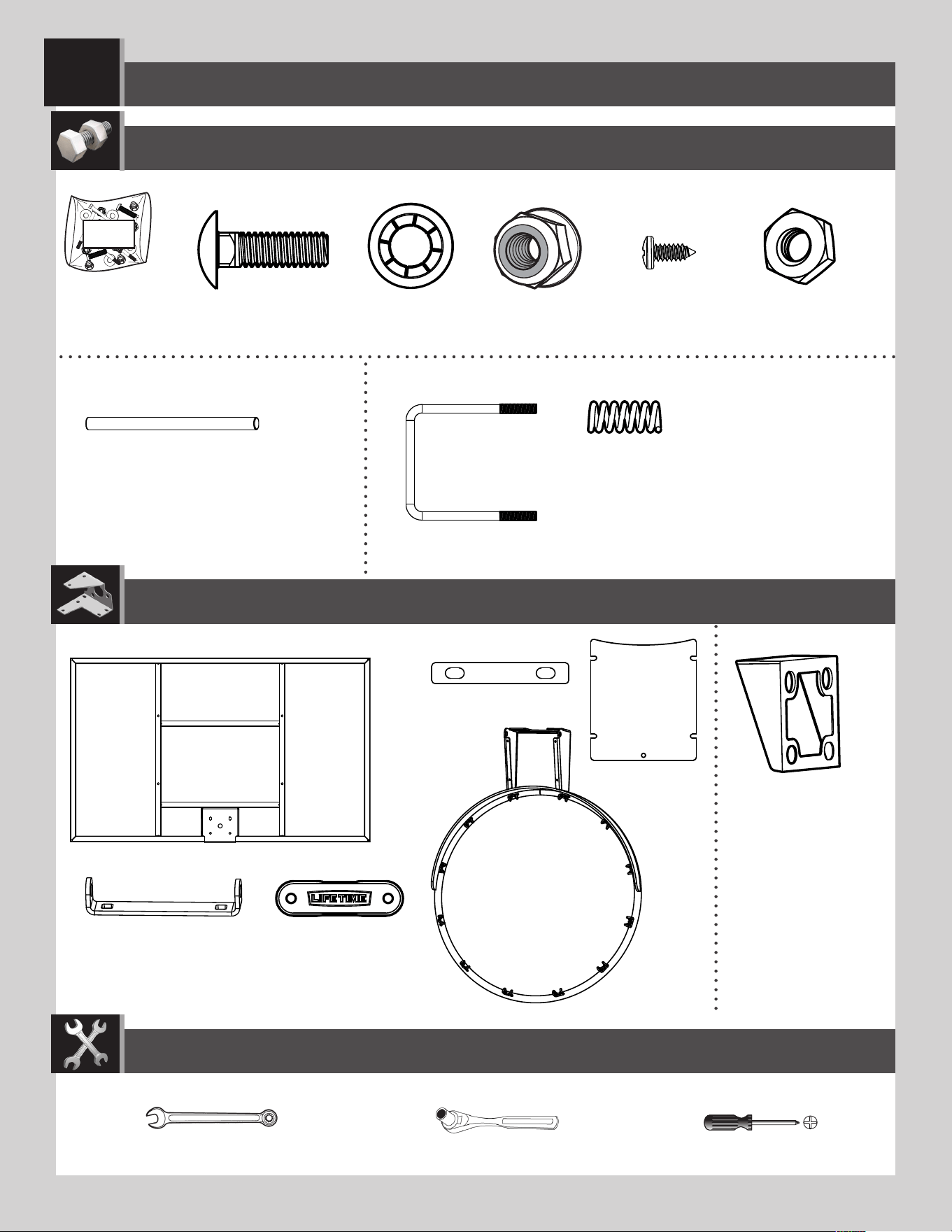

Backboard-to-rim assembly......................12
Backboard-to-pole assembly.....................17

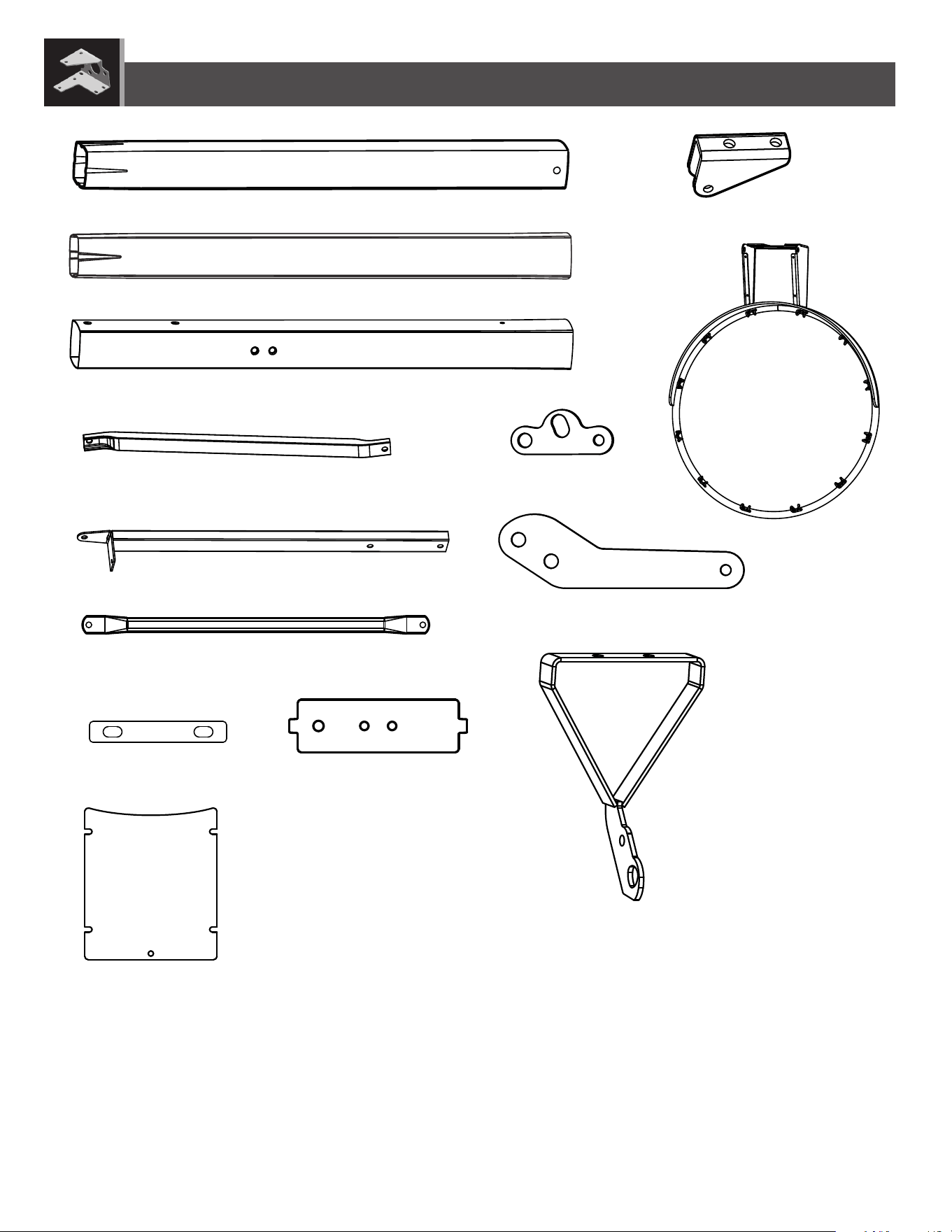

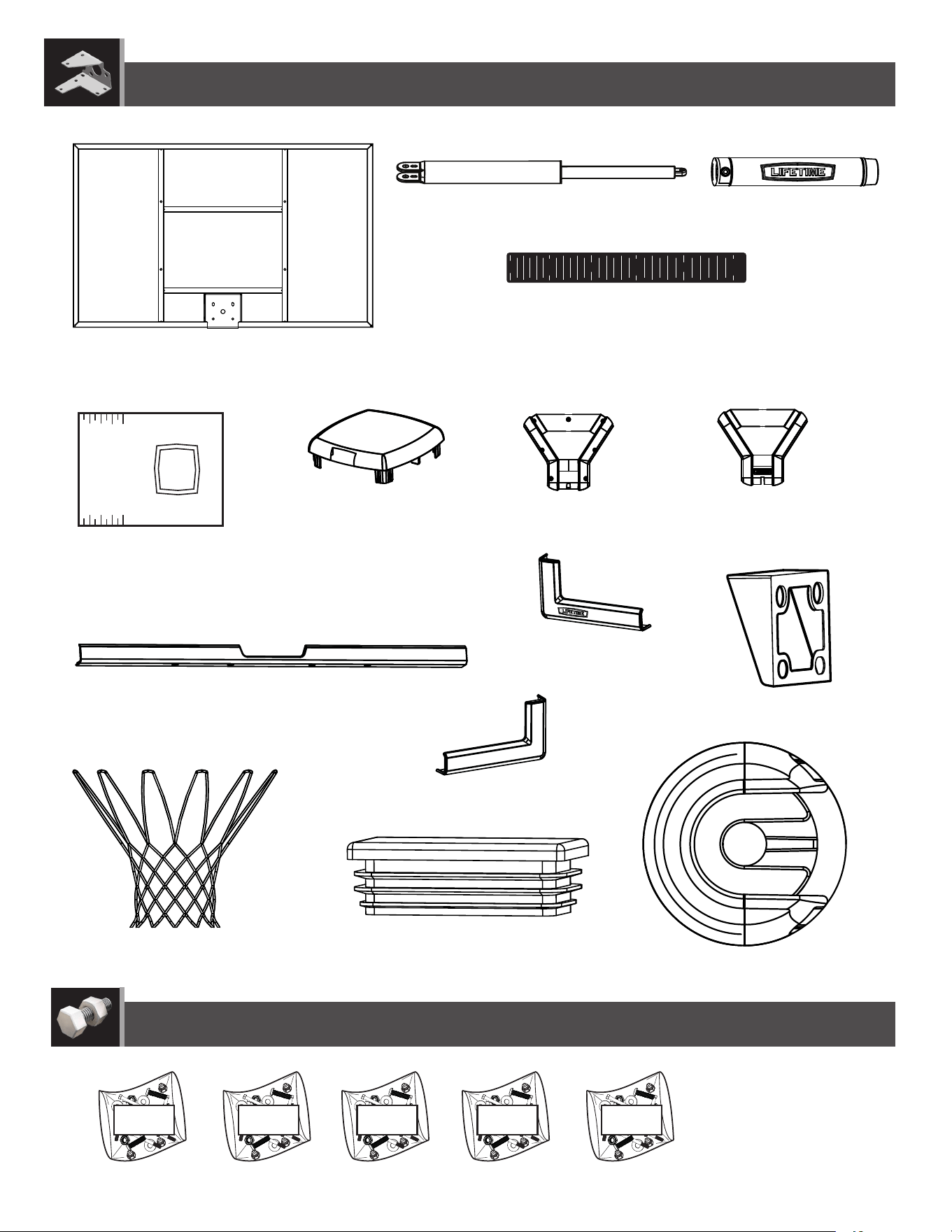

Parts identifi er............................................i-iv

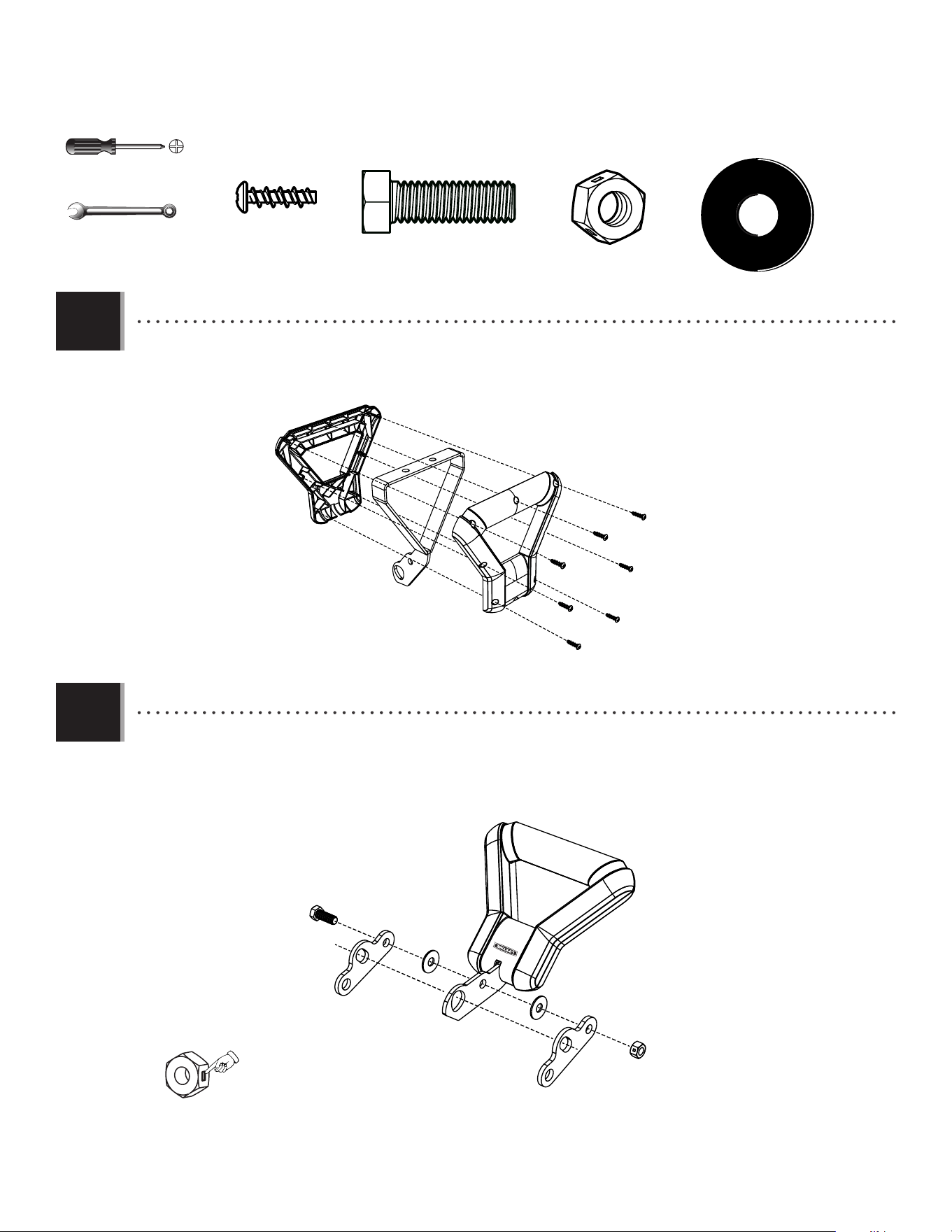

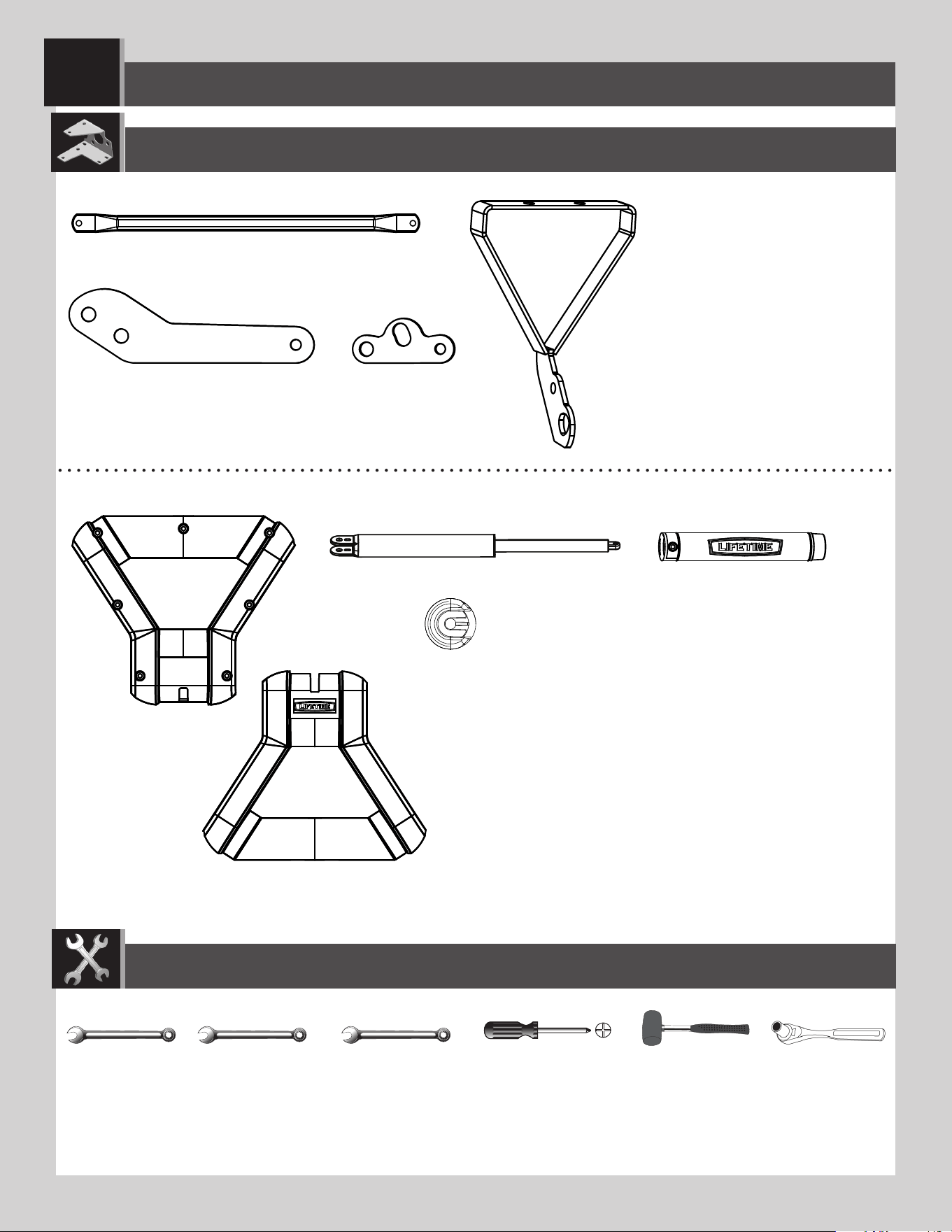

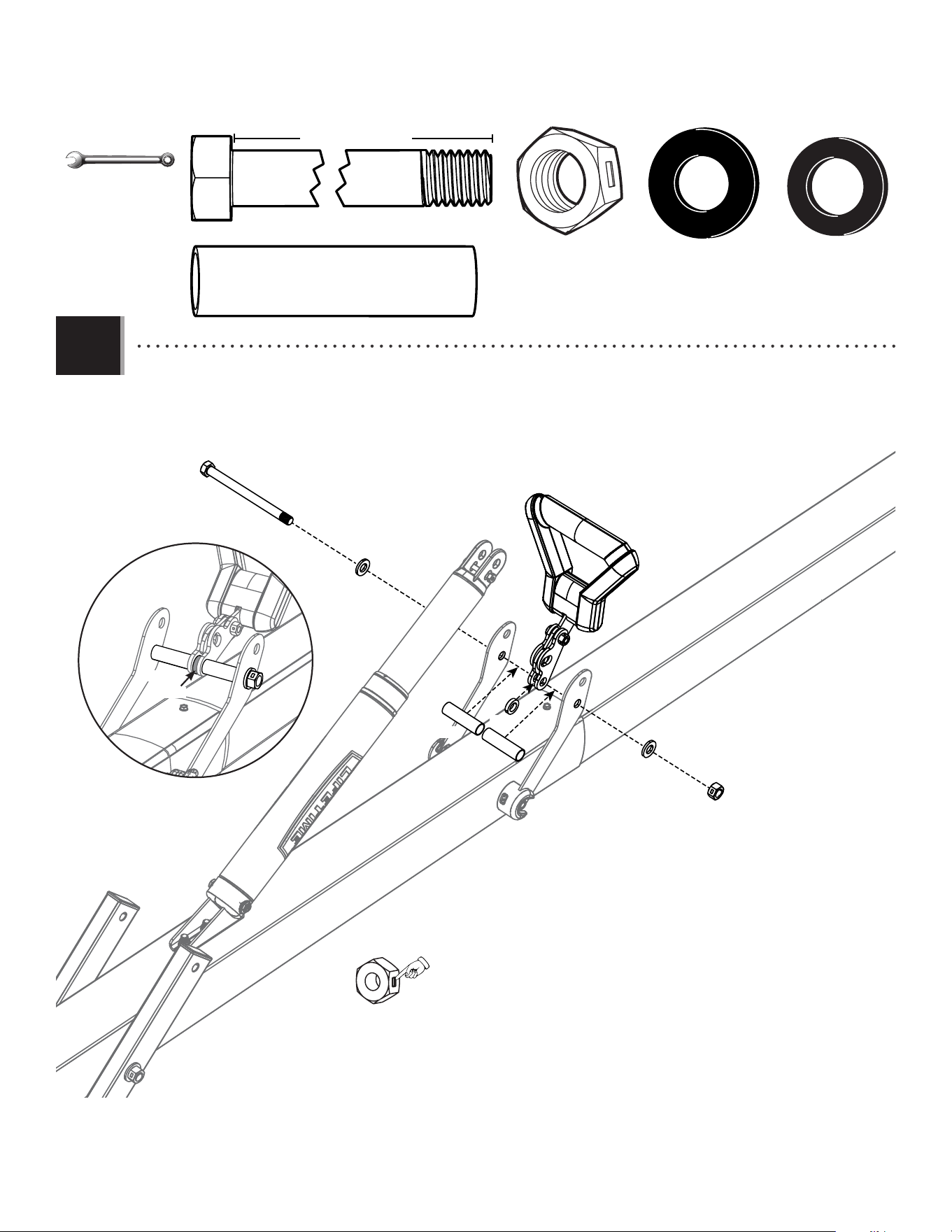

Handle assembly........................................23
Final assembly............................................32
Maintenance.............................................37
Warning sticker...........................................38
Registration..............................................42
Warranty....................................................43
(x1)
(x1)
30" Rebar
640 lb (≈291kg)
Level
(x1)
1/2" (≈13mm)
7/16" (≈11mm)
(x1)
(x1)
(x3)
(x1)
Frame pads and Backboard
Graphics may vary from the
system pictured here.
TOOLS REQUIRED TABLE OF CONTENTS
• Before you start, make sure you have the required
amount of concrete and rebar (not included)
• R
equires, at least, 3 days for concrete to cure, plus 3–4
hours to complete assembly steps
• Requires at least 3 people recommended for setup
ASSEMBLY INSTRUCTIONS
MODEL 90469
Save this instruction in the event that the manufacturer must be contacted for replacement parts.
BEFORE ASSEMBLY:
CONTACT LIFETIME CUSTOMER SERVICE:
Dial 1-800-225-3865
QUESTIONS?
Model Number: 90469
Product ID:
For Customer Service in Mainland Europe
and the United Kingdom,
E-mail: [email protected]
Live Chat:
www.lifetime.com/customerservice/home
(Click on the “LIVE CHAT” tab)
5/16" Nut Driver
(x1)

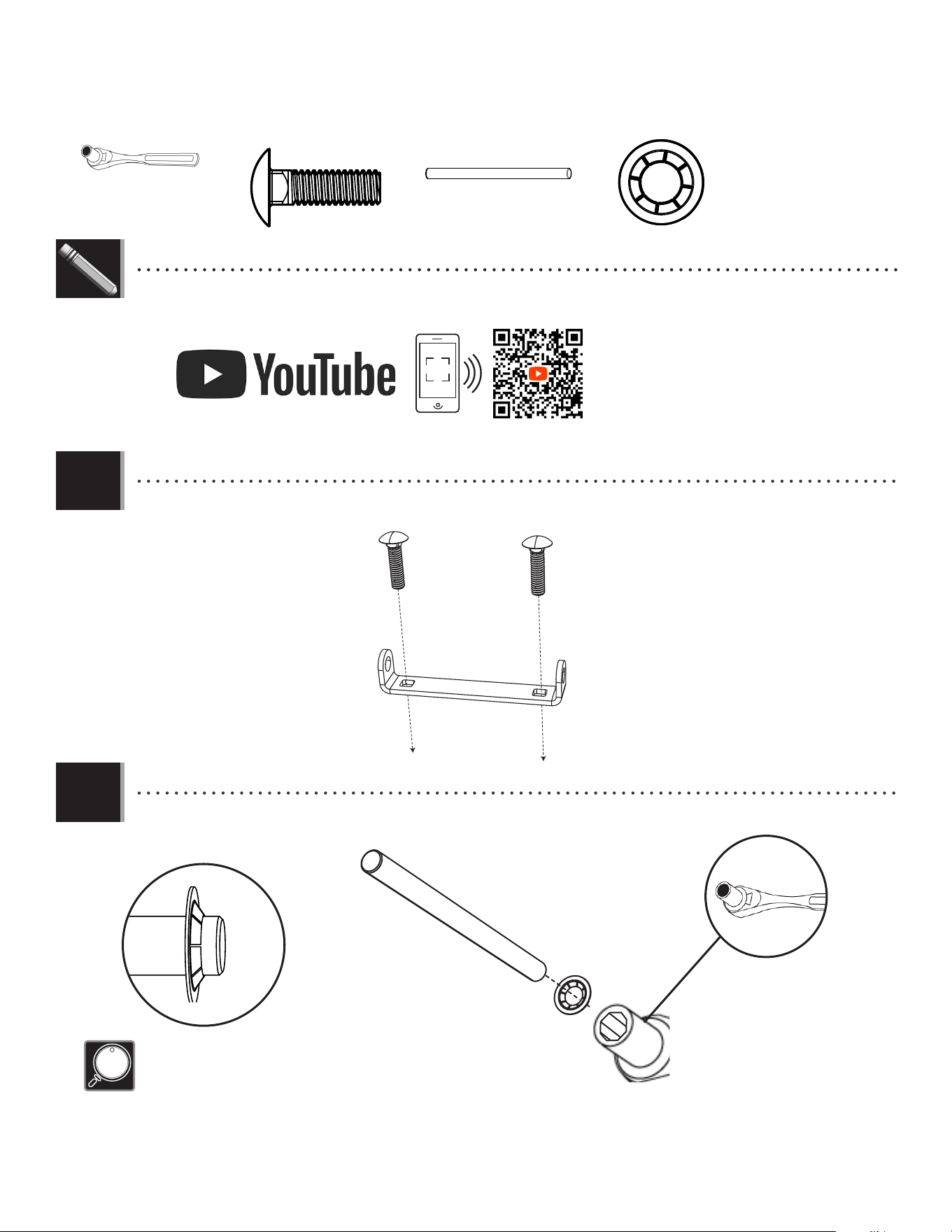

Scan the code, or visit go.lifetime.com/90469-fullassembly
WATCH THE INSTRUCTIONAL VIDEO ON YOUTUBE
YouTube
®
and the YouTube logo are trademarks of Google, LLC.
2
• Indicates the parts (or no parts) required for a section.
• Indique les pièces (ou aucune pièce) à utiliser pour une section.
• Indica las piezas (o ninguna pieza) que se usarán en una sección.
• Indicates special heed should be taken when reading.
• Indique qu’une attention spéciale doit être portée à la lecture.
• Indica que uno debe prestar atención al leer.
• Indicates the tools (or no tools) to be used for a section.
• Indique les outils (ou aucun outil) à utiliser pour une section.
• Indica las herramientas (o ninguna herramienta) que se utilizarán para una sección.
• Indicates the number of adults required to perform a specifi c step, e.g., 2, 3, 4, etc.
• Indique le nombre d’adultes requis pour e ectuer une étape spécifi que, p. ex., 2, 3, 4, etc.
• Indica el número de adultos requeridos para realizar un paso específi co, p.ej., 2, 3, 4, etc.
• Indicates to repeat a step or an action.
• Indique de répéter une étape ou une action.
• Indica repetir un paso o una acción.
• Indicates a specifc step is harder to perform.
• Indique qu’une étape spécifi que est plus di cile à exécuter.
• Indica que un paso específi co es más difícil de realizar.
• Indicates the hardware (no new hardware) required for a specifi c page or section.
• Indique la quincaillerie (ou aucune nouvelle quincaillerie) n’est requis pour une page précise.
• Indica el herraje (que no se necesita nuevo herraje) para una página específi ca.
• Indicates to use/not use an electric drill for a specifi c step.
• Indique quand utiliser une/que ne pas utiliser de perceuse électrique pour une étape précise.
• Indica la utilización de/que no utilizar un taladro eléctrico para un paso específi co.

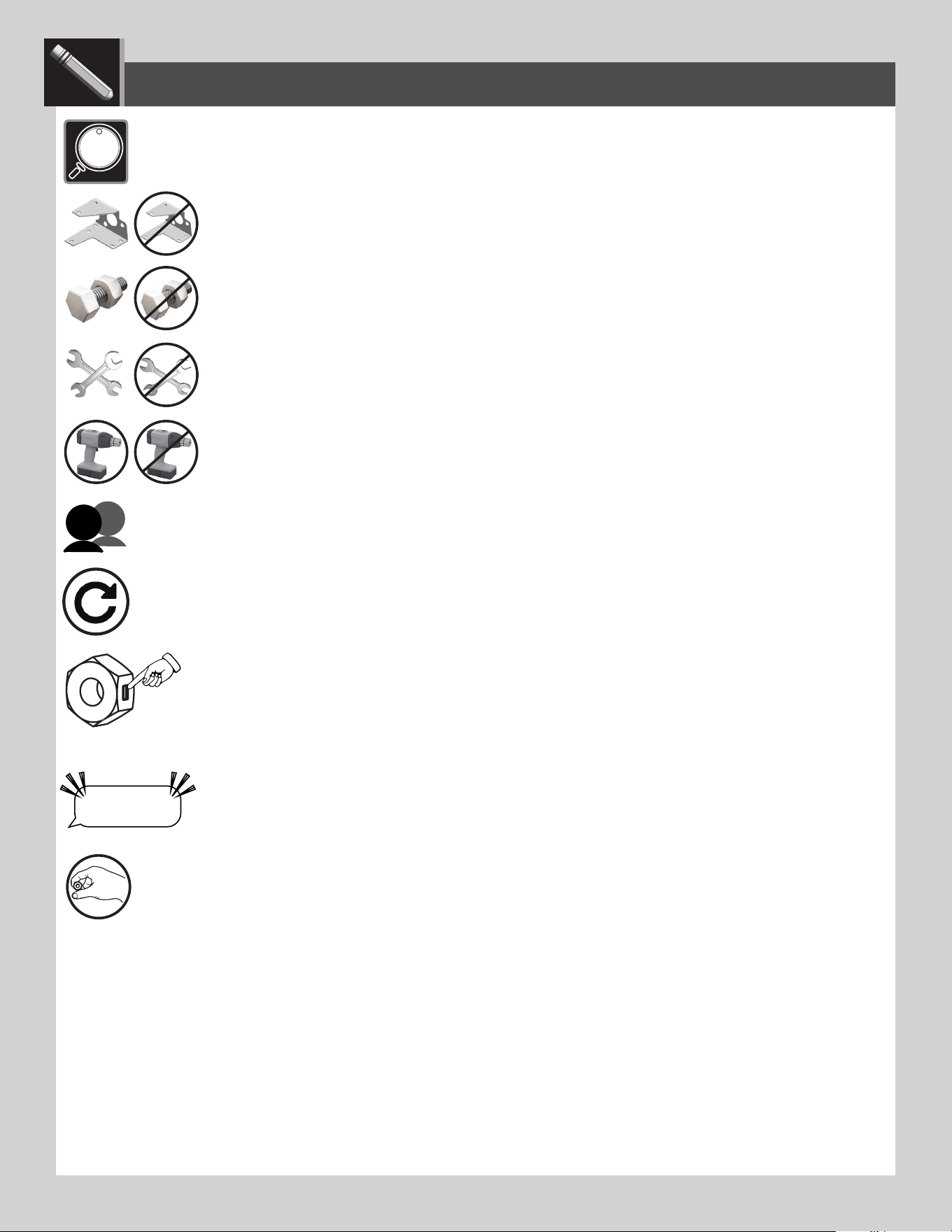

ICON LEGEND / LÉGENDE DES ICÔNES / LEYENDA DE ÍCONOS
• Indicates the use of a centerlock nut. A nut with this marking will require some e ort to tighten. This
hardware was designed with this feature in order to prevent loosening later.
• Cette image indique l’usage d’un écrou de blocage central. Un écrou avec ce marquage requerra plus
d’e ort pour le serrer. Cet écrou a été conçu avec cette fonction afi n d’empêcher son desserrage plus tard.
• Indica el uso de una tuerca de bloque central. Una tuerca con esta marca requerirá un poco de esfuerzo para
apretarlo. Esta tuerca fue diseñada con esta característica con el fi n de evitar su afl ojamiento más tarde.
“$#@*%!”
THIS STEP CAN BE DIFFICULT
LIFETIME
®
• Indicates that one should only hand-tighten the hardware until instructed otherwise.
• Indique qu’il ne faut serrer la quincaillerie qu’à la main jusqu’à ce que l’on reçoive des instructions contraires.
• Indica que sólo se debe apretar a mano el herraje hasta que indique lo contrario.
3

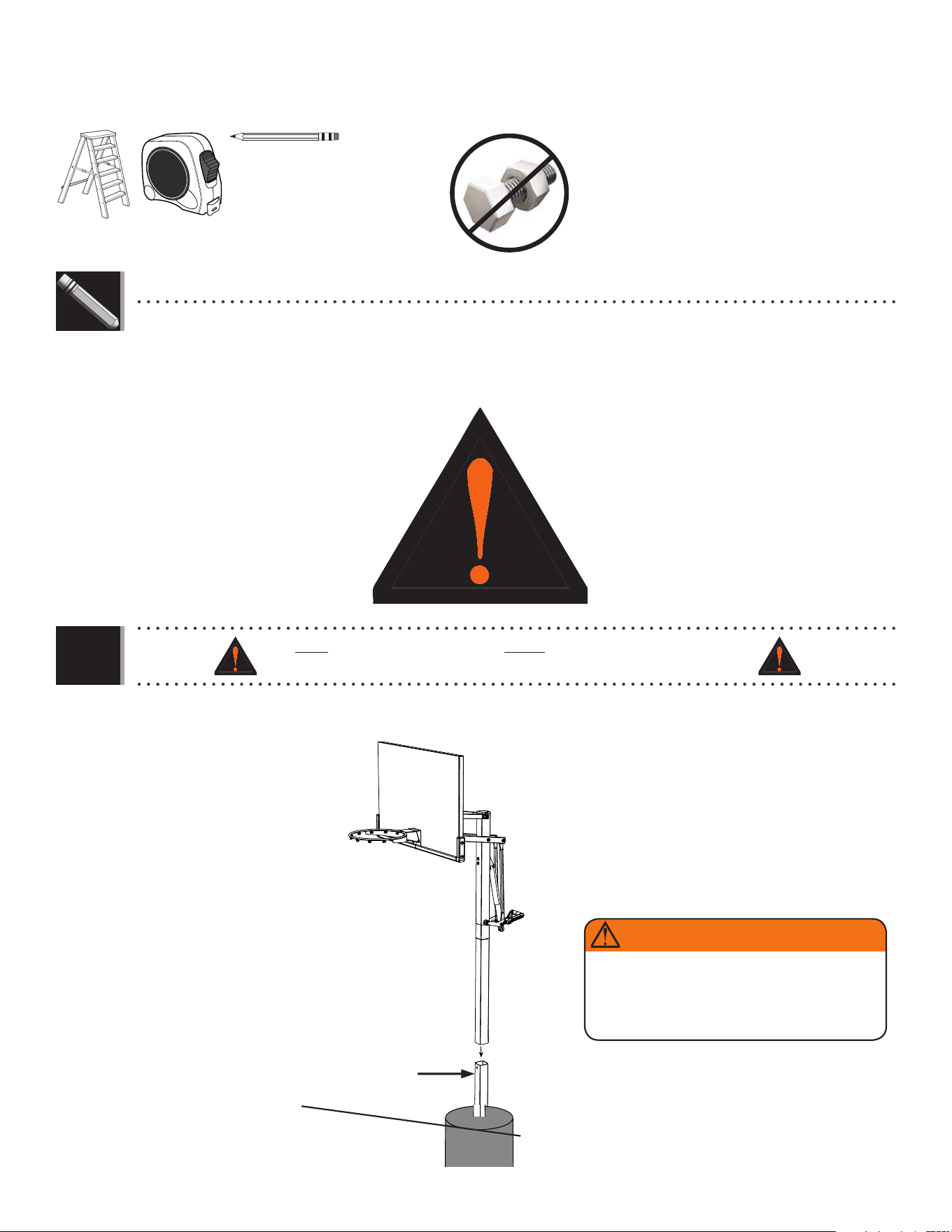

WARNINGS & NOTICES
Most injuries are caused by misuse and/or not following instructions. Use caution when using this product.
To ensure safety, do not attempt to assemble this product without following the instructions carefully. Check entire box and inside all packing
material for parts and/or additional instruction material. Before beginning assembly, read the instructions and identify parts using the hardware
identifi er and parts list in this document. Proper and complete assembly, use and supervision are essential for proper operation and to reduce the
risk of accident or injury. A high probability of serious injury exists if this product is not installed, maintained, and operated properly.
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE AND WILL VOID WARRANTY.
Owner must ensure that all players know and follow these rules for safe operation of the system.
• If using a ladder during assembly, use extreme caution.
• Three capable adults are recommended for this operation.
• Assemble the pole sections properly. Failure to do so could cause the pole sections to separate during play or transport.
• Before digging, contact utility company to locate underground power cables, gas, and water lines. Ensure that there are no
overhead power lines within 20 ft (7m) radius of pole locations.
• Minimum operational height is 6 ft 6 in (1.98m) to the bottom of the backboard.
SAFETY INSTRUCTIONS

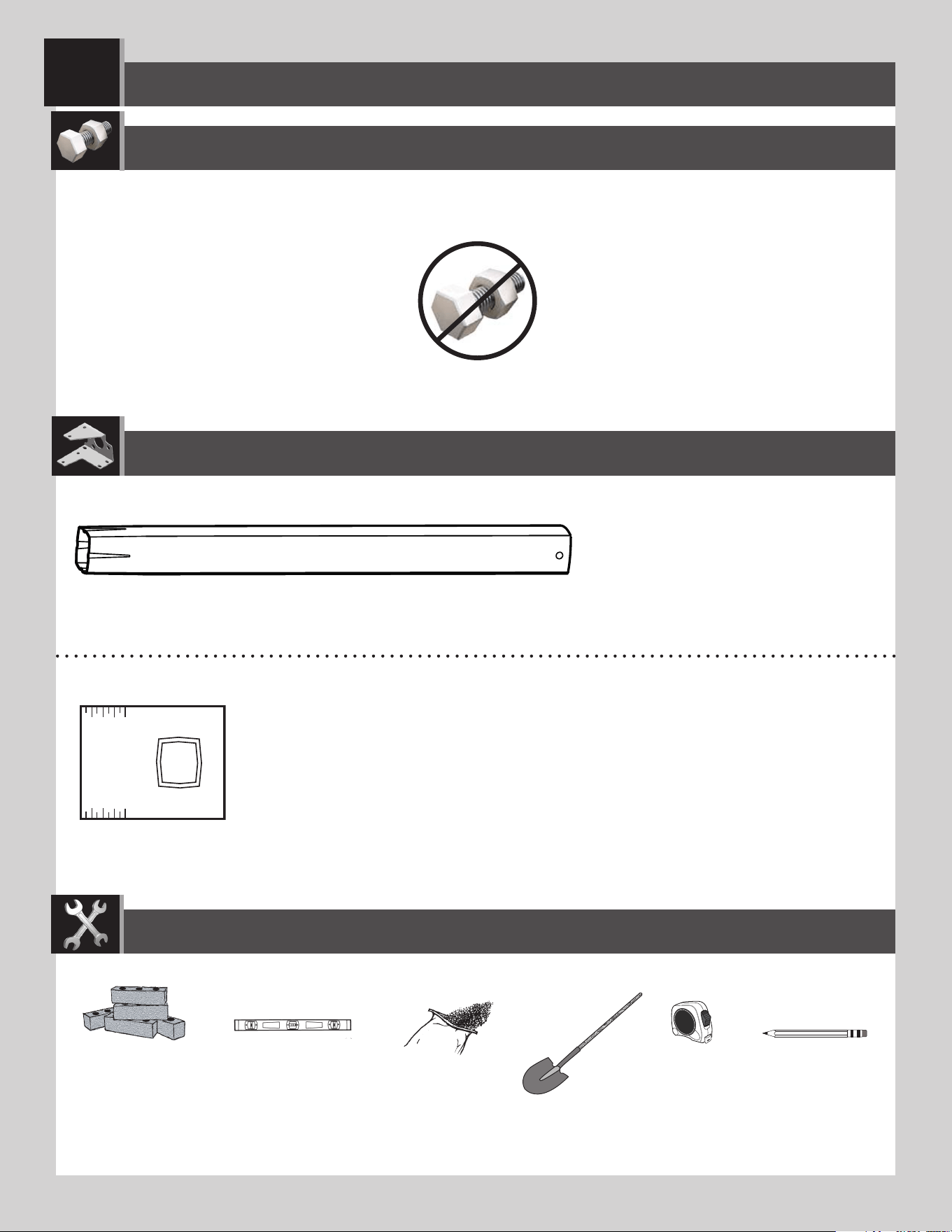

4
1
Metal parts
TOOLS REQUIRED
PARTS REQUIRED
HARDWARE REQUIRED
(x1)
(x1)
ALE (x1)
BGW (x1)
Plastic parts
(x1)
(x1)
Concrete mix
640 lb (291 kg)
INITIAL SETUP
(≈4-6)
5
TOOLS AND HARDWARE REQUIRED
SECTION 1 (CONTINUED)
1.1

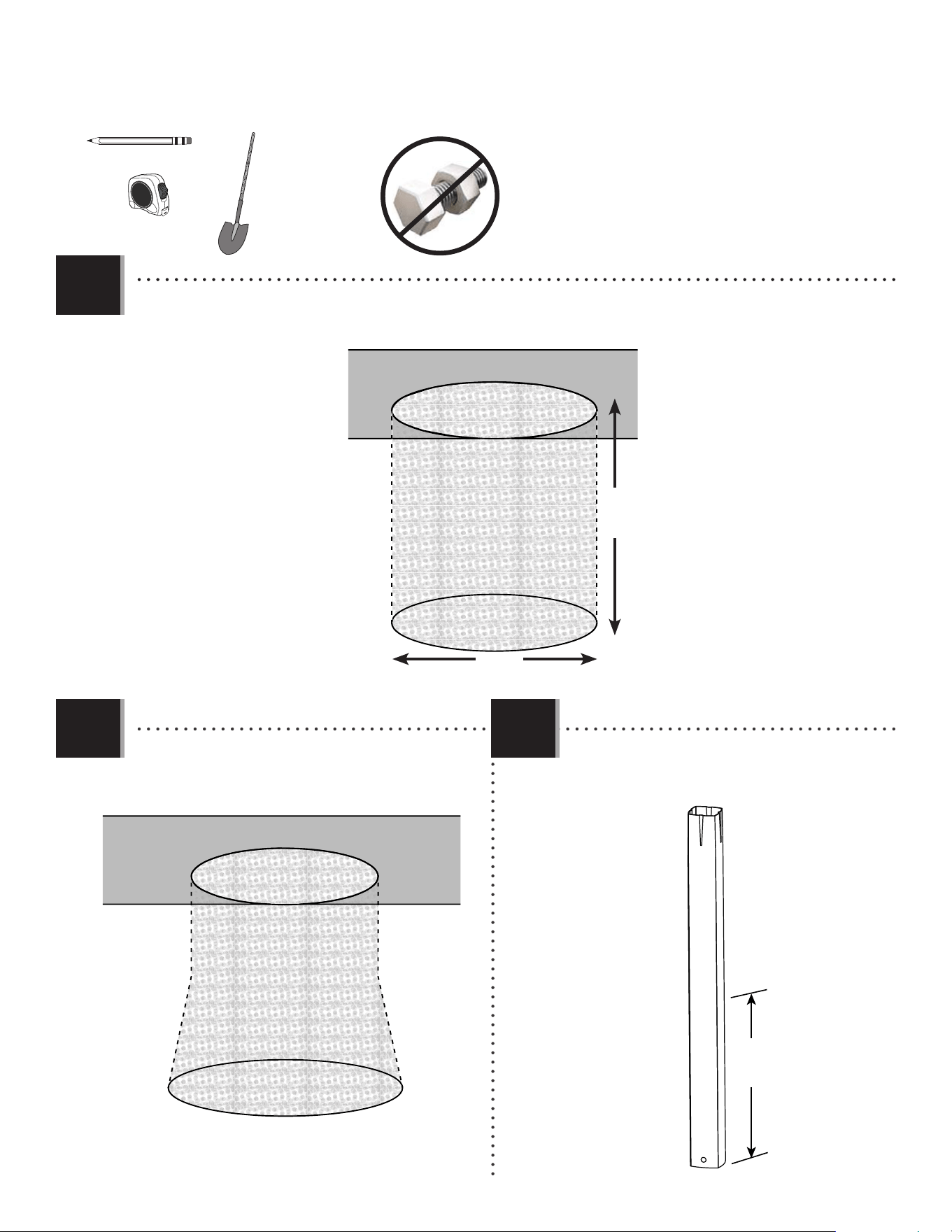

• Dig a round hole 24” (≈61 cm) deep and 21” (≈53 cm) in diameter. If you live in an area where frost heaves may
pose a problem, consult your local building inspector to determine the proper hole depth. The edge of the hole
should be fl ush with the edge of the playing surface.
24 in/po
21 in/po
• Widen the bottom diameter about 4” (≈10 cm)
into a bell-shaped hole as shown.
1.2
ALE
16 in/po
(40.6 cm)
• Make a mark 16 inches (40.6 cm) from the
dimpled end of the bottom pole (ALE) (do not
scratch the powder coating).
1.3
6
TOOLS AND HARDWARE REQUIRED
SECTION 1 (CONTINUED)

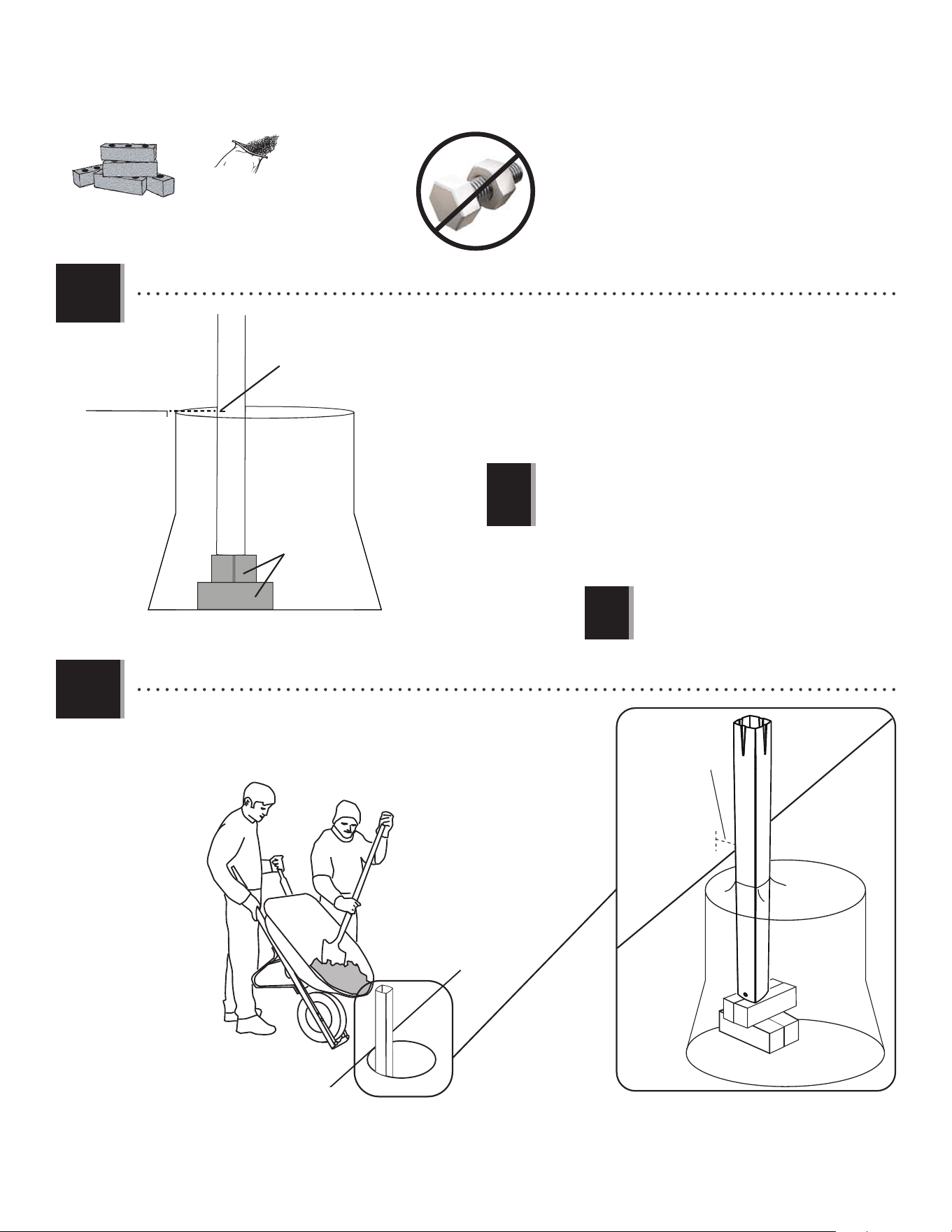

• Stack bricks in the hole for the bottom pole to stand on. Stack enough bricks
in the hole so that the 16-inch (40.6 cm) mark on the pole is even with
the top edge of the playing surface. If the pole is not even with the playing
surface, dig the hole deeper or add more bricks as necessary. Position the
bricks close to the front edge of the hole, near the playing surface. The correct
distance from the basketball court to the front of the pole is 4” (≈10 cm).
1.4
640 lb (291 kg)
• A ground sleeve is available as an
alternative to cementing the pole into the
ground. Please contact Customer Service
for more information.
!
Playing surface
Bricks
16 in. mark
• Mix the concrete. Have one adult hold the bottom pole in place
on the bricks, then pour the mixed concrete into the hole until it is
fi lled to the level of the playing surface.
1.5
Playing surface
4 in/po
• IMPORTANT! If the pole is buried too deep
or too shallow, the rim will not to be at the
correct height.
!
7
TOOLS AND HARDWARE REQUIRED
SECTION 1 (CONTINUED)

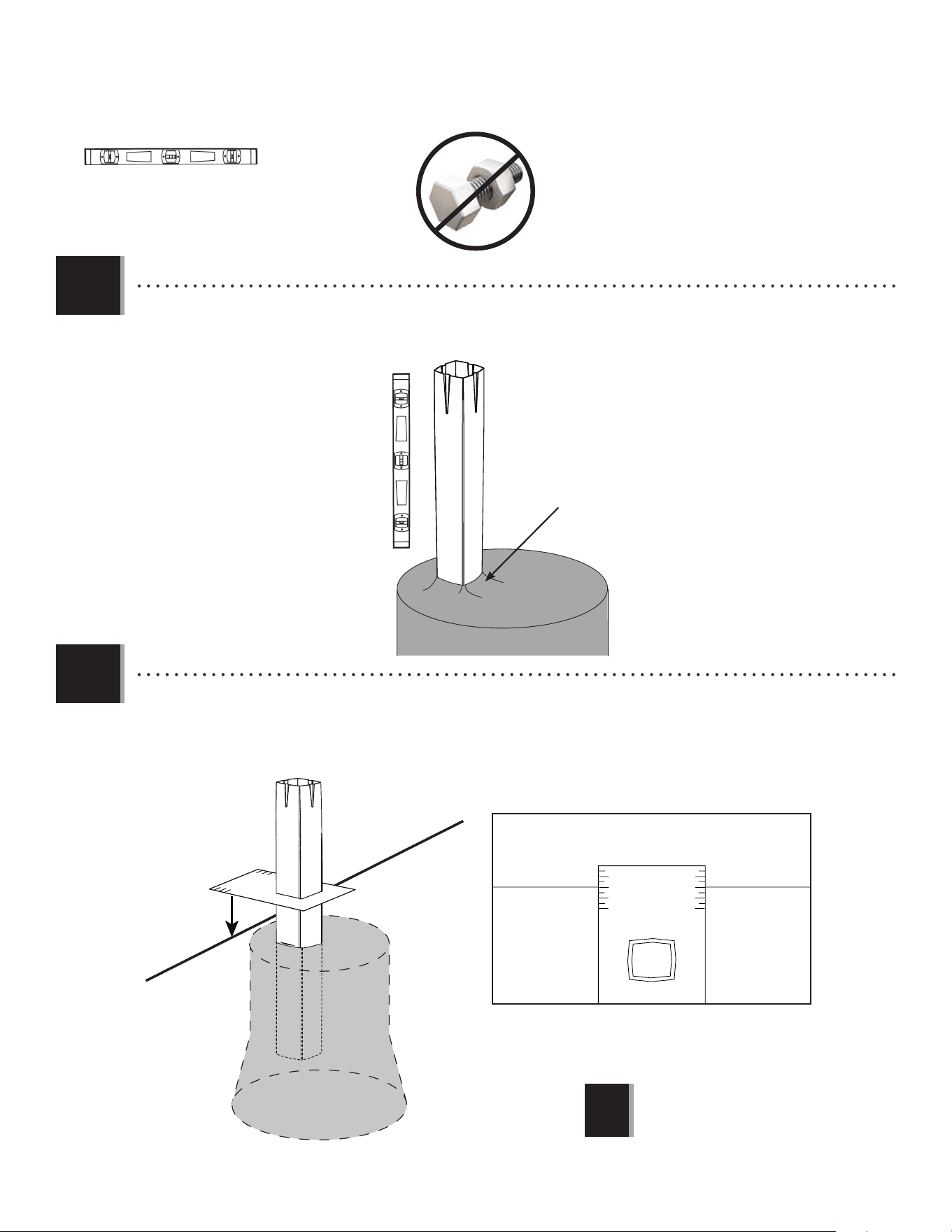

• Slide the paper alignment frame (BGW) over the bottom pole. For regulation courts, the alignment frame should
cross the playing surface at the middle of the scored measurements.
1.7
• IMPORTANT! If the pole is buried too deep
or too shallow, the rim will not to be at the
correct height.
!
Playing Surface
ALE
TOP VIEW
BGW
BGW
• Use a level to make sure the bottom pole is standing vertical. Form the cement into a downward slope away from
the pole to allow water runoff. Failure to do so may result in premature rusting of the pole.
1.6
(x1)
Slope
8
TOOLS AND HARDWARE REQUIRED
SECTION 1 (CONTINUED)
!

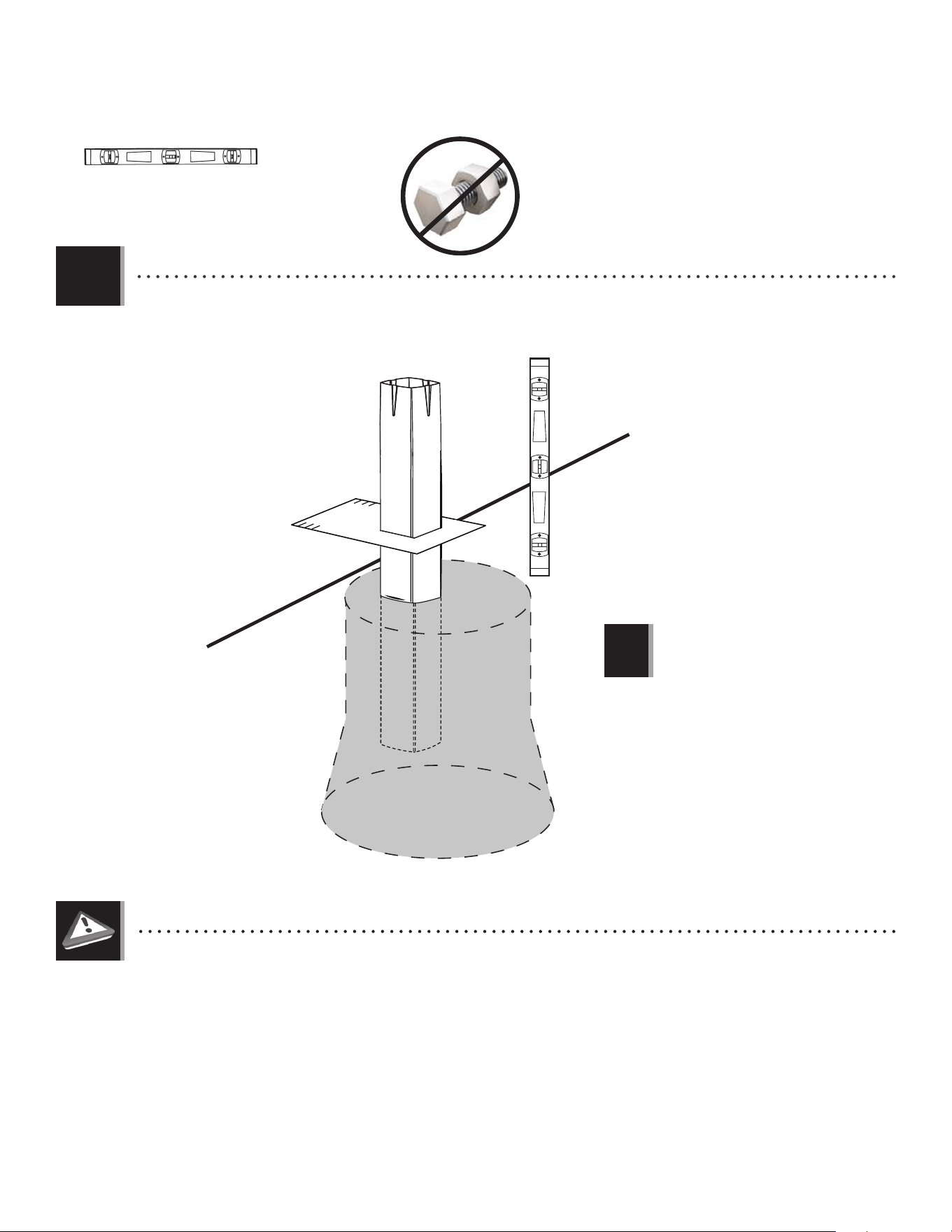

• Check the pole several times within the fi rst hour to make sure that all sides are vertical and that the 16-inch
mark (40.6 cm) remains level with the surface.
1.8
• STOP ASSEMBLY NOW!
Do not continue the assembly until the concrete has been allowed to set for at least 72 hours (3 days). In humid climates or wet
weather, allow more time for the concrete to cure. Do not proceed until the curing process is complete.
• You may now remove the
alignment frame (BGW).
(x1)
BGW
9

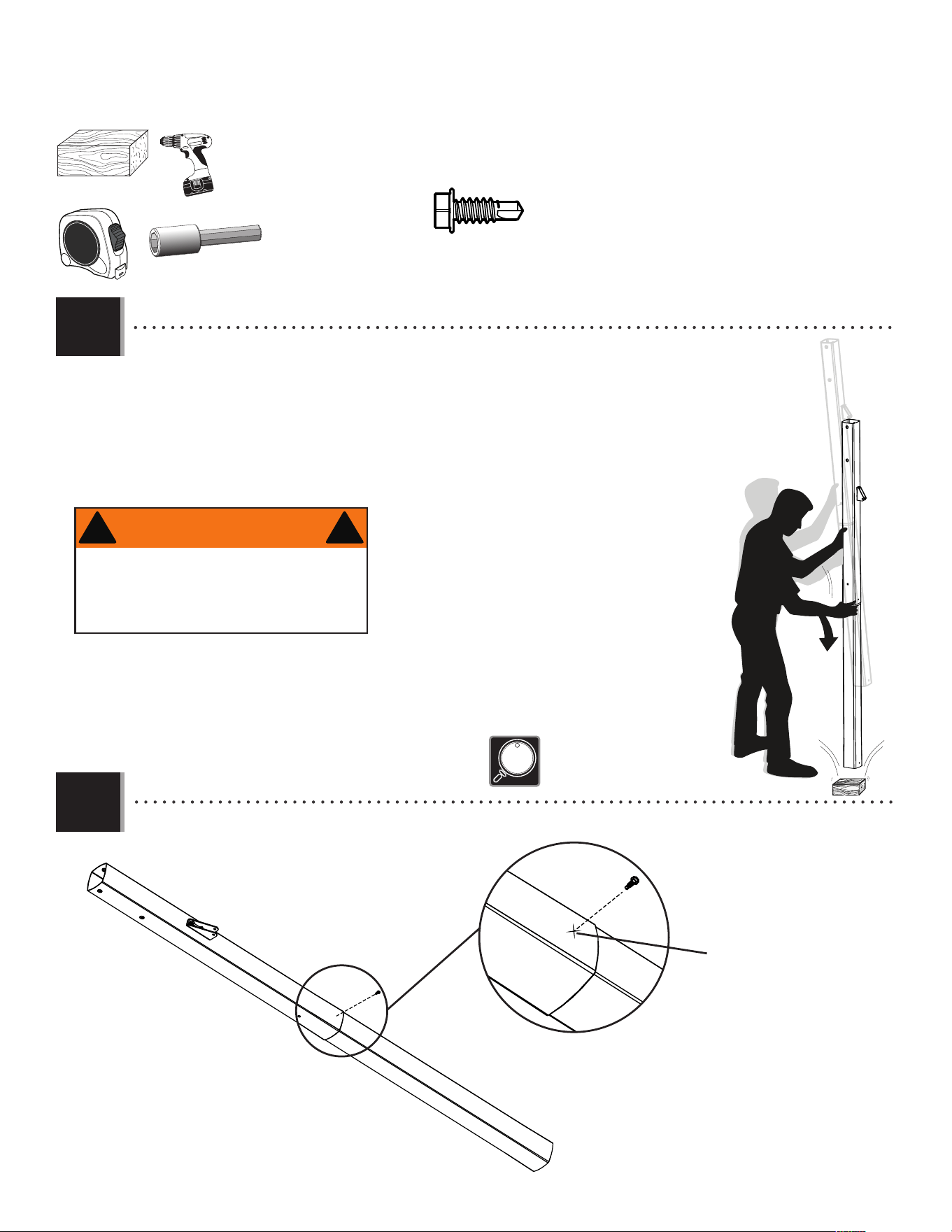

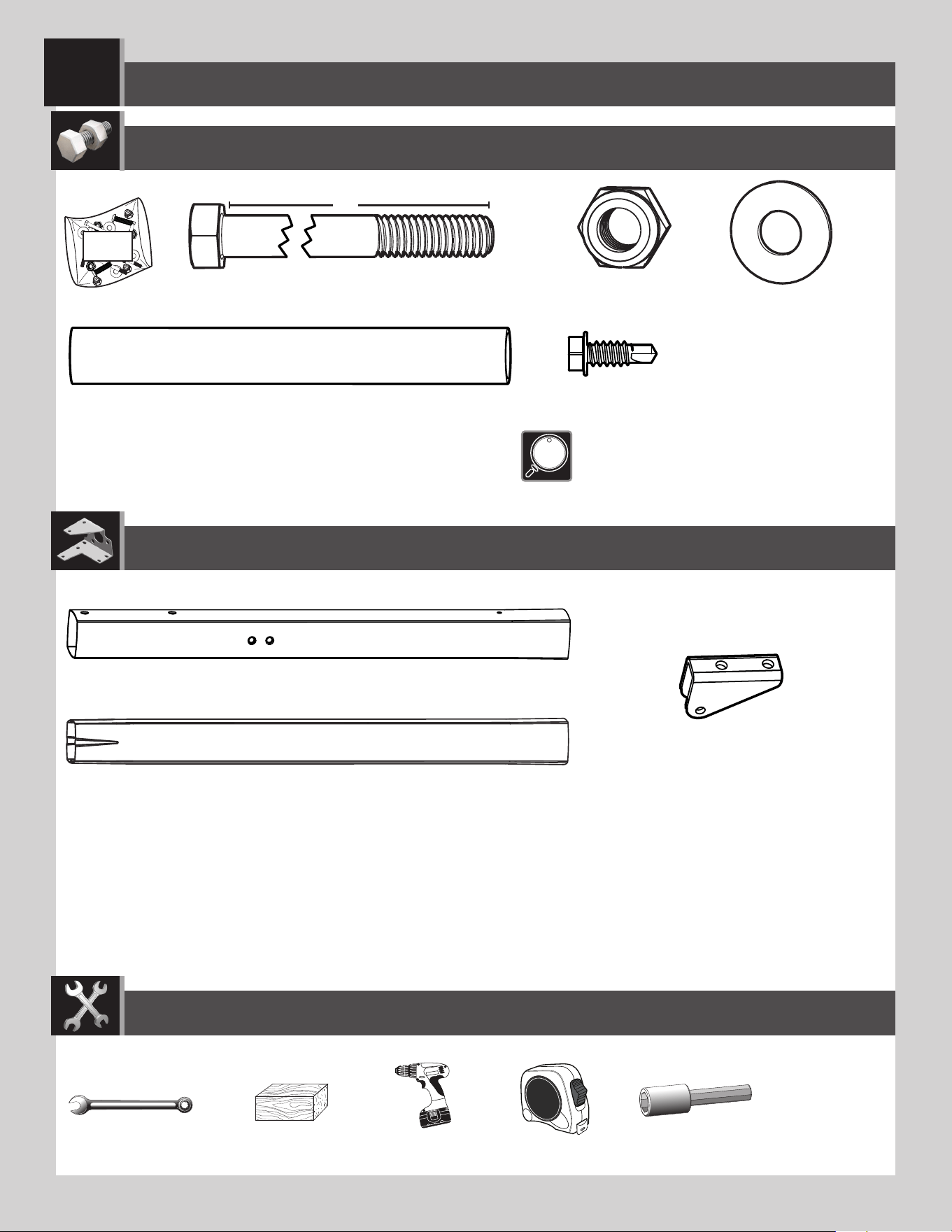

POLE ASSEMBLY
2
BCO
Metal Parts
TOOLS REQUIRED
PARTS REQUIRED
HARDWARE REQUIRED
(1)
(1)
9/16" (≈14mm)
(2)
• Warning Sticker applied to this Pole
CMV (x2)*
AAA (x2)
AAF (x2)
ANF (x2)
ANE (x2)
5”
• Only one self-drilling screw (CMV) will
be used in Section 2. Save the second
Screw for use in Section 5.
ALL (x1)
ALF (x1)
ALH (x1)
(1)
5/16” Nut Driver
(1)
10
TOOLS AND HARDWARE REQUIRED
SECTION 2 (CONTINUED)

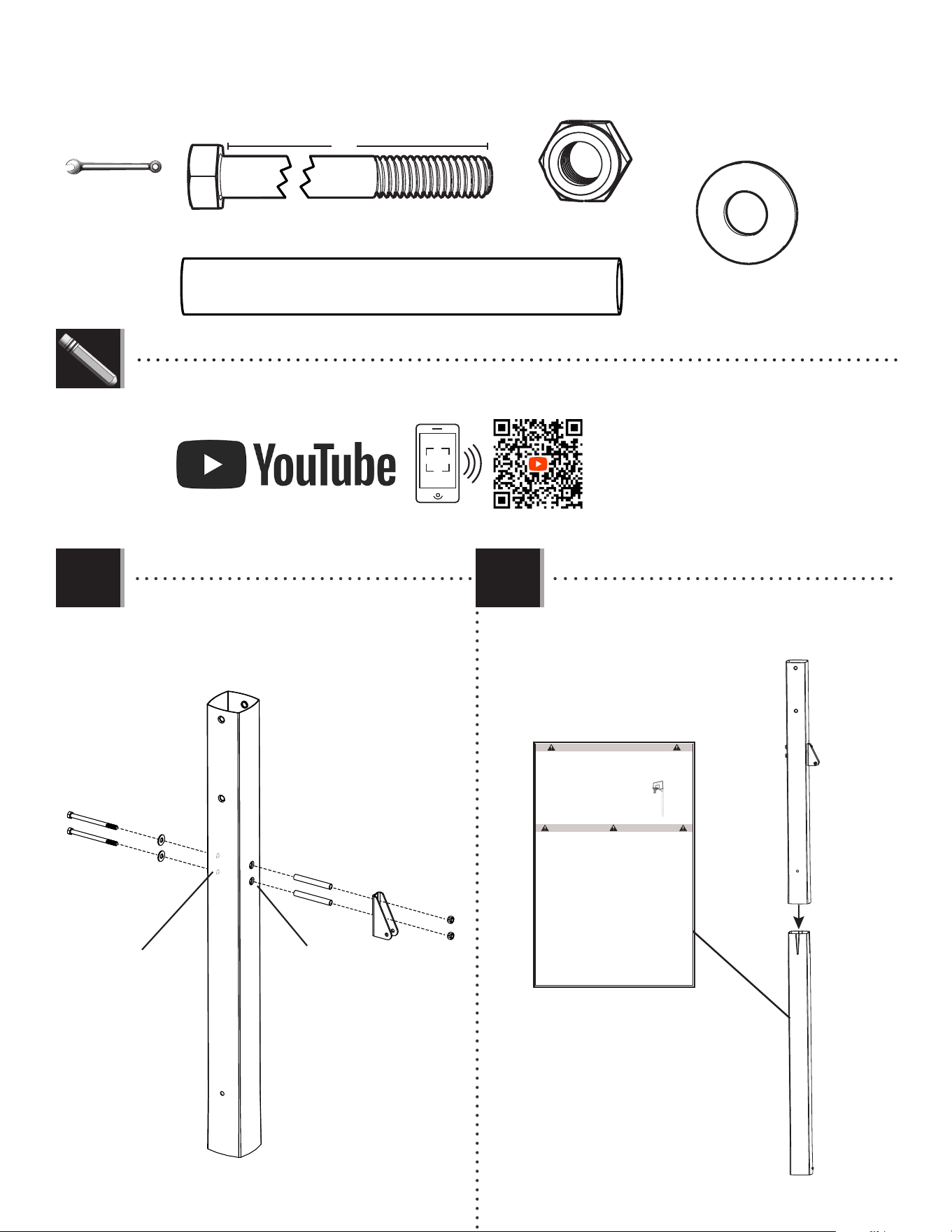

• Secure the pole bracket (ALL) to top pole (ALH) with
the hardware shown.
2.1
ANE (x2)
ANF (x2)
ALH
ANF
ANE
ALL
AAA
AAF
Large Holes
Small Holes
AAA (x2)
9/16”
(≈14mm)
(2)
5”
AAF (x2)
ALH
ALF
• Slide the top pole over the middle pole (ALF). Ensure
the warning sticker is on the opposite side of the
assembly as the pole bracket.
2.2
FAUTE DE NE PAS SUIVRE CES AVERTISSEMENTS, VOUS RISQUEZ DE CAUSER
DES BLESSURES GRAVES ET/OU DES DOMMAGES À L’ÉQUIPEMENT.
Le propriétaire doit s’assurer que tous les joueurs con-
naissent et appliquent les règles suivantes afin d’utiliser
l’équipement en toute sécurité.
SI NO SE OBEDECEN ESTAS ADVERTENCIAS PUEDEN PRODUCIRSE
GRAVES LESIONES Y/O DAÑOS A LA PROPIEDAD.
El propietario del sistema debe asegurarse de que todos
los jugadores conozcan y respeten estas reglas para que el
sistema se use en forma segura.
WARNING
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN SERIOUS INJURY
AND/OR PROPERTY DAMAGE.
Owners must ensure that all players know and follow these
rules for safe operation of the system.
• Only hang from the rim briefly to regain balance or avoid
injuring others. Release the rim as soon as safely possible.
• During play, especially when performing dunk type activities,
keep player’s face away from the backboard, rim, and net.
Serious injury could occur if teeth/face come in contact with
the backboard, rim, or net. Player should wear a mouth guard
during play.
• Do not slide, climb, or play on base or pole.
• When adjusting height or moving system, keep hands and
fingers away from moving parts.
• Do not allow children to move or adjust system.
• Do not wear jewelry (rings, watches, necklaces, etc.) during
play. Objects may entangle in net.
• Keep water and organic material away from pole base. grass,
litter, etc. could cause corrosion and/or deterioration.
• Never play on damaged equipment.
• Once a month check pole and all metal parts for signs of
corrosion (rust, pitting, chipping). Completely remove rust and
repaint with exterior enamel. If rust has penetrated any steel
part, replace that part immediately.
• Check system before each use for proper ballast, loose
hardware, excessive wear, instability, and signs of corrosion
and repair before use.
• Do not use the system to lift or hoist anything. The
mechanism is designed to lift only the weight of the
backboard and rim. Do not hang anything from the handle,
rim, backboard, or lifter arms as this will damage the system
and void the warranty.
• Ne pas se suspendre à l’anneau plus que nécessaire pour
retrouver l'équilibre ou éviter de blesser les autres joueurs.
Relâchez l’anneau aussitôt que possible.
• Lors d’un match, particulièrement dans le cas des smashs, le
visage du joueur ne doit pas faire face au panneau, à l’anneau, ni au
filet. Le joueur risque de graves blessures si ses dents ou son visage
entrent en contact avec le panneau, l’anneau, ou le filet. Les joueurs
doivent toujours porter un protège-dents lorsqu’ils jouent.
• Ne pas glisser, ne pas grimper, et ne pas jouer sur la base ou le
poteau.
• Lors du réglage de la hauteur ou lorsque du déplacement
de l’équipement, garder les mains et doigts loin des pièces mobiles.
• Ne permettre pas aux enfants de déplacer ou d’ajuster
l’équipement.
• Ne pas porter de bijoux (bagues, montres, colliers, etc.) pendant
le jeu. Ces objets pourraient s’accrocher au filet.
• Garder de l’eau et autre matiére organique loin de la base. Le
gazon, les déchets, etc. pourraient provoquer la corrosion et/ou la
détérioration.
• Une fois par mois, vérifier que le poteau et toutes les pièces en
métal ne montrent pas de signes de corrosion (rouille, piqûres,
écaillage). Enlever toute la rouille et repeindre complètement avec
une peinture pour extérieur. Si la rouille a pénétré une des pièces en
acier, il faut remplacer immédiatement la pièce en question.
• A chaque utilisation de l’équipement, vérifier d’abord l’équilibre, la
possibilité de pièces desserrées ou usées, la stabilité de
l’équipement et tout signe de corrosion ou réparation nécessaire
avant utilisation.
• Ne jamais jouer avec un équipement endommagé.
•Ne pas utiliser l’équipement pour lever ou soulever quoique ce
soit. Son mécanisme a été conçu uniquement pour soutenir le poids
du panneau et de l’
anneau. Ne rien accrocher au manche, à
l’anneau, au panneau ni aux leviers sous peine d’endommager
l’équipement et d’annuler la garantie.
• Cuélguese del aro sólo en forma breve, para recuperar el equilibrio
o evitar lesionar a otros jugadores. Suéltese del aro lo más pro nto
que pueda hacerlo con seguridad.
• Durante el juego, especialmente al embocar violentamente de
alto, la cara de los jugadores debe mantenerse alejada del tablero,
el aro y la red. Pueden producirse lesiones graves si los dientes o la
cara entran en contacto con el tablero, el aro o la red. Los jugadores
deben usar un protector bucal durante el juego.
• No se deslice, no trepe ni juegue sobre la base o el poste.
• Mantenga las manos y los dedos alejados de las piezas
movibles cuando regule la altura o desplace el sistema.
• No deje que los niños regulen ni desplacen el sistema.
• No use joyas (anillos, relojes, collares o gargantillas, etc.) durante el
juego. Estos objetos pueden engancharse en la red.
• Guarde aqua y materia orgánica. Césped, basura,etc., prodrian
causar corrosión et/o deterioros.
• Controle el poste y todas las piezas metálicas una vez al mes
en busca de signos visibles de corrosión (oxidación, picaduras,
escamado). Elimine todo rastro de óxido y vuelva a pintar con
esmalte para exteriores. Si el óxido ha penetrado cualquier pieza de
acero, reemplace esa pieza de inmediato.
• Inspeccione el sistema antes de cada uso para verificar que esté
adecuadamente contrapesado, que los elementos de fijación no
estén flojos, que no haya desgaste excesivo, inestabilidad ni signos
de corrosión. Si encuentra irregularidades, repárelas antes de usar
el sistema.
• Nunca juegue con un equipo dañado.
• No use el sistema para levantar ningún objeto. El mecanismo
está diseñado para elevar solamente el peso del tablero con el
aro. No cuelgue nada de la agarradera, el aro, el tablero ni los
brazos de elevación, ya que esto puede dañar el sistema y anular la
garantía.
www.lifetime.com
# 1176611
ADVERTENCIAAVERTISSEMENT
Lifetime Products, Inc., Clearfield, UT 84016
1-800-225-3865
7/12/2016
LIFETIME
®
• http://go.lifetime.com/90469-section2
•
In case of any troubles with this section, scan the code below to view a video on its assembly.
11
TOOLS AND HARDWARE REQUIRED
SECTION 2 (CONTINUED)
2.3
• Do not hit your feet with the Pole
sections, as serious injury could
occur.
(1)

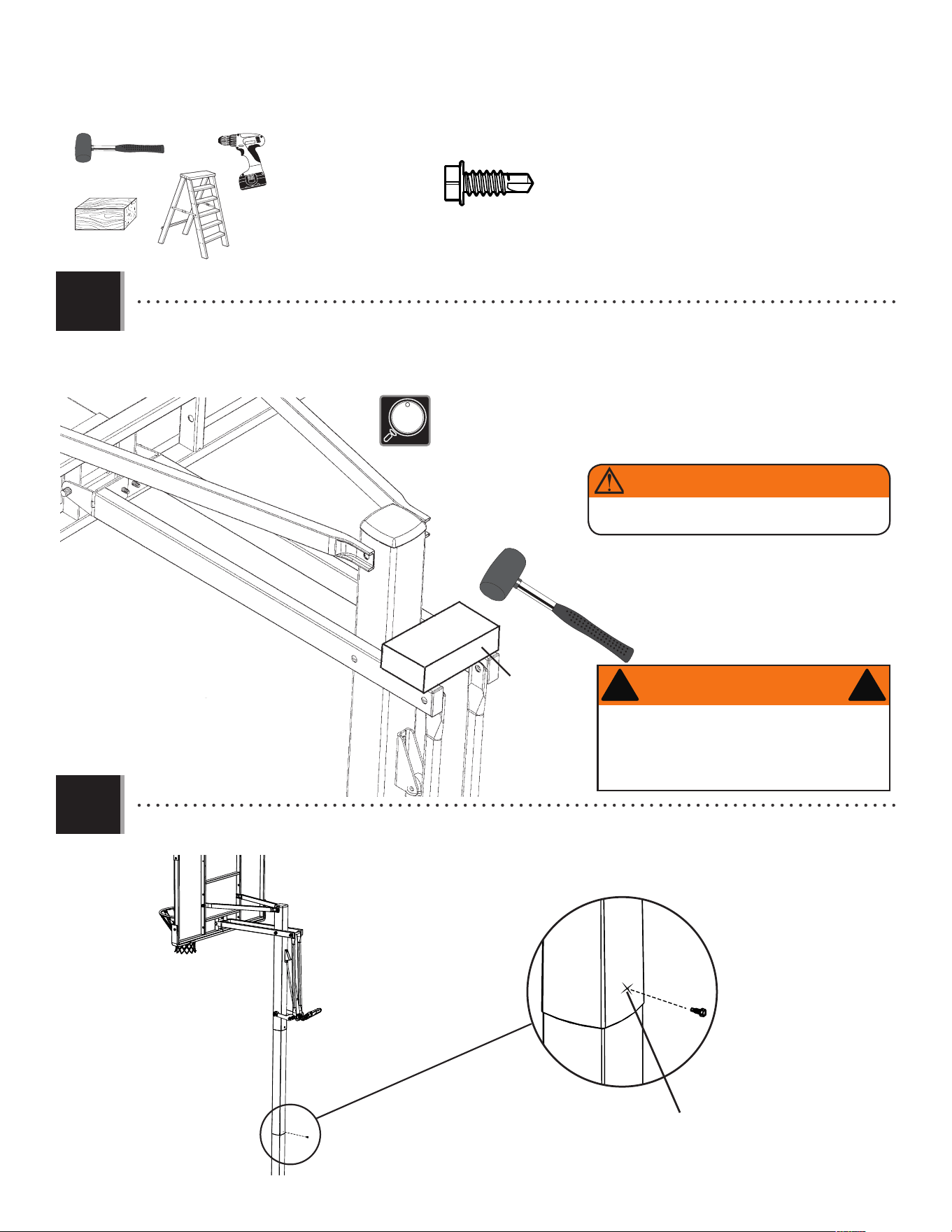

• THIS STEP CANNOT BE REVERSED! Strike the end of the pole assembly on a piece of
scrap wood or cardboard fi ve to six times.
6x
(1)
(1)
CMV (x1)
CMV
ALH
ALH
ALF
1" up from bottom of
Top Pole
• After the poles have been seated, measure up 1" from the bottom center of the top pole (ALH) and insert one self-
drilling screw (CMV) into the Pole as shown.
2.4
WARNING
!
!
The Poles must be seated together! Poles must
be struck on a hard surface five to six times!
Failure to seat the Poles correctly could allow the
Poles to separate during use, which could lead
to serious personal injuries or property damage.
5/16” Nut Driver
(1)
12

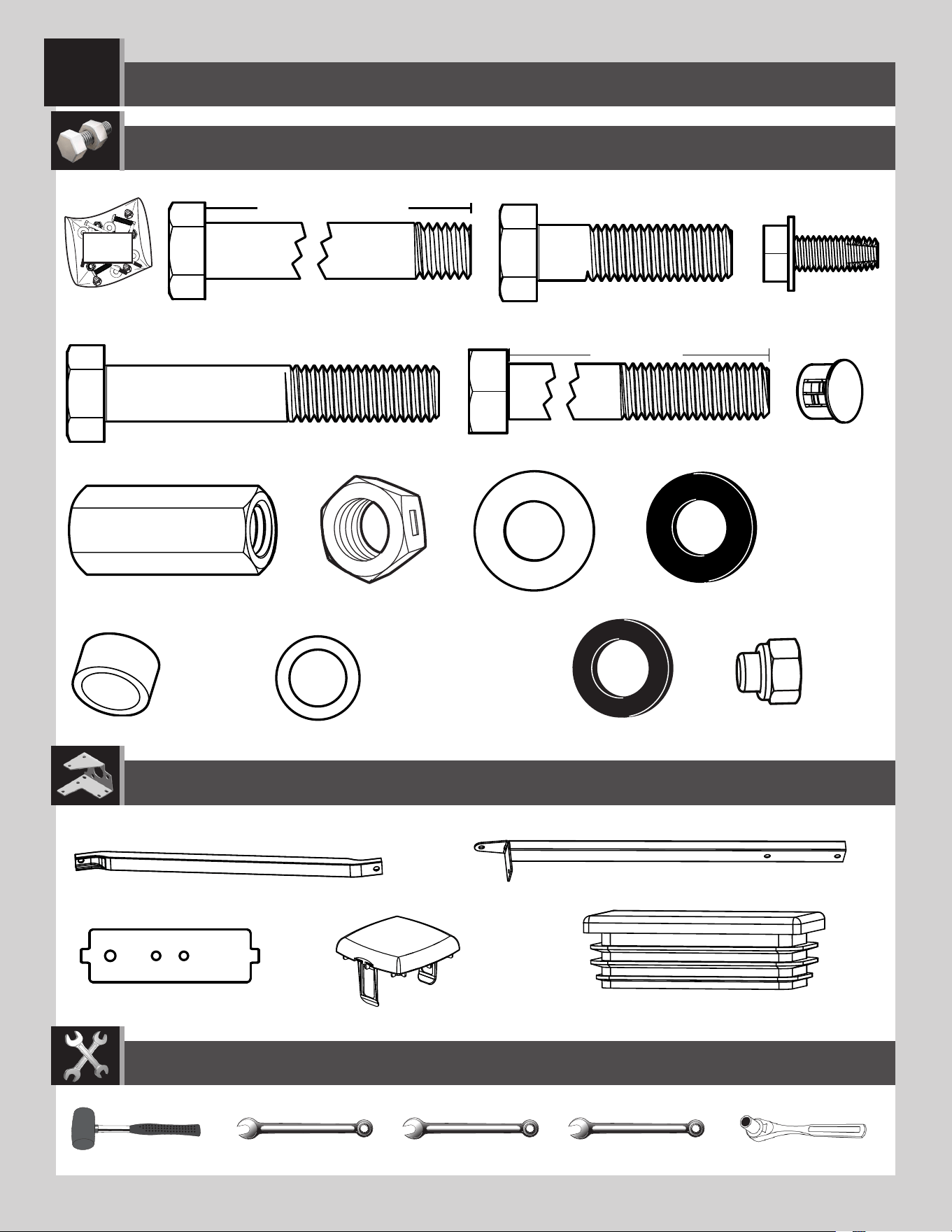

BACKBOARD-TO-RIM ASSEMBLY
3
BCS
Metal Parts
PARTS REQUIRED
HARDWARE REQUIRED
TOOLS REQUIRED
(2)
1/2” (≈13 mm)
AAQ (x2)
EAP (x2)
ABK (x4)
AAV (x2)
ADR (x4)
ABQ (x1)
APY (x1)
Hardware shown at 50% of Actual Size
ALX (x1)
(1)
(1)
ALD (x1)
AMA (x1)
Plastic Parts
BGR (x1)
APZ (x1)
Hardware shown at 25% of Actual Size
AJW (x2)
AOW (x1)
1/2” (≈13 mm)
AJI (x1)
13
TOOLS AND HARDWARE REQUIRED
SECTION 3 (CONTINUED)
3.1
• Insert two carriage bolts (EAP) through the rim pivot bracket (APY) as shown.
3.2
EAP EAP
APY
ABQ (x1)
(Not to scale)
• Use the 1/2" (≈13mm) socket from the socket wrench to press one push nut (AAQ) onto one end of the axle (ABQ).
AAQ
ABQ
• The push nut should rest about 1/4" from the end of the axle.
If the push nut slips on too far, continue sliding it off the
other end of the axle to remove it and try again.
AAQ (x1)
EAP (x2)
(1)
1/2” (≈13 mm)
LIFETIME
®
• http://go.lifetime.com/90469-section3
•
In case of any troubles with this section, scan the code below to view a video on its assembly.
14
TOOLS AND HARDWARE REQUIRED
SECTION 3 (CONTINUED)

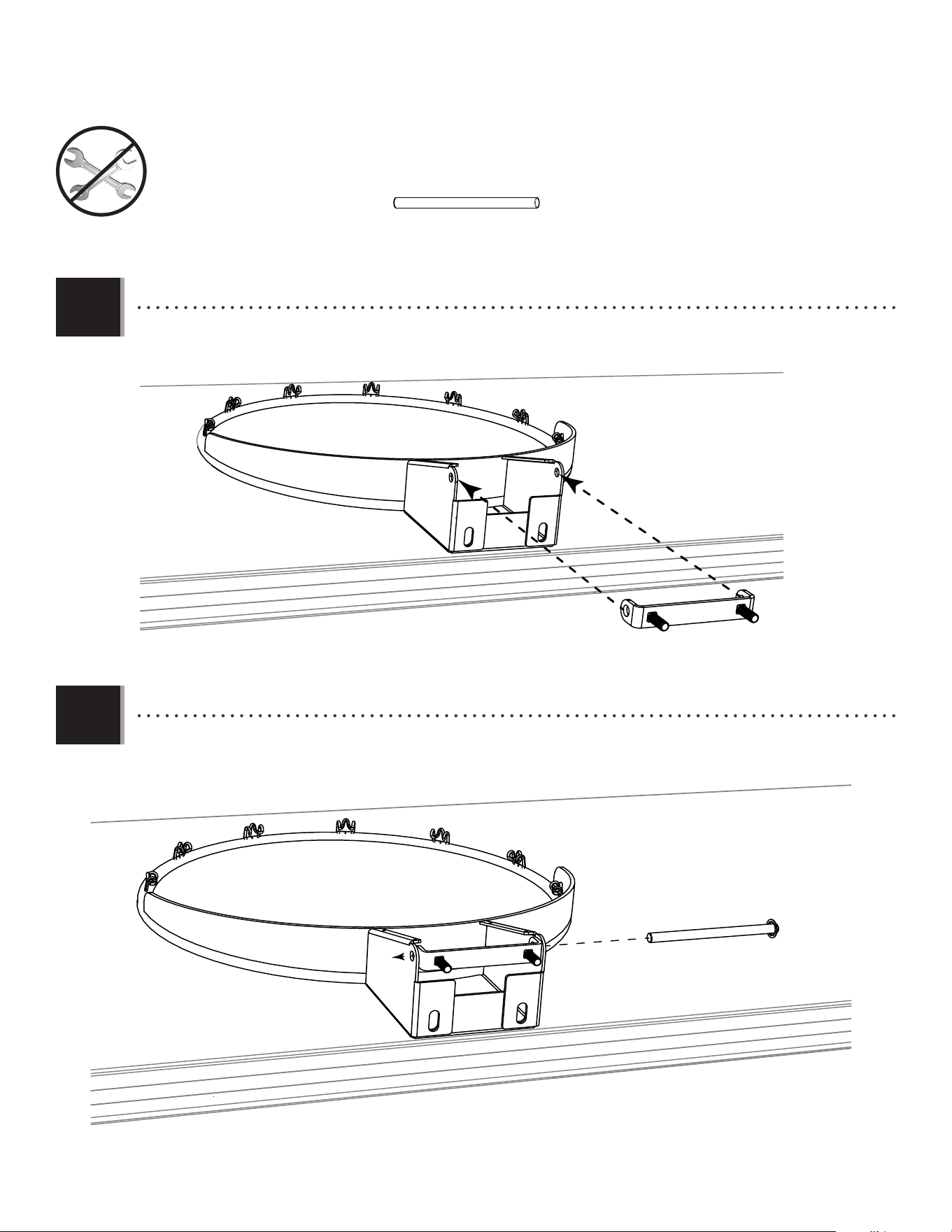

3.4
• Insert the axle with the push nut through the holes in the rim housing and pivot bracket as indicated.
ABQ (x1)
(Not to scale)
ALX
3.3
• It’s easier to do steps 3.3–3.8 on a box, table, chair or similar. Insert the ends of rim pivot bracket into the housing of the
Slam-It Pro™ rim (ALX) and align the holes.
15
TOOLS AND HARDWARE REQUIRED
SECTION 3 (CONTINUED)
3.6
• Set the backboard face down on the box, table, chair or similar with the lower edge hanging over as indicated. Insert
the U-bolt (APZ) through the upper part of the opening on the backside of the backboard (AJI). Connect the rim (ALX) and
plastic guard (ALD) to the backboard (AJI) with the hardware as shown.
APZ
BGR
ABK (x2)
BGR (x1)
APZ (x1)
(2)
1/2” (≈13 mm)
ABK
APZ
AJI
ALD
ABK
3.5
• Slide the push nut over the axle to secure the pivot bracket in place.
AAQ
(1)
1/2” (≈13 mm)
AAQ (x1)
16
TOOLS AND HARDWARE REQUIRED
SECTION 3 (CONTINUED)

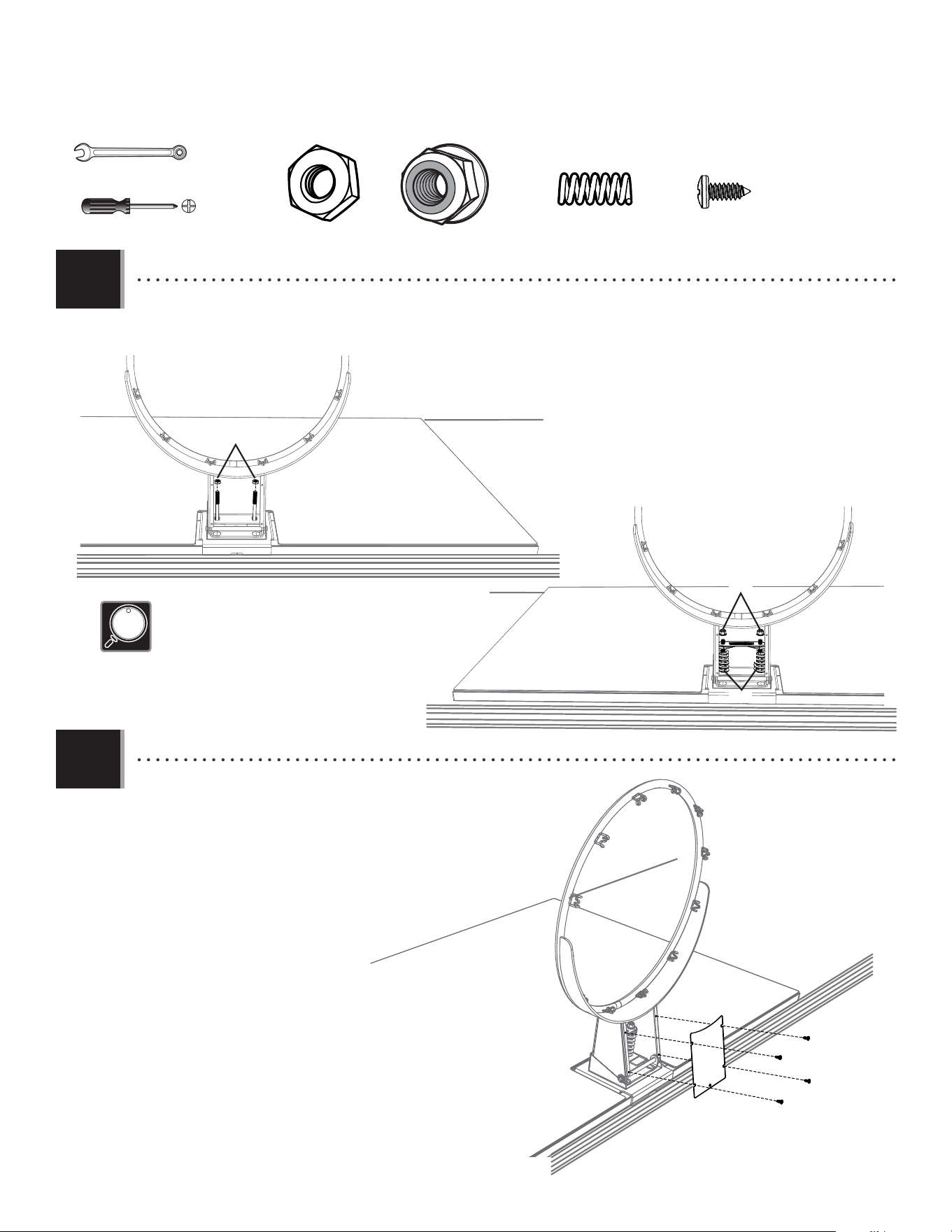

3.7
• Flip the assembly over. Thread two jam nuts (AAV) all the way on to the U-bolt (APZ). Then slide the compression springs
(AJW) onto the U-bolt and place the spring retainer plate (AOW) over the compression springs. Tighten the fl ange nuts
(ABK) until the rim (ALX) does not wobble to complete this step.
ABK (x2)
AAV (x2)
AJW (x2)
• DO NOT COMPLETELY TIGHTEN THE NYLOCK FLANGE NUTS IN
THIS STEP! Only tighten the nuts until the Rim does not wobble.
Tightening the Nuts will adjust the Rim tension.
3.8
• Attach the rim cover plate (AMA) to the rim with the hardware shown.
ADR (x4)
(2)
1/2”
(≈13 mm)
ABK
AOW
AJW
APZ
AAV
ADR
AMA
ADR
ADR
ADR
17
Metal Part
TOOLS REQUIRED
PARTS REQUIRED
HARDWARE REQUIRED

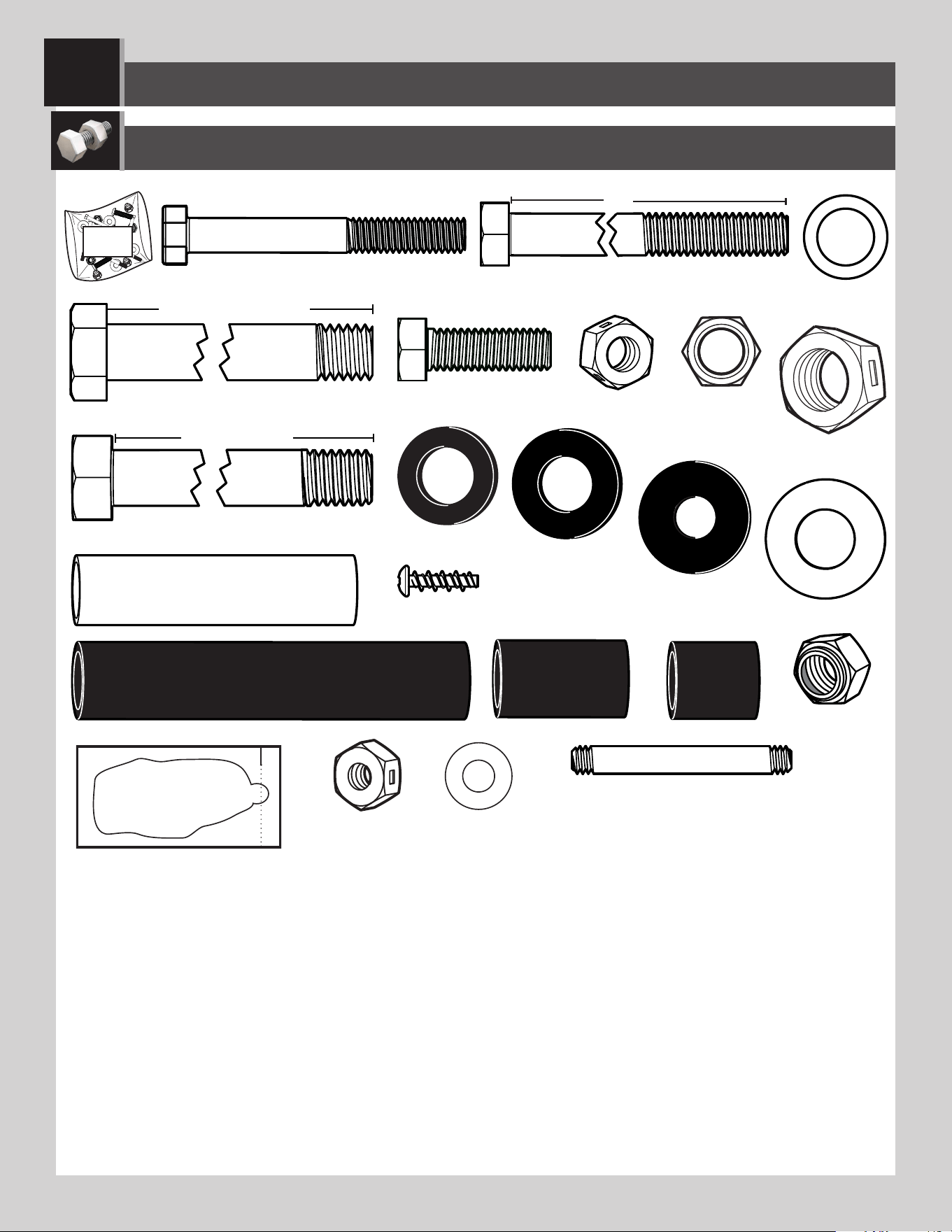

BACKBOARD-TO-POLE ASSEMBLY
4
(1)
(2)
(1) (1)
1/2”
(≈13mm)
1/2” (≈13mm)
3/4” (≈19mm)
11/16” (≈18mm)
(1)
BCR
AAD (x1)
ANQ (x2) AQD (x1)
ANU (x2) AQB (x2)
ANS (x8)
AAN (x2)
AAX (x4)
7 1/16 in/po (≈18cm)
5 in/po (≈13cm)
ANP (x1)
AOR (x6)
ABP (x2)
ANK (x4)
AQC (x2)
BGP (x2)
BGO (x2)
BLC (x1)
ANZ (x2)
ABN (x4)
ALM (x1)
18
SECTION 4 (CONTINUED)
TOOLS AND HARDWARE REQUIRED
4.1

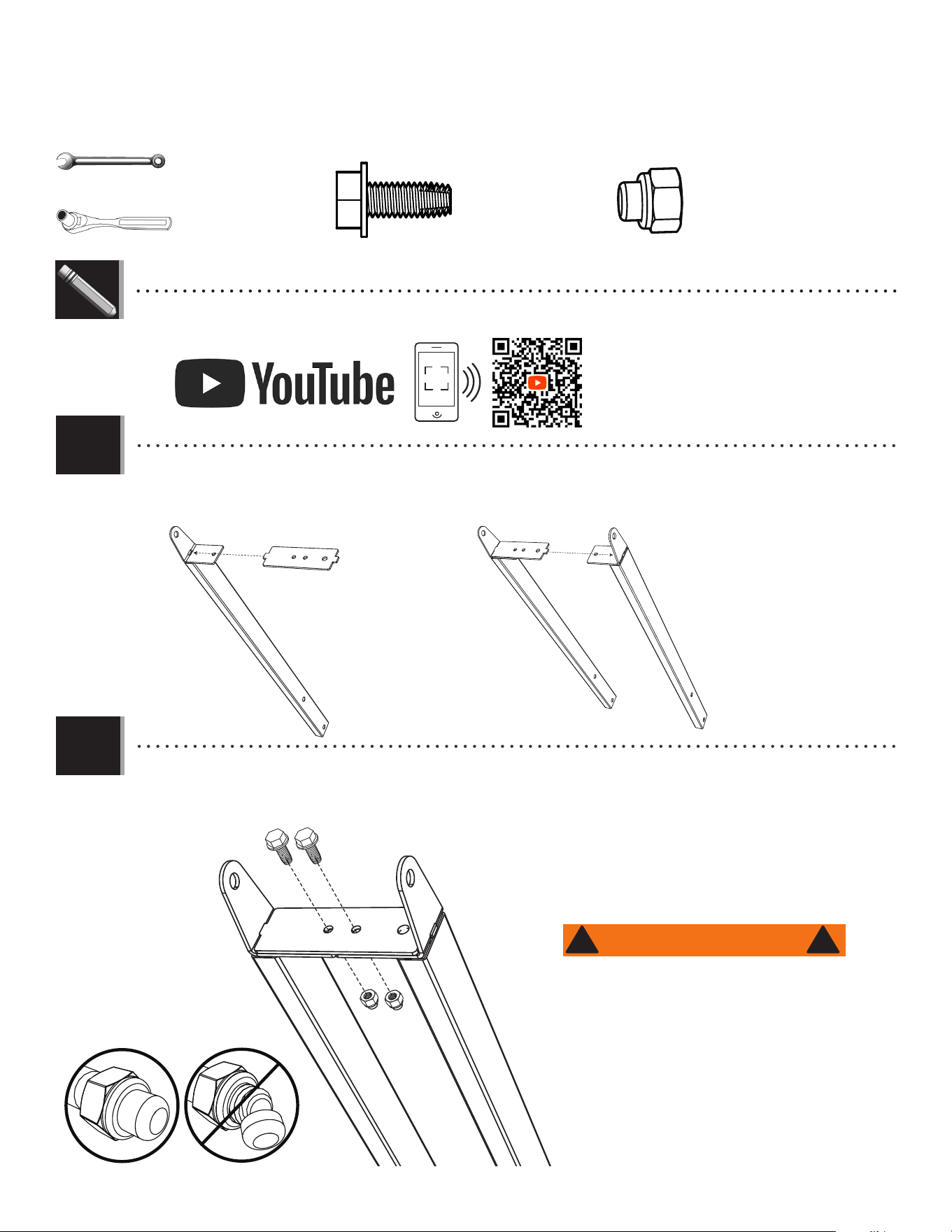

• Insert one end of the tie plate (BLC) into the slot on the lower extension arm (BGP), then insert the opposite end of the
tie plate into the slot on the other lower extension arm as indicated.
(1)
(1)
BLC
BLC
BGP
BGP
AQB
AAN
BGP
BGP
BLC
AQB (x2)
4.2
• Secure the lower extension arms together with the hardware shown. Use a 1/2" (≈13mm) socket wrench to screw the
thread-cutting bolts (AQB) through the lower extension arms and the tie plate. Secure with the nuts (AAN). DO NOT overtighten.
AAN (x2)
1/2” (≈13 mm)
1/2” (≈13mm)
WARNING
Do not overtighten the cap nut. If the end of
the bolt breaks through the plastic cap, call our
Customer Service Department. Exposed threads
on the end of the bolt may cause serious injuries.
AVERTISSEMENT
Ne pas serrer excessivement l’écrou à chape.
Si l’extrémité du boulon passe au travers du
chapeau en plastique, veiller à appeler le service
client. Si le filetage à l’extrémité du boulon est
exposé il peut causer des blessures graves.
ADVERTENCIA
No apretar demasiado la tuerca ciega. Si el
extremo del perno extiende por el plástico, llamar
a nuestro Departamento de servicios a clientes.
Hilos expuestos podrían causar lesiones graves.
!
!
!
!
!
!
LIFETIME
®
• http://go.lifetime.com/90469-section4
•
In case of any troubles with this section, scan the code below to view a video on its assembly.
19
SECTION 4 (CONTINUED)
TOOLS AND HARDWARE REQUIRED
4.3

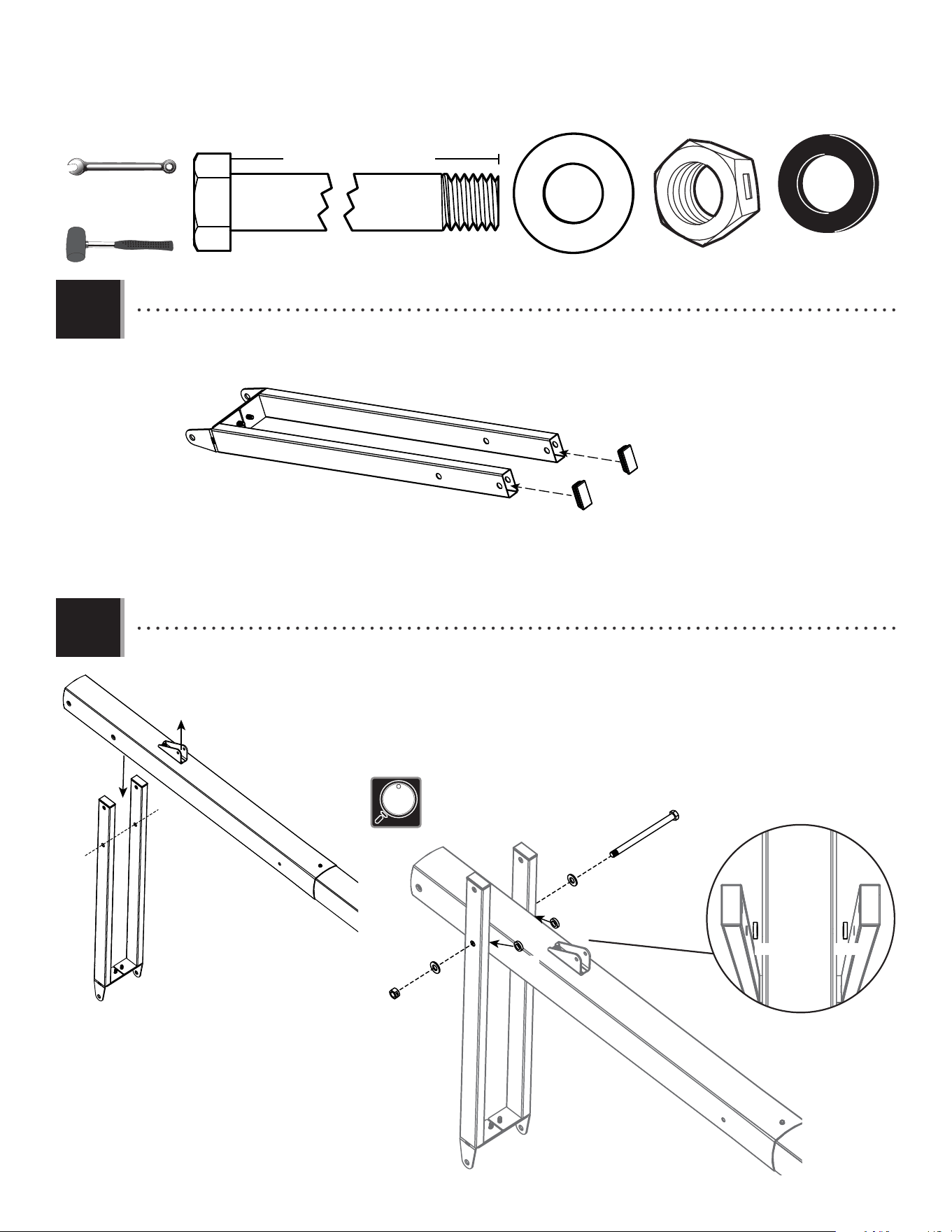

• Insert the extension arm caps (AQC) into the ends of the lower extension arms (BGP) as shown.
SECTION 4 (CONTINUED)
• Place the top pole to the lower extension arms assembly and secure them with the hardware shown.
4.4
BGP
BGP
AQC
AQC
AAX
AAD
AOR
AOR
ANZ
ANZ ANZ
ANZ
ALH
• Tighten the nut until it is fl ush with the
end of the bolt.
AAX (x1)
AAD (x1)
7 1/16 in/po (≈18cm)
(2)
ANZ (x2)
AOR (x2)
3/4" (≈19mm)
(1)
20
SECTION 4 (CONTINUED)
TOOLS AND HARDWARE REQUIRED
AAX (x1)

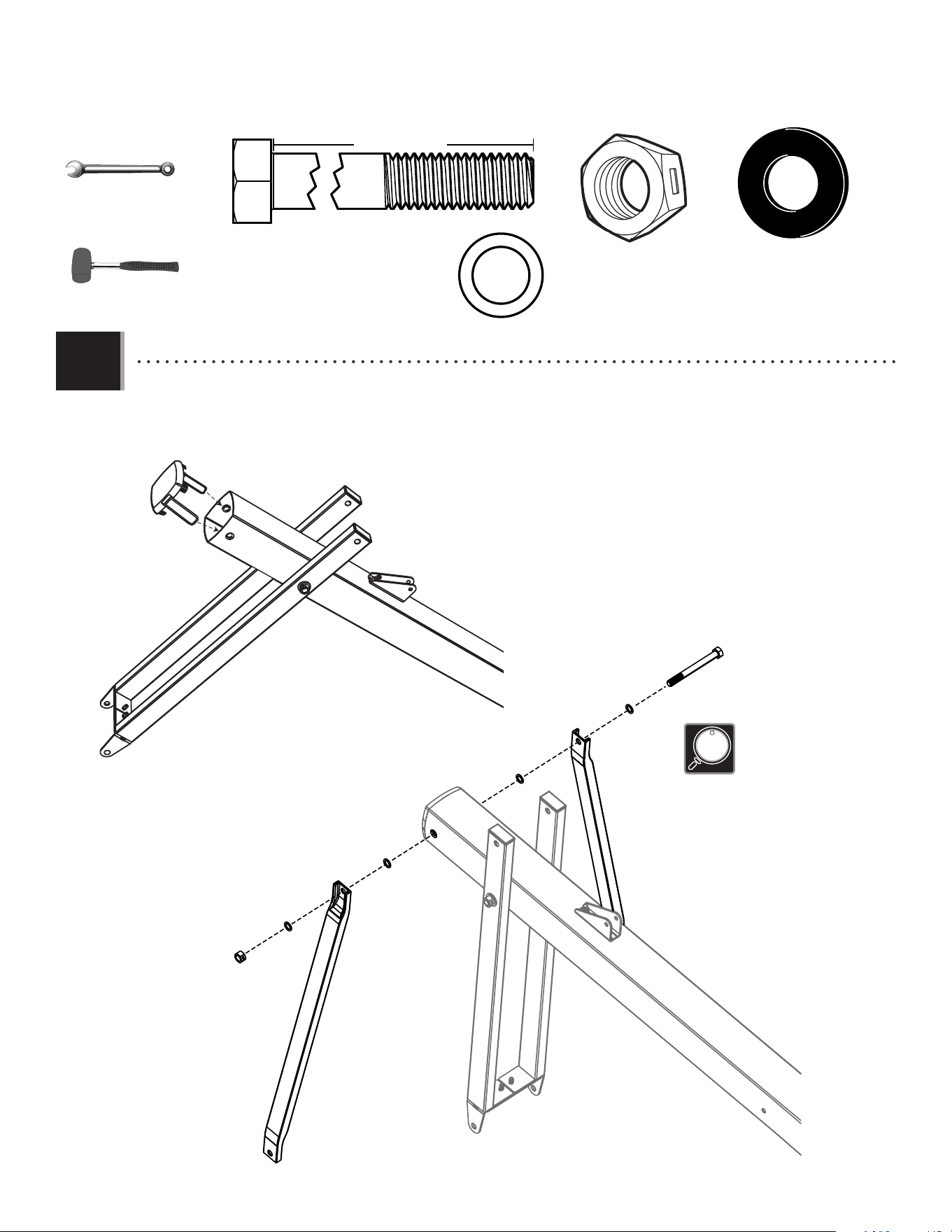

4.5
• Place the cap (ALM) to the pop pole. Then attach the upper extension arms (BGO) to the top pole with the hardware as shown.
(2)
5 in/po (≈13cm)
BGO
BGO
AQD
AAX
ANK
ALM
ALH
ABN
ABN
ANK
AQD (x1)
ANK (x2)
• Tighten the nut until it is
fl ush with the end of the bolt.
ABN (x2)
3/4" (≈19mm)
(1)
21
SECTION 4 (CONTINUED)
TOOLS AND HARDWARE REQUIRED
4.6
ANP (x1)
ABP (x2)
AOR (x2)
ANQ (x2)
BGP BGP
ANQ
ANQ
AOR
AOR
ANP
ABP
ABP
ABP
AOR
AOR
ANQ
ANQ
ANP
(2)
(1)

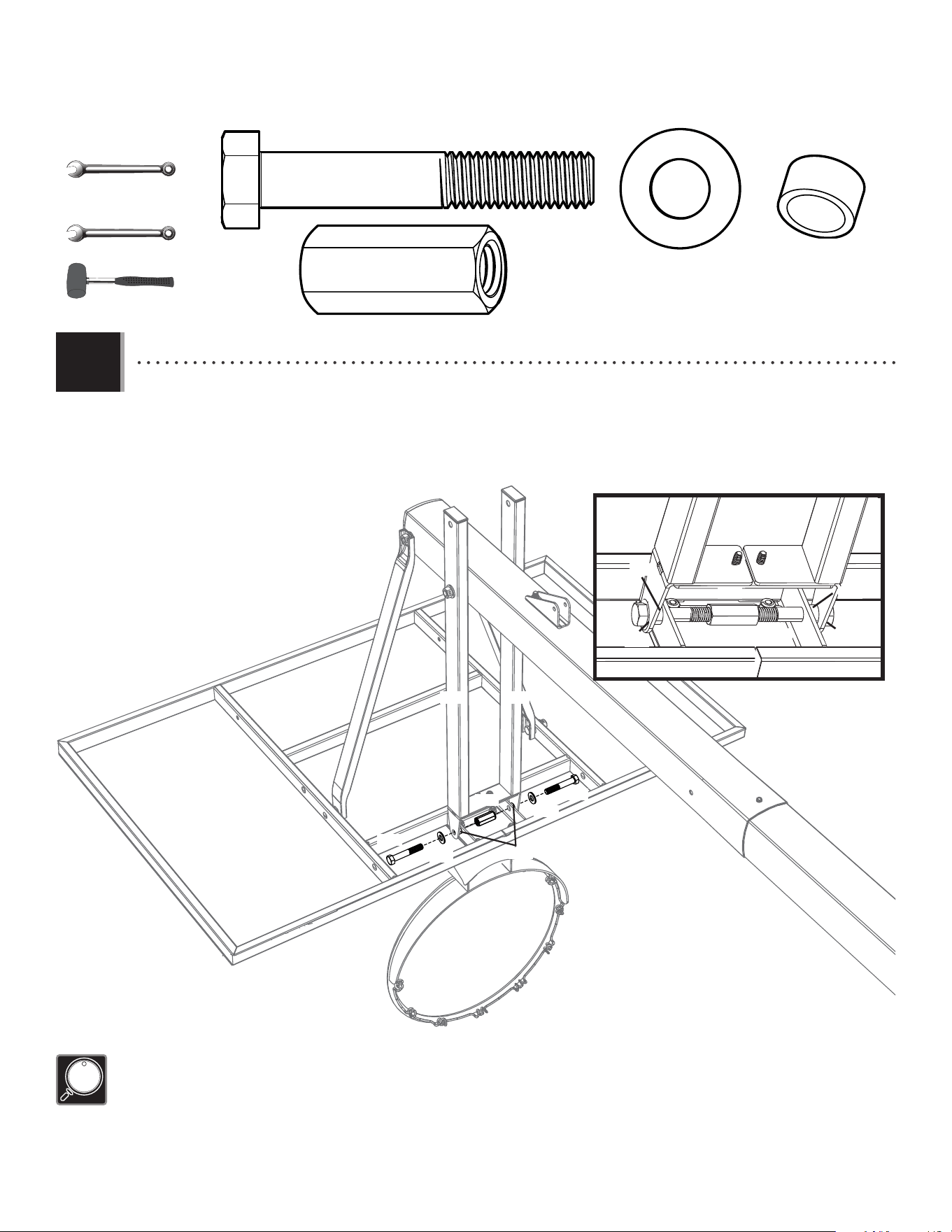

• Rest the rim on cardboard to prevent scratching, then secure the lower extension arms to the backboard with the
hardware shown. Screw the nut coupler (ANP) onto one of the hex bolts (ANQ), then onto the other. Center the coupler
between the two bolts as shown.
•
Make sure the poly spacers (ABP) positioned between the
lower extension arms and the backboard do not bulge.
(1)
11/16" (≈18mm)
3/4" (≈19mm)
22
SECTION 4 (CONTINUED)
TOOLS AND HARDWARE REQUIRED
4.7
AOR (x2)
ANK (x2)
ANU (x2)
AAX (x2)

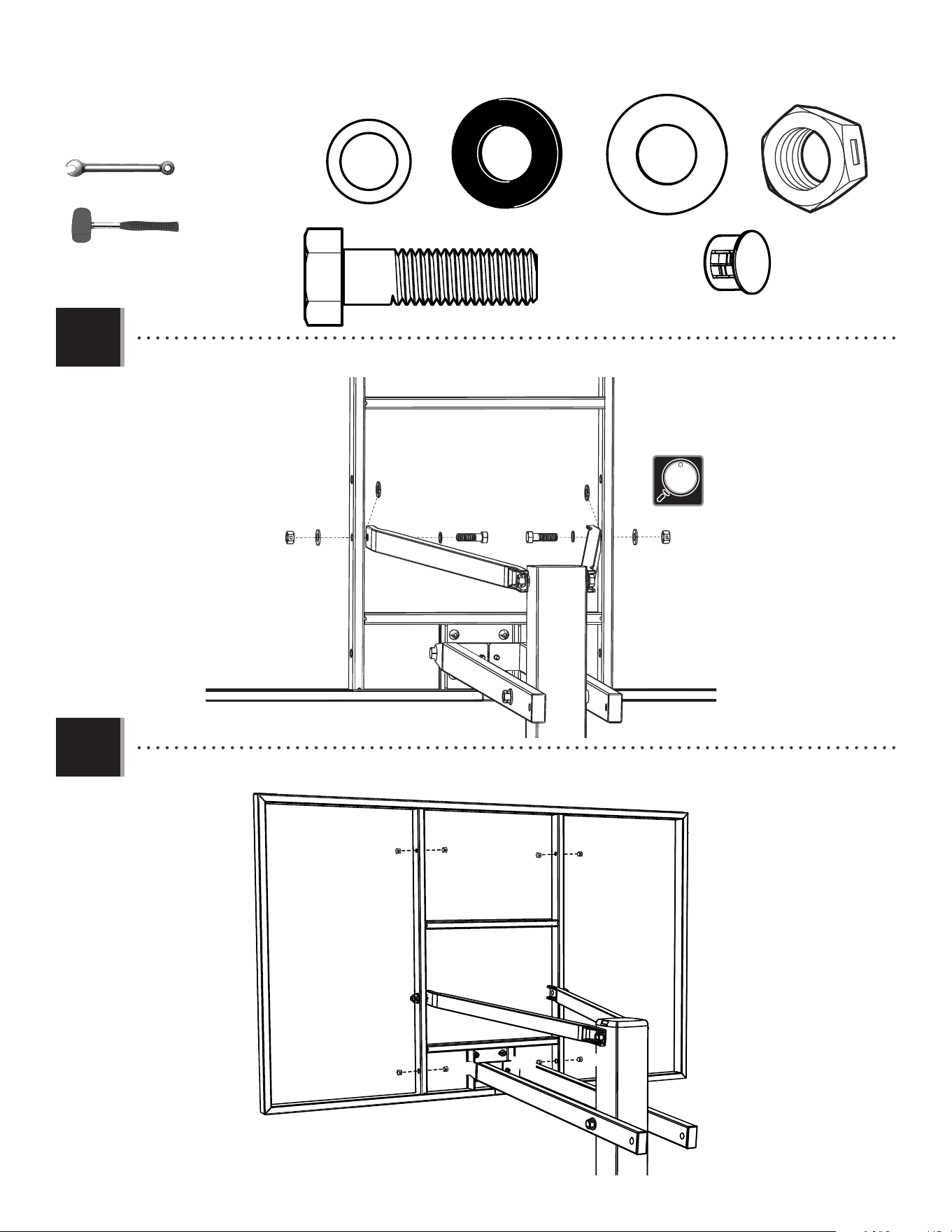

• Attach the upper extension arms to the backboard with the hardware as shown.
(2)
4.8
• Insert the nylon plugs (ANS) into the locations indicated on the back of the backboard frame.
ANS (x8)
ABN (x2)
AAX
AAX
AOR
AOR
ANK
ANK
ANU
ANU
ABN
ABN
• Tighten the nuts until they are
fl ush with the end of the bolts.
ANS
ANS
ANS
ANS
3/4” (≈19mm)
(1)
ANS
ANS
ANS ANS
i
This page intentionally left blank
Detach this yellow section for use as a quick reference
PARTS IDENTIFIER
ii
PARTS IDENTIFIER
Metal Parts
• Warning Sticker applied to side not shown
ALL (x1)
ALX (x1)
AMA (x1)
BGP (x2)
BGO (x2)
BLC (x1)
ALS (x2)
CKJ (x1)
CKM (x2)
CMR (x2)
BGR (x1)
ALE (x1)
ALF (x1)
ALH (x1)
Detach this yellow section for use as a quick reference
iii
PARTS IDENTIFIER
HARDWARE REQUIRED
Plastic Parts
BCO BCS BCR BCT
BGW (x1)
ALM (x1)
AJI (x1)
AKZ (x1)
AKF (x1)
CKH (x1)
CKI (x1)
AKG (x1)
CKG (x2)
AKP (x1)
AQC (x2)
1109 02 5
10’
9’6”
9’
8’6”
7’6”
8’
ALD (x1)
BCU
BAA (x1)
AJQ (x1)
BAB (x1)
Detach this yellow section for use as a quick reference
iv
This page intentionally left blank
Detach this yellow section for use as a quick reference
PARTS IDENTIFIER
23
HANDLE ASSEMBLY
5
6”
FHM (x1)
HARDWARE REQUIRED
BCT
AAX (x3)
ABB (x1)
ACX (x1)
BFI (x1)
AAW (x2)
AAD (x1)
CKU (x2)
AOR (x2)
ANZ (x3)
ABN (x4)
ANK (x2)
CKV (x2)
ADT (x7)
7 1/16 in/po (≈18cm)
6 1/2 in/po (≈17cm)
CKT (x1)
CKW (x1)
CKX (x2)
CKY (x2)
AAO (x1)
CKZ (x1)
AAB (x2) AEB (x2)
AKH (x1)
7 1/16" (17,9 cm)
24
HANDLE ASSEMBLY
5
Plastic Parts
PARTS REQUIRED
Metal Parts
TOOLS REQUIRED
(2)(2) (2)
3/4" (≈19mm)
1/2" (≈13mm)
9/16" (≈14mm)
(1)(1)
ALS (x2)
AKF (x1)
CKH (x1)
CKI (x1)
AKG (x1)
CKJ (x1)
CKM (x2)
CMR (x2)
CKG (x2)
(2)
7/16" (≈11mm)
25
SECTION 5 (CONTINUED)
TOOLS AND HARDWARE REQUIRED
5.1
5.2
ACX (x1)
AAO (x1)

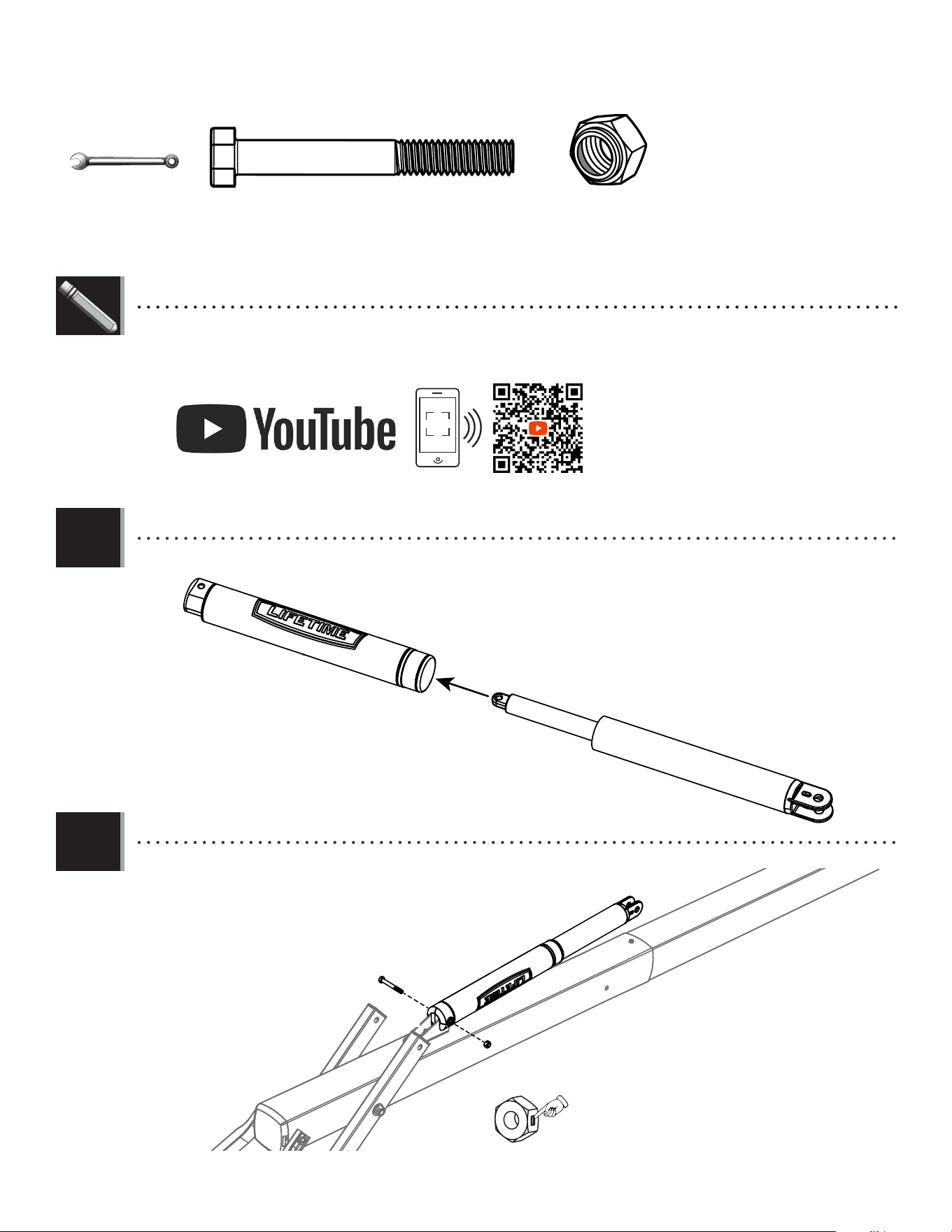

• Slide the Gas Spring Cover (AKG) onto the Gas Spring (AKF) as shown.
• Align the holes in the Gas Spring Cover (AKG) and the Gas Spring (AKF) with the holes in the Pole Bracket (ALL), and attach
the Gas Spring assembly to the Pole Bracket with the hardware shown.
(2)
• Tighten the Nylock Nut (AAO) until it is
fl ush with the end of the Bolt.
AKG
AKF
AKG
AKF
ACX
AAO
ALL
1/2" (≈13 mm)
LIFETIME
®
• http://go.lifetime.com/90469-section5
•
In case of any troubles with this section, scan the code below to view a video on its assembly.
26
SECTION 5 (CONTINUED)
TOOLS AND HARDWARE REQUIRED
5.4
CKW (x1)
CKW
BFI (x1)
BFI

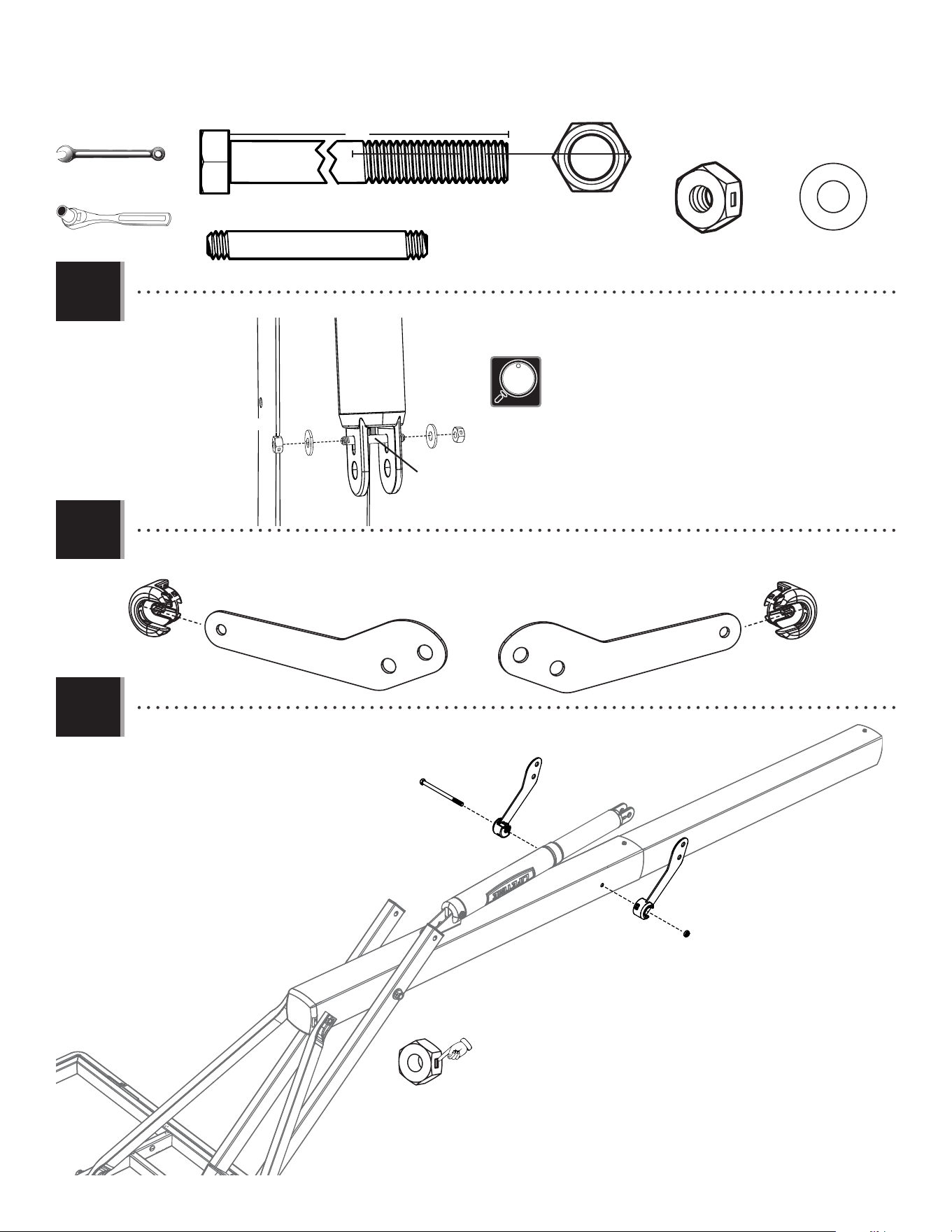

• Slide the Link Cap (CKG) onto the Pump Adjust Link (CKM). Repeat this for the second Link, with the Link Cap fl ipped over.
(2)
• Tighten the centerlock nut (BFI)
until it is fl ush with the end of the
Bolt.
CKG
CKM
CKM
CKM
5.5
• Secure the Pump Adjust Links (CKM) to the Pole Assembly using the hardware as shown.
CKG
CKM
9/16" (≈14mm)
5.3
• Connect the Gas Shock Rod (CKZ) to the Gas Spring in the location pictured using the hardware shown.
CKZ
AAB
AEB
AAB
AEB
AKF
• DO NOT overtighten the hardware. The Gas Shock
Rod should move freely.
CKZ (x1)
AAB (x2)
AEB (x2)
(2)
7/16" (≈11mm)
6”
27
SECTION 5 (CONTINUED)
TOOLS AND HARDWARE REQUIRED
5.6
5.7
• Position the Handle Frame (CKJ) inside of the Top Handle (CKH) and Bottom Handle (CKI) as shown, and secure with the
hardware shown.
• Secure the Pump Adjust Actuators (CMR) to the Handle with the hardware shown.
• Tighten the centerlock
nut (AAX) until it is fl ush
with the end of the bolt.
CKJ
FHM
CKV
CMR
CMR
CKV
CKH
CKI
ADT
ADT
ADT
ADT
ADT
ADT
ADT
ADT (x7)
ABB (x1)
CKV (x2)
(2)
(1)
9/16” (≈14mm)
ABB
FHM (x1)
28
SECTION 5 (CONTINUED)
TOOLS AND HARDWARE REQUIRED
6 1/2 in/po (≈17cm)
5.8

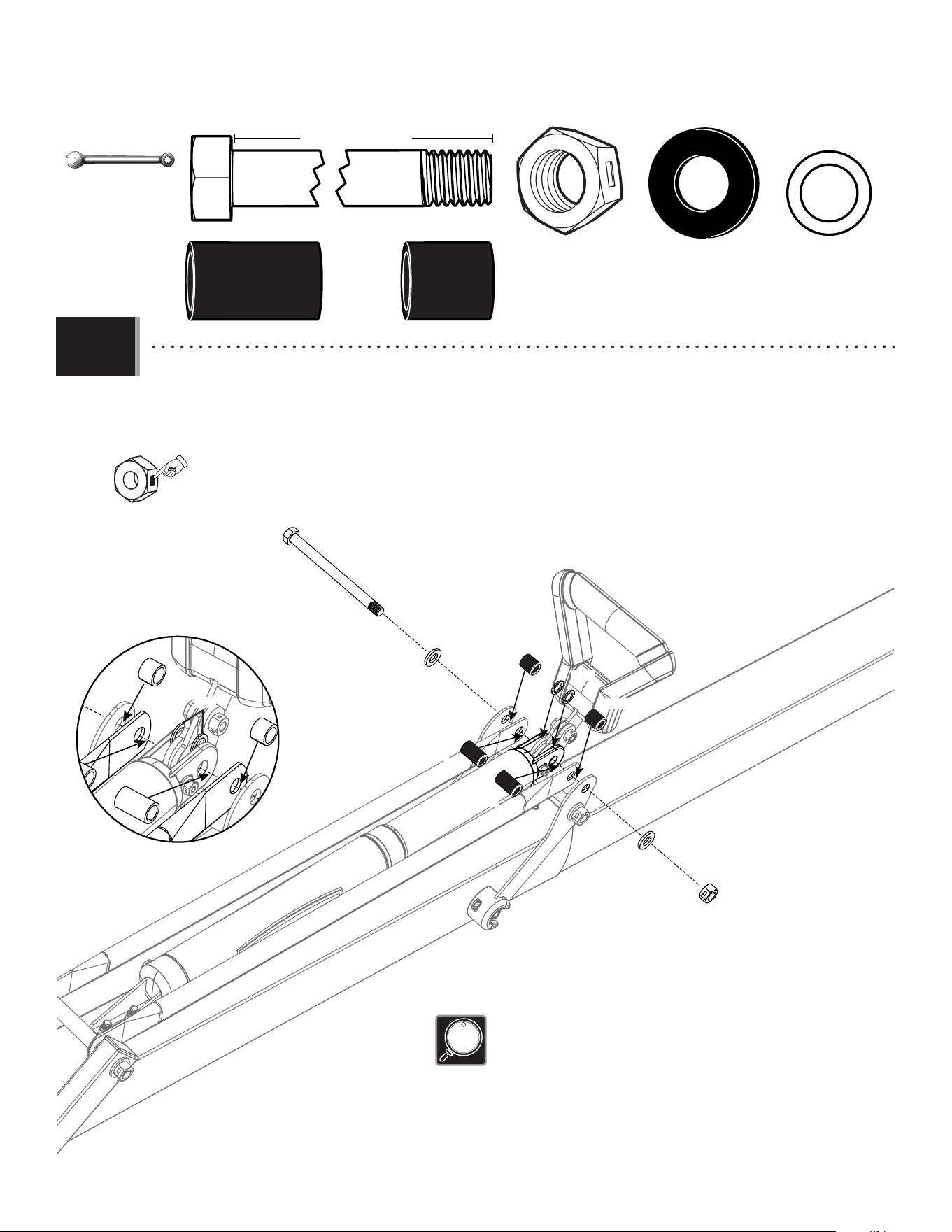

• Line up the hardware and spacers shown with the hole nearest to the pole on the pump adjust links and
the pump adjust actuators. Secure with the centerlock nut (AAX).
AAW (x1)
AAW
AAX
ABN
ABN
ANZ
CKX
CKX
AAX (x1)
ABN (x2)
ANZ (x1)
CKX (x2)
(2)
• Tighten the centerlock nut (AAX) until it is fl ush with
the end of the bolt.
ANZ
CKX
CKX
3/4" (≈19mm)
29
SECTION 5 (CONTINUED)
TOOLS AND HARDWARE REQUIRED
5.9
(2)

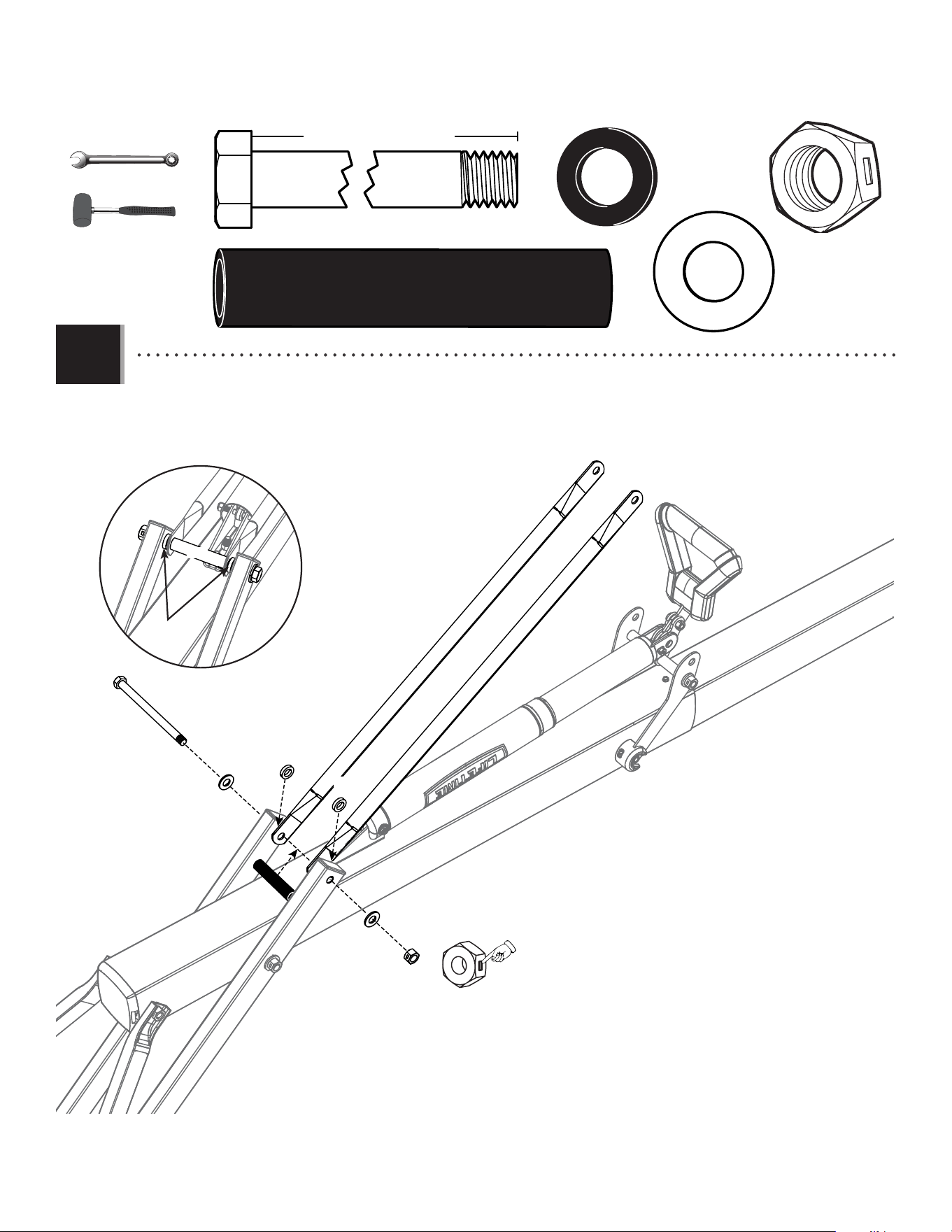

• Connect the rear lifter arms (ALS) to the inside of the lower extension arms with the hardware shown. Place the
black spacer (CKT) between the rear lifter arms as shown, with a spacer (ANZ) between the rear lifter arms and the
long extension arms on each side. Tighten the nut (AAX) only until it’s fl ush with the end of the bolt.
AAX (x1)
AOR (x2)
ANZ (x2)
AAD (x1)
7 1/16 in/po (≈18cm)
CKT (x1)
CKT
ANZ
ANZ
ALS
ALS
ANZ
AAX
AOR
AOR
AAD
•
Tighten the centerlock nut (AAX) until it is
fl ush with the end of the bolt.
CKT
(1)
3/4" (≈19mm)
30
SECTION 5 (CONTINUED)
TOOLS AND HARDWARE REQUIRED
• Finish connecting the handle assembly to the gas spring (AKF) with the hardware shown. Make sure to place
a nylon washer (ANK) between the gas spring and the handle assembly on each side of the handle assembly as
shown.
AAW
ABN
CKU
CKU
CKY
CKY
ANK
ABN
AAX
•
Tighten the centerlock nut (AAX) until it is fl ush
with the end of the bolt.
• The rear lifter arms must be on the inside of the
long extension arms.
6 1/2 in/po (≈17cm)
AAW (x1)
AAX (x1)
ABN (x2)
ANK (x2)
CKY (x2)
CKU (x2)
(2)
ANK
5.10
3/4" (≈19mm)
31
SECTION 5 (CONTINUED)
TOOLS AND HARDWARE REQUIRED
5.11

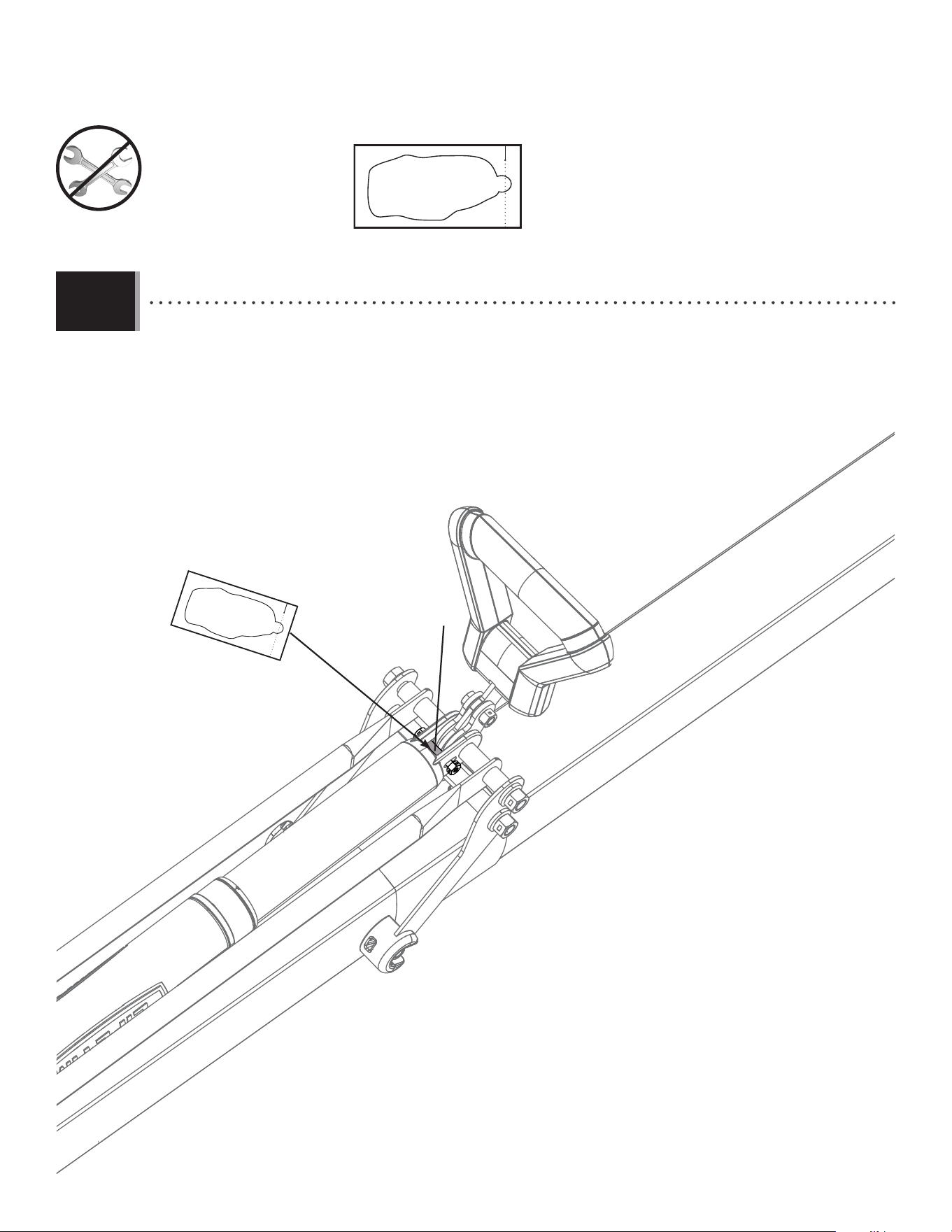

• Apply grease from the Grease Packet (AKH) on to the Gas Shock Rod (CKZ).
AKH (x1)
AKH
CKZ
32
Plastic Parts
TOOLS REQUIRED
PARTS REQUIRED
HARDWARE REQUIRED

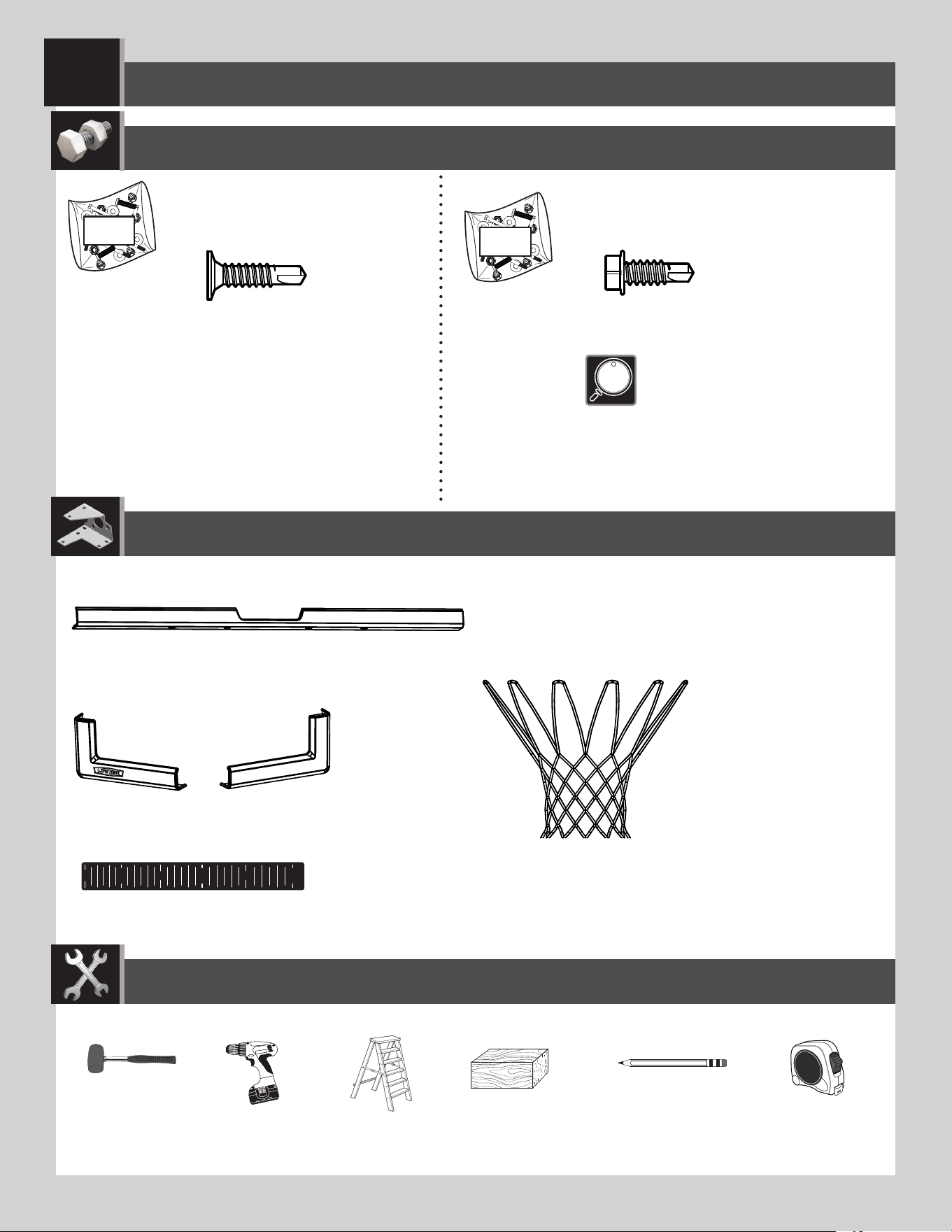

FINAL ASSEMBLY
6
(1)
(1)
(3)
(1)
(1)
CMV (x1)*
BCU
•
Screw CMV is taken from the remaining hardware
in bag BCO, which was used in section 1 of this
manual.
(1)
AKZ (x1)
ADP (x10)
BCO
BAA (x2)
AJQ (x1)
BAB (x1)
AKP (x1)
1109 02 5
10’
9’6”
9’
8’6”
7’6”
8’
33
SECTION 6 (CONTINUED)
TOOLS AND HARDWARE REQUIRED
6.2

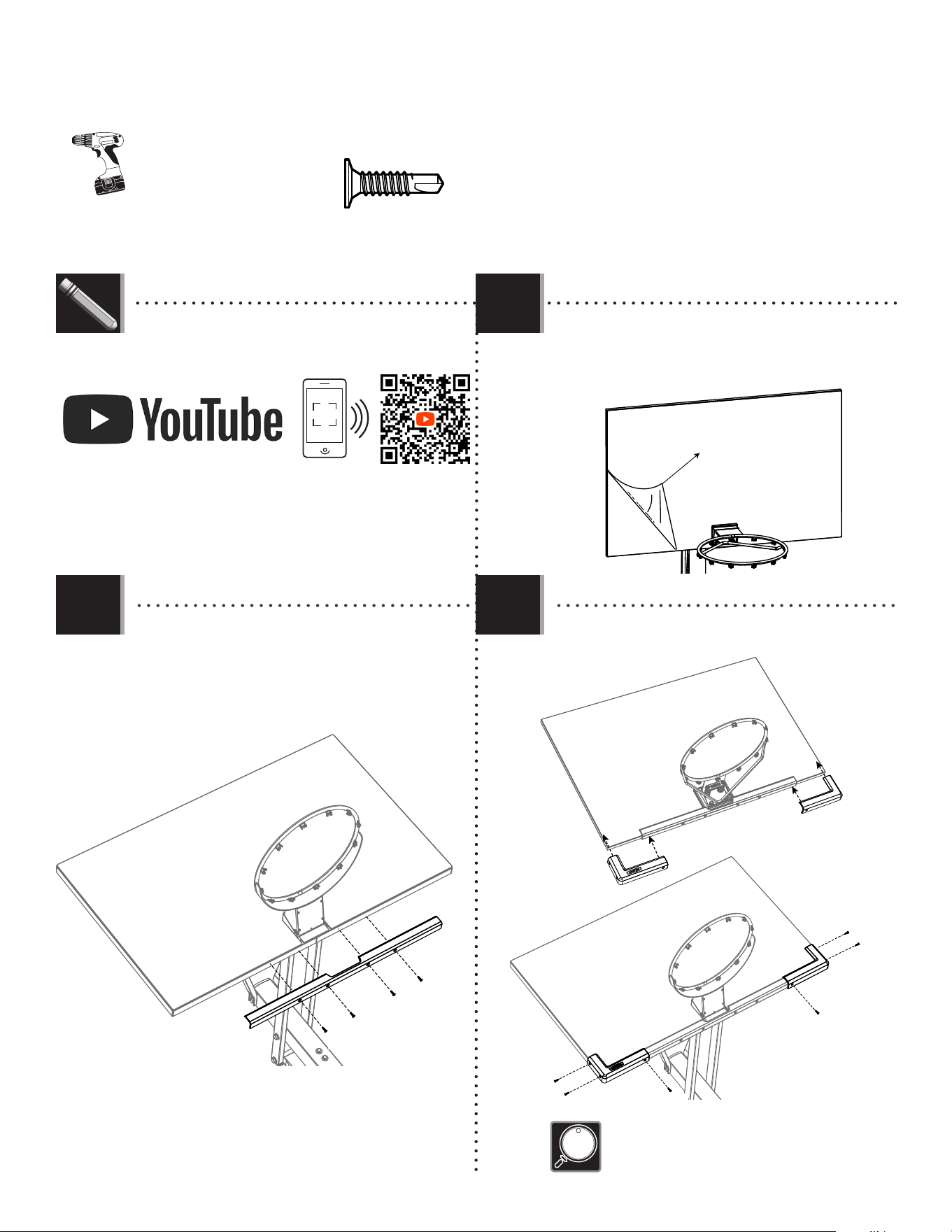

• Attach the center frame pad (AJQ) to the backboard
in the location shown with the hardware
indicated. Ensure that the center frame pad is
oriented and centered on the metal piece of the
backboard.
AJI
BAA
BAB
AJQ
ADP
ADP
ADP
ADP
ADP
ADP
ADP
ADP
(1)
ADP (x10)
6.3
• Attach the corner frame pads (BAA and BAB) to the
backboard in the locations indicated with the
hardware indicated.
• Remove the plastic fi lm from the backboard (AJI).
ADP
ADP
• The corner frame pads (BAA and BAB) will overlap
the center frame pad (AJQ).
6.1
LIFETIME
®
• http://go.lifetime.com/90469-section6
•
In case of any troubles with this section, scan the code below to
view a video on its assembly.
34
SECTION 6 (CONTINUED)
TOOLS AND HARDWARE REQUIRED
• IMPORTANT! All concrete from section 1 must have been allowed to cure for at least 72 hours before continuing. It is critical that
the instructions in the following steps are followed exactly. Failure to properly orient and align the pole sections
will render the pole unusable. If the pole sections are assembled incorrectly, you will have to purchase new pole
sections from our Customer Service Department. If you have questions regarding the pole assembly, please call
our Customer Service Department for assistance.
(3)
AT LEAST THREE ADULTS ARE REQUIRED. DO NOT ATTEMPT ASSEMBLY WITH FEWER
THAN THREE ADULTS AND THREE LADDERS.
(1)
WARNING
Use extreme caution when standing on ladders to
perform assembly steps. Follow all warnings and
cautions on the ladder. Failure to follow all of these
instructions and warnings could lead to serious
personal injury or property damage.
6.4
• Make a mark 5" (≈13cm) from the top of the bottom pole (ALE). With the backboard facing the playing surface,
carefully slide the top/middle pole assembly over the bottom pole. Adjust the system to the 7-1/2' (≈2,3m)
setting.
ALH
ALE
ALF
5" (≈13mm) mark
Playing
Surface
(1)
LIFETIME
®
35
SECTION 6 (CONTINUED)
TOOLS AND HARDWARE REQUIRED
6.6
6.5
Wood Block
• While two people continue to hold the assembly in place, set a block of scrap wood on top of the lower
extension arms and strike it 5–6 times with a hammer or mallet. You must have wood on top of the arms before hitting
them with a hammer to prevent scratching the powder coating. The bottom edge of the middle pole must reach within a
1/2" (≈13mm) of the 5" (≈13cm) mark on the bottom pole.
• After the poles have been seated, measure up 1" (≈2,5cm) from the bottom center of the middle pole (ALF) and
insert one self-drilling screw (CMV) into the pole as shown.
• If your Pole sections do not reach within 1/2" of the 5"
mark after seating, DO NOT COMPLETE ASSEMBLY. Call
our Customer Service number for assistance.
(1)
CMV
ALH
CMV (x1)
1" up from bottom of top pole
(1)
(1)
WARNING
Use extreme caution when standing on ladders to
perform assembly steps.
(3)
WARNING
!
!
The Poles must be seated together! Poles must
be struck on a hard surface five to six times!
Failure to seat the Poles correctly could allow the
Poles to separate during use, which could lead
to serious personal injuries or property damage.
36
SECTION 6 (CONTINUED)
TOOLS AND HARDWARE REQUIRED
6.7
6.7
(1)

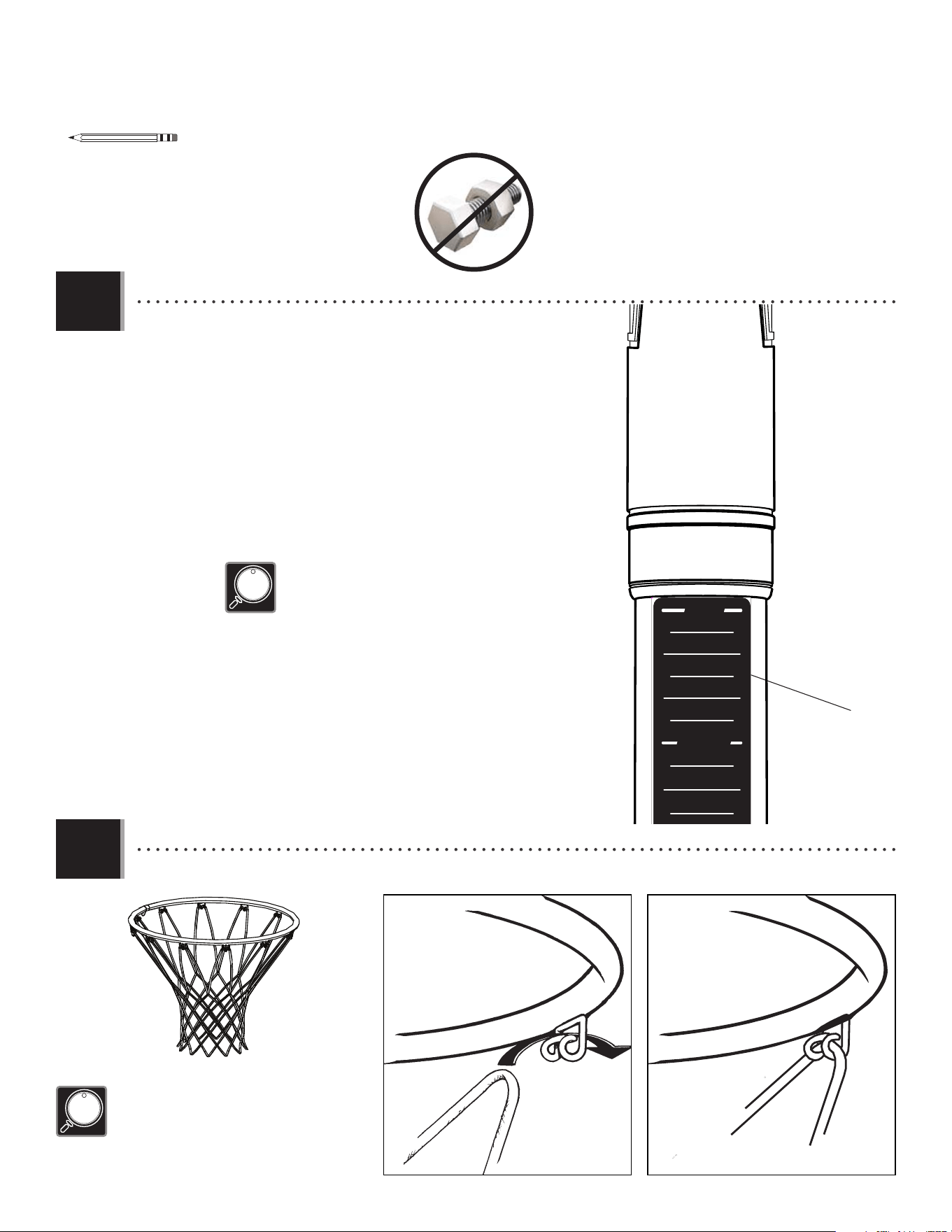

• Actual height sticker (AKP) and gas
spring cover (AKG) may vary from
those shown here.
• Raise the backboard until the top of the rim measures 10' (≈3,05m)
from the playing surface. Apply the height adjustment sticker (AKP) onto
the gas spring (GFL), aligning the edge of the gas spring cover with the
10' (≈3,05m) mark on the sticker. Press the sticker into place while
carefully removing the rest of the backing.
AKP
1202457
10'
9.5'
9'
8.5'
7.5'
8'
AKF
AKG
• Attach the net (AKZ) to the rim.
AKZ
AKZ
AKZ
• If a replacement net is needed, please call our
Customer Service Department 1-800-424-3865.
Our nets are shorter than average to reduce the risk
of entanglement.
37
The life of your basketball system depends on many variables. The climate, exposure to corrosives such as salt, pesticides, or herbicides,
and excessive use or misuse can all contribute to Pole failure, which may cause property damage or personal injury.
Check your basketball system frequently for loose hardware, excessive wear, and signs of corrosion. For safety reasons, and to
prolong the life of your basketball system, you must take the following preventive measures.
a. Check all Nuts and Bolts. If any are loose, tighten them.
b. Check all parts for excessive wear and tear. If necessary, replace any parts that have been worn or damaged through usage.
Contact our Customer Service Department for replacement parts.
c. Inspect the Warning Sticker on the Pole. If it is ripped, faded, or illegible, call our Customer Service Department to request
a replacement Sticker.
d. Check all Pole sections for visible rust or chipped or cracked paint. If either are present, do the following:
1. Use an emery cloth to completely remove any rust or chipped paint.
2. Clean the area with a damp cloth and allow it to dry.
3. Apply two coats of a rust preventative, high gloss enamel paint to the area. Allow the paint to dry between coats.
IF RUST HAS PENETRATED THROUGH THE POLE ANYWHERE, REPLACE IT IMMEDIATELY!
MAINTENANCE
LIFETIME
®
38
WARNING STICKER / AUTOCOLLANT D’AVERTISSEMENT / AUTOADHESIVO DE ADVERTENCIA
FAUTE DE NE PAS SUIVRE CES AVERTISSEMENTS, VOUS RISQUEZ DE CAUSER
DES BLESSURES GRAVES ET/OU DES DOMMAGES À L’ÉQUIPEMENT.
Le propriétaire doit s’assurer que tous les joueurs con-
naissent et appliquent les règles suivantes afin d’utiliser
l’équipement en toute sécurité.
SI NO SE OBEDECEN ESTAS ADVERTENCIAS PUEDEN PRODUCIRSE
GRAVES LESIONES Y/O DAÑOS A LA PROPIEDAD.
El propietario del sistema debe asegurarse de que todos
los jugadores conozcan y respeten estas reglas para que el
sistema se use en forma segura.
WARNING
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN SERIOUS INJURY
AND/OR PROPERTY DAMAGE.
Owners must ensure that all players know and follow these
rules for safe operation of the system.
• Only hang from the rim briefly to regain balance or avoid
injuring others. Release the rim as soon as safely possible.
• During play, especially when performing dunk type activities,
keep player’s face away from the backboard, rim, and net.
Serious injury could occur if teeth/face come in contact with
the backboard, rim, or net. Player should wear a mouth guard
during play.
• Do not slide, climb, or play on base or pole.
• When adjusting height or moving system, keep hands and
fingers away from moving parts.
• Do not allow children to move or adjust system.
• Do not wear jewelry (rings, watches, necklaces, etc.) during
play. Objects may entangle in net.
• Keep water and organic material away from pole base. grass,
litter, etc. could cause corrosion and/or deterioration.
• Never play on damaged equipment.
• Once a month check pole and all metal parts for signs of
corrosion (rust, pitting, chipping). Completely remove rust and
repaint with exterior enamel. If rust has penetrated any steel
part, replace that part immediately.
• Check system before each use for proper ballast, loose
hardware, excessive wear, instability, and signs of corrosion
and repair before use.
• Do not use the system to lift or hoist anything. The
mechanism is designed to lift only the weight of the
backboard and rim. Do not hang anything from the handle,
rim, backboard, or lifter arms as this will damage the system
and void the warranty.
• Ne pas se suspendre à l’anneau plus que nécessaire pour
retrouver l'équilibre ou éviter de blesser les autres joueurs.
Relâchez l’anneau aussitôt que possible.
• Lors d’un match, particulièrement dans le cas des smashs, le
visage du joueur ne doit pas faire face au panneau, à l’anneau, ni au
filet. Le joueur risque de graves blessures si ses dents ou son visage
entrent en contact avec le panneau, l’anneau, ou le filet. Les joueurs
doivent toujours porter un protège-dents lorsqu’ils jouent.
• Ne pas glisser, ne pas grimper, et ne pas jouer sur la base ou le
poteau.
• Lors du réglage de la hauteur ou lorsque du déplacement
de l’équipement, garder les mains et doigts loin des pièces mobiles.
• Ne permettre pas aux enfants de déplacer ou d’ajuster
l’équipement.
• Ne pas porter de bijoux (bagues, montres, colliers, etc.) pendant
le jeu. Ces objets pourraient s’accrocher au filet.
• Garder de l’eau et autre matiére organique loin de la base. Le
gazon, les déchets, etc. pourraient provoquer la corrosion et/ou la
détérioration.
• Une fois par mois, vérifier que le poteau et toutes les pièces en
métal ne montrent pas de signes de corrosion (rouille, piqûres,
écaillage). Enlever toute la rouille et repeindre complètement avec
une peinture pour extérieur. Si la rouille a pénétré une des pièces en
acier, il faut remplacer immédiatement la pièce en question.
• A chaque utilisation de l’équipement, vérifier d’abord l’équilibre, la
possibilité de pièces desserrées ou usées, la stabilité de
l’équipement et tout signe de corrosion ou réparation nécessaire
avant utilisation.
• Ne jamais jouer avec un équipement endommagé.
•Ne pas utiliser l’équipement pour lever ou soulever quoique ce
soit. Son mécanisme a été conçu uniquement pour soutenir le poids
du panneau et de l’
anneau. Ne rien accrocher au manche, à
l’anneau, au panneau ni aux leviers sous peine d’endommager
l’équipement et d’annuler la garantie.
• Cuélguese del aro sólo en forma breve, para recuperar el equilibrio
o evitar lesionar a otros jugadores. Suéltese del aro lo más pronto
que pueda hacerlo con seguridad.
• Durante el juego, especialmente al embocar violentamente de
alto, la cara de los jugadores debe mantenerse alejada del tablero,
el aro y la red. Pueden producirse lesiones graves si los dientes o la
cara entran en contacto con el tablero, el aro o la red. Los jugadores
deben usar un protector bucal durante el juego.
• No se deslice, no trepe ni juegue sobre la base o el poste.
• Mantenga las manos y los dedos alejados de las piezas
movibles cuando regule la altura o desplace el sistema.
• No deje que los niños regulen ni desplacen el sistema.
• No use joyas (anillos, relojes, collares o gargantillas, etc.) durante el
juego. Estos objetos pueden engancharse en la red.
• Guarde aqua y materia orgánica. Césped, basura,etc., prodrian
causar corrosión et/o deterioros.
• Controle el poste y todas las piezas metálicas una vez al mes
en busca de signos visibles de corrosión (oxidación, picaduras,
escamado). Elimine todo rastro de óxido y vuelva a pintar con
esmalte para exteriores. Si el óxido ha penetrado cualquier pieza de
acero, reemplace esa pieza de inmediato.
• Inspeccione el sistema antes de cada uso para verificar que esté
adecuadamente contrapesado, que los elementos de fijación no
estén flojos, que no haya desgaste excesivo, inestabilidad ni signos
de corrosión. Si encuentra irregularidades, repárelas antes de usar
el sistema.
• Nunca juegue con un equipo dañado.
• No use el sistema para levantar ningún objeto. El mecanismo
está diseñado para elevar solamente el peso del tablero con el
aro. No cuelgue nada de la agarradera, el aro, el tablero ni los
brazos de elevación, ya que esto puede dañar el sistema y anular la
garantía.
www.lifetime.com
# 1176611
ADVERTENCIAAVERTISSEMENT
Lifetime Products, Inc., Clearfield, UT 84016
1-800-225-3865
7/12/2016
LIFETIME
®
39
NOTES
40
NOTES
41
NOTES
42
LIFETIME
®
LIFETIME
®
LIFETIME’S PROMISE TO YOU:
We invite you to read our privacy policy at www.lifetime.com
REGISTER today!
At Lifetime
®
, we are committed to providing innovative and quality products. While registering, you will have the opportunity to give us your feedback. Your input is
valuable to us.
• You can also opt in to receive new product notifi cations or promotions.
• In the unlikely event of a product recall or safety modifi cation, your registration provides the information we need to notify you directly.
• Registration is fast, easy, and completely voluntary.
Maintaining your privacy is our long-standing policy at Lifetime
®
. And you can rest assured that Lifetime
®
will not sell or provide your personal data to other third parties,
or allow them to use your personal data for their own purposes.
LA PROMESA DE LIFETIME
®
PARA USTED:
Lo invitamos a leer nuestra política de privacidad en www.lifetime.com (sólo en inglés)
¡REGISTRARSE hoy mismo!
En Lifetime
®
, estamos comprometidos a ofrecer productos innovadores y de calidad. Al registrarse, usted tendrá la oportunidad de darnos su retroalimentación. Su
información es valiosa para nosotros.
• También puede optar por recibir nuestras notifi caciones o promociones.
• En el caso improbable de que el producto deba ser retirado del mercado o que sufra alguna modifi cación, su registro provee la
información que necesitamos para notifi carle directamente.
• El registro es rápido, fácil y completamente voluntario.
Mantener privacidad es nuestra política permanente en Lifetime
®
. Y puede estar seguro que Lifetime
®
no venderá ni dará datos personales a terceros, ni les permitirá usar
datos personales para sus propios fi nes.
LA PROMESSE DE LIFETIME :
Nous vous invitons à lire notre politique de confi dentialité à www.lifetime.com (en anglais seulement)
ENREGISTRER CE PRODUIT aujourd’hui!
Chez Lifetime
®
, nous nous engageons à fournir des produits innovateurs de qualité. Lors de votre inscription, vous aurez l’occasion de nous faire parvenir vos com-
mentaires. Votre opinion est importante pour nous.
• On peut également choisir de recevoir des avis ou des promotions dans le cadre de nouveaux produits.
• Dans l’éventualité peu probable d’un rappel ou d’un avis de sécurité, l’inscription fournit les renseignements nécessaires nous
permettant de communiquer avec vous.
• L’inscription est rapide, facile et complètement volontaire.
Conserver votre confi dentialité est notre politique de longue date chez Lifetime
®
. Vous pouvez donc être rassuré par le fait que Lifetime
®
ne vendra pas ou ne fournira
pas vos données personnelles à des tiers, et ne leur permettra pas d’utiliser vos données personnelles à leurs propres fi ns.
REGISTER YOUR PRODUCT ONLINE AT WWW.LIFETIME.COM
REGISTRAR EL PRODUCTO EN LÍNEA EN WWW.LIFETIME.COM
ENREGISTRER CE PRODUIT EN LIGNE À WWW.LIFETIME.COM
LIFETIME
®
43
THE MANUFACTURER RESERVES THE RIGHT TO MAKE SUBSTITUTIONS TO WARRANTY CLAIMS IF PARTS ARE UNAVAILABLE OR OBSOLETE.
1. Lifetime basketball systems are warranted to the original purchaser to be free from defects in material or workmanship for a
period of fi ve years (60 months) from the date of original retail purchase. The word “defects” is defi ned as imperfections that
impair the use of the product. Defects resulting from misuse, abuse or negligence will void this warranty. This warranty does not
cover defects due to improper installation, alteration or accident. This warranty does not cover damage caused by vandalism,
rusting, “acts of nature” or any other event beyond the control of the manufacturer.
2. This warranty is nontransferable and is expressly limited to the repair or replacement of defective product. If the product is
defective within the terms of this warranty, Lifetime Products, Inc. will repair or replace defective parts at no cost to the purchaser.
Shipping charges to and from the factory or distribution center are not covered and are the responsibility of the purchaser. Labor
charges and related expenses for removal, installation or replacement of the product or its components are not covered under
this warranty.
3. This warranty does not cover scratching or scu ng of the product that may result from normal usage. In addition, defects
resulting from intentional damage, negligence, unreasonable use or hanging from the rim will void this warranty.
4. Liability for incidental or consequential damages is excluded to the extent permitted by law. While every attempt is made to
embody the highest degree of safety in all equipment, freedom from injury cannot be guaranteed. The user assumes all risk of
injury resulting from the use of this product. All merchandise is sold on this condition, and no representative of the company
may waive or change this policy.
5. This product is not intended for institutional or commercial use; Lifetime Products, Inc. does not assume any liability for such use.
Institutional or commercial use will void the warranty.
6. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement
or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
7. This warranty is expressly in lieu of all other warranties, expressed or implied, including warranties of merchantability or fi tness
for use to extent permitted by Federal and state law. Neither Lifetime Products, Inc., nor any representative assumes any other
liability in connection with this product. This warranty gives you specifi c legal rights, and you may also have other rights which
vary from state to state.
www.lifetime.com
PLEASE INCLUDE YOUR DATED SALES RECEIPT AND PHOTOGRAPHS OF DAMAGED PARTS.
REPORT PRODUCT DEFECTS IN WRITING TO:
Lifetime Products, Inc., PO Box 160010 Clearfi eld, UT 84016-0010 or dial 1-800-225-3865.
REGISTER YOUR PRODUCT FOR QUICKER CUSTOMER SERVICE.
Visit www.lifetime.com or dial 1-800-225-3865 to register your product today.
FOR INTERNATIONAL WARRANTY CLAIMS:
All warranty claims must be accompanied by a sales receipt. Report all warranty claims in writing to your regional sales
support representative. Please include your dated sales receipt and photographs of damaged parts.
To Identify the representative for your region, please visit: www.lifetime.com/international
5-YEAR LIMITED FACTORY WARRANTY
W
A
R
R
A
N
T
Y
W
A
R
R
A
N
T
Y
WARRANTY
44
www.lifetime.com
or dial 1-800-424-3865
To purchase accessories or other Lifetime
®
products, visit us at:
www.lifetime.com
ENHANCE YOUR LIFETIME
®
PURCHASE BY ADDING ACCESSORIES OR OTHER GREAT PRODUCTS
© 2023
Lifetime Products, Inc., Clearfi eld, UT
1235043
2/26/2024
