WARRANTY PART
REPLACEMENT GUIDE
MODEL
|
MODELO
463246018 463246118
MODULAR OUTDOOR KITCHEN
80029739 • 05/24/19
PAGE 2
1
2

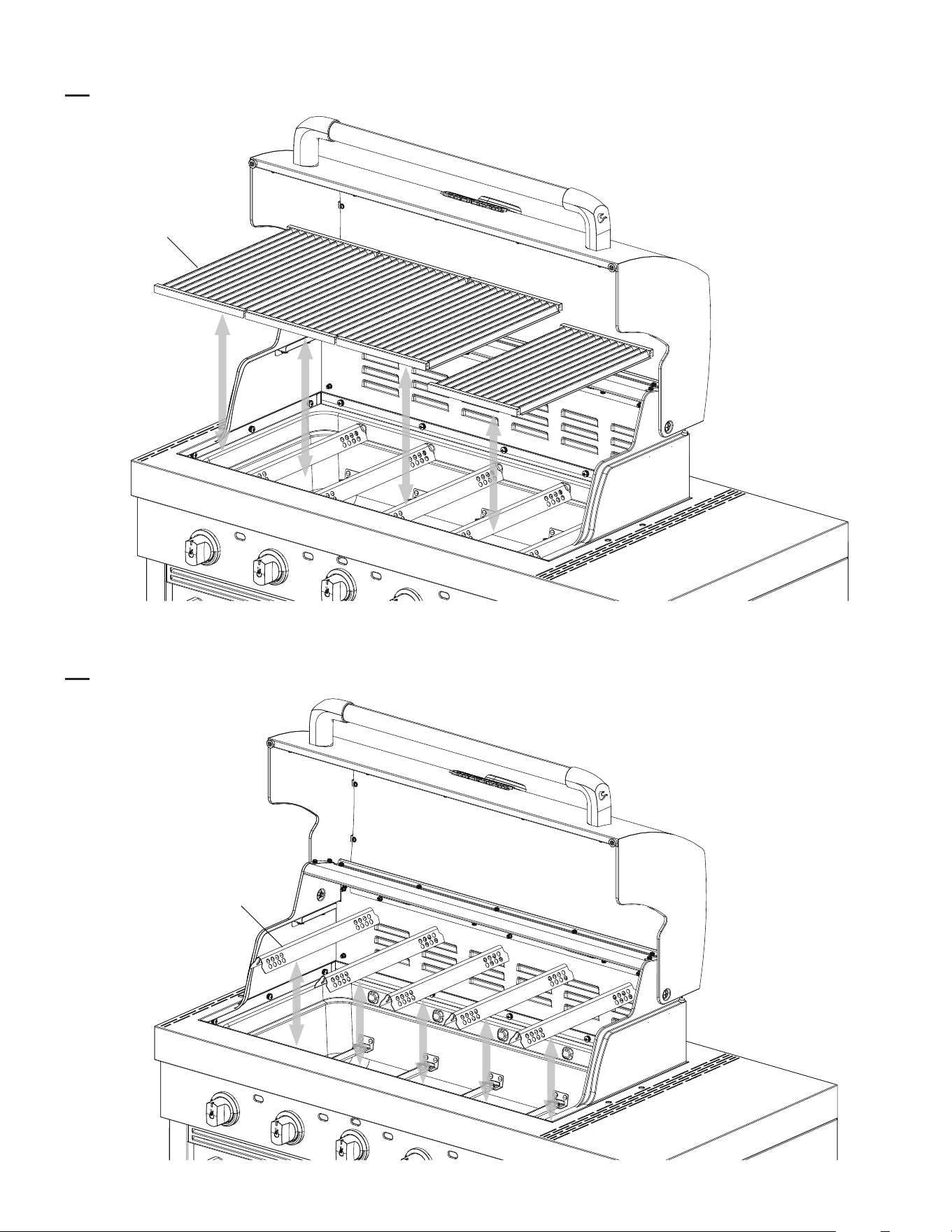

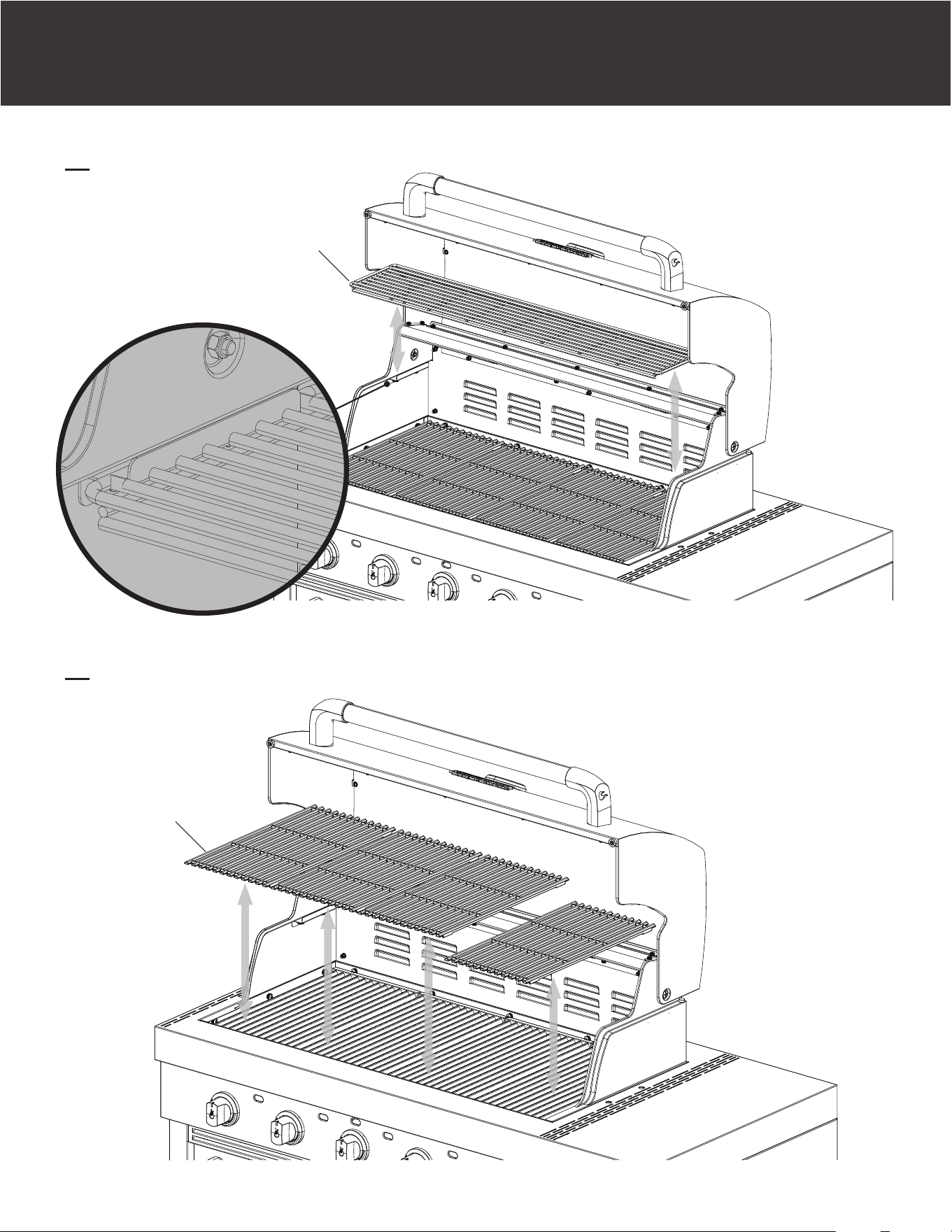

Remove and replace WARMING RACK.
Each step shows removal and replacement of parts. Follow the steps in order to remove parts, then reverse the
steps to replace all parts.
Remove and replace COOKING GRATES.
WARMING RACK
COOKING GRATE
PAGE 3
3
4
Remove and replace IR GRATES.
Remove and replace HEAT TENTS.
HEAT TENT
IR GRATE
PAGE 4
5

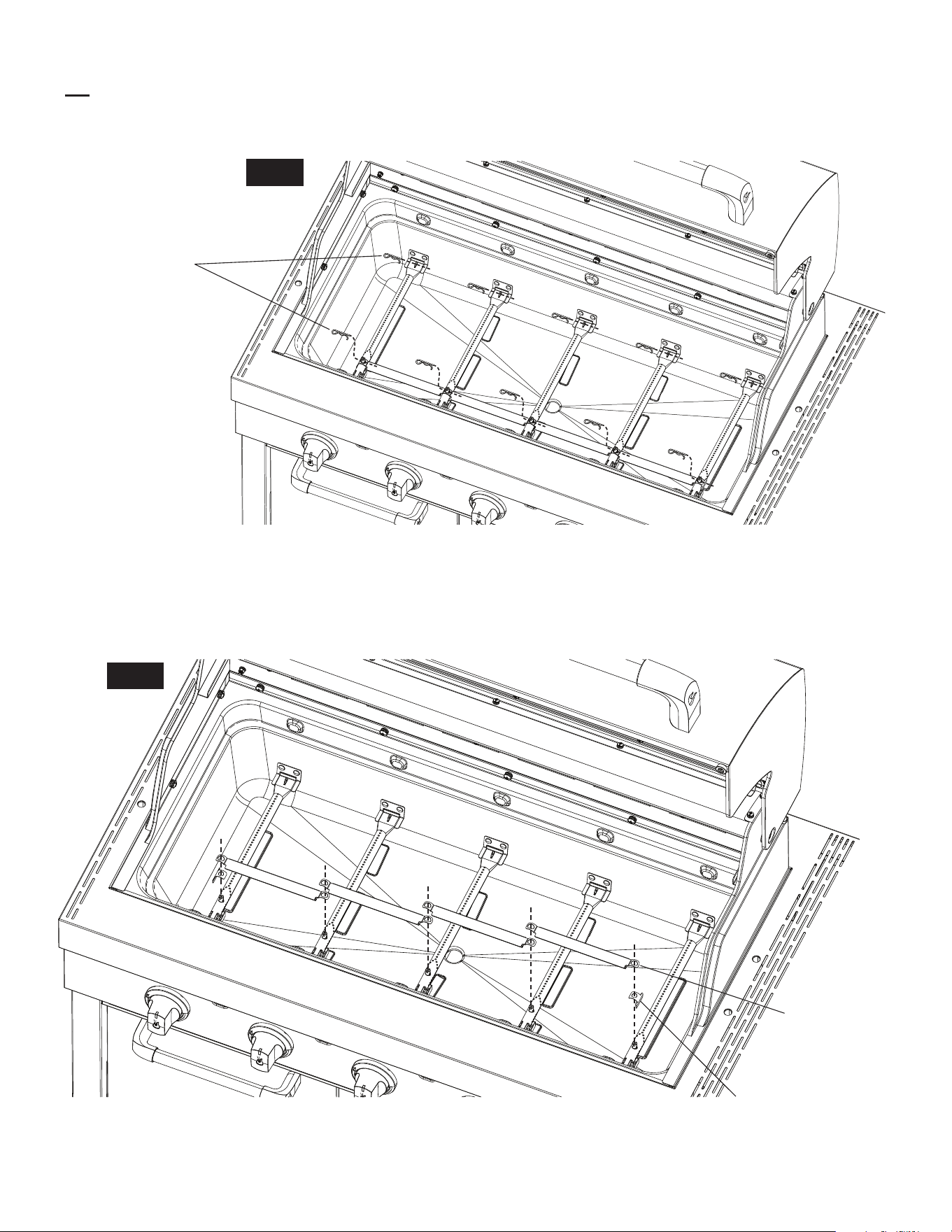

Remove and replace CARRY OVER TUBES and PORT CAPS.
1ST
2ND
PORT CAP
CARRY OVER TUBE
HITCH PINS
PAGE 5
6
7

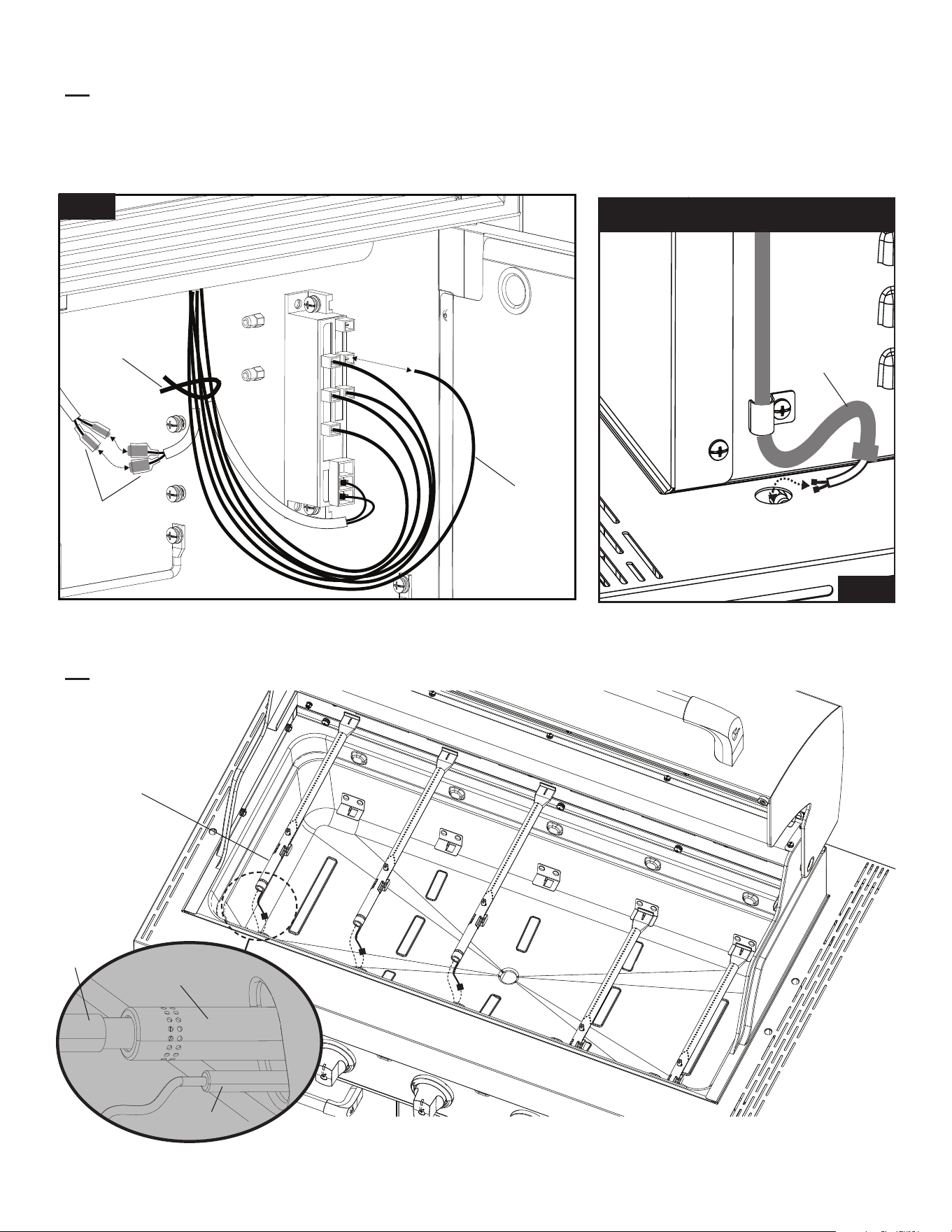

Unplug and replug ELECTRODE WIRES and LIGHT WIRE.
• Unplug/ replug ELECTRODE WIRES.
• Unplug/ replug LIGHT WIRE.
• Remove/ replace Tie Wrap to unbundle/ bundle ELECTRODE WIRES.
• Remove/ replace LIGHT WIRE from rear of TOP SHELF.
Remove and replace MAIN BURNERS.
MAIN BURNER
ELECTRODE WIRE
(BLACK)
5X
TIE WRAP
LIGHT WIRE
LIGHT WIRE
(WITH TRANSPARENT
ENCLOSURE)
VALVES MUST BE PROPER ENGAGED WITH BURNER TUBES
MAIN BURNER
ELECTRODE
VALVE
REAR OF GRILL
1ST
2ND
PAGE 6
8
9

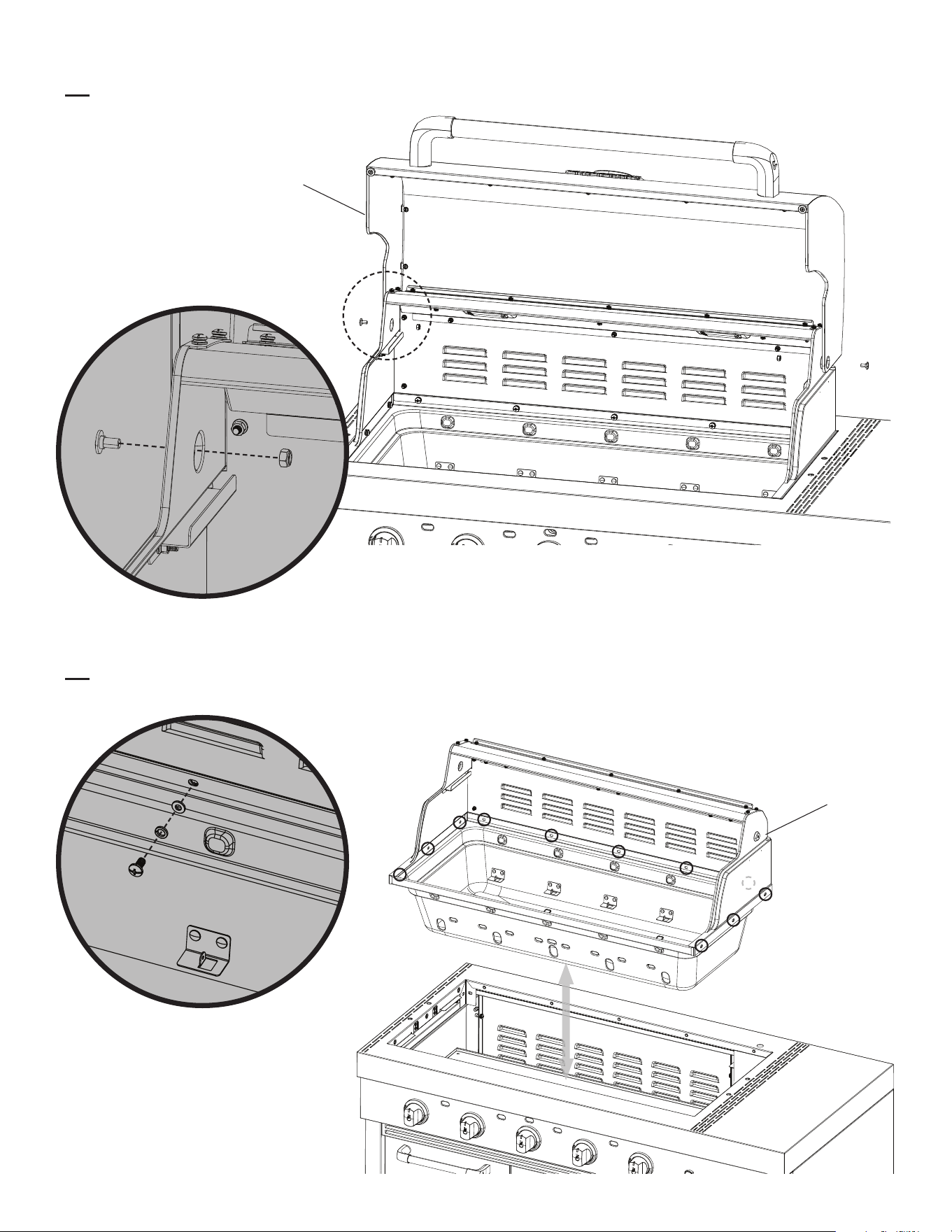

Remove and replace TOP LID ASSEMBLY.
Remove and replace FIREBOX ASSEMBLY.
TOP LID ASSEMBLY
FIREBOX ASSEMBLY
11X
PAGE 7
10
11

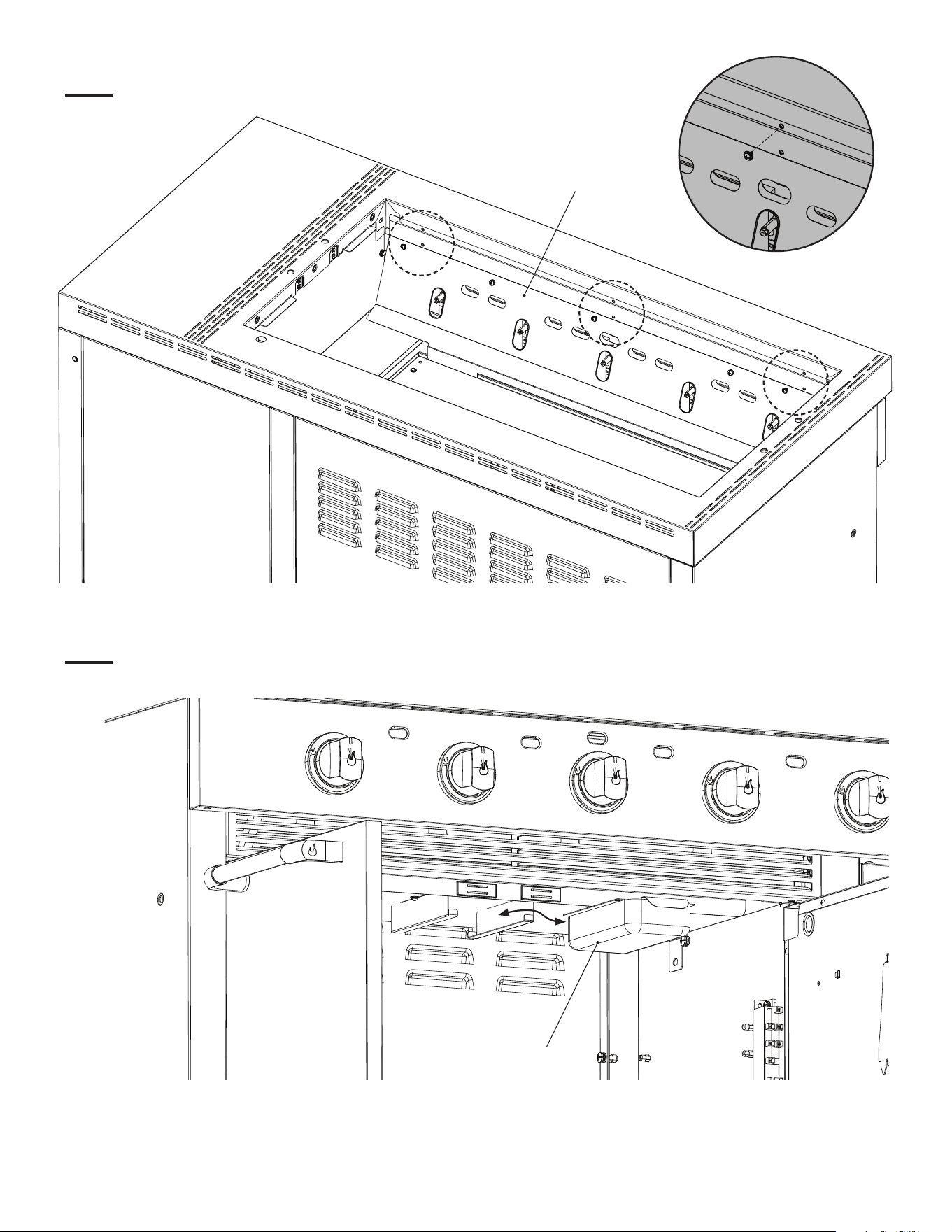

Remove and replace HEAT SHIELD.
Remove and replace GREASE BOX.
HEAT SHIELD
GREASE BOX
3X
PAGE 8
12

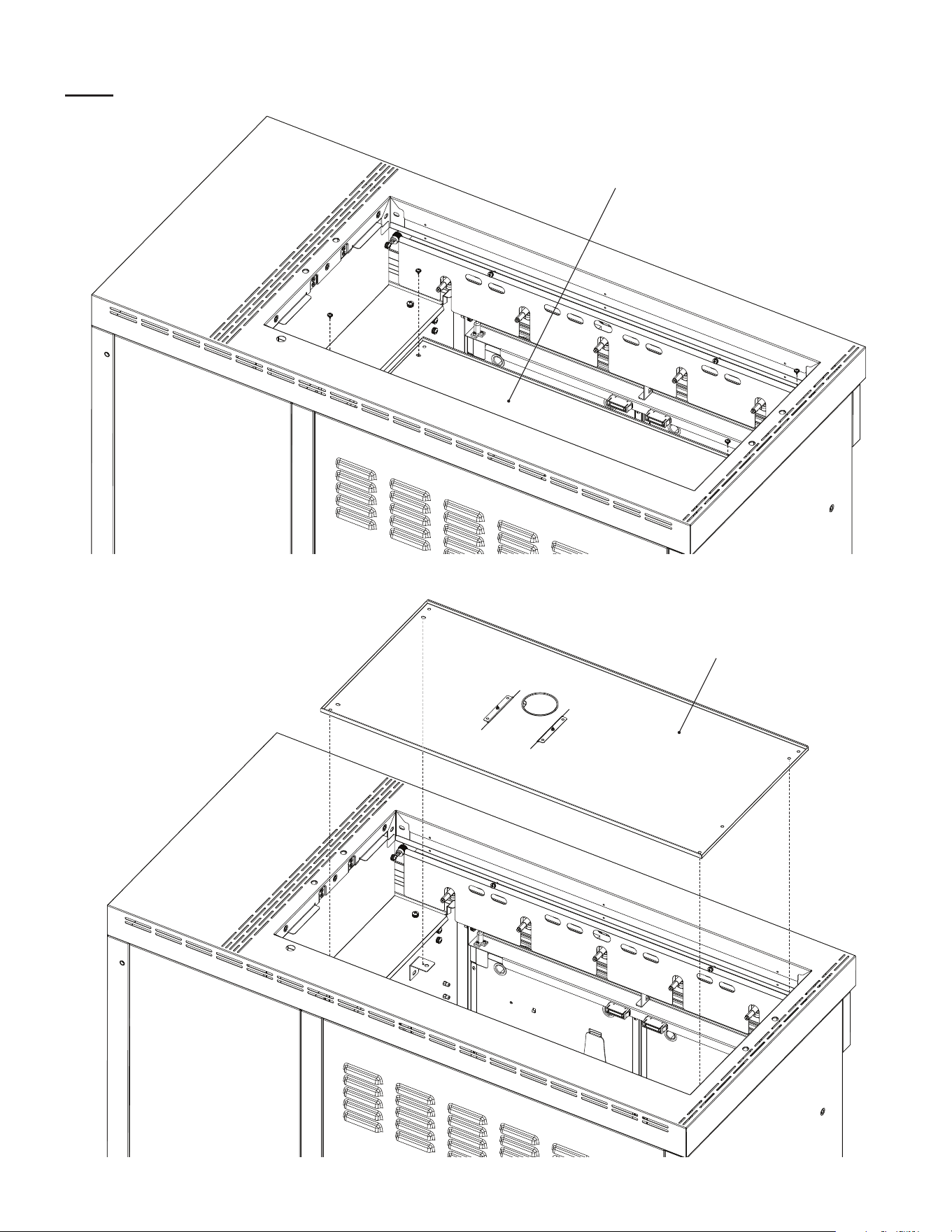

Remove and replace TANK HEAT SHIELD.
TANK HEAT SHIELD
TANK HEAT SHIELD
PAGE 9
13

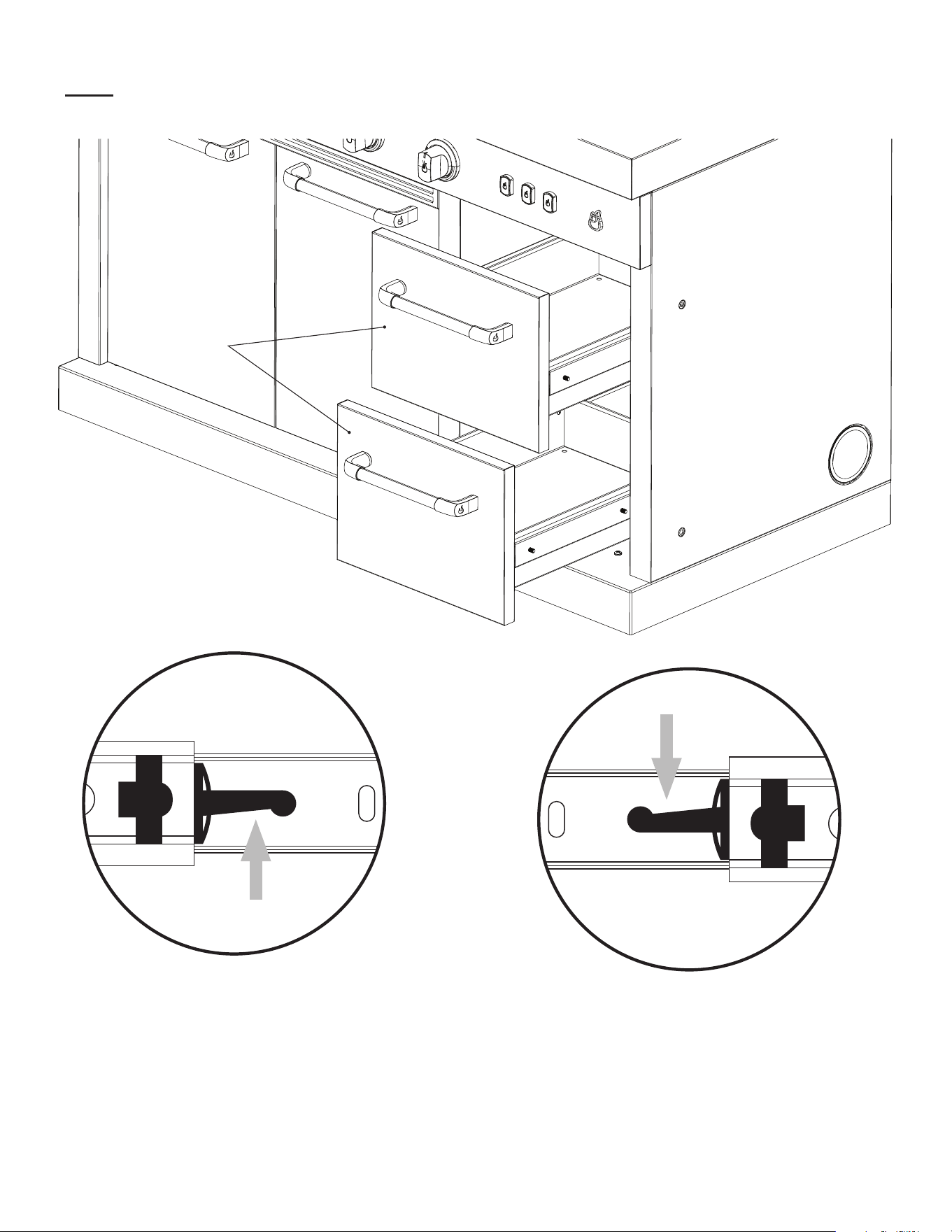

Remove and replace DRAWERS.
DRAWER
Left rail of drawer
NOTE: press the clips on left and right rails as the arrows indicate to remove drawers.
Right rail of drawer
14

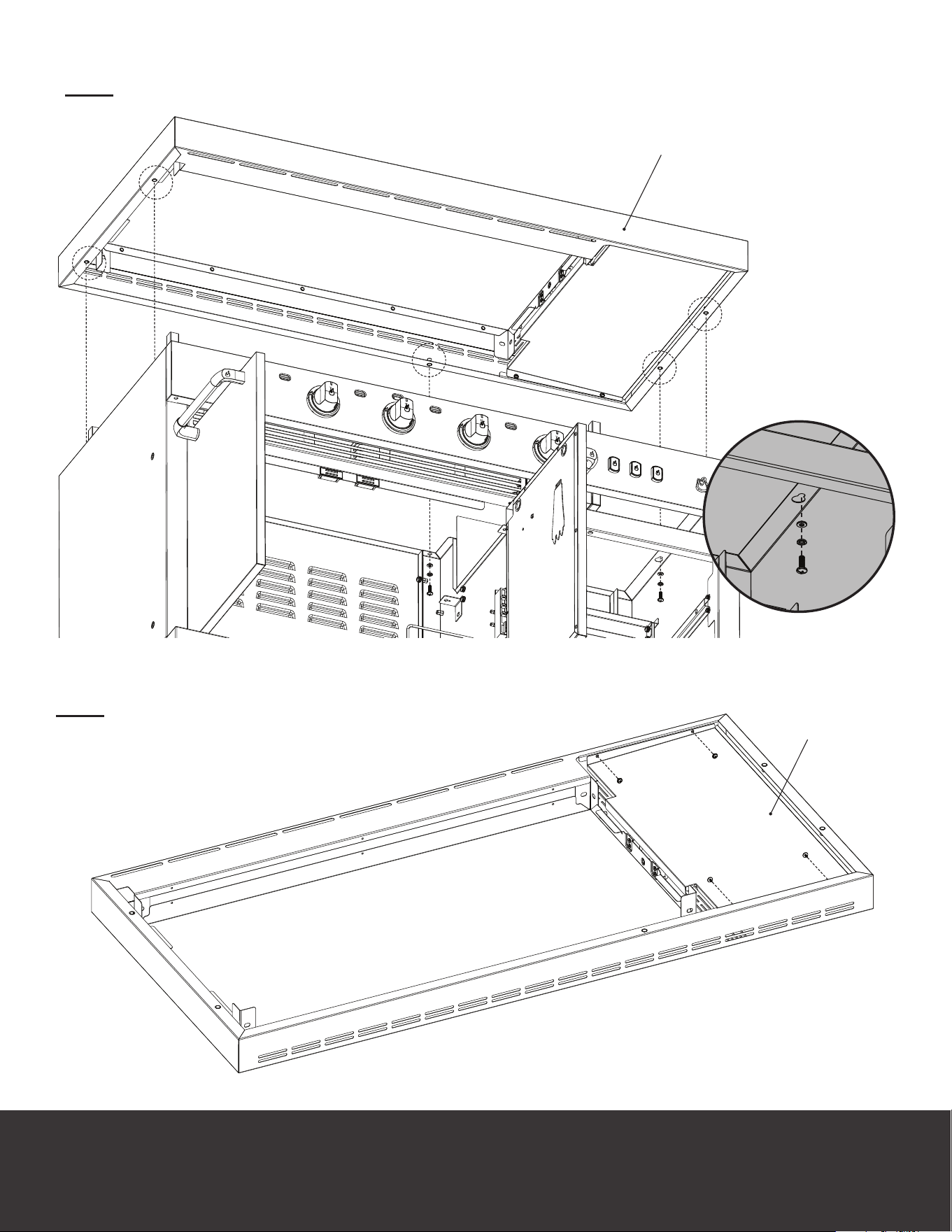

Remove and replace SHELF FRAME.
15
Remove and replace DRAWER RAIN SHIELD.
5X
SHELF FRAME
DRAWER RAIN SHIELD
REVERSE THE STEPS TO ASSEMBLE THE GRILL.
NOTE: READ THE USE AND CARE GUIDE IN INSTRUCTION MANUAL PRIOR TO LIGHTING THE GRILL.
