Tools Required: Utility knife, adjustable wrench, Philips
screwdriver, putty knife, and silicone caulk.

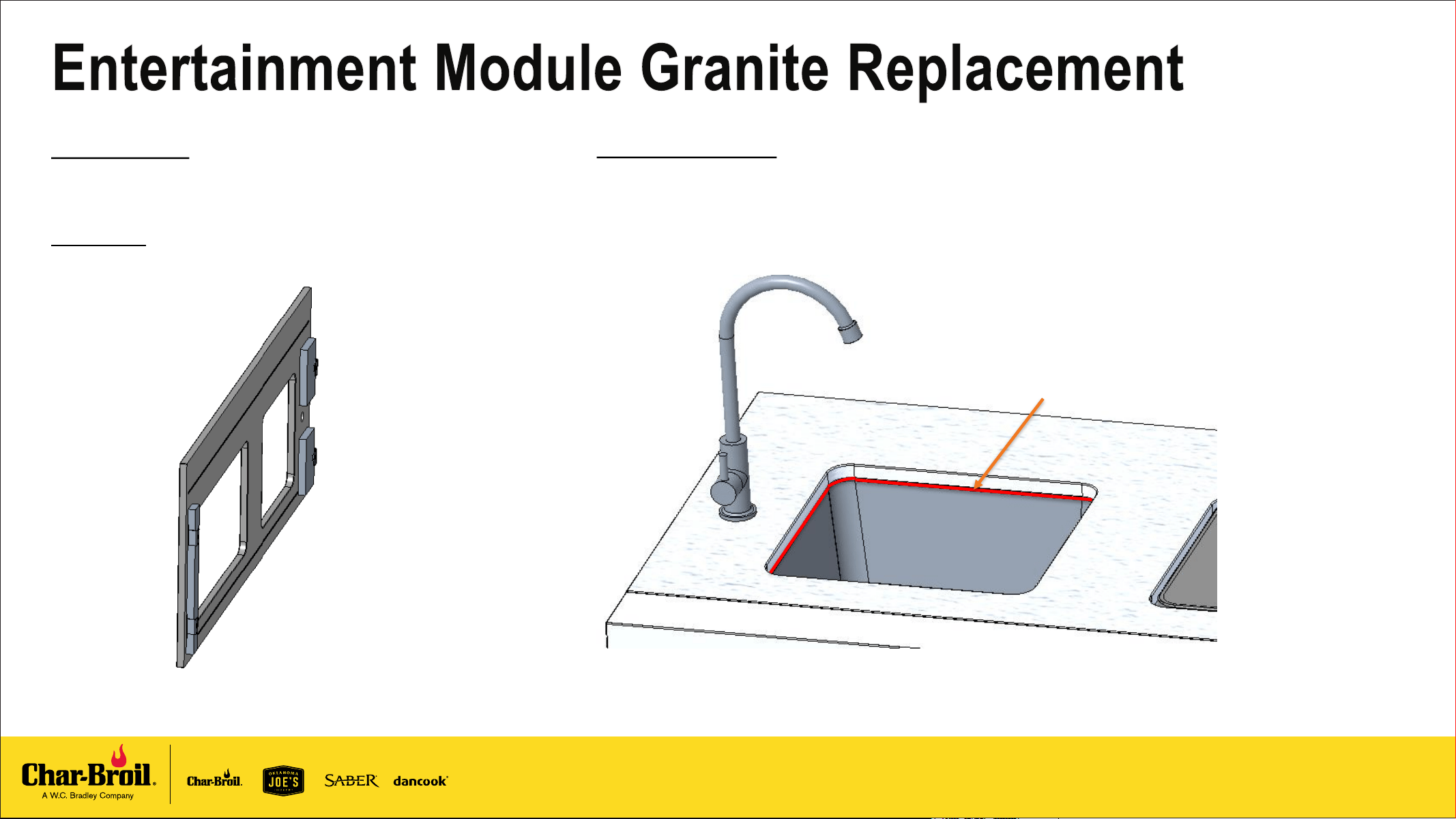

CAUTION: Granite requires 2 people to move. To avoid
damage to granite, always carry granite vertically as
shown below.
Granite replacement
1) Turn off water supply to faucet
2) Using a utility knife, cut the seal between the sink and the granite.
Use knife to cut seal between
granite and sink
A105-0700-W1
CONFIDENTIAL | © 2017 Char-Broil,LLC
2
© 2017 Char-Broil, LLC
CONFIDENTIAL | © 2017 Char-Broil,LLC
2
© 2017 Char-Broil, LLC

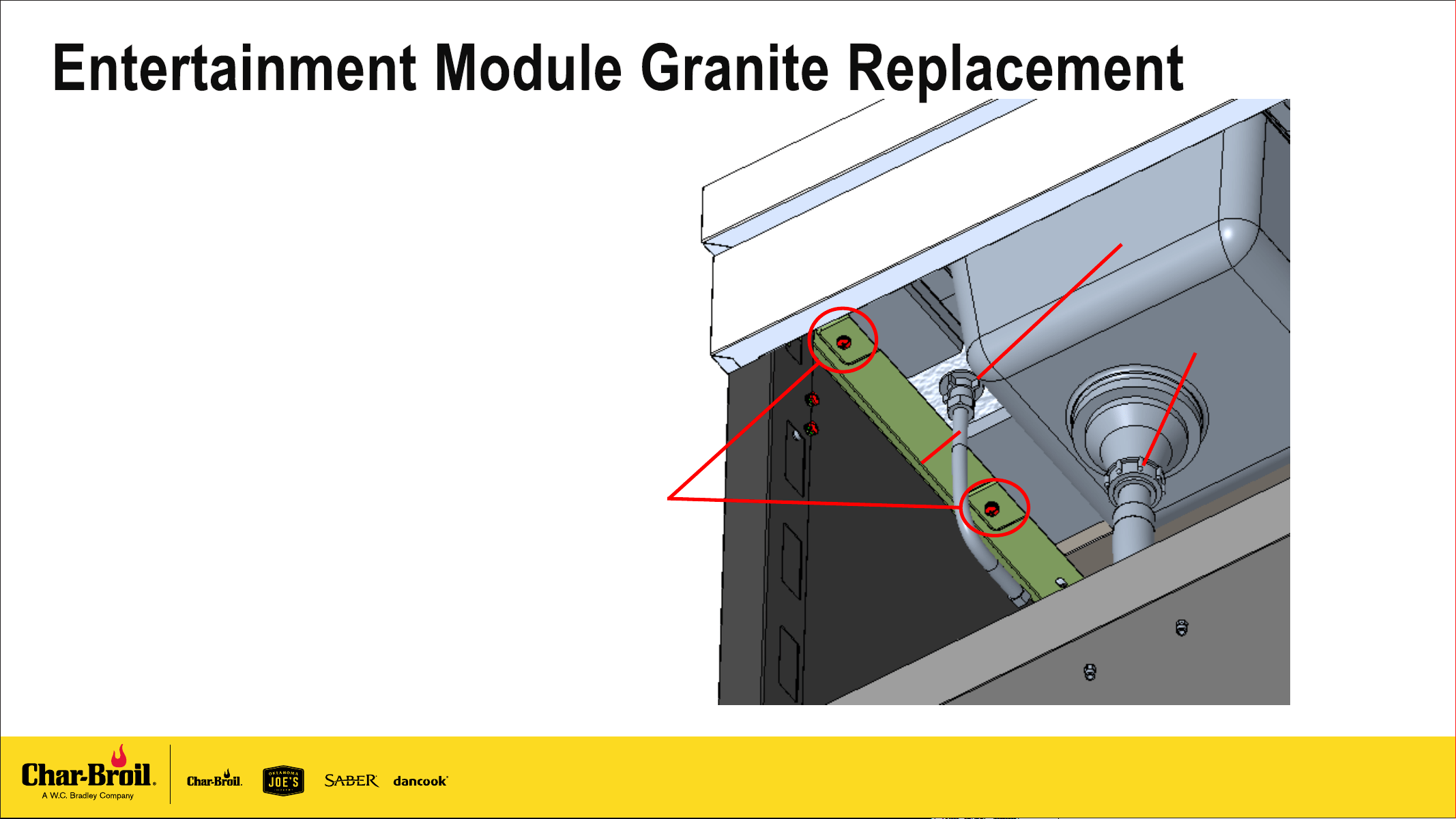

3) Disconnect supply hose from faucet
4) Remove faucet mounting nut
5) Remove faucet from granite
6) Disconnect sink drain line
7) Disconnect left side of granite by
removing highlighted screws.
Faucet Mounting
Nut
Supply hose
Sink Drain Line
Granite Mounting
Screws
A105-0700-W1
CONFIDENTIAL | © 2017 Char-Broil,LLC
3
© 2017 Char-Broil, LLC
CONFIDENTIAL | © 2017 Char-Broil,LLC
3
© 2017 Char-Broil, LLC

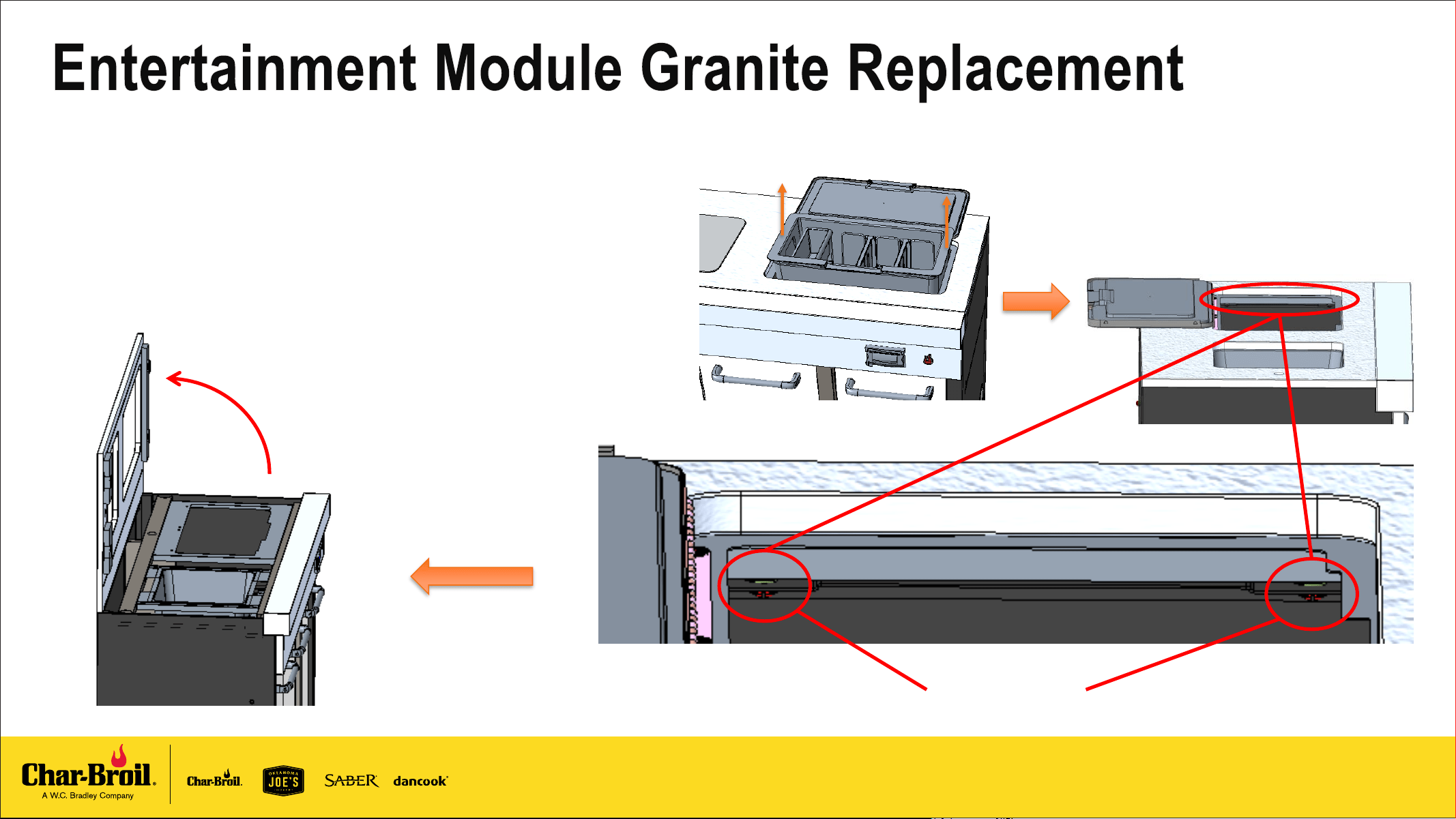

8) Open cooler lid, and remove cooler from the cabinet.
9) Remove screws securing cooler lid to frame, and remove
cooler lid assembly.
10) Disconnect right side of granite by removing highlighted
screws.
11) Rotate granite up on edge to avoid additional breakage of
granite, and remove from module. (2 people required)
Granite Mounting
Screws
A105-0700-W1
CONFIDENTIAL | © 2017 Char-Broil,LLC
4
© 2017 Char-Broil, LLC
CONFIDENTIAL | © 2017 Char-Broil,LLC
4
© 2017 Char-Broil, LLC

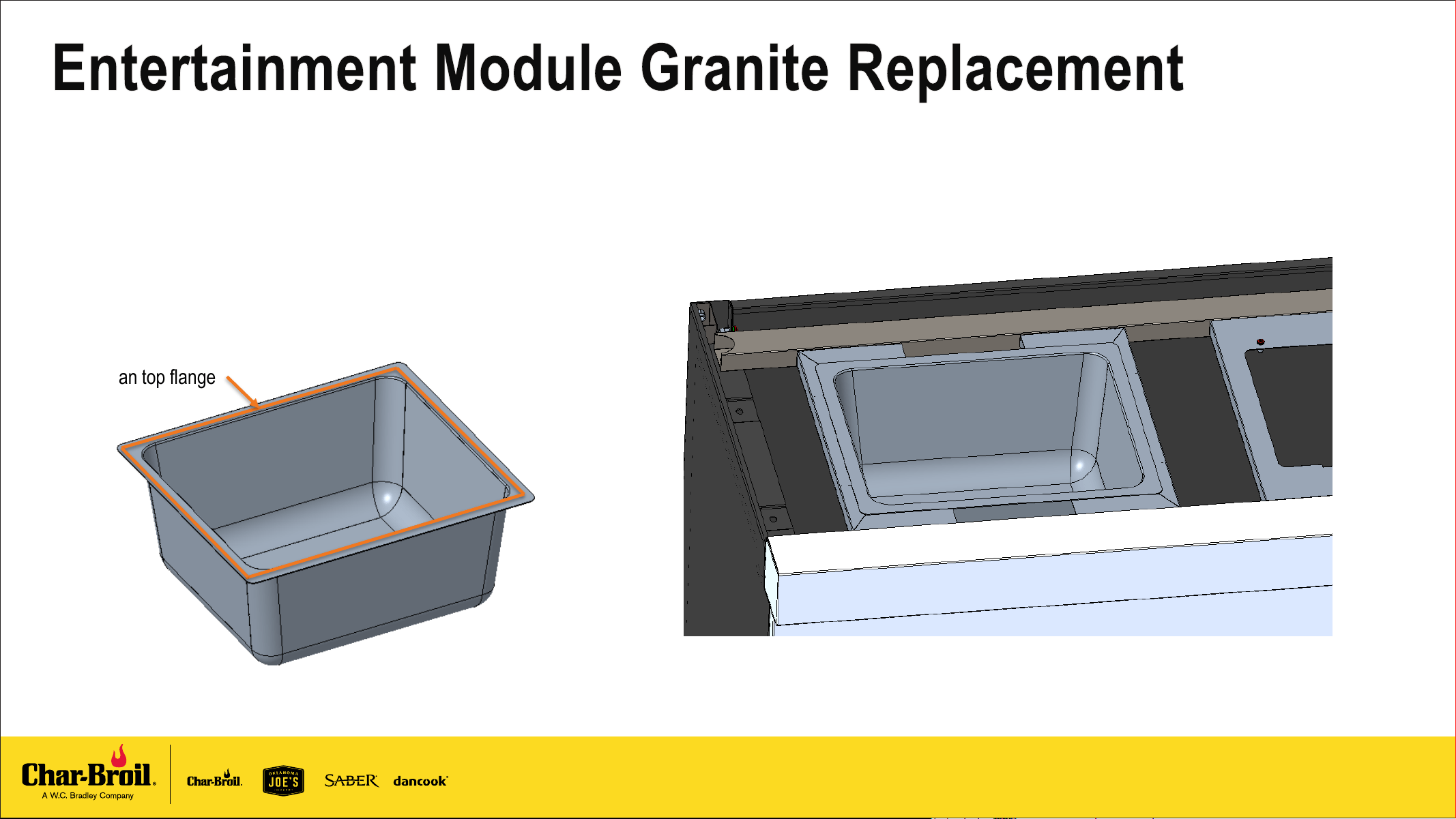

Clean top flange
Place sink as shown prior to installing
new granite countertop.
12) Remove any remaining sealant from top flange of sink using a putty knife
13) Place sink in frame as shown. Apply a ¼” bead of silicone caulk around top edge of
sink.
14) Place new granite countertop in place. (2 people required)
CAUTION: New granite piece should be handled vertically to prevent breakage.
15) Wipe any excess sealant away from sink and granite.
16) Reverse steps 1-10 to complete installation.
