Anvil
USER MANUAL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Note: The image above is one of the series' products and doesn't depict all
products' appearances. The actual product you receive determines its look.
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
ANVIL
Important safety instructions
Warning - To reduce the risk of injury, user must read instructions
manual carefully.
Warning- Be sure to wear ear protectors when using this product.
Warning- Be sure to wear eye protectors when using this product.
Warning- Be sure to wear dust masks when using this product.
Warning- Be sure to wear gloves when using this product.
WARNING!
1. Use the product only after receiving professional metalworking
training.
2. Wear necessary personal protective equipment such as safety
goggles, earplugs, and protective gloves during use.
3. Ensure that the workspace remains clean, dry, and
well-ventilated during operation.
4. Do not use the anvil in flammable, explosive, or damp
environments.
5. Ensure that the anvil is securely installed and stable to prevent
movement or tipping during use.
6. Follow safe operating procedures when using the anvil, avoiding
excessive force or incorrect techniques.
7. Fix it first when using it. So as not to be injured.
8. Keep away from children.
2. Product Overview
This casting anvil is manufactured using high-quality casting techniques,
providing blacksmiths and metalworkers with a sturdy and stable work
surface. It is suitable for various processes such as forging, hammering,
shaping, and cutting metal materials. This product features excellent
durability and impact resistance, bringing higher efficiency and accuracy to
your metalworking tasks.

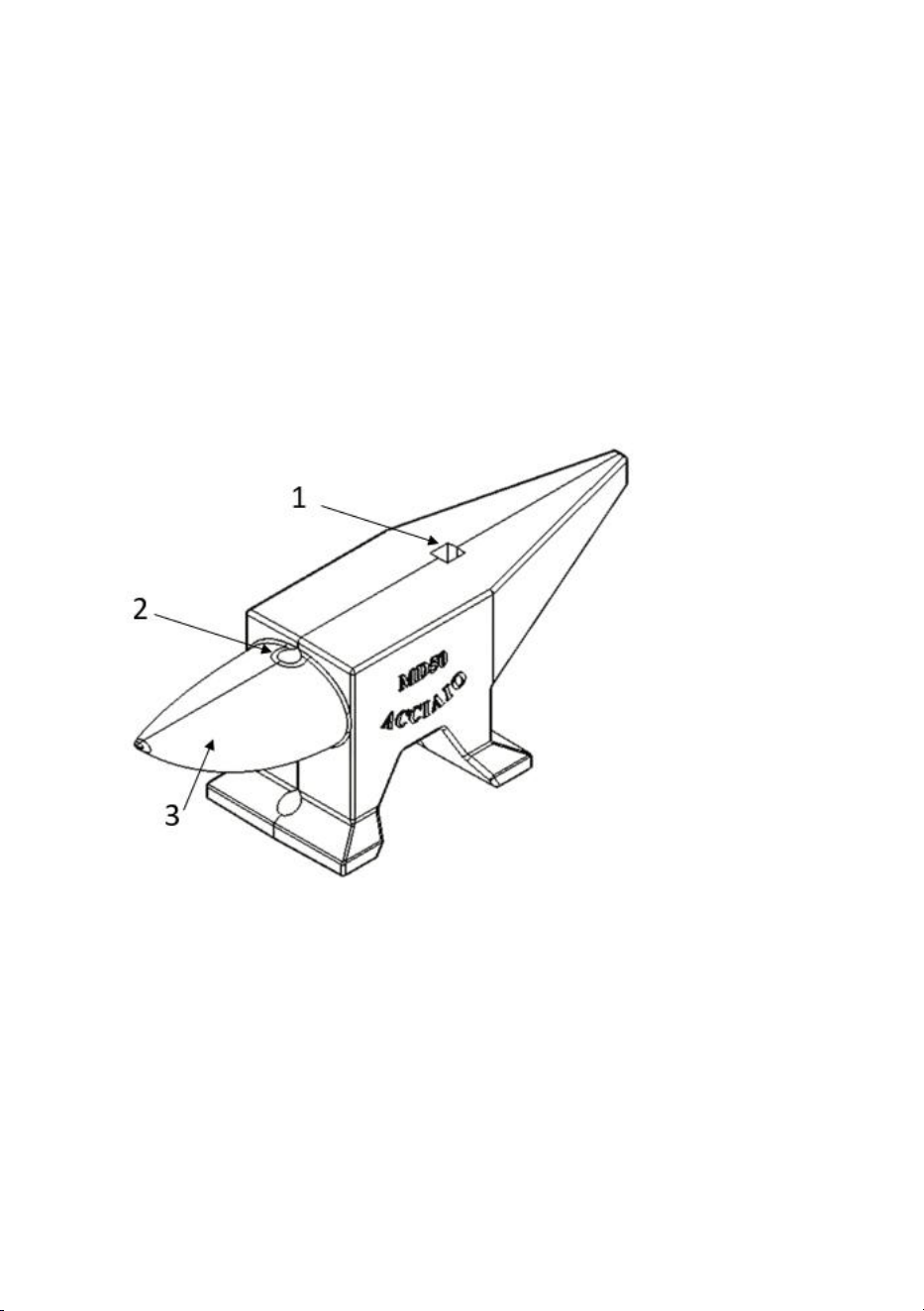

3.Product Structure
1. Hardy hole : The Hardy hole hole on the anvil is used to insert other
tools, and other tools can be firmly connected to the anvil for further
processing.
2. Pritchel hole: The Pritchel hole can be punched out on the product with
a chisel or other tools.
3. Horn:The horn is specially designed to help blacksmiths shape metal
pieces into round or curved shapes.
4. Parameter
Items
Model
Product
Material
Packaging
Material
Net weight
Hardy
hole size
(mm)
Pritchel
hole size
(mm)
Horn
1
55LBSTZ0
Cast iron
Carton
25kg/55 lbs
25×25
×
√
2
TZ45KGTZ
Cast iron
Carton
45kg/100 lbs
30×30
×
√
3
TZ11KGTZ
Cast iron
Carton
11kg/24 lbs
×
×
√
4
GZ60KGGZ
Cast steel
Wooden box
60kg/132 lbs
29×29
φ26
√
5
30KGGZ00
Cast steel
Carton
30kg/66 lbs
23×23
φ20
√
6
GZ10KGGZ
Cast steel
Carton
10kg/22 lbs
16×16
φ12
√
7
TZHS100LB
Cast iron
Carton
45kg/100 lbs
30×30
×
√
8
TZHS22LB
Cast steel
Carton
10kg/22 lbs
16×16
φ12
√
9
TZHS88LB
Cast steel
Wooden box
40kg/88 lbs
25×25
φ25
√
10
TZHS110LB
Cast steel
Wooden box
50kg/110 lbs
20×20
φ20
√
11
TZHS132LB
Cast steel
Wooden box
60kg/132 lbs
29×29
φ26
√
12
GZ50KGGZ
Cast steel
Wooden box
50kg/110 lbs
20×20
φ20
√
13
GZ20KGGZ
Cast steel
Carton
20kg/44lbs
20*20
φ20
√
14
GZ40KGGZ
Cast steel
Carton
40kg/88 lbs
25×25
φ25
√
15
TZ10KGTZ
Cast iron
Carton
10kg/22 lbs
×
×
√
16
TZHS25LB
Cast iron
Carton
11.2kg/25lbs
×
×
√
5. User Guide
1．Place the anvil on a flat, sturdy base, ensuring it is securely installed
and resistant to sliding.
2．Heat the metal material to be forged to an appropriate temperature.
3．Place the heated metal material on the anvil surface and use a hammer
or other tools to strike, shape, or cut it.
4．Reheat and forge the metal material as needed until the desired shape
and dimensions are achieved.
5．After using, allow the metal material to cool naturally to room
temperature.
6. Maintenance
1. If you do not use this tool for a long time, please add anti-rust oil on the
surface.
2. Store the anvil in a dry, well-ventilated area away from direct sunlight.
