EN OPERATOR MANUAL
LAWN MOWER
LMB405
www.greenworkstools.com
1 Description...................................4
1.1 Purpose...................................................... 4
1.2 Overview.................................................... 4
2 Read all instructions................... 4
2.1 Children and Bystanders............................ 4
2.2 General Operation......................................4
2.3 Slope Operation......................................... 6
2.4 Service/Maintenance..................................6
3 Symbols on the product............. 7
4 Risk levels....................................8
5 Environmentally safe battery
disposal........................................8
6 Proposition 65............................. 9
7 Installation................................... 9
7.1 Unpack the machine...................................9
7.2 Place the mower upright in vertical
position....................................................... 9
7.3 Unfold and adjust the handles..................10
7.4 Install the grass catcher........................... 10
7.5 Install the mulch plug................................10
7.6 Set the cutting height................................10
7.7 Install the battery pack..............................11
7.8 Remove the battery pack..........................11
8 Operation....................................11
8.1 Start the machine......................................11
8.2 Stop the machine..................................... 12
8.3 Operate the self-propel drive system*...... 12
8.4 LED Headlight.......................................... 12
8.5 Empty the grass catcher...........................12
8.6 Operation tips........................................... 13
9 Maintenance...............................13
9.1 Replace the blade.................................... 13
9.2 Vertical storage.........................................14
9.3 Store the machine.................................... 14
10 Troubleshooting........................ 14
11 Technical data............................15
12 Limited warranty........................15
3
English
EN
1 DESCRIPTION
1.1 PURPOSE
This machine is used for domestic lawn mowing. The
cutting blade must be approximately parallel to the
ground. All four wheels must touch the ground while you
mow.

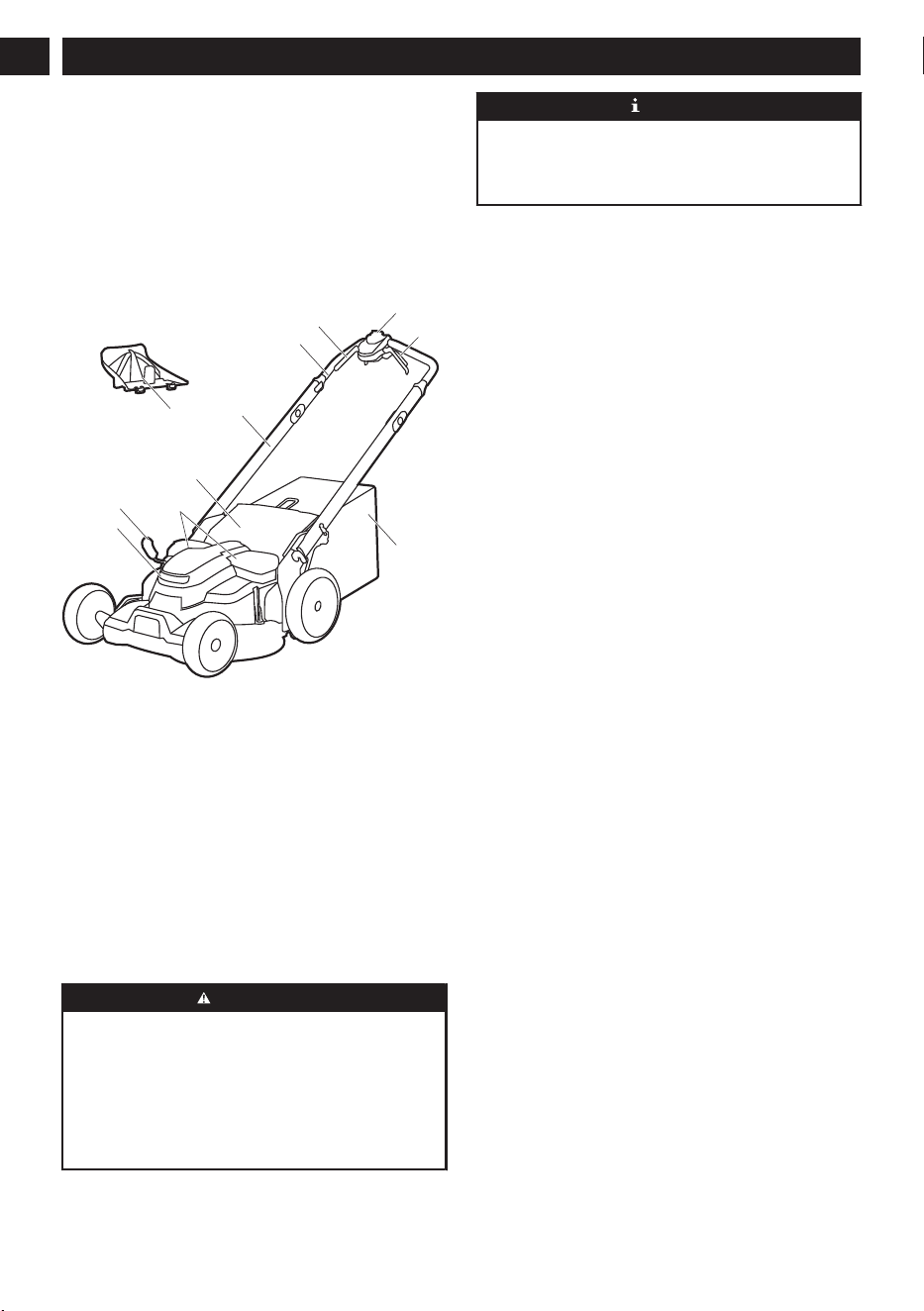

1.2 OVERVIEW
1
10
11
8
7
9
6
5
4
3
2
1
Start button
2
Start handle
3
Self-propel drive lever
4
Upper handle
5
Lower handle
6
Rear discharge door
7
Grass catcher
8
Height adjustment lever
9
Battery door
10
Mulch plug
11
Headlight
2 READ ALL INSTRUCTIONS
DANGER
This machine was built to be operated according to
the rules for safe operation included in this manual.
As with any type of power equipment, carelessness or
error on the part of the operator can result in serious
injury. This machine is capable of amputating hands
and feet and throwing objects. Failure to observe all
safety instructions could result in serious injury or
death.
NOTE
When using electric lawn mowers, basic safety
precautions should always be followed to reduce the
risk of fire, electric shock, and personal injury. These
basic precautions include the following:
2.1 CHILDREN AND BYSTANDERS
Tragic accidents can occur if the operator is not alert to
the presence of children or bystanders.
• Keep the area of operation clear of all persons,
particularly small children, and pets.
• Use extreme care when approaching blind corners,
doorways, shrubs, trees, or other objects that may
obscure your vision of a child or bystander. Keep
children, bystanders, helpers and pets at least 100
feet (30m) from the mower while it is in operation.
Stop the machine if anyone enters the area.
• Never allow children under 14 years old to
operate a power mower. Operators 14 years
old and over should fully read and understand
the operator’s manual and safety rules. Only
responsible individuals who are familiar with these
rules of safe operation should be allowed to use this
machine.
2.2 GENERAL OPERATION
• Read this operator’s manual carefully in its entirety
before assembling or operating this machine. Read,
understand, and follow all instructions on the
machine and in the manuals before operation.
Familiarize yourself with the controls and proper use
of this machine before operation. Save this manual
for future and regular reference.
• Do not use the lawn mower for any job except that
for which it is intended. Your lawn mower has been
designed to perform only one job: cut grass.
• Never attempt to make a wheel height adjustment
while the motor is running.
• Do not force the lawn mower; it will do the job
better and more safely at the rate for which it was
designed.
• Do not overreach, keep proper footing and balance
at all times. Many injuries occur because of the
mower being pulled over the foot during a fall
caused by slipping or tripping. A slip and fall
can cause serious personal injury. If you feel you
are losing your footing, release the control handle
immediately and the blade will stop rotating within
three seconds.
• Thoroughly inspect the area where the mower is to
be used and remove all stones, sticks, wires, dog
bones, and other foreign objects.
• Prevent unintentional starting. Ensure the switch
is in the off position before connecting to battery
pack, picking up or carrying the mower. Carrying this
4
English
EN
unit with finger on switch when battery is inserted
increases likelihood of accident.
• Never pull the mower back toward you while you are
walking. If you must back the mower away from a
wall or obstruction, first look down and behind you to
avoid tripping, and then follow these steps:
• Step back from the mower in order to fully
extend your arms.
• Be sure that you are well balanced.
• Pull the mower back slowly.
• Use appliances only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire. Recharge only
with the charger specified by the manufacturer. A
charger that is suitable for one type of battery pack
may create a risk of fire when used with another
battery pack.
• Remove the battery pack from the mower before
making any adjustments, changing accessories, or
storing appliance. Such preventive safety measures
reduce the risk of starting the mower accidentally.
• Before and while moving backwards with the mower,
look behind and down for small children and other
people.
• Do not operate the mower while under the influence
of alcohol or drugs. Stay alert and watch what you
are doing at all times. Use common sense and do
not operate the lawn mower when you are tired.
• Only allow operators, who are responsible, trained,
familiar with the instructions, and physically capable
to operate the machine.
• Do not carry passengers.
• Do not operate the machine without the entire grass
catcher, discharge chute, or other safety devices
in place and functioning properly. Check frequently
for signs of wear or deterioration and replace as
needed.
• Do not mow in reverse unless absolutely necessary.
• Always wear safety glasses or safety goggles during
operation and while performing an adjustment or
repair to protect your eyes. Thrown objects that
ricochet can cause serious injury to the eyes.
Always use a face or dust mask if the operation is
dusty.
• Keep clear of the discharge opening at all times. Do
not put hands or feet near rotating parts or under the
cutting deck. Contact with the blade can amputate
hands and feet.
• Plan your mowing pattern to avoid discharge of
material toward roads, sidewalks, bystanders and
the like. Also, avoid discharging material against
walls or obstructions, which may cause discharged
material to ricochet back toward the operator.
• To help avoid the blade or an injury from a thrown
objects, stay in the operator zone behind the
handles.
• A missing or damaged discharge cover can cause
blade contact or injuries from thrown objects.
• Objects struck by the lawn mower blade can cause
severe injuries to persons. The lawn should always
be carefully examined and cleared of all objects
prior to each mowing.
• Stop the blade when crossing gravel drives, walks
or roads.
• Follow all charging instructions and do not
charge the battery pack or mower outside of the
temperature range specified in the instructions.
Charging improperly or at temperatures outside of
the specified range may damage the battery and
increase the risk of fire.
• If lawn mower strikes a foreign object, follow these
steps:
• Release the bail switch to disengage the motor.
• Remove the battery.
• Inspect for damage.
• Repair any damaged parts before restarting and
operating the lawn mower.
• Have servicing performed by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the product is
maintained.
• Dress properly; do not wear loose clothing or
jewelry that can be caught in moving parts. Use
of protective gloves and footwear is recommended
when working outdoors. Wear sturdy, rough-soled
work shoes and close-fitting slacks and shirts. Shirts
and pants that cover the arms and legs and steel-
toed shoes are recommended. Never operate this
machine in bare feet, sandals, slippery or lightweight
(e.g., canvas) shoes.
• Do not modify or attempt to repair the mower or the
battery pack (as applicable) except as indicated in
the instructions for use and care.
• Wear protective hair covering to contain long hair.
• Avoid dangerous environments; do not use the lawn
mower in damp/wet locations or if it is raining.
• Store idle lawn mower indoors. When not in use,
appliances should be stored indoors in dry, and high
or locked-up place – out of reach of children. Always
remove the battery from the mower before storing.
• Mow only in daylight or good artificial light. Walk,
never run while operating.
• If the mower should start to vibrate abnormally,
immediately stop the motor, remove the battery and
check for the cause. Vibration is generally a warning
that the mower is not functioning properly.
• Check bag frequently for deterioration and wear,
and replace worn bags. Check that replacement
bags comply with the original manufacturer's
recommendations or specifications.
• Before cleaning the mower, unclogging or removing
the grass bag, mulching insert, or side discharge
chute, turn the motor off and wait until the blade
5
English
EN
comes to a complete stop, then remove the battery
pack. The cutting blade continues to rotate for a few
seconds after the motor is shut off. Never perform
these functions until you are sure the blade has
stopped rotating.
• Keep cutting edges clean and sharp to ensure best
performance.
• Periodically inspect safety devices and cords for
damage. If damaged do not operate the unit until
it has been repaired by an authorized service
professional.
• Never operate the mower without the proper
discharge cover, grass bag, mulching insert, side
discharge chute, or other safety devices in place
and working. Never operate the mower with
damaged safety devices. Failure to do so can result
in personal injury.
• Use only approved batteries and chargers. Non-
approved batteries and chargers may cause
damage to the mower or injure the operator.
• Do not dispose of the battery in a fire. The
cells could catch fire or explode. Check with local
codes and waste management for proper disposal
instructions.
• When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
burns or a fire.
• Do not open or destroy the battery. Electrolytes
contained within the battery are corrosive and may
cause damage to eyes or skin if released. It may be
toxic if swallowed.
• Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or
burns.
• Do not expose a battery pack or appliance to
fire or excessive temperature. Exposure to fire or
temperature above130°C may cause explosion.
• Exercise care in handling batteries to avoid shorting
the battery with conducting materials such as rings,
bracelets, keys, etc. The battery or conductor may
overheat and cause burns if contact with said
materials is made.
• Do not use a battery pack or appliance that
is damaged or modified. Damaged or modified
batteries may exhibit unpredictable behavior
resulting in fire, explosion or risk of injury.
• This appliance is not intended for use by
persons with reduced physical, sensory or mental
capabilities or lack of experience or knowledge,
unless they have been given supervision or
instruction concerning use of the appliance by a
person responsible for their safety.
2.3 SLOPE OPERATION
Slopes are a major factor related to slip-and-fall
accidents, which can result in severe injury. Operation
on slopes requires extra caution. If you feel uneasy on a
slope, do not mow it.
Do:
• Mow across the face of slopes; never mow up
and down. Exercise extreme caution when changing
direction on slopes.
• Watch for holes, roots, rocks, hidden objects, or
bumps which can cause you to slip or trip. Tall grass
can hide obstacles. Remove all obstacles such as
rocks and tree limbs.
• Make sure that your footing is stable. If you are out
of balance, release the switch immediately.
Do not:
• Mow excessively steep slopes.
• Mow near drop-offs, ditches or embankments; you
could lose your footing or balance.
• Mow slopes greater than 15 degrees.
• Mow on wet grass. Unstable footing could cause
slipping.
WARNING
Do not mow on the slopes with incline more than 15°.
If you are not comfortable, do not mow on a slope.
TIP
In case of self-propelled mowers, please keep a low
self-propelled speed when you mow on a slope.
2.4 SERVICE/MAINTENANCE
• Check the blade and the motor (machine) mounting
bolts at frequent intervals for proper tightness.
• Replace the blade if it is bent or cracked. An
unbalanced blade causes vibration that could
damage the motor drive unit or cause personal
injury.
• Keep all nuts, bolts, and screws tight in order to
ensure the equipment is in safe working condition.
• Do not wash with a hose; avoid getting water in
motor and electrical connections.
• Never remove or tamper with safety devices. Check
their proper operation regularly. Never do anything
to interfere with the intended function of a safety
device or to reduce the protection provided by a
safety device.
• Keep mower free of grass, leaves, or other debris
build up. Allow mower to cool before storing.
• Never make any adjustments or repairs with the
motor running.
• Always remove battery pack from mowers before
adjusting, cleaning, or repairing.
6
English
EN
• Check grass catcher components and the discharge
guard frequently and replace with manufacturer’s
recommended parts, when necessary.
• Sharpen a dull blade equally at each end to
maintain the balance.
• Keep guards in place and in working order. Mower
blades are sharp, and can cut. Wrap the blades or
wear gloves, and use extra caution when servicing.
• Clean the blade thoroughly and check its balance by
supporting it horizontally on a thin nail through its
center hole. The nail should also be in a horizontal
position. If either end of the blade rotates downward,
remove some metal from the heavy or lower end
until the blade is balanced. It is balanced when
neither end drops.
• Use identical replacement blades only.
• Maintain lawn mower with care. Keep cutting edges
sharp and clean for best and safest performance.
Follow instructions for lubricating and changing
accessories. Inspect lawn mower cord periodically
and if damaged, have it repaired by an authorized
service facility.
• If situations occur that are not covered in this
manual, use care and good judgment or contact
Customer Service for assistance.
• Never operate the mower without proper guards,
plates, or other safety protective devices in place.
• Before each use, examine the machine for
damaged, missing, or loose parts such as screws,
nuts, bolts and caps.
• Tighten correctly all the fasteners and caps.
• Clean the machine with a dry cloth. Do not use
water.
The recommended ambient temperature range:
Item
Temperature
Mower storage temperature
range
32°F (0°C) - 113°F
(45°C)
Mower operation temperature
range
32°F (0°C) - 113°F
(45°C)
Battery charging temperature
range
39°F (4°C) - 104°F
(40°C)
Charger operation temperature
range
39°F (4°C) - 104°F
(40°C)
Battery storage temperature
range
32°F (0°C) - 113°F
(45°C)
Battery discharging temperature
range
32°F (0°C) - 113°F
(45°C)

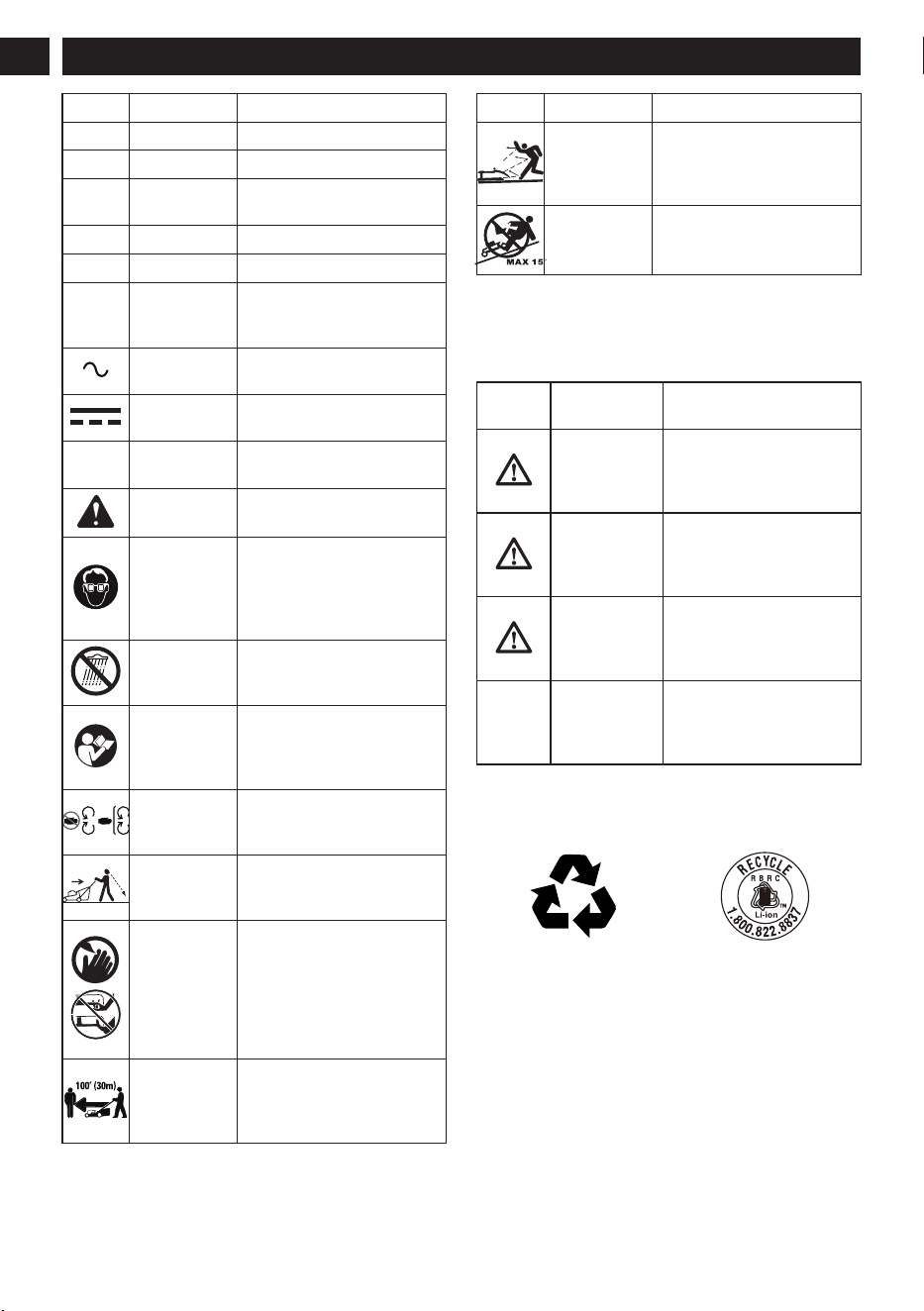

3 SYMBOLS ON THE PRODUCT
Some of the following symbols may be used on this
mower. Please study them and learn their meaning.
Proper interpretation of these symbols will allow you to
operate the mower better and safer.
7
English
EN
Symbol Name Explanation
V Volt Voltage
A Amperes Current
Hz Hertz
Frequency (cycles per sec-
ond)
W Watt Power
min Minutes Time
/min Per Minute
Revolutions, strokes, surface
speed, orbits etc., per mi-
nute
Alternating
Current
Type of current
Direct Current
Type or a characteristic of
current
n
o
No Load
Speed
Rotational speed, at no load
Safety Alert
Precautions that involve your
safety.
Eye Protec-
tion
Always wear eye protection
with side shields marked
to comply with ANSI Z87.1
when operating this equip-
ment.
WARNING ---
Wet Condi-
tions
Do not expose the product to
rain or moist conditions.
Read Opera-
tor’s Manual
To reduce the risk of injury,
user must read and under-
stand operator’s manual be-
fore using this product.
Maintain
Safety Devi-
ces
Do not open or remove safe-
ty devices while the tool is
running.
Look Behind
While Backing
Look down and behind first
to avoid tripping when pull-
ing back.
DANGER ---
Keep Hands
and Feet
Away
To reduce the risk of in-
jury, keep hands and feet
away from rotating parts. Do
not operate unless discharge
cover or grass bag is in its
proper place. If damaged,
replace immediately.
DANGER ---
Keep By-
standers
Away
All visitors should be kept at
a distance from work area.
Symbol Name Explanation
DANGER ---
Thrown Deb-
ris
Remove objects that can
be thrown by the blade in
any direction. Wear safety
glasses.
DANGER ---
Steep Slope
Hazard
Use extra caution on slopes.
do not mow slopes greater
than 15 degrees.
4 RISK LEVELS
The following signal words and meanings are intended
to explain the levels of risk associated with this product.
SYM-
BOL
SIGNAL MEANING
DANGER Indicates an imminently
hazardous situation, which,
if not avoided, will result in
death or serious injury.
WARNING Indicates a potentially haz-
ardous situation, which, if
not avoided, could result in
death or serious injury.
CAUTION Indicates a potentially haz-
ardous situation, which, if
not avoided, may result in
minor or moderate injury.
CAUTION (Without Safety Alert Sym-
bol) Indicates a situation
that may result in property
damage.
5 ENVIRONMENTALLY SAFE
BATTERY DISPOSAL
The toxic and corrosive materials below are in the
batteries used in this machine: Lithium-Ion, a toxic
material.
8
English
EN
WARNING
Discard all toxic materials in a specified manner to
prevent contamination of the environment. Before
discarding damaged or worn out Li-ion battery,
contact your local waste disposal agency, or the local
Environmental Protection Agency for information and
specific instructions. Take the batteries to a local
recycling and/or disposal center, certified for lithium-
ion disposal.
WARNING
If the battery pack cracks or breaks, with or without
leaks, do not recharge it and do not use. Discard it
and replace with a new battery pack. DO NOT TRY
TO REPAIR IT! To prevent injury and risk of fire,
explosion, or electric shock, and to avoid damage to
the environment:
• Cover the terminals of the battery with heavy-duty
adhesive tape.
• DO NOT try to remove or destroy any of the
battery pack components.
• DO NOT try to open the battery pack.
• If a leak develops, the released electrolytes are
corrosive and toxic. DO NOT get the solution in the
eyes or on skin, and do not swallow it.
• DO NOT put these batteries in your regular
household trash.
• DO NOT incinerate.
• DO NOT put them where they will become part of
any waste landfill or municipal solid waste stream.
• Take them to a certified recycling or disposal
center.
6 PROPOSITION 65
WARNING
This product contains a chemical known to the
state of California to cause cancer, birth defects
or other reproductive harm. Some dust created by
power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to
cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints;
• Crystalline silica from bricks and cement and other
masonry products;
• Arsenic and chromium from chemically treated
lumber.
Your risk of exposure to these chemicals varies
depending on how often you do this type of work. To
reduce your exposure to these chemicals, work in a
well-ventilated area, and work with approved safety
equipment, such as dust masks that are specially
designed to filter out microscopic particles.
Save these instructions.
7 INSTALLATION
WARNING
Do not change or make accessories that are not
recommended by the manufacturer.
WARNING
Do not put in the safety key or the battery pack until
you assemble all the parts.
7.1 UNPACK THE MACHINE
WARNING
Make sure that you correctly assemble the machine
before use.
WARNING
• If the parts are damaged, do not use the machine.
• If you do not have all the parts, do not operate the
machine.
• If the parts are damaged or missing, speak to the
service center.
1. Open the package.
2. Read the documentation in the box.
3. Remove all the unassembled parts from the box.
4. Remove the machine from the box.
5. Discard the box and package in compliance with
local regulations.
7.2 PLACE THE MOWER UPRIGHT IN
VERTICAL POSITION
1. Place the mower upright in vertical position.
2. Remove the packing material from the cable.
9
English
EN

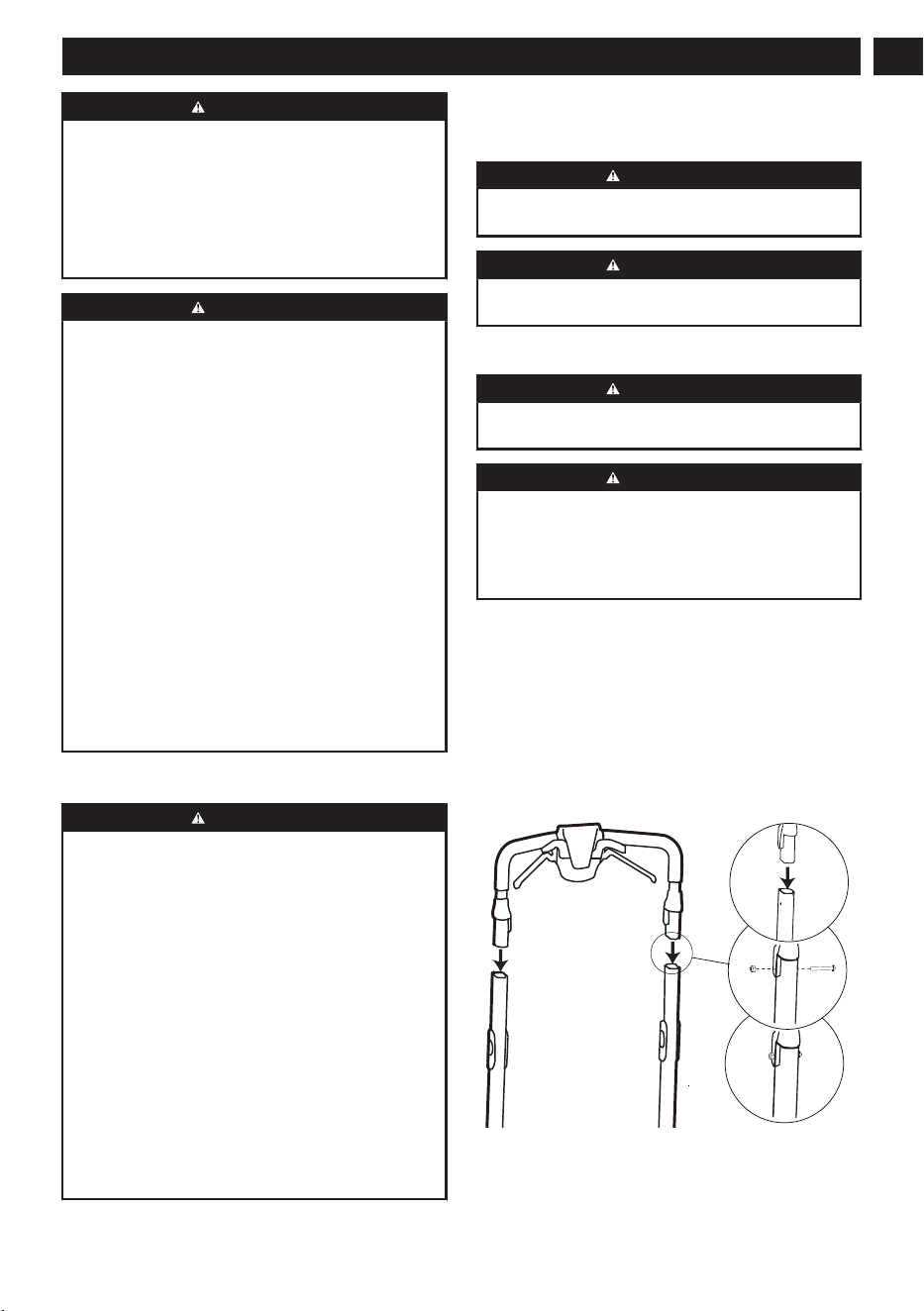

3. Remove the rubber edge guard from the upper
handle.
4. Insert the upper handle into the lower handle.
5. Put the bolts through the holes and tighten with
the nuts, using a Philips head screwdriver (not
included).
WARNING
Do not damage the cable while installing the upper
handle.
7.3 UNFOLD AND ADJUST THE
HANDLES
1
3
2
1. Pull up on the handle holes to release the handles.
2. Fold the handles up until the handle pins lock into
position.
NOTE
Make sure that the two handle pins are in the same
position.

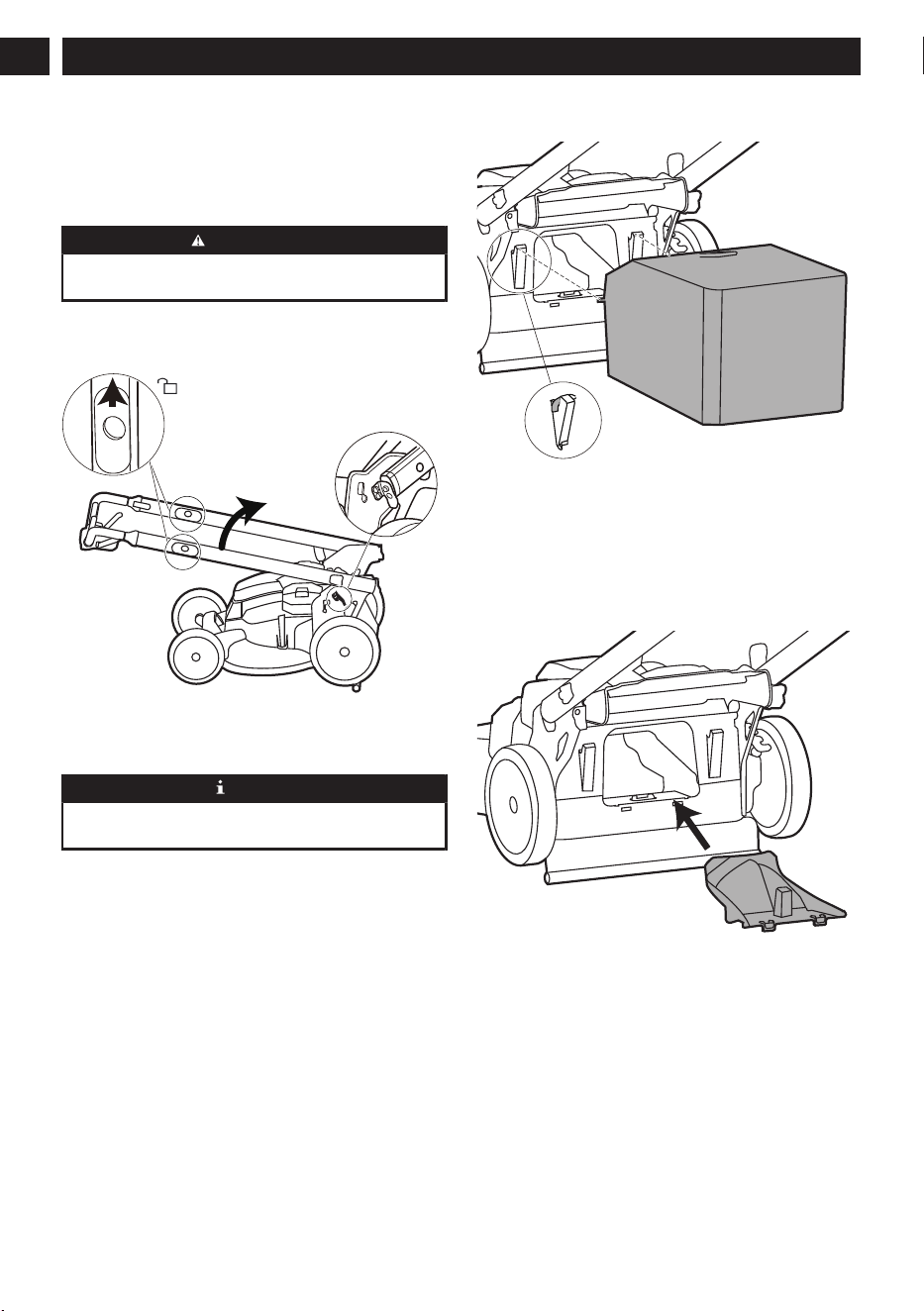

7.4 INSTALL THE GRASS CATCHER
1. Remove the mulch plug.
2. Open the rear discharge door and hold it.
3. Hold the the grass catcher by its handle and engage
the hooks on the slots.
4. Close the rear discharge door.
7.5 INSTALL THE MULCH PLUG
1. Remove the grass catcher.
2. Open the rear discharge door and hold it.
3. Hold the mulch plug by its handle and fit it in the
discharge chute.
4. Close the rear discharge door.

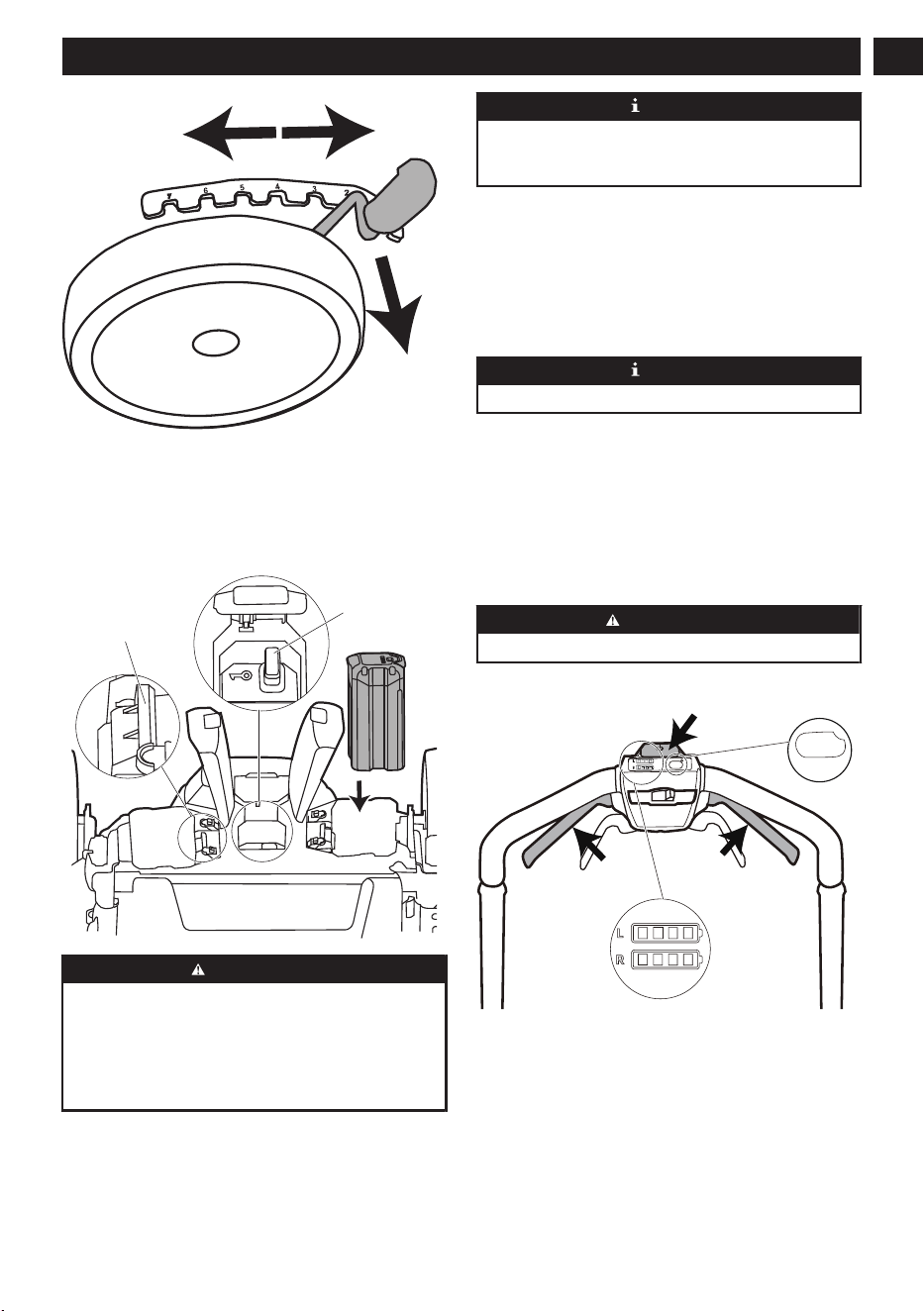

7.6 SET THE CUTTING HEIGHT
The machine can be set to different cutting height.
10
English
EN
1
2
• Pull the height adjustment lever rearward to
increase the cutting height.
• Pull the height adjustment lever forward to decrease
the cutting height.
7.7 INSTALL THE BATTERY PACK
12
13
WARNING
• If the battery pack or charger is damaged, replace
the battery pack or the charger.
• Stop the machine and wait until the engine stops
before you install or remove the battery pack.
• Read, know, and do the instructions in the battery
and charger manual.
NOTE
The machine has an automatic switch function that
lets the other battery work when the first cannot
operate.
1. Open the battery door.
2. Align the ribs on the battery pack with the grooves in
the battery compartment.
3. Push the battery pack into the battery compartment
until the battery pack locks into place.
4. When you hear a click, the battery pack is installed.
5. Close the battery door.
NOTE
The motor starts only when you put in the safety key.
7.8 REMOVE THE BATTERY PACK
1. Remove the safety key (13).
2. Open the battery door.
3. Push and hold the battery release button (12).
4. Remove the battery pack from the machine.
8 OPERATION
WARNING
Wear eye protection during operation.
8.1 START THE MACHINE
1
2
2
TURBO
1. Make sure safety key is inserted into slot.
2. Push and hold the start button.
3. While you hold the start button, grab the start
handles in the direction of the handle bar.
4. Once the machine has started, you can release the
start button.
5. Press the Turbo button to speed up to 4,500 RPM.
Battery capacity indicator (28)
11
English
EN
Lights Capacity
4 Green
Lights
The battery is above 80% capacity
3 Green
Lights
The battery is between 80% and 60%
capacity
2 Green
Lights
The battery is at between 60% and 40%
capacity
1 Green
Light
The battery is between 40% and 20%
capacity
Lights go
out
The battery is less than 20% capacity
and requires charging immediately
8.2 STOP THE MACHINE
1. Release the start handle to stop the machine.
WARNING
Wait until the blade fully stops before you start the
machine again. Do not quickly turn the machine off
and on.
WARNING
Always remove the safety key and battery pack after
you complete the work.
8.3 OPERATE THE SELF-PROPEL
DRIVE SYSTEM*
1. Start the machine.
2. While you hold the start handles, grab either of the
drive levers and pull towards the handle bar.
3. Hold the start handles and the drive levers at the
same time.
4. Release either set of start handle and drive lever
from the same side.
5. Adjust the speed control with your free hand.
• Slide the speed control button in the direction of
the Rabbit Symbol to increase the speed.
• Pull the speed control button in the direction of
the Turtle Symbol to decrease the speed.
6. Release the drive levers to close the self-propel
system.
To engage the self-propel drive system while the
mower is not running:
• Press and hold the start button, then pull up on the
drive lever.
OR
• Pull up on the drive lever, then press the start
button.
NOTE
Some models are not equipped with self-propel
function.

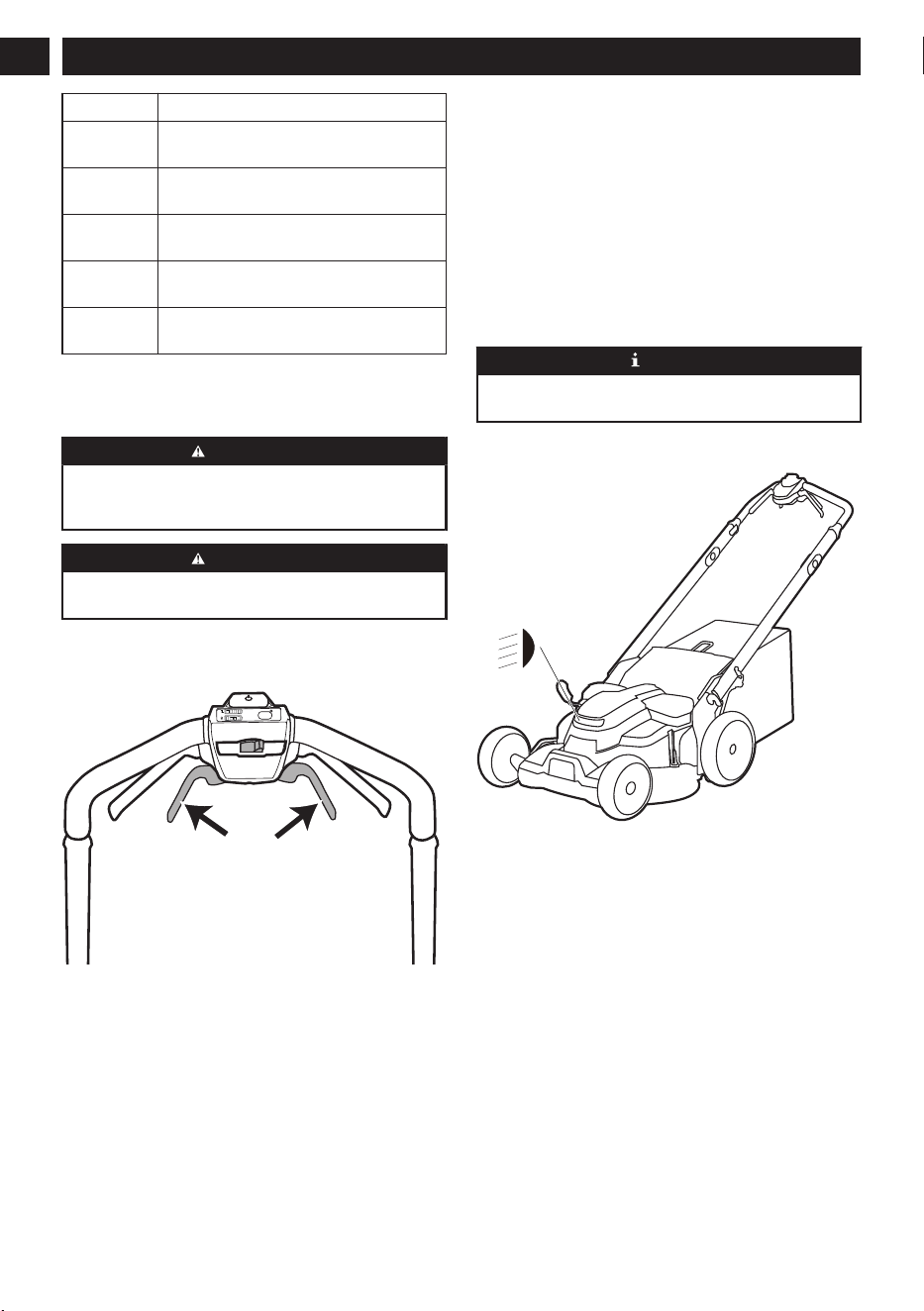

8.4 LED HEADLIGHT
1. When the mower is ready to start, you may grab the
start handle or the self-propel lever to turn on the
LED headlight.
2. Release the start handles and self-propel levers to
turn off the headlight.
8.5 EMPTY THE GRASS CATCHER
1. Stop the machine.
2. Remove the safety key.
3. Remove the battery pack.
4. Open the rear discharge door and hold it.
5. Hold the grass catcher by its handle and unhook it
from the slots.
6. Close the rear discharge door.
7. Empty the grass catcher.
12
English
EN
8.6 OPERATION TIPS
• Do not try to override the operation of the start
button or start handles.
• Do not tilt the machine when you start it.
• Do not put hands or feet near or below the turning
parts.
• Keep the discharge chute clean.
• Do not cut wet grass.
• Higher blade height is necessary for new or thick
grass.
• Clean the bottom of the mower deck after each
use. Remove grass clippings, leaves, dirt, and other
debris.
9 MAINTENANCE
WARNING
Remove the safety key and battery pack from the
machine before maintenance.
WARNING
Keep the motor and battery pack free from grass,
leaves or too much grease.
CAUTION
Use only approved replacement parts.
CAUTION
Do not let brake fluids, gasoline, petroleum-based
materials touch the plastic parts. Chemicals can
cause damage to the plastic, and make the plastic
unserviceable.
CAUTION
Do not use strong solvents or detergents on the plastic
housing or components.

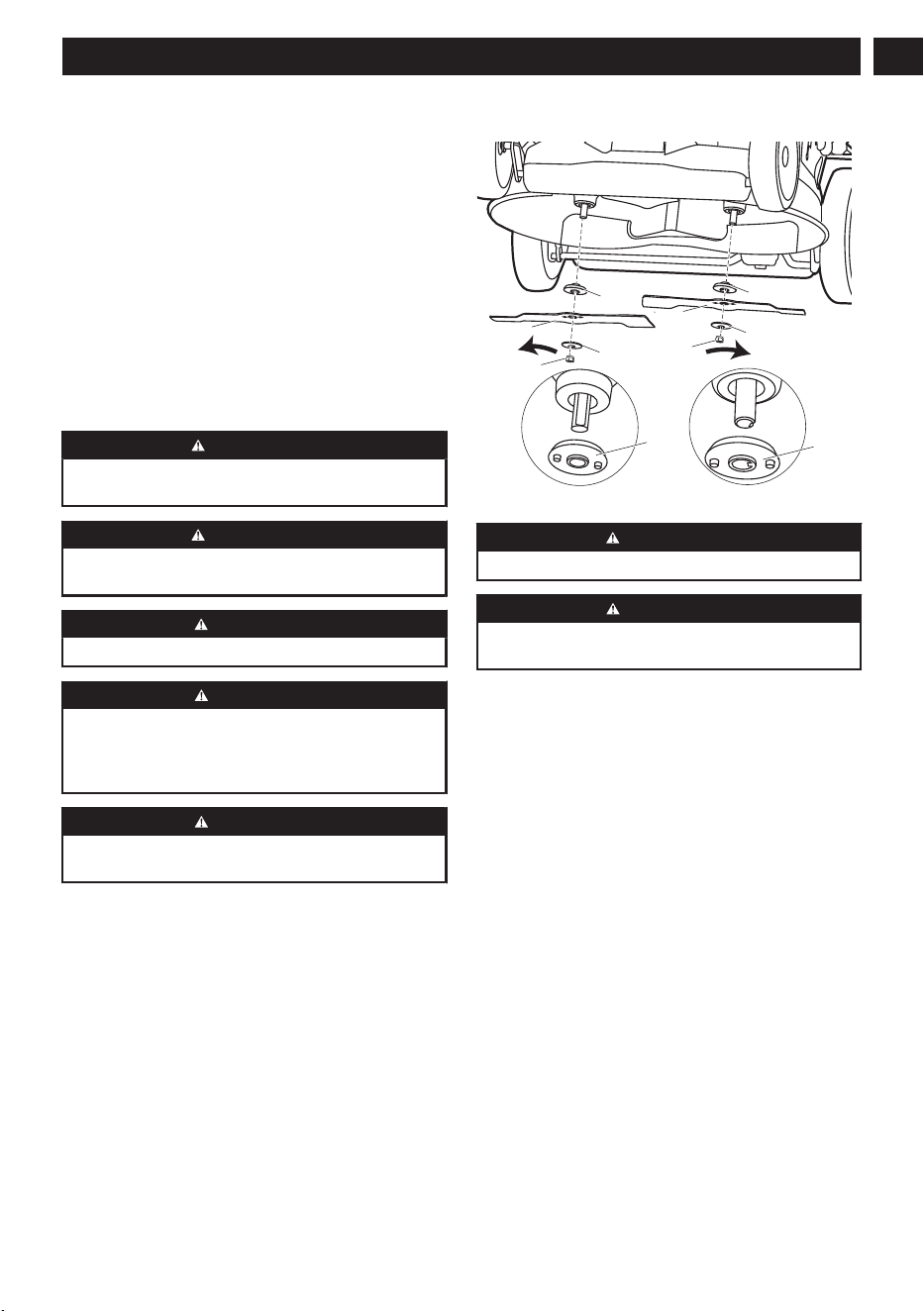

9.1 REPLACE THE BLADE
A
B
A
B
14
15
16
17
18
18
19
19
16
17
WARNING
Use only approved replacement blades.
WARNING
Wear heavy gloves or wind cloth around the blade
when you touch the blade.
1. Stop the machine.
2. Make sure that the blades fully stop.
3. Remove the safety key and battery pack.
4. Turn the machine to its side.
5. Use a piece of wood to prevent the movement of the
blade.
6. Remove blades with a wrench or a socket:
• Turn nut (18) to the right to remove blade A (14),
spacer (19) and positioner (16);
• Turn nut (18) to the left to remove blade B (15),
spacer (19) and positioner (17).
7. Install the new blade. Position the blade with the
cutting edges toward the ground. Make sure the two
posts on positioner engage the holes on the blades.
8. Assemble the positioners and spacers as shown.
Positioner (16) for blade A only; positioner (17) for
blade B only. Mounting nuts and spacers of blade A
are interchangable with that of blade B.
13
English
EN
9.2 VERTICAL STORAGE
1
2
3
1. Remove the grass catcher.
2. Remove the battery and safety key.
3. Pull through the handle holes to fold away the
handles.
4. Lock the handles into position.
5. Stand the machine on end and make sure that the
brackets touch the floor.
9.3 STORE THE MACHINE
• Clean the machine before storage.
• Make sure the motor is not hot when you store the
machine.
• Make sure that the machine does not have loose
or damaged parts. If it is necessary, do these steps/
instructions:
• Replace the damaged parts.
• Tighten the bolts.
• Speak to a person at an approved service
center.
• Store the machine in a dry area.
• Make sure that children cannot come near the
machine.

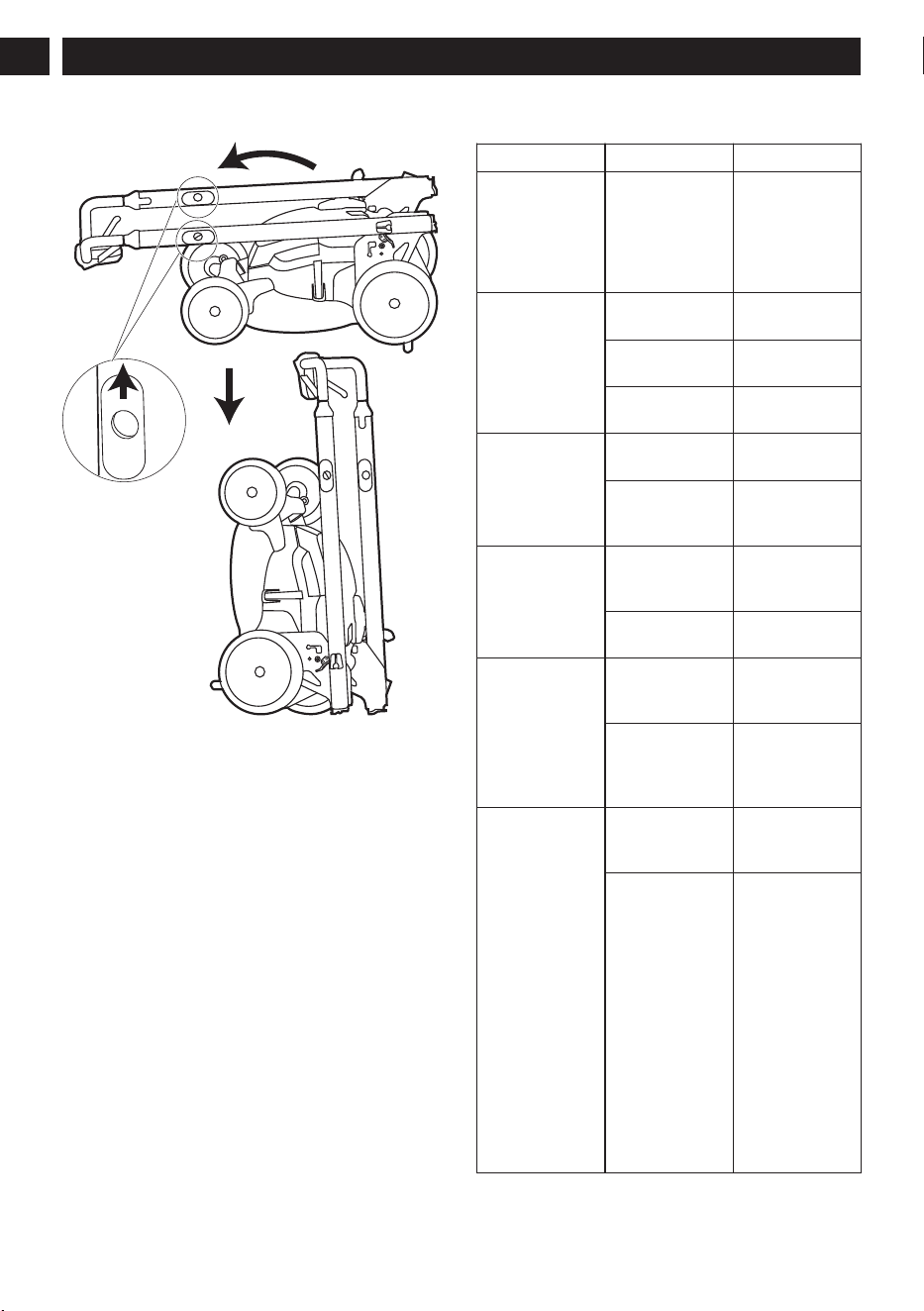

10 TROUBLESHOOTING
Problem Possible cause Solution
The handle is
not in position.
The bolts are not
engaged correct-
ly.
Adjust the height
of the handle
and make sure
that the bolts
and nuts are
aligned correctly.
The machine
does not start.
The battery ca-
pacity is low.
Charge the bat-
tery pack.
The start handle
is defective.
Replace the start
handle.
The battery key
is not put in.
Put in the battery
key.
The machine
cuts grass un-
evenly.
The lawn is
rough.
Examine the
mowing area.
The blade height
is not set cor-
rectly.
Move the wheels
to a higher posi-
tion.
The machine
does not mulch
correctly.
Wet grass clip-
pings attach to
the deck.
Wait until the
grass dries be-
fore mowing.
The mulch plug
is missing.
Install the mulch
plug.
The machine is
hard to push.
The grass is too
tall, or the blade
height is too low.
Increase the
blade height.
The grass catch-
er and the blade
drags in thick
grass.
Empty the grass
clippings from
the grass catch-
er.
There is a high
vibration in the
machine.
The blade is un-
balanced and
worn.
Replace the
blade.
The motor shaft
is bent.
1. Stop the mo-
tor.
2. Remove the
safety key
and battery
pack.
3. Disconnect
the power
source.
4. Inspect for
damage.
5. Repair the
machine be-
fore you start
it again.
14
English
EN
Problem Possible cause Solution
The machine
stops during
mowing.
The blade height
is too low.
Increase the
blade height.
The battery pack
is out of power.
Charge the bat-
tery pack.
The grass clip-
pings attach to
the deck or the
blade.
Remove the bat-
tery pack and
check the deck.
Operation tem-
perature of the
machine is too
high.
Cool the ma-
chine.
* If you cannot find the solution to these problems, go to
the service center.
11 TECHNICAL DATA
Voltage 80 V
Battery model BAB740 and other BAB series
Charger model CAB812/GCH8040 and other CAB
series
No load speed 4000 RPM / 4500 RPM (Turbo)
Height adjust-
ments
1 3/8 - 4 1/16" (3.5 - 10.2 cm)
Self-propelled
speed
1.9-4.9 fps (0.6-1.5 m/s)
Functions 2-in-1 Mulch & Rear Bag
Weight (without
battery and
charger)
69.4 lbs (31.5 kg)
Double-insulated
construction
12 LIMITED WARRANTY
ITEMS NOT COVERED BY WARRANTY:
1. Any part that has become inoperative due to
misuse, commercial use, abuse, neglect, accident,
improper maintenance, or alteration; or
2. The unit, if it has not been operated and/or
maintained in accordance with the owner's manual;
or
3. Normal wear;
4. Routine maintenance items such as lubricants,
blade sharpening;
5. Normal deterioration of the exterior finish due to use
or exposure.
HELPLINE:
Warranty service is available by calling our toll-free
helpline, at 1-855-345-3934.
TRANSPORTATION CHARGES:
Transportation charges for the movement of any power
equipment unit or attachment are the responsibility of
the purchaser. It is the purchaser’s responsibility to
pay transportation charges for any part submitted for
replacement under this warranty unless such return is
requested in writing by Greenworks.
USA address:
Greenworks Tools
P.O. Box 1238, Mooresville, NC 28115
Canadian address:
Greenworks Tools Canada, Inc.
P.O. Box 93095, Newmarket, Ontario, L3Y 8K3
Mexico address:
TECNOLOGIA CAMPO Y JARDIN S.A. DE C.V.
ADMINISTRADORES No. 5336 A, COL. ARCOS DE
GUADALUPE, ZAPOPAN , JALISCO , C.P. 45037
15
English
EN
Renewed/Refurbished products and batteries are
protected against all defects in materials, parts or
workmanship under normal use for a period of 90 days
from the shipping date or in-store purchase date. All
sales are final, no returns.
90-Day Warranty
www.greenworkstools.com
Rev B1
P0803939-02
