APMS30 SERIES
MODEL NO: APMS30UCS, APMS30WC, APMS30WA, APMS30WB,
APMS30SSC, APMS30UCD, APMS30SSB, APMS30SSA, APMS31BE,
APMS32BE, APMS33BE, APMS34BE, APMS35BE, APMS3BEBP, APMS3BP
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS &
CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO
SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE
FOR FUTURE USE.
1. SAFETY
WARNING! Ensure health & safety, local authority, and general workshop practice regulations are adhered to when using this storage system.
9 Locate in a suitable work area.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
WARNING! Use storage on level and solid ground, preferably concrete.
9 Keep the storage system clean and tidy in accordance with good workshop practice.
9 Keep children and unauthorised persons away from the work area.
8 DO NOT use the storage system for any purpose other than that for which it is designed.
8 DO NOT use the storage system outdoors.
8 DO NOT place the storage system in a damp or wet location or an area where there is condensation.
8 DO NOT clean the storage system with any solvents which may damage the surfaces or the protective coating.
8 DO NOT move the storage system when there are items placed inside.
8 DO NOT step on the shelves.
8 DO NOT overload the storage system.
2. INTRODUCTION
Modular storage system ideal for any garage/workshop. Durable construction that will last for years. Easily adjusts to specific needs.
Purchase a simple base cabinet or create a full workshop storage system. Standard features include:
9 Modular design to enable easy upgrading.
9 Tough and durable construction with high gloss finish on the doors and drawers.
9 Adonised black handles and drawer pulls.
9 Soft close Ball-bearing slides throughout.
9 Choice of worktop - rubber wood or stainless steel.
9 Gas struts on wall cabinet doors.
9 Height adjusting feet.
9 Floor cabinets feature adjustable shelves.
9 All pieces are fully welded except Model No. APMS31BE which requires simple assembly.
9 Each unit supplied with a lock and two keys (except wall cabinets).
Refer to
instructions
Wear protective
gloves
APMS30 Series Issue 2 06/03/2025
Original Language Version
© Jack Sealey Limited
FIG.1
Example
layout
3. SPECIFICATION
Model No: Description Dimensions
(W x D x H):
Cabinets & Drawers APMS31BE Full Height Floor Cabinet 600 x 460 x 2000mm
APMS32BE Modular Wall Cabinet 680mm 680 x 280 x 350mm
APMS33BE Modular Floor Cabinet 2 Door 680 x 460 x 910mm
APMS34BE Modular Mobile Cabinet 5 Drawer 650 x 460 x 860mm
APMS35BE Modular Cabinet 5 Drawer 680 x 460 x 910mm
Pressed Wood Worktops APMS30WA Pressed Wood Worktop 680mm 680 x 463 x 38mm
APMS30WB Pressed Wood Worktop 1360mm 1360 x 463 x 38mm
APMS30WC Pressed Wood Worktop 2040mm 2040 x 463 x 38mm
Stainless Steel Worktops APMS30SSA Stainless Steel Worktop 680mm 680 x 463 x 38mm
APMS30SSB Stainless Steel Worktop 1360mm 1360 x 463 x 38mm
APMS30SSC Stainless Steel Worktop 2040mm 2040 x 463 x 38mm
Upright Connectors APMS30UCS Single Connector 39 x 30 x 1420mm
APMS30UCD Double Connector 78 x 30 x 1420mm
Back Panels APMS3BEBP Back Panel with Power Bar 600mm 600 x 25 x 1080mm
APMS3BP Back Panel 600mm 600 x 25 x 1080mm
4. ASSEMBLY
NOTE: the steps below are an example using a range of drawers, cabinets, worktops, upright connectors and back panels.
STEP 1
STEP 2
APMS30 Series Issue 2 06/03/2025
Original Language Version
© Jack Sealey Limited

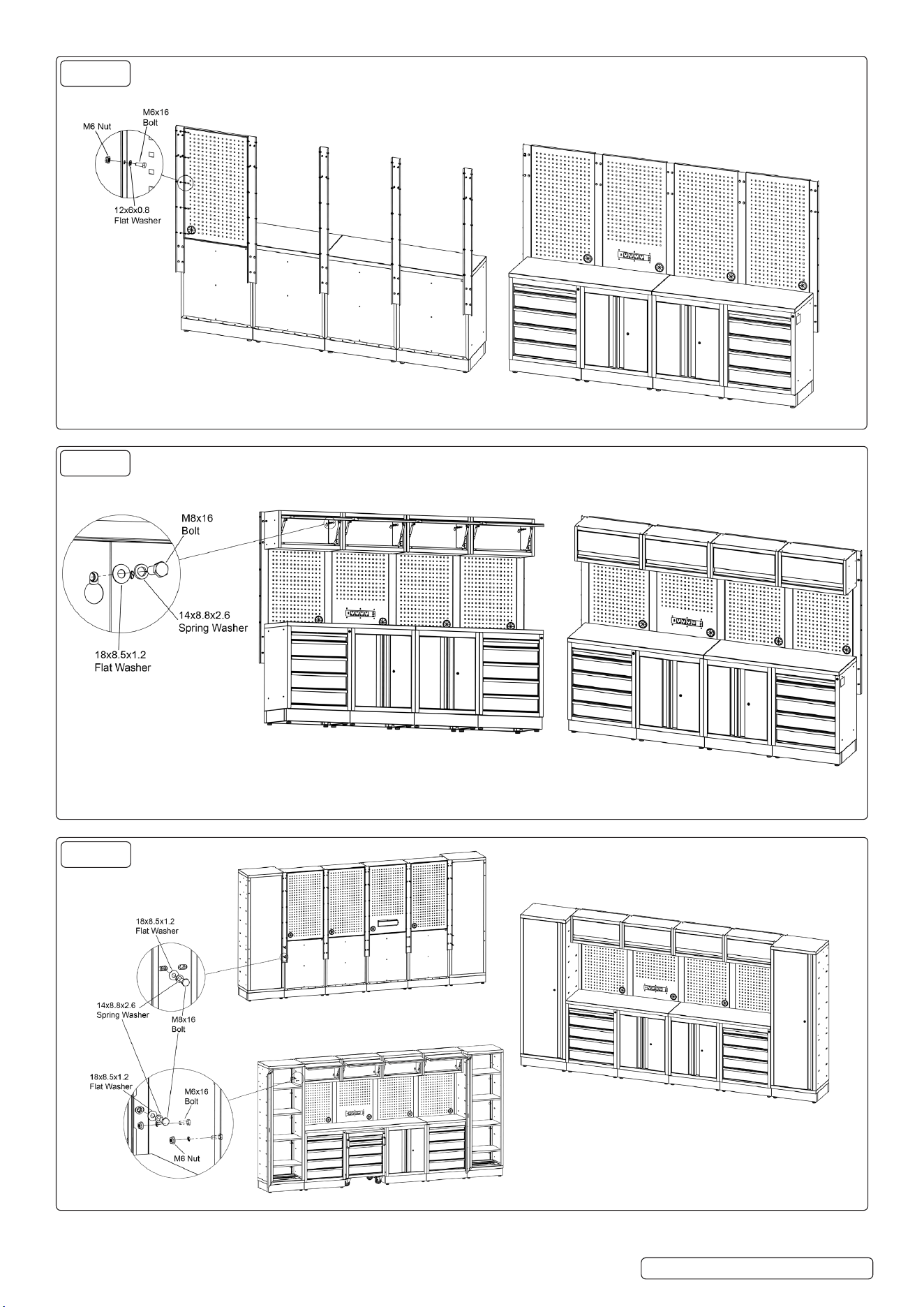

STEP 3
STEP 4
STEP 5
APMS30 Series Issue 2 06/03/2025
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specications and component parts without prior notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 5 years from purchase date, proof of which is required for any claim.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be
sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment. When
the product becomes completely unserviceable and requires disposal, drain any uids (if applicable) into approved
containers and dispose of the product and uids according to local regulations.
