Preparing 5 / 7
Drawer Trolley

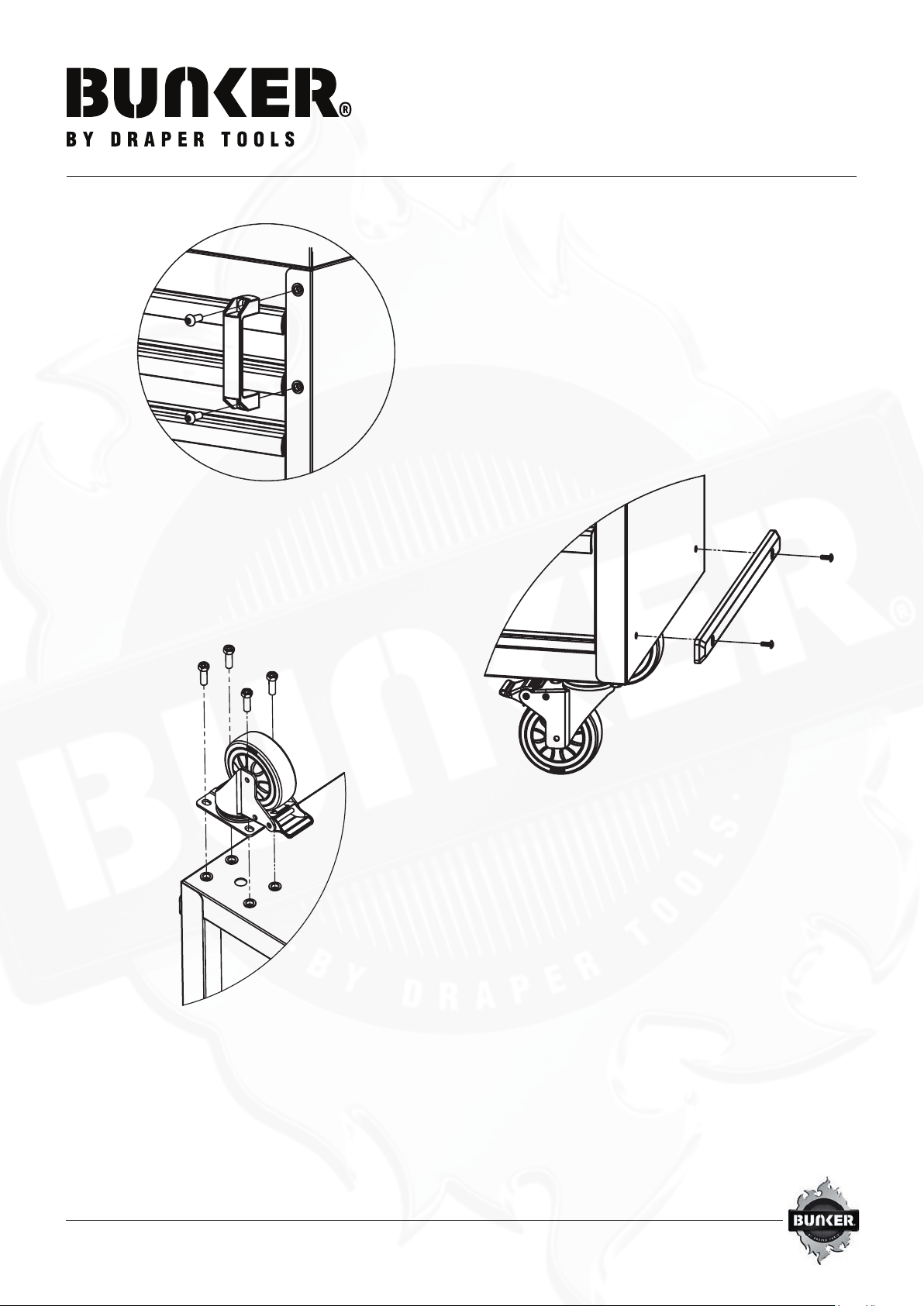

1. Attach Handles
Attach handles to front angled side
with 4 pieces of M8 x 20mm bolt.
Do not fully tighten.
2. Attach Bumpers
Attach bumpers to side panel with
4 pieces of M4 x 10mm bolt.
Do not fully tighten.
3. Attach Castors
Attach castors to the bottom of unit
with 16 pieces of M8 x 20mm bolt.
Do not fully tighten.
Stock No.
29779 / 29792
To make assembly easier we recommend having two
persons aid one another in assembly.

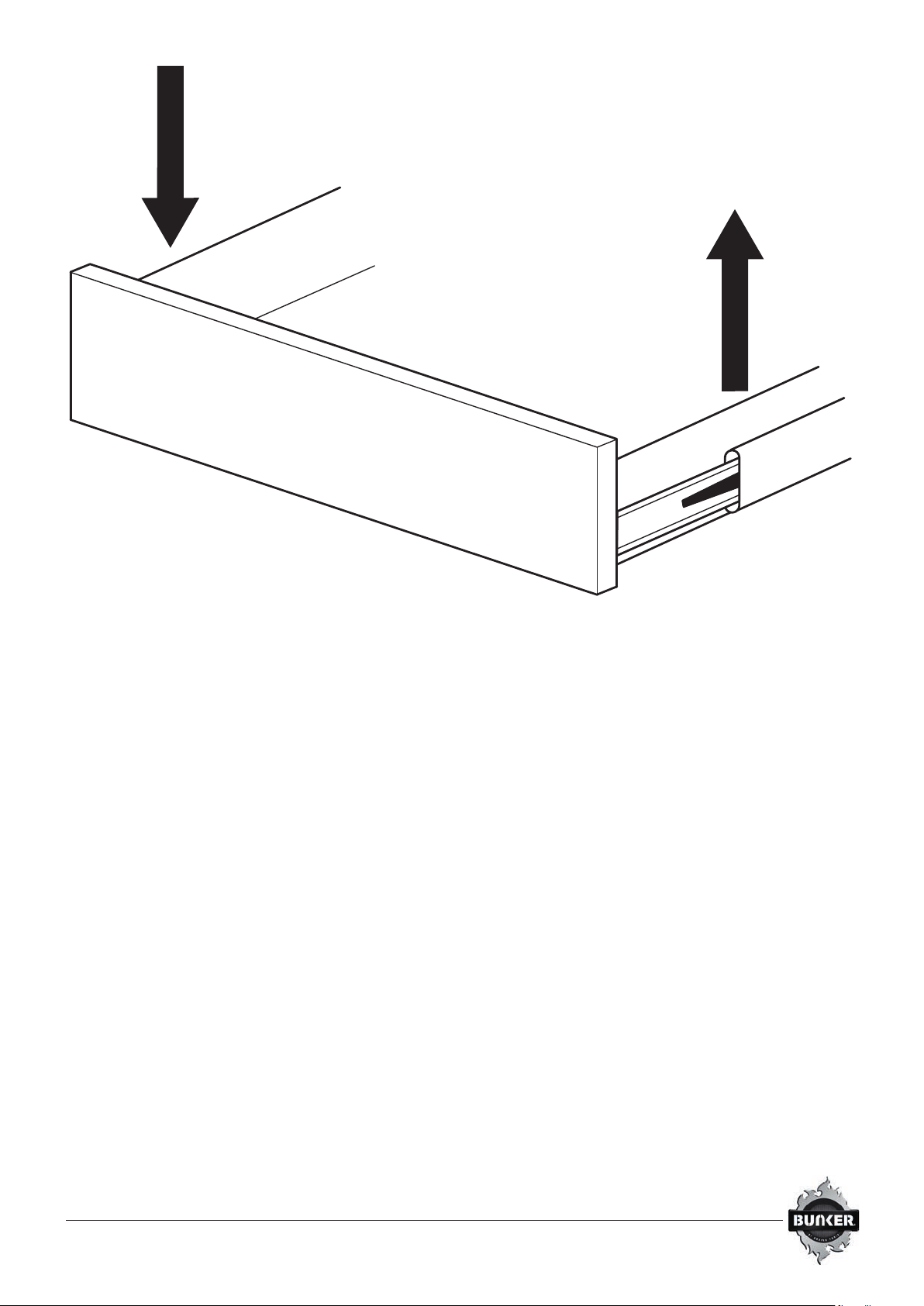

REMOVING AND REPLACING THE DRAWERS:
• Pull the drawer completely out
• Press down the left tab and lift up the right tab
• Pull drawer o sliders
• To reinstall the drawer, realign with the internal drawer slider and push in until locked in place
CASTOR MAINTENANCE
Grease the castors annually using high-quality bearing grease.
CARE AND CLEANING
Periodically the surfaces should be cleaned with a mild detergent and water. Grease and oil can be removed with
most standard cleaning uids. For safety, use a non-ammable cleaning uid.
Auto wax will preserves the storage unit’s luster nish and protects against scratches.
