©Thank you for purchasing this product! If you have questions about the product such as missing
parts,damaged products,product assembling and operation etc.,please contact us Via Amazon Message or
customer service phone:213-4467172.

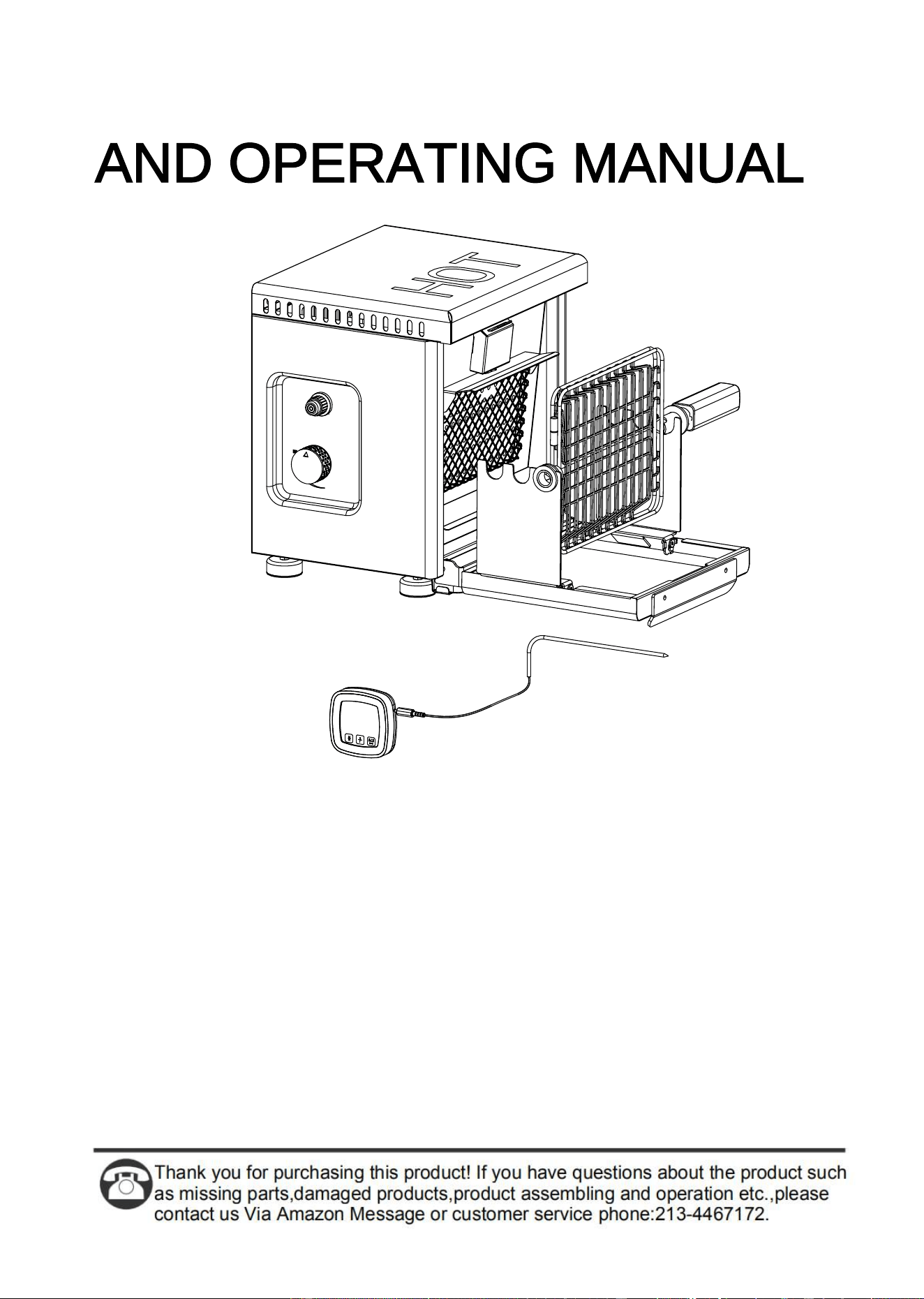

IMPORTANT INSTRUCTIONS
AND OPERATING MANUAL
IMPORTANT:
RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
MODEL GB5916

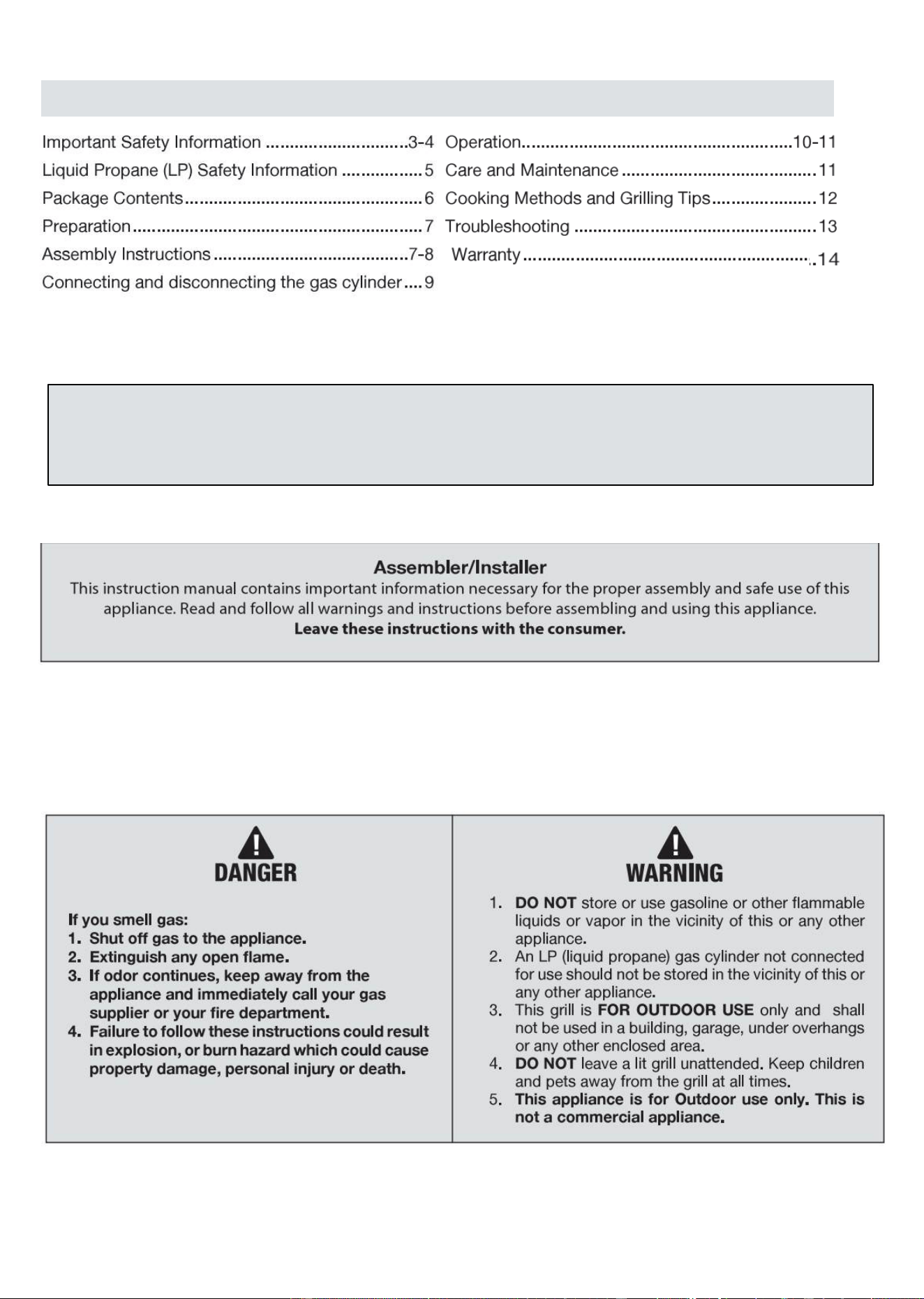

Table of Contents
Important Safety Information..............................3-4
Liquid Propane (LP) Safety Information.................5
Package
Contents..................................................6
Preparation
.............................................................7
Assembly Instructions.........................................7-8
Connecting and disconnecting the gas cylinder....9
Technical Characteristics
Heat Input: 8000BTU/H Category: Liquid Propane
Fuel: 16.4 OZ. disposable propane cylinders
Asembler/lnstaller
This instruction manual contains important information necessary for the proper assembly and safe use of this
appliance. Read and follow all warnings and instructions before assembling and using this appliance.
Leave these instructions with the consumer.
Consumer/User
Follow all warnings and instructions when using this appliance.
Keep these instructions for future reference.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance
and immediately call your gas supplier or your fire
department.
4. Failure to follow these instructions could result in
explosion, or burn hazard which could cause
property damage, personal injury or death.
WARNING
1. DO NOT store or use gasoline or other flammable
liquids or vapor in the vicinity of this or any other
appliance.
2. An LP (liquid propane) gas cylinder not connected for
use should not be stored in the vicinity of this or any
other appliance.
3. This grill is FOR OUTDOOR USE only and shall not be
used in a building, garage, under overhangs or any
other enclosed area.
4. DO NOT leave a lit grill unattended. Keep children and
pets away from the grill at all times.
5. This appliance is for Outdoor use only. This is not a
commercial appliance.
2
Important Safety Information
Warnings and Cautions contained in this
instruction manual may result in serious
njury or death, or may res in a fire or
alcohol to ignite this grill.
• This grill is an outside appliance and SHOULD NOT be
operated in a building, garage, or any other enclosed area.
• DO NOT obstruct the flow of combustion and ventilation
air. Keep the ventilation openings of the cylinder enclosure
free and clear of debris.
• Should the burner go out while the grill is in operation, turn
gas valve off, wait five minutes before attempting to relight
the grill, using the lighting instructions.
• Keep this grill clear and free from combustible material,
gasoline and other flammable vapors and liquids.
• NEVER store an extra or disconnected liquid propane
cylinder under or near this grill.
• Always use heat-resistant barbecue mitts or gloves when
operating the grill.
• DO NOT put a grill cover or anything flammable on the
grill while the grill is in operation or is hot.
• When the grill is not in use, make sure the gas is turned •
OFF at the supply cylinder.
• Cylinders must be stored outdoors and out of the reach of
children. Cylinder must not be stored in a building, garage
or other enclosed areas.
• Alw
ays check the connections for leaks each time you
connect and
disconnect the LP gas supply cylinder.
• DO NOT enlarge the valve orifices or burner ports when
cleaning the valves or burner.
CAUTION
The pressure regulator and metal hose
assembly supplied with this grill must be
used. Any requirements for a replacement
regulator and metal hose assembly must
• If a grease fire occurs, turn • OFF the burner until the fire
is out.
3
CAUTION
b do iy ult
explosion causing damage to the property.
ll is not intended to be used in or installed on
ional vehicles, boats, portable trailers, or in any
• Make sure to follow all assembly instructions carefully.
• NEVER use charcoal, lighter fluid, gasoline, kerosene or
• NEVER use charcoal briquettes or lighter fluid in a gas
grill.
• When igniting the grill or cooking, DO NOT lean over the
grill.
• DO NOT place hands or fingers at edge of the body when
the grill is hot.
• DO NOT attempt to disconnect the gas regulator and hose
assembly or any gas fitting while your grill is operating.
• DO NOT move grill while it is working.
• Keep children and pets away from the grill when it is in use.
Take care of the machine because it is hot in many parts.
• DO NOT leave a hot grill unattended or move it when
it is working.
moving objects.
• Always inspect the gas supply metal hose before every
use. If the metal hose shows any signs of abrasions or
cuts, DO NOT use the grill. The metal
hose must be
replaced before using again.
• Always check the burner and venturi tubes about insects and
insect nests. A clogged tube can lead to a fire inside the
grill.
be made through the manufacturer,
Rowan-USA.
Improper assembly of this grill may cause dangerous problem
•
.
re
T
c
h
r
i
e
s
at
gri
• Storage of an outdoor cooking gas appliance indoors is
permissible only if the cylinder is disconnected and
removed off from the outdoor c
ooking gas appliance.
• If you see, smell or hear hissing of gas escaping from the
LP gas cylinder, stay awa
y from the LP gas cylinder. DO
NOT attempt to correct the problem yourself, call the
fire department.
• DO NOT alter this grill in any manner. Any alteration
automatically will void the warranty.
• This grill SHOULD NOT be located under any overhead
unprotected combustible construction. Always allow at
least
40” from the top, bottom, back and 40” from the
sides of the grill (see below).
• DO NOT use the grill when the wind is strong.
•
This appliance will be hot during and after
use. Use insulated
oven mitts or gloves for protection from hot surfaces or
splatter from cooking liquids.
Important Safety Information
The LP gas supply cylinder to be used must be constructed
and marked in accordance with the Specification for LP Gas
Cylinders of the U.S. Department of Transportation (DOT)
or the National Standard of Canada, CAN/CSB-b339
(Cylinders, Spheres, and Tubes for transportation of
Dangerous Goods).
WARNING
A fire causing death or serious injury
may occur if the following is not
followed exactly:
NEVER store or use gasoline or other
volatile substances in the vicinity of this
grill. NEVER store a spare propane
cylinder in the vicinity of this grill, or in the
vicinity of another potential heat source.
WARNING
State of California Proposition 65 Warnings
A
WARNING
This product can expose you to
chemicals, including lead compounds,
which are known to the state of
California to cause cancer, birth defects
or other reproductive harm.
WARNING
Fuels used in liquefied propane gas
appliances, and the products of
combustion of such fuels, can expose
you to chemicals including carbon
monoxide, which is known to the state of
California to cause birth defects or other
reproductive harm.
Portable LP gas grills require a fuel delivery system which is
comprised of a regulator and an L.P. gas supply cylinder.
Set up for Grilling
1. Attached propane cylinder
2. Ready for grilling
Prepare for transporting
1. Make sure grill is cool
2. Remove propane cylinder
3. Remove & clean grease tray
4. Ready for transport
: If sure
4
PUT dust cap on cylinder valve outlet
whenever the cylinder is not in use .
Install only the type of dust cap on cy-
linder valve outlet that is provided with
the cylinder valve. Other types of caps
or plugs may result in leakage of prop-
ane.
h e
To avoid the possibility of breaking up the grill's balance,
NEVER
place more than 2 pounds in the grill basket.
Be sure to tighten all hardware (screws, nuts, bolts, etc.)
several times a year and check them out
before each grilling season
NEVER leave the machine unatteded when it is cooking food.
Keep observing the food will help it keep at an even temperature,
conserve the fuel, improve the food's flavor and lessen the flare-
ups.
to ad d amake
any
in a vehicle
ofin casethe grilltarp underneath
transporting
a
grease or oil leaks.
Caution
plastic b ag or
DO NOT store spare gas cylinder
or near the grill.
Liquid Propane (LP) Safety Information
Please review the below guidelines and safety information when using Liquid Propane (LP) gas.
General Information
Safety Information
• LP gas has an odor similar to natural gas.
• LP gas is heavier than air and leaking gas may collect in
low areas and resist dispersion.
• LP gas cylinders should not be dropped or handled
roughly.
• ALWAYS close the cylinder valve after use.
• ALWAYS close the cylinder valve when disconnecting the
regulator.
• ALWAYS treat possible empty LP gas cylinders with the
same care as a full LP gas cylinder. There may still be
gas pressure inside a possible empty LP gas cylinder.
• NEVER store or transport an LP gas cylinder where the
temperature can reach 125°F (52°C).
• Keep LP gas cylinders away from children and pets.
• If the LP gas cylinder is kept in the grill between uses,
make sure to keep both the grill and the cylinder in an
outdoor area with good ventilation.
Important
The United States LP gas appliance installation must
conform with local codes and ordinances. In the absence of
local codes, appliance installation must conform with either
the National Fuel Gas Code, ANSI Z223.1/NFPA54, Natural
Gas and Propane Appliance code, CSA B149.1, or Propane
Storage and Handling Code, B149.2, as applicable. For
Canada, installation of this grill must comply with local
codes and/or Standard CSA-B149.2 (Propane Storage and
Handling Code).
5
• This grill CANNOT be converted to natural gas. DO NOT
attempt to convert this grill to a different gas type.
• This grill is certified by ETL for use with 16.4
ounce disposable liquid propane cylinders.
• DO NOT use a damaged LP gas cylinder. A dented or
rusty LP gas cylinder or an LP gas cylinder with a
damaged valve which will be hazardous and should be
replaced with a new cylinder immediately.
• DO NOT store disconnected LP gas cylinders in a
building, garage or other enclosed areas.
• ALWAYS test the connection between the low-pressure
cylinder and the regulator for leakage when you are
replacing th low-pressure gas cylinder.
Package Contents
Part Description Quantity
1
1
2
Temperature probe
1
3
Grill Grid assembly
1
4
Grease box
1
5
1
6
6 20 Lb LP tank adapter and hose
1
Barbeacuse assembly
Grease tray assembly
Preparation
Before beginning assembly of this grill, please remove all packing material and verify that all of the assembly parts
are included (see Package Contents on pages 6). If any part is missing or damaged, DO NOT attempt to assemble
the product.
7
Assemlby Instructions
Step 1
Step 2
Step 3
Assembly Instructions
8

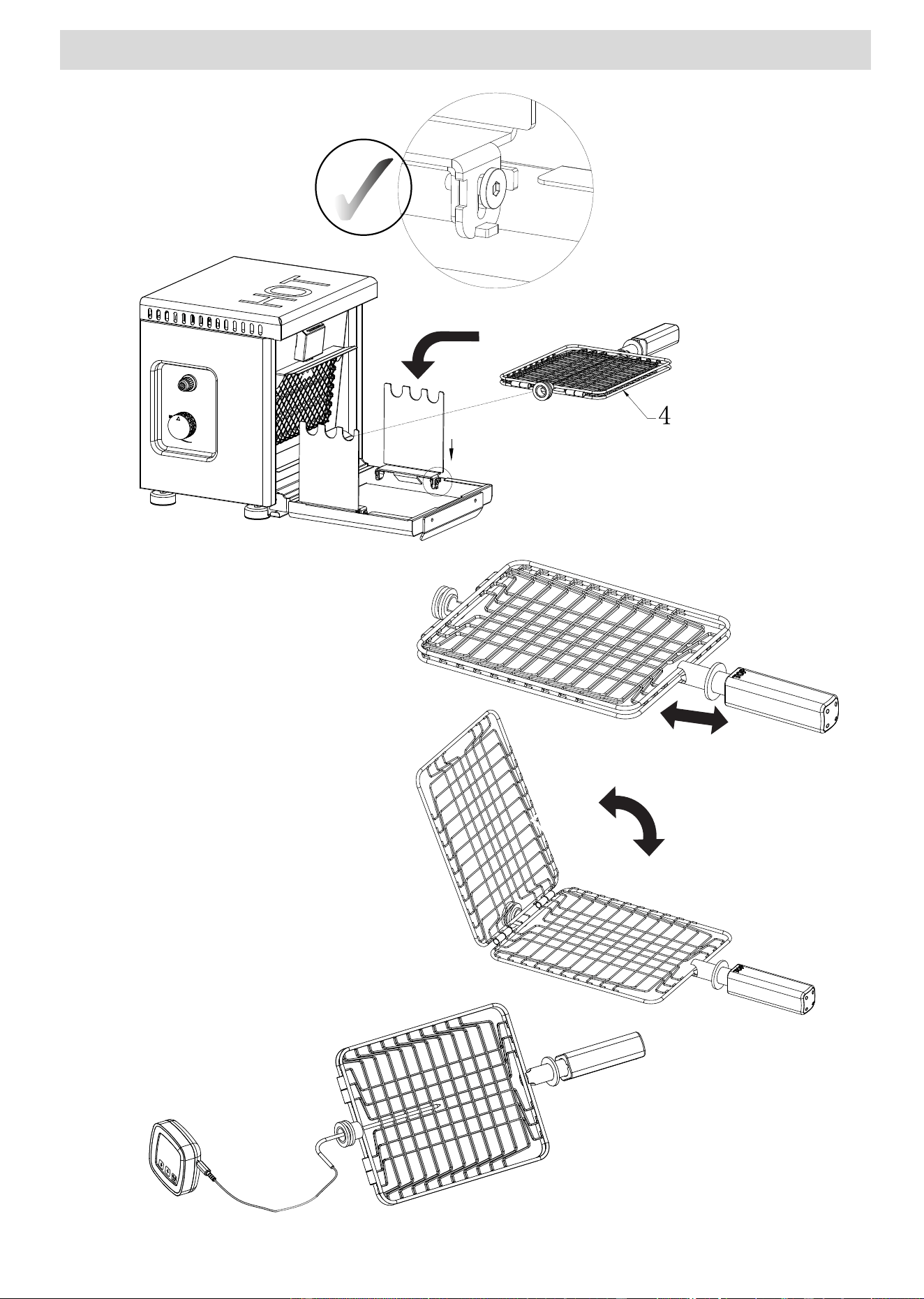

Step 4
Temperature probe
Note: Please see the operation insturction to use
the temperature probe.
Installing 16.4 ounce disposable LP Gas cylinder
NOTE: Your portable grill is set up from factory to use a
16.4 ounce disposable LP Gas cylinder.
compartment.
Only use standard 16.4 ounce LP gas cylinders with a
threaded connection (maximum size 4” wide x 8” high /
453g/1 lb).
T barbecue c also be operated with
an o do so, connect the 20 Lb LP tank
adapter and hose (5) to the cylinder's pressure regulator.
Attach the pressure regulator of the hose to the 20 Lb LP
cylinder (see operating manual).
Position the gas cylinder next to the barbecue.
A
DANGER
To prevent fire or explosion hazard
when testing for a leak:
1. ALWAYS perform the leak test
1
before
lighting the grill and each time the
cylinder is connected for use.
2. DO NOT smoke or allow other sources
of ignition in the area while conducting
a leak test.
3. Conduct the leak test outdoors in a
well-ventilated area.
4. DO NOT use matches, lighters or a
flame to check for leaks.
5. DO NOT use grill until all leaks have
Checking for Leaks
1. Make 2-3 oz. of leak solution by mixing one part liquid
dishwashing soap with three parts water.
2. Make sure the control knob is in the OFF position.
3. Spray some solution on the tank valve up to the valve
connection.
4. Inspect the solution at the connections for bubbles. If no
Make sure the connection is tight and secured.
7. Retes
t with solution.
8. If “growing” bubbles appear do not use or move the LP
cylinder. Contact an LP gas supplier or your fire
department!
9
been stopped. If you are unable to
stop a leak, disconnect the propane
supply, call the gas appliance service
or your local propane gas suppli
er.
bubbles appear, the connection is secure.
5. If bubbles appear, you have a leak. Go to step 6.
6. Disconnect the regulator from the tank and reconnect it.
an
20
he
L cb LP er.yli T
nd
Connecting and disconnecting the gas cylinder
Rowan GB5016
Use with an 20 Lb LP cylinder
Before attaching LP Gas cylinder make sure the control
knob is in the OFF position.
Remove the plastic cover from the top of the low pressure
cylinder, screw thee cylinder into the regulator and tighten it
by hand.
1. Disconnect the LP Gas cylinder from the regulator valve
when the grill is not in use.
2. DO NOT obstruct the flow of combustion air and
ventilation air to the grill.
Use the gas specified only .
Keep the grill on a level surface.
Keep the grease tray empty at start.
Placement of the
gas cylinder during use
During use, the LP gas cylinder can be stored in the rear
Operation
Prior to the first use, it is important to clean your grill with
heat. This will clean the internal parts by burning off any
residue and odor from the manufacturing process. To
perform this cleaning, operate the grill for approximately 5-
10 minutes at the highest heat setting.
IMPORTANT
Please read these instructions before attempting to light the
grill.
cylinder to appliance, open the gas supply valve if using
a 20 Lb. LP cylinder (see Instruction Manual).
4. Rotate the control knob to the MAX position and then
t£
press in
55
and hold on the knob.
5. Press the electronic igniter button until the burner is
6. Once the burner is lit continue “pressing in
55
on the
control knob for 15 to 20 seconds.
7. If the burner does not ignite, turn the control knob to the
turn clockwise to the OFF position.
A
Failure to follow the five-min waiting
period may result in an explo flare-up,
which can cause serious bo injury or
“Max” position.
3. Once the burner is lit continue “pressing in
55
on the
control knob for 15 to 20 seconds.
4. If ignition does not occur in 5 seconds, turn the burner
control off, wait 5 minutes, and repeat the lighting
procedure.
5. To extinguish the burner, push in the control knob and
io
1. Read all instructions before lighting grill.
2. Open the two side panels and insert the grease tray.
3. Either attach 1 lb. portable LP cylinder or 20 Lb. LP
WARNING
Lighting Instructions:
DO NOT lean over the open grill when
it is lighting.
ignited(you
w
ill hear a ticking sound).
OFF position. Wait for 5 minutes for the gas to dissipear
and then repeat steps 4-6.
8. To extinguish the burner, push in the control knob and
is
d
u
v
te
e
y
WARNING
death.
Always remove gas cylinder and grease tray before
transporting or storing grill.
Match Lighting
1. Strike and place a long wooden match or use a long
butane lighter to hold the flame near the ports on the
burner.
2. Push and turn the control knob counterclockwise to the
turn clockwise to the OFF posi
tion.
Moving and Storage
Caution: A collision with the grill, as with any metal object,
could cause injury. Be careful when moving a portable gas
grill.
Moving the grill:
DO NOT move the grill while it is lit or hot.
Remove liquid propane cylinder.
Clean and remove the grease tray before moving the grill to
prevent spills.
Move with the grill slowly, DO NOT run while moving the
grill.
After moving the grill:
Check all gas connections for leaks that could occur from
the movement.
Please use the following guidelines to keep your grill clean
and looking new. Before any cleaning, make sure the
control knob is in the OFF position and grill is cool to the
touch.
Cleaning the barbecue
Note: The infrared burner must not come in contact
with water.
Caution: All cleaning and maintenance should be done
only when the grill is cool & with the cut-off of the fuel-supply
clinder.fuel supply turned off at
Disposable liquid propane cylinders should be
detached from the grill during cleaning.
Replacing the batteries
The electronic ignition are powered by AAA batteries(not in-
cluded)
• Make sure all burner ports are clear of any clogs. Tip:
Use a pin or paper clip to unclog.
Steps to follow before storing grill:
Clean the grill, including the Amora bowl. For outdoor use only. If the grill is stored indoors,
detach the cylinder outdoors. If it is left outdoors,remove the cylinder and cover the grill for protection from the weather.
Grill covers may be purchased from a grill dealer.
Shutting Off the Grill
1. Close the gas supply (see operating manual).
2. Press the control knob and turn it clockwise to the 0 OFF position.
Caution: DO NOT touch hot grill parts with your bare hands! Always
use protective gloves.
Care and Maintenance
Wipe the porcelain-covered area around the burner with a
damp cloth. Do not allow any water to touch the burner.
The grill basket and the grease tray can be cleaned in the
dishwasher.
Checking the Flame
The flame coming out of the burner should be a red
combination.
To clean burner
• Make sure the burner has no damage. Change the new
burner if there is any damage on the old one.
Important: Do not leave the grill outside during the bad weather
unless it is covered(cover sold separately). Rain
water can
be
collected inside of the grill, or in the grease tray if it
is left uncovered.
Cooking Methods And Grilling Tips
Before Grilling
• Make sure that the food items are completely thawed
before grilling.
• Heat the grill on high for 5-10 minutes.
• The preheating process with high heat is necessary to
brown and seal juices of the food.
During Grilling
• Turn foods only once if possible. Juices are lost when
meat is turned several times.
12
• NEVER use water to put out the flame on a gas grill.
• Grilling conditions may require adjustments of the burner
to obtain and maintain the target cooking temperatures.
• Cooking time will be longer far location.
• The doneness of the meat will be determined by the type of
meat, the size, shape and thickness of the meat, the heat
setting or method, and the length of time on the grill.
avoid the waste of the sauce.
• Turn basket only when the juices begin to appear on the
surface.
After Grilling
When the grease tray is cool.
flare-ups from dripping grease.
• For high-fat meat and poultry, trim excess fat from meats
will shorten the preheat time. Both actions will help reduce
• Add sauces only dur
ing the last 10 minutes of cooking to
• Lightly oil the basket when cooking low-fat meat, fish or
poultry. Note that using too much oil will cause gray
ash on the food.
• Avoid puncturing or cutting the meat to test doneness.
Those actions will influence the taste of the meat.
• Require more cooking time on cold and windy days, or at
higher altitudes. On the contrary, less cooking time need in
extremely hot weather.
Troubleshooting
13
appears at ignit er t ip.
very
Wait unt il t he w ind st ops or
becomes smaller.
4. Clean t he obst ruct ions in t he burner
a
ir grilled.
1.Flare-up are normally causde by exce-
ssive fat from meat being grilled.
2.Basket is dirty.
3.The cooking temperature may be too
high.
4.Food is overcooked or burnt.
5.Grease tray is full of grease.
1.Trim fat from the meat that is go be
grilled.
2.Make sure the basket is clean.
3.Keep flame at low position.
4.Move grilling basket far away from
the burner until the flame beacomes
weak.
5.Clean grease tray.
1.Liquid proane cylinder gas level is low.
2.The 1 Lb LP cylinder may be frozen up.
Grill does not get hot
enough
1.Replace the liquid propane cylinder.
2.Turn control valve to OFF position,wait
5-10 minutes for cylinder temperature to
rise up,then relight the burner.If using for
longer periods of time,connect to a 20Lb
LP cylinder for best results.
Warranty
This Liquid Propane Gas Grill is warranted to be free of defects in material and workmanship when properly assembled,
used in a normal outdoor setting and cared for as directed in these instructions for the below time periods from the date of
the original retail purchase.
This warranty does not cover rust, fading, peeling damage or issues related to neglect, abuse, accident, misuse,
misapplication, improper assembly, transportation damages, commercial use or ANY modifications made to this product.
Repair labor is not covered. This warranty is the on
ly warranty offered and is in lieu of all other warranties, whether
expressed or implied, which includes implied warranty, merchandising or use for a particular purpose.
All replacement parts that meet the warranty requirements will be shipped at no charge via the discretion of the
manufacturer (ground shipments, US Mail, UPS or FedEx). Any special handling charges (i.e. Second Day, overnight, etc.)
will be the responsibility of the consumer.
14
1year- Stainless steel panels
1 year- All other parts
All warranty claims apply only to the original purchaser and require a proof of purchase verifying the purchase date. Do not
return parts without firstly obtaining a return authorization number from our customer service department.
Please note for the United States, that some state states do not approve the exclusion or limitation of incident or the
consequential
damages or the limitations on how long an implied warranty lasts,
so the above limitations or exclusions above
may not apply to you.
Our cus
tomer service department can be reached at 213-4467172 8:30 AM - 5:30 PM (PST) English Only, or Email
:
This warranty gives you specific legal rights and you may also have other legal rights which may vary from state to state.
IMPORTANT
22
Add:9733 Topanga Canyon Blvd. APT310, Chatsworth, CA 91311
Phone: 213-4467172
IMPORTANT
Do not return this product to the store.
Simply call our customer service department for any questions or concerns:
213-4467172
(8:30am - 5:30pm P.S.T.)
DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE.
AVIS
Ne pas retourner ce produit au magasin.
Veuillez appeler le service à la clientèle pour toutes questions au:
213-4467172
(8:30am - 5:30pm P.S.T.)
PREUVE D’ACHAT ORIGINALE REQUISE POUR SERVICE DE GARANTIE.
IMPORTANTE
No devuelva este producto a la tienda.
Sólo hay que llamar nuestro departamento de servicio
al cliente en caso de tener preguntas o inquietudes:
213-4467172
(8:30am - 5:30pm P.S.T.)
SE REQUIERE PRUEBA DE COMPRA CON FECHA PARA SERVICIO BAJO GARANTÍA.
Thank you for purchasing this product! If you have questions about the product such as
missing parts,damaged products,product assembling and operation etc.,please contact us
Via Amazon Message or customer service phone:213-4467172.
