CLIMBING BARS USER MANUAL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major top
brands and does not necessarily mean to cover all categories of tools offered by us. You are
kindly reminded to verify carefully when you are placing an order with us if you are actually saving
half in comparison with the top major brands.
- 1 -
MODEL:D01
(The picture is for reference only; please refer to the actual object)
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instructions carefully before
operating. VEVOR reserves a clear interpretation of our user manual. The
appearance of the product shall be subject to the product you received. Please
forgive us that we won't inform you again if there are any technology or software
updates on our product.
CLIMBING BARS
- 2 -
SAFETY INSTRUCTION AND PRECAUTIONS
Symbol
Symbol Description
Warning: To reduce the risk of injury, the user must read the
instructions manual carefully.
This symbol, placed before a safety comment, indicates a kind of
precaution, warning, or danger. Ignoring this warning may lead to
an accident. To reduce the risk of injury, fire, or electrocution,
please always follow the recommendations shown below.
WARNING:To reduce the risk of injury, the user must read the
instructions manual carefully. The following is highly recommended:
1.Not for public use; Only for private use.
2.The set is intended for use by children of 3 years and older.
3.Avoid the presence of children by the set installation and participation of
children in the set installation;
4.Avoid carrying out adjustments by children;
5.Always provide adult supervision when children are playing with the set;
6.Avoid using the set by more than one child at a time, if the total weight of
the users exceeds 220 lbs.
User maximum weight(except attached equipment):220Ibs;
Maximum load on the attached equipment: 110lbs
8.Always use shock-absorbing covers, such as gymnastic mats,
otherwise falling may lead to serious injuries
9.When making exercises on the set, children's clothes and shoes
must be suitable for the size. Avoid wearing chains, scarves,
hoods, clothes with cords etc. Serious injury may be caused by any part of
the children's clothing becoming entangled in the equipment.
SAVE THESE INSTRUCTIONS
- 3 -

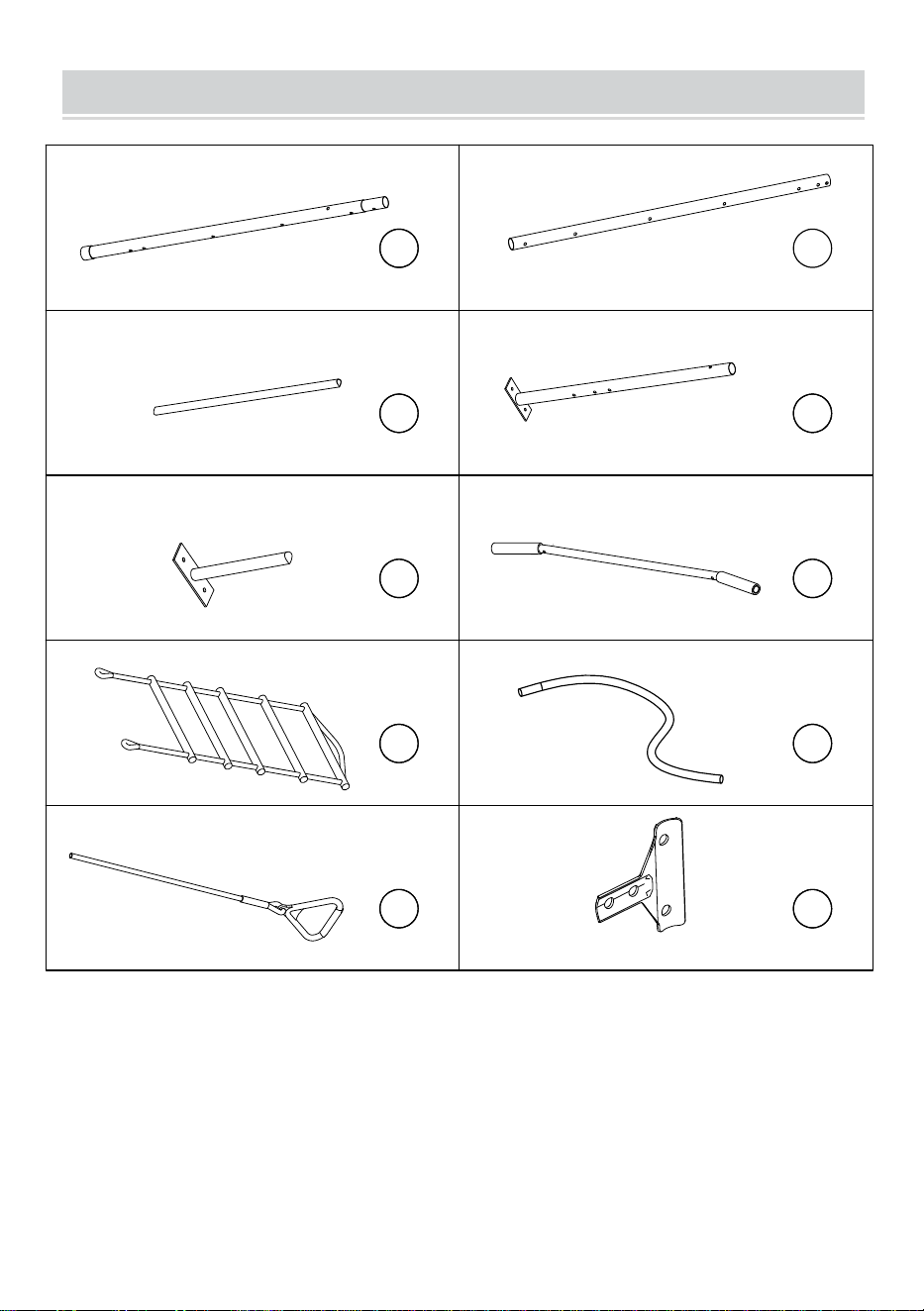

PART LIST
P1 x2 P2 x2
P4 x2
P5 x2 P6 x1
P9 x1 P10 x1
P11 x2
P3 x9
P13 x4
- 4 -

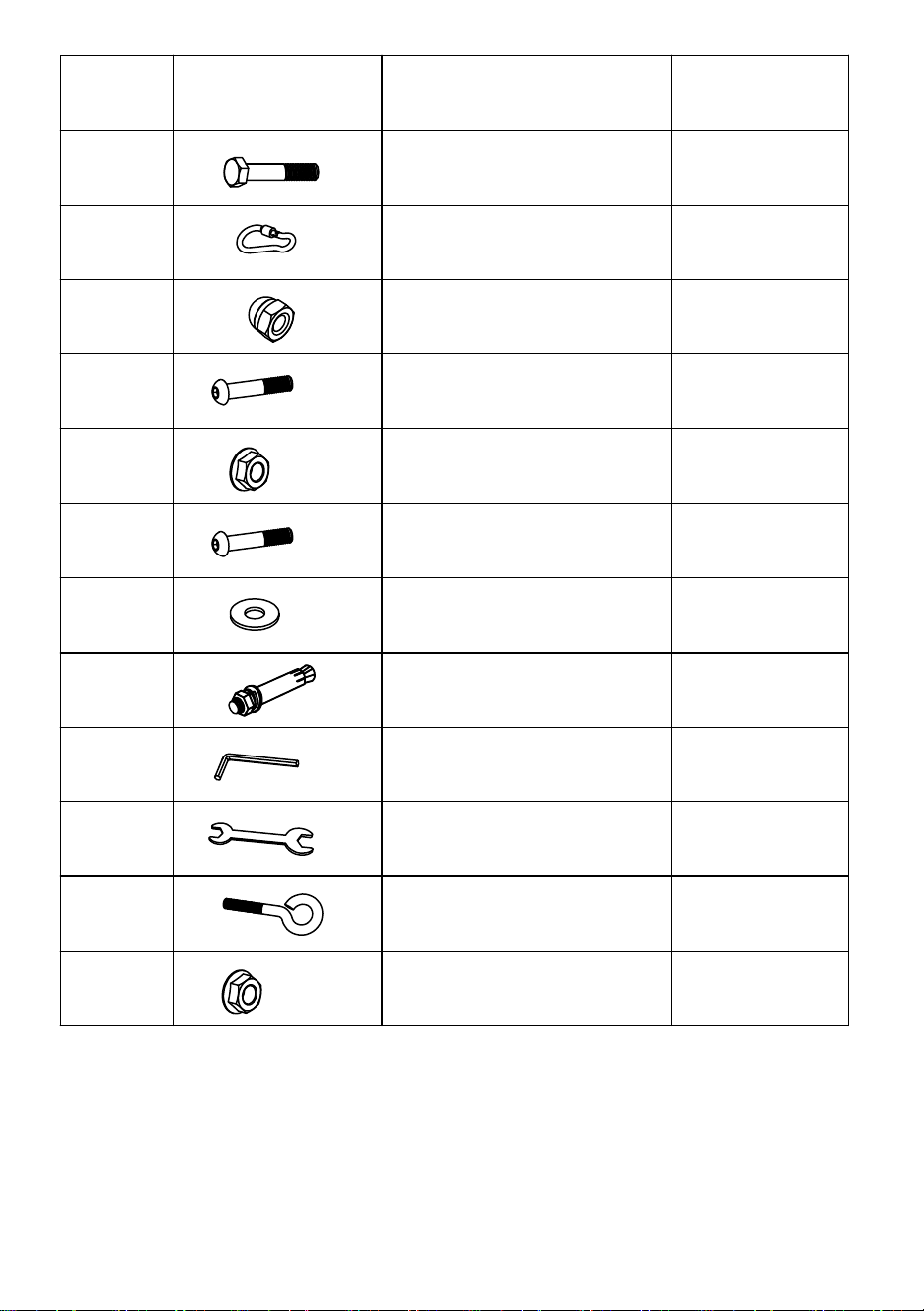

No.
1
2
Pciture Part name QTY(PCS)
Screw M10x70 2
2
3 Nut M10 4
4
5
6
Screw M10x55 28
Nut M10 8
Screw M10x50 2
7
8
9
10
11
12
Washer M10 44
Expansion Screw M10x70 8
Allen Key S6 1
Spanner S13-17 1
Screw M8 2
Nut M8 2
Carabineer
- 5 -
ASSEMBLY INSTRUCTIONS

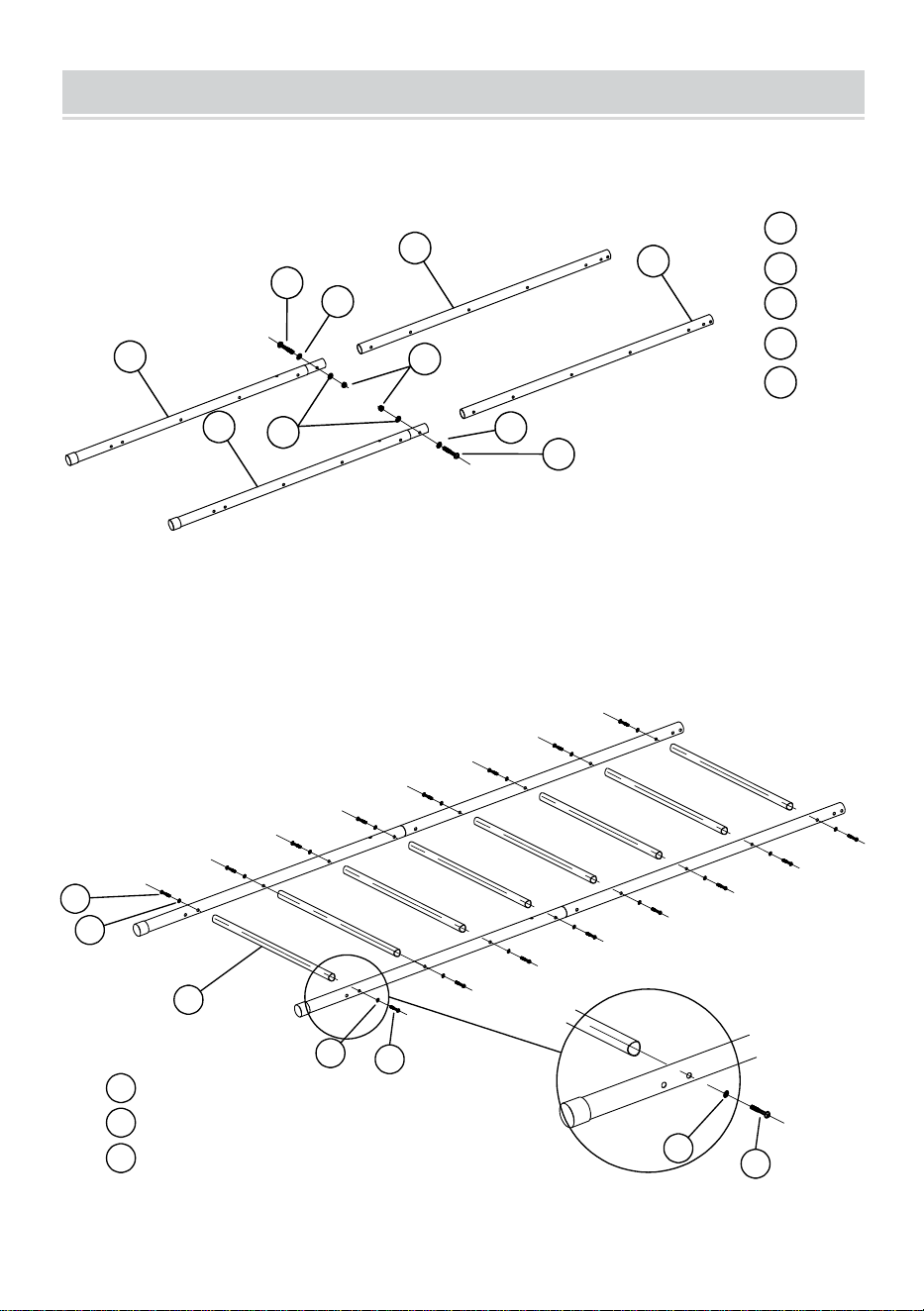

Step1: Connect the vertical bars. Tighten the screws
Step 2: Install the horizontal bars to the vertical bars. Do not tighten
screws (from step2 to step4)
P1 X2
P2 X2
3 X2
6 X2
7 X4
P1
P1
P2
P2
6
7
3
6
7
7
4
7
7
4
7
4
P3
P3 X8
4 X16
7 X16
- 6 -

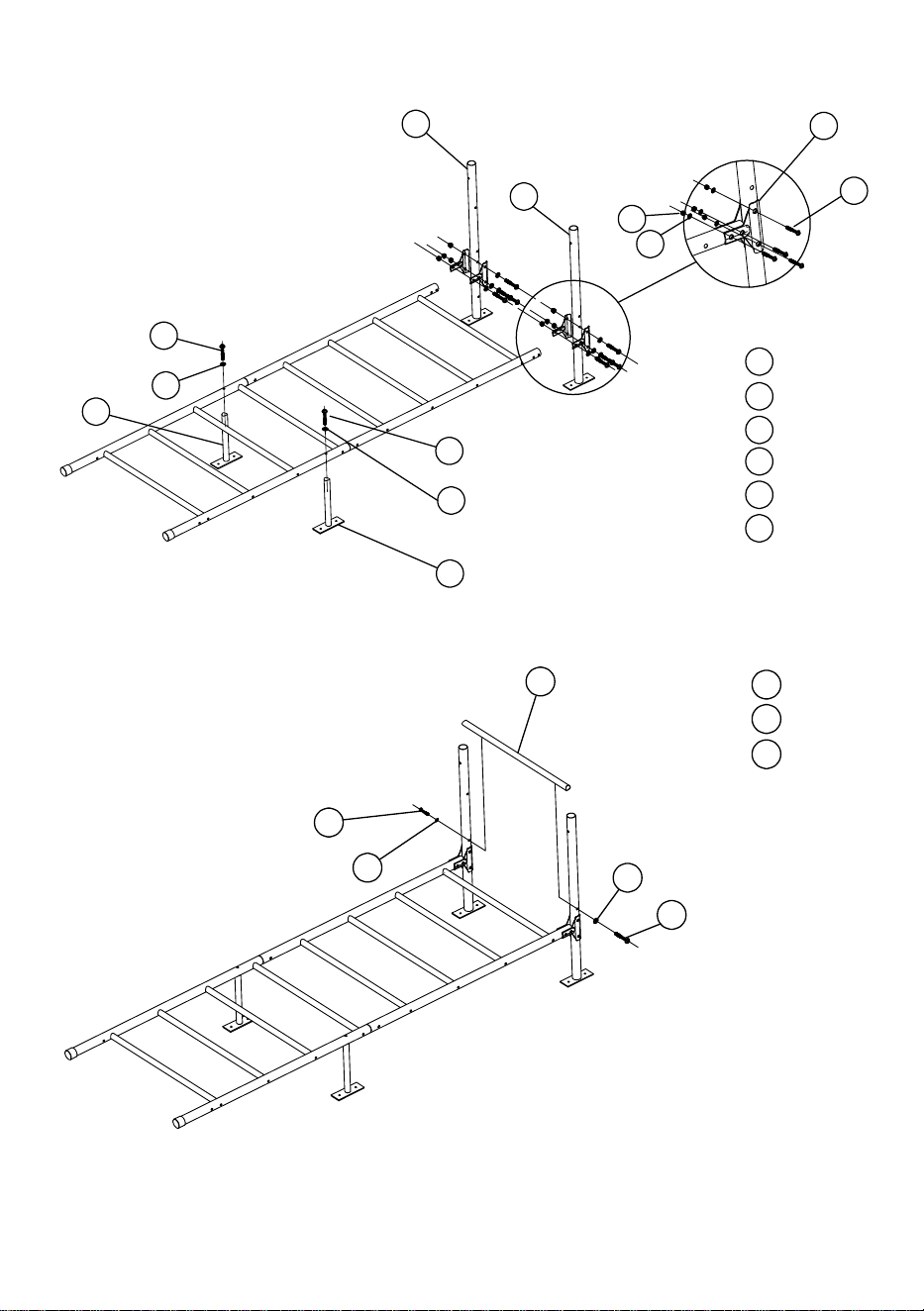

Step 3:Assemble the set
Step 4:Connect the horizontal bar to the set
4
7
5
4
7
P4
P4
P5
P5
4
7
P13
P4 X2
P5 X2
P13 X4
4 X10
7 X18
5 X8
4
7
4
7
P3
P3 X1
4 X2
7 X2
- 7 -

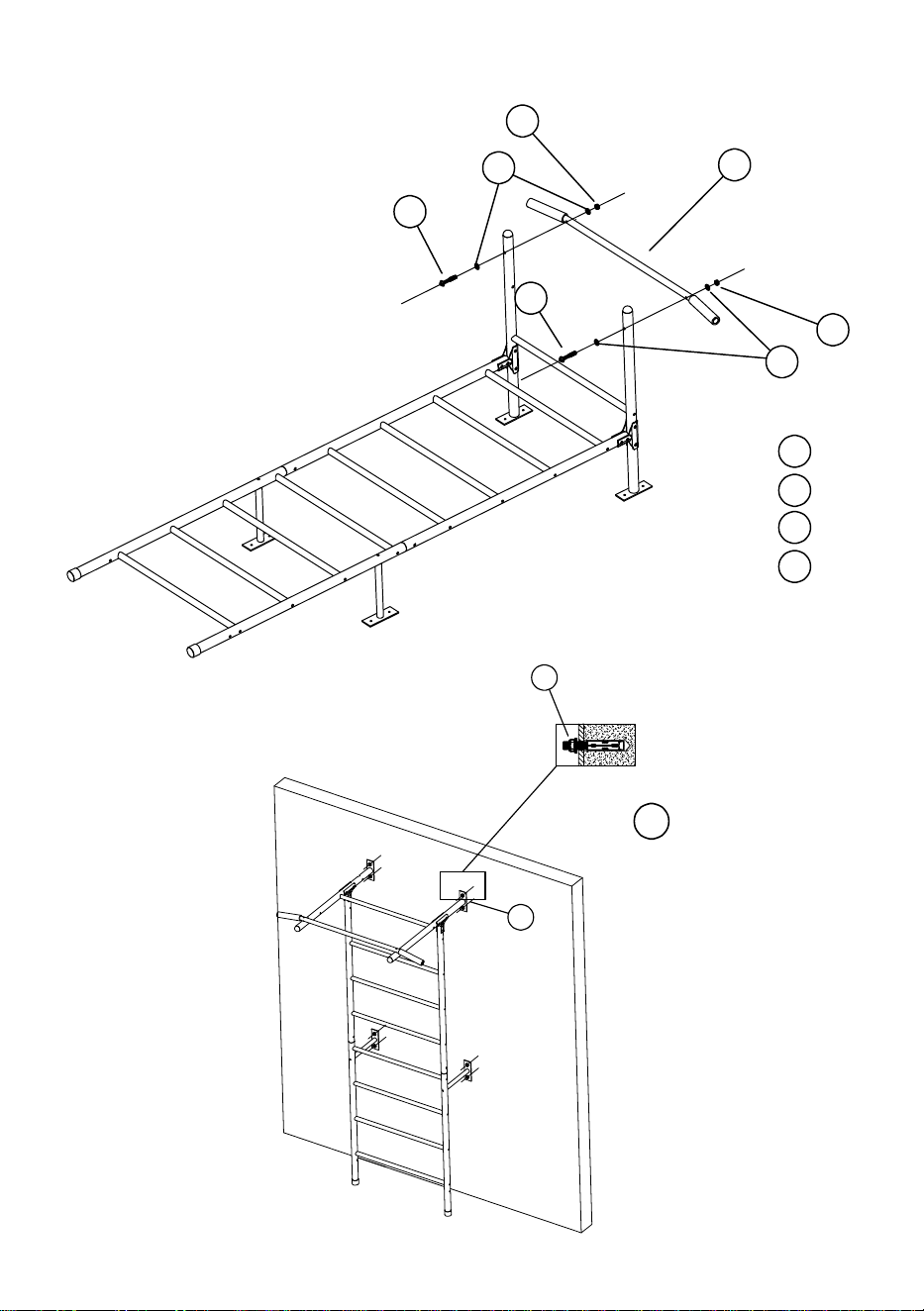

Step 5:Install the pull up bar to the set. Tighten all the screws.
Step 6:Install the set onto the solid wall
P6
3
3
1
1
7
7
P6 X1
3 X2
7 X4
1 X2
8
8
8 X8
- 8 -

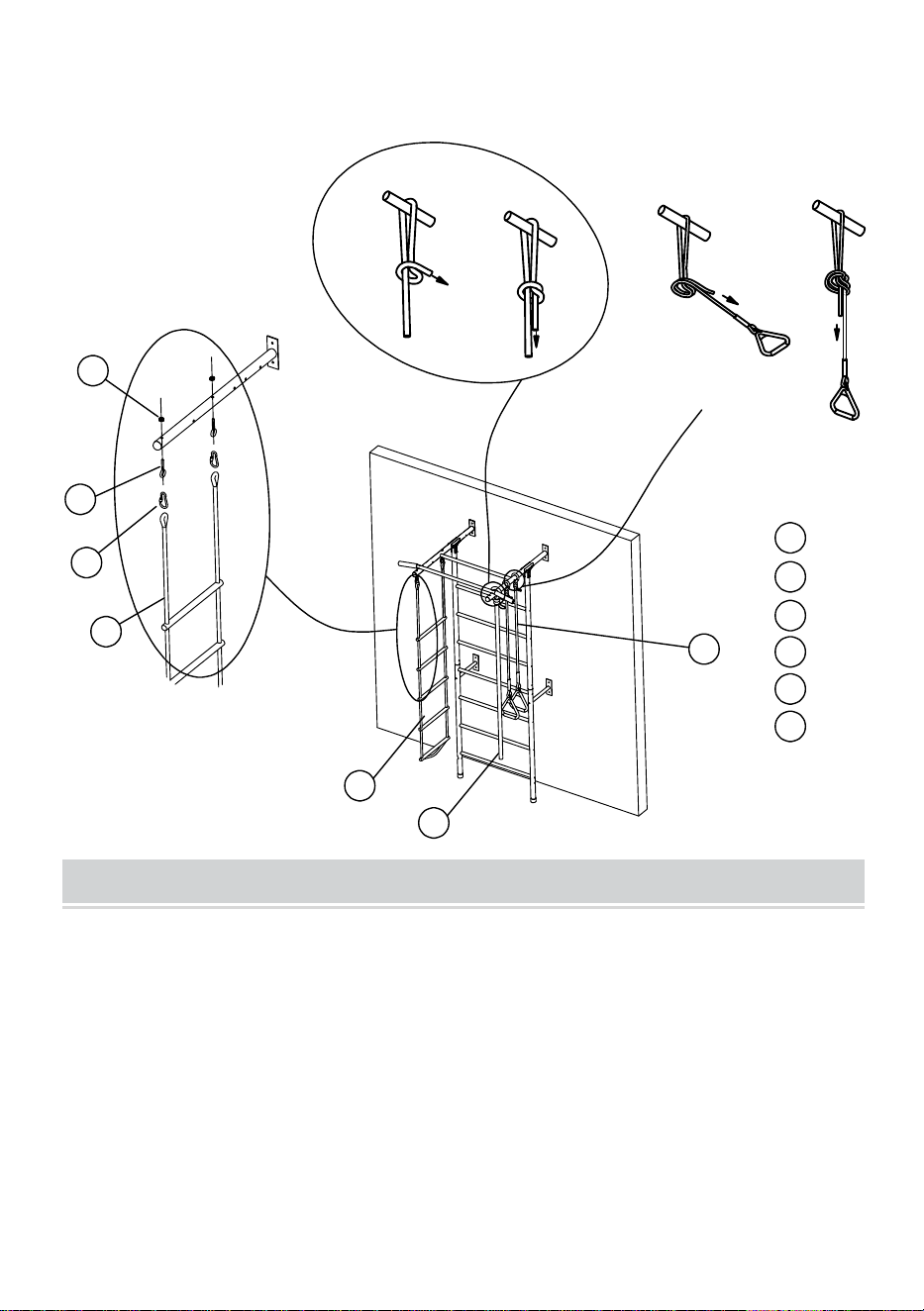

Step 7:Connect the rope ladder. Attach the rings(2pcs) and climbing
rope(1pc) to the beams as desired
EXERCISE AND PLAYING TIPS
Regular playing and exercising on the set lead to improvement of the general
physical conditions of a child(posture, appetite, sleep).To develop strength and
physical dexterity the following exercises are recommended:
-on the vertical ladder: climbing up and down the ladder, abdominal press
exercises.
-on the climbing rope: pulling up on hands, climbing up along the rope.
-on the rings: pull-ups, front(back)handspring, abdominal press exercises.
In case of non-compliance with the safety measures and guidelines for the
operation of the set a child can be injured!
12
11
2
P9
P9
P11
P9 X1
P10 X1
2 X2
11 X2
P11 X2
12 X2
P10
- 9 -
TEACH YOUR CHILD TO PLAY SAFELY
-Do not go close to moving parts, in front of moving parts, behind or between
moving parts.
-Do not twist cords holding the swing set, do not swing the empty swing set, do
not loop the swing ropes over the upper crossbar.
-Do not swing sideward on swings in relation to the adjacent swing.
-Do not twist the ropes holding any other attached equipment.
-Use the equipment only for its intended use.
-Do not leave the equipment while it is in motion.
-Do not climb the equipment and do not swing with wet hands, do not use the
wet equipment (after cleaning, for example).
-Do not stand in the rings.
-Do not use hammers, saws, nails, and wrenches on the equipment.
-Do not climb up the upper support of the swing set.
-Do not adapt to the play hardware elements that are not designed specifically
for use with this equipment,such as (the list is not limited to): jump ropes,
clotheslines, leads, cables, and chains. They can become the reason of
suffocation.
-Watch for other children while going on swings or playing close to the
equipment.
ADULTS ARE ALSO OBLIGED TO
-Set the maximum height of climbing and swinging according to physical
abilities of each child.
-Provide children with the appropriate clothes for playing. Use comfortable
shoes with slip-proof soles, sensible clothes without chains, scarves, hoods,
cords, ties, ponchos, etc. Any child's clothes part stuck in the equipment may
cause serious injuries.
-Make sure that the attached equipment is firmly mounted.
-Remember about children's creativity. Be ready to "change the rules"of unsafe
games created by children.
Scan the QR code to obtain the installation video
