Parts ManualParts ManualParts ManualParts Manual
Mfg. No: 040743-00
13,000 Watt Standby Generator With 200
Amp ATS and Symphony Choice Power
Management
Copyright © Briggs & Stratton. All Rights reserved
07-Feb-2024
Table Of ContentsTable Of ContentsTable Of ContentsTable Of Contents
Model ComponentsModel ComponentsModel ComponentsModel Components PagePagePagePage
Air Handling Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Control Panel Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Decals Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Decals Group - ATS Informational. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Decals Group - ATS Warning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Enclosure Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Manuals & Accessories Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

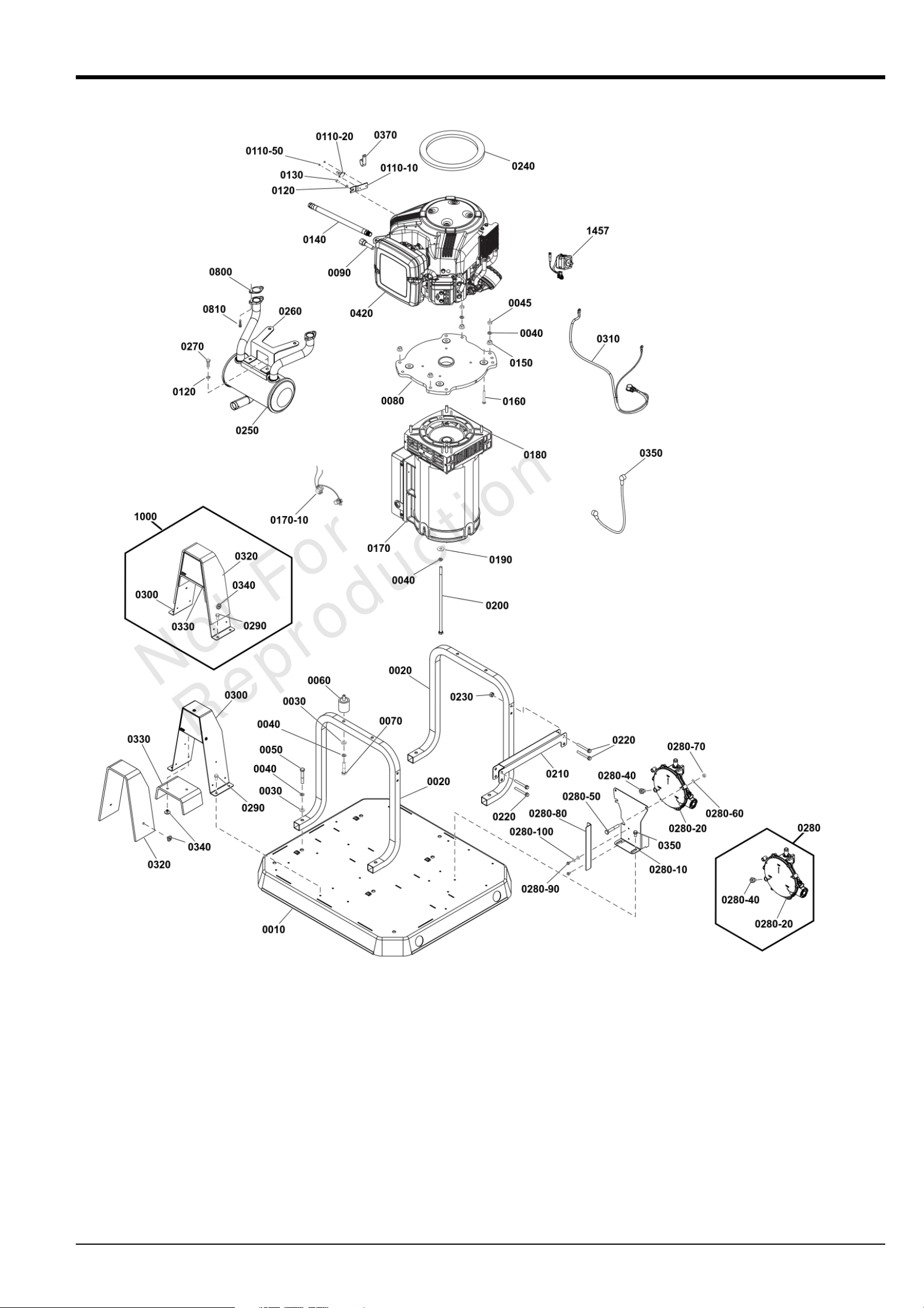

Power Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Symphony II Controller Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Transfer Switch - Hingeless Enclosure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6845-00 - Fuel Regulator Heater. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Fuel Regulator Heater. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

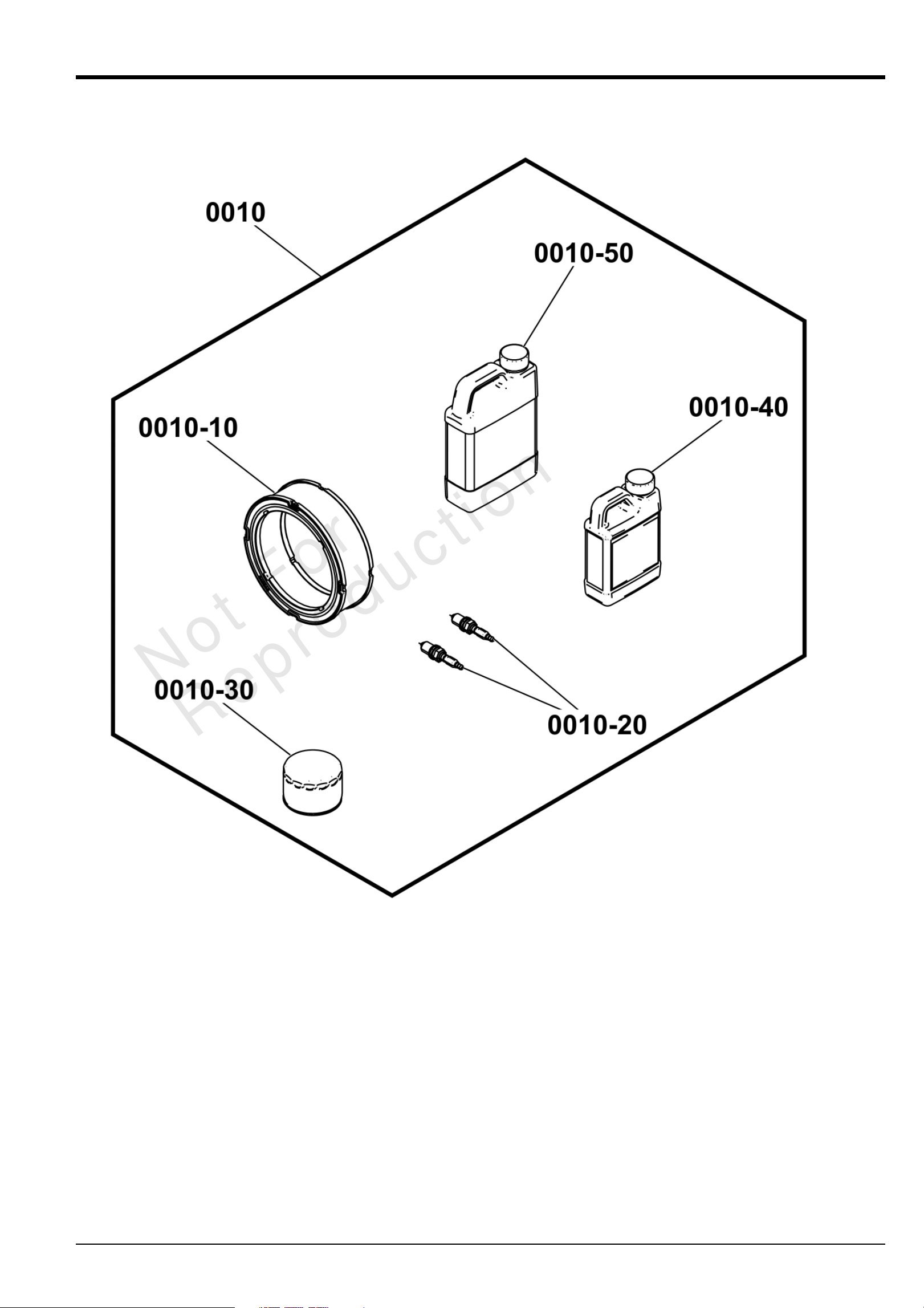

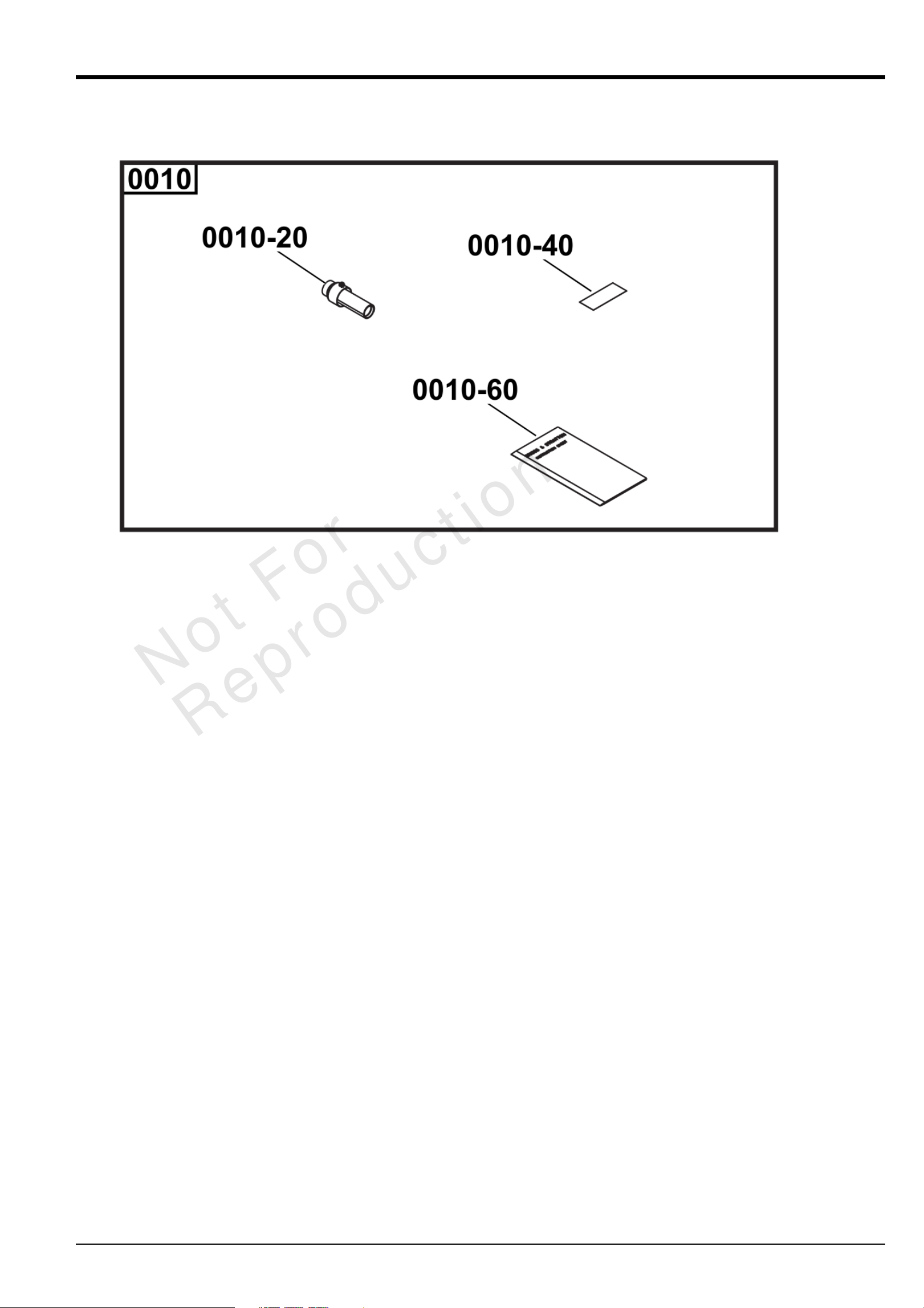

6873-00 - Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6892-00 - Spark Arrestor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Spark Arrestor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
6920-00 - Wind Brackets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Wind Brackets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

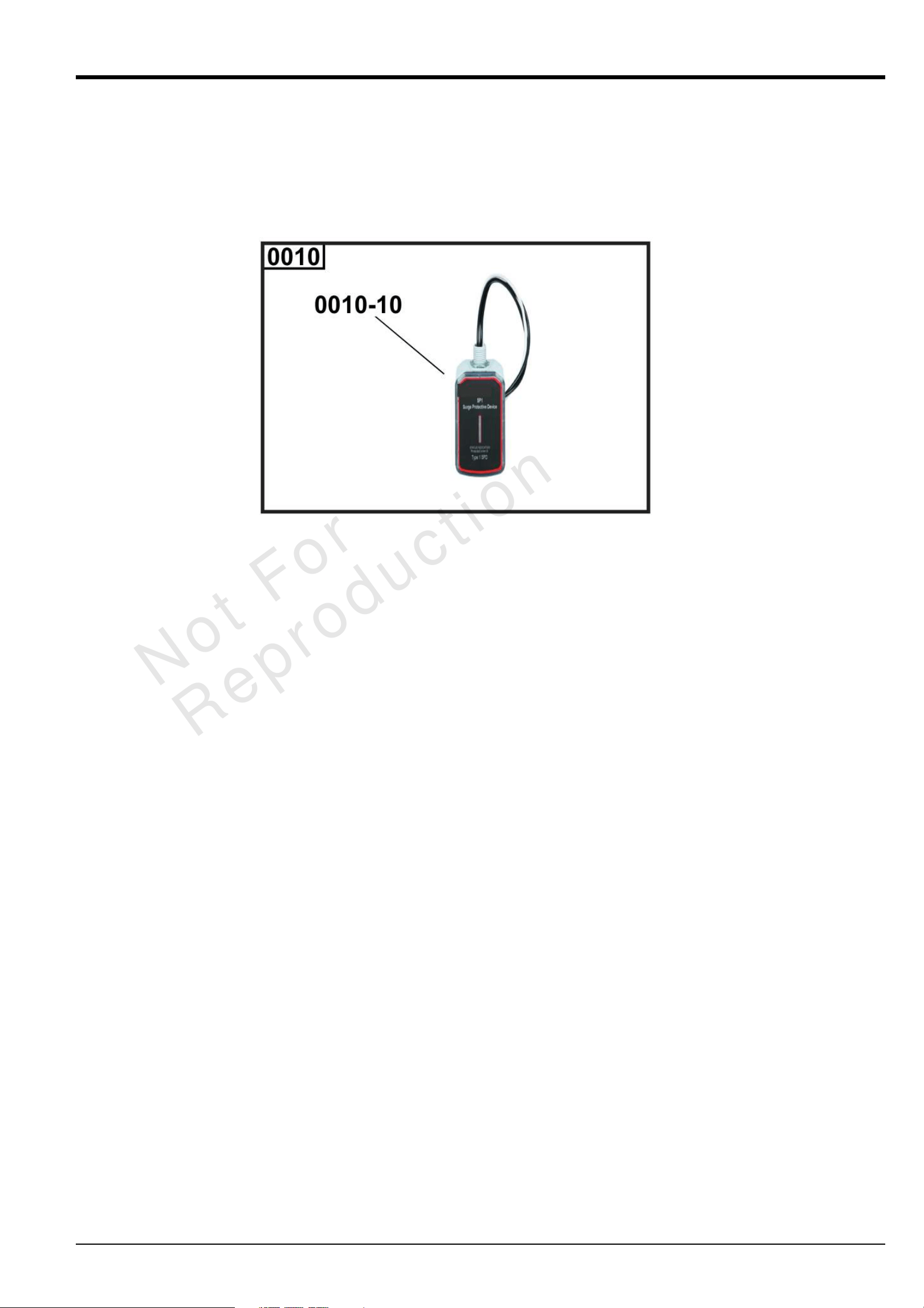

6574-01 - Infohub. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Infohub. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

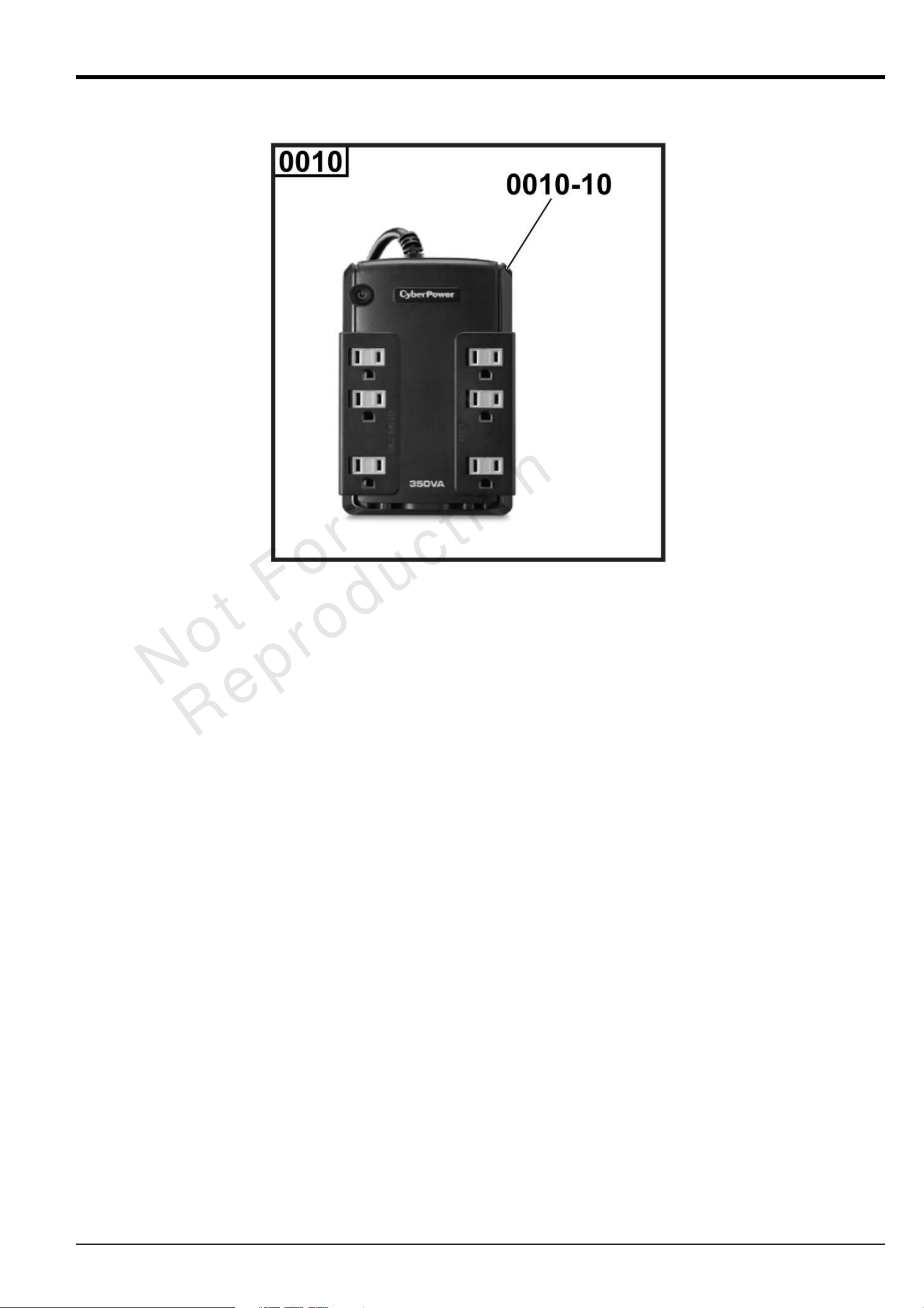

6581-00 - Uninterruptible Power Supply - (UPS). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Uninterruptible Power Supply - (UPS). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

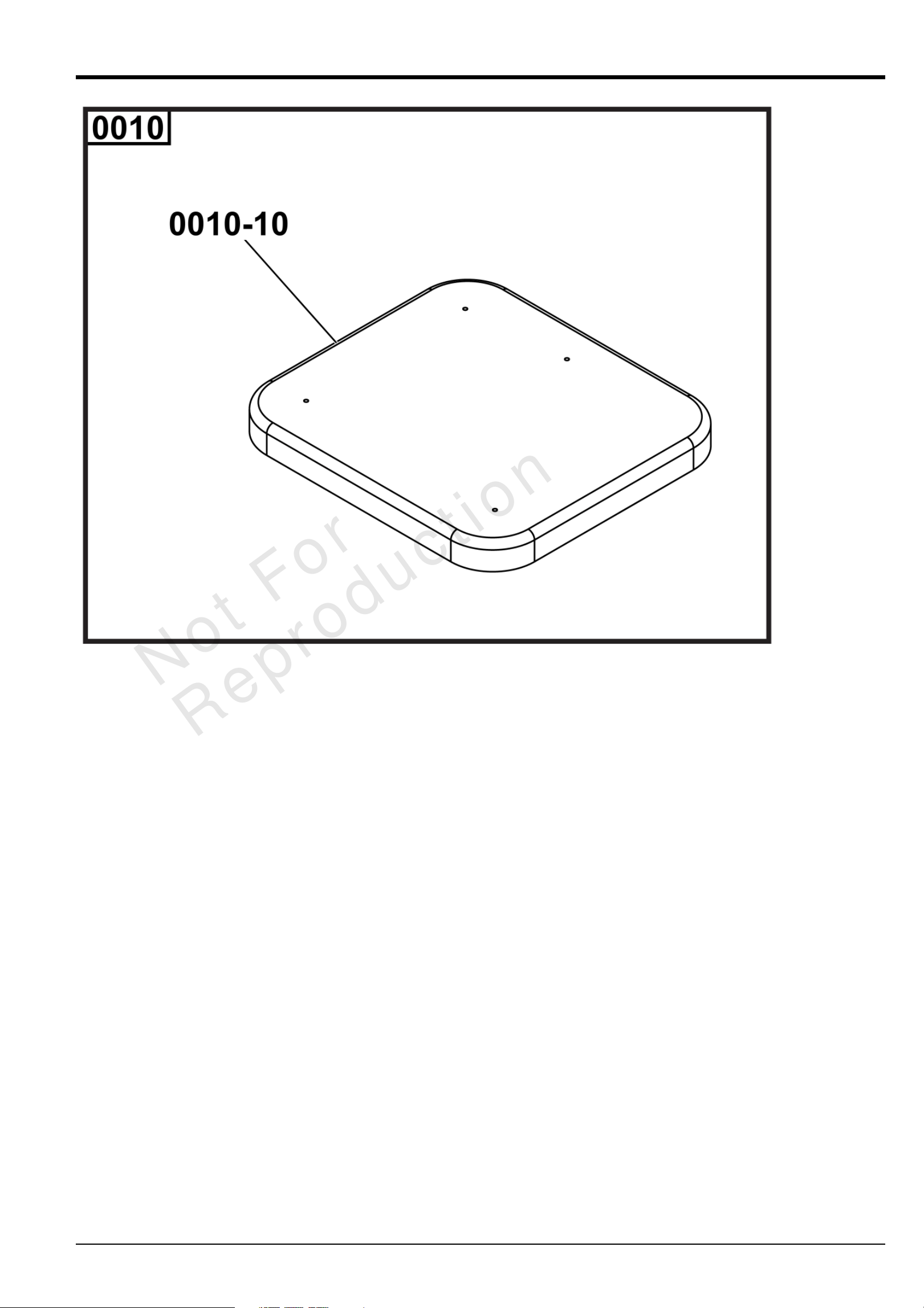

6324-01 - Concrete Pad (Non-Hurricane). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Concrete Pad (Non-Hurricane). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
6326-01 - Concrete Pad (Hurricane). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Concrete Pad (Hurricane). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
6491-01 - Estop Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Estop Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
6182-00 - Battery Warmer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Battery Warmer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

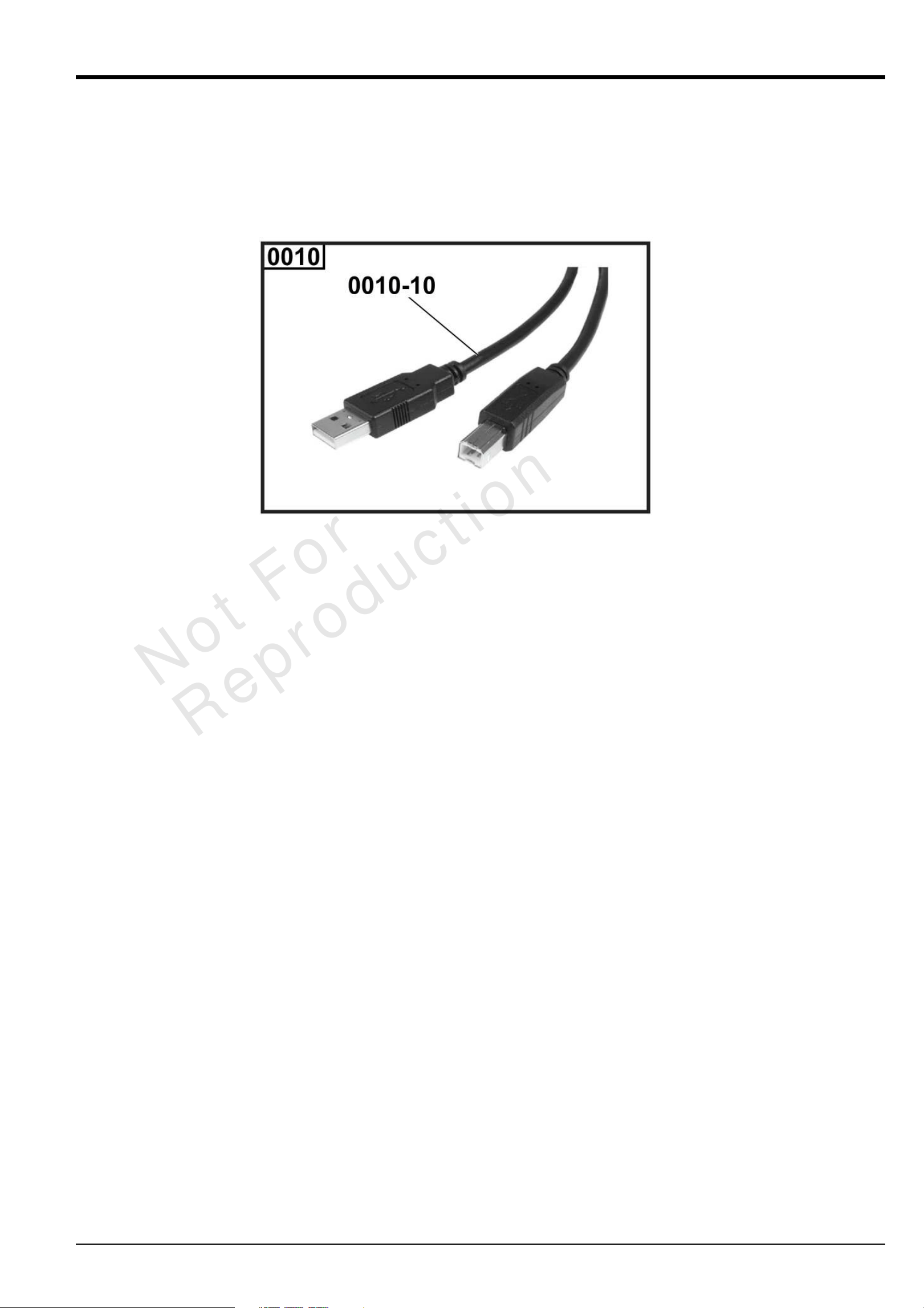

6428-00 - USB Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
USB Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
6631-00 - Surge Protective Device (SPD). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Surge Protective Device (SPD). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
6910-00 - Front Panel Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Front Panel Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
6911-00 - Right Panel Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Right Panel Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
6912-00 - Left Panel Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Left Panel Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

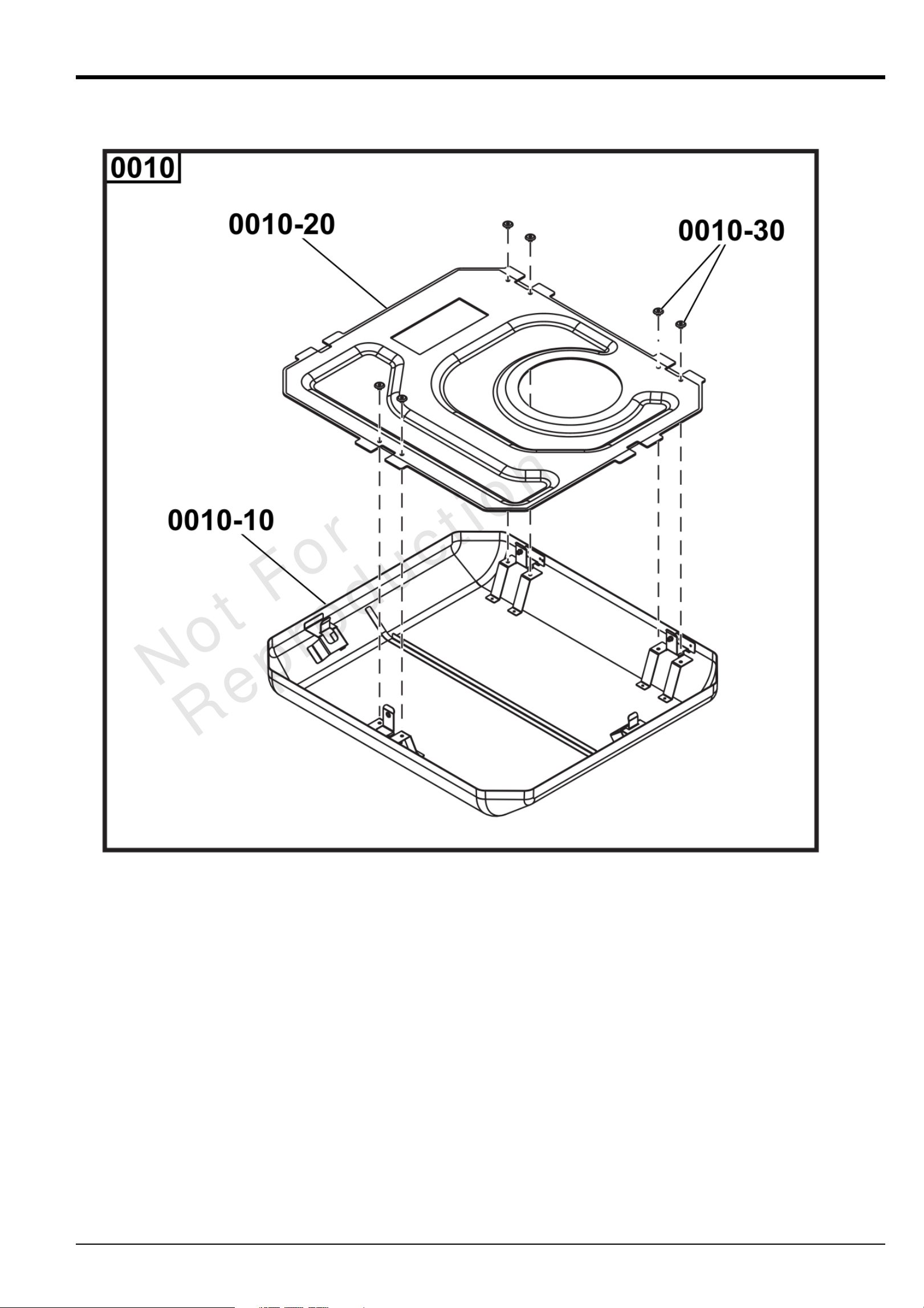

6913-00 - Roof Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Roof Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
6915-00 - Control Door Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Control Door Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
6922-00 - Oil Warmer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Oil Warmer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
6921-01 - Battery Warmer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Battery Warmer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

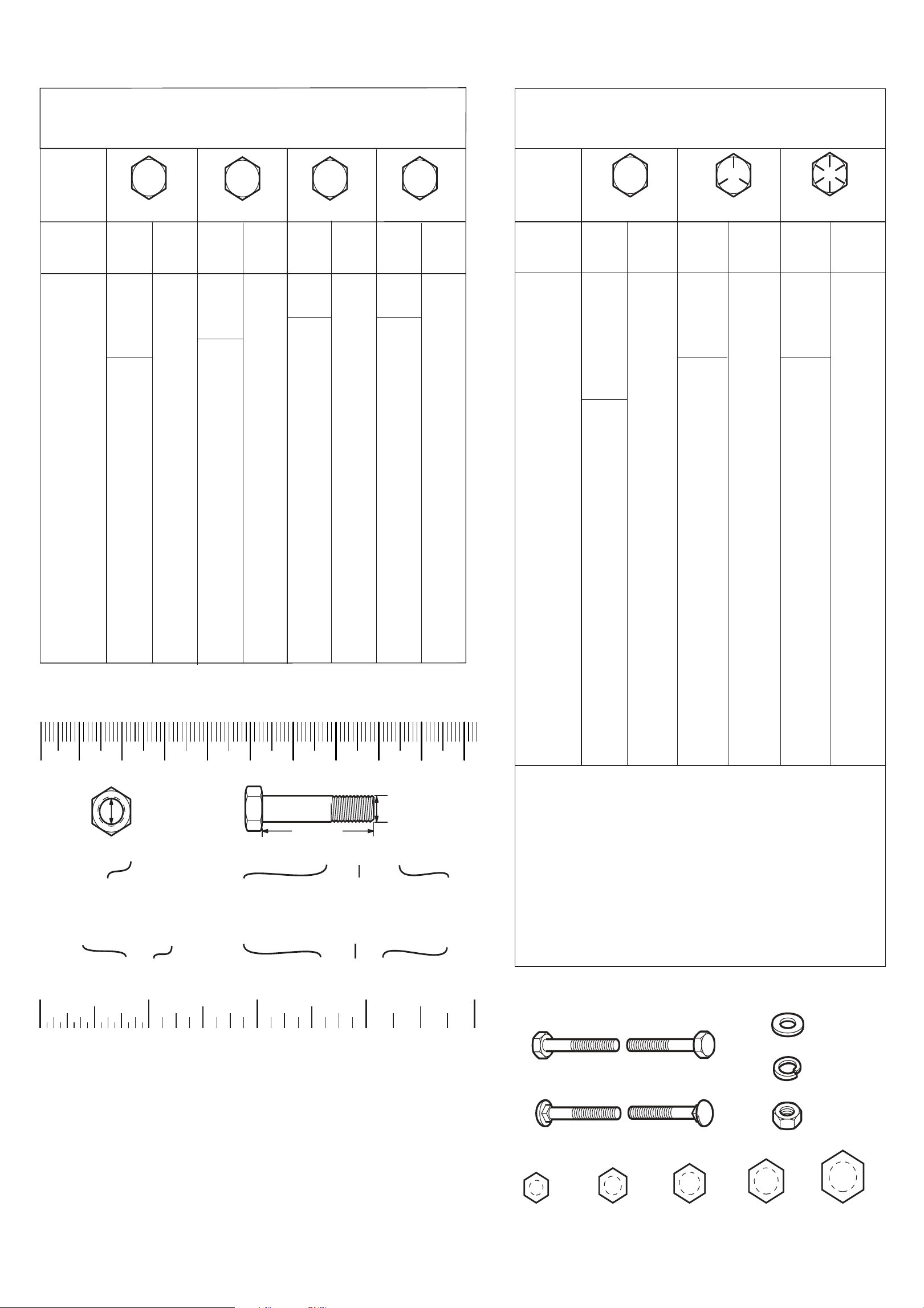

Torque Specification Chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
3 07-Feb-2024

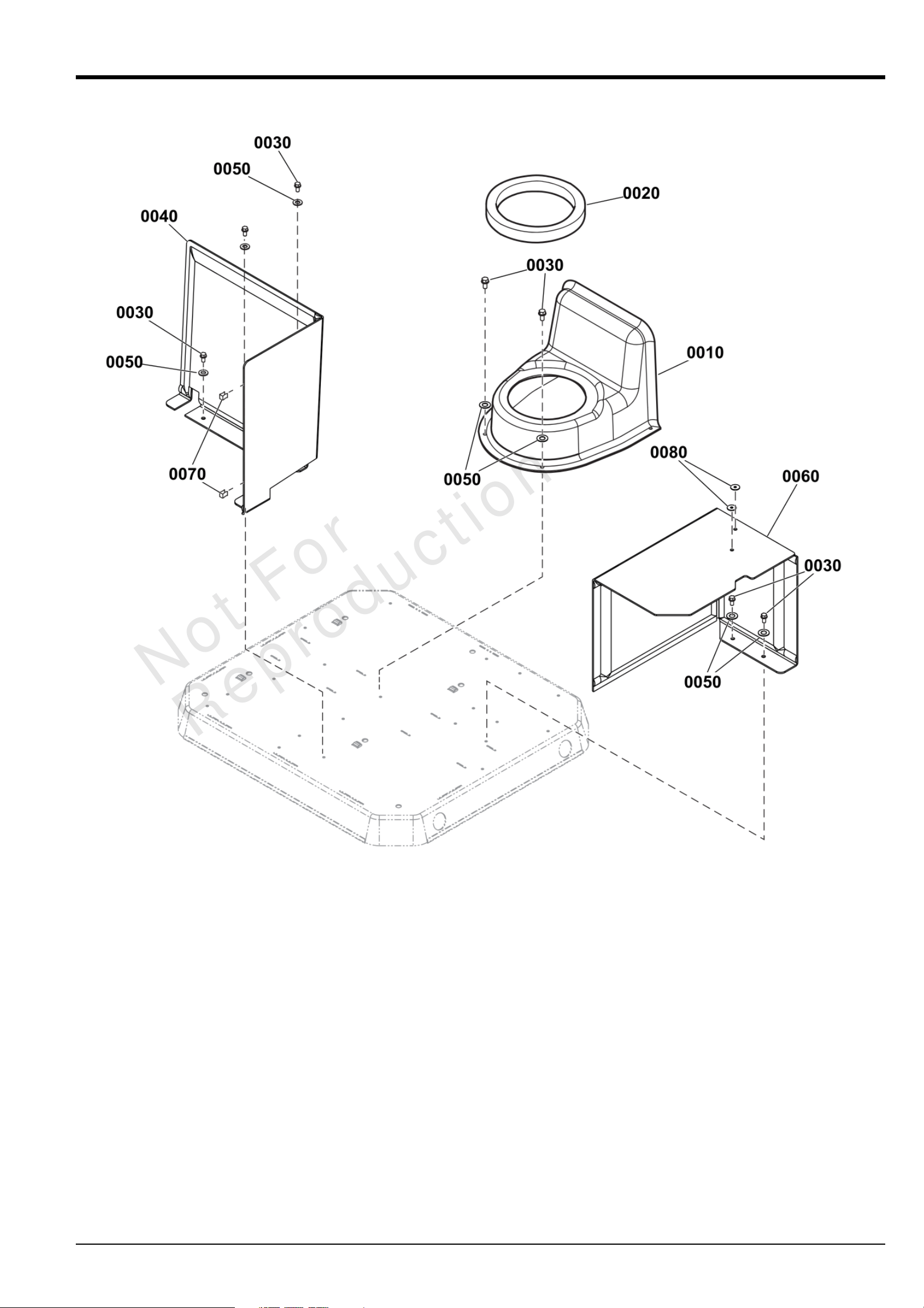

Air Handling GroupAir Handling GroupAir Handling GroupAir Handling Group
Mfg. No: 040743-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
4 07-Feb-2024
Air Handling GroupAir Handling GroupAir Handling GroupAir Handling Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 706925 1 DUCT
0020 706927 1 SEAL
0030 704130 9 SCREW, HEX, 1/4-20X.5
0040 ----- 1 PANEL, Duct, Exhaust
0050 703350 9 WASHER
0060 ----- 1 PANEL, Box, Battery
0070 314661GS 2 CLIP
0080 ----- 2 WASHER, Flat, #10, Fender
-(*See footnote)
Note:* Items without part numbers are common fasteners and are available at your local hardware store.
Footnotes:Footnotes:Footnotes:Footnotes:
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
5 07-Feb-2024

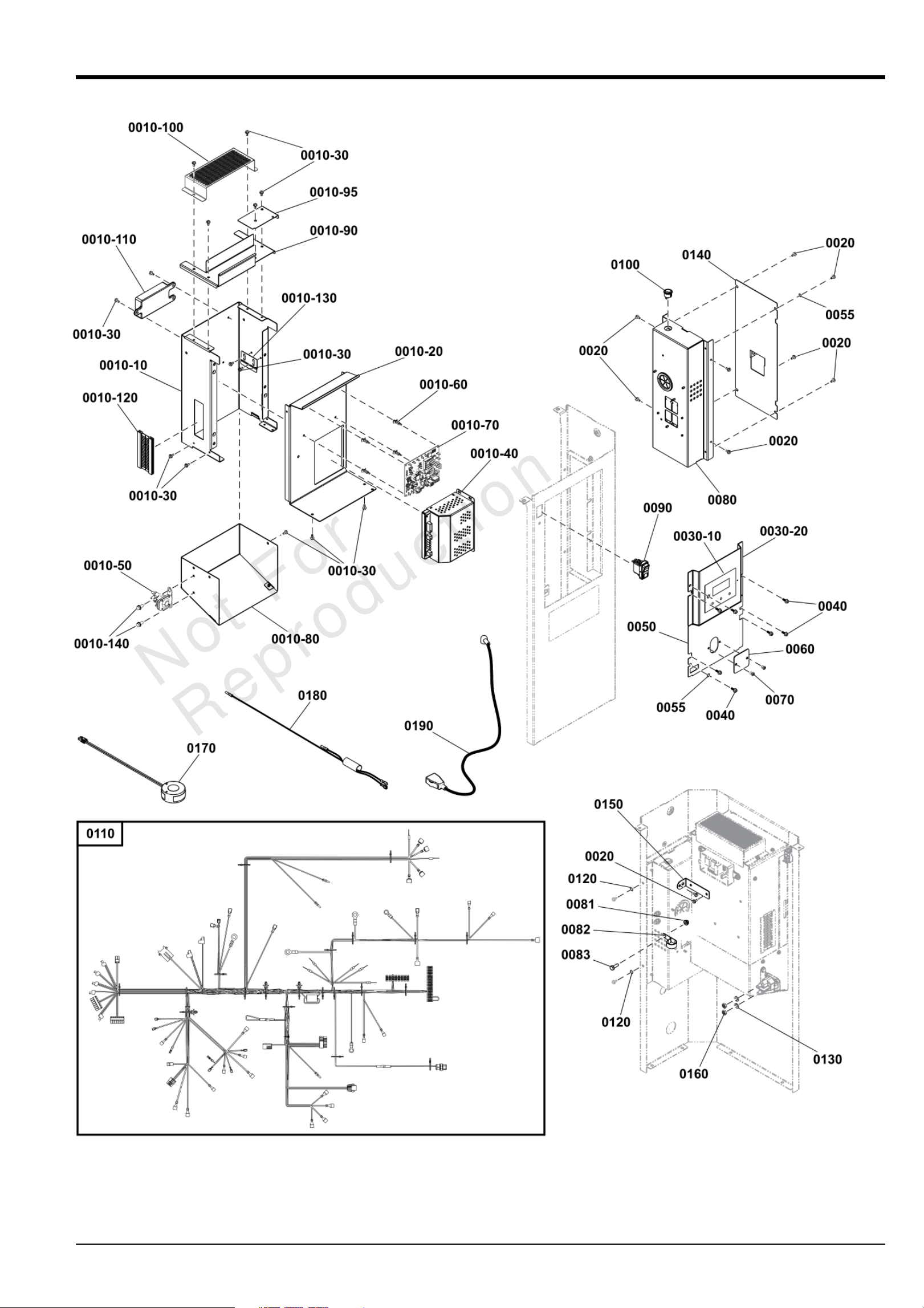

Control Panel GroupControl Panel GroupControl Panel GroupControl Panel Group
Mfg. No: 040743-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
6 07-Feb-2024
Control Panel GroupControl Panel GroupControl Panel GroupControl Panel Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010-10 ----- 1 BOX, Control
0010-20 ----- 1 DEFLECTOR
0010-30 194561GS 16 HHS, Trilobular, #10-32 x 3/8
0010-40 772376 1 CHARGER, Battery
0010-50 1755381YP 1 SOLENOID, L-BRACKET
0010-60 772379 4 SUPPORT, Circuit Board
0010-70 84010843 1 ASSEMBLY, AVR
0010-80 ----- 1 BOX, Air Duct, Controller
0010-90 ----- 1 PANEL
0010-95 ----- 1 PLATE
0010-100 ----- 1 DUCT, Control Box
0010-110 84010844 1 ASSEMBLY, Relay
0010-120 ----- 2 GROMMET
0010-130 ----- 1 BRACKET
0010-140 704130 2 SCREW, HEX, 1/4-20X.5
0020 194561GS 10 HHS, Trilobular, #10-32 x 3/8
0030-10 84007051 1 CONTROLLER
0030-20 ----- 1 COVER
0040 ----- 7 SCREW
0050 ----- 1 COVER
0055 23762GS 3 WASHER
0060 ----- 1 COVER
0070 ----- 2 RIVET, Blind, 1/8 X 5/16
0080 ----- 1 ASSEMBLY, Field Wire Box
0081 5025391SM 1 NUT, Hex Nylock, Flange, 1/4-20
0082 192669GS 1 Clamp, Hose, "J"
0083 5025010X6SM 1 BOLT, 1/4-20 X 3/4" G
0090 84010845 1 SWITCH, Rocker
0100 315551GS 1 SWITCH, Rocker
0110 84010846 1 HARNESS
0120 26850GS 2 WASHER, Ext. M6 - 1/4" Shakeproof
0130 22129GS 2 WASHER, Lock
0140 84010848 1 COVER
0150 84010847 1 BRACKET
0160 703331 2 NUT, 5/16-24
0170 772339 2 TRANSFORMER, Current, 150:5
0180 84004583 1 HARNESS
0190 84010849 1 HARNESS, Battery
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
7 07-Feb-2024
Decals GroupDecals GroupDecals GroupDecals Group
Mfg. No: 040743-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
8 07-Feb-2024

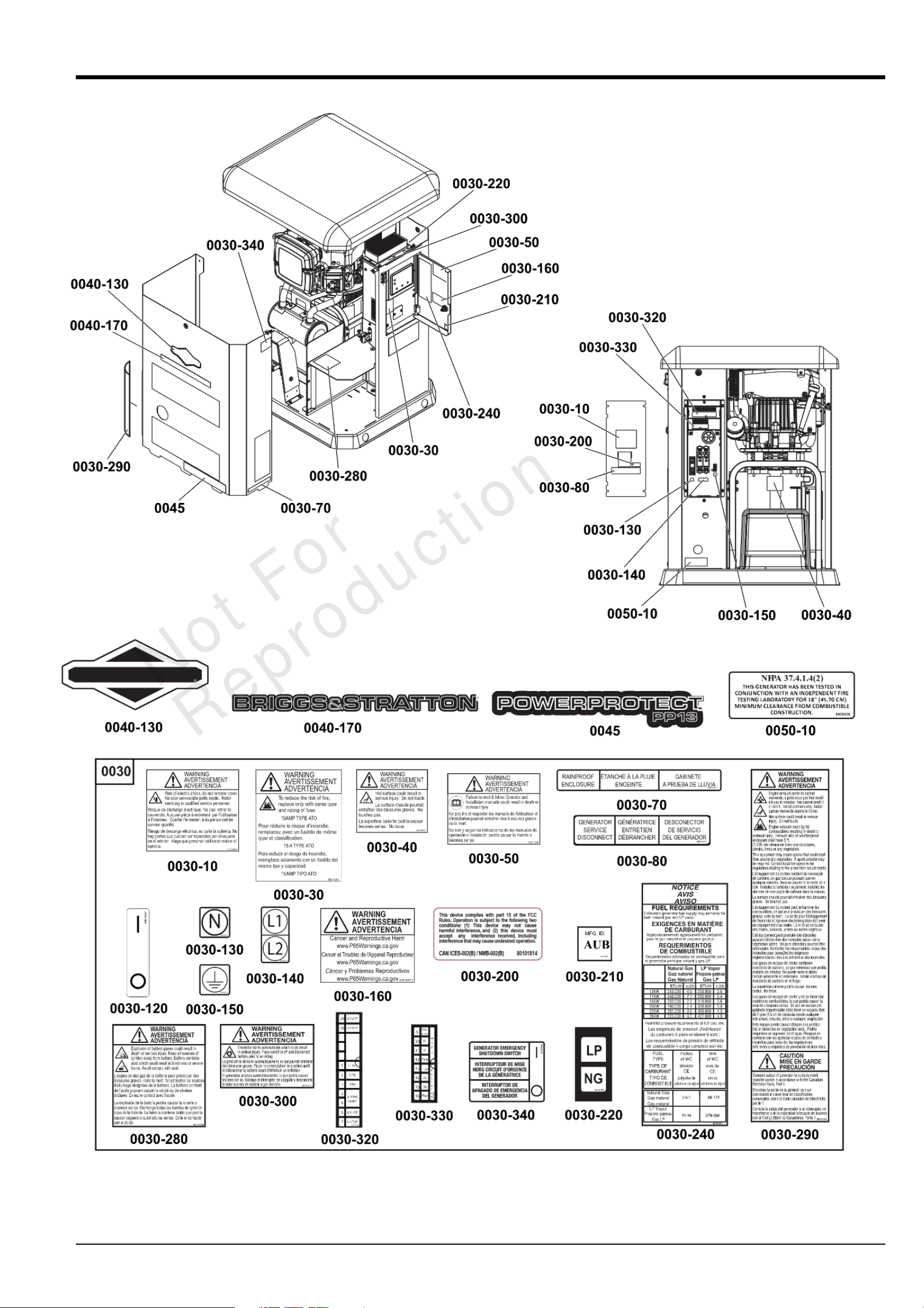

Decals GroupDecals GroupDecals GroupDecals Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0030 84010842 1 DECAL, Warning, Sheet
-(Includes items 0030-10 thru 0030-340)
0030-10 ----- 1 DECAL-WARNING, SHOCK
0030-30 ----- 1 DECAL-WARNING, FUSE
0030-40 ----- 2 DECAL-WARNING, HOT SURFACE
0030-50 ----- 1 DECAL, Warning, Manual
0030-70 ----- 1 DECAL-RAINPROOF ENCLOSURE
0030-80 ----- 2 DECAL-DISCONNECT
0030-120 ----- 1 DECAL, External Power Switch
0030-130 ----- 1 DECAL, Neutral
0030-140 ----- 1 DECAL, L1/L2
0030-150 ----- 1 DECAL, Ground
0030-160 ----- 1 DECAL, Warning
0030-200 ----- 1 DECAL, FCC, ICES-3
0030-210 ----- 1 DECAL, MOR, AUBURN
0030-220 ----- 1 DECAL, Fuel Selection
0030-240 ----- 1 DECAL, Notice Fuel Requirements
0030-280 ----- 1 DECAL, Warning, Battery
0030-290 ----- 1 DECAL, Warning, Exhaust
0030-300 ----- 1 DECAL, Warning, Auto Start
0030-320 ----- 1 DECAL, Terminal Strip
0030-330 ----- 1 DECAL, Terminal Strip
0030-340 ----- 1 DECAL, Emergency Shutdown
0040-130 ----- 1 DECAL
0040-170 ----- 1 DECAL
0045 ----- 1 DECAL
0050-10 ----- 1 DECAL, Clearance From Combustible Construction
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
9 07-Feb-2024

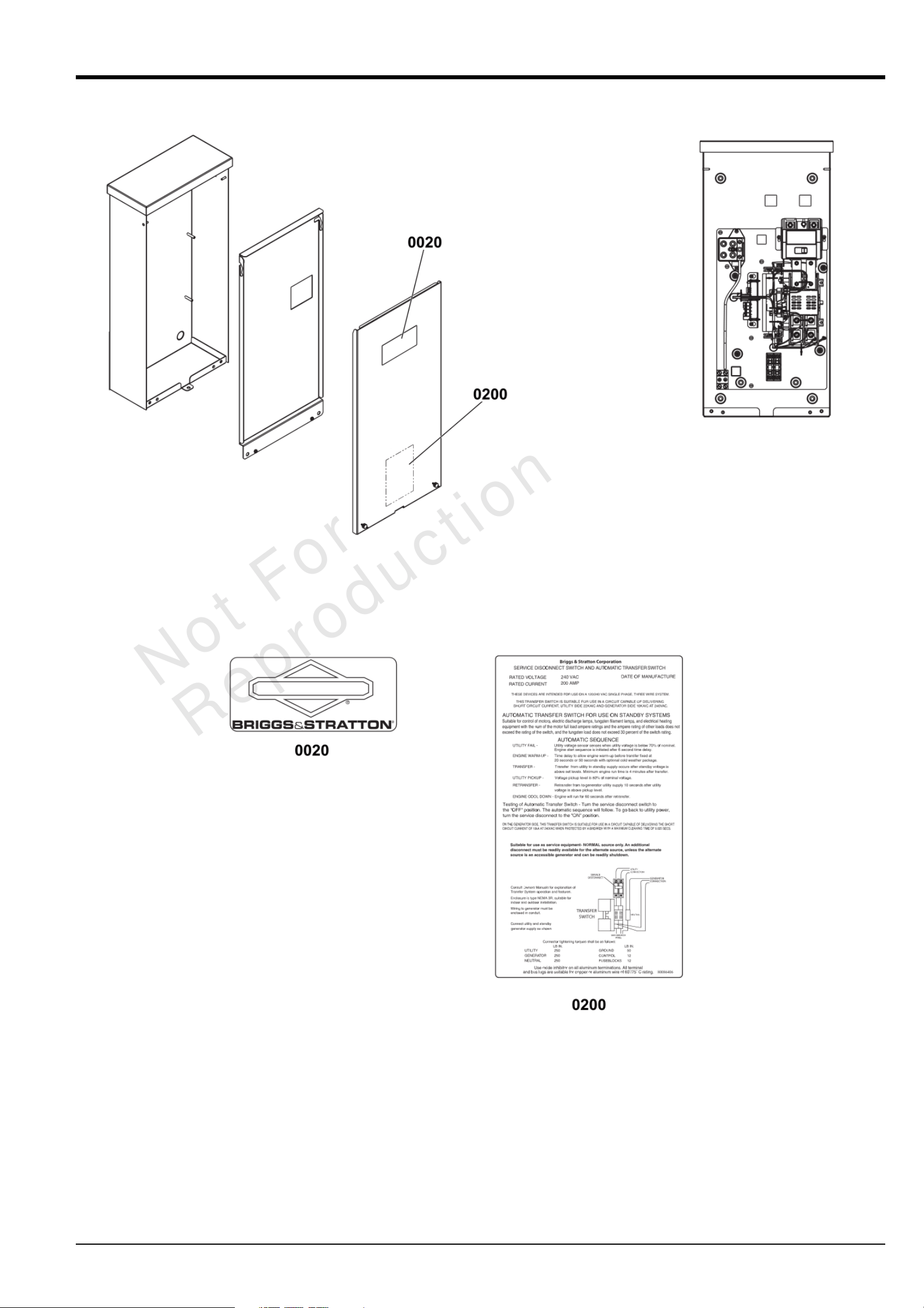

Decals Group - ATS InformationalDecals Group - ATS InformationalDecals Group - ATS InformationalDecals Group - ATS Informational
Mfg. No: 040743-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
10 07-Feb-2024
Decals Group - ATS InformationalDecals Group - ATS InformationalDecals Group - ATS InformationalDecals Group - ATS Informational
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0020 ----- 1 DECAL, Logo
0200 84004859 1 DECAL, Transfer Switch, 200A
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
11 07-Feb-2024
Decals Group - ATS WarningDecals Group - ATS WarningDecals Group - ATS WarningDecals Group - ATS Warning
Mfg. No: 040743-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
12 07-Feb-2024

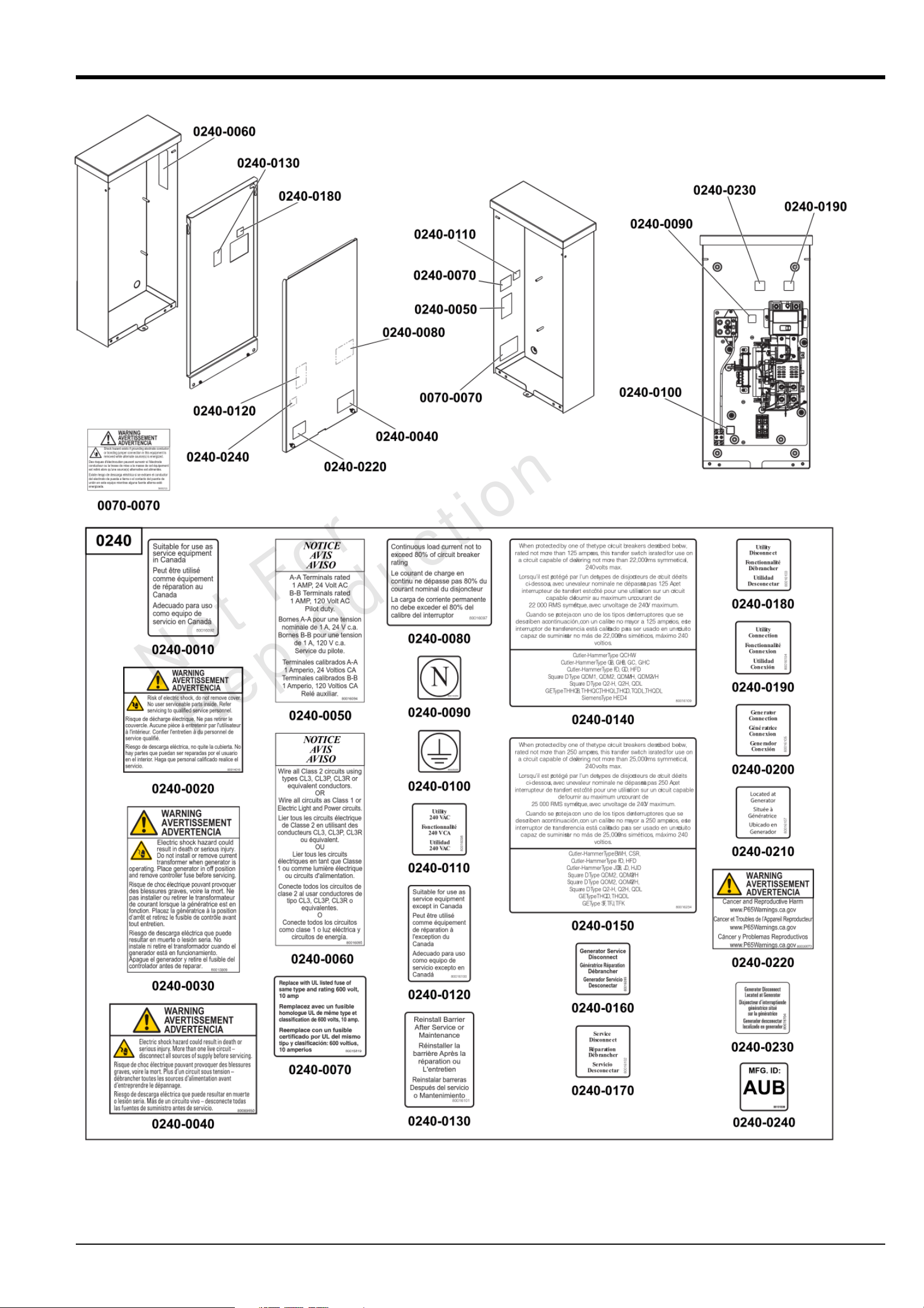

Decals Group - ATS WarningDecals Group - ATS WarningDecals Group - ATS WarningDecals Group - ATS Warning
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0070-0070 ----- 1 DECAL, Warning, Shock Hazard
0240 84007663 1 DECAL SHEET - WARNINGS
-(Includes items 0240-0010 thru 0240-0240)
0240-0010 ----- 1 DECAL, Suitable as SRV Equipment, Canada
0240-0020 ----- 1 DECAL-WARNING, SHOCK
0240-0030 ----- 1 DECAL-WARNING, ELECTRIC SHOCK
0240-0040 ----- 1 DECAL-WARNING, ELECTRIC SHOCK
0240-0050 ----- 1 DECAL, Notice, Contacts Rated
0240-0060 ----- 1 DECAL, Notice, Wire Circuits
0240-0070 ----- 1 DECAL-FUSE REPLACEMENT
0240-0080 ----- 1 DECAL, Breaker, Circuit
0240-0090 ----- 1 DECAL-NEUTRAL
0240-0100 ----- 2 DECAL-GROUND
0240-0110 ----- 1 DECAL, Utility 240VAC
0240-0120 ----- 1 DECAL, Suitable as Service Equipment
0240-0130 ----- 1 DECAL, Reinstall Barrier
0240-0140 ----- 1 DECAL, Approved Circuit Breakers, 100A
0240-0150 ----- 1 DECAL, Approved Circuit Breakers, 200A
0240-0160 ----- 1 DECAL, Generator Service Disconnect
0240-0170 ----- 2 DECAL, Service Disconnect
0240-0180 ----- 2 DECAL, Disconnect, Utility
0240-0190 ----- 2 DECAL, Connection, Utility
0240-0200 ----- 1 DECAL, Connection, Generator
0240-0210 ----- 1 DECAL, Location
0240-0220 ----- 1 DECAL, Warning
-(The installation of this decal is required for units manufactured after
08/30/2018 and sold in the state of California.)
0240-0230 ----- 1 DECAL, Generator Disconnect Located at Generator
0240-0240 ----- 1 DECAL, MOR, AUBURN
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
13 07-Feb-2024

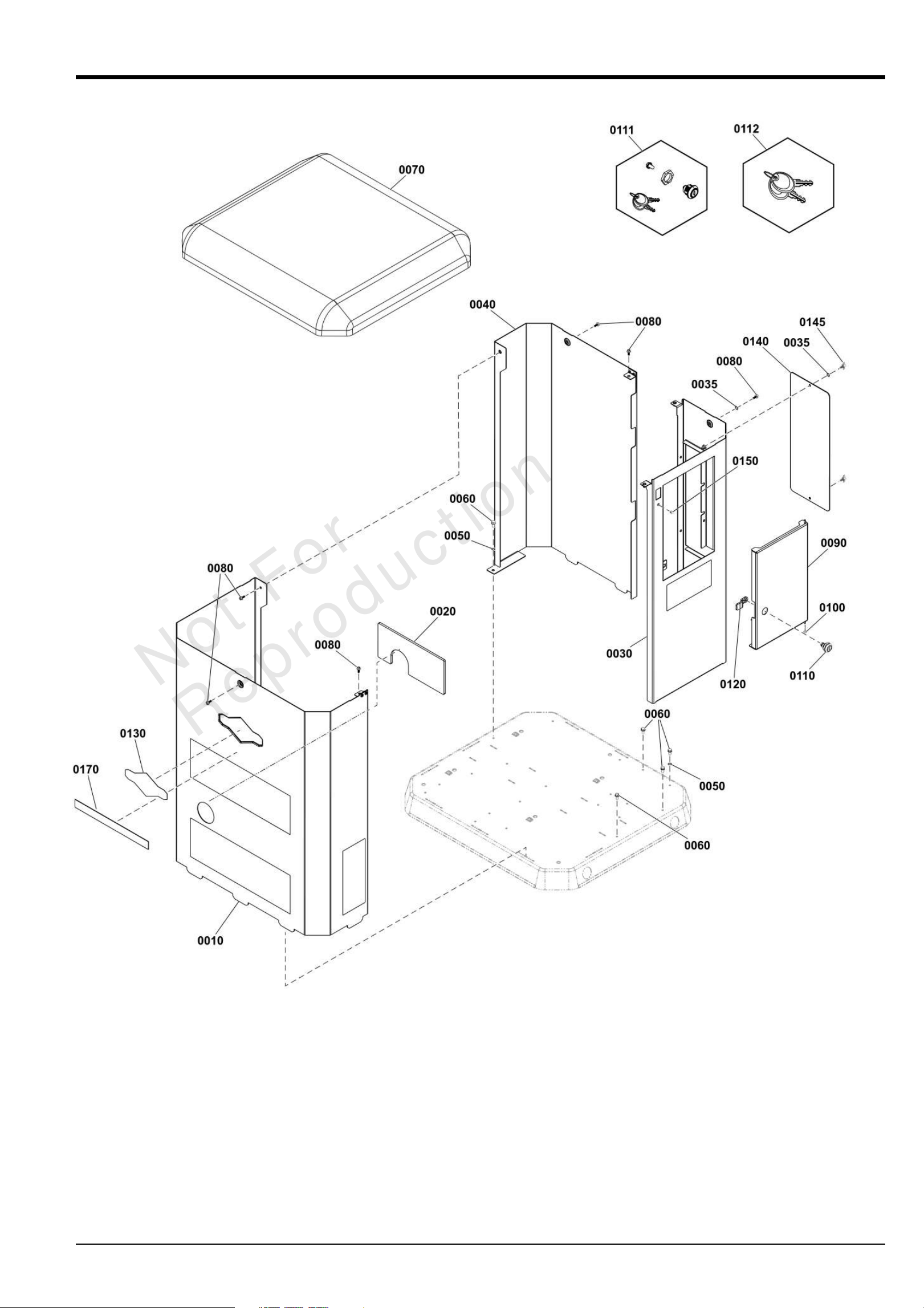

Enclosure GroupEnclosure GroupEnclosure GroupEnclosure Group
Mfg. No: 040743-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
14 07-Feb-2024
Enclosure GroupEnclosure GroupEnclosure GroupEnclosure Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6910 1 ASSEMBLY, Panel, Front
-(Reference 6910-00 Front Panel Assembly)
0020 ----- 1 PANEL, Muffler Guard
0030 6911 1 ASSEMBLY, Panel, Right
-(Reference 6911-00 Right Panel Assembly)
0035 23762GS 2 WASHER
0040 6912 1 ASSEMBLY, Panel, Left
-(Reference 6912-00 Left Panel Assembly)
0050 26850GS 2 WASHER, Ext. M6 - 1/4" Shakeproof
0060 704130 5 SCREW, HEX, 1/4-20X.5
0070 6913 1 ASSEMBLY, Roof
-(Reference 6913-00 Roof Assembly)
0080 ----- 6 SCREW
0090 6915 1 ASSEMBLY, Control Panel Door
-(Reference 6915-00 Control Panel Door Assembly)
0100 703929 1 WASHER-FLAT, NYLON
0110 314619GS 1 LATCH
0111 313745GS 1 LATCH

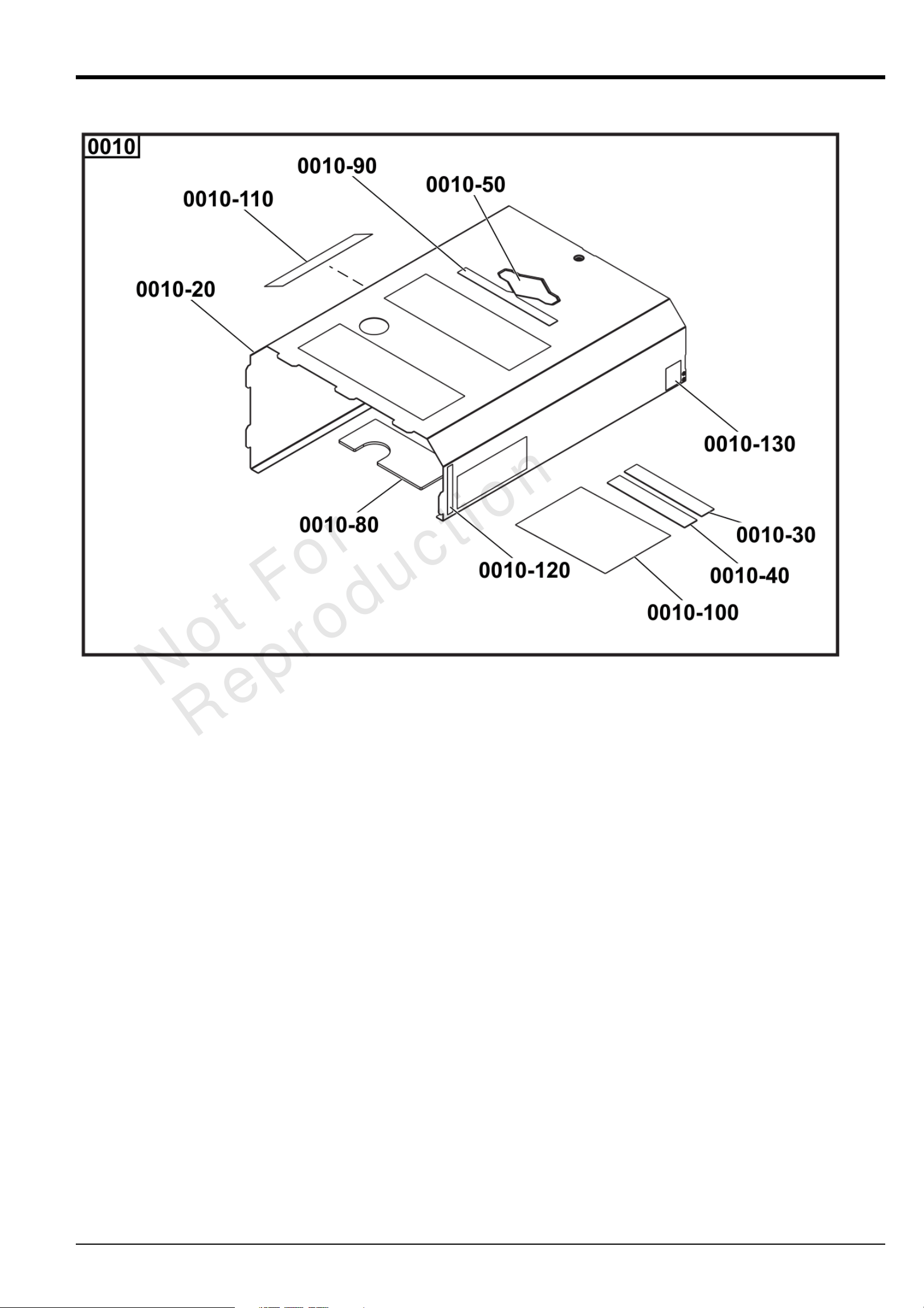

0112 314290GS 1 KEY, Latch
0120 196001GS 1 LATCH-ARM
0130 ----- 1 DECAL
0140 ----- 1 DOOR, Access
0145 ----- 2 SCREW, Thumb
0150 316193GS 1 PLUG, Roof
0170 ----- 1 DECAL
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
15 07-Feb-2024
Manuals & Accessories GroupManuals & Accessories GroupManuals & Accessories GroupManuals & Accessories Group
Mfg. No: 040743-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
16 07-Feb-2024
Manuals & Accessories GroupManuals & Accessories GroupManuals & Accessories GroupManuals & Accessories Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION

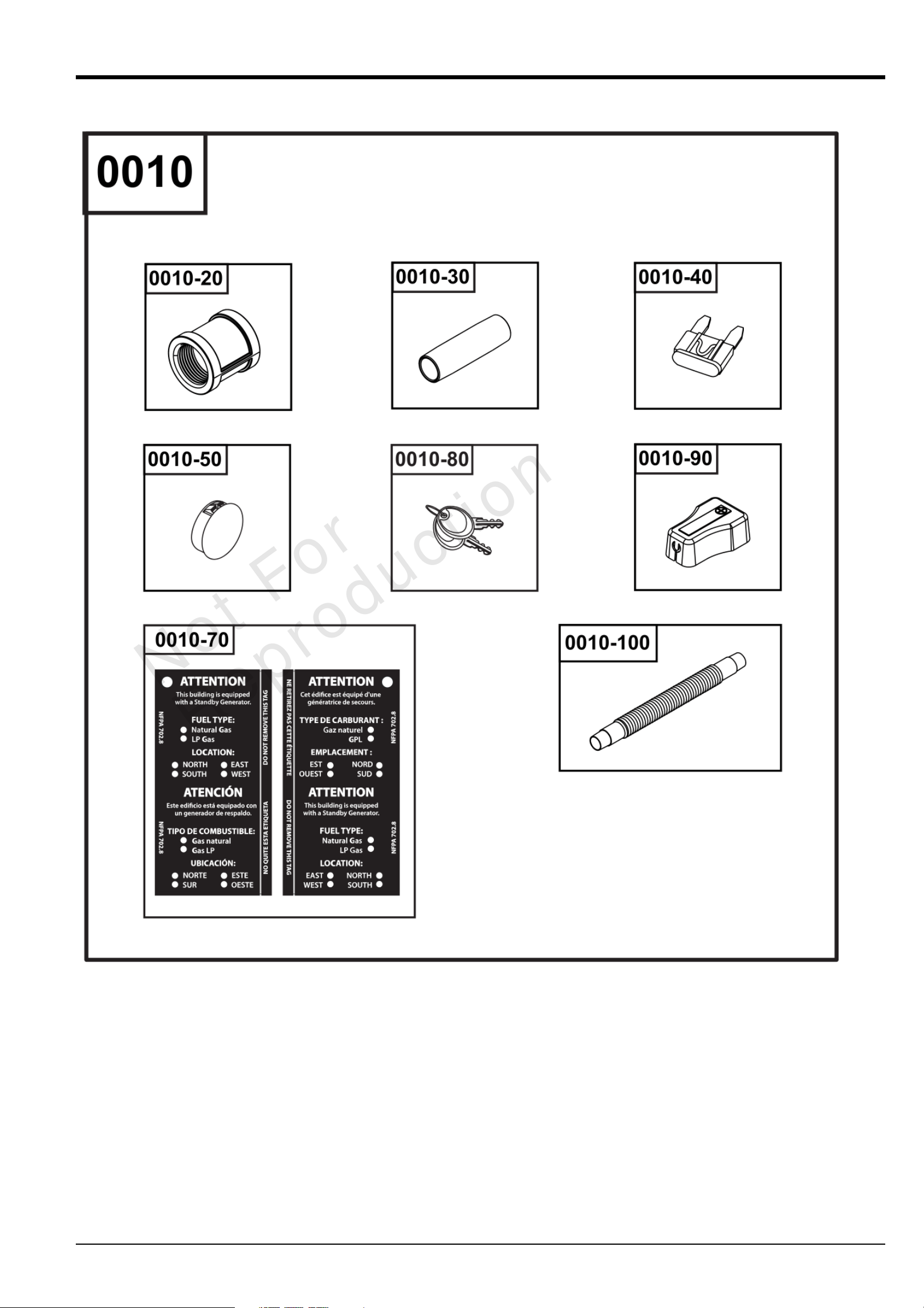

0010 84010850 1 KIT, Accessory
-(Incl. Ref. Nos. 0010-10, 0010-20, 0010-40, 0010-60, 0010-80, 0010-90)
0010-20 ----- 1 COUPLING, 3/4" NPT
0010-30 706526 1 FITTING
0010-40 198573GS 2 FUSE, Auto Type, 15 Amp
0010-50 198460GS 4 PLUG, Dome
0010-70 706988 1 HANG TAG-ATTN. STANDBY EQUIPMENT
0010-80 314290GS 1 KEY, Latch
0010-90 84010851 1 COVER, Battery Terminal
0010-100 202295GS 1 HOSE-FLEX NG/LPG
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
17 07-Feb-2024
Power GroupPower GroupPower GroupPower Group
Mfg. No: 040743-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
18 07-Feb-2024
Power GroupPower GroupPower GroupPower Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 ----- 1 BASE
0020 BF319470GS 2 CRADLE
0030 703350 8 WASHER
0040 22129GS 15 WASHER, Lock
0045 45771GS 2 NUT, M8 - 1.25
0050 5025011X16YP 4 BOLT
0060 189108GS 4 MOUNT, Vibration
0070 57821GS 4 CAPSCREW, Hex Head, M8-1.25 x 40
0080 319353GS 1 ADAPTER-ENGINE
0090 ----- 1 THERMOWELL, Oil Heater
0110-10 195124GS 1 PLATE, Temp Switch
0110-20 204426GS 1 SWITCH, Temperature
0110-50 708730 2 SCREW
0120 22097GS 3 WASHER
0130 43116GS 1 HHCS, M6 - 1.0 x 12
0140 5048681SM 1 HOSE, OIL DRAIN
0150 67989GS 4 NUT, M8 Flange Serrated
0160 704010 4 SCREW, HEX, 3/8-16
0170 772334 1 ALTERNATOR
0170-10 84011102 1 BRUSH ASSEMBLY
0180 22125GS 4 SCREW
0190 96796GS 1 WASHER, Flat M8.4 x 22.2 x 3
0200 706941 1 BOLT
0210 319471GS 1 BRACKET
0220 94220 4 SCREW
0230 703061 4 NUT, HEX KEPS, 1/4-20
0240 316881GS 1 SEAL
0250 84010841 1 ASSEMBLY, Muffler
0260 704682 1 BRACKET, Muffler
0270 47411GS 2 SCREW
0280 84006385 1 FUEL REGULATOR ASSEMBLY
-(Includes Ref. Nos. 0280-20, 0280-40)
0280-10 706379 1 BRACKET
0280-20 ----- 1 FUEL REGULATOR ASSEMBLY
0280-40 318002GS 1 FITTING
0280-50 38750GS 2 HHCS, M6 - 1.0 x 30
0280-60 22097GS 2 WASHER
0280-70 49813GS 2 NUT, Hex, M6 - 1.0
0280-80 ----- 1 BRACKET
0280-90 194561GS 2 HHS, Trilobular, #10-32 x 3/8
0280-100 23897GS 2 WASHER, Flat, #10 - M5
0290 704130 6 SCREW, HEX, 1/4-20X.5
0300 ----- 1 ASSEMBLY, Bracket
0310 84008694 1 HARNESS, Battery
0320 ----- 1 DEFLECTOR, Panel, Outer
0330 ----- 1 DEFLECTOR, Panel, Inner
0340 ----- 4 RIVET, BLIND, 3/16 X 5/8
0350 316814GS 1 WIRE, Starter Solenoid
0370 192669GS 1 Clamp, Hose, "J"
** To verify your specific engine model, please reference the ID Tag located on your engine. See your local Briggs & Stratton distributor for parts and service.
Footnotes:Footnotes:Footnotes:Footnotes:
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
19 07-Feb-2024
Power GroupPower GroupPower GroupPower Group
Mfg. No: 040743-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
20 07-Feb-2024
Power GroupPower GroupPower GroupPower Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0420 3895750117E1 1 **Replacement Engine
-(**See footnote)
0800 691613 2 GASKET, Exhaust
0810 805158 4 SCREW
1000 84011108 1 BRACKET ASSEMBLY
-(Includes Ref. Nos. 0290, 0300, 0320, 0330, 0340)
0290 704130 4 SCREW, HEX, 1/4-20X.5
0300 ----- 1 ASSEMBLY, Bracket
0320 ----- 1 DEFLECTOR, Panel, Outer
0330 ----- 1 DEFLECTOR, Panel, Inner
0340 ----- 4 RIVET, BLIND, 3/16 X 5/8
1457 ----- 1 MOTOR, Stepper
-(Refer To Your Engine Model's Parts Manual)
** To verify your specific engine model, please reference the ID Tag located on your engine. See your local Briggs & Stratton distributor for parts and service.
Footnotes:Footnotes:Footnotes:Footnotes:
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
21 07-Feb-2024
Symphony II Controller KitSymphony II Controller KitSymphony II Controller KitSymphony II Controller Kit
Mfg. No: 040743-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
22 07-Feb-2024

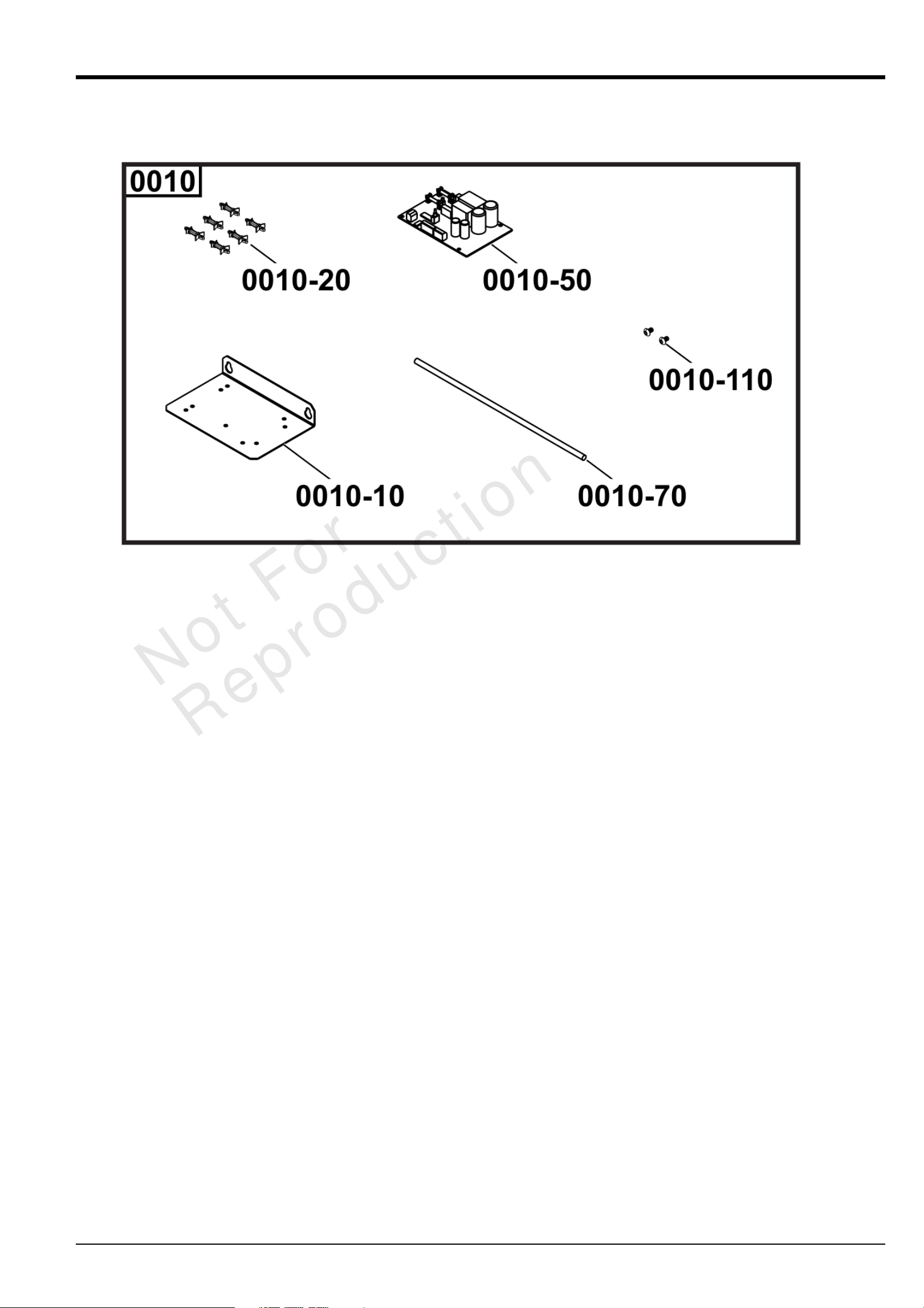

Symphony II Controller KitSymphony II Controller KitSymphony II Controller KitSymphony II Controller Kit
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6907 1 CONTROLLER, Symphony II
0010-10 84008547 1 BRACKET
0010-20 707397 6 SPACER
0010-50 ----- 1 BOARD, Circuit
0010-70 ----- 1 HARNESS, Wire
0010-110 B5763GS 2 SCREW
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
23 07-Feb-2024
Transfer Switch - Hingeless EnclosureTransfer Switch - Hingeless EnclosureTransfer Switch - Hingeless EnclosureTransfer Switch - Hingeless Enclosure
Mfg. No: 040743-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
24 07-Feb-2024

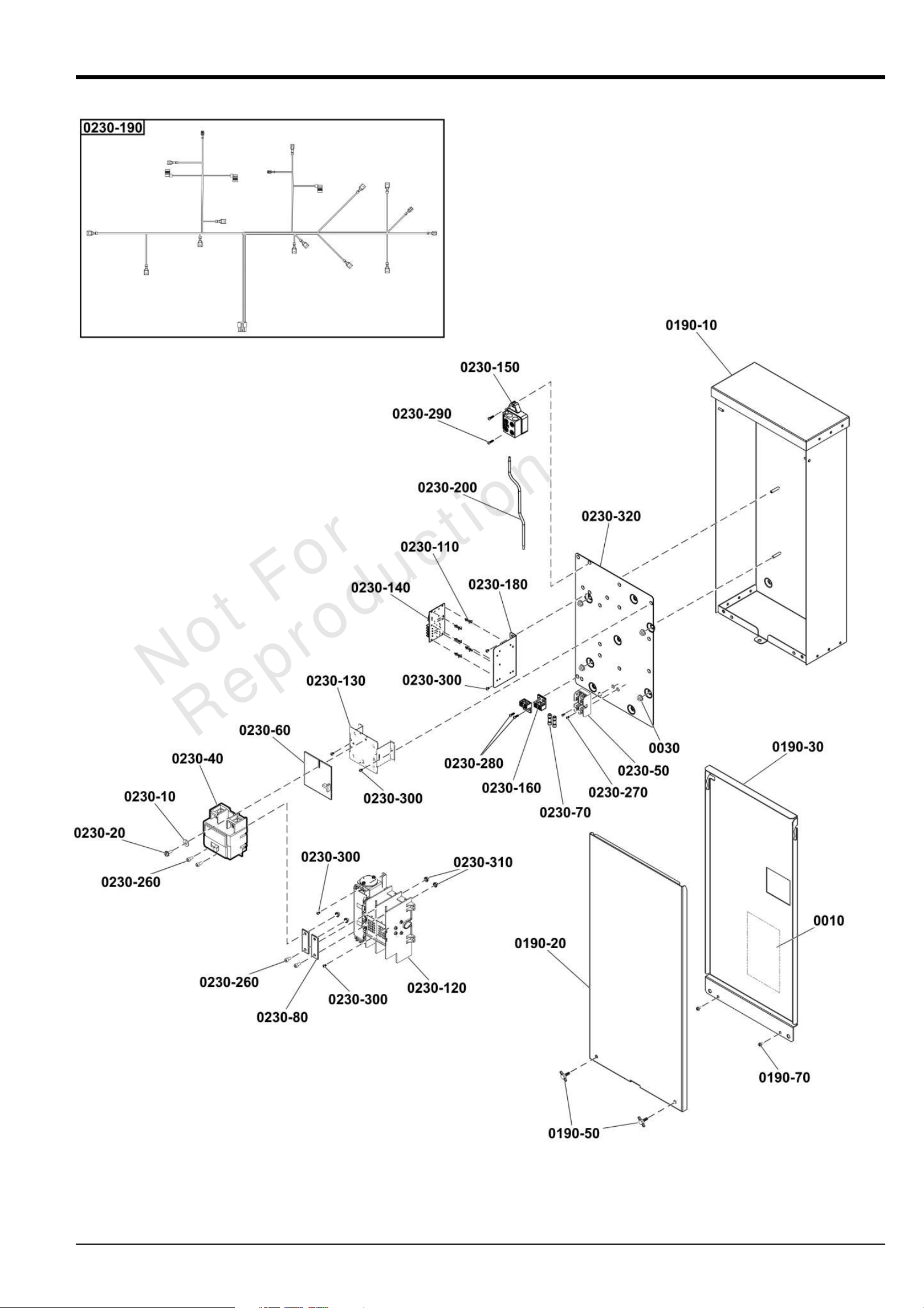

Transfer Switch - Hingeless EnclosureTransfer Switch - Hingeless EnclosureTransfer Switch - Hingeless EnclosureTransfer Switch - Hingeless Enclosure
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 193664GS 1 INSULATION, Dead Front
0030 703061 9 NUT, HEX KEPS, 1/4-20
0190-10 ----- 1 ENCLOSURE
0190-20 84004672 1 DOOR
-(Incl. Ref. No. 0060)
0060 ----- 1 DECAL SHEET - WARNINGS
0190-30 84005082 1 PANEL, Deadfront
-(Incl. Ref. Nos. 0010, 0060)
0010 193664GS 1 INSULATION, Dead Front
0060 ----- 1 DECAL SHEET - WARNINGS
0190-50 315108GS 2 SCREW
0190-70 B5763GS 2 SCREW
0230-10 23897GS 1 WASHER, Flat, #10 - M5
0230-20 24679GS 1 TRILOBULAR, #10-32 x 3/4
0230-40 192065GS 1 BREAKER, Circuit, 200A
0230-50 192151GS 1 FUSE HOLDER, 30 Amp 2P
0230-60 192879GS 1 INSULATION, Circuit Breaker
0230-70 205110GS 2 FUSE, 10 Amp 600v
0230-80 319267GS 2 BAR-BUS
0230-110 707397 5 SPACER
0230-120 84002607 1 SWITCH, TRANSFER
0230-130 770433 1 BRACKET
0230-140 770434 1 BOARD, Circuit
0230-150 84006993 1 TERMINAL, Neutral 6 Position
0230-160 84004498 2 LUG
0230-180 84008547 1 BRACKET
-(Incl. Ref. No. 0230-110)
0230-190 84008546 1 HARNESS, Wire
0230-200 ----- 1 WIRE, Neutral
0230-260 703818 4 CAPSCREW, 1/4-20X0.5
0230-270 192730GS 2 SCREW, Hex Head, Trilobular, #6-32 x 3/8
0230-280 32713GS 2 TAPTITE, #10-32 X 5/8
0230-290 ----- 2 SCREW, Hex Head, Trilobular, #10-32 x 7/8
0230-300 194561GS 8 HHS, Trilobular, #10-32 x 3/8
0230-310 703061 4 NUT, HEX KEPS, 1/4-20
0230-320 ----- 1 PANEL, Back
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
25 07-Feb-2024
6845-00 - Fuel Regulator6845-00 - Fuel Regulator6845-00 - Fuel Regulator6845-00 - Fuel Regulator
HeaterHeaterHeaterHeater
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
07-Feb-2024
Fuel Regulator HeaterFuel Regulator HeaterFuel Regulator HeaterFuel Regulator Heater
Mfg. No: 6845-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
27 07-Feb-2024

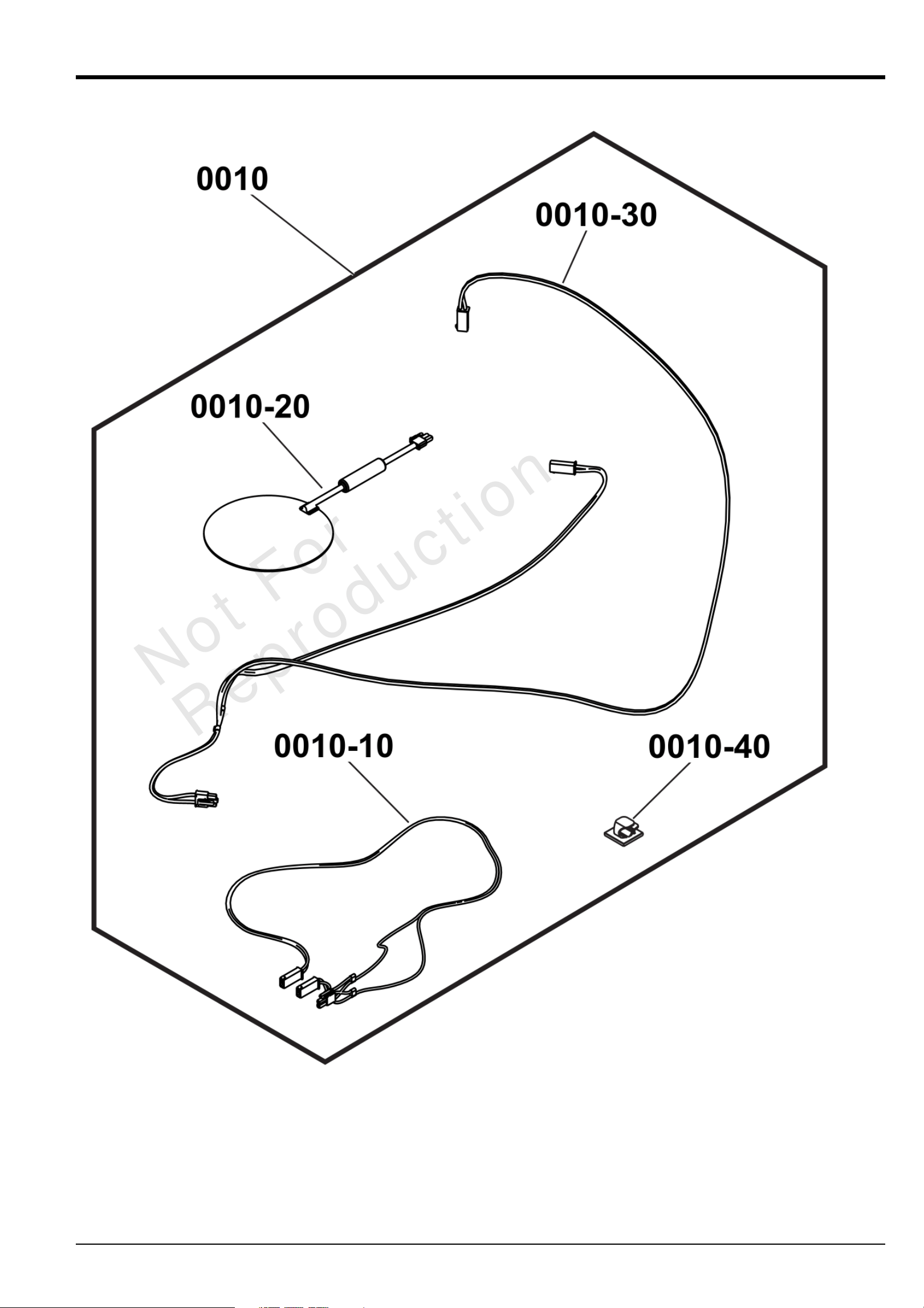

Fuel Regulator HeaterFuel Regulator HeaterFuel Regulator HeaterFuel Regulator Heater
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION

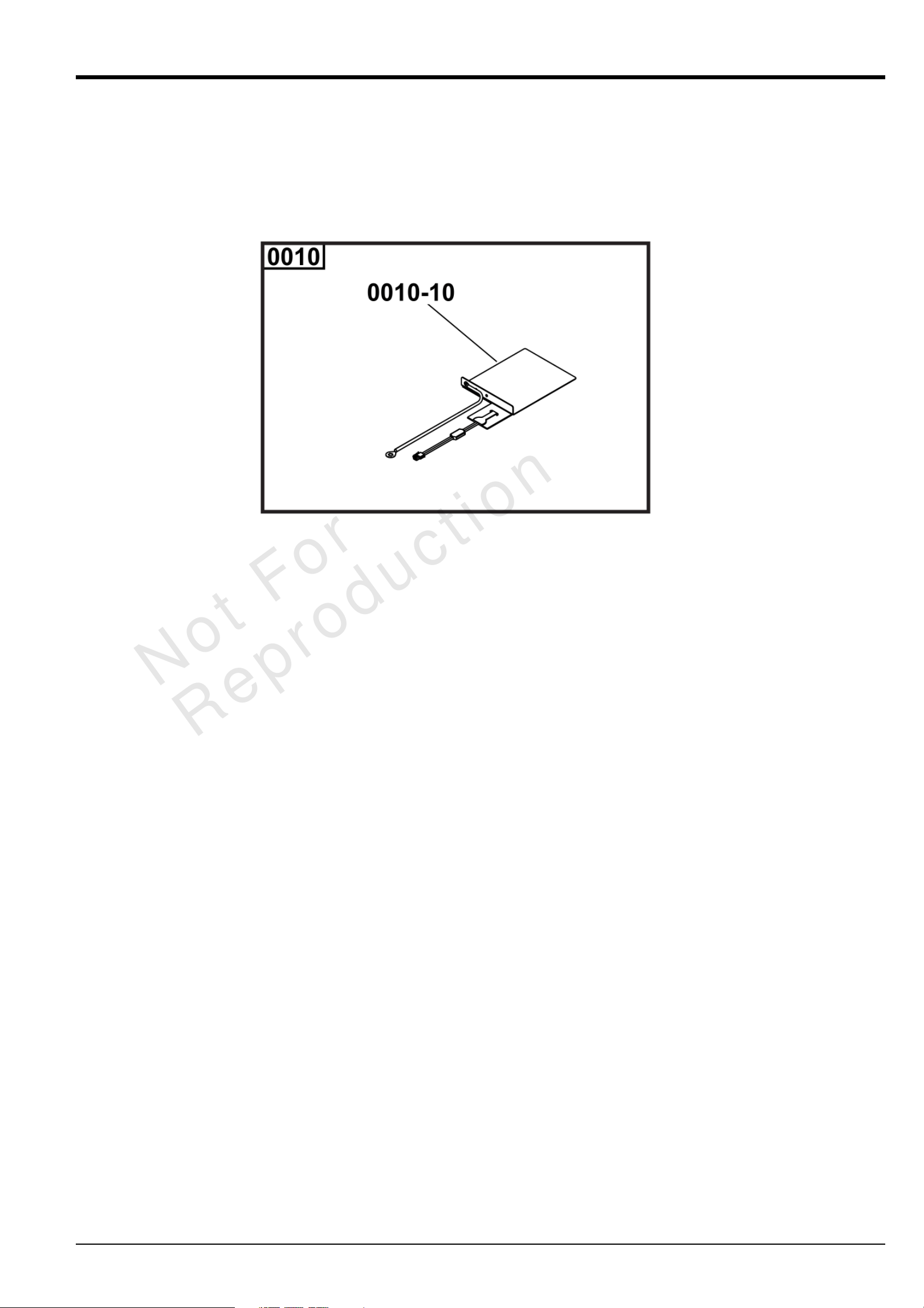

0010 6845 1 HEATER, Fuel Regulator
0010-10 ----- 1 HARNESS, Wire
0010-20 ----- 1 HEATER, Fuel Regulator
0010-30 ----- 1 HARNESS, Cold Weather
0010-40 ----- 1 CLIP, LTCHNG
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
28 07-Feb-2024
6873-00 - Maintenance6873-00 - Maintenance6873-00 - Maintenance6873-00 - Maintenance
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
07-Feb-2024
MaintenanceMaintenanceMaintenanceMaintenance
Mfg. No: 6873-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
30 07-Feb-2024
MaintenanceMaintenanceMaintenanceMaintenance
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6873 1 KIT, Maintenance
-(Incl. Ref. Nos. 0010-10, 0010-20, 0010-30, 0010-40, 0010-70)
0010-10 ----- 1 CARTRIDGE, Air Cleaner
0010-20 72347GS 2 PLUG, Spark
0010-30 492932S 1 FILTER, Oil
0010-40 ----- 1 BOTTLE, 16oz Oil
0010-50 ----- 1 BOTTLE, 32oz Oil
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
31 07-Feb-2024
6892-00 - Spark Arrestor6892-00 - Spark Arrestor6892-00 - Spark Arrestor6892-00 - Spark Arrestor
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
07-Feb-2024
Spark ArrestorSpark ArrestorSpark ArrestorSpark Arrestor
Mfg. No: 6892-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
33 07-Feb-2024
Spark ArrestorSpark ArrestorSpark ArrestorSpark Arrestor
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6892 1 ARRESTOR, Spark
-(Incl. Ref. Nos. 0010-20, 0010-40, 0010-60)
0010-20 ----- 1 ASSEMBLY, Spark Arrestor
0010-40 208538GS 1 DECAL, Spark
0010-60 ----- 1 INSTRUCTION SHEET
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
34 07-Feb-2024
6920-00 - Wind Brackets6920-00 - Wind Brackets6920-00 - Wind Brackets6920-00 - Wind Brackets
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
07-Feb-2024
Wind BracketsWind BracketsWind BracketsWind Brackets
Mfg. No: 6920-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
36 07-Feb-2024

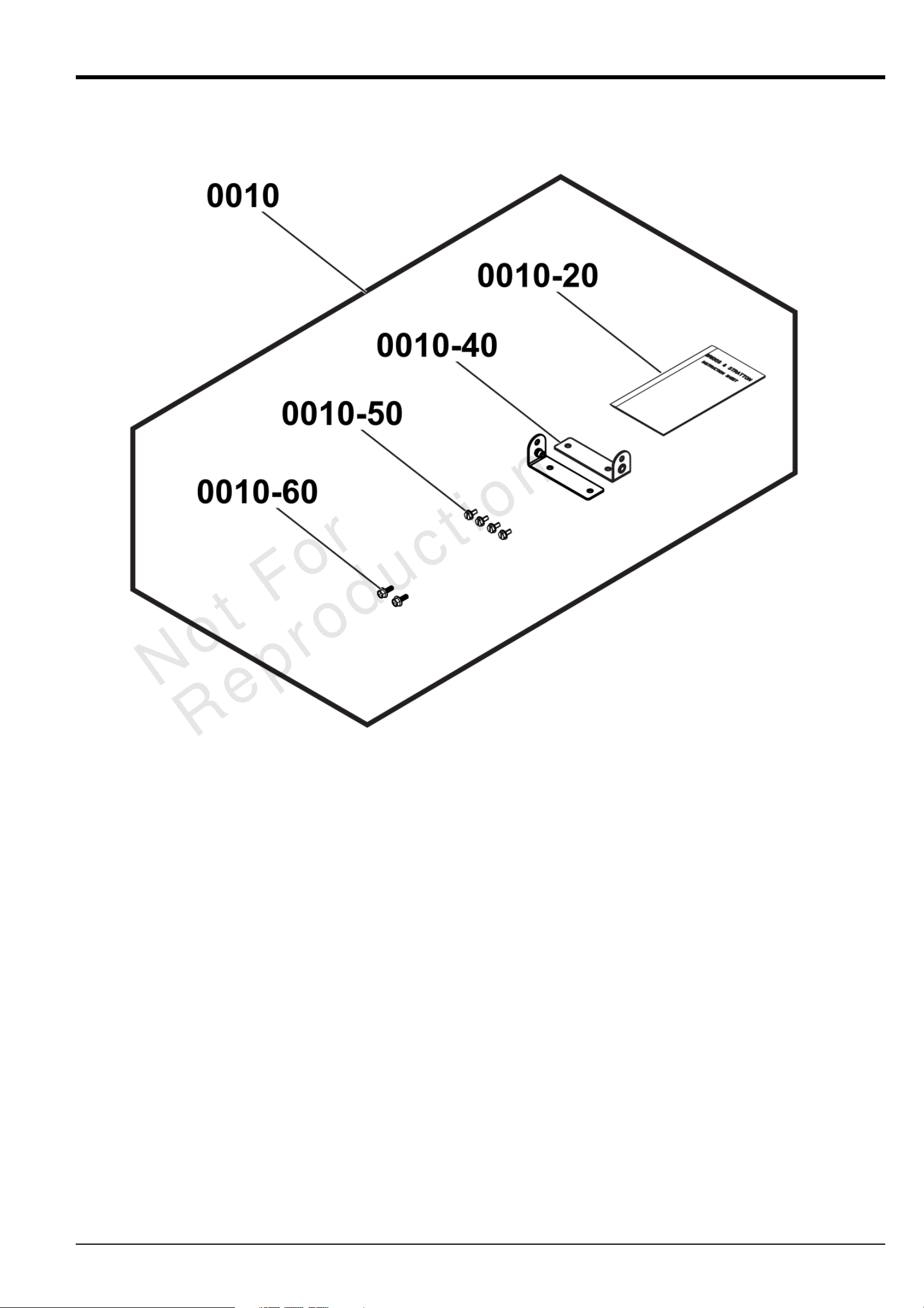

Wind BracketsWind BracketsWind BracketsWind Brackets
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6920 1 BRACKET, Wind
-(Incl. Ref. Nos. 0010-20, 0010-40, 0010-50, 0010-60)
0010-20 ----- 1 SHEET, Instruction
0010-40 ----- 2 BRACKET
0010-50 194561GS 4 HHS, Trilobular, #10-32 x 3/8
0010-60 ----- 2 SCREW
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
37 07-Feb-2024
6574-01 - Infohub6574-01 - Infohub6574-01 - Infohub6574-01 - Infohub
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
07-Feb-2024
InfohubInfohubInfohubInfohub
Mfg. No: 6574-01Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
39 07-Feb-2024
InfohubInfohubInfohubInfohub

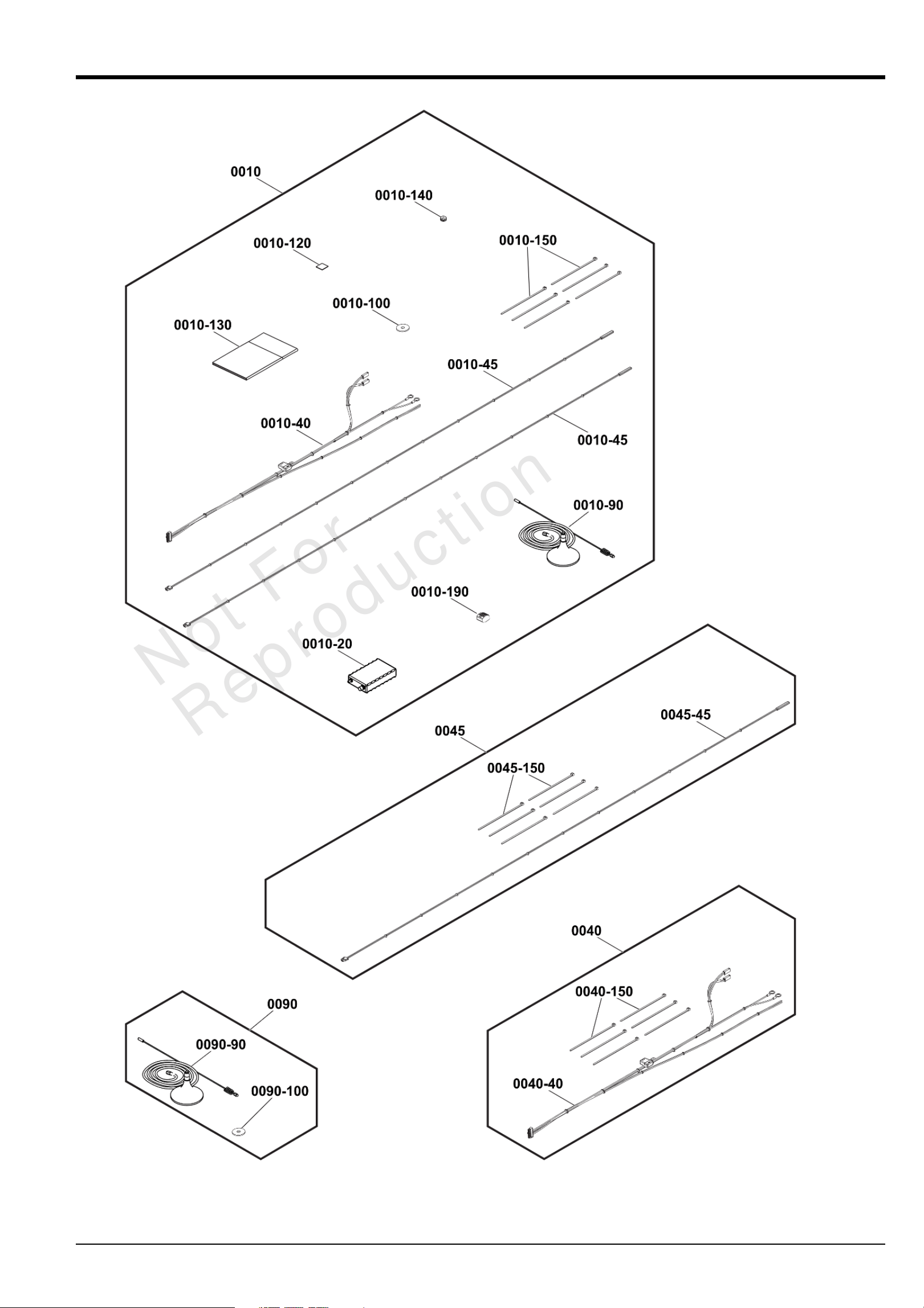

REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6574 1 KIT, Infohub SP, Agnostic
-(Incl. Ref. Nos. 0010-20, 0010-40, 0010-45, 0010-90, 0010-100, 0010-120,
0010-130, 0010-140, 0010-150, 0010-190)
0010-20 ----- 1 INFOHUB, UNIV
0010-40 ----- 1 HARNESS, Infohub SP, Agnostic
0010-45 ----- 2 ASSEMBLY, Voltage Sensor
0010-90 ----- 1 ANTENNA, Cell Quad Band
0010-100 703591 1 WASHER, .406X1.5X.12
0010-120 ----- 1 STRIP, Adhesive Mounting
0010-130 ----- 1 MANUAL, Operator
0010-140 316855GS 1 GROMMET
0010-150 29333AGS 6 TIEWRAP, 7 LG BLK
0010-190 197956GS 1 BLOCK, Terminal w/Levers
0040 84003260 1 HARNESS, Infohub SP, Agnostic
-(Incl. Ref. Nos. 0040-40, 0040-150)
0040-40 ----- 1 HARNESS, Infohub SP, Agnostic
0040-150 29333AGS 6 TIEWRAP, 7 LG BLK
0045 84003258 1 ASSEMBLY, Voltage Sensor
-(Incl. Ref. Nos. 0045-45, 0045-150)
0045-45 ----- 1 ASSEMBLY, Voltage Sensor
0045-150 29333AGS 6 TIEWRAP, 7 LG BLK
0090 84003261 1 ANTENNA, Cell Quad Band
-(Incl. Ref. Nos. 0090-90, 0090-100)
0090-90 ----- 1 ANTENNA, Cell Quad Band
0090-100 703591 1 WASHER, .406X1.5X.12
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
40 07-Feb-2024
6581-00 - Uninterruptible6581-00 - Uninterruptible6581-00 - Uninterruptible6581-00 - Uninterruptible
Power Supply - (UPS)Power Supply - (UPS)Power Supply - (UPS)Power Supply - (UPS)
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
07-Feb-2024
Uninterruptible Power Supply - (UPS)Uninterruptible Power Supply - (UPS)Uninterruptible Power Supply - (UPS)Uninterruptible Power Supply - (UPS)
Mfg. No: 6581-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
42 07-Feb-2024
Uninterruptible Power Supply - (UPS)Uninterruptible Power Supply - (UPS)Uninterruptible Power Supply - (UPS)Uninterruptible Power Supply - (UPS)
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6581 1 KIT, ACC, UPS 350VA/255W, 120VAC
-(Incl. Ref. No. 0010-10)
0010-10 ----- 1 UPS 350VA/255W, 120VAC
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
43 07-Feb-2024
6324-01 - Concrete Pad6324-01 - Concrete Pad6324-01 - Concrete Pad6324-01 - Concrete Pad
(Non-Hurricane)(Non-Hurricane)(Non-Hurricane)(Non-Hurricane)
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
07-Feb-2024
Concrete Pad (Non-Hurricane)Concrete Pad (Non-Hurricane)Concrete Pad (Non-Hurricane)Concrete Pad (Non-Hurricane)
Mfg. No: 6324-01Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
45 07-Feb-2024
Concrete Pad (Non-Hurricane)Concrete Pad (Non-Hurricane)Concrete Pad (Non-Hurricane)Concrete Pad (Non-Hurricane)
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6324 1 ACC PAD, Concrete, Non-Hurricane
-(Incl. Ref. No. 0010-10)
0010-10 ----- 1 PAD, Concrete
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
46 07-Feb-2024
6326-01 - Concrete Pad6326-01 - Concrete Pad6326-01 - Concrete Pad6326-01 - Concrete Pad
(Hurricane)(Hurricane)(Hurricane)(Hurricane)
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
07-Feb-2024
Concrete Pad (Hurricane)Concrete Pad (Hurricane)Concrete Pad (Hurricane)Concrete Pad (Hurricane)
Mfg. No: 6326-01Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
48 07-Feb-2024
Concrete Pad (Hurricane)Concrete Pad (Hurricane)Concrete Pad (Hurricane)Concrete Pad (Hurricane)
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6326 1 ACC PAD, Concrete, Hurricane
-(Incl. Ref. No. 0010-10)
0010-10 ----- 1 PAD, Concrete
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
49 07-Feb-2024
6491-01 - Estop Switch6491-01 - Estop Switch6491-01 - Estop Switch6491-01 - Estop Switch
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
07-Feb-2024
Estop SwitchEstop SwitchEstop SwitchEstop Switch
Mfg. No: 6491-01Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
51 07-Feb-2024

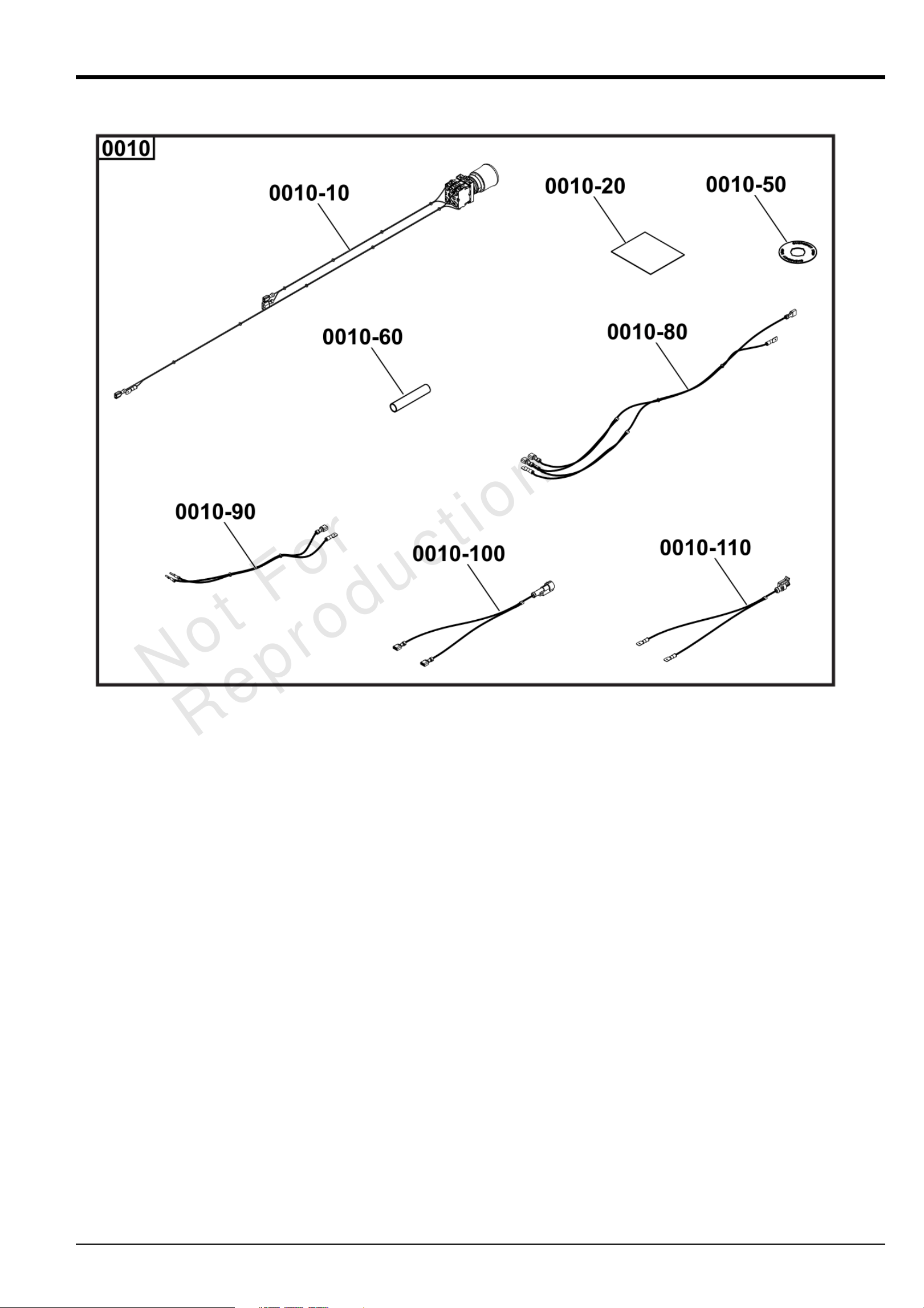

Estop SwitchEstop SwitchEstop SwitchEstop Switch
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6491 1 ACC KIT, SWITCH, E-STOP
-(Incl. Ref. Nos. 0010-10, 0010-20, 0010-50, 0010-60, 0010-80, 0010-90,
0010-100, 0010-110)
0010-10 ----- 1 ASSEMBLY, Switch, E-Stop
0010-20 ----- 1 DECAL
0010-50 ----- 1 LEGEND PLATE, E-Stop
0010-60 ----- 1 TUBING, Heat Shrink
0010-80 ----- 1 HARNESS
0010-90 ----- 1 HARNESS
0010-100 ----- 1 HARNESS
0010-110 ----- 1 HARNESS
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
52 07-Feb-2024
6182-00 - Battery Warmer6182-00 - Battery Warmer6182-00 - Battery Warmer6182-00 - Battery Warmer
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
07-Feb-2024
Battery WarmerBattery WarmerBattery WarmerBattery Warmer
Mfg. No: 6182-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
54 07-Feb-2024
Battery WarmerBattery WarmerBattery WarmerBattery Warmer
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6182 1 WARMER, Battery
-(Incl. Ref. No. 0010-10)
0010-10 314941GS 1 PLATE, Warmer
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
55 07-Feb-2024
6428-00 - USB Cable6428-00 - USB Cable6428-00 - USB Cable6428-00 - USB Cable
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
07-Feb-2024
USB CableUSB CableUSB CableUSB Cable
Mfg. No: 6428-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
57 07-Feb-2024
USB CableUSB CableUSB CableUSB Cable
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6428 1 KIT, Communication Cable
-(Incl. Ref. No. 0010-10)
0010-10 ----- 1 CABLE, USB
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
58 07-Feb-2024
6631-00 - Surge Protective6631-00 - Surge Protective6631-00 - Surge Protective6631-00 - Surge Protective
Device (SPD)Device (SPD)Device (SPD)Device (SPD)
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
07-Feb-2024
Surge Protective Device (SPD)Surge Protective Device (SPD)Surge Protective Device (SPD)Surge Protective Device (SPD)
Mfg. No: 6631-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
60 07-Feb-2024
Surge Protective Device (SPD)Surge Protective Device (SPD)Surge Protective Device (SPD)Surge Protective Device (SPD)
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6631 1 SURGE PROTECTIVE DEVICE (SPD)
-(Incl. Ref. No. 0010-10)
0010-10 ----- 1 SURGE PROTECTIVE DEVICE (SPD)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
61 07-Feb-2024
6910-00 - Front Panel6910-00 - Front Panel6910-00 - Front Panel6910-00 - Front Panel
AssemblyAssemblyAssemblyAssembly
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
07-Feb-2024
Front Panel AssemblyFront Panel AssemblyFront Panel AssemblyFront Panel Assembly
Mfg. No: 6910-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
63 07-Feb-2024
Front Panel AssemblyFront Panel AssemblyFront Panel AssemblyFront Panel Assembly
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6910 1 ASSEMBLY, Panel, Front
-(Incl. Ref. Nos. 0010-20, 0010-30, 0010-40, 0010-50, 0010-80, 0010-90,
0010-100, 0010-110, 0010-120, 0010-130)
0010-20 ----- 1 ENCLOSURE, Panel, Front
0010-30 ----- 1 DECAL
0010-40 ----- 1 DECAL
0010-50 ----- 1 DECAL
0010-80 ----- 1 PANEL, Muffler Guard
0010-90 ----- 1 DECAL
0010-100 84010842 1 DECAL, Warning, Sheet
0010-110 ----- 1 DECAL, Warning, Exhaust
0010-120 ----- 1 DECAL-RAINPROOF ENCLOSURE
0010-130 ----- 1 DECAL, Emergency Shutdown
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
64 07-Feb-2024
6911-00 - Right Panel6911-00 - Right Panel6911-00 - Right Panel6911-00 - Right Panel
AssemblyAssemblyAssemblyAssembly
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
07-Feb-2024
Right Panel AssemblyRight Panel AssemblyRight Panel AssemblyRight Panel Assembly
Mfg. No: 6911-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
66 07-Feb-2024

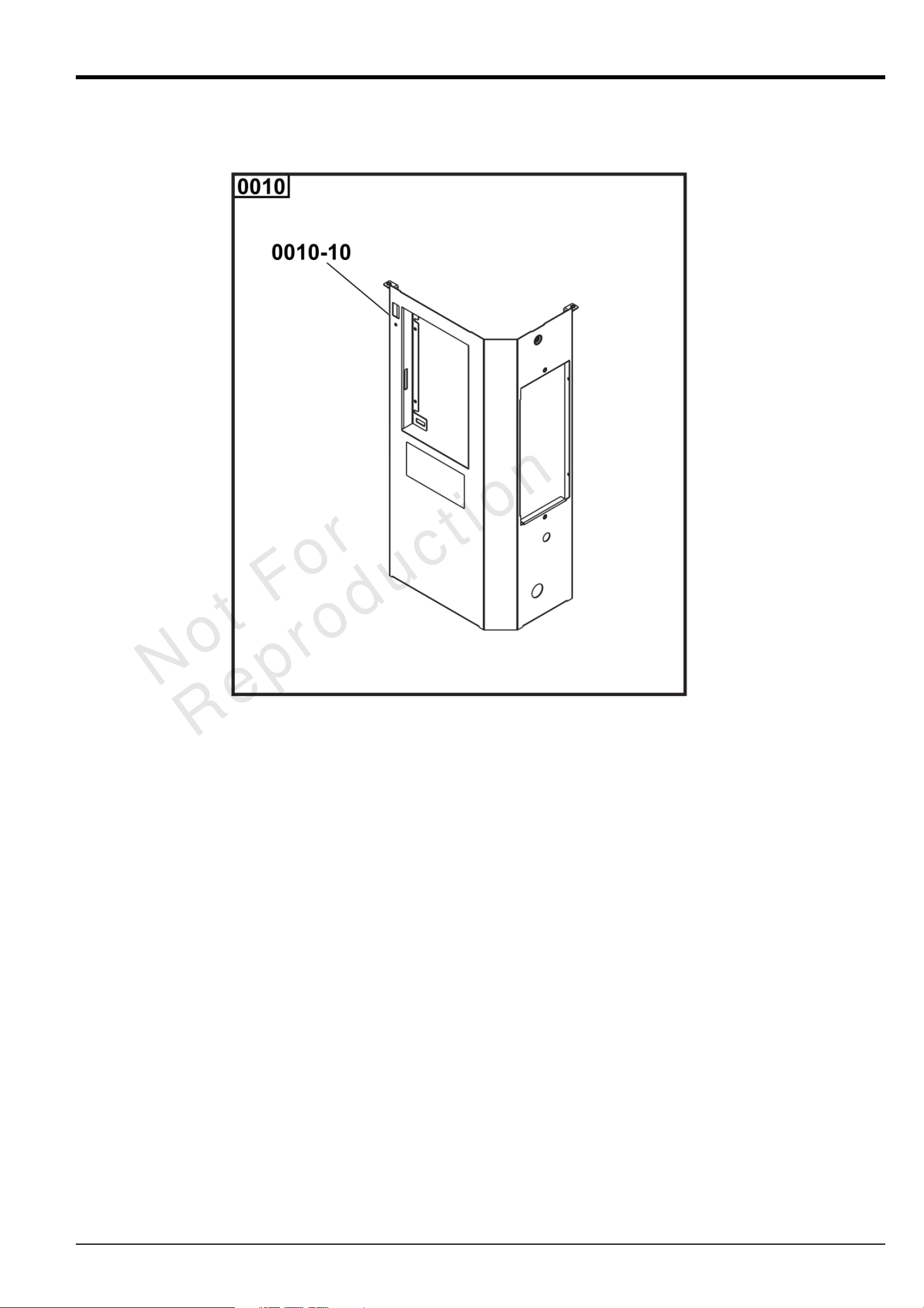

Right Panel AssemblyRight Panel AssemblyRight Panel AssemblyRight Panel Assembly
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6911 1 ASSEMBLY, Panel, Right
-(Incl. Ref. No. 0010-10)
0010-10 ----- 1 ASSEMBLY, Panel, Right
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
67 07-Feb-2024
6912-00 - Left Panel6912-00 - Left Panel6912-00 - Left Panel6912-00 - Left Panel
AssemblyAssemblyAssemblyAssembly
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
07-Feb-2024
Left Panel AssemblyLeft Panel AssemblyLeft Panel AssemblyLeft Panel Assembly
Mfg. No: 6912-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
69 07-Feb-2024

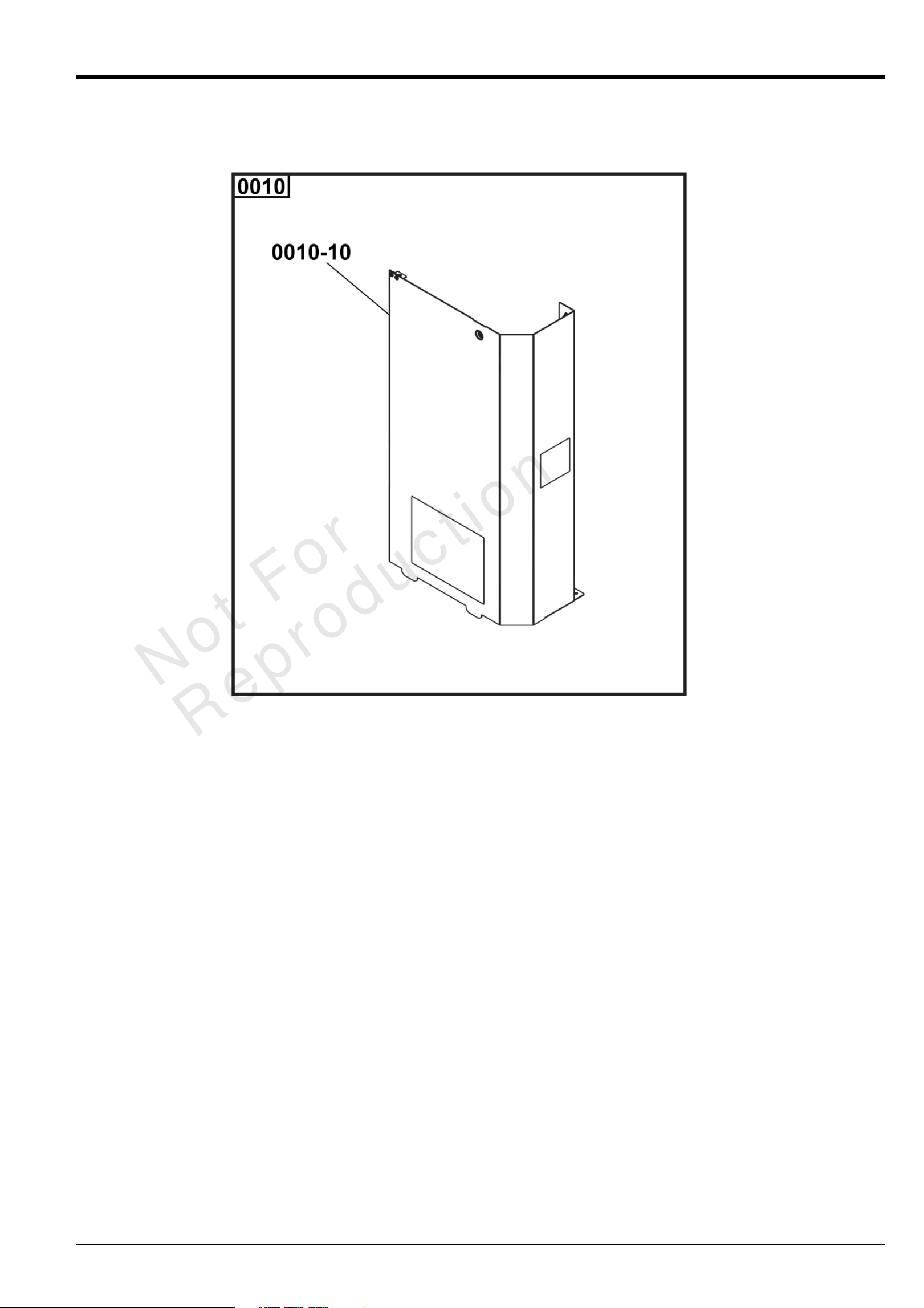

Left Panel AssemblyLeft Panel AssemblyLeft Panel AssemblyLeft Panel Assembly
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6912 1 ASSEMBLY, Panel, Left
-(Incl. Ref. No. 0010-10)
0010-10 ----- 1 ASSEMBLY, Panel, Left
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
70 07-Feb-2024
6913-00 - Roof Assembly6913-00 - Roof Assembly6913-00 - Roof Assembly6913-00 - Roof Assembly
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
07-Feb-2024
Roof AssemblyRoof AssemblyRoof AssemblyRoof Assembly
Mfg. No: 6913-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
72 07-Feb-2024
Roof AssemblyRoof AssemblyRoof AssemblyRoof Assembly
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6913 1 ASSEMBLY, Roof
-(Incl. Ref. Nos. 0010-10, 0010-20, 0010-30)
0010-10 ----- 1 ASSEMBLY, Roof
0010-20 ----- 1 DIVIDER, Roof
0010-30 ----- 6 RIVET, BLIND, 3/16 X 5/8
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
73 07-Feb-2024
6915-00 - Control Door6915-00 - Control Door6915-00 - Control Door6915-00 - Control Door
AssemblyAssemblyAssemblyAssembly
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
07-Feb-2024

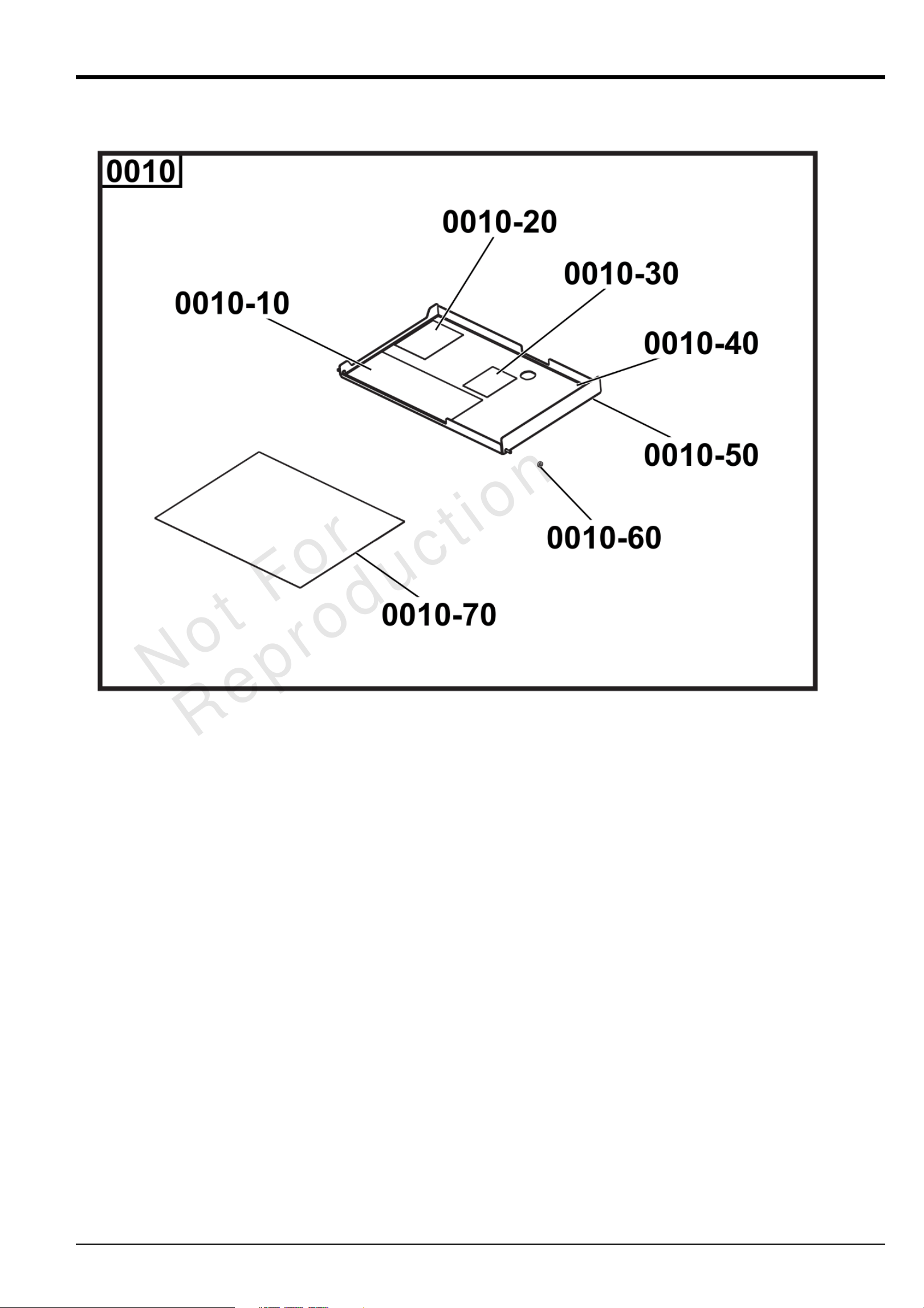

Control Door AssemblyControl Door AssemblyControl Door AssemblyControl Door Assembly
Mfg. No: 6915-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
75 07-Feb-2024
Control Door AssemblyControl Door AssemblyControl Door AssemblyControl Door Assembly
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6915 ASSEMBLY, Control Panel Door
-(Incl. Ref. Nos. 0010-10, 0010-20, 0010-30, 0010-40, 0010-50, 0010-60,
0010-70)
0010-10 ----- 1 DECAL, Notice Fuel Requirements
0010-20 ----- 1 DECAL, Warning, Manual
0010-30 ----- 1 DECAL, Warning
0010-40 ----- 1 DECAL, MOR, AUBURN
0010-50 ----- 1 DOOR, Control Panel
0010-60 703929 1 WASHER-FLAT, NYLON
0010-70 84010842 1 DECAL, Warning, Sheet
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
76 07-Feb-2024
6922-00 - Oil Warmer6922-00 - Oil Warmer6922-00 - Oil Warmer6922-00 - Oil Warmer
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
07-Feb-2024
Oil WarmerOil WarmerOil WarmerOil Warmer
Mfg. No: 6922-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
78 07-Feb-2024

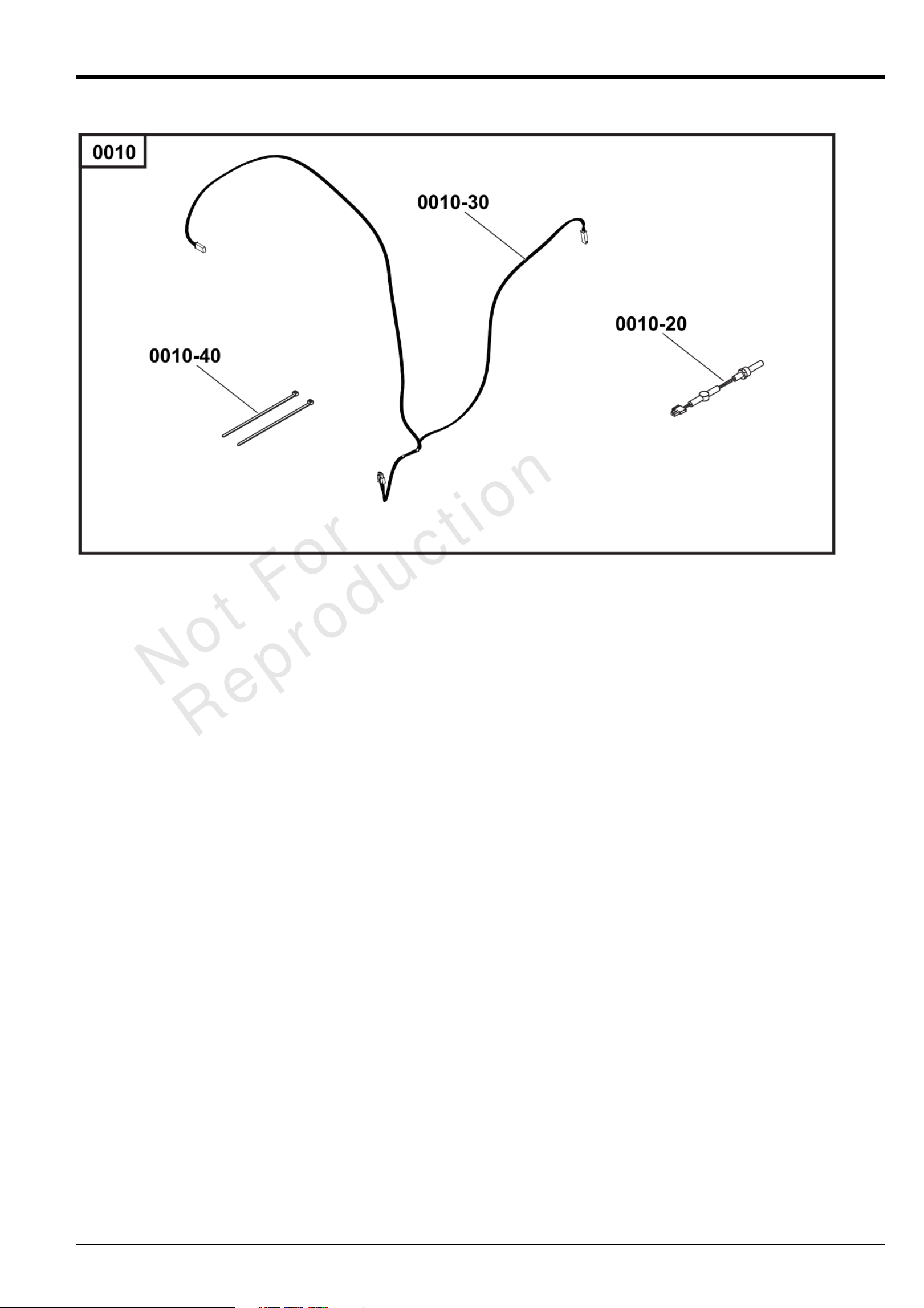

Oil WarmerOil WarmerOil WarmerOil Warmer
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6922 1 KIT, Oil Warmer
-(Incl. Ref. No. 0010-20, 0010-30, 0010-40)
00010-20 ----- 1 HEATER, Oil
0010-30 84003363 1 HARNESS, Cold Weather Kit
0010-40 29333AGS 2 TIEWRAP, 7 LG BLK
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
79 07-Feb-2024
6921-01 - Battery Warmer6921-01 - Battery Warmer6921-01 - Battery Warmer6921-01 - Battery Warmer
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
07-Feb-2024
Battery WarmerBattery WarmerBattery WarmerBattery Warmer
Mfg. No: 6921-01Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
81 07-Feb-2024
Battery WarmerBattery WarmerBattery WarmerBattery Warmer
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6921 1 KIT, Cold Weather
-(Incl. Ref. Nos. 0010-10, 0010-30, 0010-40)
0010-10 314941GS 1 PLATE, Warmer
0010-30 84003363 1 HARNESS, Cold Weather Kit
0010-40 29333AGS 6 TIEWRAP, 7 LG BLK
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
82 07-Feb-2024
in/lbs
ft/lbs
3
Torque Specification Chart
FOR STANDARD METRIC MACHINE HARDWARE (Tolerance ± 20%)
Property
Class
Class 8.8
Class 10.9
Class 12.9
Size Of
Hardware
Nm. Nm. Nm.
Nm.
M3 1.28
2.90
5.75
9.9
16.5
24
48
83
132
200
275
390
530
375
995
1350
1830
2360
3050
13.44 1.80
4.10
8.10
14
23
34
67
117
185
285
390
550
745
960
1400
1900
2580
3310
4290
19.2 22.92
2.15
M4
30.72 43.44 52.56 4.95
M5
60.96 5.97 7.15
16.5
9.7
M6 7.3 10.3 12.1
M7 12.1 16.9 19.9
27
M8 17.7
25
29
40
M10 35 50
59
81
M12 61 86.2 103 140
M14
101
136 162 220
M16 147 210 250 340
M18 202 287 346 470
M20 290 405 486 660
M22 390 559 656 890
M24 497
708
840 1140
M27 733 1032 1239 1680
M30 995 1401 1681 2280
M33
1349
1902 2278 3090
M36 1740 2441
3798
2935 3980
M39 2249 3163
Torque Specification Chart
FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)
Hardware
Grade
SAE Grade 2 SAE Grade 5 SAE Grade 8
Size Of
in/lbs
ft/lbs
in/lbs
ft/lbs
in/lbs
ft/lbs
in/lbs in/lbs
Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.
8-32 19 2.1 30 3.4 41 4.6
8-36
20 2.3 31 3.5 43 4.9
10-24
27 3.1 43 4.9 60 6.8
10-32
31 3.5 49 5.5 68 7.7
1/4-20
66 7.6 8 10.9 12 16.3
1/4-28
76 8.6 10 13.6 14 19.0
5/16-18 11 15.0 17 23.1 25 34.0
5/16-24 12 16.3 19 25.8 29 34.0
3/8-16 20 27.2 30 40.8 45 61.2
3/8-24 23 31.3 35 47.6 50 68.0
7/16-14 30 40.8 50 68.0 70 95.2
7/16-20 35 47.6 55 74.8 80 108.8
1/2-13 50 68.0 75 102.0 110 149.6
1/2-20 55 74.8 90 122.4 120 163.2
9/16-12 65 88.4
110 149.6 150 204.0
9/16-18 75 102.0 120 163.2 170 231.2
5/8-11 90 122.4 150 204.0 220 299.2
5/8-18 100 136 180 244.8 240 326.4
3/4-10 160 217.6 260 353.6 386 525.0
3/4-16 180 244.8 300 408.0 420 571.2
7/8-9 140 190.4 400 544.0 600 816.0
7/8-14 155 210.8 440 598.4 660 897.6
1-8 220 299.2 580 788.8 900 1,244.0
1-12 240 326.4 640 870.4 1,000 1,360.0
Hex Head Capscrew
Hex Nut
Lockwasher
Washer
Carriage Bolt
NOTES
1. These torque values are to be used for all hardware
excluding: locknuts, self-tapping screws, thread forming
screws, sheet metal screws and socket head setscrews.
2. Recommended seating torque values for locknuts:
a. for prevailing torque locknuts - use 65% of grade 5
torques.
b. for flange whizlock nuts and screws - use 135% of
grade 5 torques.
3. Unless otherwise noted on assembly drawings, all torque
values must meet this specification.
Hardware Identification & Torque Specifications
Common Hardware Types
No
Marks
The guides and ruler furnished below are designed to
help you select the appropriate hardware.
8.8
10.9
12.9
Class 5.6
5.6
5150
13.44
1.28
5.88
26.4
2.50
44.64
4.3
5.2
7.1
7.7
10.5
15
21
988
1340
759
1030
590
800
435
590
320
435
217
295
169
230
126
171
89
121
64
88
42
58
26
36
.56
Thread
Diameter (mm)
Screw, 1/2- 16 x 2
Body
Diameter
Diameter
Inside
Diameter (in)
Nut, 1/2-16
0
1/4 3/4
1/2
21
1/4 3/4
1/2
1/4 3/4
1/2
1/4 3/4
1/2
4
90
100
70
80
50
60
30
40
010
20
Thread
Diameter (mm)
Nut, M8
Screw, M8- 1.25 x 25
Distance between
threads (mm)
Body
Length (in)
Body
Length (mm)
3/8” Bolt or Nut
Wrench—9/16”
5/16” Bolt or Nut
Wrench—1/2”
1/4” Bolt or Nut
Wrench—7/16”
1/2” Bolt or Nut
Wrench—3/4”
7/16” Bolt or Nut
Wrench (Bolt)—5/8”
Wrench (Nut)—11/16”
in/lbs
Threads
per inch
Threads
per inch
Body Length
Body
When a washer or nut is identified as
1/2”
(M8), this is
the Nominal size, meaning the inside diameter is 1/2 inch
(8mm metric thread diameter); if a second number is present
it represents the threads per inch (distance between threads).
When bolt or capscrew is identified as
1/2 - 16 x 2”
(M8 - 1.25 x 50),
this means the Nominal size, or body diameter is 1/2 inch (8mm
metric thread diameter), the second number,16, represents the
threads per inch, (distance between threads). The final number
is the body length of the bolt or screw, 2 inches (50mm).
Standard Hardware Sizing
M6 Bolt or Nut
Wrench—10mm
M8 Bolt or Nut
Wrench—13mm
M10 Bolt or Nut
Wrench—17mm
M12 Bolt or Nut
Wrench—19mm
M14 Bolt or Nut
Wrench—22 mm
Wrench & Fastener Size Guide
Copyright © Briggs & Stratton. All Rights reserved
07-Feb-2024
