Parts ManualParts ManualParts ManualParts Manual
Mfg. No: 040783-00
22,000 Watt Standby Generator With 200
Amp ATS and 6907 Symphony Choice
(Briggs & Stratton)
Copyright © Briggs & Stratton. All Rights reserved
08-Feb-2024
Table Of ContentsTable Of ContentsTable Of ContentsTable Of Contents
Model ComponentsModel ComponentsModel ComponentsModel Components PagePagePagePage
Accessory Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Alternator Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Circuit Breaker Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Control Panel Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Decals Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Decals Group - ATS Informational. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Decals Group - ATS Warning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Enclosure Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Fuel, Duct & Support Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Power Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Symphony II Controller Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Transfer Switch - Hingeless Enclosure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6845-00 - Fuel Regulator Heater. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Fuel Regulator Heater. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
6840-00 - Oil Sump Warmer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Oil Sump Warmer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
6869-00 - Battery Warmer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Battery Warmer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
6872-00 - Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
6574-01 - Infohub. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Infohub. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

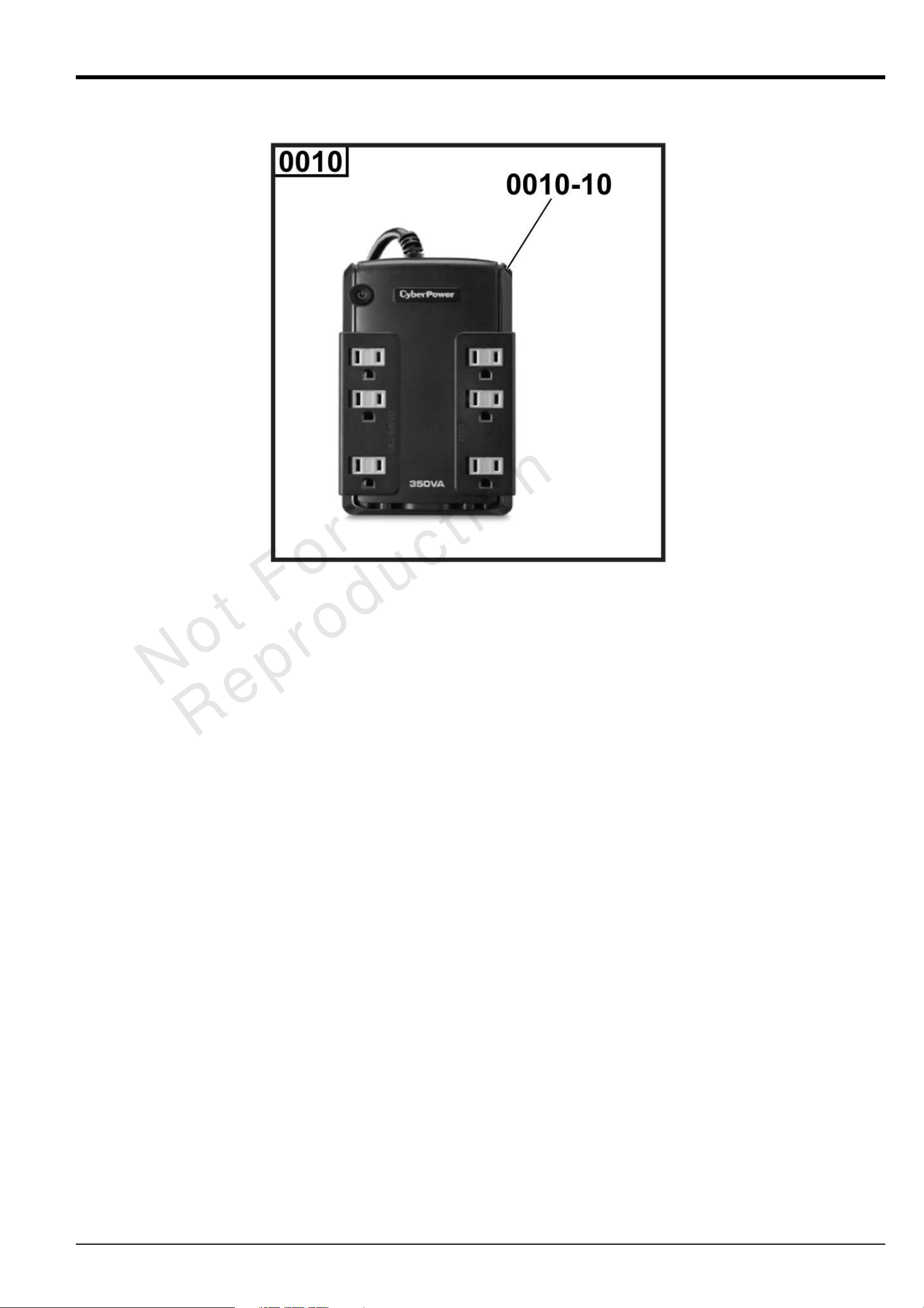

6581-00 - Uninterruptible Power Supply - (UPS). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Uninterruptible Power Supply - (UPS). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
6491-01 - Estop Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Estop Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

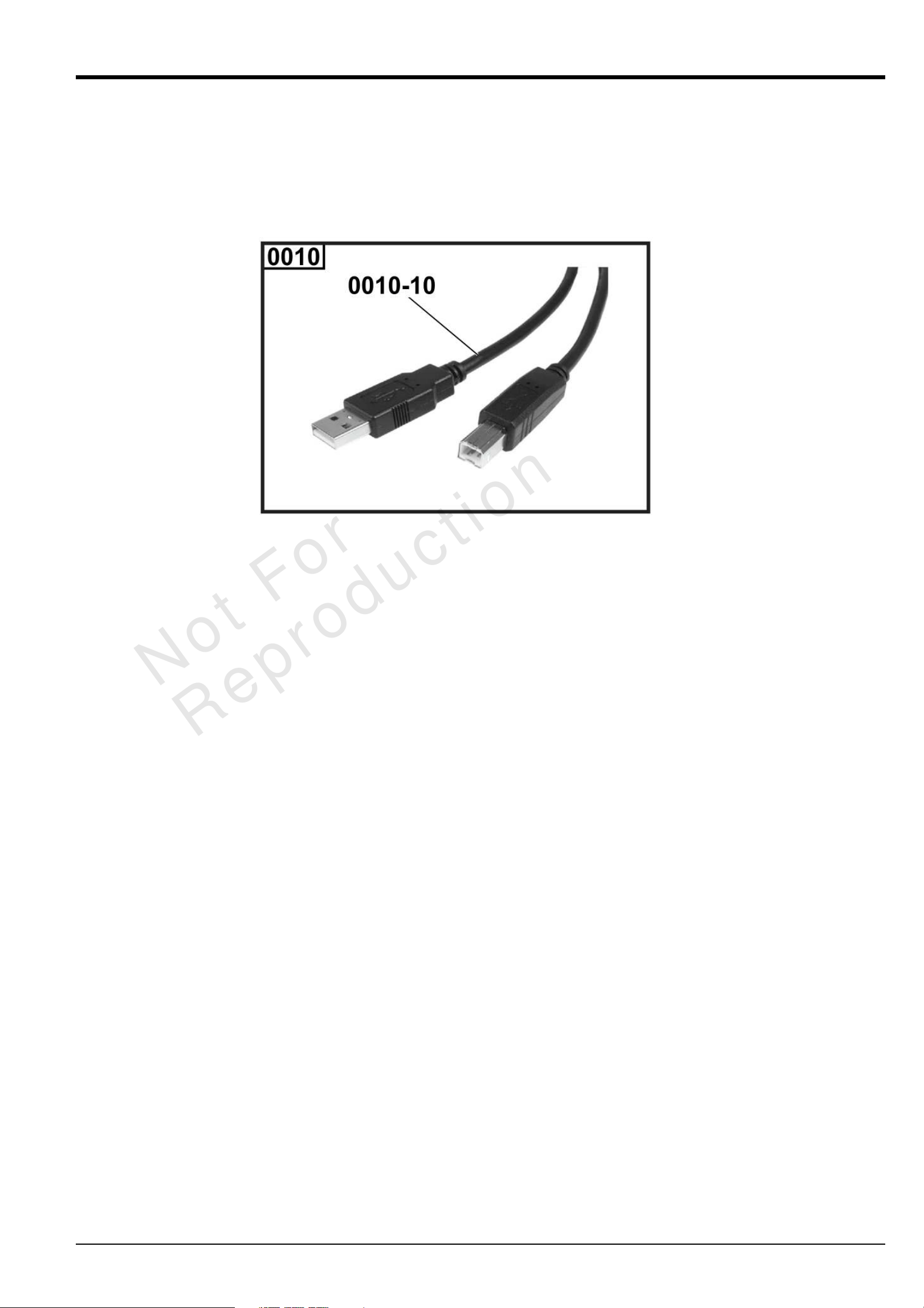

6428-00 - USB Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
USB Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
6631-00 - Surge Protective Device (SPD). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Surge Protective Device (SPD). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

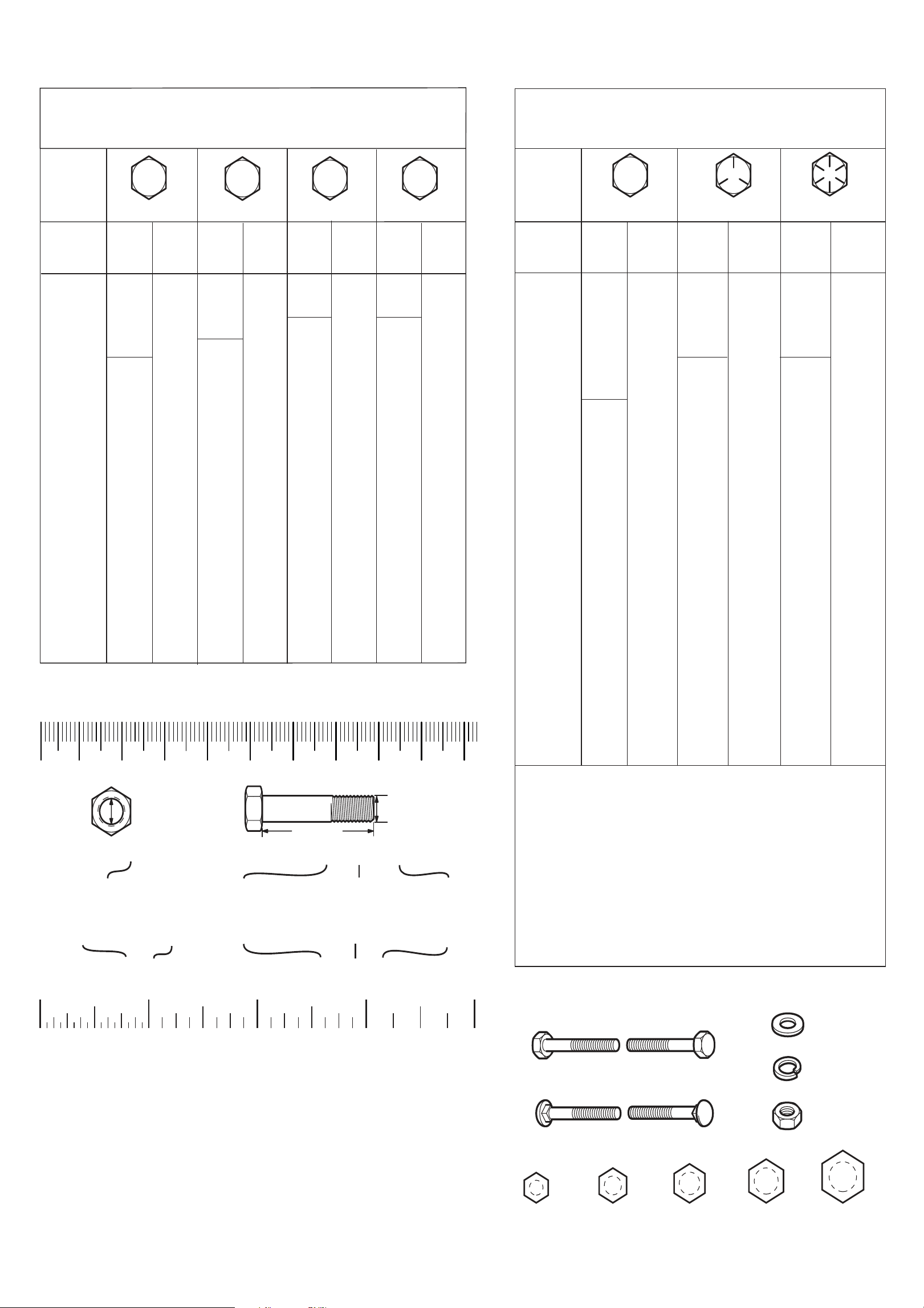

Torque Specification Chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
3 08-Feb-2024

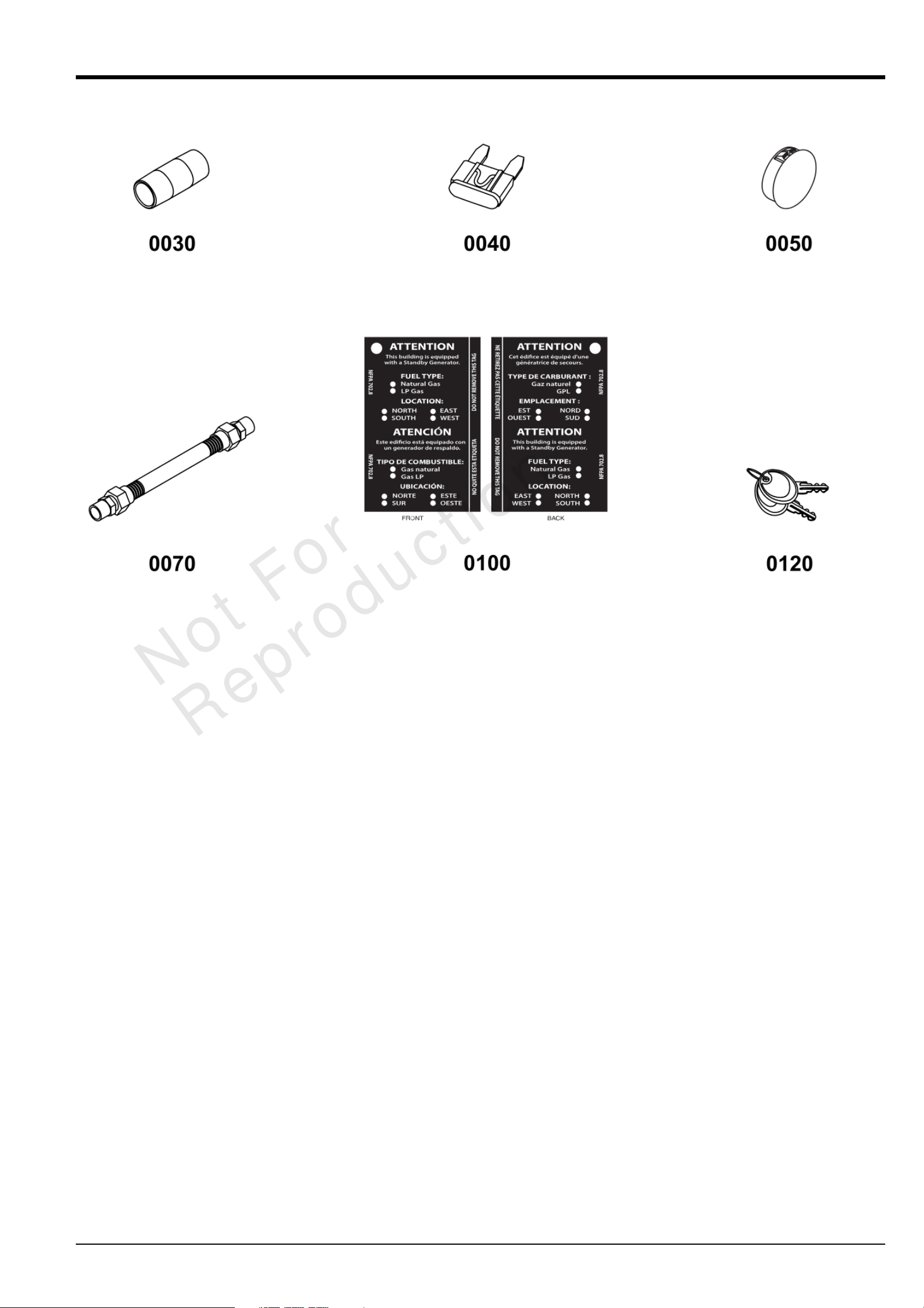

Accessory GroupAccessory GroupAccessory GroupAccessory Group
Mfg. No: 040783-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
4 08-Feb-2024
Accessory GroupAccessory GroupAccessory GroupAccessory Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0030 206976GS 1 FITTING
0040 198573GS 2 FUSE, Auto Type, 15 Amp
0050 198460GS 4 PLUG, Dome
0070 202295GS 1 HOSE-FLEX NG/LPG
0100 706988 1 HANG TAG-ATTN. STANDBY EQUIPMENT
0120 314290GS 1 KEY, Latch
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
5 08-Feb-2024

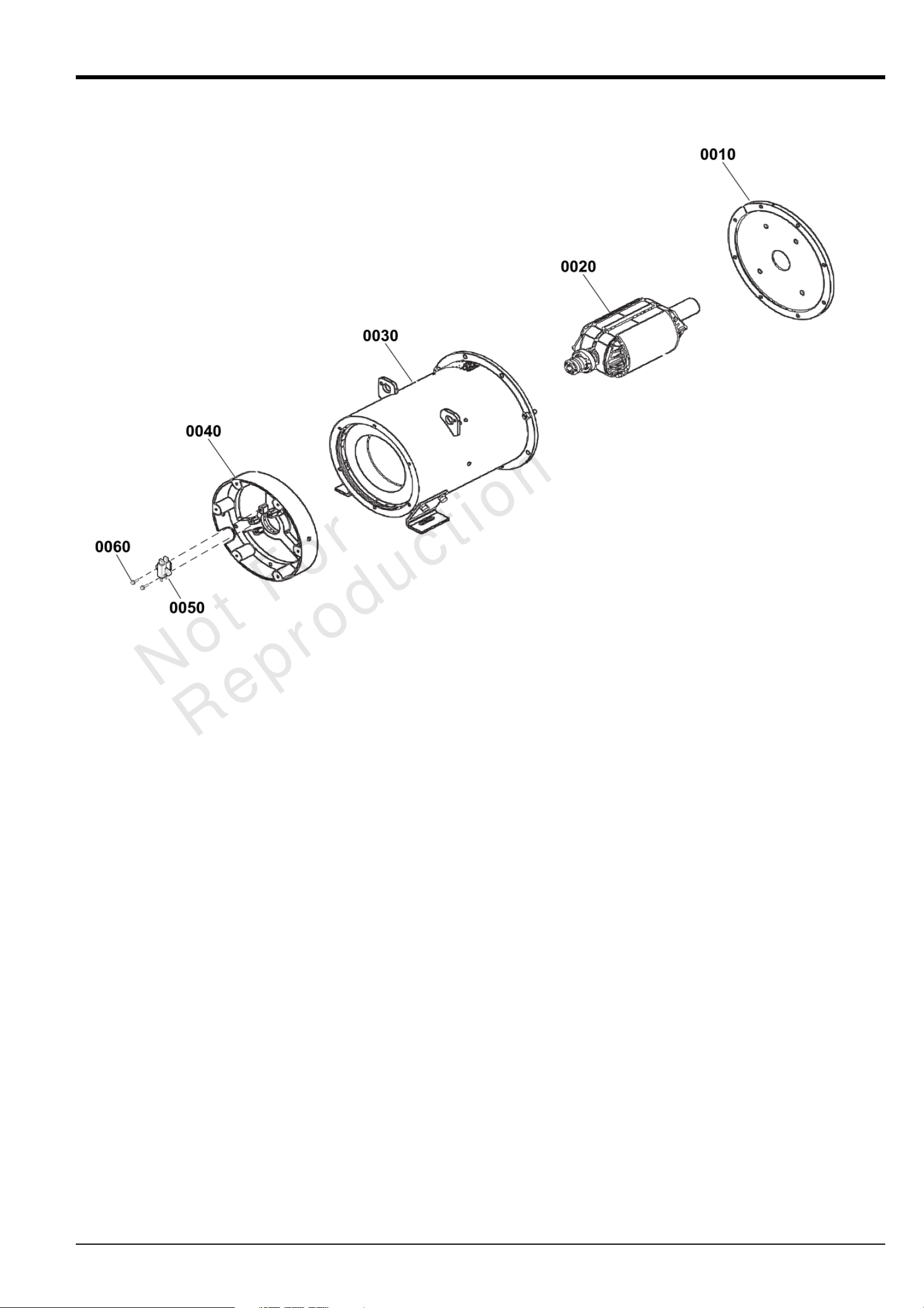

Alternator GroupAlternator GroupAlternator GroupAlternator Group
Mfg. No: 040783-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
6 08-Feb-2024
Alternator GroupAlternator GroupAlternator GroupAlternator Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 84007278 1 ADAPTER
0020 84010877 1 STATOR
0030 84010876 1 ROTOR ASSEMBLY
0040 84007279 1 HOUSING, Bearing
0050 66386GS 1 ASSY, Holder, Brush
0060 66849GS 2 TAPTITE, M5 - 0.8 x 16
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
7 08-Feb-2024
Circuit Breaker GroupCircuit Breaker GroupCircuit Breaker GroupCircuit Breaker Group
Mfg. No: 040783-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
8 08-Feb-2024
Circuit Breaker GroupCircuit Breaker GroupCircuit Breaker GroupCircuit Breaker Group

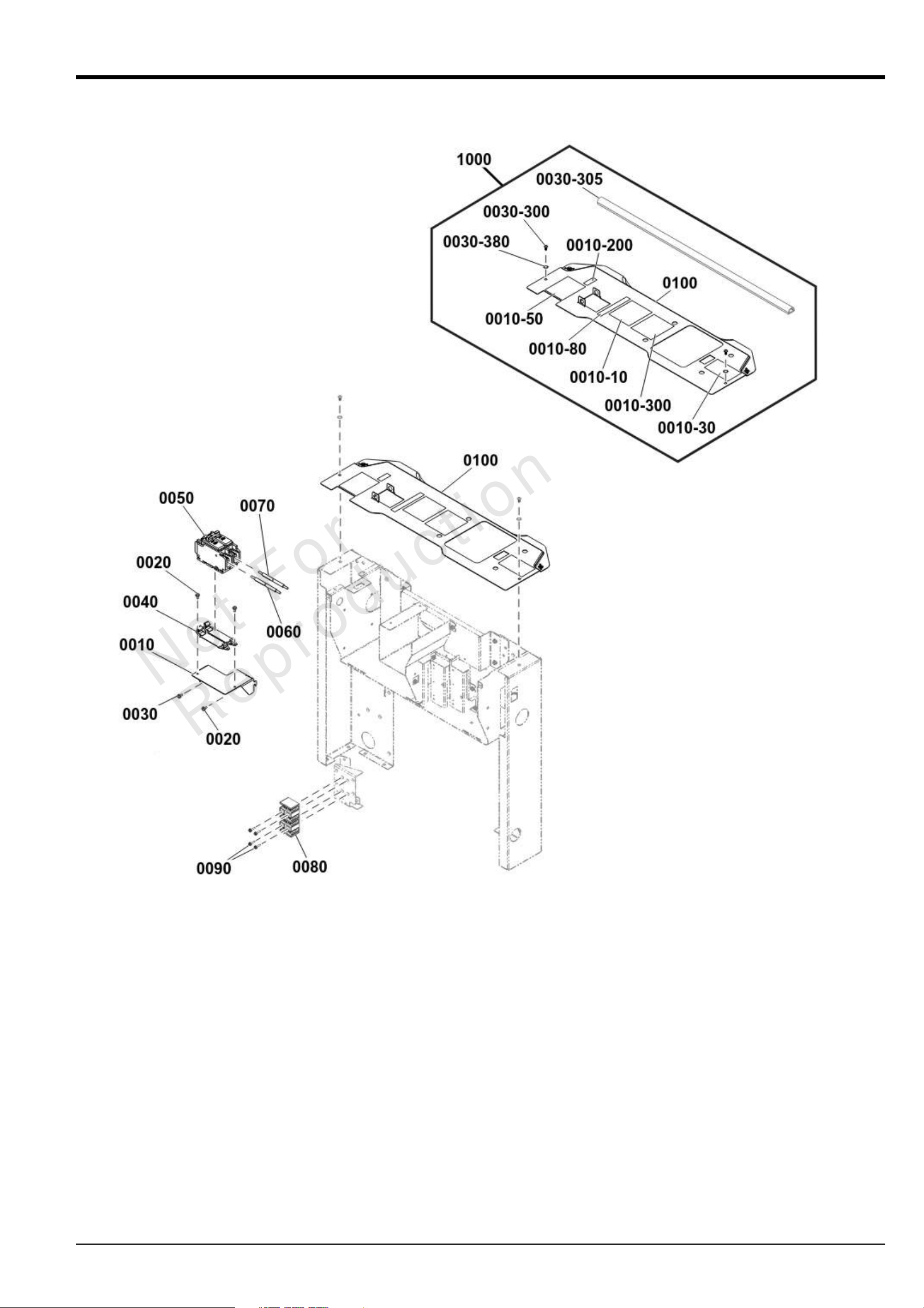

REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 ----- 1 BRACKET
0020 194561GS 3 HHS, Trilobular, #10-32 x 3/8
0030 ----- 1 SCREW, 10-16 X 3/8
0040 192770GS 2 BRACKET, Mounting / Breaker
0050 311318GS 1 BREAKER, Circuit, 100A
0060 ----- 1 WIRE, Power
0070 ----- 1 WIRE, Power
0080 84006390 1 BLOCK, Terminal
0090 707520 4 SCREW, Taptite
0100 ----- 1 COVER, Control Panel
1000 84007050 1 KIT, Cover, Control Panel
-(Includes Ref. Nos. 0010-10, 0010-30, 0010-50, 0010-80, 0010-200, 0010-300,
0030-300, 0030-305, 0030-380, 0100)
0010-10 ----- 1 DECAL-WARNING, SHOCK
-(Part information located in Decals Group.)
0010-30 ----- 1 DECAL-WARNING, FUSE
-(Part information located in Decals Group.)
0010-50 ----- 1 DECAL, Warning, Manual
-(Part information located in Decals Group.)
0010-80 ----- 1 DECAL-DISCONNECT
-(Part information located in Decals Group.)
0010-200 ----- 1 DECAL, FCC, ICES-3
-(Part information located in Decals Group.)
0010-300 ----- 1 DECAL, Warning
-(Part information located in Decals Group.)
0030-300 84006392 2 SCREW, #10-32 X 3/8
-(Part information located in Control Panel Group.)
0030-305 ----- 1 SEAL, Bulb
-(Part information located in Control Panel Group.)
0030-380 ----- 2 WASHER, Ext. M6 - 1/4" Shakeproof
-(Part information located in Control Panel Group.)
0100 ----- 1 COVER, Control Panel
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
9 08-Feb-2024

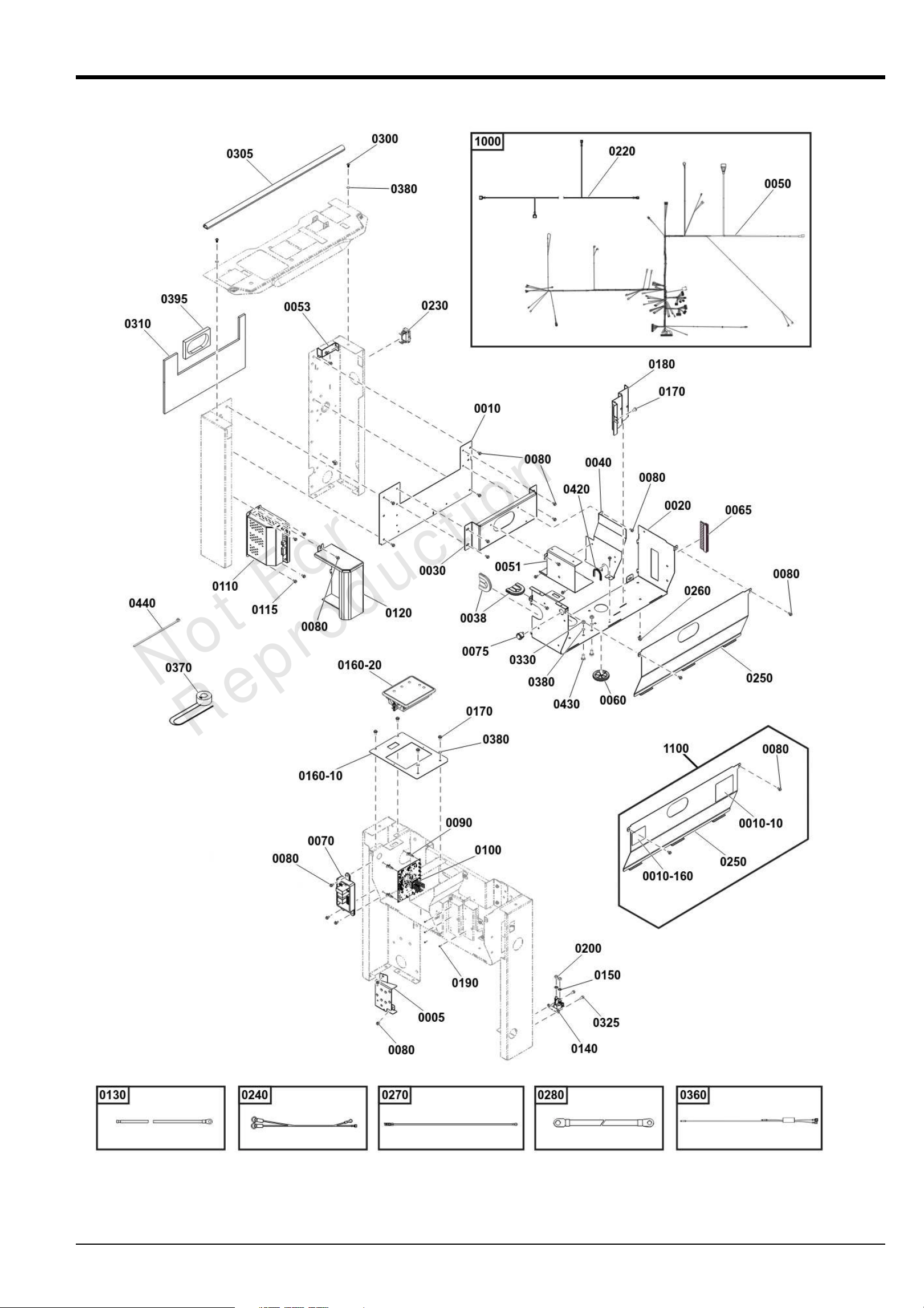

Control Panel GroupControl Panel GroupControl Panel GroupControl Panel Group
Mfg. No: 040783-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
10 08-Feb-2024
Control Panel GroupControl Panel GroupControl Panel GroupControl Panel Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0005 ----- 1 BRACKET, Terminal Block
0010 ----- 1 PANEL
0020 ----- 1 BASE
0030 ----- 1 PANEL
0038 ----- 2 GROMMET
0040 ----- 1 DIVIDER
0051 ----- 1 BRACKET
0053 ----- 1 BRACKET
0060 ----- 2 GROMMET
0065 ----- 2 GROMMET
0070 772336 1 ASSEMBLY, Relay
0075 315551GS 1 SWITCH, Rocker
0080 194561GS 18 HHS, Trilobular, #10-32 x 3/8
0090 772379 4 SUPPORT, Circuit Board
0100 84010843 1 ASSEMBLY, AVR
0110 772376 1 CHARGER, Battery
0115 ----- 4 SCREW, #10-32 X 1/2
0120 ----- 1 COVER
0130 84007028 1 WIRE, Power
0140 1755381YP 1 SOLENOID, L-BRACKET
0150 22129GP 2 WASHER, 5/16 - M8, Lock
0160-10 ----- 1 COVER, Control Panel
0160-20 84007051 1 CONTROLLER
0170 ----- 12 SCREW, 10-16 X 3/8
0180 ----- 1 BRACKET
0190 314691GS 5 SCREW, Taptite, M2.5-.45 X 12
0200 703331 2 NUT, 5/16-24
0230 772341 1 SWITCH, Rocker
0240 84007026 1 HARNESS, Intermediate, Relay
0260 195733GS 4 MOUNT, Tie Wrap
0270 84008694 1 HARNESS, Battery
0280 706527 1 WIRE, Ground
0300 ----- 2 SCREW, #10-32 X 3/8
0305 ----- 1 SEAL, Bulb
0310 ----- 1 INSULATION
0325 704130 3 SCREW, HEX, 1/4-20X.5
0330 5025391SM 2 NUT, Hex Nylock, Flange, 1/4-20
0360 84004583 1 HARNESS
0370 772339 2 TRANSFORMER, Current, 150:5
0380 26850GS 7 WASHER, Ext. M6 - 1/4" Shakeproof
0395 ----- 1 SEAL
0420 ----- 1 GROMMET
0430 703818 2 CAPSCREW, 1/4-20X0.5
0440 29333AGS 3 TIEWRAP, 7 LG BLK
1000 84010878 1 KIT, Harness
-(Includes Ref. Nos. 0050, 0220)
0050 ----- 1 HARNESS, Main
0220 ----- 1 HARNESS, Fuel Select
1100 84011527 1 KIT, Panel, Control Box
-(Includes Ref. Nos. 0010-10, 0010-160, 0080, 0250)
0010-10 ----- 1 DECAL-WARNING, SHOCK
-(Part information located in Decals Group.)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
11 08-Feb-2024
Control Panel GroupControl Panel GroupControl Panel GroupControl Panel Group
Mfg. No: 040783-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
12 08-Feb-2024
Control Panel GroupControl Panel GroupControl Panel GroupControl Panel Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010-160 ----- 1 DECAL, Warning
-(Part information located in Decals Group.)
0080 194561GS 2 HHS, Trilobular, #10-32 x 3/8
0250 ----- 1 PANEL, Control Box
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
13 08-Feb-2024

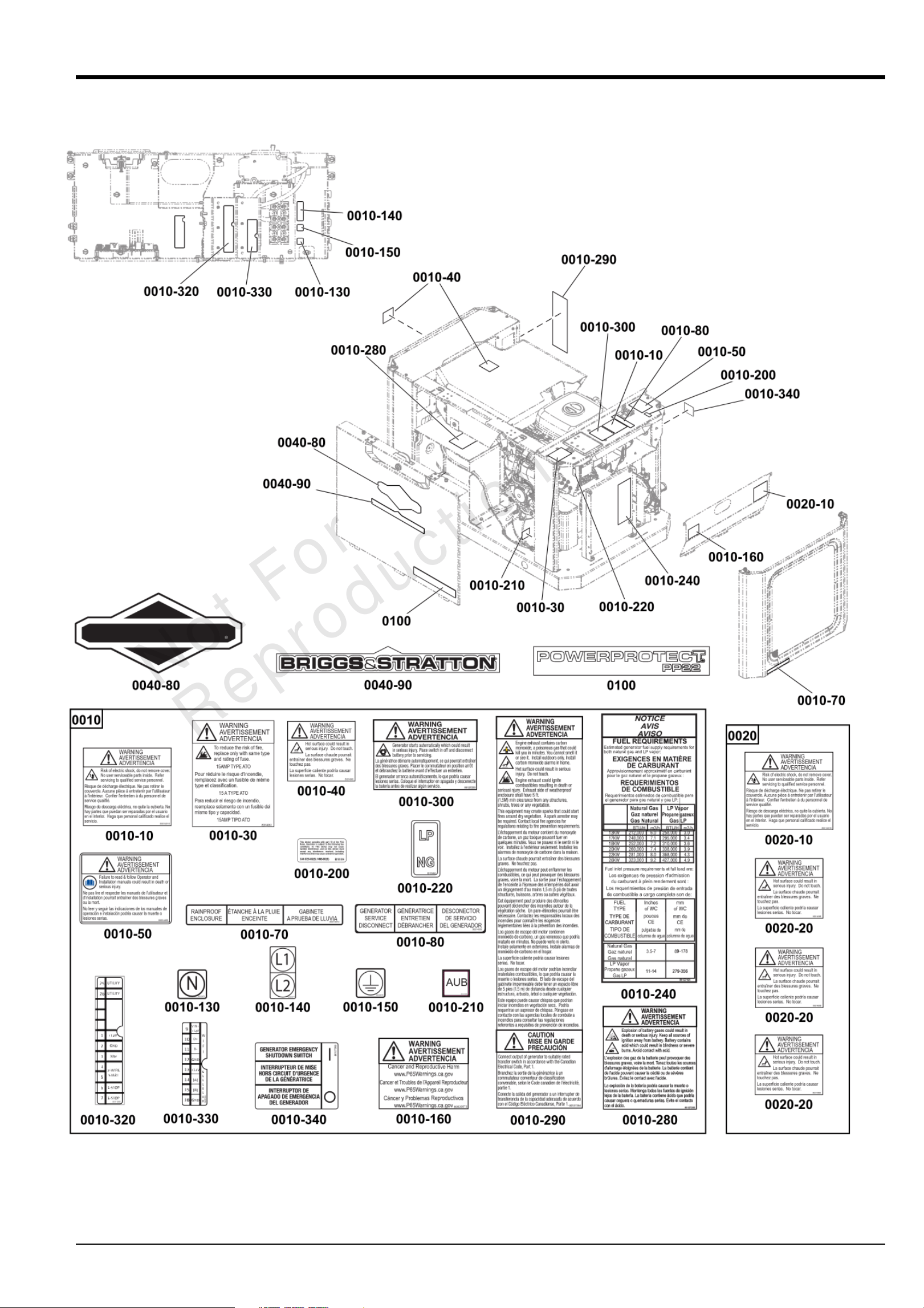

Decals GroupDecals GroupDecals GroupDecals Group
Mfg. No: 040783-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
14 08-Feb-2024
Decals GroupDecals GroupDecals GroupDecals Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 84010842 1 DECAL, Warning, Sheet
-(Includes items 0010-0010 thru 0010-0340)
0010-10 ----- 1 DECAL-WARNING, SHOCK
0010-30 ----- 1 DECAL-WARNING, FUSE
0010-40 ----- 2 DECAL-WARNING, HOT SURFACE
0010-50 ----- 1 DECAL, Warning, Manual
0010-70 ----- 1 DECAL-RAINPROOF ENCLOSURE
0010-80 ----- 1 DECAL-DISCONNECT
0010-130 ----- 1 DECAL, Neutral
0010-140 ----- 1 DECAL, L1/L2
0010-150 ----- 1 DECAL, Ground
0010-160 ----- 1 DECAL, Warning
-(The installation of this decal is required for units manufactured after
08/30/2018 and sold in the state of California.)
0010-200 ----- 1 DECAL, FCC, ICES-3
0010-210 ----- 1 DECAL, MOR, AUBURN
0010-220 ----- 1 DECAL, Fuel Selection
0010-240 ----- 1 DECAL, Notice Fuel Requirements
0010-280 ----- 1 DECAL, Warning, Battery
0010-290 ----- 1 DECAL, Warning, Exhaust
0010-300 ----- 1 DECAL, Warning, Auto Start
0010-320 ----- 1 DECAL, Terminal Strip
0010-330 ----- 1 DECAL, Terminal Strip
0010-340 ----- 1 DECAL, Emergency Shutdown
0020 84007020 1 DECAL SHEET - WARNINGS
-(Includes items 0540-10, 0540-20)
0020-10 ----- 1 DECAL-WARNING, SHOCK
0020-20 ----- 3 DECAL-WARNING, HOT SURFACE
0040-80 ----- 1 DECAL
0040-90 ----- 1 DECAL
0100 ----- 1 DECAL, Brand, PP22
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
15 08-Feb-2024

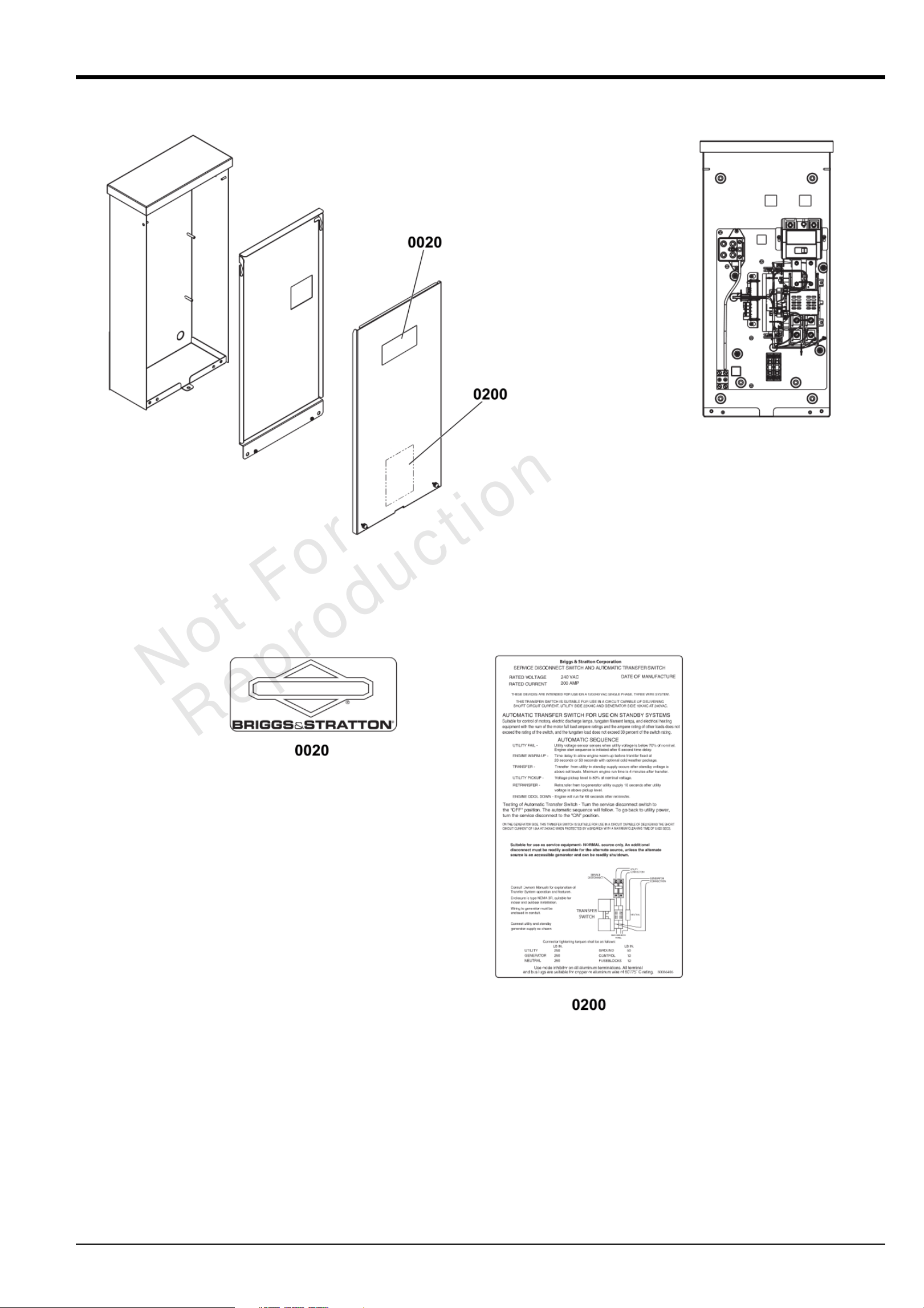

Decals Group - ATS InformationalDecals Group - ATS InformationalDecals Group - ATS InformationalDecals Group - ATS Informational
Mfg. No: 040783-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
16 08-Feb-2024
Decals Group - ATS InformationalDecals Group - ATS InformationalDecals Group - ATS InformationalDecals Group - ATS Informational
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0020 ----- 1 DECAL, Logo
0200 84004859 1 DECAL, Transfer Switch, 200A
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
17 08-Feb-2024

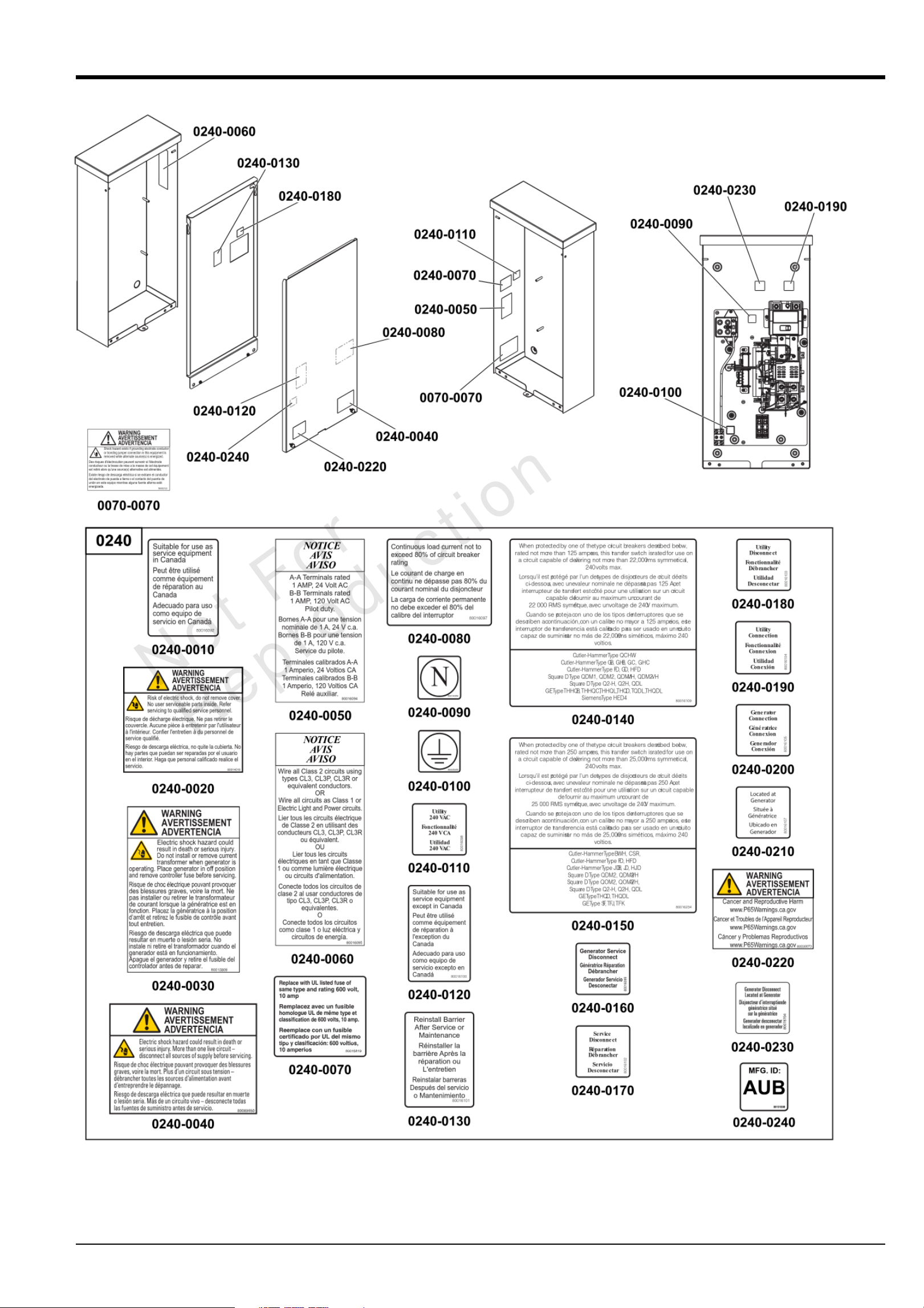

Decals Group - ATS WarningDecals Group - ATS WarningDecals Group - ATS WarningDecals Group - ATS Warning
Mfg. No: 040783-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
18 08-Feb-2024
Decals Group - ATS WarningDecals Group - ATS WarningDecals Group - ATS WarningDecals Group - ATS Warning
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0070-0070 ----- 1 DECAL, Warning, Shock Hazard
0240 84007663 1 DECAL SHEET - WARNINGS
-(Includes items 0240-0010 thru 0240-0240)
0240-0010 ----- 1 DECAL, Suitable as SRV Equipment, Canada
0240-0020 ----- 1 DECAL-WARNING, SHOCK
0240-0030 ----- 1 DECAL-WARNING, ELECTRIC SHOCK
0240-0040 ----- 1 DECAL-WARNING, ELECTRIC SHOCK
0240-0050 ----- 1 DECAL, Notice, Contacts Rated
0240-0060 ----- 1 DECAL, Notice, Wire Circuits
0240-0070 ----- 1 DECAL-FUSE REPLACEMENT
0240-0080 ----- 1 DECAL, Breaker, Circuit
0240-0090 ----- 1 DECAL-NEUTRAL
0240-0100 ----- 2 DECAL-GROUND
0240-0110 ----- 1 DECAL, Utility 240VAC
0240-0120 ----- 1 DECAL, Suitable as Service Equipment
0240-0130 ----- 1 DECAL, Reinstall Barrier
0240-0140 ----- 1 DECAL, Approved Circuit Breakers, 100A
0240-0150 ----- 1 DECAL, Approved Circuit Breakers, 200A
0240-0160 ----- 1 DECAL, Generator Service Disconnect
0240-0170 ----- 2 DECAL, Service Disconnect
0240-0180 ----- 2 DECAL, Disconnect, Utility
0240-0190 ----- 2 DECAL, Connection, Utility
0240-0200 ----- 1 DECAL, Connection, Generator
0240-0210 ----- 1 DECAL, Location
0240-0220 ----- 1 DECAL, Warning
-(The installation of this decal is required for units manufactured after
08/30/2018 and sold in the state of California.)
0240-0230 ----- 1 DECAL, Generator Disconnect Located at Generator
0240-0240 ----- 1 DECAL, MOR, AUBURN
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
19 08-Feb-2024

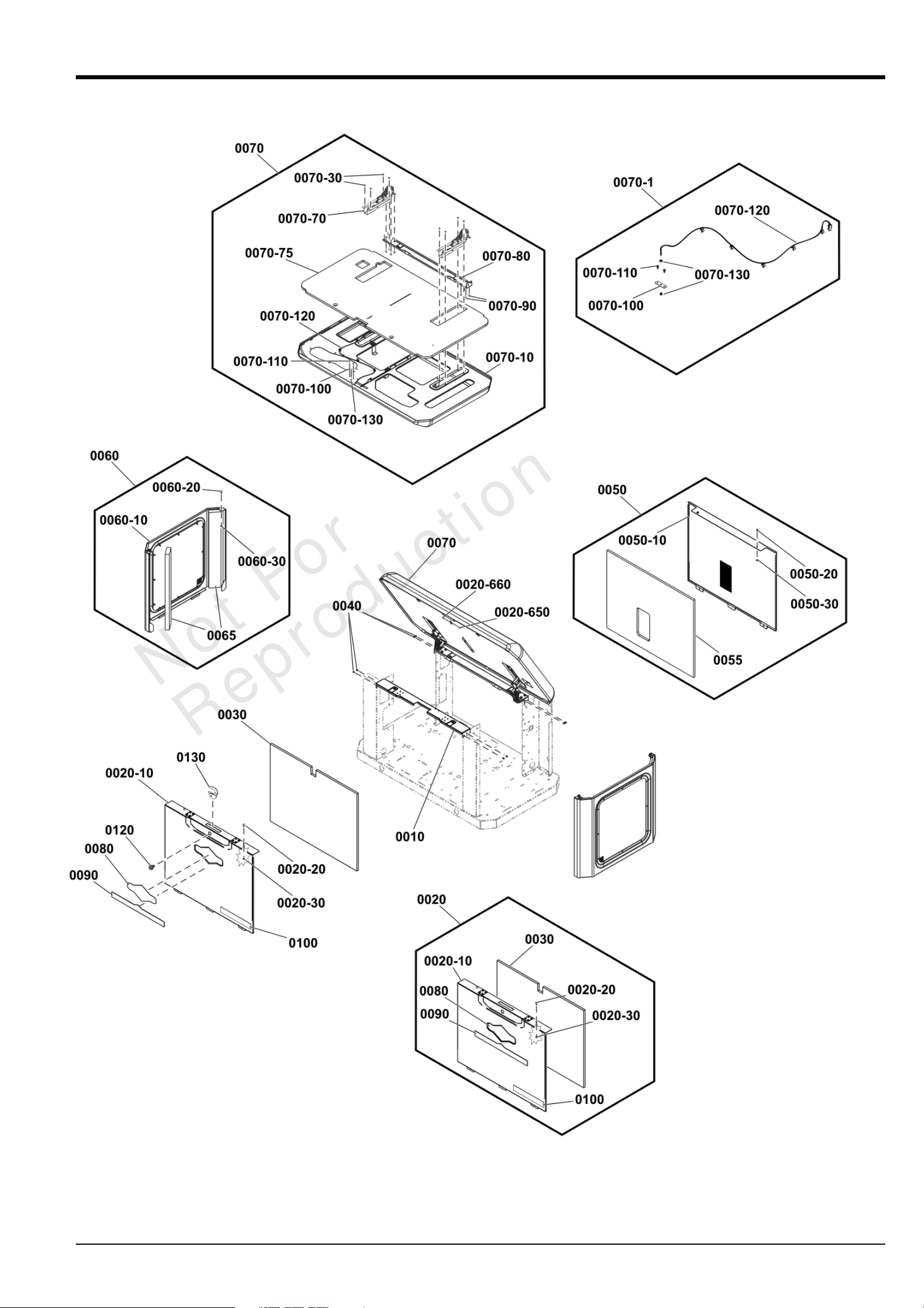

Enclosure GroupEnclosure GroupEnclosure GroupEnclosure Group
Mfg. No: 040783-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
20 08-Feb-2024
Enclosure GroupEnclosure GroupEnclosure GroupEnclosure Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 84006384 1 RAIL, Front
0020 6936 1 ASSEMBLY, Panel, Front
-(Incl. Ref. Nos. 0020-10, 0020-20, 0020-30, 0030, 0080, 0090, 0100)
0020-10 ----- 1 PANEL, Front
0020-20 ----- 2 SCREW, Captive
0020-30 ----- 2 RETAINER
0030 ----- 1 INSULATION
0080 ----- 1 DECAL
0090 ----- 1 DECAL
0100 ----- 1 DECAL, Brand, PP22
0020-650 84007139 1 BARREL, Binding
0020-660 36901GS 1 PPHMS, 6-32 X 3/8
0040 84006392 8 SCREW, #10-32 X 3/8
0050 6858 1 ASSEMBLY, Panel, Back
-(Incl. Ref. Nos. 0050, 0050-20, 0050-30, 0055)
0050-10 ----- 1 PANEL, Back
0050-20 ----- 2 SCREW, Captive
0050-30 ----- 2 RETAINER
0055 ----- 1 INSULATION
0060 6859 2 ASSEMBLY, Panel, End
-(Incl. Ref. Nos. 0060-10, 0060-20, 0060-30, 0065)
0060-10 ----- 1 PANEL, End
0060-20 ----- 2 SCREW, Captive
0060-30 ----- 2 RETAINER
0065 ----- 2 INSULATION
0070 6860 1 ASSEMBLY, Roof
-(Incl. Ref. Nos. 0070-10, 0070-30, 0070-70, 0070-75, 0070-80, 0070-90,
0070-100, 0070-110, 0070-120, 0070-130)
0070-10 ----- 1 PANEL, Roof
0070-30 ----- 8 RIVET, Blind, 1/8 X 5/16
0070-70 ----- 2 HINGE, Roof
0070-75 ----- 1 INSULATION
0070-80 ----- 1 SUPPORT, Rail
0070-90 704130 8 SCREW, HEX, 1/4-20X.5
0070-100 ----- 1 PLATE, Mount
0070-110 205947GS 2 SCREW, Trilobular, #10-32 x 3/4
0070-120 ----- 1 HARNESS, Wire
0070-130 ----- 1 CLIP, Mounting
0070-1 84008085 1 KIT, Light
-(Incl. Ref. Nos. 0070-100, 0070-110, 0070-120, 0070-130)
0070-100 ----- 1 PLATE, Mount
0070-110 205947GS 2 SCREW, Trilobular, #10-32 x 3/4
0070-120 ----- 1 HARNESS, Wire
0070-130 ----- 1 CLIP, Mounting
0080 ----- 1 DECAL
0090 ----- 1 DECAL
0100 ----- 1 DECAL, Brand, PP22
0120 314619GS 1 LATCH
0130 84006387 1 LATCH, Arm
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
21 08-Feb-2024

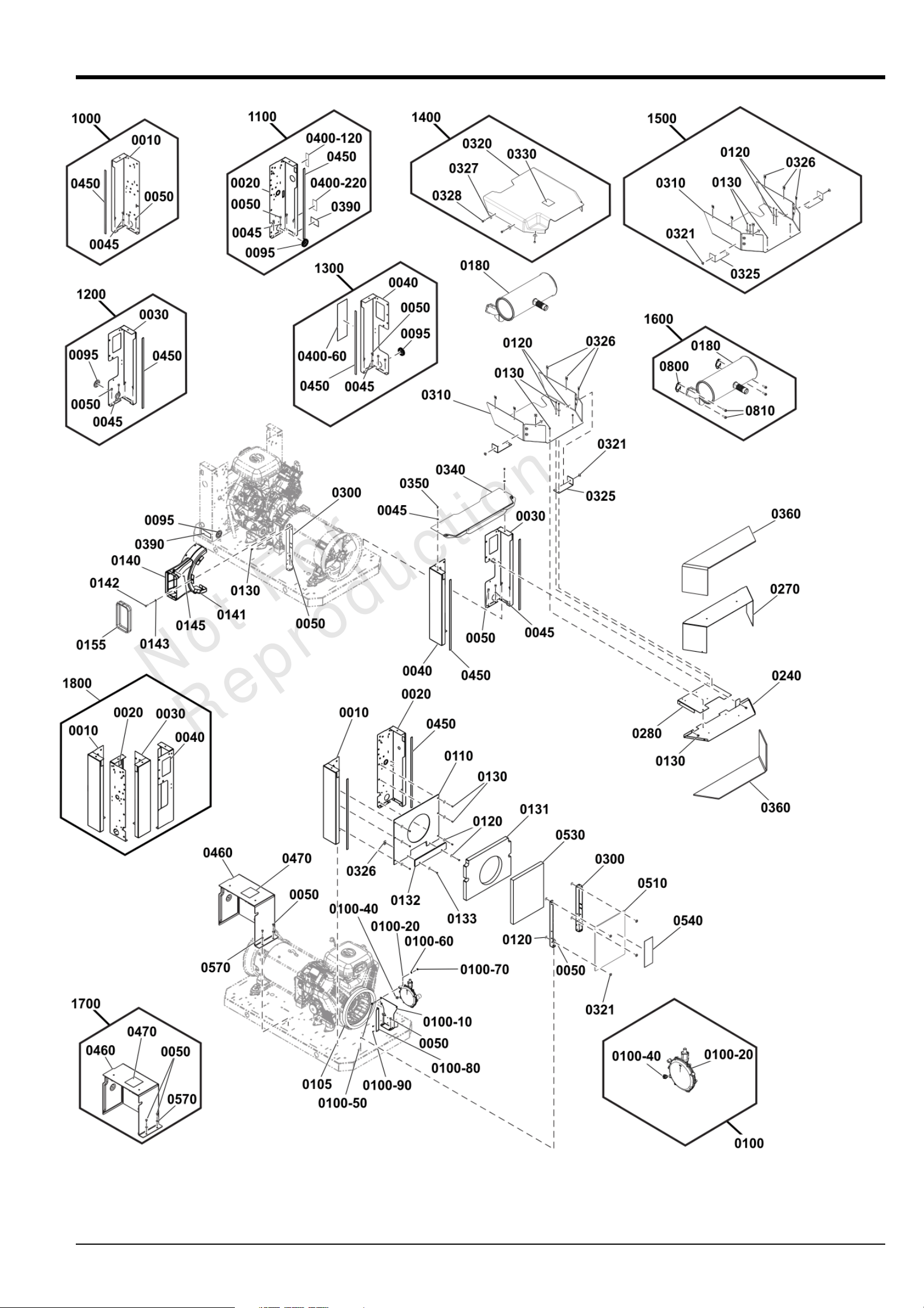

Fuel, Duct & Support GroupFuel, Duct & Support GroupFuel, Duct & Support GroupFuel, Duct & Support Group
Mfg. No: 040783-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
22 08-Feb-2024
Fuel, Duct & Support GroupFuel, Duct & Support GroupFuel, Duct & Support GroupFuel, Duct & Support Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0045 26850GS 6 WASHER, Ext. M6 - 1/4" Shakeproof
0050 704130 23 SCREW, HEX, 1/4-20X.5
0100 84006385 1 FUEL REGULATOR ASSEMBLY
-(Includes Ref. Nos. 0100-20, 0100-40)
0100-10 706379 1 BRACKET
0100-20 ----- 1 FUEL REGULATOR ASSEMBLY
0100-40 318002GS 1 FITTING
0100-50 38750GS 2 HHCS, M6 - 1.0 x 30
0100-60 22097GS 2 WASHER
0100-70 49813GS 2 NUT, Hex, M6 - 1.0
0100-80 ----- 1 BRACKET
0100-90 194561GS 2 HHS, Trilobular, #10-32 x 3/8
0105 ----- 1 SEAL, Ring
0110 84006038 1 PANEL, Intake
0120 ----- 25 WASHER, Flat, #10, Fender
-(*See footnote)
0130 194561GS 19 HHS, Trilobular, #10-32 x 3/8
0131 ----- 1 INSULATION
0132 ----- 1 INSULATION
0133 22473GS 2 FLAT WASHER, M6 - 1/4"
0140 ----- 1 DUCT, Left
0141 ----- 1 DUCT, Right
0142 52618GS 5 SCREW, M5 x 0.8 x 12
0143 23897GS 5 WASHER, Flat, #10 - M5
0145 ----- 3 SCREW, #8-18 X 3/8
0155 ----- 1 SEAL
0180 84007030 1 KIT, Muffler
0240 ----- 1 PANEL, Bottom
0270 ----- 1 PANEL, Top
0280 ----- 1 SUPPORT
0300 ----- 3 SUPPORT
0321 ----- 21 RIVET, BLIND, 3/16 X 5/8
0325 ----- 2 BRACKET, Muffler
0326 ----- 8 NUT, Clip
0327 71693GS 6 WASHER, Fender
0328 5025010X6 8 BOLT, 1/4"-20 X 3/4" GD5 YZ
0340 84006316 1 PANEL
0350 84006392 2 SCREW, #10-32 X 3/8
0360 ----- 2 INSULATION
0450 ----- 4 SEAL, Foam
0460 ----- 1 PANEL, Battery Box
0510 ----- 1 INSULATION
0530 ----- 1 INSULATION
0540 ----- 1 DECAL, Notice Fuel Requirements
-(Part information located in Decals Group.)
0570 ----- 2 WASHER
1000 84007045 1 KIT, Support, Right Front
-(Includes Ref. Nos. 0010, 0045, 0050, 0450)
0010 ----- 1 SUPPORT, Right Front
* Items without part numbers are common fasteners. Purchase locally.
Footnotes:Footnotes:Footnotes:Footnotes:
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
23 08-Feb-2024
Fuel, Duct & Support GroupFuel, Duct & Support GroupFuel, Duct & Support GroupFuel, Duct & Support Group
Mfg. No: 040783-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
24 08-Feb-2024
Fuel, Duct & Support GroupFuel, Duct & Support GroupFuel, Duct & Support GroupFuel, Duct & Support Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0045 26850GS 1 WASHER, Ext. M6 - 1/4" Shakeproof
0050 704130 4 SCREW, HEX, 1/4-20X.5
0450 ----- 1 SEAL, Foam
1100 84007046 1 KIT, Support, Right Back
-(Includes Ref. Nos. 0020, 0045, 0050, 0390, 0400-120, 0400-220, 0450)
0010 ----- 1 SUPPORT, Right Back
0045 26850GS 1 WASHER, Ext. M6 - 1/4" Shakeproof
0050 704130 4 SCREW, HEX, 1/4-20X.5
0095 ----- 1 GROMMET
0390 ----- 1 DECAL, SWRI
0400-120 ----- 1 DECAL, External Power Switch
-(Part information located in Decals Group.)
0400-220 ----- 1 DECAL, Fuel Selection
-(Part information located in Decals Group.)
0450 ----- 1 SEAL, Foam
1200 84007047 1 KIT, Support, Left Front
-(Includes Ref. Nos. 0030, 0045, 0050, 0095, 0450)
0030 ----- 1 SUPPORT, Left Front
0045 26850GS 1 WASHER, Ext. M6 - 1/4" Shakeproof
0050 704130 4 SCREW, HEX, 1/4-20X.5
0095 ----- 1 GROMMET
0450 ----- 1 SEAL, Foam
1300 84007048 1 KIT, Support, Left Back
-(Includes Ref. Nos. 0040, 0045, 0050, 0095, 0400-60, 0450)
0040 ----- 1 SUPPORT, Left Back
0045 26850GS 1 WASHER, Ext. M6 - 1/4" Shakeproof
0050 704130 4 SCREW, HEX, 1/4-20X.5
0095 ----- 1 GROMMET
0400-60 ----- 1 DECAL-WARNING, EXHAUST
-(Part information located in Decals Group.)
0450 ----- 1 SEAL, Foam
1400 84007029 1 KIT, Muffler Box, Top
-(Includes Ref. Nos. 0320, 0327, 0328, 0330)
0320 ----- 1 MUFFLER BOX, Top
0327 71693GS 6 WASHER, Fender
0328 22287GS 6 SCREW, 1/4" - 20 x 3/4"
0330 ----- 1 DECAL-WARNING, HOT SURFACE
-(Part information located in Decals Group.)
1500 84007080 1 KIT, Muffler Box, Bottom
-(Includes Ref. Nos. 0120, 0130, 0310, 0321, 0325, 0326)
0120 ----- 10 WASHER, Flat, #10, Fender
0130 194561 6 HHS,TRILOBULAR, #10-3
0310 ----- 1 MUFFLER BOX, Bottom
0321 ----- 6 RIVET, BLIND, 3/16 X 5/8
0325 ----- 2 BRACKET, Muffler
0326 ----- 6 NUT, Clip
1600 84007030 1 KIT, Muffler
-(Includes Ref. Nos. 0180, 0800, 0810)
0180 ----- 1 MUFFLER
0800 809872 2 GASKET, Exhaust
0810 846149 4 SCREW
* Items without part numbers are common fasteners. Purchase locally.
Footnotes:Footnotes:Footnotes:Footnotes:
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
25 08-Feb-2024
Fuel, Duct & Support GroupFuel, Duct & Support GroupFuel, Duct & Support GroupFuel, Duct & Support Group
Mfg. No: 040783-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
26 08-Feb-2024
Fuel, Duct & Support GroupFuel, Duct & Support GroupFuel, Duct & Support GroupFuel, Duct & Support Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
1700 84007032 1 KIT, Battery Box
-(Includes Ref. Nos. 0050, 0460, 0470)
0050 704130 2 SCREW, HEX, 1/4-20X.5
0460 ----- 1 PANEL, Battery Box
0470 ----- 1 DECAL, Warning, Battery
-(Part information located in Decals Group.)
0570 ----- 2 WASHER
1800 6856 1 ENCLOSURE, Bulkhead
-(Includes Ref. Nos. 0010, 0020, 0030, 0040)
0010 ----- 1 SUPPORT, Right Back
0020 ----- 1 SUPPORT, Left Back
0030 ----- 1 SUPPORT, Left Front
0040 ----- 1 SUPPORT, Right Front
* Items without part numbers are common fasteners. Purchase locally.
Footnotes:Footnotes:Footnotes:Footnotes:
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
27 08-Feb-2024

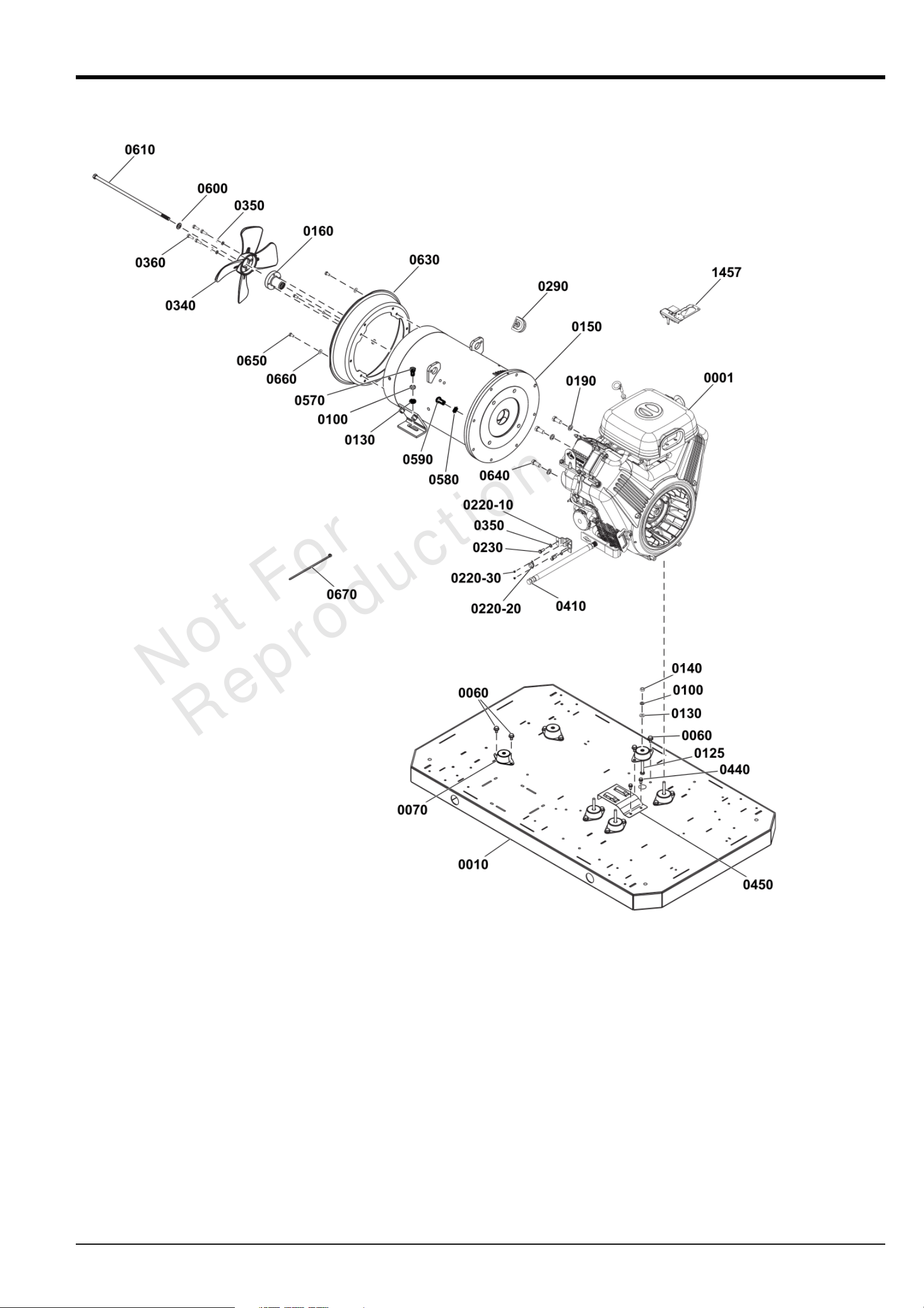

Power GroupPower GroupPower GroupPower Group
Mfg. No: 040783-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
28 08-Feb-2024
Power GroupPower GroupPower GroupPower Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0001 61H3750001E1 1 Replacement Engine
-(**See footnote)
0010 ----- 1 BASE
0060 24910GS 12 CAPSCREW, Hex Head, Trilobular, 5/16, 18 x 1/2
0070 84007023 6 MOUNT, Vibration
0100 22129GS 6 WASHER, Lock
0125 ----- 4 *CAPSCREW, Hex Head, 5/16-18 x 2-1/2
-(*See footnote)
0130 5025155SM 6 WASHER, 5/16
0140 22259GS 4 NUT, 5/16 - 18
0150 84010874 1 ALTERNATOR
0160 84007022 1 HUB, Fan
0190 ----- 4 *WASHER, Lock, 7/16
-(*See footnote)
0220-10 313561GS 1 PLATE, Temp Switch
0220-20 204426GS 1 SWITCH, Temperature
0220-30 708730 2 SCREW
0230 47411GS 2 SCREW
0290 315440GS 1 GROMMET
0340 84006018 1 FAN
0350 22097GS 6 WASHER
0360 5025010X6SM 4 BOLT, 1/4-20 X 3/4" G
0410 5048681SM 1 HOSE, OIL DRAIN
0440 704130 2 SCREW, HEX, 1/4-20X.5
0450 ----- 1 BRACKET, Heater
0570 5025011X6 2 BOLT, 5/16-18 X 3/4 GD5
0580 193686 8 WSHR, M10, SHKPRF, EXT
0590 ----- 8 *SCREW, M10 X 25
-(*See footnote)
0600 203200 1 WASHER, 3/8" SAE
0610 315203GS 1 BOLT
0630 84006017 1 SHROUD, Fan
0640 2820676SM 4 CAPSCREW-HEX HD 7/16-
0650 807435 6 SCREW
0660 22473GS 6 FLAT WASHER, M6 - 1/4"
0670 29333AGS 1 TIEWRAP, 7 LG BLK
1457 ----- 1 MOTOR, Stepper
-(Refer To Your Engine Model's Parts Manual)
** To verify your specific engine model, please reference the ID Tag located on your engine. See your local Briggs & Stratton distributor for parts and service.
* Items without part numbers are common fasteners. Purchase locally.
Footnotes:Footnotes:Footnotes:Footnotes:
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
29 08-Feb-2024
Symphony II Controller KitSymphony II Controller KitSymphony II Controller KitSymphony II Controller Kit
Mfg. No: 040783-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved

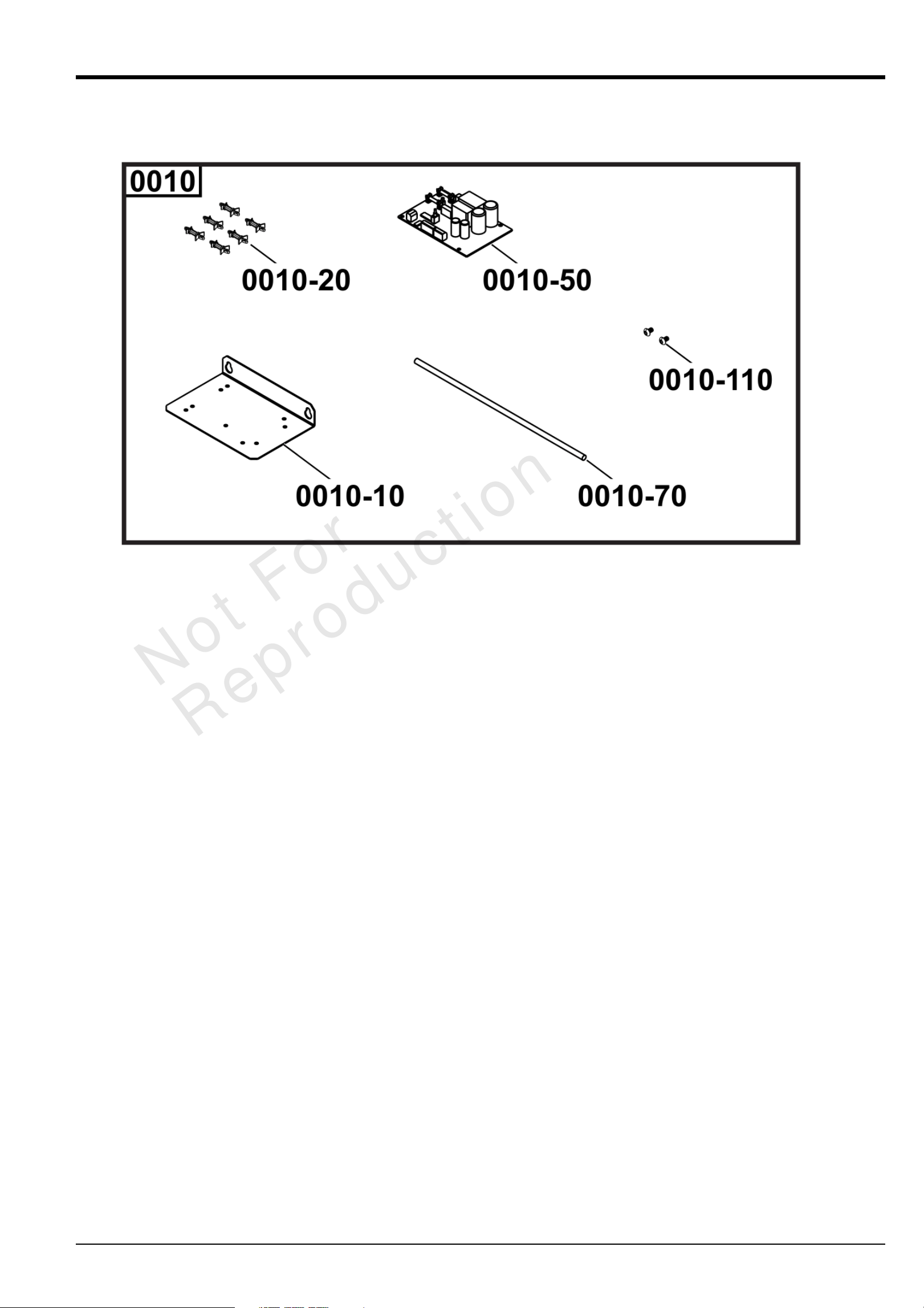

30 08-Feb-2024
Symphony II Controller KitSymphony II Controller KitSymphony II Controller KitSymphony II Controller Kit
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6907 1 CONTROLLER, Symphony II
0010-10 84008547 1 BRACKET
0010-20 707397 6 SPACER
0010-50 ----- 1 BOARD, Circuit
0010-70 ----- 1 HARNESS, Wire
0010-110 B5763GS 2 SCREW
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
31 08-Feb-2024
Transfer Switch - Hingeless EnclosureTransfer Switch - Hingeless EnclosureTransfer Switch - Hingeless EnclosureTransfer Switch - Hingeless Enclosure
Mfg. No: 040783-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
32 08-Feb-2024
Transfer Switch - Hingeless EnclosureTransfer Switch - Hingeless EnclosureTransfer Switch - Hingeless EnclosureTransfer Switch - Hingeless Enclosure

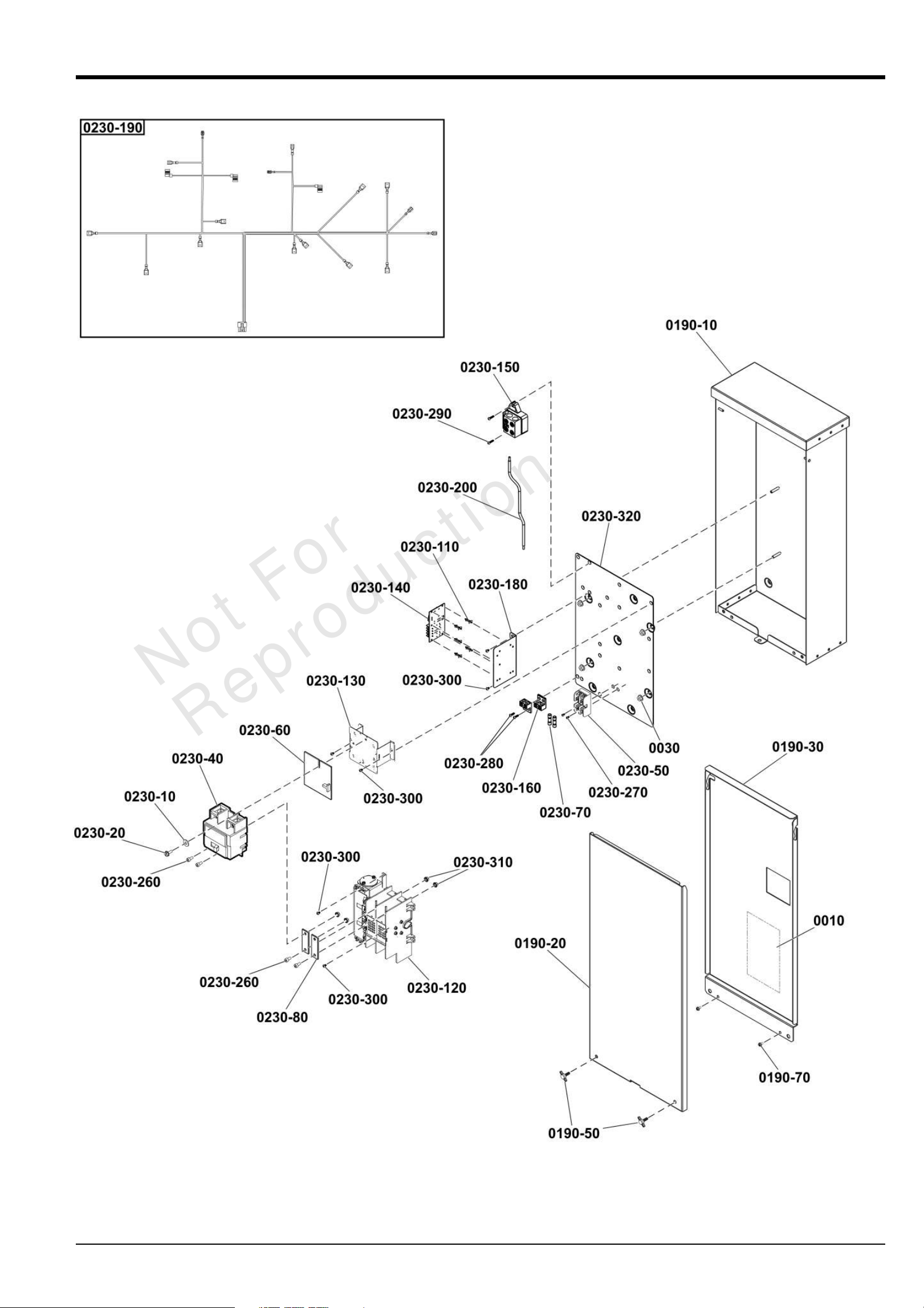

REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 193664GS 1 INSULATION, Dead Front
0030 703061 9 NUT, HEX KEPS, 1/4-20
0190-10 ----- 1 ENCLOSURE
0190-20 84004672 1 DOOR
-(Incl. Ref. No. 0060)
0060 ----- 1 DECAL SHEET - WARNINGS
0190-30 84005082 1 PANEL, Deadfront
-(Incl. Ref. Nos. 0010, 0060)
0010 193664GS 1 INSULATION, Dead Front
0060 ----- 1 DECAL SHEET - WARNINGS
0190-50 315108GS 2 SCREW
0190-70 B5763GS 2 SCREW
0230-10 23897GS 1 WASHER, Flat, #10 - M5
0230-20 24679GS 1 TRILOBULAR, #10-32 x 3/4
0230-40 192065GS 1 BREAKER, Circuit, 200A
0230-50 192151GS 1 FUSE HOLDER, 30 Amp 2P
0230-60 192879GS 1 INSULATION, Circuit Breaker
0230-70 205110GS 2 FUSE, 10 Amp 600v
0230-80 319267GS 2 BAR-BUS
0230-110 707397 5 SPACER
0230-120 84002607 1 SWITCH, TRANSFER
0230-130 770433 1 BRACKET
0230-140 770434 1 BOARD, Circuit
0230-150 84006993 1 TERMINAL, Neutral 6 Position
0230-160 84004498 2 LUG
0230-180 84008547 1 BRACKET
-(Incl. Ref. No. 0230-110)
0230-190 84008546 1 HARNESS, Wire
0230-200 ----- 1 WIRE, Neutral
0230-260 703818 4 CAPSCREW, 1/4-20X0.5
0230-270 192730GS 2 SCREW, Hex Head, Trilobular, #6-32 x 3/8
0230-280 32713GS 2 TAPTITE, #10-32 X 5/8
0230-290 ----- 2 SCREW, Hex Head, Trilobular, #10-32 x 7/8
0230-300 194561GS 8 HHS, Trilobular, #10-32 x 3/8
0230-310 703061 4 NUT, HEX KEPS, 1/4-20
0230-320 ----- 1 PANEL, Back
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
33 08-Feb-2024
6845-00 - Fuel Regulator6845-00 - Fuel Regulator6845-00 - Fuel Regulator6845-00 - Fuel Regulator
HeaterHeaterHeaterHeater
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
08-Feb-2024
Fuel Regulator HeaterFuel Regulator HeaterFuel Regulator HeaterFuel Regulator Heater
Mfg. No: 6845-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
35 08-Feb-2024

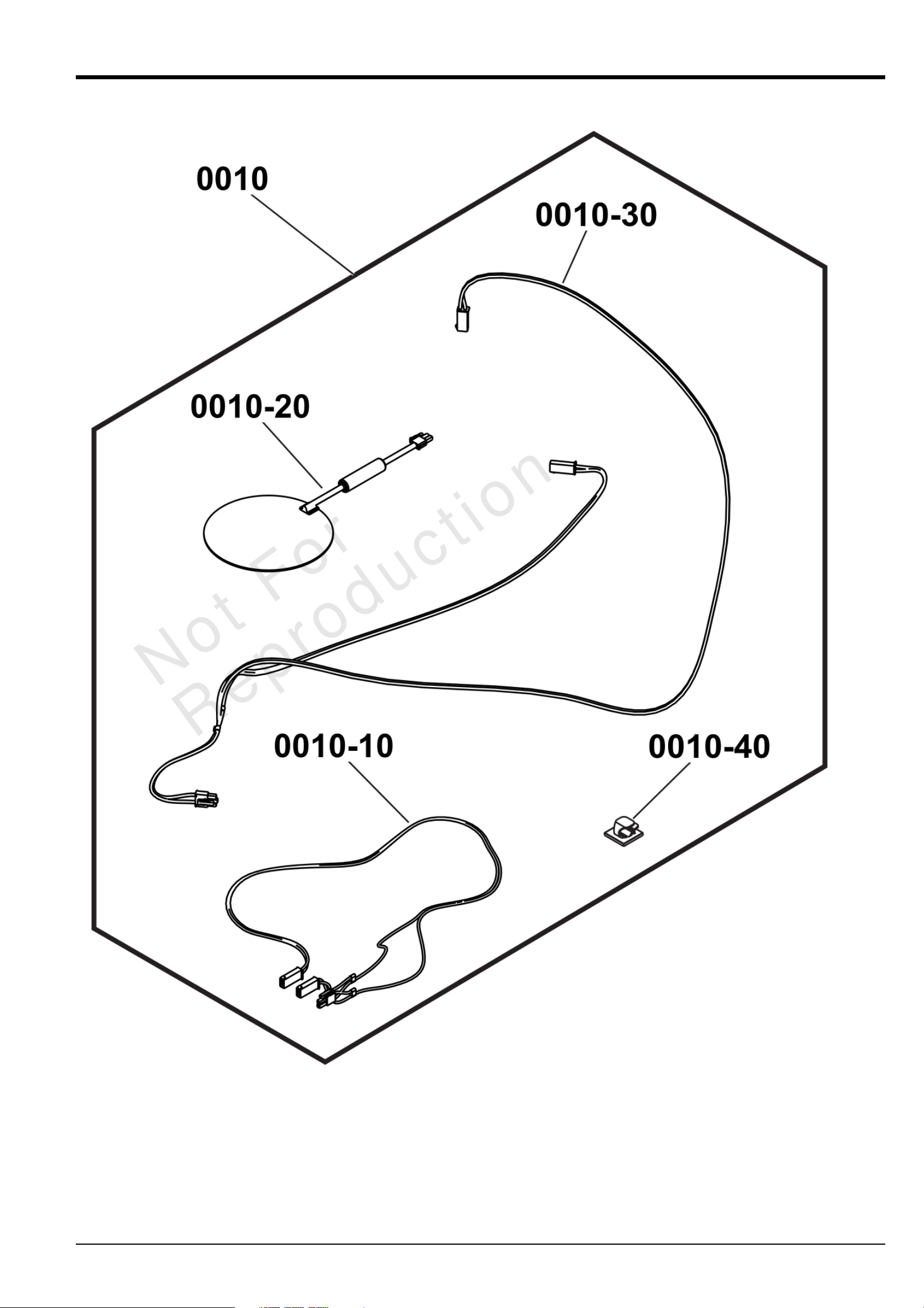

Fuel Regulator HeaterFuel Regulator HeaterFuel Regulator HeaterFuel Regulator Heater
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6845 1 HEATER, Fuel Regulator
0010-10 ----- 1 HARNESS, Wire
0010-20 ----- 1 HEATER, Fuel Regulator
0010-30 ----- 1 HARNESS, Cold Weather
0010-40 ----- 1 CLIP, LTCHNG
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
36 08-Feb-2024
6840-00 - Oil Sump6840-00 - Oil Sump6840-00 - Oil Sump6840-00 - Oil Sump
WarmerWarmerWarmerWarmer
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
08-Feb-2024
Oil Sump WarmerOil Sump WarmerOil Sump WarmerOil Sump Warmer
Mfg. No: 6840-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
38 08-Feb-2024

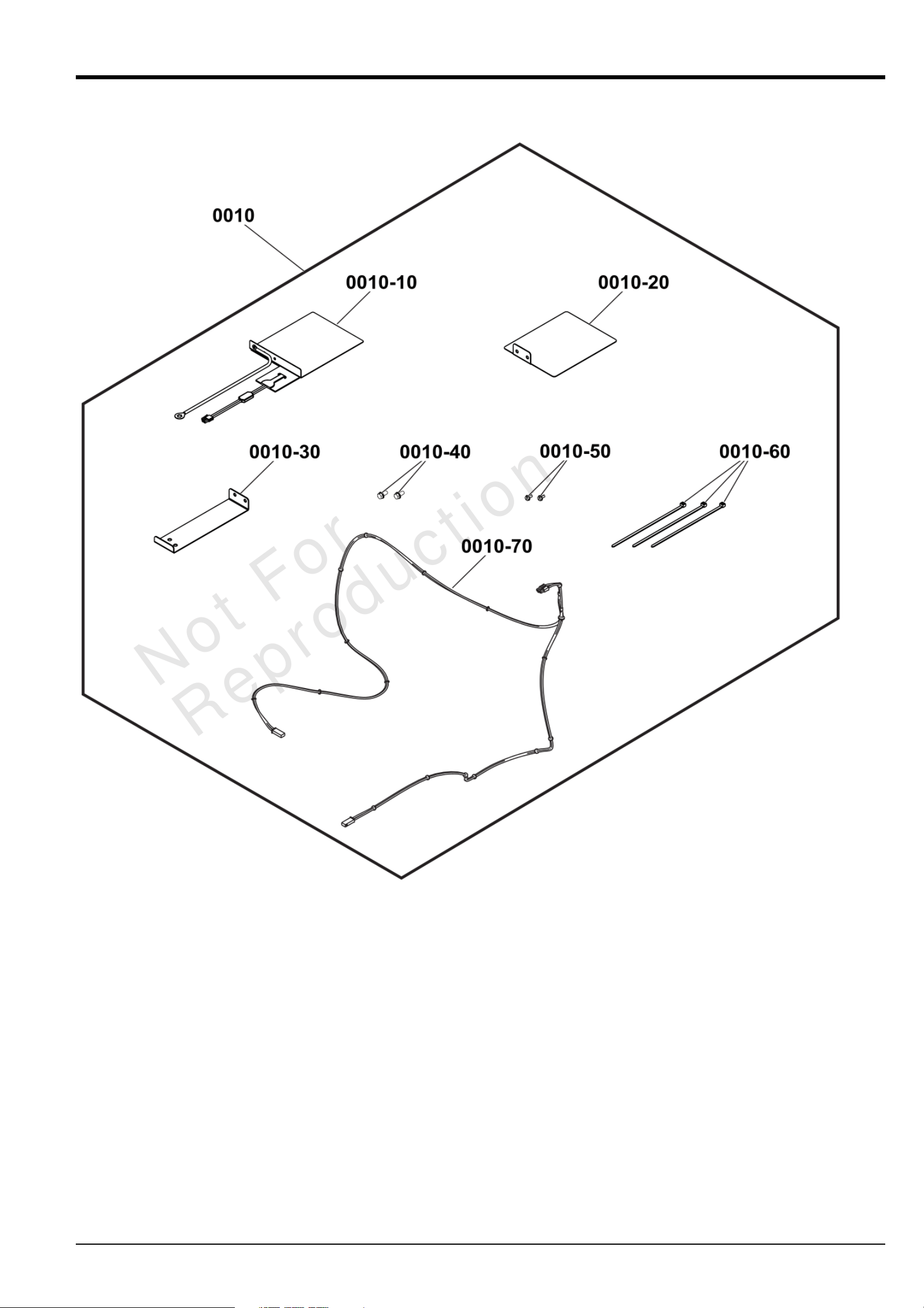

Oil Sump WarmerOil Sump WarmerOil Sump WarmerOil Sump Warmer
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6840 KIT, Oil Sump Warmer
-(Incl. Ref. Nos. 0010-10, 0010-20, 0010-30, 0010-40, 0010-50, 0010-60,
0010-70)
0010-10 314941GS 1 PLATE, Warmer
0010-20 ----- 1 PLATE, Warmer
0010-30 ----- 1 BRACKET, Guide, Warmer
0010-40 704130 2 SCREW, HEX, 1/4-20X.5
0010-50 194561GS 2 HHS, Trilobular, #10-32 x 3/8
0010-60 29333AGS 3 TIEWRAP, 7 LG BLK
0010-70 84007199 1 HARNESS, Cold Weather
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
39 08-Feb-2024
6869-00 - Battery Warmer6869-00 - Battery Warmer6869-00 - Battery Warmer6869-00 - Battery Warmer
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
08-Feb-2024
Battery WarmerBattery WarmerBattery WarmerBattery Warmer
Mfg. No: 6869-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
41 08-Feb-2024

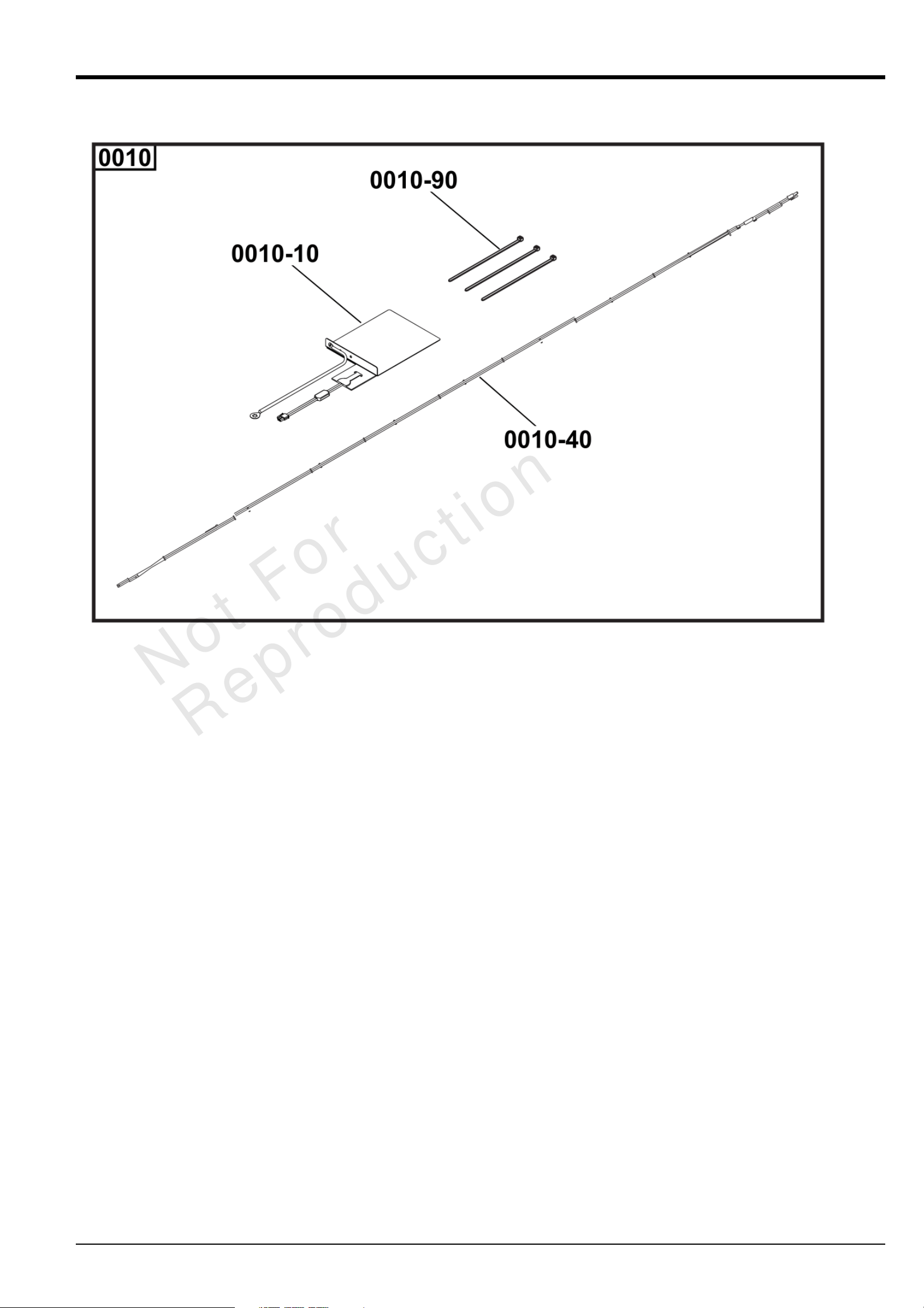

Battery WarmerBattery WarmerBattery WarmerBattery Warmer
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6869 1 WARMER, Battery
0010-10 314941GS 1 PLATE, Warmer
0010-40 84007199 1 HARNESS, Cold Weather
0010-90 29333AGS 3 TIEWRAP, 7 LG BLK
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
42 08-Feb-2024
6872-00 - Maintenance6872-00 - Maintenance6872-00 - Maintenance6872-00 - Maintenance
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
08-Feb-2024
MaintenanceMaintenanceMaintenanceMaintenance
Mfg. No: 6872-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
44 08-Feb-2024
MaintenanceMaintenanceMaintenanceMaintenance

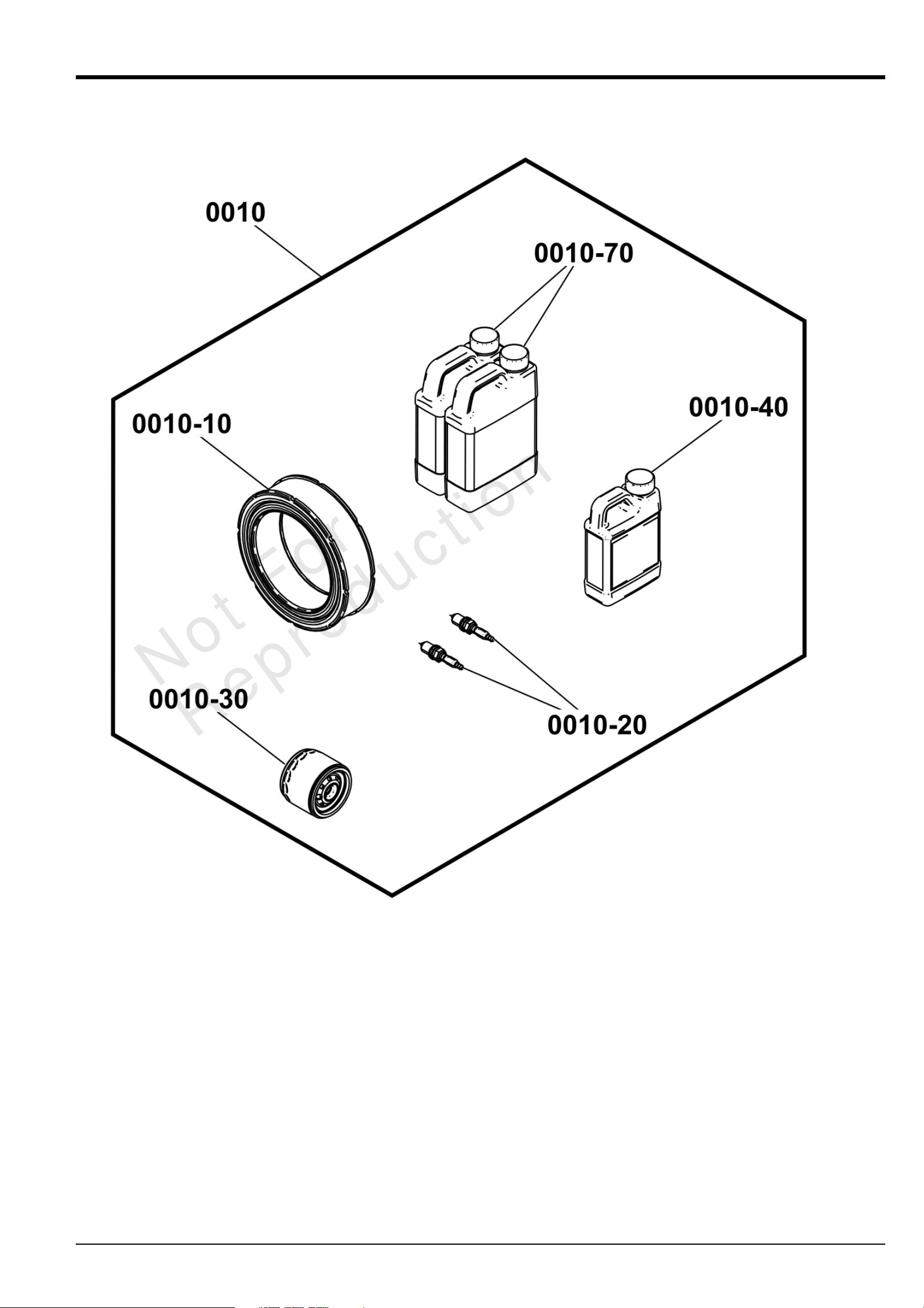

REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6872 1 ACC, KIT, MAINTENANCE, 17-26000
-(Incl. Ref. Nos. 0010-10, 0010-20, 0010-30, 0010-40, 0010-70)
0010-10 ----- 1 CARTRIDGE, Air Cleaner
0010-20 72347GS 2 PLUG, Spark
0010-30 841023 1 FILTER, OIL
0010-40 ----- 1 BOTTLE, 16oz Oil
0010-70 ----- 2 BOTTLE, 32oz Oil
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
45 08-Feb-2024
6574-01 - Infohub6574-01 - Infohub6574-01 - Infohub6574-01 - Infohub
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
08-Feb-2024
InfohubInfohubInfohubInfohub
Mfg. No: 6574-01Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
47 08-Feb-2024
InfohubInfohubInfohubInfohub

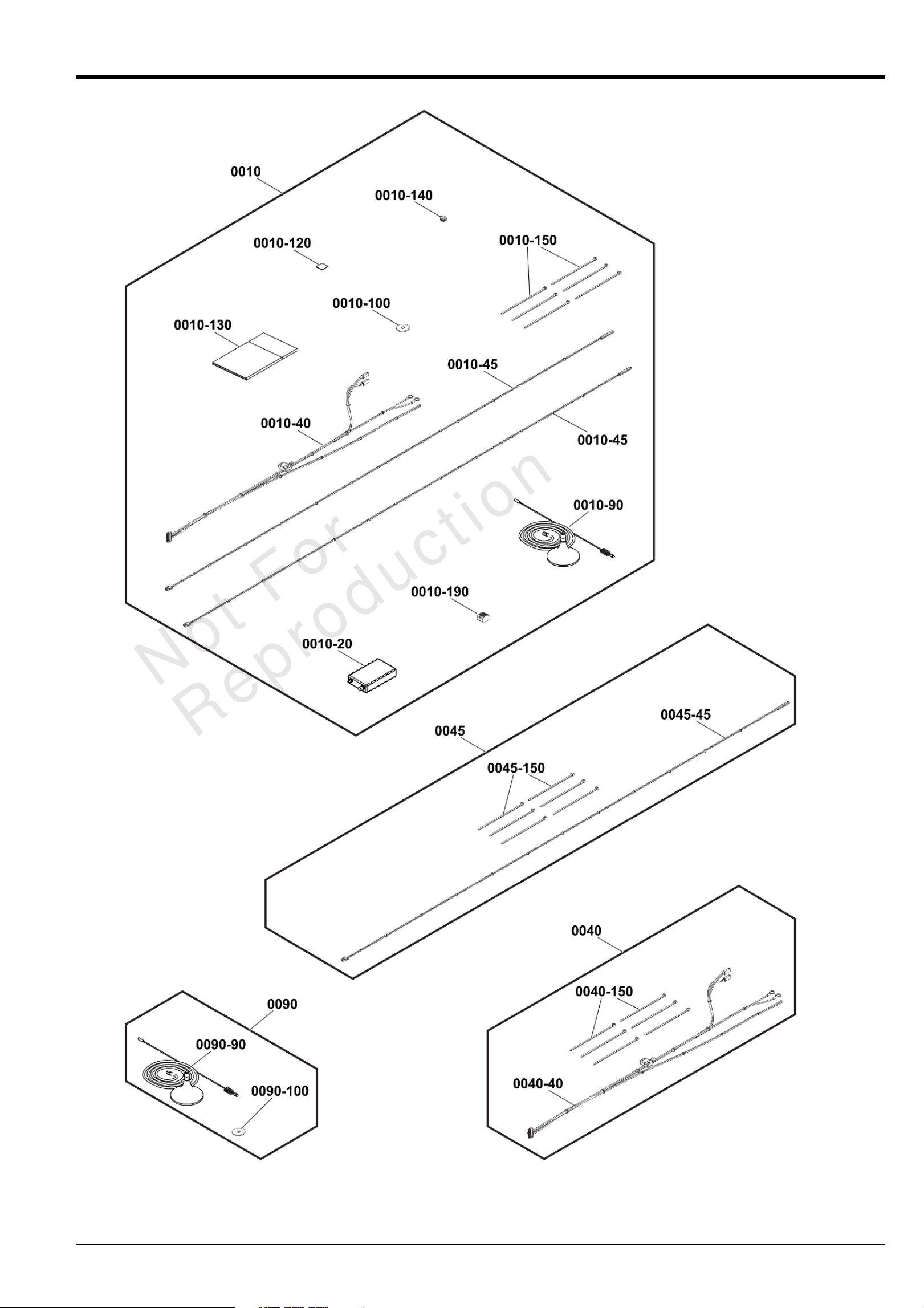

REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6574 1 KIT, Infohub SP, Agnostic
-(Incl. Ref. Nos. 0010-20, 0010-40, 0010-45, 0010-90, 0010-100, 0010-120,
0010-130, 0010-140, 0010-150, 0010-190)
0010-20 ----- 1 INFOHUB, UNIV
0010-40 ----- 1 HARNESS, Infohub SP, Agnostic
0010-45 ----- 2 ASSEMBLY, Voltage Sensor
0010-90 ----- 1 ANTENNA, Cell Quad Band
0010-100 703591 1 WASHER, .406X1.5X.12
0010-120 ----- 1 STRIP, Adhesive Mounting
0010-130 ----- 1 MANUAL, Operator
0010-140 316855GS 1 GROMMET
0010-150 29333AGS 6 TIEWRAP, 7 LG BLK
0010-190 197956GS 1 BLOCK, Terminal w/Levers
0040 84003260 1 HARNESS, Infohub SP, Agnostic
-(Incl. Ref. Nos. 0040-40, 0040-150)
0040-40 ----- 1 HARNESS, Infohub SP, Agnostic
0040-150 29333AGS 6 TIEWRAP, 7 LG BLK
0045 84003258 1 ASSEMBLY, Voltage Sensor
-(Incl. Ref. Nos. 0045-45, 0045-150)
0045-45 ----- 1 ASSEMBLY, Voltage Sensor
0045-150 29333AGS 6 TIEWRAP, 7 LG BLK
0090 84003261 1 ANTENNA, Cell Quad Band
-(Incl. Ref. Nos. 0090-90, 0090-100)
0090-90 ----- 1 ANTENNA, Cell Quad Band
0090-100 703591 1 WASHER, .406X1.5X.12
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
48 08-Feb-2024
6581-00 - Uninterruptible6581-00 - Uninterruptible6581-00 - Uninterruptible6581-00 - Uninterruptible
Power Supply - (UPS)Power Supply - (UPS)Power Supply - (UPS)Power Supply - (UPS)
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
08-Feb-2024
Uninterruptible Power Supply - (UPS)Uninterruptible Power Supply - (UPS)Uninterruptible Power Supply - (UPS)Uninterruptible Power Supply - (UPS)
Mfg. No: 6581-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
50 08-Feb-2024
Uninterruptible Power Supply - (UPS)Uninterruptible Power Supply - (UPS)Uninterruptible Power Supply - (UPS)Uninterruptible Power Supply - (UPS)
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6581 1 KIT, ACC, UPS 350VA/255W, 120VAC
-(Incl. Ref. No. 0010-10)
0010-10 ----- 1 UPS 350VA/255W, 120VAC
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
51 08-Feb-2024
6491-01 - Estop Switch6491-01 - Estop Switch6491-01 - Estop Switch6491-01 - Estop Switch
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
08-Feb-2024
Estop SwitchEstop SwitchEstop SwitchEstop Switch
Mfg. No: 6491-01Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
53 08-Feb-2024
Estop SwitchEstop SwitchEstop SwitchEstop Switch

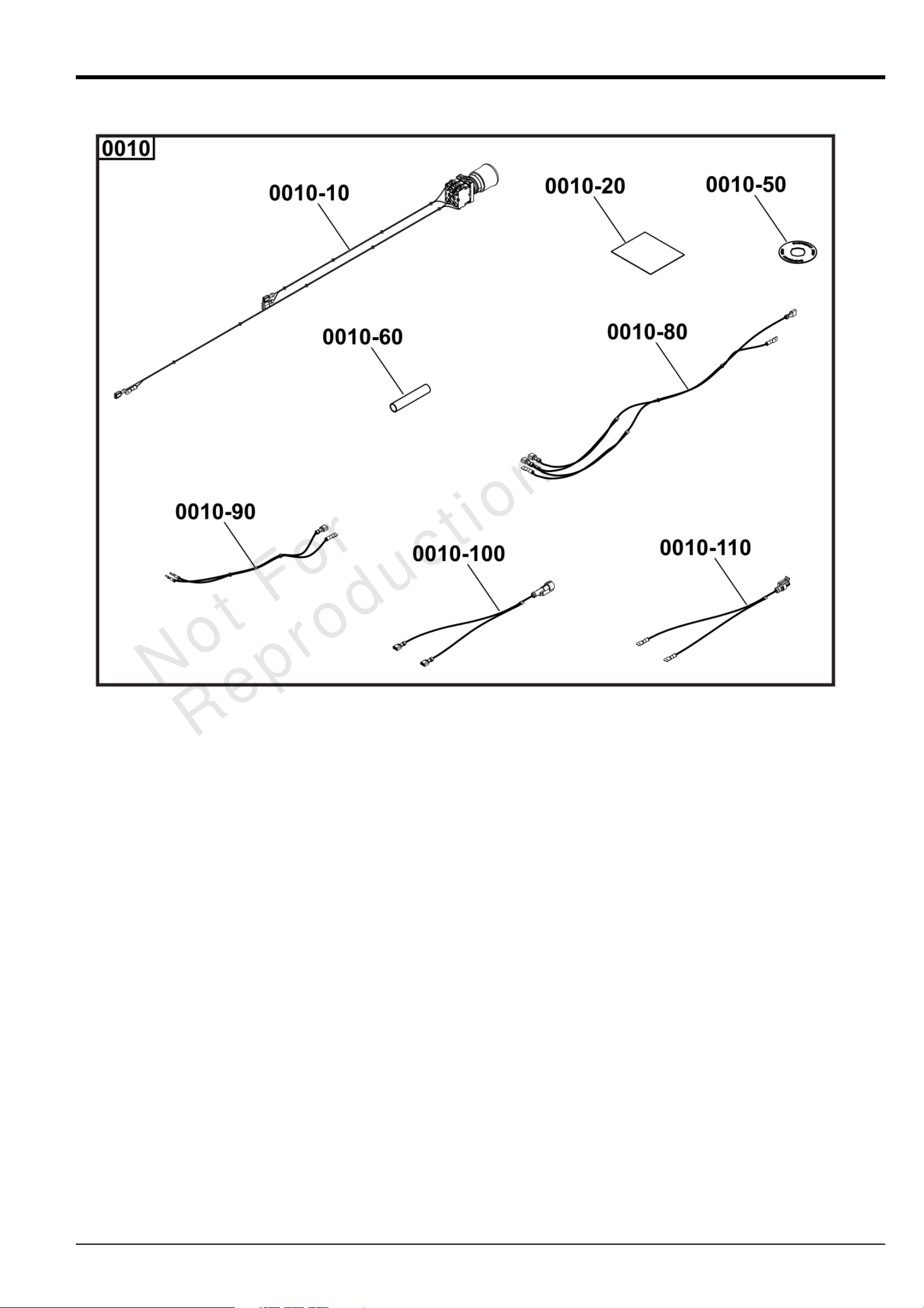

REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6491 1 ACC KIT, SWITCH, E-STOP
-(Incl. Ref. Nos. 0010-10, 0010-20, 0010-50, 0010-60, 0010-80, 0010-90,
0010-100, 0010-110)
0010-10 ----- 1 ASSEMBLY, Switch, E-Stop
0010-20 ----- 1 DECAL
0010-50 ----- 1 LEGEND PLATE, E-Stop
0010-60 ----- 1 TUBING, Heat Shrink
0010-80 ----- 1 HARNESS
0010-90 ----- 1 HARNESS
0010-100 ----- 1 HARNESS
0010-110 ----- 1 HARNESS
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
54 08-Feb-2024
6428-00 - USB Cable6428-00 - USB Cable6428-00 - USB Cable6428-00 - USB Cable
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
08-Feb-2024
USB CableUSB CableUSB CableUSB Cable
Mfg. No: 6428-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
56 08-Feb-2024
USB CableUSB CableUSB CableUSB Cable

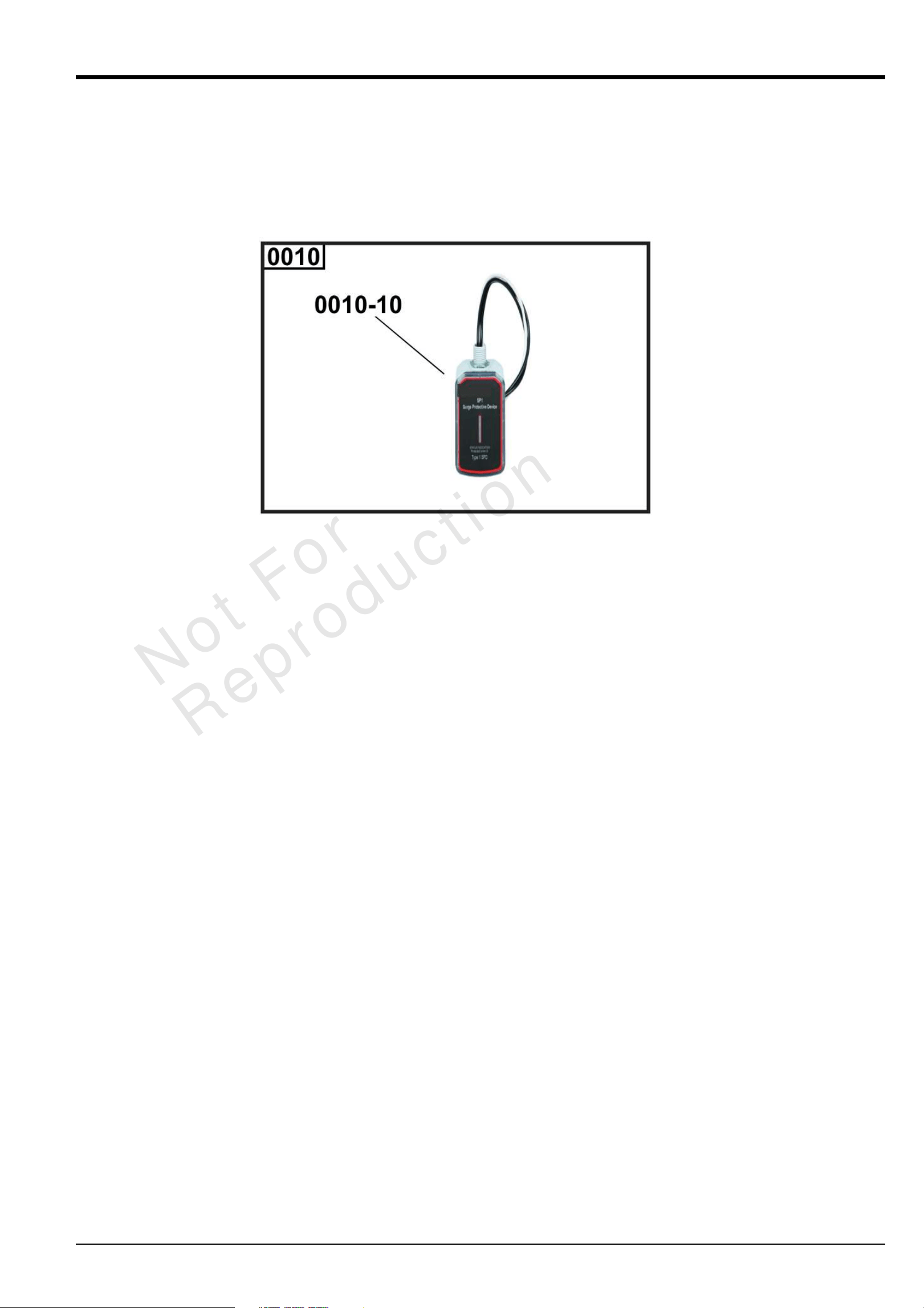

REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6428 1 KIT, Communication Cable
-(Incl. Ref. No. 0010-10)
0010-10 ----- 1 CABLE, USB
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
57 08-Feb-2024
6631-00 - Surge Protective6631-00 - Surge Protective6631-00 - Surge Protective6631-00 - Surge Protective
Device (SPD)Device (SPD)Device (SPD)Device (SPD)
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
08-Feb-2024
Surge Protective Device (SPD)Surge Protective Device (SPD)Surge Protective Device (SPD)Surge Protective Device (SPD)
Mfg. No: 6631-00Note: Unless noted otherwise, use the standard torque specifications
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
59 08-Feb-2024
Surge Protective Device (SPD)Surge Protective Device (SPD)Surge Protective Device (SPD)Surge Protective Device (SPD)
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 6631 1 SURGE PROTECTIVE DEVICE (SPD)
-(Incl. Ref. No. 0010-10)
0010-10 ----- 1 SURGE PROTECTIVE DEVICE (SPD)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
60 08-Feb-2024
in/lbs
ft/lbs
3
Torque Specification Chart
FOR STANDARD METRIC MACHINE HARDWARE (Tolerance ± 20%)
Property
Class
Class 8.8
Class 10.9
Class 12.9
Size Of
Hardware
Nm. Nm. Nm.
Nm.
M3 1.28
2.90
5.75
9.9
16.5
24
48
83
132
200
275
390
530
375
995
1350
1830
2360
3050
13.44 1.80
4.10
8.10
14
23
34
67
117
185
285
390
550
745
960
1400
1900
2580
3310
4290
19.2 22.92
2.15
M4
30.72 43.44 52.56 4.95
M5
60.96 5.97 7.15
16.5
9.7
M6 7.3 10.3 12.1
M7 12.1 16.9 19.9
27
M8 17.7
25
29
40
M10 35 50
59
81
M12 61 86.2 103 140
M14
101
136 162 220
M16 147 210 250 340
M18 202 287 346 470
M20 290 405 486 660
M22 390 559 656 890
M24 497
708
840 1140
M27 733 1032 1239 1680
M30 995 1401 1681 2280
M33
1349
1902 2278 3090
M36 1740 2441
3798
2935 3980
M39 2249 3163
Torque Specification Chart
FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)
Hardware
Grade
SAE Grade 2 SAE Grade 5 SAE Grade 8
Size Of
in/lbs
ft/lbs
in/lbs
ft/lbs
in/lbs
ft/lbs
in/lbs in/lbs
Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.
8-32 19 2.1 30 3.4 41 4.6
8-36
20 2.3 31 3.5 43 4.9
10-24
27 3.1 43 4.9 60 6.8
10-32
31 3.5 49 5.5 68 7.7
1/4-20
66 7.6 8 10.9 12 16.3
1/4-28
76 8.6 10 13.6 14 19.0
5/16-18 11 15.0 17 23.1 25 34.0
5/16-24 12 16.3 19 25.8 29 34.0
3/8-16 20 27.2 30 40.8 45 61.2
3/8-24 23 31.3 35 47.6 50 68.0
7/16-14 30 40.8 50 68.0 70 95.2
7/16-20 35 47.6 55 74.8 80 108.8
1/2-13 50 68.0 75 102.0 110 149.6
1/2-20 55 74.8 90 122.4 120 163.2
9/16-12 65 88.4
110 149.6 150 204.0
9/16-18 75 102.0 120 163.2 170 231.2
5/8-11 90 122.4 150 204.0 220 299.2
5/8-18 100 136 180 244.8 240 326.4
3/4-10 160 217.6 260 353.6 386 525.0
3/4-16 180 244.8 300 408.0 420 571.2
7/8-9 140 190.4 400 544.0 600 816.0
7/8-14 155 210.8 440 598.4 660 897.6
1-8 220 299.2 580 788.8 900 1,244.0
1-12 240 326.4 640 870.4 1,000 1,360.0
Hex Head Capscrew
Hex Nut
Lockwasher
Washer
Carriage Bolt
NOTES
1. These torque values are to be used for all hardware
excluding: locknuts, self-tapping screws, thread forming
screws, sheet metal screws and socket head setscrews.
2. Recommended seating torque values for locknuts:
a. for prevailing torque locknuts - use 65% of grade 5
torques.
b. for flange whizlock nuts and screws - use 135% of
grade 5 torques.
3. Unless otherwise noted on assembly drawings, all torque
values must meet this specification.
Hardware Identification & Torque Specifications
Common Hardware Types
No
Marks
The guides and ruler furnished below are designed to
help you select the appropriate hardware.
8.8
10.9
12.9
Class 5.6
5.6
5150
13.44
1.28
5.88
26.4
2.50
44.64
4.3
5.2
7.1
7.7
10.5
15
21
988
1340
759
1030
590
800
435
590
320
435
217
295
169
230
126
171
89
121
64
88
42
58
26
36
.56
Thread
Diameter (mm)
Screw, 1/2- 16 x 2
Body
Diameter
Diameter
Inside
Diameter (in)
Nut, 1/2-16
0
1/4 3/4
1/2
21
1/4 3/4
1/2
1/4 3/4
1/2
1/4 3/4
1/2
4
90
100
70
80
50
60
30
40
010
20
Thread
Diameter (mm)
Nut, M8
Screw, M8- 1.25 x 25
Distance between
threads (mm)
Body
Length (in)
Body
Length (mm)
3/8” Bolt or Nut
Wrench—9/16”
5/16” Bolt or Nut
Wrench—1/2”
1/4” Bolt or Nut
Wrench—7/16”
1/2” Bolt or Nut
Wrench—3/4”
7/16” Bolt or Nut
Wrench (Bolt)—5/8”
Wrench (Nut)—11/16”
in/lbs
Threads
per inch
Threads
per inch
Body Length
Body
When a washer or nut is identified as
1/2”
(M8), this is
the Nominal size, meaning the inside diameter is 1/2 inch
(8mm metric thread diameter); if a second number is present
it represents the threads per inch (distance between threads).
When bolt or capscrew is identified as
1/2 - 16 x 2”
(M8 - 1.25 x 50),
this means the Nominal size, or body diameter is 1/2 inch (8mm
metric thread diameter), the second number,16, represents the
threads per inch, (distance between threads). The final number
is the body length of the bolt or screw, 2 inches (50mm).
Standard Hardware Sizing
M6 Bolt or Nut
Wrench—10mm
M8 Bolt or Nut
Wrench—13mm
M10 Bolt or Nut
Wrench—17mm
M12 Bolt or Nut
Wrench—19mm
M14 Bolt or Nut
Wrench—22 mm
Wrench & Fastener Size Guide
Copyright © Briggs & Stratton. All Rights reserved
08-Feb-2024
