WIIM AMP USER MANUAL VERSION 1.2 10/29/23
1 | P a g e

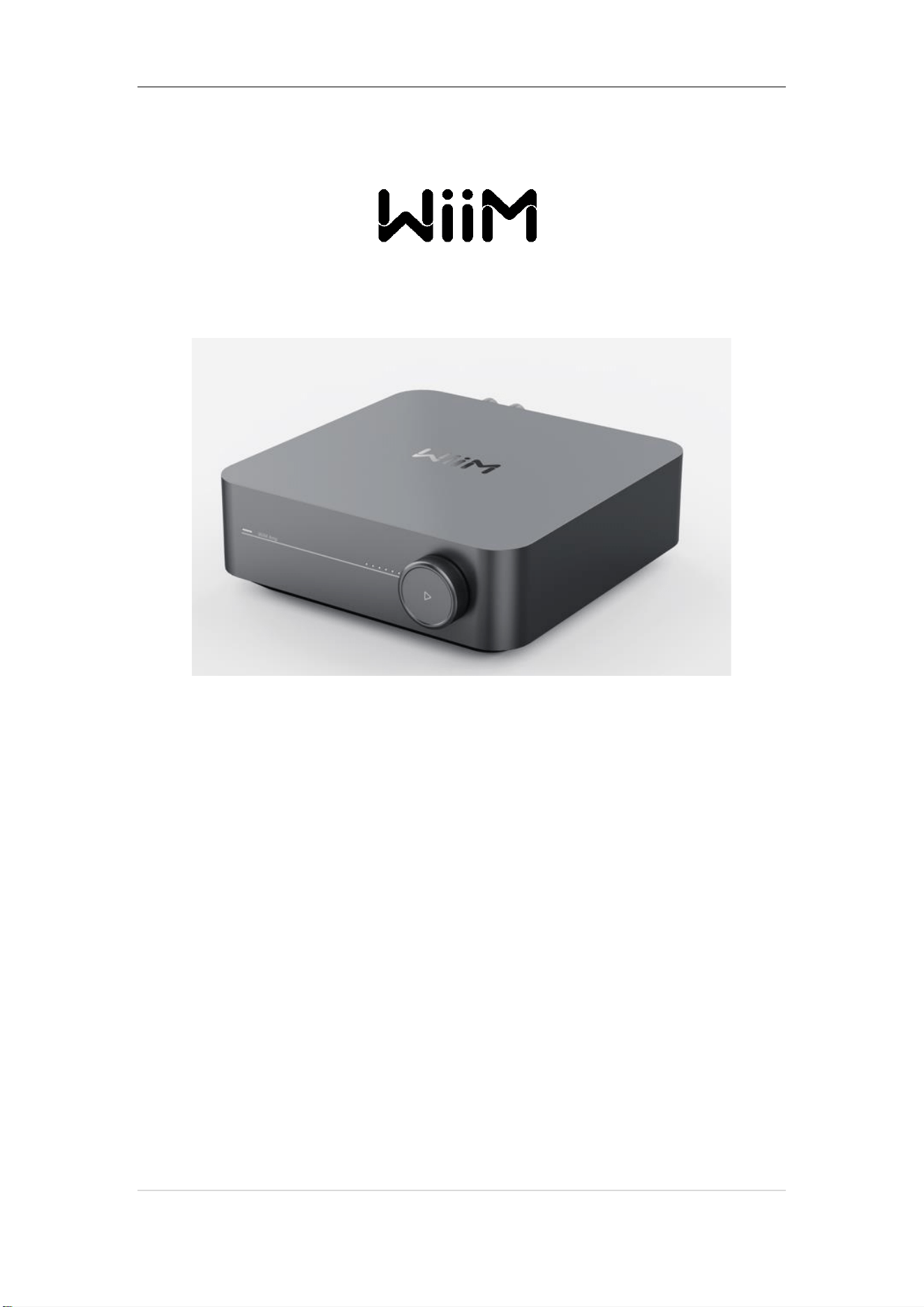

WiiM Amp: Stereo Streaming Amplifier
Model: WiiM Amp
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
2 | P a g e
CONTENTS
1. INTRODUCTION .........................................................................................................................................4
TYPICAL USE CASES ............................................................................................................................5
OTHER DEVICES NEEDED TO USE WIIM AMP ..........................................................................6
AUDIO DEVICES WORK WITH WIIM AMP ..................................................................................6
2. WHAT’S IN BOX ..........................................................................................................................................7
3. TECHNICAL SPECIFICATIONS ................................................................................................................8
4. LIGHT AND CONTROL .......................................................................................................................... 10
CONTROL AND INPUT/OUT INTERFACE ................................................................................. 11
5. HOW TO SET UP ..................................................................................................................................... 13
CONNECT AUDIO INPUT PORT ON WIIM AMP .................................................................... 13
CONNECT SPEAKER OUT PORT .................................................................................................. 16
POWER THE WIIM AMP ................................................................................................................. 17
CONNECT TO YOUR NETWORK WITH THE WIIM HOME APP ......................................... 18
FILL YOUR HOME WITH SOUND ................................................................................................ 19
AUDIO OUTPUT VIA BLUETOOTH OUT .................................................................................... 19
6. VOICE CONTROL .................................................................................................................................... 21
WORKS WITH ALEXA ....................................................................................................................... 21
WORKS WITH SIRI ............................................................................................................................ 21
WORKS WITH GOOGLE VOICE ASSISTANT............................................................................. 22
7. DIRECT CONTROL VIA YOUR FAVORITE APP ............................................................................... 23
SPOTIFY CONNECT .......................................................................................................................... 23
AIRPLAY 2 ............................................................................................................................................ 23
TIDAL CONNECT ............................................................................................................................... 25
AMAZON MUSIC CAST (ALEXA CAST) ...................................................................................... 25
CHROMECAST AUDIO .................................................................................................................... 26
DLNA ..................................................................................................................................................... 26
8. ALL MUSIC IN ONE APP ....................................................................................................................... 27
9. MULTIROOM AND STEREO PAIRING .............................................................................................. 28
LINKPLAY MULTIROOM/STEREO PAIRING .............................................................................. 28
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
3 | P a g e
AMAZON ALEXA MULTIROOM ................................................................................................... 28
MULTIROOM WITH CHROMECAST AUDIO DEVICES .......................................................... 28
10. AUDIO INPUT VIA LINE IN OR SPDIF IN ......................................................................................... 30
11. AUDIO OUTPUT VIA SPEAKER OUT ................................................................................................. 31
12. STREAM AUDIO WITH BLUETOOTH ................................................................................................ 32
13. ADVANCED FEATURES ......................................................................................................................... 33
FIRMWARE UPDATES ...................................................................................................................... 33
USE ETHERNET INSTEAD OF Wi-Fi ............................................................................................ 33
14. FAQ .............................................................................................................................................................. 34
15. IMPORTANT SAFETY INSTRUCTIONS .............................................................................................. 36
16. CE/FCC Statements ................................................................................................................................ 37
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
4 | P a g e
1. INTRODUCTION
At WiiM, our goal is to offer you the simplest and most affordable Hi-Fi, lossless audio
systems. Every product we create showcases top-tier design and an intuitive user interface.
With our patented audio streaming solution integrated into all our premium products and
user-friendly mobile apps, you can effortlessly enjoy music throughout your entire home.
Introducing the WiiM Amp, the heart of your home audio system. Designed to refine the
way you experience music, movie, and more, WiiM Amp combines power, versatility, and
simplicity like never before. Whether you're an audiophile or a home theater enthusiast,
WiiM Amp delivers exceptional sound quality, reliable connectivity, and intuitive control.
With support for streaming services, voice assistants, and automatic software updates, it's
the amplifier that keeps getting smarter. Elevate your audio experience with WiiM Amp and
unlock a world of immersive sound that's tailored to your unique preferences.
It features an ESS Sabre premium DAC, leveraging ESS’ patented 32-bit HyperStream
DAC architecture to deliver industry-leading low distortion and wide dynamic range. It
boasts a Signal-to-Noise Ratio (SNR) of 135 dB (A-wt) and a Total Harmonic Distortion
plus Noise (THD+N) of -120 dB across sample rates from 44.1k to 192k, courtesy of its
ultra-low noise clock and optimized power and circuit design. Additionally, it features a
cutting-edge TI Burr-Brown PCM1861 ADC, which achieves a 110 dB SNR for analog-to-
digital conversion, making it the go-to choice for input sources like turntables, MP3 players,
or TVs.
Simply add your speaker to the WiiM Amp, and control it using the user-friendly WiiM Home
App, popular platforms like Spotify, TIDAL, Amazon Music, or any Chromecast-enabled
apps. Voice control is also a breeze through iPhone, HomePod, compatible Echo and
Google Home devices, as well as the included voice remote.
Create synchronized groups with HomePods, Echoes, Google Home, AirPlay 2 devices,
Alexa-compatible devices, or additional WiiM devices, and play the same music throughout
your home or different songs in separate rooms.
Elevate your passive speaker with the smart and amplification capabilities of the WiiM Amp,
delivering high-fidelity, gapless music and enhanced TV audio, all encapsulated within the
exceptional innovation of WiiM.
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
5 | P a g e
TYPICAL USE CASES
The WiiM Amp is designed to simply add your speaker and bring it the wireless streaming
capabilities and smart features. Here are a few common use cases for the WiiM Amp:
I. Connect and Power your Favorite Passive Speakers: Connect and power your
traditional wired speakers, including bookshelf, floor-standing, in-wall, in-ceiling
or outdoor speakers, integrating them into the wireless streaming system for an
elevated audio experience.
II. Streaming Music and Music Libraries: Stream music using Apple AirPlay 2,
Google Chromecast, Alexa Cast, Spotify Connect or LinkPlay streaming platform,
allowing you to access hundreds streaming services such as Spotify, Amazon
Music, or Tidal. Plus, stream your personal music library stored on a computer or
network-attached storage device for seamless playback.
III. Podcasts and Internet Radio: In addition to streaming music, the WiiM Amp
provides access to a wide range of podcasts and internet radio stations. You can
browse through different genres, podcasts, or specific radio stations to enjoy on
your existing audio system.
IV. High-Quality Audio: It supports bit-perfect, high-resolution audio up to 192k/24-
bit and delivers rich, clear, and undistorted sound at higher volumes.
V. Multi-Room Audio: The WiiM Amp is compatible with other 3
rd
party popular
smart speakers and components, or another WiiM/Linkplay device, allowing you
to create a whole-home audio system with synchronized music playback in
multiple rooms.
VI. Smart Home Integration: The WiiM Amp supports voice control through
platforms like Apple Siri, Amazon Alexa or Google Assistant, allowing you to
control your music hands-free and integrate with other smart home devices.
VII. Vinyl or CD Integration: If you have a turntable or CD player that you want to
incorporate into your WiiM system, the WiiM Amp can connect to the analog or
digital outputs of these devices. This enables wireless audio streaming to other
speakers via another WiiM compatible device, allowing you to relish the sound
throughout your entire home, all in sync.
VIII. Home Theater Integration: Elevate your entertainment experience effortlessly
with the WiiM Amp's HDMI ARC port. Plug in your TV and immerse yourself in
rich stereo sound for shows, movies, and video games. Craving that extra oomph?
Simply add a powered subwoofer to take your audio to cinematic levels. With
minimal setup required, the WiiM Amp offers a seamlessly integrated AV system
that turns your living room into a home theater paradise.
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
6 | P a g e
OTHER DEVICES NEEDED TO USE WIIM AMP
To use the WiiM Amp, you will need a few essential devices and components. Here's a
list of what you'll need:
• Passive Speakers: The WiiM Amp is designed to connect to your passive speakers
such as bookshelf, floor-standing, in-wall, in-ceiling or outdoor speakers. Make
sure you have the appropriate speakers in place.
• Wi-Fi Network: The WiiM Amp requires a stable Wi-Fi network connection to
function. Ensure that you have a reliable Wi-Fi network available in the area where
you plan to set up the WiiM Amp. You'll need the Wi-Fi network credentials during
the setup process.
• Smartphone or Tablet: You'll need a compatible smartphone or tablet (iOS or
Android) with the WiiM Home app installed. The WiiM Home app is used for initial
setup, configuration, and control of the WiiM Amp.
• Power Source: The WiiM Amp needs to be connected to a power source using the
included power cable. Ensure that you have an electrical outlet nearby to power
the device.
• Ethernet Cable (optional): While the WiiM Amp primarily connects to your Wi-Fi
network, it also has an Ethernet port. If you prefer a wired connection for added
stability, you can use an Ethernet cable to connect the WiiM Amp directly to your
router or network switch.
These are the core components required to use the WiiM Amp. It's important to have a pair
of speakers that you want to integrate with the Amp, a stable Wi-Fi network, and a
compatible device with the WiiM Home app for setup and control.
AUDIO DEVICES WORK WITH WIIM AMP
The WiiM Pro Amp can work with your passive speakers, including bookshelf, floor-
standing, in-wall, in-ceiling or outdoor speakers. Besides the network and Bluetooth
streaming music, it can play audio from TV, record player and MP3 player.
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
7 | P a g e
2. WHAT’S IN BOX
• WiiM Amp
• Bluetooth voice remote
• Quick start guide
• 100~240v AC power cable
• HDMI cable
• RCA audio cable
• Optical audio cable
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
8 | P a g e
3. TECHNICAL SPECIFICATIONS
Feature
Description
Power Input
100-240V 50/60Hz AC Power
Audio Output Quality
SNR: 98 dB
THD+N: 0.002% (-92 dB)
Network
802.11 b/g/n/ac 2.4 GHz and 5 GHz dual
band Wi-Fi
10/100M Ethernet
Bluetooth
Bluetooth 5.1, A2DP, AVRCP
Support SBC, AAC Codec
Audio Input
HDMI ARC, Optical, RCA
Audio Output
Passive Speaker Terminal
Subwoofer Output
Audio Codec
MP3, AAC, ALAC, APE, FLAC, WAV, WMA,
OGG, AIFF
Streaming Protocol
AirPlay 2, Chromecast Audio, Spotify
Connect, TIDAL Connect, Alexa Cast, DLNA,
Qplay 2.0, Squeezelite
Streaming Services in App
Spotify, Amazon Music, Deezer, TuneIn,
Tidal, Qobuz, SoundCloud, Pandora,
iHeartRadio, vTuner, Napster, Sound
Machine, etc.
LED
Three-color status LED - Red, Green, and
White
Six Volume LED
Controls
Volume knob, play/pause, and more
Weight
1.84 kg (4.1 lbs)
Dimension
7.48” x 7.48“ x 2.48" (190 mm x 190mm x 63
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
9 | P a g e
mm)
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
10 | P a g e
4. LIGHT AND CONTROL
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
11 | P a g e

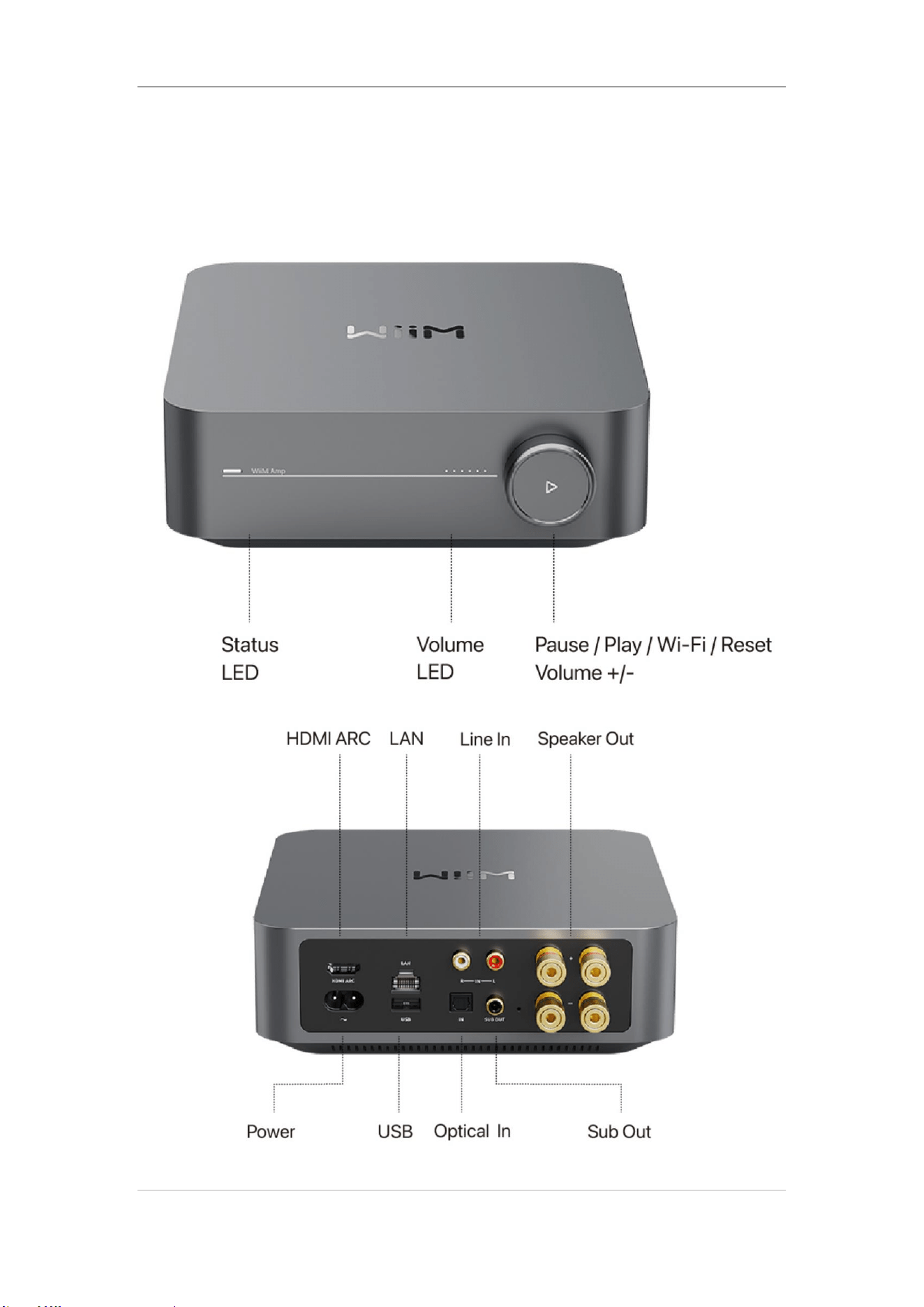

CONTROL AND INPUT/OUT INTERFACE
Control / IO Interface
Functions
Power
100-240V 50/60Hz AC Power
Volume Knob
Push down to Play/Pause, network or Bluetooth
pairing, or restore to the factory setting
Turn clockwise: Increase volume
Turn anti-clockwise: Decrease volume
Analog Audio In
Standard RCA
Digital Optical In
Optical audio input up to 192 kHz/24-bit
HDMI ARC
Stereo PCM (Dolby Digital and DTS are not
supported)
Sub Out
Connect to the powered subwoofer, 2.0 Vrms
Speaker Out
Passive speakers terminal (L, R), banana plugs
LAN
10/100Mbps Ethernet port
LIGHTS
State
Color
Flashing/Solid
Boot-up
White
Flashing (fast)
OOBE/Ready to Setup
White
Flashing (slow)
BT ready to pair
Green
Flashing (slow)
Connecting to Wi-Fi
White, Green
Flashing (fast)
Connected to network
White
Solid
BT mode, paired
Green
Solid
Aux-in mode
Green
Solid
OTA
White, Green
Flashing (slow)
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
12 | P a g e
Restore to factory setting
White, Red
Flashing (slow)
Not connected to the network (and
not in setup mode)
Red
Solid
Faulty Error
Red
Flashing (slow)
NOTES:
WGR: Three-color LED, no color mix
W: Wi-Fi as the audio source (product default mode)
G: Audio source from Analog, digital audio input, or BT
R: Error (Not connected to a network or faulty error)
Three modes: Solid, flashing slow, flashing fast
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
13 | P a g e
5. HOW TO SET UP
CONNECT AUDIO INPUT PORT ON WIIM AMP
The WiiM Amp features three distinct audio input interfaces: the analog LINE IN, the digital
optical (TOSLINK) SPDIF IN, and HDMI ARC.
This versatile device functions as both an amplifier and a network audio transmitter through
Wi-Fi or Ethernet. You have the capability to stream analog audio input from sources such
as CD players, vinyl players, TVs, or computers to other WiiM devices like WiiM Pro Plus,
Pro, or Mini devices, either singly or in multiple combinations.
Scenario 1: Analog Audio Source Input (CD Player, Vinyl Player, or Computer)
Connect your source device to the WiiM Amp’s LINE IN port using a line-in cable. One of
two types’ cable as the follows might be used, i.e., RCA to RCA or Aux to RCA.
Connect to WiiM Pro Amp’s Line IN port
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
14 | P a g e
Connect to CD player, vinyl player, TV or computer
Steps to set up the WiiM Amp with the line-in input:
(Perform step 3/4/5 after WiiM Home App is installed)
1. Insert the line-in cable into the LINE IN port located at the back of the WiiM Amp.
2. Connect the other end of the cable to the AUX or LINE OUT port on your audio
source device (CD player, vinyl player, TV, or computer).
3. In the WiiM Home app, navigate to the ‘Browse’ tab, choose ‘Select source on
device,’ then opt for ‘LINE IN’ to set it as your audio distribution source.
4. For creating a multiroom music group with your WiiM Amp, access the Devices
section in the WiiM Home app. Select the WiiM Amp linked to your LINE-IN device,
tap the group button (displaying a “link” icon within a box) in the upper-right corner
of the device box, and choose the WiiM Amp you wish to transmit audio to.
5. Once done, the music from the device connected to the WiiM Amp will play across
your multiroom music group.
Scenario 2: Digital Audio Source Input (TV or PC)
Connect your source device to the WiiM Amp's SPDIF IN (optical) port using an optical
cable or HDMI ARC with an HDMI cable.
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
15 | P a g e
Steps to set up the WiiM Amp with the optical or HDMI IN are the same as Line-in, replacing
Line-in with Optical IN or HDMI.
Notes:
• To connect your TV to the WiiM Amp using an HDMI cable, please select HDMI
port on your TV marked as ‘HDMI ARC’. Please note that connecting to other HDMI
ports will not transmit sound to the WiiM Amp.
• You can also enable “Autosense” on the WiiM Amp to automatically play your Line-
In, Optical-In or HDMI ARC source when WiiM Amp detects a signal. You can
enable this feature from the WiiM Home App.
• WiiM Amp has a built-in EQ to process the audio input based on your taste. You
can also control the audio volume in the App remotely without adjusting your audio
input.
• Some source devices may require a preamp. For example, some turntables do not
have a preamp built-in, so you will need to connect your turntable to an external
preamp and then connect the preamp to WiiM Amp.
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
16 | P a g e
CONNECT SPEAKER OUT PORT
The WiiM Amp features one pair of passive speaker terminals (shown in figure below) and
a separate subwoofer out to connect to powered subwoofer. You can output audio to
speaker terminals in stereo or dual mono mode.
Setting Up WiiM Amp Audio Output:
1. Depending on your preferred audio equipment, select the appropriate connection
method to your passive speaker: Banana plugs (see figure below) or straight wired
connection. Banana plugs are recommended for the best sound and more reliable
performance.
2. Connect the other end of the speaker wire to your passive speakers.
3. You're now ready to begin playing audio on your speakers.
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
17 | P a g e
There are multiple ways to connect speaker wires to your speakers and WiiM Amp, i.e.,
bare wire, spade connectors, and banana plugs. Here are some connector examples
(credit: Crutchfield).
POWER THE WIIM AMP
For optimal performance of your WiiM Amp, please ensure to use the AC power cable that
is included with your device. This cable is specifically designed to support a wide range of
voltages, accommodating 100-240V AC with a maximum current of 4A. This flexibility
ensures that your WiiM Amp can be safely and effectively powered in various locations.
Important Safety Warning: Before connecting the power to your WiiM Amp, it is crucial
to first connect your speakers and any other audio ports. This sequence is important to
safeguard both your equipment and the quality of your audio experience. By following this
procedure, you ensure a safe and efficient setup process for your WiiM Amp.
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
18 | P a g e
CONNECT TO YOUR NETWORK WITH THE WIIM HOME APP
You can use Ethernet or Wi-Fi to connect WiiM Amp to your network. Before the setup,
please download the WiiM Home App. If you want to use the Wi-Fi to connect your WiiM
Amp, please have your network password ready.
● DOWNLOAD THE WIIM HOME APP
● Wi-Fi OR ETHERNET SETUP
● Power on the WiiM Amp and wait 30 seconds until it fully boots up.
● Open the WiiM Home App.
● Click on the device you want to configure.
● Select the network and enter the correct network password. (Ethernet
doesn’t have this step)
If you use an iOS system, you can also use Apple Wireless Accessary
Configuration (WAC) protocol or Home App to set up the device.
● SETUP with Apple WAC
● Power on WiiM Amp and wait 30 seconds until it fully boots up.
● Open iPhone settings and tap your selected device’s name on the WAC
setup section
● SETUP with Apple Home App
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
19 | P a g e
● Tap the Home app located on the home screen of the iOS device.
● Tap the "+" button located at the top-right corner of the screen.
● Tap “Add Accessory.”
● Tap “Don’t Have a Code or Can’t Scan?”
● Tap your selected device, which MUST be listed under “Nearby
Accessories.”
FILL YOUR HOME WITH SOUND
Immerse yourself in your favorite music and radio stations through seamless Wi-Fi or
Bluetooth streaming. With multiple WiiM devices, enjoy music throughout your entire home.
Alternatively, connect stereo components like an amplified turntable, CD player, or MP3
player, and simultaneously cast music to multiple WiiM Amp, Pro Plus, Pro, Mini connected
speakers.
Expand your audio experience by grouping with AirPlay 2-enabled devices, Amazon Echo,
or Google Home, creating a synchronized whole-home audio setup across multiple rooms.
Note that grouping with non-WiiM or LinkPlay devices requires the respective apps like
Alexa or Google Home app.
When using Amazon Echo or Google Home devices in conjunction with your WiiM Amp,
it’s essential to understand the specific capabilities and limitations of this setup. When
grouping with Amazon Echo or Google Home devices, the WiiM Amp primarily functions
as an audio receiver, playing multiroom audio with Echo or Google Home devices.
It’s important to note that the WiiM Amp cannot transmit its physical audio inputs, such as
those from Line-In, HDMI ARC or Optical-In connections, to non-WiiM devices, including
Amazon Echo and Google Home devices, over Wi-Fi.
By understanding these specific functionalities, you can optimize your use of the WiiM Amp
in a smart home environment, ensuring seamless integration with your preferred devices.
AUDIO OUTPUT VIA BLUETOOTH OUT
You can use the WiiM Amp as a Bluetooth source device, enabling seamless pairing with
your Bluetooth speakers or headsets.
Please follow the steps below to pair with your Bluetooth audio devices:
1) Launch the WiiM Home App on your iOS or Android device.
2) Select ‘Device’ Tab and tap the gear icon for device settings.
3) Select the ‘Audio Output’ setting and opt for ‘Bluetooth’ to establish a connection
with an external Bluetooth receiver, such as an amplifier or speaker.
4) Start playing music.
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
20 | P a g e
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
21 | P a g e
6. VOICE CONTROL
With voice control, you can navigate and interact with your device to search, play, stop, or
skip music and more.
When voice control is configured, you can speak commands as you would act by touch.
WORKS WITH ALEXA
Download the Amazon Alexa App and turn on Amazon devices or 3
rd
party Alexa built-in
devices.
● Setup your Amazon account for your WiiM device
If your WiiM device is not logged into your Amazon account in the WiiM Home App,
● Open WiiM Home App, click “Browse -> Amazon Alexa -> Sign in to
Amazon."
● Log in to your Amazon account
● Open the Amazon Alexa app
● Tap the "Devices" at the bottom of the page.
● Tap the "+" in the top right corner.
● Tap "Combine speakers,” then select “Multi-room music."
● Select the configured Echo or other Amazon devices and the configured WiiM
Amp device
● Click "Next" and choose the group name (i.e., Bedroom)
● Amazon Alexa app prompts that the group has been created.
● Try "Alexa, play some music in the Bedroom” for the multi-room audio with Echo.
Or
● Choose the WiiM device as the preferred speaker. Thus, you don't need to say
your device name when using Alexa.
WORKS WITH SIRI
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
22 | P a g e
● Configure one to more devices
● Open a music app (like Apple Music) and select a track to play
● Tap .
● Select your speaker/speakers or Home Pod
● Say “Hey Siri, stop the music/Play music” on your phone or HomePod
WORKS WITH GOOGLE VOICE ASSISTANT
Let’s assume you’ve set up your Google Home and WiiM Amp separately. Now, you must
link them together in the Google Home app for Android or iOS:
● Open the Google Home app, and you will find the WiiM Amp enabled as a
Chromecast audio device under “Local devices.”
● Tap the name of the WiiM Amp and enter the device control UI.
● Tap the “Add to a room” button under the volume circle to add WiiM Amp to one
room.
● You can use voice to control the WiiM Amp with your Google Home or Android
devices.
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
23 | P a g e
7. DIRECT CONTROL VIA YOUR FAVORITE APP
You can stream from your favorite apps directly to your WiiM Amp with the following
approaches.
Depending on your mobile devices and music service, there may be multiple ways to
stream from your music app to WiiM devices. I.e., if you use Spotify App on iOS device,
you can use either Spotify Connect or AirPlay 2. However, Spotify Connect gives you better
audio quality compared with AirPlay 2 and liberate your phone for other tasks.
SPOTIFY CONNECT
Spotify Connect is a way of playing Spotify through your wireless-compatible device over
Wi-Fi. That means you can play your favorite tunes anywhere in the house without the
need for convoluted Bluetooth pairing between devices whenever you want to listen to
music.
Spotify Connect works from smart phone, tablet or PC that functions as a remote control
for Spotify. Both free and premium account are supported. Go to Spotify.com/connect to
learn more. It’s the best way to play Spotify on WiiM device giving the best possible audio
quality and streaming experience.
The Spotify Software is subject to third-party licenses found here:
https://www.spotify.com/connect/third-party-licenses
To use Spotify Connect with multiroom or stereo pairing, you can first group multiple
WiiM devices on WiiM Home App then stream Spotify to the grouped devices. The group
name is the same as the name of master device (i.e., the first device showing in the
device list for the group).
AIRPLAY 2
WiiM device turns your speaker into an AirPlay 2-enabled speaker to stream the music you
love from iOS, Mac, and PC devices or stream audio from Apple TV. It’s an easy and
affordable way to connect your Apple devices to your favorite audio equipment and
upgrade to an AirPlay 2 receiver.
AirPlay 2 lets you stream music from your iOS, MAC, PC, and Apple TV device to more
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
24 | P a g e
than one product to create a multiroom audio experience over Wi-Fi.
NOTES:
• To use AirPlay 2, you need an Apple device running iOS 11.4 or later.
• Your Apple device and WiiM device must be connected to the same Wi-Fi
network.
• For more information about AirPlay 2, visit: https://www.apple.com/airplay
You can either start the AirPlay 2 streaming from the music App or the iOS control center.
The steps are shown below for both cases.
STREAM AUDIO FROM THE CONTROL CENTER
1. On your Apple device, open the Control Center.
2. Tap and hold the audio card in the top-right corner of the screen, then tap the AirPlay
icon .
3. Select your WiiM device.
STREAM AUDIO FROM AN APP
1. Open a music app (like Apple Music) and select a track to play.
2. Tap .
3. Select your WiiM device.
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
25 | P a g e
TIDAL CONNECT
TIDAL is a global music streaming platform bringing fans closer to artists through unique
experiences and the highest sound quality. Stream your favorite music seamlessly from
TIDAL App straight to your devices in the highest possible quality.
TIDAL Connect is a feature that allows you to stream music from the TIDAL App to
compatible devices. It's similar to Apple AirPlay and Spotify Connect in that it lets users
stream music to connected devices from within the App. This means you can use your
smartphone or computer as a controller to play music on WiiM device.
WiiM Amp also supports MQA decoder for the TIDAL Connect up to 24-bits/96 kHz and
Hi-Res FLAC up to 24-bits/192 kHz if you subscribe to TIDAL Hi-Fi+ tier.
To use TIDAL Connect, you need to launch the TIDAL App on your mobile device. Then
find and play a song you like and head to the 'Now Playing' screen. Touch on the 'cast'
icon at the top right on the ‘Now Playing’ screen and select a WiiM device from the list.
AMAZON MUSIC CAST (ALEXA CAST)
Alexa Cast is a feature that allows you to play and control music on any of your Alexa
devices from your Amazon Music iOS or Android app. You can discover all your Alexa
devices from your music app. Your devices do not need to be on the same Wi-Fi network
as your mobile device. You can target any device from anywhere. Once you pick a target
device, the music you selected on your App will start playing on the chosen device. You
can now follow along on your App. When you tap skip on your App, your device skips to
the next track. Your App becomes a remote control for the device.
WiiM Amp is one of the first devices that support Alexa Cast with bit-perfect output up to
192 kHz/24-bit. Thus, you can listen to your Amazon Music Ultra HD directly from the native
Amazon Music to WiiM Amp in the highest possible quality.
To use this, please log in to your Amazon account for Amazon Alexa on the WiiM Home
App. Also, make sure you have the latest version of the Amazon Music app. Next, on the
"Now Playing" screen, you will see a casting icon in the top right. Tapping the icon will bring
up the list of all your available Alexa devices for you to select.
Once you have started casting, you can still use voice to control the music playing on the
device. You can switch between using your voice and your App based on your convenience.
When you want to stop casting to a device and resume playing on your phone, you will
have to pull up the device list and tap the disconnect button.
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
26 | P a g e
CHROMECAST AUDIO
Chromecast audio lets you instantly stream your favorite music, radio, or podcasts from
your favorite Chromecast-enabled apps on the mobile device to your speakers over Wi-Fi.
Once you have set up WiiM Amp, you can enable Chromecast from the WiiM Home
companion app. Then, open a compatible app on your smartphone or tablet and tap the
Cast button. This will allow you to select your WiiM Amp and start streaming audio to it.
Most music apps on both iOS and Android already support Chromecast such as Spotify,
Apple Music, TIDAL, Amazon Music, YouTube Music and Deezer. You can also cast any
audio from your Chrome browser by selecting ‘Menu’ > ‘Cast’.
Chromecast can also be used for multi-room audio, playing music in sync to multiple
speakers from compatible brands and WiiM Amp, using the Google Home app.
DLNA
DLNA stands for Digital Living Network Alliance. It is a trade organization that sets
standards and guidelines for home networking devices, including PCs, smartphones,
tablets, smart TVs, Blu-ray Disc players, home theater receivers, and media streamers,
among others. When a DLNA certified device is added to a home network, it can
automatically communicate and share media files with other connected DLNA products on
the network.
WiiM Amp is the DLNA digital media render. When it’s connected to the same network as
your other DLNA devices or apps, it appears in the menus of other networked components.
Your computer and other media devices discover and recognize the WiiM Amp without any
setup.
You can control the WiiM Amp from other DLNA digital media player or controller. You can
also play content to the WiiM Amp from other DLNA digital media servers, all without
additional setup.
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
27 | P a g e
8. ALL MUSIC IN ONE APP
With the free WiiM Home App, you can control your content and devices from one place.
We support many popular music streaming services in the App, such as Spotify,
iHeartRadio, Tidal, Amazon Prime Music and Unlimited, SoundCloud, Qobuz, Pandora,
Deezer, TuneIn & more to come. You can also play music stored in your mobile device,
local network media servers, or personal cloud server.
The App supports the unified search across multiple music services and your local network
for artist, track, station, playlist, etc. It's a powerful tool to discover your favorite content
from your online and local library.
The WiiM Home App supports equalization (EQ) with two options: 24 EQ presets, a 10-
band graphical EQ, and a 4-band parametric EQ. These EQ settings can be assigned to
different sources, such as AUX, Optical or HDMI in, online music, or Bluetooth streaming.
The App has twelve music presets that allow you to save your favorite station, playlist,
album, etc., and access them later with the preset button on the remote, or the App with
one tap.
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
28 | P a g e
9. MULTIROOM AND STEREO PAIRING
With the WiiM Amp, it’s easy to build your wireless multiroom sound system with other
AirPlay 2 speakers, Amazon Echo (or Alexa built-in devices) or Google Home. You can
create an even more flexible multiroom sound system with multiple WiiM Amps, Pro Plus,
Pros Minis, and your existing audio devices.
LINKPLAY MULTIROOM/STEREO PAIRING
With our proprietary multiroom scheme, all types of audio input, including Wi-Fi, BT, analog
Line in, or digital SPDIF in, can be used as the audio source for the multiroom system.
In addition, you can group two speakers connected with WiiM devices as a stereo pair for
a wider, more immersive sound stage. It supports all four input options too. Thus, it can
work with almost every music listening option.
● Configure two or more devices.
● Open WiiM Home App.
● Select the device and click the plus sign in the upper right corner “ ”
● Select the other WiiM device, click “Done”
● Click the LR icon” ” and set the device to "L/R/LR"
● Select Browse tab, choose your music to play.
AMAZON ALEXA MULTIROOM
TIP: Download Amazon Alexa App and get ready with Echo or other Amazon devices.
For detailed steps please refer to 6.1.
Since the WiiM Amp is an Alexa Cast audio receiver, not a transmitter, it can’t transmit
the Line-in, HDMI, or Optical-in audio to other Alexa-enabled devices such as Echo.
MULTIROOM WITH CHROMECAST AUDIO DEVICES
You can group WiiM Amp with other Google Home or Chromecast audio enabled devices
to play the same music on all devices via the Google Home App.
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
29 | P a g e
● Enter Google Home App, tap the “+” in the top left corner
● Tap “Create speaker group” to create a speaker group
● Select the devices that are in the same network
● Give a group name
● Stream music to the group
Since the WiiM Amp is a Chromecast audio receiver, not a transmitter, it can’t transmit the
Line-in, HDMI ARC, or Optical-in audio to other Chromecast audio devices such as Google
Home.
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
30 | P a g e
10. AUDIO INPUT VIA LINE IN OR SPDIF IN
Unlock the full potential of the WiiM Amp by employing it as a network audio transmitter
via Wi-Fi or Ethernet. You can seamlessly stream analog or digital audio input from devices
like CD players, vinyl players, TVs, or computers to other WiiM connected devices.
To set up your WiiM Amp with Line-IN:
1. Insert the line-in cable into the LINE IN port on the WiiM Amp's rear.
2. Connect the other end of the cable to your record player.
3. In the WiiM Home app, navigate to ‘Browse’ tab > Select source on device > LINE
IN, and designate LINE IN as the audio source.
4. Form a multiroom music group with your WiiM Amp. In the WiiM Home app, go to
Devices and choose the WiiM Amp linked with your LINE-IN device. Tap the group
button (depicted by a "link" icon within a box) at the upper right corner of the device
box. Select the desired WiiM Amp for audio transmission.
Upon completion, the music from the connected device will play across your multiroom
music group.
You can follow the same procedure using the SPDIF input port of the WiiM device if your
source device offers a digital audio output via SPDIF.
Additionally, you can enable the "Autosense" feature on the WiiM device, allowing it to
automatically play your Line-In, HDMI ARC, or Optical-In source upon detection of a signal.
This feature can be activated within the WiiM Home App.
The WiiM device features a built-in EQ to tailor audio input to your preferences. Moreover,
you can control audio volume remotely through the app, eliminating the need to adjust the
audio input directly.
Note that certain source devices may require a preamp. For instance, some turntables
lack a built-in preamp, necessitating connection to an external preamp before linking to
the WiiM Amp.
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
31 | P a g e
11. AUDIO OUTPUT VIA SPEAKER OUT
The WiiM Amp features one pair of passive speaker terminals and a separate subwoofer
out to connect to powered subwoofer. You can output audio to speaker terminals in stereo
or dual mono mode.
Setting Up WiiM Amp Audio Output:
1. Depending on your preferred audio equipment, select the appropriate connection
method to your passive speaker: Banana plugs or straight wired connection.
Banana plugs are recommended for the best sound and more reliable performance.
2. Connect the other end of the speaker wire to your passive speakers.
3. You're now ready to begin playing audio on your selected output devices.
Audio Output Via BT Out (BT sourcing mode):
● Open the WiiM Home App on your iOS or Android device.
● Select Device Tab, and tap the device setting gear icon.
● Tap the Audio Output setting and select Bluetooth to connect to an external
Bluetooth device (such as an amplifier or speaker)
● Start playing music.
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
32 | P a g e
12. STREAM AUDIO WITH BLUETOOTH
With Bluetooth wireless technology, you can stream tunes from various devices like
smartphones, tablets, TVs, and laptops. To start streaming, first pair your device with the
WiiM Amp.
Simple Pairing Process:
• Manual pairing: To pair your device manually, simply press and hold the volume
knob on the WiiM Amp for 3 seconds to initiate pairing mode.
• App-Assisted Pairing: If your WiiM Amp is connected to your network, you can
enable the Bluetooth pairing directly from the WiiM Home App. Just navigate to
the ‘Browse’ tab and select the ‘Bluetooth’ as your input source. In this case, if
there’s no device connected to the WiiM Amp, the App will initiate pairing mode
for WiiM Amp automatically.
The Bluetooth feature is compatible with A2DP and AVRCP profiles, and supports both
SBC and AAC codecs.
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
33 | P a g e
13. ADVANCED FEATURES
FIRMWARE UPDATES
● WiiM Amp updates automatically when connected to your Wi-Fi network.
● Upgrades happen from 2:00-5:00 a.m. in your time zone. During the silent
upgrade, there will be no sound and no indication. Upon opening the App, you
will see the latest updates made to WiiM Amp.
USE ETHERNET INSTEAD OF Wi-Fi
When an Ethernet cable is connected, the WiiM Amp will automatically switch off
Wi-Fi to use the Ethernet network. To confirm which connection is active, open the
WiiM Home App, go to the 'Browse' tab, and scroll down to the 'Select Audio Source'
section at the bottom. If Ethernet is being used, it will display 'Ethernet' instead of 'Wi-
Fi.'
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
34 | P a g e
14. FAQ
If you experience problems with the audio streamer, try these solutions first:
● What can I do if my WiiM Home App can’t find the device?
o Make sure your network is available and the device is powered on properly.
o Check the LED on the device is solid white.
o Make sure your device and WiiM Amp are connected to the same Wi-Fi network.
o Make sure you have the latest version of the WiiM Home App on your device.
o Try restarting your device, WiiM Amp, and router.
o If still can’t find, reconfigure the device to the network.
● What can I do if my device has no sound?
If you are not getting any sound from your WiiM Amp, make sure you have checked
the following things:
o The volume level on the WiiM Amp.
o The physical connections between WiiM Amp and your speakers, are
connected correctly and securely.
● Audio dropout or no sound on AirPlay 2?
If you experience no sound with AirPlay 2 but has sound with other service, please
check if the progress bar of music app on your Apple device is moving.
o Check network connectivity: Ensure the signal of your WiiM Amp and your
streaming device are strong. Move the WiiM Amp and the streaming device
closer to your wireless router or access point to improve the signal strength.
o Restart your network devices: Power cycling your network devices, including
your router, modem, WiiM Amp, and streaming devices, can often resolve
connectivity issues.
o Update firmware and software: Ensure that your WiiM Amp and all devices
involved in the AirPlay 2 setup have the latest firmware and software updates
installed. Additionally, update your streaming device (e.g., iPhone, iPad, Mac)
to the latest version of iOS, iPadOS or macOS.
o Reset the WiiM Amp: As a last resort, you can try performing a factory reset
on your WiiM Amp and set it up again.
● What can I do if my device cannot power on normally?
o Check the device LED status and ensure it’s on.
o Ensure the original power cable is used.
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
35 | P a g e
SUPPORT
If you are unable to resolve your issue, please send us a ticket through the App or send us
an email about the issue you’re experiencing.
WiiM Home App: Settings > Feedback, Settings > FAQ
Website: faq.wiimhome.com/support/solutions
Email: support@wiimhome.com
Product User Guides: wiimhome.com/guides
RESETTING WIIM AMP
Press and hold the play/pause for 10s until you will hear the voice prompts of “Restore to
factory setting” and see the light flashing red and white.
Factory reset clears all source, volume, and network settings for WiiM Amp and returns it
back to the original factory settings.
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
36 | P a g e
15. IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
10. Only use attachments/accessories specified by the manufacturer.
11. Unplug this apparatus during lightning storms or when unused for long periods of time
12. Refer all servicing to qualified personnel. Servicing is required when the apparatus
has been damaged in any way, such as external power supply, power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
13. To reduce the risk of fire or electrical shock, do NOT expose this product to rain, liquids
or moisture.
14. Do NOT expose this product to dripping or splashing, and do not place objects filled
with liquids, such as vases, on or near the product.
15. Keep the product away from fire and heat sources. Do NOT place naked flame sources,
such as lighted candles, on or near the product.
16. Do NOT make unauthorized alterations to this product.
17. Do NOT use in vehicles or boats.
18. Use this product only with the power supply provided.
19. Where the mains plug or an appliance coupler is used as the disconnect device, the
disconnect device shall remain readily operable.
20. Due to ventilation requirements, does not recommend placing the product in a
confined space such as in a wall cavity or in an enclosed cabinet.
21. Contains small parts which may be a choking hazard. Not suitable for children under
age 3.
22. This product contains magnetic material. Consult your physician on whether this might
affect your implantable medical device.
23. Do not place or install the bracket or product near any heat sources, such as fireplaces,
radiators, heat registers, or other apparatus (including amplifiers) that produce heat.
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
37 | P a g e
16. CE/FCC Statements
RF Exposure Information: To maintain compliance with FCC RF exposure requirements, use
the product that maintains a 20cm separation distance between the user's body and the host.
MPE limit for RF exposure at prediction frequency and satisfy RF exposure compliance.
FCC Statement:
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications or changes to this equipment. Such modifications or changes could
void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
‐ Reorient or relocate the receiving antenna.
‐ Increase the separation between the equipment and receiver.
‐Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
‐Consult the dealer or an experienced radio/TV technician for help.
CE Statement:
RF exposure information: The Maximum Permissible Exposure (MPE) level has been
calculated based on a distance of d=20 cm between the device and the human body. To
maintain compliance with RF exposure requirement, use product that maintain a 20cm
distance between the device and the human body.
Do not use the device in the environment at too high or too low temperature,
never expose the device under strong sunshine or too wet environment.
The suitable temperature for the product and accessories is 0℃-40℃.
Operating frequency range and maximum transmit power
Bluetooth: 2402MHz ~ 2480MHz, <9.11 dBm EIRP
WLAN 2.4GHz: 2412MHz ~ 2472MHz, <20 dBm EIRP
WLAN 5GHz: 5150MHz ~ 5825MHz, <20 dBm EIRP
The device for operation in the band 5150~5350 MHz is only for indoor use to reduce the
potential for harmful interference to co-channel mobile satellite systems.
WIIM AMP USER MANUAL VERSION 1.2 10/29/23
38 | P a g e
This product can be used across EU member states.
EU Regulatory Conformance
Hereby, Linkplay Technology Inc. Corporation declares that this device is in compliance with
the essential requirements and other relevant provisions of Directive 2014/53/EU.
