USER GUIDE
2.1CH Soundbar with Subwoofer
100130683
2
Contents & Information
Contents & Information.........................
Overview.................................................
Safety Precautions.................................
Unpacking..............................................
Wall Mounting Setup (Optional)..........
First Time Setup..................
Operation............................
Cleaning & Care..................
Specifications.....................
Troubleshooting..................
• 2.1 Channels
• Roku TV Ready™
• Bluetooth®
• DTS:X® and DTS® Virtual:X™
• 2 Internal speakers + 1 wireless subwoofer
• 120 W RMS output / 480 W peak output (4 x RMS)
• Dolby Atmos
Features

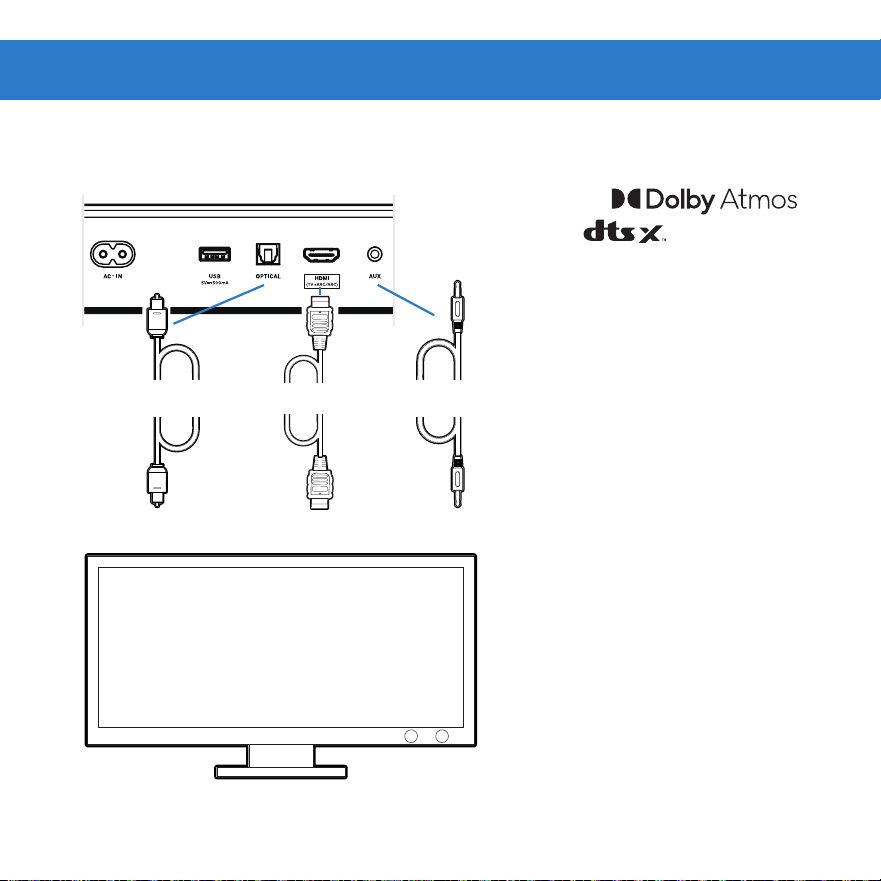

• 1 x HDMI® (TV eARC/ARC)
• 1 x AUX
• 1 x Optical
• 1 x USB
Connections
2
3
6
11
12
13
18
24
25
26
3

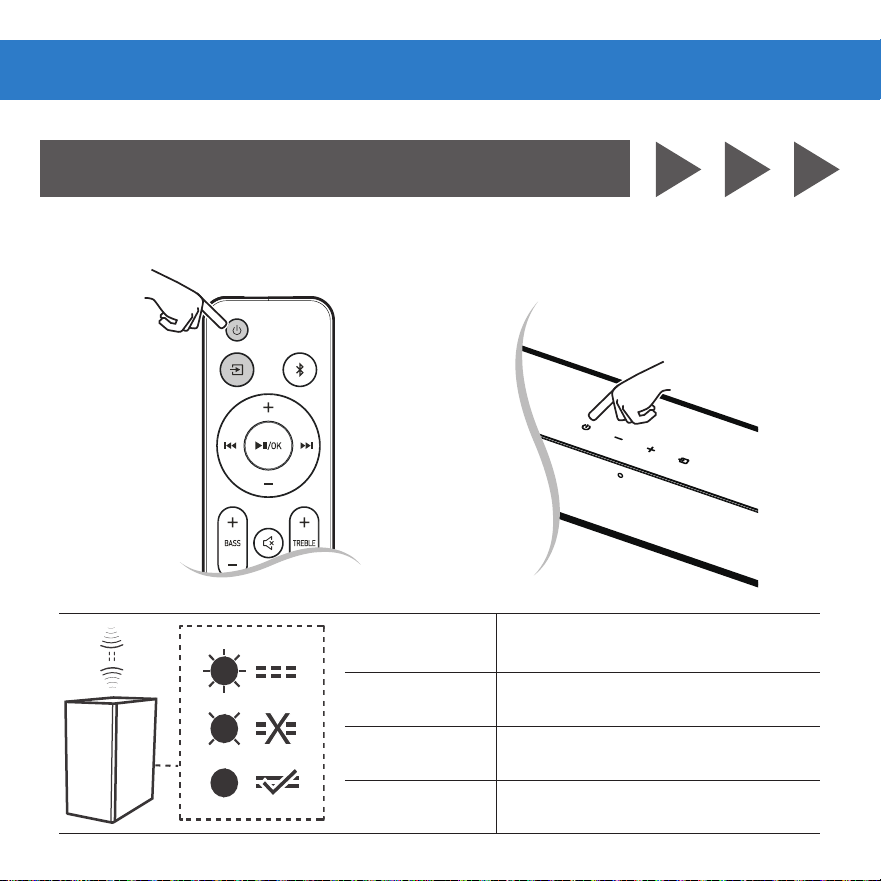

STATUS LED
SOUNDBAR
Overview
Standby Solid Red
HDMI (TV eARC/ARC) Solid Yellow
Optical Solid Purple
Aux in Solid White
USB Solid Green
Bluetooth pairing mode Flashing Blue
Bluetooth device connected Solid Blue
Volume up/down Corresponding source color flash 1 time
Maximum/minimum volume Corresponding source color flash 3 times
Mute Flashing Red
Talk Corresponding source color flash 1 time
Music Corresponding source color flash 3 times
Movie Corresponding source color flash 5 times
Bass +/- White Status LED flash 2 times
Treble +/- White Status LED flash 2 times
VRT:X
Yellow Status LED flash 3 times
VOLUME UP
VOLUME DOWN SOURCE
ON/OFF
4

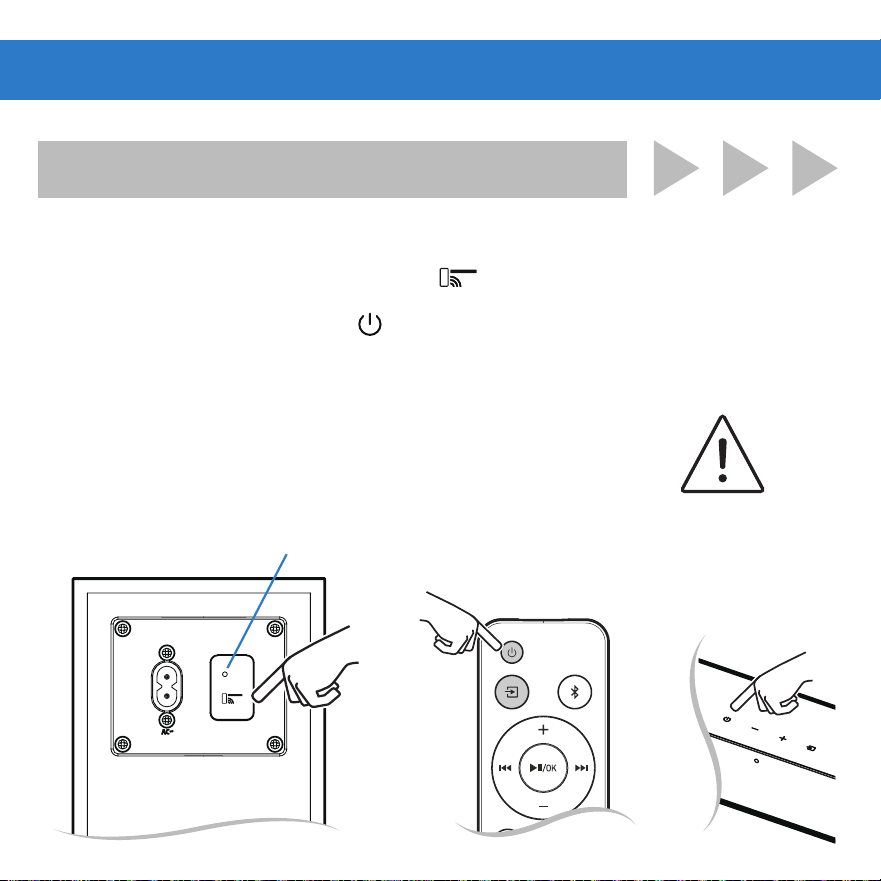

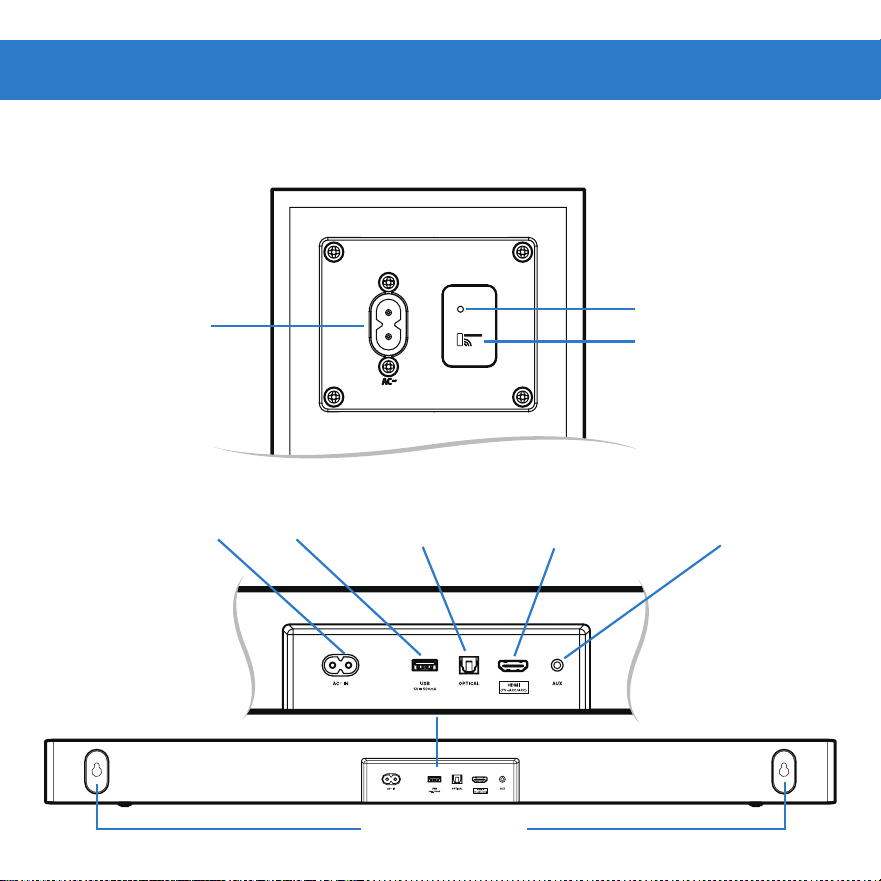

PAIR INDICATOR
POWER
PAIR BUTTON
WALL MOUNTS
USB
AUX AUDIO IN
(STEREO 3.5MM)
OPTICAL
AUDIO IN
POWER
WIRELESS SUBWOOFER BACK
HDMI
(TV eARC/ARC)
SOUNDBAR BACK
5

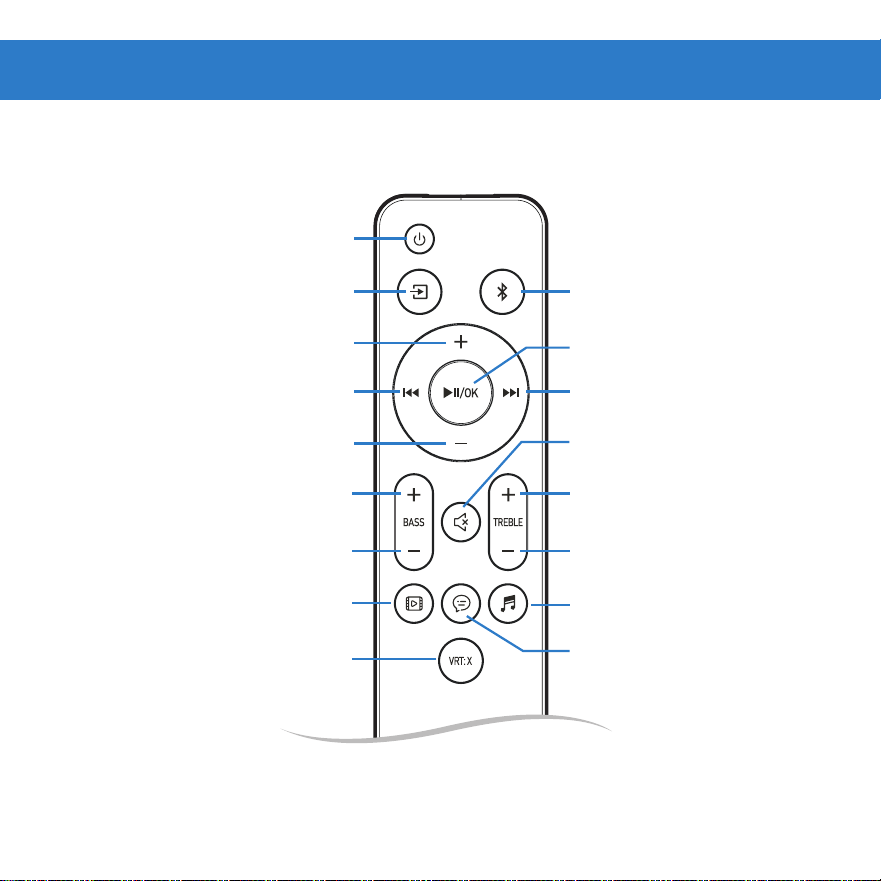

REMOTE CONTROL

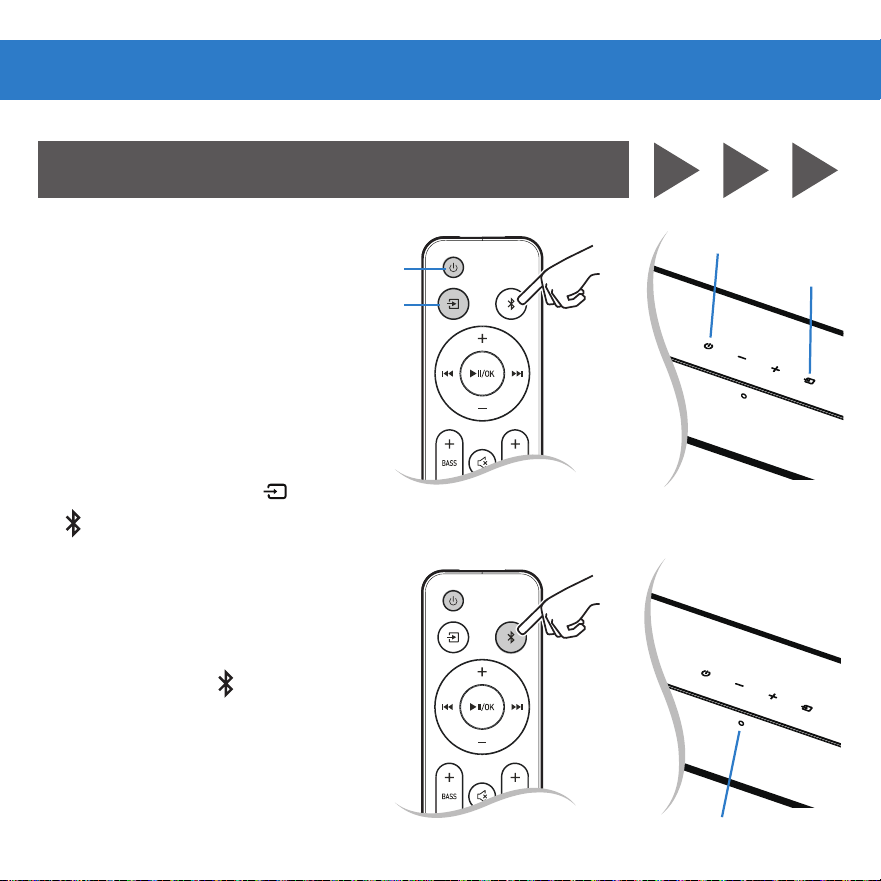

BLUETOOTH
BASS DOWN
BASS UP TREBLE UP
TREBLE DOWN
NEXT TRACK
PLAY/PAUSE
TALK
MUSIC
SOURCE
POWER
ON/OFF
VOLUME UP
VOLUME DOWN
PREVIOUS TRACK
MOVIE
DTS® VIRTUAL: X™
MUTE
6
Safety Precautions
WARNING
The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated “dangerous
voltage” within the product’s enclosure
that may be of sufficient magnitude as
to constitute a risk of electric shock to
persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing) instructions
in the literature accompanying the
appliance.
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC
SHOCK DO NOT OPEN
• Read these instructions – All safety and
operating instructions should be read
before product is operated.
• Keep these instructions – The safety and
operating instructions should be retained
for future reference.
• Heed all warnings – All warnings on
appliance and in operating instructions
should be adhered to.
• All operating and use instructions should be
followed.
• Do not use this apparatus near water –
Appliance should not be used near water or
moisture – for example, in a wet basement
or near a swimming pool, etc.
• Do not block any ventilation openings.
Install in accordance with manufacturer’s
instructions.
• Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
• Do not defeat the safety purpose of the
polarized or grounding plug. A polarized
plug has two blades with one wider than the
other. A grounding plug has two blades and a
third grounding prong. The wide blade or the
third prong is provided for your safety. If the
provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.
• Protect power cord from being walked
on or pinched particularly at the plugs,
convenience receptacles, and at the point
where they exit from the apparatus.
7
• Only use attachments/accessories specified
by the manufacturer.
• Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart or rack
is used, use caution when moving the cart/
apparatus combination to avoid injury from
tip-over.
• Unplug apparatus during lightning storms or
when unused for long periods of time.
• Refer all servicing to qualified personnel.
Servicing is required when apparatus has been
damaged in any way, such as power supply
cord or plug is damaged, liquid has been
spilled or objects have fallen into apparatus.
Apparatus has been exposed to rain or
moisture, does not operate normally, or has
been dropped.
• Maintain ventilation around equipment.
Do not install in a confined space such as
a book case or similar unit. Do not cover
the ventilation openings with items such as
newspaper, table-cloths, curtains etc.
• This equipment is a Class II or double insulated
electrical appliance. It has been designed in
such a way that it does not require a safety
connection to electrical earth.
• The equipment shall be used at maximum 35
degree C ambient temperature.
• Do not replace a battery with an incorrect
type that can defeat a safeguard (for
example,in the case of some lithium battery
types).
• Do not dispose of a battery in a fire or a
hot oven. Do not mechanically crush or cut
a battery. These conditions can result in an
explosion.
• Leaving a battery in an extremely high
temperature environment can result in an
explosion or the leakage of flammable liquid
or gas.
• A battery subjected to extremely low air
pressure may result in an explosion or the
leakage of flammable liquid or gas. To reduce
the risk of fire or electric shock, do not
expose this apparatus to rain or moisture. The
apparatus shall not be exposed to dripping,
splashing or objects filled with liquids, such as
vases, etc.
• The mains plug is used as disconnect device,
the disconnect device shall remain readily
operable.
• To reduce the risk of electric shock, do not
remove cover (or back) as there are no user-
serviceable parts inside. Refer servicing to
qualified personnel.
• To prevent injury, this apparatus must
be securely attached to the floor/wall in
accordance with the installation instructions.
• Danger of explosion if the remote control
batteries are incorrectly replaced. Replace
only with the same or equivalent type.
8
FCC Statement :
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: 1) This device may not cause harmful interference, and 2) This device must accept
any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communication
s. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
d
oes cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
• Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
• This equipment complies with FCC and IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with minimum
distance 20cm between the radiator & your body.
• Shielded cables must be used with this unit to ensure compliance with the Class B
FCC limits.
9
CAUTIO N
• Batteries should not be exposed to excessive heat such as sunshine, fire, etc.
• Keep new and used batteries away from children.
•
away from children.
•
immediate medical attention.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject
to the following two conditions:
• This device may not cause interference.
• This device must accept any interference, including interference that may cause undesired
operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux
CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:
• L’appareil ne doit pas produire de brouillage;
• L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
10
The Adopted Trademarks HDMI, HDMI High-Denition Multimedia Interface, HDMI trade dress
and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator,
Inc. in the United States and other countries.
Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories
Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential
unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc.
and any use of such marks by Walmart Inc. is under license. Other trademarks and trade names
are those of their respective owners.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. or
DTS Licensing Limited. DTS, DTS:X, Virtual:X, and the DTS:X logo are registered trademarks or
trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS
RESERVED.
Roku, the Roku logo, Roku TV, Roku TV Ready, and the Roku TV Ready logo are trademarks and/
or registered trademarks of Roku, Inc.
This product is Roku TV Ready-supported in the United State. Countries are subject to change.
For the most current list of countries in which this product is Roku TV Ready-supported, please
email rokutvready@roku.com.
11

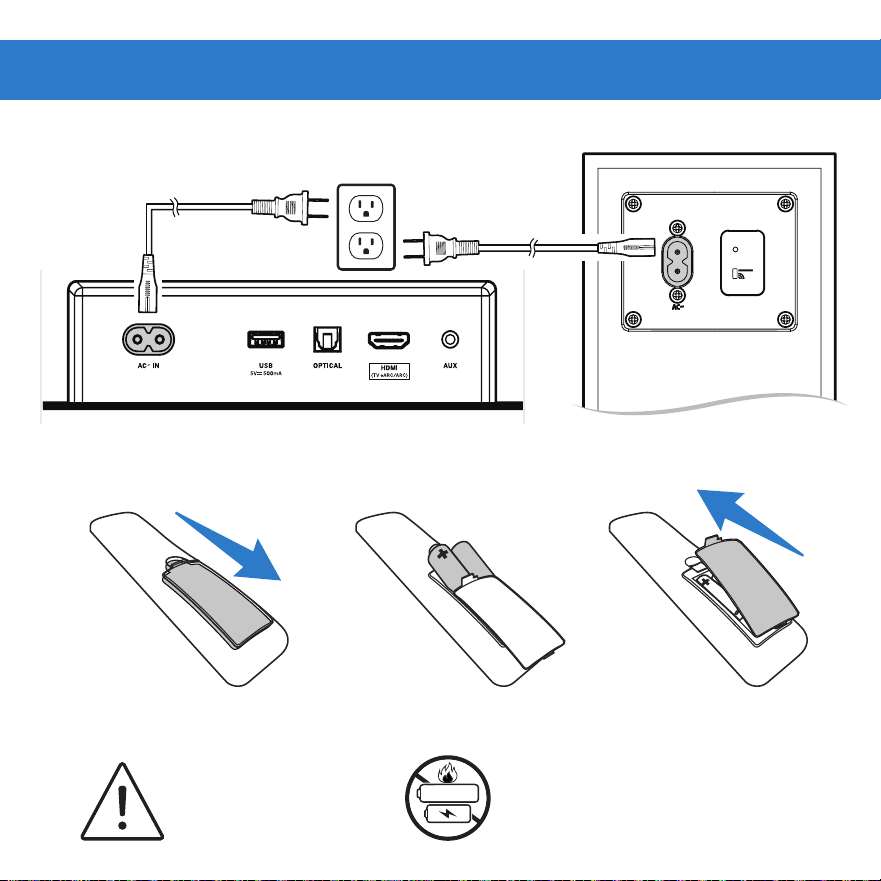

Part Description Qty
1 Soundbar 1
2 Wireless Subwoofer 1
3 HDMI cable 1
4 Power cable 2
Part Description Qty
5 Wall mounting template 1
6 Wall mounting kit 1
7
Remote control
(AAA batteries x2)
1
PARTS
3
4
1
5 6

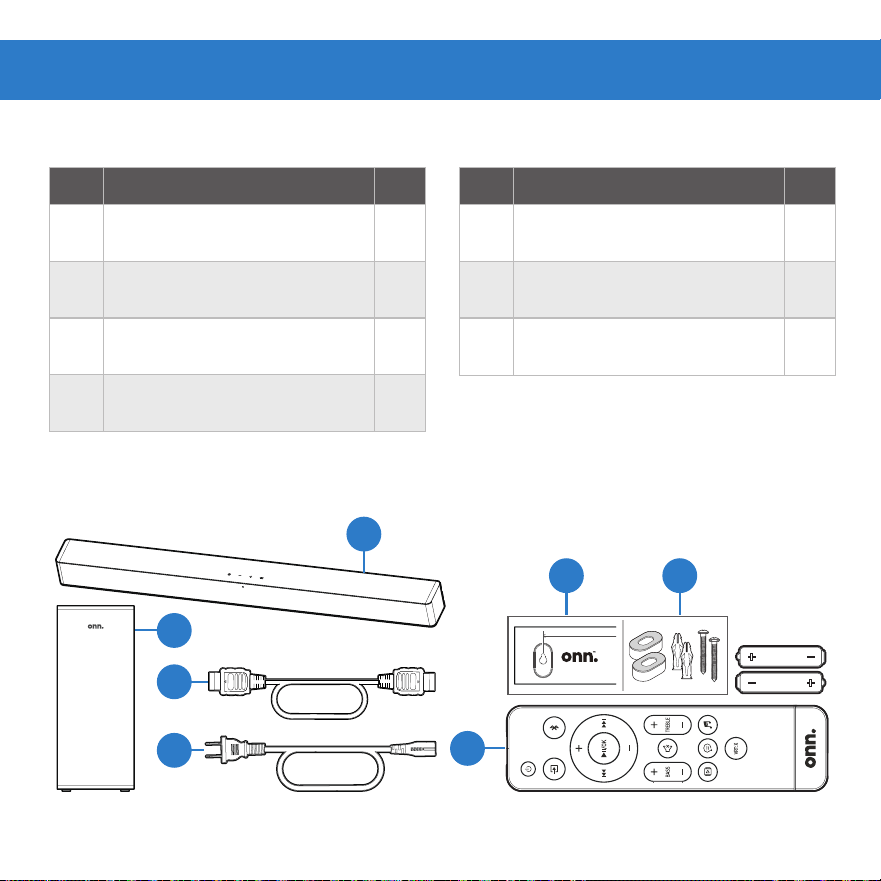

PARTS DIAGRAM
2
7
Unpacking
27.48” / 698 mm
Wall Mounting Template
Not supplied
Attach to soundbar
Attach to wall
CBA
1 2 3 4
12
25
min

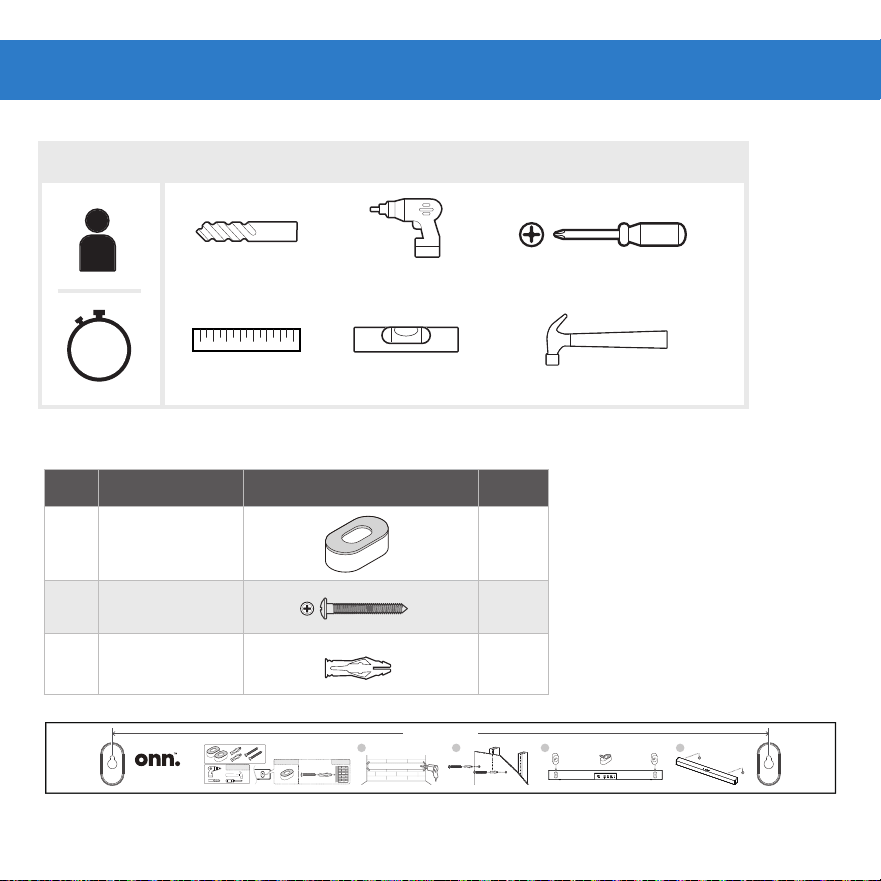

Part Description Picture Qty
A Rubber pads
2
B Screws
2
C Anchor 2
Cross Head ScrewdriverDrill bit
Ruler Level Hammer
Drill
SETUP
TOOLS NEEDED (NOT SUPPLIED)

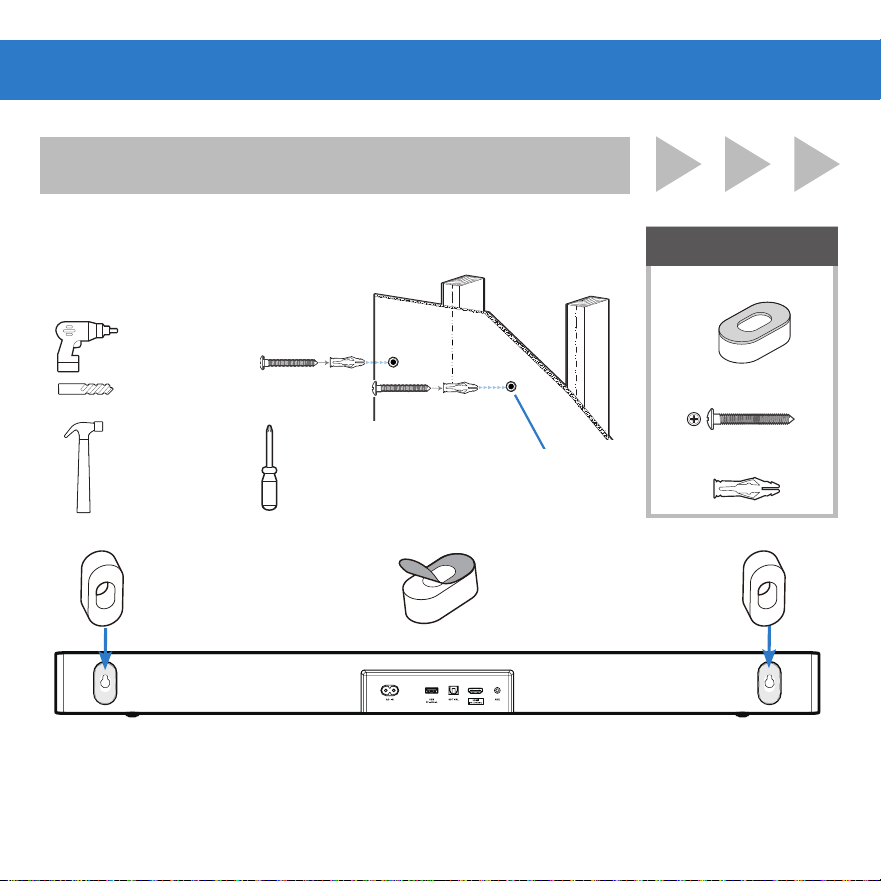

Wall Mounting Setup (Optional)
HARDWARE
(Wall mounting, optional)
27.48” / 698 mm
Wall Mounting Template
Not supplied
Attach to soundbar
Attach to wall
CBA
1 2 3 4
Wall mounting template
13
• Be sure screws will be attached to wood studs or use anchors
for drywall, or anchors for concrete or brick walls.
27.48” / 698 mm
Wall Mounting Template
Not supplied
Attach to soundbar
Attach to wall
CBA
1 2 3 4
1B. PLACE
1A. CENTER
1. Place wall mount template on wall under TV.
2. Mark Bracket holes (Ensure enough space between Soundbar
and TV) See 3B. HANG.
1. Below TV, close to ear level
2. Go to step 4
First Time Setup
ON A SURFACE
ON A WALL
14
Remove the backing paper from the backs of the rubber pads and stick them
to the back of the soundbar in the position shown in the diagram.
ON A WALL
2B. INSTALL
Wall mounts Screws and Anchors (if required)
1. Drill holes
REQUIRED
(A) Rubber pads x2
(B) Screws x2
(C) Anchors x2
2. Hammer
in anchors(C)
3. Screw
in screws(B)
into anchors
Anchors not
needed if screwed
into Studs
15
CAUTION
Note: Make sure wall
mount orientation
matches example
Mounting hooks on screws then slide down to lock in place.
If you are unfamiliar with power tools or layout of electrical wiring in the walls of
your home, consult a professional installer.
3B. HANG
16
4. CHOOSE CABLE
Connect one cable to Soundbar and TV
OPTICAL 3.5MM AUX
Best GoodBetter
Tip: If you have a Roku TV™, setup will be easy. Just use the included cable to connect your
soundbar to the HDMI (TV eARC/ARC) port on your TV and follow the on-screen instructions.
*
If no Audio using Digital
Inputs See troubleshooting.
• To use
and in HDMI (TV
eARC/ARC) mode, your TV has to
support Dolby Atmos®
• Enable CEC and ARC on TV
• Settings for CEC and ARC may
differ by TV manufacturer. See
TV’s user guide for more.
• To control soundbar volume on
TV remote, enable System Audio
Control in CEC menu.
• CEC Function naming may differ
by TV Manufacture. See TV’s user
guide for more.
• The full Dolby Atmos and DTS:X
experience is only available when
the soundbar is connected to the
source via a HDMI 2.0 cable.
HDMI
17
5. CONNECT POWER
WARNING
Do not mix old and
new batteries.
WARNING
Do not mix alkaline, standard
(carbon-zinc) or rechargeable (ni-
cad, ni-mh, etc.) batteries.
Alk/Zinc/Ni-Mh
6. INSTALL BATTERIES
Remove battery door Insert batteries Close battery door
18
-OR-
Operation
LED State Status
Quick flash Subwoofer in pairing mode
Slow flash Connection/Pairing Failed
Solid Connected/Pairing successful
1A. AUTOMATIC PAIRING
Connect Wireless Subwoofer
19
A: Press and hold the PAIR button ( ) of the wireless subwoofer.
B: Press the
Power button ( ) on the soundbar or on the remote control.
C: When wireless connection is successful, the indicator will be solid
orange.
Press
and hold
The indicator will
flash rapidly.
-OR-
WARNING
The subwoofer is within
5m of the soundbar.
1B. MANUAL PAIRING (IF AUTOMATIC PAIRING FAILED)
Connect Wireless Subwoofer
20
ON/OFF
SOURCE
1C. POWER ON/OFF
Soundbar
(Remote control or Bar)
2C. SELECT SOURCE
To switch between audio sources
(Remote control or Bar button
or button on remote control )
3C. PAIR DEVICE
Press and hold the button on
remote control.
-OR-
-OR-
ON/OFF
SOURCE
LED flashing blue
Press and hold
Bluetooth® Operation
21
WARNING
High volume levels can
damage your hearing.
Reduce the volume levels
before pressing Play.
IMPORTANT
Soundbar does not
include microphone
and cannot operate as
hands-free device.
BLUETOOTH
onn. 2.1 Soundbar
DEVICES
Bluetooth
ON
4C. SEARCH ON DEVICE
Select “onn. 2.1 Soundbar” on device
5C. PLAY AUDIO
From device
6C. VOLUME
Controlled by Device, Remote control or Soundbar
Device is connected when
Blue LED stops flashing
and becomes solid.
22
Bluetooth use
Your Soundbar supports music streaming from smartphones, tablets, and computers with
Bluetooth capability.
Device compatibility will vary, see your device’s documentation for more information. Once
you have paired your source device to the Soundbar, as long as you stay within range of the
Soundbar, your device should remain paired.
If the input is changed, the Bluetooth device will disconnect. If the source is changed back to
Bluetooth, any paired Bluetooth device will reconnect automatically.
A Bluetooth signal has a range of up to 27 feet. Keep in mind that Bluetooth is a compressed
audio format, so streamed music may lose some integrity when compared to a wired
connection.
23
2D. SELECT SOURCE
3D. PLAY AUDIO
Button Action
Play, pause or resume play.
/
Skip to the previous or next track.
/
Increase/decrease the volume.
Select USB Mode
(Remote or Soundbar button)
Tip: Support the USB music file format of MP3.
1D. INSERT THE USB DEVICE
USB Operation
24
CAUTION
Ensure the unit is fully unplugged from
the power supply before cleaning.
• Wipe down surfaces with a light cloth.
• Never use abrasive pads to clean device.
• Avoid using liquids to clean device.
CLEANING
Cleaning & Care
25
Specifications
Soundbar
Power
100-240V~ 50/60Hz
30 W / < 0.5 W (StandBy)
USB
5V
500mA
Full Speed USB / FAT32 / FAT16, MP3
Dimension (WxHxD) 31.57” x 2.62” x 3.09” (802 x 66.5 x 78.5 mm)
Net weight 2.64 lbs (1.2 kg)
Audio input sensitivity 500mV
Frequency Response 120Hz - 20KHz
Wireless Specification
Bluetooth version/profiles Bluetooth
frequency range
V 5.3 (A2DP, AVRCP)
2402 MHz ~ 2480 MHz
Modulation Type GFSK, π/4 DQPSK, 8DPSK
Wireless Subwoofer
Power
100-240V~ 50/60Hz
30 W / < 0.5 W (StandBy)
Dimension (WxHxD) 4.13” x 14.56” x 10.16” (105 x 370 x 258 mm)
Net weight 7.7 lbs (3.5 kg)
Frequency Response 40Hz - 120Hz
Remote Control
Distance/Angle 19.7 feet (6m) / 30°
Battery type AAA (1.5V x 2)
26
Problem Cause Solution
No power
Power off
Press “
” button on remote
control or on Soundbar.
Loose power cord
Ensure the power cord is securely
connected.
Faulty outlet
Plug a different device into the
electrical outlet to verify that the
outlet is working correctly
No audio
Low Volume / Mute
Press “
”
Increase volume
Some TVs do not Pass
through Digital Audio
Change TV output to AUTO
Input source Select different Input source
Not All TVs have Audio
outputs listed.
Connect directly to another
device (Blu-Ray, Game System,
etc.)
TV set to variable audio
output
Set audio output to fixed or
standard, NOT variable.
Troubleshooting
• Input LEDs will flash rapidly if an unsupported format is present.
• Consult your TV’s user manual for more detailed information.
27
Problem Cause Solution
No audio
Bluetooth source device
Increase volume / unmute source
device
Wireless subwoofer and
soundbar too far
The wireless subwoofer is out
of range, please move the
wireless subwoofer closer to the
soundbar. Make sure the wireless
subwoofer is within 5m of the
soundbar.
Bluetooth break-
up or disconnect
Source too far
Move the source device closer to
soundbar
Solid obstruction
Move source device into
line-of-site of soundbar
Other wireless devices
Turn off / move devices away
(wireless security cameras,
wireless video baby monitors,
cordless phones, and microwave
ovens
Remark: In standby mode, press the VOL , VOL , , , in sequence to enter
Flat mode, it’s only for debug use and the sound setting is Flat without DRC.
1-888-516-2630
THIS GUIDE CONTAINS
IMPORTANT SAFETY
INFORMATION.
For product assistance:
WE CAN HELP
PLEASE READ AND KEEP
FOR FUTURE REFERENCE.
7 DAYS/WEEK 7:00am- 9:00pm CST
Find more at Walmart.com
Manufactured in China for Walmart Inc.
