OWNER’ S MANUAL
FOR
TYTUS FRESNO™ SERIES
TDT-021-0101
2
TM
THIS IS
MORE
THAN A
GRILL
lt’s home-cooked meals. Summer afternoons
and evenings enjoying fresh air and the savory
smell of a tender steak. Laughter with your
friends and family. Because grilling is about
more than good food. lt’s about the time you
spend with your favorite people.
TYTUS® is proud to produce quality grills that
transform your outdoors.
Thank you for your purchase.
3
OWNER'S MANUAL
TYTUS FRESNO SERIES
TABLE OF CONTENTS
Important Safety Instructions ..................................................................................................................... 4
Package Contents ............................................................................................................................................. 8
Assembling your Grill ....................................................................................................................................... 9
Lighting your Grill ......................................................................................................................22
Using your Grill ....................................................................................................................................................22
Cooking with your Grill ........................................................................................................... 29
Checking for Gas Leaks ....................................................................................................... 30
Purging Air from the Gas Line/Reset the Regulator .............................................. 31
Disassembling your grill ................................................................................................................................32
Cleaning and Maintaining your Grill ....................................................................................................... 41
Troubleshooting ................................................................................................................................................ 44
Specications .................................................................................................................................................... 47
Part Diagrams and Lists .............................................................................................................................. 48
Warranty ...............................................................................................................................................................58
4
TM
IMPORTANT SAFETY INSTRUCTIONS
FREE HELP FROM THE GRILL EXPERTS
Your TYTUS grill is designed for quick assembly and ease of use. If you have problems, DO NOT RETURN THIS GRILL TO
THE STORE. We’re the experts on this product and are trained to help you with assembly questions, grill operation, and
replacement of damaged or missing parts. Email SUPPORT@TYTUSGRILLS.COM or call (855) 969-5185.
IMPORTANT
NOTE: Keep this manual with your grill for future reference.
RECORD YOUR SERIAL #: (see the silver ETL label on the
door inside your grill's main cart)
- Failure to comply with these instructions could result in a re or explosion that could cause serious bodily injury,
death, or property damage.
- Whether this grill was assembled by you or someone else, you must read this entire manual before using your
grill to ensure the grill is properly assembled, installed, and maintained.
- Use your grill at least 3 ft. (91 cm) away from any wall or surface. Use your grill at least 3 ft. (91 cm) away from
combustible objects that can melt or catch re such as vinyl or wood siding, fences and overhangs, or sources
of ignition, including pilot lights on water heaters and live electrical appliances.
- THIS GAS ACCESSORY IS DESIGNED FOR OUTDOOR USE ONLY.
- NEVER use your gas grill in a garage, porch, shed, breezeway, or any other enclosed area.
- NEVER obstruct the ow of ventilation air around your gas grill housing.
- NEVER disconnect the gas regulator or any gas tting while your grill is lit. A lit grill can ignite leaking gas and
cause a re or explosion which could result in property damage, personal injury, or death.
- DO NOT store or use extra/additional gasoline or other ammable liquids or vapors in the vicinity of this or any
other appliances.
- A propane tank not connected for use must not be stored in the vicinity of your grill or any other appliance.
- Your grill will come ready to use with a standard 20 lb. liquid propane tank (not included). To convert your grill to
natural gas, please use a TYTUS Natural Gas Conversion Kit and consult a natural gas professional. Using any
other equipment or completing the conversion without a natural gas professional will void the warranty on your
grill.
- Keep the gas regulator hose away from hot grill surfaces and dripping grease. Avoid unnecessary twisting
of the hose. Visually inspect the hose prior to each use for cuts, cracks, excessive wear, or other damage.
If the hose appears damaged, do not use the gas grill. Contact the TYTUS Customer Support for a certied
replacement hose.
- The outdoor cooking gas appliance must be isolated from the gas supply piping system by closing its
individual manual shut-o valve during any pressure testing of the gas supply piping system at test pressures
equal to or less than 1/2 psi (3.5 kPa).
WARNING
5
OWNER'S MANUAL
TYTUS FRESNO SERIES
- NEVER use charcoal or lighter uid in this gas grill. Failure to comply with these instructions could result in a
grease re or explosion that could cause serious bodily injury, death, or property damage.
- Before each use of your grill, inspect the grease tray, ame tamers, and the inside of the grill bowl to be sure
there is no excessive grease and debris buildup. Clean the grease tray, ame tamers, and inside of the grill
bowl frequently to eliminate grease/debris buildup and to prevent greas res. Failure to comply with these
instructions could result in a grease re and even a subsequent explosion that could cause serious bodily
injury, death, or property damage.
PROPOSITION 65
WARNING: This product and the fuels used to operate this product (liqueed propane), and the products of
combustion of such fuels, can expose you to chemicals including benzene, which is known to the State of California
to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Wash your hands after handling this product.
DANGER
- If you smell gas:
A) Shut o gas to the appliance.
B) Extinguish any open ame.
C) Open the lid.
D) If the odor continues, keep away from the appliance, and immediately call your gas supplier or your re
department.
- Never cover slots, holes, or passages in the grill bowl or cover an entire rack with material such as aluminum foil.
Doing so blocks air ow through the grill and may cause carbon monoxide poisoning. Aluminum foil linings may
trap heat, causing a re hazard. If the instructions above are not followed exactly, a re may cause death or
serious injury.
- Your grill will get very hot. NEVER lean over the cooking area while using your grill. Do not touch cooking
surfaces, grill housing, grill lid, or any other grill parts while the grill is in operation, or until the grill has cooled
after use. Failure to comply with these instructions may result in serious bodily injury.
- NEVER store ammable liquids or materials in the cabinet. Failure to comply with these instructions could
result in a re or explosion that could cause serious bodily injury, death, or property damage.
CAUTION
- Failure to comply with these instructions may result in a hazardous situation which may result in injury.
- Spiders and small insects can spin webs and nest in the grill burner tubes during transit and warehousing
which can lead to a gas ow obstruction, resulting in a re in and around the burner tubes. This type of
“FLASHBACK FIRE” can cause serious grill damage and create an unsafe operating condition for the user.
- To reduce the chance of FLASHBACK FIRE you must clean the burner tubes before initial use, at least once a
month in the summer and fall (whenever spiders are active in your area), and if your grill has not been used for
an extended period of time. See "BURNER TUBES AND BURNER PORTS" on PAGE 42 for instructions.
- NEVER cover or wrap the cooking grids, bottom of the grill bowl, or grease tray with aluminum foil or any other
material that will absorb grease.
WARNING (CONT.)
6
TM

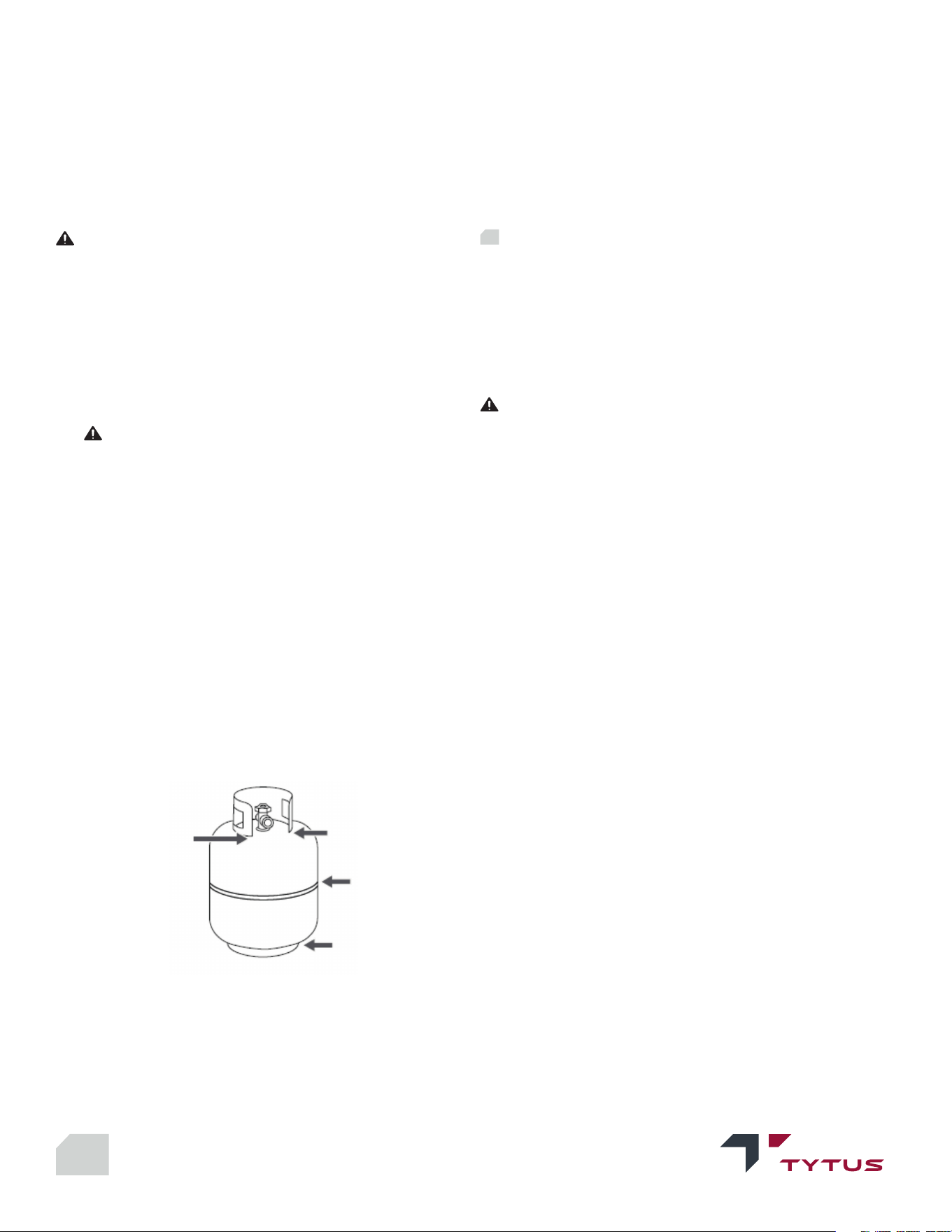

CORRECT PROPANE GAS TANK USE
- Propane gas grill models are designed for use with a
standard 20 lb. Liquid Propane Gas (LP Gas) tank (sold
separately). Never connect your gas grill to a propane gas
tank that exceeds this capacity. A tank of approximately
12 inches in diameter by 18-1/2 inches high is the
maximum size propane gas tank to use. You must use
an "OPD" gas tank which oers a listed Overll Prevention
Device. This safety feature prevents the tank from being
overlled which can cause a malfunction of the LP Gas
tank.
- The propane gas tank must be constructed and marked
in accordance with the Specications for LP-Gas
Cylinders of the U.S. Department of Transportation (D.O.T.)
or the National Standard of Canada, CAN/CSA-B339,
Cylinders, Spheres and Tubes for Transportation of
Dangerous Goods; and Commission, as applicable.
- The propane gas tank must have a shuto valve,
terminating in a propane gas supply tank valve outlet,
that is compatible with a Type 1 tank connection device.
- The propane gas tank must also have a safety relief
device that has a direct connection with the vapor space
of the tank.
- The tank supply system must be arranged for vapor
withdrawal.
- The propane gas tank must have a collar to protect the
tank valve.
- Never connect an unregulated propane gas tank to your
gas grill. The gas regulator assembly supplied with your
gas grill is adjusted to have an outlet pressure of 11" water
column (W.C.) for connection to a propane gas tank. Only
use the regulator and hose assembly supplied with your
gas grill. Any replacement hose and regulator assembly
must be identical to those listed in the parts list of this
Owner's Manual as specied by the manufacturer.
- Have your propane gas dealer check the release valve
after every lling to ensure it remains free of defects.
- The LP Tank valve must be closed when grill is not in use.
Close by turning the valve clockwise.
- Always keep the propane gas tank in the upright position.
- Do not subject the propane gas tank to excessive heat.
- Never store a propane gas tank indoors. If you store your
gas grill in the garage, always disconnect the propane
gas tank rst and store it safely outside.
- Propane gas tanks must be stored outdoors in a well-
ventilated area and out of the reach of children.
- Disconnected propane gas tanks must not be stored in a
building, garage, or any other enclosed area.
- The regulator and hose assembly can be seen after
opening the right cabinet door and must be inspected
before each use of the grill. If there is excessive abrasion
or wear or if the hose is cut, it must be replaced prior to
using the grill again.
- Any attempt to convert the grill from one fuel type to
another is extremely hazardous and must be performed
by a qualied gas technician only, using a natural gas
conversion kit purchased from TYTUS. Contact TYTUS
Customer Support for more information.
- Never light your gas grill with the lid closed or before
checking to ensure the burner tubes are fully seated over
the gas valve orices.
- Never allow children to operate your grill. Do not allow
children or pets to play near your grill. Always supervise
children and pets if they are in the vicinity of the unit.
- Use of alcohol, prescription, or non-prescription drugs
can impair your ability to properly assemble and safely
operate your grill.
- Keep a re extinguisher readily accessible. ln the event of
an oil/grease re, do not attempt to extinguish with water.
Use a type B extinguisher or smother with dirt, sand, or
baking soda.
- ln the event of rain, turn o the burners and gas supply.
Wait for the grill to cool, and then place a cover on it.
- Use your grill on a level, stable surface in an area clear of
combustible materials.
- Do not leave the grill unattended when in use. Do not
move the appliance when in use.
- Allow the grill to cool before moving or storing.
- Do not use your grill as a heater.
- This grill is not intended to be installed in or on
recreational vehicles and/or boats.
- This grill is not intended for commercial use.
- Never use charcoal or lighter uid in this grill. Never use
lava rocks or wood chips.
- Please protect your grill with a grill cover when not in use.
Only use the cover when the grill is in cold conditions and
when the grill is not hot.
- Place the dust cap on cylinder valve outlet whenever the
cylinder is not in use. Only install the type of dust cap on
the cylinder valve outlet that is provided with the cylinder
valve. Other types of caps or plugs may result in leakage
of propane.
7
OWNER'S MANUAL
TYTUS FRESNO SERIES
A) Do not store a spare propane gas tank under or near this appliance.
B) Never ll the tank beyond 80 percent full.
C) If the information in “(A)” and “(B)” are not followed exactly, a re causing death or serious injury may occur.
- Use your grill at least 3 ft. (91 cm) away from any wall or surface.
- Use your grill 3 ft. (91 cm) away from any combustible objects that can melt or catch re such as vinyl or wood

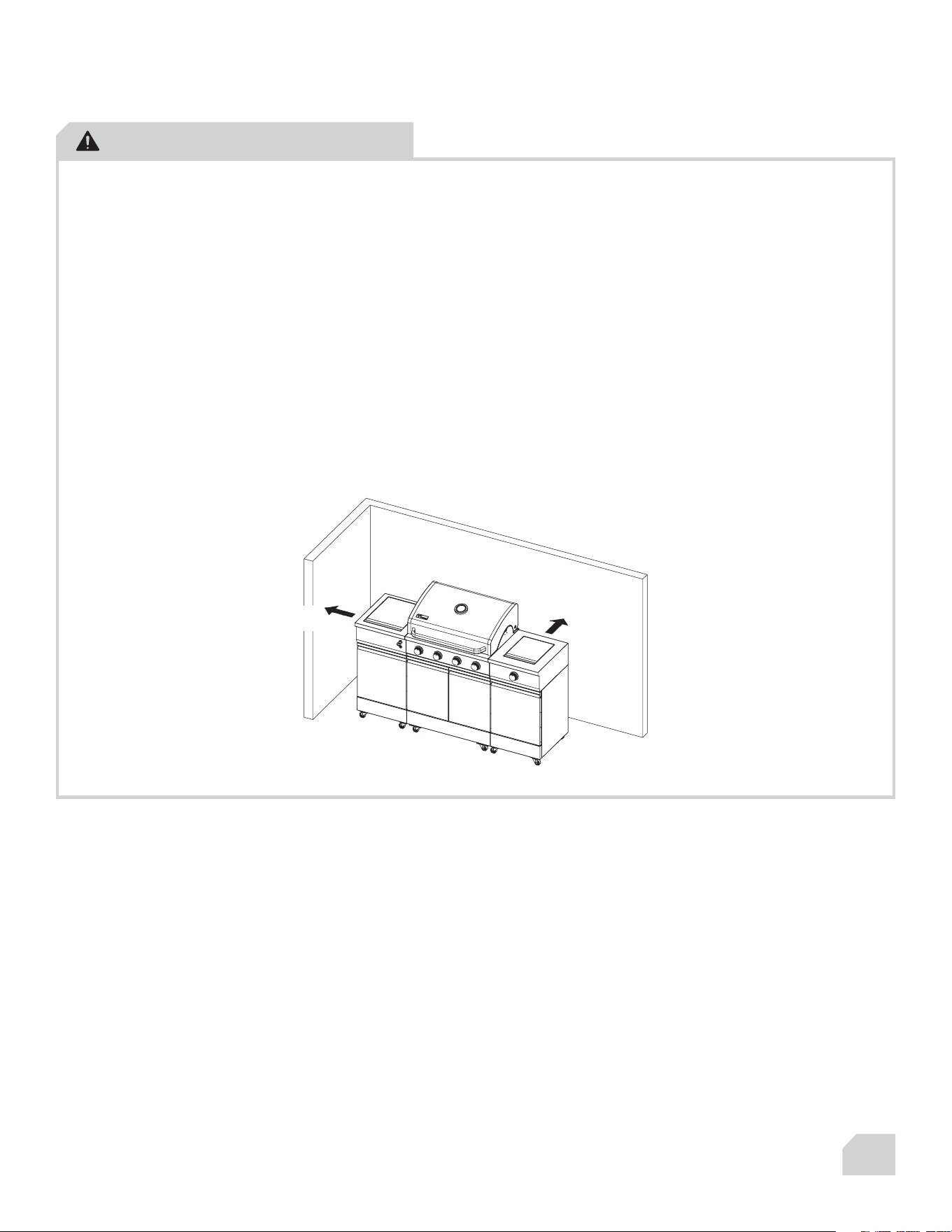

siding, fences, overhangs (see diagram below), or any other sources of ignition, including pilot lights and live
electrical appliances.
- Do not use your grill under any combustible overhead construction.
- Never use your gas grill in a garage, porch, shed, breezeway, or any other enclosed area.
- ln windy conditions, always position the front of the grill to face oncoming wind to reduce heat
and smoke blowing in your face and to prevent potential hazards to yourself and the grill.
NOTE ABOUT PROPANE GAS TANK EXCHANGE PROGRAMS
- Many retailers who sell grills oer you the option of replacing your empty propane gas tank through an exchange
service. Use only those reputable exchange companies that inspect, precision ll, test, and certify their tanks.
Exchange your tank only for an OPD safety feature-equipped tank as described in the propane gas tank section
of this manual.
- Always keep new and exchanged propane gas tanks in an upright position during use, transit, or storage.
- Leak test new and exchanged propane gas tanks BEFORE connecting one to your grill. See "Checking for Gas
Leaks" on PAGE 30 for instructions.
WARNING
3 ft.
(91.5 cm)
3 ft.
(91.5 cm)
8
TM
Remove your grill from the packaging, and lay out the contents in a large, sturdy area. Make sure that your grill is not
damaged and that you have all parts.

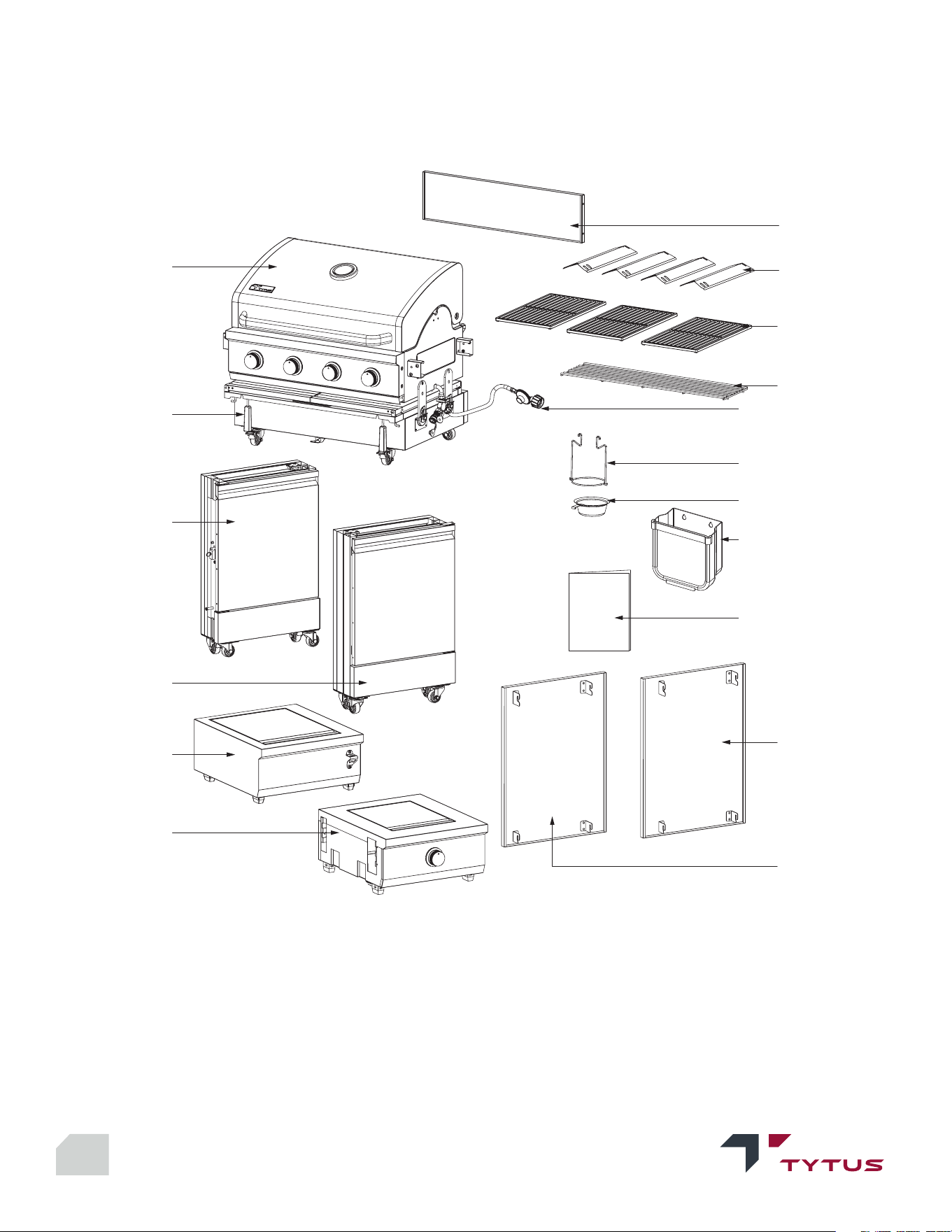

PACKAGE CONTENTS
Grill main cart
Left side cart
Left top cap/
removable ice
bucket
Left side panel
Right top cap/
side burner (side
burner grate &
regulator hose
assembly
pre-installed)
Right side cart
Grill box
Right side panel
Owner's Manual
Warming rack
Flame tamers (4)
Collapsible
trash bin
Grease cup holder
Grease cup
Porcelain enameled
cast iron grates
Upper rear
cart panel
Regulator/
"T" gas hose assembly
9
OWNER'S MANUAL
TYTUS FRESNO SERIES
BEFORE ASSEMBLING YOUR GRILL
- Make sure that you have assistance from another person to handle the grill box and other large, heavy parts.
- Open the lid of the shipping box and remove the top sheet of cardboard and packing materials. Lay the
cardboard sheet on the oor and use it as a work surface to protect the oor and grill parts from scratches.
RESOLUTION: If a QR code that links to the User Manual is placed on the outside of the box, I think that resolves
this issue, and this sentence can stay in the User Manual.
- You may slice the box's front corners with a utility knife to lay open the box's front panel. This lets you raise the lid
and remove the components packed inside, making it easier to lift.
- Remove the ame tamers, grease cup, and grease cup holder from the inside of the grill box.
- Use the "Package Contents" on PAGE 8 and "Part Diagrams and Lists" on PAGE 48 to ensure all items are
included and free of damage.
- Do not assemble or operate the grill if it appears damaged. If there are damaged or missing parts when you
unpack the shipping box or you have questions during the assembly process, call (855) 969-5185 or email
SUPPORT@TYTUSGRILLS.COM.
- The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code,
ANSI Z223.1/NFPA 54, or the Natural Gas and Propane Installation Code, CSA B149.1, or the Propane Storage and
Handling Code, CSA B149.2, ANS Z21.58-2018 • CSA 1.6-2018 Outdoor Cooking Gas Appliances.

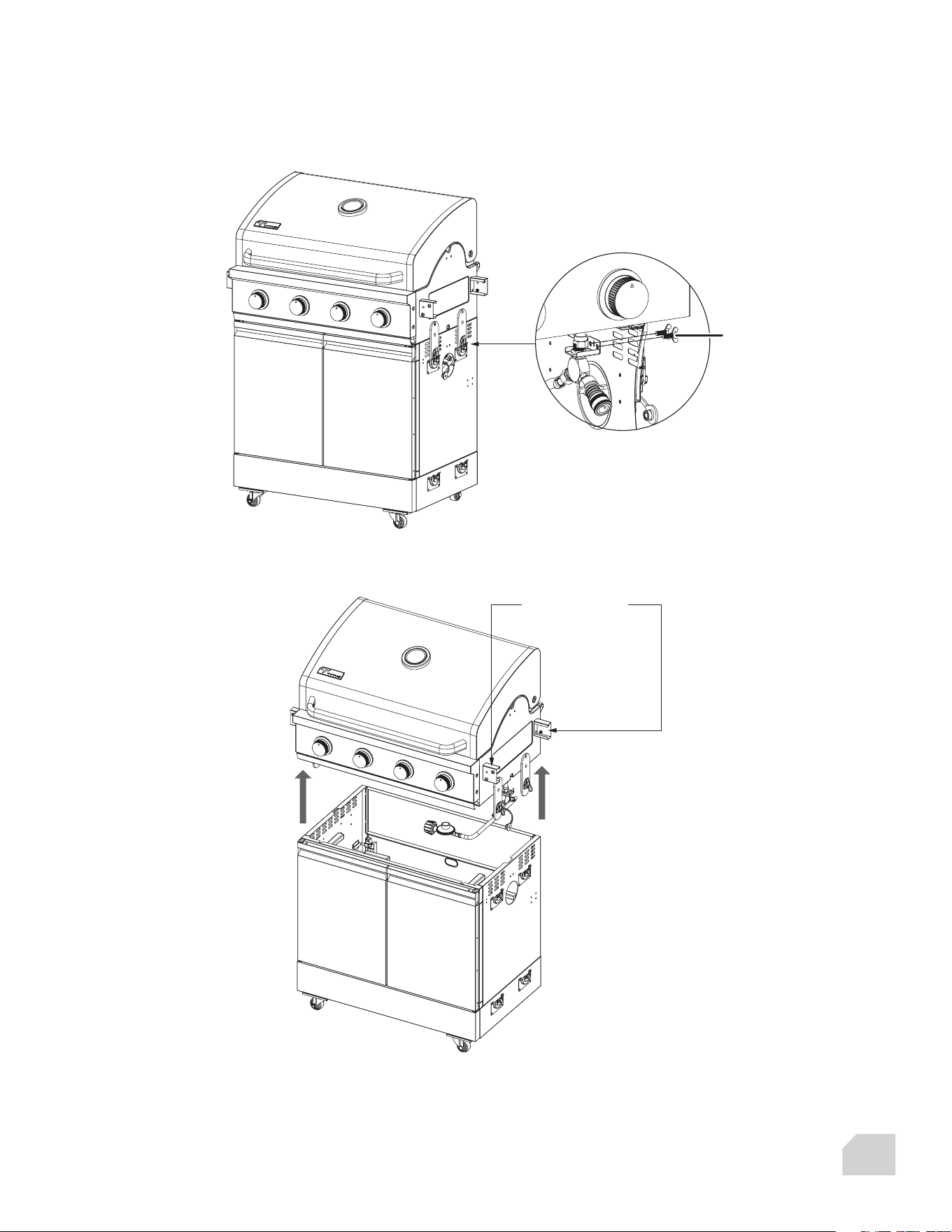

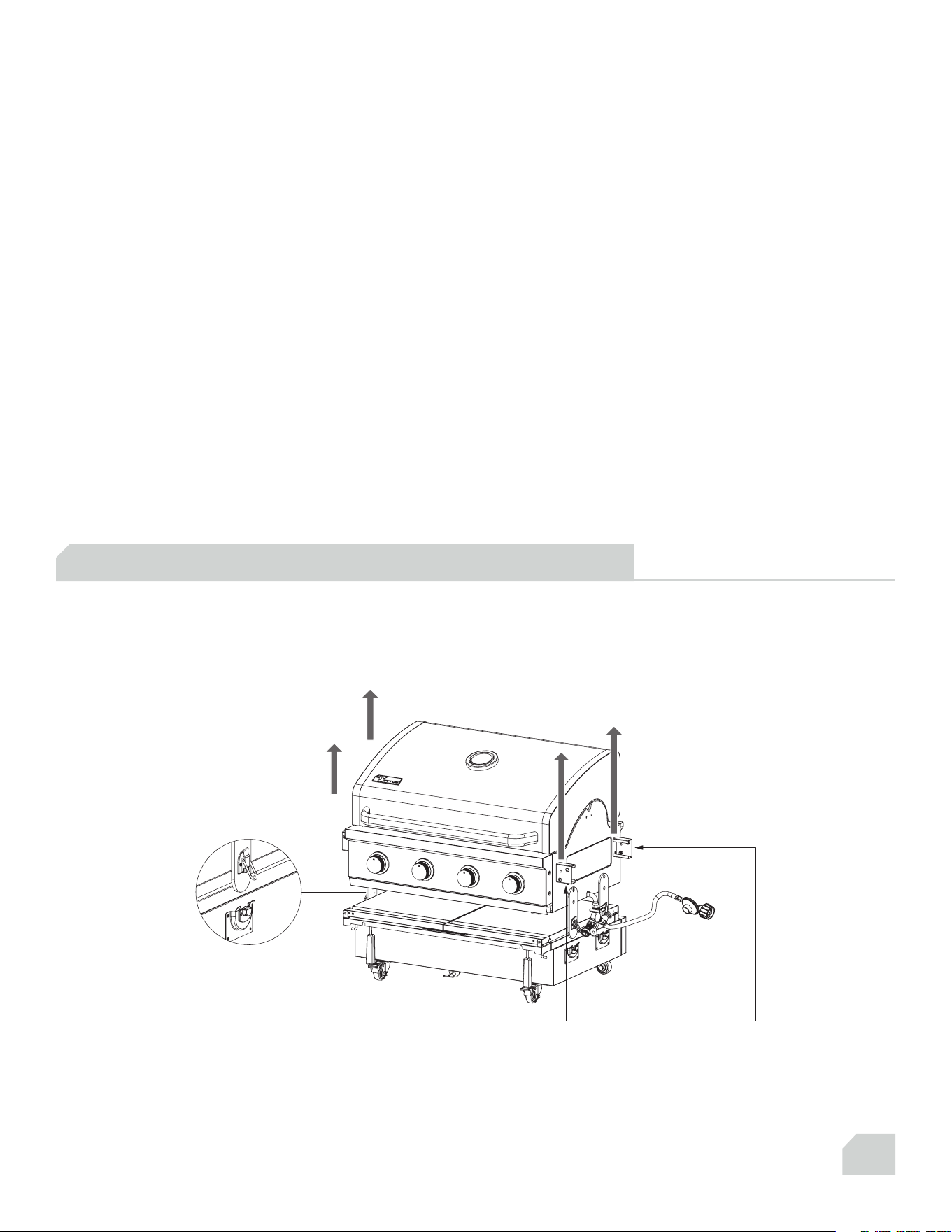

STEP 1: LIFT OFF THE GRILL BOX
A) Unlock the four latches on the sides of the grill.
B) With another person, grasp the handholds on the sides of the grill box, then lift it straight up and set it to the
side.
ASSEMBLING YOUR GRILL
TIP: Lift with
these handholds
10
TM

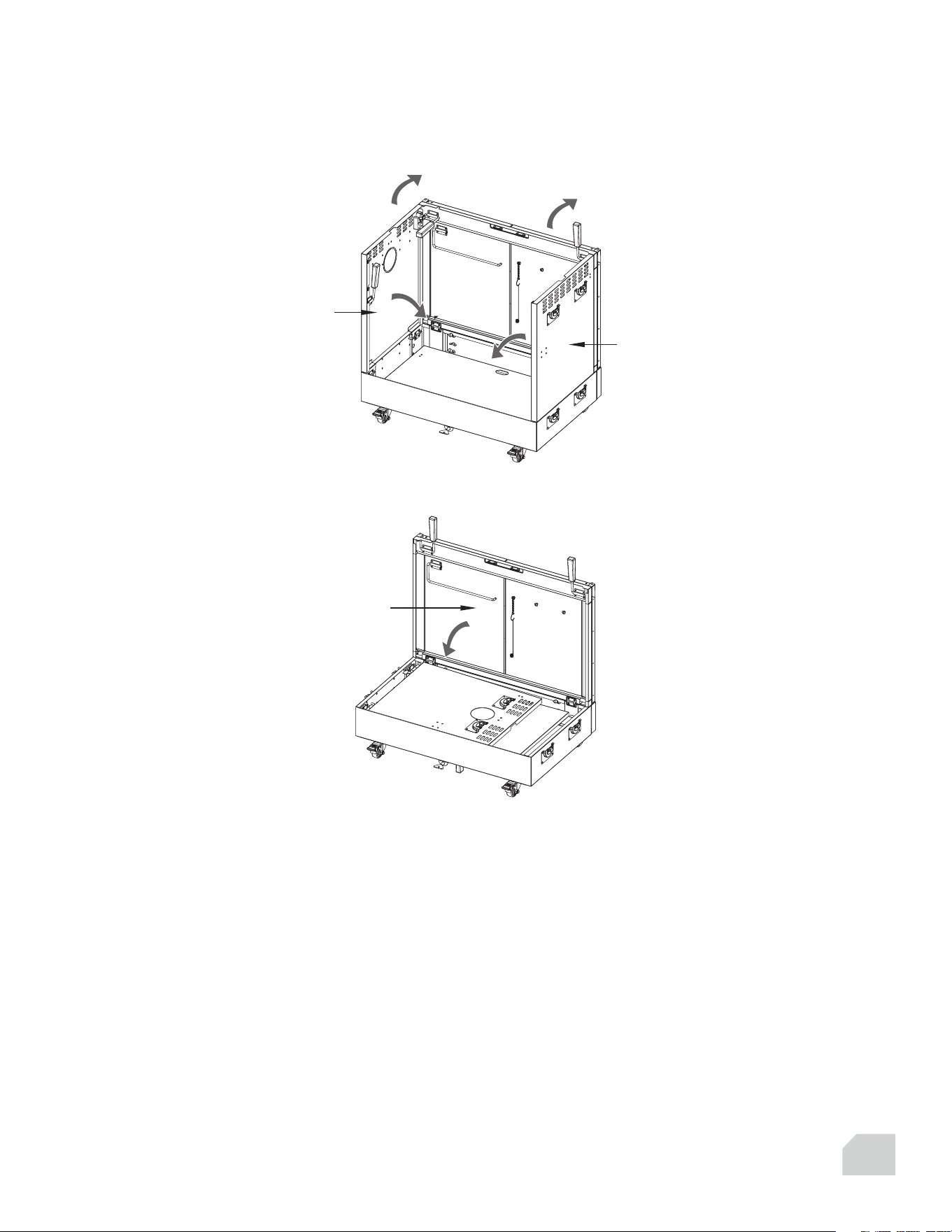

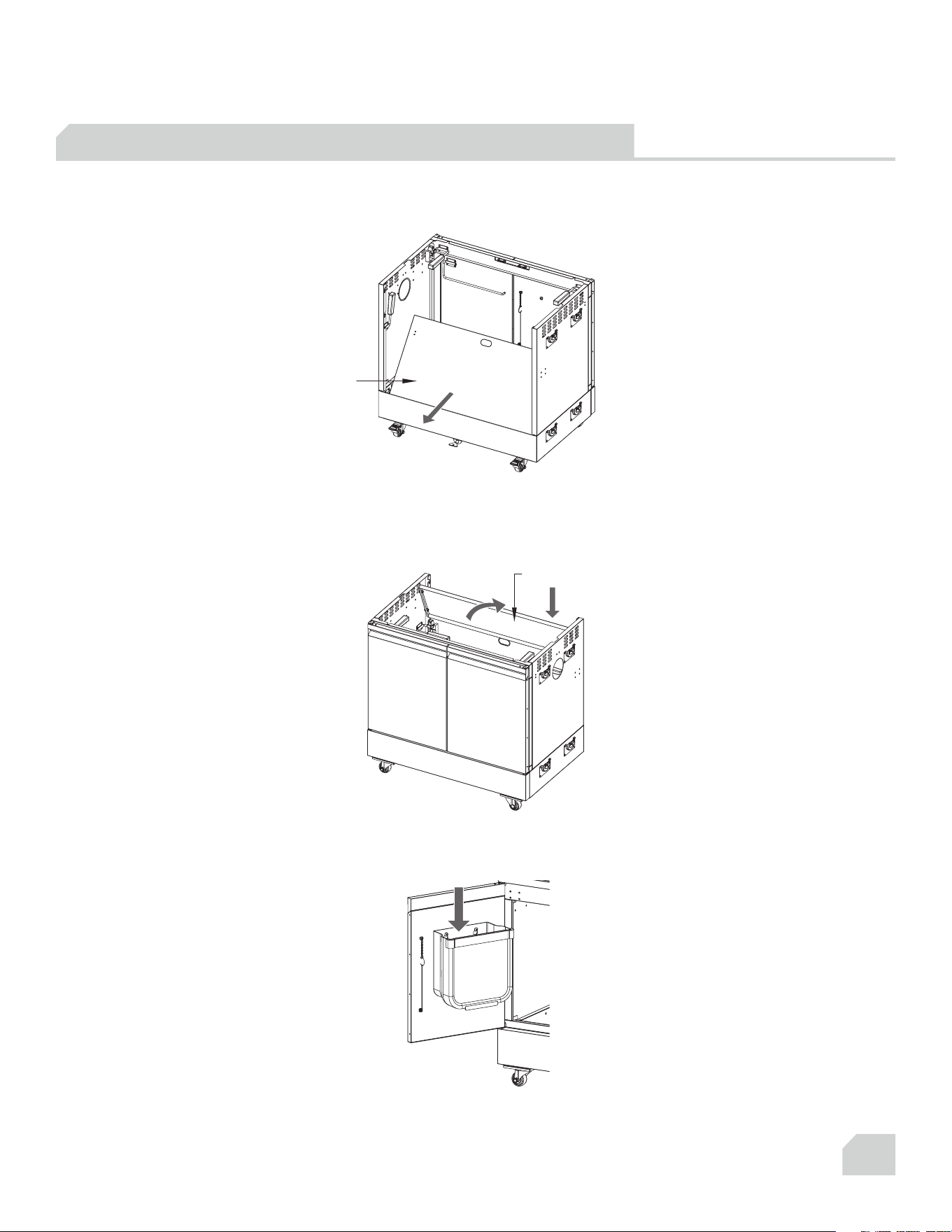

STEP 2: ASSEMBLING THE GRILL BASE

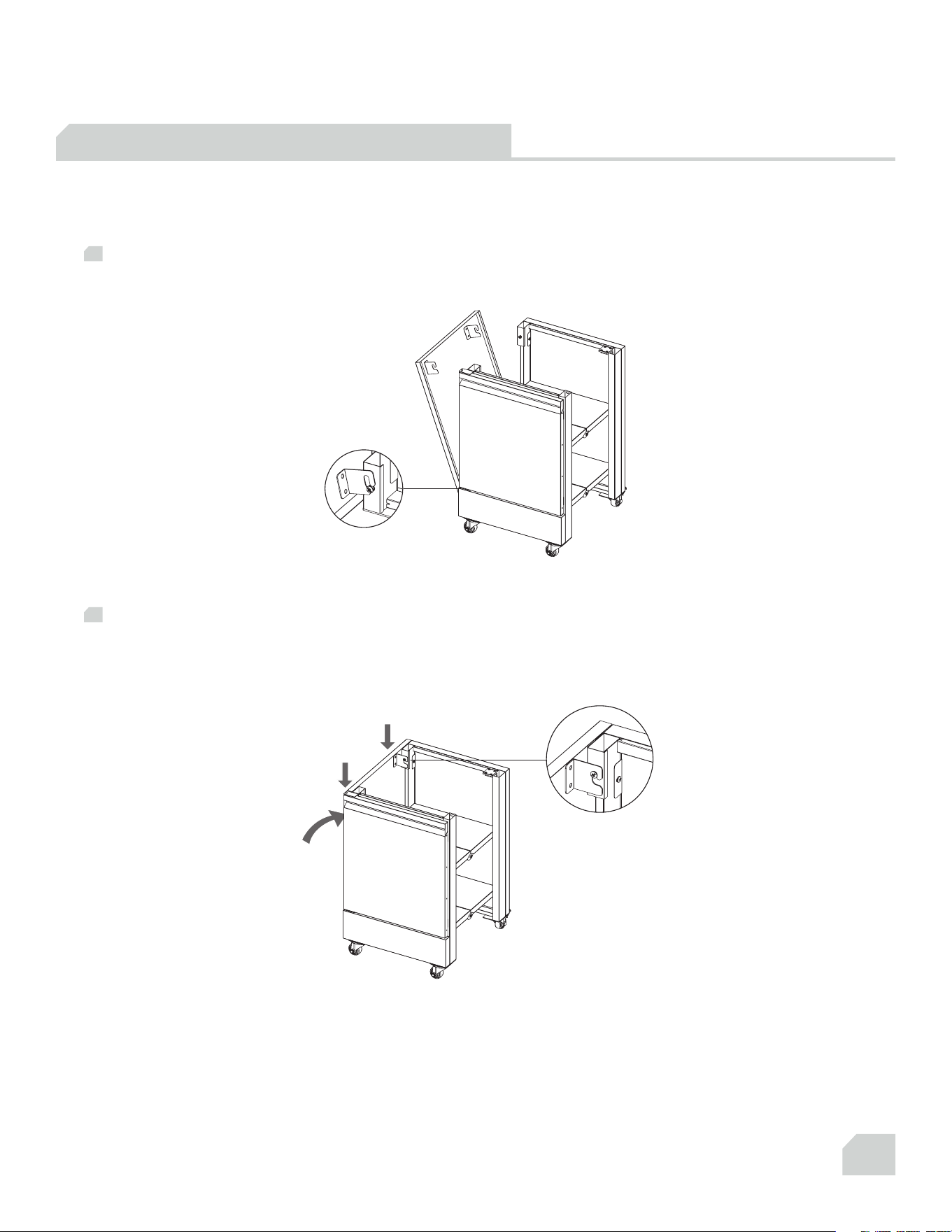

A) Make sure that the two locking handles are lifted up in an unlocked position.
B) Lift the main cart's front panel.
C) Lift the main cart's left panel, then push the locking handle down to secure it to the front panel.
D) Lift the main cart's right panel, then push the locking handle down to secure it to the front panel.
Locking
handles
Main cart front panel
Main cart left panel
Main cart right panel
11
OWNER'S MANUAL
TYTUS FRESNO SERIES
STEP 2: ASSEMBLING THE GRILL BASE (CONT.)

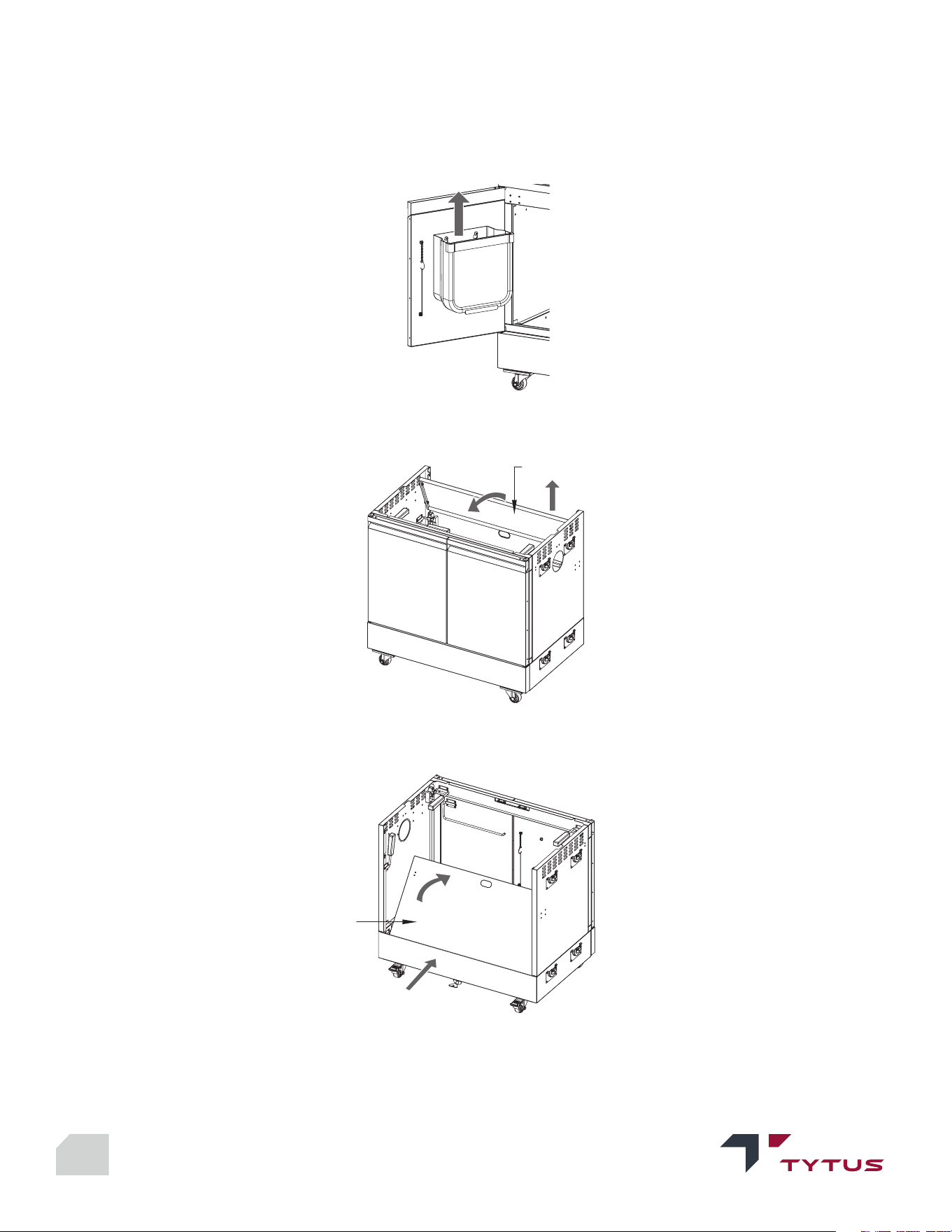

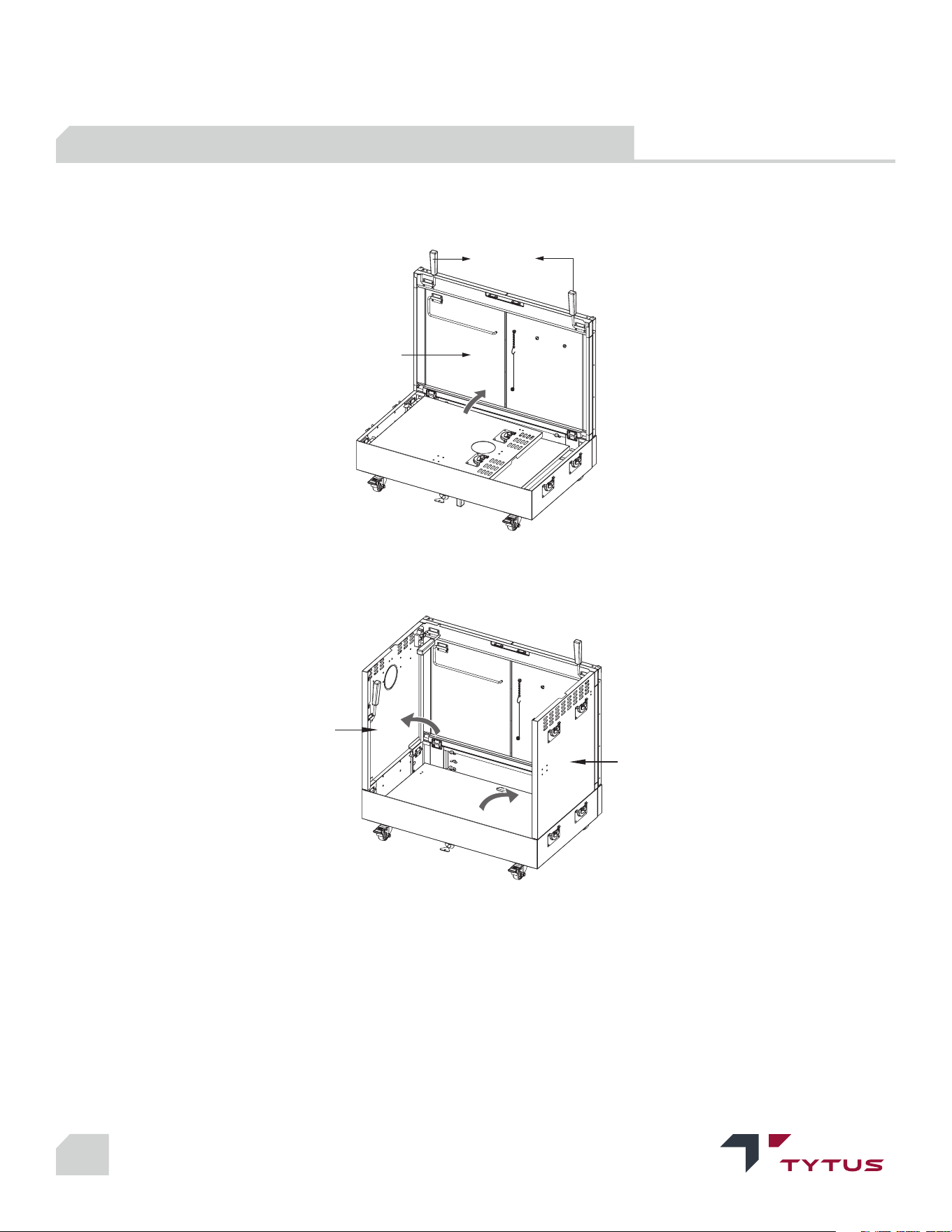

A) Lift the main cart's rear panel, then push the locking handles down into the notches to secure the rear panel to
the main cart's right and left panels.
B) From the inside of the cart, angle the bottom of the upper rear cart panel into the slots on the back of the grill
base. Pull the panel toward you and push down.
TIP: Start from the inside at a 45° angle.
C) Install the collapsible trash bin onto the back side of the left main cart door by sliding the locking holes onto the
two locking bolts.
Main cart rear panel
Upper rear cart panel
12
TM

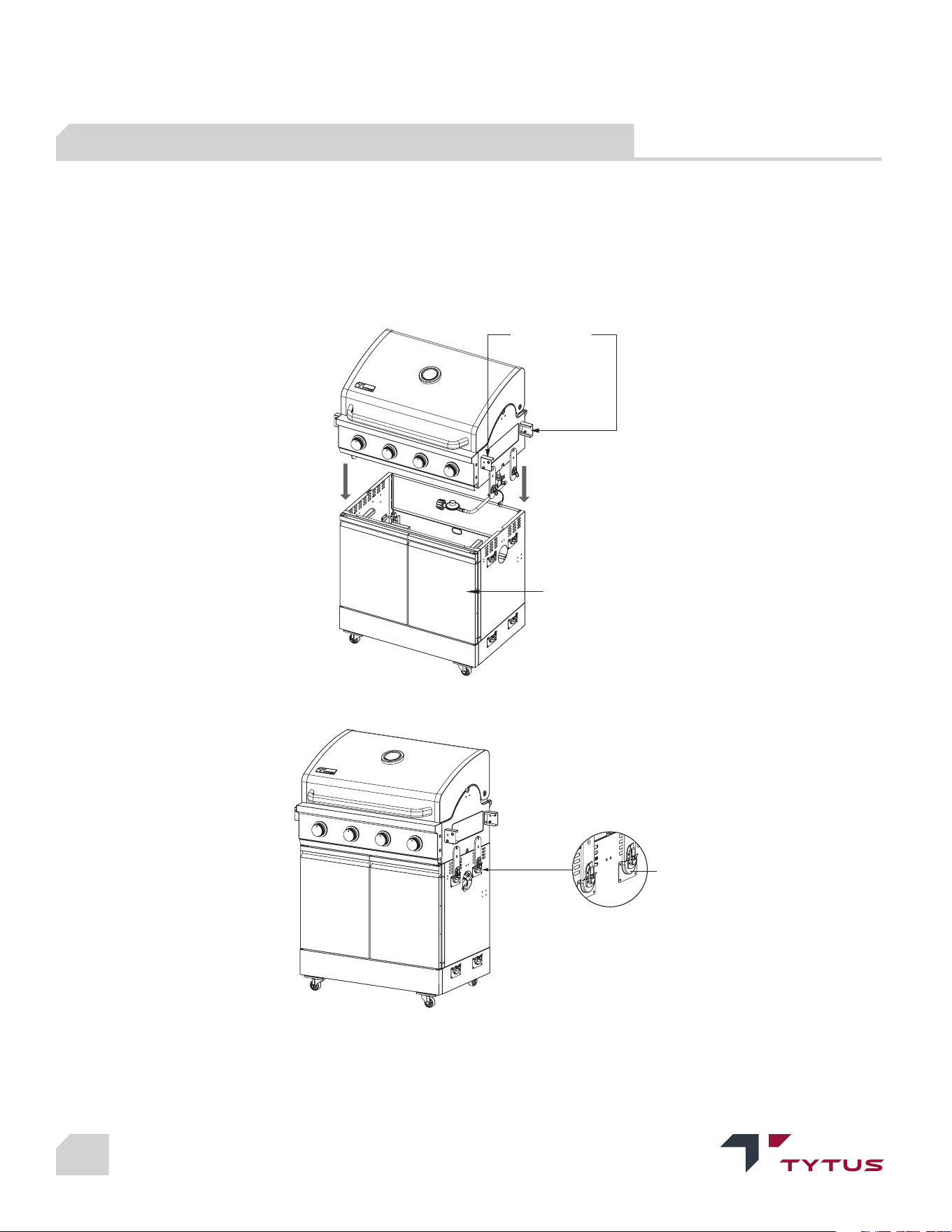

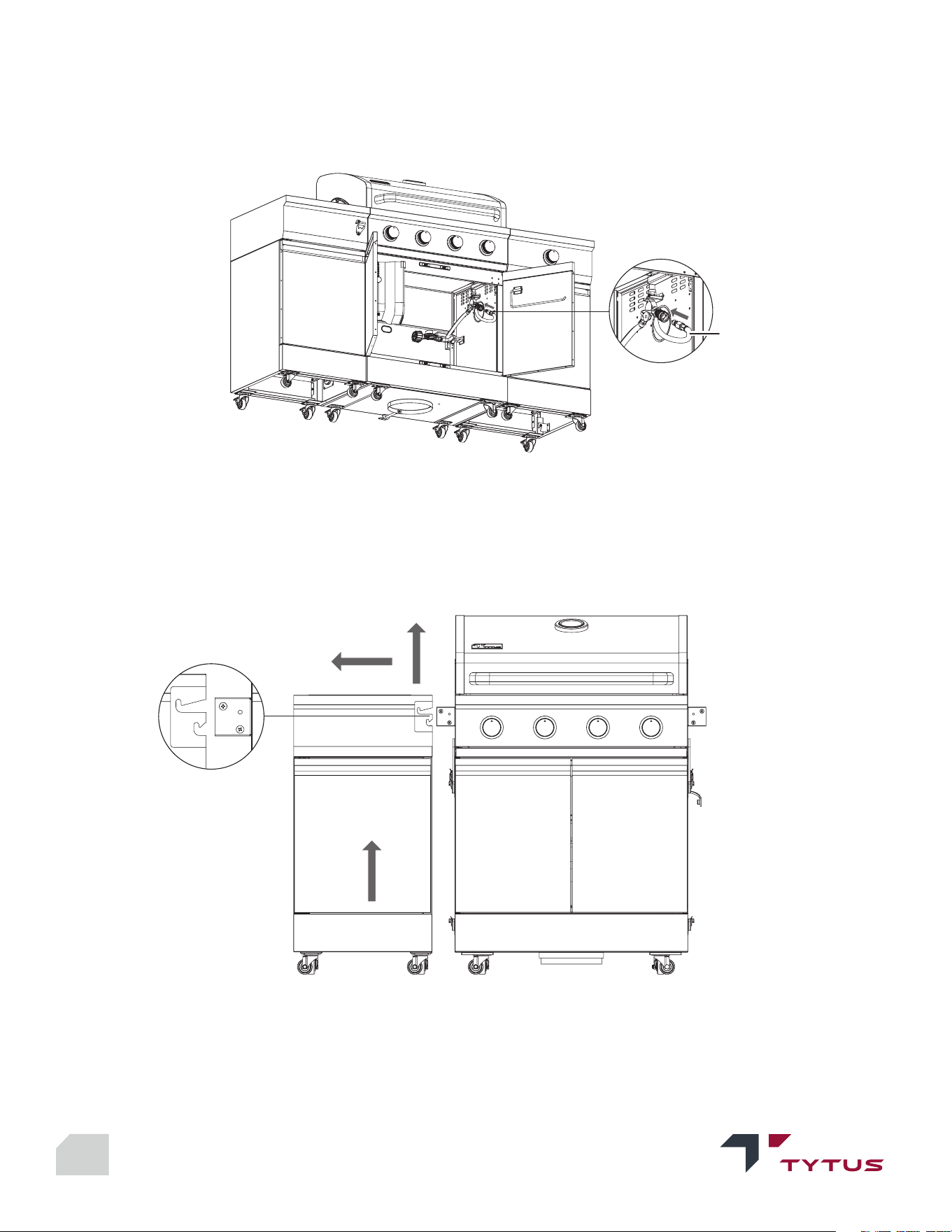

STEP 3: ATTACH THE GRILL BOX TO THE MAIN CART

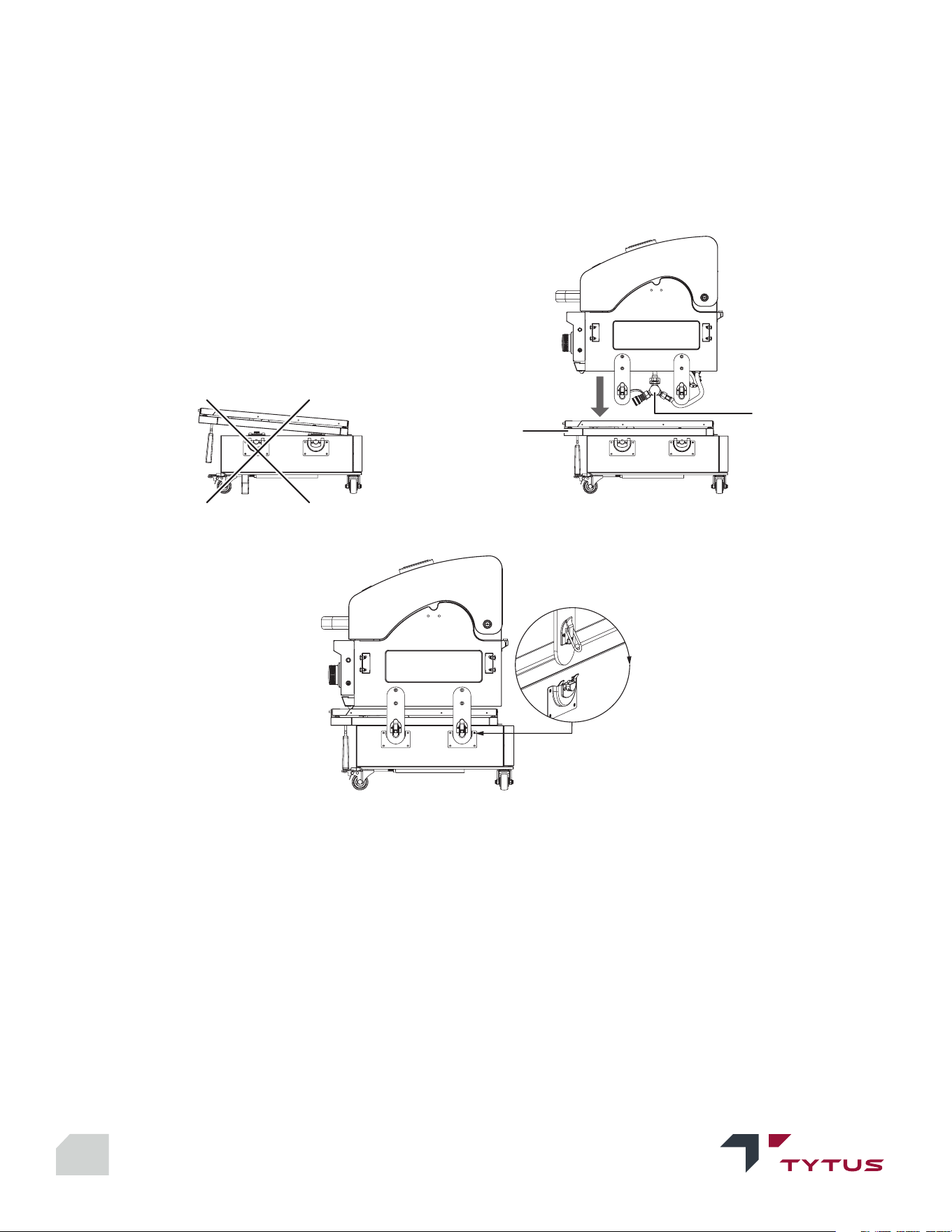

IMPORTANT: While placing the grill box onto the main cart, ensure the regulator hose assembly will not catch on the side
of the main cart. It should hang down into the main cart.
A) With another person, use the handholds to lift the grill box on top of the main cart and align the latches on the
sides. The grill cabinet doors should face the same direction as the front of the grill box.
TIP: Keep the grill box level as you lower it straight down. Don't torque or twist it. Lower it slowly to align with the
latches.
B) Lock the four latches on the sides of the grill.
Grill cabinet doors
TIP: Lift
with these
handholds.
Front
Closed latches
13
OWNER'S MANUAL
TYTUS FRESNO SERIES

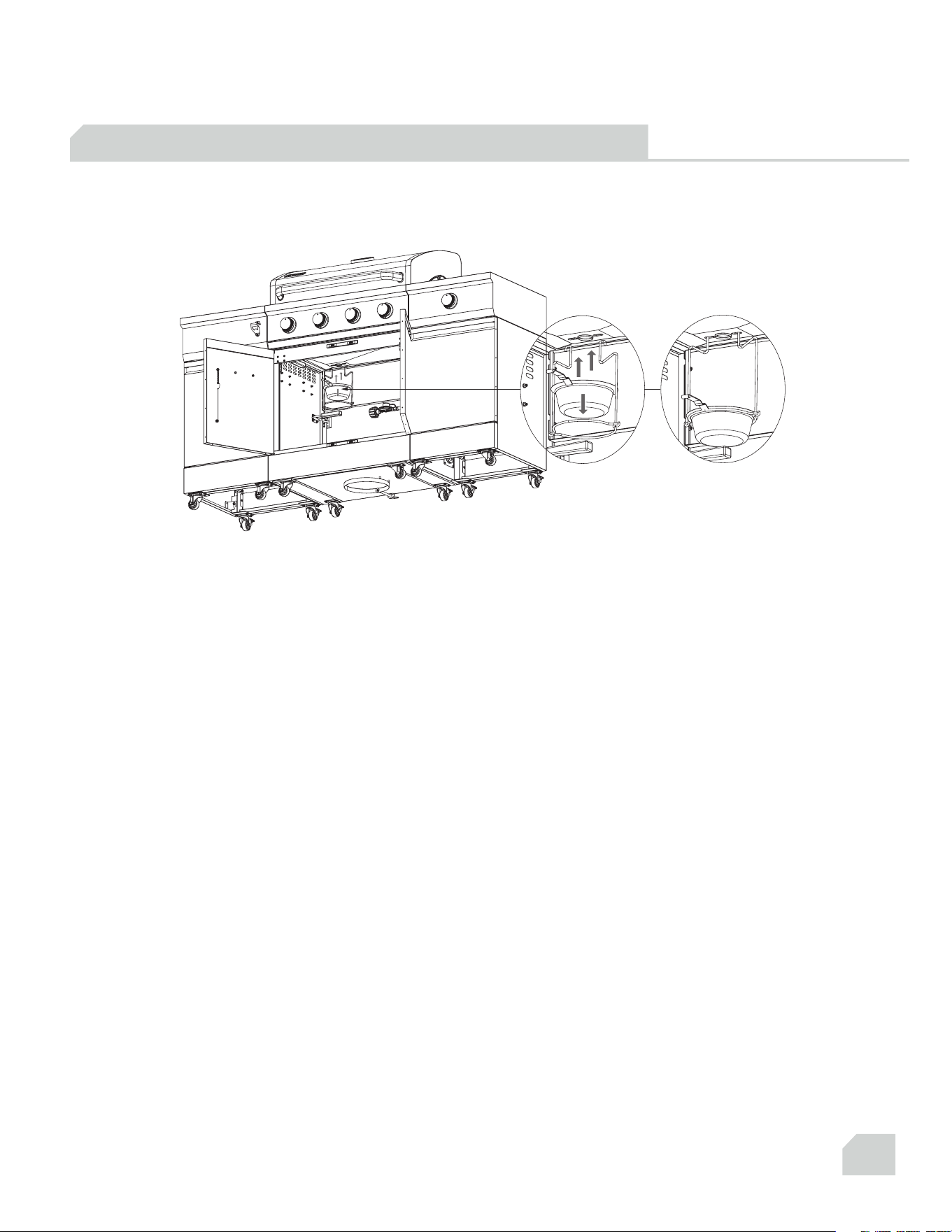

STEP 4: INSTALL GREASE CUP HOLDER AND GREASE CUP
A) Push the ends of the grease cup holder through the tabs in the grease tray.
B) Place the grease cup into the grease cup holder with the hand tab facing the front of the grill.
14
TM
ATTACH SIDE CARTS AND PROPANE TANK
STEP 5: EXPAND THE SIDE CARTS

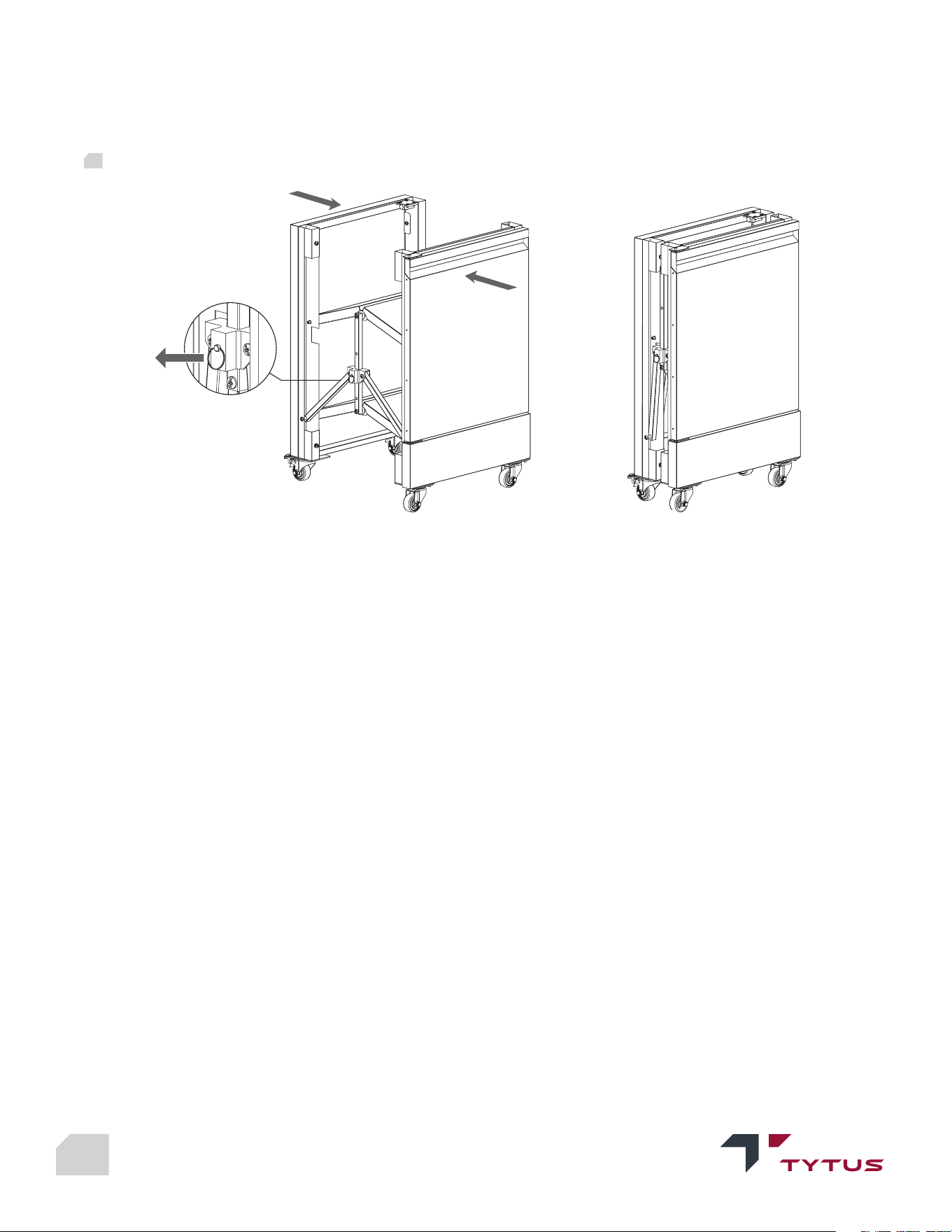

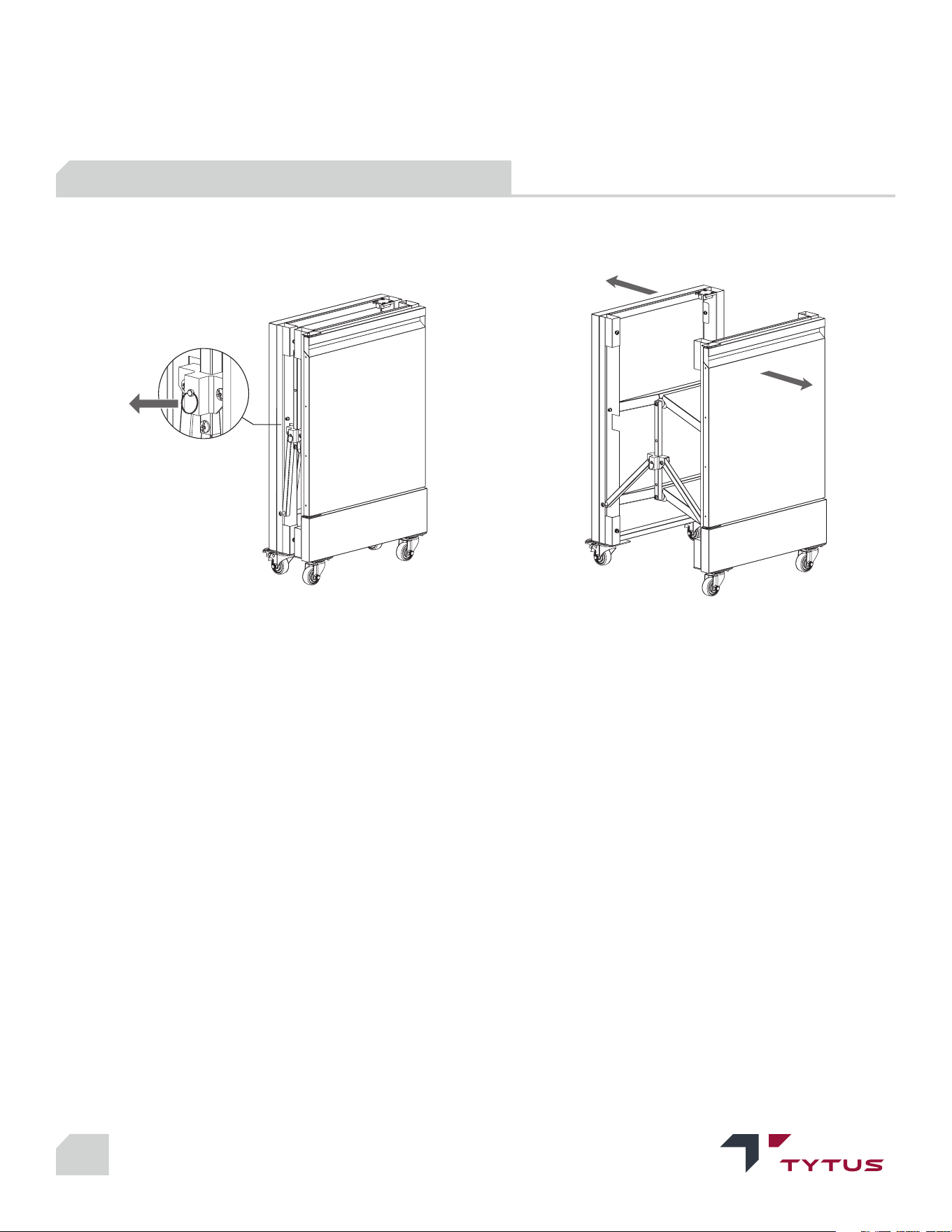

A) Pull the captive pin on the side of a cart (note: The pin can't be completely removed from the side cart.), then pull
the panels apart. When the cart is open and the shelves are at and secure, the pin will lock into place.
B) Repeat step A to expand the other side cart.
15
OWNER'S MANUAL
TYTUS FRESNO SERIES
STEP 6: INSTALL THE SIDE PANELS
TIP: Have a partner hold the side cart steady while installing the side panels.
A) Identify which panel ts onto the left or right of the two side carts.
NOTE: Each panel will only t into the correct corresponding side cart.
B) At a 45° angle, line up the bottom of a panel with the bolts on its corresponding side cart.
C) Rotate the panel forward onto the top bolts, then let it drop down into place.
NOTE: The panel may need to be pushed down to drop it into place.
TIP: Make sure that the side panel is securely fastened. The panel should not pull away from the side cart at the top
or bottom.
D) Repeat steps 6A through 6C to install the panel on the other side cart.
16
TM

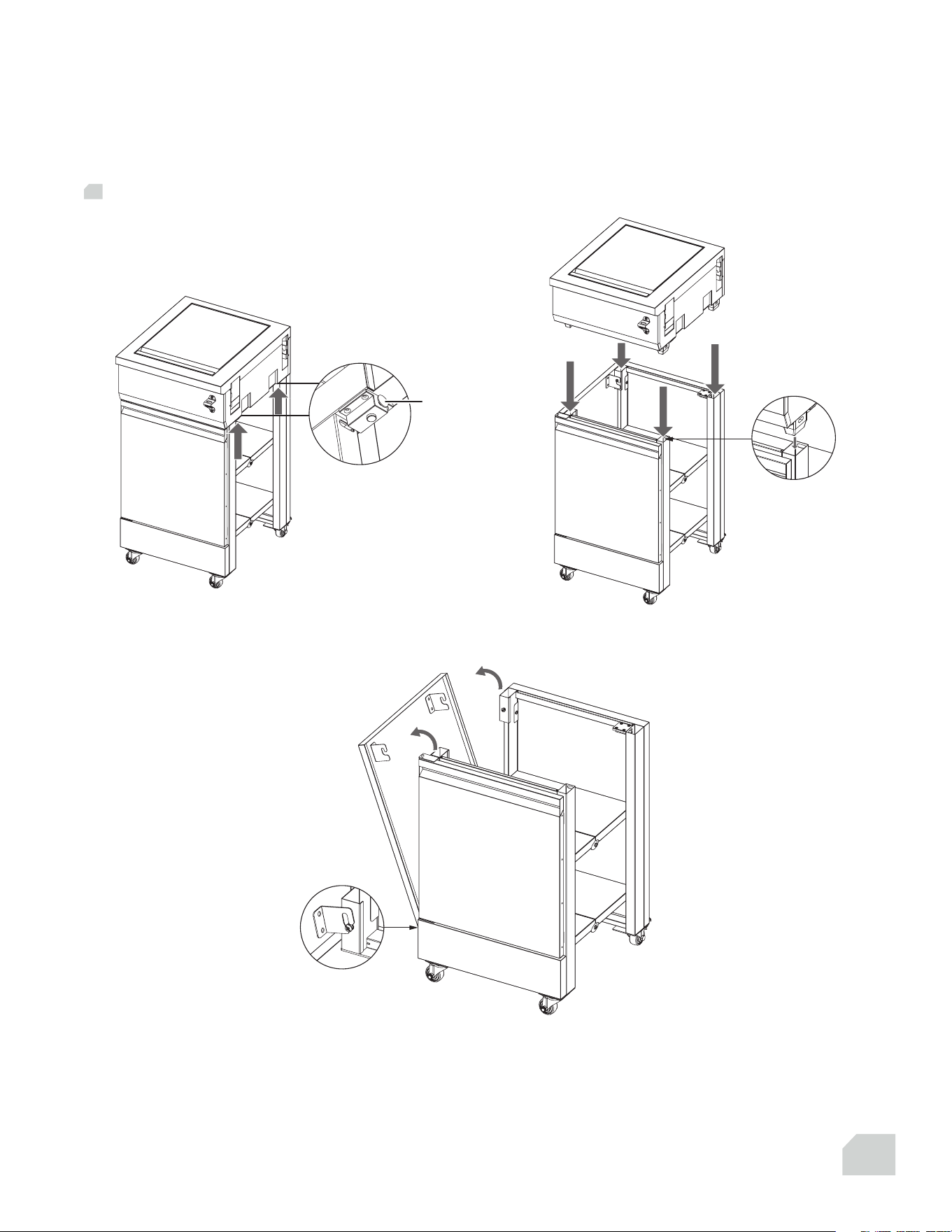

STEP 7: INSTALL THE TOP CAPS
A) Lock the wheels on the side carts before installing the top caps to keep them from moving.
B) Identify which top cap ts into the left or right side cart. The ice chest is for the left side cart. The side burner is
for the right side cart.
NOTE: The spring pins will align with the holes for the spring pins when assembled correctly. The side of the top
cap with openings should face the same direction as the open side of the cabinet below.
C) Place the top cap's feet into the slots inside the cart's frame, then lock it in place with the two spring pins under
the top cap.
NOTE: One spring pin is located at the top of each side cart, and one is located at the bottom of each top cap.
D) Repeat steps 7A and 7B to install the second top cap.
Locked
pin
17
OWNER'S MANUAL
TYTUS FRESNO SERIES

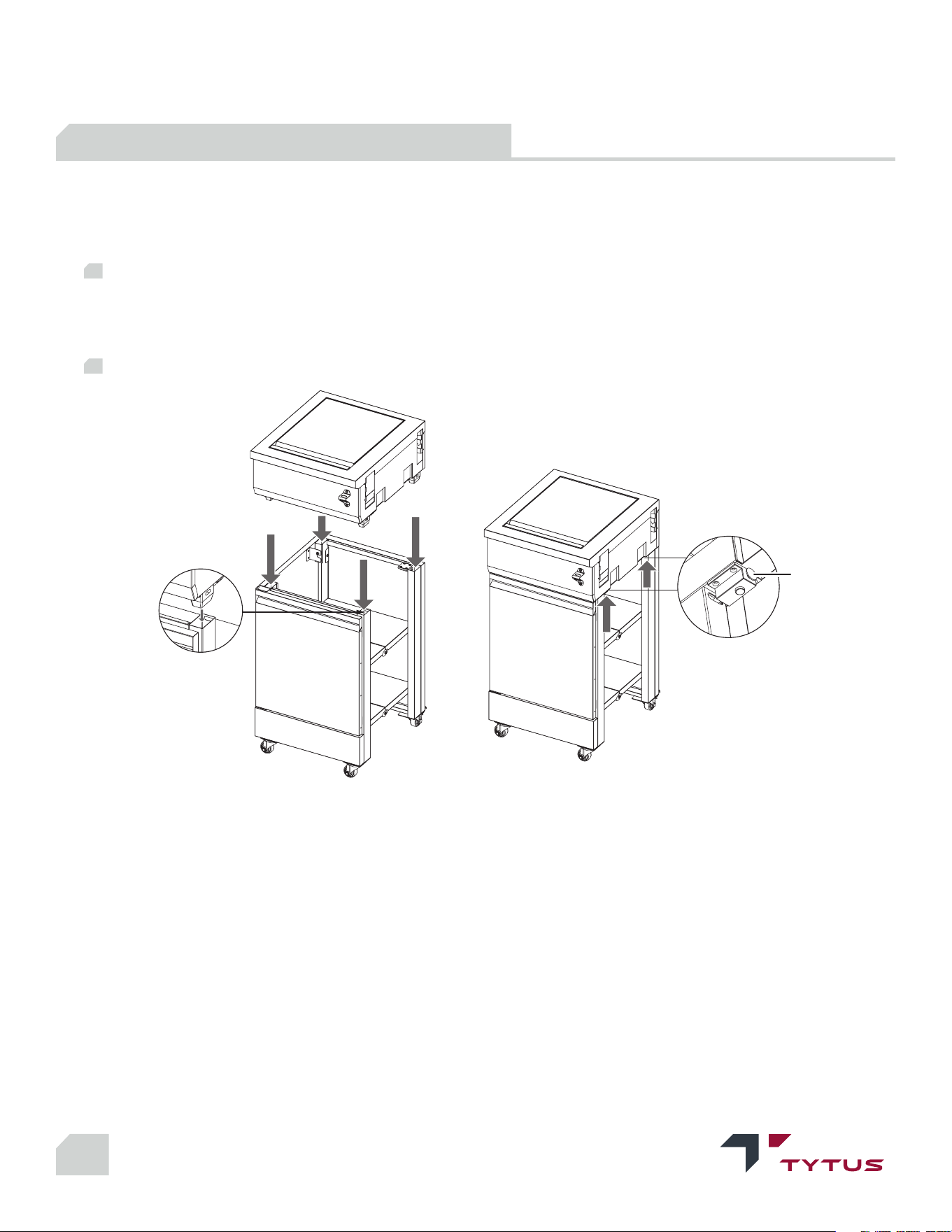

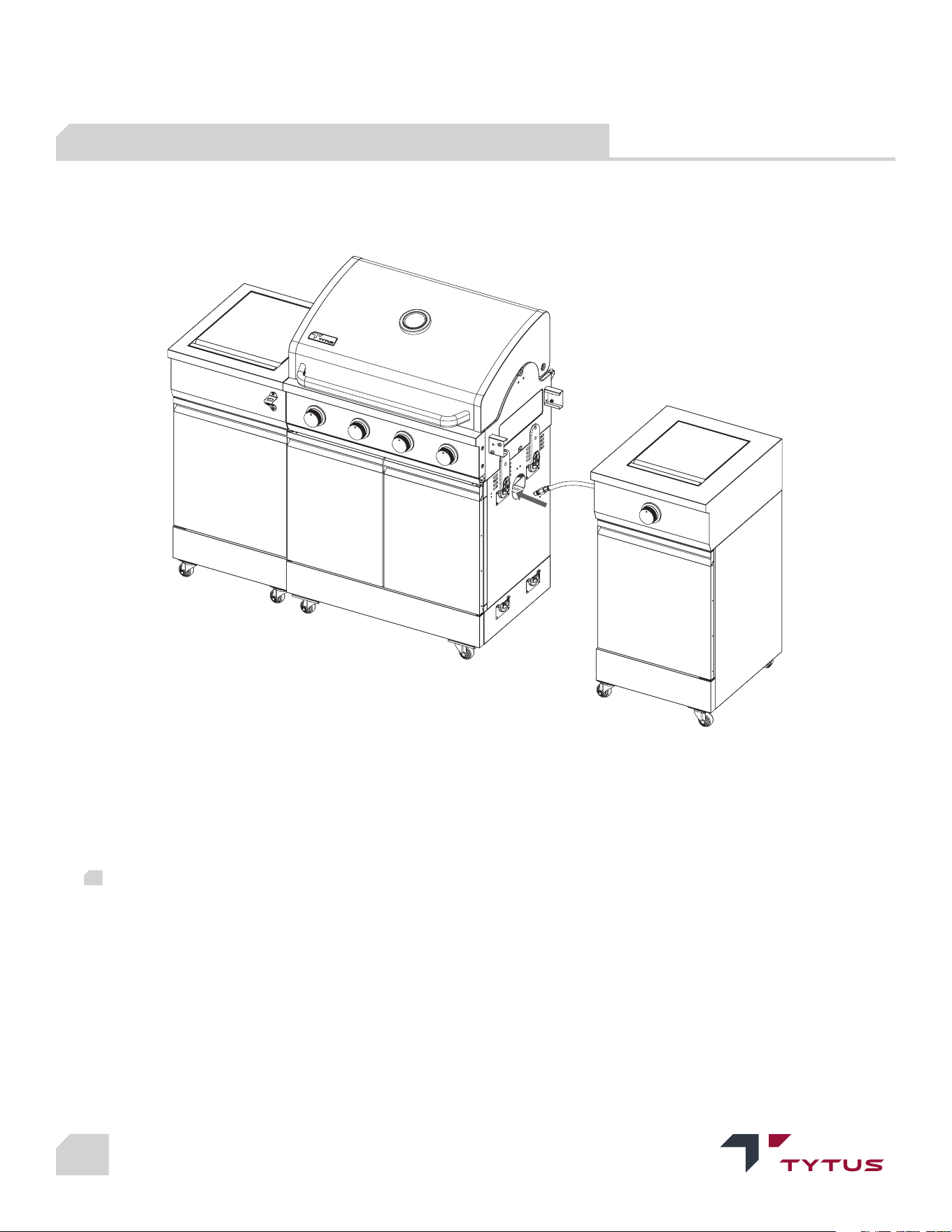

STEP 8: ATTACH THE LEFT SIDE CART
A) Unlock the side cart's wheels and have your partner hold the main cart steady.
B) Have your partner hold the main cart steady.
C) Line up the notches on the left side cart (ice chest side) with the main cart. The two pieces should be about one
to two inches from one another.
D) Push the side cart toward the main cart. As you push them together, the side cart will rise up slightly and then
drop into place.
NOTE: You may need to slightly to slightly lift the side cart while pushing it into the main cart.
Regulator
hose
assembly
Wing bolt
18
TM
STEP 9: INSTALL THE GAS LINE AND RIGHT SIDE CART
A) Make sure that the regulator hose assembly is NOT hanging out of the main cart. This will prevent the side cart
from properly installing and could damage the regulator hose assembly.
B) Feed the quick connect hose through the opening in the main cart.
C) Have your partner hold the main cart steady.
D) Line up the notches on the right side cart with the main cart. The two pieces should be about one to two inches
from one another.
E) Push the side cart toward the main cart. As you push them together, the side cart will rise up slightly, and then
drop into place.
NOTE: You may need to lift the side cart slightly while pushing it into the main cart.
19
OWNER'S MANUAL
TYTUS FRESNO SERIES

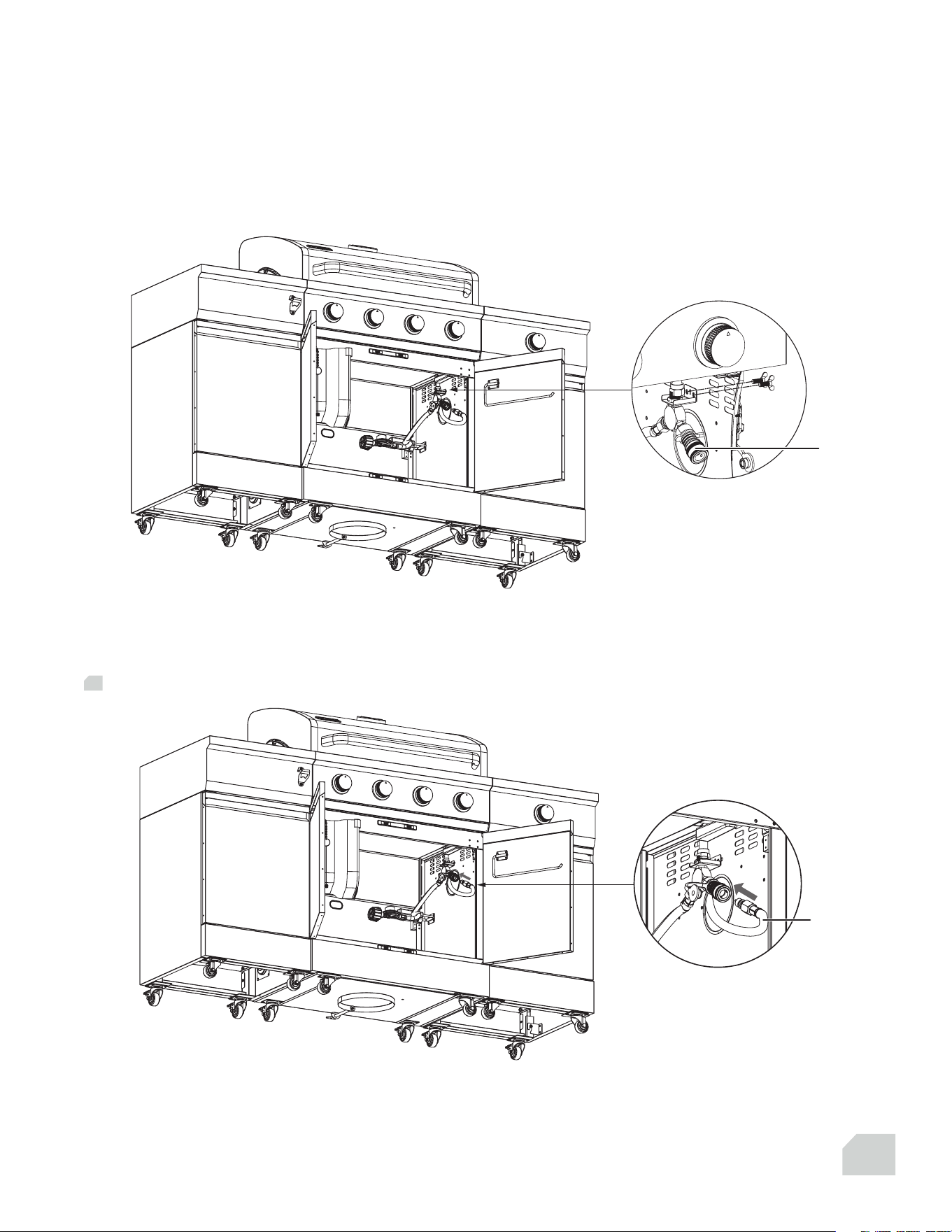

F) Unscrew the wingnuts from the "T" gas hose assembly, then attach the assembly onto the side of the main
cart's right panel using the supplied wingnuts. The wingnuts should be hand-tightened until the "T" gas hose
assembly is snug against the cart.
TIP: Have one person hold the "T" gas hose assembly snug to the main cart right panel while the other person
tightens the wingnuts from the outside.
G) Under the main cart, pull the quick connect ring back, insert the gas line hose, then release the quick connect
ring. The quick connect ring springs back into place, connecting the right side cart manifold tube to the "T" gas
hose assembly.
NOTE: Make sure that the connection is secure by lightly pulling on both ends of the connection.
"T" gas
hose
assembly
Gas line
hose
20
TM

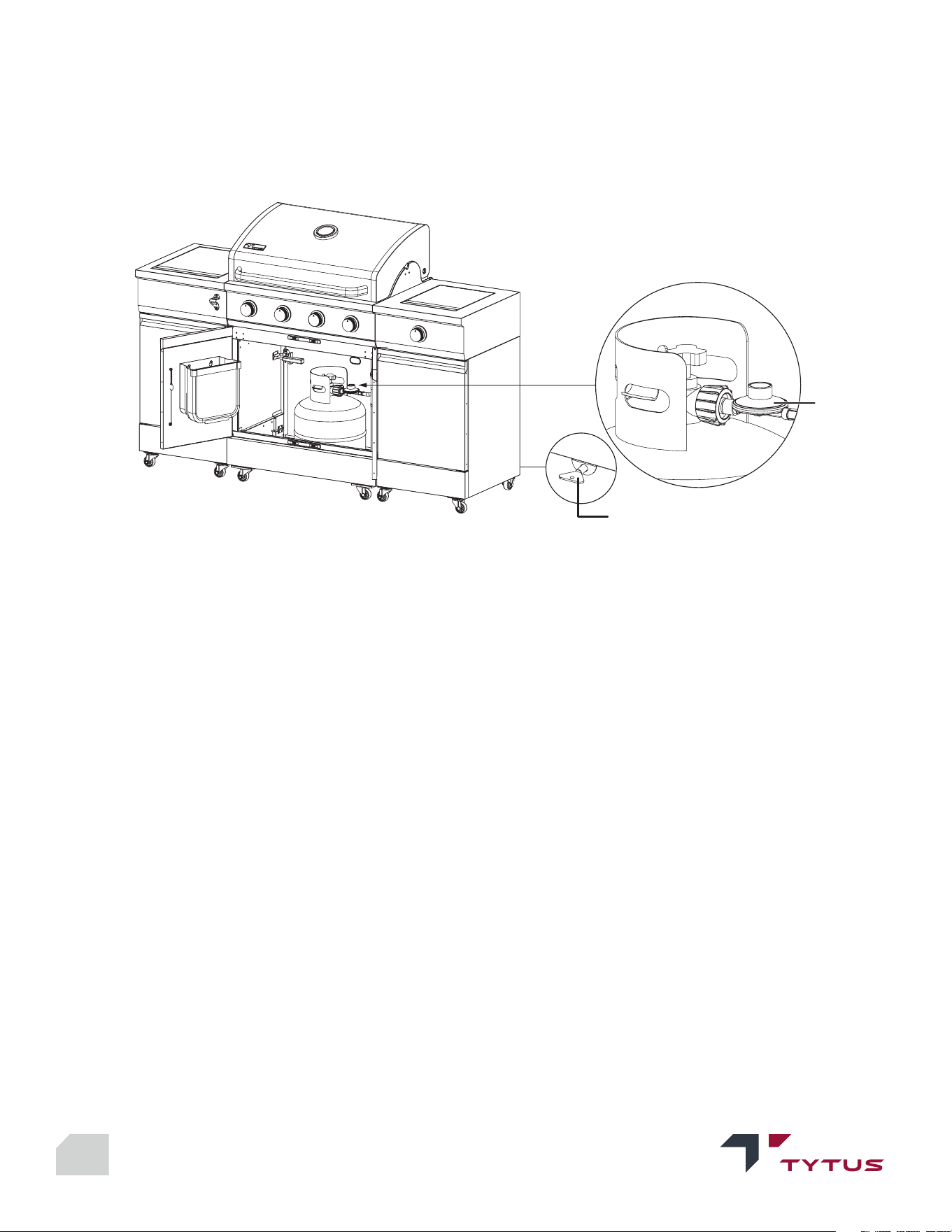

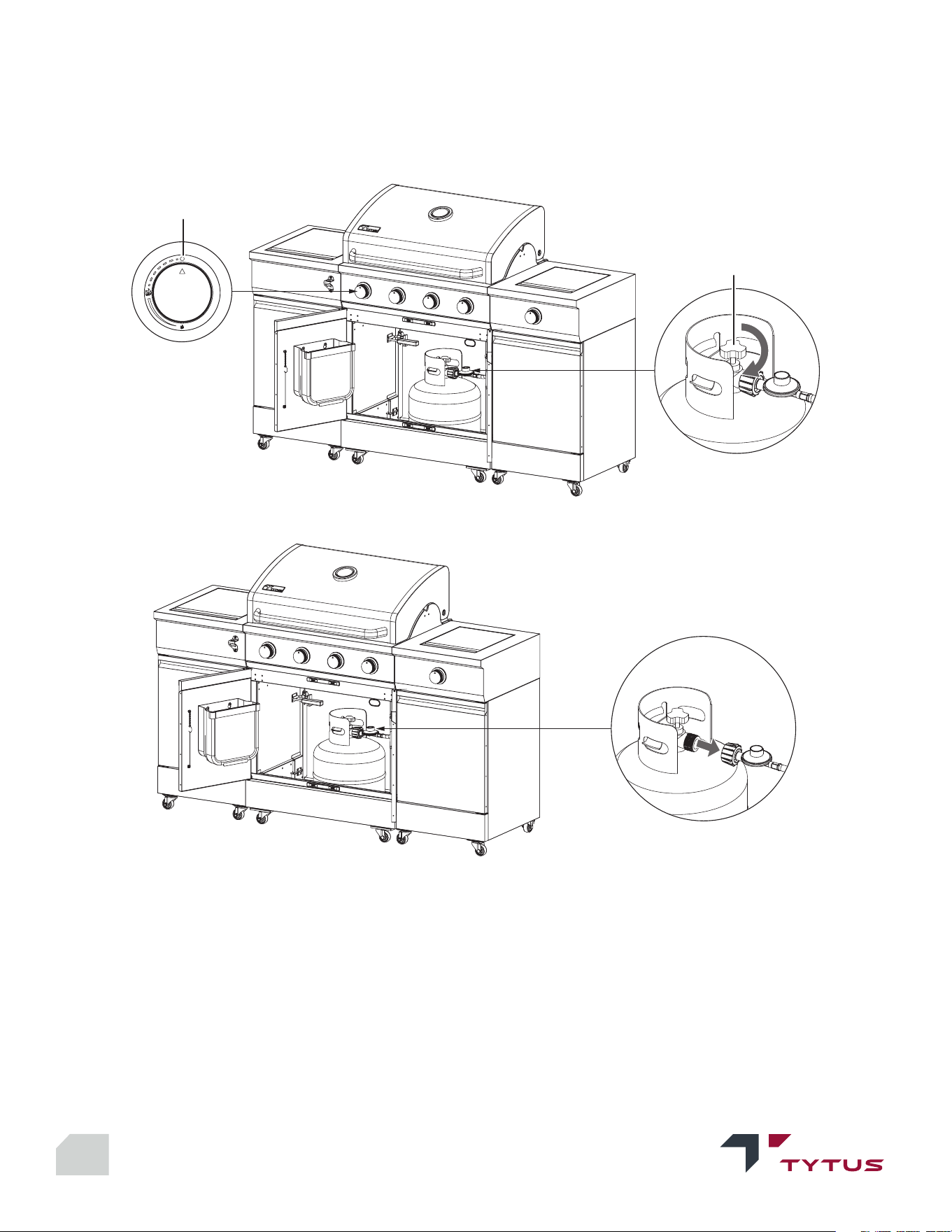

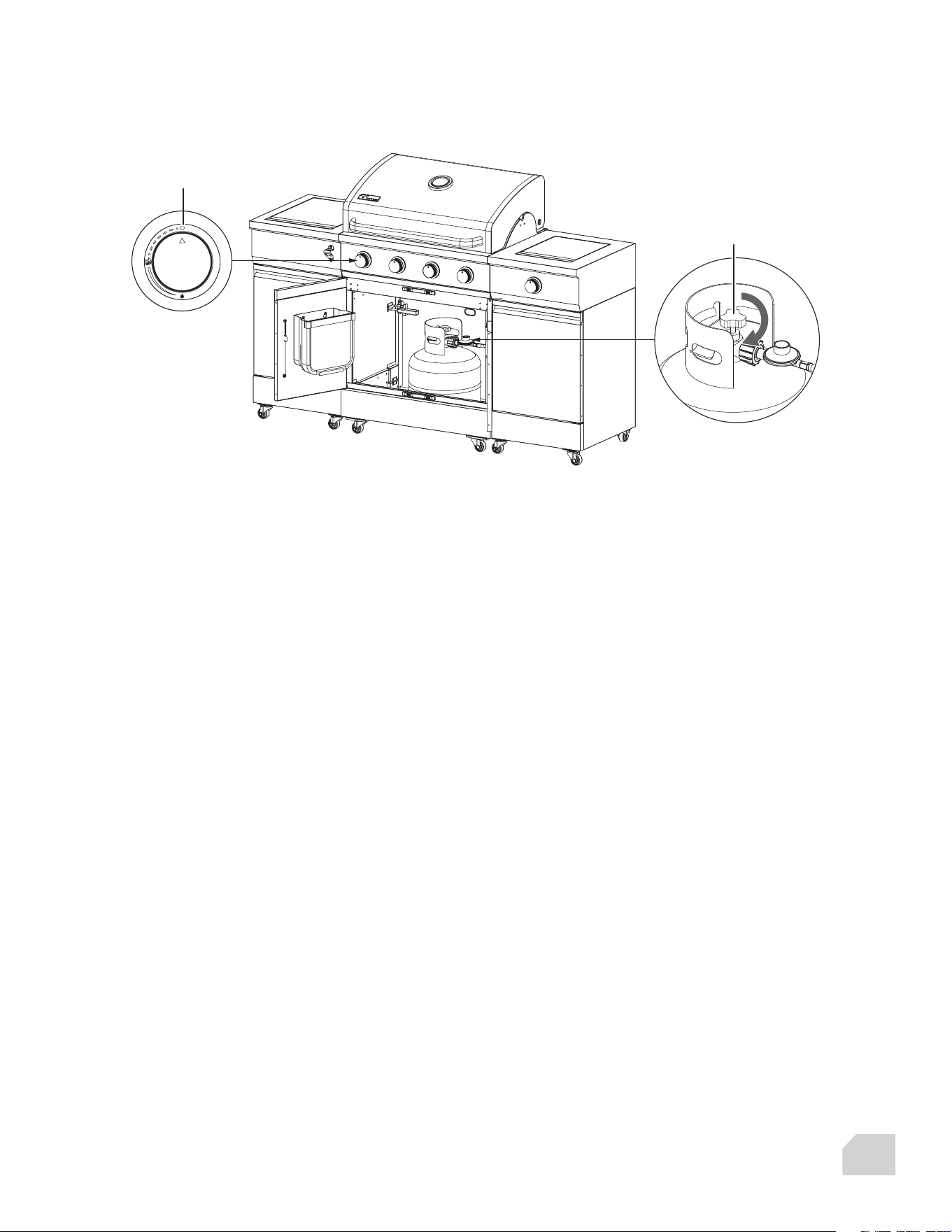

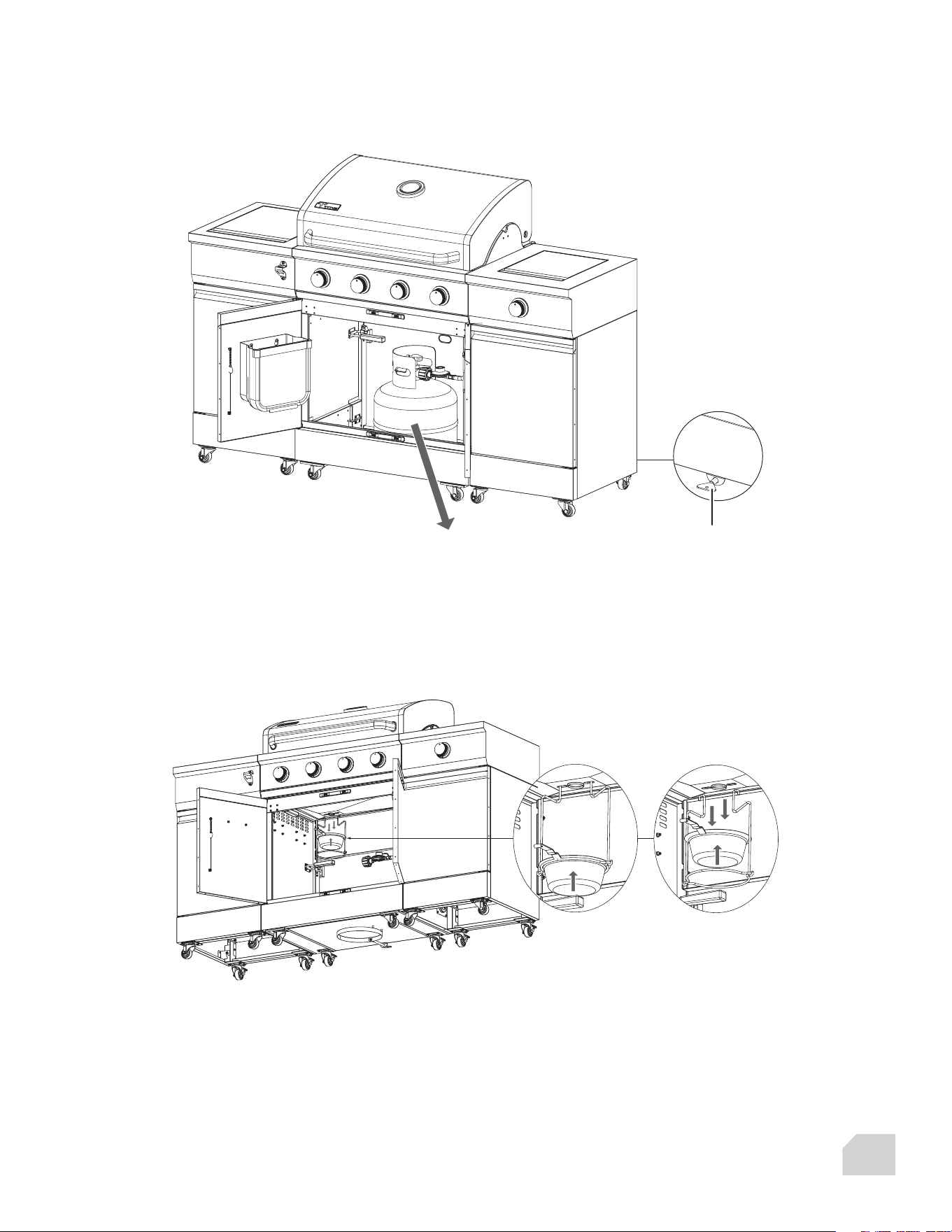

H) Place a propane tank (not included) into the main cart with the tank valve facing the front right corner. Tighten
the wing bolt behind the grill base (near the bottom) to secure the propane tank in place.
I) Attach the regulator hose assembly to the propane tank.
Regulator
hose
assembly
Wing bolt
21
OWNER'S MANUAL
TYTUS FRESNO SERIES

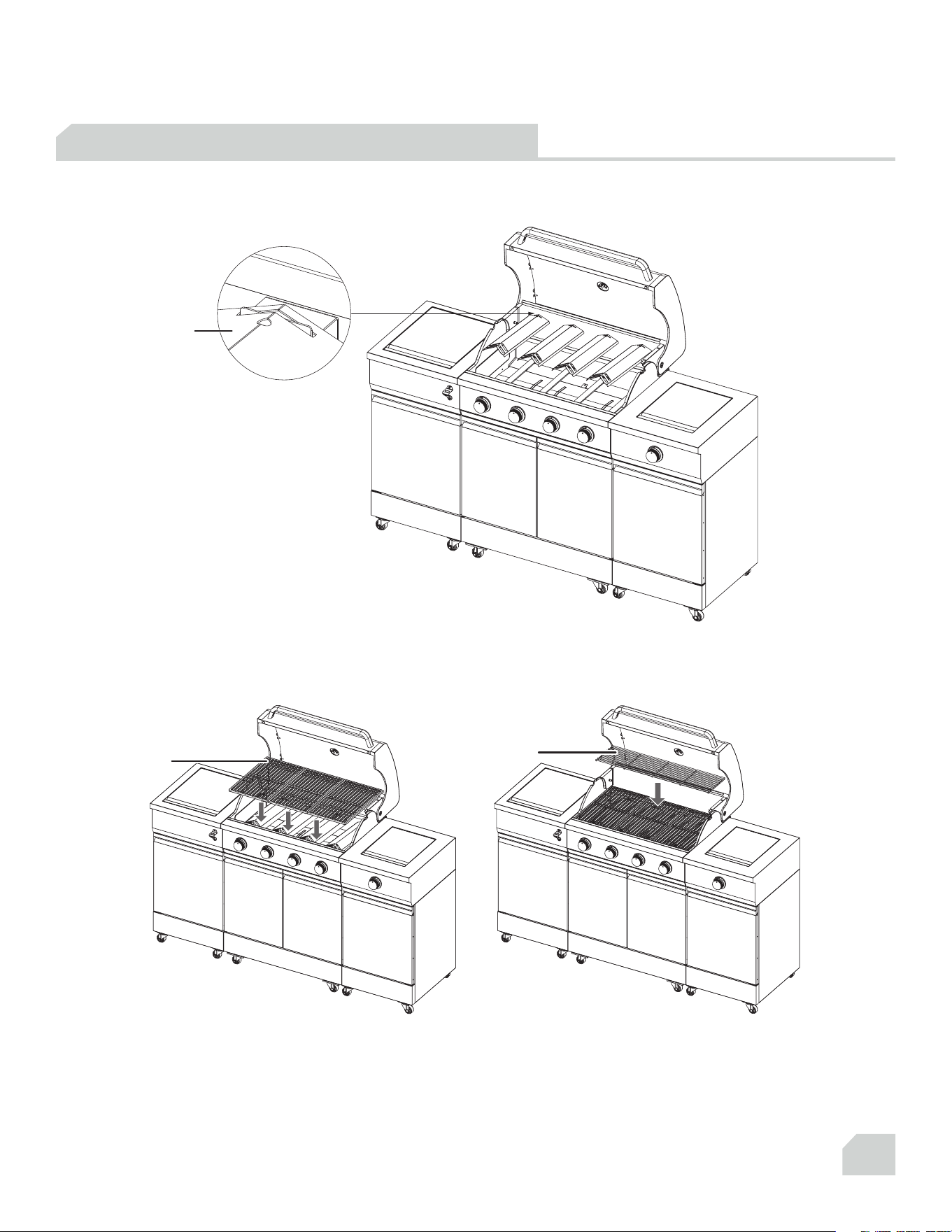

STEP 10: INSTALL THE COOKING COMPONENTS

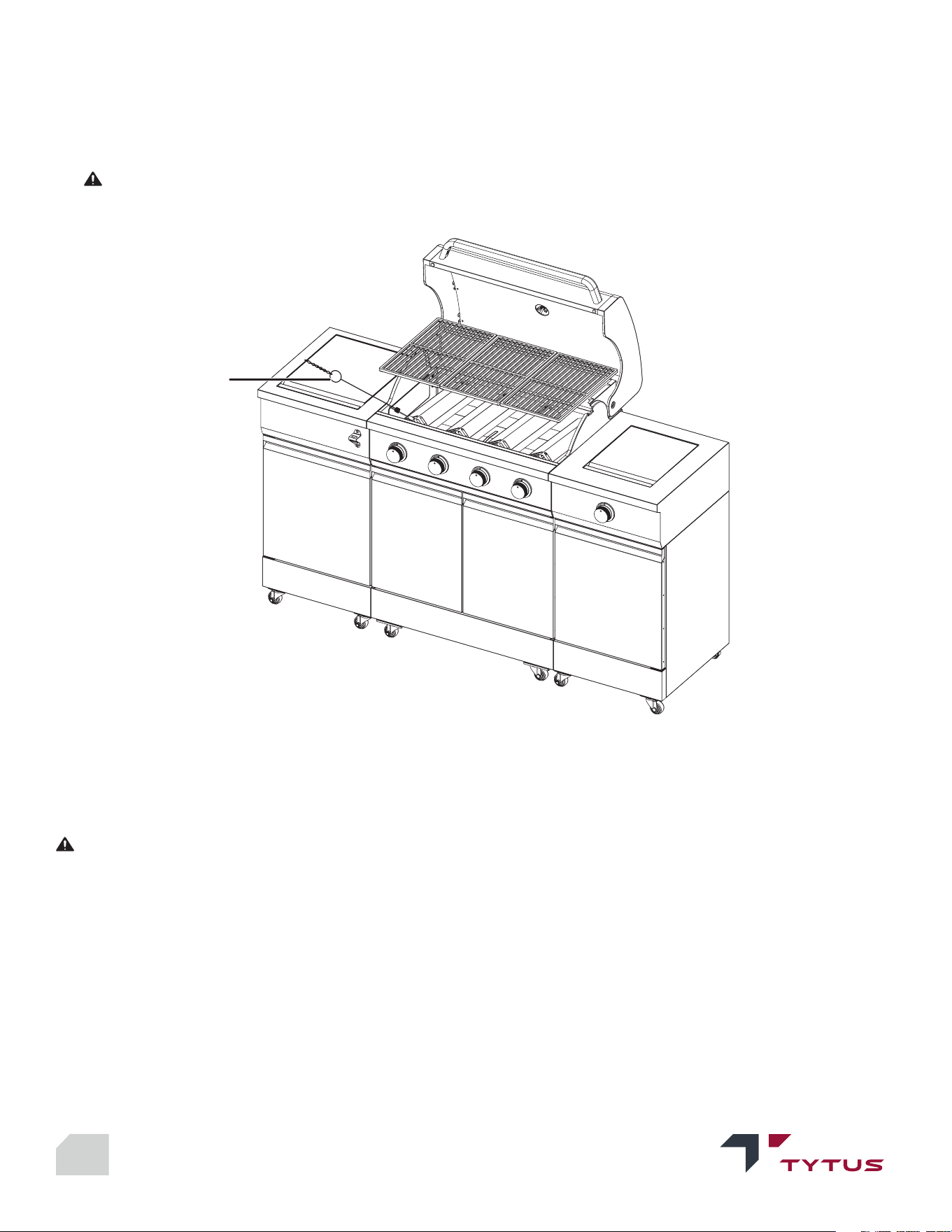

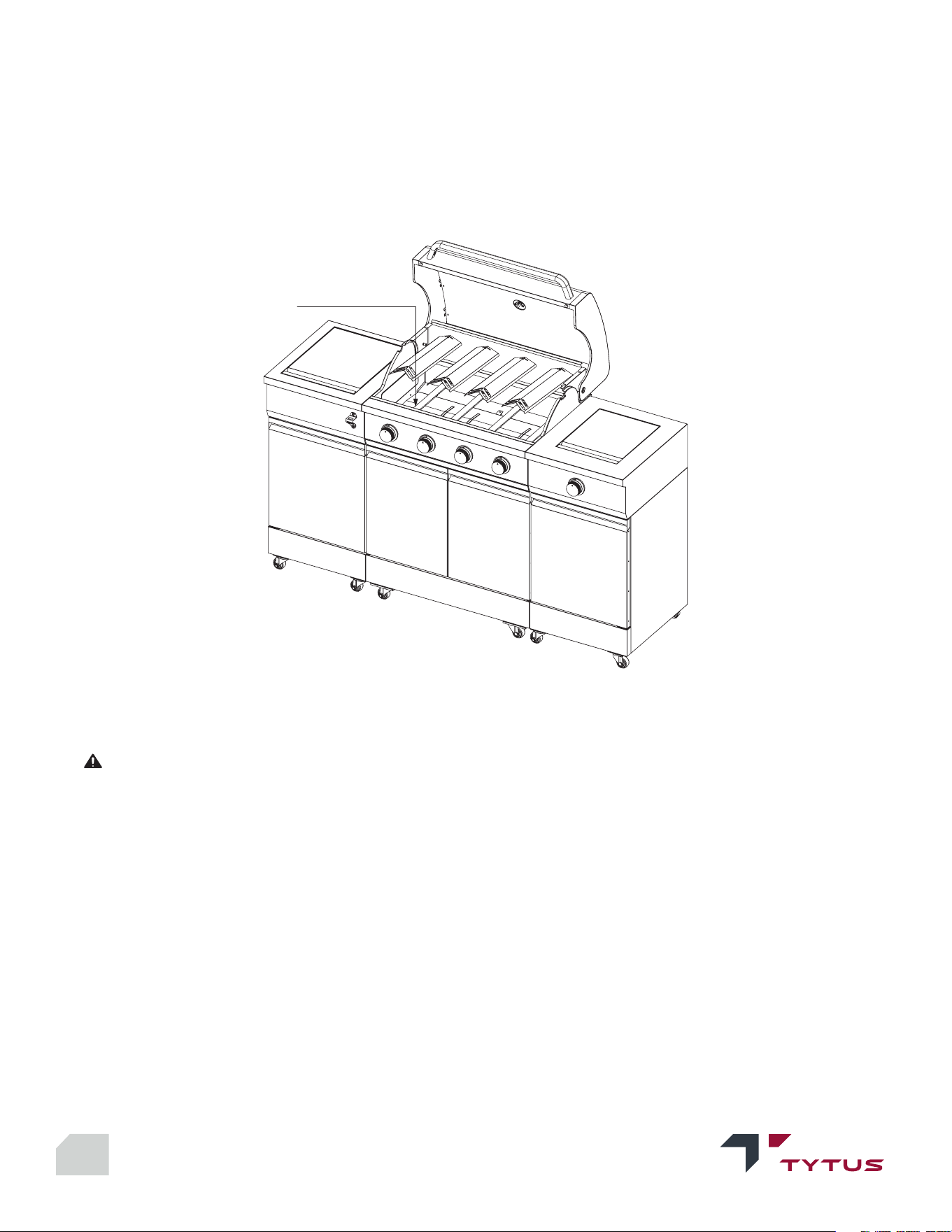

A) Insert the ame tamers into the grill box. The notch at the end of each ame tamer should t into the tabs at
the back of the grill box.
B) Place the cooking grates over the ame tamers.
C) Insert the ends of the warming rack into the notches in the rear of the grill box.
Regulator
hose
assembly
Cooking grates
Warming rack
22
TM
Before lighting or using your grill, familiarize yourself with the safety guidelines at the front of this manual.
See "Important Safety Instructions" on PAGE 4.
WARNING: Do not smoke while lighting the grill or checking gas supply connections.
LIGHTING YOUR GRILL
NOTE: If your grill does not light properly, see "WHAT SHOULD I DO IF MY GRILL WON’T LIGHT?" on PAGE 44.
MAIN GRILL
1. Make sure that your propane gas tank is lled.

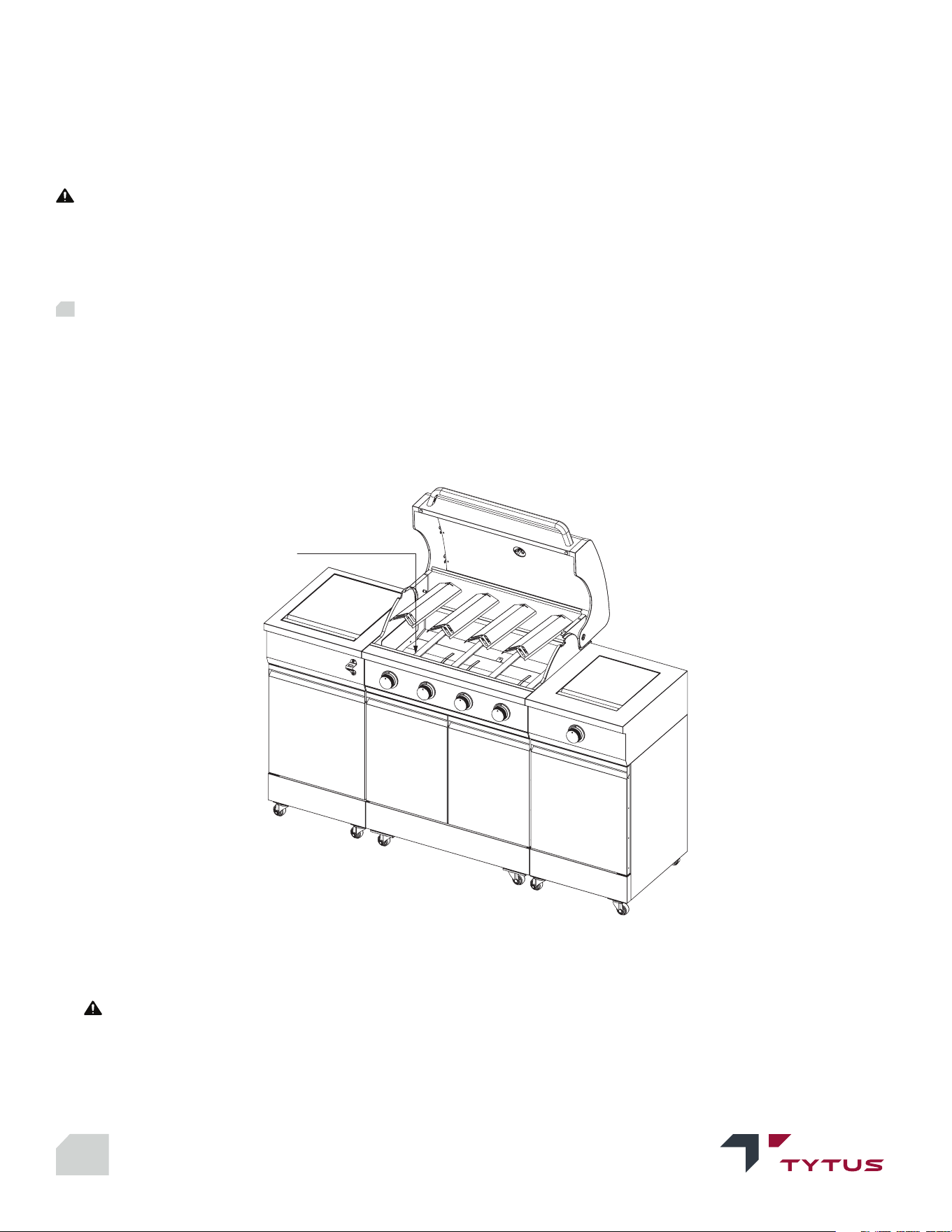

2. Make sure that the end of each burner tube is properly located over each valve orice. [Reviewers: please conrm this
graphic is correct below]
3. Make sure that all regulator/"T" gas hose assembly connections are tightened securely.
4. Open the grill lid.
WARNING: Failure to open the grill lid while lighting could result in a re or explosion that could cause serious
bodily injury, death, or property damage.
USING YOUR GRILL
Valve orice
23
OWNER'S MANUAL
TYTUS FRESNO SERIES

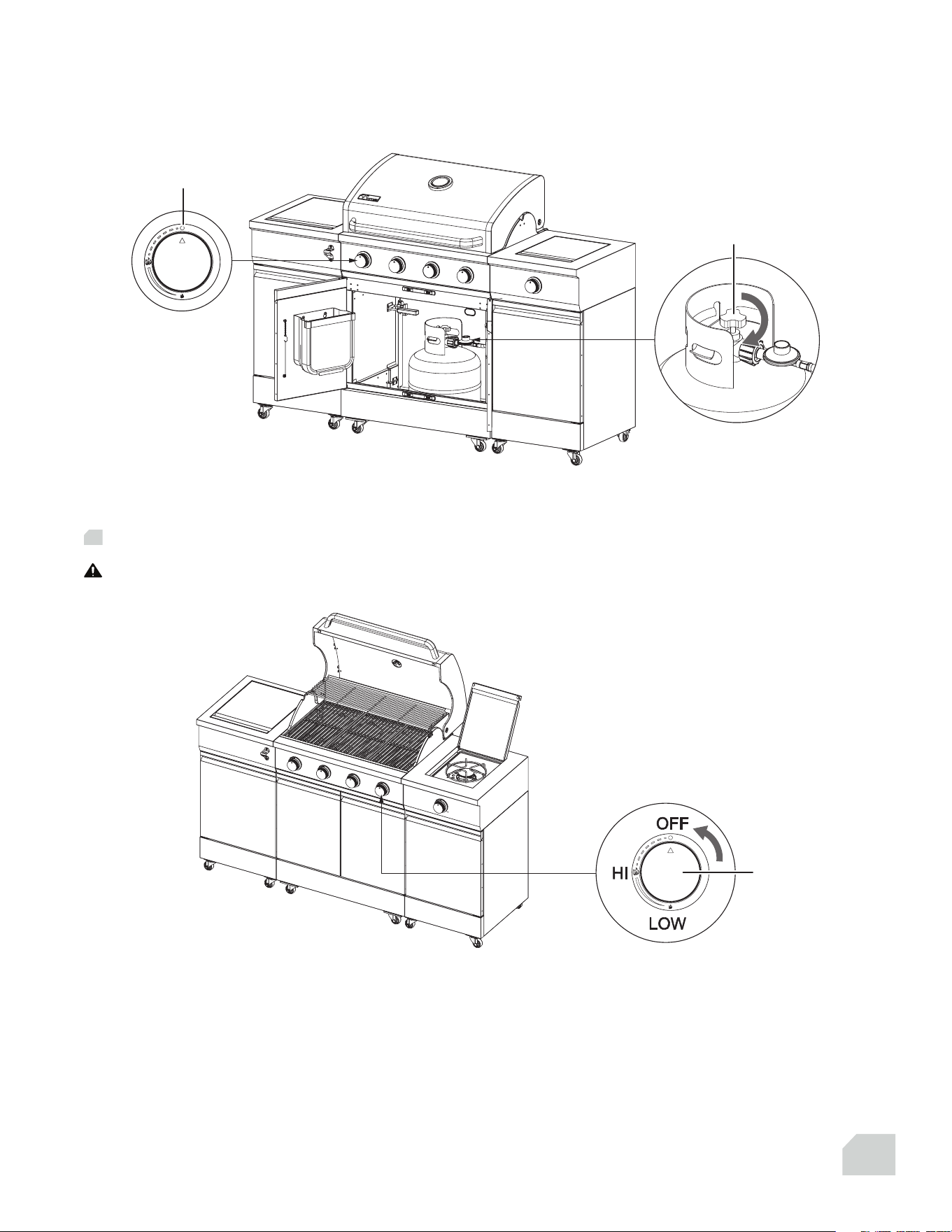

5. Set the control knobs to OFF, then open the propane gas tank valve slowly until it’s between 1/4 and 1/2 open.
6. Push and turn the right main control knob slowly to Hl. Keep the control knob pushed in until the ignitor lights the
burner.
NOTE: If the burner does not light, turn the control knob to OFF, wait ve minutes for the gas to clear, then retry.
WARNING: Failure to open the grill lid while lighting could result in a re or explosion that could cause serious
bodily injury, death, or property damage.
7. Adjust the control knobs to your desired cooking temperature.
Propane gas tank valve
Control knobs
Right main
control knob
24
TM
SIDE BURNER
1. Make sure that your propane gas tank is lled.
2. Make sure that the end of each burner tube is properly located over each valve orice. [Reviewers: please conrm this
graphic is correct below or provide a new graphic]
3. Make sure that all regulator/"T" gas hose assembly connections are tightened securely.
4. Open the side burner lid.
WARNING: Failure to open the lids while lighting could result in a re or explosion that could cause serious
bodily injury, death, or property damage.
Valve orice
25
OWNER'S MANUAL
TYTUS FRESNO SERIES

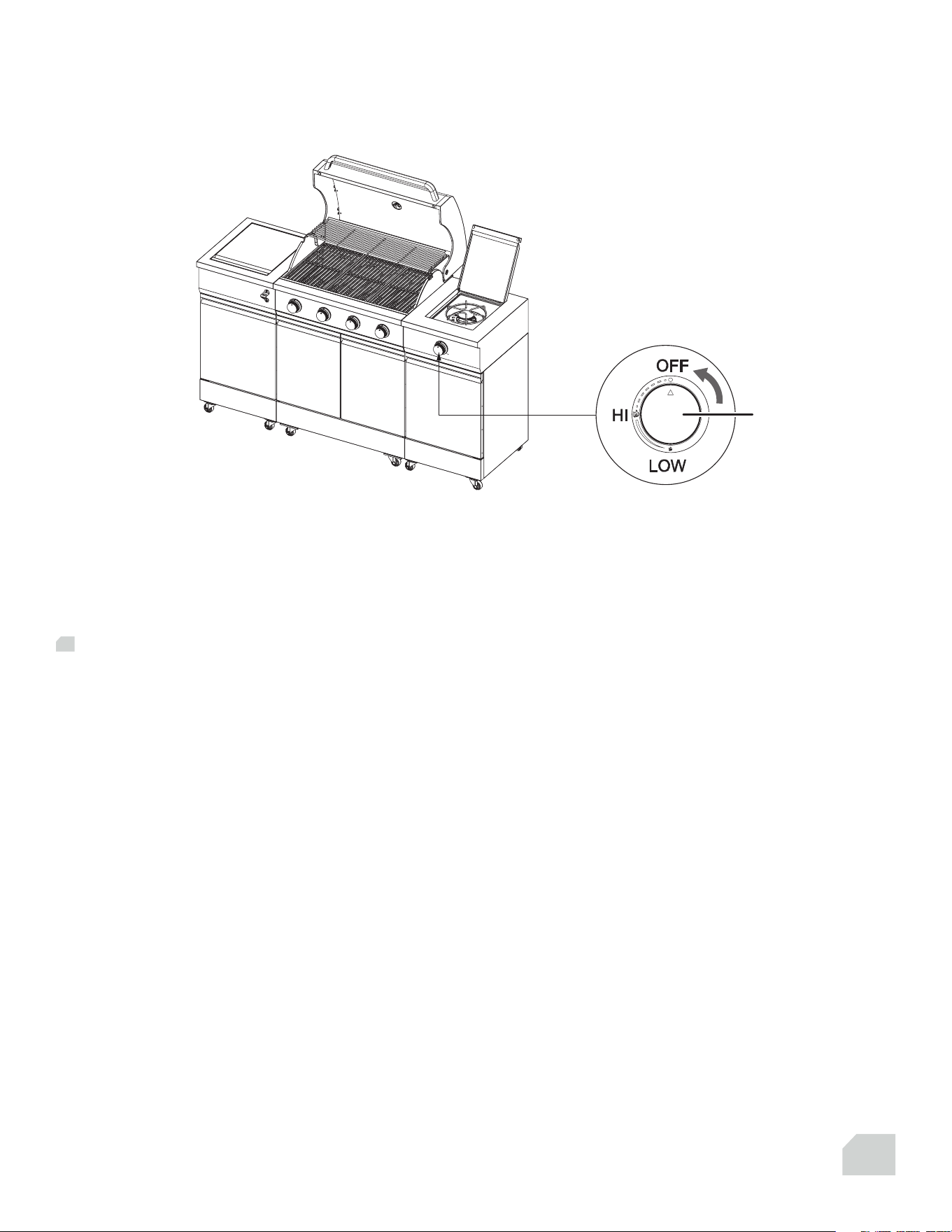

5. Push and turn the side burner's control knob to Hl. The built-in ignitor lights the burner automatically.
If the grill doesn't light in ve seconds, turn the side burner control knob o, wait ve minutes, and repeat the lighting
procedure. If the grill still does not light:
A) Turn the burner control and gas source OFF, then wait ve minutes for the gas to clear.
B) Conduct a leak test of ALL gas connections and gas sources. See "Checking for Gas Leaks" on PAGE 30 for
instructions. If no leaks are detected, wait ve minutes for any gas to clear and repeat the lighting procedure.
NOTE: You may have to push and turn the control knob up to three or four times to light.
Side burner
control knob
26
TM

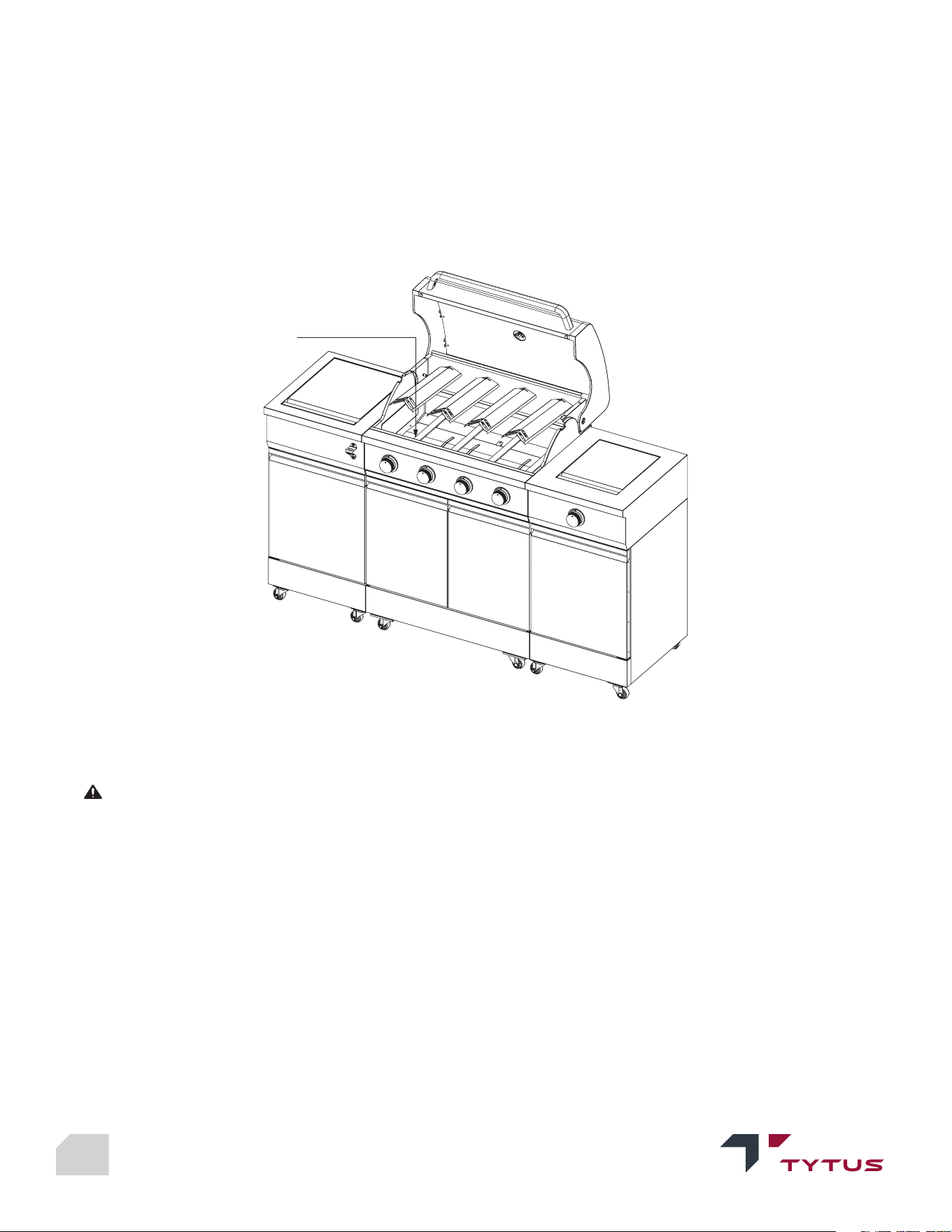

MANUALLY LIGHTING WITH A MATCH

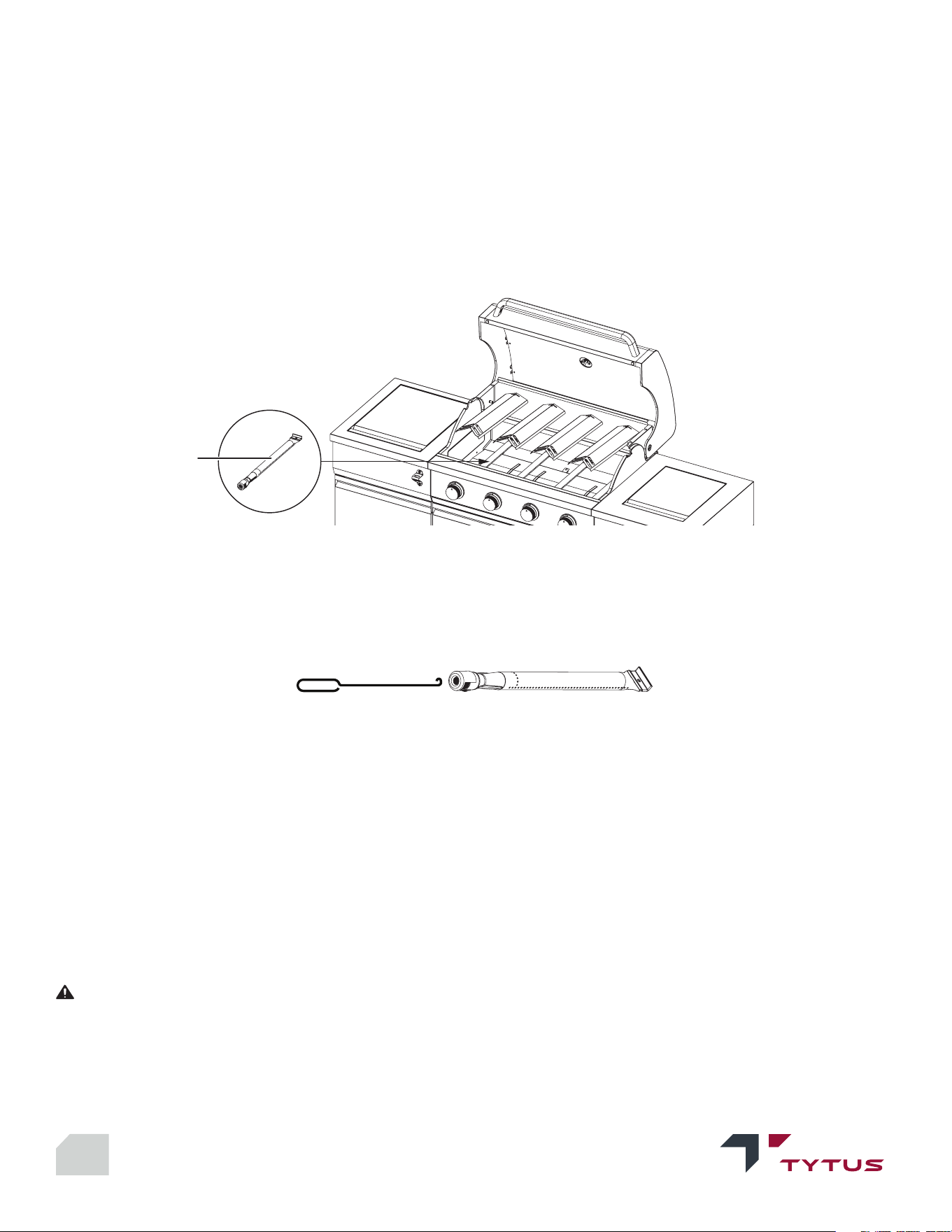

1. Insert a match into the manual lighting stick (included in the bag with the Owner's Manual).
2. Make sure that your propane gas tank is lled.
3. Make sure that the end of each burner tube is properly located over each valve orice. [Reviewers: please conrm this
graphic is correct below]
4. Make sure that all regulator/"T" gas hose assembly connections are tightened securely.
5. Open the grill lid.
WARNING: Failure to open the grill lid while lighting could result in a re or explosion that could cause serious
bodily injury, death, or property damage.
Valve orice
27
OWNER'S MANUAL
TYTUS FRESNO SERIES
6. Set the control knobs to OFF, then open the propane gas tank valve slowly until it’s between 1/4 and 1/2 open.
Control knobs
Propane gas
tank valve
28
TM
7. Light the match, insert the manual lighting stick through the lighting hole, then turn the nearest main burner control
knob to HI to release gas. The burner should light immediately.
WARNING:
NEVER lean over the cooking area while lighting your gas grill. Keep your face and body a safe distance (at least 18
inches) from the lighting hole or burners when lighting your grill with a match.
WARNING:
Should a "FLASH-BACK" re occur in or around the burner tubes, follow the instructions below. Failure to comply with
these instructions could result in a re or explosion that could cause serious bodily injury, death, or property damage.
- Shut o the gas supply to the grill.
- Turn the control knobs to the OFF position.
- Put out any ame with a Class B re extinguisher.
- Open the grill lid.
- After the grill has cooled down, clean the burner tubes and burners. See "BURNER TUBES AND BURNER PORTS" on
PAGE 42 for instructions.
Manual
lighting stick
NOTE: The manual
lighting stick can
be used on any
of the burners.
29
OWNER'S MANUAL
TYTUS FRESNO SERIES
COOKING WITH YOUR GRILL
WARNING:
Your grill will get very hot. NEVER lean over the cooking area
while using your grill. Do not touch cooking surfaces, grill
housing, lid, or any other parts while the grill is in operation
or until the grill has cooled down after use. Failure to comply
with these instructions may result in serious bodily injury.
BEFORE FIRST USE
Before cooking on your grill for the rst time:
1. Clean the burner tubes to reduce the chance of
ashback re. See "BURNER TUBES AND BURNER
PORTS" on PAGE 42 for instructions.
2. Use stainless steel cleaner and a soft cloth to remove
residual adhesive and oils from the inside and outside
of your grill lid.
3. "Burn o" the grill to eliminate any odor or debris. Ignite
the burner, lower the lid, and operate the grill on the
HIGH setting for three to ve minutes.
4. Wipe your cooking grates with a clean cloth, then apply
a thin coating of cooking oil.
PREHEAT THE GRILL
To preheat, light your grill on HIGH, lower the lid, and follow
this timetable:
- If you want to cook at a high temperature, preheat
the grill for three to ve minutes.
- If you want to cook at a low temperature, preheat
the grill for three minutes.
- If you want to slow cook, preheating is not
necessary.
NOTE: Temperature settings will vary with the amount of
wind and temperature outside your home.
HIGH SETTING: Only use high for fast warm-up, searing
steaks or chops, and for burning food residue o the grills
after cooking is complete. Never use the high setting for
extended cooking.
CAUTION:
Operating your grill on the HIGH setting for longer than ve
minutes may damage certain parts of your grill.
Do not leave your grill unattended.
MEDIUM TO LOW SETTINGS: Most recipes specify medium
to low settings, including all smoking, roasting, baking, and
for cooking lean cuts such as sh.
COOKING METHODS
DIRECT COOKING: With the lid up, place your food directly
on the grill over the lit burners. This method is ideal for
searing and for giving meat, poultry, or sh an open-ame
barbecued taste.
INDIRECT COOKING: With the lid down, place your food to
the left or right side of your grill with the burner lit on the
opposite side.
CONTROLLING FLARE-UPS
The fats and juices dripping from grilled food can cause
are-ups. Since are-ups impart a favorable, distinctive
taste and color to food cooked over an open ame, they
should be accepted up to a point. However, uncontrolled
aring can ruin your meal.
If a are-up is out of control, turn o the burners. To reduce
are ups, trim excess fat from your meat, keep your grill
away from windy areas, and keep your grill clean.
WARNING:
DO NOT line the bottom of the grill housing with aluminum
foil, sand, or any substance that will restrict the ow of
grease into the grease draining tray and receptacle. Failure
to comply with these instructions could result in a re or
explosion, which could cause serious bodily injury, death, or
property damage.
30
TM
CHECKING FOR GAS LEAKS
Before rst use, at the beginning of each season, or every time your propane tank is changed, you must check for gas
leaks.
WARNING:
Your grill must be leak tested outdoors in a well-ventilated
area, away from ignition sources such as gas-red or
electrical appliances. During the leak test, keep your grill
away from open ames or sparks.
Do not smoke when checking for gas leaks. Do not use an
open ame to check for gas leaks.
1. Make a soap solution by mixing one part liquid
detergent and one part water.
CAUTION:
Do not use household cleaning agents. Damage to gas
assembly components can result.
2. Turn the grill control knobs OFF.
3. Turn the gas on at the propane tank.
4. Apply the soap solution to all gas connections. If
bubbles appear in the soap solution the connections
are not properly sealed. Check each tting and tighten
or repair as necessary.
If you have a gas leak that you cannot repair, turn o
the gas at the source, disconnect the fuel line from
your grill, and call the TYTUS Customer Support at 855-
969-5185, or your gas supplier for repair assistance.
5. Brush soapy solution onto propane tank in the areas
indicated by the arrows, and look for growing bubbles
on your propane tank.
NOTE: The normal ow of gas through the regulator/
gas hose assembly can create a humming noise. A low
volume of noise is perfectly normal and will not interfere
with operation of the grill. If the humming noise is loud and
excessive you may need to purge air from the gas line or
reset the regulator excess gas ow device. This purging
procedure should be done every time a new propane gas
tank is connected to your grill. For help call the Customer
Service Helpline for assistance.
WARNING:
A strong gas smell or the hissing sound of gas indicates
a serious problem with your grill or the propane gas tank.
Failure to immediately follow the steps listed below could
result in a re or explosion that could cause serious bodily
injury, death, or property damage.
- Shut o the gas supply to the grill.
- Turn the control knobs to the OFF position.
- Put out any ame with a re extinguisher.
- Open the grill lid.
- Get away from the LP gas tank.
- Do not try to x the problem yourself.
- If odor continues or you have a re you cannot
extinguish, call your re department. Do not call
near the propane tank because your telephone
is an electrical device and could create a spark
resulting in re and/or explosion.
31
OWNER'S MANUAL
TYTUS FRESNO SERIES
PURGING AIR FROM THE GAS LINE/RESET THE REGULATOR
NOTE: This procedure should be done every time a new propane gas tank is connected to your grill.
1. Turn the control knobs OFF.
2. Turn o the gas at the propane gas tank valve.
3. Disconnect the regulator hose assembly from propane tank.
4. Let the gas line and regulator hose assembly stand for ve minutes to allow air to purge.
5. Reconnect the regulator hose assembly to the propane tank.
6. Turn the tank valve on SLOWLY 1/4 of a turn.
7. Open the grill lid.
8. Push and turn the left main burner control knob to Hl.
WARNING:
Should a "FLASH-BACK" re occur in/or around the burner tubes, follow the instructions below. Failure to comply with
these instructions could result in a re or explosion that could cause serious bodily injury, death, or property damage.
- Shut o the gas supply to the grill.
- Turn the control knobs to the OFF position.
- Put out any ame with a Class B re extinguisher.
- Open the grill lid.
After the grill has cooled down, clean the burner tubes and burners. See "BURNER TUBES AND BURNER PORTS" on PAGE
42 for instructions.
WARNING:
If ignition does not occur in ve seconds, turn the control knob(s) and gas source OFF and conduct a leak test as
explained in "BURNER TUBES AND BURNER PORTS" on PAGE 42. If no leaks are detected, wait ve minutes for any gas
to clear and repeat the lighting procedure.
32
TM
1. Make sure that the grill’s control knobs and the propane tank’s gas knob are turned o and that the grill is clean.
TIP: If you want, remove the warming rack, cooking grates, and ame tamers.
2. Disconnect the regulator hose assembly from the propane tank.
DISASSEMBLING YOUR GRILL
Control knobs
Propane gas
tank valve
33
OWNER'S MANUAL
TYTUS FRESNO SERIES
3. Loosen the wing bolt behind the grill base (near the bottom), and remove the propane tank from the grill cabinet.
4. Remove grease cup and holder.
A) Pull the grease tray forward, about halfway out of the grill box.
B) Remove the grease cup from the grease cup holder, being careful to avoid spilling any grease that may have
accumulated.
C) Disconnect the grease cup holder from the grease tray by bringing the ends back through the tabs in the grease
tray one at a time, or both at the same time.
Wing Bolt
34
TM
5. Disconnect the gas line hose underneath the right side cap. Carefully feed the hoses back through the openings in
the sides of the main cart and right side cart.
6. Gently lift each side cart up and out to disconnect them from the main cart. The easiest way to do this is for you and
your partner to lift with your foot at the same time at the front and back of the cart:
A) At the front and back of the grill, insert your foot under the side cart next to the wheel near the grill base.
B) Use your foot to lift the cart up, then slide the cart slightly away from the main cart.
C) Repeat this step to remove the other side cart.
Gas line hose
TIP: As you remove
the right side cart,
make sure that the
regulator/"T" gas hose
assembly doesn't get
caught or snagged.
35
OWNER'S MANUAL
TYTUS FRESNO SERIES
7. Disconnect the "T" gas hose assembly from the side of the main cart's right panel by unscrewing the two wingnuts.
After removal, reattach the wingnuts to the "T" gas hose assembly so they are not lost.
8. Unlock the four latches on the sides of the grill, then lift the grill straight up (with another person) and set it to the side
on a sturdy surface.
Wingnuts
TIP: Lift with
these handholds.
36
TM
9. To fold down the main cart:
A) Remove the collapsible trash bin. You can store your trash bin in the burner box or inside your ice chest.
B) Lift up the upper rear cart panel, rotate the top inward (45°), then pull it o the grill cart. Lay the upper rear cart
panel at inside the grill cart for easy storage.
C) Unlock the main cart's right panel and left panel from the main cart's rear panel by lifting the locking levers, then
lay the rear panel at by lifting the locking levers.
Upper rear cart panel
Main
cart rear
panel
37
OWNER'S MANUAL
TYTUS FRESNO SERIES
D) Unlock the main cart's left panel from the front panel, then lay it at into the base. Unlock the main cart's right
panel from the front panel, then lay it at into the base.
E) Lay the main cart's front panel at into the base.
Main cart
left panel
Main cart
right panel
Main cart
front panel
38
TM
10. Make sure that the base is completely at. With another person, grasp the handholds on the sides of the grill box,
then lift it onto the folded main cart. The front of the grill box should face the same direction as the overhanging
panel lock handle.
CAUTION: Ensure the "T" gas hose assembly is not caught between the burner box and the folded-down side cart;
this will damage the "T" gas hose assembly.
11. Lock the four latches on the sides of the grill.
"T" gas hose
assembly
Overhanging panel
lock handle
39
OWNER'S MANUAL
TYTUS FRESNO SERIES
12. To fold down the side cart:
A) Press the two red buttons inside the cabinet to unlock the top cap, then lift the top cap o and set aside.
NOTE: If the pins don't release after pressing the red button, you may need to manually pull it out.
B) Lift the side panel up and o the cart.
Locked
pin
40
TM
C) Pull the locking pin, then push the cart together until the cart locking pin locks the cart.
NOTE: You may need to push up on the shelves to get the cart pushed together completely.
D) Repeat to fold down the second side cart.
41
OWNER'S MANUAL
TYTUS FRESNO SERIES
WARNING:
- Always wear protective gloves and safety glasses when cleaning your grill.
- Turn o the gas supply at the source and disconnect the unit before servicing. To avoid the possibility of burns,
cleaning and maintenance should be done only when the grill is cool and o.
Keep your outdoor cooking area clear and free from combustible materials, gasoline, and other ammable vapors and
liquids.
Proper care and maintenance will keep your grill in top condition and prolong its life.
Never use abrasive cleaners, scrubbers, or sti wire brushes of any type on your grill. Use a heat resistant stainless steel
cleaner and rub or wipe in the direction of the stainless steel grain or polish lines. Do not polish against the grain. Use a
mild soapy solution for non-stainless steel parts.
COOKING GRATES
Wipe your cooking grates with a clean cloth, and apply a thin coating of cooking oil. For stubborn food residue, use
degreaser and a ber or metal bristle cleaning brush.
GREASE TRAY
To reduce the chance of re, inspect the grease draining tray and heat shield before each use. Remove grease (a plastic
spatula works well) and wash the grease tray with a mild soap and warm water solution.
WARNING:
Grease can get very hot. Always handle the grease tray with a ame-retardant BBQ mitt. Before removing the tray, always
be sure that the grill has properly cooled. Be aware that the tray does contain grease and be extremely careful when
removing the tray to prevent spillage. Failure to follow these instructions could cause serious bodily injury or property
damage.
FLAME TAMERS
To reduce the chance of are-ups, the ame tamers should be cleaned whenever food or grease drippings accumulate.
Brush o the ame tamers with a ber-type brush, and turn them over to let the burner heat to burn o any stubborn
food residue. The ame tamers work equally well on either side. Do not immerse the ame tamers in water.
EXTERIOR STAINLESS STEEL SURFACES
Weathering and high heat can cause the stainless steel grill lid to turn tan in color. This is not rust and is not a product
defect. Machine oils used to manufacture stainless steel, cooking oils, and a dirty grill lid can also encourage discoloration
if the lid is not cleaned prior to use. After every use (after your grill has cooled down), clean the grill’s exterior:
1. Shut o the gas supply at the source and disconnect the gas line from the gas valve manifold. Protect the gas line
connector.
2. Use a stainless steel cleaner and a soft cloth to clean the inside and outside of your grill lid. Be sure to remove all
food particles, sauces, or marinades as these can be highly acidic and damaging to stainless surfaces. Never use
abrasive cleaners or scrubbers.
TIP: Routine cleaning to remove dirt, grease, and oils will help prevent discoloration.
CLEANING AND MAINTAINING YOUR GRILL
42
TM
EXTERIOR POWDER COATED SURFACES
Wipe your grill down after each use. Use warm soapy water to cut the grease. Do not use oven cleaner, abrasive
cleansers, or abrasive cleaning pads on powder-coated surfaces.
BURNER TUBES AND BURNER PORTS
To reduce the chance of a ashback re, clean the burner tubes before initial use, at least once a month in the summer
and fall (whenever spiders are active in your area), and if your grill has not been used for an extended period of time.
1. Turn all the control knobs to OFF.
2. Turn the propane tank valve o.
3. Detach the gas line from your grill or propane tank.
4. Remove the cooking grates, ame tamers, and grease trays from your grill.
5. Remove the cotter pin from the rear of each burner.
6. Carefully lift each burner up and away from the gas valve orice.
7. Clean the burner tubes with one of these three cleaning methods:
- Bend a sti wire (a lightweight coat hanger works well) into a small hook, then run the hook through the burner tube and inside
the burner several times to remove any debris.
- Run a burner cleaning brush (or bottle brush with a exible handle) through the burner tube and inside the burner several times,
removing any debris.
- Use an air hose to force air through each burner tube. The forced air should blow debris through the burner and out the ports.
8. lnspect each burner for damage (cracks or holes). lf damage is found, order and install a new burner. After installation,
make sure that the gas valves are correctly placed inside the ends of the burner tubes, and check the position of
your spark electrode.
WARNING:
The location of the burner tube, relative to the orice, is vital for safe operation. Make sure that each gas valve is inside
a burner tube before using your grill. lf the gas valve is not inside the burner tube, lighting the burner may cause an
explosion or a re.
Burner tube
43
OWNER'S MANUAL
TYTUS FRESNO SERIES
ANNUAL CLEANING
Use a ber or brass cleaning brush to clean the interior grill box, cooking grills, ame tamers, and grease containers.
Never use a wire brush or metal scraper on the porcelain nished parts as it can scratch or chip the porcelain nish and
promote rusting.
1. Turn all the control knobs to OFF.
2. Turn the propane tank valve o.
3. Detach the gas line from your grill or propane tank.
4. Remove and clean the ame tamers, cooking grates, and burners.
5. Cover each gas valve orice with aluminum foil.
6. Brush the inside and bottom of the grill with a brass wire brush or ber cleaning pad, then wash with a mild soap and
warm water. Rinse thoroughly and let dry.
7. Remove the aluminum foil and check each orice for obstructions.
8. Replace the ame tamers and the cooking grates.
9. Reconnect the gas source, light the grill, and observe the burner ame to make sure that it is operating correctly.
WARNlNG:
Accumulation of grease can cause a re hazard.
- Barbecue sauce and salt can be corrosive and will cause rapid deterioration of grill components unless cleaned
regularly.
44
TM
WHAT SHOULD I DO IF MY GRILL WON’T LIGHT?
- Turn the gas o at its source, then turn the control knobs OFF. Wait at least ve minutes for gas to clear, then
retry.
- Check your gas supply and connections.
- Repeat the lighting procedure. If your grill still fails to operate, turn the gas o at its source, turn the control knobs
to OFF, then check the following:
- The burner tubes may be misaligned with the orices. Reposition the burner tubes over the orices.
- There may be an obstruction in the gas line orice. Remove the fuel line from the grill. Open the gas supply for one second to
clear any obstruction from the fuel line. Close o the gas supply at its source and reconnect the fuel line to the grill.
WARNING: Do not smoke while clearing the gas line.
- Check for a plugged gas valve orice. Remove the cotter pin at the rear of each burner, then carefully lift each
burner up and away from the gas valve orice. Remove the orice from the gas valve, and gently clear any
obstruction with a ne wire. Reinstall all orices, burners, screws, and cooking components.
- If you suspect an obstruction in the gas valves or manifold, call TYTUS Customer Support at (855) 969-5185.
- Check for obstructions in the burner tubes. See "BURNER TUBES AND BURNER PORTS" on PAGE 42 for cleaning
instructions.
- Make sure that the igniter is aligned correctly with the burner. The gap between the spark electrode tip and
spark receiver should be approximately 3/16" wide. Adjust, if necessary. With the gas supply closed and all
control knobs set to OFF, press the electric igniter cap, and watch for the presence of a spark at the end of the
electrode.
- Inspect the igniter junction box found behind the control panel. Connect loose electric wires to the junction box,
then try to light the grill.
- If the grill still does not light, you may need to purge air from the gas line or reset the regulator excess gas
ow device.
CAN I CONVERT MY GRILL FROM PROPANE TO NATURAL GAS?
- Fresno Series models can be converted from propane to natural gas. Other models cannot be converted from
propane to natural gas. Visit TYTUSGrills.com to learn more about our Natural Gas Conversion Kit.
WHY DON’T THE HOSE AND REGULATOR SUPPLIED WITH MY GRILL FIT THE OLDER PROPANE
TANK I’VE USED FOR YEARS?
- U.S. Government regulates gas appliances and propane gas tanks. When regulations are changed, propane
gas tank ttings are altered to ensure compliance. If your propane gas tank does not t the hose and regulator
supplied with your new grill, the tank is outdated and must be replaced.
NOTE: Eective April 1, 2002, all propane gas tanks sold must include an Overll Protection Device (OPD). This
internal device prevents the propane gas tank from being overlled. Tanks without an OPD valve cannot be relled.
TROUBLESHOOTING
45
OWNER'S MANUAL
TYTUS FRESNO SERIES
WHERE ARE THE SERIAL AND MODEL NUMBERS OF MY GRILL?
- The model and serial numbers are listed on a silver label on the main cart door.
WHAT CAUSES GRILL PARTS TO RUST, AND WHAT EFFECT DOES IT HAVE ON MY GRILL?
- Rusting is a natural oxidation process and will not aect the short-term performance of your grill.
- To slow the rusting process on cooking grids, grease the grates before and after each use. Use a brush to apply
a thin layer of cooking oil or vegetable shortening onto each grate. We do not suggest spray-type oils unless
they are specied for high-temperature cooking. lf your cooking grates are porcelain coated, be sure to coat the
entire cooking surface, including the edges and any areas with chipped porcelain.
- Routine care and maintenance are required to preserve the appearance and corrosion resistance of stainless
steel. Stainless steel can corrode, rust, and discolor under certain conditions. Rust is caused when regular steel
particles in the atmosphere become attached to the stainless steel surface. Steel particles can also become
attached to your grill if you use steel wool or sti wire brushes to clean the grill instead of non-abrasive cloth,
sponge, or nylon cleaning tools. ln coastal areas, rust pits can develop on stainless surfaces that cannot be
fully removed. Bleach and other chlorine-based solutions used for household and pool cleaning can also cause
corrosion to stainless steel.
- Weathering, extreme heat, smoke from cooking, and machine oils used in the manufacturing process of
stainless steel can cause stainless steel to turn tan in color. Although there are many factors which can aect
the surface appearances of stainless steel, they do not aect the integrity of the steel or the performance of
the grill. To help maintain the nish of your grill, clean your grill after each use. See "EXTERIOR STAINLESS STEEL
SURFACES" on PAGE 41 for instructions.
WHY WON’T MY GRILL LIGHT PROPERLY?
- Always light the burner farthest from the fuel source rst. This draws gas across the manifold and helps prevent
air pockets that obstruct gas ow.
- Check your propane gas supply. An empty propane gas tank weighs about 20 pounds. A full tank weighs about
40 pounds.
- Make sure that all gas connections are secure.
- Reposition the igniter.
- Make sure that the end of each burner tube is properly located over each gas valve orice.
- There may be an obstruction in the gas line orice. Remove the fuel line from the grill. Open the gas supply for
one second to clear any obstruction from fuel line. Close o the gas supply at its source and reconnect fuel line
to the grill.
- If an obstruction is suspected in the orice or gas valves, call the TYTUS Support Center.
WARNING: Do not smoke while clearing the gas line.
WARNING: Always wear protective gloves and safety glasses when cleaning your grill.
Turn o the gas supply at the source and disconnect the unit before servicing. To avoid the possibility of burns,
maintenance should be done only when the grill is cool and o.
- You need to purge air from the gas line or reset the regulator excess gas ow device. See "Purging Air from the
Gas Line/Reset the Regulator" on PAGE 31 for instructions.
- Opening the tank valve all the way or too quickly triggers the regulator’s safety device to shut down gas ow,
which prevents excessive gas ow to your grill. Lighting the burner farthest from the fuel source every time will
help eliminate air pockets in the manifold.
46
TM
SOMETIMES I HEAR A HUMMING SOUND COMING FROM THE REGULATOR. WHAT CAUSES THIS?
- The humming sound is gas owing through the regulator. A low volume of sound is normal and will not interfere
with the operation of your grill. If the humming sound is loud and excessive, you need to purge air from the gas
line or reset the regulator excess gas ow device. See "Purging Air from the Gas Line/Reset the Regulator" on
PAGE 31 for instructions.
HOW AND WHEN DO I CLEAN THE INTERIOR COOKING COMPONENTS OF MY GRILL?
- See "Cleaning and Maintaining your Grill" on PAGE 41 for instructions on cleaning and maintaining your grill.
WHAT CAUSES A STAINLESS STEEL TO DISCOLOR?
- Weathering, extreme heat, smoke from cooking, and machine oils used in the manufacturing process of
stainless steel can cause it to turn tan in color. Although many factors can aect the surface appearances of
stainless steel, they do not aect the integrity of the steel or the performance of the grill. To help maintain the
nish of stainless steel, clean your grill after each use. See "EXTERIOR STAINLESS STEEL SURFACES" on PAGE
41 for instructions.
IS IT NECESSARY TO USE A PROTECTIVE COVER ON MY GRILL?
- To prevent premature rusting of it and its components, cover your grill when it is exposed to the elements. Always
make sure that your grill is completely dry before covering it to prevent moisture buildup.
- When storing your grill inside, do not cover your grill with any type of cover as moisture will be trapped under the
cover, causing premature rusting.
- Visit TYTUSGrills.com to purchase a tted TYTUS Island Grill Cover.
47
OWNER'S MANUAL
TYTUS FRESNO SERIES
TOTAL OUTPUT: 60,000 BTU
MAIN BURNER: 4 X 12,000 BTU
SIDE BURNER: 12,000 BTU
TOTAL COOKING AREA: 864 SQ. INCHES (5574 SQ. CENTIMETERS)
MAIN COOKING AREA: 510 SQ. INCHES (3290 SQ. CENTIMETERS)
SECONDARY COOKING AREA: 209 SQ. INCHES (1348 SQ. CENTIMETERS)
SIDE COOKING AREA: 154 SQ. INCHES (993 SQ. CENTIMETERS)
IGNITION TYPE: PIEZO IGNITION
FUEL TYPE: LP + NG CONVERTIBLE
LENGTH:
57.8 INCHES (FSG) (146 CENTIMETERS)
66 INCHES (IG) (167 CENTIMETERS)
WIDTH: 22 INCHES (55 CENTIMETERS)
HEIGHT: 46.25 INCHES (117 CENTIMETERS)
MAIN CART SPACE: 8.24 CUBIC FEET (0.2 CUBIC METERS)
LEFT/RIGHT CART SPACE: 2.71 CUBIC FEET/EACH (0.07 CUBIC METERS)
SPECIFICATIONS
48
TM

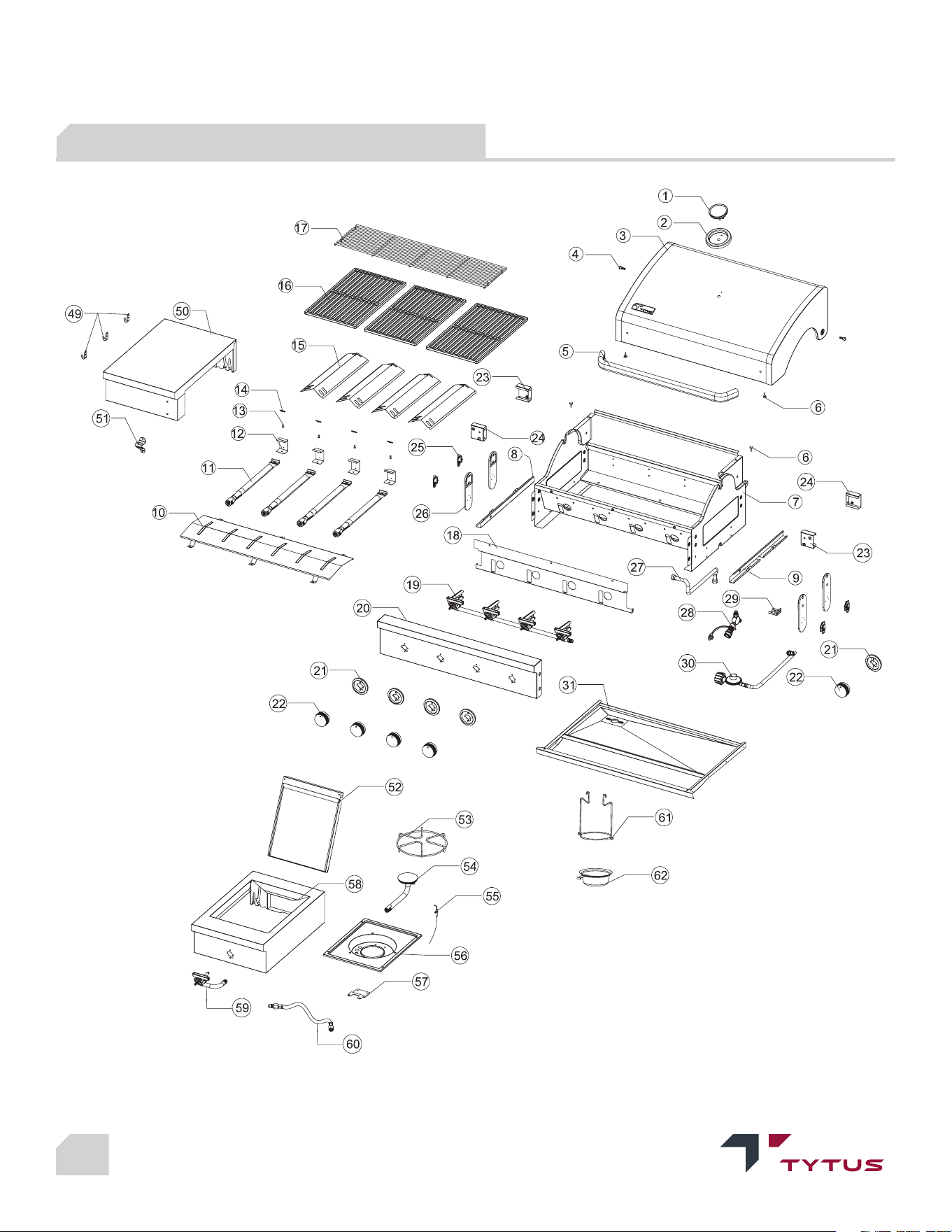

GRILL MAIN CART PARTS
PART DIAGRAMS AND LISTS
49
OWNER'S MANUAL
TYTUS FRESNO SERIES

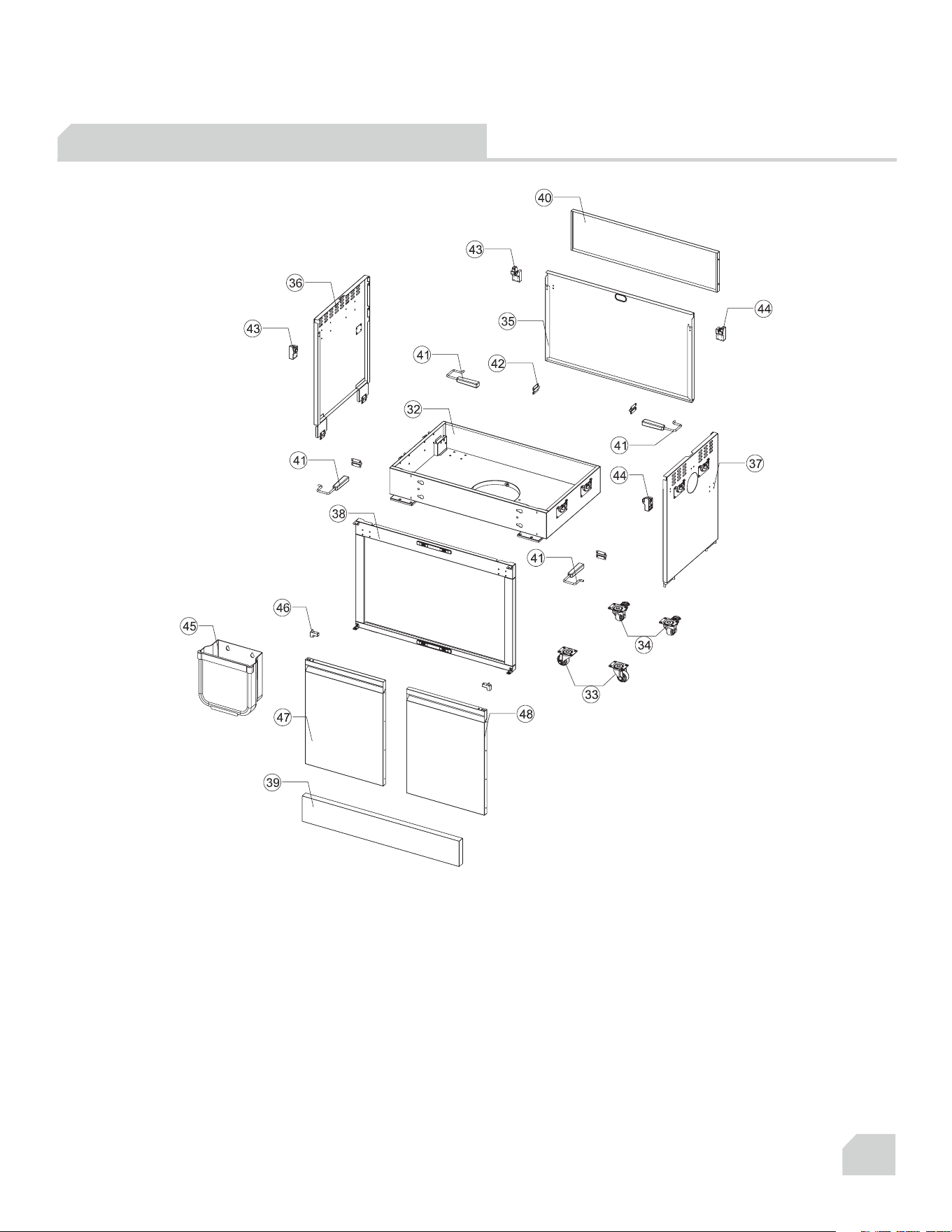

GRILL MAIN CART PARTS (CONT.)
50
TM
GRILL MAIN CART PARTS LIST
MANUAL
PART #
DESCRIPTION
QTY
PER
UNIT
PART
NUMBER
1 Temperature gauge 1 TFR-BNB-001
2 Temperature gauge base 1 TFR-BNB-002
3 Grill lid 1 TFR-BNB-003
4 Grill lid hinge 2 TFR-BNB-004
5 Grill lid handle 1 TFR-BNB-005
6 Protective pad 4 TFR-BNB-006
7 Grill box 1 TFR-BNB-007
8 Grill box, left bracket 1 TFR-BNB-008
9 Grill box, right bracket 1 TFR-BNB-009
10 Bowl heat shield panel 1 TFR-BNB-010
11 Main burner 4 TFR-BNB-011
12 Burner bracket 4 TFR-BNB-012
13 Cotter pin 4 TFR-BNB-013
14 R pin 4 TFR-BNB-014
15 Flame tamer 4 TFR-BNB-015
16 Cooking grid 3 TFR-BNB-016
17 Cooking rack/secondary 1 TFR-BNB-017
18 Heat shield panel 1 TFR-BNB-018
19 Manifold tube 1 TFR-BNB-019
20 Control panel 1 TFR-BNB-020
21 Knob seat 4 TFR-BNB-080
22 Control knob 4 TFR-BNB-081
23 Side shelf bracket (LR, RF) 2 TFR-BNB-021
24 Side shelf bracket (LF, RR) 2 TFR-BNB-022
25 Clasp, lower 4 TFR-BNB-023
26 Clasp, upper 4 TFR-BNB-024
27 Main burner hose 1 TFR-BNB-025
28 Quick connect assembly 1 TFR-BNB-026
29 Quick connect bracket 1 TFR-BNB-027
MANUAL
PART #
DESCRIPTION
QTY
PER
UNIT
PART
NUMBER
30
Regulator with hose
assembly
1 TFR-BNB-028
31 Grease tray 1 TFR-BNB-029
32 Bottom panel 1 TFR-MCT-030
33 Caster without brake 2 TFR-MCT-082
34 Caster with brake 2 TFR-MCT-083
35 Cart rear panel, lower 1 TFR-MCT-031
36 Cart side panel, left 1 TFR-MCT-032
37 Cart side panel, right 1 TFR-MCT-033
38 Door frame 1 TFR-MCT-034
39
Cart front panel
1
TFR-MCT-035
Cart front panel (Shadow) TFR-MCT-100
Cart front panel (Graphite) TFR-MCT-105
Cart front panel (Ash) TFR-MCT-110
40 Cart rear panel, upper 1 TFR-MCT-036
41 Easy setup handle 4 TFR-MCT-037
42 Easy setup handle, bracket 4 TFR-MCT-038
43
Cart locking mechanism
bracket, left
2 TFR-MCT-039
44
Cart locking mechanism
bracket, right
2 TFR-MCT-040
45 Trash can 1 TFR-MCT-041
46 Door pin 2 TFR-MCT-042
47 Door, left 1 TFR-MCT-043
48 Door, right 1 TFR-MCT-044
61 Grease cup holder 1 TFR-BNB-112
62 Grease cup 1 TFR-BNB-111
51
OWNER'S MANUAL
TYTUS FRESNO SERIES

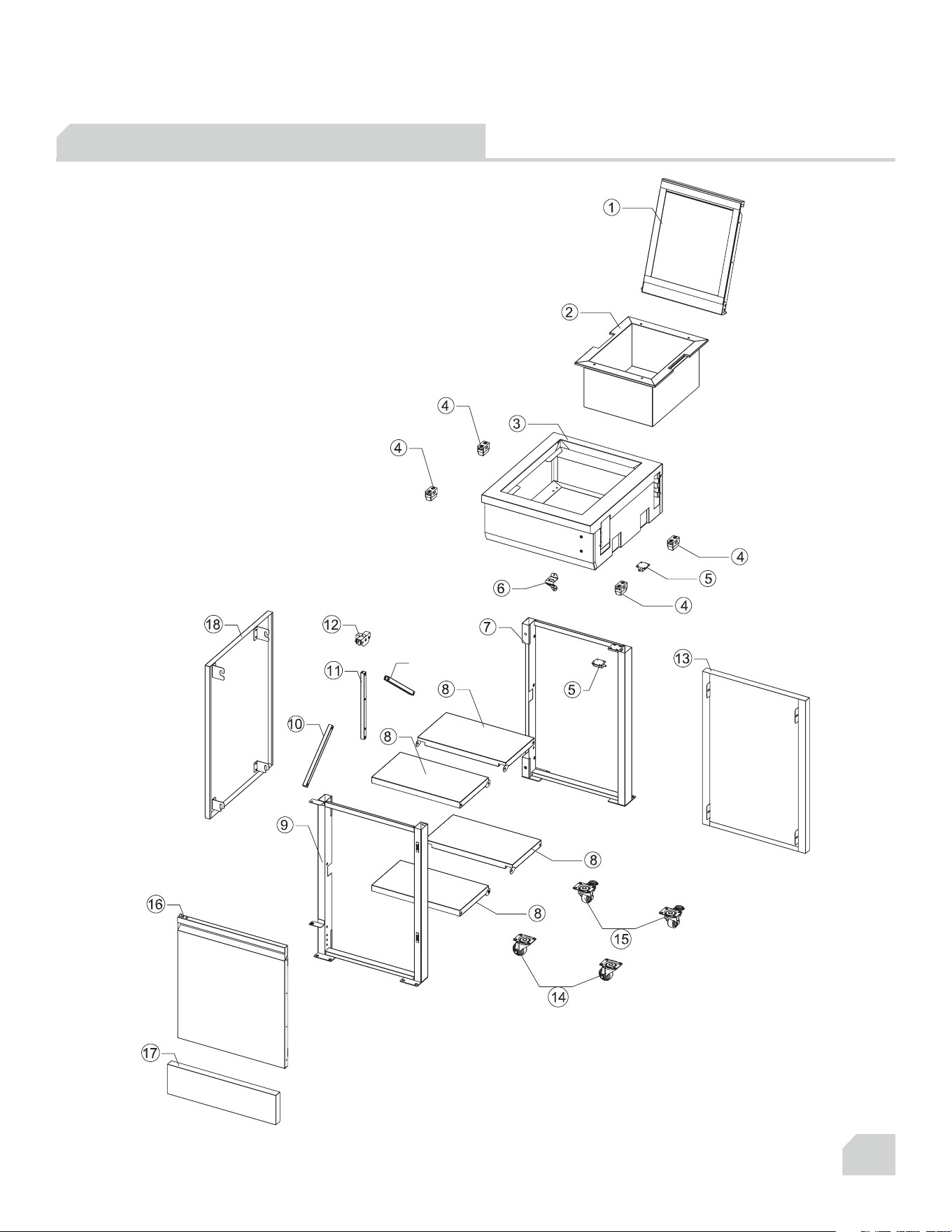

ICE BIN SIDE CART PARTS DIAGRAM
52
TM
ICE BIN SIDE CART PARTS LIST
MANUAL
PART #
DESCRIPTION
QTY
PER UNIT
PART NUMBER
1 Ice bin lid 1 TFR-LCT-056
2 Ice bin 1 TFR-LCT-057
3 Ice bin cap 1 TFR-LCT-058
4 Top cap feet 4 TFR-LCT-085
5 Locking click 2 TFR-LCT-086
6 Bottle opener 1 TFR-LCT-084
7 Cabinet frame, rear 1 TFR-LCT-059
8 Cabinet shelf 4 TFR-LCT-087
9 Cabinet frame, front 1 TFR-LCT-060
10 Folding tube, right 2 TFR-LCT-088
11 Folding tube, center 1 TFR-LCT-089
12 Locking clip 1 TFR-LCT-090
13 Cabinet rear panel 1 TFR-LCT-061
14 Caster without brake 2 TFR-MCT-082
15 Caster with brake 2 TFR-MCT-083
16 Left cabinet door 1 TFR-LCT-062
17
Ice bin cart panel
1
TFR-LCT-063
Ice bin cart panel (Shadow) TFR-LCT-096
Ice bin cart panel (Graphite) TFR-LCT-101
Ice bin cart panel (Ash) TFR-LCT-106
18
Cabinet side panel, left
1
TFR-LCT-064
Cabinet side panel, left (Shadow) TFR-LCT-097
Cabinet side panel, left (Graphite) TFR-LCT-102
Cabinet side panel, left (Ash) TFR-LCT-107
53
OWNER'S MANUAL
TYTUS FRESNO SERIES

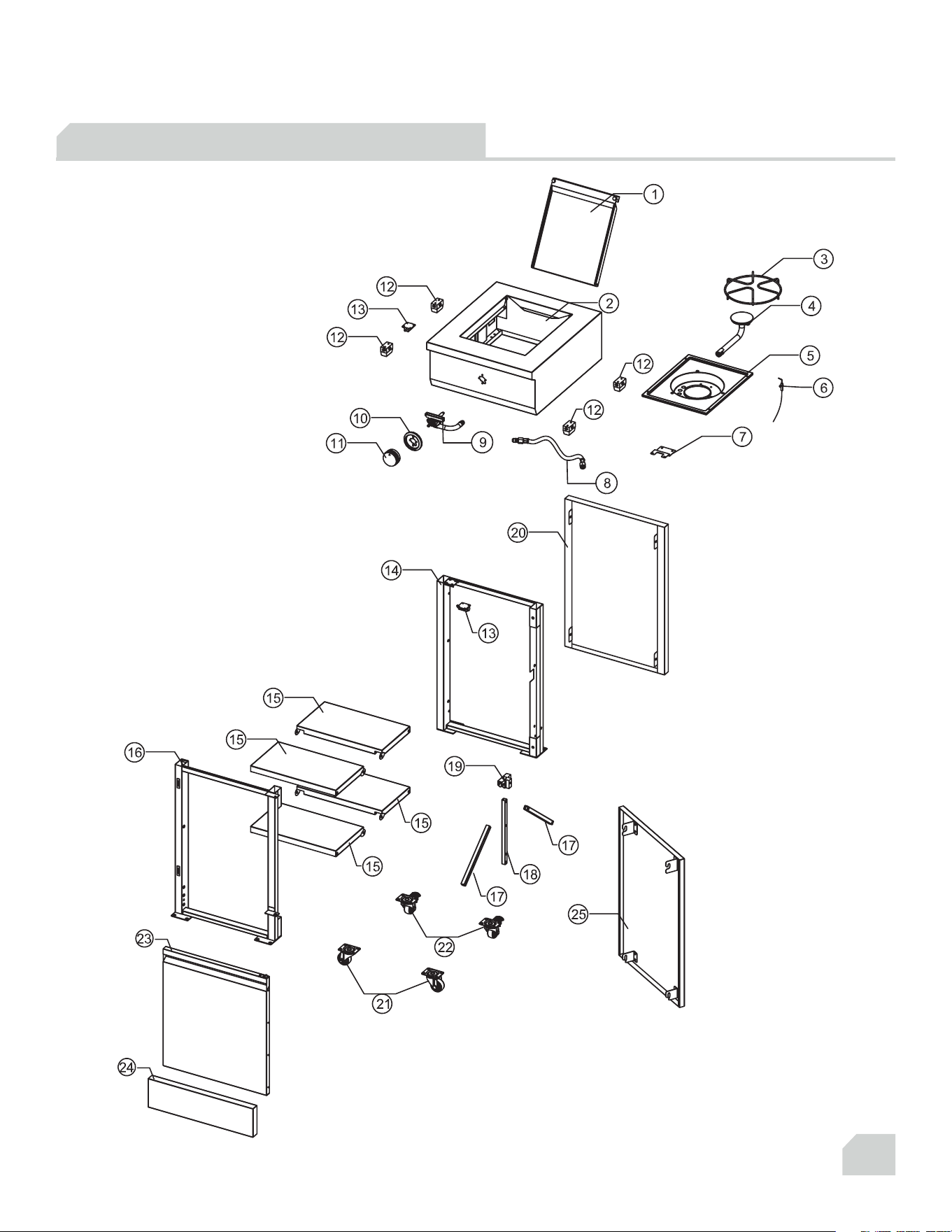

SIDE BURNER SIDE CART PARTS DIAGRAM
54
TM
SIDE BURNER SIDE CART PARTS LIST
MANUAL
PART #
DESCRIPTION
QTY
PER
UNIT
PART NUMBER
1 Side burner lid 1 TFR-RCT-065
2 Side burner cap 1 TFR-RCT-066
3 Side burner pot support 1 TFR-RCT-067
4 Side burner 1 TFR-RCT-068
5 Side burner trim plate 1 TFR-RCT-069
6 Side burner electrode with wire 1 TFR-RCT-070
7 Side burner bracket 1 TFR-RCT-071
8 Side burner hose 1 TFR-RCT-072
9 Side burner manifold tube 1 TFR-RCT-073
10 Knob seat 1 TFR-BNB-080
11 Control knob 1 TFR-BNB-081
12 Top cap feet 4 TFR-LCT-085
13 Locking click 2 TFR-LCT-086
14 Right cabinet frame, rear 1 TFR-RCT-074
15 Cabinet shelf 4 TFR-LCT-087
16 Right cabinet frame, front 1 TFR-RCT-075
17 Folding tube, right 2 TFR-LCT-088
18 Folding tube, center 1 TFR-LCT-089
19 Locking clip 1 TFR-LCT-090
20 Cabinet rear panel 1 TFR-RCT-076
21 Caster without brake 2 TFR-MCT-082
22 Caster with brake 2 TFR-MCT-083
23 Right cabinet door 1 TFR-RCT-077
24
Side burner cart panel
1
TFR-RCT-078
Side burner cart panel (Shadow) TFR-RCT-098
Side burner cart panel (Graphite) TFR-RCT-103
Side burner cart panel (Ash) TFR-RCT-108
25
Cabinet side panel, right
1
TFR-RCT-079
Cabinet side panel, right (Shadow) TFR-RCT-099
Cabinet side panel, right (Graphite) TFR-RCT-104
Cabinet side panel, right (Ash) TFR-RCT-109
55
OWNER'S MANUAL
TYTUS FRESNO SERIES
NOTES:
56
TM
NOTES:
57
OWNER'S MANUAL
TYTUS FRESNO SERIES
NOTES:
58
TM
WARRANTY
TYTUS Grills, LLC (“TYTUS”) warrants the Products identied above to be free from defects in material and workmanship,
for the specic Warranty Periods set forth below for specic parts or components of the Products, under proper use,
maintenance, and care according to the owner’s manual, warnings, and instructions accompanying the Products:
WARRANTY PERIODS:
PARTS OR COMPONENTS COVERED: TIME PERIOD COVERED:
Stainless Steel Burners 5 years from the date of the original customer
purchase*
Porcelain-enameled Cast Iron Cooking Grates 3 years from the date of the original customer
purchase*
Powder-coated and Porcelain-coated parts
of the Product
1 year from the date of the original customer
purchase*
All other parts of the Products not specied
above (excluding spare parts discussed below)
1 year from the date of the original customer
purchase*
Any spare parts provided by TYTUS for use in any
of the Products, and any replacement parts used
in a repair performed by an authorized TYTUS
dealer.
90 days from the date the spare or replacement
part is rst shipped to the customer, or the date
the part is incorporated into the Product by an
authorized TYTUS dealer, whichever comes rst.*
* PLEASE NOTE – Proof of purchase evidencing the date of the original customer purchase, or the date of the spare part
shipment or incorporation into the Product if applicable, is REQUIRED for all warranty service. The express warranty set
forth herein (the “Warranty”) is subject to all terms set forth herein below.
1. WARRANTY SERVICE (PARTS, LABOR AND/OR REPLACEMENT): During the Warranty Periods set forth above, if the
parts or components covered by each respective Warranty Period are determined by TYTUS or a TYTUS authorized
customer service provider to be defective in material or workmanship, TYTUS will, at its sole discretion and option:
(i) repair the defective part or component at no charge to the original customer, (ii) replace the defective part or
component with a new or refurbished part of similar or better quality, at no charge to the original customer, or (iii)
refund the original, documented purchase price of the Product (excluding tax) to the original customer upon return
of the defective Product as directed by TYTUS. After the applicable Warranty Period, the customer must pay for all
parts, shipping and handling, labor, and replacement costs associated with the Product or any part or component
thereof, regardless of any defects in the Product or any part or component thereof.
A) SHIPPING COSTS: Notwithstanding the foregoing, the customer is responsible for any shipping or
transportation charges incurred to ship or otherwise deliver the Product or part(s) to TYTUS or a TYTUS authorized
service provider for diagnosis, repair or replacement during or after the Warranty Periods. The customer shall
not return the Product or any part or component thereof to TYTUS without TYTUS’s prior written consent. TYTUS
recommends that the customer insure the Product or any part or component for its full replacement cost when
shipping.
B) TIMING AND PROCEDURE: Before Warranty service can commence, the original customer purchaser must
contact TYTUS for problem determination and service procedures. Proof of purchase in the form of a bill of sale
or receipted invoice, evidencing that the Product is within the Warranty Period, MUST be presented to a TYTUS
authorized customer service provider in order to obtain the requested service. Please call the
Toll-Free Customer Service Line at (952) 807-9690 to obtain Warranty Service and Troubleshooting information.
Please have your model and serial number available, along with your date of purchase of the Product. You can
also visit us online at: www.tytusgrills.com. The customer shall not return the Product or any part or component
thereof to TYTUS without TYTUS’s prior written consent.at: www.TYTUSgrills.com. The customer shall not return
the Product or any part or component thereof to TYTUS without TYTUS's prior written consent.
59
OWNER'S MANUAL
TYTUS FRESNO SERIES
2. EXCLUSIONS AND LIMITATIONS TO WARRANTY SERVICE
This Warranty covers manufacturing defects in materials and workmanship encountered in the normal, non-commercial
use of the Product, and does not cover (a) damage or failure caused by or attributable to Product abuse or misuse, failure
to follow instructions, improper installation or maintenance, alteration, accident, high cooking temperatures, outdoor
humidity, outdoor temperature, chlorine, fertilizers, lawn pesticides, or chemical exposure; (b) improper or incorrectly
performed repairs by non-authorized service facilities; (c) onsite customer instruction or adjustments, and any costs
related to service calls to your home; (d) transportation, shipping, delivery, pickup, insurance, installation, or set-up costs;
(e) costs of product removal, transportation, or reinstallation costs; (f) ordinary wear and tear, cosmetic damage, or
damage due to acts of nature, including but not limited to, water, oods, wind, storm, tornado, earthquake, or re, or due
to damage caused by extraordinary impact events, such as dropping or crushing; (g) commercial use of the Product, or
use of the Product for anything other than single-family household or residential use; (h) modication of the Product or
any part of the Product; or (i) any food loss due to Product failure or diculties in operating the Product.
This Warranty applies to the original customer only and does not cover Products sold AS IS or WITH ALL FAULTS. The
Warranty is invalid if the factory-applied serial number has been altered or removed from the Product. This Warranty is
valid only in the United States and Canada, and only applies to products purchased and serviced in the United States
and Canada. All replaced parts and Products, and Products on which a refund is made, become the property of TYTUS.
The addition of equipment or features to the Product that are not manufactured or recommended by TYTUS could aect
the intended function of the Product, and therefore may void the Warranty. Furthermore, the exposure of the Product
to chemicals, heat, cold, humidity, or other elements can aect the Product components, and therefore, the Warranty
does not cover discoloration, fading, cosmetic changes, rust, or any damages or failure related to any such items. The
Warranty is contingent upon the proper use, maintenance, and care of the Product. The Warranty may be void if the
Product has been used in a manner contradictory to, or in violation of, the terms of the user’s manual, warnings, or
instructions accompanying the Product.
This Warranty is made in lieu of and supersedes all other warranties or conditions of merchantability or tness for
a particular purpose or general use, whether express, implied, collateral, statutory, or provided by common law,
the Uniform Commercial Code, or otherwise. TYTUS further disclaims all warranties after the end of the Warranty
Period dened above. No other express warranty or guaranty given by any other person, rm, or entity with
respect to the Product shall be binding on TYTUS. Repair, replacement, or refund of the original purchase price, at
TYTUS’s sole discretion, are the exclusive remedies of the customer. TYTUS shall not be liable for any incidental
or consequential damages caused by the use, misuse or inability to use the Product. These include but are not
limited to any damages in the form of lost prots, loss of use, legal fees, economic loss, personal injuries, or any
other damages caused by circumstances beyond the control of TYTUS. Notwithstanding the foregoing, TYTUS’s
aggregate liability to any customer shall not exceed the purchase price of the Product. This Warranty shall not
extend to anyone other than the original customer who purchased the Product, and is not transferrable. No person
is authorized to alter, extend, or waive the Warranty of TYTUS.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on
warranties, so the above limitations or exclusions may not apply to you. This Warranty gives you specic rights, and
you may have other rights, which vary from state to state. The exclusions and limitations to the Warranty apply to
the maximum extent permitted by law and unless restricted or prohibited by law. Where any term of this Warranty is
prohibited by applicable law, it shall be null and void, but the remainder of this Warranty shall remain in eect.
PLEASE DIRECT ALL CORRESPONDENCE TO:
TYTUS Grills, LLC
suppo[email protected]m
(855) 969-5185
www.tytusgrills.com
PLEASE CONTACT TYTUS CUSTOMER SUPPORT TO CONFIRM
PRODUCT RETURN ADDRESS AND PROCEDURES FOR WARRANTY.
TRANSFORM
YOUR
OUTDOORS
®
