Sainlogic-SA7
Quick Setup Guide
Product Includes:
-Integrated outdoor transmitter
- Gateway
- Rain collector
- Wind Cups
- Wind vane
- Mounting brackets and accessories
- Instruction manual
- Power Adapter

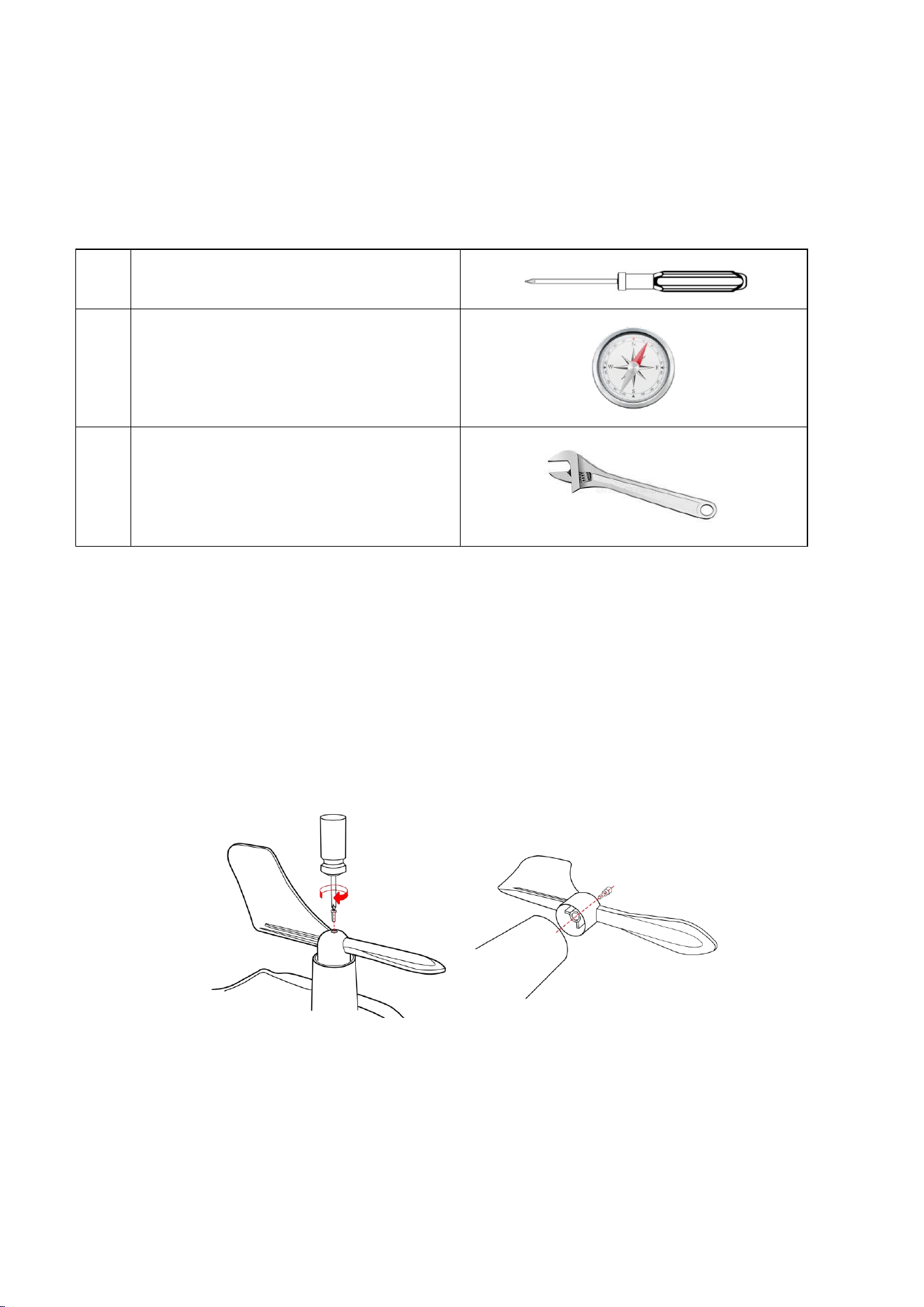

Recommended Tools:
- Precision screwdriver (for small Phillips screws)
- Compass or GPS (for wind direction calibration)
- Adjustable wrench
Step 3（Paring mode）:

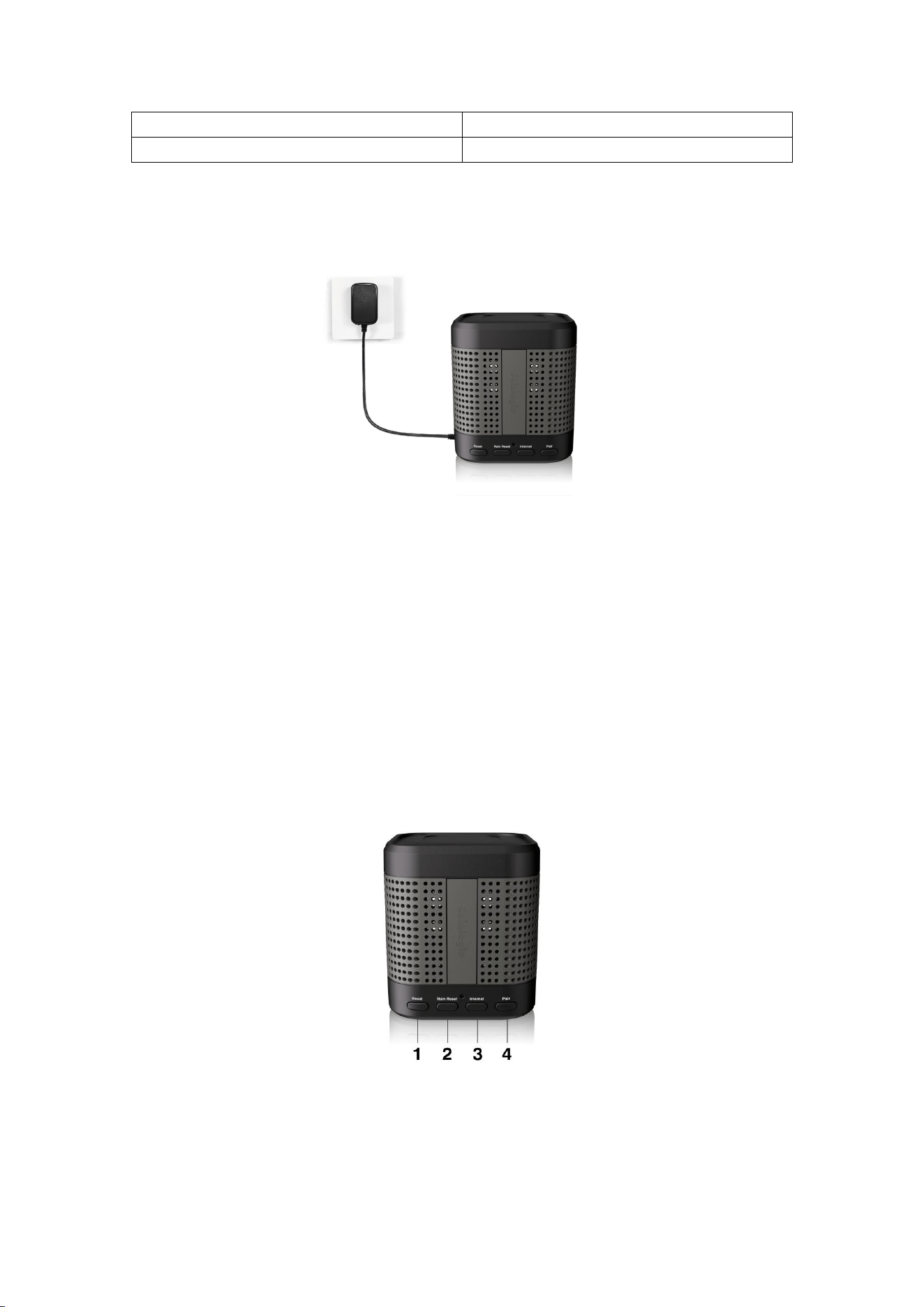

1. Plug in the device with the power adapter.
2. Please press and hold the “Pair” button for 3
seconds to enter the Pairing mode, the indicator
light (red) flashes fast, the indicator light (red,
green) will flash alternately after successful
pairing.
3.If the gateway is in pairing status, one click to
exit pairing mode.

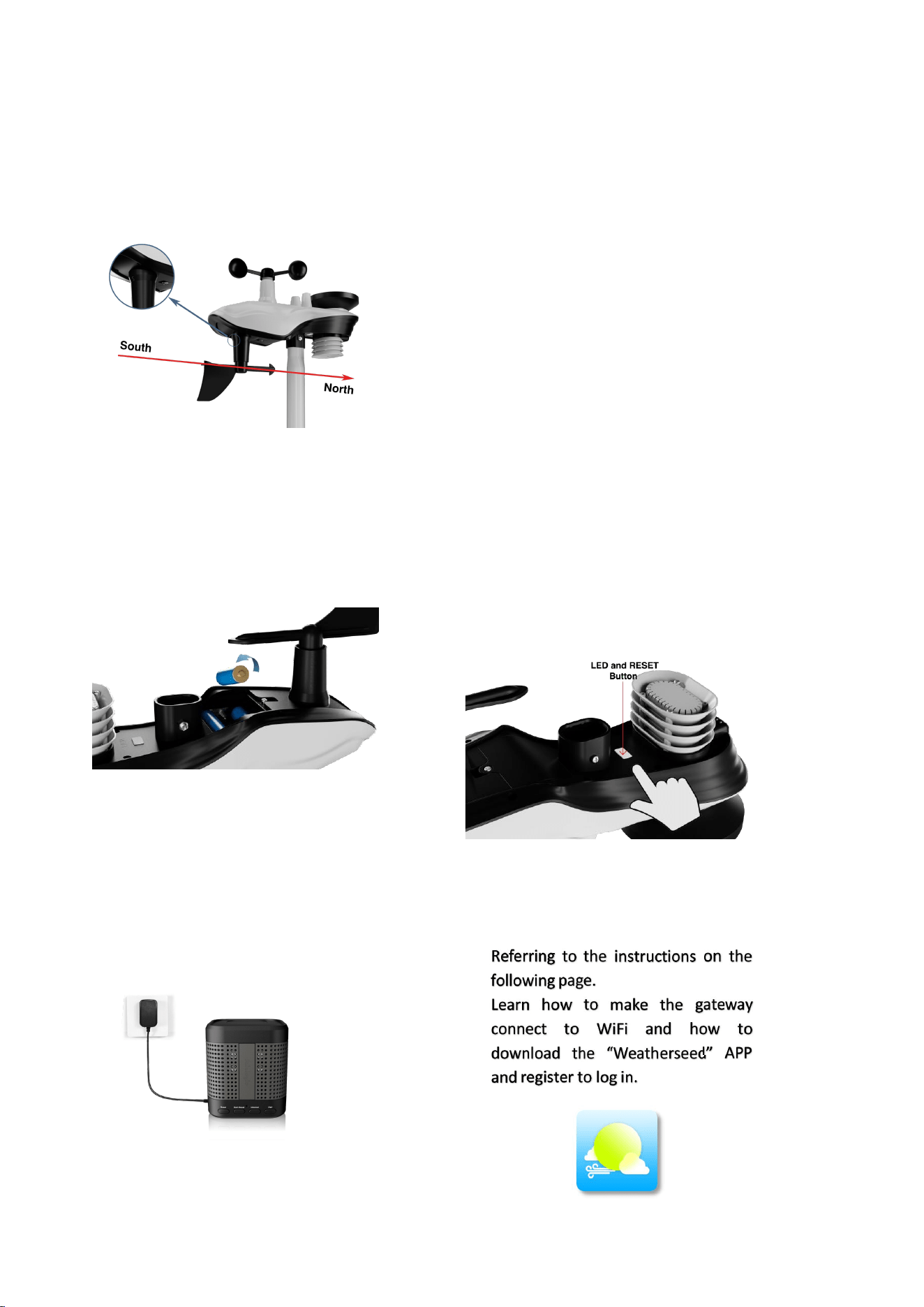

Step 1：
Locate the battery door on the bottom of
the transmitter, remove the retaining
screws on the back of the sensor, remove
the battery door, insert 3 new AA
batteries and close the battery door.
Step 2:

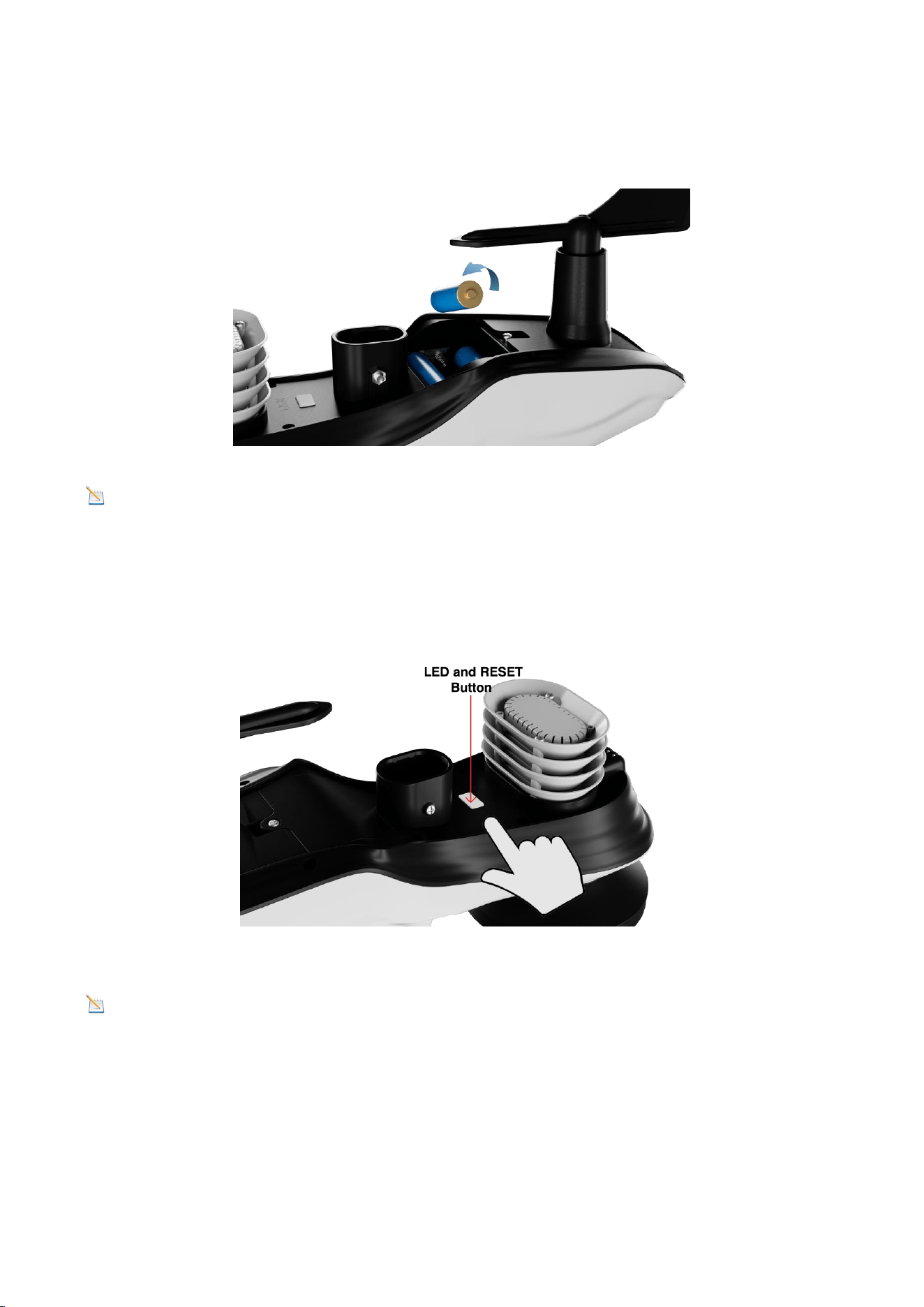

After installing the batteries, the
Integrated Outdoor Sensor LED will
illuminate for 3 seconds and then blink
every 60 seconds. If it does not flash, press
the reset button.
Note:You need to check if the device is
online in the “Weatherseed” app.
2
Step 6: WiFi Connection Steps (3 steps)
Note : The power adapter needs to be plugged into connect to WiFi.
Note
：
Please don't choose the wrong type and model , if you choose the
wrong one, you can't match the network successfully.
Note
：
The QR code is at the top of the Gateway.
Note
：
Requirements for routers
1. The weather station can only connect to 2.4 GHz, but could not do it automatically.
It could not distinguish between the signals and kept trying to connect to 5 GHz.
2. The router had to have the signals "split".
If you own a dual band router including both 2.4G and 5G, you need to separate
the two SSID names for the 2.4G/5G dual band. Then you can re-power up the
router and try it again.
Step 5:

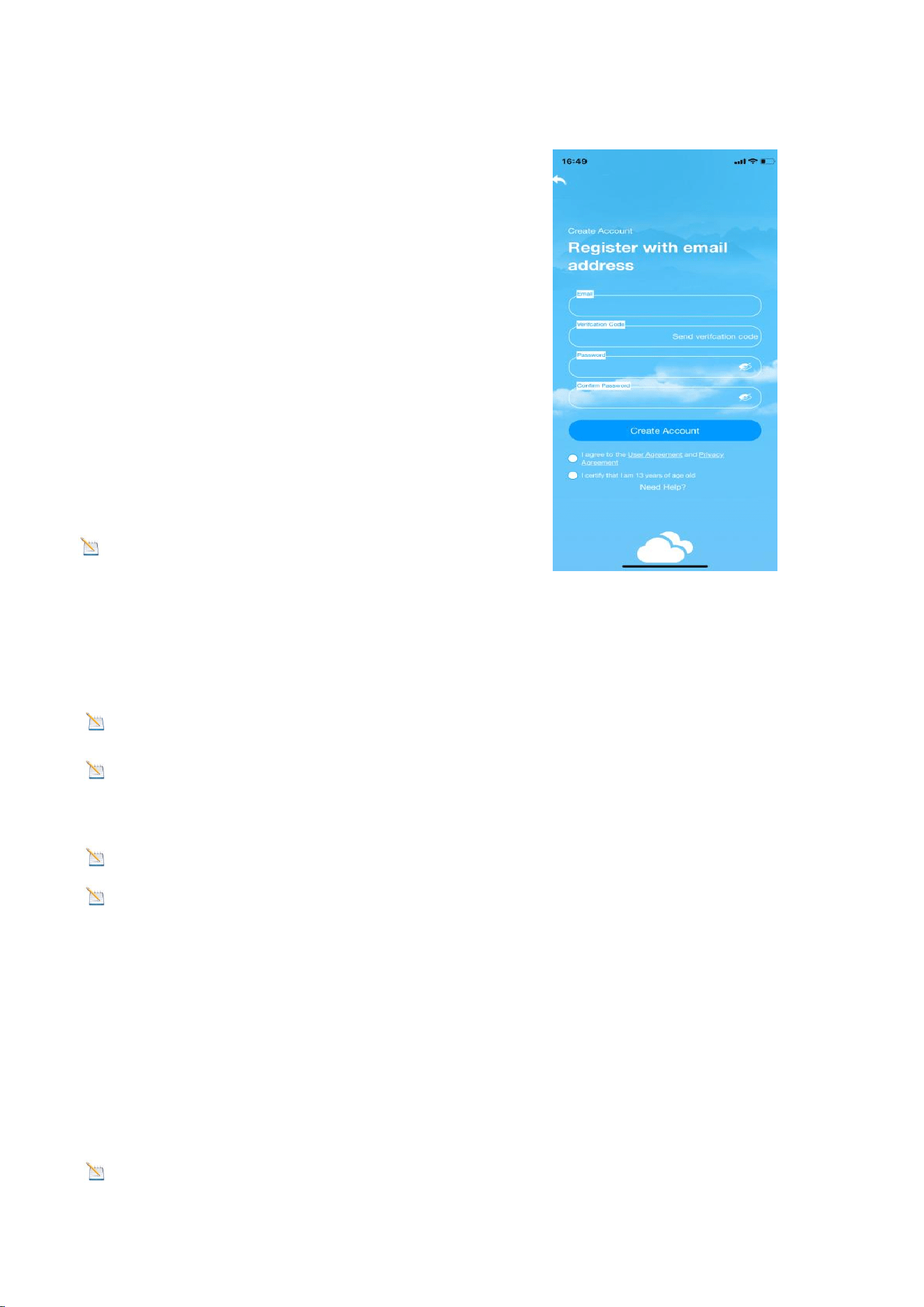

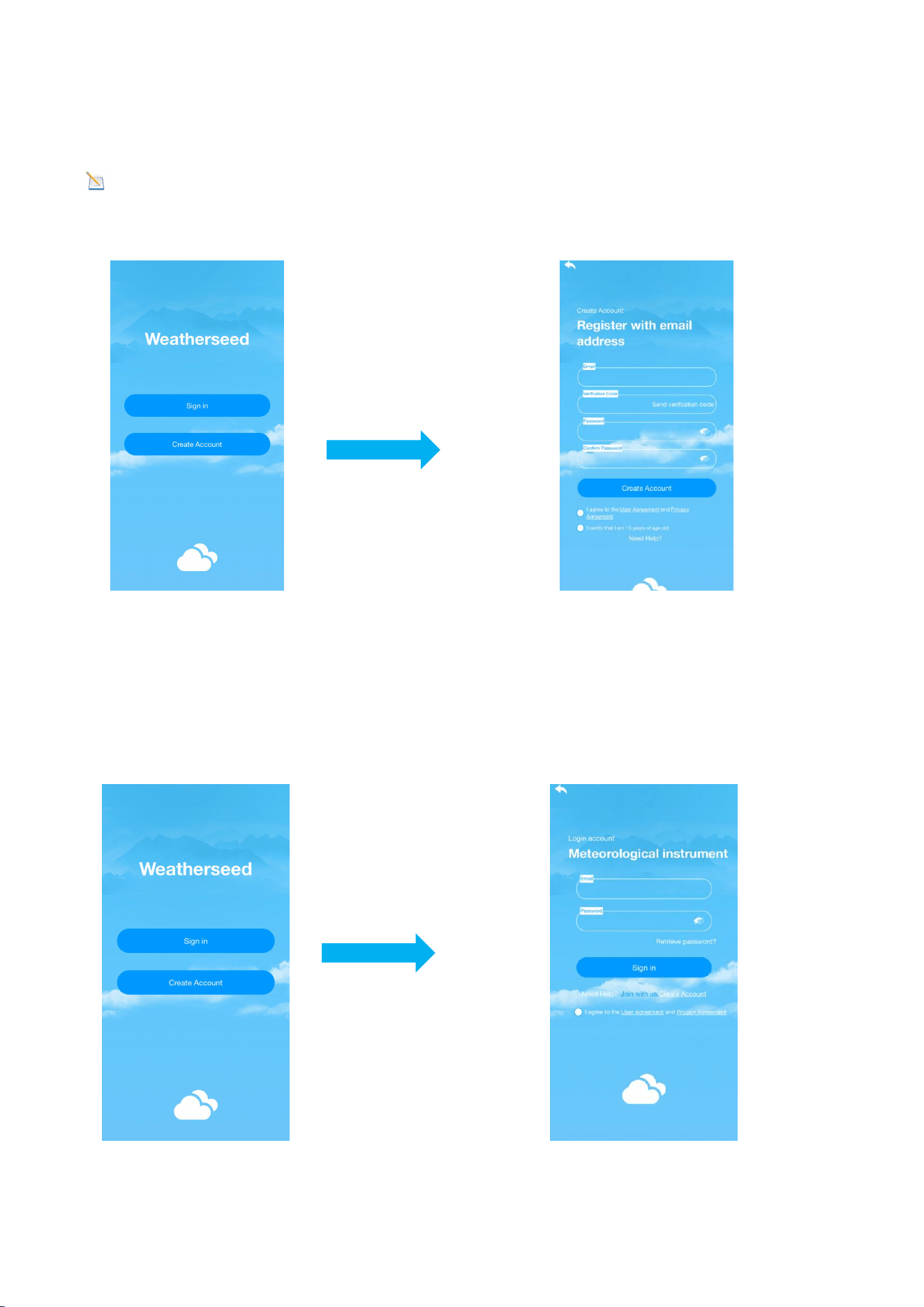

Register and login to your own
Weatherseed account:
(1) Fill in the e-mail address;
(2)Send a verification code to the e-mail
address and enter the code;
(3) Set a password;
(4)Confirm the password (must be
consistent with the set password);
(5)Check the user agreement and proof of
age;
(6) Register account.
Note
：
If the device is frequently offline, it must be reset. The router should always be on,
Note:
The weather station only supports 2.4 GHz signals. If you have a dual-band router (2.4
GHz and 5.0 GHz), make sure the router's 2.4 GHz band is turned on.
And separate it from the SSID of the 5.0 GHz channel for accurate connection to 2.4 GHz.
Step 4：
Please search "Weatherseed” APP in
Google Play Store or IOS App Store.
3
it will show offline after no WiFi.
1. Bluetooth Distribution Network Mode(Recommend)
Please press and hold the “Internet” button for 3 seconds, the device will enter the network mode.
By default, the first network mode is “Bluetooth distribution network” mode, the indicator light
(green) blinks about 0.5s kind of blinking once.

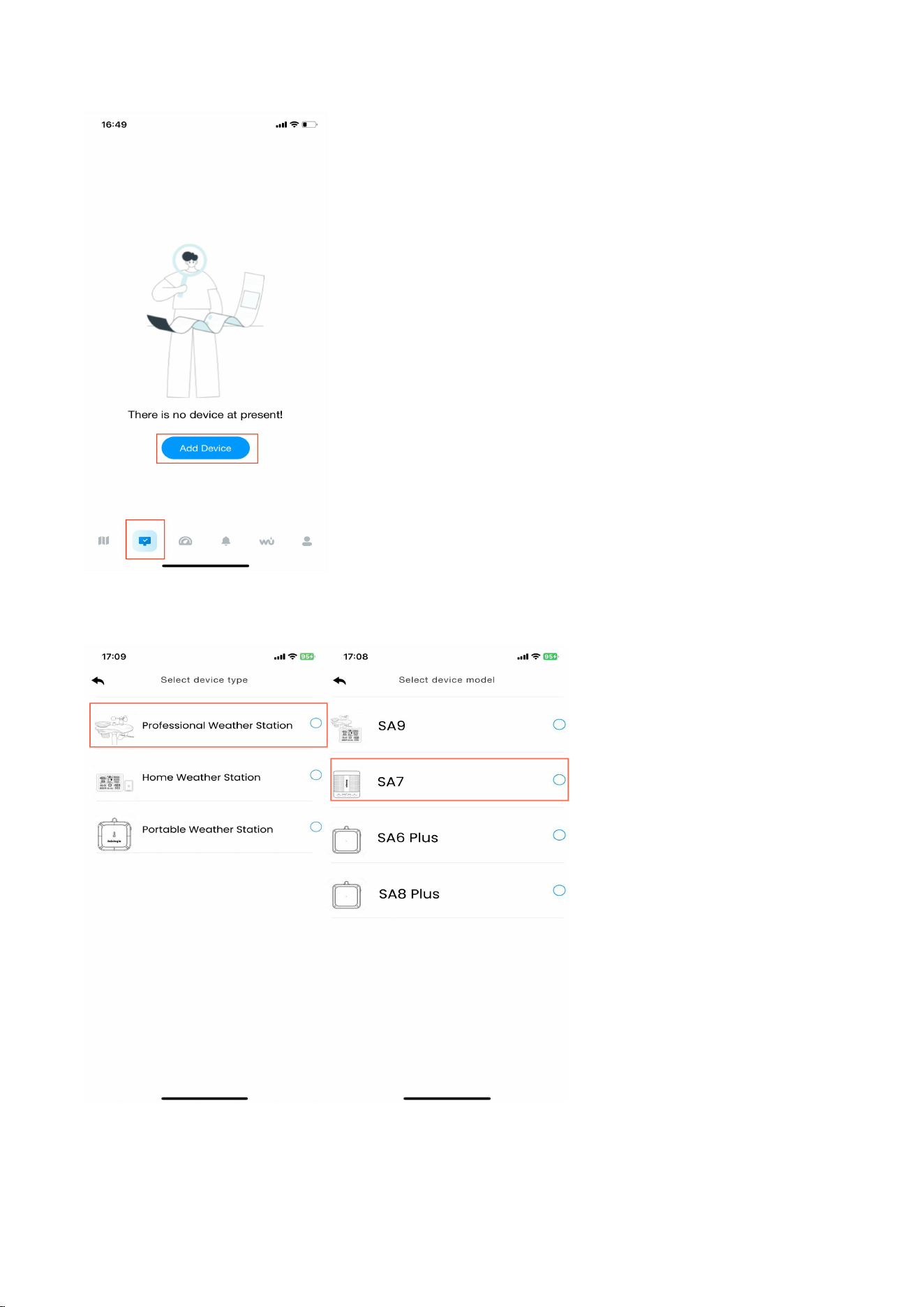

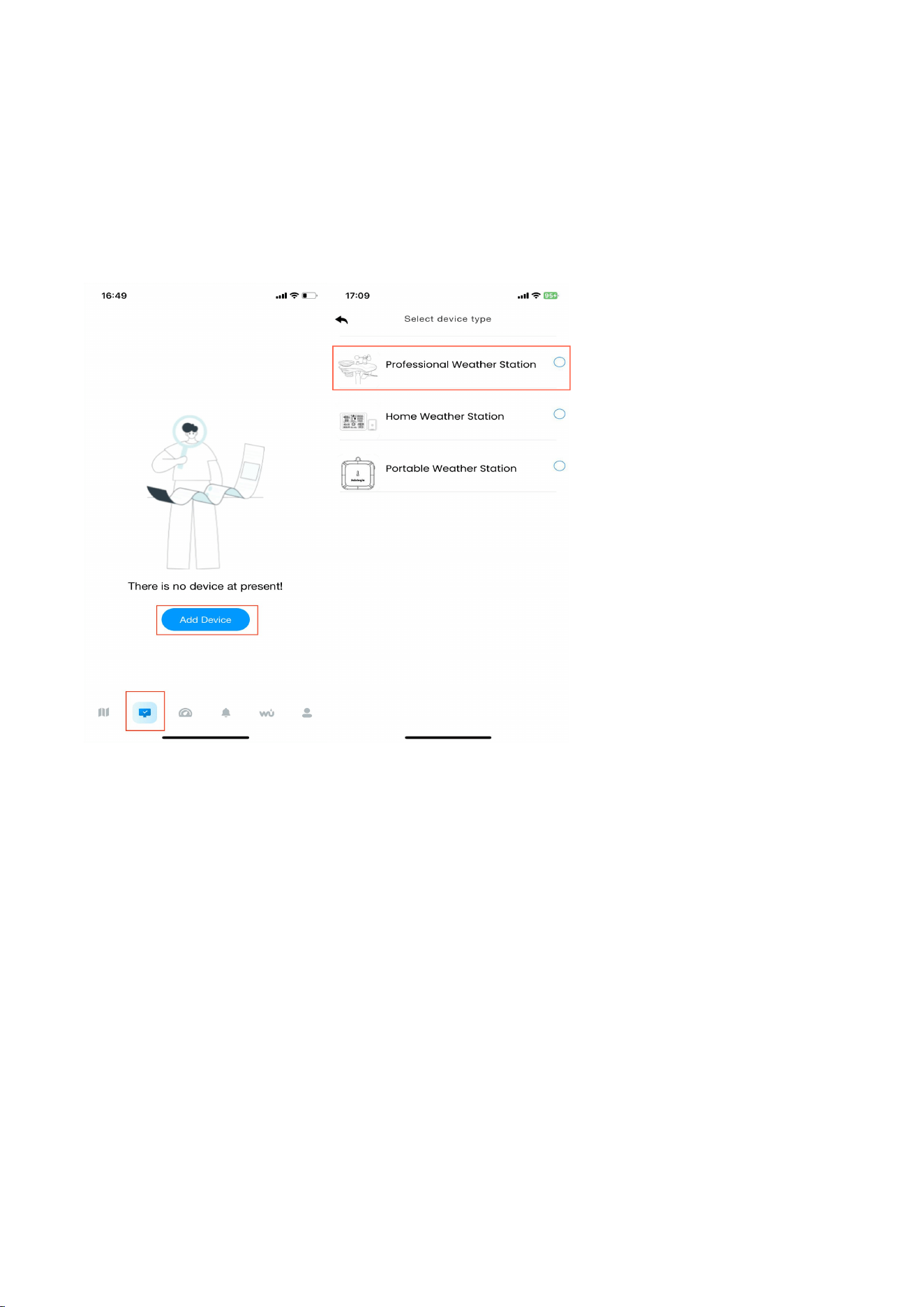

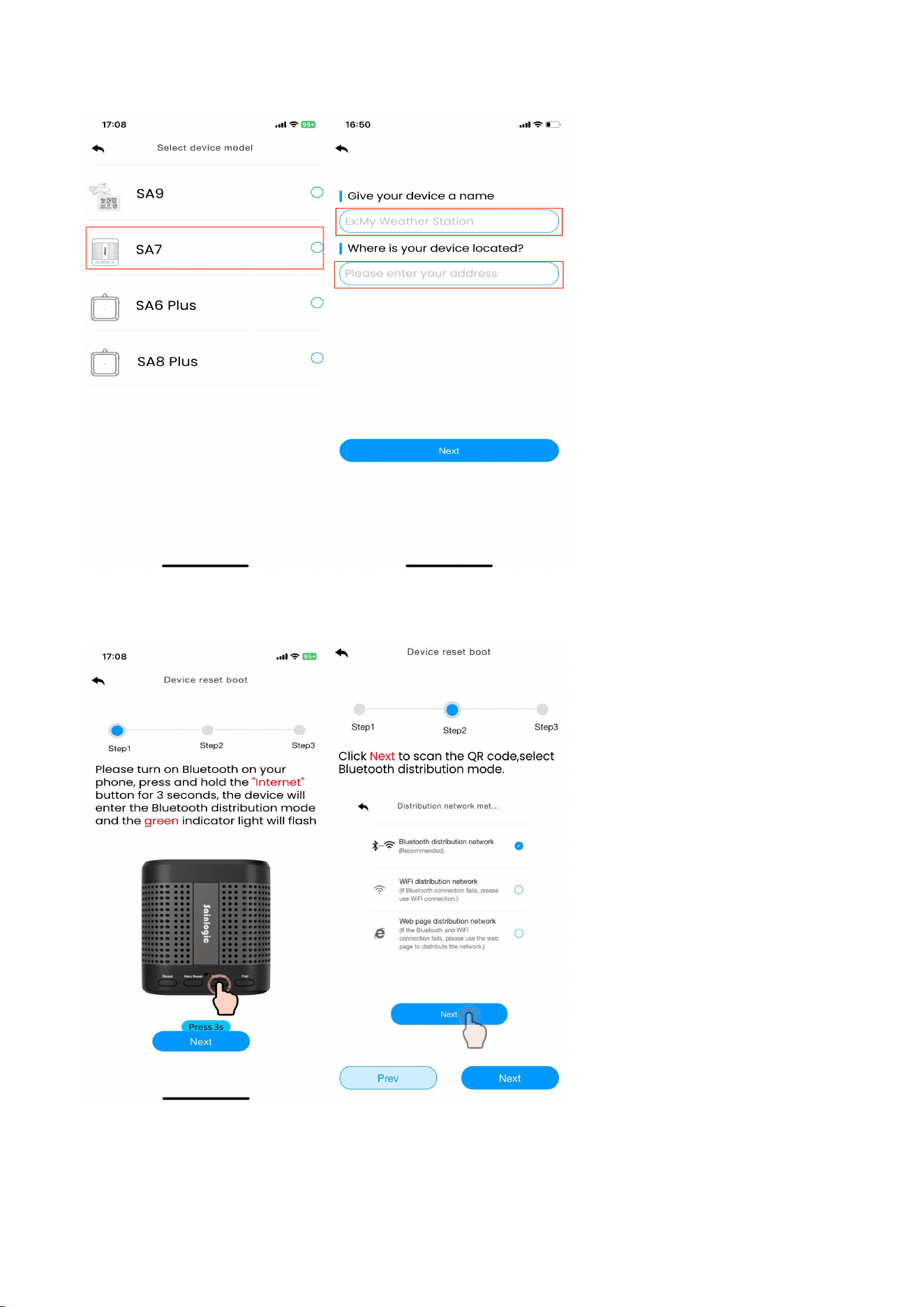

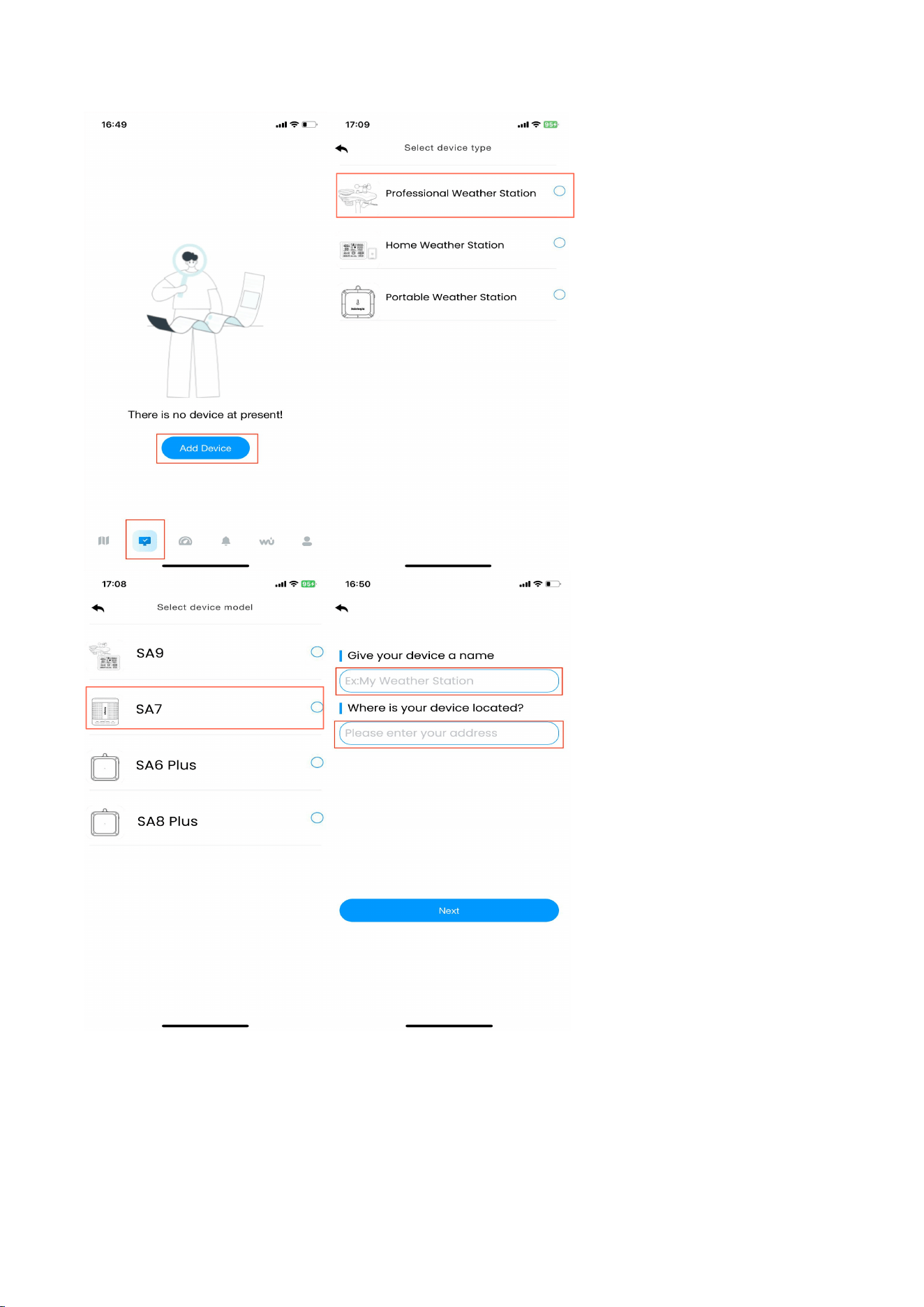

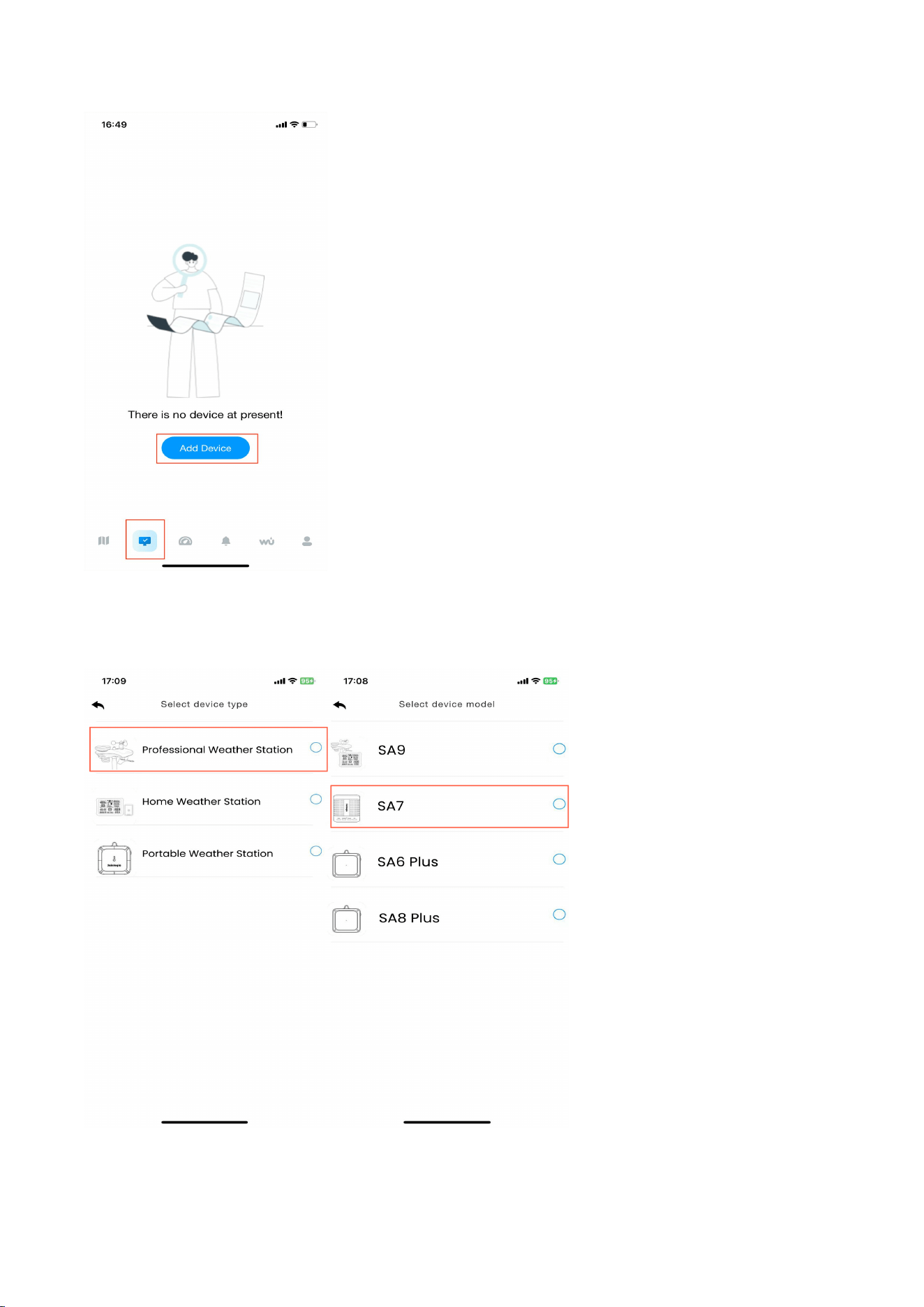

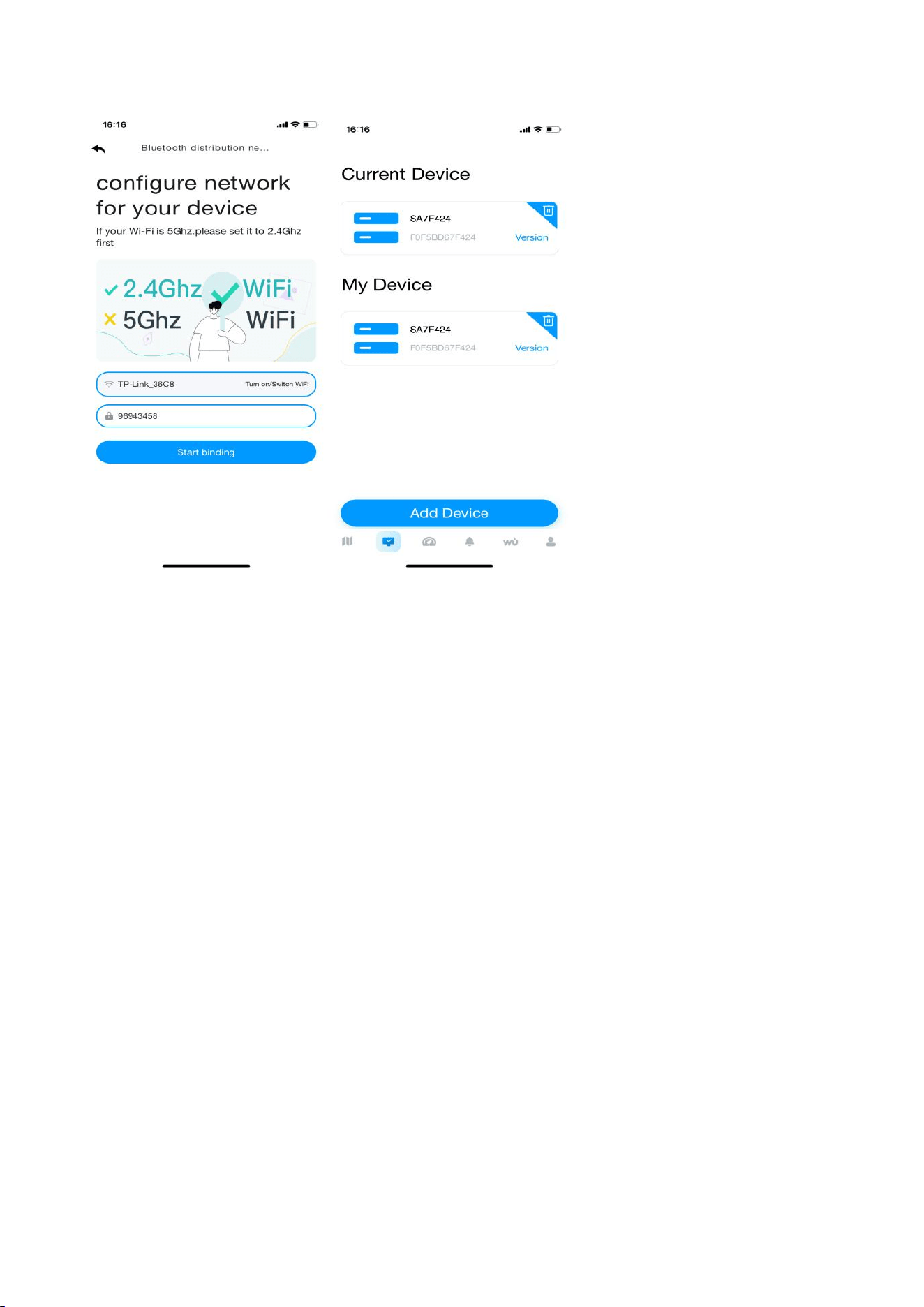

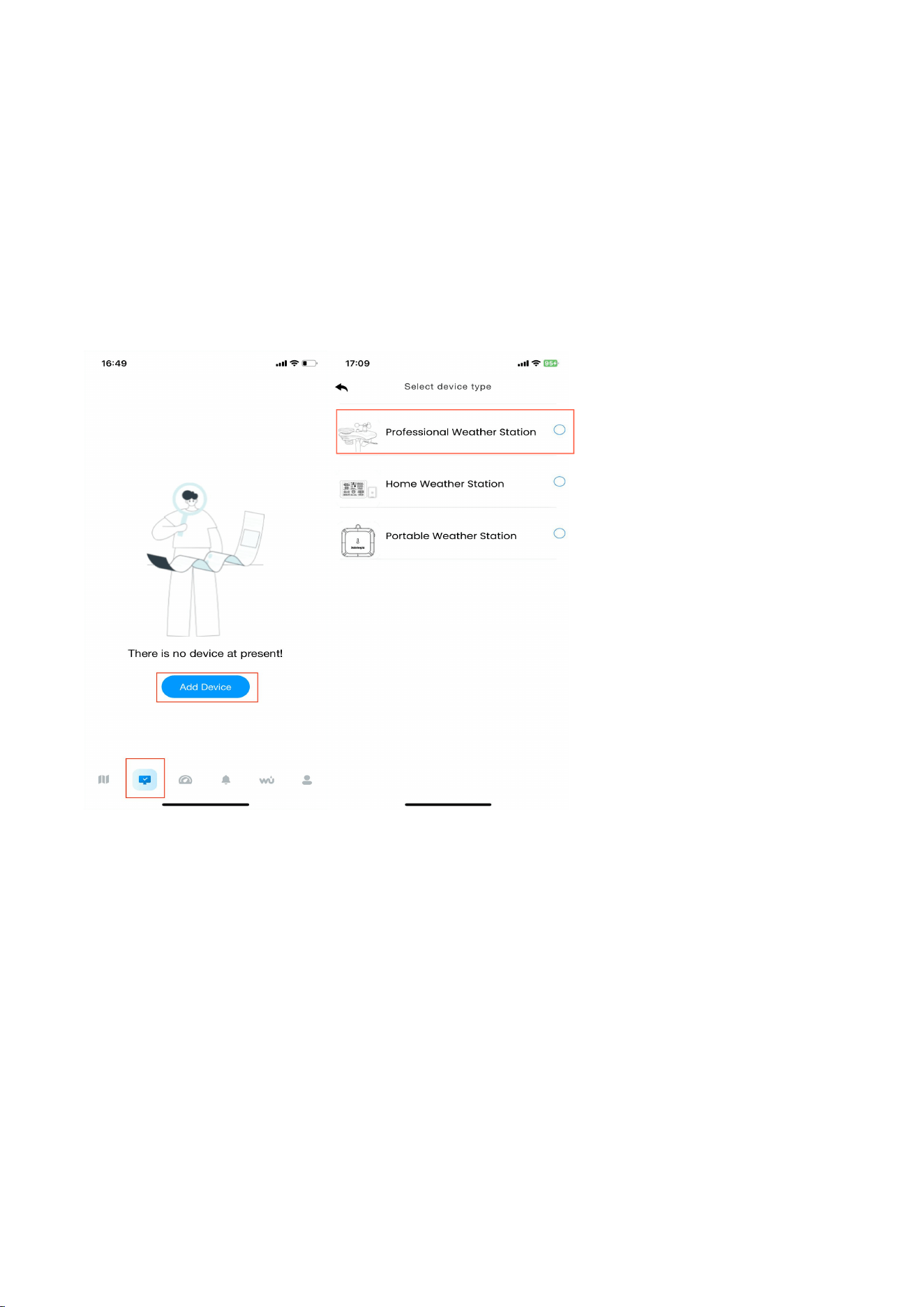

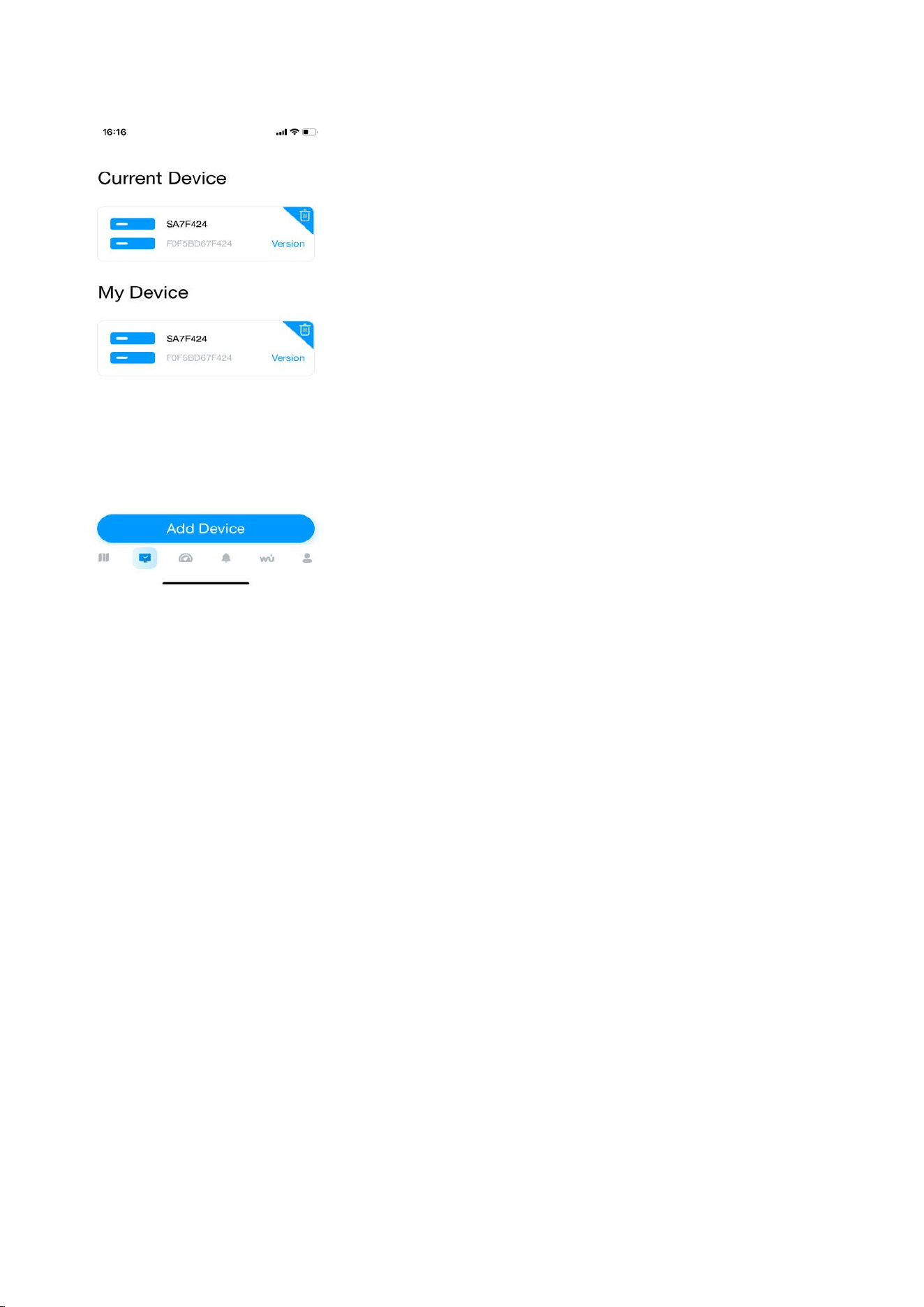

(1) Select product model. Set the name and location by yourself;
4

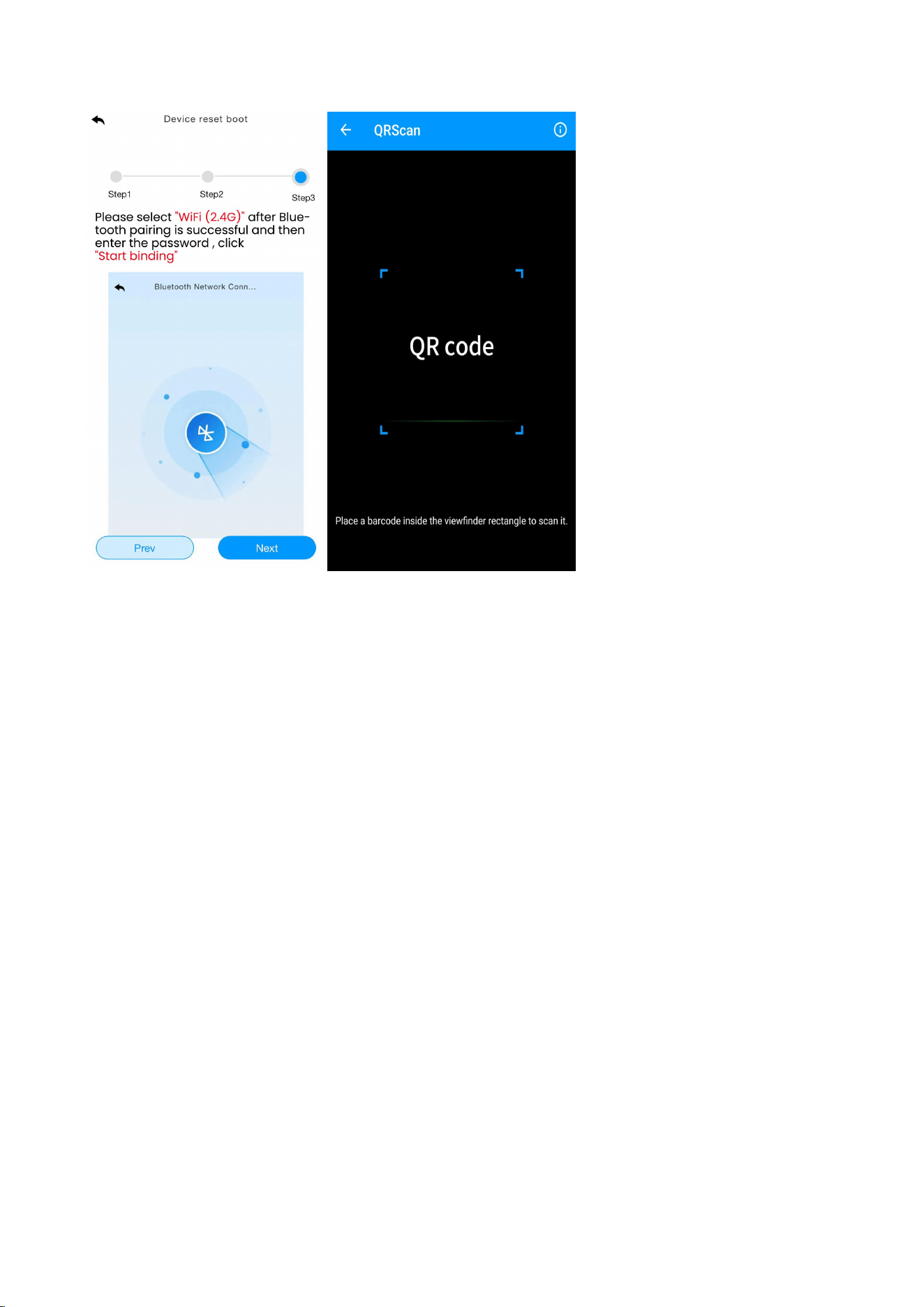

(2) Follow steps 1 through 3 for WiFi connectivity, scan the QR code and then select the distribution
method.
5

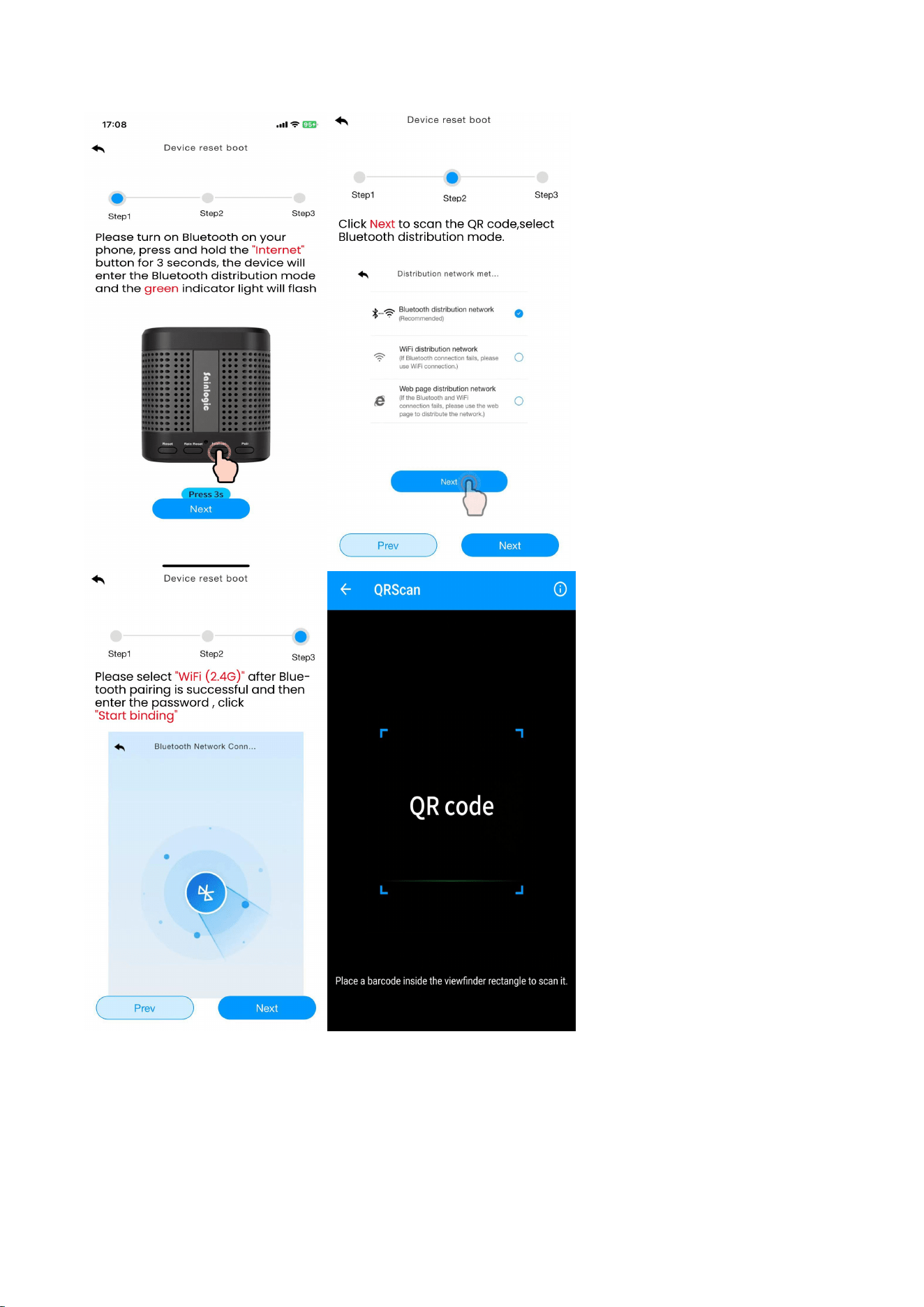

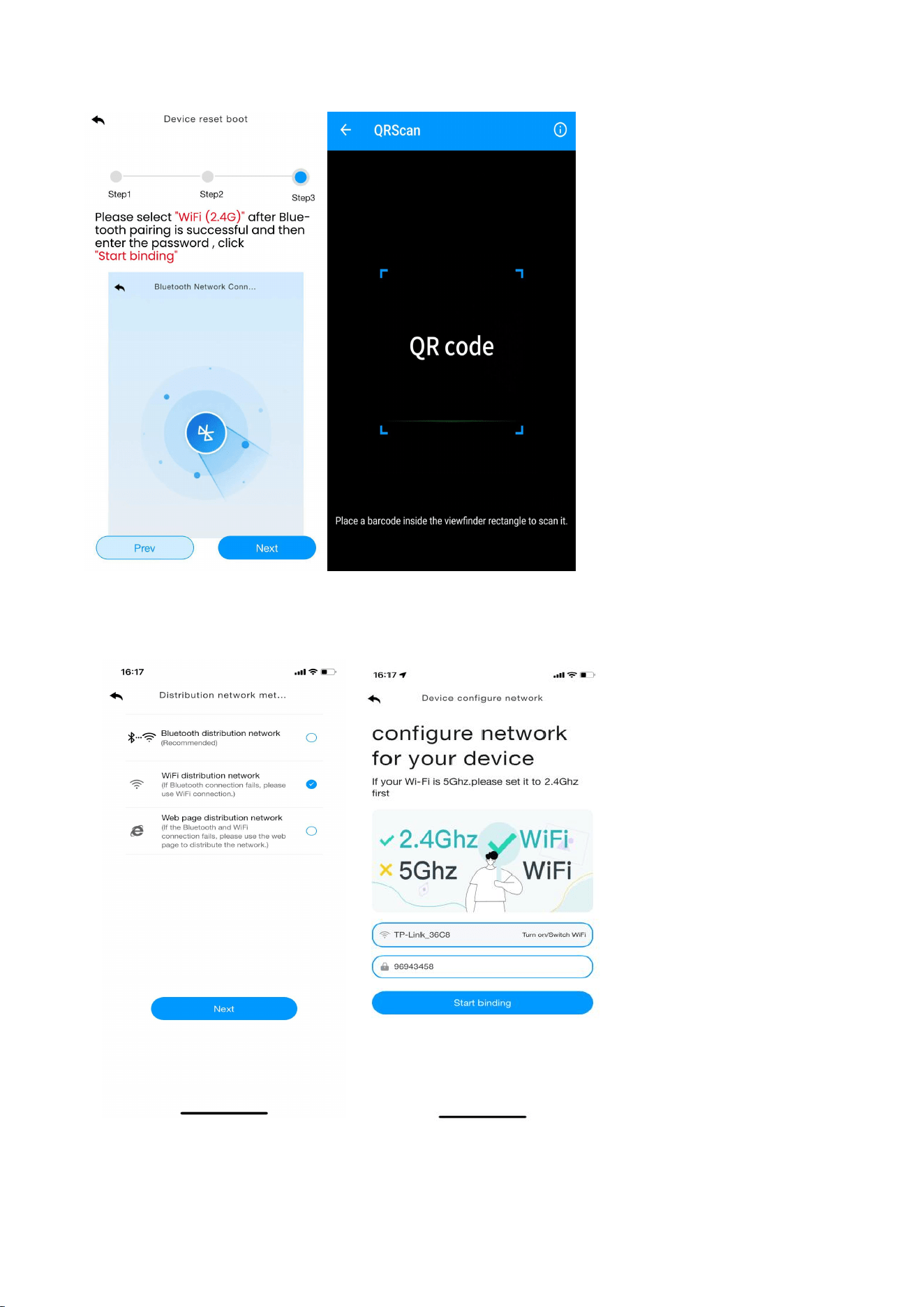

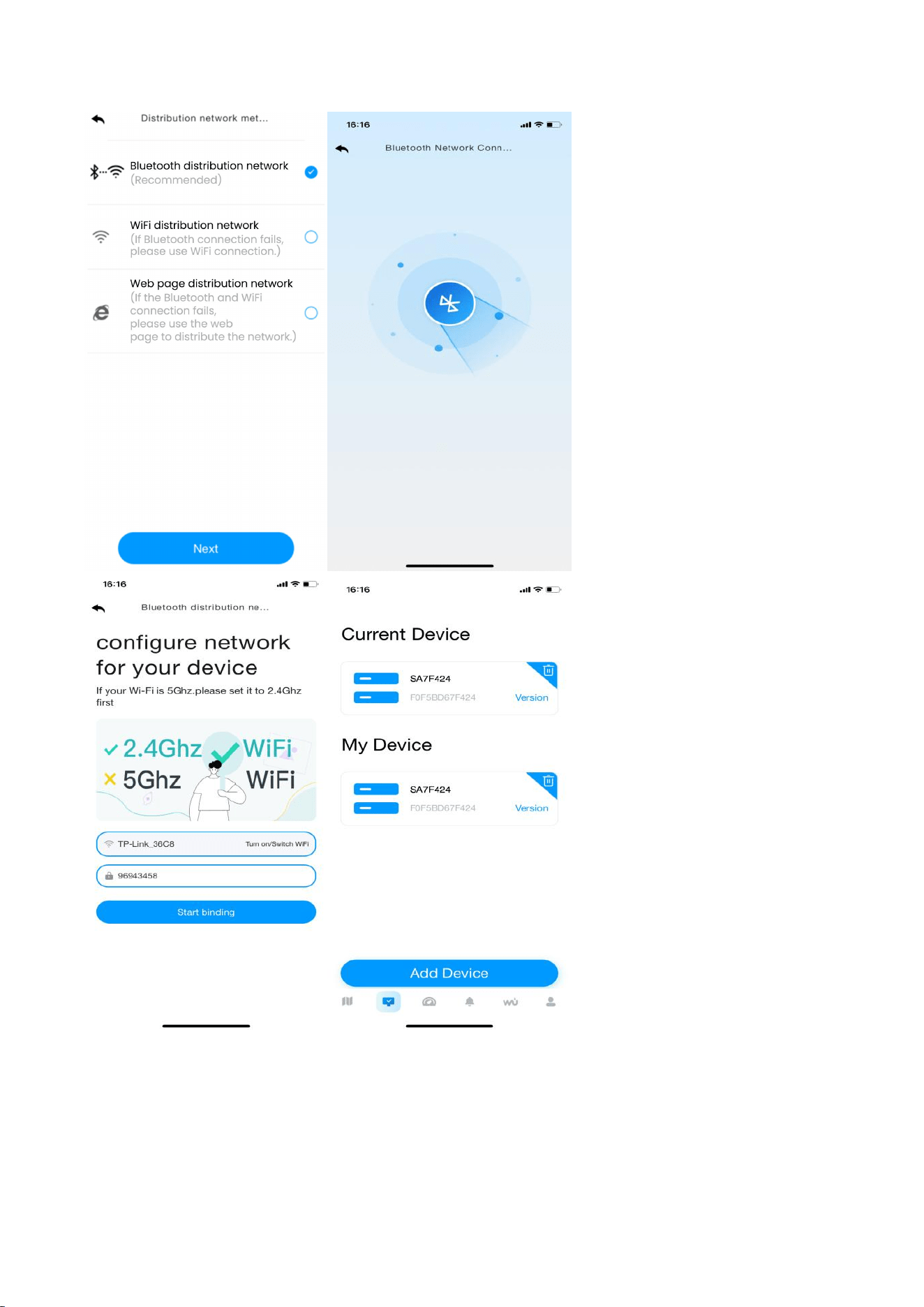

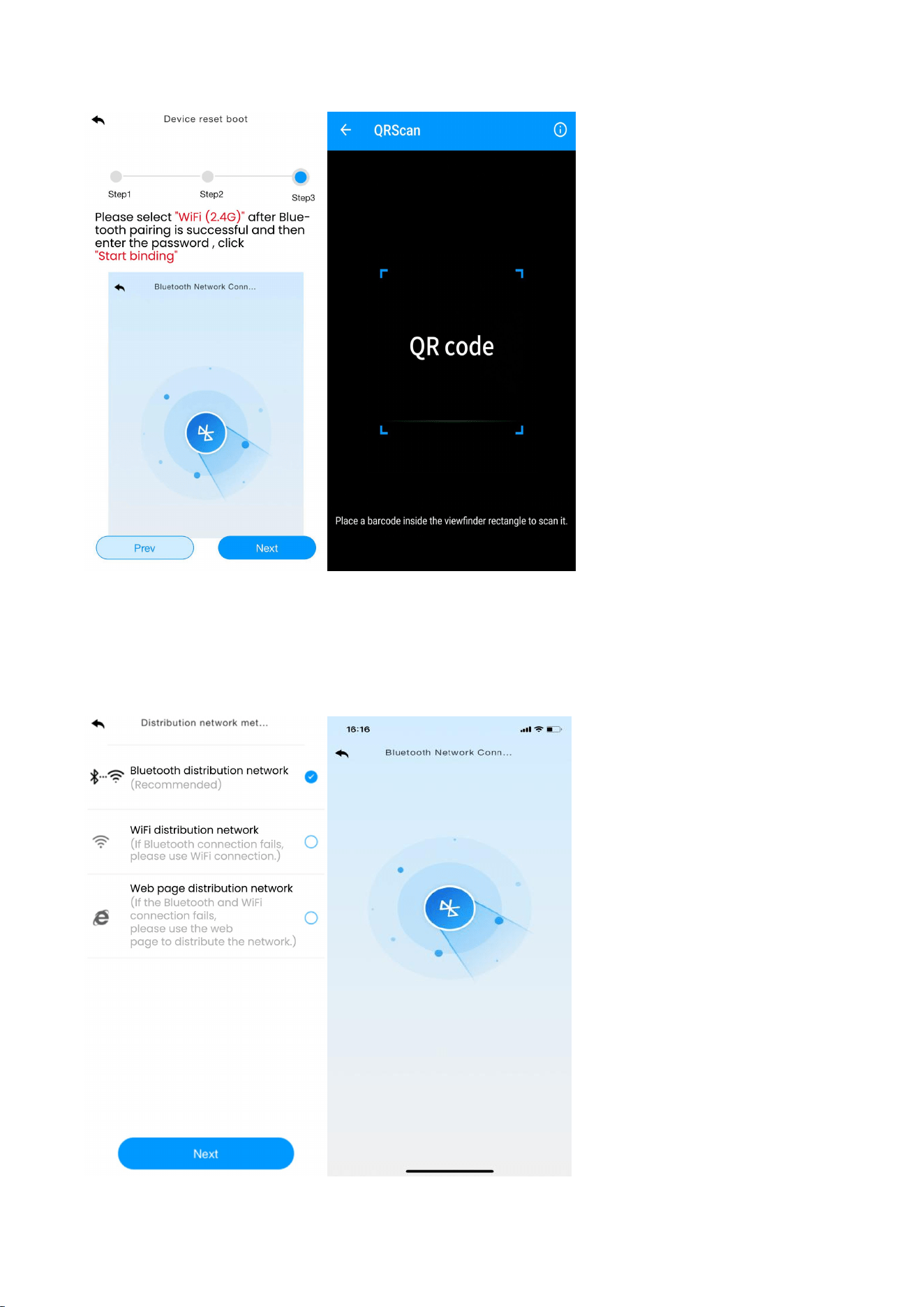

(3) Select the “Bluetooth distribution network" to automatically search for Bluetooth signals
and pairing. After successful pairing, jump to WiFi interface. Please select 2.4Ghz WiFi and
enter the password.
6
2. WiFi Distribution Network Mode
Please press and hold the “Internet” button, the device will enter the “Bluetooth distribution
network” mode. Then please long press the the “Internet” button again for at least 3 seconds, the
7
device will enter “WiFi distribution network” mode, the indicator light (green) will blink once in 1s.
After the gateway enters the “WiFi distribution network” mode, please open the APP to start
networking:

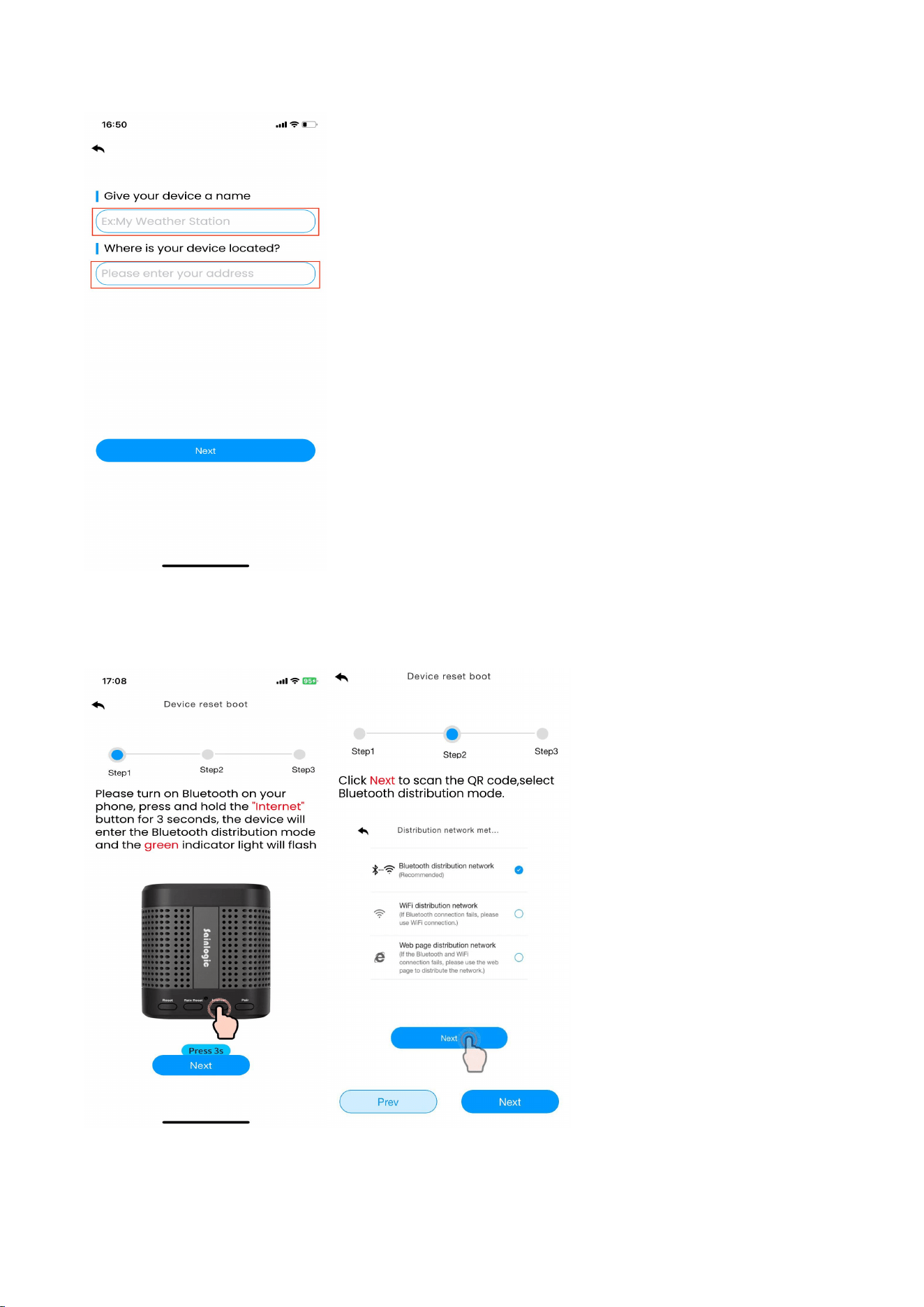

(1)Select product model. Set the name and location by yourself;
8
(2) Follow steps 1 through 3 for WiFi connectivity, scan the QR code and then select the distribution
method.
9

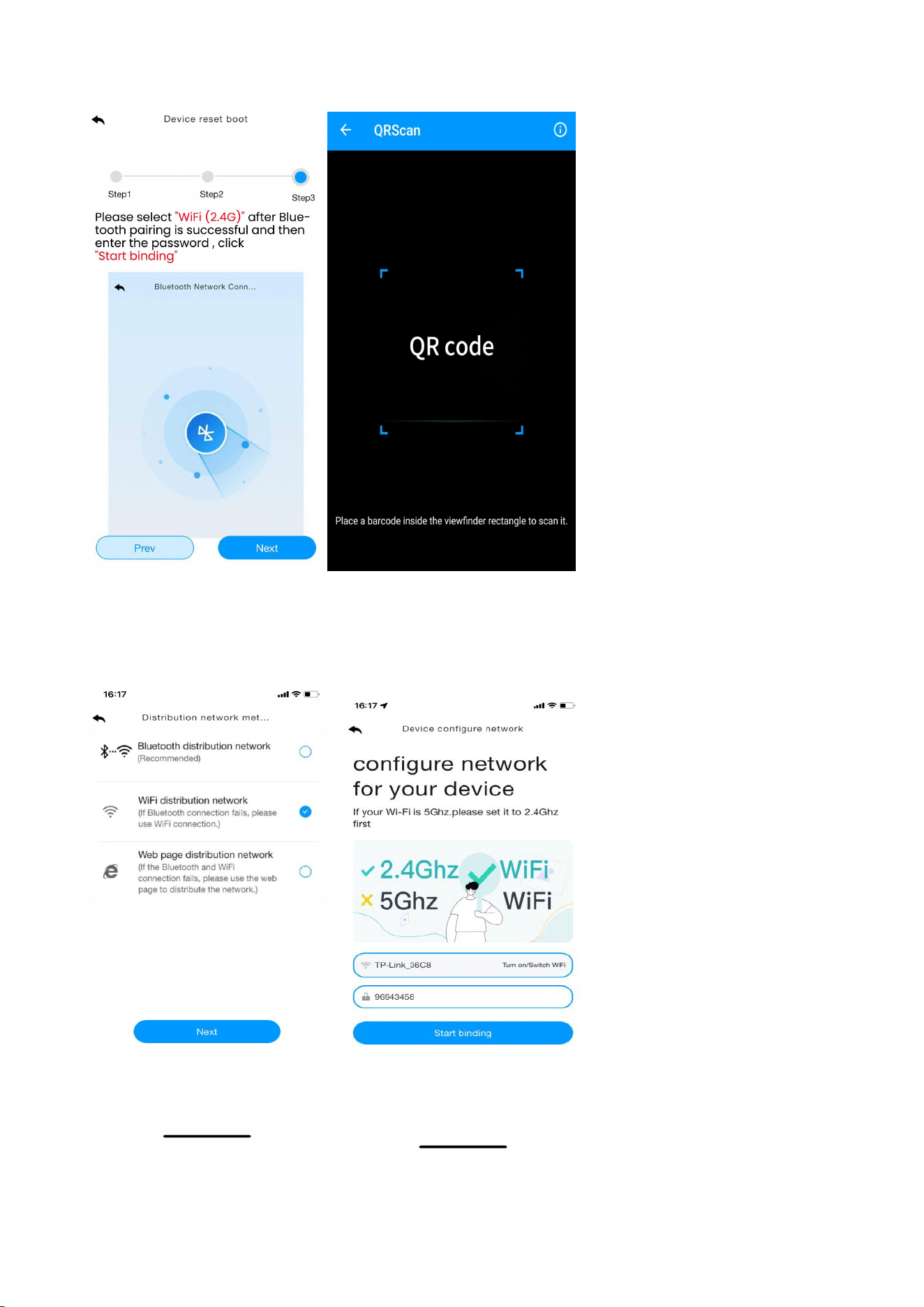

(3) Choose the “WiFi distribution network“ mode, select the router WiFi name (2.4Ghz), then
enter the password and click “Next ”.
10
3.Web page distribution network mode
Please press and hold the “Internet” button to enter the distribution network mode, the device will
enter “Bluetooth distribution network” mode. Then please long press the “Internet” button again
for at least 3s, the device will enter “WiFi distribution network” mode. In “WiFi distribution network”
mode, press and hold again for 3s to enter the “Web page distribution network” mode, the
indicator light (green) will blink once in 2s.
After the gateway enters the “Web page distribution network” mode, please open the APP to start
networking:
(1) Select product model. Set the name and location by yourself;
11
(2) Follow steps 1 through 3 for WiFi connectivity, scan the QR code and then select the distribution
method.
12

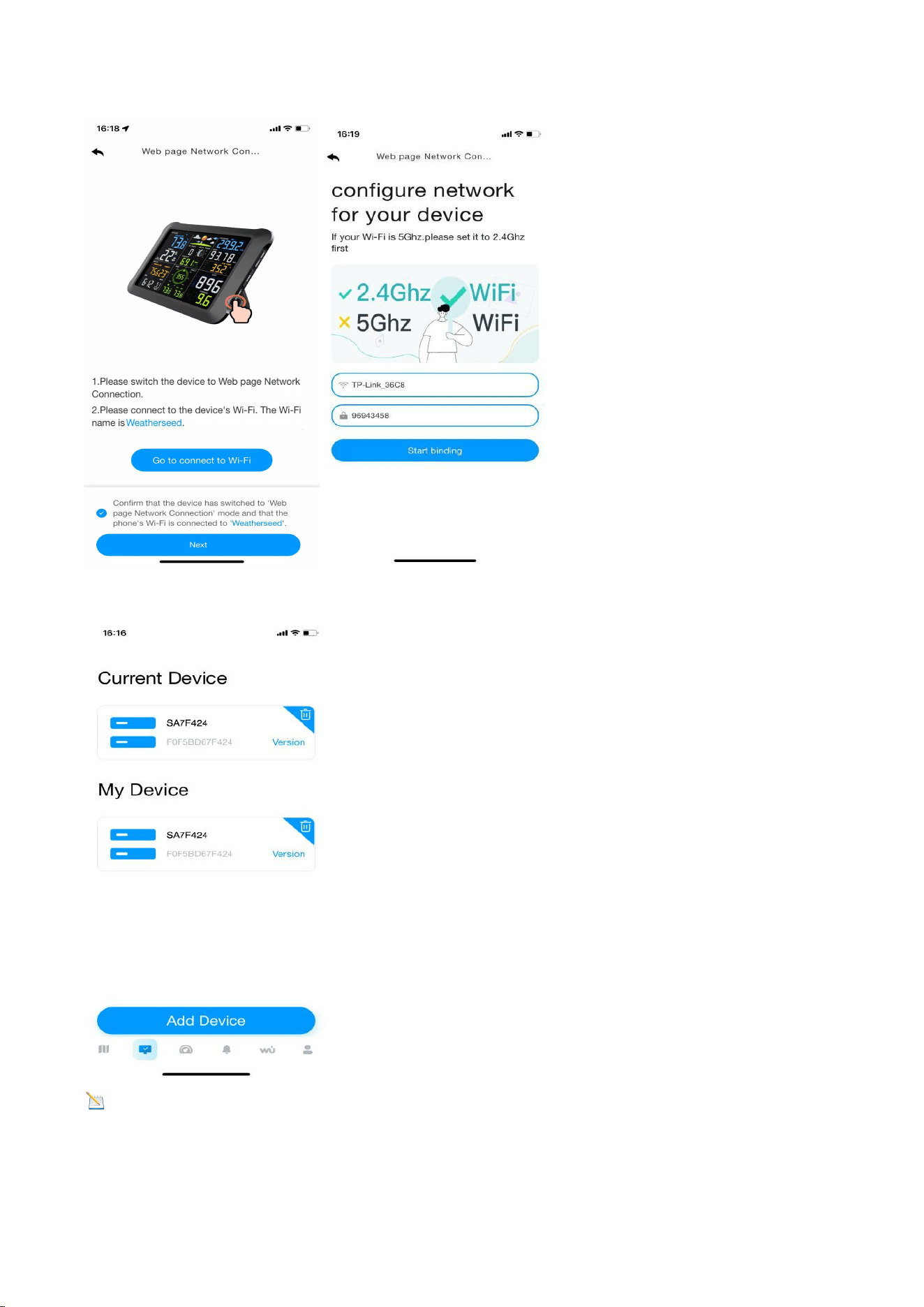

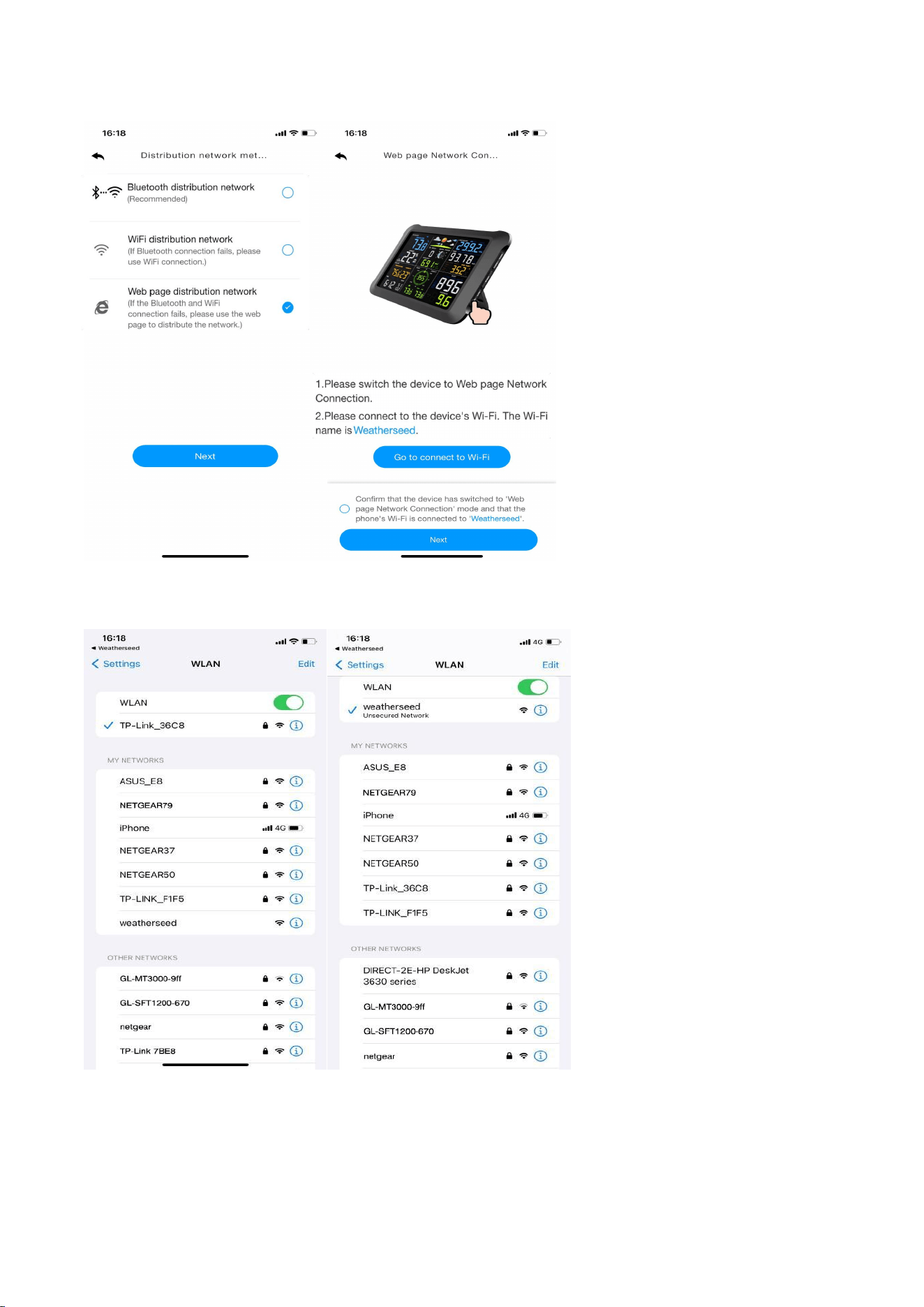

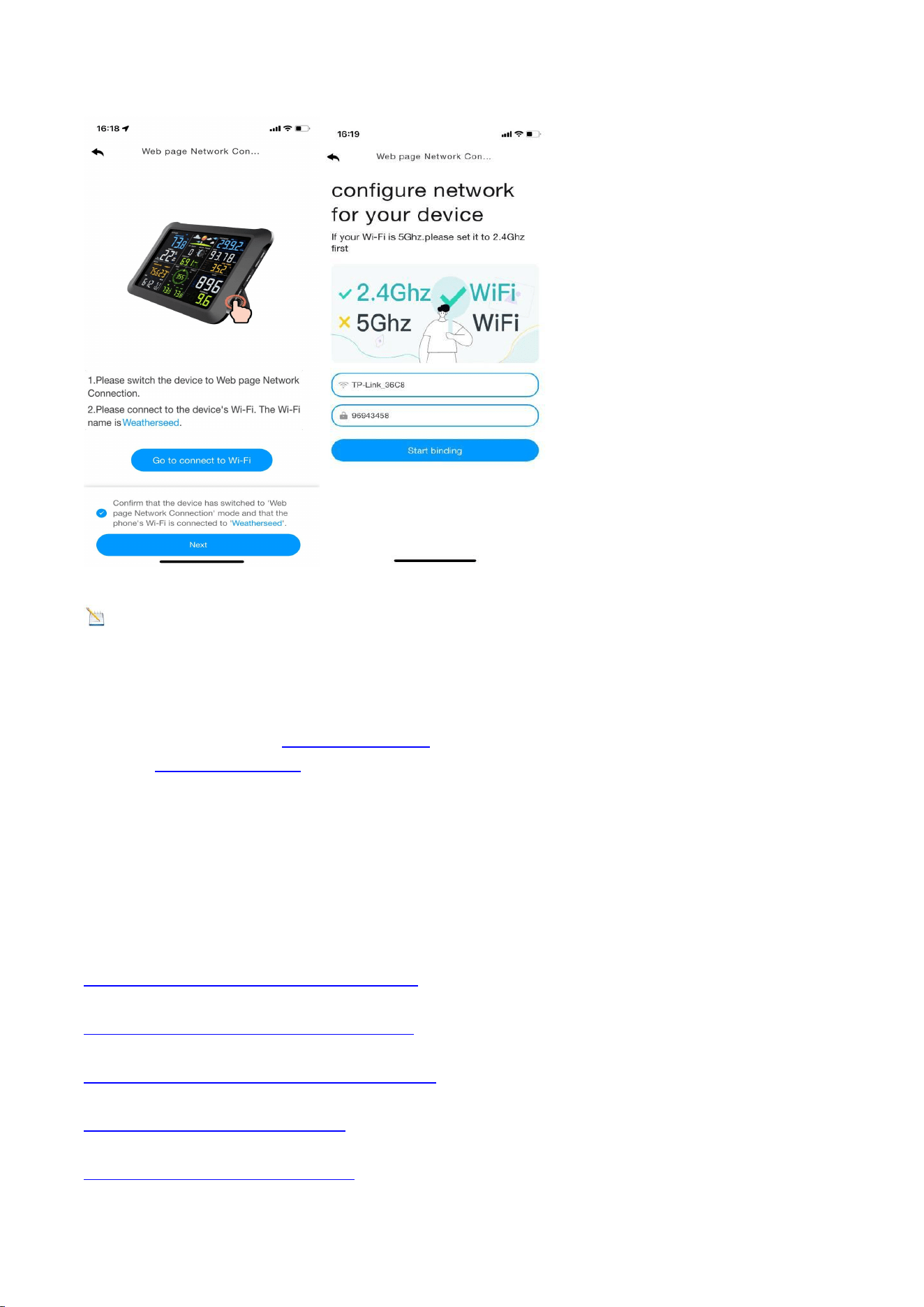

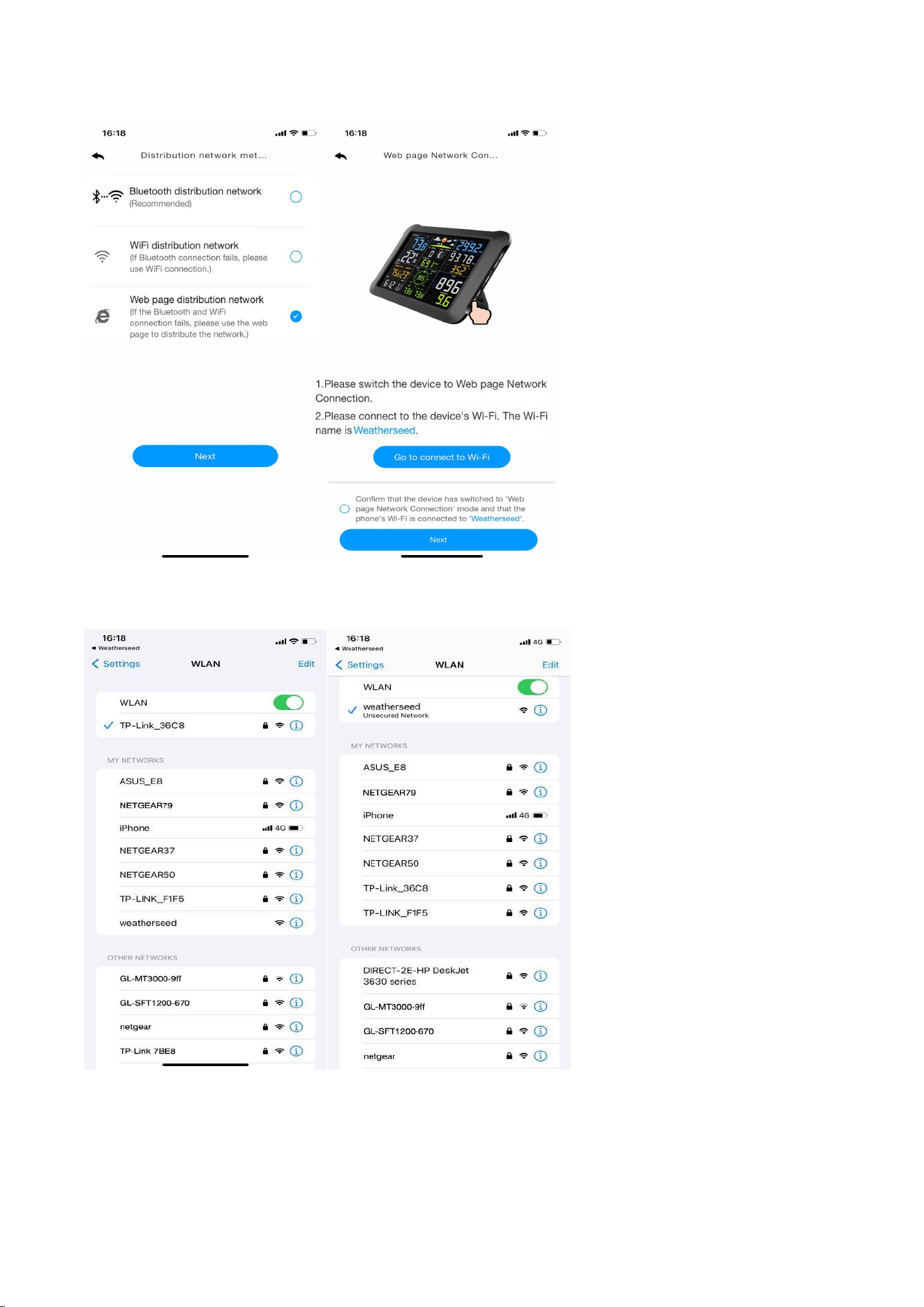

(3)Choose the " Web page distribution network" mode. Click Go to connect to WiFi.
Automatically jump to the WiFi list screen, click Connect " weatherseed " WiFi.
13
(4) Return to the app, click the confirmation dot and click "Next". Please select 2.4Ghz
WiFi, enter the password and click "Connect".
14
Note: Android system can select WiFi. IOS system needs to manually enter the WiFi name.
If you have any questions, please feel free to contact us. You can reach us via Customer Support
Email, Customer Support phone,or social media accounts.
Customer Support Email：info@sainlogic.com
Website: www.sainlogic.com
Customer Support Phone: +1 (888) 513-9823 (Mon-Fri 10 a.m. - 6 p.m, Eastern Standard Time)
If you need to register or apply for a warranty, please contact us by Customer Support.
Website：https://www.sainlogicwarranty.com/
YouTube:
https://www.youtube.com/@sainlogicbrand
Facebook:
https://www.facebook.com/sainlogicofficial
Instagram:
https://www.instagram.com/sainlogic_official/
Twitter:
https://twitter.com/sainlogicbrand
TikTok:
https://www.tiktok.com/@sainlogic
ACTIVATE WARRANTY AND CLAIM THE
1-YEAR FREE EXTENSION
Activate within 14 days by visiting:
WWW.SAINLOGICWARRANTY.COM
Have questions?
Reach us at:
sainlogicwarranty0[email protected]
1
Sainlogic SA7 Weather Station User Manual
Content
1.Introduction........................................................................................................................................ 3
2.Warning and Cautions .........................................................................................................................3
3.Quick Start Guide ................................................................................................................................ 3
4.Assembly of sensor arrays .................................................................................................................. 4
4.1.Parts List ....................................................................................................................................4
4.2.Recommended tools.................................................................................................................6
4.3. Remove/Install the Wind Vane ................................................................................................ 6
4.4.Remove/Install the Wind Cup ...................................................................................................7

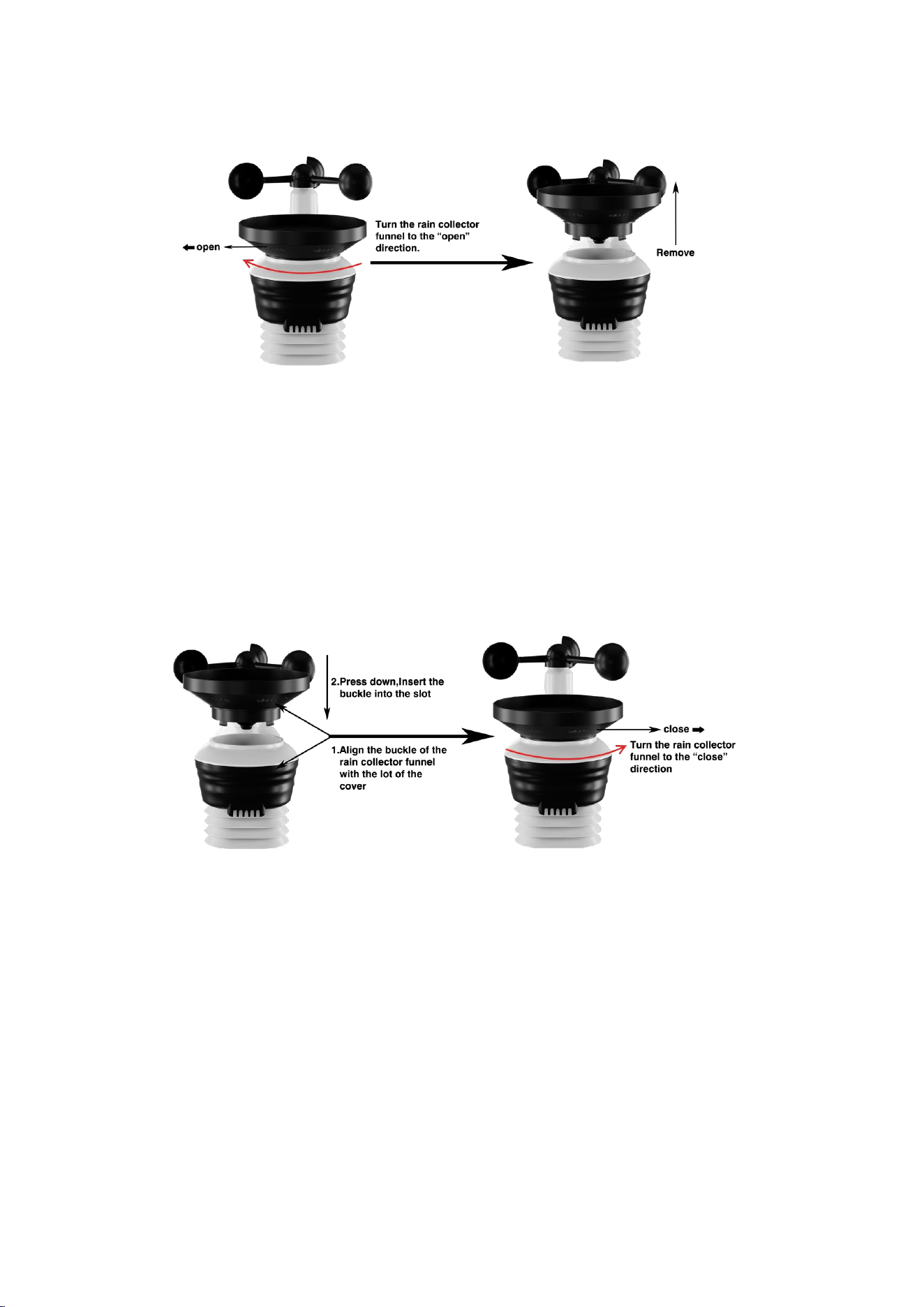

4.5.Remove/ Install the rain collector .............................................................................................7
4.6. Installation of coil filters...........................................................................................................8

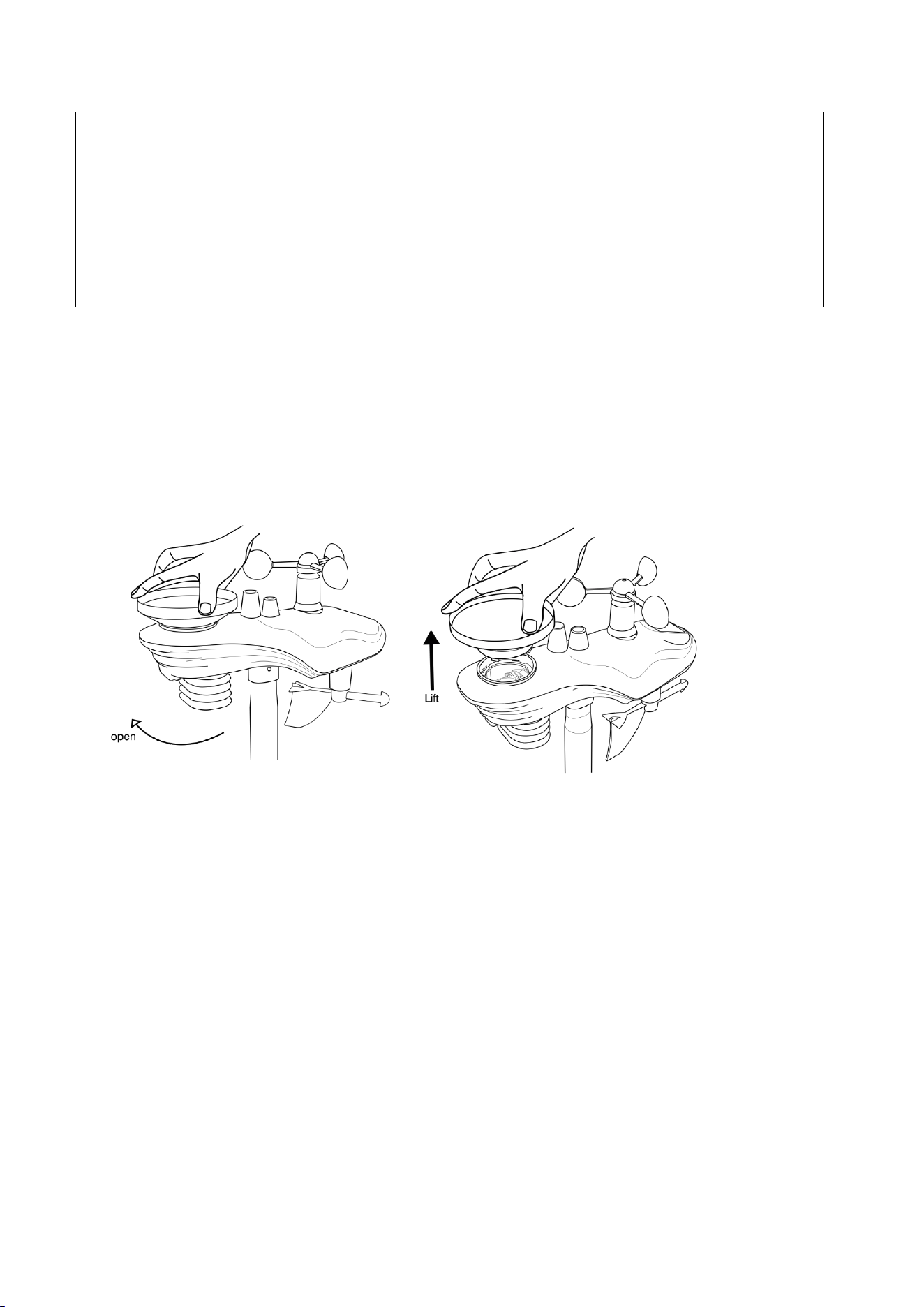

4.7.Install Battery ............................................................................................................................9
5. Installation of the Sensor Array ....................................................................................................... 11
5.1. Pre-installation Check ............................................................................................................ 11
5.2. Site Survey ..............................................................................................................................11

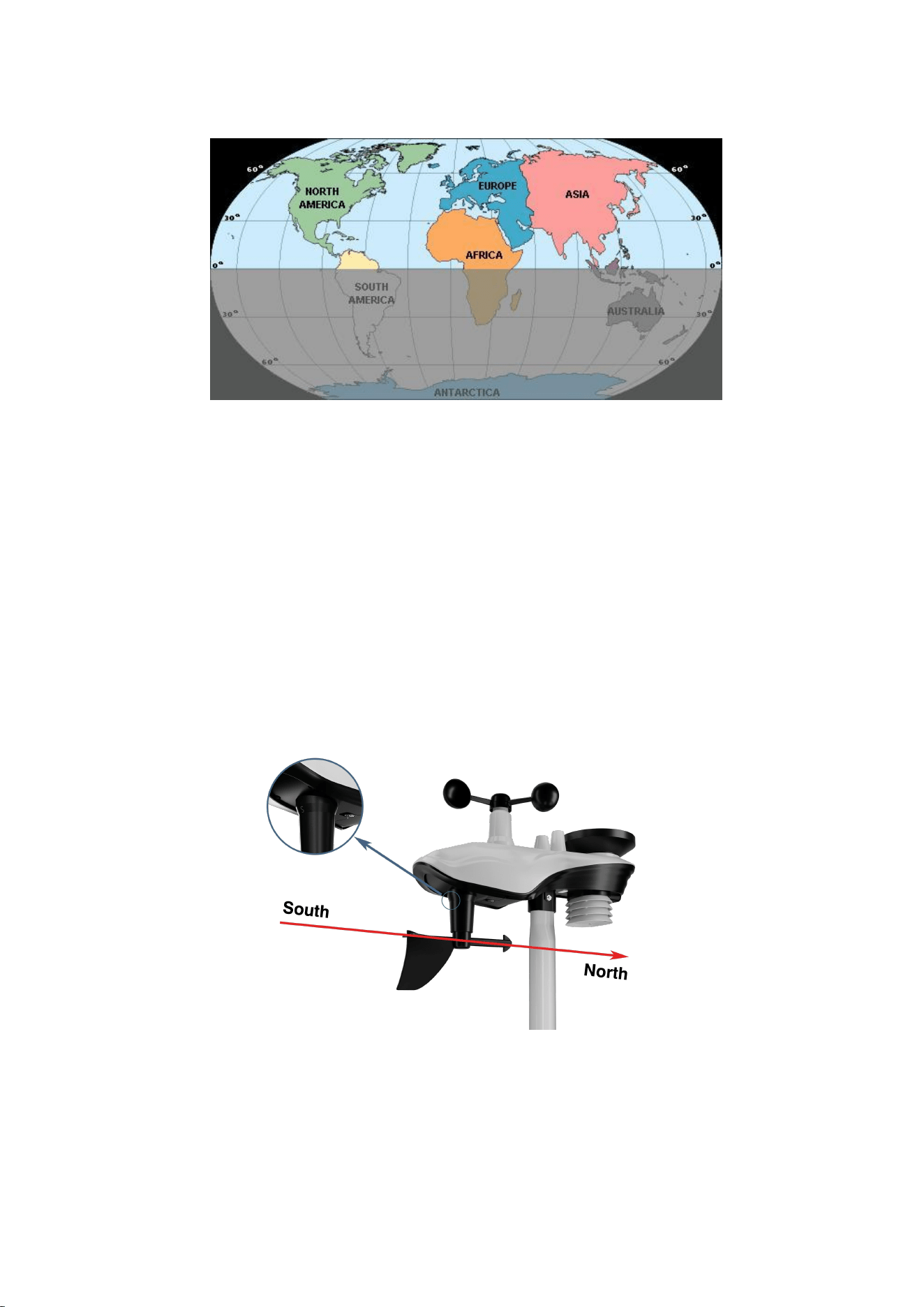

5.3.Adjusting the Sensor Mounting Direction .............................................................................. 11
5.3.1.Northern Hemisphere Reference ................................................................................. 12
5.3.2.Southern Hemisphere Reference ..................................................................................12

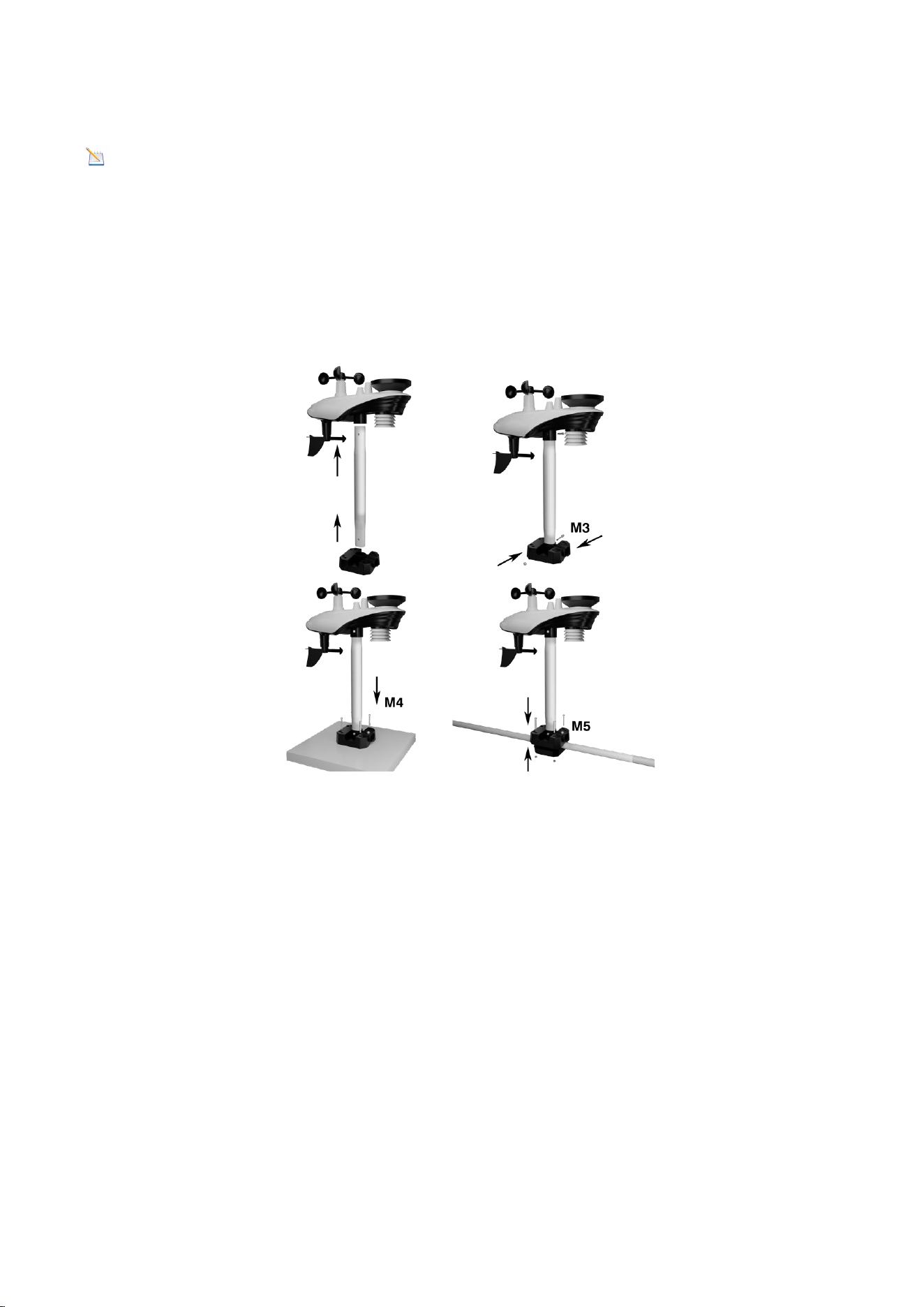

5.4.Securing the Mounting Pole................................................................................................... 13
5.4.1.Horizontal mounting and fixing sensors ....................................................................... 14
5.4.2.Vertical mounting and fixing sensors ............................................................................14
5.4.3.Best Practices for Wireless Communication .................................................................15
6.Install the gateway ............................................................................................................................ 16
6.1.Button Operation ....................................................................................................................16
7. Gateway connected to WiFi .............................................................................................................18
7.1. Real-time Network Monitoring ..............................................................................................18
7.2.APP Download ........................................................................................................................ 18
7.3.APP Account Register and Login ............................................................................................. 18
7.3.1. Registering Process...................................................................................................... 18
7.3.2. Login process ............................................................................................................... 19
7.4. Connecting Steps ................................................................................................................... 20
7.4.1 Bluetooth Distribution Network Mode .........................................................................20
7.4.2. Wifi Distribution Network Mode ................................................................................. 24
7.4.3. Web page distribution network mode .........................................................................28
7.5.Firmware Upgrade .................................................................................................................. 33
7.6. Sign up on Wunderground.com .............................................................................................34
8. Time Zone ........................................................................................................................................ 36
9.Data Discussion .................................................................................................................................37
10. Feels Like Temperatures.................................................................................................................40
11.Glossary of Terms ............................................................................................................................41
2
12.Specifications.................................................................................................................................. 42
12.1. Wireless specifications .........................................................................................................42
12.2. Measurement Specifications............................................................................................... 42
12.3. Power Consumption............................................................................................................ 43
13. Maintenance ..................................................................................................................................44
14. Troubleshooting Guide ...................................................................................................................45
15.Disclaimer ....................................................................................................................................... 47
16. Warranty Information.................................................................................................................... 47
17. FCC Statement................................................................................................................................48
3
1.Introduction
Thank you for purchasing the Sainlogic Professional WiFi Wireless Weather Station. The following
user guide provides detailed instructions on installation, operation and troubleshooting. This
product is constantly changing and improving, especially the online services and associated
applications.
To download the latest manuals and other help, please contact Customer Support.
Website: www.sainlogic.com
Customer Support Phone: +1 (888) 513-9823 (Mon-Fri 10 a.m. - 6 p.m, Eastern Standard Time)
2.Warning and Cautions
WARNING: Lightning strikes can be caused by any metal object, including your weather station
mounting pole. Mounting your weather station during a storm is prohibited.
WARNING: Installing a weather station in an elevated location may result in injury or death, so
perform as many preliminary checks and operations as possible on the ground and inside a building
or house.
WARNING: Install the weather station on a clear, dry day.
3.Quick Start Guide
The following Quick Start Guide provides the necessary steps to install and operate the weather
station.
1
Assembling and activating the outdoor sensor array
4-5
2
Gateway button definition
6
3
Connecting the device to Wi-Fi
7
4
Data Definition and Discussion
8-11
5
Specification
12
6
Troubleshooting
14
4
4.Assembly of sensor arrays

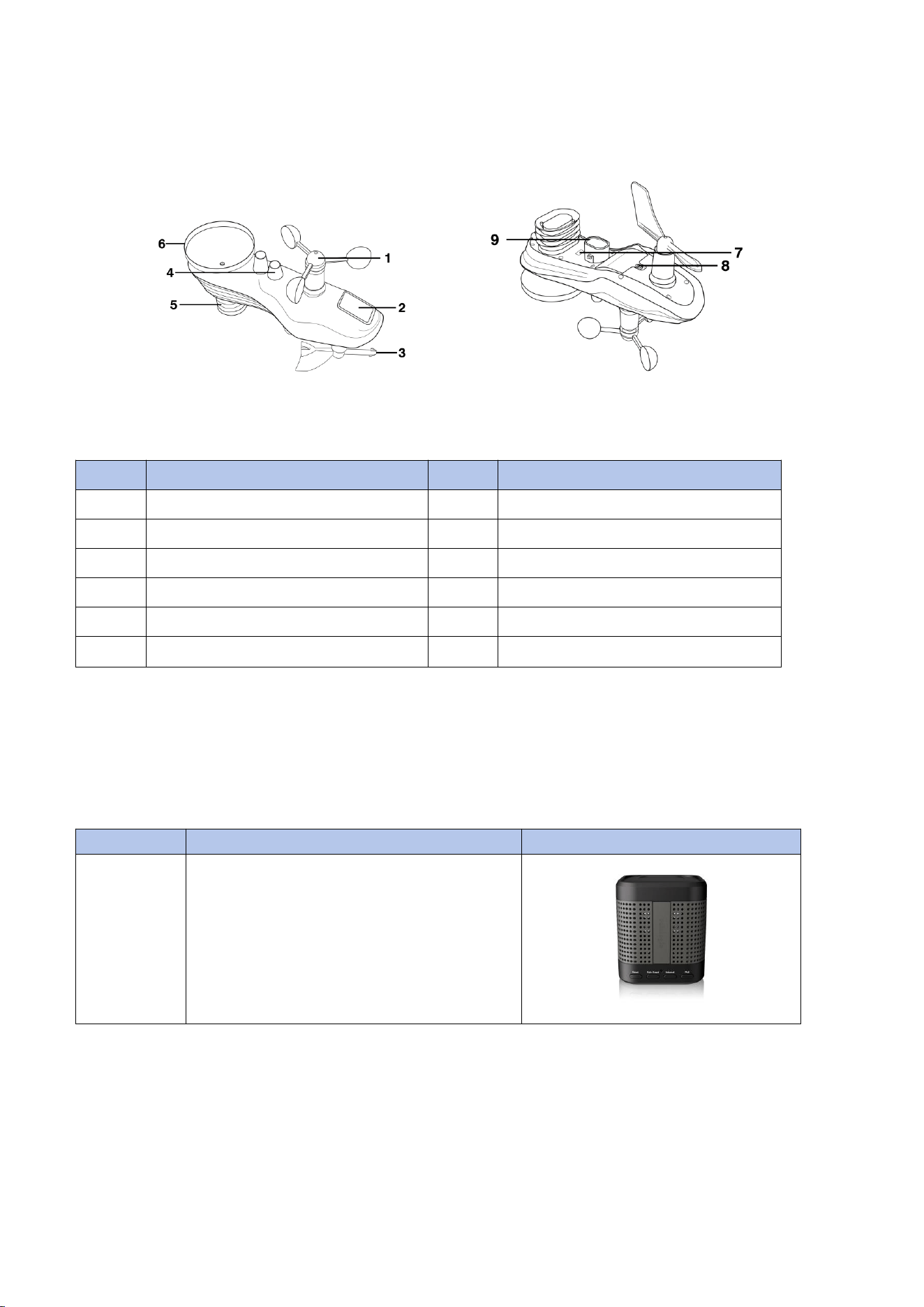

Figure 1
NO
Description
NO
Description
1
Wind Cup
7
Reset Button/LED Indicator
2
Solar Panel
8
Battery Door
3
Wind Vane
9
Mounting Pole Socket
4
Bubble Level
5
Thermometer-Hygrometer Sensor
6
Rain Collector

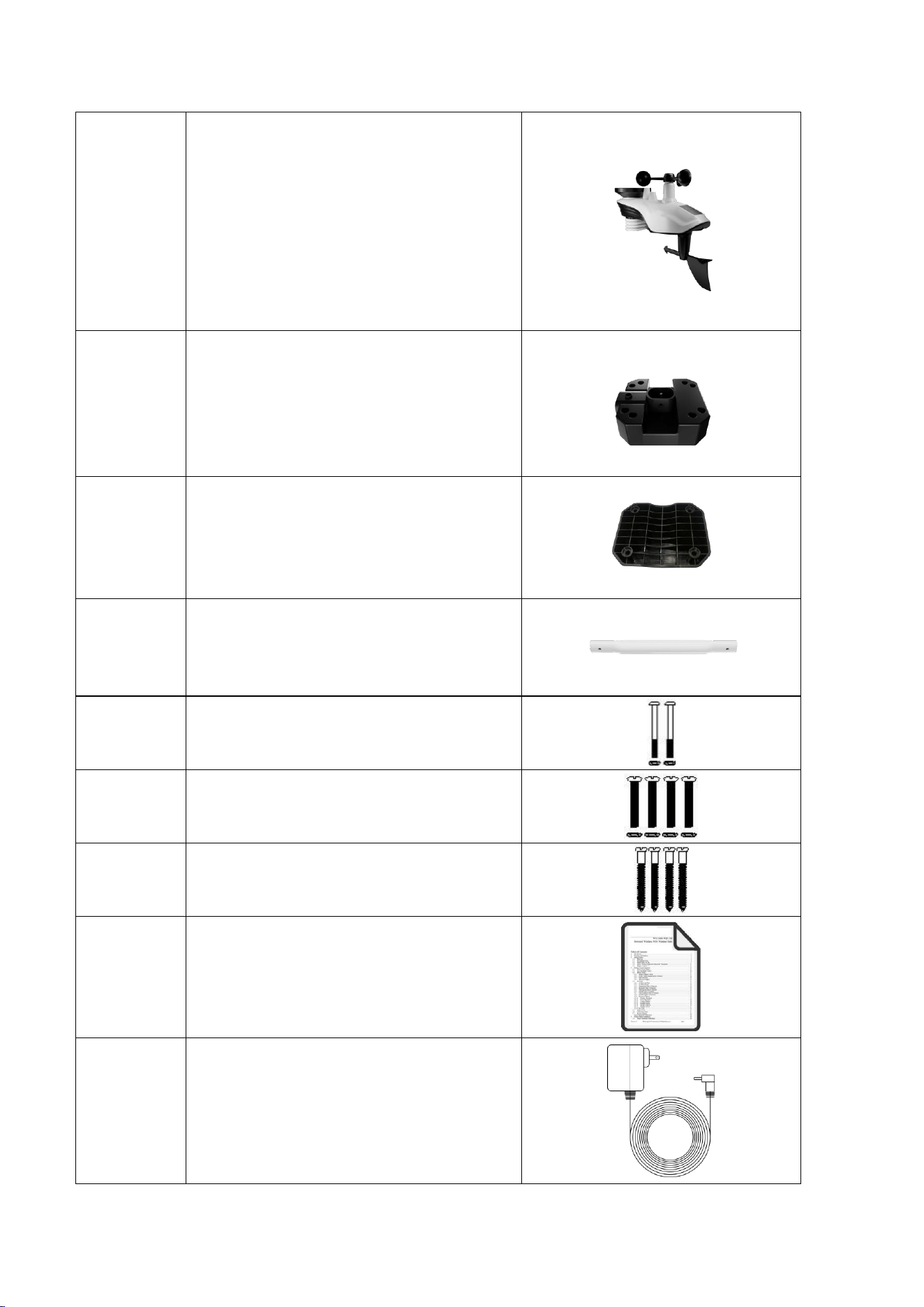

4.1.Parts List
The weather station consists of the following parts.
QTY
Item
1
Gateway：
Frame Dimensions:
3.1x3.1x3.6inch
(78x78x91mm)
5
1
Integrated Outdoor
Transmitter Dimensions:
12.9x4x9.8inch
(327x101x249mm)
1
Foot Mounting (with pole insert)
Dimensions:
4.25x4.1x1.75inch
(107x104x44.5mm)
1
Mounting Bracket Back Plate (pole
mount)
Dimensions:
4x3.25x1inch
(101x82x25mm)
1
Mounting Pole Dimensions:
12.8x1.3x0.9inch
(325x33x22mm)
2
Pole mounting nuts (M3) / bolts
Ø3)
4
Pole mounting nuts (M5) / bolts
( Ø5)
4
Tapping screws
1
Manual
1
Power Adapter
6
4.2.Recommended tools
We recommend using the following tools to assist in the installation of the weather station.
1
Precision screwdriver (for small Phillips
screws)
2
Compass or GPS (for wind direction
calibration)
3
Adjustable wrench
4.3. Remove/Install the Wind Vane
Remove the wind vane: (refer to Figure 2)
(a) Locate the black waterproof silicone plug in the center of the round cap at the top of the wind
vane and pick it out with a tool.
(b) Use a precision screwdriver to loosen the set screw in the round hole until the wind vane can be
easily removed.
Figure 2
Install the Wind Vane:
(c) Put the round hole at the bottom of the wind vane against the wind vane shaft and tighten the
fixing screws with a precision screwdriver to make sure the wind vane can rotate freely.
7
(d) Insert the black waterproof silicone plug into the round hole at the top of the wind vane and
make sure it fits into the round hole to achieve waterproof effect.
Note: The wind vane axis cannot rotate freely like the wind cup, which is specially designed by
us.

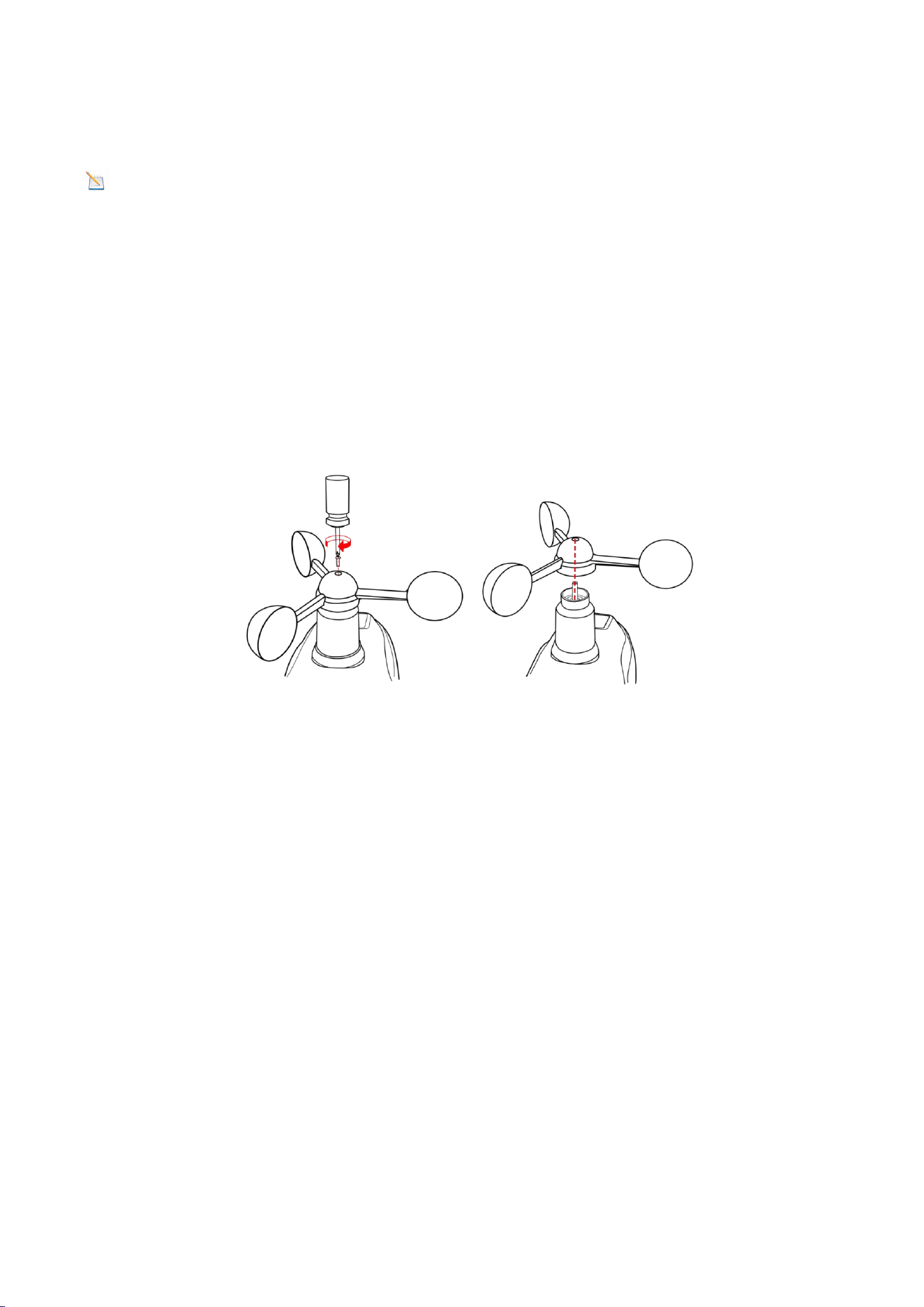

4.4.Remove/Install the Wind Cup
Remove the wind cup: (refer to Figure 3)
(a) Locate the black waterproof silicone plug in the center of the round cap at the top of the wind
cup and pick it out with a tool.
(b) Use a precision screwdriver to loosen the set screw in the round hole until the wind cup can be
easily removed.
Figure 3
Install the wind cup:
(a)Place the round hole at the bottom of the wind cup against the wind vane axis and tighten the
fixing screw with a precision screwdriver to ensure that the wind cup can rotate freely.
(b) Insert the black waterproof silicone plug into the round hole at the top of the wind cup and
make sure it fits the hole to achieve waterproof effect.
4.5.Remove/ Install the rain collector
Remove the rain collector:（refer to Figure 4）

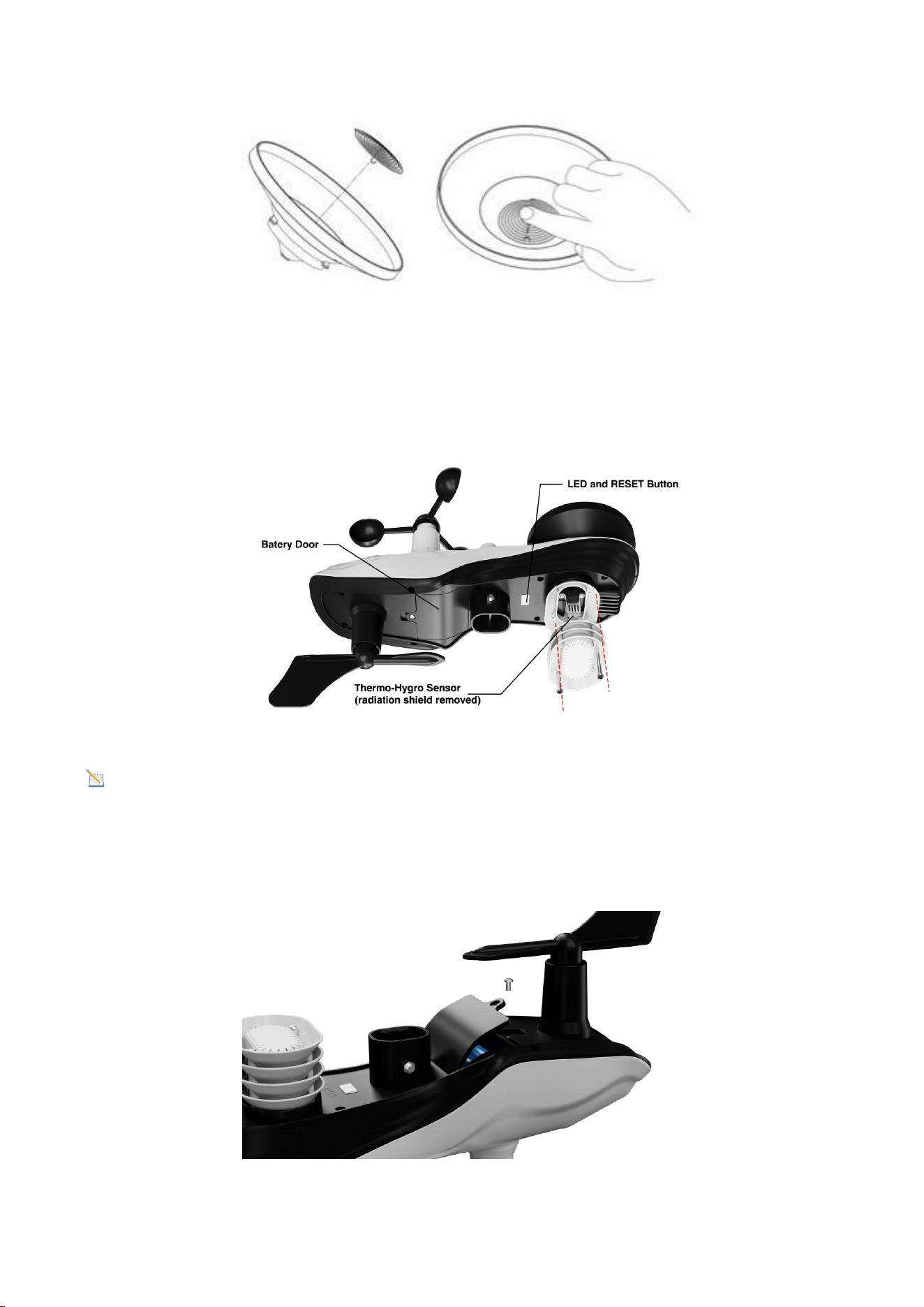

(a) With your hand flat on top of the rain collector, grasp the entire rain collector and rotate it
clockwise.
(b) Remove the rain collector vertically upwards when a click is heard.
8
Figure 4
Remove the rain collector:（refer to Figure 5）
(a)Align the snap on the bottom edge of the rain collector with the snap notch on the transmitter so
that the two fit perfectly, then press the rain collector down vertically.
(b) After placing the rain collector into the groove, rotate it counterclockwise and it will be installed
successfully when you hear a click.
Figure 5
4.6. Installation of coil filters
(a) Place the coil vertically into the rain collector (hook facing downward) so that the coil fits snugly
against the bottom of the rain collector.
(b) Gently press the coil so that it hooks into the hole at the bottom of the rain collector and locks
into place. The tension of the spring will keep the filter tightly fitted to the rain collector.
9
Figure 6
4.7.Install Battery
Find the battery door at the bottom of the transmitter, as shown in Figure 7.
Figure 7
Note: Do not install the batteries backwards. You can permanently damage the outdoor
sensors. The solar panel does not charge the batteries, so rechargeable batteries are not
recommended.
Remove the battery door on the back of the sensor by removing the set screw, as show in Figure 8.
Figure 8
10
Insert 3 new AA batteries and close the battery door as shown. Before closing the battery door and
tightening the set screws, make sure the washers (around the inside perimeter of the battery door)
are properly secured in their tracks.
Figure 9
Note: We recommend installing AA lithium batteries for the Outdoor Sensor in cold weather
environments.
When the battery is installed, the Integrated Outdoor Sensor LED indicator will illuminate for 3
seconds and then blink every 60 seconds. The sensor is transmitting data each time it blinks.
Figure 10
NOTE: If the sensor LED does not flash after inserting the batteries, press the reset button on
the bottom of the sensor as shown in Figure 10.
11
5. Installation of the Sensor Array
5.1. Pre-installation Check
Before installing the weather station at a permanent location, we recommend running it at a
temporary, easily accessible location for one week. This allows you to check all functions in advance,
ensure they are operating correctly, and familiarize yourself with the weather station and
calibration procedures.
5.2. Site Survey
Before installing the weather station, consider the following points during the site survey:
1. The rain gauge must be cleaned every 3 months and the battery should be replaced every 3
months.
2. Avoid heat radiation transfer from buildings and structures. Generally, the sensor array should be
installed at least 5 feet (1.5 meters) away from any buildings, structures, ground, or roofs.
3. Avoid influencing wind speed and rainfall measurements. The installation distance of the sensor
array should be at least four times the height of the highest obstacle. For example, if a building is 20
feet (6 meters) high and the installation pole is 6 feet (2 meters) high, the installation distance
should be 4 x (20 - 6) = 56 feet (17 meters). If the weather station is installed close to tall buildings,
wind speed and rainfall measurements will be inaccurate.
4. Radio signal range. Assuming no interference from buildings, trees, vehicles, high-voltage lines,
etc., the radio communication distance between the gateway console and the transmitter can reach
up to 330 feet (100 meters). In most cases, due to interference from buildings and walls, most
wireless applications can only reach up to 100 feet (30 meters). Radio signals cannot penetrate
metal buildings.
5. In the worst-case scenario, radio interference from personal computers, radios, or televisions can
completely cut off radio communication. Therefore, consider this when selecting the gateway
console or installation location.
5.3.Adjusting the Sensor Mounting Direction
This professional weather station can be used in both the Northern and Southern Hemispheres. To
ensure the accuracy of the wind direction display, please secure the direction of the integrated
outdoor sensor before installation.
Note: Wind direction is indicated by the letters N, E, S, and W. (N is north, E is east, S is south,
W is west)
12
Northern Hemisphere
Southern Hemisphere
Figure 11
5.3.1.Northern Hemisphere Reference
The body of the outdoor sensor is embossed with the four cardinal directions: N, E, S, W, which are
applicable only in the Northern Hemisphere.

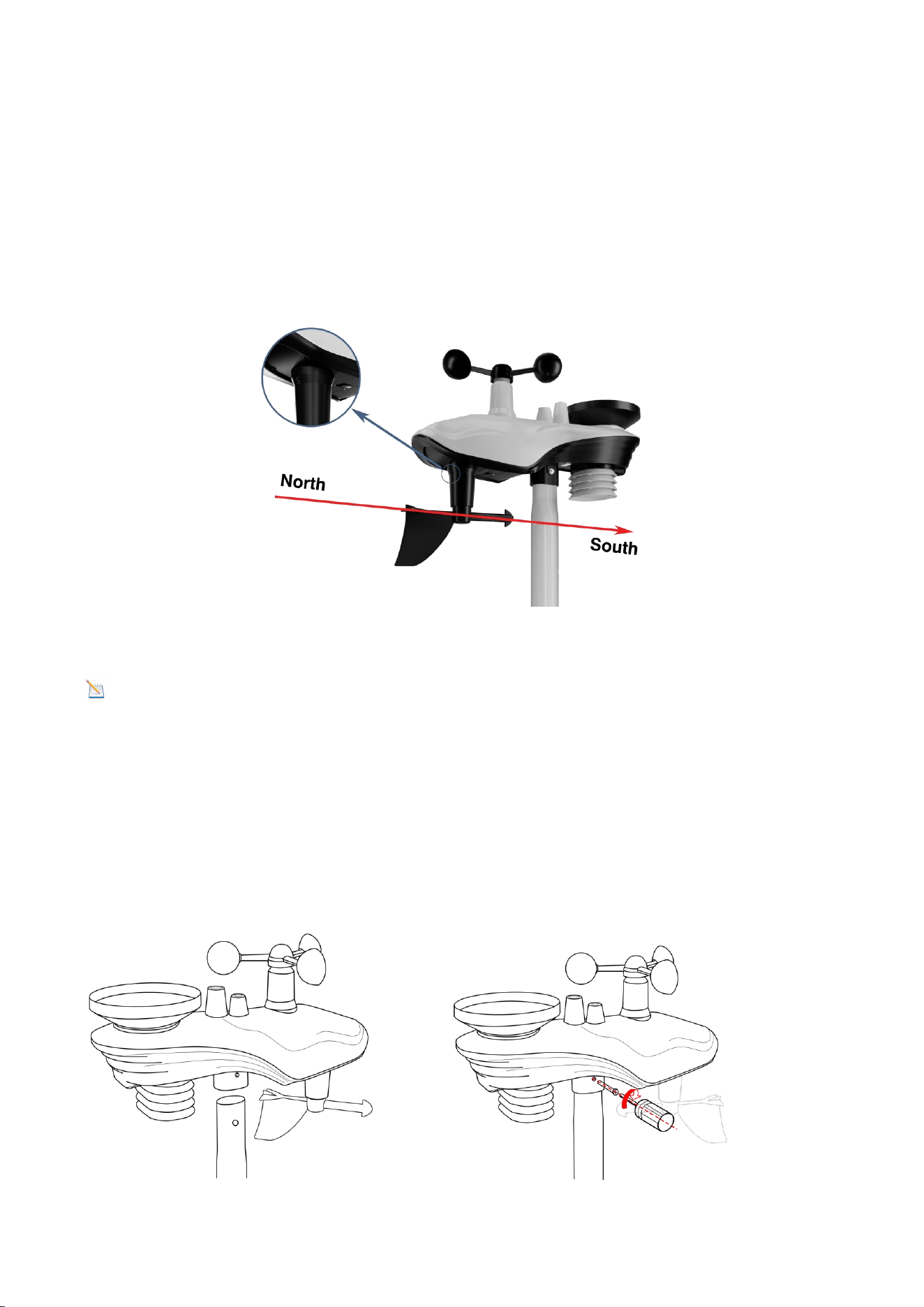

Step 1: As shown in the diagram, there is an "S" indicator on the wind vane representing south.
Using a compass, check the direction and adjust the orientation of the entire sensor to ensure the
"S" mark on the sensor aligns with the south.
Figure 12
5.3.2.Southern Hemisphere Reference
For installing the integrated outdoor sensor in the Southern Hemisphere, disregard the four
13
directions (N, E, S, W) marked on the sensor body. When installing, adjust the orientation of the
entire outdoor sensor to ensure the solar panel faces north (and is positioned to receive maximum
sunlight), as shown in the diagram.
Step 1: Install the Integrated Outdoor Sensor
Ensure the solar panel is facing north.
Figure 13
Note:
If the integrated outdoor sensor is not positioned correctly during installation, it will result in
permanent wind direction errors.
5.4.Securing the Mounting Pole
Observe the bubble level next to the rain gauge to ensure the bubble is stable within the circle,
keeping the sensor array completely level. If the sensor array is not level, the rain gauge will not
measure accurately.
14
Figure 14
NOTE: If the bubble level cannot be read due to mounting limitations, a horizontal line or level
can be placed across the top of the rain gauge for easier viewing.

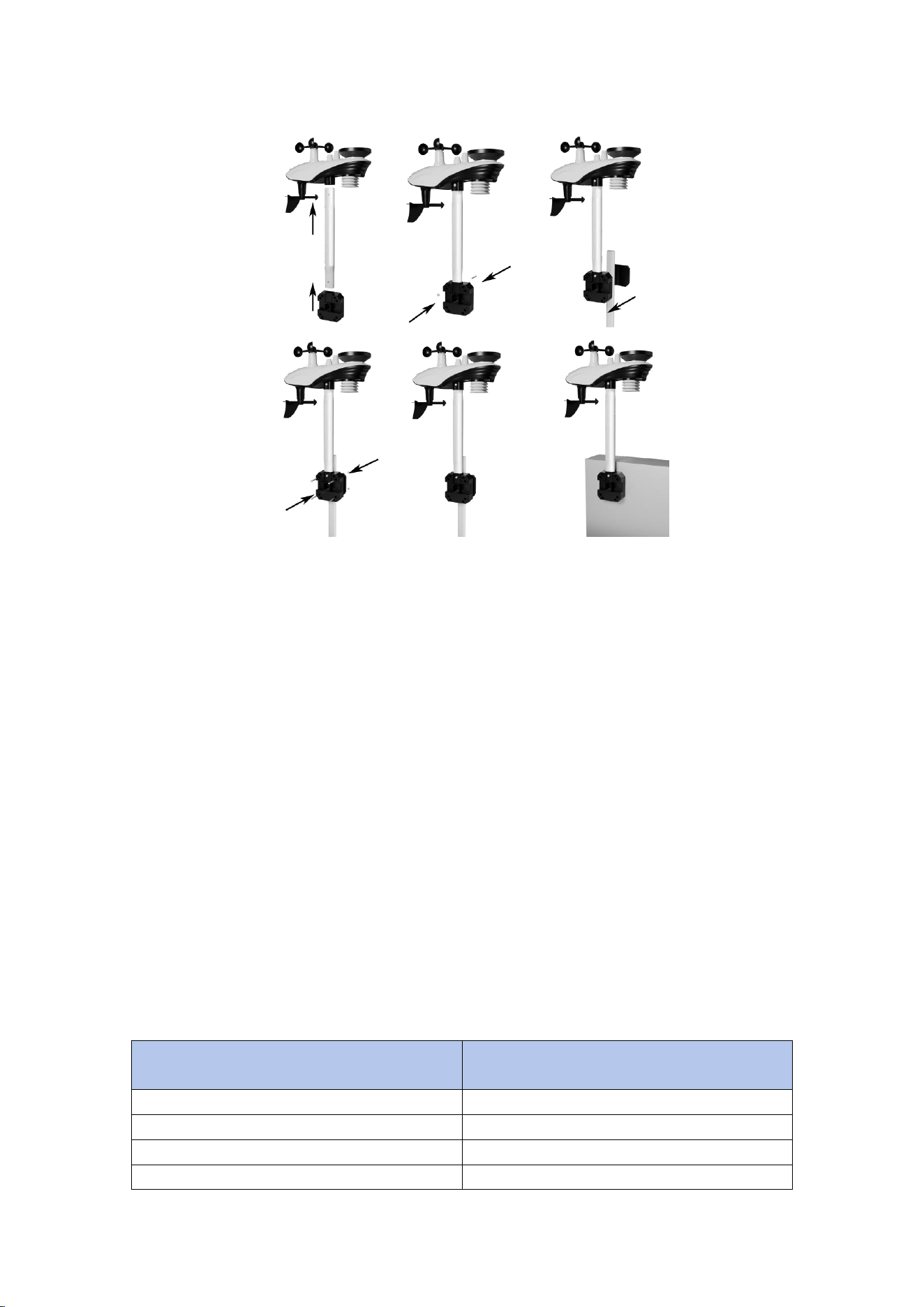

5.4.1.Horizontal mounting and fixing sensors
Fasten the integrated outdoor sensor to the mounting bar bracket with two mounting bolts
(Ø4)/nuts (M3). Then, tighten the mounting bar to your existing mounting bar with four bolts (Ø5)
and nuts (M5) or secure it to a flat surface with four self-tapping screws as shown. (Figure 15 )
Figure 15
5.4.2.Vertical mounting and fixing sensors
Fasten the integrated outdoor sensor to the mounting bar bracket with two mounting bolts
(Ø4)/nuts (M3). Then, tighten the mounting bar to your existing mounting bar with four bolts (Ø5)
and nuts (M5) or secure it to a flat surface with four self-tapping screws as shown.(Figure 16)
15
Figure 16
5.4.3.Best Practices for Wireless Communication
Wireless communication is susceptible to interference, distance, walls, and metal barriers. We
recommend the following best practices for trouble-free wireless communication.
1. Electro-Magnetic Interference (EMI): Keep the console several feet away from computer
monitors and TVs.
2. Radio Frequency Interference (RFI): If you have other 433 MHz devices and communication is
intermittent, try turning off these other devices for troubleshooting purposes. You may need to
relocate the transmitters or receivers to avoid intermittent communication.
3. Line of Sight Rating: This device is rated at 300 feet line of sight (no interference, barriers, or
walls), but typically you will get 100 feet maximum. [This is under most real-world installations,
which include passing through barriers or walls].
4. Metal Barriers: Radio frequency will not pass through metal barriers, such as aluminum siding. If
you have metal siding, align the remote and console through a window to get a clear line of sight.
The following is a table of reception loss, versus the transmission medium. Each “wall” or
obstruction decreases the transmission range by the factor shown below:
Medium
Radio Frequency (RF) signal strength
reduction
Glass (untreated)
5-15%
Plastic
10-15%
Wood
10-40%
Brick
10-40%
16
6.Install the gateway
Figure 17
1. Please plug in the gateway console with the power adapter.
2. Please press and hold the fourth button for 3 seconds to enter the pairing mode, the indicator
light (red) flashes fast, the indicator light (red, green) will flash alternately after successful pairing.
3.If the gateway is in pairing status, one click to exit pairing mode
6.1.Button Operation
Figure 18
The gateway has the following 4 buttons for setting the gateway function by short press, long press
or double tap.
Concrete
40-80%
Metal
90-100%
17
Key
Description
1-Reset Button
Reset：
Please press and hold the “Reset” button for 3 seconds, the gateway will disconnect the
pairing with the transmitter.
2-Rain Reset
Button
Rain Reset：
Please press and hold the “Rain Reset” button for 3 seconds, all rain values will be
cleared to zero (current hour, 24 hours, week, month).
3-Internet
Button
WiFi connection(3 modes)：
Bluetooth Distribution Network Mode:
Please press and hold the “Internet” button for 3 seconds, the device will enter the
network mode. By default, the first network mode is “Bluetooth distribution network
“mode, the indicator light (green) blinks about 0.5s kind of blinking once.
WiFi Distribution Network Mode
Please press and hold the “Internet” button, the device will enter “Bluetooth
distribution network” mode. Then please long press the button again for at least 3
seconds, the device will enter “WiFi distribution network” mode, the indicator light
(green) will blink once in 1s.
Web page distribution Network Mode
Please press and hold the “Internet” button to enter the distribution network mode, the
device will enter “Bluetooth distribution network” mode. Then please long press the
button again for at least 3s, the device will enter “WiFi distribution network” mode. In
“WiFi distribution network”mode, press and hold again for 3s to enter “Web page
network distribution” mode, the indicator light (green) will blink once in 2s.
4-Paring Button
Paring：
Please press and hold the “Paring” button for 3 seconds to enter the pairing mode, the
indicator light (red) flashes fast, the indicator light (red, green) will flash alternately after
successful pairing.
One click to exit pairing mode.
18
7. Gateway connected to WiFi
7.1. Real-time Network Monitoring
The weather station can upload data to the following two platforms:
Application Services
Website
Description
Weatherseed APP
Wunderground.com
Our weather stations feature the most
user-friendly design to monitor data
across different platforms. Use our
animated expandable modules to
quickly view the details you want.
*Weather station use the WiFi connection to send data to the Internet.
* Please DO NOT fill in any credit card information on WU website. If a pop-up window appears
when you open the Weather Underground website, please be careful and not to click it!
7.2.APP Download
Please search "Weatherseed " APP in Google Play or IOS App Store.
After downloading, you can follow the steps of WiFi connection to connect the weather station to
WiFi and then view the data on the APP!
7.3.APP Account Register and Login
After successfully downloading “Weatherseed” APP, please open the APP, the first time you open
the APP, the login or registration screen will appear. If you don't have an account for the first time,
you need to register your own account to log in later; if you have already registered a Weatherseed
account, you can log in directly without registering again.
7.3.1. Registering Process
You can follow the steps and pictures below to register your Weatherseed account:
(1) Fill in your e-mail address;
(2) Send the verification code to the e-mail address;
(3) Go to the e-mail address to check the verification code and enter it;
(4) Set a password;
(5) Confirm the password (must be consistent with the set password);
19
(6) Check the user agreement and proof of age;
(7) Register an account.
Note: Your account will be automatically logged in the APP directly after the registration is
completed.
7.3.2. Login process
You can follow the steps and picture instructions below to log in to your Weatherseed account:
(1) Enter your registered Weatherseed account (email address);
(2) Enter the password you have set;
(3) Check the User Privacy Agreement;
(4) Log in to your account.
20
7.4. Connecting Steps
Note: The weather station only supports 2.4 GHz signals. If you have a dual-band router (2.4 GHz
and 5.0 GHz), please make sure that the router's 2.4 GHz band is turned on and can be distinguished
from the 5.0 GHz channel's SSID for accurate connection to the 2.4 GHz channel.
Note : The power adapter needs to be plugged into connect to WiFi.
Battery power cannot connect to WiFi.
Note
：
Please don't choose the wrong type and model , if you choose the wrong one, you can't
match the network successfully.
Note
：
The QR code is at the top of the Gateway.
7.4.1 Bluetooth Distribution Network Mode
Please press and hold the “Internet” button, the device will enter “Bluetooth distribution network”
mode. After the gateway enters the “Bluetooth distribution network” mode, please open the APP to
start networking:
Select the second icon on the lower left to enter the networking interface to start networking,
the specific steps and picture instructions are as follows:
(1)Enter the networking interface, click "Add Device" to start connecting the wifi ;
21
(2) Add the device in the app, select the device type and model, and set a weather station name,
enter your location.
22
(3)Enter the network configuration interface and click “Next” to complete the three steps of
network configuration. Then need to scan the QR code (Mac address) of the device.
23
(4)Select “Bluetooth distribution network” mode to automatically search for Bluetooth signals and
pairing.
After successful pairing, jump to WiFi interface. Please select 2.4Ghz WiFi and enter the password.
24
7.4.2. Wifi Distribution Network Mode
Please press and hold the “Internet” button, the device will enter “Bluetooth distribution network”
mode. Then please long press the button again for at least 3 seconds, the device will enter “WiFi
distribution network” mode, the indicator light (green) will blink once in 1s.
After the gateway enters the “WiFi distribution network” mode, please open the APP to start
networking:
(1)Enter the networking interface, click "Add Device" to start connecting the wifi ;
25
(2)Add the device in the app, select the device type and model, and set a weather station name,
enter your location.
26
(3)Enter the network configuration interface and click “Next” to complete the three steps of
network configuration. Then need to scan the QR code (Mac address) of the device.
27
(4)Select the distribution network mode: “WiFi distribution network”.
Select your own WiFi (2.4Ghz), enter the correct password and connect the device. After the
connection is successful, you will go back to Device page.
28
7.4.3. Web page distribution network mode
Please press and hold the third button to enter the distribution network mode, the device will enter
“Bluetooth distribution network” mode. Then please long press the button again for at least 3s, the
device will enter “WiFi distribution network” mode.
In “WiFi distribution network” mode, press and hold again for 3s to enter “Web page distribution
network” mode, the indicator light (green) will blink once in 2s.
After the gateway enters the “Web page distribution” mode, please open the APP to start
networking.
(1) Add device in the dashboard interface. Select device type and model, and set a weather station
name, enter your location. Enter the network configuration interface and click Next to complete the
three steps of network configuration.
29
(2)Enter the network configuration interface and click “Next” to complete the three steps of
network configuration. Scan the QR code.
30
(3)Select the “Web page distribution network” mode , Click Go to connect WiFi.
Then will automatically jump to the WiFi list screen, click Connect “weatherseed” WiFi.
31
Return to the app, click the confirmation dot and click “Next”. Please select 2.4Ghz WiFi, enter the
password and click “Connect”.
32
NOTE: Android system can select WiFi. IOS system needs to manually enter the WiFi name.
33
7.5.Firmware Upgrade
When your app receives a firmware upgrade notification, follow the steps below to remotely
upgrade the firmware.
34

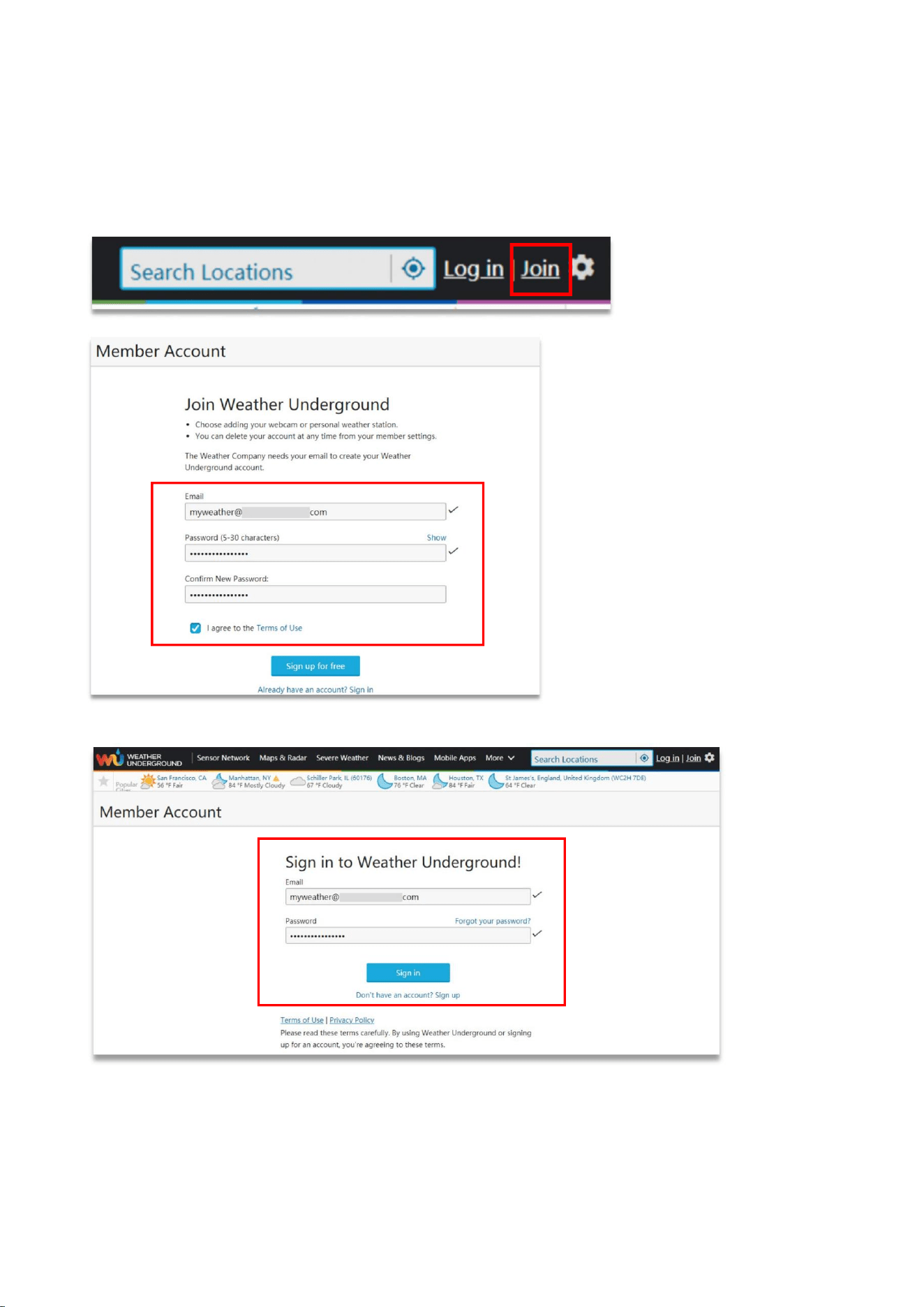

7.6. Sign up on Wunderground.com
1.Visit the “https://www.wunderground.com” website, and click “Join" button,input the Email and
password, and select “Sign up for free” button to create your own account.
2.Click “Sign in” button to login, and switch to Member Settings page.

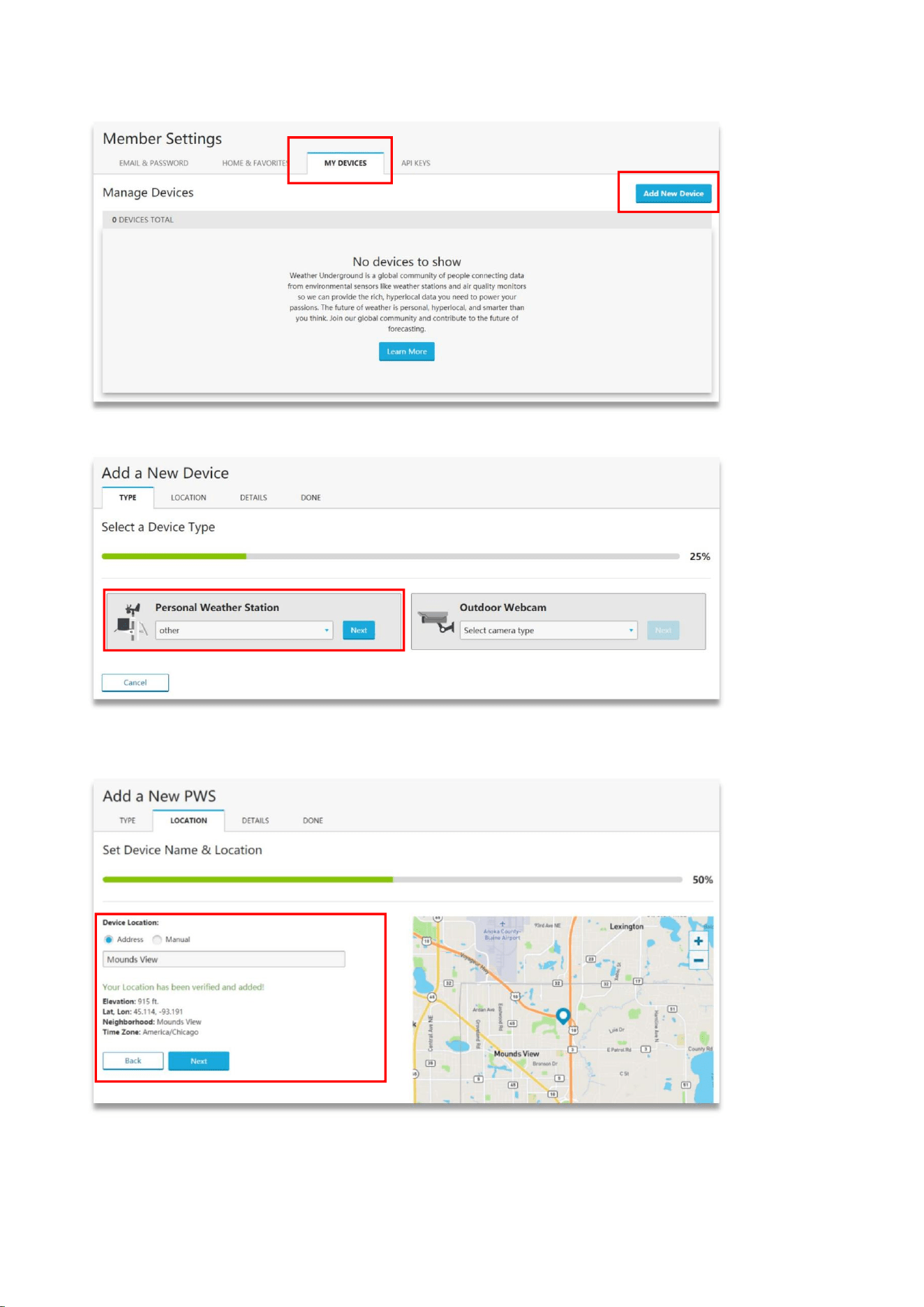

3.Select My Devices tab and click “Add New Devices”.
Note: in “Add New Devices" page, set the “TYPE”, “LOCATION",“DETAILS” and“DONE" page step by
step until 100% completion.
35
4. In TYPE
Page, click“Personal Weather Station” drop down list to select “Other”.
5. In LOCATON Page, Select “Address” or “Manual” Option, find and input your local position and
press “Next”.

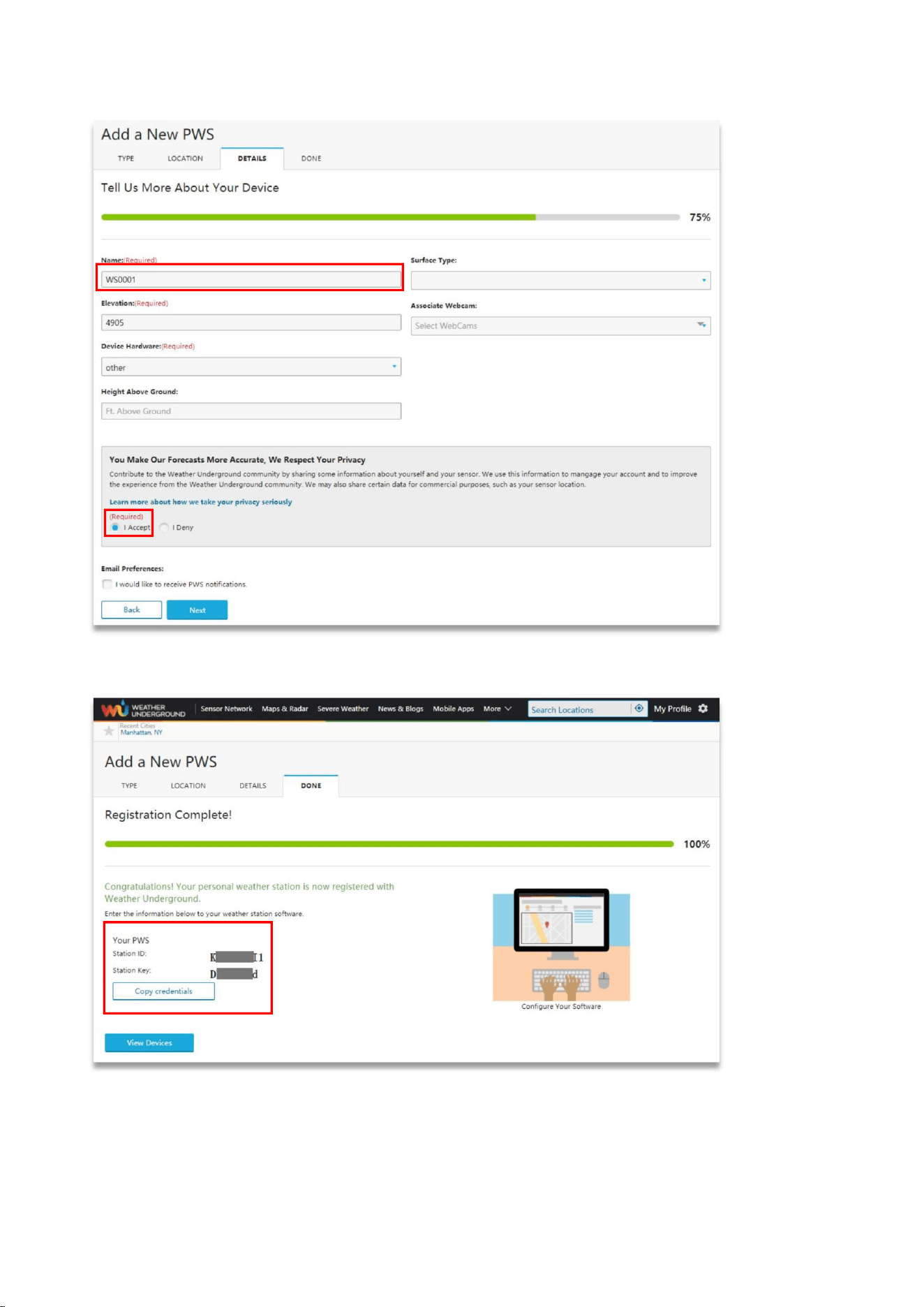

6. In DETAILS Page ,Fill in the “Required” information and Press “Next”.
36
7. In DONE Page, the device “Station lD” and “Station Key” are shown, copy and record the
information for late use.
8. Time Zone
The following table summarizes time zones around the world:
37
9.Data Discussion
（1）
Temperature errors can occur when a sensor is placed too close to a heat source (such as a
building/structure, the ground, or trees).
Hours from
GMT
Time zone
Cities
-12
IDLW: International Date Line West
---
-11
NT: Nome
Nome, AK, USA
-10
AHST: Alaska-Hawaii Standard
CAT: Central Alaska
HST: Hawaii Standard
Honolulu, HI, USA
-9
YST: Yukon Standard
Yukon Territory
-8
PST: Pacific Standard
Los Angeles, CA, USA
-7
MST: Mountain Standard
Denver, CO, USA
-6
CST: Central Standard
Chicago, IL, USA
-5
EST: Eastern Standard
New York, NY, USA
-4
AST: Atlantic Standard
Caracas, Venezuela
-3.5
Newfoundland Time (NT)
Newfoundland, Canada
-3
---
São Paulo, Brazil
-2
AT: Azores
Azores, Cape Verde Islands
-1
WAT: West Africa
---
0
GMT: Greenwich Mean
WET: Western European
London, England
1
CET: Central European
Paris, France
2
EET: Eastern European
Athens, Greece
3
BT: Baghdad
Moscow, Russia
3.5
Iran Standard Time (IRST)
Tehran, Iran
4
---
Abu Dhabi, UAE
5
---
Tashkent, Uzbekistan
5.45
Nepal Standard Time
Nepal
5.5
Indian Standard Time (IST)
India
6
---
Astana, Kazakhstan
7
---
Bangkok, Thailand
8
CCT: China Coast
Beijing, China
9
JST: Japan Standard
Tokyo, Japan
9.5
Australian Central Standard Time (ACST)
Adelaide, Australia
10
GST: Guam Standard
Sydney, Australia
11
---
Magadan, Russia
12
IDLE: International Date Line East
NZST: New Zealand Standard
Wellington, New Zealand
38
To calibrate temperature, we recommend a mercury or red spirit (fluid) thermometer. Bi-metal (dial)
and digital thermometers (from other weather stations) are not a good source and have their own
margin of error.
Using a local weather station in your area is also a poor source due to changes in location and
timing (airport weather stations are only updated once per hour).
Place the sensor in a shaded, controlled environment next to the fluid thermometer and allow the
sensor to stabilize for 48 hours.
（2）
Humidity is a difficult parameter to measure electronically and drifts over time due to
contamination. In addition, location has an adverse effect on humidity readings (installation over
dirt vs. a lawn, for example).
Official stations recalibrate or replace humidity sensors on a yearly basis. Due to manufacturing
tolerances, the humidity is accurate to ± 5%. To improve this accuracy, the indoor and outdoor
humidity can be calibrated using an accurate source, such as a sling psychrometer.
NOTE: The measured humidity range is between 10% and 99%. Humidity cannot be measured
accurately outside of this range. Therefore, it is not possible to calibrate humidity below 10% or
above 99%.
（3）
The app shows two different pressures: absolute pressure (measured value) and relative pressure
(corrected for sea level).
In order to compare air pressure conditions at different locations, meteorologists correct air
pressure to sea level pressure. Because barometric pressure decreases with elevation, the sea level
corrected pressure (the pressure at your location if you are at sea level) is usually higher than your
measured pressure.
Thus, at an elevation of 1,000 feet (305 meters), the absolute barometric pressure may be 28.62
inHg (969 mb), but the relative barometric pressure is 30.00 inHg (1016 mb).
The standard sea level pressure is 29.92 inHg (1013 mb). This is the average sea level pressure for
the entire world. A relative pressure measurement greater than 29.92 inHg (1013 mb) is considered
high pressure, and a relative pressure measurement less than 29.92 inHg is considered low
pressure.
To determine the relative barometric pressure at your location, look for an official reporting station
near you (the Internet is the best source for real-time barometric conditions, such as the
Weather.com or Wunderground.com websites) and set your weather station to match the official
reporting station.
39
（4）
Wind speed is the most sensitive to installation constraints. The guideline for properly installing a
wind speed sensor is 4 x the distance of the tallest obstruction. For example, if your house is 20’ tall
and you mount the sensor on a 5’ pole:
Distance = 4 x (20 – 5)’ = 60’.
Many installations are not perfect, and installing the weather station on a roof can be difficult. Thus,
you can calibrate for this error with a wind speed multiplier.
In addition to the installation challenges, wind cup bearings (moving parts) wear over time.
（5）
The rain collector is calibrated to the funnel diameter at the factory. The internal unit of the rain
collector records 0.01 inches of rainfall (called resolution) for each pour. Accumulated rainfall can be
compared to a sight glass rain gauge with an aperture of at least 4 inches.
The rain cycle view is calculated as follows:
View Period
Description
Example
1H
One hour delay from current time
If the current time is 08:25, the 1-hour
rainfall refers to the rainfall from 08:25 to
09:25.
24H
Same time from current time to
the day after
If the date is October 20 and the time is
08:25, the 24-hour rainfall is the amount
of rainfall from 08:25 (10.20) to 08:25
(10.21).
Week
From the beginning of the week
to the current time
If the current time is 08:25 on Thursday,
the weekly rainfall refers to the rainfall
from 00:00 on this Sunday to 08:25 on
this Thursday.
Month
From the beginning of the month
to the current time
If the current time is 08:25 on October
20, the monthly rainfall refers to the
rainfall from 00:00 on October 1 to 08:25
on October 20.
Total
Total rainfall since the most recent
start
If the start time is now October 20,
2024,then the total rainfall is
October 20, 2024 to October 20,
2025.
NOTE: Debris and insects can collect in the dump unit (they can form spider nests), so carefully
remove the rain collector and check for debris in the dump unit
before calibrating.
40

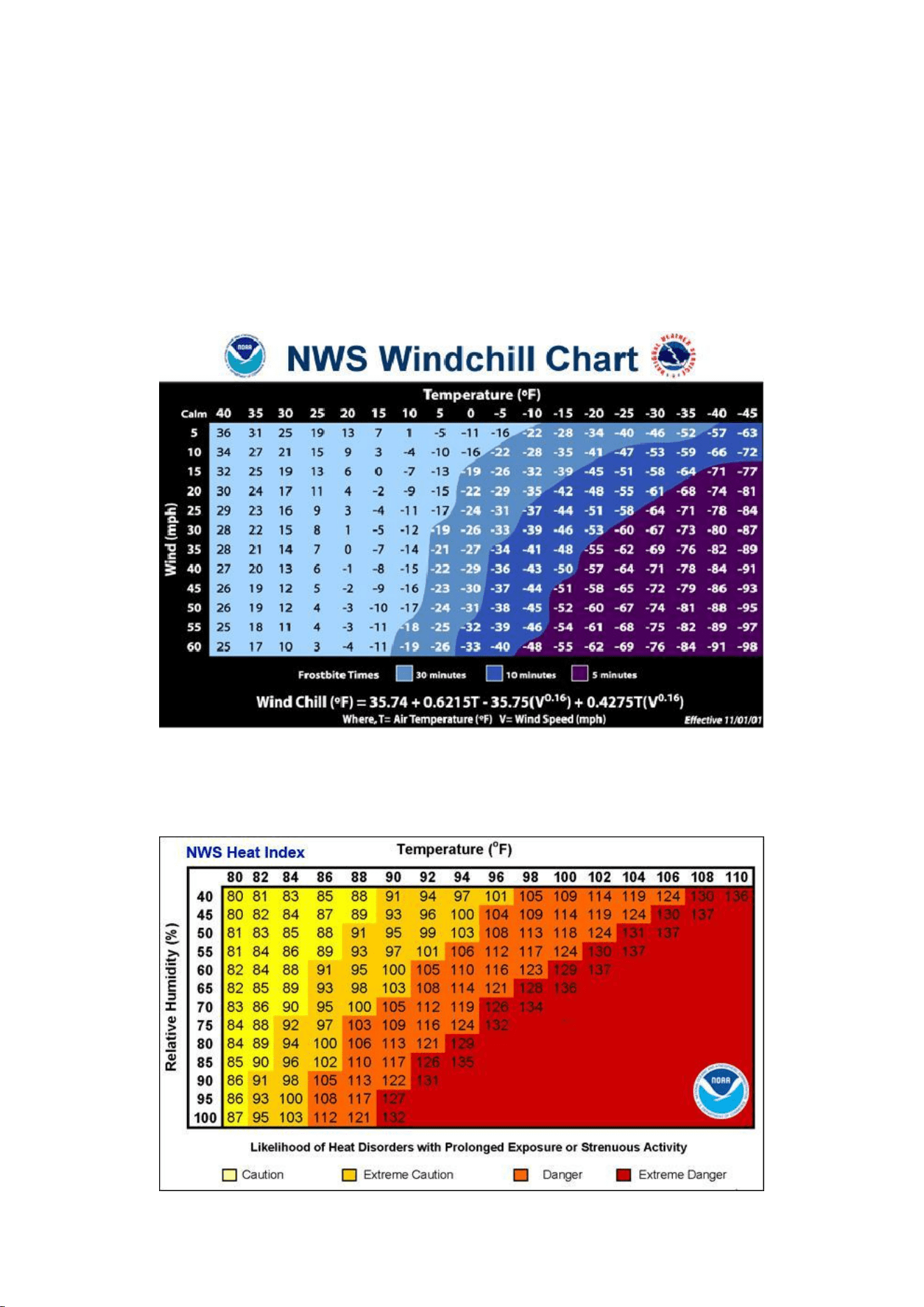

10. Feels Like Temperatures
The Feels Like Temperature is a combination of the Heat Index and the Wind Chill Index.
(1) When the air temperature is below 4.4°C (40°F), the Wind Chill Index is displayed, as shown in
the following National Weather Service Wind Chill Index table:
Figure 19
(2) When the temperature is above 26.7°C (80°F), the heat index is displayed, as shown in the
following National Weather Service heat index chart:
41
Figure 20
Note: Both the Wind Chill and Heat Index are displayed uniformly as it feels like.
11.Glossary of Terms
Terms
Definition
Absolute pressure
Absolute pressure is the measured atmospheric pressure and is a
function of altitude and, to a lesser extent, changes in weather
conditions.
Absolute air pressure is not corrected for sea level conditions. See
relative air pressure for details.
Relative pressure
The measured air pressure relative to your location or environmental
conditions.
HectoPascals (hPa)
A unit of pressure measured in the SI (International System of Units).
Same as the millibar (1 hPa = 1 mbar).
Inches of Mercury
(inHg)
Pressure expressed in imperial units. (1 inHg = 33.86 mbar).
Dew point
Dew point refers to the temperature at which water vapor condenses
into water after cooling in air of a certain humidity under constant air
pressure. The condensed water is called dew, and the dew point is a
saturation temperature.
Dew point is related to relative humidity. A high relative humidity
means the dew point is closer to the current air temperature. A relative
humidity of 100% means the dew point is equal to the current
temperature and the water in the air reaches maximum saturation.
When the dew point remains constant and the temperature rises, the
relative humidity decreases
42
Rain gauge
A rain gauge is a device that measures liquid precipitation (rain) over a
period of time, rather than solid precipitation (snow, hail, or ice).
All digital rain gauges are self-emptying or self-dumping (also called
dumping rain gauges). The accuracy of a rain gauge depends on the
amount of rain that falls during each emptying cycle.
Accuracy
Precision is defined as the ability of a measurement to match the actual value of
the quantity being measured.
Range
Range is defined as the number and interval of measurable values.
Resolution
Resolution is defined as the number of significant digits (decimal digits) that can
be reliably measured.
Wind vane
Wind direction refers to the direction the wind is blowing from. For
example, if the display shows the wind direction as south, it means the
wind is blowing from the south.
12.Specifications
12.1. Wireless specifications
Wireless transmission
Specifications
Line of sight wireless sensor array RF transmission
(open air)
330 ft, 100 ft in most cases
Line of sight Wi-Fi RF transmission (open air)
80 ft
Outdoor sensor update frequency
60 sec
Sensor array RF frequency
433 MHz
Wi-Fi console RF frequency
2.4 GHz
12.2. Measurement Specifications
The table below provides the specifications of the measured parameters.
Measurement
Range
Accuracy
Resolution
Indoor Temperature
0 to 60 °C
(32 to 140°F)
± 1 °C
(± 2°F)
0.1 °C(°F)
Outdoor Temperature
-40 to 60 °C
± 1 °C
0.1 °C(°F)
43
(-40 to 140°F)
(± 2°F)
Indoor humidity
10 to 99 %
± 5% (only guaranteed
between 20
to 90%)
1%
Outdoor Humidity
10 to 99 %
± 5% (only guaranteed
between 20
to 90%)
1%
Rainfall
0 to 9999mm
<15mm: ±1 mm,
15mm to 9999mm:
±7%
<1000mm
(0.3mm)
>1000mm
(1mm)
Wind direction
0 - 360º
± 10º (16 point
compass)
± 1º (16 point
compass)
Wind Speed
0 to 50 m/s
2 m/s ~10
m/s:±0.3m/s
, 10m/s ~50
m/s: ±10%
(whichever
is greater)
0.1 m/s
Barometric Pressure
300 to 1100
hpa
± 3 hpa
0.1 hpa
12.3. Power Consumption
Gateway
Power adapter plugged in to use
Integrated Outdoor Sensor:
3xAA alkaline or lithium batteries (not
included) provide backup power when solar
power is limited.
Note: Solar panels can charge the batteries.
Power Adapter
5V-1000mA (Included)
44
Battery Life
If the base station signal reception is good, the
transmitter battery can last at least 3 months.
If the base station reception signal is
intermittent, the transmitter battery life may
be reduced.
We recommend using lithium batteries for the
transmitter in cold climates below -20°C (-4°F).
13. Maintenance
(1)We recommend cleaning the rain gauge once every 3 months. Twist the funnel clockwise and lift
it vertically to expose the rain gauge assembly (see the image below). Then wipe the internal rain
gauge assembly with a damp cloth to remove any dirt, debris, or insects. If insect infestation is a
concern, you can lightly spray the array with an insecticide.
Figure 21
(2) Clean the solar panel with a damp cloth every 3 months.
Replace the battery every 3 months. If left for too long, the battery may leak due to environmental
factors. In harsh environments, check the battery every 3 months (when cleaning the solar panel).
(3) When replacing the battery, apply anti-corrosion compound to the battery terminals, which is
available on Amazon and most hardware stores.
(4) In snowy conditions, spray the top of the weather station with anti-icing silicone spray to
prevent snow accumulation.
(5) Over time, the smoothness of the rain gauge funnel surface will degrade due to dirt, debris.
Therefore, we recommend spraying Teflon spray on the rain gauge funnel and coil filter to reduce
the surface tension of the water.
45
14. Troubleshooting Guide
If your question is not answered here, you can contact us by Customer Support Email, Customer
Support Phone and Website:
（2） Website：https://www.sainlogic.com/
Customer Support Phone：+1 (888) 513-9823 (Mon-Fri 10 a.m. - 6 p.m, EST)
Problem
Solution
Outdoor/Indoor data is not shown in
the APP
If the device is online, but the data still not be displayed
on the app.
Please follow the instructions below to troubleshoot.
1.Please press and hold the first button for 3 seconds, the
gateway will disconnect the pairing with the transmitter.
2.Then please reset the transmitter.
After the transmitter is powered on, if the indicator light
blinks every 60 seconds it means the outdoor unit is work
ing properly.
After the transmitter is powered on and working properly,
the display has to be re-plugged in to re-receive the trans
mitter signal. It usually takes 1-3 minutes to receive the d
ata, do not operate the keys or power off until the transm
itter data is received.
Install a new set of batteries for the remote sensor. In
cold weather environments, install lithium batteries.
3. Plug in the device with the power adapter.
Please press and hold the fourth button for 3 seconds to
enter the pairing mode, the indicator light (red) flashes
fast, the indicator light (red, green) will flash alternately
after successful pairing.
4.If the device shows offline on the app, you need to
reconnect to WiFi.
Rainfall display is incorrect/zero
Please check and verify the following points when you
46
find you rainfall is not working or inaccurate:
1.Make sure that the level bubble is seated in the small
black circle in the installation. Sloping installation might
cause incorrect reading or even not working.
2. Shake the sensor array back and forth. After hearing
the click sound inside the sensor array, observe whether
the rainfall reading in the console changes.
3. Check whether the funnel in the rain collector was
blocked by tree leaves or debris. Remove the rain
collector to check whether the rain tip was blocked by
insects or debris.
4. Check whether different rainfall histories are correct.
Check the Quick Mode part in the instruction manual to
know how to get rainfall histories in different periods.
5. An example on how rainfall histories for different
periods are calculated.
Presume that the current time is 08:42 22rd Sept. 2023
Rainfall Hour: 08:42-09:42
Rainfall Day: 08:42 on September22 to
08:42 on September 23
Rainfall Week: 00:00 Sunday to 08:42 today
Rainfall Month: 00:00 1st Sept. to 08:42 today
Rainfall Total: Total rainfall amount from the latest
powering on
6. How to verify the rainfall accuracy
A：Use a bottle containing 500g or 500ml of water.
B：Drip water slowly into the rain collector. DO NOT POUR
WATER QUICKLY.
C. Observe the rainfall reading of the console after the
water is completely dripped out. It should be 5.46cm
+/-5%. （5.46cm=54.6mm）
7. The rain gauge could not measure rainfall below
0.3mm due to limited resolution.
Note: One transmitter can connect to multiple gateway of the same model, but one gateway
cannot be connected to multiple transmitters at the same time.
Note: Please carefully check whether the model is consistent before purchasing. If you have
47
any questions, please consult after-sales service in advance.
15.Disclaimer
Please protect the environment by returning used batteries to an authorized recycling station.
Electrical and electronic waste contains hazardous substances. Disposal of e-waste in the natural
environment and/or in unauthorized locations can damage the environment.
Reading the user manual is strongly recommended and the manufacturer and supplier cannot be
held responsible for any incorrect readings or consequences resulting from failure to read the
manual carefully.
This product is intended for home use only and is not intended for medical purposes or public
safety information. This product is not a toy and should be kept out of the reach of children.
We assume no liability for accidental, consequential, punitive or other similar damages related to
operation or malfunction.
16. Warranty Information
Sainlogic provides a 1-year limited warranty against manufacturing defects in materials and
workmanship on this product.
This limited warranty begins on the date of original purchase and is valid only for the product
purchased and only for the original purchaser of this product. To obtain warranty service, the
purchaser must contact Sainlogic to determine the problem and service procedure.
Warranty service can only be performed by Sainlogic. The original dated bill of sale must be
presented to Sainlogic upon request as proof of purchase.
Sainlogic's warranty covers all defects in materials and workmanship except:
(1) Damage caused by accident, unreasonable use or neglect (lack of reasonable and necessary
maintenance);
(2) Damage caused by failure to follow the instructions in the user's manual;
(3) Damage caused by self-repair or alteration;
(4) Equipment not intended for personal use;
(5) Applications and uses of this product that do not correspond to the intended use;
(6) The product is unable to receive signals due to any source of interference or metal obstruction;
If you need to register or apply for a warranty, please contact us by Customer Support.
Customer Support Email：info@sainlogic.com
Website：https://www.sainlogic.com/
Customer Support Phone：+1 (888) 513-9823 (Mon-Fri 10 a.m. - 6 p.m, EST)
48
17. FCC Statement
1. This device complies with Part 15 of the FCC Rules.Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC ID:2A7KU-SA7
