Sainlogic SA9 Plus Weather Station User Manual
Content
1. Introduction ....................................................................................................................................... 3
2. Warning and Cautions ....................................................................................................................... 3
3. Quick Start Guide ...............................................................................................................................3
4. Assembly of Sensor Arrays ................................................................................................................ 3
4.1. Parts List ...................................................................................................................................4
4.2. Recommended tools ................................................................................................................5
4.3. Remove/Install the Wind Vane ................................................................................................6
4.4.Remove/Install the Wind Cup ...................................................................................................6
4.5.Remove/ Install the Rain Collector ...........................................................................................7
4.6. Installation of Coil Filters ......................................................................................................... 8
4.7.Install Battery ............................................................................................................................8
5. Installation of the Sensor Array....................................................................................................... 10
5.1. Pre-installation Check ............................................................................................................10
5.2. Site Survey ............................................................................................................................. 10
5.3. Adjusting the Sensor Mounting Direction............................................................................. 11
5.3.1. Northern Hemisphere Reference ................................................................................ 11
5.3.2.Southern Hemisphere Reference ................................................................................. 12
5.4. Securing the Mounting Pole.................................................................................................. 13
5.4.1. Horizontal Mounting and Fixing Sensors.....................................................................13
5.4.2. Vertical Mounting and Fixing Sensors ......................................................................... 14
5.4.3. Best Practices for Wireless Communication................................................................15
5. Install the Display Screen .................................................................................................................15
7. Start the Display Console .................................................................................................................16
7.1. Button Operation ...................................................................................................................18
7.2. Display Console ......................................................................................................................19
7.3. Display Restore Factory Settings........................................................................................... 20
7.4. Search for Outdoor Sensor Signal ..........................................................................................20
8. Display Connected to WiFi ...............................................................................................................20
8.1. Real-time Network Monitoring ............................................................................................. 20
8.2. App Download ....................................................................................................................... 21
8.3. App Account Register and Login ............................................................................................21
8.3.1. Registering Process ......................................................................................................21
8.3.2. Login Process ............................................................................................................... 21
8.4. MAC Address ..........................................................................................................................22
8.5. IP Address .............................................................................................................................. 23
8.6. Connecting Steps ................................................................................................................... 23
8.6.1 Bluetooth Distribution Network Mode ........................................................................ 23
8.6.2. WiFi Distribution Network Mode ................................................................................ 27
8.6.3. Web Page Distribution Network Mode ....................................................................... 31
8.7. Firmware Upgrade .................................................................................................................35
8.8. Sign Up on Wunderground.com............................................................................................ 36
9. Display Console Operation .............................................................................................................. 40
2
9.1. Quick Display Mode ...............................................................................................................40
9.2. Set Mode................................................................................................................................41
9.3. Time Zone .............................................................................................................................. 43
9.4.Max/Min Mode .......................................................................................................................44
9.4.1. Viewing and Resetting Maximum Values.................................................................... 44
9.4.2. Viewing and Resetting Minimum Values .....................................................................46
9.5. Alarm Mode ........................................................................................................................... 48
9.5.1. Alarm Trigger ............................................................................................................... 48
9.5.2. Viewing High/Low Alarm Values..................................................................................49
9.5.3. Setting High/Low Alarms ............................................................................................. 52
9.5.4. Alarm and Key Sound Switches................................................................................... 59
9.6. Calibration Mode ...................................................................................................................59
9.6.1. Temperature Calibration ............................................................................................. 59
9.6.2. Humidity Calibration ....................................................................................................60
9.6.3. Sensor Mode Calibration ............................................................................................. 61
9.6.4.Calibration Discussion ...................................................................................................64
9.7. Snooze Mode......................................................................................................................... 66
10. Feels Like and AT Temperatures ....................................................................................................67
10.1. Feels Like Temperatures ......................................................................................................67
10.2. Apparent Temperature (AT) ................................................................................................ 68
11. Moon Phase ................................................................................................................................... 68
12. Weather Forecasting ..................................................................................................................... 69
12.1. Weather Icon ....................................................................................................................... 69
12.2. Weather Forecast Instructions and Limitations.................................................................. 69
12.3. Pressure Threshold .............................................................................................................. 69
13. Backlight Operation ....................................................................................................................... 70
13.1. Connect the power adapter................................................................................................ 70
13.2. Power Not Connected ......................................................................................................... 70
14. Glossary of Terms .......................................................................................................................... 70
15. Specifications .................................................................................................................................72
15.1. Wireless Specifications ........................................................................................................ 72
15.2. Measurement Specifications ............................................................................................... 72
15.3. Power Consumption ............................................................................................................ 73
16. Maintenance ..................................................................................................................................73
17. Troubleshooting Guide .................................................................................................................. 74
18. Disclaimer ...................................................................................................................................... 77
19. Warranty Information ....................................................................................................................77
20. FCC Statement ............................................................................................................................... 78
3
1. Introduction
Thank you for purchasing the Sainlogic Professional WiFi Wireless Weather Station. The following
user guide provides detailed instructions on installation, operation, and troubleshooting. This
product is continually evolving and improving, particularly in its online services and associated
applications.
To download the latest manuals and other information, please contact Customer Support.
Website: www.sainlogic.com
Customer Support Phone: +1 (888) 513-9823 (Mon-Fri 10 a.m. - 6 p.m., Eastern Standard Time)
2. Warning and Cautions
WARNING: Lightning strikes can be caused by any metal object, including your weather station
mounting pole. Mounting your weather station during a storm is prohibited.
WARNING: Installing a weather station in an elevated location may result in injury or death, so
perform as many preliminary checks and operations as possible on the ground and inside a building
or house.
WARNING: Install the weather station on a clear, dry day.
3. Quick Start Guide
The following Quick Start Guide provides the necessary steps to install and operate the weather
station.
1
Assembling and Activating the Outdoor Sensor Array
4-5
2
Installing and Activating the Display Console to Connect to the Outdoor
Sensors
6-8
3
Connecting the Weather Station Console to Wi-Fi
8
4
Display Function Setup
9-13
5
Calibration Functions
9.6
6
Troubleshooting
17
4. Assembly of Sensor Arrays

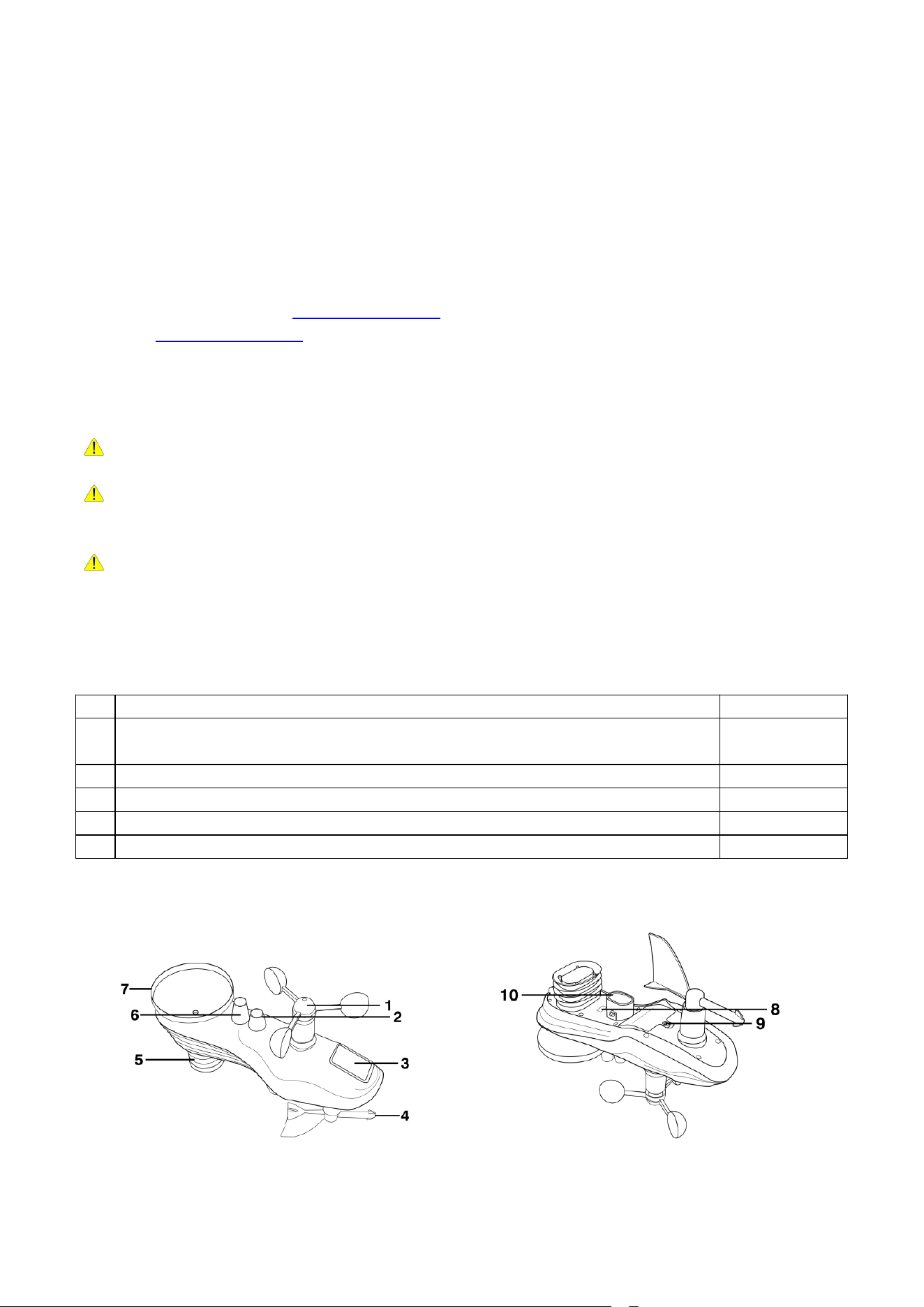

Figure 1
4
NO
Description
NO
Description
1
Wind Cup
7
Rain Collector
2
Bubble Level
8
Reset Button/LED Indicator
3
Solar Panel
9
Battery Door
4
Wind Vane
10
Mounting Pole Socket
5
Thermometer-Hygrometer Sensor
6
UV/Light Sensor

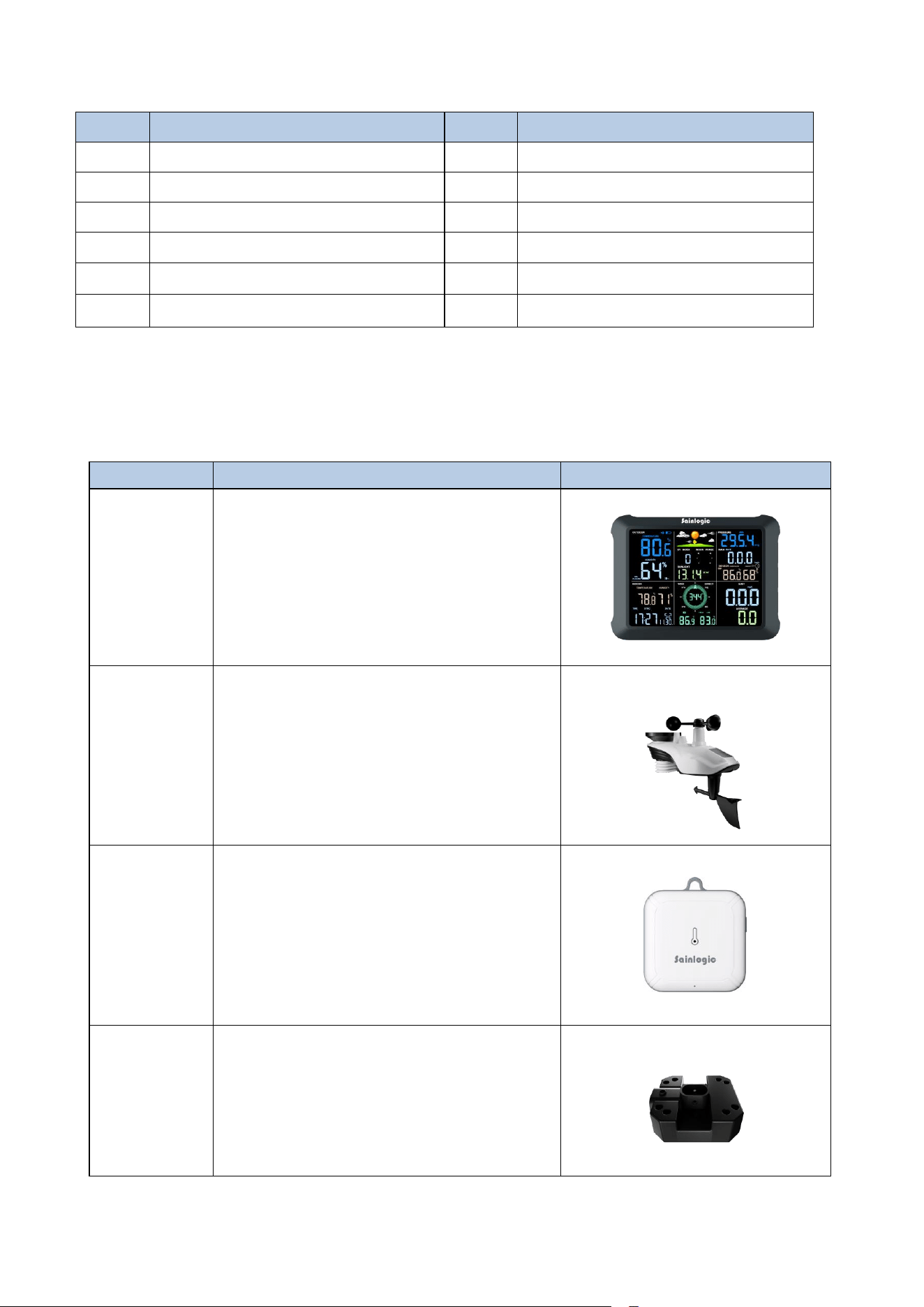

4.1. Parts List
The weather station consists of the following parts.
QTY
Item
1
Display Console
Frame Dimensions:
8.5x6.2x1inch
(216x157x25mm)
LCD Dimensions:
6.55x4.85inch
(166x123mm)
1
Integrated Outdoor
Transmitter Dimensions:
12.9x4x9.8inch
(327x101x249mm)
1
Thermo-hygrometer Sensor
Dimensions:
2.5x2.5x0.6inch
(63x63x15mm)
1
Foot Mounting (with pole insert)
Dimensions:
4.25x4.1x1.75inch
(107x104x44.5mm)
5

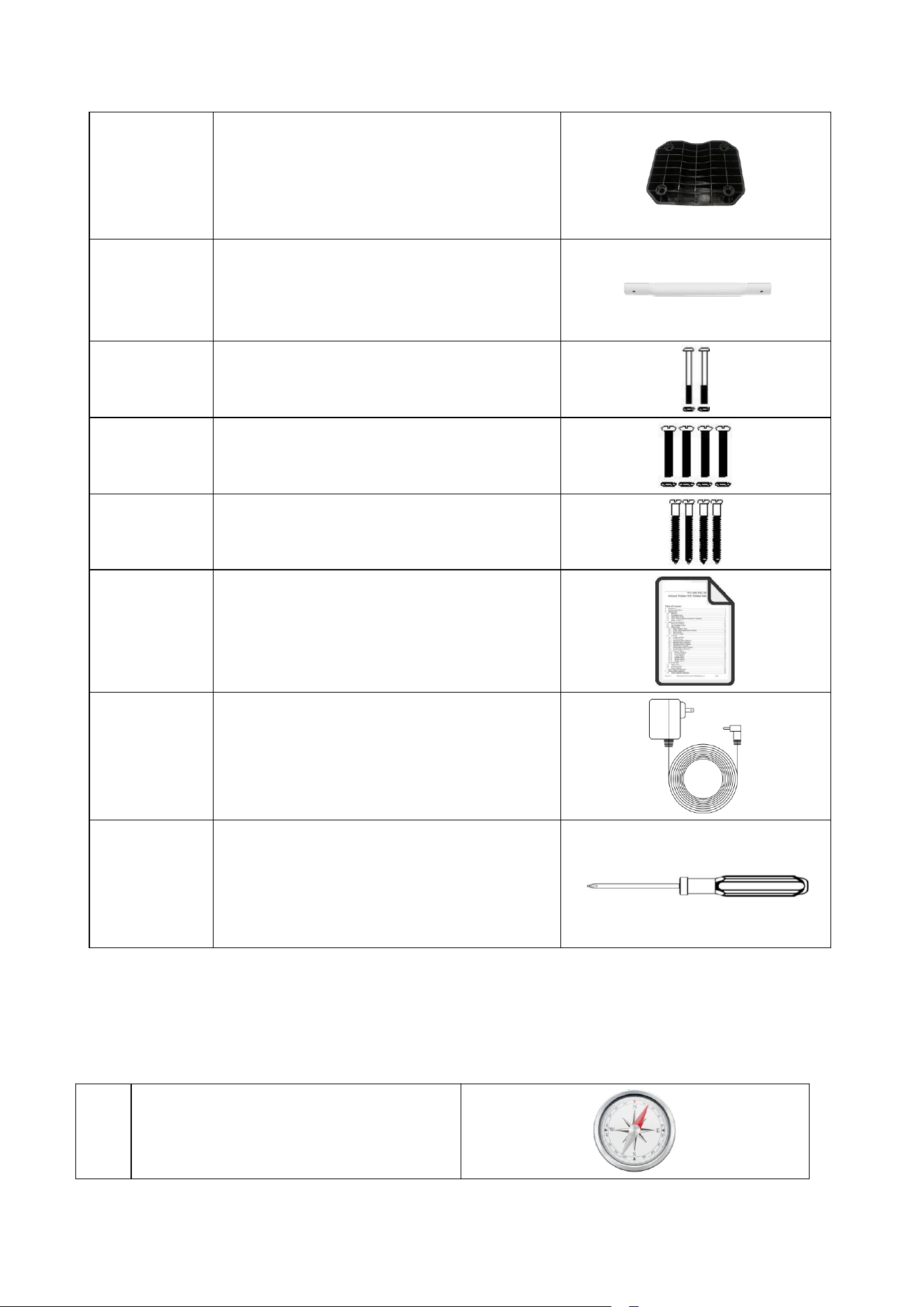

4.2. Recommended tools
We recommend using the following tools to assist in the installation of the weather station.
1
Compass or GPS (for wind direction
calibration)
1
Mounting Bracket Back Plate (pole mount)
Dimensions:
4x3.25x1inch
(101x82x25mm)
1
Mounting Pole
Dimensions:
12.8x1.3x0.9inch
(325x33x22mm)
2
Pole Mounting Nuts (M3) / Bolts
Ø3)
4
Pole Mounting Nuts (M5) / Bolts
( Ø5)
4
Tapping Screws
1
Manual
1
Power Adapter
1
Precision Screwdriver (for small Phillips
screws)
6
2
Adjustable Wrench
4.3. Remove/Install the Wind Vane
Note: If you need to replace the wind cup and wind vane, follow the steps below.

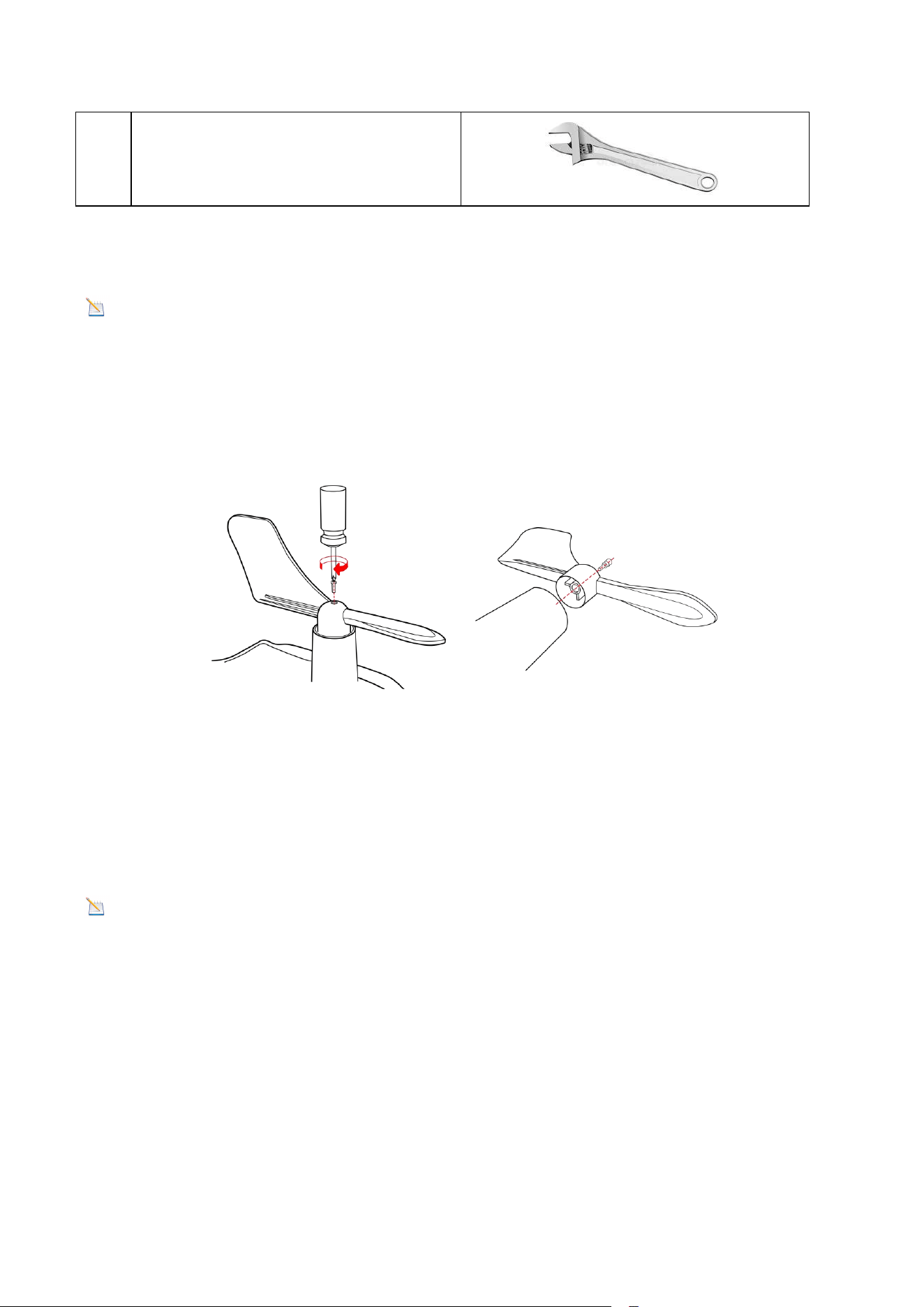

Remove the Wind Vane: (refer to Figure 2)
(a) Locate the black waterproof silicone plug in the center of the round cap at the top of the wind
vane and remove it with a tool.
(b) Use a precision screwdriver to loosen the set screw in the round hole until the wind vane can be
easily removed.
Figure 2
Install the Wind Vane:
(c) Place the round hole at the bottom of the wind vane against the wind vane shaft, then tighten
the fixing screws with a precision screwdriver to ensure the wind vane can rotate freely.
(d) Insert the black waterproof silicone plug into the round hole at the top of the wind vane. Ensure
it fits snugly the round hole to achieve a watertight seal.
Note: The wind vane axis cannot rotate freely, unlike the wind cup, which was intentionally
designed to do so.
4.4.Remove/Install the Wind Cup
Remove the Wind Cup: (refer to Figure 3)
(a) Locate the black waterproof silicone plug in the center of the round cap at the top of the wind
cup, then remove it with a tool.
(b) Use a precision screwdriver to loosen the set screw in the round hole until the wind cup can be
easily removed.
7

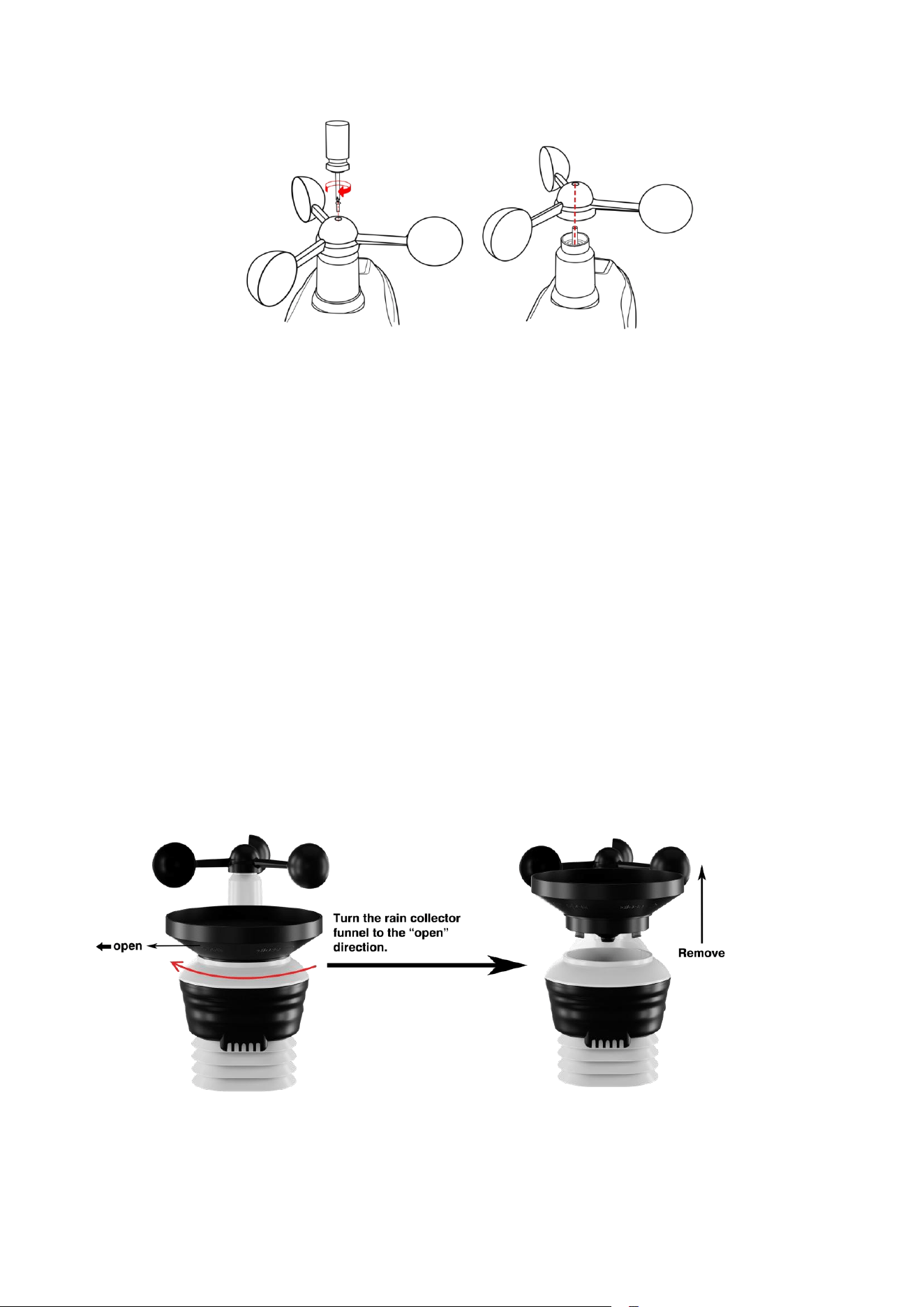

Figure 3
Install the Wind Cup:
(a) Place the round hole at the bottom of the wind cup against the wind vane axis, then tighten the
fixing screw with a precision screwdriver to ensure that the wind cup can rotate freely.
(b) Insert the black waterproof silicone plug into the round hole at the top of the wind cup. Ensure
it fits snugly in the hole to achieve a watertight seal.
4.5.Remove/ Install the Rain Collector
Remove the Rain Collector:（refer to Figure 4）

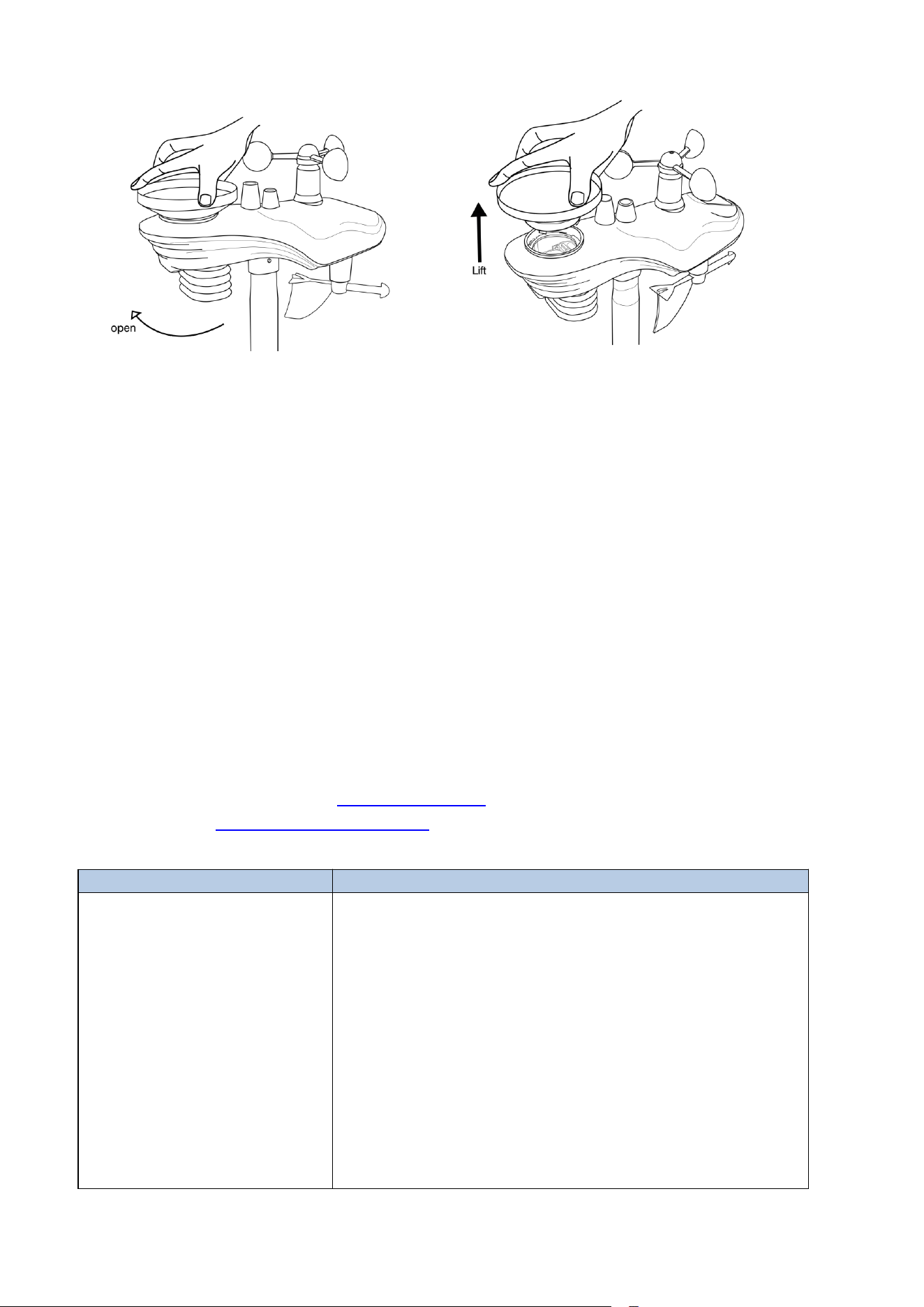

(a) Place your hand flat on the top of the rain collector. Grasp the entire collector and rotate it
clockwise.
(b) Remove the rain collector vertically upwards once a click is heard.
Figure 4
8
Remove the Rain Collector:（refer to Figure 5）

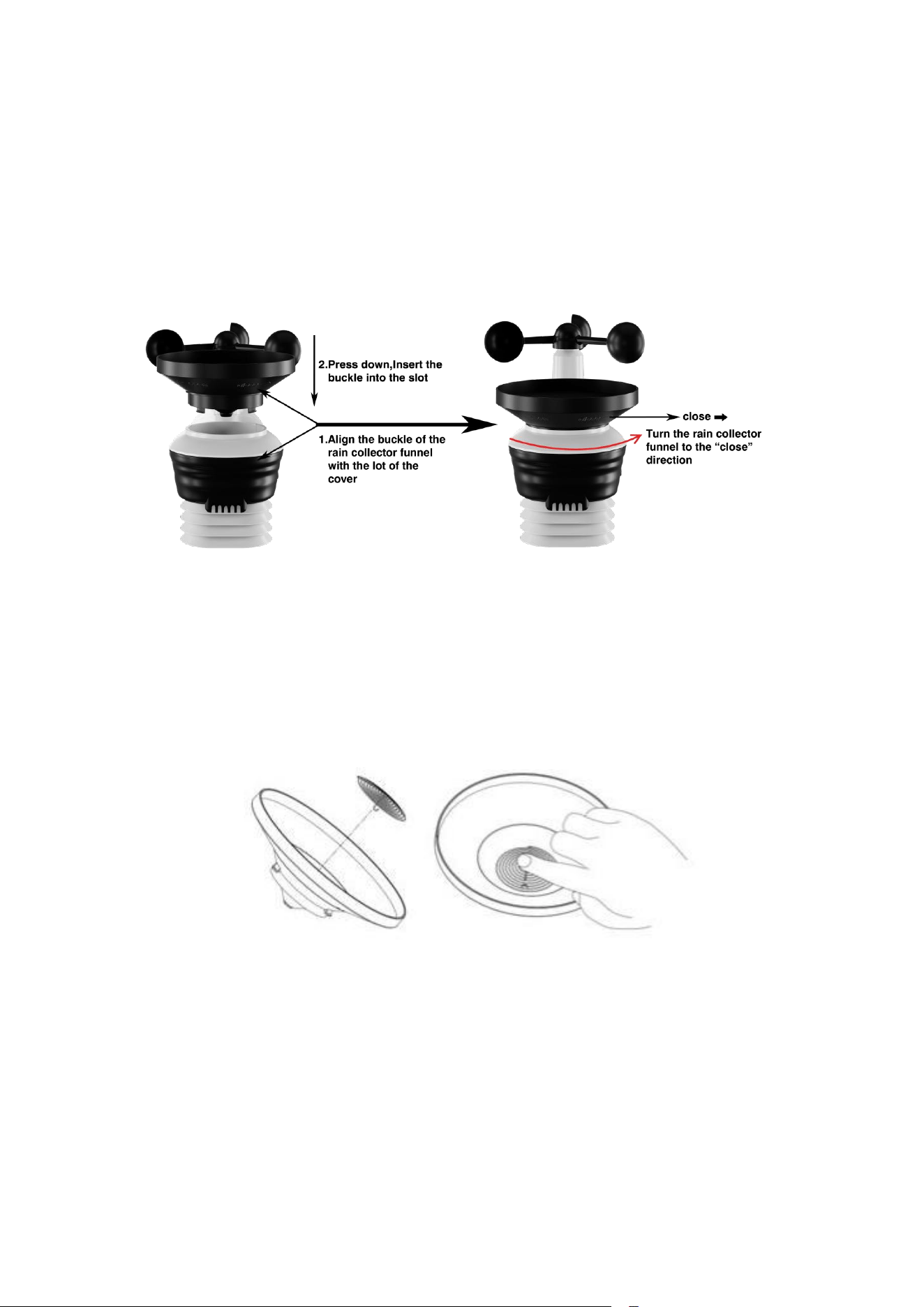

(a) Align the snap on the bottom edge of the rain collector with the snap notch on the transmitter
so that the two fit perfectly. Then, press the rain collector down vertically.
(b) After placing the rain collector into the groove, rotate it counterclockwise. The installation will
be successful when you hear a click.
Figure 5
4.6. Installation of Coil Filters
(a) Place the coil vertically into the rain collector (hook facing downward), so that the coil fits snugly
against the bottom of the rain collector.
(b) Gently press the coil so that it hooks into the hole at the bottom of the rain collector and locks
into place. The tension of the spring will keep the filter tightly fitted to the rain collector.
Figure 6
4.7.Install Battery

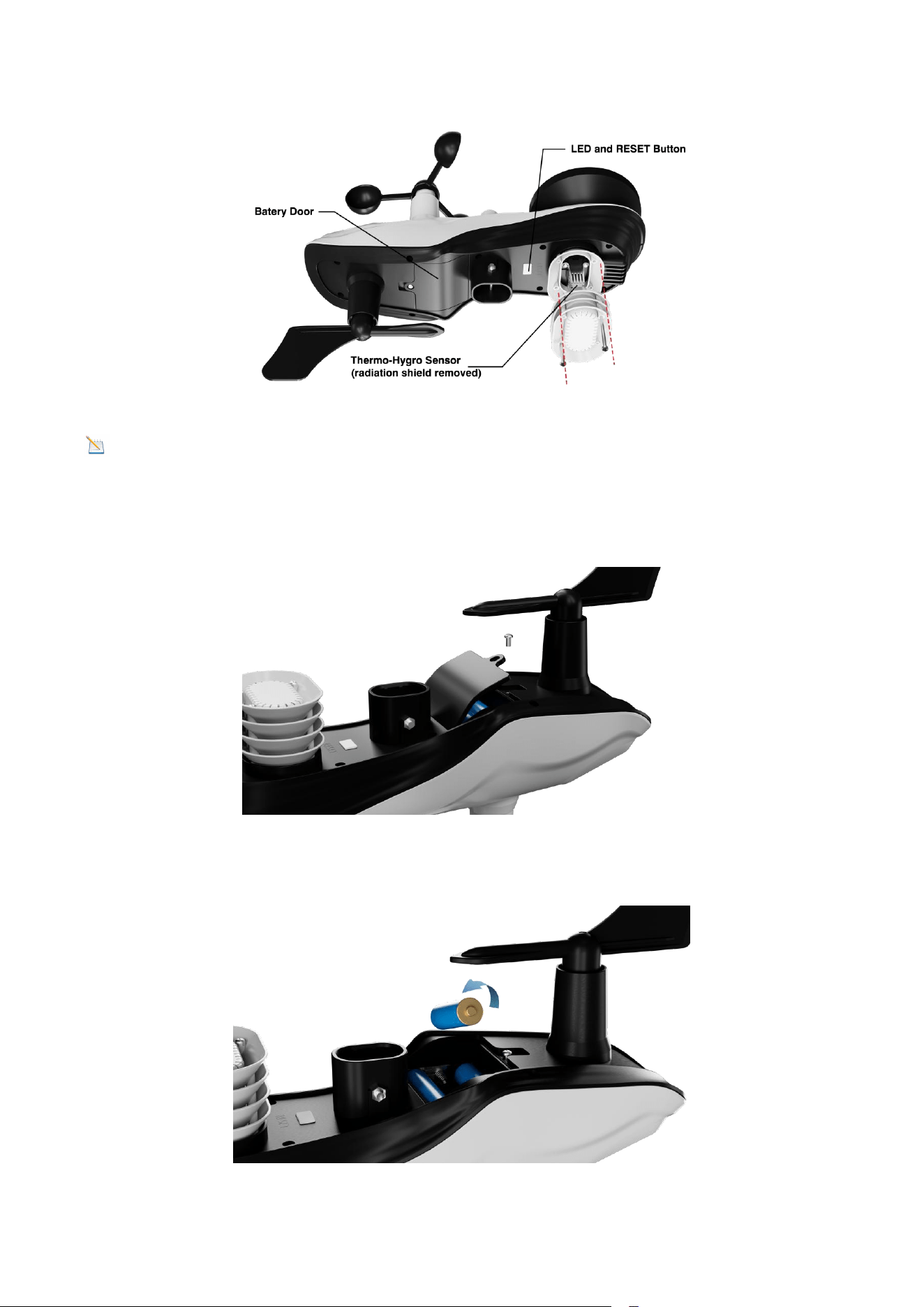

Locate the battery door at the bottom of the transmitter, as shown in Figure 7.
9
Figure 7
Note: Do not install the batteries backwards. You can permanently damage the outdoor
sensors. The solar panel does not charge the batteries, so rechargeable batteries are not
recommended.
Remove the battery door on the back of the sensor by removing the set screw, as show in Figure 8.
Figure 8
Insert 3 new AA batteries and close the battery door as shown. Before closing the battery door and
tightening the set screws, make sure the washers (around the inside perimeter of the battery door)
are properly secured in their tracks.
Figure 9
10
Note: We recommend installing AA lithium batteries for the Outdoor Sensor in cold weather
environments.
Once the battery is installed, the Integrated Outdoor Sensor LED indicator will illuminate for 3
seconds and then blink every 60 seconds. The sensor is transmitting data each time it blinks.
Figure 10
NOTE: If the sensor LED does not flash after inserting the batteries, press the reset button

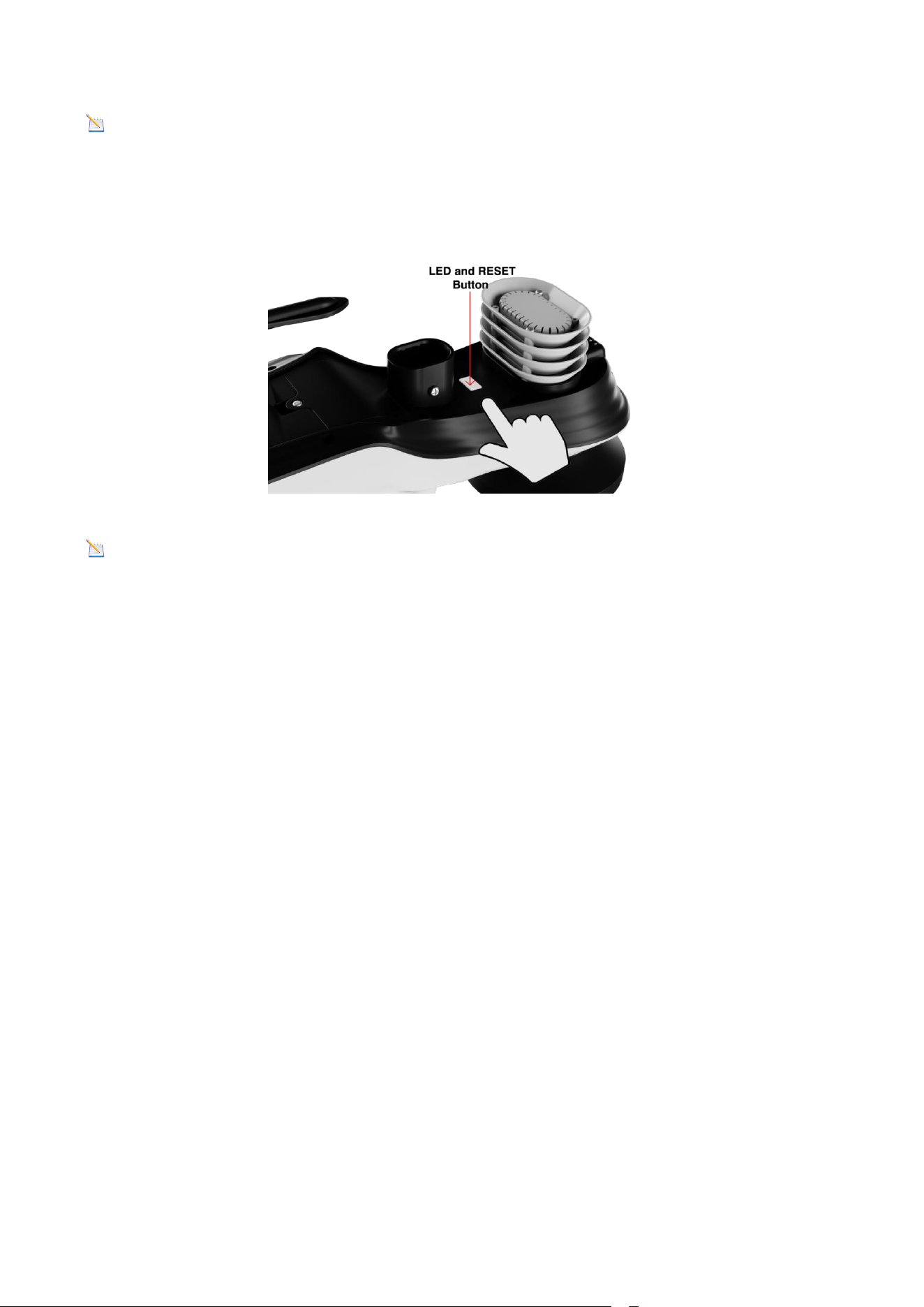

located at the bottom of the sensor as shown in Figure 10.
5. Installation of the Sensor Array
5.1. Pre-installation Check
Before installing the weather station in a permanent location, we recommend running it at a
temporary, easily accessible location for one week. This allows you to check all functions in advance,
ensure they are operating correctly, and familiarize yourself with the weather station and
calibration procedures.
5.2. Site Survey
Before installing the weather station, consider the following during the site survey:
1. The rain gauge must be cleaned every 3 months and the battery should be replaced every 3
months.
2. Avoid heat radiation transfer from buildings and structures. Generally, the sensor array should be
installed at least 5 feet (1.5 meters) away from any buildings, structures, ground, or roofs.
3. Avoid influencing wind speed and rainfall measurements. The installation distance of the sensor
array should be at least four times the height of the highest obstacle. For example, if a building is 20
feet (6 meters) high and the installation pole is 6 feet (2 meters) high, the installation distance
should be 4 x (20 - 6) = 56 feet (17 meters). If the weather station is installed near tall buildings,
wind speed and rainfall measurements may be inaccurate.
4. Radio signal range. Assuming no interference from buildings, trees, vehicles, high-voltage lines,
and other obstructions, the radio communication distance between the display console and the
transmitter can reach up to 330 feet (100 meters). In most cases, due to interference from
11
buildings and walls, most wireless applications can only reach up to 100 feet (30 meters). Radio
signals cannot penetrate metal buildings.
5. In the worst-case scenario, radio interference from personal computers, radios, or televisions can
completely cut off radio communication. Therefore, consider this when selecting a display console
or determining the installation location.
5.3. Adjusting the Sensor Mounting Direction
This professional weather station is suitable for use in both the Northern and Southern
Hemispheres. To ensure the accuracy of the wind direction display, please secure the direction of
the integrated outdoor sensor before installation.
Note: Wind direction is indicated by the letters N, E, S, and W. (N is north, E is east, S is south,
W is west)

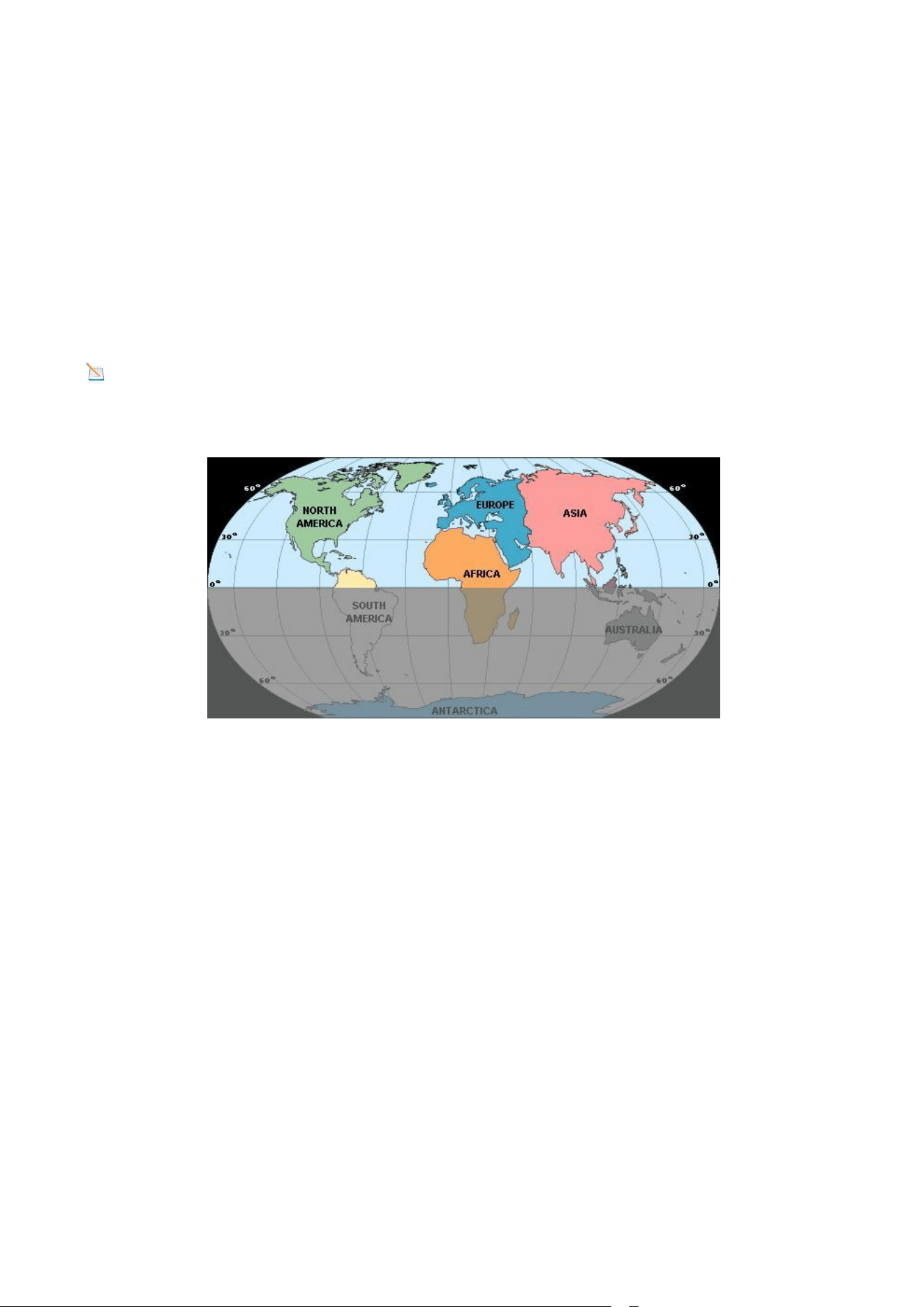

Northern Hemisphere
Southern Hemisphere
Figure 11
5.3.1. Northern Hemisphere Reference
The body of the outdoor sensor is embossed with the four cardinal directions: N, E, S, W, which are
applicable only in the Northern Hemisphere.

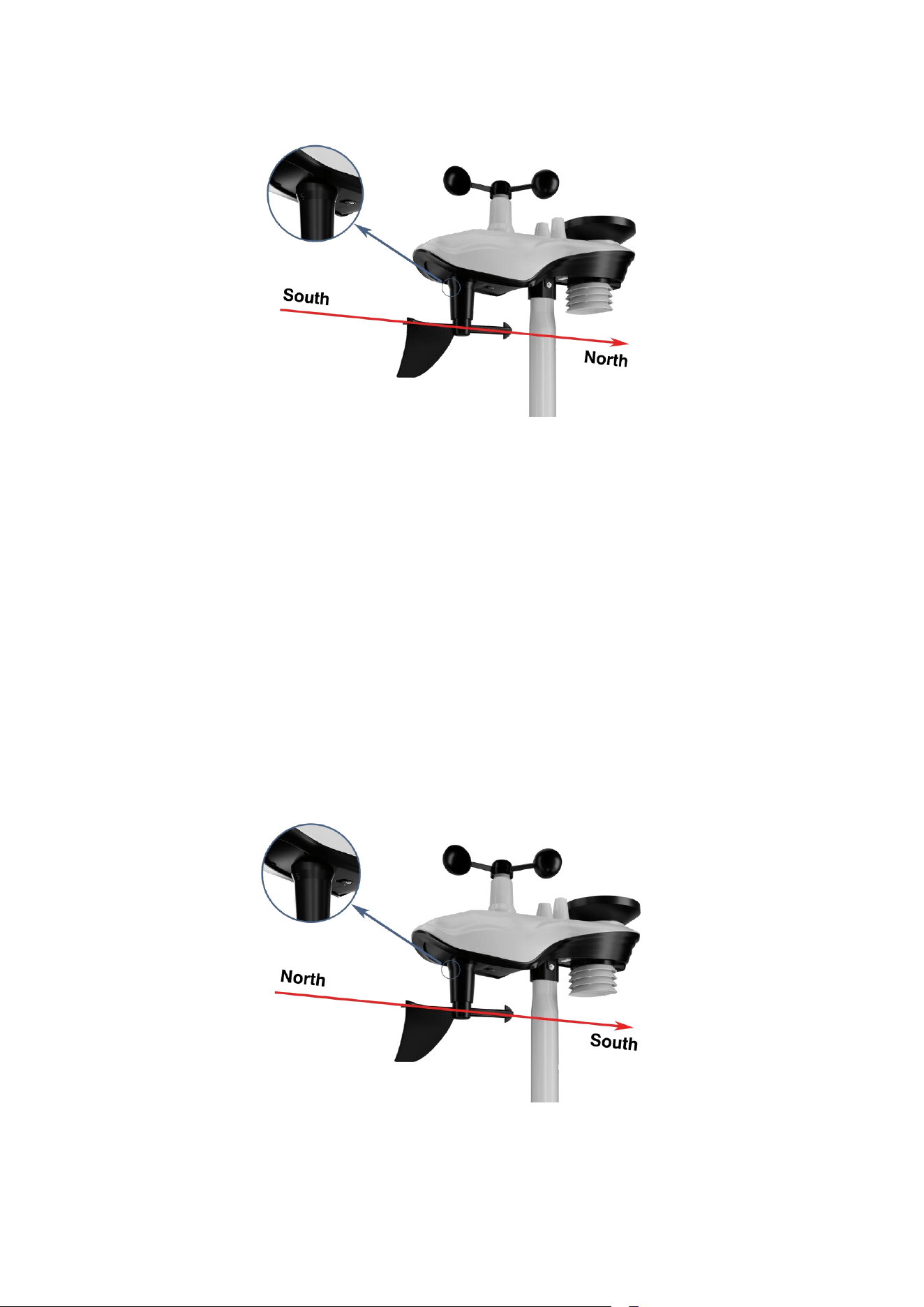

Step 1: As shown in the diagram, there is an "S" indicator on the wind vane representing south.
Using a compass, check the direction and adjust the orientation of the entire sensor to ensure the
"S" mark on the sensor aligns with the south.
12
Figure 12
Step 2: On the display console, set the location region to the Northern Hemisphere (NOR will
appear in the time zone).
(For detailed steps on setting the location region, see Step 18 in section 9.2).
5.3.2.Southern Hemisphere Reference
For installing the integrated outdoor sensor in the Southern Hemisphere, disregard the four
directions (N, E, S, W) marked on the sensor body. When installing, adjust the orientation of the
entire outdoor sensor to ensure the solar panel faces north (and is positioned to receive maximum
sunlight), as shown in the diagram.
Step 1: Install the Integrated Outdoor Sensor
Ensure the solar panel is positioned to face north.
Figure 13
Step 2: Set the Location Region on the Display Console
13
Set the location region to the Southern Hemisphere (SOU will appear in the time zone).
(For detailed steps on setting the location region, please refer to Step 18 in section 9.2).
Note: The location region (NOR or SOU) on the display console and the sensor direction must be
adjusted according to your actual location.
If the integrated outdoor sensor is not positioned correctly during installation, it will result in
permanent wind direction errors.
5.4. Securing the Mounting Pole
Observe the bubble level next to the rain gauge to ensure the bubble is stable within the circle,
keeping the sensor array completely level. If the sensor array is not level, the rain gauge, UV, and
solar radiation sensors will not measure accurately.

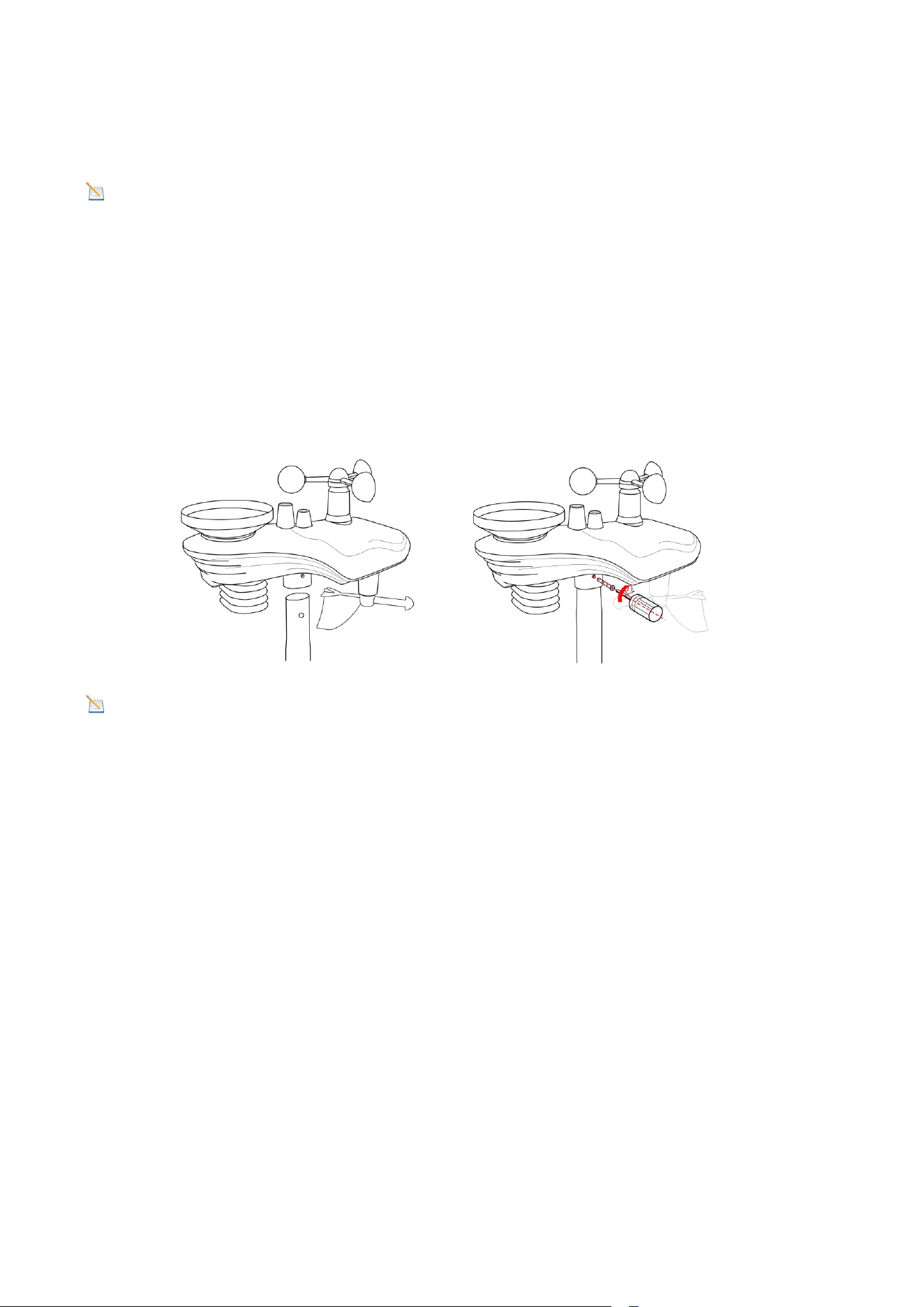

Figure 14
NOTE: If the bubble level cannot be read due to mounting limitations, a horizontal line or level
can be placed across the top of the rain gauge for easier viewing.
5.4.1. Horizontal Mounting and Fixing Sensors
Fasten the integrated outdoor sensor to the mounting bar bracket with two mounting bolts
(Ø4)/nuts (M3). Then, tighten the mounting bar to your existing mounting bar using four bolts (Ø5)
and nuts (M5), or secure it to a flat surface with four self-tapping screws, as shown. (Figure 15)
14

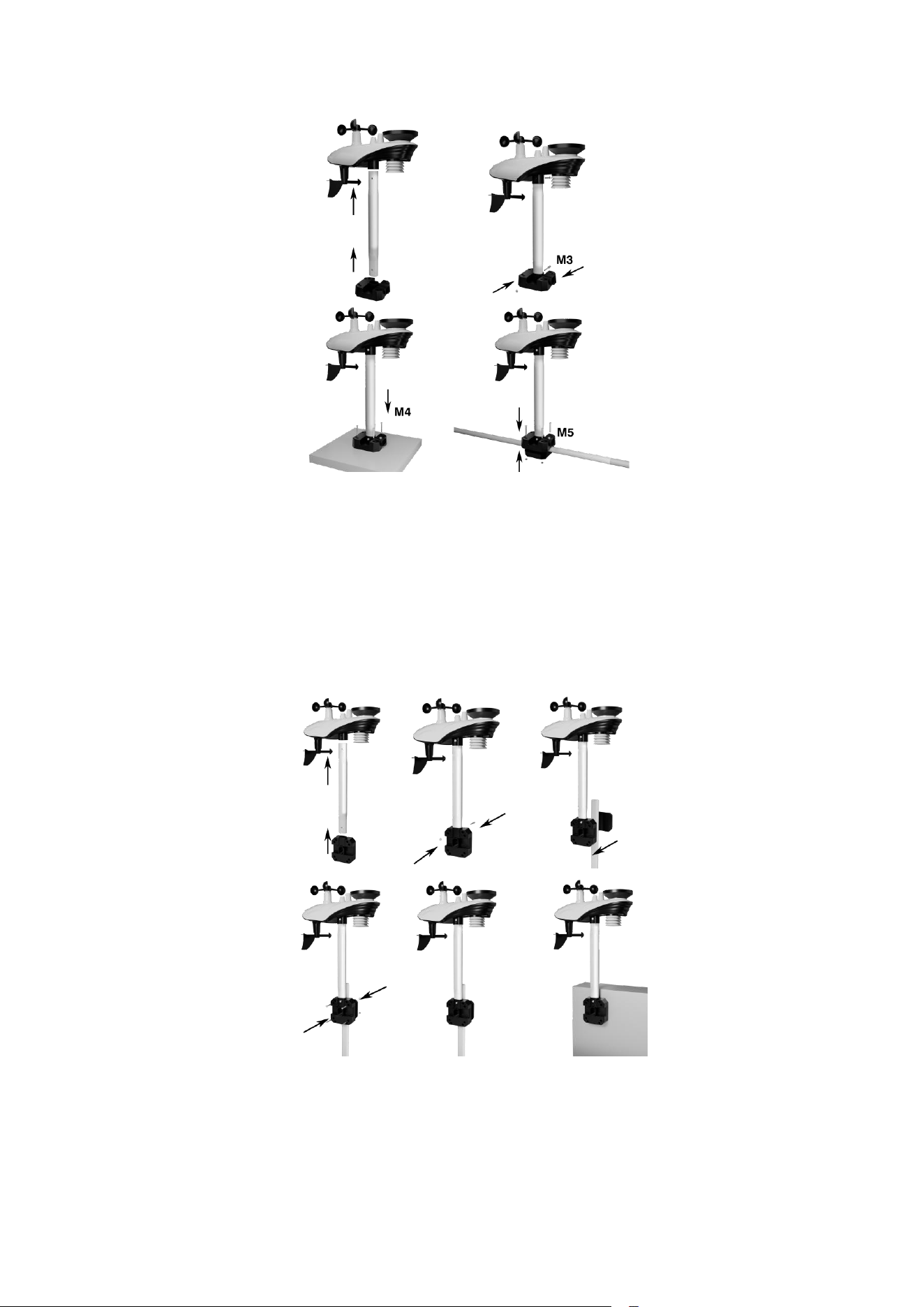

Figure 15
5.4.2. Vertical Mounting and Fixing Sensors
Fasten the integrated outdoor sensor to the mounting bar bracket with two mounting bolts
(Ø4)/nuts (M3). Then, tighten the mounting bar to your existing mounting bar with four bolts (Ø5)
and nuts (M5), or secure it to a flat surface with four self-tapping screws, as shown.(Figure 16)
Figure 16
15
5.4.3. Best Practices for Wireless Communication
Wireless communication is susceptible to interference, distance, walls, and metal barriers. We
recommend the following best practices for trouble-free wireless communication:
1. Electro-Magnetic Interference (EMI): Keep the console several feet away from computer
monitors and TVs.
2. Radio Frequency Interference (RFI): If you have other 433 MHz devices and communication is
intermittent, try turning off these other devices for troubleshooting purposes. You may need to
relocate the transmitters or receivers to avoid intermittent communication.
3. Line of Sight Rating: This device is rated at 300 feet line of sight (no interference, barriers, or
walls), but typically you will get 100 feet maximum. [This is under most real-world installations,
which include passing through barriers or walls.]
4. Metal Barriers: Radio frequency will not pass through metal barriers, such as aluminum siding.
If you have metal siding, align the remote and console through a window to get a clear line of sight.
The following is a table presents reception loss, versus the transmission medium. Each “wall” or
obstruction decreases the transmission range by the factor shown below:
6. Install the Display Screen
The front and back diagram of the console is shown in the figure below.

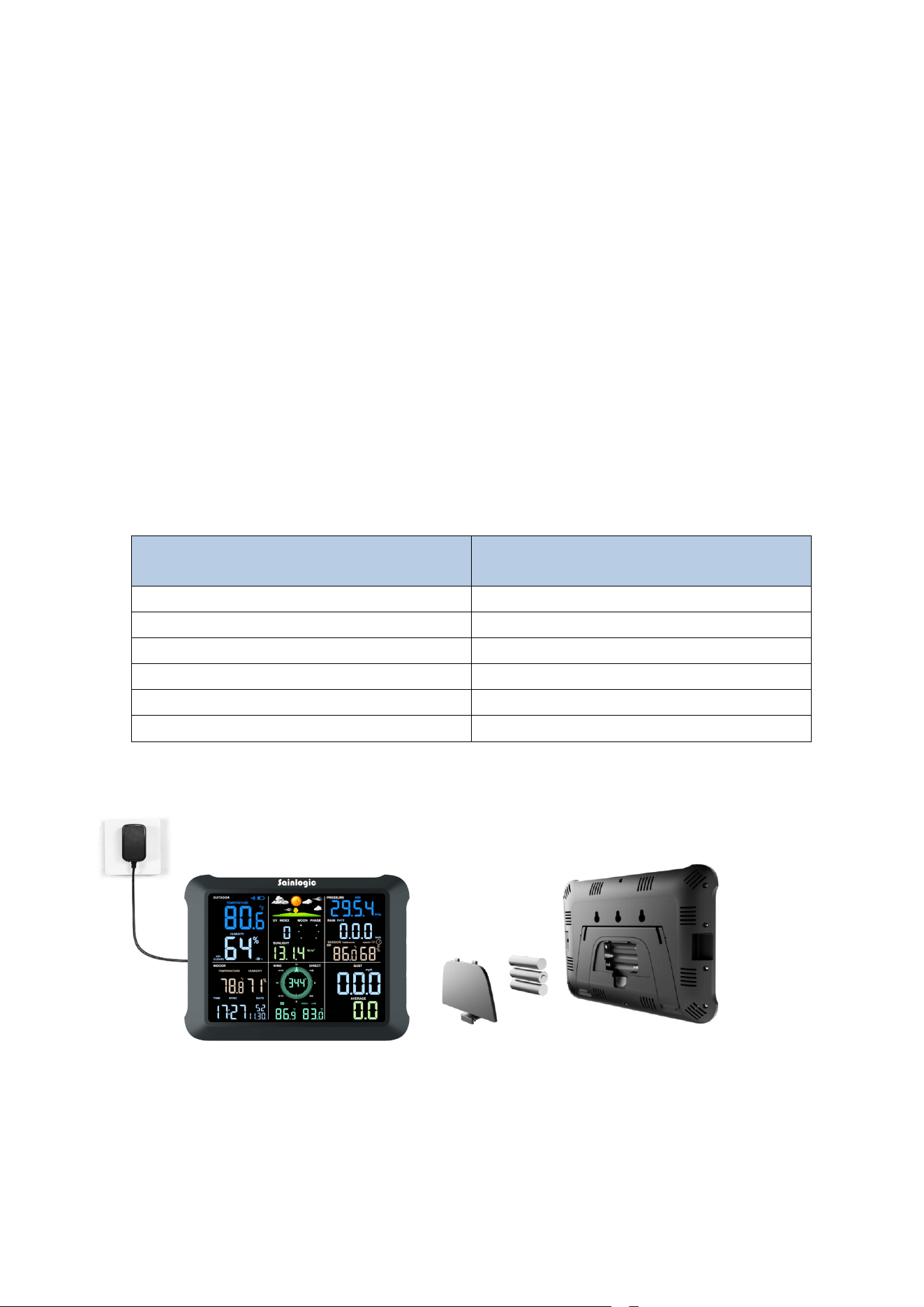

Figure 17
(1) Plug in the display console with the power adapter.
Medium
Radio Frequency (RF) signal strength
reduction
Glass (untreated)
5-15%
Plastic
10-15%
Wood
10-40%
Brick
10-40%
Concrete
40-80%
Metal
90-100%
16
Note：It is recommended that the power adapter be plugged in at all times to minimize
display battery consumption and extend battery life. If you use battery power without the
adapter, it will not remain on constantly and will likely only last approximately 2 hours.
(2) Install the display console batteries
Remove the battery door on the back of the display (Figure 17) and install three AAA (alkaline or
lithium) batteries. The display will beep and all layouts on the display will light up for a few seconds
as a verification that the display is working properly.

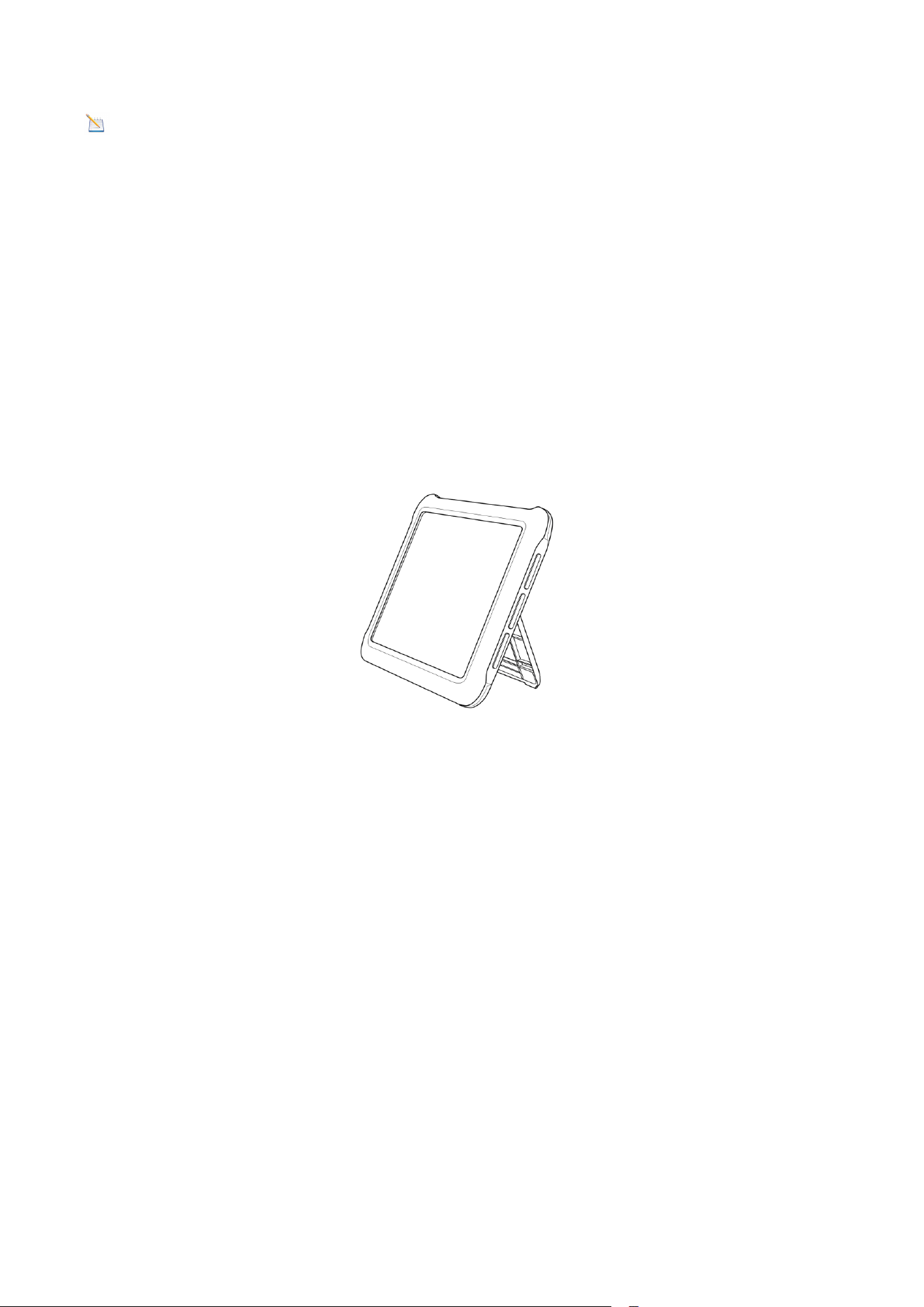

(3) Use the Display Stand.
The folding tabletop stand on the back of the display console is positioned at roughly 45 degrees to
the display (Figure 18). We recommend viewing the console from a 20-degree to 30-degree angle
from above for the best display of the screen.
Figure 18
7. Start the Display Console
As shown in the figure, once the display console is powered up, it will display all layouts of the
screen for three seconds. Then, it will automatically scan all nearby integrated outdoor sensors. The
indoor data will be updated immediately, and the outdoor sensor data will be updated within a few
minutes.
17
Figure 19
In Search Mode, the Remote Search icon will blink continuously and will not stop until all
measurements have been received; then it will remain permanently lit. The console will
automatically switch to normal mode, where all other settings can be performed.
Note: Do not touch any buttons on the display until all remote sensors have reported data on
the display, or the display console will terminate the connection to the remote sensors.
When the integrated outdoor sensor is connected, the measured values (outdoor temperature,
humidity, wind speed, wind direction, gusts and average wind, rainfall, UV and sunlight index, dew
point, and sensory image) will be displayed on the display console.
Note: Ensure that the distance between the weather station's sensor and the display console
is between 10 feet (3 meters) and 100 feet (30 meters). If the weather station sensor is too close
or too far away, it may not receive the proper signal.
18
7.1. Button Operation
Figure 20

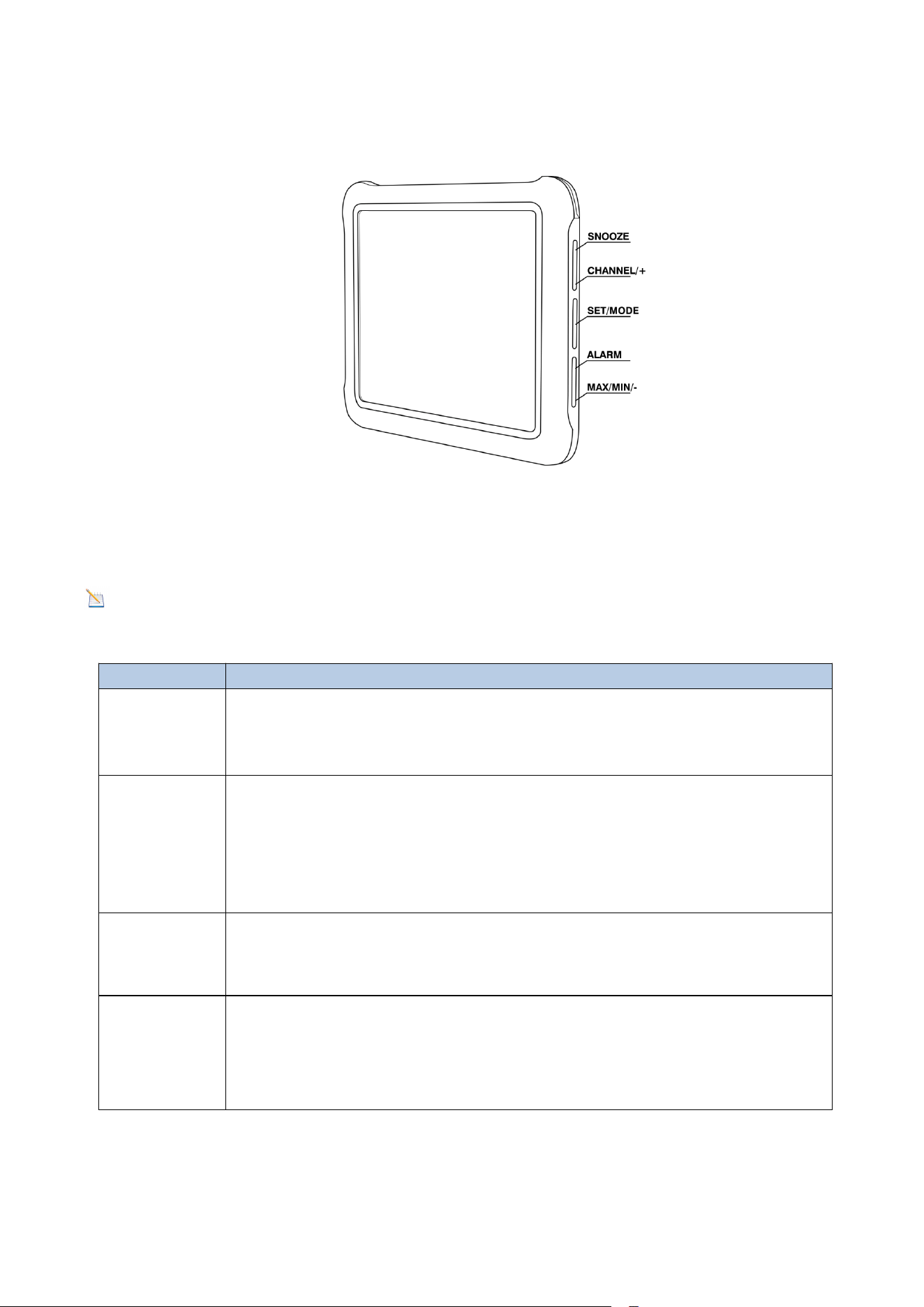

The following 5 keys can be found on the right side of the console (from top to bottom) and used to
set the display functions by short press, long press, or double click.
Note: SET/MODE is the same key and has the same function.
Key
Description
SNOOZE
1. In normal mode, short press to toggle between 3 levels of brightness.
2. In any setting mode, short press to return to normal mode.
3. Long press to keep the display on or turn off the backlight.
CHANNEL/+
1. In normal mode, press and hold the SET key at the same time for 5 seconds
to enter the temperature calibration mode.
2. double-click to display the MAC address.
3. In any setting mode, short press to increase the value; long press to
increase the value quickly.
4. Long press to enter the outdoor unit and indoor unit pairing mode.
SET/MODE
1. In normal mode, short press to enter fast display mode.
2. Long press to enter setting mode.
3. In any setting mode, short press to skip any step to the next step.
ALARM
1. In normal mode, short press to view alarm parameters.
2. In calibration mode, short press to reset the calibration value.
3. Long press to enter sensor pairing mode.
4. In normal mode, press and hold the SET button for 5 seconds to enter the
sensor calibration mode;
19
7.2. Display Console

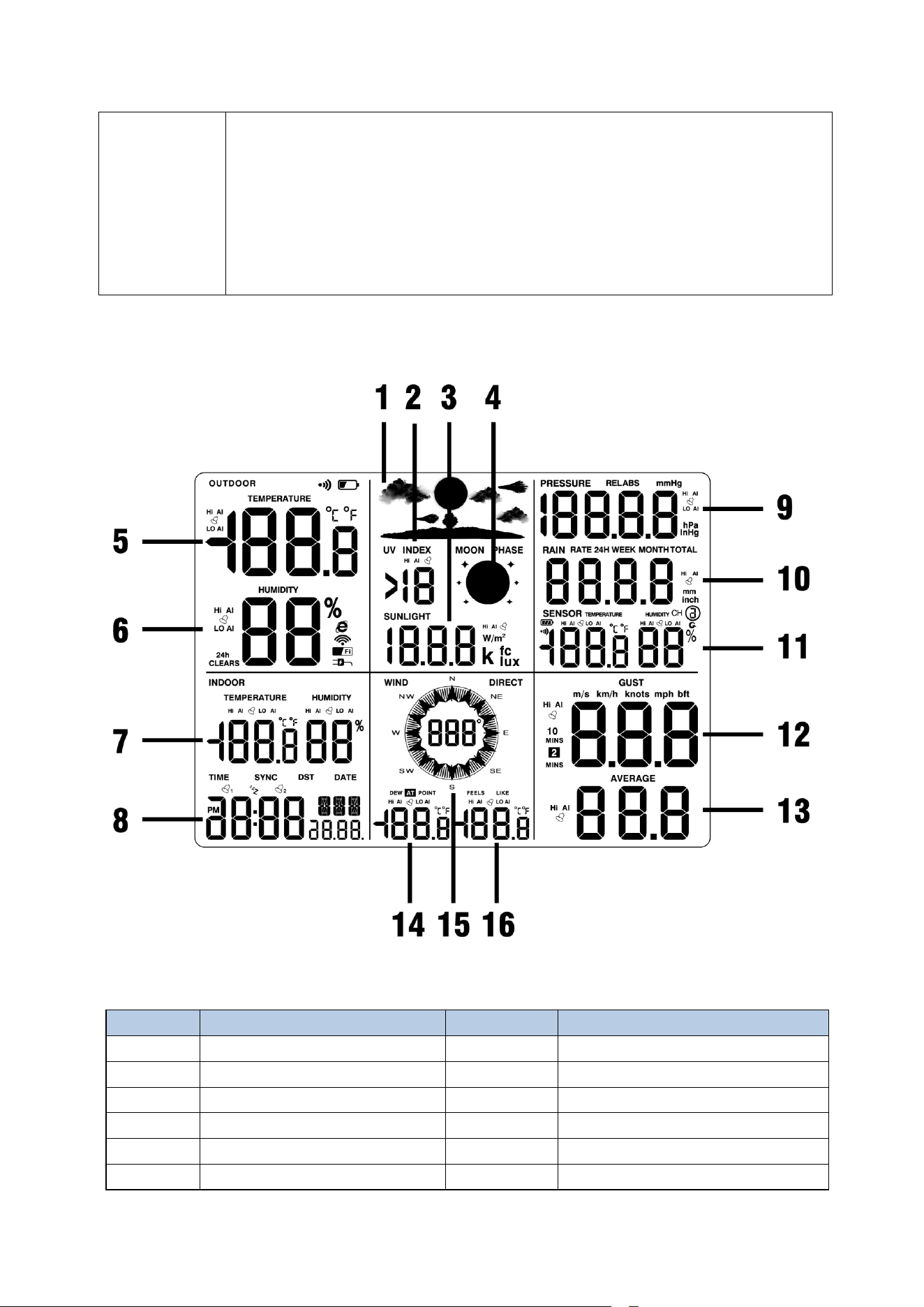

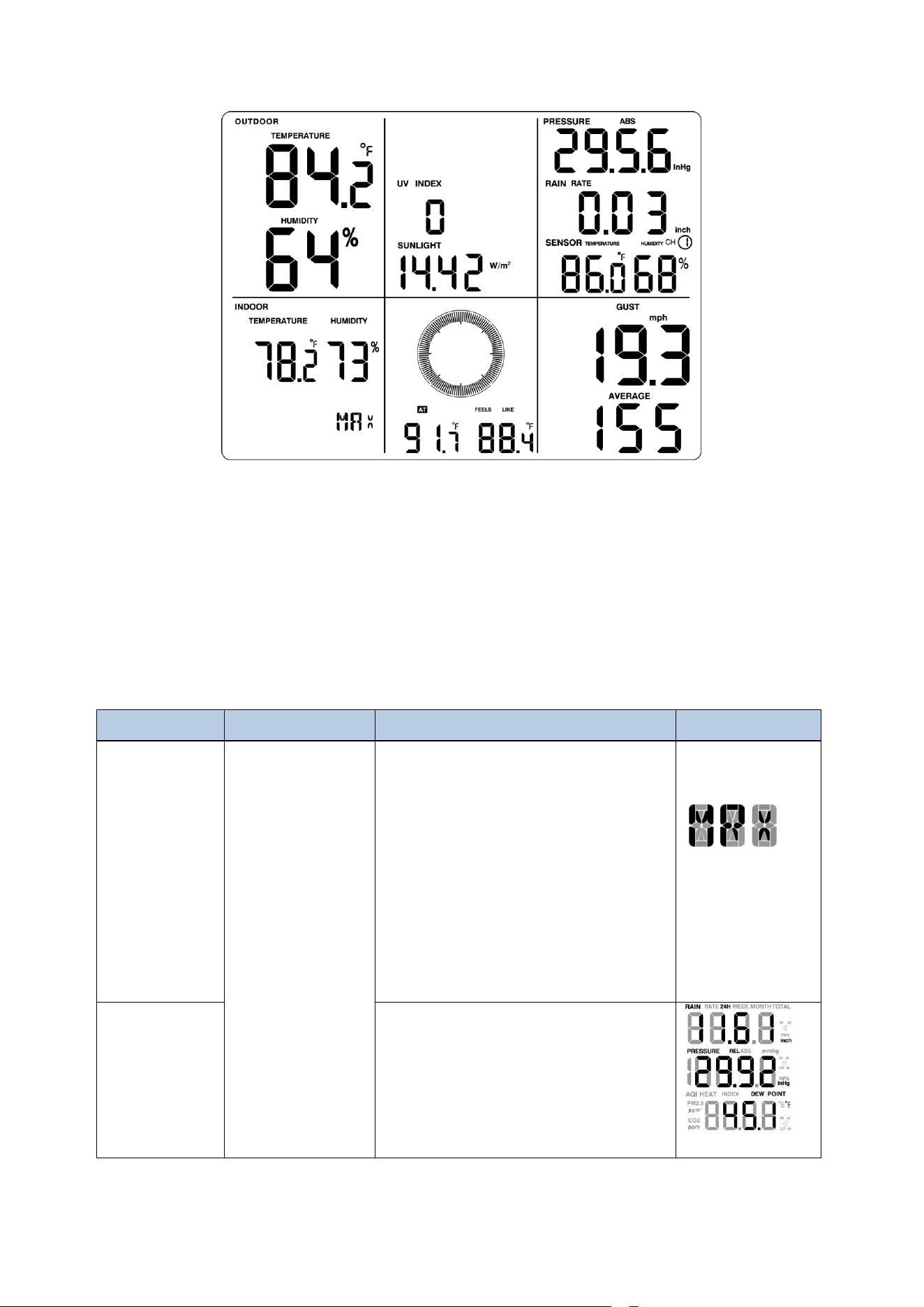

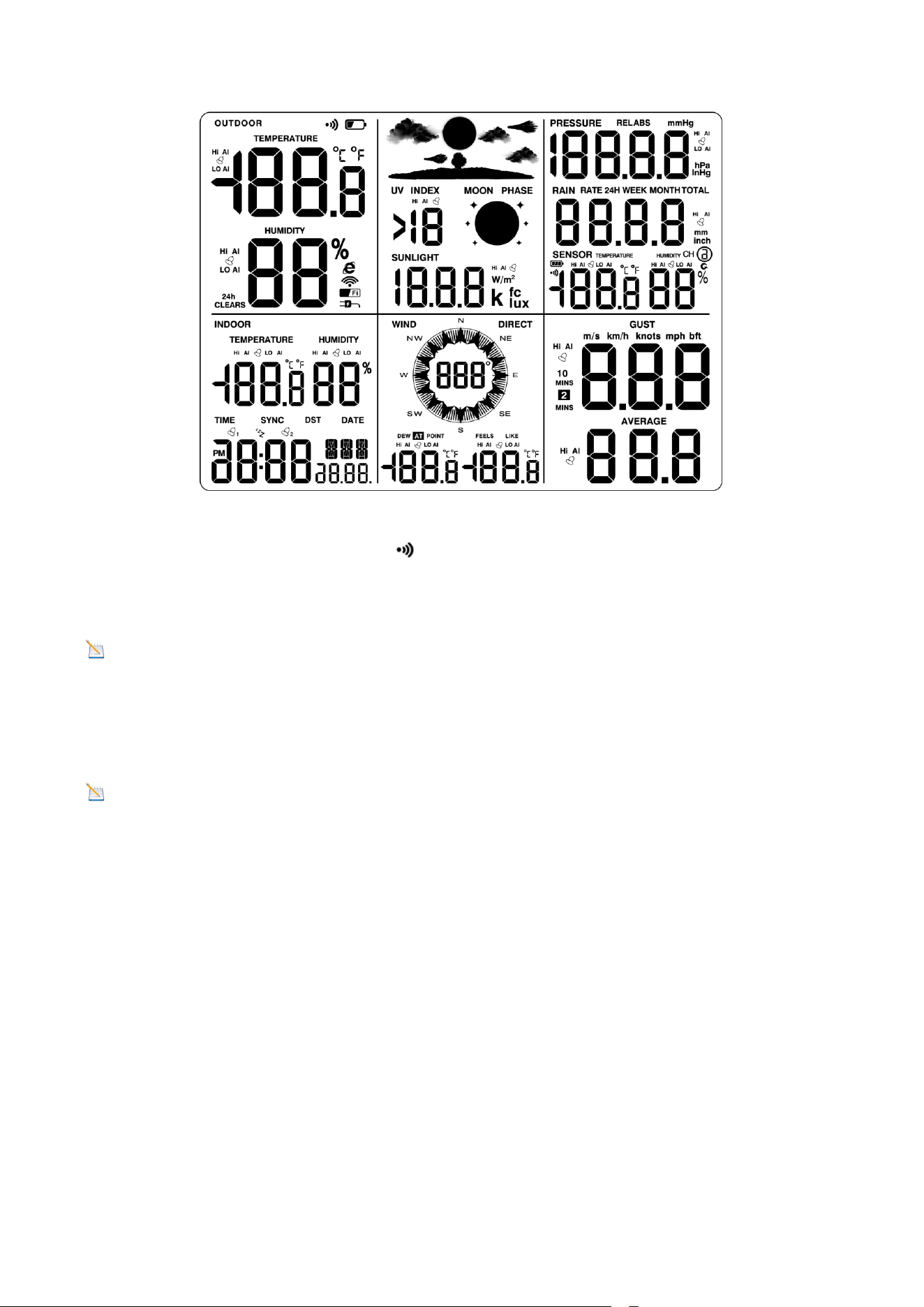

The following figure shows the layout of all the data on the display.
Figure 21
MAX/MIN/-
1. In normal mode, short press to switch to view the maximum and minimum
values.
2. Long press to enter the network mode(BT;WIFI;Web);double-click to
display the IP address.
3. In any setting mode, short press to reduce the value; long press to quickly
reduce the value.
4. In normal mode, press and hold the SET button for 5 seconds to enter the
humidity calibration mode;
No
Description
No
Description
1
Weather Icon
9
Barometric Pressure
2
UV
10
Rainfall
3
Sunlight
11
Sensor data
4
Moon Phase
12
Wind Gust
5
Outdoor Temperature
13
Average Wind Speed
6
Outdoor Humidity
14
Outdoor AT/Outdoor Dew point
20
7.3. Display Restore Factory Settings
To reset the console to factory default settings (including WiFi, weather server, and display settings),
please follow these steps:
1. Remove the battery and disconnect the adapter to turn off the console power.
2. Connect the adapter and turn on the power.
3. When all layouts appear on the screen, simultaneously press and hold the MAX/MIN- button for
three seconds until the console startup process is complete.
4. Replace the battery.
7.4. Search for Outdoor Sensor Signal
If the outdoor sensor data is not displayed on the screen, you can press and hold the CHANNEL/+
button for three seconds until you hear a beep, and all data displays dashes.
At this point, the display will re-receive the signal from the outdoor sensor, and the search
icon will start flashing. Once the signal is reacquired, all data will be displayed, the remote
search icon will remain lit, and the screen will show the current values.
Note: Pressing the SNOOZE button briefly can exit the signal search mode; if the search times
out after 60 seconds, it will also exit the signal search mode.

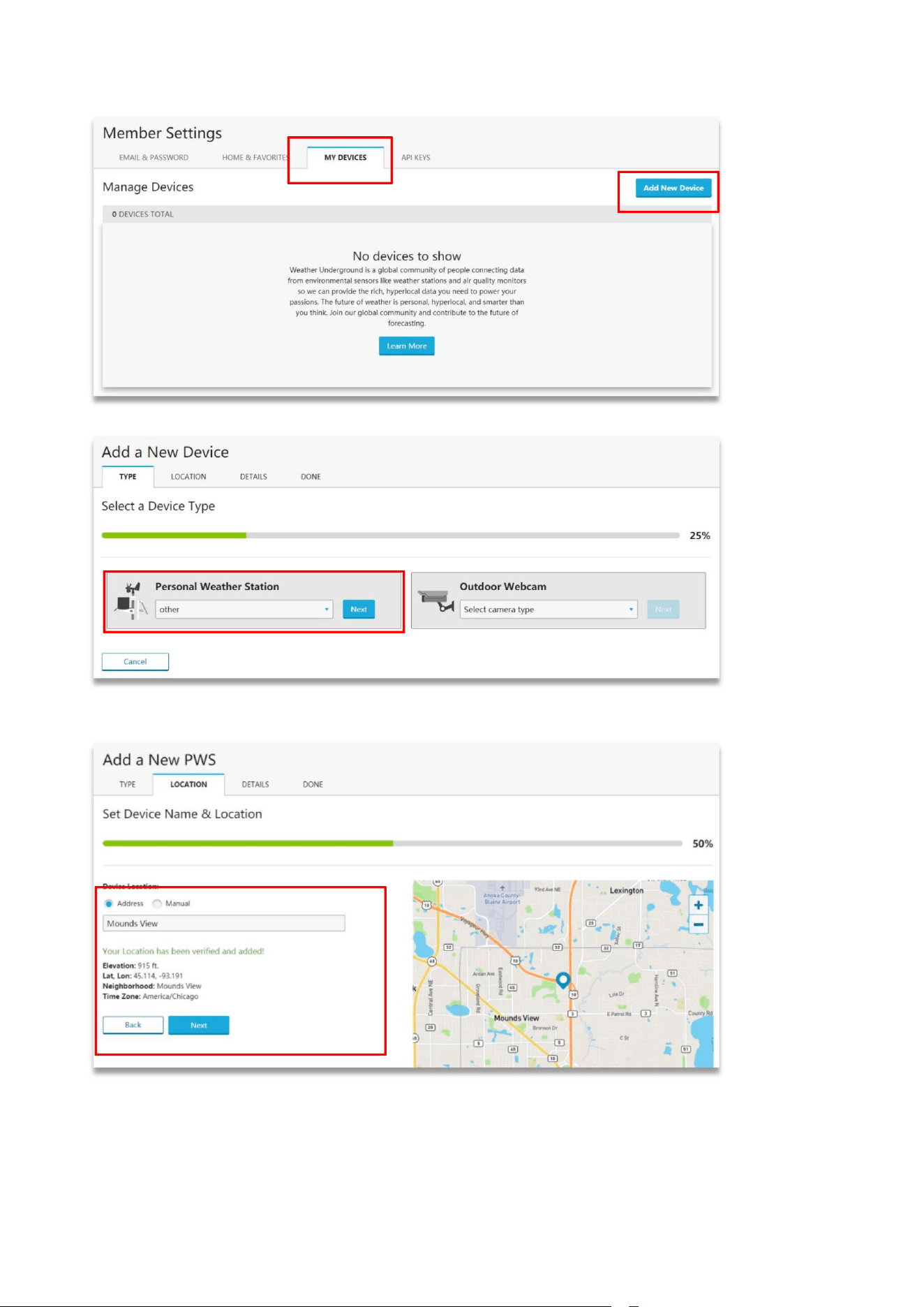

8. Display Connected to WiFi
8.1. Real-time Network Monitoring
The weather station can upload data to the following two platforms:
Application Services
Website
Description
Weatherseed App
Wunderground.com
Our weather stations feature the most
user-friendly design to monitor data
across different platforms. Use our
animated expandable modules to
quickly view the details you want.
*Weather station uses the WiFi connection to send data to the Internet.

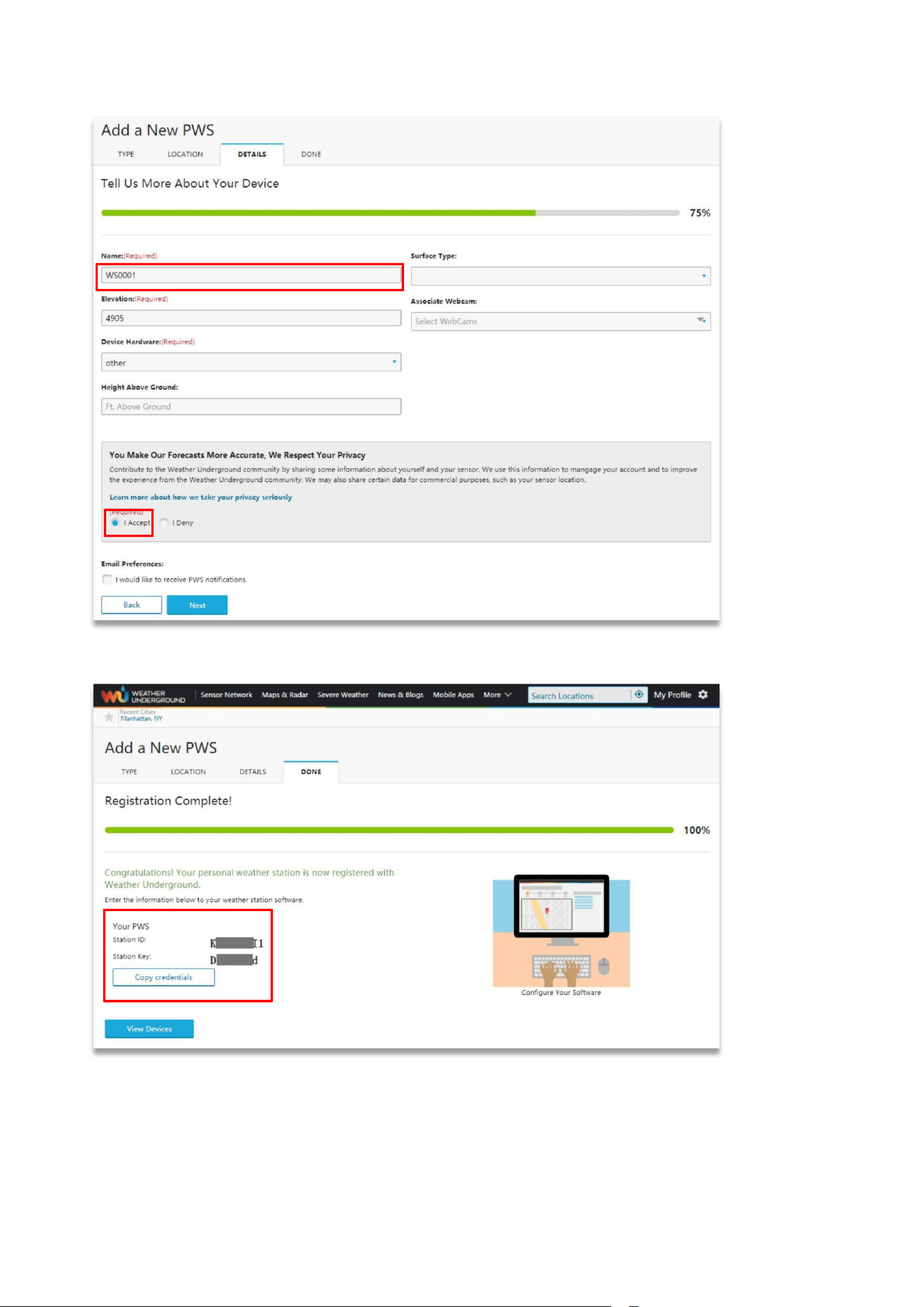

* Please DO NOT fill in any credit card information on Weather Underground website. If a pop-up
window appears when you open the Weather Underground website, please be careful not to click it!
7
Indoor Data
15
Wind Direction
8
Time
16
Outdoor Feels Like
21

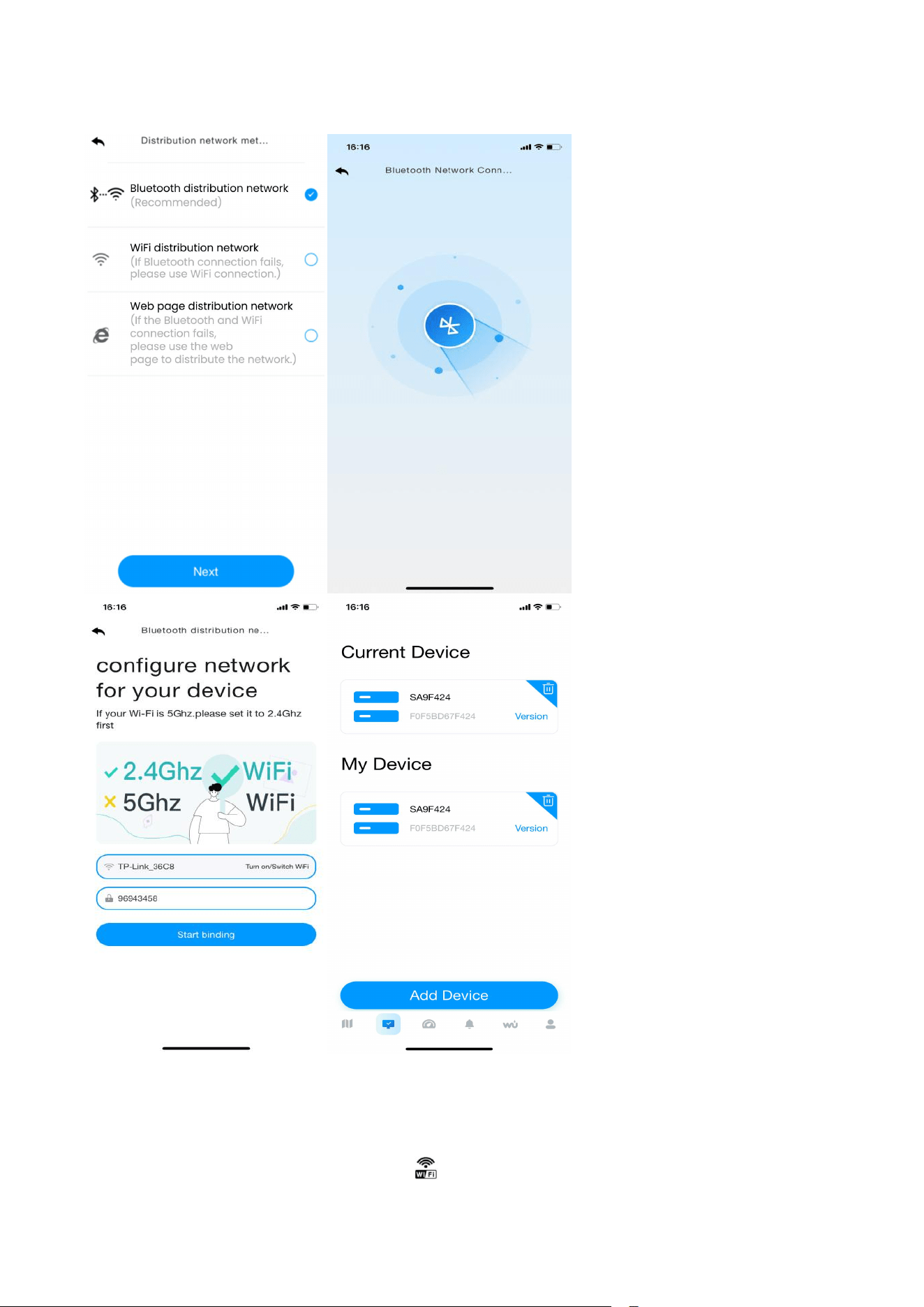

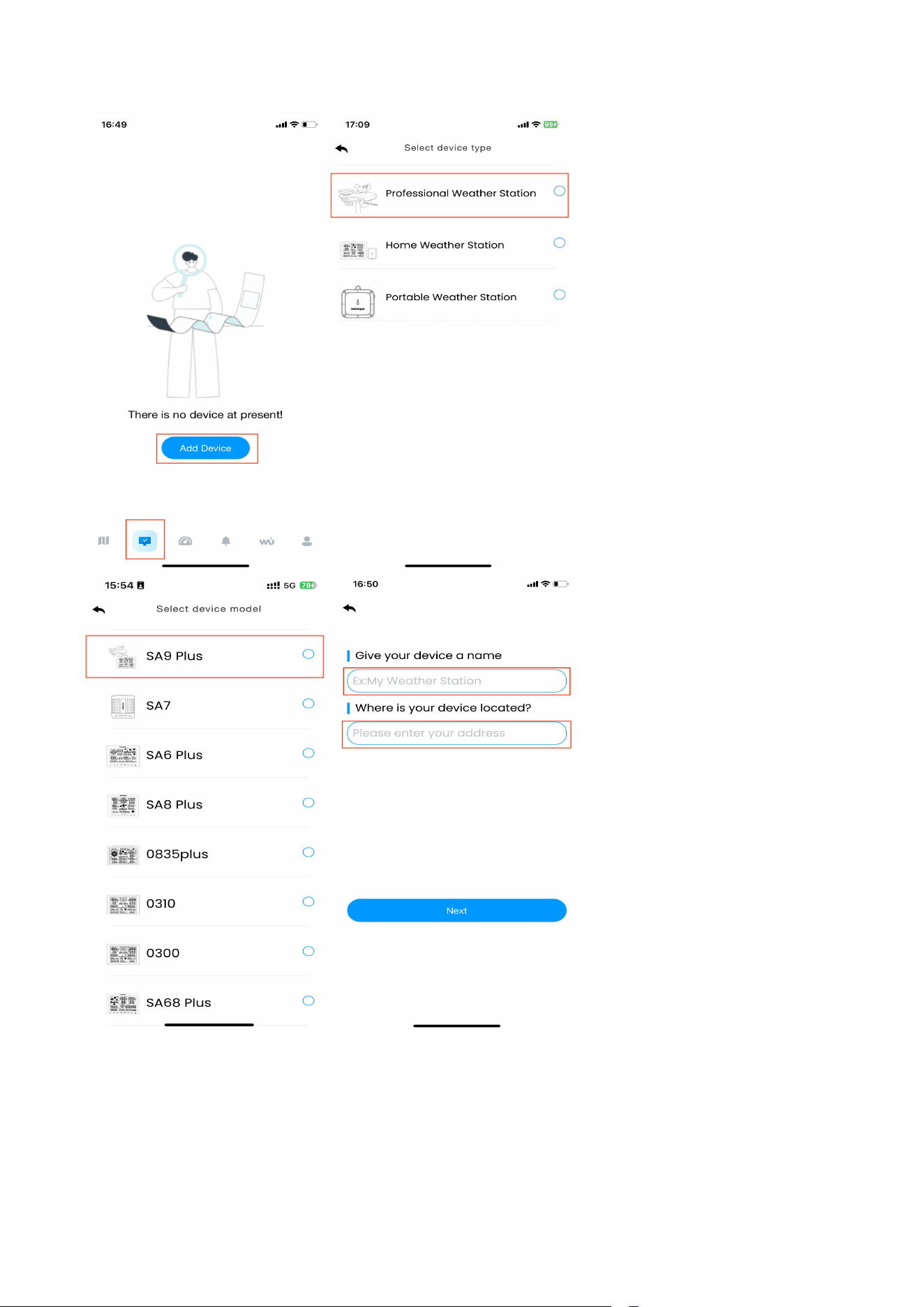

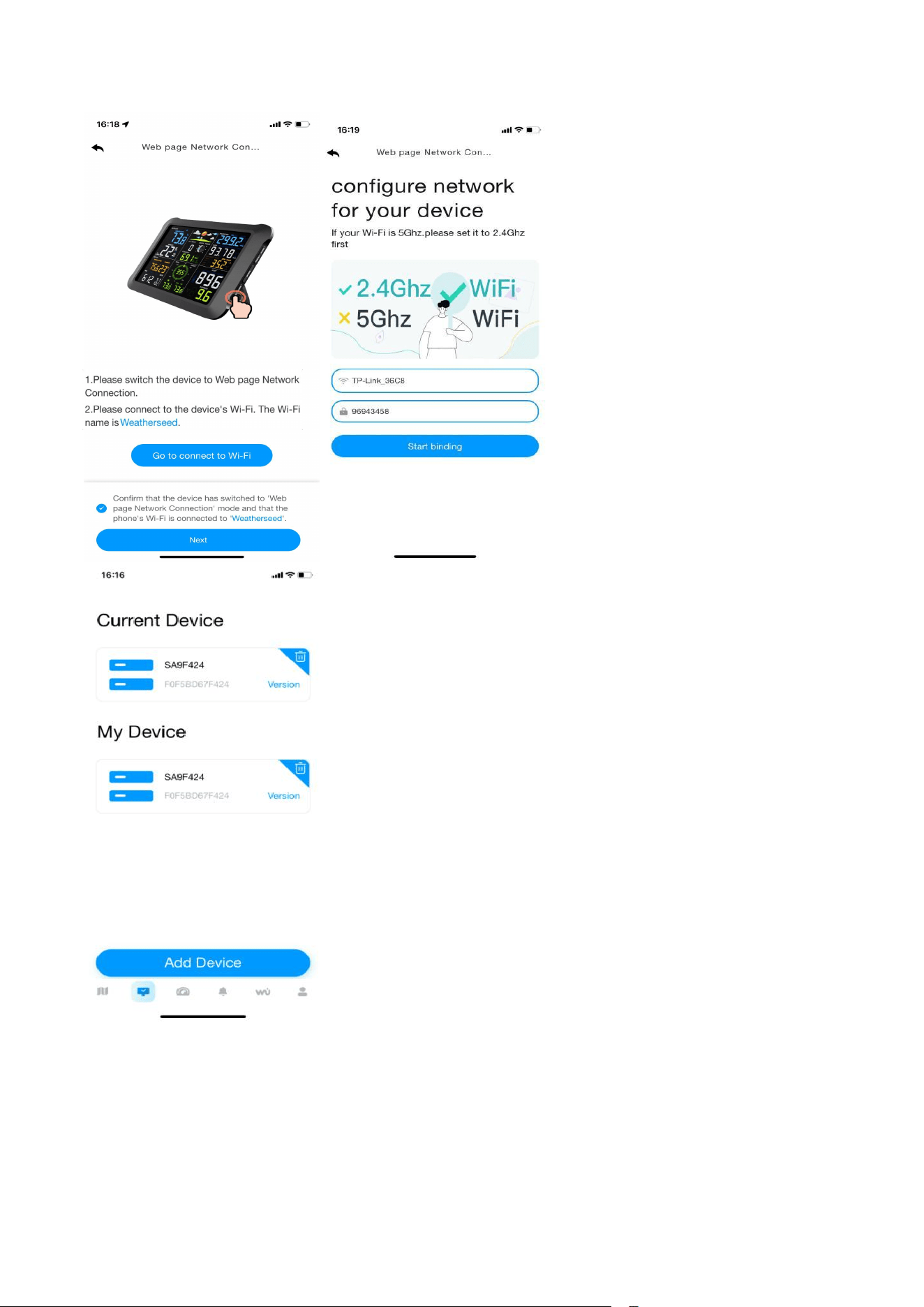

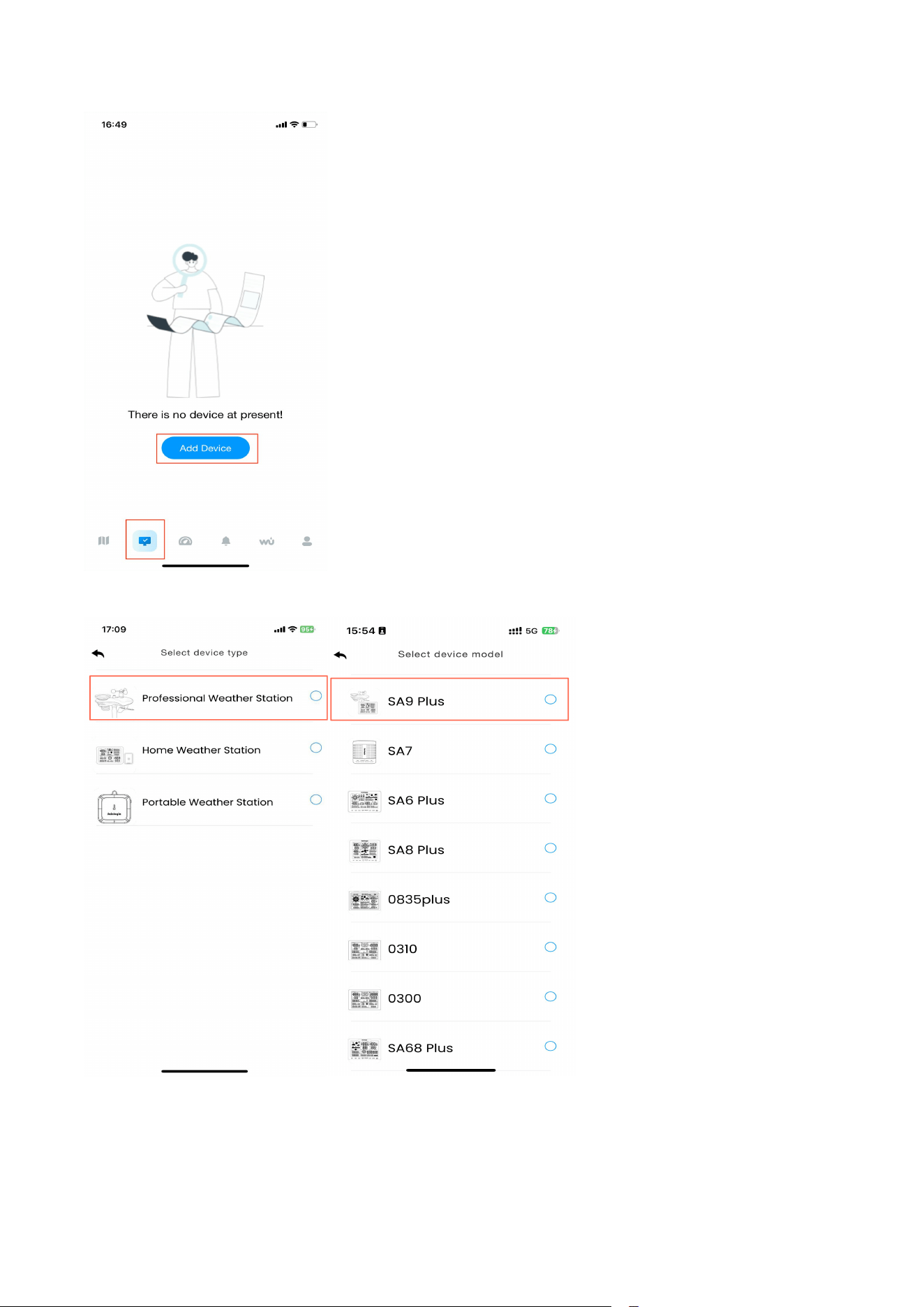

8.2. App Download
Please search for "Weatherseed " in the Google Play or IOS App Store.
After downloading, you can follow the steps to connect the weather station to WiFi and then view
the data on the app.
8.3. App Account Register and Login
After successfully downloading the Weatherseed app, please open the app. The first time you open
the app, the login or registration screen will appear. If you don't have an account, you need to
register to create an account to log in with. If you have already registered a Weatherseed account,
you can log in directly without registering again.
8.3.1. Registering Process

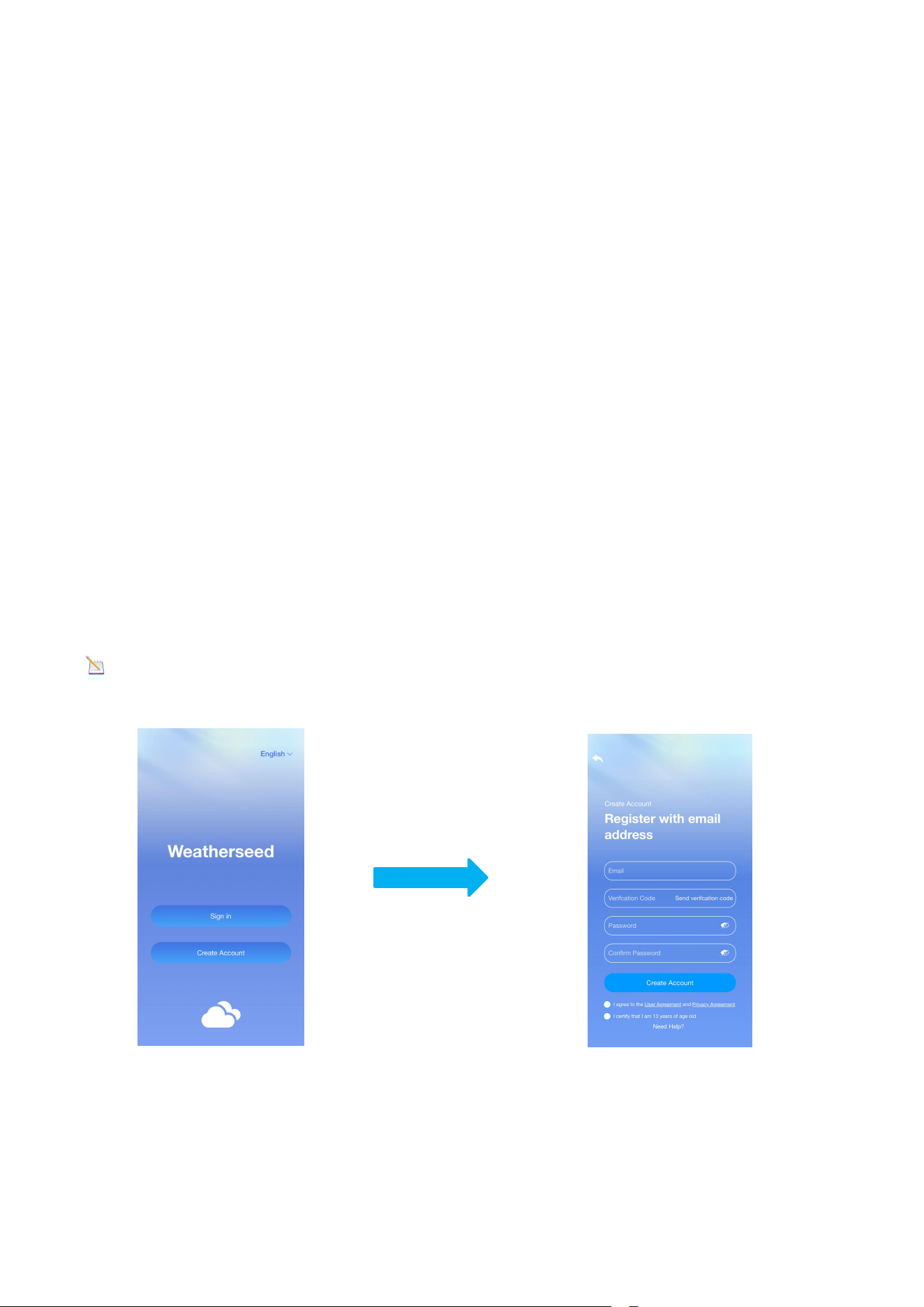

Follow the steps and pictures below to register your Weatherseed account:
(1) Fill in your e-mail address.
(2) Send the verification code to the e-mail address.
(3) Go to the e-mail address to check the verification code and enter it.
(4) Set a password.
(5) Confirm the password (must be consistent with the set password).
(6) Check the user agreement and proof of age.
(7) Register an account.
Note: Your account will be automatically logged into the app directly after the registration is
completed.
8.3.2. Login Process
Follow the steps below to log in to your Weatherseed account:
(1) Enter your registered Weatherseed account (e-mail address).
(2) Enter the password you have created.
22
(3) Check the User Privacy Agreement.
(4) Log in to your account.
8.4. MAC Address

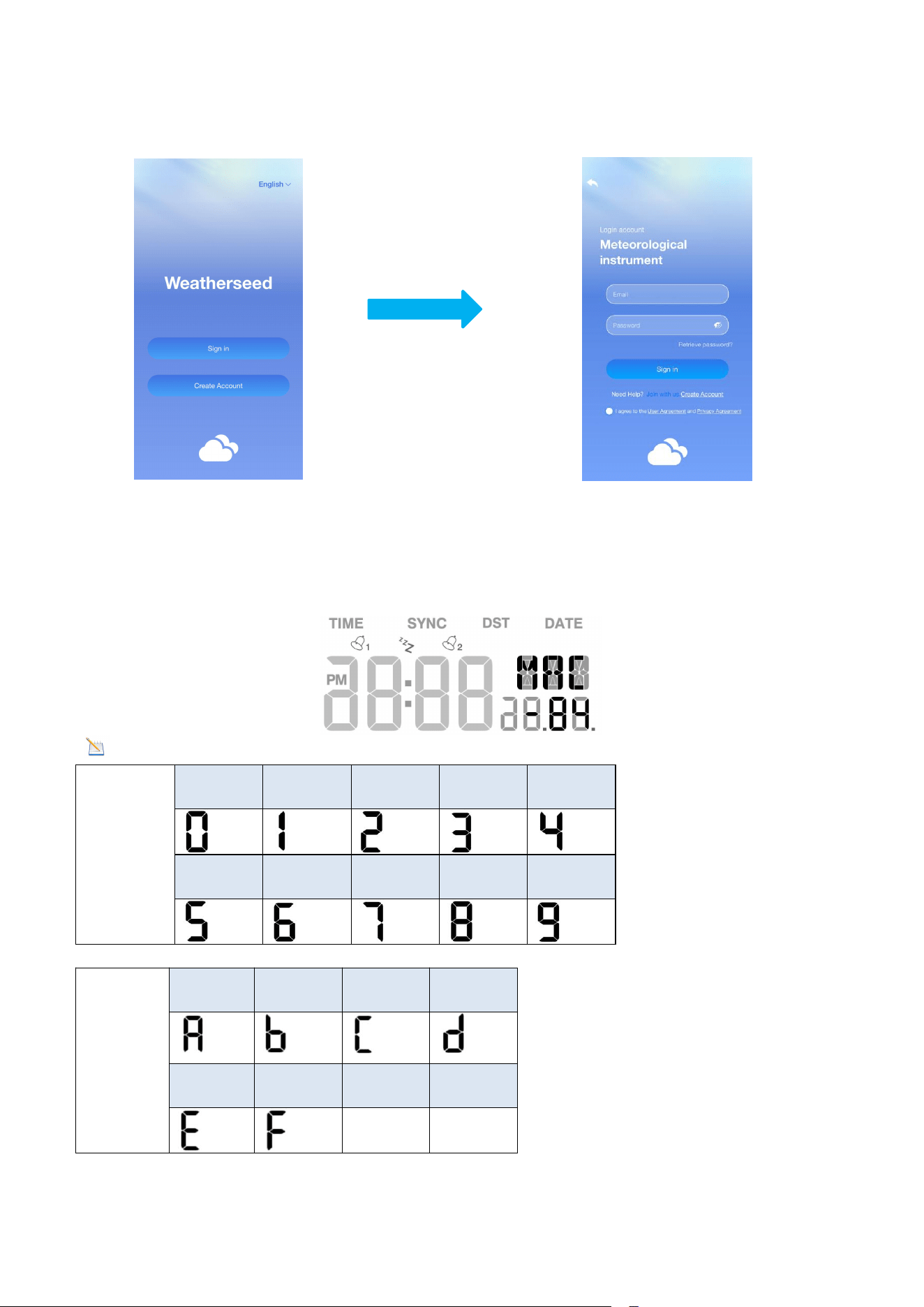

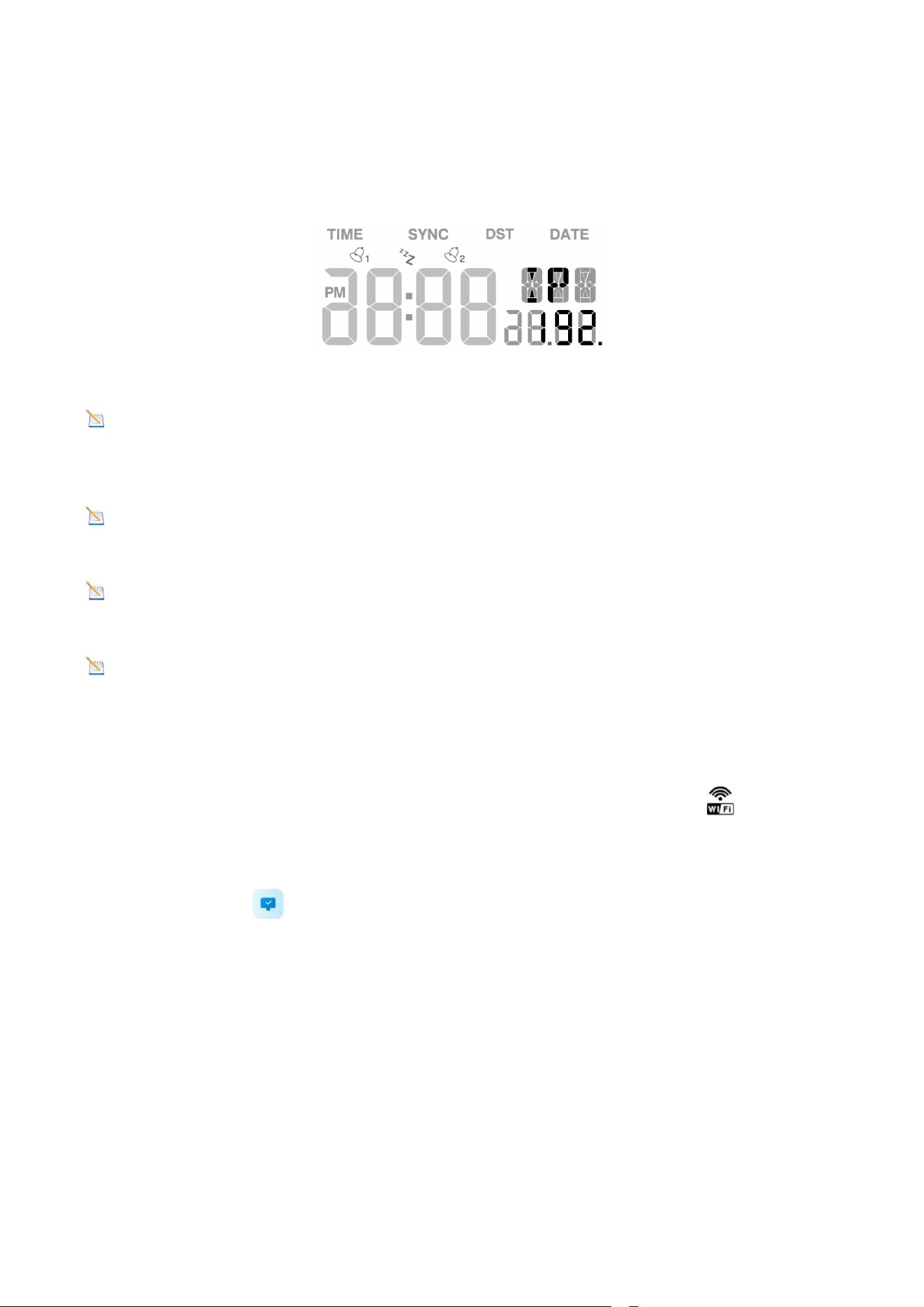

In normal mode, double-click the CHANNEL/+ key on the display. The MAC icon will be shown in the
date area (as shown in the figure). Then, the MAC addresses will flash one by one in sequence, and
the device will automatically return to normal mode when all the addresses have been displayed.
Note: Comparison table of numbers and letters
Numbers
0
1
2
3
4
5
6
7
8
9
Letters
A
b
C
d
E
F
23
8.5. IP Address
In normal mode, double-click the MAX/MIN/- key on the display. The IP icon will be shown in the
date area (as shown in the figure). Then, the IP addresses will flash in sequence one by one, and the
device will automatically return to normal mode when all the addresses have been displayed.
8.6. Connecting Steps
Note: The display console only supports 2.4 GHz signals. If you have a dual-band router
(supporting both 2.4 GHz and 5.0 GHz bands), ensure that the 2.4 GHz band is enabled and can be
distinguished from the 5.0 GHz channel's SSID for accurate connection to the 2.4 GHz channel.
Note : The power adapter must be plugged in to connect to WiFi.
Battery power alone cannot connect the device to WiFi.
Note：Please don't select the wrong device type or model. If you choose the wrong one, the
network will not connect successfully.
Note：The QR code is located on the back of the console.
8.6.1 Bluetooth Distribution Network Mode

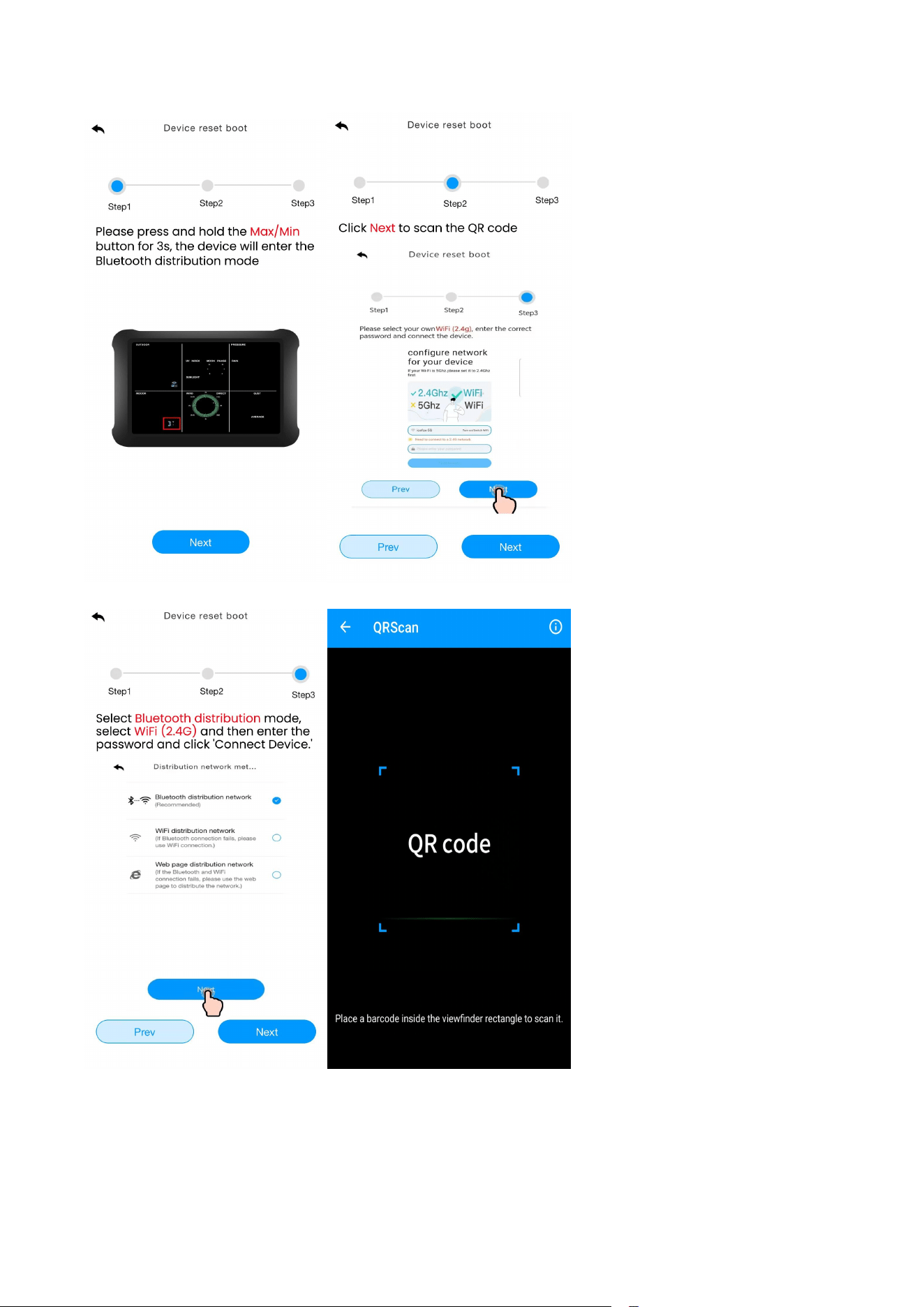

To enter the distribution mode, press and hold the MAX/MIN/- key. The WiFi icon will flash,
and the BI icon will be shown in the date area, indicating that the display has entered the
“Bluetooth Distribution Network” mode.
After the display has entered the “Bluetooth Distribution Network” mode, please open the app.
Select the second icon on the lower left to enter the networking interface to start networking.
The specific steps are as follows:

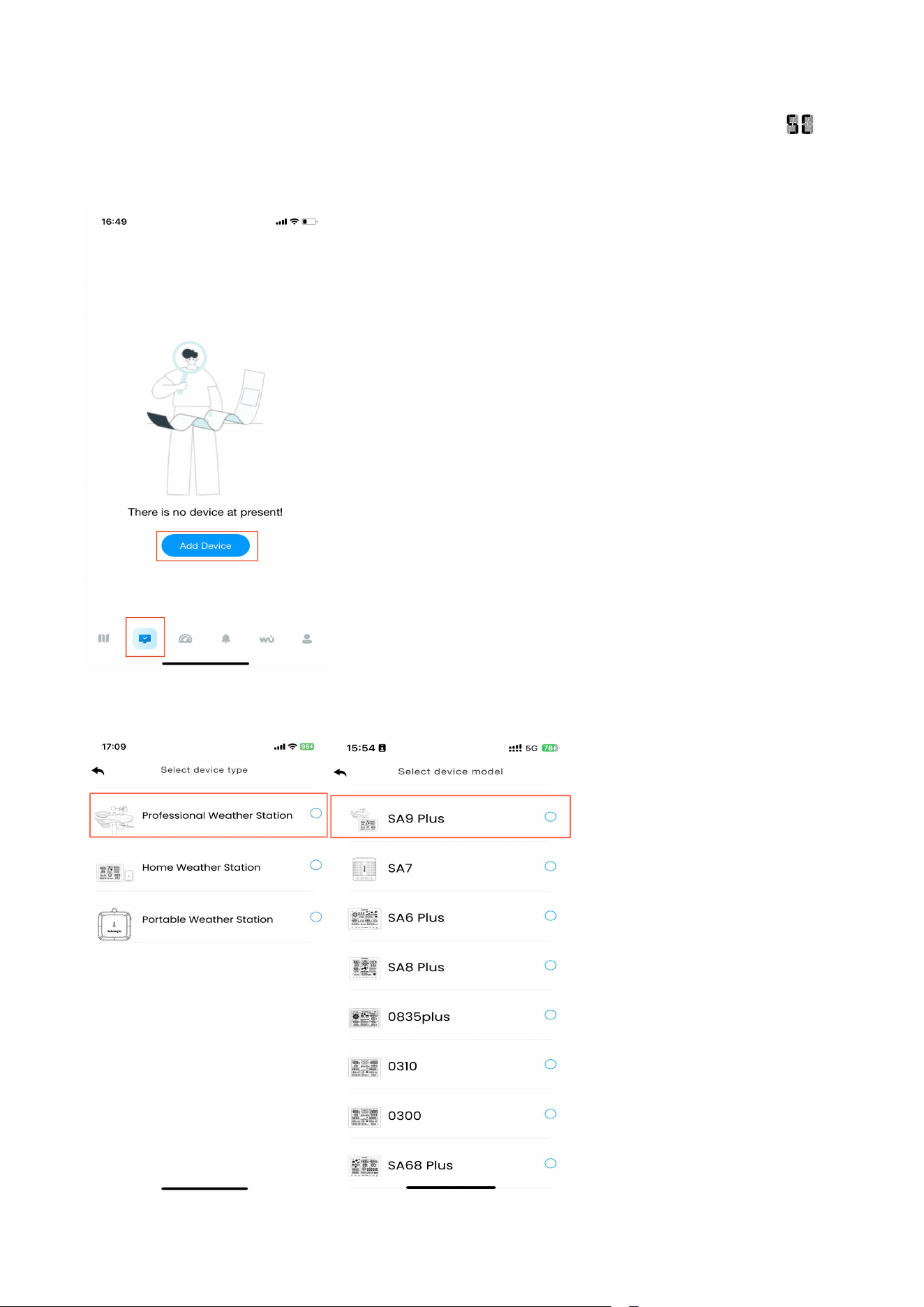

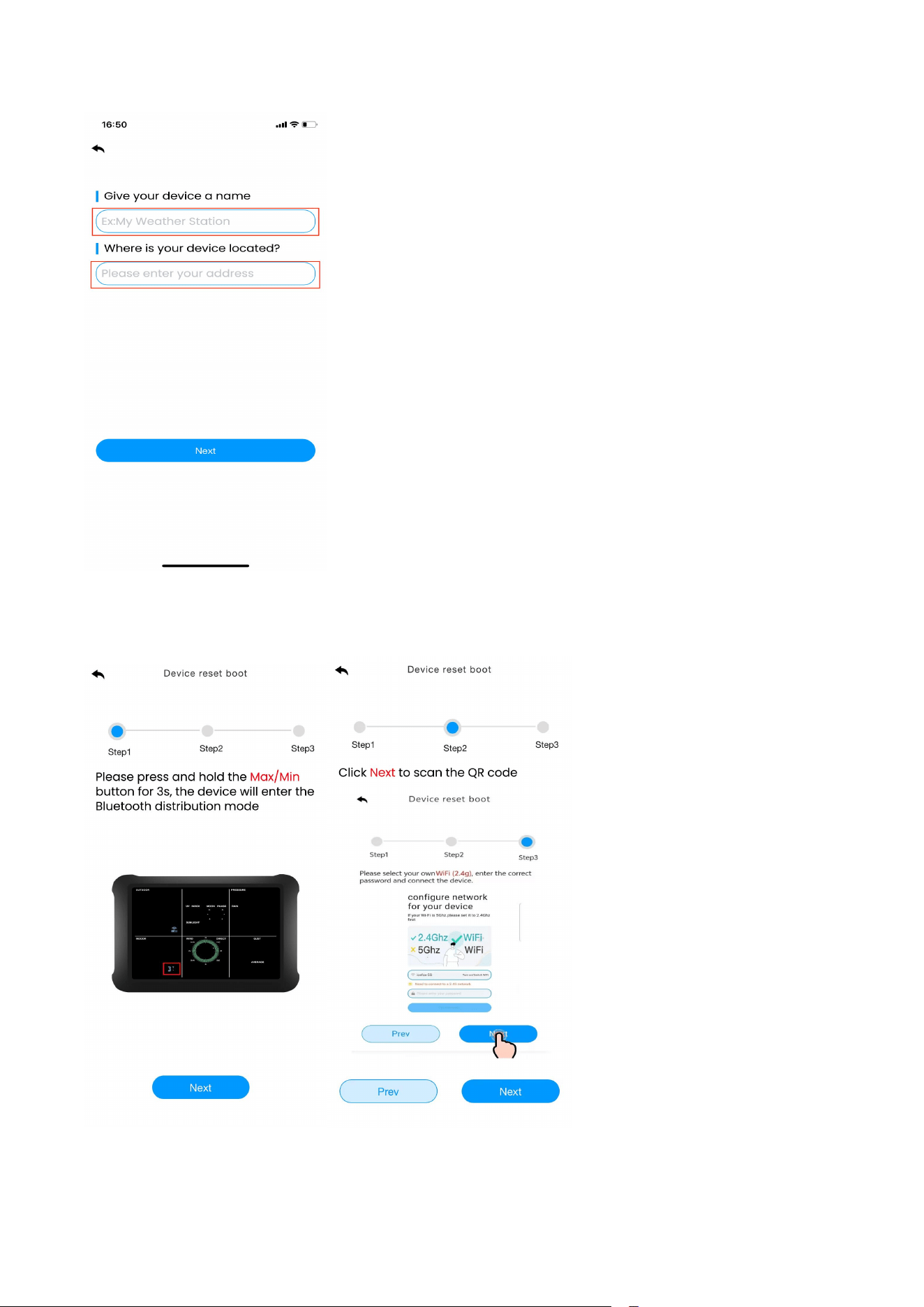

(1) Enter the networking interface. Click "Add Device" to start connecting to the WiFi;
24
(2) Add the device in the app. Select the device type and model. Then set a weather station name

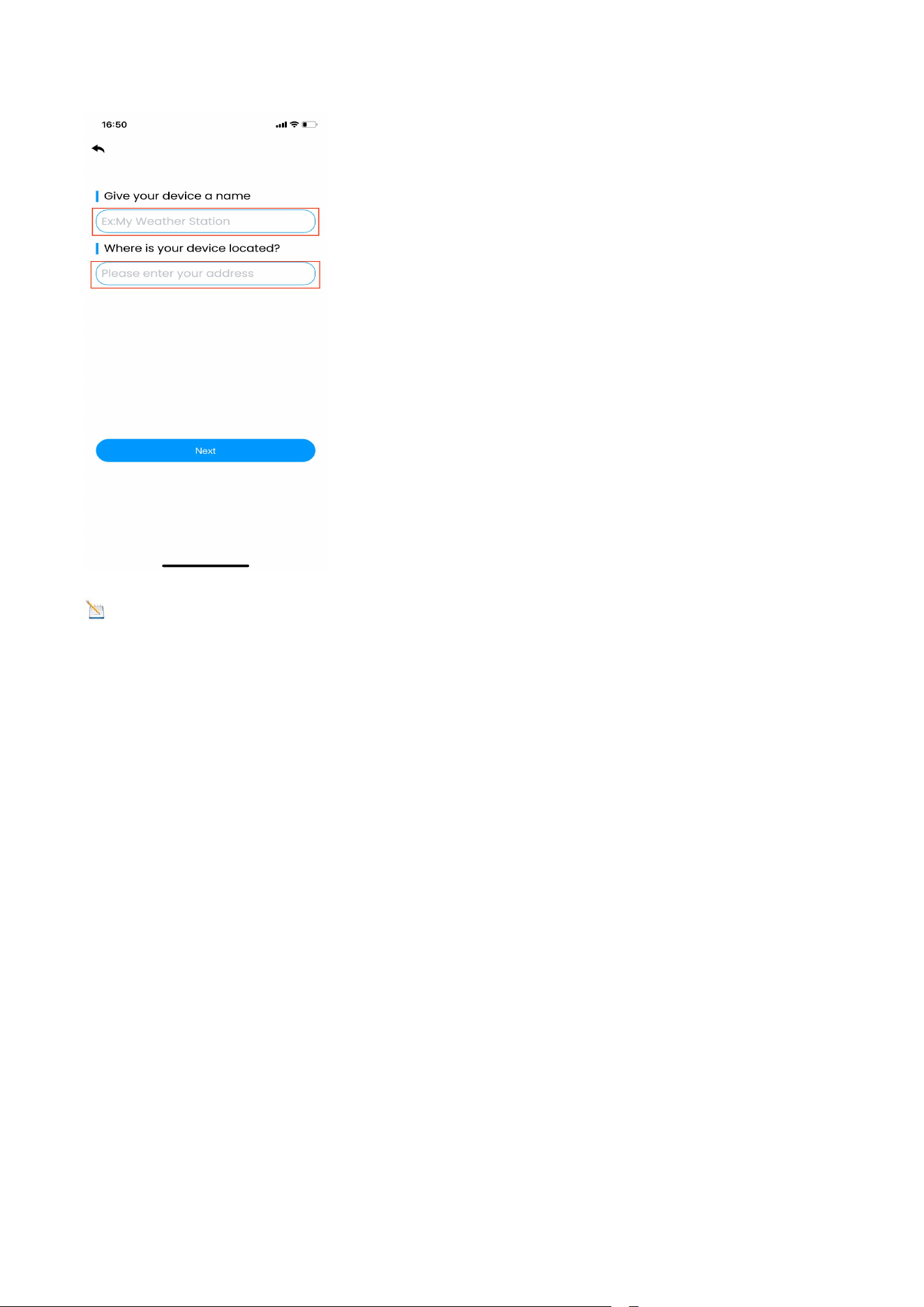

and enter your location.
25
Note
：
Device and location naming requirements: Only numbers, upper and lower case letters.
Maximum 20 characters, spaces allowed. Symbols prohibited. Spaces are included in the 20
characters.
(3) Enter the network configuration interface and click “Next” to complete the three steps of
network configuration. Then need to scan the QR code (MAC address) of the device.
26

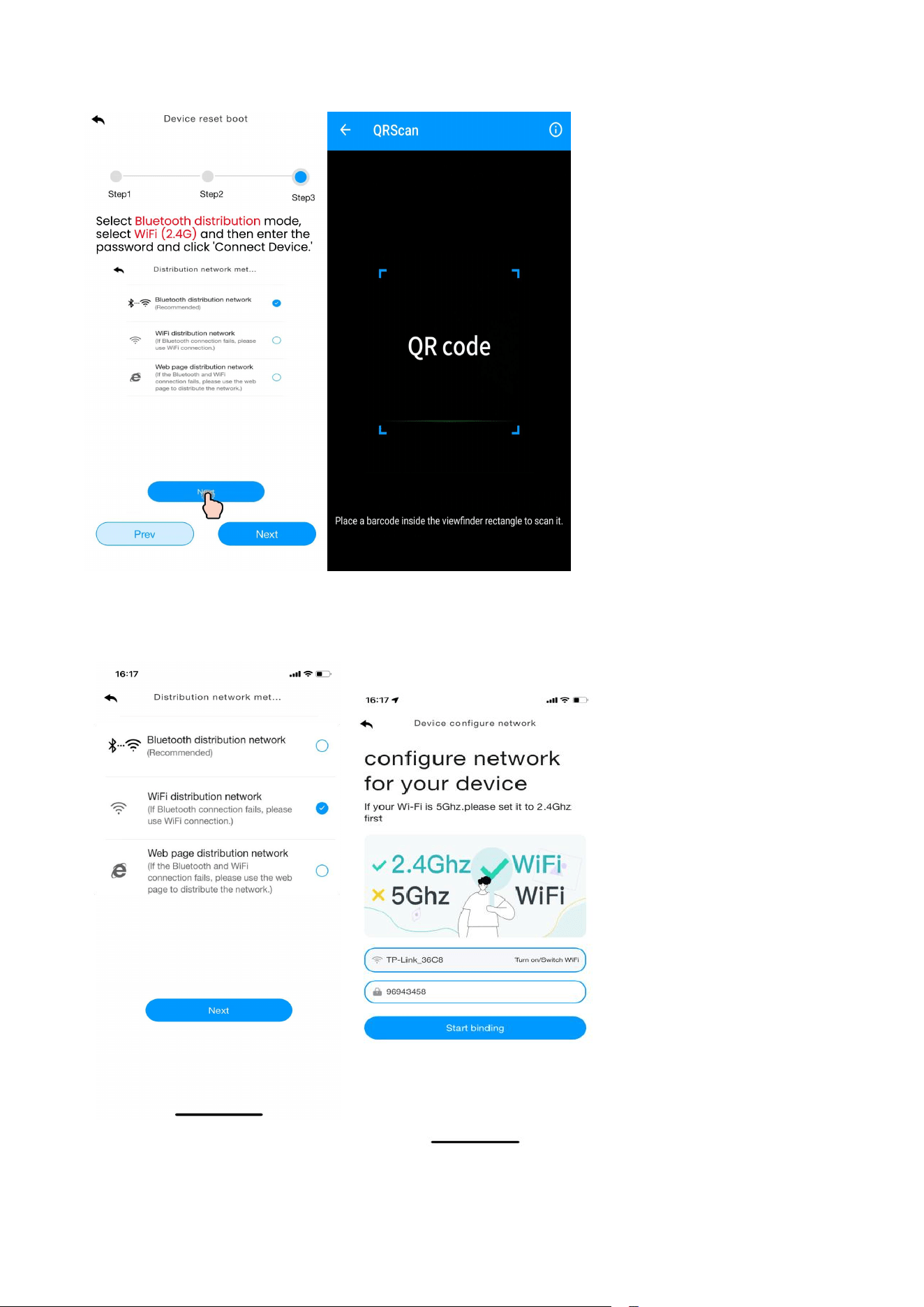

(4)Select “Bluetooth Distribution Network” mode to automatically search for Bluetooth signals and
pairing.
After successful pairing, jump to the WiFi interface. Please select 2.4Ghz WiFi, then enter the
password.
27
8.6.2. WiFi Distribution Network Mode
In normal mode, press and hold MAX/MIN/- key for at least 5 seconds to enter the “Bluetooth
Distribution Network” Mode. The WiFi icon will be flashing and the BI icon will be displayed in
28
the date area. Short-press the SET key once, then the BI icon will be converted to the SC icon ,
indicating that the display has entered the “WiFi Distribution Network” mode.
(1) Enter the networking interface. Click "Add Device" to start connecting to the WiFi.
(2) Add the device in the app. Select the device type and model, set a weather station name and
enter your location.
29
(3) Enter the network configuration interface and click “Next” to complete the three steps of
network configuration. Then, scan the QR code (MAC address) of the device.
30

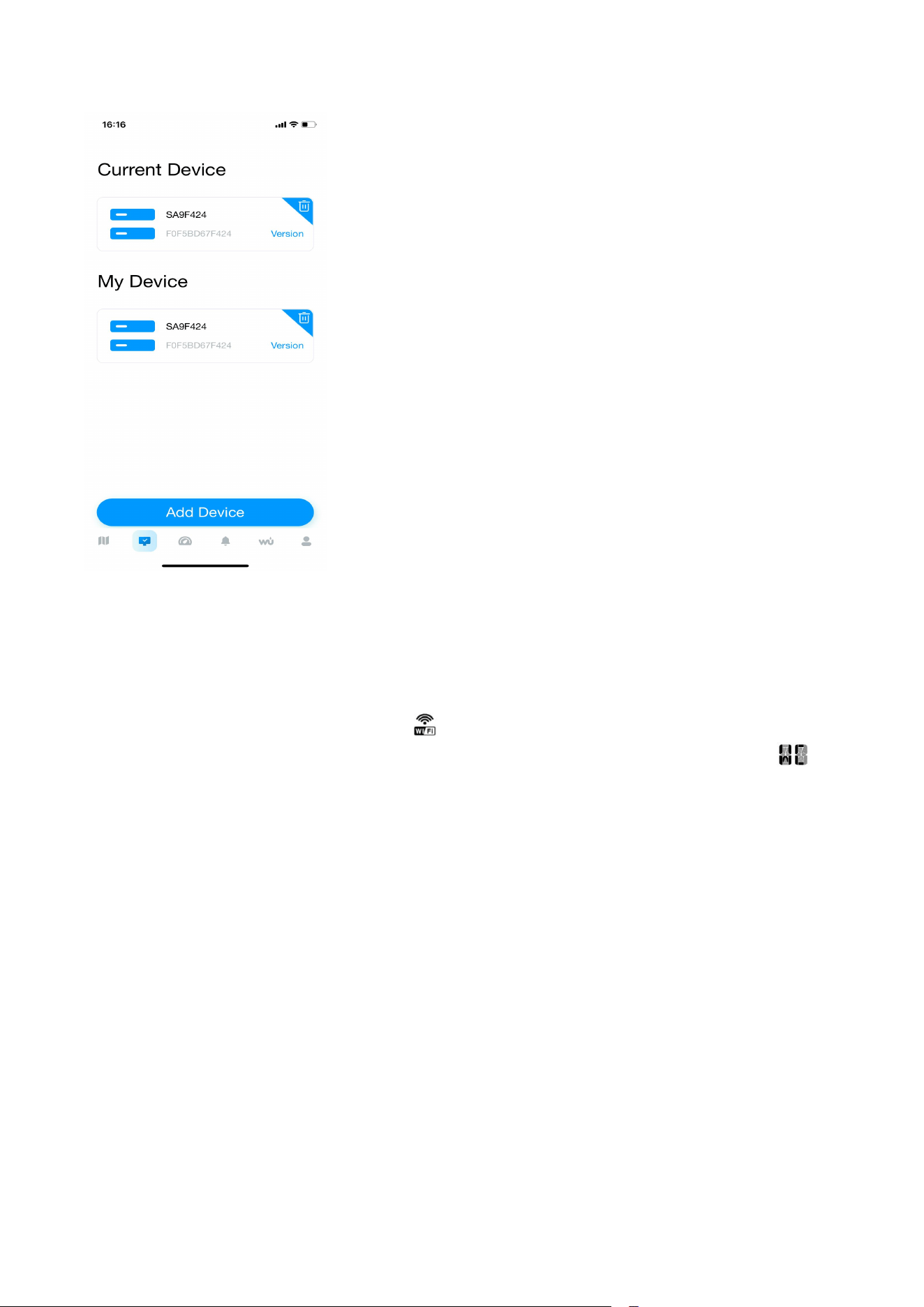

(4)Select “WiFi Distribution Network” mode.
Select your WiFi (2.4g), enter the correct password and connect the device. After the connection is
successful, return to the Device page.
31
8.6.3. Web Page Distribution Network Mode
In normal mode, press and hold MAX/MIN/- key for at least 5 seconds to enter “Bluetooth
Distribution Network” mode. The WiFi icon will be flashing and the BI icon will be displayed in
the date area. Short-press the SET key twice, then the icon will be converted to the WC icon ,
indicating that the display has entered the “WiFi Distribution Network” mode.
After the display has entered the “Web Page Distribution Network” mode, please follow the steps
below to connect:
(1) Add a device in the dashboard interface. Select device type and model, set a weather station
name, and enter your location. Enter the network configuration interface, then click “Next” to
complete the three steps of network configuration.
32
(2) Enter the network configuration interface and click “Next” to complete the three steps of
network configuration. Scan the QR code.
33

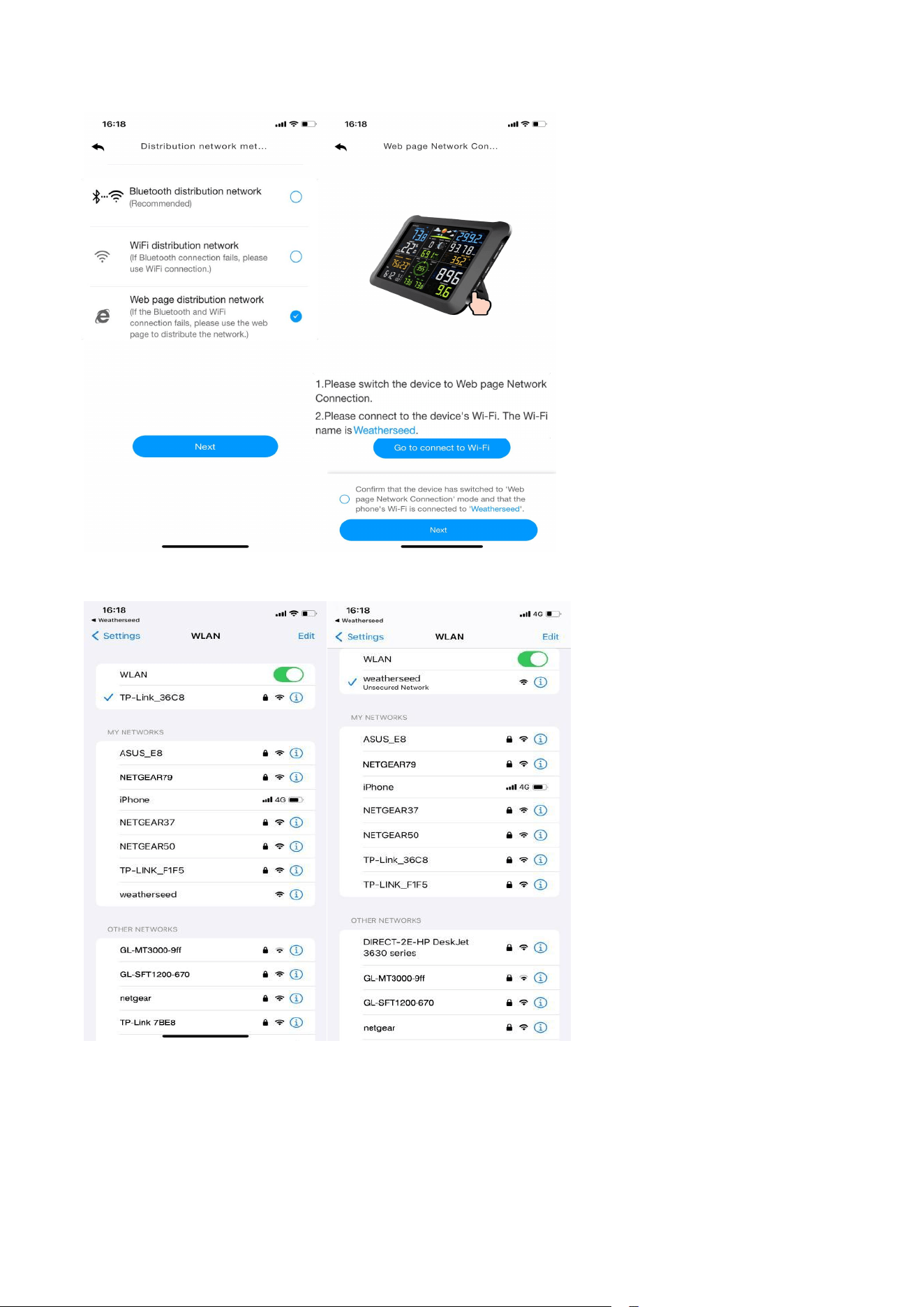

(3) Select the “Web Page Distribution Network” mode. Click “Go” to connect WiFi.
Then device will automatically jump to the WiFi list screen. Connect to the “weatherseed” WiFi.
34
Return to the app. Click the confirmation dot, and click “Next”. Please select 2.4Ghz WiFi. Enter the
password, and click “Connect”.
35
8.7. Firmware Upgrade

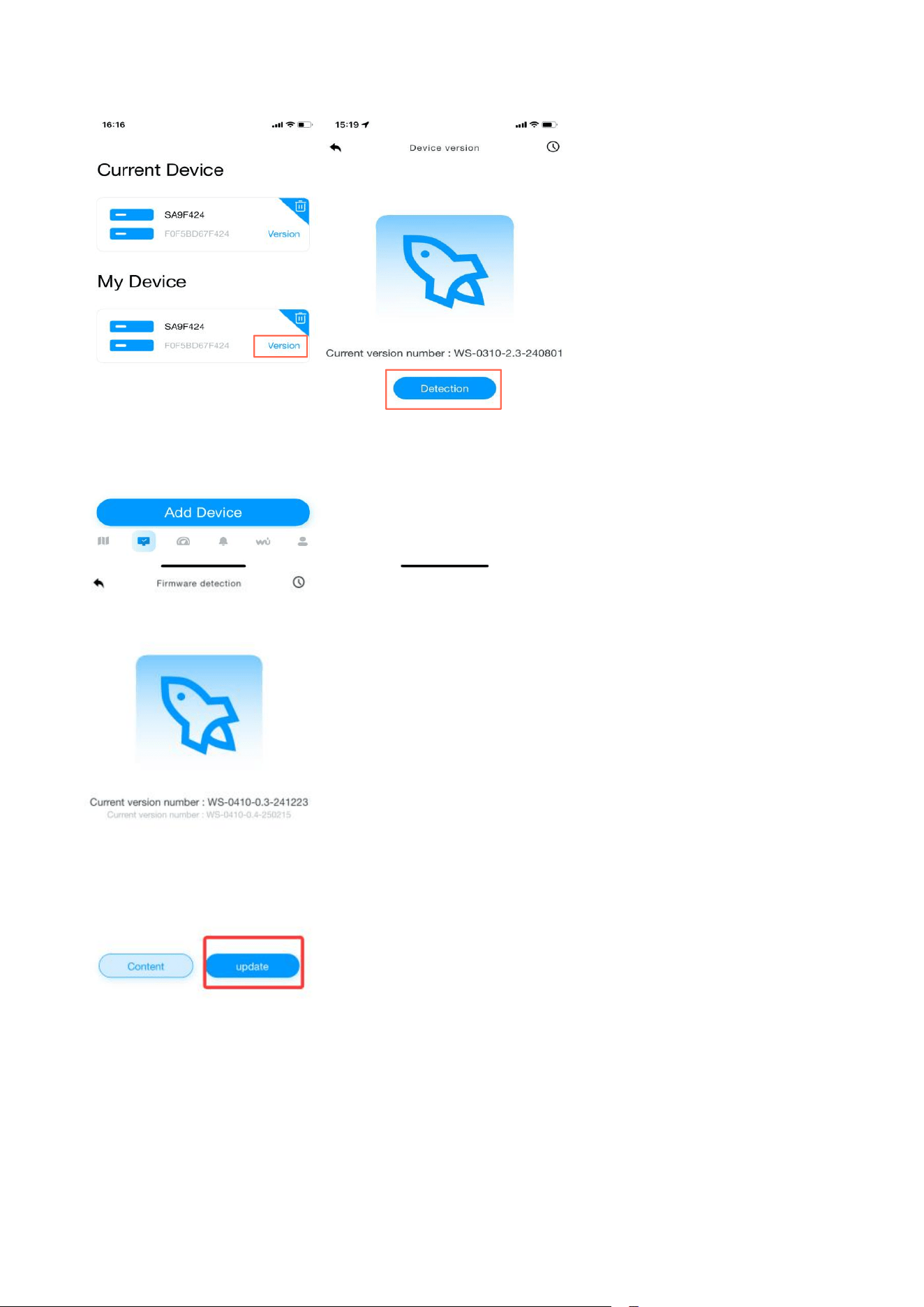

When your app receives a firmware upgrade notification, follow the steps below to upgrade the
firmware remotely:
36
8.8. Sign Up on Wunderground.com

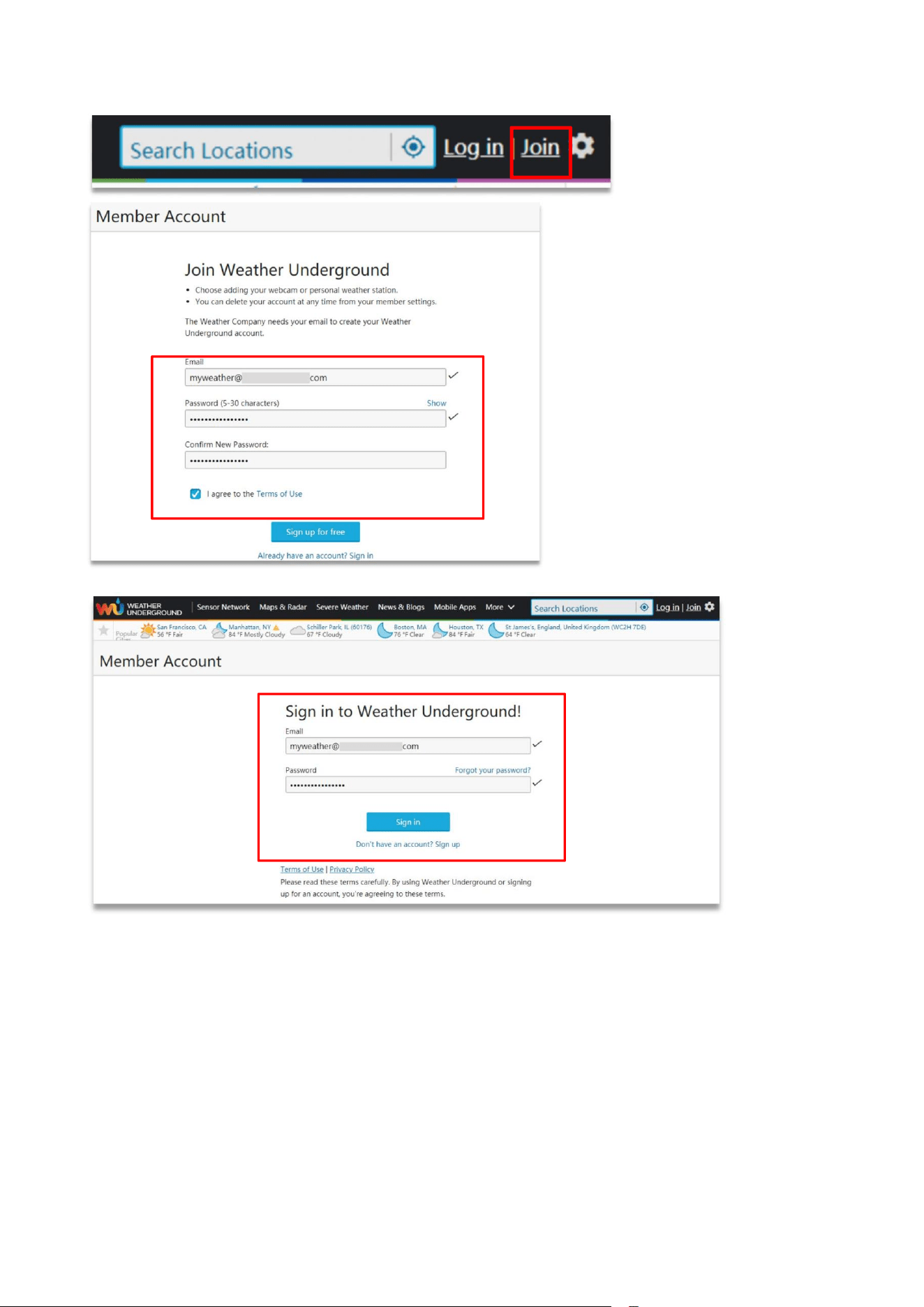

1. Visit the “https://www.wunderground.com” website. Click the “Join" button, input your e-mail
and password, and select the “Sign up for free” button to create your own account.
37
2. Click the “Sign in” button to log in, and switch to the Member Settings page.
3. Select the My Devices tab and click “Add New Devices”.
Note: On the “Add New Devices" page, set the “TYPE”, “LOCATION", “DETAILS”, and “DONE" pages
step-by-step until 100% completed.
38
4. On the TYPE page, click the “Personal Weather Station” drop-down list to select “Other”.
5. On the LOCATION page, select the “Address” or “Manual” Option, find and input your local
position, then press “Next”.
6. On the DETAILS page, fill in the “Required” information, then press “Next”.
39
7. On the DONE page, the device “Station lD” and “Station Key” are shown. Copy and record the
information for later use.
40
9. Display Console Operation
9.1. Quick Display Mode

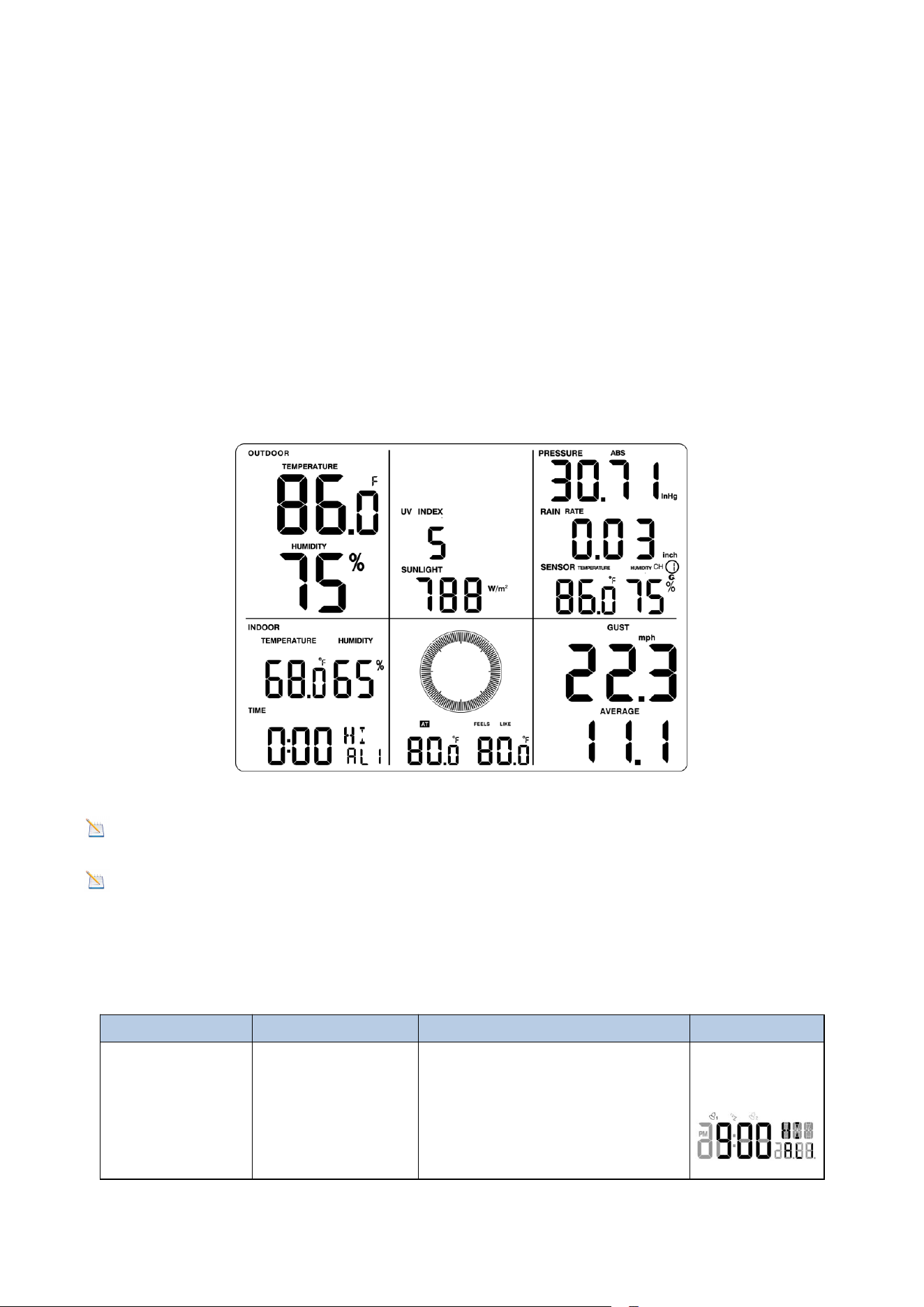

In normal mode, press (do not hold) the SET/MODE key to enter Quick Display mode. To skip any
step to the next setting, press the SET/MODE key continuously, and the current setting parameter
will flash.
NOTE: To exit Quick Display mode at any time, press the SNOOZE key on the display console.

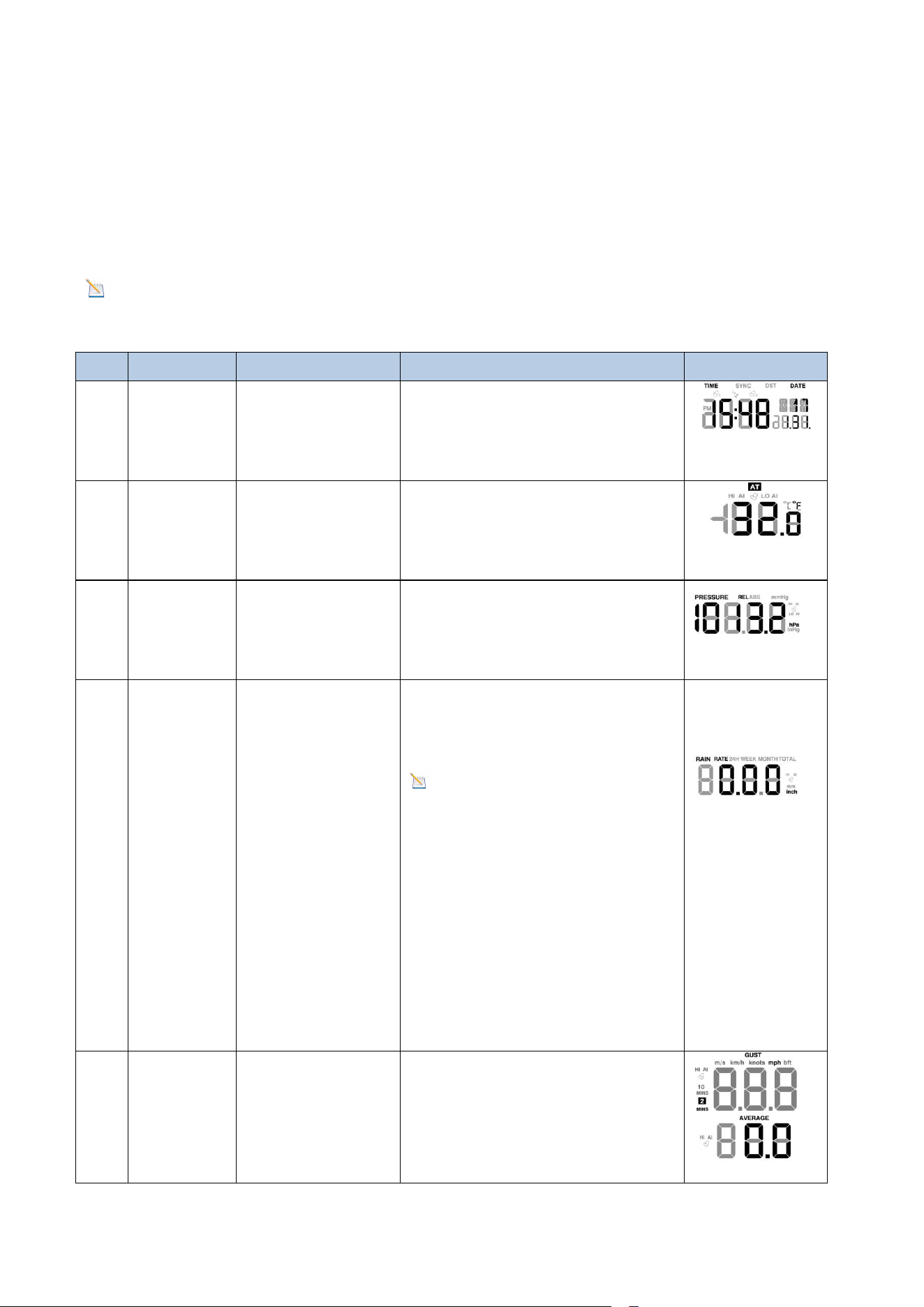

The sequence and commands for the Quick Display mode are summarized in the following charts:
NO
Command
Mode
Settings
1
[SET]
Time/Week and
Seconds
Press the CHANNEL/+ or
MAX/MIN/- key to toggle between
time/week and seconds.
2
[SET]
Outdoor Dew Point
Press the CHANNEL/+ or
MAX/MIN/- key to toggle between
AT (surface temperature) and dew
point.
3
[SET]
Absolute and
Relative Pressure
Press the CHANNEL/+ or
MAX/MIN/- key to toggle between
absolute and relative pressure.
4
[SET]
Rain Period View
Mode
Press the CHANNEL/+ or
MAX/MIN/- key to toggle between
rainfall, 24-hour, weekly, monthly
and total rainfall.
To clear the rainfall for each
time period, press the CHANNEL/+
or MAX/MIN/- key to display to the
time period you want to clear.
When the rain amount is flashing,
press and hold the SET/MODE key
for five seconds until the rain
amount is displayed as 0.0.
5
[SET]
Average Wind
Speed
Press the CHANNEL/+ or
MAX/MIN/- key to toggle between
current, 2 minutes and 10 minutes.
41
*[SET] means press the SET button.
9.2. Set Mode

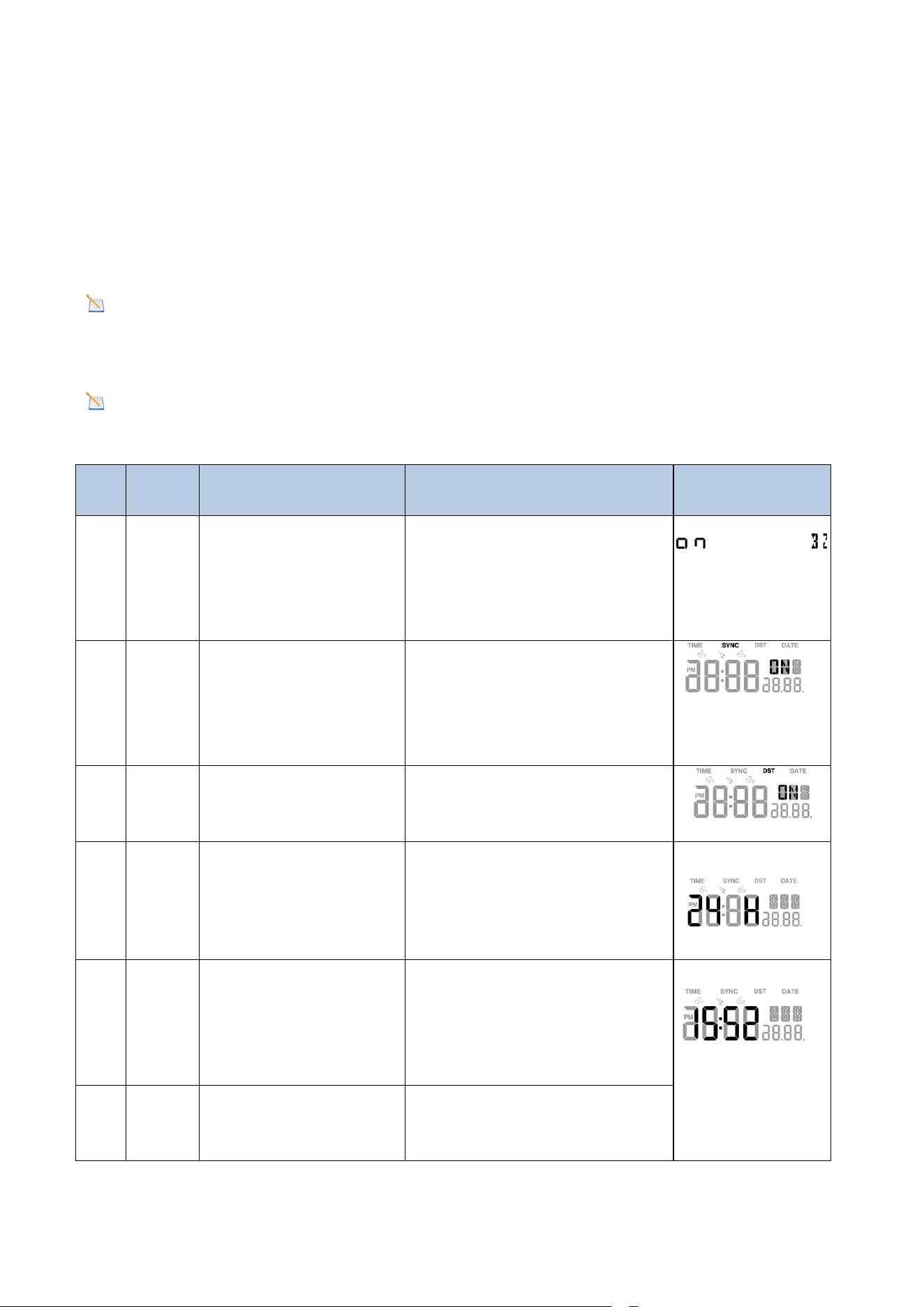

In normal mode, press and hold the SET/MODE key for at least 3 seconds to enter set mode and the
first setting will flash. To skip any step to the next setting, keep pressing the SET/MODE key and the
current setting parameter will flash.
NOTE: In Set Mode, press the CHANNEL/+ key or the MAX/MIN/- key to change or scroll the
setup value. Press and hold the CHANNEL/+ key or MAX/MIN/- key for three seconds to quickly
increase or decrease.
NOTE: To exit Set Mode at any time, press the SNOOZE key on the display console.

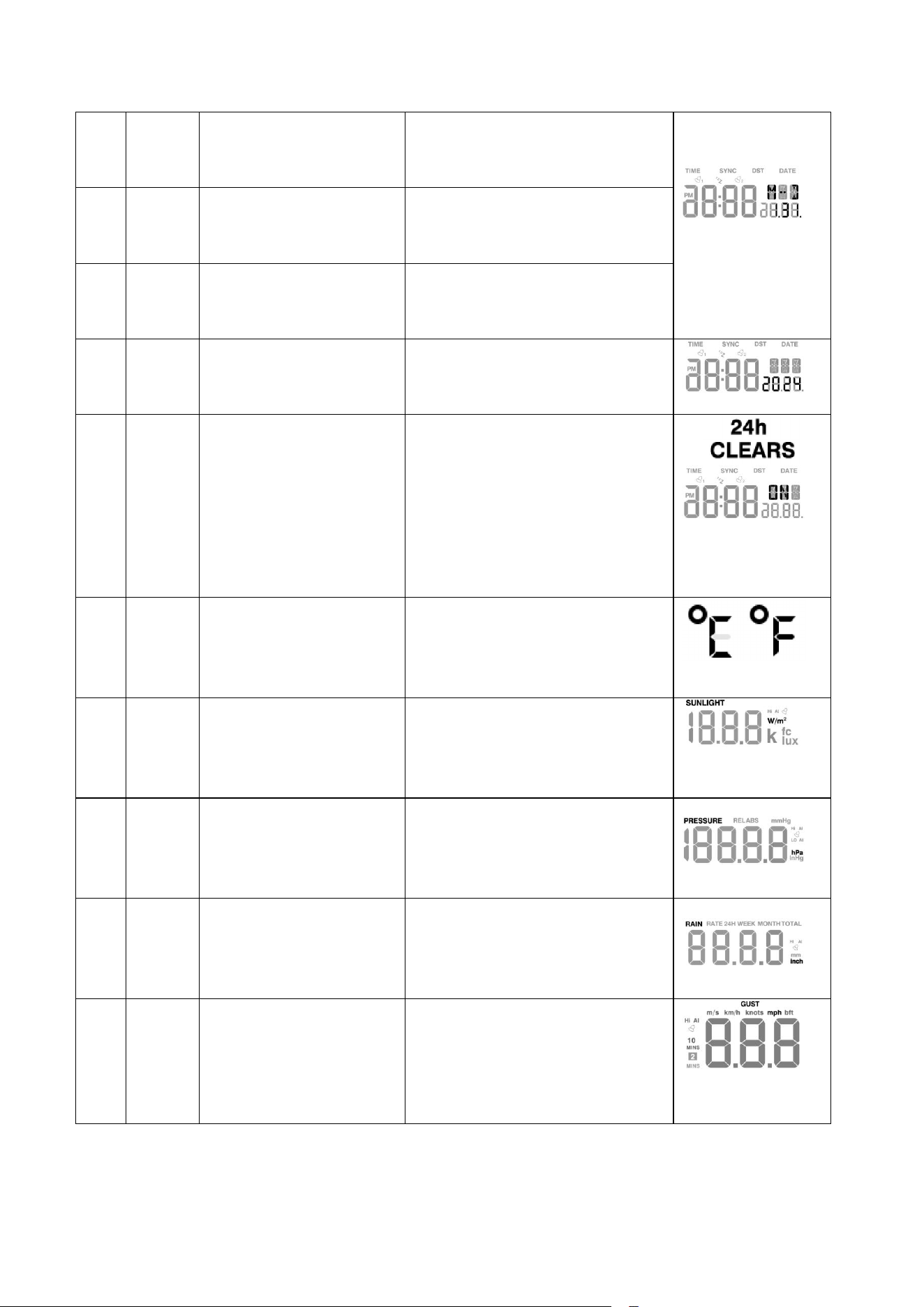

The sequence and commands for the Set mode are summarized in the following charts:
NO
Comm
and
Mode
Settings
1
[SET]+3
sec
BZ ON/OFF(default: ON)
Press the CHANNEL/+ key or
MAX/MIN/- key to toggle BZ
on/off.
2
[SET]
Time SYNC (default: ON)
- Press the CHANNEL/+ key or
MAX/MIN/- key to toggle the
synchronized time on/off.
- Synchronize the device with the
time and date via WiFi.
3
[SET]
DST
(default: ON)
Press the CHANNEL/+ key or
MAX/MIN/- key to toggle DST
on/off.
4
[SET]
12/24-Hour Format
Press the CHANNEL/+ key or
MAX/MIN/- key to toggle
between 12-hour and 24-hour.
5
[SET]
Hour
Press the CHANNEL/+ key or
MAX/MIN/- key to adjust the
hours up or down.
The PM icon will be displayed
during the afternoon hours.
6
[SET]
Minute
Press the CHANNEL/+ key or
MAX/MIN/- key to adjust the
minutes up or down.
42
7
[SET]
Date Format
Press the CHANNEL/+ or
MAX/MIN/- key to toggle
between M-D and D-M.
8
[SET]
Month
Press the CHANNEL/+ or
MAX/MIN/- key to adjust the
calendar month.
9
[SET]
Day
Press the CHANNEL/+ or
MAX/MIN/- key to adjust the
calendar day.
10
[SET]
Year
Press the CHANNEL/+ key or
MAX/MIN/- key to adjust the
calendar year.
11
[SET]
Max/Min Clearing
(default: ON)
The maximum/minimum value
can be set to daily (midnight) or
manually cleared.
Press the CHANNEL/+ key
MAX/MIN/- key to toggle
between ON (24-hour clearing)
and OFF (manual).
12
[SET]
Temperature
Measurement Unit
(default value:
°F)
Press the CHANNEL/+ or
MAX/MIN/- keys to toggle
between °F and °C measurement
units.
13
[SET]
Sunlight Unit (default
value: W/m2)
Press the CHANNEL/+ key or
MAX/MIN/- key to toggle the
daylight display unit between
W/m2 , fc or lux.
14
[SET]
Barometric Pressure
Unit
(default value: InHg)
Press the CHANNEL/+ key or the
MAX/MIN/- key to toggle the
pressure unit between mmhg,
inHg or hPa.
15
[SET]
Rainfall Measurement
Unit (default value: inch)
Press the CHANNEL/+ key or
MAX/MIN/- key to toggle the
rainfall unit between mm and
inch.
16
[SET]
Wind Speed
Measurement Unit
(default value: mph)
Press the CHANNEL/+ key or
MAX/MIN/- key to toggle the
wind speed unit between m/s,
km/h, mph, knots bft or ft/s.
43
17
[SET]
Pressure Threshold
Setting (default value: 2
levels)
Press the CHANNEL/+ key or the
MAX/MIN/- key to change the
pressure threshold from 2 hPa to
4 hPa. (See 12.3 for more
information on this section).
18
[SET]

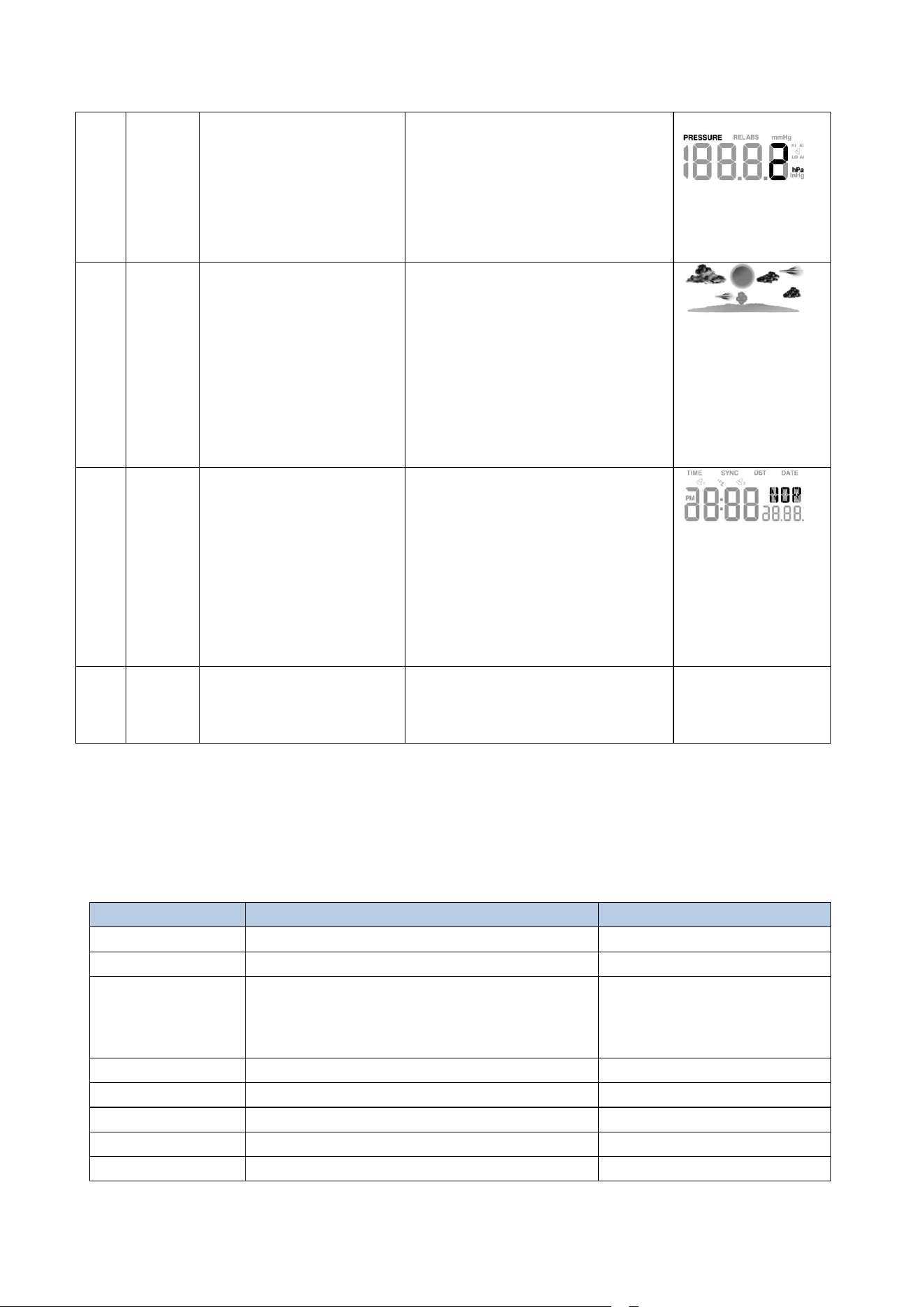

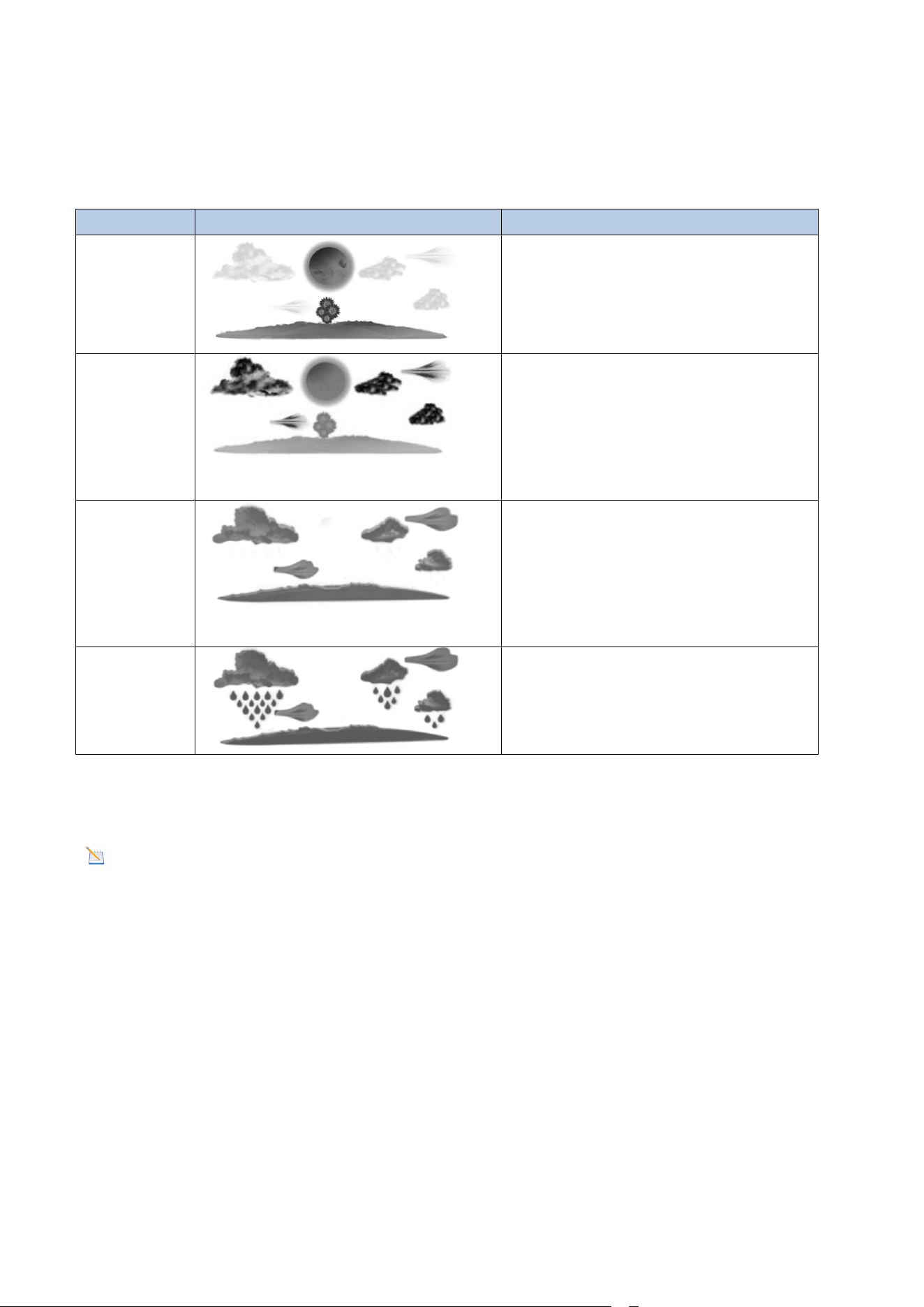

Weather Icon Settings
(default value: few
clouds)
Press the CHANNEL/+ key or the
MAX/MIN/- key to select the
initial weather icon for a sunny,
less cloudy, cloudy, or rainy day
(see 12.1 for more information
on this section).
Note: The weather icon does not
change immediately, wait 4
hours for it to change.
19
[SET]
Location Area (default
value: Northern
Hemisphere)
Press the CHANNEL/+ key or the
MAX/MIN/- key to toggle the
geographic location of the
Northern Hemisphere (NOR) or
Southern Hemisphere (SOU).
(Refer to 5.3 Sensor Mounting
Orientation).
20
[SET]
Exit Set Mode
Press the SET/MODE or SNOOZE
key to exit setup mode.
*[SET] + 3 seconds means press and hold the SET button for three seconds.
*[SET] means press the SET button.
9.3. Time Zone
The following table summarizes time zones around the world:
Hours from GMT
Time Zone
Cities
-12
IDLW: International Date Line West
---
-11
NT: Nome
Nome, AK, USA
-10
AHST: Alaska-Hawaii Standard
CAT: Central Alaska
HST: Hawaii Standard
Honolulu, HI, USA
-9
YST: Yukon Standard
Yukon Territory
-8
PST: Pacific Standard
Los Angeles, CA, USA
-7
MST: Mountain Standard
Denver, CO, USA
-6
CST: Central Standard
Chicago, IL, USA
-5
EST: Eastern Standard
New York, NY, USA
44
9.4.Max/Min Mode
9.4.1. Viewing and Resetting Maximum Values
In normal mode, press the MAX/MIN/- key once briefly. The MAX icon will be displayed in the date
area, and the display will show the maximum values for rainfall rate, gust and average wind speed,
UV and sunshine, ABS barometric pressure, outdoor temperature, humidity, sensory image,
outdoor AT temperature, indoor temperature, humidity, and dew point.
Press SET/MODE to toggle through the maximum values of rainfall (24 hours, week, or month), REL
barometric pressure, and outdoor dew point (the rest of the parameters remain unchanged).
-4
AST: Atlantic Standard
Caracas, Venezuela
-3.5
Newfoundland Time (NT)
Newfoundland, Canada
-3
---
São Paulo, Brazil
-2
AT: Azores
Azores, Cape Verde Islands
-1
WAT: West Africa
---
0
GMT: Greenwich Mean
WET: Western European
London, England
1
CET: Central European
Paris, France
2
EET: Eastern European
Athens, Greece
3
BT: Baghdad
Moscow, Russia
3.5
Iran Standard Time (IRST)
Tehran, Iran
4
---
Abu Dhabi, UAE
5
---
Tashkent, Uzbekistan
5.45
Nepal Standard Time
Nepal
5.5
Indian Standard Time (IST)
India
6
---
Astana, Kazakhstan
7
---
Bangkok, Thailand
8
CCT: China Coast
Beijing, China
9
JST: Japan Standard
Tokyo, Japan
9.5
Australian Central Standard Time (ACST)
Adelaide, Australia
10
GST: Guam Standard
Sydney, Australia
11
---
Magadan, Russia
12
IDLE: International Date Line East
NZST: New Zealand Standard
Wellington, New Zealand
45
Figure 22
Press the MAX/MIN/- key for three seconds to clear all maximum values (rainfall, wind speed, gusts,
barometric pressure, UV and sunshine, temperature,and humidity maximums).
Press the SNOOZE key to exit the Maximum View and Reset mode and return to the
normal display mode.
The following charts summarize the sequence and instructions for viewing and resetting the mode
settings in Maximum:
Command
Mode
Settings
[MAX/MIN/-]
Maximum View
Mode
The MAX icon is displayed in the date
area.
The display shows a portion of the
parameter maximum:
Rainfall rate, gust and average wind
speed, UV and insolation, ABS
barometric pressure, outdoor
temperature, AT temperature,
sensory image, indoor temperature,
humidity and dew point.
[SET]
The display switches to show the
maximum value of another part of
the parameter (the rest of the
parameters remain unchanged):
24-hour rainfall, REL air pressure,
and outdoor dew point.
46
NOTE: After resetting the maximum values, the display maximums will show the current
values.
*[MAX/MIN/-] means press the MAX/MIN/- button.
*[SET] means press the SET button.
*[MAX/MIN/-] + 3 seconds means press and hold the SET button for three seconds.
9.4.2. Viewing and Resetting Minimum Values

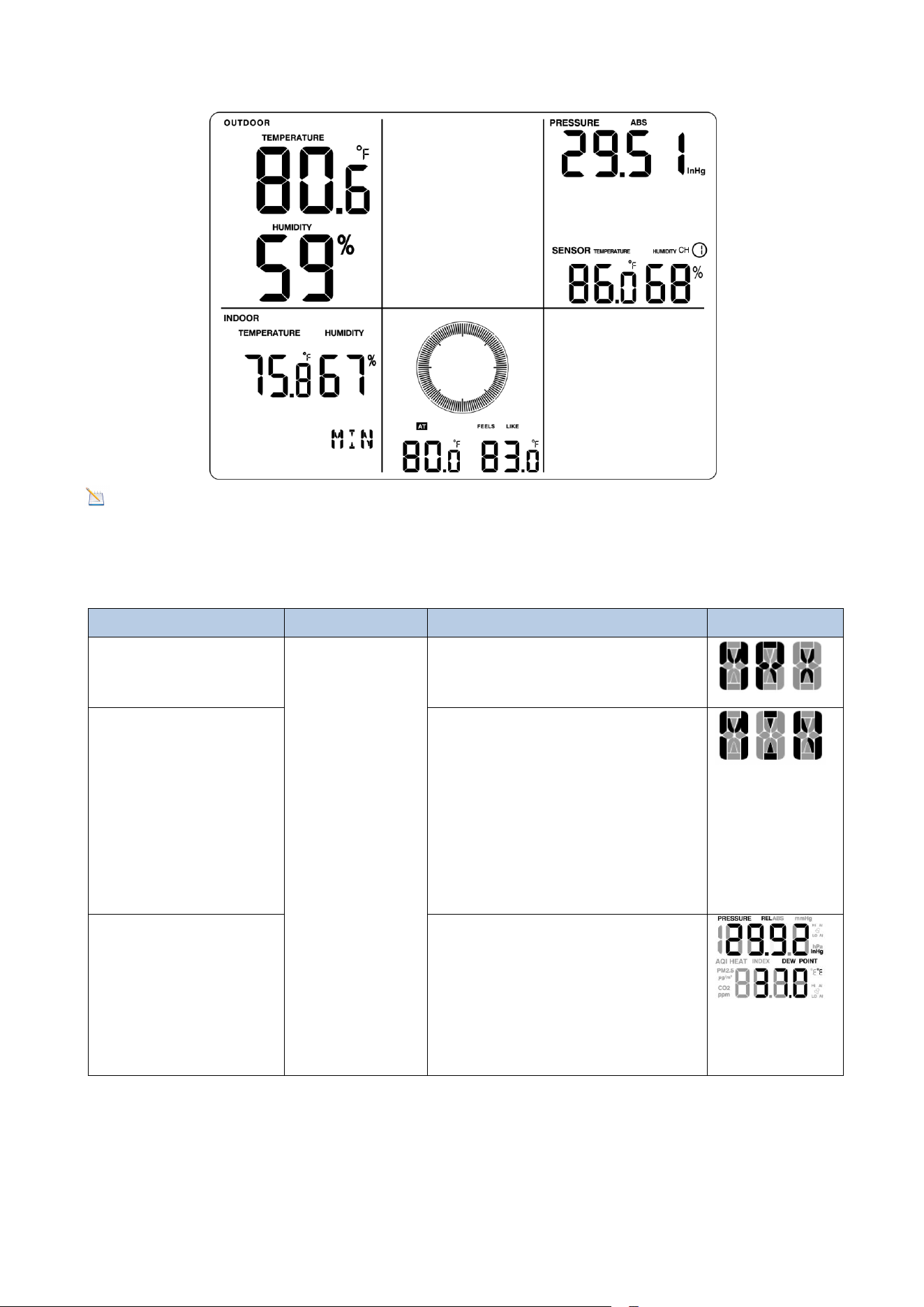

In normal mode, press the MAX/MIN/- key briefly once, and the date area will show the MAX icon.
Press the MAX/MIN/- key once more. The date area will show the MIN icon, and the display will
show the ABS barometric pressure, outdoor temperature, humidity and sensory image, outdoor AT
temperature, indoor temperature, and humidity and dew point minimum values.
Press SET/MODE to toggle the view of REL barometric pressure and outdoor dew point minimum
(the rest of the parameters remain unchanged).
Press the MAX/MIN/- key for three seconds to clear all minimum (barometric pressure,
temperature, humidity, dew point, and sensory image).
Press the SNOOZE key to exit the Minimum Values View and Reset mode and return to the normal
display mode

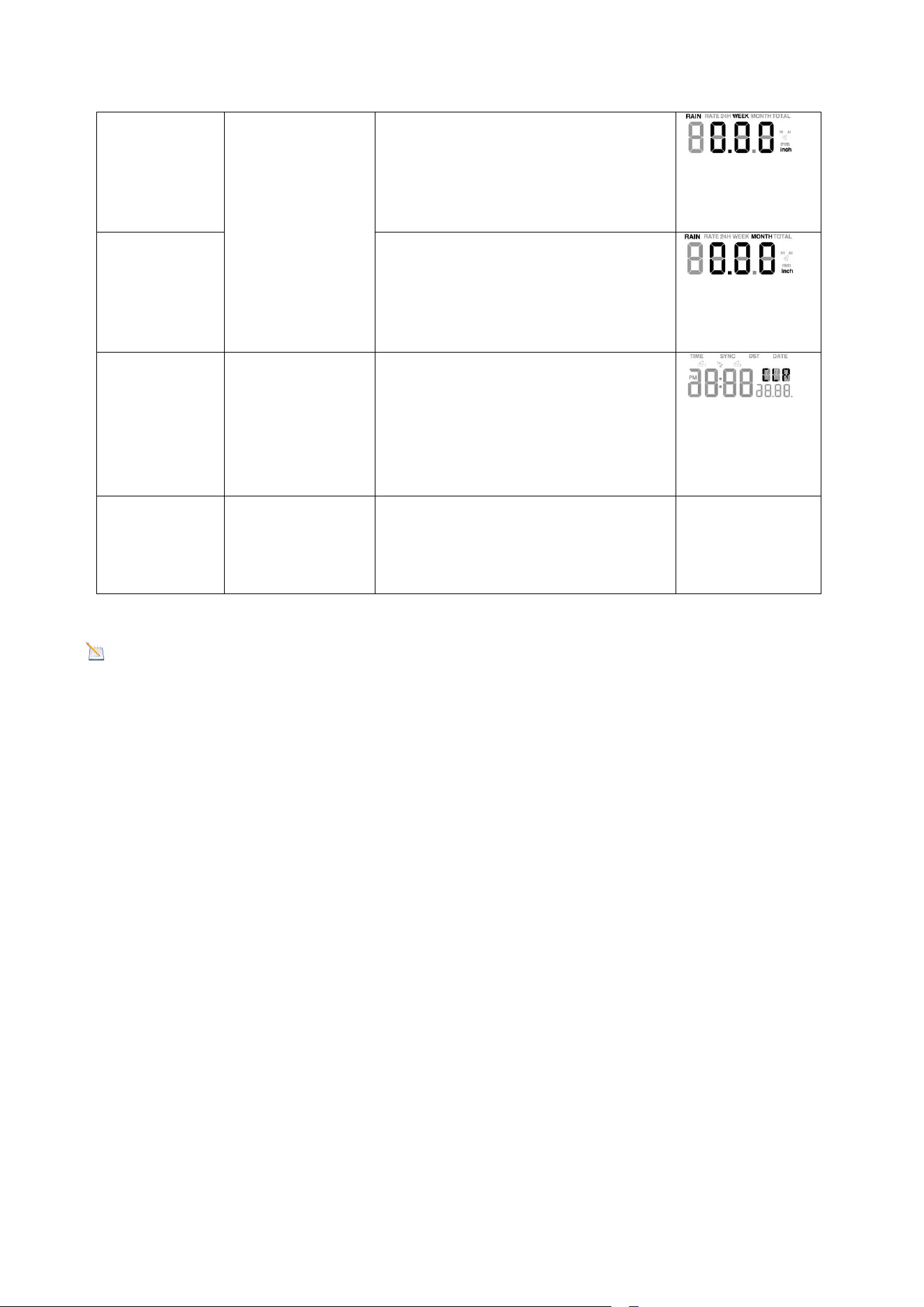

[SET]
The display switches to show the
maximum value of the other part of
the parameter (the rest of the
parameters remain unchanged):
Rainfall for a week
[SET]
The display switches to show the
maximum value of another part of
the parameter (the rest of the
parameters remain unchanged):
Rainfall in January
[MAX/MIN/-]
+3 Sec
Reset Maximum
Mode
The date area will show the CLR icon.
Clears all maximum (rainfall, wind
speed, gusts, barometric pressure,
UV and sunshine, temperature, and
humidity).
[SNOOZE]
Exiting Maximum
View and Reset
Mode
Return to normal mode
47
.
NOTE: After resetting the minimum value, the display minimum value will show the current
value.
The following charts summarize the sequence and instructions for viewing and resetting the mode
settings in Minimum:
Command
Mode
Settings
[MAX/MIN/-]
Minimum View
Mode
The MAX icon is displayed in the
date area.
[MAX/MIN/-]
- The MIN icon is displayed in the
date area.
- The display shows a portion of
the parameter minimum values:
ABS air pressure, outdoor
temperature and humidity, AT
temperature and sensory image,
indoor temperature, and humidity
and dew point.
[SET]
The display switches to show the
minimum value of another part of
the parameter (the rest of the
parameters remain unchanged):
REL air pressure, and outdoor dew
point.
48
*[MAX/MIN/-] means press the MAX/MIN/- button.
*[SET] means press the SET button.
*[MAX/MIN/-] + 3 seconds means press and hold the SET button for three seconds.
9.5. Alarm Mode
The weather station contains the following alarms:
9.5.1. Alarm Trigger
If the current value reaches the alarm condition, the alarm icon will flash (visual) and the alarm
buzzer will sound (audible).
To turn off the buzzer, press any key.
[MAX/MIN/-]+3 Sec
Reset Minimum
Mode
A CLR icon will be displayed in the
date area.
Clear all minimum (barometric
pressure, temperature and
humidity, dew point, and sensory
image).
[SNOOZE]
Exiting
Maximum View
and Reset Mode
Return to normal mode.
No
Parameter
Default
No
Parameter
Default
1
Time (Alarm 1 and
Alarm 2)
00:00
10
24-hour rainfall
50.0mm
2
Outdoor
temperature
HI：30℃
Low：-10℃
11
Absolute Pressure
HI：1040.0hpa
Low：960.0hpa
3
Outdoor humidity
HI：75%
Low：45%
12
Relative Pressure
HI：1040.0hpa
Low：960.0hpa
4
Outdoor Apparent
Temperature
HI：26.7℃
Low：0.0℃
13
Indoor
temperature
HI：20.0℃
Low：0.0℃
5
Outdoor Dew
Point
HI：10.0℃
Low：-10.0℃
14
Indoor humidity
HI：65%
Low：35%
6
Outdoor Feels Like
Temperature
HI：26.7℃
Low：0.0℃
15
Indoor Dew Point
HI：10.0℃
Low：-10.0℃
7
Wind Speed
HI：10.0 m/s
16
UV
6
8
Average wind
speed
HI：5.0 m/s
17
Sunlight
789 W/㎡
9
Rainfall rate
1.0 mm/h
49
9.5.2. Viewing High/Low Alarm Values
(1) Viewing High Alarm Values
To view the current alarm value, press the ALARM key to enter Alarm View mode, which defaults to
High Alarm View mode.
As shown, the date area will display HI AL 1 and Alarm 1 time. The display shows indoor
temperature and humidity, outdoor temperature and humidity, rain rate, AT, “feels like”
temperature, gust, average wind speed, absolute pressure, UV index, and sunshine high alarm
parameters.
Press SET/MODE, then the date area will show HI AL 2 and Alarm 2 time. The display will toggle to
show the high alarm parameters for rainfall (24 hours, week, or month), outdoor dew point, and
relative barometric pressure (the remaining parameters remain unchanged).
Figure 23
Note: Press the ALARM key again to return to normal mode.
Note: Press the SNOOZE key at any time during the High/Low Alarm mode to return to Normal
mode.
The following chart summarizes the sequence and commands for the High Alarm View mode
setting:
Command
Mode
Settings
[ALARM]
High Alarm View
Mode
The date area will show the HI AL
1 icon and the Alarm 1 time.
The display will show high alarm
values for some parameters:
Indoor temperature and
humidity, outdoor temperature
50
*[ALARM] means press the ALARM button.
*[SET] means press the SET button.
*[ALARM]/[SNOOZE] means press the ALARM or SNOOZE button.
(1) Viewing Low Alarm Values
To view the current alarm value, press the ALARM key to enter the Alarm View mode, which is
currently the High Alarm View mode. Press the ALARM key again to enter the Low Alarm View
mode.

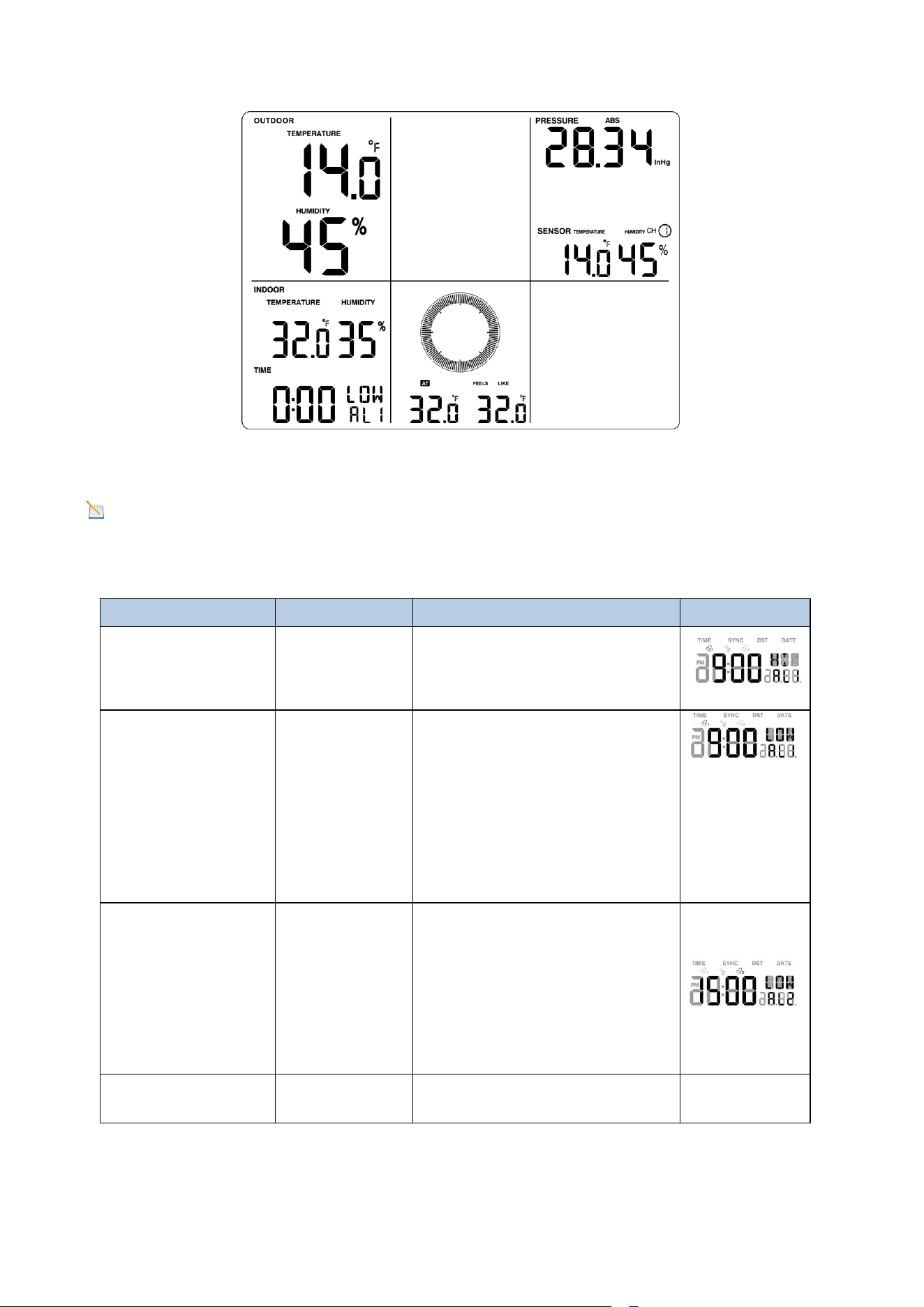

The date area will display LOW AL 1 and the Alarm 1 time as shown. The display shows the low
alarm parameters for indoor temperature and humidity, outdoor temperature and humidity, indoor
dew point, AT, sensation, and ABS pressure.
Press the SET/MODE key and the date area will show LOW AL 2 and Alarm 2 time. The display will
toggle to show the low alarm parameters for outdoor dew point and REL barometric pressure (the
remaining parameters remain unchanged).
and humidity, rain rate, AT,
“feels like” temperature, gust,
average wind speed, absolute
pressure, UV index, and sunlight.

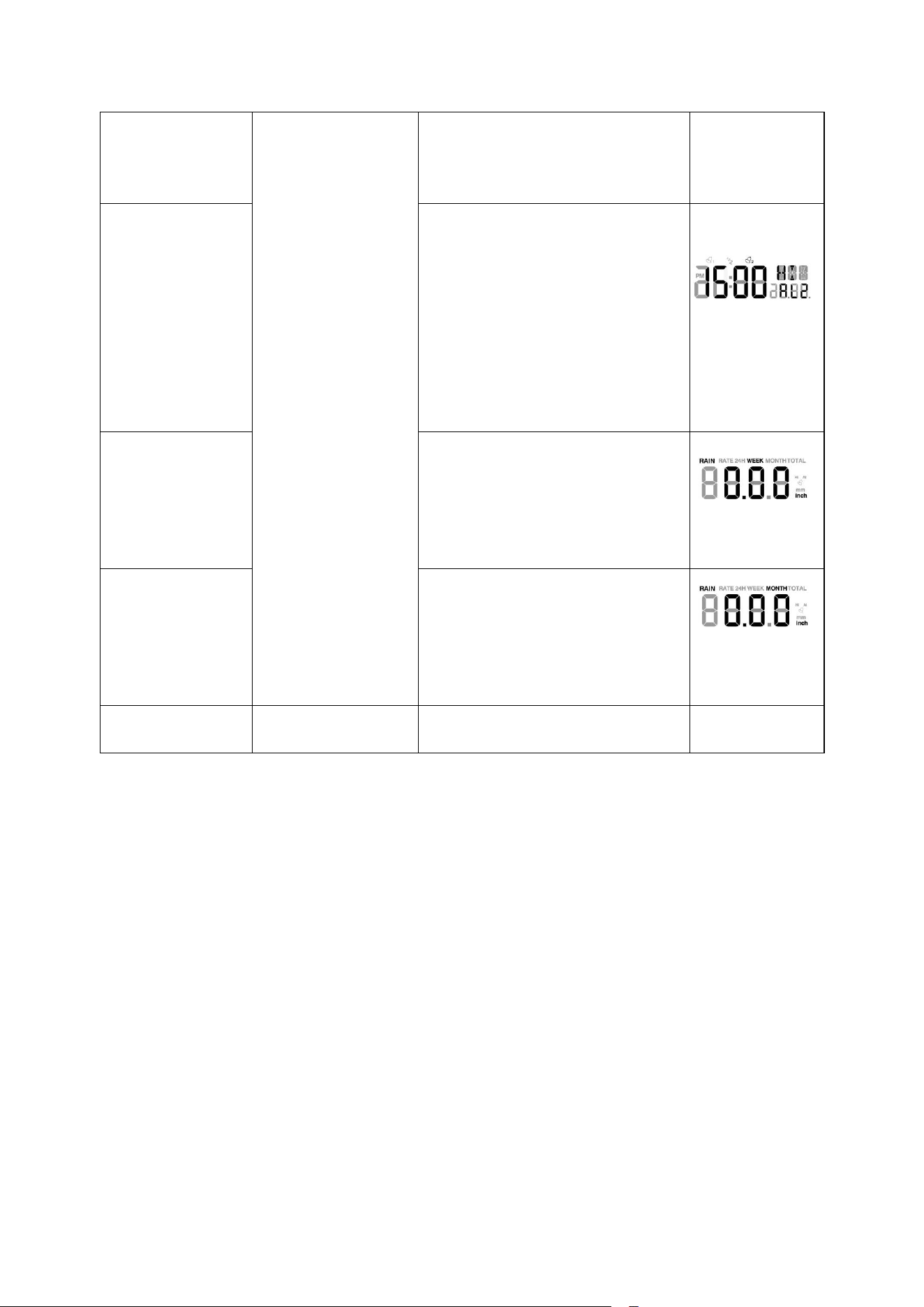

[SET]
The date area displays the HI AL
2 icon and the time of Alarm 2.
The display switches to show
another part of the parameter
high alarm values:
High alarm parameters for 24-
hour rainfall, outdoor dew point
and relative barometric pressure
(the rest of the parameters
remain unchanged)
[SET]
The display switches to show the
high alarm value for another part
of the parameter (the rest of the
parameters remain unchanged):
Weekly rainfall
[SET]
The display switches to show the
high alarm value for another part
of the parameter (the rest of the
parameters remain unchanged):
Monthly rainfall
[ALARM]/
[SNOOZE]
Exit High Alarm
View Mode
Return to normal mode
51
Figure 24
Press ALARM again to return to normal mode.
NOTE: In High/Low Alarm mode, press the SNOOZE key at any time to return to normal mode.
The following diagrams summarize the sequence and instructions for setting up the Low Alarm
View mode:
*[ALARM] means press the ALARM button.
*[SET] means press the SET button.
Command
Mode
Settings
Images
[ALARM]
High Alarm
View Mode
The date area will display the HI
AL 1 icon and the Alarm 1 time
[ALARM]
Low Alarm
View Mode
The date area will show the LOW AL
1 icon and the Alarm 1 time;
The display will show low alarm
values for some parameters:
Indoor temperature and humidity,
outdoor temperature and humidity,
indoor dew point, AT temperature,
feels like , ABS pressure
[SET]
The date area will show LOW AL 2
and Alarm 2 times;
The display will toggle to show
another portion of the parameter
low alarm values:
Outdoor dew point and REL air
pressure (the rest of the
parameters remain unchanged)
[ALARM]/
[SNOOZE]
Exit Low Alarm
View Mode
Return to normal mode
52
*[ALARM]/[SNOOZE] means press the ALARM or SNOOZE button.
9.5.3. Setting High/Low Alarms
Press the ALARM key to enter Alarm View mode. Then, press and hold the SET/MODE key for three
seconds to enter Alarm Setting mode. The first parameter will start flashing (hourly). To save the
setting and proceed to the next parameter, briefly press the SET/MODE key continuously.
To adjust an alarm parameter, press the CHANNEL/+ key or the MAX/MIN/- key to increase or
decrease the value, or press and hold the CHANNEL/+ key or the MAX/MIN/- key for three seconds
for a quick increase or decrease.
Press the ALARM key to turn the alarm on (the alarm icon will display) or off (the alarm icon will
disappear).
Press the SNOOZE key at any time to return to normal mode. If no action is taken within 30 seconds,
the alarm mode will time out and revert to normal mode.
The following diagrams summarize the sequence and instructions for setting alarms.
Command
Mode
Settings
[ALARM]
Enter Alarm Viewing
Mode
[SET]+3 sec
Enter Alarm Setting
Mode;
Hour Setting (Alarm 1)
·Press the CHANNEL/+ button or the MAX/MIN/-
button to increase or decrease the value. Long press
to increase or decrease quickly.
·Press the ALARM button to turn the time alarm on or
off. When the alarm is on, the alarm time icon
will be displayed; when the alarm is off, the alarm time
icon will disappear.
[SET]
Minute Setting (Alarm
1)
[SET]
Hour Setting (Alarm 2)
[SET]
Minute Setting (Alarm
2)
[SET]
Outdoor Temperature
High Alarm
·Press the CHANNEL/+ key or the MAX/MIN/- key to
increase or decrease the value. Long press to increase
or decrease quickly.
·Press the ALARM key to turn the alarm on or off. The
time area will display HI ON/OFF. If the alarm is turned
on, an icon will be displayed next to the
parameter. If the alarm is turned off, the icon will
disappear.
53
[SET]
Outdoor Temperature
Low Alarm
· Press the CHANNEL/+ key or the MAX/MIN/- key to
increase or decrease the value. Long press to increase
or decrease quickly.
· Press the ALARM key to turn the alarm on or off. The
time area will display LOW ON/OFF. If the alarm is on,
an icon will be displayed next to the parameter. If
the alarm is off, the icon will disappear.
[SET]
Outdoor Humidity
High Alarm
· Press the CHANNEL/+ key or the MAX/MIN/- key to
increase or decrease the value. Long press to increase
or decrease quickly.
· Press the ALARM key to turn the alarm on or off. The
time area will display HI ON/OFF. If the alarm is on, an
icon will be displayed next to the parameter. If
the alarm is off, the icon will disappear.
[SET]
Outdoor Humidity
Low Alarm
· Press the CHANNEL/+ key or the MAX/MIN/- key to
increase or decrease the value. Long press to increase
or decrease quickly.
· Press the ALARM key to turn the alarm on or off. The
time area will display LOW ON/OFF. If the alarm is on,
an icon will be displayed next to the parameter. If
the alarm is off, the icon will disappear.
[SET]
Outdoor AT High
Alarm
·Press the CHANNEL/+ key or the MAX/MIN/- key to
increase or decrease the value. Long press to increase
or decrease quickly.
· Press the ALARM key to turn the alarm on or off. The
time area will display HI ON/OFF. If the alarm is on, an
icon will be displayed next to the parameter. If the
alarm is off, the icon will disappear.
54
[SET]
Outdoor AT Low
Alarm
· Press the CHANNEL/+ key or the MAX/MIN/- key to
increase or decrease the value. Long press to increase
or decrease quickly.
· Press the ALARM key to turn the alarm on or off. The
time area will display LOW ON/OFF. If the alarm is on,
an icon will be displayed next to the parameter. If
the alarm is off, the icon will disappear.
[SET]
Outdoor Dew Point
High Alarm
· Press the CHANNEL/+ key or the MAX/MIN/- key to
increase or decrease the value. Long press to increase
or decrease quickly.
· Press the ALARM key to turn the alarm on or off. The
time area will display LOW ON/OFF. If the alarm is on,
an icon will be displayed next to the parameter. If
the alarm is off, the icon will disappear.
[SET]
Outdoor Dew Point
Low Alarm
· Press the CHANNEL/+ key or the MAX/MIN/- key to
increase or decrease the value. Long press to increase
or decrease quickly.
· Press the ALARM key to turn the alarm on or off. The
time area will display LOW ON/OFF. If the alarm is on,
an icon will be displayed next to the parameter. If
the alarm is off, the icon will disappear.
[SET]
Outdoor Feels Like
High Alarm
· Press the CHANNEL/+ key or the MAX/MIN/- key to
increase or decrease the value. Long press to increase
or decrease quickly.
· Press the ALARM key to turn the alarm on or off. The
time area will display HI ON/OFF. If the alarm is on, an
icon will be displayed next to the parameter. If
the alarm is off, the icon will disappear.
55
[SET]
Outdoor Feels Like
Low Alarm
· Press the CHANNEL/+ key or the MAX/MIN/- key to
increase or decrease the value. Long press to increase
or decrease quickly.
· Press the ALARM key to turn the alarm on or off. The
time area will display LOW ON/OFF. If the alarm is on,
an icon will be displayed next to the parameter. If
the alarm is off, the icon will disappear.
[SET]
Indoor Temperature
High Alarm
· Press the CHANNEL/+ key or the MAX/MIN/- key to
increase or decrease the value. Long press to increase
or decrease quickly.
· Press the ALARM key to turn the alarm on or off. The
time area will display HI ON/OFF. If the alarm is on, an
icon will be displayed next to the parameter. If
the alarm is off, the icon will disappear.
[SET]
Indoor Temperature
Low Alarm
· Press the CHANNEL/+ key or the MAX/MIN/- key to
increase or decrease the value. Long press to increase
or decrease quickly.
· Press the ALARM key to turn the alarm on or off. The
time area will display LOW ON/OFF. If the alarm is on,
an icon will be displayed next to the parameter. If
the alarm is off, the icon will disappear.
[SET]
Indoor Humidity High
Alarm
· Press the CHANNEL/+ key or the MAX/MIN/- key to
increase or decrease the value. Long press to increase
or decrease quickly.
· Press the ALARM key to turn the alarm on or off. The
time area will display HI ON/OFF. If the alarm is on, an
icon will be displayed next to the parameter. If
the alarm is off, the icon will disappear.
56
[SET]
Indoor Humidity Low
Alarm
· Press the CHANNEL/+ key or the MAX/MIN/- key to
increase or decrease the value. Long press to increase
or decrease quickly.
· Press the ALARM key to turn the alarm on or off. The
time area will display LOW ON/OFF. If the alarm is on,
an icon will be displayed next to the parameter. If
the alarm is off, the icon will disappear.
[SET]
Sensor Temperature
High Alarm
· Press the CHANNEL/+ key or the MAX/MIN/- key to
increase or decrease the value. Long press to increase
or decrease quickly.
· Press the ALARM key to turn the alarm on or off. The
time area will display HI ON/OFF. If the alarm is on, an
icon will be displayed next to the parameter. If
the alarm is off, the icon will disappear.
[SET]
Sensor Temperature
Low Alarm
· Press the CHANNEL/+ key or the MAX/MIN/- key to
increase or decrease the value. Long press to increase
or decrease quickly.
· Press the ALARM key to turn the alarm on or off. The
time area will display LOW ON/OFF. If the alarm is on,
an icon will be displayed next to the parameter. If
the alarm is off, the icon will disappear.
[SET]
Sensor Humidity High
Alarm
· Press the CHANNEL/+ key or the MAX/MIN/- key to
increase or decrease the value. Long press to increase
or decrease quickly.
· Press the ALARM key to turn the alarm on or off. The
time area will display HI ON/OFF. If the alarm is on, an
icon will be displayed next to the parameter. If
the alarm is off, the icon will disappear.
57
[SET]
Sensor Humidity Low
Alarm
· Press the CHANNEL/+ key or the MAX/MIN/- key to
increase or decrease the value. Long press to increase
or decrease quickly.
· Press the ALARM key to turn the alarm on or off. The
time area will display LOW ON/OFF. If the alarm is on,
an icon will be displayed next to the parameter. If
the alarm is off, the icon will disappear.
[SET]
UV Index High Alarm
· Press the CHANNEL/+ key or the MAX/MIN/- key to
increase or decrease the value. Long press to increase
or decrease quickly.
· Press the ALARM key to turn the alarm on or off. The
time area will display HI ON/OFF. If the alarm is on, an
icon will be displayed next to the parameter. If
the alarm is off, the icon will disappear.
[SET]
Sunlight High Alarm
[SET]
Absolute Air Pressure
High Alarm
· Press the CHANNEL/+ key or the MAX/MIN/- key to
increase or decrease the value. Long press to increase
or decrease quickly.
· Press the ALARM key to turn the alarm on or off. The
time area will display HI ON/OFF. If the alarm is on, an
icon will be displayed next to the parameter. If
the alarm is off, the icon will disappear.
[SET]
Absolute Air Pressure
Low Alarm
· Press the CHANNEL/+ key or the MAX/MIN/- key to
increase or decrease the value. Long press to increase
or decrease quickly.
· Press the ALARM key to turn the alarm on or off. The
time area will display LOW ON/OFF. If the alarm is on,
an icon will be displayed next to the parameter. If
the alarm is off, the icon will disappear.
58
[SET]
Relative Air Pressure
High Alarm
· Press the CHANNEL/+ key or the MAX/MIN/- key to
increase or decrease the value. Long press to increase
or decrease quickly.
· Press the ALARM key to turn the alarm on or off. The
time area will display HI ON/OFF. If the alarm is on, an
icon will be displayed next to the parameter. If
the alarm is off, the icon will disappear.
[SET]
Relative Air Pressure
Low Alarm
· Press the CHANNEL/+ key or the MAX/MIN/- key to
increase or decrease the value. Long press to increase
or decrease quickly.
· Press the ALARM key to turn the alarm on or off. The
time area will display LOW ON/OFF. If the alarm is on,
an icon will be displayed next to the parameter. If
the alarm is off, the icon will disappear.
[SET]
Rainfall (Rate) High
Alarm
· Press the CHANNEL/+ key or the MAX/MIN/- key to
increase or decrease the value. Long press to increase
or decrease quickly.
· Press the ALARM key to turn the alarm on or off. The
time area will display HI ON/OFF. If the alarm is on, an
icon will be displayed next to the parameter. If
the alarm is off, the icon will disappear.
[SET]
Rainfall (24H) High
Alarm
[SET]
Gust High Alarm
[SET]
Average Wind Speed
High Alarm
*[ALARM] means press the ALARM button.
*[SET] means press the SET button.
*[SET]+3 sec means press and hold the SET key for three seconds;
NOTE: A tolerance of 0.9 °F (0.5°C) is set to prevent repeated temperature alarms.
For example, if a high temperature alarm is set to 26.7°C (80.0°F) and the alarm is silenced, the
alarm icon will continue to flash until the temperature drops below 26.7°C (80.0°F). At this point
the alarm will reset and must rise above 26.7°C (80.0°F) to activate again.
NOTE: To prevent repeated humidity alarms, the humidity alarm has a 4% tolerance range.
For example, if the high alarm is set to 60% and the alarm is silenced, the alarm icon will continue
to flash until the humidity drops below 56%. At this point the alarm will reset and must rise above
60% to become active again.
59
9.5.4. Alarm and Key Sound Switches
If the alarm sounds, press any key to silence the alarm.
In normal mode, press and hold the ALARM key for three seconds to turn the alarm/key sound on
or off according to the current setting, and BZ ON and BZ OFF will be displayed in the date area
correspondingly.
The display console will return to normal mode automatically within three seconds, without
requiring any action.
9.6. Calibration Mode
9.6.1. Temperature Calibration
In normal mode, press and hold the SET key and the CHANNEL/+ key simultaneously for 5 seconds
to enter Temperature Calibration mode. The CRL icon will be displayed in the date area, and the
room temperature will begin to flash.
Figure 25
Press the CHANNEL/+ key or MAX/MIN/- key to increase or decrease the temperature reading (in
0.1 increments).
Press and hold the CHANNEL/+ key or MAX/MIN/- key for three seconds to quickly increase or
decrease the temperature reading.
Press the ALARM key to reset the current value. Press the SET key to switch to Outdoor
Temperature Calibration mode.
To exit Temperature Calibration mode at any time, press the SNOOZE key. If no action is performed,
the Calibration mode will time out and automatically exit after 30 seconds.
The following chart summarizes the temperature calibration mode sequence and commands.
Command
Mode
Settings
60
[SET]
and[CHANNE
L/+]
+5 sec
Enter the temperature
calibration mode
Indoor Temperature
calibration
- Press the CHANNEL/+ key or MAX/MIN/- key to
increase or decrease the temperature reading (in
0.1 increments).
- Press and hold the CHANNEL/+ key or
MAX/MIN/- key for three seconds to quickly
increase or decrease the temperature reading.
- Press the ALARM key to reset the current value.
[SET]
Outdoor Temperature
Calibration
- Press the CHANNEL/+ key or MAX/MIN/- key to
increase or decrease the temperature reading (in
0.1 increments).
- Press and hold the CHANNEL/+ key or
MAX/MIN/- key for three seconds to quickly
increase or decrease the temperature reading.
- Press the ALARM key to reset the current value.
[SET]
Sensor Temperature
Calibration
- Press the CHANNEL/+ key or MAX/MIN/- key to
increase or decrease the temperature reading (in
0.1 increments).
- Press and hold the CHANNEL/+ key or
MAX/MIN/- key for three seconds to quickly
increase or decrease the temperature reading.
- Press the ALARM key to reset the current value.
[SNOOZE]
Exit Temperature
Calibration Mode
If no operation is performed, the calibration
mode will time out and automatically exit after
30 seconds.
*[SET] and [CHANNEL/+]+5 sec means press and hold the SET and CHANNEL/+ keys for at least 5
seconds；
*[SET] means press the SET button.
9.6.2. Humidity Calibration
In normal mode, press and hold the SET key and the MAX/MIN/- key simultaneously for 5 seconds
to enter the Humidity Calibration mode.The CRL icon will be displayed in the date area and the
indoor humidity will begin to flash.
Press the CHANNEL/+ key or MAX/MIN/- key to increase or decrease the temperature reading in 1%
increments.
Press and hold the CHANNEL/+ key or MAX/MIN/- key for three seconds to quickly increase or
decrease the humidity reading.
61
Press the ALARM key to reset the current value. Press the SET key to switch to Outdoor Humidity
Calibration mode.
To exit the Humidity Calibration mode at any time, press the SNOOZE key. If no action is performed,
the calibration mode will time out and automatically exit after 30 seconds.
The following chart summarizes the sequence and commands for the humidity calibration mode.
Command
Mode
Settings
[SET]
and[MAX/MIN
/-]+5 sec
Enter the Humidity
Calibration Mode.
Indoor Humidity
Calibration
- Press the CHANNEL/+ key or MAX/MIN/- key to
increase or decrease the humidity reading (in 1%
increments).
- Press and hold the CHANNEL/+ key or MAX/MIN/-
key for three seconds to quickly increase or decrease
the humidity reading.
- Press the ALARM key to reset the current value.
[SET]
Outdoor Humidity
Calibration
- Press the CHANNEL/+ key or MAX/MIN/- key to
increase or decrease the humidity reading (in 1%
increments).
- Press and hold the CHANNEL/+ key or MAX/MIN/-
key for three seconds to quickly increase or decrease
the humidity reading.
- Press the ALARM key to reset the current value.
[SET]
Sensor Humidity
calibration
- Press the CHANNEL/+ key or MAX/MIN/- key to
increase or decrease the humidity reading (in 1%
increments).
- Press and hold the CHANNEL/+ key or MAX/MIN/-
key for three seconds to quickly increase or decrease
the humidity reading.
- Press the ALARM key to reset the current value.
[SNOOZE]
Exiting Humidity
Calibration Mode
If no operation is performed, the calibration mode
will time out and automatically exit after 30 seconds.
*[SET] and [MAX/MIN/-] +5 sec means press and hold the SET and CHANNEL/+ key for at least 5
seconds.
*[SET] means press the SET button.
9.6.3. Sensor Mode Calibration
In Normal Mode, press and hold the SET and ALARM keys simultaneously for 5 seconds to enter
Pressure, Gust, Rainfall and Sunshine Calibration Modes.
62
The CRL icon will be displayed in the date area then first calibration parameter (Absolute Pressure)
will flash. Press the SET key to skip any parameter and proceed to the next parameter calibration
setting.
Press the CHANNEL/+ key or MAX/MIN/- key to increase or decrease the value.
Press and hold the CHANNEL/+ key or MAX/MIN/- key for three seconds to quickly increase or
decrease the value.
Press the ALARM key to reset the current value. To exit the calibration mode at any time, press the
SNOOZE key. If no action is performed, the calibration mode will time out and automatically exit
after 30 seconds.
The following chart summarizes the setup sequence and commands for the Sensor Calibration
mode.
Command
Mode
Settings
[SET]and[ALA
RM]+5 sec
Enter Sensor
Calibration Mode.
Absolute Pressure
Calibration
- The Pressure Section will display the "ABS" symbol
and the absolute pressure value will flash. (Default
value is 0.00 inHg.)
- Press the CHANNEL/+ key or the MAX/MIN/- key
to increase or decrease the absolute pressure value
(in increments of 0.01 inHg).
-Press and hold the CHANNEL/+ or MAX/MIN/- key
for three seconds to quickly increase or decrease
the absolute pressure value.
-Press the ALARM key to reset the current value.
Example: Calibration pressure source measures
28.37 inHg. Display console pressure reading is
28.75 inHg. Offset = 28.37 - 28.75 = - 0.38 inHg.
[SET]
Relative Pressure
Calibration
- The pressure section will display the "REL" symbol
and the relative pressure value will flash. (Default
value is 0.00 inHg).
- Press the CHANNEL/+ key or the MAX/MIN/- key
to increase or decrease the relative pressure value
(in increments of 0.01 inHg).
- Press and hold the CHANNEL/+ or MAX/MIN/- key
for three seconds to quickly increase or decrease.
-Press the ALARM key to reset the current value.
Example: The calibration pressure source measured
25.00 inHg. The display console pressure reading is
24.85 inHg. Offset = 25.00 – 24.85 = 0.15 inHg.
63
*[SET] and [ALARM] +5 sec means press and hold the SET and ALARM keys for at least 5 seconds；
*[SET] means press the SET button.
*Calibration Ranges
The following chart summarizes the calibration ranges allowed for weather stations.
Parameter
Range
Indoor Temperature
± 9 °F (± 5 °C)
Outdoor Temperature
± 9 °F (± 5 °C)
Sensor Temperature
± 9 °F (± 5 °C)
Indoor Humidity
± 9 %
Outdoor Humidity
± 9 %
Sensor Humidity
± 9 %
Absolute Pressure
± 0.27 inHg (± 6.8hpa)
Relative Pressure
± 0.27 inHg (± 6.8hpa)
Wind Speed
0.5-1.5
Rainfall
0.5-1.5
[SET]
Wind Speed
Calibration
- The wind speed value will flash (default value is
1.00).
- Press the CHANNEL/+ key or the MAX/MIN/- key
to adjust the wind speed calibration factor from 0.5
to 1.5. (Calibrated Wind Speed = Calibration Factor
x Measured Wind Speed)
- Press and hold the CHANNEL/+ or MAX/MIN/- key
for three seconds to quickly increase or decrease.
- Press the ALARM key to reset the current value.
[SET]
Rainfall Calibration
- The rainfall value will flash (default value is 1.00).
- Press the CHANNEL/+ key or the MAX/MIN/- key
to adjust the rainfall calibration factor from 0.5 to
1.5 (Calibrated Rain = Calibration Factor x Measured
Rain)
- Press and hold the CHANNEL/+ or MAX/MIN/- key
for three seconds to quickly increase or decrease.
- Press the ALARM key to reset the current value.
[SET]
Sunlight Calibration
- The sunlight value will blink (default value is 1.00).
- Press the CHANNEL/+ key or the MAX/MIN/- key
to adjust the insolation calibration factor from 0.5
to 1.5. (Calibrated Insolation = Calibration Factor x
Measured Insolation)
- Press and hold the CHANNEL/+ or MAX/MIN/- key
for three seconds to quickly increase or decrease.
- Press the ALARM key to reset the current value.
[SNOOZE]
Exit Sensor
Calibration Mode
Setting
If no operation is performed, the calibration mode
will automatically time out after 30 seconds.
64
Sunlight
0.5-1.5
Note: The calibration range (0.5-1.5) for wind speed, rainfall, and sunlight are coefficients, and
the calibration formula is: Calibration value = Calibration coefficient x Measured value.
9.6.4.Calibration Discussion
NOTE: The calibration value can only be adjusted on the display console, the outdoor remote
sensor always displays an uncalibrated or measured value.
The purpose of calibration is to fine-tune or correct any sensor errors associated with the device's
error range. Errors can result from electronic changes (e.g., temperature sensors are resistive
thermistors or RTDs, humidity sensors are capacitive devices), mechanical changes or degradation
(e.g., moving parts wear or sensor contamination). Calibration is only useful when there is a known
calibration source to compare it to.
This section will discuss practices, procedures, and sources for sensor calibration to minimize
manufacturing and degradation errors. Do not compare data with results obtained from sources
such as the Internet, radio, television, or newspapers.
The purpose of a weather station is to measure the surrounding environmental conditions, which
vary greatly from location to location.
（1）
Temperature errors can occur when a sensor is placed too close to a heat source (such as a
building/structure, the ground, or trees).
To calibrate temperature, we recommend a mercury or red spirit (fluid) thermometer. Bi-metal
(dial) and digital thermometers (from other weather stations) are not a good source and have their
own margin of error.
Parameter
Type of
Calibration
Default
Typical Calibration Source
Temperature
Offset
Current Value
Red Spirit or Mercury
Thermometer (1)
Humidity
Offset
Current Value
Sling Psychrometer (2)
ABS Barometer
Offset
Current Value
Calibrated Laboratory-
Grade Barometer
REL Barometer
Offset
Current Value
Local Airport (3)
Wind Speed
Gain
1.0
Calibrated Laboratory-
Grade Wind Meter (4)
Rainfall
Gain
1.0
Sight Glass Rain Gauge
with an aperture of at
least 4”
(5)
65
Using a local weather station in your area is also a poor source due to changes in location and
timing (airport weather stations are only updated once per hour).
Place the sensor in a shaded, controlled environment next to the fluid thermometer and allow the
sensor to stabilize for 48 hours. Compare this temperature to the fluid thermometer and adjust the
console to match the fluid thermometer.
（2）
Humidity is a difficult parameter to measure electronically and can drift over time due to
contamination. Additionally, location has an adverse effect on humidity readings (such as
installation over dirt versus a lawn).
Official stations recalibrate or replace humidity sensors on a yearly basis. Due to manufacturing
tolerances, the humidity is accurate to ± 5%. To improve this accuracy, the indoor and outdoor
humidity can be calibrated using an accurate source, such as a sling psychrometer.
NOTE: The measured humidity range is between 10% and 99%. Humidity cannot be measured
accurately outside of this range. Therefore, it is not possible to calibrate humidity below 10% or
above 99%.
（3）
The display console shows two different pressures: absolute pressure (measured value) and relative
pressure (corrected for sea level).
To compare air pressure conditions at different locations, meteorologists adjust air pressure to sea
level pressure. Because barometric pressure decreases with elevation, the sea level corrected
pressure (the pressure at your location if you are at sea level) is usually higher than your measured
pressure.
Thus, at an elevation of 1,000 feet (305 meters), the absolute barometric pressure may be 28.62
inHg (969 mb), but the relative barometric pressure is 30.00 inHg (1016 mb).
The standard sea level pressure is 29.92 inHg (1013 mb). This is the average sea level pressure for
the entire world. A relative pressure measurement greater than 29.92 inHg (1013 mb) is considered
high pressure, and a relative pressure measurement less than 29.92 inHg is considered low
pressure.
To determine the relative barometric pressure at your location, look for an official reporting station
near you (the Internet is the best source for real-time barometric conditions, such as the
Weather.com or Wunderground.com websites) and set your weather station to match the official
reporting station.
NOTE: The calibration settings will be saved to the display console until a factory reset is
performed. If the console location altitude is changed, the barometric pressure will need to be
recalibrated.
（4）
66
Wind speed is the most sensitive to installation constraints. A properly installed wind speed sensor
must be 4x the distance of the tallest obstruction. For example, if your house is 20’ tall and you
mount the sensor on a 5’ pole:
Distance = 4 x (20 – 5)’ = 60’
Many installations are not perfect and installing the weather station on a roof can be difficult. Thus,
you can calibrate for this error with a wind speed multiplier.
In addition to the installation challenges, wind cup bearings (moving parts) wear over time.
Without a calibrated source, measuring wind speed can be challenging. We recommend using a
calibrated wind meter and a consistent, high-speed fan.
（5）
The rain collector is calibrated to the funnel diameter at the factory. The internal unit of the rain
collector records 0.01 inches of rainfall (called resolution) for each pour. Accumulated rainfall can
be compared to a sight glass rain gauge with an aperture of at least 4 inches.
The rain cycle view is calculated as follows:
View Period
Description
Example
1H
One hour delay from current time
If the current time is 08:25, the 1-hour
rainfall refers to the rainfall from 08:25 to
09:25.
24H
Same time from current time to
the day after
If the date is October 20 and the time is
08:25, the 24-hour rainfall is the amount
of rainfall from 08:25 (10.20) to 08:25
(10.21).
Week
From the beginning of the week to
the current time
If the current time is 08:25 on Thursday,
the weekly rainfall refers to the rainfall
from 00:00 on this Sunday to 08:25 on
this Thursday.
Month
From the beginning of the month
to the current time
If the current time is 08:25 on October
20, the monthly rainfall refers to the
rainfall from 00:00 on October 1 to 08:25
on October 20.
Total
Total rainfall since the most recent
start
If the start time is now October 20, 2024,
then the total rainfall is October 20, 2024
to October 20, 2025.
NOTE: Debris and insects can collect in the dump unit (they can form spider nests), so carefully
remove the rain collector and check for debris in the dump unit before calibrating.
9.7. Snooze Mode
If the alarm sounds and you wish to silence the display, press the SNOOZE key. The alarm icon will
continue to flash, the alarm will be silent for five minutes, and the backlight will turn on.
67
Press SNOOZE key to permanently exit Sleep mode.
10. Feels Like and AT Temperatures
10.1. Feels Like Temperatures
The Feels Like Temperature is a combination of the Heat Index and the Wind Chill Index.
(1) When the air temperature is below 4.4°C (40°F), the Wind Chill Index is displayed, as shown in
the following National Weather Service Wind Chill Index table:

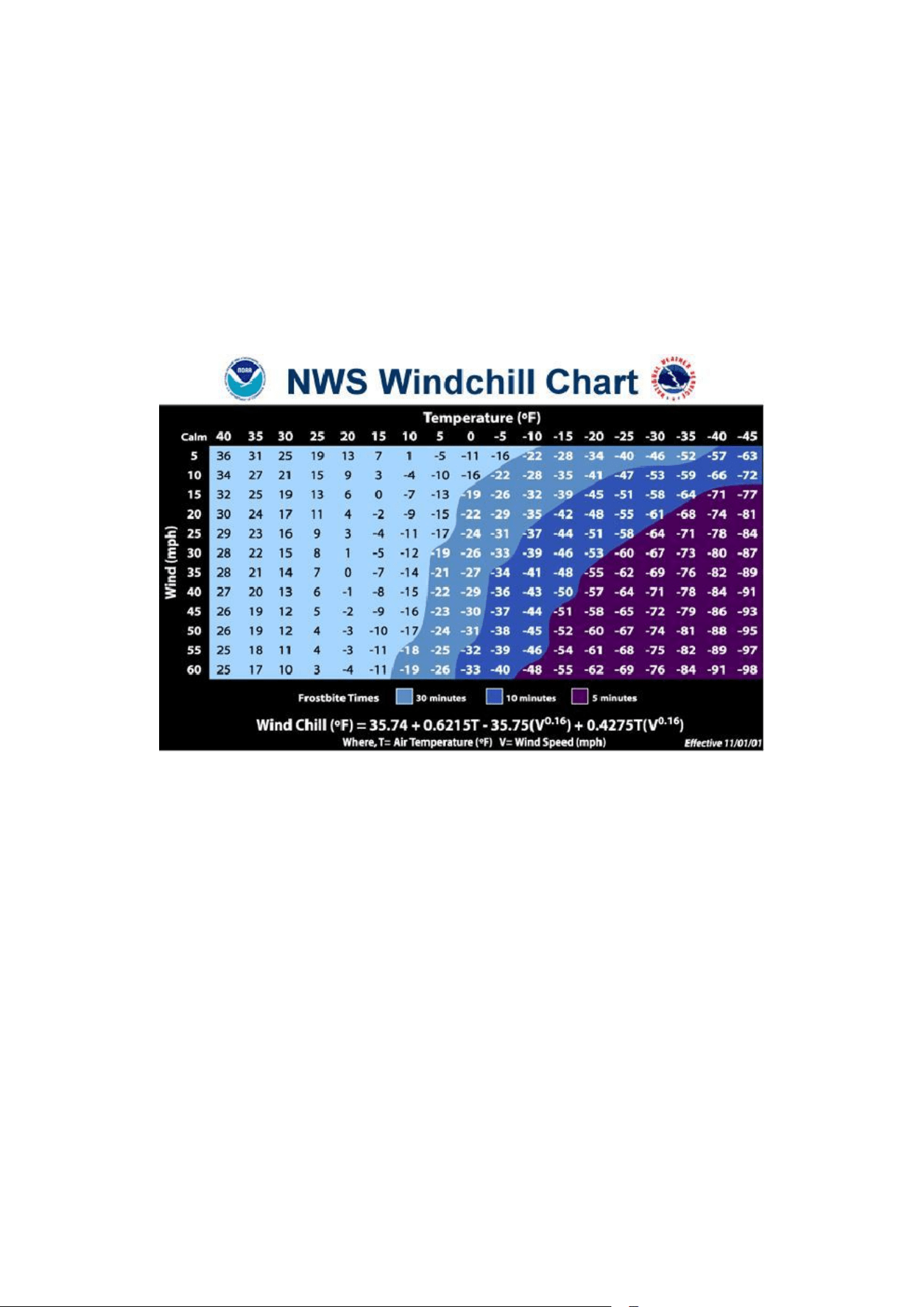

Figure 26
(2) When the temperature is above 26.7°C (80°F), the heat index is displayed, as shown in the
following National Weather Service heat index chart:
68

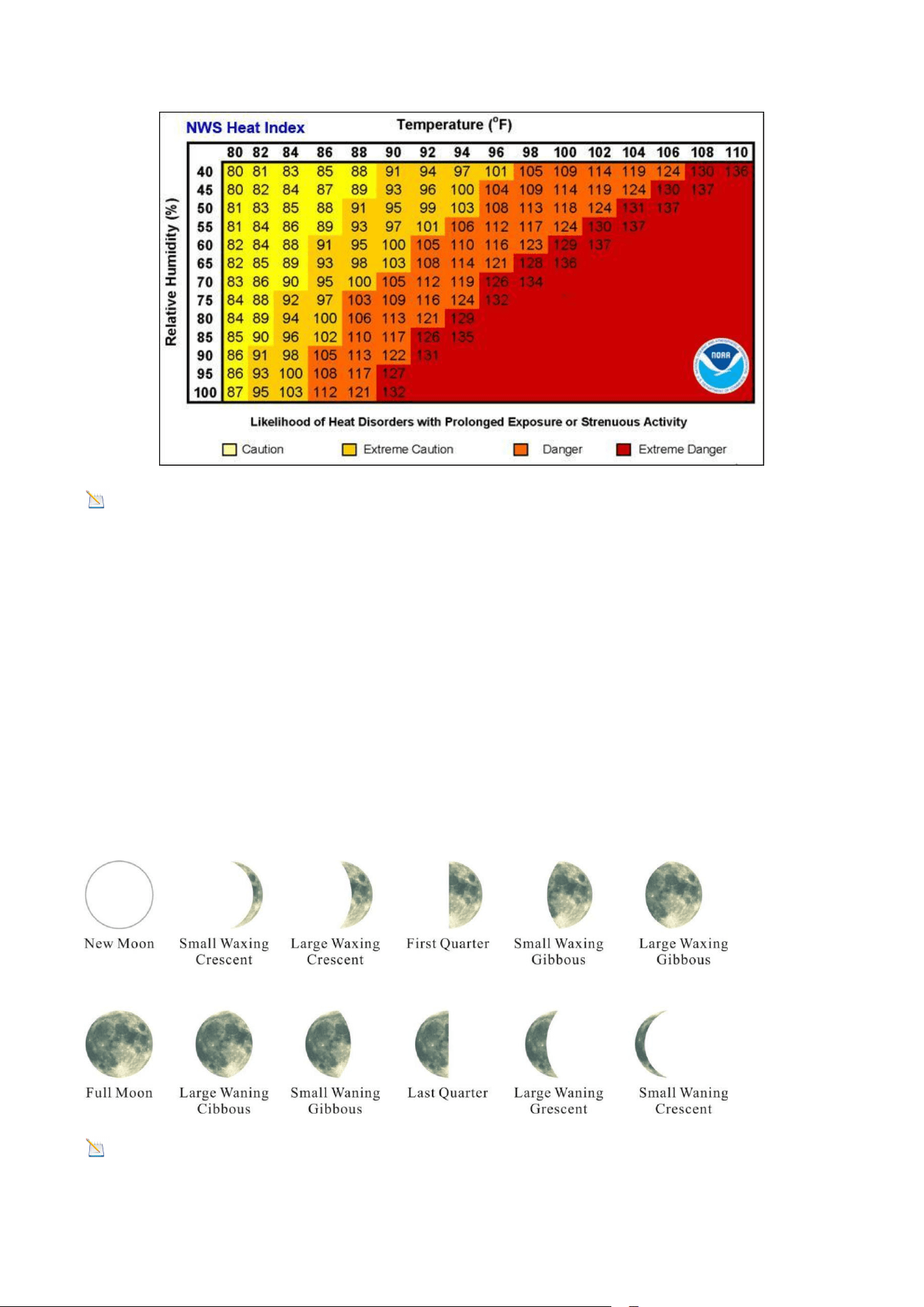

Figure 27
Note: Both the Wind Chill and Heat Index are displayed uniformly as the Feels Like
Temperature.
10.2. Apparent Temperature (AT)
AT is a linear regression that is not restricted. It is more appropriate for outside conditions because
it includes wind and was intended as an assessment of what exposed body surfaces feel like in cold,
windy conditions.
Regression equations of this universal scale are formulated for indoors, outdoors in shade exposed
to wind, and outdoors exposed to wind and solar radiation. Of these, outdoors in shade exposed to
wind has been chosen as the most informative.
11. Moon Phase
The following moon phases are displayed according to the calendar date.
Figure 28
Note: The new moon does not show the phases of the moon.
69
12. Weather Forecasting
12.1. Weather Icon
Conditions
Icon
Description
Sunny
The pressure rises, and the weather in
the previous period was less cloudy.
Partly Cloudy
The pressure drops, and the weather in
the previous period was sunny;
The pressure rises, and the weather in
the previous period was cloudy.
Cloudy
The pressure drops, and the weather in
the previous period was less cloudy;
The pressure rises, and the weather in
the previous period was rainy.
Rainy
The air pressure drops and the weather
was cloudy in the previous period.
12.2. Weather Forecast Instructions and Limitations
Note: Weather forecasts or pressure trends are based on the rate of change of air pressure.
Generally speaking, as air pressure increases, the weather improves (from partly cloudy to sunny),
and as air pressure decreases, the weather deteriorates (from cloudy to rainy).
If the current conditions don't match the forecast icon, it is because the forecast is an estimate or
summary of how the weather is expected to change over the next 24-48 hours, which varies from
place to place. Weather trends are only a tool for predicting how the weather will change and
should never be relied upon as an accurate method of forecasting the weather. In most areas,
these predictions are only 70% accurate, so it's best to consult the National Weather Service for a
more accurate weather forecast.
12.3. Pressure Threshold
The pressure threshold (the rate of negative or positive pressure change that indicates weather
changes) can be adjusted between 2 hPa and 4 hPa (default is 2 hPa).
70
The lower the pressure threshold is set, the more sensitive it becomes to changes in the weather
forecast. Locations where pressure changes frequently require a higher pressure threshold than
those where the pressure is usually stagnant.
13. Backlight Operation
13.1. Connect the power adapter
The display will remain on only when the power adapter is connected. The display backlight has 3
levels of brightness.
When the backlight is on, short press the SNOOZE button to switch between the 3 levels of
backlight.
When the backlight is off, press and hold the SNOOZE button for 3 seconds and the backlight will
turn on permanently. The BL ON icon will be displayed in the date area for 3 seconds.
To turn off the display backlight at any time, press and hold the SNOOZE button for two seconds.
The BL OFF icon will appear in the date area for 3 seconds.
13.2. Power Not Connected
When the display is not connected to the power adapter and is operated solely by batteries, we do
not recommend leaving the display backlight on for extended periods; otherwise, the batteries will
be depleted quickly.
Note: To save power, the backlight operates differently when using batteries.
If the display console is powered only by batteries and the backlight is off, briefly press the SNOOZE
key once. The backlight will turn on for 5 seconds and will turn off after 3 seconds of inactivity.
14. Glossary of Terms
Terms
Definition
Absolute pressure
Absolute pressure is the measured atmospheric pressure and is a
function of altitude and, to a lesser extent, changes in weather
conditions.
Absolute air pressure is not corrected for sea level conditions. See
relative air pressure for details.
Relative pressure
The measured air pressure relative to your location or environmental
conditions.
HectoPascals (hPa)
A unit of pressure measured in the SI (International System of Units).
Same as the millibar (1 hPa = 1 mbar).
Inches of Mercury
(inHg)
Pressure expressed in imperial units. (1 inHg = 33.86 mbar).
71
Dew point
Dew point refers to the temperature at which water vapor condenses
into water after cooling in air of a certain humidity under constant air
pressure. The condensed water is called dew, and the dew point is a
saturation temperature.
Dew point is related to relative humidity. A high relative humidity
means the dew point is closer to the current air temperature. A relative
humidity of 100% means the dew point is equal to the current
temperature and the water in the air reaches maximum saturation.
When the dew point remains constant and the temperature rises, the
relative humidity decreases
Apparent
temperature (heat
index)
The heat index, sometimes called the apparent temperature, is a
measure of how hot it actually feels when the relative humidity is
compared to the actual air temperature. To find the heat index
temperature, look at the heat index chart (reference 10.1).
For example, if the air temperature is 96°F and the relative humidity is
65%, the heat index (how hot it feels) is 121°F.
NOTE: Because heat index values are designed for shaded, breezy
conditions, heat index values may increase by up to 15 degrees
Fahrenheit in full sun conditions.
In addition, strong winds and especially very hot, dry air can be
extremely hazardous. The shaded area above 105 degrees Fahrenheit
shows levels where continued exposure or physical activity could lead
to increasingly severe heat disorders.
The heat index is not calculated for temperatures below 80 degrees
Fahrenheit.
Rain gauge
A rain gauge is a device that measures liquid precipitation (rain) over a
period of time, rather than solid precipitation (snow, hail, or ice).
All digital rain gauges are self-emptying or self-dumping (also called
dumping rain gauges). The accuracy of a rain gauge depends on the
amount of rain that falls during each emptying cycle.
Accuracy
Precision is defined as the ability of a measurement to match the actual
value of the quantity being measured.
Calibration
Calibration is the comparison between measurements made by a
device (standard) of known magnitude or correctness with another
device (instrument) in a manner as similar as possible.
Range
Range is defined as the number and interval of measurable values.
Resolution
Resolution is defined as the number of significant digits (decimal digits)
that can be reliably measured.
72
Solar radiation
Solar radiation sensors measure solar energy from the sun.
Solar radiation is the radiant energy emitted by the sun through the
production of electromagnetic energy from nuclear fusion reactions.
The spectrum of solar radiation is close to that of a black object with a
temperature of about 5,800 K. The other half is mainly in the near
infrared part, with some in the ultraviolet part of the spectrum.
A wind vane is a device that measures wind direction, usually in
conjunction with an anemometer.
Wind vane
A wind vane is a device that measures wind direction, usually in
conjunction with an anemometer. Wind direction refers to the
direction the wind is blowing from. For example, if the display shows
the wind direction as south, it means the wind is blowing from the
south.
15. Specifications
15.1. Wireless Specifications
Wireless transmission
Specifications
Line of sight wireless sensor array RF
transmission (open air)
330 ft, 100 ft in most cases
Line of sight Wi-Fi RF transmission (open air)
80 ft
Outdoor sensor update frequency
60 sec
Sensor array RF frequency
433 MHz
Wi-Fi console RF frequency
2.4 GHz
15.2. Measurement Specifications
The table below provides the specifications of the measured parameters.
Measurement
Range
Accuracy
Resolution
Indoor Temperature
0 to 60 °C
(32 to 140°F)
± 1 °C
(± 2°F)
0.1 °C(°F)
Outdoor Temperature
-40 to 60 °C
(-40 to 140°F)
± 1 °C
(± 2°F)
0.1 °C(°F)
Indoor Humidity
10 to 99 %
± 5% (only guaranteed
between 20
to 90%)
1%
Outdoor Humidity
10 to 99 %
± 5% (only guaranteed
between 20
to 90%)
1%
UV
1 to 15+
± 1
± 1
Sunlight
0 to 200klux
± 15%
± 15%
73
Rainfall
0 to 9999mm
<15mm: ±1 mm,
15mm to 9999mm:
±7%
<1000mm
(0.3mm)
>1000mm
(1mm)
Wind Direction
0 - 360º
± 10º (16 point
compass)
± 1º (16 point
compass)
Wind Speed
0 to 50 m/s
2 m/s ~10
m/s:±0.3m/s
, 10m/s ~50
m/s: ±10%
(whichever
is greater)
0.1 m/s
Barometric Pressure
300 to 1100
hpa
± 3 hpa
0.1 hpa
15.3. Power Consumption
Display Console
3 x AAA 1.5V alkaline or lithium batteries (not
included)
Integrated Outdoor Sensor:
3xAA alkaline or lithium batteries (not
included) provide backup power when solar
power is limited.
Note: Solar panels can charge the batteries.
Power Adapter
5V ~ 1000mA (included)
Battery Life
If the base station signal reception is good, the
transmitter battery can last at least 3 months.
If the base station reception signal is
intermittent, the transmitter battery life may
be reduced.
We recommend using lithium batteries for the
transmitter in cold climates below -20°C (-4°F).
16. Maintenance
(1) We recommend cleaning the rain gauge once every 3 months. Twist the funnel clockwise and lift
it vertically to expose the rain gauge assembly (see the image below). Then wipe the internal rain
gauge assembly with a damp cloth to remove any dirt, debris, or insects. If insect infestation is a
concern, you can lightly spray the array with an insecticide.
74
Figure 29
(2) Clean the solar radiation sensor and solar panel with a damp cloth every 3 months. Replace the
battery every 3 months. If left for too long, the battery may leak due to environmental factors. In
harsh environments, check the battery every 3 months (when cleaning the solar panel).
(3) When replacing the battery, apply anti-corrosion compound to the battery terminals, which is
available on Amazon and most hardware stores.
(4) In snowy conditions, spray the top of the weather station with anti-icing silicone spray to
prevent snow accumulation.
(5) Over time, the smoothness of the rain gauge funnel surface will degrade due to dirt, debris, and
UV rays. We recommend spraying Teflon spray on the rain gauge funnel and coil filter to reduce the
surface tension of the water.
17. Troubleshooting Guide
If your question is not answered here, you can contact us by E-mail, Phone, and on our Website:
（2） Website：https://www.sainlogic.com/
（3） Customer Support Phone：+1 (888) 513-9823 (Mon-Fri:10 a.m. - 6 p.m. EST)
Problem
Solution
The wireless remote control is
not reporting to the console.
The display console has dotted
lines; dashes (--.-).
If any sensor communication is lost, dashes (--.-) will appear
on the screen. To reacquire the signal, press and hold the
CHANNEL/+ button for 3 seconds, select the lost sensor, and
the remote search icon will display continuously. When the
signal is reacquired, the remote search icon will turn off and
the current value will be displayed.
You can also reset the transmitter.
After the transmitter is powered on, if the indicator light bli
nks every 60 seconds it means the outdoor unit is working p
roperly.
After the transmitter is powered on and working properly, t
75
he display has to be re-plugged in to re-
receive the transmitter signal. It usually takes 1-
3 minutes to receive the data.
Do not operate the keys or power off until the transmitter d
ata is received.
If this still does not help, please follow the steps below to
reconnect the transmitter and display to troubleshoot poor
connections:
1. Remove the batteries of the transmitter and the display.
2. Unplug the display from the power supply.
3. Put batteries in the transmitter.
4. Plug in the power of the display.
5. Put the batteries in the display after the display lights up
and the data show dashes.
Also, you can try to replace the batteries in the transmitter
with new ones.
In most cases, the maximum line-of-sight communication
distance is 100 meters (330 feet) and 30 meters (100 feet).
Move the sensor assembly closer to the display console.
If the sensor assembly is too close (less than 1.5 meters/5
feet), move the sensor assembly away from the display
console.
Install a new set of batteries for the remote sensor. In cold
weather environments, install lithium batteries.
Make sure the remote sensor is not transmitting through
solid metal (as an RF shield) or earth barriers (under a
mountain).
Keep the display console away from devices that generate
electrical noise, such as computers, televisions, and other
wireless transmitters or receivers.
Display console has weak
contrast
Replace the console batteries with a new set of batteries.
Indoor temperature and
humidity data is incorrect/the
display shows incomplete data
You can reset the display console to factory defaults by
pressing and holding the MAX/MIN/- key for at least three
seconds while plugging in the power supply. Then unplug
the display and plug it back in. (Remove the batteries before
doing this).
If any data is not displayed, press and hold the CHANNEL/+
key for three seconds until a click is heard and all data is
76
displayed as dashed lines.
The display will reacquire the signal from the transmitter.
Once the signal is reacquired, all data will be displayed.
Display brightness is very dim
Adjust the backlight (refer to Section 13).
If the brightness cannot be adjusted, it means that the
power adapter or the display interface has a poor contact
problem.
Weather forecast is inaccurate
The weather icon is a weather forecast, an estimate or
summary of weather changes in the next 24 to 48 hours,
which varies from place to place. This trend is only a tool to
predict how the weather will change, and it should never be
used as an accurate method to predict the weather.
If you are just starting to use the weather station, wait for
about a week for the pressure sensor to slowly adapt to the
environment, and then adjust the data and weather
forecast.
After using it for a while, if the weather forecast is still
inaccurate, you can follow the steps in the manual to
manually set the weather icon to show the actual weather.
(Refer to 9.2)
Rainfall display is
incorrect/zero
Check and verify the following points when you find you
rainfall is not working or inaccurate:
1.Make sure that the level bubble is seated in the small
black circle in the installation. Sloping installation might
cause incorrect reading or even not working.
2. Shake the sensor array back and forth. After hearing the
click sound inside the sensor array, observe whether the
rainfall reading in the console changes.
3. Check whether the funnel in the rain collector was
blocked by tree leaves or debris. Remove the rain collector
to check whether the rain tip was blocked by insects or
debris.
4. Check whether different rainfall histories are correct.
Check the Quick Mode part in the instruction manual to
know how to get rainfall histories in different periods.
5. An example on how rainfall histories for different periods
are calculated.
Presume that the current time is 08:42 22rd Sept. 2023
Rainfall Hour: 08:42-09:42
Rainfall Day: 08:42 on September22 to
77
Note: One transmitter can connect to multiple displays of the same model, but a single
display cannot be connected to multiple transmitters simultaneously.
Note: Please carefully verify that the model is consistent before making a purchase. If you
have any questions before purchase, please consult the after-sales service in advance.
18. Disclaimer
Please protect the environment by returning used batteries to an authorized recycling station.
Electrical and electronic waste contains hazardous substances. Disposal of e-waste in the natural
environment and/or in unauthorized locations can harm the environment.
Reading the user manual is strongly recommended. The manufacturer and supplier cannot be held
responsible for any incorrect readings or consequences resulting from failure to read the manual
carefully.
This product is intended for home use only and is not intended for medical purposes or public
safety information. This product is not a toy and should be kept out of the reach of children.
We assume no liability for accidental, consequential, punitive or other similar damages related to
operation or malfunction.
19. Warranty Information
Sainlogic provides a 1-year limited warranty against manufacturing defects in materials and
workmanship on this product.
08:42 on September 23
Rainfall Week: 00:00 Sunday to 08:42 today
Rainfall Month: 00:00 1st Sept. to 08:42 today
Rainfall Total: Total rainfall amount from the latest powering
on
6. How to verify the rainfall accuracy
A：Use a bottle containing 500g or 500ml of water.
B：Drip water slowly into the rain collector. DO NOT POUR
WATER QUICKLY.
C. Observe the rainfall reading of the console after the
water is completely dripped out. It should be 5.46cm +/-5%.
（5.46cm=54.6mm）
7. The rain gauge could not measure rainfall below 0.3mm
due to limited resolution.
78
This limited warranty takes effect on the date of original purchase and is valid only for the product
purchased and only for the original purchaser of this product. To obtain warranty service, the
purchaser must contact Sainlogic to determine the problem and service procedure.
Warranty service can only be performed by Sainlogic. The original dated bill of sale must be
presented to Sainlogic upon request as proof of purchase.
Sainlogic's warranty covers all defects in materials and workmanship except:
(1) Damage caused by accident, unreasonable use, neglect (lack of reasonable and necessary
maintenance);
(2) Damage caused by failure to follow the instructions in the user's manual;
(3) Damage caused by self-repair or alteration;
(4) Equipment not intended for personal use;
(5) Applications and uses of this product that do not correspond to the intended use;
(6) The product is unable to receive signals due to any source of interference or metal obstruction;
If you need to register or apply for a warranty, please get in touch with us through Customer
Support.
Website：https://www.sainlogic.com/
Customer Support Phone：+1 (888) 513-9823 (Mon-Fri:10 a.m. - 6 p.m. EST)
20. FCC Statement
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
FCCID: 2A7KU-SA9
