12" Double-Bevel
Sliding Compound Miter Saw
Model
HE74
Owner’s Manual &
Safety Instructions
23e
WARNING: To prevent serious injury, User must read and
understand Owner’s Manual. SAVE THIS MANUAL.
When unpacking, make sure that the product is intact and
undamaged. If any parts are missing or broken, please call
1-888-866-5797 as soon as possible. Reference 56682.
Page 2 For technical questions, please call 1-888-866-5797. Item 56682
IMPORTANT SAFETY INFORMATION
GENERAL POWER TOOL SAFETY WARNINGS
Read all safety warnings, instructions, illustrations
and specifications provided with this power tool.
Failure to follow all instructions listed below may
result in electric shock, fire and/or serious injury.
Save all warnings and instructions
for future reference.
The term “power tool” in the warnings refers
to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
Work area safety
1. Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
3. Keep children and bystanders away
while operating a power tool. Distractions
can cause you to lose control.
Electrical safety
1. Power tool plugs must match the outlet.
Never modify the plug in any way. Do not use
any adapter plugs with earthed (grounded)
power tools. Unmodified plugs and matching
outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet
conditions. Water entering a power tool
will increase the risk of electric shock.
4. Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
5. When operating a power tool outdoors,
use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor
use reduces the risk of electric shock.
6. If operating a power tool in a damp location
is unavoidable, use a ground fault circuit
interrupter (GFCI) protected supply. Use of
a GFCI reduces the risk of electric shock.
Personal safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the influence of drugs, alcohol or medication.
A moment of inattention while operating power
tools may result in serious personal injury.
2. Use personal protective equipment. Always
wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
3. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting to
power source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your
finger on the switch or energizing power tools
that have the switch on invites accidents.
4. Remove any adjusting key or wrench
before turning the power tool on. A wrench
or a key left attached to a rotating part of the
power tool may result in personal injury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing
or jewelry. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewelry
or long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
8. Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action can
cause severe injury within a fraction of a second.
9. Only use safety equipment that has been
approved by an appropriate standards agency.
Unapproved safety equipment may not provide
adequate protection. Eye protection must be
ANSI-approved and breathing protection
must be NIOSH-approved for the
specific hazards in the work area.
10. Avoid unintentional starting.
Prepare to begin work before turning on the tool.
11. Do not leave the tool unattended when it is
plugged into an electrical outlet. Turn off the tool,
and unplug it from its electrical outlet before leaving.
12. This product is not a toy.
Keep it out of reach of children.
Page 3For technical questions, please call 1-888-866-5797.Item 56682
13. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields
in close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure.
In addition, people with pacemakers should:
• Avoid operating alone.
• Do not use with Trigger locked on.
• Properly maintain and inspect to avoid
electrical shock.
• Properly ground power cord.
Ground Fault Circuit Interrupter (GFCI)
should also be implemented – it prevents
sustained electrical shock.
14. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer
at the rate for which it was designed.
2. Do not use the power tool if the switch
does not turn it on and off. Any power
tool that cannot be controlled with the switch
is dangerous and must be repaired.
3. Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power
tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
5. Maintain power tools and accessories.
Check for misalignment or binding of moving
parts, breakage of parts and any other
condition that may affect the power tool’s
operation. If damaged, have the power tool
repaired before use. Many accidents are
caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
power tool for operations different from those
intended could result in a hazardous situation.
8. Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles
and grasping surfaces do not allow for safe handling
and control of the tool in unexpected situations.
Service
1. Have your power tool serviced by a
qualified repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
2. Maintain labels and nameplates on the tool.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
Safety instructions for mitre saws
1. Mitre saws are intended to cut wood or wood-
like products, they cannot be used with abrasive
cut-off wheels for cutting ferrous material such
as bars, rods, studs, etc. Abrasive dust causes
moving parts such as the lower guard to jam.
Sparks from abrasive cutting will burn the lower
guard, the kerf insert and other plastic parts.
2. Use clamps to support the workpiece whenever
possible. If supporting the workpiece by hand,
you must always keep your hand at least 100
mm from either side of the saw blade. Do not
use this saw to cut pieces that are too small to
be securely clamped or held by hand. If your
hand is placed too close to the saw blade, there
is an increased risk of injury from blade contact.
3. The workpiece must be stationary and
clamped or held against both the fence
and the table. Do not feed the workpiece
into the blade or cut ″freehand″ in any way.
Unrestrained or moving workpieces could be
thrown at high speeds, causing injury.
4. Push the saw through the workpiece. Do
not pull the saw through the workpiece. To
make a cut, raise the saw head and pull it out
over the workpiece without cutting, start the
motor, press the saw head down and push
the saw through the workpiece. Cutting on
the pull stroke is likely to cause the saw blade to
climb on top of the workpiece and violently throw
the blade assembly towards the operator.
5. Never cross your hand over the intended line of
cutting either in front or behind the saw blade.
Supporting the workpiece ″cross handed″ i.e. holding
the workpiece to the right of the saw blade with
your left hand or vice versa is very dangerous.
6. Do not reach behind the fence with either hand
closer than 100 mm from either side of the saw
blade, to remove wood scraps, or for any other
reason while the blade is spinning. The proximity
of the spinning saw blade to your hand may not
be obvious and you may be seriously injured.
Page 4 For technical questions, please call 1-888-866-5797. Item 56682
7. Inspect your workpiece before cutting. If the
workpiece is bowed or warped, clamp it with
the outside bowed face toward the fence.
Always make certain that there is no gap
between the workpiece, fence and table along
the line of the cut. Bent or warped workpieces
can twist or shift and may cause binding on the
spinning saw blade while cutting. There should
be no nails or foreign objects in the workpiece.
8. Do not use the saw until the table is clear
of all tools, wood scraps, etc., except for
the workpiece. Small debris or loose pieces of
wood or other objects that contact the revolving
blade can be thrown with high speed.
9. Cut only one workpiece at a time. Stacked multiple
workpieces cannot be adequately clamped or braced
and may bind on the blade or shift during cutting.
10. Ensure the mitre saw is mounted or placed
on a level, firm work surface before use.
A level and firm work surface reduces the
risk of the mitre saw becoming unstable.
11. Plan your work. Every time you change the bevel
or mitre angle setting, make sure the adjustable
fence is set correctly to support the workpiece
and will not interfere with the blade or the
guarding system. Without turning the tool ″ON″ and
with no workpiece on the table, move the saw blade
through a complete simulated cut to assure there will
be no interference or danger of cutting the fence.
12. Provide adequate support such as table
extensions, saw horses, etc. for a workpiece
that is wider or longer than the table top.
Workpieces longer or wider than the mitre saw
table can tip if not securely supported. If the cut-
off piece or workpiece tips, it can lift the lower
guard or be thrown by the spinning blade.
13. Do not use another person as a substitute for a
table extension or as additional support. Unstable
support for the workpiece can cause the blade to bind
or the workpiece to shift during the cutting operation
pulling you and the helper into the spinning blade.
14. The cut-off piece must not be jammed or
pressed by any means against the spinning
saw blade. If confined, i.e. using length
stops, the cut-off piece could get wedged
against them blade and thrown violently.
15. Always use a clamp or a fixture designed
to properly support round material such as
rods or tubing. Rods have a tendency to roll
while being cut, causing the blade to ″bite″ and
pull the work with your hand into the blade.
16. Let the blade reach full speed before
contacting the workpiece. This will reduce
the risk of the workpiece being thrown.
17. If the workpiece or blade becomes jammed, turn
the mitre saw off. Wait for all moving parts to
stop and disconnect the plug from the power
source and/or remove the battery pack. Then
work to free the jammed material. Continued
sawing with a jammed workpiece could cause
loss of control or damage to the .mitre saw.
18. After finishing the cut, release the switch, hold
the saw head down and wait for the blade to stop
before removing the cut-off piece. Reaching with
your hand near the coasting blade is dangerous.
19. Hold the handle firmly when making an
incomplete cut or when releasing the switch
before the saw head is completely in the
down position. The braking action of the
saw may cause the saw head to be suddenly
pulled downward, causing a risk of injury.
Vibration Safety
This tool vibrates during use.
Repeated or long-term exposure to vibration may
cause temporary or permanent physical injury,
particularly to the hands, arms and shoulders.
To reduce the risk of vibration-related injury:
a. Anyone using vibrating tools regularly or for an
extended period should first be examined by a
doctor and then have regular medical check-ups
to ensure medical problems are not being caused
or worsened from use. Pregnant women or
people who have impaired blood circulation to
the hand, past hand injuries, nervous system
disorders, diabetes, or Raynaud’s Disease should
not use this tool. If you feel any medical or
physical symptoms related to vibration (such as
tingling, numbness, and white or blue fingers),
seek medical advice as soon as possible.
b. Do not smoke during use. Nicotine reduces
the blood supply to the hands and fingers,
increasing the risk of vibration-related injury.
c. Use tools with the lowest vibration when there
is a choice between different processes.
d. Include vibration-free periods each day of work.
e. Grip workpiece as lightly as possible
(while still keeping safe control of it).
Let the tool do the work.
f. To reduce vibration, maintain the tool as
explained in this manual. If any abnormal
vibration occurs, stop use immediately.
Page 5For technical questions, please call 1-888-866-5797.Item 56682
Grounding
TO PREVENT ELECTRIC SHOCK AND
DEATH FROM INCORRECT GROUNDING
WIRE CONNECTION:
Check with a qualified electrician if you are
in doubt as to whether the outlet is properly
grounded. Do not modify the power cord plug
provided with the tool. Never remove the grounding
prong from the plug. Do not use the tool if the power
cord or plug is damaged. If damaged, have it
repaired by a service facility before use. If the plug
will not fit the outlet, have a proper outlet installed by
a qualified electrician.
Grounded Tools: Tools with
Three Prong Plugs

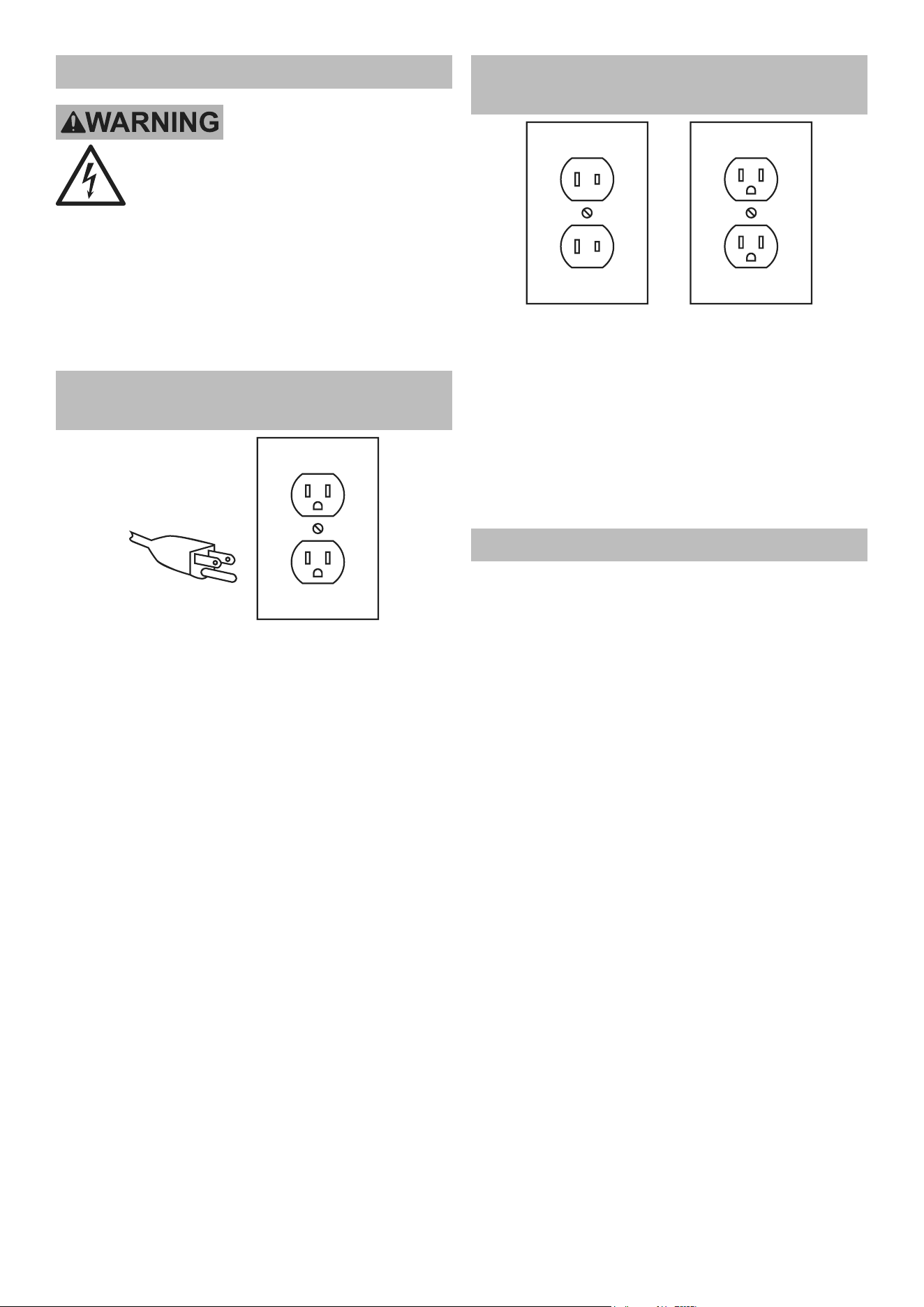

3-Prong Plug and Outlet
1. Tools marked with “Grounding Required” have a three
wire cord and three prong grounding plug. The plug
must be connected to a properly grounded outlet.
If the tool should electrically malfunction or break
down, grounding provides a low resistance path to
carry electricity away from the user, reducing the risk
of electric shock. (See 3-Prong Plug and Outlet.)
2. The grounding prong in the plug is connected through
the green wire inside the cord to the grounding
system in the tool. The green wire in the cord must
be the only wire connected to the tool’s grounding
system and must never be attached to an electrically
“live” terminal. (See 3-Prong Plug and Outlet.)
3. The tool must be plugged into an appropriate outlet,
properly installed and grounded in accordance with
all codes and ordinances. The plug and outlet should
look like those in the preceding illustration.
(See 3-Prong Plug and Outlet.)
Double Insulated Tools: Tools
with Two Prong Plugs
Outlets for 2-Prong Plug
1. Tools marked “Double Insulated” do not
require grounding. They have a special
double insulation system which satisfies
OSHA requirements and complies with
the applicable standards of Underwriters
Laboratories, Inc., the Canadian Standard
Association, and the National Electrical Code.
2. Double insulated tools may be used in either of the
120 volt outlets shown in the preceding illustration.
(See 3-Prong Plug and Outlet.)
Extension Cords
1. Grounded tools require a three wire extension cord.
Double Insulated tools can use either
a two or three wire extension cord.
2. As the distance from the supply outlet increases,
you must use a heavier gauge extension cord.
Using extension cords with inadequately sized wire
causes a serious drop in voltage, resulting in loss of
power and possible tool damage. (See Table A.)
3. The smaller the gauge number of the wire, the
greater the capacity of the cord. For example,
a 14 gauge cord can carry a higher current
than a 16 gauge cord. (See Table A.)
4. When using more than one extension cord to make
up the total length, make sure each cord contains at
least the minimum wire size required. (See Table A.)
5. If you are using one extension cord for more
than one tool, add the nameplate amperes
and use the sum to determine the required
minimum cord size. (See Table A.)
6. If you are using an extension cord outdoors, make
sure it is marked with the suffix “W-A” (“W” in
Canada) to indicate it is acceptable for outdoor use.
7. Make sure the extension cord is properly wired
and in good electrical condition. Always replace
a damaged extension cord or have it repaired
by a qualified electrician before using it.
8. Protect the extension cords from sharp objects,
excessive heat, and damp or wet areas.
Page 6 For technical questions, please call 1-888-866-5797. Item 56682

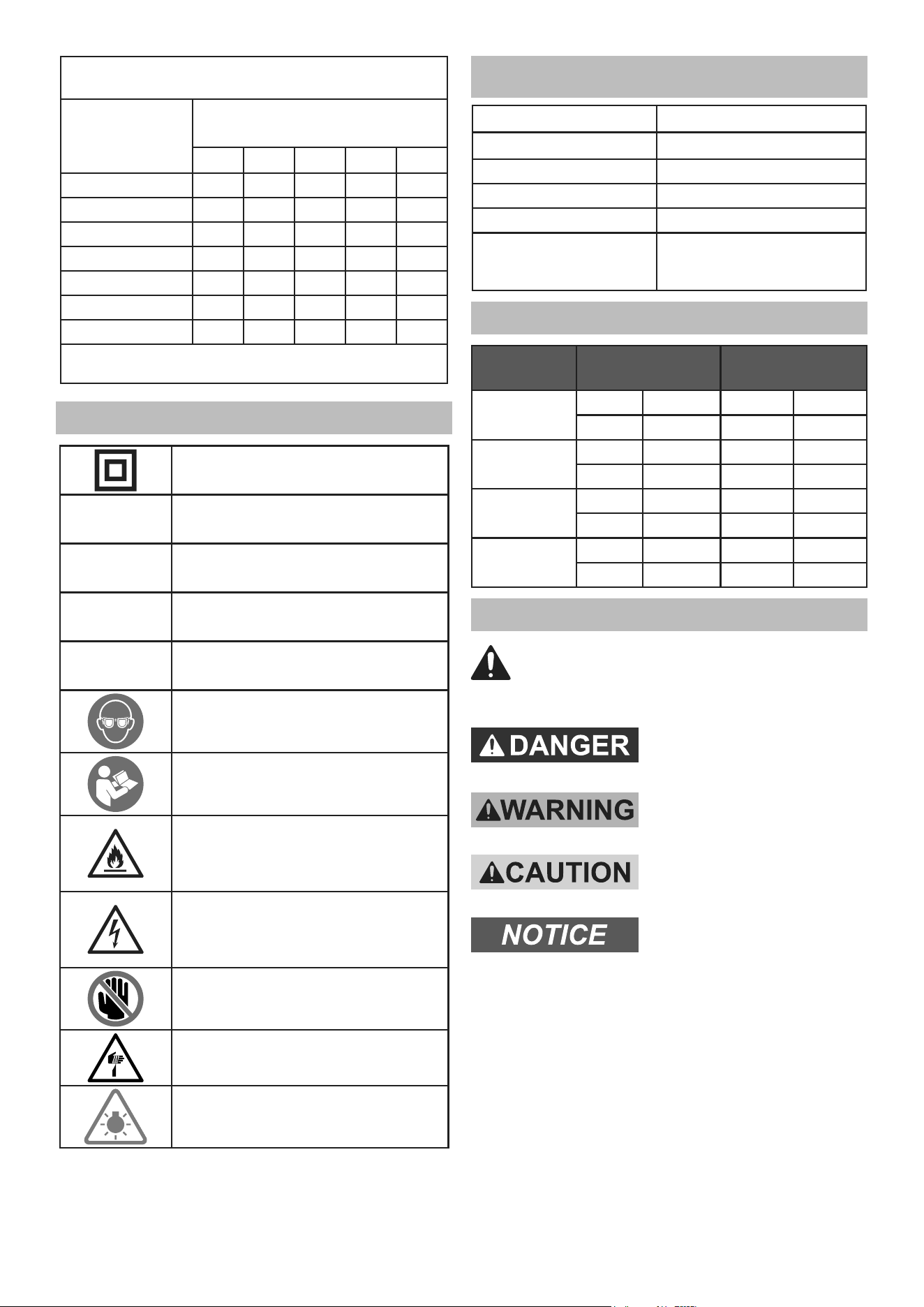

TABLE A: RECOMMENDED MINIMUM WIRE
GAUGE FOR EXTENSION CORDS* (120/240 VOLT)
NAMEPLATE
AMPERES
(at full load)
EXTENSION CORD
LENGTH
25´ 50´ 75´ 100´ 150´
0 – 2.0 18 18 18 18 16
2.1 – 3.4 18 18 18 16 14
3.5 – 5.0 18 18 16 14 12
5.1 – 7.0 18 16 14 12 12
7.1 – 12.0 18 14 12 10 -
12.1 – 16.0 14 12 10 - -
16.1 – 20.0 12 10 - - -
* Based on limiting the line voltage drop to five volts at
150% of the rated amperes.
Symbology
Double Insulated
V
Volts
~
Alternating Current
A
Amperes
n
0
xxxx/min.
No Load Revolutions per Minute (RPM)
WARNING marking concerning Risk
of Eye Injury. Wear ANSI-approved
safety goggles with side shields.
Read the manual before set-up and/or use.
WARNING marking
concerning Risk of Fire.
Do not cover ventilation ducts.
Keep flammable objects away.
WARNING marking concerning
Risk of Electric Shock.
Properly connect power cord
to appropriate outlet.
Keep hands clear of fence area.
DANGER marking concerning
Risk of Amputation.
Keep hands well clear of cutting area.
Bright Light.
To prevent eye injury,
do not stare into light.
SPECIFICATIONS
Electrical Rating 120 VAC / 60 Hz / 15 A
Spindle No Load Speed 4,100 RPM
Max. Accessory Diameter
Blade Diameter – 12"
Arbor 1" Round
Maximum Blade Kerf 0.11″
Capacity of Cut
50° Miter Left
60° Miter Right
49° Bevel Left and Right
Cutting Capacities
ANGLE
MAXIMUM
CAPACITY OF CUT
RESULT
0° Miter
Height 4-1/2" Width 12-1/2"
Width 14" Height 3-1/2"
45° Miter
Height 4-1/2" Width 8-1/4"
Width 9-3/4" Height 3-5/16"
45° Bevel
Left
Height 2-7/8" Width 9-7/8"
Width 14" Height 1-3/4"
45° Bevel
Right
Height 1-15/16" Width 12-1/8"
Width 14" Height 1-5/16"
Warning Symbols and Definitions
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to
avoid possible injury or death.
Indicates a hazardous
situation which, if not
avoided, will result in death or serious injury.
Indicates a hazardous
situation which, if not
avoided, could result in death or serious injury.
Indicates a hazardous
situation which, if not
avoided, could result in minor or moderate injury.
Addresses practices not
related to personal injury.
Page 7For technical questions, please call 1-888-866-5797.Item 56682

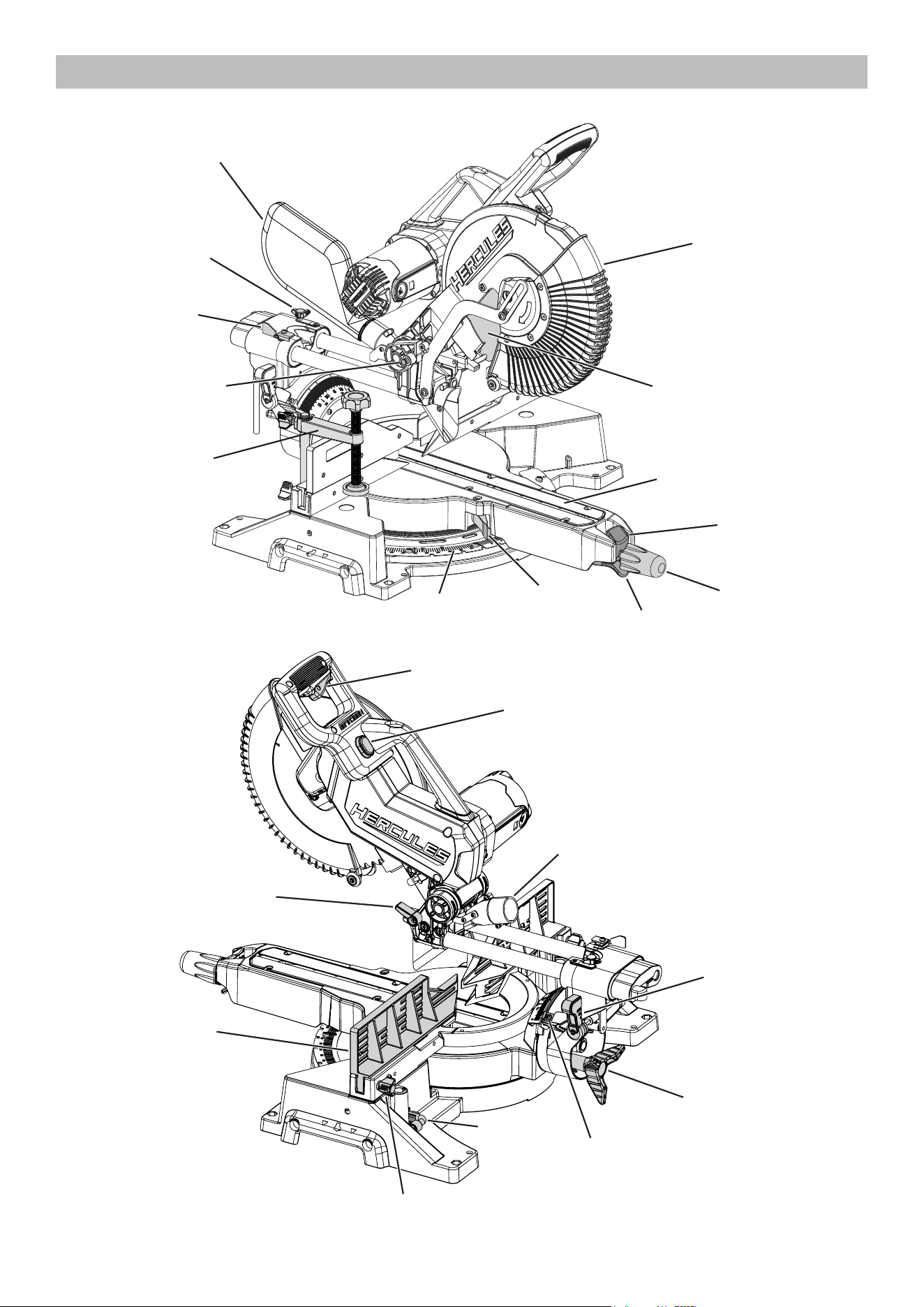

Functions
Bevel
Angle
Indicator
Bevel
Detent
Lever
Bevel
Lock
Knob
Fence Lock Knob
Dust Outlet
Precision Blade Guide System
On/Off Switch
Fence
Trigger
Wrench
Depth Stop
Head
Lock-Down
Pin
Dust
Collection
Bag
Slide Lock
Knob
Slide
Stop
Blade
Lower Blade
Guard
Clamp
Miter Detent
Lever
Miter
Lock
Knob
Miter
Scale
Kerf
Board
TurntableTurntable
Detent
Latch
Button
Miter Angle Miter Angle
IndicatorIndicator
Page 8 For technical questions, please call 1-888-866-5797. Item 56682
SETUP - BEFORE USE:
Read the ENTIRE IMPORTANT
SAFETY INFORMATION section at the
beginning of this manual including
all text under subheadings therein
before set up or use of this product.
Note: For additional information regarding

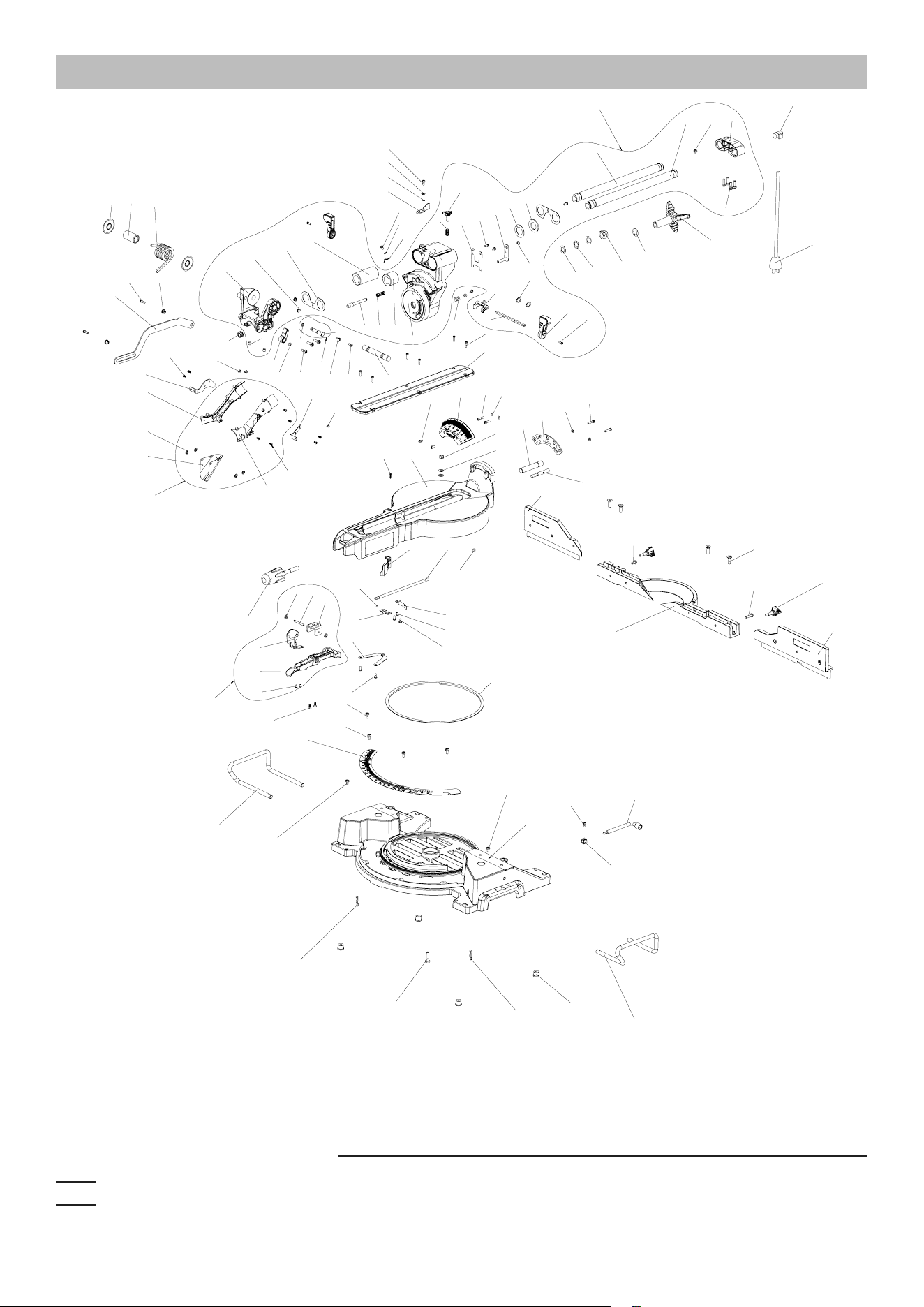

the parts listed in the following pages, refer to
Parts List and Diagram on page 13.
Assembly
1. Insert the four Feet into the holes on the
bottom of the Base and tap into place.
2. Thread the Miter Lock Knob into the end of the table
above the Miter Detent Lever until securely in place.
3. Slip the Dust Collection Bag over the
Dust Outlet behind the saw.
4. If adjustable and/or removable workpiece
support extension(s) are provided, always fix
and use these extension(s) during operation.
Mounting
1. Use the bolt holes in the Base to mount the
Miter Saw to a stable support before use.
Note: Mounting holes are provided in two sizes
to accommodate different sizes of hardware.
Mounting hardware not included.
2. Ensure that the mitre saw is always stable
and secure (e.g. fixed to a bench).
Saw Blade Selection
1. Any saw blade that will be used must be
marked as suitable for the material to be cut.
2. Use only a saw blade diameter in
accordance with the markings on the saw.
See specification table for the bore diameter
and the maximum kerf of the saw blade.
3. Use only saw blades that are marked with a speed
equal or higher than the speed marked on the tool.
Guard Setup
Check that the Lower Blade Guard is in place,
moves freely, and closes instantly.
OPERATING INSTRUCTIONS
Read the ENTIRE IMPORTANT
SAFETY INFORMATION section at the
beginning of this manual including
all text under subheadings therein
before set up or use of this product.
TO PREVENT SERIOUS INJURY FROM
ACCIDENTAL OPERATION:
Make sure that the Trigger is in the off-position
and unplug the tool from its electrical outlet before
performing any procedure in this section.
Tool Changing
1. Unplug the tool from its power source.
2. Pull out the Head Lock-Down Pin, raise the Saw
Head to the upper position, then raise the Lower
Blade Guard out of the way and hold it up.
3. Loosen the Guard Plate Screw until
it disengages the Guard Plate.
4. Swing the Guard Plate up and out of
the way. Refer to Figure A.

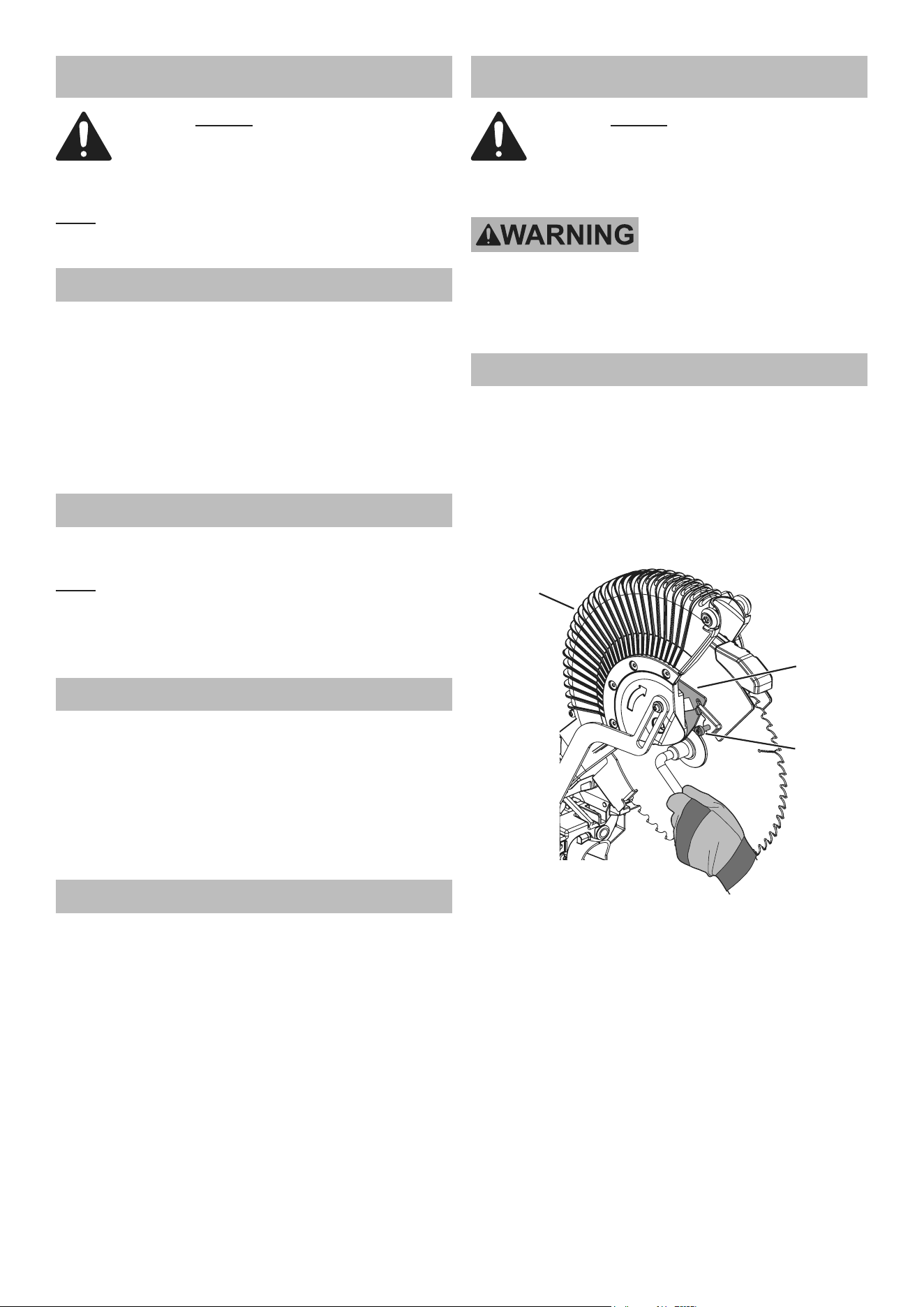

Lower
Blade
Guard
Guard
Plate
Guard
Plate
Screw
Figure A
5. Press in the Spindle Lock on the back
of the saw′s head and hold it in.
Page 9For technical questions, please call 1-888-866-5797.Item 56682
6. Remove the Arbor Bolt and Outer Flange.
Refer to Figure B.
IMPORTANT: The Arbor Bolt has a left-handed
thread and removes by turning CLOCKWISE.
Note: Make sure the Inner Flange
stays in place on the Spindle.

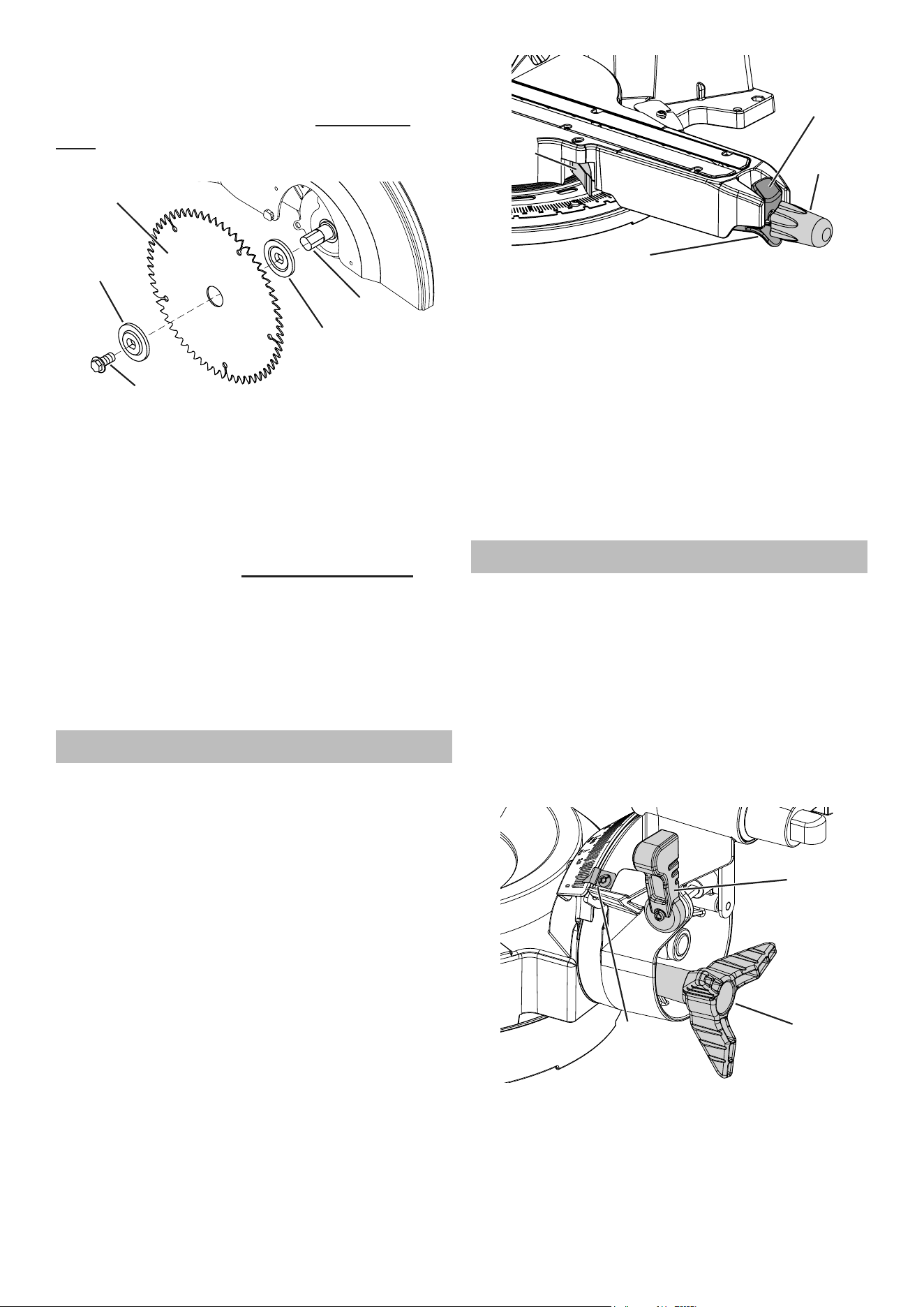

Outer
Flange
Inner
Flange
Spindle
Blade
Arbor Bolt
Figure B
7. If replacing a used blade, remove the blade.
Install the new Blade. Make sure that the Blade’s
rotation arrow points in the same direction as
the rotation arrow on the Lower Blade Guard.
8. Replace the Outer Flange and Arbor Bolt. Position
the cupped side of the Flange against the blade.
Hold in the Spindle Lock and wrench tighten the
Arbor Bolt by turning it COUNTERCLOCKWISE.
Release the Spindle Lock.
9. Rotate the Guard Plate back into place and
secure it with the Guard Plate Bolt.
10. WARNING! TO PREVENT SERIOUS
INJURY: Make sure the Lower Blade Guard
operates smoothly and properly protects
from the Blade before using the saw.
Adjusting the Miter Angle
A miter cut is one that is at an angle across the horizontal
surface of the material. 45º miter cuts to join two pieces
in a right angle corner are common. A 30º cut is often
used for a scarf joint or to make a chamfered end.
1. Loosen the Miter Lock Knob by turning it
approximately 1/4 turn counterclockwise.
2. Pull up on the Miter Detent Lever to
unlock the Table. While holding the Miter Detent
Lever up, move the Table to the desired angle.
3. The Miter Angle Indicator will indicate the
selected angle. While the Miter Detent Lever
is released, the Table will lock into place at
often used miter angles, including 15º, 22.5º,
30º, and 45º on both left and right sides.
Miter Detent Lever
Miter
Lock
Knob
Detent
Latch
Button
Miter Miter
Angle Angle
IndicatorIndicator
Figure C
4. To override the pre-set detents (stops) for micro
adjustments at any angle, pull up on the Miter
Detent Lever and push the Detent Latch Button
forward and latch in place. Release the Miter
Detent Lever and adjust Table to any position on
the miter scale. To disengage pull up on the Miter
Detent Lever to release the Detent Latch Button.
5. Tighten the Miter Lock Knob after
adjusting the miter angle.
6. With the Table adjusted to the desired angle,
place the workpiece flush against the Fence,
secure it with the Clamp and make the cut.
Adjusting the Bevel Angle
A bevel cut is one that is at an angle vertically. Bevel
cuts can be used to miter relatively wide and thin
material. Bevel cuts can be used in combination with
a miter cut to form a compound angle. Compound
angle cuts are often used in crown moldings,
picture frames and similar trim materials.
1. Loosen the Bevel Lock Knob at the rear of the saw.
2. For micro adjustments at any bevel angle, push the
Bevel Detent Lever back until it snaps into place
and move the Saw Head Assembly to the desired
angle. Read the angle on the Bevel Angle Indicator.
Bevel Bevel
Angle Angle
IndicatorIndicator
Bevel
Detent
Lever
Bevel
Lock
Knob
Figure D
3. To use the pre-set detents (stops), push the
Bevel Detent Lever back until the Saw Head
Assembly can be moved and then release the
Lever. The Saw Head Assembly will lock into
place at often used bevel angles, including 22.5º,
33.9º, and 45º on both left and right sides.
Page 10 For technical questions, please call 1-888-866-5797. Item 56682
4. Lock the Saw Head Assembly into position
by rotating the Bevel Lock Knob clockwise.
Tighten firmly but do not over-tighten.
5. Make a sample cut in a piece of scrap to
confirm that the bevel angle is correct.
If it is not, correct the angle before cutting.
WARNING! TO PREVENT SERIOUS INJURY:
Adjust both sides of the Fence clear of the Blade’s
cutting path after making any adjustment to the
cutting angle. Move the Blade through its full
range of motion to ensure the Fences are clear.
Using the Depth Stop
If a kerfing or rabbet cut which does not cut
through the workpiece is desired, use the
Depth Stop to control the depth of the cut.
1. Pull out the Head Lock-Down Pin and
raise the Saw Head Assembly.
2. Rotate the Depth Stop down to a horizontal position
to use the Depth Adjustment Bolt setting.
3. Pull down on the Saw Head to
check the current setting.

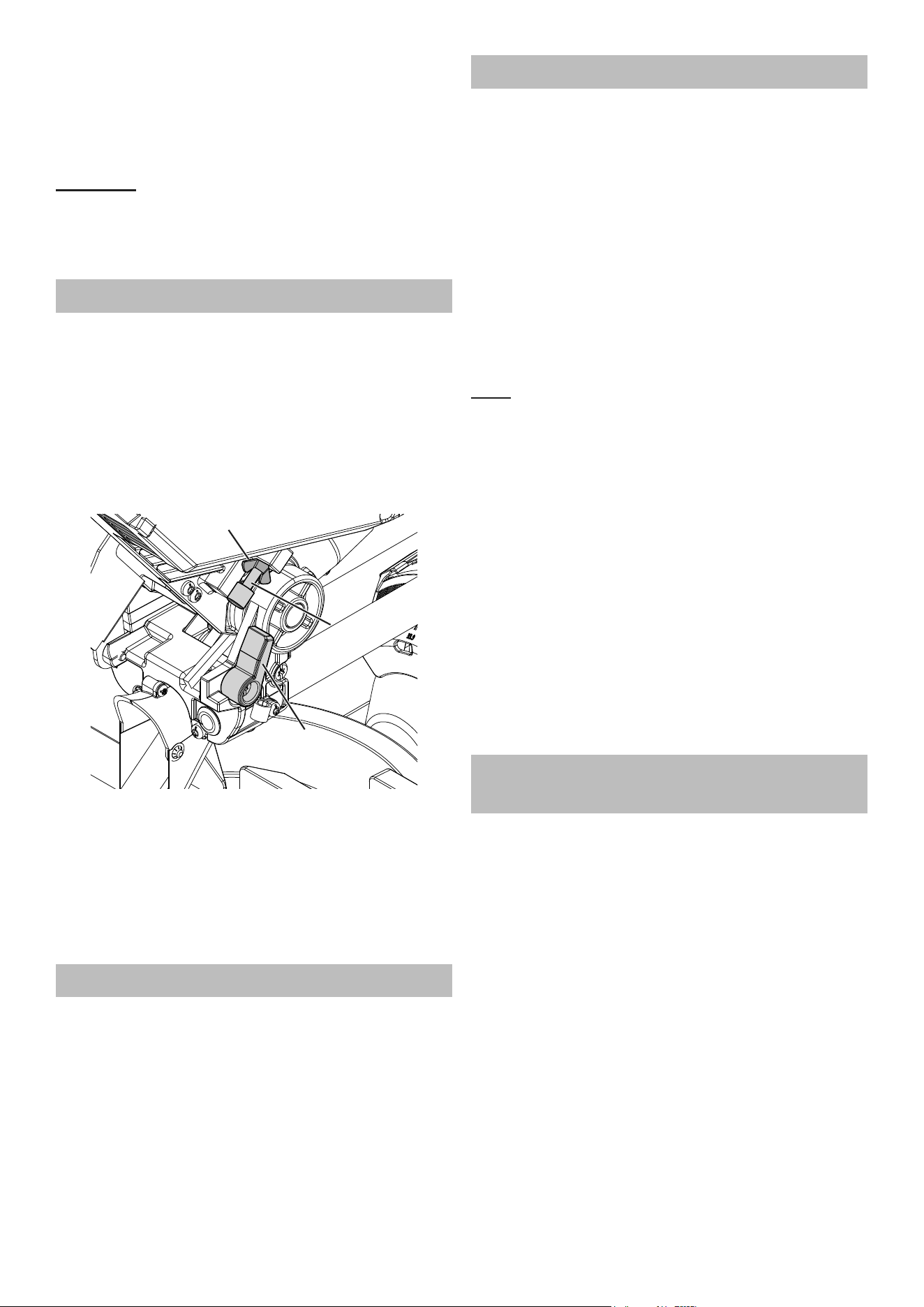

Depth Depth
Adjustment Adjustment
BoltBolt
Wing Nut
Depth
Stop
Figure E
4. To change the setting, first loosen the Wing
Nut on the Depth Adjustment Bolt. Turn the
Depth Adjustment Bolt clockwise to increase
depth and counterclockwise to decrease depth.
Tighten the Wing Nut after adjustment.
5. To disengage, rotate the Depth Stop
up to its vertical position.
Aligning the Fence
1. After adjusting the miter, bevel, or depth setting,
check and adjust both sides of the fence.
2. Loosen one of the Fence Knobs, and move its
Sliding Fence to be within 1/8" of the blade.
3. Tighten the Fence Knob. Make sure that the
Sliding Fence still does not contact the Blade.
4. Repeat the process for the other
Fence Knob and Sliding Fence.
Workpiece and Work Area Set Up
1. Designate a work area that is clean and well lit.
The work area must not allow access by children
or pets to prevent distraction and injury.
2. Route the power cord along a safe route to reach
the work area without creating a tripping hazard or
exposing the power cord to possible damage. The
power cord must reach the work area with enough
extra length to allow free movement while working.
3. Secure loose workpieces using a vise or clamps
(not included) to prevent movement while working.
4. There must not be objects, such as utility lines,
nearby that will present a hazard while working.
5. Cut only the following materials:
dimensional lumber, plywood, particle board, plastic.
Note: Use caution to avoid overheating the cutting tips.
If cutting plastic, cut at an even pace to avoid melting it.
6. Allow room on both left and right sides
of saw for extended workpieces.
7. Use additional supports if needed to ensure
the stability of the workpiece. Mount the Saw
so that the surface is level to the ground, and
additional supports to provide a surface on the
same level as the saw table. If the work surface
and any workpiece supports are not level, and
on the same level, unwanted bevel angles will
appear in the cuts resulting in poor joinery.
8. Secure workpieces to the saw table using the Clamp
or other clamping devices (not included). Securing
the workpiece will provide safety by preventing kick
back and by removing the need to hold workpieces
near the blade by hand. Clamping the workpiece
will also improve cutting accuracy by preventing the
workpiece from moving during the cutting operation.
Using the Workpiece
Extension Supports
1. The Table Extensions are inserted into
each side of the Table, and locked in place
using the Table Extension Knobs.
2. When properly installed, the upper face of
the Table Extensions are level with the Table,
and provide a wider support surface for the
workpiece. Each Extension has a stop lever
which can be raised to make repetitive cuts.
3. Support the workpiece to be level with the table,
and so that after the cut is made the cut off pieces
will not fall. Use sawhorses or other supports
(not included) to support longer workpieces.
4. If the workpiece is not level, you will make
an unintentional bevel cut in the material.
If the workpiece is not supported, it will bind
the blade and may cause the material to
kick back, potentially causing injury.
Page 11For technical questions, please call 1-888-866-5797.Item 56682
General Instructions for Use
1. Make sure that the Trigger is in the
off-position, then plug in the tool.
WARNING! TO PREVENT SERIOUS INJURY:
The tool will restart automatically if stalled.
Sliding Miter Saw Cutting Procedure:
2. Unlock the Head Lock-Down Pin.
3. Check that all adjustment knobs are tight
(Miter Lock Knob, Bevel Lock Lever,
Fence and Table Extension Knobs).
4. Blow any sawdust or debris away from the Fence.
Place the work material against the Fence.
5. Align the marked location of the cut on
the work material with the saw blade.
6. Note: To prevent your workpiece from being
cut too short, align the edge of the blade
with the measured mark, keeping the rest of
the blade on the waste side of the cut.
7. Hold the work material in place using the Clamp.
Ensure that the work material is level and supported
securely. Use saw horses or supports if necessary.
DANGER! TO PREVENT SERIOUS
INJURY AND DEATH: Saws can quickly
amputate fingers if misused.
Keep hands well clear of cutting area.
8. Grip the Saw Handle, press one of the
Trigger Locks with your thumb, and
squeeze the Trigger to start the Saw.
9. Note: If the laser guide line does not line
up with the cut line, release Trigger and
reposition workpiece before making the cut.
10. Use two hands and hold workpiece securely
against table and fence at all times.
11. With narrow material, press down lightly to
cut the workpiece. Press straight down,
“chopping” the material. Do not bear down on
the material — use light downward pressure.
If the material binds the blade, release the Trigger.
12. With wide material, move the Blade across
the workpiece while cutting as follows:
13. Loosen Slide Lock Knob and pull
Saw Head Assembly forward.
14. Press down on the Saw Handle.
15. Push the Saw Head toward the rear to
make the cut. Refer to Figure F.
16. Do not bear down on the material — use light
downward and lateral pressure. If the material
binds the blade, release the Trigger.

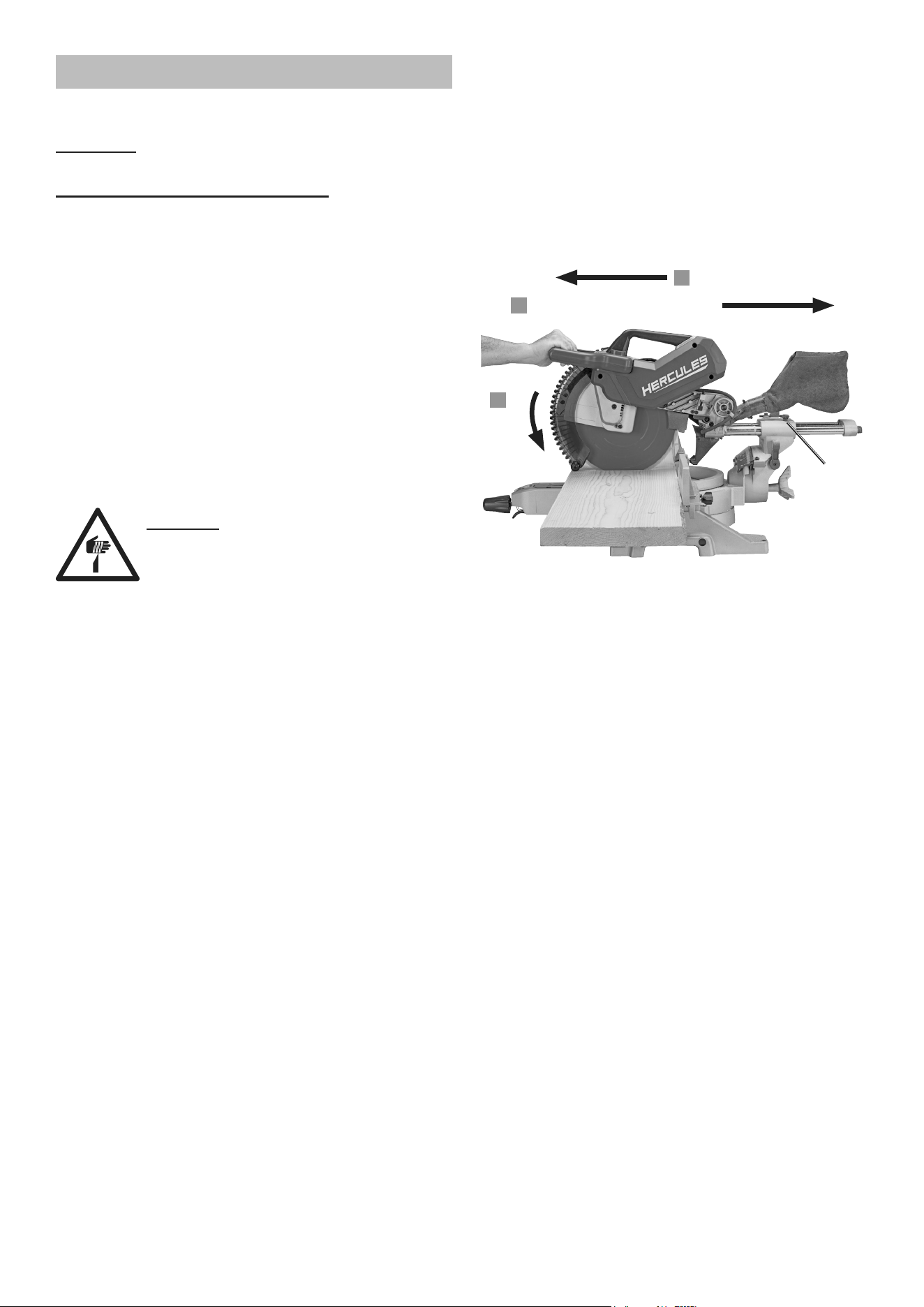

Workpiece
Pull Forward
1
Push Toward Rear to Cut
3
Press
Down
2
Slide
Lock
Knob
Figure F
17. When the cut is completed, raise the Saw
Head, release the Trigger, wait for the Blade
to stop turning, release the Clamp and
remove the workpiece from the Saw.
18. To prevent accidents, turn off the tool and
unplug it after use. Clean, then store the
tool indoors out of children’s reach.
19. Lock the head down and lock all other
adjustments before moving the saw. Use the
handle cut outs on each end of the base to
lift and support the Saw while moving it.
Page 12 For technical questions, please call 1-888-866-5797. Item 56682
MAINTENANCE AND
SERVICING INSTRUCTIONS
Procedures not specifically explained
in this manual must be performed
only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM
ACCIDENTAL OPERATION:
Make sure that the Trigger is in the off-position
and unplug the tool from its electrical outlet before
performing any procedure in this section.
TO PREVENT SERIOUS INJURY
FROM TOOL FAILURE: Do not use damaged
equipment. If abnormal noise or vibration occurs,
have the problem corrected before further use.
Cleaning, Maintenance,
and Lubrication
1. BEFORE EACH USE, inspect the general
condition of the tool. Check for:
• loose hardware,
• misalignment or binding of moving parts,
• damaged cord/electrical wiring,
• cracked or broken parts, and
• any other condition that may
affect its safe operation.
2. AFTER USE, wipe external surfaces of the tool with
clean cloth. Carefully clean the dust collection chute
and the area around the Lower Blade Guard. Check
that the Lower Blade Guard moves smoothly through
its entire range of movement, without sticking.
3. WARNING! TO PREVENT SERIOUS
INJURY: If the plug or the supply cord of this
power tool is damaged, it must be replaced
only by a qualified service technician.
Troubleshooting
Problem Possible Causes Likely Solutions
Tool will not start. 1. Cord not connected.
2. No power at outlet.
3. Tool’s thermal reset breaker
tripped (if equipped).
4. Internal damage or wear. (Carbon
brushes or Trigger, for example.)
1. Check that cord is plugged in.
2. Check power at outlet. If outlet is unpowered,
turn off tool and check circuit breaker.
If breaker is tripped, make sure circuit is right
capacity for tool and circuit has no other loads.
3. Turn off tool and allow to cool.
Press reset button on tool.
4. Have technician service tool.
Tool operates slowly. 1. Forcing tool to work too fast.
2. Extension cord too long or cord
diameter too small.
1. Allow tool to work at its own rate.
2. Eliminate use of extension cord. If an extension
cord is needed, use one with the proper diameter
for its length and load. See Extension Cords
in Grounding section on page 5.
Performance
decreases over time.
Carbon brushes worn or damaged. Have qualified technician replace brushes.
Excessive noise
or rattling.
Internal damage or wear. (Carbon
brushes or bearings, for example.)
Have technician service tool.
Overheating. 1. Forcing tool to work too fast.
2. Blocked motor housing vents.
3. Motor being strained by long or
small diameter extension cord.
1. Allow tool to work at its own rate.
2. Wear ANSI-approved safety goggles and
NIOSH-approved dust mask/respirator while
blowing dust out of motor using compressed air.
3. Eliminate use of extension cord. If an extension
cord is needed, use one with the proper diameter
for its length and load. See Extension Cords
in Grounding section on page 5.
Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect power supply before service.
Page 13For technical questions, please call 1-888-866-5797.Item 56682
PARTS LIST AND DIAGRAM
Parts List
Part Description Qty
1 Base 1
2 Foot 4
3 Miter Scale 1
4 M6x12 Screw 2
5 M6x13 Screw 2
6 Wrench Clamp 1
7 M5x10 Screw 1
8 Wrench 1
9 Table Pad 1
10 Table 1
11 Spring Sheet 1
12 M5x8 Screw 1
13 M5x10 Screw 2
14 M5x12 Screw 2
15 Rod 1
16 Retaining Sheet 1
17 M5x8 Screw 1
18 Miter Detent Lever Assembly. 1
19 Miter Detent Lever 1
20 Detent Latch Button 1
21 4.5x9 Rivet 2
22 Handle Support 1
23 5x45 Pin 1
24 Nut 2
25 Miter Retaining Sheet 1
26 M5x13 Screw 2
27 Bolt 1
28 M10x69 Bevel Lock Bolt 1
29 M8x10 Screw 1
30 Kerf Board 1
31 M4x16 Screw 6
32 Miter Angle Indicator 1
33 M4x20 Screw 1
34 M8x30 Screw 1
35 Washer 2
36 M8 Nut 1
37 Bevel Detent Plate 1
38 Washer 2
39 M5x18 Screw 2
40 M5x25 Screw 2
41 Wave Washer 2
42 Pivot Assembly. 1
43 Front Pivot 1
44 Left Sliding Bar 1
45 Right Sliding Bar 1
46 Pivot 1
47 Linear Bearing 1
48 Linear Bearing 1
49 Bevel Detent Plate 1
50 M5x10 Screw 2
51 Bevel Shaft 1
52 Bevel Clamp 1
53 Bevel Detent Lever 2
54 M4x12 Screw 2
55 Spring 1
56 Detent Shaft 1
57 Detent Shaft Drive Assembly. 1
58 C Ring 2
59 E Ring 1
60 Bearing Cover 2
61 Washer 1
62 Felt Washer 1
63 M5x10 Set Screw 2
64 Rear Pivot 1
65 Pad 2
66 M8x8 Screw 2
67 M6x20 Screw 6
68 Slide Lock Knob 1
69 Spring 1
70 Washer 1
71 Washer 2
72 M16 Lock Nut 1
Part Description Qty
73 Stationary Fence 1
74 M8x25 Screw 4
75 Left Sliding Fence 1
76 Right Sliding Fence 1
77 Fence Knob 2
78 M6x13 Screw 1
79 M6x24 Screw 1
80 Washer 1
81 Bevel Lock Knob 1
82 Bevel Scale 1
83 M5x16 Screw 2
84 Left Bevel Angle Indicator 1
85 Right Bevel Angle Indicator 1
86 M5x8 Screw 2
87 Washer 2
88 Head Lock-Down Pin Assy. 1
89 Head Lock-Down Pin 1
90 O Ring 1
91 Wear Plate 2
92 Upper Guard 1
93 Linear Bearing 1
94 Shaft Assembly. 1
95 6302 Bearing 1
96 Shaft 1
97 C Ring 1
98 Pulley 1
99 M5x8 Screw 1
100 Spindle And Gear Assembly 1
101 Bearing Holder 1
102 Linear Bearing 1
103 Spindle 1
104 6003 Bearing 1
105 Cover 1
106 M4x6 Screw 2
107 Reduction Gear 1
108 Pad 1
109 M5x16 Screw 3
110 Spring 1
111 Spindle Lock Set 1
112 Spindle Lock 1
113 O Ring 1
114 Dowel Lock Plate 1
115 M5x12 Screw 1
116 Waver Washer 1
117 Shaft Set 1
118 6202 Bearing 1
119 Shaft 1
120 Cover 1
121 Pulley 1
122 629 Bearing 1
123 M5x16 Screw 3
124 Blade Guide Holder Assembly. 1
125 Blade Guide Holder 1
126 Blade Guide Light 1
127 Blade Guide Lens 1
128 Lock Cover 1
129 M5x16 Screw 2
130 Led Wire Cover 1
131 M4x15 Screw 2
132 Short Drive Belt 1
133 Dowel 1
134 Pulley 1
135 Washer 1
136 Washer 1
137 M6x16 Screw 1
138 Motor Assembly 1
139 Motor Front Cover 1
140 Armature Assembly. 1
141 M5x40 Screw 4
142 Rotor 1
143 Motor Housing 1
144 M5x5 Screw 2
Part Description Qty
145 Brush Holder 2
146 Lock Nut 2
147 Nut Holder 2
148 Stator 1
149 Hex. Shaft 2
150 Power Cord Clip 1
151 Bearing Cover 1
152 Baffle 1
153 Brush 2
154 Brush Cover 2
155 End Cap 1
156 M4x16 Screw 2
157 Dowel 2
158 Pulley 1
159 Washer 1
160 Washer 1
161 M6x16 Screw 1
162 C Ring 1
163 M6x16 Screw 2
164 M6x16 Screw 2
165 Long Drive Belt 1
166 M8x16 Screw 1
167 Aluminum Belt Cover 1
168 M5x16 Screw 1
169 Belt Cover 1
170 M5x16 Screw 4
171 Bushing 1
172 Torsion Spring 1
173 Shaft 1
174 M8x15 Screw 1
175 M6x16 Screw 2
176 Bottom Handle 1
177 M5x16 Screw 1
178 Transformer 1
179 Trigger 1
180 M4x12 Screw 1
181 Power Cord 1
182 Bushing 1
183 Terminal 1
184 Cable Clip 1
185 Top Handle 1
186 Blade Guide Switch 1
187 Blade Guide Switch Cover 1
188 M4x16 Screw 3
189 M5x16 Screw 4
190 Carry Handle 1
191 M5x55 Screw 1
192 Depth Stop 1
193 M6x16 Screw 1
194 Washer 1
195 M6x44 Depth Adjustment Bolt 1
196 M6 Wing Nut 1
197 Dust Cover Assembly. 1
198 Left Dust Cover 1
199 Right Dust Cover 1
200 M4x12 Screw 4
201 Dust Cover 1
202 Nut 4
203 Left Retaining Sheet 1
204 Right Retaining Sheet 1
205 M4x8 Screw 4
206 M4x10 Screw 2
207 M4x10 Screw 1
208 Slide Stop 1
209 M5x13 Screw 1
210 Washer 1
211 Washer 1
212 Lower Guard Bracket 1
213 M5x8 Screw 4
214 Cable Clamp 1
215 M5x16 Screw 1
216 M5x12 Screw 1
Page 14 For technical questions, please call 1-888-866-5797. Item 56682
Part Description Qty
217 Cable Clamp 1
218 Inner Flange 1
219 Blade 1
220 Outer Flange 1
221 Arbor Bolt 1
222 Lower Guard Set 1
223 Lower Guard Bracket 1
224 Lower Blade Guard 1
225 M5x10 Screw 4
226 Spring 1
227 M5x16 Screw 1
228 Bushing 1
229 Guard Plate 1
230 Washer 1
231 M5 Lock Nut 1
Part Description Qty
232 Stop Pad 1
233 Lower Guard Pad 2
234 Nut 2
235 M6x16 Screw 2
236 Bushing 2
237 Linkage 1
238 M5x16 Screw 2
239 Miter Lock Knob 1
240 Dust Collection Assembly 1
241 Port 1
242 Dust Collection Bag Bracket 1
243 Dust Collection Bag 1
244 Fastener 1
245 Clamp Assembly 1
246 Clamp Knob 1
Part Description Qty
247 M16x137 Bolt 1
248 Spring Dowel 1
249 Metal Pad 1
250 M5x8 Screw 1
251 Washer 1
252 Clamp Rod 15.87x200 1
253 Clamp Arm 1
254 Clamp Lock Knob 1
255 Bushing 1
256 E Ring 1
257 Right Extension Bar 1
258 Left Extension Bar 1
259 R Pin 2
260 M6x10 Screw 2

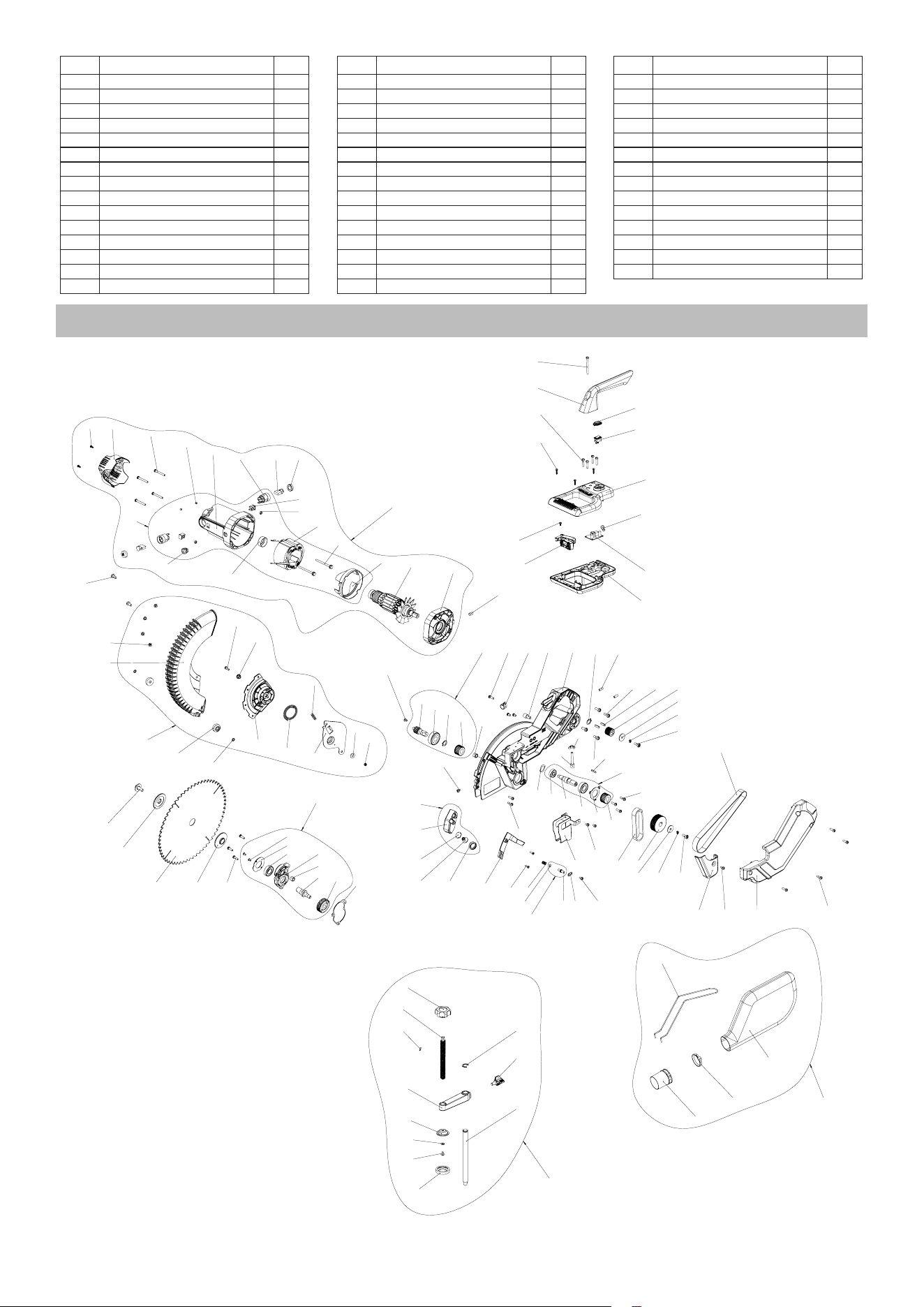

Assembly Diagram
92
93
94
95
96
97
98
99
110
111
112113 114 115
116
117
118
119
120
121
122
123
129
130
131
132
133
134
135 136 137
157 158
159
160
161
162
163
164
165
167 168 169
170
174
175
177
195
196
212
213
88
42
197
214215
124
125
126
127 128
138
139
150
140
141
142
143
152
145
146
147
148
149
151
144
153 154
155156
166
222
224
223
225
226
232
227
228
229
230
231
233
234
235
100
101
102
103
104
105
106
107
108
109218219
220
221
176
178
180
183
185
186
187
188
189
190
191
179
1
2
3
4
5
6
7
8
9
10
11
12
22
14
15
16
17
13
19
20
21
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
43
182
44
45
46
47
49
50
51
52
53
54
5556
57
58
59
60
63
64
65
67
68
69
70
71
72
73
74
75
76
77
78
79
81
82
83
84
85
86
89
90
91 171
172
173
181
184
192
193
198
199
200
201
202
203
204
205
207
208
209
211
217 216
236
237
238
239
48
39
18
80
206
40 41
61
62
66
87
194
210
257
258
259
260
260
259
245
246
247
249
248
250
251
252
253
254
255
256
240
241
242
243
244
Page 15For technical questions, please call 1-888-866-5797.Item 56682
Assembly Diagram
92
93
94
95
96
97
98
99
110
111
112113 114 115
116
117
118
119
120
121
122
123
129
130
131
132
133
134
135 136 137
157 158
159
160
161
162
163
164
165
167 168 169
170
174
175
177
195
196
212
213
88
42
197
214215
124
125
126
127 128
138
139
150
140
141
142
143
152
145
146
147
148
149
151
144
153 154
155156
166
222
224
223
225
226
232
227
228
229
230
231
233
234
235
100
101
102
103
104
105
106
107
108
109218219
220
221
176
178
180
183
185
186
187
188
189
190
191
179
1
2
3
4
5
6
7
8
9
10
11
12
22
14
15
16
17
13
19
20
21
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
43
182
44
45
46
47
49
50
51
52
53
54
5556
57
58
59
60
63
64
65
67
68
69
70
71
72
73
74
75
76
77
78
79
81
82
83
84
85
86
89
90
91 171
172
173
181
184
192
193
198
199
200
201
202
203
204
205
207
208
209
211
217 216
236
237
238
239
48
39
18
80
206
40 41
61
62
66
87
194
210
257
258
259
260
260
259
245
246
247
249
248
250
251
252
253
254
255
256
240
241
242
243
244
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not
available individually as replacement parts. Reference UPC 193175512819.
26677 Agoura Road • Calabasas, CA 91302 • 1-888-866-5797
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
LIMITED 90 DAY WARRANTY
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected]
For technical questions, please call 1-888-866-5797
Copyright
©
2023 by Harbor Freight Tools
®
. All rights reserved. No portion of this manual or
any artwork contained herein may be reproduced in any shape or form without the express
written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn
proportionally. Due to continuing improvements, actual product may differ slightly from the
product described herein. Tools required for assembly and service may not be included.
